STM32G473VB, STM32G473VC и STM32G473VE в корпусе TFBGA100: распиновка

STM32G473VB, STM32G473VC и STM32G473VE — микроконтроллеры STM32G4 на ядре Cortex-M4 с частотой до 170 МГц: 128, 256 и 512 КБ флеш-памяти и 128 КБ ОЗУ. Корпус TFBGA100 — 100 шариков, из них 86 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M4
Частота ядра
до 170 МГц
Флеш-память
128, 256 и 512 КБ
ОЗУ
128 КБ
Корпус
TFBGA100, 100 шариков
Линий ввода-вывода
86
Напряжение питания
1,71…3,6 В
Рабочая температура
0…+125 °C, зависит от исполнения

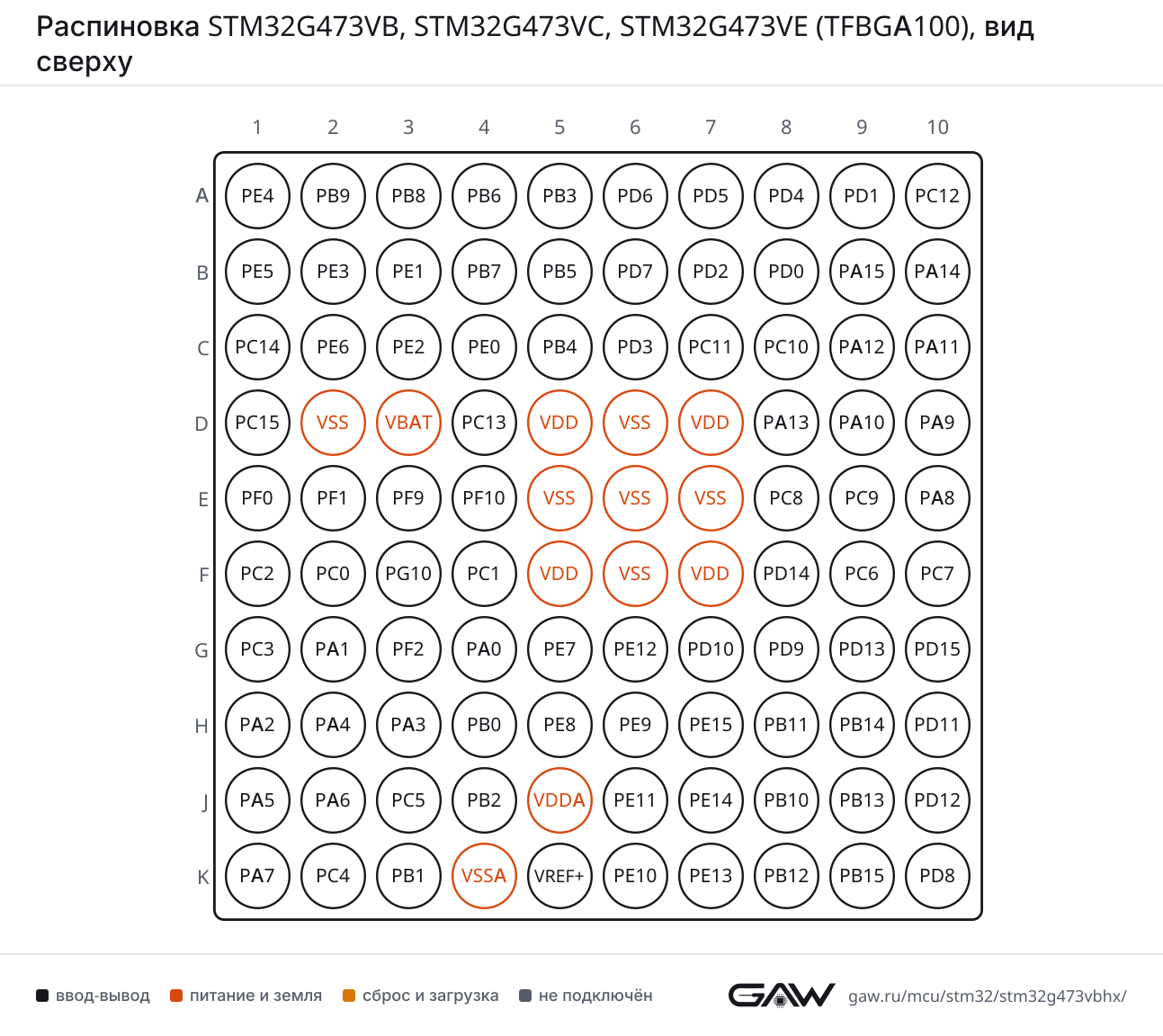

Схема корпуса TFBGA100

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32G473VB, STM32G473VC, STM32G473VE в корпусе TFBGA100, вид сверхуABCDEFGHJK12345678910PE4 — шарик A1: FMC_A20, SAI1_D2, SAI1_FS_A, SPI4_NSS, SYS_TRACED1, TIM20_CH1N, TIM3_CH3PE4PB9 — шарик A2: COMP2_OUT, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FDCAN1_TX, I2C1_SDA, IR_OUT, SAI1_D2, SAI1_FS_A, TIM17_CH1, TIM1_CH3N, TIM4_CH4, TIM8_CH3, USART3_TXPB9PB8-BOOT0 — шарик A3: COMP1_OUT, FDCAN1_RX, I2C1_SCL, SAI1_CK1, SAI1_MCLK_A, TIM16_CH1, TIM1_BKIN, TIM4_CH3, TIM8_CH2, USART3_RXPB8PB6 — шарик A4: COMP4_OUT, FDCAN2_TX, LPTIM1_ETR, SAI1_FS_B, TIM16_CH1N, TIM4_CH1, TIM8_BKIN2, TIM8_CH1, TIM8_ETR, UCPD1_CC1, USART1_TXPB6PB3 — шарик A5: ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, CRS_SYNC, FDCAN3_RX, I2S3_CK, SAI1_SCK_B, SPI1_SCK, SPI3_SCK, SYS_JTDO-SWO, TIM2_CH2, TIM3_ETR, TIM4_ETR, TIM8_CH1N, USART2_TXPB3PD6 — шарик A6: FMC_NWAIT, QUADSPI1_BK2_IO2, SAI1_D1, SAI1_SD_A, TIM2_CH4, USART2_RXPD6PD5 — шарик A7: FMC_NWE, QUADSPI1_BK2_IO1, USART2_TXPD5PD4 — шарик A8: FMC_NOE, QUADSPI1_BK2_IO0, TIM2_CH2, USART2_DE, USART2_RTSPD4PD1 — шарик A9: FDCAN1_TX, FMC_D3, FMC_DA3, TIM8_BKIN2, TIM8_CH4PD1PC12 — шарик A10: I2S3_SD, SPI3_MOSI, TIM5_CH2, TIM8_CH3N, UART5_TX, UCPD1_FRSTX1, UCPD1_FRSTX2, USART3_CKPC12PE5 — шарик B1: FMC_A21, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, SYS_TRACED2, TIM20_CH2N, TIM3_CH4PE5PE3 — шарик B2: ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_A19, SAI1_SD_B, SPI4_NSS, SYS_TRACED0, TIM20_CH2, TIM3_CH2PE3PE1 — шарик B3: FMC_NBL1, TIM17_CH1, TIM20_CH4, USART1_RXPE1PB7 — шарик B4: COMP3_OUT, FMC_NL, I2C1_SDA, I2C4_SDA, LPTIM1_IN2, TIM17_CH1N, TIM3_CH4, TIM4_CH2, TIM8_BKIN, UART4_CTS, USART1_RXPB7PB5 — шарик B5: FDCAN2_RX, I2C1_SMBA, I2C3_SDA, I2S3_SD, LPTIM1_IN1, SAI1_SD_B, SPI1_MOSI, SPI3_MOSI, TIM16_BKIN, TIM17_CH1, TIM3_CH2, TIM8_CH3N, UART5_CTS, USART2_CKPB5PD7 — шарик B6: FMC_NCE, FMC_NE1, QUADSPI1_BK2_IO3, TIM2_CH3, USART2_CKPD7PD2 — шарик B7: ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, TIM3_ETR, TIM8_BKIN, UART5_RXPD2PD0 — шарик B8: FDCAN1_RX, FMC_D2, FMC_DA2, TIM8_CH4NPD0PA15 — шарик B9: ADC1_EXTI15, ADC2_EXTI15, FDCAN3_TX, I2C1_SCL, I2S3_WS, SPI1_NSS, SPI3_NSS, SYS_JTDI, TIM1_BKIN, TIM2_CH1, TIM2_ETR, TIM8_CH1, UART4_DE, UART4_RTS, USART2_RXPA15PA14 — шарик B10: I2C1_SDA, I2C4_SMBA, LPTIM1_OUT, SAI1_FS_B, SYS_JTCK-SWCLK, TIM1_BKIN, TIM8_CH2, USART2_TXPA14PC14-OSC32_IN — шарик C1: RCC_OSC32_INPC14PE6 — шарик C2: FMC_A22, RTC_TAMP3, SAI1_D1, SAI1_SD_A, SPI4_MOSI, SYS_TRACED3, SYS_WKUP3, TIM20_CH3NPE6PE2 — шарик C3: ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, FMC_A23, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, SYS_TRACECLK, TIM20_CH1, TIM3_CH1PE2PE0 — шарик C4: FMC_NBL0, TIM16_CH1, TIM20_CH4N, TIM20_ETR, TIM4_ETR, USART1_TXPE0PB4 — шарик C5: FDCAN3_TX, SAI1_MCLK_B, SPI1_MISO, SPI3_MISO, SYS_JTRST, TIM16_CH1, TIM17_BKIN, TIM3_CH1, TIM8_CH2N, UART5_DE, UART5_RTS, UCPD1_CC2, USART2_RXPB4PD3 — шарик C6: ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_CLK, QUADSPI1_BK2_NCS, TIM2_CH1, TIM2_ETR, USART2_CTS, USART2_NSSPD3PC11 — шарик C7: ADC1_EXTI11, ADC2_EXTI11, I2C3_SDA, SPI3_MISO, TIM8_CH2N, UART4_RX, USART3_RXPC11PC10 — шарик C8: DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, I2S3_CK, SPI3_SCK, TIM8_CH1N, UART4_TX, USART3_TXPC10PA12 — шарик C9: COMP2_OUT, FDCAN1_TX, I2S_CKIN, TIM16_CH1, TIM1_CH2N, TIM1_ETR, TIM4_CH2, USART1_DE, USART1_RTS, USB_DPPA12PA11 — шарик C10: ADC1_EXTI11, ADC2_EXTI11, COMP1_OUT, FDCAN1_RX, I2S2_SD, SPI2_MOSI, TIM1_BKIN2, TIM1_CH1N, TIM1_CH4, TIM4_CH1, USART1_CTS, USART1_NSS, USB_DMPA11PC15-OSC32_OUT — шарик D1: ADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUTPC15VSS — шарик D2VSSVBAT — шарик D3VBATPC13 — шарик D4: RTC_OUT1, RTC_TAMP1, RTC_TS, SYS_WKUP2, TIM1_BKIN, TIM1_CH1N, TIM8_CH4NPC13VDD — шарик D5VDDVSS — шарик D6VSSVDD — шарик D7VDDPA13 — шарик D8: I2C1_SCL, I2C4_SCL, IR_OUT, SAI1_SD_B, SYS_JTMS-SWDIO, TIM16_CH1N, TIM4_CH3, USART3_CTS, USART3_NSSPA13PA10 — шарик D9: COMP6_OUT, CRS_SYNC, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, I2C2_SMBA, SAI1_D1, SAI1_SD_A, SPI2_MISO, SYS_PVD_IN, TIM17_BKIN, TIM1_CH3, TIM2_CH4, TIM8_BKIN, UCPD1_DBCC2, USART1_RXPA10PA9 — шарик D10: ADC5_IN2, COMP5_OUT, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, I2C2_SCL, I2C3_SMBA, I2S3_MCK, SAI1_FS_A, TIM15_BKIN, TIM1_CH2, TIM2_CH3, UCPD1_DBCC1, USART1_TXPA9PF0-OSC_IN — шарик E1: ADC1_IN10, I2C2_SDA, I2S2_WS, RCC_OSC_IN, SPI2_NSS, TIM1_CH3NPF0PF1-OSC_OUT — шарик E2: ADC2_IN10, COMP3_INM, I2S2_CK, RCC_OSC_OUT, SPI2_SCKPF1PF9 — шарик E3: DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_A25, QUADSPI1_BK1_IO1, SAI1_FS_B, SPI2_SCK, TIM15_CH1, TIM20_BKIN, TIM5_CH4PF9PF10 — шарик E4: DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_A0, QUADSPI1_CLK, SAI1_D3, SPI2_SCK, TIM15_CH2, TIM20_BKIN2PF10VSS — шарик E5VSSVSS — шарик E6VSSVSS — шарик E7VSSPC8 — шарик E8: COMP7_OUT, I2C3_SCL, TIM20_CH3, TIM3_CH3, TIM8_CH3PC8PC9 — шарик E9: DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, I2C3_SDA, I2S_CKIN, TIM3_CH4, TIM8_BKIN2, TIM8_CH4PC9PA8 — шарик E10: ADC5_IN1, COMP7_OUT, FDCAN3_RX, I2C2_SDA, I2C3_SCL, I2S2_MCK, OPAMP5_VOUT, RCC_MCO, SAI1_CK2, SAI1_SCK_A, TIM1_CH1, TIM4_ETR, USART1_CKPA8PC2 — шарик F1: ADC1_IN8, ADC2_IN8, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP3_OUT, LPTIM1_IN2, QUADSPI1_BK2_IO1, TIM1_CH3, TIM20_CH2PC2PC0 — шарик F2: ADC1_IN6, ADC2_IN6, COMP3_INM, LPTIM1_IN1, LPUART1_RX, TIM1_CH1PC0PG10-NRST — шарик F3: DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, RCC_MCOPG10PC1 — шарик F4: ADC1_IN7, ADC2_IN7, COMP3_INP, LPTIM1_OUT, LPUART1_TX, QUADSPI1_BK2_IO0, SAI1_SD_A, TIM1_CH2PC1VDD — шарик F5VDDVSS — шарик F6VSSVDD — шарик F7VDDPD14 — шарик F8: ADC3_IN11, ADC4_IN11, ADC5_IN11, COMP7_INP, FMC_D0, FMC_DA0, OPAMP2_VINP, OPAMP2_VINP_SEC, TIM4_CH3PD14PC6 — шарик F9: COMP6_OUT, I2C4_SCL, I2S2_MCK, TIM3_CH1, TIM8_CH1PC6PC7 — шарик F10: COMP5_OUT, I2C4_SDA, I2S3_MCK, TIM3_CH2, TIM8_CH2PC7PC3 — шарик G1: ADC1_IN9, ADC2_IN9, ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, LPTIM1_ETR, OPAMP5_VINP, OPAMP5_VINP_SEC, QUADSPI1_BK2_IO2, SAI1_D1, SAI1_SD_A, TIM1_BKIN2, TIM1_CH4PC3PA1 — шарик G2: ADC1_IN2, ADC2_IN2, COMP1_INP, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP3_VINP, OPAMP3_VINP_SEC, OPAMP6_VINM, OPAMP6_VINM0, OPAMP6_VINM_SEC, RTC_REFIN, TIM15_CH1N, TIM2_CH2, TIM5_CH2, USART2_DE, USART2_RTSPA1PF2 — шарик G3: ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, FMC_A2, I2C2_SMBA, TIM20_CH3PF2PA0 — шарик G4: ADC1_IN1, ADC2_IN1, COMP1_INM, COMP1_OUT, COMP3_INP, RTC_TAMP2, SYS_WKUP1, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_BKIN, TIM8_ETR, USART2_CTS, USART2_NSSPA0PE7 — шарик G5: ADC3_IN4, COMP4_INP, FMC_D4, FMC_DA4, SAI1_SD_B, TIM1_ETRPE7PE12 — шарик G6: ADC3_IN16, ADC4_IN16, ADC5_IN16, FMC_D9, FMC_DA9, QUADSPI1_BK1_IO0, SPI4_SCK, TIM1_CH3NPE12PD10 — шарик G7: ADC3_IN7, ADC4_IN7, ADC5_IN7, COMP6_INM, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_D15, FMC_DA15, USART3_CKPD10PD9 — шарик G8: ADC4_IN13, ADC5_IN13, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_D14, FMC_DA14, OPAMP6_VINP, OPAMP6_VINP_SEC, USART3_RXPD9PD13 — шарик G9: ADC3_IN10, ADC4_IN10, ADC5_IN10, COMP5_INM, FMC_A18, TIM4_CH2PD13PD15 — шарик G10: ADC1_EXTI15, ADC2_EXTI15, COMP7_INM, FMC_D1, FMC_DA1, SPI2_NSS, TIM4_CH4PD15PA2 — шарик H1: ADC1_IN3, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP2_INM, COMP2_OUT, LPUART1_TX, OPAMP1_VOUT, QUADSPI1_BK1_NCS, RCC_LSCO, SYS_WKUP4, TIM15_CH1, TIM2_CH3, TIM5_CH3, UCPD1_FRSTX1, UCPD1_FRSTX2, USART2_TXPA2PA4 — шарик H2: ADC2_IN17, COMP1_INM, DAC1_OUT1, I2S3_WS, SAI1_FS_B, SPI1_NSS, SPI3_NSS, TIM3_CH2, USART2_CKPA4PA3 — шарик H3: ADC1_IN4, ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, COMP2_INP, LPUART1_RX, OPAMP1_VINM, OPAMP1_VINM0, OPAMP1_VINM_SEC, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP5_VINM, OPAMP5_VINM1, OPAMP5_VINM_SEC, QUADSPI1_CLK, SAI1_CK1, SAI1_MCLK_A, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3PB0 — шарик H4: ADC1_IN15, ADC3_IN12, COMP4_INP, OPAMP2_VINP, OPAMP2_VINP_SEC, OPAMP3_VINP, OPAMP3_VINP_SEC, QUADSPI1_BK1_IO1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UCPD1_FRSTX1, UCPD1_FRSTX2PB0PE8 — шарик H5: ADC3_IN6, ADC4_IN6, ADC5_IN6, COMP4_INM, FMC_D5, FMC_DA5, SAI1_SCK_B, TIM1_CH1N, TIM5_CH3PE8PE9 — шарик H6: ADC3_IN2, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_D6, FMC_DA6, SAI1_FS_B, TIM1_CH1, TIM5_CH4PE9PE15 — шарик H7: ADC1_EXTI15, ADC2_EXTI15, ADC4_IN2, FMC_D12, FMC_DA12, QUADSPI1_BK1_IO3, TIM1_BKIN, TIM1_CH4N, USART3_RXPE15PB11 — шарик H8: ADC1_EXTI11, ADC1_IN14, ADC2_EXTI11, ADC2_IN14, COMP6_INP, LPUART1_TX, OPAMP4_VINP, OPAMP4_VINP_SEC, OPAMP6_VOUT, QUADSPI1_BK1_NCS, TIM2_CH4, USART3_RXPB11PB14 — шарик H9: ADC1_IN5, ADC4_IN4, COMP4_OUT, COMP7_INP, OPAMP2_VINP, OPAMP2_VINP_SEC, OPAMP5_VINP, OPAMP5_VINP_SEC, SPI2_MISO, TIM15_CH1, TIM1_CH2N, USART3_DE, USART3_RTSPB14PD11 — шарик H10: ADC1_EXTI11, ADC2_EXTI11, ADC3_IN8, ADC4_IN8, ADC5_IN8, COMP6_INP, FMC_A16, FMC_CLE, I2C4_SMBA, OPAMP4_VINP, OPAMP4_VINP_SEC, TIM5_ETR, USART3_CTS, USART3_NSSPD11PA5 — шарик J1: ADC2_IN13, COMP2_INM, DAC1_OUT2, OPAMP2_VINM, OPAMP2_VINM0, OPAMP2_VINM_SEC, SPI1_SCK, TIM2_CH1, TIM2_ETR, UCPD1_FRSTX1, UCPD1_FRSTX2PA5PA6 — шарик J2: ADC2_IN3, COMP1_OUT, DAC2_OUT1, LPUART1_CTS, OPAMP2_VOUT, QUADSPI1_BK1_IO3, SPI1_MISO, TIM16_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKINPA6PC5 — шарик J3: ADC2_IN11, OPAMP1_VINM, OPAMP1_VINM1, OPAMP1_VINM_SEC, OPAMP2_VINM, OPAMP2_VINM1, OPAMP2_VINM_SEC, SAI1_D3, SYS_WKUP5, TIM15_BKIN, TIM1_CH4N, USART1_RXPC5PB2 — шарик J4: ADC2_IN12, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP4_INM, I2C3_SMBA, LPTIM1_OUT, OPAMP3_VINM, OPAMP3_VINM0, OPAMP3_VINM_SEC, QUADSPI1_BK2_IO1, RTC_OUT2, TIM20_CH1, TIM5_CH1PB2VDDA — шарик J5VDDAPE11 — шарик J6: ADC1_EXTI11, ADC2_EXTI11, ADC3_IN15, ADC4_IN15, ADC5_IN15, FMC_D8, FMC_DA8, QUADSPI1_BK1_NCS, SPI4_NSS, TIM1_CH2PE11PE14 — шарик J7: ADC4_IN1, FMC_D11, FMC_DA11, QUADSPI1_BK1_IO2, SPI4_MOSI, TIM1_BKIN2, TIM1_CH4PE14PB10 — шарик J8: COMP5_INM, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, LPUART1_RX, OPAMP3_VINM, OPAMP3_VINM1, OPAMP3_VINM_SEC, OPAMP4_VINM, OPAMP4_VINM0, OPAMP4_VINM_SEC, QUADSPI1_CLK, SAI1_SCK_A, TIM1_BKIN, TIM2_CH3, USART3_TXPB10PB13 — шарик J9: ADC3_IN5, COMP5_INP, FDCAN2_TX, I2S2_CK, LPUART1_CTS, OPAMP3_VINP, OPAMP3_VINP_SEC, OPAMP4_VINP, OPAMP4_VINP_SEC, OPAMP6_VINP, OPAMP6_VINP_SEC, SPI2_SCK, TIM1_CH1N, USART3_CTS, USART3_NSSPB13PD12 — шарик J10: ADC3_IN9, ADC4_IN9, ADC5_IN9, COMP5_INP, FMC_A17, FMC_ALE, OPAMP5_VINP, OPAMP5_VINP_SEC, TIM4_CH1, USART3_DE, USART3_RTSPD12PA7 — шарик K1: ADC2_IN4, COMP2_INP, COMP2_OUT, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP2_VINP, OPAMP2_VINP_SEC, QUADSPI1_BK1_IO2, SPI1_MOSI, TIM17_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, UCPD1_FRSTX1, UCPD1_FRSTX2PA7PC4 — шарик K2: ADC2_IN5, I2C2_SCL, QUADSPI1_BK2_IO3, TIM1_ETR, USART1_TXPC4PB1 — шарик K3: ADC1_IN12, ADC3_IN1, COMP1_INP, COMP4_OUT, LPUART1_DE, LPUART1_RTS, OPAMP3_VOUT, OPAMP6_VINM, OPAMP6_VINM1, OPAMP6_VINM_SEC, QUADSPI1_BK1_IO0, TIM1_CH3N, TIM3_CH4, TIM8_CH3NPB1VSSA — шарик K4VSSAVREF+ — шарик K5: VREFBUF_OUTVREF+PE10 — шарик K6: ADC3_IN14, ADC4_IN14, ADC5_IN14, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_D7, FMC_DA7, QUADSPI1_CLK, SAI1_MCLK_B, TIM1_CH2NPE10PE13 — шарик K7: ADC3_IN3, FMC_D10, FMC_DA10, QUADSPI1_BK1_IO1, SPI4_MISO, TIM1_CH3PE13PB12 — шарик K8: ADC1_IN11, ADC4_IN3, COMP7_INM, FDCAN2_RX, I2C2_SMBA, I2S2_WS, LPUART1_DE, LPUART1_RTS, OPAMP4_VOUT, OPAMP6_VINP, OPAMP6_VINP_SEC, SPI2_NSS, TIM1_BKIN, TIM5_ETR, USART3_CKPB12PB15 — шарик K9: ADC1_EXTI15, ADC2_EXTI15, ADC2_IN15, ADC4_IN5, COMP3_OUT, COMP6_INM, I2S2_SD, OPAMP5_VINM, OPAMP5_VINM0, OPAMP5_VINM_SEC, RTC_REFIN, SPI2_MOSI, TIM15_CH1N, TIM15_CH2, TIM1_CH3NPB15PD8 — шарик K10: ADC4_IN12, ADC5_IN12, FMC_D13, FMC_DA13, OPAMP4_VINM, OPAMP4_VINM1, OPAMP4_VINM_SEC, USART3_TXPD8TFBGA100, вид сверху: шарики видны сквозь корпус, A1 — в левомверхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия
Распиновка STM32G473VB, STM32G473VC, STM32G473VE (TFBGA100), вид сверхуРаспиновка TFBGA100 картинкой
PNG, 1293 × 1152 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (E10, AF7)
CTSPA11 (C10, AF7)
DEPA12 (C9, AF7)
NSSPA11 (C10, AF7)
RTSPA12 (C9, AF7)
RXPE1 (B3, AF7), PB7 (B4, AF7), PA10 (D9, AF7), PC5 (J3, AF7)
TXPB6 (A4, AF7), PE0 (C4, AF7), PA9 (D10, AF7), PC4 (K2, AF7)
USART2CKPB5 (B5, AF7), PD7 (B6, AF7), PA4 (H2, AF7)
CTSPD3 (C6, AF7), PA0 (G4, AF7)
DEPD4 (A8, AF7), PA1 (G2, AF7)
NSSPD3 (C6, AF7), PA0 (G4, AF7)
RTSPD4 (A8, AF7), PA1 (G2, AF7)
RXPD6 (A6, AF7), PA15 (B9, AF7), PB4 (C5, AF7), PA3 (H3, AF7)
TXPB3 (A5, AF7), PD5 (A7, AF7), PA14 (B10, AF7), PA2 (H1, AF7)
USART3CKPC12 (A10, AF7), PD10 (G7, AF7), PB12 (K8, AF7)
CTSPA13 (D8, AF7), PD11 (H10, AF7), PB13 (J9, AF7)
DEPB14 (H9, AF7), PD12 (J10, AF7)
NSSPA13 (D8, AF7), PD11 (H10, AF7), PB13 (J9, AF7)
RTSPB14 (H9, AF7), PD12 (J10, AF7)
RXPB8-BOOT0 (A3, AF7), PC11 (C7, AF7), PD9 (G8, AF7), PE15 (H7, AF7), PB11 (H8, AF7)
TXPB9 (A2, AF7), PC10 (C8, AF7), PB10 (J8, AF7), PD8 (K10, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB7 (B4, AF14)
DEPA15 (B9, AF8)
RTSPA15 (B9, AF8)
RXPC11 (C7, AF5)
TXPC10 (C8, AF5)
UART5CTSPB5 (B5, AF14)
DEPB4 (C5, AF8)
RTSPB4 (C5, AF8)
RXPD2 (B7, AF5)
TXPC12 (A10, AF5)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA6 (J2, AF12), PB13 (J9, AF8)
DEPB1 (K3, AF12), PB12 (K8, AF8)
RTSPB1 (K3, AF12), PB12 (K8, AF8)
RXPC0 (F2, AF8), PA3 (H3, AF12), PB10 (J8, AF8)
TXPC1 (F4, AF8), PA2 (H1, AF12), PB11 (H8, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4 (C5, AF5), PA6 (J2, AF5)
MOSIPB5 (B5, AF5), PA7 (K1, AF5)
NSSPA15 (B9, AF5), PA4 (H2, AF5)
SCKPB3 (A5, AF5), PA5 (J1, AF5)
SPI2MISOPA10 (D9, AF5), PB14 (H9, AF5)
MOSIPA11 (C10, AF5), PB15 (K9, AF5)
NSSPF0-OSC_IN (E1, AF5), PD15 (G10, AF6), PB12 (K8, AF5)
SCKPF1-OSC_OUT (E2, AF5), PF9 (E3, AF5), PF10 (E4, AF5), PB13 (J9, AF5)
SPI3MISOPB4 (C5, AF6), PC11 (C7, AF6)
MOSIPC12 (A10, AF6), PB5 (B5, AF6)
NSSPA15 (B9, AF6), PA4 (H2, AF6)
SCKPB3 (A5, AF6), PC10 (C8, AF6)
SPI4MISOPE5 (B1, AF5), PE13 (K7, AF5)
MOSIPE6 (C2, AF5), PE14 (J7, AF5)
NSSPE4 (A1, AF5), PE3 (B2, AF5), PE11 (J6, AF5)
SCKPE2 (C3, AF5), PE12 (G6, AF5)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPA12 (C9, AF5), PC9 (E9, AF5)
I2S2CKPF1-OSC_OUT (E2, AF5), PB13 (J9, AF5)
MCKPA8 (E10, AF5), PC6 (F9, AF6)
SDPA11 (C10, AF5), PB15 (K9, AF5)
WSPF0-OSC_IN (E1, AF5), PB12 (K8, AF5)
I2S3CKPB3 (A5, AF6), PC10 (C8, AF6)
MCKPA9 (D10, AF5), PC7 (F10, AF6)
SDPC12 (A10, AF6), PB5 (B5, AF6)
WSPA15 (B9, AF6), PA4 (H2, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8-BOOT0 (A3, AF4), PA15 (B9, AF4), PA13 (D8, AF4)
SDAPB9 (A2, AF4), PB7 (B4, AF4), PA14 (B10, AF4)
SMBAPB5 (B5, AF4)
I2C2SCLPA9 (D10, AF4), PC4 (K2, AF4)
SDAPF0-OSC_IN (E1, AF4), PA8 (E10, AF4)
SMBAPA10 (D9, AF4), PF2 (G3, AF4), PB12 (K8, AF4)
I2C3SCLPC8 (E8, AF8), PA8 (E10, AF2)
SDAPB5 (B5, AF8), PC11 (C7, AF8), PC9 (E9, AF8)
SMBAPA9 (D10, AF2), PB2 (J4, AF4)
I2C4SCLPA13 (D8, AF3), PC6 (F9, AF8)
SDAPB7 (B4, AF3), PC7 (F10, AF8)
SMBAPA14 (B10, AF3), PD11 (H10, AF4)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPB8-BOOT0 (A3, AF9), PD0 (B8, AF9), PA11 (C10, AF9)
TXPB9 (A2, AF9), PD1 (A9, AF9), PA12 (C9, AF9)
FDCAN2RXPB5 (B5, AF9), PB12 (K8, AF9)
TXPB6 (A4, AF9), PB13 (J9, AF9)
FDCAN3RXPB3 (A5, AF11), PA8 (E10, AF11)
TXPA15 (B9, AF11), PB4 (C5, AF11)

USB — USB Full Speed, устройство

БлокСигналВыводы
USBDMPA11 (C10)
DPPA12 (C9)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB6 (A4)
CC2PB4 (C5)
DBCC1PA9 (D10)
DBCC2PA10 (D9)
FRSTX1PC12 (A10, AF14), PA2 (H1, AF14), PB0 (H4, AF14), PA5 (J1, AF14), PA7 (K1, AF14)
FRSTX2PC12 (A10, AF14), PA2 (H1, AF14), PB0 (H4, AF14), PA5 (J1, AF14), PA7 (K1, AF14)

QUADSPI — интерфейс Quad-SPI памяти

БлокСигналВыводы
QUADSPI1BK1_IO0PE12 (G6, AF10), PB1 (K3, AF10)
BK1_IO1PF9 (E3, AF10), PB0 (H4, AF10), PE13 (K7, AF10)
BK1_IO2PE14 (J7, AF10), PA7 (K1, AF10)
BK1_IO3PE15 (H7, AF10), PA6 (J2, AF10)
BK1_NCSPA2 (H1, AF10), PB11 (H8, AF10), PE11 (J6, AF10)
BK2_IO0PD4 (A8, AF10), PC1 (F4, AF10)
BK2_IO1PD5 (A7, AF10), PC2 (F1, AF10), PB2 (J4, AF10)
BK2_IO2PD6 (A6, AF10), PC3 (G1, AF10)
BK2_IO3PD7 (B6, AF10), PC4 (K2, AF10)
BK2_NCSPD3 (C6, AF10)
CLKPF10 (E4, AF10), PA3 (H3, AF10), PB10 (J8, AF10), PE10 (K6, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PB8-BOOT0 (A3, AF3), PE2 (C3, AF3), PA3 (H3, AF3)
CK2PE5 (B1, AF3), PA8 (E10, AF12)
D1PD6 (A6, AF3), PE6 (C2, AF3), PA10 (D9, AF12), PC3 (G1, AF3)
D2PE4 (A1, AF3), PB9 (A2, AF3)
D3PF10 (E4, AF13), PC5 (J3, AF3)
FS_APE4 (A1, AF13), PB9 (A2, AF14), PA9 (D10, AF14)
FS_BPB6 (A4, AF14), PA14 (B10, AF13), PF9 (E3, AF13), PA4 (H2, AF13), PE9 (H6, AF13)
MCLK_APB8-BOOT0 (A3, AF14), PE2 (C3, AF13), PA3 (H3, AF13)
MCLK_BPB4 (C5, AF14), PE10 (K6, AF13)
SCK_APE5 (B1, AF13), PA8 (E10, AF14), PB10 (J8, AF14)
SCK_BPB3 (A5, AF14), PE8 (H5, AF13)
SD_APD6 (A6, AF13), PE6 (C2, AF13), PA10 (D9, AF14), PC1 (F4, AF13), PC3 (G1, AF13)
SD_BPE3 (B2, AF13), PB5 (B5, AF12), PA13 (D8, AF13), PE7 (G5, AF13)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (C7), PA11 (C10), PB11 (H8), PD11 (H10), PE11 (J6)
EXTI15PA15 (B9), PC15-OSC32_OUT (D1), PD15 (G10), PE15 (H7), PB15 (K9)
IN1PA0 (G4)
IN2PA1 (G2)
IN3PA2 (H1)
IN4PA3 (H3)
IN5PB14 (H9)
IN6PC0 (F2)
IN7PC1 (F4)
IN8PC2 (F1)
IN9PC3 (G1)
IN10PF0-OSC_IN (E1)
IN11PB12 (K8)
IN12PB1 (K3)
IN14PB11 (H8)
IN15PB0 (H4)
ADC2EXTI11PC11 (C7), PA11 (C10), PB11 (H8), PD11 (H10), PE11 (J6)
EXTI15PA15 (B9), PC15-OSC32_OUT (D1), PD15 (G10), PE15 (H7), PB15 (K9)
IN1PA0 (G4)
IN2PA1 (G2)
IN3PA6 (J2)
IN4PA7 (K1)
IN5PC4 (K2)
IN6PC0 (F2)
IN7PC1 (F4)
IN8PC2 (F1)
IN9PC3 (G1)
IN10PF1-OSC_OUT (E2)
IN11PC5 (J3)
IN12PB2 (J4)
IN13PA5 (J1)
IN14PB11 (H8)
IN15PB15 (K9)
IN17PA4 (H2)
ADC3EXTI2PD2 (B7), PE2 (C3), PC2 (F1), PF2 (G3), PA2 (H1), PB2 (J4)
EXTI3PB3 (A5), PE3 (B2), PD3 (C6), PC3 (G1), PA3 (H3)
IN1PB1 (K3)
IN2PE9 (H6)
IN3PE13 (K7)
IN4PE7 (G5)
IN5PB13 (J9)
IN6PE8 (H5)
IN7PD10 (G7)
IN8PD11 (H10)
IN9PD12 (J10)
IN10PD13 (G9)
IN11PD14 (F8)
IN12PB0 (H4)
IN14PE10 (K6)
IN15PE11 (J6)
IN16PE12 (G6)
ADC4EXTI2PD2 (B7), PE2 (C3), PC2 (F1), PF2 (G3), PA2 (H1), PB2 (J4)
EXTI3PB3 (A5), PE3 (B2), PD3 (C6), PC3 (G1), PA3 (H3)
IN1PE14 (J7)
IN2PE15 (H7)
IN3PB12 (K8)
IN4PB14 (H9)
IN5PB15 (K9)
IN6PE8 (H5)
IN7PD10 (G7)
IN8PD11 (H10)
IN9PD12 (J10)
IN10PD13 (G9)
IN11PD14 (F8)
IN12PD8 (K10)
IN13PD9 (G8)
IN14PE10 (K6)
IN15PE11 (J6)
IN16PE12 (G6)
ADC5EXTI2PD2 (B7), PE2 (C3), PC2 (F1), PF2 (G3), PA2 (H1), PB2 (J4)
EXTI3PB3 (A5), PE3 (B2), PD3 (C6), PC3 (G1), PA3 (H3)
IN1PA8 (E10)
IN2PA9 (D10)
IN6PE8 (H5)
IN7PD10 (G7)
IN8PD11 (H10)
IN9PD12 (J10)
IN10PD13 (G9)
IN11PD14 (F8)
IN12PD8 (K10)
IN13PD9 (G8)
IN14PE10 (K6)
IN15PE11 (J6)
IN16PE12 (G6)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (A2), PA9 (D10), PF9 (E3), PC9 (E9), PD9 (G8), PE9 (H6)
EXTI10PC10 (C8), PA10 (D9), PF10 (E4), PG10-NRST (F3), PD10 (G7), PB10 (J8), PE10 (K6)
OUT1PA4 (H2)
OUT2PA5 (J1)
DAC2EXTI9PB9 (A2), PA9 (D10), PF9 (E3), PC9 (E9), PD9 (G8), PE9 (H6)
EXTI10PC10 (C8), PA10 (D9), PF10 (E4), PG10-NRST (F3), PD10 (G7), PB10 (J8), PE10 (K6)
OUT1PA6 (J2)
DAC3EXTI9PB9 (A2), PA9 (D10), PF9 (E3), PC9 (E9), PD9 (G8), PE9 (H6)
EXTI10PC10 (C8), PA10 (D9), PF10 (E4), PG10-NRST (F3), PD10 (G7), PB10 (J8), PE10 (K6)
DAC4EXTI9PB9 (A2), PA9 (D10), PF9 (E3), PC9 (E9), PD9 (G8), PE9 (H6)
EXTI10PC10 (C8), PA10 (D9), PF10 (E4), PG10-NRST (F3), PD10 (G7), PB10 (J8), PE10 (K6)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPA0 (G4), PA4 (H2)
INPPA1 (G2), PB1 (K3)
OUTPB8-BOOT0 (A3, AF8), PA11 (C10, AF8), PA0 (G4, AF8), PA6 (J2, AF8)
COMP2INMPA2 (H1), PA5 (J1)
INPPA3 (H3), PA7 (K1)
OUTPB9 (A2, AF8), PA12 (C9, AF8), PA2 (H1, AF8), PA7 (K1, AF8)
COMP3INMPF1-OSC_OUT (E2), PC0 (F2)
INPPC1 (F4), PA0 (G4)
OUTPB7 (B4, AF8), PC2 (F1, AF3), PB15 (K9, AF3)
COMP4INMPE8 (H5), PB2 (J4)
INPPE7 (G5), PB0 (H4)
OUTPB6 (A4, AF8), PB14 (H9, AF8), PB1 (K3, AF8)
COMP5INMPD13 (G9), PB10 (J8)
INPPB13 (J9), PD12 (J10)
OUTPA9 (D10, AF8), PC7 (F10, AF7)
COMP6INMPD10 (G7), PB15 (K9)
INPPB11 (H8), PD11 (H10)
OUTPA10 (D9, AF8), PC6 (F9, AF7)
COMP7INMPD15 (G10), PB12 (K8)
INPPD14 (F8), PB14 (H9)
OUTPC8 (E8, AF7), PA8 (E10, AF8)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA3 (H3), PC5 (J3)
VINM_SECPA3 (H3), PC5 (J3)
VINM0PA3 (H3)
VINM1PC5 (J3)
VINPPA1 (G2), PA3 (H3), PA7 (K1)
VINP_SECPA1 (G2), PA3 (H3), PA7 (K1)
VOUTPA2 (H1)
OPAMP2VINMPA5 (J1), PC5 (J3)
VINM_SECPA5 (J1), PC5 (J3)
VINM0PA5 (J1)
VINM1PC5 (J3)
VINPPD14 (F8), PB0 (H4), PB14 (H9), PA7 (K1)
VINP_SECPD14 (F8), PB0 (H4), PB14 (H9), PA7 (K1)
VOUTPA6 (J2)
OPAMP3VINMPB2 (J4), PB10 (J8)
VINM_SECPB2 (J4), PB10 (J8)
VINM0PB2 (J4)
VINM1PB10 (J8)
VINPPA1 (G2), PB0 (H4), PB13 (J9)
VINP_SECPA1 (G2), PB0 (H4), PB13 (J9)
VOUTPB1 (K3)
OPAMP4VINMPB10 (J8), PD8 (K10)
VINM_SECPB10 (J8), PD8 (K10)
VINM0PB10 (J8)
VINM1PD8 (K10)
VINPPB11 (H8), PD11 (H10), PB13 (J9)
VINP_SECPB11 (H8), PD11 (H10), PB13 (J9)
VOUTPB12 (K8)
OPAMP5VINMPA3 (H3), PB15 (K9)
VINM_SECPA3 (H3), PB15 (K9)
VINM0PB15 (K9)
VINM1PA3 (H3)
VINPPC3 (G1), PB14 (H9), PD12 (J10)
VINP_SECPC3 (G1), PB14 (H9), PD12 (J10)
VOUTPA8 (E10)
OPAMP6VINMPA1 (G2), PB1 (K3)
VINM_SECPA1 (G2), PB1 (K3)
VINM0PA1 (G2)
VINM1PB1 (K3)
VINPPD9 (G8), PB13 (J9), PB12 (K8)
VINP_SECPD9 (G8), PB13 (J9), PB12 (K8)
VOUTPB11 (H8)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (K5)

TIM — таймер

БлокСигналВыводы
TIM1BKINPB8-BOOT0 (A3, AF12), PA15 (B9, AF9), PA14 (B10, AF6), PC13 (D4, AF2), PE15 (H7, AF2), PA6 (J2, AF6), PB10 (J8, AF12), PB12 (K8, AF6)
BKIN2PA11 (C10, AF12), PC3 (G1, AF6), PE14 (J7, AF6)
CH1PA8 (E10, AF6), PC0 (F2, AF2), PE9 (H6, AF2)
CH1NPA11 (C10, AF6), PC13 (D4, AF4), PE8 (H5, AF2), PB13 (J9, AF6), PA7 (K1, AF6)
CH2PA9 (D10, AF6), PC1 (F4, AF2), PE11 (J6, AF2)
CH2NPA12 (C9, AF6), PB0 (H4, AF6), PB14 (H9, AF6), PE10 (K6, AF2)
CH3PA10 (D9, AF6), PC2 (F1, AF2), PE13 (K7, AF2)
CH3NPB9 (A2, AF12), PF0-OSC_IN (E1, AF6), PE12 (G6, AF2), PB1 (K3, AF6), PB15 (K9, AF4)
CH4PA11 (C10, AF11), PC3 (G1, AF2), PE14 (J7, AF2)
CH4NPE15 (H7, AF6), PC5 (J3, AF6)
ETRPA12 (C9, AF11), PE7 (G5, AF2), PC4 (K2, AF2)
TIM2CH1PA15 (B9, AF1), PD3 (C6, AF2), PA0 (G4, AF1), PA5 (J1, AF1)
CH2PB3 (A5, AF1), PD4 (A8, AF2), PA1 (G2, AF1)
CH3PD7 (B6, AF2), PA9 (D10, AF10), PA2 (H1, AF1), PB10 (J8, AF1)
CH4PD6 (A6, AF2), PA10 (D9, AF10), PA3 (H3, AF1), PB11 (H8, AF1)
ETRPA15 (B9, AF14), PD3 (C6, AF2), PA0 (G4, AF14), PA5 (J1, AF2)
TIM3CH1PE2 (C3, AF2), PB4 (C5, AF2), PC6 (F9, AF2), PA6 (J2, AF2)
CH2PE3 (B2, AF2), PB5 (B5, AF2), PC7 (F10, AF2), PA4 (H2, AF2), PA7 (K1, AF2)
CH3PE4 (A1, AF2), PC8 (E8, AF2), PB0 (H4, AF2)
CH4PE5 (B1, AF2), PB7 (B4, AF10), PC9 (E9, AF2), PB1 (K3, AF2)
ETRPB3 (A5, AF10), PD2 (B7, AF2)
TIM4CH1PB6 (A4, AF2), PA11 (C10, AF10), PD12 (J10, AF2)
CH2PB7 (B4, AF2), PA12 (C9, AF10), PD13 (G9, AF2)
CH3PB8-BOOT0 (A3, AF2), PA13 (D8, AF10), PD14 (F8, AF2)
CH4PB9 (A2, AF2), PD15 (G10, AF2)
ETRPB3 (A5, AF2), PE0 (C4, AF2), PA8 (E10, AF10)
TIM5CH1PA0 (G4, AF2), PB2 (J4, AF2)
CH2PC12 (A10, AF1), PA1 (G2, AF2)
CH3PA2 (H1, AF2), PE8 (H5, AF1)
CH4PF9 (E3, AF6), PA3 (H3, AF2), PE9 (H6, AF1)
ETRPD11 (H10, AF1), PB12 (K8, AF2)
TIM8BKINPB7 (B4, AF5), PD2 (B7, AF4), PA10 (D9, AF11), PA0 (G4, AF9), PA6 (J2, AF4)
BKIN2PB6 (A4, AF10), PD1 (A9, AF6), PC9 (E9, AF6)
CH1PB6 (A4, AF5), PA15 (B9, AF2), PC6 (F9, AF4)
CH1NPB3 (A5, AF4), PC10 (C8, AF4), PA7 (K1, AF4)
CH2PB8-BOOT0 (A3, AF10), PA14 (B10, AF5), PC7 (F10, AF4)
CH2NPB4 (C5, AF4), PC11 (C7, AF4), PB0 (H4, AF4)
CH3PB9 (A2, AF10), PC8 (E8, AF4)
CH3NPC12 (A10, AF4), PB5 (B5, AF3), PB1 (K3, AF4)
CH4PD1 (A9, AF4), PC9 (E9, AF4)
CH4NPD0 (B8, AF6), PC13 (D4, AF6)
ETRPB6 (A4, AF6), PA0 (G4, AF10)
TIM15BKINPA9 (D10, AF9), PC5 (J3, AF2)
CH1PF9 (E3, AF3), PA2 (H1, AF9), PB14 (H9, AF1)
CH1NPA1 (G2, AF9), PB15 (K9, AF2)
CH2PF10 (E4, AF3), PA3 (H3, AF9), PB15 (K9, AF1)
TIM16BKINPB5 (B5, AF1)
CH1PB8-BOOT0 (A3, AF1), PE0 (C4, AF4), PB4 (C5, AF1), PA12 (C9, AF1), PA6 (J2, AF1)
CH1NPB6 (A4, AF1), PA13 (D8, AF1)
TIM17BKINPB4 (C5, AF10), PA10 (D9, AF1)
CH1PB9 (A2, AF1), PE1 (B3, AF4), PB5 (B5, AF10), PA7 (K1, AF1)
CH1NPB7 (B4, AF1)
TIM20BKINPF9 (E3, AF2)
BKIN2PF10 (E4, AF2)
CH1PE2 (C3, AF6), PB2 (J4, AF3)
CH1NPE4 (A1, AF6)
CH2PE3 (B2, AF6), PC2 (F1, AF6)
CH2NPE5 (B1, AF6)
CH3PC8 (E8, AF6), PF2 (G3, AF2)
CH3NPE6 (C2, AF6)
CH4PE1 (B3, AF6)
CH4NPE0 (C4, AF3)
ETRPE0 (C4, AF6)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPB6 (A4, AF11), PC3 (G1, AF1)
IN1PB5 (B5, AF11), PC0 (F2, AF1)
IN2PB7 (B4, AF11), PC2 (F1, AF1)
OUTPA14 (B10, AF1), PC1 (F4, AF1), PB2 (J4, AF1)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (D4)
OUT2PB2 (J4, AF0)
REFINPA1 (G2, AF0), PB15 (K9, AF0)
TSPC13 (D4)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF10 (E4, AF12)
A2PF2 (G3, AF12)
A16PD11 (H10, AF12)
A17PD12 (J10, AF12)
A18PD13 (G9, AF12)
A19PE3 (B2, AF12)
A20PE4 (A1, AF12)
A21PE5 (B1, AF12)
A22PE6 (C2, AF12)
A23PE2 (C3, AF12)
A25PF9 (E3, AF12)
ALEPD12 (J10)
CLEPD11 (H10)
CLKPD3 (C6, AF12)
D0PD14 (F8, AF12)
D1PD15 (G10, AF12)
D2PD0 (B8, AF12)
D3PD1 (A9, AF12)
D4PE7 (G5, AF12)
D5PE8 (H5, AF12)
D6PE9 (H6, AF12)
D7PE10 (K6, AF12)
D8PE11 (J6, AF12)
D9PE12 (G6, AF12)
D10PE13 (K7, AF12)
D11PE14 (J7, AF12)
D12PE15 (H7, AF12)
D13PD8 (K10, AF12)
D14PD9 (G8, AF12)
D15PD10 (G7, AF12)
DA0PD14 (F8, AF12)
DA1PD15 (G10, AF12)
DA2PD0 (B8, AF12)
DA3PD1 (A9, AF12)
DA4PE7 (G5, AF12)
DA5PE8 (H5, AF12)
DA6PE9 (H6, AF12)
DA7PE10 (K6, AF12)
DA8PE11 (J6, AF12)
DA9PE12 (G6, AF12)
DA10PE13 (K7, AF12)
DA11PE14 (J7, AF12)
DA12PE15 (H7, AF12)
DA13PD8 (K10, AF12)
DA14PD9 (G8, AF12)
DA15PD10 (G7, AF12)
NBL0PE0 (C4, AF12)
NBL1PE1 (B3, AF12)
NCEPD7 (B6, AF12)
NE1PD7 (B6, AF12)
NLPB7 (B4, AF12)
NOEPD4 (A8, AF12)
NWAITPD6 (A6, AF12)
NWEPD5 (A7, AF12)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (B10, AF0)
JTDIPA15 (B9, AF0)
JTDO-SWOPB3 (A5, AF0)
JTMS-SWDIOPA13 (D8, AF0)
TRACECLKPE2 (C3, AF0)
TRACED0PE3 (B2, AF0)
TRACED1PE4 (A1, AF0)
TRACED2PE5 (B1, AF0)
TRACED3PE6 (C2, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPA2 (H1)
MCOPA8 (E10, AF0), PG10-NRST (F3, AF0)
OSC_INPF0-OSC_IN (E1)
OSC_OUTPF1-OSC_OUT (E2)
OSC32_INPC14-OSC32_IN (C1)
OSC32_OUTPC15-OSC32_OUT (D1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPRTC_TAMP1PC13 (D4)
RTC_TAMP2PA0 (G4)
RTC_TAMP3PE6 (C2)
SYS_WKUP1PA0 (G4)
SYS_WKUP2PC13 (D4)
SYS_WKUP3PE6 (C2)
SYS_WKUP4PA2 (H1)
SYS_WKUP5PC5 (J3)

Блоки без собственных выводов: IRTIM (формирователь ИК-сигнала), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 100 шариков корпуса TFBGA100 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PE4ввод-выводFMC_A20 (AF12), SAI1_D2 (AF3), SAI1_FS_A (AF13), SPI4_NSS (AF5), SYS_TRACED1 (AF0), TIM20_CH1N (AF6), TIM3_CH3 (AF2)
A2PB9ввод-выводCOMP2_OUT (AF8), DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FDCAN1_TX (AF9), I2C1_SDA (AF4), IR_OUT (AF6), SAI1_D2 (AF3), SAI1_FS_A (AF14), TIM17_CH1 (AF1), TIM1_CH3N (AF12), TIM4_CH4 (AF2), TIM8_CH3 (AF10), USART3_TX (AF7)
A3PB8-BOOT0ввод-выводCOMP1_OUT (AF8), FDCAN1_RX (AF9), I2C1_SCL (AF4), SAI1_CK1 (AF3), SAI1_MCLK_A (AF14), TIM16_CH1 (AF1), TIM1_BKIN (AF12), TIM4_CH3 (AF2), TIM8_CH2 (AF10), USART3_RX (AF7)
A4PB6ввод-выводCOMP4_OUT (AF8), FDCAN2_TX (AF9), LPTIM1_ETR (AF11), SAI1_FS_B (AF14), TIM16_CH1N (AF1), TIM4_CH1 (AF2), TIM8_BKIN2 (AF10), TIM8_CH1 (AF5), TIM8_ETR (AF6), UCPD1_CC1, USART1_TX (AF7)
A5PB3ввод-выводADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, CRS_SYNC (AF3), FDCAN3_RX (AF11), I2S3_CK (AF6), SAI1_SCK_B (AF14), SPI1_SCK (AF5), SPI3_SCK (AF6), SYS_JTDO-SWO (AF0), TIM2_CH2 (AF1), TIM3_ETR (AF10), TIM4_ETR (AF2), TIM8_CH1N (AF4), USART2_TX (AF7)
A6PD6ввод-выводFMC_NWAIT (AF12), QUADSPI1_BK2_IO2 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM2_CH4 (AF2), USART2_RX (AF7)
A7PD5ввод-выводFMC_NWE (AF12), QUADSPI1_BK2_IO1 (AF10), USART2_TX (AF7)
A8PD4ввод-выводFMC_NOE (AF12), QUADSPI1_BK2_IO0 (AF10), TIM2_CH2 (AF2), USART2_DE (AF7), USART2_RTS (AF7)
A9PD1ввод-выводFDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), TIM8_BKIN2 (AF6), TIM8_CH4 (AF4)
A10PC12ввод-выводI2S3_SD (AF6), SPI3_MOSI (AF6), TIM5_CH2 (AF1), TIM8_CH3N (AF4), UART5_TX (AF5), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14), USART3_CK (AF7)
B1PE5ввод-выводFMC_A21 (AF12), SAI1_CK2 (AF3), SAI1_SCK_A (AF13), SPI4_MISO (AF5), SYS_TRACED2 (AF0), TIM20_CH2N (AF6), TIM3_CH4 (AF2)
B2PE3ввод-выводADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_A19 (AF12), SAI1_SD_B (AF13), SPI4_NSS (AF5), SYS_TRACED0 (AF0), TIM20_CH2 (AF6), TIM3_CH2 (AF2)
B3PE1ввод-выводFMC_NBL1 (AF12), TIM17_CH1 (AF4), TIM20_CH4 (AF6), USART1_RX (AF7)
B4PB7ввод-выводCOMP3_OUT (AF8), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF3), LPTIM1_IN2 (AF11), TIM17_CH1N (AF1), TIM3_CH4 (AF10), TIM4_CH2 (AF2), TIM8_BKIN (AF5), UART4_CTS (AF14), USART1_RX (AF7)
B5PB5ввод-выводFDCAN2_RX (AF9), I2C1_SMBA (AF4), I2C3_SDA (AF8), I2S3_SD (AF6), LPTIM1_IN1 (AF11), SAI1_SD_B (AF12), SPI1_MOSI (AF5), SPI3_MOSI (AF6), TIM16_BKIN (AF1), TIM17_CH1 (AF10), TIM3_CH2 (AF2), TIM8_CH3N (AF3), UART5_CTS (AF14), USART2_CK (AF7)
B6PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), QUADSPI1_BK2_IO3 (AF10), TIM2_CH3 (AF2), USART2_CK (AF7)
B7PD2ввод-выводADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, TIM3_ETR (AF2), TIM8_BKIN (AF4), UART5_RX (AF5)
B8PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), TIM8_CH4N (AF6)
B9PA15ввод-выводADC1_EXTI15, ADC2_EXTI15, FDCAN3_TX (AF11), I2C1_SCL (AF4), I2S3_WS (AF6), SPI1_NSS (AF5), SPI3_NSS (AF6), SYS_JTDI (AF0), TIM1_BKIN (AF9), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1 (AF2), UART4_DE (AF8), UART4_RTS (AF8), USART2_RX (AF7)
B10PA14ввод-выводI2C1_SDA (AF4), I2C4_SMBA (AF3), LPTIM1_OUT (AF1), SAI1_FS_B (AF13), SYS_JTCK-SWCLK (AF0), TIM1_BKIN (AF6), TIM8_CH2 (AF5), USART2_TX (AF7)
C1PC14-OSC32_INввод-выводRCC_OSC32_IN
C2PE6ввод-выводFMC_A22 (AF12), RTC_TAMP3, SAI1_D1 (AF3), SAI1_SD_A (AF13), SPI4_MOSI (AF5), SYS_TRACED3 (AF0), SYS_WKUP3, TIM20_CH3N (AF6)
C3PE2ввод-выводADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, FMC_A23 (AF12), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), SPI4_SCK (AF5), SYS_TRACECLK (AF0), TIM20_CH1 (AF6), TIM3_CH1 (AF2)
C4PE0ввод-выводFMC_NBL0 (AF12), TIM16_CH1 (AF4), TIM20_CH4N (AF3), TIM20_ETR (AF6), TIM4_ETR (AF2), USART1_TX (AF7)
C5PB4ввод-выводFDCAN3_TX (AF11), SAI1_MCLK_B (AF14), SPI1_MISO (AF5), SPI3_MISO (AF6), SYS_JTRST (AF0), TIM16_CH1 (AF1), TIM17_BKIN (AF10), TIM3_CH1 (AF2), TIM8_CH2N (AF4), UART5_DE (AF8), UART5_RTS (AF8), UCPD1_CC2, USART2_RX (AF7)
C6PD3ввод-выводADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_CLK (AF12), QUADSPI1_BK2_NCS (AF10), TIM2_CH1 (AF2), TIM2_ETR (AF2), USART2_CTS (AF7), USART2_NSS (AF7)
C7PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, I2C3_SDA (AF8), SPI3_MISO (AF6), TIM8_CH2N (AF4), UART4_RX (AF5), USART3_RX (AF7)
C8PC10ввод-выводDAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, I2S3_CK (AF6), SPI3_SCK (AF6), TIM8_CH1N (AF4), UART4_TX (AF5), USART3_TX (AF7)
C9PA12ввод-выводCOMP2_OUT (AF8), FDCAN1_TX (AF9), I2S_CKIN (AF5), TIM16_CH1 (AF1), TIM1_CH2N (AF6), TIM1_ETR (AF11), TIM4_CH2 (AF10), USART1_DE (AF7), USART1_RTS (AF7), USB_DP
C10PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, COMP1_OUT (AF8), FDCAN1_RX (AF9), I2S2_SD (AF5), SPI2_MOSI (AF5), TIM1_BKIN2 (AF12), TIM1_CH1N (AF6), TIM1_CH4 (AF11), TIM4_CH1 (AF10), USART1_CTS (AF7), USART1_NSS (AF7), USB_DM
D1PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT
D2VSSпитание—
D3VBATпитание—
D4PC13ввод-выводRTC_OUT1, RTC_TAMP1, RTC_TS, SYS_WKUP2, TIM1_BKIN (AF2), TIM1_CH1N (AF4), TIM8_CH4N (AF6)
D5VDDпитание—
D6VSSпитание—
D7VDDпитание—
D8PA13ввод-выводI2C1_SCL (AF4), I2C4_SCL (AF3), IR_OUT (AF5), SAI1_SD_B (AF13), SYS_JTMS-SWDIO (AF0), TIM16_CH1N (AF1), TIM4_CH3 (AF10), USART3_CTS (AF7), USART3_NSS (AF7)
D9PA10ввод-выводCOMP6_OUT (AF8), CRS_SYNC (AF3), DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, I2C2_SMBA (AF4), SAI1_D1 (AF12), SAI1_SD_A (AF14), SPI2_MISO (AF5), SYS_PVD_IN, TIM17_BKIN (AF1), TIM1_CH3 (AF6), TIM2_CH4 (AF10), TIM8_BKIN (AF11), UCPD1_DBCC2, USART1_RX (AF7)
D10PA9ввод-выводADC5_IN2, COMP5_OUT (AF8), DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, I2C2_SCL (AF4), I2C3_SMBA (AF2), I2S3_MCK (AF5), SAI1_FS_A (AF14), TIM15_BKIN (AF9), TIM1_CH2 (AF6), TIM2_CH3 (AF10), UCPD1_DBCC1, USART1_TX (AF7)
E1PF0-OSC_INввод-выводADC1_IN10, I2C2_SDA (AF4), I2S2_WS (AF5), RCC_OSC_IN, SPI2_NSS (AF5), TIM1_CH3N (AF6)
E2PF1-OSC_OUTввод-выводADC2_IN10, COMP3_INM, I2S2_CK (AF5), RCC_OSC_OUT, SPI2_SCK (AF5)
E3PF9ввод-выводDAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_A25 (AF12), QUADSPI1_BK1_IO1 (AF10), SAI1_FS_B (AF13), SPI2_SCK (AF5), TIM15_CH1 (AF3), TIM20_BKIN (AF2), TIM5_CH4 (AF6)
E4PF10ввод-выводDAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_A0 (AF12), QUADSPI1_CLK (AF10), SAI1_D3 (AF13), SPI2_SCK (AF5), TIM15_CH2 (AF3), TIM20_BKIN2 (AF2)
E5VSSпитание—
E6VSSпитание—
E7VSSпитание—
E8PC8ввод-выводCOMP7_OUT (AF7), I2C3_SCL (AF8), TIM20_CH3 (AF6), TIM3_CH3 (AF2), TIM8_CH3 (AF4)
E9PC9ввод-выводDAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, I2C3_SDA (AF8), I2S_CKIN (AF5), TIM3_CH4 (AF2), TIM8_BKIN2 (AF6), TIM8_CH4 (AF4)
E10PA8ввод-выводADC5_IN1, COMP7_OUT (AF8), FDCAN3_RX (AF11), I2C2_SDA (AF4), I2C3_SCL (AF2), I2S2_MCK (AF5), OPAMP5_VOUT, RCC_MCO (AF0), SAI1_CK2 (AF12), SAI1_SCK_A (AF14), TIM1_CH1 (AF6), TIM4_ETR (AF10), USART1_CK (AF7)
F1PC2ввод-выводADC1_IN8, ADC2_IN8, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP3_OUT (AF3), LPTIM1_IN2 (AF1), QUADSPI1_BK2_IO1 (AF10), TIM1_CH3 (AF2), TIM20_CH2 (AF6)
F2PC0ввод-выводADC1_IN6, ADC2_IN6, COMP3_INM, LPTIM1_IN1 (AF1), LPUART1_RX (AF8), TIM1_CH1 (AF2)
F3PG10-NRSTввод-выводDAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, RCC_MCO (AF0)
F4PC1ввод-выводADC1_IN7, ADC2_IN7, COMP3_INP, LPTIM1_OUT (AF1), LPUART1_TX (AF8), QUADSPI1_BK2_IO0 (AF10), SAI1_SD_A (AF13), TIM1_CH2 (AF2)
F5VDDпитание—
F6VSSпитание—
F7VDDпитание—
F8PD14ввод-выводADC3_IN11, ADC4_IN11, ADC5_IN11, COMP7_INP, FMC_D0 (AF12), FMC_DA0 (AF12), OPAMP2_VINP, OPAMP2_VINP_SEC, TIM4_CH3 (AF2)
F9PC6ввод-выводCOMP6_OUT (AF7), I2C4_SCL (AF8), I2S2_MCK (AF6), TIM3_CH1 (AF2), TIM8_CH1 (AF4)
F10PC7ввод-выводCOMP5_OUT (AF7), I2C4_SDA (AF8), I2S3_MCK (AF6), TIM3_CH2 (AF2), TIM8_CH2 (AF4)
G1PC3ввод-выводADC1_IN9, ADC2_IN9, ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, LPTIM1_ETR (AF1), OPAMP5_VINP, OPAMP5_VINP_SEC, QUADSPI1_BK2_IO2 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM1_BKIN2 (AF6), TIM1_CH4 (AF2)
G2PA1ввод-выводADC1_IN2, ADC2_IN2, COMP1_INP, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP3_VINP, OPAMP3_VINP_SEC, OPAMP6_VINM, OPAMP6_VINM0, OPAMP6_VINM_SEC, RTC_REFIN (AF0), TIM15_CH1N (AF9), TIM2_CH2 (AF1), TIM5_CH2 (AF2), USART2_DE (AF7), USART2_RTS (AF7)
G3PF2ввод-выводADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, FMC_A2 (AF12), I2C2_SMBA (AF4), TIM20_CH3 (AF2)
G4PA0ввод-выводADC1_IN1, ADC2_IN1, COMP1_INM, COMP1_OUT (AF8), COMP3_INP, RTC_TAMP2, SYS_WKUP1, TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_BKIN (AF9), TIM8_ETR (AF10), USART2_CTS (AF7), USART2_NSS (AF7)
G5PE7ввод-выводADC3_IN4, COMP4_INP, FMC_D4 (AF12), FMC_DA4 (AF12), SAI1_SD_B (AF13), TIM1_ETR (AF2)
G6PE12ввод-выводADC3_IN16, ADC4_IN16, ADC5_IN16, FMC_D9 (AF12), FMC_DA9 (AF12), QUADSPI1_BK1_IO0 (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF2)
G7PD10ввод-выводADC3_IN7, ADC4_IN7, ADC5_IN7, COMP6_INM, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_D15 (AF12), FMC_DA15 (AF12), USART3_CK (AF7)
G8PD9ввод-выводADC4_IN13, ADC5_IN13, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_D14 (AF12), FMC_DA14 (AF12), OPAMP6_VINP, OPAMP6_VINP_SEC, USART3_RX (AF7)
G9PD13ввод-выводADC3_IN10, ADC4_IN10, ADC5_IN10, COMP5_INM, FMC_A18 (AF12), TIM4_CH2 (AF2)
G10PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, COMP7_INM, FMC_D1 (AF12), FMC_DA1 (AF12), SPI2_NSS (AF6), TIM4_CH4 (AF2)
H1PA2ввод-выводADC1_IN3, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP2_INM, COMP2_OUT (AF8), LPUART1_TX (AF12), OPAMP1_VOUT, QUADSPI1_BK1_NCS (AF10), RCC_LSCO, SYS_WKUP4, TIM15_CH1 (AF9), TIM2_CH3 (AF1), TIM5_CH3 (AF2), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14), USART2_TX (AF7)
H2PA4ввод-выводADC2_IN17, COMP1_INM, DAC1_OUT1, I2S3_WS (AF6), SAI1_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), TIM3_CH2 (AF2), USART2_CK (AF7)
H3PA3ввод-выводADC1_IN4, ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, COMP2_INP, LPUART1_RX (AF12), OPAMP1_VINM, OPAMP1_VINM0, OPAMP1_VINM_SEC, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP5_VINM, OPAMP5_VINM1, OPAMP5_VINM_SEC, QUADSPI1_CLK (AF10), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM15_CH2 (AF9), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
H4PB0ввод-выводADC1_IN15, ADC3_IN12, COMP4_INP, OPAMP2_VINP, OPAMP2_VINP_SEC, OPAMP3_VINP, OPAMP3_VINP_SEC, QUADSPI1_BK1_IO1 (AF10), TIM1_CH2N (AF6), TIM3_CH3 (AF2), TIM8_CH2N (AF4), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14)
H5PE8ввод-выводADC3_IN6, ADC4_IN6, ADC5_IN6, COMP4_INM, FMC_D5 (AF12), FMC_DA5 (AF12), SAI1_SCK_B (AF13), TIM1_CH1N (AF2), TIM5_CH3 (AF1)
H6PE9ввод-выводADC3_IN2, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), SAI1_FS_B (AF13), TIM1_CH1 (AF2), TIM5_CH4 (AF1)
H7PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_IN2, FMC_D12 (AF12), FMC_DA12 (AF12), QUADSPI1_BK1_IO3 (AF10), TIM1_BKIN (AF2), TIM1_CH4N (AF6), USART3_RX (AF7)
H8PB11ввод-выводADC1_EXTI11, ADC1_IN14, ADC2_EXTI11, ADC2_IN14, COMP6_INP, LPUART1_TX (AF8), OPAMP4_VINP, OPAMP4_VINP_SEC, OPAMP6_VOUT, QUADSPI1_BK1_NCS (AF10), TIM2_CH4 (AF1), USART3_RX (AF7)
H9PB14ввод-выводADC1_IN5, ADC4_IN4, COMP4_OUT (AF8), COMP7_INP, OPAMP2_VINP, OPAMP2_VINP_SEC, OPAMP5_VINP, OPAMP5_VINP_SEC, SPI2_MISO (AF5), TIM15_CH1 (AF1), TIM1_CH2N (AF6), USART3_DE (AF7), USART3_RTS (AF7)
H10PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_IN8, ADC4_IN8, ADC5_IN8, COMP6_INP, FMC_A16 (AF12), FMC_CLE, I2C4_SMBA (AF4), OPAMP4_VINP, OPAMP4_VINP_SEC, TIM5_ETR (AF1), USART3_CTS (AF7), USART3_NSS (AF7)
J1PA5ввод-выводADC2_IN13, COMP2_INM, DAC1_OUT2, OPAMP2_VINM, OPAMP2_VINM0, OPAMP2_VINM_SEC, SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF2), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14)
J2PA6ввод-выводADC2_IN3, COMP1_OUT (AF8), DAC2_OUT1, LPUART1_CTS (AF12), OPAMP2_VOUT, QUADSPI1_BK1_IO3 (AF10), SPI1_MISO (AF5), TIM16_CH1 (AF1), TIM1_BKIN (AF6), TIM3_CH1 (AF2), TIM8_BKIN (AF4)
J3PC5ввод-выводADC2_IN11, OPAMP1_VINM, OPAMP1_VINM1, OPAMP1_VINM_SEC, OPAMP2_VINM, OPAMP2_VINM1, OPAMP2_VINM_SEC, SAI1_D3 (AF3), SYS_WKUP5, TIM15_BKIN (AF2), TIM1_CH4N (AF6), USART1_RX (AF7)
J4PB2ввод-выводADC2_IN12, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP4_INM, I2C3_SMBA (AF4), LPTIM1_OUT (AF1), OPAMP3_VINM, OPAMP3_VINM0, OPAMP3_VINM_SEC, QUADSPI1_BK2_IO1 (AF10), RTC_OUT2 (AF0), TIM20_CH1 (AF3), TIM5_CH1 (AF2)
J5VDDAпитание—
J6PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_IN15, ADC4_IN15, ADC5_IN15, FMC_D8 (AF12), FMC_DA8 (AF12), QUADSPI1_BK1_NCS (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF2)
J7PE14ввод-выводADC4_IN1, FMC_D11 (AF12), FMC_DA11 (AF12), QUADSPI1_BK1_IO2 (AF10), SPI4_MOSI (AF5), TIM1_BKIN2 (AF6), TIM1_CH4 (AF2)
J8PB10ввод-выводCOMP5_INM, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, LPUART1_RX (AF8), OPAMP3_VINM, OPAMP3_VINM1, OPAMP3_VINM_SEC, OPAMP4_VINM, OPAMP4_VINM0, OPAMP4_VINM_SEC, QUADSPI1_CLK (AF10), SAI1_SCK_A (AF14), TIM1_BKIN (AF12), TIM2_CH3 (AF1), USART3_TX (AF7)
J9PB13ввод-выводADC3_IN5, COMP5_INP, FDCAN2_TX (AF9), I2S2_CK (AF5), LPUART1_CTS (AF8), OPAMP3_VINP, OPAMP3_VINP_SEC, OPAMP4_VINP, OPAMP4_VINP_SEC, OPAMP6_VINP, OPAMP6_VINP_SEC, SPI2_SCK (AF5), TIM1_CH1N (AF6), USART3_CTS (AF7), USART3_NSS (AF7)
J10PD12ввод-выводADC3_IN9, ADC4_IN9, ADC5_IN9, COMP5_INP, FMC_A17 (AF12), FMC_ALE, OPAMP5_VINP, OPAMP5_VINP_SEC, TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
K1PA7ввод-выводADC2_IN4, COMP2_INP, COMP2_OUT (AF8), OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP2_VINP, OPAMP2_VINP_SEC, QUADSPI1_BK1_IO2 (AF10), SPI1_MOSI (AF5), TIM17_CH1 (AF1), TIM1_CH1N (AF6), TIM3_CH2 (AF2), TIM8_CH1N (AF4), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14)
K2PC4ввод-выводADC2_IN5, I2C2_SCL (AF4), QUADSPI1_BK2_IO3 (AF10), TIM1_ETR (AF2), USART1_TX (AF7)
K3PB1ввод-выводADC1_IN12, ADC3_IN1, COMP1_INP, COMP4_OUT (AF8), LPUART1_DE (AF12), LPUART1_RTS (AF12), OPAMP3_VOUT, OPAMP6_VINM, OPAMP6_VINM1, OPAMP6_VINM_SEC, QUADSPI1_BK1_IO0 (AF10), TIM1_CH3N (AF6), TIM3_CH4 (AF2), TIM8_CH3N (AF4)
K4VSSAпитание—
K5VREF+служебныйVREFBUF_OUT
K6PE10ввод-выводADC3_IN14, ADC4_IN14, ADC5_IN14, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_D7 (AF12), FMC_DA7 (AF12), QUADSPI1_CLK (AF10), SAI1_MCLK_B (AF13), TIM1_CH2N (AF2)
K7PE13ввод-выводADC3_IN3, FMC_D10 (AF12), FMC_DA10 (AF12), QUADSPI1_BK1_IO1 (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF2)
K8PB12ввод-выводADC1_IN11, ADC4_IN3, COMP7_INM, FDCAN2_RX (AF9), I2C2_SMBA (AF4), I2S2_WS (AF5), LPUART1_DE (AF8), LPUART1_RTS (AF8), OPAMP4_VOUT, OPAMP6_VINP, OPAMP6_VINP_SEC, SPI2_NSS (AF5), TIM1_BKIN (AF6), TIM5_ETR (AF2), USART3_CK (AF7)
K9PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC2_IN15, ADC4_IN5, COMP3_OUT (AF3), COMP6_INM, I2S2_SD (AF5), OPAMP5_VINM, OPAMP5_VINM0, OPAMP5_VINM_SEC, RTC_REFIN (AF0), SPI2_MOSI (AF5), TIM15_CH1N (AF2), TIM15_CH2 (AF1), TIM1_CH3N (AF4)
K10PD8ввод-выводADC4_IN12, ADC5_IN12, FMC_D13 (AF12), FMC_DA13 (AF12), OPAMP4_VINM, OPAMP4_VINM1, OPAMP4_VINM_SEC, USART3_TX (AF7)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATD3резервное питание: часы реального времени и резервные регистры
VDDD5, D7, F5, F7питание цифровой части и линий ввода-вывода
VDDAJ5питание аналоговой части: АЦП, ЦАП, генераторы
VSSD2, D6, E5, E6, E7, F6общий провод (земля)
VSSAK4общий провод аналоговой части
VREF+K5верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX эта группа называется STM32G473V(B-C-E)Hx: одна распиновка и один набор периферии, отличается только объём памяти. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32G473VBSTM32G473VBHx128 КБ128 КБ
STM32G473VCSTM32G473VCHx256 КБ128 КБ
STM32G473VESTM32G473VEHx512 КБ128 КБ

Линейка STM32G4x3, семейство STM32G4, ядро Cortex-M4.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе TFBGA100, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32G483VESTM32G4x3100 из 100выводы совпадают полностью
STM32G471VC, STM32G471VESTM32G4x1100 из 100выводы совпадают полностью
STM32G474VB, STM32G474VC, STM32G474VESTM32G4x4100 из 100выводы совпадают полностью
STM32G484VESTM32G4x4100 из 100выводы совпадают полностью

Частые вопросы

На каких выводах USART1 у STM32G473VB?

В корпусе TFBGA100 сигнал USART1_TX выведен на PB6 (шарик A4, AF7) или PE0 (шарик C4, AF7) или PA9 (шарик D10, AF7) или PC4 (шарик K2, AF7), USART1_RX — на PE1 (шарик B3, AF7) или PB7 (шарик B4, AF7) или PA10 (шарик D9, AF7) или PC5 (шарик J3, AF7).

Где у STM32G473VB выводы SWD для программатора?

SWDIO — PA13 (шарик D8, AF0), SWCLK — PA14 (шарик B10, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32G473VB?

I2C1_SCL — PB8-BOOT0 (шарик A3, AF4) или PA15 (шарик B9, AF4) или PA13 (шарик D8, AF4), I2C1_SDA — PB9 (шарик A2, AF4) или PB7 (шарик B4, AF4) или PA14 (шарик B10, AF4).

Сколько выводов ввода-вывода у STM32G473VB в корпусе TFBGA100?

86 из 100. Ещё 13 выводов заняты питанием и землёй, остальные 1 — сброс, выбор загрузки и служебные цепи.

Чем отличаются STM32G473VB, STM32G473VC и STM32G473VE?

Объёмом памяти: STM32G473VB — 128 КБ флеш-памяти и 128 КБ ОЗУ, STM32G473VC — 256 КБ флеш-памяти и 128 КБ ОЗУ, STM32G473VE — 512 КБ флеш-памяти и 128 КБ ОЗУ. Корпус, расположение выводов и набор периферии у них одинаковые.

Какое напряжение питания у STM32G473VB?

От 1,71 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
