STM32G484VE в корпусе LQFP100: распиновка

STM32G484VE — микроконтроллер STM32G4 на ядре Cortex-M4 с частотой до 170 МГц: 512 КБ флеш-памяти и 128 КБ ОЗУ. Корпус LQFP100 — 100 выводов, из них 86 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M4
Частота ядра
до 170 МГц
Флеш-память
512 КБ
ОЗУ
128 КБ
Корпус
LQFP100, 100 выводов
Линий ввода-вывода
86
Напряжение питания
1,71…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса LQFP100

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

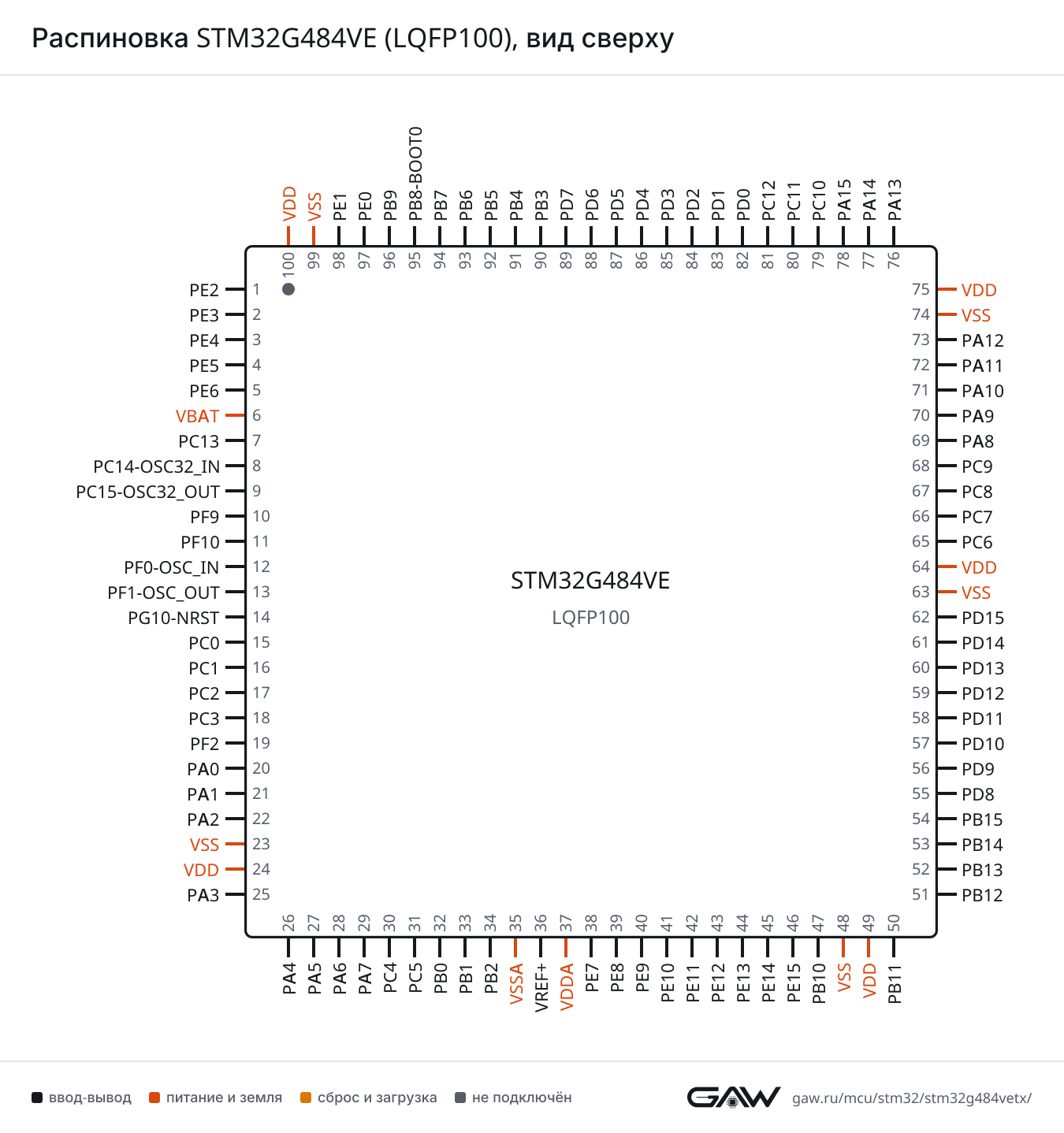

Распиновка STM32G484VE в корпусе LQFP100, вид сверхуSTM32G484VELQFP100, вид сверхуPE2 — вывод 1: ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, FMC_A23, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, SYS_TRACECLK, TIM20_CH1, TIM3_CH11PE2PE3 — вывод 2: ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_A19, SAI1_SD_B, SPI4_NSS, SYS_TRACED0, TIM20_CH2, TIM3_CH22PE3PE4 — вывод 3: FMC_A20, SAI1_D2, SAI1_FS_A, SPI4_NSS, SYS_TRACED1, TIM20_CH1N, TIM3_CH33PE4PE5 — вывод 4: FMC_A21, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, SYS_TRACED2, TIM20_CH2N, TIM3_CH44PE5PE6 — вывод 5: FMC_A22, RTC_TAMP3, SAI1_D1, SAI1_SD_A, SPI4_MOSI, SYS_TRACED3, SYS_WKUP3, TIM20_CH3N5PE6VBAT — вывод 66VBATPC13 — вывод 7: RTC_OUT1, RTC_TAMP1, RTC_TS, SYS_WKUP2, TIM1_BKIN, TIM1_CH1N, TIM8_CH4N7PC13PC14-OSC32_IN — вывод 8: RCC_OSC32_IN8PC14-OSC32_INPC15-OSC32_OUT — вывод 9: ADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT9PC15-OSC32_OUTPF9 — вывод 10: DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_A25, QUADSPI1_BK1_IO1, SAI1_FS_B, SPI2_SCK, TIM15_CH1, TIM20_BKIN, TIM5_CH410PF9PF10 — вывод 11: DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_A0, QUADSPI1_CLK, SAI1_D3, SPI2_SCK, TIM15_CH2, TIM20_BKIN211PF10PF0-OSC_IN — вывод 12: ADC1_IN10, I2C2_SDA, I2S2_WS, RCC_OSC_IN, SPI2_NSS, TIM1_CH3N12PF0-OSC_INPF1-OSC_OUT — вывод 13: ADC2_IN10, COMP3_INM, I2S2_CK, RCC_OSC_OUT, SPI2_SCK13PF1-OSC_OUTPG10-NRST — вывод 14: DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, RCC_MCO14PG10-NRSTPC0 — вывод 15: ADC1_IN6, ADC2_IN6, COMP3_INM, LPTIM1_IN1, LPUART1_RX, TIM1_CH115PC0PC1 — вывод 16: ADC1_IN7, ADC2_IN7, COMP3_INP, LPTIM1_OUT, LPUART1_TX, QUADSPI1_BK2_IO0, SAI1_SD_A, TIM1_CH216PC1PC2 — вывод 17: ADC1_IN8, ADC2_IN8, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP3_OUT, LPTIM1_IN2, QUADSPI1_BK2_IO1, TIM1_CH3, TIM20_CH217PC2PC3 — вывод 18: ADC1_IN9, ADC2_IN9, ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, LPTIM1_ETR, OPAMP5_VINP, OPAMP5_VINP_SEC, QUADSPI1_BK2_IO2, SAI1_D1, SAI1_SD_A, TIM1_BKIN2, TIM1_CH418PC3PF2 — вывод 19: ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, FMC_A2, I2C2_SMBA, TIM20_CH319PF2PA0 — вывод 20: ADC1_IN1, ADC2_IN1, COMP1_INM, COMP1_OUT, COMP3_INP, RTC_TAMP2, SYS_WKUP1, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_BKIN, TIM8_ETR, USART2_CTS, USART2_NSS20PA0PA1 — вывод 21: ADC1_IN2, ADC2_IN2, COMP1_INP, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP3_VINP, OPAMP3_VINP_SEC, OPAMP6_VINM, OPAMP6_VINM0, OPAMP6_VINM_SEC, RTC_REFIN, TIM15_CH1N, TIM2_CH2, TIM5_CH2, USART2_DE, USART2_RTS21PA1PA2 — вывод 22: ADC1_IN3, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP2_INM, COMP2_OUT, LPUART1_TX, OPAMP1_VOUT, QUADSPI1_BK1_NCS, RCC_LSCO, SYS_WKUP4, TIM15_CH1, TIM2_CH3, TIM5_CH3, UCPD1_FRSTX1, UCPD1_FRSTX2, USART2_TX22PA2VSS — вывод 2323VSSVDD — вывод 2424VDDPA3 — вывод 25: ADC1_IN4, ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, COMP2_INP, LPUART1_RX, OPAMP1_VINM, OPAMP1_VINM0, OPAMP1_VINM_SEC, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP5_VINM, OPAMP5_VINM1, OPAMP5_VINM_SEC, QUADSPI1_CLK, SAI1_CK1, SAI1_MCLK_A, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX25PA3PA4 — вывод 26: ADC2_IN17, COMP1_INM, DAC1_OUT1, I2S3_WS, SAI1_FS_B, SPI1_NSS, SPI3_NSS, TIM3_CH2, USART2_CK26PA4PA5 — вывод 27: ADC2_IN13, COMP2_INM, DAC1_OUT2, OPAMP2_VINM, OPAMP2_VINM0, OPAMP2_VINM_SEC, SPI1_SCK, TIM2_CH1, TIM2_ETR, UCPD1_FRSTX1, UCPD1_FRSTX227PA5PA6 — вывод 28: ADC2_IN3, COMP1_OUT, DAC2_OUT1, LPUART1_CTS, OPAMP2_VOUT, QUADSPI1_BK1_IO3, SPI1_MISO, TIM16_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN28PA6PA7 — вывод 29: ADC2_IN4, COMP2_INP, COMP2_OUT, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP2_VINP, OPAMP2_VINP_SEC, QUADSPI1_BK1_IO2, SPI1_MOSI, TIM17_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, UCPD1_FRSTX1, UCPD1_FRSTX229PA7PC4 — вывод 30: ADC2_IN5, I2C2_SCL, QUADSPI1_BK2_IO3, TIM1_ETR, USART1_TX30PC4PC5 — вывод 31: ADC2_IN11, HRTIM1_EEV10, OPAMP1_VINM, OPAMP1_VINM1, OPAMP1_VINM_SEC, OPAMP2_VINM, OPAMP2_VINM1, OPAMP2_VINM_SEC, SAI1_D3, SYS_WKUP5, TIM15_BKIN, TIM1_CH4N, USART1_RX31PC5PB0 — вывод 32: ADC1_IN15, ADC3_IN12, COMP4_INP, HRTIM1_FLT5, OPAMP2_VINP, OPAMP2_VINP_SEC, OPAMP3_VINP, OPAMP3_VINP_SEC, QUADSPI1_BK1_IO1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UCPD1_FRSTX1, UCPD1_FRSTX232PB0PB1 — вывод 33: ADC1_IN12, ADC3_IN1, COMP1_INP, COMP4_OUT, HRTIM1_SCOUT, LPUART1_DE, LPUART1_RTS, OPAMP3_VOUT, OPAMP6_VINM, OPAMP6_VINM1, OPAMP6_VINM_SEC, QUADSPI1_BK1_IO0, TIM1_CH3N, TIM3_CH4, TIM8_CH3N33PB1PB2 — вывод 34: ADC2_IN12, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP4_INM, HRTIM1_SCIN, I2C3_SMBA, LPTIM1_OUT, OPAMP3_VINM, OPAMP3_VINM0, OPAMP3_VINM_SEC, QUADSPI1_BK2_IO1, RTC_OUT2, TIM20_CH1, TIM5_CH134PB2VSSA — вывод 3535VSSAVREF+ — вывод 36: VREFBUF_OUT36VREF+VDDA — вывод 3737VDDAPE7 — вывод 38: ADC3_IN4, COMP4_INP, FMC_D4, FMC_DA4, SAI1_SD_B, TIM1_ETR38PE7PE8 — вывод 39: ADC3_IN6, ADC4_IN6, ADC5_IN6, COMP4_INM, FMC_D5, FMC_DA5, SAI1_SCK_B, TIM1_CH1N, TIM5_CH339PE8PE9 — вывод 40: ADC3_IN2, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_D6, FMC_DA6, SAI1_FS_B, TIM1_CH1, TIM5_CH440PE9PE10 — вывод 41: ADC3_IN14, ADC4_IN14, ADC5_IN14, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_D7, FMC_DA7, QUADSPI1_CLK, SAI1_MCLK_B, TIM1_CH2N41PE10PE11 — вывод 42: ADC1_EXTI11, ADC2_EXTI11, ADC3_IN15, ADC4_IN15, ADC5_IN15, FMC_D8, FMC_DA8, QUADSPI1_BK1_NCS, SPI4_NSS, TIM1_CH242PE11PE12 — вывод 43: ADC3_IN16, ADC4_IN16, ADC5_IN16, FMC_D9, FMC_DA9, QUADSPI1_BK1_IO0, SPI4_SCK, TIM1_CH3N43PE12PE13 — вывод 44: ADC3_IN3, FMC_D10, FMC_DA10, QUADSPI1_BK1_IO1, SPI4_MISO, TIM1_CH344PE13PE14 — вывод 45: ADC4_IN1, FMC_D11, FMC_DA11, QUADSPI1_BK1_IO2, SPI4_MOSI, TIM1_BKIN2, TIM1_CH445PE14PE15 — вывод 46: ADC1_EXTI15, ADC2_EXTI15, ADC4_IN2, FMC_D12, FMC_DA12, QUADSPI1_BK1_IO3, TIM1_BKIN, TIM1_CH4N, USART3_RX46PE15PB10 — вывод 47: COMP5_INM, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, HRTIM1_FLT3, LPUART1_RX, OPAMP3_VINM, OPAMP3_VINM1, OPAMP3_VINM_SEC, OPAMP4_VINM, OPAMP4_VINM0, OPAMP4_VINM_SEC, QUADSPI1_CLK, SAI1_SCK_A, TIM1_BKIN, TIM2_CH3, USART3_TX47PB10VSS — вывод 4848VSSVDD — вывод 4949VDDPB11 — вывод 50: ADC1_EXTI11, ADC1_IN14, ADC2_EXTI11, ADC2_IN14, COMP6_INP, HRTIM1_FLT4, LPUART1_TX, OPAMP4_VINP, OPAMP4_VINP_SEC, OPAMP6_VOUT, QUADSPI1_BK1_NCS, TIM2_CH4, USART3_RX50PB11PB12 — вывод 51: ADC1_IN11, ADC4_IN3, COMP7_INM, FDCAN2_RX, HRTIM1_CHC1, I2C2_SMBA, I2S2_WS, LPUART1_DE, LPUART1_RTS, OPAMP4_VOUT, OPAMP6_VINP, OPAMP6_VINP_SEC, SPI2_NSS, TIM1_BKIN, TIM5_ETR, USART3_CK51PB12PB13 — вывод 52: ADC3_IN5, COMP5_INP, FDCAN2_TX, HRTIM1_CHC2, I2S2_CK, LPUART1_CTS, OPAMP3_VINP, OPAMP3_VINP_SEC, OPAMP4_VINP, OPAMP4_VINP_SEC, OPAMP6_VINP, OPAMP6_VINP_SEC, SPI2_SCK, TIM1_CH1N, USART3_CTS, USART3_NSS52PB13PB14 — вывод 53: ADC1_IN5, ADC4_IN4, COMP4_OUT, COMP7_INP, HRTIM1_CHD1, OPAMP2_VINP, OPAMP2_VINP_SEC, OPAMP5_VINP, OPAMP5_VINP_SEC, SPI2_MISO, TIM15_CH1, TIM1_CH2N, USART3_DE, USART3_RTS53PB14PB15 — вывод 54: ADC1_EXTI15, ADC2_EXTI15, ADC2_IN15, ADC4_IN5, COMP3_OUT, COMP6_INM, HRTIM1_CHD2, I2S2_SD, OPAMP5_VINM, OPAMP5_VINM0, OPAMP5_VINM_SEC, RTC_REFIN, SPI2_MOSI, TIM15_CH1N, TIM15_CH2, TIM1_CH3N54PB15PD8 — вывод 55: ADC4_IN12, ADC5_IN12, FMC_D13, FMC_DA13, OPAMP4_VINM, OPAMP4_VINM1, OPAMP4_VINM_SEC, USART3_TX55PD8PD9 — вывод 56: ADC4_IN13, ADC5_IN13, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_D14, FMC_DA14, OPAMP6_VINP, OPAMP6_VINP_SEC, USART3_RX56PD9PD10 — вывод 57: ADC3_IN7, ADC4_IN7, ADC5_IN7, COMP6_INM, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_D15, FMC_DA15, USART3_CK57PD10PD11 — вывод 58: ADC1_EXTI11, ADC2_EXTI11, ADC3_IN8, ADC4_IN8, ADC5_IN8, COMP6_INP, FMC_A16, FMC_CLE, I2C4_SMBA, OPAMP4_VINP, OPAMP4_VINP_SEC, TIM5_ETR, USART3_CTS, USART3_NSS58PD11PD12 — вывод 59: ADC3_IN9, ADC4_IN9, ADC5_IN9, COMP5_INP, FMC_A17, FMC_ALE, OPAMP5_VINP, OPAMP5_VINP_SEC, TIM4_CH1, USART3_DE, USART3_RTS59PD12PD13 — вывод 60: ADC3_IN10, ADC4_IN10, ADC5_IN10, COMP5_INM, FMC_A18, TIM4_CH260PD13PD14 — вывод 61: ADC3_IN11, ADC4_IN11, ADC5_IN11, COMP7_INP, FMC_D0, FMC_DA0, OPAMP2_VINP, OPAMP2_VINP_SEC, TIM4_CH361PD14PD15 — вывод 62: ADC1_EXTI15, ADC2_EXTI15, COMP7_INM, FMC_D1, FMC_DA1, SPI2_NSS, TIM4_CH462PD15VSS — вывод 6363VSSVDD — вывод 6464VDDPC6 — вывод 65: COMP6_OUT, HRTIM1_CHF1, HRTIM1_EEV10, I2C4_SCL, I2S2_MCK, TIM3_CH1, TIM8_CH165PC6PC7 — вывод 66: COMP5_OUT, HRTIM1_CHF2, HRTIM1_FLT5, I2C4_SDA, I2S3_MCK, TIM3_CH2, TIM8_CH266PC7PC8 — вывод 67: COMP7_OUT, HRTIM1_CHE1, I2C3_SCL, TIM20_CH3, TIM3_CH3, TIM8_CH367PC8PC9 — вывод 68: DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, HRTIM1_CHE2, I2C3_SDA, I2S_CKIN, TIM3_CH4, TIM8_BKIN2, TIM8_CH468PC9PA8 — вывод 69: ADC5_IN1, COMP7_OUT, FDCAN3_RX, HRTIM1_CHA1, I2C2_SDA, I2C3_SCL, I2S2_MCK, OPAMP5_VOUT, RCC_MCO, SAI1_CK2, SAI1_SCK_A, TIM1_CH1, TIM4_ETR, USART1_CK69PA8PA9 — вывод 70: ADC5_IN2, COMP5_OUT, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, HRTIM1_CHA2, I2C2_SCL, I2C3_SMBA, I2S3_MCK, SAI1_FS_A, TIM15_BKIN, TIM1_CH2, TIM2_CH3, UCPD1_DBCC1, USART1_TX70PA9PA10 — вывод 71: COMP6_OUT, CRS_SYNC, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, HRTIM1_CHB1, I2C2_SMBA, SAI1_D1, SAI1_SD_A, SPI2_MISO, SYS_PVD_IN, TIM17_BKIN, TIM1_CH3, TIM2_CH4, TIM8_BKIN, UCPD1_DBCC2, USART1_RX71PA10PA11 — вывод 72: ADC1_EXTI11, ADC2_EXTI11, COMP1_OUT, FDCAN1_RX, HRTIM1_CHB2, I2S2_SD, SPI2_MOSI, TIM1_BKIN2, TIM1_CH1N, TIM1_CH4, TIM4_CH1, USART1_CTS, USART1_NSS, USB_DM72PA11PA12 — вывод 73: COMP2_OUT, FDCAN1_TX, HRTIM1_FLT1, I2S_CKIN, TIM16_CH1, TIM1_CH2N, TIM1_ETR, TIM4_CH2, USART1_DE, USART1_RTS, USB_DP73PA12VSS — вывод 7474VSSVDD — вывод 7575VDDPA13 — вывод 76: I2C1_SCL, I2C4_SCL, IR_OUT, SAI1_SD_B, SYS_JTMS-SWDIO, TIM16_CH1N, TIM4_CH3, USART3_CTS, USART3_NSS76PA13PA14 — вывод 77: I2C1_SDA, I2C4_SMBA, LPTIM1_OUT, SAI1_FS_B, SYS_JTCK-SWCLK, TIM1_BKIN, TIM8_CH2, USART2_TX77PA14PA15 — вывод 78: ADC1_EXTI15, ADC2_EXTI15, FDCAN3_TX, HRTIM1_FLT2, I2C1_SCL, I2S3_WS, SPI1_NSS, SPI3_NSS, SYS_JTDI, TIM1_BKIN, TIM2_CH1, TIM2_ETR, TIM8_CH1, UART4_DE, UART4_RTS, USART2_RX78PA15PC10 — вывод 79: DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, HRTIM1_FLT6, I2S3_CK, SPI3_SCK, TIM8_CH1N, UART4_TX, USART3_TX79PC10PC11 — вывод 80: ADC1_EXTI11, ADC2_EXTI11, HRTIM1_EEV2, I2C3_SDA, SPI3_MISO, TIM8_CH2N, UART4_RX, USART3_RX80PC11PC12 — вывод 81: HRTIM1_EEV1, I2S3_SD, SPI3_MOSI, TIM5_CH2, TIM8_CH3N, UART5_TX, UCPD1_FRSTX1, UCPD1_FRSTX2, USART3_CK81PC12PD0 — вывод 82: FDCAN1_RX, FMC_D2, FMC_DA2, TIM8_CH4N82PD0PD1 — вывод 83: FDCAN1_TX, FMC_D3, FMC_DA3, TIM8_BKIN2, TIM8_CH483PD1PD2 — вывод 84: ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, TIM3_ETR, TIM8_BKIN, UART5_RX84PD2PD3 — вывод 85: ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_CLK, QUADSPI1_BK2_NCS, TIM2_CH1, TIM2_ETR, USART2_CTS, USART2_NSS85PD3PD4 — вывод 86: FMC_NOE, QUADSPI1_BK2_IO0, TIM2_CH2, USART2_DE, USART2_RTS86PD4PD5 — вывод 87: FMC_NWE, QUADSPI1_BK2_IO1, USART2_TX87PD5PD6 — вывод 88: FMC_NWAIT, QUADSPI1_BK2_IO2, SAI1_D1, SAI1_SD_A, TIM2_CH4, USART2_RX88PD6PD7 — вывод 89: FMC_NCE, FMC_NE1, QUADSPI1_BK2_IO3, TIM2_CH3, USART2_CK89PD7PB3 — вывод 90: ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, CRS_SYNC, FDCAN3_RX, HRTIM1_EEV9, HRTIM1_SCOUT, I2S3_CK, SAI1_SCK_B, SPI1_SCK, SPI3_SCK, SYS_JTDO-SWO, TIM2_CH2, TIM3_ETR, TIM4_ETR, TIM8_CH1N, USART2_TX90PB3PB4 — вывод 91: FDCAN3_TX, HRTIM1_EEV7, SAI1_MCLK_B, SPI1_MISO, SPI3_MISO, SYS_JTRST, TIM16_CH1, TIM17_BKIN, TIM3_CH1, TIM8_CH2N, UART5_DE, UART5_RTS, UCPD1_CC2, USART2_RX91PB4PB5 — вывод 92: FDCAN2_RX, HRTIM1_EEV6, I2C1_SMBA, I2C3_SDA, I2S3_SD, LPTIM1_IN1, SAI1_SD_B, SPI1_MOSI, SPI3_MOSI, TIM16_BKIN, TIM17_CH1, TIM3_CH2, TIM8_CH3N, UART5_CTS, USART2_CK92PB5PB6 — вывод 93: COMP4_OUT, FDCAN2_TX, HRTIM1_EEV4, HRTIM1_SCIN, LPTIM1_ETR, SAI1_FS_B, TIM16_CH1N, TIM4_CH1, TIM8_BKIN2, TIM8_CH1, TIM8_ETR, UCPD1_CC1, USART1_TX93PB6PB7 — вывод 94: COMP3_OUT, FMC_NL, HRTIM1_EEV3, I2C1_SDA, I2C4_SDA, LPTIM1_IN2, TIM17_CH1N, TIM3_CH4, TIM4_CH2, TIM8_BKIN, UART4_CTS, USART1_RX94PB7PB8-BOOT0 — вывод 95: COMP1_OUT, FDCAN1_RX, HRTIM1_EEV8, I2C1_SCL, SAI1_CK1, SAI1_MCLK_A, TIM16_CH1, TIM1_BKIN, TIM4_CH3, TIM8_CH2, USART3_RX95PB8-BOOT0PB9 — вывод 96: COMP2_OUT, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FDCAN1_TX, HRTIM1_EEV5, I2C1_SDA, IR_OUT, SAI1_D2, SAI1_FS_A, TIM17_CH1, TIM1_CH3N, TIM4_CH4, TIM8_CH3, USART3_TX96PB9PE0 — вывод 97: FMC_NBL0, TIM16_CH1, TIM20_CH4N, TIM20_ETR, TIM4_ETR, USART1_TX97PE0PE1 — вывод 98: FMC_NBL1, TIM17_CH1, TIM20_CH4, USART1_RX98PE1VSS — вывод 9999VSSVDD — вывод 100100VDD
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия
Распиновка STM32G484VE (LQFP100), вид сверхуРаспиновка LQFP100 картинкой
PNG, 1350 × 1438 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер вывода и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (69, AF7)
CTSPA11 (72, AF7)
DEPA12 (73, AF7)
NSSPA11 (72, AF7)
RTSPA12 (73, AF7)
RXPC5 (31, AF7), PA10 (71, AF7), PB7 (94, AF7), PE1 (98, AF7)
TXPC4 (30, AF7), PA9 (70, AF7), PB6 (93, AF7), PE0 (97, AF7)
USART2CKPA4 (26, AF7), PD7 (89, AF7), PB5 (92, AF7)
CTSPA0 (20, AF7), PD3 (85, AF7)
DEPA1 (21, AF7), PD4 (86, AF7)
NSSPA0 (20, AF7), PD3 (85, AF7)
RTSPA1 (21, AF7), PD4 (86, AF7)
RXPA3 (25, AF7), PA15 (78, AF7), PD6 (88, AF7), PB4 (91, AF7)
TXPA2 (22, AF7), PA14 (77, AF7), PD5 (87, AF7), PB3 (90, AF7)
USART3CKPB12 (51, AF7), PD10 (57, AF7), PC12 (81, AF7)
CTSPB13 (52, AF7), PD11 (58, AF7), PA13 (76, AF7)
DEPB14 (53, AF7), PD12 (59, AF7)
NSSPB13 (52, AF7), PD11 (58, AF7), PA13 (76, AF7)
RTSPB14 (53, AF7), PD12 (59, AF7)
RXPE15 (46, AF7), PB11 (50, AF7), PD9 (56, AF7), PC11 (80, AF7), PB8-BOOT0 (95, AF7)
TXPB10 (47, AF7), PD8 (55, AF7), PC10 (79, AF7), PB9 (96, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB7 (94, AF14)
DEPA15 (78, AF8)
RTSPA15 (78, AF8)
RXPC11 (80, AF5)
TXPC10 (79, AF5)
UART5CTSPB5 (92, AF14)
DEPB4 (91, AF8)
RTSPB4 (91, AF8)
RXPD2 (84, AF5)
TXPC12 (81, AF5)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA6 (28, AF12), PB13 (52, AF8)
DEPB1 (33, AF12), PB12 (51, AF8)
RTSPB1 (33, AF12), PB12 (51, AF8)
RXPC0 (15, AF8), PA3 (25, AF12), PB10 (47, AF8)
TXPC1 (16, AF8), PA2 (22, AF12), PB11 (50, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA6 (28, AF5), PB4 (91, AF5)
MOSIPA7 (29, AF5), PB5 (92, AF5)
NSSPA4 (26, AF5), PA15 (78, AF5)
SCKPA5 (27, AF5), PB3 (90, AF5)
SPI2MISOPB14 (53, AF5), PA10 (71, AF5)
MOSIPB15 (54, AF5), PA11 (72, AF5)
NSSPF0-OSC_IN (12, AF5), PB12 (51, AF5), PD15 (62, AF6)
SCKPF9 (10, AF5), PF10 (11, AF5), PF1-OSC_OUT (13, AF5), PB13 (52, AF5)
SPI3MISOPC11 (80, AF6), PB4 (91, AF6)
MOSIPC12 (81, AF6), PB5 (92, AF6)
NSSPA4 (26, AF6), PA15 (78, AF6)
SCKPC10 (79, AF6), PB3 (90, AF6)
SPI4MISOPE5 (4, AF5), PE13 (44, AF5)
MOSIPE6 (5, AF5), PE14 (45, AF5)
NSSPE3 (2, AF5), PE4 (3, AF5), PE11 (42, AF5)
SCKPE2 (1, AF5), PE12 (43, AF5)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (68, AF5), PA12 (73, AF5)
I2S2CKPF1-OSC_OUT (13, AF5), PB13 (52, AF5)
MCKPC6 (65, AF6), PA8 (69, AF5)
SDPB15 (54, AF5), PA11 (72, AF5)
WSPF0-OSC_IN (12, AF5), PB12 (51, AF5)
I2S3CKPC10 (79, AF6), PB3 (90, AF6)
MCKPC7 (66, AF6), PA9 (70, AF5)
SDPC12 (81, AF6), PB5 (92, AF6)
WSPA4 (26, AF6), PA15 (78, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPA13 (76, AF4), PA15 (78, AF4), PB8-BOOT0 (95, AF4)
SDAPA14 (77, AF4), PB7 (94, AF4), PB9 (96, AF4)
SMBAPB5 (92, AF4)
I2C2SCLPC4 (30, AF4), PA9 (70, AF4)
SDAPF0-OSC_IN (12, AF4), PA8 (69, AF4)
SMBAPF2 (19, AF4), PB12 (51, AF4), PA10 (71, AF4)
I2C3SCLPC8 (67, AF8), PA8 (69, AF2)
SDAPC9 (68, AF8), PC11 (80, AF8), PB5 (92, AF8)
SMBAPB2 (34, AF4), PA9 (70, AF2)
I2C4SCLPC6 (65, AF8), PA13 (76, AF3)
SDAPC7 (66, AF8), PB7 (94, AF3)
SMBAPD11 (58, AF4), PA14 (77, AF3)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPA11 (72, AF9), PD0 (82, AF9), PB8-BOOT0 (95, AF9)
TXPA12 (73, AF9), PD1 (83, AF9), PB9 (96, AF9)
FDCAN2RXPB12 (51, AF9), PB5 (92, AF9)
TXPB13 (52, AF9), PB6 (93, AF9)
FDCAN3RXPA8 (69, AF11), PB3 (90, AF11)
TXPA15 (78, AF11), PB4 (91, AF11)

USB — USB Full Speed, устройство

БлокСигналВыводы
USBDMPA11 (72)
DPPA12 (73)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB6 (93)
CC2PB4 (91)
DBCC1PA9 (70)
DBCC2PA10 (71)
FRSTX1PA2 (22, AF14), PA5 (27, AF14), PA7 (29, AF14), PB0 (32, AF14), PC12 (81, AF14)
FRSTX2PA2 (22, AF14), PA5 (27, AF14), PA7 (29, AF14), PB0 (32, AF14), PC12 (81, AF14)

QUADSPI — интерфейс Quad-SPI памяти

БлокСигналВыводы
QUADSPI1BK1_IO0PB1 (33, AF10), PE12 (43, AF10)
BK1_IO1PF9 (10, AF10), PB0 (32, AF10), PE13 (44, AF10)
BK1_IO2PA7 (29, AF10), PE14 (45, AF10)
BK1_IO3PA6 (28, AF10), PE15 (46, AF10)
BK1_NCSPA2 (22, AF10), PE11 (42, AF10), PB11 (50, AF10)
BK2_IO0PC1 (16, AF10), PD4 (86, AF10)
BK2_IO1PC2 (17, AF10), PB2 (34, AF10), PD5 (87, AF10)
BK2_IO2PC3 (18, AF10), PD6 (88, AF10)
BK2_IO3PC4 (30, AF10), PD7 (89, AF10)
BK2_NCSPD3 (85, AF10)
CLKPF10 (11, AF10), PA3 (25, AF10), PE10 (41, AF10), PB10 (47, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (1, AF3), PA3 (25, AF3), PB8-BOOT0 (95, AF3)
CK2PE5 (4, AF3), PA8 (69, AF12)
D1PE6 (5, AF3), PC3 (18, AF3), PA10 (71, AF12), PD6 (88, AF3)
D2PE4 (3, AF3), PB9 (96, AF3)
D3PF10 (11, AF13), PC5 (31, AF3)
FS_APE4 (3, AF13), PA9 (70, AF14), PB9 (96, AF14)
FS_BPF9 (10, AF13), PA4 (26, AF13), PE9 (40, AF13), PA14 (77, AF13), PB6 (93, AF14)
MCLK_APE2 (1, AF13), PA3 (25, AF13), PB8-BOOT0 (95, AF14)
MCLK_BPE10 (41, AF13), PB4 (91, AF14)
SCK_APE5 (4, AF13), PB10 (47, AF14), PA8 (69, AF14)
SCK_BPE8 (39, AF13), PB3 (90, AF14)
SD_APE6 (5, AF13), PC1 (16, AF13), PC3 (18, AF13), PA10 (71, AF14), PD6 (88, AF13)
SD_BPE3 (2, AF13), PE7 (38, AF13), PA13 (76, AF13), PB5 (92, AF12)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PE11 (42), PB11 (50), PD11 (58), PA11 (72), PC11 (80)
EXTI15PC15-OSC32_OUT (9), PE15 (46), PB15 (54), PD15 (62), PA15 (78)
IN1PA0 (20)
IN2PA1 (21)
IN3PA2 (22)
IN4PA3 (25)
IN5PB14 (53)
IN6PC0 (15)
IN7PC1 (16)
IN8PC2 (17)
IN9PC3 (18)
IN10PF0-OSC_IN (12)
IN11PB12 (51)
IN12PB1 (33)
IN14PB11 (50)
IN15PB0 (32)
ADC2EXTI11PE11 (42), PB11 (50), PD11 (58), PA11 (72), PC11 (80)
EXTI15PC15-OSC32_OUT (9), PE15 (46), PB15 (54), PD15 (62), PA15 (78)
IN1PA0 (20)
IN2PA1 (21)
IN3PA6 (28)
IN4PA7 (29)
IN5PC4 (30)
IN6PC0 (15)
IN7PC1 (16)
IN8PC2 (17)
IN9PC3 (18)
IN10PF1-OSC_OUT (13)
IN11PC5 (31)
IN12PB2 (34)
IN13PA5 (27)
IN14PB11 (50)
IN15PB15 (54)
IN17PA4 (26)
ADC3EXTI2PE2 (1), PC2 (17), PF2 (19), PA2 (22), PB2 (34), PD2 (84)
EXTI3PE3 (2), PC3 (18), PA3 (25), PD3 (85), PB3 (90)
IN1PB1 (33)
IN2PE9 (40)
IN3PE13 (44)
IN4PE7 (38)
IN5PB13 (52)
IN6PE8 (39)
IN7PD10 (57)
IN8PD11 (58)
IN9PD12 (59)
IN10PD13 (60)
IN11PD14 (61)
IN12PB0 (32)
IN14PE10 (41)
IN15PE11 (42)
IN16PE12 (43)
ADC4EXTI2PE2 (1), PC2 (17), PF2 (19), PA2 (22), PB2 (34), PD2 (84)
EXTI3PE3 (2), PC3 (18), PA3 (25), PD3 (85), PB3 (90)
IN1PE14 (45)
IN2PE15 (46)
IN3PB12 (51)
IN4PB14 (53)
IN5PB15 (54)
IN6PE8 (39)
IN7PD10 (57)
IN8PD11 (58)
IN9PD12 (59)
IN10PD13 (60)
IN11PD14 (61)
IN12PD8 (55)
IN13PD9 (56)
IN14PE10 (41)
IN15PE11 (42)
IN16PE12 (43)
ADC5EXTI2PE2 (1), PC2 (17), PF2 (19), PA2 (22), PB2 (34), PD2 (84)
EXTI3PE3 (2), PC3 (18), PA3 (25), PD3 (85), PB3 (90)
IN1PA8 (69)
IN2PA9 (70)
IN6PE8 (39)
IN7PD10 (57)
IN8PD11 (58)
IN9PD12 (59)
IN10PD13 (60)
IN11PD14 (61)
IN12PD8 (55)
IN13PD9 (56)
IN14PE10 (41)
IN15PE11 (42)
IN16PE12 (43)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PF9 (10), PE9 (40), PD9 (56), PC9 (68), PA9 (70), PB9 (96)
EXTI10PF10 (11), PG10-NRST (14), PE10 (41), PB10 (47), PD10 (57), PA10 (71), PC10 (79)
OUT1PA4 (26)
OUT2PA5 (27)
DAC2EXTI9PF9 (10), PE9 (40), PD9 (56), PC9 (68), PA9 (70), PB9 (96)
EXTI10PF10 (11), PG10-NRST (14), PE10 (41), PB10 (47), PD10 (57), PA10 (71), PC10 (79)
OUT1PA6 (28)
DAC3EXTI9PF9 (10), PE9 (40), PD9 (56), PC9 (68), PA9 (70), PB9 (96)
EXTI10PF10 (11), PG10-NRST (14), PE10 (41), PB10 (47), PD10 (57), PA10 (71), PC10 (79)
DAC4EXTI9PF9 (10), PE9 (40), PD9 (56), PC9 (68), PA9 (70), PB9 (96)
EXTI10PF10 (11), PG10-NRST (14), PE10 (41), PB10 (47), PD10 (57), PA10 (71), PC10 (79)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPA0 (20), PA4 (26)
INPPA1 (21), PB1 (33)
OUTPA0 (20, AF8), PA6 (28, AF8), PA11 (72, AF8), PB8-BOOT0 (95, AF8)
COMP2INMPA2 (22), PA5 (27)
INPPA3 (25), PA7 (29)
OUTPA2 (22, AF8), PA7 (29, AF8), PA12 (73, AF8), PB9 (96, AF8)
COMP3INMPF1-OSC_OUT (13), PC0 (15)
INPPC1 (16), PA0 (20)
OUTPC2 (17, AF3), PB15 (54, AF3), PB7 (94, AF8)
COMP4INMPB2 (34), PE8 (39)
INPPB0 (32), PE7 (38)
OUTPB1 (33, AF8), PB14 (53, AF8), PB6 (93, AF8)
COMP5INMPB10 (47), PD13 (60)
INPPB13 (52), PD12 (59)
OUTPC7 (66, AF7), PA9 (70, AF8)
COMP6INMPB15 (54), PD10 (57)
INPPB11 (50), PD11 (58)
OUTPC6 (65, AF7), PA10 (71, AF8)
COMP7INMPB12 (51), PD15 (62)
INPPB14 (53), PD14 (61)
OUTPC8 (67, AF7), PA8 (69, AF8)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA3 (25), PC5 (31)
VINM_SECPA3 (25), PC5 (31)
VINM0PA3 (25)
VINM1PC5 (31)
VINPPA1 (21), PA3 (25), PA7 (29)
VINP_SECPA1 (21), PA3 (25), PA7 (29)
VOUTPA2 (22)
OPAMP2VINMPA5 (27), PC5 (31)
VINM_SECPA5 (27), PC5 (31)
VINM0PA5 (27)
VINM1PC5 (31)
VINPPA7 (29), PB0 (32), PB14 (53), PD14 (61)
VINP_SECPA7 (29), PB0 (32), PB14 (53), PD14 (61)
VOUTPA6 (28)
OPAMP3VINMPB2 (34), PB10 (47)
VINM_SECPB2 (34), PB10 (47)
VINM0PB2 (34)
VINM1PB10 (47)
VINPPA1 (21), PB0 (32), PB13 (52)
VINP_SECPA1 (21), PB0 (32), PB13 (52)
VOUTPB1 (33)
OPAMP4VINMPB10 (47), PD8 (55)
VINM_SECPB10 (47), PD8 (55)
VINM0PB10 (47)
VINM1PD8 (55)
VINPPB11 (50), PB13 (52), PD11 (58)
VINP_SECPB11 (50), PB13 (52), PD11 (58)
VOUTPB12 (51)
OPAMP5VINMPA3 (25), PB15 (54)
VINM_SECPA3 (25), PB15 (54)
VINM0PB15 (54)
VINM1PA3 (25)
VINPPC3 (18), PB14 (53), PD12 (59)
VINP_SECPC3 (18), PB14 (53), PD12 (59)
VOUTPA8 (69)
OPAMP6VINMPA1 (21), PB1 (33)
VINM_SECPA1 (21), PB1 (33)
VINM0PA1 (21)
VINM1PB1 (33)
VINPPB12 (51), PB13 (52), PD9 (56)
VINP_SECPB12 (51), PB13 (52), PD9 (56)
VOUTPB11 (50)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (36)

TIM — таймер

БлокСигналВыводы
TIM1BKINPC13 (7, AF2), PA6 (28, AF6), PE15 (46, AF2), PB10 (47, AF12), PB12 (51, AF6), PA14 (77, AF6), PA15 (78, AF9), PB8-BOOT0 (95, AF12)
BKIN2PC3 (18, AF6), PE14 (45, AF6), PA11 (72, AF12)
CH1PC0 (15, AF2), PE9 (40, AF2), PA8 (69, AF6)
CH1NPC13 (7, AF4), PA7 (29, AF6), PE8 (39, AF2), PB13 (52, AF6), PA11 (72, AF6)
CH2PC1 (16, AF2), PE11 (42, AF2), PA9 (70, AF6)
CH2NPB0 (32, AF6), PE10 (41, AF2), PB14 (53, AF6), PA12 (73, AF6)
CH3PC2 (17, AF2), PE13 (44, AF2), PA10 (71, AF6)
CH3NPF0-OSC_IN (12, AF6), PB1 (33, AF6), PE12 (43, AF2), PB15 (54, AF4), PB9 (96, AF12)
CH4PC3 (18, AF2), PE14 (45, AF2), PA11 (72, AF11)
CH4NPC5 (31, AF6), PE15 (46, AF6)
ETRPC4 (30, AF2), PE7 (38, AF2), PA12 (73, AF11)
TIM2CH1PA0 (20, AF1), PA5 (27, AF1), PA15 (78, AF1), PD3 (85, AF2)
CH2PA1 (21, AF1), PD4 (86, AF2), PB3 (90, AF1)
CH3PA2 (22, AF1), PB10 (47, AF1), PA9 (70, AF10), PD7 (89, AF2)
CH4PA3 (25, AF1), PB11 (50, AF1), PA10 (71, AF10), PD6 (88, AF2)
ETRPA0 (20, AF14), PA5 (27, AF2), PA15 (78, AF14), PD3 (85, AF2)
TIM3CH1PE2 (1, AF2), PA6 (28, AF2), PC6 (65, AF2), PB4 (91, AF2)
CH2PE3 (2, AF2), PA4 (26, AF2), PA7 (29, AF2), PC7 (66, AF2), PB5 (92, AF2)
CH3PE4 (3, AF2), PB0 (32, AF2), PC8 (67, AF2)
CH4PE5 (4, AF2), PB1 (33, AF2), PC9 (68, AF2), PB7 (94, AF10)
ETRPD2 (84, AF2), PB3 (90, AF10)
TIM4CH1PD12 (59, AF2), PA11 (72, AF10), PB6 (93, AF2)
CH2PD13 (60, AF2), PA12 (73, AF10), PB7 (94, AF2)
CH3PD14 (61, AF2), PA13 (76, AF10), PB8-BOOT0 (95, AF2)
CH4PD15 (62, AF2), PB9 (96, AF2)
ETRPA8 (69, AF10), PB3 (90, AF2), PE0 (97, AF2)
TIM5CH1PA0 (20, AF2), PB2 (34, AF2)
CH2PA1 (21, AF2), PC12 (81, AF1)
CH3PA2 (22, AF2), PE8 (39, AF1)
CH4PF9 (10, AF6), PA3 (25, AF2), PE9 (40, AF1)
ETRPB12 (51, AF2), PD11 (58, AF1)
TIM8BKINPA0 (20, AF9), PA6 (28, AF4), PA10 (71, AF11), PD2 (84, AF4), PB7 (94, AF5)
BKIN2PC9 (68, AF6), PD1 (83, AF6), PB6 (93, AF10)
CH1PC6 (65, AF4), PA15 (78, AF2), PB6 (93, AF5)
CH1NPA7 (29, AF4), PC10 (79, AF4), PB3 (90, AF4)
CH2PC7 (66, AF4), PA14 (77, AF5), PB8-BOOT0 (95, AF10)
CH2NPB0 (32, AF4), PC11 (80, AF4), PB4 (91, AF4)
CH3PC8 (67, AF4), PB9 (96, AF10)
CH3NPB1 (33, AF4), PC12 (81, AF4), PB5 (92, AF3)
CH4PC9 (68, AF4), PD1 (83, AF4)
CH4NPC13 (7, AF6), PD0 (82, AF6)
ETRPA0 (20, AF10), PB6 (93, AF6)
TIM15BKINPC5 (31, AF2), PA9 (70, AF9)
CH1PF9 (10, AF3), PA2 (22, AF9), PB14 (53, AF1)
CH1NPA1 (21, AF9), PB15 (54, AF2)
CH2PF10 (11, AF3), PA3 (25, AF9), PB15 (54, AF1)
TIM16BKINPB5 (92, AF1)
CH1PA6 (28, AF1), PA12 (73, AF1), PB4 (91, AF1), PB8-BOOT0 (95, AF1), PE0 (97, AF4)
CH1NPA13 (76, AF1), PB6 (93, AF1)
TIM17BKINPA10 (71, AF1), PB4 (91, AF10)
CH1PA7 (29, AF1), PB5 (92, AF10), PB9 (96, AF1), PE1 (98, AF4)
CH1NPB7 (94, AF1)
TIM20BKINPF9 (10, AF2)
BKIN2PF10 (11, AF2)
CH1PE2 (1, AF6), PB2 (34, AF3)
CH1NPE4 (3, AF6)
CH2PE3 (2, AF6), PC2 (17, AF6)
CH2NPE5 (4, AF6)
CH3PF2 (19, AF2), PC8 (67, AF6)
CH3NPE6 (5, AF6)
CH4PE1 (98, AF6)
CH4NPE0 (97, AF3)
ETRPE0 (97, AF6)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPC3 (18, AF1), PB6 (93, AF11)
IN1PC0 (15, AF1), PB5 (92, AF11)
IN2PC2 (17, AF1), PB7 (94, AF11)
OUTPC1 (16, AF1), PB2 (34, AF1), PA14 (77, AF1)

HRTIM — таймер высокого разрешения

БлокСигналВыводы
HRTIM1CHA1PA8 (69, AF13)
CHA2PA9 (70, AF13)
CHB1PA10 (71, AF13)
CHB2PA11 (72, AF13)
CHC1PB12 (51, AF13)
CHC2PB13 (52, AF13)
CHD1PB14 (53, AF13)
CHD2PB15 (54, AF13)
CHE1PC8 (67, AF3)
CHE2PC9 (68, AF3)
CHF1PC6 (65, AF13)
CHF2PC7 (66, AF13)
EEV1PC12 (81, AF3)
EEV2PC11 (80, AF3)
EEV3PB7 (94, AF13)
EEV4PB6 (93, AF13)
EEV5PB9 (96, AF13)
EEV6PB5 (92, AF13)
EEV7PB4 (91, AF13)
EEV8PB8-BOOT0 (95, AF13)
EEV9PB3 (90, AF13)
EEV10PC5 (31, AF13), PC6 (65, AF3)
FLT1PA12 (73, AF13)
FLT2PA15 (78, AF13)
FLT3PB10 (47, AF13)
FLT4PB11 (50, AF13)
FLT5PB0 (32, AF13), PC7 (66, AF3)
FLT6PC10 (79, AF13)
SCINPB2 (34, AF13), PB6 (93, AF12)
SCOUTPB1 (33, AF13), PB3 (90, AF12)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (7)
OUT2PB2 (34, AF0)
REFINPA1 (21, AF0), PB15 (54, AF0)
TSPC13 (7)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF10 (11, AF12)
A2PF2 (19, AF12)
A16PD11 (58, AF12)
A17PD12 (59, AF12)
A18PD13 (60, AF12)
A19PE3 (2, AF12)
A20PE4 (3, AF12)
A21PE5 (4, AF12)
A22PE6 (5, AF12)
A23PE2 (1, AF12)
A25PF9 (10, AF12)
ALEPD12 (59)
CLEPD11 (58)
CLKPD3 (85, AF12)
D0PD14 (61, AF12)
D1PD15 (62, AF12)
D2PD0 (82, AF12)
D3PD1 (83, AF12)
D4PE7 (38, AF12)
D5PE8 (39, AF12)
D6PE9 (40, AF12)
D7PE10 (41, AF12)
D8PE11 (42, AF12)
D9PE12 (43, AF12)
D10PE13 (44, AF12)
D11PE14 (45, AF12)
D12PE15 (46, AF12)
D13PD8 (55, AF12)
D14PD9 (56, AF12)
D15PD10 (57, AF12)
DA0PD14 (61, AF12)
DA1PD15 (62, AF12)
DA2PD0 (82, AF12)
DA3PD1 (83, AF12)
DA4PE7 (38, AF12)
DA5PE8 (39, AF12)
DA6PE9 (40, AF12)
DA7PE10 (41, AF12)
DA8PE11 (42, AF12)
DA9PE12 (43, AF12)
DA10PE13 (44, AF12)
DA11PE14 (45, AF12)
DA12PE15 (46, AF12)
DA13PD8 (55, AF12)
DA14PD9 (56, AF12)
DA15PD10 (57, AF12)
NBL0PE0 (97, AF12)
NBL1PE1 (98, AF12)
NCEPD7 (89, AF12)
NE1PD7 (89, AF12)
NLPB7 (94, AF12)
NOEPD4 (86, AF12)
NWAITPD6 (88, AF12)
NWEPD5 (87, AF12)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (77, AF0)
JTDIPA15 (78, AF0)
JTDO-SWOPB3 (90, AF0)
JTMS-SWDIOPA13 (76, AF0)
TRACECLKPE2 (1, AF0)
TRACED0PE3 (2, AF0)
TRACED1PE4 (3, AF0)
TRACED2PE5 (4, AF0)
TRACED3PE6 (5, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPA2 (22)
MCOPG10-NRST (14, AF0), PA8 (69, AF0)
OSC_INPF0-OSC_IN (12)
OSC_OUTPF1-OSC_OUT (13)
OSC32_INPC14-OSC32_IN (8)
OSC32_OUTPC15-OSC32_OUT (9)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPRTC_TAMP1PC13 (7)
RTC_TAMP2PA0 (20)
RTC_TAMP3PE6 (5)
SYS_WKUP1PA0 (20)
SYS_WKUP2PC13 (7)
SYS_WKUP3PE6 (5)
SYS_WKUP4PA2 (22)
SYS_WKUP5PC5 (31)

Блоки без собственных выводов: IRTIM (формирователь ИК-сигнала), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), AES (аппаратное шифрование AES), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 100 выводов корпуса LQFP100 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ВыводИмяТипФункции
1PE2ввод-выводADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, FMC_A23 (AF12), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), SPI4_SCK (AF5), SYS_TRACECLK (AF0), TIM20_CH1 (AF6), TIM3_CH1 (AF2)
2PE3ввод-выводADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_A19 (AF12), SAI1_SD_B (AF13), SPI4_NSS (AF5), SYS_TRACED0 (AF0), TIM20_CH2 (AF6), TIM3_CH2 (AF2)
3PE4ввод-выводFMC_A20 (AF12), SAI1_D2 (AF3), SAI1_FS_A (AF13), SPI4_NSS (AF5), SYS_TRACED1 (AF0), TIM20_CH1N (AF6), TIM3_CH3 (AF2)
4PE5ввод-выводFMC_A21 (AF12), SAI1_CK2 (AF3), SAI1_SCK_A (AF13), SPI4_MISO (AF5), SYS_TRACED2 (AF0), TIM20_CH2N (AF6), TIM3_CH4 (AF2)
5PE6ввод-выводFMC_A22 (AF12), RTC_TAMP3, SAI1_D1 (AF3), SAI1_SD_A (AF13), SPI4_MOSI (AF5), SYS_TRACED3 (AF0), SYS_WKUP3, TIM20_CH3N (AF6)
6VBATпитание—
7PC13ввод-выводRTC_OUT1, RTC_TAMP1, RTC_TS, SYS_WKUP2, TIM1_BKIN (AF2), TIM1_CH1N (AF4), TIM8_CH4N (AF6)
8PC14-OSC32_INввод-выводRCC_OSC32_IN
9PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT
10PF9ввод-выводDAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_A25 (AF12), QUADSPI1_BK1_IO1 (AF10), SAI1_FS_B (AF13), SPI2_SCK (AF5), TIM15_CH1 (AF3), TIM20_BKIN (AF2), TIM5_CH4 (AF6)
11PF10ввод-выводDAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_A0 (AF12), QUADSPI1_CLK (AF10), SAI1_D3 (AF13), SPI2_SCK (AF5), TIM15_CH2 (AF3), TIM20_BKIN2 (AF2)
12PF0-OSC_INввод-выводADC1_IN10, I2C2_SDA (AF4), I2S2_WS (AF5), RCC_OSC_IN, SPI2_NSS (AF5), TIM1_CH3N (AF6)
13PF1-OSC_OUTввод-выводADC2_IN10, COMP3_INM, I2S2_CK (AF5), RCC_OSC_OUT, SPI2_SCK (AF5)
14PG10-NRSTввод-выводDAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, RCC_MCO (AF0)
15PC0ввод-выводADC1_IN6, ADC2_IN6, COMP3_INM, LPTIM1_IN1 (AF1), LPUART1_RX (AF8), TIM1_CH1 (AF2)
16PC1ввод-выводADC1_IN7, ADC2_IN7, COMP3_INP, LPTIM1_OUT (AF1), LPUART1_TX (AF8), QUADSPI1_BK2_IO0 (AF10), SAI1_SD_A (AF13), TIM1_CH2 (AF2)
17PC2ввод-выводADC1_IN8, ADC2_IN8, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP3_OUT (AF3), LPTIM1_IN2 (AF1), QUADSPI1_BK2_IO1 (AF10), TIM1_CH3 (AF2), TIM20_CH2 (AF6)
18PC3ввод-выводADC1_IN9, ADC2_IN9, ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, LPTIM1_ETR (AF1), OPAMP5_VINP, OPAMP5_VINP_SEC, QUADSPI1_BK2_IO2 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM1_BKIN2 (AF6), TIM1_CH4 (AF2)
19PF2ввод-выводADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, FMC_A2 (AF12), I2C2_SMBA (AF4), TIM20_CH3 (AF2)
20PA0ввод-выводADC1_IN1, ADC2_IN1, COMP1_INM, COMP1_OUT (AF8), COMP3_INP, RTC_TAMP2, SYS_WKUP1, TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_BKIN (AF9), TIM8_ETR (AF10), USART2_CTS (AF7), USART2_NSS (AF7)
21PA1ввод-выводADC1_IN2, ADC2_IN2, COMP1_INP, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP3_VINP, OPAMP3_VINP_SEC, OPAMP6_VINM, OPAMP6_VINM0, OPAMP6_VINM_SEC, RTC_REFIN (AF0), TIM15_CH1N (AF9), TIM2_CH2 (AF1), TIM5_CH2 (AF2), USART2_DE (AF7), USART2_RTS (AF7)
22PA2ввод-выводADC1_IN3, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP2_INM, COMP2_OUT (AF8), LPUART1_TX (AF12), OPAMP1_VOUT, QUADSPI1_BK1_NCS (AF10), RCC_LSCO, SYS_WKUP4, TIM15_CH1 (AF9), TIM2_CH3 (AF1), TIM5_CH3 (AF2), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14), USART2_TX (AF7)
23VSSпитание—
24VDDпитание—
25PA3ввод-выводADC1_IN4, ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, COMP2_INP, LPUART1_RX (AF12), OPAMP1_VINM, OPAMP1_VINM0, OPAMP1_VINM_SEC, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP5_VINM, OPAMP5_VINM1, OPAMP5_VINM_SEC, QUADSPI1_CLK (AF10), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM15_CH2 (AF9), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
26PA4ввод-выводADC2_IN17, COMP1_INM, DAC1_OUT1, I2S3_WS (AF6), SAI1_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), TIM3_CH2 (AF2), USART2_CK (AF7)
27PA5ввод-выводADC2_IN13, COMP2_INM, DAC1_OUT2, OPAMP2_VINM, OPAMP2_VINM0, OPAMP2_VINM_SEC, SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF2), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14)
28PA6ввод-выводADC2_IN3, COMP1_OUT (AF8), DAC2_OUT1, LPUART1_CTS (AF12), OPAMP2_VOUT, QUADSPI1_BK1_IO3 (AF10), SPI1_MISO (AF5), TIM16_CH1 (AF1), TIM1_BKIN (AF6), TIM3_CH1 (AF2), TIM8_BKIN (AF4)
29PA7ввод-выводADC2_IN4, COMP2_INP, COMP2_OUT (AF8), OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP2_VINP, OPAMP2_VINP_SEC, QUADSPI1_BK1_IO2 (AF10), SPI1_MOSI (AF5), TIM17_CH1 (AF1), TIM1_CH1N (AF6), TIM3_CH2 (AF2), TIM8_CH1N (AF4), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14)
30PC4ввод-выводADC2_IN5, I2C2_SCL (AF4), QUADSPI1_BK2_IO3 (AF10), TIM1_ETR (AF2), USART1_TX (AF7)
31PC5ввод-выводADC2_IN11, HRTIM1_EEV10 (AF13), OPAMP1_VINM, OPAMP1_VINM1, OPAMP1_VINM_SEC, OPAMP2_VINM, OPAMP2_VINM1, OPAMP2_VINM_SEC, SAI1_D3 (AF3), SYS_WKUP5, TIM15_BKIN (AF2), TIM1_CH4N (AF6), USART1_RX (AF7)
32PB0ввод-выводADC1_IN15, ADC3_IN12, COMP4_INP, HRTIM1_FLT5 (AF13), OPAMP2_VINP, OPAMP2_VINP_SEC, OPAMP3_VINP, OPAMP3_VINP_SEC, QUADSPI1_BK1_IO1 (AF10), TIM1_CH2N (AF6), TIM3_CH3 (AF2), TIM8_CH2N (AF4), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14)
33PB1ввод-выводADC1_IN12, ADC3_IN1, COMP1_INP, COMP4_OUT (AF8), HRTIM1_SCOUT (AF13), LPUART1_DE (AF12), LPUART1_RTS (AF12), OPAMP3_VOUT, OPAMP6_VINM, OPAMP6_VINM1, OPAMP6_VINM_SEC, QUADSPI1_BK1_IO0 (AF10), TIM1_CH3N (AF6), TIM3_CH4 (AF2), TIM8_CH3N (AF4)
34PB2ввод-выводADC2_IN12, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP4_INM, HRTIM1_SCIN (AF13), I2C3_SMBA (AF4), LPTIM1_OUT (AF1), OPAMP3_VINM, OPAMP3_VINM0, OPAMP3_VINM_SEC, QUADSPI1_BK2_IO1 (AF10), RTC_OUT2 (AF0), TIM20_CH1 (AF3), TIM5_CH1 (AF2)
35VSSAпитание—
36VREF+служебныйVREFBUF_OUT
37VDDAпитание—
38PE7ввод-выводADC3_IN4, COMP4_INP, FMC_D4 (AF12), FMC_DA4 (AF12), SAI1_SD_B (AF13), TIM1_ETR (AF2)
39PE8ввод-выводADC3_IN6, ADC4_IN6, ADC5_IN6, COMP4_INM, FMC_D5 (AF12), FMC_DA5 (AF12), SAI1_SCK_B (AF13), TIM1_CH1N (AF2), TIM5_CH3 (AF1)
40PE9ввод-выводADC3_IN2, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), SAI1_FS_B (AF13), TIM1_CH1 (AF2), TIM5_CH4 (AF1)
41PE10ввод-выводADC3_IN14, ADC4_IN14, ADC5_IN14, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_D7 (AF12), FMC_DA7 (AF12), QUADSPI1_CLK (AF10), SAI1_MCLK_B (AF13), TIM1_CH2N (AF2)
42PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_IN15, ADC4_IN15, ADC5_IN15, FMC_D8 (AF12), FMC_DA8 (AF12), QUADSPI1_BK1_NCS (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF2)
43PE12ввод-выводADC3_IN16, ADC4_IN16, ADC5_IN16, FMC_D9 (AF12), FMC_DA9 (AF12), QUADSPI1_BK1_IO0 (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF2)
44PE13ввод-выводADC3_IN3, FMC_D10 (AF12), FMC_DA10 (AF12), QUADSPI1_BK1_IO1 (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF2)
45PE14ввод-выводADC4_IN1, FMC_D11 (AF12), FMC_DA11 (AF12), QUADSPI1_BK1_IO2 (AF10), SPI4_MOSI (AF5), TIM1_BKIN2 (AF6), TIM1_CH4 (AF2)
46PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_IN2, FMC_D12 (AF12), FMC_DA12 (AF12), QUADSPI1_BK1_IO3 (AF10), TIM1_BKIN (AF2), TIM1_CH4N (AF6), USART3_RX (AF7)
47PB10ввод-выводCOMP5_INM, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, HRTIM1_FLT3 (AF13), LPUART1_RX (AF8), OPAMP3_VINM, OPAMP3_VINM1, OPAMP3_VINM_SEC, OPAMP4_VINM, OPAMP4_VINM0, OPAMP4_VINM_SEC, QUADSPI1_CLK (AF10), SAI1_SCK_A (AF14), TIM1_BKIN (AF12), TIM2_CH3 (AF1), USART3_TX (AF7)
48VSSпитание—
49VDDпитание—
50PB11ввод-выводADC1_EXTI11, ADC1_IN14, ADC2_EXTI11, ADC2_IN14, COMP6_INP, HRTIM1_FLT4 (AF13), LPUART1_TX (AF8), OPAMP4_VINP, OPAMP4_VINP_SEC, OPAMP6_VOUT, QUADSPI1_BK1_NCS (AF10), TIM2_CH4 (AF1), USART3_RX (AF7)
51PB12ввод-выводADC1_IN11, ADC4_IN3, COMP7_INM, FDCAN2_RX (AF9), HRTIM1_CHC1 (AF13), I2C2_SMBA (AF4), I2S2_WS (AF5), LPUART1_DE (AF8), LPUART1_RTS (AF8), OPAMP4_VOUT, OPAMP6_VINP, OPAMP6_VINP_SEC, SPI2_NSS (AF5), TIM1_BKIN (AF6), TIM5_ETR (AF2), USART3_CK (AF7)
52PB13ввод-выводADC3_IN5, COMP5_INP, FDCAN2_TX (AF9), HRTIM1_CHC2 (AF13), I2S2_CK (AF5), LPUART1_CTS (AF8), OPAMP3_VINP, OPAMP3_VINP_SEC, OPAMP4_VINP, OPAMP4_VINP_SEC, OPAMP6_VINP, OPAMP6_VINP_SEC, SPI2_SCK (AF5), TIM1_CH1N (AF6), USART3_CTS (AF7), USART3_NSS (AF7)
53PB14ввод-выводADC1_IN5, ADC4_IN4, COMP4_OUT (AF8), COMP7_INP, HRTIM1_CHD1 (AF13), OPAMP2_VINP, OPAMP2_VINP_SEC, OPAMP5_VINP, OPAMP5_VINP_SEC, SPI2_MISO (AF5), TIM15_CH1 (AF1), TIM1_CH2N (AF6), USART3_DE (AF7), USART3_RTS (AF7)
54PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC2_IN15, ADC4_IN5, COMP3_OUT (AF3), COMP6_INM, HRTIM1_CHD2 (AF13), I2S2_SD (AF5), OPAMP5_VINM, OPAMP5_VINM0, OPAMP5_VINM_SEC, RTC_REFIN (AF0), SPI2_MOSI (AF5), TIM15_CH1N (AF2), TIM15_CH2 (AF1), TIM1_CH3N (AF4)
55PD8ввод-выводADC4_IN12, ADC5_IN12, FMC_D13 (AF12), FMC_DA13 (AF12), OPAMP4_VINM, OPAMP4_VINM1, OPAMP4_VINM_SEC, USART3_TX (AF7)
56PD9ввод-выводADC4_IN13, ADC5_IN13, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_D14 (AF12), FMC_DA14 (AF12), OPAMP6_VINP, OPAMP6_VINP_SEC, USART3_RX (AF7)
57PD10ввод-выводADC3_IN7, ADC4_IN7, ADC5_IN7, COMP6_INM, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_D15 (AF12), FMC_DA15 (AF12), USART3_CK (AF7)
58PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_IN8, ADC4_IN8, ADC5_IN8, COMP6_INP, FMC_A16 (AF12), FMC_CLE, I2C4_SMBA (AF4), OPAMP4_VINP, OPAMP4_VINP_SEC, TIM5_ETR (AF1), USART3_CTS (AF7), USART3_NSS (AF7)
59PD12ввод-выводADC3_IN9, ADC4_IN9, ADC5_IN9, COMP5_INP, FMC_A17 (AF12), FMC_ALE, OPAMP5_VINP, OPAMP5_VINP_SEC, TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
60PD13ввод-выводADC3_IN10, ADC4_IN10, ADC5_IN10, COMP5_INM, FMC_A18 (AF12), TIM4_CH2 (AF2)
61PD14ввод-выводADC3_IN11, ADC4_IN11, ADC5_IN11, COMP7_INP, FMC_D0 (AF12), FMC_DA0 (AF12), OPAMP2_VINP, OPAMP2_VINP_SEC, TIM4_CH3 (AF2)
62PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, COMP7_INM, FMC_D1 (AF12), FMC_DA1 (AF12), SPI2_NSS (AF6), TIM4_CH4 (AF2)
63VSSпитание—
64VDDпитание—
65PC6ввод-выводCOMP6_OUT (AF7), HRTIM1_CHF1 (AF13), HRTIM1_EEV10 (AF3), I2C4_SCL (AF8), I2S2_MCK (AF6), TIM3_CH1 (AF2), TIM8_CH1 (AF4)
66PC7ввод-выводCOMP5_OUT (AF7), HRTIM1_CHF2 (AF13), HRTIM1_FLT5 (AF3), I2C4_SDA (AF8), I2S3_MCK (AF6), TIM3_CH2 (AF2), TIM8_CH2 (AF4)
67PC8ввод-выводCOMP7_OUT (AF7), HRTIM1_CHE1 (AF3), I2C3_SCL (AF8), TIM20_CH3 (AF6), TIM3_CH3 (AF2), TIM8_CH3 (AF4)
68PC9ввод-выводDAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, HRTIM1_CHE2 (AF3), I2C3_SDA (AF8), I2S_CKIN (AF5), TIM3_CH4 (AF2), TIM8_BKIN2 (AF6), TIM8_CH4 (AF4)
69PA8ввод-выводADC5_IN1, COMP7_OUT (AF8), FDCAN3_RX (AF11), HRTIM1_CHA1 (AF13), I2C2_SDA (AF4), I2C3_SCL (AF2), I2S2_MCK (AF5), OPAMP5_VOUT, RCC_MCO (AF0), SAI1_CK2 (AF12), SAI1_SCK_A (AF14), TIM1_CH1 (AF6), TIM4_ETR (AF10), USART1_CK (AF7)
70PA9ввод-выводADC5_IN2, COMP5_OUT (AF8), DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, HRTIM1_CHA2 (AF13), I2C2_SCL (AF4), I2C3_SMBA (AF2), I2S3_MCK (AF5), SAI1_FS_A (AF14), TIM15_BKIN (AF9), TIM1_CH2 (AF6), TIM2_CH3 (AF10), UCPD1_DBCC1, USART1_TX (AF7)
71PA10ввод-выводCOMP6_OUT (AF8), CRS_SYNC (AF3), DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, HRTIM1_CHB1 (AF13), I2C2_SMBA (AF4), SAI1_D1 (AF12), SAI1_SD_A (AF14), SPI2_MISO (AF5), SYS_PVD_IN, TIM17_BKIN (AF1), TIM1_CH3 (AF6), TIM2_CH4 (AF10), TIM8_BKIN (AF11), UCPD1_DBCC2, USART1_RX (AF7)
72PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, COMP1_OUT (AF8), FDCAN1_RX (AF9), HRTIM1_CHB2 (AF13), I2S2_SD (AF5), SPI2_MOSI (AF5), TIM1_BKIN2 (AF12), TIM1_CH1N (AF6), TIM1_CH4 (AF11), TIM4_CH1 (AF10), USART1_CTS (AF7), USART1_NSS (AF7), USB_DM
73PA12ввод-выводCOMP2_OUT (AF8), FDCAN1_TX (AF9), HRTIM1_FLT1 (AF13), I2S_CKIN (AF5), TIM16_CH1 (AF1), TIM1_CH2N (AF6), TIM1_ETR (AF11), TIM4_CH2 (AF10), USART1_DE (AF7), USART1_RTS (AF7), USB_DP
74VSSпитание—
75VDDпитание—
76PA13ввод-выводI2C1_SCL (AF4), I2C4_SCL (AF3), IR_OUT (AF5), SAI1_SD_B (AF13), SYS_JTMS-SWDIO (AF0), TIM16_CH1N (AF1), TIM4_CH3 (AF10), USART3_CTS (AF7), USART3_NSS (AF7)
77PA14ввод-выводI2C1_SDA (AF4), I2C4_SMBA (AF3), LPTIM1_OUT (AF1), SAI1_FS_B (AF13), SYS_JTCK-SWCLK (AF0), TIM1_BKIN (AF6), TIM8_CH2 (AF5), USART2_TX (AF7)
78PA15ввод-выводADC1_EXTI15, ADC2_EXTI15, FDCAN3_TX (AF11), HRTIM1_FLT2 (AF13), I2C1_SCL (AF4), I2S3_WS (AF6), SPI1_NSS (AF5), SPI3_NSS (AF6), SYS_JTDI (AF0), TIM1_BKIN (AF9), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1 (AF2), UART4_DE (AF8), UART4_RTS (AF8), USART2_RX (AF7)
79PC10ввод-выводDAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, HRTIM1_FLT6 (AF13), I2S3_CK (AF6), SPI3_SCK (AF6), TIM8_CH1N (AF4), UART4_TX (AF5), USART3_TX (AF7)
80PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, HRTIM1_EEV2 (AF3), I2C3_SDA (AF8), SPI3_MISO (AF6), TIM8_CH2N (AF4), UART4_RX (AF5), USART3_RX (AF7)
81PC12ввод-выводHRTIM1_EEV1 (AF3), I2S3_SD (AF6), SPI3_MOSI (AF6), TIM5_CH2 (AF1), TIM8_CH3N (AF4), UART5_TX (AF5), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14), USART3_CK (AF7)
82PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), TIM8_CH4N (AF6)
83PD1ввод-выводFDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), TIM8_BKIN2 (AF6), TIM8_CH4 (AF4)
84PD2ввод-выводADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, TIM3_ETR (AF2), TIM8_BKIN (AF4), UART5_RX (AF5)
85PD3ввод-выводADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_CLK (AF12), QUADSPI1_BK2_NCS (AF10), TIM2_CH1 (AF2), TIM2_ETR (AF2), USART2_CTS (AF7), USART2_NSS (AF7)
86PD4ввод-выводFMC_NOE (AF12), QUADSPI1_BK2_IO0 (AF10), TIM2_CH2 (AF2), USART2_DE (AF7), USART2_RTS (AF7)
87PD5ввод-выводFMC_NWE (AF12), QUADSPI1_BK2_IO1 (AF10), USART2_TX (AF7)
88PD6ввод-выводFMC_NWAIT (AF12), QUADSPI1_BK2_IO2 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM2_CH4 (AF2), USART2_RX (AF7)
89PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), QUADSPI1_BK2_IO3 (AF10), TIM2_CH3 (AF2), USART2_CK (AF7)
90PB3ввод-выводADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, CRS_SYNC (AF3), FDCAN3_RX (AF11), HRTIM1_EEV9 (AF13), HRTIM1_SCOUT (AF12), I2S3_CK (AF6), SAI1_SCK_B (AF14), SPI1_SCK (AF5), SPI3_SCK (AF6), SYS_JTDO-SWO (AF0), TIM2_CH2 (AF1), TIM3_ETR (AF10), TIM4_ETR (AF2), TIM8_CH1N (AF4), USART2_TX (AF7)
91PB4ввод-выводFDCAN3_TX (AF11), HRTIM1_EEV7 (AF13), SAI1_MCLK_B (AF14), SPI1_MISO (AF5), SPI3_MISO (AF6), SYS_JTRST (AF0), TIM16_CH1 (AF1), TIM17_BKIN (AF10), TIM3_CH1 (AF2), TIM8_CH2N (AF4), UART5_DE (AF8), UART5_RTS (AF8), UCPD1_CC2, USART2_RX (AF7)
92PB5ввод-выводFDCAN2_RX (AF9), HRTIM1_EEV6 (AF13), I2C1_SMBA (AF4), I2C3_SDA (AF8), I2S3_SD (AF6), LPTIM1_IN1 (AF11), SAI1_SD_B (AF12), SPI1_MOSI (AF5), SPI3_MOSI (AF6), TIM16_BKIN (AF1), TIM17_CH1 (AF10), TIM3_CH2 (AF2), TIM8_CH3N (AF3), UART5_CTS (AF14), USART2_CK (AF7)
93PB6ввод-выводCOMP4_OUT (AF8), FDCAN2_TX (AF9), HRTIM1_EEV4 (AF13), HRTIM1_SCIN (AF12), LPTIM1_ETR (AF11), SAI1_FS_B (AF14), TIM16_CH1N (AF1), TIM4_CH1 (AF2), TIM8_BKIN2 (AF10), TIM8_CH1 (AF5), TIM8_ETR (AF6), UCPD1_CC1, USART1_TX (AF7)
94PB7ввод-выводCOMP3_OUT (AF8), FMC_NL (AF12), HRTIM1_EEV3 (AF13), I2C1_SDA (AF4), I2C4_SDA (AF3), LPTIM1_IN2 (AF11), TIM17_CH1N (AF1), TIM3_CH4 (AF10), TIM4_CH2 (AF2), TIM8_BKIN (AF5), UART4_CTS (AF14), USART1_RX (AF7)
95PB8-BOOT0ввод-выводCOMP1_OUT (AF8), FDCAN1_RX (AF9), HRTIM1_EEV8 (AF13), I2C1_SCL (AF4), SAI1_CK1 (AF3), SAI1_MCLK_A (AF14), TIM16_CH1 (AF1), TIM1_BKIN (AF12), TIM4_CH3 (AF2), TIM8_CH2 (AF10), USART3_RX (AF7)
96PB9ввод-выводCOMP2_OUT (AF8), DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FDCAN1_TX (AF9), HRTIM1_EEV5 (AF13), I2C1_SDA (AF4), IR_OUT (AF6), SAI1_D2 (AF3), SAI1_FS_A (AF14), TIM17_CH1 (AF1), TIM1_CH3N (AF12), TIM4_CH4 (AF2), TIM8_CH3 (AF10), USART3_TX (AF7)
97PE0ввод-выводFMC_NBL0 (AF12), TIM16_CH1 (AF4), TIM20_CH4N (AF3), TIM20_ETR (AF6), TIM4_ETR (AF2), USART1_TX (AF7)
98PE1ввод-выводFMC_NBL1 (AF12), TIM17_CH1 (AF4), TIM20_CH4 (AF6), USART1_RX (AF7)
99VSSпитание—
100VDDпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяВыводыНазначение
VBAT6резервное питание: часы реального времени и резервные регистры
VDD24, 49, 64, 75, 100питание цифровой части и линий ввода-вывода
VDDA37питание аналоговой части: АЦП, ЦАП, генераторы
VSS23, 48, 63, 74, 99общий провод (земля)
VSSA35общий провод аналоговой части
VREF+36верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32G484VETx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32G484VESTM32G484VETx512 КБ128 КБ

Линейка STM32G4x4, семейство STM32G4, ядро Cortex-M4.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе LQFP100, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32G474VB, STM32G474VC, STM32G474VESTM32G4x4100 из 100выводы совпадают полностьютолько у этого: AES
STM32G4A1VESTM32G4x1100 из 100выводы совпадают полностьютолько у этого: ADC4, ADC5, COMP5, COMP6, COMP7, DAC2, DAC4, FDCAN3, FMC, HRTIM1, I2C4, OPAMP4, OPAMP5, SPI4, TIM5
STM32G431V6, STM32G431V8, STM32G431VBSTM32G4x1100 из 100выводы совпадают полностьютолько у этого: ADC3, ADC4, ADC5, AES, COMP5, COMP6, COMP7, DAC2, DAC4, FDCAN2, FDCAN3, FMC, HRTIM1, I2C4, OPAMP4, OPAMP5, OPAMP6, QUADSPI1, SPI4, TIM20, TIM5, UART5; флеш-память до 512 и 128 КБ; ОЗУ 128 и 32 КБ
STM32G441VBSTM32G4x1100 из 100выводы совпадают полностьютолько у этого: ADC3, ADC4, ADC5, COMP5, COMP6, COMP7, DAC2, DAC4, FDCAN2, FDCAN3, FMC, HRTIM1, I2C4, OPAMP4, OPAMP5, OPAMP6, QUADSPI1, SPI4, TIM20, TIM5, UART5; флеш-память до 512 и 128 КБ; ОЗУ 128 и 32 КБ
STM32G471VC, STM32G471VESTM32G4x1100 из 100выводы совпадают полностьютолько у этого: ADC4, ADC5, AES, COMP5, COMP6, COMP7, DAC2, DAC4, FDCAN3, FMC, HRTIM1, OPAMP4, OPAMP5
STM32G473VB, STM32G473VC, STM32G473VESTM32G4x3100 из 100выводы совпадают полностьютолько у этого: AES, HRTIM1
STM32G483VESTM32G4x3100 из 100выводы совпадают полностьютолько у этого: HRTIM1
STM32G491VC, STM32G491VESTM32G4x1100 из 100выводы совпадают полностьютолько у этого: ADC4, ADC5, AES, COMP5, COMP6, COMP7, DAC2, DAC4, FDCAN3, FMC, HRTIM1, I2C4, OPAMP4, OPAMP5, SPI4, TIM5

Частые вопросы

На каких выводах USART1 у STM32G484VE?

В корпусе LQFP100 сигнал USART1_TX выведен на PC4 (вывод 30, AF7) или PA9 (вывод 70, AF7) или PB6 (вывод 93, AF7) или PE0 (вывод 97, AF7), USART1_RX — на PC5 (вывод 31, AF7) или PA10 (вывод 71, AF7) или PB7 (вывод 94, AF7) или PE1 (вывод 98, AF7).

Где у STM32G484VE выводы SWD для программатора?

SWDIO — PA13 (вывод 76, AF0), SWCLK — PA14 (вывод 77, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32G484VE?

I2C1_SCL — PA13 (вывод 76, AF4) или PA15 (вывод 78, AF4) или PB8-BOOT0 (вывод 95, AF4), I2C1_SDA — PA14 (вывод 77, AF4) или PB7 (вывод 94, AF4) или PB9 (вывод 96, AF4).

Сколько выводов ввода-вывода у STM32G484VE в корпусе LQFP100?

86 из 100. Ещё 13 выводов заняты питанием и землёй, остальные 1 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32G484VE?

От 1,71 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
