STM32H725IE в корпусе LQFP176: распиновка

STM32H725IE — микроконтроллер STM32H7 на ядре Cortex-M7 с частотой до 550 МГц: 512 КБ флеш-памяти и 564 КБ ОЗУ. Корпус LQFP176 — 176 выводов, из них 121 линия ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M7
Частота ядра
до 550 МГц
Флеш-память
512 КБ
ОЗУ
564 КБ
Корпус
LQFP176, 176 выводов
Линий ввода-вывода
121
Напряжение питания
1,62…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса LQFP176

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Распиновка STM32H725IE в корпусе LQFP176, вид сверхуSTM32H725IELQFP176, вид сверхуPE2 — вывод 1: DEBUG_TRACECLK, ETH_TXD3, FMC_A23, OCTOSPIM_P1_IO2, SAI1_CK1, SAI1_MCLK_A, SAI4_CK1, SAI4_MCLK_A, SPI4_SCK, USART10_RX1PE2PE3 — вывод 2: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, SAI4_SD_B, TIM15_BKIN, USART10_TX2PE3PE4 — вывод 3: DCMI_D4, DEBUG_TRACED1, DFSDM1_DATIN3, FMC_A20, LTDC_B0, PSSI_D4, SAI1_D2, SAI1_FS_A, SAI4_D2, SAI4_FS_A, SPI4_NSS, TIM15_CH1N3PE4PE5 — вывод 4: DCMI_D6, DEBUG_TRACED2, DFSDM1_CKIN3, FMC_A21, LTDC_G0, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SAI4_CK2, SAI4_SCK_A, SPI4_MISO, TIM15_CH14PE5PE6 — вывод 5: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_MCLK_B, SAI4_SD_A, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP25PE6VSS — вывод 66VSSVDD — вывод 77VDDVBAT — вывод 88VBATPC13 — вывод 9: PWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS9PC13PC14-OSC32_IN — вывод 10: RCC_OSC32_IN10PC14-OSC32_INPC15-OSC32_OUT — вывод 11: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT11PC15-OSC32_OUTVSS — вывод 1212VSSVDD — вывод 1313VDDVSSSMPS — вывод 1414VSSSMPSVLXSMPS — вывод 1515VLXSMPSVDDSMPS — вывод 1616VDDSMPSVFBSMPS — вывод 1717VFBSMPSPF0 — вывод 18: FMC_A0, I2C2_SDA, I2C5_SDA, OCTOSPIM_P2_IO0, TIM23_CH118PF0PF1 — вывод 19: FMC_A1, I2C2_SCL, I2C5_SCL, OCTOSPIM_P2_IO1, TIM23_CH219PF1PF2 — вывод 20: FMC_A2, I2C2_SMBA, I2C5_SMBA, OCTOSPIM_P2_IO2, TIM23_CH320PF2PF3 — вывод 21: ADC3_INP5, FMC_A3, OCTOSPIM_P2_IO3, TIM23_CH421PF3PF4 — вывод 22: ADC3_INN5, ADC3_INP9, FMC_A4, OCTOSPIM_P2_CLK22PF4PF5 — вывод 23: ADC3_INP4, FMC_A5, OCTOSPIM_P2_NCLK23PF5VSS — вывод 2424VSSVDD — вывод 2525VDDPF6 — вывод 26: ADC3_INN4, ADC3_INP8, FDCAN3_RX, OCTOSPIM_P1_IO3, SAI1_SD_B, SAI4_SD_B, SPI5_NSS, TIM16_CH1, TIM23_CH1, UART7_RX26PF6PF7 — вывод 27: ADC3_INP3, FDCAN3_TX, OCTOSPIM_P1_IO2, SAI1_MCLK_B, SAI4_MCLK_B, SPI5_SCK, TIM17_CH1, TIM23_CH2, UART7_TX27PF7PF8 — вывод 28: ADC3_INN3, ADC3_INP7, OCTOSPIM_P1_IO0, SAI1_SCK_B, SAI4_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, TIM23_CH3, UART7_DE, UART7_RTS28PF8PF9 — вывод 29: ADC3_INP2, DAC1_EXTI9, OCTOSPIM_P1_IO1, SAI1_FS_B, SAI4_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, TIM23_CH4, UART7_CTS29PF9PF10 — вывод 30: ADC3_INN2, ADC3_INP6, DCMI_D11, LTDC_DE, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, SAI4_D3, TIM16_BKIN30PF10PH0-OSC_IN — вывод 31: RCC_OSC_IN31PH0-OSC_INPH1-OSC_OUT — вывод 32: RCC_OSC_OUT32PH1-OSC_OUTNRST — вывод 3333NRSTPC0 — вывод 34: ADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0, DFSDM1_DATIN4, FMC_A25, FMC_D12, FMC_DA12, FMC_SDNWE, LTDC_G2, LTDC_R5, SAI4_FS_B, USB_OTG_HS_ULPI_STP34PC0PC1 — вывод 35: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0, DFSDM1_CKIN4, DFSDM1_DATIN0, ETH_MDC, I2S2_SDO, LTDC_G5, MDIOS_MDC, OCTOSPIM_P1_IO4, PWR_WKUP6, RTC_TAMP3, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI2_MOSI35PC1PC2_C — вывод 36: ADC3_INN1, ADC3_INP0, DFSDM1_CKIN1, DFSDM1_CKOUT, ETH_TXD2, FMC_SDNE0, I2S2_SDI, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSTOP, SPI2_MISO, USB_OTG_HS_ULPI_DIR36PC2_CPC3_C — вывод 37: ADC3_INP1, DFSDM1_DATIN1, ETH_TX_CLK, FMC_SDCKE0, I2S2_SDO, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSLEEP, SPI2_MOSI, USB_OTG_HS_ULPI_NXT37PC3_CVSSA — вывод 3838VSSAVREF+ — вывод 39: VREFBUF_OUT39VREF+VDDA — вывод 4040VDDAPA0 — вывод 41: ADC1_INP16, ETH_CRS, FMC_A19, I2S6_WS, PWR_WKUP1, SAI4_SD_B, SDMMC2_CMD, SPI6_NSS, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSS41PA0PA1 — вывод 42: ADC1_INN16, ADC1_INP17, ETH_REF_CLK, ETH_RX_CLK, LPTIM3_OUT, LTDC_R2, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI4_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTS42PA1PA2 — вывод 43: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM4_OUT, LTDC_R1, MDIOS_MDIO, OCTOSPIM_P1_IO0, PWR_WKUP2, SAI4_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TX43PA2VDD — вывод 4444VDDVSS — вывод 4545VSSPA3 — вывод 46: ADC1_INP15, ADC2_INP15, ETH_COL, I2S6_MCK, LPTIM5_OUT, LTDC_B2, LTDC_B5, OCTOSPIM_P1_CLK, OCTOSPIM_P1_IO2, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX, USB_OTG_HS_ULPI_D046PA3VSS — вывод 4747VSSVDD — вывод 4848VDDPA4 — вывод 49: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, FMC_D8, FMC_DA8, I2S1_WS, I2S3_WS, I2S6_WS, LTDC_VSYNC, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CK49PA4PA5 — вывод 50: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, FMC_D9, FMC_DA9, I2S1_CK, I2S6_CK, LTDC_R4, PSSI_D14, PWR_NDSTOP2, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USB_OTG_HS_ULPI_CK50PA5PA6 — вывод 51: ADC1_INP3, ADC2_INP3, DCMI_PIXCLK, I2S1_SDI, I2S6_SDI, LTDC_G2, MDIOS_MDC, OCTOSPIM_P1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM3_CH1, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP251PA6PA7 — вывод 52: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV, ETH_RX_DV, FMC_SDNWE, I2S1_SDO, I2S6_SDO, LTDC_VSYNC, OCTOSPIM_P1_IO2, OPAMP1_VINM, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N52PA7PC4 — вывод 53: ADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2, ETH_RXD0, FMC_A22, FMC_SDNE0, I2S1_MCK, LTDC_R7, OPAMP1_VOUT, SDMMC2_CKIN, SPDIFRX1_IN253PC4PC5 — вывод 54: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT, DFSDM1_DATIN2, ETH_RXD1, FMC_SDCKE0, LTDC_DE, OCTOSPIM_P1_DQS, OPAMP1_VINM, PSSI_D15, SAI1_D3, SAI4_D3, SPDIFRX1_IN354PC5PB0 — вывод 55: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT, ETH_RXD2, LTDC_G1, LTDC_R3, OCTOSPIM_P1_IO1, OPAMP1_VINP, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USB_OTG_HS_ULPI_D155PB0PB1 — вывод 56: ADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1, ETH_RXD3, LTDC_G0, LTDC_R6, OCTOSPIM_P1_IO0, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USB_OTG_HS_ULPI_D256PB1PB2 — вывод 57: COMP1_INP, DFSDM1_CKIN1, ETH_TX_ER, I2S3_SDO, OCTOSPIM_P1_CLK, OCTOSPIM_P1_DQS, RTC_OUT_ALARM, RTC_OUT_CALIB, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SPI3_MOSI, TIM23_ETR57PB2PF11 — вывод 58: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, OCTOSPIM_P1_NCLK, PSSI_D12, SAI4_SD_B, SPI5_MOSI, TIM24_CH158PF11PF12 — вывод 59: ADC1_INN2, ADC1_INP6, FMC_A6, OCTOSPIM_P2_DQS, TIM24_CH259PF12PF13 — вывод 60: ADC2_INP2, DFSDM1_DATIN6, FMC_A7, I2C4_SMBA, TIM24_CH360PF13PF14 — вывод 61: ADC2_INN2, ADC2_INP6, DFSDM1_CKIN6, FMC_A8, I2C4_SCL, TIM24_CH461PF14PF15 — вывод 62: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9, I2C4_SDA62PF15PG0 — вывод 63: FMC_A10, OCTOSPIM_P2_IO4, UART9_RX63PG0VSS — вывод 6464VSSVDD — вывод 6565VDDPG1 — вывод 66: FMC_A11, OCTOSPIM_P2_IO5, OPAMP2_VINM, UART9_TX66PG1PE7 — вывод 67: COMP2_INM, DFSDM1_DATIN2, FMC_D4, FMC_DA4, OCTOSPIM_P1_IO4, OPAMP2_VOUT, TIM1_ETR, UART7_RX67PE7PE8 — вывод 68: COMP2_OUT, DFSDM1_CKIN2, FMC_D5, FMC_DA5, OCTOSPIM_P1_IO5, OPAMP2_VINM, TIM1_CH1N, UART7_TX68PE8PE9 — вывод 69: COMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT, FMC_D6, FMC_DA6, OCTOSPIM_P1_IO6, OPAMP2_VINP, TIM1_CH1, UART7_DE, UART7_RTS69PE9VSS — вывод 7070VSSVDD — вывод 7171VDDPE10 — вывод 72: COMP2_INM, DFSDM1_DATIN4, FMC_D7, FMC_DA7, OCTOSPIM_P1_IO7, TIM1_CH2N, UART7_CTS72PE10PE11 — вывод 73: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4, FMC_D8, FMC_DA8, LTDC_G3, OCTOSPIM_P1_NCS, SAI4_SD_B, SPI4_NSS, TIM1_CH273PE11PE12 — вывод 74: COMP1_OUT, DFSDM1_DATIN5, FMC_D9, FMC_DA9, LTDC_B4, SAI4_SCK_B, SPI4_SCK, TIM1_CH3N74PE12PE13 — вывод 75: COMP2_OUT, DFSDM1_CKIN5, FMC_D10, FMC_DA10, LTDC_DE, SAI4_FS_B, SPI4_MISO, TIM1_CH375PE13PE14 — вывод 76: FMC_D11, FMC_DA11, LTDC_CLK, SAI4_MCLK_B, SPI4_MOSI, TIM1_CH476PE14PE15 — вывод 77: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12, FMC_DA12, LTDC_R7, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, USART10_CK77PE15PB10 — вывод 78: DFSDM1_DATIN7, ETH_RX_ER, I2C2_SCL, I2S2_CK, LPTIM2_IN1, LTDC_G4, OCTOSPIM_P1_NCS, SPI2_SCK, TIM2_CH3, USART3_TX, USB_OTG_HS_ULPI_D378PB10PB11 — вывод 79: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7, ETH_TX_EN, I2C2_SDA, LPTIM2_ETR, LTDC_G5, TIM2_CH4, USART3_RX, USB_OTG_HS_ULPI_D479PB11VCAP — вывод 8080VCAPVSS — вывод 8181VSSVDDLDO — вывод 8282VDDLDOVSS — вывод 8383VSSVDD — вывод 8484VDDPB12 — вывод 85: DFSDM1_DATIN1, ETH_TXD0, FDCAN2_RX, I2C2_SMBA, I2S2_WS, OCTOSPIM_P1_IO0, OCTOSPIM_P1_NCLK, SPI2_NSS, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, UART5_RX, USART3_CK, USB_OTG_HS_ULPI_D585PB12PB13 — вывод 86: DCMI_D2, DFSDM1_CKIN1, ETH_TXD1, FDCAN2_TX, I2S2_CK, LPTIM2_OUT, OCTOSPIM_P1_IO2, PSSI_D2, SDMMC1_D0, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSS, USB_OTG_HS_ULPI_D686PB13PB14 — вывод 87: DFSDM1_DATIN2, FMC_D10, FMC_DA10, I2S2_SDI, LTDC_CLK, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, USART1_TX, USART3_DE, USART3_RTS87PB14PB15 — вывод 88: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2, FMC_D11, FMC_DA11, I2S2_SDO, LTDC_G7, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, USART1_RX88PB15PD8 — вывод 89: DFSDM1_CKIN3, FMC_D13, FMC_DA13, SPDIFRX1_IN1, USART3_TX89PD8PD9 — вывод 90: DAC1_EXTI9, DFSDM1_DATIN3, FMC_D14, FMC_DA14, USART3_RX90PD9PD10 — вывод 91: DFSDM1_CKOUT, FMC_D15, FMC_DA15, LTDC_B3, USART3_CK91PD10VDD — вывод 9292VDDVSS — вывод 9393VSSPD11 — вывод 94: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, OCTOSPIM_P1_IO0, SAI4_SD_A, USART3_CTS, USART3_NSS94PD11PD12 — вывод 95: DCMI_D12, FDCAN3_RX, FMC_A17, FMC_ALE, I2C4_SCL, LPTIM1_IN1, LPTIM2_IN1, OCTOSPIM_P1_IO1, PSSI_D12, SAI4_FS_A, TIM4_CH1, USART3_DE, USART3_RTS95PD12PD13 — вывод 96: DCMI_D13, FDCAN3_TX, FMC_A18, I2C4_SDA, LPTIM1_OUT, OCTOSPIM_P1_IO3, PSSI_D13, SAI4_SCK_A, TIM4_CH2, UART9_DE, UART9_RTS96PD13PD14 — вывод 97: FMC_D0, FMC_DA0, TIM4_CH3, UART8_CTS, UART9_RX97PD14PD15 — вывод 98: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TX98PD15VDD — вывод 9999VDDVSS — вывод 100100VSSPJ8 — вывод 101: LTDC_G1, TIM1_CH3N, TIM8_CH1, UART8_TX101PJ8PJ9 — вывод 102: DAC1_EXTI9, LTDC_G2, TIM1_CH3, TIM8_CH1N, UART8_RX102PJ9PJ10 — вывод 103: LTDC_G3, SPI5_MOSI, TIM1_CH2N, TIM8_CH2103PJ10PJ11 — вывод 104: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LTDC_G4, SPI5_MISO, TIM1_CH2, TIM8_CH2N104PJ11VDD — вывод 105105VDDVSS — вывод 106106VSSPK0 — вывод 107: LTDC_G5, SPI5_SCK, TIM1_CH1N, TIM8_CH3107PK0PK1 — вывод 108: LTDC_G6, SPI5_NSS, TIM1_CH1, TIM8_CH3N108PK1PK2 — вывод 109: LTDC_G7, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2109PK2PG2 — вывод 110: FMC_A12, TIM24_ETR, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2110PG2PG3 — вывод 111: FMC_A13, TIM23_ETR, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2111PG3VSS — вывод 112112VSSVDD — вывод 113113VDDPG4 — вывод 114: FMC_A14, FMC_BA0, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2114PG4PG5 — вывод 115: FMC_A15, FMC_BA1, TIM1_ETR115PG5PG6 — вывод 116: DCMI_D12, FMC_NE3, LTDC_R7, OCTOSPIM_P1_NCS, PSSI_D12, TIM17_BKIN116PG6PG7 — вывод 117: DCMI_D13, FMC_INT, LTDC_CLK, OCTOSPIM_P2_DQS, PSSI_D13, SAI1_MCLK_A, USART6_CK117PG7PG8 — вывод 118: ETH_PPS_OUT, FMC_SDCLK, I2S6_WS, LTDC_G7, SPDIFRX1_IN2, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTS118PG8VSS — вывод 119119VSSVDD50USB — вывод 120120VDD50USBVDD33USB — вывод 121121VDD33USBPC6 — вывод 122: DCMI_D0, DFSDM1_CKIN3, FMC_NWAIT, I2S2_MCK, LTDC_HSYNC, PSSI_D0, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, SWPMI1_IO, TIM3_CH1, TIM8_CH1, USART6_TX122PC6PC7 — вывод 123: DCMI_D1, DEBUG_TRGIO, DFSDM1_DATIN3, FMC_NE1, I2S3_MCK, LTDC_G6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, SWPMI1_TX, TIM3_CH2, TIM8_CH2, USART6_RX123PC7PC8 — вывод 124: DCMI_D2, DEBUG_TRACED1, FMC_INT, FMC_NCE, FMC_NE2, PSSI_D2, SDMMC1_D0, SWPMI1_RX, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CK124PC8PC9 — вывод 125: DAC1_EXTI9, DCMI_D3, I2C3_SDA, I2C5_SDA, I2S_CKIN, LTDC_B2, LTDC_G3, OCTOSPIM_P1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, SWPMI1_SUSPEND, TIM3_CH4, TIM8_CH4, UART5_CTS125PC9VDD — вывод 126126VDDPA8 — вывод 127: I2C3_SCL, I2C5_SCL, LTDC_B3, LTDC_R6, RCC_MCO_1, TIM1_CH1, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2, UART7_RX, USART1_CK, USB_OTG_HS_SOF127PA8PA9 — вывод 128: DAC1_EXTI9, DCMI_D0, ETH_TX_ER, I2C3_SMBA, I2C5_SMBA, I2S2_CK, LPUART1_TX, LTDC_R5, PSSI_D0, SPI2_SCK, TIM1_CH2, USART1_TX, USB_OTG_HS_VBUS128PA9PA10 — вывод 129: DCMI_D1, LPUART1_RX, LTDC_B1, LTDC_B4, MDIOS_MDIO, PSSI_D1, TIM1_CH3, USART1_RX, USB_OTG_HS_ID129PA10PA11 — вывод 130: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX, I2S2_WS, LPUART1_CTS, LTDC_R4, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_HS_DM130PA11PA12 — вывод 131: FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R5, SAI4_FS_B, SPI2_SCK, TIM1_BKIN2, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_HS_DP131PA12PA13(JTMS/SWDIO) — вывод 132: DEBUG_JTMS-SWDIO132PA13(JTMS/SWDIO)VCAP — вывод 133133VCAPVSS — вывод 134134VSSVDDLDO — вывод 135135VDDLDOVDD — вывод 136136VDDVSS — вывод 137137VSSPA14(JTCK/SWCLK) — вывод 138: DEBUG_JTCK-SWCLK138PA14(JTCK/SWCLK)PA15(JTDI) — вывод 139: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DEBUG_JTDI, I2S1_WS, I2S3_WS, I2S6_WS, LTDC_B6, LTDC_R3, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TX139PA15(JTDI)PC10 — вывод 140: DCMI_D8, DFSDM1_CKIN5, I2C5_SDA, I2S3_CK, LTDC_B1, LTDC_R2, OCTOSPIM_P1_IO1, PSSI_D8, SDMMC1_D2, SPI3_SCK, SWPMI1_RX, UART4_TX, USART3_TX140PC10PC11 — вывод 141: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4, DFSDM1_DATIN5, I2C5_SCL, I2S3_SDI, LTDC_B4, OCTOSPIM_P1_NCS, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RX141PC11PC12 — вывод 142: DCMI_D9, DEBUG_TRACED3, FMC_D6, FMC_DA6, I2C5_SMBA, I2S3_SDO, I2S6_CK, LTDC_R6, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CK142PC12PD0 — вывод 143: DFSDM1_CKIN6, FDCAN1_RX, FMC_D2, FMC_DA2, LTDC_B1, UART4_RX, UART9_CTS143PD0PD1 — вывод 144: DFSDM1_DATIN6, FDCAN1_TX, FMC_D3, FMC_DA3, UART4_TX144PD1PD2 — вывод 145: DCMI_D11, DEBUG_TRACED2, FMC_D7, FMC_DA7, LTDC_B2, LTDC_B7, PSSI_D11, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RX145PD2PD3 — вывод 146: DCMI_D5, DFSDM1_CKOUT, FMC_CLK, I2S2_CK, LTDC_G7, PSSI_D5, SPI2_SCK, USART2_CTS, USART2_NSS146PD3PD4 — вывод 147: FMC_NOE, OCTOSPIM_P1_IO4, USART2_DE, USART2_RTS147PD4PD5 — вывод 148: FMC_NWE, OCTOSPIM_P1_IO5, USART2_TX148PD5PD6 — вывод 149: DCMI_D10, DFSDM1_CKIN4, DFSDM1_DATIN1, FMC_NWAIT, I2S3_SDO, LTDC_B2, OCTOSPIM_P1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RX149PD6PD7 — вывод 150: DFSDM1_CKIN1, DFSDM1_DATIN4, FMC_NE1, I2S1_SDO, OCTOSPIM_P1_IO7, SDMMC2_CMD, SPDIFRX1_IN0, SPI1_MOSI, USART2_CK150PD7VSS — вывод 151151VSSVDD — вывод 152152VDDPG9 — вывод 153: DAC1_EXTI9, DCMI_VSYNC, FDCAN3_TX, FMC_NCE, FMC_NE2, I2S1_SDI, OCTOSPIM_P1_IO6, PSSI_RDY, SAI4_FS_B, SDMMC2_D0, SPDIFRX1_IN3, SPI1_MISO, USART6_RX153PG9PG10 — вывод 154: DCMI_D2, FDCAN3_RX, FMC_NE3, I2S1_WS, LTDC_B2, LTDC_G3, OCTOSPIM_P2_IO6, PSSI_D2, SAI4_SD_B, SDMMC2_D1, SPI1_NSS154PG10PG11 — вывод 155: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3, ETH_TX_EN, I2S1_CK, LPTIM1_IN2, LTDC_B3, OCTOSPIM_P2_IO7, PSSI_D3, SDMMC2_D2, SPDIFRX1_IN0, SPI1_SCK, USART10_RX155PG11PG12 — вывод 156: ETH_TXD1, FMC_NE4, I2S6_SDI, LPTIM1_IN1, LTDC_B1, LTDC_B4, OCTOSPIM_P2_NCS, SDMMC2_D3, SPDIFRX1_IN1, SPI6_MISO, TIM23_CH1, USART10_TX, USART6_DE, USART6_RTS156PG12PG13 — вывод 157: DEBUG_TRACED0, ETH_TXD0, FMC_A24, I2S6_CK, LPTIM1_OUT, LTDC_R0, SDMMC2_D6, SPI6_SCK, TIM23_CH2, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSS157PG13PG14 — вывод 158: DEBUG_TRACED1, ETH_TXD1, FMC_A25, I2S6_SDO, LPTIM1_ETR, LTDC_B0, OCTOSPIM_P1_IO7, SDMMC2_D7, SPI6_MOSI, TIM23_CH3, USART10_DE, USART10_RTS, USART6_TX158PG14VSS — вывод 159159VSSVDD — вывод 160160VDDPG15 — вывод 161: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, OCTOSPIM_P2_DQS, PSSI_D13, USART10_CK, USART6_CTS, USART6_NSS161PG15PB3(JTDO/TRACESWO) — вывод 162: CRS_SYNC, DEBUG_JTDO-SWO, I2S1_CK, I2S3_CK, I2S6_CK, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM24_ETR, TIM2_CH2, UART7_RX162PB3(JTDO/TRACESWO)PB4(NJTRST) — вывод 163: DEBUG_JTRST, I2S1_SDI, I2S2_WS, I2S3_SDI, I2S6_SDI, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TX163PB4(NJTRST)PB5 — вывод 164: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, I2S6_SDO, LTDC_B5, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX, USB_OTG_HS_ULPI_D7164PB5PB6 — вывод 165: CEC, DCMI_D5, DFSDM1_DATIN5, FDCAN2_TX, FMC_SDNE1, I2C1_SCL, I2C4_SCL, LPUART1_TX, OCTOSPIM_P1_NCS, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TX165PB6PB7 — вывод 166: DCMI_VSYNC, DFSDM1_CKIN5, FMC_NL, I2C1_SDA, I2C4_SDA, LPUART1_RX, PSSI_RDY, PWR_PVD_IN, TIM17_CH1N, TIM4_CH2, USART1_RX166PB7BOOT0 — вывод 167167BOOT0PB8 — вывод 168: DCMI_D6, DFSDM1_CKIN7, ETH_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, LTDC_B6, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RX168PB8PB9 — вывод 169: DAC1_EXTI9, DCMI_D7, DFSDM1_DATIN7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2C4_SMBA, I2S2_WS, LTDC_B7, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TX169PB9PE0 — вывод 170: DCMI_D2, FMC_NBL0, LPTIM1_ETR, LPTIM2_ETR, LTDC_R0, PSSI_D2, SAI4_MCLK_A, TIM4_ETR, UART8_RX170PE0PE1 — вывод 171: DCMI_D3, FMC_NBL1, LPTIM1_IN2, LTDC_R6, PSSI_D3, UART8_TX171PE1VCAP — вывод 172172VCAPVSS — вывод 173173VSSPDR_ON — вывод 174174PDR_ONVDDLDO — вывод 175175VDDLDOVDD — вывод 176176VDD
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

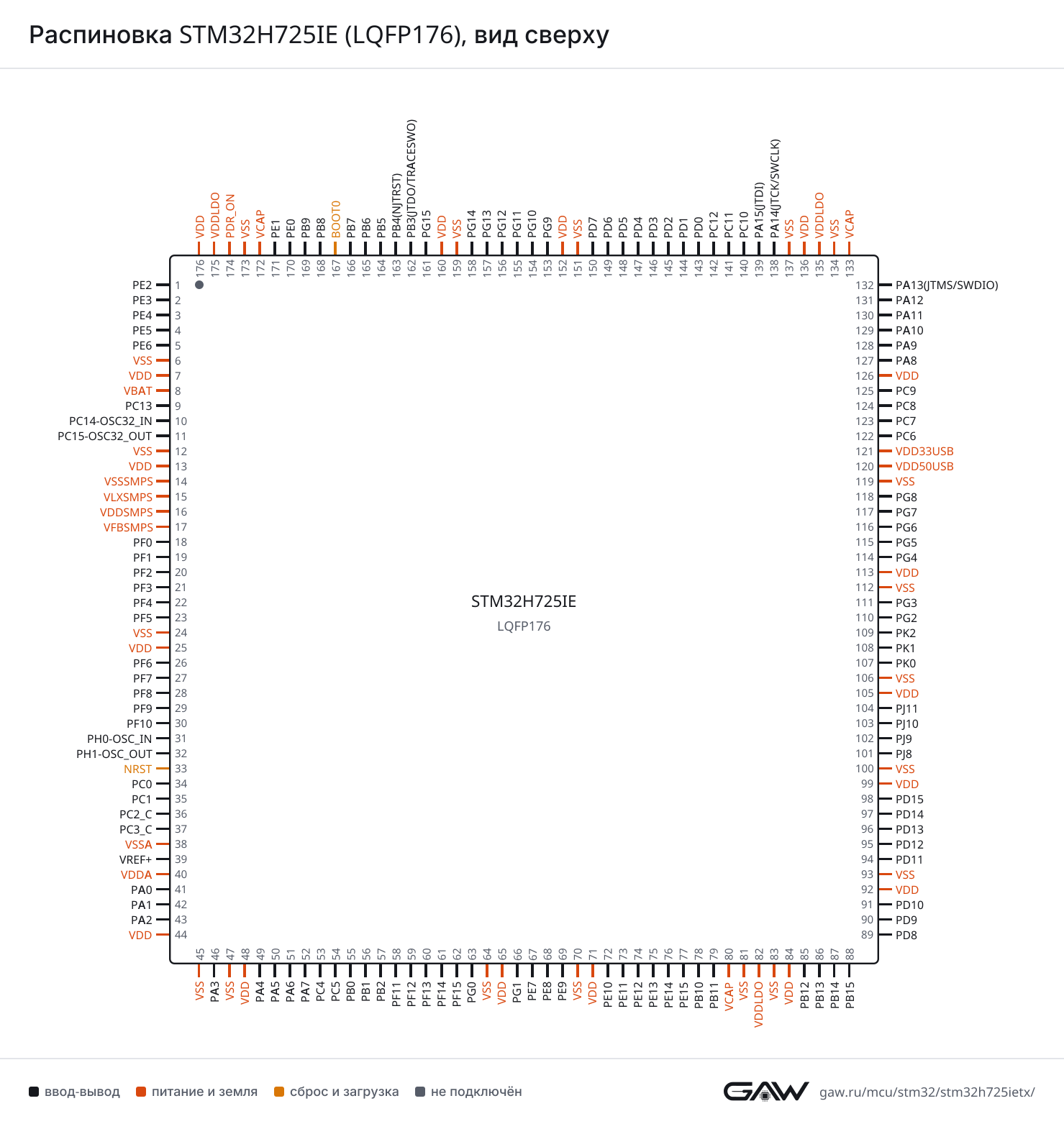

Распиновка STM32H725IE (LQFP176), вид сверхуРаспиновка LQFP176 картинкой
PNG, 1479 × 1563 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер вывода и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (127, AF7)
CTSPA11 (130, AF7)
DEPA12 (131, AF7)
NSSPA11 (130, AF7)
RTSPA12 (131, AF7)
RXPB15 (88, AF4), PA10 (129, AF7), PB7 (166, AF7)
TXPB14 (87, AF4), PA9 (128, AF7), PB6 (165, AF7)
USART2CKPA4 (49, AF7), PD7 (150, AF7)
CTSPA0 (41, AF7), PD3 (146, AF7)
DEPA1 (42, AF7), PD4 (147, AF7)
NSSPA0 (41, AF7), PD3 (146, AF7)
RTSPA1 (42, AF7), PD4 (147, AF7)
RXPA3 (46, AF7), PD6 (149, AF7)
TXPA2 (43, AF7), PD5 (148, AF7)
USART3CKPB12 (85, AF7), PD10 (91, AF7), PC12 (142, AF7)
CTSPB13 (86, AF7), PD11 (94, AF7)
DEPB14 (87, AF7), PD12 (95, AF7)
NSSPB13 (86, AF7), PD11 (94, AF7)
RTSPB14 (87, AF7), PD12 (95, AF7)
RXPB11 (79, AF7), PD9 (90, AF7), PC11 (141, AF7)
TXPB10 (78, AF7), PD8 (89, AF7), PC10 (140, AF7)
USART6CKPG7 (117, AF7), PC8 (124, AF7)
CTSPG13 (157, AF7), PG15 (161, AF7)
DEPG8 (118, AF7), PG12 (156, AF7)
NSSPG13 (157, AF7), PG15 (161, AF7)
RTSPG8 (118, AF7), PG12 (156, AF7)
RXPC7 (123, AF7), PG9 (153, AF7)
TXPC6 (122, AF7), PG14 (158, AF7)
USART10CKPE15 (77, AF11), PG15 (161, AF11)
CTSPG13 (157, AF4)
DEPG14 (158, AF4)
NSSPG13 (157, AF4)
RTSPG14 (158, AF4)
RXPE2 (1, AF4), PG11 (155, AF4)
TXPE3 (2, AF11), PG12 (156, AF4)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB0 (55, AF8), PB15 (88, AF8)
DEPB14 (87, AF8), PA15(JTDI) (139, AF8)
RTSPB14 (87, AF8), PA15(JTDI) (139, AF8)
RXPA1 (42, AF8), PA11 (130, AF6), PC11 (141, AF8), PD0 (143, AF8), PB8 (168, AF8)
TXPA0 (41, AF8), PA12 (131, AF6), PC10 (140, AF8), PD1 (144, AF8), PB9 (169, AF8)
UART5CTSPC9 (125, AF8)
DEPC8 (124, AF8)
RTSPC8 (124, AF8)
RXPB12 (85, AF14), PD2 (145, AF8), PB5 (164, AF14)
TXPB13 (86, AF14), PC12 (142, AF8), PB6 (165, AF14)
UART7CTSPF9 (29, AF7), PE10 (72, AF7)
DEPF8 (28, AF7), PE9 (69, AF7)
RTSPF8 (28, AF7), PE9 (69, AF7)
RXPF6 (26, AF7), PE7 (67, AF7), PA8 (127, AF11), PB3(JTDO/TRACESWO) (162, AF11)
TXPF7 (27, AF7), PE8 (68, AF7), PA15(JTDI) (139, AF11), PB4(NJTRST) (163, AF11)
UART8CTSPD14 (97, AF8)
DEPD15 (98, AF8)
RTSPD15 (98, AF8)
RXPJ9 (102, AF8), PE0 (170, AF8)
TXPJ8 (101, AF8), PE1 (171, AF8)
UART9CTSPD0 (143, AF11)
DEPD13 (96, AF11)
RTSPD13 (96, AF11)
RXPG0 (63, AF11), PD14 (97, AF11)
TXPG1 (66, AF11), PD15 (98, AF11)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (130, AF3)
DEPA12 (131, AF3)
RTSPA12 (131, AF3)
RXPA10 (129, AF3), PB7 (166, AF8)
TXPA9 (128, AF3), PB6 (165, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA6 (51, AF5), PG9 (153, AF5), PB4(NJTRST) (163, AF5)
MOSIPA7 (52, AF5), PD7 (150, AF5), PB5 (164, AF5)
NSSPA4 (49, AF5), PA15(JTDI) (139, AF5), PG10 (154, AF5)
SCKPA5 (50, AF5), PG11 (155, AF5), PB3(JTDO/TRACESWO) (162, AF5)
SPI2MISOPC2_C (36, AF5), PB14 (87, AF5)
MOSIPC1 (35, AF5), PC3_C (37, AF5), PB15 (88, AF5)
NSSPB12 (85, AF5), PA11 (130, AF5), PB4(NJTRST) (163, AF7), PB9 (169, AF5)
SCKPB10 (78, AF5), PB13 (86, AF5), PA9 (128, AF5), PA12 (131, AF5), PD3 (146, AF5)
SPI3MISOPC11 (141, AF6), PB4(NJTRST) (163, AF6)
MOSIPB2 (57, AF7), PC12 (142, AF6), PD6 (149, AF5), PB5 (164, AF7)
NSSPA4 (49, AF6), PA15(JTDI) (139, AF6)
SCKPC10 (140, AF6), PB3(JTDO/TRACESWO) (162, AF6)
SPI4MISOPE5 (4, AF5), PE13 (75, AF5)
MOSIPE6 (5, AF5), PE14 (76, AF5)
NSSPE4 (3, AF5), PE11 (73, AF5)
SCKPE2 (1, AF5), PE12 (74, AF5)
SPI5MISOPF8 (28, AF5), PJ11 (104, AF5)
MOSIPF9 (29, AF5), PF11 (58, AF5), PJ10 (103, AF5)
NSSPF6 (26, AF5), PK1 (108, AF5)
SCKPF7 (27, AF5), PK0 (107, AF5)
SPI6MISOPA6 (51, AF8), PG12 (156, AF5), PB4(NJTRST) (163, AF8)
MOSIPA7 (52, AF8), PG14 (158, AF5), PB5 (164, AF8)
NSSPA0 (41, AF5), PA4 (49, AF8), PG8 (118, AF5), PA15(JTDI) (139, AF7)
SCKPA5 (50, AF8), PC12 (142, AF5), PG13 (157, AF5), PB3(JTDO/TRACESWO) (162, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (125, AF5)
I2S1CKPA5 (50, AF5), PG11 (155, AF5), PB3(JTDO/TRACESWO) (162, AF5)
MCKPC4 (53, AF5)
SDIPA6 (51, AF5), PG9 (153, AF5), PB4(NJTRST) (163, AF5)
SDOPA7 (52, AF5), PD7 (150, AF5), PB5 (164, AF5)
WSPA4 (49, AF5), PA15(JTDI) (139, AF5), PG10 (154, AF5)
I2S2CKPB10 (78, AF5), PB13 (86, AF5), PA9 (128, AF5), PA12 (131, AF5), PD3 (146, AF5)
MCKPC6 (122, AF5)
SDIPC2_C (36, AF5), PB14 (87, AF5)
SDOPC1 (35, AF5), PC3_C (37, AF5), PB15 (88, AF5)
WSPB12 (85, AF5), PA11 (130, AF5), PB4(NJTRST) (163, AF7), PB9 (169, AF5)
I2S3CKPC10 (140, AF6), PB3(JTDO/TRACESWO) (162, AF6)
MCKPC7 (123, AF6)
SDIPC11 (141, AF6), PB4(NJTRST) (163, AF6)
SDOPB2 (57, AF7), PC12 (142, AF6), PD6 (149, AF5), PB5 (164, AF7)
WSPA4 (49, AF6), PA15(JTDI) (139, AF6)
I2S6CKPA5 (50, AF8), PC12 (142, AF5), PG13 (157, AF5), PB3(JTDO/TRACESWO) (162, AF8)
MCKPA3 (46, AF5)
SDIPA6 (51, AF8), PG12 (156, AF5), PB4(NJTRST) (163, AF8)
SDOPA7 (52, AF8), PG14 (158, AF5), PB5 (164, AF8)
WSPA0 (41, AF5), PA4 (49, AF8), PG8 (118, AF5), PA15(JTDI) (139, AF7)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (165, AF4), PB8 (168, AF4)
SDAPB7 (166, AF4), PB9 (169, AF4)
SMBAPB5 (164, AF4)
I2C2SCLPF1 (19, AF4), PB10 (78, AF4)
SDAPF0 (18, AF4), PB11 (79, AF4)
SMBAPF2 (20, AF4), PB12 (85, AF4)
I2C3SCLPA8 (127, AF4)
SDAPC9 (125, AF4)
SMBAPA9 (128, AF4)
I2C4SCLPF14 (61, AF4), PD12 (95, AF4), PB6 (165, AF6), PB8 (168, AF6)
SDAPF15 (62, AF4), PD13 (96, AF4), PB7 (166, AF6), PB9 (169, AF6)
SMBAPF13 (60, AF4), PD11 (94, AF4), PB5 (164, AF6), PB9 (169, AF11)
I2C5SCLPF1 (19, AF6), PA8 (127, AF6), PC11 (141, AF4)
SDAPF0 (18, AF6), PC9 (125, AF6), PC10 (140, AF4)
SMBAPF2 (20, AF6), PA9 (128, AF6), PC12 (142, AF4)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPA11 (130, AF9), PD0 (143, AF9), PB8 (168, AF9)
TXPA12 (131, AF9), PD1 (144, AF9), PB9 (169, AF9)
FDCAN2RXPB12 (85, AF9), PB5 (164, AF9)
TXPB13 (86, AF9), PB6 (165, AF9)
FDCAN3RXPF6 (26, AF2), PD12 (95, AF5), PG10 (154, AF2)
TXPF7 (27, AF2), PD13 (96, AF5), PG9 (153, AF2)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPA11 (130)
DPPA12 (131)
IDPA10 (129, AF10)
SOFPA8 (127, AF10)
ULPI_CKPA5 (50, AF10)
ULPI_D0PA3 (46, AF10)
ULPI_D1PB0 (55, AF10)
ULPI_D2PB1 (56, AF10)
ULPI_D3PB10 (78, AF10)
ULPI_D4PB11 (79, AF10)
ULPI_D5PB12 (85, AF10)
ULPI_D6PB13 (86, AF10)
ULPI_D7PB5 (164, AF10)
ULPI_DIRPC2_C (36, AF10)
ULPI_NXTPC3_C (37, AF10)
ULPI_STPPC0 (34, AF10)
VBUSPA9 (128)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCOLPA3 (46, AF11)
CRSPA0 (41, AF11)
CRS_DVPA7 (52, AF11)
MDCPC1 (35, AF11)
MDIOPA2 (43, AF11)
PPS_OUTPG8 (118, AF11), PB5 (164, AF11)
REF_CLKPA1 (42, AF11)
RX_CLKPA1 (42, AF11)
RX_DVPA7 (52, AF11)
RX_ERPB10 (78, AF11)
RXD0PC4 (53, AF11)
RXD1PC5 (54, AF11)
RXD2PB0 (55, AF11)
RXD3PB1 (56, AF11)
TX_CLKPC3_C (37, AF11)
TX_ENPB11 (79, AF11), PG11 (155, AF11)
TX_ERPB2 (57, AF11), PA9 (128, AF11)
TXD0PB12 (85, AF11), PG13 (157, AF11)
TXD1PB13 (86, AF11), PG12 (156, AF11), PG14 (158, AF11)
TXD2PC2_C (36, AF11)
TXD3PE2 (1, AF11), PB8 (168, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (169, AF7)
CKPC12 (142, AF12)
CKINPB8 (168, AF7)
CMDPD2 (145, AF12)
D0PB13 (86, AF12), PC8 (124, AF12)
D0DIRPC6 (122, AF8)
D1PC9 (125, AF12)
D2PC10 (140, AF12)
D3PC11 (141, AF12)
D4PB8 (168, AF12)
D5PB9 (169, AF12)
D6PC6 (122, AF12)
D7PC7 (123, AF12)
D123DIRPC7 (123, AF8)
SDMMC2CKPC1 (35, AF9), PD6 (149, AF11)
CKINPC4 (53, AF10)
CMDPA0 (41, AF9), PD7 (150, AF11)
D0PB14 (87, AF9), PG9 (153, AF11)
D1PB15 (88, AF9), PG10 (154, AF11)
D2PG11 (155, AF10), PB3(JTDO/TRACESWO) (162, AF9)
D3PG12 (156, AF10), PB4(NJTRST) (163, AF9)
D4PB8 (168, AF10)
D5PB9 (169, AF10)
D6PC6 (122, AF10), PG13 (157, AF10)
D7PC7 (123, AF10), PG14 (158, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (1, AF2)
CK2PE5 (4, AF2)
D1PE6 (5, AF2), PC1 (35, AF2), PB2 (57, AF2), PD6 (149, AF2)
D2PE4 (3, AF2)
D3PF10 (30, AF2), PC5 (54, AF2)
FS_APE4 (3, AF6)
FS_BPF9 (29, AF6)
MCLK_APE2 (1, AF6), PG7 (117, AF6)
MCLK_BPF7 (27, AF6)
SCK_APE5 (4, AF6)
SCK_BPF8 (28, AF6)
SD_APE6 (5, AF6), PC1 (35, AF6), PB2 (57, AF6), PD6 (149, AF6)
SD_BPE3 (2, AF6), PF6 (26, AF6)
SAI4CK1PE2 (1, AF10)
CK2PE5 (4, AF10)
D1PE6 (5, AF9), PC1 (35, AF1), PB2 (57, AF1), PD6 (149, AF1)
D2PE4 (3, AF10)
D3PF10 (30, AF10), PC5 (54, AF1)
FS_APE4 (3, AF8), PD12 (95, AF10)
FS_BPF9 (29, AF8), PC0 (34, AF8), PE13 (75, AF10), PA12 (131, AF8), PG9 (153, AF10)
MCLK_APE2 (1, AF8), PE0 (170, AF10)
MCLK_BPE6 (5, AF10), PF7 (27, AF8), PA1 (42, AF10), PE14 (76, AF10)
SCK_APE5 (4, AF8), PD13 (96, AF10)
SCK_BPF8 (28, AF8), PA2 (43, AF8), PE12 (74, AF10)
SD_APE6 (5, AF8), PC1 (35, AF8), PB2 (57, AF8), PD11 (94, AF10), PD6 (149, AF8)
SD_BPE3 (2, AF8), PF6 (26, AF8), PA0 (41, AF10), PF11 (58, AF10), PE11 (73, AF10), PG10 (154, AF10)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRX1IN0PD7 (150, AF9), PG11 (155, AF8)
IN1PD8 (89, AF9), PG12 (156, AF8)
IN2PC4 (53, AF9), PG8 (118, AF8)
IN3PC5 (54, AF9), PG9 (153, AF8)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15(JTDI) (139, AF4), PB6 (165, AF5)

SWPMI — интерфейс Single Wire Protocol

БлокСигналВыводы
SWPMI1IOPC6 (122)
RXPC8 (124, AF11), PC10 (140, AF11)
SUSPENDPC9 (125, AF11)
TXPC7 (123, AF11)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PF11 (58), PE11 (73), PB11 (79), PD11 (94), PJ11 (104), PA11 (130), PC11 (141), PG11 (155)
EXTI15PC15-OSC32_OUT (11), PF15 (62), PE15 (77), PB15 (88), PD15 (98), PA15(JTDI) (139), PG15 (161)
INN2PF12 (59)
INN3PA7 (52)
INN4PC5 (54)
INN5PB0 (55)
INN10PC1 (35)
INN16PA1 (42)
INN18PA5 (50)
INP2PF11 (58)
INP3PA6 (51)
INP4PC4 (53)
INP5PB1 (56)
INP6PF12 (59)
INP7PA7 (52)
INP8PC5 (54)
INP9PB0 (55)
INP10PC0 (34)
INP11PC1 (35)
INP14PA2 (43)
INP15PA3 (46)
INP16PA0 (41)
INP17PA1 (42)
INP18PA4 (49)
INP19PA5 (50)
ADC2EXTI11PF11 (58), PE11 (73), PB11 (79), PD11 (94), PJ11 (104), PA11 (130), PC11 (141), PG11 (155)
EXTI15PC15-OSC32_OUT (11), PF15 (62), PE15 (77), PB15 (88), PD15 (98), PA15(JTDI) (139), PG15 (161)
INN2PF14 (61)
INN3PA7 (52)
INN4PC5 (54)
INN5PB0 (55)
INN10PC1 (35)
INN18PA5 (50)
INP2PF13 (60)
INP3PA6 (51)
INP4PC4 (53)
INP5PB1 (56)
INP6PF14 (61)
INP7PA7 (52)
INP8PC5 (54)
INP9PB0 (55)
INP10PC0 (34)
INP11PC1 (35)
INP14PA2 (43)
INP15PA3 (46)
INP18PA4 (49)
INP19PA5 (50)
ADC3EXTI11PF11 (58), PE11 (73), PB11 (79), PD11 (94), PJ11 (104), PA11 (130), PC11 (141), PG11 (155)
EXTI15PC15-OSC32_OUT (11), PF15 (62), PE15 (77), PB15 (88), PD15 (98), PA15(JTDI) (139), PG15 (161)
INN1PC2_C (36)
INN2PF10 (30)
INN3PF8 (28)
INN4PF6 (26)
INN5PF4 (22)
INN10PC1 (35)
INP0PC2_C (36)
INP1PC3_C (37)
INP2PF9 (29)
INP3PF7 (27)
INP4PF5 (23)
INP5PF3 (21)
INP6PF10 (30)
INP7PF8 (28)
INP8PF6 (26)
INP9PF4 (22)
INP10PC0 (34)
INP11PC1 (35)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PF9 (29), PE9 (69), PD9 (90), PJ9 (102), PC9 (125), PA9 (128), PG9 (153), PB9 (169)
OUT1PA4 (49)
OUT2PA5 (50)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPC4 (53), PB1 (56)
INPPB0 (55), PB2 (57)
OUTPC5 (54, AF13), PE12 (74, AF13)
COMP2INMPE7 (67), PE10 (72)
INPPE9 (69), PE11 (73)
OUTPE8 (68, AF13), PE13 (75, AF13)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA7 (52), PC5 (54)
VINPPB0 (55)
VOUTPC4 (53)
OPAMP2VINMPG1 (66), PE8 (68)
VINPPE9 (69)
VOUTPE7 (67)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (39)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (51, AF1), PE15 (77, AF1), PB12 (85, AF1), PK2 (109, AF1)
BKIN_COMP1PA6 (51, AF12), PE15 (77, AF13), PB12 (85, AF13), PK2 (109, AF11)
BKIN_COMP2PA6 (51, AF12), PE15 (77, AF13), PB12 (85, AF13), PK2 (109, AF11)
BKIN2PE6 (5, AF1), PG4 (114, AF1), PA12 (131, AF12)
BKIN2_COMP1PE6 (5, AF11), PG4 (114, AF11)
BKIN2_COMP2PE6 (5, AF11), PG4 (114, AF11)
CH1PE9 (69, AF1), PK1 (108, AF1), PA8 (127, AF1)
CH1NPA7 (52, AF1), PE8 (68, AF1), PB13 (86, AF1), PK0 (107, AF1)
CH2PE11 (73, AF1), PJ11 (104, AF1), PA9 (128, AF1)
CH2NPB0 (55, AF1), PE10 (72, AF1), PB14 (87, AF1), PJ10 (103, AF1)
CH3PE13 (75, AF1), PJ9 (102, AF1), PA10 (129, AF1)
CH3NPB1 (56, AF1), PE12 (74, AF1), PB15 (88, AF1), PJ8 (101, AF1)
CH4PE14 (76, AF1), PA11 (130, AF1)
ETRPE7 (67, AF1), PG5 (115, AF1), PA12 (131, AF1)
TIM2CH1PA0 (41, AF1), PA5 (50, AF1), PA15(JTDI) (139, AF1)
CH2PA1 (42, AF1), PB3(JTDO/TRACESWO) (162, AF1)
CH3PA2 (43, AF1), PB10 (78, AF1)
CH4PA3 (46, AF1), PB11 (79, AF1)
ETRPA0 (41, AF1), PA5 (50, AF1), PA15(JTDI) (139, AF1)
TIM3CH1PA6 (51, AF2), PC6 (122, AF2), PB4(NJTRST) (163, AF2)
CH2PA7 (52, AF2), PC7 (123, AF2), PB5 (164, AF2)
CH3PB0 (55, AF2), PC8 (124, AF2)
CH4PB1 (56, AF2), PC9 (125, AF2)
ETRPD2 (145, AF2)
TIM4CH1PD12 (95, AF2), PB6 (165, AF2)
CH2PD13 (96, AF2), PB7 (166, AF2)
CH3PD14 (97, AF2), PB8 (168, AF2)
CH4PD15 (98, AF2), PB9 (169, AF2)
ETRPE0 (170, AF2)
TIM5CH1PA0 (41, AF2)
CH2PA1 (42, AF2)
CH3PA2 (43, AF2)
CH4PA3 (46, AF2)
ETRPA4 (49, AF2)
TIM8BKINPA6 (51, AF3), PK2 (109, AF3), PG2 (110, AF3)
BKIN_COMP1PA6 (51, AF10), PK2 (109, AF10), PG2 (110, AF11)
BKIN_COMP2PA6 (51, AF10), PK2 (109, AF10), PG2 (110, AF11)
BKIN2PG3 (111, AF3), PA8 (127, AF3)
BKIN2_COMP1PG3 (111, AF11), PA8 (127, AF12)
BKIN2_COMP2PG3 (111, AF11), PA8 (127, AF12)
CH1PJ8 (101, AF3), PC6 (122, AF3)
CH1NPA5 (50, AF3), PA7 (52, AF3), PJ9 (102, AF3)
CH2PJ10 (103, AF3), PC7 (123, AF3)
CH2NPB0 (55, AF3), PB14 (87, AF3), PJ11 (104, AF3)
CH3PK0 (107, AF3), PC8 (124, AF3)
CH3NPB1 (56, AF3), PB15 (88, AF3), PK1 (108, AF3)
CH4PC9 (125, AF3)
ETRPA0 (41, AF3), PG8 (118, AF3)
TIM12CH1PB14 (87, AF2)
CH2PB15 (88, AF2)
TIM13CH1PF8 (28, AF9), PA6 (51, AF9)
TIM14CH1PF9 (29, AF9), PA7 (52, AF9)
TIM15BKINPE3 (2, AF4), PA0 (41, AF4), PD2 (145, AF4)
CH1PE5 (4, AF4), PA2 (43, AF4), PC12 (142, AF2)
CH1NPE4 (3, AF4), PA1 (42, AF4)
CH2PE6 (5, AF4), PA3 (46, AF4)
TIM16BKINPF10 (30, AF1), PB4(NJTRST) (163, AF1)
CH1PF6 (26, AF1), PB8 (168, AF1)
CH1NPF8 (28, AF1), PB6 (165, AF1)
TIM17BKINPG6 (116, AF1), PB5 (164, AF1)
CH1PF7 (27, AF1), PB9 (169, AF1)
CH1NPF9 (29, AF1), PB7 (166, AF1)
TIM23CH1PF0 (18, AF13), PF6 (26, AF13), PG12 (156, AF13)
CH2PF1 (19, AF13), PF7 (27, AF13), PG13 (157, AF13)
CH3PF2 (20, AF13), PF8 (28, AF13), PG14 (158, AF13)
CH4PF3 (21, AF13), PF9 (29, AF13)
ETRPB2 (57, AF13), PG3 (111, AF13)
TIM24CH1PF11 (58, AF14)
CH2PF12 (59, AF14)
CH3PF13 (60, AF14)
CH4PF14 (61, AF14)
ETRPG2 (110, AF14), PB3(JTDO/TRACESWO) (162, AF14)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPG14 (158, AF1), PE0 (170, AF1)
IN1PD12 (95, AF1), PG12 (156, AF1)
IN2PG11 (155, AF1), PE1 (171, AF1)
OUTPD13 (96, AF1), PG13 (157, AF1)
LPTIM2ETRPB11 (79, AF3), PE0 (170, AF4)
IN1PB10 (78, AF3), PD12 (95, AF3)
IN2PD11 (94, AF3)
OUTPB13 (86, AF3)
LPTIM3OUTPA1 (42, AF3)
LPTIM4OUTPA2 (43, AF3)
LPTIM5OUTPA3 (46, AF3)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT_ALARMPC13 (9), PB2 (57, AF0)
OUT_CALIBPC13 (9), PB2 (57, AF0)
REFINPB15 (88, AF0)
TSPC13 (9)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (18, AF12)
A1PF1 (19, AF12)
A2PF2 (20, AF12)
A3PF3 (21, AF12)
A4PF4 (22, AF12)
A5PF5 (23, AF12)
A6PF12 (59, AF12)
A7PF13 (60, AF12)
A8PF14 (61, AF12)
A9PF15 (62, AF12)
A10PG0 (63, AF12)
A11PG1 (66, AF12)
A12PG2 (110, AF12)
A13PG3 (111, AF12)
A14PG4 (114, AF12)
A15PG5 (115, AF12)
A16PD11 (94, AF12)
A17PD12 (95, AF12)
A18PD13 (96, AF12)
A19PE3 (2, AF12), PA0 (41, AF12)
A20PE4 (3, AF12)
A21PE5 (4, AF12)
A22PE6 (5, AF12), PC4 (53, AF1)
A23PE2 (1, AF12)
A24PG13 (157, AF12)
A25PC0 (34, AF9), PG14 (158, AF12)
ALEPD12 (95, AF12)
BA0PG4 (114, AF12)
BA1PG5 (115, AF12)
CLEPD11 (94, AF12)
CLKPD3 (146, AF12)
D0PD14 (97, AF12)
D1PD15 (98, AF12)
D2PD0 (143, AF12)
D3PD1 (144, AF12)
D4PE7 (67, AF12)
D5PE8 (68, AF12)
D6PE9 (69, AF12), PC12 (142, AF1)
D7PE10 (72, AF12), PD2 (145, AF1)
D8PA4 (49, AF12), PE11 (73, AF12)
D9PA5 (50, AF12), PE12 (74, AF12)
D10PE13 (75, AF12), PB14 (87, AF12)
D11PE14 (76, AF12), PB15 (88, AF12)
D12PC0 (34, AF1), PE15 (77, AF12)
D13PD8 (89, AF12)
D14PD9 (90, AF12)
D15PD10 (91, AF12)
DA0PD14 (97, AF12)
DA1PD15 (98, AF12)
DA2PD0 (143, AF12)
DA3PD1 (144, AF12)
DA4PE7 (67, AF12)
DA5PE8 (68, AF12)
DA6PE9 (69, AF12), PC12 (142, AF1)
DA7PE10 (72, AF12), PD2 (145, AF1)
DA8PA4 (49, AF12), PE11 (73, AF12)
DA9PA5 (50, AF12), PE12 (74, AF12)
DA10PE13 (75, AF12), PB14 (87, AF12)
DA11PE14 (76, AF12), PB15 (88, AF12)
DA12PC0 (34, AF1), PE15 (77, AF12)
DA13PD8 (89, AF12)
DA14PD9 (90, AF12)
DA15PD10 (91, AF12)
INTPG7 (117, AF12), PC8 (124, AF10)
NBL0PE0 (170, AF12)
NBL1PE1 (171, AF12)
NCEPC8 (124, AF9), PG9 (153, AF12)
NE1PC7 (123, AF9), PD7 (150, AF12)
NE2PC8 (124, AF9), PG9 (153, AF12)
NE3PG6 (116, AF12), PG10 (154, AF12)
NE4PG12 (156, AF12)
NLPB7 (166, AF12)
NOEPD4 (147, AF12)
NWAITPC6 (122, AF9), PD6 (149, AF12)
NWEPD5 (148, AF12)
SDCKE0PC3_C (37, AF12), PC5 (54, AF12)
SDCKE1PB5 (164, AF12)
SDCLKPG8 (118, AF12)
SDNCASPG15 (161, AF12)
SDNE0PC2_C (36, AF12), PC4 (53, AF12)
SDNE1PB6 (165, AF12)
SDNRASPF11 (58, AF12)
SDNWEPC0 (34, AF12), PA7 (52, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PC6 (122, AF13), PA9 (128, AF13)
D1PC7 (123, AF13), PA10 (129, AF13)
D2PB13 (86, AF13), PC8 (124, AF13), PG10 (154, AF13), PE0 (170, AF13)
D3PC9 (125, AF13), PG11 (155, AF13), PE1 (171, AF13)
D4PE4 (3, AF13), PC11 (141, AF13)
D5PD3 (146, AF13), PB6 (165, AF13)
D6PE5 (4, AF13), PB8 (168, AF13)
D7PE6 (5, AF13), PB9 (169, AF13)
D8PC10 (140, AF13)
D9PC12 (142, AF13)
D10PD6 (149, AF13), PB5 (164, AF13)
D11PF10 (30, AF13), PD2 (145, AF13)
D12PF11 (58, AF13), PD12 (95, AF13), PG6 (116, AF13)
D13PD13 (96, AF13), PG7 (117, AF13), PG15 (161, AF13)
HSYNCPA4 (49, AF13)
PIXCLKPA6 (51, AF13)
VSYNCPG9 (153, AF13), PB7 (166, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PC6 (122, AF13), PA9 (128, AF13)
D1PC7 (123, AF13), PA10 (129, AF13)
D2PB13 (86, AF13), PC8 (124, AF13), PG10 (154, AF13), PE0 (170, AF13)
D3PC9 (125, AF13), PG11 (155, AF13), PE1 (171, AF13)
D4PE4 (3, AF13), PC11 (141, AF13)
D5PD3 (146, AF13), PB6 (165, AF13)
D6PE5 (4, AF13), PB8 (168, AF13)
D7PE6 (5, AF13), PB9 (169, AF13)
D8PC10 (140, AF13)
D9PC12 (142, AF13)
D10PD6 (149, AF13), PB5 (164, AF13)
D11PF10 (30, AF13), PD2 (145, AF13)
D12PF11 (58, AF13), PD12 (95, AF13), PG6 (116, AF13)
D13PD13 (96, AF13), PG7 (117, AF13), PG15 (161, AF13)
D14PA5 (50, AF13)
D15PF10 (30, AF4), PC5 (54, AF4)
DEPA4 (49, AF13)
PDCKPA6 (51, AF13)
RDYPG9 (153, AF13), PB7 (166, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PE4 (3, AF14), PG14 (158, AF14)
B1PA10 (129, AF14), PC10 (140, AF10), PD0 (143, AF14), PG12 (156, AF14)
B2PA3 (46, AF9), PC9 (125, AF14), PD2 (145, AF14), PD6 (149, AF14), PG10 (154, AF14)
B3PD10 (91, AF14), PA8 (127, AF13), PG11 (155, AF14)
B4PE12 (74, AF14), PA10 (129, AF12), PC11 (141, AF14), PG12 (156, AF9)
B5PA3 (46, AF14), PB5 (164, AF3)
B6PA15(JTDI) (139, AF14), PB8 (168, AF14)
B7PD2 (145, AF9), PB9 (169, AF14)
CLKPE14 (76, AF14), PB14 (87, AF14), PG7 (117, AF14)
DEPF10 (30, AF14), PC5 (54, AF14), PE13 (75, AF14)
G0PE5 (4, AF14), PB1 (56, AF14)
G1PE6 (5, AF14), PB0 (55, AF14), PJ8 (101, AF14)
G2PC0 (34, AF11), PA6 (51, AF14), PJ9 (102, AF14)
G3PE11 (73, AF14), PJ10 (103, AF14), PC9 (125, AF10), PG10 (154, AF9)
G4PB10 (78, AF14), PJ11 (104, AF14)
G5PC1 (35, AF14), PB11 (79, AF14), PK0 (107, AF14)
G6PK1 (108, AF14), PC7 (123, AF14)
G7PB15 (88, AF14), PK2 (109, AF14), PG8 (118, AF14), PD3 (146, AF14)
HSYNCPC6 (122, AF14)
R0PG13 (157, AF14), PE0 (170, AF14)
R1PA2 (43, AF14)
R2PA1 (42, AF14), PC10 (140, AF14)
R3PB0 (55, AF9), PA15(JTDI) (139, AF9)
R4PA5 (50, AF14), PA11 (130, AF14)
R5PC0 (34, AF14), PA9 (128, AF14), PA12 (131, AF14)
R6PB1 (56, AF9), PA8 (127, AF14), PC12 (142, AF14), PE1 (171, AF14)
R7PC4 (53, AF14), PE15 (77, AF14), PG6 (116, AF14)
VSYNCPA4 (49, AF14), PA7 (52, AF14)

DFSDM — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
DFSDM1CKIN0PC0 (34, AF3)
CKIN1PC2_C (36, AF3), PB2 (57, AF4), PB13 (86, AF6), PD7 (150, AF6)
CKIN2PC4 (53, AF3), PE8 (68, AF3), PB15 (88, AF6)
CKIN3PE5 (4, AF3), PD8 (89, AF3), PC6 (122, AF4)
CKIN4PC1 (35, AF4), PE11 (73, AF3), PD6 (149, AF3)
CKIN5PE13 (75, AF3), PC10 (140, AF3), PB7 (166, AF11)
CKIN6PF14 (61, AF3), PD0 (143, AF3)
CKIN7PB11 (79, AF6), PB8 (168, AF3)
CKOUTPC2_C (36, AF6), PB0 (55, AF6), PE9 (69, AF3), PD10 (91, AF3), PD3 (146, AF3)
DATIN0PC1 (35, AF3)
DATIN1PC3_C (37, AF3), PB1 (56, AF6), PB12 (85, AF6), PD6 (149, AF4)
DATIN2PC5 (54, AF3), PE7 (67, AF3), PB14 (87, AF6)
DATIN3PE4 (3, AF3), PD9 (90, AF3), PC7 (123, AF4)
DATIN4PC0 (34, AF6), PE10 (72, AF3), PD7 (150, AF3)
DATIN5PE12 (74, AF3), PC11 (141, AF3), PB6 (165, AF11)
DATIN6PF13 (60, AF3), PD1 (144, AF3)
DATIN7PB10 (78, AF6), PB9 (169, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14(JTCK/SWCLK) (138, AF0)
JTDIPA15(JTDI) (139, AF0)
JTDO-SWOPB3(JTDO/TRACESWO) (162, AF0)
JTMS-SWDIOPA13(JTMS/SWDIO) (132, AF0)
TRACECLKPE2 (1, AF0)
TRACED0PE3 (2, AF0), PC1 (35, AF0), PG13 (157, AF0)
TRACED1PE4 (3, AF0), PC8 (124, AF0), PG14 (158, AF0)
TRACED2PE5 (4, AF0), PD2 (145, AF0)
TRACED3PE6 (5, AF0), PC12 (142, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (127, AF0)
MCO_2PC9 (125, AF0)
OSC_INPH0-OSC_IN (31)
OSC_OUTPH1-OSC_OUT (32)
OSC32_INPC14-OSC32_IN (10)
OSC32_OUTPC15-OSC32_OUT (11)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC3_C (37)
PWR_CSTOPPC2_C (36)
PWR_WKUP1PA0 (41)
PWR_WKUP2PA2 (43)
PWR_WKUP4PC13 (9)
PWR_WKUP6PC1 (35)
RTC_TAMP1PC13 (9)
RTC_TAMP3PC1 (35)

Блоки без собственных выводов: USB_OTG_HS1 (USB On-The-Go High Speed), OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), HDMI_CEC (шина управления HDMI), TIM6 (таймер), TIM7 (таймер), IWDG1 (независимый сторожевой таймер), WWDG1 (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 176 выводов корпуса LQFP176 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ВыводИмяТипФункции
1PE2ввод-выводDEBUG_TRACECLK (AF0), ETH_TXD3 (AF11), FMC_A23 (AF12), OCTOSPIM_P1_IO2 (AF9), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SAI4_CK1 (AF10), SAI4_MCLK_A (AF8), SPI4_SCK (AF5), USART10_RX (AF4)
2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), SAI4_SD_B (AF8), TIM15_BKIN (AF4), USART10_TX (AF11)
3PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), DFSDM1_DATIN3 (AF3), FMC_A20 (AF12), LTDC_B0 (AF14), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SAI4_D2 (AF10), SAI4_FS_A (AF8), SPI4_NSS (AF5), TIM15_CH1N (AF4)
4PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), DFSDM1_CKIN3 (AF3), FMC_A21 (AF12), LTDC_G0 (AF14), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SAI4_CK2 (AF10), SAI4_SCK_A (AF8), SPI4_MISO (AF5), TIM15_CH1 (AF4)
5PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF14), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF9), SAI4_MCLK_B (AF10), SAI4_SD_A (AF8), SPI4_MOSI (AF5), TIM15_CH2 (AF4), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
6VSSпитание—
7VDDпитание—
8VBATпитание—
9PC13ввод-выводPWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS
10PC14-OSC32_INввод-выводRCC_OSC32_IN
11PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
12VSSпитание—
13VDDпитание—
14VSSSMPSпитание—
15VLXSMPSпитание—
16VDDSMPSпитание—
17VFBSMPSпитание—
18PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), I2C5_SDA (AF6), OCTOSPIM_P2_IO0 (AF9), TIM23_CH1 (AF13)
19PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), I2C5_SCL (AF6), OCTOSPIM_P2_IO1 (AF9), TIM23_CH2 (AF13)
20PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), I2C5_SMBA (AF6), OCTOSPIM_P2_IO2 (AF9), TIM23_CH3 (AF13)
21PF3ввод-выводADC3_INP5, FMC_A3 (AF12), OCTOSPIM_P2_IO3 (AF9), TIM23_CH4 (AF13)
22PF4ввод-выводADC3_INN5, ADC3_INP9, FMC_A4 (AF12), OCTOSPIM_P2_CLK (AF9)
23PF5ввод-выводADC3_INP4, FMC_A5 (AF12), OCTOSPIM_P2_NCLK (AF9)
24VSSпитание—
25VDDпитание—
26PF6ввод-выводADC3_INN4, ADC3_INP8, FDCAN3_RX (AF2), OCTOSPIM_P1_IO3 (AF10), SAI1_SD_B (AF6), SAI4_SD_B (AF8), SPI5_NSS (AF5), TIM16_CH1 (AF1), TIM23_CH1 (AF13), UART7_RX (AF7)
27PF7ввод-выводADC3_INP3, FDCAN3_TX (AF2), OCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF6), SAI4_MCLK_B (AF8), SPI5_SCK (AF5), TIM17_CH1 (AF1), TIM23_CH2 (AF13), UART7_TX (AF7)
28PF8ввод-выводADC3_INN3, ADC3_INP7, OCTOSPIM_P1_IO0 (AF10), SAI1_SCK_B (AF6), SAI4_SCK_B (AF8), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), TIM23_CH3 (AF13), UART7_DE (AF7), UART7_RTS (AF7)
29PF9ввод-выводADC3_INP2, DAC1_EXTI9, OCTOSPIM_P1_IO1 (AF10), SAI1_FS_B (AF6), SAI4_FS_B (AF8), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), TIM23_CH4 (AF13), UART7_CTS (AF7)
30PF10ввод-выводADC3_INN2, ADC3_INP6, DCMI_D11 (AF13), LTDC_DE (AF14), OCTOSPIM_P1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), SAI4_D3 (AF10), TIM16_BKIN (AF1)
31PH0-OSC_INввод-выводRCC_OSC_IN
32PH1-OSC_OUTввод-выводRCC_OSC_OUT
33NRSTсброс—
34PC0ввод-выводADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0 (AF3), DFSDM1_DATIN4 (AF6), FMC_A25 (AF9), FMC_D12 (AF1), FMC_DA12 (AF1), FMC_SDNWE (AF12), LTDC_G2 (AF11), LTDC_R5 (AF14), SAI4_FS_B (AF8), USB_OTG_HS_ULPI_STP (AF10)
35PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0 (AF0), DFSDM1_CKIN4 (AF4), DFSDM1_DATIN0 (AF3), ETH_MDC (AF11), I2S2_SDO (AF5), LTDC_G5 (AF14), MDIOS_MDC (AF12), OCTOSPIM_P1_IO4 (AF10), PWR_WKUP6, RTC_TAMP3, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF1), SAI4_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5)
36PC2_Cввод-выводADC3_INN1, ADC3_INP0, DFSDM1_CKIN1 (AF3), DFSDM1_CKOUT (AF6), ETH_TXD2 (AF11), FMC_SDNE0 (AF12), I2S2_SDI (AF5), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF4), PWR_CSTOP, SPI2_MISO (AF5), USB_OTG_HS_ULPI_DIR (AF10)
37PC3_Cввод-выводADC3_INP1, DFSDM1_DATIN1 (AF3), ETH_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF4), PWR_CSLEEP, SPI2_MOSI (AF5), USB_OTG_HS_ULPI_NXT (AF10)
38VSSAпитание—
39VREF+служебныйVREFBUF_OUT
40VDDAпитание—
41PA0ввод-выводADC1_INP16, ETH_CRS (AF11), FMC_A19 (AF12), I2S6_WS (AF5), PWR_WKUP1, SAI4_SD_B (AF10), SDMMC2_CMD (AF9), SPI6_NSS (AF5), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
42PA1ввод-выводADC1_INN16, ADC1_INP17, ETH_REF_CLK (AF11), ETH_RX_CLK (AF11), LPTIM3_OUT (AF3), LTDC_R2 (AF14), OCTOSPIM_P1_DQS (AF12), OCTOSPIM_P1_IO3 (AF9), SAI4_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
43PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM4_OUT (AF3), LTDC_R1 (AF14), MDIOS_MDIO (AF12), OCTOSPIM_P1_IO0 (AF6), PWR_WKUP2, SAI4_SCK_B (AF8), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
44VDDпитание—
45VSSпитание—
46PA3ввод-выводADC1_INP15, ADC2_INP15, ETH_COL (AF11), I2S6_MCK (AF5), LPTIM5_OUT (AF3), LTDC_B2 (AF9), LTDC_B5 (AF14), OCTOSPIM_P1_CLK (AF12), OCTOSPIM_P1_IO2 (AF6), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7), USB_OTG_HS_ULPI_D0 (AF10)
47VSSпитание—
48VDDпитание—
49PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), FMC_D8 (AF12), FMC_DA8 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF8), LTDC_VSYNC (AF14), PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
50PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, FMC_D9 (AF12), FMC_DA9 (AF12), I2S1_CK (AF5), I2S6_CK (AF8), LTDC_R4 (AF14), PSSI_D14 (AF13), PWR_NDSTOP2, SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM8_CH1N (AF3), USB_OTG_HS_ULPI_CK (AF10)
51PA6ввод-выводADC1_INP3, ADC2_INP3, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), I2S6_SDI (AF8), LTDC_G2 (AF14), MDIOS_MDC (AF11), OCTOSPIM_P1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF12), TIM1_BKIN_COMP2 (AF12), TIM3_CH1 (AF2), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
52PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV (AF11), ETH_RX_DV (AF11), FMC_SDNWE (AF12), I2S1_SDO (AF5), I2S6_SDO (AF8), LTDC_VSYNC (AF14), OCTOSPIM_P1_IO2 (AF10), OPAMP1_VINM, SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3)
53PC4ввод-выводADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2 (AF3), ETH_RXD0 (AF11), FMC_A22 (AF1), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LTDC_R7 (AF14), OPAMP1_VOUT, SDMMC2_CKIN (AF10), SPDIFRX1_IN2 (AF9)
54PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT (AF13), DFSDM1_DATIN2 (AF3), ETH_RXD1 (AF11), FMC_SDCKE0 (AF12), LTDC_DE (AF14), OCTOSPIM_P1_DQS (AF10), OPAMP1_VINM, PSSI_D15 (AF4), SAI1_D3 (AF2), SAI4_D3 (AF1), SPDIFRX1_IN3 (AF9)
55PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT (AF6), ETH_RXD2 (AF11), LTDC_G1 (AF14), LTDC_R3 (AF9), OCTOSPIM_P1_IO1 (AF4), OPAMP1_VINP, TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USB_OTG_HS_ULPI_D1 (AF10)
56PB1ввод-выводADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1 (AF6), ETH_RXD3 (AF11), LTDC_G0 (AF14), LTDC_R6 (AF9), OCTOSPIM_P1_IO0 (AF4), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USB_OTG_HS_ULPI_D2 (AF10)
57PB2ввод-выводCOMP1_INP, DFSDM1_CKIN1 (AF4), ETH_TX_ER (AF11), I2S3_SDO (AF7), OCTOSPIM_P1_CLK (AF9), OCTOSPIM_P1_DQS (AF10), RTC_OUT_ALARM (AF0), RTC_OUT_CALIB (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF1), SAI4_SD_A (AF8), SPI3_MOSI (AF7), TIM23_ETR (AF13)
58PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), OCTOSPIM_P1_NCLK (AF9), PSSI_D12 (AF13), SAI4_SD_B (AF10), SPI5_MOSI (AF5), TIM24_CH1 (AF14)
59PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), OCTOSPIM_P2_DQS (AF9), TIM24_CH2 (AF14)
60PF13ввод-выводADC2_INP2, DFSDM1_DATIN6 (AF3), FMC_A7 (AF12), I2C4_SMBA (AF4), TIM24_CH3 (AF14)
61PF14ввод-выводADC2_INN2, ADC2_INP6, DFSDM1_CKIN6 (AF3), FMC_A8 (AF12), I2C4_SCL (AF4), TIM24_CH4 (AF14)
62PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4)
63PG0ввод-выводFMC_A10 (AF12), OCTOSPIM_P2_IO4 (AF9), UART9_RX (AF11)
64VSSпитание—
65VDDпитание—
66PG1ввод-выводFMC_A11 (AF12), OCTOSPIM_P2_IO5 (AF9), OPAMP2_VINM, UART9_TX (AF11)
67PE7ввод-выводCOMP2_INM, DFSDM1_DATIN2 (AF3), FMC_D4 (AF12), FMC_DA4 (AF12), OCTOSPIM_P1_IO4 (AF10), OPAMP2_VOUT, TIM1_ETR (AF1), UART7_RX (AF7)
68PE8ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN2 (AF3), FMC_D5 (AF12), FMC_DA5 (AF12), OCTOSPIM_P1_IO5 (AF10), OPAMP2_VINM, TIM1_CH1N (AF1), UART7_TX (AF7)
69PE9ввод-выводCOMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT (AF3), FMC_D6 (AF12), FMC_DA6 (AF12), OCTOSPIM_P1_IO6 (AF10), OPAMP2_VINP, TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
70VSSпитание—
71VDDпитание—
72PE10ввод-выводCOMP2_INM, DFSDM1_DATIN4 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), OCTOSPIM_P1_IO7 (AF10), TIM1_CH2N (AF1), UART7_CTS (AF7)
73PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4 (AF3), FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G3 (AF14), OCTOSPIM_P1_NCS (AF11), SAI4_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
74PE12ввод-выводCOMP1_OUT (AF13), DFSDM1_DATIN5 (AF3), FMC_D9 (AF12), FMC_DA9 (AF12), LTDC_B4 (AF14), SAI4_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
75PE13ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN5 (AF3), FMC_D10 (AF12), FMC_DA10 (AF12), LTDC_DE (AF14), SAI4_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
76PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), LTDC_CLK (AF14), SAI4_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
77PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R7 (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), USART10_CK (AF11)
78PB10ввод-выводDFSDM1_DATIN7 (AF6), ETH_RX_ER (AF11), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), LTDC_G4 (AF14), OCTOSPIM_P1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7), USB_OTG_HS_ULPI_D3 (AF10)
79PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7 (AF6), ETH_TX_EN (AF11), I2C2_SDA (AF4), LPTIM2_ETR (AF3), LTDC_G5 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7), USB_OTG_HS_ULPI_D4 (AF10)
80VCAPпитание—
81VSSпитание—
82VDDLDOпитание—
83VSSпитание—
84VDDпитание—
85PB12ввод-выводDFSDM1_DATIN1 (AF6), ETH_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SMBA (AF4), I2S2_WS (AF5), OCTOSPIM_P1_IO0 (AF12), OCTOSPIM_P1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), UART5_RX (AF14), USART3_CK (AF7), USB_OTG_HS_ULPI_D5 (AF10)
86PB13ввод-выводDCMI_D2 (AF13), DFSDM1_CKIN1 (AF6), ETH_TXD1 (AF11), FDCAN2_TX (AF9), I2S2_CK (AF5), LPTIM2_OUT (AF3), OCTOSPIM_P1_IO2 (AF4), PSSI_D2 (AF13), SDMMC1_D0 (AF12), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), USART3_CTS (AF7), USART3_NSS (AF7), USB_OTG_HS_ULPI_D6 (AF10)
87PB14ввод-выводDFSDM1_DATIN2 (AF6), FMC_D10 (AF12), FMC_DA10 (AF12), I2S2_SDI (AF5), LTDC_CLK (AF14), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
88PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2 (AF6), FMC_D11 (AF12), FMC_DA11 (AF12), I2S2_SDO (AF5), LTDC_G7 (AF14), RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), USART1_RX (AF4)
89PD8ввод-выводDFSDM1_CKIN3 (AF3), FMC_D13 (AF12), FMC_DA13 (AF12), SPDIFRX1_IN1 (AF9), USART3_TX (AF7)
90PD9ввод-выводDAC1_EXTI9, DFSDM1_DATIN3 (AF3), FMC_D14 (AF12), FMC_DA14 (AF12), USART3_RX (AF7)
91PD10ввод-выводDFSDM1_CKOUT (AF3), FMC_D15 (AF12), FMC_DA15 (AF12), LTDC_B3 (AF14), USART3_CK (AF7)
92VDDпитание—
93VSSпитание—
94PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), OCTOSPIM_P1_IO0 (AF9), SAI4_SD_A (AF10), USART3_CTS (AF7), USART3_NSS (AF7)
95PD12ввод-выводDCMI_D12 (AF13), FDCAN3_RX (AF5), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), OCTOSPIM_P1_IO1 (AF9), PSSI_D12 (AF13), SAI4_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
96PD13ввод-выводDCMI_D13 (AF13), FDCAN3_TX (AF5), FMC_A18 (AF12), I2C4_SDA (AF4), LPTIM1_OUT (AF1), OCTOSPIM_P1_IO3 (AF9), PSSI_D13 (AF13), SAI4_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
97PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
98PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
99VDDпитание—
100VSSпитание—
101PJ8ввод-выводLTDC_G1 (AF14), TIM1_CH3N (AF1), TIM8_CH1 (AF3), UART8_TX (AF8)
102PJ9ввод-выводDAC1_EXTI9, LTDC_G2 (AF14), TIM1_CH3 (AF1), TIM8_CH1N (AF3), UART8_RX (AF8)
103PJ10ввод-выводLTDC_G3 (AF14), SPI5_MOSI (AF5), TIM1_CH2N (AF1), TIM8_CH2 (AF3)
104PJ11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LTDC_G4 (AF14), SPI5_MISO (AF5), TIM1_CH2 (AF1), TIM8_CH2N (AF3)
105VDDпитание—
106VSSпитание—
107PK0ввод-выводLTDC_G5 (AF14), SPI5_SCK (AF5), TIM1_CH1N (AF1), TIM8_CH3 (AF3)
108PK1ввод-выводLTDC_G6 (AF14), SPI5_NSS (AF5), TIM1_CH1 (AF1), TIM8_CH3N (AF3)
109PK2ввод-выводLTDC_G7 (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF11), TIM1_BKIN_COMP2 (AF11), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
110PG2ввод-выводFMC_A12 (AF12), TIM24_ETR (AF14), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
111PG3ввод-выводFMC_A13 (AF12), TIM23_ETR (AF13), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
112VSSпитание—
113VDDпитание—
114PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
115PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
116PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), LTDC_R7 (AF14), OCTOSPIM_P1_NCS (AF10), PSSI_D12 (AF13), TIM17_BKIN (AF1)
117PG7ввод-выводDCMI_D13 (AF13), FMC_INT (AF12), LTDC_CLK (AF14), OCTOSPIM_P2_DQS (AF9), PSSI_D13 (AF13), SAI1_MCLK_A (AF6), USART6_CK (AF7)
118PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), I2S6_WS (AF5), LTDC_G7 (AF14), SPDIFRX1_IN2 (AF8), SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
119VSSпитание—
120VDD50USBпитание—
121VDD33USBпитание—
122PC6ввод-выводDCMI_D0 (AF13), DFSDM1_CKIN3 (AF4), FMC_NWAIT (AF9), I2S2_MCK (AF5), LTDC_HSYNC (AF14), PSSI_D0 (AF13), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), SWPMI1_IO, TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
123PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), DFSDM1_DATIN3 (AF4), FMC_NE1 (AF9), I2S3_MCK (AF6), LTDC_G6 (AF14), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), SWPMI1_TX (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
124PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), PSSI_D2 (AF13), SDMMC1_D0 (AF12), SWPMI1_RX (AF11), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
125PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF13), I2C3_SDA (AF4), I2C5_SDA (AF6), I2S_CKIN (AF5), LTDC_B2 (AF14), LTDC_G3 (AF10), OCTOSPIM_P1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), SWPMI1_SUSPEND (AF11), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8)
126VDDпитание—
127PA8ввод-выводI2C3_SCL (AF4), I2C5_SCL (AF6), LTDC_B3 (AF13), LTDC_R6 (AF14), RCC_MCO_1 (AF0), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF12), TIM8_BKIN2_COMP2 (AF12), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_HS_SOF (AF10)
128PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_TX_ER (AF11), I2C3_SMBA (AF4), I2C5_SMBA (AF6), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R5 (AF14), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_HS_VBUS
129PA10ввод-выводDCMI_D1 (AF13), LPUART1_RX (AF3), LTDC_B1 (AF14), LTDC_B4 (AF12), MDIOS_MDIO (AF11), PSSI_D1 (AF13), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_HS_ID (AF10)
130PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX (AF9), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R4 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_HS_DM
131PA12ввод-выводFDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R5 (AF14), SAI4_FS_B (AF8), SPI2_SCK (AF5), TIM1_BKIN2 (AF12), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_HS_DP
132PA13(JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
133VCAPпитание—
134VSSпитание—
135VDDLDOпитание—
136VDDпитание—
137VSSпитание—
138PA14(JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
139PA15(JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF7), LTDC_B6 (AF14), LTDC_R3 (AF9), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF1), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
140PC10ввод-выводDCMI_D8 (AF13), DFSDM1_CKIN5 (AF3), I2C5_SDA (AF4), I2S3_CK (AF6), LTDC_B1 (AF10), LTDC_R2 (AF14), OCTOSPIM_P1_IO1 (AF9), PSSI_D8 (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), SWPMI1_RX (AF11), UART4_TX (AF8), USART3_TX (AF7)
141PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4 (AF13), DFSDM1_DATIN5 (AF3), I2C5_SCL (AF4), I2S3_SDI (AF6), LTDC_B4 (AF14), OCTOSPIM_P1_NCS (AF9), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
142PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), FMC_D6 (AF1), FMC_DA6 (AF1), I2C5_SMBA (AF4), I2S3_SDO (AF6), I2S6_CK (AF5), LTDC_R6 (AF14), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
143PD0ввод-выводDFSDM1_CKIN6 (AF3), FDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), LTDC_B1 (AF14), UART4_RX (AF8), UART9_CTS (AF11)
144PD1ввод-выводDFSDM1_DATIN6 (AF3), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), UART4_TX (AF8)
145PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), FMC_D7 (AF1), FMC_DA7 (AF1), LTDC_B2 (AF14), LTDC_B7 (AF9), PSSI_D11 (AF13), SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
146PD3ввод-выводDCMI_D5 (AF13), DFSDM1_CKOUT (AF3), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_G7 (AF14), PSSI_D5 (AF13), SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
147PD4ввод-выводFMC_NOE (AF12), OCTOSPIM_P1_IO4 (AF10), USART2_DE (AF7), USART2_RTS (AF7)
148PD5ввод-выводFMC_NWE (AF12), OCTOSPIM_P1_IO5 (AF10), USART2_TX (AF7)
149PD6ввод-выводDCMI_D10 (AF13), DFSDM1_CKIN4 (AF3), DFSDM1_DATIN1 (AF4), FMC_NWAIT (AF12), I2S3_SDO (AF5), LTDC_B2 (AF14), OCTOSPIM_P1_IO6 (AF10), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF1), SAI4_SD_A (AF8), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
150PD7ввод-выводDFSDM1_CKIN1 (AF6), DFSDM1_DATIN4 (AF3), FMC_NE1 (AF12), I2S1_SDO (AF5), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), SPDIFRX1_IN0 (AF9), SPI1_MOSI (AF5), USART2_CK (AF7)
151VSSпитание—
152VDDпитание—
153PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FDCAN3_TX (AF2), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), OCTOSPIM_P1_IO6 (AF9), PSSI_RDY (AF13), SAI4_FS_B (AF10), SDMMC2_D0 (AF11), SPDIFRX1_IN3 (AF8), SPI1_MISO (AF5), USART6_RX (AF7)
154PG10ввод-выводDCMI_D2 (AF13), FDCAN3_RX (AF2), FMC_NE3 (AF12), I2S1_WS (AF5), LTDC_B2 (AF14), LTDC_G3 (AF9), OCTOSPIM_P2_IO6 (AF3), PSSI_D2 (AF13), SAI4_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5)
155PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3 (AF13), ETH_TX_EN (AF11), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B3 (AF14), OCTOSPIM_P2_IO7 (AF9), PSSI_D3 (AF13), SDMMC2_D2 (AF10), SPDIFRX1_IN0 (AF8), SPI1_SCK (AF5), USART10_RX (AF4)
156PG12ввод-выводETH_TXD1 (AF11), FMC_NE4 (AF12), I2S6_SDI (AF5), LPTIM1_IN1 (AF1), LTDC_B1 (AF14), LTDC_B4 (AF9), OCTOSPIM_P2_NCS (AF3), SDMMC2_D3 (AF10), SPDIFRX1_IN1 (AF8), SPI6_MISO (AF5), TIM23_CH1 (AF13), USART10_TX (AF4), USART6_DE (AF7), USART6_RTS (AF7)
157PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_TXD0 (AF11), FMC_A24 (AF12), I2S6_CK (AF5), LPTIM1_OUT (AF1), LTDC_R0 (AF14), SDMMC2_D6 (AF10), SPI6_SCK (AF5), TIM23_CH2 (AF13), USART10_CTS (AF4), USART10_NSS (AF4), USART6_CTS (AF7), USART6_NSS (AF7)
158PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_TXD1 (AF11), FMC_A25 (AF12), I2S6_SDO (AF5), LPTIM1_ETR (AF1), LTDC_B0 (AF14), OCTOSPIM_P1_IO7 (AF9), SDMMC2_D7 (AF10), SPI6_MOSI (AF5), TIM23_CH3 (AF13), USART10_DE (AF4), USART10_RTS (AF4), USART6_TX (AF7)
159VSSпитание—
160VDDпитание—
161PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), OCTOSPIM_P2_DQS (AF9), PSSI_D13 (AF13), USART10_CK (AF11), USART6_CTS (AF7), USART6_NSS (AF7)
162PB3(JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2S1_CK (AF5), I2S3_CK (AF6), I2S6_CK (AF8), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM24_ETR (AF14), TIM2_CH2 (AF1), UART7_RX (AF11)
163PB4(NJTRST)ввод-выводDEBUG_JTRST (AF0), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), I2S6_SDI (AF8), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
164PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), I2S6_SDO (AF8), LTDC_B5 (AF3), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14), USB_OTG_HS_ULPI_D7 (AF10)
165PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), DFSDM1_DATIN5 (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), I2C1_SCL (AF4), I2C4_SCL (AF6), LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
166PB7ввод-выводDCMI_VSYNC (AF13), DFSDM1_CKIN5 (AF11), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), LPUART1_RX (AF8), PSSI_RDY (AF13), PWR_PVD_IN, TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
167BOOT0загрузка—
168PB8ввод-выводDCMI_D6 (AF13), DFSDM1_CKIN7 (AF3), ETH_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), LTDC_B6 (AF14), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
169PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), DFSDM1_DATIN7 (AF3), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2C4_SMBA (AF11), I2S2_WS (AF5), LTDC_B7 (AF14), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
170PE0ввод-выводDCMI_D2 (AF13), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_ETR (AF4), LTDC_R0 (AF14), PSSI_D2 (AF13), SAI4_MCLK_A (AF10), TIM4_ETR (AF2), UART8_RX (AF8)
171PE1ввод-выводDCMI_D3 (AF13), FMC_NBL1 (AF12), LPTIM1_IN2 (AF1), LTDC_R6 (AF14), PSSI_D3 (AF13), UART8_TX (AF8)
172VCAPпитание—
173VSSпитание—
174PDR_ONпитание—
175VDDLDOпитание—
176VDDпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяВыводыНазначение
PDR_ON174управление внутренней схемой сброса по питанию
VBAT8резервное питание: часы реального времени и резервные регистры
VCAP80, 133, 172вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDD7, 13, 25, 44, 48, 65, 71, 84, 92, 99, 105, 113, 126, 136, 152, 160, 176питание цифровой части и линий ввода-вывода
VDD33USB121—
VDD50USB120—
VDDA40питание аналоговой части: АЦП, ЦАП, генераторы
VDDLDO82, 135, 175—
VDDSMPS16—
VFBSMPS17—
VLXSMPS15—
VSS6, 12, 24, 45, 47, 64, 70, 81, 83, 93, 100, 106, 112, 119, 134, 137, 151, 159, 173общий провод (земля)
VSSA38общий провод аналоговой части
VSSSMPS14—
NRST33сброс, активный уровень — низкий
BOOT0167выбор источника загрузки при сбросе
VREF+39верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H725IETx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H725IESTM32H725IETx512 КБ564 КБ

Линейка STM32H725/735, семейство STM32H7, ядро Cortex-M7.

Заказные номера

Полные номера для заказа из таблицы на странице продукта на сайте ST: STM32H725IE. Данные на 11 октября 2026 г.; перечислены номера, которые в этот момент выпускались. Цифра после буквы корпуса — температурный диапазон, вид упаковки указан в последнем столбце.

Номер для заказаКорпусТемператураУпаковка
STM32H725IET6LQFP 176, 24×24×1,4 мм−40…+85 °Cлоток

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе LQFP176, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H725IGSTM32H725/735176 из 176выводы совпадают полностьюфлеш-память до 512 и 1024 КБ
STM32H735IGSTM32H725/735176 из 176выводы совпадают полностьютолько у него: CRYP, HASH; флеш-память до 512 и 1024 КБ
STM32H730IBSTM32H730 Value line176 из 176выводы совпадают полностьютолько у него: CRYP, HASH; флеш-память до 512 и 128 КБ
STM32H745IGSTM32H745/755174 из 176120: VDD50USB → VDD50_USB; 121: VDD33USB → VDD33_USBтолько у этого: CORDIC, FDCAN3, FMAC, I2C5, I2S6, OCTOSPI1, OCTOSPI2, PSSI, TIM23, TIM24, UART9, USART10; только у него: HRTIM, IWDG2, QUADSPI, SAI2, SAI3, USB_OTG_FS, USB_OTG_FS1, WWDG2; частота до 550 и 480 МГц; флеш-память до 512 и 1024 КБ; ОЗУ 564 и 864 КБ
STM32H745IISTM32H745/755174 из 176120: VDD50USB → VDD50_USB; 121: VDD33USB → VDD33_USBтолько у этого: CORDIC, FDCAN3, FMAC, I2C5, I2S6, OCTOSPI1, OCTOSPI2, PSSI, TIM23, TIM24, UART9, USART10; только у него: HRTIM, IWDG2, QUADSPI, SAI2, SAI3, USB_OTG_FS, USB_OTG_FS1, WWDG2; частота до 550 и 480 МГц; флеш-память до 512 и 2048 КБ; ОЗУ 564 и 864 КБ
STM32H755IISTM32H745/755174 из 176120: VDD50USB → VDD50_USB; 121: VDD33USB → VDD33_USBтолько у этого: CORDIC, FDCAN3, FMAC, I2C5, I2S6, OCTOSPI1, OCTOSPI2, PSSI, TIM23, TIM24, UART9, USART10; только у него: CRYP, HASH, HRTIM, IWDG2, QUADSPI, SAI2, SAI3, USB_OTG_FS, USB_OTG_FS1, WWDG2; частота до 550 и 480 МГц; флеш-память до 512 и 2048 КБ; ОЗУ 564 и 864 КБ
STM32H7A3IGTxQ, STM32H7A3IITxQSTM32H7A3/7B3173 из 176120: VDD50USB → VDD50_USB; 121: VDD33USB → VDD33_USB; 152: VDD → VDDMMCтолько у этого: ADC3, CORDIC, ETH, FDCAN3, FMAC, I2C5, LPTIM4, LPTIM5, SAI4, SPDIFRX1, TIM23, TIM24; только у него: DAC2, DFSDM2, SAI2, SPDIFRX; частота до 550 и 280 МГц; флеш-память до 512 и 2048 КБ; ОЗУ 564 и 1424 КБ
STM32H7B3IITxQSTM32H7A3/7B3173 из 176120: VDD50USB → VDD50_USB; 121: VDD33USB → VDD33_USB; 152: VDD → VDDMMCтолько у этого: ADC3, CORDIC, ETH, FDCAN3, FMAC, I2C5, LPTIM4, LPTIM5, SAI4, SPDIFRX1, TIM23, TIM24; только у него: CRYP, DAC2, DFSDM2, HASH, SAI2, SPDIFRX; частота до 550 и 280 МГц; флеш-память до 512 и 2048 КБ; ОЗУ 564 и 1424 КБ
STM32H747IGSTM32H747/757165 из 176101: PJ8 → VCAPDSI; 102: PJ9 → VDD12DSI; 103: PJ10 → DSI_D0P; 104: PJ11 → DSI_D0N; 105: VDD → VSSDSI; 106: VSS → DSI_CKP; 107: PK0 → DSI_CKN; 108: PK1 → VDD12DSI; 109: PK2 → VSSDSI; 120: VDD50USB → VDD50_USB; 121: VDD33USB → VDD33_USBтолько у этого: CORDIC, FDCAN3, FMAC, I2C5, I2S6, OCTOSPI1, OCTOSPI2, PSSI, TIM23, TIM24, UART9, USART10; только у него: DSIHOST, HRTIM, IWDG2, QUADSPI, SAI2, SAI3, USB_OTG_FS, USB_OTG_FS1, WWDG2; частота до 550 и 480 МГц; флеш-память до 512 и 1024 КБ; ОЗУ 564 и 864 КБ
STM32H747IISTM32H747/757165 из 176101: PJ8 → VCAPDSI; 102: PJ9 → VDD12DSI; 103: PJ10 → DSI_D0P; 104: PJ11 → DSI_D0N; 105: VDD → VSSDSI; 106: VSS → DSI_CKP; 107: PK0 → DSI_CKN; 108: PK1 → VDD12DSI; 109: PK2 → VSSDSI; 120: VDD50USB → VDD50_USB; 121: VDD33USB → VDD33_USBтолько у этого: CORDIC, FDCAN3, FMAC, I2C5, I2S6, OCTOSPI1, OCTOSPI2, PSSI, TIM23, TIM24, UART9, USART10; только у него: DSIHOST, HRTIM, IWDG2, QUADSPI, SAI2, SAI3, USB_OTG_FS, USB_OTG_FS1, WWDG2; частота до 550 и 480 МГц; флеш-память до 512 и 2048 КБ; ОЗУ 564 и 864 КБ
STM32H757IISTM32H747/757165 из 176101: PJ8 → VCAPDSI; 102: PJ9 → VDD12DSI; 103: PJ10 → DSI_D0P; 104: PJ11 → DSI_D0N; 105: VDD → VSSDSI; 106: VSS → DSI_CKP; 107: PK0 → DSI_CKN; 108: PK1 → VDD12DSI; 109: PK2 → VSSDSI; 120: VDD50USB → VDD50_USB; 121: VDD33USB → VDD33_USBтолько у этого: CORDIC, FDCAN3, FMAC, I2C5, I2S6, OCTOSPI1, OCTOSPI2, PSSI, TIM23, TIM24, UART9, USART10; только у него: CRYP, DSIHOST, HASH, HRTIM, IWDG2, QUADSPI, SAI2, SAI3, USB_OTG_FS, USB_OTG_FS1, WWDG2; частота до 550 и 480 МГц; флеш-память до 512 и 2048 КБ; ОЗУ 564 и 864 КБ

Частые вопросы

На каких выводах USART1 у STM32H725IE?

В корпусе LQFP176 сигнал USART1_TX выведен на PB14 (вывод 87, AF4) или PA9 (вывод 128, AF7) или PB6 (вывод 165, AF7), USART1_RX — на PB15 (вывод 88, AF4) или PA10 (вывод 129, AF7) или PB7 (вывод 166, AF7).

Где у STM32H725IE выводы SWD для программатора?

SWDIO — PA13(JTMS/SWDIO) (вывод 132, AF0), SWCLK — PA14(JTCK/SWCLK) (вывод 138, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H725IE?

I2C1_SCL — PB6 (вывод 165, AF4) или PB8 (вывод 168, AF4), I2C1_SDA — PB7 (вывод 166, AF4) или PB9 (вывод 169, AF4).

Сколько выводов ввода-вывода у STM32H725IE в корпусе LQFP176?

121 из 176. Ещё 52 вывода заняты питанием и землёй, остальные 3 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32H725IE?

От 1,62 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Заказные номера, корпуса, упаковка и температурный диапазон — из таблиц на страницах продуктов st.com (данные на 11 октября 2026 г.). Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
