STM32H725IG в корпусе UFBGA176: распиновка

STM32H725IG — микроконтроллер STM32H7 на ядре Cortex-M7 с частотой до 550 МГц: 1 МБ флеш-памяти и 564 КБ ОЗУ. Корпус UFBGA176 — 201 шарик, из них 132 линии ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M7
Частота ядра
до 550 МГц
Флеш-память
1 МБ
ОЗУ
564 КБ
Корпус
UFBGA176, 201 шарик
Линий ввода-вывода
132
Напряжение питания
1,62…3,6 В
Рабочая температура
−40…+125 °C, зависит от исполнения

Схема корпуса UFBGA176

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32H725IG в корпусе UFBGA176, вид сверхуABCDEFGHJKLMNPR123456789101112131415VSS — шарик A1VSSPB8 — шарик A2: DCMI_D6, DFSDM1_CKIN7, ETH_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, LTDC_B6, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RXPB8VDDLDO — шарик A3VDDLDOVCAP — шарик A4VCAPPB6 — шарик A5: CEC, DCMI_D5, DFSDM1_DATIN5, FDCAN2_TX, FMC_SDNE1, I2C1_SCL, I2C4_SCL, LPUART1_TX, OCTOSPIM_P1_NCS, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6PB3(JTDO/TRACESWO) — шарик A6: CRS_SYNC, DEBUG_JTDO-SWO, I2S1_CK, I2S3_CK, I2S6_CK, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM24_ETR, TIM2_CH2, UART7_RXPB3PG11 — шарик A7: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3, ETH_TX_EN, I2S1_CK, LPTIM1_IN2, LTDC_B3, OCTOSPIM_P2_IO7, PSSI_D3, SDMMC2_D2, SPDIFRX1_IN0, SPI1_SCK, USART10_RXPG11PG9 — шарик A8: DAC1_EXTI9, DCMI_VSYNC, FDCAN3_TX, FMC_NCE, FMC_NE2, I2S1_SDI, OCTOSPIM_P1_IO6, PSSI_RDY, SAI4_FS_B, SDMMC2_D0, SPDIFRX1_IN3, SPI1_MISO, USART6_RXPG9PD3 — шарик A9: DCMI_D5, DFSDM1_CKOUT, FMC_CLK, I2S2_CK, LTDC_G7, PSSI_D5, SPI2_SCK, USART2_CTS, USART2_NSSPD3PD1 — шарик A10: DFSDM1_DATIN6, FDCAN1_TX, FMC_D3, FMC_DA3, UART4_TXPD1PA15(JTDI) — шарик A11: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DEBUG_JTDI, I2S1_WS, I2S3_WS, I2S6_WS, LTDC_B6, LTDC_R3, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PA14(JTCK/SWCLK) — шарик A12: DEBUG_JTCK-SWCLKPA14VDDLDO — шарик A13VDDLDOVCAP — шарик A14VCAPVSS — шарик A15VSSPE4 — шарик B1: DCMI_D4, DEBUG_TRACED1, DFSDM1_DATIN3, FMC_A20, LTDC_B0, PSSI_D4, SAI1_D2, SAI1_FS_A, SAI4_D2, SAI4_FS_A, SPI4_NSS, TIM15_CH1NPE4PE3 — шарик B2: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, SAI4_SD_B, TIM15_BKIN, USART10_TXPE3PB9 — шарик B3: DAC1_EXTI9, DCMI_D7, DFSDM1_DATIN7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2C4_SMBA, I2S2_WS, LTDC_B7, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PE0 — шарик B4: DCMI_D2, FMC_NBL0, LPTIM1_ETR, LPTIM2_ETR, LTDC_R0, PSSI_D2, SAI4_MCLK_A, TIM4_ETR, UART8_RXPE0PB7 — шарик B5: DCMI_VSYNC, DFSDM1_CKIN5, FMC_NL, I2C1_SDA, I2C4_SDA, LPUART1_RX, PSSI_RDY, PWR_PVD_IN, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PB4(NJTRST) — шарик B6: DEBUG_JTRST, I2S1_SDI, I2S2_WS, I2S3_SDI, I2S6_SDI, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4PG13 — шарик B7: DEBUG_TRACED0, ETH_TXD0, FMC_A24, I2S6_CK, LPTIM1_OUT, LTDC_R0, SDMMC2_D6, SPI6_SCK, TIM23_CH2, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSSPG13PD7 — шарик B8: DFSDM1_CKIN1, DFSDM1_DATIN4, FMC_NE1, I2S1_SDO, OCTOSPIM_P1_IO7, SDMMC2_CMD, SPDIFRX1_IN0, SPI1_MOSI, USART2_CKPD7PD5 — шарик B9: FMC_NWE, OCTOSPIM_P1_IO5, USART2_TXPD5PD2 — шарик B10: DCMI_D11, DEBUG_TRACED2, FMC_D7, FMC_DA7, LTDC_B2, LTDC_B7, PSSI_D11, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RXPD2PC12 — шарик B11: DCMI_D9, DEBUG_TRACED3, FMC_D6, FMC_DA6, I2C5_SMBA, I2S3_SDO, I2S6_CK, LTDC_R6, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CKPC12PH14 — шарик B12: DCMI_D4, FDCAN1_RX, FMC_D22, LTDC_G3, PSSI_D4, TIM8_CH2N, UART4_RXPH14PA13(JTMS/SWDIO) — шарик B13: DEBUG_JTMS-SWDIOPA13PA8 — шарик B14: I2C3_SCL, I2C5_SCL, LTDC_B3, LTDC_R6, RCC_MCO_1, TIM1_CH1, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2, UART7_RX, USART1_CK, USB_OTG_HS_SOFPA8PA12 — шарик B15: FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R5, SAI4_FS_B, SPI2_SCK, TIM1_BKIN2, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_HS_DPPA12PC13 — шарик C1: PWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TSPC13VSS — шарик C2VSSPE2 — шарик C3: DEBUG_TRACECLK, ETH_TXD3, FMC_A23, OCTOSPIM_P1_IO2, SAI1_CK1, SAI1_MCLK_A, SAI4_CK1, SAI4_MCLK_A, SPI4_SCK, USART10_RXPE2PE1 — шарик C4: DCMI_D3, FMC_NBL1, LPTIM1_IN2, LTDC_R6, PSSI_D3, UART8_TXPE1BOOT0 — шарик C5BOOT0PB5 — шарик C6: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, I2S6_SDO, LTDC_B5, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX, USB_OTG_HS_ULPI_D7PB5PG14 — шарик C7: DEBUG_TRACED1, ETH_TXD1, FMC_A25, I2S6_SDO, LPTIM1_ETR, LTDC_B0, OCTOSPIM_P1_IO7, SDMMC2_D7, SPI6_MOSI, TIM23_CH3, USART10_DE, USART10_RTS, USART6_TXPG14PG10 — шарик C8: DCMI_D2, FDCAN3_RX, FMC_NE3, I2S1_WS, LTDC_B2, LTDC_G3, OCTOSPIM_P2_IO6, PSSI_D2, SAI4_SD_B, SDMMC2_D1, SPI1_NSSPG10PD4 — шарик C9: FMC_NOE, OCTOSPIM_P1_IO4, USART2_DE, USART2_RTSPD4PD0 — шарик C10: DFSDM1_CKIN6, FDCAN1_RX, FMC_D2, FMC_DA2, LTDC_B1, UART4_RX, UART9_CTSPD0PC11 — шарик C11: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4, DFSDM1_DATIN5, I2C5_SCL, I2S3_SDI, LTDC_B4, OCTOSPIM_P1_NCS, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PC10 — шарик C12: DCMI_D8, DFSDM1_CKIN5, I2C5_SDA, I2S3_CK, LTDC_B1, LTDC_R2, OCTOSPIM_P1_IO1, PSSI_D8, SDMMC1_D2, SPI3_SCK, SWPMI1_RX, UART4_TX, USART3_TXPC10PH13 — шарик C13: FDCAN1_TX, FMC_D21, LTDC_G2, TIM8_CH1N, UART4_TXPH13PA10 — шарик C14: DCMI_D1, LPUART1_RX, LTDC_B1, LTDC_B4, MDIOS_MDIO, PSSI_D1, TIM1_CH3, USART1_RX, USB_OTG_HS_IDPA10PA11 — шарик C15: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX, I2S2_WS, LPUART1_CTS, LTDC_R4, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_HS_DMPA11PC15-OSC32_OUT — шарик D1: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUTPC15PC14-OSC32_IN — шарик D2: RCC_OSC32_INPC14PE5 — шарик D3: DCMI_D6, DEBUG_TRACED2, DFSDM1_CKIN3, FMC_A21, LTDC_G0, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SAI4_CK2, SAI4_SCK_A, SPI4_MISO, TIM15_CH1PE5PDR_ON — шарик D4PDR_ONVDD — шарик D5VDDVSS — шарик D6VSSPG15 — шарик D7: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, OCTOSPIM_P2_DQS, PSSI_D13, USART10_CK, USART6_CTS, USART6_NSSPG15PG12 — шарик D8: ETH_TXD1, FMC_NE4, I2S6_SDI, LPTIM1_IN1, LTDC_B1, LTDC_B4, OCTOSPIM_P2_NCS, SDMMC2_D3, SPDIFRX1_IN1, SPI6_MISO, TIM23_CH1, USART10_TX, USART6_DE, USART6_RTSPG12PD6 — шарик D9: DCMI_D10, DFSDM1_CKIN4, DFSDM1_DATIN1, FMC_NWAIT, I2S3_SDO, LTDC_B2, OCTOSPIM_P1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6VSS — шарик D10VSSVDD — шарик D11VDDPH15 — шарик D12: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11, FMC_D23, LTDC_G4, PSSI_D11, TIM8_CH3NPH15PA9 — шарик D13: DAC1_EXTI9, DCMI_D0, ETH_TX_ER, I2C3_SMBA, I2C5_SMBA, I2S2_CK, LPUART1_TX, LTDC_R5, PSSI_D0, SPI2_SCK, TIM1_CH2, USART1_TX, USB_OTG_HS_VBUSPA9PC8 — шарик D14: DCMI_D2, DEBUG_TRACED1, FMC_INT, FMC_NCE, FMC_NE2, PSSI_D2, SDMMC1_D0, SWPMI1_RX, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PC7 — шарик D15: DCMI_D1, DEBUG_TRGIO, DFSDM1_DATIN3, FMC_NE1, I2S3_MCK, LTDC_G6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, SWPMI1_TX, TIM3_CH2, TIM8_CH2, USART6_RXPC7VSS — шарик E1VSSVBAT — шарик E2VBATPE6 — шарик E3: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_MCLK_B, SAI4_SD_A, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PE6VDD — шарик E4VDDVDD — шарик E12VDDPC9 — шарик E13: DAC1_EXTI9, DCMI_D3, I2C3_SDA, I2C5_SDA, I2S_CKIN, LTDC_B2, LTDC_G3, OCTOSPIM_P1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, SWPMI1_SUSPEND, TIM3_CH4, TIM8_CH4, UART5_CTSPC9PC6 — шарик E14: DCMI_D0, DFSDM1_CKIN3, FMC_NWAIT, I2S2_MCK, LTDC_HSYNC, PSSI_D0, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, SWPMI1_IO, TIM3_CH1, TIM8_CH1, USART6_TXPC6VDD50USB — шарик E15VDD50USBVLXSMPS — шарик F1VLXSMPSVSSSMPS — шарик F2VSSSMPSPF1 — шарик F3: FMC_A1, I2C2_SCL, I2C5_SCL, OCTOSPIM_P2_IO1, TIM23_CH2PF1PF0 — шарик F4: FMC_A0, I2C2_SDA, I2C5_SDA, OCTOSPIM_P2_IO0, TIM23_CH1PF0VSS — шарик F6VSSVSS — шарик F7VSSVSS — шарик F8VSSVSS — шарик F9VSSVSS — шарик F10VSSVSS — шарик F12VSSVDD33USB — шарик F13VDD33USBPG6 — шарик F14: DCMI_D12, FMC_NE3, LTDC_R7, OCTOSPIM_P1_NCS, PSSI_D12, TIM17_BKINPG6PG5 — шарик F15: FMC_A15, FMC_BA1, TIM1_ETRPG5VDDSMPS — шарик G1VDDSMPSVFBSMPS — шарик G2VFBSMPSPF2 — шарик G3: FMC_A2, I2C2_SMBA, I2C5_SMBA, OCTOSPIM_P2_IO2, TIM23_CH3PF2VDD — шарик G4VDDVSS — шарик G6VSSVSS — шарик G7VSSVSS — шарик G8VSSVSS — шарик G9VSSVSS — шарик G10VSSPG8 — шарик G12: ETH_PPS_OUT, FMC_SDCLK, I2S6_WS, LTDC_G7, SPDIFRX1_IN2, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTSPG8PG7 — шарик G13: DCMI_D13, FMC_INT, LTDC_CLK, OCTOSPIM_P2_DQS, PSSI_D13, SAI1_MCLK_A, USART6_CKPG7PG4 — шарик G14: FMC_A14, FMC_BA0, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PG4PG2 — шарик G15: FMC_A12, TIM24_ETR, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PG2PF6 — шарик H1: ADC3_INN4, ADC3_INP8, FDCAN3_RX, OCTOSPIM_P1_IO3, SAI1_SD_B, SAI4_SD_B, SPI5_NSS, TIM16_CH1, TIM23_CH1, UART7_RXPF6PF4 — шарик H2: ADC3_INN5, ADC3_INP9, FMC_A4, OCTOSPIM_P2_CLKPF4PF5 — шарик H3: ADC3_INP4, FMC_A5, OCTOSPIM_P2_NCLKPF5PF3 — шарик H4: ADC3_INP5, FMC_A3, OCTOSPIM_P2_IO3, TIM23_CH4PF3VSS — шарик H6VSSVSS — шарик H7VSSVSS — шарик H8VSSVSS — шарик H9VSSVSS — шарик H10VSSVDD — шарик H12VDDPG3 — шарик H13: FMC_A13, TIM23_ETR, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2PG3PD14 — шарик H14: FMC_D0, FMC_DA0, TIM4_CH3, UART8_CTS, UART9_RXPD14PD13 — шарик H15: DCMI_D13, FDCAN3_TX, FMC_A18, I2C4_SDA, LPTIM1_OUT, OCTOSPIM_P1_IO3, PSSI_D13, SAI4_SCK_A, TIM4_CH2, UART9_DE, UART9_RTSPD13PH0-OSC_IN — шарик J1: RCC_OSC_INPH0PF8 — шарик J2: ADC3_INN3, ADC3_INP7, OCTOSPIM_P1_IO0, SAI1_SCK_B, SAI4_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, TIM23_CH3, UART7_DE, UART7_RTSPF8PF7 — шарик J3: ADC3_INP3, FDCAN3_TX, OCTOSPIM_P1_IO2, SAI1_MCLK_B, SAI4_MCLK_B, SPI5_SCK, TIM17_CH1, TIM23_CH2, UART7_TXPF7PF9 — шарик J4: ADC3_INP2, DAC1_EXTI9, OCTOSPIM_P1_IO1, SAI1_FS_B, SAI4_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, TIM23_CH4, UART7_CTSPF9VSS — шарик J6VSSVSS — шарик J7VSSVSS — шарик J8VSSVSS — шарик J9VSSVSS — шарик J10VSSPD15 — шарик J12: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TXPD15PD11 — шарик J13: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, OCTOSPIM_P1_IO0, SAI4_SD_A, USART3_CTS, USART3_NSSPD11VSS — шарик J14VSSPD12 — шарик J15: DCMI_D12, FDCAN3_RX, FMC_A17, FMC_ALE, I2C4_SCL, LPTIM1_IN1, LPTIM2_IN1, OCTOSPIM_P1_IO1, PSSI_D12, SAI4_FS_A, TIM4_CH1, USART3_DE, USART3_RTSPD12PH1-OSC_OUT — шарик K1: RCC_OSC_OUTPH1VSS — шарик K2VSSPF10 — шарик K3: ADC3_INN2, ADC3_INP6, DCMI_D11, LTDC_DE, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, SAI4_D3, TIM16_BKINPF10VDD — шарик K4VDDVSS — шарик K6VSSVSS — шарик K7VSSVSS — шарик K8VSSVSS — шарик K9VSSVSS — шарик K10VSSVSS — шарик K12VSSPD9 — шарик K13: DAC1_EXTI9, DFSDM1_DATIN3, FMC_D14, FMC_DA14, USART3_RXPD9PB15 — шарик K14: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2, FMC_D11, FMC_DA11, I2S2_SDO, LTDC_G7, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, USART1_RXPB15PB14 — шарик K15: DFSDM1_DATIN2, FMC_D10, FMC_DA10, I2S2_SDI, LTDC_CLK, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, USART1_TX, USART3_DE, USART3_RTSPB14NRST — шарик L1NRSTPC0 — шарик L2: ADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0, DFSDM1_DATIN4, FMC_A25, FMC_D12, FMC_DA12, FMC_SDNWE, LTDC_G2, LTDC_R5, SAI4_FS_B, USB_OTG_HS_ULPI_STPPC0PC1 — шарик L3: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0, DFSDM1_CKIN4, DFSDM1_DATIN0, ETH_MDC, I2S2_SDO, LTDC_G5, MDIOS_MDC, OCTOSPIM_P1_IO4, PWR_WKUP6, RTC_TAMP3, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI2_MOSIPC1VREF- — шарик L4VREF-VDD — шарик L12VDDPD10 — шарик L13: DFSDM1_CKOUT, FMC_D15, FMC_DA15, LTDC_B3, USART3_CKPD10PD8 — шарик L14: DFSDM1_CKIN3, FMC_D13, FMC_DA13, SPDIFRX1_IN1, USART3_TXPD8PB13 — шарик L15: DCMI_D2, DFSDM1_CKIN1, ETH_TXD1, FDCAN2_TX, I2S2_CK, LPTIM2_OUT, OCTOSPIM_P1_IO2, PSSI_D2, SDMMC1_D0, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSS, USB_OTG_HS_ULPI_D6PB13PC2 — шарик M1: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ADC3_INN11, ADC3_INP12, DFSDM1_CKIN1, DFSDM1_CKOUT, ETH_TXD2, FMC_SDNE0, I2S2_SDI, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSTOP, SPI2_MISO, USB_OTG_HS_ULPI_DIRPC2PC3 — шарик M2: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, DFSDM1_DATIN1, ETH_TX_CLK, FMC_SDCKE0, I2S2_SDO, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSLEEP, SPI2_MOSI, USB_OTG_HS_ULPI_NXTPC3VREF+ — шарик M3: VREFBUF_OUTVREF+VDDA — шарик M4VDDAVDD — шарик M5VDDVSS — шарик M6VSSPC5 — шарик M7: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT, DFSDM1_DATIN2, ETH_RXD1, FMC_SDCKE0, LTDC_DE, OCTOSPIM_P1_DQS, OPAMP1_VINM, PSSI_D15, SAI1_D3, SAI4_D3, SPDIFRX1_IN3PC5PB1 — шарик M8: ADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1, ETH_RXD3, LTDC_G0, LTDC_R6, OCTOSPIM_P1_IO0, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USB_OTG_HS_ULPI_D2PB1VDD — шарик M9VDDVSS — шарик M10VSSPH7 — шарик M11: DCMI_D9, ETH_RXD3, FMC_SDCKE1, I2C3_SCL, PSSI_D9, SPI5_MISOPH7PE14 — шарик M12: FMC_D11, FMC_DA11, LTDC_CLK, SAI4_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PH11 — шарик M13: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2, FMC_D19, I2C4_SCL, LTDC_R5, PSSI_D2, TIM5_CH2PH11PH9 — шарик M14: DAC1_EXTI9, DCMI_D0, FMC_D17, I2C3_SMBA, LTDC_R3, PSSI_D0, TIM12_CH2PH9PB12 — шарик M15: DFSDM1_DATIN1, ETH_TXD0, FDCAN2_RX, I2C2_SMBA, I2S2_WS, OCTOSPIM_P1_IO0, OCTOSPIM_P1_NCLK, SPI2_NSS, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, UART5_RX, USART3_CK, USB_OTG_HS_ULPI_D5PB12PC2_C — шарик N1: ADC3_INN1, ADC3_INP0, DFSDM1_CKIN1, DFSDM1_CKOUT, ETH_TXD2, FMC_SDNE0, I2S2_SDI, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSTOP, SPI2_MISO, USB_OTG_HS_ULPI_DIRPC2PC3_C — шарик N2: ADC3_INP1, DFSDM1_DATIN1, ETH_TX_CLK, FMC_SDCKE0, I2S2_SDO, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSLEEP, SPI2_MOSI, USB_OTG_HS_ULPI_NXTPC3VSSA — шарик N3VSSAPH2 — шарик N4: ADC3_INP13, ETH_CRS, FMC_SDCKE0, LPTIM1_IN2, LTDC_R0, OCTOSPIM_P1_IO4, SAI4_SCK_BPH2PA3 — шарик N5: ADC1_INP15, ADC2_INP15, ETH_COL, I2S6_MCK, LPTIM5_OUT, LTDC_B2, LTDC_B5, OCTOSPIM_P1_CLK, OCTOSPIM_P1_IO2, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX, USB_OTG_HS_ULPI_D0PA3PA7 — шарик N6: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV, ETH_RX_DV, FMC_SDNWE, I2S1_SDO, I2S6_SDO, LTDC_VSYNC, OCTOSPIM_P1_IO2, OPAMP1_VINM, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1NPA7PF11 — шарик N7: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, OCTOSPIM_P1_NCLK, PSSI_D12, SAI4_SD_B, SPI5_MOSI, TIM24_CH1PF11PE8 — шарик N8: COMP2_OUT, DFSDM1_CKIN2, FMC_D5, FMC_DA5, OCTOSPIM_P1_IO5, OPAMP2_VINM, TIM1_CH1N, UART7_TXPE8PG1 — шарик N9: FMC_A11, OCTOSPIM_P2_IO5, OPAMP2_VINM, UART9_TXPG1PF15 — шарик N10: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9, I2C4_SDAPF15PF13 — шарик N11: ADC2_INP2, DFSDM1_DATIN6, FMC_A7, I2C4_SMBA, TIM24_CH3PF13PB10 — шарик N12: DFSDM1_DATIN7, ETH_RX_ER, I2C2_SCL, I2S2_CK, LPTIM2_IN1, LTDC_G4, OCTOSPIM_P1_NCS, SPI2_SCK, TIM2_CH3, USART3_TX, USB_OTG_HS_ULPI_D3PB10PH8 — шарик N13: DCMI_HSYNC, FMC_D16, I2C3_SDA, LTDC_R2, PSSI_DE, TIM5_ETRPH8PH10 — шарик N14: DCMI_D1, FMC_D18, I2C4_SMBA, LTDC_R4, PSSI_D1, TIM5_CH1PH10PH12 — шарик N15: DCMI_D3, FMC_D20, I2C4_SDA, LTDC_R6, PSSI_D3, TIM5_CH3PH12PA0 — шарик P1: ADC1_INP16, ETH_CRS, FMC_A19, I2S6_WS, PWR_WKUP1, SAI4_SD_B, SDMMC2_CMD, SPI6_NSS, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PA1 — шарик P2: ADC1_INN16, ADC1_INP17, ETH_REF_CLK, ETH_RX_CLK, LPTIM3_OUT, LTDC_R2, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI4_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PA1_C — шарик P3: ADC1_INP1, ADC2_INP1, ETH_REF_CLK, ETH_RX_CLK, LPTIM3_OUT, LTDC_R2, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI4_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PH4 — шарик P4: ADC3_INN14, ADC3_INP15, I2C2_SCL, LTDC_G4, LTDC_G5, PSSI_D14, USB_OTG_HS_ULPI_NXTPH4PA4 — шарик P5: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, FMC_D8, FMC_DA8, I2S1_WS, I2S3_WS, I2S6_WS, LTDC_VSYNC, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CKPA4PA5 — шарик P6: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, FMC_D9, FMC_DA9, I2S1_CK, I2S6_CK, LTDC_R4, PSSI_D14, PWR_NDSTOP2, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USB_OTG_HS_ULPI_CKPA5PB2 — шарик P7: COMP1_INP, DFSDM1_CKIN1, ETH_TX_ER, I2S3_SDO, OCTOSPIM_P1_CLK, OCTOSPIM_P1_DQS, RTC_OUT_ALARM, RTC_OUT_CALIB, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SPI3_MOSI, TIM23_ETRPB2PG0 — шарик P8: FMC_A10, OCTOSPIM_P2_IO4, UART9_RXPG0PE7 — шарик P9: COMP2_INM, DFSDM1_DATIN2, FMC_D4, FMC_DA4, OCTOSPIM_P1_IO4, OPAMP2_VOUT, TIM1_ETR, UART7_RXPE7PB11 — шарик P10: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7, ETH_TX_EN, I2C2_SDA, LPTIM2_ETR, LTDC_G5, TIM2_CH4, USART3_RX, USB_OTG_HS_ULPI_D4PB11PF12 — шарик P11: ADC1_INN2, ADC1_INP6, FMC_A6, OCTOSPIM_P2_DQS, TIM24_CH2PF12PE12 — шарик P12: COMP1_OUT, DFSDM1_DATIN5, FMC_D9, FMC_DA9, LTDC_B4, SAI4_SCK_B, SPI4_SCK, TIM1_CH3NPE12PE13 — шарик P13: COMP2_OUT, DFSDM1_CKIN5, FMC_D10, FMC_DA10, LTDC_DE, SAI4_FS_B, SPI4_MISO, TIM1_CH3PE13PE15 — шарик P14: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12, FMC_DA12, LTDC_R7, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, USART10_CKPE15PH6 — шарик P15: DCMI_D8, ETH_RXD2, FMC_SDNE1, I2C2_SMBA, PSSI_D8, SPI5_SCK, TIM12_CH1PH6VSS — шарик R1VSSPA2 — шарик R2: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM4_OUT, LTDC_R1, MDIOS_MDIO, OCTOSPIM_P1_IO0, PWR_WKUP2, SAI4_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PA0_C — шарик R3: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_CRS, FMC_A19, I2S6_WS, PWR_WKUP1, SAI4_SD_B, SDMMC2_CMD, SPI6_NSS, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PH3 — шарик R4: ADC3_INN13, ADC3_INP14, ETH_COL, FMC_SDNE0, LTDC_R1, OCTOSPIM_P1_IO5, SAI4_MCLK_BPH3PH5 — шарик R5: ADC3_INN15, FMC_SDNWE, I2C2_SDA, SPI5_NSSPH5PC4 — шарик R6: ADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2, ETH_RXD0, FMC_A22, FMC_SDNE0, I2S1_MCK, LTDC_R7, OPAMP1_VOUT, SDMMC2_CKIN, SPDIFRX1_IN2PC4PA6 — шарик R7: ADC1_INP3, ADC2_INP3, DCMI_PIXCLK, I2S1_SDI, I2S6_SDI, LTDC_G2, MDIOS_MDC, OCTOSPIM_P1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM3_CH1, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PA6PB0 — шарик R8: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT, ETH_RXD2, LTDC_G1, LTDC_R3, OCTOSPIM_P1_IO1, OPAMP1_VINP, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USB_OTG_HS_ULPI_D1PB0PE10 — шарик R9: COMP2_INM, DFSDM1_DATIN4, FMC_D7, FMC_DA7, OCTOSPIM_P1_IO7, TIM1_CH2N, UART7_CTSPE10PF14 — шарик R10: ADC2_INN2, ADC2_INP6, DFSDM1_CKIN6, FMC_A8, I2C4_SCL, TIM24_CH4PF14PE9 — шарик R11: COMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT, FMC_D6, FMC_DA6, OCTOSPIM_P1_IO6, OPAMP2_VINP, TIM1_CH1, UART7_DE, UART7_RTSPE9PE11 — шарик R12: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4, FMC_D8, FMC_DA8, LTDC_G3, OCTOSPIM_P1_NCS, SAI4_SD_B, SPI4_NSS, TIM1_CH2PE11VCAP — шарик R13VCAPVDDLDO — шарик R14VDDLDOVSS — шарик R15VSSUFBGA176, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

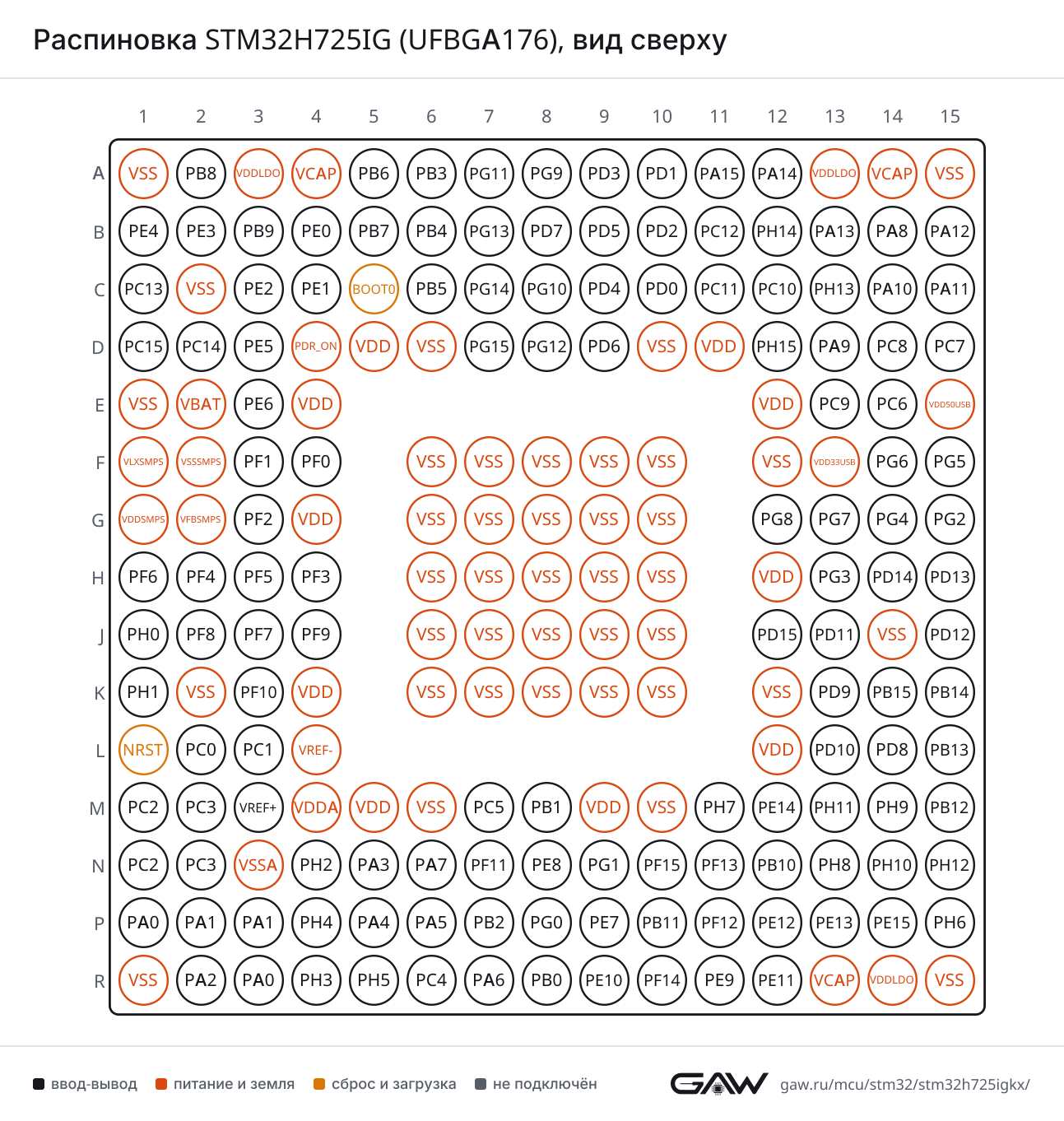

Распиновка STM32H725IG (UFBGA176), вид сверхуРаспиновка UFBGA176 картинкой
PNG, 1293 × 1362 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (B14, AF7)
CTSPA11 (C15, AF7)
DEPA12 (B15, AF7)
NSSPA11 (C15, AF7)
RTSPA12 (B15, AF7)
RXPB7 (B5, AF7), PA10 (C14, AF7), PB15 (K14, AF4)
TXPB6 (A5, AF7), PA9 (D13, AF7), PB14 (K15, AF4)
USART2CKPD7 (B8, AF7), PA4 (P5, AF7)
CTSPD3 (A9, AF7), PA0 (P1, AF7), PA0_C (R3, AF7)
DEPD4 (C9, AF7), PA1 (P2, AF7), PA1_C (P3, AF7)
NSSPD3 (A9, AF7), PA0 (P1, AF7), PA0_C (R3, AF7)
RTSPD4 (C9, AF7), PA1 (P2, AF7), PA1_C (P3, AF7)
RXPD6 (D9, AF7), PA3 (N5, AF7)
TXPD5 (B9, AF7), PA2 (R2, AF7)
USART3CKPC12 (B11, AF7), PD10 (L13, AF7), PB12 (M15, AF7)
CTSPD11 (J13, AF7), PB13 (L15, AF7)
DEPD12 (J15, AF7), PB14 (K15, AF7)
NSSPD11 (J13, AF7), PB13 (L15, AF7)
RTSPD12 (J15, AF7), PB14 (K15, AF7)
RXPC11 (C11, AF7), PD9 (K13, AF7), PB11 (P10, AF7)
TXPC10 (C12, AF7), PD8 (L14, AF7), PB10 (N12, AF7)
USART6CKPC8 (D14, AF7), PG7 (G13, AF7)
CTSPG13 (B7, AF7), PG15 (D7, AF7)
DEPG12 (D8, AF7), PG8 (G12, AF7)
NSSPG13 (B7, AF7), PG15 (D7, AF7)
RTSPG12 (D8, AF7), PG8 (G12, AF7)
RXPG9 (A8, AF7), PC7 (D15, AF7)
TXPG14 (C7, AF7), PC6 (E14, AF7)
USART10CKPG15 (D7, AF11), PE15 (P14, AF11)
CTSPG13 (B7, AF4)
DEPG14 (C7, AF4)
NSSPG13 (B7, AF4)
RTSPG14 (C7, AF4)
RXPG11 (A7, AF4), PE2 (C3, AF4)
TXPE3 (B2, AF11), PG12 (D8, AF4)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB15 (K14, AF8), PB0 (R8, AF8)
DEPA15(JTDI) (A11, AF8), PB14 (K15, AF8)
RTSPA15(JTDI) (A11, AF8), PB14 (K15, AF8)
RXPB8 (A2, AF8), PH14 (B12, AF8), PD0 (C10, AF8), PC11 (C11, AF8), PA11 (C15, AF6), PA1 (P2, AF8), PA1_C (P3, AF8)
TXPD1 (A10, AF8), PB9 (B3, AF8), PA12 (B15, AF6), PC10 (C12, AF8), PH13 (C13, AF8), PA0 (P1, AF8), PA0_C (R3, AF8)
UART5CTSPC9 (E13, AF8)
DEPC8 (D14, AF8)
RTSPC8 (D14, AF8)
RXPD2 (B10, AF8), PB5 (C6, AF14), PB12 (M15, AF14)
TXPB6 (A5, AF14), PC12 (B11, AF8), PB13 (L15, AF14)
UART7CTSPF9 (J4, AF7), PE10 (R9, AF7)
DEPF8 (J2, AF7), PE9 (R11, AF7)
RTSPF8 (J2, AF7), PE9 (R11, AF7)
RXPB3(JTDO/TRACESWO) (A6, AF11), PA8 (B14, AF11), PF6 (H1, AF7), PE7 (P9, AF7)
TXPA15(JTDI) (A11, AF11), PB4(NJTRST) (B6, AF11), PF7 (J3, AF7), PE8 (N8, AF7)
UART8CTSPD14 (H14, AF8)
DEPD15 (J12, AF8)
RTSPD15 (J12, AF8)
RXPE0 (B4, AF8)
TXPE1 (C4, AF8)
UART9CTSPD0 (C10, AF11)
DEPD13 (H15, AF11)
RTSPD13 (H15, AF11)
RXPD14 (H14, AF11), PG0 (P8, AF11)
TXPD15 (J12, AF11), PG1 (N9, AF11)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (C15, AF3)
DEPA12 (B15, AF3)
RTSPA12 (B15, AF3)
RXPB7 (B5, AF8), PA10 (C14, AF3)
TXPB6 (A5, AF8), PA9 (D13, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPG9 (A8, AF5), PB4(NJTRST) (B6, AF5), PA6 (R7, AF5)
MOSIPD7 (B8, AF5), PB5 (C6, AF5), PA7 (N6, AF5)
NSSPA15(JTDI) (A11, AF5), PG10 (C8, AF5), PA4 (P5, AF5)
SCKPB3(JTDO/TRACESWO) (A6, AF5), PG11 (A7, AF5), PA5 (P6, AF5)
SPI2MISOPB14 (K15, AF5), PC2 (M1, AF5), PC2_C (N1, AF5)
MOSIPB15 (K14, AF5), PC1 (L3, AF5), PC3 (M2, AF5), PC3_C (N2, AF5)
NSSPB9 (B3, AF5), PB4(NJTRST) (B6, AF7), PA11 (C15, AF5), PB12 (M15, AF5)
SCKPD3 (A9, AF5), PA12 (B15, AF5), PA9 (D13, AF5), PB13 (L15, AF5), PB10 (N12, AF5)
SPI3MISOPB4(NJTRST) (B6, AF6), PC11 (C11, AF6)
MOSIPC12 (B11, AF6), PB5 (C6, AF7), PD6 (D9, AF5), PB2 (P7, AF7)
NSSPA15(JTDI) (A11, AF6), PA4 (P5, AF6)
SCKPB3(JTDO/TRACESWO) (A6, AF6), PC10 (C12, AF6)
SPI4MISOPE5 (D3, AF5), PE13 (P13, AF5)
MOSIPE6 (E3, AF5), PE14 (M12, AF5)
NSSPE4 (B1, AF5), PE11 (R12, AF5)
SCKPE2 (C3, AF5), PE12 (P12, AF5)
SPI5MISOPF8 (J2, AF5), PH7 (M11, AF5)
MOSIPF9 (J4, AF5), PF11 (N7, AF5)
NSSPF6 (H1, AF5), PH5 (R5, AF5)
SCKPF7 (J3, AF5), PH6 (P15, AF5)
SPI6MISOPB4(NJTRST) (B6, AF8), PG12 (D8, AF5), PA6 (R7, AF8)
MOSIPB5 (C6, AF8), PG14 (C7, AF5), PA7 (N6, AF8)
NSSPA15(JTDI) (A11, AF7), PG8 (G12, AF5), PA0 (P1, AF5), PA4 (P5, AF8), PA0_C (R3, AF5)
SCKPB3(JTDO/TRACESWO) (A6, AF8), PG13 (B7, AF5), PC12 (B11, AF5), PA5 (P6, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (E13, AF5)
I2S1CKPB3(JTDO/TRACESWO) (A6, AF5), PG11 (A7, AF5), PA5 (P6, AF5)
MCKPC4 (R6, AF5)
SDIPG9 (A8, AF5), PB4(NJTRST) (B6, AF5), PA6 (R7, AF5)
SDOPD7 (B8, AF5), PB5 (C6, AF5), PA7 (N6, AF5)
WSPA15(JTDI) (A11, AF5), PG10 (C8, AF5), PA4 (P5, AF5)
I2S2CKPD3 (A9, AF5), PA12 (B15, AF5), PA9 (D13, AF5), PB13 (L15, AF5), PB10 (N12, AF5)
MCKPC6 (E14, AF5)
SDIPB14 (K15, AF5), PC2 (M1, AF5), PC2_C (N1, AF5)
SDOPB15 (K14, AF5), PC1 (L3, AF5), PC3 (M2, AF5), PC3_C (N2, AF5)
WSPB9 (B3, AF5), PB4(NJTRST) (B6, AF7), PA11 (C15, AF5), PB12 (M15, AF5)
I2S3CKPB3(JTDO/TRACESWO) (A6, AF6), PC10 (C12, AF6)
MCKPC7 (D15, AF6)
SDIPB4(NJTRST) (B6, AF6), PC11 (C11, AF6)
SDOPC12 (B11, AF6), PB5 (C6, AF7), PD6 (D9, AF5), PB2 (P7, AF7)
WSPA15(JTDI) (A11, AF6), PA4 (P5, AF6)
I2S6CKPB3(JTDO/TRACESWO) (A6, AF8), PG13 (B7, AF5), PC12 (B11, AF5), PA5 (P6, AF8)
MCKPA3 (N5, AF5)
SDIPB4(NJTRST) (B6, AF8), PG12 (D8, AF5), PA6 (R7, AF8)
SDOPB5 (C6, AF8), PG14 (C7, AF5), PA7 (N6, AF8)
WSPA15(JTDI) (A11, AF7), PG8 (G12, AF5), PA0 (P1, AF5), PA4 (P5, AF8), PA0_C (R3, AF5)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8 (A2, AF4), PB6 (A5, AF4)
SDAPB9 (B3, AF4), PB7 (B5, AF4)
SMBAPB5 (C6, AF4)
I2C2SCLPF1 (F3, AF4), PB10 (N12, AF4), PH4 (P4, AF4)
SDAPF0 (F4, AF4), PB11 (P10, AF4), PH5 (R5, AF4)
SMBAPF2 (G3, AF4), PB12 (M15, AF4), PH6 (P15, AF4)
I2C3SCLPA8 (B14, AF4), PH7 (M11, AF4)
SDAPC9 (E13, AF4), PH8 (N13, AF4)
SMBAPA9 (D13, AF4), PH9 (M14, AF4)
I2C4SCLPB8 (A2, AF6), PB6 (A5, AF6), PD12 (J15, AF4), PH11 (M13, AF4), PF14 (R10, AF4)
SDAPB9 (B3, AF6), PB7 (B5, AF6), PD13 (H15, AF4), PF15 (N10, AF4), PH12 (N15, AF4)
SMBAPB9 (B3, AF11), PB5 (C6, AF6), PD11 (J13, AF4), PF13 (N11, AF4), PH10 (N14, AF4)
I2C5SCLPA8 (B14, AF6), PC11 (C11, AF4), PF1 (F3, AF6)
SDAPC10 (C12, AF4), PC9 (E13, AF6), PF0 (F4, AF6)
SMBAPC12 (B11, AF4), PA9 (D13, AF6), PF2 (G3, AF6)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPB8 (A2, AF9), PH14 (B12, AF9), PD0 (C10, AF9), PA11 (C15, AF9)
TXPD1 (A10, AF9), PB9 (B3, AF9), PA12 (B15, AF9), PH13 (C13, AF9)
FDCAN2RXPB5 (C6, AF9), PB12 (M15, AF9)
TXPB6 (A5, AF9), PB13 (L15, AF9)
FDCAN3RXPG10 (C8, AF2), PF6 (H1, AF2), PD12 (J15, AF5)
TXPG9 (A8, AF2), PD13 (H15, AF5), PF7 (J3, AF2)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPA11 (C15)
DPPA12 (B15)
IDPA10 (C14, AF10)
SOFPA8 (B14, AF10)
ULPI_CKPA5 (P6, AF10)
ULPI_D0PA3 (N5, AF10)
ULPI_D1PB0 (R8, AF10)
ULPI_D2PB1 (M8, AF10)
ULPI_D3PB10 (N12, AF10)
ULPI_D4PB11 (P10, AF10)
ULPI_D5PB12 (M15, AF10)
ULPI_D6PB13 (L15, AF10)
ULPI_D7PB5 (C6, AF10)
ULPI_DIRPC2 (M1), PC2_C (N1, AF10)
ULPI_NXTPC3 (M2), PC3_C (N2, AF10), PH4 (P4, AF10)
ULPI_STPPC0 (L2, AF10)
VBUSPA9 (D13)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCOLPA3 (N5, AF11), PH3 (R4, AF11)
CRSPH2 (N4, AF11), PA0 (P1, AF11), PA0_C (R3, AF11)
CRS_DVPA7 (N6, AF11)
MDCPC1 (L3, AF11)
MDIOPA2 (R2, AF11)
PPS_OUTPB5 (C6, AF11), PG8 (G12, AF11)
REF_CLKPA1 (P2, AF11), PA1_C (P3, AF11)
RX_CLKPA1 (P2, AF11), PA1_C (P3, AF11)
RX_DVPA7 (N6, AF11)
RX_ERPB10 (N12, AF11)
RXD0PC4 (R6, AF11)
RXD1PC5 (M7, AF11)
RXD2PH6 (P15, AF11), PB0 (R8, AF11)
RXD3PB1 (M8, AF11), PH7 (M11, AF11)
TX_CLKPC3 (M2), PC3_C (N2, AF11)
TX_ENPG11 (A7, AF11), PB11 (P10, AF11)
TX_ERPA9 (D13, AF11), PB2 (P7, AF11)
TXD0PG13 (B7, AF11), PB12 (M15, AF11)
TXD1PG14 (C7, AF11), PG12 (D8, AF11), PB13 (L15, AF11)
TXD2PC2 (M1), PC2_C (N1, AF11)
TXD3PB8 (A2, AF11), PE2 (C3, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (B3, AF7)
CKPC12 (B11, AF12)
CKINPB8 (A2, AF7)
CMDPD2 (B10, AF12)
D0PC8 (D14, AF12), PB13 (L15, AF12)
D0DIRPC6 (E14, AF8)
D1PC9 (E13, AF12)
D2PC10 (C12, AF12)
D3PC11 (C11, AF12)
D4PB8 (A2, AF12)
D5PB9 (B3, AF12)
D6PC6 (E14, AF12)
D7PC7 (D15, AF12)
D123DIRPC7 (D15, AF8)
SDMMC2CKPD6 (D9, AF11), PC1 (L3, AF9)
CKINPC4 (R6, AF10)
CMDPD7 (B8, AF11), PA0 (P1, AF9), PA0_C (R3, AF9)
D0PG9 (A8, AF11), PB14 (K15, AF9)
D1PG10 (C8, AF11), PB15 (K14, AF9)
D2PB3(JTDO/TRACESWO) (A6, AF9), PG11 (A7, AF10)
D3PB4(NJTRST) (B6, AF9), PG12 (D8, AF10)
D4PB8 (A2, AF10)
D5PB9 (B3, AF10)
D6PG13 (B7, AF10), PC6 (E14, AF10)
D7PG14 (C7, AF10), PC7 (D15, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (C3, AF2)
CK2PE5 (D3, AF2)
D1PD6 (D9, AF2), PE6 (E3, AF2), PC1 (L3, AF2), PB2 (P7, AF2)
D2PE4 (B1, AF2)
D3PF10 (K3, AF2), PC5 (M7, AF2)
FS_APE4 (B1, AF6)
FS_BPF9 (J4, AF6)
MCLK_APE2 (C3, AF6), PG7 (G13, AF6)
MCLK_BPF7 (J3, AF6)
SCK_APE5 (D3, AF6)
SCK_BPF8 (J2, AF6)
SD_APD6 (D9, AF6), PE6 (E3, AF6), PC1 (L3, AF6), PB2 (P7, AF6)
SD_BPE3 (B2, AF6), PF6 (H1, AF6)
SAI4CK1PE2 (C3, AF10)
CK2PE5 (D3, AF10)
D1PD6 (D9, AF1), PE6 (E3, AF9), PC1 (L3, AF1), PB2 (P7, AF1)
D2PE4 (B1, AF10)
D3PF10 (K3, AF10), PC5 (M7, AF1)
FS_APE4 (B1, AF8), PD12 (J15, AF10)
FS_BPG9 (A8, AF10), PA12 (B15, AF8), PF9 (J4, AF8), PC0 (L2, AF8), PE13 (P13, AF10)
MCLK_APE0 (B4, AF10), PE2 (C3, AF8)
MCLK_BPE6 (E3, AF10), PF7 (J3, AF8), PE14 (M12, AF10), PA1 (P2, AF10), PA1_C (P3, AF10), PH3 (R4, AF10)
SCK_APE5 (D3, AF8), PD13 (H15, AF10)
SCK_BPF8 (J2, AF8), PH2 (N4, AF10), PE12 (P12, AF10), PA2 (R2, AF8)
SD_APD6 (D9, AF8), PE6 (E3, AF8), PD11 (J13, AF10), PC1 (L3, AF8), PB2 (P7, AF8)
SD_BPE3 (B2, AF8), PG10 (C8, AF10), PF6 (H1, AF8), PF11 (N7, AF10), PA0 (P1, AF10), PA0_C (R3, AF10), PE11 (R12, AF10)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRX1IN0PG11 (A7, AF8), PD7 (B8, AF9)
IN1PG12 (D8, AF8), PD8 (L14, AF9)
IN2PG8 (G12, AF8), PC4 (R6, AF9)
IN3PG9 (A8, AF8), PC5 (M7, AF9)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPB6 (A5, AF5), PA15(JTDI) (A11, AF4)

SWPMI — интерфейс Single Wire Protocol

БлокСигналВыводы
SWPMI1IOPC6 (E14)
RXPC10 (C12, AF11), PC8 (D14, AF11)
SUSPENDPC9 (E13, AF11)
TXPC7 (D15, AF11)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PG11 (A7), PC11 (C11), PA11 (C15), PD11 (J13), PH11 (M13), PF11 (N7), PB11 (P10), PE11 (R12)
EXTI15PA15(JTDI) (A11), PC15-OSC32_OUT (D1), PG15 (D7), PH15 (D12), PD15 (J12), PB15 (K14), PF15 (N10), PE15 (P14)
INN1PA0_C (R3)
INN2PF12 (P11)
INN3PA7 (N6)
INN4PC5 (M7)
INN5PB0 (R8)
INN10PC1 (L3)
INN11PC2 (M1)
INN12PC3 (M2)
INN16PA1 (P2)
INN18PA5 (P6)
INP0PA0_C (R3)
INP1PA1_C (P3)
INP2PF11 (N7)
INP3PA6 (R7)
INP4PC4 (R6)
INP5PB1 (M8)
INP6PF12 (P11)
INP7PA7 (N6)
INP8PC5 (M7)
INP9PB0 (R8)
INP10PC0 (L2)
INP11PC1 (L3)
INP12PC2 (M1)
INP13PC3 (M2)
INP14PA2 (R2)
INP15PA3 (N5)
INP16PA0 (P1)
INP17PA1 (P2)
INP18PA4 (P5)
INP19PA5 (P6)
ADC2EXTI11PG11 (A7), PC11 (C11), PA11 (C15), PD11 (J13), PH11 (M13), PF11 (N7), PB11 (P10), PE11 (R12)
EXTI15PA15(JTDI) (A11), PC15-OSC32_OUT (D1), PG15 (D7), PH15 (D12), PD15 (J12), PB15 (K14), PF15 (N10), PE15 (P14)
INN1PA0_C (R3)
INN2PF14 (R10)
INN3PA7 (N6)
INN4PC5 (M7)
INN5PB0 (R8)
INN10PC1 (L3)
INN11PC2 (M1)
INN12PC3 (M2)
INN18PA5 (P6)
INP0PA0_C (R3)
INP1PA1_C (P3)
INP2PF13 (N11)
INP3PA6 (R7)
INP4PC4 (R6)
INP5PB1 (M8)
INP6PF14 (R10)
INP7PA7 (N6)
INP8PC5 (M7)
INP9PB0 (R8)
INP10PC0 (L2)
INP11PC1 (L3)
INP12PC2 (M1)
INP13PC3 (M2)
INP14PA2 (R2)
INP15PA3 (N5)
INP18PA4 (P5)
INP19PA5 (P6)
ADC3EXTI11PG11 (A7), PC11 (C11), PA11 (C15), PD11 (J13), PH11 (M13), PF11 (N7), PB11 (P10), PE11 (R12)
EXTI15PA15(JTDI) (A11), PC15-OSC32_OUT (D1), PG15 (D7), PH15 (D12), PD15 (J12), PB15 (K14), PF15 (N10), PE15 (P14)
INN1PC2_C (N1)
INN2PF10 (K3)
INN3PF8 (J2)
INN4PF6 (H1)
INN5PF4 (H2)
INN10PC1 (L3)
INN11PC2 (M1)
INN13PH3 (R4)
INN14PH4 (P4)
INN15PH5 (R5)
INP0PC2_C (N1)
INP1PC3_C (N2)
INP2PF9 (J4)
INP3PF7 (J3)
INP4PF5 (H3)
INP5PF3 (H4)
INP6PF10 (K3)
INP7PF8 (J2)
INP8PF6 (H1)
INP9PF4 (H2)
INP10PC0 (L2)
INP11PC1 (L3)
INP12PC2 (M1)
INP13PH2 (N4)
INP14PH3 (R4)
INP15PH4 (P4)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PG9 (A8), PB9 (B3), PA9 (D13), PC9 (E13), PF9 (J4), PD9 (K13), PH9 (M14), PE9 (R11)
OUT1PA4 (P5)
OUT2PA5 (P6)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPB1 (M8), PC4 (R6)
INPPB2 (P7), PB0 (R8)
OUTPC5 (M7, AF13), PE12 (P12, AF13)
COMP2INMPE7 (P9), PE10 (R9)
INPPE9 (R11), PE11 (R12)
OUTPE8 (N8, AF13), PE13 (P13, AF13)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPC5 (M7), PA7 (N6)
VINPPB0 (R8)
VOUTPC4 (R6)
OPAMP2VINMPE8 (N8), PG1 (N9)
VINPPE9 (R11)
VOUTPE7 (P9)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (M3)

TIM — таймер

БлокСигналВыводы
TIM1BKINPB12 (M15, AF1), PE15 (P14, AF1), PA6 (R7, AF1)
BKIN_COMP1PB12 (M15, AF13), PE15 (P14, AF13), PA6 (R7, AF12)
BKIN_COMP2PB12 (M15, AF13), PE15 (P14, AF13), PA6 (R7, AF12)
BKIN2PA12 (B15, AF12), PE6 (E3, AF1), PG4 (G14, AF1)
BKIN2_COMP1PE6 (E3, AF11), PG4 (G14, AF11)
BKIN2_COMP2PE6 (E3, AF11), PG4 (G14, AF11)
CH1PA8 (B14, AF1), PE9 (R11, AF1)
CH1NPB13 (L15, AF1), PA7 (N6, AF1), PE8 (N8, AF1)
CH2PA9 (D13, AF1), PE11 (R12, AF1)
CH2NPB14 (K15, AF1), PB0 (R8, AF1), PE10 (R9, AF1)
CH3PA10 (C14, AF1), PE13 (P13, AF1)
CH3NPB15 (K14, AF1), PB1 (M8, AF1), PE12 (P12, AF1)
CH4PA11 (C15, AF1), PE14 (M12, AF1)
ETRPA12 (B15, AF1), PG5 (F15, AF1), PE7 (P9, AF1)
TIM2CH1PA15(JTDI) (A11, AF1), PA0 (P1, AF1), PA5 (P6, AF1), PA0_C (R3, AF1)
CH2PB3(JTDO/TRACESWO) (A6, AF1), PA1 (P2, AF1), PA1_C (P3, AF1)
CH3PB10 (N12, AF1), PA2 (R2, AF1)
CH4PA3 (N5, AF1), PB11 (P10, AF1)
ETRPA15(JTDI) (A11, AF1), PA0 (P1, AF1), PA5 (P6, AF1), PA0_C (R3, AF1)
TIM3CH1PB4(NJTRST) (B6, AF2), PC6 (E14, AF2), PA6 (R7, AF2)
CH2PB5 (C6, AF2), PC7 (D15, AF2), PA7 (N6, AF2)
CH3PC8 (D14, AF2), PB0 (R8, AF2)
CH4PC9 (E13, AF2), PB1 (M8, AF2)
ETRPD2 (B10, AF2)
TIM4CH1PB6 (A5, AF2), PD12 (J15, AF2)
CH2PB7 (B5, AF2), PD13 (H15, AF2)
CH3PB8 (A2, AF2), PD14 (H14, AF2)
CH4PB9 (B3, AF2), PD15 (J12, AF2)
ETRPE0 (B4, AF2)
TIM5CH1PH10 (N14, AF2), PA0 (P1, AF2), PA0_C (R3, AF2)
CH2PH11 (M13, AF2), PA1 (P2, AF2), PA1_C (P3, AF2)
CH3PH12 (N15, AF2), PA2 (R2, AF2)
CH4PA3 (N5, AF2)
ETRPH8 (N13, AF2), PA4 (P5, AF2)
TIM8BKINPG2 (G15, AF3), PA6 (R7, AF3)
BKIN_COMP1PG2 (G15, AF11), PA6 (R7, AF10)
BKIN_COMP2PG2 (G15, AF11), PA6 (R7, AF10)
BKIN2PA8 (B14, AF3), PG3 (H13, AF3)
BKIN2_COMP1PA8 (B14, AF12), PG3 (H13, AF11)
BKIN2_COMP2PA8 (B14, AF12), PG3 (H13, AF11)
CH1PC6 (E14, AF3)
CH1NPH13 (C13, AF3), PA7 (N6, AF3), PA5 (P6, AF3)
CH2PC7 (D15, AF3)
CH2NPH14 (B12, AF3), PB14 (K15, AF3), PB0 (R8, AF3)
CH3PC8 (D14, AF3)
CH3NPH15 (D12, AF3), PB15 (K14, AF3), PB1 (M8, AF3)
CH4PC9 (E13, AF3)
ETRPG8 (G12, AF3), PA0 (P1, AF3), PA0_C (R3, AF3)
TIM12CH1PB14 (K15, AF2), PH6 (P15, AF2)
CH2PB15 (K14, AF2), PH9 (M14, AF2)
TIM13CH1PF8 (J2, AF9), PA6 (R7, AF9)
TIM14CH1PF9 (J4, AF9), PA7 (N6, AF9)
TIM15BKINPE3 (B2, AF4), PD2 (B10, AF4), PA0 (P1, AF4), PA0_C (R3, AF4)
CH1PC12 (B11, AF2), PE5 (D3, AF4), PA2 (R2, AF4)
CH1NPE4 (B1, AF4), PA1 (P2, AF4), PA1_C (P3, AF4)
CH2PE6 (E3, AF4), PA3 (N5, AF4)
TIM16BKINPB4(NJTRST) (B6, AF1), PF10 (K3, AF1)
CH1PB8 (A2, AF1), PF6 (H1, AF1)
CH1NPB6 (A5, AF1), PF8 (J2, AF1)
TIM17BKINPB5 (C6, AF1), PG6 (F14, AF1)
CH1PB9 (B3, AF1), PF7 (J3, AF1)
CH1NPB7 (B5, AF1), PF9 (J4, AF1)
TIM23CH1PG12 (D8, AF13), PF0 (F4, AF13), PF6 (H1, AF13)
CH2PG13 (B7, AF13), PF1 (F3, AF13), PF7 (J3, AF13)
CH3PG14 (C7, AF13), PF2 (G3, AF13), PF8 (J2, AF13)
CH4PF3 (H4, AF13), PF9 (J4, AF13)
ETRPG3 (H13, AF13), PB2 (P7, AF13)
TIM24CH1PF11 (N7, AF14)
CH2PF12 (P11, AF14)
CH3PF13 (N11, AF14)
CH4PF14 (R10, AF14)
ETRPB3(JTDO/TRACESWO) (A6, AF14), PG2 (G15, AF14)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPE0 (B4, AF1), PG14 (C7, AF1)
IN1PG12 (D8, AF1), PD12 (J15, AF1)
IN2PG11 (A7, AF1), PE1 (C4, AF1), PH2 (N4, AF1)
OUTPG13 (B7, AF1), PD13 (H15, AF1)
LPTIM2ETRPE0 (B4, AF4), PB11 (P10, AF3)
IN1PD12 (J15, AF3), PB10 (N12, AF3)
IN2PD11 (J13, AF3)
OUTPB13 (L15, AF3)
LPTIM3OUTPA1 (P2, AF3), PA1_C (P3, AF3)
LPTIM4OUTPA2 (R2, AF3)
LPTIM5OUTPA3 (N5, AF3)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT_ALARMPC13 (C1), PB2 (P7, AF0)
OUT_CALIBPC13 (C1), PB2 (P7, AF0)
REFINPB15 (K14, AF0)
TSPC13 (C1)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (F4, AF12)
A1PF1 (F3, AF12)
A2PF2 (G3, AF12)
A3PF3 (H4, AF12)
A4PF4 (H2, AF12)
A5PF5 (H3, AF12)
A6PF12 (P11, AF12)
A7PF13 (N11, AF12)
A8PF14 (R10, AF12)
A9PF15 (N10, AF12)
A10PG0 (P8, AF12)
A11PG1 (N9, AF12)
A12PG2 (G15, AF12)
A13PG3 (H13, AF12)
A14PG4 (G14, AF12)
A15PG5 (F15, AF12)
A16PD11 (J13, AF12)
A17PD12 (J15, AF12)
A18PD13 (H15, AF12)
A19PE3 (B2, AF12), PA0 (P1, AF12), PA0_C (R3, AF12)
A20PE4 (B1, AF12)
A21PE5 (D3, AF12)
A22PE6 (E3, AF12), PC4 (R6, AF1)
A23PE2 (C3, AF12)
A24PG13 (B7, AF12)
A25PG14 (C7, AF12), PC0 (L2, AF9)
ALEPD12 (J15, AF12)
BA0PG4 (G14, AF12)
BA1PG5 (F15, AF12)
CLEPD11 (J13, AF12)
CLKPD3 (A9, AF12)
D0PD14 (H14, AF12)
D1PD15 (J12, AF12)
D2PD0 (C10, AF12)
D3PD1 (A10, AF12)
D4PE7 (P9, AF12)
D5PE8 (N8, AF12)
D6PC12 (B11, AF1), PE9 (R11, AF12)
D7PD2 (B10, AF1), PE10 (R9, AF12)
D8PA4 (P5, AF12), PE11 (R12, AF12)
D9PA5 (P6, AF12), PE12 (P12, AF12)
D10PB14 (K15, AF12), PE13 (P13, AF12)
D11PB15 (K14, AF12), PE14 (M12, AF12)
D12PC0 (L2, AF1), PE15 (P14, AF12)
D13PD8 (L14, AF12)
D14PD9 (K13, AF12)
D15PD10 (L13, AF12)
D16PH8 (N13, AF12)
D17PH9 (M14, AF12)
D18PH10 (N14, AF12)
D19PH11 (M13, AF12)
D20PH12 (N15, AF12)
D21PH13 (C13, AF12)
D22PH14 (B12, AF12)
D23PH15 (D12, AF12)
DA0PD14 (H14, AF12)
DA1PD15 (J12, AF12)
DA2PD0 (C10, AF12)
DA3PD1 (A10, AF12)
DA4PE7 (P9, AF12)
DA5PE8 (N8, AF12)
DA6PC12 (B11, AF1), PE9 (R11, AF12)
DA7PD2 (B10, AF1), PE10 (R9, AF12)
DA8PA4 (P5, AF12), PE11 (R12, AF12)
DA9PA5 (P6, AF12), PE12 (P12, AF12)
DA10PB14 (K15, AF12), PE13 (P13, AF12)
DA11PB15 (K14, AF12), PE14 (M12, AF12)
DA12PC0 (L2, AF1), PE15 (P14, AF12)
DA13PD8 (L14, AF12)
DA14PD9 (K13, AF12)
DA15PD10 (L13, AF12)
INTPC8 (D14, AF10), PG7 (G13, AF12)
NBL0PE0 (B4, AF12)
NBL1PE1 (C4, AF12)
NCEPG9 (A8, AF12), PC8 (D14, AF9)
NE1PD7 (B8, AF12), PC7 (D15, AF9)
NE2PG9 (A8, AF12), PC8 (D14, AF9)
NE3PG10 (C8, AF12), PG6 (F14, AF12)
NE4PG12 (D8, AF12)
NLPB7 (B5, AF12)
NOEPD4 (C9, AF12)
NWAITPD6 (D9, AF12), PC6 (E14, AF9)
NWEPD5 (B9, AF12)
SDCKE0PC3 (M2, AF12), PC5 (M7, AF12), PC3_C (N2, AF12), PH2 (N4, AF12)
SDCKE1PB5 (C6, AF12), PH7 (M11, AF12)
SDCLKPG8 (G12, AF12)
SDNCASPG15 (D7, AF12)
SDNE0PC2 (M1, AF12), PC2_C (N1, AF12), PH3 (R4, AF12), PC4 (R6, AF12)
SDNE1PB6 (A5, AF12), PH6 (P15, AF12)
SDNRASPF11 (N7, AF12)
SDNWEPC0 (L2, AF12), PA7 (N6, AF12), PH5 (R5, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (D13, AF13), PC6 (E14, AF13), PH9 (M14, AF13)
D1PA10 (C14, AF13), PC7 (D15, AF13), PH10 (N14, AF13)
D2PE0 (B4, AF13), PG10 (C8, AF13), PC8 (D14, AF13), PB13 (L15, AF13), PH11 (M13, AF13)
D3PG11 (A7, AF13), PE1 (C4, AF13), PC9 (E13, AF13), PH12 (N15, AF13)
D4PE4 (B1, AF13), PH14 (B12, AF13), PC11 (C11, AF13)
D5PB6 (A5, AF13), PD3 (A9, AF13)
D6PB8 (A2, AF13), PE5 (D3, AF13)
D7PB9 (B3, AF13), PE6 (E3, AF13)
D8PC10 (C12, AF13), PH6 (P15, AF13)
D9PC12 (B11, AF13), PH7 (M11, AF13)
D10PB5 (C6, AF13), PD6 (D9, AF13)
D11PD2 (B10, AF13), PH15 (D12, AF13), PF10 (K3, AF13)
D12PG6 (F14, AF13), PD12 (J15, AF13), PF11 (N7, AF13)
D13PG15 (D7, AF13), PG7 (G13, AF13), PD13 (H15, AF13)
HSYNCPH8 (N13, AF13), PA4 (P5, AF13)
PIXCLKPA6 (R7, AF13)
VSYNCPG9 (A8, AF13), PB7 (B5, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (D13, AF13), PC6 (E14, AF13), PH9 (M14, AF13)
D1PA10 (C14, AF13), PC7 (D15, AF13), PH10 (N14, AF13)
D2PE0 (B4, AF13), PG10 (C8, AF13), PC8 (D14, AF13), PB13 (L15, AF13), PH11 (M13, AF13)
D3PG11 (A7, AF13), PE1 (C4, AF13), PC9 (E13, AF13), PH12 (N15, AF13)
D4PE4 (B1, AF13), PH14 (B12, AF13), PC11 (C11, AF13)
D5PB6 (A5, AF13), PD3 (A9, AF13)
D6PB8 (A2, AF13), PE5 (D3, AF13)
D7PB9 (B3, AF13), PE6 (E3, AF13)
D8PC10 (C12, AF13), PH6 (P15, AF13)
D9PC12 (B11, AF13), PH7 (M11, AF13)
D10PB5 (C6, AF13), PD6 (D9, AF13)
D11PD2 (B10, AF13), PH15 (D12, AF13), PF10 (K3, AF13)
D12PG6 (F14, AF13), PD12 (J15, AF13), PF11 (N7, AF13)
D13PG15 (D7, AF13), PG7 (G13, AF13), PD13 (H15, AF13)
D14PH4 (P4, AF13), PA5 (P6, AF13)
D15PF10 (K3, AF4), PC5 (M7, AF4)
DEPH8 (N13, AF13), PA4 (P5, AF13)
PDCKPA6 (R7, AF13)
RDYPG9 (A8, AF13), PB7 (B5, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PE4 (B1, AF14), PG14 (C7, AF14)
B1PD0 (C10, AF14), PC10 (C12, AF10), PA10 (C14, AF14), PG12 (D8, AF14)
B2PD2 (B10, AF14), PG10 (C8, AF14), PD6 (D9, AF14), PC9 (E13, AF14), PA3 (N5, AF9)
B3PG11 (A7, AF14), PA8 (B14, AF13), PD10 (L13, AF14)
B4PC11 (C11, AF14), PA10 (C14, AF12), PG12 (D8, AF9), PE12 (P12, AF14)
B5PB5 (C6, AF3), PA3 (N5, AF14)
B6PB8 (A2, AF14), PA15(JTDI) (A11, AF14)
B7PB9 (B3, AF14), PD2 (B10, AF9)
CLKPG7 (G13, AF14), PB14 (K15, AF14), PE14 (M12, AF14)
DEPF10 (K3, AF14), PC5 (M7, AF14), PE13 (P13, AF14)
G0PE5 (D3, AF14), PB1 (M8, AF14)
G1PE6 (E3, AF14), PB0 (R8, AF14)
G2PH13 (C13, AF14), PC0 (L2, AF11), PA6 (R7, AF14)
G3PH14 (B12, AF14), PG10 (C8, AF9), PC9 (E13, AF10), PE11 (R12, AF14)
G4PH15 (D12, AF14), PB10 (N12, AF14), PH4 (P4, AF14)
G5PC1 (L3, AF14), PH4 (P4, AF9), PB11 (P10, AF14)
G6PC7 (D15, AF14)
G7PD3 (A9, AF14), PG8 (G12, AF14), PB15 (K14, AF14)
HSYNCPC6 (E14, AF14)
R0PE0 (B4, AF14), PG13 (B7, AF14), PH2 (N4, AF14)
R1PA2 (R2, AF14), PH3 (R4, AF14)
R2PC10 (C12, AF14), PH8 (N13, AF14), PA1 (P2, AF14), PA1_C (P3, AF14)
R3PA15(JTDI) (A11, AF9), PH9 (M14, AF14), PB0 (R8, AF9)
R4PA11 (C15, AF14), PH10 (N14, AF14), PA5 (P6, AF14)
R5PA12 (B15, AF14), PA9 (D13, AF14), PC0 (L2, AF14), PH11 (M13, AF14)
R6PC12 (B11, AF14), PA8 (B14, AF14), PE1 (C4, AF14), PB1 (M8, AF9), PH12 (N15, AF14)
R7PG6 (F14, AF14), PE15 (P14, AF14), PC4 (R6, AF14)
VSYNCPA7 (N6, AF14), PA4 (P5, AF14)

DFSDM — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
DFSDM1CKIN0PC0 (L2, AF3)
CKIN1PD7 (B8, AF6), PB13 (L15, AF6), PC2 (M1, AF3), PC2_C (N1, AF3), PB2 (P7, AF4)
CKIN2PB15 (K14, AF6), PE8 (N8, AF3), PC4 (R6, AF3)
CKIN3PE5 (D3, AF3), PC6 (E14, AF4), PD8 (L14, AF3)
CKIN4PD6 (D9, AF3), PC1 (L3, AF4), PE11 (R12, AF3)
CKIN5PB7 (B5, AF11), PC10 (C12, AF3), PE13 (P13, AF3)
CKIN6PD0 (C10, AF3), PF14 (R10, AF3)
CKIN7PB8 (A2, AF3), PB11 (P10, AF6)
CKOUTPD3 (A9, AF3), PD10 (L13, AF3), PC2 (M1, AF6), PC2_C (N1, AF6), PB0 (R8, AF6), PE9 (R11, AF3)
DATIN0PC1 (L3, AF3)
DATIN1PD6 (D9, AF4), PC3 (M2, AF3), PB1 (M8, AF6), PB12 (M15, AF6), PC3_C (N2, AF3)
DATIN2PB14 (K15, AF6), PC5 (M7, AF3), PE7 (P9, AF3)
DATIN3PE4 (B1, AF3), PC7 (D15, AF4), PD9 (K13, AF3)
DATIN4PD7 (B8, AF3), PC0 (L2, AF6), PE10 (R9, AF3)
DATIN5PB6 (A5, AF11), PC11 (C11, AF3), PE12 (P12, AF3)
DATIN6PD1 (A10, AF3), PF13 (N11, AF3)
DATIN7PB9 (B3, AF3), PB10 (N12, AF6)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14(JTCK/SWCLK) (A12, AF0)
JTDIPA15(JTDI) (A11, AF0)
JTDO-SWOPB3(JTDO/TRACESWO) (A6, AF0)
JTMS-SWDIOPA13(JTMS/SWDIO) (B13, AF0)
TRACECLKPE2 (C3, AF0)
TRACED0PE3 (B2, AF0), PG13 (B7, AF0), PC1 (L3, AF0)
TRACED1PE4 (B1, AF0), PG14 (C7, AF0), PC8 (D14, AF0)
TRACED2PD2 (B10, AF0), PE5 (D3, AF0)
TRACED3PC12 (B11, AF0), PE6 (E3, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (B14, AF0)
MCO_2PC9 (E13, AF0)
OSC_INPH0-OSC_IN (J1)
OSC_OUTPH1-OSC_OUT (K1)
OSC32_INPC14-OSC32_IN (D2)
OSC32_OUTPC15-OSC32_OUT (D1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC3 (M2), PC3_C (N2)
PWR_CSTOPPC2 (M1), PC2_C (N1)
PWR_WKUP1PA0 (P1), PA0_C (R3)
PWR_WKUP2PA2 (R2)
PWR_WKUP4PC13 (C1)
PWR_WKUP6PC1 (L3)
RTC_TAMP1PC13 (C1)
RTC_TAMP3PC1 (L3)

Блоки без собственных выводов: USB_OTG_HS1 (USB On-The-Go High Speed), OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), HDMI_CEC (шина управления HDMI), TIM6 (таймер), TIM7 (таймер), IWDG1 (независимый сторожевой таймер), WWDG1 (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 201 шарик корпуса UFBGA176 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1VSSпитание—
A2PB8ввод-выводDCMI_D6 (AF13), DFSDM1_CKIN7 (AF3), ETH_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), LTDC_B6 (AF14), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
A3VDDLDOпитание—
A4VCAPпитание—
A5PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), DFSDM1_DATIN5 (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), I2C1_SCL (AF4), I2C4_SCL (AF6), LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
A6PB3(JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2S1_CK (AF5), I2S3_CK (AF6), I2S6_CK (AF8), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM24_ETR (AF14), TIM2_CH2 (AF1), UART7_RX (AF11)
A7PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3 (AF13), ETH_TX_EN (AF11), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B3 (AF14), OCTOSPIM_P2_IO7 (AF9), PSSI_D3 (AF13), SDMMC2_D2 (AF10), SPDIFRX1_IN0 (AF8), SPI1_SCK (AF5), USART10_RX (AF4)
A8PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FDCAN3_TX (AF2), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), OCTOSPIM_P1_IO6 (AF9), PSSI_RDY (AF13), SAI4_FS_B (AF10), SDMMC2_D0 (AF11), SPDIFRX1_IN3 (AF8), SPI1_MISO (AF5), USART6_RX (AF7)
A9PD3ввод-выводDCMI_D5 (AF13), DFSDM1_CKOUT (AF3), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_G7 (AF14), PSSI_D5 (AF13), SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
A10PD1ввод-выводDFSDM1_DATIN6 (AF3), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), UART4_TX (AF8)
A11PA15(JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF7), LTDC_B6 (AF14), LTDC_R3 (AF9), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF1), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
A12PA14(JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
A13VDDLDOпитание—
A14VCAPпитание—
A15VSSпитание—
B1PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), DFSDM1_DATIN3 (AF3), FMC_A20 (AF12), LTDC_B0 (AF14), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SAI4_D2 (AF10), SAI4_FS_A (AF8), SPI4_NSS (AF5), TIM15_CH1N (AF4)
B2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), SAI4_SD_B (AF8), TIM15_BKIN (AF4), USART10_TX (AF11)
B3PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), DFSDM1_DATIN7 (AF3), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2C4_SMBA (AF11), I2S2_WS (AF5), LTDC_B7 (AF14), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
B4PE0ввод-выводDCMI_D2 (AF13), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_ETR (AF4), LTDC_R0 (AF14), PSSI_D2 (AF13), SAI4_MCLK_A (AF10), TIM4_ETR (AF2), UART8_RX (AF8)
B5PB7ввод-выводDCMI_VSYNC (AF13), DFSDM1_CKIN5 (AF11), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), LPUART1_RX (AF8), PSSI_RDY (AF13), PWR_PVD_IN, TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
B6PB4(NJTRST)ввод-выводDEBUG_JTRST (AF0), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), I2S6_SDI (AF8), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
B7PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_TXD0 (AF11), FMC_A24 (AF12), I2S6_CK (AF5), LPTIM1_OUT (AF1), LTDC_R0 (AF14), SDMMC2_D6 (AF10), SPI6_SCK (AF5), TIM23_CH2 (AF13), USART10_CTS (AF4), USART10_NSS (AF4), USART6_CTS (AF7), USART6_NSS (AF7)
B8PD7ввод-выводDFSDM1_CKIN1 (AF6), DFSDM1_DATIN4 (AF3), FMC_NE1 (AF12), I2S1_SDO (AF5), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), SPDIFRX1_IN0 (AF9), SPI1_MOSI (AF5), USART2_CK (AF7)
B9PD5ввод-выводFMC_NWE (AF12), OCTOSPIM_P1_IO5 (AF10), USART2_TX (AF7)
B10PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), FMC_D7 (AF1), FMC_DA7 (AF1), LTDC_B2 (AF14), LTDC_B7 (AF9), PSSI_D11 (AF13), SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
B11PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), FMC_D6 (AF1), FMC_DA6 (AF1), I2C5_SMBA (AF4), I2S3_SDO (AF6), I2S6_CK (AF5), LTDC_R6 (AF14), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
B12PH14ввод-выводDCMI_D4 (AF13), FDCAN1_RX (AF9), FMC_D22 (AF12), LTDC_G3 (AF14), PSSI_D4 (AF13), TIM8_CH2N (AF3), UART4_RX (AF8)
B13PA13(JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
B14PA8ввод-выводI2C3_SCL (AF4), I2C5_SCL (AF6), LTDC_B3 (AF13), LTDC_R6 (AF14), RCC_MCO_1 (AF0), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF12), TIM8_BKIN2_COMP2 (AF12), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_HS_SOF (AF10)
B15PA12ввод-выводFDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R5 (AF14), SAI4_FS_B (AF8), SPI2_SCK (AF5), TIM1_BKIN2 (AF12), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_HS_DP
C1PC13ввод-выводPWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS
C2VSSпитание—
C3PE2ввод-выводDEBUG_TRACECLK (AF0), ETH_TXD3 (AF11), FMC_A23 (AF12), OCTOSPIM_P1_IO2 (AF9), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SAI4_CK1 (AF10), SAI4_MCLK_A (AF8), SPI4_SCK (AF5), USART10_RX (AF4)
C4PE1ввод-выводDCMI_D3 (AF13), FMC_NBL1 (AF12), LPTIM1_IN2 (AF1), LTDC_R6 (AF14), PSSI_D3 (AF13), UART8_TX (AF8)
C5BOOT0загрузка—
C6PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), I2S6_SDO (AF8), LTDC_B5 (AF3), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14), USB_OTG_HS_ULPI_D7 (AF10)
C7PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_TXD1 (AF11), FMC_A25 (AF12), I2S6_SDO (AF5), LPTIM1_ETR (AF1), LTDC_B0 (AF14), OCTOSPIM_P1_IO7 (AF9), SDMMC2_D7 (AF10), SPI6_MOSI (AF5), TIM23_CH3 (AF13), USART10_DE (AF4), USART10_RTS (AF4), USART6_TX (AF7)
C8PG10ввод-выводDCMI_D2 (AF13), FDCAN3_RX (AF2), FMC_NE3 (AF12), I2S1_WS (AF5), LTDC_B2 (AF14), LTDC_G3 (AF9), OCTOSPIM_P2_IO6 (AF3), PSSI_D2 (AF13), SAI4_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5)
C9PD4ввод-выводFMC_NOE (AF12), OCTOSPIM_P1_IO4 (AF10), USART2_DE (AF7), USART2_RTS (AF7)
C10PD0ввод-выводDFSDM1_CKIN6 (AF3), FDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), LTDC_B1 (AF14), UART4_RX (AF8), UART9_CTS (AF11)
C11PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4 (AF13), DFSDM1_DATIN5 (AF3), I2C5_SCL (AF4), I2S3_SDI (AF6), LTDC_B4 (AF14), OCTOSPIM_P1_NCS (AF9), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
C12PC10ввод-выводDCMI_D8 (AF13), DFSDM1_CKIN5 (AF3), I2C5_SDA (AF4), I2S3_CK (AF6), LTDC_B1 (AF10), LTDC_R2 (AF14), OCTOSPIM_P1_IO1 (AF9), PSSI_D8 (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), SWPMI1_RX (AF11), UART4_TX (AF8), USART3_TX (AF7)
C13PH13ввод-выводFDCAN1_TX (AF9), FMC_D21 (AF12), LTDC_G2 (AF14), TIM8_CH1N (AF3), UART4_TX (AF8)
C14PA10ввод-выводDCMI_D1 (AF13), LPUART1_RX (AF3), LTDC_B1 (AF14), LTDC_B4 (AF12), MDIOS_MDIO (AF11), PSSI_D1 (AF13), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_HS_ID (AF10)
C15PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX (AF9), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R4 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_HS_DM
D1PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
D2PC14-OSC32_INввод-выводRCC_OSC32_IN
D3PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), DFSDM1_CKIN3 (AF3), FMC_A21 (AF12), LTDC_G0 (AF14), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SAI4_CK2 (AF10), SAI4_SCK_A (AF8), SPI4_MISO (AF5), TIM15_CH1 (AF4)
D4PDR_ONпитание—
D5VDDпитание—
D6VSSпитание—
D7PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), OCTOSPIM_P2_DQS (AF9), PSSI_D13 (AF13), USART10_CK (AF11), USART6_CTS (AF7), USART6_NSS (AF7)
D8PG12ввод-выводETH_TXD1 (AF11), FMC_NE4 (AF12), I2S6_SDI (AF5), LPTIM1_IN1 (AF1), LTDC_B1 (AF14), LTDC_B4 (AF9), OCTOSPIM_P2_NCS (AF3), SDMMC2_D3 (AF10), SPDIFRX1_IN1 (AF8), SPI6_MISO (AF5), TIM23_CH1 (AF13), USART10_TX (AF4), USART6_DE (AF7), USART6_RTS (AF7)
D9PD6ввод-выводDCMI_D10 (AF13), DFSDM1_CKIN4 (AF3), DFSDM1_DATIN1 (AF4), FMC_NWAIT (AF12), I2S3_SDO (AF5), LTDC_B2 (AF14), OCTOSPIM_P1_IO6 (AF10), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF1), SAI4_SD_A (AF8), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
D10VSSпитание—
D11VDDпитание—
D12PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11 (AF13), FMC_D23 (AF12), LTDC_G4 (AF14), PSSI_D11 (AF13), TIM8_CH3N (AF3)
D13PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_TX_ER (AF11), I2C3_SMBA (AF4), I2C5_SMBA (AF6), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R5 (AF14), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_HS_VBUS
D14PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), PSSI_D2 (AF13), SDMMC1_D0 (AF12), SWPMI1_RX (AF11), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
D15PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), DFSDM1_DATIN3 (AF4), FMC_NE1 (AF9), I2S3_MCK (AF6), LTDC_G6 (AF14), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), SWPMI1_TX (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
E1VSSпитание—
E2VBATпитание—
E3PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF14), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF9), SAI4_MCLK_B (AF10), SAI4_SD_A (AF8), SPI4_MOSI (AF5), TIM15_CH2 (AF4), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
E4VDDпитание—
E12VDDпитание—
E13PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF13), I2C3_SDA (AF4), I2C5_SDA (AF6), I2S_CKIN (AF5), LTDC_B2 (AF14), LTDC_G3 (AF10), OCTOSPIM_P1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), SWPMI1_SUSPEND (AF11), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8)
E14PC6ввод-выводDCMI_D0 (AF13), DFSDM1_CKIN3 (AF4), FMC_NWAIT (AF9), I2S2_MCK (AF5), LTDC_HSYNC (AF14), PSSI_D0 (AF13), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), SWPMI1_IO, TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
E15VDD50USBпитание—
F1VLXSMPSпитание—
F2VSSSMPSпитание—
F3PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), I2C5_SCL (AF6), OCTOSPIM_P2_IO1 (AF9), TIM23_CH2 (AF13)
F4PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), I2C5_SDA (AF6), OCTOSPIM_P2_IO0 (AF9), TIM23_CH1 (AF13)
F6VSSпитание—
F7VSSпитание—
F8VSSпитание—
F9VSSпитание—
F10VSSпитание—
F12VSSпитание—
F13VDD33USBпитание—
F14PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), LTDC_R7 (AF14), OCTOSPIM_P1_NCS (AF10), PSSI_D12 (AF13), TIM17_BKIN (AF1)
F15PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
G1VDDSMPSпитание—
G2VFBSMPSпитание—
G3PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), I2C5_SMBA (AF6), OCTOSPIM_P2_IO2 (AF9), TIM23_CH3 (AF13)
G4VDDпитание—
G6VSSпитание—
G7VSSпитание—
G8VSSпитание—
G9VSSпитание—
G10VSSпитание—
G12PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), I2S6_WS (AF5), LTDC_G7 (AF14), SPDIFRX1_IN2 (AF8), SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
G13PG7ввод-выводDCMI_D13 (AF13), FMC_INT (AF12), LTDC_CLK (AF14), OCTOSPIM_P2_DQS (AF9), PSSI_D13 (AF13), SAI1_MCLK_A (AF6), USART6_CK (AF7)
G14PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
G15PG2ввод-выводFMC_A12 (AF12), TIM24_ETR (AF14), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
H1PF6ввод-выводADC3_INN4, ADC3_INP8, FDCAN3_RX (AF2), OCTOSPIM_P1_IO3 (AF10), SAI1_SD_B (AF6), SAI4_SD_B (AF8), SPI5_NSS (AF5), TIM16_CH1 (AF1), TIM23_CH1 (AF13), UART7_RX (AF7)
H2PF4ввод-выводADC3_INN5, ADC3_INP9, FMC_A4 (AF12), OCTOSPIM_P2_CLK (AF9)
H3PF5ввод-выводADC3_INP4, FMC_A5 (AF12), OCTOSPIM_P2_NCLK (AF9)
H4PF3ввод-выводADC3_INP5, FMC_A3 (AF12), OCTOSPIM_P2_IO3 (AF9), TIM23_CH4 (AF13)
H6VSSпитание—
H7VSSпитание—
H8VSSпитание—
H9VSSпитание—
H10VSSпитание—
H12VDDпитание—
H13PG3ввод-выводFMC_A13 (AF12), TIM23_ETR (AF13), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
H14PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
H15PD13ввод-выводDCMI_D13 (AF13), FDCAN3_TX (AF5), FMC_A18 (AF12), I2C4_SDA (AF4), LPTIM1_OUT (AF1), OCTOSPIM_P1_IO3 (AF9), PSSI_D13 (AF13), SAI4_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
J1PH0-OSC_INввод-выводRCC_OSC_IN
J2PF8ввод-выводADC3_INN3, ADC3_INP7, OCTOSPIM_P1_IO0 (AF10), SAI1_SCK_B (AF6), SAI4_SCK_B (AF8), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), TIM23_CH3 (AF13), UART7_DE (AF7), UART7_RTS (AF7)
J3PF7ввод-выводADC3_INP3, FDCAN3_TX (AF2), OCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF6), SAI4_MCLK_B (AF8), SPI5_SCK (AF5), TIM17_CH1 (AF1), TIM23_CH2 (AF13), UART7_TX (AF7)
J4PF9ввод-выводADC3_INP2, DAC1_EXTI9, OCTOSPIM_P1_IO1 (AF10), SAI1_FS_B (AF6), SAI4_FS_B (AF8), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), TIM23_CH4 (AF13), UART7_CTS (AF7)
J6VSSпитание—
J7VSSпитание—
J8VSSпитание—
J9VSSпитание—
J10VSSпитание—
J12PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
J13PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), OCTOSPIM_P1_IO0 (AF9), SAI4_SD_A (AF10), USART3_CTS (AF7), USART3_NSS (AF7)
J14VSSпитание—
J15PD12ввод-выводDCMI_D12 (AF13), FDCAN3_RX (AF5), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), OCTOSPIM_P1_IO1 (AF9), PSSI_D12 (AF13), SAI4_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
K1PH1-OSC_OUTввод-выводRCC_OSC_OUT
K2VSSпитание—
K3PF10ввод-выводADC3_INN2, ADC3_INP6, DCMI_D11 (AF13), LTDC_DE (AF14), OCTOSPIM_P1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), SAI4_D3 (AF10), TIM16_BKIN (AF1)
K4VDDпитание—
K6VSSпитание—
K7VSSпитание—
K8VSSпитание—
K9VSSпитание—
K10VSSпитание—
K12VSSпитание—
K13PD9ввод-выводDAC1_EXTI9, DFSDM1_DATIN3 (AF3), FMC_D14 (AF12), FMC_DA14 (AF12), USART3_RX (AF7)
K14PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2 (AF6), FMC_D11 (AF12), FMC_DA11 (AF12), I2S2_SDO (AF5), LTDC_G7 (AF14), RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), USART1_RX (AF4)
K15PB14ввод-выводDFSDM1_DATIN2 (AF6), FMC_D10 (AF12), FMC_DA10 (AF12), I2S2_SDI (AF5), LTDC_CLK (AF14), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
L1NRSTсброс—
L2PC0ввод-выводADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0 (AF3), DFSDM1_DATIN4 (AF6), FMC_A25 (AF9), FMC_D12 (AF1), FMC_DA12 (AF1), FMC_SDNWE (AF12), LTDC_G2 (AF11), LTDC_R5 (AF14), SAI4_FS_B (AF8), USB_OTG_HS_ULPI_STP (AF10)
L3PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0 (AF0), DFSDM1_CKIN4 (AF4), DFSDM1_DATIN0 (AF3), ETH_MDC (AF11), I2S2_SDO (AF5), LTDC_G5 (AF14), MDIOS_MDC (AF12), OCTOSPIM_P1_IO4 (AF10), PWR_WKUP6, RTC_TAMP3, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF1), SAI4_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5)
L4VREF-питание—
L12VDDпитание—
L13PD10ввод-выводDFSDM1_CKOUT (AF3), FMC_D15 (AF12), FMC_DA15 (AF12), LTDC_B3 (AF14), USART3_CK (AF7)
L14PD8ввод-выводDFSDM1_CKIN3 (AF3), FMC_D13 (AF12), FMC_DA13 (AF12), SPDIFRX1_IN1 (AF9), USART3_TX (AF7)
L15PB13ввод-выводDCMI_D2 (AF13), DFSDM1_CKIN1 (AF6), ETH_TXD1 (AF11), FDCAN2_TX (AF9), I2S2_CK (AF5), LPTIM2_OUT (AF3), OCTOSPIM_P1_IO2 (AF4), PSSI_D2 (AF13), SDMMC1_D0 (AF12), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), USART3_CTS (AF7), USART3_NSS (AF7), USB_OTG_HS_ULPI_D6 (AF10)
M1PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ADC3_INN11, ADC3_INP12, DFSDM1_CKIN1 (AF3), DFSDM1_CKOUT (AF6), ETH_TXD2, FMC_SDNE0 (AF12), I2S2_SDI (AF5), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF4), PWR_CSTOP, SPI2_MISO (AF5), USB_OTG_HS_ULPI_DIR
M2PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, DFSDM1_DATIN1 (AF3), ETH_TX_CLK, FMC_SDCKE0 (AF12), I2S2_SDO (AF5), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF4), PWR_CSLEEP, SPI2_MOSI (AF5), USB_OTG_HS_ULPI_NXT
M3VREF+служебныйVREFBUF_OUT
M4VDDAпитание—
M5VDDпитание—
M6VSSпитание—
M7PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT (AF13), DFSDM1_DATIN2 (AF3), ETH_RXD1 (AF11), FMC_SDCKE0 (AF12), LTDC_DE (AF14), OCTOSPIM_P1_DQS (AF10), OPAMP1_VINM, PSSI_D15 (AF4), SAI1_D3 (AF2), SAI4_D3 (AF1), SPDIFRX1_IN3 (AF9)
M8PB1ввод-выводADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1 (AF6), ETH_RXD3 (AF11), LTDC_G0 (AF14), LTDC_R6 (AF9), OCTOSPIM_P1_IO0 (AF4), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USB_OTG_HS_ULPI_D2 (AF10)
M9VDDпитание—
M10VSSпитание—
M11PH7ввод-выводDCMI_D9 (AF13), ETH_RXD3 (AF11), FMC_SDCKE1 (AF12), I2C3_SCL (AF4), PSSI_D9 (AF13), SPI5_MISO (AF5)
M12PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), LTDC_CLK (AF14), SAI4_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
M13PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2 (AF13), FMC_D19 (AF12), I2C4_SCL (AF4), LTDC_R5 (AF14), PSSI_D2 (AF13), TIM5_CH2 (AF2)
M14PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), FMC_D17 (AF12), I2C3_SMBA (AF4), LTDC_R3 (AF14), PSSI_D0 (AF13), TIM12_CH2 (AF2)
M15PB12ввод-выводDFSDM1_DATIN1 (AF6), ETH_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SMBA (AF4), I2S2_WS (AF5), OCTOSPIM_P1_IO0 (AF12), OCTOSPIM_P1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), UART5_RX (AF14), USART3_CK (AF7), USB_OTG_HS_ULPI_D5 (AF10)
N1PC2_Cввод-выводADC3_INN1, ADC3_INP0, DFSDM1_CKIN1 (AF3), DFSDM1_CKOUT (AF6), ETH_TXD2 (AF11), FMC_SDNE0 (AF12), I2S2_SDI (AF5), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF4), PWR_CSTOP, SPI2_MISO (AF5), USB_OTG_HS_ULPI_DIR (AF10)
N2PC3_Cввод-выводADC3_INP1, DFSDM1_DATIN1 (AF3), ETH_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF4), PWR_CSLEEP, SPI2_MOSI (AF5), USB_OTG_HS_ULPI_NXT (AF10)
N3VSSAпитание—
N4PH2ввод-выводADC3_INP13, ETH_CRS (AF11), FMC_SDCKE0 (AF12), LPTIM1_IN2 (AF1), LTDC_R0 (AF14), OCTOSPIM_P1_IO4 (AF9), SAI4_SCK_B (AF10)
N5PA3ввод-выводADC1_INP15, ADC2_INP15, ETH_COL (AF11), I2S6_MCK (AF5), LPTIM5_OUT (AF3), LTDC_B2 (AF9), LTDC_B5 (AF14), OCTOSPIM_P1_CLK (AF12), OCTOSPIM_P1_IO2 (AF6), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7), USB_OTG_HS_ULPI_D0 (AF10)
N6PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV (AF11), ETH_RX_DV (AF11), FMC_SDNWE (AF12), I2S1_SDO (AF5), I2S6_SDO (AF8), LTDC_VSYNC (AF14), OCTOSPIM_P1_IO2 (AF10), OPAMP1_VINM, SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3)
N7PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), OCTOSPIM_P1_NCLK (AF9), PSSI_D12 (AF13), SAI4_SD_B (AF10), SPI5_MOSI (AF5), TIM24_CH1 (AF14)
N8PE8ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN2 (AF3), FMC_D5 (AF12), FMC_DA5 (AF12), OCTOSPIM_P1_IO5 (AF10), OPAMP2_VINM, TIM1_CH1N (AF1), UART7_TX (AF7)
N9PG1ввод-выводFMC_A11 (AF12), OCTOSPIM_P2_IO5 (AF9), OPAMP2_VINM, UART9_TX (AF11)
N10PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4)
N11PF13ввод-выводADC2_INP2, DFSDM1_DATIN6 (AF3), FMC_A7 (AF12), I2C4_SMBA (AF4), TIM24_CH3 (AF14)
N12PB10ввод-выводDFSDM1_DATIN7 (AF6), ETH_RX_ER (AF11), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), LTDC_G4 (AF14), OCTOSPIM_P1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7), USB_OTG_HS_ULPI_D3 (AF10)
N13PH8ввод-выводDCMI_HSYNC (AF13), FMC_D16 (AF12), I2C3_SDA (AF4), LTDC_R2 (AF14), PSSI_DE (AF13), TIM5_ETR (AF2)
N14PH10ввод-выводDCMI_D1 (AF13), FMC_D18 (AF12), I2C4_SMBA (AF4), LTDC_R4 (AF14), PSSI_D1 (AF13), TIM5_CH1 (AF2)
N15PH12ввод-выводDCMI_D3 (AF13), FMC_D20 (AF12), I2C4_SDA (AF4), LTDC_R6 (AF14), PSSI_D3 (AF13), TIM5_CH3 (AF2)
P1PA0ввод-выводADC1_INP16, ETH_CRS (AF11), FMC_A19 (AF12), I2S6_WS (AF5), PWR_WKUP1, SAI4_SD_B (AF10), SDMMC2_CMD (AF9), SPI6_NSS (AF5), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
P2PA1ввод-выводADC1_INN16, ADC1_INP17, ETH_REF_CLK (AF11), ETH_RX_CLK (AF11), LPTIM3_OUT (AF3), LTDC_R2 (AF14), OCTOSPIM_P1_DQS (AF12), OCTOSPIM_P1_IO3 (AF9), SAI4_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
P3PA1_Cввод-выводADC1_INP1, ADC2_INP1, ETH_REF_CLK (AF11), ETH_RX_CLK (AF11), LPTIM3_OUT (AF3), LTDC_R2 (AF14), OCTOSPIM_P1_DQS (AF12), OCTOSPIM_P1_IO3 (AF9), SAI4_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
P4PH4ввод-выводADC3_INN14, ADC3_INP15, I2C2_SCL (AF4), LTDC_G4 (AF14), LTDC_G5 (AF9), PSSI_D14 (AF13), USB_OTG_HS_ULPI_NXT (AF10)
P5PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), FMC_D8 (AF12), FMC_DA8 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF8), LTDC_VSYNC (AF14), PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
P6PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, FMC_D9 (AF12), FMC_DA9 (AF12), I2S1_CK (AF5), I2S6_CK (AF8), LTDC_R4 (AF14), PSSI_D14 (AF13), PWR_NDSTOP2, SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM8_CH1N (AF3), USB_OTG_HS_ULPI_CK (AF10)
P7PB2ввод-выводCOMP1_INP, DFSDM1_CKIN1 (AF4), ETH_TX_ER (AF11), I2S3_SDO (AF7), OCTOSPIM_P1_CLK (AF9), OCTOSPIM_P1_DQS (AF10), RTC_OUT_ALARM (AF0), RTC_OUT_CALIB (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF1), SAI4_SD_A (AF8), SPI3_MOSI (AF7), TIM23_ETR (AF13)
P8PG0ввод-выводFMC_A10 (AF12), OCTOSPIM_P2_IO4 (AF9), UART9_RX (AF11)
P9PE7ввод-выводCOMP2_INM, DFSDM1_DATIN2 (AF3), FMC_D4 (AF12), FMC_DA4 (AF12), OCTOSPIM_P1_IO4 (AF10), OPAMP2_VOUT, TIM1_ETR (AF1), UART7_RX (AF7)
P10PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7 (AF6), ETH_TX_EN (AF11), I2C2_SDA (AF4), LPTIM2_ETR (AF3), LTDC_G5 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7), USB_OTG_HS_ULPI_D4 (AF10)
P11PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), OCTOSPIM_P2_DQS (AF9), TIM24_CH2 (AF14)
P12PE12ввод-выводCOMP1_OUT (AF13), DFSDM1_DATIN5 (AF3), FMC_D9 (AF12), FMC_DA9 (AF12), LTDC_B4 (AF14), SAI4_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
P13PE13ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN5 (AF3), FMC_D10 (AF12), FMC_DA10 (AF12), LTDC_DE (AF14), SAI4_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
P14PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R7 (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), USART10_CK (AF11)
P15PH6ввод-выводDCMI_D8 (AF13), ETH_RXD2 (AF11), FMC_SDNE1 (AF12), I2C2_SMBA (AF4), PSSI_D8 (AF13), SPI5_SCK (AF5), TIM12_CH1 (AF2)
R1VSSпитание—
R2PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM4_OUT (AF3), LTDC_R1 (AF14), MDIOS_MDIO (AF12), OCTOSPIM_P1_IO0 (AF6), PWR_WKUP2, SAI4_SCK_B (AF8), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
R3PA0_Cввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_CRS (AF11), FMC_A19 (AF12), I2S6_WS (AF5), PWR_WKUP1, SAI4_SD_B (AF10), SDMMC2_CMD (AF9), SPI6_NSS (AF5), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
R4PH3ввод-выводADC3_INN13, ADC3_INP14, ETH_COL (AF11), FMC_SDNE0 (AF12), LTDC_R1 (AF14), OCTOSPIM_P1_IO5 (AF9), SAI4_MCLK_B (AF10)
R5PH5ввод-выводADC3_INN15, FMC_SDNWE (AF12), I2C2_SDA (AF4), SPI5_NSS (AF5)
R6PC4ввод-выводADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2 (AF3), ETH_RXD0 (AF11), FMC_A22 (AF1), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LTDC_R7 (AF14), OPAMP1_VOUT, SDMMC2_CKIN (AF10), SPDIFRX1_IN2 (AF9)
R7PA6ввод-выводADC1_INP3, ADC2_INP3, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), I2S6_SDI (AF8), LTDC_G2 (AF14), MDIOS_MDC (AF11), OCTOSPIM_P1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF12), TIM1_BKIN_COMP2 (AF12), TIM3_CH1 (AF2), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
R8PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT (AF6), ETH_RXD2 (AF11), LTDC_G1 (AF14), LTDC_R3 (AF9), OCTOSPIM_P1_IO1 (AF4), OPAMP1_VINP, TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USB_OTG_HS_ULPI_D1 (AF10)
R9PE10ввод-выводCOMP2_INM, DFSDM1_DATIN4 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), OCTOSPIM_P1_IO7 (AF10), TIM1_CH2N (AF1), UART7_CTS (AF7)
R10PF14ввод-выводADC2_INN2, ADC2_INP6, DFSDM1_CKIN6 (AF3), FMC_A8 (AF12), I2C4_SCL (AF4), TIM24_CH4 (AF14)
R11PE9ввод-выводCOMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT (AF3), FMC_D6 (AF12), FMC_DA6 (AF12), OCTOSPIM_P1_IO6 (AF10), OPAMP2_VINP, TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
R12PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4 (AF3), FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G3 (AF14), OCTOSPIM_P1_NCS (AF11), SAI4_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
R13VCAPпитание—
R14VDDLDOпитание—
R15VSSпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
PDR_OND4управление внутренней схемой сброса по питанию
VBATE2резервное питание: часы реального времени и резервные регистры
VCAPA4, A14, R13вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDD5, D11, E4, E12, G4, H12, K4, L12, M5, M9питание цифровой части и линий ввода-вывода
VDD33USBF13—
VDD50USBE15—
VDDAM4питание аналоговой части: АЦП, ЦАП, генераторы
VDDLDOA3, A13, R14—
VDDSMPSG1—
VFBSMPSG2—
VLXSMPSF1—
VREF-L4нижнее опорное напряжение АЦП
VSSA1, A15, C2, D6, D10, E1, F6, F7, F8, F9, F10, F12, G6, G7, G8, G9, G10, H6, H7, H8, H9, H10, J6, J7, J8, J9, J10, J14, K2, K6, K7, K8, K9, K10, K12, M6, M10, R1, R15общий провод (земля)
VSSAN3общий провод аналоговой части
VSSSMPSF2—
NRSTL1сброс, активный уровень — низкий
BOOT0C5выбор источника загрузки при сбросе
VREF+M3верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H725IGKx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H725IGSTM32H725IGKx1 МБ564 КБ

Линейка STM32H725/735, семейство STM32H7, ядро Cortex-M7.

Заказные номера

Полные номера для заказа из таблицы на странице продукта на сайте ST: STM32H725IG. Данные на 11 октября 2026 г.; перечислены номера, которые в этот момент выпускались. Цифра после буквы корпуса — температурный диапазон, вид упаковки указан в последнем столбце.

Номер для заказаКорпусТемператураУпаковка
STM32H725IGK3UFBGA 176+25, 10×10×0,6 мм, шаг 0,65 мм−40…+125 °Cлоток
STM32H725IGK3TRUFBGA 176+25, 10×10×0,6 мм, шаг 0,65 мм−40…+125 °Cлента на катушке
STM32H725IGK6UFBGA 176+25, 10×10×0,6 мм, шаг 0,65 мм−40…+85 °Cлоток

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе UFBGA176, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H725IESTM32H725/735201 из 201выводы совпадают полностьюфлеш-память до 1024 и 512 КБ
STM32H735IGSTM32H725/735201 из 201выводы совпадают полностьютолько у него: CRYP, HASH
STM32H730IBSTM32H730 Value line201 из 201выводы совпадают полностьютолько у него: CRYP, HASH; флеш-память до 1024 и 128 КБ
STM32H745IGSTM32H745/755199 из 201E15: VDD50USB → VDD50_USB; F13: VDD33USB → VDD33_USBтолько у этого: CORDIC, FDCAN3, FMAC, I2C5, I2S6, OCTOSPI1, OCTOSPI2, PSSI, TIM23, TIM24, UART9, USART10; только у него: HRTIM, IWDG2, QUADSPI, SAI2, SAI3, USB_OTG_FS, USB_OTG_FS1, WWDG2; частота до 550 и 480 МГц; ОЗУ 564 и 864 КБ
STM32H745IISTM32H745/755199 из 201E15: VDD50USB → VDD50_USB; F13: VDD33USB → VDD33_USBтолько у этого: CORDIC, FDCAN3, FMAC, I2C5, I2S6, OCTOSPI1, OCTOSPI2, PSSI, TIM23, TIM24, UART9, USART10; только у него: HRTIM, IWDG2, QUADSPI, SAI2, SAI3, USB_OTG_FS, USB_OTG_FS1, WWDG2; частота до 550 и 480 МГц; флеш-память до 1024 и 2048 КБ; ОЗУ 564 и 864 КБ
STM32H755IISTM32H745/755199 из 201E15: VDD50USB → VDD50_USB; F13: VDD33USB → VDD33_USBтолько у этого: CORDIC, FDCAN3, FMAC, I2C5, I2S6, OCTOSPI1, OCTOSPI2, PSSI, TIM23, TIM24, UART9, USART10; только у него: CRYP, HASH, HRTIM, IWDG2, QUADSPI, SAI2, SAI3, USB_OTG_FS, USB_OTG_FS1, WWDG2; частота до 550 и 480 МГц; флеш-память до 1024 и 2048 КБ; ОЗУ 564 и 864 КБ
STM32H7A3IGKxQ, STM32H7A3IIKxQSTM32H7A3/7B3198 из 201D5: VDD → VDDMMC; E15: VDD50USB → VDD50_USB; F13: VDD33USB → VDD33_USBтолько у этого: ADC3, CORDIC, ETH, FDCAN3, FMAC, I2C5, LPTIM4, LPTIM5, SAI4, SPDIFRX1, TIM23, TIM24; только у него: DAC2, DFSDM2, SAI2, SPDIFRX; частота до 550 и 280 МГц; флеш-память до 1024 и 2048 КБ; ОЗУ 564 и 1424 КБ
STM32H7B0IBSTM32H7B0 Value line198 из 201D5: VDD → VDDMMC; E15: VDD50USB → VDD50_USB; F13: VDD33USB → VDD33_USBтолько у этого: ADC3, CORDIC, ETH, FDCAN3, FMAC, I2C5, LPTIM4, LPTIM5, SAI4, SPDIFRX1, TIM23, TIM24; только у него: CRYP, DAC2, DFSDM2, HASH, SAI2, SPDIFRX; частота до 550 и 280 МГц; флеш-память до 1024 и 128 КБ; ОЗУ 564 и 1424 КБ
STM32H7B3IIKxQSTM32H7A3/7B3198 из 201D5: VDD → VDDMMC; E15: VDD50USB → VDD50_USB; F13: VDD33USB → VDD33_USBтолько у этого: ADC3, CORDIC, ETH, FDCAN3, FMAC, I2C5, LPTIM4, LPTIM5, SAI4, SPDIFRX1, TIM23, TIM24; только у него: CRYP, DAC2, DFSDM2, HASH, SAI2, SPDIFRX; частота до 550 и 280 МГц; флеш-память до 1024 и 2048 КБ; ОЗУ 564 и 1424 КБ

Частые вопросы

На каких выводах USART1 у STM32H725IG?

В корпусе UFBGA176 сигнал USART1_TX выведен на PB6 (шарик A5, AF7) или PA9 (шарик D13, AF7) или PB14 (шарик K15, AF4), USART1_RX — на PB7 (шарик B5, AF7) или PA10 (шарик C14, AF7) или PB15 (шарик K14, AF4).

Где у STM32H725IG выводы SWD для программатора?

SWDIO — PA13(JTMS/SWDIO) (шарик B13, AF0), SWCLK — PA14(JTCK/SWCLK) (шарик A12, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H725IG?

I2C1_SCL — PB8 (шарик A2, AF4) или PB6 (шарик A5, AF4), I2C1_SDA — PB9 (шарик B3, AF4) или PB7 (шарик B5, AF4).

Сколько выводов ввода-вывода у STM32H725IG в корпусе UFBGA176?

132 из 201. Ещё 66 выводов заняты питанием и землёй, остальные 3 — сброс, выбор загрузки и служебные цепи.

Чем отличаются STM32H725IGK6 и STM32H725IGK3?

Диапазоном рабочей температуры: STM32H725IGK6 — −40…+85 °C, STM32H725IGK3 — −40…+125 °C (по таблице заказных номеров на st.com). Корпус (UFBGA 176+25, 10×10×0,6 мм, шаг 0,65 мм) и расположение выводов у них одинаковые.

Какое напряжение питания у STM32H725IG?

От 1,62 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Заказные номера, корпуса, упаковка и температурный диапазон — из таблиц на страницах продуктов st.com (данные на 11 октября 2026 г.). Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
