STM32H747ZI в корпусе WLCSP156: распиновка

STM32H747ZI — микроконтроллер STM32H7 на ядре Cortex-M7 + Cortex-M4 с частотой до 480 МГц: 2 МБ флеш-памяти и 864 КБ ОЗУ. Корпус WLCSP156 — 156 шариков, из них 101 линия ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M7 + Cortex-M4
Частота ядра
до 480 МГц
Флеш-память
2 МБ
ОЗУ
864 КБ
Корпус
WLCSP156, 156 шариков
Линий ввода-вывода
101
Напряжение питания
1,62…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса WLCSP156

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32H747ZI в корпусе WLCSP156, вид сверхуABCDEFGHJKLM12345678910111213VSS — шарик A1VSSVDDLDO — шарик A2VDDLDOPA15 (JTDI) — шарик A3: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DEBUG_JTDI, DSIHOST_TE, HRTIM_FLT1, I2S1_WS, I2S3_WS, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PD0 — шарик A4: DFSDM1_CKIN6, FDCAN1_RX, FMC_D2, FMC_DA2, SAI3_SCK_A, UART4_RXPD0PD4 — шарик A5: FMC_NOE, HRTIM_FLT3, SAI3_FS_A, USART2_DE, USART2_RTSPD4VDD — шарик A6VDDPG15 — шарик A7: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, USART6_CTS, USART6_NSSPG15PB4 (NJTRST) — шарик A8: DEBUG_JTRST, HRTIM_EEV6, I2S1_SDI, I2S2_WS, I2S3_SDI, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4VDD — шарик A9VDDPB8 — шарик A10: DCMI_D6, DFSDM1_CKIN7, ETH_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, LTDC_B6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RXPB8VCAP — шарик A11VCAPVDDLDO — шарик A12VDDLDODNC — шарик A13DNCPA12 — шарик B1: FDCAN1_TX, HRTIM_CHD2, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R5, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_FS_DPPA12VCAP — шарик B2VCAPVDD — шарик B3VDDPC12 — шарик B4: DCMI_D9, DEBUG_TRACED3, HRTIM_EEV2, I2S3_SDO, SDMMC1_CK, SPI3_MOSI, UART5_TX, USART3_CKPC12PD3 — шарик B5: DCMI_D5, DFSDM1_CKOUT, FMC_CLK, I2S2_CK, LTDC_G7, SPI2_SCK, USART2_CTS, USART2_NSSPD3VSS — шарик B6VSSPB3 (JTDO/TRACESWO) — шарик B7: CRS_SYNC, DEBUG_JTDO-SWO, HRTIM_FLT4, I2S1_CK, I2S3_CK, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART7_RXPB3PB5 — шарик B8: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, HRTIM_EEV7, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX, USB_OTG_HS_ULPI_D7PB5VSS — шарик B9VSSPE0 — шарик B10: DCMI_D2, FMC_NBL0, HRTIM_SCIN, LPTIM1_ETR, LPTIM2_ETR, SAI2_MCLK_A, TIM4_ETR, UART8_RXPE0VDD — шарик B11VDDPE4 — шарик B12: DCMI_D4, DEBUG_TRACED1, DFSDM1_DATIN3, FMC_A20, LTDC_B0, SAI1_D2, SAI1_FS_A, SAI4_D2, SAI4_FS_A, SPI4_NSS, TIM15_CH1NPE4VBAT — шарик B13VBATPA11 — шарик C1: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX, HRTIM_CHD1, I2S2_WS, LPUART1_CTS, LTDC_R4, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_FS_DMPA11PA10 — шарик C2: DCMI_D1, HRTIM_CHC2, LPUART1_RX, LTDC_B1, LTDC_B4, MDIOS_MDIO, TIM1_CH3, USART1_RX, USB_OTG_FS_IDPA10PA13 (JTMS/SWDIO) — шарик C3: DEBUG_JTMS-SWDIOPA13VSS — шарик C4VSSPC11 — шарик C5: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4, DFSDM1_DATIN5, HRTIM_FLT2, I2S3_SDI, QUADSPI_BK2_NCS, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PD6 — шарик C6: DCMI_D10, DFSDM1_CKIN4, DFSDM1_DATIN1, FMC_NWAIT, I2S3_SDO, LTDC_B2, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PB6 — шарик C7: CEC, DCMI_D5, DFSDM1_DATIN5, FDCAN2_TX, FMC_SDNE1, HRTIM_EEV8, I2C1_SCL, I2C4_SCL, LPUART1_TX, QUADSPI_BK1_NCS, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6PB7 — шарик C8: DCMI_VSYNC, DFSDM1_CKIN5, FMC_NL, HRTIM_EEV9, I2C1_SDA, I2C4_SDA, LPUART1_RX, PWR_PVD_IN, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PB9 — шарик C9: DAC1_EXTI9, DCMI_D7, DFSDM1_DATIN7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2C4_SMBA, I2S2_WS, LTDC_B7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9VSS — шарик C10VSSPE5 — шарик C11: DCMI_D6, DEBUG_TRACED2, DFSDM1_CKIN3, FMC_A21, LTDC_G0, SAI1_CK2, SAI1_SCK_A, SAI4_CK2, SAI4_SCK_A, SPI4_MISO, TIM15_CH1PE5PC15-OSC32_OUT (OSC32_OUT) — шарик C12: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUTPC15PC14-OSC32_IN (OSC32_IN) — шарик C13: RCC_OSC32_INPC14PC8 — шарик D1: DCMI_D2, DEBUG_TRACED1, FMC_NCE, FMC_NE2, HRTIM_CHB1, SDMMC1_D0, SWPMI1_RX, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PC9 — шарик D2: DAC1_EXTI9, DCMI_D3, I2C3_SDA, I2S_CKIN, LTDC_B2, LTDC_G3, QUADSPI_BK1_IO0, RCC_MCO_2, SDMMC1_D1, SWPMI1_SUSPEND, TIM3_CH4, TIM8_CH4, UART5_CTSPC9PA8 — шарик D3: HRTIM_CHB2, I2C3_SCL, LTDC_B3, LTDC_R6, RCC_MCO_1, TIM1_CH1, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2, UART7_RX, USART1_CK, USB_OTG_FS_SOFPA8PA9 — шарик D4: DAC1_EXTI9, DCMI_D0, ETH_TX_ER, HRTIM_CHC1, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R5, SPI2_SCK, TIM1_CH2, USART1_TX, USB_OTG_FS_VBUSPA9PC10 — шарик D5: DCMI_D8, DFSDM1_CKIN5, HRTIM_EEV1, I2S3_CK, LTDC_R2, QUADSPI_BK1_IO1, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TXPC10PD7 — шарик D6: DFSDM1_CKIN1, DFSDM1_DATIN4, FMC_NE1, I2S1_SDO, SDMMC2_CMD, SPDIFRX1_IN0, SPI1_MOSI, USART2_CKPD7BOOT0 — шарик D7BOOT0PE1 — шарик D8: DCMI_D3, FMC_NBL1, HRTIM_SCOUT, LPTIM1_IN2, UART8_TXPE1PE2 — шарик D9: DEBUG_TRACECLK, ETH_TXD3, FMC_A23, QUADSPI_BK1_IO2, SAI1_CK1, SAI1_MCLK_A, SAI4_CK1, SAI4_MCLK_A, SPI4_SCKPE2PE3 — шарик D10: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, SAI4_SD_B, TIM15_BKINPE3VSS — шарик D11VSSVSSSMPS — шарик D12VSSSMPSVDD — шарик D13VDDVDD33_USB — шарик E1VDD33USBVDD — шарик E2VDDVDD50_USB — шарик E3VDD50USBPC7 — шарик E4: DCMI_D1, DEBUG_TRGIO, DFSDM1_DATIN3, FMC_NE1, HRTIM_CHA2, I2S3_MCK, LTDC_G6, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, SWPMI1_TX, TIM3_CH2, TIM8_CH2, USART6_RXPC7PA14 (JTCK/SWCLK) — шарик E5: DEBUG_JTCK-SWCLKPA14PD2 — шарик E6: DCMI_D11, DEBUG_TRACED2, SDMMC1_CMD, TIM3_ETR, UART5_RXPD2PDR_ON — шарик E7PDR_ONPE6 — шарик E8: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SAI4_D1, SAI4_SD_A, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PE6PC13 — шарик E9: PWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TSPC13PF0 — шарик E10: FMC_A0, I2C2_SDAPF0VFBSMPS — шарик E11VFBSMPSVLXSMPS — шарик E12VLXSMPSVDDSMPS — шарик E13VDDSMPSPG5 — шарик F1: FMC_A15, FMC_BA1, TIM1_ETRPG5PG8 — шарик F2: ETH_PPS_OUT, FMC_SDCLK, LTDC_G7, SPDIFRX1_IN2, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTSPG8VSS — шарик F3VSSPG4 — шарик F4: FMC_A14, FMC_BA0, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PG4PC6 — шарик F5: DCMI_D0, DFSDM1_CKIN3, FMC_NWAIT, HRTIM_CHA1, I2S2_MCK, LTDC_HSYNC, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, SWPMI1_IO, TIM3_CH1, TIM8_CH1, USART6_TXPC6PD1 — шарик F6: DFSDM1_DATIN6, FDCAN1_TX, FMC_D3, FMC_DA3, SAI3_SD_A, UART4_TXPD1PD5 — шарик F7: FMC_NWE, HRTIM_EEV3, USART2_TXPD5PF11 — шарик F8: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, SAI2_SD_BPF11PF1 — шарик F9: FMC_A1, I2C2_SCLPF1PF5 — шарик F10: ADC3_INP4, FMC_A5PF5PF4 — шарик F11: ADC3_INN5, ADC3_INP9, FMC_A4PF4PF2 — шарик F12: FMC_A2, I2C2_SMBAPF2PF3 — шарик F13: ADC3_INP5, FMC_A3PF3DSI_D1N — шарик G1: DSIHOST_D1NDSID1NDSI_D1P — шарик G2: DSIHOST_D1PDSID1PPG2 — шарик G3: FMC_A12, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PG2PG3 — шарик G4: FMC_A13, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2PG3PD8 — шарик G5: DFSDM1_CKIN3, FMC_D13, FMC_DA13, SAI3_SCK_B, SPDIFRX1_IN1, USART3_TXPD8PE11 — шарик G6: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4, FMC_D8, FMC_DA8, LTDC_G3, SAI2_SD_B, SPI4_NSS, TIM1_CH2PE11PE10 — шарик G7: COMP2_INM, DFSDM1_DATIN4, FMC_D7, FMC_DA7, QUADSPI_BK2_IO3, TIM1_CH2N, UART7_CTSPE10PF12 — шарик G8: ADC1_INN2, ADC1_INP6, FMC_A6PF12PA6 — шарик G9: ADC1_INP3, ADC2_INP3, DCMI_PIXCLK, I2S1_SDI, LTDC_G2, MDIOS_MDC, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM3_CH1, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PA6PC1 — шарик G10: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0, DFSDM1_CKIN4, DFSDM1_DATIN0, ETH_MDC, I2S2_SDO, MDIOS_MDC, PWR_WKUP6, RTC_TAMP3, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI2_MOSIPC1PC0 — шарик G11: ADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0, DFSDM1_DATIN4, FMC_SDNWE, LTDC_R5, SAI2_FS_B, USB_OTG_HS_ULPI_STPPC0VSS — шарик G12VSSVDD — шарик G13VDDDSI_CKN — шарик H1: DSIHOST_CKNDSICKNDSI_CKP — шарик H2: DSIHOST_CKPDSICKPVSSDSI — шарик H3VSSDSIPD14 — шарик H4: FMC_D0, FMC_DA0, SAI3_MCLK_B, TIM4_CH3, UART8_CTSPD14PB13 — шарик H5: DFSDM1_CKIN1, ETH_TXD1, FDCAN2_TX, I2S2_CK, LPTIM2_OUT, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSS, USB_OTG_HS_ULPI_D6, USB_OTG_HS_VBUSPB13PB10 — шарик H6: DFSDM1_DATIN7, ETH_RX_ER, HRTIM_SCOUT, I2C2_SCL, I2S2_CK, LPTIM2_IN1, LTDC_G4, QUADSPI_BK1_NCS, SPI2_SCK, TIM2_CH3, USART3_TX, USB_OTG_HS_ULPI_D3PB10PE7 — шарик H7: COMP2_INM, DFSDM1_DATIN2, FMC_D4, FMC_DA4, OPAMP2_VOUT, QUADSPI_BK2_IO0, TIM1_ETR, UART7_RXPE7PF13 — шарик H8: ADC2_INP2, DFSDM1_DATIN6, FMC_A7, I2C4_SMBAPF13PB1 — шарик H9: ADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1, ETH_RXD3, LTDC_G0, LTDC_R6, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USB_OTG_HS_ULPI_D2PB1PA5 — шарик H10: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, I2S1_CK, LTDC_R4, PWR_NDSTOP2, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USB_OTG_HS_ULPI_CKPA5NRST — шарик H11NRSTPH0-OSC_IN — шарик H12: RCC_OSC_INPH0PH1-OSC_OUT — шарик H13: RCC_OSC_OUTPH1DSI_D0N — шарик J1: DSIHOST_D0NDSID0NDSI_D0P — шарик J2: DSIHOST_D0PDSID0PPD15 — шарик J3: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, SAI3_MCLK_A, TIM4_CH4, UART8_DE, UART8_RTSPD15PD11 — шарик J4: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, QUADSPI_BK1_IO0, SAI2_SD_A, USART3_CTS, USART3_NSSPD11PB12 — шарик J5: DFSDM1_DATIN1, ETH_TXD0, FDCAN2_RX, I2C2_SMBA, I2S2_WS, SPI2_NSS, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, UART5_RX, USART3_CK, USB_OTG_HS_ID, USB_OTG_HS_ULPI_D5PB12PE12 — шарик J6: COMP1_OUT, DFSDM1_DATIN5, FMC_D9, FMC_DA9, LTDC_B4, SAI2_SCK_B, SPI4_SCK, TIM1_CH3NPE12PE8 — шарик J7: COMP2_OUT, DFSDM1_CKIN2, FMC_D5, FMC_DA5, OPAMP2_VINM, OPAMP2_VINM0, QUADSPI_BK2_IO1, TIM1_CH1N, UART7_TXPE8PF15 — шарик J8: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9, I2C4_SDAPF15PA7 — шарик J9: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV, ETH_RX_DV, FMC_SDNWE, I2S1_SDO, OPAMP1_VINM, OPAMP1_VINM1, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1NPA7PA3 — шарик J10: ADC1_INP15, ADC2_INP15, ETH_COL, LPTIM5_OUT, LTDC_B2, LTDC_B5, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX, USB_OTG_HS_ULPI_D0PA3VDDA — шарик J11VDDAVREF+ — шарик J12: VREFBUF_OUTVREF+VSSA — шарик J13VSSAVCAPDSI — шарик K1VCAPDSIVDD — шарик K2VDDPD13 — шарик K3: FMC_A18, I2C4_SDA, LPTIM1_OUT, QUADSPI_BK1_IO3, SAI2_SCK_A, TIM4_CH2PD13PD9 — шарик K4: DAC1_EXTI9, DFSDM1_DATIN3, FMC_D14, FMC_DA14, SAI3_SD_B, USART3_RXPD9PB11 — шарик K5: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7, DSIHOST_TE, ETH_TX_EN, HRTIM_SCIN, I2C2_SDA, LPTIM2_ETR, LTDC_G5, TIM2_CH4, USART3_RX, USB_OTG_HS_ULPI_D4PB11PE13 — шарик K6: COMP2_OUT, DFSDM1_CKIN5, FMC_D10, FMC_DA10, LTDC_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH3PE13PE9 — шарик K7: COMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT, FMC_D6, FMC_DA6, OPAMP2_VINP, QUADSPI_BK2_IO2, TIM1_CH1, UART7_DE, UART7_RTSPE9PF14 — шарик K8: ADC2_INN2, ADC2_INP6, DFSDM1_CKIN6, FMC_A8, I2C4_SCLPF14PB0 — шарик K9: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT, ETH_RXD2, LTDC_G1, LTDC_R3, OPAMP1_VINP, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USB_OTG_HS_ULPI_D1PB0PA4 — шарик K10: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, I2S1_WS, I2S3_WS, LTDC_VSYNC, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CK, USB_OTG_HS_SOFPA4PA2 — шарик K11: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM4_OUT, LTDC_R1, MDIOS_MDIO, PWR_WKUP2, SAI2_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PC3_C — шарик K12: ADC3_INP1, DFSDM1_DATIN1, ETH_TX_CLK, FMC_SDCKE0, I2S2_SDO, PWR_CSLEEP, SPI2_MOSI, USB_OTG_HS_ULPI_NXTPC3PC2_C — шарик K13: ADC3_INN1, ADC3_INP0, DFSDM1_CKIN1, DFSDM1_CKOUT, ETH_TXD2, FMC_SDNE0, I2S2_SDI, PWR_CSTOP, SPI2_MISO, USB_OTG_HS_ULPI_DIRPC2VSS — шарик L1VSSPD12 — шарик L2: FMC_A17, FMC_ALE, I2C4_SCL, LPTIM1_IN1, LPTIM2_IN1, QUADSPI_BK1_IO1, SAI2_FS_A, TIM4_CH1, USART3_DE, USART3_RTSPD12PD10 — шарик L3: DFSDM1_CKOUT, FMC_D15, FMC_DA15, LTDC_B3, SAI3_FS_B, USART3_CKPD10VDDLDO — шарик L4VDDLDOVSS — шарик L5VSSPE15 — шарик L6: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12, FMC_DA12, LTDC_R7, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2PE15VSS — шарик L7VSSPG0 — шарик L8: FMC_A10PG0VSS — шарик L9VSSPC5 — шарик L10: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT, DFSDM1_DATIN2, ETH_RXD1, FMC_SDCKE0, OPAMP1_VINM, OPAMP1_VINM0, SAI1_D3, SAI4_D3, SPDIFRX1_IN3PC5VSS — шарик L11VSSPA1 — шарик L12: ADC1_INN16, ADC1_INP17, ETH_REF_CLK, ETH_RX_CLK, LPTIM3_OUT, LTDC_R2, QUADSPI_BK1_IO3, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PA0 — шарик L13: ADC1_INP16, ETH_CRS, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0VSS — шарик M1VSSPB15 — шарик M2: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2, I2S2_SDO, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, USART1_RX, USB_OTG_HS_DPPB15PB14 — шарик M3: DFSDM1_DATIN2, I2S2_SDI, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, USART1_TX, USART3_DE, USART3_RTS, USB_OTG_HS_DMPB14VDD — шарик M4VDDVCAP — шарик M5VCAPPE14 — шарик M6: FMC_D11, FMC_DA11, LTDC_CLK, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14VDD — шарик M7VDDPG1 — шарик M8: FMC_A11, OPAMP2_VINM, OPAMP2_VINM1PG1VDD — шарик M9VDDPB2 — шарик M10: COMP1_INP, DFSDM1_CKIN1, ETH_TX_ER, I2S3_SDO, QUADSPI_CLK, RTC_OUT_ALARM, RTC_OUT_CALIB, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SPI3_MOSIPB2PC4 — шарик M11: ADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2, ETH_RXD0, FMC_SDNE0, I2S1_MCK, OPAMP1_VOUT, SPDIFRX1_IN2PC4VDD — шарик M12VDDVSS — шарик M13VSSWLCSP156, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнемуглу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

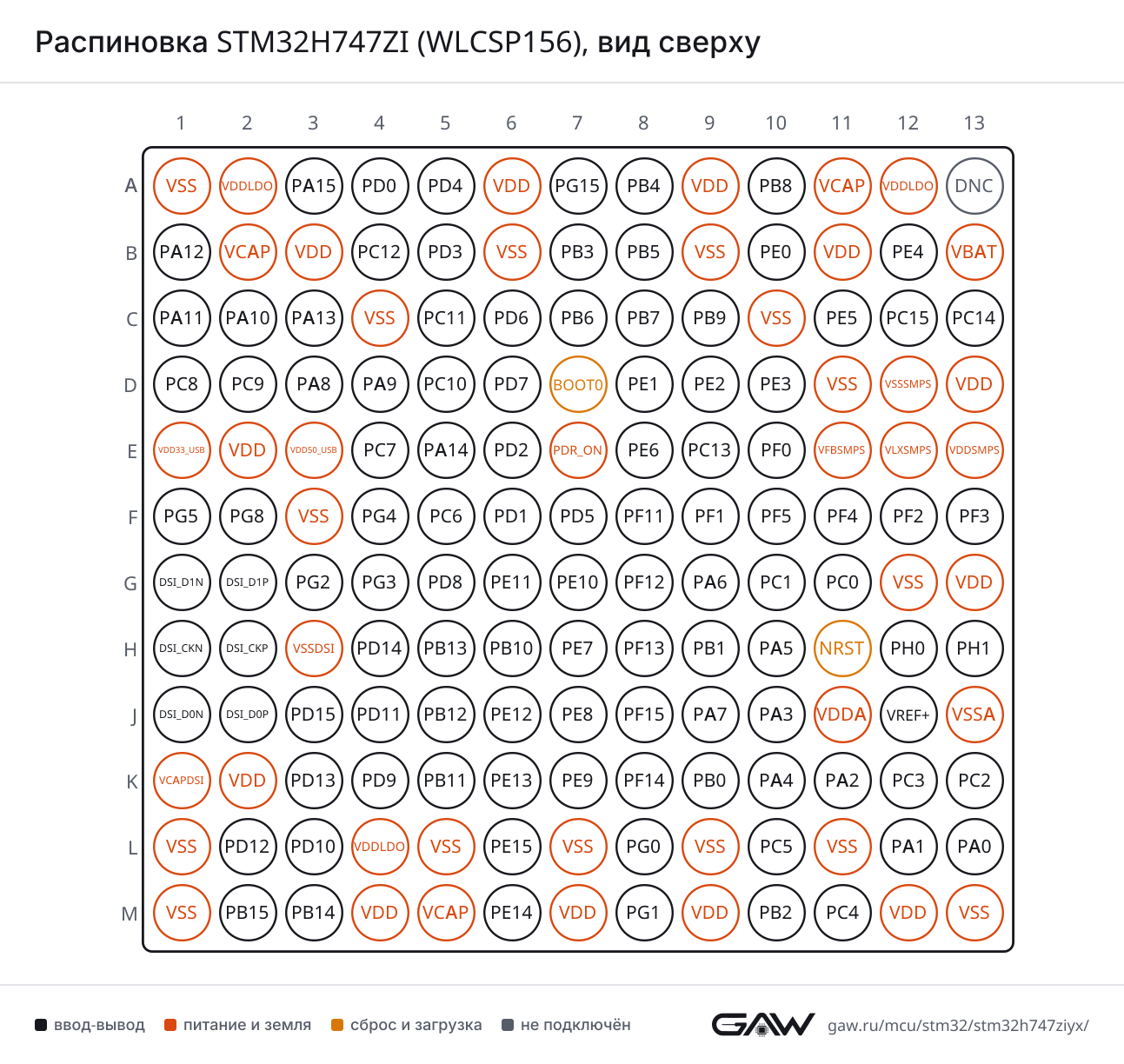

Распиновка STM32H747ZI (WLCSP156), вид сверхуРаспиновка WLCSP156 картинкой
PNG, 1293 × 1224 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (D3, AF7)
CTSPA11 (C1, AF7)
DEPA12 (B1, AF7)
NSSPA11 (C1, AF7)
RTSPA12 (B1, AF7)
RXPA10 (C2, AF7), PB7 (C8, AF7), PB15 (M2, AF4)
TXPB6 (C7, AF7), PA9 (D4, AF7), PB14 (M3, AF4)
USART2CKPD7 (D6, AF7), PA4 (K10, AF7)
CTSPD3 (B5, AF7), PA0 (L13, AF7)
DEPD4 (A5, AF7), PA1 (L12, AF7)
NSSPD3 (B5, AF7), PA0 (L13, AF7)
RTSPD4 (A5, AF7), PA1 (L12, AF7)
RXPD6 (C6, AF7), PA3 (J10, AF7)
TXPD5 (F7, AF7), PA2 (K11, AF7)
USART3CKPC12 (B4, AF7), PB12 (J5, AF7), PD10 (L3, AF7)
CTSPB13 (H5, AF7), PD11 (J4, AF7)
DEPD12 (L2, AF7), PB14 (M3, AF7)
NSSPB13 (H5, AF7), PD11 (J4, AF7)
RTSPD12 (L2, AF7), PB14 (M3, AF7)
RXPC11 (C5, AF7), PD9 (K4, AF7), PB11 (K5, AF7)
TXPC10 (D5, AF7), PD8 (G5, AF7), PB10 (H6, AF7)
USART6CKPC8 (D1, AF7)
CTSPG15 (A7, AF7)
DEPG8 (F2, AF7)
NSSPG15 (A7, AF7)
RTSPG8 (F2, AF7)
RXPC7 (E4, AF7)
TXPC6 (F5, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB0 (K9, AF8), PB15 (M2, AF8)
DEPA15 (JTDI) (A3, AF8), PB14 (M3, AF8)
RTSPA15 (JTDI) (A3, AF8), PB14 (M3, AF8)
RXPD0 (A4, AF8), PB8 (A10, AF8), PA11 (C1, AF6), PC11 (C5, AF8), PA1 (L12, AF8)
TXPA12 (B1, AF6), PB9 (C9, AF8), PC10 (D5, AF8), PD1 (F6, AF8), PA0 (L13, AF8)
UART5CTSPC9 (D2, AF8)
DEPC8 (D1, AF8)
RTSPC8 (D1, AF8)
RXPB5 (B8, AF14), PD2 (E6, AF8), PB12 (J5, AF14)
TXPC12 (B4, AF8), PB6 (C7, AF14), PB13 (H5, AF14)
UART7CTSPE10 (G7, AF7)
DEPE9 (K7, AF7)
RTSPE9 (K7, AF7)
RXPB3 (JTDO/TRACESWO) (B7, AF11), PA8 (D3, AF11), PE7 (H7, AF7)
TXPA15 (JTDI) (A3, AF11), PB4 (NJTRST) (A8, AF11), PE8 (J7, AF7)
UART8CTSPD14 (H4, AF8)
DEPD15 (J3, AF8)
RTSPD15 (J3, AF8)
RXPE0 (B10, AF8)
TXPE1 (D8, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (C1, AF3)
DEPA12 (B1, AF3)
RTSPA12 (B1, AF3)
RXPA10 (C2, AF3), PB7 (C8, AF8)
TXPB6 (C7, AF8), PA9 (D4, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4 (NJTRST) (A8, AF5), PA6 (G9, AF5)
MOSIPB5 (B8, AF5), PD7 (D6, AF5), PA7 (J9, AF5)
NSSPA15 (JTDI) (A3, AF5), PA4 (K10, AF5)
SCKPB3 (JTDO/TRACESWO) (B7, AF5), PA5 (H10, AF5)
SPI2MISOPC2_C (K13, AF5), PB14 (M3, AF5)
MOSIPC1 (G10, AF5), PC3_C (K12, AF5), PB15 (M2, AF5)
NSSPB4 (NJTRST) (A8, AF7), PA11 (C1, AF5), PB9 (C9, AF5), PB12 (J5, AF5)
SCKPA12 (B1, AF5), PD3 (B5, AF5), PA9 (D4, AF5), PB13 (H5, AF5), PB10 (H6, AF5)
SPI3MISOPB4 (NJTRST) (A8, AF6), PC11 (C5, AF6)
MOSIPC12 (B4, AF6), PB5 (B8, AF7), PD6 (C6, AF5), PB2 (M10, AF7)
NSSPA15 (JTDI) (A3, AF6), PA4 (K10, AF6)
SCKPB3 (JTDO/TRACESWO) (B7, AF6), PC10 (D5, AF6)
SPI4MISOPE5 (C11, AF5), PE13 (K6, AF5)
MOSIPE6 (E8, AF5), PE14 (M6, AF5)
NSSPE4 (B12, AF5), PE11 (G6, AF5)
SCKPE2 (D9, AF5), PE12 (J6, AF5)
SPI6MISOPB4 (NJTRST) (A8, AF8), PA6 (G9, AF8)
MOSIPB5 (B8, AF8), PA7 (J9, AF8)
NSSPA15 (JTDI) (A3, AF7), PG8 (F2, AF5), PA4 (K10, AF8)
SCKPB3 (JTDO/TRACESWO) (B7, AF8), PA5 (H10, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (D2, AF5)
I2S1CKPB3 (JTDO/TRACESWO) (B7, AF5), PA5 (H10, AF5)
MCKPC4 (M11, AF5)
SDIPB4 (NJTRST) (A8, AF5), PA6 (G9, AF5)
SDOPB5 (B8, AF5), PD7 (D6, AF5), PA7 (J9, AF5)
WSPA15 (JTDI) (A3, AF5), PA4 (K10, AF5)
I2S2CKPA12 (B1, AF5), PD3 (B5, AF5), PA9 (D4, AF5), PB13 (H5, AF5), PB10 (H6, AF5)
MCKPC6 (F5, AF5)
SDIPC2_C (K13, AF5), PB14 (M3, AF5)
SDOPC1 (G10, AF5), PC3_C (K12, AF5), PB15 (M2, AF5)
WSPB4 (NJTRST) (A8, AF7), PA11 (C1, AF5), PB9 (C9, AF5), PB12 (J5, AF5)
I2S3CKPB3 (JTDO/TRACESWO) (B7, AF6), PC10 (D5, AF6)
MCKPC7 (E4, AF6)
SDIPB4 (NJTRST) (A8, AF6), PC11 (C5, AF6)
SDOPC12 (B4, AF6), PB5 (B8, AF7), PD6 (C6, AF5), PB2 (M10, AF7)
WSPA15 (JTDI) (A3, AF6), PA4 (K10, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8 (A10, AF4), PB6 (C7, AF4)
SDAPB7 (C8, AF4), PB9 (C9, AF4)
SMBAPB5 (B8, AF4)
I2C2SCLPF1 (F9, AF4), PB10 (H6, AF4)
SDAPF0 (E10, AF4), PB11 (K5, AF4)
SMBAPF2 (F12, AF4), PB12 (J5, AF4)
I2C3SCLPA8 (D3, AF4)
SDAPC9 (D2, AF4)
SMBAPA9 (D4, AF4)
I2C4SCLPB8 (A10, AF6), PB6 (C7, AF6), PF14 (K8, AF4), PD12 (L2, AF4)
SDAPB7 (C8, AF6), PB9 (C9, AF6), PF15 (J8, AF4), PD13 (K3, AF4)
SMBAPB5 (B8, AF6), PB9 (C9, AF11), PF13 (H8, AF4), PD11 (J4, AF4)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPD0 (A4, AF9), PB8 (A10, AF9), PA11 (C1, AF9)
TXPA12 (B1, AF9), PB9 (C9, AF9), PD1 (F6, AF9)
FDCAN2RXPB5 (B8, AF9), PB12 (J5, AF9)
TXPB6 (C7, AF9), PB13 (H5, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (C1, AF10)
DPPA12 (B1, AF10)
IDPA10 (C2, AF10)
SOFPA8 (D3, AF10)
VBUSPA9 (D4)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPB14 (M3, AF12)
DPPB15 (M2, AF12)
IDPB12 (J5, AF12)
SOFPA4 (K10, AF12)
ULPI_CKPA5 (H10, AF10)
ULPI_D0PA3 (J10, AF10)
ULPI_D1PB0 (K9, AF10)
ULPI_D2PB1 (H9, AF10)
ULPI_D3PB10 (H6, AF10)
ULPI_D4PB11 (K5, AF10)
ULPI_D5PB12 (J5, AF10)
ULPI_D6PB13 (H5, AF10)
ULPI_D7PB5 (B8, AF10)
ULPI_DIRPC2_C (K13, AF10)
ULPI_NXTPC3_C (K12, AF10)
ULPI_STPPC0 (G11, AF10)
VBUSPB13 (H5)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCOLPA3 (J10, AF11)
CRSPA0 (L13, AF11)
CRS_DVPA7 (J9, AF11)
MDCPC1 (G10, AF11)
MDIOPA2 (K11, AF11)
PPS_OUTPB5 (B8, AF11), PG8 (F2, AF11)
REF_CLKPA1 (L12, AF11)
RX_CLKPA1 (L12, AF11)
RX_DVPA7 (J9, AF11)
RX_ERPB10 (H6, AF11)
RXD0PC4 (M11, AF11)
RXD1PC5 (L10, AF11)
RXD2PB0 (K9, AF11)
RXD3PB1 (H9, AF11)
TX_CLKPC3_C (K12, AF11)
TX_ENPB11 (K5, AF11)
TX_ERPA9 (D4, AF11), PB2 (M10, AF11)
TXD0PB12 (J5, AF11)
TXD1PB13 (H5, AF11)
TXD2PC2_C (K13, AF11)
TXD3PB8 (A10, AF11), PE2 (D9, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (C9, AF7)
CKPC12 (B4, AF12)
CKINPB8 (A10, AF7)
CMDPD2 (E6, AF12)
D0PC8 (D1, AF12)
D0DIRPC6 (F5, AF8)
D1PC9 (D2, AF12)
D2PC10 (D5, AF12)
D3PC11 (C5, AF12)
D4PB8 (A10, AF12)
D5PB9 (C9, AF12)
D6PC6 (F5, AF12)
D7PC7 (E4, AF12)
D123DIRPC7 (E4, AF8)
SDMMC2CKPD6 (C6, AF11), PC1 (G10, AF9)
CMDPD7 (D6, AF11), PA0 (L13, AF9)
D0PB14 (M3, AF9)
D1PB15 (M2, AF9)
D2PB3 (JTDO/TRACESWO) (B7, AF9)
D3PB4 (NJTRST) (A8, AF9)
D4PB8 (A10, AF10)
D5PB9 (C9, AF10)
D6PC6 (F5, AF10)
D7PC7 (E4, AF10)

QUADSPI — интерфейс Quad-SPI памяти

БлокСигналВыводы
QUADSPIBK1_IO0PC9 (D2, AF9), PD11 (J4, AF9)
BK1_IO1PC10 (D5, AF9), PD12 (L2, AF9)
BK1_IO2PE2 (D9, AF9)
BK1_IO3PD13 (K3, AF9), PA1 (L12, AF9)
BK1_NCSPB6 (C7, AF10), PB10 (H6, AF9)
BK2_IO0PE7 (H7, AF10)
BK2_IO1PE8 (J7, AF10)
BK2_IO2PE9 (K7, AF10)
BK2_IO3PE10 (G7, AF10)
BK2_NCSPC11 (C5, AF9)
CLKPB2 (M10, AF9)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (D9, AF2)
CK2PE5 (C11, AF2)
D1PD6 (C6, AF2), PE6 (E8, AF2), PC1 (G10, AF2), PB2 (M10, AF2)
D2PE4 (B12, AF2)
D3PC5 (L10, AF2)
FS_APE4 (B12, AF6)
MCLK_APE2 (D9, AF6)
SCK_APE5 (C11, AF6)
SD_APD6 (C6, AF6), PE6 (E8, AF6), PC1 (G10, AF6), PB2 (M10, AF6)
SD_BPE3 (D10, AF6)
SAI2FS_APD12 (L2, AF10)
FS_BPA12 (B1, AF8), PC0 (G11, AF8), PE13 (K6, AF10)
MCLK_APE0 (B10, AF10)
MCLK_BPE6 (E8, AF10), PA1 (L12, AF10), PE14 (M6, AF10)
SCK_APD13 (K3, AF10)
SCK_BPE12 (J6, AF10), PA2 (K11, AF8)
SD_APD11 (J4, AF10)
SD_BPF11 (F8, AF10), PE11 (G6, AF10), PA0 (L13, AF10)
SAI3FS_APD4 (A5, AF6)
FS_BPD10 (L3, AF6)
MCLK_APD15 (J3, AF6)
MCLK_BPD14 (H4, AF6)
SCK_APD0 (A4, AF6)
SCK_BPD8 (G5, AF6)
SD_APD1 (F6, AF6)
SD_BPD9 (K4, AF6)
SAI4CK1PE2 (D9, AF10)
CK2PE5 (C11, AF10)
D1PD6 (C6, AF10), PE6 (E8, AF9), PC1 (G10, AF10), PB2 (M10, AF10)
D2PE4 (B12, AF10)
D3PC5 (L10, AF10)
FS_APE4 (B12, AF8)
MCLK_APE2 (D9, AF8)
SCK_APE5 (C11, AF8)
SD_APD6 (C6, AF8), PE6 (E8, AF8), PC1 (G10, AF8), PB2 (M10, AF8)
SD_BPE3 (D10, AF8)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRX1IN0PD7 (D6, AF9)
IN1PD8 (G5, AF9)
IN2PG8 (F2, AF8), PC4 (M11, AF9)
IN3PC5 (L10, AF9)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15 (JTDI) (A3, AF4), PB6 (C7, AF5)

SWPMI — интерфейс Single Wire Protocol

БлокСигналВыводы
SWPMI1IOPC6 (F5)
RXPC8 (D1, AF11)
SUSPENDPC9 (D2, AF11)
TXPC7 (E4, AF11)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PA11 (C1), PC11 (C5), PF11 (F8), PE11 (G6), PD11 (J4), PB11 (K5)
EXTI15PA15 (JTDI) (A3), PG15 (A7), PC15-OSC32_OUT (OSC32_OUT) (C12), PD15 (J3), PF15 (J8), PE15 (L6), PB15 (M2)
INN2PF12 (G8)
INN3PA7 (J9)
INN4PC5 (L10)
INN5PB0 (K9)
INN10PC1 (G10)
INN16PA1 (L12)
INN18PA5 (H10)
INP2PF11 (F8)
INP3PA6 (G9)
INP4PC4 (M11)
INP5PB1 (H9)
INP6PF12 (G8)
INP7PA7 (J9)
INP8PC5 (L10)
INP9PB0 (K9)
INP10PC0 (G11)
INP11PC1 (G10)
INP14PA2 (K11)
INP15PA3 (J10)
INP16PA0 (L13)
INP17PA1 (L12)
INP18PA4 (K10)
INP19PA5 (H10)
ADC2EXTI11PA11 (C1), PC11 (C5), PF11 (F8), PE11 (G6), PD11 (J4), PB11 (K5)
EXTI15PA15 (JTDI) (A3), PG15 (A7), PC15-OSC32_OUT (OSC32_OUT) (C12), PD15 (J3), PF15 (J8), PE15 (L6), PB15 (M2)
INN2PF14 (K8)
INN3PA7 (J9)
INN4PC5 (L10)
INN5PB0 (K9)
INN10PC1 (G10)
INN18PA5 (H10)
INP2PF13 (H8)
INP3PA6 (G9)
INP4PC4 (M11)
INP5PB1 (H9)
INP6PF14 (K8)
INP7PA7 (J9)
INP8PC5 (L10)
INP9PB0 (K9)
INP10PC0 (G11)
INP11PC1 (G10)
INP14PA2 (K11)
INP15PA3 (J10)
INP18PA4 (K10)
INP19PA5 (H10)
ADC3EXTI11PA11 (C1), PC11 (C5), PF11 (F8), PE11 (G6), PD11 (J4), PB11 (K5)
EXTI15PA15 (JTDI) (A3), PG15 (A7), PC15-OSC32_OUT (OSC32_OUT) (C12), PD15 (J3), PF15 (J8), PE15 (L6), PB15 (M2)
INN1PC2_C (K13)
INN5PF4 (F11)
INN10PC1 (G10)
INP0PC2_C (K13)
INP1PC3_C (K12)
INP4PF5 (F10)
INP5PF3 (F13)
INP9PF4 (F11)
INP10PC0 (G11)
INP11PC1 (G10)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (C9), PC9 (D2), PA9 (D4), PD9 (K4), PE9 (K7)
OUT1PA4 (K10)
OUT2PA5 (H10)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPB1 (H9), PC4 (M11)
INPPB0 (K9), PB2 (M10)
OUTPE12 (J6, AF13), PC5 (L10, AF13)
COMP2INMPE10 (G7), PE7 (H7)
INPPE11 (G6), PE9 (K7)
OUTPE8 (J7, AF13), PE13 (K6, AF13)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA7 (J9), PC5 (L10)
VINM0PC5 (L10)
VINM1PA7 (J9)
VINPPB0 (K9)
VOUTPC4 (M11)
OPAMP2VINMPE8 (J7), PG1 (M8)
VINM0PE8 (J7)
VINM1PG1 (M8)
VINPPE9 (K7)
VOUTPE7 (H7)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (J12)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (G9, AF1), PB12 (J5, AF1), PE15 (L6, AF1)
BKIN_COMP1PA6 (G9, AF12), PB12 (J5, AF13), PE15 (L6, AF13)
BKIN_COMP2PA6 (G9, AF12), PB12 (J5, AF13), PE15 (L6, AF13)
BKIN2PE6 (E8, AF1), PG4 (F4, AF1)
BKIN2_COMP1PE6 (E8, AF11), PG4 (F4, AF11)
BKIN2_COMP2PE6 (E8, AF11), PG4 (F4, AF11)
CH1PA8 (D3, AF1), PE9 (K7, AF1)
CH1NPB13 (H5, AF1), PE8 (J7, AF1), PA7 (J9, AF1)
CH2PA9 (D4, AF1), PE11 (G6, AF1)
CH2NPE10 (G7, AF1), PB0 (K9, AF1), PB14 (M3, AF1)
CH3PA10 (C2, AF1), PE13 (K6, AF1)
CH3NPB1 (H9, AF1), PE12 (J6, AF1), PB15 (M2, AF1)
CH4PA11 (C1, AF1), PE14 (M6, AF1)
ETRPA12 (B1, AF1), PG5 (F1, AF1), PE7 (H7, AF1)
TIM2CH1PA15 (JTDI) (A3, AF1), PA5 (H10, AF1), PA0 (L13, AF1)
CH2PB3 (JTDO/TRACESWO) (B7, AF1), PA1 (L12, AF1)
CH3PB10 (H6, AF1), PA2 (K11, AF1)
CH4PA3 (J10, AF1), PB11 (K5, AF1)
ETRPA15 (JTDI) (A3, AF1), PA5 (H10, AF1), PA0 (L13, AF1)
TIM3CH1PB4 (NJTRST) (A8, AF2), PC6 (F5, AF2), PA6 (G9, AF2)
CH2PB5 (B8, AF2), PC7 (E4, AF2), PA7 (J9, AF2)
CH3PC8 (D1, AF2), PB0 (K9, AF2)
CH4PC9 (D2, AF2), PB1 (H9, AF2)
ETRPD2 (E6, AF2)
TIM4CH1PB6 (C7, AF2), PD12 (L2, AF2)
CH2PB7 (C8, AF2), PD13 (K3, AF2)
CH3PB8 (A10, AF2), PD14 (H4, AF2)
CH4PB9 (C9, AF2), PD15 (J3, AF2)
ETRPE0 (B10, AF2)
TIM5CH1PA0 (L13, AF2)
CH2PA1 (L12, AF2)
CH3PA2 (K11, AF2)
CH4PA3 (J10, AF2)
ETRPA4 (K10, AF2)
TIM8BKINPG2 (G3, AF3), PA6 (G9, AF3)
BKIN_COMP1PG2 (G3, AF11), PA6 (G9, AF10)
BKIN_COMP2PG2 (G3, AF11), PA6 (G9, AF10)
BKIN2PA8 (D3, AF3), PG3 (G4, AF3)
BKIN2_COMP1PA8 (D3, AF12), PG3 (G4, AF11)
BKIN2_COMP2PA8 (D3, AF12), PG3 (G4, AF11)
CH1PC6 (F5, AF3)
CH1NPA5 (H10, AF3), PA7 (J9, AF3)
CH2PC7 (E4, AF3)
CH2NPB0 (K9, AF3), PB14 (M3, AF3)
CH3PC8 (D1, AF3)
CH3NPB1 (H9, AF3), PB15 (M2, AF3)
CH4PC9 (D2, AF3)
ETRPG8 (F2, AF3), PA0 (L13, AF3)
TIM12CH1PB14 (M3, AF2)
CH2PB15 (M2, AF2)
TIM13CH1PA6 (G9, AF9)
TIM14CH1PA7 (J9, AF9)
TIM15BKINPE3 (D10, AF4), PA0 (L13, AF4)
CH1PE5 (C11, AF4), PA2 (K11, AF4)
CH1NPE4 (B12, AF4), PA1 (L12, AF4)
CH2PE6 (E8, AF4), PA3 (J10, AF4)
TIM16BKINPB4 (NJTRST) (A8, AF1)
CH1PB8 (A10, AF1)
CH1NPB6 (C7, AF1)
TIM17BKINPB5 (B8, AF1)
CH1PB9 (C9, AF1)
CH1NPB7 (C8, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPE0 (B10, AF1)
IN1PD12 (L2, AF1)
IN2PE1 (D8, AF1)
OUTPD13 (K3, AF1)
LPTIM2ETRPE0 (B10, AF4), PB11 (K5, AF3)
IN1PB10 (H6, AF3), PD12 (L2, AF3)
IN2PD11 (J4, AF3)
OUTPB13 (H5, AF3)
LPTIM3OUTPA1 (L12, AF3)
LPTIM4OUTPA2 (K11, AF3)
LPTIM5OUTPA3 (J10, AF3)

HRTIM — таймер высокого разрешения

БлокСигналВыводы
HRTIMCHA1PC6 (F5, AF1)
CHA2PC7 (E4, AF1)
CHB1PC8 (D1, AF1)
CHB2PA8 (D3, AF2)
CHC1PA9 (D4, AF2)
CHC2PA10 (C2, AF2)
CHD1PA11 (C1, AF2)
CHD2PA12 (B1, AF2)
EEV1PC10 (D5, AF2)
EEV2PC12 (B4, AF2)
EEV3PD5 (F7, AF2)
EEV6PB4 (NJTRST) (A8, AF3)
EEV7PB5 (B8, AF3)
EEV8PB6 (C7, AF3)
EEV9PB7 (C8, AF3)
FLT1PA15 (JTDI) (A3, AF2)
FLT2PC11 (C5, AF2)
FLT3PD4 (A5, AF2)
FLT4PB3 (JTDO/TRACESWO) (B7, AF2)
SCINPE0 (B10, AF3), PB11 (K5, AF2)
SCOUTPE1 (D8, AF3), PB10 (H6, AF2)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT_ALARMPC13 (E9), PB2 (M10, AF0)
OUT_CALIBPC13 (E9), PB2 (M10, AF0)
REFINPB15 (M2, AF0)
TSPC13 (E9)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (E10, AF12)
A1PF1 (F9, AF12)
A2PF2 (F12, AF12)
A3PF3 (F13, AF12)
A4PF4 (F11, AF12)
A5PF5 (F10, AF12)
A6PF12 (G8, AF12)
A7PF13 (H8, AF12)
A8PF14 (K8, AF12)
A9PF15 (J8, AF12)
A10PG0 (L8, AF12)
A11PG1 (M8, AF12)
A12PG2 (G3, AF12)
A13PG3 (G4, AF12)
A14PG4 (F4, AF12)
A15PG5 (F1, AF12)
A16PD11 (J4, AF12)
A17PD12 (L2, AF12)
A18PD13 (K3, AF12)
A19PE3 (D10, AF12)
A20PE4 (B12, AF12)
A21PE5 (C11, AF12)
A22PE6 (E8, AF12)
A23PE2 (D9, AF12)
ALEPD12 (L2)
BA0PG4 (F4, AF12)
BA1PG5 (F1, AF12)
CLEPD11 (J4)
CLKPD3 (B5, AF12)
D0PD14 (H4, AF12)
D1PD15 (J3, AF12)
D2PD0 (A4, AF12)
D3PD1 (F6, AF12)
D4PE7 (H7, AF12)
D5PE8 (J7, AF12)
D6PE9 (K7, AF12)
D7PE10 (G7, AF12)
D8PE11 (G6, AF12)
D9PE12 (J6, AF12)
D10PE13 (K6, AF12)
D11PE14 (M6, AF12)
D12PE15 (L6, AF12)
D13PD8 (G5, AF12)
D14PD9 (K4, AF12)
D15PD10 (L3, AF12)
DA0PD14 (H4, AF12)
DA1PD15 (J3, AF12)
DA2PD0 (A4, AF12)
DA3PD1 (F6, AF12)
DA4PE7 (H7, AF12)
DA5PE8 (J7, AF12)
DA6PE9 (K7, AF12)
DA7PE10 (G7, AF12)
DA8PE11 (G6, AF12)
DA9PE12 (J6, AF12)
DA10PE13 (K6, AF12)
DA11PE14 (M6, AF12)
DA12PE15 (L6, AF12)
DA13PD8 (G5, AF12)
DA14PD9 (K4, AF12)
DA15PD10 (L3, AF12)
NBL0PE0 (B10, AF12)
NBL1PE1 (D8, AF12)
NCEPC8 (D1, AF9)
NE1PD7 (D6, AF12), PC7 (E4, AF9)
NE2PC8 (D1, AF9)
NLPB7 (C8, AF12)
NOEPD4 (A5, AF12)
NWAITPD6 (C6, AF12), PC6 (F5, AF9)
NWEPD5 (F7, AF12)
SDCKE0PC3_C (K12, AF12), PC5 (L10, AF12)
SDCKE1PB5 (B8, AF12)
SDCLKPG8 (F2, AF12)
SDNCASPG15 (A7, AF12)
SDNE0PC2_C (K13, AF12), PC4 (M11, AF12)
SDNE1PB6 (C7, AF12)
SDNRASPF11 (F8, AF12)
SDNWEPC0 (G11, AF12), PA7 (J9, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (D4, AF13), PC6 (F5, AF13)
D1PA10 (C2, AF13), PC7 (E4, AF13)
D2PE0 (B10, AF13), PC8 (D1, AF13)
D3PC9 (D2, AF13), PE1 (D8, AF13)
D4PE4 (B12, AF13), PC11 (C5, AF13)
D5PD3 (B5, AF13), PB6 (C7, AF13)
D6PB8 (A10, AF13), PE5 (C11, AF13)
D7PB9 (C9, AF13), PE6 (E8, AF13)
D8PC10 (D5, AF13)
D9PC12 (B4, AF13)
D10PB5 (B8, AF13), PD6 (C6, AF13)
D11PD2 (E6, AF13)
D12PF11 (F8, AF13)
D13PG15 (A7, AF13)
HSYNCPA4 (K10, AF13)
PIXCLKPA6 (G9, AF13)
VSYNCPB7 (C8, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PE4 (B12, AF14)
B1PA10 (C2, AF14)
B2PD6 (C6, AF14), PC9 (D2, AF14), PA3 (J10, AF9)
B3PA8 (D3, AF13), PD10 (L3, AF14)
B4PA10 (C2, AF12), PE12 (J6, AF14)
B5PA3 (J10, AF14)
B6PB8 (A10, AF14)
B7PB9 (C9, AF14)
CLKPE14 (M6, AF14)
DEPE13 (K6, AF14)
G0PE5 (C11, AF14), PB1 (H9, AF14)
G1PE6 (E8, AF14), PB0 (K9, AF14)
G2PA6 (G9, AF14)
G3PC9 (D2, AF10), PE11 (G6, AF14)
G4PB10 (H6, AF14)
G5PB11 (K5, AF14)
G6PC7 (E4, AF14)
G7PD3 (B5, AF14), PG8 (F2, AF14)
HSYNCPC6 (F5, AF14)
R1PA2 (K11, AF14)
R2PC10 (D5, AF14), PA1 (L12, AF14)
R3PB0 (K9, AF9)
R4PA11 (C1, AF14), PA5 (H10, AF14)
R5PA12 (B1, AF14), PA9 (D4, AF14), PC0 (G11, AF14)
R6PA8 (D3, AF14), PB1 (H9, AF9)
R7PE15 (L6, AF14)
VSYNCPA4 (K10, AF14)

DSI — хост MIPI DSI

БлокСигналВыводы
DSIHOSTCKNDSI_CKN (H1)
CKPDSI_CKP (H2)
D0NDSI_D0N (J1)
D0PDSI_D0P (J2)
D1NDSI_D1N (G1)
D1PDSI_D1P (G2)
TEPA15 (JTDI) (A3, AF13), PB11 (K5, AF13)

DFSDM — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
DFSDM1CKIN0PC0 (G11, AF3)
CKIN1PD7 (D6, AF6), PB13 (H5, AF6), PC2_C (K13, AF3), PB2 (M10, AF4)
CKIN2PE8 (J7, AF3), PB15 (M2, AF6), PC4 (M11, AF3)
CKIN3PE5 (C11, AF3), PC6 (F5, AF4), PD8 (G5, AF3)
CKIN4PD6 (C6, AF3), PE11 (G6, AF3), PC1 (G10, AF4)
CKIN5PB7 (C8, AF11), PC10 (D5, AF3), PE13 (K6, AF3)
CKIN6PD0 (A4, AF3), PF14 (K8, AF3)
CKIN7PB8 (A10, AF3), PB11 (K5, AF6)
CKOUTPD3 (B5, AF3), PE9 (K7, AF3), PB0 (K9, AF6), PC2_C (K13, AF6), PD10 (L3, AF3)
DATIN0PC1 (G10, AF3)
DATIN1PD6 (C6, AF4), PB1 (H9, AF6), PB12 (J5, AF6), PC3_C (K12, AF3)
DATIN2PE7 (H7, AF3), PC5 (L10, AF3), PB14 (M3, AF6)
DATIN3PE4 (B12, AF3), PC7 (E4, AF4), PD9 (K4, AF3)
DATIN4PD7 (D6, AF3), PE10 (G7, AF3), PC0 (G11, AF6)
DATIN5PC11 (C5, AF3), PB6 (C7, AF11), PE12 (J6, AF3)
DATIN6PD1 (F6, AF3), PF13 (H8, AF3)
DATIN7PB9 (C9, AF3), PB10 (H6, AF6)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (E5, AF0)
JTDIPA15 (JTDI) (A3, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (B7, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (C3, AF0)
TRACECLKPE2 (D9, AF0)
TRACED0PE3 (D10, AF0), PC1 (G10, AF0)
TRACED1PE4 (B12, AF0), PC8 (D1, AF0)
TRACED2PE5 (C11, AF0), PD2 (E6, AF0)
TRACED3PC12 (B4, AF0), PE6 (E8, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (D3, AF0)
MCO_2PC9 (D2, AF0)
OSC_INPH0-OSC_IN (H12)
OSC_OUTPH1-OSC_OUT (H13)
OSC32_INPC14-OSC32_IN (OSC32_IN) (C13)
OSC32_OUTPC15-OSC32_OUT (OSC32_OUT) (C12)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC3_C (K12)
PWR_CSTOPPC2_C (K13)
PWR_WKUP1PA0 (L13)
PWR_WKUP2PA2 (K11)
PWR_WKUP4PC13 (E9)
PWR_WKUP6PC1 (G10)
RTC_TAMP1PC13 (E9)
RTC_TAMP3PC1 (G10)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), USB_OTG_HS1 (USB On-The-Go High Speed), HDMI_CEC (шина управления HDMI), TIM6 (таймер), TIM7 (таймер), IWDG1 (независимый сторожевой таймер), IWDG2 (независимый сторожевой таймер), WWDG1 (оконный сторожевой таймер), WWDG2 (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), DMA2D (графический ускоритель Chrom-ART).

Таблица выводов

Все 156 шариков корпуса WLCSP156 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1VSSпитание—
A2VDDLDOпитание—
A3PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), DSIHOST_TE (AF13), HRTIM_FLT1 (AF2), I2S1_WS (AF5), I2S3_WS (AF6), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF1), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
A4PD0ввод-выводDFSDM1_CKIN6 (AF3), FDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), SAI3_SCK_A (AF6), UART4_RX (AF8)
A5PD4ввод-выводFMC_NOE (AF12), HRTIM_FLT3 (AF2), SAI3_FS_A (AF6), USART2_DE (AF7), USART2_RTS (AF7)
A6VDDпитание—
A7PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), USART6_CTS (AF7), USART6_NSS (AF7)
A8PB4 (NJTRST)ввод-выводDEBUG_JTRST, HRTIM_EEV6 (AF3), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
A9VDDпитание—
A10PB8ввод-выводDCMI_D6 (AF13), DFSDM1_CKIN7 (AF3), ETH_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), LTDC_B6 (AF14), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
A11VCAPпитание—
A12VDDLDOпитание—
A13DNCне подключён—
B1PA12ввод-выводFDCAN1_TX (AF9), HRTIM_CHD2 (AF2), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R5 (AF14), SAI2_FS_B (AF8), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP (AF10)
B2VCAPпитание—
B3VDDпитание—
B4PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), HRTIM_EEV2 (AF2), I2S3_SDO (AF6), SDMMC1_CK (AF12), SPI3_MOSI (AF6), UART5_TX (AF8), USART3_CK (AF7)
B5PD3ввод-выводDCMI_D5 (AF13), DFSDM1_CKOUT (AF3), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_G7 (AF14), SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
B6VSSпитание—
B7PB3 (JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), HRTIM_FLT4 (AF2), I2S1_CK (AF5), I2S3_CK (AF6), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART7_RX (AF11)
B8PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), HRTIM_EEV7 (AF3), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14), USB_OTG_HS_ULPI_D7 (AF10)
B9VSSпитание—
B10PE0ввод-выводDCMI_D2 (AF13), FMC_NBL0 (AF12), HRTIM_SCIN (AF3), LPTIM1_ETR (AF1), LPTIM2_ETR (AF4), SAI2_MCLK_A (AF10), TIM4_ETR (AF2), UART8_RX (AF8)
B11VDDпитание—
B12PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), DFSDM1_DATIN3 (AF3), FMC_A20 (AF12), LTDC_B0 (AF14), SAI1_D2 (AF2), SAI1_FS_A (AF6), SAI4_D2 (AF10), SAI4_FS_A (AF8), SPI4_NSS (AF5), TIM15_CH1N (AF4)
B13VBATпитание—
C1PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX (AF9), HRTIM_CHD1 (AF2), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R4 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_FS_DM (AF10)
C2PA10ввод-выводDCMI_D1 (AF13), HRTIM_CHC2 (AF2), LPUART1_RX (AF3), LTDC_B1 (AF14), LTDC_B4 (AF12), MDIOS_MDIO (AF11), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_FS_ID (AF10)
C3PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
C4VSSпитание—
C5PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4 (AF13), DFSDM1_DATIN5 (AF3), HRTIM_FLT2 (AF2), I2S3_SDI (AF6), QUADSPI_BK2_NCS (AF9), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
C6PD6ввод-выводDCMI_D10 (AF13), DFSDM1_CKIN4 (AF3), DFSDM1_DATIN1 (AF4), FMC_NWAIT (AF12), I2S3_SDO (AF5), LTDC_B2 (AF14), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
C7PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), DFSDM1_DATIN5 (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), HRTIM_EEV8 (AF3), I2C1_SCL (AF4), I2C4_SCL (AF6), LPUART1_TX (AF8), QUADSPI_BK1_NCS (AF10), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
C8PB7ввод-выводDCMI_VSYNC (AF13), DFSDM1_CKIN5 (AF11), FMC_NL (AF12), HRTIM_EEV9 (AF3), I2C1_SDA (AF4), I2C4_SDA (AF6), LPUART1_RX (AF8), PWR_PVD_IN, TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
C9PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), DFSDM1_DATIN7 (AF3), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2C4_SMBA (AF11), I2S2_WS (AF5), LTDC_B7 (AF14), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
C10VSSпитание—
C11PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), DFSDM1_CKIN3 (AF3), FMC_A21 (AF12), LTDC_G0 (AF14), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SAI4_CK2 (AF10), SAI4_SCK_A (AF8), SPI4_MISO (AF5), TIM15_CH1 (AF4)
C12PC15-OSC32_OUT (OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
C13PC14-OSC32_IN (OSC32_IN)ввод-выводRCC_OSC32_IN
D1PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_NCE (AF9), FMC_NE2 (AF9), HRTIM_CHB1 (AF1), SDMMC1_D0 (AF12), SWPMI1_RX (AF11), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
D2PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF13), I2C3_SDA (AF4), I2S_CKIN (AF5), LTDC_B2 (AF14), LTDC_G3 (AF10), QUADSPI_BK1_IO0 (AF9), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), SWPMI1_SUSPEND (AF11), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8)
D3PA8ввод-выводHRTIM_CHB2 (AF2), I2C3_SCL (AF4), LTDC_B3 (AF13), LTDC_R6 (AF14), RCC_MCO_1 (AF0), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF12), TIM8_BKIN2_COMP2 (AF12), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF (AF10)
D4PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_TX_ER (AF11), HRTIM_CHC1 (AF2), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R5 (AF14), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_FS_VBUS
D5PC10ввод-выводDCMI_D8 (AF13), DFSDM1_CKIN5 (AF3), HRTIM_EEV1 (AF2), I2S3_CK (AF6), LTDC_R2 (AF14), QUADSPI_BK1_IO1 (AF9), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
D6PD7ввод-выводDFSDM1_CKIN1 (AF6), DFSDM1_DATIN4 (AF3), FMC_NE1 (AF12), I2S1_SDO (AF5), SDMMC2_CMD (AF11), SPDIFRX1_IN0 (AF9), SPI1_MOSI (AF5), USART2_CK (AF7)
D7BOOT0загрузка—
D8PE1ввод-выводDCMI_D3 (AF13), FMC_NBL1 (AF12), HRTIM_SCOUT (AF3), LPTIM1_IN2 (AF1), UART8_TX (AF8)
D9PE2ввод-выводDEBUG_TRACECLK (AF0), ETH_TXD3 (AF11), FMC_A23 (AF12), QUADSPI_BK1_IO2 (AF9), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SAI4_CK1 (AF10), SAI4_MCLK_A (AF8), SPI4_SCK (AF5)
D10PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), SAI4_SD_B (AF8), TIM15_BKIN (AF4)
D11VSSпитание—
D12VSSSMPSпитание—
D13VDDпитание—
E1VDD33_USBпитание—
E2VDDпитание—
E3VDD50_USBпитание—
E4PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), DFSDM1_DATIN3 (AF4), FMC_NE1 (AF9), HRTIM_CHA2 (AF1), I2S3_MCK (AF6), LTDC_G6 (AF14), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), SWPMI1_TX (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
E5PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
E6PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), SDMMC1_CMD (AF12), TIM3_ETR (AF2), UART5_RX (AF8)
E7PDR_ONпитание—
E8PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF14), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SAI4_D1 (AF9), SAI4_SD_A (AF8), SPI4_MOSI (AF5), TIM15_CH2 (AF4), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
E9PC13ввод-выводPWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS
E10PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4)
E11VFBSMPSпитание—
E12VLXSMPSпитание—
E13VDDSMPSпитание—
F1PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
F2PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), LTDC_G7 (AF14), SPDIFRX1_IN2 (AF8), SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
F3VSSпитание—
F4PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
F5PC6ввод-выводDCMI_D0 (AF13), DFSDM1_CKIN3 (AF4), FMC_NWAIT (AF9), HRTIM_CHA1 (AF1), I2S2_MCK (AF5), LTDC_HSYNC (AF14), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), SWPMI1_IO, TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
F6PD1ввод-выводDFSDM1_DATIN6 (AF3), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), SAI3_SD_A (AF6), UART4_TX (AF8)
F7PD5ввод-выводFMC_NWE (AF12), HRTIM_EEV3 (AF2), USART2_TX (AF7)
F8PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), SAI2_SD_B (AF10)
F9PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4)
F10PF5ввод-выводADC3_INP4, FMC_A5 (AF12)
F11PF4ввод-выводADC3_INN5, ADC3_INP9, FMC_A4 (AF12)
F12PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4)
F13PF3ввод-выводADC3_INP5, FMC_A3 (AF12)
G1DSI_D1NслужебныйDSIHOST_D1N
G2DSI_D1PслужебныйDSIHOST_D1P
G3PG2ввод-выводFMC_A12 (AF12), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
G4PG3ввод-выводFMC_A13 (AF12), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
G5PD8ввод-выводDFSDM1_CKIN3 (AF3), FMC_D13 (AF12), FMC_DA13 (AF12), SAI3_SCK_B (AF6), SPDIFRX1_IN1 (AF9), USART3_TX (AF7)
G6PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4 (AF3), FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G3 (AF14), SAI2_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
G7PE10ввод-выводCOMP2_INM, DFSDM1_DATIN4 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), QUADSPI_BK2_IO3 (AF10), TIM1_CH2N (AF1), UART7_CTS (AF7)
G8PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12)
G9PA6ввод-выводADC1_INP3, ADC2_INP3, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), LTDC_G2 (AF14), MDIOS_MDC (AF11), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF12), TIM1_BKIN_COMP2 (AF12), TIM3_CH1 (AF2), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
G10PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0 (AF0), DFSDM1_CKIN4 (AF4), DFSDM1_DATIN0 (AF3), ETH_MDC (AF11), I2S2_SDO (AF5), MDIOS_MDC (AF12), PWR_WKUP6, RTC_TAMP3, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5)
G11PC0ввод-выводADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0 (AF3), DFSDM1_DATIN4 (AF6), FMC_SDNWE (AF12), LTDC_R5 (AF14), SAI2_FS_B (AF8), USB_OTG_HS_ULPI_STP (AF10)
G12VSSпитание—
G13VDDпитание—
H1DSI_CKNслужебныйDSIHOST_CKN
H2DSI_CKPслужебныйDSIHOST_CKP
H3VSSDSIпитание—
H4PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), SAI3_MCLK_B (AF6), TIM4_CH3 (AF2), UART8_CTS (AF8)
H5PB13ввод-выводDFSDM1_CKIN1 (AF6), ETH_TXD1 (AF11), FDCAN2_TX (AF9), I2S2_CK (AF5), LPTIM2_OUT (AF3), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), USART3_CTS (AF7), USART3_NSS (AF7), USB_OTG_HS_ULPI_D6 (AF10), USB_OTG_HS_VBUS
H6PB10ввод-выводDFSDM1_DATIN7 (AF6), ETH_RX_ER (AF11), HRTIM_SCOUT (AF2), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), LTDC_G4 (AF14), QUADSPI_BK1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7), USB_OTG_HS_ULPI_D3 (AF10)
H7PE7ввод-выводCOMP2_INM, DFSDM1_DATIN2 (AF3), FMC_D4 (AF12), FMC_DA4 (AF12), OPAMP2_VOUT, QUADSPI_BK2_IO0 (AF10), TIM1_ETR (AF1), UART7_RX (AF7)
H8PF13ввод-выводADC2_INP2, DFSDM1_DATIN6 (AF3), FMC_A7 (AF12), I2C4_SMBA (AF4)
H9PB1ввод-выводADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1 (AF6), ETH_RXD3 (AF11), LTDC_G0 (AF14), LTDC_R6 (AF9), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USB_OTG_HS_ULPI_D2 (AF10)
H10PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, I2S1_CK (AF5), LTDC_R4 (AF14), PWR_NDSTOP2, SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM8_CH1N (AF3), USB_OTG_HS_ULPI_CK (AF10)
H11NRSTсброс—
H12PH0-OSC_INввод-выводRCC_OSC_IN
H13PH1-OSC_OUTввод-выводRCC_OSC_OUT
J1DSI_D0NслужебныйDSIHOST_D0N
J2DSI_D0PслужебныйDSIHOST_D0P
J3PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), SAI3_MCLK_A (AF6), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8)
J4PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16 (AF12), FMC_CLE, I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), QUADSPI_BK1_IO0 (AF9), SAI2_SD_A (AF10), USART3_CTS (AF7), USART3_NSS (AF7)
J5PB12ввод-выводDFSDM1_DATIN1 (AF6), ETH_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SMBA (AF4), I2S2_WS (AF5), SPI2_NSS (AF5), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), UART5_RX (AF14), USART3_CK (AF7), USB_OTG_HS_ID (AF12), USB_OTG_HS_ULPI_D5 (AF10)
J6PE12ввод-выводCOMP1_OUT (AF13), DFSDM1_DATIN5 (AF3), FMC_D9 (AF12), FMC_DA9 (AF12), LTDC_B4 (AF14), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
J7PE8ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN2 (AF3), FMC_D5 (AF12), FMC_DA5 (AF12), OPAMP2_VINM, OPAMP2_VINM0, QUADSPI_BK2_IO1 (AF10), TIM1_CH1N (AF1), UART7_TX (AF7)
J8PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4)
J9PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV (AF11), ETH_RX_DV (AF11), FMC_SDNWE (AF12), I2S1_SDO (AF5), OPAMP1_VINM, OPAMP1_VINM1, SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3)
J10PA3ввод-выводADC1_INP15, ADC2_INP15, ETH_COL (AF11), LPTIM5_OUT (AF3), LTDC_B2 (AF9), LTDC_B5 (AF14), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7), USB_OTG_HS_ULPI_D0 (AF10)
J11VDDAпитание—
J12VREF+служебныйVREFBUF_OUT
J13VSSAпитание—
K1VCAPDSIпитание—
K2VDDпитание—
K3PD13ввод-выводFMC_A18 (AF12), I2C4_SDA (AF4), LPTIM1_OUT (AF1), QUADSPI_BK1_IO3 (AF9), SAI2_SCK_A (AF10), TIM4_CH2 (AF2)
K4PD9ввод-выводDAC1_EXTI9, DFSDM1_DATIN3 (AF3), FMC_D14 (AF12), FMC_DA14 (AF12), SAI3_SD_B (AF6), USART3_RX (AF7)
K5PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7 (AF6), DSIHOST_TE (AF13), ETH_TX_EN (AF11), HRTIM_SCIN (AF2), I2C2_SDA (AF4), LPTIM2_ETR (AF3), LTDC_G5 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7), USB_OTG_HS_ULPI_D4 (AF10)
K6PE13ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN5 (AF3), FMC_D10 (AF12), FMC_DA10 (AF12), LTDC_DE (AF14), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
K7PE9ввод-выводCOMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT (AF3), FMC_D6 (AF12), FMC_DA6 (AF12), OPAMP2_VINP, QUADSPI_BK2_IO2 (AF10), TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
K8PF14ввод-выводADC2_INN2, ADC2_INP6, DFSDM1_CKIN6 (AF3), FMC_A8 (AF12), I2C4_SCL (AF4)
K9PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT (AF6), ETH_RXD2 (AF11), LTDC_G1 (AF14), LTDC_R3 (AF9), OPAMP1_VINP, TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USB_OTG_HS_ULPI_D1 (AF10)
K10PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), I2S1_WS (AF5), I2S3_WS (AF6), LTDC_VSYNC (AF14), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7), USB_OTG_HS_SOF (AF12)
K11PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM4_OUT (AF3), LTDC_R1 (AF14), MDIOS_MDIO (AF12), PWR_WKUP2, SAI2_SCK_B (AF8), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
K12PC3_Cввод-выводADC3_INP1, DFSDM1_DATIN1 (AF3), ETH_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), PWR_CSLEEP, SPI2_MOSI (AF5), USB_OTG_HS_ULPI_NXT (AF10)
K13PC2_Cввод-выводADC3_INN1, ADC3_INP0, DFSDM1_CKIN1 (AF3), DFSDM1_CKOUT (AF6), ETH_TXD2 (AF11), FMC_SDNE0 (AF12), I2S2_SDI (AF5), PWR_CSTOP, SPI2_MISO (AF5), USB_OTG_HS_ULPI_DIR (AF10)
L1VSSпитание—
L2PD12ввод-выводFMC_A17 (AF12), FMC_ALE, I2C4_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), QUADSPI_BK1_IO1 (AF9), SAI2_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
L3PD10ввод-выводDFSDM1_CKOUT (AF3), FMC_D15 (AF12), FMC_DA15 (AF12), LTDC_B3 (AF14), SAI3_FS_B (AF6), USART3_CK (AF7)
L4VDDLDOпитание—
L5VSSпитание—
L6PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R7 (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13)
L7VSSпитание—
L8PG0ввод-выводFMC_A10 (AF12)
L9VSSпитание—
L10PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT (AF13), DFSDM1_DATIN2 (AF3), ETH_RXD1 (AF11), FMC_SDCKE0 (AF12), OPAMP1_VINM, OPAMP1_VINM0, SAI1_D3 (AF2), SAI4_D3 (AF10), SPDIFRX1_IN3 (AF9)
L11VSSпитание—
L12PA1ввод-выводADC1_INN16, ADC1_INP17, ETH_REF_CLK (AF11), ETH_RX_CLK (AF11), LPTIM3_OUT (AF3), LTDC_R2 (AF14), QUADSPI_BK1_IO3 (AF9), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
L13PA0ввод-выводADC1_INP16, ETH_CRS (AF11), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
M1VSSпитание—
M2PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2 (AF6), I2S2_SDO (AF5), RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), USART1_RX (AF4), USB_OTG_HS_DP (AF12)
M3PB14ввод-выводDFSDM1_DATIN2 (AF6), I2S2_SDI (AF5), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7), USB_OTG_HS_DM (AF12)
M4VDDпитание—
M5VCAPпитание—
M6PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), LTDC_CLK (AF14), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
M7VDDпитание—
M8PG1ввод-выводFMC_A11 (AF12), OPAMP2_VINM, OPAMP2_VINM1
M9VDDпитание—
M10PB2ввод-выводCOMP1_INP, DFSDM1_CKIN1 (AF4), ETH_TX_ER (AF11), I2S3_SDO (AF7), QUADSPI_CLK (AF9), RTC_OUT_ALARM (AF0), RTC_OUT_CALIB (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SPI3_MOSI (AF7)
M11PC4ввод-выводADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2 (AF3), ETH_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), OPAMP1_VOUT, SPDIFRX1_IN2 (AF9)
M12VDDпитание—
M13VSSпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
PDR_ONE7управление внутренней схемой сброса по питанию
VBATB13резервное питание: часы реального времени и резервные регистры
VCAPA11, B2, M5вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VCAPDSIK1вывод стабилизатора блока DSI для внешнего конденсатора
VDDA6, A9, B3, B11, D13, E2, G13, K2, M4, M7, M9, M12питание цифровой части и линий ввода-вывода
VDD33_USBE1—
VDD50_USBE3—
VDDAJ11питание аналоговой части: АЦП, ЦАП, генераторы
VDDLDOA2, A12, L4—
VDDSMPSE13—
VFBSMPSE11—
VLXSMPSE12—
VSSA1, B6, B9, C4, C10, D11, F3, G12, L1, L5, L7, L9, L11, M1, M13общий провод (земля)
VSSAJ13общий провод аналоговой части
VSSDSIH3общий провод блока DSI
VSSSMPSD12—
NRSTH11сброс, активный уровень — низкий
BOOT0D7выбор источника загрузки при сбросе
DSI_CKNH1—
DSI_CKPH2—
DSI_D0NJ1—
DSI_D0PJ2—
DSI_D1NG1—
DSI_D1PG2—
VREF+J12верхнее опорное напряжение АЦП и ЦАП
DNCA13—

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H747ZIYx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H747ZISTM32H747ZIYx2 МБ864 КБ

Линейка STM32H747/757, семейство STM32H7, ядро Cortex-M7 + Cortex-M4.

Заказные номера

Полные номера для заказа из таблицы на странице продукта на сайте ST: STM32H747ZI. Данные на 11 октября 2026 г.; перечислены номера, которые в этот момент выпускались. Цифра после буквы корпуса — температурный диапазон, вид упаковки указан в последнем столбце.

Номер для заказаКорпусТемператураУпаковка
STM32H747ZIY6TRWLCSP 156, 5×4,7×0,6 мм, шаг 0,35 мм−40…+85 °Cлента на катушке

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе WLCSP156, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H757ZISTM32H747/757156 из 156выводы совпадают полностьютолько у него: CRYP, HASH

Частые вопросы

На каких выводах USART1 у STM32H747ZI?

В корпусе WLCSP156 сигнал USART1_TX выведен на PB6 (шарик C7, AF7) или PA9 (шарик D4, AF7) или PB14 (шарик M3, AF4), USART1_RX — на PA10 (шарик C2, AF7) или PB7 (шарик C8, AF7) или PB15 (шарик M2, AF4).

Где у STM32H747ZI выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик C3, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик E5, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H747ZI?

I2C1_SCL — PB8 (шарик A10, AF4) или PB6 (шарик C7, AF4), I2C1_SDA — PB7 (шарик C8, AF4) или PB9 (шарик C9, AF4).

Сколько выводов ввода-вывода у STM32H747ZI в корпусе WLCSP156?

101 из 156. Ещё 45 выводов заняты питанием и землёй, остальные 10 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32H747ZI?

От 1,62 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Заказные номера, корпуса, упаковка и температурный диапазон — из таблиц на страницах продуктов st.com (данные на 11 октября 2026 г.). Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
