STM32H750XB в корпусе TFBGA240: распиновка

STM32H750XB — микроконтроллер STM32H7 на ядре Cortex-M7 с частотой до 480 МГц: 128 КБ флеш-памяти и 864 КБ ОЗУ. Корпус TFBGA240 — 265 шариков, из них 172 линии ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M7
Частота ядра
до 480 МГц
Флеш-память
128 КБ
ОЗУ
864 КБ
Корпус
TFBGA240, 265 шариков
Линий ввода-вывода
172
Напряжение питания
1,62…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса TFBGA240

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32H750XB в корпусе TFBGA240, вид сверхуABCDEFGHJKLMNPRTU1234567891011121314151617VSS — шарик A1VSSPI6 — шарик A2: DCMI_D6, FMC_D28, LTDC_B6, SAI2_SD_A, TIM8_CH2PI6PI5 — шарик A3: DCMI_VSYNC, FMC_NBL3, LTDC_B5, SAI2_SCK_A, TIM8_CH1PI5PI4 — шарик A4: DCMI_D5, FMC_NBL2, LTDC_B4, SAI2_MCLK_A, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PI4PB5 — шарик A5: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, HRTIM_EEV7, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX, USB_OTG_HS_ULPI_D7PB5VDDLDO — шарик A6VDDLDOVCAP — шарик A7VCAPPK5 — шарик A8: LTDC_B6PK5PG10 — шарик A9: DCMI_D2, FMC_NE3, HRTIM_FLT5, I2S1_WS, LTDC_B2, LTDC_G3, SAI2_SD_B, SPI1_NSSPG10PG9 — шарик A10: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, QUADSPI_BK2_IO2, SAI2_FS_B, SPDIFRX1_IN3, SPI1_MISO, USART6_RXPG9PD5 — шарик A11: FMC_NWE, HRTIM_EEV3, USART2_TXPD5PD4 — шарик A12: FMC_NOE, HRTIM_FLT3, SAI3_FS_A, USART2_DE, USART2_RTSPD4PC10 — шарик A13: DCMI_D8, DFSDM1_CKIN5, HRTIM_EEV1, I2S3_CK, LTDC_R2, QUADSPI_BK1_IO1, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TXPC10PA15 (JTDI) — шарик A14: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DEBUG_JTDI, HRTIM_FLT1, I2S1_WS, I2S3_WS, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PI1 — шарик A15: DCMI_D8, FMC_D25, I2S2_CK, LTDC_G6, SPI2_SCK, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2PI1PI0 — шарик A16: DCMI_D13, FMC_D24, I2S2_WS, LTDC_G5, SPI2_NSS, TIM5_CH4PI0VSS — шарик A17VSSVBAT — шарик B1VBATVSS — шарик B2VSSPI7 — шарик B3: DCMI_D7, FMC_D29, LTDC_B7, SAI2_FS_A, TIM8_CH3PI7PE1 — шарик B4: DCMI_D3, FMC_NBL1, HRTIM_SCOUT, LPTIM1_IN2, UART8_TXPE1PB6 — шарик B5: CEC, DCMI_D5, DFSDM1_DATIN5, FDCAN2_TX, FMC_SDNE1, HRTIM_EEV8, I2C1_SCL, I2C4_SCL, LPUART1_TX, QUADSPI_BK1_NCS, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6VSS — шарик B6VSSPB4 (NJTRST) — шарик B7: DEBUG_JTRST, HRTIM_EEV6, I2S1_SDI, I2S2_WS, I2S3_SDI, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4PK4 — шарик B8: LTDC_B5PK4PG11 — шарик B9: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3, ETH_TX_EN, HRTIM_EEV4, I2S1_CK, LPTIM1_IN2, LTDC_B3, SDMMC2_D2, SPDIFRX1_IN0, SPI1_SCKPG11PJ15 — шарик B10: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, LTDC_B3PJ15PD6 — шарик B11: DCMI_D10, DFSDM1_CKIN4, DFSDM1_DATIN1, FMC_NWAIT, I2S3_SDO, LTDC_B2, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PD3 — шарик B12: DCMI_D5, DFSDM1_CKOUT, FMC_CLK, I2S2_CK, LTDC_G7, SPI2_SCK, USART2_CTS, USART2_NSSPD3PC11 — шарик B13: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4, DFSDM1_DATIN5, HRTIM_FLT2, I2S3_SDI, QUADSPI_BK2_NCS, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PA14 (JTCK/SWCLK) — шарик B14: DEBUG_JTCK-SWCLKPA14PI2 — шарик B15: DCMI_D9, FMC_D26, I2S2_SDI, LTDC_G7, SPI2_MISO, TIM8_CH4PI2PH15 — шарик B16: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11, FMC_D23, LTDC_G4, TIM8_CH3NPH15PH14 — шарик B17: DCMI_D4, FDCAN1_RX, FMC_D22, LTDC_G3, TIM8_CH2N, UART4_RXPH14PC15-OSC32_OUT (OSC32_OUT) — шарик C1: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUTPC15PC14-OSC32_IN (OSC32_IN) — шарик C2: RCC_OSC32_INPC14PE2 — шарик C3: DEBUG_TRACECLK, ETH_TXD3, FMC_A23, QUADSPI_BK1_IO2, SAI1_CK1, SAI1_MCLK_A, SAI4_CK1, SAI4_MCLK_A, SPI4_SCKPE2PE0 — шарик C4: DCMI_D2, FMC_NBL0, HRTIM_SCIN, LPTIM1_ETR, LPTIM2_ETR, SAI2_MCLK_A, TIM4_ETR, UART8_RXPE0PB7 — шарик C5: DCMI_VSYNC, DFSDM1_CKIN5, FMC_NL, HRTIM_EEV9, I2C1_SDA, I2C4_SDA, LPUART1_RX, PWR_PVD_IN, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PB3 (JTDO/TRACESWO) — шарик C6: CRS_SYNC, DEBUG_JTDO-SWO, HRTIM_FLT4, I2S1_CK, I2S3_CK, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART7_RXPB3PK6 — шарик C7: LTDC_B7PK6PK3 — шарик C8: LTDC_B4PK3PG12 — шарик C9: ETH_TXD1, FMC_NE4, HRTIM_EEV5, LPTIM1_IN1, LTDC_B1, LTDC_B4, SPDIFRX1_IN1, SPI6_MISO, USART6_DE, USART6_RTSPG12VSS — шарик C10VSSPD7 — шарик C11: DFSDM1_CKIN1, DFSDM1_DATIN4, FMC_NE1, I2S1_SDO, SDMMC2_CMD, SPDIFRX1_IN0, SPI1_MOSI, USART2_CKPD7PC12 — шарик C12: DCMI_D9, DEBUG_TRACED3, HRTIM_EEV2, I2S3_SDO, SDMMC1_CK, SPI3_MOSI, UART5_TX, USART3_CKPC12VSS — шарик C13VSSPI3 — шарик C14: DCMI_D10, FMC_D27, I2S2_SDO, SPI2_MOSI, TIM8_ETRPI3PA13 (JTMS/SWDIO) — шарик C15: DEBUG_JTMS-SWDIOPA13VSS — шарик C16VSSVDDLDO — шарик C17VDDLDOPE5 — шарик D1: DCMI_D6, DEBUG_TRACED2, DFSDM1_CKIN3, FMC_A21, LTDC_G0, SAI1_CK2, SAI1_SCK_A, SAI4_CK2, SAI4_SCK_A, SPI4_MISO, TIM15_CH1PE5PE4 — шарик D2: DCMI_D4, DEBUG_TRACED1, DFSDM1_DATIN3, FMC_A20, LTDC_B0, SAI1_D2, SAI1_FS_A, SAI4_D2, SAI4_FS_A, SPI4_NSS, TIM15_CH1NPE4PE3 — шарик D3: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, SAI4_SD_B, TIM15_BKINPE3PB9 — шарик D4: DAC1_EXTI9, DCMI_D7, DFSDM1_DATIN7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2C4_SMBA, I2S2_WS, LTDC_B7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PB8 — шарик D5: DCMI_D6, DFSDM1_CKIN7, ETH_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, LTDC_B6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RXPB8PG15 — шарик D6: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, USART6_CTS, USART6_NSSPG15PK7 — шарик D7: LTDC_DEPK7PG14 — шарик D8: DEBUG_TRACED1, ETH_TXD1, FMC_A25, LPTIM1_ETR, LTDC_B0, QUADSPI_BK2_IO3, SPI6_MOSI, USART6_TXPG14PG13 — шарик D9: DEBUG_TRACED0, ETH_TXD0, FMC_A24, HRTIM_EEV10, LPTIM1_OUT, LTDC_R0, SPI6_SCK, USART6_CTS, USART6_NSSPG13PJ14 — шарик D10: LTDC_B2PJ14PJ12 — шарик D11: DEBUG_TRGOUT, LTDC_B0, LTDC_G3PJ12PD2 — шарик D12: DCMI_D11, DEBUG_TRACED2, SDMMC1_CMD, TIM3_ETR, UART5_RXPD2PD0 — шарик D13: DFSDM1_CKIN6, FDCAN1_RX, FMC_D2, FMC_DA2, SAI3_SCK_A, UART4_RXPD0PA10 — шарик D14: DCMI_D1, HRTIM_CHC2, LPUART1_RX, LTDC_B1, LTDC_B4, MDIOS_MDIO, TIM1_CH3, USART1_RX, USB_OTG_FS_IDPA10PA9 — шарик D15: DAC1_EXTI9, DCMI_D0, ETH_TX_ER, HRTIM_CHC1, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R5, SPI2_SCK, TIM1_CH2, USART1_TX, USB_OTG_FS_VBUSPA9PH13 — шарик D16: FDCAN1_TX, FMC_D21, LTDC_G2, TIM8_CH1N, UART4_TXPH13VCAP — шарик D17VCAPNC — шарик E1NCPI9 — шарик E2: DAC1_EXTI9, FDCAN1_RX, FMC_D30, LTDC_VSYNC, UART4_RXPI9PC13 — шарик E3: PWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TSPC13PI8 — шарик E4: PWR_WKUP3, RTC_TAMP2PI8PE6 — шарик E5: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SAI4_D1, SAI4_SD_A, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PE6VDD — шарик E6VDDPDR_ON — шарик E7PDR_ONBOOT0 — шарик E8BOOT0VDD — шарик E9VDDPJ13 — шарик E10: LTDC_B1, LTDC_B4PJ13VDD — шарик E11VDDPD1 — шарик E12: DFSDM1_DATIN6, FDCAN1_TX, FMC_D3, FMC_DA3, SAI3_SD_A, UART4_TXPD1PC8 — шарик E13: DCMI_D2, DEBUG_TRACED1, FMC_NCE, FMC_NE2, HRTIM_CHB1, SDMMC1_D0, SWPMI1_RX, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PC9 — шарик E14: DAC1_EXTI9, DCMI_D3, I2C3_SDA, I2S_CKIN, LTDC_B2, LTDC_G3, QUADSPI_BK1_IO0, RCC_MCO_2, SDMMC1_D1, SWPMI1_SUSPEND, TIM3_CH4, TIM8_CH4, UART5_CTSPC9PA8 — шарик E15: HRTIM_CHB2, I2C3_SCL, LTDC_B3, LTDC_R6, RCC_MCO_1, TIM1_CH1, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2, UART7_RX, USART1_CK, USB_OTG_FS_SOFPA8PA12 — шарик E16: FDCAN1_TX, HRTIM_CHD2, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R5, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_FS_DPPA12PA11 — шарик E17: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX, HRTIM_CHD1, I2S2_WS, LPUART1_CTS, LTDC_R4, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_FS_DMPA11VSS — шарик F1VSSVSS — шарик F2VSSPI10 — шарик F3: ETH_RX_ER, FMC_D31, LTDC_HSYNCPI10PI11 — шарик F4: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LTDC_G6, PWR_WKUP5, USB_OTG_HS_ULPI_DIRPI11VDD — шарик F5VDDPC7 — шарик F13: DCMI_D1, DEBUG_TRGIO, DFSDM1_DATIN3, FMC_NE1, HRTIM_CHA2, I2S3_MCK, LTDC_G6, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, SWPMI1_TX, TIM3_CH2, TIM8_CH2, USART6_RXPC7PC6 — шарик F14: DCMI_D0, DFSDM1_CKIN3, FMC_NWAIT, HRTIM_CHA1, I2S2_MCK, LTDC_HSYNC, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, SWPMI1_IO, TIM3_CH1, TIM8_CH1, USART6_TXPC6PG8 — шарик F15: ETH_PPS_OUT, FMC_SDCLK, LTDC_G7, SPDIFRX1_IN2, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTSPG8PG7 — шарик F16: DCMI_D13, FMC_INT, HRTIM_CHE2, LTDC_CLK, SAI1_MCLK_A, USART6_CKPG7VDD33_USB — шарик F17VDD33USBPF2 — шарик G1: FMC_A2, I2C2_SMBAPF2VSS — шарик G2VSSPF1 — шарик G3: FMC_A1, I2C2_SCLPF1PF0 — шарик G4: FMC_A0, I2C2_SDAPF0VDD — шарик G5VDDVSS — шарик G7VSSVSS — шарик G8VSSVSS — шарик G9VSSVSS — шарик G10VSSVSS — шарик G11VSSVDD — шарик G13VDDPG5 — шарик G14: FMC_A15, FMC_BA1, TIM1_ETRPG5PG6 — шарик G15: DCMI_D12, FMC_NE3, HRTIM_CHE1, LTDC_R7, QUADSPI_BK1_NCS, TIM17_BKINPG6VSS — шарик G16VSSVDD50_USB — шарик G17VDD50USBPI12 — шарик H1: ETH_TX_ER, LTDC_HSYNCPI12PI13 — шарик H2: LTDC_VSYNCPI13PI14 — шарик H3: LTDC_CLKPI14PF3 — шарик H4: ADC3_INP5, FMC_A3PF3VDD — шарик H5VDDVSS — шарик H7VSSVSS — шарик H8VSSVSS — шарик H9VSSVSS — шарик H10VSSVSS — шарик H11VSSVDD — шарик H13VDDPG4 — шарик H14: FMC_A14, FMC_BA0, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PG4PG3 — шарик H15: FMC_A13, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2PG3PG2 — шарик H16: FMC_A12, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PG2PK2 — шарик H17: LTDC_G7, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PK2PH1-OSC_OUT — шарик J1: RCC_OSC_OUTPH1PH0-OSC_IN — шарик J2: RCC_OSC_INPH0VSS — шарик J3VSSPF5 — шарик J4: ADC3_INP4, FMC_A5PF5PF4 — шарик J5: ADC3_INN5, ADC3_INP9, FMC_A4PF4VSS — шарик J7VSSVSS — шарик J8VSSVSS — шарик J9VSSVSS — шарик J10VSSVSS — шарик J11VSSVDD — шарик J13VDDPK0 — шарик J14: LTDC_G5, SPI5_SCK, TIM1_CH1N, TIM8_CH3PK0PK1 — шарик J15: LTDC_G6, SPI5_NSS, TIM1_CH1, TIM8_CH3NPK1VSS — шарик J16VSSVSS — шарик J17VSSNRST — шарик K1NRSTPF6 — шарик K2: ADC3_INN4, ADC3_INP8, QUADSPI_BK1_IO3, SAI1_SD_B, SAI4_SD_B, SPI5_NSS, TIM16_CH1, UART7_RXPF6PF7 — шарик K3: ADC3_INP3, QUADSPI_BK1_IO2, SAI1_MCLK_B, SAI4_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TXPF7PF8 — шарик K4: ADC3_INN3, ADC3_INP7, QUADSPI_BK1_IO0, SAI1_SCK_B, SAI4_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPF8VDD — шарик K5VDDVSS — шарик K7VSSVSS — шарик K8VSSVSS — шарик K9VSSVSS — шарик K10VSSVSS — шарик K11VSSVDD — шарик K13VDDPJ11 — шарик K14: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LTDC_G4, SPI5_MISO, TIM1_CH2, TIM8_CH2NPJ11VSS — шарик K15VSSNC — шарик K16NCNC — шарик K17NCVDDA — шарик L1VDDAPC0 — шарик L2: ADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0, DFSDM1_DATIN4, FMC_SDNWE, LTDC_R5, SAI2_FS_B, USB_OTG_HS_ULPI_STPPC0PF10 — шарик L3: ADC3_INN2, ADC3_INP6, DCMI_D11, LTDC_DE, QUADSPI_CLK, SAI1_D3, SAI4_D3, TIM16_BKINPF10PF9 — шарик L4: ADC3_INP2, DAC1_EXTI9, QUADSPI_BK1_IO1, SAI1_FS_B, SAI4_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTSPF9VDD — шарик L5VDDVSS — шарик L7VSSVSS — шарик L8VSSVSS — шарик L9VSSVSS — шарик L10VSSVSS — шарик L11VSSVDD — шарик L13VDDPJ10 — шарик L14: LTDC_G3, SPI5_MOSI, TIM1_CH2N, TIM8_CH2PJ10VSS — шарик L15VSSNC — шарик L16NCNC — шарик L17NCVREF+ — шарик M1: VREFBUF_OUTVREF+PC1 — шарик M2: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0, DFSDM1_CKIN4, DFSDM1_DATIN0, ETH_MDC, I2S2_SDO, MDIOS_MDC, PWR_WKUP6, RTC_TAMP3, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI2_MOSIPC1PC2 — шарик M3: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ADC3_INN11, ADC3_INP12, DFSDM1_CKIN1, DFSDM1_CKOUT, ETH_TXD2, FMC_SDNE0, I2S2_SDI, PWR_CSTOP, SPI2_MISO, USB_OTG_HS_ULPI_DIRPC2PC3 — шарик M4: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, DFSDM1_DATIN1, ETH_TX_CLK, FMC_SDCKE0, I2S2_SDO, PWR_CSLEEP, SPI2_MOSI, USB_OTG_HS_ULPI_NXTPC3VDD — шарик M5VDDVDD — шарик M13VDDPJ9 — шарик M14: DAC1_EXTI9, LTDC_G2, TIM1_CH3, TIM8_CH1N, UART8_RXPJ9VSS — шарик M15VSSNC — шарик M16NCNC — шарик M17NCVREF- — шарик N1VREF-PH2 — шарик N2: ADC3_INP13, ETH_CRS, FMC_SDCKE0, LPTIM1_IN2, LTDC_R0, QUADSPI_BK2_IO0, SAI2_SCK_BPH2PA2 — шарик N3: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM4_OUT, LTDC_R1, MDIOS_MDIO, PWR_WKUP2, SAI2_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PA1 — шарик N4: ADC1_INN16, ADC1_INP17, ETH_REF_CLK, ETH_RX_CLK, LPTIM3_OUT, LTDC_R2, QUADSPI_BK1_IO3, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PA0 — шарик N5: ADC1_INP16, ETH_CRS, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PJ0 — шарик N6: LTDC_R1, LTDC_R7PJ0VDD — шарик N7VDDVDD — шарик N8VDDPE10 — шарик N9: COMP2_INM, DFSDM1_DATIN4, FMC_D7, FMC_DA7, QUADSPI_BK2_IO3, TIM1_CH2N, UART7_CTSPE10VDD — шарик N10VDDVDD — шарик N11VDDVDD — шарик N12VDDPJ8 — шарик N13: LTDC_G1, TIM1_CH3N, TIM8_CH1, UART8_TXPJ8PJ7 — шарик N14: DEBUG_TRGIN, LTDC_G0, TIM8_CH2NPJ7PJ6 — шарик N15: LTDC_R7, TIM8_CH2PJ6VSS — шарик N16VSSNC — шарик N17NCVSSA — шарик P1VSSAPH3 — шарик P2: ADC3_INN13, ADC3_INP14, ETH_COL, FMC_SDNE0, LTDC_R1, QUADSPI_BK2_IO1, SAI2_MCLK_BPH3PH4 — шарик P3: ADC3_INN14, ADC3_INP15, I2C2_SCL, LTDC_G4, LTDC_G5, USB_OTG_HS_ULPI_NXTPH4PH5 — шарик P4: ADC3_INN15, ADC3_INP16, FMC_SDNWE, I2C2_SDA, SPI5_NSSPH5PI15 — шарик P5: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, LTDC_G2, LTDC_R0PI15PJ1 — шарик P6: LTDC_R2PJ1PF13 — шарик P7: ADC2_INP2, DFSDM1_DATIN6, FMC_A7, I2C4_SMBAPF13PF14 — шарик P8: ADC2_INN2, ADC2_INP6, DFSDM1_CKIN6, FMC_A8, I2C4_SCLPF14PE9 — шарик P9: COMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT, FMC_D6, FMC_DA6, OPAMP2_VINP, QUADSPI_BK2_IO2, TIM1_CH1, UART7_DE, UART7_RTSPE9PE11 — шарик P10: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4, FMC_D8, FMC_DA8, LTDC_G3, SAI2_SD_B, SPI4_NSS, TIM1_CH2PE11PB10 — шарик P11: DFSDM1_DATIN7, ETH_RX_ER, HRTIM_SCOUT, I2C2_SCL, I2S2_CK, LPTIM2_IN1, LTDC_G4, QUADSPI_BK1_NCS, SPI2_SCK, TIM2_CH3, USART3_TX, USB_OTG_HS_ULPI_D3PB10PB11 — шарик P12: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7, ETH_TX_EN, HRTIM_SCIN, I2C2_SDA, LPTIM2_ETR, LTDC_G5, TIM2_CH4, USART3_RX, USB_OTG_HS_ULPI_D4PB11PH10 — шарик P13: DCMI_D1, FMC_D18, I2C4_SMBA, LTDC_R4, TIM5_CH1PH10PH11 — шарик P14: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2, FMC_D19, I2C4_SCL, LTDC_R5, TIM5_CH2PH11PD15 — шарик P15: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, SAI3_MCLK_A, TIM4_CH4, UART8_DE, UART8_RTSPD15PD14 — шарик P16: FMC_D0, FMC_DA0, SAI3_MCLK_B, TIM4_CH3, UART8_CTSPD14VDD — шарик P17VDDPC2_C — шарик R1: ADC3_INN1, ADC3_INP0, DFSDM1_CKIN1, DFSDM1_CKOUT, ETH_TXD2, FMC_SDNE0, I2S2_SDI, PWR_CSTOP, SPI2_MISO, USB_OTG_HS_ULPI_DIRPC2PC3_C — шарик R2: ADC3_INP1, DFSDM1_DATIN1, ETH_TX_CLK, FMC_SDCKE0, I2S2_SDO, PWR_CSLEEP, SPI2_MOSI, USB_OTG_HS_ULPI_NXTPC3PA6 — шарик R3: ADC1_INP3, ADC2_INP3, DCMI_PIXCLK, I2S1_SDI, LTDC_G2, MDIOS_MDC, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM3_CH1, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PA6VSS — шарик R4VSSPA7 — шарик R5: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV, ETH_RX_DV, FMC_SDNWE, I2S1_SDO, OPAMP1_VINM, OPAMP1_VINM1, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1NPA7PB2 — шарик R6: COMP1_INP, DFSDM1_CKIN1, ETH_TX_ER, I2S3_SDO, QUADSPI_CLK, RTC_OUT_ALARM, RTC_OUT_CALIB, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SPI3_MOSIPB2PF12 — шарик R7: ADC1_INN2, ADC1_INP6, FMC_A6PF12VSS — шарик R8VSSPF15 — шарик R9: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9, I2C4_SDAPF15PE12 — шарик R10: COMP1_OUT, DFSDM1_DATIN5, FMC_D9, FMC_DA9, LTDC_B4, SAI2_SCK_B, SPI4_SCK, TIM1_CH3NPE12PE15 — шарик R11: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12, FMC_DA12, LTDC_R7, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2PE15PJ5 — шарик R12: LTDC_R6PJ5PH9 — шарик R13: DAC1_EXTI9, DCMI_D0, FMC_D17, I2C3_SMBA, LTDC_R3, TIM12_CH2PH9PH12 — шарик R14: DCMI_D3, FMC_D20, I2C4_SDA, LTDC_R6, TIM5_CH3PH12PD11 — шарик R15: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, QUADSPI_BK1_IO0, SAI2_SD_A, USART3_CTS, USART3_NSSPD11PD12 — шарик R16: FMC_A17, FMC_ALE, I2C4_SCL, LPTIM1_IN1, LPTIM2_IN1, QUADSPI_BK1_IO1, SAI2_FS_A, TIM4_CH1, USART3_DE, USART3_RTSPD12PD13 — шарик R17: FMC_A18, I2C4_SDA, LPTIM1_OUT, QUADSPI_BK1_IO3, SAI2_SCK_A, TIM4_CH2PD13PA0_C — шарик T1: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_CRS, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PA1_C — шарик T2: ADC1_INP1, ADC2_INP1, ETH_REF_CLK, ETH_RX_CLK, LPTIM3_OUT, LTDC_R2, QUADSPI_BK1_IO3, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PA5 — шарик T3: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, I2S1_CK, LTDC_R4, PWR_NDSTOP2, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USB_OTG_HS_ULPI_CKPA5PC4 — шарик T4: ADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2, ETH_RXD0, FMC_SDNE0, I2S1_MCK, OPAMP1_VOUT, SPDIFRX1_IN2PC4PB1 — шарик T5: ADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1, ETH_RXD3, LTDC_G0, LTDC_R6, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USB_OTG_HS_ULPI_D2PB1PJ2 — шарик T6: LTDC_R3PJ2PF11 — шарик T7: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, SAI2_SD_B, SPI5_MOSIPF11PG0 — шарик T8: FMC_A10PG0PE8 — шарик T9: COMP2_OUT, DFSDM1_CKIN2, FMC_D5, FMC_DA5, OPAMP2_VINM, OPAMP2_VINM0, QUADSPI_BK2_IO1, TIM1_CH1N, UART7_TXPE8PE13 — шарик T10: COMP2_OUT, DFSDM1_CKIN5, FMC_D10, FMC_DA10, LTDC_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH3PE13PH6 — шарик T11: DCMI_D8, ETH_RXD2, FMC_SDNE1, I2C2_SMBA, SPI5_SCK, TIM12_CH1PH6VSS — шарик T12VSSPH8 — шарик T13: DCMI_HSYNC, FMC_D16, I2C3_SDA, LTDC_R2, TIM5_ETRPH8PB12 — шарик T14: DFSDM1_DATIN1, ETH_TXD0, FDCAN2_RX, I2C2_SMBA, I2S2_WS, SPI2_NSS, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, UART5_RX, USART3_CK, USB_OTG_HS_ID, USB_OTG_HS_ULPI_D5PB12PB15 — шарик T15: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2, I2S2_SDO, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, USART1_RX, USB_OTG_HS_DPPB15PD10 — шарик T16: DFSDM1_CKOUT, FMC_D15, FMC_DA15, LTDC_B3, SAI3_FS_B, USART3_CKPD10PD9 — шарик T17: DAC1_EXTI9, DFSDM1_DATIN3, FMC_D14, FMC_DA14, SAI3_SD_B, USART3_RXPD9VSS — шарик U1VSSPA3 — шарик U2: ADC1_INP15, ADC2_INP15, ETH_COL, LPTIM5_OUT, LTDC_B2, LTDC_B5, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX, USB_OTG_HS_ULPI_D0PA3PA4 — шарик U3: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, I2S1_WS, I2S3_WS, LTDC_VSYNC, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CK, USB_OTG_HS_SOFPA4PC5 — шарик U4: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT, DFSDM1_DATIN2, ETH_RXD1, FMC_SDCKE0, OPAMP1_VINM, OPAMP1_VINM0, SAI1_D3, SAI4_D3, SPDIFRX1_IN3PC5PB0 — шарик U5: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT, ETH_RXD2, LTDC_G1, LTDC_R3, OPAMP1_VINP, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USB_OTG_HS_ULPI_D1PB0PJ3 — шарик U6: LTDC_R4PJ3PJ4 — шарик U7: LTDC_R5PJ4PG1 — шарик U8: FMC_A11, OPAMP2_VINM, OPAMP2_VINM1PG1PE7 — шарик U9: COMP2_INM, DFSDM1_DATIN2, FMC_D4, FMC_DA4, OPAMP2_VOUT, QUADSPI_BK2_IO0, TIM1_ETR, UART7_RXPE7PE14 — шарик U10: FMC_D11, FMC_DA11, LTDC_CLK, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14VCAP — шарик U11VCAPVDDLDO — шарик U12VDDLDOPH7 — шарик U13: DCMI_D9, ETH_RXD3, FMC_SDCKE1, I2C3_SCL, SPI5_MISOPH7PB13 — шарик U14: DFSDM1_CKIN1, ETH_TXD1, FDCAN2_TX, I2S2_CK, LPTIM2_OUT, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSS, USB_OTG_HS_ULPI_D6, USB_OTG_HS_VBUSPB13PB14 — шарик U15: DFSDM1_DATIN2, I2S2_SDI, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, USART1_TX, USART3_DE, USART3_RTS, USB_OTG_HS_DMPB14PD8 — шарик U16: DFSDM1_CKIN3, FMC_D13, FMC_DA13, SAI3_SCK_B, SPDIFRX1_IN1, USART3_TXPD8VSS — шарик U17VSSTFBGA240, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

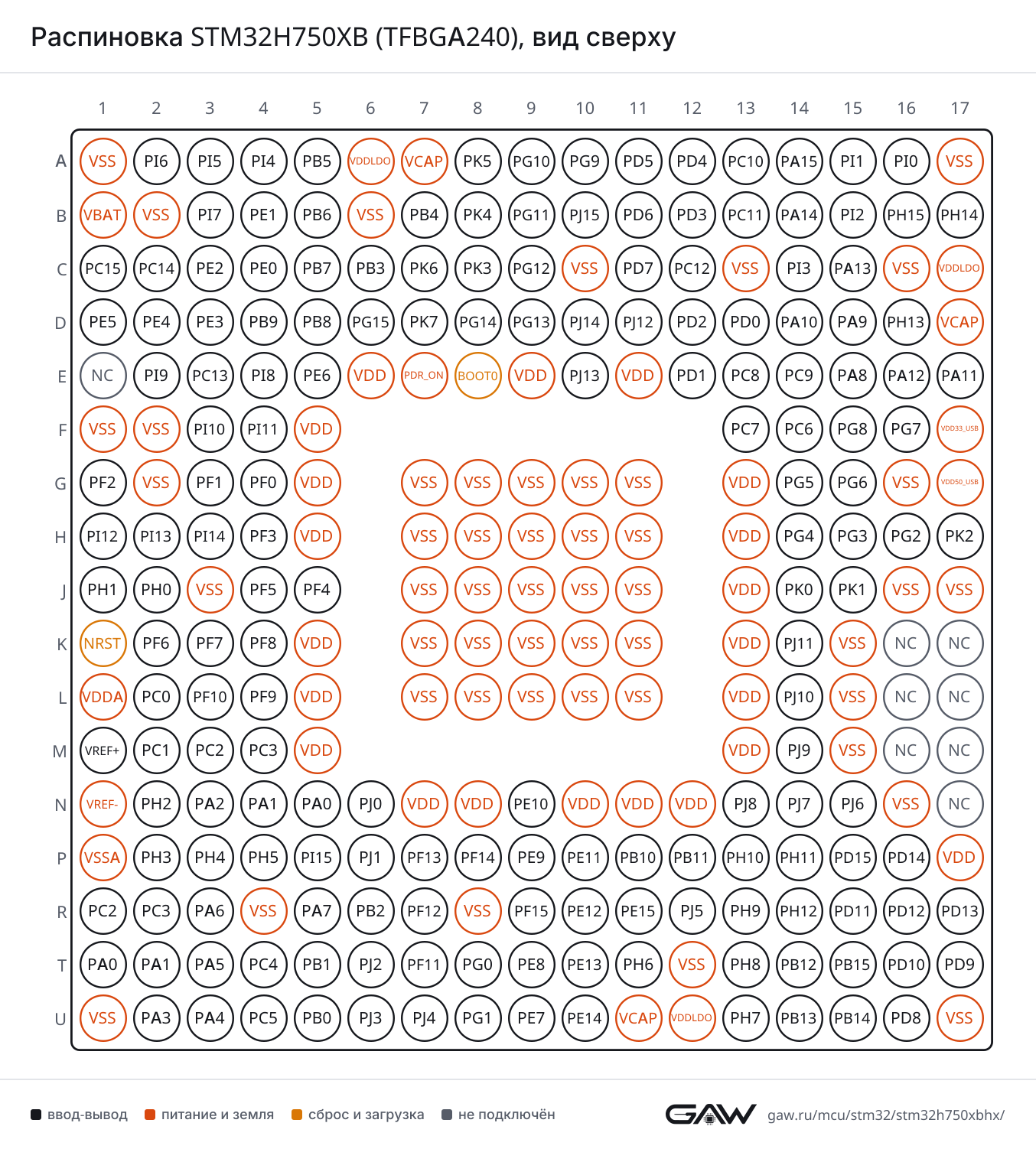

Распиновка STM32H750XB (TFBGA240), вид сверхуРаспиновка TFBGA240 картинкой
PNG, 1354 × 1502 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (E15, AF7)
CTSPA11 (E17, AF7)
DEPA12 (E16, AF7)
NSSPA11 (E17, AF7)
RTSPA12 (E16, AF7)
RXPB7 (C5, AF7), PA10 (D14, AF7), PB15 (T15, AF4)
TXPB6 (B5, AF7), PA9 (D15, AF7), PB14 (U15, AF4)
USART2CKPD7 (C11, AF7), PA4 (U3, AF7)
CTSPD3 (B12, AF7), PA0 (N5, AF7), PA0_C (T1, AF7)
DEPD4 (A12, AF7), PA1 (N4, AF7), PA1_C (T2, AF7)
NSSPD3 (B12, AF7), PA0 (N5, AF7), PA0_C (T1, AF7)
RTSPD4 (A12, AF7), PA1 (N4, AF7), PA1_C (T2, AF7)
RXPD6 (B11, AF7), PA3 (U2, AF7)
TXPD5 (A11, AF7), PA2 (N3, AF7)
USART3CKPC12 (C12, AF7), PB12 (T14, AF7), PD10 (T16, AF7)
CTSPD11 (R15, AF7), PB13 (U14, AF7)
DEPD12 (R16, AF7), PB14 (U15, AF7)
NSSPD11 (R15, AF7), PB13 (U14, AF7)
RTSPD12 (R16, AF7), PB14 (U15, AF7)
RXPC11 (B13, AF7), PB11 (P12, AF7), PD9 (T17, AF7)
TXPC10 (A13, AF7), PB10 (P11, AF7), PD8 (U16, AF7)
USART6CKPC8 (E13, AF7), PG7 (F16, AF7)
CTSPG15 (D6, AF7), PG13 (D9, AF7)
DEPG12 (C9, AF7), PG8 (F15, AF7)
NSSPG15 (D6, AF7), PG13 (D9, AF7)
RTSPG12 (C9, AF7), PG8 (F15, AF7)
RXPG9 (A10, AF7), PC7 (F13, AF7)
TXPG14 (D8, AF7), PC6 (F14, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB15 (T15, AF8), PB0 (U5, AF8)
DEPA15 (JTDI) (A14, AF8), PB14 (U15, AF8)
RTSPA15 (JTDI) (A14, AF8), PB14 (U15, AF8)
RXPC11 (B13, AF8), PH14 (B17, AF8), PB8 (D5, AF8), PD0 (D13, AF8), PI9 (E2, AF8), PA11 (E17, AF6), PA1 (N4, AF8), PA1_C (T2, AF8)
TXPC10 (A13, AF8), PB9 (D4, AF8), PH13 (D16, AF8), PD1 (E12, AF8), PA12 (E16, AF6), PA0 (N5, AF8), PA0_C (T1, AF8)
UART5CTSPC9 (E14, AF8)
DEPC8 (E13, AF8)
RTSPC8 (E13, AF8)
RXPB5 (A5, AF14), PD2 (D12, AF8), PB12 (T14, AF14)
TXPB6 (B5, AF14), PC12 (C12, AF8), PB13 (U14, AF14)
UART7CTSPF9 (L4, AF7), PE10 (N9, AF7)
DEPF8 (K4, AF7), PE9 (P9, AF7)
RTSPF8 (K4, AF7), PE9 (P9, AF7)
RXPB3 (JTDO/TRACESWO) (C6, AF11), PA8 (E15, AF11), PF6 (K2, AF7), PE7 (U9, AF7)
TXPA15 (JTDI) (A14, AF11), PB4 (NJTRST) (B7, AF11), PF7 (K3, AF7), PE8 (T9, AF7)
UART8CTSPD14 (P16, AF8)
DEPD15 (P15, AF8)
RTSPD15 (P15, AF8)
RXPE0 (C4, AF8), PJ9 (M14, AF8)
TXPE1 (B4, AF8), PJ8 (N13, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (E17, AF3)
DEPA12 (E16, AF3)
RTSPA12 (E16, AF3)
RXPB7 (C5, AF8), PA10 (D14, AF3)
TXPB6 (B5, AF8), PA9 (D15, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPG9 (A10, AF5), PB4 (NJTRST) (B7, AF5), PA6 (R3, AF5)
MOSIPB5 (A5, AF5), PD7 (C11, AF5), PA7 (R5, AF5)
NSSPG10 (A9, AF5), PA15 (JTDI) (A14, AF5), PA4 (U3, AF5)
SCKPG11 (B9, AF5), PB3 (JTDO/TRACESWO) (C6, AF5), PA5 (T3, AF5)
SPI2MISOPI2 (B15, AF5), PC2 (M3, AF5), PC2_C (R1, AF5), PB14 (U15, AF5)
MOSIPI3 (C14, AF5), PC1 (M2, AF5), PC3 (M4, AF5), PC3_C (R2, AF5), PB15 (T15, AF5)
NSSPI0 (A16, AF5), PB4 (NJTRST) (B7, AF7), PB9 (D4, AF5), PA11 (E17, AF5), PB12 (T14, AF5)
SCKPI1 (A15, AF5), PD3 (B12, AF5), PA9 (D15, AF5), PA12 (E16, AF5), PB10 (P11, AF5), PB13 (U14, AF5)
SPI3MISOPB4 (NJTRST) (B7, AF6), PC11 (B13, AF6)
MOSIPB5 (A5, AF7), PD6 (B11, AF5), PC12 (C12, AF6), PB2 (R6, AF7)
NSSPA15 (JTDI) (A14, AF6), PA4 (U3, AF6)
SCKPC10 (A13, AF6), PB3 (JTDO/TRACESWO) (C6, AF6)
SPI4MISOPE5 (D1, AF5), PE13 (T10, AF5)
MOSIPE6 (E5, AF5), PE14 (U10, AF5)
NSSPE4 (D2, AF5), PE11 (P10, AF5)
SCKPE2 (C3, AF5), PE12 (R10, AF5)
SPI5MISOPF8 (K4, AF5), PJ11 (K14, AF5), PH7 (U13, AF5)
MOSIPF9 (L4, AF5), PJ10 (L14, AF5), PF11 (T7, AF5)
NSSPK1 (J15, AF5), PF6 (K2, AF5), PH5 (P4, AF5)
SCKPK0 (J14, AF5), PF7 (K3, AF5), PH6 (T11, AF5)
SPI6MISOPB4 (NJTRST) (B7, AF8), PG12 (C9, AF5), PA6 (R3, AF8)
MOSIPB5 (A5, AF8), PG14 (D8, AF5), PA7 (R5, AF8)
NSSPA15 (JTDI) (A14, AF7), PG8 (F15, AF5), PA4 (U3, AF8)
SCKPB3 (JTDO/TRACESWO) (C6, AF8), PG13 (D9, AF5), PA5 (T3, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (E14, AF5)
I2S1CKPG11 (B9, AF5), PB3 (JTDO/TRACESWO) (C6, AF5), PA5 (T3, AF5)
MCKPC4 (T4, AF5)
SDIPG9 (A10, AF5), PB4 (NJTRST) (B7, AF5), PA6 (R3, AF5)
SDOPB5 (A5, AF5), PD7 (C11, AF5), PA7 (R5, AF5)
WSPG10 (A9, AF5), PA15 (JTDI) (A14, AF5), PA4 (U3, AF5)
I2S2CKPI1 (A15, AF5), PD3 (B12, AF5), PA9 (D15, AF5), PA12 (E16, AF5), PB10 (P11, AF5), PB13 (U14, AF5)
MCKPC6 (F14, AF5)
SDIPI2 (B15, AF5), PC2 (M3, AF5), PC2_C (R1, AF5), PB14 (U15, AF5)
SDOPI3 (C14, AF5), PC1 (M2, AF5), PC3 (M4, AF5), PC3_C (R2, AF5), PB15 (T15, AF5)
WSPI0 (A16, AF5), PB4 (NJTRST) (B7, AF7), PB9 (D4, AF5), PA11 (E17, AF5), PB12 (T14, AF5)
I2S3CKPC10 (A13, AF6), PB3 (JTDO/TRACESWO) (C6, AF6)
MCKPC7 (F13, AF6)
SDIPB4 (NJTRST) (B7, AF6), PC11 (B13, AF6)
SDOPB5 (A5, AF7), PD6 (B11, AF5), PC12 (C12, AF6), PB2 (R6, AF7)
WSPA15 (JTDI) (A14, AF6), PA4 (U3, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (B5, AF4), PB8 (D5, AF4)
SDAPB7 (C5, AF4), PB9 (D4, AF4)
SMBAPB5 (A5, AF4)
I2C2SCLPF1 (G3, AF4), PH4 (P3, AF4), PB10 (P11, AF4)
SDAPF0 (G4, AF4), PH5 (P4, AF4), PB11 (P12, AF4)
SMBAPF2 (G1, AF4), PH6 (T11, AF4), PB12 (T14, AF4)
I2C3SCLPA8 (E15, AF4), PH7 (U13, AF4)
SDAPC9 (E14, AF4), PH8 (T13, AF4)
SMBAPA9 (D15, AF4), PH9 (R13, AF4)
I2C4SCLPB6 (B5, AF6), PB8 (D5, AF6), PF14 (P8, AF4), PH11 (P14, AF4), PD12 (R16, AF4)
SDAPB7 (C5, AF6), PB9 (D4, AF6), PF15 (R9, AF4), PH12 (R14, AF4), PD13 (R17, AF4)
SMBAPB5 (A5, AF6), PB9 (D4, AF11), PF13 (P7, AF4), PH10 (P13, AF4), PD11 (R15, AF4)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPH14 (B17, AF9), PB8 (D5, AF9), PD0 (D13, AF9), PI9 (E2, AF9), PA11 (E17, AF9)
TXPB9 (D4, AF9), PH13 (D16, AF9), PD1 (E12, AF9), PA12 (E16, AF9)
FDCAN2RXPB5 (A5, AF9), PB12 (T14, AF9)
TXPB6 (B5, AF9), PB13 (U14, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (E17, AF10)
DPPA12 (E16, AF10)
IDPA10 (D14, AF10)
SOFPA8 (E15, AF10)
VBUSPA9 (D15)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPB14 (U15, AF12)
DPPB15 (T15, AF12)
IDPB12 (T14, AF12)
SOFPA4 (U3, AF12)
ULPI_CKPA5 (T3, AF10)
ULPI_D0PA3 (U2, AF10)
ULPI_D1PB0 (U5, AF10)
ULPI_D2PB1 (T5, AF10)
ULPI_D3PB10 (P11, AF10)
ULPI_D4PB11 (P12, AF10)
ULPI_D5PB12 (T14, AF10)
ULPI_D6PB13 (U14, AF10)
ULPI_D7PB5 (A5, AF10)
ULPI_DIRPI11 (F4, AF10), PC2 (M3, AF10), PC2_C (R1, AF10)
ULPI_NXTPC3 (M4, AF10), PH4 (P3, AF10), PC3_C (R2, AF10)
ULPI_STPPC0 (L2, AF10)
VBUSPB13 (U14)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCOLPH3 (P2, AF11), PA3 (U2, AF11)
CRSPH2 (N2, AF11), PA0 (N5, AF11), PA0_C (T1, AF11)
CRS_DVPA7 (R5, AF11)
MDCPC1 (M2, AF11)
MDIOPA2 (N3, AF11)
PPS_OUTPB5 (A5, AF11), PG8 (F15, AF11)
REF_CLKPA1 (N4, AF11), PA1_C (T2, AF11)
RX_CLKPA1 (N4, AF11), PA1_C (T2, AF11)
RX_DVPA7 (R5, AF11)
RX_ERPI10 (F3, AF11), PB10 (P11, AF11)
RXD0PC4 (T4, AF11)
RXD1PC5 (U4, AF11)
RXD2PH6 (T11, AF11), PB0 (U5, AF11)
RXD3PB1 (T5, AF11), PH7 (U13, AF11)
TX_CLKPC3 (M4, AF11), PC3_C (R2, AF11)
TX_ENPG11 (B9, AF11), PB11 (P12, AF11)
TX_ERPA9 (D15, AF11), PI12 (H1, AF11), PB2 (R6, AF11)
TXD0PG13 (D9, AF11), PB12 (T14, AF11)
TXD1PG12 (C9, AF11), PG14 (D8, AF11), PB13 (U14, AF11)
TXD2PC2 (M3, AF11), PC2_C (R1, AF11)
TXD3PE2 (C3, AF11), PB8 (D5, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (D4, AF7)
CKPC12 (C12, AF12)
CKINPB8 (D5, AF7)
CMDPD2 (D12, AF12)
D0PC8 (E13, AF12)
D0DIRPC6 (F14, AF8)
D1PC9 (E14, AF12)
D2PC10 (A13, AF12)
D3PC11 (B13, AF12)
D4PB8 (D5, AF12)
D5PB9 (D4, AF12)
D6PC6 (F14, AF12)
D7PC7 (F13, AF12)
D123DIRPC7 (F13, AF8)
SDMMC2CKPD6 (B11, AF11), PC1 (M2, AF9)
CMDPD7 (C11, AF11), PA0 (N5, AF9), PA0_C (T1, AF9)
D0PB14 (U15, AF9)
D1PB15 (T15, AF9)
D2PG11 (B9, AF10), PB3 (JTDO/TRACESWO) (C6, AF9)
D3PB4 (NJTRST) (B7, AF9)
D4PB8 (D5, AF10)
D5PB9 (D4, AF10)
D6PC6 (F14, AF10)
D7PC7 (F13, AF10)

QUADSPI — интерфейс Quad-SPI памяти

БлокСигналВыводы
QUADSPIBK1_IO0PC9 (E14, AF9), PF8 (K4, AF10), PD11 (R15, AF9)
BK1_IO1PC10 (A13, AF9), PF9 (L4, AF10), PD12 (R16, AF9)
BK1_IO2PE2 (C3, AF9), PF7 (K3, AF9)
BK1_IO3PF6 (K2, AF9), PA1 (N4, AF9), PD13 (R17, AF9), PA1_C (T2, AF9)
BK1_NCSPB6 (B5, AF10), PG6 (G15, AF10), PB10 (P11, AF9)
BK2_IO0PH2 (N2, AF9), PE7 (U9, AF10)
BK2_IO1PH3 (P2, AF9), PE8 (T9, AF10)
BK2_IO2PG9 (A10, AF9), PE9 (P9, AF10)
BK2_IO3PG14 (D8, AF9), PE10 (N9, AF10)
BK2_NCSPC11 (B13, AF9)
CLKPF10 (L3, AF9), PB2 (R6, AF9)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (C3, AF2)
CK2PE5 (D1, AF2)
D1PD6 (B11, AF2), PE6 (E5, AF2), PC1 (M2, AF2), PB2 (R6, AF2)
D2PE4 (D2, AF2)
D3PF10 (L3, AF2), PC5 (U4, AF2)
FS_APE4 (D2, AF6)
FS_BPF9 (L4, AF6)
MCLK_APE2 (C3, AF6), PG7 (F16, AF6)
MCLK_BPF7 (K3, AF6)
SCK_APE5 (D1, AF6)
SCK_BPF8 (K4, AF6)
SD_APD6 (B11, AF6), PE6 (E5, AF6), PC1 (M2, AF6), PB2 (R6, AF6)
SD_BPE3 (D3, AF6), PF6 (K2, AF6)
SAI2FS_API7 (B3, AF10), PD12 (R16, AF10)
FS_BPG9 (A10, AF10), PA12 (E16, AF8), PC0 (L2, AF8), PE13 (T10, AF10)
MCLK_API4 (A4, AF10), PE0 (C4, AF10)
MCLK_BPE6 (E5, AF10), PA1 (N4, AF10), PH3 (P2, AF10), PA1_C (T2, AF10), PE14 (U10, AF10)
SCK_API5 (A3, AF10), PD13 (R17, AF10)
SCK_BPH2 (N2, AF10), PA2 (N3, AF8), PE12 (R10, AF10)
SD_API6 (A2, AF10), PD11 (R15, AF10)
SD_BPG10 (A9, AF10), PA0 (N5, AF10), PE11 (P10, AF10), PA0_C (T1, AF10), PF11 (T7, AF10)
SAI3FS_APD4 (A12, AF6)
FS_BPD10 (T16, AF6)
MCLK_APD15 (P15, AF6)
MCLK_BPD14 (P16, AF6)
SCK_APD0 (D13, AF6)
SCK_BPD8 (U16, AF6)
SD_APD1 (E12, AF6)
SD_BPD9 (T17, AF6)
SAI4CK1PE2 (C3, AF10)
CK2PE5 (D1, AF10)
D1PD6 (B11, AF10), PE6 (E5, AF9), PC1 (M2, AF10), PB2 (R6, AF10)
D2PE4 (D2, AF10)
D3PF10 (L3, AF10), PC5 (U4, AF10)
FS_APE4 (D2, AF8)
FS_BPF9 (L4, AF8)
MCLK_APE2 (C3, AF8)
MCLK_BPF7 (K3, AF8)
SCK_APE5 (D1, AF8)
SCK_BPF8 (K4, AF8)
SD_APD6 (B11, AF8), PE6 (E5, AF8), PC1 (M2, AF8), PB2 (R6, AF8)
SD_BPE3 (D3, AF8), PF6 (K2, AF8)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRX1IN0PG11 (B9, AF8), PD7 (C11, AF9)
IN1PG12 (C9, AF8), PD8 (U16, AF9)
IN2PG8 (F15, AF8), PC4 (T4, AF9)
IN3PG9 (A10, AF8), PC5 (U4, AF9)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15 (JTDI) (A14, AF4), PB6 (B5, AF5)

SWPMI — интерфейс Single Wire Protocol

БлокСигналВыводы
SWPMI1IOPC6 (F14)
RXPC8 (E13, AF11)
SUSPENDPC9 (E14, AF11)
TXPC7 (F13, AF11)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PG11 (B9), PC11 (B13), PA11 (E17), PI11 (F4), PJ11 (K14), PE11 (P10), PB11 (P12), PH11 (P14), PD11 (R15), PF11 (T7)
EXTI15PA15 (JTDI) (A14), PJ15 (B10), PH15 (B16), PC15-OSC32_OUT (OSC32_OUT) (C1), PG15 (D6), PI15 (P5), PD15 (P15), PF15 (R9), PE15 (R11), PB15 (T15)
INN1PA0_C (T1)
INN2PF12 (R7)
INN3PA7 (R5)
INN4PC5 (U4)
INN5PB0 (U5)
INN10PC1 (M2)
INN11PC2 (M3)
INN12PC3 (M4)
INN16PA1 (N4)
INN18PA5 (T3)
INP0PA0_C (T1)
INP1PA1_C (T2)
INP2PF11 (T7)
INP3PA6 (R3)
INP4PC4 (T4)
INP5PB1 (T5)
INP6PF12 (R7)
INP7PA7 (R5)
INP8PC5 (U4)
INP9PB0 (U5)
INP10PC0 (L2)
INP11PC1 (M2)
INP12PC2 (M3)
INP13PC3 (M4)
INP14PA2 (N3)
INP15PA3 (U2)
INP16PA0 (N5)
INP17PA1 (N4)
INP18PA4 (U3)
INP19PA5 (T3)
ADC2EXTI11PG11 (B9), PC11 (B13), PA11 (E17), PI11 (F4), PJ11 (K14), PE11 (P10), PB11 (P12), PH11 (P14), PD11 (R15), PF11 (T7)
EXTI15PA15 (JTDI) (A14), PJ15 (B10), PH15 (B16), PC15-OSC32_OUT (OSC32_OUT) (C1), PG15 (D6), PI15 (P5), PD15 (P15), PF15 (R9), PE15 (R11), PB15 (T15)
INN1PA0_C (T1)
INN2PF14 (P8)
INN3PA7 (R5)
INN4PC5 (U4)
INN5PB0 (U5)
INN10PC1 (M2)
INN11PC2 (M3)
INN12PC3 (M4)
INN18PA5 (T3)
INP0PA0_C (T1)
INP1PA1_C (T2)
INP2PF13 (P7)
INP3PA6 (R3)
INP4PC4 (T4)
INP5PB1 (T5)
INP6PF14 (P8)
INP7PA7 (R5)
INP8PC5 (U4)
INP9PB0 (U5)
INP10PC0 (L2)
INP11PC1 (M2)
INP12PC2 (M3)
INP13PC3 (M4)
INP14PA2 (N3)
INP15PA3 (U2)
INP18PA4 (U3)
INP19PA5 (T3)
ADC3EXTI11PG11 (B9), PC11 (B13), PA11 (E17), PI11 (F4), PJ11 (K14), PE11 (P10), PB11 (P12), PH11 (P14), PD11 (R15), PF11 (T7)
EXTI15PA15 (JTDI) (A14), PJ15 (B10), PH15 (B16), PC15-OSC32_OUT (OSC32_OUT) (C1), PG15 (D6), PI15 (P5), PD15 (P15), PF15 (R9), PE15 (R11), PB15 (T15)
INN1PC2_C (R1)
INN2PF10 (L3)
INN3PF8 (K4)
INN4PF6 (K2)
INN5PF4 (J5)
INN10PC1 (M2)
INN11PC2 (M3)
INN13PH3 (P2)
INN14PH4 (P3)
INN15PH5 (P4)
INP0PC2_C (R1)
INP1PC3_C (R2)
INP2PF9 (L4)
INP3PF7 (K3)
INP4PF5 (J4)
INP5PF3 (H4)
INP6PF10 (L3)
INP7PF8 (K4)
INP8PF6 (K2)
INP9PF4 (J5)
INP10PC0 (L2)
INP11PC1 (M2)
INP12PC2 (M3)
INP13PH2 (N2)
INP14PH3 (P2)
INP15PH4 (P3)
INP16PH5 (P4)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PG9 (A10), PB9 (D4), PA9 (D15), PI9 (E2), PC9 (E14), PF9 (L4), PJ9 (M14), PE9 (P9), PH9 (R13), PD9 (T17)
OUT1PA4 (U3)
OUT2PA5 (T3)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPC4 (T4), PB1 (T5)
INPPB2 (R6), PB0 (U5)
OUTPE12 (R10, AF13), PC5 (U4, AF13)
COMP2INMPE10 (N9), PE7 (U9)
INPPE9 (P9), PE11 (P10)
OUTPE8 (T9, AF13), PE13 (T10, AF13)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA7 (R5), PC5 (U4)
VINM0PC5 (U4)
VINM1PA7 (R5)
VINPPB0 (U5)
VOUTPC4 (T4)
OPAMP2VINMPE8 (T9), PG1 (U8)
VINM0PE8 (T9)
VINM1PG1 (U8)
VINPPE9 (P9)
VOUTPE7 (U9)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (M1)

TIM — таймер

БлокСигналВыводы
TIM1BKINPK2 (H17, AF1), PA6 (R3, AF1), PE15 (R11, AF1), PB12 (T14, AF1)
BKIN_COMP1PK2 (H17, AF11), PA6 (R3, AF12), PE15 (R11, AF13), PB12 (T14, AF13)
BKIN_COMP2PK2 (H17, AF11), PA6 (R3, AF12), PE15 (R11, AF13), PB12 (T14, AF13)
BKIN2PE6 (E5, AF1), PG4 (H14, AF1)
BKIN2_COMP1PE6 (E5, AF11), PG4 (H14, AF11)
BKIN2_COMP2PE6 (E5, AF11), PG4 (H14, AF11)
CH1PA8 (E15, AF1), PK1 (J15, AF1), PE9 (P9, AF1)
CH1NPK0 (J14, AF1), PA7 (R5, AF1), PE8 (T9, AF1), PB13 (U14, AF1)
CH2PA9 (D15, AF1), PJ11 (K14, AF1), PE11 (P10, AF1)
CH2NPJ10 (L14, AF1), PE10 (N9, AF1), PB0 (U5, AF1), PB14 (U15, AF1)
CH3PA10 (D14, AF1), PJ9 (M14, AF1), PE13 (T10, AF1)
CH3NPJ8 (N13, AF1), PE12 (R10, AF1), PB1 (T5, AF1), PB15 (T15, AF1)
CH4PA11 (E17, AF1), PE14 (U10, AF1)
ETRPA12 (E16, AF1), PG5 (G14, AF1), PE7 (U9, AF1)
TIM2CH1PA15 (JTDI) (A14, AF1), PA0 (N5, AF1), PA0_C (T1, AF1), PA5 (T3, AF1)
CH2PB3 (JTDO/TRACESWO) (C6, AF1), PA1 (N4, AF1), PA1_C (T2, AF1)
CH3PA2 (N3, AF1), PB10 (P11, AF1)
CH4PB11 (P12, AF1), PA3 (U2, AF1)
ETRPA15 (JTDI) (A14, AF1), PA0 (N5, AF1), PA0_C (T1, AF1), PA5 (T3, AF1)
TIM3CH1PB4 (NJTRST) (B7, AF2), PC6 (F14, AF2), PA6 (R3, AF2)
CH2PB5 (A5, AF2), PC7 (F13, AF2), PA7 (R5, AF2)
CH3PC8 (E13, AF2), PB0 (U5, AF2)
CH4PC9 (E14, AF2), PB1 (T5, AF2)
ETRPD2 (D12, AF2)
TIM4CH1PB6 (B5, AF2), PD12 (R16, AF2)
CH2PB7 (C5, AF2), PD13 (R17, AF2)
CH3PB8 (D5, AF2), PD14 (P16, AF2)
CH4PB9 (D4, AF2), PD15 (P15, AF2)
ETRPE0 (C4, AF2)
TIM5CH1PA0 (N5, AF2), PH10 (P13, AF2), PA0_C (T1, AF2)
CH2PA1 (N4, AF2), PH11 (P14, AF2), PA1_C (T2, AF2)
CH3PA2 (N3, AF2), PH12 (R14, AF2)
CH4PI0 (A16, AF2), PA3 (U2, AF2)
ETRPH8 (T13, AF2), PA4 (U3, AF2)
TIM8BKINPI4 (A4, AF3), PG2 (H16, AF3), PK2 (H17, AF3), PA6 (R3, AF3)
BKIN_COMP1PI4 (A4, AF11), PG2 (H16, AF11), PK2 (H17, AF10), PA6 (R3, AF10)
BKIN_COMP2PI4 (A4, AF11), PG2 (H16, AF11), PK2 (H17, AF10), PA6 (R3, AF10)
BKIN2PI1 (A15, AF3), PA8 (E15, AF3), PG3 (H15, AF3)
BKIN2_COMP1PI1 (A15, AF11), PA8 (E15, AF12), PG3 (H15, AF11)
BKIN2_COMP2PI1 (A15, AF11), PA8 (E15, AF12), PG3 (H15, AF11)
CH1PI5 (A3, AF3), PC6 (F14, AF3), PJ8 (N13, AF3)
CH1NPH13 (D16, AF3), PJ9 (M14, AF3), PA7 (R5, AF3), PA5 (T3, AF3)
CH2PI6 (A2, AF3), PC7 (F13, AF3), PJ10 (L14, AF3), PJ6 (N15, AF3)
CH2NPH14 (B17, AF3), PJ11 (K14, AF3), PJ7 (N14, AF3), PB0 (U5, AF3), PB14 (U15, AF3)
CH3PI7 (B3, AF3), PC8 (E13, AF3), PK0 (J14, AF3)
CH3NPH15 (B16, AF3), PK1 (J15, AF3), PB1 (T5, AF3), PB15 (T15, AF3)
CH4PI2 (B15, AF3), PC9 (E14, AF3)
ETRPI3 (C14, AF3), PG8 (F15, AF3), PA0 (N5, AF3), PA0_C (T1, AF3)
TIM12CH1PH6 (T11, AF2), PB14 (U15, AF2)
CH2PH9 (R13, AF2), PB15 (T15, AF2)
TIM13CH1PF8 (K4, AF9), PA6 (R3, AF9)
TIM14CH1PF9 (L4, AF9), PA7 (R5, AF9)
TIM15BKINPE3 (D3, AF4), PA0 (N5, AF4), PA0_C (T1, AF4)
CH1PE5 (D1, AF4), PA2 (N3, AF4)
CH1NPE4 (D2, AF4), PA1 (N4, AF4), PA1_C (T2, AF4)
CH2PE6 (E5, AF4), PA3 (U2, AF4)
TIM16BKINPB4 (NJTRST) (B7, AF1), PF10 (L3, AF1)
CH1PB8 (D5, AF1), PF6 (K2, AF1)
CH1NPB6 (B5, AF1), PF8 (K4, AF1)
TIM17BKINPB5 (A5, AF1), PG6 (G15, AF1)
CH1PB9 (D4, AF1), PF7 (K3, AF1)
CH1NPB7 (C5, AF1), PF9 (L4, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPE0 (C4, AF1), PG14 (D8, AF1)
IN1PG12 (C9, AF1), PD12 (R16, AF1)
IN2PE1 (B4, AF1), PG11 (B9, AF1), PH2 (N2, AF1)
OUTPG13 (D9, AF1), PD13 (R17, AF1)
LPTIM2ETRPE0 (C4, AF4), PB11 (P12, AF3)
IN1PB10 (P11, AF3), PD12 (R16, AF3)
IN2PD11 (R15, AF3)
OUTPB13 (U14, AF3)
LPTIM3OUTPA1 (N4, AF3), PA1_C (T2, AF3)
LPTIM4OUTPA2 (N3, AF3)
LPTIM5OUTPA3 (U2, AF3)

HRTIM — таймер высокого разрешения

БлокСигналВыводы
HRTIMCHA1PC6 (F14, AF1)
CHA2PC7 (F13, AF1)
CHB1PC8 (E13, AF1)
CHB2PA8 (E15, AF2)
CHC1PA9 (D15, AF2)
CHC2PA10 (D14, AF2)
CHD1PA11 (E17, AF2)
CHD2PA12 (E16, AF2)
CHE1PG6 (G15, AF2)
CHE2PG7 (F16, AF2)
EEV1PC10 (A13, AF2)
EEV2PC12 (C12, AF2)
EEV3PD5 (A11, AF2)
EEV4PG11 (B9, AF2)
EEV5PG12 (C9, AF2)
EEV6PB4 (NJTRST) (B7, AF3)
EEV7PB5 (A5, AF3)
EEV8PB6 (B5, AF3)
EEV9PB7 (C5, AF3)
EEV10PG13 (D9, AF2)
FLT1PA15 (JTDI) (A14, AF2)
FLT2PC11 (B13, AF2)
FLT3PD4 (A12, AF2)
FLT4PB3 (JTDO/TRACESWO) (C6, AF2)
FLT5PG10 (A9, AF2)
SCINPE0 (C4, AF3), PB11 (P12, AF2)
SCOUTPE1 (B4, AF3), PB10 (P11, AF2)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT_ALARMPC13 (E3), PB2 (R6, AF0)
OUT_CALIBPC13 (E3), PB2 (R6, AF0)
REFINPB15 (T15, AF0)
TSPC13 (E3)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (G4, AF12)
A1PF1 (G3, AF12)
A2PF2 (G1, AF12)
A3PF3 (H4, AF12)
A4PF4 (J5, AF12)
A5PF5 (J4, AF12)
A6PF12 (R7, AF12)
A7PF13 (P7, AF12)
A8PF14 (P8, AF12)
A9PF15 (R9, AF12)
A10PG0 (T8, AF12)
A11PG1 (U8, AF12)
A12PG2 (H16, AF12)
A13PG3 (H15, AF12)
A14PG4 (H14, AF12)
A15PG5 (G14, AF12)
A16PD11 (R15, AF12)
A17PD12 (R16, AF12)
A18PD13 (R17, AF12)
A19PE3 (D3, AF12)
A20PE4 (D2, AF12)
A21PE5 (D1, AF12)
A22PE6 (E5, AF12)
A23PE2 (C3, AF12)
A24PG13 (D9, AF12)
A25PG14 (D8, AF12)
ALEPD12 (R16)
BA0PG4 (H14, AF12)
BA1PG5 (G14, AF12)
CLEPD11 (R15)
CLKPD3 (B12, AF12)
D0PD14 (P16, AF12)
D1PD15 (P15, AF12)
D2PD0 (D13, AF12)
D3PD1 (E12, AF12)
D4PE7 (U9, AF12)
D5PE8 (T9, AF12)
D6PE9 (P9, AF12)
D7PE10 (N9, AF12)
D8PE11 (P10, AF12)
D9PE12 (R10, AF12)
D10PE13 (T10, AF12)
D11PE14 (U10, AF12)
D12PE15 (R11, AF12)
D13PD8 (U16, AF12)
D14PD9 (T17, AF12)
D15PD10 (T16, AF12)
D16PH8 (T13, AF12)
D17PH9 (R13, AF12)
D18PH10 (P13, AF12)
D19PH11 (P14, AF12)
D20PH12 (R14, AF12)
D21PH13 (D16, AF12)
D22PH14 (B17, AF12)
D23PH15 (B16, AF12)
D24PI0 (A16, AF12)
D25PI1 (A15, AF12)
D26PI2 (B15, AF12)
D27PI3 (C14, AF12)
D28PI6 (A2, AF12)
D29PI7 (B3, AF12)
D30PI9 (E2, AF12)
D31PI10 (F3, AF12)
DA0PD14 (P16, AF12)
DA1PD15 (P15, AF12)
DA2PD0 (D13, AF12)
DA3PD1 (E12, AF12)
DA4PE7 (U9, AF12)
DA5PE8 (T9, AF12)
DA6PE9 (P9, AF12)
DA7PE10 (N9, AF12)
DA8PE11 (P10, AF12)
DA9PE12 (R10, AF12)
DA10PE13 (T10, AF12)
DA11PE14 (U10, AF12)
DA12PE15 (R11, AF12)
DA13PD8 (U16, AF12)
DA14PD9 (T17, AF12)
DA15PD10 (T16, AF12)
INTPG7 (F16, AF12)
NBL0PE0 (C4, AF12)
NBL1PE1 (B4, AF12)
NBL2PI4 (A4, AF12)
NBL3PI5 (A3, AF12)
NCEPG9 (A10, AF12), PC8 (E13, AF9)
NE1PD7 (C11, AF12), PC7 (F13, AF9)
NE2PG9 (A10, AF12), PC8 (E13, AF9)
NE3PG10 (A9, AF12), PG6 (G15, AF12)
NE4PG12 (C9, AF12)
NLPB7 (C5, AF12)
NOEPD4 (A12, AF12)
NWAITPD6 (B11, AF12), PC6 (F14, AF9)
NWEPD5 (A11, AF12)
SDCKE0PC3 (M4, AF12), PH2 (N2, AF12), PC3_C (R2, AF12), PC5 (U4, AF12)
SDCKE1PB5 (A5, AF12), PH7 (U13, AF12)
SDCLKPG8 (F15, AF12)
SDNCASPG15 (D6, AF12)
SDNE0PC2 (M3, AF12), PH3 (P2, AF12), PC2_C (R1, AF12), PC4 (T4, AF12)
SDNE1PB6 (B5, AF12), PH6 (T11, AF12)
SDNRASPF11 (T7, AF12)
SDNWEPC0 (L2, AF12), PH5 (P4, AF12), PA7 (R5, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (D15, AF13), PC6 (F14, AF13), PH9 (R13, AF13)
D1PA10 (D14, AF13), PC7 (F13, AF13), PH10 (P13, AF13)
D2PG10 (A9, AF13), PE0 (C4, AF13), PC8 (E13, AF13), PH11 (P14, AF13)
D3PE1 (B4, AF13), PG11 (B9, AF13), PC9 (E14, AF13), PH12 (R14, AF13)
D4PC11 (B13, AF13), PH14 (B17, AF13), PE4 (D2, AF13)
D5PI4 (A4, AF13), PB6 (B5, AF13), PD3 (B12, AF13)
D6PI6 (A2, AF13), PE5 (D1, AF13), PB8 (D5, AF13)
D7PI7 (B3, AF13), PB9 (D4, AF13), PE6 (E5, AF13)
D8PC10 (A13, AF13), PI1 (A15, AF13), PH6 (T11, AF13)
D9PI2 (B15, AF13), PC12 (C12, AF13), PH7 (U13, AF13)
D10PB5 (A5, AF13), PD6 (B11, AF13), PI3 (C14, AF13)
D11PH15 (B16, AF13), PD2 (D12, AF13), PF10 (L3, AF13)
D12PG6 (G15, AF13), PF11 (T7, AF13)
D13PI0 (A16, AF13), PG15 (D6, AF13), PG7 (F16, AF13)
HSYNCPH8 (T13, AF13), PA4 (U3, AF13)
PIXCLKPA6 (R3, AF13)
VSYNCPI5 (A3, AF13), PG9 (A10, AF13), PB7 (C5, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PE4 (D2, AF14), PG14 (D8, AF14), PJ12 (D11, AF14)
B1PG12 (C9, AF14), PA10 (D14, AF14), PJ13 (E10, AF14)
B2PG10 (A9, AF14), PD6 (B11, AF14), PJ14 (D10, AF14), PC9 (E14, AF14), PA3 (U2, AF9)
B3PG11 (B9, AF14), PJ15 (B10, AF14), PA8 (E15, AF13), PD10 (T16, AF14)
B4PI4 (A4, AF14), PK3 (C8, AF14), PG12 (C9, AF9), PA10 (D14, AF12), PJ13 (E10, AF9), PE12 (R10, AF14)
B5PI5 (A3, AF14), PK4 (B8, AF14), PA3 (U2, AF14)
B6PI6 (A2, AF14), PK5 (A8, AF14), PB8 (D5, AF14)
B7PI7 (B3, AF14), PK6 (C7, AF14), PB9 (D4, AF14)
CLKPG7 (F16, AF14), PI14 (H3, AF14), PE14 (U10, AF14)
DEPK7 (D7, AF14), PF10 (L3, AF14), PE13 (T10, AF14)
G0PE5 (D1, AF14), PJ7 (N14, AF14), PB1 (T5, AF14)
G1PE6 (E5, AF14), PJ8 (N13, AF14), PB0 (U5, AF14)
G2PH13 (D16, AF14), PJ9 (M14, AF14), PI15 (P5, AF9), PA6 (R3, AF14)
G3PG10 (A9, AF9), PH14 (B17, AF14), PJ12 (D11, AF9), PC9 (E14, AF10), PJ10 (L14, AF14), PE11 (P10, AF14)
G4PH15 (B16, AF14), PJ11 (K14, AF14), PH4 (P3, AF14), PB10 (P11, AF14)
G5PI0 (A16, AF14), PK0 (J14, AF14), PH4 (P3, AF9), PB11 (P12, AF14)
G6PI1 (A15, AF14), PI11 (F4, AF9), PC7 (F13, AF14), PK1 (J15, AF14)
G7PD3 (B12, AF14), PI2 (B15, AF14), PG8 (F15, AF14), PK2 (H17, AF14)
HSYNCPI10 (F3, AF14), PC6 (F14, AF14), PI12 (H1, AF14)
R0PG13 (D9, AF14), PH2 (N2, AF14), PI15 (P5, AF14)
R1PA2 (N3, AF14), PJ0 (N6, AF14), PH3 (P2, AF14)
R2PC10 (A13, AF14), PA1 (N4, AF14), PJ1 (P6, AF14), PA1_C (T2, AF14), PH8 (T13, AF14)
R3PH9 (R13, AF14), PJ2 (T6, AF14), PB0 (U5, AF9)
R4PA11 (E17, AF14), PH10 (P13, AF14), PA5 (T3, AF14), PJ3 (U6, AF14)
R5PA9 (D15, AF14), PA12 (E16, AF14), PC0 (L2, AF14), PH11 (P14, AF14), PJ4 (U7, AF14)
R6PA8 (E15, AF14), PJ5 (R12, AF14), PH12 (R14, AF14), PB1 (T5, AF9)
R7PG6 (G15, AF14), PJ0 (N6, AF9), PJ6 (N15, AF14), PE15 (R11, AF14)
VSYNCPI9 (E2, AF14), PI13 (H2, AF14), PA4 (U3, AF14)

DFSDM — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
DFSDM1CKIN0PC0 (L2, AF3)
CKIN1PD7 (C11, AF6), PC2 (M3, AF3), PC2_C (R1, AF3), PB2 (R6, AF4), PB13 (U14, AF6)
CKIN2PC4 (T4, AF3), PE8 (T9, AF3), PB15 (T15, AF6)
CKIN3PE5 (D1, AF3), PC6 (F14, AF4), PD8 (U16, AF3)
CKIN4PD6 (B11, AF3), PC1 (M2, AF4), PE11 (P10, AF3)
CKIN5PC10 (A13, AF3), PB7 (C5, AF11), PE13 (T10, AF3)
CKIN6PD0 (D13, AF3), PF14 (P8, AF3)
CKIN7PB8 (D5, AF3), PB11 (P12, AF6)
CKOUTPD3 (B12, AF3), PC2 (M3, AF6), PE9 (P9, AF3), PC2_C (R1, AF6), PD10 (T16, AF3), PB0 (U5, AF6)
DATIN0PC1 (M2, AF3)
DATIN1PD6 (B11, AF4), PC3 (M4, AF3), PC3_C (R2, AF3), PB1 (T5, AF6), PB12 (T14, AF6)
DATIN2PC5 (U4, AF3), PE7 (U9, AF3), PB14 (U15, AF6)
DATIN3PE4 (D2, AF3), PC7 (F13, AF4), PD9 (T17, AF3)
DATIN4PD7 (C11, AF3), PC0 (L2, AF6), PE10 (N9, AF3)
DATIN5PB6 (B5, AF11), PC11 (B13, AF3), PE12 (R10, AF3)
DATIN6PD1 (E12, AF3), PF13 (P7, AF3)
DATIN7PB9 (D4, AF3), PB10 (P11, AF6)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (B14, AF0)
JTDIPA15 (JTDI) (A14, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (C6, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (C15, AF0)
TRACECLKPE2 (C3, AF0)
TRACED0PE3 (D3, AF0), PG13 (D9, AF0), PC1 (M2, AF0)
TRACED1PE4 (D2, AF0), PG14 (D8, AF0), PC8 (E13, AF0)
TRACED2PE5 (D1, AF0), PD2 (D12, AF0)
TRACED3PC12 (C12, AF0), PE6 (E5, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (E15, AF0)
MCO_2PC9 (E14, AF0)
OSC_INPH0-OSC_IN (J2)
OSC_OUTPH1-OSC_OUT (J1)
OSC32_INPC14-OSC32_IN (OSC32_IN) (C2)
OSC32_OUTPC15-OSC32_OUT (OSC32_OUT) (C1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC3 (M4), PC3_C (R2)
PWR_CSTOPPC2 (M3), PC2_C (R1)
PWR_WKUP1PA0 (N5), PA0_C (T1)
PWR_WKUP2PA2 (N3)
PWR_WKUP3PI8 (E4)
PWR_WKUP4PC13 (E3)
PWR_WKUP5PI11 (F4)
PWR_WKUP6PC1 (M2)
RTC_TAMP1PC13 (E3)
RTC_TAMP2PI8 (E4)
RTC_TAMP3PC1 (M2)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), USB_OTG_HS1 (USB On-The-Go High Speed), HDMI_CEC (шина управления HDMI), TIM6 (таймер), TIM7 (таймер), IWDG1 (независимый сторожевой таймер), WWDG1 (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), CRYP (криптографический процессор), HASH (блок хеширования), DMA2D (графический ускоритель Chrom-ART).

Таблица выводов

Все 265 шариков корпуса TFBGA240 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1VSSпитание—
A2PI6ввод-выводDCMI_D6 (AF13), FMC_D28 (AF12), LTDC_B6 (AF14), SAI2_SD_A (AF10), TIM8_CH2 (AF3)
A3PI5ввод-выводDCMI_VSYNC (AF13), FMC_NBL3 (AF12), LTDC_B5 (AF14), SAI2_SCK_A (AF10), TIM8_CH1 (AF3)
A4PI4ввод-выводDCMI_D5 (AF13), FMC_NBL2 (AF12), LTDC_B4 (AF14), SAI2_MCLK_A (AF10), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
A5PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), HRTIM_EEV7 (AF3), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14), USB_OTG_HS_ULPI_D7 (AF10)
A6VDDLDOпитание—
A7VCAPпитание—
A8PK5ввод-выводLTDC_B6 (AF14)
A9PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), HRTIM_FLT5 (AF2), I2S1_WS (AF5), LTDC_B2 (AF14), LTDC_G3 (AF9), SAI2_SD_B (AF10), SPI1_NSS (AF5)
A10PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), QUADSPI_BK2_IO2 (AF9), SAI2_FS_B (AF10), SPDIFRX1_IN3 (AF8), SPI1_MISO (AF5), USART6_RX (AF7)
A11PD5ввод-выводFMC_NWE (AF12), HRTIM_EEV3 (AF2), USART2_TX (AF7)
A12PD4ввод-выводFMC_NOE (AF12), HRTIM_FLT3 (AF2), SAI3_FS_A (AF6), USART2_DE (AF7), USART2_RTS (AF7)
A13PC10ввод-выводDCMI_D8 (AF13), DFSDM1_CKIN5 (AF3), HRTIM_EEV1 (AF2), I2S3_CK (AF6), LTDC_R2 (AF14), QUADSPI_BK1_IO1 (AF9), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
A14PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), HRTIM_FLT1 (AF2), I2S1_WS (AF5), I2S3_WS (AF6), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF1), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
A15PI1ввод-выводDCMI_D8 (AF13), FMC_D25 (AF12), I2S2_CK (AF5), LTDC_G6 (AF14), SPI2_SCK (AF5), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
A16PI0ввод-выводDCMI_D13 (AF13), FMC_D24 (AF12), I2S2_WS (AF5), LTDC_G5 (AF14), SPI2_NSS (AF5), TIM5_CH4 (AF2)
A17VSSпитание—
B1VBATпитание—
B2VSSпитание—
B3PI7ввод-выводDCMI_D7 (AF13), FMC_D29 (AF12), LTDC_B7 (AF14), SAI2_FS_A (AF10), TIM8_CH3 (AF3)
B4PE1ввод-выводDCMI_D3 (AF13), FMC_NBL1 (AF12), HRTIM_SCOUT (AF3), LPTIM1_IN2 (AF1), UART8_TX (AF8)
B5PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), DFSDM1_DATIN5 (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), HRTIM_EEV8 (AF3), I2C1_SCL (AF4), I2C4_SCL (AF6), LPUART1_TX (AF8), QUADSPI_BK1_NCS (AF10), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
B6VSSпитание—
B7PB4 (NJTRST)ввод-выводDEBUG_JTRST, HRTIM_EEV6 (AF3), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
B8PK4ввод-выводLTDC_B5 (AF14)
B9PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3 (AF13), ETH_TX_EN (AF11), HRTIM_EEV4 (AF2), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B3 (AF14), SDMMC2_D2 (AF10), SPDIFRX1_IN0 (AF8), SPI1_SCK (AF5)
B10PJ15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, LTDC_B3 (AF14)
B11PD6ввод-выводDCMI_D10 (AF13), DFSDM1_CKIN4 (AF3), DFSDM1_DATIN1 (AF4), FMC_NWAIT (AF12), I2S3_SDO (AF5), LTDC_B2 (AF14), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
B12PD3ввод-выводDCMI_D5 (AF13), DFSDM1_CKOUT (AF3), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_G7 (AF14), SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
B13PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4 (AF13), DFSDM1_DATIN5 (AF3), HRTIM_FLT2 (AF2), I2S3_SDI (AF6), QUADSPI_BK2_NCS (AF9), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
B14PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
B15PI2ввод-выводDCMI_D9 (AF13), FMC_D26 (AF12), I2S2_SDI (AF5), LTDC_G7 (AF14), SPI2_MISO (AF5), TIM8_CH4 (AF3)
B16PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11 (AF13), FMC_D23 (AF12), LTDC_G4 (AF14), TIM8_CH3N (AF3)
B17PH14ввод-выводDCMI_D4 (AF13), FDCAN1_RX (AF9), FMC_D22 (AF12), LTDC_G3 (AF14), TIM8_CH2N (AF3), UART4_RX (AF8)
C1PC15-OSC32_OUT (OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
C2PC14-OSC32_IN (OSC32_IN)ввод-выводRCC_OSC32_IN
C3PE2ввод-выводDEBUG_TRACECLK (AF0), ETH_TXD3 (AF11), FMC_A23 (AF12), QUADSPI_BK1_IO2 (AF9), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SAI4_CK1 (AF10), SAI4_MCLK_A (AF8), SPI4_SCK (AF5)
C4PE0ввод-выводDCMI_D2 (AF13), FMC_NBL0 (AF12), HRTIM_SCIN (AF3), LPTIM1_ETR (AF1), LPTIM2_ETR (AF4), SAI2_MCLK_A (AF10), TIM4_ETR (AF2), UART8_RX (AF8)
C5PB7ввод-выводDCMI_VSYNC (AF13), DFSDM1_CKIN5 (AF11), FMC_NL (AF12), HRTIM_EEV9 (AF3), I2C1_SDA (AF4), I2C4_SDA (AF6), LPUART1_RX (AF8), PWR_PVD_IN, TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
C6PB3 (JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), HRTIM_FLT4 (AF2), I2S1_CK (AF5), I2S3_CK (AF6), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART7_RX (AF11)
C7PK6ввод-выводLTDC_B7 (AF14)
C8PK3ввод-выводLTDC_B4 (AF14)
C9PG12ввод-выводETH_TXD1 (AF11), FMC_NE4 (AF12), HRTIM_EEV5 (AF2), LPTIM1_IN1 (AF1), LTDC_B1 (AF14), LTDC_B4 (AF9), SPDIFRX1_IN1 (AF8), SPI6_MISO (AF5), USART6_DE (AF7), USART6_RTS (AF7)
C10VSSпитание—
C11PD7ввод-выводDFSDM1_CKIN1 (AF6), DFSDM1_DATIN4 (AF3), FMC_NE1 (AF12), I2S1_SDO (AF5), SDMMC2_CMD (AF11), SPDIFRX1_IN0 (AF9), SPI1_MOSI (AF5), USART2_CK (AF7)
C12PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), HRTIM_EEV2 (AF2), I2S3_SDO (AF6), SDMMC1_CK (AF12), SPI3_MOSI (AF6), UART5_TX (AF8), USART3_CK (AF7)
C13VSSпитание—
C14PI3ввод-выводDCMI_D10 (AF13), FMC_D27 (AF12), I2S2_SDO (AF5), SPI2_MOSI (AF5), TIM8_ETR (AF3)
C15PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
C16VSSпитание—
C17VDDLDOпитание—
D1PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), DFSDM1_CKIN3 (AF3), FMC_A21 (AF12), LTDC_G0 (AF14), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SAI4_CK2 (AF10), SAI4_SCK_A (AF8), SPI4_MISO (AF5), TIM15_CH1 (AF4)
D2PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), DFSDM1_DATIN3 (AF3), FMC_A20 (AF12), LTDC_B0 (AF14), SAI1_D2 (AF2), SAI1_FS_A (AF6), SAI4_D2 (AF10), SAI4_FS_A (AF8), SPI4_NSS (AF5), TIM15_CH1N (AF4)
D3PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), SAI4_SD_B (AF8), TIM15_BKIN (AF4)
D4PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), DFSDM1_DATIN7 (AF3), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2C4_SMBA (AF11), I2S2_WS (AF5), LTDC_B7 (AF14), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
D5PB8ввод-выводDCMI_D6 (AF13), DFSDM1_CKIN7 (AF3), ETH_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), LTDC_B6 (AF14), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
D6PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), USART6_CTS (AF7), USART6_NSS (AF7)
D7PK7ввод-выводLTDC_DE (AF14)
D8PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_TXD1 (AF11), FMC_A25 (AF12), LPTIM1_ETR (AF1), LTDC_B0 (AF14), QUADSPI_BK2_IO3 (AF9), SPI6_MOSI (AF5), USART6_TX (AF7)
D9PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_TXD0 (AF11), FMC_A24 (AF12), HRTIM_EEV10 (AF2), LPTIM1_OUT (AF1), LTDC_R0 (AF14), SPI6_SCK (AF5), USART6_CTS (AF7), USART6_NSS (AF7)
D10PJ14ввод-выводLTDC_B2 (AF14)
D11PJ12ввод-выводDEBUG_TRGOUT (AF0), LTDC_B0 (AF14), LTDC_G3 (AF9)
D12PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), SDMMC1_CMD (AF12), TIM3_ETR (AF2), UART5_RX (AF8)
D13PD0ввод-выводDFSDM1_CKIN6 (AF3), FDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), SAI3_SCK_A (AF6), UART4_RX (AF8)
D14PA10ввод-выводDCMI_D1 (AF13), HRTIM_CHC2 (AF2), LPUART1_RX (AF3), LTDC_B1 (AF14), LTDC_B4 (AF12), MDIOS_MDIO (AF11), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_FS_ID (AF10)
D15PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_TX_ER (AF11), HRTIM_CHC1 (AF2), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R5 (AF14), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_FS_VBUS
D16PH13ввод-выводFDCAN1_TX (AF9), FMC_D21 (AF12), LTDC_G2 (AF14), TIM8_CH1N (AF3), UART4_TX (AF8)
D17VCAPпитание—
E1NCне подключён—
E2PI9ввод-выводDAC1_EXTI9, FDCAN1_RX (AF9), FMC_D30 (AF12), LTDC_VSYNC (AF14), UART4_RX (AF8)
E3PC13ввод-выводPWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS
E4PI8ввод-выводPWR_WKUP3, RTC_TAMP2
E5PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF14), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SAI4_D1 (AF9), SAI4_SD_A (AF8), SPI4_MOSI (AF5), TIM15_CH2 (AF4), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
E6VDDпитание—
E7PDR_ONпитание—
E8BOOT0загрузка—
E9VDDпитание—
E10PJ13ввод-выводLTDC_B1 (AF14), LTDC_B4 (AF9)
E11VDDпитание—
E12PD1ввод-выводDFSDM1_DATIN6 (AF3), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), SAI3_SD_A (AF6), UART4_TX (AF8)
E13PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_NCE (AF9), FMC_NE2 (AF9), HRTIM_CHB1 (AF1), SDMMC1_D0 (AF12), SWPMI1_RX (AF11), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
E14PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF13), I2C3_SDA (AF4), I2S_CKIN (AF5), LTDC_B2 (AF14), LTDC_G3 (AF10), QUADSPI_BK1_IO0 (AF9), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), SWPMI1_SUSPEND (AF11), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8)
E15PA8ввод-выводHRTIM_CHB2 (AF2), I2C3_SCL (AF4), LTDC_B3 (AF13), LTDC_R6 (AF14), RCC_MCO_1 (AF0), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF12), TIM8_BKIN2_COMP2 (AF12), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF (AF10)
E16PA12ввод-выводFDCAN1_TX (AF9), HRTIM_CHD2 (AF2), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R5 (AF14), SAI2_FS_B (AF8), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP (AF10)
E17PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX (AF9), HRTIM_CHD1 (AF2), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R4 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_FS_DM (AF10)
F1VSSпитание—
F2VSSпитание—
F3PI10ввод-выводETH_RX_ER (AF11), FMC_D31 (AF12), LTDC_HSYNC (AF14)
F4PI11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LTDC_G6 (AF9), PWR_WKUP5, USB_OTG_HS_ULPI_DIR (AF10)
F5VDDпитание—
F13PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), DFSDM1_DATIN3 (AF4), FMC_NE1 (AF9), HRTIM_CHA2 (AF1), I2S3_MCK (AF6), LTDC_G6 (AF14), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), SWPMI1_TX (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
F14PC6ввод-выводDCMI_D0 (AF13), DFSDM1_CKIN3 (AF4), FMC_NWAIT (AF9), HRTIM_CHA1 (AF1), I2S2_MCK (AF5), LTDC_HSYNC (AF14), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), SWPMI1_IO, TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
F15PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), LTDC_G7 (AF14), SPDIFRX1_IN2 (AF8), SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
F16PG7ввод-выводDCMI_D13 (AF13), FMC_INT (AF12), HRTIM_CHE2 (AF2), LTDC_CLK (AF14), SAI1_MCLK_A (AF6), USART6_CK (AF7)
F17VDD33_USBпитание—
G1PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4)
G2VSSпитание—
G3PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4)
G4PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4)
G5VDDпитание—
G7VSSпитание—
G8VSSпитание—
G9VSSпитание—
G10VSSпитание—
G11VSSпитание—
G13VDDпитание—
G14PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
G15PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), HRTIM_CHE1 (AF2), LTDC_R7 (AF14), QUADSPI_BK1_NCS (AF10), TIM17_BKIN (AF1)
G16VSSпитание—
G17VDD50_USBпитание—
H1PI12ввод-выводETH_TX_ER (AF11), LTDC_HSYNC (AF14)
H2PI13ввод-выводLTDC_VSYNC (AF14)
H3PI14ввод-выводLTDC_CLK (AF14)
H4PF3ввод-выводADC3_INP5, FMC_A3 (AF12)
H5VDDпитание—
H7VSSпитание—
H8VSSпитание—
H9VSSпитание—
H10VSSпитание—
H11VSSпитание—
H13VDDпитание—
H14PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
H15PG3ввод-выводFMC_A13 (AF12), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
H16PG2ввод-выводFMC_A12 (AF12), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
H17PK2ввод-выводLTDC_G7 (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF11), TIM1_BKIN_COMP2 (AF11), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
J1PH1-OSC_OUTввод-выводRCC_OSC_OUT
J2PH0-OSC_INввод-выводRCC_OSC_IN
J3VSSпитание—
J4PF5ввод-выводADC3_INP4, FMC_A5 (AF12)
J5PF4ввод-выводADC3_INN5, ADC3_INP9, FMC_A4 (AF12)
J7VSSпитание—
J8VSSпитание—
J9VSSпитание—
J10VSSпитание—
J11VSSпитание—
J13VDDпитание—
J14PK0ввод-выводLTDC_G5 (AF14), SPI5_SCK (AF5), TIM1_CH1N (AF1), TIM8_CH3 (AF3)
J15PK1ввод-выводLTDC_G6 (AF14), SPI5_NSS (AF5), TIM1_CH1 (AF1), TIM8_CH3N (AF3)
J16VSSпитание—
J17VSSпитание—
K1NRSTсброс—
K2PF6ввод-выводADC3_INN4, ADC3_INP8, QUADSPI_BK1_IO3 (AF9), SAI1_SD_B (AF6), SAI4_SD_B (AF8), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
K3PF7ввод-выводADC3_INP3, QUADSPI_BK1_IO2 (AF9), SAI1_MCLK_B (AF6), SAI4_MCLK_B (AF8), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
K4PF8ввод-выводADC3_INN3, ADC3_INP7, QUADSPI_BK1_IO0 (AF10), SAI1_SCK_B (AF6), SAI4_SCK_B (AF8), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
K5VDDпитание—
K7VSSпитание—
K8VSSпитание—
K9VSSпитание—
K10VSSпитание—
K11VSSпитание—
K13VDDпитание—
K14PJ11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LTDC_G4 (AF14), SPI5_MISO (AF5), TIM1_CH2 (AF1), TIM8_CH2N (AF3)
K15VSSпитание—
K16NCне подключён—
K17NCне подключён—
L1VDDAпитание—
L2PC0ввод-выводADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0 (AF3), DFSDM1_DATIN4 (AF6), FMC_SDNWE (AF12), LTDC_R5 (AF14), SAI2_FS_B (AF8), USB_OTG_HS_ULPI_STP (AF10)
L3PF10ввод-выводADC3_INN2, ADC3_INP6, DCMI_D11 (AF13), LTDC_DE (AF14), QUADSPI_CLK (AF9), SAI1_D3 (AF2), SAI4_D3 (AF10), TIM16_BKIN (AF1)
L4PF9ввод-выводADC3_INP2, DAC1_EXTI9, QUADSPI_BK1_IO1 (AF10), SAI1_FS_B (AF6), SAI4_FS_B (AF8), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
L5VDDпитание—
L7VSSпитание—
L8VSSпитание—
L9VSSпитание—
L10VSSпитание—
L11VSSпитание—
L13VDDпитание—
L14PJ10ввод-выводLTDC_G3 (AF14), SPI5_MOSI (AF5), TIM1_CH2N (AF1), TIM8_CH2 (AF3)
L15VSSпитание—
L16NCне подключён—
L17NCне подключён—
M1VREF+служебныйVREFBUF_OUT
M2PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0 (AF0), DFSDM1_CKIN4 (AF4), DFSDM1_DATIN0 (AF3), ETH_MDC (AF11), I2S2_SDO (AF5), MDIOS_MDC (AF12), PWR_WKUP6, RTC_TAMP3, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5)
M3PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ADC3_INN11, ADC3_INP12, DFSDM1_CKIN1 (AF3), DFSDM1_CKOUT (AF6), ETH_TXD2 (AF11), FMC_SDNE0 (AF12), I2S2_SDI (AF5), PWR_CSTOP, SPI2_MISO (AF5), USB_OTG_HS_ULPI_DIR (AF10)
M4PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, DFSDM1_DATIN1 (AF3), ETH_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), PWR_CSLEEP, SPI2_MOSI (AF5), USB_OTG_HS_ULPI_NXT (AF10)
M5VDDпитание—
M13VDDпитание—
M14PJ9ввод-выводDAC1_EXTI9, LTDC_G2 (AF14), TIM1_CH3 (AF1), TIM8_CH1N (AF3), UART8_RX (AF8)
M15VSSпитание—
M16NCне подключён—
M17NCне подключён—
N1VREF-питание—
N2PH2ввод-выводADC3_INP13, ETH_CRS (AF11), FMC_SDCKE0 (AF12), LPTIM1_IN2 (AF1), LTDC_R0 (AF14), QUADSPI_BK2_IO0 (AF9), SAI2_SCK_B (AF10)
N3PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM4_OUT (AF3), LTDC_R1 (AF14), MDIOS_MDIO (AF12), PWR_WKUP2, SAI2_SCK_B (AF8), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
N4PA1ввод-выводADC1_INN16, ADC1_INP17, ETH_REF_CLK (AF11), ETH_RX_CLK (AF11), LPTIM3_OUT (AF3), LTDC_R2 (AF14), QUADSPI_BK1_IO3 (AF9), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
N5PA0ввод-выводADC1_INP16, ETH_CRS (AF11), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
N6PJ0ввод-выводLTDC_R1 (AF14), LTDC_R7 (AF9)
N7VDDпитание—
N8VDDпитание—
N9PE10ввод-выводCOMP2_INM, DFSDM1_DATIN4 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), QUADSPI_BK2_IO3 (AF10), TIM1_CH2N (AF1), UART7_CTS (AF7)
N10VDDпитание—
N11VDDпитание—
N12VDDпитание—
N13PJ8ввод-выводLTDC_G1 (AF14), TIM1_CH3N (AF1), TIM8_CH1 (AF3), UART8_TX (AF8)
N14PJ7ввод-выводDEBUG_TRGIN (AF0), LTDC_G0 (AF14), TIM8_CH2N (AF3)
N15PJ6ввод-выводLTDC_R7 (AF14), TIM8_CH2 (AF3)
N16VSSпитание—
N17NCне подключён—
P1VSSAпитание—
P2PH3ввод-выводADC3_INN13, ADC3_INP14, ETH_COL (AF11), FMC_SDNE0 (AF12), LTDC_R1 (AF14), QUADSPI_BK2_IO1 (AF9), SAI2_MCLK_B (AF10)
P3PH4ввод-выводADC3_INN14, ADC3_INP15, I2C2_SCL (AF4), LTDC_G4 (AF14), LTDC_G5 (AF9), USB_OTG_HS_ULPI_NXT (AF10)
P4PH5ввод-выводADC3_INN15, ADC3_INP16, FMC_SDNWE (AF12), I2C2_SDA (AF4), SPI5_NSS (AF5)
P5PI15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, LTDC_G2 (AF9), LTDC_R0 (AF14)
P6PJ1ввод-выводLTDC_R2 (AF14)
P7PF13ввод-выводADC2_INP2, DFSDM1_DATIN6 (AF3), FMC_A7 (AF12), I2C4_SMBA (AF4)
P8PF14ввод-выводADC2_INN2, ADC2_INP6, DFSDM1_CKIN6 (AF3), FMC_A8 (AF12), I2C4_SCL (AF4)
P9PE9ввод-выводCOMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT (AF3), FMC_D6 (AF12), FMC_DA6 (AF12), OPAMP2_VINP, QUADSPI_BK2_IO2 (AF10), TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
P10PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4 (AF3), FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G3 (AF14), SAI2_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
P11PB10ввод-выводDFSDM1_DATIN7 (AF6), ETH_RX_ER (AF11), HRTIM_SCOUT (AF2), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), LTDC_G4 (AF14), QUADSPI_BK1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7), USB_OTG_HS_ULPI_D3 (AF10)
P12PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7 (AF6), ETH_TX_EN (AF11), HRTIM_SCIN (AF2), I2C2_SDA (AF4), LPTIM2_ETR (AF3), LTDC_G5 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7), USB_OTG_HS_ULPI_D4 (AF10)
P13PH10ввод-выводDCMI_D1 (AF13), FMC_D18 (AF12), I2C4_SMBA (AF4), LTDC_R4 (AF14), TIM5_CH1 (AF2)
P14PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2 (AF13), FMC_D19 (AF12), I2C4_SCL (AF4), LTDC_R5 (AF14), TIM5_CH2 (AF2)
P15PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), SAI3_MCLK_A (AF6), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8)
P16PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), SAI3_MCLK_B (AF6), TIM4_CH3 (AF2), UART8_CTS (AF8)
P17VDDпитание—
R1PC2_Cввод-выводADC3_INN1, ADC3_INP0, DFSDM1_CKIN1 (AF3), DFSDM1_CKOUT (AF6), ETH_TXD2 (AF11), FMC_SDNE0 (AF12), I2S2_SDI (AF5), PWR_CSTOP, SPI2_MISO (AF5), USB_OTG_HS_ULPI_DIR (AF10)
R2PC3_Cввод-выводADC3_INP1, DFSDM1_DATIN1 (AF3), ETH_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), PWR_CSLEEP, SPI2_MOSI (AF5), USB_OTG_HS_ULPI_NXT (AF10)
R3PA6ввод-выводADC1_INP3, ADC2_INP3, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), LTDC_G2 (AF14), MDIOS_MDC (AF11), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF12), TIM1_BKIN_COMP2 (AF12), TIM3_CH1 (AF2), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
R4VSSпитание—
R5PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV (AF11), ETH_RX_DV (AF11), FMC_SDNWE (AF12), I2S1_SDO (AF5), OPAMP1_VINM, OPAMP1_VINM1, SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3)
R6PB2ввод-выводCOMP1_INP, DFSDM1_CKIN1 (AF4), ETH_TX_ER (AF11), I2S3_SDO (AF7), QUADSPI_CLK (AF9), RTC_OUT_ALARM (AF0), RTC_OUT_CALIB (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SPI3_MOSI (AF7)
R7PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12)
R8VSSпитание—
R9PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4)
R10PE12ввод-выводCOMP1_OUT (AF13), DFSDM1_DATIN5 (AF3), FMC_D9 (AF12), FMC_DA9 (AF12), LTDC_B4 (AF14), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
R11PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R7 (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13)
R12PJ5ввод-выводLTDC_R6 (AF14)
R13PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), FMC_D17 (AF12), I2C3_SMBA (AF4), LTDC_R3 (AF14), TIM12_CH2 (AF2)
R14PH12ввод-выводDCMI_D3 (AF13), FMC_D20 (AF12), I2C4_SDA (AF4), LTDC_R6 (AF14), TIM5_CH3 (AF2)
R15PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16 (AF12), FMC_CLE, I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), QUADSPI_BK1_IO0 (AF9), SAI2_SD_A (AF10), USART3_CTS (AF7), USART3_NSS (AF7)
R16PD12ввод-выводFMC_A17 (AF12), FMC_ALE, I2C4_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), QUADSPI_BK1_IO1 (AF9), SAI2_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
R17PD13ввод-выводFMC_A18 (AF12), I2C4_SDA (AF4), LPTIM1_OUT (AF1), QUADSPI_BK1_IO3 (AF9), SAI2_SCK_A (AF10), TIM4_CH2 (AF2)
T1PA0_Cввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_CRS (AF11), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
T2PA1_Cввод-выводADC1_INP1, ADC2_INP1, ETH_REF_CLK (AF11), ETH_RX_CLK (AF11), LPTIM3_OUT (AF3), LTDC_R2 (AF14), QUADSPI_BK1_IO3 (AF9), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
T3PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, I2S1_CK (AF5), LTDC_R4 (AF14), PWR_NDSTOP2, SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM8_CH1N (AF3), USB_OTG_HS_ULPI_CK (AF10)
T4PC4ввод-выводADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2 (AF3), ETH_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), OPAMP1_VOUT, SPDIFRX1_IN2 (AF9)
T5PB1ввод-выводADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1 (AF6), ETH_RXD3 (AF11), LTDC_G0 (AF14), LTDC_R6 (AF9), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USB_OTG_HS_ULPI_D2 (AF10)
T6PJ2ввод-выводLTDC_R3 (AF14)
T7PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
T8PG0ввод-выводFMC_A10 (AF12)
T9PE8ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN2 (AF3), FMC_D5 (AF12), FMC_DA5 (AF12), OPAMP2_VINM, OPAMP2_VINM0, QUADSPI_BK2_IO1 (AF10), TIM1_CH1N (AF1), UART7_TX (AF7)
T10PE13ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN5 (AF3), FMC_D10 (AF12), FMC_DA10 (AF12), LTDC_DE (AF14), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
T11PH6ввод-выводDCMI_D8 (AF13), ETH_RXD2 (AF11), FMC_SDNE1 (AF12), I2C2_SMBA (AF4), SPI5_SCK (AF5), TIM12_CH1 (AF2)
T12VSSпитание—
T13PH8ввод-выводDCMI_HSYNC (AF13), FMC_D16 (AF12), I2C3_SDA (AF4), LTDC_R2 (AF14), TIM5_ETR (AF2)
T14PB12ввод-выводDFSDM1_DATIN1 (AF6), ETH_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SMBA (AF4), I2S2_WS (AF5), SPI2_NSS (AF5), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), UART5_RX (AF14), USART3_CK (AF7), USB_OTG_HS_ID (AF12), USB_OTG_HS_ULPI_D5 (AF10)
T15PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2 (AF6), I2S2_SDO (AF5), RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), USART1_RX (AF4), USB_OTG_HS_DP (AF12)
T16PD10ввод-выводDFSDM1_CKOUT (AF3), FMC_D15 (AF12), FMC_DA15 (AF12), LTDC_B3 (AF14), SAI3_FS_B (AF6), USART3_CK (AF7)
T17PD9ввод-выводDAC1_EXTI9, DFSDM1_DATIN3 (AF3), FMC_D14 (AF12), FMC_DA14 (AF12), SAI3_SD_B (AF6), USART3_RX (AF7)
U1VSSпитание—
U2PA3ввод-выводADC1_INP15, ADC2_INP15, ETH_COL (AF11), LPTIM5_OUT (AF3), LTDC_B2 (AF9), LTDC_B5 (AF14), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7), USB_OTG_HS_ULPI_D0 (AF10)
U3PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), I2S1_WS (AF5), I2S3_WS (AF6), LTDC_VSYNC (AF14), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7), USB_OTG_HS_SOF (AF12)
U4PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT (AF13), DFSDM1_DATIN2 (AF3), ETH_RXD1 (AF11), FMC_SDCKE0 (AF12), OPAMP1_VINM, OPAMP1_VINM0, SAI1_D3 (AF2), SAI4_D3 (AF10), SPDIFRX1_IN3 (AF9)
U5PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT (AF6), ETH_RXD2 (AF11), LTDC_G1 (AF14), LTDC_R3 (AF9), OPAMP1_VINP, TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USB_OTG_HS_ULPI_D1 (AF10)
U6PJ3ввод-выводLTDC_R4 (AF14)
U7PJ4ввод-выводLTDC_R5 (AF14)
U8PG1ввод-выводFMC_A11 (AF12), OPAMP2_VINM, OPAMP2_VINM1
U9PE7ввод-выводCOMP2_INM, DFSDM1_DATIN2 (AF3), FMC_D4 (AF12), FMC_DA4 (AF12), OPAMP2_VOUT, QUADSPI_BK2_IO0 (AF10), TIM1_ETR (AF1), UART7_RX (AF7)
U10PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), LTDC_CLK (AF14), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
U11VCAPпитание—
U12VDDLDOпитание—
U13PH7ввод-выводDCMI_D9 (AF13), ETH_RXD3 (AF11), FMC_SDCKE1 (AF12), I2C3_SCL (AF4), SPI5_MISO (AF5)
U14PB13ввод-выводDFSDM1_CKIN1 (AF6), ETH_TXD1 (AF11), FDCAN2_TX (AF9), I2S2_CK (AF5), LPTIM2_OUT (AF3), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), USART3_CTS (AF7), USART3_NSS (AF7), USB_OTG_HS_ULPI_D6 (AF10), USB_OTG_HS_VBUS
U15PB14ввод-выводDFSDM1_DATIN2 (AF6), I2S2_SDI (AF5), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7), USB_OTG_HS_DM (AF12)
U16PD8ввод-выводDFSDM1_CKIN3 (AF3), FMC_D13 (AF12), FMC_DA13 (AF12), SAI3_SCK_B (AF6), SPDIFRX1_IN1 (AF9), USART3_TX (AF7)
U17VSSпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
PDR_ONE7управление внутренней схемой сброса по питанию
VBATB1резервное питание: часы реального времени и резервные регистры
VCAPA7, D17, U11вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDE6, E9, E11, F5, G5, G13, H5, H13, J13, K5, K13, L5, L13, M5, M13, N7, N8, N10, N11, N12, P17питание цифровой части и линий ввода-вывода
VDD33_USBF17—
VDD50_USBG17—
VDDAL1питание аналоговой части: АЦП, ЦАП, генераторы
VDDLDOA6, C17, U12—
VREF-N1нижнее опорное напряжение АЦП
VSSA1, A17, B2, B6, C10, C13, C16, F1, F2, G2, G7, G8, G9, G10, G11, G16, H7, H8, H9, H10, H11, J3, J7, J8, J9, J10, J11, J16, J17, K7, K8, K9, K10, K11, K15, L7, L8, L9, L10, L11, L15, M15, N16, R4, R8, T12, U1, U17общий провод (земля)
VSSAP1общий провод аналоговой части
NRSTK1сброс, активный уровень — низкий
BOOT0E8выбор источника загрузки при сбросе
VREF+M1верхнее опорное напряжение АЦП и ЦАП
NCE1, K16, K17, L16, L17, M16, M17, N17не подключён

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H750XBHx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H750XBSTM32H750XBHx128 КБ864 КБ

Линейка STM32H750 Value line, семейство STM32H7, ядро Cortex-M7. Отладочные платы ST на этом микроконтроллере: STM32H750B-DK.

Заказные номера

Полные номера для заказа из таблицы на странице продукта на сайте ST: STM32H750XB. Данные на 11 октября 2026 г.; перечислены номера, которые в этот момент выпускались. Цифра после буквы корпуса — температурный диапазон, вид упаковки указан в последнем столбце.

Номер для заказаКорпусТемператураУпаковка
STM32H750XBH6TFBGA 240+25, 14×14×1,2 мм, шаг 0,8 мм−40…+85 °Cлоток

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе TFBGA240, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H742XG, STM32H742XISTM32H742265 из 265выводы совпадают полностьютолько у этого: CRYP, HASH, LTDC; флеш-память до 128 и 2048 КБ
STM32H743XGSTM32H743/753265 из 265выводы совпадают полностьютолько у этого: CRYP, HASH; флеш-память до 128 и 1024 КБ
STM32H743XISTM32H743/753265 из 265выводы совпадают полностьютолько у этого: CRYP, HASH; флеш-память до 128 и 2048 КБ
STM32H753XISTM32H743/753265 из 265выводы совпадают полностьюфлеш-память до 128 и 2048 КБ
STM32H745XGSTM32H745/755261 из 265E1: NC → VLXSMPS; F1: VSS → VDDSMPS; F2: VSS → VSSSMPS; G2: VSS → VFBSMPSтолько у этого: CRYP, HASH; только у него: IWDG2, WWDG2; флеш-память до 128 и 1024 КБ
STM32H745XISTM32H745/755261 из 265E1: NC → VLXSMPS; F1: VSS → VDDSMPS; F2: VSS → VSSSMPS; G2: VSS → VFBSMPSтолько у этого: CRYP, HASH; только у него: IWDG2, WWDG2; флеш-память до 128 и 2048 КБ
STM32H755XISTM32H745/755261 из 265E1: NC → VLXSMPS; F1: VSS → VDDSMPS; F2: VSS → VSSSMPS; G2: VSS → VFBSMPSтолько у него: IWDG2, WWDG2; флеш-память до 128 и 2048 КБ
STM32H747XGSTM32H747/757250 из 265E1: NC → VLXSMPS; F1: VSS → VDDSMPS; F2: VSS → VSSSMPS; G2: VSS → VFBSMPS; K15: VSS → VSSDSI; K16: NC → DSI_D1P; K17: NC → DSI_D1N; L15: VSS → VSSDSI; L16: NC → DSI_CKP; L17: NC → DSI_CKN; M15: VSS → VSSDSI; M16: NC → DSI_D0Pтолько у этого: CRYP, HASH; только у него: DSIHOST, IWDG2, WWDG2; флеш-память до 128 и 1024 КБ
STM32H747XISTM32H747/757250 из 265E1: NC → VLXSMPS; F1: VSS → VDDSMPS; F2: VSS → VSSSMPS; G2: VSS → VFBSMPS; K15: VSS → VSSDSI; K16: NC → DSI_D1P; K17: NC → DSI_D1N; L15: VSS → VSSDSI; L16: NC → DSI_CKP; L17: NC → DSI_CKN; M15: VSS → VSSDSI; M16: NC → DSI_D0Pтолько у этого: CRYP, HASH; только у него: DSIHOST, IWDG2, WWDG2; флеш-память до 128 и 2048 КБ
STM32H757XISTM32H747/757250 из 265E1: NC → VLXSMPS; F1: VSS → VDDSMPS; F2: VSS → VSSSMPS; G2: VSS → VFBSMPS; K15: VSS → VSSDSI; K16: NC → DSI_D1P; K17: NC → DSI_D1N; L15: VSS → VSSDSI; L16: NC → DSI_CKP; L17: NC → DSI_CKN; M15: VSS → VSSDSI; M16: NC → DSI_D0Pтолько у него: DSIHOST, IWDG2, WWDG2; флеш-память до 128 и 2048 КБ

Частые вопросы

На каких выводах USART1 у STM32H750XB?

В корпусе TFBGA240 сигнал USART1_TX выведен на PB6 (шарик B5, AF7) или PA9 (шарик D15, AF7) или PB14 (шарик U15, AF4), USART1_RX — на PB7 (шарик C5, AF7) или PA10 (шарик D14, AF7) или PB15 (шарик T15, AF4).

Где у STM32H750XB выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик C15, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик B14, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H750XB?

I2C1_SCL — PB6 (шарик B5, AF4) или PB8 (шарик D5, AF4), I2C1_SDA — PB7 (шарик C5, AF4) или PB9 (шарик D4, AF4).

Сколько выводов ввода-вывода у STM32H750XB в корпусе TFBGA240?

172 из 265. Ещё 82 вывода заняты питанием и землёй, остальные 11 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32H750XB?

От 1,62 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Заказные номера, корпуса, упаковка и температурный диапазон — из таблиц на страницах продуктов st.com (данные на 11 октября 2026 г.). Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
