STM32H757AI в корпусе UFBGA169: распиновка

STM32H757AI — микроконтроллер STM32H7 на ядре Cortex-M7 + Cortex-M4 с частотой до 480 МГц: 2 МБ флеш-памяти и 864 КБ ОЗУ. Корпус UFBGA169 — 169 шариков, из них 114 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M7 + Cortex-M4
Частота ядра
до 480 МГц
Флеш-память
2 МБ
ОЗУ
864 КБ
Корпус
UFBGA169, 169 шариков
Линий ввода-вывода
114
Напряжение питания
1,62…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса UFBGA169

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32H757AI в корпусе UFBGA169, вид сверхуABCDEFGHJKLMN12345678910111213VSS — шарик A1VSSPE2 — шарик A2: DEBUG_TRACECLK, ETH_TXD3, FMC_A23, QUADSPI_BK1_IO2, SAI1_CK1, SAI1_MCLK_A, SAI4_CK1, SAI4_MCLK_A, SPI4_SCKPE2VDDLDO — шарик A3VDDLDOVCAP — шарик A4VCAPPB5 — шарик A5: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, HRTIM_EEV7, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX, USB_OTG_HS_ULPI_D7PB5PB3 (JTDO/TRACESWO) — шарик A6: CRS_SYNC, DEBUG_JTDO-SWO, HRTIM_FLT4, I2S1_CK, I2S3_CK, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART7_RXPB3VSS — шарик A7VSSPD7 — шарик A8: DFSDM1_CKIN1, DFSDM1_DATIN4, FMC_NE1, I2S1_SDO, SDMMC2_CMD, SPDIFRX1_IN0, SPI1_MOSI, USART2_CKPD7VDD — шарик A9VDDPD3 — шарик A10: DCMI_D5, DFSDM1_CKOUT, FMC_CLK, I2S2_CK, LTDC_G7, SPI2_SCK, USART2_CTS, USART2_NSSPD3PA14 (JTCK/SWCLK) — шарик A11: DEBUG_JTCK-SWCLKPA14VSS — шарик A12VSSPA10 — шарик A13: DCMI_D1, HRTIM_CHC2, LPUART1_RX, LTDC_B1, LTDC_B4, MDIOS_MDIO, TIM1_CH3, USART1_RX, USB_OTG_FS_IDPA10VBAT — шарик B1VBATVDD — шарик B2VDDPDR_ON — шарик B3PDR_ONVSS — шарик B4VSSBOOT0 — шарик B5BOOT0PB4 (NJTRST) — шарик B6: DEBUG_JTRST, HRTIM_EEV6, I2S1_SDI, I2S2_WS, I2S3_SDI, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4VDD — шарик B7VDDPD6 — шарик B8: DCMI_D10, DFSDM1_CKIN4, DFSDM1_DATIN1, FMC_NWAIT, I2S3_SDO, LTDC_B2, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6VSS — шарик B9VSSPA15 (JTDI) — шарик B10: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DEBUG_JTDI, DSIHOST_TE, HRTIM_FLT1, I2S1_WS, I2S3_WS, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PA13 (JTMS/SWDIO) — шарик B11: DEBUG_JTMS-SWDIOPA13VDD — шарик B12VDDVDDLDO — шарик B13VDDLDOPC14-OSC32_IN (OSC32_IN) — шарик C1: RCC_OSC32_INPC14PE6 — шарик C2: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SAI4_D1, SAI4_SD_A, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PE6PE3 — шарик C3: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, SAI4_SD_B, TIM15_BKINPE3PE1 — шарик C4: DCMI_D3, FMC_NBL1, HRTIM_SCOUT, LPTIM1_IN2, UART8_TXPE1PB7 — шарик C5: DCMI_VSYNC, DFSDM1_CKIN5, FMC_NL, HRTIM_EEV9, I2C1_SDA, I2C4_SDA, LPUART1_RX, PWR_PVD_IN, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PG15 — шарик C6: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, USART6_CTS, USART6_NSSPG15PG9 — шарик C7: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, QUADSPI_BK2_IO2, SAI2_FS_B, SPDIFRX1_IN3, SPI1_MISO, USART6_RXPG9PD5 — шарик C8: FMC_NWE, HRTIM_EEV3, USART2_TXPD5PD1 — шарик C9: DFSDM1_DATIN6, FDCAN1_TX, FMC_D3, FMC_DA3, SAI3_SD_A, UART4_TXPD1PD0 — шарик C10: DFSDM1_CKIN6, FDCAN1_RX, FMC_D2, FMC_DA2, SAI3_SCK_A, UART4_RXPD0PC10 — шарик C11: DCMI_D8, DFSDM1_CKIN5, HRTIM_EEV1, I2S3_CK, LTDC_R2, QUADSPI_BK1_IO1, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TXPC10VSS — шарик C12VSSVCAP — шарик C13VCAPVSS — шарик D1VSSPC15-OSC32_OUT (OSC32_OUT) — шарик D2: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUTPC15PE4 — шарик D3: DCMI_D4, DEBUG_TRACED1, DFSDM1_DATIN3, FMC_A20, LTDC_B0, SAI1_D2, SAI1_FS_A, SAI4_D2, SAI4_FS_A, SPI4_NSS, TIM15_CH1NPE4PE0 — шарик D4: DCMI_D2, FMC_NBL0, HRTIM_SCIN, LPTIM1_ETR, LPTIM2_ETR, SAI2_MCLK_A, TIM4_ETR, UART8_RXPE0PB8 — шарик D5: DCMI_D6, DFSDM1_CKIN7, ETH_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, LTDC_B6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RXPB8PB9 — шарик D6: DAC1_EXTI9, DCMI_D7, DFSDM1_DATIN7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2C4_SMBA, I2S2_WS, LTDC_B7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PG10 — шарик D7: DCMI_D2, FMC_NE3, HRTIM_FLT5, I2S1_WS, LTDC_B2, LTDC_G3, SAI2_SD_B, SPI1_NSSPG10PD4 — шарик D8: FMC_NOE, HRTIM_FLT3, SAI3_FS_A, USART2_DE, USART2_RTSPD4PC12 — шарик D9: DCMI_D9, DEBUG_TRACED3, HRTIM_EEV2, I2S3_SDO, SDMMC1_CK, SPI3_MOSI, UART5_TX, USART3_CKPC12PA8 — шарик D10: HRTIM_CHB2, I2C3_SCL, LTDC_B3, LTDC_R6, RCC_MCO_1, TIM1_CH1, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2, UART7_RX, USART1_CK, USB_OTG_FS_SOFPA8PA9 — шарик D11: DAC1_EXTI9, DCMI_D0, ETH_TX_ER, HRTIM_CHC1, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R5, SPI2_SCK, TIM1_CH2, USART1_TX, USB_OTG_FS_VBUSPA9PA11 — шарик D12: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX, HRTIM_CHD1, I2S2_WS, LPUART1_CTS, LTDC_R4, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_FS_DMPA11PA12 — шарик D13: FDCAN1_TX, HRTIM_CHD2, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R5, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_FS_DPPA12VLXSMPS — шарик E1VLXSMPSVDD — шарик E2VDDPC13 — шарик E3: PWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TSPC13PE5 — шарик E4: DCMI_D6, DEBUG_TRACED2, DFSDM1_CKIN3, FMC_A21, LTDC_G0, SAI1_CK2, SAI1_SCK_A, SAI4_CK2, SAI4_SCK_A, SPI4_MISO, TIM15_CH1PE5PB6 — шарик E5: CEC, DCMI_D5, DFSDM1_DATIN5, FDCAN2_TX, FMC_SDNE1, HRTIM_EEV8, I2C1_SCL, I2C4_SCL, LPUART1_TX, QUADSPI_BK1_NCS, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6PG14 — шарик E6: DEBUG_TRACED1, ETH_TXD1, FMC_A25, LPTIM1_ETR, LTDC_B0, QUADSPI_BK2_IO3, SPI6_MOSI, USART6_TXPG14PG11 — шарик E7: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3, ETH_TX_EN, HRTIM_EEV4, I2S1_CK, LPTIM1_IN2, LTDC_B3, SDMMC2_D2, SPDIFRX1_IN0, SPI1_SCKPG11PD2 — шарик E8: DCMI_D11, DEBUG_TRACED2, SDMMC1_CMD, TIM3_ETR, UART5_RXPD2PC11 — шарик E9: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4, DFSDM1_DATIN5, HRTIM_FLT2, I2S3_SDI, QUADSPI_BK2_NCS, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PC7 — шарик E10: DCMI_D1, DEBUG_TRGIO, DFSDM1_DATIN3, FMC_NE1, HRTIM_CHA2, I2S3_MCK, LTDC_G6, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, SWPMI1_TX, TIM3_CH2, TIM8_CH2, USART6_RXPC7PC9 — шарик E11: DAC1_EXTI9, DCMI_D3, I2C3_SDA, I2S_CKIN, LTDC_B2, LTDC_G3, QUADSPI_BK1_IO0, RCC_MCO_2, SDMMC1_D1, SWPMI1_SUSPEND, TIM3_CH4, TIM8_CH4, UART5_CTSPC9VDD — шарик E12VDDVSS — шарик E13VSSVDDSMPS — шарик F1VDDSMPSVSSSMPS — шарик F2VSSSMPSVFBSMPS — шарик F3VFBSMPSPF0 — шарик F4: FMC_A0, I2C2_SDAPF0PF1 — шарик F5: FMC_A1, I2C2_SCLPF1PF2 — шарик F6: FMC_A2, I2C2_SMBAPF2PG13 — шарик F7: DEBUG_TRACED0, ETH_TXD0, FMC_A24, HRTIM_EEV10, LPTIM1_OUT, LTDC_R0, SPI6_SCK, USART6_CTS, USART6_NSSPG13PG7 — шарик F8: DCMI_D13, FMC_INT, HRTIM_CHE2, LTDC_CLK, SAI1_MCLK_A, USART6_CKPG7PG8 — шарик F9: ETH_PPS_OUT, FMC_SDCLK, LTDC_G7, SPDIFRX1_IN2, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTSPG8PC8 — шарик F10: DCMI_D2, DEBUG_TRACED1, FMC_NCE, FMC_NE2, HRTIM_CHB1, SDMMC1_D0, SWPMI1_RX, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PC6 — шарик F11: DCMI_D0, DFSDM1_CKIN3, FMC_NWAIT, HRTIM_CHA1, I2S2_MCK, LTDC_HSYNC, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, SWPMI1_IO, TIM3_CH1, TIM8_CH1, USART6_TXPC6VDD50_USB — шарик F12VDD50USBVDD33_USB — шарик F13VDD33USBPF4 — шарик G1: ADC3_INN5, ADC3_INP9, FMC_A4PF4PF3 — шарик G2: ADC3_INP5, FMC_A3PF3PF5 — шарик G3: ADC3_INP4, FMC_A5PF5PF6 — шарик G4: ADC3_INN4, ADC3_INP8, QUADSPI_BK1_IO3, SAI1_SD_B, SAI4_SD_B, SPI5_NSS, TIM16_CH1, UART7_RXPF6PF7 — шарик G5: ADC3_INP3, QUADSPI_BK1_IO2, SAI1_MCLK_B, SAI4_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TXPF7PF8 — шарик G6: ADC3_INN3, ADC3_INP7, QUADSPI_BK1_IO0, SAI1_SCK_B, SAI4_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPF8PG12 — шарик G7: ETH_TXD1, FMC_NE4, HRTIM_EEV5, LPTIM1_IN1, LTDC_B1, LTDC_B4, SPDIFRX1_IN1, SPI6_MISO, USART6_DE, USART6_RTSPG12PG3 — шарик G8: FMC_A13, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2PG3PG5 — шарик G9: FMC_A15, FMC_BA1, TIM1_ETRPG5PG4 — шарик G10: FMC_A14, FMC_BA0, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PG4PG6 — шарик G11: DCMI_D12, FMC_NE3, HRTIM_CHE1, LTDC_R7, QUADSPI_BK1_NCS, TIM17_BKINPG6VSSDSI — шарик G12VSSDSIVSSDSI — шарик G13VSSDSIVDD — шарик H1VDDVSS — шарик H2VSSPF9 — шарик H3: ADC3_INP2, DAC1_EXTI9, QUADSPI_BK1_IO1, SAI1_FS_B, SAI4_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTSPF9PF10 — шарик H4: ADC3_INN2, ADC3_INP6, DCMI_D11, LTDC_DE, QUADSPI_CLK, SAI1_D3, SAI4_D3, TIM16_BKINPF10NRST — шарик H5NRSTPB1 — шарик H6: ADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1, ETH_RXD3, LTDC_G0, LTDC_R6, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USB_OTG_HS_ULPI_D2PB1PG2 — шарик H7: FMC_A12, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PG2PE13 — шарик H8: COMP2_OUT, DFSDM1_CKIN5, FMC_D10, FMC_DA10, LTDC_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH3PE13PD14 — шарик H9: FMC_D0, FMC_DA0, SAI3_MCLK_B, TIM4_CH3, UART8_CTSPD14PD15 — шарик H10: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, SAI3_MCLK_A, TIM4_CH4, UART8_DE, UART8_RTSPD15VSSDSI — шарик H11VSSDSIDSI_D1P — шарик H12: DSIHOST_D1PDSID1PDSI_D1N — шарик H13: DSIHOST_D1NDSID1NPH1-OSC_OUT — шарик J1: RCC_OSC_OUTPH1PH0-OSC_IN — шарик J2: RCC_OSC_INPH0PC1 — шарик J3: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0, DFSDM1_CKIN4, DFSDM1_DATIN0, ETH_MDC, I2S2_SDO, MDIOS_MDC, PWR_WKUP6, RTC_TAMP3, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI2_MOSIPC1PC0 — шарик J4: ADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0, DFSDM1_DATIN4, FMC_SDNWE, LTDC_R5, SAI2_FS_B, USB_OTG_HS_ULPI_STPPC0PA5 — шарик J5: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, I2S1_CK, LTDC_R4, PWR_NDSTOP2, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USB_OTG_HS_ULPI_CKPA5PF12 — шарик J6: ADC1_INN2, ADC1_INP6, FMC_A6PF12PG1 — шарик J7: FMC_A11, OPAMP2_VINM, OPAMP2_VINM1PG1PE12 — шарик J8: COMP1_OUT, DFSDM1_DATIN5, FMC_D9, FMC_DA9, LTDC_B4, SAI2_SCK_B, SPI4_SCK, TIM1_CH3NPE12PD13 — шарик J9: FMC_A18, I2C4_SDA, LPTIM1_OUT, QUADSPI_BK1_IO3, SAI2_SCK_A, TIM4_CH2PD13PD12 — шарик J10: FMC_A17, FMC_ALE, I2C4_SCL, LPTIM1_IN1, LPTIM2_IN1, QUADSPI_BK1_IO1, SAI2_FS_A, TIM4_CH1, USART3_DE, USART3_RTSPD12VSSDSI — шарик J11VSSDSIDSI_CKP — шарик J12: DSIHOST_CKPDSICKPDSI_CKN — шарик J13: DSIHOST_CKNDSICKNPC2_C — шарик K1: ADC3_INN1, ADC3_INP0, DFSDM1_CKIN1, DFSDM1_CKOUT, ETH_TXD2, FMC_SDNE0, I2S2_SDI, PWR_CSTOP, SPI2_MISO, USB_OTG_HS_ULPI_DIRPC2PC3_C — шарик K2: ADC3_INP1, DFSDM1_DATIN1, ETH_TX_CLK, FMC_SDCKE0, I2S2_SDO, PWR_CSLEEP, SPI2_MOSI, USB_OTG_HS_ULPI_NXTPC3PA0 — шарик K3: ADC1_INP16, ETH_CRS, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PA7 — шарик K4: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV, ETH_RX_DV, FMC_SDNWE, I2S1_SDO, OPAMP1_VINM, OPAMP1_VINM1, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1NPA7PC5 — шарик K5: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT, DFSDM1_DATIN2, ETH_RXD1, FMC_SDCKE0, OPAMP1_VINM, OPAMP1_VINM0, SAI1_D3, SAI4_D3, SPDIFRX1_IN3PC5PF11 — шарик K6: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, SAI2_SD_B, SPI5_MOSIPF11PE7 — шарик K7: COMP2_INM, DFSDM1_DATIN2, FMC_D4, FMC_DA4, OPAMP2_VOUT, QUADSPI_BK2_IO0, TIM1_ETR, UART7_RXPE7PE15 — шарик K8: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12, FMC_DA12, LTDC_R7, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2PE15PB10 — шарик K9: DFSDM1_DATIN7, ETH_RX_ER, HRTIM_SCOUT, I2C2_SCL, I2S2_CK, LPTIM2_IN1, LTDC_G4, QUADSPI_BK1_NCS, SPI2_SCK, TIM2_CH3, USART3_TX, USB_OTG_HS_ULPI_D3PB10PD11 — шарик K10: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, QUADSPI_BK1_IO0, SAI2_SD_A, USART3_CTS, USART3_NSSPD11VSSDSI — шарик K11VSSDSIDSI_D0P — шарик K12: DSIHOST_D0PDSID0PDSI_D0N — шарик K13: DSIHOST_D0NDSID0NVREF- — шарик L1VREF-VDDA — шарик L2VDDAPA1 — шарик L3: ADC1_INN16, ADC1_INP17, ETH_REF_CLK, ETH_RX_CLK, LPTIM3_OUT, LTDC_R2, QUADSPI_BK1_IO3, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PC4 — шарик L4: ADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2, ETH_RXD0, FMC_SDNE0, I2S1_MCK, OPAMP1_VOUT, SPDIFRX1_IN2PC4PB2 — шарик L5: COMP1_INP, DFSDM1_CKIN1, ETH_TX_ER, I2S3_SDO, QUADSPI_CLK, RTC_OUT_ALARM, RTC_OUT_CALIB, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SPI3_MOSIPB2PG0 — шарик L6: FMC_A10PG0PE10 — шарик L7: COMP2_INM, DFSDM1_DATIN4, FMC_D7, FMC_DA7, QUADSPI_BK2_IO3, TIM1_CH2N, UART7_CTSPE10PE8 — шарик L8: COMP2_OUT, DFSDM1_CKIN2, FMC_D5, FMC_DA5, OPAMP2_VINM, OPAMP2_VINM0, QUADSPI_BK2_IO1, TIM1_CH1N, UART7_TXPE8VDD — шарик L9VDDPB12 — шарик L10: DFSDM1_DATIN1, ETH_TXD0, FDCAN2_RX, I2C2_SMBA, I2S2_WS, SPI2_NSS, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, UART5_RX, USART3_CK, USB_OTG_HS_ID, USB_OTG_HS_ULPI_D5PB12VDD — шарик L11VDDVCAPDSI — шарик L12VCAPDSIVSS — шарик L13VSSVREF+ — шарик M1: VREFBUF_OUTVREF+VDD — шарик M2VDDPA2 — шарик M3: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM4_OUT, LTDC_R1, MDIOS_MDIO, PWR_WKUP2, SAI2_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PA6 — шарик M4: ADC1_INP3, ADC2_INP3, DCMI_PIXCLK, I2S1_SDI, LTDC_G2, MDIOS_MDC, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM3_CH1, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PA6PF13 — шарик M5: ADC2_INP2, DFSDM1_DATIN6, FMC_A7, I2C4_SMBAPF13VSS — шарик M6VSSPF15 — шарик M7: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9, I2C4_SDAPF15PE14 — шарик M8: FMC_D11, FMC_DA11, LTDC_CLK, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14VSS — шарик M9VSSPB13 — шарик M10: DFSDM1_CKIN1, ETH_TXD1, FDCAN2_TX, I2S2_CK, LPTIM2_OUT, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSS, USB_OTG_HS_ULPI_D6, USB_OTG_HS_VBUSPB13PB15 — шарик M11: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2, I2S2_SDO, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, USART1_RX, USB_OTG_HS_DPPB15PD9 — шарик M12: DAC1_EXTI9, DFSDM1_DATIN3, FMC_D14, FMC_DA14, SAI3_SD_B, USART3_RXPD9VDDDSI — шарик M13VDDDSIVSS — шарик N1VSSPA3 — шарик N2: ADC1_INP15, ADC2_INP15, ETH_COL, LPTIM5_OUT, LTDC_B2, LTDC_B5, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX, USB_OTG_HS_ULPI_D0PA3PA4 — шарик N3: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, I2S1_WS, I2S3_WS, LTDC_VSYNC, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CK, USB_OTG_HS_SOFPA4PB0 — шарик N4: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT, ETH_RXD2, LTDC_G1, LTDC_R3, OPAMP1_VINP, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USB_OTG_HS_ULPI_D1PB0PF14 — шарик N5: ADC2_INN2, ADC2_INP6, DFSDM1_CKIN6, FMC_A8, I2C4_SCLPF14PE9 — шарик N6: COMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT, FMC_D6, FMC_DA6, OPAMP2_VINP, QUADSPI_BK2_IO2, TIM1_CH1, UART7_DE, UART7_RTSPE9PE11 — шарик N7: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4, FMC_D8, FMC_DA8, LTDC_G3, SAI2_SD_B, SPI4_NSS, TIM1_CH2PE11PB11 — шарик N8: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7, DSIHOST_TE, ETH_TX_EN, HRTIM_SCIN, I2C2_SDA, LPTIM2_ETR, LTDC_G5, TIM2_CH4, USART3_RX, USB_OTG_HS_ULPI_D4PB11VCAP — шарик N9VCAPVDDLDO — шарик N10VDDLDOPB14 — шарик N11: DFSDM1_DATIN2, I2S2_SDI, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, USART1_TX, USART3_DE, USART3_RTS, USB_OTG_HS_DMPB14PD8 — шарик N12: DFSDM1_CKIN3, FMC_D13, FMC_DA13, SAI3_SCK_B, SPDIFRX1_IN1, USART3_TXPD8PD10 — шарик N13: DFSDM1_CKOUT, FMC_D15, FMC_DA15, LTDC_B3, SAI3_FS_B, USART3_CKPD10UFBGA169, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнемуглу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

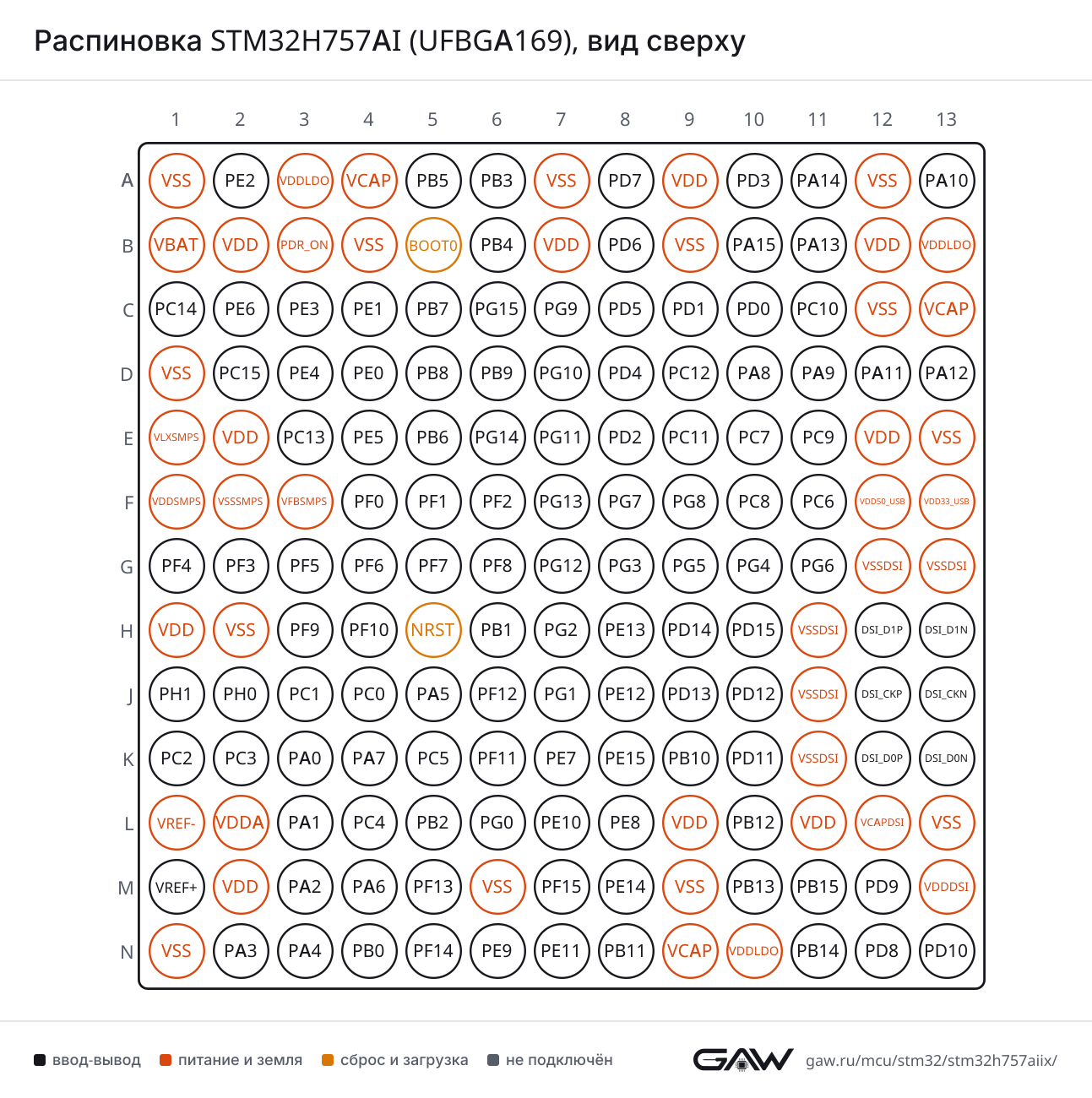

Распиновка STM32H757AI (UFBGA169), вид сверхуРаспиновка UFBGA169 картинкой
PNG, 1293 × 1300 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (D10, AF7)
CTSPA11 (D12, AF7)
DEPA12 (D13, AF7)
NSSPA11 (D12, AF7)
RTSPA12 (D13, AF7)
RXPA10 (A13, AF7), PB7 (C5, AF7), PB15 (M11, AF4)
TXPA9 (D11, AF7), PB6 (E5, AF7), PB14 (N11, AF4)
USART2CKPD7 (A8, AF7), PA4 (N3, AF7)
CTSPD3 (A10, AF7), PA0 (K3, AF7)
DEPD4 (D8, AF7), PA1 (L3, AF7)
NSSPD3 (A10, AF7), PA0 (K3, AF7)
RTSPD4 (D8, AF7), PA1 (L3, AF7)
RXPD6 (B8, AF7), PA3 (N2, AF7)
TXPD5 (C8, AF7), PA2 (M3, AF7)
USART3CKPC12 (D9, AF7), PB12 (L10, AF7), PD10 (N13, AF7)
CTSPD11 (K10, AF7), PB13 (M10, AF7)
DEPD12 (J10, AF7), PB14 (N11, AF7)
NSSPD11 (K10, AF7), PB13 (M10, AF7)
RTSPD12 (J10, AF7), PB14 (N11, AF7)
RXPC11 (E9, AF7), PD9 (M12, AF7), PB11 (N8, AF7)
TXPC10 (C11, AF7), PB10 (K9, AF7), PD8 (N12, AF7)
USART6CKPG7 (F8, AF7), PC8 (F10, AF7)
CTSPG15 (C6, AF7), PG13 (F7, AF7)
DEPG8 (F9, AF7), PG12 (G7, AF7)
NSSPG15 (C6, AF7), PG13 (F7, AF7)
RTSPG8 (F9, AF7), PG12 (G7, AF7)
RXPG9 (C7, AF7), PC7 (E10, AF7)
TXPG14 (E6, AF7), PC6 (F11, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB15 (M11, AF8), PB0 (N4, AF8)
DEPA15 (JTDI) (B10, AF8), PB14 (N11, AF8)
RTSPA15 (JTDI) (B10, AF8), PB14 (N11, AF8)
RXPD0 (C10, AF8), PB8 (D5, AF8), PA11 (D12, AF6), PC11 (E9, AF8), PA1 (L3, AF8)
TXPD1 (C9, AF8), PC10 (C11, AF8), PB9 (D6, AF8), PA12 (D13, AF6), PA0 (K3, AF8)
UART5CTSPC9 (E11, AF8)
DEPC8 (F10, AF8)
RTSPC8 (F10, AF8)
RXPB5 (A5, AF14), PD2 (E8, AF8), PB12 (L10, AF14)
TXPC12 (D9, AF8), PB6 (E5, AF14), PB13 (M10, AF14)
UART7CTSPF9 (H3, AF7), PE10 (L7, AF7)
DEPF8 (G6, AF7), PE9 (N6, AF7)
RTSPF8 (G6, AF7), PE9 (N6, AF7)
RXPB3 (JTDO/TRACESWO) (A6, AF11), PA8 (D10, AF11), PF6 (G4, AF7), PE7 (K7, AF7)
TXPB4 (NJTRST) (B6, AF11), PA15 (JTDI) (B10, AF11), PF7 (G5, AF7), PE8 (L8, AF7)
UART8CTSPD14 (H9, AF8)
DEPD15 (H10, AF8)
RTSPD15 (H10, AF8)
RXPE0 (D4, AF8)
TXPE1 (C4, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (D12, AF3)
DEPA12 (D13, AF3)
RTSPA12 (D13, AF3)
RXPA10 (A13, AF3), PB7 (C5, AF8)
TXPA9 (D11, AF3), PB6 (E5, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4 (NJTRST) (B6, AF5), PG9 (C7, AF5), PA6 (M4, AF5)
MOSIPB5 (A5, AF5), PD7 (A8, AF5), PA7 (K4, AF5)
NSSPA15 (JTDI) (B10, AF5), PG10 (D7, AF5), PA4 (N3, AF5)
SCKPB3 (JTDO/TRACESWO) (A6, AF5), PG11 (E7, AF5), PA5 (J5, AF5)
SPI2MISOPC2_C (K1, AF5), PB14 (N11, AF5)
MOSIPC1 (J3, AF5), PC3_C (K2, AF5), PB15 (M11, AF5)
NSSPB4 (NJTRST) (B6, AF7), PB9 (D6, AF5), PA11 (D12, AF5), PB12 (L10, AF5)
SCKPD3 (A10, AF5), PA9 (D11, AF5), PA12 (D13, AF5), PB10 (K9, AF5), PB13 (M10, AF5)
SPI3MISOPB4 (NJTRST) (B6, AF6), PC11 (E9, AF6)
MOSIPB5 (A5, AF7), PD6 (B8, AF5), PC12 (D9, AF6), PB2 (L5, AF7)
NSSPA15 (JTDI) (B10, AF6), PA4 (N3, AF6)
SCKPB3 (JTDO/TRACESWO) (A6, AF6), PC10 (C11, AF6)
SPI4MISOPE5 (E4, AF5), PE13 (H8, AF5)
MOSIPE6 (C2, AF5), PE14 (M8, AF5)
NSSPE4 (D3, AF5), PE11 (N7, AF5)
SCKPE2 (A2, AF5), PE12 (J8, AF5)
SPI5MISOPF8 (G6, AF5)
MOSIPF9 (H3, AF5), PF11 (K6, AF5)
NSSPF6 (G4, AF5)
SCKPF7 (G5, AF5)
SPI6MISOPB4 (NJTRST) (B6, AF8), PG12 (G7, AF5), PA6 (M4, AF8)
MOSIPB5 (A5, AF8), PG14 (E6, AF5), PA7 (K4, AF8)
NSSPA15 (JTDI) (B10, AF7), PG8 (F9, AF5), PA4 (N3, AF8)
SCKPB3 (JTDO/TRACESWO) (A6, AF8), PG13 (F7, AF5), PA5 (J5, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (E11, AF5)
I2S1CKPB3 (JTDO/TRACESWO) (A6, AF5), PG11 (E7, AF5), PA5 (J5, AF5)
MCKPC4 (L4, AF5)
SDIPB4 (NJTRST) (B6, AF5), PG9 (C7, AF5), PA6 (M4, AF5)
SDOPB5 (A5, AF5), PD7 (A8, AF5), PA7 (K4, AF5)
WSPA15 (JTDI) (B10, AF5), PG10 (D7, AF5), PA4 (N3, AF5)
I2S2CKPD3 (A10, AF5), PA9 (D11, AF5), PA12 (D13, AF5), PB10 (K9, AF5), PB13 (M10, AF5)
MCKPC6 (F11, AF5)
SDIPC2_C (K1, AF5), PB14 (N11, AF5)
SDOPC1 (J3, AF5), PC3_C (K2, AF5), PB15 (M11, AF5)
WSPB4 (NJTRST) (B6, AF7), PB9 (D6, AF5), PA11 (D12, AF5), PB12 (L10, AF5)
I2S3CKPB3 (JTDO/TRACESWO) (A6, AF6), PC10 (C11, AF6)
MCKPC7 (E10, AF6)
SDIPB4 (NJTRST) (B6, AF6), PC11 (E9, AF6)
SDOPB5 (A5, AF7), PD6 (B8, AF5), PC12 (D9, AF6), PB2 (L5, AF7)
WSPA15 (JTDI) (B10, AF6), PA4 (N3, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8 (D5, AF4), PB6 (E5, AF4)
SDAPB7 (C5, AF4), PB9 (D6, AF4)
SMBAPB5 (A5, AF4)
I2C2SCLPF1 (F5, AF4), PB10 (K9, AF4)
SDAPF0 (F4, AF4), PB11 (N8, AF4)
SMBAPF2 (F6, AF4), PB12 (L10, AF4)
I2C3SCLPA8 (D10, AF4)
SDAPC9 (E11, AF4)
SMBAPA9 (D11, AF4)
I2C4SCLPB8 (D5, AF6), PB6 (E5, AF6), PD12 (J10, AF4), PF14 (N5, AF4)
SDAPB7 (C5, AF6), PB9 (D6, AF6), PD13 (J9, AF4), PF15 (M7, AF4)
SMBAPB5 (A5, AF6), PB9 (D6, AF11), PD11 (K10, AF4), PF13 (M5, AF4)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPD0 (C10, AF9), PB8 (D5, AF9), PA11 (D12, AF9)
TXPD1 (C9, AF9), PB9 (D6, AF9), PA12 (D13, AF9)
FDCAN2RXPB5 (A5, AF9), PB12 (L10, AF9)
TXPB6 (E5, AF9), PB13 (M10, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (D12, AF10)
DPPA12 (D13, AF10)
IDPA10 (A13, AF10)
SOFPA8 (D10, AF10)
VBUSPA9 (D11)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPB14 (N11, AF12)
DPPB15 (M11, AF12)
IDPB12 (L10, AF12)
SOFPA4 (N3, AF12)
ULPI_CKPA5 (J5, AF10)
ULPI_D0PA3 (N2, AF10)
ULPI_D1PB0 (N4, AF10)
ULPI_D2PB1 (H6, AF10)
ULPI_D3PB10 (K9, AF10)
ULPI_D4PB11 (N8, AF10)
ULPI_D5PB12 (L10, AF10)
ULPI_D6PB13 (M10, AF10)
ULPI_D7PB5 (A5, AF10)
ULPI_DIRPC2_C (K1, AF10)
ULPI_NXTPC3_C (K2, AF10)
ULPI_STPPC0 (J4, AF10)
VBUSPB13 (M10)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCOLPA3 (N2, AF11)
CRSPA0 (K3, AF11)
CRS_DVPA7 (K4, AF11)
MDCPC1 (J3, AF11)
MDIOPA2 (M3, AF11)
PPS_OUTPB5 (A5, AF11), PG8 (F9, AF11)
REF_CLKPA1 (L3, AF11)
RX_CLKPA1 (L3, AF11)
RX_DVPA7 (K4, AF11)
RX_ERPB10 (K9, AF11)
RXD0PC4 (L4, AF11)
RXD1PC5 (K5, AF11)
RXD2PB0 (N4, AF11)
RXD3PB1 (H6, AF11)
TX_CLKPC3_C (K2, AF11)
TX_ENPG11 (E7, AF11), PB11 (N8, AF11)
TX_ERPA9 (D11, AF11), PB2 (L5, AF11)
TXD0PG13 (F7, AF11), PB12 (L10, AF11)
TXD1PG14 (E6, AF11), PG12 (G7, AF11), PB13 (M10, AF11)
TXD2PC2_C (K1, AF11)
TXD3PE2 (A2, AF11), PB8 (D5, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (D6, AF7)
CKPC12 (D9, AF12)
CKINPB8 (D5, AF7)
CMDPD2 (E8, AF12)
D0PC8 (F10, AF12)
D0DIRPC6 (F11, AF8)
D1PC9 (E11, AF12)
D2PC10 (C11, AF12)
D3PC11 (E9, AF12)
D4PB8 (D5, AF12)
D5PB9 (D6, AF12)
D6PC6 (F11, AF12)
D7PC7 (E10, AF12)
D123DIRPC7 (E10, AF8)
SDMMC2CKPD6 (B8, AF11), PC1 (J3, AF9)
CMDPD7 (A8, AF11), PA0 (K3, AF9)
D0PB14 (N11, AF9)
D1PB15 (M11, AF9)
D2PB3 (JTDO/TRACESWO) (A6, AF9), PG11 (E7, AF10)
D3PB4 (NJTRST) (B6, AF9)
D4PB8 (D5, AF10)
D5PB9 (D6, AF10)
D6PC6 (F11, AF10)
D7PC7 (E10, AF10)

QUADSPI — интерфейс Quad-SPI памяти

БлокСигналВыводы
QUADSPIBK1_IO0PC9 (E11, AF9), PF8 (G6, AF10), PD11 (K10, AF9)
BK1_IO1PC10 (C11, AF9), PF9 (H3, AF10), PD12 (J10, AF9)
BK1_IO2PE2 (A2, AF9), PF7 (G5, AF9)
BK1_IO3PF6 (G4, AF9), PD13 (J9, AF9), PA1 (L3, AF9)
BK1_NCSPB6 (E5, AF10), PG6 (G11, AF10), PB10 (K9, AF9)
BK2_IO0PE7 (K7, AF10)
BK2_IO1PE8 (L8, AF10)
BK2_IO2PG9 (C7, AF9), PE9 (N6, AF10)
BK2_IO3PG14 (E6, AF9), PE10 (L7, AF10)
BK2_NCSPC11 (E9, AF9)
CLKPF10 (H4, AF9), PB2 (L5, AF9)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (A2, AF2)
CK2PE5 (E4, AF2)
D1PD6 (B8, AF2), PE6 (C2, AF2), PC1 (J3, AF2), PB2 (L5, AF2)
D2PE4 (D3, AF2)
D3PF10 (H4, AF2), PC5 (K5, AF2)
FS_APE4 (D3, AF6)
FS_BPF9 (H3, AF6)
MCLK_APE2 (A2, AF6), PG7 (F8, AF6)
MCLK_BPF7 (G5, AF6)
SCK_APE5 (E4, AF6)
SCK_BPF8 (G6, AF6)
SD_APD6 (B8, AF6), PE6 (C2, AF6), PC1 (J3, AF6), PB2 (L5, AF6)
SD_BPE3 (C3, AF6), PF6 (G4, AF6)
SAI2FS_APD12 (J10, AF10)
FS_BPG9 (C7, AF10), PA12 (D13, AF8), PE13 (H8, AF10), PC0 (J4, AF8)
MCLK_APE0 (D4, AF10)
MCLK_BPE6 (C2, AF10), PA1 (L3, AF10), PE14 (M8, AF10)
SCK_APD13 (J9, AF10)
SCK_BPE12 (J8, AF10), PA2 (M3, AF8)
SD_APD11 (K10, AF10)
SD_BPG10 (D7, AF10), PA0 (K3, AF10), PF11 (K6, AF10), PE11 (N7, AF10)
SAI3FS_APD4 (D8, AF6)
FS_BPD10 (N13, AF6)
MCLK_APD15 (H10, AF6)
MCLK_BPD14 (H9, AF6)
SCK_APD0 (C10, AF6)
SCK_BPD8 (N12, AF6)
SD_APD1 (C9, AF6)
SD_BPD9 (M12, AF6)
SAI4CK1PE2 (A2, AF10)
CK2PE5 (E4, AF10)
D1PD6 (B8, AF10), PE6 (C2, AF9), PC1 (J3, AF10), PB2 (L5, AF10)
D2PE4 (D3, AF10)
D3PF10 (H4, AF10), PC5 (K5, AF10)
FS_APE4 (D3, AF8)
FS_BPF9 (H3, AF8)
MCLK_APE2 (A2, AF8)
MCLK_BPF7 (G5, AF8)
SCK_APE5 (E4, AF8)
SCK_BPF8 (G6, AF8)
SD_APD6 (B8, AF8), PE6 (C2, AF8), PC1 (J3, AF8), PB2 (L5, AF8)
SD_BPE3 (C3, AF8), PF6 (G4, AF8)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRX1IN0PD7 (A8, AF9), PG11 (E7, AF8)
IN1PG12 (G7, AF8), PD8 (N12, AF9)
IN2PG8 (F9, AF8), PC4 (L4, AF9)
IN3PG9 (C7, AF8), PC5 (K5, AF9)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15 (JTDI) (B10, AF4), PB6 (E5, AF5)

SWPMI — интерфейс Single Wire Protocol

БлокСигналВыводы
SWPMI1IOPC6 (F11)
RXPC8 (F10, AF11)
SUSPENDPC9 (E11, AF11)
TXPC7 (E10, AF11)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PA11 (D12), PG11 (E7), PC11 (E9), PF11 (K6), PD11 (K10), PE11 (N7), PB11 (N8)
EXTI15PA15 (JTDI) (B10), PG15 (C6), PC15-OSC32_OUT (OSC32_OUT) (D2), PD15 (H10), PE15 (K8), PF15 (M7), PB15 (M11)
INN2PF12 (J6)
INN3PA7 (K4)
INN4PC5 (K5)
INN5PB0 (N4)
INN10PC1 (J3)
INN16PA1 (L3)
INN18PA5 (J5)
INP2PF11 (K6)
INP3PA6 (M4)
INP4PC4 (L4)
INP5PB1 (H6)
INP6PF12 (J6)
INP7PA7 (K4)
INP8PC5 (K5)
INP9PB0 (N4)
INP10PC0 (J4)
INP11PC1 (J3)
INP14PA2 (M3)
INP15PA3 (N2)
INP16PA0 (K3)
INP17PA1 (L3)
INP18PA4 (N3)
INP19PA5 (J5)
ADC2EXTI11PA11 (D12), PG11 (E7), PC11 (E9), PF11 (K6), PD11 (K10), PE11 (N7), PB11 (N8)
EXTI15PA15 (JTDI) (B10), PG15 (C6), PC15-OSC32_OUT (OSC32_OUT) (D2), PD15 (H10), PE15 (K8), PF15 (M7), PB15 (M11)
INN2PF14 (N5)
INN3PA7 (K4)
INN4PC5 (K5)
INN5PB0 (N4)
INN10PC1 (J3)
INN18PA5 (J5)
INP2PF13 (M5)
INP3PA6 (M4)
INP4PC4 (L4)
INP5PB1 (H6)
INP6PF14 (N5)
INP7PA7 (K4)
INP8PC5 (K5)
INP9PB0 (N4)
INP10PC0 (J4)
INP11PC1 (J3)
INP14PA2 (M3)
INP15PA3 (N2)
INP18PA4 (N3)
INP19PA5 (J5)
ADC3EXTI11PA11 (D12), PG11 (E7), PC11 (E9), PF11 (K6), PD11 (K10), PE11 (N7), PB11 (N8)
EXTI15PA15 (JTDI) (B10), PG15 (C6), PC15-OSC32_OUT (OSC32_OUT) (D2), PD15 (H10), PE15 (K8), PF15 (M7), PB15 (M11)
INN1PC2_C (K1)
INN2PF10 (H4)
INN3PF8 (G6)
INN4PF6 (G4)
INN5PF4 (G1)
INN10PC1 (J3)
INP0PC2_C (K1)
INP1PC3_C (K2)
INP2PF9 (H3)
INP3PF7 (G5)
INP4PF5 (G3)
INP5PF3 (G2)
INP6PF10 (H4)
INP7PF8 (G6)
INP8PF6 (G4)
INP9PF4 (G1)
INP10PC0 (J4)
INP11PC1 (J3)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PG9 (C7), PB9 (D6), PA9 (D11), PC9 (E11), PF9 (H3), PD9 (M12), PE9 (N6)
OUT1PA4 (N3)
OUT2PA5 (J5)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPB1 (H6), PC4 (L4)
INPPB2 (L5), PB0 (N4)
OUTPE12 (J8, AF13), PC5 (K5, AF13)
COMP2INMPE7 (K7), PE10 (L7)
INPPE9 (N6), PE11 (N7)
OUTPE13 (H8, AF13), PE8 (L8, AF13)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA7 (K4), PC5 (K5)
VINM0PC5 (K5)
VINM1PA7 (K4)
VINPPB0 (N4)
VOUTPC4 (L4)
OPAMP2VINMPG1 (J7), PE8 (L8)
VINM0PE8 (L8)
VINM1PG1 (J7)
VINPPE9 (N6)
VOUTPE7 (K7)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (M1)

TIM — таймер

БлокСигналВыводы
TIM1BKINPE15 (K8, AF1), PB12 (L10, AF1), PA6 (M4, AF1)
BKIN_COMP1PE15 (K8, AF13), PB12 (L10, AF13), PA6 (M4, AF12)
BKIN_COMP2PE15 (K8, AF13), PB12 (L10, AF13), PA6 (M4, AF12)
BKIN2PE6 (C2, AF1), PG4 (G10, AF1)
BKIN2_COMP1PE6 (C2, AF11), PG4 (G10, AF11)
BKIN2_COMP2PE6 (C2, AF11), PG4 (G10, AF11)
CH1PA8 (D10, AF1), PE9 (N6, AF1)
CH1NPA7 (K4, AF1), PE8 (L8, AF1), PB13 (M10, AF1)
CH2PA9 (D11, AF1), PE11 (N7, AF1)
CH2NPE10 (L7, AF1), PB0 (N4, AF1), PB14 (N11, AF1)
CH3PA10 (A13, AF1), PE13 (H8, AF1)
CH3NPB1 (H6, AF1), PE12 (J8, AF1), PB15 (M11, AF1)
CH4PA11 (D12, AF1), PE14 (M8, AF1)
ETRPA12 (D13, AF1), PG5 (G9, AF1), PE7 (K7, AF1)
TIM2CH1PA15 (JTDI) (B10, AF1), PA5 (J5, AF1), PA0 (K3, AF1)
CH2PB3 (JTDO/TRACESWO) (A6, AF1), PA1 (L3, AF1)
CH3PB10 (K9, AF1), PA2 (M3, AF1)
CH4PA3 (N2, AF1), PB11 (N8, AF1)
ETRPA15 (JTDI) (B10, AF1), PA5 (J5, AF1), PA0 (K3, AF1)
TIM3CH1PB4 (NJTRST) (B6, AF2), PC6 (F11, AF2), PA6 (M4, AF2)
CH2PB5 (A5, AF2), PC7 (E10, AF2), PA7 (K4, AF2)
CH3PC8 (F10, AF2), PB0 (N4, AF2)
CH4PC9 (E11, AF2), PB1 (H6, AF2)
ETRPD2 (E8, AF2)
TIM4CH1PB6 (E5, AF2), PD12 (J10, AF2)
CH2PB7 (C5, AF2), PD13 (J9, AF2)
CH3PB8 (D5, AF2), PD14 (H9, AF2)
CH4PB9 (D6, AF2), PD15 (H10, AF2)
ETRPE0 (D4, AF2)
TIM5CH1PA0 (K3, AF2)
CH2PA1 (L3, AF2)
CH3PA2 (M3, AF2)
CH4PA3 (N2, AF2)
ETRPA4 (N3, AF2)
TIM8BKINPG2 (H7, AF3), PA6 (M4, AF3)
BKIN_COMP1PG2 (H7, AF11), PA6 (M4, AF10)
BKIN_COMP2PG2 (H7, AF11), PA6 (M4, AF10)
BKIN2PA8 (D10, AF3), PG3 (G8, AF3)
BKIN2_COMP1PA8 (D10, AF12), PG3 (G8, AF11)
BKIN2_COMP2PA8 (D10, AF12), PG3 (G8, AF11)
CH1PC6 (F11, AF3)
CH1NPA5 (J5, AF3), PA7 (K4, AF3)
CH2PC7 (E10, AF3)
CH2NPB0 (N4, AF3), PB14 (N11, AF3)
CH3PC8 (F10, AF3)
CH3NPB1 (H6, AF3), PB15 (M11, AF3)
CH4PC9 (E11, AF3)
ETRPG8 (F9, AF3), PA0 (K3, AF3)
TIM12CH1PB14 (N11, AF2)
CH2PB15 (M11, AF2)
TIM13CH1PF8 (G6, AF9), PA6 (M4, AF9)
TIM14CH1PF9 (H3, AF9), PA7 (K4, AF9)
TIM15BKINPE3 (C3, AF4), PA0 (K3, AF4)
CH1PE5 (E4, AF4), PA2 (M3, AF4)
CH1NPE4 (D3, AF4), PA1 (L3, AF4)
CH2PE6 (C2, AF4), PA3 (N2, AF4)
TIM16BKINPB4 (NJTRST) (B6, AF1), PF10 (H4, AF1)
CH1PB8 (D5, AF1), PF6 (G4, AF1)
CH1NPB6 (E5, AF1), PF8 (G6, AF1)
TIM17BKINPB5 (A5, AF1), PG6 (G11, AF1)
CH1PB9 (D6, AF1), PF7 (G5, AF1)
CH1NPB7 (C5, AF1), PF9 (H3, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPE0 (D4, AF1), PG14 (E6, AF1)
IN1PG12 (G7, AF1), PD12 (J10, AF1)
IN2PE1 (C4, AF1), PG11 (E7, AF1)
OUTPG13 (F7, AF1), PD13 (J9, AF1)
LPTIM2ETRPE0 (D4, AF4), PB11 (N8, AF3)
IN1PD12 (J10, AF3), PB10 (K9, AF3)
IN2PD11 (K10, AF3)
OUTPB13 (M10, AF3)
LPTIM3OUTPA1 (L3, AF3)
LPTIM4OUTPA2 (M3, AF3)
LPTIM5OUTPA3 (N2, AF3)

HRTIM — таймер высокого разрешения

БлокСигналВыводы
HRTIMCHA1PC6 (F11, AF1)
CHA2PC7 (E10, AF1)
CHB1PC8 (F10, AF1)
CHB2PA8 (D10, AF2)
CHC1PA9 (D11, AF2)
CHC2PA10 (A13, AF2)
CHD1PA11 (D12, AF2)
CHD2PA12 (D13, AF2)
CHE1PG6 (G11, AF2)
CHE2PG7 (F8, AF2)
EEV1PC10 (C11, AF2)
EEV2PC12 (D9, AF2)
EEV3PD5 (C8, AF2)
EEV4PG11 (E7, AF2)
EEV5PG12 (G7, AF2)
EEV6PB4 (NJTRST) (B6, AF3)
EEV7PB5 (A5, AF3)
EEV8PB6 (E5, AF3)
EEV9PB7 (C5, AF3)
EEV10PG13 (F7, AF2)
FLT1PA15 (JTDI) (B10, AF2)
FLT2PC11 (E9, AF2)
FLT3PD4 (D8, AF2)
FLT4PB3 (JTDO/TRACESWO) (A6, AF2)
FLT5PG10 (D7, AF2)
SCINPE0 (D4, AF3), PB11 (N8, AF2)
SCOUTPE1 (C4, AF3), PB10 (K9, AF2)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT_ALARMPC13 (E3), PB2 (L5, AF0)
OUT_CALIBPC13 (E3), PB2 (L5, AF0)
REFINPB15 (M11, AF0)
TSPC13 (E3)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (F4, AF12)
A1PF1 (F5, AF12)
A2PF2 (F6, AF12)
A3PF3 (G2, AF12)
A4PF4 (G1, AF12)
A5PF5 (G3, AF12)
A6PF12 (J6, AF12)
A7PF13 (M5, AF12)
A8PF14 (N5, AF12)
A9PF15 (M7, AF12)
A10PG0 (L6, AF12)
A11PG1 (J7, AF12)
A12PG2 (H7, AF12)
A13PG3 (G8, AF12)
A14PG4 (G10, AF12)
A15PG5 (G9, AF12)
A16PD11 (K10, AF12)
A17PD12 (J10, AF12)
A18PD13 (J9, AF12)
A19PE3 (C3, AF12)
A20PE4 (D3, AF12)
A21PE5 (E4, AF12)
A22PE6 (C2, AF12)
A23PE2 (A2, AF12)
A24PG13 (F7, AF12)
A25PG14 (E6, AF12)
ALEPD12 (J10)
BA0PG4 (G10, AF12)
BA1PG5 (G9, AF12)
CLEPD11 (K10)
CLKPD3 (A10, AF12)
D0PD14 (H9, AF12)
D1PD15 (H10, AF12)
D2PD0 (C10, AF12)
D3PD1 (C9, AF12)
D4PE7 (K7, AF12)
D5PE8 (L8, AF12)
D6PE9 (N6, AF12)
D7PE10 (L7, AF12)
D8PE11 (N7, AF12)
D9PE12 (J8, AF12)
D10PE13 (H8, AF12)
D11PE14 (M8, AF12)
D12PE15 (K8, AF12)
D13PD8 (N12, AF12)
D14PD9 (M12, AF12)
D15PD10 (N13, AF12)
DA0PD14 (H9, AF12)
DA1PD15 (H10, AF12)
DA2PD0 (C10, AF12)
DA3PD1 (C9, AF12)
DA4PE7 (K7, AF12)
DA5PE8 (L8, AF12)
DA6PE9 (N6, AF12)
DA7PE10 (L7, AF12)
DA8PE11 (N7, AF12)
DA9PE12 (J8, AF12)
DA10PE13 (H8, AF12)
DA11PE14 (M8, AF12)
DA12PE15 (K8, AF12)
DA13PD8 (N12, AF12)
DA14PD9 (M12, AF12)
DA15PD10 (N13, AF12)
INTPG7 (F8, AF12)
NBL0PE0 (D4, AF12)
NBL1PE1 (C4, AF12)
NCEPG9 (C7, AF12), PC8 (F10, AF9)
NE1PD7 (A8, AF12), PC7 (E10, AF9)
NE2PG9 (C7, AF12), PC8 (F10, AF9)
NE3PG10 (D7, AF12), PG6 (G11, AF12)
NE4PG12 (G7, AF12)
NLPB7 (C5, AF12)
NOEPD4 (D8, AF12)
NWAITPD6 (B8, AF12), PC6 (F11, AF9)
NWEPD5 (C8, AF12)
SDCKE0PC3_C (K2, AF12), PC5 (K5, AF12)
SDCKE1PB5 (A5, AF12)
SDCLKPG8 (F9, AF12)
SDNCASPG15 (C6, AF12)
SDNE0PC2_C (K1, AF12), PC4 (L4, AF12)
SDNE1PB6 (E5, AF12)
SDNRASPF11 (K6, AF12)
SDNWEPC0 (J4, AF12), PA7 (K4, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (D11, AF13), PC6 (F11, AF13)
D1PA10 (A13, AF13), PC7 (E10, AF13)
D2PE0 (D4, AF13), PG10 (D7, AF13), PC8 (F10, AF13)
D3PE1 (C4, AF13), PG11 (E7, AF13), PC9 (E11, AF13)
D4PE4 (D3, AF13), PC11 (E9, AF13)
D5PD3 (A10, AF13), PB6 (E5, AF13)
D6PB8 (D5, AF13), PE5 (E4, AF13)
D7PE6 (C2, AF13), PB9 (D6, AF13)
D8PC10 (C11, AF13)
D9PC12 (D9, AF13)
D10PB5 (A5, AF13), PD6 (B8, AF13)
D11PD2 (E8, AF13), PF10 (H4, AF13)
D12PG6 (G11, AF13), PF11 (K6, AF13)
D13PG15 (C6, AF13), PG7 (F8, AF13)
HSYNCPA4 (N3, AF13)
PIXCLKPA6 (M4, AF13)
VSYNCPB7 (C5, AF13), PG9 (C7, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PE4 (D3, AF14), PG14 (E6, AF14)
B1PA10 (A13, AF14), PG12 (G7, AF14)
B2PD6 (B8, AF14), PG10 (D7, AF14), PC9 (E11, AF14), PA3 (N2, AF9)
B3PA8 (D10, AF13), PG11 (E7, AF14), PD10 (N13, AF14)
B4PA10 (A13, AF12), PG12 (G7, AF9), PE12 (J8, AF14)
B5PA3 (N2, AF14)
B6PB8 (D5, AF14)
B7PB9 (D6, AF14)
CLKPG7 (F8, AF14), PE14 (M8, AF14)
DEPF10 (H4, AF14), PE13 (H8, AF14)
G0PE5 (E4, AF14), PB1 (H6, AF14)
G1PE6 (C2, AF14), PB0 (N4, AF14)
G2PA6 (M4, AF14)
G3PG10 (D7, AF9), PC9 (E11, AF10), PE11 (N7, AF14)
G4PB10 (K9, AF14)
G5PB11 (N8, AF14)
G6PC7 (E10, AF14)
G7PD3 (A10, AF14), PG8 (F9, AF14)
HSYNCPC6 (F11, AF14)
R0PG13 (F7, AF14)
R1PA2 (M3, AF14)
R2PC10 (C11, AF14), PA1 (L3, AF14)
R3PB0 (N4, AF9)
R4PA11 (D12, AF14), PA5 (J5, AF14)
R5PA9 (D11, AF14), PA12 (D13, AF14), PC0 (J4, AF14)
R6PA8 (D10, AF14), PB1 (H6, AF9)
R7PG6 (G11, AF14), PE15 (K8, AF14)
VSYNCPA4 (N3, AF14)

DSI — хост MIPI DSI

БлокСигналВыводы
DSIHOSTCKNDSI_CKN (J13)
CKPDSI_CKP (J12)
D0NDSI_D0N (K13)
D0PDSI_D0P (K12)
D1NDSI_D1N (H13)
D1PDSI_D1P (H12)
TEPA15 (JTDI) (B10, AF13), PB11 (N8, AF13)

DFSDM — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
DFSDM1CKIN0PC0 (J4, AF3)
CKIN1PD7 (A8, AF6), PC2_C (K1, AF3), PB2 (L5, AF4), PB13 (M10, AF6)
CKIN2PC4 (L4, AF3), PE8 (L8, AF3), PB15 (M11, AF6)
CKIN3PE5 (E4, AF3), PC6 (F11, AF4), PD8 (N12, AF3)
CKIN4PD6 (B8, AF3), PC1 (J3, AF4), PE11 (N7, AF3)
CKIN5PB7 (C5, AF11), PC10 (C11, AF3), PE13 (H8, AF3)
CKIN6PD0 (C10, AF3), PF14 (N5, AF3)
CKIN7PB8 (D5, AF3), PB11 (N8, AF6)
CKOUTPD3 (A10, AF3), PC2_C (K1, AF6), PB0 (N4, AF6), PE9 (N6, AF3), PD10 (N13, AF3)
DATIN0PC1 (J3, AF3)
DATIN1PD6 (B8, AF4), PB1 (H6, AF6), PC3_C (K2, AF3), PB12 (L10, AF6)
DATIN2PC5 (K5, AF3), PE7 (K7, AF3), PB14 (N11, AF6)
DATIN3PE4 (D3, AF3), PC7 (E10, AF4), PD9 (M12, AF3)
DATIN4PD7 (A8, AF3), PC0 (J4, AF6), PE10 (L7, AF3)
DATIN5PB6 (E5, AF11), PC11 (E9, AF3), PE12 (J8, AF3)
DATIN6PD1 (C9, AF3), PF13 (M5, AF3)
DATIN7PB9 (D6, AF3), PB10 (K9, AF6)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (A11, AF0)
JTDIPA15 (JTDI) (B10, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (A6, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (B11, AF0)
TRACECLKPE2 (A2, AF0)
TRACED0PE3 (C3, AF0), PG13 (F7, AF0), PC1 (J3, AF0)
TRACED1PE4 (D3, AF0), PG14 (E6, AF0), PC8 (F10, AF0)
TRACED2PE5 (E4, AF0), PD2 (E8, AF0)
TRACED3PE6 (C2, AF0), PC12 (D9, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (D10, AF0)
MCO_2PC9 (E11, AF0)
OSC_INPH0-OSC_IN (J2)
OSC_OUTPH1-OSC_OUT (J1)
OSC32_INPC14-OSC32_IN (OSC32_IN) (C1)
OSC32_OUTPC15-OSC32_OUT (OSC32_OUT) (D2)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC3_C (K2)
PWR_CSTOPPC2_C (K1)
PWR_WKUP1PA0 (K3)
PWR_WKUP2PA2 (M3)
PWR_WKUP4PC13 (E3)
PWR_WKUP6PC1 (J3)
RTC_TAMP1PC13 (E3)
RTC_TAMP3PC1 (J3)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), USB_OTG_HS1 (USB On-The-Go High Speed), HDMI_CEC (шина управления HDMI), TIM6 (таймер), TIM7 (таймер), IWDG1 (независимый сторожевой таймер), IWDG2 (независимый сторожевой таймер), WWDG1 (оконный сторожевой таймер), WWDG2 (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), CRYP (криптографический процессор), HASH (блок хеширования), DMA2D (графический ускоритель Chrom-ART).

Таблица выводов

Все 169 шариков корпуса UFBGA169 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1VSSпитание—
A2PE2ввод-выводDEBUG_TRACECLK (AF0), ETH_TXD3 (AF11), FMC_A23 (AF12), QUADSPI_BK1_IO2 (AF9), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SAI4_CK1 (AF10), SAI4_MCLK_A (AF8), SPI4_SCK (AF5)
A3VDDLDOпитание—
A4VCAPпитание—
A5PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), HRTIM_EEV7 (AF3), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14), USB_OTG_HS_ULPI_D7 (AF10)
A6PB3 (JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), HRTIM_FLT4 (AF2), I2S1_CK (AF5), I2S3_CK (AF6), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART7_RX (AF11)
A7VSSпитание—
A8PD7ввод-выводDFSDM1_CKIN1 (AF6), DFSDM1_DATIN4 (AF3), FMC_NE1 (AF12), I2S1_SDO (AF5), SDMMC2_CMD (AF11), SPDIFRX1_IN0 (AF9), SPI1_MOSI (AF5), USART2_CK (AF7)
A9VDDпитание—
A10PD3ввод-выводDCMI_D5 (AF13), DFSDM1_CKOUT (AF3), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_G7 (AF14), SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
A11PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
A12VSSпитание—
A13PA10ввод-выводDCMI_D1 (AF13), HRTIM_CHC2 (AF2), LPUART1_RX (AF3), LTDC_B1 (AF14), LTDC_B4 (AF12), MDIOS_MDIO (AF11), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_FS_ID (AF10)
B1VBATпитание—
B2VDDпитание—
B3PDR_ONпитание—
B4VSSпитание—
B5BOOT0загрузка—
B6PB4 (NJTRST)ввод-выводDEBUG_JTRST, HRTIM_EEV6 (AF3), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
B7VDDпитание—
B8PD6ввод-выводDCMI_D10 (AF13), DFSDM1_CKIN4 (AF3), DFSDM1_DATIN1 (AF4), FMC_NWAIT (AF12), I2S3_SDO (AF5), LTDC_B2 (AF14), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
B9VSSпитание—
B10PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), DSIHOST_TE (AF13), HRTIM_FLT1 (AF2), I2S1_WS (AF5), I2S3_WS (AF6), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF1), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
B11PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
B12VDDпитание—
B13VDDLDOпитание—
C1PC14-OSC32_IN (OSC32_IN)ввод-выводRCC_OSC32_IN
C2PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF14), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SAI4_D1 (AF9), SAI4_SD_A (AF8), SPI4_MOSI (AF5), TIM15_CH2 (AF4), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
C3PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), SAI4_SD_B (AF8), TIM15_BKIN (AF4)
C4PE1ввод-выводDCMI_D3 (AF13), FMC_NBL1 (AF12), HRTIM_SCOUT (AF3), LPTIM1_IN2 (AF1), UART8_TX (AF8)
C5PB7ввод-выводDCMI_VSYNC (AF13), DFSDM1_CKIN5 (AF11), FMC_NL (AF12), HRTIM_EEV9 (AF3), I2C1_SDA (AF4), I2C4_SDA (AF6), LPUART1_RX (AF8), PWR_PVD_IN, TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
C6PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), USART6_CTS (AF7), USART6_NSS (AF7)
C7PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), QUADSPI_BK2_IO2 (AF9), SAI2_FS_B (AF10), SPDIFRX1_IN3 (AF8), SPI1_MISO (AF5), USART6_RX (AF7)
C8PD5ввод-выводFMC_NWE (AF12), HRTIM_EEV3 (AF2), USART2_TX (AF7)
C9PD1ввод-выводDFSDM1_DATIN6 (AF3), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), SAI3_SD_A (AF6), UART4_TX (AF8)
C10PD0ввод-выводDFSDM1_CKIN6 (AF3), FDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), SAI3_SCK_A (AF6), UART4_RX (AF8)
C11PC10ввод-выводDCMI_D8 (AF13), DFSDM1_CKIN5 (AF3), HRTIM_EEV1 (AF2), I2S3_CK (AF6), LTDC_R2 (AF14), QUADSPI_BK1_IO1 (AF9), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
C12VSSпитание—
C13VCAPпитание—
D1VSSпитание—
D2PC15-OSC32_OUT (OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
D3PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), DFSDM1_DATIN3 (AF3), FMC_A20 (AF12), LTDC_B0 (AF14), SAI1_D2 (AF2), SAI1_FS_A (AF6), SAI4_D2 (AF10), SAI4_FS_A (AF8), SPI4_NSS (AF5), TIM15_CH1N (AF4)
D4PE0ввод-выводDCMI_D2 (AF13), FMC_NBL0 (AF12), HRTIM_SCIN (AF3), LPTIM1_ETR (AF1), LPTIM2_ETR (AF4), SAI2_MCLK_A (AF10), TIM4_ETR (AF2), UART8_RX (AF8)
D5PB8ввод-выводDCMI_D6 (AF13), DFSDM1_CKIN7 (AF3), ETH_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), LTDC_B6 (AF14), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
D6PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), DFSDM1_DATIN7 (AF3), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2C4_SMBA (AF11), I2S2_WS (AF5), LTDC_B7 (AF14), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
D7PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), HRTIM_FLT5 (AF2), I2S1_WS (AF5), LTDC_B2 (AF14), LTDC_G3 (AF9), SAI2_SD_B (AF10), SPI1_NSS (AF5)
D8PD4ввод-выводFMC_NOE (AF12), HRTIM_FLT3 (AF2), SAI3_FS_A (AF6), USART2_DE (AF7), USART2_RTS (AF7)
D9PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), HRTIM_EEV2 (AF2), I2S3_SDO (AF6), SDMMC1_CK (AF12), SPI3_MOSI (AF6), UART5_TX (AF8), USART3_CK (AF7)
D10PA8ввод-выводHRTIM_CHB2 (AF2), I2C3_SCL (AF4), LTDC_B3 (AF13), LTDC_R6 (AF14), RCC_MCO_1 (AF0), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF12), TIM8_BKIN2_COMP2 (AF12), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF (AF10)
D11PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_TX_ER (AF11), HRTIM_CHC1 (AF2), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R5 (AF14), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_FS_VBUS
D12PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX (AF9), HRTIM_CHD1 (AF2), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R4 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_FS_DM (AF10)
D13PA12ввод-выводFDCAN1_TX (AF9), HRTIM_CHD2 (AF2), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R5 (AF14), SAI2_FS_B (AF8), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP (AF10)
E1VLXSMPSпитание—
E2VDDпитание—
E3PC13ввод-выводPWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS
E4PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), DFSDM1_CKIN3 (AF3), FMC_A21 (AF12), LTDC_G0 (AF14), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SAI4_CK2 (AF10), SAI4_SCK_A (AF8), SPI4_MISO (AF5), TIM15_CH1 (AF4)
E5PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), DFSDM1_DATIN5 (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), HRTIM_EEV8 (AF3), I2C1_SCL (AF4), I2C4_SCL (AF6), LPUART1_TX (AF8), QUADSPI_BK1_NCS (AF10), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
E6PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_TXD1 (AF11), FMC_A25 (AF12), LPTIM1_ETR (AF1), LTDC_B0 (AF14), QUADSPI_BK2_IO3 (AF9), SPI6_MOSI (AF5), USART6_TX (AF7)
E7PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3 (AF13), ETH_TX_EN (AF11), HRTIM_EEV4 (AF2), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B3 (AF14), SDMMC2_D2 (AF10), SPDIFRX1_IN0 (AF8), SPI1_SCK (AF5)
E8PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), SDMMC1_CMD (AF12), TIM3_ETR (AF2), UART5_RX (AF8)
E9PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4 (AF13), DFSDM1_DATIN5 (AF3), HRTIM_FLT2 (AF2), I2S3_SDI (AF6), QUADSPI_BK2_NCS (AF9), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
E10PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), DFSDM1_DATIN3 (AF4), FMC_NE1 (AF9), HRTIM_CHA2 (AF1), I2S3_MCK (AF6), LTDC_G6 (AF14), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), SWPMI1_TX (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
E11PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF13), I2C3_SDA (AF4), I2S_CKIN (AF5), LTDC_B2 (AF14), LTDC_G3 (AF10), QUADSPI_BK1_IO0 (AF9), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), SWPMI1_SUSPEND (AF11), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8)
E12VDDпитание—
E13VSSпитание—
F1VDDSMPSпитание—
F2VSSSMPSпитание—
F3VFBSMPSпитание—
F4PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4)
F5PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4)
F6PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4)
F7PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_TXD0 (AF11), FMC_A24 (AF12), HRTIM_EEV10 (AF2), LPTIM1_OUT (AF1), LTDC_R0 (AF14), SPI6_SCK (AF5), USART6_CTS (AF7), USART6_NSS (AF7)
F8PG7ввод-выводDCMI_D13 (AF13), FMC_INT (AF12), HRTIM_CHE2 (AF2), LTDC_CLK (AF14), SAI1_MCLK_A (AF6), USART6_CK (AF7)
F9PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), LTDC_G7 (AF14), SPDIFRX1_IN2 (AF8), SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
F10PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_NCE (AF9), FMC_NE2 (AF9), HRTIM_CHB1 (AF1), SDMMC1_D0 (AF12), SWPMI1_RX (AF11), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
F11PC6ввод-выводDCMI_D0 (AF13), DFSDM1_CKIN3 (AF4), FMC_NWAIT (AF9), HRTIM_CHA1 (AF1), I2S2_MCK (AF5), LTDC_HSYNC (AF14), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), SWPMI1_IO, TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
F12VDD50_USBпитание—
F13VDD33_USBпитание—
G1PF4ввод-выводADC3_INN5, ADC3_INP9, FMC_A4 (AF12)
G2PF3ввод-выводADC3_INP5, FMC_A3 (AF12)
G3PF5ввод-выводADC3_INP4, FMC_A5 (AF12)
G4PF6ввод-выводADC3_INN4, ADC3_INP8, QUADSPI_BK1_IO3 (AF9), SAI1_SD_B (AF6), SAI4_SD_B (AF8), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
G5PF7ввод-выводADC3_INP3, QUADSPI_BK1_IO2 (AF9), SAI1_MCLK_B (AF6), SAI4_MCLK_B (AF8), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
G6PF8ввод-выводADC3_INN3, ADC3_INP7, QUADSPI_BK1_IO0 (AF10), SAI1_SCK_B (AF6), SAI4_SCK_B (AF8), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
G7PG12ввод-выводETH_TXD1 (AF11), FMC_NE4 (AF12), HRTIM_EEV5 (AF2), LPTIM1_IN1 (AF1), LTDC_B1 (AF14), LTDC_B4 (AF9), SPDIFRX1_IN1 (AF8), SPI6_MISO (AF5), USART6_DE (AF7), USART6_RTS (AF7)
G8PG3ввод-выводFMC_A13 (AF12), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
G9PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
G10PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
G11PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), HRTIM_CHE1 (AF2), LTDC_R7 (AF14), QUADSPI_BK1_NCS (AF10), TIM17_BKIN (AF1)
G12VSSDSIпитание—
G13VSSDSIпитание—
H1VDDпитание—
H2VSSпитание—
H3PF9ввод-выводADC3_INP2, DAC1_EXTI9, QUADSPI_BK1_IO1 (AF10), SAI1_FS_B (AF6), SAI4_FS_B (AF8), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
H4PF10ввод-выводADC3_INN2, ADC3_INP6, DCMI_D11 (AF13), LTDC_DE (AF14), QUADSPI_CLK (AF9), SAI1_D3 (AF2), SAI4_D3 (AF10), TIM16_BKIN (AF1)
H5NRSTсброс—
H6PB1ввод-выводADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1 (AF6), ETH_RXD3 (AF11), LTDC_G0 (AF14), LTDC_R6 (AF9), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USB_OTG_HS_ULPI_D2 (AF10)
H7PG2ввод-выводFMC_A12 (AF12), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
H8PE13ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN5 (AF3), FMC_D10 (AF12), FMC_DA10 (AF12), LTDC_DE (AF14), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
H9PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), SAI3_MCLK_B (AF6), TIM4_CH3 (AF2), UART8_CTS (AF8)
H10PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), SAI3_MCLK_A (AF6), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8)
H11VSSDSIпитание—
H12DSI_D1PслужебныйDSIHOST_D1P
H13DSI_D1NслужебныйDSIHOST_D1N
J1PH1-OSC_OUTввод-выводRCC_OSC_OUT
J2PH0-OSC_INввод-выводRCC_OSC_IN
J3PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0 (AF0), DFSDM1_CKIN4 (AF4), DFSDM1_DATIN0 (AF3), ETH_MDC (AF11), I2S2_SDO (AF5), MDIOS_MDC (AF12), PWR_WKUP6, RTC_TAMP3, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5)
J4PC0ввод-выводADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0 (AF3), DFSDM1_DATIN4 (AF6), FMC_SDNWE (AF12), LTDC_R5 (AF14), SAI2_FS_B (AF8), USB_OTG_HS_ULPI_STP (AF10)
J5PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, I2S1_CK (AF5), LTDC_R4 (AF14), PWR_NDSTOP2, SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM8_CH1N (AF3), USB_OTG_HS_ULPI_CK (AF10)
J6PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12)
J7PG1ввод-выводFMC_A11 (AF12), OPAMP2_VINM, OPAMP2_VINM1
J8PE12ввод-выводCOMP1_OUT (AF13), DFSDM1_DATIN5 (AF3), FMC_D9 (AF12), FMC_DA9 (AF12), LTDC_B4 (AF14), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
J9PD13ввод-выводFMC_A18 (AF12), I2C4_SDA (AF4), LPTIM1_OUT (AF1), QUADSPI_BK1_IO3 (AF9), SAI2_SCK_A (AF10), TIM4_CH2 (AF2)
J10PD12ввод-выводFMC_A17 (AF12), FMC_ALE, I2C4_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), QUADSPI_BK1_IO1 (AF9), SAI2_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
J11VSSDSIпитание—
J12DSI_CKPслужебныйDSIHOST_CKP
J13DSI_CKNслужебныйDSIHOST_CKN
K1PC2_Cввод-выводADC3_INN1, ADC3_INP0, DFSDM1_CKIN1 (AF3), DFSDM1_CKOUT (AF6), ETH_TXD2 (AF11), FMC_SDNE0 (AF12), I2S2_SDI (AF5), PWR_CSTOP, SPI2_MISO (AF5), USB_OTG_HS_ULPI_DIR (AF10)
K2PC3_Cввод-выводADC3_INP1, DFSDM1_DATIN1 (AF3), ETH_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), PWR_CSLEEP, SPI2_MOSI (AF5), USB_OTG_HS_ULPI_NXT (AF10)
K3PA0ввод-выводADC1_INP16, ETH_CRS (AF11), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
K4PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV (AF11), ETH_RX_DV (AF11), FMC_SDNWE (AF12), I2S1_SDO (AF5), OPAMP1_VINM, OPAMP1_VINM1, SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3)
K5PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT (AF13), DFSDM1_DATIN2 (AF3), ETH_RXD1 (AF11), FMC_SDCKE0 (AF12), OPAMP1_VINM, OPAMP1_VINM0, SAI1_D3 (AF2), SAI4_D3 (AF10), SPDIFRX1_IN3 (AF9)
K6PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
K7PE7ввод-выводCOMP2_INM, DFSDM1_DATIN2 (AF3), FMC_D4 (AF12), FMC_DA4 (AF12), OPAMP2_VOUT, QUADSPI_BK2_IO0 (AF10), TIM1_ETR (AF1), UART7_RX (AF7)
K8PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R7 (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13)
K9PB10ввод-выводDFSDM1_DATIN7 (AF6), ETH_RX_ER (AF11), HRTIM_SCOUT (AF2), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), LTDC_G4 (AF14), QUADSPI_BK1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7), USB_OTG_HS_ULPI_D3 (AF10)
K10PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16 (AF12), FMC_CLE, I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), QUADSPI_BK1_IO0 (AF9), SAI2_SD_A (AF10), USART3_CTS (AF7), USART3_NSS (AF7)
K11VSSDSIпитание—
K12DSI_D0PслужебныйDSIHOST_D0P
K13DSI_D0NслужебныйDSIHOST_D0N
L1VREF-питание—
L2VDDAпитание—
L3PA1ввод-выводADC1_INN16, ADC1_INP17, ETH_REF_CLK (AF11), ETH_RX_CLK (AF11), LPTIM3_OUT (AF3), LTDC_R2 (AF14), QUADSPI_BK1_IO3 (AF9), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
L4PC4ввод-выводADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2 (AF3), ETH_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), OPAMP1_VOUT, SPDIFRX1_IN2 (AF9)
L5PB2ввод-выводCOMP1_INP, DFSDM1_CKIN1 (AF4), ETH_TX_ER (AF11), I2S3_SDO (AF7), QUADSPI_CLK (AF9), RTC_OUT_ALARM (AF0), RTC_OUT_CALIB (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SPI3_MOSI (AF7)
L6PG0ввод-выводFMC_A10 (AF12)
L7PE10ввод-выводCOMP2_INM, DFSDM1_DATIN4 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), QUADSPI_BK2_IO3 (AF10), TIM1_CH2N (AF1), UART7_CTS (AF7)
L8PE8ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN2 (AF3), FMC_D5 (AF12), FMC_DA5 (AF12), OPAMP2_VINM, OPAMP2_VINM0, QUADSPI_BK2_IO1 (AF10), TIM1_CH1N (AF1), UART7_TX (AF7)
L9VDDпитание—
L10PB12ввод-выводDFSDM1_DATIN1 (AF6), ETH_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SMBA (AF4), I2S2_WS (AF5), SPI2_NSS (AF5), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), UART5_RX (AF14), USART3_CK (AF7), USB_OTG_HS_ID (AF12), USB_OTG_HS_ULPI_D5 (AF10)
L11VDDпитание—
L12VCAPDSIпитание—
L13VSSпитание—
M1VREF+служебныйVREFBUF_OUT
M2VDDпитание—
M3PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM4_OUT (AF3), LTDC_R1 (AF14), MDIOS_MDIO (AF12), PWR_WKUP2, SAI2_SCK_B (AF8), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
M4PA6ввод-выводADC1_INP3, ADC2_INP3, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), LTDC_G2 (AF14), MDIOS_MDC (AF11), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF12), TIM1_BKIN_COMP2 (AF12), TIM3_CH1 (AF2), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
M5PF13ввод-выводADC2_INP2, DFSDM1_DATIN6 (AF3), FMC_A7 (AF12), I2C4_SMBA (AF4)
M6VSSпитание—
M7PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4)
M8PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), LTDC_CLK (AF14), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
M9VSSпитание—
M10PB13ввод-выводDFSDM1_CKIN1 (AF6), ETH_TXD1 (AF11), FDCAN2_TX (AF9), I2S2_CK (AF5), LPTIM2_OUT (AF3), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), USART3_CTS (AF7), USART3_NSS (AF7), USB_OTG_HS_ULPI_D6 (AF10), USB_OTG_HS_VBUS
M11PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2 (AF6), I2S2_SDO (AF5), RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), USART1_RX (AF4), USB_OTG_HS_DP (AF12)
M12PD9ввод-выводDAC1_EXTI9, DFSDM1_DATIN3 (AF3), FMC_D14 (AF12), FMC_DA14 (AF12), SAI3_SD_B (AF6), USART3_RX (AF7)
M13VDDDSIпитание—
N1VSSпитание—
N2PA3ввод-выводADC1_INP15, ADC2_INP15, ETH_COL (AF11), LPTIM5_OUT (AF3), LTDC_B2 (AF9), LTDC_B5 (AF14), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7), USB_OTG_HS_ULPI_D0 (AF10)
N3PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), I2S1_WS (AF5), I2S3_WS (AF6), LTDC_VSYNC (AF14), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7), USB_OTG_HS_SOF (AF12)
N4PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT (AF6), ETH_RXD2 (AF11), LTDC_G1 (AF14), LTDC_R3 (AF9), OPAMP1_VINP, TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USB_OTG_HS_ULPI_D1 (AF10)
N5PF14ввод-выводADC2_INN2, ADC2_INP6, DFSDM1_CKIN6 (AF3), FMC_A8 (AF12), I2C4_SCL (AF4)
N6PE9ввод-выводCOMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT (AF3), FMC_D6 (AF12), FMC_DA6 (AF12), OPAMP2_VINP, QUADSPI_BK2_IO2 (AF10), TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
N7PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4 (AF3), FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G3 (AF14), SAI2_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
N8PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7 (AF6), DSIHOST_TE (AF13), ETH_TX_EN (AF11), HRTIM_SCIN (AF2), I2C2_SDA (AF4), LPTIM2_ETR (AF3), LTDC_G5 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7), USB_OTG_HS_ULPI_D4 (AF10)
N9VCAPпитание—
N10VDDLDOпитание—
N11PB14ввод-выводDFSDM1_DATIN2 (AF6), I2S2_SDI (AF5), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7), USB_OTG_HS_DM (AF12)
N12PD8ввод-выводDFSDM1_CKIN3 (AF3), FMC_D13 (AF12), FMC_DA13 (AF12), SAI3_SCK_B (AF6), SPDIFRX1_IN1 (AF9), USART3_TX (AF7)
N13PD10ввод-выводDFSDM1_CKOUT (AF3), FMC_D15 (AF12), FMC_DA15 (AF12), LTDC_B3 (AF14), SAI3_FS_B (AF6), USART3_CK (AF7)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
PDR_ONB3управление внутренней схемой сброса по питанию
VBATB1резервное питание: часы реального времени и резервные регистры
VCAPA4, C13, N9вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VCAPDSIL12вывод стабилизатора блока DSI для внешнего конденсатора
VDDA9, B2, B7, B12, E2, E12, H1, L9, L11, M2питание цифровой части и линий ввода-вывода
VDD33_USBF13—
VDD50_USBF12—
VDDAL2питание аналоговой части: АЦП, ЦАП, генераторы
VDDDSIM13питание блока DSI
VDDLDOA3, B13, N10—
VDDSMPSF1—
VFBSMPSF3—
VLXSMPSE1—
VREF-L1нижнее опорное напряжение АЦП
VSSA1, A7, A12, B4, B9, C12, D1, E13, H2, L13, M6, M9, N1общий провод (земля)
VSSDSIG12, G13, H11, J11, K11общий провод блока DSI
VSSSMPSF2—
NRSTH5сброс, активный уровень — низкий
BOOT0B5выбор источника загрузки при сбросе
DSI_CKNJ13—
DSI_CKPJ12—
DSI_D0NK13—
DSI_D0PK12—
DSI_D1NH13—
DSI_D1PH12—
VREF+M1верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H757AIIx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H757AISTM32H757AIIx2 МБ864 КБ

Линейка STM32H747/757, семейство STM32H7, ядро Cortex-M7 + Cortex-M4.

Заказные номера

Полные номера для заказа из таблицы на странице продукта на сайте ST: STM32H757AI. Данные на 11 октября 2026 г.; перечислены номера, которые в этот момент выпускались. Цифра после буквы корпуса — температурный диапазон, вид упаковки указан в последнем столбце.

Номер для заказаКорпусТемператураУпаковка
STM32H757AII6UFBGA 169, 7×7×0,6 мм, шаг 0,5 мм−40…+85 °Cлоток

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе UFBGA169, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H747AG, STM32H747AISTM32H747/757169 из 169выводы совпадают полностьютолько у этого: CRYP, HASH

Частые вопросы

На каких выводах USART1 у STM32H757AI?

В корпусе UFBGA169 сигнал USART1_TX выведен на PA9 (шарик D11, AF7) или PB6 (шарик E5, AF7) или PB14 (шарик N11, AF4), USART1_RX — на PA10 (шарик A13, AF7) или PB7 (шарик C5, AF7) или PB15 (шарик M11, AF4).

Где у STM32H757AI выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик B11, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик A11, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H757AI?

I2C1_SCL — PB8 (шарик D5, AF4) или PB6 (шарик E5, AF4), I2C1_SDA — PB7 (шарик C5, AF4) или PB9 (шарик D6, AF4).

Сколько выводов ввода-вывода у STM32H757AI в корпусе UFBGA169?

114 из 169. Ещё 46 выводов заняты питанием и землёй, остальные 9 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32H757AI?

От 1,62 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Заказные номера, корпуса, упаковка и температурный диапазон — из таблиц на страницах продуктов st.com (данные на 11 октября 2026 г.). Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
