STM32H7A3NG и STM32H7A3NI в корпусе TFBGA216: распиновка

STM32H7A3NG и STM32H7A3NI — микроконтроллеры STM32H7 на ядре Cortex-M7 с частотой до 280 МГц: 1 и 2 МБ флеш-памяти и 1,390625 МБ ОЗУ. Корпус TFBGA216 — 216 шариков, из них 168 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M7
Частота ядра
до 280 МГц
Флеш-память
1 и 2 МБ
ОЗУ
1,390625 МБ
Корпус
TFBGA216, 216 шариков
Линий ввода-вывода
168
Напряжение питания
1,62…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса TFBGA216

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32H7A3NG, STM32H7A3NI в корпусе TFBGA216, вид сверхуABCDEFGHJKLMNPR123456789101112131415PE4 — шарик A1: DCMI_D4, DEBUG_TRACED1, DFSDM1_DATIN3, FMC_A20, LTDC_B0, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TIM15_CH1NPE4PE3 — шарик A2: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, TIM15_BKIN, USART10_TXPE3PE2 — шарик A3: DEBUG_TRACECLK, FMC_A23, OCTOSPIM_P1_IO2, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, USART10_RXPE2PG14 — шарик A4: DEBUG_TRACED1, FMC_A25, I2S6_SDO, LPTIM1_ETR, LTDC_B0, OCTOSPIM_P1_IO7, SDMMC2_D7, SPI6_MOSI, USART10_DE, USART10_RTS, USART6_TXPG14PE1 — шарик A5: DCMI_D3, FMC_NBL1, LPTIM1_IN2, LTDC_R6, PSSI_D3, UART8_TXPE1PE0 — шарик A6: DCMI_D2, FMC_NBL0, LPTIM1_ETR, LPTIM2_ETR, LTDC_R0, PSSI_D2, SAI2_MCLK_A, TIM4_ETR, UART8_RXPE0PB8 — шарик A7: DCMI_D6, DFSDM1_CKIN7, FDCAN1_RX, I2C1_SCL, I2C4_SCL, LTDC_B6, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RXPB8PB5 — шарик A8: DCMI_D10, FDCAN2_RX, FMC_SDCKE1, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, I2S6_SDO, LTDC_B5, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX, USB_OTG_HS_ULPI_D7PB5PB4 — шарик A9: DEBUG_NJTRST, I2S1_SDI, I2S2_WS, I2S3_SDI, I2S6_SDI, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4PB3 — шарик A10: CRS_SYNC, DEBUG_JTDO-SWO, I2S1_CK, I2S3_CK, I2S6_CK, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART7_RXPB3PD7 — шарик A11: DFSDM1_CKIN1, DFSDM1_DATIN4, FMC_NE1, I2S1_SDO, OCTOSPIM_P1_IO7, SDMMC2_CMD, SPDIFRX_IN0, SPI1_MOSI, USART2_CKPD7PC12 — шарик A12: DCMI_D9, DEBUG_TRACED3, DFSDM2_CKOUT, I2S3_SDO, I2S6_CK, LTDC_R6, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CKPC12PA15 — шарик A13: ADC1_EXTI15, ADC2_EXTI15, CEC, DEBUG_JTDI, I2S1_WS, I2S3_WS, I2S6_WS, LTDC_B6, LTDC_R3, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PA14 — шарик A14: DEBUG_JTCK-SWCLKPA14PA13 — шарик A15: DEBUG_JTMS-SWDIOPA13PE5 — шарик B1: DCMI_D6, DEBUG_TRACED2, DFSDM1_CKIN3, FMC_A21, LTDC_G0, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TIM15_CH1PE5PE6 — шарик B2: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PE6PG13 — шарик B3: DEBUG_TRACED0, FMC_A24, I2S6_CK, LPTIM1_OUT, LTDC_R0, SDMMC2_D6, SPI6_SCK, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSSPG13PB9 — шарик B4: DAC1_EXTI9, DCMI_D7, DFSDM1_DATIN7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2C4_SMBA, I2S2_WS, LTDC_B7, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PB7 — шарик B5: DCMI_VSYNC, DFSDM1_CKIN5, FMC_NL, I2C1_SDA, I2C4_SDA, LPUART1_RX, PSSI_RDY, PWR_PVD_IN, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PB6 — шарик B6: CEC, DCMI_D5, DFSDM1_DATIN5, FDCAN2_TX, FMC_SDNE1, I2C1_SCL, I2C4_SCL, LPUART1_TX, OCTOSPIM_P1_NCS, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6PG15 — шарик B7: ADC1_EXTI15, ADC2_EXTI15, DCMI_D13, FMC_SDNCAS, OCTOSPIM_P2_DQS, PSSI_D13, USART10_CK, USART6_CTS, USART6_NSSPG15PG11 — шарик B8: ADC1_EXTI11, ADC2_EXTI11, DCMI_D3, I2S1_CK, LPTIM1_IN2, LTDC_B3, OCTOSPIM_P2_IO7, PSSI_D3, SDMMC2_D2, SPDIFRX_IN0, SPI1_SCK, USART10_RXPG11PJ13 — шарик B9: LTDC_B1, LTDC_B4PJ13PJ12 — шарик B10: DEBUG_TRGOUT, LTDC_B0, LTDC_G3PJ12PD6 — шарик B11: DCMI_D10, DFSDM1_CKIN4, DFSDM1_DATIN1, FMC_NWAIT, I2S3_SDO, LTDC_B2, OCTOSPIM_P1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PD0 — шарик B12: DFSDM1_CKIN6, FDCAN1_RX, FMC_D2, FMC_DA2, LTDC_B1, UART4_RX, UART9_CTSPD0PC11 — шарик B13: ADC1_EXTI11, ADC2_EXTI11, DCMI_D4, DFSDM1_DATIN5, DFSDM2_DATIN0, I2S3_SDI, LTDC_B4, OCTOSPIM_P1_NCS, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PC10 — шарик B14: DCMI_D8, DFSDM1_CKIN5, DFSDM2_CKIN0, I2S3_CK, LTDC_B1, LTDC_R2, OCTOSPIM_P1_IO1, PSSI_D8, SDMMC1_D2, SPI3_SCK, SWPMI1_RX, UART4_TX, USART3_TXPC10PA12 — шарик B15: FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R5, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_HS_DPPA12VBAT — шарик C1VBATPI8 — шарик C2: PWR_WKUP3, RTC_OUT_ALARM, RTC_TAMP2PI8PI4 — шарик C3: DCMI_D5, FMC_NBL2, LTDC_B4, PSSI_D5, SAI2_MCLK_A, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PI4PK7 — шарик C4: LTDC_DEPK7PK6 — шарик C5: LTDC_B7, OCTOSPIM_P2_DQSPK6PK5 — шарик C6: LTDC_B6, OCTOSPIM_P2_NCSPK5PG12 — шарик C7: FMC_NE4, I2S6_SDI, LPTIM1_IN1, LTDC_B1, LTDC_B4, OCTOSPIM_P2_NCS, SDMMC2_D3, SPDIFRX_IN1, SPI6_MISO, USART10_TX, USART6_DE, USART6_RTSPG12PG10 — шарик C8: DCMI_D2, FMC_NE3, I2S1_WS, LTDC_B2, LTDC_G3, OCTOSPIM_P2_IO6, PSSI_D2, SAI2_SD_B, SDMMC2_D1, SPI1_NSSPG10PJ14 — шарик C9: LTDC_B2PJ14PD5 — шарик C10: FMC_NWE, OCTOSPIM_P1_IO5, USART2_TXPD5PD3 — шарик C11: DCMI_D5, DFSDM1_CKOUT, FMC_CLK, I2S2_CK, LTDC_G7, PSSI_D5, SPI2_SCK, USART2_CTS, USART2_NSSPD3PD1 — шарик C12: DFSDM1_DATIN6, FDCAN1_TX, FMC_D3, FMC_DA3, UART4_TXPD1PI3 — шарик C13: DCMI_D10, FMC_D27, I2S2_SDO, PSSI_D10, SPI2_MOSI, TIM8_ETRPI3PI2 — шарик C14: DCMI_D9, FMC_D26, I2S2_SDI, LTDC_G7, PSSI_D9, SPI2_MISO, TIM8_CH4PI2PA11 — шарик C15: ADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX, I2S2_WS, LPUART1_CTS, LTDC_R4, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_HS_DMPA11PC13 — шарик D1: PWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TSPC13PF0 — шарик D2: FMC_A0, I2C2_SDA, OCTOSPIM_P2_IO0PF0PI5 — шарик D3: DCMI_VSYNC, FMC_NBL3, LTDC_B5, PSSI_RDY, SAI2_SCK_A, TIM8_CH1PI5PI7 — шарик D4: DCMI_D7, FMC_D29, LTDC_B7, PSSI_D7, SAI2_FS_A, TIM8_CH3PI7PI10 — шарик D5: FMC_D31, LTDC_HSYNC, OCTOSPIM_P2_IO1, PSSI_D14PI10PI6 — шарик D6: DCMI_D6, FMC_D28, LTDC_B6, PSSI_D6, SAI2_SD_A, TIM8_CH2PI6PK4 — шарик D7: LTDC_B5, OCTOSPIM_P2_IO7PK4PK3 — шарик D8: LTDC_B4, OCTOSPIM_P2_IO6PK3PG9 — шарик D9: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, OCTOSPIM_P1_IO6, PSSI_RDY, SAI2_FS_B, SDMMC2_D0, SPDIFRX_IN3, SPI1_MISO, USART6_RXPG9PJ15 — шарик D10: ADC1_EXTI15, ADC2_EXTI15, LTDC_B3PJ15PD4 — шарик D11: FMC_NOE, OCTOSPIM_P1_IO4, USART2_DE, USART2_RTSPD4PD2 — шарик D12: DCMI_D11, DEBUG_TRACED2, LTDC_B2, LTDC_B7, PSSI_D11, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RXPD2PH15 — шарик D13: ADC1_EXTI15, ADC2_EXTI15, DCMI_D11, FMC_D23, LTDC_G4, PSSI_D11, TIM8_CH3NPH15PI1 — шарик D14: DCMI_D8, FMC_D25, I2S2_CK, LTDC_G6, PSSI_D8, SPI2_SCK, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2PI1PA10 — шарик D15: DCMI_D1, LPUART1_RX, LTDC_B1, LTDC_B4, MDIOS_MDIO, PSSI_D1, TIM1_CH3, USART1_RX, USB_OTG_HS_IDPA10PC14-OSC32_IN — шарик E1: RCC_OSC32_INPC14PF1 — шарик E2: FMC_A1, I2C2_SCL, OCTOSPIM_P2_IO1PF1PI12 — шарик E3: LTDC_HSYNC, OCTOSPIM_P2_IO3PI12PI9 — шарик E4: DAC1_EXTI9, FDCAN1_RX, FMC_D30, LTDC_VSYNC, OCTOSPIM_P2_IO0, UART4_RXPI9PDR_ON — шарик E5PDR_ONBOOT0 — шарик E6BOOT0VDD — шарик E7VDDVDD — шарик E8VDDVDDMMC — шарик E9VDDMMCVDD — шарик E10VDDVCAP — шарик E11VCAPPH13 — шарик E12: FDCAN1_TX, FMC_D21, LTDC_G2, TIM8_CH1N, UART4_TXPH13PH14 — шарик E13: DCMI_D4, FDCAN1_RX, FMC_D22, LTDC_G3, PSSI_D4, TIM8_CH2N, UART4_RXPH14PI0 — шарик E14: DCMI_D13, FMC_D24, I2S2_WS, LTDC_G5, PSSI_D13, SPI2_NSS, TIM5_CH4PI0PA9 — шарик E15: DAC1_EXTI9, DCMI_D0, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R5, PSSI_D0, SPI2_SCK, TIM1_CH2, USART1_TX, USB_OTG_HS_VBUSPA9PC15-OSC32_OUT — шарик F1: ADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUTPC15VSS — шарик F2VSSPI11 — шарик F3: ADC1_EXTI11, ADC2_EXTI11, LTDC_G6, OCTOSPIM_P2_IO2, PSSI_D15, PWR_WKUP5, USB_OTG_HS_ULPI_DIRPI11VDD — шарик F4VDDVDD — шарик F5VDDVSS — шарик F6VSSVSS — шарик F7VSSVSS — шарик F8VSSVSS — шарик F9VSSVSS — шарик F10VSSVDD — шарик F11VDDPK1 — шарик F12: LTDC_G6, SPI5_NSS, TIM1_CH1, TIM8_CH3NPK1PK2 — шарик F13: LTDC_G7, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PK2PC9 — шарик F14: DAC1_EXTI9, DCMI_D3, I2C3_SDA, I2S_CKIN, LTDC_B2, LTDC_G3, OCTOSPIM_P1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, SWPMI1_SUSPEND, TIM3_CH4, TIM8_CH4, UART5_CTSPC9PA8 — шарик F15: I2C3_SCL, LTDC_B3, LTDC_R6, RCC_MCO_1, TIM1_CH1, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2, UART7_RX, USART1_CK, USB_OTG_HS_SOFPA8PH0-OSC_IN — шарик G1: RCC_OSC_INPH0PF2 — шарик G2: FMC_A2, I2C2_SMBA, OCTOSPIM_P2_IO2PF2PI13 — шарик G3: LTDC_VSYNC, OCTOSPIM_P2_CLKPI13PI15 — шарик G4: ADC1_EXTI15, ADC2_EXTI15, LTDC_G2, LTDC_R0PI15VDD — шарик G5VDDVSS — шарик G6VSSVSS — шарик G10VSSVDD33_USB — шарик G11VDD33USBPJ11 — шарик G12: ADC1_EXTI11, ADC2_EXTI11, LTDC_G4, SPI5_MISO, TIM1_CH2, TIM8_CH2NPJ11PK0 — шарик G13: LTDC_G5, SPI5_SCK, TIM1_CH1N, TIM8_CH3PK0PC8 — шарик G14: DCMI_D2, DEBUG_TRACED1, FMC_INT, FMC_NCE, FMC_NE2, PSSI_D2, SDMMC1_D0, SWPMI1_RX, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PC7 — шарик G15: DCMI_D1, DEBUG_TRGIO, DFSDM1_DATIN3, FMC_NE1, I2S3_MCK, LTDC_G6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, SWPMI1_TX, TIM3_CH2, TIM8_CH2, USART6_RXPC7PH1-OSC_OUT — шарик H1: RCC_OSC_OUTPH1PF3 — шарик H2: FMC_A3, OCTOSPIM_P2_IO3PF3PI14 — шарик H3: LTDC_CLK, OCTOSPIM_P2_NCLKPI14PH4 — шарик H4: I2C2_SCL, LTDC_G4, LTDC_G5, PSSI_D14, USB_OTG_HS_ULPI_NXTPH4VDD — шарик H5VDDVSS — шарик H6VSSVSS — шарик H10VSSVDD — шарик H11VDDPJ8 — шарик H12: LTDC_G1, TIM1_CH3N, TIM8_CH1, UART8_TXPJ8PJ10 — шарик H13: LTDC_G3, SPI5_MOSI, TIM1_CH2N, TIM8_CH2PJ10PG8 — шарик H14: FMC_SDCLK, I2S6_WS, LTDC_G7, SPDIFRX_IN2, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTSPG8PC6 — шарик H15: DCMI_D0, DFSDM1_CKIN3, FMC_NWAIT, I2S2_MCK, LTDC_HSYNC, PSSI_D0, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, SWPMI1_IO, TIM3_CH1, TIM8_CH1, USART6_TXPC6NRST — шарик J1NRSTPF4 — шарик J2: FMC_A4, OCTOSPIM_P2_CLKPF4PH5 — шарик J3: FMC_SDNWE, I2C2_SDA, SPI5_NSSPH5PH3 — шарик J4: FMC_SDNE0, LTDC_R1, OCTOSPIM_P1_IO5, SAI2_MCLK_BPH3VDD — шарик J5VDDVSS — шарик J6VSSVSS — шарик J10VSSVDD — шарик J11VDDPJ7 — шарик J12: DEBUG_TRGIN, LTDC_G0, TIM8_CH2NPJ7PJ9 — шарик J13: DAC1_EXTI9, LTDC_G2, TIM1_CH3, TIM8_CH1N, UART8_RXPJ9PG7 — шарик J14: DCMI_D13, FMC_INT, LTDC_CLK, OCTOSPIM_P2_DQS, PSSI_D13, SAI1_MCLK_A, USART6_CKPG7PG6 — шарик J15: DCMI_D12, FMC_NE3, LTDC_R7, OCTOSPIM_P1_NCS, PSSI_D12, TIM17_BKINPG6PF7 — шарик K1: OCTOSPIM_P1_IO2, SAI1_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TXPF7PF6 — шарик K2: OCTOSPIM_P1_IO3, SAI1_SD_B, SPI5_NSS, TIM16_CH1, UART7_RXPF6PF5 — шарик K3: FMC_A5, OCTOSPIM_P2_NCLKPF5PH2 — шарик K4: FMC_SDCKE0, LPTIM1_IN2, LTDC_R0, OCTOSPIM_P1_IO4, SAI2_SCK_BPH2VDD — шарик K5VDDVSS — шарик K6VSSVSS — шарик K7VSSVSS — шарик K8VSSVSS — шарик K9VSSVSS — шарик K10VSSVDD — шарик K11VDDPJ6 — шарик K12: LTDC_R7, TIM8_CH2PJ6PD15 — шарик K13: ADC1_EXTI15, ADC2_EXTI15, FMC_D1, FMC_DA1, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TXPD15PB13 — шарик K14: DCMI_D2, DFSDM1_CKIN1, DFSDM2_CKIN1, FDCAN2_TX, I2S2_CK, LPTIM2_OUT, PSSI_D2, SDMMC1_D0, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSS, USB_OTG_HS_ULPI_D6PB13PD10 — шарик K15: DFSDM1_CKOUT, DFSDM2_CKOUT, FMC_D15, FMC_DA15, LTDC_B3, USART3_CKPD10PF10 — шарик L1: DCMI_D11, LTDC_DE, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKINPF10PF9 — шарик L2: DAC1_EXTI9, OCTOSPIM_P1_IO1, SAI1_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTSPF9PF8 — шарик L3: OCTOSPIM_P1_IO0, SAI1_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPF8PC3_C — шарик L4: ADC2_INP1, DFSDM1_DATIN1, FMC_SDCKE0, I2S2_SDO, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSLEEP, SPI2_MOSI, USB_OTG_HS_ULPI_NXTPC3VSS — шарик L5VSSVSS — шарик L6VSSVDD — шарик L7VDDVDD — шарик L8VDDVDD — шарик L9VDDVDD — шарик L10VDDVCAP — шарик L11VCAPPD14 — шарик L12: FMC_D0, FMC_DA0, TIM4_CH3, UART8_CTS, UART9_RXPD14PB12 — шарик L13: DFSDM1_DATIN1, DFSDM2_DATIN1, FDCAN2_RX, I2C2_SMBA, I2S2_WS, OCTOSPIM_P1_NCLK, SPI2_NSS, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, UART5_RX, USART3_CK, USB_OTG_HS_ULPI_D5PB12PD9 — шарик L14: DAC1_EXTI9, DFSDM1_DATIN3, FMC_D14, FMC_DA14, USART3_RXPD9PD8 — шарик L15: DFSDM1_CKIN3, FMC_D13, FMC_DA13, SPDIFRX_IN1, USART3_TXPD8VSSA — шарик M1VSSAPC0 — шарик M2: ADC1_INP10, ADC2_INP10, DFSDM1_CKIN0, DFSDM1_DATIN4, FMC_A25, FMC_SDNWE, LTDC_G2, LTDC_R5, SAI2_FS_B, USB_OTG_HS_ULPI_STPPC0PC1 — шарик M3: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DEBUG_TRACED0, DFSDM1_CKIN4, DFSDM1_DATIN0, I2S2_SDO, LTDC_G5, MDIOS_MDC, OCTOSPIM_P1_IO4, PWR_WKUP6, RTC_TAMP3, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI2_MOSIPC1PC2_C — шарик M4: ADC2_INN1, ADC2_INP0, DFSDM1_CKIN1, DFSDM1_CKOUT, FMC_SDNE0, I2S2_SDI, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSTOP, SPI2_MISO, USB_OTG_HS_ULPI_DIRPC2PB2 — шарик M5: COMP1_INP, DFSDM1_CKIN1, I2S3_SDO, OCTOSPIM_P1_CLK, OCTOSPIM_P1_DQS, RTC_OUT_ALARM, RTC_OUT_CALIB, SAI1_D1, SAI1_SD_A, SPI3_MOSIPB2PF12 — шарик M6: ADC1_INN2, ADC1_INP6, FMC_A6, OCTOSPIM_P2_DQSPF12PG1 — шарик M7: FMC_A11, OCTOSPIM_P2_IO5, OPAMP2_VINM, UART9_TXPG1PF15 — шарик M8: ADC1_EXTI15, ADC2_EXTI15, FMC_A9, I2C4_SDAPF15PJ4 — шарик M9: LTDC_R5, UART9_CTSPJ4PD12 — шарик M10: DCMI_D12, FMC_A17, FMC_ALE, I2C4_SCL, LPTIM1_IN1, LPTIM2_IN1, OCTOSPIM_P1_IO1, PSSI_D12, SAI2_FS_A, TIM4_CH1, USART3_DE, USART3_RTSPD12PD13 — шарик M11: DCMI_D13, FMC_A18, I2C4_SDA, LPTIM1_OUT, OCTOSPIM_P1_IO3, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTSPD13PG3 — шарик M12: FMC_A13, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2PG3PG2 — шарик M13: FMC_A12, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PG2PJ5 — шарик M14: LTDC_R6PJ5PH12 — шарик M15: DCMI_D3, FMC_D20, I2C4_SDA, LTDC_R6, PSSI_D3, TIM5_CH3PH12VREF- — шарик N1VREF-PA1 — шарик N2: ADC1_INN16, ADC1_INP17, LPTIM3_OUT, LTDC_R2, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PA0 — шарик N3: ADC1_INP16, I2S6_WS, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI6_NSS, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PA4 — шарик N4: ADC1_INP18, DAC1_OUT1, DCMI_HSYNC, I2S1_WS, I2S3_WS, I2S6_WS, LTDC_VSYNC, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CKPA4PC4 — шарик N5: ADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2, FMC_SDNE0, I2S1_MCK, LTDC_R7, OPAMP1_VOUT, SPDIFRX_IN2PC4PF13 — шарик N6: ADC2_INP2, DFSDM1_DATIN6, FMC_A7, I2C4_SMBAPF13PG0 — шарик N7: FMC_A10, OCTOSPIM_P2_IO4, UART9_RXPG0PJ3 — шарик N8: LTDC_R4, UART9_DE, UART9_RTSPJ3PE8 — шарик N9: COMP2_OUT, DFSDM1_CKIN2, FMC_D5, FMC_DA5, OCTOSPIM_P1_IO5, OPAMP2_VINM, TIM1_CH1N, UART7_TXPE8PD11 — шарик N10: ADC1_EXTI11, ADC2_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, OCTOSPIM_P1_IO0, SAI2_SD_A, USART3_CTS, USART3_NSSPD11PG5 — шарик N11: FMC_A15, FMC_BA1, TIM1_ETRPG5PG4 — шарик N12: FMC_A14, FMC_BA0, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PG4PH7 — шарик N13: DCMI_D9, FMC_SDCKE1, I2C3_SCL, PSSI_D9, SPI5_MISOPH7PH9 — шарик N14: DAC1_EXTI9, DCMI_D0, FMC_D17, I2C3_SMBA, LTDC_R3, PSSI_D0, TIM12_CH2PH9PH11 — шарик N15: ADC1_EXTI11, ADC2_EXTI11, DCMI_D2, FMC_D19, I2C4_SCL, LTDC_R5, PSSI_D2, TIM5_CH2PH11VREF+ — шарик P1: VREFBUF_OUTVREF+PA2 — шарик P2: ADC1_INP14, DFSDM2_CKIN1, LTDC_R1, MDIOS_MDIO, PWR_WKUP2, SAI2_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PA6 — шарик P3: ADC1_INP3, ADC2_INP3, DAC2_OUT1, DCMI_PIXCLK, I2S1_SDI, I2S6_SDI, LTDC_G2, MDIOS_MDC, OCTOSPIM_P1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM3_CH1, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PA6PA5 — шарик P4: ADC1_INN18, ADC1_INP19, DAC1_OUT2, I2S1_CK, I2S6_CK, LTDC_R4, PSSI_D14, PWR_NDSTOP2, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USB_OTG_HS_ULPI_CKPA5PC5 — шарик P5: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT, DFSDM1_DATIN2, FMC_SDCKE0, LTDC_DE, OCTOSPIM_P1_DQS, OPAMP1_VINM, PSSI_D15, SAI1_D3, SPDIFRX_IN3PC5PF14 — шарик P6: ADC2_INN2, ADC2_INP6, DFSDM1_CKIN6, FMC_A8, I2C4_SCLPF14PJ2 — шарик P7: LTDC_R3, OCTOSPIM_P2_IO5PJ2PF11 — шарик P8: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMI_D12, FMC_SDNRAS, OCTOSPIM_P1_NCLK, PSSI_D12, SAI2_SD_B, SPI5_MOSIPF11PE9 — шарик P9: COMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT, FMC_D6, FMC_DA6, OCTOSPIM_P1_IO6, OPAMP2_VINP, TIM1_CH1, UART7_DE, UART7_RTSPE9PE11 — шарик P10: ADC1_EXTI11, ADC2_EXTI11, COMP2_INP, DFSDM1_CKIN4, FMC_D8, FMC_DA8, LTDC_G3, OCTOSPIM_P1_NCS, SAI2_SD_B, SPI4_NSS, TIM1_CH2PE11PE14 — шарик P11: FMC_D11, FMC_DA11, LTDC_CLK, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PB10 — шарик P12: DFSDM1_DATIN7, I2C2_SCL, I2S2_CK, LPTIM2_IN1, LTDC_G4, OCTOSPIM_P1_NCS, SPI2_SCK, TIM2_CH3, USART3_TX, USB_OTG_HS_ULPI_D3PB10PH6 — шарик P13: DCMI_D8, FMC_SDNE1, I2C2_SMBA, PSSI_D8, SPI5_SCK, TIM12_CH1PH6PH8 — шарик P14: DCMI_HSYNC, FMC_D16, I2C3_SDA, LTDC_R2, PSSI_DE, TIM5_ETRPH8PH10 — шарик P15: DCMI_D1, FMC_D18, I2C4_SMBA, LTDC_R4, PSSI_D1, TIM5_CH1PH10VDDA — шарик R1VDDAPA3 — шарик R2: ADC1_INP15, I2S6_MCK, LTDC_B2, LTDC_B5, OCTOSPIM_P1_CLK, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX, USB_OTG_HS_ULPI_D0PA3PA7 — шарик R3: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, DFSDM2_DATIN1, FMC_SDNWE, I2S1_SDO, I2S6_SDO, LTDC_VSYNC, OCTOSPIM_P1_IO2, OPAMP1_VINM, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1NPA7PB1 — шарик R4: ADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1, LTDC_G0, LTDC_R6, OCTOSPIM_P1_IO0, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USB_OTG_HS_ULPI_D2PB1PB0 — шарик R5: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT, DFSDM2_CKOUT, LTDC_G1, LTDC_R3, OCTOSPIM_P1_IO1, OPAMP1_VINP, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USB_OTG_HS_ULPI_D1PB0PJ0 — шарик R6: LTDC_R1, LTDC_R7PJ0PJ1 — шарик R7: LTDC_R2, OCTOSPIM_P2_IO4PJ1PE7 — шарик R8: COMP2_INM, DFSDM1_DATIN2, FMC_D4, FMC_DA4, OCTOSPIM_P1_IO4, OPAMP2_VOUT, TIM1_ETR, UART7_RXPE7PE10 — шарик R9: COMP2_INM, DFSDM1_DATIN4, FMC_D7, FMC_DA7, OCTOSPIM_P1_IO7, TIM1_CH2N, UART7_CTSPE10PE12 — шарик R10: COMP1_OUT, DFSDM1_DATIN5, FMC_D9, FMC_DA9, LTDC_B4, SAI2_SCK_B, SPI4_SCK, TIM1_CH3NPE12PE15 — шарик R11: ADC1_EXTI15, ADC2_EXTI15, FMC_D12, FMC_DA12, LTDC_R7, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, USART10_CKPE15PE13 — шарик R12: COMP2_OUT, DFSDM1_CKIN5, FMC_D10, FMC_DA10, LTDC_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH3PE13PB11 — шарик R13: ADC1_EXTI11, ADC2_EXTI11, DFSDM1_CKIN7, I2C2_SDA, LPTIM2_ETR, LTDC_G5, TIM2_CH4, USART3_RX, USB_OTG_HS_ULPI_D4PB11PB14 — шарик R14: DFSDM1_DATIN2, I2S2_SDI, LTDC_CLK, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, USART1_TX, USART3_DE, USART3_RTSPB14PB15 — шарик R15: ADC1_EXTI15, ADC2_EXTI15, DFSDM1_CKIN2, I2S2_SDO, LTDC_G7, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, USART1_RXPB15TFBGA216, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

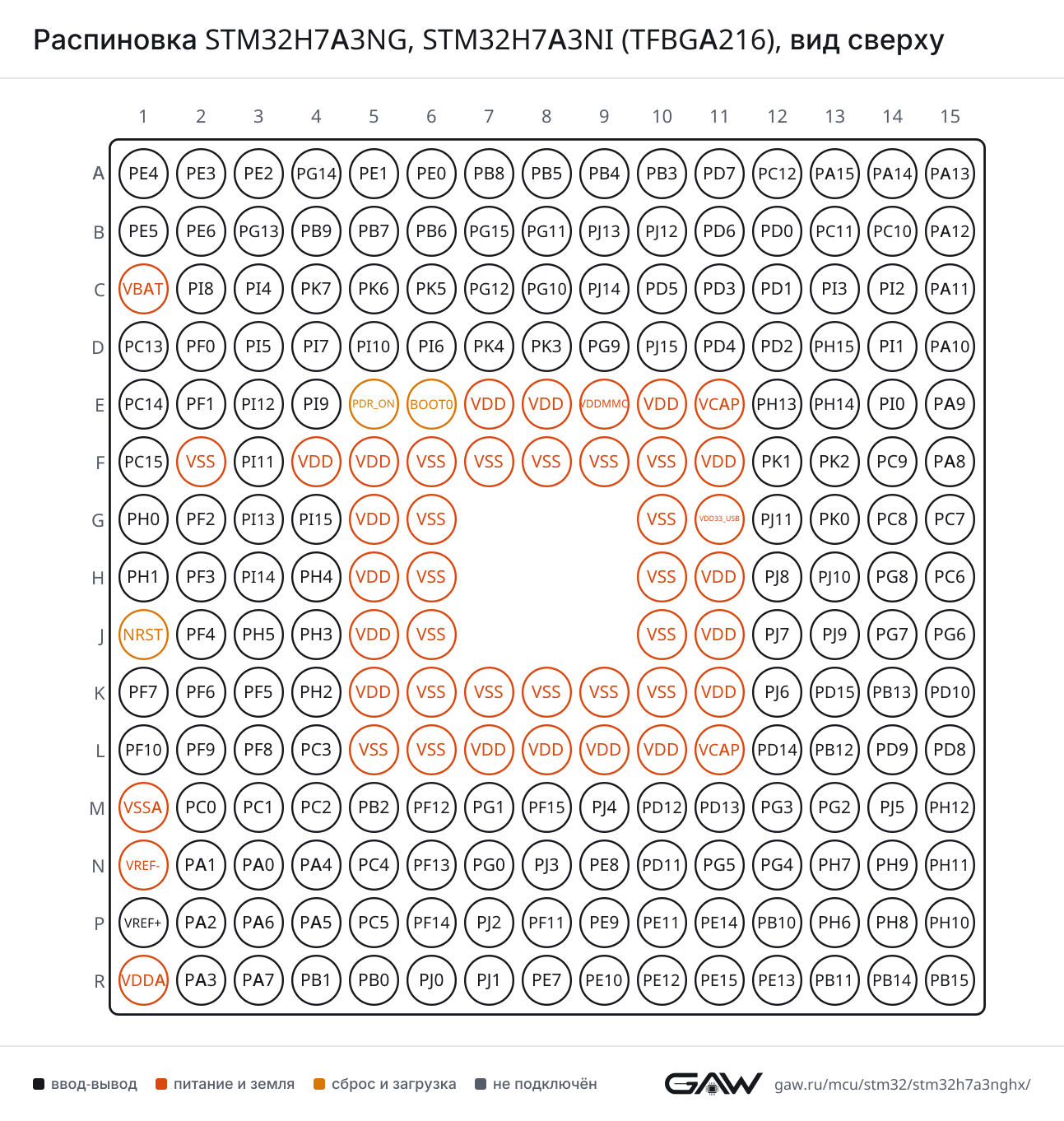

Распиновка STM32H7A3NG, STM32H7A3NI (TFBGA216), вид сверхуРаспиновка TFBGA216 картинкой
PNG, 1293 × 1362 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (F15, AF7)
CTSPA11 (C15, AF7)
DEPA12 (B15, AF7)
NSSPA11 (C15, AF7)
RTSPA12 (B15, AF7)
RXPB7 (B5, AF7), PA10 (D15, AF7), PB15 (R15, AF4)
TXPB6 (B6, AF7), PA9 (E15, AF7), PB14 (R14, AF4)
USART2CKPD7 (A11, AF7), PA4 (N4, AF7)
CTSPD3 (C11, AF7), PA0 (N3, AF7)
DEPD4 (D11, AF7), PA1 (N2, AF7)
NSSPD3 (C11, AF7), PA0 (N3, AF7)
RTSPD4 (D11, AF7), PA1 (N2, AF7)
RXPD6 (B11, AF7), PA3 (R2, AF7)
TXPD5 (C10, AF7), PA2 (P2, AF7)
USART3CKPC12 (A12, AF7), PD10 (K15, AF7), PB12 (L13, AF7)
CTSPB13 (K14, AF7), PD11 (N10, AF7)
DEPD12 (M10, AF7), PB14 (R14, AF7)
NSSPB13 (K14, AF7), PD11 (N10, AF7)
RTSPD12 (M10, AF7), PB14 (R14, AF7)
RXPC11 (B13, AF7), PD9 (L14, AF7), PB11 (R13, AF7)
TXPC10 (B14, AF7), PD8 (L15, AF7), PB10 (P12, AF7)
USART6CKPC8 (G14, AF7), PG7 (J14, AF7)
CTSPG13 (B3, AF7), PG15 (B7, AF7)
DEPG12 (C7, AF7), PG8 (H14, AF7)
NSSPG13 (B3, AF7), PG15 (B7, AF7)
RTSPG12 (C7, AF7), PG8 (H14, AF7)
RXPG9 (D9, AF7), PC7 (G15, AF7)
TXPG14 (A4, AF7), PC6 (H15, AF7)
USART10CKPG15 (B7, AF11), PE15 (R11, AF11)
CTSPG13 (B3, AF11)
DEPG14 (A4, AF11)
NSSPG13 (B3, AF11)
RTSPG14 (A4, AF11)
RXPE2 (A3, AF11), PG11 (B8, AF11)
TXPE3 (A2, AF11), PG12 (C7, AF11)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB0 (R5, AF8), PB15 (R15, AF8)
DEPA15 (A13, AF8), PB14 (R14, AF8)
RTSPA15 (A13, AF8), PB14 (R14, AF8)
RXPB8 (A7, AF8), PD0 (B12, AF8), PC11 (B13, AF8), PA11 (C15, AF6), PI9 (E4, AF8), PH14 (E13, AF8), PA1 (N2, AF8)
TXPB9 (B4, AF8), PC10 (B14, AF8), PA12 (B15, AF6), PD1 (C12, AF8), PH13 (E12, AF8), PA0 (N3, AF8)
UART5CTSPC9 (F14, AF8)
DEPC8 (G14, AF8)
RTSPC8 (G14, AF8)
RXPB5 (A8, AF14), PD2 (D12, AF8), PB12 (L13, AF14)
TXPC12 (A12, AF8), PB6 (B6, AF14), PB13 (K14, AF14)
UART7CTSPF9 (L2, AF7), PE10 (R9, AF7)
DEPF8 (L3, AF7), PE9 (P9, AF7)
RTSPF8 (L3, AF7), PE9 (P9, AF7)
RXPB3 (A10, AF11), PA8 (F15, AF11), PF6 (K2, AF7), PE7 (R8, AF7)
TXPB4 (A9, AF11), PA15 (A13, AF11), PF7 (K1, AF7), PE8 (N9, AF7)
UART8CTSPD14 (L12, AF8)
DEPD15 (K13, AF8)
RTSPD15 (K13, AF8)
RXPE0 (A6, AF8), PJ9 (J13, AF8)
TXPE1 (A5, AF8), PJ8 (H12, AF8)
UART9CTSPD0 (B12, AF11), PJ4 (M9, AF11)
DEPD13 (M11, AF11), PJ3 (N8, AF11)
RTSPD13 (M11, AF11), PJ3 (N8, AF11)
RXPD14 (L12, AF11), PG0 (N7, AF11)
TXPD15 (K13, AF11), PG1 (M7, AF11)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (C15, AF3)
DEPA12 (B15, AF3)
RTSPA12 (B15, AF3)
RXPB7 (B5, AF8), PA10 (D15, AF3)
TXPB6 (B6, AF8), PA9 (E15, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4 (A9, AF5), PG9 (D9, AF5), PA6 (P3, AF5)
MOSIPB5 (A8, AF5), PD7 (A11, AF5), PA7 (R3, AF5)
NSSPA15 (A13, AF5), PG10 (C8, AF5), PA4 (N4, AF5)
SCKPB3 (A10, AF5), PG11 (B8, AF5), PA5 (P4, AF5)
SPI2MISOPI2 (C14, AF5), PC2_C (M4, AF5), PB14 (R14, AF5)
MOSIPI3 (C13, AF5), PC3_C (L4, AF5), PC1 (M3, AF5), PB15 (R15, AF5)
NSSPB4 (A9, AF7), PB9 (B4, AF5), PA11 (C15, AF5), PI0 (E14, AF5), PB12 (L13, AF5)
SCKPA12 (B15, AF5), PD3 (C11, AF5), PI1 (D14, AF5), PA9 (E15, AF5), PB13 (K14, AF5), PB10 (P12, AF5)
SPI3MISOPB4 (A9, AF6), PC11 (B13, AF6)
MOSIPB5 (A8, AF7), PC12 (A12, AF6), PD6 (B11, AF5), PB2 (M5, AF7)
NSSPA15 (A13, AF6), PA4 (N4, AF6)
SCKPB3 (A10, AF6), PC10 (B14, AF6)
SPI4MISOPE5 (B1, AF5), PE13 (R12, AF5)
MOSIPE6 (B2, AF5), PE14 (P11, AF5)
NSSPE4 (A1, AF5), PE11 (P10, AF5)
SCKPE2 (A3, AF5), PE12 (R10, AF5)
SPI5MISOPJ11 (G12, AF5), PF8 (L3, AF5), PH7 (N13, AF5)
MOSIPJ10 (H13, AF5), PF9 (L2, AF5), PF11 (P8, AF5)
NSSPK1 (F12, AF5), PH5 (J3, AF5), PF6 (K2, AF5)
SCKPK0 (G13, AF5), PF7 (K1, AF5), PH6 (P13, AF5)
SPI6MISOPB4 (A9, AF8), PG12 (C7, AF5), PA6 (P3, AF8)
MOSIPG14 (A4, AF5), PB5 (A8, AF8), PA7 (R3, AF8)
NSSPA15 (A13, AF7), PG8 (H14, AF5), PA0 (N3, AF5), PA4 (N4, AF8)
SCKPB3 (A10, AF8), PC12 (A12, AF5), PG13 (B3, AF5), PA5 (P4, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (F14, AF5)
I2S1CKPB3 (A10, AF5), PG11 (B8, AF5), PA5 (P4, AF5)
MCKPC4 (N5, AF5)
SDIPB4 (A9, AF5), PG9 (D9, AF5), PA6 (P3, AF5)
SDOPB5 (A8, AF5), PD7 (A11, AF5), PA7 (R3, AF5)
WSPA15 (A13, AF5), PG10 (C8, AF5), PA4 (N4, AF5)
I2S2CKPA12 (B15, AF5), PD3 (C11, AF5), PI1 (D14, AF5), PA9 (E15, AF5), PB13 (K14, AF5), PB10 (P12, AF5)
MCKPC6 (H15, AF5)
SDIPI2 (C14, AF5), PC2_C (M4, AF5), PB14 (R14, AF5)
SDOPI3 (C13, AF5), PC3_C (L4, AF5), PC1 (M3, AF5), PB15 (R15, AF5)
WSPB4 (A9, AF7), PB9 (B4, AF5), PA11 (C15, AF5), PI0 (E14, AF5), PB12 (L13, AF5)
I2S3CKPB3 (A10, AF6), PC10 (B14, AF6)
MCKPC7 (G15, AF6)
SDIPB4 (A9, AF6), PC11 (B13, AF6)
SDOPB5 (A8, AF7), PC12 (A12, AF6), PD6 (B11, AF5), PB2 (M5, AF7)
WSPA15 (A13, AF6), PA4 (N4, AF6)
I2S6CKPB3 (A10, AF8), PC12 (A12, AF5), PG13 (B3, AF5), PA5 (P4, AF8)
MCKPA3 (R2, AF5)
SDIPB4 (A9, AF8), PG12 (C7, AF5), PA6 (P3, AF8)
SDOPG14 (A4, AF5), PB5 (A8, AF8), PA7 (R3, AF8)
WSPA15 (A13, AF7), PG8 (H14, AF5), PA0 (N3, AF5), PA4 (N4, AF8)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8 (A7, AF4), PB6 (B6, AF4)
SDAPB9 (B4, AF4), PB7 (B5, AF4)
SMBAPB5 (A8, AF4)
I2C2SCLPF1 (E2, AF4), PH4 (H4, AF4), PB10 (P12, AF4)
SDAPF0 (D2, AF4), PH5 (J3, AF4), PB11 (R13, AF4)
SMBAPF2 (G2, AF4), PB12 (L13, AF4), PH6 (P13, AF4)
I2C3SCLPA8 (F15, AF4), PH7 (N13, AF4)
SDAPC9 (F14, AF4), PH8 (P14, AF4)
SMBAPA9 (E15, AF4), PH9 (N14, AF4)
I2C4SCLPB8 (A7, AF6), PB6 (B6, AF6), PD12 (M10, AF4), PH11 (N15, AF4), PF14 (P6, AF4)
SDAPB9 (B4, AF6), PB7 (B5, AF6), PF15 (M8, AF4), PD13 (M11, AF4), PH12 (M15, AF4)
SMBAPB5 (A8, AF6), PB9 (B4, AF11), PF13 (N6, AF4), PD11 (N10, AF4), PH10 (P15, AF4)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPB8 (A7, AF9), PD0 (B12, AF9), PA11 (C15, AF9), PI9 (E4, AF9), PH14 (E13, AF9)
TXPB9 (B4, AF9), PA12 (B15, AF9), PD1 (C12, AF9), PH13 (E12, AF9)
FDCAN2RXPB5 (A8, AF9), PB12 (L13, AF9)
TXPB6 (B6, AF9), PB13 (K14, AF9)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPA11 (C15)
DPPA12 (B15)
IDPA10 (D15, AF10)
SOFPA8 (F15, AF10)
ULPI_CKPA5 (P4, AF10)
ULPI_D0PA3 (R2, AF10)
ULPI_D1PB0 (R5, AF10)
ULPI_D2PB1 (R4, AF10)
ULPI_D3PB10 (P12, AF10)
ULPI_D4PB11 (R13, AF10)
ULPI_D5PB12 (L13, AF10)
ULPI_D6PB13 (K14, AF10)
ULPI_D7PB5 (A8, AF10)
ULPI_DIRPI11 (F3, AF10), PC2_C (M4, AF10)
ULPI_NXTPH4 (H4, AF10), PC3_C (L4, AF10)
ULPI_STPPC0 (M2, AF10)
VBUSPA9 (E15)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (B4, AF7)
CKPC12 (A12, AF12)
CKINPB8 (A7, AF7)
CMDPD2 (D12, AF12)
D0PC8 (G14, AF12), PB13 (K14, AF12)
D0DIRPC6 (H15, AF8)
D1PC9 (F14, AF12)
D2PC10 (B14, AF12)
D3PC11 (B13, AF12)
D4PB8 (A7, AF12)
D5PB9 (B4, AF12)
D6PC6 (H15, AF12)
D7PC7 (G15, AF12)
D123DIRPC7 (G15, AF8)
SDMMC2CKPD6 (B11, AF11), PC1 (M3, AF9)
CMDPD7 (A11, AF11), PA0 (N3, AF9)
D0PG9 (D9, AF11), PB14 (R14, AF9)
D1PG10 (C8, AF11), PB15 (R15, AF9)
D2PB3 (A10, AF9), PG11 (B8, AF10)
D3PB4 (A9, AF9), PG12 (C7, AF10)
D4PB8 (A7, AF10)
D5PB9 (B4, AF10)
D6PG13 (B3, AF10), PC6 (H15, AF10)
D7PG14 (A4, AF10), PC7 (G15, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (A3, AF2)
CK2PE5 (B1, AF2)
D1PE6 (B2, AF2), PD6 (B11, AF2), PC1 (M3, AF2), PB2 (M5, AF2)
D2PE4 (A1, AF2)
D3PF10 (L1, AF2), PC5 (P5, AF2)
FS_APE4 (A1, AF6)
FS_BPF9 (L2, AF6)
MCLK_APE2 (A3, AF6), PG7 (J14, AF6)
MCLK_BPF7 (K1, AF6)
SCK_APE5 (B1, AF6)
SCK_BPF8 (L3, AF6)
SD_APE6 (B2, AF6), PD6 (B11, AF6), PC1 (M3, AF6), PB2 (M5, AF6)
SD_BPE3 (A2, AF6), PF6 (K2, AF6)
SAI2FS_API7 (D4, AF10), PD12 (M10, AF10)
FS_BPA12 (B15, AF8), PG9 (D9, AF10), PC0 (M2, AF8), PE13 (R12, AF10)
MCLK_APE0 (A6, AF10), PI4 (C3, AF10)
MCLK_BPE6 (B2, AF10), PH3 (J4, AF10), PA1 (N2, AF10), PE14 (P11, AF10)
SCK_API5 (D3, AF10), PD13 (M11, AF10)
SCK_BPH2 (K4, AF10), PA2 (P2, AF8), PE12 (R10, AF10)
SD_API6 (D6, AF10), PD11 (N10, AF10)
SD_BPG10 (C8, AF10), PA0 (N3, AF10), PF11 (P8, AF10), PE11 (P10, AF10)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRXIN0PD7 (A11), PG11 (B8)
IN1PG12 (C7), PD8 (L15)
IN2PG8 (H14), PC4 (N5)
IN3PG9 (D9), PC5 (P5)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15 (A13, AF4), PB6 (B6, AF5)

SWPMI — интерфейс Single Wire Protocol

БлокСигналВыводы
SWPMI1IOPC6 (H15)
RXPC10 (B14, AF11), PC8 (G14, AF11)
SUSPENDPC9 (F14, AF11)
TXPC7 (G15, AF11)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PG11 (B8), PC11 (B13), PA11 (C15), PI11 (F3), PJ11 (G12), PD11 (N10), PH11 (N15), PF11 (P8), PE11 (P10), PB11 (R13)
EXTI15PA15 (A13), PG15 (B7), PJ15 (D10), PH15 (D13), PC15-OSC32_OUT (F1), PI15 (G4), PD15 (K13), PF15 (M8), PE15 (R11), PB15 (R15)
INN2PF12 (M6)
INN3PA7 (R3)
INN4PC5 (P5)
INN5PB0 (R5)
INN10PC1 (M3)
INN16PA1 (N2)
INN18PA5 (P4)
INP2PF11 (P8)
INP3PA6 (P3)
INP4PC4 (N5)
INP5PB1 (R4)
INP6PF12 (M6)
INP7PA7 (R3)
INP8PC5 (P5)
INP9PB0 (R5)
INP10PC0 (M2)
INP11PC1 (M3)
INP14PA2 (P2)
INP15PA3 (R2)
INP16PA0 (N3)
INP17PA1 (N2)
INP18PA4 (N4)
INP19PA5 (P4)
ADC2EXTI11PG11 (B8), PC11 (B13), PA11 (C15), PI11 (F3), PJ11 (G12), PD11 (N10), PH11 (N15), PF11 (P8), PE11 (P10), PB11 (R13)
EXTI15PA15 (A13), PG15 (B7), PJ15 (D10), PH15 (D13), PC15-OSC32_OUT (F1), PI15 (G4), PD15 (K13), PF15 (M8), PE15 (R11), PB15 (R15)
INN1PC2_C (M4)
INN2PF14 (P6)
INN3PA7 (R3)
INN4PC5 (P5)
INN5PB0 (R5)
INN10PC1 (M3)
INP0PC2_C (M4)
INP1PC3_C (L4)
INP2PF13 (N6)
INP3PA6 (P3)
INP4PC4 (N5)
INP5PB1 (R4)
INP6PF14 (P6)
INP7PA7 (R3)
INP8PC5 (P5)
INP9PB0 (R5)
INP10PC0 (M2)
INP11PC1 (M3)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (B4), PG9 (D9), PI9 (E4), PA9 (E15), PC9 (F14), PJ9 (J13), PF9 (L2), PD9 (L14), PH9 (N14), PE9 (P9)
OUT1PA4 (N4)
OUT2PA5 (P4)
DAC2OUT1PA6 (P3)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPC4 (N5), PB1 (R4)
INPPB2 (M5), PB0 (R5)
OUTPC5 (P5, AF13), PE12 (R10, AF13)
COMP2INMPE7 (R8), PE10 (R9)
INPPE9 (P9), PE11 (P10)
OUTPE8 (N9, AF13), PE13 (R12, AF13)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPC5 (P5), PA7 (R3)
VINPPB0 (R5)
VOUTPC4 (N5)
OPAMP2VINMPG1 (M7), PE8 (N9)
VINPPE9 (P9)
VOUTPE7 (R8)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (P1)

TIM — таймер

БлокСигналВыводы
TIM1BKINPK2 (F13, AF1), PB12 (L13, AF1), PA6 (P3, AF1), PE15 (R11, AF1)
BKIN_COMP1PK2 (F13, AF11), PB12 (L13, AF13), PA6 (P3, AF12), PE15 (R11, AF13)
BKIN_COMP2PK2 (F13, AF11), PB12 (L13, AF13), PA6 (P3, AF12), PE15 (R11, AF13)
BKIN2PE6 (B2, AF1), PG4 (N12, AF1)
BKIN2_COMP1PE6 (B2, AF11), PG4 (N12, AF11)
BKIN2_COMP2PE6 (B2, AF11), PG4 (N12, AF11)
CH1PK1 (F12, AF1), PA8 (F15, AF1), PE9 (P9, AF1)
CH1NPK0 (G13, AF1), PB13 (K14, AF1), PE8 (N9, AF1), PA7 (R3, AF1)
CH2PA9 (E15, AF1), PJ11 (G12, AF1), PE11 (P10, AF1)
CH2NPJ10 (H13, AF1), PB0 (R5, AF1), PE10 (R9, AF1), PB14 (R14, AF1)
CH3PA10 (D15, AF1), PJ9 (J13, AF1), PE13 (R12, AF1)
CH3NPJ8 (H12, AF1), PB1 (R4, AF1), PE12 (R10, AF1), PB15 (R15, AF1)
CH4PA11 (C15, AF1), PE14 (P11, AF1)
ETRPA12 (B15, AF1), PG5 (N11, AF1), PE7 (R8, AF1)
TIM2CH1PA15 (A13, AF1), PA0 (N3, AF1), PA5 (P4, AF1)
CH2PB3 (A10, AF1), PA1 (N2, AF1)
CH3PA2 (P2, AF1), PB10 (P12, AF1)
CH4PA3 (R2, AF1), PB11 (R13, AF1)
ETRPA15 (A13, AF1), PA0 (N3, AF1), PA5 (P4, AF1)
TIM3CH1PB4 (A9, AF2), PC6 (H15, AF2), PA6 (P3, AF2)
CH2PB5 (A8, AF2), PC7 (G15, AF2), PA7 (R3, AF2)
CH3PC8 (G14, AF2), PB0 (R5, AF2)
CH4PC9 (F14, AF2), PB1 (R4, AF2)
ETRPD2 (D12, AF2)
TIM4CH1PB6 (B6, AF2), PD12 (M10, AF2)
CH2PB7 (B5, AF2), PD13 (M11, AF2)
CH3PB8 (A7, AF2), PD14 (L12, AF2)
CH4PB9 (B4, AF2), PD15 (K13, AF2)
ETRPE0 (A6, AF2)
TIM5CH1PA0 (N3, AF2), PH10 (P15, AF2)
CH2PA1 (N2, AF2), PH11 (N15, AF2)
CH3PH12 (M15, AF2), PA2 (P2, AF2)
CH4PI0 (E14, AF2), PA3 (R2, AF2)
ETRPA4 (N4, AF2), PH8 (P14, AF2)
TIM8BKINPI4 (C3, AF3), PK2 (F13, AF3), PG2 (M13, AF3), PA6 (P3, AF3)
BKIN_COMP1PI4 (C3, AF11), PK2 (F13, AF10), PG2 (M13, AF11), PA6 (P3, AF10)
BKIN_COMP2PI4 (C3, AF11), PK2 (F13, AF10), PG2 (M13, AF11), PA6 (P3, AF10)
BKIN2PI1 (D14, AF3), PA8 (F15, AF3), PG3 (M12, AF3)
BKIN2_COMP1PI1 (D14, AF11), PA8 (F15, AF12), PG3 (M12, AF11)
BKIN2_COMP2PI1 (D14, AF11), PA8 (F15, AF12), PG3 (M12, AF11)
CH1PI5 (D3, AF3), PJ8 (H12, AF3), PC6 (H15, AF3)
CH1NPH13 (E12, AF3), PJ9 (J13, AF3), PA5 (P4, AF3), PA7 (R3, AF3)
CH2PI6 (D6, AF3), PC7 (G15, AF3), PJ10 (H13, AF3), PJ6 (K12, AF3)
CH2NPH14 (E13, AF3), PJ11 (G12, AF3), PJ7 (J12, AF3), PB0 (R5, AF3), PB14 (R14, AF3)
CH3PI7 (D4, AF3), PK0 (G13, AF3), PC8 (G14, AF3)
CH3NPH15 (D13, AF3), PK1 (F12, AF3), PB1 (R4, AF3), PB15 (R15, AF3)
CH4PI2 (C14, AF3), PC9 (F14, AF3)
ETRPI3 (C13, AF3), PG8 (H14, AF3), PA0 (N3, AF3)
TIM12CH1PH6 (P13, AF2), PB14 (R14, AF2)
CH2PH9 (N14, AF2), PB15 (R15, AF2)
TIM13CH1PF8 (L3, AF9), PA6 (P3, AF9)
TIM14CH1PF9 (L2, AF9), PA7 (R3, AF9)
TIM15BKINPE3 (A2, AF4), PD2 (D12, AF4), PA0 (N3, AF4)
CH1PC12 (A12, AF2), PE5 (B1, AF4), PA2 (P2, AF4)
CH1NPE4 (A1, AF4), PA1 (N2, AF4)
CH2PE6 (B2, AF4), PA3 (R2, AF4)
TIM16BKINPB4 (A9, AF1), PF10 (L1, AF1)
CH1PB8 (A7, AF1), PF6 (K2, AF1)
CH1NPB6 (B6, AF1), PF8 (L3, AF1)
TIM17BKINPB5 (A8, AF1), PG6 (J15, AF1)
CH1PB9 (B4, AF1), PF7 (K1, AF1)
CH1NPB7 (B5, AF1), PF9 (L2, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPG14 (A4, AF1), PE0 (A6, AF1)
IN1PG12 (C7, AF1), PD12 (M10, AF1)
IN2PE1 (A5, AF1), PG11 (B8, AF1), PH2 (K4, AF1)
OUTPG13 (B3, AF1), PD13 (M11, AF1)
LPTIM2ETRPE0 (A6, AF4), PB11 (R13, AF3)
IN1PD12 (M10, AF3), PB10 (P12, AF3)
IN2PD11 (N10, AF3)
OUTPB13 (K14, AF3)
LPTIM3OUTPA1 (N2, AF3)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT_ALARMPI8 (C2), PC13 (D1), PB2 (M5, AF0)
OUT_CALIBPC13 (D1), PB2 (M5)
REFINPB15 (R15, AF0)
TSPC13 (D1)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (D2, AF12)
A1PF1 (E2, AF12)
A2PF2 (G2, AF12)
A3PF3 (H2, AF12)
A4PF4 (J2, AF12)
A5PF5 (K3, AF12)
A6PF12 (M6, AF12)
A7PF13 (N6, AF12)
A8PF14 (P6, AF12)
A9PF15 (M8, AF12)
A10PG0 (N7, AF12)
A11PG1 (M7, AF12)
A12PG2 (M13, AF12)
A13PG3 (M12, AF12)
A14PG4 (N12, AF12)
A15PG5 (N11, AF12)
A16PD11 (N10, AF12)
A17PD12 (M10, AF12)
A18PD13 (M11, AF12)
A19PE3 (A2, AF12)
A20PE4 (A1, AF12)
A21PE5 (B1, AF12)
A22PE6 (B2, AF12)
A23PE2 (A3, AF12)
A24PG13 (B3, AF12)
A25PG14 (A4, AF12), PC0 (M2, AF9)
ALEPD12 (M10, AF12)
BA0PG4 (N12, AF12)
BA1PG5 (N11, AF12)
CLEPD11 (N10, AF12)
CLKPD3 (C11, AF12)
D0PD14 (L12, AF12)
D1PD15 (K13, AF12)
D2PD0 (B12, AF12)
D3PD1 (C12, AF12)
D4PE7 (R8, AF12)
D5PE8 (N9, AF12)
D6PE9 (P9, AF12)
D7PE10 (R9, AF12)
D8PE11 (P10, AF12)
D9PE12 (R10, AF12)
D10PE13 (R12, AF12)
D11PE14 (P11, AF12)
D12PE15 (R11, AF12)
D13PD8 (L15, AF12)
D14PD9 (L14, AF12)
D15PD10 (K15, AF12)
D16PH8 (P14, AF12)
D17PH9 (N14, AF12)
D18PH10 (P15, AF12)
D19PH11 (N15, AF12)
D20PH12 (M15, AF12)
D21PH13 (E12, AF12)
D22PH14 (E13, AF12)
D23PH15 (D13, AF12)
D24PI0 (E14, AF12)
D25PI1 (D14, AF12)
D26PI2 (C14, AF12)
D27PI3 (C13, AF12)
D28PI6 (D6, AF12)
D29PI7 (D4, AF12)
D30PI9 (E4, AF12)
D31PI10 (D5, AF12)
DA0PD14 (L12, AF12)
DA1PD15 (K13, AF12)
DA2PD0 (B12, AF12)
DA3PD1 (C12, AF12)
DA4PE7 (R8, AF12)
DA5PE8 (N9, AF12)
DA6PE9 (P9, AF12)
DA7PE10 (R9, AF12)
DA8PE11 (P10, AF12)
DA9PE12 (R10, AF12)
DA10PE13 (R12, AF12)
DA11PE14 (P11, AF12)
DA12PE15 (R11, AF12)
DA13PD8 (L15, AF12)
DA14PD9 (L14, AF12)
DA15PD10 (K15, AF12)
INTPC8 (G14, AF10), PG7 (J14, AF12)
NBL0PE0 (A6, AF12)
NBL1PE1 (A5, AF12)
NBL2PI4 (C3, AF12)
NBL3PI5 (D3, AF12)
NCEPG9 (D9, AF12), PC8 (G14, AF9)
NE1PD7 (A11, AF12), PC7 (G15, AF9)
NE2PG9 (D9, AF12), PC8 (G14, AF9)
NE3PG10 (C8, AF12), PG6 (J15, AF12)
NE4PG12 (C7, AF12)
NLPB7 (B5, AF12)
NOEPD4 (D11, AF12)
NWAITPD6 (B11, AF12), PC6 (H15, AF9)
NWEPD5 (C10, AF12)
SDCKE0PH2 (K4, AF12), PC3_C (L4, AF12), PC5 (P5, AF12)
SDCKE1PB5 (A8, AF12), PH7 (N13, AF12)
SDCLKPG8 (H14, AF12)
SDNCASPG15 (B7, AF12)
SDNE0PH3 (J4, AF12), PC2_C (M4, AF12), PC4 (N5, AF12)
SDNE1PB6 (B6, AF12), PH6 (P13, AF12)
SDNRASPF11 (P8, AF12)
SDNWEPH5 (J3, AF12), PC0 (M2, AF12), PA7 (R3, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (E15, AF13), PC6 (H15, AF13), PH9 (N14, AF13)
D1PA10 (D15, AF13), PC7 (G15, AF13), PH10 (P15, AF13)
D2PE0 (A6, AF13), PG10 (C8, AF13), PC8 (G14, AF13), PB13 (K14, AF13), PH11 (N15, AF13)
D3PE1 (A5, AF13), PG11 (B8, AF13), PC9 (F14, AF13), PH12 (M15, AF13)
D4PE4 (A1, AF13), PC11 (B13, AF13), PH14 (E13, AF13)
D5PB6 (B6, AF13), PI4 (C3, AF13), PD3 (C11, AF13)
D6PB8 (A7, AF13), PE5 (B1, AF13), PI6 (D6, AF13)
D7PE6 (B2, AF13), PB9 (B4, AF13), PI7 (D4, AF13)
D8PC10 (B14, AF13), PI1 (D14, AF13), PH6 (P13, AF13)
D9PC12 (A12, AF13), PI2 (C14, AF13), PH7 (N13, AF13)
D10PB5 (A8, AF13), PD6 (B11, AF13), PI3 (C13, AF13)
D11PD2 (D12, AF13), PH15 (D13, AF13), PF10 (L1, AF13)
D12PG6 (J15, AF13), PD12 (M10, AF13), PF11 (P8, AF13)
D13PG15 (B7, AF13), PI0 (E14, AF13), PG7 (J14, AF13), PD13 (M11, AF13)
HSYNCPA4 (N4, AF13), PH8 (P14, AF13)
PIXCLKPA6 (P3, AF13)
VSYNCPB7 (B5, AF13), PI5 (D3, AF13), PG9 (D9, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (E15, AF13), PC6 (H15, AF13), PH9 (N14, AF13)
D1PA10 (D15, AF13), PC7 (G15, AF13), PH10 (P15, AF13)
D2PE0 (A6, AF13), PG10 (C8, AF13), PC8 (G14, AF13), PB13 (K14, AF13), PH11 (N15, AF13)
D3PE1 (A5, AF13), PG11 (B8, AF13), PC9 (F14, AF13), PH12 (M15, AF13)
D4PE4 (A1, AF13), PC11 (B13, AF13), PH14 (E13, AF13)
D5PB6 (B6, AF13), PI4 (C3, AF13), PD3 (C11, AF13)
D6PB8 (A7, AF13), PE5 (B1, AF13), PI6 (D6, AF13)
D7PE6 (B2, AF13), PB9 (B4, AF13), PI7 (D4, AF13)
D8PC10 (B14, AF13), PI1 (D14, AF13), PH6 (P13, AF13)
D9PC12 (A12, AF13), PI2 (C14, AF13), PH7 (N13, AF13)
D10PB5 (A8, AF13), PD6 (B11, AF13), PI3 (C13, AF13)
D11PD2 (D12, AF13), PH15 (D13, AF13), PF10 (L1, AF13)
D12PG6 (J15, AF13), PD12 (M10, AF13), PF11 (P8, AF13)
D13PG15 (B7, AF13), PI0 (E14, AF13), PG7 (J14, AF13), PD13 (M11, AF13)
D14PI10 (D5, AF13), PH4 (H4, AF13), PA5 (P4, AF13)
D15PI11 (F3, AF13), PF10 (L1, AF4), PC5 (P5, AF4)
DEPA4 (N4, AF13), PH8 (P14, AF13)
PDCKPA6 (P3, AF13)
RDYPB7 (B5, AF13), PI5 (D3, AF13), PG9 (D9, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PE4 (A1, AF14), PG14 (A4, AF14), PJ12 (B10, AF14)
B1PJ13 (B9, AF14), PD0 (B12, AF14), PC10 (B14, AF10), PG12 (C7, AF14), PA10 (D15, AF14)
B2PD6 (B11, AF14), PG10 (C8, AF14), PJ14 (C9, AF14), PD2 (D12, AF14), PC9 (F14, AF14), PA3 (R2, AF9)
B3PG11 (B8, AF14), PJ15 (D10, AF14), PA8 (F15, AF13), PD10 (K15, AF14)
B4PJ13 (B9, AF9), PC11 (B13, AF14), PI4 (C3, AF14), PG12 (C7, AF9), PK3 (D8, AF14), PA10 (D15, AF12), PE12 (R10, AF14)
B5PB5 (A8, AF11), PI5 (D3, AF14), PK4 (D7, AF14), PA3 (R2, AF14)
B6PB8 (A7, AF14), PA15 (A13, AF14), PK5 (C6, AF14), PI6 (D6, AF14)
B7PB9 (B4, AF14), PK6 (C5, AF14), PI7 (D4, AF14), PD2 (D12, AF9)
CLKPI14 (H3, AF14), PG7 (J14, AF14), PE14 (P11, AF14), PB14 (R14, AF14)
DEPK7 (C4, AF14), PF10 (L1, AF14), PC5 (P5, AF14), PE13 (R12, AF14)
G0PE5 (B1, AF14), PJ7 (J12, AF14), PB1 (R4, AF14)
G1PE6 (B2, AF14), PJ8 (H12, AF14), PB0 (R5, AF14)
G2PH13 (E12, AF14), PI15 (G4, AF9), PJ9 (J13, AF14), PC0 (M2, AF11), PA6 (P3, AF14)
G3PJ12 (B10, AF9), PG10 (C8, AF9), PH14 (E13, AF14), PC9 (F14, AF10), PJ10 (H13, AF14), PE11 (P10, AF14)
G4PH15 (D13, AF14), PJ11 (G12, AF14), PH4 (H4, AF14), PB10 (P12, AF14)
G5PI0 (E14, AF14), PK0 (G13, AF14), PH4 (H4, AF9), PC1 (M3, AF14), PB11 (R13, AF14)
G6PI1 (D14, AF14), PI11 (F3, AF9), PK1 (F12, AF14), PC7 (G15, AF14)
G7PD3 (C11, AF14), PI2 (C14, AF14), PK2 (F13, AF14), PG8 (H14, AF14), PB15 (R15, AF14)
HSYNCPI10 (D5, AF14), PI12 (E3, AF14), PC6 (H15, AF14)
R0PE0 (A6, AF14), PG13 (B3, AF14), PI15 (G4, AF14), PH2 (K4, AF14)
R1PH3 (J4, AF14), PA2 (P2, AF14), PJ0 (R6, AF14)
R2PC10 (B14, AF14), PA1 (N2, AF14), PH8 (P14, AF14), PJ1 (R7, AF14)
R3PA15 (A13, AF9), PH9 (N14, AF14), PJ2 (P7, AF14), PB0 (R5, AF9)
R4PA11 (C15, AF14), PJ3 (N8, AF14), PA5 (P4, AF14), PH10 (P15, AF14)
R5PA12 (B15, AF14), PA9 (E15, AF14), PC0 (M2, AF14), PJ4 (M9, AF14), PH11 (N15, AF14)
R6PE1 (A5, AF14), PC12 (A12, AF14), PA8 (F15, AF14), PJ5 (M14, AF14), PH12 (M15, AF14), PB1 (R4, AF9)
R7PG6 (J15, AF14), PJ6 (K12, AF14), PC4 (N5, AF14), PJ0 (R6, AF9), PE15 (R11, AF14)
VSYNCPI9 (E4, AF14), PI13 (G3, AF14), PA4 (N4, AF14), PA7 (R3, AF14)

DFSDM — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
DFSDM1CKIN0PC0 (M2, AF3)
CKIN1PD7 (A11, AF6), PB13 (K14, AF6), PC2_C (M4, AF3), PB2 (M5, AF4)
CKIN2PC4 (N5, AF3), PE8 (N9, AF3), PB15 (R15, AF6)
CKIN3PE5 (B1, AF3), PC6 (H15, AF4), PD8 (L15, AF3)
CKIN4PD6 (B11, AF3), PC1 (M3, AF4), PE11 (P10, AF3)
CKIN5PB7 (B5, AF11), PC10 (B14, AF3), PE13 (R12, AF3)
CKIN6PD0 (B12, AF3), PF14 (P6, AF3)
CKIN7PB8 (A7, AF3), PB11 (R13, AF6)
CKOUTPD3 (C11, AF3), PD10 (K15, AF3), PC2_C (M4, AF6), PE9 (P9, AF3), PB0 (R5, AF6)
DATIN0PC1 (M3, AF3)
DATIN1PD6 (B11, AF4), PC3_C (L4, AF3), PB12 (L13, AF6), PB1 (R4, AF6)
DATIN2PC5 (P5, AF3), PE7 (R8, AF3), PB14 (R14, AF6)
DATIN3PE4 (A1, AF3), PC7 (G15, AF4), PD9 (L14, AF3)
DATIN4PD7 (A11, AF3), PC0 (M2, AF6), PE10 (R9, AF3)
DATIN5PB6 (B6, AF11), PC11 (B13, AF3), PE12 (R10, AF3)
DATIN6PD1 (C12, AF3), PF13 (N6, AF3)
DATIN7PB9 (B4, AF3), PB10 (P12, AF6)
DFSDM2CKIN0PC10 (B14, AF4)
CKIN1PB13 (K14, AF4), PA2 (P2, AF6)
CKOUTPC12 (A12, AF4), PD10 (K15, AF4), PB0 (R5, AF4)
DATIN0PC11 (B13, AF4)
DATIN1PB12 (L13, AF11), PA7 (R3, AF4)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (A14, AF0)
JTDIPA15 (A13, AF0)
JTDO-SWOPB3 (A10, AF0)
JTMS-SWDIOPA13 (A15, AF0)
NJTRSTPB4 (A9, AF0)
TRACECLKPE2 (A3, AF0)
TRACED0PE3 (A2, AF0), PG13 (B3, AF0), PC1 (M3, AF0)
TRACED1PE4 (A1, AF0), PG14 (A4, AF0), PC8 (G14, AF0)
TRACED2PE5 (B1, AF0), PD2 (D12, AF0)
TRACED3PC12 (A12, AF0), PE6 (B2, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (F15, AF0)
MCO_2PC9 (F14, AF0)
OSC_INPH0-OSC_IN (G1)
OSC_OUTPH1-OSC_OUT (H1)
OSC32_INPC14-OSC32_IN (E1)
OSC32_OUTPC15-OSC32_OUT (F1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC3_C (L4, AF0)
PWR_CSTOPPC2_C (M4, AF0)
PWR_WKUP1PA0 (N3)
PWR_WKUP2PA2 (P2)
PWR_WKUP3PI8 (C2)
PWR_WKUP4PC13 (D1)
PWR_WKUP5PI11 (F3)
PWR_WKUP6PC1 (M3)
RTC_TAMP1PC13 (D1)
RTC_TAMP2PI8 (C2)
RTC_TAMP3PC1 (M3)

Блоки без собственных выводов: USB_OTG_HS1 (USB On-The-Go High Speed), OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), HDMI_CEC (шина управления HDMI), TIM6 (таймер), TIM7 (таймер), IWDG1 (независимый сторожевой таймер), WWDG1 (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), DMA2D (графический ускоритель Chrom-ART).

Таблица выводов

Все 216 шариков корпуса TFBGA216 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), DFSDM1_DATIN3 (AF3), FMC_A20 (AF12), LTDC_B0 (AF14), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TIM15_CH1N (AF4)
A2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), TIM15_BKIN (AF4), USART10_TX (AF11)
A3PE2ввод-выводDEBUG_TRACECLK (AF0), FMC_A23 (AF12), OCTOSPIM_P1_IO2 (AF9), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), USART10_RX (AF11)
A4PG14ввод-выводDEBUG_TRACED1 (AF0), FMC_A25 (AF12), I2S6_SDO (AF5), LPTIM1_ETR (AF1), LTDC_B0 (AF14), OCTOSPIM_P1_IO7 (AF9), SDMMC2_D7 (AF10), SPI6_MOSI (AF5), USART10_DE (AF11), USART10_RTS (AF11), USART6_TX (AF7)
A5PE1ввод-выводDCMI_D3 (AF13), FMC_NBL1 (AF12), LPTIM1_IN2 (AF1), LTDC_R6 (AF14), PSSI_D3 (AF13), UART8_TX (AF8)
A6PE0ввод-выводDCMI_D2 (AF13), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_ETR (AF4), LTDC_R0 (AF14), PSSI_D2 (AF13), SAI2_MCLK_A (AF10), TIM4_ETR (AF2), UART8_RX (AF8)
A7PB8ввод-выводDCMI_D6 (AF13), DFSDM1_CKIN7 (AF3), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), LTDC_B6 (AF14), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
A8PB5ввод-выводDCMI_D10 (AF13), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), I2S6_SDO (AF8), LTDC_B5 (AF11), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14), USB_OTG_HS_ULPI_D7 (AF10)
A9PB4ввод-выводDEBUG_NJTRST (AF0), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), I2S6_SDI (AF8), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
A10PB3ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2S1_CK (AF5), I2S3_CK (AF6), I2S6_CK (AF8), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART7_RX (AF11)
A11PD7ввод-выводDFSDM1_CKIN1 (AF6), DFSDM1_DATIN4 (AF3), FMC_NE1 (AF12), I2S1_SDO (AF5), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), SPDIFRX_IN0, SPI1_MOSI (AF5), USART2_CK (AF7)
A12PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), DFSDM2_CKOUT (AF4), I2S3_SDO (AF6), I2S6_CK (AF5), LTDC_R6 (AF14), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
A13PA15ввод-выводADC1_EXTI15, ADC2_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF7), LTDC_B6 (AF14), LTDC_R3 (AF9), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF1), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
A14PA14ввод-выводDEBUG_JTCK-SWCLK (AF0)
A15PA13ввод-выводDEBUG_JTMS-SWDIO (AF0)
B1PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), DFSDM1_CKIN3 (AF3), FMC_A21 (AF12), LTDC_G0 (AF14), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TIM15_CH1 (AF4)
B2PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF14), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM15_CH2 (AF4), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
B3PG13ввод-выводDEBUG_TRACED0 (AF0), FMC_A24 (AF12), I2S6_CK (AF5), LPTIM1_OUT (AF1), LTDC_R0 (AF14), SDMMC2_D6 (AF10), SPI6_SCK (AF5), USART10_CTS (AF11), USART10_NSS (AF11), USART6_CTS (AF7), USART6_NSS (AF7)
B4PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), DFSDM1_DATIN7 (AF3), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2C4_SMBA (AF11), I2S2_WS (AF5), LTDC_B7 (AF14), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
B5PB7ввод-выводDCMI_VSYNC (AF13), DFSDM1_CKIN5 (AF11), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), LPUART1_RX (AF8), PSSI_RDY (AF13), PWR_PVD_IN, TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
B6PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), DFSDM1_DATIN5 (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), I2C1_SCL (AF4), I2C4_SCL (AF6), LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
B7PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), OCTOSPIM_P2_DQS (AF9), PSSI_D13 (AF13), USART10_CK (AF11), USART6_CTS (AF7), USART6_NSS (AF7)
B8PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D3 (AF13), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B3 (AF14), OCTOSPIM_P2_IO7 (AF9), PSSI_D3 (AF13), SDMMC2_D2 (AF10), SPDIFRX_IN0, SPI1_SCK (AF5), USART10_RX (AF11)
B9PJ13ввод-выводLTDC_B1 (AF14), LTDC_B4 (AF9)
B10PJ12ввод-выводDEBUG_TRGOUT (AF0), LTDC_B0 (AF14), LTDC_G3 (AF9)
B11PD6ввод-выводDCMI_D10 (AF13), DFSDM1_CKIN4 (AF3), DFSDM1_DATIN1 (AF4), FMC_NWAIT (AF12), I2S3_SDO (AF5), LTDC_B2 (AF14), OCTOSPIM_P1_IO6 (AF10), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
B12PD0ввод-выводDFSDM1_CKIN6 (AF3), FDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), LTDC_B1 (AF14), UART4_RX (AF8), UART9_CTS (AF11)
B13PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D4 (AF13), DFSDM1_DATIN5 (AF3), DFSDM2_DATIN0 (AF4), I2S3_SDI (AF6), LTDC_B4 (AF14), OCTOSPIM_P1_NCS (AF9), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
B14PC10ввод-выводDCMI_D8 (AF13), DFSDM1_CKIN5 (AF3), DFSDM2_CKIN0 (AF4), I2S3_CK (AF6), LTDC_B1 (AF10), LTDC_R2 (AF14), OCTOSPIM_P1_IO1 (AF9), PSSI_D8 (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), SWPMI1_RX (AF11), UART4_TX (AF8), USART3_TX (AF7)
B15PA12ввод-выводFDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R5 (AF14), SAI2_FS_B (AF8), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_HS_DP
C1VBATпитание—
C2PI8ввод-выводPWR_WKUP3, RTC_OUT_ALARM, RTC_TAMP2
C3PI4ввод-выводDCMI_D5 (AF13), FMC_NBL2 (AF12), LTDC_B4 (AF14), PSSI_D5 (AF13), SAI2_MCLK_A (AF10), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
C4PK7ввод-выводLTDC_DE (AF14)
C5PK6ввод-выводLTDC_B7 (AF14), OCTOSPIM_P2_DQS (AF3)
C6PK5ввод-выводLTDC_B6 (AF14), OCTOSPIM_P2_NCS (AF3)
C7PG12ввод-выводFMC_NE4 (AF12), I2S6_SDI (AF5), LPTIM1_IN1 (AF1), LTDC_B1 (AF14), LTDC_B4 (AF9), OCTOSPIM_P2_NCS (AF3), SDMMC2_D3 (AF10), SPDIFRX_IN1, SPI6_MISO (AF5), USART10_TX (AF11), USART6_DE (AF7), USART6_RTS (AF7)
C8PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), I2S1_WS (AF5), LTDC_B2 (AF14), LTDC_G3 (AF9), OCTOSPIM_P2_IO6 (AF3), PSSI_D2 (AF13), SAI2_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5)
C9PJ14ввод-выводLTDC_B2 (AF14)
C10PD5ввод-выводFMC_NWE (AF12), OCTOSPIM_P1_IO5 (AF10), USART2_TX (AF7)
C11PD3ввод-выводDCMI_D5 (AF13), DFSDM1_CKOUT (AF3), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_G7 (AF14), PSSI_D5 (AF13), SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
C12PD1ввод-выводDFSDM1_DATIN6 (AF3), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), UART4_TX (AF8)
C13PI3ввод-выводDCMI_D10 (AF13), FMC_D27 (AF12), I2S2_SDO (AF5), PSSI_D10 (AF13), SPI2_MOSI (AF5), TIM8_ETR (AF3)
C14PI2ввод-выводDCMI_D9 (AF13), FMC_D26 (AF12), I2S2_SDI (AF5), LTDC_G7 (AF14), PSSI_D9 (AF13), SPI2_MISO (AF5), TIM8_CH4 (AF3)
C15PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX (AF9), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R4 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_HS_DM
D1PC13ввод-выводPWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS
D2PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), OCTOSPIM_P2_IO0 (AF9)
D3PI5ввод-выводDCMI_VSYNC (AF13), FMC_NBL3 (AF12), LTDC_B5 (AF14), PSSI_RDY (AF13), SAI2_SCK_A (AF10), TIM8_CH1 (AF3)
D4PI7ввод-выводDCMI_D7 (AF13), FMC_D29 (AF12), LTDC_B7 (AF14), PSSI_D7 (AF13), SAI2_FS_A (AF10), TIM8_CH3 (AF3)
D5PI10ввод-выводFMC_D31 (AF12), LTDC_HSYNC (AF14), OCTOSPIM_P2_IO1 (AF3), PSSI_D14 (AF13)
D6PI6ввод-выводDCMI_D6 (AF13), FMC_D28 (AF12), LTDC_B6 (AF14), PSSI_D6 (AF13), SAI2_SD_A (AF10), TIM8_CH2 (AF3)
D7PK4ввод-выводLTDC_B5 (AF14), OCTOSPIM_P2_IO7 (AF3)
D8PK3ввод-выводLTDC_B4 (AF14), OCTOSPIM_P2_IO6 (AF3)
D9PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), OCTOSPIM_P1_IO6 (AF9), PSSI_RDY (AF13), SAI2_FS_B (AF10), SDMMC2_D0 (AF11), SPDIFRX_IN3, SPI1_MISO (AF5), USART6_RX (AF7)
D10PJ15ввод-выводADC1_EXTI15, ADC2_EXTI15, LTDC_B3 (AF14)
D11PD4ввод-выводFMC_NOE (AF12), OCTOSPIM_P1_IO4 (AF10), USART2_DE (AF7), USART2_RTS (AF7)
D12PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), LTDC_B2 (AF14), LTDC_B7 (AF9), PSSI_D11 (AF13), SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
D13PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMI_D11 (AF13), FMC_D23 (AF12), LTDC_G4 (AF14), PSSI_D11 (AF13), TIM8_CH3N (AF3)
D14PI1ввод-выводDCMI_D8 (AF13), FMC_D25 (AF12), I2S2_CK (AF5), LTDC_G6 (AF14), PSSI_D8 (AF13), SPI2_SCK (AF5), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
D15PA10ввод-выводDCMI_D1 (AF13), LPUART1_RX (AF3), LTDC_B1 (AF14), LTDC_B4 (AF12), MDIOS_MDIO (AF11), PSSI_D1 (AF13), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_HS_ID (AF10)
E1PC14-OSC32_INввод-выводRCC_OSC32_IN
E2PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), OCTOSPIM_P2_IO1 (AF9)
E3PI12ввод-выводLTDC_HSYNC (AF14), OCTOSPIM_P2_IO3 (AF3)
E4PI9ввод-выводDAC1_EXTI9, FDCAN1_RX (AF9), FMC_D30 (AF12), LTDC_VSYNC (AF14), OCTOSPIM_P2_IO0 (AF3), UART4_RX (AF8)
E5PDR_ONсброс—
E6BOOT0загрузка—
E7VDDпитание—
E8VDDпитание—
E9VDDMMCпитание—
E10VDDпитание—
E11VCAPпитание—
E12PH13ввод-выводFDCAN1_TX (AF9), FMC_D21 (AF12), LTDC_G2 (AF14), TIM8_CH1N (AF3), UART4_TX (AF8)
E13PH14ввод-выводDCMI_D4 (AF13), FDCAN1_RX (AF9), FMC_D22 (AF12), LTDC_G3 (AF14), PSSI_D4 (AF13), TIM8_CH2N (AF3), UART4_RX (AF8)
E14PI0ввод-выводDCMI_D13 (AF13), FMC_D24 (AF12), I2S2_WS (AF5), LTDC_G5 (AF14), PSSI_D13 (AF13), SPI2_NSS (AF5), TIM5_CH4 (AF2)
E15PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R5 (AF14), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_HS_VBUS
F1PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT
F2VSSпитание—
F3PI11ввод-выводADC1_EXTI11, ADC2_EXTI11, LTDC_G6 (AF9), OCTOSPIM_P2_IO2 (AF3), PSSI_D15 (AF13), PWR_WKUP5, USB_OTG_HS_ULPI_DIR (AF10)
F4VDDпитание—
F5VDDпитание—
F6VSSпитание—
F7VSSпитание—
F8VSSпитание—
F9VSSпитание—
F10VSSпитание—
F11VDDпитание—
F12PK1ввод-выводLTDC_G6 (AF14), SPI5_NSS (AF5), TIM1_CH1 (AF1), TIM8_CH3N (AF3)
F13PK2ввод-выводLTDC_G7 (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF11), TIM1_BKIN_COMP2 (AF11), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
F14PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF13), I2C3_SDA (AF4), I2S_CKIN (AF5), LTDC_B2 (AF14), LTDC_G3 (AF10), OCTOSPIM_P1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), SWPMI1_SUSPEND (AF11), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8)
F15PA8ввод-выводI2C3_SCL (AF4), LTDC_B3 (AF13), LTDC_R6 (AF14), RCC_MCO_1 (AF0), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF12), TIM8_BKIN2_COMP2 (AF12), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_HS_SOF (AF10)
G1PH0-OSC_INввод-выводRCC_OSC_IN
G2PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), OCTOSPIM_P2_IO2 (AF9)
G3PI13ввод-выводLTDC_VSYNC (AF14), OCTOSPIM_P2_CLK (AF3)
G4PI15ввод-выводADC1_EXTI15, ADC2_EXTI15, LTDC_G2 (AF9), LTDC_R0 (AF14)
G5VDDпитание—
G6VSSпитание—
G10VSSпитание—
G11VDD33_USBпитание—
G12PJ11ввод-выводADC1_EXTI11, ADC2_EXTI11, LTDC_G4 (AF14), SPI5_MISO (AF5), TIM1_CH2 (AF1), TIM8_CH2N (AF3)
G13PK0ввод-выводLTDC_G5 (AF14), SPI5_SCK (AF5), TIM1_CH1N (AF1), TIM8_CH3 (AF3)
G14PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), PSSI_D2 (AF13), SDMMC1_D0 (AF12), SWPMI1_RX (AF11), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
G15PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), DFSDM1_DATIN3 (AF4), FMC_NE1 (AF9), I2S3_MCK (AF6), LTDC_G6 (AF14), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), SWPMI1_TX (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
H1PH1-OSC_OUTввод-выводRCC_OSC_OUT
H2PF3ввод-выводFMC_A3 (AF12), OCTOSPIM_P2_IO3 (AF9)
H3PI14ввод-выводLTDC_CLK (AF14), OCTOSPIM_P2_NCLK (AF3)
H4PH4ввод-выводI2C2_SCL (AF4), LTDC_G4 (AF14), LTDC_G5 (AF9), PSSI_D14 (AF13), USB_OTG_HS_ULPI_NXT (AF10)
H5VDDпитание—
H6VSSпитание—
H10VSSпитание—
H11VDDпитание—
H12PJ8ввод-выводLTDC_G1 (AF14), TIM1_CH3N (AF1), TIM8_CH1 (AF3), UART8_TX (AF8)
H13PJ10ввод-выводLTDC_G3 (AF14), SPI5_MOSI (AF5), TIM1_CH2N (AF1), TIM8_CH2 (AF3)
H14PG8ввод-выводFMC_SDCLK (AF12), I2S6_WS (AF5), LTDC_G7 (AF14), SPDIFRX_IN2, SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
H15PC6ввод-выводDCMI_D0 (AF13), DFSDM1_CKIN3 (AF4), FMC_NWAIT (AF9), I2S2_MCK (AF5), LTDC_HSYNC (AF14), PSSI_D0 (AF13), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), SWPMI1_IO, TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
J1NRSTсброс—
J2PF4ввод-выводFMC_A4 (AF12), OCTOSPIM_P2_CLK (AF9)
J3PH5ввод-выводFMC_SDNWE (AF12), I2C2_SDA (AF4), SPI5_NSS (AF5)
J4PH3ввод-выводFMC_SDNE0 (AF12), LTDC_R1 (AF14), OCTOSPIM_P1_IO5 (AF9), SAI2_MCLK_B (AF10)
J5VDDпитание—
J6VSSпитание—
J10VSSпитание—
J11VDDпитание—
J12PJ7ввод-выводDEBUG_TRGIN (AF0), LTDC_G0 (AF14), TIM8_CH2N (AF3)
J13PJ9ввод-выводDAC1_EXTI9, LTDC_G2 (AF14), TIM1_CH3 (AF1), TIM8_CH1N (AF3), UART8_RX (AF8)
J14PG7ввод-выводDCMI_D13 (AF13), FMC_INT (AF12), LTDC_CLK (AF14), OCTOSPIM_P2_DQS (AF9), PSSI_D13 (AF13), SAI1_MCLK_A (AF6), USART6_CK (AF7)
J15PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), LTDC_R7 (AF14), OCTOSPIM_P1_NCS (AF10), PSSI_D12 (AF13), TIM17_BKIN (AF1)
K1PF7ввод-выводOCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF6), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
K2PF6ввод-выводOCTOSPIM_P1_IO3 (AF10), SAI1_SD_B (AF6), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
K3PF5ввод-выводFMC_A5 (AF12), OCTOSPIM_P2_NCLK (AF9)
K4PH2ввод-выводFMC_SDCKE0 (AF12), LPTIM1_IN2 (AF1), LTDC_R0 (AF14), OCTOSPIM_P1_IO4 (AF9), SAI2_SCK_B (AF10)
K5VDDпитание—
K6VSSпитание—
K7VSSпитание—
K8VSSпитание—
K9VSSпитание—
K10VSSпитание—
K11VDDпитание—
K12PJ6ввод-выводLTDC_R7 (AF14), TIM8_CH2 (AF3)
K13PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
K14PB13ввод-выводDCMI_D2 (AF13), DFSDM1_CKIN1 (AF6), DFSDM2_CKIN1 (AF4), FDCAN2_TX (AF9), I2S2_CK (AF5), LPTIM2_OUT (AF3), PSSI_D2 (AF13), SDMMC1_D0 (AF12), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), USART3_CTS (AF7), USART3_NSS (AF7), USB_OTG_HS_ULPI_D6 (AF10)
K15PD10ввод-выводDFSDM1_CKOUT (AF3), DFSDM2_CKOUT (AF4), FMC_D15 (AF12), FMC_DA15 (AF12), LTDC_B3 (AF14), USART3_CK (AF7)
L1PF10ввод-выводDCMI_D11 (AF13), LTDC_DE (AF14), OCTOSPIM_P1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), TIM16_BKIN (AF1)
L2PF9ввод-выводDAC1_EXTI9, OCTOSPIM_P1_IO1 (AF10), SAI1_FS_B (AF6), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
L3PF8ввод-выводOCTOSPIM_P1_IO0 (AF10), SAI1_SCK_B (AF6), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
L4PC3_Cввод-выводADC2_INP1, DFSDM1_DATIN1 (AF3), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF11), PWR_CSLEEP (AF0), SPI2_MOSI (AF5), USB_OTG_HS_ULPI_NXT (AF10)
L5VSSпитание—
L6VSSпитание—
L7VDDпитание—
L8VDDпитание—
L9VDDпитание—
L10VDDпитание—
L11VCAPпитание—
L12PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
L13PB12ввод-выводDFSDM1_DATIN1 (AF6), DFSDM2_DATIN1 (AF11), FDCAN2_RX (AF9), I2C2_SMBA (AF4), I2S2_WS (AF5), OCTOSPIM_P1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), UART5_RX (AF14), USART3_CK (AF7), USB_OTG_HS_ULPI_D5 (AF10)
L14PD9ввод-выводDAC1_EXTI9, DFSDM1_DATIN3 (AF3), FMC_D14 (AF12), FMC_DA14 (AF12), USART3_RX (AF7)
L15PD8ввод-выводDFSDM1_CKIN3 (AF3), FMC_D13 (AF12), FMC_DA13 (AF12), SPDIFRX_IN1, USART3_TX (AF7)
M1VSSAпитание—
M2PC0ввод-выводADC1_INP10, ADC2_INP10, DFSDM1_CKIN0 (AF3), DFSDM1_DATIN4 (AF6), FMC_A25 (AF9), FMC_SDNWE (AF12), LTDC_G2 (AF11), LTDC_R5 (AF14), SAI2_FS_B (AF8), USB_OTG_HS_ULPI_STP (AF10)
M3PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DEBUG_TRACED0 (AF0), DFSDM1_CKIN4 (AF4), DFSDM1_DATIN0 (AF3), I2S2_SDO (AF5), LTDC_G5 (AF14), MDIOS_MDC (AF12), OCTOSPIM_P1_IO4 (AF10), PWR_WKUP6, RTC_TAMP3, SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF9), SPI2_MOSI (AF5)
M4PC2_Cввод-выводADC2_INN1, ADC2_INP0, DFSDM1_CKIN1 (AF3), DFSDM1_CKOUT (AF6), FMC_SDNE0 (AF12), I2S2_SDI (AF5), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF11), PWR_CSTOP (AF0), SPI2_MISO (AF5), USB_OTG_HS_ULPI_DIR (AF10)
M5PB2ввод-выводCOMP1_INP, DFSDM1_CKIN1 (AF4), I2S3_SDO (AF7), OCTOSPIM_P1_CLK (AF9), OCTOSPIM_P1_DQS (AF10), RTC_OUT_ALARM (AF0), RTC_OUT_CALIB, SAI1_D1 (AF2), SAI1_SD_A (AF6), SPI3_MOSI (AF7)
M6PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), OCTOSPIM_P2_DQS (AF9)
M7PG1ввод-выводFMC_A11 (AF12), OCTOSPIM_P2_IO5 (AF9), OPAMP2_VINM, UART9_TX (AF11)
M8PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4)
M9PJ4ввод-выводLTDC_R5 (AF14), UART9_CTS (AF11)
M10PD12ввод-выводDCMI_D12 (AF13), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), OCTOSPIM_P1_IO1 (AF9), PSSI_D12 (AF13), SAI2_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
M11PD13ввод-выводDCMI_D13 (AF13), FMC_A18 (AF12), I2C4_SDA (AF4), LPTIM1_OUT (AF1), OCTOSPIM_P1_IO3 (AF9), PSSI_D13 (AF13), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
M12PG3ввод-выводFMC_A13 (AF12), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
M13PG2ввод-выводFMC_A12 (AF12), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
M14PJ5ввод-выводLTDC_R6 (AF14)
M15PH12ввод-выводDCMI_D3 (AF13), FMC_D20 (AF12), I2C4_SDA (AF4), LTDC_R6 (AF14), PSSI_D3 (AF13), TIM5_CH3 (AF2)
N1VREF-питание—
N2PA1ввод-выводADC1_INN16, ADC1_INP17, LPTIM3_OUT (AF3), LTDC_R2 (AF14), OCTOSPIM_P1_DQS (AF11), OCTOSPIM_P1_IO3 (AF9), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
N3PA0ввод-выводADC1_INP16, I2S6_WS (AF5), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI6_NSS (AF5), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
N4PA4ввод-выводADC1_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF8), LTDC_VSYNC (AF14), PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
N5PC4ввод-выводADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2 (AF3), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LTDC_R7 (AF14), OPAMP1_VOUT, SPDIFRX_IN2
N6PF13ввод-выводADC2_INP2, DFSDM1_DATIN6 (AF3), FMC_A7 (AF12), I2C4_SMBA (AF4)
N7PG0ввод-выводFMC_A10 (AF12), OCTOSPIM_P2_IO4 (AF9), UART9_RX (AF11)
N8PJ3ввод-выводLTDC_R4 (AF14), UART9_DE (AF11), UART9_RTS (AF11)
N9PE8ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN2 (AF3), FMC_D5 (AF12), FMC_DA5 (AF12), OCTOSPIM_P1_IO5 (AF10), OPAMP2_VINM, TIM1_CH1N (AF1), UART7_TX (AF7)
N10PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), OCTOSPIM_P1_IO0 (AF9), SAI2_SD_A (AF10), USART3_CTS (AF7), USART3_NSS (AF7)
N11PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
N12PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
N13PH7ввод-выводDCMI_D9 (AF13), FMC_SDCKE1 (AF12), I2C3_SCL (AF4), PSSI_D9 (AF13), SPI5_MISO (AF5)
N14PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), FMC_D17 (AF12), I2C3_SMBA (AF4), LTDC_R3 (AF14), PSSI_D0 (AF13), TIM12_CH2 (AF2)
N15PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D2 (AF13), FMC_D19 (AF12), I2C4_SCL (AF4), LTDC_R5 (AF14), PSSI_D2 (AF13), TIM5_CH2 (AF2)
P1VREF+служебныйVREFBUF_OUT
P2PA2ввод-выводADC1_INP14, DFSDM2_CKIN1 (AF6), LTDC_R1 (AF14), MDIOS_MDIO (AF12), PWR_WKUP2, SAI2_SCK_B (AF8), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
P3PA6ввод-выводADC1_INP3, ADC2_INP3, DAC2_OUT1, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), I2S6_SDI (AF8), LTDC_G2 (AF14), MDIOS_MDC (AF11), OCTOSPIM_P1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF12), TIM1_BKIN_COMP2 (AF12), TIM3_CH1 (AF2), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
P4PA5ввод-выводADC1_INN18, ADC1_INP19, DAC1_OUT2, I2S1_CK (AF5), I2S6_CK (AF8), LTDC_R4 (AF14), PSSI_D14 (AF13), PWR_NDSTOP2 (AF0), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM8_CH1N (AF3), USB_OTG_HS_ULPI_CK (AF10)
P5PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT (AF13), DFSDM1_DATIN2 (AF3), FMC_SDCKE0 (AF12), LTDC_DE (AF14), OCTOSPIM_P1_DQS (AF10), OPAMP1_VINM, PSSI_D15 (AF4), SAI1_D3 (AF2), SPDIFRX_IN3
P6PF14ввод-выводADC2_INN2, ADC2_INP6, DFSDM1_CKIN6 (AF3), FMC_A8 (AF12), I2C4_SCL (AF4)
P7PJ2ввод-выводLTDC_R3 (AF14), OCTOSPIM_P2_IO5 (AF3)
P8PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), OCTOSPIM_P1_NCLK (AF9), PSSI_D12 (AF13), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
P9PE9ввод-выводCOMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT (AF3), FMC_D6 (AF12), FMC_DA6 (AF12), OCTOSPIM_P1_IO6 (AF10), OPAMP2_VINP, TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
P10PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, COMP2_INP, DFSDM1_CKIN4 (AF3), FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G3 (AF14), OCTOSPIM_P1_NCS (AF11), SAI2_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
P11PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), LTDC_CLK (AF14), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
P12PB10ввод-выводDFSDM1_DATIN7 (AF6), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), LTDC_G4 (AF14), OCTOSPIM_P1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7), USB_OTG_HS_ULPI_D3 (AF10)
P13PH6ввод-выводDCMI_D8 (AF13), FMC_SDNE1 (AF12), I2C2_SMBA (AF4), PSSI_D8 (AF13), SPI5_SCK (AF5), TIM12_CH1 (AF2)
P14PH8ввод-выводDCMI_HSYNC (AF13), FMC_D16 (AF12), I2C3_SDA (AF4), LTDC_R2 (AF14), PSSI_DE (AF13), TIM5_ETR (AF2)
P15PH10ввод-выводDCMI_D1 (AF13), FMC_D18 (AF12), I2C4_SMBA (AF4), LTDC_R4 (AF14), PSSI_D1 (AF13), TIM5_CH1 (AF2)
R1VDDAпитание—
R2PA3ввод-выводADC1_INP15, I2S6_MCK (AF5), LTDC_B2 (AF9), LTDC_B5 (AF14), OCTOSPIM_P1_CLK (AF3), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7), USB_OTG_HS_ULPI_D0 (AF10)
R3PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, DFSDM2_DATIN1 (AF4), FMC_SDNWE (AF12), I2S1_SDO (AF5), I2S6_SDO (AF8), LTDC_VSYNC (AF14), OCTOSPIM_P1_IO2 (AF10), OPAMP1_VINM, SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3)
R4PB1ввод-выводADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1 (AF6), LTDC_G0 (AF14), LTDC_R6 (AF9), OCTOSPIM_P1_IO0 (AF11), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USB_OTG_HS_ULPI_D2 (AF10)
R5PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT (AF6), DFSDM2_CKOUT (AF4), LTDC_G1 (AF14), LTDC_R3 (AF9), OCTOSPIM_P1_IO1 (AF11), OPAMP1_VINP, TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USB_OTG_HS_ULPI_D1 (AF10)
R6PJ0ввод-выводLTDC_R1 (AF14), LTDC_R7 (AF9)
R7PJ1ввод-выводLTDC_R2 (AF14), OCTOSPIM_P2_IO4 (AF3)
R8PE7ввод-выводCOMP2_INM, DFSDM1_DATIN2 (AF3), FMC_D4 (AF12), FMC_DA4 (AF12), OCTOSPIM_P1_IO4 (AF10), OPAMP2_VOUT, TIM1_ETR (AF1), UART7_RX (AF7)
R9PE10ввод-выводCOMP2_INM, DFSDM1_DATIN4 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), OCTOSPIM_P1_IO7 (AF10), TIM1_CH2N (AF1), UART7_CTS (AF7)
R10PE12ввод-выводCOMP1_OUT (AF13), DFSDM1_DATIN5 (AF3), FMC_D9 (AF12), FMC_DA9 (AF12), LTDC_B4 (AF14), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
R11PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R7 (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), USART10_CK (AF11)
R12PE13ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN5 (AF3), FMC_D10 (AF12), FMC_DA10 (AF12), LTDC_DE (AF14), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
R13PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, DFSDM1_CKIN7 (AF6), I2C2_SDA (AF4), LPTIM2_ETR (AF3), LTDC_G5 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7), USB_OTG_HS_ULPI_D4 (AF10)
R14PB14ввод-выводDFSDM1_DATIN2 (AF6), I2S2_SDI (AF5), LTDC_CLK (AF14), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
R15PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, DFSDM1_CKIN2 (AF6), I2S2_SDO (AF5), LTDC_G7 (AF14), RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), USART1_RX (AF4)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATC1резервное питание: часы реального времени и резервные регистры
VCAPE11, L11вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDE7, E8, E10, F4, F5, F11, G5, H5, H11, J5, J11, K5, K11, L7, L8, L9, L10питание цифровой части и линий ввода-вывода
VDD33_USBG11—
VDDAR1питание аналоговой части: АЦП, ЦАП, генераторы
VDDMMCE9—
VREF-N1нижнее опорное напряжение АЦП
VSSF2, F6, F7, F8, F9, F10, G6, G10, H6, H10, J6, J10, K6, K7, K8, K9, K10, L5, L6общий провод (земля)
VSSAM1общий провод аналоговой части
NRSTJ1сброс, активный уровень — низкий
PDR_ONE5управление внутренней схемой сброса по питанию
BOOT0E6выбор источника загрузки при сбросе
VREF+P1верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX эта группа называется STM32H7A3N(G-I)Hx: одна распиновка и один набор периферии, отличается только объём памяти. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H7A3NGSTM32H7A3NGHx1 МБ1,390625 МБ
STM32H7A3NISTM32H7A3NIHx2 МБ1,390625 МБ

Линейка STM32H7A3/7B3, семейство STM32H7, ядро Cortex-M7.

Заказные номера

Полные номера для заказа из таблицы на страницах продуктов на сайте ST: STM32H7A3NG, STM32H7A3NI. Данные на 11 октября 2026 г.; перечислены номера, которые в этот момент выпускались. Цифра после буквы корпуса — температурный диапазон, вид упаковки указан в последнем столбце.

Номер для заказаКорпусТемператураУпаковка
STM32H7A3NGH6TFBGA 216, 13×13×1,2 мм, шаг 0,8 мм−40…+85 °Cлоток
STM32H7A3NIH6TFBGA 216, 13×13×1,2 мм, шаг 0,8 мм−40…+85 °Cлоток

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе TFBGA216, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H7B3NISTM32H7A3/7B3216 из 216выводы совпадают полностьютолько у него: CRYP, HASH
STM32F429NE, STM32F429NGSTM32F429/439213 из 216E9: VDDMMC → VDD; G11: VDD33_USB → VDD; L5: VSS → BYPASS_REGтолько у этого: COMP1, COMP2, DAC1, DAC2, DFSDM1, DFSDM2, FDCAN1, FDCAN2, HDMI_CEC, I2C4, I2S1, I2S6, IWDG1, LPTIM1, LPTIM2, LPTIM3, LPUART1, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SAI2, SDMMC1, SDMMC2, SPDIFRX, SWPMI1, TIM15, TIM16, TIM17, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: ADC3, CAN1, CAN2, DAC, ETH, IWDG, SDIO, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 280 и 180 МГц; флеш-память до 2048 и 1024 КБ; ОЗУ 1424 и 192 КБ
STM32F429NISTM32F429/439213 из 216E9: VDDMMC → VDD; G11: VDD33_USB → VDD; L5: VSS → BYPASS_REGтолько у этого: COMP1, COMP2, DAC1, DAC2, DFSDM1, DFSDM2, FDCAN1, FDCAN2, HDMI_CEC, I2C4, I2S1, I2S6, IWDG1, LPTIM1, LPTIM2, LPTIM3, LPUART1, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SAI2, SDMMC1, SDMMC2, SPDIFRX, SWPMI1, TIM15, TIM16, TIM17, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: ADC3, CAN1, CAN2, DAC, ETH, IWDG, SDIO, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 280 и 180 МГц; ОЗУ 1424 и 192 КБ
STM32F439NG, STM32F439NISTM32F429/439213 из 216E9: VDDMMC → VDD; G11: VDD33_USB → VDD; L5: VSS → BYPASS_REGтолько у этого: COMP1, COMP2, DAC1, DAC2, DFSDM1, DFSDM2, FDCAN1, FDCAN2, HDMI_CEC, I2C4, I2S1, I2S6, IWDG1, LPTIM1, LPTIM2, LPTIM3, LPUART1, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SAI2, SDMMC1, SDMMC2, SPDIFRX, SWPMI1, TIM15, TIM16, TIM17, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: ADC3, CAN1, CAN2, CRYP, DAC, ETH, HASH, IWDG, SDIO, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 280 и 180 МГц; ОЗУ 1424 и 192 КБ
STM32F746NESTM32F7x6213 из 216E9: VDDMMC → VDD; G11: VDD33_USB → VDDUSB; L5: VSS → BYPASS_REGтолько у этого: COMP1, COMP2, DAC1, DAC2, DFSDM1, DFSDM2, FDCAN1, FDCAN2, I2S6, IWDG1, LPTIM2, LPTIM3, LPUART1, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SDMMC2, SWPMI1, TIM15, TIM16, TIM17, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: ADC3, CAN1, CAN2, DAC, ETH, IWDG, QUADSPI, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 280 и 216 МГц; флеш-память до 2048 и 512 КБ; ОЗУ 1424 и 320 КБ
STM32F746NGSTM32F7x6213 из 216E9: VDDMMC → VDD; G11: VDD33_USB → VDDUSB; L5: VSS → BYPASS_REGтолько у этого: COMP1, COMP2, DAC1, DAC2, DFSDM1, DFSDM2, FDCAN1, FDCAN2, I2S6, IWDG1, LPTIM2, LPTIM3, LPUART1, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SDMMC2, SWPMI1, TIM15, TIM16, TIM17, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: ADC3, CAN1, CAN2, DAC, ETH, IWDG, QUADSPI, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 280 и 216 МГц; флеш-память до 2048 и 1024 КБ; ОЗУ 1424 и 320 КБ
STM32F750N8STM32F7x0 Value line213 из 216E9: VDDMMC → VDD; G11: VDD33_USB → VDDUSB; L5: VSS → BYPASS_REGтолько у этого: COMP1, COMP2, DAC1, DAC2, DFSDM1, DFSDM2, FDCAN1, FDCAN2, I2S6, IWDG1, LPTIM2, LPTIM3, LPUART1, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SDMMC2, SWPMI1, TIM15, TIM16, TIM17, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: ADC3, CAN1, CAN2, CRYP, DAC, ETH, HASH, IWDG, QUADSPI, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 280 и 216 МГц; флеш-память до 2048 и 64 КБ; ОЗУ 1424 и 320 КБ
STM32F756NGSTM32F7x6213 из 216E9: VDDMMC → VDD; G11: VDD33_USB → VDDUSB; L5: VSS → BYPASS_REGтолько у этого: COMP1, COMP2, DAC1, DAC2, DFSDM1, DFSDM2, FDCAN1, FDCAN2, I2S6, IWDG1, LPTIM2, LPTIM3, LPUART1, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SDMMC2, SWPMI1, TIM15, TIM16, TIM17, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: ADC3, CAN1, CAN2, CRYP, DAC, ETH, HASH, IWDG, QUADSPI, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 280 и 216 МГц; флеш-память до 2048 и 1024 КБ; ОЗУ 1424 и 320 КБ
STM32F765NG, STM32F765NISTM32F7x5213 из 216E9: VDDMMC → VDDSDMMC; G11: VDD33_USB → VDDUSB; L5: VSS → BYPASS_REGтолько у этого: COMP1, COMP2, DAC1, DAC2, DFSDM2, FDCAN1, FDCAN2, I2S6, IWDG1, LPTIM2, LPTIM3, LPUART1, LTDC, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SWPMI1, TIM15, TIM16, TIM17, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: ADC3, CAN1, CAN2, CAN3, DAC, ETH, IWDG, QUADSPI, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 280 и 216 МГц; ОЗУ 1424 и 384 КБ
STM32F767NG, STM32F767NISTM32F7x7213 из 216E9: VDDMMC → VDDSDMMC; G11: VDD33_USB → VDDUSB; L5: VSS → BYPASS_REGтолько у этого: COMP1, COMP2, DAC1, DAC2, DFSDM2, FDCAN1, FDCAN2, I2S6, IWDG1, LPTIM2, LPTIM3, LPUART1, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SWPMI1, TIM15, TIM16, TIM17, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: ADC3, CAN1, CAN2, CAN3, DAC, ETH, IWDG, QUADSPI, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 280 и 216 МГц; ОЗУ 1424 и 384 КБ
STM32F777NISTM32F7x7213 из 216E9: VDDMMC → VDDSDMMC; G11: VDD33_USB → VDDUSB; L5: VSS → BYPASS_REGтолько у этого: COMP1, COMP2, DAC1, DAC2, DFSDM2, FDCAN1, FDCAN2, I2S6, IWDG1, LPTIM2, LPTIM3, LPUART1, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SWPMI1, TIM15, TIM16, TIM17, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: ADC3, CAN1, CAN2, CAN3, CRYP, DAC, ETH, HASH, IWDG, QUADSPI, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 280 и 216 МГц; ОЗУ 1424 и 384 КБ
STM32F769NGSTM32F7x9203 из 216E9: VDDMMC → VDDSDMMC; F12: PK1 → DSIHOST_D1P; F13: PK2 → DSIHOST_D1N; G11: VDD33_USB → VDDUSB; G12: PJ11 → VSSDSI; G13: PK0 → VDD12DSI; H11: VDD → VDDDSI; H12: PJ8 → DSIHOST_CKP; H13: PJ10 → DSIHOST_CKN; J12: PJ7 → DSIHOST_D0P; J13: PJ9 → DSIHOST_D0N; K12: PJ6 → VCAPDSIтолько у этого: COMP1, COMP2, DAC1, DAC2, DFSDM2, FDCAN1, FDCAN2, I2S6, IWDG1, LPTIM2, LPTIM3, LPUART1, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SWPMI1, TIM15, TIM16, TIM17, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: ADC3, CAN1, CAN2, CAN3, DAC, DSIHOST, ETH, IWDG, QUADSPI, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 280 и 216 МГц; флеш-память до 2048 и 1024 КБ; ОЗУ 1424 и 384 КБ

Частые вопросы

На каких выводах USART1 у STM32H7A3NG?

В корпусе TFBGA216 сигнал USART1_TX выведен на PB6 (шарик B6, AF7) или PA9 (шарик E15, AF7) или PB14 (шарик R14, AF4), USART1_RX — на PB7 (шарик B5, AF7) или PA10 (шарик D15, AF7) или PB15 (шарик R15, AF4).

Где у STM32H7A3NG выводы SWD для программатора?

SWDIO — PA13 (шарик A15, AF0), SWCLK — PA14 (шарик A14, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H7A3NG?

I2C1_SCL — PB8 (шарик A7, AF4) или PB6 (шарик B6, AF4), I2C1_SDA — PB9 (шарик B4, AF4) или PB7 (шарик B5, AF4).

Сколько выводов ввода-вывода у STM32H7A3NG в корпусе TFBGA216?

168 из 216. Ещё 44 вывода заняты питанием и землёй, остальные 4 — сброс, выбор загрузки и служебные цепи.

Чем отличаются STM32H7A3NG и STM32H7A3NI?

Объёмом памяти: STM32H7A3NG — 1 МБ флеш-памяти и 1,390625 МБ ОЗУ, STM32H7A3NI — 2 МБ флеш-памяти и 1,390625 МБ ОЗУ. Корпус, расположение выводов и набор периферии у них одинаковые.

Какое напряжение питания у STM32H7A3NG?

От 1,62 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Заказные номера, корпуса, упаковка и температурный диапазон — из таблиц на страницах продуктов st.com (данные на 11 октября 2026 г.). Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
