STM32H7R3L8 в корпусе TFBGA225 OCTO SMPS: распиновка

STM32H7R3L8 — микроконтроллер STM32H7 на ядре Cortex-M7: 64 КБ флеш-памяти и 620 КБ ОЗУ. Корпус TFBGA225 OCTO SMPS — 225 шариков, из них 152 линии ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M7
Флеш-память
64 КБ
ОЗУ
620 КБ
Корпус
TFBGA225 OCTO SMPS, 225 шариков
Линий ввода-вывода
152

Схема корпуса TFBGA225 OCTO SMPS

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

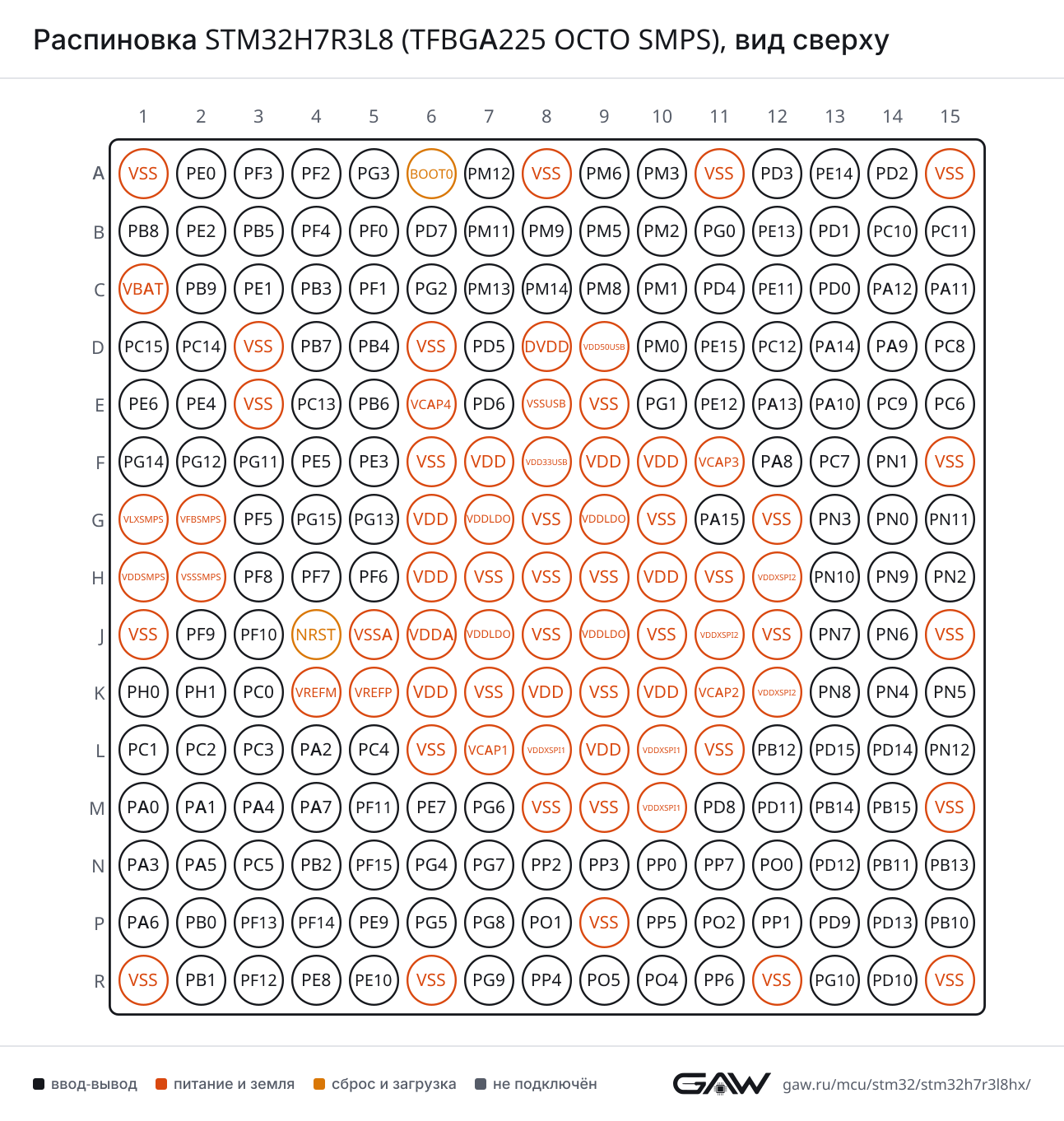

Расположение шариков STM32H7R3L8 в корпусе TFBGA225 OCTO SMPS, вид сверхуABCDEFGHJKLMNPR123456789101112131415VSS — шарик A1VSSPE0 — шарик A2: DCMIPP_D2, FMC_D9, FMC_DA9, LPTIM1_ETR, LPTIM2_ETR, PSSI_D2, SAI2_MCLK_A, TAMP_IN4, TAMP_OUT5, TIM4_ETR, UART8_RXPE0PF3 — шарик A3: DCMIPP_D9, ETH_MII_CRS, FMC_A11, PSSI_D9PF3PF2 — шарик A4: DCMIPP_D14, FMC_A10, I2C2_SMBA, PSSI_D14PF2PG3 — шарик A5: DCMIPP_HSYNC, ETH_PPS_OUT, FMC_D21, PSSI_DEPG3BOOT0 — шарик A6BOOT0PM12 — шарик A7: SPI5_NSS, USB_OTG_FS_DMPM12VSS — шарик A8VSSPM6 — шарик A9: USB_OTG_HS_DPPM6PM3 — шарик A10: UCPD1_DBCC2PM3VSS — шарик A11VSSPD3 — шарик A12: DCMIPP_D5, FMC_NWAIT, I2S2_CK, PSSI_D5, SPI2_SCK, TIM1_CH3N, USART2_CTS, USART2_NSSPD3PE14 — шарик A13: FMC_SDNE0, GFXTIM_FCKCAL, GFXTIM_LCKCAL, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PD2 — шарик A14: DCMIPP_D11, DEBUG_TRACED2, PSSI_D11, SDMMC1_CMD, TIM15_BKIN, TIM1_ETR, TIM3_ETR, UART5_RXPD2VSS — шарик A15VSSPB8 — шарик B1: DCMIPP_D6, ETH_MII_TXD3, FDCAN1_RX, FMC_D9, FMC_DA9, I2C1_SCL, I3C1_SCL, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RX, USART3_CKPB8PE2 — шарик B2: ADF1_CCK0, DEBUG_TRACECLK, ETH_MII_TXD3, FMC_D11, FMC_DA11, LPTIM5_IN1, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, TIM1_CH2NPE2PB5 — шарик B3: DCMIPP_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_D12, FMC_DA12, I2C1_SMBA, I2S1_SDO, I2S3_SDO, I2S6_SDO, LPTIM4_OUT, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RXPB5PF4 — шарик B4: DCMIPP_D8, ETH_MII_TX_ER, FMC_A13, PSSI_D8PF4PF0 — шарик B5: FMC_A8, I2C2_SDAPF0PD7 — шарик B6: DCMIPP_D2, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, FMC_D8, FMC_DA8, I2S1_SDO, PSSI_D2, SDMMC2_CMD, SPDIFRX_IN0, SPI1_MOSI, USART2_CKPD7PM11 — шарик B7: ADC1_EXTI11, ADC2_EXTI11, SPI5_SCK, USB_OTG_FS_DPPM11PM9 — шарик B8: UART7_TX, USB_OTG_HS_IDPM9PM5 — шарик B9: USB_OTG_HS_DMPM5PM2 — шарик B10: UCPD1_DBCC1PM2PG0 — шарик B11: TIM1_CH4NPG0PE13 — шарик B12: FMC_SDNCAS, SAI2_FS_B, SPI4_MISO, TIM1_CH3PE13PD1 — шарик B13: FDCAN1_TX, FMC_A7, FMC_A23, UART4_TXPD1PC10 — шарик B14: DCMIPP_D14, I2S3_CK, PSSI_D14, SDMMC1_D2, SPI3_SCK, TIM1_BKIN, UART4_TX, USART3_TXPC10PC11 — шарик B15: ADC1_EXTI11, ADC2_EXTI11, DCMIPP_D4, I2S3_SDI, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11VBAT — шарик C1VBATPB9 — шарик C2: DCMIPP_D7, FDCAN1_TX, I2C1_SDA, I2S2_WS, I3C1_SDA, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TAMP_IN2, TAMP_OUT1, TIM17_CH1, TIM4_CH4, UART4_TXPB9PE1 — шарик C3: DCMIPP_D3, FMC_D10, FMC_DA10, LPTIM1_IN2, LPTIM2_CH2, PSSI_D3, TAMP_IN3, TAMP_OUT6, UART8_TXPE1PB3(JTDO/TRACESWO) — шарик C4: CRS_SYNC, DCMIPP_HSYNC, DEBUG_JTDO-SWO, FMC_D14, FMC_DA14, I2S1_CK, I2S3_CK, I2S6_CK, LPTIM4_IN1, PSSI_DE, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART7_RXPB3PF1 — шарик C5: FMC_A9, I2C2_SCLPF1PG2 — шарик C6PG2PM13 — шарик C7: SPI5_MOSI, USB_OTG_FS_IDPM13PM14 — шарик C8: SPI5_MISO, USB_OTG_FS_VBUSPM14PM8 — шарик C9: UART7_RX, USB_OTG_HS_VBUSPM8PM1 — шарик C10: UCPD1_CC2PM1PD4 — шарик C11: DCMIPP_HSYNC, ETH_PHY_INTN, FMC_NL, PSSI_DE, TAMP_IN6, TAMP_OUT3, USART2_DE, USART2_RTSPD4PE11 — шарик C12: ADC1_EXTI11, ADC2_EXTI11, FMC_SDNWE, SAI2_SD_B, SPI4_NSS, TIM1_CH2PE11PD0 — шарик C13: DCMIPP_HSYNC, FDCAN1_RX, FMC_A6, FMC_A22, PSSI_DE, UART4_RXPD0PA12 — шарик C14: FDCAN1_TX, FMC_D0, FMC_DA0, I2S2_CK, LPUART1_DE, LPUART1_RTS, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTSPA12PA11 — шарик C15: ADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX, FMC_D1, FMC_DA1, I2S2_WS, LPUART1_CTS, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSSPA11PC15-OSC32_OUT(OSC32_OUT) — шарик D1: ADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUTPC15PC14-OSC32_IN(OSC32_IN) — шарик D2: RCC_OSC32_INPC14VSS — шарик D3VSSPB7 — шарик D4: DCMIPP_D1, DCMIPP_VSYNC, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_SDCKE1, I2C1_SDA, I3C1_SDA, LPUART1_RX, PSSI_D1, PSSI_RDY, TIM17_CH1N, TIM4_CH2, UART5_TX, USART1_RXPB7PB4(NJTRST) — шарик D5: DCMIPP_VSYNC, DEBUG_NJTRST, FMC_D13, FMC_DA13, I2S1_SDI, I2S2_WS, I2S3_SDI, I2S6_SDI, LPTIM4_ETR, PSSI_RDY, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4VSS — шарик D6VSSPD5 — шарик D7: DCMIPP_PIXCLK, FMC_NCE, FMC_NE2, PSSI_PDCK, TAMP_IN5, TAMP_OUT4, TIM1_CH4N, USART2_TXPD5DVDD — шарик D8DVDDVDD50USB — шарик D9VDD50USBPM0 — шарик D10: UCPD1_CC1PM0PE15 — шарик D11: ADC1_EXTI15, ADC2_EXTI15, FMC_SDCKE0, GFXTIM_FCKCAL, GFXTIM_LCKCAL, TIM1_BKINPE15PC12 — шарик D12: DCMIPP_D9, DEBUG_TRACED3, I2S3_SDO, I2S6_CK, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, TIM1_CH4, UART5_TX, USART3_CKPC12PA14(JTCK/SWCLK) — шарик D13: DEBUG_JTCK-SWCLKPA14PA9 — шарик D14: DCMIPP_D0, FMC_D3, FMC_DA3, I2C3_SDA, I2S2_CK, LPUART1_TX, PSSI_D0, SPI2_SCK, TIM1_CH2, USART1_TXPA9PC8 — шарик D15: DCMIPP_D2, DEBUG_TRACED1, I2C3_SMBA, PSSI_D2, SDMMC1_D0, TIM3_CH3, UART5_DE, UART5_RTSPC8PE6 — шарик E1: ADF1_SDI0, DCMIPP_D7, DEBUG_TRACED3, FMC_D15, FMC_DA15, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2PE6PE4 — шарик E2: ADF1_SDI0, DCMIPP_D4, DEBUG_TRACED1, FMC_D13, FMC_DA13, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TIM15_CH1NPE4VSS — шарик E3VSSPC13 — шарик E4: PWR_WKUP3, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2PC13PB6 — шарик E5: CEC, DCMIPP_D5, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, FDCAN2_TX, FMC_SDNE1, I2C1_SCL, I3C1_SCL, LPUART1_TX, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6VCAP4 — шарик E6VCAP4PD6 — шарик E7: ADF1_SDI0, DCMIPP_D10, ETH_CLK, FMC_INT, FMC_NE3, I2S3_SDO, PSSI_D10, SAI1_D1, SAI1_SCK_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6VSSUSB — шарик E8VSSUSBVSS — шарик E9VSSPG1 — шарик E10PG1PE12 — шарик E11: FMC_SDNRAS, SAI2_SCK_B, SPI4_SCK, TIM1_CH3NPE12PA13(JTMS/SWDIO) — шарик E12: DEBUG_JTMS-SWDIOPA13PA10 — шарик E13: DCMIPP_D1, FMC_D2, FMC_DA2, LPUART1_RX, MDIOS_MDIO, PSSI_D1, TIM1_CH3, USART1_RXPA10PC9 — шарик E14: DCMIPP_D3, I2C3_SDA, I2S_CKIN, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, UART5_CTSPC9PC6 — шарик E15: DCMIPP_D0, I2S2_MCK, PSSI_D0, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM9_CH1PC6PG14 — шарик F1: DEBUG_TRACED1, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_D31, I2S6_SDO, LPTIM1_ETR, SDMMC2_D7, SPI6_MOSIPG14PG12 — шарик F2: ETH_MII_TXD1, ETH_RMII_TXD1, FMC_D29, I2S6_SDI, LPTIM1_IN1, SDMMC2_D3, SPDIFRX_IN1, SPI6_MISOPG12PG11 — шарик F3: ADC1_EXTI11, ADC2_EXTI11, DCMIPP_D3, ETH_MII_TX_EN, ETH_RMII_TX_EN, FMC_D28, I2S1_CK, LPTIM1_IN2, PSSI_D3, SDMMC2_D2, SPDIFRX_IN0, SPI1_SCKPG11PE5 — шарик F4: ADF1_CCK1, DCMIPP_D6, DEBUG_TRACED2, FMC_D14, FMC_DA14, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TIM15_CH1PE5PE3 — шарик F5: DEBUG_TRACED0, ETH_MII_RXD3, FMC_D12, FMC_DA12, LPTIM5_ETR, SAI1_SD_B, TIM15_BKINPE3VSS — шарик F6VSSVDD — шарик F7VDDVDD33USB — шарик F8VDD33USBVDD — шарик F9VDDVDD — шарик F10VDDVCAP3 — шарик F11VCAP3PA8 — шарик F12: FMC_D4, FMC_DA4, I2C3_SCL, RCC_MCO_1, TIM1_CH1, UART7_RX, USART1_CK, USB_OTG_FS_SOFPA8PC7 — шарик F13: DCMIPP_D1, DEBUG_TRGIO, I2S3_MCK, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM9_CH2PC7PN1 — шарик F14: FMC_NBL0, XSPIM_P2_NCS1PN1VSS — шарик F15VSSVLXSMPS — шарик G1VLXSMPSVFBSMPS — шарик G2VFBSMPSPF5 — шарик G3: DCMIPP_D15, ETH_MII_RXD2, FMC_A16, FMC_CLE, PSSI_D15, UCPD1_FRSTX1PF5PG15 — шарик G4: ADC1_EXTI15, ADC2_EXTI15, DCMIPP_D13, FMC_NBL3, LPTIM1_CH2, PSSI_D13PG15PG13 — шарик G5: DEBUG_TRACED0, ETH_MII_TXD0, ETH_RMII_TXD0, FMC_D30, I2S6_CK, LPTIM1_CH1, SDMMC2_D6, SPI6_SCKPG13VDD — шарик G6VDDVDDLDO — шарик G7VDDLDOVSS — шарик G8VSSVDDLDO — шарик G9VDDLDOVSS — шарик G10VSSPA15(JTDI) — шарик G11: ADC1_EXTI15, ADC2_EXTI15, CEC, DEBUG_JTDI, FMC_D15, FMC_DA15, I2S1_WS, I2S3_WS, I2S6_WS, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15VSS — шарик G12VSSPN3 — шарик G13: FMC_D1, FMC_DA1, XSPIM_P2_IO1PN3PN0 — шарик G14: FMC_NE4, XSPIM_P2_DQS0PN0PN11 — шарик G15: ADC1_EXTI11, ADC2_EXTI11, FMC_D7, FMC_DA7, XSPIM_P2_IO7PN11VDDSMPS — шарик H1VDDSMPSVSSSMPS — шарик H2VSSSMPSPF8 — шарик H3: DCMIPP_PIXCLK, FMC_A19, PSSI_PDCK, SAI1_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPF8PF7 — шарик H4: FMC_A18, SAI1_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TXPF7PF6 — шарик H5: FMC_A17, FMC_ALE, SAI1_SD_B, SPI5_NSS, TIM16_CH1, UART7_RXPF6VDD — шарик H6VDDVSS — шарик H7VSSVSS — шарик H8VSSVSS — шарик H9VSSVDD — шарик H10VDDVSS — шарик H11VSSVDDXSPI2 — шарик H12VDDXSPI2PN10 — шарик H13: FMC_D6, FMC_DA6, XSPIM_P2_IO6PN10PN9 — шарик H14: FMC_D5, FMC_DA5, XSPIM_P2_IO5PN9PN2 — шарик H15: FMC_D0, FMC_DA0, XSPIM_P2_IO0PN2VSS — шарик J1VSSPF9 — шарик J2: FMC_A21, SAI1_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTSPF9PF10 — шарик J3: DCMIPP_D11, DCMIPP_D15, FMC_A22, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKINPF10NRST — шарик J4NRSTVSSA — шарик J5VSSAVDDA — шарик J6VDDAVDDLDO — шарик J7VDDLDOVSS — шарик J8VSSVDDLDO — шарик J9VDDLDOVSS — шарик J10VSSVDDXSPI2 — шарик J11VDDXSPI2VSS — шарик J12VSSPN7 — шарик J13: FMC_CLK, XSPIM_P2_NCLKPN7PN6 — шарик J14: FMC_SDCLK, XSPIM_P2_CLKPN6VSS — шарик J15VSSPH0-OSC_IN — шарик K1: RCC_OSC_INPH0PH1-OSC_OUT — шарик K2: RCC_OSC_OUTPH1PC0 — шарик K3: ADC1_INP10, ADC2_INP10, FMC_NBL1, GFXTIM_FCKCAL, GFXTIM_LCKCAL, SAI2_FS_BPC0VREFM — шарик K4VREFMVREFP — шарик K5VREFPVDD — шарик K6VDDVSS — шарик K7VSSVDD — шарик K8VDDVSS — шарик K9VSSVDD — шарик K10VDDVCAP2 — шарик K11VCAP2VDDXSPI2 — шарик K12VDDXSPI2PN8 — шарик K13: FMC_D4, FMC_DA4, XSPIM_P2_IO4PN8PN4 — шарик K14: FMC_D2, FMC_DA2, XSPIM_P2_IO2PN4PN5 — шарик K15: FMC_D3, FMC_DA3, XSPIM_P2_IO3PN5PC1 — шарик L1: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0, DEBUG_TRACED0, ETH_MDC, FMC_A0, FMC_A16, I2S2_SDO, MDIOS_MDC, PWR_WKUP4, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI2_MOSI, TAMP_IN7, TAMP_OUT8PC1PC2 — шарик L2: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_A1, FMC_A17, I2S2_SDI, SPI2_MISO, TIM1_CH1PC2PC3 — шарик L3: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_A2, FMC_A18, I2S2_SDO, SPI2_MOSI, TIM1_CH2PC3PA2 — шарик L4: ADC1_INP14, ADC2_INP14, ETH_MDIO, FMC_D5, FMC_DA5, LPTIM3_IN2, MDIOS_MDIO, PWR_WKUP2, SAI2_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PC4 — шарик L5: ADC1_INP4, ADC2_INP4, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_A3, FMC_A19, I2S1_MCK, SPDIFRX_IN2PC4VSS — шарик L6VSSVCAP1 — шарик L7VCAP1VDDXSPI1 — шарик L8VDDXSPI1VDD — шарик L9VDDVDDXSPI1 — шарик L10VDDXSPI1VSS — шарик L11VSSPB12 — шарик L12: FDCAN2_RX, FMC_D9, FMC_DA9, I2C2_SMBA, I2S2_WS, LPTIM2_IN2, SPI2_NSS, TIM1_BKIN, UART5_RX, USART3_CKPB12PD15 — шарик L13: ADC1_EXTI15, ADC2_EXTI15, DCMIPP_D9, FMC_D18, LPTIM5_OUT, PSSI_D9, TIM4_CH4, UART8_DE, UART8_RTS, UCPD1_FRSTX2PD15PD14 — шарик L14: DCMIPP_D7, FMC_D17, LPTIM1_CH2, LPTIM2_CH1, PSSI_D7, TIM4_CH3, UART8_CTS, UCPD1_FRSTX1PD14PN12 — шарик L15: XSPIM_P2_NCS2PN12PA0 — шарик M1: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, FMC_D7, FMC_DA7, I2S6_WS, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI6_NSS, TIM15_BKIN, TIM2_CH1, TIM5_CH1, TIM9_CH1, UART4_TX, USART2_CTS, USART2_NSSPA0PA1 — шарик M2: ADC1_INP1, ADC2_INP1, DCMIPP_D0, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, FMC_D6, FMC_DA6, LPTIM3_IN1, PSSI_D0, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PA4 — шарик M3: ADC1_INP18, DCMIPP_HSYNC, ETH_MDIO, I2S1_WS, I2S3_WS, I2S6_WS, LPTIM3_CH2, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CK, USB_OTG_HS_SOFPA4PA7 — шарик M4: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_INT, I2S1_SDO, I2S6_SDO, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2PA7PF11 — шарик M5: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMIPP_D12, FMC_A23, PSSI_D12, SAI2_SD_B, SPI5_MOSIPF11PE7 — шарик M6: FMC_A4, FMC_A20, SAI2_SD_B, TIM1_ETR, UART7_RXPE7PG6 — шарик M7: DCMIPP_D12, ETH_MDC, FMC_NBL2, PSSI_D12, TIM17_BKINPG6VSS — шарик M8VSSVSS — шарик M9VSSVDDXSPI1 — шарик M10VDDXSPI1PD8 — шарик M11: ETH_MII_TX_EN, ETH_RMII_TX_EN, FMC_NBL0, SPDIFRX_IN1, USART3_TXPD8PD11 — шарик M12: ADC1_EXTI11, ADC2_EXTI11, DCMIPP_D6, FMC_D16, LPTIM2_IN2, PSSI_D6, SAI2_SD_A, TIM1_ETR, USART3_CTS, USART3_NSSPD11PB14 — шарик M13: FMC_NE1, I2S2_SDI, LPTIM2_CH2, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, UART4_DE, UART4_RTS, USART1_TX, USART3_DE, USART3_RTSPB14PB15 — шарик M14: ADC1_EXTI15, ADC2_EXTI15, FMC_A20, I2S2_SDO, PWR_PVD_IN, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, UART4_CTS, USART1_RXPB15VSS — шарик M15VSSPA3 — шарик N1: ADC1_INP15, ADC2_INP15, ETH_MII_COL, GFXTIM_FCKCAL, GFXTIM_LCKCAL, I2S6_MCK, LPTIM3_CH1, SPI1_RDY, SPI4_RDY, SPI5_RDY, TIM15_CH2, TIM1_CH3, TIM2_CH4, TIM5_CH4, USART2_RXPA3PA5 — шарик N2: ADC2_INP18, DCMIPP_D8, FMC_NOE, I2S1_CK, I2S6_CK, PSSI_D8, PWR_CSTOP, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM9_CH2PA5PC5 — шарик N3: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, DCMIPP_D15, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_A5, FMC_A21, PSSI_D15, SAI1_D3, SPDIFRX_IN3PC5PB2 — шарик N4: ADF1_SDI0, FMC_NWE, I2S3_SDO, RTC_OUT2, SAI1_D1, SAI1_SD_A, SPI3_MOSIPB2PF15 — шарик N5: ADC1_EXTI15, ADC2_EXTI15, FMC_A25, SPI5_SCK, USART1_DE, USART1_RTSPF15PG4 — шарик N6: ETH_MII_RXD0, ETH_RMII_RXD0, FMC_D22, TIM1_BKIN2PG4PG7 — шарик N7: DCMIPP_D13, FMC_D24, PSSI_D13, SAI1_MCLK_APG7PP2 — шарик N8: XSPIM_P1_IO2PP2PP3 — шарик N9: XSPIM_P1_IO3PP3PP0 — шарик N10: XSPIM_P1_IO0PP0PP7 — шарик N11: XSPIM_P1_IO7PP7PO0 — шарик N12: XSPIM_P1_NCS1PO0PD12 — шарик N13: DCMIPP_D12, FMC_NE1, LPTIM1_IN1, LPTIM2_IN1, PSSI_D12, SAI2_FS_A, TIM4_CH1, USART3_DE, USART3_RTSPD12PB11 — шарик N14: ADC1_EXTI11, ADC2_EXTI11, ETH_MII_TX_EN, ETH_RMII_TX_EN, FMC_D10, FMC_DA10, I2C2_SDA, LPTIM2_ETR, TIM2_CH4, USART3_RXPB11PB13 — шарик N15: DCMIPP_D2, ETH_MII_RXD3, FDCAN2_TX, FMC_D8, FMC_DA8, I2S2_CK, LPTIM2_CH1, PSSI_D2, SDMMC1_D0, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSSPB13PA6 — шарик P1: ADC1_INP3, ADC2_INP3, DCMIPP_PIXCLK, I2S1_SDI, I2S6_SDI, LPTIM3_ETR, MDIOS_MDC, PSSI_PDCK, PWR_CSLEEP, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1PA6PB0 — шарик P2: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH_MII_TXD0, ETH_RMII_TXD0, GFXTIM_TE, I2S1_CK, SPI1_SCK, TIM1_CH2N, TIM3_CH3, TIM9_CH1, UART4_CTSPB0PF13 — шарик P3: ADC2_INP2, DCMIPP_D10, FMC_D20, PSSI_D10, SPI5_NSS, USART1_TXPF13PF14 — шарик P4: ADC2_INN2, ADC2_INP6, FMC_A24, SPI5_MOSI, USART1_CTSPF14PE9 — шарик P5: FMC_A14, FMC_BA0, TIM1_CH1, UART7_DE, UART7_RTSPE9PG5 — шарик P6: ETH_MII_RXD1, ETH_RMII_RXD1, FMC_D23, TIM1_ETRPG5PG8 — шарик P7: ETH_PPS_OUT, FMC_D25, I2S6_WS, SPDIFRX_IN2, SPI6_NSSPG8PO1 — шарик P8: XSPIM_P1_NCS2PO1VSS — шарик P9VSSPP5 — шарик P10: XSPIM_P1_IO5PP5PO2 — шарик P11: XSPIM_P1_DQS0PO2PP1 — шарик P12: XSPIM_P1_IO1PP1PD9 — шарик P13: FMC_SDCLK, USART3_RXPD9PD13 — шарик P14: DCMIPP_D13, FMC_INT, LPTIM1_CH1, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UCPD1_FRSTX2PD13PB10 — шарик P15: ETH_MII_RX_ER, FMC_D11, FMC_DA11, I2C2_SCL, I2S2_CK, LPTIM2_IN1, SPI2_SCK, TIM2_CH3, USART3_TXPB10VSS — шарик R1VSSPB1 — шарик R2: ADC1_INP5, ADC2_INP5, ETH_MII_TXD1, ETH_RMII_TXD1, FDCAN2_TX, FMC_NOE, TIM1_CH3N, TIM3_CH4, TIM9_CH2PB1PF12 — шарик R3: ADC1_INN2, ADC1_INP6, FMC_D19, SPI5_MISO, USART1_RXPF12PE8 — шарик R4: FMC_A12, TIM1_CH1N, UART7_TXPE8PE10 — шарик R5: FMC_A15, FMC_BA1, TIM1_CH2N, UART7_CTSPE10VSS — шарик R6VSSPG9 — шарик R7: DCMIPP_VSYNC, FMC_D26, I2S1_SDI, PSSI_RDY, SAI2_FS_B, SDMMC2_D0, SPDIFRX_IN3, SPI1_MISOPG9PP4 — шарик R8: XSPIM_P1_IO4PP4PO5 — шарик R9: XSPIM_P1_NCLKPO5PO4 — шарик R10: XSPIM_P1_CLKPO4PP6 — шарик R11: XSPIM_P1_IO6PP6VSS — шарик R12VSSPG10 — шарик R13: DCMIPP_D2, FMC_D27, I2S1_WS, PSSI_D2, SAI2_SD_B, SDMMC2_D1, SPI1_NSSPG10PD10 — шарик R14: DCMIPP_D4, FMC_CLK, PSSI_D4, SPI1_RDY, SPI4_RDY, SPI5_RDY, TAMP_IN8, TAMP_OUT7, TIM1_CH4, USART3_CKPD10VSS — шарик R15VSSTFBGA225 OCTO SMPS, вид сверху: шарики видны сквозь корпус, A1 — в левомверхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия
Распиновка STM32H7R3L8 (TFBGA225 OCTO SMPS), вид сверхуРаспиновка TFBGA225 OCTO SMPS картинкой
PNG, 1293 × 1362 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (F12, AF7)
CTSPA11 (C15, AF7), PF14 (P4, AF4)
DEPA12 (C14, AF7), PF15 (N5, AF4)
NSSPA11 (C15, AF7)
RTSPA12 (C14, AF7), PF15 (N5, AF4)
RXPB7 (D4, AF7), PA10 (E13, AF7), PB15 (M14, AF4), PF12 (R3, AF4)
TXPA9 (D14, AF7), PB6 (E5, AF7), PB14 (M13, AF4), PF13 (P3, AF4)
USART2CKPD7 (B6, AF7), PA4 (M3, AF7)
CTSPD3 (A12, AF7), PA0 (M1, AF7)
DEPD4 (C11, AF7), PA1 (M2, AF7)
NSSPD3 (A12, AF7), PA0 (M1, AF7)
RTSPD4 (C11, AF7), PA1 (M2, AF7)
RXPD6 (E7, AF7), PA3 (N1, AF7)
TXPD5 (D7, AF7), PA2 (L4, AF7)
USART3CKPB8 (B1, AF3), PC12 (D12, AF7), PB12 (L12, AF7), PD10 (R14, AF7)
CTSPD11 (M12, AF7), PB13 (N15, AF7)
DEPB14 (M13, AF7), PD12 (N13, AF7)
NSSPD11 (M12, AF7), PB13 (N15, AF7)
RTSPB14 (M13, AF7), PD12 (N13, AF7)
RXPC11 (B15, AF7), PB11 (N14, AF7), PD9 (P13, AF7)
TXPC10 (B14, AF7), PD8 (M11, AF7), PB10 (P15, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB15 (M14, AF8), PB0 (P2, AF8)
DEPA15(JTDI) (G11, AF8), PB14 (M13, AF8)
RTSPA15(JTDI) (G11, AF8), PB14 (M13, AF8)
RXPB8 (B1, AF8), PC11 (B15, AF8), PD0 (C13, AF8), PA11 (C15, AF6), PA1 (M2, AF8)
TXPD1 (B13, AF8), PC10 (B14, AF8), PB9 (C2, AF8), PA12 (C14, AF6), PA0 (M1, AF8)
UART5CTSPC9 (E14, AF8)
DEPC8 (D15, AF8)
RTSPC8 (D15, AF8)
RXPD2 (A14, AF8), PB5 (B3, AF14), PB12 (L12, AF14)
TXPB7 (D4, AF14), PC12 (D12, AF8), PB6 (E5, AF14), PB13 (N15, AF14)
UART7CTSPF9 (J2, AF7), PE10 (R5, AF7)
DEPF8 (H3, AF7), PE9 (P5, AF7)
RTSPF8 (H3, AF7), PE9 (P5, AF7)
RXPB3(JTDO/TRACESWO) (C4, AF11), PM8 (C9, AF7), PA8 (F12, AF11), PF6 (H5, AF7), PE7 (M6, AF7)
TXPM9 (B8, AF7), PB4(NJTRST) (D5, AF11), PA15(JTDI) (G11, AF11), PF7 (H4, AF7), PE8 (R4, AF7)
UART8CTSPD14 (L14, AF8)
DEPD15 (L13, AF8)
RTSPD15 (L13, AF8)
RXPE0 (A2, AF8)
TXPE1 (C3, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (C15, AF3)
DEPA12 (C14, AF3)
RTSPA12 (C14, AF3)
RXPB7 (D4, AF8), PA10 (E13, AF3)
TXPA9 (D14, AF3), PB6 (E5, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4(NJTRST) (D5, AF5), PA6 (P1, AF5), PG9 (R7, AF5)
MOSIPB5 (B3, AF5), PD7 (B6, AF5), PA7 (M4, AF5)
NSSPA15(JTDI) (G11, AF5), PA4 (M3, AF5), PG10 (R13, AF5)
RDYPA3 (N1, AF10), PD10 (R14, AF10)
SCKPB3(JTDO/TRACESWO) (C4, AF5), PG11 (F3, AF5), PA5 (N2, AF5), PB0 (P2, AF5)
SPI2MISOPC2 (L2, AF5), PB14 (M13, AF5)
MOSIPC1 (L1, AF5), PC3 (L3, AF5), PB15 (M14, AF5)
NSSPB9 (C2, AF5), PA11 (C15, AF5), PB4(NJTRST) (D5, AF7), PB12 (L12, AF5)
SCKPD3 (A12, AF5), PA12 (C14, AF5), PA9 (D14, AF5), PB13 (N15, AF5), PB10 (P15, AF5)
SPI3MISOPC11 (B15, AF6), PB4(NJTRST) (D5, AF6)
MOSIPB5 (B3, AF7), PC12 (D12, AF6), PD6 (E7, AF5), PB2 (N4, AF7)
NSSPA15(JTDI) (G11, AF6), PA4 (M3, AF6)
SCKPC10 (B14, AF6), PB3(JTDO/TRACESWO) (C4, AF6)
SPI4MISOPE13 (B12, AF5), PE5 (F4, AF5)
MOSIPE14 (A13, AF5), PE6 (E1, AF5)
NSSPE11 (C12, AF5), PE4 (E2, AF5)
RDYPA3 (N1, AF6), PD10 (R14, AF6)
SCKPE2 (B2, AF5), PE12 (E11, AF5)
SPI5MISOPM14 (C8, AF5), PF8 (H3, AF5), PF12 (R3, AF5)
MOSIPM13 (C7, AF5), PF9 (J2, AF5), PF11 (M5, AF5), PF14 (P4, AF5)
NSSPM12 (A7, AF5), PF6 (H5, AF5), PF13 (P3, AF5)
RDYPA3 (N1, AF9), PD10 (R14, AF9)
SCKPM11 (B7, AF5), PF7 (H4, AF5), PF15 (N5, AF5)
SPI6MISOPB4(NJTRST) (D5, AF8), PG12 (F2, AF5), PA6 (P1, AF8)
MOSIPB5 (B3, AF8), PG14 (F1, AF5), PA7 (M4, AF8)
NSSPA15(JTDI) (G11, AF7), PA0 (M1, AF5), PA4 (M3, AF8), PG8 (P7, AF5)
SCKPB3(JTDO/TRACESWO) (C4, AF8), PC12 (D12, AF5), PG13 (G5, AF5), PA5 (N2, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (E14, AF5)
I2S1CKPB3(JTDO/TRACESWO) (C4, AF5), PG11 (F3, AF5), PA5 (N2, AF5), PB0 (P2, AF5)
MCKPC4 (L5, AF5)
SDIPB4(NJTRST) (D5, AF5), PA6 (P1, AF5), PG9 (R7, AF5)
SDOPB5 (B3, AF5), PD7 (B6, AF5), PA7 (M4, AF5)
WSPA15(JTDI) (G11, AF5), PA4 (M3, AF5), PG10 (R13, AF5)
I2S2CKPD3 (A12, AF5), PA12 (C14, AF5), PA9 (D14, AF5), PB13 (N15, AF5), PB10 (P15, AF5)
MCKPC6 (E15, AF5)
SDIPC2 (L2, AF5), PB14 (M13, AF5)
SDOPC1 (L1, AF5), PC3 (L3, AF5), PB15 (M14, AF5)
WSPB9 (C2, AF5), PA11 (C15, AF5), PB4(NJTRST) (D5, AF7), PB12 (L12, AF5)
I2S3CKPC10 (B14, AF6), PB3(JTDO/TRACESWO) (C4, AF6)
MCKPC7 (F13, AF6)
SDIPC11 (B15, AF6), PB4(NJTRST) (D5, AF6)
SDOPB5 (B3, AF7), PC12 (D12, AF6), PD6 (E7, AF5), PB2 (N4, AF7)
WSPA15(JTDI) (G11, AF6), PA4 (M3, AF6)
I2S6CKPB3(JTDO/TRACESWO) (C4, AF8), PC12 (D12, AF5), PG13 (G5, AF5), PA5 (N2, AF8)
MCKPA3 (N1, AF5)
SDIPB4(NJTRST) (D5, AF8), PG12 (F2, AF5), PA6 (P1, AF8)
SDOPB5 (B3, AF8), PG14 (F1, AF5), PA7 (M4, AF8)
WSPA15(JTDI) (G11, AF7), PA0 (M1, AF5), PA4 (M3, AF8), PG8 (P7, AF5)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8 (B1, AF4), PB6 (E5, AF4)
SDAPB9 (C2, AF4), PB7 (D4, AF4)
SMBAPB5 (B3, AF4)
I2C2SCLPF1 (C5, AF4), PB10 (P15, AF4)
SDAPF0 (B5, AF4), PB11 (N14, AF4)
SMBAPF2 (A4, AF4), PB12 (L12, AF4)
I2C3SCLPA8 (F12, AF4)
SDAPA9 (D14, AF4), PC9 (E14, AF4)
SMBAPC8 (D15, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPB8 (B1, AF4), PB6 (E5, AF4)
SDAPB9 (C2, AF4), PB7 (D4, AF4)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPB8 (B1, AF9), PD0 (C13, AF9), PA11 (C15, AF9)
TXPD1 (B13, AF9), PB9 (C2, AF9), PA12 (C14, AF9)
FDCAN2RXPB5 (B3, AF9), PB12 (L12, AF9)
TXPB6 (E5, AF9), PB13 (N15, AF9), PB1 (R2, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPM12 (A7, AF10)
DPPM11 (B7, AF10)
IDPM13 (C7, AF10)
SOFPA8 (F12, AF10)
VBUSPM14 (C8, AF10)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPM5 (B9, AF10)
DPPM6 (A9, AF10)
IDPM9 (B8, AF10)
SOFPA4 (M3, AF10)
VBUSPM8 (C9, AF10)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PM0 (D10, AF6)
CC2PM1 (C10, AF6)
DBCC1PM2 (B10, AF6)
DBCC2PM3 (A10, AF6)
FRSTX1PF5 (G3, AF6), PD14 (L14, AF6)
FRSTX2PD15 (L13, AF6), PD13 (P14, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCLKPD6 (E7, AF4)
MDCPC1 (L1, AF11), PG6 (M7, AF11)
MDIOPA2 (L4, AF11), PA4 (M3, AF11)
MII_COLPA3 (N1, AF11)
MII_CRSPF3 (A3, AF11)
MII_RX_CLKPD7 (B6, AF4), PB6 (E5, AF11), PA1 (M2, AF11)
MII_RX_DVPA7 (M4, AF11)
MII_RX_ERPB10 (P15, AF11)
MII_RXD0PC4 (L5, AF11), PG4 (N6, AF11)
MII_RXD1PC5 (N3, AF11), PG5 (P6, AF11)
MII_RXD2PF5 (G3, AF11)
MII_RXD3PE3 (F5, AF11), PB13 (N15, AF11)
MII_TX_CLKPC3 (L3, AF11)
MII_TX_ENPG11 (F3, AF11), PD8 (M11, AF11), PB11 (N14, AF11)
MII_TX_ERPF4 (B4, AF11)
MII_TXD0PG13 (G5, AF11), PB0 (P2, AF11)
MII_TXD1PB7 (D4, AF11), PG14 (F1, AF11), PG12 (F2, AF11), PB1 (R2, AF11)
MII_TXD2PC2 (L2, AF11)
MII_TXD3PB8 (B1, AF11), PE2 (B2, AF11)
PHY_INTNPD4 (C11, AF11)
PPS_OUTPG3 (A5, AF11), PB5 (B3, AF11), PG8 (P7, AF11)
RMII_CRS_DVPA7 (M4, AF11)
RMII_REF_CLKPD7 (B6, AF4), PB6 (E5, AF11), PA1 (M2, AF11)
RMII_RXD0PC4 (L5, AF11), PG4 (N6, AF11)
RMII_RXD1PC5 (N3, AF11), PG5 (P6, AF11)
RMII_TX_ENPG11 (F3, AF11), PD8 (M11, AF11), PB11 (N14, AF11)
RMII_TXD0PG13 (G5, AF11), PB0 (P2, AF11)
RMII_TXD1PB7 (D4, AF11), PG14 (F1, AF11), PG12 (F2, AF11), PB1 (R2, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (C2, AF7)
CKPC12 (D12, AF11)
CKINPB8 (B1, AF7)
CMDPD2 (A14, AF11)
D0PC8 (D15, AF11), PB13 (N15, AF6)
D0DIRPC6 (E15, AF8)
D1PC9 (E14, AF11)
D2PC10 (B14, AF12)
D3PC11 (B15, AF11)
D4PB8 (B1, AF12)
D5PB9 (C2, AF12)
D6PC6 (E15, AF11)
D7PC7 (F13, AF11)
D123DIRPC7 (F13, AF8)
SDMMC2CKPD6 (E7, AF11), PC1 (L1, AF9)
CMDPD7 (B6, AF11), PA0 (M1, AF9)
D0PB14 (M13, AF9), PG9 (R7, AF11)
D1PB15 (M14, AF9), PG10 (R13, AF11)
D2PB3(JTDO/TRACESWO) (C4, AF9), PG11 (F3, AF10)
D3PB4(NJTRST) (D5, AF9), PG12 (F2, AF10)
D4PB8 (B1, AF10)
D5PB9 (C2, AF10)
D6PC6 (E15, AF10), PG13 (G5, AF10)
D7PG14 (F1, AF10), PC7 (F13, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (B2, AF2)
CK2PE5 (F4, AF2)
D1PE6 (E1, AF2), PD6 (E7, AF2), PC1 (L1, AF2), PB2 (N4, AF2)
D2PE4 (E2, AF2)
D3PF10 (J3, AF2), PC5 (N3, AF2)
FS_APE4 (E2, AF6)
FS_BPF9 (J2, AF6)
MCLK_APE2 (B2, AF6), PG7 (N7, AF6)
MCLK_BPF7 (H4, AF6)
SCK_APD6 (E7, AF6), PE5 (F4, AF6)
SCK_BPF8 (H3, AF6)
SD_APE6 (E1, AF6), PC1 (L1, AF6), PB2 (N4, AF6)
SD_BPE3 (F5, AF6), PF6 (H5, AF6)
SAI2FS_APD12 (N13, AF10)
FS_BPE13 (B12, AF10), PA12 (C14, AF8), PC0 (K3, AF8), PG9 (R7, AF10)
MCLK_APE0 (A2, AF10)
MCLK_BPE14 (A13, AF10), PE6 (E1, AF10), PA1 (M2, AF10)
SCK_APD13 (P14, AF8)
SCK_BPE12 (E11, AF10), PA2 (L4, AF8)
SD_APD11 (M12, AF10)
SD_BPE11 (C12, AF10), PA0 (M1, AF10), PF11 (M5, AF10), PE7 (M6, AF10), PG10 (R13, AF10)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRXIN0PD7 (B6, AF9), PG11 (F3, AF8)
IN1PG12 (F2, AF8), PD8 (M11, AF9)
IN2PC4 (L5, AF9), PG8 (P7, AF8)
IN3PC5 (N3, AF9), PG9 (R7, AF8)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPB6 (E5, AF5), PA15(JTDI) (G11, AF4)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PM11 (B7), PC11 (B15), PE11 (C12), PA11 (C15), PG11 (F3), PN11 (G15), PF11 (M5), PD11 (M12), PB11 (N14)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (D1), PE15 (D11), PG15 (G4), PA15(JTDI) (G11), PD15 (L13), PB15 (M14), PF15 (N5)
INN1PA0 (M1)
INN2PF12 (R3)
INN3PA7 (M4)
INN4PC5 (N3)
INN5PB0 (P2)
INN10PC1 (L1)
INN11PC2 (L2)
INN12PC3 (L3)
INP0PA0 (M1)
INP1PA1 (M2)
INP2PF11 (M5)
INP3PA6 (P1)
INP4PC4 (L5)
INP5PB1 (R2)
INP6PF12 (R3)
INP7PA7 (M4)
INP8PC5 (N3)
INP9PB0 (P2)
INP10PC0 (K3)
INP11PC1 (L1)
INP12PC2 (L2)
INP13PC3 (L3)
INP14PA2 (L4)
INP15PA3 (N1)
INP18PA4 (M3)
ADC2EXTI11PM11 (B7), PC11 (B15), PE11 (C12), PA11 (C15), PG11 (F3), PN11 (G15), PF11 (M5), PD11 (M12), PB11 (N14)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (D1), PE15 (D11), PG15 (G4), PA15(JTDI) (G11), PD15 (L13), PB15 (M14), PF15 (N5)
INN1PA0 (M1)
INN2PF14 (P4)
INN3PA7 (M4)
INN4PC5 (N3)
INN5PB0 (P2)
INN10PC1 (L1)
INN11PC2 (L2)
INN12PC3 (L3)
INP0PA0 (M1)
INP1PA1 (M2)
INP2PF13 (P3)
INP3PA6 (P1)
INP4PC4 (L5)
INP5PB1 (R2)
INP6PF14 (P4)
INP7PA7 (M4)
INP8PC5 (N3)
INP9PB0 (P2)
INP10PC0 (K3)
INP11PC1 (L1)
INP12PC2 (L2)
INP13PC3 (L3)
INP14PA2 (L4)
INP15PA3 (N1)
INP18PA5 (N2)

TIM — таймер

БлокСигналВыводы
TIM1BKINPC10 (B14, AF1), PE15 (D11, AF1), PB12 (L12, AF1), PA6 (P1, AF1)
BKIN2PE6 (E1, AF1), PG4 (N6, AF1)
CH1PA8 (F12, AF1), PC2 (L2, AF1), PE9 (P5, AF1)
CH1NPA7 (M4, AF1), PB13 (N15, AF1), PE8 (R4, AF1)
CH2PE11 (C12, AF1), PA9 (D14, AF1), PC3 (L3, AF1)
CH2NPE2 (B2, AF14), PB14 (M13, AF1), PB0 (P2, AF1), PE10 (R5, AF1)
CH3PE13 (B12, AF1), PA10 (E13, AF1), PA3 (N1, AF14)
CH3NPD3 (A12, AF1), PE12 (E11, AF1), PB15 (M14, AF1), PB1 (R2, AF1)
CH4PE14 (A13, AF1), PA11 (C15, AF1), PC12 (D12, AF1), PD10 (R14, AF1)
CH4NPG0 (B11, AF1), PD5 (D7, AF1)
ETRPD2 (A14, AF1), PA12 (C14, AF1), PE7 (M6, AF1), PD11 (M12, AF1), PG5 (P6, AF1)
TIM2CH1PA15(JTDI) (G11, AF1), PA0 (M1, AF1), PA5 (N2, AF1)
CH2PB3(JTDO/TRACESWO) (C4, AF1), PA1 (M2, AF1)
CH3PA2 (L4, AF1), PB10 (P15, AF1)
CH4PA3 (N1, AF1), PB11 (N14, AF1)
ETRPA15(JTDI) (G11, AF2), PA5 (N2, AF2)
TIM3CH1PB4(NJTRST) (D5, AF2), PC6 (E15, AF2), PA6 (P1, AF2)
CH2PB5 (B3, AF2), PC7 (F13, AF2), PA7 (M4, AF2)
CH3PC8 (D15, AF2), PB0 (P2, AF2)
CH4PC9 (E14, AF2), PB1 (R2, AF2)
ETRPD2 (A14, AF2)
TIM4CH1PB6 (E5, AF2), PD12 (N13, AF2)
CH2PB7 (D4, AF2), PD13 (P14, AF2)
CH3PB8 (B1, AF2), PD14 (L14, AF2)
CH4PB9 (C2, AF2), PD15 (L13, AF2)
ETRPE0 (A2, AF2)
TIM5CH1PA0 (M1, AF2)
CH2PA1 (M2, AF2)
CH3PA2 (L4, AF2)
CH4PA3 (N1, AF2)
ETRPA4 (M3, AF2)
TIM9CH1PC6 (E15, AF3), PA0 (M1, AF3), PB0 (P2, AF3)
CH2PC7 (F13, AF3), PA5 (N2, AF3), PB1 (R2, AF3)
TIM12CH1PB14 (M13, AF2)
CH2PB15 (M14, AF2)
TIM13CH1PF8 (H3, AF9), PA6 (P1, AF9)
TIM14CH1PF9 (J2, AF9), PA7 (M4, AF9)
TIM15BKINPD2 (A14, AF4), PE3 (F5, AF4), PA0 (M1, AF4)
CH1PC12 (D12, AF2), PE5 (F4, AF4), PA2 (L4, AF4)
CH1NPE4 (E2, AF4), PA1 (M2, AF4)
CH2PE6 (E1, AF4), PA3 (N1, AF4)
TIM16BKINPB4(NJTRST) (D5, AF1), PF10 (J3, AF1)
CH1PB8 (B1, AF1), PF6 (H5, AF1)
CH1NPB6 (E5, AF1), PF8 (H3, AF1)
TIM17BKINPB5 (B3, AF1), PG6 (M7, AF1)
CH1PB9 (C2, AF1), PF7 (H4, AF1)
CH1NPB7 (D4, AF1), PF9 (J2, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PG13 (G5, AF1), PD13 (P14, AF1)
CH2PG15 (G4, AF1), PD14 (L14, AF1)
ETRPE0 (A2, AF1), PG14 (F1, AF1)
IN1PG12 (F2, AF1), PD12 (N13, AF1)
IN2PE1 (C3, AF1), PG11 (F3, AF1)
LPTIM2CH1PD14 (L14, AF3), PB13 (N15, AF3)
CH2PE1 (C3, AF3), PB14 (M13, AF3)
ETRPE0 (A2, AF3), PB11 (N14, AF3)
IN1PD12 (N13, AF3), PB10 (P15, AF3)
IN2PB12 (L12, AF3), PD11 (M12, AF3)
LPTIM3CH1PA3 (N1, AF3)
CH2PA4 (M3, AF3)
ETRPA6 (P1, AF3)
IN1PA1 (M2, AF3)
IN2PA2 (L4, AF3)
LPTIM4ETRPB4(NJTRST) (D5, AF3)
IN1PB3(JTDO/TRACESWO) (C4, AF3)
OUTPB5 (B3, AF3)
LPTIM5ETRPE3 (F5, AF3)
IN1PE2 (B2, AF3)
OUTPD15 (L13, AF3)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (E4)
OUT2PB2 (N4, AF0)
REFINPB15 (M14, AF0)
TSPC13 (E4)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PC1 (L1, AF12)
A1PC2 (L2, AF12)
A2PC3 (L3, AF12)
A3PC4 (L5, AF12)
A4PE7 (M6, AF12)
A5PC5 (N3, AF12)
A6PD0 (C13, AF12)
A7PD1 (B13, AF12)
A8PF0 (B5, AF12)
A9PF1 (C5, AF12)
A10PF2 (A4, AF12)
A11PF3 (A3, AF12)
A12PE8 (R4, AF12)
A13PF4 (B4, AF12)
A14PE9 (P5, AF12)
A15PE10 (R5, AF12)
A16PF5 (G3, AF12), PC1 (L1, AF7)
A17PF6 (H5, AF12), PC2 (L2, AF9)
A18PF7 (H4, AF12), PC3 (L3, AF7)
A19PF8 (H3, AF12), PC4 (L5, AF7)
A20PE7 (M6, AF9), PB15 (M14, AF12)
A21PF9 (J2, AF12), PC5 (N3, AF7)
A22PD0 (C13, AF7), PF10 (J3, AF12)
A23PD1 (B13, AF7), PF11 (M5, AF12)
A24PF14 (P4, AF12)
A25PF15 (N5, AF12)
ALEPF6 (H5, AF10)
BA0PE9 (P5, AF14)
BA1PE10 (R5, AF14)
CLEPF5 (G3, AF10)
CLKPN7 (J13, AF12), PD10 (R14, AF12)
D0PA12 (C14, AF12), PN2 (H15, AF12)
D1PA11 (C15, AF12), PN3 (G13, AF12)
D2PA10 (E13, AF12), PN4 (K14, AF12)
D3PA9 (D14, AF12), PN5 (K15, AF12)
D4PA8 (F12, AF12), PN8 (K13, AF12)
D5PN9 (H14, AF12), PA2 (L4, AF12)
D6PN10 (H13, AF12), PA1 (M2, AF12)
D7PN11 (G15, AF12), PA0 (M1, AF12)
D8PD7 (B6, AF12), PB13 (N15, AF12)
D9PE0 (A2, AF12), PB8 (B1, AF14), PB12 (L12, AF12)
D10PE1 (C3, AF12), PB11 (N14, AF12)
D11PE2 (B2, AF12), PB10 (P15, AF12)
D12PB5 (B3, AF12), PE3 (F5, AF12)
D13PB4(NJTRST) (D5, AF12), PE4 (E2, AF12)
D14PB3(JTDO/TRACESWO) (C4, AF12), PE5 (F4, AF12)
D15PE6 (E1, AF12), PA15(JTDI) (G11, AF12)
D16PD11 (M12, AF12)
D17PD14 (L14, AF12)
D18PD15 (L13, AF12)
D19PF12 (R3, AF12)
D20PF13 (P3, AF12)
D21PG3 (A5, AF12)
D22PG4 (N6, AF12)
D23PG5 (P6, AF12)
D24PG7 (N7, AF12)
D25PG8 (P7, AF12)
D26PG9 (R7, AF12)
D27PG10 (R13, AF12)
D28PG11 (F3, AF12)
D29PG12 (F2, AF12)
D30PG13 (G5, AF12)
D31PG14 (F1, AF12)
DA0PA12 (C14, AF12), PN2 (H15, AF12)
DA1PA11 (C15, AF12), PN3 (G13, AF12)
DA2PA10 (E13, AF12), PN4 (K14, AF12)
DA3PA9 (D14, AF12), PN5 (K15, AF12)
DA4PA8 (F12, AF12), PN8 (K13, AF12)
DA5PN9 (H14, AF12), PA2 (L4, AF12)
DA6PN10 (H13, AF12), PA1 (M2, AF12)
DA7PN11 (G15, AF12), PA0 (M1, AF12)
DA8PD7 (B6, AF12), PB13 (N15, AF12)
DA9PE0 (A2, AF12), PB8 (B1, AF14), PB12 (L12, AF12)
DA10PE1 (C3, AF12), PB11 (N14, AF12)
DA11PE2 (B2, AF12), PB10 (P15, AF12)
DA12PB5 (B3, AF12), PE3 (F5, AF12)
DA13PB4(NJTRST) (D5, AF12), PE4 (E2, AF12)
DA14PB3(JTDO/TRACESWO) (C4, AF12), PE5 (F4, AF12)
DA15PE6 (E1, AF12), PA15(JTDI) (G11, AF12)
INTPD6 (E7, AF10), PA7 (M4, AF12), PD13 (P14, AF10)
NBL0PN1 (F14, AF12), PD8 (M11, AF12)
NBL1PC0 (K3, AF12)
NBL2PG6 (M7, AF12)
NBL3PG15 (G4, AF12)
NCEPD5 (D7, AF10)
NE1PB14 (M13, AF12), PD12 (N13, AF12)
NE2PD5 (D7, AF12)
NE3PD6 (E7, AF12)
NE4PN0 (G14, AF12)
NLPD4 (C11, AF12)
NOEPA5 (N2, AF12), PB1 (R2, AF12)
NWAITPD3 (A12, AF12)
NWEPB2 (N4, AF12)
SDCKE0PE15 (D11, AF12)
SDCKE1PB7 (D4, AF12)
SDCLKPN6 (J14, AF12), PD9 (P13, AF12)
SDNCASPE13 (B12, AF12)
SDNE0PE14 (A13, AF12)
SDNE1PB6 (E5, AF12)
SDNRASPE12 (E11, AF12)
SDNWEPE11 (C12, AF12)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (D14, AF6), PC6 (E15, AF9), PA1 (M2, AF6)
D1PB7 (D4, AF9), PA10 (E13, AF6), PC7 (F13, AF9)
D2PE0 (A2, AF9), PD7 (B6, AF6), PC8 (D15, AF9), PB13 (N15, AF8), PG10 (R13, AF9)
D3PE1 (C3, AF9), PC9 (E14, AF9), PG11 (F3, AF9)
D4PC11 (B15, AF9), PE4 (E2, AF9), PD10 (R14, AF8)
D5PD3 (A12, AF6), PB6 (E5, AF6)
D6PB8 (B1, AF6), PE5 (F4, AF9), PD11 (M12, AF8)
D7PB9 (C2, AF6), PE6 (E1, AF9), PD14 (L14, AF9)
D8PF4 (B4, AF9), PA5 (N2, AF6)
D9PF3 (A3, AF9), PC12 (D12, AF9), PD15 (L13, AF9)
D10PB5 (B3, AF6), PD6 (E7, AF9), PF13 (P3, AF9)
D11PD2 (A14, AF6), PF10 (J3, AF9)
D12PF11 (M5, AF9), PG6 (M7, AF9), PD12 (N13, AF9)
D13PG15 (G4, AF9), PG7 (N7, AF9), PD13 (P14, AF9)
D14PF2 (A4, AF9), PC10 (B14, AF9)
D15PF5 (G3, AF9), PF10 (J3, AF6), PC5 (N3, AF6)
DEPG3 (A5, AF9), PB3(JTDO/TRACESWO) (C4, AF14), PD4 (C11, AF6), PD0 (C13, AF6), PA4 (M3, AF9)
PDCKPD5 (D7, AF6), PF8 (H3, AF8), PA6 (P1, AF6)
RDYPB7 (D4, AF6), PB4(NJTRST) (D5, AF14), PG9 (R7, AF9)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PE2 (B2, AF1)
CCK1PE5 (F4, AF1)
SDI0PE6 (E1, AF3), PE4 (E2, AF3), PD6 (E7, AF3), PC1 (L1, AF3), PB2 (N4, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14(JTCK/SWCLK) (D13, AF0)
JTDIPA15(JTDI) (G11, AF0)
JTDO-SWOPB3(JTDO/TRACESWO) (C4, AF0)
JTMS-SWDIOPA13(JTMS/SWDIO) (E12, AF0)
NJTRSTPB4(NJTRST) (D5, AF0)
TRACECLKPE2 (B2, AF0)
TRACED0PE3 (F5, AF0), PG13 (G5, AF0), PC1 (L1, AF0)
TRACED1PC8 (D15, AF0), PE4 (E2, AF0), PG14 (F1, AF0)
TRACED2PD2 (A14, AF0), PE5 (F4, AF0)
TRACED3PC12 (D12, AF0), PE6 (E1, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (F12, AF0)
MCO_2PC9 (E14, AF0)
OSC_INPH0-OSC_IN (K1)
OSC_OUTPH1-OSC_OUT (K2)
OSC32_INPC14-OSC32_IN(OSC32_IN) (D2)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (D1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPA6 (P1, AF0)
PWR_CSTOPPA5 (N2, AF0)
PWR_WKUP1PA0 (M1)
PWR_WKUP2PA2 (L4)
PWR_WKUP3PC13 (E4)
PWR_WKUP4PC1 (L1)
TAMP_IN1PC13 (E4)
TAMP_IN2PB9 (C2)
TAMP_IN3PE1 (C3)
TAMP_IN4PE0 (A2)
TAMP_IN5PD5 (D7)
TAMP_IN6PD4 (C11)
TAMP_IN7PC1 (L1)
TAMP_IN8PD10 (R14)
TAMP_OUT1PB9 (C2)
TAMP_OUT2PC13 (E4)
TAMP_OUT3PD4 (C11)
TAMP_OUT4PD5 (D7)
TAMP_OUT5PE0 (A2)
TAMP_OUT6PE1 (C3)
TAMP_OUT7PD10 (R14)
TAMP_OUT8PC1 (L1)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), USB_OTG_HS1 (USB On-The-Go High Speed), XSPI1 (расширенный SPI для памяти), XSPI2 (расширенный SPI для памяти), HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций).

Таблица выводов

Все 225 шариков корпуса TFBGA225 OCTO SMPS по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1VSSпитание—
A2PE0ввод-выводDCMIPP_D2 (AF13), FMC_D9 (AF12), FMC_DA9 (AF12), LPTIM1_ETR (AF1), LPTIM2_ETR (AF3), PSSI_D2 (AF9), SAI2_MCLK_A (AF10), TAMP_IN4, TAMP_OUT5, TIM4_ETR (AF2), UART8_RX (AF8)
A3PF3ввод-выводDCMIPP_D9 (AF5), ETH_MII_CRS (AF11), FMC_A11 (AF12), PSSI_D9 (AF9)
A4PF2ввод-выводDCMIPP_D14 (AF5), FMC_A10 (AF12), I2C2_SMBA (AF4), PSSI_D14 (AF9)
A5PG3ввод-выводDCMIPP_HSYNC (AF5), ETH_PPS_OUT (AF11), FMC_D21 (AF12), PSSI_DE (AF9)
A6BOOT0загрузка—
A7PM12ввод-выводSPI5_NSS (AF5), USB_OTG_FS_DM (AF10)
A8VSSпитание—
A9PM6ввод-выводUSB_OTG_HS_DP (AF10)
A10PM3ввод-выводUCPD1_DBCC2 (AF6)
A11VSSпитание—
A12PD3ввод-выводDCMIPP_D5 (AF13), FMC_NWAIT (AF12), I2S2_CK (AF5), PSSI_D5 (AF6), SPI2_SCK (AF5), TIM1_CH3N (AF1), USART2_CTS (AF7), USART2_NSS (AF7)
A13PE14ввод-выводFMC_SDNE0 (AF12), GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF13), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
A14PD2ввод-выводDCMIPP_D11 (AF13), DEBUG_TRACED2 (AF0), PSSI_D11 (AF6), SDMMC1_CMD (AF11), TIM15_BKIN (AF4), TIM1_ETR (AF1), TIM3_ETR (AF2), UART5_RX (AF8)
A15VSSпитание—
B1PB8ввод-выводDCMIPP_D6 (AF13), ETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), FMC_D9 (AF14), FMC_DA9 (AF14), I2C1_SCL (AF4), I3C1_SCL (AF4), PSSI_D6 (AF6), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8), USART3_CK (AF3)
B2PE2ввод-выводADF1_CCK0 (AF1), DEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_D11 (AF12), FMC_DA11 (AF12), LPTIM5_IN1 (AF3), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), TIM1_CH2N (AF14)
B3PB5ввод-выводDCMIPP_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_D12 (AF12), FMC_DA12 (AF12), I2C1_SMBA (AF4), I2S1_SDO (AF5), I2S3_SDO (AF7), I2S6_SDO (AF8), LPTIM4_OUT (AF3), PSSI_D10 (AF6), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14)
B4PF4ввод-выводDCMIPP_D8 (AF5), ETH_MII_TX_ER (AF11), FMC_A13 (AF12), PSSI_D8 (AF9)
B5PF0ввод-выводFMC_A8 (AF12), I2C2_SDA (AF4)
B6PD7ввод-выводDCMIPP_D2 (AF13), ETH_MII_RX_CLK (AF4), ETH_RMII_REF_CLK (AF4), FMC_D8 (AF12), FMC_DA8 (AF12), I2S1_SDO (AF5), PSSI_D2 (AF6), SDMMC2_CMD (AF11), SPDIFRX_IN0 (AF9), SPI1_MOSI (AF5), USART2_CK (AF7)
B7PM11ввод-выводADC1_EXTI11, ADC2_EXTI11, SPI5_SCK (AF5), USB_OTG_FS_DP (AF10)
B8PM9ввод-выводUART7_TX (AF7), USB_OTG_HS_ID (AF10)
B9PM5ввод-выводUSB_OTG_HS_DM (AF10)
B10PM2ввод-выводUCPD1_DBCC1 (AF6)
B11PG0ввод-выводTIM1_CH4N (AF1)
B12PE13ввод-выводFMC_SDNCAS (AF12), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
B13PD1ввод-выводFDCAN1_TX (AF9), FMC_A7 (AF12), FMC_A23 (AF7), UART4_TX (AF8)
B14PC10ввод-выводDCMIPP_D14 (AF13), I2S3_CK (AF6), PSSI_D14 (AF9), SDMMC1_D2 (AF12), SPI3_SCK (AF6), TIM1_BKIN (AF1), UART4_TX (AF8), USART3_TX (AF7)
B15PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMIPP_D4 (AF13), I2S3_SDI (AF6), PSSI_D4 (AF9), SDMMC1_D3 (AF11), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
C1VBATпитание—
C2PB9ввод-выводDCMIPP_D7 (AF13), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2S2_WS (AF5), I3C1_SDA (AF4), PSSI_D7 (AF6), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TAMP_IN2, TAMP_OUT1, TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
C3PE1ввод-выводDCMIPP_D3 (AF13), FMC_D10 (AF12), FMC_DA10 (AF12), LPTIM1_IN2 (AF1), LPTIM2_CH2 (AF3), PSSI_D3 (AF9), TAMP_IN3, TAMP_OUT6, UART8_TX (AF8)
C4PB3(JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DCMIPP_HSYNC (AF4), DEBUG_JTDO-SWO (AF0), FMC_D14 (AF12), FMC_DA14 (AF12), I2S1_CK (AF5), I2S3_CK (AF6), I2S6_CK (AF8), LPTIM4_IN1 (AF3), PSSI_DE (AF14), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART7_RX (AF11)
C5PF1ввод-выводFMC_A9 (AF12), I2C2_SCL (AF4)
C6PG2ввод-вывод—
C7PM13ввод-выводSPI5_MOSI (AF5), USB_OTG_FS_ID (AF10)
C8PM14ввод-выводSPI5_MISO (AF5), USB_OTG_FS_VBUS (AF10)
C9PM8ввод-выводUART7_RX (AF7), USB_OTG_HS_VBUS (AF10)
C10PM1ввод-выводUCPD1_CC2 (AF6)
C11PD4ввод-выводDCMIPP_HSYNC (AF5), ETH_PHY_INTN (AF11), FMC_NL (AF12), PSSI_DE (AF6), TAMP_IN6, TAMP_OUT3, USART2_DE (AF7), USART2_RTS (AF7)
C12PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_SDNWE (AF12), SAI2_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
C13PD0ввод-выводDCMIPP_HSYNC (AF13), FDCAN1_RX (AF9), FMC_A6 (AF12), FMC_A22 (AF7), PSSI_DE (AF6), UART4_RX (AF8)
C14PA12ввод-выводFDCAN1_TX (AF9), FMC_D0 (AF12), FMC_DA0 (AF12), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), SAI2_FS_B (AF8), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7)
C15PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX (AF9), FMC_D1 (AF12), FMC_DA1 (AF12), I2S2_WS (AF5), LPUART1_CTS (AF3), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7)
D1PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT
D2PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
D3VSSпитание—
D4PB7ввод-выводDCMIPP_D1 (AF5), DCMIPP_VSYNC (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_SDCKE1 (AF12), I2C1_SDA (AF4), I3C1_SDA (AF4), LPUART1_RX (AF8), PSSI_D1 (AF9), PSSI_RDY (AF6), TIM17_CH1N (AF1), TIM4_CH2 (AF2), UART5_TX (AF14), USART1_RX (AF7)
D5PB4(NJTRST)ввод-выводDCMIPP_VSYNC (AF4), DEBUG_NJTRST (AF0), FMC_D13 (AF12), FMC_DA13 (AF12), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), I2S6_SDI (AF8), LPTIM4_ETR (AF3), PSSI_RDY (AF14), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
D6VSSпитание—
D7PD5ввод-выводDCMIPP_PIXCLK (AF5), FMC_NCE (AF10), FMC_NE2 (AF12), PSSI_PDCK (AF6), TAMP_IN5, TAMP_OUT4, TIM1_CH4N (AF1), USART2_TX (AF7)
D8DVDDпитание—
D9VDD50USBпитание—
D10PM0ввод-выводUCPD1_CC1 (AF6)
D11PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_SDCKE0 (AF12), GFXTIM_FCKCAL (AF13), GFXTIM_LCKCAL (AF2), TIM1_BKIN (AF1)
D12PC12ввод-выводDCMIPP_D9 (AF13), DEBUG_TRACED3 (AF0), I2S3_SDO (AF6), I2S6_CK (AF5), PSSI_D9 (AF9), SDMMC1_CK (AF11), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), TIM1_CH4 (AF1), UART5_TX (AF8), USART3_CK (AF7)
D13PA14(JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
D14PA9ввод-выводDCMIPP_D0 (AF13), FMC_D3 (AF12), FMC_DA3 (AF12), I2C3_SDA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), PSSI_D0 (AF6), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7)
D15PC8ввод-выводDCMIPP_D2 (AF13), DEBUG_TRACED1 (AF0), I2C3_SMBA (AF4), PSSI_D2 (AF9), SDMMC1_D0 (AF11), TIM3_CH3 (AF2), UART5_DE (AF8), UART5_RTS (AF8)
E1PE6ввод-выводADF1_SDI0 (AF3), DCMIPP_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_D15 (AF12), FMC_DA15 (AF12), PSSI_D7 (AF9), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
E2PE4ввод-выводADF1_SDI0 (AF3), DCMIPP_D4 (AF13), DEBUG_TRACED1 (AF0), FMC_D13 (AF12), FMC_DA13 (AF12), PSSI_D4 (AF9), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TIM15_CH1N (AF4)
E3VSSпитание—
E4PC13ввод-выводPWR_WKUP3, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2
E5PB6ввод-выводCEC (AF5), DCMIPP_D5 (AF13), ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), I2C1_SCL (AF4), I3C1_SCL (AF4), LPUART1_TX (AF8), PSSI_D5 (AF6), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
E6VCAP4питание—
E7PD6ввод-выводADF1_SDI0 (AF3), DCMIPP_D10 (AF13), ETH_CLK (AF4), FMC_INT (AF10), FMC_NE3 (AF12), I2S3_SDO (AF5), PSSI_D10 (AF9), SAI1_D1 (AF2), SAI1_SCK_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
E8VSSUSBпитание—
E9VSSпитание—
E10PG1ввод-вывод—
E11PE12ввод-выводFMC_SDNRAS (AF12), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
E12PA13(JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
E13PA10ввод-выводDCMIPP_D1 (AF13), FMC_D2 (AF12), FMC_DA2 (AF12), LPUART1_RX (AF3), MDIOS_MDIO (AF11), PSSI_D1 (AF6), TIM1_CH3 (AF1), USART1_RX (AF7)
E14PC9ввод-выводDCMIPP_D3 (AF13), I2C3_SDA (AF4), I2S_CKIN (AF5), PSSI_D3 (AF9), RCC_MCO_2 (AF0), SDMMC1_D1 (AF11), TIM3_CH4 (AF2), UART5_CTS (AF8)
E15PC6ввод-выводDCMIPP_D0 (AF13), I2S2_MCK (AF5), PSSI_D0 (AF9), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF11), SDMMC2_D6 (AF10), TIM3_CH1 (AF2), TIM9_CH1 (AF3)
F1PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_D31 (AF12), I2S6_SDO (AF5), LPTIM1_ETR (AF1), SDMMC2_D7 (AF10), SPI6_MOSI (AF5)
F2PG12ввод-выводETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_D29 (AF12), I2S6_SDI (AF5), LPTIM1_IN1 (AF1), SDMMC2_D3 (AF10), SPDIFRX_IN1 (AF8), SPI6_MISO (AF5)
F3PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMIPP_D3 (AF13), ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), FMC_D28 (AF12), I2S1_CK (AF5), LPTIM1_IN2 (AF1), PSSI_D3 (AF9), SDMMC2_D2 (AF10), SPDIFRX_IN0 (AF8), SPI1_SCK (AF5)
F4PE5ввод-выводADF1_CCK1 (AF1), DCMIPP_D6 (AF13), DEBUG_TRACED2 (AF0), FMC_D14 (AF12), FMC_DA14 (AF12), PSSI_D6 (AF9), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TIM15_CH1 (AF4)
F5PE3ввод-выводDEBUG_TRACED0 (AF0), ETH_MII_RXD3 (AF11), FMC_D12 (AF12), FMC_DA12 (AF12), LPTIM5_ETR (AF3), SAI1_SD_B (AF6), TIM15_BKIN (AF4)
F6VSSпитание—
F7VDDпитание—
F8VDD33USBпитание—
F9VDDпитание—
F10VDDпитание—
F11VCAP3питание—
F12PA8ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), I2C3_SCL (AF4), RCC_MCO_1 (AF0), TIM1_CH1 (AF1), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF (AF10)
F13PC7ввод-выводDCMIPP_D1 (AF13), DEBUG_TRGIO (AF0), I2S3_MCK (AF6), PSSI_D1 (AF9), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF11), SDMMC2_D7 (AF10), TIM3_CH2 (AF2), TIM9_CH2 (AF3)
F14PN1ввод-выводFMC_NBL0 (AF12), XSPIM_P2_NCS1 (AF9)
F15VSSпитание—
G1VLXSMPSпитание—
G2VFBSMPSпитание—
G3PF5ввод-выводDCMIPP_D15 (AF5), ETH_MII_RXD2 (AF11), FMC_A16 (AF12), FMC_CLE (AF10), PSSI_D15 (AF9), UCPD1_FRSTX1 (AF6)
G4PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMIPP_D13 (AF13), FMC_NBL3 (AF12), LPTIM1_CH2 (AF1), PSSI_D13 (AF9)
G5PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FMC_D30 (AF12), I2S6_CK (AF5), LPTIM1_CH1 (AF1), SDMMC2_D6 (AF10), SPI6_SCK (AF5)
G6VDDпитание—
G7VDDLDOпитание—
G8VSSпитание—
G9VDDLDOпитание—
G10VSSпитание—
G11PA15(JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), FMC_D15 (AF12), FMC_DA15 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF7), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
G12VSSпитание—
G13PN3ввод-выводFMC_D1 (AF12), FMC_DA1 (AF12), XSPIM_P2_IO1 (AF9)
G14PN0ввод-выводFMC_NE4 (AF12), XSPIM_P2_DQS0 (AF9)
G15PN11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D7 (AF12), FMC_DA7 (AF12), XSPIM_P2_IO7 (AF9)
H1VDDSMPSпитание—
H2VSSSMPSпитание—
H3PF8ввод-выводDCMIPP_PIXCLK (AF4), FMC_A19 (AF12), PSSI_PDCK (AF8), SAI1_SCK_B (AF6), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
H4PF7ввод-выводFMC_A18 (AF12), SAI1_MCLK_B (AF6), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
H5PF6ввод-выводFMC_A17 (AF12), FMC_ALE (AF10), SAI1_SD_B (AF6), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
H6VDDпитание—
H7VSSпитание—
H8VSSпитание—
H9VSSпитание—
H10VDDпитание—
H11VSSпитание—
H12VDDXSPI2питание—
H13PN10ввод-выводFMC_D6 (AF12), FMC_DA6 (AF12), XSPIM_P2_IO6 (AF9)
H14PN9ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), XSPIM_P2_IO5 (AF9)
H15PN2ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), XSPIM_P2_IO0 (AF9)
J1VSSпитание—
J2PF9ввод-выводFMC_A21 (AF12), SAI1_FS_B (AF6), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
J3PF10ввод-выводDCMIPP_D11 (AF13), DCMIPP_D15 (AF4), FMC_A22 (AF12), PSSI_D11 (AF9), PSSI_D15 (AF6), SAI1_D3 (AF2), TIM16_BKIN (AF1)
J4NRSTсброс—
J5VSSAпитание—
J6VDDAпитание—
J7VDDLDOпитание—
J8VSSпитание—
J9VDDLDOпитание—
J10VSSпитание—
J11VDDXSPI2питание—
J12VSSпитание—
J13PN7ввод-выводFMC_CLK (AF12), XSPIM_P2_NCLK (AF9)
J14PN6ввод-выводFMC_SDCLK (AF12), XSPIM_P2_CLK (AF9)
J15VSSпитание—
K1PH0-OSC_INввод-выводRCC_OSC_IN
K2PH1-OSC_OUTввод-выводRCC_OSC_OUT
K3PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_NBL1 (AF12), GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF13), SAI2_FS_B (AF8)
K4VREFMпитание—
K5VREFPпитание—
K6VDDпитание—
K7VSSпитание—
K8VDDпитание—
K9VSSпитание—
K10VDDпитание—
K11VCAP2питание—
K12VDDXSPI2питание—
K13PN8ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), XSPIM_P2_IO4 (AF9)
K14PN4ввод-выводFMC_D2 (AF12), FMC_DA2 (AF12), XSPIM_P2_IO2 (AF9)
K15PN5ввод-выводFMC_D3 (AF12), FMC_DA3 (AF12), XSPIM_P2_IO3 (AF9)
L1PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0 (AF3), DEBUG_TRACED0 (AF0), ETH_MDC (AF11), FMC_A0 (AF12), FMC_A16 (AF7), I2S2_SDO (AF5), MDIOS_MDC (AF14), PWR_WKUP4, SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF9), SPI2_MOSI (AF5), TAMP_IN7, TAMP_OUT8
L2PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_A1 (AF12), FMC_A17 (AF9), I2S2_SDI (AF5), SPI2_MISO (AF5), TIM1_CH1 (AF1)
L3PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_A2 (AF12), FMC_A18 (AF7), I2S2_SDO (AF5), SPI2_MOSI (AF5), TIM1_CH2 (AF1)
L4PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), FMC_D5 (AF12), FMC_DA5 (AF12), LPTIM3_IN2 (AF3), MDIOS_MDIO (AF14), PWR_WKUP2, SAI2_SCK_B (AF8), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
L5PC4ввод-выводADC1_INP4, ADC2_INP4, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_A3 (AF12), FMC_A19 (AF7), I2S1_MCK (AF5), SPDIFRX_IN2 (AF9)
L6VSSпитание—
L7VCAP1питание—
L8VDDXSPI1питание—
L9VDDпитание—
L10VDDXSPI1питание—
L11VSSпитание—
L12PB12ввод-выводFDCAN2_RX (AF9), FMC_D9 (AF12), FMC_DA9 (AF12), I2C2_SMBA (AF4), I2S2_WS (AF5), LPTIM2_IN2 (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF14), USART3_CK (AF7)
L13PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMIPP_D9 (AF5), FMC_D18 (AF12), LPTIM5_OUT (AF3), PSSI_D9 (AF9), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UCPD1_FRSTX2 (AF6)
L14PD14ввод-выводDCMIPP_D7 (AF5), FMC_D17 (AF12), LPTIM1_CH2 (AF1), LPTIM2_CH1 (AF3), PSSI_D7 (AF9), TIM4_CH3 (AF2), UART8_CTS (AF8), UCPD1_FRSTX1 (AF6)
L15PN12ввод-выводXSPIM_P2_NCS2 (AF9)
M1PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, FMC_D7 (AF12), FMC_DA7 (AF12), I2S6_WS (AF5), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI6_NSS (AF5), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM5_CH1 (AF2), TIM9_CH1 (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
M2PA1ввод-выводADC1_INP1, ADC2_INP1, DCMIPP_D0 (AF5), ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), FMC_D6 (AF12), FMC_DA6 (AF12), LPTIM3_IN1 (AF3), PSSI_D0 (AF6), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
M3PA4ввод-выводADC1_INP18, DCMIPP_HSYNC (AF13), ETH_MDIO (AF11), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF8), LPTIM3_CH2 (AF3), PSSI_DE (AF9), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7), USB_OTG_HS_SOF (AF10)
M4PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_INT (AF12), I2S1_SDO (AF5), I2S6_SDO (AF8), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2)
M5PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMIPP_D12 (AF13), FMC_A23 (AF12), PSSI_D12 (AF9), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
M6PE7ввод-выводFMC_A4 (AF12), FMC_A20 (AF9), SAI2_SD_B (AF10), TIM1_ETR (AF1), UART7_RX (AF7)
M7PG6ввод-выводDCMIPP_D12 (AF13), ETH_MDC (AF11), FMC_NBL2 (AF12), PSSI_D12 (AF9), TIM17_BKIN (AF1)
M8VSSпитание—
M9VSSпитание—
M10VDDXSPI1питание—
M11PD8ввод-выводETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), FMC_NBL0 (AF12), SPDIFRX_IN1 (AF9), USART3_TX (AF7)
M12PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMIPP_D6 (AF5), FMC_D16 (AF12), LPTIM2_IN2 (AF3), PSSI_D6 (AF8), SAI2_SD_A (AF10), TIM1_ETR (AF1), USART3_CTS (AF7), USART3_NSS (AF7)
M13PB14ввод-выводFMC_NE1 (AF12), I2S2_SDI (AF5), LPTIM2_CH2 (AF3), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), UART4_DE (AF8), UART4_RTS (AF8), USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
M14PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_A20 (AF12), I2S2_SDO (AF5), PWR_PVD_IN, RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), UART4_CTS (AF8), USART1_RX (AF4)
M15VSSпитание—
N1PA3ввод-выводADC1_INP15, ADC2_INP15, ETH_MII_COL (AF11), GFXTIM_FCKCAL (AF12), GFXTIM_LCKCAL (AF8), I2S6_MCK (AF5), LPTIM3_CH1 (AF3), SPI1_RDY (AF10), SPI4_RDY (AF6), SPI5_RDY (AF9), TIM15_CH2 (AF4), TIM1_CH3 (AF14), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
N2PA5ввод-выводADC2_INP18, DCMIPP_D8 (AF13), FMC_NOE (AF12), I2S1_CK (AF5), I2S6_CK (AF8), PSSI_D8 (AF6), PWR_CSTOP (AF0), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM9_CH2 (AF3)
N3PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, DCMIPP_D15 (AF4), ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_A5 (AF12), FMC_A21 (AF7), PSSI_D15 (AF6), SAI1_D3 (AF2), SPDIFRX_IN3 (AF9)
N4PB2ввод-выводADF1_SDI0 (AF3), FMC_NWE (AF12), I2S3_SDO (AF7), RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SPI3_MOSI (AF7)
N5PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_A25 (AF12), SPI5_SCK (AF5), USART1_DE (AF4), USART1_RTS (AF4)
N6PG4ввод-выводETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_D22 (AF12), TIM1_BKIN2 (AF1)
N7PG7ввод-выводDCMIPP_D13 (AF13), FMC_D24 (AF12), PSSI_D13 (AF9), SAI1_MCLK_A (AF6)
N8PP2ввод-выводXSPIM_P1_IO2 (AF9)
N9PP3ввод-выводXSPIM_P1_IO3 (AF9)
N10PP0ввод-выводXSPIM_P1_IO0 (AF9)
N11PP7ввод-выводXSPIM_P1_IO7 (AF9)
N12PO0ввод-выводXSPIM_P1_NCS1 (AF9)
N13PD12ввод-выводDCMIPP_D12 (AF13), FMC_NE1 (AF12), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), PSSI_D12 (AF9), SAI2_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
N14PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), FMC_D10 (AF12), FMC_DA10 (AF12), I2C2_SDA (AF4), LPTIM2_ETR (AF3), TIM2_CH4 (AF1), USART3_RX (AF7)
N15PB13ввод-выводDCMIPP_D2 (AF13), ETH_MII_RXD3 (AF11), FDCAN2_TX (AF9), FMC_D8 (AF12), FMC_DA8 (AF12), I2S2_CK (AF5), LPTIM2_CH1 (AF3), PSSI_D2 (AF8), SDMMC1_D0 (AF6), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), USART3_CTS (AF7), USART3_NSS (AF7)
P1PA6ввод-выводADC1_INP3, ADC2_INP3, DCMIPP_PIXCLK (AF13), I2S1_SDI (AF5), I2S6_SDI (AF8), LPTIM3_ETR (AF3), MDIOS_MDC (AF11), PSSI_PDCK (AF6), PWR_CSLEEP (AF0), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM3_CH1 (AF2)
P2PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), GFXTIM_TE (AF12), I2S1_CK (AF5), SPI1_SCK (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM9_CH1 (AF3), UART4_CTS (AF8)
P3PF13ввод-выводADC2_INP2, DCMIPP_D10 (AF13), FMC_D20 (AF12), PSSI_D10 (AF9), SPI5_NSS (AF5), USART1_TX (AF4)
P4PF14ввод-выводADC2_INN2, ADC2_INP6, FMC_A24 (AF12), SPI5_MOSI (AF5), USART1_CTS (AF4)
P5PE9ввод-выводFMC_A14 (AF12), FMC_BA0 (AF14), TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
P6PG5ввод-выводETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_D23 (AF12), TIM1_ETR (AF1)
P7PG8ввод-выводETH_PPS_OUT (AF11), FMC_D25 (AF12), I2S6_WS (AF5), SPDIFRX_IN2 (AF8), SPI6_NSS (AF5)
P8PO1ввод-выводXSPIM_P1_NCS2 (AF9)
P9VSSпитание—
P10PP5ввод-выводXSPIM_P1_IO5 (AF9)
P11PO2ввод-выводXSPIM_P1_DQS0 (AF9)
P12PP1ввод-выводXSPIM_P1_IO1 (AF9)
P13PD9ввод-выводFMC_SDCLK (AF12), USART3_RX (AF7)
P14PD13ввод-выводDCMIPP_D13 (AF13), FMC_INT (AF10), LPTIM1_CH1 (AF1), PSSI_D13 (AF9), SAI2_SCK_A (AF8), TIM4_CH2 (AF2), UCPD1_FRSTX2 (AF6)
P15PB10ввод-выводETH_MII_RX_ER (AF11), FMC_D11 (AF12), FMC_DA11 (AF12), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
R1VSSпитание—
R2PB1ввод-выводADC1_INP5, ADC2_INP5, ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FDCAN2_TX (AF9), FMC_NOE (AF12), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM9_CH2 (AF3)
R3PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_D19 (AF12), SPI5_MISO (AF5), USART1_RX (AF4)
R4PE8ввод-выводFMC_A12 (AF12), TIM1_CH1N (AF1), UART7_TX (AF7)
R5PE10ввод-выводFMC_A15 (AF12), FMC_BA1 (AF14), TIM1_CH2N (AF1), UART7_CTS (AF7)
R6VSSпитание—
R7PG9ввод-выводDCMIPP_VSYNC (AF13), FMC_D26 (AF12), I2S1_SDI (AF5), PSSI_RDY (AF9), SAI2_FS_B (AF10), SDMMC2_D0 (AF11), SPDIFRX_IN3 (AF8), SPI1_MISO (AF5)
R8PP4ввод-выводXSPIM_P1_IO4 (AF9)
R9PO5ввод-выводXSPIM_P1_NCLK (AF9)
R10PO4ввод-выводXSPIM_P1_CLK (AF9)
R11PP6ввод-выводXSPIM_P1_IO6 (AF9)
R12VSSпитание—
R13PG10ввод-выводDCMIPP_D2 (AF13), FMC_D27 (AF12), I2S1_WS (AF5), PSSI_D2 (AF9), SAI2_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5)
R14PD10ввод-выводDCMIPP_D4 (AF5), FMC_CLK (AF12), PSSI_D4 (AF8), SPI1_RDY (AF10), SPI4_RDY (AF6), SPI5_RDY (AF9), TAMP_IN8, TAMP_OUT7, TIM1_CH4 (AF1), USART3_CK (AF7)
R15VSSпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
DVDDD8—
VBATC1резервное питание: часы реального времени и резервные регистры
VCAP1L7—
VCAP2K11—
VCAP3F11—
VCAP4E6—
VDDF7, F9, F10, G6, H6, H10, K6, K8, K10, L9питание цифровой части и линий ввода-вывода
VDD33USBF8—
VDD50USBD9—
VDDAJ6питание аналоговой части: АЦП, ЦАП, генераторы
VDDLDOG7, G9, J7, J9—
VDDSMPSH1—
VDDXSPI1L8, L10, M10—
VDDXSPI2H12, J11, K12—
VFBSMPSG2—
VLXSMPSG1—
VREFMK4—
VREFPK5—
VSSA1, A8, A11, A15, D3, D6, E3, E9, F6, F15, G8, G10, G12, H7, H8, H9, H11, J1, J8, J10, J12, J15, K7, K9, L6, L11, M8, M9, M15, P9, R1, R6, R12, R15общий провод (земля)
VSSAJ5общий провод аналоговой части
VSSSMPSH2—
VSSUSBE8—
NRSTJ4сброс, активный уровень — низкий
BOOT0A6выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H7R3L8Hx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H7R3L8STM32H7R3L8Hx64 КБ620 КБ

Линейка STM32H7R3/7S3, семейство STM32H7, ядро Cortex-M7.

Заказные номера

Полные номера для заказа из таблицы на странице продукта на сайте ST: STM32H7R3L8. Данные на 11 октября 2026 г.; перечислены номера, которые в этот момент выпускались. Цифра после буквы корпуса — температурный диапазон, вид упаковки указан в последнем столбце.

Номер для заказаКорпусТемператураУпаковка
STM32H7R3L8H6TFBGA 225, 13×13×1,2 мм, шаг 0,8 мм−40…+85 °Cлоток

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе TFBGA225 OCTO SMPS, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H7S3L8STM32H7R3/7S3225 из 225выводы совпадают полностьютолько у него: CRYP, PKA
STM32H7R7L8STM32H7R7/7S7225 из 225выводы совпадают полностьютолько у него: LTDC
STM32H7S7L8STM32H7R7/7S7225 из 225выводы совпадают полностьютолько у него: CRYP, LTDC, PKA

Частые вопросы

На каких выводах USART1 у STM32H7R3L8?

В корпусе TFBGA225 OCTO SMPS сигнал USART1_TX выведен на PA9 (шарик D14, AF7) или PB6 (шарик E5, AF7) или PB14 (шарик M13, AF4) или PF13 (шарик P3, AF4), USART1_RX — на PB7 (шарик D4, AF7) или PA10 (шарик E13, AF7) или PB15 (шарик M14, AF4) или PF12 (шарик R3, AF4).

Где у STM32H7R3L8 выводы SWD для программатора?

SWDIO — PA13(JTMS/SWDIO) (шарик E12, AF0), SWCLK — PA14(JTCK/SWCLK) (шарик D13, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H7R3L8?

I2C1_SCL — PB8 (шарик B1, AF4) или PB6 (шарик E5, AF4), I2C1_SDA — PB9 (шарик C2, AF4) или PB7 (шарик D4, AF4).

Сколько выводов ввода-вывода у STM32H7R3L8 в корпусе TFBGA225 OCTO SMPS?

152 из 225. Ещё 71 вывод занят питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Заказные номера, корпуса, упаковка и температурный диапазон — из таблиц на страницах продуктов st.com (данные на 11 октября 2026 г.). Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
