STM32H7S3I8 в корпусе LQFP176: распиновка

STM32H7S3I8 — микроконтроллер STM32H7 на ядре Cortex-M7: 64 КБ флеш-памяти и 620 КБ ОЗУ. Корпус LQFP176 — 176 выводов, из них 119 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M7
Флеш-память
64 КБ
ОЗУ
620 КБ
Корпус
LQFP176, 176 выводов
Линий ввода-вывода
119

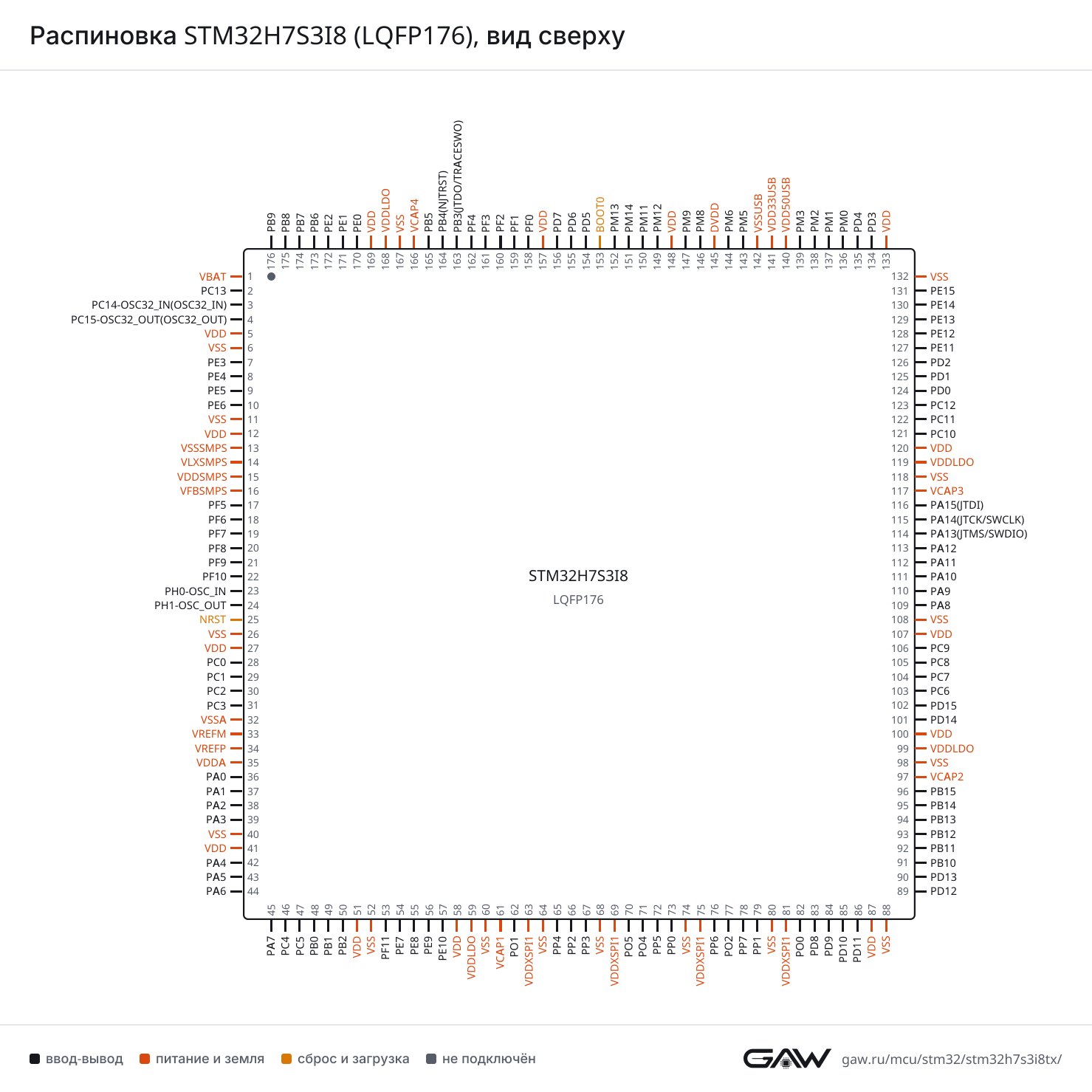

Схема корпуса LQFP176

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Распиновка STM32H7S3I8 в корпусе LQFP176, вид сверхуSTM32H7S3I8LQFP176, вид сверхуVBAT — вывод 11VBATPC13 — вывод 2: PWR_WKUP3, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT22PC13PC14-OSC32_IN(OSC32_IN) — вывод 3: RCC_OSC32_IN3PC14-OSC32_IN(OSC32_IN)PC15-OSC32_OUT(OSC32_OUT) — вывод 4: ADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT4PC15-OSC32_OUT(OSC32_OUT)VDD — вывод 55VDDVSS — вывод 66VSSPE3 — вывод 7: DEBUG_TRACED0, ETH_MII_RXD3, FMC_D12, FMC_DA12, LPTIM5_ETR, SAI1_SD_B, TIM15_BKIN7PE3PE4 — вывод 8: ADF1_SDI0, DCMIPP_D4, DEBUG_TRACED1, FMC_D13, FMC_DA13, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TIM15_CH1N8PE4PE5 — вывод 9: ADF1_CCK1, DCMIPP_D6, DEBUG_TRACED2, FMC_D14, FMC_DA14, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TIM15_CH19PE5PE6 — вывод 10: ADF1_SDI0, DCMIPP_D7, DEBUG_TRACED3, FMC_D15, FMC_DA15, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TIM15_CH2, TIM1_BKIN210PE6VSS — вывод 1111VSSVDD — вывод 1212VDDVSSSMPS — вывод 1313VSSSMPSVLXSMPS — вывод 1414VLXSMPSVDDSMPS — вывод 1515VDDSMPSVFBSMPS — вывод 1616VFBSMPSPF5 — вывод 17: DCMIPP_D15, ETH_MII_RXD2, FMC_A16, FMC_CLE, PSSI_D15, UCPD1_FRSTX117PF5PF6 — вывод 18: FMC_A17, FMC_ALE, SAI1_SD_B, SPI5_NSS, TIM16_CH1, UART7_RX18PF6PF7 — вывод 19: FMC_A18, SAI1_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TX19PF7PF8 — вывод 20: DCMIPP_PIXCLK, FMC_A19, PSSI_PDCK, SAI1_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTS20PF8PF9 — вывод 21: FMC_A21, SAI1_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTS21PF9PF10 — вывод 22: DCMIPP_D11, DCMIPP_D15, FMC_A22, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKIN22PF10PH0-OSC_IN — вывод 23: RCC_OSC_IN23PH0-OSC_INPH1-OSC_OUT — вывод 24: RCC_OSC_OUT24PH1-OSC_OUTNRST — вывод 2525NRSTVSS — вывод 2626VSSVDD — вывод 2727VDDPC0 — вывод 28: ADC1_INP10, ADC2_INP10, FMC_NBL1, GFXTIM_FCKCAL, GFXTIM_LCKCAL, SAI2_FS_B28PC0PC1 — вывод 29: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0, DEBUG_TRACED0, ETH_MDC, FMC_A0, FMC_A16, I2S2_SDO, MDIOS_MDC, PWR_WKUP4, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI2_MOSI, TAMP_IN7, TAMP_OUT829PC1PC2 — вывод 30: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_A1, FMC_A17, I2S2_SDI, SPI2_MISO, TIM1_CH130PC2PC3 — вывод 31: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_A2, FMC_A18, I2S2_SDO, SPI2_MOSI, TIM1_CH231PC3VSSA — вывод 3232VSSAVREFM — вывод 3333VREFMVREFP — вывод 3434VREFPVDDA — вывод 3535VDDAPA0 — вывод 36: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, FMC_D7, FMC_DA7, I2S6_WS, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI6_NSS, TIM15_BKIN, TIM2_CH1, TIM5_CH1, TIM9_CH1, UART4_TX, USART2_CTS, USART2_NSS36PA0PA1 — вывод 37: ADC1_INP1, ADC2_INP1, DCMIPP_D0, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, FMC_D6, FMC_DA6, LPTIM3_IN1, PSSI_D0, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTS37PA1PA2 — вывод 38: ADC1_INP14, ADC2_INP14, ETH_MDIO, FMC_D5, FMC_DA5, LPTIM3_IN2, MDIOS_MDIO, PWR_WKUP2, SAI2_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TX38PA2PA3 — вывод 39: ADC1_INP15, ADC2_INP15, ETH_MII_COL, GFXTIM_FCKCAL, GFXTIM_LCKCAL, I2S6_MCK, LPTIM3_CH1, SPI1_RDY, SPI4_RDY, SPI5_RDY, TIM15_CH2, TIM1_CH3, TIM2_CH4, TIM5_CH4, USART2_RX39PA3VSS — вывод 4040VSSVDD — вывод 4141VDDPA4 — вывод 42: ADC1_INP18, DCMIPP_HSYNC, ETH_MDIO, I2S1_WS, I2S3_WS, I2S6_WS, LPTIM3_CH2, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CK, USB_OTG_HS_SOF42PA4PA5 — вывод 43: ADC2_INP18, DCMIPP_D8, FMC_NOE, I2S1_CK, I2S6_CK, PSSI_D8, PWR_CSTOP, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM9_CH243PA5PA6 — вывод 44: ADC1_INP3, ADC2_INP3, DCMIPP_PIXCLK, I2S1_SDI, I2S6_SDI, LPTIM3_ETR, MDIOS_MDC, PSSI_PDCK, PWR_CSLEEP, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH144PA6PA7 — вывод 45: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_INT, I2S1_SDO, I2S6_SDO, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH245PA7PC4 — вывод 46: ADC1_INP4, ADC2_INP4, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_A3, FMC_A19, I2S1_MCK, SPDIFRX_IN246PC4PC5 — вывод 47: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, DCMIPP_D15, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_A5, FMC_A21, PSSI_D15, SAI1_D3, SPDIFRX_IN347PC5PB0 — вывод 48: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH_MII_TXD0, ETH_RMII_TXD0, GFXTIM_TE, I2S1_CK, SPI1_SCK, TIM1_CH2N, TIM3_CH3, TIM9_CH1, UART4_CTS48PB0PB1 — вывод 49: ADC1_INP5, ADC2_INP5, ETH_MII_TXD1, ETH_RMII_TXD1, FDCAN2_TX, FMC_NOE, TIM1_CH3N, TIM3_CH4, TIM9_CH249PB1PB2 — вывод 50: ADF1_SDI0, FMC_NWE, I2S3_SDO, RTC_OUT2, SAI1_D1, SAI1_SD_A, SPI3_MOSI50PB2VDD — вывод 5151VDDVSS — вывод 5252VSSPF11 — вывод 53: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMIPP_D12, FMC_A23, PSSI_D12, SAI2_SD_B, SPI5_MOSI53PF11PE7 — вывод 54: FMC_A4, FMC_A20, SAI2_SD_B, TIM1_ETR, UART7_RX54PE7PE8 — вывод 55: FMC_A12, TIM1_CH1N, UART7_TX55PE8PE9 — вывод 56: FMC_A14, FMC_BA0, TIM1_CH1, UART7_DE, UART7_RTS56PE9PE10 — вывод 57: FMC_A15, FMC_BA1, TIM1_CH2N, UART7_CTS57PE10VDD — вывод 5858VDDVDDLDO — вывод 5959VDDLDOVSS — вывод 6060VSSVCAP1 — вывод 6161VCAP1PO1 — вывод 62: XSPIM_P1_NCS262PO1VDDXSPI1 — вывод 6363VDDXSPI1VSS — вывод 6464VSSPP4 — вывод 65: XSPIM_P1_IO465PP4PP2 — вывод 66: XSPIM_P1_IO266PP2PP3 — вывод 67: XSPIM_P1_IO367PP3VSS — вывод 6868VSSVDDXSPI1 — вывод 6969VDDXSPI1PO5 — вывод 70: XSPIM_P1_NCLK70PO5PO4 — вывод 71: XSPIM_P1_CLK71PO4PP5 — вывод 72: XSPIM_P1_IO572PP5PP0 — вывод 73: XSPIM_P1_IO073PP0VSS — вывод 7474VSSVDDXSPI1 — вывод 7575VDDXSPI1PP6 — вывод 76: XSPIM_P1_IO676PP6PO2 — вывод 77: XSPIM_P1_DQS077PO2PP7 — вывод 78: XSPIM_P1_IO778PP7PP1 — вывод 79: XSPIM_P1_IO179PP1VSS — вывод 8080VSSVDDXSPI1 — вывод 8181VDDXSPI1PO0 — вывод 82: XSPIM_P1_NCS182PO0PD8 — вывод 83: ETH_MII_TX_EN, ETH_RMII_TX_EN, FMC_NBL0, SPDIFRX_IN1, USART3_TX83PD8PD9 — вывод 84: FMC_SDCLK, USART3_RX84PD9PD10 — вывод 85: DCMIPP_D4, FMC_CLK, PSSI_D4, SPI1_RDY, SPI4_RDY, SPI5_RDY, TAMP_IN8, TAMP_OUT7, TIM1_CH4, USART3_CK85PD10PD11 — вывод 86: ADC1_EXTI11, ADC2_EXTI11, DCMIPP_D6, FMC_D16, LPTIM2_IN2, PSSI_D6, SAI2_SD_A, TIM1_ETR, USART3_CTS, USART3_NSS86PD11VDD — вывод 8787VDDVSS — вывод 8888VSSPD12 — вывод 89: DCMIPP_D12, FMC_NE1, LPTIM1_IN1, LPTIM2_IN1, PSSI_D12, SAI2_FS_A, TIM4_CH1, USART3_DE, USART3_RTS89PD12PD13 — вывод 90: DCMIPP_D13, FMC_INT, LPTIM1_CH1, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UCPD1_FRSTX290PD13PB10 — вывод 91: ETH_MII_RX_ER, FMC_D11, FMC_DA11, I2C2_SCL, I2S2_CK, LPTIM2_IN1, SPI2_SCK, TIM2_CH3, USART3_TX91PB10PB11 — вывод 92: ADC1_EXTI11, ADC2_EXTI11, ETH_MII_TX_EN, ETH_RMII_TX_EN, FMC_D10, FMC_DA10, I2C2_SDA, LPTIM2_ETR, TIM2_CH4, USART3_RX92PB11PB12 — вывод 93: FDCAN2_RX, FMC_D9, FMC_DA9, I2C2_SMBA, I2S2_WS, LPTIM2_IN2, SPI2_NSS, TIM1_BKIN, UART5_RX, USART3_CK93PB12PB13 — вывод 94: DCMIPP_D2, ETH_MII_RXD3, FDCAN2_TX, FMC_D8, FMC_DA8, I2S2_CK, LPTIM2_CH1, PSSI_D2, SDMMC1_D0, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSS94PB13PB14 — вывод 95: FMC_NE1, I2S2_SDI, LPTIM2_CH2, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, UART4_DE, UART4_RTS, USART1_TX, USART3_DE, USART3_RTS95PB14PB15 — вывод 96: ADC1_EXTI15, ADC2_EXTI15, FMC_A20, I2S2_SDO, PWR_PVD_IN, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, UART4_CTS, USART1_RX96PB15VCAP2 — вывод 9797VCAP2VSS — вывод 9898VSSVDDLDO — вывод 9999VDDLDOVDD — вывод 100100VDDPD14 — вывод 101: DCMIPP_D7, FMC_D17, LPTIM1_CH2, LPTIM2_CH1, PSSI_D7, TIM4_CH3, UART8_CTS, UCPD1_FRSTX1101PD14PD15 — вывод 102: ADC1_EXTI15, ADC2_EXTI15, DCMIPP_D9, FMC_D18, LPTIM5_OUT, PSSI_D9, TIM4_CH4, UART8_DE, UART8_RTS, UCPD1_FRSTX2102PD15PC6 — вывод 103: DCMIPP_D0, I2S2_MCK, PSSI_D0, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM9_CH1103PC6PC7 — вывод 104: DCMIPP_D1, DEBUG_TRGIO, I2S3_MCK, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM9_CH2104PC7PC8 — вывод 105: DCMIPP_D2, DEBUG_TRACED1, I2C3_SMBA, PSSI_D2, SDMMC1_D0, TIM3_CH3, UART5_DE, UART5_RTS105PC8PC9 — вывод 106: DCMIPP_D3, I2C3_SDA, I2S_CKIN, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, UART5_CTS106PC9VDD — вывод 107107VDDVSS — вывод 108108VSSPA8 — вывод 109: FMC_D4, FMC_DA4, I2C3_SCL, RCC_MCO_1, TIM1_CH1, UART7_RX, USART1_CK, USB_OTG_FS_SOF109PA8PA9 — вывод 110: DCMIPP_D0, FMC_D3, FMC_DA3, I2C3_SDA, I2S2_CK, LPUART1_TX, PSSI_D0, SPI2_SCK, TIM1_CH2, USART1_TX110PA9PA10 — вывод 111: DCMIPP_D1, FMC_D2, FMC_DA2, LPUART1_RX, MDIOS_MDIO, PSSI_D1, TIM1_CH3, USART1_RX111PA10PA11 — вывод 112: ADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX, FMC_D1, FMC_DA1, I2S2_WS, LPUART1_CTS, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS112PA11PA12 — вывод 113: FDCAN1_TX, FMC_D0, FMC_DA0, I2S2_CK, LPUART1_DE, LPUART1_RTS, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS113PA12PA13(JTMS/SWDIO) — вывод 114: DEBUG_JTMS-SWDIO114PA13(JTMS/SWDIO)PA14(JTCK/SWCLK) — вывод 115: DEBUG_JTCK-SWCLK115PA14(JTCK/SWCLK)PA15(JTDI) — вывод 116: ADC1_EXTI15, ADC2_EXTI15, CEC, DEBUG_JTDI, FMC_D15, FMC_DA15, I2S1_WS, I2S3_WS, I2S6_WS, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TX116PA15(JTDI)VCAP3 — вывод 117117VCAP3VSS — вывод 118118VSSVDDLDO — вывод 119119VDDLDOVDD — вывод 120120VDDPC10 — вывод 121: DCMIPP_D14, I2S3_CK, PSSI_D14, SDMMC1_D2, SPI3_SCK, TIM1_BKIN, UART4_TX, USART3_TX121PC10PC11 — вывод 122: ADC1_EXTI11, ADC2_EXTI11, DCMIPP_D4, I2S3_SDI, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RX122PC11PC12 — вывод 123: DCMIPP_D9, DEBUG_TRACED3, I2S3_SDO, I2S6_CK, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, TIM1_CH4, UART5_TX, USART3_CK123PC12PD0 — вывод 124: DCMIPP_HSYNC, FDCAN1_RX, FMC_A6, FMC_A22, PSSI_DE, UART4_RX124PD0PD1 — вывод 125: FDCAN1_TX, FMC_A7, FMC_A23, UART4_TX125PD1PD2 — вывод 126: DCMIPP_D11, DEBUG_TRACED2, PSSI_D11, SDMMC1_CMD, TIM15_BKIN, TIM1_ETR, TIM3_ETR, UART5_RX126PD2PE11 — вывод 127: ADC1_EXTI11, ADC2_EXTI11, FMC_SDNWE, SAI2_SD_B, SPI4_NSS, TIM1_CH2127PE11PE12 — вывод 128: FMC_SDNRAS, SAI2_SCK_B, SPI4_SCK, TIM1_CH3N128PE12PE13 — вывод 129: FMC_SDNCAS, SAI2_FS_B, SPI4_MISO, TIM1_CH3129PE13PE14 — вывод 130: FMC_SDNE0, GFXTIM_FCKCAL, GFXTIM_LCKCAL, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4130PE14PE15 — вывод 131: ADC1_EXTI15, ADC2_EXTI15, FMC_SDCKE0, GFXTIM_FCKCAL, GFXTIM_LCKCAL, TIM1_BKIN131PE15VSS — вывод 132132VSSVDD — вывод 133133VDDPD3 — вывод 134: DCMIPP_D5, FMC_NWAIT, I2S2_CK, PSSI_D5, SPI2_SCK, TIM1_CH3N, USART2_CTS, USART2_NSS134PD3PD4 — вывод 135: DCMIPP_HSYNC, ETH_PHY_INTN, FMC_NL, PSSI_DE, TAMP_IN6, TAMP_OUT3, USART2_DE, USART2_RTS135PD4PM0 — вывод 136: UCPD1_CC1136PM0PM1 — вывод 137: UCPD1_CC2137PM1PM2 — вывод 138: UCPD1_DBCC1138PM2PM3 — вывод 139: UCPD1_DBCC2139PM3VDD50USB — вывод 140140VDD50USBVDD33USB — вывод 141141VDD33USBVSSUSB — вывод 142142VSSUSBPM5 — вывод 143: USB_OTG_HS_DM143PM5PM6 — вывод 144: USB_OTG_HS_DP144PM6DVDD — вывод 145145DVDDPM8 — вывод 146: UART7_RX, USB_OTG_HS_VBUS146PM8PM9 — вывод 147: UART7_TX, USB_OTG_HS_ID147PM9VDD — вывод 148148VDDPM12 — вывод 149: SPI5_NSS, USB_OTG_FS_DM149PM12PM11 — вывод 150: ADC1_EXTI11, ADC2_EXTI11, SPI5_SCK, USB_OTG_FS_DP150PM11PM14 — вывод 151: SPI5_MISO, USB_OTG_FS_VBUS151PM14PM13 — вывод 152: SPI5_MOSI, USB_OTG_FS_ID152PM13BOOT0 — вывод 153153BOOT0PD5 — вывод 154: DCMIPP_PIXCLK, FMC_NCE, FMC_NE2, PSSI_PDCK, TAMP_IN5, TAMP_OUT4, TIM1_CH4N, USART2_TX154PD5PD6 — вывод 155: ADF1_SDI0, DCMIPP_D10, ETH_CLK, FMC_INT, FMC_NE3, I2S3_SDO, PSSI_D10, SAI1_D1, SAI1_SCK_A, SDMMC2_CK, SPI3_MOSI, USART2_RX155PD6PD7 — вывод 156: DCMIPP_D2, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, FMC_D8, FMC_DA8, I2S1_SDO, PSSI_D2, SDMMC2_CMD, SPDIFRX_IN0, SPI1_MOSI, USART2_CK156PD7VDD — вывод 157157VDDPF0 — вывод 158: FMC_A8, I2C2_SDA158PF0PF1 — вывод 159: FMC_A9, I2C2_SCL159PF1PF2 — вывод 160: DCMIPP_D14, FMC_A10, I2C2_SMBA, PSSI_D14160PF2PF3 — вывод 161: DCMIPP_D9, ETH_MII_CRS, FMC_A11, PSSI_D9161PF3PF4 — вывод 162: DCMIPP_D8, ETH_MII_TX_ER, FMC_A13, PSSI_D8162PF4PB3(JTDO/TRACESWO) — вывод 163: CRS_SYNC, DCMIPP_HSYNC, DEBUG_JTDO-SWO, FMC_D14, FMC_DA14, I2S1_CK, I2S3_CK, I2S6_CK, LPTIM4_IN1, PSSI_DE, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART7_RX163PB3(JTDO/TRACESWO)PB4(NJTRST) — вывод 164: DCMIPP_VSYNC, DEBUG_NJTRST, FMC_D13, FMC_DA13, I2S1_SDI, I2S2_WS, I2S3_SDI, I2S6_SDI, LPTIM4_ETR, PSSI_RDY, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TX164PB4(NJTRST)PB5 — вывод 165: DCMIPP_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_D12, FMC_DA12, I2C1_SMBA, I2S1_SDO, I2S3_SDO, I2S6_SDO, LPTIM4_OUT, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX165PB5VCAP4 — вывод 166166VCAP4VSS — вывод 167167VSSVDDLDO — вывод 168168VDDLDOVDD — вывод 169169VDDPE0 — вывод 170: DCMIPP_D2, FMC_D9, FMC_DA9, LPTIM1_ETR, LPTIM2_ETR, PSSI_D2, SAI2_MCLK_A, TAMP_IN4, TAMP_OUT5, TIM4_ETR, UART8_RX170PE0PE1 — вывод 171: DCMIPP_D3, FMC_D10, FMC_DA10, LPTIM1_IN2, LPTIM2_CH2, PSSI_D3, TAMP_IN3, TAMP_OUT6, UART8_TX171PE1PE2 — вывод 172: ADF1_CCK0, DEBUG_TRACECLK, ETH_MII_TXD3, FMC_D11, FMC_DA11, LPTIM5_IN1, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, TIM1_CH2N172PE2PB6 — вывод 173: CEC, DCMIPP_D5, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, FDCAN2_TX, FMC_SDNE1, I2C1_SCL, I3C1_SCL, LPUART1_TX, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TX173PB6PB7 — вывод 174: DCMIPP_D1, DCMIPP_VSYNC, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_SDCKE1, I2C1_SDA, I3C1_SDA, LPUART1_RX, PSSI_D1, PSSI_RDY, TIM17_CH1N, TIM4_CH2, UART5_TX, USART1_RX174PB7PB8 — вывод 175: DCMIPP_D6, ETH_MII_TXD3, FDCAN1_RX, FMC_D9, FMC_DA9, I2C1_SCL, I3C1_SCL, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RX, USART3_CK175PB8PB9 — вывод 176: DCMIPP_D7, FDCAN1_TX, I2C1_SDA, I2S2_WS, I3C1_SDA, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TAMP_IN2, TAMP_OUT1, TIM17_CH1, TIM4_CH4, UART4_TX176PB9
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия
Распиновка STM32H7S3I8 (LQFP176), вид сверхуРаспиновка LQFP176 картинкой
PNG, 1479 × 1479 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер вывода и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (109, AF7)
CTSPA11 (112, AF7)
DEPA12 (113, AF7)
NSSPA11 (112, AF7)
RTSPA12 (113, AF7)
RXPB15 (96, AF4), PA10 (111, AF7), PB7 (174, AF7)
TXPB14 (95, AF4), PA9 (110, AF7), PB6 (173, AF7)
USART2CKPA4 (42, AF7), PD7 (156, AF7)
CTSPA0 (36, AF7), PD3 (134, AF7)
DEPA1 (37, AF7), PD4 (135, AF7)
NSSPA0 (36, AF7), PD3 (134, AF7)
RTSPA1 (37, AF7), PD4 (135, AF7)
RXPA3 (39, AF7), PD6 (155, AF7)
TXPA2 (38, AF7), PD5 (154, AF7)
USART3CKPD10 (85, AF7), PB12 (93, AF7), PC12 (123, AF7), PB8 (175, AF3)
CTSPD11 (86, AF7), PB13 (94, AF7)
DEPD12 (89, AF7), PB14 (95, AF7)
NSSPD11 (86, AF7), PB13 (94, AF7)
RTSPD12 (89, AF7), PB14 (95, AF7)
RXPD9 (84, AF7), PB11 (92, AF7), PC11 (122, AF7)
TXPD8 (83, AF7), PB10 (91, AF7), PC10 (121, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB0 (48, AF8), PB15 (96, AF8)
DEPB14 (95, AF8), PA15(JTDI) (116, AF8)
RTSPB14 (95, AF8), PA15(JTDI) (116, AF8)
RXPA1 (37, AF8), PA11 (112, AF6), PC11 (122, AF8), PD0 (124, AF8), PB8 (175, AF8)
TXPA0 (36, AF8), PA12 (113, AF6), PC10 (121, AF8), PD1 (125, AF8), PB9 (176, AF8)
UART5CTSPC9 (106, AF8)
DEPC8 (105, AF8)
RTSPC8 (105, AF8)
RXPB12 (93, AF14), PD2 (126, AF8), PB5 (165, AF14)
TXPB13 (94, AF14), PC12 (123, AF8), PB6 (173, AF14), PB7 (174, AF14)
UART7CTSPF9 (21, AF7), PE10 (57, AF7)
DEPF8 (20, AF7), PE9 (56, AF7)
RTSPF8 (20, AF7), PE9 (56, AF7)
RXPF6 (18, AF7), PE7 (54, AF7), PA8 (109, AF11), PM8 (146, AF7), PB3(JTDO/TRACESWO) (163, AF11)
TXPF7 (19, AF7), PE8 (55, AF7), PA15(JTDI) (116, AF11), PM9 (147, AF7), PB4(NJTRST) (164, AF11)
UART8CTSPD14 (101, AF8)
DEPD15 (102, AF8)
RTSPD15 (102, AF8)
RXPE0 (170, AF8)
TXPE1 (171, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (112, AF3)
DEPA12 (113, AF3)
RTSPA12 (113, AF3)
RXPA10 (111, AF3), PB7 (174, AF8)
TXPA9 (110, AF3), PB6 (173, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA6 (44, AF5), PB4(NJTRST) (164, AF5)
MOSIPA7 (45, AF5), PD7 (156, AF5), PB5 (165, AF5)
NSSPA4 (42, AF5), PA15(JTDI) (116, AF5)
RDYPA3 (39, AF10), PD10 (85, AF10)
SCKPA5 (43, AF5), PB0 (48, AF5), PB3(JTDO/TRACESWO) (163, AF5)
SPI2MISOPC2 (30, AF5), PB14 (95, AF5)
MOSIPC1 (29, AF5), PC3 (31, AF5), PB15 (96, AF5)
NSSPB12 (93, AF5), PA11 (112, AF5), PB4(NJTRST) (164, AF7), PB9 (176, AF5)
SCKPB10 (91, AF5), PB13 (94, AF5), PA9 (110, AF5), PA12 (113, AF5), PD3 (134, AF5)
SPI3MISOPC11 (122, AF6), PB4(NJTRST) (164, AF6)
MOSIPB2 (50, AF7), PC12 (123, AF6), PD6 (155, AF5), PB5 (165, AF7)
NSSPA4 (42, AF6), PA15(JTDI) (116, AF6)
SCKPC10 (121, AF6), PB3(JTDO/TRACESWO) (163, AF6)
SPI4MISOPE5 (9, AF5), PE13 (129, AF5)
MOSIPE6 (10, AF5), PE14 (130, AF5)
NSSPE4 (8, AF5), PE11 (127, AF5)
RDYPA3 (39, AF6), PD10 (85, AF6)
SCKPE12 (128, AF5), PE2 (172, AF5)
SPI5MISOPF8 (20, AF5), PM14 (151, AF5)
MOSIPF9 (21, AF5), PF11 (53, AF5), PM13 (152, AF5)
NSSPF6 (18, AF5), PM12 (149, AF5)
RDYPA3 (39, AF9), PD10 (85, AF9)
SCKPF7 (19, AF5), PM11 (150, AF5)
SPI6MISOPA6 (44, AF8), PB4(NJTRST) (164, AF8)
MOSIPA7 (45, AF8), PB5 (165, AF8)
NSSPA0 (36, AF5), PA4 (42, AF8), PA15(JTDI) (116, AF7)
SCKPA5 (43, AF8), PC12 (123, AF5), PB3(JTDO/TRACESWO) (163, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (106, AF5)
I2S1CKPA5 (43, AF5), PB0 (48, AF5), PB3(JTDO/TRACESWO) (163, AF5)
MCKPC4 (46, AF5)
SDIPA6 (44, AF5), PB4(NJTRST) (164, AF5)
SDOPA7 (45, AF5), PD7 (156, AF5), PB5 (165, AF5)
WSPA4 (42, AF5), PA15(JTDI) (116, AF5)
I2S2CKPB10 (91, AF5), PB13 (94, AF5), PA9 (110, AF5), PA12 (113, AF5), PD3 (134, AF5)
MCKPC6 (103, AF5)
SDIPC2 (30, AF5), PB14 (95, AF5)
SDOPC1 (29, AF5), PC3 (31, AF5), PB15 (96, AF5)
WSPB12 (93, AF5), PA11 (112, AF5), PB4(NJTRST) (164, AF7), PB9 (176, AF5)
I2S3CKPC10 (121, AF6), PB3(JTDO/TRACESWO) (163, AF6)
MCKPC7 (104, AF6)
SDIPC11 (122, AF6), PB4(NJTRST) (164, AF6)
SDOPB2 (50, AF7), PC12 (123, AF6), PD6 (155, AF5), PB5 (165, AF7)
WSPA4 (42, AF6), PA15(JTDI) (116, AF6)
I2S6CKPA5 (43, AF8), PC12 (123, AF5), PB3(JTDO/TRACESWO) (163, AF8)
MCKPA3 (39, AF5)
SDIPA6 (44, AF8), PB4(NJTRST) (164, AF8)
SDOPA7 (45, AF8), PB5 (165, AF8)
WSPA0 (36, AF5), PA4 (42, AF8), PA15(JTDI) (116, AF7)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (173, AF4), PB8 (175, AF4)
SDAPB7 (174, AF4), PB9 (176, AF4)
SMBAPB5 (165, AF4)
I2C2SCLPB10 (91, AF4), PF1 (159, AF4)
SDAPB11 (92, AF4), PF0 (158, AF4)
SMBAPB12 (93, AF4), PF2 (160, AF4)
I2C3SCLPA8 (109, AF4)
SDAPC9 (106, AF4), PA9 (110, AF4)
SMBAPC8 (105, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPB6 (173, AF4), PB8 (175, AF4)
SDAPB7 (174, AF4), PB9 (176, AF4)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPA11 (112, AF9), PD0 (124, AF9), PB8 (175, AF9)
TXPA12 (113, AF9), PD1 (125, AF9), PB9 (176, AF9)
FDCAN2RXPB12 (93, AF9), PB5 (165, AF9)
TXPB1 (49, AF9), PB13 (94, AF9), PB6 (173, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPM12 (149, AF10)
DPPM11 (150, AF10)
IDPM13 (152, AF10)
SOFPA8 (109, AF10)
VBUSPM14 (151, AF10)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPM5 (143, AF10)
DPPM6 (144, AF10)
IDPM9 (147, AF10)
SOFPA4 (42, AF10)
VBUSPM8 (146, AF10)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PM0 (136, AF6)
CC2PM1 (137, AF6)
DBCC1PM2 (138, AF6)
DBCC2PM3 (139, AF6)
FRSTX1PF5 (17, AF6), PD14 (101, AF6)
FRSTX2PD13 (90, AF6), PD15 (102, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCLKPD6 (155, AF4)
MDCPC1 (29, AF11)
MDIOPA2 (38, AF11), PA4 (42, AF11)
MII_COLPA3 (39, AF11)
MII_CRSPF3 (161, AF11)
MII_RX_CLKPA1 (37, AF11), PD7 (156, AF4), PB6 (173, AF11)
MII_RX_DVPA7 (45, AF11)
MII_RX_ERPB10 (91, AF11)
MII_RXD0PC4 (46, AF11)
MII_RXD1PC5 (47, AF11)
MII_RXD2PF5 (17, AF11)
MII_RXD3PE3 (7, AF11), PB13 (94, AF11)
MII_TX_CLKPC3 (31, AF11)
MII_TX_ENPD8 (83, AF11), PB11 (92, AF11)
MII_TX_ERPF4 (162, AF11)
MII_TXD0PB0 (48, AF11)
MII_TXD1PB1 (49, AF11), PB7 (174, AF11)
MII_TXD2PC2 (30, AF11)
MII_TXD3PE2 (172, AF11), PB8 (175, AF11)
PHY_INTNPD4 (135, AF11)
PPS_OUTPB5 (165, AF11)
RMII_CRS_DVPA7 (45, AF11)
RMII_REF_CLKPA1 (37, AF11), PD7 (156, AF4), PB6 (173, AF11)
RMII_RXD0PC4 (46, AF11)
RMII_RXD1PC5 (47, AF11)
RMII_TX_ENPD8 (83, AF11), PB11 (92, AF11)
RMII_TXD0PB0 (48, AF11)
RMII_TXD1PB1 (49, AF11), PB7 (174, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (176, AF7)
CKPC12 (123, AF11)
CKINPB8 (175, AF7)
CMDPD2 (126, AF11)
D0PB13 (94, AF6), PC8 (105, AF11)
D0DIRPC6 (103, AF8)
D1PC9 (106, AF11)
D2PC10 (121, AF12)
D3PC11 (122, AF11)
D4PB8 (175, AF12)
D5PB9 (176, AF12)
D6PC6 (103, AF11)
D7PC7 (104, AF11)
D123DIRPC7 (104, AF8)
SDMMC2CKPC1 (29, AF9), PD6 (155, AF11)
CMDPA0 (36, AF9), PD7 (156, AF11)
D0PB14 (95, AF9)
D1PB15 (96, AF9)
D2PB3(JTDO/TRACESWO) (163, AF9)
D3PB4(NJTRST) (164, AF9)
D4PB8 (175, AF10)
D5PB9 (176, AF10)
D6PC6 (103, AF10)
D7PC7 (104, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (172, AF2)
CK2PE5 (9, AF2)
D1PE6 (10, AF2), PC1 (29, AF2), PB2 (50, AF2), PD6 (155, AF2)
D2PE4 (8, AF2)
D3PF10 (22, AF2), PC5 (47, AF2)
FS_APE4 (8, AF6)
FS_BPF9 (21, AF6)
MCLK_APE2 (172, AF6)
MCLK_BPF7 (19, AF6)
SCK_APE5 (9, AF6), PD6 (155, AF6)
SCK_BPF8 (20, AF6)
SD_APE6 (10, AF6), PC1 (29, AF6), PB2 (50, AF6)
SD_BPE3 (7, AF6), PF6 (18, AF6)
SAI2FS_APD12 (89, AF10)
FS_BPC0 (28, AF8), PA12 (113, AF8), PE13 (129, AF10)
MCLK_APE0 (170, AF10)
MCLK_BPE6 (10, AF10), PA1 (37, AF10), PE14 (130, AF10)
SCK_APD13 (90, AF8)
SCK_BPA2 (38, AF8), PE12 (128, AF10)
SD_APD11 (86, AF10)
SD_BPA0 (36, AF10), PF11 (53, AF10), PE7 (54, AF10), PE11 (127, AF10)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRXIN0PD7 (156, AF9)
IN1PD8 (83, AF9)
IN2PC4 (46, AF9)
IN3PC5 (47, AF9)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15(JTDI) (116, AF4), PB6 (173, AF5)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PF11 (53), PD11 (86), PB11 (92), PA11 (112), PC11 (122), PE11 (127), PM11 (150)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (4), PB15 (96), PD15 (102), PA15(JTDI) (116), PE15 (131)
INN1PA0 (36)
INN3PA7 (45)
INN4PC5 (47)
INN5PB0 (48)
INN10PC1 (29)
INN11PC2 (30)
INN12PC3 (31)
INP0PA0 (36)
INP1PA1 (37)
INP2PF11 (53)
INP3PA6 (44)
INP4PC4 (46)
INP5PB1 (49)
INP7PA7 (45)
INP8PC5 (47)
INP9PB0 (48)
INP10PC0 (28)
INP11PC1 (29)
INP12PC2 (30)
INP13PC3 (31)
INP14PA2 (38)
INP15PA3 (39)
INP18PA4 (42)
ADC2EXTI11PF11 (53), PD11 (86), PB11 (92), PA11 (112), PC11 (122), PE11 (127), PM11 (150)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (4), PB15 (96), PD15 (102), PA15(JTDI) (116), PE15 (131)
INN1PA0 (36)
INN3PA7 (45)
INN4PC5 (47)
INN5PB0 (48)
INN10PC1 (29)
INN11PC2 (30)
INN12PC3 (31)
INP0PA0 (36)
INP1PA1 (37)
INP3PA6 (44)
INP4PC4 (46)
INP5PB1 (49)
INP7PA7 (45)
INP8PC5 (47)
INP9PB0 (48)
INP10PC0 (28)
INP11PC1 (29)
INP12PC2 (30)
INP13PC3 (31)
INP14PA2 (38)
INP15PA3 (39)
INP18PA5 (43)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (44, AF1), PB12 (93, AF1), PC10 (121, AF1), PE15 (131, AF1)
BKIN2PE6 (10, AF1)
CH1PC2 (30, AF1), PE9 (56, AF1), PA8 (109, AF1)
CH1NPA7 (45, AF1), PE8 (55, AF1), PB13 (94, AF1)
CH2PC3 (31, AF1), PA9 (110, AF1), PE11 (127, AF1)
CH2NPB0 (48, AF1), PE10 (57, AF1), PB14 (95, AF1), PE2 (172, AF14)
CH3PA3 (39, AF14), PA10 (111, AF1), PE13 (129, AF1)
CH3NPB1 (49, AF1), PB15 (96, AF1), PE12 (128, AF1), PD3 (134, AF1)
CH4PD10 (85, AF1), PA11 (112, AF1), PC12 (123, AF1), PE14 (130, AF1)
CH4NPD5 (154, AF1)
ETRPE7 (54, AF1), PD11 (86, AF1), PA12 (113, AF1), PD2 (126, AF1)
TIM2CH1PA0 (36, AF1), PA5 (43, AF1), PA15(JTDI) (116, AF1)
CH2PA1 (37, AF1), PB3(JTDO/TRACESWO) (163, AF1)
CH3PA2 (38, AF1), PB10 (91, AF1)
CH4PA3 (39, AF1), PB11 (92, AF1)
ETRPA5 (43, AF2), PA15(JTDI) (116, AF2)
TIM3CH1PA6 (44, AF2), PC6 (103, AF2), PB4(NJTRST) (164, AF2)
CH2PA7 (45, AF2), PC7 (104, AF2), PB5 (165, AF2)
CH3PB0 (48, AF2), PC8 (105, AF2)
CH4PB1 (49, AF2), PC9 (106, AF2)
ETRPD2 (126, AF2)
TIM4CH1PD12 (89, AF2), PB6 (173, AF2)
CH2PD13 (90, AF2), PB7 (174, AF2)
CH3PD14 (101, AF2), PB8 (175, AF2)
CH4PD15 (102, AF2), PB9 (176, AF2)
ETRPE0 (170, AF2)
TIM5CH1PA0 (36, AF2)
CH2PA1 (37, AF2)
CH3PA2 (38, AF2)
CH4PA3 (39, AF2)
ETRPA4 (42, AF2)
TIM9CH1PA0 (36, AF3), PB0 (48, AF3), PC6 (103, AF3)
CH2PA5 (43, AF3), PB1 (49, AF3), PC7 (104, AF3)
TIM12CH1PB14 (95, AF2)
CH2PB15 (96, AF2)
TIM13CH1PF8 (20, AF9), PA6 (44, AF9)
TIM14CH1PF9 (21, AF9), PA7 (45, AF9)
TIM15BKINPE3 (7, AF4), PA0 (36, AF4), PD2 (126, AF4)
CH1PE5 (9, AF4), PA2 (38, AF4), PC12 (123, AF2)
CH1NPE4 (8, AF4), PA1 (37, AF4)
CH2PE6 (10, AF4), PA3 (39, AF4)
TIM16BKINPF10 (22, AF1), PB4(NJTRST) (164, AF1)
CH1PF6 (18, AF1), PB8 (175, AF1)
CH1NPF8 (20, AF1), PB6 (173, AF1)
TIM17BKINPB5 (165, AF1)
CH1PF7 (19, AF1), PB9 (176, AF1)
CH1NPF9 (21, AF1), PB7 (174, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PD13 (90, AF1)
CH2PD14 (101, AF1)
ETRPE0 (170, AF1)
IN1PD12 (89, AF1)
IN2PE1 (171, AF1)
LPTIM2CH1PB13 (94, AF3), PD14 (101, AF3)
CH2PB14 (95, AF3), PE1 (171, AF3)
ETRPB11 (92, AF3), PE0 (170, AF3)
IN1PD12 (89, AF3), PB10 (91, AF3)
IN2PD11 (86, AF3), PB12 (93, AF3)
LPTIM3CH1PA3 (39, AF3)
CH2PA4 (42, AF3)
ETRPA6 (44, AF3)
IN1PA1 (37, AF3)
IN2PA2 (38, AF3)
LPTIM4ETRPB4(NJTRST) (164, AF3)
IN1PB3(JTDO/TRACESWO) (163, AF3)
OUTPB5 (165, AF3)
LPTIM5ETRPE3 (7, AF3)
IN1PE2 (172, AF3)
OUTPD15 (102, AF3)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (2)
OUT2PB2 (50, AF0)
REFINPB15 (96, AF0)
TSPC13 (2)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PC1 (29, AF12)
A1PC2 (30, AF12)
A2PC3 (31, AF12)
A3PC4 (46, AF12)
A4PE7 (54, AF12)
A5PC5 (47, AF12)
A6PD0 (124, AF12)
A7PD1 (125, AF12)
A8PF0 (158, AF12)
A9PF1 (159, AF12)
A10PF2 (160, AF12)
A11PF3 (161, AF12)
A12PE8 (55, AF12)
A13PF4 (162, AF12)
A14PE9 (56, AF12)
A15PE10 (57, AF12)
A16PF5 (17, AF12), PC1 (29, AF7)
A17PF6 (18, AF12), PC2 (30, AF9)
A18PF7 (19, AF12), PC3 (31, AF7)
A19PF8 (20, AF12), PC4 (46, AF7)
A20PE7 (54, AF9), PB15 (96, AF12)
A21PF9 (21, AF12), PC5 (47, AF7)
A22PF10 (22, AF12), PD0 (124, AF7)
A23PF11 (53, AF12), PD1 (125, AF7)
ALEPF6 (18, AF10)
BA0PE9 (56, AF14)
BA1PE10 (57, AF14)
CLEPF5 (17, AF10)
CLKPD10 (85, AF12)
D0PA12 (113, AF12)
D1PA11 (112, AF12)
D2PA10 (111, AF12)
D3PA9 (110, AF12)
D4PA8 (109, AF12)
D5PA2 (38, AF12)
D6PA1 (37, AF12)
D7PA0 (36, AF12)
D8PB13 (94, AF12), PD7 (156, AF12)
D9PB12 (93, AF12), PE0 (170, AF12), PB8 (175, AF14)
D10PB11 (92, AF12), PE1 (171, AF12)
D11PB10 (91, AF12), PE2 (172, AF12)
D12PE3 (7, AF12), PB5 (165, AF12)
D13PE4 (8, AF12), PB4(NJTRST) (164, AF12)
D14PE5 (9, AF12), PB3(JTDO/TRACESWO) (163, AF12)
D15PE6 (10, AF12), PA15(JTDI) (116, AF12)
D16PD11 (86, AF12)
D17PD14 (101, AF12)
D18PD15 (102, AF12)
DA0PA12 (113, AF12)
DA1PA11 (112, AF12)
DA2PA10 (111, AF12)
DA3PA9 (110, AF12)
DA4PA8 (109, AF12)
DA5PA2 (38, AF12)
DA6PA1 (37, AF12)
DA7PA0 (36, AF12)
DA8PB13 (94, AF12), PD7 (156, AF12)
DA9PB12 (93, AF12), PE0 (170, AF12), PB8 (175, AF14)
DA10PB11 (92, AF12), PE1 (171, AF12)
DA11PB10 (91, AF12), PE2 (172, AF12)
DA12PE3 (7, AF12), PB5 (165, AF12)
DA13PE4 (8, AF12), PB4(NJTRST) (164, AF12)
DA14PE5 (9, AF12), PB3(JTDO/TRACESWO) (163, AF12)
DA15PE6 (10, AF12), PA15(JTDI) (116, AF12)
INTPA7 (45, AF12), PD13 (90, AF10), PD6 (155, AF10)
NBL0PD8 (83, AF12)
NBL1PC0 (28, AF12)
NCEPD5 (154, AF10)
NE1PD12 (89, AF12), PB14 (95, AF12)
NE2PD5 (154, AF12)
NE3PD6 (155, AF12)
NLPD4 (135, AF12)
NOEPA5 (43, AF12), PB1 (49, AF12)
NWAITPD3 (134, AF12)
NWEPB2 (50, AF12)
SDCKE0PE15 (131, AF12)
SDCKE1PB7 (174, AF12)
SDCLKPD9 (84, AF12)
SDNCASPE13 (129, AF12)
SDNE0PE14 (130, AF12)
SDNE1PB6 (173, AF12)
SDNRASPE12 (128, AF12)
SDNWEPE11 (127, AF12)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA1 (37, AF6), PC6 (103, AF9), PA9 (110, AF6)
D1PC7 (104, AF9), PA10 (111, AF6), PB7 (174, AF9)
D2PB13 (94, AF8), PC8 (105, AF9), PD7 (156, AF6), PE0 (170, AF9)
D3PC9 (106, AF9), PE1 (171, AF9)
D4PE4 (8, AF9), PD10 (85, AF8), PC11 (122, AF9)
D5PD3 (134, AF6), PB6 (173, AF6)
D6PE5 (9, AF9), PD11 (86, AF8), PB8 (175, AF6)
D7PE6 (10, AF9), PD14 (101, AF9), PB9 (176, AF6)
D8PA5 (43, AF6), PF4 (162, AF9)
D9PD15 (102, AF9), PC12 (123, AF9), PF3 (161, AF9)
D10PD6 (155, AF9), PB5 (165, AF6)
D11PF10 (22, AF9), PD2 (126, AF6)
D12PF11 (53, AF9), PD12 (89, AF9)
D13PD13 (90, AF9)
D14PC10 (121, AF9), PF2 (160, AF9)
D15PF5 (17, AF9), PF10 (22, AF6), PC5 (47, AF6)
DEPA4 (42, AF9), PD0 (124, AF6), PD4 (135, AF6), PB3(JTDO/TRACESWO) (163, AF14)
PDCKPF8 (20, AF8), PA6 (44, AF6), PD5 (154, AF6)
RDYPB4(NJTRST) (164, AF14), PB7 (174, AF6)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PE2 (172, AF1)
CCK1PE5 (9, AF1)
SDI0PE4 (8, AF3), PE6 (10, AF3), PC1 (29, AF3), PB2 (50, AF3), PD6 (155, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14(JTCK/SWCLK) (115, AF0)
JTDIPA15(JTDI) (116, AF0)
JTDO-SWOPB3(JTDO/TRACESWO) (163, AF0)
JTMS-SWDIOPA13(JTMS/SWDIO) (114, AF0)
NJTRSTPB4(NJTRST) (164, AF0)
TRACECLKPE2 (172, AF0)
TRACED0PE3 (7, AF0), PC1 (29, AF0)
TRACED1PE4 (8, AF0), PC8 (105, AF0)
TRACED2PE5 (9, AF0), PD2 (126, AF0)
TRACED3PE6 (10, AF0), PC12 (123, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (109, AF0)
MCO_2PC9 (106, AF0)
OSC_INPH0-OSC_IN (23)
OSC_OUTPH1-OSC_OUT (24)
OSC32_INPC14-OSC32_IN(OSC32_IN) (3)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (4)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPA6 (44, AF0)
PWR_CSTOPPA5 (43, AF0)
PWR_WKUP1PA0 (36)
PWR_WKUP2PA2 (38)
PWR_WKUP3PC13 (2)
PWR_WKUP4PC1 (29)
TAMP_IN1PC13 (2)
TAMP_IN2PB9 (176)
TAMP_IN3PE1 (171)
TAMP_IN4PE0 (170)
TAMP_IN5PD5 (154)
TAMP_IN6PD4 (135)
TAMP_IN7PC1 (29)
TAMP_IN8PD10 (85)
TAMP_OUT1PB9 (176)
TAMP_OUT2PC13 (2)
TAMP_OUT3PD4 (135)
TAMP_OUT4PD5 (154)
TAMP_OUT5PE0 (170)
TAMP_OUT6PE1 (171)
TAMP_OUT7PD10 (85)
TAMP_OUT8PC1 (29)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), USB_OTG_HS1 (USB On-The-Go High Speed), XSPI1 (расширенный SPI для памяти), HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), CRYP (криптографический процессор), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций).

Таблица выводов

Все 176 выводов корпуса LQFP176 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ВыводИмяТипФункции
1VBATпитание—
2PC13ввод-выводPWR_WKUP3, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2
3PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
4PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT
5VDDпитание—
6VSSпитание—
7PE3ввод-выводDEBUG_TRACED0 (AF0), ETH_MII_RXD3 (AF11), FMC_D12 (AF12), FMC_DA12 (AF12), LPTIM5_ETR (AF3), SAI1_SD_B (AF6), TIM15_BKIN (AF4)
8PE4ввод-выводADF1_SDI0 (AF3), DCMIPP_D4 (AF13), DEBUG_TRACED1 (AF0), FMC_D13 (AF12), FMC_DA13 (AF12), PSSI_D4 (AF9), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TIM15_CH1N (AF4)
9PE5ввод-выводADF1_CCK1 (AF1), DCMIPP_D6 (AF13), DEBUG_TRACED2 (AF0), FMC_D14 (AF12), FMC_DA14 (AF12), PSSI_D6 (AF9), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TIM15_CH1 (AF4)
10PE6ввод-выводADF1_SDI0 (AF3), DCMIPP_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_D15 (AF12), FMC_DA15 (AF12), PSSI_D7 (AF9), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
11VSSпитание—
12VDDпитание—
13VSSSMPSпитание—
14VLXSMPSпитание—
15VDDSMPSпитание—
16VFBSMPSпитание—
17PF5ввод-выводDCMIPP_D15 (AF5), ETH_MII_RXD2 (AF11), FMC_A16 (AF12), FMC_CLE (AF10), PSSI_D15 (AF9), UCPD1_FRSTX1 (AF6)
18PF6ввод-выводFMC_A17 (AF12), FMC_ALE (AF10), SAI1_SD_B (AF6), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
19PF7ввод-выводFMC_A18 (AF12), SAI1_MCLK_B (AF6), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
20PF8ввод-выводDCMIPP_PIXCLK (AF4), FMC_A19 (AF12), PSSI_PDCK (AF8), SAI1_SCK_B (AF6), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
21PF9ввод-выводFMC_A21 (AF12), SAI1_FS_B (AF6), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
22PF10ввод-выводDCMIPP_D11 (AF13), DCMIPP_D15 (AF4), FMC_A22 (AF12), PSSI_D11 (AF9), PSSI_D15 (AF6), SAI1_D3 (AF2), TIM16_BKIN (AF1)
23PH0-OSC_INввод-выводRCC_OSC_IN
24PH1-OSC_OUTввод-выводRCC_OSC_OUT
25NRSTсброс—
26VSSпитание—
27VDDпитание—
28PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_NBL1 (AF12), GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF13), SAI2_FS_B (AF8)
29PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0 (AF3), DEBUG_TRACED0 (AF0), ETH_MDC (AF11), FMC_A0 (AF12), FMC_A16 (AF7), I2S2_SDO (AF5), MDIOS_MDC (AF14), PWR_WKUP4, SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF9), SPI2_MOSI (AF5), TAMP_IN7, TAMP_OUT8
30PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_A1 (AF12), FMC_A17 (AF9), I2S2_SDI (AF5), SPI2_MISO (AF5), TIM1_CH1 (AF1)
31PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_A2 (AF12), FMC_A18 (AF7), I2S2_SDO (AF5), SPI2_MOSI (AF5), TIM1_CH2 (AF1)
32VSSAпитание—
33VREFMпитание—
34VREFPпитание—
35VDDAпитание—
36PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, FMC_D7 (AF12), FMC_DA7 (AF12), I2S6_WS (AF5), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI6_NSS (AF5), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM5_CH1 (AF2), TIM9_CH1 (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
37PA1ввод-выводADC1_INP1, ADC2_INP1, DCMIPP_D0 (AF5), ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), FMC_D6 (AF12), FMC_DA6 (AF12), LPTIM3_IN1 (AF3), PSSI_D0 (AF6), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
38PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), FMC_D5 (AF12), FMC_DA5 (AF12), LPTIM3_IN2 (AF3), MDIOS_MDIO (AF14), PWR_WKUP2, SAI2_SCK_B (AF8), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
39PA3ввод-выводADC1_INP15, ADC2_INP15, ETH_MII_COL (AF11), GFXTIM_FCKCAL (AF12), GFXTIM_LCKCAL (AF8), I2S6_MCK (AF5), LPTIM3_CH1 (AF3), SPI1_RDY (AF10), SPI4_RDY (AF6), SPI5_RDY (AF9), TIM15_CH2 (AF4), TIM1_CH3 (AF14), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
40VSSпитание—
41VDDпитание—
42PA4ввод-выводADC1_INP18, DCMIPP_HSYNC (AF13), ETH_MDIO (AF11), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF8), LPTIM3_CH2 (AF3), PSSI_DE (AF9), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7), USB_OTG_HS_SOF (AF10)
43PA5ввод-выводADC2_INP18, DCMIPP_D8 (AF13), FMC_NOE (AF12), I2S1_CK (AF5), I2S6_CK (AF8), PSSI_D8 (AF6), PWR_CSTOP (AF0), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM9_CH2 (AF3)
44PA6ввод-выводADC1_INP3, ADC2_INP3, DCMIPP_PIXCLK (AF13), I2S1_SDI (AF5), I2S6_SDI (AF8), LPTIM3_ETR (AF3), MDIOS_MDC (AF11), PSSI_PDCK (AF6), PWR_CSLEEP (AF0), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM3_CH1 (AF2)
45PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_INT (AF12), I2S1_SDO (AF5), I2S6_SDO (AF8), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2)
46PC4ввод-выводADC1_INP4, ADC2_INP4, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_A3 (AF12), FMC_A19 (AF7), I2S1_MCK (AF5), SPDIFRX_IN2 (AF9)
47PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, DCMIPP_D15 (AF4), ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_A5 (AF12), FMC_A21 (AF7), PSSI_D15 (AF6), SAI1_D3 (AF2), SPDIFRX_IN3 (AF9)
48PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), GFXTIM_TE (AF12), I2S1_CK (AF5), SPI1_SCK (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM9_CH1 (AF3), UART4_CTS (AF8)
49PB1ввод-выводADC1_INP5, ADC2_INP5, ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FDCAN2_TX (AF9), FMC_NOE (AF12), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM9_CH2 (AF3)
50PB2ввод-выводADF1_SDI0 (AF3), FMC_NWE (AF12), I2S3_SDO (AF7), RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SPI3_MOSI (AF7)
51VDDпитание—
52VSSпитание—
53PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMIPP_D12 (AF13), FMC_A23 (AF12), PSSI_D12 (AF9), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
54PE7ввод-выводFMC_A4 (AF12), FMC_A20 (AF9), SAI2_SD_B (AF10), TIM1_ETR (AF1), UART7_RX (AF7)
55PE8ввод-выводFMC_A12 (AF12), TIM1_CH1N (AF1), UART7_TX (AF7)
56PE9ввод-выводFMC_A14 (AF12), FMC_BA0 (AF14), TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
57PE10ввод-выводFMC_A15 (AF12), FMC_BA1 (AF14), TIM1_CH2N (AF1), UART7_CTS (AF7)
58VDDпитание—
59VDDLDOпитание—
60VSSпитание—
61VCAP1питание—
62PO1ввод-выводXSPIM_P1_NCS2 (AF9)
63VDDXSPI1питание—
64VSSпитание—
65PP4ввод-выводXSPIM_P1_IO4 (AF9)
66PP2ввод-выводXSPIM_P1_IO2 (AF9)
67PP3ввод-выводXSPIM_P1_IO3 (AF9)
68VSSпитание—
69VDDXSPI1питание—
70PO5ввод-выводXSPIM_P1_NCLK (AF9)
71PO4ввод-выводXSPIM_P1_CLK (AF9)
72PP5ввод-выводXSPIM_P1_IO5 (AF9)
73PP0ввод-выводXSPIM_P1_IO0 (AF9)
74VSSпитание—
75VDDXSPI1питание—
76PP6ввод-выводXSPIM_P1_IO6 (AF9)
77PO2ввод-выводXSPIM_P1_DQS0 (AF9)
78PP7ввод-выводXSPIM_P1_IO7 (AF9)
79PP1ввод-выводXSPIM_P1_IO1 (AF9)
80VSSпитание—
81VDDXSPI1питание—
82PO0ввод-выводXSPIM_P1_NCS1 (AF9)
83PD8ввод-выводETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), FMC_NBL0 (AF12), SPDIFRX_IN1 (AF9), USART3_TX (AF7)
84PD9ввод-выводFMC_SDCLK (AF12), USART3_RX (AF7)
85PD10ввод-выводDCMIPP_D4 (AF5), FMC_CLK (AF12), PSSI_D4 (AF8), SPI1_RDY (AF10), SPI4_RDY (AF6), SPI5_RDY (AF9), TAMP_IN8, TAMP_OUT7, TIM1_CH4 (AF1), USART3_CK (AF7)
86PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMIPP_D6 (AF5), FMC_D16 (AF12), LPTIM2_IN2 (AF3), PSSI_D6 (AF8), SAI2_SD_A (AF10), TIM1_ETR (AF1), USART3_CTS (AF7), USART3_NSS (AF7)
87VDDпитание—
88VSSпитание—
89PD12ввод-выводDCMIPP_D12 (AF13), FMC_NE1 (AF12), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), PSSI_D12 (AF9), SAI2_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
90PD13ввод-выводDCMIPP_D13 (AF13), FMC_INT (AF10), LPTIM1_CH1 (AF1), PSSI_D13 (AF9), SAI2_SCK_A (AF8), TIM4_CH2 (AF2), UCPD1_FRSTX2 (AF6)
91PB10ввод-выводETH_MII_RX_ER (AF11), FMC_D11 (AF12), FMC_DA11 (AF12), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
92PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), FMC_D10 (AF12), FMC_DA10 (AF12), I2C2_SDA (AF4), LPTIM2_ETR (AF3), TIM2_CH4 (AF1), USART3_RX (AF7)
93PB12ввод-выводFDCAN2_RX (AF9), FMC_D9 (AF12), FMC_DA9 (AF12), I2C2_SMBA (AF4), I2S2_WS (AF5), LPTIM2_IN2 (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF14), USART3_CK (AF7)
94PB13ввод-выводDCMIPP_D2 (AF13), ETH_MII_RXD3 (AF11), FDCAN2_TX (AF9), FMC_D8 (AF12), FMC_DA8 (AF12), I2S2_CK (AF5), LPTIM2_CH1 (AF3), PSSI_D2 (AF8), SDMMC1_D0 (AF6), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), USART3_CTS (AF7), USART3_NSS (AF7)
95PB14ввод-выводFMC_NE1 (AF12), I2S2_SDI (AF5), LPTIM2_CH2 (AF3), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), UART4_DE (AF8), UART4_RTS (AF8), USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
96PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_A20 (AF12), I2S2_SDO (AF5), PWR_PVD_IN, RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), UART4_CTS (AF8), USART1_RX (AF4)
97VCAP2питание—
98VSSпитание—
99VDDLDOпитание—
100VDDпитание—
101PD14ввод-выводDCMIPP_D7 (AF5), FMC_D17 (AF12), LPTIM1_CH2 (AF1), LPTIM2_CH1 (AF3), PSSI_D7 (AF9), TIM4_CH3 (AF2), UART8_CTS (AF8), UCPD1_FRSTX1 (AF6)
102PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMIPP_D9 (AF5), FMC_D18 (AF12), LPTIM5_OUT (AF3), PSSI_D9 (AF9), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UCPD1_FRSTX2 (AF6)
103PC6ввод-выводDCMIPP_D0 (AF13), I2S2_MCK (AF5), PSSI_D0 (AF9), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF11), SDMMC2_D6 (AF10), TIM3_CH1 (AF2), TIM9_CH1 (AF3)
104PC7ввод-выводDCMIPP_D1 (AF13), DEBUG_TRGIO (AF0), I2S3_MCK (AF6), PSSI_D1 (AF9), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF11), SDMMC2_D7 (AF10), TIM3_CH2 (AF2), TIM9_CH2 (AF3)
105PC8ввод-выводDCMIPP_D2 (AF13), DEBUG_TRACED1 (AF0), I2C3_SMBA (AF4), PSSI_D2 (AF9), SDMMC1_D0 (AF11), TIM3_CH3 (AF2), UART5_DE (AF8), UART5_RTS (AF8)
106PC9ввод-выводDCMIPP_D3 (AF13), I2C3_SDA (AF4), I2S_CKIN (AF5), PSSI_D3 (AF9), RCC_MCO_2 (AF0), SDMMC1_D1 (AF11), TIM3_CH4 (AF2), UART5_CTS (AF8)
107VDDпитание—
108VSSпитание—
109PA8ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), I2C3_SCL (AF4), RCC_MCO_1 (AF0), TIM1_CH1 (AF1), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF (AF10)
110PA9ввод-выводDCMIPP_D0 (AF13), FMC_D3 (AF12), FMC_DA3 (AF12), I2C3_SDA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), PSSI_D0 (AF6), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7)
111PA10ввод-выводDCMIPP_D1 (AF13), FMC_D2 (AF12), FMC_DA2 (AF12), LPUART1_RX (AF3), MDIOS_MDIO (AF11), PSSI_D1 (AF6), TIM1_CH3 (AF1), USART1_RX (AF7)
112PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX (AF9), FMC_D1 (AF12), FMC_DA1 (AF12), I2S2_WS (AF5), LPUART1_CTS (AF3), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7)
113PA12ввод-выводFDCAN1_TX (AF9), FMC_D0 (AF12), FMC_DA0 (AF12), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), SAI2_FS_B (AF8), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7)
114PA13(JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
115PA14(JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
116PA15(JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), FMC_D15 (AF12), FMC_DA15 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF7), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
117VCAP3питание—
118VSSпитание—
119VDDLDOпитание—
120VDDпитание—
121PC10ввод-выводDCMIPP_D14 (AF13), I2S3_CK (AF6), PSSI_D14 (AF9), SDMMC1_D2 (AF12), SPI3_SCK (AF6), TIM1_BKIN (AF1), UART4_TX (AF8), USART3_TX (AF7)
122PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMIPP_D4 (AF13), I2S3_SDI (AF6), PSSI_D4 (AF9), SDMMC1_D3 (AF11), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
123PC12ввод-выводDCMIPP_D9 (AF13), DEBUG_TRACED3 (AF0), I2S3_SDO (AF6), I2S6_CK (AF5), PSSI_D9 (AF9), SDMMC1_CK (AF11), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), TIM1_CH4 (AF1), UART5_TX (AF8), USART3_CK (AF7)
124PD0ввод-выводDCMIPP_HSYNC (AF13), FDCAN1_RX (AF9), FMC_A6 (AF12), FMC_A22 (AF7), PSSI_DE (AF6), UART4_RX (AF8)
125PD1ввод-выводFDCAN1_TX (AF9), FMC_A7 (AF12), FMC_A23 (AF7), UART4_TX (AF8)
126PD2ввод-выводDCMIPP_D11 (AF13), DEBUG_TRACED2 (AF0), PSSI_D11 (AF6), SDMMC1_CMD (AF11), TIM15_BKIN (AF4), TIM1_ETR (AF1), TIM3_ETR (AF2), UART5_RX (AF8)
127PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_SDNWE (AF12), SAI2_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
128PE12ввод-выводFMC_SDNRAS (AF12), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
129PE13ввод-выводFMC_SDNCAS (AF12), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
130PE14ввод-выводFMC_SDNE0 (AF12), GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF13), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
131PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_SDCKE0 (AF12), GFXTIM_FCKCAL (AF13), GFXTIM_LCKCAL (AF2), TIM1_BKIN (AF1)
132VSSпитание—
133VDDпитание—
134PD3ввод-выводDCMIPP_D5 (AF13), FMC_NWAIT (AF12), I2S2_CK (AF5), PSSI_D5 (AF6), SPI2_SCK (AF5), TIM1_CH3N (AF1), USART2_CTS (AF7), USART2_NSS (AF7)
135PD4ввод-выводDCMIPP_HSYNC (AF5), ETH_PHY_INTN (AF11), FMC_NL (AF12), PSSI_DE (AF6), TAMP_IN6, TAMP_OUT3, USART2_DE (AF7), USART2_RTS (AF7)
136PM0ввод-выводUCPD1_CC1 (AF6)
137PM1ввод-выводUCPD1_CC2 (AF6)
138PM2ввод-выводUCPD1_DBCC1 (AF6)
139PM3ввод-выводUCPD1_DBCC2 (AF6)
140VDD50USBпитание—
141VDD33USBпитание—
142VSSUSBпитание—
143PM5ввод-выводUSB_OTG_HS_DM (AF10)
144PM6ввод-выводUSB_OTG_HS_DP (AF10)
145DVDDпитание—
146PM8ввод-выводUART7_RX (AF7), USB_OTG_HS_VBUS (AF10)
147PM9ввод-выводUART7_TX (AF7), USB_OTG_HS_ID (AF10)
148VDDпитание—
149PM12ввод-выводSPI5_NSS (AF5), USB_OTG_FS_DM (AF10)
150PM11ввод-выводADC1_EXTI11, ADC2_EXTI11, SPI5_SCK (AF5), USB_OTG_FS_DP (AF10)
151PM14ввод-выводSPI5_MISO (AF5), USB_OTG_FS_VBUS (AF10)
152PM13ввод-выводSPI5_MOSI (AF5), USB_OTG_FS_ID (AF10)
153BOOT0загрузка—
154PD5ввод-выводDCMIPP_PIXCLK (AF5), FMC_NCE (AF10), FMC_NE2 (AF12), PSSI_PDCK (AF6), TAMP_IN5, TAMP_OUT4, TIM1_CH4N (AF1), USART2_TX (AF7)
155PD6ввод-выводADF1_SDI0 (AF3), DCMIPP_D10 (AF13), ETH_CLK (AF4), FMC_INT (AF10), FMC_NE3 (AF12), I2S3_SDO (AF5), PSSI_D10 (AF9), SAI1_D1 (AF2), SAI1_SCK_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
156PD7ввод-выводDCMIPP_D2 (AF13), ETH_MII_RX_CLK (AF4), ETH_RMII_REF_CLK (AF4), FMC_D8 (AF12), FMC_DA8 (AF12), I2S1_SDO (AF5), PSSI_D2 (AF6), SDMMC2_CMD (AF11), SPDIFRX_IN0 (AF9), SPI1_MOSI (AF5), USART2_CK (AF7)
157VDDпитание—
158PF0ввод-выводFMC_A8 (AF12), I2C2_SDA (AF4)
159PF1ввод-выводFMC_A9 (AF12), I2C2_SCL (AF4)
160PF2ввод-выводDCMIPP_D14 (AF5), FMC_A10 (AF12), I2C2_SMBA (AF4), PSSI_D14 (AF9)
161PF3ввод-выводDCMIPP_D9 (AF5), ETH_MII_CRS (AF11), FMC_A11 (AF12), PSSI_D9 (AF9)
162PF4ввод-выводDCMIPP_D8 (AF5), ETH_MII_TX_ER (AF11), FMC_A13 (AF12), PSSI_D8 (AF9)
163PB3(JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DCMIPP_HSYNC (AF4), DEBUG_JTDO-SWO (AF0), FMC_D14 (AF12), FMC_DA14 (AF12), I2S1_CK (AF5), I2S3_CK (AF6), I2S6_CK (AF8), LPTIM4_IN1 (AF3), PSSI_DE (AF14), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART7_RX (AF11)
164PB4(NJTRST)ввод-выводDCMIPP_VSYNC (AF4), DEBUG_NJTRST (AF0), FMC_D13 (AF12), FMC_DA13 (AF12), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), I2S6_SDI (AF8), LPTIM4_ETR (AF3), PSSI_RDY (AF14), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
165PB5ввод-выводDCMIPP_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_D12 (AF12), FMC_DA12 (AF12), I2C1_SMBA (AF4), I2S1_SDO (AF5), I2S3_SDO (AF7), I2S6_SDO (AF8), LPTIM4_OUT (AF3), PSSI_D10 (AF6), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14)
166VCAP4питание—
167VSSпитание—
168VDDLDOпитание—
169VDDпитание—
170PE0ввод-выводDCMIPP_D2 (AF13), FMC_D9 (AF12), FMC_DA9 (AF12), LPTIM1_ETR (AF1), LPTIM2_ETR (AF3), PSSI_D2 (AF9), SAI2_MCLK_A (AF10), TAMP_IN4, TAMP_OUT5, TIM4_ETR (AF2), UART8_RX (AF8)
171PE1ввод-выводDCMIPP_D3 (AF13), FMC_D10 (AF12), FMC_DA10 (AF12), LPTIM1_IN2 (AF1), LPTIM2_CH2 (AF3), PSSI_D3 (AF9), TAMP_IN3, TAMP_OUT6, UART8_TX (AF8)
172PE2ввод-выводADF1_CCK0 (AF1), DEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_D11 (AF12), FMC_DA11 (AF12), LPTIM5_IN1 (AF3), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), TIM1_CH2N (AF14)
173PB6ввод-выводCEC (AF5), DCMIPP_D5 (AF13), ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), I2C1_SCL (AF4), I3C1_SCL (AF4), LPUART1_TX (AF8), PSSI_D5 (AF6), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
174PB7ввод-выводDCMIPP_D1 (AF5), DCMIPP_VSYNC (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_SDCKE1 (AF12), I2C1_SDA (AF4), I3C1_SDA (AF4), LPUART1_RX (AF8), PSSI_D1 (AF9), PSSI_RDY (AF6), TIM17_CH1N (AF1), TIM4_CH2 (AF2), UART5_TX (AF14), USART1_RX (AF7)
175PB8ввод-выводDCMIPP_D6 (AF13), ETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), FMC_D9 (AF14), FMC_DA9 (AF14), I2C1_SCL (AF4), I3C1_SCL (AF4), PSSI_D6 (AF6), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8), USART3_CK (AF3)
176PB9ввод-выводDCMIPP_D7 (AF13), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2S2_WS (AF5), I3C1_SDA (AF4), PSSI_D7 (AF6), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TAMP_IN2, TAMP_OUT1, TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяВыводыНазначение
DVDD145—
VBAT1резервное питание: часы реального времени и резервные регистры
VCAP161—
VCAP297—
VCAP3117—
VCAP4166—
VDD5, 12, 27, 41, 51, 58, 87, 100, 107, 120, 133, 148, 157, 169питание цифровой части и линий ввода-вывода
VDD33USB141—
VDD50USB140—
VDDA35питание аналоговой части: АЦП, ЦАП, генераторы
VDDLDO59, 99, 119, 168—
VDDSMPS15—
VDDXSPI163, 69, 75, 81—
VFBSMPS16—
VLXSMPS14—
VREFM33—
VREFP34—
VSS6, 11, 26, 40, 52, 60, 64, 68, 74, 80, 88, 98, 108, 118, 132, 167общий провод (земля)
VSSA32общий провод аналоговой части
VSSSMPS13—
VSSUSB142—
NRST25сброс, активный уровень — низкий
BOOT0153выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H7S3I8Tx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H7S3I8STM32H7S3I8Tx64 КБ620 КБ

Линейка STM32H7R3/7S3, семейство STM32H7, ядро Cortex-M7.

Заказные номера

Полные номера для заказа из таблицы на странице продукта на сайте ST: STM32H7S3I8. Данные на 11 октября 2026 г.; перечислены номера, которые в этот момент выпускались. Цифра после буквы корпуса — температурный диапазон, вид упаковки указан в последнем столбце.

Номер для заказаКорпусТемператураУпаковка
STM32H7S3I8T6LQFP 176, 24×24×1,4 мм−40…+85 °Cлоток

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе LQFP176, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H7R3I8STM32H7R3/7S3176 из 176выводы совпадают полностьютолько у этого: CRYP, PKA

Частые вопросы

На каких выводах USART1 у STM32H7S3I8?

В корпусе LQFP176 сигнал USART1_TX выведен на PB14 (вывод 95, AF4) или PA9 (вывод 110, AF7) или PB6 (вывод 173, AF7), USART1_RX — на PB15 (вывод 96, AF4) или PA10 (вывод 111, AF7) или PB7 (вывод 174, AF7).

Где у STM32H7S3I8 выводы SWD для программатора?

SWDIO — PA13(JTMS/SWDIO) (вывод 114, AF0), SWCLK — PA14(JTCK/SWCLK) (вывод 115, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H7S3I8?

I2C1_SCL — PB6 (вывод 173, AF4) или PB8 (вывод 175, AF4), I2C1_SDA — PB7 (вывод 174, AF4) или PB9 (вывод 176, AF4).

Сколько выводов ввода-вывода у STM32H7S3I8 в корпусе LQFP176?

119 из 176. Ещё 55 выводов заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Заказные номера, корпуса, упаковка и температурный диапазон — из таблиц на страницах продуктов st.com (данные на 11 октября 2026 г.). Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
