STM32L496WG в корпусе WLCSP115: распиновка

STM32L496WG — микроконтроллер STM32L4 на ядре Cortex-M4 с частотой до 80 МГц: 1 МБ флеш-памяти и 320 КБ ОЗУ. Корпус WLCSP115 — 115 шариков, из них 90 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M4
Частота ядра
до 80 МГц
Флеш-память
1 МБ
ОЗУ
320 КБ
Корпус
WLCSP115, 115 шариков
Линий ввода-вывода
90
Напряжение питания
1,71…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса WLCSP115

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32L496WG в корпусе WLCSP115, вид сверхуABCDEFGHJKL123456789101112131415161718192021VDD — шарик A2VDDPC11 — шарик A4: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4, LCD_COM5, LCD_SEG29, LCD_SEG41, QUADSPI_BK2_NCS, SAI2_MCLK_B, SDMMC1_D3, SPI3_MISO, TSC_G3_IO3, UART4_RX, USART3_RXPC11PD2 — шарик A6: DCMI_D11, LCD_COM7, LCD_SEG31, LCD_SEG43, SDMMC1_CMD, SYS_TRACED2, TIM3_ETR, TSC_SYNC, UART5_RX, USART3_DE, USART3_RTSPD2VDD — шарик A8VDDPG10 — шарик A10: FMC_NE3, LPTIM1_IN1, SAI2_FS_A, SPI3_MISO, TIM15_CH1, USART1_RXPG10PG14 — шарик A12: FMC_A25, I2C1_SCLPG14PB5 — шарик A14: CAN2_RX, COMP2_OUT, DCMI_D10, I2C1_SMBA, LCD_SEG9, LPTIM1_IN1, SAI1_SD_B, SPI1_MOSI, SPI3_MOSI, TIM16_BKIN, TIM3_CH2, TSC_G2_IO2, UART5_CTS, USART1_CKPB5PB9 — шарик A16: CAN1_TX, DAC1_EXTI9, DCMI_D7, DFSDM1_CKIN6, I2C1_SDA, IR_OUT, LCD_COM3, SAI1_FS_A, SDMMC1_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4PB9VSS — шарик A18VSSVDD — шарик A20VDDPA12 — шарик B1: CAN1_TX, SPI1_MOSI, TIM1_ETR, USART1_DE, USART1_RTS, USB_OTG_FS_DPPA12VSS — шарик B3VSSPC10 — шарик B5: DCMI_D8, LCD_COM4, LCD_SEG28, LCD_SEG40, SAI2_SCK_B, SDMMC1_D2, SPI3_SCK, SYS_TRACED1, TSC_G3_IO2, UART4_TX, USART3_TXPC10PD1 — шарик B7: CAN1_TX, DFSDM1_CKIN7, FMC_D3, FMC_DA3, SPI2_SCKPD1VSS — шарик B9VSSPG11 — шарик B11: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LPTIM1_IN2, SAI2_MCLK_A, SPI3_MOSI, TIM15_CH2, USART1_CTSPG11VDDIO2 — шарик B13VDDIO2PB7 — шарик B15: COMP2_INM, DCMI_VSYNC, DFSDM1_CKIN5, FMC_NL, I2C1_SDA, I2C4_SDA, LCD_SEG21, LPTIM1_IN2, SYS_PVD_IN, TIM17_CH1N, TIM4_CH2, TIM8_BKIN, TIM8_BKIN_COMP1, TSC_G2_IO4, UART4_CTS, USART1_RXPB7VDD12 — шарик B17VDD12PE3 — шарик B19: FMC_A19, LCD_SEG39, SAI1_SD_B, SYS_TRACED0, TIM3_CH1, TSC_G7_IO2PE3PE5 — шарик B21: DCMI_D6, DFSDM1_CKIN3, FMC_A21, SAI1_SCK_A, SYS_TRACED2, TIM3_CH3, TSC_G7_IO4PE5PA11 — шарик C2: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, CAN1_RX, SPI1_MISO, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_CH4, USART1_CTS, USB_OTG_FS_DMPA11VDDUSB — шарик C4VDDUSBPA15 (JTDI) — шарик C6: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, LCD_SEG17, SAI2_FS_B, SPI1_NSS, SPI3_NSS, SWPMI1_SUSPEND, SYS_JTDI, TIM2_CH1, TIM2_ETR, TSC_G3_IO1, UART4_DE, UART4_RTS, USART2_RX, USART3_DE, USART3_RTSPA15PD0 — шарик C8: CAN1_RX, DFSDM1_DATIN7, FMC_D2, FMC_DA2, SPI2_NSSPD0PD5 — шарик C10: FMC_NWE, QUADSPI_BK2_IO1, USART2_TXPD5PG12 — шарик C12: FMC_NE4, LPTIM1_ETR, SAI2_SD_A, SPI3_NSS, USART1_DE, USART1_RTSPG12PB4 (NJTRST) — шарик C14: COMP2_INP, DCMI_D12, I2C3_SDA, LCD_SEG8, SAI1_MCLK_B, SPI1_MISO, SPI3_MISO, SYS_JTRST, TIM17_BKIN, TIM3_CH1, TSC_G2_IO1, UART5_DE, UART5_RTS, USART1_CTSPB4PE2 — шарик C16: FMC_A23, LCD_SEG38, SAI1_MCLK_A, SYS_TRACECLK, TIM3_ETR, TSC_G7_IO1PE2PE4 — шарик C18: DCMI_D4, DFSDM1_DATIN3, FMC_A20, SAI1_FS_A, SYS_TRACED1, TIM3_CH2, TSC_G7_IO3PE4VBAT — шарик C20VBATPA9 — шарик D1: DAC1_EXTI9, DCMI_D0, LCD_COM1, SAI1_FS_A, SPI2_SCK, TIM15_BKIN, TIM1_CH2, USART1_TX, USB_OTG_FS_VBUSPA9PA8 — шарик D3: LCD_COM0, LPTIM2_OUT, RCC_MCO, SAI1_SCK_A, SWPMI1_IO, TIM1_CH1, USART1_CK, USB_OTG_FS_SOFPA8PA13 (JTMS/SWDIO) — шарик D5: IR_OUT, SAI1_SD_B, SWPMI1_TX, SYS_JTMS-SWDIO, USB_OTG_FS_NOEPA13PA14 (JTCK/SWCLK) — шарик D7: I2C1_SMBA, I2C4_SMBA, LPTIM1_OUT, SAI1_FS_B, SWPMI1_RX, SYS_JTCK-SWCLK, USB_OTG_FS_SOFPA14PC12 — шарик D9: DCMI_D9, LCD_COM6, LCD_SEG30, LCD_SEG42, SAI2_SD_B, SDMMC1_CK, SPI3_MOSI, SYS_TRACED3, TSC_G3_IO4, UART5_TX, USART3_CKPC12PD7 — шарик D11: DFSDM1_CKIN1, FMC_NE1, QUADSPI_BK2_IO3, USART2_CKPD7PG13 — шарик D13: FMC_A24, I2C1_SDA, USART1_CKPG13PH3-BOOT0 — шарик D15PH3PC13 — шарик D17: RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS, SYS_WKUP2PC13PE6 — шарик D19: DCMI_D7, FMC_A22, RTC_TAMP3, SAI1_SD_A, SYS_TRACED3, SYS_WKUP3, TIM3_CH4PE6PC14-OSC32_IN — шарик D21: RCC_OSC32_INPC14PC7 — шарик E2: DCMI_D1, DFSDM1_DATIN3, LCD_SEG25, SAI2_MCLK_B, SDMMC1_D7, TIM3_CH2, TIM8_CH2, TSC_G4_IO2PC7PC8 — шарик E4: DCMI_D2, LCD_SEG26, SDMMC1_D0, TIM3_CH3, TIM8_CH3, TSC_G4_IO3PC8PC9 — шарик E6: DAC1_EXTI9, DCMI_D3, I2C3_SDA, LCD_SEG27, SAI2_EXTCLK, SDMMC1_D1, TIM3_CH4, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_CH4, TSC_G4_IO4, USB_OTG_FS_NOEPC9PA10 — шарик E8: DCMI_D1, LCD_COM2, SAI1_SD_A, TIM17_BKIN, TIM1_CH3, USART1_RX, USB_OTG_FS_IDPA10PD4 — шарик E10: DFSDM1_CKIN0, FMC_NOE, QUADSPI_BK2_IO0, SPI2_MOSI, USART2_DE, USART2_RTSPD4PG9 — шарик E12: DAC1_EXTI9, FMC_NCE, FMC_NE2, SAI2_SCK_A, SPI3_SCK, TIM15_CH1N, USART1_TXPG9PB6 — шарик E14: CAN2_TX, COMP2_INP, DCMI_D5, DFSDM1_DATIN5, I2C1_SCL, I2C4_SCL, LPTIM1_ETR, SAI1_FS_B, TIM16_CH1N, TIM4_CH1, TIM8_BKIN2, TIM8_BKIN2_COMP2, TSC_G2_IO3, USART1_TXPB6NRST — шарик E16NRSTVSS — шарик E18VSSPC15-OSC32_OUT — шарик E20: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUTPC15VDDIO2 — шарик F1VDDIO2VSS — шарик F3VSSPG8 — шарик F5: I2C3_SDA, LPUART1_RXPG8PG7 — шарик F7: FMC_INT, I2C3_SCL, LPUART1_TX, SAI1_MCLK_APG7PC6 — шарик F9: DCMI_D0, DFSDM1_CKIN3, LCD_SEG24, SAI2_MCLK_A, SDMMC1_D6, TIM3_CH1, TIM8_CH1, TSC_G4_IO1PC6PD6 — шарик F11: DCMI_D10, DFSDM1_DATIN1, FMC_NWAIT, QUADSPI_BK2_IO1, QUADSPI_BK2_IO2, SAI1_SD_A, USART2_RXPD6PB3 (JTDO/TRACESWO) — шарик F13: COMP2_INM, CRS_SYNC, LCD_SEG7, SAI1_SCK_B, SPI1_SCK, SPI3_SCK, SYS_JTDO-SWO, TIM2_CH2, USART1_DE, USART1_RTSPB3PA2 — шарик F15: ADC1_IN7, ADC2_IN7, LCD_SEG1, LPUART1_TX, QUADSPI_BK1_NCS, RCC_LSCO, SAI2_EXTCLK, SYS_WKUP4, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PC0 — шарик F17: ADC1_IN1, ADC2_IN1, ADC3_IN1, DFSDM1_DATIN4, I2C3_SCL, I2C4_SCL, LCD_SEG18, LPTIM1_IN1, LPTIM2_IN1, LPUART1_RXPC0VDD — шарик F19VDDPH0-OSC_IN — шарик F21: RCC_OSC_INPH0PG5 — шарик G2: FMC_A15, LPUART1_CTS, SAI2_SD_B, SPI1_NSSPG5PG4 — шарик G4: FMC_A14, SAI2_MCLK_B, SPI1_MOSIPG4PG3 — шарик G6: FMC_A13, SAI2_FS_B, SPI1_MISOPG3PG2 — шарик G8: FMC_A12, SAI2_SCK_B, SPI1_SCKPG2PG6 — шарик G10: I2C3_SMBA, LPUART1_DE, LPUART1_RTSPG6PG1 — шарик G12: FMC_A11, TSC_G8_IO4PG1PC5 — шарик G14: ADC1_IN14, ADC2_IN14, COMP1_INP, LCD_SEG23, SYS_WKUP5, USART3_RXPC5PA1 — шарик G16: ADC1_IN6, ADC2_IN6, I2C1_SMBA, LCD_SEG0, OPAMP1_VINM, SPI1_SCK, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PC2 — шарик G18: ADC1_IN3, ADC2_IN3, ADC3_IN3, DFSDM1_CKOUT, LCD_SEG20, LPTIM1_IN2, QUADSPI_BK2_IO1, SPI2_MISOPC2PH1-OSC_OUT — шарик G20: RCC_OSC_OUTPH1PD15 — шарик H1: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, LCD_SEG35, TIM4_CH4PD15PD14 — шарик H3: FMC_D0, FMC_DA0, LCD_SEG34, TIM4_CH3PD14PD10 — шарик H5: FMC_D15, FMC_DA15, LCD_SEG30, SAI2_SCK_A, TSC_G6_IO1, USART3_CKPD10PD9 — шарик H7: DAC1_EXTI9, DCMI_PIXCLK, FMC_D14, FMC_DA14, LCD_SEG29, SAI2_MCLK_A, USART3_RXPD9PE13 — шарик H9: DFSDM1_CKIN5, FMC_D10, FMC_DA10, QUADSPI_BK1_IO1, SPI1_SCK, TIM1_CH3, TSC_G5_IO4PE13PE9 — шарик H11: DAC1_EXTI9, DFSDM1_CKOUT, FMC_D6, FMC_DA6, SAI1_FS_B, TIM1_CH1PE9PB2 — шарик H13: COMP1_INP, DFSDM1_CKIN0, I2C3_SMBA, LCD_VLCD, LPTIM1_OUT, RTC_OUT_ALARM, RTC_OUT_CALIBPB2PA6 — шарик H15: ADC1_IN11, ADC2_IN11, DCMI_PIXCLK, LCD_SEG3, LPUART1_CTS, OPAMP2_VINP, QUADSPI_BK1_IO3, SPI1_MISO, TIM16_CH1, TIM1_BKIN, TIM1_BKIN_COMP2, TIM3_CH1, TIM8_BKIN, TIM8_BKIN_COMP2, USART3_CTSPA6PA0 — шарик H17: ADC1_IN5, ADC2_IN5, OPAMP1_VINP, RTC_TAMP2, SAI1_EXTCLK, SYS_WKUP1, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTSPA0PC3 — шарик H19: ADC1_IN4, ADC2_IN4, ADC3_IN4, LCD_VLCD, LPTIM1_ETR, LPTIM2_ETR, QUADSPI_BK2_IO2, SAI1_SD_A, SPI2_MOSIPC3PC1 — шарик H21: ADC1_IN2, ADC2_IN2, ADC3_IN2, DFSDM1_CKIN4, I2C3_SDA, I2C4_SDA, LCD_SEG19, LPTIM1_OUT, LPUART1_TX, QUADSPI_BK2_IO0, SAI1_SD_A, SPI2_MOSI, SYS_TRACED0PC1PD8 — шарик J2: DCMI_HSYNC, FMC_D13, FMC_DA13, LCD_SEG28, USART3_TXPD8PB14 — шарик J4: DFSDM1_DATIN2, I2C2_SDA, LCD_SEG14, SAI2_MCLK_A, SPI2_MISO, SWPMI1_RX, TIM15_CH1, TIM1_CH2N, TIM8_CH2N, TSC_G1_IO3, USART3_DE, USART3_RTSPB14PB13 — шарик J6: CAN2_TX, DFSDM1_CKIN1, I2C2_SCL, LCD_SEG13, LPUART1_CTS, SAI2_SCK_A, SPI2_SCK, SWPMI1_TX, TIM15_CH1N, TIM1_CH1N, TSC_G1_IO2, USART3_CTSPB13PB10 — шарик J8: COMP1_OUT, DFSDM1_DATIN7, I2C2_SCL, I2C4_SCL, LCD_SEG10, LPUART1_RX, QUADSPI_CLK, SAI1_SCK_A, SPI2_SCK, TIM2_CH3, TSC_SYNC, USART3_TXPB10PE12 — шарик J10: DFSDM1_DATIN5, FMC_D9, FMC_DA9, QUADSPI_BK1_IO0, SPI1_NSS, TIM1_CH3N, TSC_G5_IO3PE12PG0 — шарик J12: FMC_A10, TSC_G8_IO3PG0PB0 — шарик J14: ADC1_IN15, ADC2_IN15, COMP1_OUT, LCD_SEG5, OPAMP2_VOUT, QUADSPI_BK1_IO1, SAI1_EXTCLK, SPI1_NSS, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, USART3_CKPB0PA5 — шарик J16: ADC1_IN10, ADC2_IN10, DAC1_OUT2, LPTIM2_ETR, SPI1_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1NPA5VSSA — шарик J18VSSAVREF+ — шарик J20: VREFBUF_OUTVREF+VDD — шарик K1VDDVSS — шарик K3VSSPB12 — шарик K5: CAN2_RX, DFSDM1_DATIN1, I2C2_SMBA, LCD_SEG12, LPUART1_DE, LPUART1_RTS, SAI2_FS_A, SPI2_NSS, SWPMI1_IO, TIM15_BKIN, TIM1_BKIN, TIM1_BKIN_COMP2, TSC_G1_IO1, USART3_CKPB12PE14 — шарик K7: FMC_D11, FMC_DA11, QUADSPI_BK1_IO2, SPI1_MISO, TIM1_BKIN2, TIM1_BKIN2_COMP2, TIM1_CH4PE14PE10 — шарик K9: DFSDM1_DATIN4, FMC_D7, FMC_DA7, QUADSPI_CLK, SAI1_MCLK_B, TIM1_CH2N, TSC_G5_IO1PE10PE7 — шарик K11: DFSDM1_DATIN2, FMC_D4, FMC_DA4, SAI1_SD_B, TIM1_ETRPE7VSS — шарик K13VSSPC4 — шарик K15: ADC1_IN13, ADC2_IN13, COMP1_INM, LCD_SEG22, QUADSPI_BK2_IO3, USART3_TXPC4VDD — шарик K17VDDVSS — шарик K19VSSVDDA — шарик K21VDDAVDD12 — шарик L2VDD12PB11 — шарик L4: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_OUT, DFSDM1_CKIN7, I2C2_SDA, I2C4_SDA, LCD_SEG11, LPUART1_TX, QUADSPI_BK1_NCS, TIM2_CH4, USART3_RXPB11PE15 — шарик L6: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12, FMC_DA12, QUADSPI_BK1_IO3, SPI1_MOSI, TIM1_BKIN, TIM1_BKIN_COMP1PE15PE11 — шарик L8: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN4, FMC_D8, FMC_DA8, QUADSPI_BK1_NCS, TIM1_CH2, TSC_G5_IO2PE11PE8 — шарик L10: DFSDM1_CKIN2, FMC_D5, FMC_DA5, SAI1_SCK_B, TIM1_CH1NPE8VDD — шарик L12VDDPB1 — шарик L14: ADC1_IN16, ADC2_IN16, COMP1_INM, DFSDM1_DATIN0, LCD_SEG6, LPTIM2_IN1, LPUART1_DE, LPUART1_RTS, QUADSPI_BK1_IO0, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USART3_DE, USART3_RTSPB1PA7 — шарик L16: ADC1_IN12, ADC2_IN12, I2C3_SCL, LCD_SEG4, OPAMP2_VINM, QUADSPI_BK1_IO2, SPI1_MOSI, TIM17_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1NPA7PA4 — шарик L18: ADC1_IN9, ADC2_IN9, DAC1_OUT1, DCMI_HSYNC, LPTIM2_OUT, SAI1_FS_B, SPI1_NSS, SPI3_NSS, USART2_CKPA4PA3 — шарик L20: ADC1_IN8, ADC2_IN8, LCD_SEG2, LPUART1_RX, OPAMP1_VOUT, QUADSPI_CLK, SAI1_MCLK_A, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3WLCSP115, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

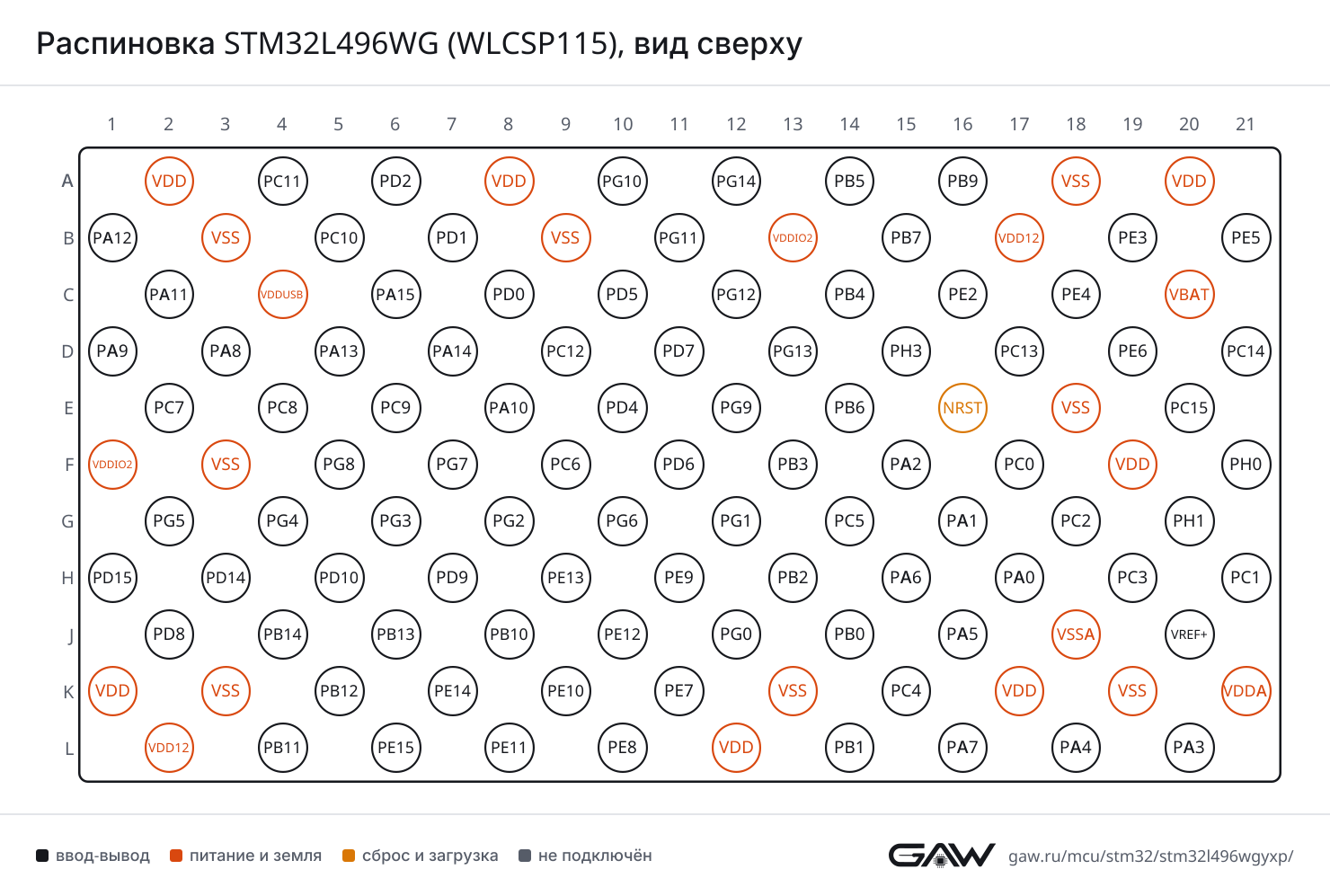

Распиновка STM32L496WG (WLCSP115), вид сверхуРаспиновка WLCSP115 картинкой
PNG, 1480 × 997 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPB5 (A14, AF7), PA8 (D3, AF7), PG13 (D13, AF7)
CTSPG11 (B11, AF7), PA11 (C2, AF7), PB4 (NJTRST) (C14, AF7)
DEPA12 (B1, AF7), PG12 (C12, AF7), PB3 (JTDO/TRACESWO) (F13, AF7)
RTSPA12 (B1, AF7), PG12 (C12, AF7), PB3 (JTDO/TRACESWO) (F13, AF7)
RXPG10 (A10, AF7), PB7 (B15, AF7), PA10 (E8, AF7)
TXPA9 (D1, AF7), PG9 (E12, AF7), PB6 (E14, AF7)
USART2CKPD7 (D11, AF7), PA4 (L18, AF7)
CTSPA0 (H17, AF7)
DEPD4 (E10, AF7), PA1 (G16, AF7)
RTSPD4 (E10, AF7), PA1 (G16, AF7)
RXPA15 (JTDI) (C6, AF3), PD6 (F11, AF7), PA3 (L20, AF7)
TXPD5 (C10, AF7), PA2 (F15, AF7)
USART3CKPC12 (D9, AF7), PD10 (H5, AF7), PB0 (J14, AF7), PB12 (K5, AF7)
CTSPA6 (H15, AF7), PB13 (J6, AF7)
DEPD2 (A6, AF7), PA15 (JTDI) (C6, AF7), PB14 (J4, AF7), PB1 (L14, AF7)
RTSPD2 (A6, AF7), PA15 (JTDI) (C6, AF7), PB14 (J4, AF7), PB1 (L14, AF7)
RXPC11 (A4, AF7), PC5 (G14, AF7), PD9 (H7, AF7), PB11 (L4, AF7)
TXPC10 (B5, AF7), PD8 (J2, AF7), PB10 (J8, AF7), PC4 (K15, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB7 (B15, AF8)
DEPA15 (JTDI) (C6, AF8)
RTSPA15 (JTDI) (C6, AF8)
RXPC11 (A4, AF8), PA1 (G16, AF8)
TXPC10 (B5, AF8), PA0 (H17, AF8)
UART5CTSPB5 (A14, AF8)
DEPB4 (NJTRST) (C14, AF8)
RTSPB4 (NJTRST) (C14, AF8)
RXPD2 (A6, AF8)
TXPC12 (D9, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPG5 (G2, AF8), PA6 (H15, AF8), PB13 (J6, AF8)
DEPG6 (G10, AF8), PB12 (K5, AF8), PB1 (L14, AF8)
RTSPG6 (G10, AF8), PB12 (K5, AF8), PB1 (L14, AF8)
RXPG8 (F5, AF8), PC0 (F17, AF8), PB10 (J8, AF8), PA3 (L20, AF8)
TXPG7 (F7, AF8), PA2 (F15, AF8), PC1 (H21, AF8), PB11 (L4, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA11 (C2, AF5), PB4 (NJTRST) (C14, AF5), PG3 (G6, AF5), PA6 (H15, AF5), PE14 (K7, AF5)
MOSIPB5 (A14, AF5), PA12 (B1, AF5), PG4 (G4, AF5), PE15 (L6, AF5), PA7 (L16, AF5)
NSSPA15 (JTDI) (C6, AF5), PG5 (G2, AF5), PE12 (J10, AF5), PB0 (J14, AF5), PA4 (L18, AF5)
SCKPB3 (JTDO/TRACESWO) (F13, AF5), PG2 (G8, AF5), PA1 (G16, AF5), PE13 (H9, AF5), PA5 (J16, AF5)
SPI2MISOPC2 (G18, AF5), PB14 (J4, AF5)
MOSIPD4 (E10, AF5), PC3 (H19, AF5), PC1 (H21, AF3)
NSSPB9 (A16, AF5), PD0 (C8, AF5), PB12 (K5, AF5)
SCKPD1 (B7, AF5), PA9 (D1, AF3), PB13 (J6, AF5), PB10 (J8, AF5)
SPI3MISOPC11 (A4, AF6), PG10 (A10, AF6), PB4 (NJTRST) (C14, AF6)
MOSIPB5 (A14, AF6), PG11 (B11, AF6), PC12 (D9, AF6)
NSSPA15 (JTDI) (C6, AF6), PG12 (C12, AF6), PA4 (L18, AF6)
SCKPC10 (B5, AF6), PG9 (E12, AF6), PB3 (JTDO/TRACESWO) (F13, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPG14 (A12, AF4), PB6 (E14, AF4)
SDAPB9 (A16, AF4), PB7 (B15, AF4), PG13 (D13, AF4)
SMBAPB5 (A14, AF4), PA14 (JTCK/SWCLK) (D7, AF4), PA1 (G16, AF4)
I2C2SCLPB13 (J6, AF4), PB10 (J8, AF4)
SDAPB14 (J4, AF4), PB11 (L4, AF4)
SMBAPB12 (K5, AF4)
I2C3SCLPG7 (F7, AF4), PC0 (F17, AF4), PA7 (L16, AF4)
SDAPB4 (NJTRST) (C14, AF4), PC9 (E6, AF6), PG8 (F5, AF4), PC1 (H21, AF4)
SMBAPG6 (G10, AF4), PB2 (H13, AF4)
I2C4SCLPB6 (E14, AF5), PC0 (F17, AF2), PB10 (J8, AF3)
SDAPB7 (B15, AF5), PC1 (H21, AF2), PB11 (L4, AF3)
SMBAPA14 (JTCK/SWCLK) (D7, AF5)

CAN — контроллер CAN (bxCAN)

БлокСигналВыводы
CAN1RXPA11 (C2, AF9), PD0 (C8, AF9)
TXPB9 (A16, AF9), PA12 (B1, AF9), PD1 (B7, AF9)
CAN2RXPB5 (A14, AF3), PB12 (K5, AF10)
TXPB6 (E14, AF8), PB13 (J6, AF10)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (C2, AF10)
DPPA12 (B1, AF10)
IDPA10 (E8, AF10)
NOEPA13 (JTMS/SWDIO) (D5, AF10), PC9 (E6, AF10)
SOFPA8 (D3, AF10), PA14 (JTCK/SWCLK) (D7, AF10)
VBUSPA9 (D1)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CKPC12 (D9, AF12)
CMDPD2 (A6, AF12)
D0PC8 (E4, AF12)
D1PC9 (E6, AF12)
D2PC10 (B5, AF12)
D3PC11 (A4, AF12)
D5PB9 (A16, AF12)
D6PC6 (F9, AF12)
D7PC7 (E2, AF12)

QUADSPI — интерфейс Quad-SPI памяти

БлокСигналВыводы
QUADSPIBK1_IO0PE12 (J10, AF10), PB1 (L14, AF10)
BK1_IO1PE13 (H9, AF10), PB0 (J14, AF10)
BK1_IO2PE14 (K7, AF10), PA7 (L16, AF10)
BK1_IO3PA6 (H15, AF10), PE15 (L6, AF10)
BK1_NCSPA2 (F15, AF10), PB11 (L4, AF10), PE11 (L8, AF10)
BK2_IO0PD4 (E10, AF10), PC1 (H21, AF10)
BK2_IO1PD5 (C10, AF10), PD6 (F11, AF5), PC2 (G18, AF10)
BK2_IO2PD6 (F11, AF10), PC3 (H19, AF10)
BK2_IO3PD7 (D11, AF10), PC4 (K15, AF10)
BK2_NCSPC11 (A4, AF5)
CLKPB10 (J8, AF10), PE10 (K9, AF10), PA3 (L20, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1EXTCLKPA0 (H17, AF13), PB0 (J14, AF13)
FS_APB9 (A16, AF13), PE4 (C18, AF13), PA9 (D1, AF13)
FS_BPA14 (JTCK/SWCLK) (D7, AF13), PB6 (E14, AF13), PE9 (H11, AF13), PA4 (L18, AF13)
MCLK_APE2 (C16, AF13), PG7 (F7, AF13), PA3 (L20, AF13)
MCLK_BPB4 (NJTRST) (C14, AF13), PE10 (K9, AF13)
SCK_APE5 (B21, AF13), PA8 (D3, AF13), PB10 (J8, AF13)
SCK_BPB3 (JTDO/TRACESWO) (F13, AF13), PE8 (L10, AF13)
SD_APE6 (D19, AF13), PA10 (E8, AF13), PD6 (F11, AF13), PC3 (H19, AF13), PC1 (H21, AF13)
SD_BPB5 (A14, AF13), PE3 (B19, AF13), PA13 (JTMS/SWDIO) (D5, AF13), PE7 (K11, AF13)
SAI2EXTCLKPC9 (E6, AF13), PA2 (F15, AF13)
FS_APG10 (A10, AF13), PB12 (K5, AF13)
FS_BPA15 (JTDI) (C6, AF13), PG3 (G6, AF13)
MCLK_APG11 (B11, AF13), PC6 (F9, AF13), PD9 (H7, AF13), PB14 (J4, AF13)
MCLK_BPC11 (A4, AF13), PC7 (E2, AF13), PG4 (G4, AF13)
SCK_APG9 (E12, AF13), PD10 (H5, AF13), PB13 (J6, AF13)
SCK_BPC10 (B5, AF13), PG2 (G8, AF13)
SD_APG12 (C12, AF13)
SD_BPC12 (D9, AF13), PG5 (G2, AF13)

SWPMI — интерфейс Single Wire Protocol

БлокСигналВыводы
SWPMI1IOPA8 (D3, AF12), PB12 (K5, AF12)
RXPA14 (JTCK/SWCLK) (D7, AF12), PB14 (J4, AF12)
SUSPENDPA15 (JTDI) (C6, AF12)
TXPA13 (JTMS/SWDIO) (D5, AF12), PB13 (J6, AF12)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (A4), PG11 (B11), PA11 (C2), PB11 (L4), PE11 (L8)
EXTI15PA15 (JTDI) (C6), PC15-OSC32_OUT (E20), PD15 (H1), PE15 (L6)
IN1PC0 (F17)
IN2PC1 (H21)
IN3PC2 (G18)
IN4PC3 (H19)
IN5PA0 (H17)
IN6PA1 (G16)
IN7PA2 (F15)
IN8PA3 (L20)
IN9PA4 (L18)
IN10PA5 (J16)
IN11PA6 (H15)
IN12PA7 (L16)
IN13PC4 (K15)
IN14PC5 (G14)
IN15PB0 (J14)
IN16PB1 (L14)
ADC2EXTI11PC11 (A4), PG11 (B11), PA11 (C2), PB11 (L4), PE11 (L8)
EXTI15PA15 (JTDI) (C6), PC15-OSC32_OUT (E20), PD15 (H1), PE15 (L6)
IN1PC0 (F17)
IN2PC1 (H21)
IN3PC2 (G18)
IN4PC3 (H19)
IN5PA0 (H17)
IN6PA1 (G16)
IN7PA2 (F15)
IN8PA3 (L20)
IN9PA4 (L18)
IN10PA5 (J16)
IN11PA6 (H15)
IN12PA7 (L16)
IN13PC4 (K15)
IN14PC5 (G14)
IN15PB0 (J14)
IN16PB1 (L14)
ADC3EXTI11PC11 (A4), PG11 (B11), PA11 (C2), PB11 (L4), PE11 (L8)
EXTI15PA15 (JTDI) (C6), PC15-OSC32_OUT (E20), PD15 (H1), PE15 (L6)
IN1PC0 (F17)
IN2PC1 (H21)
IN3PC2 (G18)
IN4PC3 (H19)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (A16), PA9 (D1), PC9 (E6), PG9 (E12), PD9 (H7), PE9 (H11)
OUT1PA4 (L18)
OUT2PA5 (J16)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPC4 (K15), PB1 (L14)
INPPC5 (G14), PB2 (H13)
OUTPB10 (J8, AF12), PB0 (J14, AF12)
COMP2INMPB7 (B15), PB3 (JTDO/TRACESWO) (F13)
INPPB4 (NJTRST) (C14), PB6 (E14)
OUTPB5 (A14, AF12), PB11 (L4, AF12)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA1 (G16)
VINPPA0 (H17)
VOUTPA3 (L20)
OPAMP2VINMPA7 (L16)
VINPPA6 (H15)
VOUTPB0 (J14)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (J20)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (H15, AF1), PB12 (K5, AF1), PE15 (L6, AF1)
BKIN_COMP1PE15 (L6, AF3)
BKIN_COMP2PA6 (H15, AF12), PB12 (K5, AF3)
BKIN2PA11 (C2, AF2), PE14 (K7, AF2)
BKIN2_COMP1PA11 (C2, AF12)
BKIN2_COMP2PE14 (K7, AF3)
CH1PA8 (D3, AF1), PE9 (H11, AF1)
CH1NPB13 (J6, AF1), PE8 (L10, AF1), PA7 (L16, AF1)
CH2PA9 (D1, AF1), PE11 (L8, AF1)
CH2NPB14 (J4, AF1), PB0 (J14, AF1), PE10 (K9, AF1)
CH3PA10 (E8, AF1), PE13 (H9, AF1)
CH3NPE12 (J10, AF1), PB1 (L14, AF1)
CH4PA11 (C2, AF1), PE14 (K7, AF1)
ETRPA12 (B1, AF1), PE7 (K11, AF1)
TIM2CH1PA15 (JTDI) (C6, AF1), PA0 (H17, AF1), PA5 (J16, AF1)
CH2PB3 (JTDO/TRACESWO) (F13, AF1), PA1 (G16, AF1)
CH3PA2 (F15, AF1), PB10 (J8, AF1)
CH4PB11 (L4, AF1), PA3 (L20, AF1)
ETRPA15 (JTDI) (C6, AF2), PA0 (H17, AF14), PA5 (J16, AF2)
TIM3CH1PE3 (B19, AF2), PB4 (NJTRST) (C14, AF2), PC6 (F9, AF2), PA6 (H15, AF2)
CH2PB5 (A14, AF2), PE4 (C18, AF2), PC7 (E2, AF2), PA7 (L16, AF2)
CH3PE5 (B21, AF2), PC8 (E4, AF2), PB0 (J14, AF2)
CH4PE6 (D19, AF2), PC9 (E6, AF2), PB1 (L14, AF2)
ETRPD2 (A6, AF2), PE2 (C16, AF2)
TIM4CH1PB6 (E14, AF2)
CH2PB7 (B15, AF2)
CH3PD14 (H3, AF2)
CH4PB9 (A16, AF2), PD15 (H1, AF2)
TIM5CH1PA0 (H17, AF2)
CH2PA1 (G16, AF2)
CH3PA2 (F15, AF2)
CH4PA3 (L20, AF2)
TIM8BKINPB7 (B15, AF3), PA6 (H15, AF3)
BKIN_COMP1PB7 (B15, AF13)
BKIN_COMP2PA6 (H15, AF13)
BKIN2PC9 (E6, AF1), PB6 (E14, AF3)
BKIN2_COMP1PC9 (E6, AF14)
BKIN2_COMP2PB6 (E14, AF12)
CH1PC6 (F9, AF3)
CH1NPA5 (J16, AF3), PA7 (L16, AF3)
CH2PC7 (E2, AF3)
CH2NPB14 (J4, AF3), PB0 (J14, AF3)
CH3PC8 (E4, AF3)
CH3NPB1 (L14, AF3)
CH4PC9 (E6, AF3)
ETRPA0 (H17, AF3)
TIM15BKINPA9 (D1, AF14), PB12 (K5, AF14)
CH1PG10 (A10, AF14), PA2 (F15, AF14), PB14 (J4, AF14)
CH1NPG9 (E12, AF14), PA1 (G16, AF14), PB13 (J6, AF14)
CH2PG11 (B11, AF14), PA3 (L20, AF14)
TIM16BKINPB5 (A14, AF14)
CH1PA6 (H15, AF14)
CH1NPB6 (E14, AF14)
TIM17BKINPB4 (NJTRST) (C14, AF14), PA10 (E8, AF14)
CH1PB9 (A16, AF14), PA7 (L16, AF14)
CH1NPB7 (B15, AF14)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPG12 (C12, AF1), PB6 (E14, AF1), PC3 (H19, AF1)
IN1PG10 (A10, AF1), PB5 (A14, AF1), PC0 (F17, AF1)
IN2PG11 (B11, AF1), PB7 (B15, AF1), PC2 (G18, AF1)
OUTPA14 (JTCK/SWCLK) (D7, AF1), PB2 (H13, AF1), PC1 (H21, AF1)
LPTIM2ETRPC3 (H19, AF14), PA5 (J16, AF14)
IN1PC0 (F17, AF14), PB1 (L14, AF14)
OUTPA8 (D3, AF14), PA4 (L18, AF14)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT_ALARMPC13 (D17), PB2 (H13, AF0)
OUT_CALIBPC13 (D17), PB2 (H13, AF0)
TSPC13 (D17)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA10PG0 (J12, AF12)
A11PG1 (G12, AF12)
A12PG2 (G8, AF12)
A13PG3 (G6, AF12)
A14PG4 (G4, AF12)
A15PG5 (G2, AF12)
A19PE3 (B19, AF12)
A20PE4 (C18, AF12)
A21PE5 (B21, AF12)
A22PE6 (D19, AF12)
A23PE2 (C16, AF12)
A24PG13 (D13, AF12)
A25PG14 (A12, AF12)
D0PD14 (H3, AF12)
D1PD15 (H1, AF12)
D2PD0 (C8, AF12)
D3PD1 (B7, AF12)
D4PE7 (K11, AF12)
D5PE8 (L10, AF12)
D6PE9 (H11, AF12)
D7PE10 (K9, AF12)
D8PE11 (L8, AF12)
D9PE12 (J10, AF12)
D10PE13 (H9, AF12)
D11PE14 (K7, AF12)
D12PE15 (L6, AF12)
D13PD8 (J2, AF12)
D14PD9 (H7, AF12)
D15PD10 (H5, AF12)
DA0PD14 (H3, AF12)
DA1PD15 (H1, AF12)
DA2PD0 (C8, AF12)
DA3PD1 (B7, AF12)
DA4PE7 (K11, AF12)
DA5PE8 (L10, AF12)
DA6PE9 (H11, AF12)
DA7PE10 (K9, AF12)
DA8PE11 (L8, AF12)
DA9PE12 (J10, AF12)
DA10PE13 (H9, AF12)
DA11PE14 (K7, AF12)
DA12PE15 (L6, AF12)
DA13PD8 (J2, AF12)
DA14PD9 (H7, AF12)
DA15PD10 (H5, AF12)
INTPG7 (F7, AF12)
NCEPG9 (E12, AF12)
NE1PD7 (D11, AF12)
NE2PG9 (E12, AF12)
NE3PG10 (A10, AF12)
NE4PG12 (C12, AF12)
NLPB7 (B15, AF12)
NOEPD4 (E10, AF12)
NWAITPD6 (F11, AF12)
NWEPD5 (C10, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (D1, AF5), PC6 (F9, AF10)
D1PC7 (E2, AF10), PA10 (E8, AF5)
D2PC8 (E4, AF10)
D3PC9 (E6, AF4)
D4PC11 (A4, AF10), PE4 (C18, AF10)
D5PB6 (E14, AF10)
D6PE5 (B21, AF10)
D7PB9 (A16, AF10), PE6 (D19, AF10)
D8PC10 (B5, AF10)
D9PC12 (D9, AF10)
D10PB5 (A14, AF10), PD6 (F11, AF4)
D11PD2 (A6, AF10)
D12PB4 (NJTRST) (C14, AF10)
HSYNCPD8 (J2, AF10), PA4 (L18, AF10)
PIXCLKPD9 (H7, AF10), PA6 (H15, AF4)
VSYNCPB7 (B15, AF10)

LCD — драйвер сегментного ЖК-индикатора

БлокСигналВыводы
LCDCOM0PA8 (D3, AF11)
COM1PA9 (D1, AF11)
COM2PA10 (E8, AF11)
COM3PB9 (A16, AF11)
COM4PC10 (B5, AF11)
COM5PC11 (A4, AF11)
COM6PC12 (D9, AF11)
COM7PD2 (A6, AF11)
SEG0PA1 (G16, AF11)
SEG1PA2 (F15, AF11)
SEG2PA3 (L20, AF11)
SEG3PA6 (H15, AF11)
SEG4PA7 (L16, AF11)
SEG5PB0 (J14, AF11)
SEG6PB1 (L14, AF11)
SEG7PB3 (JTDO/TRACESWO) (F13, AF11)
SEG8PB4 (NJTRST) (C14, AF11)
SEG9PB5 (A14, AF11)
SEG10PB10 (J8, AF11)
SEG11PB11 (L4, AF11)
SEG12PB12 (K5, AF11)
SEG13PB13 (J6, AF11)
SEG14PB14 (J4, AF11)
SEG17PA15 (JTDI) (C6, AF11)
SEG18PC0 (F17, AF11)
SEG19PC1 (H21, AF11)
SEG20PC2 (G18, AF11)
SEG21PB7 (B15, AF11)
SEG22PC4 (K15, AF11)
SEG23PC5 (G14, AF11)
SEG24PC6 (F9, AF11)
SEG25PC7 (E2, AF11)
SEG26PC8 (E4, AF11)
SEG27PC9 (E6, AF11)
SEG28PC10 (B5, AF11), PD8 (J2, AF11)
SEG29PC11 (A4, AF11), PD9 (H7, AF11)
SEG30PC12 (D9, AF11), PD10 (H5, AF11)
SEG31PD2 (A6, AF11)
SEG34PD14 (H3, AF11)
SEG35PD15 (H1, AF11)
SEG38PE2 (C16, AF11)
SEG39PE3 (B19, AF11)
SEG40PC10 (B5, AF11)
SEG41PC11 (A4, AF11)
SEG42PC12 (D9, AF11)
SEG43PD2 (A6, AF11)
VLCDPB2 (H13, AF11), PC3 (H19, AF11)

TSC — контроллер сенсорных кнопок

БлокСигналВыводы
TSCG1_IO1PB12 (K5, AF9)
G1_IO2PB13 (J6, AF9)
G1_IO3PB14 (J4, AF9)
G2_IO1PB4 (NJTRST) (C14, AF9)
G2_IO2PB5 (A14, AF9)
G2_IO3PB6 (E14, AF9)
G2_IO4PB7 (B15, AF9)
G3_IO1PA15 (JTDI) (C6, AF9)
G3_IO2PC10 (B5, AF9)
G3_IO3PC11 (A4, AF9)
G3_IO4PC12 (D9, AF9)
G4_IO1PC6 (F9, AF9)
G4_IO2PC7 (E2, AF9)
G4_IO3PC8 (E4, AF9)
G4_IO4PC9 (E6, AF9)
G5_IO1PE10 (K9, AF9)
G5_IO2PE11 (L8, AF9)
G5_IO3PE12 (J10, AF9)
G5_IO4PE13 (H9, AF9)
G6_IO1PD10 (H5, AF9)
G7_IO1PE2 (C16, AF9)
G7_IO2PE3 (B19, AF9)
G7_IO3PE4 (C18, AF9)
G7_IO4PE5 (B21, AF9)
G8_IO3PG0 (J12, AF9)
G8_IO4PG1 (G12, AF9)
SYNCPD2 (A6, AF9), PB10 (J8, AF9)

DFSDM — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
DFSDM1CKIN0PD4 (E10, AF6), PB2 (H13, AF6)
CKIN1PD7 (D11, AF6), PB13 (J6, AF6)
CKIN2PE8 (L10, AF6)
CKIN3PE5 (B21, AF6), PC6 (F9, AF6)
CKIN4PC1 (H21, AF6), PE11 (L8, AF6)
CKIN5PB7 (B15, AF6), PE13 (H9, AF6)
CKIN6PB9 (A16, AF6)
CKIN7PD1 (B7, AF6), PB11 (L4, AF6)
CKOUTPC2 (G18, AF6), PE9 (H11, AF6)
DATIN0PB1 (L14, AF6)
DATIN1PD6 (F11, AF6), PB12 (K5, AF6)
DATIN2PB14 (J4, AF6), PE7 (K11, AF6)
DATIN3PE4 (C18, AF6), PC7 (E2, AF6)
DATIN4PC0 (F17, AF6), PE10 (K9, AF6)
DATIN5PB6 (E14, AF6), PE12 (J10, AF6)
DATIN7PD0 (C8, AF6), PB10 (J8, AF6)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (D7, AF0)
JTDIPA15 (JTDI) (C6, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (F13, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (D5, AF0)
TRACECLKPE2 (C16, AF0)
TRACED0PE3 (B19, AF0), PC1 (H21, AF0)
TRACED1PC10 (B5, AF0), PE4 (C18, AF0)
TRACED2PD2 (A6, AF0), PE5 (B21, AF0)
TRACED3PC12 (D9, AF0), PE6 (D19, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPA2 (F15)
MCOPA8 (D3, AF0)
OSC_INPH0-OSC_IN (F21)
OSC_OUTPH1-OSC_OUT (G20)
OSC32_INPC14-OSC32_IN (D21)
OSC32_OUTPC15-OSC32_OUT (E20)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPRTC_TAMP1PC13 (D17)
RTC_TAMP2PA0 (H17)
RTC_TAMP3PE6 (D19)
SYS_WKUP1PA0 (H17)
SYS_WKUP2PC13 (D17)
SYS_WKUP3PE6 (D19)
SYS_WKUP4PA2 (F15)
SYS_WKUP5PC5 (G14)

Блоки без собственных выводов: IRTIM (формирователь ИК-сигнала), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), DMA2D (графический ускоритель Chrom-ART).

Таблица выводов

Все 115 шариков корпуса WLCSP115 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A2VDDпитание—
A4PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4 (AF10), LCD_COM5 (AF11), LCD_SEG29 (AF11), LCD_SEG41 (AF11), QUADSPI_BK2_NCS (AF5), SAI2_MCLK_B (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), TSC_G3_IO3 (AF9), UART4_RX (AF8), USART3_RX (AF7)
A6PD2ввод-выводDCMI_D11 (AF10), LCD_COM7 (AF11), LCD_SEG31 (AF11), LCD_SEG43 (AF11), SDMMC1_CMD (AF12), SYS_TRACED2 (AF0), TIM3_ETR (AF2), TSC_SYNC (AF9), UART5_RX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
A8VDDпитание—
A10PG10ввод-выводFMC_NE3 (AF12), LPTIM1_IN1 (AF1), SAI2_FS_A (AF13), SPI3_MISO (AF6), TIM15_CH1 (AF14), USART1_RX (AF7)
A12PG14ввод-выводFMC_A25 (AF12), I2C1_SCL (AF4)
A14PB5ввод-выводCAN2_RX (AF3), COMP2_OUT (AF12), DCMI_D10 (AF10), I2C1_SMBA (AF4), LCD_SEG9 (AF11), LPTIM1_IN1 (AF1), SAI1_SD_B (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF6), TIM16_BKIN (AF14), TIM3_CH2 (AF2), TSC_G2_IO2 (AF9), UART5_CTS (AF8), USART1_CK (AF7)
A16PB9ввод-выводCAN1_TX (AF9), DAC1_EXTI9, DCMI_D7 (AF10), DFSDM1_CKIN6 (AF6), I2C1_SDA (AF4), IR_OUT (AF1), LCD_COM3 (AF11), SAI1_FS_A (AF13), SDMMC1_D5 (AF12), SPI2_NSS (AF5), TIM17_CH1 (AF14), TIM4_CH4 (AF2)
A18VSSпитание—
A20VDDпитание—
B1PA12ввод-выводCAN1_TX (AF9), SPI1_MOSI (AF5), TIM1_ETR (AF1), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP (AF10)
B3VSSпитание—
B5PC10ввод-выводDCMI_D8 (AF10), LCD_COM4 (AF11), LCD_SEG28 (AF11), LCD_SEG40 (AF11), SAI2_SCK_B (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), SYS_TRACED1 (AF0), TSC_G3_IO2 (AF9), UART4_TX (AF8), USART3_TX (AF7)
B7PD1ввод-выводCAN1_TX (AF9), DFSDM1_CKIN7 (AF6), FMC_D3 (AF12), FMC_DA3 (AF12), SPI2_SCK (AF5)
B9VSSпитание—
B11PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LPTIM1_IN2 (AF1), SAI2_MCLK_A (AF13), SPI3_MOSI (AF6), TIM15_CH2 (AF14), USART1_CTS (AF7)
B13VDDIO2питание—
B15PB7ввод-выводCOMP2_INM, DCMI_VSYNC (AF10), DFSDM1_CKIN5 (AF6), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF5), LCD_SEG21 (AF11), LPTIM1_IN2 (AF1), SYS_PVD_IN, TIM17_CH1N (AF14), TIM4_CH2 (AF2), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF13), TSC_G2_IO4 (AF9), UART4_CTS (AF8), USART1_RX (AF7)
B17VDD12питание—
B19PE3ввод-выводFMC_A19 (AF12), LCD_SEG39 (AF11), SAI1_SD_B (AF13), SYS_TRACED0 (AF0), TIM3_CH1 (AF2), TSC_G7_IO2 (AF9)
B21PE5ввод-выводDCMI_D6 (AF10), DFSDM1_CKIN3 (AF6), FMC_A21 (AF12), SAI1_SCK_A (AF13), SYS_TRACED2 (AF0), TIM3_CH3 (AF2), TSC_G7_IO4 (AF9)
C2PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, CAN1_RX (AF9), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_BKIN2_COMP1 (AF12), TIM1_CH4 (AF1), USART1_CTS (AF7), USB_OTG_FS_DM (AF10)
C4VDDUSBпитание—
C6PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, LCD_SEG17 (AF11), SAI2_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SWPMI1_SUSPEND (AF12), SYS_JTDI (AF0), TIM2_CH1 (AF1), TIM2_ETR (AF2), TSC_G3_IO1 (AF9), UART4_DE (AF8), UART4_RTS (AF8), USART2_RX (AF3), USART3_DE (AF7), USART3_RTS (AF7)
C8PD0ввод-выводCAN1_RX (AF9), DFSDM1_DATIN7 (AF6), FMC_D2 (AF12), FMC_DA2 (AF12), SPI2_NSS (AF5)
C10PD5ввод-выводFMC_NWE (AF12), QUADSPI_BK2_IO1 (AF10), USART2_TX (AF7)
C12PG12ввод-выводFMC_NE4 (AF12), LPTIM1_ETR (AF1), SAI2_SD_A (AF13), SPI3_NSS (AF6), USART1_DE (AF7), USART1_RTS (AF7)
C14PB4 (NJTRST)ввод-выводCOMP2_INP, DCMI_D12 (AF10), I2C3_SDA (AF4), LCD_SEG8 (AF11), SAI1_MCLK_B (AF13), SPI1_MISO (AF5), SPI3_MISO (AF6), SYS_JTRST (AF0), TIM17_BKIN (AF14), TIM3_CH1 (AF2), TSC_G2_IO1 (AF9), UART5_DE (AF8), UART5_RTS (AF8), USART1_CTS (AF7)
C16PE2ввод-выводFMC_A23 (AF12), LCD_SEG38 (AF11), SAI1_MCLK_A (AF13), SYS_TRACECLK (AF0), TIM3_ETR (AF2), TSC_G7_IO1 (AF9)
C18PE4ввод-выводDCMI_D4 (AF10), DFSDM1_DATIN3 (AF6), FMC_A20 (AF12), SAI1_FS_A (AF13), SYS_TRACED1 (AF0), TIM3_CH2 (AF2), TSC_G7_IO3 (AF9)
C20VBATпитание—
D1PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF5), LCD_COM1 (AF11), SAI1_FS_A (AF13), SPI2_SCK (AF3), TIM15_BKIN (AF14), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_FS_VBUS
D3PA8ввод-выводLCD_COM0 (AF11), LPTIM2_OUT (AF14), RCC_MCO (AF0), SAI1_SCK_A (AF13), SWPMI1_IO (AF12), TIM1_CH1 (AF1), USART1_CK (AF7), USB_OTG_FS_SOF (AF10)
D5PA13 (JTMS/SWDIO)ввод-выводIR_OUT (AF1), SAI1_SD_B (AF13), SWPMI1_TX (AF12), SYS_JTMS-SWDIO (AF0), USB_OTG_FS_NOE (AF10)
D7PA14 (JTCK/SWCLK)ввод-выводI2C1_SMBA (AF4), I2C4_SMBA (AF5), LPTIM1_OUT (AF1), SAI1_FS_B (AF13), SWPMI1_RX (AF12), SYS_JTCK-SWCLK (AF0), USB_OTG_FS_SOF (AF10)
D9PC12ввод-выводDCMI_D9 (AF10), LCD_COM6 (AF11), LCD_SEG30 (AF11), LCD_SEG42 (AF11), SAI2_SD_B (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SYS_TRACED3 (AF0), TSC_G3_IO4 (AF9), UART5_TX (AF8), USART3_CK (AF7)
D11PD7ввод-выводDFSDM1_CKIN1 (AF6), FMC_NE1 (AF12), QUADSPI_BK2_IO3 (AF10), USART2_CK (AF7)
D13PG13ввод-выводFMC_A24 (AF12), I2C1_SDA (AF4), USART1_CK (AF7)
D15PH3-BOOT0ввод-вывод—
D17PC13ввод-выводRTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS, SYS_WKUP2
D19PE6ввод-выводDCMI_D7 (AF10), FMC_A22 (AF12), RTC_TAMP3, SAI1_SD_A (AF13), SYS_TRACED3 (AF0), SYS_WKUP3, TIM3_CH4 (AF2)
D21PC14-OSC32_INввод-выводRCC_OSC32_IN
E2PC7ввод-выводDCMI_D1 (AF10), DFSDM1_DATIN3 (AF6), LCD_SEG25 (AF11), SAI2_MCLK_B (AF13), SDMMC1_D7 (AF12), TIM3_CH2 (AF2), TIM8_CH2 (AF3), TSC_G4_IO2 (AF9)
E4PC8ввод-выводDCMI_D2 (AF10), LCD_SEG26 (AF11), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), TSC_G4_IO3 (AF9)
E6PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF4), I2C3_SDA (AF6), LCD_SEG27 (AF11), SAI2_EXTCLK (AF13), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_BKIN2 (AF1), TIM8_BKIN2_COMP1 (AF14), TIM8_CH4 (AF3), TSC_G4_IO4 (AF9), USB_OTG_FS_NOE (AF10)
E8PA10ввод-выводDCMI_D1 (AF5), LCD_COM2 (AF11), SAI1_SD_A (AF13), TIM17_BKIN (AF14), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_FS_ID (AF10)
E10PD4ввод-выводDFSDM1_CKIN0 (AF6), FMC_NOE (AF12), QUADSPI_BK2_IO0 (AF10), SPI2_MOSI (AF5), USART2_DE (AF7), USART2_RTS (AF7)
E12PG9ввод-выводDAC1_EXTI9, FMC_NCE (AF12), FMC_NE2 (AF12), SAI2_SCK_A (AF13), SPI3_SCK (AF6), TIM15_CH1N (AF14), USART1_TX (AF7)
E14PB6ввод-выводCAN2_TX (AF8), COMP2_INP, DCMI_D5 (AF10), DFSDM1_DATIN5 (AF6), I2C1_SCL (AF4), I2C4_SCL (AF5), LPTIM1_ETR (AF1), SAI1_FS_B (AF13), TIM16_CH1N (AF14), TIM4_CH1 (AF2), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP2 (AF12), TSC_G2_IO3 (AF9), USART1_TX (AF7)
E16NRSTсброс—
E18VSSпитание—
E20PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
F1VDDIO2питание—
F3VSSпитание—
F5PG8ввод-выводI2C3_SDA (AF4), LPUART1_RX (AF8)
F7PG7ввод-выводFMC_INT (AF12), I2C3_SCL (AF4), LPUART1_TX (AF8), SAI1_MCLK_A (AF13)
F9PC6ввод-выводDCMI_D0 (AF10), DFSDM1_CKIN3 (AF6), LCD_SEG24 (AF11), SAI2_MCLK_A (AF13), SDMMC1_D6 (AF12), TIM3_CH1 (AF2), TIM8_CH1 (AF3), TSC_G4_IO1 (AF9)
F11PD6ввод-выводDCMI_D10 (AF4), DFSDM1_DATIN1 (AF6), FMC_NWAIT (AF12), QUADSPI_BK2_IO1 (AF5), QUADSPI_BK2_IO2 (AF10), SAI1_SD_A (AF13), USART2_RX (AF7)
F13PB3 (JTDO/TRACESWO)ввод-выводCOMP2_INM, CRS_SYNC (AF10), LCD_SEG7 (AF11), SAI1_SCK_B (AF13), SPI1_SCK (AF5), SPI3_SCK (AF6), SYS_JTDO-SWO (AF0), TIM2_CH2 (AF1), USART1_DE (AF7), USART1_RTS (AF7)
F15PA2ввод-выводADC1_IN7, ADC2_IN7, LCD_SEG1 (AF11), LPUART1_TX (AF8), QUADSPI_BK1_NCS (AF10), RCC_LSCO, SAI2_EXTCLK (AF13), SYS_WKUP4, TIM15_CH1 (AF14), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
F17PC0ввод-выводADC1_IN1, ADC2_IN1, ADC3_IN1, DFSDM1_DATIN4 (AF6), I2C3_SCL (AF4), I2C4_SCL (AF2), LCD_SEG18 (AF11), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF14), LPUART1_RX (AF8)
F19VDDпитание—
F21PH0-OSC_INввод-выводRCC_OSC_IN
G2PG5ввод-выводFMC_A15 (AF12), LPUART1_CTS (AF8), SAI2_SD_B (AF13), SPI1_NSS (AF5)
G4PG4ввод-выводFMC_A14 (AF12), SAI2_MCLK_B (AF13), SPI1_MOSI (AF5)
G6PG3ввод-выводFMC_A13 (AF12), SAI2_FS_B (AF13), SPI1_MISO (AF5)
G8PG2ввод-выводFMC_A12 (AF12), SAI2_SCK_B (AF13), SPI1_SCK (AF5)
G10PG6ввод-выводI2C3_SMBA (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8)
G12PG1ввод-выводFMC_A11 (AF12), TSC_G8_IO4 (AF9)
G14PC5ввод-выводADC1_IN14, ADC2_IN14, COMP1_INP, LCD_SEG23 (AF11), SYS_WKUP5, USART3_RX (AF7)
G16PA1ввод-выводADC1_IN6, ADC2_IN6, I2C1_SMBA (AF4), LCD_SEG0 (AF11), OPAMP1_VINM, SPI1_SCK (AF5), TIM15_CH1N (AF14), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
G18PC2ввод-выводADC1_IN3, ADC2_IN3, ADC3_IN3, DFSDM1_CKOUT (AF6), LCD_SEG20 (AF11), LPTIM1_IN2 (AF1), QUADSPI_BK2_IO1 (AF10), SPI2_MISO (AF5)
G20PH1-OSC_OUTввод-выводRCC_OSC_OUT
H1PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LCD_SEG35 (AF11), TIM4_CH4 (AF2)
H3PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LCD_SEG34 (AF11), TIM4_CH3 (AF2)
H5PD10ввод-выводFMC_D15 (AF12), FMC_DA15 (AF12), LCD_SEG30 (AF11), SAI2_SCK_A (AF13), TSC_G6_IO1 (AF9), USART3_CK (AF7)
H7PD9ввод-выводDAC1_EXTI9, DCMI_PIXCLK (AF10), FMC_D14 (AF12), FMC_DA14 (AF12), LCD_SEG29 (AF11), SAI2_MCLK_A (AF13), USART3_RX (AF7)
H9PE13ввод-выводDFSDM1_CKIN5 (AF6), FMC_D10 (AF12), FMC_DA10 (AF12), QUADSPI_BK1_IO1 (AF10), SPI1_SCK (AF5), TIM1_CH3 (AF1), TSC_G5_IO4 (AF9)
H11PE9ввод-выводDAC1_EXTI9, DFSDM1_CKOUT (AF6), FMC_D6 (AF12), FMC_DA6 (AF12), SAI1_FS_B (AF13), TIM1_CH1 (AF1)
H13PB2ввод-выводCOMP1_INP, DFSDM1_CKIN0 (AF6), I2C3_SMBA (AF4), LCD_VLCD (AF11), LPTIM1_OUT (AF1), RTC_OUT_ALARM (AF0), RTC_OUT_CALIB (AF0)
H15PA6ввод-выводADC1_IN11, ADC2_IN11, DCMI_PIXCLK (AF4), LCD_SEG3 (AF11), LPUART1_CTS (AF8), OPAMP2_VINP, QUADSPI_BK1_IO3 (AF10), SPI1_MISO (AF5), TIM16_CH1 (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP2 (AF12), TIM3_CH1 (AF2), TIM8_BKIN (AF3), TIM8_BKIN_COMP2 (AF13), USART3_CTS (AF7)
H17PA0ввод-выводADC1_IN5, ADC2_IN5, OPAMP1_VINP, RTC_TAMP2, SAI1_EXTCLK (AF13), SYS_WKUP1, TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7)
H19PC3ввод-выводADC1_IN4, ADC2_IN4, ADC3_IN4, LCD_VLCD (AF11), LPTIM1_ETR (AF1), LPTIM2_ETR (AF14), QUADSPI_BK2_IO2 (AF10), SAI1_SD_A (AF13), SPI2_MOSI (AF5)
H21PC1ввод-выводADC1_IN2, ADC2_IN2, ADC3_IN2, DFSDM1_CKIN4 (AF6), I2C3_SDA (AF4), I2C4_SDA (AF2), LCD_SEG19 (AF11), LPTIM1_OUT (AF1), LPUART1_TX (AF8), QUADSPI_BK2_IO0 (AF10), SAI1_SD_A (AF13), SPI2_MOSI (AF3), SYS_TRACED0 (AF0)
J2PD8ввод-выводDCMI_HSYNC (AF10), FMC_D13 (AF12), FMC_DA13 (AF12), LCD_SEG28 (AF11), USART3_TX (AF7)
J4PB14ввод-выводDFSDM1_DATIN2 (AF6), I2C2_SDA (AF4), LCD_SEG14 (AF11), SAI2_MCLK_A (AF13), SPI2_MISO (AF5), SWPMI1_RX (AF12), TIM15_CH1 (AF14), TIM1_CH2N (AF1), TIM8_CH2N (AF3), TSC_G1_IO3 (AF9), USART3_DE (AF7), USART3_RTS (AF7)
J6PB13ввод-выводCAN2_TX (AF10), DFSDM1_CKIN1 (AF6), I2C2_SCL (AF4), LCD_SEG13 (AF11), LPUART1_CTS (AF8), SAI2_SCK_A (AF13), SPI2_SCK (AF5), SWPMI1_TX (AF12), TIM15_CH1N (AF14), TIM1_CH1N (AF1), TSC_G1_IO2 (AF9), USART3_CTS (AF7)
J8PB10ввод-выводCOMP1_OUT (AF12), DFSDM1_DATIN7 (AF6), I2C2_SCL (AF4), I2C4_SCL (AF3), LCD_SEG10 (AF11), LPUART1_RX (AF8), QUADSPI_CLK (AF10), SAI1_SCK_A (AF13), SPI2_SCK (AF5), TIM2_CH3 (AF1), TSC_SYNC (AF9), USART3_TX (AF7)
J10PE12ввод-выводDFSDM1_DATIN5 (AF6), FMC_D9 (AF12), FMC_DA9 (AF12), QUADSPI_BK1_IO0 (AF10), SPI1_NSS (AF5), TIM1_CH3N (AF1), TSC_G5_IO3 (AF9)
J12PG0ввод-выводFMC_A10 (AF12), TSC_G8_IO3 (AF9)
J14PB0ввод-выводADC1_IN15, ADC2_IN15, COMP1_OUT (AF12), LCD_SEG5 (AF11), OPAMP2_VOUT, QUADSPI_BK1_IO1 (AF10), SAI1_EXTCLK (AF13), SPI1_NSS (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), USART3_CK (AF7)
J16PA5ввод-выводADC1_IN10, ADC2_IN10, DAC1_OUT2, LPTIM2_ETR (AF14), SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM8_CH1N (AF3)
J18VSSAпитание—
J20VREF+служебныйVREFBUF_OUT
K1VDDпитание—
K3VSSпитание—
K5PB12ввод-выводCAN2_RX (AF10), DFSDM1_DATIN1 (AF6), I2C2_SMBA (AF4), LCD_SEG12 (AF11), LPUART1_DE (AF8), LPUART1_RTS (AF8), SAI2_FS_A (AF13), SPI2_NSS (AF5), SWPMI1_IO (AF12), TIM15_BKIN (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP2 (AF3), TSC_G1_IO1 (AF9), USART3_CK (AF7)
K7PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), QUADSPI_BK1_IO2 (AF10), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_BKIN2_COMP2 (AF3), TIM1_CH4 (AF1)
K9PE10ввод-выводDFSDM1_DATIN4 (AF6), FMC_D7 (AF12), FMC_DA7 (AF12), QUADSPI_CLK (AF10), SAI1_MCLK_B (AF13), TIM1_CH2N (AF1), TSC_G5_IO1 (AF9)
K11PE7ввод-выводDFSDM1_DATIN2 (AF6), FMC_D4 (AF12), FMC_DA4 (AF12), SAI1_SD_B (AF13), TIM1_ETR (AF1)
K13VSSпитание—
K15PC4ввод-выводADC1_IN13, ADC2_IN13, COMP1_INM, LCD_SEG22 (AF11), QUADSPI_BK2_IO3 (AF10), USART3_TX (AF7)
K17VDDпитание—
K19VSSпитание—
K21VDDAпитание—
L2VDD12питание—
L4PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_OUT (AF12), DFSDM1_CKIN7 (AF6), I2C2_SDA (AF4), I2C4_SDA (AF3), LCD_SEG11 (AF11), LPUART1_TX (AF8), QUADSPI_BK1_NCS (AF10), TIM2_CH4 (AF1), USART3_RX (AF7)
L6PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), QUADSPI_BK1_IO3 (AF10), SPI1_MOSI (AF5), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF3)
L8PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN4 (AF6), FMC_D8 (AF12), FMC_DA8 (AF12), QUADSPI_BK1_NCS (AF10), TIM1_CH2 (AF1), TSC_G5_IO2 (AF9)
L10PE8ввод-выводDFSDM1_CKIN2 (AF6), FMC_D5 (AF12), FMC_DA5 (AF12), SAI1_SCK_B (AF13), TIM1_CH1N (AF1)
L12VDDпитание—
L14PB1ввод-выводADC1_IN16, ADC2_IN16, COMP1_INM, DFSDM1_DATIN0 (AF6), LCD_SEG6 (AF11), LPTIM2_IN1 (AF14), LPUART1_DE (AF8), LPUART1_RTS (AF8), QUADSPI_BK1_IO0 (AF10), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USART3_DE (AF7), USART3_RTS (AF7)
L16PA7ввод-выводADC1_IN12, ADC2_IN12, I2C3_SCL (AF4), LCD_SEG4 (AF11), OPAMP2_VINM, QUADSPI_BK1_IO2 (AF10), SPI1_MOSI (AF5), TIM17_CH1 (AF14), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3)
L18PA4ввод-выводADC1_IN9, ADC2_IN9, DAC1_OUT1, DCMI_HSYNC (AF10), LPTIM2_OUT (AF14), SAI1_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), USART2_CK (AF7)
L20PA3ввод-выводADC1_IN8, ADC2_IN8, LCD_SEG2 (AF11), LPUART1_RX (AF8), OPAMP1_VOUT, QUADSPI_CLK (AF10), SAI1_MCLK_A (AF13), TIM15_CH2 (AF14), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATC20резервное питание: часы реального времени и резервные регистры
VDDA2, A8, A20, F19, K1, K17, L12питание цифровой части и линий ввода-вывода
VDD12B17, L2—
VDDAK21питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2B13, F1питание отдельной группы линий ввода-вывода
VDDUSBC4питание приёмопередатчика USB
VSSA18, B3, B9, E18, F3, K3, K13, K19общий провод (земля)
VSSAJ18общий провод аналоговой части
NRSTE16сброс, активный уровень — низкий
VREF+J20верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32L496WGYxP. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32L496WGSTM32L496WGYxP1 МБ320 КБ

Линейка STM32L4x6, семейство STM32L4, ядро Cortex-M4.

Похожие по выводам микроконтроллеры

В базе STM32CubeMX нет других микроконтроллеров в корпусе WLCSP115, у которых совпадает не меньше 90 % выводов.

Частые вопросы

На каких выводах USART1 у STM32L496WG?

В корпусе WLCSP115 сигнал USART1_TX выведен на PA9 (шарик D1, AF7) или PG9 (шарик E12, AF7) или PB6 (шарик E14, AF7), USART1_RX — на PG10 (шарик A10, AF7) или PB7 (шарик B15, AF7) или PA10 (шарик E8, AF7).

Где у STM32L496WG выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик D5, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик D7, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32L496WG?

I2C1_SCL — PG14 (шарик A12, AF4) или PB6 (шарик E14, AF4), I2C1_SDA — PB9 (шарик A16, AF4) или PB7 (шарик B15, AF4) или PG13 (шарик D13, AF4).

Сколько выводов ввода-вывода у STM32L496WG в корпусе WLCSP115?

90 из 115. Ещё 23 вывода заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32L496WG?

От 1,71 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
