STM32U595AIHxQ в корпусе TFBGA169: распиновка

STM32U595AIHxQ — микроконтроллер STM32U5 на ядре Cortex-M33: 2 МБ флеш-памяти и 2514 КБ ОЗУ. Корпус TFBGA169 — 169 шариков, из них 133 линии ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
2 МБ
ОЗУ
2514 КБ
Корпус
TFBGA169, 169 шариков
Линий ввода-вывода
133

Схема корпуса TFBGA169

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32U595AIHxQ в корпусе TFBGA169, вид сверхуABCDEFGHJKLMN12345678910111213PE2 — шарик A1: DEBUG_TRACECLK, FMC_A23, SAI1_CK1, SAI1_MCLK_A, TIM3_ETR, TSC_G7_IO1, USART6_CKPE2PI6 — шарик A2: DCMI_D6, OCTOSPIM_P2_CLK, PSSI_D6, TIM8_CH2PI6VDD — шарик A3VDDVDD11 — шарик A4VDD11PG15 — шарик A5: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13, I2C1_SMBA, LPTIM1_CH1, OCTOSPIM_P2_DQS, PSSI_D13PG15VDDIO2 — шарик A6VDDIO2PG9 — шарик A7: DAC1_EXTI9, FMC_NCE, FMC_NE2, OCTOSPIM_P2_IO6, SAI2_SCK_A, SPI3_SCK, TIM15_CH1N, USART1_TXPG9VDD — шарик A8VDDPC11 — шарик A9: ADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0, DCMI_D2, DCMI_D4, LPTIM3_IN1, OCTOSPIM_P1_NCS, PSSI_D2, PSSI_D4, SAI2_MCLK_B, SDMMC1_D3, SPI3_MISO, TSC_G3_IO3, UART4_RX, UCPD1_FRSTX2, USART3_RXPC11PA15 (JTDI) — шарик A10: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI, SAI2_FS_B, SPI1_NSS, SPI3_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UCPD1_CC1, USART2_RX, USART3_DE, USART3_RTSPA15VDD — шарик A11VDDPI1 — шарик A12: DCMI_D8, OCTOSPIM_P2_IO2, PSSI_D8, SPI2_SCKPI1PH15 — шарик A13: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D11, OCTOSPIM_P2_IO6, PSSI_D11, TIM8_CH3NPH15VDD — шарик B1VDDVSS — шарик B2VSSPI5 — шарик B3: DCMI_VSYNC, OCTOSPIM_P2_NCS, PSSI_RDY, TIM8_CH1PI5VSS — шарик B4VSSPB6 — шарик B5: COMP2_INP, DCMI_D5, I2C1_SCL, I2C4_SCL, LPTIM1_ETR, MDF1_SDI5, PSSI_D5, PWR_WKUP3, SAI1_FS_B, TIM16_CH1N, TIM4_CH1, TIM8_BKIN2, TSC_G2_IO3, USART1_TXPB6PB4 (NJTRST) — шарик B6: ADF1_SDI0, COMP2_INP, DCMI_D12, DEBUG_NJTRST, I2C3_SDA, LPTIM1_CH2, PSSI_D12, SAI1_MCLK_B, SDMMC2_D3, SPI1_MISO, SPI3_MISO, TIM17_BKIN, TIM3_CH1, TSC_G2_IO1, UART5_DE, UART5_RTS, USART1_CTSPB4PD6 — шарик B7: DCMI_D10, FMC_NWAIT, MDF1_SDI1, OCTOSPIM_P1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6VSS — шарик B8VSSPD0 — шарик B9: FDCAN1_RX, FMC_D2, FMC_DA2, I2C5_SDA, I2C6_SDA, SPI2_NSS, TIM8_CH4NPD0PI4 — шарик B10: DCMI_D5, PSSI_D5, SPI2_RDY, TIM8_BKINPI4VSS — шарик B11VSSPI0 — шарик B12: DCMI_D13, OCTOSPIM_P1_IO5, PSSI_D13, SPI2_NSS, TIM5_CH4PI0PH12 — шарик B13: DCMI_D3, OCTOSPIM_P2_IO7, PSSI_D3, TIM5_CH3, TIM8_CH4NPH12VBAT — шарик C1VBATPE4 — шарик C2: DCMI_D4, DEBUG_TRACED1, FMC_A20, MDF1_SDI3, PSSI_D4, PWR_WKUP1, SAI1_D2, SAI1_FS_A, TAMP_IN7, TAMP_OUT8, TIM3_CH2, TSC_G7_IO3, USART6_DE, USART6_RTSPE4PI7 — шарик C3: DCMI_D7, OCTOSPIM_P2_NCLK, PSSI_D7, TIM8_CH3PI7PE1 — шарик C4: DCMI_D3, FMC_NBL1, PSSI_D3, TIM17_CH1, USART6_TXPE1PH3-BOOT0 — шарик C5PH3PB5 — шарик C6: COMP2_OUT, DCMI_D10, I2C1_SMBA, LPTIM1_IN1, OCTOSPIM_P1_NCLK, PSSI_D10, PWR_WKUP6, SAI1_SD_B, SPI1_MOSI, SPI3_MOSI, TIM16_BKIN, TIM3_CH2, TSC_G2_IO2, UART5_CTS, UCPD1_DBCC1, USART1_CKPB5PG10 — шарик C7: FMC_NE3, LPTIM1_IN1, OCTOSPIM_P2_IO7, SAI2_FS_A, SPI3_MISO, TIM15_CH1, USART1_RXPG10PD4 — шарик C8: FMC_NOE, MDF1_CKI0, OCTOSPIM_P1_IO4, SPI2_MOSI, USART2_DE, USART2_RTSPD4PC10 — шарик C9: ADF1_CCK1, DCMI_D8, DEBUG_TRACED1, LPTIM3_ETR, PSSI_D8, SAI2_SCK_B, SDMMC1_D2, SPI3_SCK, TSC_G3_IO2, UART4_TX, USART3_TXPC10PA14 (JTCK/SWCLK) — шарик C10: DEBUG_JTCK-SWCLK, I2C1_SMBA, I2C4_SMBA, LPTIM1_CH1, SAI1_FS_B, USB_OTG_HS_SOFPA14PH14 — шарик C11: DCMI_D4, FDCAN1_RX, PSSI_D4, TIM8_CH2NPH14PH13 — шарик C12: FDCAN1_TX, TIM8_CH1NPH13PH10 — шарик C13: DCMI_D1, OCTOSPIM_P2_IO5, PSSI_D1, TIM5_CH1PH10PC14-OSC32_IN — шарик D1: RCC_OSC32_INPC14PE5 — шарик D2: DCMI_D6, DEBUG_TRACED2, FMC_A21, MDF1_CKI3, PSSI_D6, PWR_WKUP2, SAI1_CK2, SAI1_SCK_A, TAMP_IN8, TAMP_OUT7, TIM3_CH3, TSC_G7_IO4PE5PE3 — шарик D3: DEBUG_TRACED0, FMC_A19, OCTOSPIM_P1_DQS, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM3_CH1, TSC_G7_IO2, USART6_CTSPE3PE0 — шарик D4: DCMI_D2, FMC_NBL0, PSSI_D2, TIM16_CH1, TIM4_ETR, USART6_RXPE0PB9 — шарик D5: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, IR_OUT, PSSI_D7, SAI1_D2, SAI1_FS_A, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4PB9PB3 (JTDO/TRACESWO) — шарик D6: ADF1_CCK0, COMP2_INM, CRS_SYNC, DEBUG_JTDO-SWO, I2C1_SDA, LPTIM1_CH1, SAI1_SCK_B, SDMMC2_D2, SPI1_SCK, SPI3_SCK, TIM2_CH2, USART1_DE, USART1_RTSPB3PD7 — шарик D7: FMC_NCE, FMC_NE1, LPTIM4_OUT, MDF1_CKI1, OCTOSPIM_P1_IO7, SDMMC2_CMD, USART2_CKPD7PD3 — шарик D8: DCMI_D5, FMC_CLK, I2C6_SMBA, MDF1_SDI0, OCTOSPIM_P2_NCS, PSSI_D5, SPI2_MISO, SPI2_SCK, USART2_CTSPD3PH11 — шарик D9: ADC1_EXTI11, ADC2_EXTI11, DCMI_D2, OCTOSPIM_P2_IO6, PSSI_D2, TIM5_CH2PH11PI3 — шарик D10: DCMI_D10, OCTOSPIM_P2_IO0, PSSI_D10, SPI2_MOSI, TIM8_ETRPI3PI2 — шарик D11: DCMI_D9, OCTOSPIM_P2_IO1, PSSI_D9, SPI2_MISO, TIM8_CH4PI2PH8 — шарик D12: DCMI_HSYNC, I2C3_SDA, OCTOSPIM_P2_IO3, PSSI_DEPH8VDD — шарик D13VDDPC15-OSC32_OUT — шарик E1: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUTPC15PF0 — шарик E2: FMC_A0, I2C2_SDA, I2C6_SDA, OCTOSPIM_P2_IO0, USART6_TXPF0PC13 — шарик E3: PWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2PC13PE6 — шарик E4: DCMI_D7, DEBUG_TRACED3, FMC_A22, PSSI_D7, PWR_WKUP3, SAI1_D1, SAI1_SD_A, TAMP_IN3, TAMP_OUT6, TIM3_CH4PE6PB8 — шарик E5: DCMI_D6, FDCAN1_RX, I2C1_SCL, MDF1_CCK0, PSSI_D6, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI3_RDY, TIM16_CH1, TIM4_CH3PB8PG12 — шарик E6: FMC_NE4, LPTIM1_ETR, OCTOSPIM_P2_NCS, SAI2_SD_A, SPI3_NSS, USART1_DE, USART1_RTSPG12PD5 — шарик E7: FMC_NWE, OCTOSPIM_P1_IO5, SPI2_RDY, USART2_TXPD5PC12 — шарик E8: DCMI_D9, DEBUG_TRACED3, PSSI_D9, SAI2_SD_B, SDMMC1_CK, SPI3_MOSI, TSC_G3_IO4, UART5_TX, USART3_CKPC12PH9 — шарик E9: DAC1_EXTI9, DCMI_D0, I2C3_SMBA, OCTOSPIM_P2_IO4, PSSI_D0PH9PH4 — шарик E10: I2C2_SCL, I2C5_SDA, OCTOSPIM_P2_DQS, PSSI_D14PH4PH6 — шарик E11: DCMI_D8, I2C2_SMBA, I2C5_SMBA, OCTOSPIM_P2_CLK, PSSI_D8PH6VSS — шарик E12VSSVDDUSB — шарик E13VDDUSBPF8 — шарик F1: FDCAN1_TX, OCTOSPIM_P1_IO0, PSSI_D14, SAI1_SCK_B, TIM5_CH3PF8VSS — шарик F2VSSPF1 — шарик F3: FMC_A1, I2C2_SCL, I2C6_SCL, OCTOSPIM_P2_IO1, USART6_RXPF1PF2 — шарик F4: FMC_A2, I2C2_SMBA, LPTIM3_CH2, OCTOSPIM_P2_IO2, PWR_WKUP8, USART6_CKPF2PB7 — шарик F5: COMP2_INM, DCMI_VSYNC, FMC_NL, I2C1_SDA, I2C4_SDA, LPTIM1_IN2, MDF1_CKI5, PSSI_RDY, PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N, TIM4_CH2, TIM8_BKIN, TSC_G2_IO4, UART4_CTS, USART1_RXPB7PD1 — шарик F6: FDCAN1_TX, FMC_D3, FMC_DA3, I2C5_SCL, I2C6_SCL, SPI2_SCKPD1PD2 — шарик F7: DCMI_D11, DEBUG_TRACED2, I2C5_SMBA, LPTIM4_ETR, PSSI_D11, SDMMC1_CMD, TIM3_ETR, TSC_SYNC, UART5_RX, USART3_DE, USART3_RTSPD2PH7 — шарик F8: DCMI_D9, I2C3_SCL, OCTOSPIM_P2_NCLK, PSSI_D9PH7PH5 — шарик F9: DCMI_PIXCLK, I2C2_SDA, I2C5_SCL, PSSI_PDCKPH5PH2 — шарик F10: OCTOSPIM_P1_IO4PH2PA10 — шарик F11: CRS_SYNC, DCMI_D1, LPTIM2_IN2, PSSI_D1, SAI1_D1, SAI1_SD_A, TIM17_BKIN, TIM1_CH3, USART1_RX, USB_OTG_HS_IDPA10PA13 (JTMS/SWDIO) — шарик F12: DEBUG_JTMS-SWDIO, IR_OUT, SAI1_SD_BPA13PA12 — шарик F13: FDCAN1_TX, OCTOSPIM_P2_NCS, SPI1_MOSI, TIM1_ETR, USART1_DE, USART1_RTS, USB_OTG_HS_DPPA12VDD — шарик G1VDDPF7 — шарик G2: FDCAN1_RX, OCTOSPIM_P1_IO2, SAI1_MCLK_B, TIM5_CH2PF7PF9 — шарик G3: DAC1_EXTI9, OCTOSPIM_P1_IO1, PSSI_D15, SAI1_FS_B, TIM15_CH1, TIM5_CH4PF9PF5 — шарик G4: FMC_A5, LPTIM3_CH1, MDF1_CKI0, OCTOSPIM_P2_NCLKPF5PF3 — шарик G5: ADF1_CCK0, FMC_A3, LPTIM3_IN1, MDF1_CCK0, OCTOSPIM_P2_IO3, UART5_TX, USART6_CTSPF3PF4 — шарик G6: ADF1_SDI0, FMC_A4, LPTIM3_ETR, MDF1_SDI0, OCTOSPIM_P2_CLK, UART5_RX, USART6_DE, USART6_RTSPF4PA8 — шарик G7: DEBUG_TRACECLK, LPTIM2_CH1, RCC_MCO, SAI1_CK2, SAI1_SCK_A, SPI1_RDY, TIM1_CH1, USART1_CK, USB_OTG_HS_SOFPA8PG7 — шарик G8: FMC_INT, I2C3_SCL, LPUART1_TX, MDF1_CCK0, OCTOSPIM_P2_DQS, SAI1_CK1, SAI1_MCLK_A, UCPD1_FRSTX2PG7PC9 — шарик G9: DAC1_EXTI9, DCMI_D3, DEBUG_TRACED0, LPTIM3_CH2, PSSI_D3, SDMMC1_D1, TIM3_CH4, TIM8_BKIN2, TIM8_CH4, TSC_G4_IO4, USART6_TXPC9PC8 — шарик G10: DCMI_D2, LPTIM3_CH1, PSSI_D2, PWR_SRDSTOP, SDMMC1_D0, TIM3_CH3, TIM8_CH3, TSC_G4_IO3, USART6_RXPC8PA9 — шарик G11: DAC1_EXTI9, DCMI_D0, PSSI_D0, SAI1_FS_A, SPI2_SCK, TIM15_BKIN, TIM1_CH2, USART1_TX, USB_OTG_HS_VBUSPA9PC7 — шарик G12: DCMI_D1, LPTIM2_CH2, MDF1_SDI3, PSSI_D1, PWR_CDSTOP, SAI2_MCLK_B, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, TSC_G4_IO2PC7PA11 — шарик G13: ADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX, SPI1_MISO, TIM1_BKIN2, TIM1_CH4, USART1_CTS, USB_OTG_HS_DMPA11PH0-OSC_IN — шарик H1: RCC_OSC_INPH0VSS — шарик H2VSSNRST — шарик H3NRSTPF10 — шарик H4: DCMI_D11, MDF1_CCK1, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM15_CH2PF10OPAMP2_VINM — шарик H5: OPAMP2_VINMOPAMP2VINMPF6 — шарик H6: DCMI_D12, OCTOSPIM_P1_IO3, OCTOSPIM_P2_NCS, PSSI_D12, SAI1_SD_B, TIM5_CH1, TIM5_ETRPF6PG1 — шарик H7: ADC4_IN8, FMC_A11, OCTOSPIM_P2_IO5, TSC_G8_IO4PG1PE10 — шарик H8: ADF1_SDI0, FMC_D7, FMC_DA7, MDF1_SDI4, OCTOSPIM_P1_CLK, SAI1_MCLK_B, TIM1_CH2N, TSC_G5_IO1PE10PG8 — шарик H9: I2C3_SDA, LPUART1_RXPG8PG6 — шарик H10: I2C3_SMBA, LPUART1_DE, LPUART1_RTS, OCTOSPIM_P1_DQS, SPI1_RDY, UCPD1_FRSTX1PG6PG4 — шарик H11: FMC_A14, SAI2_MCLK_B, SPI1_MOSIPG4VDDIO2 — шарик H12VDDIO2PC6 — шарик H13: DCMI_D0, MDF1_CKI3, PSSI_D0, PWR_CSLEEP, SAI2_MCLK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, TSC_G4_IO1PC6PH1-OSC_OUT — шарик J1: RCC_OSC_OUTPH1PC0 — шарик J2: ADC1_IN1, ADC2_IN1, ADC4_IN1, I2C3_SCL, LPTIM1_IN1, LPTIM2_IN1, LPUART1_RX, MDF1_SDI4, OCTOSPIM_P1_IO7, SAI2_FS_A, SDMMC1_D5, SPI2_RDY, USART6_CTSPC0PC1 — шарик J3: ADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0, I2C3_SDA, LPTIM1_CH1, LPUART1_TX, MDF1_CKI4, OCTOSPIM_P1_IO4, SAI1_SD_A, SDMMC2_CK, SPI2_MOSI, USART6_CKPC1PC2 — шарик J4: ADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2, MDF1_CCK1, OCTOSPIM_P1_IO5, SPI2_MISO, USART6_RXPC2PA7 — шарик J5: ADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL, LPTIM2_CH2, OCTOSPIM_P1_IO2, OPAMP2_VINM, PWR_SRDSTOP, PWR_WKUP8, SPI1_MOSI, TIM17_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART3_TXPA7PG0 — шарик J6: ADC4_IN7, FMC_A10, OCTOSPIM_P2_IO4, TSC_G8_IO3PG0PE9 — шарик J7: ADF1_CCK0, DAC1_EXTI9, FMC_D6, FMC_DA6, MDF1_CCK0, OCTOSPIM_P1_NCLK, SAI1_FS_B, TIM1_CH1PE9PG3 — шарик J8: FMC_A13, SAI2_FS_B, SPI1_MISOPG3PG5 — шарик J9: FMC_A15, LPUART1_CTS, SAI2_SD_B, SPI1_NSSPG5PD14 — шарик J10: FMC_D0, FMC_DA0, LPTIM3_CH1, TIM4_CH3, USART6_CKPD14PD15 — шарик J11: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1, FMC_DA1, LPTIM3_CH2, TIM4_CH4, USART6_DE, USART6_RTSPD15VSS — шарик J12VSSVDD — шарик J13VDDPC3 — шарик K1: ADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR, LPTIM2_ETR, LPTIM3_CH1, OCTOSPIM_P1_IO6, SAI1_D1, SAI1_SD_A, SPI2_MOSI, USART6_TXPC3VSSA — шарик K2VSSAPA0 — шарик K3: ADC1_IN5, ADC2_IN5, AUDIOCLK, OCTOSPIM_P2_NCS, OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD, SPI3_RDY, TAMP_IN2, TAMP_OUT1, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTSPA0PA5 — шарик K4: ADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR, PSSI_D14, PWR_CSLEEP, PWR_WKUP6, SPI1_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USART3_RXPA5PB0 — шарик K5: ADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK, COMP1_OUT, LPTIM3_CH1, OCTOSPIM_P1_IO1, OPAMP2_VOUT, SPI1_NSS, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, USART3_CKPB0PF12 — шарик K6: FMC_A6, LPTIM4_ETR, OCTOSPIM_P2_DQSPF12PE8 — шарик K7: FMC_D5, FMC_DA5, MDF1_CKI2, PWR_WKUP7, SAI1_SCK_B, TIM1_CH1NPE8PE14 — шарик K8: FMC_D11, FMC_DA11, OCTOSPIM_P1_IO2, SPI1_MISO, TIM1_BKIN2, TIM1_CH4PE14PB10 — шарик K9: COMP1_OUT, I2C2_SCL, I2C4_SCL, LPTIM3_CH1, LPUART1_RX, OCTOSPIM_P1_CLK, PWR_WKUP8, SAI1_SCK_A, SPI2_SCK, TIM2_CH3, TSC_SYNC, USART3_TXPB10PD12 — шарик K10: ADC4_IN16, FMC_A17, FMC_ALE, I2C4_SCL, LPTIM2_IN1, SAI2_FS_A, TIM4_CH1, TSC_G6_IO3, USART3_DE, USART3_RTSPD12PD10 — шарик K11: FMC_D15, FMC_DA15, I2C5_SMBA, LPTIM2_CH2, LPTIM3_ETR, SAI2_SCK_A, TSC_G6_IO1, USART3_CKPD10PD13 — шарик K12: ADC4_IN17, FMC_A18, I2C4_SDA, LPTIM2_CH1, LPTIM4_IN1, TIM4_CH2, TSC_G6_IO4, USART6_CTSPD13PG2 — шарик K13: FMC_A12, SAI2_SCK_B, SPI1_SCKPG2VREF+ — шарик L1: VREFBUF_OUTVREF+VDDA — шарик L2VDDAPA1 — шарик L3: ADC1_IN6, ADC2_IN6, I2C1_SMBA, LPTIM1_CH2, OCTOSPIM_P1_DQS, OPAMP1_VINM, PWR_WKUP3, SPI1_SCK, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PC4 — шарик L4: ADC1_IN13, ADC2_IN13, ADC4_IN22, COMP1_INM, I2C6_SMBA, OCTOSPIM_P1_IO7, USART3_TXPC4PB2 — шарик L5: ADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA, LPTIM1_CH1, MDF1_CKI0, OCTOSPIM_P1_DQS, PWR_WKUP1, RTC_OUT2, SPI1_RDY, TIM8_CH4N, UCPD1_FRSTX1PB2PF14 — шарик L6: ADC4_IN5, FMC_A8, I2C4_SCL, TSC_G8_IO1PF14PE7 — шарик L7: FMC_D4, FMC_DA4, MDF1_SDI2, PWR_WKUP6, SAI1_SD_B, TIM1_ETRPE7PE13 — шарик L8: FMC_D10, FMC_DA10, MDF1_CKI5, OCTOSPIM_P1_IO1, SPI1_SCK, TIM1_CH3, TSC_G5_IO4PE13PB11 — шарик L9: ADC1_EXTI11, ADC2_EXTI11, COMP2_OUT, I2C2_SDA, I2C4_SDA, LPUART1_TX, OCTOSPIM_P1_NCS, SPI2_RDY, TIM2_CH4, USART3_RXPB11PB12 — шарик L10: I2C2_SMBA, I2C6_SMBA, LPUART1_DE, LPUART1_RTS, MDF1_SDI1, OCTOSPIM_P1_NCLK, SAI2_FS_A, SPI2_NSS, TIM15_BKIN, TIM1_BKIN, TSC_G1_IO1, USART3_CKPB12PB15 — шарик L11: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_NBL1, LPTIM2_IN2, MDF1_CKI2, PWR_WKUP7, RTC_REFIN, SAI2_SD_A, SDMMC2_D1, SPI2_MOSI, TIM15_CH2, TIM1_CH3N, TIM8_CH3N, UCPD1_CC2PB15PD8 — шарик L12: DCMI_HSYNC, FMC_D13, FMC_DA13, PSSI_DE, USART3_TXPD8PD9 — шарик L13: DAC1_EXTI9, DCMI_PIXCLK, FMC_D14, FMC_DA14, LPTIM2_IN2, LPTIM3_IN1, PSSI_PDCK, SAI2_MCLK_A, USART3_RXPD9OPAMP1_VINM — шарик M1: OPAMP1_VINMOPAMP1VINMPA2 — шарик M2: ADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX, OCTOSPIM_P1_NCS, PWR_WKUP4, RCC_LSCO, SPI1_RDY, TIM15_CH1, TIM2_CH3, TIM5_CH3, UCPD1_FRSTX1, USART2_TXPA2VSS — шарик M3VSSPC5 — шарик M4: ADC1_IN14, ADC2_IN14, ADC4_IN23, COMP1_INP, PSSI_D15, PWR_WKUP5, SAI1_D3, TAMP_IN4, TAMP_OUT5, TIM1_CH4N, USART3_RXPC5PF11 — шарик M5: ADC1_EXTI11, ADC2_EXTI11, DCMI_D12, LPTIM4_IN1, OCTOSPIM_P1_NCLK, PSSI_D12PF11PF13 — шарик M6: FMC_A7, I2C4_SMBA, LPTIM4_OUT, UCPD1_FRSTX2PF13VSS — шарик M7VSSPE11 — шарик M8: ADC1_EXTI11, ADC2_EXTI11, FMC_D8, FMC_DA8, MDF1_CKI4, OCTOSPIM_P1_NCS, SPI1_RDY, TIM1_CH2, TSC_G5_IO2PE11PE15 — шарик M9: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12, FMC_DA12, OCTOSPIM_P1_IO3, SPI1_MOSI, TIM1_BKIN, TIM1_CH4NPE15VSSSMPS — шарик M10VSSSMPSVSS — шарик M11VSSPB14 — шарик M12: I2C2_SDA, LPTIM3_ETR, MDF1_SDI2, SAI2_MCLK_A, SDMMC2_D0, SPI2_MISO, TIM15_CH1, TIM1_CH2N, TIM8_CH2N, TSC_G1_IO3, UCPD1_DBCC2, USART3_DE, USART3_RTSPB14PD11 — шарик M13: ADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_ETR, SAI2_SD_A, TSC_G6_IO2, USART3_CTSPD11PA4 — шарик N1: ADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC, LPTIM2_CH1, OCTOSPIM_P1_NCS, PSSI_DE, PWR_WKUP2, SAI1_FS_B, SPI1_NSS, SPI3_NSS, USART2_CKPA4PA3 — шарик N2: ADC1_IN8, ADC2_IN8, LPUART1_RX, OCTOSPIM_P1_CLK, OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3VDD — шарик N3VDDPA6 — шарик N4: ADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK, LPUART1_CTS, OCTOSPIM_P1_IO3, OPAMP2_VINP, PSSI_PDCK, PWR_CDSTOP, PWR_WKUP7, SPI1_MISO, TIM16_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART3_CTSPA6PB1 — шарик N5: ADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1, LPTIM3_CH2, LPUART1_DE, LPUART1_RTS, MDF1_SDI0, OCTOSPIM_P1_IO0, PWR_WKUP4, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USART3_DE, USART3_RTSPB1PF15 — шарик N6: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, ADC4_IN6, FMC_A9, I2C4_SDA, TSC_G8_IO2PF15VDD — шарик N7VDDPE12 — шарик N8: FMC_D9, FMC_DA9, MDF1_SDI5, OCTOSPIM_P1_IO0, SPI1_NSS, TIM1_CH3N, TSC_G5_IO3PE12VLXSMPS — шарик N9VLXSMPSVDDSMPS — шарик N10VDDSMPSVDD11 — шарик N11VDD11VDD — шарик N12VDDPB13 — шарик N13: I2C2_SCL, LPTIM3_IN1, LPUART1_CTS, MDF1_CKI1, SAI2_SCK_A, SPI2_SCK, TIM15_CH1N, TIM1_CH1N, TSC_G1_IO2, USART3_CTSPB13TFBGA169, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнемуглу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

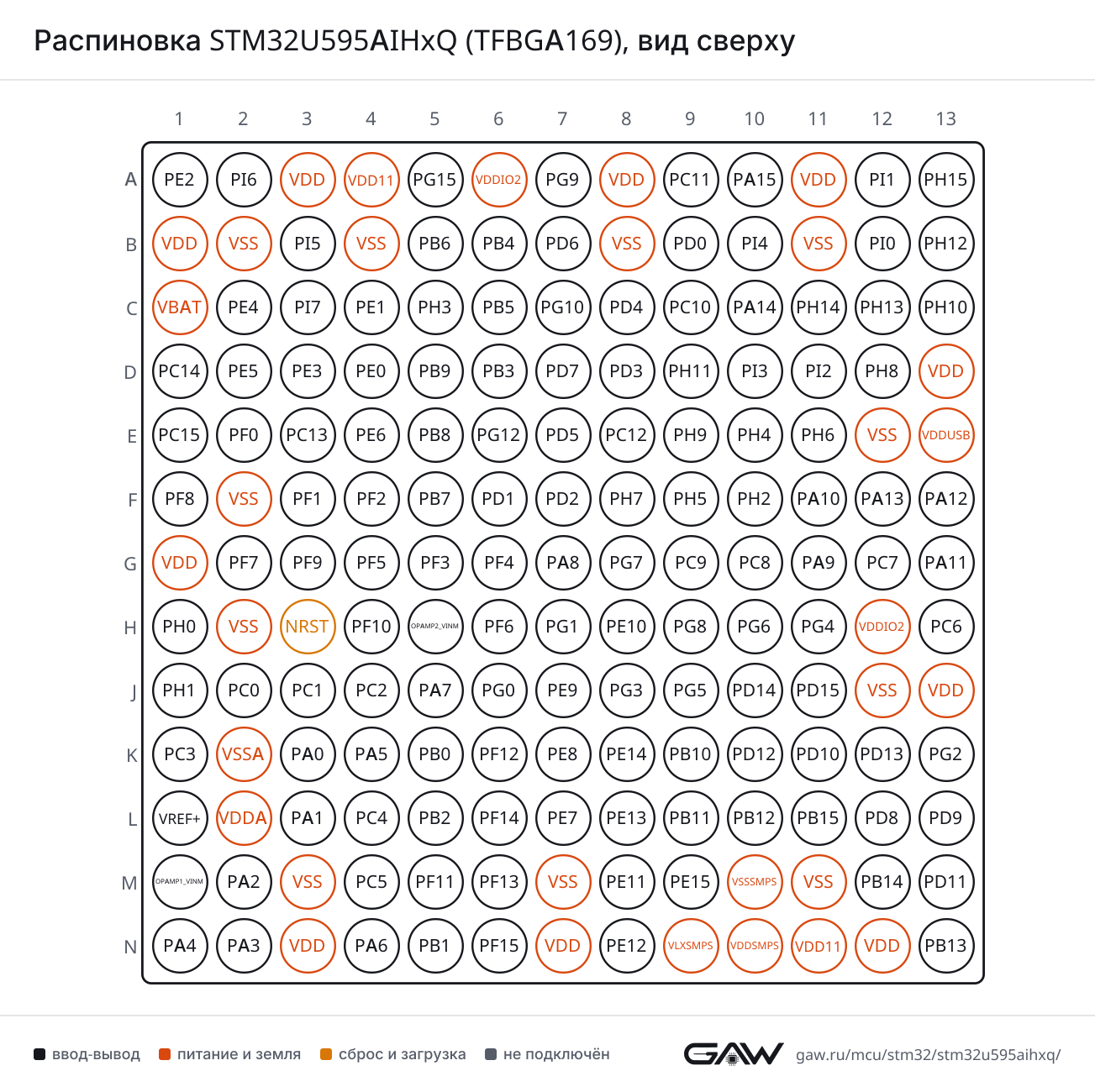

Распиновка STM32U595AIHxQ (TFBGA169), вид сверхуРаспиновка TFBGA169 картинкой
PNG, 1303 × 1300 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPB5 (C6, AF7), PA8 (G7, AF7)
CTSPB4 (NJTRST) (B6, AF7), PA11 (G13, AF7)
DEPB3 (JTDO/TRACESWO) (D6, AF7), PG12 (E6, AF7), PA12 (F13, AF7)
RTSPB3 (JTDO/TRACESWO) (D6, AF7), PG12 (E6, AF7), PA12 (F13, AF7)
RXPG10 (C7, AF7), PB7 (F5, AF7), PA10 (F11, AF7)
TXPG9 (A7, AF7), PB6 (B5, AF7), PA9 (G11, AF7)
USART2CKPD7 (D7, AF7), PA4 (N1, AF7)
CTSPD3 (D8, AF7), PA0 (K3, AF7)
DEPD4 (C8, AF7), PA1 (L3, AF7)
RTSPD4 (C8, AF7), PA1 (L3, AF7)
RXPA15 (JTDI) (A10, AF3), PD6 (B7, AF7), PA3 (N2, AF7)
TXPD5 (E7, AF7), PA2 (M2, AF7)
USART3CKPC12 (E8, AF7), PB0 (K5, AF7), PD10 (K11, AF7), PB12 (L10, AF7)
CTSPD11 (M13, AF7), PA6 (N4, AF7), PB13 (N13, AF7)
DEPA15 (JTDI) (A10, AF7), PD2 (F7, AF7), PD12 (K10, AF7), PB14 (M12, AF7), PB1 (N5, AF7)
RTSPA15 (JTDI) (A10, AF7), PD2 (F7, AF7), PD12 (K10, AF7), PB14 (M12, AF7), PB1 (N5, AF7)
RXPC11 (A9, AF7), PA5 (K4, AF7), PB11 (L9, AF7), PD9 (L13, AF7), PC5 (M4, AF7)
TXPC10 (C9, AF7), PA7 (J5, AF7), PB10 (K9, AF7), PC4 (L4, AF7), PD8 (L12, AF7)
USART6CKPE2 (A1, AF7), PF2 (F4, AF7), PC1 (J3, AF7), PD14 (J10, AF7)
CTSPE3 (D3, AF7), PF3 (G5, AF7), PC0 (J2, AF7), PD13 (K12, AF7)
DEPE4 (C2, AF7), PF4 (G6, AF7), PD15 (J11, AF7)
RTSPE4 (C2, AF7), PF4 (G6, AF7), PD15 (J11, AF7)
RXPE0 (D4, AF7), PF1 (F3, AF7), PC8 (G10, AF7), PC2 (J4, AF7)
TXPE1 (C4, AF7), PF0 (E2, AF7), PC9 (G9, AF7), PC3 (K1, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB7 (F5, AF8)
DEPA15 (JTDI) (A10, AF8)
RTSPA15 (JTDI) (A10, AF8)
RXPC11 (A9, AF8), PA1 (L3, AF8)
TXPC10 (C9, AF8), PA0 (K3, AF8)
UART5CTSPB5 (C6, AF8)
DEPB4 (NJTRST) (B6, AF8)
RTSPB4 (NJTRST) (B6, AF8)
RXPD2 (F7, AF8), PF4 (G6, AF8)
TXPC12 (E8, AF8), PF3 (G5, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPG5 (J9, AF8), PA6 (N4, AF8), PB13 (N13, AF8)
DEPG6 (H10, AF8), PB12 (L10, AF8), PB1 (N5, AF8)
RTSPG6 (H10, AF8), PB12 (L10, AF8), PB1 (N5, AF8)
RXPG8 (H9, AF8), PC0 (J2, AF8), PB10 (K9, AF8), PA3 (N2, AF8)
TXPG7 (G8, AF8), PC1 (J3, AF8), PB11 (L9, AF8), PA2 (M2, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4 (NJTRST) (B6, AF5), PA11 (G13, AF5), PG3 (J8, AF5), PE14 (K8, AF5), PA6 (N4, AF5)
MOSIPB5 (C6, AF5), PA12 (F13, AF5), PG4 (H11, AF5), PA7 (J5, AF5), PE15 (M9, AF5)
NSSPA15 (JTDI) (A10, AF5), PG5 (J9, AF5), PB0 (K5, AF5), PA4 (N1, AF5), PE12 (N8, AF5)
RDYPA8 (G7, AF5), PG6 (H10, AF5), PB2 (L5, AF5), PA2 (M2, AF5), PE11 (M8, AF5)
SCKPB3 (JTDO/TRACESWO) (D6, AF5), PA5 (K4, AF5), PG2 (K13, AF5), PA1 (L3, AF5), PE13 (L8, AF5)
SPI2MISOPD3 (D8, AF5), PI2 (D11, AF5), PC2 (J4, AF5), PB14 (M12, AF5)
MOSIPD4 (C8, AF5), PI3 (D10, AF5), PC1 (J3, AF3), PC3 (K1, AF5), PB15 (L11, AF5)
NSSPD0 (B9, AF5), PI0 (B12, AF5), PB9 (D5, AF5), PB12 (L10, AF5)
RDYPI4 (B10, AF5), PD5 (E7, AF5), PC0 (J2, AF5), PB11 (L9, AF5)
SCKPI1 (A12, AF5), PD3 (D8, AF3), PD1 (F6, AF5), PA9 (G11, AF3), PB10 (K9, AF5), PB13 (N13, AF5)
SPI3MISOPC11 (A9, AF6), PB4 (NJTRST) (B6, AF6), PG10 (C7, AF6)
MOSIPD6 (B7, AF5), PB5 (C6, AF6), PC12 (E8, AF6)
NSSPA15 (JTDI) (A10, AF6), PG12 (E6, AF6), PA4 (N1, AF6)
RDYPB8 (E5, AF6), PA0 (K3, AF6)
SCKPG9 (A7, AF6), PC10 (C9, AF6), PB3 (JTDO/TRACESWO) (D6, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (B5, AF4), PB8 (E5, AF4)
SDAPB9 (D5, AF4), PB3 (JTDO/TRACESWO) (D6, AF4), PB7 (F5, AF4)
SMBAPG15 (A5, AF4), PB5 (C6, AF4), PA14 (JTCK/SWCLK) (C10, AF4), PA1 (L3, AF4)
I2C2SCLPH4 (E10, AF4), PF1 (F3, AF4), PB10 (K9, AF4), PB13 (N13, AF4)
SDAPF0 (E2, AF4), PH5 (F9, AF4), PB11 (L9, AF4), PB14 (M12, AF4)
SMBAPH6 (E11, AF4), PF2 (F4, AF4), PB12 (L10, AF4)
I2C3SCLPH7 (F8, AF4), PG7 (G8, AF4), PC0 (J2, AF4), PA7 (J5, AF4)
SDAPB4 (NJTRST) (B6, AF4), PH8 (D12, AF4), PG8 (H9, AF4), PC1 (J3, AF4)
SMBAPH9 (E9, AF4), PG6 (H10, AF4), PB2 (L5, AF4)
I2C4SCLPB6 (B5, AF5), PB10 (K9, AF3), PD12 (K10, AF4), PF14 (L6, AF4)
SDAPB7 (F5, AF5), PD13 (K12, AF4), PB11 (L9, AF3), PF15 (N6, AF4)
SMBAPA14 (JTCK/SWCLK) (C10, AF5), PF13 (M6, AF4), PD11 (M13, AF4)
I2C5SCLPD1 (F6, AF4), PH5 (F9, AF2)
SDAPD0 (B9, AF4), PH4 (E10, AF2)
SMBAPH6 (E11, AF2), PD2 (F7, AF4), PD10 (K11, AF4)
I2C6SCLPF1 (F3, AF2), PD1 (F6, AF2)
SDAPD0 (B9, AF2), PF0 (E2, AF2)
SMBAPD3 (D8, AF2), PC4 (L4, AF2), PB12 (L10, AF2)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPD0 (B9, AF9), PH14 (C11, AF9), PB8 (E5, AF9), PF7 (G2, AF9), PA11 (G13, AF9)
TXPH13 (C12, AF9), PB9 (D5, AF9), PF8 (F1, AF9), PD1 (F6, AF9), PA12 (F13, AF9)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPA11 (G13)
DPPA12 (F13)
IDPA10 (F11, AF10)
SOFPA14 (JTCK/SWCLK) (C10, AF10), PA8 (G7, AF10)
VBUSPA9 (G11)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PA15 (JTDI) (A10)
CC2PB15 (L11)
DBCC1PB5 (C6)
DBCC2PB14 (M12)
FRSTX1PG6 (H10, AF11), PB2 (L5, AF11), PA2 (M2, AF11)
FRSTX2PC11 (A9, AF11), PG7 (G8, AF11), PF13 (M6, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (D5, AF8)
CKPC12 (E8, AF12)
CKINPB8 (E5, AF8)
CMDPD2 (F7, AF12)
D0PC8 (G10, AF12)
D0DIRPC6 (H13, AF8)
D1PC9 (G9, AF12)
D2PC10 (C9, AF12)
D3PC11 (A9, AF12)
D4PB8 (E5, AF12)
D5PB9 (D5, AF12), PC0 (J2, AF12)
D6PC6 (H13, AF12)
D7PC7 (G12, AF12)
D123DIRPC7 (G12, AF8)
SDMMC2CKPD6 (B7, AF11), PC1 (J3, AF12)
CMDPD7 (D7, AF11), PA0 (K3, AF12)
D0PB14 (M12, AF12)
D1PB15 (L11, AF12)
D2PB3 (JTDO/TRACESWO) (D6, AF12)
D3PB4 (NJTRST) (B6, AF12)
D4PB8 (E5, AF11)
D5PB9 (D5, AF11)
D6PC6 (H13, AF11)
D7PC7 (G12, AF11)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (A1, AF3), PB8 (E5, AF3), PG7 (G8, AF3), PA3 (N2, AF3)
CK2PE5 (D2, AF3), PA8 (G7, AF3)
D1PD6 (B7, AF3), PE6 (E4, AF3), PA10 (F11, AF3), PC3 (K1, AF3)
D2PE4 (C2, AF3), PB9 (D5, AF3)
D3PF10 (H4, AF13), PC5 (M4, AF3)
FS_APE4 (C2, AF13), PB9 (D5, AF13), PA9 (G11, AF13)
FS_BPB6 (B5, AF13), PA14 (JTCK/SWCLK) (C10, AF13), PF9 (G3, AF13), PE9 (J7, AF13), PA4 (N1, AF13)
MCLK_APE2 (A1, AF13), PB8 (E5, AF13), PG7 (G8, AF13), PA3 (N2, AF13)
MCLK_BPB4 (NJTRST) (B6, AF13), PF7 (G2, AF13), PE10 (H8, AF13)
SCK_APE5 (D2, AF13), PA8 (G7, AF13), PB10 (K9, AF13)
SCK_BPB3 (JTDO/TRACESWO) (D6, AF13), PF8 (F1, AF13), PE8 (K7, AF13)
SD_APD6 (B7, AF13), PE6 (E4, AF13), PA10 (F11, AF13), PC1 (J3, AF13), PC3 (K1, AF13)
SD_BPB5 (C6, AF13), PE3 (D3, AF13), PA13 (JTMS/SWDIO) (F12, AF13), PF6 (H6, AF13), PE7 (L7, AF13)
SAI2FS_APG10 (C7, AF13), PC0 (J2, AF13), PD12 (K10, AF13), PB12 (L10, AF13)
FS_BPA15 (JTDI) (A10, AF13), PG3 (J8, AF13)
MCLK_APC6 (H13, AF13), PD9 (L13, AF13), PB14 (M12, AF13)
MCLK_BPC11 (A9, AF13), PC7 (G12, AF13), PG4 (H11, AF13)
SCK_APG9 (A7, AF13), PD10 (K11, AF13), PB13 (N13, AF13)
SCK_BPC10 (C9, AF13), PG2 (K13, AF13)
SD_APG12 (E6, AF13), PB15 (L11, AF13), PD11 (M13, AF13)
SD_BPC12 (E8, AF13), PG5 (J9, AF13)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (A9), PH11 (D9), PA11 (G13), PB11 (L9), PF11 (M5), PE11 (M8), PD11 (M13)
EXTI15PG15 (A5), PA15 (JTDI) (A10), PH15 (A13), PC15-OSC32_OUT (E1), PD15 (J11), PB15 (L11), PE15 (M9), PF15 (N6)
IN1PC0 (J2)
IN2PC1 (J3)
IN3PC2 (J4)
IN4PC3 (K1)
IN5PA0 (K3)
IN6PA1 (L3)
IN7PA2 (M2)
IN8PA3 (N2)
IN9PA4 (N1)
IN10PA5 (K4)
IN11PA6 (N4)
IN12PA7 (J5)
IN13PC4 (L4)
IN14PC5 (M4)
IN15PB0 (K5)
IN16PB1 (N5)
IN17PB2 (L5)
ADC2EXTI11PC11 (A9), PH11 (D9), PA11 (G13), PB11 (L9), PF11 (M5), PE11 (M8), PD11 (M13)
EXTI15PG15 (A5), PA15 (JTDI) (A10), PH15 (A13), PC15-OSC32_OUT (E1), PD15 (J11), PB15 (L11), PE15 (M9), PF15 (N6)
IN1PC0 (J2)
IN2PC1 (J3)
IN3PC2 (J4)
IN4PC3 (K1)
IN5PA0 (K3)
IN6PA1 (L3)
IN7PA2 (M2)
IN8PA3 (N2)
IN9PA4 (N1)
IN10PA5 (K4)
IN11PA6 (N4)
IN12PA7 (J5)
IN13PC4 (L4)
IN14PC5 (M4)
IN15PB0 (K5)
IN16PB1 (N5)
IN17PB2 (L5)
ADC4EXTI15PG15 (A5), PA15 (JTDI) (A10), PH15 (A13), PC15-OSC32_OUT (E1), PD15 (J11), PB15 (L11), PE15 (M9), PF15 (N6)
IN1PC0 (J2)
IN2PC1 (J3)
IN3PC2 (J4)
IN4PC3 (K1)
IN5PF14 (L6)
IN6PF15 (N6)
IN7PG0 (J6)
IN8PG1 (H7)
IN9PA4 (N1)
IN10PA5 (K4)
IN11PA6 (N4)
IN15PD11 (M13)
IN16PD12 (K10)
IN17PD13 (K12)
IN18PB0 (K5)
IN19PB1 (N5)
IN20PA7 (J5)
IN22PC4 (L4)
IN23PC5 (M4)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PG9 (A7), PB9 (D5), PH9 (E9), PF9 (G3), PC9 (G9), PA9 (G11), PE9 (J7), PD9 (L13)
OUT1PA4 (N1)
OUT2PA5 (K4)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPC4 (L4), PB1 (N5)
INPPB2 (L5), PA2 (M2), PC5 (M4)
OUTPB0 (K5, AF12), PB10 (K9, AF12)
COMP2INMPB3 (JTDO/TRACESWO) (D6), PB7 (F5)
INPPB6 (B5), PB4 (NJTRST) (B6)
OUTPB5 (C6, AF12), PB11 (L9, AF12)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA1 (L3), OPAMP1_VINM (M1)
VINPPA0 (K3)
VOUTPA3 (N2)
OPAMP2VINMOPAMP2_VINM (H5), PA7 (J5)
VINPPA6 (N4)
VOUTPB0 (K5)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (L1)

TIM — таймер

БлокСигналВыводы
TIM1BKINPB12 (L10, AF1), PE15 (M9, AF1), PA6 (N4, AF1)
BKIN2PA11 (G13, AF2), PE14 (K8, AF2)
CH1PA8 (G7, AF1), PE9 (J7, AF1)
CH1NPA7 (J5, AF1), PE8 (K7, AF1), PB13 (N13, AF1)
CH2PA9 (G11, AF1), PE11 (M8, AF1)
CH2NPE10 (H8, AF1), PB0 (K5, AF1), PB14 (M12, AF1)
CH3PA10 (F11, AF1), PE13 (L8, AF1)
CH3NPB15 (L11, AF1), PB1 (N5, AF1), PE12 (N8, AF1)
CH4PA11 (G13, AF1), PE14 (K8, AF1)
CH4NPC5 (M4, AF1), PE15 (M9, AF3)
ETRPA12 (F13, AF1), PE7 (L7, AF1)
TIM2CH1PA15 (JTDI) (A10, AF1), PA0 (K3, AF1), PA5 (K4, AF1)
CH2PB3 (JTDO/TRACESWO) (D6, AF1), PA1 (L3, AF1)
CH3PB10 (K9, AF1), PA2 (M2, AF1)
CH4PB11 (L9, AF1), PA3 (N2, AF1)
ETRPA15 (JTDI) (A10, AF2), PA0 (K3, AF14), PA5 (K4, AF2)
TIM3CH1PB4 (NJTRST) (B6, AF2), PE3 (D3, AF2), PC6 (H13, AF2), PA6 (N4, AF2)
CH2PE4 (C2, AF2), PB5 (C6, AF2), PC7 (G12, AF2), PA7 (J5, AF2)
CH3PE5 (D2, AF2), PC8 (G10, AF2), PB0 (K5, AF2)
CH4PE6 (E4, AF2), PC9 (G9, AF2), PB1 (N5, AF2)
ETRPE2 (A1, AF2), PD2 (F7, AF2)
TIM4CH1PB6 (B5, AF2), PD12 (K10, AF2)
CH2PB7 (F5, AF2), PD13 (K12, AF2)
CH3PB8 (E5, AF2), PD14 (J10, AF2)
CH4PB9 (D5, AF2), PD15 (J11, AF2)
ETRPE0 (D4, AF2)
TIM5CH1PH10 (C13, AF2), PF6 (H6, AF2), PA0 (K3, AF2)
CH2PH11 (D9, AF2), PF7 (G2, AF2), PA1 (L3, AF2)
CH3PH12 (B13, AF2), PF8 (F1, AF2), PA2 (M2, AF2)
CH4PI0 (B12, AF2), PF9 (G3, AF2), PA3 (N2, AF2)
ETRPF6 (H6, AF1)
TIM8BKINPI4 (B10, AF3), PB7 (F5, AF3), PA6 (N4, AF3)
BKIN2PB6 (B5, AF3), PC9 (G9, AF1)
CH1PI5 (B3, AF3), PC6 (H13, AF3)
CH1NPH13 (C12, AF3), PA7 (J5, AF3), PA5 (K4, AF3)
CH2PI6 (A2, AF3), PC7 (G12, AF3)
CH2NPH14 (C11, AF3), PB0 (K5, AF3), PB14 (M12, AF3)
CH3PI7 (C3, AF3), PC8 (G10, AF3)
CH3NPH15 (A13, AF3), PB15 (L11, AF3), PB1 (N5, AF3)
CH4PI2 (D11, AF3), PC9 (G9, AF3)
CH4NPD0 (B9, AF3), PH12 (B13, AF3), PB2 (L5, AF3)
ETRPI3 (D10, AF3), PA0 (K3, AF3)
TIM15BKINPA9 (G11, AF14), PB12 (L10, AF14)
CH1PG10 (C7, AF14), PF9 (G3, AF14), PA2 (M2, AF14), PB14 (M12, AF14)
CH1NPG9 (A7, AF14), PA1 (L3, AF14), PB13 (N13, AF14)
CH2PF10 (H4, AF14), PB15 (L11, AF14), PA3 (N2, AF14)
TIM16BKINPB5 (C6, AF14)
CH1PE0 (D4, AF14), PB8 (E5, AF14), PA6 (N4, AF14)
CH1NPB6 (B5, AF14)
TIM17BKINPB4 (NJTRST) (B6, AF14), PA10 (F11, AF14)
CH1PE1 (C4, AF14), PB9 (D5, AF14), PA7 (J5, AF14)
CH1NPB7 (F5, AF14)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PG15 (A5, AF1), PA14 (JTCK/SWCLK) (C10, AF1), PB3 (JTDO/TRACESWO) (D6, AF2), PC1 (J3, AF1), PB2 (L5, AF1)
CH2PB4 (NJTRST) (B6, AF1), PA1 (L3, AF0)
ETRPB6 (B5, AF1), PG12 (E6, AF1), PC3 (K1, AF1)
IN1PB5 (C6, AF1), PG10 (C7, AF1), PC0 (J2, AF1)
IN2PB7 (F5, AF1), PC2 (J4, AF1)
LPTIM2CH1PA8 (G7, AF14), PD13 (K12, AF14), PA4 (N1, AF14)
CH2PC7 (G12, AF14), PA7 (J5, AF13), PD10 (K11, AF2)
ETRPC3 (K1, AF14), PA5 (K4, AF14), PD11 (M13, AF14)
IN1PC0 (J2, AF14), PD12 (K10, AF14), PB1 (N5, AF14)
IN2PA10 (F11, AF2), PB15 (L11, AF2), PD9 (L13, AF2)
LPTIM3CH1PF5 (G4, AF2), PC8 (G10, AF14), PD14 (J10, AF14), PC3 (K1, AF2), PB0 (K5, AF4), PB10 (K9, AF2)
CH2PF2 (F4, AF2), PC9 (G9, AF14), PD15 (J11, AF14), PB1 (N5, AF4)
ETRPC10 (C9, AF2), PF4 (G6, AF2), PD10 (K11, AF14), PB14 (M12, AF2)
IN1PC11 (A9, AF2), PF3 (G5, AF2), PD9 (L13, AF14), PB13 (N13, AF2)
LPTIM4ETRPD2 (F7, AF13), PF12 (K6, AF13)
IN1PD13 (K12, AF13), PF11 (M5, AF13)
OUTPD7 (D7, AF13), PF13 (M6, AF13)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (E3)
OUT2PB2 (L5)
REFINPB15 (L11, AF0)
TSPC13 (E3)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (E2, AF12)
A1PF1 (F3, AF12)
A2PF2 (F4, AF12)
A3PF3 (G5, AF12)
A4PF4 (G6, AF12)
A5PF5 (G4, AF12)
A6PF12 (K6, AF12)
A7PF13 (M6, AF12)
A8PF14 (L6, AF12)
A9PF15 (N6, AF12)
A10PG0 (J6, AF12)
A11PG1 (H7, AF12)
A12PG2 (K13, AF12)
A13PG3 (J8, AF12)
A14PG4 (H11, AF12)
A15PG5 (J9, AF12)
A16PD11 (M13, AF12)
A17PD12 (K10, AF12)
A18PD13 (K12, AF12)
A19PE3 (D3, AF12)
A20PE4 (C2, AF12)
A21PE5 (D2, AF12)
A22PE6 (E4, AF12)
A23PE2 (A1, AF12)
ALEPD12 (K10, AF12)
CLEPD11 (M13, AF12)
CLKPD3 (D8, AF12)
D0PD14 (J10, AF12)
D1PD15 (J11, AF12)
D2PD0 (B9, AF12)
D3PD1 (F6, AF12)
D4PE7 (L7, AF12)
D5PE8 (K7, AF12)
D6PE9 (J7, AF12)
D7PE10 (H8, AF12)
D8PE11 (M8, AF12)
D9PE12 (N8, AF12)
D10PE13 (L8, AF12)
D11PE14 (K8, AF12)
D12PE15 (M9, AF12)
D13PD8 (L12, AF12)
D14PD9 (L13, AF12)
D15PD10 (K11, AF12)
DA0PD14 (J10, AF12)
DA1PD15 (J11, AF12)
DA2PD0 (B9, AF12)
DA3PD1 (F6, AF12)
DA4PE7 (L7, AF12)
DA5PE8 (K7, AF12)
DA6PE9 (J7, AF12)
DA7PE10 (H8, AF12)
DA8PE11 (M8, AF12)
DA9PE12 (N8, AF12)
DA10PE13 (L8, AF12)
DA11PE14 (K8, AF12)
DA12PE15 (M9, AF12)
DA13PD8 (L12, AF12)
DA14PD9 (L13, AF12)
DA15PD10 (K11, AF12)
INTPG7 (G8, AF12)
NBL0PE0 (D4, AF12)
NBL1PE1 (C4, AF12), PB15 (L11, AF11)
NCEPG9 (A7, AF12), PD7 (D7, AF12)
NE1PD7 (D7, AF12)
NE2PG9 (A7, AF12)
NE3PG10 (C7, AF12)
NE4PG12 (E6, AF12)
NLPB7 (F5, AF12)
NOEPD4 (C8, AF12)
NWAITPD6 (B7, AF12)
NWEPD5 (E7, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PH9 (E9, AF10), PA9 (G11, AF5), PC6 (H13, AF10)
D1PH10 (C13, AF10), PA10 (F11, AF5), PC7 (G12, AF10)
D2PC11 (A9, AF4), PE0 (D4, AF10), PH11 (D9, AF10), PC8 (G10, AF10)
D3PH12 (B13, AF10), PE1 (C4, AF10), PC9 (G9, AF4)
D4PC11 (A9, AF10), PE4 (C2, AF10), PH14 (C11, AF10)
D5PB6 (B5, AF10), PI4 (B10, AF10), PD3 (D8, AF4)
D6PI6 (A2, AF10), PE5 (D2, AF10), PB8 (E5, AF10)
D7PI7 (C3, AF10), PB9 (D5, AF10), PE6 (E4, AF10)
D8PI1 (A12, AF10), PC10 (C9, AF10), PH6 (E11, AF10)
D9PI2 (D11, AF10), PC12 (E8, AF10), PH7 (F8, AF10)
D10PD6 (B7, AF4), PB5 (C6, AF10), PI3 (D10, AF10)
D11PH15 (A13, AF10), PD2 (F7, AF10), PF10 (H4, AF10)
D12PB4 (NJTRST) (B6, AF10), PF6 (H6, AF4), PF11 (M5, AF10)
D13PG15 (A5, AF10), PI0 (B12, AF10)
HSYNCPH8 (D12, AF10), PD8 (L12, AF10), PA4 (N1, AF10)
PIXCLKPH5 (F9, AF10), PD9 (L13, AF10), PA6 (N4, AF4)
VSYNCPI5 (B3, AF10), PB7 (F5, AF10)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PH9 (E9, AF10), PA9 (G11, AF5), PC6 (H13, AF10)
D1PH10 (C13, AF10), PA10 (F11, AF5), PC7 (G12, AF10)
D2PC11 (A9, AF4), PE0 (D4, AF10), PH11 (D9, AF10), PC8 (G10, AF10)
D3PH12 (B13, AF10), PE1 (C4, AF10), PC9 (G9, AF4)
D4PC11 (A9, AF10), PE4 (C2, AF10), PH14 (C11, AF10)
D5PB6 (B5, AF10), PI4 (B10, AF10), PD3 (D8, AF4)
D6PI6 (A2, AF10), PE5 (D2, AF10), PB8 (E5, AF10)
D7PI7 (C3, AF10), PB9 (D5, AF10), PE6 (E4, AF10)
D8PI1 (A12, AF10), PC10 (C9, AF10), PH6 (E11, AF10)
D9PI2 (D11, AF10), PC12 (E8, AF10), PH7 (F8, AF10)
D10PD6 (B7, AF4), PB5 (C6, AF10), PI3 (D10, AF10)
D11PH15 (A13, AF10), PD2 (F7, AF10), PF10 (H4, AF10)
D12PB4 (NJTRST) (B6, AF10), PF6 (H6, AF4), PF11 (M5, AF10)
D13PG15 (A5, AF10), PI0 (B12, AF10)
D14PH4 (E10, AF10), PF8 (F1, AF4), PA5 (K4, AF4)
D15PF9 (G3, AF4), PF10 (H4, AF4), PC5 (M4, AF4)
DEPH8 (D12, AF10), PD8 (L12, AF10), PA4 (N1, AF10)
PDCKPH5 (F9, AF10), PD9 (L13, AF10), PA6 (N4, AF4)
RDYPI5 (B3, AF10), PB7 (F5, AF10)

TSC — контроллер сенсорных кнопок

БлокСигналВыводы
TSCG1_IO1PB12 (L10, AF9)
G1_IO2PB13 (N13, AF9)
G1_IO3PB14 (M12, AF9)
G2_IO1PB4 (NJTRST) (B6, AF9)
G2_IO2PB5 (C6, AF9)
G2_IO3PB6 (B5, AF9)
G2_IO4PB7 (F5, AF9)
G3_IO2PC10 (C9, AF9)
G3_IO3PC11 (A9, AF9)
G3_IO4PC12 (E8, AF9)
G4_IO1PC6 (H13, AF9)
G4_IO2PC7 (G12, AF9)
G4_IO3PC8 (G10, AF9)
G4_IO4PC9 (G9, AF9)
G5_IO1PE10 (H8, AF9)
G5_IO2PE11 (M8, AF9)
G5_IO3PE12 (N8, AF9)
G5_IO4PE13 (L8, AF9)
G6_IO1PD10 (K11, AF9)
G6_IO2PD11 (M13, AF9)
G6_IO3PD12 (K10, AF9)
G6_IO4PD13 (K12, AF9)
G7_IO1PE2 (A1, AF9)
G7_IO2PE3 (D3, AF9)
G7_IO3PE4 (C2, AF9)
G7_IO4PE5 (D2, AF9)
G8_IO1PF14 (L6, AF9)
G8_IO2PF15 (N6, AF9)
G8_IO3PG0 (J6, AF9)
G8_IO4PG1 (H7, AF9)
SYNCPD2 (F7, AF9), PB10 (K9, AF9)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PB8 (E5, AF5), PF3 (G5, AF6), PG7 (G8, AF6), PE9 (J7, AF6)
CCK1PF10 (H4, AF6), PC2 (J4, AF6)
CKI0PD4 (C8, AF6), PF5 (G4, AF6), PB2 (L5, AF6)
CKI1PD7 (D7, AF6), PB13 (N13, AF6)
CKI2PE8 (K7, AF6), PB15 (L11, AF6)
CKI3PE5 (D2, AF6), PC6 (H13, AF6)
CKI4PC1 (J3, AF6), PE11 (M8, AF6)
CKI5PB7 (F5, AF6), PE13 (L8, AF6)
SDI0PD3 (D8, AF6), PF4 (G6, AF6), PB1 (N5, AF6)
SDI1PD6 (B7, AF6), PB12 (L10, AF6)
SDI2PE7 (L7, AF6), PB14 (M12, AF6)
SDI3PE4 (C2, AF6), PC7 (G12, AF6)
SDI4PE10 (H8, AF6), PC0 (J2, AF6)
SDI5PB6 (B5, AF6), PE12 (N8, AF6)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PB3 (JTDO/TRACESWO) (D6, AF3), PF3 (G5, AF3), PE9 (J7, AF3)
CCK1PC10 (C9, AF3)
SDI0PC11 (A9, AF3), PB4 (NJTRST) (B6, AF3), PF4 (G6, AF3), PE10 (H8, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (C10, AF0)
JTDIPA15 (JTDI) (A10, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (D6, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (F12, AF0)
NJTRSTPB4 (NJTRST) (B6, AF0)
TRACECLKPE2 (A1, AF0), PA8 (G7, AF12)
TRACED0PE3 (D3, AF0), PC9 (G9, AF0), PC1 (J3, AF0)
TRACED1PE4 (C2, AF0), PC10 (C9, AF0)
TRACED2PE5 (D2, AF0), PD2 (F7, AF0)
TRACED3PE6 (E4, AF0), PC12 (E8, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPA2 (M2)
MCOPA8 (G7, AF0)
OSC_INPH0-OSC_IN (H1)
OSC_OUTPH1-OSC_OUT (J1)
OSC32_INPC14-OSC32_IN (D1)
OSC32_OUTPC15-OSC32_OUT (E1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC6 (H13, AF0), PA5 (K4, AF0)
PWR_WKUP1PE4 (C2), PA0 (K3), PB2 (L5)
PWR_WKUP2PE5 (D2), PC13 (E3), PA4 (N1)
PWR_WKUP3PB6 (B5), PE6 (E4), PA1 (L3)
PWR_WKUP4PB7 (F5), PA2 (M2), PB1 (N5)
PWR_WKUP5PB8 (E5), PC5 (M4), PA3 (N2)
PWR_WKUP6PB5 (C6), PA5 (K4), PE7 (L7)
PWR_WKUP7PE8 (K7), PB15 (L11), PA6 (N4)
PWR_WKUP8PF2 (F4), PA7 (J5), PB10 (K9)
TAMP_IN1PC13 (E3)
TAMP_IN2PA0 (K3)
TAMP_IN3PE6 (E4)
TAMP_IN4PC5 (M4)
TAMP_IN5PA1 (L3)
TAMP_IN6PE3 (D3)
TAMP_IN7PE4 (C2)
TAMP_IN8PE5 (D2)
TAMP_OUT1PA0 (K3)
TAMP_OUT2PC13 (E3)
TAMP_OUT3PE3 (D3)
TAMP_OUT4PA1 (L3)
TAMP_OUT5PC5 (M4)
TAMP_OUT6PE6 (E4)
TAMP_OUT7PE5 (D2)
TAMP_OUT8PE4 (C2)

Блоки без собственных выводов: OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), IRTIM (формирователь ИК-сигнала), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 169 шариков корпуса TFBGA169 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PE2ввод-выводDEBUG_TRACECLK (AF0), FMC_A23 (AF12), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM3_ETR (AF2), TSC_G7_IO1 (AF9), USART6_CK (AF7)
A2PI6ввод-выводDCMI_D6 (AF10), OCTOSPIM_P2_CLK (AF5), PSSI_D6 (AF10), TIM8_CH2 (AF3)
A3VDDпитание—
A4VDD11питание—
A5PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13 (AF10), I2C1_SMBA (AF4), LPTIM1_CH1 (AF1), OCTOSPIM_P2_DQS (AF5), PSSI_D13 (AF10)
A6VDDIO2питание—
A7PG9ввод-выводDAC1_EXTI9, FMC_NCE (AF12), FMC_NE2 (AF12), OCTOSPIM_P2_IO6 (AF5), SAI2_SCK_A (AF13), SPI3_SCK (AF6), TIM15_CH1N (AF14), USART1_TX (AF7)
A8VDDпитание—
A9PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0 (AF3), DCMI_D2 (AF4), DCMI_D4 (AF10), LPTIM3_IN1 (AF2), OCTOSPIM_P1_NCS (AF5), PSSI_D2 (AF4), PSSI_D4 (AF10), SAI2_MCLK_B (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), TSC_G3_IO3 (AF9), UART4_RX (AF8), UCPD1_FRSTX2 (AF11), USART3_RX (AF7)
A10PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI (AF0), SAI2_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC1, USART2_RX (AF3), USART3_DE (AF7), USART3_RTS (AF7)
A11VDDпитание—
A12PI1ввод-выводDCMI_D8 (AF10), OCTOSPIM_P2_IO2 (AF6), PSSI_D8 (AF10), SPI2_SCK (AF5)
A13PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D11 (AF10), OCTOSPIM_P2_IO6 (AF5), PSSI_D11 (AF10), TIM8_CH3N (AF3)
B1VDDпитание—
B2VSSпитание—
B3PI5ввод-выводDCMI_VSYNC (AF10), OCTOSPIM_P2_NCS (AF5), PSSI_RDY (AF10), TIM8_CH1 (AF3)
B4VSSпитание—
B5PB6ввод-выводCOMP2_INP, DCMI_D5 (AF10), I2C1_SCL (AF4), I2C4_SCL (AF5), LPTIM1_ETR (AF1), MDF1_SDI5 (AF6), PSSI_D5 (AF10), PWR_WKUP3, SAI1_FS_B (AF13), TIM16_CH1N (AF14), TIM4_CH1 (AF2), TIM8_BKIN2 (AF3), TSC_G2_IO3 (AF9), USART1_TX (AF7)
B6PB4 (NJTRST)ввод-выводADF1_SDI0 (AF3), COMP2_INP, DCMI_D12 (AF10), DEBUG_NJTRST (AF0), I2C3_SDA (AF4), LPTIM1_CH2 (AF1), PSSI_D12 (AF10), SAI1_MCLK_B (AF13), SDMMC2_D3 (AF12), SPI1_MISO (AF5), SPI3_MISO (AF6), TIM17_BKIN (AF14), TIM3_CH1 (AF2), TSC_G2_IO1 (AF9), UART5_DE (AF8), UART5_RTS (AF8), USART1_CTS (AF7)
B7PD6ввод-выводDCMI_D10 (AF4), FMC_NWAIT (AF12), MDF1_SDI1 (AF6), OCTOSPIM_P1_IO6 (AF10), PSSI_D10 (AF4), SAI1_D1 (AF3), SAI1_SD_A (AF13), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
B8VSSпитание—
B9PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), I2C5_SDA (AF4), I2C6_SDA (AF2), SPI2_NSS (AF5), TIM8_CH4N (AF3)
B10PI4ввод-выводDCMI_D5 (AF10), PSSI_D5 (AF10), SPI2_RDY (AF5), TIM8_BKIN (AF3)
B11VSSпитание—
B12PI0ввод-выводDCMI_D13 (AF10), OCTOSPIM_P1_IO5 (AF3), PSSI_D13 (AF10), SPI2_NSS (AF5), TIM5_CH4 (AF2)
B13PH12ввод-выводDCMI_D3 (AF10), OCTOSPIM_P2_IO7 (AF5), PSSI_D3 (AF10), TIM5_CH3 (AF2), TIM8_CH4N (AF3)
C1VBATпитание—
C2PE4ввод-выводDCMI_D4 (AF10), DEBUG_TRACED1 (AF0), FMC_A20 (AF12), MDF1_SDI3 (AF6), PSSI_D4 (AF10), PWR_WKUP1, SAI1_D2 (AF3), SAI1_FS_A (AF13), TAMP_IN7, TAMP_OUT8, TIM3_CH2 (AF2), TSC_G7_IO3 (AF9), USART6_DE (AF7), USART6_RTS (AF7)
C3PI7ввод-выводDCMI_D7 (AF10), OCTOSPIM_P2_NCLK (AF5), PSSI_D7 (AF10), TIM8_CH3 (AF3)
C4PE1ввод-выводDCMI_D3 (AF10), FMC_NBL1 (AF12), PSSI_D3 (AF10), TIM17_CH1 (AF14), USART6_TX (AF7)
C5PH3-BOOT0ввод-вывод—
C6PB5ввод-выводCOMP2_OUT (AF12), DCMI_D10 (AF10), I2C1_SMBA (AF4), LPTIM1_IN1 (AF1), OCTOSPIM_P1_NCLK (AF3), PSSI_D10 (AF10), PWR_WKUP6, SAI1_SD_B (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF6), TIM16_BKIN (AF14), TIM3_CH2 (AF2), TSC_G2_IO2 (AF9), UART5_CTS (AF8), UCPD1_DBCC1, USART1_CK (AF7)
C7PG10ввод-выводFMC_NE3 (AF12), LPTIM1_IN1 (AF1), OCTOSPIM_P2_IO7 (AF5), SAI2_FS_A (AF13), SPI3_MISO (AF6), TIM15_CH1 (AF14), USART1_RX (AF7)
C8PD4ввод-выводFMC_NOE (AF12), MDF1_CKI0 (AF6), OCTOSPIM_P1_IO4 (AF10), SPI2_MOSI (AF5), USART2_DE (AF7), USART2_RTS (AF7)
C9PC10ввод-выводADF1_CCK1 (AF3), DCMI_D8 (AF10), DEBUG_TRACED1 (AF0), LPTIM3_ETR (AF2), PSSI_D8 (AF10), SAI2_SCK_B (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), TSC_G3_IO2 (AF9), UART4_TX (AF8), USART3_TX (AF7)
C10PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF5), LPTIM1_CH1 (AF1), SAI1_FS_B (AF13), USB_OTG_HS_SOF (AF10)
C11PH14ввод-выводDCMI_D4 (AF10), FDCAN1_RX (AF9), PSSI_D4 (AF10), TIM8_CH2N (AF3)
C12PH13ввод-выводFDCAN1_TX (AF9), TIM8_CH1N (AF3)
C13PH10ввод-выводDCMI_D1 (AF10), OCTOSPIM_P2_IO5 (AF5), PSSI_D1 (AF10), TIM5_CH1 (AF2)
D1PC14-OSC32_INввод-выводRCC_OSC32_IN
D2PE5ввод-выводDCMI_D6 (AF10), DEBUG_TRACED2 (AF0), FMC_A21 (AF12), MDF1_CKI3 (AF6), PSSI_D6 (AF10), PWR_WKUP2, SAI1_CK2 (AF3), SAI1_SCK_A (AF13), TAMP_IN8, TAMP_OUT7, TIM3_CH3 (AF2), TSC_G7_IO4 (AF9)
D3PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), OCTOSPIM_P1_DQS (AF3), SAI1_SD_B (AF13), TAMP_IN6, TAMP_OUT3, TIM3_CH1 (AF2), TSC_G7_IO2 (AF9), USART6_CTS (AF7)
D4PE0ввод-выводDCMI_D2 (AF10), FMC_NBL0 (AF12), PSSI_D2 (AF10), TIM16_CH1 (AF14), TIM4_ETR (AF2), USART6_RX (AF7)
D5PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF10), FDCAN1_TX (AF9), I2C1_SDA (AF4), IR_OUT (AF1), PSSI_D7 (AF10), SAI1_D2 (AF3), SAI1_FS_A (AF13), SDMMC1_CDIR (AF8), SDMMC1_D5 (AF12), SDMMC2_D5 (AF11), SPI2_NSS (AF5), TIM17_CH1 (AF14), TIM4_CH4 (AF2)
D6PB3 (JTDO/TRACESWO)ввод-выводADF1_CCK0 (AF3), COMP2_INM, CRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2C1_SDA (AF4), LPTIM1_CH1 (AF2), SAI1_SCK_B (AF13), SDMMC2_D2 (AF12), SPI1_SCK (AF5), SPI3_SCK (AF6), TIM2_CH2 (AF1), USART1_DE (AF7), USART1_RTS (AF7)
D7PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), LPTIM4_OUT (AF13), MDF1_CKI1 (AF6), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), USART2_CK (AF7)
D8PD3ввод-выводDCMI_D5 (AF4), FMC_CLK (AF12), I2C6_SMBA (AF2), MDF1_SDI0 (AF6), OCTOSPIM_P2_NCS (AF10), PSSI_D5 (AF4), SPI2_MISO (AF5), SPI2_SCK (AF3), USART2_CTS (AF7)
D9PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D2 (AF10), OCTOSPIM_P2_IO6 (AF5), PSSI_D2 (AF10), TIM5_CH2 (AF2)
D10PI3ввод-выводDCMI_D10 (AF10), OCTOSPIM_P2_IO0 (AF6), PSSI_D10 (AF10), SPI2_MOSI (AF5), TIM8_ETR (AF3)
D11PI2ввод-выводDCMI_D9 (AF10), OCTOSPIM_P2_IO1 (AF6), PSSI_D9 (AF10), SPI2_MISO (AF5), TIM8_CH4 (AF3)
D12PH8ввод-выводDCMI_HSYNC (AF10), I2C3_SDA (AF4), OCTOSPIM_P2_IO3 (AF5), PSSI_DE (AF10)
D13VDDпитание—
E1PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUT
E2PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), I2C6_SDA (AF2), OCTOSPIM_P2_IO0 (AF5), USART6_TX (AF7)
E3PC13ввод-выводPWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2
E4PE6ввод-выводDCMI_D7 (AF10), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), PSSI_D7 (AF10), PWR_WKUP3, SAI1_D1 (AF3), SAI1_SD_A (AF13), TAMP_IN3, TAMP_OUT6, TIM3_CH4 (AF2)
E5PB8ввод-выводDCMI_D6 (AF10), FDCAN1_RX (AF9), I2C1_SCL (AF4), MDF1_CCK0 (AF5), PSSI_D6 (AF10), PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), SDMMC1_CKIN (AF8), SDMMC1_D4 (AF12), SDMMC2_D4 (AF11), SPI3_RDY (AF6), TIM16_CH1 (AF14), TIM4_CH3 (AF2)
E6PG12ввод-выводFMC_NE4 (AF12), LPTIM1_ETR (AF1), OCTOSPIM_P2_NCS (AF5), SAI2_SD_A (AF13), SPI3_NSS (AF6), USART1_DE (AF7), USART1_RTS (AF7)
E7PD5ввод-выводFMC_NWE (AF12), OCTOSPIM_P1_IO5 (AF10), SPI2_RDY (AF5), USART2_TX (AF7)
E8PC12ввод-выводDCMI_D9 (AF10), DEBUG_TRACED3 (AF0), PSSI_D9 (AF10), SAI2_SD_B (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), TSC_G3_IO4 (AF9), UART5_TX (AF8), USART3_CK (AF7)
E9PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF10), I2C3_SMBA (AF4), OCTOSPIM_P2_IO4 (AF5), PSSI_D0 (AF10)
E10PH4ввод-выводI2C2_SCL (AF4), I2C5_SDA (AF2), OCTOSPIM_P2_DQS (AF5), PSSI_D14 (AF10)
E11PH6ввод-выводDCMI_D8 (AF10), I2C2_SMBA (AF4), I2C5_SMBA (AF2), OCTOSPIM_P2_CLK (AF5), PSSI_D8 (AF10)
E12VSSпитание—
E13VDDUSBпитание—
F1PF8ввод-выводFDCAN1_TX (AF9), OCTOSPIM_P1_IO0 (AF10), PSSI_D14 (AF4), SAI1_SCK_B (AF13), TIM5_CH3 (AF2)
F2VSSпитание—
F3PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), I2C6_SCL (AF2), OCTOSPIM_P2_IO1 (AF5), USART6_RX (AF7)
F4PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), OCTOSPIM_P2_IO2 (AF5), PWR_WKUP8, USART6_CK (AF7)
F5PB7ввод-выводCOMP2_INM, DCMI_VSYNC (AF10), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF5), LPTIM1_IN2 (AF1), MDF1_CKI5 (AF6), PSSI_RDY (AF10), PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N (AF14), TIM4_CH2 (AF2), TIM8_BKIN (AF3), TSC_G2_IO4 (AF9), UART4_CTS (AF8), USART1_RX (AF7)
F6PD1ввод-выводFDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2C5_SCL (AF4), I2C6_SCL (AF2), SPI2_SCK (AF5)
F7PD2ввод-выводDCMI_D11 (AF10), DEBUG_TRACED2 (AF0), I2C5_SMBA (AF4), LPTIM4_ETR (AF13), PSSI_D11 (AF10), SDMMC1_CMD (AF12), TIM3_ETR (AF2), TSC_SYNC (AF9), UART5_RX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
F8PH7ввод-выводDCMI_D9 (AF10), I2C3_SCL (AF4), OCTOSPIM_P2_NCLK (AF5), PSSI_D9 (AF10)
F9PH5ввод-выводDCMI_PIXCLK (AF10), I2C2_SDA (AF4), I2C5_SCL (AF2), PSSI_PDCK (AF10)
F10PH2ввод-выводOCTOSPIM_P1_IO4 (AF3)
F11PA10ввод-выводCRS_SYNC (AF0), DCMI_D1 (AF5), LPTIM2_IN2 (AF2), PSSI_D1 (AF5), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM17_BKIN (AF14), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_HS_ID (AF10)
F12PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0), IR_OUT (AF1), SAI1_SD_B (AF13)
F13PA12ввод-выводFDCAN1_TX (AF9), OCTOSPIM_P2_NCS (AF6), SPI1_MOSI (AF5), TIM1_ETR (AF1), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_HS_DP
G1VDDпитание—
G2PF7ввод-выводFDCAN1_RX (AF9), OCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF13), TIM5_CH2 (AF2)
G3PF9ввод-выводDAC1_EXTI9, OCTOSPIM_P1_IO1 (AF10), PSSI_D15 (AF4), SAI1_FS_B (AF13), TIM15_CH1 (AF14), TIM5_CH4 (AF2)
G4PF5ввод-выводFMC_A5 (AF12), LPTIM3_CH1 (AF2), MDF1_CKI0 (AF6), OCTOSPIM_P2_NCLK (AF5)
G5PF3ввод-выводADF1_CCK0 (AF3), FMC_A3 (AF12), LPTIM3_IN1 (AF2), MDF1_CCK0 (AF6), OCTOSPIM_P2_IO3 (AF5), UART5_TX (AF8), USART6_CTS (AF7)
G6PF4ввод-выводADF1_SDI0 (AF3), FMC_A4 (AF12), LPTIM3_ETR (AF2), MDF1_SDI0 (AF6), OCTOSPIM_P2_CLK (AF5), UART5_RX (AF8), USART6_DE (AF7), USART6_RTS (AF7)
G7PA8ввод-выводDEBUG_TRACECLK (AF12), LPTIM2_CH1 (AF14), RCC_MCO (AF0), SAI1_CK2 (AF3), SAI1_SCK_A (AF13), SPI1_RDY (AF5), TIM1_CH1 (AF1), USART1_CK (AF7), USB_OTG_HS_SOF (AF10)
G8PG7ввод-выводFMC_INT (AF12), I2C3_SCL (AF4), LPUART1_TX (AF8), MDF1_CCK0 (AF6), OCTOSPIM_P2_DQS (AF5), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), UCPD1_FRSTX2 (AF11)
G9PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF4), DEBUG_TRACED0 (AF0), LPTIM3_CH2 (AF14), PSSI_D3 (AF4), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_BKIN2 (AF1), TIM8_CH4 (AF3), TSC_G4_IO4 (AF9), USART6_TX (AF7)
G10PC8ввод-выводDCMI_D2 (AF10), LPTIM3_CH1 (AF14), PSSI_D2 (AF10), PWR_SRDSTOP (AF0), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), TSC_G4_IO3 (AF9), USART6_RX (AF7)
G11PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF5), PSSI_D0 (AF5), SAI1_FS_A (AF13), SPI2_SCK (AF3), TIM15_BKIN (AF14), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_HS_VBUS
G12PC7ввод-выводDCMI_D1 (AF10), LPTIM2_CH2 (AF14), MDF1_SDI3 (AF6), PSSI_D1 (AF10), PWR_CDSTOP (AF0), SAI2_MCLK_B (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), TSC_G4_IO2 (AF9)
G13PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX (AF9), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1), USART1_CTS (AF7), USB_OTG_HS_DM
H1PH0-OSC_INввод-выводRCC_OSC_IN
H2VSSпитание—
H3NRSTсброс—
H4PF10ввод-выводDCMI_D11 (AF10), MDF1_CCK1 (AF6), OCTOSPIM_P1_CLK (AF3), PSSI_D11 (AF10), PSSI_D15 (AF4), SAI1_D3 (AF13), TIM15_CH2 (AF14)
H5OPAMP2_VINMслужебныйOPAMP2_VINM
H6PF6ввод-выводDCMI_D12 (AF4), OCTOSPIM_P1_IO3 (AF10), OCTOSPIM_P2_NCS (AF5), PSSI_D12 (AF4), SAI1_SD_B (AF13), TIM5_CH1 (AF2), TIM5_ETR (AF1)
H7PG1ввод-выводADC4_IN8, FMC_A11 (AF12), OCTOSPIM_P2_IO5 (AF5), TSC_G8_IO4 (AF9)
H8PE10ввод-выводADF1_SDI0 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), MDF1_SDI4 (AF6), OCTOSPIM_P1_CLK (AF10), SAI1_MCLK_B (AF13), TIM1_CH2N (AF1), TSC_G5_IO1 (AF9)
H9PG8ввод-выводI2C3_SDA (AF4), LPUART1_RX (AF8)
H10PG6ввод-выводI2C3_SMBA (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), OCTOSPIM_P1_DQS (AF3), SPI1_RDY (AF5), UCPD1_FRSTX1 (AF11)
H11PG4ввод-выводFMC_A14 (AF12), SAI2_MCLK_B (AF13), SPI1_MOSI (AF5)
H12VDDIO2питание—
H13PC6ввод-выводDCMI_D0 (AF10), MDF1_CKI3 (AF6), PSSI_D0 (AF10), PWR_CSLEEP (AF0), SAI2_MCLK_A (AF13), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF11), TIM3_CH1 (AF2), TIM8_CH1 (AF3), TSC_G4_IO1 (AF9)
J1PH1-OSC_OUTввод-выводRCC_OSC_OUT
J2PC0ввод-выводADC1_IN1, ADC2_IN1, ADC4_IN1, I2C3_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF14), LPUART1_RX (AF8), MDF1_SDI4 (AF6), OCTOSPIM_P1_IO7 (AF3), SAI2_FS_A (AF13), SDMMC1_D5 (AF12), SPI2_RDY (AF5), USART6_CTS (AF7)
J3PC1ввод-выводADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0 (AF0), I2C3_SDA (AF4), LPTIM1_CH1 (AF1), LPUART1_TX (AF8), MDF1_CKI4 (AF6), OCTOSPIM_P1_IO4 (AF10), SAI1_SD_A (AF13), SDMMC2_CK (AF12), SPI2_MOSI (AF3), USART6_CK (AF7)
J4PC2ввод-выводADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2 (AF1), MDF1_CCK1 (AF6), OCTOSPIM_P1_IO5 (AF10), SPI2_MISO (AF5), USART6_RX (AF7)
J5PA7ввод-выводADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL (AF4), LPTIM2_CH2 (AF13), OCTOSPIM_P1_IO2 (AF10), OPAMP2_VINM, PWR_SRDSTOP (AF0), PWR_WKUP8, SPI1_MOSI (AF5), TIM17_CH1 (AF14), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART3_TX (AF7)
J6PG0ввод-выводADC4_IN7, FMC_A10 (AF12), OCTOSPIM_P2_IO4 (AF5), TSC_G8_IO3 (AF9)
J7PE9ввод-выводADF1_CCK0 (AF3), DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), MDF1_CCK0 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI1_FS_B (AF13), TIM1_CH1 (AF1)
J8PG3ввод-выводFMC_A13 (AF12), SAI2_FS_B (AF13), SPI1_MISO (AF5)
J9PG5ввод-выводFMC_A15 (AF12), LPUART1_CTS (AF8), SAI2_SD_B (AF13), SPI1_NSS (AF5)
J10PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LPTIM3_CH1 (AF14), TIM4_CH3 (AF2), USART6_CK (AF7)
J11PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LPTIM3_CH2 (AF14), TIM4_CH4 (AF2), USART6_DE (AF7), USART6_RTS (AF7)
J12VSSпитание—
J13VDDпитание—
K1PC3ввод-выводADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR (AF1), LPTIM2_ETR (AF14), LPTIM3_CH1 (AF2), OCTOSPIM_P1_IO6 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), SPI2_MOSI (AF5), USART6_TX (AF7)
K2VSSAпитание—
K3PA0ввод-выводADC1_IN5, ADC2_IN5, AUDIOCLK (AF13), OCTOSPIM_P2_NCS (AF10), OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD (AF12), SPI3_RDY (AF6), TAMP_IN2, TAMP_OUT1, TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7)
K4PA5ввод-выводADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR (AF14), PSSI_D14 (AF4), PWR_CSLEEP (AF0), PWR_WKUP6, SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM8_CH1N (AF3), USART3_RX (AF7)
K5PB0ввод-выводADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK (AF13), COMP1_OUT (AF12), LPTIM3_CH1 (AF4), OCTOSPIM_P1_IO1 (AF10), OPAMP2_VOUT, SPI1_NSS (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), USART3_CK (AF7)
K6PF12ввод-выводFMC_A6 (AF12), LPTIM4_ETR (AF13), OCTOSPIM_P2_DQS (AF5)
K7PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), MDF1_CKI2 (AF6), PWR_WKUP7, SAI1_SCK_B (AF13), TIM1_CH1N (AF1)
K8PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), OCTOSPIM_P1_IO2 (AF10), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1)
K9PB10ввод-выводCOMP1_OUT (AF12), I2C2_SCL (AF4), I2C4_SCL (AF3), LPTIM3_CH1 (AF2), LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), PWR_WKUP8, SAI1_SCK_A (AF13), SPI2_SCK (AF5), TIM2_CH3 (AF1), TSC_SYNC (AF9), USART3_TX (AF7)
K10PD12ввод-выводADC4_IN16, FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), LPTIM2_IN1 (AF14), SAI2_FS_A (AF13), TIM4_CH1 (AF2), TSC_G6_IO3 (AF9), USART3_DE (AF7), USART3_RTS (AF7)
K11PD10ввод-выводFMC_D15 (AF12), FMC_DA15 (AF12), I2C5_SMBA (AF4), LPTIM2_CH2 (AF2), LPTIM3_ETR (AF14), SAI2_SCK_A (AF13), TSC_G6_IO1 (AF9), USART3_CK (AF7)
K12PD13ввод-выводADC4_IN17, FMC_A18 (AF12), I2C4_SDA (AF4), LPTIM2_CH1 (AF14), LPTIM4_IN1 (AF13), TIM4_CH2 (AF2), TSC_G6_IO4 (AF9), USART6_CTS (AF7)
K13PG2ввод-выводFMC_A12 (AF12), SAI2_SCK_B (AF13), SPI1_SCK (AF5)
L1VREF+служебныйVREFBUF_OUT
L2VDDAпитание—
L3PA1ввод-выводADC1_IN6, ADC2_IN6, I2C1_SMBA (AF4), LPTIM1_CH2 (AF0), OCTOSPIM_P1_DQS (AF10), OPAMP1_VINM, PWR_WKUP3, SPI1_SCK (AF5), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF14), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
L4PC4ввод-выводADC1_IN13, ADC2_IN13, ADC4_IN22, COMP1_INM, I2C6_SMBA (AF2), OCTOSPIM_P1_IO7 (AF10), USART3_TX (AF7)
L5PB2ввод-выводADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA (AF4), LPTIM1_CH1 (AF1), MDF1_CKI0 (AF6), OCTOSPIM_P1_DQS (AF10), PWR_WKUP1, RTC_OUT2, SPI1_RDY (AF5), TIM8_CH4N (AF3), UCPD1_FRSTX1 (AF11)
L6PF14ввод-выводADC4_IN5, FMC_A8 (AF12), I2C4_SCL (AF4), TSC_G8_IO1 (AF9)
L7PE7ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), MDF1_SDI2 (AF6), PWR_WKUP6, SAI1_SD_B (AF13), TIM1_ETR (AF1)
L8PE13ввод-выводFMC_D10 (AF12), FMC_DA10 (AF12), MDF1_CKI5 (AF6), OCTOSPIM_P1_IO1 (AF10), SPI1_SCK (AF5), TIM1_CH3 (AF1), TSC_G5_IO4 (AF9)
L9PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, COMP2_OUT (AF12), I2C2_SDA (AF4), I2C4_SDA (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), SPI2_RDY (AF5), TIM2_CH4 (AF1), USART3_RX (AF7)
L10PB12ввод-выводI2C2_SMBA (AF4), I2C6_SMBA (AF2), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI1 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI2_FS_A (AF13), SPI2_NSS (AF5), TIM15_BKIN (AF14), TIM1_BKIN (AF1), TSC_G1_IO1 (AF9), USART3_CK (AF7)
L11PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_NBL1 (AF11), LPTIM2_IN2 (AF2), MDF1_CKI2 (AF6), PWR_WKUP7, RTC_REFIN (AF0), SAI2_SD_A (AF13), SDMMC2_D1 (AF12), SPI2_MOSI (AF5), TIM15_CH2 (AF14), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UCPD1_CC2
L12PD8ввод-выводDCMI_HSYNC (AF10), FMC_D13 (AF12), FMC_DA13 (AF12), PSSI_DE (AF10), USART3_TX (AF7)
L13PD9ввод-выводDAC1_EXTI9, DCMI_PIXCLK (AF10), FMC_D14 (AF12), FMC_DA14 (AF12), LPTIM2_IN2 (AF2), LPTIM3_IN1 (AF14), PSSI_PDCK (AF10), SAI2_MCLK_A (AF13), USART3_RX (AF7)
M1OPAMP1_VINMслужебныйOPAMP1_VINM
M2PA2ввод-выводADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), PWR_WKUP4, RCC_LSCO, SPI1_RDY (AF5), TIM15_CH1 (AF14), TIM2_CH3 (AF1), TIM5_CH3 (AF2), UCPD1_FRSTX1 (AF11), USART2_TX (AF7)
M3VSSпитание—
M4PC5ввод-выводADC1_IN14, ADC2_IN14, ADC4_IN23, COMP1_INP, PSSI_D15 (AF4), PWR_WKUP5, SAI1_D3 (AF3), TAMP_IN4, TAMP_OUT5, TIM1_CH4N (AF1), USART3_RX (AF7)
M5PF11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D12 (AF10), LPTIM4_IN1 (AF13), OCTOSPIM_P1_NCLK (AF3), PSSI_D12 (AF10)
M6PF13ввод-выводFMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM4_OUT (AF13), UCPD1_FRSTX2 (AF11)
M7VSSпитание—
M8PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D8 (AF12), FMC_DA8 (AF12), MDF1_CKI4 (AF6), OCTOSPIM_P1_NCS (AF10), SPI1_RDY (AF5), TIM1_CH2 (AF1), TSC_G5_IO2 (AF9)
M9PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), OCTOSPIM_P1_IO3 (AF10), SPI1_MOSI (AF5), TIM1_BKIN (AF1), TIM1_CH4N (AF3)
M10VSSSMPSпитание—
M11VSSпитание—
M12PB14ввод-выводI2C2_SDA (AF4), LPTIM3_ETR (AF2), MDF1_SDI2 (AF6), SAI2_MCLK_A (AF13), SDMMC2_D0 (AF12), SPI2_MISO (AF5), TIM15_CH1 (AF14), TIM1_CH2N (AF1), TIM8_CH2N (AF3), TSC_G1_IO3 (AF9), UCPD1_DBCC2, USART3_DE (AF7), USART3_RTS (AF7)
M13PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_ETR (AF14), SAI2_SD_A (AF13), TSC_G6_IO2 (AF9), USART3_CTS (AF7)
N1PA4ввод-выводADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC (AF10), LPTIM2_CH1 (AF14), OCTOSPIM_P1_NCS (AF3), PSSI_DE (AF10), PWR_WKUP2, SAI1_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), USART2_CK (AF7)
N2PA3ввод-выводADC1_IN8, ADC2_IN8, LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM15_CH2 (AF14), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
N3VDDпитание—
N4PA6ввод-выводADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK (AF4), LPUART1_CTS (AF8), OCTOSPIM_P1_IO3 (AF10), OPAMP2_VINP, PSSI_PDCK (AF4), PWR_CDSTOP (AF0), PWR_WKUP7, SPI1_MISO (AF5), TIM16_CH1 (AF14), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART3_CTS (AF7)
N5PB1ввод-выводADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1 (AF14), LPTIM3_CH2 (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI0 (AF6), OCTOSPIM_P1_IO0 (AF10), PWR_WKUP4, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USART3_DE (AF7), USART3_RTS (AF7)
N6PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, ADC4_IN6, FMC_A9 (AF12), I2C4_SDA (AF4), TSC_G8_IO2 (AF9)
N7VDDпитание—
N8PE12ввод-выводFMC_D9 (AF12), FMC_DA9 (AF12), MDF1_SDI5 (AF6), OCTOSPIM_P1_IO0 (AF10), SPI1_NSS (AF5), TIM1_CH3N (AF1), TSC_G5_IO3 (AF9)
N9VLXSMPSпитание—
N10VDDSMPSпитание—
N11VDD11питание—
N12VDDпитание—
N13PB13ввод-выводI2C2_SCL (AF4), LPTIM3_IN1 (AF2), LPUART1_CTS (AF8), MDF1_CKI1 (AF6), SAI2_SCK_A (AF13), SPI2_SCK (AF5), TIM15_CH1N (AF14), TIM1_CH1N (AF1), TSC_G1_IO2 (AF9), USART3_CTS (AF7)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATC1резервное питание: часы реального времени и резервные регистры
VDDA3, A8, A11, B1, D13, G1, J13, N3, N7, N12питание цифровой части и линий ввода-вывода
VDD11A4, N11—
VDDAL2питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2A6, H12питание отдельной группы линий ввода-вывода
VDDSMPSN10—
VDDUSBE13питание приёмопередатчика USB
VLXSMPSN9—
VSSB2, B4, B8, B11, E12, F2, H2, J12, M3, M7, M11общий провод (земля)
VSSAK2общий провод аналоговой части
VSSSMPSM10—
NRSTH3сброс, активный уровень — низкий
OPAMP1_VINMM1—
OPAMP2_VINMH5—
VREF+L1верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32U595AIHxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32U595AISTM32U595AIHxQ2 МБ2514 КБ

Линейка STM32U5x5, семейство STM32U5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе TFBGA169, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32U5A5AJHxQSTM32U5x5169 из 169выводы совпадают полностьютолько у него: AES, PKA; флеш-память до 2048 и 4096 КБ
STM32U595AJHxQSTM32U5x5169 из 169выводы совпадают полностьюфлеш-память до 2048 и 4096 КБ
STM32U5A5AJHxSTM32U5x5164 из 169A4: VDD11 → VCAP; M10: VSSSMPS → PG11; N9: VLXSMPS → PG14; N10: VDDSMPS → PG13; N11: VDD11 → VCAPтолько у него: AES, PKA; флеш-память до 2048 и 4096 КБ
STM32U595AIHxSTM32U5x5164 из 169A4: VDD11 → VCAP; M10: VSSSMPS → PG11; N9: VLXSMPS → PG14; N10: VDDSMPS → PG13; N11: VDD11 → VCAP
STM32U595AJHxSTM32U5x5164 из 169A4: VDD11 → VCAP; M10: VSSSMPS → PG11; N9: VLXSMPS → PG14; N10: VDDSMPS → PG13; N11: VDD11 → VCAPфлеш-память до 2048 и 4096 КБ

Частые вопросы

На каких выводах USART1 у STM32U595AIHxQ?

В корпусе TFBGA169 сигнал USART1_TX выведен на PG9 (шарик A7, AF7) или PB6 (шарик B5, AF7) или PA9 (шарик G11, AF7), USART1_RX — на PG10 (шарик C7, AF7) или PB7 (шарик F5, AF7) или PA10 (шарик F11, AF7).

Где у STM32U595AIHxQ выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик F12, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик C10, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32U595AIHxQ?

I2C1_SCL — PB6 (шарик B5, AF4) или PB8 (шарик E5, AF4), I2C1_SDA — PB9 (шарик D5, AF4) или PB3 (JTDO/TRACESWO) (шарик D6, AF4) или PB7 (шарик F5, AF4).

Сколько выводов ввода-вывода у STM32U595AIHxQ в корпусе TFBGA169?

133 из 169. Ещё 32 вывода заняты питанием и землёй, остальные 4 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
