STM32U599NJ в корпусе TFBGA216: распиновка

STM32U599NJ — микроконтроллер STM32U5 на ядре Cortex-M33 с частотой до 160 МГц: 4 МБ флеш-памяти и 2514 КБ ОЗУ. Корпус TFBGA216 — 216 шариков, из них 156 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Частота ядра
до 160 МГц
Флеш-память
4 МБ
ОЗУ
2514 КБ
Корпус
TFBGA216, 216 шариков
Линий ввода-вывода
156
Напряжение питания
1,71…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса TFBGA216

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32U599NJ в корпусе TFBGA216, вид сверхуABCDEFGHJKLMNPR123456789101112131415VSS — шарик A1VSSPE0 — шарик A2: DCMI_D2, FMC_NBL0, LTDC_HSYNC, PSSI_D2, TIM16_CH1, TIM4_ETR, USART6_RXPE0PB7 — шарик A3: COMP2_INM, DCMI_VSYNC, FMC_NL, I2C1_SDA, I2C4_SDA, LPTIM1_IN2, MDF1_CKI5, PSSI_RDY, PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N, TIM4_CH2, TIM8_BKIN, TSC_G2_IO4, UART4_CTS, USART1_RXPB7PB6 — шарик A4: COMP2_INP, DCMI_D5, I2C1_SCL, I2C4_SCL, LPTIM1_ETR, MDF1_SDI5, PSSI_D5, PWR_WKUP3, SAI1_FS_B, TIM16_CH1N, TIM4_CH1, TIM8_BKIN2, TSC_G2_IO3, USART1_TXPB6PG15 — шарик A5: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13, I2C1_SMBA, LPTIM1_CH1, OCTOSPIM_P2_DQS, PSSI_D13PG15PG12 — шарик A6: FMC_NE4, LPTIM1_ETR, OCTOSPIM_P2_NCS, SAI2_SD_A, SPI3_NSS, USART1_DE, USART1_RTSPG12PG9 — шарик A7: DAC1_EXTI9, FMC_NCE, FMC_NE2, OCTOSPIM_P2_IO6, SAI2_SCK_A, SPI3_SCK, TIM15_CH1N, USART1_TXPG9PD4 — шарик A8: FMC_NOE, MDF1_CKI0, OCTOSPIM_P1_IO4, SPI2_MOSI, USART2_DE, USART2_RTSPD4PD3 — шарик A9: DCMI_D5, FMC_CLK, I2C6_SMBA, LTDC_CLK, MDF1_SDI0, OCTOSPIM_P2_NCS, PSSI_D5, SPI2_MISO, SPI2_SCK, USART2_CTSPD3PC10 — шарик A10: ADF1_CCK1, DCMI_D8, DEBUG_TRACED1, LPTIM3_ETR, PSSI_D8, SAI2_SCK_B, SDMMC1_D2, SPI3_SCK, TSC_G3_IO2, UART4_TX, USART3_TXPC10PA15 (JTDI) — шарик A11: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI, SAI2_FS_B, SPI1_NSS, SPI3_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UCPD1_CC1, USART2_RX, USART3_DE, USART3_RTSPA15PA14 (JTCK/SWCLK) — шарик A12: DEBUG_JTCK-SWCLK, I2C1_SMBA, I2C4_SMBA, LPTIM1_CH1, SAI1_FS_B, USB_OTG_HS_SOFPA14PA8 — шарик A13: DEBUG_TRACECLK, LPTIM2_CH1, RCC_MCO, SAI1_CK2, SAI1_SCK_A, SPI1_RDY, TIM1_CH1, USART1_CK, USB_OTG_HS_SOFPA8PC8 — шарик A14: DCMI_D2, LPTIM3_CH1, PSSI_D2, PWR_SRDSTOP, SDMMC1_D0, TIM3_CH3, TIM8_CH3, TSC_G4_IO3, USART6_RXPC8VSS — шарик A15VSSPC14-OSC32_IN — шарик B1: RCC_OSC32_INPC14PE4 — шарик B2: DCMI_D4, DEBUG_TRACED1, FMC_A20, LTDC_B0, MDF1_SDI3, PSSI_D4, PWR_WKUP1, SAI1_D2, SAI1_FS_A, TAMP_IN7, TAMP_OUT8, TIM3_CH2, TSC_G7_IO3, USART6_DE, USART6_RTSPE4PE1 — шарик B3: DCMI_D3, FMC_NBL1, LTDC_VSYNC, PSSI_D3, TIM17_CH1, USART6_TXPE1PH3-BOOT0 — шарик B4PH3PB5 — шарик B5: COMP2_OUT, DCMI_D10, I2C1_SMBA, LPTIM1_IN1, OCTOSPIM_P1_NCLK, PSSI_D10, PWR_WKUP6, SAI1_SD_B, SPI1_MOSI, SPI3_MOSI, TIM16_BKIN, TIM3_CH2, TSC_G2_IO2, UART5_CTS, UCPD1_DBCC1, USART1_CKPB5PG13 — шарик B6: FMC_A24, I2C1_SDA, LTDC_R0, SPI3_RDY, USART1_CKPG13PG10 — шарик B7: FMC_NE3, LPTIM1_IN1, OCTOSPIM_P2_IO7, SAI2_FS_A, SPI3_MISO, TIM15_CH1, USART1_RXPG10PD5 — шарик B8: FMC_NWE, OCTOSPIM_P1_IO5, SPI2_RDY, USART2_TXPD5PD2 — шарик B9: DCMI_D11, DEBUG_TRACED2, I2C5_SMBA, LPTIM4_ETR, PSSI_D11, SDMMC1_CMD, TIM3_ETR, TSC_SYNC, UART5_RX, USART3_DE, USART3_RTSPD2PC11 — шарик B10: ADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0, DCMI_D2, DCMI_D4, LPTIM3_IN1, OCTOSPIM_P1_NCS, PSSI_D2, PSSI_D4, SAI2_MCLK_B, SDMMC1_D3, SPI3_MISO, TSC_G3_IO3, UART4_RX, UCPD1_FRSTX2, USART3_RXPC11PH7 — шарик B11: DCMI_D9, I2C3_SCL, OCTOSPIM_P2_NCLK, PSSI_D9PH7PH5 — шарик B12: DCMI_PIXCLK, I2C2_SDA, I2C5_SCL, PSSI_PDCKPH5PA12 — шарик B13: FDCAN1_TX, OCTOSPIM_P2_NCS, SPI1_MOSI, TIM1_ETR, USART1_DE, USART1_RTS, USB_OTG_HS_DPPA12PA11 — шарик B14: ADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX, SPI1_MISO, TIM1_BKIN2, TIM1_CH4, USART1_CTS, USB_OTG_HS_DMPA11PC7 — шарик B15: DCMI_D1, LPTIM2_CH2, LTDC_R1, MDF1_SDI3, PSSI_D1, PWR_CDSTOP, SAI2_MCLK_B, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, TSC_G4_IO2PC7PC15-OSC32_OUT — шарик C1: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUTPC15VBAT — шарик C2VBATPE3 — шарик C3: DEBUG_TRACED0, FMC_A19, LTDC_R1, OCTOSPIM_P1_DQS, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM3_CH1, TSC_G7_IO2, USART6_CTSPE3PI5 — шарик C4: DCMI_VSYNC, OCTOSPIM_P2_NCS, PSSI_RDY, TIM8_CH1PI5PB9 — шарик C5: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, IR_OUT, PSSI_D7, SAI1_D2, SAI1_FS_A, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4PB9PB8 — шарик C6: DCMI_D6, FDCAN1_RX, I2C1_SCL, LTDC_B1, MDF1_CCK0, PSSI_D6, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI3_RDY, TIM16_CH1, TIM4_CH3PB8PG11 — шарик C7: ADC1_EXTI11, ADC2_EXTI11, LPTIM1_IN2, OCTOSPIM_P1_IO5, SAI2_MCLK_A, SPI3_MOSI, TIM15_CH2, USART1_CTSPG11PD6 — шарик C8: DCMI_D10, FMC_NWAIT, LTDC_DE, MDF1_SDI1, OCTOSPIM_P1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PD1 — шарик C9: FDCAN1_TX, FMC_D3, FMC_DA3, I2C5_SCL, I2C6_SCL, LTDC_B5, SPI2_SCKPD1PC12 — шарик C10: DCMI_D9, DEBUG_TRACED3, PSSI_D9, SAI2_SD_B, SDMMC1_CK, SPI3_MOSI, TSC_G3_IO4, UART5_TX, USART3_CKPC12PH6 — шарик C11: DCMI_D8, I2C2_SMBA, I2C5_SMBA, OCTOSPIM_P2_CLK, PSSI_D8PH6PH4 — шарик C12: I2C2_SCL, I2C5_SDA, OCTOSPIM_P2_DQS, PSSI_D14PH4PA13 (JTMS/SWDIO) — шарик C13: DEBUG_JTMS-SWDIO, IR_OUT, SAI1_SD_BPA13PC9 — шарик C14: DAC1_EXTI9, DCMI_D3, DEBUG_TRACED0, LPTIM3_CH2, PSSI_D3, SDMMC1_D1, TIM3_CH4, TIM8_BKIN2, TIM8_CH4, TSC_G4_IO4, USART6_TXPC9PC6 — шарик C15: DCMI_D0, LTDC_R0, MDF1_CKI3, PSSI_D0, PWR_CSLEEP, SAI2_MCLK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, TSC_G4_IO1PC6PJ3 — шарик D1: USART6_TXPJ3PJ2 — шарик D2: I2C5_SCLPJ2PE5 — шарик D3: DCMI_D6, DEBUG_TRACED2, FMC_A21, LTDC_G0, MDF1_CKI3, PSSI_D6, PWR_WKUP2, SAI1_CK2, SAI1_SCK_A, TAMP_IN8, TAMP_OUT7, TIM3_CH3, TSC_G7_IO4PE5PI7 — шарик D4: DCMI_D7, OCTOSPIM_P2_NCLK, PSSI_D7, TIM8_CH3PI7PI6 — шарик D5: DCMI_D6, OCTOSPIM_P2_CLK, PSSI_D6, TIM8_CH2PI6PB4 (NJTRST) — шарик D6: ADF1_SDI0, COMP2_INP, DCMI_D12, DEBUG_NJTRST, I2C3_SDA, LPTIM1_CH2, PSSI_D12, SAI1_MCLK_B, SDMMC2_D3, SPI1_MISO, SPI3_MISO, TIM17_BKIN, TIM3_CH1, TSC_G2_IO1, UART5_DE, UART5_RTS, USART1_CTSPB4PG14 — шарик D7: FMC_A25, I2C1_SCL, LPTIM1_CH2, LTDC_R1PG14PD7 — шарик D8: FMC_NCE, FMC_NE1, LPTIM4_OUT, MDF1_CKI1, OCTOSPIM_P1_IO7, SDMMC2_CMD, USART2_CKPD7PD0 — шарик D9: FDCAN1_RX, FMC_D2, FMC_DA2, I2C5_SDA, I2C6_SDA, LTDC_B4, SPI2_NSS, TIM8_CH4NPD0PH8 — шарик D10: DCMI_HSYNC, I2C3_SDA, OCTOSPIM_P2_IO3, PSSI_DEPH8PH2 — шарик D11: OCTOSPIM_P1_IO4PH2PA10 — шарик D12: CRS_SYNC, DCMI_D1, LPTIM2_IN2, PSSI_D1, SAI1_D1, SAI1_SD_A, TIM17_BKIN, TIM1_CH3, USART1_RX, USB_OTG_HS_IDPA10PG7 — шарик D13: FMC_INT, I2C3_SCL, LPUART1_TX, MDF1_CCK0, OCTOSPIM_P2_DQS, SAI1_CK1, SAI1_MCLK_A, UCPD1_FRSTX2PG7PG6 — шарик D14: I2C3_SMBA, LPUART1_DE, LPUART1_RTS, LTDC_R1, OCTOSPIM_P1_DQS, SPI1_RDY, UCPD1_FRSTX1PG6PG3 — шарик D15: FMC_A13, SAI2_FS_B, SPI1_MISOPG3PJ7 — шарик E1: USART6_CTSPJ7PJ6 — шарик E2: USART6_CKPJ6PJ4 — шарик E3: USART6_RXPJ4PE6 — шарик E4: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, PSSI_D7, PWR_WKUP3, SAI1_D1, SAI1_SD_A, TAMP_IN3, TAMP_OUT6, TIM3_CH4PE6PE2 — шарик E5: DEBUG_TRACECLK, FMC_A23, LTDC_R0, SAI1_CK1, SAI1_MCLK_A, TIM3_ETR, TSC_G7_IO1, USART6_CKPE2VDD11 — шарик E6VDD11PB3 (JTDO/TRACESWO) — шарик E7: ADF1_CCK0, COMP2_INM, CRS_SYNC, DEBUG_JTDO-SWO, I2C1_SDA, LPTIM1_CH1, SAI1_SCK_B, SDMMC2_D2, SPI1_SCK, SPI3_SCK, TIM2_CH2, USART1_DE, USART1_RTSPB3VDDIO2 — шарик E8VDDIO2VDDUSB — шарик E9VDDUSBVSS — шарик E10VSSVDD11 — шарик E11VDD11PA9 — шарик E12: DAC1_EXTI9, DCMI_D0, PSSI_D0, SAI1_FS_A, SPI2_SCK, TIM15_BKIN, TIM1_CH2, USART1_TX, USB_OTG_HS_VBUSPA9PG8 — шарик E13: I2C3_SDA, LPUART1_RXPG8PG5 — шарик E14: DSIHOST_TE, FMC_A15, LPUART1_CTS, SAI2_SD_B, SPI1_NSSPG5PJ0 — шарик E15: HSPI1_IO15, I2C5_SMBAPJ0PJ10 — шарик F1: I2C6_SCLPJ10PJ8 — шарик F2: I2C6_SMBAPJ8PJ5 — шарик F3: USART6_DE, USART6_RTSPJ5PC13 — шарик F4: PWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2PC13VDD — шарик F5VDDVSS — шарик F6VSSVSS — шарик F7VSSVDD — шарик F8VDDVSS — шарик F9VSSVSS — шарик F10VSSVDD11USB — шарик F11VDD11USBPG4 — шарик F12: FMC_A14, SAI2_MCLK_B, SPI1_MOSIPG4PI15 — шарик F13: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, HSPI1_IO14PI15PI14 — шарик F14: HSPI1_IO13PI14PI13 — шарик F15: HSPI1_IO12PI13DSI_D0P — шарик G1: DSIHOST_D0PDSID0PDSI_D0N — шарик G2: DSIHOST_D0NDSID0NPJ11 — шарик G3: ADC1_EXTI11, ADC2_EXTI11PJ11PJ1 — шарик G4: I2C5_SDAPJ1VDDDSI — шарик G5VDDDSIVSSDSI — шарик G6VSSDSIVSS — шарик G10VSSVDDIO2 — шарик G11VDDIO2PG2 — шарик G12: FMC_A12, SAI2_SCK_B, SPI1_SCKPG2PI12 — шарик G13: HSPI1_IO11PI12PI11 — шарик G14: ADC1_EXTI11, ADC2_EXTI11, HSPI1_IO10PI11PI10 — шарик G15: HSPI1_IO9PI10DSI_CKP — шарик H1: DSIHOST_CKPDSICKPVSSDSI — шарик H2VSSDSIPF0 — шарик H3: FMC_A0, I2C2_SDA, I2C6_SDA, OCTOSPIM_P2_IO0, USART6_TXPF0PJ9 — шарик H4: DAC1_EXTI9, I2C6_SDAPJ9VDD11DSI — шарик H5VDD11DSIVSSDSI — шарик H6VSSDSIVSS — шарик H10VSSVDD — шарик H11VDDPI9 — шарик H12: DAC1_EXTI9, HSPI1_IO8PI9PI8 — шарик H13: HSPI1_DQS1PI8PI4 — шарик H14: DCMI_D5, HSPI1_NCLK, PSSI_D5, SPI2_RDY, TIM8_BKINPI4VSS — шарик H15VSSDSI_CKN — шарик J1: DSIHOST_CKNDSICKNVSSDSI — шарик J2VSSDSIPF2 — шарик J3: FMC_A2, I2C2_SMBA, LPTIM3_CH2, OCTOSPIM_P2_IO2, PWR_WKUP8, USART6_CKPF2PF1 — шарик J4: FMC_A1, I2C2_SCL, I2C6_SCL, OCTOSPIM_P2_IO1, USART6_RXPF1VDD — шарик J5VDDVSS — шарик J6VSSVSS — шарик J10VSSVDD — шарик J11VDDPI1 — шарик J12: DCMI_D8, HSPI1_IO7, OCTOSPIM_P2_IO2, PSSI_D8, SPI2_SCKPI1PI2 — шарик J13: DCMI_D9, HSPI1_DQS0, OCTOSPIM_P2_IO1, PSSI_D9, SPI2_MISO, TIM8_CH4PI2PI3 — шарик J14: DCMI_D10, HSPI1_CLK, OCTOSPIM_P2_IO0, PSSI_D10, SPI2_MOSI, TIM8_ETRPI3VSS — шарик J15VSSDSI_D1N — шарик K1: DSIHOST_D1NDSID1NDSI_D1P — шарик K2: DSIHOST_D1PDSID1PPF4 — шарик K3: ADF1_SDI0, FMC_A4, LPTIM3_ETR, MDF1_SDI0, OCTOSPIM_P2_CLK, UART5_RX, USART6_DE, USART6_RTSPF4PF3 — шарик K4: ADF1_CCK0, FMC_A3, LPTIM3_IN1, MDF1_CCK0, OCTOSPIM_P2_IO3, UART5_TX, USART6_CTSPF3VREF- — шарик K5VREF-VSSA — шарик K6VSSAVSS — шарик K7VSSVSS — шарик K8VSSVSS — шарик K9VSSVSS — шарик K10VSSVDD — шарик K11VDDPD15 — шарик K12: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1, FMC_DA1, LPTIM3_CH2, LTDC_B3, TIM4_CH4, USART6_DE, USART6_RTSPD15PH14 — шарик K13: DCMI_D4, FDCAN1_RX, HSPI1_IO4, PSSI_D4, TIM8_CH2NPH14PH15 — шарик K14: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D11, HSPI1_IO5, OCTOSPIM_P2_IO6, PSSI_D11, TIM8_CH3NPH15PI0 — шарик K15: DCMI_D13, HSPI1_IO6, OCTOSPIM_P1_IO5, PSSI_D13, SPI2_NSS, TIM5_CH4PI0PF10 — шарик L1: DCMI_D11, DSIHOST_TE, MDF1_CCK1, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM15_CH2PF10PF5 — шарик L2: FMC_A5, LPTIM3_CH1, MDF1_CKI0, OCTOSPIM_P2_NCLKPF5PF7 — шарик L3: FDCAN1_RX, OCTOSPIM_P1_IO2, SAI1_MCLK_B, TIM5_CH2PF7PF9 — шарик L4: DAC1_EXTI9, OCTOSPIM_P1_IO1, PSSI_D15, SAI1_FS_B, TIM15_CH1, TIM5_CH4PF9VREF+ — шарик L5: VREFBUF_OUTVREF+VDDA — шарик L6VDDAVDD — шарик L7VDDVDD — шарик L8VDDVDD — шарик L9VDDVSS — шарик L10VSSVDD — шарик L11VDDPD11 — шарик L12: ADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_ETR, LTDC_R6, SAI2_SD_A, TSC_G6_IO2, USART3_CTSPD11PH10 — шарик L13: DCMI_D1, HSPI1_IO0, OCTOSPIM_P2_IO5, PSSI_D1, TIM5_CH1PH10PH11 — шарик L14: ADC1_EXTI11, ADC2_EXTI11, DCMI_D2, HSPI1_IO1, OCTOSPIM_P2_IO6, PSSI_D2, TIM5_CH2PH11PH13 — шарик L15: FDCAN1_TX, HSPI1_IO3, TIM8_CH1NPH13PC1 — шарик M1: ADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0, I2C3_SDA, LPTIM1_CH1, LPUART1_TX, MDF1_CKI4, OCTOSPIM_P1_IO4, SAI1_SD_A, SDMMC2_CK, SPI2_MOSI, USART6_CKPC1PF6 — шарик M2: DCMI_D12, OCTOSPIM_P1_IO3, OCTOSPIM_P2_NCS, PSSI_D12, SAI1_SD_B, TIM5_CH1, TIM5_ETRPF6PF8 — шарик M3: FDCAN1_TX, OCTOSPIM_P1_IO0, PSSI_D14, SAI1_SCK_B, TIM5_CH3PF8PA2 — шарик M4: ADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX, OCTOSPIM_P1_NCS, PWR_WKUP4, RCC_LSCO, SPI1_RDY, TIM15_CH1, TIM2_CH3, TIM5_CH3, UCPD1_FRSTX1, USART2_TXPA2PA4 — шарик M5: ADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC, LPTIM2_CH1, OCTOSPIM_P1_NCS, PSSI_DE, PWR_WKUP2, SAI1_FS_B, SPI1_NSS, SPI3_NSS, USART2_CKPA4PB1 — шарик M6: ADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1, LPTIM3_CH2, LPUART1_DE, LPUART1_RTS, MDF1_SDI0, OCTOSPIM_P1_IO0, PWR_WKUP4, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USART3_DE, USART3_RTSPB1PF13 — шарик M7: FMC_A7, I2C4_SMBA, LPTIM4_OUT, LTDC_B1, UCPD1_FRSTX2PF13PE8 — шарик M8: FMC_D5, FMC_DA5, LTDC_B7, MDF1_CKI2, PWR_WKUP7, SAI1_SCK_B, TIM1_CH1NPE8PE13 — шарик M9: FMC_D10, FMC_DA10, LTDC_G6, MDF1_CKI5, OCTOSPIM_P1_IO1, SPI1_SCK, TIM1_CH3, TSC_G5_IO4PE13PB11 — шарик M10: ADC1_EXTI11, ADC2_EXTI11, COMP2_OUT, I2C2_SDA, I2C4_SDA, LPUART1_TX, OCTOSPIM_P1_NCS, SPI2_RDY, TIM2_CH4, USART3_RXPB11PB12 — шарик M11: I2C2_SMBA, I2C6_SMBA, LPUART1_DE, LPUART1_RTS, MDF1_SDI1, OCTOSPIM_P1_NCLK, SAI2_FS_A, SPI2_NSS, TIM15_BKIN, TIM1_BKIN, TSC_G1_IO1, USART3_CKPB12PB13 — шарик M12: I2C2_SCL, LPTIM3_IN1, LPUART1_CTS, MDF1_CKI1, SAI2_SCK_A, SPI2_SCK, TIM15_CH1N, TIM1_CH1N, TSC_G1_IO2, USART3_CTSPB13PD12 — шарик M13: ADC4_IN16, FMC_A17, FMC_ALE, I2C4_SCL, LPTIM2_IN1, LTDC_R7, SAI2_FS_A, TIM4_CH1, TSC_G6_IO3, USART3_DE, USART3_RTSPD12PH9 — шарик M14: DAC1_EXTI9, DCMI_D0, HSPI1_NCS, I2C3_SMBA, OCTOSPIM_P2_IO4, PSSI_D0PH9PH12 — шарик M15: DCMI_D3, HSPI1_IO2, OCTOSPIM_P2_IO7, PSSI_D3, TIM5_CH3, TIM8_CH4NPH12PH0-OSC_IN — шарик N1: RCC_OSC_INPH0PH1-OSC_OUT — шарик N2: RCC_OSC_OUTPH1PC3 — шарик N3: ADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR, LPTIM2_ETR, LPTIM3_CH1, OCTOSPIM_P1_IO6, SAI1_D1, SAI1_SD_A, SPI2_MOSI, USART6_TXPC3PA0 — шарик N4: ADC1_IN5, ADC2_IN5, AUDIOCLK, OCTOSPIM_P2_NCS, OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD, SPI3_RDY, TAMP_IN2, TAMP_OUT1, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTSPA0OPAMP2_VINM — шарик N5: OPAMP2_VINMOPAMP2VINMPB0 — шарик N6: ADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK, COMP1_OUT, LPTIM3_CH1, OCTOSPIM_P1_IO1, OPAMP2_VOUT, SPI1_NSS, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, USART3_CKPB0PF12 — шарик N7: FMC_A6, LPTIM4_ETR, LTDC_B0, OCTOSPIM_P2_DQSPF12PG1 — шарик N8: ADC4_IN8, FMC_A11, OCTOSPIM_P2_IO5, TSC_G8_IO4PG1PE7 — шарик N9: FMC_D4, FMC_DA4, LTDC_B6, MDF1_SDI2, PWR_WKUP6, SAI1_SD_B, TIM1_ETRPE7PE15 — шарик N10: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12, FMC_DA12, LTDC_R2, OCTOSPIM_P1_IO3, SPI1_MOSI, TIM1_BKIN, TIM1_CH4NPE15PE12 — шарик N11: FMC_D9, FMC_DA9, LTDC_G5, MDF1_SDI5, OCTOSPIM_P1_IO0, SPI1_NSS, TIM1_CH3N, TSC_G5_IO3PE12PB10 — шарик N12: COMP1_OUT, I2C2_SCL, I2C4_SCL, LPTIM3_CH1, LPUART1_RX, OCTOSPIM_P1_CLK, PWR_WKUP8, SAI1_SCK_A, SPI2_SCK, TIM2_CH3, TSC_SYNC, USART3_TXPB10PD8 — шарик N13: DCMI_HSYNC, FMC_D13, FMC_DA13, LTDC_R3, PSSI_DE, USART3_TXPD8PD13 — шарик N14: ADC4_IN17, FMC_A18, I2C4_SDA, LPTIM2_CH1, LPTIM4_IN1, LTDC_VSYNC, TIM4_CH2, TSC_G6_IO4, USART6_CTSPD13PD14 — шарик N15: FMC_D0, FMC_DA0, LPTIM3_CH1, LTDC_B2, TIM4_CH3, USART6_CKPD14PC2 — шарик P1: ADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2, MDF1_CCK1, OCTOSPIM_P1_IO5, SPI2_MISO, USART6_RXPC2PC0 — шарик P2: ADC1_IN1, ADC2_IN1, ADC4_IN1, I2C3_SCL, LPTIM1_IN1, LPTIM2_IN1, LPUART1_RX, MDF1_SDI4, OCTOSPIM_P1_IO7, SAI2_FS_A, SDMMC1_D5, SPI2_RDY, USART6_CTSPC0PA1 — шарик P3: ADC1_IN6, ADC2_IN6, I2C1_SMBA, LPTIM1_CH2, OCTOSPIM_P1_DQS, OPAMP1_VINM, PWR_WKUP3, SPI1_SCK, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PA3 — шарик P4: ADC1_IN8, ADC2_IN8, LPUART1_RX, OCTOSPIM_P1_CLK, OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3PA6 — шарик P5: ADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK, LPUART1_CTS, OCTOSPIM_P1_IO3, OPAMP2_VINP, PSSI_PDCK, PWR_CDSTOP, PWR_WKUP7, SPI1_MISO, TIM16_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART3_CTSPA6PC5 — шарик P6: ADC1_IN14, ADC2_IN14, ADC4_IN23, COMP1_INP, PSSI_D15, PWR_WKUP5, SAI1_D3, TAMP_IN4, TAMP_OUT5, TIM1_CH4N, USART3_RXPC5PF11 — шарик P7: ADC1_EXTI11, ADC2_EXTI11, DCMI_D12, DSIHOST_TE, LPTIM4_IN1, LTDC_DE, OCTOSPIM_P1_NCLK, PSSI_D12PF11PF15 — шарик P8: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, ADC4_IN6, FMC_A9, I2C4_SDA, LTDC_G1, TSC_G8_IO2PF15PE9 — шарик P9: ADF1_CCK0, DAC1_EXTI9, FMC_D6, FMC_DA6, LTDC_G2, MDF1_CCK0, OCTOSPIM_P1_NCLK, SAI1_FS_B, TIM1_CH1PE9PE10 — шарик P10: ADF1_SDI0, FMC_D7, FMC_DA7, LTDC_G3, MDF1_SDI4, OCTOSPIM_P1_CLK, SAI1_MCLK_B, TIM1_CH2N, TSC_G5_IO1PE10PE11 — шарик P11: ADC1_EXTI11, ADC2_EXTI11, FMC_D8, FMC_DA8, LTDC_G4, MDF1_CKI4, OCTOSPIM_P1_NCS, SPI1_RDY, TIM1_CH2, TSC_G5_IO2PE11VSSSMPS — шарик P12VSSSMPSPB14 — шарик P13: I2C2_SDA, LPTIM3_ETR, MDF1_SDI2, SAI2_MCLK_A, SDMMC2_D0, SPI2_MISO, TIM15_CH1, TIM1_CH2N, TIM8_CH2N, TSC_G1_IO3, UCPD1_DBCC2, USART3_DE, USART3_RTSPB14PD10 — шарик P14: FMC_D15, FMC_DA15, I2C5_SMBA, LPTIM2_CH2, LPTIM3_ETR, LTDC_R5, SAI2_SCK_A, TSC_G6_IO1, USART3_CKPD10PD9 — шарик P15: DAC1_EXTI9, DCMI_PIXCLK, FMC_D14, FMC_DA14, LPTIM2_IN2, LPTIM3_IN1, LTDC_R4, PSSI_PDCK, SAI2_MCLK_A, USART3_RXPD9VSS — шарик R1VSSNRST — шарик R2NRSTOPAMP1_VINM — шарик R3: OPAMP1_VINMOPAMP1VINMPA5 — шарик R4: ADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR, PSSI_D14, PWR_CSLEEP, PWR_WKUP6, SPI1_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USART3_RXPA5PA7 — шарик R5: ADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL, LPTIM2_CH2, OCTOSPIM_P1_IO2, OPAMP2_VINM, PWR_SRDSTOP, PWR_WKUP8, SPI1_MOSI, TIM17_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART3_TXPA7PC4 — шарик R6: ADC1_IN13, ADC2_IN13, ADC4_IN22, COMP1_INM, I2C6_SMBA, OCTOSPIM_P1_IO7, USART3_TXPC4PB2 — шарик R7: ADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA, LPTIM1_CH1, LTDC_B1, MDF1_CKI0, OCTOSPIM_P1_DQS, PWR_WKUP1, RTC_OUT2, SPI1_RDY, TIM8_CH4N, UCPD1_FRSTX1PB2PF14 — шарик R8: ADC4_IN5, FMC_A8, I2C4_SCL, LTDC_G0, TSC_G8_IO1PF14PG0 — шарик R9: ADC4_IN7, FMC_A10, OCTOSPIM_P2_IO4, TSC_G8_IO3PG0PE14 — шарик R10: FMC_D11, FMC_DA11, LTDC_G7, OCTOSPIM_P1_IO2, SPI1_MISO, TIM1_BKIN2, TIM1_CH4PE14VLXSMPS — шарик R11VLXSMPSVDDSMPS — шарик R12VDDSMPSVDD11 — шарик R13VDD11PB15 — шарик R14: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_NBL1, LPTIM2_IN2, MDF1_CKI2, PWR_WKUP7, RTC_REFIN, SAI2_SD_A, SDMMC2_D1, SPI2_MOSI, TIM15_CH2, TIM1_CH3N, TIM8_CH3N, UCPD1_CC2PB15VSS — шарик R15VSSTFBGA216, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

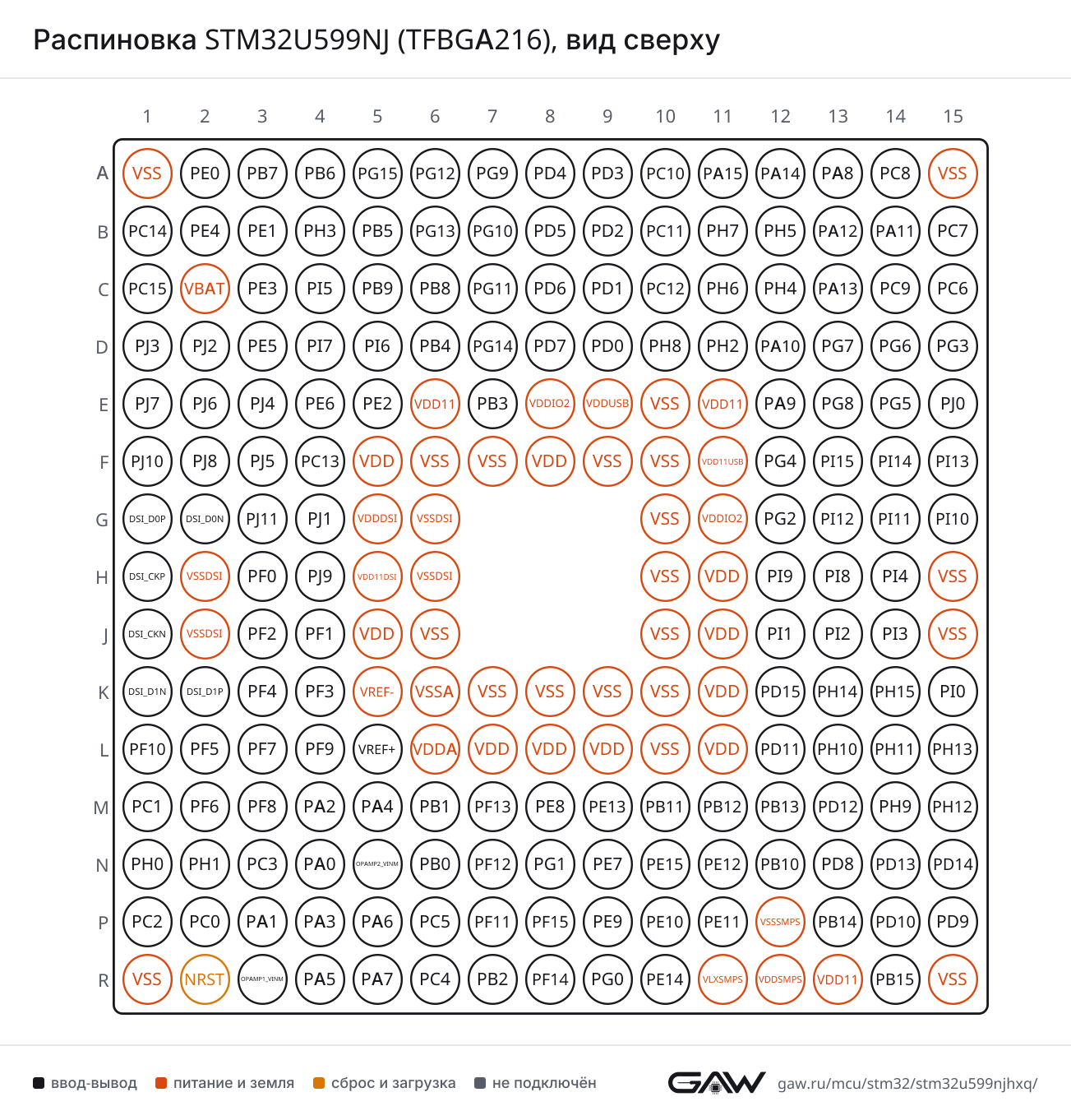

Распиновка STM32U599NJ (TFBGA216), вид сверхуРаспиновка TFBGA216 картинкой
PNG, 1303 × 1362 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (A13, AF7), PB5 (B5, AF7), PG13 (B6, AF7)
CTSPA11 (B14, AF7), PG11 (C7, AF7), PB4 (NJTRST) (D6, AF7)
DEPG12 (A6, AF7), PA12 (B13, AF7), PB3 (JTDO/TRACESWO) (E7, AF7)
RTSPG12 (A6, AF7), PA12 (B13, AF7), PB3 (JTDO/TRACESWO) (E7, AF7)
RXPB7 (A3, AF7), PG10 (B7, AF7), PA10 (D12, AF7)
TXPB6 (A4, AF7), PG9 (A7, AF7), PA9 (E12, AF7)
USART2CKPD7 (D8, AF7), PA4 (M5, AF7)
CTSPD3 (A9, AF7), PA0 (N4, AF7)
DEPD4 (A8, AF7), PA1 (P3, AF7)
RTSPD4 (A8, AF7), PA1 (P3, AF7)
RXPA15 (JTDI) (A11, AF3), PD6 (C8, AF7), PA3 (P4, AF7)
TXPD5 (B8, AF7), PA2 (M4, AF7)
USART3CKPC12 (C10, AF7), PB12 (M11, AF7), PB0 (N6, AF7), PD10 (P14, AF7)
CTSPD11 (L12, AF7), PB13 (M12, AF7), PA6 (P5, AF7)
DEPA15 (JTDI) (A11, AF7), PD2 (B9, AF7), PB1 (M6, AF7), PD12 (M13, AF7), PB14 (P13, AF7)
RTSPA15 (JTDI) (A11, AF7), PD2 (B9, AF7), PB1 (M6, AF7), PD12 (M13, AF7), PB14 (P13, AF7)
RXPC11 (B10, AF7), PB11 (M10, AF7), PC5 (P6, AF7), PD9 (P15, AF7), PA5 (R4, AF7)
TXPC10 (A10, AF7), PB10 (N12, AF7), PD8 (N13, AF7), PA7 (R5, AF7), PC4 (R6, AF7)
USART6CKPJ6 (E2, AF7), PE2 (E5, AF7), PF2 (J3, AF7), PC1 (M1, AF7), PD14 (N15, AF7)
CTSPE3 (C3, AF7), PJ7 (E1, AF7), PF3 (K4, AF7), PD13 (N14, AF7), PC0 (P2, AF7)
DEPE4 (B2, AF7), PJ5 (F3, AF7), PF4 (K3, AF7), PD15 (K12, AF7)
RTSPE4 (B2, AF7), PJ5 (F3, AF7), PF4 (K3, AF7), PD15 (K12, AF7)
RXPE0 (A2, AF7), PC8 (A14, AF7), PJ4 (E3, AF7), PF1 (J4, AF7), PC2 (P1, AF7)
TXPE1 (B3, AF7), PC9 (C14, AF7), PJ3 (D1, AF7), PF0 (H3, AF7), PC3 (N3, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB7 (A3, AF8)
DEPA15 (JTDI) (A11, AF8)
RTSPA15 (JTDI) (A11, AF8)
RXPC11 (B10, AF8), PA1 (P3, AF8)
TXPC10 (A10, AF8), PA0 (N4, AF8)
UART5CTSPB5 (B5, AF8)
DEPB4 (NJTRST) (D6, AF8)
RTSPB4 (NJTRST) (D6, AF8)
RXPD2 (B9, AF8), PF4 (K3, AF8)
TXPC12 (C10, AF8), PF3 (K4, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPG5 (E14, AF8), PB13 (M12, AF8), PA6 (P5, AF8)
DEPG6 (D14, AF8), PB1 (M6, AF8), PB12 (M11, AF8)
RTSPG6 (D14, AF8), PB1 (M6, AF8), PB12 (M11, AF8)
RXPG8 (E13, AF8), PB10 (N12, AF8), PC0 (P2, AF8), PA3 (P4, AF8)
TXPG7 (D13, AF8), PC1 (M1, AF8), PA2 (M4, AF8), PB11 (M10, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA11 (B14, AF5), PB4 (NJTRST) (D6, AF5), PG3 (D15, AF5), PA6 (P5, AF5), PE14 (R10, AF5)
MOSIPB5 (B5, AF5), PA12 (B13, AF5), PG4 (F12, AF5), PE15 (N10, AF5), PA7 (R5, AF5)
NSSPA15 (JTDI) (A11, AF5), PG5 (E14, AF5), PA4 (M5, AF5), PB0 (N6, AF5), PE12 (N11, AF5)
RDYPA8 (A13, AF5), PG6 (D14, AF5), PA2 (M4, AF5), PE11 (P11, AF5), PB2 (R7, AF5)
SCKPB3 (JTDO/TRACESWO) (E7, AF5), PG2 (G12, AF5), PE13 (M9, AF5), PA1 (P3, AF5), PA5 (R4, AF5)
SPI2MISOPD3 (A9, AF5), PI2 (J13, AF5), PC2 (P1, AF5), PB14 (P13, AF5)
MOSIPD4 (A8, AF5), PI3 (J14, AF5), PC1 (M1, AF3), PC3 (N3, AF5), PB15 (R14, AF5)
NSSPB9 (C5, AF5), PD0 (D9, AF5), PI0 (K15, AF5), PB12 (M11, AF5)
RDYPD5 (B8, AF5), PI4 (H14, AF5), PB11 (M10, AF5), PC0 (P2, AF5)
SCKPD3 (A9, AF3), PD1 (C9, AF5), PA9 (E12, AF3), PI1 (J12, AF5), PB13 (M12, AF5), PB10 (N12, AF5)
SPI3MISOPG10 (B7, AF6), PC11 (B10, AF6), PB4 (NJTRST) (D6, AF6)
MOSIPB5 (B5, AF6), PG11 (C7, AF6), PD6 (C8, AF5), PC12 (C10, AF6)
NSSPG12 (A6, AF6), PA15 (JTDI) (A11, AF6), PA4 (M5, AF6)
RDYPG13 (B6, AF6), PB8 (C6, AF6), PA0 (N4, AF6)
SCKPG9 (A7, AF6), PC10 (A10, AF6), PB3 (JTDO/TRACESWO) (E7, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (A4, AF4), PB8 (C6, AF4), PG14 (D7, AF4)
SDAPB7 (A3, AF4), PG13 (B6, AF4), PB9 (C5, AF4), PB3 (JTDO/TRACESWO) (E7, AF4)
SMBAPG15 (A5, AF4), PA14 (JTCK/SWCLK) (A12, AF4), PB5 (B5, AF4), PA1 (P3, AF4)
I2C2SCLPH4 (C12, AF4), PF1 (J4, AF4), PB13 (M12, AF4), PB10 (N12, AF4)
SDAPH5 (B12, AF4), PF0 (H3, AF4), PB11 (M10, AF4), PB14 (P13, AF4)
SMBAPH6 (C11, AF4), PF2 (J3, AF4), PB12 (M11, AF4)
I2C3SCLPH7 (B11, AF4), PG7 (D13, AF4), PC0 (P2, AF4), PA7 (R5, AF4)
SDAPB4 (NJTRST) (D6, AF4), PH8 (D10, AF4), PG8 (E13, AF4), PC1 (M1, AF4)
SMBAPG6 (D14, AF4), PH9 (M14, AF4), PB2 (R7, AF4)
I2C4SCLPB6 (A4, AF5), PD12 (M13, AF4), PB10 (N12, AF3), PF14 (R8, AF4)
SDAPB7 (A3, AF5), PB11 (M10, AF3), PD13 (N14, AF4), PF15 (P8, AF4)
SMBAPA14 (JTCK/SWCLK) (A12, AF5), PD11 (L12, AF4), PF13 (M7, AF4)
I2C5SCLPH5 (B12, AF2), PD1 (C9, AF4), PJ2 (D2, AF4)
SDAPH4 (C12, AF2), PD0 (D9, AF4), PJ1 (G4, AF4)
SMBAPD2 (B9, AF4), PH6 (C11, AF2), PJ0 (E15, AF4), PD10 (P14, AF4)
I2C6SCLPD1 (C9, AF2), PJ10 (F1, AF2), PF1 (J4, AF2)
SDAPD0 (D9, AF2), PF0 (H3, AF2), PJ9 (H4, AF2)
SMBAPD3 (A9, AF2), PJ8 (F2, AF2), PB12 (M11, AF2), PC4 (R6, AF2)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPA11 (B14, AF9), PB8 (C6, AF9), PD0 (D9, AF9), PH14 (K13, AF9), PF7 (L3, AF9)
TXPA12 (B13, AF9), PB9 (C5, AF9), PD1 (C9, AF9), PH13 (L15, AF9), PF8 (M3, AF9)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPA11 (B14)
DPPA12 (B13)
IDPA10 (D12, AF10)
SOFPA14 (JTCK/SWCLK) (A12, AF10), PA8 (A13, AF10)
VBUSPA9 (E12)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PA15 (JTDI) (A11)
CC2PB15 (R14)
DBCC1PB5 (B5)
DBCC2PB14 (P13)
FRSTX1PG6 (D14, AF11), PA2 (M4, AF11), PB2 (R7, AF11)
FRSTX2PC11 (B10, AF11), PG7 (D13, AF11), PF13 (M7, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (C5, AF8)
CKPC12 (C10, AF12)
CKINPB8 (C6, AF8)
CMDPD2 (B9, AF12)
D0PC8 (A14, AF12)
D0DIRPC6 (C15, AF8)
D1PC9 (C14, AF12)
D2PC10 (A10, AF12)
D3PC11 (B10, AF12)
D4PB8 (C6, AF12)
D5PB9 (C5, AF12), PC0 (P2, AF12)
D6PC6 (C15, AF12)
D7PC7 (B15, AF12)
D123DIRPC7 (B15, AF8)
SDMMC2CKPD6 (C8, AF11), PC1 (M1, AF12)
CMDPD7 (D8, AF11), PA0 (N4, AF12)
D0PB14 (P13, AF12)
D1PB15 (R14, AF12)
D2PB3 (JTDO/TRACESWO) (E7, AF12)
D3PB4 (NJTRST) (D6, AF12)
D4PB8 (C6, AF11)
D5PB9 (C5, AF11)
D6PC6 (C15, AF11)
D7PC7 (B15, AF11)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PB8 (C6, AF3), PG7 (D13, AF3), PE2 (E5, AF3), PA3 (P4, AF3)
CK2PA8 (A13, AF3), PE5 (D3, AF3)
D1PD6 (C8, AF3), PA10 (D12, AF3), PE6 (E4, AF3), PC3 (N3, AF3)
D2PE4 (B2, AF3), PB9 (C5, AF3)
D3PF10 (L1, AF13), PC5 (P6, AF3)
FS_APE4 (B2, AF13), PB9 (C5, AF13), PA9 (E12, AF13)
FS_BPB6 (A4, AF13), PA14 (JTCK/SWCLK) (A12, AF13), PF9 (L4, AF13), PA4 (M5, AF13), PE9 (P9, AF13)
MCLK_APB8 (C6, AF13), PG7 (D13, AF13), PE2 (E5, AF13), PA3 (P4, AF13)
MCLK_BPB4 (NJTRST) (D6, AF13), PF7 (L3, AF13), PE10 (P10, AF13)
SCK_APA8 (A13, AF13), PE5 (D3, AF13), PB10 (N12, AF13)
SCK_BPB3 (JTDO/TRACESWO) (E7, AF13), PF8 (M3, AF13), PE8 (M8, AF13)
SD_APD6 (C8, AF13), PA10 (D12, AF13), PE6 (E4, AF13), PC1 (M1, AF13), PC3 (N3, AF13)
SD_BPB5 (B5, AF13), PE3 (C3, AF13), PA13 (JTMS/SWDIO) (C13, AF13), PF6 (M2, AF13), PE7 (N9, AF13)
SAI2FS_APG10 (B7, AF13), PB12 (M11, AF13), PD12 (M13, AF13), PC0 (P2, AF13)
FS_BPA15 (JTDI) (A11, AF13), PG3 (D15, AF13)
MCLK_APG11 (C7, AF13), PC6 (C15, AF13), PB14 (P13, AF13), PD9 (P15, AF13)
MCLK_BPC11 (B10, AF13), PC7 (B15, AF13), PG4 (F12, AF13)
SCK_APG9 (A7, AF13), PB13 (M12, AF13), PD10 (P14, AF13)
SCK_BPC10 (A10, AF13), PG2 (G12, AF13)
SD_APG12 (A6, AF13), PD11 (L12, AF13), PB15 (R14, AF13)
SD_BPC12 (C10, AF13), PG5 (E14, AF13)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (B10), PA11 (B14), PG11 (C7), PJ11 (G3), PI11 (G14), PD11 (L12), PH11 (L14), PB11 (M10), PF11 (P7), PE11 (P11)
EXTI15PG15 (A5), PA15 (JTDI) (A11), PC15-OSC32_OUT (C1), PI15 (F13), PD15 (K12), PH15 (K14), PE15 (N10), PF15 (P8), PB15 (R14)
IN1PC0 (P2)
IN2PC1 (M1)
IN3PC2 (P1)
IN4PC3 (N3)
IN5PA0 (N4)
IN6PA1 (P3)
IN7PA2 (M4)
IN8PA3 (P4)
IN9PA4 (M5)
IN10PA5 (R4)
IN11PA6 (P5)
IN12PA7 (R5)
IN13PC4 (R6)
IN14PC5 (P6)
IN15PB0 (N6)
IN16PB1 (M6)
IN17PB2 (R7)
ADC2EXTI11PC11 (B10), PA11 (B14), PG11 (C7), PJ11 (G3), PI11 (G14), PD11 (L12), PH11 (L14), PB11 (M10), PF11 (P7), PE11 (P11)
EXTI15PG15 (A5), PA15 (JTDI) (A11), PC15-OSC32_OUT (C1), PI15 (F13), PD15 (K12), PH15 (K14), PE15 (N10), PF15 (P8), PB15 (R14)
IN1PC0 (P2)
IN2PC1 (M1)
IN3PC2 (P1)
IN4PC3 (N3)
IN5PA0 (N4)
IN6PA1 (P3)
IN7PA2 (M4)
IN8PA3 (P4)
IN9PA4 (M5)
IN10PA5 (R4)
IN11PA6 (P5)
IN12PA7 (R5)
IN13PC4 (R6)
IN14PC5 (P6)
IN15PB0 (N6)
IN16PB1 (M6)
IN17PB2 (R7)
ADC4EXTI15PG15 (A5), PA15 (JTDI) (A11), PC15-OSC32_OUT (C1), PI15 (F13), PD15 (K12), PH15 (K14), PE15 (N10), PF15 (P8), PB15 (R14)
IN1PC0 (P2)
IN2PC1 (M1)
IN3PC2 (P1)
IN4PC3 (N3)
IN5PF14 (R8)
IN6PF15 (P8)
IN7PG0 (R9)
IN8PG1 (N8)
IN9PA4 (M5)
IN10PA5 (R4)
IN11PA6 (P5)
IN15PD11 (L12)
IN16PD12 (M13)
IN17PD13 (N14)
IN18PB0 (N6)
IN19PB1 (M6)
IN20PA7 (R5)
IN22PC4 (R6)
IN23PC5 (P6)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PG9 (A7), PB9 (C5), PC9 (C14), PA9 (E12), PJ9 (H4), PI9 (H12), PF9 (L4), PH9 (M14), PE9 (P9), PD9 (P15)
OUT1PA4 (M5)
OUT2PA5 (R4)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPB1 (M6), PC4 (R6)
INPPA2 (M4), PC5 (P6), PB2 (R7)
OUTPB0 (N6, AF12), PB10 (N12, AF12)
COMP2INMPB7 (A3), PB3 (JTDO/TRACESWO) (E7)
INPPB6 (A4), PB4 (NJTRST) (D6)
OUTPB5 (B5, AF12), PB11 (M10, AF12)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA1 (P3), OPAMP1_VINM (R3)
VINPPA0 (N4)
VOUTPA3 (P4)
OPAMP2VINMOPAMP2_VINM (N5), PA7 (R5)
VINPPA6 (P5)
VOUTPB0 (N6)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (L5)

TIM — таймер

БлокСигналВыводы
TIM1BKINPB12 (M11, AF1), PE15 (N10, AF1), PA6 (P5, AF1)
BKIN2PA11 (B14, AF2), PE14 (R10, AF2)
CH1PA8 (A13, AF1), PE9 (P9, AF1)
CH1NPE8 (M8, AF1), PB13 (M12, AF1), PA7 (R5, AF1)
CH2PA9 (E12, AF1), PE11 (P11, AF1)
CH2NPB0 (N6, AF1), PE10 (P10, AF1), PB14 (P13, AF1)
CH3PA10 (D12, AF1), PE13 (M9, AF1)
CH3NPB1 (M6, AF1), PE12 (N11, AF1), PB15 (R14, AF1)
CH4PA11 (B14, AF1), PE14 (R10, AF1)
CH4NPE15 (N10, AF3), PC5 (P6, AF1)
ETRPA12 (B13, AF1), PE7 (N9, AF1)
TIM2CH1PA15 (JTDI) (A11, AF1), PA0 (N4, AF1), PA5 (R4, AF1)
CH2PB3 (JTDO/TRACESWO) (E7, AF1), PA1 (P3, AF1)
CH3PA2 (M4, AF1), PB10 (N12, AF1)
CH4PB11 (M10, AF1), PA3 (P4, AF1)
ETRPA15 (JTDI) (A11, AF2), PA0 (N4, AF14), PA5 (R4, AF2)
TIM3CH1PE3 (C3, AF2), PC6 (C15, AF2), PB4 (NJTRST) (D6, AF2), PA6 (P5, AF2)
CH2PE4 (B2, AF2), PB5 (B5, AF2), PC7 (B15, AF2), PA7 (R5, AF2)
CH3PC8 (A14, AF2), PE5 (D3, AF2), PB0 (N6, AF2)
CH4PC9 (C14, AF2), PE6 (E4, AF2), PB1 (M6, AF2)
ETRPD2 (B9, AF2), PE2 (E5, AF2)
TIM4CH1PB6 (A4, AF2), PD12 (M13, AF2)
CH2PB7 (A3, AF2), PD13 (N14, AF2)
CH3PB8 (C6, AF2), PD14 (N15, AF2)
CH4PB9 (C5, AF2), PD15 (K12, AF2)
ETRPE0 (A2, AF2)
TIM5CH1PH10 (L13, AF2), PF6 (M2, AF2), PA0 (N4, AF2)
CH2PF7 (L3, AF2), PH11 (L14, AF2), PA1 (P3, AF2)
CH3PF8 (M3, AF2), PA2 (M4, AF2), PH12 (M15, AF2)
CH4PI0 (K15, AF2), PF9 (L4, AF2), PA3 (P4, AF2)
ETRPF6 (M2, AF1)
TIM8BKINPB7 (A3, AF3), PI4 (H14, AF3), PA6 (P5, AF3)
BKIN2PB6 (A4, AF3), PC9 (C14, AF1)
CH1PI5 (C4, AF3), PC6 (C15, AF3)
CH1NPH13 (L15, AF3), PA5 (R4, AF3), PA7 (R5, AF3)
CH2PC7 (B15, AF3), PI6 (D5, AF3)
CH2NPH14 (K13, AF3), PB0 (N6, AF3), PB14 (P13, AF3)
CH3PC8 (A14, AF3), PI7 (D4, AF3)
CH3NPH15 (K14, AF3), PB1 (M6, AF3), PB15 (R14, AF3)
CH4PC9 (C14, AF3), PI2 (J13, AF3)
CH4NPD0 (D9, AF3), PH12 (M15, AF3), PB2 (R7, AF3)
ETRPI3 (J14, AF3), PA0 (N4, AF3)
TIM15BKINPA9 (E12, AF14), PB12 (M11, AF14)
CH1PG10 (B7, AF14), PF9 (L4, AF14), PA2 (M4, AF14), PB14 (P13, AF14)
CH1NPG9 (A7, AF14), PB13 (M12, AF14), PA1 (P3, AF14)
CH2PG11 (C7, AF14), PF10 (L1, AF14), PA3 (P4, AF14), PB15 (R14, AF14)
TIM16BKINPB5 (B5, AF14)
CH1PE0 (A2, AF14), PB8 (C6, AF14), PA6 (P5, AF14)
CH1NPB6 (A4, AF14)
TIM17BKINPB4 (NJTRST) (D6, AF14), PA10 (D12, AF14)
CH1PE1 (B3, AF14), PB9 (C5, AF14), PA7 (R5, AF14)
CH1NPB7 (A3, AF14)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PG15 (A5, AF1), PA14 (JTCK/SWCLK) (A12, AF1), PB3 (JTDO/TRACESWO) (E7, AF2), PC1 (M1, AF1), PB2 (R7, AF1)
CH2PB4 (NJTRST) (D6, AF1), PG14 (D7, AF1), PA1 (P3, AF0)
ETRPB6 (A4, AF1), PG12 (A6, AF1), PC3 (N3, AF1)
IN1PB5 (B5, AF1), PG10 (B7, AF1), PC0 (P2, AF1)
IN2PB7 (A3, AF1), PG11 (C7, AF1), PC2 (P1, AF1)
LPTIM2CH1PA8 (A13, AF14), PA4 (M5, AF14), PD13 (N14, AF14)
CH2PC7 (B15, AF14), PD10 (P14, AF2), PA7 (R5, AF13)
ETRPD11 (L12, AF14), PC3 (N3, AF14), PA5 (R4, AF14)
IN1PB1 (M6, AF14), PD12 (M13, AF14), PC0 (P2, AF14)
IN2PA10 (D12, AF2), PD9 (P15, AF2), PB15 (R14, AF2)
LPTIM3CH1PC8 (A14, AF14), PF5 (L2, AF2), PC3 (N3, AF2), PB0 (N6, AF4), PB10 (N12, AF2), PD14 (N15, AF14)
CH2PC9 (C14, AF14), PF2 (J3, AF2), PD15 (K12, AF14), PB1 (M6, AF4)
ETRPC10 (A10, AF2), PF4 (K3, AF2), PB14 (P13, AF2), PD10 (P14, AF14)
IN1PC11 (B10, AF2), PF3 (K4, AF2), PB13 (M12, AF2), PD9 (P15, AF14)
LPTIM4ETRPD2 (B9, AF13), PF12 (N7, AF13)
IN1PD13 (N14, AF13), PF11 (P7, AF13)
OUTPD7 (D8, AF13), PF13 (M7, AF13)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (F4)
OUT2PB2 (R7)
REFINPB15 (R14, AF0)
TSPC13 (F4)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (H3, AF12)
A1PF1 (J4, AF12)
A2PF2 (J3, AF12)
A3PF3 (K4, AF12)
A4PF4 (K3, AF12)
A5PF5 (L2, AF12)
A6PF12 (N7, AF12)
A7PF13 (M7, AF12)
A8PF14 (R8, AF12)
A9PF15 (P8, AF12)
A10PG0 (R9, AF12)
A11PG1 (N8, AF12)
A12PG2 (G12, AF12)
A13PG3 (D15, AF12)
A14PG4 (F12, AF12)
A15PG5 (E14, AF12)
A16PD11 (L12, AF12)
A17PD12 (M13, AF12)
A18PD13 (N14, AF12)
A19PE3 (C3, AF12)
A20PE4 (B2, AF12)
A21PE5 (D3, AF12)
A22PE6 (E4, AF12)
A23PE2 (E5, AF12)
A24PG13 (B6, AF12)
A25PG14 (D7, AF12)
ALEPD12 (M13, AF12)
CLEPD11 (L12, AF12)
CLKPD3 (A9, AF12)
D0PD14 (N15, AF12)
D1PD15 (K12, AF12)
D2PD0 (D9, AF12)
D3PD1 (C9, AF12)
D4PE7 (N9, AF12)
D5PE8 (M8, AF12)
D6PE9 (P9, AF12)
D7PE10 (P10, AF12)
D8PE11 (P11, AF12)
D9PE12 (N11, AF12)
D10PE13 (M9, AF12)
D11PE14 (R10, AF12)
D12PE15 (N10, AF12)
D13PD8 (N13, AF12)
D14PD9 (P15, AF12)
D15PD10 (P14, AF12)
DA0PD14 (N15, AF12)
DA1PD15 (K12, AF12)
DA2PD0 (D9, AF12)
DA3PD1 (C9, AF12)
DA4PE7 (N9, AF12)
DA5PE8 (M8, AF12)
DA6PE9 (P9, AF12)
DA7PE10 (P10, AF12)
DA8PE11 (P11, AF12)
DA9PE12 (N11, AF12)
DA10PE13 (M9, AF12)
DA11PE14 (R10, AF12)
DA12PE15 (N10, AF12)
DA13PD8 (N13, AF12)
DA14PD9 (P15, AF12)
DA15PD10 (P14, AF12)
INTPG7 (D13, AF12)
NBL0PE0 (A2, AF12)
NBL1PE1 (B3, AF12), PB15 (R14, AF11)
NCEPG9 (A7, AF12), PD7 (D8, AF12)
NE1PD7 (D8, AF12)
NE2PG9 (A7, AF12)
NE3PG10 (B7, AF12)
NE4PG12 (A6, AF12)
NLPB7 (A3, AF12)
NOEPD4 (A8, AF12)
NWAITPD6 (C8, AF12)
NWEPD5 (B8, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PC6 (C15, AF10), PA9 (E12, AF5), PH9 (M14, AF10)
D1PC7 (B15, AF10), PA10 (D12, AF5), PH10 (L13, AF10)
D2PE0 (A2, AF10), PC8 (A14, AF10), PC11 (B10, AF4), PH11 (L14, AF10)
D3PE1 (B3, AF10), PC9 (C14, AF4), PH12 (M15, AF10)
D4PE4 (B2, AF10), PC11 (B10, AF10), PH14 (K13, AF10)
D5PB6 (A4, AF10), PD3 (A9, AF4), PI4 (H14, AF10)
D6PB8 (C6, AF10), PE5 (D3, AF10), PI6 (D5, AF10)
D7PB9 (C5, AF10), PI7 (D4, AF10), PE6 (E4, AF10)
D8PC10 (A10, AF10), PH6 (C11, AF10), PI1 (J12, AF10)
D9PH7 (B11, AF10), PC12 (C10, AF10), PI2 (J13, AF10)
D10PB5 (B5, AF10), PD6 (C8, AF4), PI3 (J14, AF10)
D11PD2 (B9, AF10), PH15 (K14, AF10), PF10 (L1, AF10)
D12PB4 (NJTRST) (D6, AF10), PF6 (M2, AF4), PF11 (P7, AF10)
D13PG15 (A5, AF10), PI0 (K15, AF10)
HSYNCPH8 (D10, AF10), PA4 (M5, AF10), PD8 (N13, AF10)
PIXCLKPH5 (B12, AF10), PA6 (P5, AF4), PD9 (P15, AF10)
VSYNCPB7 (A3, AF10), PI5 (C4, AF10)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PC6 (C15, AF10), PA9 (E12, AF5), PH9 (M14, AF10)
D1PC7 (B15, AF10), PA10 (D12, AF5), PH10 (L13, AF10)
D2PE0 (A2, AF10), PC8 (A14, AF10), PC11 (B10, AF4), PH11 (L14, AF10)
D3PE1 (B3, AF10), PC9 (C14, AF4), PH12 (M15, AF10)
D4PE4 (B2, AF10), PC11 (B10, AF10), PH14 (K13, AF10)
D5PB6 (A4, AF10), PD3 (A9, AF4), PI4 (H14, AF10)
D6PB8 (C6, AF10), PE5 (D3, AF10), PI6 (D5, AF10)
D7PB9 (C5, AF10), PI7 (D4, AF10), PE6 (E4, AF10)
D8PC10 (A10, AF10), PH6 (C11, AF10), PI1 (J12, AF10)
D9PH7 (B11, AF10), PC12 (C10, AF10), PI2 (J13, AF10)
D10PB5 (B5, AF10), PD6 (C8, AF4), PI3 (J14, AF10)
D11PD2 (B9, AF10), PH15 (K14, AF10), PF10 (L1, AF10)
D12PB4 (NJTRST) (D6, AF10), PF6 (M2, AF4), PF11 (P7, AF10)
D13PG15 (A5, AF10), PI0 (K15, AF10)
D14PH4 (C12, AF10), PF8 (M3, AF4), PA5 (R4, AF4)
D15PF10 (L1, AF4), PF9 (L4, AF4), PC5 (P6, AF4)
DEPH8 (D10, AF10), PA4 (M5, AF10), PD8 (N13, AF10)
PDCKPH5 (B12, AF10), PA6 (P5, AF4), PD9 (P15, AF10)
RDYPB7 (A3, AF10), PI5 (C4, AF10)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PE4 (B2, AF8), PF12 (N7, AF8)
B1PB8 (C6, AF7), PF13 (M7, AF8), PB2 (R7, AF8)
B2PD14 (N15, AF8)
B3PD15 (K12, AF8)
B4PD0 (D9, AF8)
B5PD1 (C9, AF8)
B6PE7 (N9, AF8)
B7PE8 (M8, AF8)
CLKPD3 (A9, AF8)
DEPD6 (C8, AF8), PF11 (P7, AF8)
G0PE5 (D3, AF8), PF14 (R8, AF8)
G1PE6 (E4, AF8), PF15 (P8, AF8)
G2PE9 (P9, AF8)
G3PE10 (P10, AF8)
G4PE11 (P11, AF8)
G5PE12 (N11, AF8)
G6PE13 (M9, AF8)
G7PE14 (R10, AF8)
HSYNCPE0 (A2, AF8)
R0PG13 (B6, AF8), PC6 (C15, AF7), PE2 (E5, AF8)
R1PC7 (B15, AF7), PE3 (C3, AF8), PG14 (D7, AF8), PG6 (D14, AF7)
R2PE15 (N10, AF8)
R3PD8 (N13, AF8)
R4PD9 (P15, AF8)
R5PD10 (P14, AF8)
R6PD11 (L12, AF8)
R7PD12 (M13, AF8)
VSYNCPE1 (B3, AF8), PD13 (N14, AF8)

DSI — хост MIPI DSI

БлокСигналВыводы
DSIHOSTCKNDSI_CKN (J1)
CKPDSI_CKP (H1)
D0NDSI_D0N (G2)
D0PDSI_D0P (G1)
D1NDSI_D1N (K1)
D1PDSI_D1P (K2)
TEPG5 (E14, AF11), PF10 (L1, AF11), PF11 (P7, AF11)

TSC — контроллер сенсорных кнопок

БлокСигналВыводы
TSCG1_IO1PB12 (M11, AF9)
G1_IO2PB13 (M12, AF9)
G1_IO3PB14 (P13, AF9)
G2_IO1PB4 (NJTRST) (D6, AF9)
G2_IO2PB5 (B5, AF9)
G2_IO3PB6 (A4, AF9)
G2_IO4PB7 (A3, AF9)
G3_IO2PC10 (A10, AF9)
G3_IO3PC11 (B10, AF9)
G3_IO4PC12 (C10, AF9)
G4_IO1PC6 (C15, AF9)
G4_IO2PC7 (B15, AF9)
G4_IO3PC8 (A14, AF9)
G4_IO4PC9 (C14, AF9)
G5_IO1PE10 (P10, AF9)
G5_IO2PE11 (P11, AF9)
G5_IO3PE12 (N11, AF9)
G5_IO4PE13 (M9, AF9)
G6_IO1PD10 (P14, AF9)
G6_IO2PD11 (L12, AF9)
G6_IO3PD12 (M13, AF9)
G6_IO4PD13 (N14, AF9)
G7_IO1PE2 (E5, AF9)
G7_IO2PE3 (C3, AF9)
G7_IO3PE4 (B2, AF9)
G7_IO4PE5 (D3, AF9)
G8_IO1PF14 (R8, AF9)
G8_IO2PF15 (P8, AF9)
G8_IO3PG0 (R9, AF9)
G8_IO4PG1 (N8, AF9)
SYNCPD2 (B9, AF9), PB10 (N12, AF9)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PB8 (C6, AF5), PG7 (D13, AF6), PF3 (K4, AF6), PE9 (P9, AF6)
CCK1PF10 (L1, AF6), PC2 (P1, AF6)
CKI0PD4 (A8, AF6), PF5 (L2, AF6), PB2 (R7, AF6)
CKI1PD7 (D8, AF6), PB13 (M12, AF6)
CKI2PE8 (M8, AF6), PB15 (R14, AF6)
CKI3PC6 (C15, AF6), PE5 (D3, AF6)
CKI4PC1 (M1, AF6), PE11 (P11, AF6)
CKI5PB7 (A3, AF6), PE13 (M9, AF6)
SDI0PD3 (A9, AF6), PF4 (K3, AF6), PB1 (M6, AF6)
SDI1PD6 (C8, AF6), PB12 (M11, AF6)
SDI2PE7 (N9, AF6), PB14 (P13, AF6)
SDI3PE4 (B2, AF6), PC7 (B15, AF6)
SDI4PC0 (P2, AF6), PE10 (P10, AF6)
SDI5PB6 (A4, AF6), PE12 (N11, AF6)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PB3 (JTDO/TRACESWO) (E7, AF3), PF3 (K4, AF3), PE9 (P9, AF3)
CCK1PC10 (A10, AF3)
SDI0PC11 (B10, AF3), PB4 (NJTRST) (D6, AF3), PF4 (K3, AF3), PE10 (P10, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (A12, AF0)
JTDIPA15 (JTDI) (A11, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (E7, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (C13, AF0)
NJTRSTPB4 (NJTRST) (D6, AF0)
TRACECLKPA8 (A13, AF12), PE2 (E5, AF0)
TRACED0PE3 (C3, AF0), PC9 (C14, AF0), PC1 (M1, AF0)
TRACED1PC10 (A10, AF0), PE4 (B2, AF0)
TRACED2PD2 (B9, AF0), PE5 (D3, AF0)
TRACED3PC12 (C10, AF0), PE6 (E4, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPA2 (M4)
MCOPA8 (A13, AF0)
OSC_INPH0-OSC_IN (N1)
OSC_OUTPH1-OSC_OUT (N2)
OSC32_INPC14-OSC32_IN (B1)
OSC32_OUTPC15-OSC32_OUT (C1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC6 (C15, AF0), PA5 (R4, AF0)
PWR_WKUP1PE4 (B2), PA0 (N4), PB2 (R7)
PWR_WKUP2PE5 (D3), PC13 (F4), PA4 (M5)
PWR_WKUP3PB6 (A4), PE6 (E4), PA1 (P3)
PWR_WKUP4PB7 (A3), PA2 (M4), PB1 (M6)
PWR_WKUP5PB8 (C6), PA3 (P4), PC5 (P6)
PWR_WKUP6PB5 (B5), PE7 (N9), PA5 (R4)
PWR_WKUP7PE8 (M8), PA6 (P5), PB15 (R14)
PWR_WKUP8PF2 (J3), PB10 (N12), PA7 (R5)
TAMP_IN1PC13 (F4)
TAMP_IN2PA0 (N4)
TAMP_IN3PE6 (E4)
TAMP_IN4PC5 (P6)
TAMP_IN5PA1 (P3)
TAMP_IN6PE3 (C3)
TAMP_IN7PE4 (B2)
TAMP_IN8PE5 (D3)
TAMP_OUT1PA0 (N4)
TAMP_OUT2PC13 (F4)
TAMP_OUT3PE3 (C3)
TAMP_OUT4PA1 (P3)
TAMP_OUT5PC5 (P6)
TAMP_OUT6PE6 (E4)
TAMP_OUT7PE5 (D3)
TAMP_OUT8PE4 (B2)

Блоки без собственных выводов: OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), IRTIM (формирователь ИК-сигнала), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 216 шариков корпуса TFBGA216 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1VSSпитание—
A2PE0ввод-выводDCMI_D2 (AF10), FMC_NBL0 (AF12), LTDC_HSYNC (AF8), PSSI_D2 (AF10), TIM16_CH1 (AF14), TIM4_ETR (AF2), USART6_RX (AF7)
A3PB7ввод-выводCOMP2_INM, DCMI_VSYNC (AF10), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF5), LPTIM1_IN2 (AF1), MDF1_CKI5 (AF6), PSSI_RDY (AF10), PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N (AF14), TIM4_CH2 (AF2), TIM8_BKIN (AF3), TSC_G2_IO4 (AF9), UART4_CTS (AF8), USART1_RX (AF7)
A4PB6ввод-выводCOMP2_INP, DCMI_D5 (AF10), I2C1_SCL (AF4), I2C4_SCL (AF5), LPTIM1_ETR (AF1), MDF1_SDI5 (AF6), PSSI_D5 (AF10), PWR_WKUP3, SAI1_FS_B (AF13), TIM16_CH1N (AF14), TIM4_CH1 (AF2), TIM8_BKIN2 (AF3), TSC_G2_IO3 (AF9), USART1_TX (AF7)
A5PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13 (AF10), I2C1_SMBA (AF4), LPTIM1_CH1 (AF1), OCTOSPIM_P2_DQS (AF5), PSSI_D13 (AF10)
A6PG12ввод-выводFMC_NE4 (AF12), LPTIM1_ETR (AF1), OCTOSPIM_P2_NCS (AF5), SAI2_SD_A (AF13), SPI3_NSS (AF6), USART1_DE (AF7), USART1_RTS (AF7)
A7PG9ввод-выводDAC1_EXTI9, FMC_NCE (AF12), FMC_NE2 (AF12), OCTOSPIM_P2_IO6 (AF5), SAI2_SCK_A (AF13), SPI3_SCK (AF6), TIM15_CH1N (AF14), USART1_TX (AF7)
A8PD4ввод-выводFMC_NOE (AF12), MDF1_CKI0 (AF6), OCTOSPIM_P1_IO4 (AF10), SPI2_MOSI (AF5), USART2_DE (AF7), USART2_RTS (AF7)
A9PD3ввод-выводDCMI_D5 (AF4), FMC_CLK (AF12), I2C6_SMBA (AF2), LTDC_CLK (AF8), MDF1_SDI0 (AF6), OCTOSPIM_P2_NCS (AF10), PSSI_D5 (AF4), SPI2_MISO (AF5), SPI2_SCK (AF3), USART2_CTS (AF7)
A10PC10ввод-выводADF1_CCK1 (AF3), DCMI_D8 (AF10), DEBUG_TRACED1 (AF0), LPTIM3_ETR (AF2), PSSI_D8 (AF10), SAI2_SCK_B (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), TSC_G3_IO2 (AF9), UART4_TX (AF8), USART3_TX (AF7)
A11PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI (AF0), SAI2_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC1, USART2_RX (AF3), USART3_DE (AF7), USART3_RTS (AF7)
A12PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF5), LPTIM1_CH1 (AF1), SAI1_FS_B (AF13), USB_OTG_HS_SOF (AF10)
A13PA8ввод-выводDEBUG_TRACECLK (AF12), LPTIM2_CH1 (AF14), RCC_MCO (AF0), SAI1_CK2 (AF3), SAI1_SCK_A (AF13), SPI1_RDY (AF5), TIM1_CH1 (AF1), USART1_CK (AF7), USB_OTG_HS_SOF (AF10)
A14PC8ввод-выводDCMI_D2 (AF10), LPTIM3_CH1 (AF14), PSSI_D2 (AF10), PWR_SRDSTOP (AF0), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), TSC_G4_IO3 (AF9), USART6_RX (AF7)
A15VSSпитание—
B1PC14-OSC32_INввод-выводRCC_OSC32_IN
B2PE4ввод-выводDCMI_D4 (AF10), DEBUG_TRACED1 (AF0), FMC_A20 (AF12), LTDC_B0 (AF8), MDF1_SDI3 (AF6), PSSI_D4 (AF10), PWR_WKUP1, SAI1_D2 (AF3), SAI1_FS_A (AF13), TAMP_IN7, TAMP_OUT8, TIM3_CH2 (AF2), TSC_G7_IO3 (AF9), USART6_DE (AF7), USART6_RTS (AF7)
B3PE1ввод-выводDCMI_D3 (AF10), FMC_NBL1 (AF12), LTDC_VSYNC (AF8), PSSI_D3 (AF10), TIM17_CH1 (AF14), USART6_TX (AF7)
B4PH3-BOOT0ввод-вывод—
B5PB5ввод-выводCOMP2_OUT (AF12), DCMI_D10 (AF10), I2C1_SMBA (AF4), LPTIM1_IN1 (AF1), OCTOSPIM_P1_NCLK (AF3), PSSI_D10 (AF10), PWR_WKUP6, SAI1_SD_B (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF6), TIM16_BKIN (AF14), TIM3_CH2 (AF2), TSC_G2_IO2 (AF9), UART5_CTS (AF8), UCPD1_DBCC1, USART1_CK (AF7)
B6PG13ввод-выводFMC_A24 (AF12), I2C1_SDA (AF4), LTDC_R0 (AF8), SPI3_RDY (AF6), USART1_CK (AF7)
B7PG10ввод-выводFMC_NE3 (AF12), LPTIM1_IN1 (AF1), OCTOSPIM_P2_IO7 (AF5), SAI2_FS_A (AF13), SPI3_MISO (AF6), TIM15_CH1 (AF14), USART1_RX (AF7)
B8PD5ввод-выводFMC_NWE (AF12), OCTOSPIM_P1_IO5 (AF10), SPI2_RDY (AF5), USART2_TX (AF7)
B9PD2ввод-выводDCMI_D11 (AF10), DEBUG_TRACED2 (AF0), I2C5_SMBA (AF4), LPTIM4_ETR (AF13), PSSI_D11 (AF10), SDMMC1_CMD (AF12), TIM3_ETR (AF2), TSC_SYNC (AF9), UART5_RX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
B10PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0 (AF3), DCMI_D2 (AF4), DCMI_D4 (AF10), LPTIM3_IN1 (AF2), OCTOSPIM_P1_NCS (AF5), PSSI_D2 (AF4), PSSI_D4 (AF10), SAI2_MCLK_B (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), TSC_G3_IO3 (AF9), UART4_RX (AF8), UCPD1_FRSTX2 (AF11), USART3_RX (AF7)
B11PH7ввод-выводDCMI_D9 (AF10), I2C3_SCL (AF4), OCTOSPIM_P2_NCLK (AF5), PSSI_D9 (AF10)
B12PH5ввод-выводDCMI_PIXCLK (AF10), I2C2_SDA (AF4), I2C5_SCL (AF2), PSSI_PDCK (AF10)
B13PA12ввод-выводFDCAN1_TX (AF9), OCTOSPIM_P2_NCS (AF6), SPI1_MOSI (AF5), TIM1_ETR (AF1), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_HS_DP
B14PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX (AF9), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1), USART1_CTS (AF7), USB_OTG_HS_DM
B15PC7ввод-выводDCMI_D1 (AF10), LPTIM2_CH2 (AF14), LTDC_R1 (AF7), MDF1_SDI3 (AF6), PSSI_D1 (AF10), PWR_CDSTOP (AF0), SAI2_MCLK_B (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), TSC_G4_IO2 (AF9)
C1PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUT
C2VBATпитание—
C3PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), LTDC_R1 (AF8), OCTOSPIM_P1_DQS (AF3), SAI1_SD_B (AF13), TAMP_IN6, TAMP_OUT3, TIM3_CH1 (AF2), TSC_G7_IO2 (AF9), USART6_CTS (AF7)
C4PI5ввод-выводDCMI_VSYNC (AF10), OCTOSPIM_P2_NCS (AF5), PSSI_RDY (AF10), TIM8_CH1 (AF3)
C5PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF10), FDCAN1_TX (AF9), I2C1_SDA (AF4), IR_OUT (AF1), PSSI_D7 (AF10), SAI1_D2 (AF3), SAI1_FS_A (AF13), SDMMC1_CDIR (AF8), SDMMC1_D5 (AF12), SDMMC2_D5 (AF11), SPI2_NSS (AF5), TIM17_CH1 (AF14), TIM4_CH4 (AF2)
C6PB8ввод-выводDCMI_D6 (AF10), FDCAN1_RX (AF9), I2C1_SCL (AF4), LTDC_B1 (AF7), MDF1_CCK0 (AF5), PSSI_D6 (AF10), PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), SDMMC1_CKIN (AF8), SDMMC1_D4 (AF12), SDMMC2_D4 (AF11), SPI3_RDY (AF6), TIM16_CH1 (AF14), TIM4_CH3 (AF2)
C7PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, LPTIM1_IN2 (AF1), OCTOSPIM_P1_IO5 (AF3), SAI2_MCLK_A (AF13), SPI3_MOSI (AF6), TIM15_CH2 (AF14), USART1_CTS (AF7)
C8PD6ввод-выводDCMI_D10 (AF4), FMC_NWAIT (AF12), LTDC_DE (AF8), MDF1_SDI1 (AF6), OCTOSPIM_P1_IO6 (AF10), PSSI_D10 (AF4), SAI1_D1 (AF3), SAI1_SD_A (AF13), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
C9PD1ввод-выводFDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2C5_SCL (AF4), I2C6_SCL (AF2), LTDC_B5 (AF8), SPI2_SCK (AF5)
C10PC12ввод-выводDCMI_D9 (AF10), DEBUG_TRACED3 (AF0), PSSI_D9 (AF10), SAI2_SD_B (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), TSC_G3_IO4 (AF9), UART5_TX (AF8), USART3_CK (AF7)
C11PH6ввод-выводDCMI_D8 (AF10), I2C2_SMBA (AF4), I2C5_SMBA (AF2), OCTOSPIM_P2_CLK (AF5), PSSI_D8 (AF10)
C12PH4ввод-выводI2C2_SCL (AF4), I2C5_SDA (AF2), OCTOSPIM_P2_DQS (AF5), PSSI_D14 (AF10)
C13PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0), IR_OUT (AF1), SAI1_SD_B (AF13)
C14PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF4), DEBUG_TRACED0 (AF0), LPTIM3_CH2 (AF14), PSSI_D3 (AF4), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_BKIN2 (AF1), TIM8_CH4 (AF3), TSC_G4_IO4 (AF9), USART6_TX (AF7)
C15PC6ввод-выводDCMI_D0 (AF10), LTDC_R0 (AF7), MDF1_CKI3 (AF6), PSSI_D0 (AF10), PWR_CSLEEP (AF0), SAI2_MCLK_A (AF13), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF11), TIM3_CH1 (AF2), TIM8_CH1 (AF3), TSC_G4_IO1 (AF9)
D1PJ3ввод-выводUSART6_TX (AF7)
D2PJ2ввод-выводI2C5_SCL (AF4)
D3PE5ввод-выводDCMI_D6 (AF10), DEBUG_TRACED2 (AF0), FMC_A21 (AF12), LTDC_G0 (AF8), MDF1_CKI3 (AF6), PSSI_D6 (AF10), PWR_WKUP2, SAI1_CK2 (AF3), SAI1_SCK_A (AF13), TAMP_IN8, TAMP_OUT7, TIM3_CH3 (AF2), TSC_G7_IO4 (AF9)
D4PI7ввод-выводDCMI_D7 (AF10), OCTOSPIM_P2_NCLK (AF5), PSSI_D7 (AF10), TIM8_CH3 (AF3)
D5PI6ввод-выводDCMI_D6 (AF10), OCTOSPIM_P2_CLK (AF5), PSSI_D6 (AF10), TIM8_CH2 (AF3)
D6PB4 (NJTRST)ввод-выводADF1_SDI0 (AF3), COMP2_INP, DCMI_D12 (AF10), DEBUG_NJTRST (AF0), I2C3_SDA (AF4), LPTIM1_CH2 (AF1), PSSI_D12 (AF10), SAI1_MCLK_B (AF13), SDMMC2_D3 (AF12), SPI1_MISO (AF5), SPI3_MISO (AF6), TIM17_BKIN (AF14), TIM3_CH1 (AF2), TSC_G2_IO1 (AF9), UART5_DE (AF8), UART5_RTS (AF8), USART1_CTS (AF7)
D7PG14ввод-выводFMC_A25 (AF12), I2C1_SCL (AF4), LPTIM1_CH2 (AF1), LTDC_R1 (AF8)
D8PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), LPTIM4_OUT (AF13), MDF1_CKI1 (AF6), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), USART2_CK (AF7)
D9PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), I2C5_SDA (AF4), I2C6_SDA (AF2), LTDC_B4 (AF8), SPI2_NSS (AF5), TIM8_CH4N (AF3)
D10PH8ввод-выводDCMI_HSYNC (AF10), I2C3_SDA (AF4), OCTOSPIM_P2_IO3 (AF5), PSSI_DE (AF10)
D11PH2ввод-выводOCTOSPIM_P1_IO4 (AF3)
D12PA10ввод-выводCRS_SYNC (AF0), DCMI_D1 (AF5), LPTIM2_IN2 (AF2), PSSI_D1 (AF5), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM17_BKIN (AF14), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_HS_ID (AF10)
D13PG7ввод-выводFMC_INT (AF12), I2C3_SCL (AF4), LPUART1_TX (AF8), MDF1_CCK0 (AF6), OCTOSPIM_P2_DQS (AF5), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), UCPD1_FRSTX2 (AF11)
D14PG6ввод-выводI2C3_SMBA (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), LTDC_R1 (AF7), OCTOSPIM_P1_DQS (AF3), SPI1_RDY (AF5), UCPD1_FRSTX1 (AF11)
D15PG3ввод-выводFMC_A13 (AF12), SAI2_FS_B (AF13), SPI1_MISO (AF5)
E1PJ7ввод-выводUSART6_CTS (AF7)
E2PJ6ввод-выводUSART6_CK (AF7)
E3PJ4ввод-выводUSART6_RX (AF7)
E4PE6ввод-выводDCMI_D7 (AF10), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF8), PSSI_D7 (AF10), PWR_WKUP3, SAI1_D1 (AF3), SAI1_SD_A (AF13), TAMP_IN3, TAMP_OUT6, TIM3_CH4 (AF2)
E5PE2ввод-выводDEBUG_TRACECLK (AF0), FMC_A23 (AF12), LTDC_R0 (AF8), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM3_ETR (AF2), TSC_G7_IO1 (AF9), USART6_CK (AF7)
E6VDD11питание—
E7PB3 (JTDO/TRACESWO)ввод-выводADF1_CCK0 (AF3), COMP2_INM, CRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2C1_SDA (AF4), LPTIM1_CH1 (AF2), SAI1_SCK_B (AF13), SDMMC2_D2 (AF12), SPI1_SCK (AF5), SPI3_SCK (AF6), TIM2_CH2 (AF1), USART1_DE (AF7), USART1_RTS (AF7)
E8VDDIO2питание—
E9VDDUSBпитание—
E10VSSпитание—
E11VDD11питание—
E12PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF5), PSSI_D0 (AF5), SAI1_FS_A (AF13), SPI2_SCK (AF3), TIM15_BKIN (AF14), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_HS_VBUS
E13PG8ввод-выводI2C3_SDA (AF4), LPUART1_RX (AF8)
E14PG5ввод-выводDSIHOST_TE (AF11), FMC_A15 (AF12), LPUART1_CTS (AF8), SAI2_SD_B (AF13), SPI1_NSS (AF5)
E15PJ0ввод-выводHSPI1_IO15 (AF8), I2C5_SMBA (AF4)
F1PJ10ввод-выводI2C6_SCL (AF2)
F2PJ8ввод-выводI2C6_SMBA (AF2)
F3PJ5ввод-выводUSART6_DE (AF7), USART6_RTS (AF7)
F4PC13ввод-выводPWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2
F5VDDпитание—
F6VSSпитание—
F7VSSпитание—
F8VDDпитание—
F9VSSпитание—
F10VSSпитание—
F11VDD11USBпитание—
F12PG4ввод-выводFMC_A14 (AF12), SAI2_MCLK_B (AF13), SPI1_MOSI (AF5)
F13PI15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, HSPI1_IO14 (AF8)
F14PI14ввод-выводHSPI1_IO13 (AF8)
F15PI13ввод-выводHSPI1_IO12 (AF8)
G1DSI_D0PслужебныйDSIHOST_D0P
G2DSI_D0NслужебныйDSIHOST_D0N
G3PJ11ввод-выводADC1_EXTI11, ADC2_EXTI11
G4PJ1ввод-выводI2C5_SDA (AF4)
G5VDDDSIпитание—
G6VSSDSIпитание—
G10VSSпитание—
G11VDDIO2питание—
G12PG2ввод-выводFMC_A12 (AF12), SAI2_SCK_B (AF13), SPI1_SCK (AF5)
G13PI12ввод-выводHSPI1_IO11 (AF8)
G14PI11ввод-выводADC1_EXTI11, ADC2_EXTI11, HSPI1_IO10 (AF8)
G15PI10ввод-выводHSPI1_IO9 (AF8)
H1DSI_CKPслужебныйDSIHOST_CKP
H2VSSDSIпитание—
H3PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), I2C6_SDA (AF2), OCTOSPIM_P2_IO0 (AF5), USART6_TX (AF7)
H4PJ9ввод-выводDAC1_EXTI9, I2C6_SDA (AF2)
H5VDD11DSIпитание—
H6VSSDSIпитание—
H10VSSпитание—
H11VDDпитание—
H12PI9ввод-выводDAC1_EXTI9, HSPI1_IO8 (AF8)
H13PI8ввод-выводHSPI1_DQS1 (AF8)
H14PI4ввод-выводDCMI_D5 (AF10), HSPI1_NCLK (AF8), PSSI_D5 (AF10), SPI2_RDY (AF5), TIM8_BKIN (AF3)
H15VSSпитание—
J1DSI_CKNслужебныйDSIHOST_CKN
J2VSSDSIпитание—
J3PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), OCTOSPIM_P2_IO2 (AF5), PWR_WKUP8, USART6_CK (AF7)
J4PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), I2C6_SCL (AF2), OCTOSPIM_P2_IO1 (AF5), USART6_RX (AF7)
J5VDDпитание—
J6VSSпитание—
J10VSSпитание—
J11VDDпитание—
J12PI1ввод-выводDCMI_D8 (AF10), HSPI1_IO7 (AF8), OCTOSPIM_P2_IO2 (AF6), PSSI_D8 (AF10), SPI2_SCK (AF5)
J13PI2ввод-выводDCMI_D9 (AF10), HSPI1_DQS0 (AF8), OCTOSPIM_P2_IO1 (AF6), PSSI_D9 (AF10), SPI2_MISO (AF5), TIM8_CH4 (AF3)
J14PI3ввод-выводDCMI_D10 (AF10), HSPI1_CLK (AF8), OCTOSPIM_P2_IO0 (AF6), PSSI_D10 (AF10), SPI2_MOSI (AF5), TIM8_ETR (AF3)
J15VSSпитание—
K1DSI_D1NслужебныйDSIHOST_D1N
K2DSI_D1PслужебныйDSIHOST_D1P
K3PF4ввод-выводADF1_SDI0 (AF3), FMC_A4 (AF12), LPTIM3_ETR (AF2), MDF1_SDI0 (AF6), OCTOSPIM_P2_CLK (AF5), UART5_RX (AF8), USART6_DE (AF7), USART6_RTS (AF7)
K4PF3ввод-выводADF1_CCK0 (AF3), FMC_A3 (AF12), LPTIM3_IN1 (AF2), MDF1_CCK0 (AF6), OCTOSPIM_P2_IO3 (AF5), UART5_TX (AF8), USART6_CTS (AF7)
K5VREF-питание—
K6VSSAпитание—
K7VSSпитание—
K8VSSпитание—
K9VSSпитание—
K10VSSпитание—
K11VDDпитание—
K12PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LPTIM3_CH2 (AF14), LTDC_B3 (AF8), TIM4_CH4 (AF2), USART6_DE (AF7), USART6_RTS (AF7)
K13PH14ввод-выводDCMI_D4 (AF10), FDCAN1_RX (AF9), HSPI1_IO4 (AF8), PSSI_D4 (AF10), TIM8_CH2N (AF3)
K14PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D11 (AF10), HSPI1_IO5 (AF8), OCTOSPIM_P2_IO6 (AF5), PSSI_D11 (AF10), TIM8_CH3N (AF3)
K15PI0ввод-выводDCMI_D13 (AF10), HSPI1_IO6 (AF8), OCTOSPIM_P1_IO5 (AF3), PSSI_D13 (AF10), SPI2_NSS (AF5), TIM5_CH4 (AF2)
L1PF10ввод-выводDCMI_D11 (AF10), DSIHOST_TE (AF11), MDF1_CCK1 (AF6), OCTOSPIM_P1_CLK (AF3), PSSI_D11 (AF10), PSSI_D15 (AF4), SAI1_D3 (AF13), TIM15_CH2 (AF14)
L2PF5ввод-выводFMC_A5 (AF12), LPTIM3_CH1 (AF2), MDF1_CKI0 (AF6), OCTOSPIM_P2_NCLK (AF5)
L3PF7ввод-выводFDCAN1_RX (AF9), OCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF13), TIM5_CH2 (AF2)
L4PF9ввод-выводDAC1_EXTI9, OCTOSPIM_P1_IO1 (AF10), PSSI_D15 (AF4), SAI1_FS_B (AF13), TIM15_CH1 (AF14), TIM5_CH4 (AF2)
L5VREF+служебныйVREFBUF_OUT
L6VDDAпитание—
L7VDDпитание—
L8VDDпитание—
L9VDDпитание—
L10VSSпитание—
L11VDDпитание—
L12PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_ETR (AF14), LTDC_R6 (AF8), SAI2_SD_A (AF13), TSC_G6_IO2 (AF9), USART3_CTS (AF7)
L13PH10ввод-выводDCMI_D1 (AF10), HSPI1_IO0 (AF8), OCTOSPIM_P2_IO5 (AF5), PSSI_D1 (AF10), TIM5_CH1 (AF2)
L14PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D2 (AF10), HSPI1_IO1 (AF8), OCTOSPIM_P2_IO6 (AF5), PSSI_D2 (AF10), TIM5_CH2 (AF2)
L15PH13ввод-выводFDCAN1_TX (AF9), HSPI1_IO3 (AF8), TIM8_CH1N (AF3)
M1PC1ввод-выводADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0 (AF0), I2C3_SDA (AF4), LPTIM1_CH1 (AF1), LPUART1_TX (AF8), MDF1_CKI4 (AF6), OCTOSPIM_P1_IO4 (AF10), SAI1_SD_A (AF13), SDMMC2_CK (AF12), SPI2_MOSI (AF3), USART6_CK (AF7)
M2PF6ввод-выводDCMI_D12 (AF4), OCTOSPIM_P1_IO3 (AF10), OCTOSPIM_P2_NCS (AF5), PSSI_D12 (AF4), SAI1_SD_B (AF13), TIM5_CH1 (AF2), TIM5_ETR (AF1)
M3PF8ввод-выводFDCAN1_TX (AF9), OCTOSPIM_P1_IO0 (AF10), PSSI_D14 (AF4), SAI1_SCK_B (AF13), TIM5_CH3 (AF2)
M4PA2ввод-выводADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), PWR_WKUP4, RCC_LSCO, SPI1_RDY (AF5), TIM15_CH1 (AF14), TIM2_CH3 (AF1), TIM5_CH3 (AF2), UCPD1_FRSTX1 (AF11), USART2_TX (AF7)
M5PA4ввод-выводADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC (AF10), LPTIM2_CH1 (AF14), OCTOSPIM_P1_NCS (AF3), PSSI_DE (AF10), PWR_WKUP2, SAI1_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), USART2_CK (AF7)
M6PB1ввод-выводADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1 (AF14), LPTIM3_CH2 (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI0 (AF6), OCTOSPIM_P1_IO0 (AF10), PWR_WKUP4, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USART3_DE (AF7), USART3_RTS (AF7)
M7PF13ввод-выводFMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM4_OUT (AF13), LTDC_B1 (AF8), UCPD1_FRSTX2 (AF11)
M8PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), LTDC_B7 (AF8), MDF1_CKI2 (AF6), PWR_WKUP7, SAI1_SCK_B (AF13), TIM1_CH1N (AF1)
M9PE13ввод-выводFMC_D10 (AF12), FMC_DA10 (AF12), LTDC_G6 (AF8), MDF1_CKI5 (AF6), OCTOSPIM_P1_IO1 (AF10), SPI1_SCK (AF5), TIM1_CH3 (AF1), TSC_G5_IO4 (AF9)
M10PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, COMP2_OUT (AF12), I2C2_SDA (AF4), I2C4_SDA (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), SPI2_RDY (AF5), TIM2_CH4 (AF1), USART3_RX (AF7)
M11PB12ввод-выводI2C2_SMBA (AF4), I2C6_SMBA (AF2), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI1 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI2_FS_A (AF13), SPI2_NSS (AF5), TIM15_BKIN (AF14), TIM1_BKIN (AF1), TSC_G1_IO1 (AF9), USART3_CK (AF7)
M12PB13ввод-выводI2C2_SCL (AF4), LPTIM3_IN1 (AF2), LPUART1_CTS (AF8), MDF1_CKI1 (AF6), SAI2_SCK_A (AF13), SPI2_SCK (AF5), TIM15_CH1N (AF14), TIM1_CH1N (AF1), TSC_G1_IO2 (AF9), USART3_CTS (AF7)
M13PD12ввод-выводADC4_IN16, FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), LPTIM2_IN1 (AF14), LTDC_R7 (AF8), SAI2_FS_A (AF13), TIM4_CH1 (AF2), TSC_G6_IO3 (AF9), USART3_DE (AF7), USART3_RTS (AF7)
M14PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF10), HSPI1_NCS (AF8), I2C3_SMBA (AF4), OCTOSPIM_P2_IO4 (AF5), PSSI_D0 (AF10)
M15PH12ввод-выводDCMI_D3 (AF10), HSPI1_IO2 (AF8), OCTOSPIM_P2_IO7 (AF5), PSSI_D3 (AF10), TIM5_CH3 (AF2), TIM8_CH4N (AF3)
N1PH0-OSC_INввод-выводRCC_OSC_IN
N2PH1-OSC_OUTввод-выводRCC_OSC_OUT
N3PC3ввод-выводADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR (AF1), LPTIM2_ETR (AF14), LPTIM3_CH1 (AF2), OCTOSPIM_P1_IO6 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), SPI2_MOSI (AF5), USART6_TX (AF7)
N4PA0ввод-выводADC1_IN5, ADC2_IN5, AUDIOCLK (AF13), OCTOSPIM_P2_NCS (AF10), OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD (AF12), SPI3_RDY (AF6), TAMP_IN2, TAMP_OUT1, TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7)
N5OPAMP2_VINMслужебныйOPAMP2_VINM
N6PB0ввод-выводADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK (AF13), COMP1_OUT (AF12), LPTIM3_CH1 (AF4), OCTOSPIM_P1_IO1 (AF10), OPAMP2_VOUT, SPI1_NSS (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), USART3_CK (AF7)
N7PF12ввод-выводFMC_A6 (AF12), LPTIM4_ETR (AF13), LTDC_B0 (AF8), OCTOSPIM_P2_DQS (AF5)
N8PG1ввод-выводADC4_IN8, FMC_A11 (AF12), OCTOSPIM_P2_IO5 (AF5), TSC_G8_IO4 (AF9)
N9PE7ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), LTDC_B6 (AF8), MDF1_SDI2 (AF6), PWR_WKUP6, SAI1_SD_B (AF13), TIM1_ETR (AF1)
N10PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R2 (AF8), OCTOSPIM_P1_IO3 (AF10), SPI1_MOSI (AF5), TIM1_BKIN (AF1), TIM1_CH4N (AF3)
N11PE12ввод-выводFMC_D9 (AF12), FMC_DA9 (AF12), LTDC_G5 (AF8), MDF1_SDI5 (AF6), OCTOSPIM_P1_IO0 (AF10), SPI1_NSS (AF5), TIM1_CH3N (AF1), TSC_G5_IO3 (AF9)
N12PB10ввод-выводCOMP1_OUT (AF12), I2C2_SCL (AF4), I2C4_SCL (AF3), LPTIM3_CH1 (AF2), LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), PWR_WKUP8, SAI1_SCK_A (AF13), SPI2_SCK (AF5), TIM2_CH3 (AF1), TSC_SYNC (AF9), USART3_TX (AF7)
N13PD8ввод-выводDCMI_HSYNC (AF10), FMC_D13 (AF12), FMC_DA13 (AF12), LTDC_R3 (AF8), PSSI_DE (AF10), USART3_TX (AF7)
N14PD13ввод-выводADC4_IN17, FMC_A18 (AF12), I2C4_SDA (AF4), LPTIM2_CH1 (AF14), LPTIM4_IN1 (AF13), LTDC_VSYNC (AF8), TIM4_CH2 (AF2), TSC_G6_IO4 (AF9), USART6_CTS (AF7)
N15PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LPTIM3_CH1 (AF14), LTDC_B2 (AF8), TIM4_CH3 (AF2), USART6_CK (AF7)
P1PC2ввод-выводADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2 (AF1), MDF1_CCK1 (AF6), OCTOSPIM_P1_IO5 (AF10), SPI2_MISO (AF5), USART6_RX (AF7)
P2PC0ввод-выводADC1_IN1, ADC2_IN1, ADC4_IN1, I2C3_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF14), LPUART1_RX (AF8), MDF1_SDI4 (AF6), OCTOSPIM_P1_IO7 (AF3), SAI2_FS_A (AF13), SDMMC1_D5 (AF12), SPI2_RDY (AF5), USART6_CTS (AF7)
P3PA1ввод-выводADC1_IN6, ADC2_IN6, I2C1_SMBA (AF4), LPTIM1_CH2 (AF0), OCTOSPIM_P1_DQS (AF10), OPAMP1_VINM, PWR_WKUP3, SPI1_SCK (AF5), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF14), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
P4PA3ввод-выводADC1_IN8, ADC2_IN8, LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM15_CH2 (AF14), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
P5PA6ввод-выводADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK (AF4), LPUART1_CTS (AF8), OCTOSPIM_P1_IO3 (AF10), OPAMP2_VINP, PSSI_PDCK (AF4), PWR_CDSTOP (AF0), PWR_WKUP7, SPI1_MISO (AF5), TIM16_CH1 (AF14), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART3_CTS (AF7)
P6PC5ввод-выводADC1_IN14, ADC2_IN14, ADC4_IN23, COMP1_INP, PSSI_D15 (AF4), PWR_WKUP5, SAI1_D3 (AF3), TAMP_IN4, TAMP_OUT5, TIM1_CH4N (AF1), USART3_RX (AF7)
P7PF11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D12 (AF10), DSIHOST_TE (AF11), LPTIM4_IN1 (AF13), LTDC_DE (AF8), OCTOSPIM_P1_NCLK (AF3), PSSI_D12 (AF10)
P8PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, ADC4_IN6, FMC_A9 (AF12), I2C4_SDA (AF4), LTDC_G1 (AF8), TSC_G8_IO2 (AF9)
P9PE9ввод-выводADF1_CCK0 (AF3), DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), LTDC_G2 (AF8), MDF1_CCK0 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI1_FS_B (AF13), TIM1_CH1 (AF1)
P10PE10ввод-выводADF1_SDI0 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), LTDC_G3 (AF8), MDF1_SDI4 (AF6), OCTOSPIM_P1_CLK (AF10), SAI1_MCLK_B (AF13), TIM1_CH2N (AF1), TSC_G5_IO1 (AF9)
P11PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G4 (AF8), MDF1_CKI4 (AF6), OCTOSPIM_P1_NCS (AF10), SPI1_RDY (AF5), TIM1_CH2 (AF1), TSC_G5_IO2 (AF9)
P12VSSSMPSпитание—
P13PB14ввод-выводI2C2_SDA (AF4), LPTIM3_ETR (AF2), MDF1_SDI2 (AF6), SAI2_MCLK_A (AF13), SDMMC2_D0 (AF12), SPI2_MISO (AF5), TIM15_CH1 (AF14), TIM1_CH2N (AF1), TIM8_CH2N (AF3), TSC_G1_IO3 (AF9), UCPD1_DBCC2, USART3_DE (AF7), USART3_RTS (AF7)
P14PD10ввод-выводFMC_D15 (AF12), FMC_DA15 (AF12), I2C5_SMBA (AF4), LPTIM2_CH2 (AF2), LPTIM3_ETR (AF14), LTDC_R5 (AF8), SAI2_SCK_A (AF13), TSC_G6_IO1 (AF9), USART3_CK (AF7)
P15PD9ввод-выводDAC1_EXTI9, DCMI_PIXCLK (AF10), FMC_D14 (AF12), FMC_DA14 (AF12), LPTIM2_IN2 (AF2), LPTIM3_IN1 (AF14), LTDC_R4 (AF8), PSSI_PDCK (AF10), SAI2_MCLK_A (AF13), USART3_RX (AF7)
R1VSSпитание—
R2NRSTсброс—
R3OPAMP1_VINMслужебныйOPAMP1_VINM
R4PA5ввод-выводADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR (AF14), PSSI_D14 (AF4), PWR_CSLEEP (AF0), PWR_WKUP6, SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM8_CH1N (AF3), USART3_RX (AF7)
R5PA7ввод-выводADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL (AF4), LPTIM2_CH2 (AF13), OCTOSPIM_P1_IO2 (AF10), OPAMP2_VINM, PWR_SRDSTOP (AF0), PWR_WKUP8, SPI1_MOSI (AF5), TIM17_CH1 (AF14), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART3_TX (AF7)
R6PC4ввод-выводADC1_IN13, ADC2_IN13, ADC4_IN22, COMP1_INM, I2C6_SMBA (AF2), OCTOSPIM_P1_IO7 (AF10), USART3_TX (AF7)
R7PB2ввод-выводADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA (AF4), LPTIM1_CH1 (AF1), LTDC_B1 (AF8), MDF1_CKI0 (AF6), OCTOSPIM_P1_DQS (AF10), PWR_WKUP1, RTC_OUT2, SPI1_RDY (AF5), TIM8_CH4N (AF3), UCPD1_FRSTX1 (AF11)
R8PF14ввод-выводADC4_IN5, FMC_A8 (AF12), I2C4_SCL (AF4), LTDC_G0 (AF8), TSC_G8_IO1 (AF9)
R9PG0ввод-выводADC4_IN7, FMC_A10 (AF12), OCTOSPIM_P2_IO4 (AF5), TSC_G8_IO3 (AF9)
R10PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), LTDC_G7 (AF8), OCTOSPIM_P1_IO2 (AF10), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1)
R11VLXSMPSпитание—
R12VDDSMPSпитание—
R13VDD11питание—
R14PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_NBL1 (AF11), LPTIM2_IN2 (AF2), MDF1_CKI2 (AF6), PWR_WKUP7, RTC_REFIN (AF0), SAI2_SD_A (AF13), SDMMC2_D1 (AF12), SPI2_MOSI (AF5), TIM15_CH2 (AF14), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UCPD1_CC2
R15VSSпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATC2резервное питание: часы реального времени и резервные регистры
VDDF5, F8, H11, J5, J11, K11, L7, L8, L9, L11питание цифровой части и линий ввода-вывода
VDD11E6, E11, R13—
VDD11DSIH5—
VDD11USBF11—
VDDAL6питание аналоговой части: АЦП, ЦАП, генераторы
VDDDSIG5питание блока DSI
VDDIO2E8, G11питание отдельной группы линий ввода-вывода
VDDSMPSR12—
VDDUSBE9питание приёмопередатчика USB
VLXSMPSR11—
VREF-K5нижнее опорное напряжение АЦП
VSSA1, A15, E10, F6, F7, F9, F10, G10, H10, H15, J6, J10, J15, K7, K8, K9, K10, L10, R1, R15общий провод (земля)
VSSAK6общий провод аналоговой части
VSSDSIG6, H2, H6, J2общий провод блока DSI
VSSSMPSP12—
NRSTR2сброс, активный уровень — низкий
DSI_CKNJ1—
DSI_CKPH1—
DSI_D0NG2—
DSI_D0PG1—
DSI_D1NK1—
DSI_D1PK2—
OPAMP1_VINMR3—
OPAMP2_VINMN5—
VREF+L5верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32U599NJHxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32U599NJSTM32U599NJHxQ4 МБ2514 КБ

Линейка STM32U599/5A9, семейство STM32U5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе TFBGA216, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32U5A9NJSTM32U599/5A9216 из 216выводы совпадают полностьютолько у него: AES, PKA
STM32U599NISTM32U599/5A9216 из 216выводы совпадают полностьюфлеш-память до 4096 и 2048 КБ
STM32U5F9NJSTM32U5F9/5G9216 из 216выводы совпадают полностьютолько у этого: FDCAN1; ОЗУ 2514 и 3026 КБ
STM32U5G9NJSTM32U5F9/5G9216 из 216выводы совпадают полностьютолько у него: AES, PKA; ОЗУ 2514 и 3026 КБ

Частые вопросы

На каких выводах USART1 у STM32U599NJ?

В корпусе TFBGA216 сигнал USART1_TX выведен на PB6 (шарик A4, AF7) или PG9 (шарик A7, AF7) или PA9 (шарик E12, AF7), USART1_RX — на PB7 (шарик A3, AF7) или PG10 (шарик B7, AF7) или PA10 (шарик D12, AF7).

Где у STM32U599NJ выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик C13, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик A12, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32U599NJ?

I2C1_SCL — PB6 (шарик A4, AF4) или PB8 (шарик C6, AF4) или PG14 (шарик D7, AF4), I2C1_SDA — PB7 (шарик A3, AF4) или PG13 (шарик B6, AF4) или PB9 (шарик C5, AF4) или PB3 (JTDO/TRACESWO) (шарик E7, AF4).

Сколько выводов ввода-вывода у STM32U599NJ в корпусе TFBGA216?

156 из 216. Ещё 50 выводов заняты питанием и землёй, остальные 10 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32U599NJ?

От 1,71 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
