STM32U599ZI в корпусе WLCSP150: распиновка

STM32U599ZI — микроконтроллер STM32U5 на ядре Cortex-M33: 2 МБ флеш-памяти и 2514 КБ ОЗУ. Корпус WLCSP150 — 150 шариков, из них 108 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
2 МБ
ОЗУ
2514 КБ
Корпус
WLCSP150, 150 шариков
Линий ввода-вывода
108

Схема корпуса WLCSP150

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

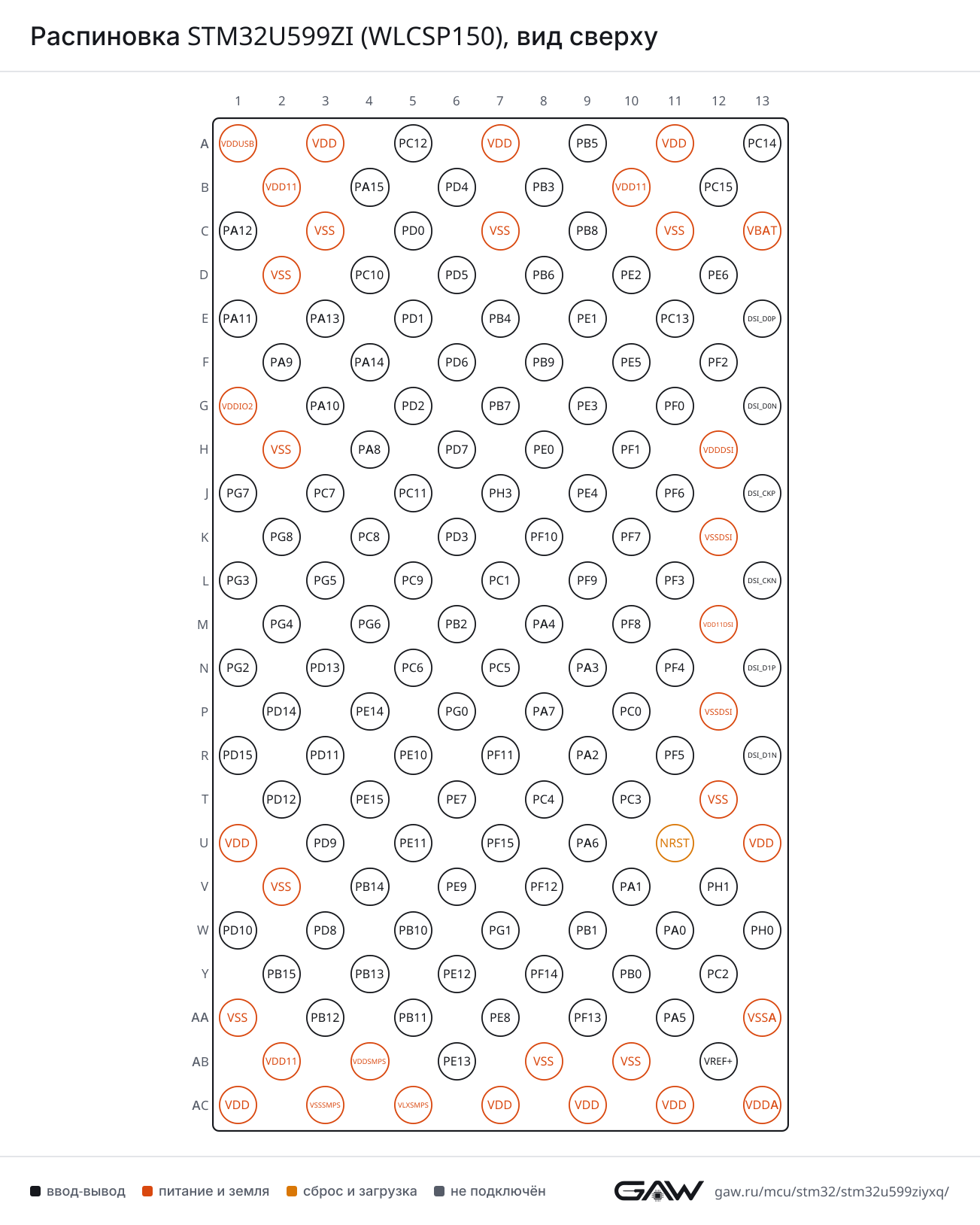

Расположение шариков STM32U599ZI в корпусе WLCSP150, вид сверхуABCDEFGHJKLMNPRTUVWYAAABAC12345678910111213VDDUSB — шарик A1VDDUSBVDD — шарик A3VDDPC12 — шарик A5: DCMI_D9, DEBUG_TRACED3, PSSI_D9, SAI2_SD_B, SDMMC1_CK, SPI3_MOSI, TSC_G3_IO4, UART5_TX, USART3_CKPC12VDD — шарик A7VDDPB5 — шарик A9: COMP2_OUT, DCMI_D10, I2C1_SMBA, LPTIM1_IN1, OCTOSPIM_P1_NCLK, PSSI_D10, PWR_WKUP6, SAI1_SD_B, SPI1_MOSI, SPI3_MOSI, TIM16_BKIN, TIM3_CH2, TSC_G2_IO2, UART5_CTS, UCPD1_DBCC1, USART1_CKPB5VDD — шарик A11VDDPC14-OSC32_IN — шарик A13: RCC_OSC32_INPC14VDD11 — шарик B2VDD11PA15 (JTDI) — шарик B4: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI, SAI2_FS_B, SPI1_NSS, SPI3_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UCPD1_CC1, USART2_RX, USART3_DE, USART3_RTSPA15PD4 — шарик B6: FMC_NOE, MDF1_CKI0, OCTOSPIM_P1_IO4, SPI2_MOSI, USART2_DE, USART2_RTSPD4PB3 (JTDO/TRACESWO) — шарик B8: ADF1_CCK0, COMP2_INM, CRS_SYNC, DEBUG_JTDO-SWO, I2C1_SDA, LPTIM1_CH1, SAI1_SCK_B, SDMMC2_D2, SPI1_SCK, SPI3_SCK, TIM2_CH2, USART1_DE, USART1_RTSPB3VDD11 — шарик B10VDD11PC15-OSC32_OUT — шарик B12: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUTPC15PA12 — шарик C1: FDCAN1_TX, OCTOSPIM_P2_NCS, SPI1_MOSI, TIM1_ETR, USART1_DE, USART1_RTS, USB_OTG_HS_DPPA12VSS — шарик C3VSSPD0 — шарик C5: FDCAN1_RX, FMC_D2, FMC_DA2, I2C5_SDA, I2C6_SDA, LTDC_B4, SPI2_NSS, TIM8_CH4NPD0VSS — шарик C7VSSPB8 — шарик C9: DCMI_D6, FDCAN1_RX, I2C1_SCL, LTDC_B1, MDF1_CCK0, PSSI_D6, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI3_RDY, TIM16_CH1, TIM4_CH3PB8VSS — шарик C11VSSVBAT — шарик C13VBATVSS — шарик D2VSSPC10 — шарик D4: ADF1_CCK1, DCMI_D8, DEBUG_TRACED1, LPTIM3_ETR, PSSI_D8, SAI2_SCK_B, SDMMC1_D2, SPI3_SCK, TSC_G3_IO2, UART4_TX, USART3_TXPC10PD5 — шарик D6: FMC_NWE, OCTOSPIM_P1_IO5, SPI2_RDY, USART2_TXPD5PB6 — шарик D8: COMP2_INP, DCMI_D5, I2C1_SCL, I2C4_SCL, LPTIM1_ETR, MDF1_SDI5, PSSI_D5, PWR_WKUP3, SAI1_FS_B, TIM16_CH1N, TIM4_CH1, TIM8_BKIN2, TSC_G2_IO3, USART1_TXPB6PE2 — шарик D10: DEBUG_TRACECLK, FMC_A23, LTDC_R0, SAI1_CK1, SAI1_MCLK_A, TIM3_ETR, TSC_G7_IO1, USART6_CKPE2PE6 — шарик D12: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, PSSI_D7, PWR_WKUP3, SAI1_D1, SAI1_SD_A, TAMP_IN3, TAMP_OUT6, TIM3_CH4PE6PA11 — шарик E1: ADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX, SPI1_MISO, TIM1_BKIN2, TIM1_CH4, USART1_CTS, USB_OTG_HS_DMPA11PA13 (JTMS/SWDIO) — шарик E3: DEBUG_JTMS-SWDIO, IR_OUT, SAI1_SD_BPA13PD1 — шарик E5: FDCAN1_TX, FMC_D3, FMC_DA3, I2C5_SCL, I2C6_SCL, LTDC_B5, SPI2_SCKPD1PB4 (NJTRST) — шарик E7: ADF1_SDI0, COMP2_INP, DCMI_D12, DEBUG_NJTRST, I2C3_SDA, LPTIM1_CH2, PSSI_D12, SAI1_MCLK_B, SDMMC2_D3, SPI1_MISO, SPI3_MISO, TIM17_BKIN, TIM3_CH1, TSC_G2_IO1, UART5_DE, UART5_RTS, USART1_CTSPB4PE1 — шарик E9: DCMI_D3, FMC_NBL1, LTDC_VSYNC, PSSI_D3, TIM17_CH1, USART6_TXPE1PC13 — шарик E11: PWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2PC13DSI_D0P — шарик E13: DSIHOST_D0PDSID0PPA9 — шарик F2: DAC1_EXTI9, DCMI_D0, PSSI_D0, SAI1_FS_A, SPI2_SCK, TIM15_BKIN, TIM1_CH2, USART1_TX, USB_OTG_HS_VBUSPA9PA14 (JTCK/SWCLK) — шарик F4: DEBUG_JTCK-SWCLK, I2C1_SMBA, I2C4_SMBA, LPTIM1_CH1, SAI1_FS_B, USB_OTG_HS_SOFPA14PD6 — шарик F6: DCMI_D10, FMC_NWAIT, LTDC_DE, MDF1_SDI1, OCTOSPIM_P1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PB9 — шарик F8: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, IR_OUT, PSSI_D7, SAI1_D2, SAI1_FS_A, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4PB9PE5 — шарик F10: DCMI_D6, DEBUG_TRACED2, FMC_A21, LTDC_G0, MDF1_CKI3, PSSI_D6, PWR_WKUP2, SAI1_CK2, SAI1_SCK_A, TAMP_IN8, TAMP_OUT7, TIM3_CH3, TSC_G7_IO4PE5PF2 — шарик F12: FMC_A2, I2C2_SMBA, LPTIM3_CH2, OCTOSPIM_P2_IO2, PWR_WKUP8, USART6_CKPF2VDDIO2 — шарик G1VDDIO2PA10 — шарик G3: CRS_SYNC, DCMI_D1, LPTIM2_IN2, PSSI_D1, SAI1_D1, SAI1_SD_A, TIM17_BKIN, TIM1_CH3, USART1_RX, USB_OTG_HS_IDPA10PD2 — шарик G5: DCMI_D11, DEBUG_TRACED2, I2C5_SMBA, LPTIM4_ETR, PSSI_D11, SDMMC1_CMD, TIM3_ETR, TSC_SYNC, UART5_RX, USART3_DE, USART3_RTSPD2PB7 — шарик G7: COMP2_INM, DCMI_VSYNC, FMC_NL, I2C1_SDA, I2C4_SDA, LPTIM1_IN2, MDF1_CKI5, PSSI_RDY, PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N, TIM4_CH2, TIM8_BKIN, TSC_G2_IO4, UART4_CTS, USART1_RXPB7PE3 — шарик G9: DEBUG_TRACED0, FMC_A19, LTDC_R1, OCTOSPIM_P1_DQS, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM3_CH1, TSC_G7_IO2, USART6_CTSPE3PF0 — шарик G11: FMC_A0, I2C2_SDA, I2C6_SDA, OCTOSPIM_P2_IO0, USART6_TXPF0DSI_D0N — шарик G13: DSIHOST_D0NDSID0NVSS — шарик H2VSSPA8 — шарик H4: DEBUG_TRACECLK, LPTIM2_CH1, RCC_MCO, SAI1_CK2, SAI1_SCK_A, SPI1_RDY, TIM1_CH1, USART1_CK, USB_OTG_HS_SOFPA8PD7 — шарик H6: FMC_NCE, FMC_NE1, LPTIM4_OUT, MDF1_CKI1, OCTOSPIM_P1_IO7, SDMMC2_CMD, USART2_CKPD7PE0 — шарик H8: DCMI_D2, FMC_NBL0, LTDC_HSYNC, PSSI_D2, TIM16_CH1, TIM4_ETR, USART6_RXPE0PF1 — шарик H10: FMC_A1, I2C2_SCL, I2C6_SCL, OCTOSPIM_P2_IO1, USART6_RXPF1VDDDSI — шарик H12VDDDSIPG7 — шарик J1: FMC_INT, I2C3_SCL, LPUART1_TX, MDF1_CCK0, OCTOSPIM_P2_DQS, SAI1_CK1, SAI1_MCLK_A, UCPD1_FRSTX2PG7PC7 — шарик J3: DCMI_D1, LPTIM2_CH2, LTDC_R1, MDF1_SDI3, PSSI_D1, PWR_CDSTOP, SAI2_MCLK_B, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, TSC_G4_IO2PC7PC11 — шарик J5: ADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0, DCMI_D2, DCMI_D4, LPTIM3_IN1, OCTOSPIM_P1_NCS, PSSI_D2, PSSI_D4, SAI2_MCLK_B, SDMMC1_D3, SPI3_MISO, TSC_G3_IO3, UART4_RX, UCPD1_FRSTX2, USART3_RXPC11PH3-BOOT0 — шарик J7PH3PE4 — шарик J9: DCMI_D4, DEBUG_TRACED1, FMC_A20, LTDC_B0, MDF1_SDI3, PSSI_D4, PWR_WKUP1, SAI1_D2, SAI1_FS_A, TAMP_IN7, TAMP_OUT8, TIM3_CH2, TSC_G7_IO3, USART6_DE, USART6_RTSPE4PF6 — шарик J11: DCMI_D12, OCTOSPIM_P1_IO3, OCTOSPIM_P2_NCS, PSSI_D12, SAI1_SD_B, TIM5_CH1, TIM5_ETRPF6DSI_CKP — шарик J13: DSIHOST_CKPDSICKPPG8 — шарик K2: I2C3_SDA, LPUART1_RXPG8PC8 — шарик K4: DCMI_D2, LPTIM3_CH1, PSSI_D2, PWR_SRDSTOP, SDMMC1_D0, TIM3_CH3, TIM8_CH3, TSC_G4_IO3, USART6_RXPC8PD3 — шарик K6: DCMI_D5, FMC_CLK, I2C6_SMBA, LTDC_CLK, MDF1_SDI0, OCTOSPIM_P2_NCS, PSSI_D5, SPI2_MISO, SPI2_SCK, USART2_CTSPD3PF10 — шарик K8: DCMI_D11, DSIHOST_TE, MDF1_CCK1, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM15_CH2PF10PF7 — шарик K10: FDCAN1_RX, OCTOSPIM_P1_IO2, SAI1_MCLK_B, TIM5_CH2PF7VSSDSI — шарик K12VSSDSIPG3 — шарик L1: FMC_A13, SAI2_FS_B, SPI1_MISOPG3PG5 — шарик L3: DSIHOST_TE, FMC_A15, LPUART1_CTS, SAI2_SD_B, SPI1_NSSPG5PC9 — шарик L5: DAC1_EXTI9, DCMI_D3, DEBUG_TRACED0, LPTIM3_CH2, PSSI_D3, SDMMC1_D1, TIM3_CH4, TIM8_BKIN2, TIM8_CH4, TSC_G4_IO4, USART6_TXPC9PC1 — шарик L7: ADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0, I2C3_SDA, LPTIM1_CH1, LPUART1_TX, MDF1_CKI4, OCTOSPIM_P1_IO4, SAI1_SD_A, SDMMC2_CK, SPI2_MOSI, USART6_CKPC1PF9 — шарик L9: DAC1_EXTI9, OCTOSPIM_P1_IO1, PSSI_D15, SAI1_FS_B, TIM15_CH1, TIM5_CH4PF9PF3 — шарик L11: ADF1_CCK0, FMC_A3, LPTIM3_IN1, MDF1_CCK0, OCTOSPIM_P2_IO3, UART5_TX, USART6_CTSPF3DSI_CKN — шарик L13: DSIHOST_CKNDSICKNPG4 — шарик M2: FMC_A14, SAI2_MCLK_B, SPI1_MOSIPG4PG6 — шарик M4: I2C3_SMBA, LPUART1_DE, LPUART1_RTS, LTDC_R1, OCTOSPIM_P1_DQS, SPI1_RDY, UCPD1_FRSTX1PG6PB2 — шарик M6: ADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA, LPTIM1_CH1, LTDC_B1, MDF1_CKI0, OCTOSPIM_P1_DQS, PWR_WKUP1, RTC_OUT2, SPI1_RDY, TIM8_CH4N, UCPD1_FRSTX1PB2PA4 — шарик M8: ADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC, LPTIM2_CH1, OCTOSPIM_P1_NCS, PSSI_DE, PWR_WKUP2, SAI1_FS_B, SPI1_NSS, SPI3_NSS, USART2_CKPA4PF8 — шарик M10: FDCAN1_TX, OCTOSPIM_P1_IO0, PSSI_D14, SAI1_SCK_B, TIM5_CH3PF8VDD11DSI — шарик M12VDD11DSIPG2 — шарик N1: FMC_A12, SAI2_SCK_B, SPI1_SCKPG2PD13 — шарик N3: ADC4_IN17, FMC_A18, I2C4_SDA, LPTIM2_CH1, LPTIM4_IN1, LTDC_VSYNC, TIM4_CH2, TSC_G6_IO4, USART6_CTSPD13PC6 — шарик N5: DCMI_D0, LTDC_R0, MDF1_CKI3, PSSI_D0, PWR_CSLEEP, SAI2_MCLK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, TSC_G4_IO1PC6PC5 — шарик N7: ADC1_IN14, ADC2_IN14, ADC4_IN23, COMP1_INP, PSSI_D15, PWR_WKUP5, SAI1_D3, TAMP_IN4, TAMP_OUT5, TIM1_CH4N, USART3_RXPC5PA3 — шарик N9: ADC1_IN8, ADC2_IN8, LPUART1_RX, OCTOSPIM_P1_CLK, OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3PF4 — шарик N11: ADF1_SDI0, FMC_A4, LPTIM3_ETR, MDF1_SDI0, OCTOSPIM_P2_CLK, UART5_RX, USART6_DE, USART6_RTSPF4DSI_D1P — шарик N13: DSIHOST_D1PDSID1PPD14 — шарик P2: FMC_D0, FMC_DA0, LPTIM3_CH1, LTDC_B2, TIM4_CH3, USART6_CKPD14PE14 — шарик P4: FMC_D11, FMC_DA11, LTDC_G7, OCTOSPIM_P1_IO2, SPI1_MISO, TIM1_BKIN2, TIM1_CH4PE14PG0 — шарик P6: ADC4_IN7, FMC_A10, OCTOSPIM_P2_IO4, TSC_G8_IO3PG0PA7 — шарик P8: ADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL, LPTIM2_CH2, OCTOSPIM_P1_IO2, OPAMP2_VINM, PWR_SRDSTOP, PWR_WKUP8, SPI1_MOSI, TIM17_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART3_TXPA7PC0 — шарик P10: ADC1_IN1, ADC2_IN1, ADC4_IN1, I2C3_SCL, LPTIM1_IN1, LPTIM2_IN1, LPUART1_RX, MDF1_SDI4, OCTOSPIM_P1_IO7, SAI2_FS_A, SDMMC1_D5, SPI2_RDY, USART6_CTSPC0VSSDSI — шарик P12VSSDSIPD15 — шарик R1: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1, FMC_DA1, LPTIM3_CH2, LTDC_B3, TIM4_CH4, USART6_DE, USART6_RTSPD15PD11 — шарик R3: ADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_ETR, LTDC_R6, SAI2_SD_A, TSC_G6_IO2, USART3_CTSPD11PE10 — шарик R5: ADF1_SDI0, FMC_D7, FMC_DA7, LTDC_G3, MDF1_SDI4, OCTOSPIM_P1_CLK, SAI1_MCLK_B, TIM1_CH2N, TSC_G5_IO1PE10PF11 — шарик R7: ADC1_EXTI11, ADC2_EXTI11, DCMI_D12, DSIHOST_TE, LPTIM4_IN1, LTDC_DE, OCTOSPIM_P1_NCLK, PSSI_D12PF11PA2 — шарик R9: ADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX, OCTOSPIM_P1_NCS, PWR_WKUP4, RCC_LSCO, SPI1_RDY, TIM15_CH1, TIM2_CH3, TIM5_CH3, UCPD1_FRSTX1, USART2_TXPA2PF5 — шарик R11: FMC_A5, LPTIM3_CH1, MDF1_CKI0, OCTOSPIM_P2_NCLKPF5DSI_D1N — шарик R13: DSIHOST_D1NDSID1NPD12 — шарик T2: ADC4_IN16, FMC_A17, FMC_ALE, I2C4_SCL, LPTIM2_IN1, LTDC_R7, SAI2_FS_A, TIM4_CH1, TSC_G6_IO3, USART3_DE, USART3_RTSPD12PE15 — шарик T4: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12, FMC_DA12, LTDC_R2, OCTOSPIM_P1_IO3, SPI1_MOSI, TIM1_BKIN, TIM1_CH4NPE15PE7 — шарик T6: FMC_D4, FMC_DA4, LTDC_B6, MDF1_SDI2, PWR_WKUP6, SAI1_SD_B, TIM1_ETRPE7PC4 — шарик T8: ADC1_IN13, ADC2_IN13, ADC4_IN22, COMP1_INM, I2C6_SMBA, OCTOSPIM_P1_IO7, USART3_TXPC4PC3 — шарик T10: ADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR, LPTIM2_ETR, LPTIM3_CH1, OCTOSPIM_P1_IO6, SAI1_D1, SAI1_SD_A, SPI2_MOSI, USART6_TXPC3VSS — шарик T12VSSVDD — шарик U1VDDPD9 — шарик U3: DAC1_EXTI9, DCMI_PIXCLK, FMC_D14, FMC_DA14, LPTIM2_IN2, LPTIM3_IN1, LTDC_R4, PSSI_PDCK, SAI2_MCLK_A, USART3_RXPD9PE11 — шарик U5: ADC1_EXTI11, ADC2_EXTI11, FMC_D8, FMC_DA8, LTDC_G4, MDF1_CKI4, OCTOSPIM_P1_NCS, SPI1_RDY, TIM1_CH2, TSC_G5_IO2PE11PF15 — шарик U7: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, ADC4_IN6, FMC_A9, I2C4_SDA, LTDC_G1, TSC_G8_IO2PF15PA6 — шарик U9: ADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK, LPUART1_CTS, OCTOSPIM_P1_IO3, OPAMP2_VINP, PSSI_PDCK, PWR_CDSTOP, PWR_WKUP7, SPI1_MISO, TIM16_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART3_CTSPA6NRST — шарик U11NRSTVDD — шарик U13VDDVSS — шарик V2VSSPB14 — шарик V4: I2C2_SDA, LPTIM3_ETR, MDF1_SDI2, SAI2_MCLK_A, SDMMC2_D0, SPI2_MISO, TIM15_CH1, TIM1_CH2N, TIM8_CH2N, TSC_G1_IO3, UCPD1_DBCC2, USART3_DE, USART3_RTSPB14PE9 — шарик V6: ADF1_CCK0, DAC1_EXTI9, FMC_D6, FMC_DA6, LTDC_G2, MDF1_CCK0, OCTOSPIM_P1_NCLK, SAI1_FS_B, TIM1_CH1PE9PF12 — шарик V8: FMC_A6, LPTIM4_ETR, LTDC_B0, OCTOSPIM_P2_DQSPF12PA1 — шарик V10: ADC1_IN6, ADC2_IN6, I2C1_SMBA, LPTIM1_CH2, OCTOSPIM_P1_DQS, OPAMP1_VINM, PWR_WKUP3, SPI1_SCK, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PH1-OSC_OUT — шарик V12: RCC_OSC_OUTPH1PD10 — шарик W1: FMC_D15, FMC_DA15, I2C5_SMBA, LPTIM2_CH2, LPTIM3_ETR, LTDC_R5, SAI2_SCK_A, TSC_G6_IO1, USART3_CKPD10PD8 — шарик W3: DCMI_HSYNC, FMC_D13, FMC_DA13, LTDC_R3, PSSI_DE, USART3_TXPD8PB10 — шарик W5: COMP1_OUT, I2C2_SCL, I2C4_SCL, LPTIM3_CH1, LPUART1_RX, OCTOSPIM_P1_CLK, PWR_WKUP8, SAI1_SCK_A, SPI2_SCK, TIM2_CH3, TSC_SYNC, USART3_TXPB10PG1 — шарик W7: ADC4_IN8, FMC_A11, OCTOSPIM_P2_IO5, TSC_G8_IO4PG1PB1 — шарик W9: ADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1, LPTIM3_CH2, LPUART1_DE, LPUART1_RTS, MDF1_SDI0, OCTOSPIM_P1_IO0, PWR_WKUP4, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USART3_DE, USART3_RTSPB1PA0 — шарик W11: ADC1_IN5, ADC2_IN5, AUDIOCLK, OCTOSPIM_P2_NCS, OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD, SPI3_RDY, TAMP_IN2, TAMP_OUT1, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTSPA0PH0-OSC_IN — шарик W13: RCC_OSC_INPH0PB15 — шарик Y2: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_NBL1, LPTIM2_IN2, MDF1_CKI2, PWR_WKUP7, RTC_REFIN, SAI2_SD_A, SDMMC2_D1, SPI2_MOSI, TIM15_CH2, TIM1_CH3N, TIM8_CH3N, UCPD1_CC2PB15PB13 — шарик Y4: I2C2_SCL, LPTIM3_IN1, LPUART1_CTS, MDF1_CKI1, SAI2_SCK_A, SPI2_SCK, TIM15_CH1N, TIM1_CH1N, TSC_G1_IO2, USART3_CTSPB13PE12 — шарик Y6: FMC_D9, FMC_DA9, LTDC_G5, MDF1_SDI5, OCTOSPIM_P1_IO0, SPI1_NSS, TIM1_CH3N, TSC_G5_IO3PE12PF14 — шарик Y8: ADC4_IN5, FMC_A8, I2C4_SCL, LTDC_G0, TSC_G8_IO1PF14PB0 — шарик Y10: ADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK, COMP1_OUT, LPTIM3_CH1, OCTOSPIM_P1_IO1, OPAMP2_VOUT, SPI1_NSS, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, USART3_CKPB0PC2 — шарик Y12: ADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2, MDF1_CCK1, OCTOSPIM_P1_IO5, SPI2_MISO, USART6_RXPC2VSS — шарик AA1VSSPB12 — шарик AA3: I2C2_SMBA, I2C6_SMBA, LPUART1_DE, LPUART1_RTS, MDF1_SDI1, OCTOSPIM_P1_NCLK, SAI2_FS_A, SPI2_NSS, TIM15_BKIN, TIM1_BKIN, TSC_G1_IO1, USART3_CKPB12PB11 — шарик AA5: ADC1_EXTI11, ADC2_EXTI11, COMP2_OUT, I2C2_SDA, I2C4_SDA, LPUART1_TX, OCTOSPIM_P1_NCS, SPI2_RDY, TIM2_CH4, USART3_RXPB11PE8 — шарик AA7: FMC_D5, FMC_DA5, LTDC_B7, MDF1_CKI2, PWR_WKUP7, SAI1_SCK_B, TIM1_CH1NPE8PF13 — шарик AA9: FMC_A7, I2C4_SMBA, LPTIM4_OUT, LTDC_B1, UCPD1_FRSTX2PF13PA5 — шарик AA11: ADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR, PSSI_D14, PWR_CSLEEP, PWR_WKUP6, SPI1_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USART3_RXPA5VSSA — шарик AA13VSSAVDD11 — шарик AB2VDD11VDDSMPS — шарик AB4VDDSMPSPE13 — шарик AB6: FMC_D10, FMC_DA10, LTDC_G6, MDF1_CKI5, OCTOSPIM_P1_IO1, SPI1_SCK, TIM1_CH3, TSC_G5_IO4PE13VSS — шарик AB8VSSVSS — шарик AB10VSSVREF+ — шарик AB12: VREFBUF_OUTVREF+VDD — шарик AC1VDDVSSSMPS — шарик AC3VSSSMPSVLXSMPS — шарик AC5VLXSMPSVDD — шарик AC7VDDVDD — шарик AC9VDDVDD — шарик AC11VDDVDDA — шарик AC13VDDAWLCSP150, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнемуглу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия
Распиновка STM32U599ZI (WLCSP150), вид сверхуРаспиновка WLCSP150 картинкой
PNG, 1303 × 1628 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPB5 (A9, AF7), PA8 (H4, AF7)
CTSPA11 (E1, AF7), PB4 (NJTRST) (E7, AF7)
DEPB3 (JTDO/TRACESWO) (B8, AF7), PA12 (C1, AF7)
RTSPB3 (JTDO/TRACESWO) (B8, AF7), PA12 (C1, AF7)
RXPA10 (G3, AF7), PB7 (G7, AF7)
TXPB6 (D8, AF7), PA9 (F2, AF7)
USART2CKPD7 (H6, AF7), PA4 (M8, AF7)
CTSPD3 (K6, AF7), PA0 (W11, AF7)
DEPD4 (B6, AF7), PA1 (V10, AF7)
RTSPD4 (B6, AF7), PA1 (V10, AF7)
RXPA15 (JTDI) (B4, AF3), PD6 (F6, AF7), PA3 (N9, AF7)
TXPD5 (D6, AF7), PA2 (R9, AF7)
USART3CKPC12 (A5, AF7), PD10 (W1, AF7), PB0 (Y10, AF7), PB12 (AA3, AF7)
CTSPD11 (R3, AF7), PA6 (U9, AF7), PB13 (Y4, AF7)
DEPA15 (JTDI) (B4, AF7), PD2 (G5, AF7), PD12 (T2, AF7), PB14 (V4, AF7), PB1 (W9, AF7)
RTSPA15 (JTDI) (B4, AF7), PD2 (G5, AF7), PD12 (T2, AF7), PB14 (V4, AF7), PB1 (W9, AF7)
RXPC11 (J5, AF7), PC5 (N7, AF7), PD9 (U3, AF7), PB11 (AA5, AF7), PA5 (AA11, AF7)
TXPC10 (D4, AF7), PA7 (P8, AF7), PC4 (T8, AF7), PD8 (W3, AF7), PB10 (W5, AF7)
USART6CKPE2 (D10, AF7), PF2 (F12, AF7), PC1 (L7, AF7), PD14 (P2, AF7)
CTSPE3 (G9, AF7), PF3 (L11, AF7), PD13 (N3, AF7), PC0 (P10, AF7)
DEPE4 (J9, AF7), PF4 (N11, AF7), PD15 (R1, AF7)
RTSPE4 (J9, AF7), PF4 (N11, AF7), PD15 (R1, AF7)
RXPE0 (H8, AF7), PF1 (H10, AF7), PC8 (K4, AF7), PC2 (Y12, AF7)
TXPE1 (E9, AF7), PF0 (G11, AF7), PC9 (L5, AF7), PC3 (T10, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB7 (G7, AF8)
DEPA15 (JTDI) (B4, AF8)
RTSPA15 (JTDI) (B4, AF8)
RXPC11 (J5, AF8), PA1 (V10, AF8)
TXPC10 (D4, AF8), PA0 (W11, AF8)
UART5CTSPB5 (A9, AF8)
DEPB4 (NJTRST) (E7, AF8)
RTSPB4 (NJTRST) (E7, AF8)
RXPD2 (G5, AF8), PF4 (N11, AF8)
TXPC12 (A5, AF8), PF3 (L11, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPG5 (L3, AF8), PA6 (U9, AF8), PB13 (Y4, AF8)
DEPG6 (M4, AF8), PB1 (W9, AF8), PB12 (AA3, AF8)
RTSPG6 (M4, AF8), PB1 (W9, AF8), PB12 (AA3, AF8)
RXPG8 (K2, AF8), PA3 (N9, AF8), PC0 (P10, AF8), PB10 (W5, AF8)
TXPG7 (J1, AF8), PC1 (L7, AF8), PA2 (R9, AF8), PB11 (AA5, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA11 (E1, AF5), PB4 (NJTRST) (E7, AF5), PG3 (L1, AF5), PE14 (P4, AF5), PA6 (U9, AF5)
MOSIPB5 (A9, AF5), PA12 (C1, AF5), PG4 (M2, AF5), PA7 (P8, AF5), PE15 (T4, AF5)
NSSPA15 (JTDI) (B4, AF5), PG5 (L3, AF5), PA4 (M8, AF5), PE12 (Y6, AF5), PB0 (Y10, AF5)
RDYPA8 (H4, AF5), PG6 (M4, AF5), PB2 (M6, AF5), PA2 (R9, AF5), PE11 (U5, AF5)
SCKPB3 (JTDO/TRACESWO) (B8, AF5), PG2 (N1, AF5), PA1 (V10, AF5), PA5 (AA11, AF5), PE13 (AB6, AF5)
SPI2MISOPD3 (K6, AF5), PB14 (V4, AF5), PC2 (Y12, AF5)
MOSIPD4 (B6, AF5), PC1 (L7, AF3), PC3 (T10, AF5), PB15 (Y2, AF5)
NSSPD0 (C5, AF5), PB9 (F8, AF5), PB12 (AA3, AF5)
RDYPD5 (D6, AF5), PC0 (P10, AF5), PB11 (AA5, AF5)
SCKPD1 (E5, AF5), PA9 (F2, AF3), PD3 (K6, AF3), PB10 (W5, AF5), PB13 (Y4, AF5)
SPI3MISOPB4 (NJTRST) (E7, AF6), PC11 (J5, AF6)
MOSIPC12 (A5, AF6), PB5 (A9, AF6), PD6 (F6, AF5)
NSSPA15 (JTDI) (B4, AF6), PA4 (M8, AF6)
RDYPB8 (C9, AF6), PA0 (W11, AF6)
SCKPB3 (JTDO/TRACESWO) (B8, AF6), PC10 (D4, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8 (C9, AF4), PB6 (D8, AF4)
SDAPB3 (JTDO/TRACESWO) (B8, AF4), PB9 (F8, AF4), PB7 (G7, AF4)
SMBAPB5 (A9, AF4), PA14 (JTCK/SWCLK) (F4, AF4), PA1 (V10, AF4)
I2C2SCLPF1 (H10, AF4), PB10 (W5, AF4), PB13 (Y4, AF4)
SDAPF0 (G11, AF4), PB14 (V4, AF4), PB11 (AA5, AF4)
SMBAPF2 (F12, AF4), PB12 (AA3, AF4)
I2C3SCLPG7 (J1, AF4), PA7 (P8, AF4), PC0 (P10, AF4)
SDAPB4 (NJTRST) (E7, AF4), PG8 (K2, AF4), PC1 (L7, AF4)
SMBAPG6 (M4, AF4), PB2 (M6, AF4)
I2C4SCLPB6 (D8, AF5), PD12 (T2, AF4), PB10 (W5, AF3), PF14 (Y8, AF4)
SDAPB7 (G7, AF5), PD13 (N3, AF4), PF15 (U7, AF4), PB11 (AA5, AF3)
SMBAPA14 (JTCK/SWCLK) (F4, AF5), PD11 (R3, AF4), PF13 (AA9, AF4)
I2C5SCLPD1 (E5, AF4)
SDAPD0 (C5, AF4)
SMBAPD2 (G5, AF4), PD10 (W1, AF4)
I2C6SCLPD1 (E5, AF2), PF1 (H10, AF2)
SDAPD0 (C5, AF2), PF0 (G11, AF2)
SMBAPD3 (K6, AF2), PC4 (T8, AF2), PB12 (AA3, AF2)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPD0 (C5, AF9), PB8 (C9, AF9), PA11 (E1, AF9), PF7 (K10, AF9)
TXPA12 (C1, AF9), PD1 (E5, AF9), PB9 (F8, AF9), PF8 (M10, AF9)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPA11 (E1)
DPPA12 (C1)
IDPA10 (G3, AF10)
SOFPA14 (JTCK/SWCLK) (F4, AF10), PA8 (H4, AF10)
VBUSPA9 (F2)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PA15 (JTDI) (B4)
CC2PB15 (Y2)
DBCC1PB5 (A9)
DBCC2PB14 (V4)
FRSTX1PG6 (M4, AF11), PB2 (M6, AF11), PA2 (R9, AF11)
FRSTX2PG7 (J1, AF11), PC11 (J5, AF11), PF13 (AA9, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (F8, AF8)
CKPC12 (A5, AF12)
CKINPB8 (C9, AF8)
CMDPD2 (G5, AF12)
D0PC8 (K4, AF12)
D0DIRPC6 (N5, AF8)
D1PC9 (L5, AF12)
D2PC10 (D4, AF12)
D3PC11 (J5, AF12)
D4PB8 (C9, AF12)
D5PB9 (F8, AF12), PC0 (P10, AF12)
D6PC6 (N5, AF12)
D7PC7 (J3, AF12)
D123DIRPC7 (J3, AF8)
SDMMC2CKPD6 (F6, AF11), PC1 (L7, AF12)
CMDPD7 (H6, AF11), PA0 (W11, AF12)
D0PB14 (V4, AF12)
D1PB15 (Y2, AF12)
D2PB3 (JTDO/TRACESWO) (B8, AF12)
D3PB4 (NJTRST) (E7, AF12)
D4PB8 (C9, AF11)
D5PB9 (F8, AF11)
D6PC6 (N5, AF11)
D7PC7 (J3, AF11)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PB8 (C9, AF3), PE2 (D10, AF3), PG7 (J1, AF3), PA3 (N9, AF3)
CK2PE5 (F10, AF3), PA8 (H4, AF3)
D1PE6 (D12, AF3), PD6 (F6, AF3), PA10 (G3, AF3), PC3 (T10, AF3)
D2PB9 (F8, AF3), PE4 (J9, AF3)
D3PF10 (K8, AF13), PC5 (N7, AF3)
FS_APA9 (F2, AF13), PB9 (F8, AF13), PE4 (J9, AF13)
FS_BPB6 (D8, AF13), PA14 (JTCK/SWCLK) (F4, AF13), PF9 (L9, AF13), PA4 (M8, AF13), PE9 (V6, AF13)
MCLK_APB8 (C9, AF13), PE2 (D10, AF13), PG7 (J1, AF13), PA3 (N9, AF13)
MCLK_BPB4 (NJTRST) (E7, AF13), PF7 (K10, AF13), PE10 (R5, AF13)
SCK_APE5 (F10, AF13), PA8 (H4, AF13), PB10 (W5, AF13)
SCK_BPB3 (JTDO/TRACESWO) (B8, AF13), PF8 (M10, AF13), PE8 (AA7, AF13)
SD_APE6 (D12, AF13), PD6 (F6, AF13), PA10 (G3, AF13), PC1 (L7, AF13), PC3 (T10, AF13)
SD_BPB5 (A9, AF13), PA13 (JTMS/SWDIO) (E3, AF13), PE3 (G9, AF13), PF6 (J11, AF13), PE7 (T6, AF13)
SAI2FS_APC0 (P10, AF13), PD12 (T2, AF13), PB12 (AA3, AF13)
FS_BPA15 (JTDI) (B4, AF13), PG3 (L1, AF13)
MCLK_APC6 (N5, AF13), PD9 (U3, AF13), PB14 (V4, AF13)
MCLK_BPC7 (J3, AF13), PC11 (J5, AF13), PG4 (M2, AF13)
SCK_APD10 (W1, AF13), PB13 (Y4, AF13)
SCK_BPC10 (D4, AF13), PG2 (N1, AF13)
SD_APD11 (R3, AF13), PB15 (Y2, AF13)
SD_BPC12 (A5, AF13), PG5 (L3, AF13)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PA11 (E1), PC11 (J5), PD11 (R3), PF11 (R7), PE11 (U5), PB11 (AA5)
EXTI15PA15 (JTDI) (B4), PC15-OSC32_OUT (B12), PD15 (R1), PE15 (T4), PF15 (U7), PB15 (Y2)
IN1PC0 (P10)
IN2PC1 (L7)
IN3PC2 (Y12)
IN4PC3 (T10)
IN5PA0 (W11)
IN6PA1 (V10)
IN7PA2 (R9)
IN8PA3 (N9)
IN9PA4 (M8)
IN10PA5 (AA11)
IN11PA6 (U9)
IN12PA7 (P8)
IN13PC4 (T8)
IN14PC5 (N7)
IN15PB0 (Y10)
IN16PB1 (W9)
IN17PB2 (M6)
ADC2EXTI11PA11 (E1), PC11 (J5), PD11 (R3), PF11 (R7), PE11 (U5), PB11 (AA5)
EXTI15PA15 (JTDI) (B4), PC15-OSC32_OUT (B12), PD15 (R1), PE15 (T4), PF15 (U7), PB15 (Y2)
IN1PC0 (P10)
IN2PC1 (L7)
IN3PC2 (Y12)
IN4PC3 (T10)
IN5PA0 (W11)
IN6PA1 (V10)
IN7PA2 (R9)
IN8PA3 (N9)
IN9PA4 (M8)
IN10PA5 (AA11)
IN11PA6 (U9)
IN12PA7 (P8)
IN13PC4 (T8)
IN14PC5 (N7)
IN15PB0 (Y10)
IN16PB1 (W9)
IN17PB2 (M6)
ADC4EXTI15PA15 (JTDI) (B4), PC15-OSC32_OUT (B12), PD15 (R1), PE15 (T4), PF15 (U7), PB15 (Y2)
IN1PC0 (P10)
IN2PC1 (L7)
IN3PC2 (Y12)
IN4PC3 (T10)
IN5PF14 (Y8)
IN6PF15 (U7)
IN7PG0 (P6)
IN8PG1 (W7)
IN9PA4 (M8)
IN10PA5 (AA11)
IN11PA6 (U9)
IN15PD11 (R3)
IN16PD12 (T2)
IN17PD13 (N3)
IN18PB0 (Y10)
IN19PB1 (W9)
IN20PA7 (P8)
IN22PC4 (T8)
IN23PC5 (N7)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PA9 (F2), PB9 (F8), PC9 (L5), PF9 (L9), PD9 (U3), PE9 (V6)
OUT1PA4 (M8)
OUT2PA5 (AA11)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPC4 (T8), PB1 (W9)
INPPB2 (M6), PC5 (N7), PA2 (R9)
OUTPB10 (W5, AF12), PB0 (Y10, AF12)
COMP2INMPB3 (JTDO/TRACESWO) (B8), PB7 (G7)
INPPB6 (D8), PB4 (NJTRST) (E7)
OUTPB5 (A9, AF12), PB11 (AA5, AF12)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA1 (V10)
VINPPA0 (W11)
VOUTPA3 (N9)
OPAMP2VINMPA7 (P8)
VINPPA6 (U9)
VOUTPB0 (Y10)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (AB12)

TIM — таймер

БлокСигналВыводы
TIM1BKINPE15 (T4, AF1), PA6 (U9, AF1), PB12 (AA3, AF1)
BKIN2PA11 (E1, AF2), PE14 (P4, AF2)
CH1PA8 (H4, AF1), PE9 (V6, AF1)
CH1NPA7 (P8, AF1), PB13 (Y4, AF1), PE8 (AA7, AF1)
CH2PA9 (F2, AF1), PE11 (U5, AF1)
CH2NPE10 (R5, AF1), PB14 (V4, AF1), PB0 (Y10, AF1)
CH3PA10 (G3, AF1), PE13 (AB6, AF1)
CH3NPB1 (W9, AF1), PB15 (Y2, AF1), PE12 (Y6, AF1)
CH4PA11 (E1, AF1), PE14 (P4, AF1)
CH4NPC5 (N7, AF1), PE15 (T4, AF3)
ETRPA12 (C1, AF1), PE7 (T6, AF1)
TIM2CH1PA15 (JTDI) (B4, AF1), PA0 (W11, AF1), PA5 (AA11, AF1)
CH2PB3 (JTDO/TRACESWO) (B8, AF1), PA1 (V10, AF1)
CH3PA2 (R9, AF1), PB10 (W5, AF1)
CH4PA3 (N9, AF1), PB11 (AA5, AF1)
ETRPA15 (JTDI) (B4, AF2), PA0 (W11, AF14), PA5 (AA11, AF2)
TIM3CH1PB4 (NJTRST) (E7, AF2), PE3 (G9, AF2), PC6 (N5, AF2), PA6 (U9, AF2)
CH2PB5 (A9, AF2), PC7 (J3, AF2), PE4 (J9, AF2), PA7 (P8, AF2)
CH3PE5 (F10, AF2), PC8 (K4, AF2), PB0 (Y10, AF2)
CH4PE6 (D12, AF2), PC9 (L5, AF2), PB1 (W9, AF2)
ETRPE2 (D10, AF2), PD2 (G5, AF2)
TIM4CH1PB6 (D8, AF2), PD12 (T2, AF2)
CH2PB7 (G7, AF2), PD13 (N3, AF2)
CH3PB8 (C9, AF2), PD14 (P2, AF2)
CH4PB9 (F8, AF2), PD15 (R1, AF2)
ETRPE0 (H8, AF2)
TIM5CH1PF6 (J11, AF2), PA0 (W11, AF2)
CH2PF7 (K10, AF2), PA1 (V10, AF2)
CH3PF8 (M10, AF2), PA2 (R9, AF2)
CH4PF9 (L9, AF2), PA3 (N9, AF2)
ETRPF6 (J11, AF1)
TIM8BKINPB7 (G7, AF3), PA6 (U9, AF3)
BKIN2PB6 (D8, AF3), PC9 (L5, AF1)
CH1PC6 (N5, AF3)
CH1NPA7 (P8, AF3), PA5 (AA11, AF3)
CH2PC7 (J3, AF3)
CH2NPB14 (V4, AF3), PB0 (Y10, AF3)
CH3PC8 (K4, AF3)
CH3NPB1 (W9, AF3), PB15 (Y2, AF3)
CH4PC9 (L5, AF3)
CH4NPD0 (C5, AF3), PB2 (M6, AF3)
ETRPA0 (W11, AF3)
TIM15BKINPA9 (F2, AF14), PB12 (AA3, AF14)
CH1PF9 (L9, AF14), PA2 (R9, AF14), PB14 (V4, AF14)
CH1NPA1 (V10, AF14), PB13 (Y4, AF14)
CH2PF10 (K8, AF14), PA3 (N9, AF14), PB15 (Y2, AF14)
TIM16BKINPB5 (A9, AF14)
CH1PB8 (C9, AF14), PE0 (H8, AF14), PA6 (U9, AF14)
CH1NPB6 (D8, AF14)
TIM17BKINPB4 (NJTRST) (E7, AF14), PA10 (G3, AF14)
CH1PE1 (E9, AF14), PB9 (F8, AF14), PA7 (P8, AF14)
CH1NPB7 (G7, AF14)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PB3 (JTDO/TRACESWO) (B8, AF2), PA14 (JTCK/SWCLK) (F4, AF1), PC1 (L7, AF1), PB2 (M6, AF1)
CH2PB4 (NJTRST) (E7, AF1), PA1 (V10, AF0)
ETRPB6 (D8, AF1), PC3 (T10, AF1)
IN1PB5 (A9, AF1), PC0 (P10, AF1)
IN2PB7 (G7, AF1), PC2 (Y12, AF1)
LPTIM2CH1PA8 (H4, AF14), PA4 (M8, AF14), PD13 (N3, AF14)
CH2PC7 (J3, AF14), PA7 (P8, AF13), PD10 (W1, AF2)
ETRPD11 (R3, AF14), PC3 (T10, AF14), PA5 (AA11, AF14)
IN1PC0 (P10, AF14), PD12 (T2, AF14), PB1 (W9, AF14)
IN2PA10 (G3, AF2), PD9 (U3, AF2), PB15 (Y2, AF2)
LPTIM3CH1PC8 (K4, AF14), PD14 (P2, AF14), PF5 (R11, AF2), PC3 (T10, AF2), PB10 (W5, AF2), PB0 (Y10, AF4)
CH2PF2 (F12, AF2), PC9 (L5, AF14), PD15 (R1, AF14), PB1 (W9, AF4)
ETRPC10 (D4, AF2), PF4 (N11, AF2), PB14 (V4, AF2), PD10 (W1, AF14)
IN1PC11 (J5, AF2), PF3 (L11, AF2), PD9 (U3, AF14), PB13 (Y4, AF2)
LPTIM4ETRPD2 (G5, AF13), PF12 (V8, AF13)
IN1PD13 (N3, AF13), PF11 (R7, AF13)
OUTPD7 (H6, AF13), PF13 (AA9, AF13)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (E11)
OUT2PB2 (M6)
REFINPB15 (Y2, AF0)
TSPC13 (E11)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (G11, AF12)
A1PF1 (H10, AF12)
A2PF2 (F12, AF12)
A3PF3 (L11, AF12)
A4PF4 (N11, AF12)
A5PF5 (R11, AF12)
A6PF12 (V8, AF12)
A7PF13 (AA9, AF12)
A8PF14 (Y8, AF12)
A9PF15 (U7, AF12)
A10PG0 (P6, AF12)
A11PG1 (W7, AF12)
A12PG2 (N1, AF12)
A13PG3 (L1, AF12)
A14PG4 (M2, AF12)
A15PG5 (L3, AF12)
A16PD11 (R3, AF12)
A17PD12 (T2, AF12)
A18PD13 (N3, AF12)
A19PE3 (G9, AF12)
A20PE4 (J9, AF12)
A21PE5 (F10, AF12)
A22PE6 (D12, AF12)
A23PE2 (D10, AF12)
ALEPD12 (T2, AF12)
CLEPD11 (R3, AF12)
CLKPD3 (K6, AF12)
D0PD14 (P2, AF12)
D1PD15 (R1, AF12)
D2PD0 (C5, AF12)
D3PD1 (E5, AF12)
D4PE7 (T6, AF12)
D5PE8 (AA7, AF12)
D6PE9 (V6, AF12)
D7PE10 (R5, AF12)
D8PE11 (U5, AF12)
D9PE12 (Y6, AF12)
D10PE13 (AB6, AF12)
D11PE14 (P4, AF12)
D12PE15 (T4, AF12)
D13PD8 (W3, AF12)
D14PD9 (U3, AF12)
D15PD10 (W1, AF12)
DA0PD14 (P2, AF12)
DA1PD15 (R1, AF12)
DA2PD0 (C5, AF12)
DA3PD1 (E5, AF12)
DA4PE7 (T6, AF12)
DA5PE8 (AA7, AF12)
DA6PE9 (V6, AF12)
DA7PE10 (R5, AF12)
DA8PE11 (U5, AF12)
DA9PE12 (Y6, AF12)
DA10PE13 (AB6, AF12)
DA11PE14 (P4, AF12)
DA12PE15 (T4, AF12)
DA13PD8 (W3, AF12)
DA14PD9 (U3, AF12)
DA15PD10 (W1, AF12)
INTPG7 (J1, AF12)
NBL0PE0 (H8, AF12)
NBL1PE1 (E9, AF12), PB15 (Y2, AF11)
NCEPD7 (H6, AF12)
NE1PD7 (H6, AF12)
NLPB7 (G7, AF12)
NOEPD4 (B6, AF12)
NWAITPD6 (F6, AF12)
NWEPD5 (D6, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (F2, AF5), PC6 (N5, AF10)
D1PA10 (G3, AF5), PC7 (J3, AF10)
D2PE0 (H8, AF10), PC11 (J5, AF4), PC8 (K4, AF10)
D3PE1 (E9, AF10), PC9 (L5, AF4)
D4PC11 (J5, AF10), PE4 (J9, AF10)
D5PB6 (D8, AF10), PD3 (K6, AF4)
D6PB8 (C9, AF10), PE5 (F10, AF10)
D7PE6 (D12, AF10), PB9 (F8, AF10)
D8PC10 (D4, AF10)
D9PC12 (A5, AF10)
D10PB5 (A9, AF10), PD6 (F6, AF4)
D11PD2 (G5, AF10), PF10 (K8, AF10)
D12PB4 (NJTRST) (E7, AF10), PF6 (J11, AF4), PF11 (R7, AF10)
HSYNCPA4 (M8, AF10), PD8 (W3, AF10)
PIXCLKPD9 (U3, AF10), PA6 (U9, AF4)
VSYNCPB7 (G7, AF10)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (F2, AF5), PC6 (N5, AF10)
D1PA10 (G3, AF5), PC7 (J3, AF10)
D2PE0 (H8, AF10), PC11 (J5, AF4), PC8 (K4, AF10)
D3PE1 (E9, AF10), PC9 (L5, AF4)
D4PC11 (J5, AF10), PE4 (J9, AF10)
D5PB6 (D8, AF10), PD3 (K6, AF4)
D6PB8 (C9, AF10), PE5 (F10, AF10)
D7PE6 (D12, AF10), PB9 (F8, AF10)
D8PC10 (D4, AF10)
D9PC12 (A5, AF10)
D10PB5 (A9, AF10), PD6 (F6, AF4)
D11PD2 (G5, AF10), PF10 (K8, AF10)
D12PB4 (NJTRST) (E7, AF10), PF6 (J11, AF4), PF11 (R7, AF10)
D14PF8 (M10, AF4), PA5 (AA11, AF4)
D15PF10 (K8, AF4), PF9 (L9, AF4), PC5 (N7, AF4)
DEPA4 (M8, AF10), PD8 (W3, AF10)
PDCKPD9 (U3, AF10), PA6 (U9, AF4)
RDYPB7 (G7, AF10)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PE4 (J9, AF8), PF12 (V8, AF8)
B1PB8 (C9, AF7), PB2 (M6, AF8), PF13 (AA9, AF8)
B2PD14 (P2, AF8)
B3PD15 (R1, AF8)
B4PD0 (C5, AF8)
B5PD1 (E5, AF8)
B6PE7 (T6, AF8)
B7PE8 (AA7, AF8)
CLKPD3 (K6, AF8)
DEPD6 (F6, AF8), PF11 (R7, AF8)
G0PE5 (F10, AF8), PF14 (Y8, AF8)
G1PE6 (D12, AF8), PF15 (U7, AF8)
G2PE9 (V6, AF8)
G3PE10 (R5, AF8)
G4PE11 (U5, AF8)
G5PE12 (Y6, AF8)
G6PE13 (AB6, AF8)
G7PE14 (P4, AF8)
HSYNCPE0 (H8, AF8)
R0PE2 (D10, AF8), PC6 (N5, AF7)
R1PE3 (G9, AF8), PC7 (J3, AF7), PG6 (M4, AF7)
R2PE15 (T4, AF8)
R3PD8 (W3, AF8)
R4PD9 (U3, AF8)
R5PD10 (W1, AF8)
R6PD11 (R3, AF8)
R7PD12 (T2, AF8)
VSYNCPE1 (E9, AF8), PD13 (N3, AF8)

DSI — хост MIPI DSI

БлокСигналВыводы
DSIHOSTCKNDSI_CKN (L13)
CKPDSI_CKP (J13)
D0NDSI_D0N (G13)
D0PDSI_D0P (E13)
D1NDSI_D1N (R13)
D1PDSI_D1P (N13)
TEPF10 (K8, AF11), PG5 (L3, AF11), PF11 (R7, AF11)

TSC — контроллер сенсорных кнопок

БлокСигналВыводы
TSCG1_IO1PB12 (AA3, AF9)
G1_IO2PB13 (Y4, AF9)
G1_IO3PB14 (V4, AF9)
G2_IO1PB4 (NJTRST) (E7, AF9)
G2_IO2PB5 (A9, AF9)
G2_IO3PB6 (D8, AF9)
G2_IO4PB7 (G7, AF9)
G3_IO2PC10 (D4, AF9)
G3_IO3PC11 (J5, AF9)
G3_IO4PC12 (A5, AF9)
G4_IO1PC6 (N5, AF9)
G4_IO2PC7 (J3, AF9)
G4_IO3PC8 (K4, AF9)
G4_IO4PC9 (L5, AF9)
G5_IO1PE10 (R5, AF9)
G5_IO2PE11 (U5, AF9)
G5_IO3PE12 (Y6, AF9)
G5_IO4PE13 (AB6, AF9)
G6_IO1PD10 (W1, AF9)
G6_IO2PD11 (R3, AF9)
G6_IO3PD12 (T2, AF9)
G6_IO4PD13 (N3, AF9)
G7_IO1PE2 (D10, AF9)
G7_IO2PE3 (G9, AF9)
G7_IO3PE4 (J9, AF9)
G7_IO4PE5 (F10, AF9)
G8_IO1PF14 (Y8, AF9)
G8_IO2PF15 (U7, AF9)
G8_IO3PG0 (P6, AF9)
G8_IO4PG1 (W7, AF9)
SYNCPD2 (G5, AF9), PB10 (W5, AF9)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PB8 (C9, AF5), PG7 (J1, AF6), PF3 (L11, AF6), PE9 (V6, AF6)
CCK1PF10 (K8, AF6), PC2 (Y12, AF6)
CKI0PD4 (B6, AF6), PB2 (M6, AF6), PF5 (R11, AF6)
CKI1PD7 (H6, AF6), PB13 (Y4, AF6)
CKI2PB15 (Y2, AF6), PE8 (AA7, AF6)
CKI3PE5 (F10, AF6), PC6 (N5, AF6)
CKI4PC1 (L7, AF6), PE11 (U5, AF6)
CKI5PB7 (G7, AF6), PE13 (AB6, AF6)
SDI0PD3 (K6, AF6), PF4 (N11, AF6), PB1 (W9, AF6)
SDI1PD6 (F6, AF6), PB12 (AA3, AF6)
SDI2PE7 (T6, AF6), PB14 (V4, AF6)
SDI3PC7 (J3, AF6), PE4 (J9, AF6)
SDI4PC0 (P10, AF6), PE10 (R5, AF6)
SDI5PB6 (D8, AF6), PE12 (Y6, AF6)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PB3 (JTDO/TRACESWO) (B8, AF3), PF3 (L11, AF3), PE9 (V6, AF3)
CCK1PC10 (D4, AF3)
SDI0PB4 (NJTRST) (E7, AF3), PC11 (J5, AF3), PF4 (N11, AF3), PE10 (R5, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (F4, AF0)
JTDIPA15 (JTDI) (B4, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (B8, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (E3, AF0)
NJTRSTPB4 (NJTRST) (E7, AF0)
TRACECLKPE2 (D10, AF0), PA8 (H4, AF12)
TRACED0PE3 (G9, AF0), PC9 (L5, AF0), PC1 (L7, AF0)
TRACED1PC10 (D4, AF0), PE4 (J9, AF0)
TRACED2PE5 (F10, AF0), PD2 (G5, AF0)
TRACED3PC12 (A5, AF0), PE6 (D12, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPA2 (R9)
MCOPA8 (H4, AF0)
OSC_INPH0-OSC_IN (W13)
OSC_OUTPH1-OSC_OUT (V12)
OSC32_INPC14-OSC32_IN (A13)
OSC32_OUTPC15-OSC32_OUT (B12)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC6 (N5, AF0), PA5 (AA11, AF0)
PWR_WKUP1PE4 (J9), PB2 (M6), PA0 (W11)
PWR_WKUP2PC13 (E11), PE5 (F10), PA4 (M8)
PWR_WKUP3PB6 (D8), PE6 (D12), PA1 (V10)
PWR_WKUP4PB7 (G7), PA2 (R9), PB1 (W9)
PWR_WKUP5PB8 (C9), PC5 (N7), PA3 (N9)
PWR_WKUP6PB5 (A9), PE7 (T6), PA5 (AA11)
PWR_WKUP7PA6 (U9), PB15 (Y2), PE8 (AA7)
PWR_WKUP8PF2 (F12), PA7 (P8), PB10 (W5)
TAMP_IN1PC13 (E11)
TAMP_IN2PA0 (W11)
TAMP_IN3PE6 (D12)
TAMP_IN4PC5 (N7)
TAMP_IN5PA1 (V10)
TAMP_IN6PE3 (G9)
TAMP_IN7PE4 (J9)
TAMP_IN8PE5 (F10)
TAMP_OUT1PA0 (W11)
TAMP_OUT2PC13 (E11)
TAMP_OUT3PE3 (G9)
TAMP_OUT4PA1 (V10)
TAMP_OUT5PC5 (N7)
TAMP_OUT6PE6 (D12)
TAMP_OUT7PE5 (F10)
TAMP_OUT8PE4 (J9)

Блоки без собственных выводов: OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), IRTIM (формирователь ИК-сигнала), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 150 шариков корпуса WLCSP150 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1VDDUSBпитание—
A3VDDпитание—
A5PC12ввод-выводDCMI_D9 (AF10), DEBUG_TRACED3 (AF0), PSSI_D9 (AF10), SAI2_SD_B (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), TSC_G3_IO4 (AF9), UART5_TX (AF8), USART3_CK (AF7)
A7VDDпитание—
A9PB5ввод-выводCOMP2_OUT (AF12), DCMI_D10 (AF10), I2C1_SMBA (AF4), LPTIM1_IN1 (AF1), OCTOSPIM_P1_NCLK (AF3), PSSI_D10 (AF10), PWR_WKUP6, SAI1_SD_B (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF6), TIM16_BKIN (AF14), TIM3_CH2 (AF2), TSC_G2_IO2 (AF9), UART5_CTS (AF8), UCPD1_DBCC1, USART1_CK (AF7)
A11VDDпитание—
A13PC14-OSC32_INввод-выводRCC_OSC32_IN
B2VDD11питание—
B4PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI (AF0), SAI2_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC1, USART2_RX (AF3), USART3_DE (AF7), USART3_RTS (AF7)
B6PD4ввод-выводFMC_NOE (AF12), MDF1_CKI0 (AF6), OCTOSPIM_P1_IO4 (AF10), SPI2_MOSI (AF5), USART2_DE (AF7), USART2_RTS (AF7)
B8PB3 (JTDO/TRACESWO)ввод-выводADF1_CCK0 (AF3), COMP2_INM, CRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2C1_SDA (AF4), LPTIM1_CH1 (AF2), SAI1_SCK_B (AF13), SDMMC2_D2 (AF12), SPI1_SCK (AF5), SPI3_SCK (AF6), TIM2_CH2 (AF1), USART1_DE (AF7), USART1_RTS (AF7)
B10VDD11питание—
B12PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUT
C1PA12ввод-выводFDCAN1_TX (AF9), OCTOSPIM_P2_NCS (AF6), SPI1_MOSI (AF5), TIM1_ETR (AF1), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_HS_DP
C3VSSпитание—
C5PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), I2C5_SDA (AF4), I2C6_SDA (AF2), LTDC_B4 (AF8), SPI2_NSS (AF5), TIM8_CH4N (AF3)
C7VSSпитание—
C9PB8ввод-выводDCMI_D6 (AF10), FDCAN1_RX (AF9), I2C1_SCL (AF4), LTDC_B1 (AF7), MDF1_CCK0 (AF5), PSSI_D6 (AF10), PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), SDMMC1_CKIN (AF8), SDMMC1_D4 (AF12), SDMMC2_D4 (AF11), SPI3_RDY (AF6), TIM16_CH1 (AF14), TIM4_CH3 (AF2)
C11VSSпитание—
C13VBATпитание—
D2VSSпитание—
D4PC10ввод-выводADF1_CCK1 (AF3), DCMI_D8 (AF10), DEBUG_TRACED1 (AF0), LPTIM3_ETR (AF2), PSSI_D8 (AF10), SAI2_SCK_B (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), TSC_G3_IO2 (AF9), UART4_TX (AF8), USART3_TX (AF7)
D6PD5ввод-выводFMC_NWE (AF12), OCTOSPIM_P1_IO5 (AF10), SPI2_RDY (AF5), USART2_TX (AF7)
D8PB6ввод-выводCOMP2_INP, DCMI_D5 (AF10), I2C1_SCL (AF4), I2C4_SCL (AF5), LPTIM1_ETR (AF1), MDF1_SDI5 (AF6), PSSI_D5 (AF10), PWR_WKUP3, SAI1_FS_B (AF13), TIM16_CH1N (AF14), TIM4_CH1 (AF2), TIM8_BKIN2 (AF3), TSC_G2_IO3 (AF9), USART1_TX (AF7)
D10PE2ввод-выводDEBUG_TRACECLK (AF0), FMC_A23 (AF12), LTDC_R0 (AF8), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM3_ETR (AF2), TSC_G7_IO1 (AF9), USART6_CK (AF7)
D12PE6ввод-выводDCMI_D7 (AF10), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF8), PSSI_D7 (AF10), PWR_WKUP3, SAI1_D1 (AF3), SAI1_SD_A (AF13), TAMP_IN3, TAMP_OUT6, TIM3_CH4 (AF2)
E1PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX (AF9), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1), USART1_CTS (AF7), USB_OTG_HS_DM
E3PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0), IR_OUT (AF1), SAI1_SD_B (AF13)
E5PD1ввод-выводFDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2C5_SCL (AF4), I2C6_SCL (AF2), LTDC_B5 (AF8), SPI2_SCK (AF5)
E7PB4 (NJTRST)ввод-выводADF1_SDI0 (AF3), COMP2_INP, DCMI_D12 (AF10), DEBUG_NJTRST (AF0), I2C3_SDA (AF4), LPTIM1_CH2 (AF1), PSSI_D12 (AF10), SAI1_MCLK_B (AF13), SDMMC2_D3 (AF12), SPI1_MISO (AF5), SPI3_MISO (AF6), TIM17_BKIN (AF14), TIM3_CH1 (AF2), TSC_G2_IO1 (AF9), UART5_DE (AF8), UART5_RTS (AF8), USART1_CTS (AF7)
E9PE1ввод-выводDCMI_D3 (AF10), FMC_NBL1 (AF12), LTDC_VSYNC (AF8), PSSI_D3 (AF10), TIM17_CH1 (AF14), USART6_TX (AF7)
E11PC13ввод-выводPWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2
E13DSI_D0PслужебныйDSIHOST_D0P
F2PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF5), PSSI_D0 (AF5), SAI1_FS_A (AF13), SPI2_SCK (AF3), TIM15_BKIN (AF14), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_HS_VBUS
F4PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF5), LPTIM1_CH1 (AF1), SAI1_FS_B (AF13), USB_OTG_HS_SOF (AF10)
F6PD6ввод-выводDCMI_D10 (AF4), FMC_NWAIT (AF12), LTDC_DE (AF8), MDF1_SDI1 (AF6), OCTOSPIM_P1_IO6 (AF10), PSSI_D10 (AF4), SAI1_D1 (AF3), SAI1_SD_A (AF13), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
F8PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF10), FDCAN1_TX (AF9), I2C1_SDA (AF4), IR_OUT (AF1), PSSI_D7 (AF10), SAI1_D2 (AF3), SAI1_FS_A (AF13), SDMMC1_CDIR (AF8), SDMMC1_D5 (AF12), SDMMC2_D5 (AF11), SPI2_NSS (AF5), TIM17_CH1 (AF14), TIM4_CH4 (AF2)
F10PE5ввод-выводDCMI_D6 (AF10), DEBUG_TRACED2 (AF0), FMC_A21 (AF12), LTDC_G0 (AF8), MDF1_CKI3 (AF6), PSSI_D6 (AF10), PWR_WKUP2, SAI1_CK2 (AF3), SAI1_SCK_A (AF13), TAMP_IN8, TAMP_OUT7, TIM3_CH3 (AF2), TSC_G7_IO4 (AF9)
F12PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), OCTOSPIM_P2_IO2 (AF5), PWR_WKUP8, USART6_CK (AF7)
G1VDDIO2питание—
G3PA10ввод-выводCRS_SYNC (AF0), DCMI_D1 (AF5), LPTIM2_IN2 (AF2), PSSI_D1 (AF5), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM17_BKIN (AF14), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_HS_ID (AF10)
G5PD2ввод-выводDCMI_D11 (AF10), DEBUG_TRACED2 (AF0), I2C5_SMBA (AF4), LPTIM4_ETR (AF13), PSSI_D11 (AF10), SDMMC1_CMD (AF12), TIM3_ETR (AF2), TSC_SYNC (AF9), UART5_RX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
G7PB7ввод-выводCOMP2_INM, DCMI_VSYNC (AF10), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF5), LPTIM1_IN2 (AF1), MDF1_CKI5 (AF6), PSSI_RDY (AF10), PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N (AF14), TIM4_CH2 (AF2), TIM8_BKIN (AF3), TSC_G2_IO4 (AF9), UART4_CTS (AF8), USART1_RX (AF7)
G9PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), LTDC_R1 (AF8), OCTOSPIM_P1_DQS (AF3), SAI1_SD_B (AF13), TAMP_IN6, TAMP_OUT3, TIM3_CH1 (AF2), TSC_G7_IO2 (AF9), USART6_CTS (AF7)
G11PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), I2C6_SDA (AF2), OCTOSPIM_P2_IO0 (AF5), USART6_TX (AF7)
G13DSI_D0NслужебныйDSIHOST_D0N
H2VSSпитание—
H4PA8ввод-выводDEBUG_TRACECLK (AF12), LPTIM2_CH1 (AF14), RCC_MCO (AF0), SAI1_CK2 (AF3), SAI1_SCK_A (AF13), SPI1_RDY (AF5), TIM1_CH1 (AF1), USART1_CK (AF7), USB_OTG_HS_SOF (AF10)
H6PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), LPTIM4_OUT (AF13), MDF1_CKI1 (AF6), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), USART2_CK (AF7)
H8PE0ввод-выводDCMI_D2 (AF10), FMC_NBL0 (AF12), LTDC_HSYNC (AF8), PSSI_D2 (AF10), TIM16_CH1 (AF14), TIM4_ETR (AF2), USART6_RX (AF7)
H10PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), I2C6_SCL (AF2), OCTOSPIM_P2_IO1 (AF5), USART6_RX (AF7)
H12VDDDSIпитание—
J1PG7ввод-выводFMC_INT (AF12), I2C3_SCL (AF4), LPUART1_TX (AF8), MDF1_CCK0 (AF6), OCTOSPIM_P2_DQS (AF5), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), UCPD1_FRSTX2 (AF11)
J3PC7ввод-выводDCMI_D1 (AF10), LPTIM2_CH2 (AF14), LTDC_R1 (AF7), MDF1_SDI3 (AF6), PSSI_D1 (AF10), PWR_CDSTOP (AF0), SAI2_MCLK_B (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), TSC_G4_IO2 (AF9)
J5PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0 (AF3), DCMI_D2 (AF4), DCMI_D4 (AF10), LPTIM3_IN1 (AF2), OCTOSPIM_P1_NCS (AF5), PSSI_D2 (AF4), PSSI_D4 (AF10), SAI2_MCLK_B (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), TSC_G3_IO3 (AF9), UART4_RX (AF8), UCPD1_FRSTX2 (AF11), USART3_RX (AF7)
J7PH3-BOOT0ввод-вывод—
J9PE4ввод-выводDCMI_D4 (AF10), DEBUG_TRACED1 (AF0), FMC_A20 (AF12), LTDC_B0 (AF8), MDF1_SDI3 (AF6), PSSI_D4 (AF10), PWR_WKUP1, SAI1_D2 (AF3), SAI1_FS_A (AF13), TAMP_IN7, TAMP_OUT8, TIM3_CH2 (AF2), TSC_G7_IO3 (AF9), USART6_DE (AF7), USART6_RTS (AF7)
J11PF6ввод-выводDCMI_D12 (AF4), OCTOSPIM_P1_IO3 (AF10), OCTOSPIM_P2_NCS (AF5), PSSI_D12 (AF4), SAI1_SD_B (AF13), TIM5_CH1 (AF2), TIM5_ETR (AF1)
J13DSI_CKPслужебныйDSIHOST_CKP
K2PG8ввод-выводI2C3_SDA (AF4), LPUART1_RX (AF8)
K4PC8ввод-выводDCMI_D2 (AF10), LPTIM3_CH1 (AF14), PSSI_D2 (AF10), PWR_SRDSTOP (AF0), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), TSC_G4_IO3 (AF9), USART6_RX (AF7)
K6PD3ввод-выводDCMI_D5 (AF4), FMC_CLK (AF12), I2C6_SMBA (AF2), LTDC_CLK (AF8), MDF1_SDI0 (AF6), OCTOSPIM_P2_NCS (AF10), PSSI_D5 (AF4), SPI2_MISO (AF5), SPI2_SCK (AF3), USART2_CTS (AF7)
K8PF10ввод-выводDCMI_D11 (AF10), DSIHOST_TE (AF11), MDF1_CCK1 (AF6), OCTOSPIM_P1_CLK (AF3), PSSI_D11 (AF10), PSSI_D15 (AF4), SAI1_D3 (AF13), TIM15_CH2 (AF14)
K10PF7ввод-выводFDCAN1_RX (AF9), OCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF13), TIM5_CH2 (AF2)
K12VSSDSIпитание—
L1PG3ввод-выводFMC_A13 (AF12), SAI2_FS_B (AF13), SPI1_MISO (AF5)
L3PG5ввод-выводDSIHOST_TE (AF11), FMC_A15 (AF12), LPUART1_CTS (AF8), SAI2_SD_B (AF13), SPI1_NSS (AF5)
L5PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF4), DEBUG_TRACED0 (AF0), LPTIM3_CH2 (AF14), PSSI_D3 (AF4), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_BKIN2 (AF1), TIM8_CH4 (AF3), TSC_G4_IO4 (AF9), USART6_TX (AF7)
L7PC1ввод-выводADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0 (AF0), I2C3_SDA (AF4), LPTIM1_CH1 (AF1), LPUART1_TX (AF8), MDF1_CKI4 (AF6), OCTOSPIM_P1_IO4 (AF10), SAI1_SD_A (AF13), SDMMC2_CK (AF12), SPI2_MOSI (AF3), USART6_CK (AF7)
L9PF9ввод-выводDAC1_EXTI9, OCTOSPIM_P1_IO1 (AF10), PSSI_D15 (AF4), SAI1_FS_B (AF13), TIM15_CH1 (AF14), TIM5_CH4 (AF2)
L11PF3ввод-выводADF1_CCK0 (AF3), FMC_A3 (AF12), LPTIM3_IN1 (AF2), MDF1_CCK0 (AF6), OCTOSPIM_P2_IO3 (AF5), UART5_TX (AF8), USART6_CTS (AF7)
L13DSI_CKNслужебныйDSIHOST_CKN
M2PG4ввод-выводFMC_A14 (AF12), SAI2_MCLK_B (AF13), SPI1_MOSI (AF5)
M4PG6ввод-выводI2C3_SMBA (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), LTDC_R1 (AF7), OCTOSPIM_P1_DQS (AF3), SPI1_RDY (AF5), UCPD1_FRSTX1 (AF11)
M6PB2ввод-выводADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA (AF4), LPTIM1_CH1 (AF1), LTDC_B1 (AF8), MDF1_CKI0 (AF6), OCTOSPIM_P1_DQS (AF10), PWR_WKUP1, RTC_OUT2, SPI1_RDY (AF5), TIM8_CH4N (AF3), UCPD1_FRSTX1 (AF11)
M8PA4ввод-выводADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC (AF10), LPTIM2_CH1 (AF14), OCTOSPIM_P1_NCS (AF3), PSSI_DE (AF10), PWR_WKUP2, SAI1_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), USART2_CK (AF7)
M10PF8ввод-выводFDCAN1_TX (AF9), OCTOSPIM_P1_IO0 (AF10), PSSI_D14 (AF4), SAI1_SCK_B (AF13), TIM5_CH3 (AF2)
M12VDD11DSIпитание—
N1PG2ввод-выводFMC_A12 (AF12), SAI2_SCK_B (AF13), SPI1_SCK (AF5)
N3PD13ввод-выводADC4_IN17, FMC_A18 (AF12), I2C4_SDA (AF4), LPTIM2_CH1 (AF14), LPTIM4_IN1 (AF13), LTDC_VSYNC (AF8), TIM4_CH2 (AF2), TSC_G6_IO4 (AF9), USART6_CTS (AF7)
N5PC6ввод-выводDCMI_D0 (AF10), LTDC_R0 (AF7), MDF1_CKI3 (AF6), PSSI_D0 (AF10), PWR_CSLEEP (AF0), SAI2_MCLK_A (AF13), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF11), TIM3_CH1 (AF2), TIM8_CH1 (AF3), TSC_G4_IO1 (AF9)
N7PC5ввод-выводADC1_IN14, ADC2_IN14, ADC4_IN23, COMP1_INP, PSSI_D15 (AF4), PWR_WKUP5, SAI1_D3 (AF3), TAMP_IN4, TAMP_OUT5, TIM1_CH4N (AF1), USART3_RX (AF7)
N9PA3ввод-выводADC1_IN8, ADC2_IN8, LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM15_CH2 (AF14), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
N11PF4ввод-выводADF1_SDI0 (AF3), FMC_A4 (AF12), LPTIM3_ETR (AF2), MDF1_SDI0 (AF6), OCTOSPIM_P2_CLK (AF5), UART5_RX (AF8), USART6_DE (AF7), USART6_RTS (AF7)
N13DSI_D1PслужебныйDSIHOST_D1P
P2PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LPTIM3_CH1 (AF14), LTDC_B2 (AF8), TIM4_CH3 (AF2), USART6_CK (AF7)
P4PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), LTDC_G7 (AF8), OCTOSPIM_P1_IO2 (AF10), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1)
P6PG0ввод-выводADC4_IN7, FMC_A10 (AF12), OCTOSPIM_P2_IO4 (AF5), TSC_G8_IO3 (AF9)
P8PA7ввод-выводADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL (AF4), LPTIM2_CH2 (AF13), OCTOSPIM_P1_IO2 (AF10), OPAMP2_VINM, PWR_SRDSTOP (AF0), PWR_WKUP8, SPI1_MOSI (AF5), TIM17_CH1 (AF14), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART3_TX (AF7)
P10PC0ввод-выводADC1_IN1, ADC2_IN1, ADC4_IN1, I2C3_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF14), LPUART1_RX (AF8), MDF1_SDI4 (AF6), OCTOSPIM_P1_IO7 (AF3), SAI2_FS_A (AF13), SDMMC1_D5 (AF12), SPI2_RDY (AF5), USART6_CTS (AF7)
P12VSSDSIпитание—
R1PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LPTIM3_CH2 (AF14), LTDC_B3 (AF8), TIM4_CH4 (AF2), USART6_DE (AF7), USART6_RTS (AF7)
R3PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_ETR (AF14), LTDC_R6 (AF8), SAI2_SD_A (AF13), TSC_G6_IO2 (AF9), USART3_CTS (AF7)
R5PE10ввод-выводADF1_SDI0 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), LTDC_G3 (AF8), MDF1_SDI4 (AF6), OCTOSPIM_P1_CLK (AF10), SAI1_MCLK_B (AF13), TIM1_CH2N (AF1), TSC_G5_IO1 (AF9)
R7PF11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D12 (AF10), DSIHOST_TE (AF11), LPTIM4_IN1 (AF13), LTDC_DE (AF8), OCTOSPIM_P1_NCLK (AF3), PSSI_D12 (AF10)
R9PA2ввод-выводADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), PWR_WKUP4, RCC_LSCO, SPI1_RDY (AF5), TIM15_CH1 (AF14), TIM2_CH3 (AF1), TIM5_CH3 (AF2), UCPD1_FRSTX1 (AF11), USART2_TX (AF7)
R11PF5ввод-выводFMC_A5 (AF12), LPTIM3_CH1 (AF2), MDF1_CKI0 (AF6), OCTOSPIM_P2_NCLK (AF5)
R13DSI_D1NслужебныйDSIHOST_D1N
T2PD12ввод-выводADC4_IN16, FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), LPTIM2_IN1 (AF14), LTDC_R7 (AF8), SAI2_FS_A (AF13), TIM4_CH1 (AF2), TSC_G6_IO3 (AF9), USART3_DE (AF7), USART3_RTS (AF7)
T4PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R2 (AF8), OCTOSPIM_P1_IO3 (AF10), SPI1_MOSI (AF5), TIM1_BKIN (AF1), TIM1_CH4N (AF3)
T6PE7ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), LTDC_B6 (AF8), MDF1_SDI2 (AF6), PWR_WKUP6, SAI1_SD_B (AF13), TIM1_ETR (AF1)
T8PC4ввод-выводADC1_IN13, ADC2_IN13, ADC4_IN22, COMP1_INM, I2C6_SMBA (AF2), OCTOSPIM_P1_IO7 (AF10), USART3_TX (AF7)
T10PC3ввод-выводADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR (AF1), LPTIM2_ETR (AF14), LPTIM3_CH1 (AF2), OCTOSPIM_P1_IO6 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), SPI2_MOSI (AF5), USART6_TX (AF7)
T12VSSпитание—
U1VDDпитание—
U3PD9ввод-выводDAC1_EXTI9, DCMI_PIXCLK (AF10), FMC_D14 (AF12), FMC_DA14 (AF12), LPTIM2_IN2 (AF2), LPTIM3_IN1 (AF14), LTDC_R4 (AF8), PSSI_PDCK (AF10), SAI2_MCLK_A (AF13), USART3_RX (AF7)
U5PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G4 (AF8), MDF1_CKI4 (AF6), OCTOSPIM_P1_NCS (AF10), SPI1_RDY (AF5), TIM1_CH2 (AF1), TSC_G5_IO2 (AF9)
U7PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, ADC4_IN6, FMC_A9 (AF12), I2C4_SDA (AF4), LTDC_G1 (AF8), TSC_G8_IO2 (AF9)
U9PA6ввод-выводADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK (AF4), LPUART1_CTS (AF8), OCTOSPIM_P1_IO3 (AF10), OPAMP2_VINP, PSSI_PDCK (AF4), PWR_CDSTOP (AF0), PWR_WKUP7, SPI1_MISO (AF5), TIM16_CH1 (AF14), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART3_CTS (AF7)
U11NRSTсброс—
U13VDDпитание—
V2VSSпитание—
V4PB14ввод-выводI2C2_SDA (AF4), LPTIM3_ETR (AF2), MDF1_SDI2 (AF6), SAI2_MCLK_A (AF13), SDMMC2_D0 (AF12), SPI2_MISO (AF5), TIM15_CH1 (AF14), TIM1_CH2N (AF1), TIM8_CH2N (AF3), TSC_G1_IO3 (AF9), UCPD1_DBCC2, USART3_DE (AF7), USART3_RTS (AF7)
V6PE9ввод-выводADF1_CCK0 (AF3), DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), LTDC_G2 (AF8), MDF1_CCK0 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI1_FS_B (AF13), TIM1_CH1 (AF1)
V8PF12ввод-выводFMC_A6 (AF12), LPTIM4_ETR (AF13), LTDC_B0 (AF8), OCTOSPIM_P2_DQS (AF5)
V10PA1ввод-выводADC1_IN6, ADC2_IN6, I2C1_SMBA (AF4), LPTIM1_CH2 (AF0), OCTOSPIM_P1_DQS (AF10), OPAMP1_VINM, PWR_WKUP3, SPI1_SCK (AF5), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF14), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
V12PH1-OSC_OUTввод-выводRCC_OSC_OUT
W1PD10ввод-выводFMC_D15 (AF12), FMC_DA15 (AF12), I2C5_SMBA (AF4), LPTIM2_CH2 (AF2), LPTIM3_ETR (AF14), LTDC_R5 (AF8), SAI2_SCK_A (AF13), TSC_G6_IO1 (AF9), USART3_CK (AF7)
W3PD8ввод-выводDCMI_HSYNC (AF10), FMC_D13 (AF12), FMC_DA13 (AF12), LTDC_R3 (AF8), PSSI_DE (AF10), USART3_TX (AF7)
W5PB10ввод-выводCOMP1_OUT (AF12), I2C2_SCL (AF4), I2C4_SCL (AF3), LPTIM3_CH1 (AF2), LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), PWR_WKUP8, SAI1_SCK_A (AF13), SPI2_SCK (AF5), TIM2_CH3 (AF1), TSC_SYNC (AF9), USART3_TX (AF7)
W7PG1ввод-выводADC4_IN8, FMC_A11 (AF12), OCTOSPIM_P2_IO5 (AF5), TSC_G8_IO4 (AF9)
W9PB1ввод-выводADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1 (AF14), LPTIM3_CH2 (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI0 (AF6), OCTOSPIM_P1_IO0 (AF10), PWR_WKUP4, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USART3_DE (AF7), USART3_RTS (AF7)
W11PA0ввод-выводADC1_IN5, ADC2_IN5, AUDIOCLK (AF13), OCTOSPIM_P2_NCS (AF10), OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD (AF12), SPI3_RDY (AF6), TAMP_IN2, TAMP_OUT1, TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7)
W13PH0-OSC_INввод-выводRCC_OSC_IN
Y2PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_NBL1 (AF11), LPTIM2_IN2 (AF2), MDF1_CKI2 (AF6), PWR_WKUP7, RTC_REFIN (AF0), SAI2_SD_A (AF13), SDMMC2_D1 (AF12), SPI2_MOSI (AF5), TIM15_CH2 (AF14), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UCPD1_CC2
Y4PB13ввод-выводI2C2_SCL (AF4), LPTIM3_IN1 (AF2), LPUART1_CTS (AF8), MDF1_CKI1 (AF6), SAI2_SCK_A (AF13), SPI2_SCK (AF5), TIM15_CH1N (AF14), TIM1_CH1N (AF1), TSC_G1_IO2 (AF9), USART3_CTS (AF7)
Y6PE12ввод-выводFMC_D9 (AF12), FMC_DA9 (AF12), LTDC_G5 (AF8), MDF1_SDI5 (AF6), OCTOSPIM_P1_IO0 (AF10), SPI1_NSS (AF5), TIM1_CH3N (AF1), TSC_G5_IO3 (AF9)
Y8PF14ввод-выводADC4_IN5, FMC_A8 (AF12), I2C4_SCL (AF4), LTDC_G0 (AF8), TSC_G8_IO1 (AF9)
Y10PB0ввод-выводADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK (AF13), COMP1_OUT (AF12), LPTIM3_CH1 (AF4), OCTOSPIM_P1_IO1 (AF10), OPAMP2_VOUT, SPI1_NSS (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), USART3_CK (AF7)
Y12PC2ввод-выводADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2 (AF1), MDF1_CCK1 (AF6), OCTOSPIM_P1_IO5 (AF10), SPI2_MISO (AF5), USART6_RX (AF7)
AA1VSSпитание—
AA3PB12ввод-выводI2C2_SMBA (AF4), I2C6_SMBA (AF2), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI1 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI2_FS_A (AF13), SPI2_NSS (AF5), TIM15_BKIN (AF14), TIM1_BKIN (AF1), TSC_G1_IO1 (AF9), USART3_CK (AF7)
AA5PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, COMP2_OUT (AF12), I2C2_SDA (AF4), I2C4_SDA (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), SPI2_RDY (AF5), TIM2_CH4 (AF1), USART3_RX (AF7)
AA7PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), LTDC_B7 (AF8), MDF1_CKI2 (AF6), PWR_WKUP7, SAI1_SCK_B (AF13), TIM1_CH1N (AF1)
AA9PF13ввод-выводFMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM4_OUT (AF13), LTDC_B1 (AF8), UCPD1_FRSTX2 (AF11)
AA11PA5ввод-выводADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR (AF14), PSSI_D14 (AF4), PWR_CSLEEP (AF0), PWR_WKUP6, SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM8_CH1N (AF3), USART3_RX (AF7)
AA13VSSAпитание—
AB2VDD11питание—
AB4VDDSMPSпитание—
AB6PE13ввод-выводFMC_D10 (AF12), FMC_DA10 (AF12), LTDC_G6 (AF8), MDF1_CKI5 (AF6), OCTOSPIM_P1_IO1 (AF10), SPI1_SCK (AF5), TIM1_CH3 (AF1), TSC_G5_IO4 (AF9)
AB8VSSпитание—
AB10VSSпитание—
AB12VREF+служебныйVREFBUF_OUT
AC1VDDпитание—
AC3VSSSMPSпитание—
AC5VLXSMPSпитание—
AC7VDDпитание—
AC9VDDпитание—
AC11VDDпитание—
AC13VDDAпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATC13резервное питание: часы реального времени и резервные регистры
VDDA3, A7, A11, U1, U13, AC1, AC7, AC9, AC11питание цифровой части и линий ввода-вывода
VDD11B2, B10, AB2—
VDD11DSIM12—
VDDAAC13питание аналоговой части: АЦП, ЦАП, генераторы
VDDDSIH12питание блока DSI
VDDIO2G1питание отдельной группы линий ввода-вывода
VDDSMPSAB4—
VDDUSBA1питание приёмопередатчика USB
VLXSMPSAC5—
VSSC3, C7, C11, D2, H2, T12, V2, AA1, AB8, AB10общий провод (земля)
VSSAAA13общий провод аналоговой части
VSSDSIK12, P12общий провод блока DSI
VSSSMPSAC3—
NRSTU11сброс, активный уровень — низкий
DSI_CKNL13—
DSI_CKPJ13—
DSI_D0NG13—
DSI_D0PE13—
DSI_D1NR13—
DSI_D1PN13—
VREF+AB12верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32U599ZIYxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32U599ZISTM32U599ZIYxQ2 МБ2514 КБ

Линейка STM32U5x9, семейство STM32U5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе WLCSP150, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32U5A9ZJSTM32U5x9150 из 150выводы совпадают полностьютолько у него: AES, PKA; флеш-память до 2048 и 4096 КБ
STM32U599ZJSTM32U5x9150 из 150выводы совпадают полностьюфлеш-память до 2048 и 4096 КБ

Частые вопросы

На каких выводах USART1 у STM32U599ZI?

В корпусе WLCSP150 сигнал USART1_TX выведен на PB6 (шарик D8, AF7) или PA9 (шарик F2, AF7), USART1_RX — на PA10 (шарик G3, AF7) или PB7 (шарик G7, AF7).

Где у STM32U599ZI выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик E3, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик F4, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32U599ZI?

I2C1_SCL — PB8 (шарик C9, AF4) или PB6 (шарик D8, AF4), I2C1_SDA — PB3 (JTDO/TRACESWO) (шарик B8, AF4) или PB9 (шарик F8, AF4) или PB7 (шарик G7, AF4).

Сколько выводов ввода-вывода у STM32U599ZI в корпусе WLCSP150?

108 из 150. Ещё 34 вывода заняты питанием и землёй, остальные 8 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
