STM32U5A5ZJTx в корпусе LQFP144: распиновка

STM32U5A5ZJTx — микроконтроллер STM32U5 на ядре Cortex-M33 с частотой до 160 МГц: 4 МБ флеш-памяти и 2514 КБ ОЗУ. Корпус LQFP144 — 144 вывода, из них 114 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Частота ядра
до 160 МГц
Флеш-память
4 МБ
ОЗУ
2514 КБ
Корпус
LQFP144, 144 вывода
Линий ввода-вывода
114
Напряжение питания
1,71…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса LQFP144

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Распиновка STM32U5A5ZJTx в корпусе LQFP144, вид сверхуSTM32U5A5ZJTxLQFP144, вид сверхуPE2 — вывод 1: DEBUG_TRACECLK, FMC_A23, SAI1_CK1, SAI1_MCLK_A, TIM3_ETR, TSC_G7_IO1, USART6_CK1PE2PE3 — вывод 2: DEBUG_TRACED0, FMC_A19, OCTOSPIM_P1_DQS, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM3_CH1, TSC_G7_IO2, USART6_CTS2PE3PE4 — вывод 3: DCMI_D4, DEBUG_TRACED1, FMC_A20, MDF1_SDI3, PSSI_D4, PWR_WKUP1, SAI1_D2, SAI1_FS_A, TAMP_IN7, TAMP_OUT8, TIM3_CH2, TSC_G7_IO3, USART6_DE, USART6_RTS3PE4PE5 — вывод 4: DCMI_D6, DEBUG_TRACED2, FMC_A21, MDF1_CKI3, PSSI_D6, PWR_WKUP2, SAI1_CK2, SAI1_SCK_A, TAMP_IN8, TAMP_OUT7, TIM3_CH3, TSC_G7_IO44PE5PE6 — вывод 5: DCMI_D7, DEBUG_TRACED3, FMC_A22, PSSI_D7, PWR_WKUP3, SAI1_D1, SAI1_SD_A, TAMP_IN3, TAMP_OUT6, TIM3_CH45PE6VBAT — вывод 66VBATPC13 — вывод 7: PWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT27PC13PC14-OSC32_IN — вывод 8: RCC_OSC32_IN8PC14-OSC32_INPC15-OSC32_OUT — вывод 9: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUT9PC15-OSC32_OUTPF0 — вывод 10: FMC_A0, I2C2_SDA, I2C6_SDA, OCTOSPIM_P2_IO0, USART6_TX10PF0PF1 — вывод 11: FMC_A1, I2C2_SCL, I2C6_SCL, OCTOSPIM_P2_IO1, USART6_RX11PF1PF2 — вывод 12: FMC_A2, I2C2_SMBA, LPTIM3_CH2, OCTOSPIM_P2_IO2, PWR_WKUP8, USART6_CK12PF2PF3 — вывод 13: ADF1_CCK0, FMC_A3, LPTIM3_IN1, MDF1_CCK0, OCTOSPIM_P2_IO3, UART5_TX, USART6_CTS13PF3PF4 — вывод 14: ADF1_SDI0, FMC_A4, LPTIM3_ETR, MDF1_SDI0, OCTOSPIM_P2_CLK, UART5_RX, USART6_DE, USART6_RTS14PF4PF5 — вывод 15: FMC_A5, LPTIM3_CH1, MDF1_CKI0, OCTOSPIM_P2_NCLK15PF5VSS — вывод 1616VSSVDD — вывод 1717VDDPF6 — вывод 18: DCMI_D12, OCTOSPIM_P1_IO3, OCTOSPIM_P2_NCS, PSSI_D12, SAI1_SD_B, TIM5_CH1, TIM5_ETR18PF6PF7 — вывод 19: FDCAN1_RX, OCTOSPIM_P1_IO2, SAI1_MCLK_B, TIM5_CH219PF7PF8 — вывод 20: FDCAN1_TX, OCTOSPIM_P1_IO0, PSSI_D14, SAI1_SCK_B, TIM5_CH320PF8PF9 — вывод 21: DAC1_EXTI9, OCTOSPIM_P1_IO1, PSSI_D15, SAI1_FS_B, TIM15_CH1, TIM5_CH421PF9PF10 — вывод 22: DCMI_D11, MDF1_CCK1, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM15_CH222PF10PH0-OSC_IN — вывод 23: RCC_OSC_IN23PH0-OSC_INPH1-OSC_OUT — вывод 24: RCC_OSC_OUT24PH1-OSC_OUTNRST — вывод 2525NRSTPC0 — вывод 26: ADC1_IN1, ADC2_IN1, ADC4_IN1, I2C3_SCL, LPTIM1_IN1, LPTIM2_IN1, LPUART1_RX, MDF1_SDI4, OCTOSPIM_P1_IO7, SAI2_FS_A, SDMMC1_D5, SPI2_RDY, USART6_CTS26PC0PC1 — вывод 27: ADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0, I2C3_SDA, LPTIM1_CH1, LPUART1_TX, MDF1_CKI4, OCTOSPIM_P1_IO4, SAI1_SD_A, SDMMC2_CK, SPI2_MOSI, USART6_CK27PC1PC2 — вывод 28: ADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2, MDF1_CCK1, OCTOSPIM_P1_IO5, SPI2_MISO, USART6_RX28PC2PC3 — вывод 29: ADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR, LPTIM2_ETR, LPTIM3_CH1, OCTOSPIM_P1_IO6, SAI1_D1, SAI1_SD_A, SPI2_MOSI, USART6_TX29PC3VSSA — вывод 3030VSSAVREF- — вывод 3131VREF-VREF+ — вывод 32: VREFBUF_OUT32VREF+VDDA — вывод 3333VDDAPA0 — вывод 34: ADC1_IN5, ADC2_IN5, AUDIOCLK, OCTOSPIM_P2_NCS, OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD, SPI3_RDY, TAMP_IN2, TAMP_OUT1, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS34PA0PA1 — вывод 35: ADC1_IN6, ADC2_IN6, I2C1_SMBA, LPTIM1_CH2, OCTOSPIM_P1_DQS, OPAMP1_VINM, PWR_WKUP3, SPI1_SCK, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTS35PA1PA2 — вывод 36: ADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX, OCTOSPIM_P1_NCS, PWR_WKUP4, RCC_LSCO, SPI1_RDY, TIM15_CH1, TIM2_CH3, TIM5_CH3, UCPD1_FRSTX1, USART2_TX36PA2PA3 — вывод 37: ADC1_IN8, ADC2_IN8, LPUART1_RX, OCTOSPIM_P1_CLK, OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX37PA3VSS — вывод 3838VSSVDD — вывод 3939VDDPA4 — вывод 40: ADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC, LPTIM2_CH1, OCTOSPIM_P1_NCS, PSSI_DE, PWR_WKUP2, SAI1_FS_B, SPI1_NSS, SPI3_NSS, USART2_CK40PA4PA5 — вывод 41: ADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR, PSSI_D14, PWR_CSLEEP, PWR_WKUP6, SPI1_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USART3_RX41PA5PA6 — вывод 42: ADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK, LPUART1_CTS, OCTOSPIM_P1_IO3, OPAMP2_VINP, PSSI_PDCK, PWR_CDSTOP, PWR_WKUP7, SPI1_MISO, TIM16_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART3_CTS42PA6PA7 — вывод 43: ADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL, LPTIM2_CH2, OCTOSPIM_P1_IO2, OPAMP2_VINM, PWR_SRDSTOP, PWR_WKUP8, SPI1_MOSI, TIM17_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART3_TX43PA7PC4 — вывод 44: ADC1_IN13, ADC2_IN13, ADC4_IN22, COMP1_INM, I2C6_SMBA, OCTOSPIM_P1_IO7, USART3_TX44PC4PC5 — вывод 45: ADC1_IN14, ADC2_IN14, ADC4_IN23, COMP1_INP, PSSI_D15, PWR_WKUP5, SAI1_D3, TAMP_IN4, TAMP_OUT5, TIM1_CH4N, USART3_RX45PC5PB0 — вывод 46: ADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK, COMP1_OUT, LPTIM3_CH1, OCTOSPIM_P1_IO1, OPAMP2_VOUT, SPI1_NSS, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, USART3_CK46PB0PB1 — вывод 47: ADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1, LPTIM3_CH2, LPUART1_DE, LPUART1_RTS, MDF1_SDI0, OCTOSPIM_P1_IO0, PWR_WKUP4, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USART3_DE, USART3_RTS47PB1PB2 — вывод 48: ADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA, LPTIM1_CH1, MDF1_CKI0, OCTOSPIM_P1_DQS, PWR_WKUP1, RTC_OUT2, SPI1_RDY, TIM8_CH4N, UCPD1_FRSTX148PB2PF11 — вывод 49: ADC1_EXTI11, ADC2_EXTI11, DCMI_D12, LPTIM4_IN1, OCTOSPIM_P1_NCLK, PSSI_D1249PF11PF12 — вывод 50: FMC_A6, LPTIM4_ETR, OCTOSPIM_P2_DQS50PF12VSS — вывод 5151VSSVDD — вывод 5252VDDPF13 — вывод 53: FMC_A7, I2C4_SMBA, LPTIM4_OUT, UCPD1_FRSTX253PF13PF14 — вывод 54: ADC4_IN5, FMC_A8, I2C4_SCL, TSC_G8_IO154PF14PF15 — вывод 55: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, ADC4_IN6, FMC_A9, I2C4_SDA, TSC_G8_IO255PF15PG0 — вывод 56: ADC4_IN7, FMC_A10, OCTOSPIM_P2_IO4, TSC_G8_IO356PG0PG1 — вывод 57: ADC4_IN8, FMC_A11, OCTOSPIM_P2_IO5, TSC_G8_IO457PG1PE7 — вывод 58: FMC_D4, FMC_DA4, MDF1_SDI2, PWR_WKUP6, SAI1_SD_B, TIM1_ETR58PE7PE8 — вывод 59: FMC_D5, FMC_DA5, MDF1_CKI2, PWR_WKUP7, SAI1_SCK_B, TIM1_CH1N59PE8PE9 — вывод 60: ADF1_CCK0, DAC1_EXTI9, FMC_D6, FMC_DA6, MDF1_CCK0, OCTOSPIM_P1_NCLK, SAI1_FS_B, TIM1_CH160PE9VSS — вывод 6161VSSVDD — вывод 6262VDDPE10 — вывод 63: ADF1_SDI0, FMC_D7, FMC_DA7, MDF1_SDI4, OCTOSPIM_P1_CLK, SAI1_MCLK_B, TIM1_CH2N, TSC_G5_IO163PE10PE11 — вывод 64: ADC1_EXTI11, ADC2_EXTI11, FMC_D8, FMC_DA8, MDF1_CKI4, OCTOSPIM_P1_NCS, SPI1_RDY, TIM1_CH2, TSC_G5_IO264PE11PE12 — вывод 65: FMC_D9, FMC_DA9, MDF1_SDI5, OCTOSPIM_P1_IO0, SPI1_NSS, TIM1_CH3N, TSC_G5_IO365PE12PE13 — вывод 66: FMC_D10, FMC_DA10, MDF1_CKI5, OCTOSPIM_P1_IO1, SPI1_SCK, TIM1_CH3, TSC_G5_IO466PE13PE14 — вывод 67: FMC_D11, FMC_DA11, OCTOSPIM_P1_IO2, SPI1_MISO, TIM1_BKIN2, TIM1_CH467PE14PE15 — вывод 68: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12, FMC_DA12, OCTOSPIM_P1_IO3, SPI1_MOSI, TIM1_BKIN, TIM1_CH4N68PE15PB10 — вывод 69: COMP1_OUT, I2C2_SCL, I2C4_SCL, LPTIM3_CH1, LPUART1_RX, OCTOSPIM_P1_CLK, PWR_WKUP8, SAI1_SCK_A, SPI2_SCK, TIM2_CH3, TSC_SYNC, USART3_TX69PB10VCAP — вывод 7070VCAPVSS — вывод 7171VSSVDD — вывод 7272VDDPB12 — вывод 73: I2C2_SMBA, I2C6_SMBA, LPUART1_DE, LPUART1_RTS, MDF1_SDI1, OCTOSPIM_P1_NCLK, SAI2_FS_A, SPI2_NSS, TIM15_BKIN, TIM1_BKIN, TSC_G1_IO1, USART3_CK73PB12PB13 — вывод 74: I2C2_SCL, LPTIM3_IN1, LPUART1_CTS, MDF1_CKI1, SAI2_SCK_A, SPI2_SCK, TIM15_CH1N, TIM1_CH1N, TSC_G1_IO2, USART3_CTS74PB13PB14 — вывод 75: I2C2_SDA, LPTIM3_ETR, MDF1_SDI2, SAI2_MCLK_A, SDMMC2_D0, SPI2_MISO, TIM15_CH1, TIM1_CH2N, TIM8_CH2N, TSC_G1_IO3, UCPD1_DBCC2, USART3_DE, USART3_RTS75PB14PB15 — вывод 76: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_NBL1, LPTIM2_IN2, MDF1_CKI2, PWR_WKUP7, RTC_REFIN, SAI2_SD_A, SDMMC2_D1, SPI2_MOSI, TIM15_CH2, TIM1_CH3N, TIM8_CH3N, UCPD1_CC276PB15PD8 — вывод 77: DCMI_HSYNC, FMC_D13, FMC_DA13, PSSI_DE, USART3_TX77PD8PD9 — вывод 78: DAC1_EXTI9, DCMI_PIXCLK, FMC_D14, FMC_DA14, LPTIM2_IN2, LPTIM3_IN1, PSSI_PDCK, SAI2_MCLK_A, USART3_RX78PD9PD10 — вывод 79: FMC_D15, FMC_DA15, I2C5_SMBA, LPTIM2_CH2, LPTIM3_ETR, SAI2_SCK_A, TSC_G6_IO1, USART3_CK79PD10PD11 — вывод 80: ADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_ETR, SAI2_SD_A, TSC_G6_IO2, USART3_CTS80PD11PD12 — вывод 81: ADC4_IN16, FMC_A17, FMC_ALE, I2C4_SCL, LPTIM2_IN1, SAI2_FS_A, TIM4_CH1, TSC_G6_IO3, USART3_DE, USART3_RTS81PD12PD13 — вывод 82: ADC4_IN17, FMC_A18, I2C4_SDA, LPTIM2_CH1, LPTIM4_IN1, TIM4_CH2, TSC_G6_IO4, USART6_CTS82PD13VSS — вывод 8383VSSVDD — вывод 8484VDDPD14 — вывод 85: FMC_D0, FMC_DA0, LPTIM3_CH1, TIM4_CH3, USART6_CK85PD14PD15 — вывод 86: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1, FMC_DA1, LPTIM3_CH2, TIM4_CH4, USART6_DE, USART6_RTS86PD15PG2 — вывод 87: FMC_A12, SAI2_SCK_B, SPI1_SCK87PG2PG3 — вывод 88: FMC_A13, SAI2_FS_B, SPI1_MISO88PG3PG4 — вывод 89: FMC_A14, SAI2_MCLK_B, SPI1_MOSI89PG4PG5 — вывод 90: FMC_A15, LPUART1_CTS, SAI2_SD_B, SPI1_NSS90PG5PG6 — вывод 91: I2C3_SMBA, LPUART1_DE, LPUART1_RTS, OCTOSPIM_P1_DQS, SPI1_RDY, UCPD1_FRSTX191PG6PG7 — вывод 92: FMC_INT, I2C3_SCL, LPUART1_TX, MDF1_CCK0, OCTOSPIM_P2_DQS, SAI1_CK1, SAI1_MCLK_A, UCPD1_FRSTX292PG7PG8 — вывод 93: I2C3_SDA, LPUART1_RX93PG8VSS — вывод 9494VSSVDDIO2 — вывод 9595VDDIO2PC6 — вывод 96: DCMI_D0, MDF1_CKI3, PSSI_D0, PWR_CSLEEP, SAI2_MCLK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, TSC_G4_IO196PC6PC7 — вывод 97: DCMI_D1, LPTIM2_CH2, MDF1_SDI3, PSSI_D1, PWR_CDSTOP, SAI2_MCLK_B, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, TSC_G4_IO297PC7PC8 — вывод 98: DCMI_D2, LPTIM3_CH1, PSSI_D2, PWR_SRDSTOP, SDMMC1_D0, TIM3_CH3, TIM8_CH3, TSC_G4_IO3, USART6_RX98PC8PC9 — вывод 99: DAC1_EXTI9, DCMI_D3, DEBUG_TRACED0, LPTIM3_CH2, PSSI_D3, SDMMC1_D1, TIM3_CH4, TIM8_BKIN2, TIM8_CH4, TSC_G4_IO4, USART6_TX99PC9PA8 — вывод 100: DEBUG_TRACECLK, LPTIM2_CH1, RCC_MCO, SAI1_CK2, SAI1_SCK_A, SPI1_RDY, TIM1_CH1, USART1_CK, USB_OTG_HS_SOF100PA8PA9 — вывод 101: DAC1_EXTI9, DCMI_D0, PSSI_D0, SAI1_FS_A, SPI2_SCK, TIM15_BKIN, TIM1_CH2, USART1_TX, USB_OTG_HS_VBUS101PA9PA10 — вывод 102: CRS_SYNC, DCMI_D1, LPTIM2_IN2, PSSI_D1, SAI1_D1, SAI1_SD_A, TIM17_BKIN, TIM1_CH3, USART1_RX, USB_OTG_HS_ID102PA10PA11 — вывод 103: ADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX, SPI1_MISO, TIM1_BKIN2, TIM1_CH4, USART1_CTS, USB_OTG_HS_DM103PA11PA12 — вывод 104: FDCAN1_TX, OCTOSPIM_P2_NCS, SPI1_MOSI, TIM1_ETR, USART1_DE, USART1_RTS, USB_OTG_HS_DP104PA12PA13 (JTMS/SWDIO) — вывод 105: DEBUG_JTMS-SWDIO, IR_OUT, SAI1_SD_B105PA13 (JTMS/SWDIO)VDDUSB — вывод 106106VDDUSBVSS — вывод 107107VSSVDD — вывод 108108VDDPA14 (JTCK/SWCLK) — вывод 109: DEBUG_JTCK-SWCLK, I2C1_SMBA, I2C4_SMBA, LPTIM1_CH1, SAI1_FS_B, USB_OTG_HS_SOF109PA14 (JTCK/SWCLK)PA15 (JTDI) — вывод 110: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI, SAI2_FS_B, SPI1_NSS, SPI3_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UCPD1_CC1, USART2_RX, USART3_DE, USART3_RTS110PA15 (JTDI)PC10 — вывод 111: ADF1_CCK1, DCMI_D8, DEBUG_TRACED1, LPTIM3_ETR, PSSI_D8, SAI2_SCK_B, SDMMC1_D2, SPI3_SCK, TSC_G3_IO2, UART4_TX, USART3_TX111PC10PC11 — вывод 112: ADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0, DCMI_D2, DCMI_D4, LPTIM3_IN1, OCTOSPIM_P1_NCS, PSSI_D2, PSSI_D4, SAI2_MCLK_B, SDMMC1_D3, SPI3_MISO, TSC_G3_IO3, UART4_RX, UCPD1_FRSTX2, USART3_RX112PC11PC12 — вывод 113: DCMI_D9, DEBUG_TRACED3, PSSI_D9, SAI2_SD_B, SDMMC1_CK, SPI3_MOSI, TSC_G3_IO4, UART5_TX, USART3_CK113PC12PD0 — вывод 114: FDCAN1_RX, FMC_D2, FMC_DA2, I2C5_SDA, I2C6_SDA, SPI2_NSS, TIM8_CH4N114PD0PD1 — вывод 115: FDCAN1_TX, FMC_D3, FMC_DA3, I2C5_SCL, I2C6_SCL, SPI2_SCK115PD1PD2 — вывод 116: DCMI_D11, DEBUG_TRACED2, I2C5_SMBA, LPTIM4_ETR, PSSI_D11, SDMMC1_CMD, TIM3_ETR, TSC_SYNC, UART5_RX, USART3_DE, USART3_RTS116PD2PD3 — вывод 117: DCMI_D5, FMC_CLK, I2C6_SMBA, MDF1_SDI0, OCTOSPIM_P2_NCS, PSSI_D5, SPI2_MISO, SPI2_SCK, USART2_CTS117PD3PD4 — вывод 118: FMC_NOE, MDF1_CKI0, OCTOSPIM_P1_IO4, SPI2_MOSI, USART2_DE, USART2_RTS118PD4PD5 — вывод 119: FMC_NWE, OCTOSPIM_P1_IO5, SPI2_RDY, USART2_TX119PD5VSS — вывод 120120VSSVDD — вывод 121121VDDPD6 — вывод 122: DCMI_D10, FMC_NWAIT, MDF1_SDI1, OCTOSPIM_P1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RX122PD6PD7 — вывод 123: FMC_NCE, FMC_NE1, LPTIM4_OUT, MDF1_CKI1, OCTOSPIM_P1_IO7, SDMMC2_CMD, USART2_CK123PD7PG9 — вывод 124: DAC1_EXTI9, FMC_NCE, FMC_NE2, OCTOSPIM_P2_IO6, SAI2_SCK_A, SPI3_SCK, TIM15_CH1N, USART1_TX124PG9PG10 — вывод 125: FMC_NE3, LPTIM1_IN1, OCTOSPIM_P2_IO7, SAI2_FS_A, SPI3_MISO, TIM15_CH1, USART1_RX125PG10PG11 — вывод 126: ADC1_EXTI11, ADC2_EXTI11, LPTIM1_IN2, OCTOSPIM_P1_IO5, SAI2_MCLK_A, SPI3_MOSI, TIM15_CH2, USART1_CTS126PG11PG12 — вывод 127: FMC_NE4, LPTIM1_ETR, OCTOSPIM_P2_NCS, SAI2_SD_A, SPI3_NSS, USART1_DE, USART1_RTS127PG12PG13 — вывод 128: FMC_A24, I2C1_SDA, SPI3_RDY, USART1_CK128PG13PG14 — вывод 129: FMC_A25, I2C1_SCL, LPTIM1_CH2129PG14VSS — вывод 130130VSSVDDIO2 — вывод 131131VDDIO2PG15 — вывод 132: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13, I2C1_SMBA, LPTIM1_CH1, OCTOSPIM_P2_DQS, PSSI_D13132PG15PB3 (JTDO/TRACESWO) — вывод 133: ADF1_CCK0, COMP2_INM, CRS_SYNC, DEBUG_JTDO-SWO, I2C1_SDA, LPTIM1_CH1, SAI1_SCK_B, SDMMC2_D2, SPI1_SCK, SPI3_SCK, TIM2_CH2, USART1_DE, USART1_RTS133PB3 (JTDO/TRACESWO)PB4 (NJTRST) — вывод 134: ADF1_SDI0, COMP2_INP, DCMI_D12, DEBUG_NJTRST, I2C3_SDA, LPTIM1_CH2, PSSI_D12, SAI1_MCLK_B, SDMMC2_D3, SPI1_MISO, SPI3_MISO, TIM17_BKIN, TIM3_CH1, TSC_G2_IO1, UART5_DE, UART5_RTS, USART1_CTS134PB4 (NJTRST)PB5 — вывод 135: COMP2_OUT, DCMI_D10, I2C1_SMBA, LPTIM1_IN1, OCTOSPIM_P1_NCLK, PSSI_D10, PWR_WKUP6, SAI1_SD_B, SPI1_MOSI, SPI3_MOSI, TIM16_BKIN, TIM3_CH2, TSC_G2_IO2, UART5_CTS, UCPD1_DBCC1, USART1_CK135PB5PB6 — вывод 136: COMP2_INP, DCMI_D5, I2C1_SCL, I2C4_SCL, LPTIM1_ETR, MDF1_SDI5, PSSI_D5, PWR_WKUP3, SAI1_FS_B, TIM16_CH1N, TIM4_CH1, TIM8_BKIN2, TSC_G2_IO3, USART1_TX136PB6PB7 — вывод 137: COMP2_INM, DCMI_VSYNC, FMC_NL, I2C1_SDA, I2C4_SDA, LPTIM1_IN2, MDF1_CKI5, PSSI_RDY, PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N, TIM4_CH2, TIM8_BKIN, TSC_G2_IO4, UART4_CTS, USART1_RX137PB7PH3-BOOT0 — вывод 138138PH3-BOOT0PB8 — вывод 139: DCMI_D6, FDCAN1_RX, I2C1_SCL, MDF1_CCK0, PSSI_D6, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI3_RDY, TIM16_CH1, TIM4_CH3139PB8PB9 — вывод 140: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, IR_OUT, PSSI_D7, SAI1_D2, SAI1_FS_A, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4140PB9PE0 — вывод 141: DCMI_D2, FMC_NBL0, PSSI_D2, TIM16_CH1, TIM4_ETR, USART6_RX141PE0PE1 — вывод 142: DCMI_D3, FMC_NBL1, PSSI_D3, TIM17_CH1, USART6_TX142PE1VSS — вывод 143143VSSVDD — вывод 144144VDD
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

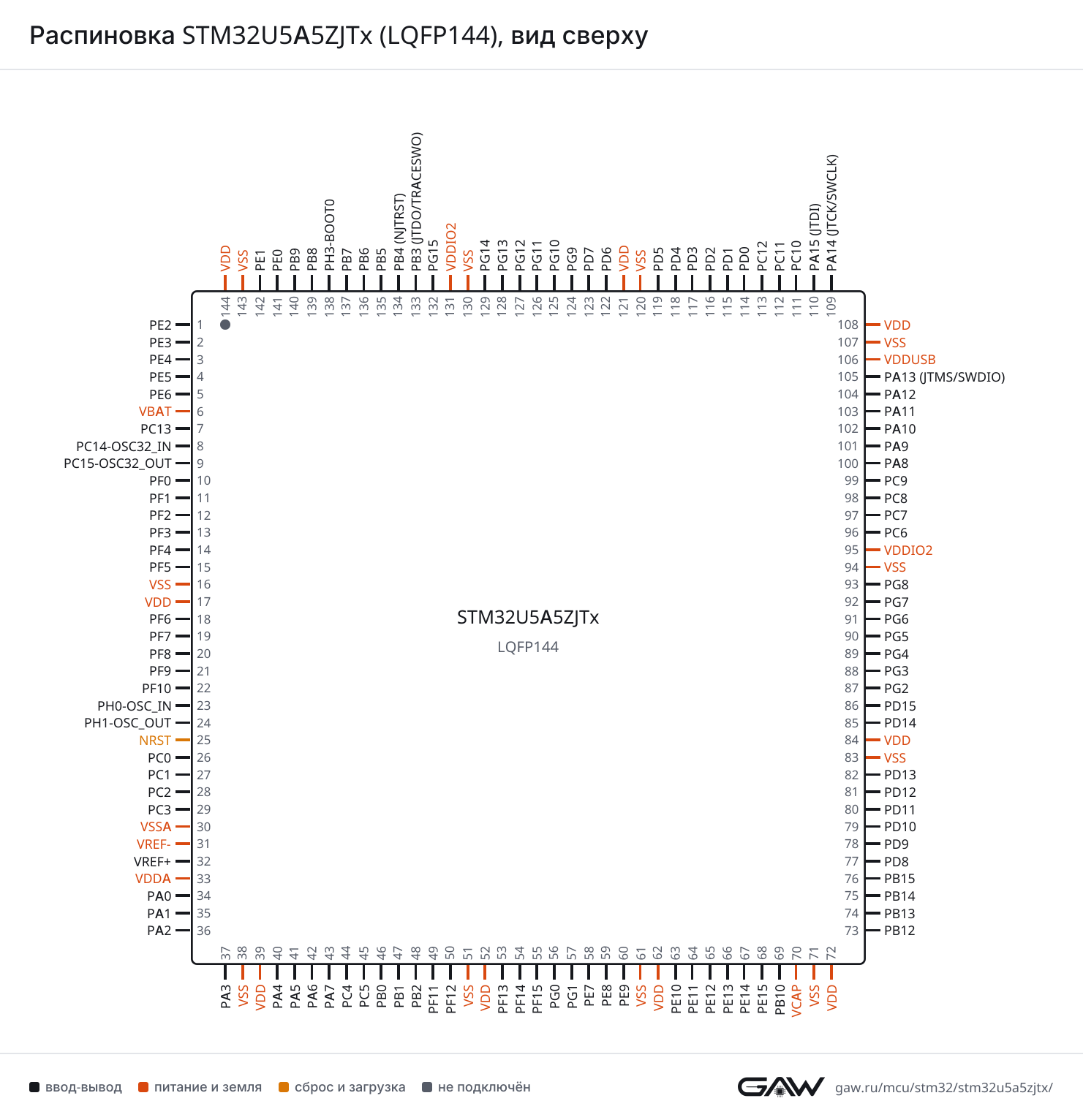

Распиновка STM32U5A5ZJTx (LQFP144), вид сверхуРаспиновка LQFP144 картинкой
PNG, 1481 × 1532 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер вывода и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (100, AF7), PG13 (128, AF7), PB5 (135, AF7)
CTSPA11 (103, AF7), PG11 (126, AF7), PB4 (NJTRST) (134, AF7)
DEPA12 (104, AF7), PG12 (127, AF7), PB3 (JTDO/TRACESWO) (133, AF7)
RTSPA12 (104, AF7), PG12 (127, AF7), PB3 (JTDO/TRACESWO) (133, AF7)
RXPA10 (102, AF7), PG10 (125, AF7), PB7 (137, AF7)
TXPA9 (101, AF7), PG9 (124, AF7), PB6 (136, AF7)
USART2CKPA4 (40, AF7), PD7 (123, AF7)
CTSPA0 (34, AF7), PD3 (117, AF7)
DEPA1 (35, AF7), PD4 (118, AF7)
RTSPA1 (35, AF7), PD4 (118, AF7)
RXPA3 (37, AF7), PA15 (JTDI) (110, AF3), PD6 (122, AF7)
TXPA2 (36, AF7), PD5 (119, AF7)
USART3CKPB0 (46, AF7), PB12 (73, AF7), PD10 (79, AF7), PC12 (113, AF7)
CTSPA6 (42, AF7), PB13 (74, AF7), PD11 (80, AF7)
DEPB1 (47, AF7), PB14 (75, AF7), PD12 (81, AF7), PA15 (JTDI) (110, AF7), PD2 (116, AF7)
RTSPB1 (47, AF7), PB14 (75, AF7), PD12 (81, AF7), PA15 (JTDI) (110, AF7), PD2 (116, AF7)
RXPA5 (41, AF7), PC5 (45, AF7), PD9 (78, AF7), PC11 (112, AF7)
TXPA7 (43, AF7), PC4 (44, AF7), PB10 (69, AF7), PD8 (77, AF7), PC10 (111, AF7)
USART6CKPE2 (1, AF7), PF2 (12, AF7), PC1 (27, AF7), PD14 (85, AF7)
CTSPE3 (2, AF7), PF3 (13, AF7), PC0 (26, AF7), PD13 (82, AF7)
DEPE4 (3, AF7), PF4 (14, AF7), PD15 (86, AF7)
RTSPE4 (3, AF7), PF4 (14, AF7), PD15 (86, AF7)
RXPF1 (11, AF7), PC2 (28, AF7), PC8 (98, AF7), PE0 (141, AF7)
TXPF0 (10, AF7), PC3 (29, AF7), PC9 (99, AF7), PE1 (142, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB7 (137, AF8)
DEPA15 (JTDI) (110, AF8)
RTSPA15 (JTDI) (110, AF8)
RXPA1 (35, AF8), PC11 (112, AF8)
TXPA0 (34, AF8), PC10 (111, AF8)
UART5CTSPB5 (135, AF8)
DEPB4 (NJTRST) (134, AF8)
RTSPB4 (NJTRST) (134, AF8)
RXPF4 (14, AF8), PD2 (116, AF8)
TXPF3 (13, AF8), PC12 (113, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA6 (42, AF8), PB13 (74, AF8), PG5 (90, AF8)
DEPB1 (47, AF8), PB12 (73, AF8), PG6 (91, AF8)
RTSPB1 (47, AF8), PB12 (73, AF8), PG6 (91, AF8)
RXPC0 (26, AF8), PA3 (37, AF8), PB10 (69, AF8), PG8 (93, AF8)
TXPC1 (27, AF8), PA2 (36, AF8), PG7 (92, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA6 (42, AF5), PE14 (67, AF5), PG3 (88, AF5), PA11 (103, AF5), PB4 (NJTRST) (134, AF5)
MOSIPA7 (43, AF5), PE15 (68, AF5), PG4 (89, AF5), PA12 (104, AF5), PB5 (135, AF5)
NSSPA4 (40, AF5), PB0 (46, AF5), PE12 (65, AF5), PG5 (90, AF5), PA15 (JTDI) (110, AF5)
RDYPA2 (36, AF5), PB2 (48, AF5), PE11 (64, AF5), PG6 (91, AF5), PA8 (100, AF5)
SCKPA1 (35, AF5), PA5 (41, AF5), PE13 (66, AF5), PG2 (87, AF5), PB3 (JTDO/TRACESWO) (133, AF5)
SPI2MISOPC2 (28, AF5), PB14 (75, AF5), PD3 (117, AF5)
MOSIPC1 (27, AF3), PC3 (29, AF5), PB15 (76, AF5), PD4 (118, AF5)
NSSPB12 (73, AF5), PD0 (114, AF5), PB9 (140, AF5)
RDYPC0 (26, AF5), PD5 (119, AF5)
SCKPB10 (69, AF5), PB13 (74, AF5), PA9 (101, AF3), PD1 (115, AF5), PD3 (117, AF3)
SPI3MISOPC11 (112, AF6), PG10 (125, AF6), PB4 (NJTRST) (134, AF6)
MOSIPC12 (113, AF6), PD6 (122, AF5), PG11 (126, AF6), PB5 (135, AF6)
NSSPA4 (40, AF6), PA15 (JTDI) (110, AF6), PG12 (127, AF6)
RDYPA0 (34, AF6), PG13 (128, AF6), PB8 (139, AF6)
SCKPC10 (111, AF6), PG9 (124, AF6), PB3 (JTDO/TRACESWO) (133, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPG14 (129, AF4), PB6 (136, AF4), PB8 (139, AF4)
SDAPG13 (128, AF4), PB3 (JTDO/TRACESWO) (133, AF4), PB7 (137, AF4), PB9 (140, AF4)
SMBAPA1 (35, AF4), PA14 (JTCK/SWCLK) (109, AF4), PG15 (132, AF4), PB5 (135, AF4)
I2C2SCLPF1 (11, AF4), PB10 (69, AF4), PB13 (74, AF4)
SDAPF0 (10, AF4), PB14 (75, AF4)
SMBAPF2 (12, AF4), PB12 (73, AF4)
I2C3SCLPC0 (26, AF4), PA7 (43, AF4), PG7 (92, AF4)
SDAPC1 (27, AF4), PG8 (93, AF4), PB4 (NJTRST) (134, AF4)
SMBAPB2 (48, AF4), PG6 (91, AF4)
I2C4SCLPF14 (54, AF4), PB10 (69, AF3), PD12 (81, AF4), PB6 (136, AF5)
SDAPF15 (55, AF4), PD13 (82, AF4), PB7 (137, AF5)
SMBAPF13 (53, AF4), PD11 (80, AF4), PA14 (JTCK/SWCLK) (109, AF5)
I2C5SCLPD1 (115, AF4)
SDAPD0 (114, AF4)
SMBAPD10 (79, AF4), PD2 (116, AF4)
I2C6SCLPF1 (11, AF2), PD1 (115, AF2)
SDAPF0 (10, AF2), PD0 (114, AF2)
SMBAPC4 (44, AF2), PB12 (73, AF2), PD3 (117, AF2)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPF7 (19, AF9), PA11 (103, AF9), PD0 (114, AF9), PB8 (139, AF9)
TXPF8 (20, AF9), PA12 (104, AF9), PD1 (115, AF9), PB9 (140, AF9)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPA11 (103)
DPPA12 (104)
IDPA10 (102, AF10)
SOFPA8 (100, AF10), PA14 (JTCK/SWCLK) (109, AF10)
VBUSPA9 (101)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PA15 (JTDI) (110)
CC2PB15 (76)
DBCC1PB5 (135)
DBCC2PB14 (75)
FRSTX1PA2 (36, AF11), PB2 (48, AF11), PG6 (91, AF11)
FRSTX2PF13 (53, AF11), PG7 (92, AF11), PC11 (112, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (140, AF8)
CKPC12 (113, AF12)
CKINPB8 (139, AF8)
CMDPD2 (116, AF12)
D0PC8 (98, AF12)
D0DIRPC6 (96, AF8)
D1PC9 (99, AF12)
D2PC10 (111, AF12)
D3PC11 (112, AF12)
D4PB8 (139, AF12)
D5PC0 (26, AF12), PB9 (140, AF12)
D6PC6 (96, AF12)
D7PC7 (97, AF12)
D123DIRPC7 (97, AF8)
SDMMC2CKPC1 (27, AF12), PD6 (122, AF11)
CMDPA0 (34, AF12), PD7 (123, AF11)
D0PB14 (75, AF12)
D1PB15 (76, AF12)
D2PB3 (JTDO/TRACESWO) (133, AF12)
D3PB4 (NJTRST) (134, AF12)
D4PB8 (139, AF11)
D5PB9 (140, AF11)
D6PC6 (96, AF11)
D7PC7 (97, AF11)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (1, AF3), PA3 (37, AF3), PG7 (92, AF3), PB8 (139, AF3)
CK2PE5 (4, AF3), PA8 (100, AF3)
D1PE6 (5, AF3), PC3 (29, AF3), PA10 (102, AF3), PD6 (122, AF3)
D2PE4 (3, AF3), PB9 (140, AF3)
D3PF10 (22, AF13), PC5 (45, AF3)
FS_APE4 (3, AF13), PA9 (101, AF13), PB9 (140, AF13)
FS_BPF9 (21, AF13), PA4 (40, AF13), PE9 (60, AF13), PA14 (JTCK/SWCLK) (109, AF13), PB6 (136, AF13)
MCLK_APE2 (1, AF13), PA3 (37, AF13), PG7 (92, AF13), PB8 (139, AF13)
MCLK_BPF7 (19, AF13), PE10 (63, AF13), PB4 (NJTRST) (134, AF13)
SCK_APE5 (4, AF13), PB10 (69, AF13), PA8 (100, AF13)
SCK_BPF8 (20, AF13), PE8 (59, AF13), PB3 (JTDO/TRACESWO) (133, AF13)
SD_APE6 (5, AF13), PC1 (27, AF13), PC3 (29, AF13), PA10 (102, AF13), PD6 (122, AF13)
SD_BPE3 (2, AF13), PF6 (18, AF13), PE7 (58, AF13), PA13 (JTMS/SWDIO) (105, AF13), PB5 (135, AF13)
SAI2FS_APC0 (26, AF13), PB12 (73, AF13), PD12 (81, AF13), PG10 (125, AF13)
FS_BPG3 (88, AF13), PA15 (JTDI) (110, AF13)
MCLK_APB14 (75, AF13), PD9 (78, AF13), PC6 (96, AF13), PG11 (126, AF13)
MCLK_BPG4 (89, AF13), PC7 (97, AF13), PC11 (112, AF13)
SCK_APB13 (74, AF13), PD10 (79, AF13), PG9 (124, AF13)
SCK_BPG2 (87, AF13), PC10 (111, AF13)
SD_APB15 (76, AF13), PD11 (80, AF13), PG12 (127, AF13)
SD_BPG5 (90, AF13), PC12 (113, AF13)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PF11 (49), PE11 (64), PD11 (80), PA11 (103), PC11 (112), PG11 (126)
EXTI15PC15-OSC32_OUT (9), PF15 (55), PE15 (68), PB15 (76), PD15 (86), PA15 (JTDI) (110), PG15 (132)
IN1PC0 (26)
IN2PC1 (27)
IN3PC2 (28)
IN4PC3 (29)
IN5PA0 (34)
IN6PA1 (35)
IN7PA2 (36)
IN8PA3 (37)
IN9PA4 (40)
IN10PA5 (41)
IN11PA6 (42)
IN12PA7 (43)
IN13PC4 (44)
IN14PC5 (45)
IN15PB0 (46)
IN16PB1 (47)
IN17PB2 (48)
ADC2EXTI11PF11 (49), PE11 (64), PD11 (80), PA11 (103), PC11 (112), PG11 (126)
EXTI15PC15-OSC32_OUT (9), PF15 (55), PE15 (68), PB15 (76), PD15 (86), PA15 (JTDI) (110), PG15 (132)
IN1PC0 (26)
IN2PC1 (27)
IN3PC2 (28)
IN4PC3 (29)
IN5PA0 (34)
IN6PA1 (35)
IN7PA2 (36)
IN8PA3 (37)
IN9PA4 (40)
IN10PA5 (41)
IN11PA6 (42)
IN12PA7 (43)
IN13PC4 (44)
IN14PC5 (45)
IN15PB0 (46)
IN16PB1 (47)
IN17PB2 (48)
ADC4EXTI15PC15-OSC32_OUT (9), PF15 (55), PE15 (68), PB15 (76), PD15 (86), PA15 (JTDI) (110), PG15 (132)
IN1PC0 (26)
IN2PC1 (27)
IN3PC2 (28)
IN4PC3 (29)
IN5PF14 (54)
IN6PF15 (55)
IN7PG0 (56)
IN8PG1 (57)
IN9PA4 (40)
IN10PA5 (41)
IN11PA6 (42)
IN15PD11 (80)
IN16PD12 (81)
IN17PD13 (82)
IN18PB0 (46)
IN19PB1 (47)
IN20PA7 (43)
IN22PC4 (44)
IN23PC5 (45)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PF9 (21), PE9 (60), PD9 (78), PC9 (99), PA9 (101), PG9 (124), PB9 (140)
OUT1PA4 (40)
OUT2PA5 (41)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPC4 (44), PB1 (47)
INPPA2 (36), PC5 (45), PB2 (48)
OUTPB0 (46, AF12), PB10 (69, AF12)
COMP2INMPB3 (JTDO/TRACESWO) (133), PB7 (137)
INPPB4 (NJTRST) (134), PB6 (136)
OUTPB5 (135, AF12)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA1 (35)
VINPPA0 (34)
VOUTPA3 (37)
OPAMP2VINMPA7 (43)
VINPPA6 (42)
VOUTPB0 (46)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (32)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (42, AF1), PE15 (68, AF1), PB12 (73, AF1)
BKIN2PE14 (67, AF2), PA11 (103, AF2)
CH1PE9 (60, AF1), PA8 (100, AF1)
CH1NPA7 (43, AF1), PE8 (59, AF1), PB13 (74, AF1)
CH2PE11 (64, AF1), PA9 (101, AF1)
CH2NPB0 (46, AF1), PE10 (63, AF1), PB14 (75, AF1)
CH3PE13 (66, AF1), PA10 (102, AF1)
CH3NPB1 (47, AF1), PE12 (65, AF1), PB15 (76, AF1)
CH4PE14 (67, AF1), PA11 (103, AF1)
CH4NPC5 (45, AF1), PE15 (68, AF3)
ETRPE7 (58, AF1), PA12 (104, AF1)
TIM2CH1PA0 (34, AF1), PA5 (41, AF1), PA15 (JTDI) (110, AF1)
CH2PA1 (35, AF1), PB3 (JTDO/TRACESWO) (133, AF1)
CH3PA2 (36, AF1), PB10 (69, AF1)
CH4PA3 (37, AF1)
ETRPA0 (34, AF14), PA5 (41, AF2), PA15 (JTDI) (110, AF2)
TIM3CH1PE3 (2, AF2), PA6 (42, AF2), PC6 (96, AF2), PB4 (NJTRST) (134, AF2)
CH2PE4 (3, AF2), PA7 (43, AF2), PC7 (97, AF2), PB5 (135, AF2)
CH3PE5 (4, AF2), PB0 (46, AF2), PC8 (98, AF2)
CH4PE6 (5, AF2), PB1 (47, AF2), PC9 (99, AF2)
ETRPE2 (1, AF2), PD2 (116, AF2)
TIM4CH1PD12 (81, AF2), PB6 (136, AF2)
CH2PD13 (82, AF2), PB7 (137, AF2)
CH3PD14 (85, AF2), PB8 (139, AF2)
CH4PD15 (86, AF2), PB9 (140, AF2)
ETRPE0 (141, AF2)
TIM5CH1PF6 (18, AF2), PA0 (34, AF2)
CH2PF7 (19, AF2), PA1 (35, AF2)
CH3PF8 (20, AF2), PA2 (36, AF2)
CH4PF9 (21, AF2), PA3 (37, AF2)
ETRPF6 (18, AF1)
TIM8BKINPA6 (42, AF3), PB7 (137, AF3)
BKIN2PC9 (99, AF1), PB6 (136, AF3)
CH1PC6 (96, AF3)
CH1NPA5 (41, AF3), PA7 (43, AF3)
CH2PC7 (97, AF3)
CH2NPB0 (46, AF3), PB14 (75, AF3)
CH3PC8 (98, AF3)
CH3NPB1 (47, AF3), PB15 (76, AF3)
CH4PC9 (99, AF3)
CH4NPB2 (48, AF3), PD0 (114, AF3)
ETRPA0 (34, AF3)
TIM15BKINPB12 (73, AF14), PA9 (101, AF14)
CH1PF9 (21, AF14), PA2 (36, AF14), PB14 (75, AF14), PG10 (125, AF14)
CH1NPA1 (35, AF14), PB13 (74, AF14), PG9 (124, AF14)
CH2PF10 (22, AF14), PA3 (37, AF14), PB15 (76, AF14), PG11 (126, AF14)
TIM16BKINPB5 (135, AF14)
CH1PA6 (42, AF14), PB8 (139, AF14), PE0 (141, AF14)
CH1NPB6 (136, AF14)
TIM17BKINPA10 (102, AF14), PB4 (NJTRST) (134, AF14)
CH1PA7 (43, AF14), PB9 (140, AF14), PE1 (142, AF14)
CH1NPB7 (137, AF14)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PC1 (27, AF1), PB2 (48, AF1), PA14 (JTCK/SWCLK) (109, AF1), PG15 (132, AF1), PB3 (JTDO/TRACESWO) (133, AF2)
CH2PA1 (35, AF0), PG14 (129, AF1), PB4 (NJTRST) (134, AF1)
ETRPC3 (29, AF1), PG12 (127, AF1), PB6 (136, AF1)
IN1PC0 (26, AF1), PG10 (125, AF1), PB5 (135, AF1)
IN2PC2 (28, AF1), PG11 (126, AF1), PB7 (137, AF1)
LPTIM2CH1PA4 (40, AF14), PD13 (82, AF14), PA8 (100, AF14)
CH2PA7 (43, AF13), PD10 (79, AF2), PC7 (97, AF14)
ETRPC3 (29, AF14), PA5 (41, AF14), PD11 (80, AF14)
IN1PC0 (26, AF14), PB1 (47, AF14), PD12 (81, AF14)
IN2PB15 (76, AF2), PD9 (78, AF2), PA10 (102, AF2)
LPTIM3CH1PF5 (15, AF2), PC3 (29, AF2), PB0 (46, AF4), PB10 (69, AF2), PD14 (85, AF14), PC8 (98, AF14)
CH2PF2 (12, AF2), PB1 (47, AF4), PD15 (86, AF14), PC9 (99, AF14)
ETRPF4 (14, AF2), PB14 (75, AF2), PD10 (79, AF14), PC10 (111, AF2)
IN1PF3 (13, AF2), PB13 (74, AF2), PD9 (78, AF14), PC11 (112, AF2)
LPTIM4ETRPF12 (50, AF13), PD2 (116, AF13)
IN1PF11 (49, AF13), PD13 (82, AF13)
OUTPF13 (53, AF13), PD7 (123, AF13)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (7)
OUT2PB2 (48)
REFINPB15 (76, AF0)
TSPC13 (7)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (10, AF12)
A1PF1 (11, AF12)
A2PF2 (12, AF12)
A3PF3 (13, AF12)
A4PF4 (14, AF12)
A5PF5 (15, AF12)
A6PF12 (50, AF12)
A7PF13 (53, AF12)
A8PF14 (54, AF12)
A9PF15 (55, AF12)
A10PG0 (56, AF12)
A11PG1 (57, AF12)
A12PG2 (87, AF12)
A13PG3 (88, AF12)
A14PG4 (89, AF12)
A15PG5 (90, AF12)
A16PD11 (80, AF12)
A17PD12 (81, AF12)
A18PD13 (82, AF12)
A19PE3 (2, AF12)
A20PE4 (3, AF12)
A21PE5 (4, AF12)
A22PE6 (5, AF12)
A23PE2 (1, AF12)
A24PG13 (128, AF12)
A25PG14 (129, AF12)
ALEPD12 (81, AF12)
CLEPD11 (80, AF12)
CLKPD3 (117, AF12)
D0PD14 (85, AF12)
D1PD15 (86, AF12)
D2PD0 (114, AF12)
D3PD1 (115, AF12)
D4PE7 (58, AF12)
D5PE8 (59, AF12)
D6PE9 (60, AF12)
D7PE10 (63, AF12)
D8PE11 (64, AF12)
D9PE12 (65, AF12)
D10PE13 (66, AF12)
D11PE14 (67, AF12)
D12PE15 (68, AF12)
D13PD8 (77, AF12)
D14PD9 (78, AF12)
D15PD10 (79, AF12)
DA0PD14 (85, AF12)
DA1PD15 (86, AF12)
DA2PD0 (114, AF12)
DA3PD1 (115, AF12)
DA4PE7 (58, AF12)
DA5PE8 (59, AF12)
DA6PE9 (60, AF12)
DA7PE10 (63, AF12)
DA8PE11 (64, AF12)
DA9PE12 (65, AF12)
DA10PE13 (66, AF12)
DA11PE14 (67, AF12)
DA12PE15 (68, AF12)
DA13PD8 (77, AF12)
DA14PD9 (78, AF12)
DA15PD10 (79, AF12)
INTPG7 (92, AF12)
NBL0PE0 (141, AF12)
NBL1PB15 (76, AF11), PE1 (142, AF12)
NCEPD7 (123, AF12), PG9 (124, AF12)
NE1PD7 (123, AF12)
NE2PG9 (124, AF12)
NE3PG10 (125, AF12)
NE4PG12 (127, AF12)
NLPB7 (137, AF12)
NOEPD4 (118, AF12)
NWAITPD6 (122, AF12)
NWEPD5 (119, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PC6 (96, AF10), PA9 (101, AF5)
D1PC7 (97, AF10), PA10 (102, AF5)
D2PC8 (98, AF10), PC11 (112, AF4), PE0 (141, AF10)
D3PC9 (99, AF4), PE1 (142, AF10)
D4PE4 (3, AF10), PC11 (112, AF10)
D5PD3 (117, AF4), PB6 (136, AF10)
D6PE5 (4, AF10), PB8 (139, AF10)
D7PE6 (5, AF10), PB9 (140, AF10)
D8PC10 (111, AF10)
D9PC12 (113, AF10)
D10PD6 (122, AF4), PB5 (135, AF10)
D11PF10 (22, AF10), PD2 (116, AF10)
D12PF6 (18, AF4), PF11 (49, AF10), PB4 (NJTRST) (134, AF10)
D13PG15 (132, AF10)
HSYNCPA4 (40, AF10), PD8 (77, AF10)
PIXCLKPA6 (42, AF4), PD9 (78, AF10)
VSYNCPB7 (137, AF10)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PC6 (96, AF10), PA9 (101, AF5)
D1PC7 (97, AF10), PA10 (102, AF5)
D2PC8 (98, AF10), PC11 (112, AF4), PE0 (141, AF10)
D3PC9 (99, AF4), PE1 (142, AF10)
D4PE4 (3, AF10), PC11 (112, AF10)
D5PD3 (117, AF4), PB6 (136, AF10)
D6PE5 (4, AF10), PB8 (139, AF10)
D7PE6 (5, AF10), PB9 (140, AF10)
D8PC10 (111, AF10)
D9PC12 (113, AF10)
D10PD6 (122, AF4), PB5 (135, AF10)
D11PF10 (22, AF10), PD2 (116, AF10)
D12PF6 (18, AF4), PF11 (49, AF10), PB4 (NJTRST) (134, AF10)
D13PG15 (132, AF10)
D14PF8 (20, AF4), PA5 (41, AF4)
D15PF9 (21, AF4), PF10 (22, AF4), PC5 (45, AF4)
DEPA4 (40, AF10), PD8 (77, AF10)
PDCKPA6 (42, AF4), PD9 (78, AF10)
RDYPB7 (137, AF10)

TSC — контроллер сенсорных кнопок

БлокСигналВыводы
TSCG1_IO1PB12 (73, AF9)
G1_IO2PB13 (74, AF9)
G1_IO3PB14 (75, AF9)
G2_IO1PB4 (NJTRST) (134, AF9)
G2_IO2PB5 (135, AF9)
G2_IO3PB6 (136, AF9)
G2_IO4PB7 (137, AF9)
G3_IO2PC10 (111, AF9)
G3_IO3PC11 (112, AF9)
G3_IO4PC12 (113, AF9)
G4_IO1PC6 (96, AF9)
G4_IO2PC7 (97, AF9)
G4_IO3PC8 (98, AF9)
G4_IO4PC9 (99, AF9)
G5_IO1PE10 (63, AF9)
G5_IO2PE11 (64, AF9)
G5_IO3PE12 (65, AF9)
G5_IO4PE13 (66, AF9)
G6_IO1PD10 (79, AF9)
G6_IO2PD11 (80, AF9)
G6_IO3PD12 (81, AF9)
G6_IO4PD13 (82, AF9)
G7_IO1PE2 (1, AF9)
G7_IO2PE3 (2, AF9)
G7_IO3PE4 (3, AF9)
G7_IO4PE5 (4, AF9)
G8_IO1PF14 (54, AF9)
G8_IO2PF15 (55, AF9)
G8_IO3PG0 (56, AF9)
G8_IO4PG1 (57, AF9)
SYNCPB10 (69, AF9), PD2 (116, AF9)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PF3 (13, AF6), PE9 (60, AF6), PG7 (92, AF6), PB8 (139, AF5)
CCK1PF10 (22, AF6), PC2 (28, AF6)
CKI0PF5 (15, AF6), PB2 (48, AF6), PD4 (118, AF6)
CKI1PB13 (74, AF6), PD7 (123, AF6)
CKI2PE8 (59, AF6), PB15 (76, AF6)
CKI3PE5 (4, AF6), PC6 (96, AF6)
CKI4PC1 (27, AF6), PE11 (64, AF6)
CKI5PE13 (66, AF6), PB7 (137, AF6)
SDI0PF4 (14, AF6), PB1 (47, AF6), PD3 (117, AF6)
SDI1PB12 (73, AF6), PD6 (122, AF6)
SDI2PE7 (58, AF6), PB14 (75, AF6)
SDI3PE4 (3, AF6), PC7 (97, AF6)
SDI4PC0 (26, AF6), PE10 (63, AF6)
SDI5PE12 (65, AF6), PB6 (136, AF6)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PF3 (13, AF3), PE9 (60, AF3), PB3 (JTDO/TRACESWO) (133, AF3)
CCK1PC10 (111, AF3)
SDI0PF4 (14, AF3), PE10 (63, AF3), PC11 (112, AF3), PB4 (NJTRST) (134, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (109, AF0)
JTDIPA15 (JTDI) (110, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (133, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (105, AF0)
NJTRSTPB4 (NJTRST) (134, AF0)
TRACECLKPE2 (1, AF0), PA8 (100, AF12)
TRACED0PE3 (2, AF0), PC1 (27, AF0), PC9 (99, AF0)
TRACED1PE4 (3, AF0), PC10 (111, AF0)
TRACED2PE5 (4, AF0), PD2 (116, AF0)
TRACED3PE6 (5, AF0), PC12 (113, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPA2 (36)
MCOPA8 (100, AF0)
OSC_INPH0-OSC_IN (23)
OSC_OUTPH1-OSC_OUT (24)
OSC32_INPC14-OSC32_IN (8)
OSC32_OUTPC15-OSC32_OUT (9)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPA5 (41, AF0), PC6 (96, AF0)
PWR_WKUP1PE4 (3), PA0 (34), PB2 (48)
PWR_WKUP2PE5 (4), PC13 (7), PA4 (40)
PWR_WKUP3PE6 (5), PA1 (35), PB6 (136)
PWR_WKUP4PA2 (36), PB1 (47), PB7 (137)
PWR_WKUP5PA3 (37), PC5 (45), PB8 (139)
PWR_WKUP6PA5 (41), PE7 (58), PB5 (135)
PWR_WKUP7PA6 (42), PE8 (59), PB15 (76)
PWR_WKUP8PF2 (12), PA7 (43), PB10 (69)
TAMP_IN1PC13 (7)
TAMP_IN2PA0 (34)
TAMP_IN3PE6 (5)
TAMP_IN4PC5 (45)
TAMP_IN5PA1 (35)
TAMP_IN6PE3 (2)
TAMP_IN7PE4 (3)
TAMP_IN8PE5 (4)
TAMP_OUT1PA0 (34)
TAMP_OUT2PC13 (7)
TAMP_OUT3PE3 (2)
TAMP_OUT4PA1 (35)
TAMP_OUT5PC5 (45)
TAMP_OUT6PE6 (5)
TAMP_OUT7PE5 (4)
TAMP_OUT8PE4 (3)

Блоки без собственных выводов: OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), IRTIM (формирователь ИК-сигнала), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), AES (аппаратное шифрование AES), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 144 вывода корпуса LQFP144 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ВыводИмяТипФункции
1PE2ввод-выводDEBUG_TRACECLK (AF0), FMC_A23 (AF12), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM3_ETR (AF2), TSC_G7_IO1 (AF9), USART6_CK (AF7)
2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), OCTOSPIM_P1_DQS (AF3), SAI1_SD_B (AF13), TAMP_IN6, TAMP_OUT3, TIM3_CH1 (AF2), TSC_G7_IO2 (AF9), USART6_CTS (AF7)
3PE4ввод-выводDCMI_D4 (AF10), DEBUG_TRACED1 (AF0), FMC_A20 (AF12), MDF1_SDI3 (AF6), PSSI_D4 (AF10), PWR_WKUP1, SAI1_D2 (AF3), SAI1_FS_A (AF13), TAMP_IN7, TAMP_OUT8, TIM3_CH2 (AF2), TSC_G7_IO3 (AF9), USART6_DE (AF7), USART6_RTS (AF7)
4PE5ввод-выводDCMI_D6 (AF10), DEBUG_TRACED2 (AF0), FMC_A21 (AF12), MDF1_CKI3 (AF6), PSSI_D6 (AF10), PWR_WKUP2, SAI1_CK2 (AF3), SAI1_SCK_A (AF13), TAMP_IN8, TAMP_OUT7, TIM3_CH3 (AF2), TSC_G7_IO4 (AF9)
5PE6ввод-выводDCMI_D7 (AF10), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), PSSI_D7 (AF10), PWR_WKUP3, SAI1_D1 (AF3), SAI1_SD_A (AF13), TAMP_IN3, TAMP_OUT6, TIM3_CH4 (AF2)
6VBATпитание—
7PC13ввод-выводPWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2
8PC14-OSC32_INввод-выводRCC_OSC32_IN
9PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUT
10PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), I2C6_SDA (AF2), OCTOSPIM_P2_IO0 (AF5), USART6_TX (AF7)
11PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), I2C6_SCL (AF2), OCTOSPIM_P2_IO1 (AF5), USART6_RX (AF7)
12PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), OCTOSPIM_P2_IO2 (AF5), PWR_WKUP8, USART6_CK (AF7)
13PF3ввод-выводADF1_CCK0 (AF3), FMC_A3 (AF12), LPTIM3_IN1 (AF2), MDF1_CCK0 (AF6), OCTOSPIM_P2_IO3 (AF5), UART5_TX (AF8), USART6_CTS (AF7)
14PF4ввод-выводADF1_SDI0 (AF3), FMC_A4 (AF12), LPTIM3_ETR (AF2), MDF1_SDI0 (AF6), OCTOSPIM_P2_CLK (AF5), UART5_RX (AF8), USART6_DE (AF7), USART6_RTS (AF7)
15PF5ввод-выводFMC_A5 (AF12), LPTIM3_CH1 (AF2), MDF1_CKI0 (AF6), OCTOSPIM_P2_NCLK (AF5)
16VSSпитание—
17VDDпитание—
18PF6ввод-выводDCMI_D12 (AF4), OCTOSPIM_P1_IO3 (AF10), OCTOSPIM_P2_NCS (AF5), PSSI_D12 (AF4), SAI1_SD_B (AF13), TIM5_CH1 (AF2), TIM5_ETR (AF1)
19PF7ввод-выводFDCAN1_RX (AF9), OCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF13), TIM5_CH2 (AF2)
20PF8ввод-выводFDCAN1_TX (AF9), OCTOSPIM_P1_IO0 (AF10), PSSI_D14 (AF4), SAI1_SCK_B (AF13), TIM5_CH3 (AF2)
21PF9ввод-выводDAC1_EXTI9, OCTOSPIM_P1_IO1 (AF10), PSSI_D15 (AF4), SAI1_FS_B (AF13), TIM15_CH1 (AF14), TIM5_CH4 (AF2)
22PF10ввод-выводDCMI_D11 (AF10), MDF1_CCK1 (AF6), OCTOSPIM_P1_CLK (AF3), PSSI_D11 (AF10), PSSI_D15 (AF4), SAI1_D3 (AF13), TIM15_CH2 (AF14)
23PH0-OSC_INввод-выводRCC_OSC_IN
24PH1-OSC_OUTввод-выводRCC_OSC_OUT
25NRSTсброс—
26PC0ввод-выводADC1_IN1, ADC2_IN1, ADC4_IN1, I2C3_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF14), LPUART1_RX (AF8), MDF1_SDI4 (AF6), OCTOSPIM_P1_IO7 (AF3), SAI2_FS_A (AF13), SDMMC1_D5 (AF12), SPI2_RDY (AF5), USART6_CTS (AF7)
27PC1ввод-выводADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0 (AF0), I2C3_SDA (AF4), LPTIM1_CH1 (AF1), LPUART1_TX (AF8), MDF1_CKI4 (AF6), OCTOSPIM_P1_IO4 (AF10), SAI1_SD_A (AF13), SDMMC2_CK (AF12), SPI2_MOSI (AF3), USART6_CK (AF7)
28PC2ввод-выводADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2 (AF1), MDF1_CCK1 (AF6), OCTOSPIM_P1_IO5 (AF10), SPI2_MISO (AF5), USART6_RX (AF7)
29PC3ввод-выводADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR (AF1), LPTIM2_ETR (AF14), LPTIM3_CH1 (AF2), OCTOSPIM_P1_IO6 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), SPI2_MOSI (AF5), USART6_TX (AF7)
30VSSAпитание—
31VREF-питание—
32VREF+служебныйVREFBUF_OUT
33VDDAпитание—
34PA0ввод-выводADC1_IN5, ADC2_IN5, AUDIOCLK (AF13), OCTOSPIM_P2_NCS (AF10), OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD (AF12), SPI3_RDY (AF6), TAMP_IN2, TAMP_OUT1, TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7)
35PA1ввод-выводADC1_IN6, ADC2_IN6, I2C1_SMBA (AF4), LPTIM1_CH2 (AF0), OCTOSPIM_P1_DQS (AF10), OPAMP1_VINM, PWR_WKUP3, SPI1_SCK (AF5), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF14), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
36PA2ввод-выводADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), PWR_WKUP4, RCC_LSCO, SPI1_RDY (AF5), TIM15_CH1 (AF14), TIM2_CH3 (AF1), TIM5_CH3 (AF2), UCPD1_FRSTX1 (AF11), USART2_TX (AF7)
37PA3ввод-выводADC1_IN8, ADC2_IN8, LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM15_CH2 (AF14), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
38VSSпитание—
39VDDпитание—
40PA4ввод-выводADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC (AF10), LPTIM2_CH1 (AF14), OCTOSPIM_P1_NCS (AF3), PSSI_DE (AF10), PWR_WKUP2, SAI1_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), USART2_CK (AF7)
41PA5ввод-выводADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR (AF14), PSSI_D14 (AF4), PWR_CSLEEP (AF0), PWR_WKUP6, SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM8_CH1N (AF3), USART3_RX (AF7)
42PA6ввод-выводADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK (AF4), LPUART1_CTS (AF8), OCTOSPIM_P1_IO3 (AF10), OPAMP2_VINP, PSSI_PDCK (AF4), PWR_CDSTOP (AF0), PWR_WKUP7, SPI1_MISO (AF5), TIM16_CH1 (AF14), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART3_CTS (AF7)
43PA7ввод-выводADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL (AF4), LPTIM2_CH2 (AF13), OCTOSPIM_P1_IO2 (AF10), OPAMP2_VINM, PWR_SRDSTOP (AF0), PWR_WKUP8, SPI1_MOSI (AF5), TIM17_CH1 (AF14), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART3_TX (AF7)
44PC4ввод-выводADC1_IN13, ADC2_IN13, ADC4_IN22, COMP1_INM, I2C6_SMBA (AF2), OCTOSPIM_P1_IO7 (AF10), USART3_TX (AF7)
45PC5ввод-выводADC1_IN14, ADC2_IN14, ADC4_IN23, COMP1_INP, PSSI_D15 (AF4), PWR_WKUP5, SAI1_D3 (AF3), TAMP_IN4, TAMP_OUT5, TIM1_CH4N (AF1), USART3_RX (AF7)
46PB0ввод-выводADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK (AF13), COMP1_OUT (AF12), LPTIM3_CH1 (AF4), OCTOSPIM_P1_IO1 (AF10), OPAMP2_VOUT, SPI1_NSS (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), USART3_CK (AF7)
47PB1ввод-выводADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1 (AF14), LPTIM3_CH2 (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI0 (AF6), OCTOSPIM_P1_IO0 (AF10), PWR_WKUP4, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USART3_DE (AF7), USART3_RTS (AF7)
48PB2ввод-выводADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA (AF4), LPTIM1_CH1 (AF1), MDF1_CKI0 (AF6), OCTOSPIM_P1_DQS (AF10), PWR_WKUP1, RTC_OUT2, SPI1_RDY (AF5), TIM8_CH4N (AF3), UCPD1_FRSTX1 (AF11)
49PF11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D12 (AF10), LPTIM4_IN1 (AF13), OCTOSPIM_P1_NCLK (AF3), PSSI_D12 (AF10)
50PF12ввод-выводFMC_A6 (AF12), LPTIM4_ETR (AF13), OCTOSPIM_P2_DQS (AF5)
51VSSпитание—
52VDDпитание—
53PF13ввод-выводFMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM4_OUT (AF13), UCPD1_FRSTX2 (AF11)
54PF14ввод-выводADC4_IN5, FMC_A8 (AF12), I2C4_SCL (AF4), TSC_G8_IO1 (AF9)
55PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, ADC4_IN6, FMC_A9 (AF12), I2C4_SDA (AF4), TSC_G8_IO2 (AF9)
56PG0ввод-выводADC4_IN7, FMC_A10 (AF12), OCTOSPIM_P2_IO4 (AF5), TSC_G8_IO3 (AF9)
57PG1ввод-выводADC4_IN8, FMC_A11 (AF12), OCTOSPIM_P2_IO5 (AF5), TSC_G8_IO4 (AF9)
58PE7ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), MDF1_SDI2 (AF6), PWR_WKUP6, SAI1_SD_B (AF13), TIM1_ETR (AF1)
59PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), MDF1_CKI2 (AF6), PWR_WKUP7, SAI1_SCK_B (AF13), TIM1_CH1N (AF1)
60PE9ввод-выводADF1_CCK0 (AF3), DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), MDF1_CCK0 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI1_FS_B (AF13), TIM1_CH1 (AF1)
61VSSпитание—
62VDDпитание—
63PE10ввод-выводADF1_SDI0 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), MDF1_SDI4 (AF6), OCTOSPIM_P1_CLK (AF10), SAI1_MCLK_B (AF13), TIM1_CH2N (AF1), TSC_G5_IO1 (AF9)
64PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D8 (AF12), FMC_DA8 (AF12), MDF1_CKI4 (AF6), OCTOSPIM_P1_NCS (AF10), SPI1_RDY (AF5), TIM1_CH2 (AF1), TSC_G5_IO2 (AF9)
65PE12ввод-выводFMC_D9 (AF12), FMC_DA9 (AF12), MDF1_SDI5 (AF6), OCTOSPIM_P1_IO0 (AF10), SPI1_NSS (AF5), TIM1_CH3N (AF1), TSC_G5_IO3 (AF9)
66PE13ввод-выводFMC_D10 (AF12), FMC_DA10 (AF12), MDF1_CKI5 (AF6), OCTOSPIM_P1_IO1 (AF10), SPI1_SCK (AF5), TIM1_CH3 (AF1), TSC_G5_IO4 (AF9)
67PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), OCTOSPIM_P1_IO2 (AF10), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1)
68PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), OCTOSPIM_P1_IO3 (AF10), SPI1_MOSI (AF5), TIM1_BKIN (AF1), TIM1_CH4N (AF3)
69PB10ввод-выводCOMP1_OUT (AF12), I2C2_SCL (AF4), I2C4_SCL (AF3), LPTIM3_CH1 (AF2), LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), PWR_WKUP8, SAI1_SCK_A (AF13), SPI2_SCK (AF5), TIM2_CH3 (AF1), TSC_SYNC (AF9), USART3_TX (AF7)
70VCAPпитание—
71VSSпитание—
72VDDпитание—
73PB12ввод-выводI2C2_SMBA (AF4), I2C6_SMBA (AF2), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI1 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI2_FS_A (AF13), SPI2_NSS (AF5), TIM15_BKIN (AF14), TIM1_BKIN (AF1), TSC_G1_IO1 (AF9), USART3_CK (AF7)
74PB13ввод-выводI2C2_SCL (AF4), LPTIM3_IN1 (AF2), LPUART1_CTS (AF8), MDF1_CKI1 (AF6), SAI2_SCK_A (AF13), SPI2_SCK (AF5), TIM15_CH1N (AF14), TIM1_CH1N (AF1), TSC_G1_IO2 (AF9), USART3_CTS (AF7)
75PB14ввод-выводI2C2_SDA (AF4), LPTIM3_ETR (AF2), MDF1_SDI2 (AF6), SAI2_MCLK_A (AF13), SDMMC2_D0 (AF12), SPI2_MISO (AF5), TIM15_CH1 (AF14), TIM1_CH2N (AF1), TIM8_CH2N (AF3), TSC_G1_IO3 (AF9), UCPD1_DBCC2, USART3_DE (AF7), USART3_RTS (AF7)
76PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_NBL1 (AF11), LPTIM2_IN2 (AF2), MDF1_CKI2 (AF6), PWR_WKUP7, RTC_REFIN (AF0), SAI2_SD_A (AF13), SDMMC2_D1 (AF12), SPI2_MOSI (AF5), TIM15_CH2 (AF14), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UCPD1_CC2
77PD8ввод-выводDCMI_HSYNC (AF10), FMC_D13 (AF12), FMC_DA13 (AF12), PSSI_DE (AF10), USART3_TX (AF7)
78PD9ввод-выводDAC1_EXTI9, DCMI_PIXCLK (AF10), FMC_D14 (AF12), FMC_DA14 (AF12), LPTIM2_IN2 (AF2), LPTIM3_IN1 (AF14), PSSI_PDCK (AF10), SAI2_MCLK_A (AF13), USART3_RX (AF7)
79PD10ввод-выводFMC_D15 (AF12), FMC_DA15 (AF12), I2C5_SMBA (AF4), LPTIM2_CH2 (AF2), LPTIM3_ETR (AF14), SAI2_SCK_A (AF13), TSC_G6_IO1 (AF9), USART3_CK (AF7)
80PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_ETR (AF14), SAI2_SD_A (AF13), TSC_G6_IO2 (AF9), USART3_CTS (AF7)
81PD12ввод-выводADC4_IN16, FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), LPTIM2_IN1 (AF14), SAI2_FS_A (AF13), TIM4_CH1 (AF2), TSC_G6_IO3 (AF9), USART3_DE (AF7), USART3_RTS (AF7)
82PD13ввод-выводADC4_IN17, FMC_A18 (AF12), I2C4_SDA (AF4), LPTIM2_CH1 (AF14), LPTIM4_IN1 (AF13), TIM4_CH2 (AF2), TSC_G6_IO4 (AF9), USART6_CTS (AF7)
83VSSпитание—
84VDDпитание—
85PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LPTIM3_CH1 (AF14), TIM4_CH3 (AF2), USART6_CK (AF7)
86PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LPTIM3_CH2 (AF14), TIM4_CH4 (AF2), USART6_DE (AF7), USART6_RTS (AF7)
87PG2ввод-выводFMC_A12 (AF12), SAI2_SCK_B (AF13), SPI1_SCK (AF5)
88PG3ввод-выводFMC_A13 (AF12), SAI2_FS_B (AF13), SPI1_MISO (AF5)
89PG4ввод-выводFMC_A14 (AF12), SAI2_MCLK_B (AF13), SPI1_MOSI (AF5)
90PG5ввод-выводFMC_A15 (AF12), LPUART1_CTS (AF8), SAI2_SD_B (AF13), SPI1_NSS (AF5)
91PG6ввод-выводI2C3_SMBA (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), OCTOSPIM_P1_DQS (AF3), SPI1_RDY (AF5), UCPD1_FRSTX1 (AF11)
92PG7ввод-выводFMC_INT (AF12), I2C3_SCL (AF4), LPUART1_TX (AF8), MDF1_CCK0 (AF6), OCTOSPIM_P2_DQS (AF5), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), UCPD1_FRSTX2 (AF11)
93PG8ввод-выводI2C3_SDA (AF4), LPUART1_RX (AF8)
94VSSпитание—
95VDDIO2питание—
96PC6ввод-выводDCMI_D0 (AF10), MDF1_CKI3 (AF6), PSSI_D0 (AF10), PWR_CSLEEP (AF0), SAI2_MCLK_A (AF13), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF11), TIM3_CH1 (AF2), TIM8_CH1 (AF3), TSC_G4_IO1 (AF9)
97PC7ввод-выводDCMI_D1 (AF10), LPTIM2_CH2 (AF14), MDF1_SDI3 (AF6), PSSI_D1 (AF10), PWR_CDSTOP (AF0), SAI2_MCLK_B (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), TSC_G4_IO2 (AF9)
98PC8ввод-выводDCMI_D2 (AF10), LPTIM3_CH1 (AF14), PSSI_D2 (AF10), PWR_SRDSTOP (AF0), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), TSC_G4_IO3 (AF9), USART6_RX (AF7)
99PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF4), DEBUG_TRACED0 (AF0), LPTIM3_CH2 (AF14), PSSI_D3 (AF4), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_BKIN2 (AF1), TIM8_CH4 (AF3), TSC_G4_IO4 (AF9), USART6_TX (AF7)
100PA8ввод-выводDEBUG_TRACECLK (AF12), LPTIM2_CH1 (AF14), RCC_MCO (AF0), SAI1_CK2 (AF3), SAI1_SCK_A (AF13), SPI1_RDY (AF5), TIM1_CH1 (AF1), USART1_CK (AF7), USB_OTG_HS_SOF (AF10)
101PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF5), PSSI_D0 (AF5), SAI1_FS_A (AF13), SPI2_SCK (AF3), TIM15_BKIN (AF14), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_HS_VBUS
102PA10ввод-выводCRS_SYNC (AF0), DCMI_D1 (AF5), LPTIM2_IN2 (AF2), PSSI_D1 (AF5), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM17_BKIN (AF14), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_HS_ID (AF10)
103PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX (AF9), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1), USART1_CTS (AF7), USB_OTG_HS_DM
104PA12ввод-выводFDCAN1_TX (AF9), OCTOSPIM_P2_NCS (AF6), SPI1_MOSI (AF5), TIM1_ETR (AF1), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_HS_DP
105PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0), IR_OUT (AF1), SAI1_SD_B (AF13)
106VDDUSBпитание—
107VSSпитание—
108VDDпитание—
109PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF5), LPTIM1_CH1 (AF1), SAI1_FS_B (AF13), USB_OTG_HS_SOF (AF10)
110PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI (AF0), SAI2_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC1, USART2_RX (AF3), USART3_DE (AF7), USART3_RTS (AF7)
111PC10ввод-выводADF1_CCK1 (AF3), DCMI_D8 (AF10), DEBUG_TRACED1 (AF0), LPTIM3_ETR (AF2), PSSI_D8 (AF10), SAI2_SCK_B (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), TSC_G3_IO2 (AF9), UART4_TX (AF8), USART3_TX (AF7)
112PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0 (AF3), DCMI_D2 (AF4), DCMI_D4 (AF10), LPTIM3_IN1 (AF2), OCTOSPIM_P1_NCS (AF5), PSSI_D2 (AF4), PSSI_D4 (AF10), SAI2_MCLK_B (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), TSC_G3_IO3 (AF9), UART4_RX (AF8), UCPD1_FRSTX2 (AF11), USART3_RX (AF7)
113PC12ввод-выводDCMI_D9 (AF10), DEBUG_TRACED3 (AF0), PSSI_D9 (AF10), SAI2_SD_B (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), TSC_G3_IO4 (AF9), UART5_TX (AF8), USART3_CK (AF7)
114PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), I2C5_SDA (AF4), I2C6_SDA (AF2), SPI2_NSS (AF5), TIM8_CH4N (AF3)
115PD1ввод-выводFDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2C5_SCL (AF4), I2C6_SCL (AF2), SPI2_SCK (AF5)
116PD2ввод-выводDCMI_D11 (AF10), DEBUG_TRACED2 (AF0), I2C5_SMBA (AF4), LPTIM4_ETR (AF13), PSSI_D11 (AF10), SDMMC1_CMD (AF12), TIM3_ETR (AF2), TSC_SYNC (AF9), UART5_RX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
117PD3ввод-выводDCMI_D5 (AF4), FMC_CLK (AF12), I2C6_SMBA (AF2), MDF1_SDI0 (AF6), OCTOSPIM_P2_NCS (AF10), PSSI_D5 (AF4), SPI2_MISO (AF5), SPI2_SCK (AF3), USART2_CTS (AF7)
118PD4ввод-выводFMC_NOE (AF12), MDF1_CKI0 (AF6), OCTOSPIM_P1_IO4 (AF10), SPI2_MOSI (AF5), USART2_DE (AF7), USART2_RTS (AF7)
119PD5ввод-выводFMC_NWE (AF12), OCTOSPIM_P1_IO5 (AF10), SPI2_RDY (AF5), USART2_TX (AF7)
120VSSпитание—
121VDDпитание—
122PD6ввод-выводDCMI_D10 (AF4), FMC_NWAIT (AF12), MDF1_SDI1 (AF6), OCTOSPIM_P1_IO6 (AF10), PSSI_D10 (AF4), SAI1_D1 (AF3), SAI1_SD_A (AF13), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
123PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), LPTIM4_OUT (AF13), MDF1_CKI1 (AF6), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), USART2_CK (AF7)
124PG9ввод-выводDAC1_EXTI9, FMC_NCE (AF12), FMC_NE2 (AF12), OCTOSPIM_P2_IO6 (AF5), SAI2_SCK_A (AF13), SPI3_SCK (AF6), TIM15_CH1N (AF14), USART1_TX (AF7)
125PG10ввод-выводFMC_NE3 (AF12), LPTIM1_IN1 (AF1), OCTOSPIM_P2_IO7 (AF5), SAI2_FS_A (AF13), SPI3_MISO (AF6), TIM15_CH1 (AF14), USART1_RX (AF7)
126PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, LPTIM1_IN2 (AF1), OCTOSPIM_P1_IO5 (AF3), SAI2_MCLK_A (AF13), SPI3_MOSI (AF6), TIM15_CH2 (AF14), USART1_CTS (AF7)
127PG12ввод-выводFMC_NE4 (AF12), LPTIM1_ETR (AF1), OCTOSPIM_P2_NCS (AF5), SAI2_SD_A (AF13), SPI3_NSS (AF6), USART1_DE (AF7), USART1_RTS (AF7)
128PG13ввод-выводFMC_A24 (AF12), I2C1_SDA (AF4), SPI3_RDY (AF6), USART1_CK (AF7)
129PG14ввод-выводFMC_A25 (AF12), I2C1_SCL (AF4), LPTIM1_CH2 (AF1)
130VSSпитание—
131VDDIO2питание—
132PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13 (AF10), I2C1_SMBA (AF4), LPTIM1_CH1 (AF1), OCTOSPIM_P2_DQS (AF5), PSSI_D13 (AF10)
133PB3 (JTDO/TRACESWO)ввод-выводADF1_CCK0 (AF3), COMP2_INM, CRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2C1_SDA (AF4), LPTIM1_CH1 (AF2), SAI1_SCK_B (AF13), SDMMC2_D2 (AF12), SPI1_SCK (AF5), SPI3_SCK (AF6), TIM2_CH2 (AF1), USART1_DE (AF7), USART1_RTS (AF7)
134PB4 (NJTRST)ввод-выводADF1_SDI0 (AF3), COMP2_INP, DCMI_D12 (AF10), DEBUG_NJTRST (AF0), I2C3_SDA (AF4), LPTIM1_CH2 (AF1), PSSI_D12 (AF10), SAI1_MCLK_B (AF13), SDMMC2_D3 (AF12), SPI1_MISO (AF5), SPI3_MISO (AF6), TIM17_BKIN (AF14), TIM3_CH1 (AF2), TSC_G2_IO1 (AF9), UART5_DE (AF8), UART5_RTS (AF8), USART1_CTS (AF7)
135PB5ввод-выводCOMP2_OUT (AF12), DCMI_D10 (AF10), I2C1_SMBA (AF4), LPTIM1_IN1 (AF1), OCTOSPIM_P1_NCLK (AF3), PSSI_D10 (AF10), PWR_WKUP6, SAI1_SD_B (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF6), TIM16_BKIN (AF14), TIM3_CH2 (AF2), TSC_G2_IO2 (AF9), UART5_CTS (AF8), UCPD1_DBCC1, USART1_CK (AF7)
136PB6ввод-выводCOMP2_INP, DCMI_D5 (AF10), I2C1_SCL (AF4), I2C4_SCL (AF5), LPTIM1_ETR (AF1), MDF1_SDI5 (AF6), PSSI_D5 (AF10), PWR_WKUP3, SAI1_FS_B (AF13), TIM16_CH1N (AF14), TIM4_CH1 (AF2), TIM8_BKIN2 (AF3), TSC_G2_IO3 (AF9), USART1_TX (AF7)
137PB7ввод-выводCOMP2_INM, DCMI_VSYNC (AF10), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF5), LPTIM1_IN2 (AF1), MDF1_CKI5 (AF6), PSSI_RDY (AF10), PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N (AF14), TIM4_CH2 (AF2), TIM8_BKIN (AF3), TSC_G2_IO4 (AF9), UART4_CTS (AF8), USART1_RX (AF7)
138PH3-BOOT0ввод-вывод—
139PB8ввод-выводDCMI_D6 (AF10), FDCAN1_RX (AF9), I2C1_SCL (AF4), MDF1_CCK0 (AF5), PSSI_D6 (AF10), PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), SDMMC1_CKIN (AF8), SDMMC1_D4 (AF12), SDMMC2_D4 (AF11), SPI3_RDY (AF6), TIM16_CH1 (AF14), TIM4_CH3 (AF2)
140PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF10), FDCAN1_TX (AF9), I2C1_SDA (AF4), IR_OUT (AF1), PSSI_D7 (AF10), SAI1_D2 (AF3), SAI1_FS_A (AF13), SDMMC1_CDIR (AF8), SDMMC1_D5 (AF12), SDMMC2_D5 (AF11), SPI2_NSS (AF5), TIM17_CH1 (AF14), TIM4_CH4 (AF2)
141PE0ввод-выводDCMI_D2 (AF10), FMC_NBL0 (AF12), PSSI_D2 (AF10), TIM16_CH1 (AF14), TIM4_ETR (AF2), USART6_RX (AF7)
142PE1ввод-выводDCMI_D3 (AF10), FMC_NBL1 (AF12), PSSI_D3 (AF10), TIM17_CH1 (AF14), USART6_TX (AF7)
143VSSпитание—
144VDDпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяВыводыНазначение
VBAT6резервное питание: часы реального времени и резервные регистры
VCAP70вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDD17, 39, 52, 62, 72, 84, 108, 121, 144питание цифровой части и линий ввода-вывода
VDDA33питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO295, 131питание отдельной группы линий ввода-вывода
VDDUSB106питание приёмопередатчика USB
VREF-31нижнее опорное напряжение АЦП
VSS16, 38, 51, 61, 71, 83, 94, 107, 120, 130, 143общий провод (земля)
VSSA30общий провод аналоговой части
NRST25сброс, активный уровень — низкий
VREF+32верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32U5A5ZJTx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32U5A5ZJSTM32U5A5ZJTx4 МБ2514 КБ

Линейка STM32U595/5A5, семейство STM32U5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе LQFP144, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32U595ZJTxSTM32U595/5A5144 из 144выводы совпадают полностьютолько у этого: AES, PKA
STM32U3B5ZGTxSTM32U3x5144 из 144выводы совпадают полностьютолько у этого: ADC4, AES, CORDIC, DCMI, DMA2D, FMAC, FMC, I2C5, I2C6, MDF1, OCTOSPI2, PSSI, SAI2, SDMMC2, TIM5, UCPD1, USART6, USB_OTG_HS; только у него: FDCAN2, I3C1, I3C2, SPI4, TIM12, USB; флеш-память до 4096 и 1024 КБ; ОЗУ 2514 и 640 КБ
STM32U3B5ZITxSTM32U3x5144 из 144выводы совпадают полностьютолько у этого: ADC4, AES, CORDIC, DCMI, DMA2D, FMAC, FMC, I2C5, I2C6, MDF1, OCTOSPI2, PSSI, SAI2, SDMMC2, TIM5, UCPD1, USART6, USB_OTG_HS; только у него: FDCAN2, I3C1, I3C2, SPI4, TIM12, USB; флеш-память до 4096 и 2048 КБ; ОЗУ 2514 и 640 КБ
STM32U3C5ZITxSTM32U3x5144 из 144выводы совпадают полностьютолько у этого: ADC4, CORDIC, DCMI, DMA2D, FMAC, FMC, I2C5, I2C6, MDF1, OCTOSPI2, PSSI, SAI2, SDMMC2, TIM5, UCPD1, USART6, USB_OTG_HS; только у него: FDCAN2, I3C1, I3C2, SPI4, TIM12, USB; флеш-память до 4096 и 2048 КБ; ОЗУ 2514 и 640 КБ
STM32U575ZGTxSTM32U575/585144 из 144выводы совпадают полностьютолько у этого: ADC2, AES, I2C5, I2C6, PKA, USART6, USB_OTG_HS; только у него: USB_OTG_FS; флеш-память до 4096 и 1024 КБ; ОЗУ 2514 и 786 КБ
STM32U575ZITxSTM32U575/585144 из 144выводы совпадают полностьютолько у этого: ADC2, AES, I2C5, I2C6, PKA, USART6, USB_OTG_HS; только у него: USB_OTG_FS; флеш-память до 4096 и 2048 КБ; ОЗУ 2514 и 786 КБ
STM32U585ZITxSTM32U575/585144 из 144выводы совпадают полностьютолько у этого: ADC2, I2C5, I2C6, USART6, USB_OTG_HS; только у него: USB_OTG_FS; флеш-память до 4096 и 2048 КБ; ОЗУ 2514 и 786 КБ
STM32U595ZITxSTM32U5x5144 из 144выводы совпадают полностьютолько у этого: AES, PKA; флеш-память до 4096 и 2048 КБ
STM32L4A6ZGTxSTM32L4x6143 из 14470: VCAP → PB11только у этого: ADC4, ADF1, CORDIC, FDCAN1, FMAC, I2C5, I2C6, LPTIM3, LPTIM4, MDF1, OCTOSPI1, OCTOSPI2, PKA, PSSI, SDMMC2, UCPD1, USART6, USB_OTG_HS, VREFBUF; только у него: ADC3, CAN1, CAN2, DFSDM1, LCD, QUADSPI, SWPMI1, USB_OTG_FS; частота до 160 и 80 МГц; флеш-память до 4096 и 1024 КБ; ОЗУ 2514 и 320 КБ
STM32L4P5ZG, STM32L4P5ZESTM32L4P5/Q5143 из 14470: VCAP → PB11только у этого: ADC4, ADF1, AES, CORDIC, FDCAN1, FMAC, I2C5, I2C6, LPTIM3, LPTIM4, MDF1, PKA, UCPD1, USART6, USB_OTG_HS, VREFBUF; только у него: CAN1, DFSDM1, LTDC, USB_OTG_FS; частота до 160 и 120 МГц; флеш-память до 4096 и 1024 КБ; ОЗУ 2514 и 320 КБ
STM32L4Q5ZGTxSTM32L4P5/Q5143 из 14470: VCAP → PB11только у этого: ADC4, ADF1, CORDIC, FDCAN1, FMAC, I2C5, I2C6, LPTIM3, LPTIM4, MDF1, UCPD1, USART6, USB_OTG_HS, VREFBUF; только у него: CAN1, DFSDM1, LTDC, USB_OTG_FS; частота до 160 и 120 МГц; флеш-память до 4096 и 1024 КБ; ОЗУ 2514 и 320 КБ
STM32L4R5ZG, STM32L4R5ZISTM32L4R5/S5143 из 14470: VCAP → PB11только у этого: ADC2, ADC4, ADF1, AES, CORDIC, FDCAN1, FMAC, HASH, I2C5, I2C6, LPTIM3, LPTIM4, MDF1, PKA, PSSI, SDMMC2, UCPD1, USART6, USB_OTG_HS, VREFBUF; только у него: CAN1, DFSDM1, USB_OTG_FS; частота до 160 и 120 МГц; флеш-память до 4096 и 2048 КБ; ОЗУ 2514 и 640 КБ

Частые вопросы

На каких выводах USART1 у STM32U5A5ZJTx?

В корпусе LQFP144 сигнал USART1_TX выведен на PA9 (вывод 101, AF7) или PG9 (вывод 124, AF7) или PB6 (вывод 136, AF7), USART1_RX — на PA10 (вывод 102, AF7) или PG10 (вывод 125, AF7) или PB7 (вывод 137, AF7).

Где у STM32U5A5ZJTx выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (вывод 105, AF0), SWCLK — PA14 (JTCK/SWCLK) (вывод 109, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32U5A5ZJTx?

I2C1_SCL — PG14 (вывод 129, AF4) или PB6 (вывод 136, AF4) или PB8 (вывод 139, AF4), I2C1_SDA — PG13 (вывод 128, AF4) или PB3 (JTDO/TRACESWO) (вывод 133, AF4) или PB7 (вывод 137, AF4) или PB9 (вывод 140, AF4).

Сколько выводов ввода-вывода у STM32U5A5ZJTx в корпусе LQFP144?

114 из 144. Ещё 28 выводов заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32U5A5ZJTx?

От 1,71 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
