STM32U5A5ZJ в корпусе WLCSP150: распиновка

STM32U5A5ZJ — микроконтроллер STM32U5 на ядре Cortex-M33: 4 МБ флеш-памяти и 2514 КБ ОЗУ. Корпус WLCSP150 — 150 шариков, из них 115 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
4 МБ
ОЗУ
2514 КБ
Корпус
WLCSP150, 150 шариков
Линий ввода-вывода
115

Схема корпуса WLCSP150

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32U5A5ZJ в корпусе WLCSP150, вид сверхуABCDEFGHJKLMNPRTUVWYAAABAC12345678910111213VDDUSB — шарик A1VDDUSBVDD — шарик A3VDDPD3 — шарик A5: DCMI_D5, FMC_CLK, I2C6_SMBA, MDF1_SDI0, OCTOSPIM_P2_NCS, PSSI_D5, SPI2_MISO, SPI2_SCK, USART2_CTSPD3PG12 — шарик A7: FMC_NE4, LPTIM1_ETR, OCTOSPIM_P2_NCS, SAI2_SD_A, SPI3_NSS, USART1_DE, USART1_RTSPG12PB5 — шарик A9: COMP2_OUT, DCMI_D10, I2C1_SMBA, LPTIM1_IN1, OCTOSPIM_P1_NCLK, PSSI_D10, PWR_WKUP6, SAI1_SD_B, SPI1_MOSI, SPI3_MOSI, TIM16_BKIN, TIM3_CH2, TSC_G2_IO2, UART5_CTS, UCPD1_DBCC1, USART1_CKPB5VDD11 — шарик A11VDD11PE2 — шарик A13: DEBUG_TRACECLK, FMC_A23, SAI1_CK1, SAI1_MCLK_A, TIM3_ETR, TSC_G7_IO1, USART6_CKPE2VDD11 — шарик B2VDD11PC11 — шарик B4: ADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0, DCMI_D2, DCMI_D4, LPTIM3_IN1, OCTOSPIM_P1_NCS, PSSI_D2, PSSI_D4, SAI2_MCLK_B, SDMMC1_D3, SPI3_MISO, TSC_G3_IO3, UART4_RX, UCPD1_FRSTX2, USART3_RXPC11VDD — шарик B6VDDVDDIO2 — шарик B8VDDIO2PB9 — шарик B10: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, IR_OUT, PSSI_D7, SAI1_D2, SAI1_FS_A, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4PB9VDD — шарик B12VDDPA12 — шарик C1: FDCAN1_TX, OCTOSPIM_P2_NCS, SPI1_MOSI, TIM1_ETR, USART1_DE, USART1_RTS, USB_OTG_HS_DPPA12VSS — шарик C3VSSPD2 — шарик C5: DCMI_D11, DEBUG_TRACED2, I2C5_SMBA, LPTIM4_ETR, PSSI_D11, SDMMC1_CMD, TIM3_ETR, TSC_SYNC, UART5_RX, USART3_DE, USART3_RTSPD2PG11 — шарик C7: ADC1_EXTI11, ADC2_EXTI11, LPTIM1_IN2, OCTOSPIM_P1_IO5, SAI2_MCLK_A, SPI3_MOSI, TIM15_CH2, USART1_CTSPG11PB7 — шарик C9: COMP2_INM, DCMI_VSYNC, FMC_NL, I2C1_SDA, I2C4_SDA, LPTIM1_IN2, MDF1_CKI5, PSSI_RDY, PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N, TIM4_CH2, TIM8_BKIN, TSC_G2_IO4, UART4_CTS, USART1_RXPB7VSS — шарик C11VSSVBAT — шарик C13VBATPA13 (JTMS/SWDIO) — шарик D2: DEBUG_JTMS-SWDIO, IR_OUT, SAI1_SD_BPA13PC10 — шарик D4: ADF1_CCK1, DCMI_D8, DEBUG_TRACED1, LPTIM3_ETR, PSSI_D8, SAI2_SCK_B, SDMMC1_D2, SPI3_SCK, TSC_G3_IO2, UART4_TX, USART3_TXPC10VSS — шарик D6VSSVSS — шарик D8VSSPE3 — шарик D10: DEBUG_TRACED0, FMC_A19, OCTOSPIM_P1_DQS, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM3_CH1, TSC_G7_IO2, USART6_CTSPE3PC13 — шарик D12: PWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2PC13PA11 — шарик E1: ADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX, SPI1_MISO, TIM1_BKIN2, TIM1_CH4, USART1_CTS, USB_OTG_HS_DMPA11PA10 — шарик E3: CRS_SYNC, DCMI_D1, LPTIM2_IN2, PSSI_D1, SAI1_D1, SAI1_SD_A, TIM17_BKIN, TIM1_CH3, USART1_RX, USB_OTG_HS_IDPA10PD1 — шарик E5: FDCAN1_TX, FMC_D3, FMC_DA3, I2C5_SCL, I2C6_SCL, SPI2_SCKPD1PG10 — шарик E7: FMC_NE3, LPTIM1_IN1, OCTOSPIM_P2_IO7, SAI2_FS_A, SPI3_MISO, TIM15_CH1, USART1_RXPG10PB6 — шарик E9: COMP2_INP, DCMI_D5, I2C1_SCL, I2C4_SCL, LPTIM1_ETR, MDF1_SDI5, PSSI_D5, PWR_WKUP3, SAI1_FS_B, TIM16_CH1N, TIM4_CH1, TIM8_BKIN2, TSC_G2_IO3, USART1_TXPB6PE6 — шарик E11: DCMI_D7, DEBUG_TRACED3, FMC_A22, PSSI_D7, PWR_WKUP3, SAI1_D1, SAI1_SD_A, TAMP_IN3, TAMP_OUT6, TIM3_CH4PE6PC14-OSC32_IN — шарик E13: RCC_OSC32_INPC14PA9 — шарик F2: DAC1_EXTI9, DCMI_D0, PSSI_D0, SAI1_FS_A, SPI2_SCK, TIM15_BKIN, TIM1_CH2, USART1_TX, USB_OTG_HS_VBUSPA9PA15 (JTDI) — шарик F4: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI, SAI2_FS_B, SPI1_NSS, SPI3_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UCPD1_CC1, USART2_RX, USART3_DE, USART3_RTSPA15PD5 — шарик F6: FMC_NWE, OCTOSPIM_P1_IO5, SPI2_RDY, USART2_TXPD5PG14 — шарик F8: FMC_A25, I2C1_SCL, LPTIM1_CH2PG14PE4 — шарик F10: DCMI_D4, DEBUG_TRACED1, FMC_A20, MDF1_SDI3, PSSI_D4, PWR_WKUP1, SAI1_D2, SAI1_FS_A, TAMP_IN7, TAMP_OUT8, TIM3_CH2, TSC_G7_IO3, USART6_DE, USART6_RTSPE4VSS — шарик F12VSSPC8 — шарик G1: DCMI_D2, LPTIM3_CH1, PSSI_D2, PWR_SRDSTOP, SDMMC1_D0, TIM3_CH3, TIM8_CH3, TSC_G4_IO3, USART6_RXPC8PA8 — шарик G3: DEBUG_TRACECLK, LPTIM2_CH1, RCC_MCO, SAI1_CK2, SAI1_SCK_A, SPI1_RDY, TIM1_CH1, USART1_CK, USB_OTG_HS_SOFPA8PD0 — шарик G5: FDCAN1_RX, FMC_D2, FMC_DA2, I2C5_SDA, I2C6_SDA, SPI2_NSS, TIM8_CH4NPD0PG13 — шарик G7: FMC_A24, I2C1_SDA, SPI3_RDY, USART1_CKPG13PH3-BOOT0 — шарик G9PH3PF0 — шарик G11: FMC_A0, I2C2_SDA, I2C6_SDA, OCTOSPIM_P2_IO0, USART6_TXPF0PC15-OSC32_OUT — шарик G13: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUTPC15PC9 — шарик H2: DAC1_EXTI9, DCMI_D3, DEBUG_TRACED0, LPTIM3_CH2, PSSI_D3, SDMMC1_D1, TIM3_CH4, TIM8_BKIN2, TIM8_CH4, TSC_G4_IO4, USART6_TXPC9PA14 (JTCK/SWCLK) — шарик H4: DEBUG_JTCK-SWCLK, I2C1_SMBA, I2C4_SMBA, LPTIM1_CH1, SAI1_FS_B, USB_OTG_HS_SOFPA14PD4 — шарик H6: FMC_NOE, MDF1_CKI0, OCTOSPIM_P1_IO4, SPI2_MOSI, USART2_DE, USART2_RTSPD4PG15 — шарик H8: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13, I2C1_SMBA, LPTIM1_CH1, OCTOSPIM_P2_DQS, PSSI_D13PG15PE5 — шарик H10: DCMI_D6, DEBUG_TRACED2, FMC_A21, MDF1_CKI3, PSSI_D6, PWR_WKUP2, SAI1_CK2, SAI1_SCK_A, TAMP_IN8, TAMP_OUT7, TIM3_CH3, TSC_G7_IO4PE5PF1 — шарик H12: FMC_A1, I2C2_SCL, I2C6_SCL, OCTOSPIM_P2_IO1, USART6_RXPF1VDDIO2 — шарик J1VDDIO2PC6 — шарик J3: DCMI_D0, MDF1_CKI3, PSSI_D0, PWR_CSLEEP, SAI2_MCLK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, TSC_G4_IO1PC6PC12 — шарик J5: DCMI_D9, DEBUG_TRACED3, PSSI_D9, SAI2_SD_B, SDMMC1_CK, SPI3_MOSI, TSC_G3_IO4, UART5_TX, USART3_CKPC12PG9 — шарик J7: DAC1_EXTI9, FMC_NCE, FMC_NE2, OCTOSPIM_P2_IO6, SAI2_SCK_A, SPI3_SCK, TIM15_CH1N, USART1_TXPG9PB8 — шарик J9: DCMI_D6, FDCAN1_RX, I2C1_SCL, MDF1_CCK0, PSSI_D6, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI3_RDY, TIM16_CH1, TIM4_CH3PB8PF4 — шарик J11: ADF1_SDI0, FMC_A4, LPTIM3_ETR, MDF1_SDI0, OCTOSPIM_P2_CLK, UART5_RX, USART6_DE, USART6_RTSPF4PF2 — шарик J13: FMC_A2, I2C2_SMBA, LPTIM3_CH2, OCTOSPIM_P2_IO2, PWR_WKUP8, USART6_CKPF2VSS — шарик K2VSSPG8 — шарик K4: I2C3_SDA, LPUART1_RXPG8PD6 — шарик K6: DCMI_D10, FMC_NWAIT, MDF1_SDI1, OCTOSPIM_P1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PB3 (JTDO/TRACESWO) — шарик K8: ADF1_CCK0, COMP2_INM, CRS_SYNC, DEBUG_JTDO-SWO, I2C1_SDA, LPTIM1_CH1, SAI1_SCK_B, SDMMC2_D2, SPI1_SCK, SPI3_SCK, TIM2_CH2, USART1_DE, USART1_RTSPB3PE1 — шарик K10: DCMI_D3, FMC_NBL1, PSSI_D3, TIM17_CH1, USART6_TXPE1PF3 — шарик K12: ADF1_CCK0, FMC_A3, LPTIM3_IN1, MDF1_CCK0, OCTOSPIM_P2_IO3, UART5_TX, USART6_CTSPF3PG7 — шарик L1: FMC_INT, I2C3_SCL, LPUART1_TX, MDF1_CCK0, OCTOSPIM_P2_DQS, SAI1_CK1, SAI1_MCLK_A, UCPD1_FRSTX2PG7PG5 — шарик L3: FMC_A15, LPUART1_CTS, SAI2_SD_B, SPI1_NSSPG5PC7 — шарик L5: DCMI_D1, LPTIM2_CH2, MDF1_SDI3, PSSI_D1, PWR_CDSTOP, SAI2_MCLK_B, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, TSC_G4_IO2PC7PD7 — шарик L7: FMC_NCE, FMC_NE1, LPTIM4_OUT, MDF1_CKI1, OCTOSPIM_P1_IO7, SDMMC2_CMD, USART2_CKPD7PB4 (NJTRST) — шарик L9: ADF1_SDI0, COMP2_INP, DCMI_D12, DEBUG_NJTRST, I2C3_SDA, LPTIM1_CH2, PSSI_D12, SAI1_MCLK_B, SDMMC2_D3, SPI1_MISO, SPI3_MISO, TIM17_BKIN, TIM3_CH1, TSC_G2_IO1, UART5_DE, UART5_RTS, USART1_CTSPB4PF5 — шарик L11: FMC_A5, LPTIM3_CH1, MDF1_CKI0, OCTOSPIM_P2_NCLKPF5VDD — шарик L13VDDPG4 — шарик M2: FMC_A14, SAI2_MCLK_B, SPI1_MOSIPG4PG3 — шарик M4: FMC_A13, SAI2_FS_B, SPI1_MISOPG3PG6 — шарик M6: I2C3_SMBA, LPUART1_DE, LPUART1_RTS, OCTOSPIM_P1_DQS, SPI1_RDY, UCPD1_FRSTX1PG6PC1 — шарик M8: ADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0, I2C3_SDA, LPTIM1_CH1, LPUART1_TX, MDF1_CKI4, OCTOSPIM_P1_IO4, SAI1_SD_A, SDMMC2_CK, SPI2_MOSI, USART6_CKPC1PE0 — шарик M10: DCMI_D2, FMC_NBL0, PSSI_D2, TIM16_CH1, TIM4_ETR, USART6_RXPE0VSS — шарик M12VSSPG2 — шарик N1: FMC_A12, SAI2_SCK_B, SPI1_SCKPG2PD14 — шарик N3: FMC_D0, FMC_DA0, LPTIM3_CH1, TIM4_CH3, USART6_CKPD14PB15 — шарик N5: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_NBL1, LPTIM2_IN2, MDF1_CKI2, PWR_WKUP7, RTC_REFIN, SAI2_SD_A, SDMMC2_D1, SPI2_MOSI, TIM15_CH2, TIM1_CH3N, TIM8_CH3N, UCPD1_CC2PB15PC5 — шарик N7: ADC1_IN14, ADC2_IN14, ADC4_IN23, COMP1_INP, PSSI_D15, PWR_WKUP5, SAI1_D3, TAMP_IN4, TAMP_OUT5, TIM1_CH4N, USART3_RXPC5PC0 — шарик N9: ADC1_IN1, ADC2_IN1, ADC4_IN1, I2C3_SCL, LPTIM1_IN1, LPTIM2_IN1, LPUART1_RX, MDF1_SDI4, OCTOSPIM_P1_IO7, SAI2_FS_A, SDMMC1_D5, SPI2_RDY, USART6_CTSPC0PF6 — шарик N11: DCMI_D12, OCTOSPIM_P1_IO3, OCTOSPIM_P2_NCS, PSSI_D12, SAI1_SD_B, TIM5_CH1, TIM5_ETRPF6PF7 — шарик N13: FDCAN1_RX, OCTOSPIM_P1_IO2, SAI1_MCLK_B, TIM5_CH2PF7PD15 — шарик P2: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1, FMC_DA1, LPTIM3_CH2, TIM4_CH4, USART6_DE, USART6_RTSPD15PD11 — шарик P4: ADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_ETR, SAI2_SD_A, TSC_G6_IO2, USART3_CTSPD11PF13 — шарик P6: FMC_A7, I2C4_SMBA, LPTIM4_OUT, UCPD1_FRSTX2PF13PA4 — шарик P8: ADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC, LPTIM2_CH1, OCTOSPIM_P1_NCS, PSSI_DE, PWR_WKUP2, SAI1_FS_B, SPI1_NSS, SPI3_NSS, USART2_CKPA4PF8 — шарик P10: FDCAN1_TX, OCTOSPIM_P1_IO0, PSSI_D14, SAI1_SCK_B, TIM5_CH3PF8PF9 — шарик P12: DAC1_EXTI9, OCTOSPIM_P1_IO1, PSSI_D15, SAI1_FS_B, TIM15_CH1, TIM5_CH4PF9VDD — шарик R1VDDPD12 — шарик R3: ADC4_IN16, FMC_A17, FMC_ALE, I2C4_SCL, LPTIM2_IN1, SAI2_FS_A, TIM4_CH1, TSC_G6_IO3, USART3_DE, USART3_RTSPD12PB13 — шарик R5: I2C2_SCL, LPTIM3_IN1, LPUART1_CTS, MDF1_CKI1, SAI2_SCK_A, SPI2_SCK, TIM15_CH1N, TIM1_CH1N, TSC_G1_IO2, USART3_CTSPB13PF11 — шарик R7: ADC1_EXTI11, ADC2_EXTI11, DCMI_D12, LPTIM4_IN1, OCTOSPIM_P1_NCLK, PSSI_D12PF11PA2 — шарик R9: ADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX, OCTOSPIM_P1_NCS, PWR_WKUP4, RCC_LSCO, SPI1_RDY, TIM15_CH1, TIM2_CH3, TIM5_CH3, UCPD1_FRSTX1, USART2_TXPA2PF10 — шарик R11: DCMI_D11, MDF1_CCK1, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM15_CH2PF10PH0-OSC_IN — шарик R13: RCC_OSC_INPH0VSS — шарик T2VSSPB14 — шарик T4: I2C2_SDA, LPTIM3_ETR, MDF1_SDI2, SAI2_MCLK_A, SDMMC2_D0, SPI2_MISO, TIM15_CH1, TIM1_CH2N, TIM8_CH2N, TSC_G1_IO3, UCPD1_DBCC2, USART3_DE, USART3_RTSPB14PG0 — шарик T6: ADC4_IN7, FMC_A10, OCTOSPIM_P2_IO4, TSC_G8_IO3PG0PB0 — шарик T8: ADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK, COMP1_OUT, LPTIM3_CH1, OCTOSPIM_P1_IO1, OPAMP2_VOUT, SPI1_NSS, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, USART3_CKPB0PA0 — шарик T10: ADC1_IN5, ADC2_IN5, AUDIOCLK, OCTOSPIM_P2_NCS, OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD, SPI3_RDY, TAMP_IN2, TAMP_OUT1, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTSPA0NRST — шарик T12NRSTPD13 — шарик U1: ADC4_IN17, FMC_A18, I2C4_SDA, LPTIM2_CH1, LPTIM4_IN1, TIM4_CH2, TSC_G6_IO4, USART6_CTSPD13PD10 — шарик U3: FMC_D15, FMC_DA15, I2C5_SMBA, LPTIM2_CH2, LPTIM3_ETR, SAI2_SCK_A, TSC_G6_IO1, USART3_CKPD10PE9 — шарик U5: ADF1_CCK0, DAC1_EXTI9, FMC_D6, FMC_DA6, MDF1_CCK0, OCTOSPIM_P1_NCLK, SAI1_FS_B, TIM1_CH1PE9PF14 — шарик U7: ADC4_IN5, FMC_A8, I2C4_SCL, TSC_G8_IO1PF14PA6 — шарик U9: ADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK, LPUART1_CTS, OCTOSPIM_P1_IO3, OPAMP2_VINP, PSSI_PDCK, PWR_CDSTOP, PWR_WKUP7, SPI1_MISO, TIM16_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART3_CTSPA6PC3 — шарик U11: ADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR, LPTIM2_ETR, LPTIM3_CH1, OCTOSPIM_P1_IO6, SAI1_D1, SAI1_SD_A, SPI2_MOSI, USART6_TXPC3PH1-OSC_OUT — шарик U13: RCC_OSC_OUTPH1PD9 — шарик V2: DAC1_EXTI9, DCMI_PIXCLK, FMC_D14, FMC_DA14, LPTIM2_IN2, LPTIM3_IN1, PSSI_PDCK, SAI2_MCLK_A, USART3_RXPD9PE12 — шарик V4: FMC_D9, FMC_DA9, MDF1_SDI5, OCTOSPIM_P1_IO0, SPI1_NSS, TIM1_CH3N, TSC_G5_IO3PE12PE8 — шарик V6: FMC_D5, FMC_DA5, MDF1_CKI2, PWR_WKUP7, SAI1_SCK_B, TIM1_CH1NPE8PF12 — шарик V8: FMC_A6, LPTIM4_ETR, OCTOSPIM_P2_DQSPF12PA3 — шарик V10: ADC1_IN8, ADC2_IN8, LPUART1_RX, OCTOSPIM_P1_CLK, OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3PC2 — шарик V12: ADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2, MDF1_CCK1, OCTOSPIM_P1_IO5, SPI2_MISO, USART6_RXPC2PD8 — шарик W1: DCMI_HSYNC, FMC_D13, FMC_DA13, PSSI_DE, USART3_TXPD8PB10 — шарик W3: COMP1_OUT, I2C2_SCL, I2C4_SCL, LPTIM3_CH1, LPUART1_RX, OCTOSPIM_P1_CLK, PWR_WKUP8, SAI1_SCK_A, SPI2_SCK, TIM2_CH3, TSC_SYNC, USART3_TXPB10PE11 — шарик W5: ADC1_EXTI11, ADC2_EXTI11, FMC_D8, FMC_DA8, MDF1_CKI4, OCTOSPIM_P1_NCS, SPI1_RDY, TIM1_CH2, TSC_G5_IO2PE11PG1 — шарик W7: ADC4_IN8, FMC_A11, OCTOSPIM_P2_IO5, TSC_G8_IO4PG1PB1 — шарик W9: ADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1, LPTIM3_CH2, LPUART1_DE, LPUART1_RTS, MDF1_SDI0, OCTOSPIM_P1_IO0, PWR_WKUP4, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USART3_DE, USART3_RTSPB1PA1 — шарик W11: ADC1_IN6, ADC2_IN6, I2C1_SMBA, LPTIM1_CH2, OCTOSPIM_P1_DQS, OPAMP1_VINM, PWR_WKUP3, SPI1_SCK, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1VSSA — шарик W13VSSAPB12 — шарик Y2: I2C2_SMBA, I2C6_SMBA, LPUART1_DE, LPUART1_RTS, MDF1_SDI1, OCTOSPIM_P1_NCLK, SAI2_FS_A, SPI2_NSS, TIM15_BKIN, TIM1_BKIN, TSC_G1_IO1, USART3_CKPB12PE13 — шарик Y4: FMC_D10, FMC_DA10, MDF1_CKI5, OCTOSPIM_P1_IO1, SPI1_SCK, TIM1_CH3, TSC_G5_IO4PE13PE10 — шарик Y6: ADF1_SDI0, FMC_D7, FMC_DA7, MDF1_SDI4, OCTOSPIM_P1_CLK, SAI1_MCLK_B, TIM1_CH2N, TSC_G5_IO1PE10PF15 — шарик Y8: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, ADC4_IN6, FMC_A9, I2C4_SDA, TSC_G8_IO2PF15PA7 — шарик Y10: ADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL, LPTIM2_CH2, OCTOSPIM_P1_IO2, OPAMP2_VINM, PWR_SRDSTOP, PWR_WKUP8, SPI1_MOSI, TIM17_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART3_TXPA7VREF+ — шарик Y12: VREFBUF_OUTVREF+VSS — шарик AA1VSSPB11 — шарик AA3: ADC1_EXTI11, ADC2_EXTI11, COMP2_OUT, I2C2_SDA, I2C4_SDA, LPUART1_TX, OCTOSPIM_P1_NCS, SPI2_RDY, TIM2_CH4, USART3_RXPB11PE15 — шарик AA5: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12, FMC_DA12, OCTOSPIM_P1_IO3, SPI1_MOSI, TIM1_BKIN, TIM1_CH4NPE15VSS — шарик AA7VSSVSS — шарик AA9VSSPA5 — шарик AA11: ADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR, PSSI_D14, PWR_CSLEEP, PWR_WKUP6, SPI1_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USART3_RXPA5VDDA — шарик AA13VDDAVDD11 — шарик AB2VDD11VDDSMPS — шарик AB4VDDSMPSPE14 — шарик AB6: FMC_D11, FMC_DA11, OCTOSPIM_P1_IO2, SPI1_MISO, TIM1_BKIN2, TIM1_CH4PE14PE7 — шарик AB8: FMC_D4, FMC_DA4, MDF1_SDI2, PWR_WKUP6, SAI1_SD_B, TIM1_ETRPE7PB2 — шарик AB10: ADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA, LPTIM1_CH1, MDF1_CKI0, OCTOSPIM_P1_DQS, PWR_WKUP1, RTC_OUT2, SPI1_RDY, TIM8_CH4N, UCPD1_FRSTX1PB2VDD — шарик AB12VDDVDD — шарик AC1VDDVSSSMPS — шарик AC3VSSSMPSVLXSMPS — шарик AC5VLXSMPSVDD — шарик AC7VDDVDD — шарик AC9VDDPC4 — шарик AC11: ADC1_IN13, ADC2_IN13, ADC4_IN22, COMP1_INM, I2C6_SMBA, OCTOSPIM_P1_IO7, USART3_TXPC4VSS — шарик AC13VSSWLCSP150, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнемуглу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

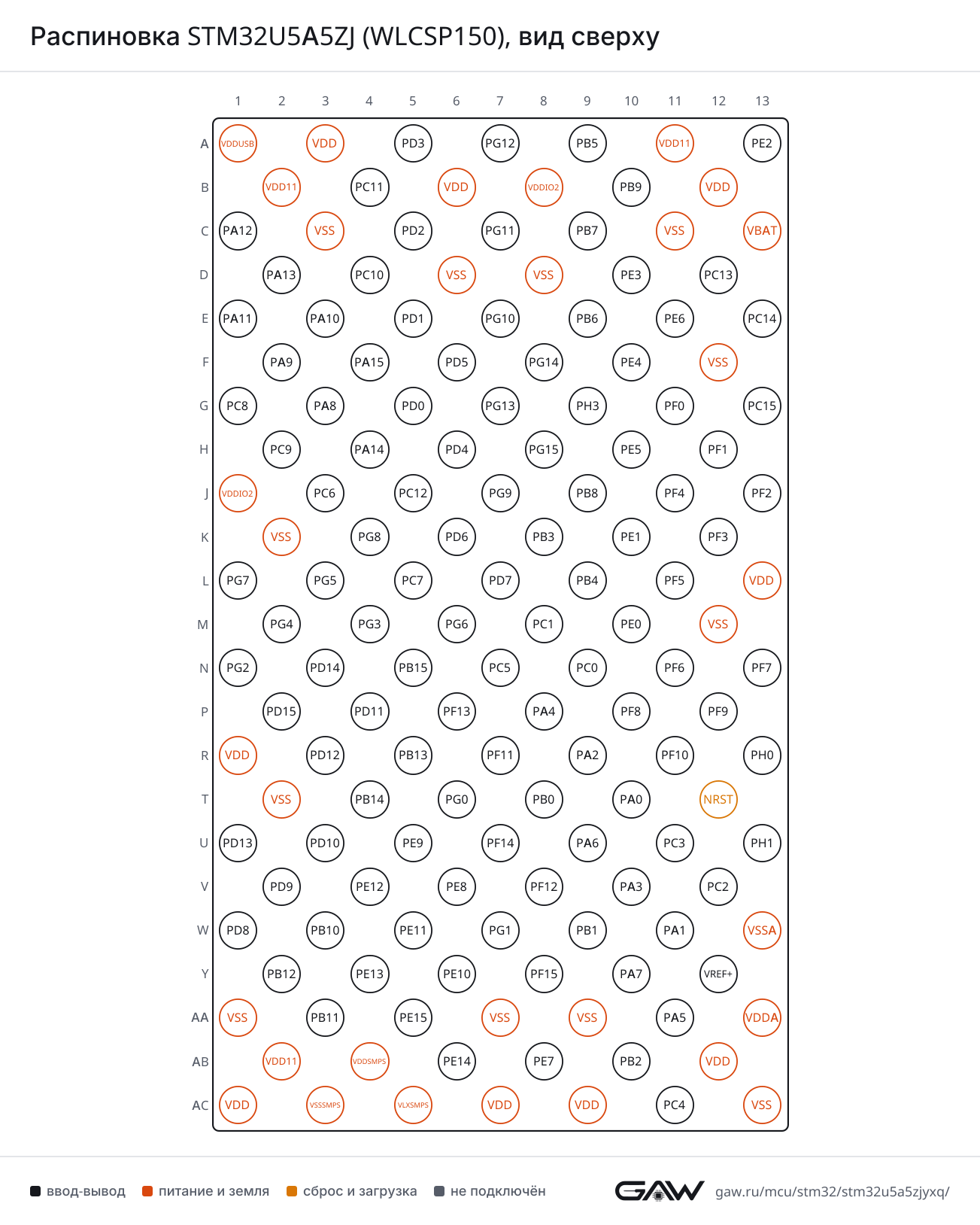

Распиновка STM32U5A5ZJ (WLCSP150), вид сверхуРаспиновка WLCSP150 картинкой
PNG, 1303 × 1628 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPB5 (A9, AF7), PA8 (G3, AF7), PG13 (G7, AF7)
CTSPG11 (C7, AF7), PA11 (E1, AF7), PB4 (NJTRST) (L9, AF7)
DEPG12 (A7, AF7), PA12 (C1, AF7), PB3 (JTDO/TRACESWO) (K8, AF7)
RTSPG12 (A7, AF7), PA12 (C1, AF7), PB3 (JTDO/TRACESWO) (K8, AF7)
RXPB7 (C9, AF7), PA10 (E3, AF7), PG10 (E7, AF7)
TXPB6 (E9, AF7), PA9 (F2, AF7), PG9 (J7, AF7)
USART2CKPD7 (L7, AF7), PA4 (P8, AF7)
CTSPD3 (A5, AF7), PA0 (T10, AF7)
DEPD4 (H6, AF7), PA1 (W11, AF7)
RTSPD4 (H6, AF7), PA1 (W11, AF7)
RXPA15 (JTDI) (F4, AF3), PD6 (K6, AF7), PA3 (V10, AF7)
TXPD5 (F6, AF7), PA2 (R9, AF7)
USART3CKPC12 (J5, AF7), PB0 (T8, AF7), PD10 (U3, AF7), PB12 (Y2, AF7)
CTSPD11 (P4, AF7), PB13 (R5, AF7), PA6 (U9, AF7)
DEPD2 (C5, AF7), PA15 (JTDI) (F4, AF7), PD12 (R3, AF7), PB14 (T4, AF7), PB1 (W9, AF7)
RTSPD2 (C5, AF7), PA15 (JTDI) (F4, AF7), PD12 (R3, AF7), PB14 (T4, AF7), PB1 (W9, AF7)
RXPC11 (B4, AF7), PC5 (N7, AF7), PD9 (V2, AF7), PB11 (AA3, AF7), PA5 (AA11, AF7)
TXPC10 (D4, AF7), PD8 (W1, AF7), PB10 (W3, AF7), PA7 (Y10, AF7), PC4 (AC11, AF7)
USART6CKPE2 (A13, AF7), PF2 (J13, AF7), PC1 (M8, AF7), PD14 (N3, AF7)
CTSPE3 (D10, AF7), PF3 (K12, AF7), PC0 (N9, AF7), PD13 (U1, AF7)
DEPE4 (F10, AF7), PF4 (J11, AF7), PD15 (P2, AF7)
RTSPE4 (F10, AF7), PF4 (J11, AF7), PD15 (P2, AF7)
RXPC8 (G1, AF7), PF1 (H12, AF7), PE0 (M10, AF7), PC2 (V12, AF7)
TXPF0 (G11, AF7), PC9 (H2, AF7), PE1 (K10, AF7), PC3 (U11, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB7 (C9, AF8)
DEPA15 (JTDI) (F4, AF8)
RTSPA15 (JTDI) (F4, AF8)
RXPC11 (B4, AF8), PA1 (W11, AF8)
TXPC10 (D4, AF8), PA0 (T10, AF8)
UART5CTSPB5 (A9, AF8)
DEPB4 (NJTRST) (L9, AF8)
RTSPB4 (NJTRST) (L9, AF8)
RXPD2 (C5, AF8), PF4 (J11, AF8)
TXPC12 (J5, AF8), PF3 (K12, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPG5 (L3, AF8), PB13 (R5, AF8), PA6 (U9, AF8)
DEPG6 (M6, AF8), PB1 (W9, AF8), PB12 (Y2, AF8)
RTSPG6 (M6, AF8), PB1 (W9, AF8), PB12 (Y2, AF8)
RXPG8 (K4, AF8), PC0 (N9, AF8), PA3 (V10, AF8), PB10 (W3, AF8)
TXPG7 (L1, AF8), PC1 (M8, AF8), PA2 (R9, AF8), PB11 (AA3, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA11 (E1, AF5), PB4 (NJTRST) (L9, AF5), PG3 (M4, AF5), PA6 (U9, AF5), PE14 (AB6, AF5)
MOSIPB5 (A9, AF5), PA12 (C1, AF5), PG4 (M2, AF5), PA7 (Y10, AF5), PE15 (AA5, AF5)
NSSPA15 (JTDI) (F4, AF5), PG5 (L3, AF5), PA4 (P8, AF5), PB0 (T8, AF5), PE12 (V4, AF5)
RDYPA8 (G3, AF5), PG6 (M6, AF5), PA2 (R9, AF5), PE11 (W5, AF5), PB2 (AB10, AF5)
SCKPB3 (JTDO/TRACESWO) (K8, AF5), PG2 (N1, AF5), PA1 (W11, AF5), PE13 (Y4, AF5), PA5 (AA11, AF5)
SPI2MISOPD3 (A5, AF5), PB14 (T4, AF5), PC2 (V12, AF5)
MOSIPD4 (H6, AF5), PC1 (M8, AF3), PB15 (N5, AF5), PC3 (U11, AF5)
NSSPB9 (B10, AF5), PD0 (G5, AF5), PB12 (Y2, AF5)
RDYPD5 (F6, AF5), PC0 (N9, AF5), PB11 (AA3, AF5)
SCKPD3 (A5, AF3), PD1 (E5, AF5), PA9 (F2, AF3), PB13 (R5, AF5), PB10 (W3, AF5)
SPI3MISOPC11 (B4, AF6), PG10 (E7, AF6), PB4 (NJTRST) (L9, AF6)
MOSIPB5 (A9, AF6), PG11 (C7, AF6), PC12 (J5, AF6), PD6 (K6, AF5)
NSSPG12 (A7, AF6), PA15 (JTDI) (F4, AF6), PA4 (P8, AF6)
RDYPG13 (G7, AF6), PB8 (J9, AF6), PA0 (T10, AF6)
SCKPC10 (D4, AF6), PG9 (J7, AF6), PB3 (JTDO/TRACESWO) (K8, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (E9, AF4), PG14 (F8, AF4), PB8 (J9, AF4)
SDAPB9 (B10, AF4), PB7 (C9, AF4), PG13 (G7, AF4), PB3 (JTDO/TRACESWO) (K8, AF4)
SMBAPB5 (A9, AF4), PA14 (JTCK/SWCLK) (H4, AF4), PG15 (H8, AF4), PA1 (W11, AF4)
I2C2SCLPF1 (H12, AF4), PB13 (R5, AF4), PB10 (W3, AF4)
SDAPF0 (G11, AF4), PB14 (T4, AF4), PB11 (AA3, AF4)
SMBAPF2 (J13, AF4), PB12 (Y2, AF4)
I2C3SCLPG7 (L1, AF4), PC0 (N9, AF4), PA7 (Y10, AF4)
SDAPG8 (K4, AF4), PB4 (NJTRST) (L9, AF4), PC1 (M8, AF4)
SMBAPG6 (M6, AF4), PB2 (AB10, AF4)
I2C4SCLPB6 (E9, AF5), PD12 (R3, AF4), PF14 (U7, AF4), PB10 (W3, AF3)
SDAPB7 (C9, AF5), PD13 (U1, AF4), PF15 (Y8, AF4), PB11 (AA3, AF3)
SMBAPA14 (JTCK/SWCLK) (H4, AF5), PD11 (P4, AF4), PF13 (P6, AF4)
I2C5SCLPD1 (E5, AF4)
SDAPD0 (G5, AF4)
SMBAPD2 (C5, AF4), PD10 (U3, AF4)
I2C6SCLPD1 (E5, AF2), PF1 (H12, AF2)
SDAPD0 (G5, AF2), PF0 (G11, AF2)
SMBAPD3 (A5, AF2), PB12 (Y2, AF2), PC4 (AC11, AF2)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPA11 (E1, AF9), PD0 (G5, AF9), PB8 (J9, AF9), PF7 (N13, AF9)
TXPB9 (B10, AF9), PA12 (C1, AF9), PD1 (E5, AF9), PF8 (P10, AF9)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPA11 (E1)
DPPA12 (C1)
IDPA10 (E3, AF10)
SOFPA8 (G3, AF10), PA14 (JTCK/SWCLK) (H4, AF10)
VBUSPA9 (F2)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PA15 (JTDI) (F4)
CC2PB15 (N5)
DBCC1PB5 (A9)
DBCC2PB14 (T4)
FRSTX1PG6 (M6, AF11), PA2 (R9, AF11), PB2 (AB10, AF11)
FRSTX2PC11 (B4, AF11), PG7 (L1, AF11), PF13 (P6, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (B10, AF8)
CKPC12 (J5, AF12)
CKINPB8 (J9, AF8)
CMDPD2 (C5, AF12)
D0PC8 (G1, AF12)
D0DIRPC6 (J3, AF8)
D1PC9 (H2, AF12)
D2PC10 (D4, AF12)
D3PC11 (B4, AF12)
D4PB8 (J9, AF12)
D5PB9 (B10, AF12), PC0 (N9, AF12)
D6PC6 (J3, AF12)
D7PC7 (L5, AF12)
D123DIRPC7 (L5, AF8)
SDMMC2CKPD6 (K6, AF11), PC1 (M8, AF12)
CMDPD7 (L7, AF11), PA0 (T10, AF12)
D0PB14 (T4, AF12)
D1PB15 (N5, AF12)
D2PB3 (JTDO/TRACESWO) (K8, AF12)
D3PB4 (NJTRST) (L9, AF12)
D4PB8 (J9, AF11)
D5PB9 (B10, AF11)
D6PC6 (J3, AF11)
D7PC7 (L5, AF11)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (A13, AF3), PB8 (J9, AF3), PG7 (L1, AF3), PA3 (V10, AF3)
CK2PA8 (G3, AF3), PE5 (H10, AF3)
D1PA10 (E3, AF3), PE6 (E11, AF3), PD6 (K6, AF3), PC3 (U11, AF3)
D2PB9 (B10, AF3), PE4 (F10, AF3)
D3PC5 (N7, AF3), PF10 (R11, AF13)
FS_APB9 (B10, AF13), PA9 (F2, AF13), PE4 (F10, AF13)
FS_BPB6 (E9, AF13), PA14 (JTCK/SWCLK) (H4, AF13), PA4 (P8, AF13), PF9 (P12, AF13), PE9 (U5, AF13)
MCLK_APE2 (A13, AF13), PB8 (J9, AF13), PG7 (L1, AF13), PA3 (V10, AF13)
MCLK_BPB4 (NJTRST) (L9, AF13), PF7 (N13, AF13), PE10 (Y6, AF13)
SCK_APA8 (G3, AF13), PE5 (H10, AF13), PB10 (W3, AF13)
SCK_BPB3 (JTDO/TRACESWO) (K8, AF13), PF8 (P10, AF13), PE8 (V6, AF13)
SD_APA10 (E3, AF13), PE6 (E11, AF13), PD6 (K6, AF13), PC1 (M8, AF13), PC3 (U11, AF13)
SD_BPB5 (A9, AF13), PA13 (JTMS/SWDIO) (D2, AF13), PE3 (D10, AF13), PF6 (N11, AF13), PE7 (AB8, AF13)
SAI2FS_APG10 (E7, AF13), PC0 (N9, AF13), PD12 (R3, AF13), PB12 (Y2, AF13)
FS_BPA15 (JTDI) (F4, AF13), PG3 (M4, AF13)
MCLK_APG11 (C7, AF13), PC6 (J3, AF13), PB14 (T4, AF13), PD9 (V2, AF13)
MCLK_BPC11 (B4, AF13), PC7 (L5, AF13), PG4 (M2, AF13)
SCK_APG9 (J7, AF13), PB13 (R5, AF13), PD10 (U3, AF13)
SCK_BPC10 (D4, AF13), PG2 (N1, AF13)
SD_APG12 (A7, AF13), PB15 (N5, AF13), PD11 (P4, AF13)
SD_BPC12 (J5, AF13), PG5 (L3, AF13)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (B4), PG11 (C7), PA11 (E1), PD11 (P4), PF11 (R7), PE11 (W5), PB11 (AA3)
EXTI15PA15 (JTDI) (F4), PC15-OSC32_OUT (G13), PG15 (H8), PB15 (N5), PD15 (P2), PF15 (Y8), PE15 (AA5)
IN1PC0 (N9)
IN2PC1 (M8)
IN3PC2 (V12)
IN4PC3 (U11)
IN5PA0 (T10)
IN6PA1 (W11)
IN7PA2 (R9)
IN8PA3 (V10)
IN9PA4 (P8)
IN10PA5 (AA11)
IN11PA6 (U9)
IN12PA7 (Y10)
IN13PC4 (AC11)
IN14PC5 (N7)
IN15PB0 (T8)
IN16PB1 (W9)
IN17PB2 (AB10)
ADC2EXTI11PC11 (B4), PG11 (C7), PA11 (E1), PD11 (P4), PF11 (R7), PE11 (W5), PB11 (AA3)
EXTI15PA15 (JTDI) (F4), PC15-OSC32_OUT (G13), PG15 (H8), PB15 (N5), PD15 (P2), PF15 (Y8), PE15 (AA5)
IN1PC0 (N9)
IN2PC1 (M8)
IN3PC2 (V12)
IN4PC3 (U11)
IN5PA0 (T10)
IN6PA1 (W11)
IN7PA2 (R9)
IN8PA3 (V10)
IN9PA4 (P8)
IN10PA5 (AA11)
IN11PA6 (U9)
IN12PA7 (Y10)
IN13PC4 (AC11)
IN14PC5 (N7)
IN15PB0 (T8)
IN16PB1 (W9)
IN17PB2 (AB10)
ADC4EXTI15PA15 (JTDI) (F4), PC15-OSC32_OUT (G13), PG15 (H8), PB15 (N5), PD15 (P2), PF15 (Y8), PE15 (AA5)
IN1PC0 (N9)
IN2PC1 (M8)
IN3PC2 (V12)
IN4PC3 (U11)
IN5PF14 (U7)
IN6PF15 (Y8)
IN7PG0 (T6)
IN8PG1 (W7)
IN9PA4 (P8)
IN10PA5 (AA11)
IN11PA6 (U9)
IN15PD11 (P4)
IN16PD12 (R3)
IN17PD13 (U1)
IN18PB0 (T8)
IN19PB1 (W9)
IN20PA7 (Y10)
IN22PC4 (AC11)
IN23PC5 (N7)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (B10), PA9 (F2), PC9 (H2), PG9 (J7), PF9 (P12), PE9 (U5), PD9 (V2)
OUT1PA4 (P8)
OUT2PA5 (AA11)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPB1 (W9), PC4 (AC11)
INPPC5 (N7), PA2 (R9), PB2 (AB10)
OUTPB0 (T8, AF12), PB10 (W3, AF12)
COMP2INMPB7 (C9), PB3 (JTDO/TRACESWO) (K8)
INPPB6 (E9), PB4 (NJTRST) (L9)
OUTPB5 (A9, AF12), PB11 (AA3, AF12)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA1 (W11)
VINPPA0 (T10)
VOUTPA3 (V10)
OPAMP2VINMPA7 (Y10)
VINPPA6 (U9)
VOUTPB0 (T8)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (Y12)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (U9, AF1), PB12 (Y2, AF1), PE15 (AA5, AF1)
BKIN2PA11 (E1, AF2), PE14 (AB6, AF2)
CH1PA8 (G3, AF1), PE9 (U5, AF1)
CH1NPB13 (R5, AF1), PE8 (V6, AF1), PA7 (Y10, AF1)
CH2PA9 (F2, AF1), PE11 (W5, AF1)
CH2NPB14 (T4, AF1), PB0 (T8, AF1), PE10 (Y6, AF1)
CH3PA10 (E3, AF1), PE13 (Y4, AF1)
CH3NPB15 (N5, AF1), PE12 (V4, AF1), PB1 (W9, AF1)
CH4PA11 (E1, AF1), PE14 (AB6, AF1)
CH4NPC5 (N7, AF1), PE15 (AA5, AF3)
ETRPA12 (C1, AF1), PE7 (AB8, AF1)
TIM2CH1PA15 (JTDI) (F4, AF1), PA0 (T10, AF1), PA5 (AA11, AF1)
CH2PB3 (JTDO/TRACESWO) (K8, AF1), PA1 (W11, AF1)
CH3PA2 (R9, AF1), PB10 (W3, AF1)
CH4PA3 (V10, AF1), PB11 (AA3, AF1)
ETRPA15 (JTDI) (F4, AF2), PA0 (T10, AF14), PA5 (AA11, AF2)
TIM3CH1PE3 (D10, AF2), PC6 (J3, AF2), PB4 (NJTRST) (L9, AF2), PA6 (U9, AF2)
CH2PB5 (A9, AF2), PE4 (F10, AF2), PC7 (L5, AF2), PA7 (Y10, AF2)
CH3PC8 (G1, AF2), PE5 (H10, AF2), PB0 (T8, AF2)
CH4PE6 (E11, AF2), PC9 (H2, AF2), PB1 (W9, AF2)
ETRPE2 (A13, AF2), PD2 (C5, AF2)
TIM4CH1PB6 (E9, AF2), PD12 (R3, AF2)
CH2PB7 (C9, AF2), PD13 (U1, AF2)
CH3PB8 (J9, AF2), PD14 (N3, AF2)
CH4PB9 (B10, AF2), PD15 (P2, AF2)
ETRPE0 (M10, AF2)
TIM5CH1PF6 (N11, AF2), PA0 (T10, AF2)
CH2PF7 (N13, AF2), PA1 (W11, AF2)
CH3PF8 (P10, AF2), PA2 (R9, AF2)
CH4PF9 (P12, AF2), PA3 (V10, AF2)
ETRPF6 (N11, AF1)
TIM8BKINPB7 (C9, AF3), PA6 (U9, AF3)
BKIN2PB6 (E9, AF3), PC9 (H2, AF1)
CH1PC6 (J3, AF3)
CH1NPA7 (Y10, AF3), PA5 (AA11, AF3)
CH2PC7 (L5, AF3)
CH2NPB14 (T4, AF3), PB0 (T8, AF3)
CH3PC8 (G1, AF3)
CH3NPB15 (N5, AF3), PB1 (W9, AF3)
CH4PC9 (H2, AF3)
CH4NPD0 (G5, AF3), PB2 (AB10, AF3)
ETRPA0 (T10, AF3)
TIM15BKINPA9 (F2, AF14), PB12 (Y2, AF14)
CH1PG10 (E7, AF14), PF9 (P12, AF14), PA2 (R9, AF14), PB14 (T4, AF14)
CH1NPG9 (J7, AF14), PB13 (R5, AF14), PA1 (W11, AF14)
CH2PG11 (C7, AF14), PB15 (N5, AF14), PF10 (R11, AF14), PA3 (V10, AF14)
TIM16BKINPB5 (A9, AF14)
CH1PB8 (J9, AF14), PE0 (M10, AF14), PA6 (U9, AF14)
CH1NPB6 (E9, AF14)
TIM17BKINPA10 (E3, AF14), PB4 (NJTRST) (L9, AF14)
CH1PB9 (B10, AF14), PE1 (K10, AF14), PA7 (Y10, AF14)
CH1NPB7 (C9, AF14)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PA14 (JTCK/SWCLK) (H4, AF1), PG15 (H8, AF1), PB3 (JTDO/TRACESWO) (K8, AF2), PC1 (M8, AF1), PB2 (AB10, AF1)
CH2PG14 (F8, AF1), PB4 (NJTRST) (L9, AF1), PA1 (W11, AF0)
ETRPG12 (A7, AF1), PB6 (E9, AF1), PC3 (U11, AF1)
IN1PB5 (A9, AF1), PG10 (E7, AF1), PC0 (N9, AF1)
IN2PG11 (C7, AF1), PB7 (C9, AF1), PC2 (V12, AF1)
LPTIM2CH1PA8 (G3, AF14), PA4 (P8, AF14), PD13 (U1, AF14)
CH2PC7 (L5, AF14), PD10 (U3, AF2), PA7 (Y10, AF13)
ETRPD11 (P4, AF14), PC3 (U11, AF14), PA5 (AA11, AF14)
IN1PC0 (N9, AF14), PD12 (R3, AF14), PB1 (W9, AF14)
IN2PA10 (E3, AF2), PB15 (N5, AF2), PD9 (V2, AF2)
LPTIM3CH1PC8 (G1, AF14), PF5 (L11, AF2), PD14 (N3, AF14), PB0 (T8, AF4), PC3 (U11, AF2), PB10 (W3, AF2)
CH2PC9 (H2, AF14), PF2 (J13, AF2), PD15 (P2, AF14), PB1 (W9, AF4)
ETRPC10 (D4, AF2), PF4 (J11, AF2), PB14 (T4, AF2), PD10 (U3, AF14)
IN1PC11 (B4, AF2), PF3 (K12, AF2), PB13 (R5, AF2), PD9 (V2, AF14)
LPTIM4ETRPD2 (C5, AF13), PF12 (V8, AF13)
IN1PF11 (R7, AF13), PD13 (U1, AF13)
OUTPD7 (L7, AF13), PF13 (P6, AF13)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (D12)
OUT2PB2 (AB10)
REFINPB15 (N5, AF0)
TSPC13 (D12)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (G11, AF12)
A1PF1 (H12, AF12)
A2PF2 (J13, AF12)
A3PF3 (K12, AF12)
A4PF4 (J11, AF12)
A5PF5 (L11, AF12)
A6PF12 (V8, AF12)
A7PF13 (P6, AF12)
A8PF14 (U7, AF12)
A9PF15 (Y8, AF12)
A10PG0 (T6, AF12)
A11PG1 (W7, AF12)
A12PG2 (N1, AF12)
A13PG3 (M4, AF12)
A14PG4 (M2, AF12)
A15PG5 (L3, AF12)
A16PD11 (P4, AF12)
A17PD12 (R3, AF12)
A18PD13 (U1, AF12)
A19PE3 (D10, AF12)
A20PE4 (F10, AF12)
A21PE5 (H10, AF12)
A22PE6 (E11, AF12)
A23PE2 (A13, AF12)
A24PG13 (G7, AF12)
A25PG14 (F8, AF12)
ALEPD12 (R3, AF12)
CLEPD11 (P4, AF12)
CLKPD3 (A5, AF12)
D0PD14 (N3, AF12)
D1PD15 (P2, AF12)
D2PD0 (G5, AF12)
D3PD1 (E5, AF12)
D4PE7 (AB8, AF12)
D5PE8 (V6, AF12)
D6PE9 (U5, AF12)
D7PE10 (Y6, AF12)
D8PE11 (W5, AF12)
D9PE12 (V4, AF12)
D10PE13 (Y4, AF12)
D11PE14 (AB6, AF12)
D12PE15 (AA5, AF12)
D13PD8 (W1, AF12)
D14PD9 (V2, AF12)
D15PD10 (U3, AF12)
DA0PD14 (N3, AF12)
DA1PD15 (P2, AF12)
DA2PD0 (G5, AF12)
DA3PD1 (E5, AF12)
DA4PE7 (AB8, AF12)
DA5PE8 (V6, AF12)
DA6PE9 (U5, AF12)
DA7PE10 (Y6, AF12)
DA8PE11 (W5, AF12)
DA9PE12 (V4, AF12)
DA10PE13 (Y4, AF12)
DA11PE14 (AB6, AF12)
DA12PE15 (AA5, AF12)
DA13PD8 (W1, AF12)
DA14PD9 (V2, AF12)
DA15PD10 (U3, AF12)
INTPG7 (L1, AF12)
NBL0PE0 (M10, AF12)
NBL1PE1 (K10, AF12), PB15 (N5, AF11)
NCEPG9 (J7, AF12), PD7 (L7, AF12)
NE1PD7 (L7, AF12)
NE2PG9 (J7, AF12)
NE3PG10 (E7, AF12)
NE4PG12 (A7, AF12)
NLPB7 (C9, AF12)
NOEPD4 (H6, AF12)
NWAITPD6 (K6, AF12)
NWEPD5 (F6, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (F2, AF5), PC6 (J3, AF10)
D1PA10 (E3, AF5), PC7 (L5, AF10)
D2PC11 (B4, AF4), PC8 (G1, AF10), PE0 (M10, AF10)
D3PC9 (H2, AF4), PE1 (K10, AF10)
D4PC11 (B4, AF10), PE4 (F10, AF10)
D5PD3 (A5, AF4), PB6 (E9, AF10)
D6PE5 (H10, AF10), PB8 (J9, AF10)
D7PB9 (B10, AF10), PE6 (E11, AF10)
D8PC10 (D4, AF10)
D9PC12 (J5, AF10)
D10PB5 (A9, AF10), PD6 (K6, AF4)
D11PD2 (C5, AF10), PF10 (R11, AF10)
D12PB4 (NJTRST) (L9, AF10), PF6 (N11, AF4), PF11 (R7, AF10)
D13PG15 (H8, AF10)
HSYNCPA4 (P8, AF10), PD8 (W1, AF10)
PIXCLKPA6 (U9, AF4), PD9 (V2, AF10)
VSYNCPB7 (C9, AF10)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (F2, AF5), PC6 (J3, AF10)
D1PA10 (E3, AF5), PC7 (L5, AF10)
D2PC11 (B4, AF4), PC8 (G1, AF10), PE0 (M10, AF10)
D3PC9 (H2, AF4), PE1 (K10, AF10)
D4PC11 (B4, AF10), PE4 (F10, AF10)
D5PD3 (A5, AF4), PB6 (E9, AF10)
D6PE5 (H10, AF10), PB8 (J9, AF10)
D7PB9 (B10, AF10), PE6 (E11, AF10)
D8PC10 (D4, AF10)
D9PC12 (J5, AF10)
D10PB5 (A9, AF10), PD6 (K6, AF4)
D11PD2 (C5, AF10), PF10 (R11, AF10)
D12PB4 (NJTRST) (L9, AF10), PF6 (N11, AF4), PF11 (R7, AF10)
D13PG15 (H8, AF10)
D14PF8 (P10, AF4), PA5 (AA11, AF4)
D15PC5 (N7, AF4), PF9 (P12, AF4), PF10 (R11, AF4)
DEPA4 (P8, AF10), PD8 (W1, AF10)
PDCKPA6 (U9, AF4), PD9 (V2, AF10)
RDYPB7 (C9, AF10)

TSC — контроллер сенсорных кнопок

БлокСигналВыводы
TSCG1_IO1PB12 (Y2, AF9)
G1_IO2PB13 (R5, AF9)
G1_IO3PB14 (T4, AF9)
G2_IO1PB4 (NJTRST) (L9, AF9)
G2_IO2PB5 (A9, AF9)
G2_IO3PB6 (E9, AF9)
G2_IO4PB7 (C9, AF9)
G3_IO2PC10 (D4, AF9)
G3_IO3PC11 (B4, AF9)
G3_IO4PC12 (J5, AF9)
G4_IO1PC6 (J3, AF9)
G4_IO2PC7 (L5, AF9)
G4_IO3PC8 (G1, AF9)
G4_IO4PC9 (H2, AF9)
G5_IO1PE10 (Y6, AF9)
G5_IO2PE11 (W5, AF9)
G5_IO3PE12 (V4, AF9)
G5_IO4PE13 (Y4, AF9)
G6_IO1PD10 (U3, AF9)
G6_IO2PD11 (P4, AF9)
G6_IO3PD12 (R3, AF9)
G6_IO4PD13 (U1, AF9)
G7_IO1PE2 (A13, AF9)
G7_IO2PE3 (D10, AF9)
G7_IO3PE4 (F10, AF9)
G7_IO4PE5 (H10, AF9)
G8_IO1PF14 (U7, AF9)
G8_IO2PF15 (Y8, AF9)
G8_IO3PG0 (T6, AF9)
G8_IO4PG1 (W7, AF9)
SYNCPD2 (C5, AF9), PB10 (W3, AF9)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PB8 (J9, AF5), PF3 (K12, AF6), PG7 (L1, AF6), PE9 (U5, AF6)
CCK1PF10 (R11, AF6), PC2 (V12, AF6)
CKI0PD4 (H6, AF6), PF5 (L11, AF6), PB2 (AB10, AF6)
CKI1PD7 (L7, AF6), PB13 (R5, AF6)
CKI2PB15 (N5, AF6), PE8 (V6, AF6)
CKI3PE5 (H10, AF6), PC6 (J3, AF6)
CKI4PC1 (M8, AF6), PE11 (W5, AF6)
CKI5PB7 (C9, AF6), PE13 (Y4, AF6)
SDI0PD3 (A5, AF6), PF4 (J11, AF6), PB1 (W9, AF6)
SDI1PD6 (K6, AF6), PB12 (Y2, AF6)
SDI2PB14 (T4, AF6), PE7 (AB8, AF6)
SDI3PE4 (F10, AF6), PC7 (L5, AF6)
SDI4PC0 (N9, AF6), PE10 (Y6, AF6)
SDI5PB6 (E9, AF6), PE12 (V4, AF6)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PB3 (JTDO/TRACESWO) (K8, AF3), PF3 (K12, AF3), PE9 (U5, AF3)
CCK1PC10 (D4, AF3)
SDI0PC11 (B4, AF3), PF4 (J11, AF3), PB4 (NJTRST) (L9, AF3), PE10 (Y6, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (H4, AF0)
JTDIPA15 (JTDI) (F4, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (K8, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (D2, AF0)
NJTRSTPB4 (NJTRST) (L9, AF0)
TRACECLKPE2 (A13, AF0), PA8 (G3, AF12)
TRACED0PE3 (D10, AF0), PC9 (H2, AF0), PC1 (M8, AF0)
TRACED1PC10 (D4, AF0), PE4 (F10, AF0)
TRACED2PD2 (C5, AF0), PE5 (H10, AF0)
TRACED3PE6 (E11, AF0), PC12 (J5, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPA2 (R9)
MCOPA8 (G3, AF0)
OSC_INPH0-OSC_IN (R13)
OSC_OUTPH1-OSC_OUT (U13)
OSC32_INPC14-OSC32_IN (E13)
OSC32_OUTPC15-OSC32_OUT (G13)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC6 (J3, AF0), PA5 (AA11, AF0)
PWR_WKUP1PE4 (F10), PA0 (T10), PB2 (AB10)
PWR_WKUP2PC13 (D12), PE5 (H10), PA4 (P8)
PWR_WKUP3PB6 (E9), PE6 (E11), PA1 (W11)
PWR_WKUP4PB7 (C9), PA2 (R9), PB1 (W9)
PWR_WKUP5PB8 (J9), PC5 (N7), PA3 (V10)
PWR_WKUP6PB5 (A9), PA5 (AA11), PE7 (AB8)
PWR_WKUP7PB15 (N5), PA6 (U9), PE8 (V6)
PWR_WKUP8PF2 (J13), PB10 (W3), PA7 (Y10)
TAMP_IN1PC13 (D12)
TAMP_IN2PA0 (T10)
TAMP_IN3PE6 (E11)
TAMP_IN4PC5 (N7)
TAMP_IN5PA1 (W11)
TAMP_IN6PE3 (D10)
TAMP_IN7PE4 (F10)
TAMP_IN8PE5 (H10)
TAMP_OUT1PA0 (T10)
TAMP_OUT2PC13 (D12)
TAMP_OUT3PE3 (D10)
TAMP_OUT4PA1 (W11)
TAMP_OUT5PC5 (N7)
TAMP_OUT6PE6 (E11)
TAMP_OUT7PE5 (H10)
TAMP_OUT8PE4 (F10)

Блоки без собственных выводов: OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), IRTIM (формирователь ИК-сигнала), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), AES (аппаратное шифрование AES), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 150 шариков корпуса WLCSP150 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1VDDUSBпитание—
A3VDDпитание—
A5PD3ввод-выводDCMI_D5 (AF4), FMC_CLK (AF12), I2C6_SMBA (AF2), MDF1_SDI0 (AF6), OCTOSPIM_P2_NCS (AF10), PSSI_D5 (AF4), SPI2_MISO (AF5), SPI2_SCK (AF3), USART2_CTS (AF7)
A7PG12ввод-выводFMC_NE4 (AF12), LPTIM1_ETR (AF1), OCTOSPIM_P2_NCS (AF5), SAI2_SD_A (AF13), SPI3_NSS (AF6), USART1_DE (AF7), USART1_RTS (AF7)
A9PB5ввод-выводCOMP2_OUT (AF12), DCMI_D10 (AF10), I2C1_SMBA (AF4), LPTIM1_IN1 (AF1), OCTOSPIM_P1_NCLK (AF3), PSSI_D10 (AF10), PWR_WKUP6, SAI1_SD_B (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF6), TIM16_BKIN (AF14), TIM3_CH2 (AF2), TSC_G2_IO2 (AF9), UART5_CTS (AF8), UCPD1_DBCC1, USART1_CK (AF7)
A11VDD11питание—
A13PE2ввод-выводDEBUG_TRACECLK (AF0), FMC_A23 (AF12), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM3_ETR (AF2), TSC_G7_IO1 (AF9), USART6_CK (AF7)
B2VDD11питание—
B4PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0 (AF3), DCMI_D2 (AF4), DCMI_D4 (AF10), LPTIM3_IN1 (AF2), OCTOSPIM_P1_NCS (AF5), PSSI_D2 (AF4), PSSI_D4 (AF10), SAI2_MCLK_B (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), TSC_G3_IO3 (AF9), UART4_RX (AF8), UCPD1_FRSTX2 (AF11), USART3_RX (AF7)
B6VDDпитание—
B8VDDIO2питание—
B10PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF10), FDCAN1_TX (AF9), I2C1_SDA (AF4), IR_OUT (AF1), PSSI_D7 (AF10), SAI1_D2 (AF3), SAI1_FS_A (AF13), SDMMC1_CDIR (AF8), SDMMC1_D5 (AF12), SDMMC2_D5 (AF11), SPI2_NSS (AF5), TIM17_CH1 (AF14), TIM4_CH4 (AF2)
B12VDDпитание—
C1PA12ввод-выводFDCAN1_TX (AF9), OCTOSPIM_P2_NCS (AF6), SPI1_MOSI (AF5), TIM1_ETR (AF1), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_HS_DP
C3VSSпитание—
C5PD2ввод-выводDCMI_D11 (AF10), DEBUG_TRACED2 (AF0), I2C5_SMBA (AF4), LPTIM4_ETR (AF13), PSSI_D11 (AF10), SDMMC1_CMD (AF12), TIM3_ETR (AF2), TSC_SYNC (AF9), UART5_RX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
C7PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, LPTIM1_IN2 (AF1), OCTOSPIM_P1_IO5 (AF3), SAI2_MCLK_A (AF13), SPI3_MOSI (AF6), TIM15_CH2 (AF14), USART1_CTS (AF7)
C9PB7ввод-выводCOMP2_INM, DCMI_VSYNC (AF10), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF5), LPTIM1_IN2 (AF1), MDF1_CKI5 (AF6), PSSI_RDY (AF10), PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N (AF14), TIM4_CH2 (AF2), TIM8_BKIN (AF3), TSC_G2_IO4 (AF9), UART4_CTS (AF8), USART1_RX (AF7)
C11VSSпитание—
C13VBATпитание—
D2PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0), IR_OUT (AF1), SAI1_SD_B (AF13)
D4PC10ввод-выводADF1_CCK1 (AF3), DCMI_D8 (AF10), DEBUG_TRACED1 (AF0), LPTIM3_ETR (AF2), PSSI_D8 (AF10), SAI2_SCK_B (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), TSC_G3_IO2 (AF9), UART4_TX (AF8), USART3_TX (AF7)
D6VSSпитание—
D8VSSпитание—
D10PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), OCTOSPIM_P1_DQS (AF3), SAI1_SD_B (AF13), TAMP_IN6, TAMP_OUT3, TIM3_CH1 (AF2), TSC_G7_IO2 (AF9), USART6_CTS (AF7)
D12PC13ввод-выводPWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2
E1PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX (AF9), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1), USART1_CTS (AF7), USB_OTG_HS_DM
E3PA10ввод-выводCRS_SYNC (AF0), DCMI_D1 (AF5), LPTIM2_IN2 (AF2), PSSI_D1 (AF5), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM17_BKIN (AF14), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_HS_ID (AF10)
E5PD1ввод-выводFDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2C5_SCL (AF4), I2C6_SCL (AF2), SPI2_SCK (AF5)
E7PG10ввод-выводFMC_NE3 (AF12), LPTIM1_IN1 (AF1), OCTOSPIM_P2_IO7 (AF5), SAI2_FS_A (AF13), SPI3_MISO (AF6), TIM15_CH1 (AF14), USART1_RX (AF7)
E9PB6ввод-выводCOMP2_INP, DCMI_D5 (AF10), I2C1_SCL (AF4), I2C4_SCL (AF5), LPTIM1_ETR (AF1), MDF1_SDI5 (AF6), PSSI_D5 (AF10), PWR_WKUP3, SAI1_FS_B (AF13), TIM16_CH1N (AF14), TIM4_CH1 (AF2), TIM8_BKIN2 (AF3), TSC_G2_IO3 (AF9), USART1_TX (AF7)
E11PE6ввод-выводDCMI_D7 (AF10), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), PSSI_D7 (AF10), PWR_WKUP3, SAI1_D1 (AF3), SAI1_SD_A (AF13), TAMP_IN3, TAMP_OUT6, TIM3_CH4 (AF2)
E13PC14-OSC32_INввод-выводRCC_OSC32_IN
F2PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF5), PSSI_D0 (AF5), SAI1_FS_A (AF13), SPI2_SCK (AF3), TIM15_BKIN (AF14), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_HS_VBUS
F4PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI (AF0), SAI2_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC1, USART2_RX (AF3), USART3_DE (AF7), USART3_RTS (AF7)
F6PD5ввод-выводFMC_NWE (AF12), OCTOSPIM_P1_IO5 (AF10), SPI2_RDY (AF5), USART2_TX (AF7)
F8PG14ввод-выводFMC_A25 (AF12), I2C1_SCL (AF4), LPTIM1_CH2 (AF1)
F10PE4ввод-выводDCMI_D4 (AF10), DEBUG_TRACED1 (AF0), FMC_A20 (AF12), MDF1_SDI3 (AF6), PSSI_D4 (AF10), PWR_WKUP1, SAI1_D2 (AF3), SAI1_FS_A (AF13), TAMP_IN7, TAMP_OUT8, TIM3_CH2 (AF2), TSC_G7_IO3 (AF9), USART6_DE (AF7), USART6_RTS (AF7)
F12VSSпитание—
G1PC8ввод-выводDCMI_D2 (AF10), LPTIM3_CH1 (AF14), PSSI_D2 (AF10), PWR_SRDSTOP (AF0), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), TSC_G4_IO3 (AF9), USART6_RX (AF7)
G3PA8ввод-выводDEBUG_TRACECLK (AF12), LPTIM2_CH1 (AF14), RCC_MCO (AF0), SAI1_CK2 (AF3), SAI1_SCK_A (AF13), SPI1_RDY (AF5), TIM1_CH1 (AF1), USART1_CK (AF7), USB_OTG_HS_SOF (AF10)
G5PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), I2C5_SDA (AF4), I2C6_SDA (AF2), SPI2_NSS (AF5), TIM8_CH4N (AF3)
G7PG13ввод-выводFMC_A24 (AF12), I2C1_SDA (AF4), SPI3_RDY (AF6), USART1_CK (AF7)
G9PH3-BOOT0ввод-вывод—
G11PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), I2C6_SDA (AF2), OCTOSPIM_P2_IO0 (AF5), USART6_TX (AF7)
G13PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUT
H2PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF4), DEBUG_TRACED0 (AF0), LPTIM3_CH2 (AF14), PSSI_D3 (AF4), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_BKIN2 (AF1), TIM8_CH4 (AF3), TSC_G4_IO4 (AF9), USART6_TX (AF7)
H4PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF5), LPTIM1_CH1 (AF1), SAI1_FS_B (AF13), USB_OTG_HS_SOF (AF10)
H6PD4ввод-выводFMC_NOE (AF12), MDF1_CKI0 (AF6), OCTOSPIM_P1_IO4 (AF10), SPI2_MOSI (AF5), USART2_DE (AF7), USART2_RTS (AF7)
H8PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13 (AF10), I2C1_SMBA (AF4), LPTIM1_CH1 (AF1), OCTOSPIM_P2_DQS (AF5), PSSI_D13 (AF10)
H10PE5ввод-выводDCMI_D6 (AF10), DEBUG_TRACED2 (AF0), FMC_A21 (AF12), MDF1_CKI3 (AF6), PSSI_D6 (AF10), PWR_WKUP2, SAI1_CK2 (AF3), SAI1_SCK_A (AF13), TAMP_IN8, TAMP_OUT7, TIM3_CH3 (AF2), TSC_G7_IO4 (AF9)
H12PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), I2C6_SCL (AF2), OCTOSPIM_P2_IO1 (AF5), USART6_RX (AF7)
J1VDDIO2питание—
J3PC6ввод-выводDCMI_D0 (AF10), MDF1_CKI3 (AF6), PSSI_D0 (AF10), PWR_CSLEEP (AF0), SAI2_MCLK_A (AF13), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF11), TIM3_CH1 (AF2), TIM8_CH1 (AF3), TSC_G4_IO1 (AF9)
J5PC12ввод-выводDCMI_D9 (AF10), DEBUG_TRACED3 (AF0), PSSI_D9 (AF10), SAI2_SD_B (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), TSC_G3_IO4 (AF9), UART5_TX (AF8), USART3_CK (AF7)
J7PG9ввод-выводDAC1_EXTI9, FMC_NCE (AF12), FMC_NE2 (AF12), OCTOSPIM_P2_IO6 (AF5), SAI2_SCK_A (AF13), SPI3_SCK (AF6), TIM15_CH1N (AF14), USART1_TX (AF7)
J9PB8ввод-выводDCMI_D6 (AF10), FDCAN1_RX (AF9), I2C1_SCL (AF4), MDF1_CCK0 (AF5), PSSI_D6 (AF10), PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), SDMMC1_CKIN (AF8), SDMMC1_D4 (AF12), SDMMC2_D4 (AF11), SPI3_RDY (AF6), TIM16_CH1 (AF14), TIM4_CH3 (AF2)
J11PF4ввод-выводADF1_SDI0 (AF3), FMC_A4 (AF12), LPTIM3_ETR (AF2), MDF1_SDI0 (AF6), OCTOSPIM_P2_CLK (AF5), UART5_RX (AF8), USART6_DE (AF7), USART6_RTS (AF7)
J13PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), OCTOSPIM_P2_IO2 (AF5), PWR_WKUP8, USART6_CK (AF7)
K2VSSпитание—
K4PG8ввод-выводI2C3_SDA (AF4), LPUART1_RX (AF8)
K6PD6ввод-выводDCMI_D10 (AF4), FMC_NWAIT (AF12), MDF1_SDI1 (AF6), OCTOSPIM_P1_IO6 (AF10), PSSI_D10 (AF4), SAI1_D1 (AF3), SAI1_SD_A (AF13), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
K8PB3 (JTDO/TRACESWO)ввод-выводADF1_CCK0 (AF3), COMP2_INM, CRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2C1_SDA (AF4), LPTIM1_CH1 (AF2), SAI1_SCK_B (AF13), SDMMC2_D2 (AF12), SPI1_SCK (AF5), SPI3_SCK (AF6), TIM2_CH2 (AF1), USART1_DE (AF7), USART1_RTS (AF7)
K10PE1ввод-выводDCMI_D3 (AF10), FMC_NBL1 (AF12), PSSI_D3 (AF10), TIM17_CH1 (AF14), USART6_TX (AF7)
K12PF3ввод-выводADF1_CCK0 (AF3), FMC_A3 (AF12), LPTIM3_IN1 (AF2), MDF1_CCK0 (AF6), OCTOSPIM_P2_IO3 (AF5), UART5_TX (AF8), USART6_CTS (AF7)
L1PG7ввод-выводFMC_INT (AF12), I2C3_SCL (AF4), LPUART1_TX (AF8), MDF1_CCK0 (AF6), OCTOSPIM_P2_DQS (AF5), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), UCPD1_FRSTX2 (AF11)
L3PG5ввод-выводFMC_A15 (AF12), LPUART1_CTS (AF8), SAI2_SD_B (AF13), SPI1_NSS (AF5)
L5PC7ввод-выводDCMI_D1 (AF10), LPTIM2_CH2 (AF14), MDF1_SDI3 (AF6), PSSI_D1 (AF10), PWR_CDSTOP (AF0), SAI2_MCLK_B (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), TSC_G4_IO2 (AF9)
L7PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), LPTIM4_OUT (AF13), MDF1_CKI1 (AF6), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), USART2_CK (AF7)
L9PB4 (NJTRST)ввод-выводADF1_SDI0 (AF3), COMP2_INP, DCMI_D12 (AF10), DEBUG_NJTRST (AF0), I2C3_SDA (AF4), LPTIM1_CH2 (AF1), PSSI_D12 (AF10), SAI1_MCLK_B (AF13), SDMMC2_D3 (AF12), SPI1_MISO (AF5), SPI3_MISO (AF6), TIM17_BKIN (AF14), TIM3_CH1 (AF2), TSC_G2_IO1 (AF9), UART5_DE (AF8), UART5_RTS (AF8), USART1_CTS (AF7)
L11PF5ввод-выводFMC_A5 (AF12), LPTIM3_CH1 (AF2), MDF1_CKI0 (AF6), OCTOSPIM_P2_NCLK (AF5)
L13VDDпитание—
M2PG4ввод-выводFMC_A14 (AF12), SAI2_MCLK_B (AF13), SPI1_MOSI (AF5)
M4PG3ввод-выводFMC_A13 (AF12), SAI2_FS_B (AF13), SPI1_MISO (AF5)
M6PG6ввод-выводI2C3_SMBA (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), OCTOSPIM_P1_DQS (AF3), SPI1_RDY (AF5), UCPD1_FRSTX1 (AF11)
M8PC1ввод-выводADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0 (AF0), I2C3_SDA (AF4), LPTIM1_CH1 (AF1), LPUART1_TX (AF8), MDF1_CKI4 (AF6), OCTOSPIM_P1_IO4 (AF10), SAI1_SD_A (AF13), SDMMC2_CK (AF12), SPI2_MOSI (AF3), USART6_CK (AF7)
M10PE0ввод-выводDCMI_D2 (AF10), FMC_NBL0 (AF12), PSSI_D2 (AF10), TIM16_CH1 (AF14), TIM4_ETR (AF2), USART6_RX (AF7)
M12VSSпитание—
N1PG2ввод-выводFMC_A12 (AF12), SAI2_SCK_B (AF13), SPI1_SCK (AF5)
N3PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LPTIM3_CH1 (AF14), TIM4_CH3 (AF2), USART6_CK (AF7)
N5PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_NBL1 (AF11), LPTIM2_IN2 (AF2), MDF1_CKI2 (AF6), PWR_WKUP7, RTC_REFIN (AF0), SAI2_SD_A (AF13), SDMMC2_D1 (AF12), SPI2_MOSI (AF5), TIM15_CH2 (AF14), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UCPD1_CC2
N7PC5ввод-выводADC1_IN14, ADC2_IN14, ADC4_IN23, COMP1_INP, PSSI_D15 (AF4), PWR_WKUP5, SAI1_D3 (AF3), TAMP_IN4, TAMP_OUT5, TIM1_CH4N (AF1), USART3_RX (AF7)
N9PC0ввод-выводADC1_IN1, ADC2_IN1, ADC4_IN1, I2C3_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF14), LPUART1_RX (AF8), MDF1_SDI4 (AF6), OCTOSPIM_P1_IO7 (AF3), SAI2_FS_A (AF13), SDMMC1_D5 (AF12), SPI2_RDY (AF5), USART6_CTS (AF7)
N11PF6ввод-выводDCMI_D12 (AF4), OCTOSPIM_P1_IO3 (AF10), OCTOSPIM_P2_NCS (AF5), PSSI_D12 (AF4), SAI1_SD_B (AF13), TIM5_CH1 (AF2), TIM5_ETR (AF1)
N13PF7ввод-выводFDCAN1_RX (AF9), OCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF13), TIM5_CH2 (AF2)
P2PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LPTIM3_CH2 (AF14), TIM4_CH4 (AF2), USART6_DE (AF7), USART6_RTS (AF7)
P4PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_ETR (AF14), SAI2_SD_A (AF13), TSC_G6_IO2 (AF9), USART3_CTS (AF7)
P6PF13ввод-выводFMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM4_OUT (AF13), UCPD1_FRSTX2 (AF11)
P8PA4ввод-выводADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC (AF10), LPTIM2_CH1 (AF14), OCTOSPIM_P1_NCS (AF3), PSSI_DE (AF10), PWR_WKUP2, SAI1_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), USART2_CK (AF7)
P10PF8ввод-выводFDCAN1_TX (AF9), OCTOSPIM_P1_IO0 (AF10), PSSI_D14 (AF4), SAI1_SCK_B (AF13), TIM5_CH3 (AF2)
P12PF9ввод-выводDAC1_EXTI9, OCTOSPIM_P1_IO1 (AF10), PSSI_D15 (AF4), SAI1_FS_B (AF13), TIM15_CH1 (AF14), TIM5_CH4 (AF2)
R1VDDпитание—
R3PD12ввод-выводADC4_IN16, FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), LPTIM2_IN1 (AF14), SAI2_FS_A (AF13), TIM4_CH1 (AF2), TSC_G6_IO3 (AF9), USART3_DE (AF7), USART3_RTS (AF7)
R5PB13ввод-выводI2C2_SCL (AF4), LPTIM3_IN1 (AF2), LPUART1_CTS (AF8), MDF1_CKI1 (AF6), SAI2_SCK_A (AF13), SPI2_SCK (AF5), TIM15_CH1N (AF14), TIM1_CH1N (AF1), TSC_G1_IO2 (AF9), USART3_CTS (AF7)
R7PF11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D12 (AF10), LPTIM4_IN1 (AF13), OCTOSPIM_P1_NCLK (AF3), PSSI_D12 (AF10)
R9PA2ввод-выводADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), PWR_WKUP4, RCC_LSCO, SPI1_RDY (AF5), TIM15_CH1 (AF14), TIM2_CH3 (AF1), TIM5_CH3 (AF2), UCPD1_FRSTX1 (AF11), USART2_TX (AF7)
R11PF10ввод-выводDCMI_D11 (AF10), MDF1_CCK1 (AF6), OCTOSPIM_P1_CLK (AF3), PSSI_D11 (AF10), PSSI_D15 (AF4), SAI1_D3 (AF13), TIM15_CH2 (AF14)
R13PH0-OSC_INввод-выводRCC_OSC_IN
T2VSSпитание—
T4PB14ввод-выводI2C2_SDA (AF4), LPTIM3_ETR (AF2), MDF1_SDI2 (AF6), SAI2_MCLK_A (AF13), SDMMC2_D0 (AF12), SPI2_MISO (AF5), TIM15_CH1 (AF14), TIM1_CH2N (AF1), TIM8_CH2N (AF3), TSC_G1_IO3 (AF9), UCPD1_DBCC2, USART3_DE (AF7), USART3_RTS (AF7)
T6PG0ввод-выводADC4_IN7, FMC_A10 (AF12), OCTOSPIM_P2_IO4 (AF5), TSC_G8_IO3 (AF9)
T8PB0ввод-выводADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK (AF13), COMP1_OUT (AF12), LPTIM3_CH1 (AF4), OCTOSPIM_P1_IO1 (AF10), OPAMP2_VOUT, SPI1_NSS (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), USART3_CK (AF7)
T10PA0ввод-выводADC1_IN5, ADC2_IN5, AUDIOCLK (AF13), OCTOSPIM_P2_NCS (AF10), OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD (AF12), SPI3_RDY (AF6), TAMP_IN2, TAMP_OUT1, TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7)
T12NRSTсброс—
U1PD13ввод-выводADC4_IN17, FMC_A18 (AF12), I2C4_SDA (AF4), LPTIM2_CH1 (AF14), LPTIM4_IN1 (AF13), TIM4_CH2 (AF2), TSC_G6_IO4 (AF9), USART6_CTS (AF7)
U3PD10ввод-выводFMC_D15 (AF12), FMC_DA15 (AF12), I2C5_SMBA (AF4), LPTIM2_CH2 (AF2), LPTIM3_ETR (AF14), SAI2_SCK_A (AF13), TSC_G6_IO1 (AF9), USART3_CK (AF7)
U5PE9ввод-выводADF1_CCK0 (AF3), DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), MDF1_CCK0 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI1_FS_B (AF13), TIM1_CH1 (AF1)
U7PF14ввод-выводADC4_IN5, FMC_A8 (AF12), I2C4_SCL (AF4), TSC_G8_IO1 (AF9)
U9PA6ввод-выводADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK (AF4), LPUART1_CTS (AF8), OCTOSPIM_P1_IO3 (AF10), OPAMP2_VINP, PSSI_PDCK (AF4), PWR_CDSTOP (AF0), PWR_WKUP7, SPI1_MISO (AF5), TIM16_CH1 (AF14), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART3_CTS (AF7)
U11PC3ввод-выводADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR (AF1), LPTIM2_ETR (AF14), LPTIM3_CH1 (AF2), OCTOSPIM_P1_IO6 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), SPI2_MOSI (AF5), USART6_TX (AF7)
U13PH1-OSC_OUTввод-выводRCC_OSC_OUT
V2PD9ввод-выводDAC1_EXTI9, DCMI_PIXCLK (AF10), FMC_D14 (AF12), FMC_DA14 (AF12), LPTIM2_IN2 (AF2), LPTIM3_IN1 (AF14), PSSI_PDCK (AF10), SAI2_MCLK_A (AF13), USART3_RX (AF7)
V4PE12ввод-выводFMC_D9 (AF12), FMC_DA9 (AF12), MDF1_SDI5 (AF6), OCTOSPIM_P1_IO0 (AF10), SPI1_NSS (AF5), TIM1_CH3N (AF1), TSC_G5_IO3 (AF9)
V6PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), MDF1_CKI2 (AF6), PWR_WKUP7, SAI1_SCK_B (AF13), TIM1_CH1N (AF1)
V8PF12ввод-выводFMC_A6 (AF12), LPTIM4_ETR (AF13), OCTOSPIM_P2_DQS (AF5)
V10PA3ввод-выводADC1_IN8, ADC2_IN8, LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM15_CH2 (AF14), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
V12PC2ввод-выводADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2 (AF1), MDF1_CCK1 (AF6), OCTOSPIM_P1_IO5 (AF10), SPI2_MISO (AF5), USART6_RX (AF7)
W1PD8ввод-выводDCMI_HSYNC (AF10), FMC_D13 (AF12), FMC_DA13 (AF12), PSSI_DE (AF10), USART3_TX (AF7)
W3PB10ввод-выводCOMP1_OUT (AF12), I2C2_SCL (AF4), I2C4_SCL (AF3), LPTIM3_CH1 (AF2), LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), PWR_WKUP8, SAI1_SCK_A (AF13), SPI2_SCK (AF5), TIM2_CH3 (AF1), TSC_SYNC (AF9), USART3_TX (AF7)
W5PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D8 (AF12), FMC_DA8 (AF12), MDF1_CKI4 (AF6), OCTOSPIM_P1_NCS (AF10), SPI1_RDY (AF5), TIM1_CH2 (AF1), TSC_G5_IO2 (AF9)
W7PG1ввод-выводADC4_IN8, FMC_A11 (AF12), OCTOSPIM_P2_IO5 (AF5), TSC_G8_IO4 (AF9)
W9PB1ввод-выводADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1 (AF14), LPTIM3_CH2 (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI0 (AF6), OCTOSPIM_P1_IO0 (AF10), PWR_WKUP4, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USART3_DE (AF7), USART3_RTS (AF7)
W11PA1ввод-выводADC1_IN6, ADC2_IN6, I2C1_SMBA (AF4), LPTIM1_CH2 (AF0), OCTOSPIM_P1_DQS (AF10), OPAMP1_VINM, PWR_WKUP3, SPI1_SCK (AF5), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF14), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
W13VSSAпитание—
Y2PB12ввод-выводI2C2_SMBA (AF4), I2C6_SMBA (AF2), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI1 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI2_FS_A (AF13), SPI2_NSS (AF5), TIM15_BKIN (AF14), TIM1_BKIN (AF1), TSC_G1_IO1 (AF9), USART3_CK (AF7)
Y4PE13ввод-выводFMC_D10 (AF12), FMC_DA10 (AF12), MDF1_CKI5 (AF6), OCTOSPIM_P1_IO1 (AF10), SPI1_SCK (AF5), TIM1_CH3 (AF1), TSC_G5_IO4 (AF9)
Y6PE10ввод-выводADF1_SDI0 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), MDF1_SDI4 (AF6), OCTOSPIM_P1_CLK (AF10), SAI1_MCLK_B (AF13), TIM1_CH2N (AF1), TSC_G5_IO1 (AF9)
Y8PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, ADC4_IN6, FMC_A9 (AF12), I2C4_SDA (AF4), TSC_G8_IO2 (AF9)
Y10PA7ввод-выводADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL (AF4), LPTIM2_CH2 (AF13), OCTOSPIM_P1_IO2 (AF10), OPAMP2_VINM, PWR_SRDSTOP (AF0), PWR_WKUP8, SPI1_MOSI (AF5), TIM17_CH1 (AF14), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART3_TX (AF7)
Y12VREF+служебныйVREFBUF_OUT
AA1VSSпитание—
AA3PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, COMP2_OUT (AF12), I2C2_SDA (AF4), I2C4_SDA (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), SPI2_RDY (AF5), TIM2_CH4 (AF1), USART3_RX (AF7)
AA5PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), OCTOSPIM_P1_IO3 (AF10), SPI1_MOSI (AF5), TIM1_BKIN (AF1), TIM1_CH4N (AF3)
AA7VSSпитание—
AA9VSSпитание—
AA11PA5ввод-выводADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR (AF14), PSSI_D14 (AF4), PWR_CSLEEP (AF0), PWR_WKUP6, SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM8_CH1N (AF3), USART3_RX (AF7)
AA13VDDAпитание—
AB2VDD11питание—
AB4VDDSMPSпитание—
AB6PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), OCTOSPIM_P1_IO2 (AF10), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1)
AB8PE7ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), MDF1_SDI2 (AF6), PWR_WKUP6, SAI1_SD_B (AF13), TIM1_ETR (AF1)
AB10PB2ввод-выводADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA (AF4), LPTIM1_CH1 (AF1), MDF1_CKI0 (AF6), OCTOSPIM_P1_DQS (AF10), PWR_WKUP1, RTC_OUT2, SPI1_RDY (AF5), TIM8_CH4N (AF3), UCPD1_FRSTX1 (AF11)
AB12VDDпитание—
AC1VDDпитание—
AC3VSSSMPSпитание—
AC5VLXSMPSпитание—
AC7VDDпитание—
AC9VDDпитание—
AC11PC4ввод-выводADC1_IN13, ADC2_IN13, ADC4_IN22, COMP1_INM, I2C6_SMBA (AF2), OCTOSPIM_P1_IO7 (AF10), USART3_TX (AF7)
AC13VSSпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATC13резервное питание: часы реального времени и резервные регистры
VDDA3, B6, B12, L13, R1, AB12, AC1, AC7, AC9питание цифровой части и линий ввода-вывода
VDD11A11, B2, AB2—
VDDAAA13питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2B8, J1питание отдельной группы линий ввода-вывода
VDDSMPSAB4—
VDDUSBA1питание приёмопередатчика USB
VLXSMPSAC5—
VSSC3, C11, D6, D8, F12, K2, M12, T2, AA1, AA7, AA9, AC13общий провод (земля)
VSSAW13общий провод аналоговой части
VSSSMPSAC3—
NRSTT12сброс, активный уровень — низкий
VREF+Y12верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32U5A5ZJYxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32U5A5ZJSTM32U5A5ZJYxQ4 МБ2514 КБ

Линейка STM32U5x5, семейство STM32U5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе WLCSP150, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32U595ZISTM32U5x5150 из 150выводы совпадают полностьютолько у этого: AES, PKA; флеш-память до 4096 и 2048 КБ
STM32U595ZJSTM32U5x5150 из 150выводы совпадают полностьютолько у этого: AES, PKA

Частые вопросы

На каких выводах USART1 у STM32U5A5ZJ?

В корпусе WLCSP150 сигнал USART1_TX выведен на PB6 (шарик E9, AF7) или PA9 (шарик F2, AF7) или PG9 (шарик J7, AF7), USART1_RX — на PB7 (шарик C9, AF7) или PA10 (шарик E3, AF7) или PG10 (шарик E7, AF7).

Где у STM32U5A5ZJ выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик D2, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик H4, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32U5A5ZJ?

I2C1_SCL — PB6 (шарик E9, AF4) или PG14 (шарик F8, AF4) или PB8 (шарик J9, AF4), I2C1_SDA — PB9 (шарик B10, AF4) или PB7 (шарик C9, AF4) или PG13 (шарик G7, AF4) или PB3 (JTDO/TRACESWO) (шарик K8, AF4).

Сколько выводов ввода-вывода у STM32U5A5ZJ в корпусе WLCSP150?

115 из 150. Ещё 33 вывода заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
