STM32U5F9ZJ в корпусе UFBGA144: распиновка

STM32U5F9ZJ — микроконтроллер STM32U5 на ядре Cortex-M33: 4 МБ флеш-памяти и 3026 КБ ОЗУ. Корпус UFBGA144 — 144 шарика, из них 101 линия ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
4 МБ
ОЗУ
3026 КБ
Корпус
UFBGA144, 144 шарика
Линий ввода-вывода
101

Схема корпуса UFBGA144

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32U5F9ZJ в корпусе UFBGA144, вид сверхуABCDEFGHJKLM123456789101112VSS — шарик A1VSSPB9 — шарик A2: DAC1_EXTI9, DCMI_D7, I2C1_SDA, IR_OUT, LTDC_B0, PSSI_D7, SAI1_D2, SAI1_FS_A, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4PB9PH3-BOOT0 — шарик A3PH3PB6 — шарик A4: COMP2_INP, DCMI_D5, I2C1_SCL, I2C4_SCL, LPTIM1_ETR, MDF1_SDI5, PSSI_D5, PWR_WKUP3, SAI1_FS_B, TIM16_CH1N, TIM4_CH1, TIM8_BKIN2, TSC_G2_IO3, USART1_TXPB6PB4 (NJTRST) — шарик A5: ADF1_SDI0, COMP2_INP, DCMI_D12, DEBUG_NJTRST, I2C3_SDA, LPTIM1_CH2, PSSI_D12, SAI1_MCLK_B, SDMMC2_D3, SPI1_MISO, SPI3_MISO, TIM17_BKIN, TIM3_CH1, TSC_G2_IO1, UART5_DE, UART5_RTS, USART1_CTSPB4PG14 — шарик A6: FMC_A25, I2C1_SCL, LPTIM1_CH2, LTDC_R1PG14PG12 — шарик A7: FMC_NE4, LPTIM1_ETR, OCTOSPIM_P2_NCS, SAI2_SD_A, SPI3_NSS, USART1_DE, USART1_RTSPG12PG10 — шарик A8: FMC_NE3, LPTIM1_IN1, OCTOSPIM_P2_IO7, SAI2_FS_A, SPI3_MISO, TIM15_CH1, USART1_RXPG10PD7 — шарик A9: FMC_NCE, FMC_NE1, GFXTIM_FCKCAL, GFXTIM_LCKCAL, LPTIM4_OUT, MDF1_CKI1, OCTOSPIM_P1_IO7, SDMMC2_CMD, USART2_CKPD7PD3 — шарик A10: DCMI_D5, FMC_CLK, I2C6_SMBA, LTDC_CLK, MDF1_SDI0, OCTOSPIM_P2_NCS, PSSI_D5, SPI2_MISO, SPI2_SCK, USART2_CTSPD3PC12 — шарик A11: DCMI_D9, DEBUG_TRACED3, PSSI_D9, SAI2_SD_B, SDMMC1_CK, SPI3_MOSI, TSC_G3_IO4, UART5_TX, USART3_CKPC12VSS — шарик A12VSSPE2 — шарик B1: DEBUG_TRACECLK, FMC_A23, LTDC_R0, SAI1_CK1, SAI1_MCLK_A, TIM3_ETR, TSC_G7_IO1, USART6_CKPE2PE3 — шарик B2: DEBUG_TRACED0, FMC_A19, LTDC_R1, OCTOSPIM_P1_DQS, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM3_CH1, TSC_G7_IO2, USART6_CTSPE3PE0 — шарик B3: DCMI_D2, FMC_NBL0, LTDC_HSYNC, PSSI_D2, TIM16_CH1, TIM4_ETR, USART6_RXPE0PB8 — шарик B4: DCMI_D6, I2C1_SCL, LTDC_B1, MDF1_CCK0, PSSI_D6, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI3_RDY, TIM16_CH1, TIM4_CH3PB8PB5 — шарик B5: COMP2_OUT, DCMI_D10, I2C1_SMBA, LPTIM1_IN1, OCTOSPIM_P1_NCLK, PSSI_D10, PWR_WKUP6, SAI1_SD_B, SPI1_MOSI, SPI3_MOSI, TIM16_BKIN, TIM3_CH2, TSC_G2_IO2, UART5_CTS, UCPD1_DBCC1, USART1_CKPB5PG15 — шарик B6: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13, I2C1_SMBA, LPTIM1_CH1, OCTOSPIM_P2_DQS, PSSI_D13PG15PG9 — шарик B7: DAC1_EXTI9, FMC_NCE, FMC_NE2, OCTOSPIM_P2_IO6, SAI2_SCK_A, SPI3_SCK, TIM15_CH1N, USART1_TXPG9PD5 — шарик B8: FMC_NWE, OCTOSPIM_P1_IO5, SPI2_RDY, USART2_TXPD5PD2 — шарик B9: DCMI_D11, DEBUG_TRACED2, FMC_A20, I2C5_SMBA, LPTIM4_ETR, PSSI_D11, SDMMC1_CMD, TIM3_ETR, TSC_SYNC, UART5_RX, USART3_DE, USART3_RTSPD2PC10 — шарик B10: ADF1_CCK1, DCMI_D8, DEBUG_TRACED1, LPTIM3_ETR, PSSI_D8, SAI2_SCK_B, SDMMC1_D2, SPI3_SCK, TSC_G3_IO2, UART4_TX, USART3_TXPC10PA14 (JTCK/SWCLK) — шарик B11: DEBUG_JTCK-SWCLK, I2C1_SMBA, I2C4_SMBA, LPTIM1_CH1, SAI1_FS_B, USB_OTG_HS_SOFPA14PA10 — шарик B12: CRS_SYNC, DCMI_D1, LPTIM2_IN2, PSSI_D1, SAI1_D1, SAI1_SD_A, TIM17_BKIN, TIM1_CH3, USART1_RX, USB_OTG_HS_IDPA10PC14-OSC32_IN — шарик C1: RCC_OSC32_INPC14VBAT — шарик C2VBATPE4 — шарик C3: DCMI_D4, DEBUG_TRACED1, FMC_A20, LTDC_B0, MDF1_SDI3, PSSI_D4, PWR_WKUP1, SAI1_D2, SAI1_FS_A, TAMP_IN7, TAMP_OUT8, TIM3_CH2, TSC_G7_IO3, USART6_DE, USART6_RTSPE4PE5 — шарик C4: DCMI_D6, DEBUG_TRACED2, FMC_A21, LTDC_G0, MDF1_CKI3, PSSI_D6, PWR_WKUP2, SAI1_CK2, SAI1_SCK_A, TAMP_IN8, TAMP_OUT7, TIM3_CH3, TSC_G7_IO4PE5PB7 — шарик C5: COMP2_INM, DCMI_VSYNC, DSIHOST_TE, FMC_NL, GFXTIM_TE, I2C1_SDA, I2C4_SDA, LPTIM1_IN2, MDF1_CKI5, PSSI_RDY, PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N, TIM4_CH2, TIM8_BKIN, TSC_G2_IO4, UART4_CTS, USART1_RXPB7PG13 — шарик C6: FMC_A24, I2C1_SDA, LTDC_R0, SPI3_RDY, USART1_CKPG13PD4 — шарик C7: FMC_NOE, MDF1_CKI0, OCTOSPIM_P1_IO4, SPI2_MOSI, USART2_DE, USART2_RTSPD4PC11 — шарик C8: ADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0, DCMI_D2, DCMI_D4, LPTIM3_IN1, OCTOSPIM_P1_NCS, PSSI_D2, PSSI_D4, SAI2_MCLK_B, SDMMC1_D3, SPI3_MISO, TSC_G3_IO3, UART4_RX, UCPD1_FRSTX2, USART3_RXPC11PA15 (JTDI) — шарик C9: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI, SAI2_FS_B, SPI1_NSS, SPI3_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UCPD1_CC1, USART2_RX, USART3_DE, USART3_RTSPA15PA13 (JTMS/SWDIO) — шарик C10: DEBUG_JTMS-SWDIO, IR_OUT, SAI1_SD_BPA13PA12 — шарик C11: OCTOSPIM_P2_NCS, SPI1_MOSI, TIM1_ETR, USART1_DE, USART1_RTS, USB_OTG_HS_DPPA12PA11 — шарик C12: ADC1_EXTI11, ADC2_EXTI11, SPI1_MISO, TIM1_BKIN2, TIM1_CH4, USART1_CTS, USB_OTG_HS_DMPA11VSSDSI — шарик D1VSSDSIPC15-OSC32_OUT — шарик D2: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUTPC15PE6 — шарик D3: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, PSSI_D7, PWR_WKUP3, SAI1_D1, SAI1_SD_A, TAMP_IN3, TAMP_OUT6, TIM3_CH4PE6VDD11 — шарик D4VDD11VSS — шарик D5VSSPB3 (JTDO/TRACESWO) — шарик D6: ADF1_CCK0, COMP2_INM, CRS_SYNC, DEBUG_JTDO-SWO, I2C1_SDA, LPTIM1_CH1, SAI1_SCK_B, SDMMC2_D2, SPI1_SCK, SPI3_SCK, TIM2_CH2, USART1_DE, USART1_RTSPB3PD6 — шарик D7: DCMI_D10, FMC_NWAIT, LTDC_DE, MDF1_SDI1, OCTOSPIM_P1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PD0 — шарик D8: FMC_D2, FMC_DA2, I2C5_SDA, I2C6_SDA, LTDC_B4, SPI2_NSS, TIM8_CH4NPD0VSS — шарик D9VSSVDDUSB — шарик D10VDDUSBPA8 — шарик D11: DEBUG_TRACECLK, GFXTIM_FCKCAL, GFXTIM_LCKCAL, LPTIM2_CH1, RCC_MCO, SAI1_CK2, SAI1_SCK_A, SDMMC2_D1, SPI1_RDY, TIM1_CH1, USART1_CK, USB_OTG_HS_SOFPA8PC8 — шарик D12: DCMI_D2, LPTIM3_CH1, LTDC_G0, PSSI_D2, PWR_SRDSTOP, SDMMC1_D0, TIM3_CH3, TIM8_CH3, TSC_G4_IO3, USART6_RXPC8DSI_D0N — шарик E1: DSIHOST_D0NDSID0NDSI_D0P — шарик E2: DSIHOST_D0PDSID0PVDDDSI — шарик E3VDDDSIPC13 — шарик E4: PWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2PC13PF0 — шарик E5: FMC_A0, I2C2_SDA, I2C6_SDA, OCTOSPIM_P2_IO0, USART6_TXPF0VDDIO2 — шарик E6VDDIO2PD1 — шарик E7: FMC_D3, FMC_DA3, I2C5_SCL, I2C6_SCL, LTDC_B5, SPI2_SCKPD1VDD — шарик E8VDDPA9 — шарик E9: DAC1_EXTI9, DCMI_D0, PSSI_D0, SAI1_FS_A, SPI2_SCK, TIM15_BKIN, TIM1_CH2, USART1_TX, USB_OTG_HS_VBUSPA9VDD — шарик E10VDDPI2 — шарик E11: DCMI_D9, HSPI1_DQS0, OCTOSPIM_P2_IO1, PSSI_D9, SPI2_MISO, TIM8_CH4PI2PI3 — шарик E12: DCMI_D10, HSPI1_CLK, OCTOSPIM_P2_IO0, PSSI_D10, SPI2_MOSI, TIM8_ETRPI3DSI_CKN — шарик F1: DSIHOST_CKNDSICKNDSI_CKP — шарик F2: DSIHOST_CKPDSICKPVSSDSI — шарик F3VSSDSIPF1 — шарик F4: FMC_A1, I2C2_SCL, I2C6_SCL, OCTOSPIM_P2_IO1, USART6_RXPF1VDD — шарик F5VDDVSS — шарик F6VSSVSS — шарик F7VSSPC9 — шарик F8: DAC1_EXTI9, DCMI_D3, DEBUG_TRACED0, LPTIM3_CH2, LTDC_G1, PSSI_D3, SDMMC1_D1, TIM3_CH4, TIM8_BKIN2, TIM8_CH4, TSC_G4_IO4, USART6_TXPC9PC7 — шарик F9: DCMI_D1, LPTIM2_CH2, LTDC_R1, MDF1_SDI3, PSSI_D1, PWR_CDSTOP, SAI2_MCLK_B, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, TSC_G4_IO2PC7VSS — шарик F10VSSPI0 — шарик F11: DCMI_D13, HSPI1_IO6, OCTOSPIM_P1_IO5, PSSI_D13, SPI2_NSS, TIM5_CH4PI0PI1 — шарик F12: DCMI_D8, HSPI1_IO7, OCTOSPIM_P2_IO2, PSSI_D8, SPI2_SCKPI1DSI_D1N — шарик G1: DSIHOST_D1NDSID1NDSI_D1P — шарик G2: DSIHOST_D1PDSID1PVDD11DSI — шарик G3VDD11DSIPF2 — шарик G4: FMC_A2, I2C2_SMBA, LPTIM3_CH2, OCTOSPIM_P2_IO2, PWR_WKUP8, USART6_CKPF2PC2 — шарик G5: ADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2, MDF1_CCK1, OCTOSPIM_P1_IO5, SPI2_MISO, USART6_RXPC2VSS — шарик G6VSSVSS — шарик G7VSSVDD — шарик G8VDDPC6 — шарик G9: DCMI_D0, LTDC_R0, MDF1_CKI3, PSSI_D0, PWR_CSLEEP, SAI2_MCLK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, TSC_G4_IO1PC6VDD — шарик G10VDDPH14 — шарик G11: DCMI_D4, HSPI1_IO4, PSSI_D4, TIM8_CH2NPH14PH15 — шарик G12: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D11, HSPI1_IO5, OCTOSPIM_P2_IO6, PSSI_D11, TIM8_CH3NPH15VSSDSI — шарик H1VSSDSIPH0-OSC_IN — шарик H2: RCC_OSC_INPH0VREF+ — шарик H3: VREFBUF_OUTVREF+PA0 — шарик H4: ADC1_IN5, ADC2_IN5, AUDIOCLK, OCTOSPIM_P2_NCS, OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD, SPI3_RDY, TAMP_IN2, TAMP_OUT1, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTSPA0VDD — шарик H5VDDPB2 — шарик H6: ADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA, LPTIM1_CH1, LTDC_B1, MDF1_CKI0, OCTOSPIM_P1_DQS, PWR_WKUP1, RTC_OUT2, SPI1_RDY, TIM8_CH4N, UCPD1_FRSTX1PB2VDD — шарик H7VDDPE8 — шарик H8: FMC_D5, FMC_DA5, LTDC_B7, MDF1_CKI2, PWR_WKUP7, SAI1_SCK_B, TIM1_CH1NPE8PD15 — шарик H9: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1, FMC_DA1, LPTIM3_CH2, LTDC_B3, TIM4_CH4, USART6_DE, USART6_RTSPD15VSS — шарик H10VSSPH12 — шарик H11: DCMI_D3, HSPI1_IO2, OCTOSPIM_P2_IO7, PSSI_D3, TIM5_CH3, TIM8_CH4NPH12PH13 — шарик H12: HSPI1_IO3, TIM8_CH1NPH13PH1-OSC_OUT — шарик J1: RCC_OSC_OUTPH1NRST — шарик J2NRSTVSSA — шарик J3VSSAVDDA — шарик J4VDDAPB0 — шарик J5: ADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK, COMP1_OUT, LPTIM3_CH1, OCTOSPIM_P1_IO1, OPAMP2_VOUT, SPI1_NSS, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, USART3_CKPB0PG1 — шарик J6: ADC4_IN8, FMC_A11, OCTOSPIM_P2_IO5, TSC_G8_IO4PG1PE10 — шарик J7: ADF1_SDI0, FMC_D7, FMC_DA7, LTDC_G3, MDF1_SDI4, OCTOSPIM_P1_CLK, SAI1_MCLK_B, TIM1_CH2N, TSC_G5_IO1PE10PE12 — шарик J8: FMC_D9, FMC_DA9, LTDC_G5, MDF1_SDI5, OCTOSPIM_P1_IO0, SPI1_NSS, TIM1_CH3N, TSC_G5_IO3PE12VDD11 — шарик J9VDD11VDD — шарик J10VDDPH11 — шарик J11: ADC1_EXTI11, ADC2_EXTI11, DCMI_D2, HSPI1_IO1, OCTOSPIM_P2_IO6, PSSI_D2, TIM5_CH2PH11PH10 — шарик J12: DCMI_D1, HSPI1_IO0, OCTOSPIM_P2_IO5, PSSI_D1, TIM5_CH1PH10PC1 — шарик K1: ADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0, I2C3_SDA, LPTIM1_CH1, LPUART1_TX, MDF1_CKI4, OCTOSPIM_P1_IO4, SAI1_SD_A, SDMMC2_CK, SPI2_MOSI, USART6_CKPC1PC0 — шарик K2: ADC1_IN1, ADC2_IN1, ADC4_IN1, GFXTIM_FCKCAL, GFXTIM_LCKCAL, I2C3_SCL, LPTIM1_IN1, LPTIM2_IN1, LPUART1_RX, MDF1_SDI4, OCTOSPIM_P1_IO7, SAI2_FS_A, SDMMC1_D5, SPI2_RDY, USART6_CTSPC0PA1 — шарик K3: ADC1_IN6, ADC2_IN6, I2C1_SMBA, LPTIM1_CH2, OCTOSPIM_P1_DQS, OPAMP1_VINM, PWR_WKUP3, SPI1_SCK, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PA5 — шарик K4: ADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR, PSSI_D14, PWR_CSLEEP, PWR_WKUP6, SPI1_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USART3_RXPA5PG0 — шарик K5: ADC4_IN7, FMC_A10, OCTOSPIM_P2_IO4, TSC_G8_IO3PG0PE9 — шарик K6: ADF1_CCK0, DAC1_EXTI9, FMC_D6, FMC_DA6, LTDC_G2, MDF1_CCK0, OCTOSPIM_P1_NCLK, SAI1_FS_B, TIM1_CH1PE9PE14 — шарик K7: FMC_D11, FMC_DA11, GFXTIM_LCKCAL, LTDC_G7, OCTOSPIM_P1_IO2, SPI1_MISO, TIM1_BKIN2, TIM1_CH4PE14PB10 — шарик K8: COMP1_OUT, I2C2_SCL, I2C4_SCL, LPTIM3_CH1, LPUART1_RX, OCTOSPIM_P1_CLK, PWR_WKUP8, SAI1_SCK_A, SPI2_SCK, TIM2_CH3, TSC_SYNC, USART3_TXPB10PD13 — шарик K9: ADC4_IN17, FMC_A18, GFXTIM_TE, I2C4_SDA, LPTIM2_CH1, LPTIM4_IN1, LTDC_VSYNC, TIM4_CH2, TSC_G6_IO4, USART6_CTSPD13PD9 — шарик K10: DAC1_EXTI9, DCMI_PIXCLK, FMC_D14, FMC_DA14, LPTIM2_IN2, LPTIM3_IN1, LTDC_R4, PSSI_PDCK, SAI2_MCLK_A, USART3_RXPD9PD12 — шарик K11: ADC4_IN16, FMC_A17, FMC_ALE, I2C4_SCL, LPTIM2_IN1, LTDC_R7, SAI2_FS_A, TIM4_CH1, TSC_G6_IO3, USART3_DE, USART3_RTSPD12PH9 — шарик K12: DAC1_EXTI9, DCMI_D0, HSPI1_NCS, I2C3_SMBA, OCTOSPIM_P2_IO4, PSSI_D0PH9PC3 — шарик L1: ADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR, LPTIM2_ETR, LPTIM3_CH1, OCTOSPIM_P1_IO6, SAI1_D1, SAI1_SD_A, SPI2_MOSI, USART6_TXPC3PA2 — шарик L2: ADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX, OCTOSPIM_P1_NCS, PWR_WKUP4, RCC_LSCO, SPI1_RDY, TIM15_CH1, TIM2_CH3, TIM5_CH3, UCPD1_FRSTX1, USART2_TXPA2PA4 — шарик L3: ADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC, LPTIM2_CH1, OCTOSPIM_P1_NCS, PSSI_DE, PWR_WKUP2, SAI1_FS_B, SPI1_NSS, SPI3_NSS, USART2_CKPA4PA7 — шарик L4: ADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL, LPTIM2_CH2, OCTOSPIM_P1_IO2, OPAMP2_VINM, PWR_SRDSTOP, PWR_WKUP8, SPI1_MOSI, TIM17_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART3_TXPA7PE7 — шарик L5: FMC_D4, FMC_DA4, LTDC_B6, MDF1_SDI2, PWR_WKUP6, SAI1_SD_B, TIM1_ETRPE7PE13 — шарик L6: FMC_D10, FMC_DA10, LTDC_G6, MDF1_CKI5, OCTOSPIM_P1_IO1, SPI1_SCK, TIM1_CH3, TSC_G5_IO4PE13PB11 — шарик L7: ADC1_EXTI11, ADC2_EXTI11, COMP2_OUT, I2C2_SDA, I2C4_SDA, LPUART1_TX, OCTOSPIM_P1_NCS, SPI2_RDY, TIM2_CH4, USART3_RXPB11VSSSMPS — шарик L8VSSSMPSPD11 — шарик L9: ADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_ETR, LTDC_R6, SAI2_SD_A, TSC_G6_IO2, USART3_CTSPD11PB14 — шарик L10: I2C2_SDA, LPTIM3_ETR, MDF1_SDI2, SAI2_MCLK_A, SDMMC2_D0, SPI2_MISO, TIM15_CH1, TIM1_CH2N, TIM8_CH2N, TSC_G1_IO3, UCPD1_DBCC2, USART3_DE, USART3_RTSPB14PD10 — шарик L11: FMC_D15, FMC_DA15, I2C5_SMBA, LPTIM2_CH2, LPTIM3_ETR, LTDC_R5, SAI2_SCK_A, TSC_G6_IO1, USART3_CKPD10PD14 — шарик L12: FMC_D0, FMC_DA0, LPTIM3_CH1, LTDC_B2, TIM4_CH3, USART6_CKPD14VSS — шарик M1VSSPA3 — шарик M2: ADC1_IN8, ADC2_IN8, LPUART1_RX, OCTOSPIM_P1_CLK, OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3PA6 — шарик M3: ADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK, LPUART1_CTS, OCTOSPIM_P1_IO3, OPAMP2_VINP, PSSI_PDCK, PWR_CDSTOP, PWR_WKUP7, SPI1_MISO, TIM16_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART3_CTSPA6PB1 — шарик M4: ADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1, LPTIM3_CH2, LPUART1_DE, LPUART1_RTS, MDF1_SDI0, OCTOSPIM_P1_IO0, PWR_WKUP4, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USART3_DE, USART3_RTSPB1PE11 — шарик M5: ADC1_EXTI11, ADC2_EXTI11, FMC_D8, FMC_DA8, LTDC_G4, MDF1_CKI4, OCTOSPIM_P1_NCS, SPI1_RDY, TIM1_CH2, TSC_G5_IO2PE11PE15 — шарик M6: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12, FMC_DA12, GFXTIM_FCKCAL, GFXTIM_LCKCAL, LTDC_R2, OCTOSPIM_P1_IO3, SPI1_MOSI, TIM1_BKIN, TIM1_CH4NPE15VLXSMPS — шарик M7VLXSMPSVDDSMPS — шарик M8VDDSMPSPB15 — шарик M9: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DSIHOST_TE, FMC_NBL1, GFXTIM_TE, LPTIM2_IN2, MDF1_CKI2, PWR_WKUP7, RTC_REFIN, SAI2_SD_A, SDMMC2_D1, SPI2_MOSI, TIM15_CH2, TIM1_CH3N, TIM8_CH3N, UCPD1_CC2PB15PB13 — шарик M10: I2C2_SCL, LPTIM3_IN1, LPUART1_CTS, MDF1_CKI1, SAI2_SCK_A, SPI2_SCK, TIM15_CH1N, TIM1_CH1N, TSC_G1_IO2, USART3_CTSPB13PD8 — шарик M11: DCMI_HSYNC, FMC_D13, FMC_DA13, LTDC_R3, PSSI_DE, USART3_TXPD8VSS — шарик M12VSSUFBGA144, вид сверху: шарики видны сквозь корпус, A1 — в левомверхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

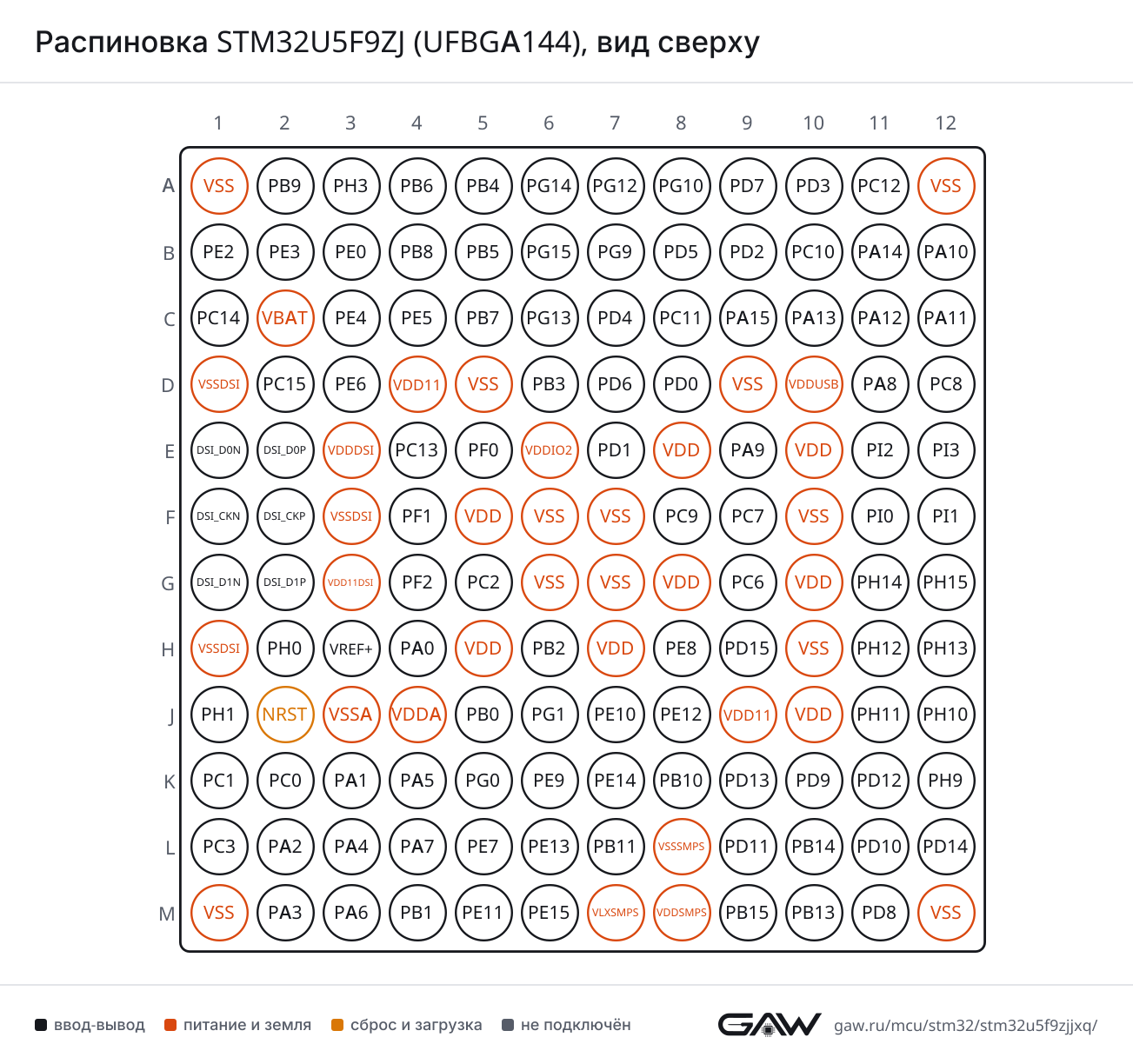

Распиновка STM32U5F9ZJ (UFBGA144), вид сверхуРаспиновка UFBGA144 картинкой
PNG, 1303 × 1224 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPB5 (B5, AF7), PG13 (C6, AF7), PA8 (D11, AF7)
CTSPB4 (NJTRST) (A5, AF7), PA11 (C12, AF7)
DEPG12 (A7, AF7), PA12 (C11, AF7), PB3 (JTDO/TRACESWO) (D6, AF7)
RTSPG12 (A7, AF7), PA12 (C11, AF7), PB3 (JTDO/TRACESWO) (D6, AF7)
RXPG10 (A8, AF7), PA10 (B12, AF7), PB7 (C5, AF7)
TXPB6 (A4, AF7), PG9 (B7, AF7), PA9 (E9, AF7)
USART2CKPD7 (A9, AF7), PA4 (L3, AF7)
CTSPD3 (A10, AF7), PA0 (H4, AF7)
DEPD4 (C7, AF7), PA1 (K3, AF7)
RTSPD4 (C7, AF7), PA1 (K3, AF7)
RXPA15 (JTDI) (C9, AF3), PD6 (D7, AF7), PA3 (M2, AF7)
TXPD5 (B8, AF7), PA2 (L2, AF7)
USART3CKPC12 (A11, AF7), PB0 (J5, AF7), PD10 (L11, AF7)
CTSPD11 (L9, AF7), PA6 (M3, AF7), PB13 (M10, AF7)
DEPD2 (B9, AF7), PA15 (JTDI) (C9, AF7), PD12 (K11, AF7), PB14 (L10, AF7), PB1 (M4, AF7)
RTSPD2 (B9, AF7), PA15 (JTDI) (C9, AF7), PD12 (K11, AF7), PB14 (L10, AF7), PB1 (M4, AF7)
RXPC11 (C8, AF7), PA5 (K4, AF7), PD9 (K10, AF7), PB11 (L7, AF7)
TXPC10 (B10, AF7), PB10 (K8, AF7), PA7 (L4, AF7), PD8 (M11, AF7)
USART6CKPE2 (B1, AF7), PF2 (G4, AF7), PC1 (K1, AF7), PD14 (L12, AF7)
CTSPE3 (B2, AF7), PC0 (K2, AF7), PD13 (K9, AF7)
DEPE4 (C3, AF7), PD15 (H9, AF7)
RTSPE4 (C3, AF7), PD15 (H9, AF7)
RXPE0 (B3, AF7), PC8 (D12, AF7), PF1 (F4, AF7), PC2 (G5, AF7)
TXPF0 (E5, AF7), PC9 (F8, AF7), PC3 (L1, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB7 (C5, AF8)
DEPA15 (JTDI) (C9, AF8)
RTSPA15 (JTDI) (C9, AF8)
RXPC11 (C8, AF8), PA1 (K3, AF8)
TXPC10 (B10, AF8), PA0 (H4, AF8)
UART5CTSPB5 (B5, AF8)
DEPB4 (NJTRST) (A5, AF8)
RTSPB4 (NJTRST) (A5, AF8)
RXPD2 (B9, AF8)
TXPC12 (A11, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA6 (M3, AF8), PB13 (M10, AF8)
DEPB1 (M4, AF8)
RTSPB1 (M4, AF8)
RXPC0 (K2, AF8), PB10 (K8, AF8), PA3 (M2, AF8)
TXPC1 (K1, AF8), PA2 (L2, AF8), PB11 (L7, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4 (NJTRST) (A5, AF5), PA11 (C12, AF5), PE14 (K7, AF5), PA6 (M3, AF5)
MOSIPB5 (B5, AF5), PA12 (C11, AF5), PA7 (L4, AF5), PE15 (M6, AF5)
NSSPA15 (JTDI) (C9, AF5), PB0 (J5, AF5), PE12 (J8, AF5), PA4 (L3, AF5)
RDYPA8 (D11, AF5), PB2 (H6, AF5), PA2 (L2, AF5), PE11 (M5, AF5)
SCKPB3 (JTDO/TRACESWO) (D6, AF5), PA1 (K3, AF5), PA5 (K4, AF5), PE13 (L6, AF5)
SPI2MISOPD3 (A10, AF5), PI2 (E11, AF5), PC2 (G5, AF5), PB14 (L10, AF5)
MOSIPD4 (C7, AF5), PI3 (E12, AF5), PC1 (K1, AF3), PC3 (L1, AF5), PB15 (M9, AF5)
NSSPB9 (A2, AF5), PD0 (D8, AF5), PI0 (F11, AF5)
RDYPD5 (B8, AF5), PC0 (K2, AF5), PB11 (L7, AF5)
SCKPD3 (A10, AF3), PD1 (E7, AF5), PA9 (E9, AF3), PI1 (F12, AF5), PB10 (K8, AF5), PB13 (M10, AF5)
SPI3MISOPB4 (NJTRST) (A5, AF6), PG10 (A8, AF6), PC11 (C8, AF6)
MOSIPC12 (A11, AF6), PB5 (B5, AF6), PD6 (D7, AF5)
NSSPG12 (A7, AF6), PA15 (JTDI) (C9, AF6), PA4 (L3, AF6)
RDYPB8 (B4, AF6), PG13 (C6, AF6), PA0 (H4, AF6)
SCKPG9 (B7, AF6), PC10 (B10, AF6), PB3 (JTDO/TRACESWO) (D6, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (A4, AF4), PG14 (A6, AF4), PB8 (B4, AF4)
SDAPB9 (A2, AF4), PB7 (C5, AF4), PG13 (C6, AF4), PB3 (JTDO/TRACESWO) (D6, AF4)
SMBAPB5 (B5, AF4), PG15 (B6, AF4), PA14 (JTCK/SWCLK) (B11, AF4), PA1 (K3, AF4)
I2C2SCLPF1 (F4, AF4), PB10 (K8, AF4), PB13 (M10, AF4)
SDAPF0 (E5, AF4), PB11 (L7, AF4), PB14 (L10, AF4)
SMBAPF2 (G4, AF4)
I2C3SCLPC0 (K2, AF4), PA7 (L4, AF4)
SDAPB4 (NJTRST) (A5, AF4), PC1 (K1, AF4)
SMBAPB2 (H6, AF4), PH9 (K12, AF4)
I2C4SCLPB6 (A4, AF5), PB10 (K8, AF3), PD12 (K11, AF4)
SDAPB7 (C5, AF5), PD13 (K9, AF4), PB11 (L7, AF3)
SMBAPA14 (JTCK/SWCLK) (B11, AF5), PD11 (L9, AF4)
I2C5SCLPD1 (E7, AF4)
SDAPD0 (D8, AF4)
SMBAPD2 (B9, AF4), PD10 (L11, AF4)
I2C6SCLPD1 (E7, AF2), PF1 (F4, AF2)
SDAPD0 (D8, AF2), PF0 (E5, AF2)
SMBAPD3 (A10, AF2)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPA11 (C12)
DPPA12 (C11)
IDPA10 (B12, AF10)
SOFPA14 (JTCK/SWCLK) (B11, AF10), PA8 (D11, AF10)
VBUSPA9 (E9)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PA15 (JTDI) (C9)
CC2PB15 (M9)
DBCC1PB5 (B5)
DBCC2PB14 (L10)
FRSTX1PB2 (H6, AF11), PA2 (L2, AF11)
FRSTX2PC11 (C8, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (A2, AF8)
CKPC12 (A11, AF12)
CKINPB8 (B4, AF8)
CMDPD2 (B9, AF12)
D0PC8 (D12, AF12)
D0DIRPC6 (G9, AF8)
D1PC9 (F8, AF12)
D2PC10 (B10, AF12)
D3PC11 (C8, AF12)
D4PB8 (B4, AF12)
D5PB9 (A2, AF12), PC0 (K2, AF12)
D6PC6 (G9, AF12)
D7PC7 (F9, AF12)
D123DIRPC7 (F9, AF8)
SDMMC2CKPD6 (D7, AF11), PC1 (K1, AF12)
CMDPD7 (A9, AF11), PA0 (H4, AF12)
D0PB14 (L10, AF12)
D1PA8 (D11, AF8), PB15 (M9, AF12)
D2PB3 (JTDO/TRACESWO) (D6, AF12)
D3PB4 (NJTRST) (A5, AF12)
D4PB8 (B4, AF11)
D5PB9 (A2, AF11)
D6PC6 (G9, AF11)
D7PC7 (F9, AF11)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (B1, AF3), PB8 (B4, AF3), PA3 (M2, AF3)
CK2PE5 (C4, AF3), PA8 (D11, AF3)
D1PA10 (B12, AF3), PE6 (D3, AF3), PD6 (D7, AF3), PC3 (L1, AF3)
D2PB9 (A2, AF3), PE4 (C3, AF3)
FS_APB9 (A2, AF13), PE4 (C3, AF13), PA9 (E9, AF13)
FS_BPB6 (A4, AF13), PA14 (JTCK/SWCLK) (B11, AF13), PE9 (K6, AF13), PA4 (L3, AF13)
MCLK_APE2 (B1, AF13), PB8 (B4, AF13), PA3 (M2, AF13)
MCLK_BPB4 (NJTRST) (A5, AF13), PE10 (J7, AF13)
SCK_APE5 (C4, AF13), PA8 (D11, AF13), PB10 (K8, AF13)
SCK_BPB3 (JTDO/TRACESWO) (D6, AF13), PE8 (H8, AF13)
SD_APA10 (B12, AF13), PE6 (D3, AF13), PD6 (D7, AF13), PC1 (K1, AF13), PC3 (L1, AF13)
SD_BPE3 (B2, AF13), PB5 (B5, AF13), PA13 (JTMS/SWDIO) (C10, AF13), PE7 (L5, AF13)
SAI2FS_APG10 (A8, AF13), PC0 (K2, AF13), PD12 (K11, AF13)
FS_BPA15 (JTDI) (C9, AF13)
MCLK_APC6 (G9, AF13), PD9 (K10, AF13), PB14 (L10, AF13)
MCLK_BPC11 (C8, AF13), PC7 (F9, AF13)
SCK_APG9 (B7, AF13), PD10 (L11, AF13), PB13 (M10, AF13)
SCK_BPC10 (B10, AF13)
SD_APG12 (A7, AF13), PD11 (L9, AF13), PB15 (M9, AF13)
SD_BPC12 (A11, AF13)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (C8), PA11 (C12), PH11 (J11), PB11 (L7), PD11 (L9), PE11 (M5)
EXTI15PG15 (B6), PA15 (JTDI) (C9), PC15-OSC32_OUT (D2), PH15 (G12), PD15 (H9), PE15 (M6), PB15 (M9)
IN1PC0 (K2)
IN2PC1 (K1)
IN3PC2 (G5)
IN4PC3 (L1)
IN5PA0 (H4)
IN6PA1 (K3)
IN7PA2 (L2)
IN8PA3 (M2)
IN9PA4 (L3)
IN10PA5 (K4)
IN11PA6 (M3)
IN12PA7 (L4)
IN15PB0 (J5)
IN16PB1 (M4)
IN17PB2 (H6)
ADC2EXTI11PC11 (C8), PA11 (C12), PH11 (J11), PB11 (L7), PD11 (L9), PE11 (M5)
EXTI15PG15 (B6), PA15 (JTDI) (C9), PC15-OSC32_OUT (D2), PH15 (G12), PD15 (H9), PE15 (M6), PB15 (M9)
IN1PC0 (K2)
IN2PC1 (K1)
IN3PC2 (G5)
IN4PC3 (L1)
IN5PA0 (H4)
IN6PA1 (K3)
IN7PA2 (L2)
IN8PA3 (M2)
IN9PA4 (L3)
IN10PA5 (K4)
IN11PA6 (M3)
IN12PA7 (L4)
IN15PB0 (J5)
IN16PB1 (M4)
IN17PB2 (H6)
ADC4EXTI15PG15 (B6), PA15 (JTDI) (C9), PC15-OSC32_OUT (D2), PH15 (G12), PD15 (H9), PE15 (M6), PB15 (M9)
IN1PC0 (K2)
IN2PC1 (K1)
IN3PC2 (G5)
IN4PC3 (L1)
IN7PG0 (K5)
IN8PG1 (J6)
IN9PA4 (L3)
IN10PA5 (K4)
IN11PA6 (M3)
IN15PD11 (L9)
IN16PD12 (K11)
IN17PD13 (K9)
IN18PB0 (J5)
IN19PB1 (M4)
IN20PA7 (L4)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (A2), PG9 (B7), PA9 (E9), PC9 (F8), PE9 (K6), PD9 (K10), PH9 (K12)
OUT1PA4 (L3)
OUT2PA5 (K4)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPB1 (M4)
INPPB2 (H6), PA2 (L2)
OUTPB0 (J5, AF12), PB10 (K8, AF12)
COMP2INMPB7 (C5), PB3 (JTDO/TRACESWO) (D6)
INPPB6 (A4), PB4 (NJTRST) (A5)
OUTPB5 (B5, AF12), PB11 (L7, AF12)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA1 (K3)
VINPPA0 (H4)
VOUTPA3 (M2)
OPAMP2VINMPA7 (L4)
VINPPA6 (M3)
VOUTPB0 (J5)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (H3)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (M3, AF1), PE15 (M6, AF1)
BKIN2PA11 (C12, AF2), PE14 (K7, AF2)
CH1PA8 (D11, AF1), PE9 (K6, AF1)
CH1NPE8 (H8, AF1), PA7 (L4, AF1), PB13 (M10, AF1)
CH2PA9 (E9, AF1), PE11 (M5, AF1)
CH2NPB0 (J5, AF1), PE10 (J7, AF1), PB14 (L10, AF1)
CH3PA10 (B12, AF1), PE13 (L6, AF1)
CH3NPE12 (J8, AF1), PB1 (M4, AF1), PB15 (M9, AF1)
CH4PA11 (C12, AF1), PE14 (K7, AF1)
CH4NPE15 (M6, AF3)
ETRPA12 (C11, AF1), PE7 (L5, AF1)
TIM2CH1PA15 (JTDI) (C9, AF1), PA0 (H4, AF1), PA5 (K4, AF1)
CH2PB3 (JTDO/TRACESWO) (D6, AF1), PA1 (K3, AF1)
CH3PB10 (K8, AF1), PA2 (L2, AF1)
CH4PB11 (L7, AF1), PA3 (M2, AF1)
ETRPA15 (JTDI) (C9, AF2), PA0 (H4, AF14), PA5 (K4, AF2)
TIM3CH1PB4 (NJTRST) (A5, AF2), PE3 (B2, AF2), PC6 (G9, AF2), PA6 (M3, AF2)
CH2PB5 (B5, AF2), PE4 (C3, AF2), PC7 (F9, AF2), PA7 (L4, AF2)
CH3PE5 (C4, AF2), PC8 (D12, AF2), PB0 (J5, AF2)
CH4PE6 (D3, AF2), PC9 (F8, AF2), PB1 (M4, AF2)
ETRPE2 (B1, AF2), PD2 (B9, AF2)
TIM4CH1PB6 (A4, AF2), PD12 (K11, AF2)
CH2PB7 (C5, AF2), PD13 (K9, AF2)
CH3PB8 (B4, AF2), PD14 (L12, AF2)
CH4PB9 (A2, AF2), PD15 (H9, AF2)
ETRPE0 (B3, AF2)
TIM5CH1PA0 (H4, AF2), PH10 (J12, AF2)
CH2PH11 (J11, AF2), PA1 (K3, AF2)
CH3PH12 (H11, AF2), PA2 (L2, AF2)
CH4PI0 (F11, AF2), PA3 (M2, AF2)
TIM8BKINPB7 (C5, AF3), PA6 (M3, AF3)
BKIN2PB6 (A4, AF3), PC9 (F8, AF1)
CH1PC6 (G9, AF3)
CH1NPH13 (H12, AF3), PA5 (K4, AF3), PA7 (L4, AF3)
CH2PC7 (F9, AF3)
CH2NPH14 (G11, AF3), PB0 (J5, AF3), PB14 (L10, AF3)
CH3PC8 (D12, AF3)
CH3NPH15 (G12, AF3), PB1 (M4, AF3), PB15 (M9, AF3)
CH4PI2 (E11, AF3), PC9 (F8, AF3)
CH4NPD0 (D8, AF3), PB2 (H6, AF3), PH12 (H11, AF3)
ETRPI3 (E12, AF3), PA0 (H4, AF3)
TIM15BKINPA9 (E9, AF14)
CH1PG10 (A8, AF14), PA2 (L2, AF14), PB14 (L10, AF14)
CH1NPG9 (B7, AF14), PA1 (K3, AF14), PB13 (M10, AF14)
CH2PA3 (M2, AF14), PB15 (M9, AF14)
TIM16BKINPB5 (B5, AF14)
CH1PE0 (B3, AF14), PB8 (B4, AF14), PA6 (M3, AF14)
CH1NPB6 (A4, AF14)
TIM17BKINPB4 (NJTRST) (A5, AF14), PA10 (B12, AF14)
CH1PB9 (A2, AF14), PA7 (L4, AF14)
CH1NPB7 (C5, AF14)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PG15 (B6, AF1), PA14 (JTCK/SWCLK) (B11, AF1), PB3 (JTDO/TRACESWO) (D6, AF2), PB2 (H6, AF1), PC1 (K1, AF1)
CH2PB4 (NJTRST) (A5, AF1), PG14 (A6, AF1), PA1 (K3, AF0)
ETRPB6 (A4, AF1), PG12 (A7, AF1), PC3 (L1, AF1)
IN1PG10 (A8, AF1), PB5 (B5, AF1), PC0 (K2, AF1)
IN2PB7 (C5, AF1), PC2 (G5, AF1)
LPTIM2CH1PA8 (D11, AF14), PD13 (K9, AF14), PA4 (L3, AF14)
CH2PC7 (F9, AF14), PA7 (L4, AF13), PD10 (L11, AF2)
ETRPA5 (K4, AF14), PC3 (L1, AF14), PD11 (L9, AF14)
IN1PC0 (K2, AF14), PD12 (K11, AF14), PB1 (M4, AF14)
IN2PA10 (B12, AF2), PD9 (K10, AF2), PB15 (M9, AF2)
LPTIM3CH1PC8 (D12, AF14), PB0 (J5, AF4), PB10 (K8, AF2), PC3 (L1, AF2), PD14 (L12, AF14)
CH2PC9 (F8, AF14), PF2 (G4, AF2), PD15 (H9, AF14), PB1 (M4, AF4)
ETRPC10 (B10, AF2), PB14 (L10, AF2), PD10 (L11, AF14)
IN1PC11 (C8, AF2), PD9 (K10, AF14), PB13 (M10, AF2)
LPTIM4ETRPD2 (B9, AF13)
IN1PD13 (K9, AF13)
OUTPD7 (A9, AF13)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (E4)
OUT2PB2 (H6)
REFINPB15 (M9, AF0)
TSPC13 (E4)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (E5, AF12)
A1PF1 (F4, AF12)
A2PF2 (G4, AF12)
A10PG0 (K5, AF12)
A11PG1 (J6, AF12)
A16PD11 (L9, AF12)
A17PD12 (K11, AF12)
A18PD13 (K9, AF12)
A19PE3 (B2, AF12)
A20PD2 (B9, AF14), PE4 (C3, AF12)
A21PE5 (C4, AF12)
A22PE6 (D3, AF12)
A23PE2 (B1, AF12)
A24PG13 (C6, AF12)
A25PG14 (A6, AF12)
ALEPD12 (K11, AF12)
CLEPD11 (L9, AF12)
CLKPD3 (A10, AF12)
D0PD14 (L12, AF12)
D1PD15 (H9, AF12)
D2PD0 (D8, AF12)
D3PD1 (E7, AF12)
D4PE7 (L5, AF12)
D5PE8 (H8, AF12)
D6PE9 (K6, AF12)
D7PE10 (J7, AF12)
D8PE11 (M5, AF12)
D9PE12 (J8, AF12)
D10PE13 (L6, AF12)
D11PE14 (K7, AF12)
D12PE15 (M6, AF12)
D13PD8 (M11, AF12)
D14PD9 (K10, AF12)
D15PD10 (L11, AF12)
DA0PD14 (L12, AF12)
DA1PD15 (H9, AF12)
DA2PD0 (D8, AF12)
DA3PD1 (E7, AF12)
DA4PE7 (L5, AF12)
DA5PE8 (H8, AF12)
DA6PE9 (K6, AF12)
DA7PE10 (J7, AF12)
DA8PE11 (M5, AF12)
DA9PE12 (J8, AF12)
DA10PE13 (L6, AF12)
DA11PE14 (K7, AF12)
DA12PE15 (M6, AF12)
DA13PD8 (M11, AF12)
DA14PD9 (K10, AF12)
DA15PD10 (L11, AF12)
NBL0PE0 (B3, AF12)
NBL1PB15 (M9, AF11)
NCEPD7 (A9, AF12), PG9 (B7, AF12)
NE1PD7 (A9, AF12)
NE2PG9 (B7, AF12)
NE3PG10 (A8, AF12)
NE4PG12 (A7, AF12)
NLPB7 (C5, AF12)
NOEPD4 (C7, AF12)
NWAITPD6 (D7, AF12)
NWEPD5 (B8, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (E9, AF5), PC6 (G9, AF10), PH9 (K12, AF10)
D1PA10 (B12, AF5), PC7 (F9, AF10), PH10 (J12, AF10)
D2PE0 (B3, AF10), PC11 (C8, AF4), PC8 (D12, AF10), PH11 (J11, AF10)
D3PC9 (F8, AF4), PH12 (H11, AF10)
D4PE4 (C3, AF10), PC11 (C8, AF10), PH14 (G11, AF10)
D5PB6 (A4, AF10), PD3 (A10, AF4)
D6PB8 (B4, AF10), PE5 (C4, AF10)
D7PB9 (A2, AF10), PE6 (D3, AF10)
D8PC10 (B10, AF10), PI1 (F12, AF10)
D9PC12 (A11, AF10), PI2 (E11, AF10)
D10PB5 (B5, AF10), PD6 (D7, AF4), PI3 (E12, AF10)
D11PD2 (B9, AF10), PH15 (G12, AF10)
D12PB4 (NJTRST) (A5, AF10)
D13PG15 (B6, AF10), PI0 (F11, AF10)
HSYNCPA4 (L3, AF10), PD8 (M11, AF10)
PIXCLKPD9 (K10, AF10), PA6 (M3, AF4)
VSYNCPB7 (C5, AF10)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (E9, AF5), PC6 (G9, AF10), PH9 (K12, AF10)
D1PA10 (B12, AF5), PC7 (F9, AF10), PH10 (J12, AF10)
D2PE0 (B3, AF10), PC11 (C8, AF4), PC8 (D12, AF10), PH11 (J11, AF10)
D3PC9 (F8, AF4), PH12 (H11, AF10)
D4PE4 (C3, AF10), PC11 (C8, AF10), PH14 (G11, AF10)
D5PB6 (A4, AF10), PD3 (A10, AF4)
D6PB8 (B4, AF10), PE5 (C4, AF10)
D7PB9 (A2, AF10), PE6 (D3, AF10)
D8PC10 (B10, AF10), PI1 (F12, AF10)
D9PC12 (A11, AF10), PI2 (E11, AF10)
D10PB5 (B5, AF10), PD6 (D7, AF4), PI3 (E12, AF10)
D11PD2 (B9, AF10), PH15 (G12, AF10)
D12PB4 (NJTRST) (A5, AF10)
D13PG15 (B6, AF10), PI0 (F11, AF10)
D14PA5 (K4, AF4)
DEPA4 (L3, AF10), PD8 (M11, AF10)
PDCKPD9 (K10, AF10), PA6 (M3, AF4)
RDYPB7 (C5, AF10)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PB9 (A2, AF7), PE4 (C3, AF8)
B1PB8 (B4, AF7), PB2 (H6, AF8)
B2PD14 (L12, AF8)
B3PD15 (H9, AF8)
B4PD0 (D8, AF8)
B5PD1 (E7, AF8)
B6PE7 (L5, AF8)
B7PE8 (H8, AF8)
CLKPD3 (A10, AF8)
DEPD6 (D7, AF8)
G0PE5 (C4, AF8), PC8 (D12, AF8)
G1PE6 (D3, AF8), PC9 (F8, AF8)
G2PE9 (K6, AF8)
G3PE10 (J7, AF8)
G4PE11 (M5, AF8)
G5PE12 (J8, AF8)
G6PE13 (L6, AF8)
G7PE14 (K7, AF8)
HSYNCPE0 (B3, AF8)
R0PE2 (B1, AF8), PG13 (C6, AF8), PC6 (G9, AF7)
R1PG14 (A6, AF8), PE3 (B2, AF8), PC7 (F9, AF7)
R2PE15 (M6, AF8)
R3PD8 (M11, AF8)
R4PD9 (K10, AF8)
R5PD10 (L11, AF8)
R6PD11 (L9, AF8)
R7PD12 (K11, AF8)
VSYNCPD13 (K9, AF8)

DSI — хост MIPI DSI

БлокСигналВыводы
DSIHOSTCKNDSI_CKN (F1)
CKPDSI_CKP (F2)
D0NDSI_D0N (E1)
D0PDSI_D0P (E2)
D1NDSI_D1N (G1)
D1PDSI_D1P (G2)
TEPB7 (C5, AF11), PB15 (M9, AF10)

TSC — контроллер сенсорных кнопок

БлокСигналВыводы
TSCG1_IO2PB13 (M10, AF9)
G1_IO3PB14 (L10, AF9)
G2_IO1PB4 (NJTRST) (A5, AF9)
G2_IO2PB5 (B5, AF9)
G2_IO3PB6 (A4, AF9)
G2_IO4PB7 (C5, AF9)
G3_IO2PC10 (B10, AF9)
G3_IO3PC11 (C8, AF9)
G3_IO4PC12 (A11, AF9)
G4_IO1PC6 (G9, AF9)
G4_IO2PC7 (F9, AF9)
G4_IO3PC8 (D12, AF9)
G4_IO4PC9 (F8, AF9)
G5_IO1PE10 (J7, AF9)
G5_IO2PE11 (M5, AF9)
G5_IO3PE12 (J8, AF9)
G5_IO4PE13 (L6, AF9)
G6_IO1PD10 (L11, AF9)
G6_IO2PD11 (L9, AF9)
G6_IO3PD12 (K11, AF9)
G6_IO4PD13 (K9, AF9)
G7_IO1PE2 (B1, AF9)
G7_IO2PE3 (B2, AF9)
G7_IO3PE4 (C3, AF9)
G7_IO4PE5 (C4, AF9)
G8_IO3PG0 (K5, AF9)
G8_IO4PG1 (J6, AF9)
SYNCPD2 (B9, AF9), PB10 (K8, AF9)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PB8 (B4, AF5), PE9 (K6, AF6)
CCK1PC2 (G5, AF6)
CKI0PD4 (C7, AF6), PB2 (H6, AF6)
CKI1PD7 (A9, AF6), PB13 (M10, AF6)
CKI2PE8 (H8, AF6), PB15 (M9, AF6)
CKI3PE5 (C4, AF6), PC6 (G9, AF6)
CKI4PC1 (K1, AF6), PE11 (M5, AF6)
CKI5PB7 (C5, AF6), PE13 (L6, AF6)
SDI0PD3 (A10, AF6), PB1 (M4, AF6)
SDI1PD6 (D7, AF6)
SDI2PE7 (L5, AF6), PB14 (L10, AF6)
SDI3PE4 (C3, AF6), PC7 (F9, AF6)
SDI4PE10 (J7, AF6), PC0 (K2, AF6)
SDI5PB6 (A4, AF6), PE12 (J8, AF6)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PB3 (JTDO/TRACESWO) (D6, AF3), PE9 (K6, AF3)
CCK1PC10 (B10, AF3)
SDI0PB4 (NJTRST) (A5, AF3), PC11 (C8, AF3), PE10 (J7, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (B11, AF0)
JTDIPA15 (JTDI) (C9, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (D6, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (C10, AF0)
NJTRSTPB4 (NJTRST) (A5, AF0)
TRACECLKPE2 (B1, AF0), PA8 (D11, AF12)
TRACED0PE3 (B2, AF0), PC9 (F8, AF0), PC1 (K1, AF0)
TRACED1PC10 (B10, AF0), PE4 (C3, AF0)
TRACED2PD2 (B9, AF0), PE5 (C4, AF0)
TRACED3PC12 (A11, AF0), PE6 (D3, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPA2 (L2)
MCOPA8 (D11, AF0)
OSC_INPH0-OSC_IN (H2)
OSC_OUTPH1-OSC_OUT (J1)
OSC32_INPC14-OSC32_IN (C1)
OSC32_OUTPC15-OSC32_OUT (D2)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC6 (G9, AF0), PA5 (K4, AF0)
PWR_WKUP1PE4 (C3), PA0 (H4), PB2 (H6)
PWR_WKUP2PE5 (C4), PC13 (E4), PA4 (L3)
PWR_WKUP3PB6 (A4), PE6 (D3), PA1 (K3)
PWR_WKUP4PB7 (C5), PA2 (L2), PB1 (M4)
PWR_WKUP5PB8 (B4), PA3 (M2)
PWR_WKUP6PB5 (B5), PA5 (K4), PE7 (L5)
PWR_WKUP7PE8 (H8), PA6 (M3), PB15 (M9)
PWR_WKUP8PF2 (G4), PB10 (K8), PA7 (L4)
TAMP_IN1PC13 (E4)
TAMP_IN2PA0 (H4)
TAMP_IN3PE6 (D3)
TAMP_IN5PA1 (K3)
TAMP_IN6PE3 (B2)
TAMP_IN7PE4 (C3)
TAMP_IN8PE5 (C4)
TAMP_OUT1PA0 (H4)
TAMP_OUT2PC13 (E4)
TAMP_OUT3PE3 (B2)
TAMP_OUT4PA1 (K3)
TAMP_OUT6PE6 (D3)
TAMP_OUT7PE5 (C4)
TAMP_OUT8PE4 (C3)

Блоки без собственных выводов: OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), IRTIM (формирователь ИК-сигнала), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 144 шарика корпуса UFBGA144 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1VSSпитание—
A2PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF10), I2C1_SDA (AF4), IR_OUT (AF1), LTDC_B0 (AF7), PSSI_D7 (AF10), SAI1_D2 (AF3), SAI1_FS_A (AF13), SDMMC1_CDIR (AF8), SDMMC1_D5 (AF12), SDMMC2_D5 (AF11), SPI2_NSS (AF5), TIM17_CH1 (AF14), TIM4_CH4 (AF2)
A3PH3-BOOT0ввод-вывод—
A4PB6ввод-выводCOMP2_INP, DCMI_D5 (AF10), I2C1_SCL (AF4), I2C4_SCL (AF5), LPTIM1_ETR (AF1), MDF1_SDI5 (AF6), PSSI_D5 (AF10), PWR_WKUP3, SAI1_FS_B (AF13), TIM16_CH1N (AF14), TIM4_CH1 (AF2), TIM8_BKIN2 (AF3), TSC_G2_IO3 (AF9), USART1_TX (AF7)
A5PB4 (NJTRST)ввод-выводADF1_SDI0 (AF3), COMP2_INP, DCMI_D12 (AF10), DEBUG_NJTRST (AF0), I2C3_SDA (AF4), LPTIM1_CH2 (AF1), PSSI_D12 (AF10), SAI1_MCLK_B (AF13), SDMMC2_D3 (AF12), SPI1_MISO (AF5), SPI3_MISO (AF6), TIM17_BKIN (AF14), TIM3_CH1 (AF2), TSC_G2_IO1 (AF9), UART5_DE (AF8), UART5_RTS (AF8), USART1_CTS (AF7)
A6PG14ввод-выводFMC_A25 (AF12), I2C1_SCL (AF4), LPTIM1_CH2 (AF1), LTDC_R1 (AF8)
A7PG12ввод-выводFMC_NE4 (AF12), LPTIM1_ETR (AF1), OCTOSPIM_P2_NCS (AF5), SAI2_SD_A (AF13), SPI3_NSS (AF6), USART1_DE (AF7), USART1_RTS (AF7)
A8PG10ввод-выводFMC_NE3 (AF12), LPTIM1_IN1 (AF1), OCTOSPIM_P2_IO7 (AF5), SAI2_FS_A (AF13), SPI3_MISO (AF6), TIM15_CH1 (AF14), USART1_RX (AF7)
A9PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF5), LPTIM4_OUT (AF13), MDF1_CKI1 (AF6), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), USART2_CK (AF7)
A10PD3ввод-выводDCMI_D5 (AF4), FMC_CLK (AF12), I2C6_SMBA (AF2), LTDC_CLK (AF8), MDF1_SDI0 (AF6), OCTOSPIM_P2_NCS (AF10), PSSI_D5 (AF4), SPI2_MISO (AF5), SPI2_SCK (AF3), USART2_CTS (AF7)
A11PC12ввод-выводDCMI_D9 (AF10), DEBUG_TRACED3 (AF0), PSSI_D9 (AF10), SAI2_SD_B (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), TSC_G3_IO4 (AF9), UART5_TX (AF8), USART3_CK (AF7)
A12VSSпитание—
B1PE2ввод-выводDEBUG_TRACECLK (AF0), FMC_A23 (AF12), LTDC_R0 (AF8), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM3_ETR (AF2), TSC_G7_IO1 (AF9), USART6_CK (AF7)
B2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), LTDC_R1 (AF8), OCTOSPIM_P1_DQS (AF3), SAI1_SD_B (AF13), TAMP_IN6, TAMP_OUT3, TIM3_CH1 (AF2), TSC_G7_IO2 (AF9), USART6_CTS (AF7)
B3PE0ввод-выводDCMI_D2 (AF10), FMC_NBL0 (AF12), LTDC_HSYNC (AF8), PSSI_D2 (AF10), TIM16_CH1 (AF14), TIM4_ETR (AF2), USART6_RX (AF7)
B4PB8ввод-выводDCMI_D6 (AF10), I2C1_SCL (AF4), LTDC_B1 (AF7), MDF1_CCK0 (AF5), PSSI_D6 (AF10), PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), SDMMC1_CKIN (AF8), SDMMC1_D4 (AF12), SDMMC2_D4 (AF11), SPI3_RDY (AF6), TIM16_CH1 (AF14), TIM4_CH3 (AF2)
B5PB5ввод-выводCOMP2_OUT (AF12), DCMI_D10 (AF10), I2C1_SMBA (AF4), LPTIM1_IN1 (AF1), OCTOSPIM_P1_NCLK (AF3), PSSI_D10 (AF10), PWR_WKUP6, SAI1_SD_B (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF6), TIM16_BKIN (AF14), TIM3_CH2 (AF2), TSC_G2_IO2 (AF9), UART5_CTS (AF8), UCPD1_DBCC1, USART1_CK (AF7)
B6PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13 (AF10), I2C1_SMBA (AF4), LPTIM1_CH1 (AF1), OCTOSPIM_P2_DQS (AF5), PSSI_D13 (AF10)
B7PG9ввод-выводDAC1_EXTI9, FMC_NCE (AF12), FMC_NE2 (AF12), OCTOSPIM_P2_IO6 (AF5), SAI2_SCK_A (AF13), SPI3_SCK (AF6), TIM15_CH1N (AF14), USART1_TX (AF7)
B8PD5ввод-выводFMC_NWE (AF12), OCTOSPIM_P1_IO5 (AF10), SPI2_RDY (AF5), USART2_TX (AF7)
B9PD2ввод-выводDCMI_D11 (AF10), DEBUG_TRACED2 (AF0), FMC_A20 (AF14), I2C5_SMBA (AF4), LPTIM4_ETR (AF13), PSSI_D11 (AF10), SDMMC1_CMD (AF12), TIM3_ETR (AF2), TSC_SYNC (AF9), UART5_RX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
B10PC10ввод-выводADF1_CCK1 (AF3), DCMI_D8 (AF10), DEBUG_TRACED1 (AF0), LPTIM3_ETR (AF2), PSSI_D8 (AF10), SAI2_SCK_B (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), TSC_G3_IO2 (AF9), UART4_TX (AF8), USART3_TX (AF7)
B11PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF5), LPTIM1_CH1 (AF1), SAI1_FS_B (AF13), USB_OTG_HS_SOF (AF10)
B12PA10ввод-выводCRS_SYNC (AF0), DCMI_D1 (AF5), LPTIM2_IN2 (AF2), PSSI_D1 (AF5), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM17_BKIN (AF14), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_HS_ID (AF10)
C1PC14-OSC32_INввод-выводRCC_OSC32_IN
C2VBATпитание—
C3PE4ввод-выводDCMI_D4 (AF10), DEBUG_TRACED1 (AF0), FMC_A20 (AF12), LTDC_B0 (AF8), MDF1_SDI3 (AF6), PSSI_D4 (AF10), PWR_WKUP1, SAI1_D2 (AF3), SAI1_FS_A (AF13), TAMP_IN7, TAMP_OUT8, TIM3_CH2 (AF2), TSC_G7_IO3 (AF9), USART6_DE (AF7), USART6_RTS (AF7)
C4PE5ввод-выводDCMI_D6 (AF10), DEBUG_TRACED2 (AF0), FMC_A21 (AF12), LTDC_G0 (AF8), MDF1_CKI3 (AF6), PSSI_D6 (AF10), PWR_WKUP2, SAI1_CK2 (AF3), SAI1_SCK_A (AF13), TAMP_IN8, TAMP_OUT7, TIM3_CH3 (AF2), TSC_G7_IO4 (AF9)
C5PB7ввод-выводCOMP2_INM, DCMI_VSYNC (AF10), DSIHOST_TE (AF11), FMC_NL (AF12), GFXTIM_TE (AF11), I2C1_SDA (AF4), I2C4_SDA (AF5), LPTIM1_IN2 (AF1), MDF1_CKI5 (AF6), PSSI_RDY (AF10), PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N (AF14), TIM4_CH2 (AF2), TIM8_BKIN (AF3), TSC_G2_IO4 (AF9), UART4_CTS (AF8), USART1_RX (AF7)
C6PG13ввод-выводFMC_A24 (AF12), I2C1_SDA (AF4), LTDC_R0 (AF8), SPI3_RDY (AF6), USART1_CK (AF7)
C7PD4ввод-выводFMC_NOE (AF12), MDF1_CKI0 (AF6), OCTOSPIM_P1_IO4 (AF10), SPI2_MOSI (AF5), USART2_DE (AF7), USART2_RTS (AF7)
C8PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0 (AF3), DCMI_D2 (AF4), DCMI_D4 (AF10), LPTIM3_IN1 (AF2), OCTOSPIM_P1_NCS (AF5), PSSI_D2 (AF4), PSSI_D4 (AF10), SAI2_MCLK_B (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), TSC_G3_IO3 (AF9), UART4_RX (AF8), UCPD1_FRSTX2 (AF11), USART3_RX (AF7)
C9PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI (AF0), SAI2_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC1, USART2_RX (AF3), USART3_DE (AF7), USART3_RTS (AF7)
C10PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0), IR_OUT (AF1), SAI1_SD_B (AF13)
C11PA12ввод-выводOCTOSPIM_P2_NCS (AF6), SPI1_MOSI (AF5), TIM1_ETR (AF1), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_HS_DP
C12PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1), USART1_CTS (AF7), USB_OTG_HS_DM
D1VSSDSIпитание—
D2PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUT
D3PE6ввод-выводDCMI_D7 (AF10), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF8), PSSI_D7 (AF10), PWR_WKUP3, SAI1_D1 (AF3), SAI1_SD_A (AF13), TAMP_IN3, TAMP_OUT6, TIM3_CH4 (AF2)
D4VDD11питание—
D5VSSпитание—
D6PB3 (JTDO/TRACESWO)ввод-выводADF1_CCK0 (AF3), COMP2_INM, CRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2C1_SDA (AF4), LPTIM1_CH1 (AF2), SAI1_SCK_B (AF13), SDMMC2_D2 (AF12), SPI1_SCK (AF5), SPI3_SCK (AF6), TIM2_CH2 (AF1), USART1_DE (AF7), USART1_RTS (AF7)
D7PD6ввод-выводDCMI_D10 (AF4), FMC_NWAIT (AF12), LTDC_DE (AF8), MDF1_SDI1 (AF6), OCTOSPIM_P1_IO6 (AF10), PSSI_D10 (AF4), SAI1_D1 (AF3), SAI1_SD_A (AF13), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
D8PD0ввод-выводFMC_D2 (AF12), FMC_DA2 (AF12), I2C5_SDA (AF4), I2C6_SDA (AF2), LTDC_B4 (AF8), SPI2_NSS (AF5), TIM8_CH4N (AF3)
D9VSSпитание—
D10VDDUSBпитание—
D11PA8ввод-выводDEBUG_TRACECLK (AF12), GFXTIM_FCKCAL (AF11), GFXTIM_LCKCAL (AF2), LPTIM2_CH1 (AF14), RCC_MCO (AF0), SAI1_CK2 (AF3), SAI1_SCK_A (AF13), SDMMC2_D1 (AF8), SPI1_RDY (AF5), TIM1_CH1 (AF1), USART1_CK (AF7), USB_OTG_HS_SOF (AF10)
D12PC8ввод-выводDCMI_D2 (AF10), LPTIM3_CH1 (AF14), LTDC_G0 (AF8), PSSI_D2 (AF10), PWR_SRDSTOP (AF0), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), TSC_G4_IO3 (AF9), USART6_RX (AF7)
E1DSI_D0NслужебныйDSIHOST_D0N
E2DSI_D0PслужебныйDSIHOST_D0P
E3VDDDSIпитание—
E4PC13ввод-выводPWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2
E5PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), I2C6_SDA (AF2), OCTOSPIM_P2_IO0 (AF5), USART6_TX (AF7)
E6VDDIO2питание—
E7PD1ввод-выводFMC_D3 (AF12), FMC_DA3 (AF12), I2C5_SCL (AF4), I2C6_SCL (AF2), LTDC_B5 (AF8), SPI2_SCK (AF5)
E8VDDпитание—
E9PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF5), PSSI_D0 (AF5), SAI1_FS_A (AF13), SPI2_SCK (AF3), TIM15_BKIN (AF14), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_HS_VBUS
E10VDDпитание—
E11PI2ввод-выводDCMI_D9 (AF10), HSPI1_DQS0 (AF8), OCTOSPIM_P2_IO1 (AF6), PSSI_D9 (AF10), SPI2_MISO (AF5), TIM8_CH4 (AF3)
E12PI3ввод-выводDCMI_D10 (AF10), HSPI1_CLK (AF8), OCTOSPIM_P2_IO0 (AF6), PSSI_D10 (AF10), SPI2_MOSI (AF5), TIM8_ETR (AF3)
F1DSI_CKNслужебныйDSIHOST_CKN
F2DSI_CKPслужебныйDSIHOST_CKP
F3VSSDSIпитание—
F4PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), I2C6_SCL (AF2), OCTOSPIM_P2_IO1 (AF5), USART6_RX (AF7)
F5VDDпитание—
F6VSSпитание—
F7VSSпитание—
F8PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF4), DEBUG_TRACED0 (AF0), LPTIM3_CH2 (AF14), LTDC_G1 (AF8), PSSI_D3 (AF4), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_BKIN2 (AF1), TIM8_CH4 (AF3), TSC_G4_IO4 (AF9), USART6_TX (AF7)
F9PC7ввод-выводDCMI_D1 (AF10), LPTIM2_CH2 (AF14), LTDC_R1 (AF7), MDF1_SDI3 (AF6), PSSI_D1 (AF10), PWR_CDSTOP (AF0), SAI2_MCLK_B (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), TSC_G4_IO2 (AF9)
F10VSSпитание—
F11PI0ввод-выводDCMI_D13 (AF10), HSPI1_IO6 (AF8), OCTOSPIM_P1_IO5 (AF3), PSSI_D13 (AF10), SPI2_NSS (AF5), TIM5_CH4 (AF2)
F12PI1ввод-выводDCMI_D8 (AF10), HSPI1_IO7 (AF8), OCTOSPIM_P2_IO2 (AF6), PSSI_D8 (AF10), SPI2_SCK (AF5)
G1DSI_D1NслужебныйDSIHOST_D1N
G2DSI_D1PслужебныйDSIHOST_D1P
G3VDD11DSIпитание—
G4PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), OCTOSPIM_P2_IO2 (AF5), PWR_WKUP8, USART6_CK (AF7)
G5PC2ввод-выводADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2 (AF1), MDF1_CCK1 (AF6), OCTOSPIM_P1_IO5 (AF10), SPI2_MISO (AF5), USART6_RX (AF7)
G6VSSпитание—
G7VSSпитание—
G8VDDпитание—
G9PC6ввод-выводDCMI_D0 (AF10), LTDC_R0 (AF7), MDF1_CKI3 (AF6), PSSI_D0 (AF10), PWR_CSLEEP (AF0), SAI2_MCLK_A (AF13), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF11), TIM3_CH1 (AF2), TIM8_CH1 (AF3), TSC_G4_IO1 (AF9)
G10VDDпитание—
G11PH14ввод-выводDCMI_D4 (AF10), HSPI1_IO4 (AF8), PSSI_D4 (AF10), TIM8_CH2N (AF3)
G12PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D11 (AF10), HSPI1_IO5 (AF8), OCTOSPIM_P2_IO6 (AF5), PSSI_D11 (AF10), TIM8_CH3N (AF3)
H1VSSDSIпитание—
H2PH0-OSC_INввод-выводRCC_OSC_IN
H3VREF+служебныйVREFBUF_OUT
H4PA0ввод-выводADC1_IN5, ADC2_IN5, AUDIOCLK (AF13), OCTOSPIM_P2_NCS (AF10), OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD (AF12), SPI3_RDY (AF6), TAMP_IN2, TAMP_OUT1, TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7)
H5VDDпитание—
H6PB2ввод-выводADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA (AF4), LPTIM1_CH1 (AF1), LTDC_B1 (AF8), MDF1_CKI0 (AF6), OCTOSPIM_P1_DQS (AF10), PWR_WKUP1, RTC_OUT2, SPI1_RDY (AF5), TIM8_CH4N (AF3), UCPD1_FRSTX1 (AF11)
H7VDDпитание—
H8PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), LTDC_B7 (AF8), MDF1_CKI2 (AF6), PWR_WKUP7, SAI1_SCK_B (AF13), TIM1_CH1N (AF1)
H9PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LPTIM3_CH2 (AF14), LTDC_B3 (AF8), TIM4_CH4 (AF2), USART6_DE (AF7), USART6_RTS (AF7)
H10VSSпитание—
H11PH12ввод-выводDCMI_D3 (AF10), HSPI1_IO2 (AF8), OCTOSPIM_P2_IO7 (AF5), PSSI_D3 (AF10), TIM5_CH3 (AF2), TIM8_CH4N (AF3)
H12PH13ввод-выводHSPI1_IO3 (AF8), TIM8_CH1N (AF3)
J1PH1-OSC_OUTввод-выводRCC_OSC_OUT
J2NRSTсброс—
J3VSSAпитание—
J4VDDAпитание—
J5PB0ввод-выводADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK (AF13), COMP1_OUT (AF12), LPTIM3_CH1 (AF4), OCTOSPIM_P1_IO1 (AF10), OPAMP2_VOUT, SPI1_NSS (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), USART3_CK (AF7)
J6PG1ввод-выводADC4_IN8, FMC_A11 (AF12), OCTOSPIM_P2_IO5 (AF5), TSC_G8_IO4 (AF9)
J7PE10ввод-выводADF1_SDI0 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), LTDC_G3 (AF8), MDF1_SDI4 (AF6), OCTOSPIM_P1_CLK (AF10), SAI1_MCLK_B (AF13), TIM1_CH2N (AF1), TSC_G5_IO1 (AF9)
J8PE12ввод-выводFMC_D9 (AF12), FMC_DA9 (AF12), LTDC_G5 (AF8), MDF1_SDI5 (AF6), OCTOSPIM_P1_IO0 (AF10), SPI1_NSS (AF5), TIM1_CH3N (AF1), TSC_G5_IO3 (AF9)
J9VDD11питание—
J10VDDпитание—
J11PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D2 (AF10), HSPI1_IO1 (AF8), OCTOSPIM_P2_IO6 (AF5), PSSI_D2 (AF10), TIM5_CH2 (AF2)
J12PH10ввод-выводDCMI_D1 (AF10), HSPI1_IO0 (AF8), OCTOSPIM_P2_IO5 (AF5), PSSI_D1 (AF10), TIM5_CH1 (AF2)
K1PC1ввод-выводADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0 (AF0), I2C3_SDA (AF4), LPTIM1_CH1 (AF1), LPUART1_TX (AF8), MDF1_CKI4 (AF6), OCTOSPIM_P1_IO4 (AF10), SAI1_SD_A (AF13), SDMMC2_CK (AF12), SPI2_MOSI (AF3), USART6_CK (AF7)
K2PC0ввод-выводADC1_IN1, ADC2_IN1, ADC4_IN1, GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF11), I2C3_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF14), LPUART1_RX (AF8), MDF1_SDI4 (AF6), OCTOSPIM_P1_IO7 (AF3), SAI2_FS_A (AF13), SDMMC1_D5 (AF12), SPI2_RDY (AF5), USART6_CTS (AF7)
K3PA1ввод-выводADC1_IN6, ADC2_IN6, I2C1_SMBA (AF4), LPTIM1_CH2 (AF0), OCTOSPIM_P1_DQS (AF10), OPAMP1_VINM, PWR_WKUP3, SPI1_SCK (AF5), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF14), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
K4PA5ввод-выводADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR (AF14), PSSI_D14 (AF4), PWR_CSLEEP (AF0), PWR_WKUP6, SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM8_CH1N (AF3), USART3_RX (AF7)
K5PG0ввод-выводADC4_IN7, FMC_A10 (AF12), OCTOSPIM_P2_IO4 (AF5), TSC_G8_IO3 (AF9)
K6PE9ввод-выводADF1_CCK0 (AF3), DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), LTDC_G2 (AF8), MDF1_CCK0 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI1_FS_B (AF13), TIM1_CH1 (AF1)
K7PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), GFXTIM_LCKCAL (AF13), LTDC_G7 (AF8), OCTOSPIM_P1_IO2 (AF10), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1)
K8PB10ввод-выводCOMP1_OUT (AF12), I2C2_SCL (AF4), I2C4_SCL (AF3), LPTIM3_CH1 (AF2), LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), PWR_WKUP8, SAI1_SCK_A (AF13), SPI2_SCK (AF5), TIM2_CH3 (AF1), TSC_SYNC (AF9), USART3_TX (AF7)
K9PD13ввод-выводADC4_IN17, FMC_A18 (AF12), GFXTIM_TE (AF5), I2C4_SDA (AF4), LPTIM2_CH1 (AF14), LPTIM4_IN1 (AF13), LTDC_VSYNC (AF8), TIM4_CH2 (AF2), TSC_G6_IO4 (AF9), USART6_CTS (AF7)
K10PD9ввод-выводDAC1_EXTI9, DCMI_PIXCLK (AF10), FMC_D14 (AF12), FMC_DA14 (AF12), LPTIM2_IN2 (AF2), LPTIM3_IN1 (AF14), LTDC_R4 (AF8), PSSI_PDCK (AF10), SAI2_MCLK_A (AF13), USART3_RX (AF7)
K11PD12ввод-выводADC4_IN16, FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), LPTIM2_IN1 (AF14), LTDC_R7 (AF8), SAI2_FS_A (AF13), TIM4_CH1 (AF2), TSC_G6_IO3 (AF9), USART3_DE (AF7), USART3_RTS (AF7)
K12PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF10), HSPI1_NCS (AF8), I2C3_SMBA (AF4), OCTOSPIM_P2_IO4 (AF5), PSSI_D0 (AF10)
L1PC3ввод-выводADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR (AF1), LPTIM2_ETR (AF14), LPTIM3_CH1 (AF2), OCTOSPIM_P1_IO6 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), SPI2_MOSI (AF5), USART6_TX (AF7)
L2PA2ввод-выводADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), PWR_WKUP4, RCC_LSCO, SPI1_RDY (AF5), TIM15_CH1 (AF14), TIM2_CH3 (AF1), TIM5_CH3 (AF2), UCPD1_FRSTX1 (AF11), USART2_TX (AF7)
L3PA4ввод-выводADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC (AF10), LPTIM2_CH1 (AF14), OCTOSPIM_P1_NCS (AF3), PSSI_DE (AF10), PWR_WKUP2, SAI1_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), USART2_CK (AF7)
L4PA7ввод-выводADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL (AF4), LPTIM2_CH2 (AF13), OCTOSPIM_P1_IO2 (AF10), OPAMP2_VINM, PWR_SRDSTOP (AF0), PWR_WKUP8, SPI1_MOSI (AF5), TIM17_CH1 (AF14), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART3_TX (AF7)
L5PE7ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), LTDC_B6 (AF8), MDF1_SDI2 (AF6), PWR_WKUP6, SAI1_SD_B (AF13), TIM1_ETR (AF1)
L6PE13ввод-выводFMC_D10 (AF12), FMC_DA10 (AF12), LTDC_G6 (AF8), MDF1_CKI5 (AF6), OCTOSPIM_P1_IO1 (AF10), SPI1_SCK (AF5), TIM1_CH3 (AF1), TSC_G5_IO4 (AF9)
L7PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, COMP2_OUT (AF12), I2C2_SDA (AF4), I2C4_SDA (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), SPI2_RDY (AF5), TIM2_CH4 (AF1), USART3_RX (AF7)
L8VSSSMPSпитание—
L9PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_ETR (AF14), LTDC_R6 (AF8), SAI2_SD_A (AF13), TSC_G6_IO2 (AF9), USART3_CTS (AF7)
L10PB14ввод-выводI2C2_SDA (AF4), LPTIM3_ETR (AF2), MDF1_SDI2 (AF6), SAI2_MCLK_A (AF13), SDMMC2_D0 (AF12), SPI2_MISO (AF5), TIM15_CH1 (AF14), TIM1_CH2N (AF1), TIM8_CH2N (AF3), TSC_G1_IO3 (AF9), UCPD1_DBCC2, USART3_DE (AF7), USART3_RTS (AF7)
L11PD10ввод-выводFMC_D15 (AF12), FMC_DA15 (AF12), I2C5_SMBA (AF4), LPTIM2_CH2 (AF2), LPTIM3_ETR (AF14), LTDC_R5 (AF8), SAI2_SCK_A (AF13), TSC_G6_IO1 (AF9), USART3_CK (AF7)
L12PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LPTIM3_CH1 (AF14), LTDC_B2 (AF8), TIM4_CH3 (AF2), USART6_CK (AF7)
M1VSSпитание—
M2PA3ввод-выводADC1_IN8, ADC2_IN8, LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM15_CH2 (AF14), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
M3PA6ввод-выводADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK (AF4), LPUART1_CTS (AF8), OCTOSPIM_P1_IO3 (AF10), OPAMP2_VINP, PSSI_PDCK (AF4), PWR_CDSTOP (AF0), PWR_WKUP7, SPI1_MISO (AF5), TIM16_CH1 (AF14), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART3_CTS (AF7)
M4PB1ввод-выводADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1 (AF14), LPTIM3_CH2 (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI0 (AF6), OCTOSPIM_P1_IO0 (AF10), PWR_WKUP4, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USART3_DE (AF7), USART3_RTS (AF7)
M5PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G4 (AF8), MDF1_CKI4 (AF6), OCTOSPIM_P1_NCS (AF10), SPI1_RDY (AF5), TIM1_CH2 (AF1), TSC_G5_IO2 (AF9)
M6PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), GFXTIM_FCKCAL (AF13), GFXTIM_LCKCAL (AF2), LTDC_R2 (AF8), OCTOSPIM_P1_IO3 (AF10), SPI1_MOSI (AF5), TIM1_BKIN (AF1), TIM1_CH4N (AF3)
M7VLXSMPSпитание—
M8VDDSMPSпитание—
M9PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DSIHOST_TE (AF10), FMC_NBL1 (AF11), GFXTIM_TE (AF10), LPTIM2_IN2 (AF2), MDF1_CKI2 (AF6), PWR_WKUP7, RTC_REFIN (AF0), SAI2_SD_A (AF13), SDMMC2_D1 (AF12), SPI2_MOSI (AF5), TIM15_CH2 (AF14), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UCPD1_CC2
M10PB13ввод-выводI2C2_SCL (AF4), LPTIM3_IN1 (AF2), LPUART1_CTS (AF8), MDF1_CKI1 (AF6), SAI2_SCK_A (AF13), SPI2_SCK (AF5), TIM15_CH1N (AF14), TIM1_CH1N (AF1), TSC_G1_IO2 (AF9), USART3_CTS (AF7)
M11PD8ввод-выводDCMI_HSYNC (AF10), FMC_D13 (AF12), FMC_DA13 (AF12), LTDC_R3 (AF8), PSSI_DE (AF10), USART3_TX (AF7)
M12VSSпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATC2резервное питание: часы реального времени и резервные регистры
VDDE8, E10, F5, G8, G10, H5, H7, J10питание цифровой части и линий ввода-вывода
VDD11D4, J9—
VDD11DSIG3—
VDDAJ4питание аналоговой части: АЦП, ЦАП, генераторы
VDDDSIE3питание блока DSI
VDDIO2E6питание отдельной группы линий ввода-вывода
VDDSMPSM8—
VDDUSBD10питание приёмопередатчика USB
VLXSMPSM7—
VSSA1, A12, D5, D9, F6, F7, F10, G6, G7, H10, M1, M12общий провод (земля)
VSSAJ3общий провод аналоговой части
VSSDSID1, F3, H1общий провод блока DSI
VSSSMPSL8—
NRSTJ2сброс, активный уровень — низкий
DSI_CKNF1—
DSI_CKPF2—
DSI_D0NE1—
DSI_D0PE2—
DSI_D1NG1—
DSI_D1PG2—
VREF+H3верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32U5F9ZJJxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32U5F9ZJSTM32U5F9ZJJxQ4 МБ3026 КБ

Линейка STM32U5F9/5G9, семейство STM32U5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе UFBGA144, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32U5F9ZISTM32U5F9/5G9144 из 144выводы совпадают полностьютолько у этого: OCTOSPI2; флеш-память до 4096 и 2048 КБ
STM32U5G9ZJSTM32U5F9/5G9144 из 144выводы совпадают полностьютолько у него: AES, FDCAN1, PKA

Частые вопросы

На каких выводах USART1 у STM32U5F9ZJ?

В корпусе UFBGA144 сигнал USART1_TX выведен на PB6 (шарик A4, AF7) или PG9 (шарик B7, AF7) или PA9 (шарик E9, AF7), USART1_RX — на PG10 (шарик A8, AF7) или PA10 (шарик B12, AF7) или PB7 (шарик C5, AF7).

Где у STM32U5F9ZJ выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик C10, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик B11, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32U5F9ZJ?

I2C1_SCL — PB6 (шарик A4, AF4) или PG14 (шарик A6, AF4) или PB8 (шарик B4, AF4), I2C1_SDA — PB9 (шарик A2, AF4) или PB7 (шарик C5, AF4) или PG13 (шарик C6, AF4) или PB3 (JTDO/TRACESWO) (шарик D6, AF4).

Сколько выводов ввода-вывода у STM32U5F9ZJ в корпусе UFBGA144?

101 из 144. Ещё 35 выводов заняты питанием и землёй, остальные 8 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
