STM32U5F9ZJ в корпусе LQFP144: распиновка

STM32U5F9ZJ — микроконтроллер STM32U5 на ядре Cortex-M33: 4 МБ флеш-памяти и 3026 КБ ОЗУ. Корпус LQFP144 — 144 вывода, из них 101 линия ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
4 МБ
ОЗУ
3026 КБ
Корпус
LQFP144, 144 вывода
Линий ввода-вывода
101

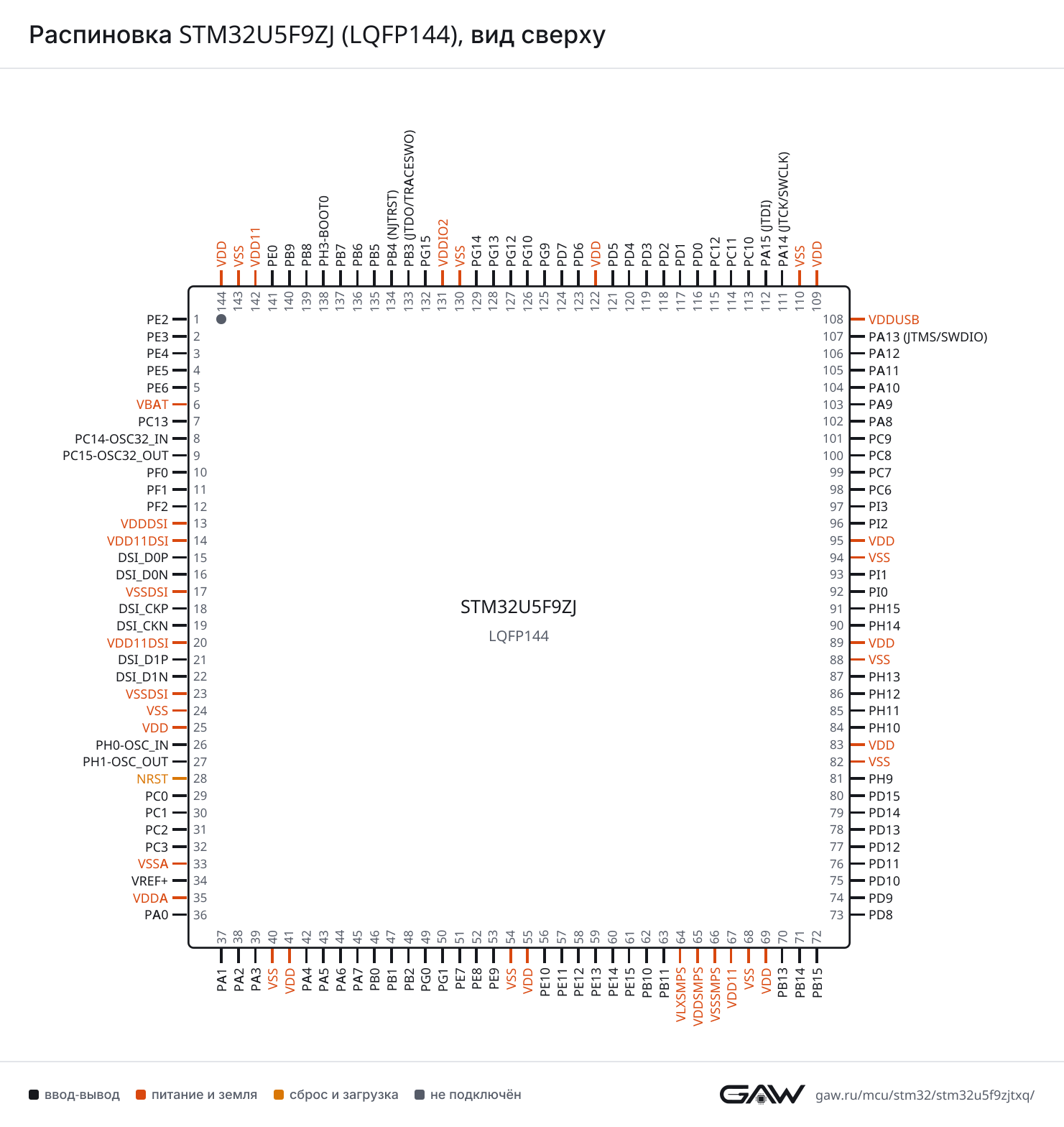

Схема корпуса LQFP144

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Распиновка STM32U5F9ZJ в корпусе LQFP144, вид сверхуSTM32U5F9ZJLQFP144, вид сверхуPE2 — вывод 1: DEBUG_TRACECLK, FMC_A23, LTDC_R0, SAI1_CK1, SAI1_MCLK_A, TIM3_ETR, TSC_G7_IO1, USART6_CK1PE2PE3 — вывод 2: DEBUG_TRACED0, FMC_A19, LTDC_R1, OCTOSPIM_P1_DQS, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM3_CH1, TSC_G7_IO2, USART6_CTS2PE3PE4 — вывод 3: DCMI_D4, DEBUG_TRACED1, FMC_A20, LTDC_B0, MDF1_SDI3, PSSI_D4, PWR_WKUP1, SAI1_D2, SAI1_FS_A, TAMP_IN7, TAMP_OUT8, TIM3_CH2, TSC_G7_IO3, USART6_DE, USART6_RTS3PE4PE5 — вывод 4: DCMI_D6, DEBUG_TRACED2, FMC_A21, LTDC_G0, MDF1_CKI3, PSSI_D6, PWR_WKUP2, SAI1_CK2, SAI1_SCK_A, TAMP_IN8, TAMP_OUT7, TIM3_CH3, TSC_G7_IO44PE5PE6 — вывод 5: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, PSSI_D7, PWR_WKUP3, SAI1_D1, SAI1_SD_A, TAMP_IN3, TAMP_OUT6, TIM3_CH45PE6VBAT — вывод 66VBATPC13 — вывод 7: PWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT27PC13PC14-OSC32_IN — вывод 8: RCC_OSC32_IN8PC14-OSC32_INPC15-OSC32_OUT — вывод 9: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUT9PC15-OSC32_OUTPF0 — вывод 10: FMC_A0, I2C2_SDA, I2C6_SDA, OCTOSPIM_P2_IO0, USART6_TX10PF0PF1 — вывод 11: FMC_A1, I2C2_SCL, I2C6_SCL, OCTOSPIM_P2_IO1, USART6_RX11PF1PF2 — вывод 12: FMC_A2, I2C2_SMBA, LPTIM3_CH2, OCTOSPIM_P2_IO2, PWR_WKUP8, USART6_CK12PF2VDDDSI — вывод 1313VDDDSIVDD11DSI — вывод 1414VDD11DSIDSI_D0P — вывод 15: DSIHOST_D0P15DSI_D0PDSI_D0N — вывод 16: DSIHOST_D0N16DSI_D0NVSSDSI — вывод 1717VSSDSIDSI_CKP — вывод 18: DSIHOST_CKP18DSI_CKPDSI_CKN — вывод 19: DSIHOST_CKN19DSI_CKNVDD11DSI — вывод 2020VDD11DSIDSI_D1P — вывод 21: DSIHOST_D1P21DSI_D1PDSI_D1N — вывод 22: DSIHOST_D1N22DSI_D1NVSSDSI — вывод 2323VSSDSIVSS — вывод 2424VSSVDD — вывод 2525VDDPH0-OSC_IN — вывод 26: RCC_OSC_IN26PH0-OSC_INPH1-OSC_OUT — вывод 27: RCC_OSC_OUT27PH1-OSC_OUTNRST — вывод 2828NRSTPC0 — вывод 29: ADC1_IN1, ADC2_IN1, ADC4_IN1, GFXTIM_FCKCAL, GFXTIM_LCKCAL, I2C3_SCL, LPTIM1_IN1, LPTIM2_IN1, LPUART1_RX, MDF1_SDI4, OCTOSPIM_P1_IO7, SAI2_FS_A, SDMMC1_D5, SPI2_RDY, USART6_CTS29PC0PC1 — вывод 30: ADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0, I2C3_SDA, LPTIM1_CH1, LPUART1_TX, MDF1_CKI4, OCTOSPIM_P1_IO4, SAI1_SD_A, SDMMC2_CK, SPI2_MOSI, USART6_CK30PC1PC2 — вывод 31: ADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2, MDF1_CCK1, OCTOSPIM_P1_IO5, SPI2_MISO, USART6_RX31PC2PC3 — вывод 32: ADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR, LPTIM2_ETR, LPTIM3_CH1, OCTOSPIM_P1_IO6, SAI1_D1, SAI1_SD_A, SPI2_MOSI, USART6_TX32PC3VSSA — вывод 3333VSSAVREF+ — вывод 34: VREFBUF_OUT34VREF+VDDA — вывод 3535VDDAPA0 — вывод 36: ADC1_IN5, ADC2_IN5, AUDIOCLK, OCTOSPIM_P2_NCS, OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD, SPI3_RDY, TAMP_IN2, TAMP_OUT1, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS36PA0PA1 — вывод 37: ADC1_IN6, ADC2_IN6, I2C1_SMBA, LPTIM1_CH2, OCTOSPIM_P1_DQS, OPAMP1_VINM, PWR_WKUP3, SPI1_SCK, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTS37PA1PA2 — вывод 38: ADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX, OCTOSPIM_P1_NCS, PWR_WKUP4, RCC_LSCO, SPI1_RDY, TIM15_CH1, TIM2_CH3, TIM5_CH3, UCPD1_FRSTX1, USART2_TX38PA2PA3 — вывод 39: ADC1_IN8, ADC2_IN8, LPUART1_RX, OCTOSPIM_P1_CLK, OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX39PA3VSS — вывод 4040VSSVDD — вывод 4141VDDPA4 — вывод 42: ADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC, LPTIM2_CH1, OCTOSPIM_P1_NCS, PSSI_DE, PWR_WKUP2, SAI1_FS_B, SPI1_NSS, SPI3_NSS, USART2_CK42PA4PA5 — вывод 43: ADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR, PSSI_D14, PWR_CSLEEP, PWR_WKUP6, SPI1_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USART3_RX43PA5PA6 — вывод 44: ADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK, LPUART1_CTS, OCTOSPIM_P1_IO3, OPAMP2_VINP, PSSI_PDCK, PWR_CDSTOP, PWR_WKUP7, SPI1_MISO, TIM16_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART3_CTS44PA6PA7 — вывод 45: ADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL, LPTIM2_CH2, OCTOSPIM_P1_IO2, OPAMP2_VINM, PWR_SRDSTOP, PWR_WKUP8, SPI1_MOSI, TIM17_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART3_TX45PA7PB0 — вывод 46: ADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK, COMP1_OUT, LPTIM3_CH1, OCTOSPIM_P1_IO1, OPAMP2_VOUT, SPI1_NSS, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, USART3_CK46PB0PB1 — вывод 47: ADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1, LPTIM3_CH2, LPUART1_DE, LPUART1_RTS, MDF1_SDI0, OCTOSPIM_P1_IO0, PWR_WKUP4, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USART3_DE, USART3_RTS47PB1PB2 — вывод 48: ADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA, LPTIM1_CH1, LTDC_B1, MDF1_CKI0, OCTOSPIM_P1_DQS, PWR_WKUP1, RTC_OUT2, SPI1_RDY, TIM8_CH4N, UCPD1_FRSTX148PB2PG0 — вывод 49: ADC4_IN7, FMC_A10, OCTOSPIM_P2_IO4, TSC_G8_IO349PG0PG1 — вывод 50: ADC4_IN8, FMC_A11, OCTOSPIM_P2_IO5, TSC_G8_IO450PG1PE7 — вывод 51: FMC_D4, FMC_DA4, LTDC_B6, MDF1_SDI2, PWR_WKUP6, SAI1_SD_B, TIM1_ETR51PE7PE8 — вывод 52: FMC_D5, FMC_DA5, LTDC_B7, MDF1_CKI2, PWR_WKUP7, SAI1_SCK_B, TIM1_CH1N52PE8PE9 — вывод 53: ADF1_CCK0, DAC1_EXTI9, FMC_D6, FMC_DA6, LTDC_G2, MDF1_CCK0, OCTOSPIM_P1_NCLK, SAI1_FS_B, TIM1_CH153PE9VSS — вывод 5454VSSVDD — вывод 5555VDDPE10 — вывод 56: ADF1_SDI0, FMC_D7, FMC_DA7, LTDC_G3, MDF1_SDI4, OCTOSPIM_P1_CLK, SAI1_MCLK_B, TIM1_CH2N, TSC_G5_IO156PE10PE11 — вывод 57: ADC1_EXTI11, ADC2_EXTI11, FMC_D8, FMC_DA8, LTDC_G4, MDF1_CKI4, OCTOSPIM_P1_NCS, SPI1_RDY, TIM1_CH2, TSC_G5_IO257PE11PE12 — вывод 58: FMC_D9, FMC_DA9, LTDC_G5, MDF1_SDI5, OCTOSPIM_P1_IO0, SPI1_NSS, TIM1_CH3N, TSC_G5_IO358PE12PE13 — вывод 59: FMC_D10, FMC_DA10, LTDC_G6, MDF1_CKI5, OCTOSPIM_P1_IO1, SPI1_SCK, TIM1_CH3, TSC_G5_IO459PE13PE14 — вывод 60: FMC_D11, FMC_DA11, GFXTIM_LCKCAL, LTDC_G7, OCTOSPIM_P1_IO2, SPI1_MISO, TIM1_BKIN2, TIM1_CH460PE14PE15 — вывод 61: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12, FMC_DA12, GFXTIM_FCKCAL, GFXTIM_LCKCAL, LTDC_R2, OCTOSPIM_P1_IO3, SPI1_MOSI, TIM1_BKIN, TIM1_CH4N61PE15PB10 — вывод 62: COMP1_OUT, I2C2_SCL, I2C4_SCL, LPTIM3_CH1, LPUART1_RX, OCTOSPIM_P1_CLK, PWR_WKUP8, SAI1_SCK_A, SPI2_SCK, TIM2_CH3, TSC_SYNC, USART3_TX62PB10PB11 — вывод 63: ADC1_EXTI11, ADC2_EXTI11, COMP2_OUT, I2C2_SDA, I2C4_SDA, LPUART1_TX, OCTOSPIM_P1_NCS, SPI2_RDY, TIM2_CH4, USART3_RX63PB11VLXSMPS — вывод 6464VLXSMPSVDDSMPS — вывод 6565VDDSMPSVSSSMPS — вывод 6666VSSSMPSVDD11 — вывод 6767VDD11VSS — вывод 6868VSSVDD — вывод 6969VDDPB13 — вывод 70: I2C2_SCL, LPTIM3_IN1, LPUART1_CTS, MDF1_CKI1, SAI2_SCK_A, SPI2_SCK, TIM15_CH1N, TIM1_CH1N, TSC_G1_IO2, USART3_CTS70PB13PB14 — вывод 71: I2C2_SDA, LPTIM3_ETR, MDF1_SDI2, SAI2_MCLK_A, SDMMC2_D0, SPI2_MISO, TIM15_CH1, TIM1_CH2N, TIM8_CH2N, TSC_G1_IO3, UCPD1_DBCC2, USART3_DE, USART3_RTS71PB14PB15 — вывод 72: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DSIHOST_TE, FMC_NBL1, GFXTIM_TE, LPTIM2_IN2, MDF1_CKI2, PWR_WKUP7, RTC_REFIN, SAI2_SD_A, SDMMC2_D1, SPI2_MOSI, TIM15_CH2, TIM1_CH3N, TIM8_CH3N, UCPD1_CC272PB15PD8 — вывод 73: DCMI_HSYNC, FMC_D13, FMC_DA13, LTDC_R3, PSSI_DE, USART3_TX73PD8PD9 — вывод 74: DAC1_EXTI9, DCMI_PIXCLK, FMC_D14, FMC_DA14, LPTIM2_IN2, LPTIM3_IN1, LTDC_R4, PSSI_PDCK, SAI2_MCLK_A, USART3_RX74PD9PD10 — вывод 75: FMC_D15, FMC_DA15, I2C5_SMBA, LPTIM2_CH2, LPTIM3_ETR, LTDC_R5, SAI2_SCK_A, TSC_G6_IO1, USART3_CK75PD10PD11 — вывод 76: ADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_ETR, LTDC_R6, SAI2_SD_A, TSC_G6_IO2, USART3_CTS76PD11PD12 — вывод 77: ADC4_IN16, FMC_A17, FMC_ALE, I2C4_SCL, LPTIM2_IN1, LTDC_R7, SAI2_FS_A, TIM4_CH1, TSC_G6_IO3, USART3_DE, USART3_RTS77PD12PD13 — вывод 78: ADC4_IN17, FMC_A18, GFXTIM_TE, I2C4_SDA, LPTIM2_CH1, LPTIM4_IN1, LTDC_VSYNC, TIM4_CH2, TSC_G6_IO4, USART6_CTS78PD13PD14 — вывод 79: FMC_D0, FMC_DA0, LPTIM3_CH1, LTDC_B2, TIM4_CH3, USART6_CK79PD14PD15 — вывод 80: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1, FMC_DA1, LPTIM3_CH2, LTDC_B3, TIM4_CH4, USART6_DE, USART6_RTS80PD15PH9 — вывод 81: DAC1_EXTI9, DCMI_D0, HSPI1_NCS, I2C3_SMBA, OCTOSPIM_P2_IO4, PSSI_D081PH9VSS — вывод 8282VSSVDD — вывод 8383VDDPH10 — вывод 84: DCMI_D1, HSPI1_IO0, OCTOSPIM_P2_IO5, PSSI_D1, TIM5_CH184PH10PH11 — вывод 85: ADC1_EXTI11, ADC2_EXTI11, DCMI_D2, HSPI1_IO1, OCTOSPIM_P2_IO6, PSSI_D2, TIM5_CH285PH11PH12 — вывод 86: DCMI_D3, HSPI1_IO2, OCTOSPIM_P2_IO7, PSSI_D3, TIM5_CH3, TIM8_CH4N86PH12PH13 — вывод 87: HSPI1_IO3, TIM8_CH1N87PH13VSS — вывод 8888VSSVDD — вывод 8989VDDPH14 — вывод 90: DCMI_D4, HSPI1_IO4, PSSI_D4, TIM8_CH2N90PH14PH15 — вывод 91: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D11, HSPI1_IO5, OCTOSPIM_P2_IO6, PSSI_D11, TIM8_CH3N91PH15PI0 — вывод 92: DCMI_D13, HSPI1_IO6, OCTOSPIM_P1_IO5, PSSI_D13, SPI2_NSS, TIM5_CH492PI0PI1 — вывод 93: DCMI_D8, HSPI1_IO7, OCTOSPIM_P2_IO2, PSSI_D8, SPI2_SCK93PI1VSS — вывод 9494VSSVDD — вывод 9595VDDPI2 — вывод 96: DCMI_D9, HSPI1_DQS0, OCTOSPIM_P2_IO1, PSSI_D9, SPI2_MISO, TIM8_CH496PI2PI3 — вывод 97: DCMI_D10, HSPI1_CLK, OCTOSPIM_P2_IO0, PSSI_D10, SPI2_MOSI, TIM8_ETR97PI3PC6 — вывод 98: DCMI_D0, LTDC_R0, MDF1_CKI3, PSSI_D0, PWR_CSLEEP, SAI2_MCLK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, TSC_G4_IO198PC6PC7 — вывод 99: DCMI_D1, LPTIM2_CH2, LTDC_R1, MDF1_SDI3, PSSI_D1, PWR_CDSTOP, SAI2_MCLK_B, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, TSC_G4_IO299PC7PC8 — вывод 100: DCMI_D2, LPTIM3_CH1, LTDC_G0, PSSI_D2, PWR_SRDSTOP, SDMMC1_D0, TIM3_CH3, TIM8_CH3, TSC_G4_IO3, USART6_RX100PC8PC9 — вывод 101: DAC1_EXTI9, DCMI_D3, DEBUG_TRACED0, LPTIM3_CH2, LTDC_G1, PSSI_D3, SDMMC1_D1, TIM3_CH4, TIM8_BKIN2, TIM8_CH4, TSC_G4_IO4, USART6_TX101PC9PA8 — вывод 102: DEBUG_TRACECLK, GFXTIM_FCKCAL, GFXTIM_LCKCAL, LPTIM2_CH1, RCC_MCO, SAI1_CK2, SAI1_SCK_A, SDMMC2_D1, SPI1_RDY, TIM1_CH1, USART1_CK, USB_OTG_HS_SOF102PA8PA9 — вывод 103: DAC1_EXTI9, DCMI_D0, PSSI_D0, SAI1_FS_A, SPI2_SCK, TIM15_BKIN, TIM1_CH2, USART1_TX, USB_OTG_HS_VBUS103PA9PA10 — вывод 104: CRS_SYNC, DCMI_D1, LPTIM2_IN2, PSSI_D1, SAI1_D1, SAI1_SD_A, TIM17_BKIN, TIM1_CH3, USART1_RX, USB_OTG_HS_ID104PA10PA11 — вывод 105: ADC1_EXTI11, ADC2_EXTI11, SPI1_MISO, TIM1_BKIN2, TIM1_CH4, USART1_CTS, USB_OTG_HS_DM105PA11PA12 — вывод 106: OCTOSPIM_P2_NCS, SPI1_MOSI, TIM1_ETR, USART1_DE, USART1_RTS, USB_OTG_HS_DP106PA12PA13 (JTMS/SWDIO) — вывод 107: DEBUG_JTMS-SWDIO, IR_OUT, SAI1_SD_B107PA13 (JTMS/SWDIO)VDDUSB — вывод 108108VDDUSBVDD — вывод 109109VDDVSS — вывод 110110VSSPA14 (JTCK/SWCLK) — вывод 111: DEBUG_JTCK-SWCLK, I2C1_SMBA, I2C4_SMBA, LPTIM1_CH1, SAI1_FS_B, USB_OTG_HS_SOF111PA14 (JTCK/SWCLK)PA15 (JTDI) — вывод 112: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI, SAI2_FS_B, SPI1_NSS, SPI3_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UCPD1_CC1, USART2_RX, USART3_DE, USART3_RTS112PA15 (JTDI)PC10 — вывод 113: ADF1_CCK1, DCMI_D8, DEBUG_TRACED1, LPTIM3_ETR, PSSI_D8, SAI2_SCK_B, SDMMC1_D2, SPI3_SCK, TSC_G3_IO2, UART4_TX, USART3_TX113PC10PC11 — вывод 114: ADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0, DCMI_D2, DCMI_D4, LPTIM3_IN1, OCTOSPIM_P1_NCS, PSSI_D2, PSSI_D4, SAI2_MCLK_B, SDMMC1_D3, SPI3_MISO, TSC_G3_IO3, UART4_RX, UCPD1_FRSTX2, USART3_RX114PC11PC12 — вывод 115: DCMI_D9, DEBUG_TRACED3, PSSI_D9, SAI2_SD_B, SDMMC1_CK, SPI3_MOSI, TSC_G3_IO4, UART5_TX, USART3_CK115PC12PD0 — вывод 116: FMC_D2, FMC_DA2, I2C5_SDA, I2C6_SDA, LTDC_B4, SPI2_NSS, TIM8_CH4N116PD0PD1 — вывод 117: FMC_D3, FMC_DA3, I2C5_SCL, I2C6_SCL, LTDC_B5, SPI2_SCK117PD1PD2 — вывод 118: DCMI_D11, DEBUG_TRACED2, FMC_A20, I2C5_SMBA, LPTIM4_ETR, PSSI_D11, SDMMC1_CMD, TIM3_ETR, TSC_SYNC, UART5_RX, USART3_DE, USART3_RTS118PD2PD3 — вывод 119: DCMI_D5, FMC_CLK, I2C6_SMBA, LTDC_CLK, MDF1_SDI0, OCTOSPIM_P2_NCS, PSSI_D5, SPI2_MISO, SPI2_SCK, USART2_CTS119PD3PD4 — вывод 120: FMC_NOE, MDF1_CKI0, OCTOSPIM_P1_IO4, SPI2_MOSI, USART2_DE, USART2_RTS120PD4PD5 — вывод 121: FMC_NWE, OCTOSPIM_P1_IO5, SPI2_RDY, USART2_TX121PD5VDD — вывод 122122VDDPD6 — вывод 123: DCMI_D10, FMC_NWAIT, LTDC_DE, MDF1_SDI1, OCTOSPIM_P1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RX123PD6PD7 — вывод 124: FMC_NCE, FMC_NE1, GFXTIM_FCKCAL, GFXTIM_LCKCAL, LPTIM4_OUT, MDF1_CKI1, OCTOSPIM_P1_IO7, SDMMC2_CMD, USART2_CK124PD7PG9 — вывод 125: DAC1_EXTI9, FMC_NCE, FMC_NE2, OCTOSPIM_P2_IO6, SAI2_SCK_A, SPI3_SCK, TIM15_CH1N, USART1_TX125PG9PG10 — вывод 126: FMC_NE3, LPTIM1_IN1, OCTOSPIM_P2_IO7, SAI2_FS_A, SPI3_MISO, TIM15_CH1, USART1_RX126PG10PG12 — вывод 127: FMC_NE4, LPTIM1_ETR, OCTOSPIM_P2_NCS, SAI2_SD_A, SPI3_NSS, USART1_DE, USART1_RTS127PG12PG13 — вывод 128: FMC_A24, I2C1_SDA, LTDC_R0, SPI3_RDY, USART1_CK128PG13PG14 — вывод 129: FMC_A25, I2C1_SCL, LPTIM1_CH2, LTDC_R1129PG14VSS — вывод 130130VSSVDDIO2 — вывод 131131VDDIO2PG15 — вывод 132: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13, I2C1_SMBA, LPTIM1_CH1, OCTOSPIM_P2_DQS, PSSI_D13132PG15PB3 (JTDO/TRACESWO) — вывод 133: ADF1_CCK0, COMP2_INM, CRS_SYNC, DEBUG_JTDO-SWO, I2C1_SDA, LPTIM1_CH1, SAI1_SCK_B, SDMMC2_D2, SPI1_SCK, SPI3_SCK, TIM2_CH2, USART1_DE, USART1_RTS133PB3 (JTDO/TRACESWO)PB4 (NJTRST) — вывод 134: ADF1_SDI0, COMP2_INP, DCMI_D12, DEBUG_NJTRST, I2C3_SDA, LPTIM1_CH2, PSSI_D12, SAI1_MCLK_B, SDMMC2_D3, SPI1_MISO, SPI3_MISO, TIM17_BKIN, TIM3_CH1, TSC_G2_IO1, UART5_DE, UART5_RTS, USART1_CTS134PB4 (NJTRST)PB5 — вывод 135: COMP2_OUT, DCMI_D10, I2C1_SMBA, LPTIM1_IN1, OCTOSPIM_P1_NCLK, PSSI_D10, PWR_WKUP6, SAI1_SD_B, SPI1_MOSI, SPI3_MOSI, TIM16_BKIN, TIM3_CH2, TSC_G2_IO2, UART5_CTS, UCPD1_DBCC1, USART1_CK135PB5PB6 — вывод 136: COMP2_INP, DCMI_D5, I2C1_SCL, I2C4_SCL, LPTIM1_ETR, MDF1_SDI5, PSSI_D5, PWR_WKUP3, SAI1_FS_B, TIM16_CH1N, TIM4_CH1, TIM8_BKIN2, TSC_G2_IO3, USART1_TX136PB6PB7 — вывод 137: COMP2_INM, DCMI_VSYNC, DSIHOST_TE, FMC_NL, GFXTIM_TE, I2C1_SDA, I2C4_SDA, LPTIM1_IN2, MDF1_CKI5, PSSI_RDY, PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N, TIM4_CH2, TIM8_BKIN, TSC_G2_IO4, UART4_CTS, USART1_RX137PB7PH3-BOOT0 — вывод 138138PH3-BOOT0PB8 — вывод 139: DCMI_D6, I2C1_SCL, LTDC_B1, MDF1_CCK0, PSSI_D6, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI3_RDY, TIM16_CH1, TIM4_CH3139PB8PB9 — вывод 140: DAC1_EXTI9, DCMI_D7, I2C1_SDA, IR_OUT, LTDC_B0, PSSI_D7, SAI1_D2, SAI1_FS_A, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4140PB9PE0 — вывод 141: DCMI_D2, FMC_NBL0, LTDC_HSYNC, PSSI_D2, TIM16_CH1, TIM4_ETR, USART6_RX141PE0VDD11 — вывод 142142VDD11VSS — вывод 143143VSSVDD — вывод 144144VDD
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия
Распиновка STM32U5F9ZJ (LQFP144), вид сверхуРаспиновка LQFP144 картинкой
PNG, 1481 × 1568 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер вывода и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (102, AF7), PG13 (128, AF7), PB5 (135, AF7)
CTSPA11 (105, AF7), PB4 (NJTRST) (134, AF7)
DEPA12 (106, AF7), PG12 (127, AF7), PB3 (JTDO/TRACESWO) (133, AF7)
RTSPA12 (106, AF7), PG12 (127, AF7), PB3 (JTDO/TRACESWO) (133, AF7)
RXPA10 (104, AF7), PG10 (126, AF7), PB7 (137, AF7)
TXPA9 (103, AF7), PG9 (125, AF7), PB6 (136, AF7)
USART2CKPA4 (42, AF7), PD7 (124, AF7)
CTSPA0 (36, AF7), PD3 (119, AF7)
DEPA1 (37, AF7), PD4 (120, AF7)
RTSPA1 (37, AF7), PD4 (120, AF7)
RXPA3 (39, AF7), PA15 (JTDI) (112, AF3), PD6 (123, AF7)
TXPA2 (38, AF7), PD5 (121, AF7)
USART3CKPB0 (46, AF7), PD10 (75, AF7), PC12 (115, AF7)
CTSPA6 (44, AF7), PB13 (70, AF7), PD11 (76, AF7)
DEPB1 (47, AF7), PB14 (71, AF7), PD12 (77, AF7), PA15 (JTDI) (112, AF7), PD2 (118, AF7)
RTSPB1 (47, AF7), PB14 (71, AF7), PD12 (77, AF7), PA15 (JTDI) (112, AF7), PD2 (118, AF7)
RXPA5 (43, AF7), PB11 (63, AF7), PD9 (74, AF7), PC11 (114, AF7)
TXPA7 (45, AF7), PB10 (62, AF7), PD8 (73, AF7), PC10 (113, AF7)
USART6CKPE2 (1, AF7), PF2 (12, AF7), PC1 (30, AF7), PD14 (79, AF7)
CTSPE3 (2, AF7), PC0 (29, AF7), PD13 (78, AF7)
DEPE4 (3, AF7), PD15 (80, AF7)
RTSPE4 (3, AF7), PD15 (80, AF7)
RXPF1 (11, AF7), PC2 (31, AF7), PC8 (100, AF7), PE0 (141, AF7)
TXPF0 (10, AF7), PC3 (32, AF7), PC9 (101, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB7 (137, AF8)
DEPA15 (JTDI) (112, AF8)
RTSPA15 (JTDI) (112, AF8)
RXPA1 (37, AF8), PC11 (114, AF8)
TXPA0 (36, AF8), PC10 (113, AF8)
UART5CTSPB5 (135, AF8)
DEPB4 (NJTRST) (134, AF8)
RTSPB4 (NJTRST) (134, AF8)
RXPD2 (118, AF8)
TXPC12 (115, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA6 (44, AF8), PB13 (70, AF8)
DEPB1 (47, AF8)
RTSPB1 (47, AF8)
RXPC0 (29, AF8), PA3 (39, AF8), PB10 (62, AF8)
TXPC1 (30, AF8), PA2 (38, AF8), PB11 (63, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA6 (44, AF5), PE14 (60, AF5), PA11 (105, AF5), PB4 (NJTRST) (134, AF5)
MOSIPA7 (45, AF5), PE15 (61, AF5), PA12 (106, AF5), PB5 (135, AF5)
NSSPA4 (42, AF5), PB0 (46, AF5), PE12 (58, AF5), PA15 (JTDI) (112, AF5)
RDYPA2 (38, AF5), PB2 (48, AF5), PE11 (57, AF5), PA8 (102, AF5)
SCKPA1 (37, AF5), PA5 (43, AF5), PE13 (59, AF5), PB3 (JTDO/TRACESWO) (133, AF5)
SPI2MISOPC2 (31, AF5), PB14 (71, AF5), PI2 (96, AF5), PD3 (119, AF5)
MOSIPC1 (30, AF3), PC3 (32, AF5), PB15 (72, AF5), PI3 (97, AF5), PD4 (120, AF5)
NSSPI0 (92, AF5), PD0 (116, AF5), PB9 (140, AF5)
RDYPC0 (29, AF5), PB11 (63, AF5), PD5 (121, AF5)
SCKPB10 (62, AF5), PB13 (70, AF5), PI1 (93, AF5), PA9 (103, AF3), PD1 (117, AF5), PD3 (119, AF3)
SPI3MISOPC11 (114, AF6), PG10 (126, AF6), PB4 (NJTRST) (134, AF6)
MOSIPC12 (115, AF6), PD6 (123, AF5), PB5 (135, AF6)
NSSPA4 (42, AF6), PA15 (JTDI) (112, AF6), PG12 (127, AF6)
RDYPA0 (36, AF6), PG13 (128, AF6), PB8 (139, AF6)
SCKPC10 (113, AF6), PG9 (125, AF6), PB3 (JTDO/TRACESWO) (133, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPG14 (129, AF4), PB6 (136, AF4), PB8 (139, AF4)
SDAPG13 (128, AF4), PB3 (JTDO/TRACESWO) (133, AF4), PB7 (137, AF4), PB9 (140, AF4)
SMBAPA1 (37, AF4), PA14 (JTCK/SWCLK) (111, AF4), PG15 (132, AF4), PB5 (135, AF4)
I2C2SCLPF1 (11, AF4), PB10 (62, AF4), PB13 (70, AF4)
SDAPF0 (10, AF4), PB11 (63, AF4), PB14 (71, AF4)
SMBAPF2 (12, AF4)
I2C3SCLPC0 (29, AF4), PA7 (45, AF4)
SDAPC1 (30, AF4), PB4 (NJTRST) (134, AF4)
SMBAPB2 (48, AF4), PH9 (81, AF4)
I2C4SCLPB10 (62, AF3), PD12 (77, AF4), PB6 (136, AF5)
SDAPB11 (63, AF3), PD13 (78, AF4), PB7 (137, AF5)
SMBAPD11 (76, AF4), PA14 (JTCK/SWCLK) (111, AF5)
I2C5SCLPD1 (117, AF4)
SDAPD0 (116, AF4)
SMBAPD10 (75, AF4), PD2 (118, AF4)
I2C6SCLPF1 (11, AF2), PD1 (117, AF2)
SDAPF0 (10, AF2), PD0 (116, AF2)
SMBAPD3 (119, AF2)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPA11 (105)
DPPA12 (106)
IDPA10 (104, AF10)
SOFPA8 (102, AF10), PA14 (JTCK/SWCLK) (111, AF10)
VBUSPA9 (103)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PA15 (JTDI) (112)
CC2PB15 (72)
DBCC1PB5 (135)
DBCC2PB14 (71)
FRSTX1PA2 (38, AF11), PB2 (48, AF11)
FRSTX2PC11 (114, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (140, AF8)
CKPC12 (115, AF12)
CKINPB8 (139, AF8)
CMDPD2 (118, AF12)
D0PC8 (100, AF12)
D0DIRPC6 (98, AF8)
D1PC9 (101, AF12)
D2PC10 (113, AF12)
D3PC11 (114, AF12)
D4PB8 (139, AF12)
D5PC0 (29, AF12), PB9 (140, AF12)
D6PC6 (98, AF12)
D7PC7 (99, AF12)
D123DIRPC7 (99, AF8)
SDMMC2CKPC1 (30, AF12), PD6 (123, AF11)
CMDPA0 (36, AF12), PD7 (124, AF11)
D0PB14 (71, AF12)
D1PB15 (72, AF12), PA8 (102, AF8)
D2PB3 (JTDO/TRACESWO) (133, AF12)
D3PB4 (NJTRST) (134, AF12)
D4PB8 (139, AF11)
D5PB9 (140, AF11)
D6PC6 (98, AF11)
D7PC7 (99, AF11)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (1, AF3), PA3 (39, AF3), PB8 (139, AF3)
CK2PE5 (4, AF3), PA8 (102, AF3)
D1PE6 (5, AF3), PC3 (32, AF3), PA10 (104, AF3), PD6 (123, AF3)
D2PE4 (3, AF3), PB9 (140, AF3)
FS_APE4 (3, AF13), PA9 (103, AF13), PB9 (140, AF13)
FS_BPA4 (42, AF13), PE9 (53, AF13), PA14 (JTCK/SWCLK) (111, AF13), PB6 (136, AF13)
MCLK_APE2 (1, AF13), PA3 (39, AF13), PB8 (139, AF13)
MCLK_BPE10 (56, AF13), PB4 (NJTRST) (134, AF13)
SCK_APE5 (4, AF13), PB10 (62, AF13), PA8 (102, AF13)
SCK_BPE8 (52, AF13), PB3 (JTDO/TRACESWO) (133, AF13)
SD_APE6 (5, AF13), PC1 (30, AF13), PC3 (32, AF13), PA10 (104, AF13), PD6 (123, AF13)
SD_BPE3 (2, AF13), PE7 (51, AF13), PA13 (JTMS/SWDIO) (107, AF13), PB5 (135, AF13)
SAI2FS_APC0 (29, AF13), PD12 (77, AF13), PG10 (126, AF13)
FS_BPA15 (JTDI) (112, AF13)
MCLK_APB14 (71, AF13), PD9 (74, AF13), PC6 (98, AF13)
MCLK_BPC7 (99, AF13), PC11 (114, AF13)
SCK_APB13 (70, AF13), PD10 (75, AF13), PG9 (125, AF13)
SCK_BPC10 (113, AF13)
SD_APB15 (72, AF13), PD11 (76, AF13), PG12 (127, AF13)
SD_BPC12 (115, AF13)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PE11 (57), PB11 (63), PD11 (76), PH11 (85), PA11 (105), PC11 (114)
EXTI15PC15-OSC32_OUT (9), PE15 (61), PB15 (72), PD15 (80), PH15 (91), PA15 (JTDI) (112), PG15 (132)
IN1PC0 (29)
IN2PC1 (30)
IN3PC2 (31)
IN4PC3 (32)
IN5PA0 (36)
IN6PA1 (37)
IN7PA2 (38)
IN8PA3 (39)
IN9PA4 (42)
IN10PA5 (43)
IN11PA6 (44)
IN12PA7 (45)
IN15PB0 (46)
IN16PB1 (47)
IN17PB2 (48)
ADC2EXTI11PE11 (57), PB11 (63), PD11 (76), PH11 (85), PA11 (105), PC11 (114)
EXTI15PC15-OSC32_OUT (9), PE15 (61), PB15 (72), PD15 (80), PH15 (91), PA15 (JTDI) (112), PG15 (132)
IN1PC0 (29)
IN2PC1 (30)
IN3PC2 (31)
IN4PC3 (32)
IN5PA0 (36)
IN6PA1 (37)
IN7PA2 (38)
IN8PA3 (39)
IN9PA4 (42)
IN10PA5 (43)
IN11PA6 (44)
IN12PA7 (45)
IN15PB0 (46)
IN16PB1 (47)
IN17PB2 (48)
ADC4EXTI15PC15-OSC32_OUT (9), PE15 (61), PB15 (72), PD15 (80), PH15 (91), PA15 (JTDI) (112), PG15 (132)
IN1PC0 (29)
IN2PC1 (30)
IN3PC2 (31)
IN4PC3 (32)
IN7PG0 (49)
IN8PG1 (50)
IN9PA4 (42)
IN10PA5 (43)
IN11PA6 (44)
IN15PD11 (76)
IN16PD12 (77)
IN17PD13 (78)
IN18PB0 (46)
IN19PB1 (47)
IN20PA7 (45)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PE9 (53), PD9 (74), PH9 (81), PC9 (101), PA9 (103), PG9 (125), PB9 (140)
OUT1PA4 (42)
OUT2PA5 (43)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPB1 (47)
INPPA2 (38), PB2 (48)
OUTPB0 (46, AF12), PB10 (62, AF12)
COMP2INMPB3 (JTDO/TRACESWO) (133), PB7 (137)
INPPB4 (NJTRST) (134), PB6 (136)
OUTPB11 (63, AF12), PB5 (135, AF12)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA1 (37)
VINPPA0 (36)
VOUTPA3 (39)
OPAMP2VINMPA7 (45)
VINPPA6 (44)
VOUTPB0 (46)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (34)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (44, AF1), PE15 (61, AF1)
BKIN2PE14 (60, AF2), PA11 (105, AF2)
CH1PE9 (53, AF1), PA8 (102, AF1)
CH1NPA7 (45, AF1), PE8 (52, AF1), PB13 (70, AF1)
CH2PE11 (57, AF1), PA9 (103, AF1)
CH2NPB0 (46, AF1), PE10 (56, AF1), PB14 (71, AF1)
CH3PE13 (59, AF1), PA10 (104, AF1)
CH3NPB1 (47, AF1), PE12 (58, AF1), PB15 (72, AF1)
CH4PE14 (60, AF1), PA11 (105, AF1)
CH4NPE15 (61, AF3)
ETRPE7 (51, AF1), PA12 (106, AF1)
TIM2CH1PA0 (36, AF1), PA5 (43, AF1), PA15 (JTDI) (112, AF1)
CH2PA1 (37, AF1), PB3 (JTDO/TRACESWO) (133, AF1)
CH3PA2 (38, AF1), PB10 (62, AF1)
CH4PA3 (39, AF1), PB11 (63, AF1)
ETRPA0 (36, AF14), PA5 (43, AF2), PA15 (JTDI) (112, AF2)
TIM3CH1PE3 (2, AF2), PA6 (44, AF2), PC6 (98, AF2), PB4 (NJTRST) (134, AF2)
CH2PE4 (3, AF2), PA7 (45, AF2), PC7 (99, AF2), PB5 (135, AF2)
CH3PE5 (4, AF2), PB0 (46, AF2), PC8 (100, AF2)
CH4PE6 (5, AF2), PB1 (47, AF2), PC9 (101, AF2)
ETRPE2 (1, AF2), PD2 (118, AF2)
TIM4CH1PD12 (77, AF2), PB6 (136, AF2)
CH2PD13 (78, AF2), PB7 (137, AF2)
CH3PD14 (79, AF2), PB8 (139, AF2)
CH4PD15 (80, AF2), PB9 (140, AF2)
ETRPE0 (141, AF2)
TIM5CH1PA0 (36, AF2), PH10 (84, AF2)
CH2PA1 (37, AF2), PH11 (85, AF2)
CH3PA2 (38, AF2), PH12 (86, AF2)
CH4PA3 (39, AF2), PI0 (92, AF2)
TIM8BKINPA6 (44, AF3), PB7 (137, AF3)
BKIN2PC9 (101, AF1), PB6 (136, AF3)
CH1PC6 (98, AF3)
CH1NPA5 (43, AF3), PA7 (45, AF3), PH13 (87, AF3)
CH2PC7 (99, AF3)
CH2NPB0 (46, AF3), PB14 (71, AF3), PH14 (90, AF3)
CH3PC8 (100, AF3)
CH3NPB1 (47, AF3), PB15 (72, AF3), PH15 (91, AF3)
CH4PI2 (96, AF3), PC9 (101, AF3)
CH4NPB2 (48, AF3), PH12 (86, AF3), PD0 (116, AF3)
ETRPA0 (36, AF3), PI3 (97, AF3)
TIM15BKINPA9 (103, AF14)
CH1PA2 (38, AF14), PB14 (71, AF14), PG10 (126, AF14)
CH1NPA1 (37, AF14), PB13 (70, AF14), PG9 (125, AF14)
CH2PA3 (39, AF14), PB15 (72, AF14)
TIM16BKINPB5 (135, AF14)
CH1PA6 (44, AF14), PB8 (139, AF14), PE0 (141, AF14)
CH1NPB6 (136, AF14)
TIM17BKINPA10 (104, AF14), PB4 (NJTRST) (134, AF14)
CH1PA7 (45, AF14), PB9 (140, AF14)
CH1NPB7 (137, AF14)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PC1 (30, AF1), PB2 (48, AF1), PA14 (JTCK/SWCLK) (111, AF1), PG15 (132, AF1), PB3 (JTDO/TRACESWO) (133, AF2)
CH2PA1 (37, AF0), PG14 (129, AF1), PB4 (NJTRST) (134, AF1)
ETRPC3 (32, AF1), PG12 (127, AF1), PB6 (136, AF1)
IN1PC0 (29, AF1), PG10 (126, AF1), PB5 (135, AF1)
IN2PC2 (31, AF1), PB7 (137, AF1)
LPTIM2CH1PA4 (42, AF14), PD13 (78, AF14), PA8 (102, AF14)
CH2PA7 (45, AF13), PD10 (75, AF2), PC7 (99, AF14)
ETRPC3 (32, AF14), PA5 (43, AF14), PD11 (76, AF14)
IN1PC0 (29, AF14), PB1 (47, AF14), PD12 (77, AF14)
IN2PB15 (72, AF2), PD9 (74, AF2), PA10 (104, AF2)
LPTIM3CH1PC3 (32, AF2), PB0 (46, AF4), PB10 (62, AF2), PD14 (79, AF14), PC8 (100, AF14)
CH2PF2 (12, AF2), PB1 (47, AF4), PD15 (80, AF14), PC9 (101, AF14)
ETRPB14 (71, AF2), PD10 (75, AF14), PC10 (113, AF2)
IN1PB13 (70, AF2), PD9 (74, AF14), PC11 (114, AF2)
LPTIM4ETRPD2 (118, AF13)
IN1PD13 (78, AF13)
OUTPD7 (124, AF13)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (7)
OUT2PB2 (48)
REFINPB15 (72, AF0)
TSPC13 (7)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (10, AF12)
A1PF1 (11, AF12)
A2PF2 (12, AF12)
A10PG0 (49, AF12)
A11PG1 (50, AF12)
A16PD11 (76, AF12)
A17PD12 (77, AF12)
A18PD13 (78, AF12)
A19PE3 (2, AF12)
A20PE4 (3, AF12), PD2 (118, AF14)
A21PE5 (4, AF12)
A22PE6 (5, AF12)
A23PE2 (1, AF12)
A24PG13 (128, AF12)
A25PG14 (129, AF12)
ALEPD12 (77, AF12)
CLEPD11 (76, AF12)
CLKPD3 (119, AF12)
D0PD14 (79, AF12)
D1PD15 (80, AF12)
D2PD0 (116, AF12)
D3PD1 (117, AF12)
D4PE7 (51, AF12)
D5PE8 (52, AF12)
D6PE9 (53, AF12)
D7PE10 (56, AF12)
D8PE11 (57, AF12)
D9PE12 (58, AF12)
D10PE13 (59, AF12)
D11PE14 (60, AF12)
D12PE15 (61, AF12)
D13PD8 (73, AF12)
D14PD9 (74, AF12)
D15PD10 (75, AF12)
DA0PD14 (79, AF12)
DA1PD15 (80, AF12)
DA2PD0 (116, AF12)
DA3PD1 (117, AF12)
DA4PE7 (51, AF12)
DA5PE8 (52, AF12)
DA6PE9 (53, AF12)
DA7PE10 (56, AF12)
DA8PE11 (57, AF12)
DA9PE12 (58, AF12)
DA10PE13 (59, AF12)
DA11PE14 (60, AF12)
DA12PE15 (61, AF12)
DA13PD8 (73, AF12)
DA14PD9 (74, AF12)
DA15PD10 (75, AF12)
NBL0PE0 (141, AF12)
NBL1PB15 (72, AF11)
NCEPD7 (124, AF12), PG9 (125, AF12)
NE1PD7 (124, AF12)
NE2PG9 (125, AF12)
NE3PG10 (126, AF12)
NE4PG12 (127, AF12)
NLPB7 (137, AF12)
NOEPD4 (120, AF12)
NWAITPD6 (123, AF12)
NWEPD5 (121, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PH9 (81, AF10), PC6 (98, AF10), PA9 (103, AF5)
D1PH10 (84, AF10), PC7 (99, AF10), PA10 (104, AF5)
D2PH11 (85, AF10), PC8 (100, AF10), PC11 (114, AF4), PE0 (141, AF10)
D3PH12 (86, AF10), PC9 (101, AF4)
D4PE4 (3, AF10), PH14 (90, AF10), PC11 (114, AF10)
D5PD3 (119, AF4), PB6 (136, AF10)
D6PE5 (4, AF10), PB8 (139, AF10)
D7PE6 (5, AF10), PB9 (140, AF10)
D8PI1 (93, AF10), PC10 (113, AF10)
D9PI2 (96, AF10), PC12 (115, AF10)
D10PI3 (97, AF10), PD6 (123, AF4), PB5 (135, AF10)
D11PH15 (91, AF10), PD2 (118, AF10)
D12PB4 (NJTRST) (134, AF10)
D13PI0 (92, AF10), PG15 (132, AF10)
HSYNCPA4 (42, AF10), PD8 (73, AF10)
PIXCLKPA6 (44, AF4), PD9 (74, AF10)
VSYNCPB7 (137, AF10)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PH9 (81, AF10), PC6 (98, AF10), PA9 (103, AF5)
D1PH10 (84, AF10), PC7 (99, AF10), PA10 (104, AF5)
D2PH11 (85, AF10), PC8 (100, AF10), PC11 (114, AF4), PE0 (141, AF10)
D3PH12 (86, AF10), PC9 (101, AF4)
D4PE4 (3, AF10), PH14 (90, AF10), PC11 (114, AF10)
D5PD3 (119, AF4), PB6 (136, AF10)
D6PE5 (4, AF10), PB8 (139, AF10)
D7PE6 (5, AF10), PB9 (140, AF10)
D8PI1 (93, AF10), PC10 (113, AF10)
D9PI2 (96, AF10), PC12 (115, AF10)
D10PI3 (97, AF10), PD6 (123, AF4), PB5 (135, AF10)
D11PH15 (91, AF10), PD2 (118, AF10)
D12PB4 (NJTRST) (134, AF10)
D13PI0 (92, AF10), PG15 (132, AF10)
D14PA5 (43, AF4)
DEPA4 (42, AF10), PD8 (73, AF10)
PDCKPA6 (44, AF4), PD9 (74, AF10)
RDYPB7 (137, AF10)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PE4 (3, AF8), PB9 (140, AF7)
B1PB2 (48, AF8), PB8 (139, AF7)
B2PD14 (79, AF8)
B3PD15 (80, AF8)
B4PD0 (116, AF8)
B5PD1 (117, AF8)
B6PE7 (51, AF8)
B7PE8 (52, AF8)
CLKPD3 (119, AF8)
DEPD6 (123, AF8)
G0PE5 (4, AF8), PC8 (100, AF8)
G1PE6 (5, AF8), PC9 (101, AF8)
G2PE9 (53, AF8)
G3PE10 (56, AF8)
G4PE11 (57, AF8)
G5PE12 (58, AF8)
G6PE13 (59, AF8)
G7PE14 (60, AF8)
HSYNCPE0 (141, AF8)
R0PE2 (1, AF8), PC6 (98, AF7), PG13 (128, AF8)
R1PE3 (2, AF8), PC7 (99, AF7), PG14 (129, AF8)
R2PE15 (61, AF8)
R3PD8 (73, AF8)
R4PD9 (74, AF8)
R5PD10 (75, AF8)
R6PD11 (76, AF8)
R7PD12 (77, AF8)
VSYNCPD13 (78, AF8)

DSI — хост MIPI DSI

БлокСигналВыводы
DSIHOSTCKNDSI_CKN (19)
CKPDSI_CKP (18)
D0NDSI_D0N (16)
D0PDSI_D0P (15)
D1NDSI_D1N (22)
D1PDSI_D1P (21)
TEPB15 (72, AF10), PB7 (137, AF11)

TSC — контроллер сенсорных кнопок

БлокСигналВыводы
TSCG1_IO2PB13 (70, AF9)
G1_IO3PB14 (71, AF9)
G2_IO1PB4 (NJTRST) (134, AF9)
G2_IO2PB5 (135, AF9)
G2_IO3PB6 (136, AF9)
G2_IO4PB7 (137, AF9)
G3_IO2PC10 (113, AF9)
G3_IO3PC11 (114, AF9)
G3_IO4PC12 (115, AF9)
G4_IO1PC6 (98, AF9)
G4_IO2PC7 (99, AF9)
G4_IO3PC8 (100, AF9)
G4_IO4PC9 (101, AF9)
G5_IO1PE10 (56, AF9)
G5_IO2PE11 (57, AF9)
G5_IO3PE12 (58, AF9)
G5_IO4PE13 (59, AF9)
G6_IO1PD10 (75, AF9)
G6_IO2PD11 (76, AF9)
G6_IO3PD12 (77, AF9)
G6_IO4PD13 (78, AF9)
G7_IO1PE2 (1, AF9)
G7_IO2PE3 (2, AF9)
G7_IO3PE4 (3, AF9)
G7_IO4PE5 (4, AF9)
G8_IO3PG0 (49, AF9)
G8_IO4PG1 (50, AF9)
SYNCPB10 (62, AF9), PD2 (118, AF9)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PE9 (53, AF6), PB8 (139, AF5)
CCK1PC2 (31, AF6)
CKI0PB2 (48, AF6), PD4 (120, AF6)
CKI1PB13 (70, AF6), PD7 (124, AF6)
CKI2PE8 (52, AF6), PB15 (72, AF6)
CKI3PE5 (4, AF6), PC6 (98, AF6)
CKI4PC1 (30, AF6), PE11 (57, AF6)
CKI5PE13 (59, AF6), PB7 (137, AF6)
SDI0PB1 (47, AF6), PD3 (119, AF6)
SDI1PD6 (123, AF6)
SDI2PE7 (51, AF6), PB14 (71, AF6)
SDI3PE4 (3, AF6), PC7 (99, AF6)
SDI4PC0 (29, AF6), PE10 (56, AF6)
SDI5PE12 (58, AF6), PB6 (136, AF6)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PE9 (53, AF3), PB3 (JTDO/TRACESWO) (133, AF3)
CCK1PC10 (113, AF3)
SDI0PE10 (56, AF3), PC11 (114, AF3), PB4 (NJTRST) (134, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (111, AF0)
JTDIPA15 (JTDI) (112, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (133, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (107, AF0)
NJTRSTPB4 (NJTRST) (134, AF0)
TRACECLKPE2 (1, AF0), PA8 (102, AF12)
TRACED0PE3 (2, AF0), PC1 (30, AF0), PC9 (101, AF0)
TRACED1PE4 (3, AF0), PC10 (113, AF0)
TRACED2PE5 (4, AF0), PD2 (118, AF0)
TRACED3PE6 (5, AF0), PC12 (115, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPA2 (38)
MCOPA8 (102, AF0)
OSC_INPH0-OSC_IN (26)
OSC_OUTPH1-OSC_OUT (27)
OSC32_INPC14-OSC32_IN (8)
OSC32_OUTPC15-OSC32_OUT (9)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPA5 (43, AF0), PC6 (98, AF0)
PWR_WKUP1PE4 (3), PA0 (36), PB2 (48)
PWR_WKUP2PE5 (4), PC13 (7), PA4 (42)
PWR_WKUP3PE6 (5), PA1 (37), PB6 (136)
PWR_WKUP4PA2 (38), PB1 (47), PB7 (137)
PWR_WKUP5PA3 (39), PB8 (139)
PWR_WKUP6PA5 (43), PE7 (51), PB5 (135)
PWR_WKUP7PA6 (44), PE8 (52), PB15 (72)
PWR_WKUP8PF2 (12), PA7 (45), PB10 (62)
TAMP_IN1PC13 (7)
TAMP_IN2PA0 (36)
TAMP_IN3PE6 (5)
TAMP_IN5PA1 (37)
TAMP_IN6PE3 (2)
TAMP_IN7PE4 (3)
TAMP_IN8PE5 (4)
TAMP_OUT1PA0 (36)
TAMP_OUT2PC13 (7)
TAMP_OUT3PE3 (2)
TAMP_OUT4PA1 (37)
TAMP_OUT6PE6 (5)
TAMP_OUT7PE5 (4)
TAMP_OUT8PE4 (3)

Блоки без собственных выводов: OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), IRTIM (формирователь ИК-сигнала), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 144 вывода корпуса LQFP144 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ВыводИмяТипФункции
1PE2ввод-выводDEBUG_TRACECLK (AF0), FMC_A23 (AF12), LTDC_R0 (AF8), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM3_ETR (AF2), TSC_G7_IO1 (AF9), USART6_CK (AF7)
2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), LTDC_R1 (AF8), OCTOSPIM_P1_DQS (AF3), SAI1_SD_B (AF13), TAMP_IN6, TAMP_OUT3, TIM3_CH1 (AF2), TSC_G7_IO2 (AF9), USART6_CTS (AF7)
3PE4ввод-выводDCMI_D4 (AF10), DEBUG_TRACED1 (AF0), FMC_A20 (AF12), LTDC_B0 (AF8), MDF1_SDI3 (AF6), PSSI_D4 (AF10), PWR_WKUP1, SAI1_D2 (AF3), SAI1_FS_A (AF13), TAMP_IN7, TAMP_OUT8, TIM3_CH2 (AF2), TSC_G7_IO3 (AF9), USART6_DE (AF7), USART6_RTS (AF7)
4PE5ввод-выводDCMI_D6 (AF10), DEBUG_TRACED2 (AF0), FMC_A21 (AF12), LTDC_G0 (AF8), MDF1_CKI3 (AF6), PSSI_D6 (AF10), PWR_WKUP2, SAI1_CK2 (AF3), SAI1_SCK_A (AF13), TAMP_IN8, TAMP_OUT7, TIM3_CH3 (AF2), TSC_G7_IO4 (AF9)
5PE6ввод-выводDCMI_D7 (AF10), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF8), PSSI_D7 (AF10), PWR_WKUP3, SAI1_D1 (AF3), SAI1_SD_A (AF13), TAMP_IN3, TAMP_OUT6, TIM3_CH4 (AF2)
6VBATпитание—
7PC13ввод-выводPWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2
8PC14-OSC32_INввод-выводRCC_OSC32_IN
9PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUT
10PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), I2C6_SDA (AF2), OCTOSPIM_P2_IO0 (AF5), USART6_TX (AF7)
11PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), I2C6_SCL (AF2), OCTOSPIM_P2_IO1 (AF5), USART6_RX (AF7)
12PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), OCTOSPIM_P2_IO2 (AF5), PWR_WKUP8, USART6_CK (AF7)
13VDDDSIпитание—
14VDD11DSIпитание—
15DSI_D0PслужебныйDSIHOST_D0P
16DSI_D0NслужебныйDSIHOST_D0N
17VSSDSIпитание—
18DSI_CKPслужебныйDSIHOST_CKP
19DSI_CKNслужебныйDSIHOST_CKN
20VDD11DSIпитание—
21DSI_D1PслужебныйDSIHOST_D1P
22DSI_D1NслужебныйDSIHOST_D1N
23VSSDSIпитание—
24VSSпитание—
25VDDпитание—
26PH0-OSC_INввод-выводRCC_OSC_IN
27PH1-OSC_OUTввод-выводRCC_OSC_OUT
28NRSTсброс—
29PC0ввод-выводADC1_IN1, ADC2_IN1, ADC4_IN1, GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF11), I2C3_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF14), LPUART1_RX (AF8), MDF1_SDI4 (AF6), OCTOSPIM_P1_IO7 (AF3), SAI2_FS_A (AF13), SDMMC1_D5 (AF12), SPI2_RDY (AF5), USART6_CTS (AF7)
30PC1ввод-выводADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0 (AF0), I2C3_SDA (AF4), LPTIM1_CH1 (AF1), LPUART1_TX (AF8), MDF1_CKI4 (AF6), OCTOSPIM_P1_IO4 (AF10), SAI1_SD_A (AF13), SDMMC2_CK (AF12), SPI2_MOSI (AF3), USART6_CK (AF7)
31PC2ввод-выводADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2 (AF1), MDF1_CCK1 (AF6), OCTOSPIM_P1_IO5 (AF10), SPI2_MISO (AF5), USART6_RX (AF7)
32PC3ввод-выводADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR (AF1), LPTIM2_ETR (AF14), LPTIM3_CH1 (AF2), OCTOSPIM_P1_IO6 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), SPI2_MOSI (AF5), USART6_TX (AF7)
33VSSAпитание—
34VREF+служебныйVREFBUF_OUT
35VDDAпитание—
36PA0ввод-выводADC1_IN5, ADC2_IN5, AUDIOCLK (AF13), OCTOSPIM_P2_NCS (AF10), OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD (AF12), SPI3_RDY (AF6), TAMP_IN2, TAMP_OUT1, TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7)
37PA1ввод-выводADC1_IN6, ADC2_IN6, I2C1_SMBA (AF4), LPTIM1_CH2 (AF0), OCTOSPIM_P1_DQS (AF10), OPAMP1_VINM, PWR_WKUP3, SPI1_SCK (AF5), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF14), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
38PA2ввод-выводADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), PWR_WKUP4, RCC_LSCO, SPI1_RDY (AF5), TIM15_CH1 (AF14), TIM2_CH3 (AF1), TIM5_CH3 (AF2), UCPD1_FRSTX1 (AF11), USART2_TX (AF7)
39PA3ввод-выводADC1_IN8, ADC2_IN8, LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM15_CH2 (AF14), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
40VSSпитание—
41VDDпитание—
42PA4ввод-выводADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC (AF10), LPTIM2_CH1 (AF14), OCTOSPIM_P1_NCS (AF3), PSSI_DE (AF10), PWR_WKUP2, SAI1_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), USART2_CK (AF7)
43PA5ввод-выводADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR (AF14), PSSI_D14 (AF4), PWR_CSLEEP (AF0), PWR_WKUP6, SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM8_CH1N (AF3), USART3_RX (AF7)
44PA6ввод-выводADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK (AF4), LPUART1_CTS (AF8), OCTOSPIM_P1_IO3 (AF10), OPAMP2_VINP, PSSI_PDCK (AF4), PWR_CDSTOP (AF0), PWR_WKUP7, SPI1_MISO (AF5), TIM16_CH1 (AF14), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART3_CTS (AF7)
45PA7ввод-выводADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL (AF4), LPTIM2_CH2 (AF13), OCTOSPIM_P1_IO2 (AF10), OPAMP2_VINM, PWR_SRDSTOP (AF0), PWR_WKUP8, SPI1_MOSI (AF5), TIM17_CH1 (AF14), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART3_TX (AF7)
46PB0ввод-выводADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK (AF13), COMP1_OUT (AF12), LPTIM3_CH1 (AF4), OCTOSPIM_P1_IO1 (AF10), OPAMP2_VOUT, SPI1_NSS (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), USART3_CK (AF7)
47PB1ввод-выводADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1 (AF14), LPTIM3_CH2 (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI0 (AF6), OCTOSPIM_P1_IO0 (AF10), PWR_WKUP4, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USART3_DE (AF7), USART3_RTS (AF7)
48PB2ввод-выводADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA (AF4), LPTIM1_CH1 (AF1), LTDC_B1 (AF8), MDF1_CKI0 (AF6), OCTOSPIM_P1_DQS (AF10), PWR_WKUP1, RTC_OUT2, SPI1_RDY (AF5), TIM8_CH4N (AF3), UCPD1_FRSTX1 (AF11)
49PG0ввод-выводADC4_IN7, FMC_A10 (AF12), OCTOSPIM_P2_IO4 (AF5), TSC_G8_IO3 (AF9)
50PG1ввод-выводADC4_IN8, FMC_A11 (AF12), OCTOSPIM_P2_IO5 (AF5), TSC_G8_IO4 (AF9)
51PE7ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), LTDC_B6 (AF8), MDF1_SDI2 (AF6), PWR_WKUP6, SAI1_SD_B (AF13), TIM1_ETR (AF1)
52PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), LTDC_B7 (AF8), MDF1_CKI2 (AF6), PWR_WKUP7, SAI1_SCK_B (AF13), TIM1_CH1N (AF1)
53PE9ввод-выводADF1_CCK0 (AF3), DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), LTDC_G2 (AF8), MDF1_CCK0 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI1_FS_B (AF13), TIM1_CH1 (AF1)
54VSSпитание—
55VDDпитание—
56PE10ввод-выводADF1_SDI0 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), LTDC_G3 (AF8), MDF1_SDI4 (AF6), OCTOSPIM_P1_CLK (AF10), SAI1_MCLK_B (AF13), TIM1_CH2N (AF1), TSC_G5_IO1 (AF9)
57PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G4 (AF8), MDF1_CKI4 (AF6), OCTOSPIM_P1_NCS (AF10), SPI1_RDY (AF5), TIM1_CH2 (AF1), TSC_G5_IO2 (AF9)
58PE12ввод-выводFMC_D9 (AF12), FMC_DA9 (AF12), LTDC_G5 (AF8), MDF1_SDI5 (AF6), OCTOSPIM_P1_IO0 (AF10), SPI1_NSS (AF5), TIM1_CH3N (AF1), TSC_G5_IO3 (AF9)
59PE13ввод-выводFMC_D10 (AF12), FMC_DA10 (AF12), LTDC_G6 (AF8), MDF1_CKI5 (AF6), OCTOSPIM_P1_IO1 (AF10), SPI1_SCK (AF5), TIM1_CH3 (AF1), TSC_G5_IO4 (AF9)
60PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), GFXTIM_LCKCAL (AF13), LTDC_G7 (AF8), OCTOSPIM_P1_IO2 (AF10), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1)
61PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), GFXTIM_FCKCAL (AF13), GFXTIM_LCKCAL (AF2), LTDC_R2 (AF8), OCTOSPIM_P1_IO3 (AF10), SPI1_MOSI (AF5), TIM1_BKIN (AF1), TIM1_CH4N (AF3)
62PB10ввод-выводCOMP1_OUT (AF12), I2C2_SCL (AF4), I2C4_SCL (AF3), LPTIM3_CH1 (AF2), LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), PWR_WKUP8, SAI1_SCK_A (AF13), SPI2_SCK (AF5), TIM2_CH3 (AF1), TSC_SYNC (AF9), USART3_TX (AF7)
63PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, COMP2_OUT (AF12), I2C2_SDA (AF4), I2C4_SDA (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), SPI2_RDY (AF5), TIM2_CH4 (AF1), USART3_RX (AF7)
64VLXSMPSпитание—
65VDDSMPSпитание—
66VSSSMPSпитание—
67VDD11питание—
68VSSпитание—
69VDDпитание—
70PB13ввод-выводI2C2_SCL (AF4), LPTIM3_IN1 (AF2), LPUART1_CTS (AF8), MDF1_CKI1 (AF6), SAI2_SCK_A (AF13), SPI2_SCK (AF5), TIM15_CH1N (AF14), TIM1_CH1N (AF1), TSC_G1_IO2 (AF9), USART3_CTS (AF7)
71PB14ввод-выводI2C2_SDA (AF4), LPTIM3_ETR (AF2), MDF1_SDI2 (AF6), SAI2_MCLK_A (AF13), SDMMC2_D0 (AF12), SPI2_MISO (AF5), TIM15_CH1 (AF14), TIM1_CH2N (AF1), TIM8_CH2N (AF3), TSC_G1_IO3 (AF9), UCPD1_DBCC2, USART3_DE (AF7), USART3_RTS (AF7)
72PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DSIHOST_TE (AF10), FMC_NBL1 (AF11), GFXTIM_TE (AF10), LPTIM2_IN2 (AF2), MDF1_CKI2 (AF6), PWR_WKUP7, RTC_REFIN (AF0), SAI2_SD_A (AF13), SDMMC2_D1 (AF12), SPI2_MOSI (AF5), TIM15_CH2 (AF14), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UCPD1_CC2
73PD8ввод-выводDCMI_HSYNC (AF10), FMC_D13 (AF12), FMC_DA13 (AF12), LTDC_R3 (AF8), PSSI_DE (AF10), USART3_TX (AF7)
74PD9ввод-выводDAC1_EXTI9, DCMI_PIXCLK (AF10), FMC_D14 (AF12), FMC_DA14 (AF12), LPTIM2_IN2 (AF2), LPTIM3_IN1 (AF14), LTDC_R4 (AF8), PSSI_PDCK (AF10), SAI2_MCLK_A (AF13), USART3_RX (AF7)
75PD10ввод-выводFMC_D15 (AF12), FMC_DA15 (AF12), I2C5_SMBA (AF4), LPTIM2_CH2 (AF2), LPTIM3_ETR (AF14), LTDC_R5 (AF8), SAI2_SCK_A (AF13), TSC_G6_IO1 (AF9), USART3_CK (AF7)
76PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_ETR (AF14), LTDC_R6 (AF8), SAI2_SD_A (AF13), TSC_G6_IO2 (AF9), USART3_CTS (AF7)
77PD12ввод-выводADC4_IN16, FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), LPTIM2_IN1 (AF14), LTDC_R7 (AF8), SAI2_FS_A (AF13), TIM4_CH1 (AF2), TSC_G6_IO3 (AF9), USART3_DE (AF7), USART3_RTS (AF7)
78PD13ввод-выводADC4_IN17, FMC_A18 (AF12), GFXTIM_TE (AF5), I2C4_SDA (AF4), LPTIM2_CH1 (AF14), LPTIM4_IN1 (AF13), LTDC_VSYNC (AF8), TIM4_CH2 (AF2), TSC_G6_IO4 (AF9), USART6_CTS (AF7)
79PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LPTIM3_CH1 (AF14), LTDC_B2 (AF8), TIM4_CH3 (AF2), USART6_CK (AF7)
80PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LPTIM3_CH2 (AF14), LTDC_B3 (AF8), TIM4_CH4 (AF2), USART6_DE (AF7), USART6_RTS (AF7)
81PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF10), HSPI1_NCS (AF8), I2C3_SMBA (AF4), OCTOSPIM_P2_IO4 (AF5), PSSI_D0 (AF10)
82VSSпитание—
83VDDпитание—
84PH10ввод-выводDCMI_D1 (AF10), HSPI1_IO0 (AF8), OCTOSPIM_P2_IO5 (AF5), PSSI_D1 (AF10), TIM5_CH1 (AF2)
85PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D2 (AF10), HSPI1_IO1 (AF8), OCTOSPIM_P2_IO6 (AF5), PSSI_D2 (AF10), TIM5_CH2 (AF2)
86PH12ввод-выводDCMI_D3 (AF10), HSPI1_IO2 (AF8), OCTOSPIM_P2_IO7 (AF5), PSSI_D3 (AF10), TIM5_CH3 (AF2), TIM8_CH4N (AF3)
87PH13ввод-выводHSPI1_IO3 (AF8), TIM8_CH1N (AF3)
88VSSпитание—
89VDDпитание—
90PH14ввод-выводDCMI_D4 (AF10), HSPI1_IO4 (AF8), PSSI_D4 (AF10), TIM8_CH2N (AF3)
91PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D11 (AF10), HSPI1_IO5 (AF8), OCTOSPIM_P2_IO6 (AF5), PSSI_D11 (AF10), TIM8_CH3N (AF3)
92PI0ввод-выводDCMI_D13 (AF10), HSPI1_IO6 (AF8), OCTOSPIM_P1_IO5 (AF3), PSSI_D13 (AF10), SPI2_NSS (AF5), TIM5_CH4 (AF2)
93PI1ввод-выводDCMI_D8 (AF10), HSPI1_IO7 (AF8), OCTOSPIM_P2_IO2 (AF6), PSSI_D8 (AF10), SPI2_SCK (AF5)
94VSSпитание—
95VDDпитание—
96PI2ввод-выводDCMI_D9 (AF10), HSPI1_DQS0 (AF8), OCTOSPIM_P2_IO1 (AF6), PSSI_D9 (AF10), SPI2_MISO (AF5), TIM8_CH4 (AF3)
97PI3ввод-выводDCMI_D10 (AF10), HSPI1_CLK (AF8), OCTOSPIM_P2_IO0 (AF6), PSSI_D10 (AF10), SPI2_MOSI (AF5), TIM8_ETR (AF3)
98PC6ввод-выводDCMI_D0 (AF10), LTDC_R0 (AF7), MDF1_CKI3 (AF6), PSSI_D0 (AF10), PWR_CSLEEP (AF0), SAI2_MCLK_A (AF13), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF11), TIM3_CH1 (AF2), TIM8_CH1 (AF3), TSC_G4_IO1 (AF9)
99PC7ввод-выводDCMI_D1 (AF10), LPTIM2_CH2 (AF14), LTDC_R1 (AF7), MDF1_SDI3 (AF6), PSSI_D1 (AF10), PWR_CDSTOP (AF0), SAI2_MCLK_B (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), TSC_G4_IO2 (AF9)
100PC8ввод-выводDCMI_D2 (AF10), LPTIM3_CH1 (AF14), LTDC_G0 (AF8), PSSI_D2 (AF10), PWR_SRDSTOP (AF0), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), TSC_G4_IO3 (AF9), USART6_RX (AF7)
101PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF4), DEBUG_TRACED0 (AF0), LPTIM3_CH2 (AF14), LTDC_G1 (AF8), PSSI_D3 (AF4), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_BKIN2 (AF1), TIM8_CH4 (AF3), TSC_G4_IO4 (AF9), USART6_TX (AF7)
102PA8ввод-выводDEBUG_TRACECLK (AF12), GFXTIM_FCKCAL (AF11), GFXTIM_LCKCAL (AF2), LPTIM2_CH1 (AF14), RCC_MCO (AF0), SAI1_CK2 (AF3), SAI1_SCK_A (AF13), SDMMC2_D1 (AF8), SPI1_RDY (AF5), TIM1_CH1 (AF1), USART1_CK (AF7), USB_OTG_HS_SOF (AF10)
103PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF5), PSSI_D0 (AF5), SAI1_FS_A (AF13), SPI2_SCK (AF3), TIM15_BKIN (AF14), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_HS_VBUS
104PA10ввод-выводCRS_SYNC (AF0), DCMI_D1 (AF5), LPTIM2_IN2 (AF2), PSSI_D1 (AF5), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM17_BKIN (AF14), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_HS_ID (AF10)
105PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1), USART1_CTS (AF7), USB_OTG_HS_DM
106PA12ввод-выводOCTOSPIM_P2_NCS (AF6), SPI1_MOSI (AF5), TIM1_ETR (AF1), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_HS_DP
107PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0), IR_OUT (AF1), SAI1_SD_B (AF13)
108VDDUSBпитание—
109VDDпитание—
110VSSпитание—
111PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF5), LPTIM1_CH1 (AF1), SAI1_FS_B (AF13), USB_OTG_HS_SOF (AF10)
112PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI (AF0), SAI2_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC1, USART2_RX (AF3), USART3_DE (AF7), USART3_RTS (AF7)
113PC10ввод-выводADF1_CCK1 (AF3), DCMI_D8 (AF10), DEBUG_TRACED1 (AF0), LPTIM3_ETR (AF2), PSSI_D8 (AF10), SAI2_SCK_B (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), TSC_G3_IO2 (AF9), UART4_TX (AF8), USART3_TX (AF7)
114PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0 (AF3), DCMI_D2 (AF4), DCMI_D4 (AF10), LPTIM3_IN1 (AF2), OCTOSPIM_P1_NCS (AF5), PSSI_D2 (AF4), PSSI_D4 (AF10), SAI2_MCLK_B (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), TSC_G3_IO3 (AF9), UART4_RX (AF8), UCPD1_FRSTX2 (AF11), USART3_RX (AF7)
115PC12ввод-выводDCMI_D9 (AF10), DEBUG_TRACED3 (AF0), PSSI_D9 (AF10), SAI2_SD_B (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), TSC_G3_IO4 (AF9), UART5_TX (AF8), USART3_CK (AF7)
116PD0ввод-выводFMC_D2 (AF12), FMC_DA2 (AF12), I2C5_SDA (AF4), I2C6_SDA (AF2), LTDC_B4 (AF8), SPI2_NSS (AF5), TIM8_CH4N (AF3)
117PD1ввод-выводFMC_D3 (AF12), FMC_DA3 (AF12), I2C5_SCL (AF4), I2C6_SCL (AF2), LTDC_B5 (AF8), SPI2_SCK (AF5)
118PD2ввод-выводDCMI_D11 (AF10), DEBUG_TRACED2 (AF0), FMC_A20 (AF14), I2C5_SMBA (AF4), LPTIM4_ETR (AF13), PSSI_D11 (AF10), SDMMC1_CMD (AF12), TIM3_ETR (AF2), TSC_SYNC (AF9), UART5_RX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
119PD3ввод-выводDCMI_D5 (AF4), FMC_CLK (AF12), I2C6_SMBA (AF2), LTDC_CLK (AF8), MDF1_SDI0 (AF6), OCTOSPIM_P2_NCS (AF10), PSSI_D5 (AF4), SPI2_MISO (AF5), SPI2_SCK (AF3), USART2_CTS (AF7)
120PD4ввод-выводFMC_NOE (AF12), MDF1_CKI0 (AF6), OCTOSPIM_P1_IO4 (AF10), SPI2_MOSI (AF5), USART2_DE (AF7), USART2_RTS (AF7)
121PD5ввод-выводFMC_NWE (AF12), OCTOSPIM_P1_IO5 (AF10), SPI2_RDY (AF5), USART2_TX (AF7)
122VDDпитание—
123PD6ввод-выводDCMI_D10 (AF4), FMC_NWAIT (AF12), LTDC_DE (AF8), MDF1_SDI1 (AF6), OCTOSPIM_P1_IO6 (AF10), PSSI_D10 (AF4), SAI1_D1 (AF3), SAI1_SD_A (AF13), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
124PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF5), LPTIM4_OUT (AF13), MDF1_CKI1 (AF6), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), USART2_CK (AF7)
125PG9ввод-выводDAC1_EXTI9, FMC_NCE (AF12), FMC_NE2 (AF12), OCTOSPIM_P2_IO6 (AF5), SAI2_SCK_A (AF13), SPI3_SCK (AF6), TIM15_CH1N (AF14), USART1_TX (AF7)
126PG10ввод-выводFMC_NE3 (AF12), LPTIM1_IN1 (AF1), OCTOSPIM_P2_IO7 (AF5), SAI2_FS_A (AF13), SPI3_MISO (AF6), TIM15_CH1 (AF14), USART1_RX (AF7)
127PG12ввод-выводFMC_NE4 (AF12), LPTIM1_ETR (AF1), OCTOSPIM_P2_NCS (AF5), SAI2_SD_A (AF13), SPI3_NSS (AF6), USART1_DE (AF7), USART1_RTS (AF7)
128PG13ввод-выводFMC_A24 (AF12), I2C1_SDA (AF4), LTDC_R0 (AF8), SPI3_RDY (AF6), USART1_CK (AF7)
129PG14ввод-выводFMC_A25 (AF12), I2C1_SCL (AF4), LPTIM1_CH2 (AF1), LTDC_R1 (AF8)
130VSSпитание—
131VDDIO2питание—
132PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13 (AF10), I2C1_SMBA (AF4), LPTIM1_CH1 (AF1), OCTOSPIM_P2_DQS (AF5), PSSI_D13 (AF10)
133PB3 (JTDO/TRACESWO)ввод-выводADF1_CCK0 (AF3), COMP2_INM, CRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2C1_SDA (AF4), LPTIM1_CH1 (AF2), SAI1_SCK_B (AF13), SDMMC2_D2 (AF12), SPI1_SCK (AF5), SPI3_SCK (AF6), TIM2_CH2 (AF1), USART1_DE (AF7), USART1_RTS (AF7)
134PB4 (NJTRST)ввод-выводADF1_SDI0 (AF3), COMP2_INP, DCMI_D12 (AF10), DEBUG_NJTRST (AF0), I2C3_SDA (AF4), LPTIM1_CH2 (AF1), PSSI_D12 (AF10), SAI1_MCLK_B (AF13), SDMMC2_D3 (AF12), SPI1_MISO (AF5), SPI3_MISO (AF6), TIM17_BKIN (AF14), TIM3_CH1 (AF2), TSC_G2_IO1 (AF9), UART5_DE (AF8), UART5_RTS (AF8), USART1_CTS (AF7)
135PB5ввод-выводCOMP2_OUT (AF12), DCMI_D10 (AF10), I2C1_SMBA (AF4), LPTIM1_IN1 (AF1), OCTOSPIM_P1_NCLK (AF3), PSSI_D10 (AF10), PWR_WKUP6, SAI1_SD_B (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF6), TIM16_BKIN (AF14), TIM3_CH2 (AF2), TSC_G2_IO2 (AF9), UART5_CTS (AF8), UCPD1_DBCC1, USART1_CK (AF7)
136PB6ввод-выводCOMP2_INP, DCMI_D5 (AF10), I2C1_SCL (AF4), I2C4_SCL (AF5), LPTIM1_ETR (AF1), MDF1_SDI5 (AF6), PSSI_D5 (AF10), PWR_WKUP3, SAI1_FS_B (AF13), TIM16_CH1N (AF14), TIM4_CH1 (AF2), TIM8_BKIN2 (AF3), TSC_G2_IO3 (AF9), USART1_TX (AF7)
137PB7ввод-выводCOMP2_INM, DCMI_VSYNC (AF10), DSIHOST_TE (AF11), FMC_NL (AF12), GFXTIM_TE (AF11), I2C1_SDA (AF4), I2C4_SDA (AF5), LPTIM1_IN2 (AF1), MDF1_CKI5 (AF6), PSSI_RDY (AF10), PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N (AF14), TIM4_CH2 (AF2), TIM8_BKIN (AF3), TSC_G2_IO4 (AF9), UART4_CTS (AF8), USART1_RX (AF7)
138PH3-BOOT0ввод-вывод—
139PB8ввод-выводDCMI_D6 (AF10), I2C1_SCL (AF4), LTDC_B1 (AF7), MDF1_CCK0 (AF5), PSSI_D6 (AF10), PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), SDMMC1_CKIN (AF8), SDMMC1_D4 (AF12), SDMMC2_D4 (AF11), SPI3_RDY (AF6), TIM16_CH1 (AF14), TIM4_CH3 (AF2)
140PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF10), I2C1_SDA (AF4), IR_OUT (AF1), LTDC_B0 (AF7), PSSI_D7 (AF10), SAI1_D2 (AF3), SAI1_FS_A (AF13), SDMMC1_CDIR (AF8), SDMMC1_D5 (AF12), SDMMC2_D5 (AF11), SPI2_NSS (AF5), TIM17_CH1 (AF14), TIM4_CH4 (AF2)
141PE0ввод-выводDCMI_D2 (AF10), FMC_NBL0 (AF12), LTDC_HSYNC (AF8), PSSI_D2 (AF10), TIM16_CH1 (AF14), TIM4_ETR (AF2), USART6_RX (AF7)
142VDD11питание—
143VSSпитание—
144VDDпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяВыводыНазначение
VBAT6резервное питание: часы реального времени и резервные регистры
VDD25, 41, 55, 69, 83, 89, 95, 109, 122, 144питание цифровой части и линий ввода-вывода
VDD1167, 142—
VDD11DSI14, 20—
VDDA35питание аналоговой части: АЦП, ЦАП, генераторы
VDDDSI13питание блока DSI
VDDIO2131питание отдельной группы линий ввода-вывода
VDDSMPS65—
VDDUSB108питание приёмопередатчика USB
VLXSMPS64—
VSS24, 40, 54, 68, 82, 88, 94, 110, 130, 143общий провод (земля)
VSSA33общий провод аналоговой части
VSSDSI17, 23общий провод блока DSI
VSSSMPS66—
NRST28сброс, активный уровень — низкий
DSI_CKN19—
DSI_CKP18—
DSI_D0N16—
DSI_D0P15—
DSI_D1N22—
DSI_D1P21—
VREF+34верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32U5F9ZJTxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32U5F9ZJSTM32U5F9ZJTxQ4 МБ3026 КБ

Линейка STM32U5F9/5G9, семейство STM32U5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе LQFP144, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32U5F9ZISTM32U5F9/5G9144 из 144выводы совпадают полностьютолько у этого: OCTOSPI2; флеш-память до 4096 и 2048 КБ
STM32U5G9ZJSTM32U5F9/5G9144 из 144выводы совпадают полностьютолько у него: AES, FDCAN1, PKA

Частые вопросы

На каких выводах USART1 у STM32U5F9ZJ?

В корпусе LQFP144 сигнал USART1_TX выведен на PA9 (вывод 103, AF7) или PG9 (вывод 125, AF7) или PB6 (вывод 136, AF7), USART1_RX — на PA10 (вывод 104, AF7) или PG10 (вывод 126, AF7) или PB7 (вывод 137, AF7).

Где у STM32U5F9ZJ выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (вывод 107, AF0), SWCLK — PA14 (JTCK/SWCLK) (вывод 111, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32U5F9ZJ?

I2C1_SCL — PG14 (вывод 129, AF4) или PB6 (вывод 136, AF4) или PB8 (вывод 139, AF4), I2C1_SDA — PG13 (вывод 128, AF4) или PB3 (JTDO/TRACESWO) (вывод 133, AF4) или PB7 (вывод 137, AF4) или PB9 (вывод 140, AF4).

Сколько выводов ввода-вывода у STM32U5F9ZJ в корпусе LQFP144?

101 из 144. Ещё 35 выводов заняты питанием и землёй, остальные 8 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
