STM32U5G9BJ в корпусе WLCSP208: распиновка

STM32U5G9BJ — микроконтроллер STM32U5 на ядре Cortex-M33: 4 МБ флеш-памяти и 3026 КБ ОЗУ. Корпус WLCSP208 — 208 шариков, из них 145 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
4 МБ
ОЗУ
3026 КБ
Корпус
WLCSP208, 208 шариков
Линий ввода-вывода
145

Схема корпуса WLCSP208

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32U5G9BJ в корпусе WLCSP208, вид сверхуABCDEFGHJKLMNPRT1234567891011121314151617181920212223242526VDDUSB — шарик A2VDDUSBVDD11 — шарик A4VDD11VDD — шарик A6VDDPA15 (JTDI) — шарик A8: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI, SAI2_FS_B, SPI1_NSS, SPI3_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UCPD1_CC1, USART2_RX, USART3_DE, USART3_RTSPA15PD1 — шарик A10: FMC_D3, FMC_DA3, I2C5_SCL, I2C6_SCL, LTDC_B5, SPI2_SCKPD1VDD — шарик A12VDDPG13 — шарик A14: FMC_A24, I2C1_SDA, LTDC_R0, SPI3_RDY, USART1_CKPG13VDDIO2 — шарик A16VDDIO2PB6 — шарик A18: COMP2_INP, DCMI_D5, I2C1_SCL, I2C4_SCL, LPTIM1_ETR, MDF1_SDI5, PSSI_D5, PWR_WKUP3, SAI1_FS_B, TIM16_CH1N, TIM4_CH1, TIM8_BKIN2, TSC_G2_IO3, USART1_TXPB6PE0 — шарик A20: DCMI_D2, FMC_NBL0, LTDC_HSYNC, PSSI_D2, TIM16_CH1, TIM4_ETR, USART6_RXPE0VDD11 — шарик A22VDD11VDD — шарик A24VDDVDD — шарик A26VDDPA12 — шарик B1: OCTOSPIM_P2_NCS, SPI1_MOSI, TIM1_ETR, USART1_DE, USART1_RTS, USB_OTG_HS_DPPA12PA13 (JTMS/SWDIO) — шарик B3: DEBUG_JTMS-SWDIO, IR_OUT, SAI1_SD_BPA13VSS — шарик B5VSSPH2 — шарик B7: OCTOSPIM_P1_IO4PH2PC10 — шарик B9: ADF1_CCK1, DCMI_D8, DEBUG_TRACED1, LPTIM3_ETR, PSSI_D8, SAI2_SCK_B, SDMMC1_D2, SPI3_SCK, TSC_G3_IO2, UART4_TX, USART3_TXPC10VSS — шарик B11VSSPG9 — шарик B13: DAC1_EXTI9, FMC_NCE, FMC_NE2, OCTOSPIM_P2_IO6, SAI2_SCK_A, SPI3_SCK, TIM15_CH1N, USART1_TXPG9VSS — шарик B15VSSPB3 (JTDO/TRACESWO) — шарик B17: ADF1_CCK0, COMP2_INM, CRS_SYNC, DEBUG_JTDO-SWO, I2C1_SDA, LPTIM1_CH1, SAI1_SCK_B, SDMMC2_D2, SPI1_SCK, SPI3_SCK, TIM2_CH2, USART1_DE, USART1_RTSPB3PB8 — шарик B19: DCMI_D6, I2C1_SCL, LTDC_B1, MDF1_CCK0, PSSI_D6, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI3_RDY, TIM16_CH1, TIM4_CH3PB8PE1 — шарик B21: DCMI_D3, FMC_NBL1, LTDC_VSYNC, PSSI_D3, TIM17_CH1, USART6_TXPE1VSS — шарик B23VSSVBAT — шарик B25VBATPA11 — шарик C2: ADC1_EXTI11, ADC2_EXTI11, SPI1_MISO, TIM1_BKIN2, TIM1_CH4, USART1_CTS, USB_OTG_HS_DMPA11PA10 — шарик C4: CRS_SYNC, DCMI_D1, LPTIM2_IN2, PSSI_D1, SAI1_D1, SAI1_SD_A, TIM17_BKIN, TIM1_CH3, USART1_RX, USB_OTG_HS_IDPA10PA9 — шарик C6: DAC1_EXTI9, DCMI_D0, PSSI_D0, SAI1_FS_A, SPI2_SCK, TIM15_BKIN, TIM1_CH2, USART1_TX, USB_OTG_HS_VBUSPA9PA8 — шарик C8: DEBUG_TRACECLK, GFXTIM_FCKCAL, GFXTIM_LCKCAL, LPTIM2_CH1, RCC_MCO, SAI1_CK2, SAI1_SCK_A, SDMMC2_D1, SPI1_RDY, TIM1_CH1, USART1_CK, USB_OTG_HS_SOFPA8PC11 — шарик C10: ADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0, DCMI_D2, DCMI_D4, LPTIM3_IN1, OCTOSPIM_P1_NCS, PSSI_D2, PSSI_D4, SAI2_MCLK_B, SDMMC1_D3, SPI3_MISO, TSC_G3_IO3, UART4_RX, UCPD1_FRSTX2, USART3_RXPC11PD3 — шарик C12: DCMI_D5, FMC_CLK, I2C6_SMBA, LTDC_CLK, MDF1_SDI0, OCTOSPIM_P2_NCS, PSSI_D5, SPI2_MISO, SPI2_SCK, USART2_CTSPD3PD7 — шарик C14: FMC_NCE, FMC_NE1, GFXTIM_FCKCAL, GFXTIM_LCKCAL, LPTIM4_OUT, MDF1_CKI1, OCTOSPIM_P1_IO7, SDMMC2_CMD, USART2_CKPD7PG14 — шарик C16: FMC_A25, I2C1_SCL, LPTIM1_CH2, LTDC_R1PG14PB5 — шарик C18: COMP2_OUT, DCMI_D10, I2C1_SMBA, LPTIM1_IN1, OCTOSPIM_P1_NCLK, PSSI_D10, PWR_WKUP6, SAI1_SD_B, SPI1_MOSI, SPI3_MOSI, TIM16_BKIN, TIM3_CH2, TSC_G2_IO2, UART5_CTS, UCPD1_DBCC1, USART1_CKPB5PB9 — шарик C20: DAC1_EXTI9, DCMI_D7, I2C1_SDA, IR_OUT, LTDC_B0, PSSI_D7, SAI1_D2, SAI1_FS_A, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4PB9PI5 — шарик C22: DCMI_VSYNC, OCTOSPIM_P2_NCS, PSSI_RDY, TIM8_CH1PI5PE6 — шарик C24: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, PSSI_D7, PWR_WKUP3, SAI1_D1, SAI1_SD_A, TAMP_IN3, TAMP_OUT6, TIM3_CH4PE6PC14-OSC32_IN — шарик C26: RCC_OSC32_INPC14VDD11USB — шарик D1VDD11USBPC7 — шарик D3: DCMI_D1, LPTIM2_CH2, LTDC_R1, MDF1_SDI3, PSSI_D1, PWR_CDSTOP, SAI2_MCLK_B, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, TSC_G4_IO2PC7PC6 — шарик D5: DCMI_D0, LTDC_R0, MDF1_CKI3, PSSI_D0, PWR_CSLEEP, SAI2_MCLK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, TSC_G4_IO1PC6PC8 — шарик D7: DCMI_D2, LPTIM3_CH1, LTDC_G0, PSSI_D2, PWR_SRDSTOP, SDMMC1_D0, TIM3_CH3, TIM8_CH3, TSC_G4_IO3, USART6_RXPC8PC9 — шарик D9: DAC1_EXTI9, DCMI_D3, DEBUG_TRACED0, LPTIM3_CH2, LTDC_G1, PSSI_D3, SDMMC1_D1, TIM3_CH4, TIM8_BKIN2, TIM8_CH4, TSC_G4_IO4, USART6_TXPC9PA14 (JTCK/SWCLK) — шарик D11: DEBUG_JTCK-SWCLK, I2C1_SMBA, I2C4_SMBA, LPTIM1_CH1, SAI1_FS_B, USB_OTG_HS_SOFPA14PD2 — шарик D13: DCMI_D11, DEBUG_TRACED2, FMC_A20, I2C5_SMBA, LPTIM4_ETR, PSSI_D11, SDMMC1_CMD, TIM3_ETR, TSC_SYNC, UART5_RX, USART3_DE, USART3_RTSPD2PD4 — шарик D15: FMC_NOE, MDF1_CKI0, OCTOSPIM_P1_IO4, SPI2_MOSI, USART2_DE, USART2_RTSPD4PG12 — шарик D17: FMC_NE4, LPTIM1_ETR, OCTOSPIM_P2_NCS, SAI2_SD_A, SPI3_NSS, USART1_DE, USART1_RTSPG12PB7 — шарик D19: COMP2_INM, DCMI_VSYNC, DSIHOST_TE, FMC_NL, GFXTIM_TE, I2C1_SDA, I2C4_SDA, LPTIM1_IN2, MDF1_CKI5, PSSI_RDY, PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N, TIM4_CH2, TIM8_BKIN, TSC_G2_IO4, UART4_CTS, USART1_RXPB7PI6 — шарик D21: DCMI_D6, OCTOSPIM_P2_CLK, PSSI_D6, TIM8_CH2PI6PC13 — шарик D23: PWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2PC13PC15-OSC32_OUT — шарик D25: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUTPC15VDDIO2 — шарик E2VDDIO2VSS — шарик E4VSSPJ0 — шарик E6: HSPI1_IO15, I2C5_SMBAPJ0PI15 — шарик E8: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, HSPI1_IO14PI15PH4 — шарик E10: I2C2_SCL, I2C5_SDA, OCTOSPIM_P2_DQS, PSSI_D14PH4PH7 — шарик E12: DCMI_D9, I2C3_SCL, OCTOSPIM_P2_NCLK, PSSI_D9PH7PC12 — шарик E14: DCMI_D9, DEBUG_TRACED3, PSSI_D9, SAI2_SD_B, SDMMC1_CK, SPI3_MOSI, TSC_G3_IO4, UART5_TX, USART3_CKPC12PD5 — шарик E16: FMC_NWE, OCTOSPIM_P1_IO5, SPI2_RDY, USART2_TXPD5PG11 — шарик E18: ADC1_EXTI11, ADC2_EXTI11, LPTIM1_IN2, OCTOSPIM_P1_IO5, SAI2_MCLK_A, SPI3_MOSI, TIM15_CH2, USART1_CTSPG11PH3-BOOT0 — шарик E20PH3PE3 — шарик E22: DEBUG_TRACED0, FMC_A19, LTDC_R1, OCTOSPIM_P1_DQS, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM3_CH1, TSC_G7_IO2, USART6_CTSPE3VSSDSI — шарик E24VSSDSIDSI_D0P — шарик E26: DSIHOST_D0PDSID0PVDD — шарик F1VDDVSS — шарик F3VSSPI14 — шарик F5: HSPI1_IO13PI14PI13 — шарик F7: HSPI1_IO12PI13PG2 — шарик F9: FMC_A12, SAI2_SCK_B, SPI1_SCKPG2PG8 — шарик F11: I2C3_SDA, LPUART1_RXPG8PH5 — шарик F13: DCMI_PIXCLK, I2C2_SDA, I2C5_SCL, PSSI_PDCKPH5PD0 — шарик F15: FMC_D2, FMC_DA2, I2C5_SDA, I2C6_SDA, LTDC_B4, SPI2_NSS, TIM8_CH4NPD0PD6 — шарик F17: DCMI_D10, FMC_NWAIT, LTDC_DE, MDF1_SDI1, OCTOSPIM_P1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PG10 — шарик F19: FMC_NE3, LPTIM1_IN1, OCTOSPIM_P2_IO7, SAI2_FS_A, SPI3_MISO, TIM15_CH1, USART1_RXPG10PE4 — шарик F21: DCMI_D4, DEBUG_TRACED1, FMC_A20, LTDC_B0, MDF1_SDI3, PSSI_D4, PWR_WKUP1, SAI1_D2, SAI1_FS_A, TAMP_IN7, TAMP_OUT8, TIM3_CH2, TSC_G7_IO3, USART6_DE, USART6_RTSPE4VSSDSI — шарик F23VSSDSIDSI_D0N — шарик F25: DSIHOST_D0NDSID0NVDD — шарик G2VDDVSS — шарик G4VSSPI11 — шарик G6: ADC1_EXTI11, ADC2_EXTI11, HSPI1_IO10PI11PI12 — шарик G8: HSPI1_IO11PI12PG6 — шарик G10: I2C3_SMBA, LPUART1_DE, LPUART1_RTS, LTDC_R1, OCTOSPIM_P1_DQS, SPI1_RDY, UCPD1_FRSTX1PG6PG5 — шарик G12: DSIHOST_TE, FMC_A15, GFXTIM_TE, LPUART1_CTS, SAI2_SD_B, SPI1_NSSPG5PG7 — шарик G14: FMC_INT, I2C3_SCL, LPUART1_TX, MDF1_CCK0, OCTOSPIM_P2_DQS, SAI1_CK1, SAI1_MCLK_A, UCPD1_FRSTX2PG7PH8 — шарик G16: DCMI_HSYNC, I2C3_SDA, OCTOSPIM_P2_IO3, PSSI_DEPH8PB4 (NJTRST) — шарик G18: ADF1_SDI0, COMP2_INP, DCMI_D12, DEBUG_NJTRST, I2C3_SDA, LPTIM1_CH2, PSSI_D12, SAI1_MCLK_B, SDMMC2_D3, SPI1_MISO, SPI3_MISO, TIM17_BKIN, TIM3_CH1, TSC_G2_IO1, UART5_DE, UART5_RTS, USART1_CTSPB4PE2 — шарик G20: DEBUG_TRACECLK, FMC_A23, LTDC_R0, SAI1_CK1, SAI1_MCLK_A, TIM3_ETR, TSC_G7_IO1, USART6_CKPE2PE5 — шарик G22: DCMI_D6, DEBUG_TRACED2, FMC_A21, LTDC_G0, MDF1_CKI3, PSSI_D6, PWR_WKUP2, SAI1_CK2, SAI1_SCK_A, TAMP_IN8, TAMP_OUT7, TIM3_CH3, TSC_G7_IO4PE5VDDDSI — шарик G24VDDDSIDSI_CKP — шарик G26: DSIHOST_CKPDSICKPVDD — шарик H1VDDVSS — шарик H3VSSPI9 — шарик H5: DAC1_EXTI9, HSPI1_IO8PI9PI10 — шарик H7: HSPI1_IO9PI10PG3 — шарик H9: FMC_A13, SAI2_FS_B, SPI1_MISOPG3PG0 — шарик H11: ADC4_IN7, FMC_A10, OCTOSPIM_P2_IO4, TSC_G8_IO3PG0PB0 — шарик H13: ADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK, COMP1_OUT, LPTIM3_CH1, OCTOSPIM_P1_IO1, OPAMP2_VOUT, SPI1_NSS, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, USART3_CKPB0PH6 — шарик H15: DCMI_D8, I2C2_SMBA, I2C5_SMBA, OCTOSPIM_P2_CLK, PSSI_D8PH6PG15 — шарик H17: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13, I2C1_SMBA, LPTIM1_CH1, OCTOSPIM_P2_DQS, PSSI_D13PG15PF0 — шарик H19: FMC_A0, I2C2_SDA, I2C6_SDA, OCTOSPIM_P2_IO0, USART6_TXPF0PF1 — шарик H21: FMC_A1, I2C2_SCL, I2C6_SCL, OCTOSPIM_P2_IO1, USART6_RXPF1VSSDSI — шарик H23VSSDSIDSI_CKN — шарик H25: DSIHOST_CKNDSICKNPI4 — шарик J2: DCMI_D5, HSPI1_NCLK, PSSI_D5, SPI2_RDY, TIM8_BKINPI4VSS — шарик J4VSSPI2 — шарик J6: DCMI_D9, HSPI1_DQS0, OCTOSPIM_P2_IO1, PSSI_D9, SPI2_MISO, TIM8_CH4PI2PI8 — шарик J8: HSPI1_DQS1PI8PG4 — шарик J10: FMC_A14, SAI2_MCLK_B, SPI1_MOSIPG4PG1 — шарик J12: ADC4_IN8, FMC_A11, OCTOSPIM_P2_IO5, TSC_G8_IO4PG1PF7 — шарик J14: OCTOSPIM_P1_IO2, SAI1_MCLK_B, TIM5_CH2PF7PF6 — шарик J16: DCMI_D12, OCTOSPIM_P1_IO3, OCTOSPIM_P2_NCS, PSSI_D12, SAI1_SD_B, TIM5_CH1, TIM5_ETRPF6PI7 — шарик J18: DCMI_D7, OCTOSPIM_P2_NCLK, PSSI_D7, TIM8_CH3PI7PF2 — шарик J20: FMC_A2, I2C2_SMBA, LPTIM3_CH2, OCTOSPIM_P2_IO2, PWR_WKUP8, USART6_CKPF2PF4 — шарик J22: ADF1_SDI0, FMC_A4, LPTIM3_ETR, MDF1_SDI0, OCTOSPIM_P2_CLK, UART5_RX, USART6_DE, USART6_RTSPF4VDD11DSI — шарик J24VDD11DSIDSI_D1P — шарик J26: DSIHOST_D1PDSID1PPI3 — шарик K1: DCMI_D10, HSPI1_CLK, OCTOSPIM_P2_IO0, PSSI_D10, SPI2_MOSI, TIM8_ETRPI3VSS — шарик K3VSSPI1 — шарик K5: DCMI_D8, HSPI1_IO7, OCTOSPIM_P2_IO2, PSSI_D8, SPI2_SCKPI1PI0 — шарик K7: DCMI_D13, HSPI1_IO6, OCTOSPIM_P1_IO5, PSSI_D13, SPI2_NSS, TIM5_CH4PI0PD15 — шарик K9: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1, FMC_DA1, LPTIM3_CH2, LTDC_B3, TIM4_CH4, USART6_DE, USART6_RTSPD15PD13 — шарик K11: ADC4_IN17, FMC_A18, GFXTIM_TE, I2C4_SDA, LPTIM2_CH1, LPTIM4_IN1, LTDC_VSYNC, TIM4_CH2, TSC_G6_IO4, USART6_CTSPD13PF14 — шарик K13: ADC4_IN5, FMC_A8, I2C4_SCL, LTDC_G0, TSC_G8_IO1PF14PC1 — шарик K15: ADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0, I2C3_SDA, LPTIM1_CH1, LPUART1_TX, MDF1_CKI4, OCTOSPIM_P1_IO4, SAI1_SD_A, SDMMC2_CK, SPI2_MOSI, USART6_CKPC1PC0 — шарик K17: ADC1_IN1, ADC2_IN1, ADC4_IN1, GFXTIM_FCKCAL, GFXTIM_LCKCAL, I2C3_SCL, LPTIM1_IN1, LPTIM2_IN1, LPUART1_RX, MDF1_SDI4, OCTOSPIM_P1_IO7, SAI2_FS_A, SDMMC1_D5, SPI2_RDY, USART6_CTSPC0PF8 — шарик K19: OCTOSPIM_P1_IO0, PSSI_D14, SAI1_SCK_B, TIM5_CH3PF8PF5 — шарик K21: FMC_A5, LPTIM3_CH1, MDF1_CKI0, OCTOSPIM_P2_NCLKPF5PF3 — шарик K23: ADF1_CCK0, FMC_A3, LPTIM3_IN1, MDF1_CCK0, OCTOSPIM_P2_IO3, UART5_TX, USART6_CTSPF3DSI_D1N — шарик K25: DSIHOST_D1NDSID1NVDD — шарик L2VDDVSS — шарик L4VSSPH14 — шарик L6: DCMI_D4, HSPI1_IO4, PSSI_D4, TIM8_CH2NPH14PH15 — шарик L8: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D11, HSPI1_IO5, OCTOSPIM_P2_IO6, PSSI_D11, TIM8_CH3NPH15PD12 — шарик L10: ADC4_IN16, FMC_A17, FMC_ALE, I2C4_SCL, LPTIM2_IN1, LTDC_R7, SAI2_FS_A, TIM4_CH1, TSC_G6_IO3, USART3_DE, USART3_RTSPD12PE7 — шарик L12: FMC_D4, FMC_DA4, LTDC_B6, MDF1_SDI2, PWR_WKUP6, SAI1_SD_B, TIM1_ETRPE7PB1 — шарик L14: ADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1, LPTIM3_CH2, LPUART1_DE, LPUART1_RTS, MDF1_SDI0, OCTOSPIM_P1_IO0, PWR_WKUP4, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USART3_DE, USART3_RTSPB1PA1 — шарик L16: ADC1_IN6, ADC2_IN6, I2C1_SMBA, LPTIM1_CH2, OCTOSPIM_P1_DQS, OPAMP1_VINM, PWR_WKUP3, SPI1_SCK, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PC2 — шарик L18: ADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2, MDF1_CCK1, OCTOSPIM_P1_IO5, SPI2_MISO, USART6_RXPC2PF9 — шарик L20: DAC1_EXTI9, OCTOSPIM_P1_IO1, PSSI_D15, SAI1_FS_B, TIM15_CH1, TIM5_CH4PF9PF10 — шарик L22: DCMI_D11, DSIHOST_TE, GFXTIM_TE, MDF1_CCK1, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM15_CH2PF10VSS — шарик L24VSSVDD — шарик L26VDDVDD — шарик M1VDDVSS — шарик M3VSSPH12 — шарик M5: DCMI_D3, HSPI1_IO2, OCTOSPIM_P2_IO7, PSSI_D3, TIM5_CH3, TIM8_CH4NPH12PH13 — шарик M7: HSPI1_IO3, TIM8_CH1NPH13PH9 — шарик M9: DAC1_EXTI9, DCMI_D0, HSPI1_NCS, I2C3_SMBA, OCTOSPIM_P2_IO4, PSSI_D0PH9PD11 — шарик M11: ADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_ETR, LTDC_R6, SAI2_SD_A, TSC_G6_IO2, USART3_CTSPD11PE10 — шарик M13: ADF1_SDI0, FMC_D7, FMC_DA7, LTDC_G3, MDF1_SDI4, OCTOSPIM_P1_CLK, SAI1_MCLK_B, TIM1_CH2N, TSC_G5_IO1PE10PB2 — шарик M15: ADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA, LPTIM1_CH1, LTDC_B1, MDF1_CKI0, OCTOSPIM_P1_DQS, PWR_WKUP1, RTC_OUT2, SPI1_RDY, TIM8_CH4N, UCPD1_FRSTX1PB2PA2 — шарик M17: ADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX, OCTOSPIM_P1_NCS, PWR_WKUP4, RCC_LSCO, SPI1_RDY, TIM15_CH1, TIM2_CH3, TIM5_CH3, UCPD1_FRSTX1, USART2_TXPA2PC3 — шарик M19: ADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR, LPTIM2_ETR, LPTIM3_CH1, OCTOSPIM_P1_IO6, SAI1_D1, SAI1_SD_A, SPI2_MOSI, USART6_TXPC3NRST — шарик M21NRSTPH0-OSC_IN — шарик M23: RCC_OSC_INPH0PH1-OSC_OUT — шарик M25: RCC_OSC_OUTPH1VDD — шарик N2VDDVSS — шарик N4VSSPH10 — шарик N6: DCMI_D1, HSPI1_IO0, OCTOSPIM_P2_IO5, PSSI_D1, TIM5_CH1PH10PH11 — шарик N8: ADC1_EXTI11, ADC2_EXTI11, DCMI_D2, HSPI1_IO1, OCTOSPIM_P2_IO6, PSSI_D2, TIM5_CH2PH11PD14 — шарик N10: FMC_D0, FMC_DA0, LPTIM3_CH1, LTDC_B2, TIM4_CH3, USART6_CKPD14PE13 — шарик N12: FMC_D10, FMC_DA10, LTDC_G6, MDF1_CKI5, OCTOSPIM_P1_IO1, SPI1_SCK, TIM1_CH3, TSC_G5_IO4PE13PE8 — шарик N14: FMC_D5, FMC_DA5, LTDC_B7, MDF1_CKI2, PWR_WKUP7, SAI1_SCK_B, TIM1_CH1NPE8PF11 — шарик N16: ADC1_EXTI11, ADC2_EXTI11, DCMI_D12, DSIHOST_TE, GFXTIM_TE, LPTIM4_IN1, LTDC_DE, OCTOSPIM_P1_NCLK, PSSI_D12PF11PA6 — шарик N18: ADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK, LPUART1_CTS, OCTOSPIM_P1_IO3, OPAMP2_VINP, PSSI_PDCK, PWR_CDSTOP, PWR_WKUP7, SPI1_MISO, TIM16_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART3_CTSPA6PA4 — шарик N20: ADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC, LPTIM2_CH1, OCTOSPIM_P1_NCS, PSSI_DE, PWR_WKUP2, SAI1_FS_B, SPI1_NSS, SPI3_NSS, USART2_CKPA4PA0 — шарик N22: ADC1_IN5, ADC2_IN5, AUDIOCLK, OCTOSPIM_P2_NCS, OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD, SPI3_RDY, TAMP_IN2, TAMP_OUT1, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTSPA0VREF- — шарик N24VREF-VSSA — шарик N26VSSAVDD — шарик P1VDDVSS — шарик P3VSSPD10 — шарик P5: FMC_D15, FMC_DA15, I2C5_SMBA, LPTIM2_CH2, LPTIM3_ETR, LTDC_R5, SAI2_SCK_A, TSC_G6_IO1, USART3_CKPD10PD9 — шарик P7: DAC1_EXTI9, DCMI_PIXCLK, FMC_D14, FMC_DA14, LPTIM2_IN2, LPTIM3_IN1, LTDC_R4, PSSI_PDCK, SAI2_MCLK_A, USART3_RXPD9PD8 — шарик P9: DCMI_HSYNC, FMC_D13, FMC_DA13, LTDC_R3, PSSI_DE, USART3_TXPD8PB15 — шарик P11: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DSIHOST_TE, FMC_NBL1, GFXTIM_TE, LPTIM2_IN2, MDF1_CKI2, PWR_WKUP7, RTC_REFIN, SAI2_SD_A, SDMMC2_D1, SPI2_MOSI, TIM15_CH2, TIM1_CH3N, TIM8_CH3N, UCPD1_CC2PB15PE14 — шарик P13: FMC_D11, FMC_DA11, GFXTIM_LCKCAL, LTDC_G7, OCTOSPIM_P1_IO2, SPI1_MISO, TIM1_BKIN2, TIM1_CH4PE14PE11 — шарик P15: ADC1_EXTI11, ADC2_EXTI11, FMC_D8, FMC_DA8, LTDC_G4, MDF1_CKI4, OCTOSPIM_P1_NCS, SPI1_RDY, TIM1_CH2, TSC_G5_IO2PE11PF13 — шарик P17: FMC_A7, I2C4_SMBA, LPTIM4_OUT, LTDC_B1, UCPD1_FRSTX2PF13PC5 — шарик P19: ADC1_IN14, ADC2_IN14, ADC4_IN23, COMP1_INP, PSSI_D15, PWR_WKUP5, SAI1_D3, TAMP_IN4, TAMP_OUT5, TIM1_CH4N, USART3_RXPC5PA5 — шарик P21: ADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR, PSSI_D14, PWR_CSLEEP, PWR_WKUP6, SPI1_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USART3_RXPA5PA3 — шарик P23: ADC1_IN8, ADC2_IN8, LPUART1_RX, OCTOSPIM_P1_CLK, OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3VREF+ — шарик P25: VREFBUF_OUTVREF+VDD — шарик R2VDDVSS — шарик R4VSSPB14 — шарик R6: I2C2_SDA, LPTIM3_ETR, MDF1_SDI2, SAI2_MCLK_A, SDMMC2_D0, SPI2_MISO, TIM15_CH1, TIM1_CH2N, TIM8_CH2N, TSC_G1_IO3, UCPD1_DBCC2, USART3_DE, USART3_RTSPB14VSSSMPS — шарик R8VSSSMPSPB11 — шарик R10: ADC1_EXTI11, ADC2_EXTI11, COMP2_OUT, I2C2_SDA, I2C4_SDA, LPUART1_TX, OCTOSPIM_P1_NCS, SPI2_RDY, TIM2_CH4, USART3_RXPB11PE15 — шарик R12: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12, FMC_DA12, GFXTIM_FCKCAL, GFXTIM_LCKCAL, LTDC_R2, OCTOSPIM_P1_IO3, SPI1_MOSI, TIM1_BKIN, TIM1_CH4NPE15PE12 — шарик R14: FMC_D9, FMC_DA9, LTDC_G5, MDF1_SDI5, OCTOSPIM_P1_IO0, SPI1_NSS, TIM1_CH3N, TSC_G5_IO3PE12VSS — шарик R16VSSPF15 — шарик R18: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, ADC4_IN6, FMC_A9, I2C4_SDA, LTDC_G1, TSC_G8_IO2PF15VSS — шарик R20VSSPA7 — шарик R22: ADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL, LPTIM2_CH2, OCTOSPIM_P1_IO2, OPAMP2_VINM, PWR_SRDSTOP, PWR_WKUP8, SPI1_MOSI, TIM17_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART3_TXPA7VSS — шарик R24VSSVDDA — шарик R26VDDAVDD — шарик T1VDDVDD11 — шарик T3VDD11PB12 — шарик T5: I2C2_SMBA, I2C6_SMBA, LPUART1_DE, LPUART1_RTS, MDF1_SDI1, OCTOSPIM_P1_NCLK, SAI2_FS_A, SPI2_NSS, TIM15_BKIN, TIM1_BKIN, TSC_G1_IO1, USART3_CKPB12PB13 — шарик T7: I2C2_SCL, LPTIM3_IN1, LPUART1_CTS, MDF1_CKI1, SAI2_SCK_A, SPI2_SCK, TIM15_CH1N, TIM1_CH1N, TSC_G1_IO2, USART3_CTSPB13VDDSMPS — шарик T9VDDSMPSVLXSMPS — шарик T11VLXSMPSPB10 — шарик T13: COMP1_OUT, I2C2_SCL, I2C4_SCL, LPTIM3_CH1, LPUART1_RX, OCTOSPIM_P1_CLK, PWR_WKUP8, SAI1_SCK_A, SPI2_SCK, TIM2_CH3, TSC_SYNC, USART3_TXPB10VDD — шарик T15VDDPE9 — шарик T17: ADF1_CCK0, DAC1_EXTI9, FMC_D6, FMC_DA6, LTDC_G2, MDF1_CCK0, OCTOSPIM_P1_NCLK, SAI1_FS_B, TIM1_CH1PE9VDD — шарик T19VDDPF12 — шарик T21: FMC_A6, LPTIM4_ETR, LTDC_B0, OCTOSPIM_P2_DQSPF12PC4 — шарик T23: ADC1_IN13, ADC2_IN13, ADC4_IN22, COMP1_INM, I2C6_SMBA, OCTOSPIM_P1_IO7, USART3_TXPC4VDD — шарик T25VDDWLCSP208, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

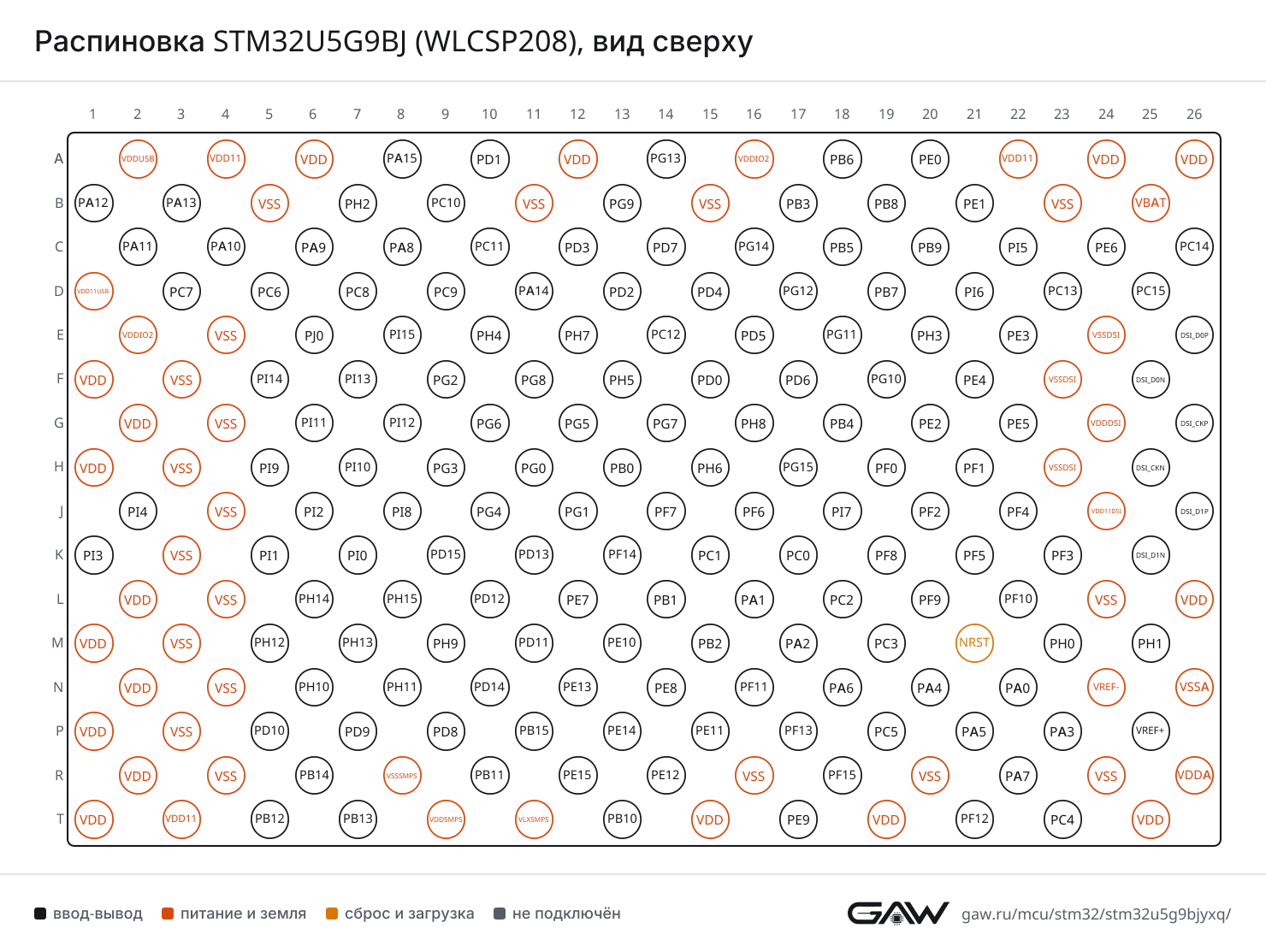

Распиновка STM32U5G9BJ (WLCSP208), вид сверхуРаспиновка WLCSP208 картинкой
PNG, 1480 × 1113 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPG13 (A14, AF7), PA8 (C8, AF7), PB5 (C18, AF7)
CTSPA11 (C2, AF7), PG11 (E18, AF7), PB4 (NJTRST) (G18, AF7)
DEPA12 (B1, AF7), PB3 (JTDO/TRACESWO) (B17, AF7), PG12 (D17, AF7)
RTSPA12 (B1, AF7), PB3 (JTDO/TRACESWO) (B17, AF7), PG12 (D17, AF7)
RXPA10 (C4, AF7), PB7 (D19, AF7), PG10 (F19, AF7)
TXPB6 (A18, AF7), PG9 (B13, AF7), PA9 (C6, AF7)
USART2CKPD7 (C14, AF7), PA4 (N20, AF7)
CTSPD3 (C12, AF7), PA0 (N22, AF7)
DEPD4 (D15, AF7), PA1 (L16, AF7)
RTSPD4 (D15, AF7), PA1 (L16, AF7)
RXPA15 (JTDI) (A8, AF3), PD6 (F17, AF7), PA3 (P23, AF7)
TXPD5 (E16, AF7), PA2 (M17, AF7)
USART3CKPC12 (E14, AF7), PB0 (H13, AF7), PD10 (P5, AF7), PB12 (T5, AF7)
CTSPD11 (M11, AF7), PA6 (N18, AF7), PB13 (T7, AF7)
DEPA15 (JTDI) (A8, AF7), PD2 (D13, AF7), PD12 (L10, AF7), PB1 (L14, AF7), PB14 (R6, AF7)
RTSPA15 (JTDI) (A8, AF7), PD2 (D13, AF7), PD12 (L10, AF7), PB1 (L14, AF7), PB14 (R6, AF7)
RXPC11 (C10, AF7), PD9 (P7, AF7), PC5 (P19, AF7), PA5 (P21, AF7), PB11 (R10, AF7)
TXPC10 (B9, AF7), PD8 (P9, AF7), PA7 (R22, AF7), PB10 (T13, AF7), PC4 (T23, AF7)
USART6CKPE2 (G20, AF7), PF2 (J20, AF7), PC1 (K15, AF7), PD14 (N10, AF7)
CTSPE3 (E22, AF7), PD13 (K11, AF7), PC0 (K17, AF7), PF3 (K23, AF7)
DEPE4 (F21, AF7), PF4 (J22, AF7), PD15 (K9, AF7)
RTSPE4 (F21, AF7), PF4 (J22, AF7), PD15 (K9, AF7)
RXPE0 (A20, AF7), PC8 (D7, AF7), PF1 (H21, AF7), PC2 (L18, AF7)
TXPE1 (B21, AF7), PC9 (D9, AF7), PF0 (H19, AF7), PC3 (M19, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB7 (D19, AF8)
DEPA15 (JTDI) (A8, AF8)
RTSPA15 (JTDI) (A8, AF8)
RXPC11 (C10, AF8), PA1 (L16, AF8)
TXPC10 (B9, AF8), PA0 (N22, AF8)
UART5CTSPB5 (C18, AF8)
DEPB4 (NJTRST) (G18, AF8)
RTSPB4 (NJTRST) (G18, AF8)
RXPD2 (D13, AF8), PF4 (J22, AF8)
TXPC12 (E14, AF8), PF3 (K23, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPG5 (G12, AF8), PA6 (N18, AF8), PB13 (T7, AF8)
DEPG6 (G10, AF8), PB1 (L14, AF8), PB12 (T5, AF8)
RTSPG6 (G10, AF8), PB1 (L14, AF8), PB12 (T5, AF8)
RXPG8 (F11, AF8), PC0 (K17, AF8), PA3 (P23, AF8), PB10 (T13, AF8)
TXPG7 (G14, AF8), PC1 (K15, AF8), PA2 (M17, AF8), PB11 (R10, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA11 (C2, AF5), PB4 (NJTRST) (G18, AF5), PG3 (H9, AF5), PA6 (N18, AF5), PE14 (P13, AF5)
MOSIPA12 (B1, AF5), PB5 (C18, AF5), PG4 (J10, AF5), PE15 (R12, AF5), PA7 (R22, AF5)
NSSPA15 (JTDI) (A8, AF5), PG5 (G12, AF5), PB0 (H13, AF5), PA4 (N20, AF5), PE12 (R14, AF5)
RDYPA8 (C8, AF5), PG6 (G10, AF5), PB2 (M15, AF5), PA2 (M17, AF5), PE11 (P15, AF5)
SCKPB3 (JTDO/TRACESWO) (B17, AF5), PG2 (F9, AF5), PA1 (L16, AF5), PE13 (N12, AF5), PA5 (P21, AF5)
SPI2MISOPD3 (C12, AF5), PI2 (J6, AF5), PC2 (L18, AF5), PB14 (R6, AF5)
MOSIPD4 (D15, AF5), PI3 (K1, AF5), PC1 (K15, AF3), PC3 (M19, AF5), PB15 (P11, AF5)
NSSPB9 (C20, AF5), PD0 (F15, AF5), PI0 (K7, AF5), PB12 (T5, AF5)
RDYPD5 (E16, AF5), PI4 (J2, AF5), PC0 (K17, AF5), PB11 (R10, AF5)
SCKPD1 (A10, AF5), PA9 (C6, AF3), PD3 (C12, AF3), PI1 (K5, AF5), PB13 (T7, AF5), PB10 (T13, AF5)
SPI3MISOPC11 (C10, AF6), PG10 (F19, AF6), PB4 (NJTRST) (G18, AF6)
MOSIPB5 (C18, AF6), PC12 (E14, AF6), PG11 (E18, AF6), PD6 (F17, AF5)
NSSPA15 (JTDI) (A8, AF6), PG12 (D17, AF6), PA4 (N20, AF6)
RDYPG13 (A14, AF6), PB8 (B19, AF6), PA0 (N22, AF6)
SCKPC10 (B9, AF6), PG9 (B13, AF6), PB3 (JTDO/TRACESWO) (B17, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (A18, AF4), PB8 (B19, AF4), PG14 (C16, AF4)
SDAPG13 (A14, AF4), PB3 (JTDO/TRACESWO) (B17, AF4), PB9 (C20, AF4), PB7 (D19, AF4)
SMBAPB5 (C18, AF4), PA14 (JTCK/SWCLK) (D11, AF4), PG15 (H17, AF4), PA1 (L16, AF4)
I2C2SCLPH4 (E10, AF4), PF1 (H21, AF4), PB13 (T7, AF4), PB10 (T13, AF4)
SDAPH5 (F13, AF4), PF0 (H19, AF4), PB14 (R6, AF4), PB11 (R10, AF4)
SMBAPH6 (H15, AF4), PF2 (J20, AF4), PB12 (T5, AF4)
I2C3SCLPH7 (E12, AF4), PG7 (G14, AF4), PC0 (K17, AF4), PA7 (R22, AF4)
SDAPG8 (F11, AF4), PH8 (G16, AF4), PB4 (NJTRST) (G18, AF4), PC1 (K15, AF4)
SMBAPG6 (G10, AF4), PH9 (M9, AF4), PB2 (M15, AF4)
I2C4SCLPB6 (A18, AF5), PF14 (K13, AF4), PD12 (L10, AF4), PB10 (T13, AF3)
SDAPB7 (D19, AF5), PD13 (K11, AF4), PB11 (R10, AF3), PF15 (R18, AF4)
SMBAPA14 (JTCK/SWCLK) (D11, AF5), PD11 (M11, AF4), PF13 (P17, AF4)
I2C5SCLPD1 (A10, AF4), PH5 (F13, AF2)
SDAPH4 (E10, AF2), PD0 (F15, AF4)
SMBAPD2 (D13, AF4), PJ0 (E6, AF4), PH6 (H15, AF2), PD10 (P5, AF4)
I2C6SCLPD1 (A10, AF2), PF1 (H21, AF2)
SDAPD0 (F15, AF2), PF0 (H19, AF2)
SMBAPD3 (C12, AF2), PB12 (T5, AF2), PC4 (T23, AF2)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPA11 (C2)
DPPA12 (B1)
IDPA10 (C4, AF10)
SOFPA8 (C8, AF10), PA14 (JTCK/SWCLK) (D11, AF10)
VBUSPA9 (C6)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PA15 (JTDI) (A8)
CC2PB15 (P11)
DBCC1PB5 (C18)
DBCC2PB14 (R6)
FRSTX1PG6 (G10, AF11), PB2 (M15, AF11), PA2 (M17, AF11)
FRSTX2PC11 (C10, AF11), PG7 (G14, AF11), PF13 (P17, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (C20, AF8)
CKPC12 (E14, AF12)
CKINPB8 (B19, AF8)
CMDPD2 (D13, AF12)
D0PC8 (D7, AF12)
D0DIRPC6 (D5, AF8)
D1PC9 (D9, AF12)
D2PC10 (B9, AF12)
D3PC11 (C10, AF12)
D4PB8 (B19, AF12)
D5PB9 (C20, AF12), PC0 (K17, AF12)
D6PC6 (D5, AF12)
D7PC7 (D3, AF12)
D123DIRPC7 (D3, AF8)
SDMMC2CKPD6 (F17, AF11), PC1 (K15, AF12)
CMDPD7 (C14, AF11), PA0 (N22, AF12)
D0PB14 (R6, AF12)
D1PA8 (C8, AF8), PB15 (P11, AF12)
D2PB3 (JTDO/TRACESWO) (B17, AF12)
D3PB4 (NJTRST) (G18, AF12)
D4PB8 (B19, AF11)
D5PB9 (C20, AF11)
D6PC6 (D5, AF11)
D7PC7 (D3, AF11)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PB8 (B19, AF3), PG7 (G14, AF3), PE2 (G20, AF3), PA3 (P23, AF3)
CK2PA8 (C8, AF3), PE5 (G22, AF3)
D1PA10 (C4, AF3), PE6 (C24, AF3), PD6 (F17, AF3), PC3 (M19, AF3)
D2PB9 (C20, AF3), PE4 (F21, AF3)
D3PF10 (L22, AF13), PC5 (P19, AF3)
FS_APA9 (C6, AF13), PB9 (C20, AF13), PE4 (F21, AF13)
FS_BPB6 (A18, AF13), PA14 (JTCK/SWCLK) (D11, AF13), PF9 (L20, AF13), PA4 (N20, AF13), PE9 (T17, AF13)
MCLK_APB8 (B19, AF13), PG7 (G14, AF13), PE2 (G20, AF13), PA3 (P23, AF13)
MCLK_BPB4 (NJTRST) (G18, AF13), PF7 (J14, AF13), PE10 (M13, AF13)
SCK_APA8 (C8, AF13), PE5 (G22, AF13), PB10 (T13, AF13)
SCK_BPB3 (JTDO/TRACESWO) (B17, AF13), PF8 (K19, AF13), PE8 (N14, AF13)
SD_APA10 (C4, AF13), PE6 (C24, AF13), PD6 (F17, AF13), PC1 (K15, AF13), PC3 (M19, AF13)
SD_BPA13 (JTMS/SWDIO) (B3, AF13), PB5 (C18, AF13), PE3 (E22, AF13), PF6 (J16, AF13), PE7 (L12, AF13)
SAI2FS_APG10 (F19, AF13), PC0 (K17, AF13), PD12 (L10, AF13), PB12 (T5, AF13)
FS_BPA15 (JTDI) (A8, AF13), PG3 (H9, AF13)
MCLK_APC6 (D5, AF13), PG11 (E18, AF13), PD9 (P7, AF13), PB14 (R6, AF13)
MCLK_BPC11 (C10, AF13), PC7 (D3, AF13), PG4 (J10, AF13)
SCK_APG9 (B13, AF13), PD10 (P5, AF13), PB13 (T7, AF13)
SCK_BPC10 (B9, AF13), PG2 (F9, AF13)
SD_APG12 (D17, AF13), PD11 (M11, AF13), PB15 (P11, AF13)
SD_BPC12 (E14, AF13), PG5 (G12, AF13)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PA11 (C2), PC11 (C10), PG11 (E18), PI11 (G6), PD11 (M11), PH11 (N8), PF11 (N16), PE11 (P15), PB11 (R10)
EXTI15PA15 (JTDI) (A8), PC15-OSC32_OUT (D25), PI15 (E8), PG15 (H17), PD15 (K9), PH15 (L8), PB15 (P11), PE15 (R12), PF15 (R18)
IN1PC0 (K17)
IN2PC1 (K15)
IN3PC2 (L18)
IN4PC3 (M19)
IN5PA0 (N22)
IN6PA1 (L16)
IN7PA2 (M17)
IN8PA3 (P23)
IN9PA4 (N20)
IN10PA5 (P21)
IN11PA6 (N18)
IN12PA7 (R22)
IN13PC4 (T23)
IN14PC5 (P19)
IN15PB0 (H13)
IN16PB1 (L14)
IN17PB2 (M15)
ADC2EXTI11PA11 (C2), PC11 (C10), PG11 (E18), PI11 (G6), PD11 (M11), PH11 (N8), PF11 (N16), PE11 (P15), PB11 (R10)
EXTI15PA15 (JTDI) (A8), PC15-OSC32_OUT (D25), PI15 (E8), PG15 (H17), PD15 (K9), PH15 (L8), PB15 (P11), PE15 (R12), PF15 (R18)
IN1PC0 (K17)
IN2PC1 (K15)
IN3PC2 (L18)
IN4PC3 (M19)
IN5PA0 (N22)
IN6PA1 (L16)
IN7PA2 (M17)
IN8PA3 (P23)
IN9PA4 (N20)
IN10PA5 (P21)
IN11PA6 (N18)
IN12PA7 (R22)
IN13PC4 (T23)
IN14PC5 (P19)
IN15PB0 (H13)
IN16PB1 (L14)
IN17PB2 (M15)
ADC4EXTI15PA15 (JTDI) (A8), PC15-OSC32_OUT (D25), PI15 (E8), PG15 (H17), PD15 (K9), PH15 (L8), PB15 (P11), PE15 (R12), PF15 (R18)
IN1PC0 (K17)
IN2PC1 (K15)
IN3PC2 (L18)
IN4PC3 (M19)
IN5PF14 (K13)
IN6PF15 (R18)
IN7PG0 (H11)
IN8PG1 (J12)
IN9PA4 (N20)
IN10PA5 (P21)
IN11PA6 (N18)
IN15PD11 (M11)
IN16PD12 (L10)
IN17PD13 (K11)
IN18PB0 (H13)
IN19PB1 (L14)
IN20PA7 (R22)
IN22PC4 (T23)
IN23PC5 (P19)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PG9 (B13), PA9 (C6), PB9 (C20), PC9 (D9), PI9 (H5), PF9 (L20), PH9 (M9), PD9 (P7), PE9 (T17)
OUT1PA4 (N20)
OUT2PA5 (P21)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPB1 (L14), PC4 (T23)
INPPB2 (M15), PA2 (M17), PC5 (P19)
OUTPB0 (H13, AF12), PB10 (T13, AF12)
COMP2INMPB3 (JTDO/TRACESWO) (B17), PB7 (D19)
INPPB6 (A18), PB4 (NJTRST) (G18)
OUTPB5 (C18, AF12), PB11 (R10, AF12)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA1 (L16)
VINPPA0 (N22)
VOUTPA3 (P23)
OPAMP2VINMPA7 (R22)
VINPPA6 (N18)
VOUTPB0 (H13)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (P25)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (N18, AF1), PE15 (R12, AF1), PB12 (T5, AF1)
BKIN2PA11 (C2, AF2), PE14 (P13, AF2)
CH1PA8 (C8, AF1), PE9 (T17, AF1)
CH1NPE8 (N14, AF1), PA7 (R22, AF1), PB13 (T7, AF1)
CH2PA9 (C6, AF1), PE11 (P15, AF1)
CH2NPB0 (H13, AF1), PE10 (M13, AF1), PB14 (R6, AF1)
CH3PA10 (C4, AF1), PE13 (N12, AF1)
CH3NPB1 (L14, AF1), PB15 (P11, AF1), PE12 (R14, AF1)
CH4PA11 (C2, AF1), PE14 (P13, AF1)
CH4NPC5 (P19, AF1), PE15 (R12, AF3)
ETRPA12 (B1, AF1), PE7 (L12, AF1)
TIM2CH1PA15 (JTDI) (A8, AF1), PA0 (N22, AF1), PA5 (P21, AF1)
CH2PB3 (JTDO/TRACESWO) (B17, AF1), PA1 (L16, AF1)
CH3PA2 (M17, AF1), PB10 (T13, AF1)
CH4PA3 (P23, AF1), PB11 (R10, AF1)
ETRPA15 (JTDI) (A8, AF2), PA0 (N22, AF14), PA5 (P21, AF2)
TIM3CH1PC6 (D5, AF2), PE3 (E22, AF2), PB4 (NJTRST) (G18, AF2), PA6 (N18, AF2)
CH2PB5 (C18, AF2), PC7 (D3, AF2), PE4 (F21, AF2), PA7 (R22, AF2)
CH3PC8 (D7, AF2), PE5 (G22, AF2), PB0 (H13, AF2)
CH4PE6 (C24, AF2), PC9 (D9, AF2), PB1 (L14, AF2)
ETRPD2 (D13, AF2), PE2 (G20, AF2)
TIM4CH1PB6 (A18, AF2), PD12 (L10, AF2)
CH2PB7 (D19, AF2), PD13 (K11, AF2)
CH3PB8 (B19, AF2), PD14 (N10, AF2)
CH4PB9 (C20, AF2), PD15 (K9, AF2)
ETRPE0 (A20, AF2)
TIM5CH1PF6 (J16, AF2), PH10 (N6, AF2), PA0 (N22, AF2)
CH2PF7 (J14, AF2), PA1 (L16, AF2), PH11 (N8, AF2)
CH3PF8 (K19, AF2), PH12 (M5, AF2), PA2 (M17, AF2)
CH4PI0 (K7, AF2), PF9 (L20, AF2), PA3 (P23, AF2)
ETRPF6 (J16, AF1)
TIM8BKINPB7 (D19, AF3), PI4 (J2, AF3), PA6 (N18, AF3)
BKIN2PB6 (A18, AF3), PC9 (D9, AF1)
CH1PI5 (C22, AF3), PC6 (D5, AF3)
CH1NPH13 (M7, AF3), PA5 (P21, AF3), PA7 (R22, AF3)
CH2PC7 (D3, AF3), PI6 (D21, AF3)
CH2NPB0 (H13, AF3), PH14 (L6, AF3), PB14 (R6, AF3)
CH3PC8 (D7, AF3), PI7 (J18, AF3)
CH3NPH15 (L8, AF3), PB1 (L14, AF3), PB15 (P11, AF3)
CH4PC9 (D9, AF3), PI2 (J6, AF3)
CH4NPD0 (F15, AF3), PH12 (M5, AF3), PB2 (M15, AF3)
ETRPI3 (K1, AF3), PA0 (N22, AF3)
TIM15BKINPA9 (C6, AF14), PB12 (T5, AF14)
CH1PG10 (F19, AF14), PF9 (L20, AF14), PA2 (M17, AF14), PB14 (R6, AF14)
CH1NPG9 (B13, AF14), PA1 (L16, AF14), PB13 (T7, AF14)
CH2PG11 (E18, AF14), PF10 (L22, AF14), PB15 (P11, AF14), PA3 (P23, AF14)
TIM16BKINPB5 (C18, AF14)
CH1PE0 (A20, AF14), PB8 (B19, AF14), PA6 (N18, AF14)
CH1NPB6 (A18, AF14)
TIM17BKINPA10 (C4, AF14), PB4 (NJTRST) (G18, AF14)
CH1PE1 (B21, AF14), PB9 (C20, AF14), PA7 (R22, AF14)
CH1NPB7 (D19, AF14)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PB3 (JTDO/TRACESWO) (B17, AF2), PA14 (JTCK/SWCLK) (D11, AF1), PG15 (H17, AF1), PC1 (K15, AF1), PB2 (M15, AF1)
CH2PG14 (C16, AF1), PB4 (NJTRST) (G18, AF1), PA1 (L16, AF0)
ETRPB6 (A18, AF1), PG12 (D17, AF1), PC3 (M19, AF1)
IN1PB5 (C18, AF1), PG10 (F19, AF1), PC0 (K17, AF1)
IN2PB7 (D19, AF1), PG11 (E18, AF1), PC2 (L18, AF1)
LPTIM2CH1PA8 (C8, AF14), PD13 (K11, AF14), PA4 (N20, AF14)
CH2PC7 (D3, AF14), PD10 (P5, AF2), PA7 (R22, AF13)
ETRPD11 (M11, AF14), PC3 (M19, AF14), PA5 (P21, AF14)
IN1PC0 (K17, AF14), PD12 (L10, AF14), PB1 (L14, AF14)
IN2PA10 (C4, AF2), PD9 (P7, AF2), PB15 (P11, AF2)
LPTIM3CH1PC8 (D7, AF14), PB0 (H13, AF4), PF5 (K21, AF2), PC3 (M19, AF2), PD14 (N10, AF14), PB10 (T13, AF2)
CH2PC9 (D9, AF14), PF2 (J20, AF2), PD15 (K9, AF14), PB1 (L14, AF4)
ETRPC10 (B9, AF2), PF4 (J22, AF2), PD10 (P5, AF14), PB14 (R6, AF2)
IN1PC11 (C10, AF2), PF3 (K23, AF2), PD9 (P7, AF14), PB13 (T7, AF2)
LPTIM4ETRPD2 (D13, AF13), PF12 (T21, AF13)
IN1PD13 (K11, AF13), PF11 (N16, AF13)
OUTPD7 (C14, AF13), PF13 (P17, AF13)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (D23)
OUT2PB2 (M15)
REFINPB15 (P11, AF0)
TSPC13 (D23)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (H19, AF12)
A1PF1 (H21, AF12)
A2PF2 (J20, AF12)
A3PF3 (K23, AF12)
A4PF4 (J22, AF12)
A5PF5 (K21, AF12)
A6PF12 (T21, AF12)
A7PF13 (P17, AF12)
A8PF14 (K13, AF12)
A9PF15 (R18, AF12)
A10PG0 (H11, AF12)
A11PG1 (J12, AF12)
A12PG2 (F9, AF12)
A13PG3 (H9, AF12)
A14PG4 (J10, AF12)
A15PG5 (G12, AF12)
A16PD11 (M11, AF12)
A17PD12 (L10, AF12)
A18PD13 (K11, AF12)
A19PE3 (E22, AF12)
A20PD2 (D13, AF14), PE4 (F21, AF12)
A21PE5 (G22, AF12)
A22PE6 (C24, AF12)
A23PE2 (G20, AF12)
A24PG13 (A14, AF12)
A25PG14 (C16, AF12)
ALEPD12 (L10, AF12)
CLEPD11 (M11, AF12)
CLKPD3 (C12, AF12)
D0PD14 (N10, AF12)
D1PD15 (K9, AF12)
D2PD0 (F15, AF12)
D3PD1 (A10, AF12)
D4PE7 (L12, AF12)
D5PE8 (N14, AF12)
D6PE9 (T17, AF12)
D7PE10 (M13, AF12)
D8PE11 (P15, AF12)
D9PE12 (R14, AF12)
D10PE13 (N12, AF12)
D11PE14 (P13, AF12)
D12PE15 (R12, AF12)
D13PD8 (P9, AF12)
D14PD9 (P7, AF12)
D15PD10 (P5, AF12)
DA0PD14 (N10, AF12)
DA1PD15 (K9, AF12)
DA2PD0 (F15, AF12)
DA3PD1 (A10, AF12)
DA4PE7 (L12, AF12)
DA5PE8 (N14, AF12)
DA6PE9 (T17, AF12)
DA7PE10 (M13, AF12)
DA8PE11 (P15, AF12)
DA9PE12 (R14, AF12)
DA10PE13 (N12, AF12)
DA11PE14 (P13, AF12)
DA12PE15 (R12, AF12)
DA13PD8 (P9, AF12)
DA14PD9 (P7, AF12)
DA15PD10 (P5, AF12)
INTPG7 (G14, AF12)
NBL0PE0 (A20, AF12)
NBL1PE1 (B21, AF12), PB15 (P11, AF11)
NCEPG9 (B13, AF12), PD7 (C14, AF12)
NE1PD7 (C14, AF12)
NE2PG9 (B13, AF12)
NE3PG10 (F19, AF12)
NE4PG12 (D17, AF12)
NLPB7 (D19, AF12)
NOEPD4 (D15, AF12)
NWAITPD6 (F17, AF12)
NWEPD5 (E16, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (C6, AF5), PC6 (D5, AF10), PH9 (M9, AF10)
D1PA10 (C4, AF5), PC7 (D3, AF10), PH10 (N6, AF10)
D2PE0 (A20, AF10), PC11 (C10, AF4), PC8 (D7, AF10), PH11 (N8, AF10)
D3PE1 (B21, AF10), PC9 (D9, AF4), PH12 (M5, AF10)
D4PC11 (C10, AF10), PE4 (F21, AF10), PH14 (L6, AF10)
D5PB6 (A18, AF10), PD3 (C12, AF4), PI4 (J2, AF10)
D6PB8 (B19, AF10), PI6 (D21, AF10), PE5 (G22, AF10)
D7PB9 (C20, AF10), PE6 (C24, AF10), PI7 (J18, AF10)
D8PC10 (B9, AF10), PH6 (H15, AF10), PI1 (K5, AF10)
D9PH7 (E12, AF10), PC12 (E14, AF10), PI2 (J6, AF10)
D10PB5 (C18, AF10), PD6 (F17, AF4), PI3 (K1, AF10)
D11PD2 (D13, AF10), PH15 (L8, AF10), PF10 (L22, AF10)
D12PB4 (NJTRST) (G18, AF10), PF6 (J16, AF4), PF11 (N16, AF10)
D13PG15 (H17, AF10), PI0 (K7, AF10)
HSYNCPH8 (G16, AF10), PA4 (N20, AF10), PD8 (P9, AF10)
PIXCLKPH5 (F13, AF10), PA6 (N18, AF4), PD9 (P7, AF10)
VSYNCPI5 (C22, AF10), PB7 (D19, AF10)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (C6, AF5), PC6 (D5, AF10), PH9 (M9, AF10)
D1PA10 (C4, AF5), PC7 (D3, AF10), PH10 (N6, AF10)
D2PE0 (A20, AF10), PC11 (C10, AF4), PC8 (D7, AF10), PH11 (N8, AF10)
D3PE1 (B21, AF10), PC9 (D9, AF4), PH12 (M5, AF10)
D4PC11 (C10, AF10), PE4 (F21, AF10), PH14 (L6, AF10)
D5PB6 (A18, AF10), PD3 (C12, AF4), PI4 (J2, AF10)
D6PB8 (B19, AF10), PI6 (D21, AF10), PE5 (G22, AF10)
D7PB9 (C20, AF10), PE6 (C24, AF10), PI7 (J18, AF10)
D8PC10 (B9, AF10), PH6 (H15, AF10), PI1 (K5, AF10)
D9PH7 (E12, AF10), PC12 (E14, AF10), PI2 (J6, AF10)
D10PB5 (C18, AF10), PD6 (F17, AF4), PI3 (K1, AF10)
D11PD2 (D13, AF10), PH15 (L8, AF10), PF10 (L22, AF10)
D12PB4 (NJTRST) (G18, AF10), PF6 (J16, AF4), PF11 (N16, AF10)
D13PG15 (H17, AF10), PI0 (K7, AF10)
D14PH4 (E10, AF10), PF8 (K19, AF4), PA5 (P21, AF4)
D15PF9 (L20, AF4), PF10 (L22, AF4), PC5 (P19, AF4)
DEPH8 (G16, AF10), PA4 (N20, AF10), PD8 (P9, AF10)
PDCKPH5 (F13, AF10), PA6 (N18, AF4), PD9 (P7, AF10)
RDYPI5 (C22, AF10), PB7 (D19, AF10)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PB9 (C20, AF7), PE4 (F21, AF8), PF12 (T21, AF8)
B1PB8 (B19, AF7), PB2 (M15, AF8), PF13 (P17, AF8)
B2PD14 (N10, AF8)
B3PD15 (K9, AF8)
B4PD0 (F15, AF8)
B5PD1 (A10, AF8)
B6PE7 (L12, AF8)
B7PE8 (N14, AF8)
CLKPD3 (C12, AF8)
DEPD6 (F17, AF8), PF11 (N16, AF8)
G0PC8 (D7, AF8), PE5 (G22, AF8), PF14 (K13, AF8)
G1PE6 (C24, AF8), PC9 (D9, AF8), PF15 (R18, AF8)
G2PE9 (T17, AF8)
G3PE10 (M13, AF8)
G4PE11 (P15, AF8)
G5PE12 (R14, AF8)
G6PE13 (N12, AF8)
G7PE14 (P13, AF8)
HSYNCPE0 (A20, AF8)
R0PG13 (A14, AF8), PC6 (D5, AF7), PE2 (G20, AF8)
R1PG14 (C16, AF8), PC7 (D3, AF7), PE3 (E22, AF8), PG6 (G10, AF7)
R2PE15 (R12, AF8)
R3PD8 (P9, AF8)
R4PD9 (P7, AF8)
R5PD10 (P5, AF8)
R6PD11 (M11, AF8)
R7PD12 (L10, AF8)
VSYNCPE1 (B21, AF8), PD13 (K11, AF8)

DSI — хост MIPI DSI

БлокСигналВыводы
DSIHOSTCKNDSI_CKN (H25)
CKPDSI_CKP (G26)
D0NDSI_D0N (F25)
D0PDSI_D0P (E26)
D1NDSI_D1N (K25)
D1PDSI_D1P (J26)
TEPB7 (D19, AF11), PG5 (G12, AF11), PF10 (L22, AF11), PF11 (N16, AF11), PB15 (P11, AF10)

TSC — контроллер сенсорных кнопок

БлокСигналВыводы
TSCG1_IO1PB12 (T5, AF9)
G1_IO2PB13 (T7, AF9)
G1_IO3PB14 (R6, AF9)
G2_IO1PB4 (NJTRST) (G18, AF9)
G2_IO2PB5 (C18, AF9)
G2_IO3PB6 (A18, AF9)
G2_IO4PB7 (D19, AF9)
G3_IO2PC10 (B9, AF9)
G3_IO3PC11 (C10, AF9)
G3_IO4PC12 (E14, AF9)
G4_IO1PC6 (D5, AF9)
G4_IO2PC7 (D3, AF9)
G4_IO3PC8 (D7, AF9)
G4_IO4PC9 (D9, AF9)
G5_IO1PE10 (M13, AF9)
G5_IO2PE11 (P15, AF9)
G5_IO3PE12 (R14, AF9)
G5_IO4PE13 (N12, AF9)
G6_IO1PD10 (P5, AF9)
G6_IO2PD11 (M11, AF9)
G6_IO3PD12 (L10, AF9)
G6_IO4PD13 (K11, AF9)
G7_IO1PE2 (G20, AF9)
G7_IO2PE3 (E22, AF9)
G7_IO3PE4 (F21, AF9)
G7_IO4PE5 (G22, AF9)
G8_IO1PF14 (K13, AF9)
G8_IO2PF15 (R18, AF9)
G8_IO3PG0 (H11, AF9)
G8_IO4PG1 (J12, AF9)
SYNCPD2 (D13, AF9), PB10 (T13, AF9)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PB8 (B19, AF5), PG7 (G14, AF6), PF3 (K23, AF6), PE9 (T17, AF6)
CCK1PC2 (L18, AF6), PF10 (L22, AF6)
CKI0PD4 (D15, AF6), PF5 (K21, AF6), PB2 (M15, AF6)
CKI1PD7 (C14, AF6), PB13 (T7, AF6)
CKI2PE8 (N14, AF6), PB15 (P11, AF6)
CKI3PC6 (D5, AF6), PE5 (G22, AF6)
CKI4PC1 (K15, AF6), PE11 (P15, AF6)
CKI5PB7 (D19, AF6), PE13 (N12, AF6)
SDI0PD3 (C12, AF6), PF4 (J22, AF6), PB1 (L14, AF6)
SDI1PD6 (F17, AF6), PB12 (T5, AF6)
SDI2PE7 (L12, AF6), PB14 (R6, AF6)
SDI3PC7 (D3, AF6), PE4 (F21, AF6)
SDI4PC0 (K17, AF6), PE10 (M13, AF6)
SDI5PB6 (A18, AF6), PE12 (R14, AF6)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PB3 (JTDO/TRACESWO) (B17, AF3), PF3 (K23, AF3), PE9 (T17, AF3)
CCK1PC10 (B9, AF3)
SDI0PC11 (C10, AF3), PB4 (NJTRST) (G18, AF3), PF4 (J22, AF3), PE10 (M13, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (D11, AF0)
JTDIPA15 (JTDI) (A8, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (B17, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (B3, AF0)
NJTRSTPB4 (NJTRST) (G18, AF0)
TRACECLKPA8 (C8, AF12), PE2 (G20, AF0)
TRACED0PC9 (D9, AF0), PE3 (E22, AF0), PC1 (K15, AF0)
TRACED1PC10 (B9, AF0), PE4 (F21, AF0)
TRACED2PD2 (D13, AF0), PE5 (G22, AF0)
TRACED3PE6 (C24, AF0), PC12 (E14, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPA2 (M17)
MCOPA8 (C8, AF0)
OSC_INPH0-OSC_IN (M23)
OSC_OUTPH1-OSC_OUT (M25)
OSC32_INPC14-OSC32_IN (C26)
OSC32_OUTPC15-OSC32_OUT (D25)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC6 (D5, AF0), PA5 (P21, AF0)
PWR_WKUP1PE4 (F21), PB2 (M15), PA0 (N22)
PWR_WKUP2PC13 (D23), PE5 (G22), PA4 (N20)
PWR_WKUP3PB6 (A18), PE6 (C24), PA1 (L16)
PWR_WKUP4PB7 (D19), PB1 (L14), PA2 (M17)
PWR_WKUP5PB8 (B19), PC5 (P19), PA3 (P23)
PWR_WKUP6PB5 (C18), PE7 (L12), PA5 (P21)
PWR_WKUP7PE8 (N14), PA6 (N18), PB15 (P11)
PWR_WKUP8PF2 (J20), PA7 (R22), PB10 (T13)
TAMP_IN1PC13 (D23)
TAMP_IN2PA0 (N22)
TAMP_IN3PE6 (C24)
TAMP_IN4PC5 (P19)
TAMP_IN5PA1 (L16)
TAMP_IN6PE3 (E22)
TAMP_IN7PE4 (F21)
TAMP_IN8PE5 (G22)
TAMP_OUT1PA0 (N22)
TAMP_OUT2PC13 (D23)
TAMP_OUT3PE3 (E22)
TAMP_OUT4PA1 (L16)
TAMP_OUT5PC5 (P19)
TAMP_OUT6PE6 (C24)
TAMP_OUT7PE5 (G22)
TAMP_OUT8PE4 (F21)

Блоки без собственных выводов: OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), IRTIM (формирователь ИК-сигнала), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), AES (аппаратное шифрование AES), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 208 шариков корпуса WLCSP208 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A2VDDUSBпитание—
A4VDD11питание—
A6VDDпитание—
A8PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI (AF0), SAI2_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC1, USART2_RX (AF3), USART3_DE (AF7), USART3_RTS (AF7)
A10PD1ввод-выводFMC_D3 (AF12), FMC_DA3 (AF12), I2C5_SCL (AF4), I2C6_SCL (AF2), LTDC_B5 (AF8), SPI2_SCK (AF5)
A12VDDпитание—
A14PG13ввод-выводFMC_A24 (AF12), I2C1_SDA (AF4), LTDC_R0 (AF8), SPI3_RDY (AF6), USART1_CK (AF7)
A16VDDIO2питание—
A18PB6ввод-выводCOMP2_INP, DCMI_D5 (AF10), I2C1_SCL (AF4), I2C4_SCL (AF5), LPTIM1_ETR (AF1), MDF1_SDI5 (AF6), PSSI_D5 (AF10), PWR_WKUP3, SAI1_FS_B (AF13), TIM16_CH1N (AF14), TIM4_CH1 (AF2), TIM8_BKIN2 (AF3), TSC_G2_IO3 (AF9), USART1_TX (AF7)
A20PE0ввод-выводDCMI_D2 (AF10), FMC_NBL0 (AF12), LTDC_HSYNC (AF8), PSSI_D2 (AF10), TIM16_CH1 (AF14), TIM4_ETR (AF2), USART6_RX (AF7)
A22VDD11питание—
A24VDDпитание—
A26VDDпитание—
B1PA12ввод-выводOCTOSPIM_P2_NCS (AF6), SPI1_MOSI (AF5), TIM1_ETR (AF1), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_HS_DP
B3PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0), IR_OUT (AF1), SAI1_SD_B (AF13)
B5VSSпитание—
B7PH2ввод-выводOCTOSPIM_P1_IO4 (AF3)
B9PC10ввод-выводADF1_CCK1 (AF3), DCMI_D8 (AF10), DEBUG_TRACED1 (AF0), LPTIM3_ETR (AF2), PSSI_D8 (AF10), SAI2_SCK_B (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), TSC_G3_IO2 (AF9), UART4_TX (AF8), USART3_TX (AF7)
B11VSSпитание—
B13PG9ввод-выводDAC1_EXTI9, FMC_NCE (AF12), FMC_NE2 (AF12), OCTOSPIM_P2_IO6 (AF5), SAI2_SCK_A (AF13), SPI3_SCK (AF6), TIM15_CH1N (AF14), USART1_TX (AF7)
B15VSSпитание—
B17PB3 (JTDO/TRACESWO)ввод-выводADF1_CCK0 (AF3), COMP2_INM, CRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2C1_SDA (AF4), LPTIM1_CH1 (AF2), SAI1_SCK_B (AF13), SDMMC2_D2 (AF12), SPI1_SCK (AF5), SPI3_SCK (AF6), TIM2_CH2 (AF1), USART1_DE (AF7), USART1_RTS (AF7)
B19PB8ввод-выводDCMI_D6 (AF10), I2C1_SCL (AF4), LTDC_B1 (AF7), MDF1_CCK0 (AF5), PSSI_D6 (AF10), PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), SDMMC1_CKIN (AF8), SDMMC1_D4 (AF12), SDMMC2_D4 (AF11), SPI3_RDY (AF6), TIM16_CH1 (AF14), TIM4_CH3 (AF2)
B21PE1ввод-выводDCMI_D3 (AF10), FMC_NBL1 (AF12), LTDC_VSYNC (AF8), PSSI_D3 (AF10), TIM17_CH1 (AF14), USART6_TX (AF7)
B23VSSпитание—
B25VBATпитание—
C2PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1), USART1_CTS (AF7), USB_OTG_HS_DM
C4PA10ввод-выводCRS_SYNC (AF0), DCMI_D1 (AF5), LPTIM2_IN2 (AF2), PSSI_D1 (AF5), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM17_BKIN (AF14), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_HS_ID (AF10)
C6PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF5), PSSI_D0 (AF5), SAI1_FS_A (AF13), SPI2_SCK (AF3), TIM15_BKIN (AF14), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_HS_VBUS
C8PA8ввод-выводDEBUG_TRACECLK (AF12), GFXTIM_FCKCAL (AF11), GFXTIM_LCKCAL (AF2), LPTIM2_CH1 (AF14), RCC_MCO (AF0), SAI1_CK2 (AF3), SAI1_SCK_A (AF13), SDMMC2_D1 (AF8), SPI1_RDY (AF5), TIM1_CH1 (AF1), USART1_CK (AF7), USB_OTG_HS_SOF (AF10)
C10PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0 (AF3), DCMI_D2 (AF4), DCMI_D4 (AF10), LPTIM3_IN1 (AF2), OCTOSPIM_P1_NCS (AF5), PSSI_D2 (AF4), PSSI_D4 (AF10), SAI2_MCLK_B (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), TSC_G3_IO3 (AF9), UART4_RX (AF8), UCPD1_FRSTX2 (AF11), USART3_RX (AF7)
C12PD3ввод-выводDCMI_D5 (AF4), FMC_CLK (AF12), I2C6_SMBA (AF2), LTDC_CLK (AF8), MDF1_SDI0 (AF6), OCTOSPIM_P2_NCS (AF10), PSSI_D5 (AF4), SPI2_MISO (AF5), SPI2_SCK (AF3), USART2_CTS (AF7)
C14PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF5), LPTIM4_OUT (AF13), MDF1_CKI1 (AF6), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), USART2_CK (AF7)
C16PG14ввод-выводFMC_A25 (AF12), I2C1_SCL (AF4), LPTIM1_CH2 (AF1), LTDC_R1 (AF8)
C18PB5ввод-выводCOMP2_OUT (AF12), DCMI_D10 (AF10), I2C1_SMBA (AF4), LPTIM1_IN1 (AF1), OCTOSPIM_P1_NCLK (AF3), PSSI_D10 (AF10), PWR_WKUP6, SAI1_SD_B (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF6), TIM16_BKIN (AF14), TIM3_CH2 (AF2), TSC_G2_IO2 (AF9), UART5_CTS (AF8), UCPD1_DBCC1, USART1_CK (AF7)
C20PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF10), I2C1_SDA (AF4), IR_OUT (AF1), LTDC_B0 (AF7), PSSI_D7 (AF10), SAI1_D2 (AF3), SAI1_FS_A (AF13), SDMMC1_CDIR (AF8), SDMMC1_D5 (AF12), SDMMC2_D5 (AF11), SPI2_NSS (AF5), TIM17_CH1 (AF14), TIM4_CH4 (AF2)
C22PI5ввод-выводDCMI_VSYNC (AF10), OCTOSPIM_P2_NCS (AF5), PSSI_RDY (AF10), TIM8_CH1 (AF3)
C24PE6ввод-выводDCMI_D7 (AF10), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF8), PSSI_D7 (AF10), PWR_WKUP3, SAI1_D1 (AF3), SAI1_SD_A (AF13), TAMP_IN3, TAMP_OUT6, TIM3_CH4 (AF2)
C26PC14-OSC32_INввод-выводRCC_OSC32_IN
D1VDD11USBпитание—
D3PC7ввод-выводDCMI_D1 (AF10), LPTIM2_CH2 (AF14), LTDC_R1 (AF7), MDF1_SDI3 (AF6), PSSI_D1 (AF10), PWR_CDSTOP (AF0), SAI2_MCLK_B (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), TSC_G4_IO2 (AF9)
D5PC6ввод-выводDCMI_D0 (AF10), LTDC_R0 (AF7), MDF1_CKI3 (AF6), PSSI_D0 (AF10), PWR_CSLEEP (AF0), SAI2_MCLK_A (AF13), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF11), TIM3_CH1 (AF2), TIM8_CH1 (AF3), TSC_G4_IO1 (AF9)
D7PC8ввод-выводDCMI_D2 (AF10), LPTIM3_CH1 (AF14), LTDC_G0 (AF8), PSSI_D2 (AF10), PWR_SRDSTOP (AF0), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), TSC_G4_IO3 (AF9), USART6_RX (AF7)
D9PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF4), DEBUG_TRACED0 (AF0), LPTIM3_CH2 (AF14), LTDC_G1 (AF8), PSSI_D3 (AF4), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_BKIN2 (AF1), TIM8_CH4 (AF3), TSC_G4_IO4 (AF9), USART6_TX (AF7)
D11PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF5), LPTIM1_CH1 (AF1), SAI1_FS_B (AF13), USB_OTG_HS_SOF (AF10)
D13PD2ввод-выводDCMI_D11 (AF10), DEBUG_TRACED2 (AF0), FMC_A20 (AF14), I2C5_SMBA (AF4), LPTIM4_ETR (AF13), PSSI_D11 (AF10), SDMMC1_CMD (AF12), TIM3_ETR (AF2), TSC_SYNC (AF9), UART5_RX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
D15PD4ввод-выводFMC_NOE (AF12), MDF1_CKI0 (AF6), OCTOSPIM_P1_IO4 (AF10), SPI2_MOSI (AF5), USART2_DE (AF7), USART2_RTS (AF7)
D17PG12ввод-выводFMC_NE4 (AF12), LPTIM1_ETR (AF1), OCTOSPIM_P2_NCS (AF5), SAI2_SD_A (AF13), SPI3_NSS (AF6), USART1_DE (AF7), USART1_RTS (AF7)
D19PB7ввод-выводCOMP2_INM, DCMI_VSYNC (AF10), DSIHOST_TE (AF11), FMC_NL (AF12), GFXTIM_TE (AF11), I2C1_SDA (AF4), I2C4_SDA (AF5), LPTIM1_IN2 (AF1), MDF1_CKI5 (AF6), PSSI_RDY (AF10), PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N (AF14), TIM4_CH2 (AF2), TIM8_BKIN (AF3), TSC_G2_IO4 (AF9), UART4_CTS (AF8), USART1_RX (AF7)
D21PI6ввод-выводDCMI_D6 (AF10), OCTOSPIM_P2_CLK (AF5), PSSI_D6 (AF10), TIM8_CH2 (AF3)
D23PC13ввод-выводPWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2
D25PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUT
E2VDDIO2питание—
E4VSSпитание—
E6PJ0ввод-выводHSPI1_IO15 (AF8), I2C5_SMBA (AF4)
E8PI15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, HSPI1_IO14 (AF8)
E10PH4ввод-выводI2C2_SCL (AF4), I2C5_SDA (AF2), OCTOSPIM_P2_DQS (AF5), PSSI_D14 (AF10)
E12PH7ввод-выводDCMI_D9 (AF10), I2C3_SCL (AF4), OCTOSPIM_P2_NCLK (AF5), PSSI_D9 (AF10)
E14PC12ввод-выводDCMI_D9 (AF10), DEBUG_TRACED3 (AF0), PSSI_D9 (AF10), SAI2_SD_B (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), TSC_G3_IO4 (AF9), UART5_TX (AF8), USART3_CK (AF7)
E16PD5ввод-выводFMC_NWE (AF12), OCTOSPIM_P1_IO5 (AF10), SPI2_RDY (AF5), USART2_TX (AF7)
E18PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, LPTIM1_IN2 (AF1), OCTOSPIM_P1_IO5 (AF3), SAI2_MCLK_A (AF13), SPI3_MOSI (AF6), TIM15_CH2 (AF14), USART1_CTS (AF7)
E20PH3-BOOT0ввод-вывод—
E22PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), LTDC_R1 (AF8), OCTOSPIM_P1_DQS (AF3), SAI1_SD_B (AF13), TAMP_IN6, TAMP_OUT3, TIM3_CH1 (AF2), TSC_G7_IO2 (AF9), USART6_CTS (AF7)
E24VSSDSIпитание—
E26DSI_D0PслужебныйDSIHOST_D0P
F1VDDпитание—
F3VSSпитание—
F5PI14ввод-выводHSPI1_IO13 (AF8)
F7PI13ввод-выводHSPI1_IO12 (AF8)
F9PG2ввод-выводFMC_A12 (AF12), SAI2_SCK_B (AF13), SPI1_SCK (AF5)
F11PG8ввод-выводI2C3_SDA (AF4), LPUART1_RX (AF8)
F13PH5ввод-выводDCMI_PIXCLK (AF10), I2C2_SDA (AF4), I2C5_SCL (AF2), PSSI_PDCK (AF10)
F15PD0ввод-выводFMC_D2 (AF12), FMC_DA2 (AF12), I2C5_SDA (AF4), I2C6_SDA (AF2), LTDC_B4 (AF8), SPI2_NSS (AF5), TIM8_CH4N (AF3)
F17PD6ввод-выводDCMI_D10 (AF4), FMC_NWAIT (AF12), LTDC_DE (AF8), MDF1_SDI1 (AF6), OCTOSPIM_P1_IO6 (AF10), PSSI_D10 (AF4), SAI1_D1 (AF3), SAI1_SD_A (AF13), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
F19PG10ввод-выводFMC_NE3 (AF12), LPTIM1_IN1 (AF1), OCTOSPIM_P2_IO7 (AF5), SAI2_FS_A (AF13), SPI3_MISO (AF6), TIM15_CH1 (AF14), USART1_RX (AF7)
F21PE4ввод-выводDCMI_D4 (AF10), DEBUG_TRACED1 (AF0), FMC_A20 (AF12), LTDC_B0 (AF8), MDF1_SDI3 (AF6), PSSI_D4 (AF10), PWR_WKUP1, SAI1_D2 (AF3), SAI1_FS_A (AF13), TAMP_IN7, TAMP_OUT8, TIM3_CH2 (AF2), TSC_G7_IO3 (AF9), USART6_DE (AF7), USART6_RTS (AF7)
F23VSSDSIпитание—
F25DSI_D0NслужебныйDSIHOST_D0N
G2VDDпитание—
G4VSSпитание—
G6PI11ввод-выводADC1_EXTI11, ADC2_EXTI11, HSPI1_IO10 (AF8)
G8PI12ввод-выводHSPI1_IO11 (AF8)
G10PG6ввод-выводI2C3_SMBA (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), LTDC_R1 (AF7), OCTOSPIM_P1_DQS (AF3), SPI1_RDY (AF5), UCPD1_FRSTX1 (AF11)
G12PG5ввод-выводDSIHOST_TE (AF11), FMC_A15 (AF12), GFXTIM_TE (AF11), LPUART1_CTS (AF8), SAI2_SD_B (AF13), SPI1_NSS (AF5)
G14PG7ввод-выводFMC_INT (AF12), I2C3_SCL (AF4), LPUART1_TX (AF8), MDF1_CCK0 (AF6), OCTOSPIM_P2_DQS (AF5), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), UCPD1_FRSTX2 (AF11)
G16PH8ввод-выводDCMI_HSYNC (AF10), I2C3_SDA (AF4), OCTOSPIM_P2_IO3 (AF5), PSSI_DE (AF10)
G18PB4 (NJTRST)ввод-выводADF1_SDI0 (AF3), COMP2_INP, DCMI_D12 (AF10), DEBUG_NJTRST (AF0), I2C3_SDA (AF4), LPTIM1_CH2 (AF1), PSSI_D12 (AF10), SAI1_MCLK_B (AF13), SDMMC2_D3 (AF12), SPI1_MISO (AF5), SPI3_MISO (AF6), TIM17_BKIN (AF14), TIM3_CH1 (AF2), TSC_G2_IO1 (AF9), UART5_DE (AF8), UART5_RTS (AF8), USART1_CTS (AF7)
G20PE2ввод-выводDEBUG_TRACECLK (AF0), FMC_A23 (AF12), LTDC_R0 (AF8), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM3_ETR (AF2), TSC_G7_IO1 (AF9), USART6_CK (AF7)
G22PE5ввод-выводDCMI_D6 (AF10), DEBUG_TRACED2 (AF0), FMC_A21 (AF12), LTDC_G0 (AF8), MDF1_CKI3 (AF6), PSSI_D6 (AF10), PWR_WKUP2, SAI1_CK2 (AF3), SAI1_SCK_A (AF13), TAMP_IN8, TAMP_OUT7, TIM3_CH3 (AF2), TSC_G7_IO4 (AF9)
G24VDDDSIпитание—
G26DSI_CKPслужебныйDSIHOST_CKP
H1VDDпитание—
H3VSSпитание—
H5PI9ввод-выводDAC1_EXTI9, HSPI1_IO8 (AF8)
H7PI10ввод-выводHSPI1_IO9 (AF8)
H9PG3ввод-выводFMC_A13 (AF12), SAI2_FS_B (AF13), SPI1_MISO (AF5)
H11PG0ввод-выводADC4_IN7, FMC_A10 (AF12), OCTOSPIM_P2_IO4 (AF5), TSC_G8_IO3 (AF9)
H13PB0ввод-выводADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK (AF13), COMP1_OUT (AF12), LPTIM3_CH1 (AF4), OCTOSPIM_P1_IO1 (AF10), OPAMP2_VOUT, SPI1_NSS (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), USART3_CK (AF7)
H15PH6ввод-выводDCMI_D8 (AF10), I2C2_SMBA (AF4), I2C5_SMBA (AF2), OCTOSPIM_P2_CLK (AF5), PSSI_D8 (AF10)
H17PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13 (AF10), I2C1_SMBA (AF4), LPTIM1_CH1 (AF1), OCTOSPIM_P2_DQS (AF5), PSSI_D13 (AF10)
H19PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), I2C6_SDA (AF2), OCTOSPIM_P2_IO0 (AF5), USART6_TX (AF7)
H21PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), I2C6_SCL (AF2), OCTOSPIM_P2_IO1 (AF5), USART6_RX (AF7)
H23VSSDSIпитание—
H25DSI_CKNслужебныйDSIHOST_CKN
J2PI4ввод-выводDCMI_D5 (AF10), HSPI1_NCLK (AF8), PSSI_D5 (AF10), SPI2_RDY (AF5), TIM8_BKIN (AF3)
J4VSSпитание—
J6PI2ввод-выводDCMI_D9 (AF10), HSPI1_DQS0 (AF8), OCTOSPIM_P2_IO1 (AF6), PSSI_D9 (AF10), SPI2_MISO (AF5), TIM8_CH4 (AF3)
J8PI8ввод-выводHSPI1_DQS1 (AF8)
J10PG4ввод-выводFMC_A14 (AF12), SAI2_MCLK_B (AF13), SPI1_MOSI (AF5)
J12PG1ввод-выводADC4_IN8, FMC_A11 (AF12), OCTOSPIM_P2_IO5 (AF5), TSC_G8_IO4 (AF9)
J14PF7ввод-выводOCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF13), TIM5_CH2 (AF2)
J16PF6ввод-выводDCMI_D12 (AF4), OCTOSPIM_P1_IO3 (AF10), OCTOSPIM_P2_NCS (AF5), PSSI_D12 (AF4), SAI1_SD_B (AF13), TIM5_CH1 (AF2), TIM5_ETR (AF1)
J18PI7ввод-выводDCMI_D7 (AF10), OCTOSPIM_P2_NCLK (AF5), PSSI_D7 (AF10), TIM8_CH3 (AF3)
J20PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), OCTOSPIM_P2_IO2 (AF5), PWR_WKUP8, USART6_CK (AF7)
J22PF4ввод-выводADF1_SDI0 (AF3), FMC_A4 (AF12), LPTIM3_ETR (AF2), MDF1_SDI0 (AF6), OCTOSPIM_P2_CLK (AF5), UART5_RX (AF8), USART6_DE (AF7), USART6_RTS (AF7)
J24VDD11DSIпитание—
J26DSI_D1PслужебныйDSIHOST_D1P
K1PI3ввод-выводDCMI_D10 (AF10), HSPI1_CLK (AF8), OCTOSPIM_P2_IO0 (AF6), PSSI_D10 (AF10), SPI2_MOSI (AF5), TIM8_ETR (AF3)
K3VSSпитание—
K5PI1ввод-выводDCMI_D8 (AF10), HSPI1_IO7 (AF8), OCTOSPIM_P2_IO2 (AF6), PSSI_D8 (AF10), SPI2_SCK (AF5)
K7PI0ввод-выводDCMI_D13 (AF10), HSPI1_IO6 (AF8), OCTOSPIM_P1_IO5 (AF3), PSSI_D13 (AF10), SPI2_NSS (AF5), TIM5_CH4 (AF2)
K9PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LPTIM3_CH2 (AF14), LTDC_B3 (AF8), TIM4_CH4 (AF2), USART6_DE (AF7), USART6_RTS (AF7)
K11PD13ввод-выводADC4_IN17, FMC_A18 (AF12), GFXTIM_TE (AF5), I2C4_SDA (AF4), LPTIM2_CH1 (AF14), LPTIM4_IN1 (AF13), LTDC_VSYNC (AF8), TIM4_CH2 (AF2), TSC_G6_IO4 (AF9), USART6_CTS (AF7)
K13PF14ввод-выводADC4_IN5, FMC_A8 (AF12), I2C4_SCL (AF4), LTDC_G0 (AF8), TSC_G8_IO1 (AF9)
K15PC1ввод-выводADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0 (AF0), I2C3_SDA (AF4), LPTIM1_CH1 (AF1), LPUART1_TX (AF8), MDF1_CKI4 (AF6), OCTOSPIM_P1_IO4 (AF10), SAI1_SD_A (AF13), SDMMC2_CK (AF12), SPI2_MOSI (AF3), USART6_CK (AF7)
K17PC0ввод-выводADC1_IN1, ADC2_IN1, ADC4_IN1, GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF11), I2C3_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF14), LPUART1_RX (AF8), MDF1_SDI4 (AF6), OCTOSPIM_P1_IO7 (AF3), SAI2_FS_A (AF13), SDMMC1_D5 (AF12), SPI2_RDY (AF5), USART6_CTS (AF7)
K19PF8ввод-выводOCTOSPIM_P1_IO0 (AF10), PSSI_D14 (AF4), SAI1_SCK_B (AF13), TIM5_CH3 (AF2)
K21PF5ввод-выводFMC_A5 (AF12), LPTIM3_CH1 (AF2), MDF1_CKI0 (AF6), OCTOSPIM_P2_NCLK (AF5)
K23PF3ввод-выводADF1_CCK0 (AF3), FMC_A3 (AF12), LPTIM3_IN1 (AF2), MDF1_CCK0 (AF6), OCTOSPIM_P2_IO3 (AF5), UART5_TX (AF8), USART6_CTS (AF7)
K25DSI_D1NслужебныйDSIHOST_D1N
L2VDDпитание—
L4VSSпитание—
L6PH14ввод-выводDCMI_D4 (AF10), HSPI1_IO4 (AF8), PSSI_D4 (AF10), TIM8_CH2N (AF3)
L8PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D11 (AF10), HSPI1_IO5 (AF8), OCTOSPIM_P2_IO6 (AF5), PSSI_D11 (AF10), TIM8_CH3N (AF3)
L10PD12ввод-выводADC4_IN16, FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), LPTIM2_IN1 (AF14), LTDC_R7 (AF8), SAI2_FS_A (AF13), TIM4_CH1 (AF2), TSC_G6_IO3 (AF9), USART3_DE (AF7), USART3_RTS (AF7)
L12PE7ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), LTDC_B6 (AF8), MDF1_SDI2 (AF6), PWR_WKUP6, SAI1_SD_B (AF13), TIM1_ETR (AF1)
L14PB1ввод-выводADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1 (AF14), LPTIM3_CH2 (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI0 (AF6), OCTOSPIM_P1_IO0 (AF10), PWR_WKUP4, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USART3_DE (AF7), USART3_RTS (AF7)
L16PA1ввод-выводADC1_IN6, ADC2_IN6, I2C1_SMBA (AF4), LPTIM1_CH2 (AF0), OCTOSPIM_P1_DQS (AF10), OPAMP1_VINM, PWR_WKUP3, SPI1_SCK (AF5), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF14), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
L18PC2ввод-выводADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2 (AF1), MDF1_CCK1 (AF6), OCTOSPIM_P1_IO5 (AF10), SPI2_MISO (AF5), USART6_RX (AF7)
L20PF9ввод-выводDAC1_EXTI9, OCTOSPIM_P1_IO1 (AF10), PSSI_D15 (AF4), SAI1_FS_B (AF13), TIM15_CH1 (AF14), TIM5_CH4 (AF2)
L22PF10ввод-выводDCMI_D11 (AF10), DSIHOST_TE (AF11), GFXTIM_TE (AF11), MDF1_CCK1 (AF6), OCTOSPIM_P1_CLK (AF3), PSSI_D11 (AF10), PSSI_D15 (AF4), SAI1_D3 (AF13), TIM15_CH2 (AF14)
L24VSSпитание—
L26VDDпитание—
M1VDDпитание—
M3VSSпитание—
M5PH12ввод-выводDCMI_D3 (AF10), HSPI1_IO2 (AF8), OCTOSPIM_P2_IO7 (AF5), PSSI_D3 (AF10), TIM5_CH3 (AF2), TIM8_CH4N (AF3)
M7PH13ввод-выводHSPI1_IO3 (AF8), TIM8_CH1N (AF3)
M9PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF10), HSPI1_NCS (AF8), I2C3_SMBA (AF4), OCTOSPIM_P2_IO4 (AF5), PSSI_D0 (AF10)
M11PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_ETR (AF14), LTDC_R6 (AF8), SAI2_SD_A (AF13), TSC_G6_IO2 (AF9), USART3_CTS (AF7)
M13PE10ввод-выводADF1_SDI0 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), LTDC_G3 (AF8), MDF1_SDI4 (AF6), OCTOSPIM_P1_CLK (AF10), SAI1_MCLK_B (AF13), TIM1_CH2N (AF1), TSC_G5_IO1 (AF9)
M15PB2ввод-выводADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA (AF4), LPTIM1_CH1 (AF1), LTDC_B1 (AF8), MDF1_CKI0 (AF6), OCTOSPIM_P1_DQS (AF10), PWR_WKUP1, RTC_OUT2, SPI1_RDY (AF5), TIM8_CH4N (AF3), UCPD1_FRSTX1 (AF11)
M17PA2ввод-выводADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), PWR_WKUP4, RCC_LSCO, SPI1_RDY (AF5), TIM15_CH1 (AF14), TIM2_CH3 (AF1), TIM5_CH3 (AF2), UCPD1_FRSTX1 (AF11), USART2_TX (AF7)
M19PC3ввод-выводADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR (AF1), LPTIM2_ETR (AF14), LPTIM3_CH1 (AF2), OCTOSPIM_P1_IO6 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), SPI2_MOSI (AF5), USART6_TX (AF7)
M21NRSTсброс—
M23PH0-OSC_INввод-выводRCC_OSC_IN
M25PH1-OSC_OUTввод-выводRCC_OSC_OUT
N2VDDпитание—
N4VSSпитание—
N6PH10ввод-выводDCMI_D1 (AF10), HSPI1_IO0 (AF8), OCTOSPIM_P2_IO5 (AF5), PSSI_D1 (AF10), TIM5_CH1 (AF2)
N8PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D2 (AF10), HSPI1_IO1 (AF8), OCTOSPIM_P2_IO6 (AF5), PSSI_D2 (AF10), TIM5_CH2 (AF2)
N10PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LPTIM3_CH1 (AF14), LTDC_B2 (AF8), TIM4_CH3 (AF2), USART6_CK (AF7)
N12PE13ввод-выводFMC_D10 (AF12), FMC_DA10 (AF12), LTDC_G6 (AF8), MDF1_CKI5 (AF6), OCTOSPIM_P1_IO1 (AF10), SPI1_SCK (AF5), TIM1_CH3 (AF1), TSC_G5_IO4 (AF9)
N14PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), LTDC_B7 (AF8), MDF1_CKI2 (AF6), PWR_WKUP7, SAI1_SCK_B (AF13), TIM1_CH1N (AF1)
N16PF11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D12 (AF10), DSIHOST_TE (AF11), GFXTIM_TE (AF11), LPTIM4_IN1 (AF13), LTDC_DE (AF8), OCTOSPIM_P1_NCLK (AF3), PSSI_D12 (AF10)
N18PA6ввод-выводADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK (AF4), LPUART1_CTS (AF8), OCTOSPIM_P1_IO3 (AF10), OPAMP2_VINP, PSSI_PDCK (AF4), PWR_CDSTOP (AF0), PWR_WKUP7, SPI1_MISO (AF5), TIM16_CH1 (AF14), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART3_CTS (AF7)
N20PA4ввод-выводADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC (AF10), LPTIM2_CH1 (AF14), OCTOSPIM_P1_NCS (AF3), PSSI_DE (AF10), PWR_WKUP2, SAI1_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), USART2_CK (AF7)
N22PA0ввод-выводADC1_IN5, ADC2_IN5, AUDIOCLK (AF13), OCTOSPIM_P2_NCS (AF10), OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD (AF12), SPI3_RDY (AF6), TAMP_IN2, TAMP_OUT1, TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7)
N24VREF-питание—
N26VSSAпитание—
P1VDDпитание—
P3VSSпитание—
P5PD10ввод-выводFMC_D15 (AF12), FMC_DA15 (AF12), I2C5_SMBA (AF4), LPTIM2_CH2 (AF2), LPTIM3_ETR (AF14), LTDC_R5 (AF8), SAI2_SCK_A (AF13), TSC_G6_IO1 (AF9), USART3_CK (AF7)
P7PD9ввод-выводDAC1_EXTI9, DCMI_PIXCLK (AF10), FMC_D14 (AF12), FMC_DA14 (AF12), LPTIM2_IN2 (AF2), LPTIM3_IN1 (AF14), LTDC_R4 (AF8), PSSI_PDCK (AF10), SAI2_MCLK_A (AF13), USART3_RX (AF7)
P9PD8ввод-выводDCMI_HSYNC (AF10), FMC_D13 (AF12), FMC_DA13 (AF12), LTDC_R3 (AF8), PSSI_DE (AF10), USART3_TX (AF7)
P11PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DSIHOST_TE (AF10), FMC_NBL1 (AF11), GFXTIM_TE (AF10), LPTIM2_IN2 (AF2), MDF1_CKI2 (AF6), PWR_WKUP7, RTC_REFIN (AF0), SAI2_SD_A (AF13), SDMMC2_D1 (AF12), SPI2_MOSI (AF5), TIM15_CH2 (AF14), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UCPD1_CC2
P13PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), GFXTIM_LCKCAL (AF13), LTDC_G7 (AF8), OCTOSPIM_P1_IO2 (AF10), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1)
P15PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G4 (AF8), MDF1_CKI4 (AF6), OCTOSPIM_P1_NCS (AF10), SPI1_RDY (AF5), TIM1_CH2 (AF1), TSC_G5_IO2 (AF9)
P17PF13ввод-выводFMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM4_OUT (AF13), LTDC_B1 (AF8), UCPD1_FRSTX2 (AF11)
P19PC5ввод-выводADC1_IN14, ADC2_IN14, ADC4_IN23, COMP1_INP, PSSI_D15 (AF4), PWR_WKUP5, SAI1_D3 (AF3), TAMP_IN4, TAMP_OUT5, TIM1_CH4N (AF1), USART3_RX (AF7)
P21PA5ввод-выводADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR (AF14), PSSI_D14 (AF4), PWR_CSLEEP (AF0), PWR_WKUP6, SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM8_CH1N (AF3), USART3_RX (AF7)
P23PA3ввод-выводADC1_IN8, ADC2_IN8, LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM15_CH2 (AF14), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
P25VREF+служебныйVREFBUF_OUT
R2VDDпитание—
R4VSSпитание—
R6PB14ввод-выводI2C2_SDA (AF4), LPTIM3_ETR (AF2), MDF1_SDI2 (AF6), SAI2_MCLK_A (AF13), SDMMC2_D0 (AF12), SPI2_MISO (AF5), TIM15_CH1 (AF14), TIM1_CH2N (AF1), TIM8_CH2N (AF3), TSC_G1_IO3 (AF9), UCPD1_DBCC2, USART3_DE (AF7), USART3_RTS (AF7)
R8VSSSMPSпитание—
R10PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, COMP2_OUT (AF12), I2C2_SDA (AF4), I2C4_SDA (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), SPI2_RDY (AF5), TIM2_CH4 (AF1), USART3_RX (AF7)
R12PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), GFXTIM_FCKCAL (AF13), GFXTIM_LCKCAL (AF2), LTDC_R2 (AF8), OCTOSPIM_P1_IO3 (AF10), SPI1_MOSI (AF5), TIM1_BKIN (AF1), TIM1_CH4N (AF3)
R14PE12ввод-выводFMC_D9 (AF12), FMC_DA9 (AF12), LTDC_G5 (AF8), MDF1_SDI5 (AF6), OCTOSPIM_P1_IO0 (AF10), SPI1_NSS (AF5), TIM1_CH3N (AF1), TSC_G5_IO3 (AF9)
R16VSSпитание—
R18PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, ADC4_IN6, FMC_A9 (AF12), I2C4_SDA (AF4), LTDC_G1 (AF8), TSC_G8_IO2 (AF9)
R20VSSпитание—
R22PA7ввод-выводADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL (AF4), LPTIM2_CH2 (AF13), OCTOSPIM_P1_IO2 (AF10), OPAMP2_VINM, PWR_SRDSTOP (AF0), PWR_WKUP8, SPI1_MOSI (AF5), TIM17_CH1 (AF14), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART3_TX (AF7)
R24VSSпитание—
R26VDDAпитание—
T1VDDпитание—
T3VDD11питание—
T5PB12ввод-выводI2C2_SMBA (AF4), I2C6_SMBA (AF2), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI1 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI2_FS_A (AF13), SPI2_NSS (AF5), TIM15_BKIN (AF14), TIM1_BKIN (AF1), TSC_G1_IO1 (AF9), USART3_CK (AF7)
T7PB13ввод-выводI2C2_SCL (AF4), LPTIM3_IN1 (AF2), LPUART1_CTS (AF8), MDF1_CKI1 (AF6), SAI2_SCK_A (AF13), SPI2_SCK (AF5), TIM15_CH1N (AF14), TIM1_CH1N (AF1), TSC_G1_IO2 (AF9), USART3_CTS (AF7)
T9VDDSMPSпитание—
T11VLXSMPSпитание—
T13PB10ввод-выводCOMP1_OUT (AF12), I2C2_SCL (AF4), I2C4_SCL (AF3), LPTIM3_CH1 (AF2), LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), PWR_WKUP8, SAI1_SCK_A (AF13), SPI2_SCK (AF5), TIM2_CH3 (AF1), TSC_SYNC (AF9), USART3_TX (AF7)
T15VDDпитание—
T17PE9ввод-выводADF1_CCK0 (AF3), DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), LTDC_G2 (AF8), MDF1_CCK0 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI1_FS_B (AF13), TIM1_CH1 (AF1)
T19VDDпитание—
T21PF12ввод-выводFMC_A6 (AF12), LPTIM4_ETR (AF13), LTDC_B0 (AF8), OCTOSPIM_P2_DQS (AF5)
T23PC4ввод-выводADC1_IN13, ADC2_IN13, ADC4_IN22, COMP1_INM, I2C6_SMBA (AF2), OCTOSPIM_P1_IO7 (AF10), USART3_TX (AF7)
T25VDDпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATB25резервное питание: часы реального времени и резервные регистры
VDDA6, A12, A24, A26, F1, G2, H1, L2, L26, M1, N2, P1, R2, T1, T15, T19, T25питание цифровой части и линий ввода-вывода
VDD11A4, A22, T3—
VDD11DSIJ24—
VDD11USBD1—
VDDAR26питание аналоговой части: АЦП, ЦАП, генераторы
VDDDSIG24питание блока DSI
VDDIO2A16, E2питание отдельной группы линий ввода-вывода
VDDSMPST9—
VDDUSBA2питание приёмопередатчика USB
VLXSMPST11—
VREF-N24нижнее опорное напряжение АЦП
VSSB5, B11, B15, B23, E4, F3, G4, H3, J4, K3, L4, L24, M3, N4, P3, R4, R16, R20, R24общий провод (земля)
VSSAN26общий провод аналоговой части
VSSDSIE24, F23, H23общий провод блока DSI
VSSSMPSR8—
NRSTM21сброс, активный уровень — низкий
DSI_CKNH25—
DSI_CKPG26—
DSI_D0NF25—
DSI_D0PE26—
DSI_D1NK25—
DSI_D1PJ26—
VREF+P25верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32U5G9BJYxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32U5G9BJSTM32U5G9BJYxQ4 МБ3026 КБ

Линейка STM32U5F9/5G9, семейство STM32U5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе WLCSP208, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32U5F9BJSTM32U5F9/5G9208 из 208выводы совпадают полностьютолько у этого: AES, PKA
STM32U5A9BJSTM32U599/5A9208 из 208выводы совпадают полностьютолько у него: FDCAN1; ОЗУ 3026 и 2514 КБ
STM32U599BJSTM32U599/5A9208 из 208выводы совпадают полностьютолько у этого: AES, PKA; только у него: FDCAN1; ОЗУ 3026 и 2514 КБ

Частые вопросы

На каких выводах USART1 у STM32U5G9BJ?

В корпусе WLCSP208 сигнал USART1_TX выведен на PB6 (шарик A18, AF7) или PG9 (шарик B13, AF7) или PA9 (шарик C6, AF7), USART1_RX — на PA10 (шарик C4, AF7) или PB7 (шарик D19, AF7) или PG10 (шарик F19, AF7).

Где у STM32U5G9BJ выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик B3, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик D11, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32U5G9BJ?

I2C1_SCL — PB6 (шарик A18, AF4) или PB8 (шарик B19, AF4) или PG14 (шарик C16, AF4), I2C1_SDA — PG13 (шарик A14, AF4) или PB3 (JTDO/TRACESWO) (шарик B17, AF4) или PB9 (шарик C20, AF4) или PB7 (шарик D19, AF4).

Сколько выводов ввода-вывода у STM32U5G9BJ в корпусе WLCSP208?

145 из 208. Ещё 55 выводов заняты питанием и землёй, остальные 8 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
