STM32G483QE в корпусе LQFP128: распиновка

STM32G483QE — микроконтроллер STM32G4 на ядре Cortex-M4 с частотой до 170 МГц: 512 КБ флеш-памяти и 128 КБ ОЗУ. Корпус LQFP128 — 128 выводов, из них 107 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M4
Частота ядра
до 170 МГц
Флеш-память
512 КБ
ОЗУ
128 КБ
Корпус
LQFP128, 128 выводов
Линий ввода-вывода
107
Напряжение питания
1,71…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

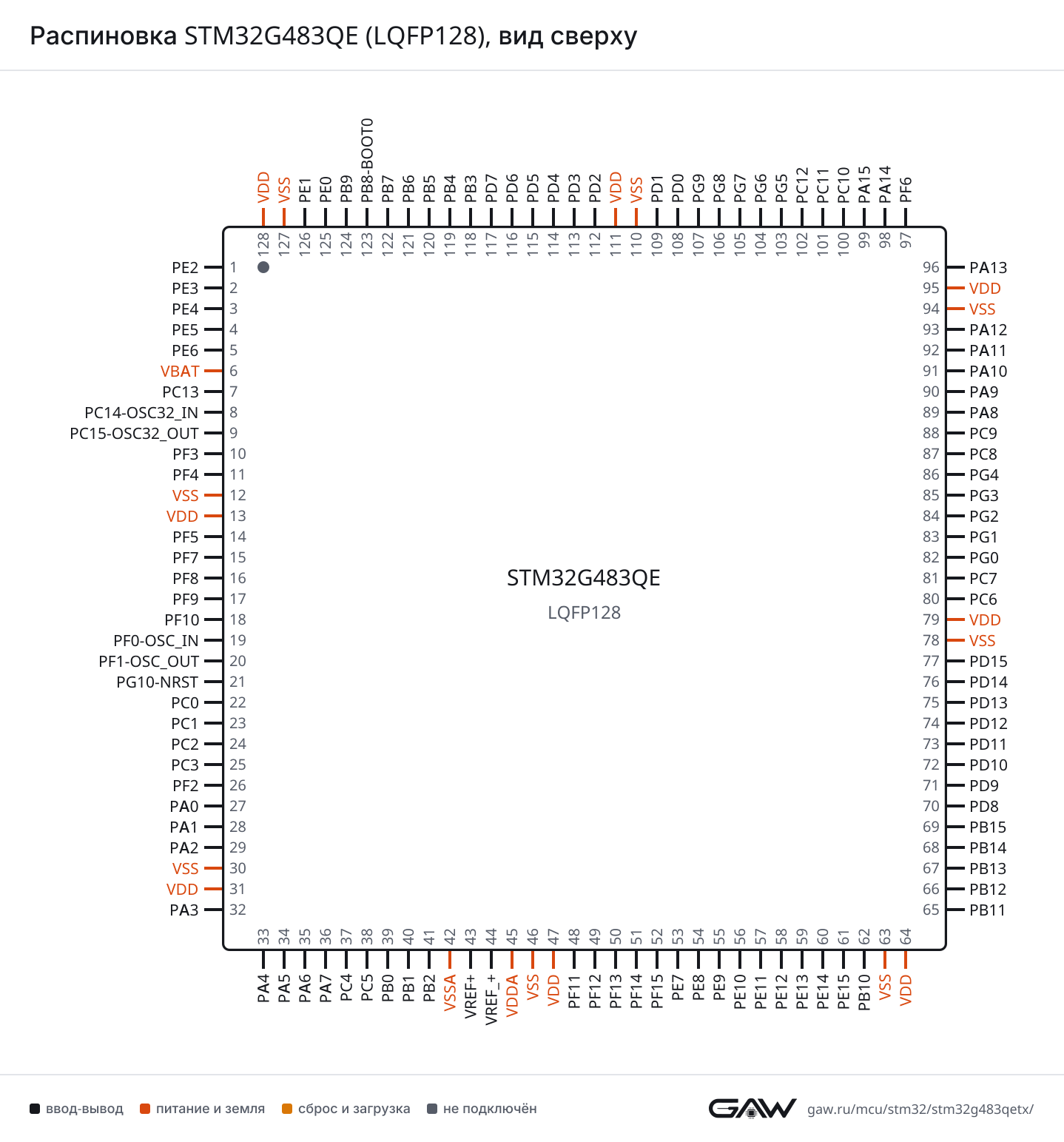

Схема корпуса LQFP128

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Распиновка STM32G483QE в корпусе LQFP128, вид сверхуSTM32G483QELQFP128, вид сверхуPE2 — вывод 1: ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, FMC_A23, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, SYS_TRACECLK, TIM20_CH1, TIM3_CH11PE2PE3 — вывод 2: ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_A19, SAI1_SD_B, SPI4_NSS, SYS_TRACED0, TIM20_CH2, TIM3_CH22PE3PE4 — вывод 3: FMC_A20, SAI1_D2, SAI1_FS_A, SPI4_NSS, SYS_TRACED1, TIM20_CH1N, TIM3_CH33PE4PE5 — вывод 4: FMC_A21, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, SYS_TRACED2, TIM20_CH2N, TIM3_CH44PE5PE6 — вывод 5: FMC_A22, RTC_TAMP3, SAI1_D1, SAI1_SD_A, SPI4_MOSI, SYS_TRACED3, SYS_WKUP3, TIM20_CH3N5PE6VBAT — вывод 66VBATPC13 — вывод 7: RTC_OUT1, RTC_TAMP1, RTC_TS, SYS_WKUP2, TIM1_BKIN, TIM1_CH1N, TIM8_CH4N7PC13PC14-OSC32_IN — вывод 8: RCC_OSC32_IN8PC14-OSC32_INPC15-OSC32_OUT — вывод 9: ADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT9PC15-OSC32_OUTPF3 — вывод 10: ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_A3, I2C3_SCL, TIM20_CH410PF3PF4 — вывод 11: COMP1_OUT, FMC_A4, I2C3_SDA, TIM20_CH1N11PF4VSS — вывод 1212VSSVDD — вывод 1313VDDPF5 — вывод 14: FMC_A5, TIM20_CH2N14PF5PF7 — вывод 15: FMC_A1, QUADSPI1_BK1_IO2, SAI1_MCLK_B, TIM20_BKIN, TIM5_CH215PF7PF8 — вывод 16: FMC_A24, QUADSPI1_BK1_IO0, SAI1_SCK_B, TIM20_BKIN2, TIM5_CH316PF8PF9 — вывод 17: DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_A25, QUADSPI1_BK1_IO1, SAI1_FS_B, SPI2_SCK, TIM15_CH1, TIM20_BKIN, TIM5_CH417PF9PF10 — вывод 18: DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_A0, QUADSPI1_CLK, SAI1_D3, SPI2_SCK, TIM15_CH2, TIM20_BKIN218PF10PF0-OSC_IN — вывод 19: ADC1_IN10, I2C2_SDA, I2S2_WS, RCC_OSC_IN, SPI2_NSS, TIM1_CH3N19PF0-OSC_INPF1-OSC_OUT — вывод 20: ADC2_IN10, COMP3_INM, I2S2_CK, RCC_OSC_OUT, SPI2_SCK20PF1-OSC_OUTPG10-NRST — вывод 21: DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, RCC_MCO21PG10-NRSTPC0 — вывод 22: ADC1_IN6, ADC2_IN6, COMP3_INM, LPTIM1_IN1, LPUART1_RX, TIM1_CH122PC0PC1 — вывод 23: ADC1_IN7, ADC2_IN7, COMP3_INP, LPTIM1_OUT, LPUART1_TX, QUADSPI1_BK2_IO0, SAI1_SD_A, TIM1_CH223PC1PC2 — вывод 24: ADC1_IN8, ADC2_IN8, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP3_OUT, LPTIM1_IN2, QUADSPI1_BK2_IO1, TIM1_CH3, TIM20_CH224PC2PC3 — вывод 25: ADC1_IN9, ADC2_IN9, ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, LPTIM1_ETR, OPAMP5_VINP, OPAMP5_VINP_SEC, QUADSPI1_BK2_IO2, SAI1_D1, SAI1_SD_A, TIM1_BKIN2, TIM1_CH425PC3PF2 — вывод 26: ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, FMC_A2, I2C2_SMBA, TIM20_CH326PF2PA0 — вывод 27: ADC1_IN1, ADC2_IN1, COMP1_INM, COMP1_OUT, COMP3_INP, RTC_TAMP2, SYS_WKUP1, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_BKIN, TIM8_ETR, USART2_CTS, USART2_NSS27PA0PA1 — вывод 28: ADC1_IN2, ADC2_IN2, COMP1_INP, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP3_VINP, OPAMP3_VINP_SEC, OPAMP6_VINM, OPAMP6_VINM0, OPAMP6_VINM_SEC, RTC_REFIN, TIM15_CH1N, TIM2_CH2, TIM5_CH2, USART2_DE, USART2_RTS28PA1PA2 — вывод 29: ADC1_IN3, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP2_INM, COMP2_OUT, LPUART1_TX, OPAMP1_VOUT, QUADSPI1_BK1_NCS, RCC_LSCO, SYS_WKUP4, TIM15_CH1, TIM2_CH3, TIM5_CH3, UCPD1_FRSTX1, UCPD1_FRSTX2, USART2_TX29PA2VSS — вывод 3030VSSVDD — вывод 3131VDDPA3 — вывод 32: ADC1_IN4, ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, COMP2_INP, LPUART1_RX, OPAMP1_VINM, OPAMP1_VINM0, OPAMP1_VINM_SEC, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP5_VINM, OPAMP5_VINM1, OPAMP5_VINM_SEC, QUADSPI1_CLK, SAI1_CK1, SAI1_MCLK_A, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX32PA3PA4 — вывод 33: ADC2_IN17, COMP1_INM, DAC1_OUT1, I2S3_WS, SAI1_FS_B, SPI1_NSS, SPI3_NSS, TIM3_CH2, USART2_CK33PA4PA5 — вывод 34: ADC2_IN13, COMP2_INM, DAC1_OUT2, OPAMP2_VINM, OPAMP2_VINM0, OPAMP2_VINM_SEC, SPI1_SCK, TIM2_CH1, TIM2_ETR, UCPD1_FRSTX1, UCPD1_FRSTX234PA5PA6 — вывод 35: ADC2_IN3, COMP1_OUT, DAC2_OUT1, LPUART1_CTS, OPAMP2_VOUT, QUADSPI1_BK1_IO3, SPI1_MISO, TIM16_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN35PA6PA7 — вывод 36: ADC2_IN4, COMP2_INP, COMP2_OUT, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP2_VINP, OPAMP2_VINP_SEC, QUADSPI1_BK1_IO2, SPI1_MOSI, TIM17_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, UCPD1_FRSTX1, UCPD1_FRSTX236PA7PC4 — вывод 37: ADC2_IN5, I2C2_SCL, QUADSPI1_BK2_IO3, TIM1_ETR, USART1_TX37PC4PC5 — вывод 38: ADC2_IN11, OPAMP1_VINM, OPAMP1_VINM1, OPAMP1_VINM_SEC, OPAMP2_VINM, OPAMP2_VINM1, OPAMP2_VINM_SEC, SAI1_D3, SYS_WKUP5, TIM15_BKIN, TIM1_CH4N, USART1_RX38PC5PB0 — вывод 39: ADC1_IN15, ADC3_IN12, COMP4_INP, OPAMP2_VINP, OPAMP2_VINP_SEC, OPAMP3_VINP, OPAMP3_VINP_SEC, QUADSPI1_BK1_IO1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UCPD1_FRSTX1, UCPD1_FRSTX239PB0PB1 — вывод 40: ADC1_IN12, ADC3_IN1, COMP1_INP, COMP4_OUT, LPUART1_DE, LPUART1_RTS, OPAMP3_VOUT, OPAMP6_VINM, OPAMP6_VINM1, OPAMP6_VINM_SEC, QUADSPI1_BK1_IO0, TIM1_CH3N, TIM3_CH4, TIM8_CH3N40PB1PB2 — вывод 41: ADC2_IN12, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP4_INM, I2C3_SMBA, LPTIM1_OUT, OPAMP3_VINM, OPAMP3_VINM0, OPAMP3_VINM_SEC, QUADSPI1_BK2_IO1, RTC_OUT2, TIM20_CH1, TIM5_CH141PB2VSSA — вывод 4242VSSAVREF+ — вывод 43: VREFBUF_OUT143VREF+VREF_+ — вывод 44: VREFBUF_OUT244VREF_+VDDA — вывод 4545VDDAVSS — вывод 4646VSSVDD — вывод 4747VDDPF11 — вывод 48: ADC1_EXTI11, ADC2_EXTI11, FMC_NE4, TIM20_ETR48PF11PF12 — вывод 49: FMC_A6, TIM20_CH149PF12PF13 — вывод 50: FMC_A7, I2C4_SMBA, TIM20_CH250PF13PF14 — вывод 51: FMC_A8, I2C4_SCL, TIM20_CH351PF14PF15 — вывод 52: ADC1_EXTI15, ADC2_EXTI15, FMC_A9, I2C4_SDA, TIM20_CH452PF15PE7 — вывод 53: ADC3_IN4, COMP4_INP, FMC_D4, FMC_DA4, SAI1_SD_B, TIM1_ETR53PE7PE8 — вывод 54: ADC3_IN6, ADC4_IN6, ADC5_IN6, COMP4_INM, FMC_D5, FMC_DA5, SAI1_SCK_B, TIM1_CH1N, TIM5_CH354PE8PE9 — вывод 55: ADC3_IN2, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_D6, FMC_DA6, SAI1_FS_B, TIM1_CH1, TIM5_CH455PE9PE10 — вывод 56: ADC3_IN14, ADC4_IN14, ADC5_IN14, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_D7, FMC_DA7, QUADSPI1_CLK, SAI1_MCLK_B, TIM1_CH2N56PE10PE11 — вывод 57: ADC1_EXTI11, ADC2_EXTI11, ADC3_IN15, ADC4_IN15, ADC5_IN15, FMC_D8, FMC_DA8, QUADSPI1_BK1_NCS, SPI4_NSS, TIM1_CH257PE11PE12 — вывод 58: ADC3_IN16, ADC4_IN16, ADC5_IN16, FMC_D9, FMC_DA9, QUADSPI1_BK1_IO0, SPI4_SCK, TIM1_CH3N58PE12PE13 — вывод 59: ADC3_IN3, FMC_D10, FMC_DA10, QUADSPI1_BK1_IO1, SPI4_MISO, TIM1_CH359PE13PE14 — вывод 60: ADC4_IN1, FMC_D11, FMC_DA11, QUADSPI1_BK1_IO2, SPI4_MOSI, TIM1_BKIN2, TIM1_CH460PE14PE15 — вывод 61: ADC1_EXTI15, ADC2_EXTI15, ADC4_IN2, FMC_D12, FMC_DA12, QUADSPI1_BK1_IO3, TIM1_BKIN, TIM1_CH4N, USART3_RX61PE15PB10 — вывод 62: COMP5_INM, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, LPUART1_RX, OPAMP3_VINM, OPAMP3_VINM1, OPAMP3_VINM_SEC, OPAMP4_VINM, OPAMP4_VINM0, OPAMP4_VINM_SEC, QUADSPI1_CLK, SAI1_SCK_A, TIM1_BKIN, TIM2_CH3, USART3_TX62PB10VSS — вывод 6363VSSVDD — вывод 6464VDDPB11 — вывод 65: ADC1_EXTI11, ADC1_IN14, ADC2_EXTI11, ADC2_IN14, COMP6_INP, LPUART1_TX, OPAMP4_VINP, OPAMP4_VINP_SEC, OPAMP6_VOUT, QUADSPI1_BK1_NCS, TIM2_CH4, USART3_RX65PB11PB12 — вывод 66: ADC1_IN11, ADC4_IN3, COMP7_INM, FDCAN2_RX, I2C2_SMBA, I2S2_WS, LPUART1_DE, LPUART1_RTS, OPAMP4_VOUT, OPAMP6_VINP, OPAMP6_VINP_SEC, SPI2_NSS, TIM1_BKIN, TIM5_ETR, USART3_CK66PB12PB13 — вывод 67: ADC3_IN5, COMP5_INP, FDCAN2_TX, I2S2_CK, LPUART1_CTS, OPAMP3_VINP, OPAMP3_VINP_SEC, OPAMP4_VINP, OPAMP4_VINP_SEC, OPAMP6_VINP, OPAMP6_VINP_SEC, SPI2_SCK, TIM1_CH1N, USART3_CTS, USART3_NSS67PB13PB14 — вывод 68: ADC1_IN5, ADC4_IN4, COMP4_OUT, COMP7_INP, OPAMP2_VINP, OPAMP2_VINP_SEC, OPAMP5_VINP, OPAMP5_VINP_SEC, SPI2_MISO, TIM15_CH1, TIM1_CH2N, USART3_DE, USART3_RTS68PB14PB15 — вывод 69: ADC1_EXTI15, ADC2_EXTI15, ADC2_IN15, ADC4_IN5, COMP3_OUT, COMP6_INM, I2S2_SD, OPAMP5_VINM, OPAMP5_VINM0, OPAMP5_VINM_SEC, RTC_REFIN, SPI2_MOSI, TIM15_CH1N, TIM15_CH2, TIM1_CH3N69PB15PD8 — вывод 70: ADC4_IN12, ADC5_IN12, FMC_D13, FMC_DA13, OPAMP4_VINM, OPAMP4_VINM1, OPAMP4_VINM_SEC, USART3_TX70PD8PD9 — вывод 71: ADC4_IN13, ADC5_IN13, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_D14, FMC_DA14, OPAMP6_VINP, OPAMP6_VINP_SEC, USART3_RX71PD9PD10 — вывод 72: ADC3_IN7, ADC4_IN7, ADC5_IN7, COMP6_INM, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_D15, FMC_DA15, USART3_CK72PD10PD11 — вывод 73: ADC1_EXTI11, ADC2_EXTI11, ADC3_IN8, ADC4_IN8, ADC5_IN8, COMP6_INP, FMC_A16, FMC_CLE, I2C4_SMBA, OPAMP4_VINP, OPAMP4_VINP_SEC, TIM5_ETR, USART3_CTS, USART3_NSS73PD11PD12 — вывод 74: ADC3_IN9, ADC4_IN9, ADC5_IN9, COMP5_INP, FMC_A17, FMC_ALE, OPAMP5_VINP, OPAMP5_VINP_SEC, TIM4_CH1, USART3_DE, USART3_RTS74PD12PD13 — вывод 75: ADC3_IN10, ADC4_IN10, ADC5_IN10, COMP5_INM, FMC_A18, TIM4_CH275PD13PD14 — вывод 76: ADC3_IN11, ADC4_IN11, ADC5_IN11, COMP7_INP, FMC_D0, FMC_DA0, OPAMP2_VINP, OPAMP2_VINP_SEC, TIM4_CH376PD14PD15 — вывод 77: ADC1_EXTI15, ADC2_EXTI15, COMP7_INM, FMC_D1, FMC_DA1, SPI2_NSS, TIM4_CH477PD15VSS — вывод 7878VSSVDD — вывод 7979VDDPC6 — вывод 80: COMP6_OUT, I2C4_SCL, I2S2_MCK, TIM3_CH1, TIM8_CH180PC6PC7 — вывод 81: COMP5_OUT, I2C4_SDA, I2S3_MCK, TIM3_CH2, TIM8_CH281PC7PG0 — вывод 82: FMC_A10, TIM20_CH1N82PG0PG1 — вывод 83: FMC_A11, TIM20_CH2N83PG1PG2 — вывод 84: ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, FMC_A12, SPI1_SCK, TIM20_CH3N84PG2PG3 — вывод 85: ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_A13, I2C4_SCL, SPI1_MISO, TIM20_BKIN, TIM20_CH4N85PG3PG4 — вывод 86: FMC_A14, I2C4_SDA, SPI1_MOSI, TIM20_BKIN286PG4PC8 — вывод 87: COMP7_OUT, I2C3_SCL, TIM20_CH3, TIM3_CH3, TIM8_CH387PC8PC9 — вывод 88: DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, I2C3_SDA, I2S_CKIN, TIM3_CH4, TIM8_BKIN2, TIM8_CH488PC9PA8 — вывод 89: ADC5_IN1, COMP7_OUT, FDCAN3_RX, I2C2_SDA, I2C3_SCL, I2S2_MCK, OPAMP5_VOUT, RCC_MCO, SAI1_CK2, SAI1_SCK_A, TIM1_CH1, TIM4_ETR, USART1_CK89PA8PA9 — вывод 90: ADC5_IN2, COMP5_OUT, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, I2C2_SCL, I2C3_SMBA, I2S3_MCK, SAI1_FS_A, TIM15_BKIN, TIM1_CH2, TIM2_CH3, UCPD1_DBCC1, USART1_TX90PA9PA10 — вывод 91: COMP6_OUT, CRS_SYNC, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, I2C2_SMBA, SAI1_D1, SAI1_SD_A, SPI2_MISO, SYS_PVD_IN, TIM17_BKIN, TIM1_CH3, TIM2_CH4, TIM8_BKIN, UCPD1_DBCC2, USART1_RX91PA10PA11 — вывод 92: ADC1_EXTI11, ADC2_EXTI11, COMP1_OUT, FDCAN1_RX, I2S2_SD, SPI2_MOSI, TIM1_BKIN2, TIM1_CH1N, TIM1_CH4, TIM4_CH1, USART1_CTS, USART1_NSS, USB_DM92PA11PA12 — вывод 93: COMP2_OUT, FDCAN1_TX, I2S_CKIN, TIM16_CH1, TIM1_CH2N, TIM1_ETR, TIM4_CH2, USART1_DE, USART1_RTS, USB_DP93PA12VSS — вывод 9494VSSVDD — вывод 9595VDDPA13 — вывод 96: I2C1_SCL, I2C4_SCL, IR_OUT, SAI1_SD_B, SYS_JTMS-SWDIO, TIM16_CH1N, TIM4_CH3, USART3_CTS, USART3_NSS96PA13PF6 — вывод 97: I2C2_SCL, QUADSPI1_BK1_IO3, SAI1_SD_B, TIM4_CH4, TIM5_CH1, TIM5_ETR, USART3_RTS97PF6PA14 — вывод 98: I2C1_SDA, I2C4_SMBA, LPTIM1_OUT, SAI1_FS_B, SYS_JTCK-SWCLK, TIM1_BKIN, TIM8_CH2, USART2_TX98PA14PA15 — вывод 99: ADC1_EXTI15, ADC2_EXTI15, FDCAN3_TX, I2C1_SCL, I2S3_WS, SPI1_NSS, SPI3_NSS, SYS_JTDI, TIM1_BKIN, TIM2_CH1, TIM2_ETR, TIM8_CH1, UART4_DE, UART4_RTS, USART2_RX99PA15PC10 — вывод 100: DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, I2S3_CK, SPI3_SCK, TIM8_CH1N, UART4_TX, USART3_TX100PC10PC11 — вывод 101: ADC1_EXTI11, ADC2_EXTI11, I2C3_SDA, SPI3_MISO, TIM8_CH2N, UART4_RX, USART3_RX101PC11PC12 — вывод 102: I2S3_SD, SPI3_MOSI, TIM5_CH2, TIM8_CH3N, UART5_TX, UCPD1_FRSTX1, UCPD1_FRSTX2, USART3_CK102PC12PG5 — вывод 103: FMC_A15, LPUART1_CTS, SPI1_NSS, TIM20_ETR103PG5PG6 — вывод 104: FMC_INT, I2C3_SMBA, LPUART1_DE, LPUART1_RTS, TIM20_BKIN104PG6PG7 — вывод 105: FMC_INT, I2C3_SCL, LPUART1_TX, SAI1_CK1, SAI1_MCLK_A105PG7PG8 — вывод 106: FMC_NE3, I2C3_SDA, LPUART1_RX106PG8PG9 — вывод 107: DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_NCE, FMC_NE2, SPI3_SCK, TIM15_CH1N, USART1_TX107PG9PD0 — вывод 108: FDCAN1_RX, FMC_D2, FMC_DA2, TIM8_CH4N108PD0PD1 — вывод 109: FDCAN1_TX, FMC_D3, FMC_DA3, TIM8_BKIN2, TIM8_CH4109PD1VSS — вывод 110110VSSVDD — вывод 111111VDDPD2 — вывод 112: ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, TIM3_ETR, TIM8_BKIN, UART5_RX112PD2PD3 — вывод 113: ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_CLK, QUADSPI1_BK2_NCS, TIM2_CH1, TIM2_ETR, USART2_CTS, USART2_NSS113PD3PD4 — вывод 114: FMC_NOE, QUADSPI1_BK2_IO0, TIM2_CH2, USART2_DE, USART2_RTS114PD4PD5 — вывод 115: FMC_NWE, QUADSPI1_BK2_IO1, USART2_TX115PD5PD6 — вывод 116: FMC_NWAIT, QUADSPI1_BK2_IO2, SAI1_D1, SAI1_SD_A, TIM2_CH4, USART2_RX116PD6PD7 — вывод 117: FMC_NCE, FMC_NE1, QUADSPI1_BK2_IO3, TIM2_CH3, USART2_CK117PD7PB3 — вывод 118: ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, CRS_SYNC, FDCAN3_RX, I2S3_CK, SAI1_SCK_B, SPI1_SCK, SPI3_SCK, SYS_JTDO-SWO, TIM2_CH2, TIM3_ETR, TIM4_ETR, TIM8_CH1N, USART2_TX118PB3PB4 — вывод 119: FDCAN3_TX, SAI1_MCLK_B, SPI1_MISO, SPI3_MISO, SYS_JTRST, TIM16_CH1, TIM17_BKIN, TIM3_CH1, TIM8_CH2N, UART5_DE, UART5_RTS, UCPD1_CC2, USART2_RX119PB4PB5 — вывод 120: FDCAN2_RX, I2C1_SMBA, I2C3_SDA, I2S3_SD, LPTIM1_IN1, SAI1_SD_B, SPI1_MOSI, SPI3_MOSI, TIM16_BKIN, TIM17_CH1, TIM3_CH2, TIM8_CH3N, UART5_CTS, USART2_CK120PB5PB6 — вывод 121: COMP4_OUT, FDCAN2_TX, LPTIM1_ETR, SAI1_FS_B, TIM16_CH1N, TIM4_CH1, TIM8_BKIN2, TIM8_CH1, TIM8_ETR, UCPD1_CC1, USART1_TX121PB6PB7 — вывод 122: COMP3_OUT, FMC_NL, I2C1_SDA, I2C4_SDA, LPTIM1_IN2, TIM17_CH1N, TIM3_CH4, TIM4_CH2, TIM8_BKIN, UART4_CTS, USART1_RX122PB7PB8-BOOT0 — вывод 123: COMP1_OUT, FDCAN1_RX, I2C1_SCL, SAI1_CK1, SAI1_MCLK_A, TIM16_CH1, TIM1_BKIN, TIM4_CH3, TIM8_CH2, USART3_RX123PB8-BOOT0PB9 — вывод 124: COMP2_OUT, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FDCAN1_TX, I2C1_SDA, IR_OUT, SAI1_D2, SAI1_FS_A, TIM17_CH1, TIM1_CH3N, TIM4_CH4, TIM8_CH3, USART3_TX124PB9PE0 — вывод 125: FMC_NBL0, TIM16_CH1, TIM20_CH4N, TIM20_ETR, TIM4_ETR, USART1_TX125PE0PE1 — вывод 126: FMC_NBL1, TIM17_CH1, TIM20_CH4, USART1_RX126PE1VSS — вывод 127127VSSVDD — вывод 128128VDD
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия
Распиновка STM32G483QE (LQFP128), вид сверхуРаспиновка LQFP128 картинкой
PNG, 1438 × 1543 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер вывода и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (89, AF7)
CTSPA11 (92, AF7)
DEPA12 (93, AF7)
NSSPA11 (92, AF7)
RTSPA12 (93, AF7)
RXPC5 (38, AF7), PA10 (91, AF7), PB7 (122, AF7), PE1 (126, AF7)
TXPC4 (37, AF7), PA9 (90, AF7), PG9 (107, AF7), PB6 (121, AF7), PE0 (125, AF7)
USART2CKPA4 (33, AF7), PD7 (117, AF7), PB5 (120, AF7)
CTSPA0 (27, AF7), PD3 (113, AF7)
DEPA1 (28, AF7), PD4 (114, AF7)
NSSPA0 (27, AF7), PD3 (113, AF7)
RTSPA1 (28, AF7), PD4 (114, AF7)
RXPA3 (32, AF7), PA15 (99, AF7), PD6 (116, AF7), PB4 (119, AF7)
TXPA2 (29, AF7), PA14 (98, AF7), PD5 (115, AF7), PB3 (118, AF7)
USART3CKPB12 (66, AF7), PD10 (72, AF7), PC12 (102, AF7)
CTSPB13 (67, AF7), PD11 (73, AF7), PA13 (96, AF7)
DEPB14 (68, AF7), PD12 (74, AF7)
NSSPB13 (67, AF7), PD11 (73, AF7), PA13 (96, AF7)
RTSPB14 (68, AF7), PD12 (74, AF7), PF6 (97, AF7)
RXPE15 (61, AF7), PB11 (65, AF7), PD9 (71, AF7), PC11 (101, AF7), PB8-BOOT0 (123, AF7)
TXPB10 (62, AF7), PD8 (70, AF7), PC10 (100, AF7), PB9 (124, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB7 (122, AF14)
DEPA15 (99, AF8)
RTSPA15 (99, AF8)
RXPC11 (101, AF5)
TXPC10 (100, AF5)
UART5CTSPB5 (120, AF14)
DEPB4 (119, AF8)
RTSPB4 (119, AF8)
RXPD2 (112, AF5)
TXPC12 (102, AF5)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA6 (35, AF12), PB13 (67, AF8), PG5 (103, AF8)
DEPB1 (40, AF12), PB12 (66, AF8), PG6 (104, AF8)
RTSPB1 (40, AF12), PB12 (66, AF8), PG6 (104, AF8)
RXPC0 (22, AF8), PA3 (32, AF12), PB10 (62, AF8), PG8 (106, AF8)
TXPC1 (23, AF8), PA2 (29, AF12), PB11 (65, AF8), PG7 (105, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA6 (35, AF5), PG3 (85, AF5), PB4 (119, AF5)
MOSIPA7 (36, AF5), PG4 (86, AF5), PB5 (120, AF5)
NSSPA4 (33, AF5), PA15 (99, AF5), PG5 (103, AF5)
SCKPA5 (34, AF5), PG2 (84, AF5), PB3 (118, AF5)
SPI2MISOPB14 (68, AF5), PA10 (91, AF5)
MOSIPB15 (69, AF5), PA11 (92, AF5)
NSSPF0-OSC_IN (19, AF5), PB12 (66, AF5), PD15 (77, AF6)
SCKPF9 (17, AF5), PF10 (18, AF5), PF1-OSC_OUT (20, AF5), PB13 (67, AF5)
SPI3MISOPC11 (101, AF6), PB4 (119, AF6)
MOSIPC12 (102, AF6), PB5 (120, AF6)
NSSPA4 (33, AF6), PA15 (99, AF6)
SCKPC10 (100, AF6), PG9 (107, AF6), PB3 (118, AF6)
SPI4MISOPE5 (4, AF5), PE13 (59, AF5)
MOSIPE6 (5, AF5), PE14 (60, AF5)
NSSPE3 (2, AF5), PE4 (3, AF5), PE11 (57, AF5)
SCKPE2 (1, AF5), PE12 (58, AF5)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (88, AF5), PA12 (93, AF5)
I2S2CKPF1-OSC_OUT (20, AF5), PB13 (67, AF5)
MCKPC6 (80, AF6), PA8 (89, AF5)
SDPB15 (69, AF5), PA11 (92, AF5)
WSPF0-OSC_IN (19, AF5), PB12 (66, AF5)
I2S3CKPC10 (100, AF6), PB3 (118, AF6)
MCKPC7 (81, AF6), PA9 (90, AF5)
SDPC12 (102, AF6), PB5 (120, AF6)
WSPA4 (33, AF6), PA15 (99, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPA13 (96, AF4), PA15 (99, AF4), PB8-BOOT0 (123, AF4)
SDAPA14 (98, AF4), PB7 (122, AF4), PB9 (124, AF4)
SMBAPB5 (120, AF4)
I2C2SCLPC4 (37, AF4), PA9 (90, AF4), PF6 (97, AF4)
SDAPF0-OSC_IN (19, AF4), PA8 (89, AF4)
SMBAPF2 (26, AF4), PB12 (66, AF4), PA10 (91, AF4)
I2C3SCLPF3 (10, AF4), PC8 (87, AF8), PA8 (89, AF2), PG7 (105, AF4)
SDAPF4 (11, AF4), PC9 (88, AF8), PC11 (101, AF8), PG8 (106, AF4), PB5 (120, AF8)
SMBAPB2 (41, AF4), PA9 (90, AF2), PG6 (104, AF4)
I2C4SCLPF14 (51, AF4), PC6 (80, AF8), PG3 (85, AF4), PA13 (96, AF3)
SDAPF15 (52, AF4), PC7 (81, AF8), PG4 (86, AF4), PB7 (122, AF3)
SMBAPF13 (50, AF4), PD11 (73, AF4), PA14 (98, AF3)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPA11 (92, AF9), PD0 (108, AF9), PB8-BOOT0 (123, AF9)
TXPA12 (93, AF9), PD1 (109, AF9), PB9 (124, AF9)
FDCAN2RXPB12 (66, AF9), PB5 (120, AF9)
TXPB13 (67, AF9), PB6 (121, AF9)
FDCAN3RXPA8 (89, AF11), PB3 (118, AF11)
TXPA15 (99, AF11), PB4 (119, AF11)

USB — USB Full Speed, устройство

БлокСигналВыводы
USBDMPA11 (92)
DPPA12 (93)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB6 (121)
CC2PB4 (119)
DBCC1PA9 (90)
DBCC2PA10 (91)
FRSTX1PA2 (29, AF14), PA5 (34, AF14), PA7 (36, AF14), PB0 (39, AF14), PC12 (102, AF14)
FRSTX2PA2 (29, AF14), PA5 (34, AF14), PA7 (36, AF14), PB0 (39, AF14), PC12 (102, AF14)

QUADSPI — интерфейс Quad-SPI памяти

БлокСигналВыводы
QUADSPI1BK1_IO0PF8 (16, AF10), PB1 (40, AF10), PE12 (58, AF10)
BK1_IO1PF9 (17, AF10), PB0 (39, AF10), PE13 (59, AF10)
BK1_IO2PF7 (15, AF10), PA7 (36, AF10), PE14 (60, AF10)
BK1_IO3PA6 (35, AF10), PE15 (61, AF10), PF6 (97, AF10)
BK1_NCSPA2 (29, AF10), PE11 (57, AF10), PB11 (65, AF10)
BK2_IO0PC1 (23, AF10), PD4 (114, AF10)
BK2_IO1PC2 (24, AF10), PB2 (41, AF10), PD5 (115, AF10)
BK2_IO2PC3 (25, AF10), PD6 (116, AF10)
BK2_IO3PC4 (37, AF10), PD7 (117, AF10)
BK2_NCSPD3 (113, AF10)
CLKPF10 (18, AF10), PA3 (32, AF10), PE10 (56, AF10), PB10 (62, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (1, AF3), PA3 (32, AF3), PG7 (105, AF3), PB8-BOOT0 (123, AF3)
CK2PE5 (4, AF3), PA8 (89, AF12)
D1PE6 (5, AF3), PC3 (25, AF3), PA10 (91, AF12), PD6 (116, AF3)
D2PE4 (3, AF3), PB9 (124, AF3)
D3PF10 (18, AF13), PC5 (38, AF3)
FS_APE4 (3, AF13), PA9 (90, AF14), PB9 (124, AF14)
FS_BPF9 (17, AF13), PA4 (33, AF13), PE9 (55, AF13), PA14 (98, AF13), PB6 (121, AF14)
MCLK_APE2 (1, AF13), PA3 (32, AF13), PG7 (105, AF13), PB8-BOOT0 (123, AF14)
MCLK_BPF7 (15, AF13), PE10 (56, AF13), PB4 (119, AF14)
SCK_APE5 (4, AF13), PB10 (62, AF14), PA8 (89, AF14)
SCK_BPF8 (16, AF13), PE8 (54, AF13), PB3 (118, AF14)
SD_APE6 (5, AF13), PC1 (23, AF13), PC3 (25, AF13), PA10 (91, AF14), PD6 (116, AF13)
SD_BPE3 (2, AF13), PE7 (53, AF13), PA13 (96, AF13), PF6 (97, AF3), PB5 (120, AF12)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PF11 (48), PE11 (57), PB11 (65), PD11 (73), PA11 (92), PC11 (101)
EXTI15PC15-OSC32_OUT (9), PF15 (52), PE15 (61), PB15 (69), PD15 (77), PA15 (99)
IN1PA0 (27)
IN2PA1 (28)
IN3PA2 (29)
IN4PA3 (32)
IN5PB14 (68)
IN6PC0 (22)
IN7PC1 (23)
IN8PC2 (24)
IN9PC3 (25)
IN10PF0-OSC_IN (19)
IN11PB12 (66)
IN12PB1 (40)
IN14PB11 (65)
IN15PB0 (39)
ADC2EXTI11PF11 (48), PE11 (57), PB11 (65), PD11 (73), PA11 (92), PC11 (101)
EXTI15PC15-OSC32_OUT (9), PF15 (52), PE15 (61), PB15 (69), PD15 (77), PA15 (99)
IN1PA0 (27)
IN2PA1 (28)
IN3PA6 (35)
IN4PA7 (36)
IN5PC4 (37)
IN6PC0 (22)
IN7PC1 (23)
IN8PC2 (24)
IN9PC3 (25)
IN10PF1-OSC_OUT (20)
IN11PC5 (38)
IN12PB2 (41)
IN13PA5 (34)
IN14PB11 (65)
IN15PB15 (69)
IN17PA4 (33)
ADC3EXTI2PE2 (1), PC2 (24), PF2 (26), PA2 (29), PB2 (41), PG2 (84), PD2 (112)
EXTI3PE3 (2), PF3 (10), PC3 (25), PA3 (32), PG3 (85), PD3 (113), PB3 (118)
IN1PB1 (40)
IN2PE9 (55)
IN3PE13 (59)
IN4PE7 (53)
IN5PB13 (67)
IN6PE8 (54)
IN7PD10 (72)
IN8PD11 (73)
IN9PD12 (74)
IN10PD13 (75)
IN11PD14 (76)
IN12PB0 (39)
IN14PE10 (56)
IN15PE11 (57)
IN16PE12 (58)
ADC4EXTI2PE2 (1), PC2 (24), PF2 (26), PA2 (29), PB2 (41), PG2 (84), PD2 (112)
EXTI3PE3 (2), PF3 (10), PC3 (25), PA3 (32), PG3 (85), PD3 (113), PB3 (118)
IN1PE14 (60)
IN2PE15 (61)
IN3PB12 (66)
IN4PB14 (68)
IN5PB15 (69)
IN6PE8 (54)
IN7PD10 (72)
IN8PD11 (73)
IN9PD12 (74)
IN10PD13 (75)
IN11PD14 (76)
IN12PD8 (70)
IN13PD9 (71)
IN14PE10 (56)
IN15PE11 (57)
IN16PE12 (58)
ADC5EXTI2PE2 (1), PC2 (24), PF2 (26), PA2 (29), PB2 (41), PG2 (84), PD2 (112)
EXTI3PE3 (2), PF3 (10), PC3 (25), PA3 (32), PG3 (85), PD3 (113), PB3 (118)
IN1PA8 (89)
IN2PA9 (90)
IN6PE8 (54)
IN7PD10 (72)
IN8PD11 (73)
IN9PD12 (74)
IN10PD13 (75)
IN11PD14 (76)
IN12PD8 (70)
IN13PD9 (71)
IN14PE10 (56)
IN15PE11 (57)
IN16PE12 (58)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PF9 (17), PE9 (55), PD9 (71), PC9 (88), PA9 (90), PG9 (107), PB9 (124)
EXTI10PF10 (18), PG10-NRST (21), PE10 (56), PB10 (62), PD10 (72), PA10 (91), PC10 (100)
OUT1PA4 (33)
OUT2PA5 (34)
DAC2EXTI9PF9 (17), PE9 (55), PD9 (71), PC9 (88), PA9 (90), PG9 (107), PB9 (124)
EXTI10PF10 (18), PG10-NRST (21), PE10 (56), PB10 (62), PD10 (72), PA10 (91), PC10 (100)
OUT1PA6 (35)
DAC3EXTI9PF9 (17), PE9 (55), PD9 (71), PC9 (88), PA9 (90), PG9 (107), PB9 (124)
EXTI10PF10 (18), PG10-NRST (21), PE10 (56), PB10 (62), PD10 (72), PA10 (91), PC10 (100)
DAC4EXTI9PF9 (17), PE9 (55), PD9 (71), PC9 (88), PA9 (90), PG9 (107), PB9 (124)
EXTI10PF10 (18), PG10-NRST (21), PE10 (56), PB10 (62), PD10 (72), PA10 (91), PC10 (100)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPA0 (27), PA4 (33)
INPPA1 (28), PB1 (40)
OUTPF4 (11, AF2), PA0 (27, AF8), PA6 (35, AF8), PA11 (92, AF8), PB8-BOOT0 (123, AF8)
COMP2INMPA2 (29), PA5 (34)
INPPA3 (32), PA7 (36)
OUTPA2 (29, AF8), PA7 (36, AF8), PA12 (93, AF8), PB9 (124, AF8)
COMP3INMPF1-OSC_OUT (20), PC0 (22)
INPPC1 (23), PA0 (27)
OUTPC2 (24, AF3), PB15 (69, AF3), PB7 (122, AF8)
COMP4INMPB2 (41), PE8 (54)
INPPB0 (39), PE7 (53)
OUTPB1 (40, AF8), PB14 (68, AF8), PB6 (121, AF8)
COMP5INMPB10 (62), PD13 (75)
INPPB13 (67), PD12 (74)
OUTPC7 (81, AF7), PA9 (90, AF8)
COMP6INMPB15 (69), PD10 (72)
INPPB11 (65), PD11 (73)
OUTPC6 (80, AF7), PA10 (91, AF8)
COMP7INMPB12 (66), PD15 (77)
INPPB14 (68), PD14 (76)
OUTPC8 (87, AF7), PA8 (89, AF8)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA3 (32), PC5 (38)
VINM_SECPA3 (32), PC5 (38)
VINM0PA3 (32)
VINM1PC5 (38)
VINPPA1 (28), PA3 (32), PA7 (36)
VINP_SECPA1 (28), PA3 (32), PA7 (36)
VOUTPA2 (29)
OPAMP2VINMPA5 (34), PC5 (38)
VINM_SECPA5 (34), PC5 (38)
VINM0PA5 (34)
VINM1PC5 (38)
VINPPA7 (36), PB0 (39), PB14 (68), PD14 (76)
VINP_SECPA7 (36), PB0 (39), PB14 (68), PD14 (76)
VOUTPA6 (35)
OPAMP3VINMPB2 (41), PB10 (62)
VINM_SECPB2 (41), PB10 (62)
VINM0PB2 (41)
VINM1PB10 (62)
VINPPA1 (28), PB0 (39), PB13 (67)
VINP_SECPA1 (28), PB0 (39), PB13 (67)
VOUTPB1 (40)
OPAMP4VINMPB10 (62), PD8 (70)
VINM_SECPB10 (62), PD8 (70)
VINM0PB10 (62)
VINM1PD8 (70)
VINPPB11 (65), PB13 (67), PD11 (73)
VINP_SECPB11 (65), PB13 (67), PD11 (73)
VOUTPB12 (66)
OPAMP5VINMPA3 (32), PB15 (69)
VINM_SECPA3 (32), PB15 (69)
VINM0PB15 (69)
VINM1PA3 (32)
VINPPC3 (25), PB14 (68), PD12 (74)
VINP_SECPC3 (25), PB14 (68), PD12 (74)
VOUTPA8 (89)
OPAMP6VINMPA1 (28), PB1 (40)
VINM_SECPA1 (28), PB1 (40)
VINM0PA1 (28)
VINM1PB1 (40)
VINPPB12 (66), PB13 (67), PD9 (71)
VINP_SECPB12 (66), PB13 (67), PD9 (71)
VOUTPB11 (65)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUT1VREF+ (43)
OUT2VREF_+ (44)

TIM — таймер

БлокСигналВыводы
TIM1BKINPC13 (7, AF2), PA6 (35, AF6), PE15 (61, AF2), PB10 (62, AF12), PB12 (66, AF6), PA14 (98, AF6), PA15 (99, AF9), PB8-BOOT0 (123, AF12)
BKIN2PC3 (25, AF6), PE14 (60, AF6), PA11 (92, AF12)
CH1PC0 (22, AF2), PE9 (55, AF2), PA8 (89, AF6)
CH1NPC13 (7, AF4), PA7 (36, AF6), PE8 (54, AF2), PB13 (67, AF6), PA11 (92, AF6)
CH2PC1 (23, AF2), PE11 (57, AF2), PA9 (90, AF6)
CH2NPB0 (39, AF6), PE10 (56, AF2), PB14 (68, AF6), PA12 (93, AF6)
CH3PC2 (24, AF2), PE13 (59, AF2), PA10 (91, AF6)
CH3NPF0-OSC_IN (19, AF6), PB1 (40, AF6), PE12 (58, AF2), PB15 (69, AF4), PB9 (124, AF12)
CH4PC3 (25, AF2), PE14 (60, AF2), PA11 (92, AF11)
CH4NPC5 (38, AF6), PE15 (61, AF6)
ETRPC4 (37, AF2), PE7 (53, AF2), PA12 (93, AF11)
TIM2CH1PA0 (27, AF1), PA5 (34, AF1), PA15 (99, AF1), PD3 (113, AF2)
CH2PA1 (28, AF1), PD4 (114, AF2), PB3 (118, AF1)
CH3PA2 (29, AF1), PB10 (62, AF1), PA9 (90, AF10), PD7 (117, AF2)
CH4PA3 (32, AF1), PB11 (65, AF1), PA10 (91, AF10), PD6 (116, AF2)
ETRPA0 (27, AF14), PA5 (34, AF2), PA15 (99, AF14), PD3 (113, AF2)
TIM3CH1PE2 (1, AF2), PA6 (35, AF2), PC6 (80, AF2), PB4 (119, AF2)
CH2PE3 (2, AF2), PA4 (33, AF2), PA7 (36, AF2), PC7 (81, AF2), PB5 (120, AF2)
CH3PE4 (3, AF2), PB0 (39, AF2), PC8 (87, AF2)
CH4PE5 (4, AF2), PB1 (40, AF2), PC9 (88, AF2), PB7 (122, AF10)
ETRPD2 (112, AF2), PB3 (118, AF10)
TIM4CH1PD12 (74, AF2), PA11 (92, AF10), PB6 (121, AF2)
CH2PD13 (75, AF2), PA12 (93, AF10), PB7 (122, AF2)
CH3PD14 (76, AF2), PA13 (96, AF10), PB8-BOOT0 (123, AF2)
CH4PD15 (77, AF2), PF6 (97, AF2), PB9 (124, AF2)
ETRPA8 (89, AF10), PB3 (118, AF2), PE0 (125, AF2)
TIM5CH1PA0 (27, AF2), PB2 (41, AF2), PF6 (97, AF6)
CH2PF7 (15, AF6), PA1 (28, AF2), PC12 (102, AF1)
CH3PF8 (16, AF6), PA2 (29, AF2), PE8 (54, AF1)
CH4PF9 (17, AF6), PA3 (32, AF2), PE9 (55, AF1)
ETRPB12 (66, AF2), PD11 (73, AF1), PF6 (97, AF1)
TIM8BKINPA0 (27, AF9), PA6 (35, AF4), PA10 (91, AF11), PD2 (112, AF4), PB7 (122, AF5)
BKIN2PC9 (88, AF6), PD1 (109, AF6), PB6 (121, AF10)
CH1PC6 (80, AF4), PA15 (99, AF2), PB6 (121, AF5)
CH1NPA7 (36, AF4), PC10 (100, AF4), PB3 (118, AF4)
CH2PC7 (81, AF4), PA14 (98, AF5), PB8-BOOT0 (123, AF10)
CH2NPB0 (39, AF4), PC11 (101, AF4), PB4 (119, AF4)
CH3PC8 (87, AF4), PB9 (124, AF10)
CH3NPB1 (40, AF4), PC12 (102, AF4), PB5 (120, AF3)
CH4PC9 (88, AF4), PD1 (109, AF4)
CH4NPC13 (7, AF6), PD0 (108, AF6)
ETRPA0 (27, AF10), PB6 (121, AF6)
TIM15BKINPC5 (38, AF2), PA9 (90, AF9)
CH1PF9 (17, AF3), PA2 (29, AF9), PB14 (68, AF1)
CH1NPA1 (28, AF9), PB15 (69, AF2), PG9 (107, AF14)
CH2PF10 (18, AF3), PA3 (32, AF9), PB15 (69, AF1)
TIM16BKINPB5 (120, AF1)
CH1PA6 (35, AF1), PA12 (93, AF1), PB4 (119, AF1), PB8-BOOT0 (123, AF1), PE0 (125, AF4)
CH1NPA13 (96, AF1), PB6 (121, AF1)
TIM17BKINPA10 (91, AF1), PB4 (119, AF10)
CH1PA7 (36, AF1), PB5 (120, AF10), PB9 (124, AF1), PE1 (126, AF4)
CH1NPB7 (122, AF1)
TIM20BKINPF7 (15, AF2), PF9 (17, AF2), PG3 (85, AF2), PG6 (104, AF2)
BKIN2PF8 (16, AF2), PF10 (18, AF2), PG4 (86, AF2)
CH1PE2 (1, AF6), PB2 (41, AF3), PF12 (49, AF2)
CH1NPE4 (3, AF6), PF4 (11, AF3), PG0 (82, AF2)
CH2PE3 (2, AF6), PC2 (24, AF6), PF13 (50, AF2)
CH2NPE5 (4, AF6), PF5 (14, AF2), PG1 (83, AF2)
CH3PF2 (26, AF2), PF14 (51, AF2), PC8 (87, AF6)
CH3NPE6 (5, AF6), PG2 (84, AF2)
CH4PF3 (10, AF2), PF15 (52, AF2), PE1 (126, AF6)
CH4NPG3 (85, AF6), PE0 (125, AF3)
ETRPF11 (48, AF2), PG5 (103, AF2), PE0 (125, AF6)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPC3 (25, AF1), PB6 (121, AF11)
IN1PC0 (22, AF1), PB5 (120, AF11)
IN2PC2 (24, AF1), PB7 (122, AF11)
OUTPC1 (23, AF1), PB2 (41, AF1), PA14 (98, AF1)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (7)
OUT2PB2 (41, AF0)
REFINPA1 (28, AF0), PB15 (69, AF0)
TSPC13 (7)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF10 (18, AF12)
A1PF7 (15, AF12)
A2PF2 (26, AF12)
A3PF3 (10, AF12)
A4PF4 (11, AF12)
A5PF5 (14, AF12)
A6PF12 (49, AF12)
A7PF13 (50, AF12)
A8PF14 (51, AF12)
A9PF15 (52, AF12)
A10PG0 (82, AF12)
A11PG1 (83, AF12)
A12PG2 (84, AF12)
A13PG3 (85, AF12)
A14PG4 (86, AF12)
A15PG5 (103, AF12)
A16PD11 (73, AF12)
A17PD12 (74, AF12)
A18PD13 (75, AF12)
A19PE3 (2, AF12)
A20PE4 (3, AF12)
A21PE5 (4, AF12)
A22PE6 (5, AF12)
A23PE2 (1, AF12)
A24PF8 (16, AF12)
A25PF9 (17, AF12)
ALEPD12 (74)
CLEPD11 (73)
CLKPD3 (113, AF12)
D0PD14 (76, AF12)
D1PD15 (77, AF12)
D2PD0 (108, AF12)
D3PD1 (109, AF12)
D4PE7 (53, AF12)
D5PE8 (54, AF12)
D6PE9 (55, AF12)
D7PE10 (56, AF12)
D8PE11 (57, AF12)
D9PE12 (58, AF12)
D10PE13 (59, AF12)
D11PE14 (60, AF12)
D12PE15 (61, AF12)
D13PD8 (70, AF12)
D14PD9 (71, AF12)
D15PD10 (72, AF12)
DA0PD14 (76, AF12)
DA1PD15 (77, AF12)
DA2PD0 (108, AF12)
DA3PD1 (109, AF12)
DA4PE7 (53, AF12)
DA5PE8 (54, AF12)
DA6PE9 (55, AF12)
DA7PE10 (56, AF12)
DA8PE11 (57, AF12)
DA9PE12 (58, AF12)
DA10PE13 (59, AF12)
DA11PE14 (60, AF12)
DA12PE15 (61, AF12)
DA13PD8 (70, AF12)
DA14PD9 (71, AF12)
DA15PD10 (72, AF12)
INTPG6 (104, AF12), PG7 (105, AF12)
NBL0PE0 (125, AF12)
NBL1PE1 (126, AF12)
NCEPG9 (107, AF12), PD7 (117, AF12)
NE1PD7 (117, AF12)
NE2PG9 (107, AF12)
NE3PG8 (106, AF12)
NE4PF11 (48, AF12)
NLPB7 (122, AF12)
NOEPD4 (114, AF12)
NWAITPD6 (116, AF12)
NWEPD5 (115, AF12)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (98, AF0)
JTDIPA15 (99, AF0)
JTDO-SWOPB3 (118, AF0)
JTMS-SWDIOPA13 (96, AF0)
TRACECLKPE2 (1, AF0)
TRACED0PE3 (2, AF0)
TRACED1PE4 (3, AF0)
TRACED2PE5 (4, AF0)
TRACED3PE6 (5, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPA2 (29)
MCOPG10-NRST (21, AF0), PA8 (89, AF0)
OSC_INPF0-OSC_IN (19)
OSC_OUTPF1-OSC_OUT (20)
OSC32_INPC14-OSC32_IN (8)
OSC32_OUTPC15-OSC32_OUT (9)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPRTC_TAMP1PC13 (7)
RTC_TAMP2PA0 (27)
RTC_TAMP3PE6 (5)
SYS_WKUP1PA0 (27)
SYS_WKUP2PC13 (7)
SYS_WKUP3PE6 (5)
SYS_WKUP4PA2 (29)
SYS_WKUP5PC5 (38)

Блоки без собственных выводов: IRTIM (формирователь ИК-сигнала), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), AES (аппаратное шифрование AES), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 128 выводов корпуса LQFP128 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ВыводИмяТипФункции
1PE2ввод-выводADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, FMC_A23 (AF12), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), SPI4_SCK (AF5), SYS_TRACECLK (AF0), TIM20_CH1 (AF6), TIM3_CH1 (AF2)
2PE3ввод-выводADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_A19 (AF12), SAI1_SD_B (AF13), SPI4_NSS (AF5), SYS_TRACED0 (AF0), TIM20_CH2 (AF6), TIM3_CH2 (AF2)
3PE4ввод-выводFMC_A20 (AF12), SAI1_D2 (AF3), SAI1_FS_A (AF13), SPI4_NSS (AF5), SYS_TRACED1 (AF0), TIM20_CH1N (AF6), TIM3_CH3 (AF2)
4PE5ввод-выводFMC_A21 (AF12), SAI1_CK2 (AF3), SAI1_SCK_A (AF13), SPI4_MISO (AF5), SYS_TRACED2 (AF0), TIM20_CH2N (AF6), TIM3_CH4 (AF2)
5PE6ввод-выводFMC_A22 (AF12), RTC_TAMP3, SAI1_D1 (AF3), SAI1_SD_A (AF13), SPI4_MOSI (AF5), SYS_TRACED3 (AF0), SYS_WKUP3, TIM20_CH3N (AF6)
6VBATпитание—
7PC13ввод-выводRTC_OUT1, RTC_TAMP1, RTC_TS, SYS_WKUP2, TIM1_BKIN (AF2), TIM1_CH1N (AF4), TIM8_CH4N (AF6)
8PC14-OSC32_INввод-выводRCC_OSC32_IN
9PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT
10PF3ввод-выводADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_A3 (AF12), I2C3_SCL (AF4), TIM20_CH4 (AF2)
11PF4ввод-выводCOMP1_OUT (AF2), FMC_A4 (AF12), I2C3_SDA (AF4), TIM20_CH1N (AF3)
12VSSпитание—
13VDDпитание—
14PF5ввод-выводFMC_A5 (AF12), TIM20_CH2N (AF2)
15PF7ввод-выводFMC_A1 (AF12), QUADSPI1_BK1_IO2 (AF10), SAI1_MCLK_B (AF13), TIM20_BKIN (AF2), TIM5_CH2 (AF6)
16PF8ввод-выводFMC_A24 (AF12), QUADSPI1_BK1_IO0 (AF10), SAI1_SCK_B (AF13), TIM20_BKIN2 (AF2), TIM5_CH3 (AF6)
17PF9ввод-выводDAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_A25 (AF12), QUADSPI1_BK1_IO1 (AF10), SAI1_FS_B (AF13), SPI2_SCK (AF5), TIM15_CH1 (AF3), TIM20_BKIN (AF2), TIM5_CH4 (AF6)
18PF10ввод-выводDAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_A0 (AF12), QUADSPI1_CLK (AF10), SAI1_D3 (AF13), SPI2_SCK (AF5), TIM15_CH2 (AF3), TIM20_BKIN2 (AF2)
19PF0-OSC_INввод-выводADC1_IN10, I2C2_SDA (AF4), I2S2_WS (AF5), RCC_OSC_IN, SPI2_NSS (AF5), TIM1_CH3N (AF6)
20PF1-OSC_OUTввод-выводADC2_IN10, COMP3_INM, I2S2_CK (AF5), RCC_OSC_OUT, SPI2_SCK (AF5)
21PG10-NRSTввод-выводDAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, RCC_MCO (AF0)
22PC0ввод-выводADC1_IN6, ADC2_IN6, COMP3_INM, LPTIM1_IN1 (AF1), LPUART1_RX (AF8), TIM1_CH1 (AF2)
23PC1ввод-выводADC1_IN7, ADC2_IN7, COMP3_INP, LPTIM1_OUT (AF1), LPUART1_TX (AF8), QUADSPI1_BK2_IO0 (AF10), SAI1_SD_A (AF13), TIM1_CH2 (AF2)
24PC2ввод-выводADC1_IN8, ADC2_IN8, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP3_OUT (AF3), LPTIM1_IN2 (AF1), QUADSPI1_BK2_IO1 (AF10), TIM1_CH3 (AF2), TIM20_CH2 (AF6)
25PC3ввод-выводADC1_IN9, ADC2_IN9, ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, LPTIM1_ETR (AF1), OPAMP5_VINP, OPAMP5_VINP_SEC, QUADSPI1_BK2_IO2 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM1_BKIN2 (AF6), TIM1_CH4 (AF2)
26PF2ввод-выводADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, FMC_A2 (AF12), I2C2_SMBA (AF4), TIM20_CH3 (AF2)
27PA0ввод-выводADC1_IN1, ADC2_IN1, COMP1_INM, COMP1_OUT (AF8), COMP3_INP, RTC_TAMP2, SYS_WKUP1, TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_BKIN (AF9), TIM8_ETR (AF10), USART2_CTS (AF7), USART2_NSS (AF7)
28PA1ввод-выводADC1_IN2, ADC2_IN2, COMP1_INP, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP3_VINP, OPAMP3_VINP_SEC, OPAMP6_VINM, OPAMP6_VINM0, OPAMP6_VINM_SEC, RTC_REFIN (AF0), TIM15_CH1N (AF9), TIM2_CH2 (AF1), TIM5_CH2 (AF2), USART2_DE (AF7), USART2_RTS (AF7)
29PA2ввод-выводADC1_IN3, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP2_INM, COMP2_OUT (AF8), LPUART1_TX (AF12), OPAMP1_VOUT, QUADSPI1_BK1_NCS (AF10), RCC_LSCO, SYS_WKUP4, TIM15_CH1 (AF9), TIM2_CH3 (AF1), TIM5_CH3 (AF2), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14), USART2_TX (AF7)
30VSSпитание—
31VDDпитание—
32PA3ввод-выводADC1_IN4, ADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, COMP2_INP, LPUART1_RX (AF12), OPAMP1_VINM, OPAMP1_VINM0, OPAMP1_VINM_SEC, OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP5_VINM, OPAMP5_VINM1, OPAMP5_VINM_SEC, QUADSPI1_CLK (AF10), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM15_CH2 (AF9), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
33PA4ввод-выводADC2_IN17, COMP1_INM, DAC1_OUT1, I2S3_WS (AF6), SAI1_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), TIM3_CH2 (AF2), USART2_CK (AF7)
34PA5ввод-выводADC2_IN13, COMP2_INM, DAC1_OUT2, OPAMP2_VINM, OPAMP2_VINM0, OPAMP2_VINM_SEC, SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF2), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14)
35PA6ввод-выводADC2_IN3, COMP1_OUT (AF8), DAC2_OUT1, LPUART1_CTS (AF12), OPAMP2_VOUT, QUADSPI1_BK1_IO3 (AF10), SPI1_MISO (AF5), TIM16_CH1 (AF1), TIM1_BKIN (AF6), TIM3_CH1 (AF2), TIM8_BKIN (AF4)
36PA7ввод-выводADC2_IN4, COMP2_INP, COMP2_OUT (AF8), OPAMP1_VINP, OPAMP1_VINP_SEC, OPAMP2_VINP, OPAMP2_VINP_SEC, QUADSPI1_BK1_IO2 (AF10), SPI1_MOSI (AF5), TIM17_CH1 (AF1), TIM1_CH1N (AF6), TIM3_CH2 (AF2), TIM8_CH1N (AF4), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14)
37PC4ввод-выводADC2_IN5, I2C2_SCL (AF4), QUADSPI1_BK2_IO3 (AF10), TIM1_ETR (AF2), USART1_TX (AF7)
38PC5ввод-выводADC2_IN11, OPAMP1_VINM, OPAMP1_VINM1, OPAMP1_VINM_SEC, OPAMP2_VINM, OPAMP2_VINM1, OPAMP2_VINM_SEC, SAI1_D3 (AF3), SYS_WKUP5, TIM15_BKIN (AF2), TIM1_CH4N (AF6), USART1_RX (AF7)
39PB0ввод-выводADC1_IN15, ADC3_IN12, COMP4_INP, OPAMP2_VINP, OPAMP2_VINP_SEC, OPAMP3_VINP, OPAMP3_VINP_SEC, QUADSPI1_BK1_IO1 (AF10), TIM1_CH2N (AF6), TIM3_CH3 (AF2), TIM8_CH2N (AF4), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14)
40PB1ввод-выводADC1_IN12, ADC3_IN1, COMP1_INP, COMP4_OUT (AF8), LPUART1_DE (AF12), LPUART1_RTS (AF12), OPAMP3_VOUT, OPAMP6_VINM, OPAMP6_VINM1, OPAMP6_VINM_SEC, QUADSPI1_BK1_IO0 (AF10), TIM1_CH3N (AF6), TIM3_CH4 (AF2), TIM8_CH3N (AF4)
41PB2ввод-выводADC2_IN12, ADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, COMP4_INM, I2C3_SMBA (AF4), LPTIM1_OUT (AF1), OPAMP3_VINM, OPAMP3_VINM0, OPAMP3_VINM_SEC, QUADSPI1_BK2_IO1 (AF10), RTC_OUT2 (AF0), TIM20_CH1 (AF3), TIM5_CH1 (AF2)
42VSSAпитание—
43VREF+служебныйVREFBUF_OUT1
44VREF_+служебныйVREFBUF_OUT2
45VDDAпитание—
46VSSпитание—
47VDDпитание—
48PF11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_NE4 (AF12), TIM20_ETR (AF2)
49PF12ввод-выводFMC_A6 (AF12), TIM20_CH1 (AF2)
50PF13ввод-выводFMC_A7 (AF12), I2C4_SMBA (AF4), TIM20_CH2 (AF2)
51PF14ввод-выводFMC_A8 (AF12), I2C4_SCL (AF4), TIM20_CH3 (AF2)
52PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4), TIM20_CH4 (AF2)
53PE7ввод-выводADC3_IN4, COMP4_INP, FMC_D4 (AF12), FMC_DA4 (AF12), SAI1_SD_B (AF13), TIM1_ETR (AF2)
54PE8ввод-выводADC3_IN6, ADC4_IN6, ADC5_IN6, COMP4_INM, FMC_D5 (AF12), FMC_DA5 (AF12), SAI1_SCK_B (AF13), TIM1_CH1N (AF2), TIM5_CH3 (AF1)
55PE9ввод-выводADC3_IN2, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), SAI1_FS_B (AF13), TIM1_CH1 (AF2), TIM5_CH4 (AF1)
56PE10ввод-выводADC3_IN14, ADC4_IN14, ADC5_IN14, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_D7 (AF12), FMC_DA7 (AF12), QUADSPI1_CLK (AF10), SAI1_MCLK_B (AF13), TIM1_CH2N (AF2)
57PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_IN15, ADC4_IN15, ADC5_IN15, FMC_D8 (AF12), FMC_DA8 (AF12), QUADSPI1_BK1_NCS (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF2)
58PE12ввод-выводADC3_IN16, ADC4_IN16, ADC5_IN16, FMC_D9 (AF12), FMC_DA9 (AF12), QUADSPI1_BK1_IO0 (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF2)
59PE13ввод-выводADC3_IN3, FMC_D10 (AF12), FMC_DA10 (AF12), QUADSPI1_BK1_IO1 (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF2)
60PE14ввод-выводADC4_IN1, FMC_D11 (AF12), FMC_DA11 (AF12), QUADSPI1_BK1_IO2 (AF10), SPI4_MOSI (AF5), TIM1_BKIN2 (AF6), TIM1_CH4 (AF2)
61PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_IN2, FMC_D12 (AF12), FMC_DA12 (AF12), QUADSPI1_BK1_IO3 (AF10), TIM1_BKIN (AF2), TIM1_CH4N (AF6), USART3_RX (AF7)
62PB10ввод-выводCOMP5_INM, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, LPUART1_RX (AF8), OPAMP3_VINM, OPAMP3_VINM1, OPAMP3_VINM_SEC, OPAMP4_VINM, OPAMP4_VINM0, OPAMP4_VINM_SEC, QUADSPI1_CLK (AF10), SAI1_SCK_A (AF14), TIM1_BKIN (AF12), TIM2_CH3 (AF1), USART3_TX (AF7)
63VSSпитание—
64VDDпитание—
65PB11ввод-выводADC1_EXTI11, ADC1_IN14, ADC2_EXTI11, ADC2_IN14, COMP6_INP, LPUART1_TX (AF8), OPAMP4_VINP, OPAMP4_VINP_SEC, OPAMP6_VOUT, QUADSPI1_BK1_NCS (AF10), TIM2_CH4 (AF1), USART3_RX (AF7)
66PB12ввод-выводADC1_IN11, ADC4_IN3, COMP7_INM, FDCAN2_RX (AF9), I2C2_SMBA (AF4), I2S2_WS (AF5), LPUART1_DE (AF8), LPUART1_RTS (AF8), OPAMP4_VOUT, OPAMP6_VINP, OPAMP6_VINP_SEC, SPI2_NSS (AF5), TIM1_BKIN (AF6), TIM5_ETR (AF2), USART3_CK (AF7)
67PB13ввод-выводADC3_IN5, COMP5_INP, FDCAN2_TX (AF9), I2S2_CK (AF5), LPUART1_CTS (AF8), OPAMP3_VINP, OPAMP3_VINP_SEC, OPAMP4_VINP, OPAMP4_VINP_SEC, OPAMP6_VINP, OPAMP6_VINP_SEC, SPI2_SCK (AF5), TIM1_CH1N (AF6), USART3_CTS (AF7), USART3_NSS (AF7)
68PB14ввод-выводADC1_IN5, ADC4_IN4, COMP4_OUT (AF8), COMP7_INP, OPAMP2_VINP, OPAMP2_VINP_SEC, OPAMP5_VINP, OPAMP5_VINP_SEC, SPI2_MISO (AF5), TIM15_CH1 (AF1), TIM1_CH2N (AF6), USART3_DE (AF7), USART3_RTS (AF7)
69PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC2_IN15, ADC4_IN5, COMP3_OUT (AF3), COMP6_INM, I2S2_SD (AF5), OPAMP5_VINM, OPAMP5_VINM0, OPAMP5_VINM_SEC, RTC_REFIN (AF0), SPI2_MOSI (AF5), TIM15_CH1N (AF2), TIM15_CH2 (AF1), TIM1_CH3N (AF4)
70PD8ввод-выводADC4_IN12, ADC5_IN12, FMC_D13 (AF12), FMC_DA13 (AF12), OPAMP4_VINM, OPAMP4_VINM1, OPAMP4_VINM_SEC, USART3_TX (AF7)
71PD9ввод-выводADC4_IN13, ADC5_IN13, DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_D14 (AF12), FMC_DA14 (AF12), OPAMP6_VINP, OPAMP6_VINP_SEC, USART3_RX (AF7)
72PD10ввод-выводADC3_IN7, ADC4_IN7, ADC5_IN7, COMP6_INM, DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, FMC_D15 (AF12), FMC_DA15 (AF12), USART3_CK (AF7)
73PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_IN8, ADC4_IN8, ADC5_IN8, COMP6_INP, FMC_A16 (AF12), FMC_CLE, I2C4_SMBA (AF4), OPAMP4_VINP, OPAMP4_VINP_SEC, TIM5_ETR (AF1), USART3_CTS (AF7), USART3_NSS (AF7)
74PD12ввод-выводADC3_IN9, ADC4_IN9, ADC5_IN9, COMP5_INP, FMC_A17 (AF12), FMC_ALE, OPAMP5_VINP, OPAMP5_VINP_SEC, TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
75PD13ввод-выводADC3_IN10, ADC4_IN10, ADC5_IN10, COMP5_INM, FMC_A18 (AF12), TIM4_CH2 (AF2)
76PD14ввод-выводADC3_IN11, ADC4_IN11, ADC5_IN11, COMP7_INP, FMC_D0 (AF12), FMC_DA0 (AF12), OPAMP2_VINP, OPAMP2_VINP_SEC, TIM4_CH3 (AF2)
77PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, COMP7_INM, FMC_D1 (AF12), FMC_DA1 (AF12), SPI2_NSS (AF6), TIM4_CH4 (AF2)
78VSSпитание—
79VDDпитание—
80PC6ввод-выводCOMP6_OUT (AF7), I2C4_SCL (AF8), I2S2_MCK (AF6), TIM3_CH1 (AF2), TIM8_CH1 (AF4)
81PC7ввод-выводCOMP5_OUT (AF7), I2C4_SDA (AF8), I2S3_MCK (AF6), TIM3_CH2 (AF2), TIM8_CH2 (AF4)
82PG0ввод-выводFMC_A10 (AF12), TIM20_CH1N (AF2)
83PG1ввод-выводFMC_A11 (AF12), TIM20_CH2N (AF2)
84PG2ввод-выводADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, FMC_A12 (AF12), SPI1_SCK (AF5), TIM20_CH3N (AF2)
85PG3ввод-выводADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_A13 (AF12), I2C4_SCL (AF4), SPI1_MISO (AF5), TIM20_BKIN (AF2), TIM20_CH4N (AF6)
86PG4ввод-выводFMC_A14 (AF12), I2C4_SDA (AF4), SPI1_MOSI (AF5), TIM20_BKIN2 (AF2)
87PC8ввод-выводCOMP7_OUT (AF7), I2C3_SCL (AF8), TIM20_CH3 (AF6), TIM3_CH3 (AF2), TIM8_CH3 (AF4)
88PC9ввод-выводDAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, I2C3_SDA (AF8), I2S_CKIN (AF5), TIM3_CH4 (AF2), TIM8_BKIN2 (AF6), TIM8_CH4 (AF4)
89PA8ввод-выводADC5_IN1, COMP7_OUT (AF8), FDCAN3_RX (AF11), I2C2_SDA (AF4), I2C3_SCL (AF2), I2S2_MCK (AF5), OPAMP5_VOUT, RCC_MCO (AF0), SAI1_CK2 (AF12), SAI1_SCK_A (AF14), TIM1_CH1 (AF6), TIM4_ETR (AF10), USART1_CK (AF7)
90PA9ввод-выводADC5_IN2, COMP5_OUT (AF8), DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, I2C2_SCL (AF4), I2C3_SMBA (AF2), I2S3_MCK (AF5), SAI1_FS_A (AF14), TIM15_BKIN (AF9), TIM1_CH2 (AF6), TIM2_CH3 (AF10), UCPD1_DBCC1, USART1_TX (AF7)
91PA10ввод-выводCOMP6_OUT (AF8), CRS_SYNC (AF3), DAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, I2C2_SMBA (AF4), SAI1_D1 (AF12), SAI1_SD_A (AF14), SPI2_MISO (AF5), SYS_PVD_IN, TIM17_BKIN (AF1), TIM1_CH3 (AF6), TIM2_CH4 (AF10), TIM8_BKIN (AF11), UCPD1_DBCC2, USART1_RX (AF7)
92PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, COMP1_OUT (AF8), FDCAN1_RX (AF9), I2S2_SD (AF5), SPI2_MOSI (AF5), TIM1_BKIN2 (AF12), TIM1_CH1N (AF6), TIM1_CH4 (AF11), TIM4_CH1 (AF10), USART1_CTS (AF7), USART1_NSS (AF7), USB_DM
93PA12ввод-выводCOMP2_OUT (AF8), FDCAN1_TX (AF9), I2S_CKIN (AF5), TIM16_CH1 (AF1), TIM1_CH2N (AF6), TIM1_ETR (AF11), TIM4_CH2 (AF10), USART1_DE (AF7), USART1_RTS (AF7), USB_DP
94VSSпитание—
95VDDпитание—
96PA13ввод-выводI2C1_SCL (AF4), I2C4_SCL (AF3), IR_OUT (AF5), SAI1_SD_B (AF13), SYS_JTMS-SWDIO (AF0), TIM16_CH1N (AF1), TIM4_CH3 (AF10), USART3_CTS (AF7), USART3_NSS (AF7)
97PF6ввод-выводI2C2_SCL (AF4), QUADSPI1_BK1_IO3 (AF10), SAI1_SD_B (AF3), TIM4_CH4 (AF2), TIM5_CH1 (AF6), TIM5_ETR (AF1), USART3_RTS (AF7)
98PA14ввод-выводI2C1_SDA (AF4), I2C4_SMBA (AF3), LPTIM1_OUT (AF1), SAI1_FS_B (AF13), SYS_JTCK-SWCLK (AF0), TIM1_BKIN (AF6), TIM8_CH2 (AF5), USART2_TX (AF7)
99PA15ввод-выводADC1_EXTI15, ADC2_EXTI15, FDCAN3_TX (AF11), I2C1_SCL (AF4), I2S3_WS (AF6), SPI1_NSS (AF5), SPI3_NSS (AF6), SYS_JTDI (AF0), TIM1_BKIN (AF9), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1 (AF2), UART4_DE (AF8), UART4_RTS (AF8), USART2_RX (AF7)
100PC10ввод-выводDAC1_EXTI10, DAC2_EXTI10, DAC3_EXTI10, DAC4_EXTI10, I2S3_CK (AF6), SPI3_SCK (AF6), TIM8_CH1N (AF4), UART4_TX (AF5), USART3_TX (AF7)
101PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, I2C3_SDA (AF8), SPI3_MISO (AF6), TIM8_CH2N (AF4), UART4_RX (AF5), USART3_RX (AF7)
102PC12ввод-выводI2S3_SD (AF6), SPI3_MOSI (AF6), TIM5_CH2 (AF1), TIM8_CH3N (AF4), UART5_TX (AF5), UCPD1_FRSTX1 (AF14), UCPD1_FRSTX2 (AF14), USART3_CK (AF7)
103PG5ввод-выводFMC_A15 (AF12), LPUART1_CTS (AF8), SPI1_NSS (AF5), TIM20_ETR (AF2)
104PG6ввод-выводFMC_INT (AF12), I2C3_SMBA (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), TIM20_BKIN (AF2)
105PG7ввод-выводFMC_INT (AF12), I2C3_SCL (AF4), LPUART1_TX (AF8), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13)
106PG8ввод-выводFMC_NE3 (AF12), I2C3_SDA (AF4), LPUART1_RX (AF8)
107PG9ввод-выводDAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FMC_NCE (AF12), FMC_NE2 (AF12), SPI3_SCK (AF6), TIM15_CH1N (AF14), USART1_TX (AF7)
108PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), TIM8_CH4N (AF6)
109PD1ввод-выводFDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), TIM8_BKIN2 (AF6), TIM8_CH4 (AF4)
110VSSпитание—
111VDDпитание—
112PD2ввод-выводADC3_EXTI2, ADC4_EXTI2, ADC5_EXTI2, TIM3_ETR (AF2), TIM8_BKIN (AF4), UART5_RX (AF5)
113PD3ввод-выводADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, FMC_CLK (AF12), QUADSPI1_BK2_NCS (AF10), TIM2_CH1 (AF2), TIM2_ETR (AF2), USART2_CTS (AF7), USART2_NSS (AF7)
114PD4ввод-выводFMC_NOE (AF12), QUADSPI1_BK2_IO0 (AF10), TIM2_CH2 (AF2), USART2_DE (AF7), USART2_RTS (AF7)
115PD5ввод-выводFMC_NWE (AF12), QUADSPI1_BK2_IO1 (AF10), USART2_TX (AF7)
116PD6ввод-выводFMC_NWAIT (AF12), QUADSPI1_BK2_IO2 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM2_CH4 (AF2), USART2_RX (AF7)
117PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), QUADSPI1_BK2_IO3 (AF10), TIM2_CH3 (AF2), USART2_CK (AF7)
118PB3ввод-выводADC3_EXTI3, ADC4_EXTI3, ADC5_EXTI3, CRS_SYNC (AF3), FDCAN3_RX (AF11), I2S3_CK (AF6), SAI1_SCK_B (AF14), SPI1_SCK (AF5), SPI3_SCK (AF6), SYS_JTDO-SWO (AF0), TIM2_CH2 (AF1), TIM3_ETR (AF10), TIM4_ETR (AF2), TIM8_CH1N (AF4), USART2_TX (AF7)
119PB4ввод-выводFDCAN3_TX (AF11), SAI1_MCLK_B (AF14), SPI1_MISO (AF5), SPI3_MISO (AF6), SYS_JTRST (AF0), TIM16_CH1 (AF1), TIM17_BKIN (AF10), TIM3_CH1 (AF2), TIM8_CH2N (AF4), UART5_DE (AF8), UART5_RTS (AF8), UCPD1_CC2, USART2_RX (AF7)
120PB5ввод-выводFDCAN2_RX (AF9), I2C1_SMBA (AF4), I2C3_SDA (AF8), I2S3_SD (AF6), LPTIM1_IN1 (AF11), SAI1_SD_B (AF12), SPI1_MOSI (AF5), SPI3_MOSI (AF6), TIM16_BKIN (AF1), TIM17_CH1 (AF10), TIM3_CH2 (AF2), TIM8_CH3N (AF3), UART5_CTS (AF14), USART2_CK (AF7)
121PB6ввод-выводCOMP4_OUT (AF8), FDCAN2_TX (AF9), LPTIM1_ETR (AF11), SAI1_FS_B (AF14), TIM16_CH1N (AF1), TIM4_CH1 (AF2), TIM8_BKIN2 (AF10), TIM8_CH1 (AF5), TIM8_ETR (AF6), UCPD1_CC1, USART1_TX (AF7)
122PB7ввод-выводCOMP3_OUT (AF8), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF3), LPTIM1_IN2 (AF11), TIM17_CH1N (AF1), TIM3_CH4 (AF10), TIM4_CH2 (AF2), TIM8_BKIN (AF5), UART4_CTS (AF14), USART1_RX (AF7)
123PB8-BOOT0ввод-выводCOMP1_OUT (AF8), FDCAN1_RX (AF9), I2C1_SCL (AF4), SAI1_CK1 (AF3), SAI1_MCLK_A (AF14), TIM16_CH1 (AF1), TIM1_BKIN (AF12), TIM4_CH3 (AF2), TIM8_CH2 (AF10), USART3_RX (AF7)
124PB9ввод-выводCOMP2_OUT (AF8), DAC1_EXTI9, DAC2_EXTI9, DAC3_EXTI9, DAC4_EXTI9, FDCAN1_TX (AF9), I2C1_SDA (AF4), IR_OUT (AF6), SAI1_D2 (AF3), SAI1_FS_A (AF14), TIM17_CH1 (AF1), TIM1_CH3N (AF12), TIM4_CH4 (AF2), TIM8_CH3 (AF10), USART3_TX (AF7)
125PE0ввод-выводFMC_NBL0 (AF12), TIM16_CH1 (AF4), TIM20_CH4N (AF3), TIM20_ETR (AF6), TIM4_ETR (AF2), USART1_TX (AF7)
126PE1ввод-выводFMC_NBL1 (AF12), TIM17_CH1 (AF4), TIM20_CH4 (AF6), USART1_RX (AF7)
127VSSпитание—
128VDDпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяВыводыНазначение
VBAT6резервное питание: часы реального времени и резервные регистры
VDD13, 31, 47, 64, 79, 95, 111, 128питание цифровой части и линий ввода-вывода
VDDA45питание аналоговой части: АЦП, ЦАП, генераторы
VSS12, 30, 46, 63, 78, 94, 110, 127общий провод (земля)
VSSA42общий провод аналоговой части
VREF_+44—
VREF+43верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32G483QETx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32G483QESTM32G483QETx512 КБ128 КБ

Линейка STM32G4x3, семейство STM32G4, ядро Cortex-M4.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе LQFP128, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32G473QB, STM32G473QC, STM32G473QESTM32G4x3128 из 128выводы совпадают полностьютолько у этого: AES
STM32G473QESTM32G4x3128 из 128выводы совпадают полностьютолько у этого: AES; только у него: VREFBUF
STM32G471QC, STM32G471QESTM32G4x1128 из 128выводы совпадают полностьютолько у этого: ADC4, ADC5, AES, COMP5, COMP6, COMP7, DAC2, DAC4, FDCAN3, FMC, OPAMP4, OPAMP5
STM32G474QB, STM32G474QC, STM32G474QESTM32G4x4128 из 128выводы совпадают полностьютолько у этого: AES; только у него: HRTIM1
STM32G484QESTM32G4x4128 из 128выводы совпадают полностьютолько у него: HRTIM1

Частые вопросы

На каких выводах USART1 у STM32G483QE?

В корпусе LQFP128 сигнал USART1_TX выведен на PC4 (вывод 37, AF7) или PA9 (вывод 90, AF7) или PG9 (вывод 107, AF7) или PB6 (вывод 121, AF7) или PE0 (вывод 125, AF7), USART1_RX — на PC5 (вывод 38, AF7) или PA10 (вывод 91, AF7) или PB7 (вывод 122, AF7) или PE1 (вывод 126, AF7).

Где у STM32G483QE выводы SWD для программатора?

SWDIO — PA13 (вывод 96, AF0), SWCLK — PA14 (вывод 98, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32G483QE?

I2C1_SCL — PA13 (вывод 96, AF4) или PA15 (вывод 99, AF4) или PB8-BOOT0 (вывод 123, AF4), I2C1_SDA — PA14 (вывод 98, AF4) или PB7 (вывод 122, AF4) или PB9 (вывод 124, AF4).

Сколько выводов ввода-вывода у STM32G483QE в корпусе LQFP128?

107 из 128. Ещё 19 выводов заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32G483QE?

От 1,71 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
