STM32H543VE в корпусе UFBGA100: распиновка

STM32H543VE — микроконтроллер STM32H5 на ядре Cortex-M33: 512 КБ флеш-памяти и 304 КБ ОЗУ. Корпус UFBGA100 — 100 шариков, из них 80 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
512 КБ
ОЗУ
304 КБ
Корпус
UFBGA100, 100 шариков
Линий ввода-вывода
80

Схема корпуса UFBGA100

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32H543VE в корпусе UFBGA100, вид сверхуABCDEFGHJKLM123456789101112PB9 — шарик A1: COMP2_OUT, DAC1_EXTI9, FDCAN1_TX, I2C1_SDA, I2S2_WS, I2S3_CK, I3C1_SDA, SDMMC1_CDIR, SDMMC1_D5, SPI2_NSS, SPI3_SCK, TIM4_CH4, UART4_TXPB9PB8 — шарик A2: ETH_MII_TXD3, FDCAN1_RX, I2C1_SCL, I2S3_WS, I3C1_SCL, PLAY1_IN1, SDMMC1_CKIN, SDMMC1_D4, SPI3_NSS, SPI4_RDY, TIM4_CH3, UART4_RXPB8BOOT0 — шарик A3BOOT0PB5 — шарик A4: ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, I2C1_SMBA, I2S1_SDO, I2S3_SDO, OCTOSPI1_NCLK, SPI1_MOSI, SPI3_MOSI, TIM3_CH2, UART5_RX, USART6_TXPB5PB3(JTDO/TRACESWO) — шарик A5: CRS_SYNC, DEBUG_JTDO-SWO, ETH_MDC, FDCAN2_TX, I2C2_SDA, I2S1_CK, I2S3_CK, I3C2_SDA, LPUART1_TX, SPI1_SCK, SPI3_SCK, TIM2_CH2, UART5_TX, UART7_RXPB3PD6 — шарик A6: FMC_NWAIT, I2C3_SCL, I2S3_SDO, I3C2_SCL, OCTOSPI1_IO6, SDMMC1_CK, SPI3_MOSI, USART2_RXPD6PD4 — шарик A7: ETH_CLK, FMC_NOE, OCTOSPI1_IO4, USART2_DE, USART2_RTSPD4PD3 — шарик A8: FMC_CLK, I2S2_CK, PLAY1_IN10, PWR_WKUP8, SPI2_SCK, USART2_CTS, USART2_NSSPD3PD1 — шарик A9: ETH_MII_RX_DV, ETH_RMII_CRS_DV, FDCAN1_TX, FMC_D3, FMC_DA3, UART4_TXPD1PC11 — шарик A10: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, I2S3_SDI, OCTOSPI1_NCS2, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PA15(JTDI) — шарик A11: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DEBUG_JTDI, ETH_PHY_INTN, FMC_NBL1, I2S1_WS, I2S3_WS, OCTOSPI1_NCS2, SPI1_NSS, SPI3_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TX, USART1_TXPA15PC10 — шарик A12: ETH_MII_TXD0, ETH_RMII_TXD0, I2S3_CK, I3C2_SCL, OCTOSPI1_IO1, PLAY1_IN0, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TXPC10PE0 — шарик B1: FDCAN1_RX, FMC_NBL0, LPTIM1_ETR, LPTIM2_CH2, LPTIM2_ETR, SPI3_RDY, TIM4_ETR, UART8_RXPE0PE4 — шарик B2: DEBUG_TRACED1, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_A20, PLAY1_OUT7, SPI4_NSS, TAMP_IN7, TAMP_OUT8, TIM15_CH1N, UART8_TXPE4PE3 — шарик B3: DEBUG_TRACED0, FMC_A19, PLAY1_IN7, TAMP_IN6, TAMP_OUT3, TIM15_BKINPE3PB6 — шарик B4: CEC, ETH_MII_TX_ER, FDCAN2_TX, FMC_SDNE1, I2C1_SCL, I3C1_SCL, LPUART1_TX, OCTOSPI1_NCS2, TIM4_CH1, UART5_TX, USART1_TX, USART6_RXPB6PB4(NJTRST) — шарик B5: DEBUG_NJTRST, ETH_MDIO, I2C3_SDA, I2S1_SDI, I2S2_WS, I2S3_SDI, I3C2_SDA, LPTIM1_CH2, OCTOSPI1_CLK, SPI1_MISO, SPI2_NSS, SPI3_MISO, TIM3_CH1, UART7_TXPB4PD7 — шарик B6: FMC_NCE, FMC_NE1, I2C3_SDA, I2S1_SDO, I2S3_SDI, I3C2_SDA, OCTOSPI1_IO7, SDMMC1_CMD, SPI1_MOSI, SPI3_MISO, USART2_CKPD7PD5 — шарик B7: ETH_MII_CRS, FDCAN1_TX, FMC_NWE, OCTOSPI1_IO5, SPI2_RDY, TIM1_CH4N, USART2_TXPD5PD2 — шарик B8: DEBUG_TRACED2, PLAY1_IN7, PWR_WKUP7, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RXPD2PD0 — шарик B9: FDCAN1_RX, FMC_D2, FMC_DA2, TIM8_CH4N, UART4_RXPD0PC12 — шарик B10: DEBUG_TRACED3, ETH_PPS_OUT, I2S3_SDO, LPTIM2_CH2, SDMMC1_CK, SPI3_MOSI, TIM15_CH1, UART5_TX, USART3_CKPC12PA14(JTCK/SWCLK) — шарик B11: DEBUG_JTCK-SWCLKPA14PA13(JTMS/SWDIO) — шарик B12: DEBUG_JTMS-SWDIOPA13PE2 — шарик C1: DEBUG_TRACECLK, ETH_MII_TXD3, FMC_A23, LPTIM1_IN2, OCTOSPI1_IO2, PLAY1_OUT15, SPI4_SCK, UART8_TXPE2PE5 — шарик C2: DEBUG_TRACED2, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_A21, PLAY1_OUT8, SPI4_MISO, TAMP_IN8, TAMP_OUT7, TIM15_CH1, UART8_RXPE5VSS — шарик C3VSSVCAP — шарик C4VCAPPB7 — шарик C5: FDCAN1_TX, FMC_NL, I2C1_SDA, I3C1_SDA, LPUART1_RX, PWR_WKUP5, SPI4_MISO, TIM4_CH2, USART1_RX, USART6_CTS, USART6_NSSPB7VDDIO2 — шарик C8VDDIO2VSS — шарик C9VSSVDDUSB — шарик C10VDDUSBPA12 — шарик C11: COMP2_OUT, FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_DPPA12PA11 — шарик C12: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX, I2S2_WS, LPUART1_CTS, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_DMPA11VBAT — шарик D1VBATPE6 — шарик D2: DEBUG_TRACED3, FMC_A22, PLAY1_IN14, SPI4_MOSI, TAMP_IN3, TAMP_OUT6, TIM15_CH2, TIM1_BKIN2PE6VDD — шарик D3VDDVDD — шарик D10VDDPA10 — шарик D11: ETH_CLK, FDCAN2_TX, LPTIM2_IN2, LPUART1_RX, SDMMC1_D0, TIM1_CH3, UCPD1_FRSTX, USART1_RXPA10PA9 — шарик D12: DAC1_EXTI9, ETH_MII_TX_ER, FMC_NWE, I2C3_SMBA, I2S2_CK, LPUART1_TX, OCTOSPI1_NCS1, PLAY1_IN4, SPI2_SCK, TIM1_CH2, UCPD1_DB1, USART1_TXPA9PC14-OSC32_IN(OSC32_IN) — шарик E1: RCC_OSC32_INPC14PC15-OSC32_OUT(OSC32_OUT) — шарик E2: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUTPC15PC13 — шарик E3: PWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3PC13PA8 — шарик E10: FMC_NOE, I2C3_SCL, I3C2_SCL, RCC_MCO_1, SPI1_RDY, SPI4_MOSI, TIM1_CH1, TIM8_BKIN2, UART7_RX, USART1_CK, USB_SOFPA8PC9 — шарик E11: AUDIOCLK, DAC1_EXTI9, FMC_CLE, I2C3_SDA, I3C2_SDA, OCTOSPI1_IO0, PLAY1_IN3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, TIM8_CH4, UART5_CTS, UCPD1_DB2PC9PC8 — шарик E12: DEBUG_TRACED1, FMC_ALE, FMC_INT, FMC_NCE, FMC_NE2, PLAY1_OUT5, SDMMC1_D0, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PH0-OSC_IN — шарик F1: RCC_OSC_INPH0PH1-OSC_OUT — шарик F2: RCC_OSC_OUTPH1PC7 — шарик F11: DEBUG_TRGIO, FMC_NE1, I2S3_MCK, I3C2_SDA, OCTOSPI1_IO6, SDMMC1_D123DIR, SDMMC1_D7, TIM3_CH2, TIM8_CH2, USART6_RXPC7PC6 — шарик F12: FMC_NWAIT, I2S2_MCK, I3C2_SCL, OCTOSPI1_IO5, PLAY1_IN9, SDMMC1_D0DIR, SDMMC1_D6, TIM3_CH1, TIM8_CH1, USART6_TXPC6PC0 — шарик G1: ADC1_INP10, ADC2_INP10, FMC_A25, FMC_SDNWE, OCTOSPI1_IO7, PLAY1_IN0, SPI2_RDY, SPI4_MISOPC0NRST — шарик G2NRSTPD14 — шарик G11: FMC_D0, FMC_DA0, PLAY1_IN1, TIM4_CH3, UART8_CTSPD14PD15 — шарик G12: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, PLAY1_OUT14, TIM4_CH4, UART8_DE, UART8_RTSPD15PC2 — шарик H1: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_SDNE0, I2S2_SDI, OCTOSPI1_IO2, OCTOSPI1_IO5, PLAY1_OUT3, PWR_CSLEEP, SPI2_MISO, TIM4_CH4PC2PC3 — шарик H2: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_SDCKE0, I2S2_SDO, LPUART1_TX, OCTOSPI1_IO0, OCTOSPI1_IO6, PLAY1_IN13, PWR_CSTOP, SPI2_MOSIPC3PC1 — шарик H3: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, COMP2_OUT, DEBUG_TRACED0, ETH_MDC, I2S2_SDO, OCTOSPI1_IO4, PWR_WKUP6, SPI2_MOSI, SPI4_MOSI, TAMP_IN3, TAMP_OUT5PC1PD11 — шарик H10: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_PTP_AUX_TS, FMC_A16, FMC_CLE, LPTIM2_IN2, OCTOSPI1_IO0, PLAY1_OUT0, UART4_RX, USART3_CTS, USART3_NSSPD11PD12 — шарик H11: FMC_A17, FMC_ALE, I2C2_SCL, I3C1_SCL, LPTIM1_IN1, LPTIM2_IN1, OCTOSPI1_IO1, PLAY1_OUT1, TIM4_CH1, UART4_TX, USART3_DE, USART3_RTSPD12PD13 — шарик H12: FMC_A18, I2C2_SDA, I3C1_SDA, LPTIM1_CH1, LPTIM2_CH1, OCTOSPI1_IO3, PLAY1_OUT13, TIM4_CH2PD13VREF+ — шарик J1VREF+VSSA — шарик J2VSSAVDD — шарик J3VDDVDD — шарик J10VDDPD9 — шарик J11: DAC1_EXTI9, FDCAN2_RX, FMC_D14, FMC_DA14, PLAY1_IN3, USART3_RXPD9PD10 — шарик J12: ETH_MII_CRS, FMC_D15, FMC_DA15, LPTIM2_CH2, USART3_CKPD10VDDA — шарик K1VDDAPA1 — шарик K2: ADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, LPTIM1_IN1, OCTOSPI1_DQS, OCTOSPI1_IO3, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTS, USART6_CKPA1VSS — шарик K3VSSPA2 — шарик K4: ADC1_INP14, ADC2_INP14, COMP2_INM, ETH_MDIO, LPTIM1_IN2, LPUART1_TX, OCTOSPI1_NCS1, PWR_WKUP2, TAMP_IN4, TAMP_OUT3, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PB1 — шарик K5: ADC1_INP5, ADC2_INP5, COMP1_INM, ETH_MII_RXD3, I2S2_WS, OCTOSPI1_IO0, PLAY1_OUT5, SPI2_NSS, SPI3_SCK, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USART3_RXPB1PE12 — шарик K8: ADC3_INP6, ETH_MDIO, FMC_D9, FMC_DA9, PLAY1_OUT10, SPI4_SCK, TIM1_CH3NPE12VCAP — шарик K9VCAPVSS — шарик K10VSSPB14 — шарик K11: I2S2_SDI, PLAY1_OUT2, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, UCPD1_CC2, USART1_TX, USART3_DE, USART3_RTSPB14PD8 — шарик K12: ETH_MII_RXD0, ETH_RMII_RXD0, FMC_D13, FMC_DA13, USART3_TXPD8PA3 — шарик L1: ADC1_INP15, ADC2_INP15, COMP2_INM, ETH_MII_COL, I2S2_WS, I2S3_SDO, OCTOSPI1_CLK, PLAY1_IN6, SPI2_NSS, SPI3_MOSI, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3PA4 — шарик L2: ADC1_INP18, ADC2_INP18, COMP1_INP, DAC1_OUT1, I2S1_WS, I2S3_SDO, I2S3_WS, LPTIM2_CH1, PLAY1_OUT12, SPI1_NSS, SPI3_MOSI, SPI3_NSS, TIM5_ETR, USART2_CKPA4PA0 — шарик L3: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, COMP1_INM, ETH_MII_CRS, FDCAN2_RX, PWR_WKUP1, SPI3_RDY, SPI4_SCK, TAMP_IN2, TAMP_OUT1, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PA7 — шарик L4: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_NWE, FMC_SDNWE, I2S1_SDO, OCTOSPI1_IO2, SPI1_MOSI, TIM1_CH1N, TIM3_CH2, TIM8_CH1NPA7PB2 — шарик L5: ADC3_INP0, COMP2_INP, ETH_MII_RXD0, ETH_RMII_RXD0, I2S2_CK, I2S3_SDO, LPTIM1_CH1, OCTOSPI1_CLK, OCTOSPI1_DQS, PLAY1_IN8, RCC_LSCO, RTC_OUT2, SDMMC1_CMD, SPI1_RDY, SPI2_SCK, SPI3_MOSI, TIM8_CH4NPB2VDD — шарик L6VDDVSS — шарик L7VSSPE10 — шарик L8: ADC3_INP4, FMC_D7, FMC_DA7, OCTOSPI1_IO7, PLAY1_OUT8, TIM1_CH2N, UART7_CTSPE10PE13 — шарик L9: ADC3_INP7, FMC_D10, FMC_DA10, PLAY1_OUT11, SPI4_MISO, TIM1_CH3PE13PE15 — шарик L10: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, FMC_D12, FMC_DA12, PLAY1_OUT9, TIM1_BKIN, TIM1_CH4NPE15PB12 — шарик L11: ADC3_INP3, ETH_MII_TXD0, ETH_RMII_TXD0, FDCAN2_RX, I2S2_WS, OCTOSPI1_NCLK, SPI2_NSS, TIM1_BKIN, TIM8_CH3, UART5_RX, UCPD1_FRSTX, USART3_CKPB12PB15 — шарик L12: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP2, ETH_MII_TXD1, ETH_RMII_TXD1, I2S1_SDO, I2S2_SDO, OCTOSPI1_CLK, PWR_PVD_IN, RTC_REFIN, SPI1_MOSI, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, UART5_RX, USART1_RXPB15PA6 — шарик M1: ADC1_INP3, ADC2_INP3, COMP1_OUT, COMP2_INM, I2S1_SDI, OCTOSPI1_IO3, SPI1_MISO, TIM1_BKIN, TIM3_CH1, TIM8_BKINPA6PA5 — шарик M2: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, SPI1_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1NPA5PC4 — шарик M3: ADC1_INP4, ADC2_INP4, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_SDNE0, I2S1_MCK, LPTIM2_ETR, OCTOSPI1_NCS1, PLAY1_OUT4, TIM2_CH4, USART3_RXPC4PC5 — шарик M4: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_SDCKE0, OCTOSPI1_DQS, SPI4_SCK, TIM1_CH4NPC5PB0 — шарик M5: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_OUT, COMP2_INP, ETH_MII_RXD2, I2S3_SDI, OCTOSPI1_IO1, SPI3_MISO, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USART2_TXPB0PE7 — шарик M6: ADC3_INP1, FMC_D4, FMC_DA4, OCTOSPI1_IO4, PLAY1_IN2, TIM1_ETR, UART7_RXPE7PE8 — шарик M7: FMC_D5, FMC_DA5, OCTOSPI1_IO5, PLAY1_OUT7, TIM1_CH1N, UART7_TXPE8PE9 — шарик M8: DAC1_EXTI9, FMC_D6, FMC_DA6, OCTOSPI1_IO6, PLAY1_IN12, TIM1_CH1, UART7_DE, UART7_RTSPE9PE11 — шарик M9: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8, FMC_DA8, OCTOSPI1_NCS1, PLAY1_IN15, SPI1_RDY, SPI4_NSS, TIM1_CH2PE11PE14 — шарик M10: ADC3_INP8, FMC_D11, FMC_DA11, PLAY1_OUT6, SPI4_MOSI, TIM1_CH4PE14PB10 — шарик M11: ETH_MII_RX_ER, I2S2_CK, I3C2_SCL, LPTIM2_IN1, OCTOSPI1_NCS2, SPI2_SCK, TIM2_CH3, TIM8_CH1, USART3_TXPB10PB13 — шарик M12: FDCAN2_TX, I2C2_SMBA, I2S2_CK, LPTIM2_CH1, LPUART1_RX, SDMMC1_D0, SPI2_SCK, TIM1_CH1N, TIM8_CH2, UART5_TX, UCPD1_CC1, USART3_CTS, USART3_NSSPB13UFBGA100, вид сверху: шарики видны сквозь корпус, A1 — в левомверхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

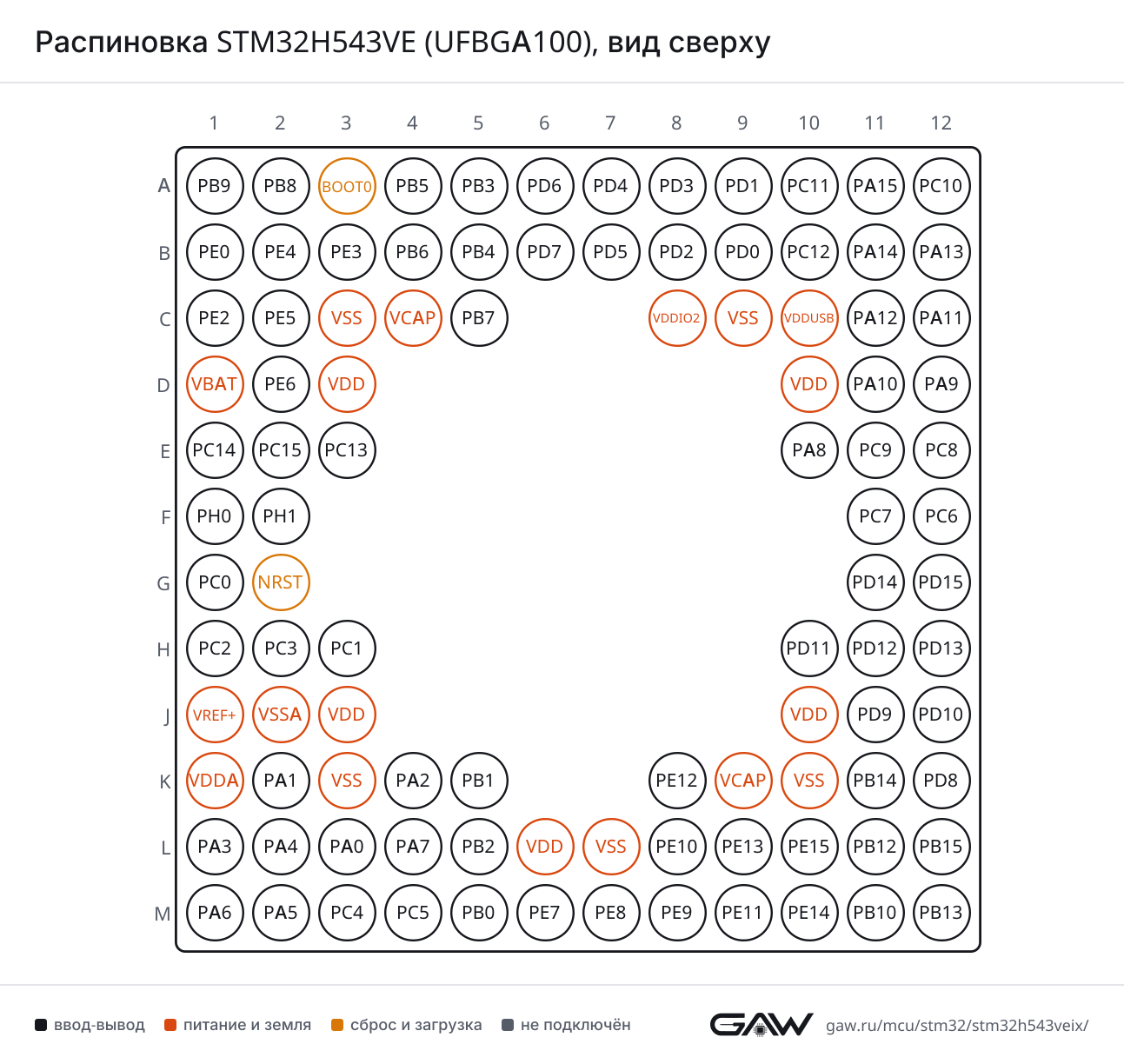

Распиновка STM32H543VE (UFBGA100), вид сверхуРаспиновка UFBGA100 картинкой
PNG, 1293 × 1224 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (E10, AF7)
CTSPA11 (C12, AF7)
DEPA12 (C11, AF7)
NSSPA11 (C12, AF7)
RTSPA12 (C11, AF7)
RXPB7 (C5, AF7), PA10 (D11, AF7), PB15 (L12, AF4)
TXPA15(JTDI) (A11, AF7), PB6 (B4, AF7), PA9 (D12, AF7), PB14 (K11, AF4)
USART2CKPD7 (B6, AF7), PA4 (L2, AF7)
CTSPD3 (A8, AF7), PA0 (L3, AF7)
DEPD4 (A7, AF7), PA1 (K2, AF7)
NSSPD3 (A8, AF7), PA0 (L3, AF7)
RTSPD4 (A7, AF7), PA1 (K2, AF7)
RXPD6 (A6, AF7), PA3 (L1, AF7)
TXPD5 (B7, AF7), PA2 (K4, AF7), PB0 (M5, AF7)
USART3CKPC12 (B10, AF7), PD10 (J12, AF7), PB12 (L11, AF7)
CTSPD11 (H10, AF7), PB13 (M12, AF7)
DEPD12 (H11, AF7), PB14 (K11, AF7)
NSSPD11 (H10, AF7), PB13 (M12, AF7)
RTSPD12 (H11, AF7), PB14 (K11, AF7)
RXPC11 (A10, AF7), PD9 (J11, AF7), PB1 (K5, AF7), PC4 (M3, AF7)
TXPC10 (A12, AF7), PD8 (K12, AF7), PB10 (M11, AF7)
USART6CKPC8 (E12, AF7), PA1 (K2, AF14)
CTSPB7 (C5, AF6)
NSSPB7 (C5, AF6)
RXPB6 (B4, AF6), PC7 (F11, AF7)
TXPB5 (A4, AF6), PC6 (F12, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB15 (L12, AF8), PB0 (M5, AF8)
DEPA15(JTDI) (A11, AF8), PB14 (K11, AF8)
RTSPA15(JTDI) (A11, AF8), PB14 (K11, AF8)
RXPB8 (A2, AF8), PC11 (A10, AF8), PD0 (B9, AF8), PA11 (C12, AF6), PD11 (H10, AF8), PA1 (K2, AF8)
TXPB9 (A1, AF8), PD1 (A9, AF8), PC10 (A12, AF8), PA12 (C11, AF6), PD12 (H11, AF8), PA0 (L3, AF8)
UART5CTSPC9 (E11, AF8)
DEPC8 (E12, AF8)
RTSPC8 (E12, AF8)
RXPB5 (A4, AF14), PD2 (B8, AF8), PB12 (L11, AF14), PB15 (L12, AF14)
TXPB3(JTDO/TRACESWO) (A5, AF14), PB6 (B4, AF14), PC12 (B10, AF8), PB13 (M12, AF14)
UART7CTSPE10 (L8, AF7)
DEPE9 (M8, AF7)
RTSPE9 (M8, AF7)
RXPB3(JTDO/TRACESWO) (A5, AF11), PA8 (E10, AF11), PE7 (M6, AF7)
TXPA15(JTDI) (A11, AF11), PB4(NJTRST) (B5, AF11), PE8 (M7, AF7)
UART8CTSPD14 (G11, AF8)
DEPD15 (G12, AF8)
RTSPD15 (G12, AF8)
RXPE0 (B1, AF8), PE5 (C2, AF13)
TXPE4 (B2, AF13), PE2 (C1, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (C12, AF3)
DEPA12 (C11, AF3)
RTSPA12 (C11, AF3)
RXPB7 (C5, AF8), PA10 (D11, AF3), PB13 (M12, AF8)
TXPB3(JTDO/TRACESWO) (A5, AF8), PB6 (B4, AF8), PA9 (D12, AF3), PC3 (H2, AF3), PA2 (K4, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4(NJTRST) (B5, AF5), PA6 (M1, AF5)
MOSIPB5 (A4, AF5), PD7 (B6, AF5), PA7 (L4, AF5), PB15 (L12, AF6)
NSSPA15(JTDI) (A11, AF5), PA4 (L2, AF5)
RDYPA8 (E10, AF5), PB2 (L5, AF4), PE11 (M9, AF4)
SCKPB3(JTDO/TRACESWO) (A5, AF5), PA5 (M2, AF5)
SPI2MISOPC2 (H1, AF5), PB14 (K11, AF5)
MOSIPC3 (H2, AF5), PC1 (H3, AF5), PB15 (L12, AF5)
NSSPB9 (A1, AF5), PB4(NJTRST) (B5, AF7), PA11 (C12, AF5), PB1 (K5, AF5), PA3 (L1, AF5), PB12 (L11, AF5)
RDYPD5 (B7, AF5), PC0 (G1, AF7)
SCKPD3 (A8, AF5), PA12 (C11, AF5), PA9 (D12, AF5), PB2 (L5, AF6), PB10 (M11, AF5), PB13 (M12, AF5)
SPI3MISOPC11 (A10, AF6), PB4(NJTRST) (B5, AF6), PD7 (B6, AF6), PB0 (M5, AF5)
MOSIPB5 (A4, AF7), PD6 (A6, AF5), PC12 (B10, AF6), PA3 (L1, AF6), PA4 (L2, AF4), PB2 (L5, AF7)
NSSPB8 (A2, AF6), PA15(JTDI) (A11, AF6), PA4 (L2, AF6)
RDYPE0 (B1, AF6), PA0 (L3, AF6)
SCKPB9 (A1, AF6), PB3(JTDO/TRACESWO) (A5, AF6), PC10 (A12, AF6), PB1 (K5, AF4)
SPI4MISOPE5 (C2, AF5), PB7 (C5, AF5), PC0 (G1, AF6), PE13 (L9, AF5)
MOSIPE6 (D2, AF5), PA8 (E10, AF6), PC1 (H3, AF6), PE14 (M10, AF5)
NSSPE4 (B2, AF5), PE11 (M9, AF5)
RDYPB8 (A2, AF5)
SCKPE2 (C1, AF5), PE12 (K8, AF5), PA0 (L3, AF5), PC5 (M4, AF6)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPB3(JTDO/TRACESWO) (A5, AF5), PA5 (M2, AF5)
MCKPC4 (M3, AF5)
SDIPB4(NJTRST) (B5, AF5), PA6 (M1, AF5)
SDOPB5 (A4, AF5), PD7 (B6, AF5), PA7 (L4, AF5), PB15 (L12, AF6)
WSPA15(JTDI) (A11, AF5), PA4 (L2, AF5)
I2S2CKPD3 (A8, AF5), PA12 (C11, AF5), PA9 (D12, AF5), PB2 (L5, AF6), PB10 (M11, AF5), PB13 (M12, AF5)
MCKPC6 (F12, AF5)
SDIPC2 (H1, AF5), PB14 (K11, AF5)
SDOPC3 (H2, AF5), PC1 (H3, AF5), PB15 (L12, AF5)
WSPB9 (A1, AF5), PB4(NJTRST) (B5, AF7), PA11 (C12, AF5), PB1 (K5, AF5), PA3 (L1, AF5), PB12 (L11, AF5)
I2S3CKPB9 (A1, AF6), PB3(JTDO/TRACESWO) (A5, AF6), PC10 (A12, AF6)
MCKPC7 (F11, AF6)
SDIPC11 (A10, AF6), PB4(NJTRST) (B5, AF6), PD7 (B6, AF6), PB0 (M5, AF5)
SDOPB5 (A4, AF7), PD6 (A6, AF5), PC12 (B10, AF6), PA3 (L1, AF6), PA4 (L2, AF4), PB2 (L5, AF7)
WSPB8 (A2, AF6), PA15(JTDI) (A11, AF6), PA4 (L2, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8 (A2, AF4), PB6 (B4, AF4)
SDAPB9 (A1, AF4), PB7 (C5, AF4)
SMBAPB5 (A4, AF4)
I2C2SCLPD12 (H11, AF4)
SDAPB3(JTDO/TRACESWO) (A5, AF4), PD13 (H12, AF4)
SMBAPB13 (M12, AF4)
I2C3SCLPD6 (A6, AF4), PA8 (E10, AF4)
SDAPB4(NJTRST) (B5, AF9), PD7 (B6, AF4), PC9 (E11, AF4)
SMBAPA9 (D12, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPB8 (A2, AF3), PB6 (B4, AF3), PD12 (H11, AF6)
SDAPB9 (A1, AF3), PB7 (C5, AF3), PD13 (H12, AF6)
I3C2SCLPD6 (A6, AF3), PC10 (A12, AF3), PA8 (E10, AF9), PC6 (F12, AF10), PB10 (M11, AF8)
SDAPB3(JTDO/TRACESWO) (A5, AF3), PB4(NJTRST) (B5, AF8), PD7 (B6, AF3), PC9 (E11, AF10), PC7 (F11, AF10)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPB8 (A2, AF9), PE0 (B1, AF9), PD0 (B9, AF9), PA11 (C12, AF9)
TXPB9 (A1, AF9), PD1 (A9, AF9), PD5 (B7, AF9), PB7 (C5, AF9), PA12 (C11, AF9)
FDCAN2RXPB5 (A4, AF9), PD9 (J11, AF9), PA0 (L3, AF9), PB12 (L11, AF9)
TXPB3(JTDO/TRACESWO) (A5, AF9), PB6 (B4, AF9), PA10 (D11, AF9), PB13 (M12, AF9)

USB — USB Full Speed, устройство

БлокСигналВыводы
USBDMPA11 (C12)
DPPA12 (C11)
SOFPA8 (E10, AF10)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB13 (M12)
CC2PB14 (K11)
DB1PA9 (D12)
DB2PC9 (E11)
FRSTXPA10 (D11, AF6), PB12 (L11, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCLKPD4 (A7, AF11), PA10 (D11, AF11)
MDCPB3(JTDO/TRACESWO) (A5, AF12), PC1 (H3, AF11)
MDIOPB4(NJTRST) (B5, AF10), PA2 (K4, AF11), PE12 (K8, AF11)
MII_COLPA3 (L1, AF11)
MII_CRSPD5 (B7, AF6), PD10 (J12, AF8), PA0 (L3, AF11)
MII_RX_CLKPA1 (K2, AF11)
MII_RX_DVPD1 (A9, AF11), PA7 (L4, AF11)
MII_RX_ERPB10 (M11, AF11)
MII_RXD0PE4 (B2, AF11), PD8 (K12, AF8), PB2 (L5, AF11), PC4 (M3, AF11)
MII_RXD1PE5 (C2, AF11), PC5 (M4, AF11)
MII_RXD2PB0 (M5, AF11)
MII_RXD3PB1 (K5, AF11)
MII_TX_CLKPC3 (H2, AF11)
MII_TX_ENPA5 (M2, AF11)
MII_TX_ERPB6 (B4, AF11), PA9 (D12, AF11)
MII_TXD0PC10 (A12, AF11), PB12 (L11, AF11)
MII_TXD1PB15 (L12, AF11)
MII_TXD2PC2 (H1, AF11)
MII_TXD3PB8 (A2, AF11), PE2 (C1, AF11)
PHY_INTNPA15(JTDI) (A11, AF10)
PPS_OUTPB5 (A4, AF11), PC12 (B10, AF10)
PTP_AUX_TSPD11 (H10, AF11)
RMII_CRS_DVPD1 (A9, AF11), PA7 (L4, AF11)
RMII_REF_CLKPA1 (K2, AF11)
RMII_RXD0PE4 (B2, AF11), PD8 (K12, AF8), PB2 (L5, AF11), PC4 (M3, AF11)
RMII_RXD1PE5 (C2, AF11), PC5 (M4, AF11)
RMII_TX_ENPA5 (M2, AF11)
RMII_TXD0PC10 (A12, AF11), PB12 (L11, AF11)
RMII_TXD1PB15 (L12, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (A1, AF7)
CKPD6 (A6, AF11), PC12 (B10, AF12)
CKINPB8 (A2, AF7)
CMDPD7 (B6, AF11), PD2 (B8, AF12), PB2 (L5, AF12)
D0PA10 (D11, AF12), PC8 (E12, AF12), PB13 (M12, AF12)
D0DIRPC6 (F12, AF8)
D1PC9 (E11, AF12)
D2PC10 (A12, AF12)
D3PC11 (A10, AF12)
D4PB8 (A2, AF12)
D5PB9 (A1, AF12)
D6PC6 (F12, AF12)
D7PC7 (F11, AF12)
D123DIRPC7 (F11, AF8)

OCTOSPI — интерфейс Octo-SPI памяти

БлокСигналВыводы
OCTOSPI1CLKPB4(NJTRST) (B5, AF3), PA3 (L1, AF3), PB2 (L5, AF9), PB15 (L12, AF10)
DQSPA1 (K2, AF6), PB2 (L5, AF10), PC5 (M4, AF10)
IO0PC9 (E11, AF9), PC3 (H2, AF9), PD11 (H10, AF9), PB1 (K5, AF6)
IO1PC10 (A12, AF9), PD12 (H11, AF9), PB0 (M5, AF6)
IO2PE2 (C1, AF9), PC2 (H1, AF9), PA7 (L4, AF10)
IO3PD13 (H12, AF9), PA1 (K2, AF9), PA6 (M1, AF6)
IO4PD4 (A7, AF10), PC1 (H3, AF10), PE7 (M6, AF10)
IO5PD5 (B7, AF10), PC6 (F12, AF11), PC2 (H1, AF6), PE8 (M7, AF10)
IO6PD6 (A6, AF10), PC7 (F11, AF11), PC3 (H2, AF6), PE9 (M8, AF10)
IO7PD7 (B6, AF10), PC0 (G1, AF10), PE10 (L8, AF10)
NCLKPB5 (A4, AF3), PB12 (L11, AF3)
NCS1PA9 (D12, AF10), PA2 (K4, AF10), PC4 (M3, AF9), PE11 (M9, AF6)
NCS2PC11 (A10, AF9), PA15(JTDI) (A11, AF9), PB6 (B4, AF10), PB10 (M11, AF9)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15(JTDI) (A11, AF4), PB6 (B4, AF5)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (A10), PA11 (C12), PD11 (H10), PE11 (M9)
EXTI15PA15(JTDI) (A11), PC15-OSC32_OUT(OSC32_OUT) (E2), PD15 (G12), PE15 (L10), PB15 (L12)
INN1PA0 (L3)
INN3PA7 (L4)
INN4PC5 (M4)
INN5PB0 (M5)
INN10PC1 (H3)
INN11PC2 (H1)
INN12PC3 (H2)
INN18PA5 (M2)
INP0PA0 (L3)
INP1PA1 (K2)
INP3PA6 (M1)
INP4PC4 (M3)
INP5PB1 (K5)
INP7PA7 (L4)
INP8PC5 (M4)
INP9PB0 (M5)
INP10PC0 (G1)
INP11PC1 (H3)
INP12PC2 (H1)
INP13PC3 (H2)
INP14PA2 (K4)
INP15PA3 (L1)
INP18PA4 (L2)
INP19PA5 (M2)
ADC2EXTI11PC11 (A10), PA11 (C12), PD11 (H10), PE11 (M9)
EXTI15PA15(JTDI) (A11), PC15-OSC32_OUT(OSC32_OUT) (E2), PD15 (G12), PE15 (L10), PB15 (L12)
INN1PA0 (L3)
INN3PA7 (L4)
INN4PC5 (M4)
INN5PB0 (M5)
INN10PC1 (H3)
INN11PC2 (H1)
INN12PC3 (H2)
INN18PA5 (M2)
INP0PA0 (L3)
INP1PA1 (K2)
INP3PA6 (M1)
INP4PC4 (M3)
INP5PB1 (K5)
INP7PA7 (L4)
INP8PC5 (M4)
INP9PB0 (M5)
INP10PC0 (G1)
INP11PC1 (H3)
INP12PC2 (H1)
INP13PC3 (H2)
INP14PA2 (K4)
INP15PA3 (L1)
INP18PA4 (L2)
INP19PA5 (M2)
ADC3EXTI11PC11 (A10), PA11 (C12), PD11 (H10), PE11 (M9)
EXTI15PA15(JTDI) (A11), PC15-OSC32_OUT(OSC32_OUT) (E2), PD15 (G12), PE15 (L10), PB15 (L12)
INP0PB2 (L5)
INP1PE7 (M6)
INP2PB15 (L12)
INP3PB12 (L11)
INP4PE10 (L8)
INP5PE11 (M9)
INP6PE12 (K8)
INP7PE13 (L9)
INP8PE14 (M10)
INP9PE15 (L10)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (A1), PA9 (D12), PC9 (E11), PD9 (J11), PE9 (M8)
OUT1PA4 (L2)
OUT2PA5 (M2)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPB1 (K5), PA0 (L3)
INPPA4 (L2), PA7 (L4)
OUTPA6 (M1, AF13), PC5 (M4, AF13), PB0 (M5, AF13)
COMP2INMPA2 (K4), PA3 (L1), PA6 (M1)
INPPB2 (L5), PB0 (M5)
OUTPB9 (A1, AF14), PA12 (C11, AF14), PC1 (H3, AF14)

TIM — таймер

БлокСигналВыводы
TIM1BKINPE15 (L10, AF1), PB12 (L11, AF1), PA6 (M1, AF1)
BKIN2PE6 (D2, AF1)
CH1PA8 (E10, AF1), PE9 (M8, AF1)
CH1NPA7 (L4, AF1), PE8 (M7, AF1), PB13 (M12, AF1)
CH2PA9 (D12, AF1), PE11 (M9, AF1)
CH2NPB14 (K11, AF1), PE10 (L8, AF1), PB0 (M5, AF1)
CH3PA10 (D11, AF1), PE13 (L9, AF1)
CH3NPB1 (K5, AF1), PE12 (K8, AF1), PB15 (L12, AF1)
CH4PA11 (C12, AF1), PE14 (M10, AF1)
CH4NPD5 (B7, AF1), PE15 (L10, AF3), PC5 (M4, AF1)
ETRPA12 (C11, AF1), PE7 (M6, AF1)
TIM2CH1PA15(JTDI) (A11, AF1), PA0 (L3, AF1), PA5 (M2, AF1)
CH2PB3(JTDO/TRACESWO) (A5, AF1), PA1 (K2, AF1)
CH3PA2 (K4, AF1), PB10 (M11, AF1)
CH4PA3 (L1, AF1), PC4 (M3, AF1)
ETRPA15(JTDI) (A11, AF14), PA0 (L3, AF14), PA5 (M2, AF14)
TIM3CH1PB4(NJTRST) (B5, AF2), PC6 (F12, AF2), PA6 (M1, AF2)
CH2PB5 (A4, AF2), PC7 (F11, AF2), PA7 (L4, AF2)
CH3PC8 (E12, AF2), PB0 (M5, AF2)
CH4PC9 (E11, AF2), PB1 (K5, AF2)
ETRPD2 (B8, AF2)
TIM4CH1PB6 (B4, AF2), PD12 (H11, AF2)
CH2PB7 (C5, AF2), PD13 (H12, AF2)
CH3PB8 (A2, AF2), PD14 (G11, AF2)
CH4PB9 (A1, AF2), PD15 (G12, AF2), PC2 (H1, AF2)
ETRPE0 (B1, AF2)
TIM5CH1PA0 (L3, AF2)
CH2PA1 (K2, AF2)
CH3PA2 (K4, AF2)
CH4PA3 (L1, AF2)
ETRPA4 (L2, AF2)
TIM8BKINPA6 (M1, AF3)
BKIN2PA8 (E10, AF3)
CH1PC6 (F12, AF3), PB10 (M11, AF2)
CH1NPA7 (L4, AF3), PA5 (M2, AF3)
CH2PC7 (F11, AF3), PB13 (M12, AF2)
CH2NPB14 (K11, AF3), PB0 (M5, AF3)
CH3PC8 (E12, AF3), PB12 (L11, AF2)
CH3NPB1 (K5, AF3), PB15 (L12, AF3)
CH4PC9 (E11, AF3)
CH4NPD0 (B9, AF3), PB2 (L5, AF3)
ETRPA0 (L3, AF3)
TIM12CH1PB14 (K11, AF2)
CH2PB15 (L12, AF2)
TIM15BKINPE3 (B3, AF4), PD2 (B8, AF4), PA0 (L3, AF4)
CH1PC12 (B10, AF2), PE5 (C2, AF4), PA2 (K4, AF4)
CH1NPE4 (B2, AF4), PA1 (K2, AF4)
CH2PE6 (D2, AF4), PA3 (L1, AF4)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PD13 (H12, AF1), PB2 (L5, AF5)
CH2PB4(NJTRST) (B5, AF4)
ETRPE0 (B1, AF1)
IN1PD12 (H11, AF1), PA1 (K2, AF5)
IN2PE2 (C1, AF1), PA2 (K4, AF5)
LPTIM2CH1PD13 (H12, AF3), PA4 (L2, AF3), PB13 (M12, AF3)
CH2PE0 (B1, AF3), PC12 (B10, AF3), PD10 (J12, AF3)
ETRPE0 (B1, AF4), PC4 (M3, AF3)
IN1PD12 (H11, AF3), PB10 (M11, AF3)
IN2PA10 (D11, AF4), PD11 (H10, AF3)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (E3)
OUT2PB2 (L5, AF0)
REFINPB15 (L12, AF0)
TSPC13 (E3)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA16PD11 (H10, AF12)
A17PD12 (H11, AF12)
A18PD13 (H12, AF12)
A19PE3 (B3, AF12)
A20PE4 (B2, AF12)
A21PE5 (C2, AF12)
A22PE6 (D2, AF12)
A23PE2 (C1, AF12)
A25PC0 (G1, AF9)
ALEPC8 (E12, AF11), PD12 (H11, AF12)
CLEPC9 (E11, AF11), PD11 (H10, AF12)
CLKPD3 (A8, AF12)
D0PD14 (G11, AF12)
D1PD15 (G12, AF12)
D2PD0 (B9, AF12)
D3PD1 (A9, AF12)
D4PE7 (M6, AF12)
D5PE8 (M7, AF12)
D6PE9 (M8, AF12)
D7PE10 (L8, AF12)
D8PE11 (M9, AF12)
D9PE12 (K8, AF12)
D10PE13 (L9, AF12)
D11PE14 (M10, AF12)
D12PE15 (L10, AF12)
D13PD8 (K12, AF12)
D14PD9 (J11, AF12)
D15PD10 (J12, AF12)
DA0PD14 (G11, AF12)
DA1PD15 (G12, AF12)
DA2PD0 (B9, AF12)
DA3PD1 (A9, AF12)
DA4PE7 (M6, AF12)
DA5PE8 (M7, AF12)
DA6PE9 (M8, AF12)
DA7PE10 (L8, AF12)
DA8PE11 (M9, AF12)
DA9PE12 (K8, AF12)
DA10PE13 (L9, AF12)
DA11PE14 (M10, AF12)
DA12PE15 (L10, AF12)
DA13PD8 (K12, AF12)
DA14PD9 (J11, AF12)
DA15PD10 (J12, AF12)
INTPC8 (E12, AF10)
NBL0PE0 (B1, AF12)
NBL1PA15(JTDI) (A11, AF12)
NCEPD7 (B6, AF12), PC8 (E12, AF9)
NE1PD7 (B6, AF12), PC7 (F11, AF9)
NE2PC8 (E12, AF9)
NLPB7 (C5, AF12)
NOEPD4 (A7, AF12), PA8 (E10, AF12)
NWAITPD6 (A6, AF12), PC6 (F12, AF9)
NWEPD5 (B7, AF12), PA9 (D12, AF12), PA7 (L4, AF13)
SDCKE0PC3 (H2, AF12), PC5 (M4, AF12)
SDCKE1PB5 (A4, AF12)
SDNE0PC2 (H1, AF12), PC4 (M3, AF12)
SDNE1PB6 (B4, AF12)
SDNWEPC0 (G1, AF12), PA7 (L4, AF12)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14(JTCK/SWCLK) (B11, AF0)
JTDIPA15(JTDI) (A11, AF0)
JTDO-SWOPB3(JTDO/TRACESWO) (A5, AF0)
JTMS-SWDIOPA13(JTMS/SWDIO) (B12, AF0)
NJTRSTPB4(NJTRST) (B5, AF0)
TRACECLKPE2 (C1, AF0)
TRACED0PE3 (B3, AF0), PC1 (H3, AF0)
TRACED1PE4 (B2, AF0), PC8 (E12, AF0)
TRACED2PD2 (B8, AF0), PE5 (C2, AF0)
TRACED3PC12 (B10, AF0), PE6 (D2, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPB2 (L5)
MCO_1PA8 (E10, AF0)
MCO_2PC9 (E11, AF0)
OSC_INPH0-OSC_IN (F1)
OSC_OUTPH1-OSC_OUT (F2)
OSC32_INPC14-OSC32_IN(OSC32_IN) (E1)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (E2)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC2 (H1, AF0)
PWR_CSTOPPC3 (H2, AF0)
PWR_WKUP1PA0 (L3)
PWR_WKUP2PA2 (K4)
PWR_WKUP4PC13 (E3)
PWR_WKUP5PB7 (C5)
PWR_WKUP6PC1 (H3)
PWR_WKUP7PD2 (B8)
PWR_WKUP8PD3 (A8)
TAMP_IN1PC13 (E3)
TAMP_IN2PA0 (L3)
TAMP_IN3PE6 (D2), PC1 (H3)
TAMP_IN4PA2 (K4)
TAMP_IN5PA1 (K2)
TAMP_IN6PE3 (B3)
TAMP_IN7PE4 (B2)
TAMP_IN8PE5 (C2)
TAMP_OUT1PA0 (L3)
TAMP_OUT2PC13 (E3)
TAMP_OUT3PE3 (B3), PC13 (E3), PA2 (K4)
TAMP_OUT4PA1 (K2)
TAMP_OUT5PC1 (H3)
TAMP_OUT6PE6 (D2)
TAMP_OUT7PE5 (C2)
TAMP_OUT8PE4 (B2)

Блоки без собственных выводов: HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), CORDIC (сопроцессор тригонометрических функций).

Таблица выводов

Все 100 шариков корпуса UFBGA100 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PB9ввод-выводCOMP2_OUT (AF14), DAC1_EXTI9, FDCAN1_TX (AF9), I2C1_SDA (AF4), I2S2_WS (AF5), I2S3_CK (AF6), I3C1_SDA (AF3), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SPI2_NSS (AF5), SPI3_SCK (AF6), TIM4_CH4 (AF2), UART4_TX (AF8)
A2PB8ввод-выводETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2S3_WS (AF6), I3C1_SCL (AF3), PLAY1_IN1 (AF14), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SPI3_NSS (AF6), SPI4_RDY (AF5), TIM4_CH3 (AF2), UART4_RX (AF8)
A3BOOT0загрузка—
A4PB5ввод-выводETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), I2C1_SMBA (AF4), I2S1_SDO (AF5), I2S3_SDO (AF7), OCTOSPI1_NCLK (AF3), SPI1_MOSI (AF5), SPI3_MOSI (AF7), TIM3_CH2 (AF2), UART5_RX (AF14), USART6_TX (AF6)
A5PB3(JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), ETH_MDC (AF12), FDCAN2_TX (AF9), I2C2_SDA (AF4), I2S1_CK (AF5), I2S3_CK (AF6), I3C2_SDA (AF3), LPUART1_TX (AF8), SPI1_SCK (AF5), SPI3_SCK (AF6), TIM2_CH2 (AF1), UART5_TX (AF14), UART7_RX (AF11)
A6PD6ввод-выводFMC_NWAIT (AF12), I2C3_SCL (AF4), I2S3_SDO (AF5), I3C2_SCL (AF3), OCTOSPI1_IO6 (AF10), SDMMC1_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
A7PD4ввод-выводETH_CLK (AF11), FMC_NOE (AF12), OCTOSPI1_IO4 (AF10), USART2_DE (AF7), USART2_RTS (AF7)
A8PD3ввод-выводFMC_CLK (AF12), I2S2_CK (AF5), PLAY1_IN10 (AF14), PWR_WKUP8, SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
A9PD1ввод-выводETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), UART4_TX (AF8)
A10PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, I2S3_SDI (AF6), OCTOSPI1_NCS2 (AF9), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
A11PA15(JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), ETH_PHY_INTN (AF10), FMC_NBL1 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), OCTOSPI1_NCS2 (AF9), SPI1_NSS (AF5), SPI3_NSS (AF6), TIM2_CH1 (AF1), TIM2_ETR (AF14), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11), USART1_TX (AF7)
A12PC10ввод-выводETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), I2S3_CK (AF6), I3C2_SCL (AF3), OCTOSPI1_IO1 (AF9), PLAY1_IN0 (AF14), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
B1PE0ввод-выводFDCAN1_RX (AF9), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_CH2 (AF3), LPTIM2_ETR (AF4), SPI3_RDY (AF6), TIM4_ETR (AF2), UART8_RX (AF8)
B2PE4ввод-выводDEBUG_TRACED1 (AF0), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_A20 (AF12), PLAY1_OUT7 (AF14), SPI4_NSS (AF5), TAMP_IN7, TAMP_OUT8, TIM15_CH1N (AF4), UART8_TX (AF13)
B3PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), PLAY1_IN7 (AF14), TAMP_IN6, TAMP_OUT3, TIM15_BKIN (AF4)
B4PB6ввод-выводCEC (AF5), ETH_MII_TX_ER (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), I2C1_SCL (AF4), I3C1_SCL (AF3), LPUART1_TX (AF8), OCTOSPI1_NCS2 (AF10), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7), USART6_RX (AF6)
B5PB4(NJTRST)ввод-выводDEBUG_NJTRST (AF0), ETH_MDIO (AF10), I2C3_SDA (AF9), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), I3C2_SDA (AF8), LPTIM1_CH2 (AF4), OCTOSPI1_CLK (AF3), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), TIM3_CH1 (AF2), UART7_TX (AF11)
B6PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), I2C3_SDA (AF4), I2S1_SDO (AF5), I2S3_SDI (AF6), I3C2_SDA (AF3), OCTOSPI1_IO7 (AF10), SDMMC1_CMD (AF11), SPI1_MOSI (AF5), SPI3_MISO (AF6), USART2_CK (AF7)
B7PD5ввод-выводETH_MII_CRS (AF6), FDCAN1_TX (AF9), FMC_NWE (AF12), OCTOSPI1_IO5 (AF10), SPI2_RDY (AF5), TIM1_CH4N (AF1), USART2_TX (AF7)
B8PD2ввод-выводDEBUG_TRACED2 (AF0), PLAY1_IN7 (AF14), PWR_WKUP7, SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
B9PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), TIM8_CH4N (AF3), UART4_RX (AF8)
B10PC12ввод-выводDEBUG_TRACED3 (AF0), ETH_PPS_OUT (AF10), I2S3_SDO (AF6), LPTIM2_CH2 (AF3), SDMMC1_CK (AF12), SPI3_MOSI (AF6), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
B11PA14(JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
B12PA13(JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
C1PE2ввод-выводDEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_A23 (AF12), LPTIM1_IN2 (AF1), OCTOSPI1_IO2 (AF9), PLAY1_OUT15 (AF14), SPI4_SCK (AF5), UART8_TX (AF8)
C2PE5ввод-выводDEBUG_TRACED2 (AF0), ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_A21 (AF12), PLAY1_OUT8 (AF14), SPI4_MISO (AF5), TAMP_IN8, TAMP_OUT7, TIM15_CH1 (AF4), UART8_RX (AF13)
C3VSSпитание—
C4VCAPпитание—
C5PB7ввод-выводFDCAN1_TX (AF9), FMC_NL (AF12), I2C1_SDA (AF4), I3C1_SDA (AF3), LPUART1_RX (AF8), PWR_WKUP5, SPI4_MISO (AF5), TIM4_CH2 (AF2), USART1_RX (AF7), USART6_CTS (AF6), USART6_NSS (AF6)
C8VDDIO2питание—
C9VSSпитание—
C10VDDUSBпитание—
C11PA12ввод-выводCOMP2_OUT (AF14), FDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_DP
C12PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX (AF9), I2S2_WS (AF5), LPUART1_CTS (AF3), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_DM
D1VBATпитание—
D2PE6ввод-выводDEBUG_TRACED3 (AF0), FMC_A22 (AF12), PLAY1_IN14 (AF14), SPI4_MOSI (AF5), TAMP_IN3, TAMP_OUT6, TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
D3VDDпитание—
D10VDDпитание—
D11PA10ввод-выводETH_CLK (AF11), FDCAN2_TX (AF9), LPTIM2_IN2 (AF4), LPUART1_RX (AF3), SDMMC1_D0 (AF12), TIM1_CH3 (AF1), UCPD1_FRSTX (AF6), USART1_RX (AF7)
D12PA9ввод-выводDAC1_EXTI9, ETH_MII_TX_ER (AF11), FMC_NWE (AF12), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), OCTOSPI1_NCS1 (AF10), PLAY1_IN4 (AF14), SPI2_SCK (AF5), TIM1_CH2 (AF1), UCPD1_DB1, USART1_TX (AF7)
E1PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
E2PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
E3PC13ввод-выводPWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3
E10PA8ввод-выводFMC_NOE (AF12), I2C3_SCL (AF4), I3C2_SCL (AF9), RCC_MCO_1 (AF0), SPI1_RDY (AF5), SPI4_MOSI (AF6), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), UART7_RX (AF11), USART1_CK (AF7), USB_SOF (AF10)
E11PC9ввод-выводAUDIOCLK (AF5), DAC1_EXTI9, FMC_CLE (AF11), I2C3_SDA (AF4), I3C2_SDA (AF10), OCTOSPI1_IO0 (AF9), PLAY1_IN3 (AF14), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8), UCPD1_DB2
E12PC8ввод-выводDEBUG_TRACED1 (AF0), FMC_ALE (AF11), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), PLAY1_OUT5 (AF14), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
F1PH0-OSC_INввод-выводRCC_OSC_IN
F2PH1-OSC_OUTввод-выводRCC_OSC_OUT
F11PC7ввод-выводDEBUG_TRGIO (AF0), FMC_NE1 (AF9), I2S3_MCK (AF6), I3C2_SDA (AF10), OCTOSPI1_IO6 (AF11), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
F12PC6ввод-выводFMC_NWAIT (AF9), I2S2_MCK (AF5), I3C2_SCL (AF10), OCTOSPI1_IO5 (AF11), PLAY1_IN9 (AF14), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
G1PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_A25 (AF9), FMC_SDNWE (AF12), OCTOSPI1_IO7 (AF10), PLAY1_IN0 (AF14), SPI2_RDY (AF7), SPI4_MISO (AF6)
G2NRSTсброс—
G11PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), PLAY1_IN1 (AF14), TIM4_CH3 (AF2), UART8_CTS (AF8)
G12PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), PLAY1_OUT14 (AF14), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8)
H1PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_SDNE0 (AF12), I2S2_SDI (AF5), OCTOSPI1_IO2 (AF9), OCTOSPI1_IO5 (AF6), PLAY1_OUT3 (AF14), PWR_CSLEEP (AF0), SPI2_MISO (AF5), TIM4_CH4 (AF2)
H2PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), LPUART1_TX (AF3), OCTOSPI1_IO0 (AF9), OCTOSPI1_IO6 (AF6), PLAY1_IN13 (AF14), PWR_CSTOP (AF0), SPI2_MOSI (AF5)
H3PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, COMP2_OUT (AF14), DEBUG_TRACED0 (AF0), ETH_MDC (AF11), I2S2_SDO (AF5), OCTOSPI1_IO4 (AF10), PWR_WKUP6, SPI2_MOSI (AF5), SPI4_MOSI (AF6), TAMP_IN3, TAMP_OUT5
H10PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_PTP_AUX_TS (AF11), FMC_A16 (AF12), FMC_CLE (AF12), LPTIM2_IN2 (AF3), OCTOSPI1_IO0 (AF9), PLAY1_OUT0 (AF14), UART4_RX (AF8), USART3_CTS (AF7), USART3_NSS (AF7)
H11PD12ввод-выводFMC_A17 (AF12), FMC_ALE (AF12), I2C2_SCL (AF4), I3C1_SCL (AF6), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), OCTOSPI1_IO1 (AF9), PLAY1_OUT1 (AF14), TIM4_CH1 (AF2), UART4_TX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
H12PD13ввод-выводFMC_A18 (AF12), I2C2_SDA (AF4), I3C1_SDA (AF6), LPTIM1_CH1 (AF1), LPTIM2_CH1 (AF3), OCTOSPI1_IO3 (AF9), PLAY1_OUT13 (AF14), TIM4_CH2 (AF2)
J1VREF+питание—
J2VSSAпитание—
J3VDDпитание—
J10VDDпитание—
J11PD9ввод-выводDAC1_EXTI9, FDCAN2_RX (AF9), FMC_D14 (AF12), FMC_DA14 (AF12), PLAY1_IN3 (AF14), USART3_RX (AF7)
J12PD10ввод-выводETH_MII_CRS (AF8), FMC_D15 (AF12), FMC_DA15 (AF12), LPTIM2_CH2 (AF3), USART3_CK (AF7)
K1VDDAпитание—
K2PA1ввод-выводADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), LPTIM1_IN1 (AF5), OCTOSPI1_DQS (AF6), OCTOSPI1_IO3 (AF9), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7), USART6_CK (AF14)
K3VSSпитание—
K4PA2ввод-выводADC1_INP14, ADC2_INP14, COMP2_INM, ETH_MDIO (AF11), LPTIM1_IN2 (AF5), LPUART1_TX (AF3), OCTOSPI1_NCS1 (AF10), PWR_WKUP2, TAMP_IN4, TAMP_OUT3, TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
K5PB1ввод-выводADC1_INP5, ADC2_INP5, COMP1_INM, ETH_MII_RXD3 (AF11), I2S2_WS (AF5), OCTOSPI1_IO0 (AF6), PLAY1_OUT5 (AF14), SPI2_NSS (AF5), SPI3_SCK (AF4), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USART3_RX (AF7)
K8PE12ввод-выводADC3_INP6, ETH_MDIO (AF11), FMC_D9 (AF12), FMC_DA9 (AF12), PLAY1_OUT10 (AF14), SPI4_SCK (AF5), TIM1_CH3N (AF1)
K9VCAPпитание—
K10VSSпитание—
K11PB14ввод-выводI2S2_SDI (AF5), PLAY1_OUT2 (AF14), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC2, USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
K12PD8ввод-выводETH_MII_RXD0 (AF8), ETH_RMII_RXD0 (AF8), FMC_D13 (AF12), FMC_DA13 (AF12), USART3_TX (AF7)
L1PA3ввод-выводADC1_INP15, ADC2_INP15, COMP2_INM, ETH_MII_COL (AF11), I2S2_WS (AF5), I2S3_SDO (AF6), OCTOSPI1_CLK (AF3), PLAY1_IN6 (AF14), SPI2_NSS (AF5), SPI3_MOSI (AF6), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
L2PA4ввод-выводADC1_INP18, ADC2_INP18, COMP1_INP, DAC1_OUT1, I2S1_WS (AF5), I2S3_SDO (AF4), I2S3_WS (AF6), LPTIM2_CH1 (AF3), PLAY1_OUT12 (AF14), SPI1_NSS (AF5), SPI3_MOSI (AF4), SPI3_NSS (AF6), TIM5_ETR (AF2), USART2_CK (AF7)
L3PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, COMP1_INM, ETH_MII_CRS (AF11), FDCAN2_RX (AF9), PWR_WKUP1, SPI3_RDY (AF6), SPI4_SCK (AF5), TAMP_IN2, TAMP_OUT1, TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
L4PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_NWE (AF13), FMC_SDNWE (AF12), I2S1_SDO (AF5), OCTOSPI1_IO2 (AF10), SPI1_MOSI (AF5), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3)
L5PB2ввод-выводADC3_INP0, COMP2_INP, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), I2S2_CK (AF6), I2S3_SDO (AF7), LPTIM1_CH1 (AF5), OCTOSPI1_CLK (AF9), OCTOSPI1_DQS (AF10), PLAY1_IN8 (AF14), RCC_LSCO, RTC_OUT2 (AF0), SDMMC1_CMD (AF12), SPI1_RDY (AF4), SPI2_SCK (AF6), SPI3_MOSI (AF7), TIM8_CH4N (AF3)
L6VDDпитание—
L7VSSпитание—
L8PE10ввод-выводADC3_INP4, FMC_D7 (AF12), FMC_DA7 (AF12), OCTOSPI1_IO7 (AF10), PLAY1_OUT8 (AF14), TIM1_CH2N (AF1), UART7_CTS (AF7)
L9PE13ввод-выводADC3_INP7, FMC_D10 (AF12), FMC_DA10 (AF12), PLAY1_OUT11 (AF14), SPI4_MISO (AF5), TIM1_CH3 (AF1)
L10PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, FMC_D12 (AF12), FMC_DA12 (AF12), PLAY1_OUT9 (AF14), TIM1_BKIN (AF1), TIM1_CH4N (AF3)
L11PB12ввод-выводADC3_INP3, ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FDCAN2_RX (AF9), I2S2_WS (AF5), OCTOSPI1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), TIM8_CH3 (AF2), UART5_RX (AF14), UCPD1_FRSTX (AF6), USART3_CK (AF7)
L12PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP2, ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), I2S1_SDO (AF6), I2S2_SDO (AF5), OCTOSPI1_CLK (AF10), PWR_PVD_IN, RTC_REFIN (AF0), SPI1_MOSI (AF6), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), UART5_RX (AF14), USART1_RX (AF4)
M1PA6ввод-выводADC1_INP3, ADC2_INP3, COMP1_OUT (AF13), COMP2_INM, I2S1_SDI (AF5), OCTOSPI1_IO3 (AF6), SPI1_MISO (AF5), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3)
M2PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1N (AF3)
M3PC4ввод-выводADC1_INP4, ADC2_INP4, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LPTIM2_ETR (AF3), OCTOSPI1_NCS1 (AF9), PLAY1_OUT4 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7)
M4PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT (AF13), ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_SDCKE0 (AF12), OCTOSPI1_DQS (AF10), SPI4_SCK (AF6), TIM1_CH4N (AF1)
M5PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_OUT (AF13), COMP2_INP, ETH_MII_RXD2 (AF11), I2S3_SDI (AF5), OCTOSPI1_IO1 (AF6), SPI3_MISO (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USART2_TX (AF7)
M6PE7ввод-выводADC3_INP1, FMC_D4 (AF12), FMC_DA4 (AF12), OCTOSPI1_IO4 (AF10), PLAY1_IN2 (AF14), TIM1_ETR (AF1), UART7_RX (AF7)
M7PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), OCTOSPI1_IO5 (AF10), PLAY1_OUT7 (AF14), TIM1_CH1N (AF1), UART7_TX (AF7)
M8PE9ввод-выводDAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), OCTOSPI1_IO6 (AF10), PLAY1_IN12 (AF14), TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
M9PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8 (AF12), FMC_DA8 (AF12), OCTOSPI1_NCS1 (AF6), PLAY1_IN15 (AF14), SPI1_RDY (AF4), SPI4_NSS (AF5), TIM1_CH2 (AF1)
M10PE14ввод-выводADC3_INP8, FMC_D11 (AF12), FMC_DA11 (AF12), PLAY1_OUT6 (AF14), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
M11PB10ввод-выводETH_MII_RX_ER (AF11), I2S2_CK (AF5), I3C2_SCL (AF8), LPTIM2_IN1 (AF3), OCTOSPI1_NCS2 (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), TIM8_CH1 (AF2), USART3_TX (AF7)
M12PB13ввод-выводFDCAN2_TX (AF9), I2C2_SMBA (AF4), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LPUART1_RX (AF8), SDMMC1_D0 (AF12), SPI2_SCK (AF5), TIM1_CH1N (AF1), TIM8_CH2 (AF2), UART5_TX (AF14), UCPD1_CC1, USART3_CTS (AF7), USART3_NSS (AF7)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATD1резервное питание: часы реального времени и резервные регистры
VCAPC4, K9вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDD3, D10, J3, J10, L6питание цифровой части и линий ввода-вывода
VDDAK1питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2C8питание отдельной группы линий ввода-вывода
VDDUSBC10питание приёмопередатчика USB
VREF+J1верхнее опорное напряжение АЦП и ЦАП
VSSC3, C9, K3, K10, L7общий провод (земля)
VSSAJ2общий провод аналоговой части
NRSTG2сброс, активный уровень — низкий
BOOT0A3выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H543VEIx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H543VESTM32H543VEIx512 КБ304 КБ

Линейка STM32H5x3, семейство STM32H5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе UFBGA100, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H523VCSTM32H5x3100 из 100выводы совпадают полностьютолько у этого: ADC3, COMP1, COMP2, CORDIC, ETH, UART7, UART8; только у него: DCMI, PSSI; флеш-память до 512 и 256 КБ; ОЗУ 304 и 272 КБ
STM32H523VESTM32H5x3100 из 100выводы совпадают полностьютолько у этого: ADC3, COMP1, COMP2, CORDIC, ETH, UART7, UART8; только у него: DCMI, PSSI; ОЗУ 304 и 272 КБ
STM32H533VESTM32H5x3100 из 100выводы совпадают полностьютолько у этого: ADC3, COMP1, COMP2, CORDIC, ETH, UART7, UART8; только у него: AES, DCMI, PSSI; ОЗУ 304 и 272 КБ
STM32H543VGSTM32H5x3100 из 100выводы совпадают полностьюфлеш-память до 512 и 1024 КБ
STM32H553VGSTM32H5x3100 из 100выводы совпадают полностьютолько у него: AES; флеш-память до 512 и 1024 КБ

Частые вопросы

На каких выводах USART1 у STM32H543VE?

В корпусе UFBGA100 сигнал USART1_TX выведен на PA15(JTDI) (шарик A11, AF7) или PB6 (шарик B4, AF7) или PA9 (шарик D12, AF7) или PB14 (шарик K11, AF4), USART1_RX — на PB7 (шарик C5, AF7) или PA10 (шарик D11, AF7) или PB15 (шарик L12, AF4).

Где у STM32H543VE выводы SWD для программатора?

SWDIO — PA13(JTMS/SWDIO) (шарик B12, AF0), SWCLK — PA14(JTCK/SWCLK) (шарик B11, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H543VE?

I2C1_SCL — PB8 (шарик A2, AF4) или PB6 (шарик B4, AF4), I2C1_SDA — PB9 (шарик A1, AF4) или PB7 (шарик C5, AF4).

Сколько выводов ввода-вывода у STM32H543VE в корпусе UFBGA100?

80 из 100. Ещё 18 выводов заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
