STM32H553ZG в корпусе LQFP144-EP: распиновка

STM32H553ZG — микроконтроллер STM32H5 на ядре Cortex-M33: 1 МБ флеш-памяти и 304 КБ ОЗУ. Корпус LQFP144-EP — 144 вывода, из них 112 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
1 МБ
ОЗУ
304 КБ
Корпус
LQFP144-EP, 144 вывода
Линий ввода-вывода
112

Схема корпуса LQFP144-EP

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Распиновка STM32H553ZG в корпусе LQFP144-EP, вид сверхуSTM32H553ZGLQFP144-EP, вид сверхуPE2 — вывод 1: DEBUG_TRACECLK, ETH_MII_TXD3, FMC_A23, LPTIM1_IN2, OCTOSPI1_IO2, PLAY1_OUT15, SPI4_SCK, UART8_TX1PE2PE3 — вывод 2: DEBUG_TRACED0, FMC_A19, PLAY1_IN7, TAMP_IN6, TAMP_OUT3, TIM15_BKIN2PE3PE4 — вывод 3: DEBUG_TRACED1, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_A20, PLAY1_OUT7, SPI4_NSS, TAMP_IN7, TAMP_OUT8, TIM15_CH1N, UART8_TX3PE4PE5 — вывод 4: DEBUG_TRACED2, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_A21, PLAY1_OUT8, SPI4_MISO, TAMP_IN8, TAMP_OUT7, TIM15_CH1, UART8_RX4PE5PE6 — вывод 5: DEBUG_TRACED3, FMC_A22, PLAY1_IN14, SPI4_MOSI, TAMP_IN3, TAMP_OUT6, TIM15_CH2, TIM1_BKIN25PE6VBAT — вывод 66VBATPC13 — вывод 7: PWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT37PC13PC14-OSC32_IN(OSC32_IN) — вывод 8: RCC_OSC32_IN8PC14-OSC32_IN(OSC32_IN)PC15-OSC32_OUT(OSC32_OUT) — вывод 9: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT9PC15-OSC32_OUT(OSC32_OUT)PF0 — вывод 10: FMC_A0, I2C2_SDA, I3C2_SDA10PF0PF1 — вывод 11: FMC_A1, I2C2_SCL, I3C2_SCL11PF1PF2 — вывод 12: FMC_A2, I2C2_SMBA12PF2PF3 — вывод 13: FMC_A313PF3PF4 — вывод 14: FMC_A414PF4PF5 — вывод 15: FMC_A5, I3C1_SCL15PF5VSS — вывод 1616VSSVDD — вывод 1717VDDPF6 — вывод 18: FMC_NBL1, OCTOSPI1_IO3, UART7_RX18PF6PF7 — вывод 19: OCTOSPI1_IO2, UART7_TX19PF7PF8 — вывод 20: ETH_MII_TX_ER, OCTOSPI1_IO0, PLAY1_OUT1, UART7_DE, UART7_RTS20PF8PF9 — вывод 21: DAC1_EXTI9, ETH_MDC, FMC_SDNWE, OCTOSPI1_IO1, UART7_CTS21PF9PF10 — вывод 22: OCTOSPI1_CLK22PF10PH0-OSC_IN — вывод 23: RCC_OSC_IN23PH0-OSC_INPH1-OSC_OUT — вывод 24: RCC_OSC_OUT24PH1-OSC_OUTNRST — вывод 2525NRSTPC0 — вывод 26: ADC1_INP10, ADC2_INP10, FMC_A25, FMC_SDNWE, OCTOSPI1_IO7, PLAY1_IN0, SPI2_RDY, SPI4_MISO26PC0PC1 — вывод 27: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, COMP2_OUT, DEBUG_TRACED0, ETH_MDC, I2S2_SDO, OCTOSPI1_IO4, PWR_WKUP6, SPI2_MOSI, SPI4_MOSI, TAMP_IN3, TAMP_OUT527PC1PC2 — вывод 28: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_SDNE0, I2S2_SDI, OCTOSPI1_IO2, OCTOSPI1_IO5, PLAY1_OUT3, PWR_CSLEEP, SPI2_MISO, TIM4_CH428PC2PC3 — вывод 29: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_SDCKE0, I2S2_SDO, LPUART1_TX, OCTOSPI1_IO0, OCTOSPI1_IO6, PLAY1_IN13, PWR_CSTOP, SPI2_MOSI29PC3VDD — вывод 3030VDDVSSA — вывод 3131VSSAVREF+ — вывод 3232VREF+VDDA — вывод 3333VDDAPA0 — вывод 34: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, COMP1_INM, ETH_MII_CRS, FDCAN2_RX, PWR_WKUP1, SPI3_RDY, SPI4_SCK, TAMP_IN2, TAMP_OUT1, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSS34PA0PA1 — вывод 35: ADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, LPTIM1_IN1, OCTOSPI1_DQS, OCTOSPI1_IO3, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTS, USART6_CK35PA1PA2 — вывод 36: ADC1_INP14, ADC2_INP14, COMP2_INM, ETH_MDIO, LPTIM1_IN2, LPUART1_TX, OCTOSPI1_NCS1, PWR_WKUP2, TAMP_IN4, TAMP_OUT3, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TX36PA2PA3 — вывод 37: ADC1_INP15, ADC2_INP15, COMP2_INM, ETH_MII_COL, I2S2_WS, I2S3_SDO, OCTOSPI1_CLK, PLAY1_IN6, SPI2_NSS, SPI3_MOSI, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX37PA3VSS — вывод 3838VSSVDD — вывод 3939VDDPA4 — вывод 40: ADC1_INP18, ADC2_INP18, COMP1_INP, DAC1_OUT1, I2S1_WS, I2S3_SDO, I2S3_WS, LPTIM2_CH1, PLAY1_OUT12, SPI1_NSS, SPI3_MOSI, SPI3_NSS, TIM5_ETR, USART2_CK40PA4PA5 — вывод 41: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, SPI1_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N41PA5PA6 — вывод 42: ADC1_INP3, ADC2_INP3, COMP1_OUT, COMP2_INM, I2S1_SDI, OCTOSPI1_IO3, SPI1_MISO, TIM1_BKIN, TIM3_CH1, TIM8_BKIN42PA6PA7 — вывод 43: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_NWE, FMC_SDNWE, I2S1_SDO, OCTOSPI1_IO2, SPI1_MOSI, TIM1_CH1N, TIM3_CH2, TIM8_CH1N43PA7PC4 — вывод 44: ADC1_INP4, ADC2_INP4, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_SDNE0, I2S1_MCK, LPTIM2_ETR, OCTOSPI1_NCS1, PLAY1_OUT4, TIM2_CH4, USART3_RX44PC4PC5 — вывод 45: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_SDCKE0, OCTOSPI1_DQS, SPI4_SCK, TIM1_CH4N45PC5PB0 — вывод 46: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_OUT, COMP2_INP, ETH_MII_RXD2, I2S3_SDI, OCTOSPI1_IO1, SPI3_MISO, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USART2_TX46PB0PB1 — вывод 47: ADC1_INP5, ADC2_INP5, COMP1_INM, ETH_MII_RXD3, I2S2_WS, OCTOSPI1_IO0, PLAY1_OUT5, SPI2_NSS, SPI3_SCK, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USART3_RX47PB1PB2 — вывод 48: ADC3_INP0, COMP2_INP, ETH_MII_RXD0, ETH_RMII_RXD0, I2S2_CK, I2S3_SDO, LPTIM1_CH1, OCTOSPI1_CLK, OCTOSPI1_DQS, PLAY1_IN8, RCC_LSCO, RTC_OUT2, SDMMC1_CMD, SPI1_RDY, SPI2_SCK, SPI3_MOSI, TIM8_CH4N48PB2PF11 — вывод 49: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, FMC_SDNRAS, OCTOSPI1_NCLK, PLAY1_IN249PF11PF12 — вывод 50: ADC1_INN2, ADC1_INP6, FMC_A650PF12VSS — вывод 5151VSSVDD — вывод 5252VDDPF13 — вывод 53: ADC2_INP2, FMC_A7, PLAY1_IN1153PF13PF14 — вывод 54: ADC2_INN2, ADC2_INP6, FMC_A854PF14PF15 — вывод 55: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ETH_CLK, FMC_A9, I3C1_SDA55PF15PG0 — вывод 56: FMC_A1056PG0PG1 — вывод 57: FMC_A11, I2S2_SDO, SPI2_MOSI57PG1PE7 — вывод 58: ADC3_INP1, FMC_D4, FMC_DA4, OCTOSPI1_IO4, PLAY1_IN2, TIM1_ETR, UART7_RX58PE7PE8 — вывод 59: FMC_D5, FMC_DA5, OCTOSPI1_IO5, PLAY1_OUT7, TIM1_CH1N, UART7_TX59PE8PE9 — вывод 60: DAC1_EXTI9, FMC_D6, FMC_DA6, OCTOSPI1_IO6, PLAY1_IN12, TIM1_CH1, UART7_DE, UART7_RTS60PE9VSS — вывод 6161VSSVDD — вывод 6262VDDPE10 — вывод 63: ADC3_INP4, FMC_D7, FMC_DA7, OCTOSPI1_IO7, PLAY1_OUT8, TIM1_CH2N, UART7_CTS63PE10PE11 — вывод 64: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8, FMC_DA8, OCTOSPI1_NCS1, PLAY1_IN15, SPI1_RDY, SPI4_NSS, TIM1_CH264PE11PE12 — вывод 65: ADC3_INP6, ETH_MDIO, FMC_D9, FMC_DA9, PLAY1_OUT10, SPI4_SCK, TIM1_CH3N65PE12PE13 — вывод 66: ADC3_INP7, FMC_D10, FMC_DA10, PLAY1_OUT11, SPI4_MISO, TIM1_CH366PE13PE14 — вывод 67: ADC3_INP8, FMC_D11, FMC_DA11, PLAY1_OUT6, SPI4_MOSI, TIM1_CH467PE14PE15 — вывод 68: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, FMC_D12, FMC_DA12, PLAY1_OUT9, TIM1_BKIN, TIM1_CH4N68PE15PB10 — вывод 69: ETH_MII_RX_ER, I2S2_CK, I3C2_SCL, LPTIM2_IN1, OCTOSPI1_NCS2, SPI2_SCK, TIM2_CH3, TIM8_CH1, USART3_TX69PB10VCAP — вывод 7070VCAPVSS — вывод 7171VSSVDD — вывод 7272VDDPB12 — вывод 73: ADC3_INP3, ETH_MII_TXD0, ETH_RMII_TXD0, FDCAN2_RX, I2S2_WS, OCTOSPI1_NCLK, SPI2_NSS, TIM1_BKIN, TIM8_CH3, UART5_RX, UCPD1_FRSTX, USART3_CK73PB12PB13 — вывод 74: FDCAN2_TX, I2C2_SMBA, I2S2_CK, LPTIM2_CH1, LPUART1_RX, SDMMC1_D0, SPI2_SCK, TIM1_CH1N, TIM8_CH2, UART5_TX, UCPD1_CC1, USART3_CTS, USART3_NSS74PB13PB14 — вывод 75: I2S2_SDI, PLAY1_OUT2, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, UCPD1_CC2, USART1_TX, USART3_DE, USART3_RTS75PB14PB15 — вывод 76: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP2, ETH_MII_TXD1, ETH_RMII_TXD1, I2S1_SDO, I2S2_SDO, OCTOSPI1_CLK, PWR_PVD_IN, RTC_REFIN, SPI1_MOSI, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, UART5_RX, USART1_RX76PB15PD8 — вывод 77: ETH_MII_RXD0, ETH_RMII_RXD0, FMC_D13, FMC_DA13, USART3_TX77PD8PD9 — вывод 78: DAC1_EXTI9, FDCAN2_RX, FMC_D14, FMC_DA14, PLAY1_IN3, USART3_RX78PD9PD10 — вывод 79: ETH_MII_CRS, FMC_D15, FMC_DA15, LPTIM2_CH2, USART3_CK79PD10PD11 — вывод 80: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_PTP_AUX_TS, FMC_A16, FMC_CLE, LPTIM2_IN2, OCTOSPI1_IO0, PLAY1_OUT0, UART4_RX, USART3_CTS, USART3_NSS80PD11PD12 — вывод 81: FMC_A17, FMC_ALE, I2C2_SCL, I3C1_SCL, LPTIM1_IN1, LPTIM2_IN1, OCTOSPI1_IO1, PLAY1_OUT1, TIM4_CH1, UART4_TX, USART3_DE, USART3_RTS81PD12PD13 — вывод 82: FMC_A18, I2C2_SDA, I3C1_SDA, LPTIM1_CH1, LPTIM2_CH1, OCTOSPI1_IO3, PLAY1_OUT13, TIM4_CH282PD13VSS — вывод 8383VSSVDD — вывод 8484VDDPD14 — вывод 85: FMC_D0, FMC_DA0, PLAY1_IN1, TIM4_CH3, UART8_CTS85PD14PD15 — вывод 86: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, PLAY1_OUT14, TIM4_CH4, UART8_DE, UART8_RTS86PD15PG2 — вывод 87: FMC_A12, TIM8_BKIN87PG2PG3 — вывод 88: ETH_MII_RX_ER, FMC_A13, PLAY1_IN8, TIM8_BKIN288PG3PG4 — вывод 89: FMC_A14, FMC_BA0, TIM1_BKIN289PG4PG5 — вывод 90: FMC_A15, FMC_BA1, PLAY1_IN5, TIM1_ETR90PG5PG6 — вывод 91: FMC_NE3, I3C1_SDA, OCTOSPI1_NCS1, SPI1_RDY, UCPD1_FRSTX91PG6PG7 — вывод 92: FMC_INT, I3C1_SCL, UCPD1_FRSTX, USART6_CK92PG7PG8 — вывод 93: ETH_PPS_OUT, FMC_SDCLK, I2S3_SDO, SPI3_MOSI, TIM8_ETR, USART6_DE, USART6_RTS93PG8VSS — вывод 9494VSSVDD — вывод 9595VDDPC6 — вывод 96: FMC_NWAIT, I2S2_MCK, I3C2_SCL, OCTOSPI1_IO5, PLAY1_IN9, SDMMC1_D0DIR, SDMMC1_D6, TIM3_CH1, TIM8_CH1, USART6_TX96PC6PC7 — вывод 97: DEBUG_TRGIO, FMC_NE1, I2S3_MCK, I3C2_SDA, OCTOSPI1_IO6, SDMMC1_D123DIR, SDMMC1_D7, TIM3_CH2, TIM8_CH2, USART6_RX97PC7PC8 — вывод 98: DEBUG_TRACED1, FMC_ALE, FMC_INT, FMC_NCE, FMC_NE2, PLAY1_OUT5, SDMMC1_D0, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CK98PC8PC9 — вывод 99: AUDIOCLK, DAC1_EXTI9, FMC_CLE, I2C3_SDA, I3C2_SDA, OCTOSPI1_IO0, PLAY1_IN3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, TIM8_CH4, UART5_CTS, UCPD1_DB299PC9PA8 — вывод 100: FMC_NOE, I2C3_SCL, I3C2_SCL, RCC_MCO_1, SPI1_RDY, SPI4_MOSI, TIM1_CH1, TIM8_BKIN2, UART7_RX, USART1_CK, USB_SOF100PA8PA9 — вывод 101: DAC1_EXTI9, ETH_MII_TX_ER, FMC_NWE, I2C3_SMBA, I2S2_CK, LPUART1_TX, OCTOSPI1_NCS1, PLAY1_IN4, SPI2_SCK, TIM1_CH2, UCPD1_DB1, USART1_TX101PA9PA10 — вывод 102: ETH_CLK, FDCAN2_TX, LPTIM2_IN2, LPUART1_RX, SDMMC1_D0, TIM1_CH3, UCPD1_FRSTX, USART1_RX102PA10PA11 — вывод 103: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX, I2S2_WS, LPUART1_CTS, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_DM103PA11PA12 — вывод 104: COMP2_OUT, FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_DP104PA12PA13(JTMS/SWDIO) — вывод 105: DEBUG_JTMS-SWDIO105PA13(JTMS/SWDIO)VDDUSB — вывод 106106VDDUSBVSS — вывод 107107VSSVDD — вывод 108108VDDPA14(JTCK/SWCLK) — вывод 109: DEBUG_JTCK-SWCLK109PA14(JTCK/SWCLK)PA15(JTDI) — вывод 110: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DEBUG_JTDI, ETH_PHY_INTN, FMC_NBL1, I2S1_WS, I2S3_WS, OCTOSPI1_NCS2, SPI1_NSS, SPI3_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TX, USART1_TX110PA15(JTDI)PC10 — вывод 111: ETH_MII_TXD0, ETH_RMII_TXD0, I2S3_CK, I3C2_SCL, OCTOSPI1_IO1, PLAY1_IN0, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TX111PC10PC11 — вывод 112: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, I2S3_SDI, OCTOSPI1_NCS2, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RX112PC11PC12 — вывод 113: DEBUG_TRACED3, ETH_PPS_OUT, I2S3_SDO, LPTIM2_CH2, SDMMC1_CK, SPI3_MOSI, TIM15_CH1, UART5_TX, USART3_CK113PC12PD0 — вывод 114: FDCAN1_RX, FMC_D2, FMC_DA2, TIM8_CH4N, UART4_RX114PD0PD1 — вывод 115: ETH_MII_RX_DV, ETH_RMII_CRS_DV, FDCAN1_TX, FMC_D3, FMC_DA3, UART4_TX115PD1PD2 — вывод 116: DEBUG_TRACED2, PLAY1_IN7, PWR_WKUP7, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RX116PD2PD3 — вывод 117: FMC_CLK, I2S2_CK, PLAY1_IN10, PWR_WKUP8, SPI2_SCK, USART2_CTS, USART2_NSS117PD3PD4 — вывод 118: ETH_CLK, FMC_NOE, OCTOSPI1_IO4, USART2_DE, USART2_RTS118PD4PD5 — вывод 119: ETH_MII_CRS, FDCAN1_TX, FMC_NWE, OCTOSPI1_IO5, SPI2_RDY, TIM1_CH4N, USART2_TX119PD5VSS — вывод 120120VSSVDDIO2 — вывод 121121VDDIO2PD6 — вывод 122: FMC_NWAIT, I2C3_SCL, I2S3_SDO, I3C2_SCL, OCTOSPI1_IO6, SDMMC1_CK, SPI3_MOSI, USART2_RX122PD6PD7 — вывод 123: FMC_NCE, FMC_NE1, I2C3_SDA, I2S1_SDO, I2S3_SDI, I3C2_SDA, OCTOSPI1_IO7, SDMMC1_CMD, SPI1_MOSI, SPI3_MISO, USART2_CK123PD7PG9 — вывод 124: DAC1_EXTI9, FMC_NCE, FMC_NE2, I2S1_SDI, OCTOSPI1_IO6, SDMMC1_D0, SPI1_MISO, USART6_RX124PG9PG10 — вывод 125: FMC_NE3, I2S1_WS, SDMMC1_D1, SPI1_NSS125PG10PG11 — вывод 126: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LPTIM1_IN2, SDMMC1_D2, SPI1_SCK126PG11PG12 — вывод 127: ETH_MII_TXD1, ETH_RMII_TXD1, FMC_NE4, LPTIM1_IN1, SDMMC1_D3, USART6_DE, USART6_RTS127PG12PG13 — вывод 128: DEBUG_TRACED0, ETH_MII_TXD0, ETH_RMII_TXD0, FMC_A24, LPTIM1_CH1, USART6_CTS, USART6_NSS128PG13PG14 — вывод 129: DEBUG_TRACED1, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_A25, LPTIM1_CH2, LPTIM1_ETR, OCTOSPI1_IO7, USART6_TX129PG14VSS — вывод 130130VSSVDD — вывод 131131VDDPG15 — вывод 132: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_SDNCAS, SPI4_RDY, USART6_CTS, USART6_NSS132PG15PB3(JTDO/TRACESWO) — вывод 133: CRS_SYNC, DEBUG_JTDO-SWO, ETH_MDC, FDCAN2_TX, I2C2_SDA, I2S1_CK, I2S3_CK, I3C2_SDA, LPUART1_TX, SPI1_SCK, SPI3_SCK, TIM2_CH2, UART5_TX, UART7_RX133PB3(JTDO/TRACESWO)PB4(NJTRST) — вывод 134: DEBUG_NJTRST, ETH_MDIO, I2C3_SDA, I2S1_SDI, I2S2_WS, I2S3_SDI, I3C2_SDA, LPTIM1_CH2, OCTOSPI1_CLK, SPI1_MISO, SPI2_NSS, SPI3_MISO, TIM3_CH1, UART7_TX134PB4(NJTRST)PB5 — вывод 135: ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, I2C1_SMBA, I2S1_SDO, I2S3_SDO, OCTOSPI1_NCLK, SPI1_MOSI, SPI3_MOSI, TIM3_CH2, UART5_RX, USART6_TX135PB5PB6 — вывод 136: CEC, ETH_MII_TX_ER, FDCAN2_TX, FMC_SDNE1, I2C1_SCL, I3C1_SCL, LPUART1_TX, OCTOSPI1_NCS2, TIM4_CH1, UART5_TX, USART1_TX, USART6_RX136PB6PB7 — вывод 137: FDCAN1_TX, FMC_NL, I2C1_SDA, I3C1_SDA, LPUART1_RX, PWR_WKUP5, SPI4_MISO, TIM4_CH2, USART1_RX, USART6_CTS, USART6_NSS137PB7BOOT0 — вывод 138138BOOT0PB8 — вывод 139: ETH_MII_TXD3, FDCAN1_RX, I2C1_SCL, I2S3_WS, I3C1_SCL, PLAY1_IN1, SDMMC1_CKIN, SDMMC1_D4, SPI3_NSS, SPI4_RDY, TIM4_CH3, UART4_RX139PB8PB9 — вывод 140: COMP2_OUT, DAC1_EXTI9, FDCAN1_TX, I2C1_SDA, I2S2_WS, I2S3_CK, I3C1_SDA, SDMMC1_CDIR, SDMMC1_D5, SPI2_NSS, SPI3_SCK, TIM4_CH4, UART4_TX140PB9PE0 — вывод 141: FDCAN1_RX, FMC_NBL0, LPTIM1_ETR, LPTIM2_CH2, LPTIM2_ETR, SPI3_RDY, TIM4_ETR, UART8_RX141PE0VCAP — вывод 142142VCAPVSS — вывод 143143VSSVDD — вывод 144144VDD
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

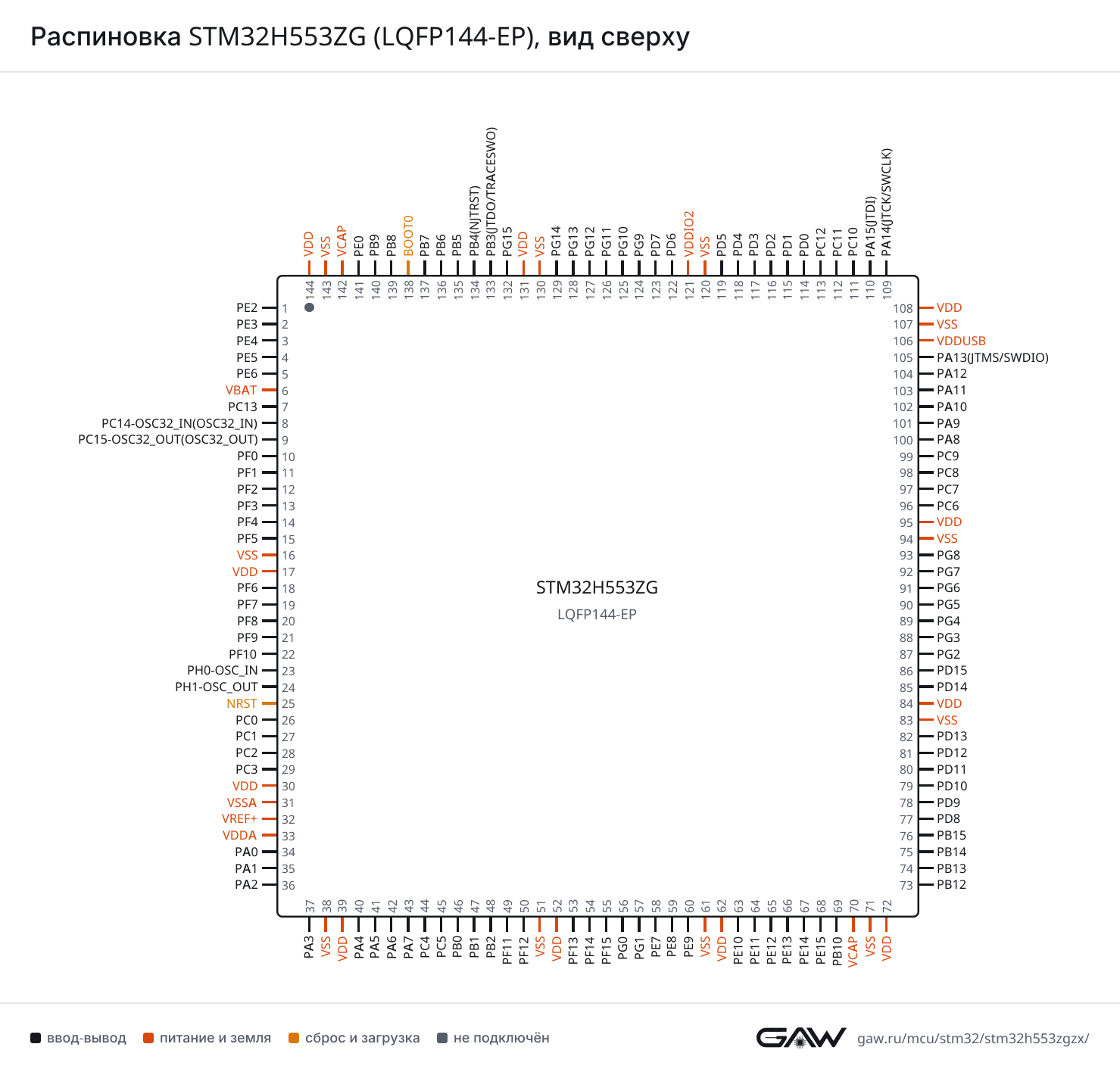

Распиновка STM32H553ZG (LQFP144-EP), вид сверхуРаспиновка LQFP144-EP картинкой
PNG, 1479 × 1416 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер вывода и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (100, AF7)
CTSPA11 (103, AF7)
DEPA12 (104, AF7)
NSSPA11 (103, AF7)
RTSPA12 (104, AF7)
RXPB15 (76, AF4), PA10 (102, AF7), PB7 (137, AF7)
TXPB14 (75, AF4), PA9 (101, AF7), PA15(JTDI) (110, AF7), PB6 (136, AF7)
USART2CKPA4 (40, AF7), PD7 (123, AF7)
CTSPA0 (34, AF7), PD3 (117, AF7)
DEPA1 (35, AF7), PD4 (118, AF7)
NSSPA0 (34, AF7), PD3 (117, AF7)
RTSPA1 (35, AF7), PD4 (118, AF7)
RXPA3 (37, AF7), PD6 (122, AF7)
TXPA2 (36, AF7), PB0 (46, AF7), PD5 (119, AF7)
USART3CKPB12 (73, AF7), PD10 (79, AF7), PC12 (113, AF7)
CTSPB13 (74, AF7), PD11 (80, AF7)
DEPB14 (75, AF7), PD12 (81, AF7)
NSSPB13 (74, AF7), PD11 (80, AF7)
RTSPB14 (75, AF7), PD12 (81, AF7)
RXPC4 (44, AF7), PB1 (47, AF7), PD9 (78, AF7), PC11 (112, AF7)
TXPB10 (69, AF7), PD8 (77, AF7), PC10 (111, AF7)
USART6CKPA1 (35, AF14), PG7 (92, AF7), PC8 (98, AF7)
CTSPG13 (128, AF7), PG15 (132, AF7), PB7 (137, AF6)
DEPG8 (93, AF7), PG12 (127, AF7)
NSSPG13 (128, AF7), PG15 (132, AF7), PB7 (137, AF6)
RTSPG8 (93, AF7), PG12 (127, AF7)
RXPC7 (97, AF7), PG9 (124, AF7), PB6 (136, AF6)
TXPC6 (96, AF7), PG14 (129, AF7), PB5 (135, AF6)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB0 (46, AF8), PB15 (76, AF8)
DEPB14 (75, AF8), PA15(JTDI) (110, AF8)
RTSPB14 (75, AF8), PA15(JTDI) (110, AF8)
RXPA1 (35, AF8), PD11 (80, AF8), PA11 (103, AF6), PC11 (112, AF8), PD0 (114, AF8), PB8 (139, AF8)
TXPA0 (34, AF8), PD12 (81, AF8), PA12 (104, AF6), PC10 (111, AF8), PD1 (115, AF8), PB9 (140, AF8)
UART5CTSPC9 (99, AF8)
DEPC8 (98, AF8)
RTSPC8 (98, AF8)
RXPB12 (73, AF14), PB15 (76, AF14), PD2 (116, AF8), PB5 (135, AF14)
TXPB13 (74, AF14), PC12 (113, AF8), PB3(JTDO/TRACESWO) (133, AF14), PB6 (136, AF14)
UART7CTSPF9 (21, AF7), PE10 (63, AF7)
DEPF8 (20, AF7), PE9 (60, AF7)
RTSPF8 (20, AF7), PE9 (60, AF7)
RXPF6 (18, AF7), PE7 (58, AF7), PA8 (100, AF11), PB3(JTDO/TRACESWO) (133, AF11)
TXPF7 (19, AF7), PE8 (59, AF7), PA15(JTDI) (110, AF11), PB4(NJTRST) (134, AF11)
UART8CTSPD14 (85, AF8)
DEPD15 (86, AF8)
RTSPD15 (86, AF8)
RXPE5 (4, AF13), PE0 (141, AF8)
TXPE2 (1, AF8), PE4 (3, AF13)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (103, AF3)
DEPA12 (104, AF3)
RTSPA12 (104, AF3)
RXPB13 (74, AF8), PA10 (102, AF3), PB7 (137, AF8)
TXPC3 (29, AF3), PA2 (36, AF3), PA9 (101, AF3), PB3(JTDO/TRACESWO) (133, AF8), PB6 (136, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA6 (42, AF5), PG9 (124, AF5), PB4(NJTRST) (134, AF5)
MOSIPA7 (43, AF5), PB15 (76, AF6), PD7 (123, AF5), PB5 (135, AF5)
NSSPA4 (40, AF5), PA15(JTDI) (110, AF5), PG10 (125, AF5)
RDYPB2 (48, AF4), PE11 (64, AF4), PG6 (91, AF5), PA8 (100, AF5)
SCKPA5 (41, AF5), PG11 (126, AF5), PB3(JTDO/TRACESWO) (133, AF5)
SPI2MISOPC2 (28, AF5), PB14 (75, AF5)
MOSIPC1 (27, AF5), PC3 (29, AF5), PG1 (57, AF7), PB15 (76, AF5)
NSSPA3 (37, AF5), PB1 (47, AF5), PB12 (73, AF5), PA11 (103, AF5), PB4(NJTRST) (134, AF7), PB9 (140, AF5)
RDYPC0 (26, AF7), PD5 (119, AF5)
SCKPB2 (48, AF6), PB10 (69, AF5), PB13 (74, AF5), PA9 (101, AF5), PA12 (104, AF5), PD3 (117, AF5)
SPI3MISOPB0 (46, AF5), PC11 (112, AF6), PD7 (123, AF6), PB4(NJTRST) (134, AF6)
MOSIPA3 (37, AF6), PA4 (40, AF4), PB2 (48, AF7), PG8 (93, AF5), PC12 (113, AF6), PD6 (122, AF5), PB5 (135, AF7)
NSSPA4 (40, AF6), PA15(JTDI) (110, AF6), PB8 (139, AF6)
RDYPA0 (34, AF6), PE0 (141, AF6)
SCKPB1 (47, AF4), PC10 (111, AF6), PB3(JTDO/TRACESWO) (133, AF6), PB9 (140, AF6)
SPI4MISOPE5 (4, AF5), PC0 (26, AF6), PE13 (66, AF5), PB7 (137, AF5)
MOSIPE6 (5, AF5), PC1 (27, AF6), PE14 (67, AF5), PA8 (100, AF6)
NSSPE4 (3, AF5), PE11 (64, AF5)
RDYPG15 (132, AF5), PB8 (139, AF5)
SCKPE2 (1, AF5), PA0 (34, AF5), PC5 (45, AF6), PE12 (65, AF5)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPA5 (41, AF5), PG11 (126, AF5), PB3(JTDO/TRACESWO) (133, AF5)
MCKPC4 (44, AF5)
SDIPA6 (42, AF5), PG9 (124, AF5), PB4(NJTRST) (134, AF5)
SDOPA7 (43, AF5), PB15 (76, AF6), PD7 (123, AF5), PB5 (135, AF5)
WSPA4 (40, AF5), PA15(JTDI) (110, AF5), PG10 (125, AF5)
I2S2CKPB2 (48, AF6), PB10 (69, AF5), PB13 (74, AF5), PA9 (101, AF5), PA12 (104, AF5), PD3 (117, AF5)
MCKPC6 (96, AF5)
SDIPC2 (28, AF5), PB14 (75, AF5)
SDOPC1 (27, AF5), PC3 (29, AF5), PG1 (57, AF7), PB15 (76, AF5)
WSPA3 (37, AF5), PB1 (47, AF5), PB12 (73, AF5), PA11 (103, AF5), PB4(NJTRST) (134, AF7), PB9 (140, AF5)
I2S3CKPC10 (111, AF6), PB3(JTDO/TRACESWO) (133, AF6), PB9 (140, AF6)
MCKPC7 (97, AF6)
SDIPB0 (46, AF5), PC11 (112, AF6), PD7 (123, AF6), PB4(NJTRST) (134, AF6)
SDOPA3 (37, AF6), PA4 (40, AF4), PB2 (48, AF7), PG8 (93, AF5), PC12 (113, AF6), PD6 (122, AF5), PB5 (135, AF7)
WSPA4 (40, AF6), PA15(JTDI) (110, AF6), PB8 (139, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (136, AF4), PB8 (139, AF4)
SDAPB7 (137, AF4), PB9 (140, AF4)
SMBAPB5 (135, AF4)
I2C2SCLPF1 (11, AF4), PD12 (81, AF4)
SDAPF0 (10, AF4), PD13 (82, AF4), PB3(JTDO/TRACESWO) (133, AF4)
SMBAPF2 (12, AF4), PB13 (74, AF4)
I2C3SCLPA8 (100, AF4), PD6 (122, AF4)
SDAPC9 (99, AF4), PD7 (123, AF4), PB4(NJTRST) (134, AF9)
SMBAPA9 (101, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPF5 (15, AF6), PD12 (81, AF6), PG7 (92, AF3), PB6 (136, AF3), PB8 (139, AF3)
SDAPF15 (55, AF6), PD13 (82, AF6), PG6 (91, AF3), PB7 (137, AF3), PB9 (140, AF3)
I3C2SCLPF1 (11, AF3), PB10 (69, AF8), PC6 (96, AF10), PA8 (100, AF9), PC10 (111, AF3), PD6 (122, AF3)
SDAPF0 (10, AF3), PC7 (97, AF10), PC9 (99, AF10), PD7 (123, AF3), PB3(JTDO/TRACESWO) (133, AF3), PB4(NJTRST) (134, AF8)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPA11 (103, AF9), PD0 (114, AF9), PB8 (139, AF9), PE0 (141, AF9)
TXPA12 (104, AF9), PD1 (115, AF9), PD5 (119, AF9), PB7 (137, AF9), PB9 (140, AF9)
FDCAN2RXPA0 (34, AF9), PB12 (73, AF9), PD9 (78, AF9), PB5 (135, AF9)
TXPB13 (74, AF9), PA10 (102, AF9), PB3(JTDO/TRACESWO) (133, AF9), PB6 (136, AF9)

USB — USB Full Speed, устройство

БлокСигналВыводы
USBDMPA11 (103)
DPPA12 (104)
SOFPA8 (100, AF10)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB13 (74)
CC2PB14 (75)
DB1PA9 (101)
DB2PC9 (99)
FRSTXPB12 (73, AF6), PG6 (91, AF11), PG7 (92, AF11), PA10 (102, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCLKPF15 (55, AF11), PA10 (102, AF11), PD4 (118, AF11)
MDCPF9 (21, AF11), PC1 (27, AF11), PB3(JTDO/TRACESWO) (133, AF12)
MDIOPA2 (36, AF11), PE12 (65, AF11), PB4(NJTRST) (134, AF10)
MII_COLPA3 (37, AF11)
MII_CRSPA0 (34, AF11), PD10 (79, AF8), PD5 (119, AF6)
MII_RX_CLKPA1 (35, AF11)
MII_RX_DVPA7 (43, AF11), PD1 (115, AF11)
MII_RX_ERPB10 (69, AF11), PG3 (88, AF10)
MII_RXD0PE4 (3, AF11), PC4 (44, AF11), PB2 (48, AF11), PD8 (77, AF8)
MII_RXD1PE5 (4, AF11), PC5 (45, AF11)
MII_RXD2PB0 (46, AF11)
MII_RXD3PB1 (47, AF11)
MII_TX_CLKPC3 (29, AF11)
MII_TX_ENPA5 (41, AF11), PG11 (126, AF11)
MII_TX_ERPF8 (20, AF11), PA9 (101, AF11), PB6 (136, AF11)
MII_TXD0PB12 (73, AF11), PC10 (111, AF11), PG13 (128, AF11)
MII_TXD1PB15 (76, AF11), PG12 (127, AF11), PG14 (129, AF11)
MII_TXD2PC2 (28, AF11)
MII_TXD3PE2 (1, AF11), PB8 (139, AF11)
PHY_INTNPA15(JTDI) (110, AF10)
PPS_OUTPG8 (93, AF11), PC12 (113, AF10), PB5 (135, AF11)
PTP_AUX_TSPD11 (80, AF11)
RMII_CRS_DVPA7 (43, AF11), PD1 (115, AF11)
RMII_REF_CLKPA1 (35, AF11)
RMII_RXD0PE4 (3, AF11), PC4 (44, AF11), PB2 (48, AF11), PD8 (77, AF8)
RMII_RXD1PE5 (4, AF11), PC5 (45, AF11)
RMII_TX_ENPA5 (41, AF11), PG11 (126, AF11)
RMII_TXD0PB12 (73, AF11), PC10 (111, AF11), PG13 (128, AF11)
RMII_TXD1PB15 (76, AF11), PG12 (127, AF11), PG14 (129, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (140, AF7)
CKPC12 (113, AF12), PD6 (122, AF11)
CKINPB8 (139, AF7)
CMDPB2 (48, AF12), PD2 (116, AF12), PD7 (123, AF11)
D0PB13 (74, AF12), PC8 (98, AF12), PA10 (102, AF12), PG9 (124, AF11)
D0DIRPC6 (96, AF8)
D1PC9 (99, AF12), PG10 (125, AF11)
D2PC10 (111, AF12), PG11 (126, AF10)
D3PC11 (112, AF12), PG12 (127, AF10)
D4PB8 (139, AF12)
D5PB9 (140, AF12)
D6PC6 (96, AF12)
D7PC7 (97, AF12)
D123DIRPC7 (97, AF8)

OCTOSPI — интерфейс Octo-SPI памяти

БлокСигналВыводы
OCTOSPI1CLKPF10 (22, AF9), PA3 (37, AF3), PB2 (48, AF9), PB15 (76, AF10), PB4(NJTRST) (134, AF3)
DQSPA1 (35, AF6), PC5 (45, AF10), PB2 (48, AF10)
IO0PF8 (20, AF10), PC3 (29, AF9), PB1 (47, AF6), PD11 (80, AF9), PC9 (99, AF9)
IO1PF9 (21, AF10), PB0 (46, AF6), PD12 (81, AF9), PC10 (111, AF9)
IO2PE2 (1, AF9), PF7 (19, AF10), PC2 (28, AF9), PA7 (43, AF10)
IO3PF6 (18, AF10), PA1 (35, AF9), PA6 (42, AF6), PD13 (82, AF9)
IO4PC1 (27, AF10), PE7 (58, AF10), PD4 (118, AF10)
IO5PC2 (28, AF6), PE8 (59, AF10), PC6 (96, AF11), PD5 (119, AF10)
IO6PC3 (29, AF6), PE9 (60, AF10), PC7 (97, AF11), PD6 (122, AF10), PG9 (124, AF9)
IO7PC0 (26, AF10), PE10 (63, AF10), PD7 (123, AF10), PG14 (129, AF9)
NCLKPF11 (49, AF9), PB12 (73, AF3), PB5 (135, AF3)
NCS1PA2 (36, AF10), PC4 (44, AF9), PE11 (64, AF6), PG6 (91, AF10), PA9 (101, AF10)
NCS2PB10 (69, AF9), PA15(JTDI) (110, AF9), PC11 (112, AF9), PB6 (136, AF10)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15(JTDI) (110, AF4), PB6 (136, AF5)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PF11 (49), PE11 (64), PD11 (80), PA11 (103), PC11 (112), PG11 (126)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (9), PF15 (55), PE15 (68), PB15 (76), PD15 (86), PA15(JTDI) (110), PG15 (132)
INN1PA0 (34)
INN2PF12 (50)
INN3PA7 (43)
INN4PC5 (45)
INN5PB0 (46)
INN10PC1 (27)
INN11PC2 (28)
INN12PC3 (29)
INN18PA5 (41)
INP0PA0 (34)
INP1PA1 (35)
INP2PF11 (49)
INP3PA6 (42)
INP4PC4 (44)
INP5PB1 (47)
INP6PF12 (50)
INP7PA7 (43)
INP8PC5 (45)
INP9PB0 (46)
INP10PC0 (26)
INP11PC1 (27)
INP12PC2 (28)
INP13PC3 (29)
INP14PA2 (36)
INP15PA3 (37)
INP18PA4 (40)
INP19PA5 (41)
ADC2EXTI11PF11 (49), PE11 (64), PD11 (80), PA11 (103), PC11 (112), PG11 (126)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (9), PF15 (55), PE15 (68), PB15 (76), PD15 (86), PA15(JTDI) (110), PG15 (132)
INN1PA0 (34)
INN2PF14 (54)
INN3PA7 (43)
INN4PC5 (45)
INN5PB0 (46)
INN10PC1 (27)
INN11PC2 (28)
INN12PC3 (29)
INN18PA5 (41)
INP0PA0 (34)
INP1PA1 (35)
INP2PF13 (53)
INP3PA6 (42)
INP4PC4 (44)
INP5PB1 (47)
INP6PF14 (54)
INP7PA7 (43)
INP8PC5 (45)
INP9PB0 (46)
INP10PC0 (26)
INP11PC1 (27)
INP12PC2 (28)
INP13PC3 (29)
INP14PA2 (36)
INP15PA3 (37)
INP18PA4 (40)
INP19PA5 (41)
ADC3EXTI11PF11 (49), PE11 (64), PD11 (80), PA11 (103), PC11 (112), PG11 (126)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (9), PF15 (55), PE15 (68), PB15 (76), PD15 (86), PA15(JTDI) (110), PG15 (132)
INP0PB2 (48)
INP1PE7 (58)
INP2PB15 (76)
INP3PB12 (73)
INP4PE10 (63)
INP5PE11 (64)
INP6PE12 (65)
INP7PE13 (66)
INP8PE14 (67)
INP9PE15 (68)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PF9 (21), PE9 (60), PD9 (78), PC9 (99), PA9 (101), PG9 (124), PB9 (140)
OUT1PA4 (40)
OUT2PA5 (41)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPA0 (34), PB1 (47)
INPPA4 (40), PA7 (43)
OUTPA6 (42, AF13), PC5 (45, AF13), PB0 (46, AF13)
COMP2INMPA2 (36), PA3 (37), PA6 (42)
INPPB0 (46), PB2 (48)
OUTPC1 (27, AF14), PA12 (104, AF14), PB9 (140, AF14)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (42, AF1), PE15 (68, AF1), PB12 (73, AF1)
BKIN2PE6 (5, AF1), PG4 (89, AF1)
CH1PE9 (60, AF1), PA8 (100, AF1)
CH1NPA7 (43, AF1), PE8 (59, AF1), PB13 (74, AF1)
CH2PE11 (64, AF1), PA9 (101, AF1)
CH2NPB0 (46, AF1), PE10 (63, AF1), PB14 (75, AF1)
CH3PE13 (66, AF1), PA10 (102, AF1)
CH3NPB1 (47, AF1), PE12 (65, AF1), PB15 (76, AF1)
CH4PE14 (67, AF1), PA11 (103, AF1)
CH4NPC5 (45, AF1), PE15 (68, AF3), PD5 (119, AF1)
ETRPE7 (58, AF1), PG5 (90, AF1), PA12 (104, AF1)
TIM2CH1PA0 (34, AF1), PA5 (41, AF1), PA15(JTDI) (110, AF1)
CH2PA1 (35, AF1), PB3(JTDO/TRACESWO) (133, AF1)
CH3PA2 (36, AF1), PB10 (69, AF1)
CH4PA3 (37, AF1), PC4 (44, AF1)
ETRPA0 (34, AF14), PA5 (41, AF14), PA15(JTDI) (110, AF14)
TIM3CH1PA6 (42, AF2), PC6 (96, AF2), PB4(NJTRST) (134, AF2)
CH2PA7 (43, AF2), PC7 (97, AF2), PB5 (135, AF2)
CH3PB0 (46, AF2), PC8 (98, AF2)
CH4PB1 (47, AF2), PC9 (99, AF2)
ETRPD2 (116, AF2)
TIM4CH1PD12 (81, AF2), PB6 (136, AF2)
CH2PD13 (82, AF2), PB7 (137, AF2)
CH3PD14 (85, AF2), PB8 (139, AF2)
CH4PC2 (28, AF2), PD15 (86, AF2), PB9 (140, AF2)
ETRPE0 (141, AF2)
TIM5CH1PA0 (34, AF2)
CH2PA1 (35, AF2)
CH3PA2 (36, AF2)
CH4PA3 (37, AF2)
ETRPA4 (40, AF2)
TIM8BKINPA6 (42, AF3), PG2 (87, AF3)
BKIN2PG3 (88, AF3), PA8 (100, AF3)
CH1PB10 (69, AF2), PC6 (96, AF3)
CH1NPA5 (41, AF3), PA7 (43, AF3)
CH2PB13 (74, AF2), PC7 (97, AF3)
CH2NPB0 (46, AF3), PB14 (75, AF3)
CH3PB12 (73, AF2), PC8 (98, AF3)
CH3NPB1 (47, AF3), PB15 (76, AF3)
CH4PC9 (99, AF3)
CH4NPB2 (48, AF3), PD0 (114, AF3)
ETRPA0 (34, AF3), PG8 (93, AF3)
TIM12CH1PB14 (75, AF2)
CH2PB15 (76, AF2)
TIM15BKINPE3 (2, AF4), PA0 (34, AF4), PD2 (116, AF4)
CH1PE5 (4, AF4), PA2 (36, AF4), PC12 (113, AF2)
CH1NPE4 (3, AF4), PA1 (35, AF4)
CH2PE6 (5, AF4), PA3 (37, AF4)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PB2 (48, AF5), PD13 (82, AF1), PG13 (128, AF1)
CH2PG14 (129, AF4), PB4(NJTRST) (134, AF4)
ETRPG14 (129, AF1), PE0 (141, AF1)
IN1PA1 (35, AF5), PD12 (81, AF1), PG12 (127, AF1)
IN2PE2 (1, AF1), PA2 (36, AF5), PG11 (126, AF1)
LPTIM2CH1PA4 (40, AF3), PB13 (74, AF3), PD13 (82, AF3)
CH2PD10 (79, AF3), PC12 (113, AF3), PE0 (141, AF3)
ETRPC4 (44, AF3), PE0 (141, AF4)
IN1PB10 (69, AF3), PD12 (81, AF3)
IN2PD11 (80, AF3), PA10 (102, AF4)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (7)
OUT2PB2 (48, AF0)
REFINPB15 (76, AF0)
TSPC13 (7)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (10, AF12)
A1PF1 (11, AF12)
A2PF2 (12, AF12)
A3PF3 (13, AF12)
A4PF4 (14, AF12)
A5PF5 (15, AF12)
A6PF12 (50, AF12)
A7PF13 (53, AF12)
A8PF14 (54, AF12)
A9PF15 (55, AF12)
A10PG0 (56, AF12)
A11PG1 (57, AF12)
A12PG2 (87, AF12)
A13PG3 (88, AF12)
A14PG4 (89, AF12)
A15PG5 (90, AF12)
A16PD11 (80, AF12)
A17PD12 (81, AF12)
A18PD13 (82, AF12)
A19PE3 (2, AF12)
A20PE4 (3, AF12)
A21PE5 (4, AF12)
A22PE6 (5, AF12)
A23PE2 (1, AF12)
A24PG13 (128, AF12)
A25PC0 (26, AF9), PG14 (129, AF12)
ALEPD12 (81, AF12), PC8 (98, AF11)
BA0PG4 (89, AF12)
BA1PG5 (90, AF12)
CLEPD11 (80, AF12), PC9 (99, AF11)
CLKPD3 (117, AF12)
D0PD14 (85, AF12)
D1PD15 (86, AF12)
D2PD0 (114, AF12)
D3PD1 (115, AF12)
D4PE7 (58, AF12)
D5PE8 (59, AF12)
D6PE9 (60, AF12)
D7PE10 (63, AF12)
D8PE11 (64, AF12)
D9PE12 (65, AF12)
D10PE13 (66, AF12)
D11PE14 (67, AF12)
D12PE15 (68, AF12)
D13PD8 (77, AF12)
D14PD9 (78, AF12)
D15PD10 (79, AF12)
DA0PD14 (85, AF12)
DA1PD15 (86, AF12)
DA2PD0 (114, AF12)
DA3PD1 (115, AF12)
DA4PE7 (58, AF12)
DA5PE8 (59, AF12)
DA6PE9 (60, AF12)
DA7PE10 (63, AF12)
DA8PE11 (64, AF12)
DA9PE12 (65, AF12)
DA10PE13 (66, AF12)
DA11PE14 (67, AF12)
DA12PE15 (68, AF12)
DA13PD8 (77, AF12)
DA14PD9 (78, AF12)
DA15PD10 (79, AF12)
INTPG7 (92, AF12), PC8 (98, AF10)
NBL0PE0 (141, AF12)
NBL1PF6 (18, AF12), PA15(JTDI) (110, AF12)
NCEPC8 (98, AF9), PD7 (123, AF12), PG9 (124, AF12)
NE1PC7 (97, AF9), PD7 (123, AF12)
NE2PC8 (98, AF9), PG9 (124, AF12)
NE3PG6 (91, AF12), PG10 (125, AF12)
NE4PG12 (127, AF12)
NLPB7 (137, AF12)
NOEPA8 (100, AF12), PD4 (118, AF12)
NWAITPC6 (96, AF9), PD6 (122, AF12)
NWEPA7 (43, AF13), PA9 (101, AF12), PD5 (119, AF12)
SDCKE0PC3 (29, AF12), PC5 (45, AF12)
SDCKE1PB5 (135, AF12)
SDCLKPG8 (93, AF12)
SDNCASPG15 (132, AF12)
SDNE0PC2 (28, AF12), PC4 (44, AF12)
SDNE1PB6 (136, AF12)
SDNRASPF11 (49, AF12)
SDNWEPF9 (21, AF12), PC0 (26, AF12), PA7 (43, AF12)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14(JTCK/SWCLK) (109, AF0)
JTDIPA15(JTDI) (110, AF0)
JTDO-SWOPB3(JTDO/TRACESWO) (133, AF0)
JTMS-SWDIOPA13(JTMS/SWDIO) (105, AF0)
NJTRSTPB4(NJTRST) (134, AF0)
TRACECLKPE2 (1, AF0)
TRACED0PE3 (2, AF0), PC1 (27, AF0), PG13 (128, AF0)
TRACED1PE4 (3, AF0), PC8 (98, AF0), PG14 (129, AF0)
TRACED2PE5 (4, AF0), PD2 (116, AF0)
TRACED3PE6 (5, AF0), PC12 (113, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPB2 (48)
MCO_1PA8 (100, AF0)
MCO_2PC9 (99, AF0)
OSC_INPH0-OSC_IN (23)
OSC_OUTPH1-OSC_OUT (24)
OSC32_INPC14-OSC32_IN(OSC32_IN) (8)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (9)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC2 (28, AF0)
PWR_CSTOPPC3 (29, AF0)
PWR_WKUP1PA0 (34)
PWR_WKUP2PA2 (36)
PWR_WKUP4PC13 (7)
PWR_WKUP5PB7 (137)
PWR_WKUP6PC1 (27)
PWR_WKUP7PD2 (116)
PWR_WKUP8PD3 (117)
TAMP_IN1PC13 (7)
TAMP_IN2PA0 (34)
TAMP_IN3PE6 (5), PC1 (27)
TAMP_IN4PA2 (36)
TAMP_IN5PA1 (35)
TAMP_IN6PE3 (2)
TAMP_IN7PE4 (3)
TAMP_IN8PE5 (4)
TAMP_OUT1PA0 (34)
TAMP_OUT2PC13 (7)
TAMP_OUT3PE3 (2), PC13 (7), PA2 (36)
TAMP_OUT4PA1 (35)
TAMP_OUT5PC1 (27)
TAMP_OUT6PE6 (5)
TAMP_OUT7PE5 (4)
TAMP_OUT8PE4 (3)

Блоки без собственных выводов: HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), AES (аппаратное шифрование AES), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), CORDIC (сопроцессор тригонометрических функций).

Таблица выводов

Все 144 вывода корпуса LQFP144-EP по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ВыводИмяТипФункции
1PE2ввод-выводDEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_A23 (AF12), LPTIM1_IN2 (AF1), OCTOSPI1_IO2 (AF9), PLAY1_OUT15 (AF14), SPI4_SCK (AF5), UART8_TX (AF8)
2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), PLAY1_IN7 (AF14), TAMP_IN6, TAMP_OUT3, TIM15_BKIN (AF4)
3PE4ввод-выводDEBUG_TRACED1 (AF0), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_A20 (AF12), PLAY1_OUT7 (AF14), SPI4_NSS (AF5), TAMP_IN7, TAMP_OUT8, TIM15_CH1N (AF4), UART8_TX (AF13)
4PE5ввод-выводDEBUG_TRACED2 (AF0), ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_A21 (AF12), PLAY1_OUT8 (AF14), SPI4_MISO (AF5), TAMP_IN8, TAMP_OUT7, TIM15_CH1 (AF4), UART8_RX (AF13)
5PE6ввод-выводDEBUG_TRACED3 (AF0), FMC_A22 (AF12), PLAY1_IN14 (AF14), SPI4_MOSI (AF5), TAMP_IN3, TAMP_OUT6, TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
6VBATпитание—
7PC13ввод-выводPWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3
8PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
9PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
10PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), I3C2_SDA (AF3)
11PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), I3C2_SCL (AF3)
12PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4)
13PF3ввод-выводFMC_A3 (AF12)
14PF4ввод-выводFMC_A4 (AF12)
15PF5ввод-выводFMC_A5 (AF12), I3C1_SCL (AF6)
16VSSпитание—
17VDDпитание—
18PF6ввод-выводFMC_NBL1 (AF12), OCTOSPI1_IO3 (AF10), UART7_RX (AF7)
19PF7ввод-выводOCTOSPI1_IO2 (AF10), UART7_TX (AF7)
20PF8ввод-выводETH_MII_TX_ER (AF11), OCTOSPI1_IO0 (AF10), PLAY1_OUT1 (AF14), UART7_DE (AF7), UART7_RTS (AF7)
21PF9ввод-выводDAC1_EXTI9, ETH_MDC (AF11), FMC_SDNWE (AF12), OCTOSPI1_IO1 (AF10), UART7_CTS (AF7)
22PF10ввод-выводOCTOSPI1_CLK (AF9)
23PH0-OSC_INввод-выводRCC_OSC_IN
24PH1-OSC_OUTввод-выводRCC_OSC_OUT
25NRSTсброс—
26PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_A25 (AF9), FMC_SDNWE (AF12), OCTOSPI1_IO7 (AF10), PLAY1_IN0 (AF14), SPI2_RDY (AF7), SPI4_MISO (AF6)
27PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, COMP2_OUT (AF14), DEBUG_TRACED0 (AF0), ETH_MDC (AF11), I2S2_SDO (AF5), OCTOSPI1_IO4 (AF10), PWR_WKUP6, SPI2_MOSI (AF5), SPI4_MOSI (AF6), TAMP_IN3, TAMP_OUT5
28PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_SDNE0 (AF12), I2S2_SDI (AF5), OCTOSPI1_IO2 (AF9), OCTOSPI1_IO5 (AF6), PLAY1_OUT3 (AF14), PWR_CSLEEP (AF0), SPI2_MISO (AF5), TIM4_CH4 (AF2)
29PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), LPUART1_TX (AF3), OCTOSPI1_IO0 (AF9), OCTOSPI1_IO6 (AF6), PLAY1_IN13 (AF14), PWR_CSTOP (AF0), SPI2_MOSI (AF5)
30VDDпитание—
31VSSAпитание—
32VREF+питание—
33VDDAпитание—
34PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, COMP1_INM, ETH_MII_CRS (AF11), FDCAN2_RX (AF9), PWR_WKUP1, SPI3_RDY (AF6), SPI4_SCK (AF5), TAMP_IN2, TAMP_OUT1, TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
35PA1ввод-выводADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), LPTIM1_IN1 (AF5), OCTOSPI1_DQS (AF6), OCTOSPI1_IO3 (AF9), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7), USART6_CK (AF14)
36PA2ввод-выводADC1_INP14, ADC2_INP14, COMP2_INM, ETH_MDIO (AF11), LPTIM1_IN2 (AF5), LPUART1_TX (AF3), OCTOSPI1_NCS1 (AF10), PWR_WKUP2, TAMP_IN4, TAMP_OUT3, TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
37PA3ввод-выводADC1_INP15, ADC2_INP15, COMP2_INM, ETH_MII_COL (AF11), I2S2_WS (AF5), I2S3_SDO (AF6), OCTOSPI1_CLK (AF3), PLAY1_IN6 (AF14), SPI2_NSS (AF5), SPI3_MOSI (AF6), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
38VSSпитание—
39VDDпитание—
40PA4ввод-выводADC1_INP18, ADC2_INP18, COMP1_INP, DAC1_OUT1, I2S1_WS (AF5), I2S3_SDO (AF4), I2S3_WS (AF6), LPTIM2_CH1 (AF3), PLAY1_OUT12 (AF14), SPI1_NSS (AF5), SPI3_MOSI (AF4), SPI3_NSS (AF6), TIM5_ETR (AF2), USART2_CK (AF7)
41PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1N (AF3)
42PA6ввод-выводADC1_INP3, ADC2_INP3, COMP1_OUT (AF13), COMP2_INM, I2S1_SDI (AF5), OCTOSPI1_IO3 (AF6), SPI1_MISO (AF5), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3)
43PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_NWE (AF13), FMC_SDNWE (AF12), I2S1_SDO (AF5), OCTOSPI1_IO2 (AF10), SPI1_MOSI (AF5), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3)
44PC4ввод-выводADC1_INP4, ADC2_INP4, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LPTIM2_ETR (AF3), OCTOSPI1_NCS1 (AF9), PLAY1_OUT4 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7)
45PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT (AF13), ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_SDCKE0 (AF12), OCTOSPI1_DQS (AF10), SPI4_SCK (AF6), TIM1_CH4N (AF1)
46PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_OUT (AF13), COMP2_INP, ETH_MII_RXD2 (AF11), I2S3_SDI (AF5), OCTOSPI1_IO1 (AF6), SPI3_MISO (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USART2_TX (AF7)
47PB1ввод-выводADC1_INP5, ADC2_INP5, COMP1_INM, ETH_MII_RXD3 (AF11), I2S2_WS (AF5), OCTOSPI1_IO0 (AF6), PLAY1_OUT5 (AF14), SPI2_NSS (AF5), SPI3_SCK (AF4), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USART3_RX (AF7)
48PB2ввод-выводADC3_INP0, COMP2_INP, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), I2S2_CK (AF6), I2S3_SDO (AF7), LPTIM1_CH1 (AF5), OCTOSPI1_CLK (AF9), OCTOSPI1_DQS (AF10), PLAY1_IN8 (AF14), RCC_LSCO, RTC_OUT2 (AF0), SDMMC1_CMD (AF12), SPI1_RDY (AF4), SPI2_SCK (AF6), SPI3_MOSI (AF7), TIM8_CH4N (AF3)
49PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, FMC_SDNRAS (AF12), OCTOSPI1_NCLK (AF9), PLAY1_IN2 (AF14)
50PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12)
51VSSпитание—
52VDDпитание—
53PF13ввод-выводADC2_INP2, FMC_A7 (AF12), PLAY1_IN11 (AF14)
54PF14ввод-выводADC2_INN2, ADC2_INP6, FMC_A8 (AF12)
55PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ETH_CLK (AF11), FMC_A9 (AF12), I3C1_SDA (AF6)
56PG0ввод-выводFMC_A10 (AF12)
57PG1ввод-выводFMC_A11 (AF12), I2S2_SDO (AF7), SPI2_MOSI (AF7)
58PE7ввод-выводADC3_INP1, FMC_D4 (AF12), FMC_DA4 (AF12), OCTOSPI1_IO4 (AF10), PLAY1_IN2 (AF14), TIM1_ETR (AF1), UART7_RX (AF7)
59PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), OCTOSPI1_IO5 (AF10), PLAY1_OUT7 (AF14), TIM1_CH1N (AF1), UART7_TX (AF7)
60PE9ввод-выводDAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), OCTOSPI1_IO6 (AF10), PLAY1_IN12 (AF14), TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
61VSSпитание—
62VDDпитание—
63PE10ввод-выводADC3_INP4, FMC_D7 (AF12), FMC_DA7 (AF12), OCTOSPI1_IO7 (AF10), PLAY1_OUT8 (AF14), TIM1_CH2N (AF1), UART7_CTS (AF7)
64PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8 (AF12), FMC_DA8 (AF12), OCTOSPI1_NCS1 (AF6), PLAY1_IN15 (AF14), SPI1_RDY (AF4), SPI4_NSS (AF5), TIM1_CH2 (AF1)
65PE12ввод-выводADC3_INP6, ETH_MDIO (AF11), FMC_D9 (AF12), FMC_DA9 (AF12), PLAY1_OUT10 (AF14), SPI4_SCK (AF5), TIM1_CH3N (AF1)
66PE13ввод-выводADC3_INP7, FMC_D10 (AF12), FMC_DA10 (AF12), PLAY1_OUT11 (AF14), SPI4_MISO (AF5), TIM1_CH3 (AF1)
67PE14ввод-выводADC3_INP8, FMC_D11 (AF12), FMC_DA11 (AF12), PLAY1_OUT6 (AF14), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
68PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, FMC_D12 (AF12), FMC_DA12 (AF12), PLAY1_OUT9 (AF14), TIM1_BKIN (AF1), TIM1_CH4N (AF3)
69PB10ввод-выводETH_MII_RX_ER (AF11), I2S2_CK (AF5), I3C2_SCL (AF8), LPTIM2_IN1 (AF3), OCTOSPI1_NCS2 (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), TIM8_CH1 (AF2), USART3_TX (AF7)
70VCAPпитание—
71VSSпитание—
72VDDпитание—
73PB12ввод-выводADC3_INP3, ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FDCAN2_RX (AF9), I2S2_WS (AF5), OCTOSPI1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), TIM8_CH3 (AF2), UART5_RX (AF14), UCPD1_FRSTX (AF6), USART3_CK (AF7)
74PB13ввод-выводFDCAN2_TX (AF9), I2C2_SMBA (AF4), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LPUART1_RX (AF8), SDMMC1_D0 (AF12), SPI2_SCK (AF5), TIM1_CH1N (AF1), TIM8_CH2 (AF2), UART5_TX (AF14), UCPD1_CC1, USART3_CTS (AF7), USART3_NSS (AF7)
75PB14ввод-выводI2S2_SDI (AF5), PLAY1_OUT2 (AF14), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC2, USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
76PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP2, ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), I2S1_SDO (AF6), I2S2_SDO (AF5), OCTOSPI1_CLK (AF10), PWR_PVD_IN, RTC_REFIN (AF0), SPI1_MOSI (AF6), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), UART5_RX (AF14), USART1_RX (AF4)
77PD8ввод-выводETH_MII_RXD0 (AF8), ETH_RMII_RXD0 (AF8), FMC_D13 (AF12), FMC_DA13 (AF12), USART3_TX (AF7)
78PD9ввод-выводDAC1_EXTI9, FDCAN2_RX (AF9), FMC_D14 (AF12), FMC_DA14 (AF12), PLAY1_IN3 (AF14), USART3_RX (AF7)
79PD10ввод-выводETH_MII_CRS (AF8), FMC_D15 (AF12), FMC_DA15 (AF12), LPTIM2_CH2 (AF3), USART3_CK (AF7)
80PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_PTP_AUX_TS (AF11), FMC_A16 (AF12), FMC_CLE (AF12), LPTIM2_IN2 (AF3), OCTOSPI1_IO0 (AF9), PLAY1_OUT0 (AF14), UART4_RX (AF8), USART3_CTS (AF7), USART3_NSS (AF7)
81PD12ввод-выводFMC_A17 (AF12), FMC_ALE (AF12), I2C2_SCL (AF4), I3C1_SCL (AF6), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), OCTOSPI1_IO1 (AF9), PLAY1_OUT1 (AF14), TIM4_CH1 (AF2), UART4_TX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
82PD13ввод-выводFMC_A18 (AF12), I2C2_SDA (AF4), I3C1_SDA (AF6), LPTIM1_CH1 (AF1), LPTIM2_CH1 (AF3), OCTOSPI1_IO3 (AF9), PLAY1_OUT13 (AF14), TIM4_CH2 (AF2)
83VSSпитание—
84VDDпитание—
85PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), PLAY1_IN1 (AF14), TIM4_CH3 (AF2), UART8_CTS (AF8)
86PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), PLAY1_OUT14 (AF14), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8)
87PG2ввод-выводFMC_A12 (AF12), TIM8_BKIN (AF3)
88PG3ввод-выводETH_MII_RX_ER (AF10), FMC_A13 (AF12), PLAY1_IN8 (AF14), TIM8_BKIN2 (AF3)
89PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), TIM1_BKIN2 (AF1)
90PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), PLAY1_IN5 (AF14), TIM1_ETR (AF1)
91PG6ввод-выводFMC_NE3 (AF12), I3C1_SDA (AF3), OCTOSPI1_NCS1 (AF10), SPI1_RDY (AF5), UCPD1_FRSTX (AF11)
92PG7ввод-выводFMC_INT (AF12), I3C1_SCL (AF3), UCPD1_FRSTX (AF11), USART6_CK (AF7)
93PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), I2S3_SDO (AF5), SPI3_MOSI (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
94VSSпитание—
95VDDпитание—
96PC6ввод-выводFMC_NWAIT (AF9), I2S2_MCK (AF5), I3C2_SCL (AF10), OCTOSPI1_IO5 (AF11), PLAY1_IN9 (AF14), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
97PC7ввод-выводDEBUG_TRGIO (AF0), FMC_NE1 (AF9), I2S3_MCK (AF6), I3C2_SDA (AF10), OCTOSPI1_IO6 (AF11), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
98PC8ввод-выводDEBUG_TRACED1 (AF0), FMC_ALE (AF11), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), PLAY1_OUT5 (AF14), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
99PC9ввод-выводAUDIOCLK (AF5), DAC1_EXTI9, FMC_CLE (AF11), I2C3_SDA (AF4), I3C2_SDA (AF10), OCTOSPI1_IO0 (AF9), PLAY1_IN3 (AF14), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8), UCPD1_DB2
100PA8ввод-выводFMC_NOE (AF12), I2C3_SCL (AF4), I3C2_SCL (AF9), RCC_MCO_1 (AF0), SPI1_RDY (AF5), SPI4_MOSI (AF6), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), UART7_RX (AF11), USART1_CK (AF7), USB_SOF (AF10)
101PA9ввод-выводDAC1_EXTI9, ETH_MII_TX_ER (AF11), FMC_NWE (AF12), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), OCTOSPI1_NCS1 (AF10), PLAY1_IN4 (AF14), SPI2_SCK (AF5), TIM1_CH2 (AF1), UCPD1_DB1, USART1_TX (AF7)
102PA10ввод-выводETH_CLK (AF11), FDCAN2_TX (AF9), LPTIM2_IN2 (AF4), LPUART1_RX (AF3), SDMMC1_D0 (AF12), TIM1_CH3 (AF1), UCPD1_FRSTX (AF6), USART1_RX (AF7)
103PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX (AF9), I2S2_WS (AF5), LPUART1_CTS (AF3), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_DM
104PA12ввод-выводCOMP2_OUT (AF14), FDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_DP
105PA13(JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
106VDDUSBпитание—
107VSSпитание—
108VDDпитание—
109PA14(JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
110PA15(JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), ETH_PHY_INTN (AF10), FMC_NBL1 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), OCTOSPI1_NCS2 (AF9), SPI1_NSS (AF5), SPI3_NSS (AF6), TIM2_CH1 (AF1), TIM2_ETR (AF14), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11), USART1_TX (AF7)
111PC10ввод-выводETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), I2S3_CK (AF6), I3C2_SCL (AF3), OCTOSPI1_IO1 (AF9), PLAY1_IN0 (AF14), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
112PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, I2S3_SDI (AF6), OCTOSPI1_NCS2 (AF9), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
113PC12ввод-выводDEBUG_TRACED3 (AF0), ETH_PPS_OUT (AF10), I2S3_SDO (AF6), LPTIM2_CH2 (AF3), SDMMC1_CK (AF12), SPI3_MOSI (AF6), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
114PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), TIM8_CH4N (AF3), UART4_RX (AF8)
115PD1ввод-выводETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), UART4_TX (AF8)
116PD2ввод-выводDEBUG_TRACED2 (AF0), PLAY1_IN7 (AF14), PWR_WKUP7, SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
117PD3ввод-выводFMC_CLK (AF12), I2S2_CK (AF5), PLAY1_IN10 (AF14), PWR_WKUP8, SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
118PD4ввод-выводETH_CLK (AF11), FMC_NOE (AF12), OCTOSPI1_IO4 (AF10), USART2_DE (AF7), USART2_RTS (AF7)
119PD5ввод-выводETH_MII_CRS (AF6), FDCAN1_TX (AF9), FMC_NWE (AF12), OCTOSPI1_IO5 (AF10), SPI2_RDY (AF5), TIM1_CH4N (AF1), USART2_TX (AF7)
120VSSпитание—
121VDDIO2питание—
122PD6ввод-выводFMC_NWAIT (AF12), I2C3_SCL (AF4), I2S3_SDO (AF5), I3C2_SCL (AF3), OCTOSPI1_IO6 (AF10), SDMMC1_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
123PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), I2C3_SDA (AF4), I2S1_SDO (AF5), I2S3_SDI (AF6), I3C2_SDA (AF3), OCTOSPI1_IO7 (AF10), SDMMC1_CMD (AF11), SPI1_MOSI (AF5), SPI3_MISO (AF6), USART2_CK (AF7)
124PG9ввод-выводDAC1_EXTI9, FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), OCTOSPI1_IO6 (AF9), SDMMC1_D0 (AF11), SPI1_MISO (AF5), USART6_RX (AF7)
125PG10ввод-выводFMC_NE3 (AF12), I2S1_WS (AF5), SDMMC1_D1 (AF11), SPI1_NSS (AF5)
126PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LPTIM1_IN2 (AF1), SDMMC1_D2 (AF10), SPI1_SCK (AF5)
127PG12ввод-выводETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_NE4 (AF12), LPTIM1_IN1 (AF1), SDMMC1_D3 (AF10), USART6_DE (AF7), USART6_RTS (AF7)
128PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FMC_A24 (AF12), LPTIM1_CH1 (AF1), USART6_CTS (AF7), USART6_NSS (AF7)
129PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_A25 (AF12), LPTIM1_CH2 (AF4), LPTIM1_ETR (AF1), OCTOSPI1_IO7 (AF9), USART6_TX (AF7)
130VSSпитание—
131VDDпитание—
132PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_SDNCAS (AF12), SPI4_RDY (AF5), USART6_CTS (AF7), USART6_NSS (AF7)
133PB3(JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), ETH_MDC (AF12), FDCAN2_TX (AF9), I2C2_SDA (AF4), I2S1_CK (AF5), I2S3_CK (AF6), I3C2_SDA (AF3), LPUART1_TX (AF8), SPI1_SCK (AF5), SPI3_SCK (AF6), TIM2_CH2 (AF1), UART5_TX (AF14), UART7_RX (AF11)
134PB4(NJTRST)ввод-выводDEBUG_NJTRST (AF0), ETH_MDIO (AF10), I2C3_SDA (AF9), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), I3C2_SDA (AF8), LPTIM1_CH2 (AF4), OCTOSPI1_CLK (AF3), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), TIM3_CH1 (AF2), UART7_TX (AF11)
135PB5ввод-выводETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), I2C1_SMBA (AF4), I2S1_SDO (AF5), I2S3_SDO (AF7), OCTOSPI1_NCLK (AF3), SPI1_MOSI (AF5), SPI3_MOSI (AF7), TIM3_CH2 (AF2), UART5_RX (AF14), USART6_TX (AF6)
136PB6ввод-выводCEC (AF5), ETH_MII_TX_ER (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), I2C1_SCL (AF4), I3C1_SCL (AF3), LPUART1_TX (AF8), OCTOSPI1_NCS2 (AF10), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7), USART6_RX (AF6)
137PB7ввод-выводFDCAN1_TX (AF9), FMC_NL (AF12), I2C1_SDA (AF4), I3C1_SDA (AF3), LPUART1_RX (AF8), PWR_WKUP5, SPI4_MISO (AF5), TIM4_CH2 (AF2), USART1_RX (AF7), USART6_CTS (AF6), USART6_NSS (AF6)
138BOOT0загрузка—
139PB8ввод-выводETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2S3_WS (AF6), I3C1_SCL (AF3), PLAY1_IN1 (AF14), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SPI3_NSS (AF6), SPI4_RDY (AF5), TIM4_CH3 (AF2), UART4_RX (AF8)
140PB9ввод-выводCOMP2_OUT (AF14), DAC1_EXTI9, FDCAN1_TX (AF9), I2C1_SDA (AF4), I2S2_WS (AF5), I2S3_CK (AF6), I3C1_SDA (AF3), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SPI2_NSS (AF5), SPI3_SCK (AF6), TIM4_CH4 (AF2), UART4_TX (AF8)
141PE0ввод-выводFDCAN1_RX (AF9), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_CH2 (AF3), LPTIM2_ETR (AF4), SPI3_RDY (AF6), TIM4_ETR (AF2), UART8_RX (AF8)
142VCAPпитание—
143VSSпитание—
144VDDпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяВыводыНазначение
VBAT6резервное питание: часы реального времени и резервные регистры
VCAP70, 142вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDD17, 30, 39, 52, 62, 72, 84, 95, 108, 131, 144питание цифровой части и линий ввода-вывода
VDDA33питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2121питание отдельной группы линий ввода-вывода
VDDUSB106питание приёмопередатчика USB
VREF+32верхнее опорное напряжение АЦП и ЦАП
VSS16, 38, 51, 61, 71, 83, 94, 107, 120, 130, 143общий провод (земля)
VSSA31общий провод аналоговой части
NRST25сброс, активный уровень — низкий
BOOT0138выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H553ZGZx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H553ZGSTM32H553ZGZx1 МБ304 КБ

Линейка STM32H5x3, семейство STM32H5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе LQFP144-EP, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H543ZESTM32H5x3144 из 144выводы совпадают полностьютолько у этого: AES; флеш-память до 1024 и 512 КБ
STM32H543ZGSTM32H5x3144 из 144выводы совпадают полностьютолько у этого: AES

Частые вопросы

На каких выводах USART1 у STM32H553ZG?

В корпусе LQFP144-EP сигнал USART1_TX выведен на PB14 (вывод 75, AF4) или PA9 (вывод 101, AF7) или PA15(JTDI) (вывод 110, AF7) или PB6 (вывод 136, AF7), USART1_RX — на PB15 (вывод 76, AF4) или PA10 (вывод 102, AF7) или PB7 (вывод 137, AF7).

Где у STM32H553ZG выводы SWD для программатора?

SWDIO — PA13(JTMS/SWDIO) (вывод 105, AF0), SWCLK — PA14(JTCK/SWCLK) (вывод 109, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H553ZG?

I2C1_SCL — PB6 (вывод 136, AF4) или PB8 (вывод 139, AF4), I2C1_SDA — PB7 (вывод 137, AF4) или PB9 (вывод 140, AF4).

Сколько выводов ввода-вывода у STM32H553ZG в корпусе LQFP144-EP?

112 из 144. Ещё 30 выводов заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
