STM32H563AIIxQ в корпусе UFBGA169: распиновка

STM32H563AIIxQ — микроконтроллер STM32H5 на ядре Cortex-M33 с частотой до 250 МГц: 2 МБ флеш-памяти и 640 КБ ОЗУ. Корпус UFBGA169 — 169 шариков, из них 134 линии ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Частота ядра
до 250 МГц
Флеш-память
2 МБ
ОЗУ
640 КБ
Корпус
UFBGA169, 169 шариков
Линий ввода-вывода
134
Напряжение питания
1,62…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса UFBGA169

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32H563AIIxQ в корпусе UFBGA169, вид сверхуABCDEFGHJKLMN12345678910111213PI7 — шарик A1: DCMI_D7, PSSI_D7, SAI2_FS_A, TIM8_CH3PI7PI6 — шарик A2: DCMI_D6, PSSI_D6, SAI2_SD_A, TIM8_CH2PI6VDD — шарик A3VDDVCAP — шарик A4VCAPPB4(NJTRST) — шарик A5: DCMI_D7, DEBUG_NJTRST, I2S1_SDI, I2S2_WS, I2S3_SDI, LPTIM1_CH2, OCTOSPI1_CLK, PSSI_D7, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4VDDIO2 — шарик A6VDDIO2PD5 — шарик A7: FDCAN1_TX, FMC_NWE, OCTOSPI1_IO5, SPI2_RDY, TIM1_CH4N, USART2_TXPD5VDD — шарик A8VDDPC11 — шарик A9: ADC1_EXTI11, ADC2_EXTI11, DCMI_D4, I2S3_SDI, LPTIM3_IN1, OCTOSPI1_NCS, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PC10 — шарик A10: DCMI_D8, ETH_MII_TXD0, ETH_RMII_TXD0, I2S3_CK, LPTIM3_ETR, OCTOSPI1_IO1, PSSI_D8, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TXPC10VDD — шарик A11VDDPI3 — шарик A12: DCMI_D10, I2S2_SDO, PSSI_D10, SPI2_MOSI, TIM8_ETRPI3PH15 — шарик A13: ADC1_EXTI15, ADC2_EXTI15, DCMI_D11, PSSI_D11, TIM8_CH3NPH15VDD — шарик B1VDDVSS — шарик B2VSSPI5 — шарик B3: DCMI_VSYNC, PSSI_RDY, SAI2_SCK_A, TIM8_CH1PI5VSS — шарик B4VSSBOOT0 — шарик B5BOOT0PG15 — шарик B6: ADC1_EXTI15, ADC2_EXTI15, DCMI_D13, FMC_SDNCAS, PSSI_D13, SPI4_RDY, USART10_CK, USART6_CTS, USART6_NSSPG15PD7 — шарик B7: FMC_NCE, FMC_NE1, I2S1_SDO, LPTIM4_OUT, OCTOSPI1_IO7, SDMMC2_CMD, SPI1_MOSI, USART2_CKPD7VSS — шарик B8VSSPD1 — шарик B9: FDCAN1_TX, FMC_D3, FMC_DA3, UART4_TXPD1PA15(JTDI) — шарик B10: ADC1_EXTI15, ADC2_EXTI15, CEC, DCMI_D11, DEBUG_JTDI, FMC_NBL1, I2S1_WS, I2S3_WS, LPTIM3_IN2, PSSI_D11, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15VSS — шарик B11VSSPI0 — шарик B12: DCMI_D13, I2S2_WS, PSSI_D13, SPI2_NSS, TIM5_CH4PI0PA12 — шарик B13: FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_DPPA12VBAT — шарик C1VBATPE5 — шарик C2: DCMI_D6, DEBUG_TRACED2, FMC_A21, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TAMP_IN8, TAMP_OUT7, TIM15_CH1PE5PE2 — шарик C3: DCMI_D3, DEBUG_TRACECLK, ETH_MII_TXD3, FMC_A23, LPTIM1_IN2, OCTOSPI1_IO2, PSSI_D3, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, UART8_TX, USART10_RXPE2PI4 — шарик C4: DCMI_D5, PSSI_D5, SAI2_MCLK_A, SPI2_RDY, TIM8_BKINPI4PE1 — шарик C5: DCMI_D3, FDCAN1_TX, FMC_NBL1, LPTIM1_IN2, PSSI_D3, UART8_TXPE1PB6 — шарик C6: CEC, DCMI_D5, FDCAN2_TX, FMC_SDNE1, I2C1_SCL, I2C4_SCL, I3C1_SCL, LPUART1_TX, OCTOSPI1_NCS, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6PG10 — шарик C7: DCMI_D2, FMC_NE3, I2S1_WS, PSSI_D2, SAI2_SD_B, SDMMC2_D1, SPI1_NSSPG10PD3 — шарик C8: DCMI_D5, FMC_CLK, I2S2_CK, PSSI_D5, PWR_WKUP8, SPI2_SCK, USART2_CTS, USART2_NSSPD3PD0 — шарик C9: FDCAN1_RX, FMC_D2, FMC_DA2, TIM8_CH4N, UART4_RX, UART9_CTSPD0PA14(JTCK/SWCLK) — шарик C10: DEBUG_JTCK-SWCLKPA14PI1 — шарик C11: DCMI_D8, I2S2_CK, PSSI_D8, SPI2_SCK, TIM8_BKIN2PI1PH13 — шарик C12: DCMI_D3, FDCAN1_TX, LPTIM1_IN2, PSSI_D3, TIM8_CH1N, UART4_TX, UART8_TXPH13PA11 — шарик C13: ADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX, I2S2_WS, LPUART1_CTS, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_DMPA11PC14-OSC32_IN(OSC32_IN) — шарик D1: RCC_OSC32_INPC14PE6 — шарик D2: DCMI_D7, DEBUG_TRACED3, FMC_A22, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TAMP_IN3, TAMP_OUT6, TIM15_CH2, TIM1_BKIN2PE6PE4 — шарик D3: DCMI_D4, DEBUG_TRACED1, FMC_A20, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TAMP_IN7, TAMP_OUT8, TIM15_CH1NPE4PE3 — шарик D4: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM15_BKIN, USART10_TXPE3PE0 — шарик D5: DCMI_D2, FDCAN1_RX, FMC_NBL0, LPTIM1_ETR, LPTIM2_CH2, LPTIM2_ETR, PSSI_D2, SAI2_MCLK_A, SPI3_RDY, TIM4_ETR, UART8_RXPE0PB7 — шарик D6: DCMI_VSYNC, FDCAN1_TX, FMC_NL, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPUART1_RX, PSSI_RDY, PWR_WKUP5, SDMMC2_CKIN, SDMMC2_D5, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PG12 — шарик D7: DCMI_D11, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_NE4, LPTIM1_IN1, LPTIM5_CH1, PSSI_D11, PSSI_D15, SDMMC2_D3, SPI6_MISO, USART10_TX, USART6_DE, USART6_RTSPG12PD4 — шарик D8: FMC_NOE, OCTOSPI1_IO4, USART2_DE, USART2_RTSPD4PC12 — шарик D9: DCMI_D9, DEBUG_TRACED3, I2S3_SDO, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CKPC12PI2 — шарик D10: DCMI_D9, I2S2_SDI, PSSI_D9, SPI2_MISO, TIM8_CH4PI2PH14 — шарик D11: DCMI_D4, FDCAN1_RX, PSSI_D4, TIM8_CH2N, UART4_RXPH14PA13(JTMS/SWDIO) — шарик D12: DEBUG_JTMS-SWDIOPA13VDD — шарик D13VDDPC15-OSC32_OUT(OSC32_OUT) — шарик E1: ADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUTPC15PF0 — шарик E2: FMC_A0, I2C2_SDA, LPTIM5_CH1PF0PC13 — шарик E3: PWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3PC13PI8 — шарик E4: PWR_WKUP3, RTC_OUT2, TAMP_IN2, TAMP_OUT3PI8PB9 — шарик E5: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2S2_WS, I3C1_SDA, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_CKIN, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PB5 — шарик E6: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, OCTOSPI1_NCLK, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RXPB5PG9 — шарик E7: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, OCTOSPI1_IO6, PSSI_RDY, SAI2_FS_B, SDMMC2_D0, SPI1_MISO, USART6_RXPG9PD2 — шарик E8: DCMI_D11, DEBUG_TRACED2, LPTIM4_ETR, PSSI_D11, PWR_WKUP7, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RXPD2PC8 — шарик E9: DCMI_D2, DEBUG_TRACED1, FMC_ALE, FMC_INT, FMC_NCE, FMC_NE2, PSSI_D2, SDMMC1_D0, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PA8 — шарик E10: DCMI_D3, FMC_NOE, I2C3_SCL, PSSI_D3, RCC_MCO_1, SPI1_RDY, TIM1_CH1, TIM8_BKIN2, UART7_RX, USART1_CK, USB_SOFPA8PA10 — шарик E11: DCMI_D1, FDCAN2_TX, LPTIM2_IN2, LPUART1_RX, PSSI_D1, SDMMC1_D0, TIM1_CH3, UCPD1_FRSTX, USART1_RXPA10VSS — шарик E12VSSVDDUSB — шарик E13VDDUSBPF7 — шарик F1: LPTIM5_CH2, OCTOSPI1_IO2, SAI1_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TXPF7VSS — шарик F2VSSPF1 — шарик F3: FMC_A1, I2C2_SCL, LPTIM5_CH2PF1PF2 — шарик F4: FMC_A2, I2C2_SMBA, LPTIM3_CH2, LPTIM3_IN2, LPTIM5_IN1, UART12_TX, USART11_CKPF2PB8 — шарик F5: DCMI_D6, ETH_MII_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, I3C1_SCL, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI4_RDY, TIM16_CH1, TIM4_CH3, UART4_RXPB8PB3(JTDO/TRACESWO) — шарик F6: CRS_SYNC, DEBUG_JTDO-SWO, I2C2_SDA, I2S1_CK, I2S3_CK, LPTIM6_ETR, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART12_CTS, UART7_RXPB3PD6 — шарик F7: DCMI_D10, FMC_NWAIT, I2S3_SDO, OCTOSPI1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PG5 — шарик F8: FMC_A15, FMC_BA1, TIM1_ETRPG5PG7 — шарик F9: DCMI_D13, FMC_INT, I2C4_SCL, I3C1_SCL, PSSI_D13, SAI1_CK2, SAI1_MCLK_A, UCPD1_FRSTX, USART6_CKPG7PC6 — шарик F10: DCMI_D0, FMC_NWAIT, I2S2_MCK, OCTOSPI1_IO5, PSSI_D0, SAI1_SCK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, USART6_TXPC6PC7 — шарик F11: DCMI_D1, DEBUG_TRGIO, FMC_NE1, I2S3_MCK, OCTOSPI1_IO6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, USART6_RXPC7PC9 — шарик F12: AUDIOCLK, DAC1_EXTI9, DCMI_D3, FMC_CLE, I2C3_SDA, OCTOSPI1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, TIM8_CH4, UART5_CTS, UCPD1_DB2PC9PA9 — шарик F13: DAC1_EXTI9, DCMI_D0, ETH_MII_TX_ER, FMC_NWE, I2C3_SMBA, I2S2_CK, LPUART1_TX, PSSI_D0, SPI2_SCK, TIM1_CH2, UCPD1_DB1, USART1_TXPA9VDD — шарик G1VDDPF9 — шарик G2: DAC1_EXTI9, LPTIM5_IN2, OCTOSPI1_IO1, SAI1_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTSPF9PF5 — шарик G3: FMC_A5, I2C4_SCL, I3C1_SCL, LPTIM3_CH1, LPTIM3_IN1, UART12_RX, USART11_CTS, USART11_NSSPF5PF8 — шарик G4: LPTIM5_IN1, OCTOSPI1_IO0, SAI1_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPF8PF4 — шарик G5: FMC_A4, LPTIM3_ETR, USART11_RXPF4PF3 — шарик G6: FMC_A3, LPTIM3_IN1, LPTIM5_IN2, USART11_TXPF3PF6 — шарик G7: LPTIM5_CH1, OCTOSPI1_IO3, SAI1_SD_B, SPI5_NSS, TIM16_CH1, UART7_RXPF6PD13 — шарик G8: DCMI_D13, FMC_A18, I2C4_SDA, I3C1_SDA, LPTIM1_CH1, LPTIM2_CH1, LPTIM4_IN1, OCTOSPI1_IO3, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTSPD13PG3 — шарик G9: FMC_A13, LPTIM5_ETR, TIM8_BKIN2, UART12_TXPG3PD15 — шарик G10: ADC1_EXTI15, ADC2_EXTI15, FMC_D1, FMC_DA1, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TXPD15PG4 — шарик G11: FMC_A14, FMC_BA0, LPTIM4_ETR, TIM1_BKIN2PG4PG6 — шарик G12: DCMI_D12, FMC_NE3, I2C4_SDA, I3C1_SDA, OCTOSPI1_NCS, PSSI_D12, SPI1_RDY, TIM17_BKIN, UCPD1_FRSTXPG6PG8 — шарик G13: ETH_PPS_OUT, FMC_SDCLK, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTSPG8PH0-OSC_IN — шарик H1: RCC_OSC_INPH0VSS — шарик H2VSSNRST — шарик H3NRSTPF10 — шарик H4: DCMI_D11, OCTOSPI1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKINPF10PA1 — шарик H5: ADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, LPTIM1_IN1, OCTOSPI1_DQS, OCTOSPI1_IO3, SAI2_MCLK_B, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PB1 — шарик H6: ADC1_INP5, ADC2_INP5, ETH_MII_RXD3, LPTIM3_CH2, OCTOSPI1_IO0, TIM1_CH3N, TIM3_CH4, TIM8_CH3NPB1PF13 — шарик H7: ADC2_INP2, FMC_A7, I2C4_SMBA, LPTIM6_IN1PF13PD11 — шарик H8: ADC1_EXTI11, ADC2_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, OCTOSPI1_IO0, SAI1_CK1, SAI2_SD_A, UART4_RX, USART3_CTS, USART3_NSSPD11PD9 — шарик H9: DAC1_EXTI9, FDCAN2_RX, FMC_D14, FMC_DA14, USART3_RXPD9PB15 — шарик H10: ADC1_EXTI15, ADC2_EXTI15, DCMI_D2, ETH_MII_TXD1, ETH_RMII_TXD1, I2S2_SDO, OCTOSPI1_CLK, PSSI_D2, PWR_PVD_IN, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, UART5_RX, USART11_CTS, USART11_NSS, USART1_RXPB15PD12 — шарик H11: DCMI_D12, FMC_A17, FMC_ALE, I2C4_SCL, I3C1_SCL, LPTIM1_IN1, LPTIM2_IN1, OCTOSPI1_IO1, PSSI_D12, SAI1_D1, SAI2_FS_A, TIM4_CH1, UART4_TX, USART3_DE, USART3_RTSPD12PD14 — шарик H12: FMC_D0, FMC_DA0, TIM4_CH3, UART8_CTS, UART9_RXPD14PG2 — шарик H13: FMC_A12, LPTIM6_ETR, TIM8_BKIN, UART12_RXPG2PH1-OSC_OUT — шарик J1: RCC_OSC_OUTPH1PC0 — шарик J2: ADC1_INP10, ADC2_INP10, FMC_A25, FMC_SDNWE, OCTOSPI1_IO7, SAI1_MCLK_A, SAI2_FS_B, SPI2_RDY, TIM16_BKINPC0PC1 — шарик J3: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DEBUG_TRACED0, ETH_MDC, I2S2_SDO, OCTOSPI1_IO4, PWR_WKUP6, SAI1_D1, SAI1_SD_A, SAI2_SD_A, SDMMC2_CK, SPI2_MOSI, TAMP_IN3, TAMP_OUT5, USART11_DE, USART11_RTSPC1PH2 — шарик J4: ETH_MII_CRS, FMC_SDCKE0, LPTIM1_IN2, OCTOSPI1_IO4, SAI2_SCK_BPH2PA5 — шарик J5: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, PSSI_D14, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1NPA5PF11 — шарик J6: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMI_D12, FMC_SDNRAS, LPTIM6_CH1, OCTOSPI1_NCLK, PSSI_D12, SAI2_SD_B, SPI5_MOSIPF11PF15 — шарик J7: ADC1_EXTI15, ADC2_EXTI15, FMC_A9, I2C4_SDA, I3C1_SDAPF15PE8 — шарик J8: FMC_D5, FMC_DA5, OCTOSPI1_IO5, TIM1_CH1N, UART12_CTS, UART7_TXPE8PE14 — шарик J9: FMC_D11, FMC_DA11, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PB14 — шарик J10: I2S2_SDI, LPTIM3_ETR, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, UCPD1_CC2, USART1_TX, USART3_DE, USART3_RTSPB14PD8 — шарик J11: FMC_D13, FMC_DA13, USART3_TXPD8VSS — шарик J12VSSVDD — шарик J13VDDPC2 — шарик K1: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_SDNE0, I2S2_SDI, OCTOSPI1_IO2, OCTOSPI1_IO5, PWR_CSLEEP, SPI2_MISO, TIM17_CH1, TIM4_CH4PC2PC3 — шарик K2: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_SDCKE0, I2S2_SDO, LPTIM3_CH1, OCTOSPI1_IO0, OCTOSPI1_IO6, PWR_CSTOP, SAI1_D3, SPI2_MOSIPC3PA0 — шарик K3: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI3_RDY, SPI6_NSS, TAMP_IN2, TAMP_OUT1, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PA3 — шарик K4: ADC1_INP15, ADC2_INP15, ETH_MII_COL, I2S2_WS, OCTOSPI1_CLK, SAI1_SD_B, SPI2_NSS, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3PA7 — шарик K5: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_NWE, FMC_SDNWE, I2S1_SDO, OCTOSPI1_IO2, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART11_RXPA7PF12 — шарик K6: ADC1_INN2, ADC1_INP6, FMC_A6, LPTIM6_CH2PF12PG1 — шарик K7: FMC_A11, I2S2_SDO, SPI2_MOSI, UART9_TXPG1PE13 — шарик K8: FMC_D10, FMC_DA10, SAI2_FS_B, SPI4_MISO, TIM1_CH3PE13PB10 — шарик K9: ETH_MII_RX_ER, I2C2_SCL, I2S2_CK, LPTIM2_IN1, LPTIM3_CH1, OCTOSPI1_NCS, SPI2_SCK, TIM2_CH3, USART3_TXPB10PH10 — шарик K10: DCMI_D1, I2C4_SMBA, PSSI_D1, SPI5_RDY, TIM1_CH1N, TIM5_CH1, TIM8_CH3PH10PB12 — шарик K11: ETH_MII_TXD0, ETH_RMII_TXD0, FDCAN2_RX, I2C2_SDA, I2S2_WS, OCTOSPI1_NCLK, SPI2_NSS, TIM1_BKIN, UART5_RX, UCPD1_FRSTX, USART3_CKPB12PB13 — шарик K12: FDCAN2_TX, I2C2_SMBA, I2S2_CK, LPTIM2_CH1, LPTIM3_IN1, SDMMC1_D0, SPI2_SCK, TIM1_CH1N, UART5_TX, UCPD1_CC1, USART3_CTS, USART3_NSSPB13PD10 — шарик K13: FMC_D15, FMC_DA15, LPTIM2_CH2, USART3_CKPD10VSSA — шарик L1VSSAVREF- — шарик L2VREF-PA2 — шарик L3: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM1_IN2, PWR_WKUP2, SAI2_SCK_B, TAMP_IN4, TAMP_OUT3, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PH5 — шарик L4: FMC_SDNWE, I2C2_SDA, SPI5_NSS, SPI6_RDYPH5PC4 — шарик L5: ADC1_INP4, ADC2_INP4, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_SDNE0, I2S1_MCK, LPTIM2_ETR, SAI1_CK1, TIM2_CH4, USART3_RXPC4PF14 — шарик L6: ADC2_INN2, ADC2_INP6, FMC_A8, LPTIM6_IN2PF14PE7 — шарик L7: FMC_D4, FMC_DA4, OCTOSPI1_IO4, TIM1_ETR, UART12_DE, UART12_RTS, UART7_RXPE7PE10 — шарик L8: FMC_D7, FMC_DA7, OCTOSPI1_IO7, TIM1_CH2N, UART12_TX, UART7_CTSPE10PE15 — шарик L9: ADC1_EXTI15, ADC2_EXTI15, FMC_D12, FMC_DA12, TIM1_BKIN, TIM1_CH4N, USART10_CKPE15PB11 — шарик L10: ADC1_EXTI11, ADC2_EXTI11, ETH_MII_TX_EN, ETH_RMII_TX_EN, FMC_NBL1, I2C2_SDA, LPTIM2_ETR, SPI2_RDY, SPI4_RDY, TIM2_CH4, USART3_RXPB11PH7 — шарик L11: DCMI_D9, ETH_MII_RXD3, FMC_SDCKE1, I2C3_SCL, PSSI_D9, SPI5_MISO, TIM1_CH3, TIM8_CH1NPH7PH12 — шарик L12: DCMI_D3, I2C4_SDA, I3C1_SDA, PSSI_D3, TIM1_BKIN, TIM5_CH3, TIM8_BKIN, TIM8_CH4NPH12PH11 — шарик L13: ADC1_EXTI11, ADC2_EXTI11, DCMI_D2, I2C4_SCL, I3C1_SCL, PSSI_D2, TIM1_CH1, TIM5_CH2, TIM8_CH3NPH11VDDA — шарик M1VDDAVREF+ — шарик M2VREF+VSS — шарик M3VSSPA4 — шарик M4: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, I2S1_WS, I2S3_WS, LPTIM2_CH1, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CKPA4PC5 — шарик M5: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_SDCKE0, OCTOSPI1_DQS, PSSI_D15, SAI1_D3, SAI1_FS_A, TIM1_CH4N, UART12_DE, UART12_RTSPC5PG0 — шарик M6: FMC_A10, LPTIM4_IN1, UART9_RXPG0VSS — шарик M7VSSPE11 — шарик M8: ADC1_EXTI11, ADC2_EXTI11, FMC_D8, FMC_DA8, OCTOSPI1_NCS, SAI2_SD_B, SPI1_RDY, SPI4_NSS, TIM1_CH2PE11PE12 — шарик M9: FMC_D9, FMC_DA9, SAI2_SCK_B, SPI4_SCK, TIM1_CH3NPE12VSSSMPS — шарик M10VSSSMPSVSS — шарик M11VSSPH8 — шарик M12: DCMI_HSYNC, I2C3_SDA, PSSI_DE, SPI5_MOSI, TIM1_CH2N, TIM5_ETR, TIM8_CH2PH8PH9 — шарик M13: DAC1_EXTI9, DCMI_D0, I2C3_SMBA, PSSI_D0, SPI5_NSS, TIM12_CH2, TIM1_CH2, TIM8_CH2NPH9PH4 — шарик N1: I2C2_SCL, PSSI_D14, SPI5_RDY, SPI6_RDYPH4PH3 — шарик N2: ETH_MII_COL, FMC_SDNE0, OCTOSPI1_IO5, SAI2_MCLK_BPH3VDD — шарик N3VDDPA6 — шарик N4: ADC1_INP3, ADC2_INP3, DCMI_PIXCLK, I2S1_SDI, OCTOSPI1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART11_TXPA6PB0 — шарик N5: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH_MII_RXD2, LPTIM3_CH1, OCTOSPI1_IO1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USART11_CKPB0PB2 — шарик N6: I2S3_SDO, LPTIM1_CH1, LPTIM5_ETR, OCTOSPI1_CLK, OCTOSPI1_DQS, RCC_LSCO, RTC_OUT2, SAI1_D1, SAI1_SD_A, SDMMC1_CMD, SPI1_RDY, SPI3_MOSI, TIM8_CH4NPB2VDD — шарик N7VDDPE9 — шарик N8: DAC1_EXTI9, FMC_D6, FMC_DA6, OCTOSPI1_IO6, TIM1_CH1, UART12_RX, UART7_DE, UART7_RTSPE9VLXSMPS — шарик N9VLXSMPSVDDSMPS — шарик N10VDDSMPSVCAP — шарик N11VCAPVDD — шарик N12VDDPH6 — шарик N13: DCMI_D8, ETH_MII_RXD2, FMC_SDNE1, I2C2_SMBA, PSSI_D8, SPI5_SCK, TIM12_CH1, TIM1_CH3N, TIM8_CH1PH6UFBGA169, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнемуглу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

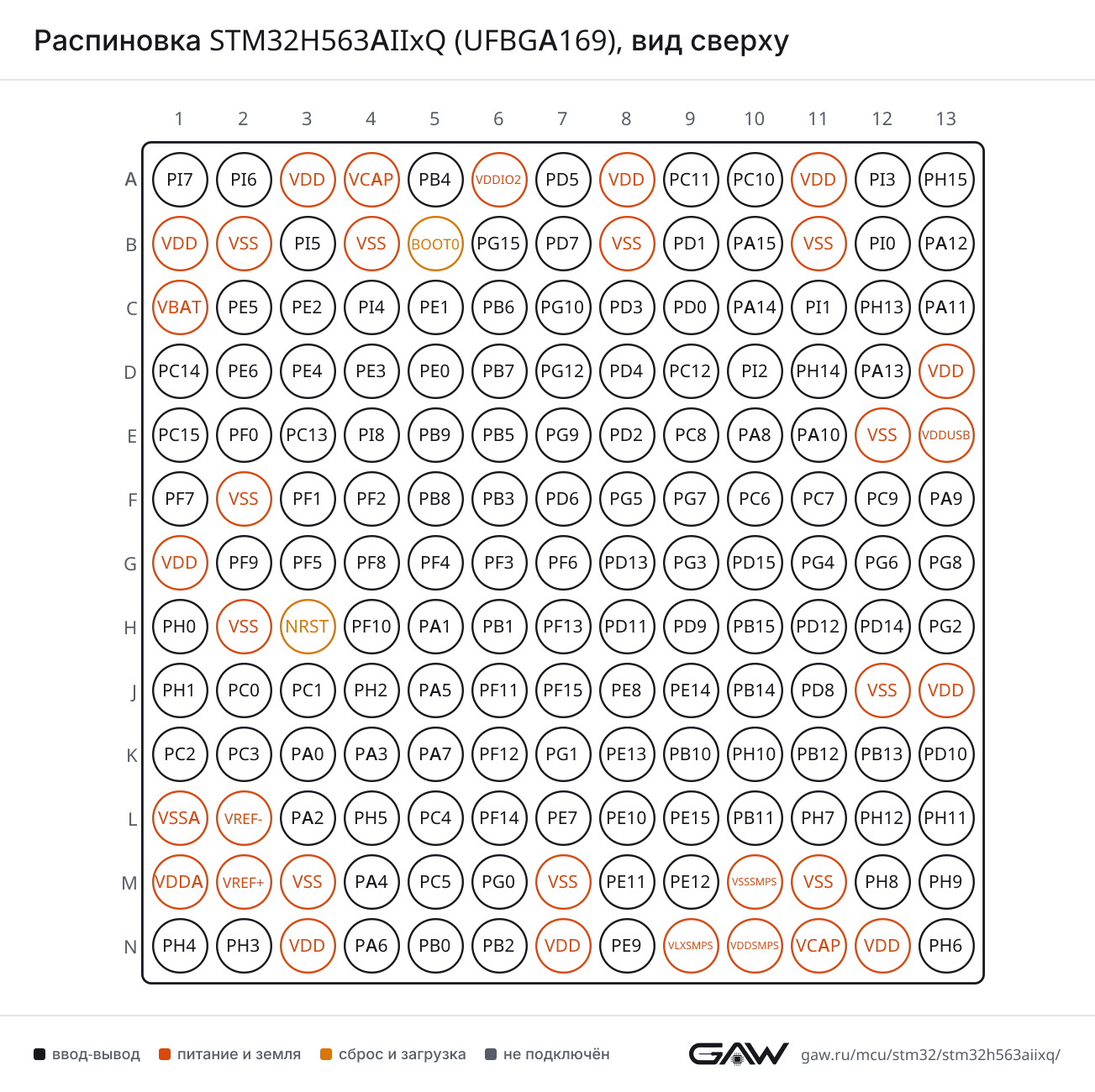

Распиновка STM32H563AIIxQ (UFBGA169), вид сверхуРаспиновка UFBGA169 картинкой
PNG, 1303 × 1300 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (E10, AF7)
CTSPA11 (C13, AF7)
DEPA12 (B13, AF7)
NSSPA11 (C13, AF7)
RTSPA12 (B13, AF7)
RXPB7 (D6, AF7), PA10 (E11, AF7), PB15 (H10, AF4)
TXPB6 (C6, AF7), PA9 (F13, AF7), PB14 (J10, AF4)
USART2CKPD7 (B7, AF7), PA4 (M4, AF7)
CTSPD3 (C8, AF7), PA0 (K3, AF7)
DEPD4 (D8, AF7), PA1 (H5, AF7)
NSSPD3 (C8, AF7), PA0 (K3, AF7)
RTSPD4 (D8, AF7), PA1 (H5, AF7)
RXPD6 (F7, AF7), PA3 (K4, AF7)
TXPD5 (A7, AF7), PA2 (L3, AF7)
USART3CKPC12 (D9, AF7), PB12 (K11, AF7), PD10 (K13, AF7)
CTSPD11 (H8, AF7), PB13 (K12, AF7)
DEPD12 (H11, AF7), PB14 (J10, AF7)
NSSPD11 (H8, AF7), PB13 (K12, AF7)
RTSPD12 (H11, AF7), PB14 (J10, AF7)
RXPC11 (A9, AF7), PD9 (H9, AF7), PC4 (L5, AF7), PB11 (L10, AF7)
TXPC10 (A10, AF7), PD8 (J11, AF7), PB10 (K9, AF7)
USART6CKPC8 (E9, AF7), PG7 (F9, AF7)
CTSPG15 (B6, AF7)
DEPG12 (D7, AF7), PG8 (G13, AF7)
NSSPG15 (B6, AF7)
RTSPG12 (D7, AF7), PG8 (G13, AF7)
RXPG9 (E7, AF7), PC7 (F11, AF7)
TXPC6 (F10, AF7)
USART10CKPG15 (B6, AF6), PE15 (L9, AF7)
RXPE2 (C3, AF7)
TXPE3 (D4, AF7), PG12 (D7, AF6)
USART11CKPF2 (F4, AF7), PB0 (N5, AF7)
CTSPF5 (G3, AF7), PB15 (H10, AF7)
DEPC1 (J3, AF7)
NSSPF5 (G3, AF7), PB15 (H10, AF7)
RTSPC1 (J3, AF7)
RXPF4 (G5, AF7), PA7 (K5, AF7)
TXPF3 (G6, AF7), PA6 (N4, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB15 (H10, AF8), PB0 (N5, AF8)
DEPA15(JTDI) (B10, AF8), PB14 (J10, AF8)
RTSPA15(JTDI) (B10, AF8), PB14 (J10, AF8)
RXPC11 (A9, AF8), PD0 (C9, AF8), PA11 (C13, AF6), PH14 (D11, AF8), PB8 (F5, AF8), PA1 (H5, AF8), PD11 (H8, AF8)
TXPC10 (A10, AF8), PD1 (B9, AF8), PA12 (B13, AF6), PH13 (C12, AF8), PB9 (E5, AF8), PD12 (H11, AF8), PA0 (K3, AF8)
UART5CTSPC9 (F12, AF8)
DEPC8 (E9, AF8)
RTSPC8 (E9, AF8)
RXPB5 (E6, AF14), PD2 (E8, AF8), PB15 (H10, AF14), PB12 (K11, AF14)
TXPB6 (C6, AF14), PC12 (D9, AF8), PB13 (K12, AF14)
UART7CTSPF9 (G2, AF7), PE10 (L8, AF7)
DEPF8 (G4, AF7), PE9 (N8, AF7)
RTSPF8 (G4, AF7), PE9 (N8, AF7)
RXPA8 (E10, AF11), PB3(JTDO/TRACESWO) (F6, AF11), PF6 (G7, AF7), PE7 (L7, AF7)
TXPB4(NJTRST) (A5, AF11), PA15(JTDI) (B10, AF11), PF7 (F1, AF7), PE8 (J8, AF7)
UART8CTSPD14 (H12, AF8)
DEPD15 (G10, AF8)
RTSPD15 (G10, AF8)
RXPE0 (D5, AF8)
TXPE2 (C3, AF8), PE1 (C5, AF8), PH13 (C12, AF7)
UART9CTSPD0 (C9, AF11)
DEPD13 (G8, AF11)
RTSPD13 (G8, AF11)
RXPD14 (H12, AF11), PG0 (M6, AF11)
TXPD15 (G10, AF11), PG1 (K7, AF11)
UART12CTSPB3(JTDO/TRACESWO) (F6, AF7), PE8 (J8, AF6)
DEPE7 (L7, AF6), PC5 (M5, AF7)
RTSPE7 (L7, AF6), PC5 (M5, AF7)
RXPF5 (G3, AF6), PG2 (H13, AF7), PE9 (N8, AF6)
TXPF2 (F4, AF6), PG3 (G9, AF7), PE10 (L8, AF6)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (C13, AF3)
DEPA12 (B13, AF3)
RTSPA12 (B13, AF3)
RXPB7 (D6, AF8), PA10 (E11, AF3)
TXPB6 (C6, AF8), PA9 (F13, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4(NJTRST) (A5, AF5), PG9 (E7, AF5), PA6 (N4, AF5)
MOSIPD7 (B7, AF5), PB5 (E6, AF5), PA7 (K5, AF5)
NSSPA15(JTDI) (B10, AF5), PG10 (C7, AF5), PA4 (M4, AF5)
RDYPA8 (E10, AF5), PG6 (G12, AF5), PE11 (M8, AF4), PB2 (N6, AF4)
SCKPB3(JTDO/TRACESWO) (F6, AF5), PA5 (J5, AF5)
SPI2MISOPI2 (D10, AF5), PB14 (J10, AF5), PC2 (K1, AF5)
MOSIPI3 (A12, AF5), PB15 (H10, AF5), PC1 (J3, AF5), PC3 (K2, AF5), PG1 (K7, AF7)
NSSPB4(NJTRST) (A5, AF7), PI0 (B12, AF5), PA11 (C13, AF5), PB9 (E5, AF5), PA3 (K4, AF5), PB12 (K11, AF5)
RDYPD5 (A7, AF5), PI4 (C4, AF7), PC0 (J2, AF7), PB11 (L10, AF5)
SCKPA12 (B13, AF5), PD3 (C8, AF5), PI1 (C11, AF5), PA9 (F13, AF5), PB10 (K9, AF5), PB13 (K12, AF5)
SPI3MISOPB4(NJTRST) (A5, AF6), PC11 (A9, AF6)
MOSIPC12 (D9, AF6), PB5 (E6, AF7), PD6 (F7, AF5), PB2 (N6, AF7)
NSSPA15(JTDI) (B10, AF6), PA4 (M4, AF6)
RDYPE0 (D5, AF6), PA0 (K3, AF6)
SCKPC10 (A10, AF6), PB3(JTDO/TRACESWO) (F6, AF6)
SPI4MISOPE5 (C2, AF5), PE13 (K8, AF5)
MOSIPE6 (D2, AF5), PE14 (J9, AF5)
NSSPE4 (D3, AF5), PE11 (M8, AF5)
RDYPG15 (B6, AF5), PB8 (F5, AF5), PB11 (L10, AF6)
SCKPE2 (C3, AF5), PE12 (M9, AF5)
SPI5MISOPF8 (G4, AF5), PH7 (L11, AF5)
MOSIPF9 (G2, AF5), PF11 (J6, AF5), PH8 (M12, AF5)
NSSPF6 (G7, AF5), PH5 (L4, AF5), PH9 (M13, AF5)
RDYPH10 (K10, AF5), PH4 (N1, AF5)
SCKPF7 (F1, AF5), PH6 (N13, AF5)
SPI6MISOPB4(NJTRST) (A5, AF8), PG12 (D7, AF5), PA6 (N4, AF8)
MOSIPB5 (E6, AF8), PA7 (K5, AF8)
NSSPA15(JTDI) (B10, AF7), PG8 (G13, AF5), PA0 (K3, AF5), PA4 (M4, AF8)
RDYPH5 (L4, AF7), PH4 (N1, AF7)
SCKPC12 (D9, AF5), PB3(JTDO/TRACESWO) (F6, AF8), PA5 (J5, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPB3(JTDO/TRACESWO) (F6, AF5), PA5 (J5, AF5)
MCKPC4 (L5, AF5)
SDIPB4(NJTRST) (A5, AF5), PG9 (E7, AF5), PA6 (N4, AF5)
SDOPD7 (B7, AF5), PB5 (E6, AF5), PA7 (K5, AF5)
WSPA15(JTDI) (B10, AF5), PG10 (C7, AF5), PA4 (M4, AF5)
I2S2CKPA12 (B13, AF5), PD3 (C8, AF5), PI1 (C11, AF5), PA9 (F13, AF5), PB10 (K9, AF5), PB13 (K12, AF5)
MCKPC6 (F10, AF5)
SDIPI2 (D10, AF5), PB14 (J10, AF5), PC2 (K1, AF5)
SDOPI3 (A12, AF5), PB15 (H10, AF5), PC1 (J3, AF5), PC3 (K2, AF5), PG1 (K7, AF7)
WSPB4(NJTRST) (A5, AF7), PI0 (B12, AF5), PA11 (C13, AF5), PB9 (E5, AF5), PA3 (K4, AF5), PB12 (K11, AF5)
I2S3CKPC10 (A10, AF6), PB3(JTDO/TRACESWO) (F6, AF6)
MCKPC7 (F11, AF6)
SDIPB4(NJTRST) (A5, AF6), PC11 (A9, AF6)
SDOPC12 (D9, AF6), PB5 (E6, AF7), PD6 (F7, AF5), PB2 (N6, AF7)
WSPA15(JTDI) (B10, AF6), PA4 (M4, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (C6, AF4), PB8 (F5, AF4)
SDAPB7 (D6, AF4), PB9 (E5, AF4)
SMBAPB5 (E6, AF4)
I2C2SCLPF1 (F3, AF4), PB10 (K9, AF4), PH4 (N1, AF4)
SDAPF0 (E2, AF4), PB3(JTDO/TRACESWO) (F6, AF4), PB12 (K11, AF4), PH5 (L4, AF4), PB11 (L10, AF4)
SMBAPF2 (F4, AF4), PB13 (K12, AF4), PH6 (N13, AF4)
I2C3SCLPA8 (E10, AF4), PH7 (L11, AF4)
SDAPC9 (F12, AF4), PH8 (M12, AF4)
SMBAPA9 (F13, AF4), PH9 (M13, AF4)
I2C4SCLPB6 (C6, AF6), PB8 (F5, AF6), PG7 (F9, AF4), PF5 (G3, AF4), PD12 (H11, AF4), PH11 (L13, AF4)
SDAPB7 (D6, AF6), PB9 (E5, AF6), PD13 (G8, AF4), PG6 (G12, AF4), PF15 (J7, AF4), PH12 (L12, AF4)
SMBAPB5 (E6, AF6), PF13 (H7, AF4), PD11 (H8, AF4), PH10 (K10, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPB6 (C6, AF3), PB8 (F5, AF3), PG7 (F9, AF3), PF5 (G3, AF5), PD12 (H11, AF5), PH11 (L13, AF5)
SDAPB7 (D6, AF3), PB9 (E5, AF3), PD13 (G8, AF5), PG6 (G12, AF3), PF15 (J7, AF5), PH12 (L12, AF5)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPD0 (C9, AF9), PA11 (C13, AF9), PE0 (D5, AF9), PH14 (D11, AF9), PB8 (F5, AF9)
TXPD5 (A7, AF9), PD1 (B9, AF9), PA12 (B13, AF9), PE1 (C5, AF9), PH13 (C12, AF9), PB7 (D6, AF9), PB9 (E5, AF9)
FDCAN2RXPB5 (E6, AF9), PD9 (H9, AF9), PB12 (K11, AF9)
TXPB6 (C6, AF9), PA10 (E11, AF9), PB13 (K12, AF9)

USB — USB Full Speed, устройство

БлокСигналВыводы
USBDMPA11 (C13, AF10)
DPPA12 (B13, AF10)
SOFPA8 (E10, AF10)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB13 (K12)
CC2PB14 (J10)
DB1PA9 (F13)
DB2PC9 (F12)
FRSTXPA10 (E11, AF6), PG7 (F9, AF11), PG6 (G12, AF11), PB12 (K11, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHMDCPC1 (J3, AF11)
MDIOPA2 (L3, AF11)
MII_COLPA3 (K4, AF11), PH3 (N2, AF11)
MII_CRSPH2 (J4, AF11), PA0 (K3, AF11)
MII_RX_CLKPA1 (H5, AF11)
MII_RX_DVPA7 (K5, AF11)
MII_RX_ERPB10 (K9, AF11)
MII_RXD0PC4 (L5, AF11)
MII_RXD1PC5 (M5, AF11)
MII_RXD2PB0 (N5, AF11), PH6 (N13, AF11)
MII_RXD3PB1 (H6, AF11), PH7 (L11, AF11)
MII_TX_CLKPC3 (K2, AF11)
MII_TX_ENPA5 (J5, AF11), PB11 (L10, AF11)
MII_TX_ERPA9 (F13, AF11)
MII_TXD0PC10 (A10, AF11), PB12 (K11, AF11)
MII_TXD1PG12 (D7, AF11), PB15 (H10, AF11)
MII_TXD2PC2 (K1, AF11)
MII_TXD3PE2 (C3, AF11), PB8 (F5, AF11)
PPS_OUTPB5 (E6, AF11), PG8 (G13, AF11)
RMII_CRS_DVPA7 (K5, AF11)
RMII_REF_CLKPA1 (H5, AF11)
RMII_RXD0PC4 (L5, AF11)
RMII_RXD1PC5 (M5, AF11)
RMII_TX_ENPA5 (J5, AF11), PB11 (L10, AF11)
RMII_TXD0PC10 (A10, AF11), PB12 (K11, AF11)
RMII_TXD1PG12 (D7, AF11), PB15 (H10, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (E5, AF7)
CKPC12 (D9, AF12)
CKINPB8 (F5, AF7)
CMDPD2 (E8, AF12), PB2 (N6, AF12)
D0PC8 (E9, AF12), PA10 (E11, AF12), PB13 (K12, AF12)
D0DIRPC6 (F10, AF8)
D1PC9 (F12, AF12)
D2PC10 (A10, AF12)
D3PC11 (A9, AF12)
D4PB8 (F5, AF12)
D5PB9 (E5, AF12)
D6PC6 (F10, AF12)
D7PC7 (F11, AF12)
D123DIRPC7 (F11, AF8)
SDMMC2CKPD6 (F7, AF11), PC1 (J3, AF9)
CKINPB7 (D6, AF11), PB9 (E5, AF11)
CMDPD7 (B7, AF11), PA0 (K3, AF9)
D0PG9 (E7, AF11), PB14 (J10, AF9)
D1PG10 (C7, AF11), PB15 (H10, AF9)
D2PB3(JTDO/TRACESWO) (F6, AF9)
D3PB4(NJTRST) (A5, AF9), PG12 (D7, AF10)
D4PB8 (F5, AF10)
D5PB7 (D6, AF10), PB9 (E5, AF10)
D6PC6 (F10, AF10)
D7PC7 (F11, AF10)

OCTOSPI — интерфейс Octo-SPI памяти

БлокСигналВыводы
OCTOSPI1CLKPB4(NJTRST) (A5, AF3), PF10 (H4, AF9), PB15 (H10, AF10), PA3 (K4, AF3), PB2 (N6, AF9)
DQSPA1 (H5, AF6), PC5 (M5, AF10), PB2 (N6, AF10)
IO0PC9 (F12, AF9), PF8 (G4, AF10), PB1 (H6, AF6), PD11 (H8, AF9), PC3 (K2, AF9)
IO1PC10 (A10, AF9), PF9 (G2, AF10), PD12 (H11, AF9), PB0 (N5, AF6)
IO2PE2 (C3, AF9), PF7 (F1, AF10), PC2 (K1, AF9), PA7 (K5, AF10)
IO3PF6 (G7, AF10), PD13 (G8, AF9), PA1 (H5, AF9), PA6 (N4, AF6)
IO4PD4 (D8, AF10), PC1 (J3, AF10), PH2 (J4, AF9), PE7 (L7, AF10)
IO5PD5 (A7, AF10), PC6 (F10, AF11), PE8 (J8, AF10), PC2 (K1, AF6), PH3 (N2, AF9)
IO6PG9 (E7, AF9), PD6 (F7, AF10), PC7 (F11, AF11), PC3 (K2, AF6), PE9 (N8, AF10)
IO7PD7 (B7, AF10), PC0 (J2, AF10), PE10 (L8, AF10)
NCLKPB5 (E6, AF3), PF11 (J6, AF9), PB12 (K11, AF3)
NCSPC11 (A9, AF9), PB6 (C6, AF10), PG6 (G12, AF10), PB10 (K9, AF9), PE11 (M8, AF6)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (C3, AF2), PD11 (H8, AF2), PC4 (L5, AF2)
CK2PE5 (C2, AF2), PG7 (F9, AF2)
D1PE6 (D2, AF2), PD6 (F7, AF2), PD12 (H11, AF6), PC1 (J3, AF2), PB2 (N6, AF2)
D2PE4 (D3, AF2)
D3PF10 (H4, AF2), PC3 (K2, AF2), PC5 (M5, AF2)
FS_APE4 (D3, AF6), PC5 (M5, AF6)
FS_BPF9 (G2, AF6)
MCLK_APE2 (C3, AF6), PG7 (F9, AF6), PC0 (J2, AF6)
MCLK_BPF7 (F1, AF6)
SCK_APE5 (C2, AF6), PC6 (F10, AF6)
SCK_BPF8 (G4, AF6)
SD_APE6 (D2, AF6), PD6 (F7, AF6), PC1 (J3, AF6), PB2 (N6, AF6)
SD_BPE3 (D4, AF6), PF6 (G7, AF6), PA3 (K4, AF6)
SAI2FS_API7 (A1, AF10), PD12 (H11, AF10)
FS_BPA12 (B13, AF8), PG9 (E7, AF10), PC0 (J2, AF8), PE13 (K8, AF10)
MCLK_API4 (C4, AF10), PE0 (D5, AF10)
MCLK_BPE6 (D2, AF10), PA1 (H5, AF10), PE14 (J9, AF10), PH3 (N2, AF10)
SCK_API5 (B3, AF10), PD13 (G8, AF10)
SCK_BPH2 (J4, AF10), PA2 (L3, AF8), PE12 (M9, AF10)
SD_API6 (A2, AF10), PD11 (H8, AF10), PC1 (J3, AF8)
SD_BPG10 (C7, AF10), PF11 (J6, AF10), PA0 (K3, AF10), PE11 (M8, AF10)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15(JTDI) (B10, AF4), PB6 (C6, AF5)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (A9), PA11 (C13), PD11 (H8), PF11 (J6), PB11 (L10), PH11 (L13), PE11 (M8)
EXTI15PH15 (A13), PG15 (B6), PA15(JTDI) (B10), PC15-OSC32_OUT(OSC32_OUT) (E1), PD15 (G10), PB15 (H10), PF15 (J7), PE15 (L9)
INN1PA0 (K3)
INN2PF12 (K6)
INN3PA7 (K5)
INN4PC5 (M5)
INN5PB0 (N5)
INN10PC1 (J3)
INN11PC2 (K1)
INN12PC3 (K2)
INN18PA5 (J5)
INP0PA0 (K3)
INP1PA1 (H5)
INP2PF11 (J6)
INP3PA6 (N4)
INP4PC4 (L5)
INP5PB1 (H6)
INP6PF12 (K6)
INP7PA7 (K5)
INP8PC5 (M5)
INP9PB0 (N5)
INP10PC0 (J2)
INP11PC1 (J3)
INP12PC2 (K1)
INP13PC3 (K2)
INP14PA2 (L3)
INP15PA3 (K4)
INP18PA4 (M4)
INP19PA5 (J5)
ADC2EXTI11PC11 (A9), PA11 (C13), PD11 (H8), PF11 (J6), PB11 (L10), PH11 (L13), PE11 (M8)
EXTI15PH15 (A13), PG15 (B6), PA15(JTDI) (B10), PC15-OSC32_OUT(OSC32_OUT) (E1), PD15 (G10), PB15 (H10), PF15 (J7), PE15 (L9)
INN1PA0 (K3)
INN2PF14 (L6)
INN3PA7 (K5)
INN4PC5 (M5)
INN5PB0 (N5)
INN10PC1 (J3)
INN11PC2 (K1)
INN12PC3 (K2)
INN18PA5 (J5)
INP0PA0 (K3)
INP1PA1 (H5)
INP2PF13 (H7)
INP3PA6 (N4)
INP4PC4 (L5)
INP5PB1 (H6)
INP6PF14 (L6)
INP7PA7 (K5)
INP8PC5 (M5)
INP9PB0 (N5)
INP10PC0 (J2)
INP11PC1 (J3)
INP12PC2 (K1)
INP13PC3 (K2)
INP14PA2 (L3)
INP15PA3 (K4)
INP18PA4 (M4)
INP19PA5 (J5)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (E5), PG9 (E7), PC9 (F12), PA9 (F13), PF9 (G2), PD9 (H9), PH9 (M13), PE9 (N8)
OUT1PA4 (M4)
OUT2PA5 (J5)

TIM — таймер

БлокСигналВыводы
TIM1BKINPB12 (K11, AF1), PE15 (L9, AF1), PH12 (L12, AF1), PA6 (N4, AF1)
BKIN2PE6 (D2, AF1), PG4 (G11, AF1)
CH1PA8 (E10, AF1), PH11 (L13, AF1), PE9 (N8, AF1)
CH1NPE8 (J8, AF1), PA7 (K5, AF1), PH10 (K10, AF1), PB13 (K12, AF1)
CH2PA9 (F13, AF1), PE11 (M8, AF1), PH9 (M13, AF1)
CH2NPB14 (J10, AF1), PE10 (L8, AF1), PH8 (M12, AF1), PB0 (N5, AF1)
CH3PA10 (E11, AF1), PE13 (K8, AF1), PH7 (L11, AF1)
CH3NPB1 (H6, AF1), PB15 (H10, AF1), PE12 (M9, AF1), PH6 (N13, AF1)
CH4PA11 (C13, AF1), PE14 (J9, AF1)
CH4NPD5 (A7, AF1), PE15 (L9, AF3), PC5 (M5, AF1)
ETRPA12 (B13, AF1), PG5 (F8, AF1), PE7 (L7, AF1)
TIM2CH1PA15(JTDI) (B10, AF1), PA5 (J5, AF1), PA0 (K3, AF1)
CH2PB3(JTDO/TRACESWO) (F6, AF1), PA1 (H5, AF1)
CH3PB10 (K9, AF1), PA2 (L3, AF1)
CH4PA3 (K4, AF1), PC4 (L5, AF1), PB11 (L10, AF1)
ETRPA15(JTDI) (B10, AF14), PA5 (J5, AF14), PA0 (K3, AF14)
TIM3CH1PB4(NJTRST) (A5, AF2), PC6 (F10, AF2), PA6 (N4, AF2)
CH2PB5 (E6, AF2), PC7 (F11, AF2), PA7 (K5, AF2)
CH3PC8 (E9, AF2), PB0 (N5, AF2)
CH4PC9 (F12, AF2), PB1 (H6, AF2)
ETRPD2 (E8, AF2)
TIM4CH1PB6 (C6, AF2), PD12 (H11, AF2)
CH2PB7 (D6, AF2), PD13 (G8, AF2)
CH3PB8 (F5, AF2), PD14 (H12, AF2)
CH4PB9 (E5, AF2), PD15 (G10, AF2), PC2 (K1, AF2)
ETRPE0 (D5, AF2)
TIM5CH1PA0 (K3, AF2), PH10 (K10, AF2)
CH2PA1 (H5, AF2), PH11 (L13, AF2)
CH3PA2 (L3, AF2), PH12 (L12, AF2)
CH4PI0 (B12, AF2), PA3 (K4, AF2)
ETRPA4 (M4, AF2), PH8 (M12, AF2)
TIM8BKINPI4 (C4, AF3), PG2 (H13, AF3), PH12 (L12, AF3), PA6 (N4, AF3)
BKIN2PI1 (C11, AF3), PA8 (E10, AF3), PG3 (G9, AF3)
CH1PI5 (B3, AF3), PC6 (F10, AF3), PH6 (N13, AF3)
CH1NPH13 (C12, AF3), PA5 (J5, AF3), PA7 (K5, AF3), PH7 (L11, AF3)
CH2PI6 (A2, AF3), PC7 (F11, AF3), PH8 (M12, AF3)
CH2NPH14 (D11, AF3), PB14 (J10, AF3), PH9 (M13, AF3), PB0 (N5, AF3)
CH3PI7 (A1, AF3), PC8 (E9, AF3), PH10 (K10, AF3)
CH3NPH15 (A13, AF3), PB1 (H6, AF3), PB15 (H10, AF3), PH11 (L13, AF3)
CH4PI2 (D10, AF3), PC9 (F12, AF3)
CH4NPD0 (C9, AF3), PH12 (L12, AF10), PB2 (N6, AF3)
ETRPI3 (A12, AF3), PG8 (G13, AF3), PA0 (K3, AF3)
TIM12CH1PB14 (J10, AF2), PH6 (N13, AF2)
CH2PB15 (H10, AF2), PH9 (M13, AF2)
TIM13CH1PF8 (G4, AF9), PA6 (N4, AF9)
TIM14CH1PF9 (G2, AF9), PA7 (K5, AF9)
TIM15BKINPE3 (D4, AF4), PD2 (E8, AF4), PA0 (K3, AF4)
CH1PE5 (C2, AF4), PC12 (D9, AF2), PA2 (L3, AF4)
CH1NPE4 (D3, AF4), PA1 (H5, AF4)
CH2PE6 (D2, AF4), PA3 (K4, AF4)
TIM16BKINPB4(NJTRST) (A5, AF1), PF10 (H4, AF1), PC0 (J2, AF1)
CH1PB8 (F5, AF1), PF6 (G7, AF1)
CH1NPB6 (C6, AF1), PF8 (G4, AF1)
TIM17BKINPB5 (E6, AF1), PG6 (G12, AF1)
CH1PB9 (E5, AF1), PF7 (F1, AF1), PC2 (K1, AF1)
CH1NPB7 (D6, AF1), PF9 (G2, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PD13 (G8, AF1), PB2 (N6, AF5)
CH2PB4(NJTRST) (A5, AF4)
ETRPE0 (D5, AF1)
IN1PG12 (D7, AF1), PA1 (H5, AF5), PD12 (H11, AF1)
IN2PE2 (C3, AF1), PE1 (C5, AF1), PH13 (C12, AF1), PH2 (J4, AF1), PA2 (L3, AF5)
LPTIM2CH1PD13 (G8, AF3), PB13 (K12, AF3), PA4 (M4, AF3)
CH2PE0 (D5, AF3), PD10 (K13, AF3)
ETRPE0 (D5, AF4), PC4 (L5, AF3), PB11 (L10, AF3)
IN1PD12 (H11, AF3), PB10 (K9, AF3)
IN2PA10 (E11, AF4), PD11 (H8, AF3)
LPTIM3CH1PF5 (G3, AF2), PC3 (K2, AF3), PB10 (K9, AF2), PB0 (N5, AF14)
CH2PF2 (F4, AF2), PB1 (H6, AF14)
ETRPC10 (A10, AF2), PF4 (G5, AF2), PB14 (J10, AF14)
IN1PC11 (A9, AF2), PF5 (G3, AF14), PF3 (G6, AF2), PB13 (K12, AF2)
IN2PA15(JTDI) (B10, AF2), PF2 (F4, AF3)
LPTIM4ETRPD2 (E8, AF14), PG4 (G11, AF14)
IN1PD13 (G8, AF14), PG0 (M6, AF14)
OUTPD7 (B7, AF14)
LPTIM5CH1PG12 (D7, AF14), PF0 (E2, AF13), PF6 (G7, AF13)
CH2PF7 (F1, AF13), PF1 (F3, AF13)
ETRPG3 (G9, AF13), PB2 (N6, AF13)
IN1PF2 (F4, AF13), PF8 (G4, AF13)
IN2PF9 (G2, AF13), PF3 (G6, AF13)
LPTIM6CH1PF11 (J6, AF14)
CH2PF12 (K6, AF14)
ETRPB3(JTDO/TRACESWO) (F6, AF14), PG2 (H13, AF14)
IN1PF13 (H7, AF14)
IN2PF14 (L6, AF14)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (E3)
OUT2PI8 (E4), PB2 (N6, AF0)
REFINPB15 (H10, AF0)
TSPC13 (E3)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (E2, AF12)
A1PF1 (F3, AF12)
A2PF2 (F4, AF12)
A3PF3 (G6, AF12)
A4PF4 (G5, AF12)
A5PF5 (G3, AF12)
A6PF12 (K6, AF12)
A7PF13 (H7, AF12)
A8PF14 (L6, AF12)
A9PF15 (J7, AF12)
A10PG0 (M6, AF12)
A11PG1 (K7, AF12)
A12PG2 (H13, AF12)
A13PG3 (G9, AF12)
A14PG4 (G11, AF12)
A15PG5 (F8, AF12)
A16PD11 (H8, AF12)
A17PD12 (H11, AF12)
A18PD13 (G8, AF12)
A19PE3 (D4, AF12)
A20PE4 (D3, AF12)
A21PE5 (C2, AF12)
A22PE6 (D2, AF12)
A23PE2 (C3, AF12)
A25PC0 (J2, AF9)
ALEPC8 (E9, AF11), PD12 (H11, AF12)
BA0PG4 (G11, AF12)
BA1PG5 (F8, AF12)
CLEPC9 (F12, AF11), PD11 (H8, AF12)
CLKPD3 (C8, AF12)
D0PD14 (H12, AF12)
D1PD15 (G10, AF12)
D2PD0 (C9, AF12)
D3PD1 (B9, AF12)
D4PE7 (L7, AF12)
D5PE8 (J8, AF12)
D6PE9 (N8, AF12)
D7PE10 (L8, AF12)
D8PE11 (M8, AF12)
D9PE12 (M9, AF12)
D10PE13 (K8, AF12)
D11PE14 (J9, AF12)
D12PE15 (L9, AF12)
D13PD8 (J11, AF12)
D14PD9 (H9, AF12)
D15PD10 (K13, AF12)
DA0PD14 (H12, AF12)
DA1PD15 (G10, AF12)
DA2PD0 (C9, AF12)
DA3PD1 (B9, AF12)
DA4PE7 (L7, AF12)
DA5PE8 (J8, AF12)
DA6PE9 (N8, AF12)
DA7PE10 (L8, AF12)
DA8PE11 (M8, AF12)
DA9PE12 (M9, AF12)
DA10PE13 (K8, AF12)
DA11PE14 (J9, AF12)
DA12PE15 (L9, AF12)
DA13PD8 (J11, AF12)
DA14PD9 (H9, AF12)
DA15PD10 (K13, AF12)
INTPC8 (E9, AF10), PG7 (F9, AF12)
NBL0PE0 (D5, AF12)
NBL1PA15(JTDI) (B10, AF12), PE1 (C5, AF12), PB11 (L10, AF12)
NCEPD7 (B7, AF12), PG9 (E7, AF12), PC8 (E9, AF9)
NE1PD7 (B7, AF12), PC7 (F11, AF9)
NE2PG9 (E7, AF12), PC8 (E9, AF9)
NE3PG10 (C7, AF12), PG6 (G12, AF12)
NE4PG12 (D7, AF12)
NLPB7 (D6, AF12)
NOEPD4 (D8, AF12), PA8 (E10, AF12)
NWAITPD6 (F7, AF12), PC6 (F10, AF9)
NWEPD5 (A7, AF12), PA9 (F13, AF12), PA7 (K5, AF13)
SDCKE0PH2 (J4, AF12), PC3 (K2, AF12), PC5 (M5, AF12)
SDCKE1PB5 (E6, AF12), PH7 (L11, AF12)
SDCLKPG8 (G13, AF12)
SDNCASPG15 (B6, AF12)
SDNE0PC2 (K1, AF12), PC4 (L5, AF12), PH3 (N2, AF12)
SDNE1PB6 (C6, AF12), PH6 (N13, AF12)
SDNRASPF11 (J6, AF12)
SDNWEPC0 (J2, AF12), PA7 (K5, AF12), PH5 (L4, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PC6 (F10, AF13), PA9 (F13, AF13), PH9 (M13, AF13)
D1PA10 (E11, AF13), PC7 (F11, AF13), PH10 (K10, AF13)
D2PG10 (C7, AF13), PE0 (D5, AF13), PC8 (E9, AF13), PB15 (H10, AF13), PH11 (L13, AF13)
D3PE2 (C3, AF13), PE1 (C5, AF13), PH13 (C12, AF13), PA8 (E10, AF13), PC9 (F12, AF13), PH12 (L12, AF13)
D4PC11 (A9, AF13), PE4 (D3, AF13), PH14 (D11, AF13)
D5PI4 (C4, AF13), PB6 (C6, AF13), PD3 (C8, AF13)
D6PI6 (A2, AF13), PE5 (C2, AF13), PB8 (F5, AF13)
D7PI7 (A1, AF13), PB4(NJTRST) (A5, AF13), PE6 (D2, AF13), PB9 (E5, AF13)
D8PC10 (A10, AF13), PI1 (C11, AF13), PH6 (N13, AF13)
D9PC12 (D9, AF13), PI2 (D10, AF13), PH7 (L11, AF13)
D10PI3 (A12, AF13), PB5 (E6, AF13), PD6 (F7, AF13)
D11PH15 (A13, AF13), PA15(JTDI) (B10, AF13), PG12 (D7, AF13), PD2 (E8, AF13), PF10 (H4, AF13)
D12PG6 (G12, AF13), PD12 (H11, AF13), PF11 (J6, AF13)
D13PG15 (B6, AF13), PI0 (B12, AF13), PG7 (F9, AF13), PD13 (G8, AF13)
HSYNCPA4 (M4, AF13), PH8 (M12, AF13)
PIXCLKPA6 (N4, AF13)
VSYNCPI5 (B3, AF13), PB7 (D6, AF13), PG9 (E7, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PC6 (F10, AF13), PA9 (F13, AF13), PH9 (M13, AF13)
D1PA10 (E11, AF13), PC7 (F11, AF13), PH10 (K10, AF13)
D2PG10 (C7, AF13), PE0 (D5, AF13), PC8 (E9, AF13), PB15 (H10, AF13), PH11 (L13, AF13)
D3PE2 (C3, AF13), PE1 (C5, AF13), PH13 (C12, AF13), PA8 (E10, AF13), PC9 (F12, AF13), PH12 (L12, AF13)
D4PC11 (A9, AF13), PE4 (D3, AF13), PH14 (D11, AF13)
D5PI4 (C4, AF13), PB6 (C6, AF13), PD3 (C8, AF13)
D6PI6 (A2, AF13), PE5 (C2, AF13), PB8 (F5, AF13)
D7PI7 (A1, AF13), PB4(NJTRST) (A5, AF13), PE6 (D2, AF13), PB9 (E5, AF13)
D8PC10 (A10, AF13), PI1 (C11, AF13), PH6 (N13, AF13)
D9PC12 (D9, AF13), PI2 (D10, AF13), PH7 (L11, AF13)
D10PI3 (A12, AF13), PB5 (E6, AF13), PD6 (F7, AF13)
D11PH15 (A13, AF13), PA15(JTDI) (B10, AF13), PG12 (D7, AF13), PD2 (E8, AF13), PF10 (H4, AF13)
D12PG6 (G12, AF13), PD12 (H11, AF13), PF11 (J6, AF13)
D13PG15 (B6, AF13), PI0 (B12, AF13), PG7 (F9, AF13), PD13 (G8, AF13)
D14PA5 (J5, AF13), PH4 (N1, AF13)
D15PG12 (D7, AF4), PF10 (H4, AF4), PC5 (M5, AF4)
DEPA4 (M4, AF13), PH8 (M12, AF13)
PDCKPA6 (N4, AF13)
RDYPI5 (B3, AF13), PB7 (D6, AF13), PG9 (E7, AF13)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14(JTCK/SWCLK) (C10, AF0)
JTDIPA15(JTDI) (B10, AF0)
JTDO-SWOPB3(JTDO/TRACESWO) (F6, AF0)
JTMS-SWDIOPA13(JTMS/SWDIO) (D12, AF0)
NJTRSTPB4(NJTRST) (A5, AF0)
TRACECLKPE2 (C3, AF0)
TRACED0PE3 (D4, AF0), PC1 (J3, AF0)
TRACED1PE4 (D3, AF0), PC8 (E9, AF0)
TRACED2PE5 (C2, AF0), PD2 (E8, AF0)
TRACED3PE6 (D2, AF0), PC12 (D9, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPB2 (N6)
MCO_1PA8 (E10, AF0)
MCO_2PC9 (F12, AF0)
OSC_INPH0-OSC_IN (H1)
OSC_OUTPH1-OSC_OUT (J1)
OSC32_INPC14-OSC32_IN(OSC32_IN) (D1)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (E1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC2 (K1, AF0)
PWR_CSTOPPC3 (K2, AF0)
PWR_WKUP1PA0 (K3)
PWR_WKUP2PA2 (L3)
PWR_WKUP3PI8 (E4)
PWR_WKUP4PC13 (E3)
PWR_WKUP5PB7 (D6)
PWR_WKUP6PC1 (J3)
PWR_WKUP7PD2 (E8)
PWR_WKUP8PD3 (C8)
TAMP_IN1PC13 (E3)
TAMP_IN2PI8 (E4), PA0 (K3)
TAMP_IN3PE6 (D2), PC1 (J3)
TAMP_IN4PA2 (L3)
TAMP_IN5PA1 (H5)
TAMP_IN6PE3 (D4)
TAMP_IN7PE4 (D3)
TAMP_IN8PE5 (C2)
TAMP_OUT1PA0 (K3)
TAMP_OUT2PC13 (E3)
TAMP_OUT3PE3 (D4), PC13 (E3), PI8 (E4), PA2 (L3)
TAMP_OUT4PA1 (H5)
TAMP_OUT5PC1 (J3)
TAMP_OUT6PE6 (D2)
TAMP_OUT7PE5 (C2)
TAMP_OUT8PE4 (D3)

Блоки без собственных выводов: HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 169 шариков корпуса UFBGA169 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PI7ввод-выводDCMI_D7 (AF13), PSSI_D7 (AF13), SAI2_FS_A (AF10), TIM8_CH3 (AF3)
A2PI6ввод-выводDCMI_D6 (AF13), PSSI_D6 (AF13), SAI2_SD_A (AF10), TIM8_CH2 (AF3)
A3VDDпитание—
A4VCAPпитание—
A5PB4(NJTRST)ввод-выводDCMI_D7 (AF13), DEBUG_NJTRST (AF0), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), LPTIM1_CH2 (AF4), OCTOSPI1_CLK (AF3), PSSI_D7 (AF13), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
A6VDDIO2питание—
A7PD5ввод-выводFDCAN1_TX (AF9), FMC_NWE (AF12), OCTOSPI1_IO5 (AF10), SPI2_RDY (AF5), TIM1_CH4N (AF1), USART2_TX (AF7)
A8VDDпитание—
A9PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D4 (AF13), I2S3_SDI (AF6), LPTIM3_IN1 (AF2), OCTOSPI1_NCS (AF9), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
A10PC10ввод-выводDCMI_D8 (AF13), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), I2S3_CK (AF6), LPTIM3_ETR (AF2), OCTOSPI1_IO1 (AF9), PSSI_D8 (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
A11VDDпитание—
A12PI3ввод-выводDCMI_D10 (AF13), I2S2_SDO (AF5), PSSI_D10 (AF13), SPI2_MOSI (AF5), TIM8_ETR (AF3)
A13PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMI_D11 (AF13), PSSI_D11 (AF13), TIM8_CH3N (AF3)
B1VDDпитание—
B2VSSпитание—
B3PI5ввод-выводDCMI_VSYNC (AF13), PSSI_RDY (AF13), SAI2_SCK_A (AF10), TIM8_CH1 (AF3)
B4VSSпитание—
B5BOOT0загрузка—
B6PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), PSSI_D13 (AF13), SPI4_RDY (AF5), USART10_CK (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
B7PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), I2S1_SDO (AF5), LPTIM4_OUT (AF14), OCTOSPI1_IO7 (AF10), SDMMC2_CMD (AF11), SPI1_MOSI (AF5), USART2_CK (AF7)
B8VSSпитание—
B9PD1ввод-выводFDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), UART4_TX (AF8)
B10PA15(JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, CEC (AF4), DCMI_D11 (AF13), DEBUG_JTDI (AF0), FMC_NBL1 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM3_IN2 (AF2), PSSI_D11 (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF14), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
B11VSSпитание—
B12PI0ввод-выводDCMI_D13 (AF13), I2S2_WS (AF5), PSSI_D13 (AF13), SPI2_NSS (AF5), TIM5_CH4 (AF2)
B13PA12ввод-выводFDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), SAI2_FS_B (AF8), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_DP (AF10)
C1VBATпитание—
C2PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), FMC_A21 (AF12), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TAMP_IN8, TAMP_OUT7, TIM15_CH1 (AF4)
C3PE2ввод-выводDCMI_D3 (AF13), DEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_A23 (AF12), LPTIM1_IN2 (AF1), OCTOSPI1_IO2 (AF9), PSSI_D3 (AF13), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), UART8_TX (AF8), USART10_RX (AF7)
C4PI4ввод-выводDCMI_D5 (AF13), PSSI_D5 (AF13), SAI2_MCLK_A (AF10), SPI2_RDY (AF7), TIM8_BKIN (AF3)
C5PE1ввод-выводDCMI_D3 (AF13), FDCAN1_TX (AF9), FMC_NBL1 (AF12), LPTIM1_IN2 (AF1), PSSI_D3 (AF13), UART8_TX (AF8)
C6PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LPUART1_TX (AF8), OCTOSPI1_NCS (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
C7PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), I2S1_WS (AF5), PSSI_D2 (AF13), SAI2_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5)
C8PD3ввод-выводDCMI_D5 (AF13), FMC_CLK (AF12), I2S2_CK (AF5), PSSI_D5 (AF13), PWR_WKUP8, SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
C9PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), TIM8_CH4N (AF3), UART4_RX (AF8), UART9_CTS (AF11)
C10PA14(JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
C11PI1ввод-выводDCMI_D8 (AF13), I2S2_CK (AF5), PSSI_D8 (AF13), SPI2_SCK (AF5), TIM8_BKIN2 (AF3)
C12PH13ввод-выводDCMI_D3 (AF13), FDCAN1_TX (AF9), LPTIM1_IN2 (AF1), PSSI_D3 (AF13), TIM8_CH1N (AF3), UART4_TX (AF8), UART8_TX (AF7)
C13PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX (AF9), I2S2_WS (AF5), LPUART1_CTS (AF3), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_DM (AF10)
D1PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
D2PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TAMP_IN3, TAMP_OUT6, TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
D3PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), FMC_A20 (AF12), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TAMP_IN7, TAMP_OUT8, TIM15_CH1N (AF4)
D4PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), TAMP_IN6, TAMP_OUT3, TIM15_BKIN (AF4), USART10_TX (AF7)
D5PE0ввод-выводDCMI_D2 (AF13), FDCAN1_RX (AF9), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_CH2 (AF3), LPTIM2_ETR (AF4), PSSI_D2 (AF13), SAI2_MCLK_A (AF10), SPI3_RDY (AF6), TIM4_ETR (AF2), UART8_RX (AF8)
D6PB7ввод-выводDCMI_VSYNC (AF13), FDCAN1_TX (AF9), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), I3C1_SDA (AF3), LPUART1_RX (AF8), PSSI_RDY (AF13), PWR_WKUP5, SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
D7PG12ввод-выводDCMI_D11 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_NE4 (AF12), LPTIM1_IN1 (AF1), LPTIM5_CH1 (AF14), PSSI_D11 (AF13), PSSI_D15 (AF4), SDMMC2_D3 (AF10), SPI6_MISO (AF5), USART10_TX (AF6), USART6_DE (AF7), USART6_RTS (AF7)
D8PD4ввод-выводFMC_NOE (AF12), OCTOSPI1_IO4 (AF10), USART2_DE (AF7), USART2_RTS (AF7)
D9PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), I2S3_SDO (AF6), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
D10PI2ввод-выводDCMI_D9 (AF13), I2S2_SDI (AF5), PSSI_D9 (AF13), SPI2_MISO (AF5), TIM8_CH4 (AF3)
D11PH14ввод-выводDCMI_D4 (AF13), FDCAN1_RX (AF9), PSSI_D4 (AF13), TIM8_CH2N (AF3), UART4_RX (AF8)
D12PA13(JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
D13VDDпитание—
E1PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT
E2PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), LPTIM5_CH1 (AF13)
E3PC13ввод-выводPWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3
E4PI8ввод-выводPWR_WKUP3, RTC_OUT2, TAMP_IN2, TAMP_OUT3
E5PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2S2_WS (AF5), I3C1_SDA (AF3), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
E6PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), OCTOSPI1_NCLK (AF3), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14)
E7PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), OCTOSPI1_IO6 (AF9), PSSI_RDY (AF13), SAI2_FS_B (AF10), SDMMC2_D0 (AF11), SPI1_MISO (AF5), USART6_RX (AF7)
E8PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), LPTIM4_ETR (AF14), PSSI_D11 (AF13), PWR_WKUP7, SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
E9PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_ALE (AF11), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), PSSI_D2 (AF13), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
E10PA8ввод-выводDCMI_D3 (AF13), FMC_NOE (AF12), I2C3_SCL (AF4), PSSI_D3 (AF13), RCC_MCO_1 (AF0), SPI1_RDY (AF5), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), UART7_RX (AF11), USART1_CK (AF7), USB_SOF (AF10)
E11PA10ввод-выводDCMI_D1 (AF13), FDCAN2_TX (AF9), LPTIM2_IN2 (AF4), LPUART1_RX (AF3), PSSI_D1 (AF13), SDMMC1_D0 (AF12), TIM1_CH3 (AF1), UCPD1_FRSTX (AF6), USART1_RX (AF7)
E12VSSпитание—
E13VDDUSBпитание—
F1PF7ввод-выводLPTIM5_CH2 (AF13), OCTOSPI1_IO2 (AF10), SAI1_MCLK_B (AF6), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
F2VSSпитание—
F3PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), LPTIM5_CH2 (AF13)
F4PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), LPTIM3_IN2 (AF3), LPTIM5_IN1 (AF13), UART12_TX (AF6), USART11_CK (AF7)
F5PB8ввод-выводDCMI_D6 (AF13), ETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), SPI4_RDY (AF5), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
F6PB3(JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2C2_SDA (AF4), I2S1_CK (AF5), I2S3_CK (AF6), LPTIM6_ETR (AF14), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART12_CTS (AF7), UART7_RX (AF11)
F7PD6ввод-выводDCMI_D10 (AF13), FMC_NWAIT (AF12), I2S3_SDO (AF5), OCTOSPI1_IO6 (AF10), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
F8PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
F9PG7ввод-выводDCMI_D13 (AF13), FMC_INT (AF12), I2C4_SCL (AF4), I3C1_SCL (AF3), PSSI_D13 (AF13), SAI1_CK2 (AF2), SAI1_MCLK_A (AF6), UCPD1_FRSTX (AF11), USART6_CK (AF7)
F10PC6ввод-выводDCMI_D0 (AF13), FMC_NWAIT (AF9), I2S2_MCK (AF5), OCTOSPI1_IO5 (AF11), PSSI_D0 (AF13), SAI1_SCK_A (AF6), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
F11PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), FMC_NE1 (AF9), I2S3_MCK (AF6), OCTOSPI1_IO6 (AF11), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
F12PC9ввод-выводAUDIOCLK (AF5), DAC1_EXTI9, DCMI_D3 (AF13), FMC_CLE (AF11), I2C3_SDA (AF4), OCTOSPI1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8), UCPD1_DB2
F13PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_MII_TX_ER (AF11), FMC_NWE (AF12), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), UCPD1_DB1, USART1_TX (AF7)
G1VDDпитание—
G2PF9ввод-выводDAC1_EXTI9, LPTIM5_IN2 (AF13), OCTOSPI1_IO1 (AF10), SAI1_FS_B (AF6), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
G3PF5ввод-выводFMC_A5 (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM3_CH1 (AF2), LPTIM3_IN1 (AF14), UART12_RX (AF6), USART11_CTS (AF7), USART11_NSS (AF7)
G4PF8ввод-выводLPTIM5_IN1 (AF13), OCTOSPI1_IO0 (AF10), SAI1_SCK_B (AF6), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
G5PF4ввод-выводFMC_A4 (AF12), LPTIM3_ETR (AF2), USART11_RX (AF7)
G6PF3ввод-выводFMC_A3 (AF12), LPTIM3_IN1 (AF2), LPTIM5_IN2 (AF13), USART11_TX (AF7)
G7PF6ввод-выводLPTIM5_CH1 (AF13), OCTOSPI1_IO3 (AF10), SAI1_SD_B (AF6), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
G8PD13ввод-выводDCMI_D13 (AF13), FMC_A18 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5), LPTIM1_CH1 (AF1), LPTIM2_CH1 (AF3), LPTIM4_IN1 (AF14), OCTOSPI1_IO3 (AF9), PSSI_D13 (AF13), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
G9PG3ввод-выводFMC_A13 (AF12), LPTIM5_ETR (AF13), TIM8_BKIN2 (AF3), UART12_TX (AF7)
G10PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
G11PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), LPTIM4_ETR (AF14), TIM1_BKIN2 (AF1)
G12PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF3), OCTOSPI1_NCS (AF10), PSSI_D12 (AF13), SPI1_RDY (AF5), TIM17_BKIN (AF1), UCPD1_FRSTX (AF11)
G13PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
H1PH0-OSC_INввод-выводRCC_OSC_IN
H2VSSпитание—
H3NRSTсброс—
H4PF10ввод-выводDCMI_D11 (AF13), OCTOSPI1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), TIM16_BKIN (AF1)
H5PA1ввод-выводADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), LPTIM1_IN1 (AF5), OCTOSPI1_DQS (AF6), OCTOSPI1_IO3 (AF9), SAI2_MCLK_B (AF10), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
H6PB1ввод-выводADC1_INP5, ADC2_INP5, ETH_MII_RXD3 (AF11), LPTIM3_CH2 (AF14), OCTOSPI1_IO0 (AF6), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3)
H7PF13ввод-выводADC2_INP2, FMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM6_IN1 (AF14)
H8PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), OCTOSPI1_IO0 (AF9), SAI1_CK1 (AF2), SAI2_SD_A (AF10), UART4_RX (AF8), USART3_CTS (AF7), USART3_NSS (AF7)
H9PD9ввод-выводDAC1_EXTI9, FDCAN2_RX (AF9), FMC_D14 (AF12), FMC_DA14 (AF12), USART3_RX (AF7)
H10PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMI_D2 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), I2S2_SDO (AF5), OCTOSPI1_CLK (AF10), PSSI_D2 (AF13), PWR_PVD_IN, RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), UART5_RX (AF14), USART11_CTS (AF7), USART11_NSS (AF7), USART1_RX (AF4)
H11PD12ввод-выводDCMI_D12 (AF13), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), OCTOSPI1_IO1 (AF9), PSSI_D12 (AF13), SAI1_D1 (AF6), SAI2_FS_A (AF10), TIM4_CH1 (AF2), UART4_TX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
H12PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
H13PG2ввод-выводFMC_A12 (AF12), LPTIM6_ETR (AF14), TIM8_BKIN (AF3), UART12_RX (AF7)
J1PH1-OSC_OUTввод-выводRCC_OSC_OUT
J2PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_A25 (AF9), FMC_SDNWE (AF12), OCTOSPI1_IO7 (AF10), SAI1_MCLK_A (AF6), SAI2_FS_B (AF8), SPI2_RDY (AF7), TIM16_BKIN (AF1)
J3PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DEBUG_TRACED0 (AF0), ETH_MDC (AF11), I2S2_SDO (AF5), OCTOSPI1_IO4 (AF10), PWR_WKUP6, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5), TAMP_IN3, TAMP_OUT5, USART11_DE (AF7), USART11_RTS (AF7)
J4PH2ввод-выводETH_MII_CRS (AF11), FMC_SDCKE0 (AF12), LPTIM1_IN2 (AF1), OCTOSPI1_IO4 (AF9), SAI2_SCK_B (AF10)
J5PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), PSSI_D14 (AF13), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1N (AF3)
J6PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), LPTIM6_CH1 (AF14), OCTOSPI1_NCLK (AF9), PSSI_D12 (AF13), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
J7PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5)
J8PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), OCTOSPI1_IO5 (AF10), TIM1_CH1N (AF1), UART12_CTS (AF6), UART7_TX (AF7)
J9PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
J10PB14ввод-выводI2S2_SDI (AF5), LPTIM3_ETR (AF14), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC2, USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
J11PD8ввод-выводFMC_D13 (AF12), FMC_DA13 (AF12), USART3_TX (AF7)
J12VSSпитание—
J13VDDпитание—
K1PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_SDNE0 (AF12), I2S2_SDI (AF5), OCTOSPI1_IO2 (AF9), OCTOSPI1_IO5 (AF6), PWR_CSLEEP (AF0), SPI2_MISO (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2)
K2PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), LPTIM3_CH1 (AF3), OCTOSPI1_IO0 (AF9), OCTOSPI1_IO6 (AF6), PWR_CSTOP (AF0), SAI1_D3 (AF2), SPI2_MOSI (AF5)
K3PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS (AF11), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI3_RDY (AF6), SPI6_NSS (AF5), TAMP_IN2, TAMP_OUT1, TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
K4PA3ввод-выводADC1_INP15, ADC2_INP15, ETH_MII_COL (AF11), I2S2_WS (AF5), OCTOSPI1_CLK (AF3), SAI1_SD_B (AF6), SPI2_NSS (AF5), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
K5PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_NWE (AF13), FMC_SDNWE (AF12), I2S1_SDO (AF5), OCTOSPI1_IO2 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART11_RX (AF7)
K6PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), LPTIM6_CH2 (AF14)
K7PG1ввод-выводFMC_A11 (AF12), I2S2_SDO (AF7), SPI2_MOSI (AF7), UART9_TX (AF11)
K8PE13ввод-выводFMC_D10 (AF12), FMC_DA10 (AF12), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
K9PB10ввод-выводETH_MII_RX_ER (AF11), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), LPTIM3_CH1 (AF2), OCTOSPI1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
K10PH10ввод-выводDCMI_D1 (AF13), I2C4_SMBA (AF4), PSSI_D1 (AF13), SPI5_RDY (AF5), TIM1_CH1N (AF1), TIM5_CH1 (AF2), TIM8_CH3 (AF3)
K11PB12ввод-выводETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SDA (AF4), I2S2_WS (AF5), OCTOSPI1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF14), UCPD1_FRSTX (AF6), USART3_CK (AF7)
K12PB13ввод-выводFDCAN2_TX (AF9), I2C2_SMBA (AF4), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LPTIM3_IN1 (AF2), SDMMC1_D0 (AF12), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), UCPD1_CC1, USART3_CTS (AF7), USART3_NSS (AF7)
K13PD10ввод-выводFMC_D15 (AF12), FMC_DA15 (AF12), LPTIM2_CH2 (AF3), USART3_CK (AF7)
L1VSSAпитание—
L2VREF-питание—
L3PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM1_IN2 (AF5), PWR_WKUP2, SAI2_SCK_B (AF8), TAMP_IN4, TAMP_OUT3, TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
L4PH5ввод-выводFMC_SDNWE (AF12), I2C2_SDA (AF4), SPI5_NSS (AF5), SPI6_RDY (AF7)
L5PC4ввод-выводADC1_INP4, ADC2_INP4, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LPTIM2_ETR (AF3), SAI1_CK1 (AF2), TIM2_CH4 (AF1), USART3_RX (AF7)
L6PF14ввод-выводADC2_INN2, ADC2_INP6, FMC_A8 (AF12), LPTIM6_IN2 (AF14)
L7PE7ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), OCTOSPI1_IO4 (AF10), TIM1_ETR (AF1), UART12_DE (AF6), UART12_RTS (AF6), UART7_RX (AF7)
L8PE10ввод-выводFMC_D7 (AF12), FMC_DA7 (AF12), OCTOSPI1_IO7 (AF10), TIM1_CH2N (AF1), UART12_TX (AF6), UART7_CTS (AF7)
L9PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), TIM1_BKIN (AF1), TIM1_CH4N (AF3), USART10_CK (AF7)
L10PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), FMC_NBL1 (AF12), I2C2_SDA (AF4), LPTIM2_ETR (AF3), SPI2_RDY (AF5), SPI4_RDY (AF6), TIM2_CH4 (AF1), USART3_RX (AF7)
L11PH7ввод-выводDCMI_D9 (AF13), ETH_MII_RXD3 (AF11), FMC_SDCKE1 (AF12), I2C3_SCL (AF4), PSSI_D9 (AF13), SPI5_MISO (AF5), TIM1_CH3 (AF1), TIM8_CH1N (AF3)
L12PH12ввод-выводDCMI_D3 (AF13), I2C4_SDA (AF4), I3C1_SDA (AF5), PSSI_D3 (AF13), TIM1_BKIN (AF1), TIM5_CH3 (AF2), TIM8_BKIN (AF3), TIM8_CH4N (AF10)
L13PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D2 (AF13), I2C4_SCL (AF4), I3C1_SCL (AF5), PSSI_D2 (AF13), TIM1_CH1 (AF1), TIM5_CH2 (AF2), TIM8_CH3N (AF3)
M1VDDAпитание—
M2VREF+питание—
M3VSSпитание—
M4PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM2_CH1 (AF3), PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
M5PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_SDCKE0 (AF12), OCTOSPI1_DQS (AF10), PSSI_D15 (AF4), SAI1_D3 (AF2), SAI1_FS_A (AF6), TIM1_CH4N (AF1), UART12_DE (AF7), UART12_RTS (AF7)
M6PG0ввод-выводFMC_A10 (AF12), LPTIM4_IN1 (AF14), UART9_RX (AF11)
M7VSSпитание—
M8PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D8 (AF12), FMC_DA8 (AF12), OCTOSPI1_NCS (AF6), SAI2_SD_B (AF10), SPI1_RDY (AF4), SPI4_NSS (AF5), TIM1_CH2 (AF1)
M9PE12ввод-выводFMC_D9 (AF12), FMC_DA9 (AF12), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
M10VSSSMPSпитание—
M11VSSпитание—
M12PH8ввод-выводDCMI_HSYNC (AF13), I2C3_SDA (AF4), PSSI_DE (AF13), SPI5_MOSI (AF5), TIM1_CH2N (AF1), TIM5_ETR (AF2), TIM8_CH2 (AF3)
M13PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), I2C3_SMBA (AF4), PSSI_D0 (AF13), SPI5_NSS (AF5), TIM12_CH2 (AF2), TIM1_CH2 (AF1), TIM8_CH2N (AF3)
N1PH4ввод-выводI2C2_SCL (AF4), PSSI_D14 (AF13), SPI5_RDY (AF5), SPI6_RDY (AF7)
N2PH3ввод-выводETH_MII_COL (AF11), FMC_SDNE0 (AF12), OCTOSPI1_IO5 (AF9), SAI2_MCLK_B (AF10)
N3VDDпитание—
N4PA6ввод-выводADC1_INP3, ADC2_INP3, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), OCTOSPI1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART11_TX (AF7)
N5PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH_MII_RXD2 (AF11), LPTIM3_CH1 (AF14), OCTOSPI1_IO1 (AF6), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USART11_CK (AF7)
N6PB2ввод-выводI2S3_SDO (AF7), LPTIM1_CH1 (AF5), LPTIM5_ETR (AF13), OCTOSPI1_CLK (AF9), OCTOSPI1_DQS (AF10), RCC_LSCO, RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC1_CMD (AF12), SPI1_RDY (AF4), SPI3_MOSI (AF7), TIM8_CH4N (AF3)
N7VDDпитание—
N8PE9ввод-выводDAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), OCTOSPI1_IO6 (AF10), TIM1_CH1 (AF1), UART12_RX (AF6), UART7_DE (AF7), UART7_RTS (AF7)
N9VLXSMPSпитание—
N10VDDSMPSпитание—
N11VCAPпитание—
N12VDDпитание—
N13PH6ввод-выводDCMI_D8 (AF13), ETH_MII_RXD2 (AF11), FMC_SDNE1 (AF12), I2C2_SMBA (AF4), PSSI_D8 (AF13), SPI5_SCK (AF5), TIM12_CH1 (AF2), TIM1_CH3N (AF1), TIM8_CH1 (AF3)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATC1резервное питание: часы реального времени и резервные регистры
VCAPA4, N11вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDA3, A8, A11, B1, D13, G1, J13, N3, N7, N12питание цифровой части и линий ввода-вывода
VDDAM1питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2A6питание отдельной группы линий ввода-вывода
VDDSMPSN10—
VDDUSBE13питание приёмопередатчика USB
VLXSMPSN9—
VREF-L2нижнее опорное напряжение АЦП
VREF+M2верхнее опорное напряжение АЦП и ЦАП
VSSB2, B4, B8, B11, E12, F2, H2, J12, M3, M7, M11общий провод (земля)
VSSAL1общий провод аналоговой части
VSSSMPSM10—
NRSTH3сброс, активный уровень — низкий
BOOT0B5выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H563AIIxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H563AISTM32H563AIIxQ2 МБ640 КБ

Линейка STM32H563/H573, семейство STM32H5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе UFBGA169, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H573AIIxQSTM32H563/H573169 из 169выводы совпадают полностьютолько у него: AES
STM32H5E4AJIxQSTM32H5x4169 из 169выводы совпадают полностьютолько у этого: USB; только у него: ADC3, ADF1, COMP1, COMP2, DMA2D, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, USB_OTG_FS, USB_OTG_FS1; флеш-память до 2048 и 4096 КБ; ОЗУ 640 и 1536 КБ
STM32H5F4AJIxQSTM32H5x4169 из 169выводы совпадают полностьютолько у этого: USB; только у него: ADC3, ADF1, AES, COMP1, COMP2, DMA2D, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, USB_OTG_FS, USB_OTG_FS1; флеш-память до 2048 и 4096 КБ; ОЗУ 640 и 1536 КБ

Частые вопросы

На каких выводах USART1 у STM32H563AIIxQ?

В корпусе UFBGA169 сигнал USART1_TX выведен на PB6 (шарик C6, AF7) или PA9 (шарик F13, AF7) или PB14 (шарик J10, AF4), USART1_RX — на PB7 (шарик D6, AF7) или PA10 (шарик E11, AF7) или PB15 (шарик H10, AF4).

Где у STM32H563AIIxQ выводы SWD для программатора?

SWDIO — PA13(JTMS/SWDIO) (шарик D12, AF0), SWCLK — PA14(JTCK/SWCLK) (шарик C10, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H563AIIxQ?

I2C1_SCL — PB6 (шарик C6, AF4) или PB8 (шарик F5, AF4), I2C1_SDA — PB7 (шарик D6, AF4) или PB9 (шарик E5, AF4).

Сколько выводов ввода-вывода у STM32H563AIIxQ в корпусе UFBGA169?

134 из 169. Ещё 33 вывода заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32H563AIIxQ?

От 1,62 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
