STM32H573LI в корпусе TFBGA225: распиновка

STM32H573LI — микроконтроллер STM32H5 на ядре Cortex-M33: 2 МБ флеш-памяти и 640 КБ ОЗУ. Корпус TFBGA225 — 225 шариков, из них 140 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
2 МБ
ОЗУ
640 КБ
Корпус
TFBGA225, 225 шариков
Линий ввода-вывода
140

Схема корпуса TFBGA225

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32H573LI в корпусе TFBGA225, вид сверхуABCDEFGHJKLMNPR123456789101112131415VSS — шарик A1VSSVSS — шарик A2VSSPI6 — шарик A3: DCMI_D6, PSSI_D6, SAI2_SD_A, TIM8_CH2PI6PI5 — шарик A4: DCMI_VSYNC, PSSI_RDY, SAI2_SCK_A, TIM8_CH1PI5PB9 — шарик A5: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2S2_WS, I3C1_SDA, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_CKIN, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PB7 — шарик A6: DCMI_VSYNC, FDCAN1_TX, FMC_NL, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPUART1_RX, PSSI_RDY, PWR_WKUP5, SDMMC2_CKIN, SDMMC2_D5, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PG15 — шарик A7: ADC1_EXTI15, ADC2_EXTI15, DCMI_D13, FMC_SDNCAS, PSSI_D13, SPI4_RDY, USART10_CK, USART6_CTS, USART6_NSSPG15PG14 — шарик A8: DEBUG_TRACED1, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_A25, LPTIM1_CH2, LPTIM1_ETR, LPTIM5_IN1, OCTOSPI1_IO7, SDMMC2_D7, SPI6_MOSI, USART10_DE, USART10_RTS, USART6_TXPG14PG10 — шарик A9: DCMI_D2, FMC_NE3, I2S1_WS, PSSI_D2, SAI2_SD_B, SDMMC2_D1, SPI1_NSSPG10PD6 — шарик A10: DCMI_D10, FMC_NWAIT, I2S3_SDO, OCTOSPI1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6VSS — шарик A11VSSVSS — шарик A12VSSVSS — шарик A13VSSPD3 — шарик A14: DCMI_D5, FMC_CLK, I2S2_CK, PSSI_D5, PWR_WKUP8, SPI2_SCK, USART2_CTS, USART2_NSSPD3VSS — шарик A15VSSVSS — шарик B1VSSVSS — шарик B2VSSPE2 — шарик B3: DCMI_D3, DEBUG_TRACECLK, ETH_MII_TXD3, FMC_A23, LPTIM1_IN2, OCTOSPI1_IO2, PSSI_D3, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, UART8_TX, USART10_RXPE2PI7 — шарик B4: DCMI_D7, PSSI_D7, SAI2_FS_A, TIM8_CH3PI7PE1 — шарик B5: DCMI_D3, FDCAN1_TX, FMC_NBL1, LPTIM1_IN2, PSSI_D3, UART8_TXPE1BOOT0 — шарик B6BOOT0PB3(JTDO/TRACESWO) — шарик B7: CRS_SYNC, DEBUG_JTDO-SWO, I2C2_SDA, I2S1_CK, I2S3_CK, LPTIM6_ETR, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART12_CTS, UART7_RXPB3PG13 — шарик B8: DEBUG_TRACED0, ETH_MII_TXD0, ETH_RMII_TXD0, FMC_A24, LPTIM1_CH1, LPTIM5_CH2, SDMMC2_D6, SPI6_SCK, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSSPG13PG9 — шарик B9: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, OCTOSPI1_IO6, PSSI_RDY, SAI2_FS_B, SDMMC2_D0, SPI1_MISO, USART6_RXPG9VSS — шарик B10VSSVSS — шарик B11VSSPD5 — шарик B12: FDCAN1_TX, FMC_NWE, OCTOSPI1_IO5, SPI2_RDY, TIM1_CH4N, USART2_TXPD5PD4 — шарик B13: FMC_NOE, OCTOSPI1_IO4, USART2_DE, USART2_RTSPD4PC11 — шарик B14: ADC1_EXTI11, ADC2_EXTI11, DCMI_D4, I2S3_SDI, LPTIM3_IN1, OCTOSPI1_NCS, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PC12 — шарик B15: DCMI_D9, DEBUG_TRACED3, I2S3_SDO, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CKPC12PI10 — шарик C1: ETH_MII_RX_ER, FDCAN1_RX, PSSI_D14PI10VSS — шарик C2VSSPC13 — шарик C3: PWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3PC13PE4 — шарик C4: DCMI_D4, DEBUG_TRACED1, FMC_A20, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TAMP_IN7, TAMP_OUT8, TIM15_CH1NPE4PI4 — шарик C5: DCMI_D5, PSSI_D5, SAI2_MCLK_A, SPI2_RDY, TIM8_BKINPI4PB8 — шарик C6: DCMI_D6, ETH_MII_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, I3C1_SCL, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI4_RDY, TIM16_CH1, TIM4_CH3, UART4_RXPB8PB4(NJTRST) — шарик C7: DCMI_D7, DEBUG_NJTRST, I2S1_SDI, I2S2_WS, I2S3_SDI, LPTIM1_CH2, OCTOSPI1_CLK, PSSI_D7, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4PG12 — шарик C8: DCMI_D11, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_NE4, LPTIM1_IN1, LPTIM5_CH1, PSSI_D11, PSSI_D15, SDMMC2_D3, SPI6_MISO, USART10_TX, USART6_DE, USART6_RTSPG12PD7 — шарик C9: FMC_NCE, FMC_NE1, I2S1_SDO, LPTIM4_OUT, OCTOSPI1_IO7, SDMMC2_CMD, SPI1_MOSI, USART2_CKPD7VSS — шарик C10VSSVSS — шарик C11VSSPD1 — шарик C12: FDCAN1_TX, FMC_D3, FMC_DA3, UART4_TXPD1PA15(JTDI) — шарик C13: ADC1_EXTI15, ADC2_EXTI15, CEC, DCMI_D11, DEBUG_JTDI, FMC_NBL1, I2S1_WS, I2S3_WS, LPTIM3_IN2, PSSI_D11, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15VSS — шарик C14VSSPA14(JTCK/SWCLK) — шарик C15: DEBUG_JTCK-SWCLKPA14PC15-OSC32_OUT(OSC32_OUT) — шарик D1: ADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUTPC15PC14-OSC32_IN(OSC32_IN) — шарик D2: RCC_OSC32_INPC14VBAT — шарик D3VBATPE5 — шарик D4: DCMI_D6, DEBUG_TRACED2, FMC_A21, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TAMP_IN8, TAMP_OUT7, TIM15_CH1PE5PE3 — шарик D5: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM15_BKIN, USART10_TXPE3PE0 — шарик D6: DCMI_D2, FDCAN1_RX, FMC_NBL0, LPTIM1_ETR, LPTIM2_CH2, LPTIM2_ETR, PSSI_D2, SAI2_MCLK_A, SPI3_RDY, TIM4_ETR, UART8_RXPE0VDDIO2 — шарик D7VDDIO2PG11 — шарик D8: ADC1_EXTI11, ADC2_EXTI11, DCMI_D3, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LPTIM1_IN2, PSSI_D3, SDMMC2_D2, SPI1_SCK, USART10_RX, USART11_DE, USART11_RTSPG11VSS — шарик D9VSSVSS — шарик D10VSSPD2 — шарик D11: DCMI_D11, DEBUG_TRACED2, LPTIM4_ETR, PSSI_D11, PWR_WKUP7, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RXPD2PC10 — шарик D12: DCMI_D8, ETH_MII_TXD0, ETH_RMII_TXD0, I2S3_CK, LPTIM3_ETR, OCTOSPI1_IO1, PSSI_D8, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TXPC10VSS — шарик D13VSSPI3 — шарик D14: DCMI_D10, I2S2_SDO, PSSI_D10, SPI2_MOSI, TIM8_ETRPI3PI1 — шарик D15: DCMI_D8, I2S2_CK, PSSI_D8, SPI2_SCK, TIM8_BKIN2PI1PF0 — шарик E1: FMC_A0, I2C2_SDA, LPTIM5_CH1PF0PI9 — шарик E2: DAC1_EXTI9, FDCAN1_RX, UART4_RXPI9VSS — шарик E3VSSPI8 — шарик E4: PWR_WKUP3, RTC_OUT2, TAMP_IN2, TAMP_OUT3PI8VSS — шарик E5VSSVCAP — шарик E6VCAPPB5 — шарик E7: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, OCTOSPI1_NCLK, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RXPB5PB6 — шарик E8: CEC, DCMI_D5, FDCAN2_TX, FMC_SDNE1, I2C1_SCL, I2C4_SCL, I3C1_SCL, LPUART1_TX, OCTOSPI1_NCS, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6VSS — шарик E9VSSPD0 — шарик E10: FDCAN1_RX, FMC_D2, FMC_DA2, TIM8_CH4N, UART4_RX, UART9_CTSPD0VSS — шарик E11VSSPI0 — шарик E12: DCMI_D13, I2S2_WS, PSSI_D13, SPI2_NSS, TIM5_CH4PI0PH15 — шарик E13: ADC1_EXTI15, ADC2_EXTI15, DCMI_D11, PSSI_D11, TIM8_CH3NPH15PH14 — шарик E14: DCMI_D4, FDCAN1_RX, PSSI_D4, TIM8_CH2N, UART4_RXPH14PH13 — шарик E15: DCMI_D3, FDCAN1_TX, LPTIM1_IN2, PSSI_D3, TIM8_CH1N, UART4_TX, UART8_TXPH13VSS — шарик F1VSSPF2 — шарик F2: FMC_A2, I2C2_SMBA, LPTIM3_CH2, LPTIM3_IN2, LPTIM5_IN1, UART12_TX, USART11_CKPF2PI11 — шарик F3: ADC1_EXTI11, ADC2_EXTI11, PSSI_D15, TAMP_IN4, TAMP_OUT5PI11VSS — шарик F4VSSVSS — шарик F5VSSPE6 — шарик F6: DCMI_D7, DEBUG_TRACED3, FMC_A22, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TAMP_IN3, TAMP_OUT6, TIM15_CH2, TIM1_BKIN2PE6VDD — шарик F7VDDVSS — шарик F8VSSVDD — шарик F9VDDPI2 — шарик F10: DCMI_D9, I2S2_SDI, PSSI_D9, SPI2_MISO, TIM8_CH4PI2VDDUSB — шарик F11VDDUSBPA13(JTMS/SWDIO) — шарик F12: DEBUG_JTMS-SWDIOPA13PA10 — шарик F13: DCMI_D1, FDCAN2_TX, LPTIM2_IN2, LPUART1_RX, PSSI_D1, SDMMC1_D0, TIM1_CH3, UCPD1_FRSTX, USART1_RXPA10PA12 — шарик F14: FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_DPPA12PA11 — шарик F15: ADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX, I2S2_WS, LPUART1_CTS, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_DMPA11PF4 — шарик G1: FMC_A4, LPTIM3_ETR, USART11_RXPF4VSS — шарик G2VSSVSS — шарик G3VSSPF1 — шарик G4: FMC_A1, I2C2_SCL, LPTIM5_CH2PF1VSS — шарик G5VSSVDD — шарик G6VDDVDD — шарик G7VDDVSS — шарик G8VSSVDD — шарик G9VDDVDD — шарик G10VDDPA8 — шарик G11: DCMI_D3, FMC_NOE, I2C3_SCL, PSSI_D3, RCC_MCO_1, SPI1_RDY, TIM1_CH1, TIM8_BKIN2, UART7_RX, USART1_CK, USB_SOFPA8VSS — шарик G12VSSPA9 — шарик G13: DAC1_EXTI9, DCMI_D0, ETH_MII_TX_ER, FMC_NWE, I2C3_SMBA, I2S2_CK, LPUART1_TX, PSSI_D0, SPI2_SCK, TIM1_CH2, UCPD1_DB1, USART1_TXPA9PC9 — шарик G14: AUDIOCLK, DAC1_EXTI9, DCMI_D3, FMC_CLE, I2C3_SDA, OCTOSPI1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, TIM8_CH4, UART5_CTS, UCPD1_DB2PC9VSS — шарик G15VSSPF8 — шарик H1: LPTIM5_IN1, OCTOSPI1_IO0, SAI1_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPF8PF7 — шарик H2: LPTIM5_CH2, OCTOSPI1_IO2, SAI1_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TXPF7PF6 — шарик H3: LPTIM5_CH1, OCTOSPI1_IO3, SAI1_SD_B, SPI5_NSS, TIM16_CH1, UART7_RXPF6PF5 — шарик H4: FMC_A5, I2C4_SCL, I3C1_SCL, LPTIM3_CH1, LPTIM3_IN1, UART12_RX, USART11_CTS, USART11_NSSPF5PF3 — шарик H5: FMC_A3, LPTIM3_IN1, LPTIM5_IN2, USART11_TXPF3VSS — шарик H6VSSVSS — шарик H7VSSVSS — шарик H8VSSVSS — шарик H9VSSVSS — шарик H10VSSPG7 — шарик H11: DCMI_D13, FMC_INT, I2C4_SCL, I3C1_SCL, PSSI_D13, SAI1_CK2, SAI1_MCLK_A, UCPD1_FRSTX, USART6_CKPG7VSS — шарик H12VSSPC8 — шарик H13: DCMI_D2, DEBUG_TRACED1, FMC_ALE, FMC_INT, FMC_NCE, FMC_NE2, PSSI_D2, SDMMC1_D0, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PC7 — шарик H14: DCMI_D1, DEBUG_TRGIO, FMC_NE1, I2S3_MCK, OCTOSPI1_IO6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, USART6_RXPC7VSS — шарик H15VSSPH0-OSC_IN — шарик J1: RCC_OSC_INPH0PH1-OSC_OUT — шарик J2: RCC_OSC_OUTPH1VSS — шарик J3VSSPF9 — шарик J4: DAC1_EXTI9, LPTIM5_IN2, OCTOSPI1_IO1, SAI1_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTSPF9NRST — шарик J5NRSTVDD — шарик J6VDDVDD — шарик J7VDDVSS — шарик J8VSSVDD — шарик J9VDDVDD — шарик J10VDDPD14 — шарик J11: FMC_D0, FMC_DA0, TIM4_CH3, UART8_CTS, UART9_RXPD14PG3 — шарик J12: FMC_A13, LPTIM5_ETR, TIM8_BKIN2, UART12_TXPG3PG6 — шарик J13: DCMI_D12, FMC_NE3, I2C4_SDA, I3C1_SDA, OCTOSPI1_NCS, PSSI_D12, SPI1_RDY, TIM17_BKIN, UCPD1_FRSTXPG6PG8 — шарик J14: ETH_PPS_OUT, FMC_SDCLK, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTSPG8PC6 — шарик J15: DCMI_D0, FMC_NWAIT, I2S2_MCK, OCTOSPI1_IO5, PSSI_D0, SAI1_SCK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, USART6_TXPC6PF10 — шарик K1: DCMI_D11, OCTOSPI1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKINPF10PC1 — шарик K2: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DEBUG_TRACED0, ETH_MDC, I2S2_SDO, OCTOSPI1_IO4, PWR_WKUP6, SAI1_D1, SAI1_SD_A, SAI2_SD_A, SDMMC2_CK, SPI2_MOSI, TAMP_IN3, TAMP_OUT5, USART11_DE, USART11_RTSPC1VSSA — шарик K3VSSAVREF- — шарик K4VREF-VREF+ — шарик K5VREF+PH5 — шарик K6: FMC_SDNWE, I2C2_SDA, SPI5_NSS, SPI6_RDYPH5VDD — шарик K7VDDVSS — шарик K8VSSVDD — шарик K9VDDPH10 — шарик K10: DCMI_D1, I2C4_SMBA, PSSI_D1, SPI5_RDY, TIM1_CH1N, TIM5_CH1, TIM8_CH3PH10PB14 — шарик K11: I2S2_SDI, LPTIM3_ETR, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, UCPD1_CC2, USART1_TX, USART3_DE, USART3_RTSPB14PD15 — шарик K12: ADC1_EXTI15, ADC2_EXTI15, FMC_D1, FMC_DA1, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TXPD15VSS — шарик K13VSSPG4 — шарик K14: FMC_A14, FMC_BA0, LPTIM4_ETR, TIM1_BKIN2PG4PG5 — шарик K15: FMC_A15, FMC_BA1, TIM1_ETRPG5PC0 — шарик L1: ADC1_INP10, ADC2_INP10, FMC_A25, FMC_SDNWE, OCTOSPI1_IO7, SAI1_MCLK_A, SAI2_FS_B, SPI2_RDY, TIM16_BKINPC0PA0 — шарик L2: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI3_RDY, SPI6_NSS, TAMP_IN2, TAMP_OUT1, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0VDDA — шарик L3VDDAPA1 — шарик L4: ADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, LPTIM1_IN1, OCTOSPI1_DQS, OCTOSPI1_IO3, SAI2_MCLK_B, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1VSS — шарик L5VSSPB1 — шарик L6: ADC1_INP5, ADC2_INP5, ETH_MII_RXD3, LPTIM3_CH2, OCTOSPI1_IO0, TIM1_CH3N, TIM3_CH4, TIM8_CH3NPB1PF11 — шарик L7: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMI_D12, FMC_SDNRAS, LPTIM6_CH1, OCTOSPI1_NCLK, PSSI_D12, SAI2_SD_B, SPI5_MOSIPF11PE7 — шарик L8: FMC_D4, FMC_DA4, OCTOSPI1_IO4, TIM1_ETR, UART12_DE, UART12_RTS, UART7_RXPE7PE12 — шарик L9: FMC_D9, FMC_DA9, SAI2_SCK_B, SPI4_SCK, TIM1_CH3NPE12VCAP — шарик L10VCAPVSS — шарик L11VSSPD8 — шарик L12: FMC_D13, FMC_DA13, USART3_TXPD8PD13 — шарик L13: DCMI_D13, FMC_A18, I2C4_SDA, I3C1_SDA, LPTIM1_CH1, LPTIM2_CH1, LPTIM4_IN1, OCTOSPI1_IO3, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTSPD13VSS — шарик L14VSSPG2 — шарик L15: FMC_A12, LPTIM6_ETR, TIM8_BKIN, UART12_RXPG2PC2 — шарик M1: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_SDNE0, I2S2_SDI, OCTOSPI1_IO2, OCTOSPI1_IO5, PWR_CSLEEP, SPI2_MISO, TIM17_CH1, TIM4_CH4PC2PC3 — шарик M2: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_SDCKE0, I2S2_SDO, LPTIM3_CH1, OCTOSPI1_IO0, OCTOSPI1_IO6, PWR_CSTOP, SAI1_D3, SPI2_MOSIPC3PA2 — шарик M3: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM1_IN2, PWR_WKUP2, SAI2_SCK_B, TAMP_IN4, TAMP_OUT3, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PA3 — шарик M4: ADC1_INP15, ADC2_INP15, ETH_MII_COL, I2S2_WS, OCTOSPI1_CLK, SAI1_SD_B, SPI2_NSS, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3PC5 — шарик M5: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_SDCKE0, OCTOSPI1_DQS, PSSI_D15, SAI1_D3, SAI1_FS_A, TIM1_CH4N, UART12_DE, UART12_RTSPC5VSS — шарик M6VSSPF14 — шарик M7: ADC2_INN2, ADC2_INP6, FMC_A8, LPTIM6_IN2PF14PE8 — шарик M8: FMC_D5, FMC_DA5, OCTOSPI1_IO5, TIM1_CH1N, UART12_CTS, UART7_TXPE8PE10 — шарик M9: FMC_D7, FMC_DA7, OCTOSPI1_IO7, TIM1_CH2N, UART12_TX, UART7_CTSPE10PB10 — шарик M10: ETH_MII_RX_ER, I2C2_SCL, I2S2_CK, LPTIM2_IN1, LPTIM3_CH1, OCTOSPI1_NCS, SPI2_SCK, TIM2_CH3, USART3_TXPB10PH7 — шарик M11: DCMI_D9, ETH_MII_RXD3, FMC_SDCKE1, I2C3_SCL, PSSI_D9, SPI5_MISO, TIM1_CH3, TIM8_CH1NPH7PH11 — шарик M12: ADC1_EXTI11, ADC2_EXTI11, DCMI_D2, I2C4_SCL, I3C1_SCL, PSSI_D2, TIM1_CH1, TIM5_CH2, TIM8_CH3NPH11PB15 — шарик M13: ADC1_EXTI15, ADC2_EXTI15, DCMI_D2, ETH_MII_TXD1, ETH_RMII_TXD1, I2S2_SDO, OCTOSPI1_CLK, PSSI_D2, PWR_PVD_IN, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, UART5_RX, USART11_CTS, USART11_NSS, USART1_RXPB15PD12 — шарик M14: DCMI_D12, FMC_A17, FMC_ALE, I2C4_SCL, I3C1_SCL, LPTIM1_IN1, LPTIM2_IN1, OCTOSPI1_IO1, PSSI_D12, SAI1_D1, SAI2_FS_A, TIM4_CH1, UART4_TX, USART3_DE, USART3_RTSPD12VSS — шарик M15VSSPH2 — шарик N1: ETH_MII_CRS, FMC_SDCKE0, LPTIM1_IN2, OCTOSPI1_IO4, SAI2_SCK_BPH2PH3 — шарик N2: ETH_MII_COL, FMC_SDNE0, OCTOSPI1_IO5, SAI2_MCLK_BPH3PA4 — шарик N3: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, I2S1_WS, I2S3_WS, LPTIM2_CH1, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CKPA4PC4 — шарик N4: ADC1_INP4, ADC2_INP4, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_SDNE0, I2S1_MCK, LPTIM2_ETR, SAI1_CK1, TIM2_CH4, USART3_RXPC4VSS — шарик N5VSSVSS — шарик N6VSSPF15 — шарик N7: ADC1_EXTI15, ADC2_EXTI15, FMC_A9, I2C4_SDA, I3C1_SDAPF15PE9 — шарик N8: DAC1_EXTI9, FMC_D6, FMC_DA6, OCTOSPI1_IO6, TIM1_CH1, UART12_RX, UART7_DE, UART7_RTSPE9VSS — шарик N9VSSPE14 — шарик N10: FMC_D11, FMC_DA11, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PH6 — шарик N11: DCMI_D8, ETH_MII_RXD2, FMC_SDNE1, I2C2_SMBA, PSSI_D8, SPI5_SCK, TIM12_CH1, TIM1_CH3N, TIM8_CH1PH6PH8 — шарик N12: DCMI_HSYNC, I2C3_SDA, PSSI_DE, SPI5_MOSI, TIM1_CH2N, TIM5_ETR, TIM8_CH2PH8PB13 — шарик N13: FDCAN2_TX, I2C2_SMBA, I2S2_CK, LPTIM2_CH1, LPTIM3_IN1, SDMMC1_D0, SPI2_SCK, TIM1_CH1N, UART5_TX, UCPD1_CC1, USART3_CTS, USART3_NSSPB13PD10 — шарик N14: FMC_D15, FMC_DA15, LPTIM2_CH2, USART3_CKPD10PD11 — шарик N15: ADC1_EXTI11, ADC2_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, OCTOSPI1_IO0, SAI1_CK1, SAI2_SD_A, UART4_RX, USART3_CTS, USART3_NSSPD11PH4 — шарик P1: I2C2_SCL, PSSI_D14, SPI5_RDY, SPI6_RDYPH4PA5 — шарик P2: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, PSSI_D14, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1NPA5PA7 — шарик P3: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_NWE, FMC_SDNWE, I2S1_SDO, OCTOSPI1_IO2, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART11_RXPA7PB2 — шарик P4: I2S3_SDO, LPTIM1_CH1, LPTIM5_ETR, OCTOSPI1_CLK, OCTOSPI1_DQS, RCC_LSCO, RTC_OUT2, SAI1_D1, SAI1_SD_A, SDMMC1_CMD, SPI1_RDY, SPI3_MOSI, TIM8_CH4NPB2VSS — шарик P5VSSPF12 — шарик P6: ADC1_INN2, ADC1_INP6, FMC_A6, LPTIM6_CH2PF12PG0 — шарик P7: FMC_A10, LPTIM4_IN1, UART9_RXPG0VSS — шарик P8VSSVSS — шарик P9VSSPE13 — шарик P10: FMC_D10, FMC_DA10, SAI2_FS_B, SPI4_MISO, TIM1_CH3PE13PB11 — шарик P11: ADC1_EXTI11, ADC2_EXTI11, ETH_MII_TX_EN, ETH_RMII_TX_EN, FMC_NBL1, I2C2_SDA, LPTIM2_ETR, SPI2_RDY, SPI4_RDY, TIM2_CH4, USART3_RXPB11VSSSMPS — шарик P12VSSSMPSPH9 — шарик P13: DAC1_EXTI9, DCMI_D0, I2C3_SMBA, PSSI_D0, SPI5_NSS, TIM12_CH2, TIM1_CH2, TIM8_CH2NPH9PB12 — шарик P14: ETH_MII_TXD0, ETH_RMII_TXD0, FDCAN2_RX, I2C2_SDA, I2S2_WS, OCTOSPI1_NCLK, SPI2_NSS, TIM1_BKIN, UART5_RX, UCPD1_FRSTX, USART3_CKPB12PD9 — шарик P15: DAC1_EXTI9, FDCAN2_RX, FMC_D14, FMC_DA14, USART3_RXPD9VSS — шарик R1VSSPA6 — шарик R2: ADC1_INP3, ADC2_INP3, DCMI_PIXCLK, I2S1_SDI, OCTOSPI1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART11_TXPA6PB0 — шарик R3: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH_MII_RXD2, LPTIM3_CH1, OCTOSPI1_IO1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USART11_CKPB0VSS — шарик R4VSSVSS — шарик R5VSSPF13 — шарик R6: ADC2_INP2, FMC_A7, I2C4_SMBA, LPTIM6_IN1PF13PG1 — шарик R7: FMC_A11, I2S2_SDO, SPI2_MOSI, UART9_TXPG1VSS — шарик R8VSSVSS — шарик R9VSSPE11 — шарик R10: ADC1_EXTI11, ADC2_EXTI11, FMC_D8, FMC_DA8, OCTOSPI1_NCS, SAI2_SD_B, SPI1_RDY, SPI4_NSS, TIM1_CH2PE11PE15 — шарик R11: ADC1_EXTI15, ADC2_EXTI15, FMC_D12, FMC_DA12, TIM1_BKIN, TIM1_CH4N, USART10_CKPE15VLXSMPS — шарик R12VLXSMPSVDDSMPS — шарик R13VDDSMPSPH12 — шарик R14: DCMI_D3, I2C4_SDA, I3C1_SDA, PSSI_D3, TIM1_BKIN, TIM5_CH3, TIM8_BKIN, TIM8_CH4NPH12VSS — шарик R15VSSTFBGA225, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

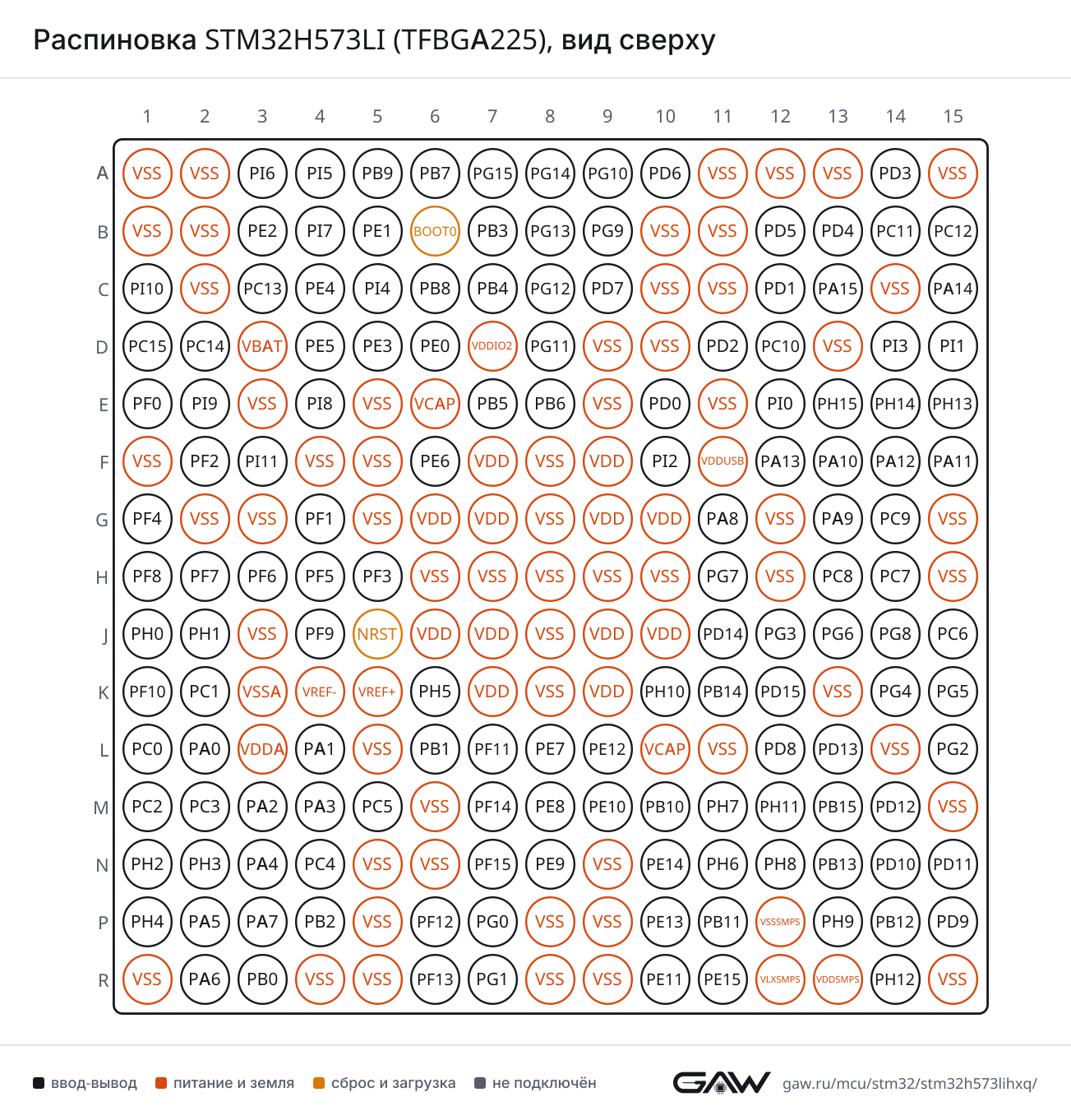

Распиновка STM32H573LI (TFBGA225), вид сверхуРаспиновка TFBGA225 картинкой
PNG, 1303 × 1362 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (G11, AF7)
CTSPA11 (F15, AF7)
DEPA12 (F14, AF7)
NSSPA11 (F15, AF7)
RTSPA12 (F14, AF7)
RXPB7 (A6, AF7), PA10 (F13, AF7), PB15 (M13, AF4)
TXPB6 (E8, AF7), PA9 (G13, AF7), PB14 (K11, AF4)
USART2CKPD7 (C9, AF7), PA4 (N3, AF7)
CTSPD3 (A14, AF7), PA0 (L2, AF7)
DEPD4 (B13, AF7), PA1 (L4, AF7)
NSSPD3 (A14, AF7), PA0 (L2, AF7)
RTSPD4 (B13, AF7), PA1 (L4, AF7)
RXPD6 (A10, AF7), PA3 (M4, AF7)
TXPD5 (B12, AF7), PA2 (M3, AF7)
USART3CKPC12 (B15, AF7), PD10 (N14, AF7), PB12 (P14, AF7)
CTSPB13 (N13, AF7), PD11 (N15, AF7)
DEPB14 (K11, AF7), PD12 (M14, AF7)
NSSPB13 (N13, AF7), PD11 (N15, AF7)
RTSPB14 (K11, AF7), PD12 (M14, AF7)
RXPC11 (B14, AF7), PC4 (N4, AF7), PB11 (P11, AF7), PD9 (P15, AF7)
TXPC10 (D12, AF7), PD8 (L12, AF7), PB10 (M10, AF7)
USART6CKPG7 (H11, AF7), PC8 (H13, AF7)
CTSPG15 (A7, AF7), PG13 (B8, AF7)
DEPG12 (C8, AF7), PG8 (J14, AF7)
NSSPG15 (A7, AF7), PG13 (B8, AF7)
RTSPG12 (C8, AF7), PG8 (J14, AF7)
RXPG9 (B9, AF7), PC7 (H14, AF7)
TXPG14 (A8, AF7), PC6 (J15, AF7)
USART10CKPG15 (A7, AF6), PE15 (R11, AF7)
CTSPG13 (B8, AF6)
DEPG14 (A8, AF6)
NSSPG13 (B8, AF6)
RTSPG14 (A8, AF6)
RXPE2 (B3, AF7), PG11 (D8, AF6)
TXPG12 (C8, AF6), PE3 (D5, AF7)
USART11CKPF2 (F2, AF7), PB0 (R3, AF7)
CTSPF5 (H4, AF7), PB15 (M13, AF7)
DEPG11 (D8, AF7), PC1 (K2, AF7)
NSSPF5 (H4, AF7), PB15 (M13, AF7)
RTSPG11 (D8, AF7), PC1 (K2, AF7)
RXPF4 (G1, AF7), PA7 (P3, AF7)
TXPF3 (H5, AF7), PA6 (R2, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB15 (M13, AF8), PB0 (R3, AF8)
DEPA15(JTDI) (C13, AF8), PB14 (K11, AF8)
RTSPA15(JTDI) (C13, AF8), PB14 (K11, AF8)
RXPC11 (B14, AF8), PB8 (C6, AF8), PI9 (E2, AF8), PD0 (E10, AF8), PH14 (E14, AF8), PA11 (F15, AF6), PA1 (L4, AF8), PD11 (N15, AF8)
TXPB9 (A5, AF8), PD1 (C12, AF8), PC10 (D12, AF8), PH13 (E15, AF8), PA12 (F14, AF6), PA0 (L2, AF8), PD12 (M14, AF8)
UART5CTSPC9 (G14, AF8)
DEPC8 (H13, AF8)
RTSPC8 (H13, AF8)
RXPD2 (D11, AF8), PB5 (E7, AF14), PB15 (M13, AF14), PB12 (P14, AF14)
TXPC12 (B15, AF8), PB6 (E8, AF14), PB13 (N13, AF14)
UART7CTSPF9 (J4, AF7), PE10 (M9, AF7)
DEPF8 (H1, AF7), PE9 (N8, AF7)
RTSPF8 (H1, AF7), PE9 (N8, AF7)
RXPB3(JTDO/TRACESWO) (B7, AF11), PA8 (G11, AF11), PF6 (H3, AF7), PE7 (L8, AF7)
TXPB4(NJTRST) (C7, AF11), PA15(JTDI) (C13, AF11), PF7 (H2, AF7), PE8 (M8, AF7)
UART8CTSPD14 (J11, AF8)
DEPD15 (K12, AF8)
RTSPD15 (K12, AF8)
RXPE0 (D6, AF8)
TXPE2 (B3, AF8), PE1 (B5, AF8), PH13 (E15, AF7)
UART9CTSPD0 (E10, AF11)
DEPD13 (L13, AF11)
RTSPD13 (L13, AF11)
RXPD14 (J11, AF11), PG0 (P7, AF11)
TXPD15 (K12, AF11), PG1 (R7, AF11)
UART12CTSPB3(JTDO/TRACESWO) (B7, AF7), PE8 (M8, AF6)
DEPE7 (L8, AF6), PC5 (M5, AF7)
RTSPE7 (L8, AF6), PC5 (M5, AF7)
RXPF5 (H4, AF6), PG2 (L15, AF7), PE9 (N8, AF6)
TXPF2 (F2, AF6), PG3 (J12, AF7), PE10 (M9, AF6)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (F15, AF3)
DEPA12 (F14, AF3)
RTSPA12 (F14, AF3)
RXPB7 (A6, AF8), PA10 (F13, AF3)
TXPB6 (E8, AF8), PA9 (G13, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPG9 (B9, AF5), PB4(NJTRST) (C7, AF5), PA6 (R2, AF5)
MOSIPD7 (C9, AF5), PB5 (E7, AF5), PA7 (P3, AF5)
NSSPG10 (A9, AF5), PA15(JTDI) (C13, AF5), PA4 (N3, AF5)
RDYPA8 (G11, AF5), PG6 (J13, AF5), PB2 (P4, AF4), PE11 (R10, AF4)
SCKPB3(JTDO/TRACESWO) (B7, AF5), PG11 (D8, AF5), PA5 (P2, AF5)
SPI2MISOPI2 (F10, AF5), PB14 (K11, AF5), PC2 (M1, AF5)
MOSIPI3 (D14, AF5), PC1 (K2, AF5), PC3 (M2, AF5), PB15 (M13, AF5), PG1 (R7, AF7)
NSSPB9 (A5, AF5), PB4(NJTRST) (C7, AF7), PI0 (E12, AF5), PA11 (F15, AF5), PA3 (M4, AF5), PB12 (P14, AF5)
RDYPD5 (B12, AF5), PI4 (C5, AF7), PC0 (L1, AF7), PB11 (P11, AF5)
SCKPD3 (A14, AF5), PI1 (D15, AF5), PA12 (F14, AF5), PA9 (G13, AF5), PB10 (M10, AF5), PB13 (N13, AF5)
SPI3MISOPC11 (B14, AF6), PB4(NJTRST) (C7, AF6)
MOSIPD6 (A10, AF5), PC12 (B15, AF6), PB5 (E7, AF7), PB2 (P4, AF7)
NSSPA15(JTDI) (C13, AF6), PA4 (N3, AF6)
RDYPE0 (D6, AF6), PA0 (L2, AF6)
SCKPB3(JTDO/TRACESWO) (B7, AF6), PC10 (D12, AF6)
SPI4MISOPE5 (D4, AF5), PE13 (P10, AF5)
MOSIPE6 (F6, AF5), PE14 (N10, AF5)
NSSPE4 (C4, AF5), PE11 (R10, AF5)
RDYPG15 (A7, AF5), PB8 (C6, AF5), PB11 (P11, AF6)
SCKPE2 (B3, AF5), PE12 (L9, AF5)
SPI5MISOPF8 (H1, AF5), PH7 (M11, AF5)
MOSIPF9 (J4, AF5), PF11 (L7, AF5), PH8 (N12, AF5)
NSSPF6 (H3, AF5), PH5 (K6, AF5), PH9 (P13, AF5)
RDYPH10 (K10, AF5), PH4 (P1, AF5)
SCKPF7 (H2, AF5), PH6 (N11, AF5)
SPI6MISOPB4(NJTRST) (C7, AF8), PG12 (C8, AF5), PA6 (R2, AF8)
MOSIPG14 (A8, AF5), PB5 (E7, AF8), PA7 (P3, AF8)
NSSPA15(JTDI) (C13, AF7), PG8 (J14, AF5), PA0 (L2, AF5), PA4 (N3, AF8)
RDYPH5 (K6, AF7), PH4 (P1, AF7)
SCKPB3(JTDO/TRACESWO) (B7, AF8), PG13 (B8, AF5), PC12 (B15, AF5), PA5 (P2, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPB3(JTDO/TRACESWO) (B7, AF5), PG11 (D8, AF5), PA5 (P2, AF5)
MCKPC4 (N4, AF5)
SDIPG9 (B9, AF5), PB4(NJTRST) (C7, AF5), PA6 (R2, AF5)
SDOPD7 (C9, AF5), PB5 (E7, AF5), PA7 (P3, AF5)
WSPG10 (A9, AF5), PA15(JTDI) (C13, AF5), PA4 (N3, AF5)
I2S2CKPD3 (A14, AF5), PI1 (D15, AF5), PA12 (F14, AF5), PA9 (G13, AF5), PB10 (M10, AF5), PB13 (N13, AF5)
MCKPC6 (J15, AF5)
SDIPI2 (F10, AF5), PB14 (K11, AF5), PC2 (M1, AF5)
SDOPI3 (D14, AF5), PC1 (K2, AF5), PC3 (M2, AF5), PB15 (M13, AF5), PG1 (R7, AF7)
WSPB9 (A5, AF5), PB4(NJTRST) (C7, AF7), PI0 (E12, AF5), PA11 (F15, AF5), PA3 (M4, AF5), PB12 (P14, AF5)
I2S3CKPB3(JTDO/TRACESWO) (B7, AF6), PC10 (D12, AF6)
MCKPC7 (H14, AF6)
SDIPC11 (B14, AF6), PB4(NJTRST) (C7, AF6)
SDOPD6 (A10, AF5), PC12 (B15, AF6), PB5 (E7, AF7), PB2 (P4, AF7)
WSPA15(JTDI) (C13, AF6), PA4 (N3, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8 (C6, AF4), PB6 (E8, AF4)
SDAPB9 (A5, AF4), PB7 (A6, AF4)
SMBAPB5 (E7, AF4)
I2C2SCLPF1 (G4, AF4), PB10 (M10, AF4), PH4 (P1, AF4)
SDAPB3(JTDO/TRACESWO) (B7, AF4), PF0 (E1, AF4), PH5 (K6, AF4), PB11 (P11, AF4), PB12 (P14, AF4)
SMBAPF2 (F2, AF4), PH6 (N11, AF4), PB13 (N13, AF4)
I2C3SCLPA8 (G11, AF4), PH7 (M11, AF4)
SDAPC9 (G14, AF4), PH8 (N12, AF4)
SMBAPA9 (G13, AF4), PH9 (P13, AF4)
I2C4SCLPB8 (C6, AF6), PB6 (E8, AF6), PF5 (H4, AF4), PG7 (H11, AF4), PH11 (M12, AF4), PD12 (M14, AF4)
SDAPB9 (A5, AF6), PB7 (A6, AF6), PG6 (J13, AF4), PD13 (L13, AF4), PF15 (N7, AF4), PH12 (R14, AF4)
SMBAPB5 (E7, AF6), PH10 (K10, AF4), PD11 (N15, AF4), PF13 (R6, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPB8 (C6, AF3), PB6 (E8, AF3), PF5 (H4, AF5), PG7 (H11, AF3), PH11 (M12, AF5), PD12 (M14, AF5)
SDAPB9 (A5, AF3), PB7 (A6, AF3), PG6 (J13, AF3), PD13 (L13, AF5), PF15 (N7, AF5), PH12 (R14, AF5)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPI10 (C1, AF9), PB8 (C6, AF9), PE0 (D6, AF9), PI9 (E2, AF9), PD0 (E10, AF9), PH14 (E14, AF9), PA11 (F15, AF9)
TXPB9 (A5, AF9), PB7 (A6, AF9), PE1 (B5, AF9), PD5 (B12, AF9), PD1 (C12, AF9), PH13 (E15, AF9), PA12 (F14, AF9)
FDCAN2RXPB5 (E7, AF9), PB12 (P14, AF9), PD9 (P15, AF9)
TXPB6 (E8, AF9), PA10 (F13, AF9), PB13 (N13, AF9)

USB — USB Full Speed, устройство

БлокСигналВыводы
USBDMPA11 (F15, AF10)
DPPA12 (F14, AF10)
SOFPA8 (G11, AF10)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB13 (N13)
CC2PB14 (K11)
DB1PA9 (G13)
DB2PC9 (G14)
FRSTXPA10 (F13, AF6), PG7 (H11, AF11), PG6 (J13, AF11), PB12 (P14, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHMDCPC1 (K2, AF11)
MDIOPA2 (M3, AF11)
MII_COLPA3 (M4, AF11), PH3 (N2, AF11)
MII_CRSPA0 (L2, AF11), PH2 (N1, AF11)
MII_RX_CLKPA1 (L4, AF11)
MII_RX_DVPA7 (P3, AF11)
MII_RX_ERPI10 (C1, AF11), PB10 (M10, AF11)
MII_RXD0PC4 (N4, AF11)
MII_RXD1PC5 (M5, AF11)
MII_RXD2PH6 (N11, AF11), PB0 (R3, AF11)
MII_RXD3PB1 (L6, AF11), PH7 (M11, AF11)
MII_TX_CLKPC3 (M2, AF11)
MII_TX_ENPG11 (D8, AF11), PA5 (P2, AF11), PB11 (P11, AF11)
MII_TX_ERPA9 (G13, AF11)
MII_TXD0PG13 (B8, AF11), PC10 (D12, AF11), PB12 (P14, AF11)
MII_TXD1PG14 (A8, AF11), PG12 (C8, AF11), PB15 (M13, AF11)
MII_TXD2PC2 (M1, AF11)
MII_TXD3PE2 (B3, AF11), PB8 (C6, AF11)
PPS_OUTPB5 (E7, AF11), PG8 (J14, AF11)
RMII_CRS_DVPA7 (P3, AF11)
RMII_REF_CLKPA1 (L4, AF11)
RMII_RXD0PC4 (N4, AF11)
RMII_RXD1PC5 (M5, AF11)
RMII_TX_ENPG11 (D8, AF11), PA5 (P2, AF11), PB11 (P11, AF11)
RMII_TXD0PG13 (B8, AF11), PC10 (D12, AF11), PB12 (P14, AF11)
RMII_TXD1PG14 (A8, AF11), PG12 (C8, AF11), PB15 (M13, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (A5, AF7)
CKPC12 (B15, AF12)
CKINPB8 (C6, AF7)
CMDPD2 (D11, AF12), PB2 (P4, AF12)
D0PA10 (F13, AF12), PC8 (H13, AF12), PB13 (N13, AF12)
D0DIRPC6 (J15, AF8)
D1PC9 (G14, AF12)
D2PC10 (D12, AF12)
D3PC11 (B14, AF12)
D4PB8 (C6, AF12)
D5PB9 (A5, AF12)
D6PC6 (J15, AF12)
D7PC7 (H14, AF12)
D123DIRPC7 (H14, AF8)
SDMMC2CKPD6 (A10, AF11), PC1 (K2, AF9)
CKINPB9 (A5, AF11), PB7 (A6, AF11)
CMDPD7 (C9, AF11), PA0 (L2, AF9)
D0PG9 (B9, AF11), PB14 (K11, AF9)
D1PG10 (A9, AF11), PB15 (M13, AF9)
D2PB3(JTDO/TRACESWO) (B7, AF9), PG11 (D8, AF10)
D3PB4(NJTRST) (C7, AF9), PG12 (C8, AF10)
D4PB8 (C6, AF10)
D5PB9 (A5, AF10), PB7 (A6, AF10)
D6PG13 (B8, AF10), PC6 (J15, AF10)
D7PG14 (A8, AF10), PC7 (H14, AF10)

OCTOSPI — интерфейс Octo-SPI памяти

БлокСигналВыводы
OCTOSPI1CLKPB4(NJTRST) (C7, AF3), PF10 (K1, AF9), PA3 (M4, AF3), PB15 (M13, AF10), PB2 (P4, AF9)
DQSPA1 (L4, AF6), PC5 (M5, AF10), PB2 (P4, AF10)
IO0PC9 (G14, AF9), PF8 (H1, AF10), PB1 (L6, AF6), PC3 (M2, AF9), PD11 (N15, AF9)
IO1PC10 (D12, AF9), PF9 (J4, AF10), PD12 (M14, AF9), PB0 (R3, AF6)
IO2PE2 (B3, AF9), PF7 (H2, AF10), PC2 (M1, AF9), PA7 (P3, AF10)
IO3PF6 (H3, AF10), PA1 (L4, AF9), PD13 (L13, AF9), PA6 (R2, AF6)
IO4PD4 (B13, AF10), PC1 (K2, AF10), PE7 (L8, AF10), PH2 (N1, AF9)
IO5PD5 (B12, AF10), PC6 (J15, AF11), PC2 (M1, AF6), PE8 (M8, AF10), PH3 (N2, AF9)
IO6PD6 (A10, AF10), PG9 (B9, AF9), PC7 (H14, AF11), PC3 (M2, AF6), PE9 (N8, AF10)
IO7PG14 (A8, AF9), PD7 (C9, AF10), PC0 (L1, AF10), PE10 (M9, AF10)
NCLKPB5 (E7, AF3), PF11 (L7, AF9), PB12 (P14, AF3)
NCSPC11 (B14, AF9), PB6 (E8, AF10), PG6 (J13, AF10), PB10 (M10, AF9), PE11 (R10, AF6)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (B3, AF2), PC4 (N4, AF2), PD11 (N15, AF2)
CK2PE5 (D4, AF2), PG7 (H11, AF2)
D1PD6 (A10, AF2), PE6 (F6, AF2), PC1 (K2, AF2), PD12 (M14, AF6), PB2 (P4, AF2)
D2PE4 (C4, AF2)
D3PF10 (K1, AF2), PC3 (M2, AF2), PC5 (M5, AF2)
FS_APE4 (C4, AF6), PC5 (M5, AF6)
FS_BPF9 (J4, AF6)
MCLK_APE2 (B3, AF6), PG7 (H11, AF6), PC0 (L1, AF6)
MCLK_BPF7 (H2, AF6)
SCK_APE5 (D4, AF6), PC6 (J15, AF6)
SCK_BPF8 (H1, AF6)
SD_APD6 (A10, AF6), PE6 (F6, AF6), PC1 (K2, AF6), PB2 (P4, AF6)
SD_BPE3 (D5, AF6), PF6 (H3, AF6), PA3 (M4, AF6)
SAI2FS_API7 (B4, AF10), PD12 (M14, AF10)
FS_BPG9 (B9, AF10), PA12 (F14, AF8), PC0 (L1, AF8), PE13 (P10, AF10)
MCLK_API4 (C5, AF10), PE0 (D6, AF10)
MCLK_BPE6 (F6, AF10), PA1 (L4, AF10), PH3 (N2, AF10), PE14 (N10, AF10)
SCK_API5 (A4, AF10), PD13 (L13, AF10)
SCK_BPE12 (L9, AF10), PA2 (M3, AF8), PH2 (N1, AF10)
SD_API6 (A3, AF10), PC1 (K2, AF8), PD11 (N15, AF10)
SD_BPG10 (A9, AF10), PA0 (L2, AF10), PF11 (L7, AF10), PE11 (R10, AF10)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15(JTDI) (C13, AF4), PB6 (E8, AF5)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (B14), PG11 (D8), PI11 (F3), PA11 (F15), PF11 (L7), PH11 (M12), PD11 (N15), PB11 (P11), PE11 (R10)
EXTI15PG15 (A7), PA15(JTDI) (C13), PC15-OSC32_OUT(OSC32_OUT) (D1), PH15 (E13), PD15 (K12), PB15 (M13), PF15 (N7), PE15 (R11)
INN1PA0 (L2)
INN2PF12 (P6)
INN3PA7 (P3)
INN4PC5 (M5)
INN5PB0 (R3)
INN10PC1 (K2)
INN11PC2 (M1)
INN12PC3 (M2)
INN18PA5 (P2)
INP0PA0 (L2)
INP1PA1 (L4)
INP2PF11 (L7)
INP3PA6 (R2)
INP4PC4 (N4)
INP5PB1 (L6)
INP6PF12 (P6)
INP7PA7 (P3)
INP8PC5 (M5)
INP9PB0 (R3)
INP10PC0 (L1)
INP11PC1 (K2)
INP12PC2 (M1)
INP13PC3 (M2)
INP14PA2 (M3)
INP15PA3 (M4)
INP18PA4 (N3)
INP19PA5 (P2)
ADC2EXTI11PC11 (B14), PG11 (D8), PI11 (F3), PA11 (F15), PF11 (L7), PH11 (M12), PD11 (N15), PB11 (P11), PE11 (R10)
EXTI15PG15 (A7), PA15(JTDI) (C13), PC15-OSC32_OUT(OSC32_OUT) (D1), PH15 (E13), PD15 (K12), PB15 (M13), PF15 (N7), PE15 (R11)
INN1PA0 (L2)
INN2PF14 (M7)
INN3PA7 (P3)
INN4PC5 (M5)
INN5PB0 (R3)
INN10PC1 (K2)
INN11PC2 (M1)
INN12PC3 (M2)
INN18PA5 (P2)
INP0PA0 (L2)
INP1PA1 (L4)
INP2PF13 (R6)
INP3PA6 (R2)
INP4PC4 (N4)
INP5PB1 (L6)
INP6PF14 (M7)
INP7PA7 (P3)
INP8PC5 (M5)
INP9PB0 (R3)
INP10PC0 (L1)
INP11PC1 (K2)
INP12PC2 (M1)
INP13PC3 (M2)
INP14PA2 (M3)
INP15PA3 (M4)
INP18PA4 (N3)
INP19PA5 (P2)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (A5), PG9 (B9), PI9 (E2), PA9 (G13), PC9 (G14), PF9 (J4), PE9 (N8), PH9 (P13), PD9 (P15)
OUT1PA4 (N3)
OUT2PA5 (P2)

TIM — таймер

БлокСигналВыводы
TIM1BKINPB12 (P14, AF1), PA6 (R2, AF1), PE15 (R11, AF1), PH12 (R14, AF1)
BKIN2PE6 (F6, AF1), PG4 (K14, AF1)
CH1PA8 (G11, AF1), PH11 (M12, AF1), PE9 (N8, AF1)
CH1NPH10 (K10, AF1), PE8 (M8, AF1), PB13 (N13, AF1), PA7 (P3, AF1)
CH2PA9 (G13, AF1), PH9 (P13, AF1), PE11 (R10, AF1)
CH2NPB14 (K11, AF1), PE10 (M9, AF1), PH8 (N12, AF1), PB0 (R3, AF1)
CH3PA10 (F13, AF1), PH7 (M11, AF1), PE13 (P10, AF1)
CH3NPB1 (L6, AF1), PE12 (L9, AF1), PB15 (M13, AF1), PH6 (N11, AF1)
CH4PA11 (F15, AF1), PE14 (N10, AF1)
CH4NPD5 (B12, AF1), PC5 (M5, AF1), PE15 (R11, AF3)
ETRPA12 (F14, AF1), PG5 (K15, AF1), PE7 (L8, AF1)
TIM2CH1PA15(JTDI) (C13, AF1), PA0 (L2, AF1), PA5 (P2, AF1)
CH2PB3(JTDO/TRACESWO) (B7, AF1), PA1 (L4, AF1)
CH3PA2 (M3, AF1), PB10 (M10, AF1)
CH4PA3 (M4, AF1), PC4 (N4, AF1), PB11 (P11, AF1)
ETRPA15(JTDI) (C13, AF14), PA0 (L2, AF14), PA5 (P2, AF14)
TIM3CH1PB4(NJTRST) (C7, AF2), PC6 (J15, AF2), PA6 (R2, AF2)
CH2PB5 (E7, AF2), PC7 (H14, AF2), PA7 (P3, AF2)
CH3PC8 (H13, AF2), PB0 (R3, AF2)
CH4PC9 (G14, AF2), PB1 (L6, AF2)
ETRPD2 (D11, AF2)
TIM4CH1PB6 (E8, AF2), PD12 (M14, AF2)
CH2PB7 (A6, AF2), PD13 (L13, AF2)
CH3PB8 (C6, AF2), PD14 (J11, AF2)
CH4PB9 (A5, AF2), PD15 (K12, AF2), PC2 (M1, AF2)
ETRPE0 (D6, AF2)
TIM5CH1PH10 (K10, AF2), PA0 (L2, AF2)
CH2PA1 (L4, AF2), PH11 (M12, AF2)
CH3PA2 (M3, AF2), PH12 (R14, AF2)
CH4PI0 (E12, AF2), PA3 (M4, AF2)
ETRPA4 (N3, AF2), PH8 (N12, AF2)
TIM8BKINPI4 (C5, AF3), PG2 (L15, AF3), PA6 (R2, AF3), PH12 (R14, AF3)
BKIN2PI1 (D15, AF3), PA8 (G11, AF3), PG3 (J12, AF3)
CH1PI5 (A4, AF3), PC6 (J15, AF3), PH6 (N11, AF3)
CH1NPH13 (E15, AF3), PH7 (M11, AF3), PA5 (P2, AF3), PA7 (P3, AF3)
CH2PI6 (A3, AF3), PC7 (H14, AF3), PH8 (N12, AF3)
CH2NPH14 (E14, AF3), PB14 (K11, AF3), PH9 (P13, AF3), PB0 (R3, AF3)
CH3PI7 (B4, AF3), PC8 (H13, AF3), PH10 (K10, AF3)
CH3NPH15 (E13, AF3), PB1 (L6, AF3), PH11 (M12, AF3), PB15 (M13, AF3)
CH4PI2 (F10, AF3), PC9 (G14, AF3)
CH4NPD0 (E10, AF3), PB2 (P4, AF3), PH12 (R14, AF10)
ETRPI3 (D14, AF3), PG8 (J14, AF3), PA0 (L2, AF3)
TIM12CH1PB14 (K11, AF2), PH6 (N11, AF2)
CH2PB15 (M13, AF2), PH9 (P13, AF2)
TIM13CH1PF8 (H1, AF9), PA6 (R2, AF9)
TIM14CH1PF9 (J4, AF9), PA7 (P3, AF9)
TIM15BKINPE3 (D5, AF4), PD2 (D11, AF4), PA0 (L2, AF4)
CH1PC12 (B15, AF2), PE5 (D4, AF4), PA2 (M3, AF4)
CH1NPE4 (C4, AF4), PA1 (L4, AF4)
CH2PE6 (F6, AF4), PA3 (M4, AF4)
TIM16BKINPB4(NJTRST) (C7, AF1), PF10 (K1, AF1), PC0 (L1, AF1)
CH1PB8 (C6, AF1), PF6 (H3, AF1)
CH1NPB6 (E8, AF1), PF8 (H1, AF1)
TIM17BKINPB5 (E7, AF1), PG6 (J13, AF1)
CH1PB9 (A5, AF1), PF7 (H2, AF1), PC2 (M1, AF1)
CH1NPB7 (A6, AF1), PF9 (J4, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PG13 (B8, AF1), PD13 (L13, AF1), PB2 (P4, AF5)
CH2PG14 (A8, AF4), PB4(NJTRST) (C7, AF4)
ETRPG14 (A8, AF1), PE0 (D6, AF1)
IN1PG12 (C8, AF1), PA1 (L4, AF5), PD12 (M14, AF1)
IN2PE2 (B3, AF1), PE1 (B5, AF1), PG11 (D8, AF1), PH13 (E15, AF1), PA2 (M3, AF5), PH2 (N1, AF1)
LPTIM2CH1PD13 (L13, AF3), PA4 (N3, AF3), PB13 (N13, AF3)
CH2PE0 (D6, AF3), PD10 (N14, AF3)
ETRPE0 (D6, AF4), PC4 (N4, AF3), PB11 (P11, AF3)
IN1PB10 (M10, AF3), PD12 (M14, AF3)
IN2PA10 (F13, AF4), PD11 (N15, AF3)
LPTIM3CH1PF5 (H4, AF2), PC3 (M2, AF3), PB10 (M10, AF2), PB0 (R3, AF14)
CH2PF2 (F2, AF2), PB1 (L6, AF14)
ETRPC10 (D12, AF2), PF4 (G1, AF2), PB14 (K11, AF14)
IN1PC11 (B14, AF2), PF5 (H4, AF14), PF3 (H5, AF2), PB13 (N13, AF2)
IN2PA15(JTDI) (C13, AF2), PF2 (F2, AF3)
LPTIM4ETRPD2 (D11, AF14), PG4 (K14, AF14)
IN1PD13 (L13, AF14), PG0 (P7, AF14)
OUTPD7 (C9, AF14)
LPTIM5CH1PG12 (C8, AF14), PF0 (E1, AF13), PF6 (H3, AF13)
CH2PG13 (B8, AF13), PF1 (G4, AF13), PF7 (H2, AF13)
ETRPG3 (J12, AF13), PB2 (P4, AF13)
IN1PG14 (A8, AF13), PF2 (F2, AF13), PF8 (H1, AF13)
IN2PF3 (H5, AF13), PF9 (J4, AF13)
LPTIM6CH1PF11 (L7, AF14)
CH2PF12 (P6, AF14)
ETRPB3(JTDO/TRACESWO) (B7, AF14), PG2 (L15, AF14)
IN1PF13 (R6, AF14)
IN2PF14 (M7, AF14)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (C3)
OUT2PI8 (E4), PB2 (P4, AF0)
REFINPB15 (M13, AF0)
TSPC13 (C3)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (E1, AF12)
A1PF1 (G4, AF12)
A2PF2 (F2, AF12)
A3PF3 (H5, AF12)
A4PF4 (G1, AF12)
A5PF5 (H4, AF12)
A6PF12 (P6, AF12)
A7PF13 (R6, AF12)
A8PF14 (M7, AF12)
A9PF15 (N7, AF12)
A10PG0 (P7, AF12)
A11PG1 (R7, AF12)
A12PG2 (L15, AF12)
A13PG3 (J12, AF12)
A14PG4 (K14, AF12)
A15PG5 (K15, AF12)
A16PD11 (N15, AF12)
A17PD12 (M14, AF12)
A18PD13 (L13, AF12)
A19PE3 (D5, AF12)
A20PE4 (C4, AF12)
A21PE5 (D4, AF12)
A22PE6 (F6, AF12)
A23PE2 (B3, AF12)
A24PG13 (B8, AF12)
A25PG14 (A8, AF12), PC0 (L1, AF9)
ALEPC8 (H13, AF11), PD12 (M14, AF12)
BA0PG4 (K14, AF12)
BA1PG5 (K15, AF12)
CLEPC9 (G14, AF11), PD11 (N15, AF12)
CLKPD3 (A14, AF12)
D0PD14 (J11, AF12)
D1PD15 (K12, AF12)
D2PD0 (E10, AF12)
D3PD1 (C12, AF12)
D4PE7 (L8, AF12)
D5PE8 (M8, AF12)
D6PE9 (N8, AF12)
D7PE10 (M9, AF12)
D8PE11 (R10, AF12)
D9PE12 (L9, AF12)
D10PE13 (P10, AF12)
D11PE14 (N10, AF12)
D12PE15 (R11, AF12)
D13PD8 (L12, AF12)
D14PD9 (P15, AF12)
D15PD10 (N14, AF12)
DA0PD14 (J11, AF12)
DA1PD15 (K12, AF12)
DA2PD0 (E10, AF12)
DA3PD1 (C12, AF12)
DA4PE7 (L8, AF12)
DA5PE8 (M8, AF12)
DA6PE9 (N8, AF12)
DA7PE10 (M9, AF12)
DA8PE11 (R10, AF12)
DA9PE12 (L9, AF12)
DA10PE13 (P10, AF12)
DA11PE14 (N10, AF12)
DA12PE15 (R11, AF12)
DA13PD8 (L12, AF12)
DA14PD9 (P15, AF12)
DA15PD10 (N14, AF12)
INTPG7 (H11, AF12), PC8 (H13, AF10)
NBL0PE0 (D6, AF12)
NBL1PE1 (B5, AF12), PA15(JTDI) (C13, AF12), PB11 (P11, AF12)
NCEPG9 (B9, AF12), PD7 (C9, AF12), PC8 (H13, AF9)
NE1PD7 (C9, AF12), PC7 (H14, AF9)
NE2PG9 (B9, AF12), PC8 (H13, AF9)
NE3PG10 (A9, AF12), PG6 (J13, AF12)
NE4PG12 (C8, AF12)
NLPB7 (A6, AF12)
NOEPD4 (B13, AF12), PA8 (G11, AF12)
NWAITPD6 (A10, AF12), PC6 (J15, AF9)
NWEPD5 (B12, AF12), PA9 (G13, AF12), PA7 (P3, AF13)
SDCKE0PC3 (M2, AF12), PC5 (M5, AF12), PH2 (N1, AF12)
SDCKE1PB5 (E7, AF12), PH7 (M11, AF12)
SDCLKPG8 (J14, AF12)
SDNCASPG15 (A7, AF12)
SDNE0PC2 (M1, AF12), PH3 (N2, AF12), PC4 (N4, AF12)
SDNE1PB6 (E8, AF12), PH6 (N11, AF12)
SDNRASPF11 (L7, AF12)
SDNWEPH5 (K6, AF12), PC0 (L1, AF12), PA7 (P3, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (G13, AF13), PC6 (J15, AF13), PH9 (P13, AF13)
D1PA10 (F13, AF13), PC7 (H14, AF13), PH10 (K10, AF13)
D2PG10 (A9, AF13), PE0 (D6, AF13), PC8 (H13, AF13), PH11 (M12, AF13), PB15 (M13, AF13)
D3PE2 (B3, AF13), PE1 (B5, AF13), PG11 (D8, AF13), PH13 (E15, AF13), PA8 (G11, AF13), PC9 (G14, AF13), PH12 (R14, AF13)
D4PC11 (B14, AF13), PE4 (C4, AF13), PH14 (E14, AF13)
D5PD3 (A14, AF13), PI4 (C5, AF13), PB6 (E8, AF13)
D6PI6 (A3, AF13), PB8 (C6, AF13), PE5 (D4, AF13)
D7PB9 (A5, AF13), PI7 (B4, AF13), PB4(NJTRST) (C7, AF13), PE6 (F6, AF13)
D8PC10 (D12, AF13), PI1 (D15, AF13), PH6 (N11, AF13)
D9PC12 (B15, AF13), PI2 (F10, AF13), PH7 (M11, AF13)
D10PD6 (A10, AF13), PI3 (D14, AF13), PB5 (E7, AF13)
D11PG12 (C8, AF13), PA15(JTDI) (C13, AF13), PD2 (D11, AF13), PH15 (E13, AF13), PF10 (K1, AF13)
D12PG6 (J13, AF13), PF11 (L7, AF13), PD12 (M14, AF13)
D13PG15 (A7, AF13), PI0 (E12, AF13), PG7 (H11, AF13), PD13 (L13, AF13)
HSYNCPA4 (N3, AF13), PH8 (N12, AF13)
PIXCLKPA6 (R2, AF13)
VSYNCPI5 (A4, AF13), PB7 (A6, AF13), PG9 (B9, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (G13, AF13), PC6 (J15, AF13), PH9 (P13, AF13)
D1PA10 (F13, AF13), PC7 (H14, AF13), PH10 (K10, AF13)
D2PG10 (A9, AF13), PE0 (D6, AF13), PC8 (H13, AF13), PH11 (M12, AF13), PB15 (M13, AF13)
D3PE2 (B3, AF13), PE1 (B5, AF13), PG11 (D8, AF13), PH13 (E15, AF13), PA8 (G11, AF13), PC9 (G14, AF13), PH12 (R14, AF13)
D4PC11 (B14, AF13), PE4 (C4, AF13), PH14 (E14, AF13)
D5PD3 (A14, AF13), PI4 (C5, AF13), PB6 (E8, AF13)
D6PI6 (A3, AF13), PB8 (C6, AF13), PE5 (D4, AF13)
D7PB9 (A5, AF13), PI7 (B4, AF13), PB4(NJTRST) (C7, AF13), PE6 (F6, AF13)
D8PC10 (D12, AF13), PI1 (D15, AF13), PH6 (N11, AF13)
D9PC12 (B15, AF13), PI2 (F10, AF13), PH7 (M11, AF13)
D10PD6 (A10, AF13), PI3 (D14, AF13), PB5 (E7, AF13)
D11PG12 (C8, AF13), PA15(JTDI) (C13, AF13), PD2 (D11, AF13), PH15 (E13, AF13), PF10 (K1, AF13)
D12PG6 (J13, AF13), PF11 (L7, AF13), PD12 (M14, AF13)
D13PG15 (A7, AF13), PI0 (E12, AF13), PG7 (H11, AF13), PD13 (L13, AF13)
D14PI10 (C1, AF13), PH4 (P1, AF13), PA5 (P2, AF13)
D15PG12 (C8, AF4), PI11 (F3, AF13), PF10 (K1, AF4), PC5 (M5, AF4)
DEPA4 (N3, AF13), PH8 (N12, AF13)
PDCKPA6 (R2, AF13)
RDYPI5 (A4, AF13), PB7 (A6, AF13), PG9 (B9, AF13)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14(JTCK/SWCLK) (C15, AF0)
JTDIPA15(JTDI) (C13, AF0)
JTDO-SWOPB3(JTDO/TRACESWO) (B7, AF0)
JTMS-SWDIOPA13(JTMS/SWDIO) (F12, AF0)
NJTRSTPB4(NJTRST) (C7, AF0)
TRACECLKPE2 (B3, AF0)
TRACED0PG13 (B8, AF0), PE3 (D5, AF0), PC1 (K2, AF0)
TRACED1PG14 (A8, AF0), PE4 (C4, AF0), PC8 (H13, AF0)
TRACED2PE5 (D4, AF0), PD2 (D11, AF0)
TRACED3PC12 (B15, AF0), PE6 (F6, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPB2 (P4)
MCO_1PA8 (G11, AF0)
MCO_2PC9 (G14, AF0)
OSC_INPH0-OSC_IN (J1)
OSC_OUTPH1-OSC_OUT (J2)
OSC32_INPC14-OSC32_IN(OSC32_IN) (D2)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (D1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC2 (M1, AF0)
PWR_CSTOPPC3 (M2, AF0)
PWR_WKUP1PA0 (L2)
PWR_WKUP2PA2 (M3)
PWR_WKUP3PI8 (E4)
PWR_WKUP4PC13 (C3)
PWR_WKUP5PB7 (A6)
PWR_WKUP6PC1 (K2)
PWR_WKUP7PD2 (D11)
PWR_WKUP8PD3 (A14)
TAMP_IN1PC13 (C3)
TAMP_IN2PI8 (E4), PA0 (L2)
TAMP_IN3PE6 (F6), PC1 (K2)
TAMP_IN4PI11 (F3), PA2 (M3)
TAMP_IN5PA1 (L4)
TAMP_IN6PE3 (D5)
TAMP_IN7PE4 (C4)
TAMP_IN8PE5 (D4)
TAMP_OUT1PA0 (L2)
TAMP_OUT2PC13 (C3)
TAMP_OUT3PC13 (C3), PE3 (D5), PI8 (E4), PA2 (M3)
TAMP_OUT4PA1 (L4)
TAMP_OUT5PI11 (F3), PC1 (K2)
TAMP_OUT6PE6 (F6)
TAMP_OUT7PE5 (D4)
TAMP_OUT8PE4 (C4)

Блоки без собственных выводов: HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), AES (аппаратное шифрование AES), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 225 шариков корпуса TFBGA225 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1VSSпитание—
A2VSSпитание—
A3PI6ввод-выводDCMI_D6 (AF13), PSSI_D6 (AF13), SAI2_SD_A (AF10), TIM8_CH2 (AF3)
A4PI5ввод-выводDCMI_VSYNC (AF13), PSSI_RDY (AF13), SAI2_SCK_A (AF10), TIM8_CH1 (AF3)
A5PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2S2_WS (AF5), I3C1_SDA (AF3), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
A6PB7ввод-выводDCMI_VSYNC (AF13), FDCAN1_TX (AF9), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), I3C1_SDA (AF3), LPUART1_RX (AF8), PSSI_RDY (AF13), PWR_WKUP5, SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
A7PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), PSSI_D13 (AF13), SPI4_RDY (AF5), USART10_CK (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
A8PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_A25 (AF12), LPTIM1_CH2 (AF4), LPTIM1_ETR (AF1), LPTIM5_IN1 (AF13), OCTOSPI1_IO7 (AF9), SDMMC2_D7 (AF10), SPI6_MOSI (AF5), USART10_DE (AF6), USART10_RTS (AF6), USART6_TX (AF7)
A9PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), I2S1_WS (AF5), PSSI_D2 (AF13), SAI2_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5)
A10PD6ввод-выводDCMI_D10 (AF13), FMC_NWAIT (AF12), I2S3_SDO (AF5), OCTOSPI1_IO6 (AF10), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
A11VSSпитание—
A12VSSпитание—
A13VSSпитание—
A14PD3ввод-выводDCMI_D5 (AF13), FMC_CLK (AF12), I2S2_CK (AF5), PSSI_D5 (AF13), PWR_WKUP8, SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
A15VSSпитание—
B1VSSпитание—
B2VSSпитание—
B3PE2ввод-выводDCMI_D3 (AF13), DEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_A23 (AF12), LPTIM1_IN2 (AF1), OCTOSPI1_IO2 (AF9), PSSI_D3 (AF13), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), UART8_TX (AF8), USART10_RX (AF7)
B4PI7ввод-выводDCMI_D7 (AF13), PSSI_D7 (AF13), SAI2_FS_A (AF10), TIM8_CH3 (AF3)
B5PE1ввод-выводDCMI_D3 (AF13), FDCAN1_TX (AF9), FMC_NBL1 (AF12), LPTIM1_IN2 (AF1), PSSI_D3 (AF13), UART8_TX (AF8)
B6BOOT0загрузка—
B7PB3(JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2C2_SDA (AF4), I2S1_CK (AF5), I2S3_CK (AF6), LPTIM6_ETR (AF14), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART12_CTS (AF7), UART7_RX (AF11)
B8PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FMC_A24 (AF12), LPTIM1_CH1 (AF1), LPTIM5_CH2 (AF13), SDMMC2_D6 (AF10), SPI6_SCK (AF5), USART10_CTS (AF6), USART10_NSS (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
B9PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), OCTOSPI1_IO6 (AF9), PSSI_RDY (AF13), SAI2_FS_B (AF10), SDMMC2_D0 (AF11), SPI1_MISO (AF5), USART6_RX (AF7)
B10VSSпитание—
B11VSSпитание—
B12PD5ввод-выводFDCAN1_TX (AF9), FMC_NWE (AF12), OCTOSPI1_IO5 (AF10), SPI2_RDY (AF5), TIM1_CH4N (AF1), USART2_TX (AF7)
B13PD4ввод-выводFMC_NOE (AF12), OCTOSPI1_IO4 (AF10), USART2_DE (AF7), USART2_RTS (AF7)
B14PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D4 (AF13), I2S3_SDI (AF6), LPTIM3_IN1 (AF2), OCTOSPI1_NCS (AF9), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
B15PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), I2S3_SDO (AF6), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
C1PI10ввод-выводETH_MII_RX_ER (AF11), FDCAN1_RX (AF9), PSSI_D14 (AF13)
C2VSSпитание—
C3PC13ввод-выводPWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3
C4PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), FMC_A20 (AF12), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TAMP_IN7, TAMP_OUT8, TIM15_CH1N (AF4)
C5PI4ввод-выводDCMI_D5 (AF13), PSSI_D5 (AF13), SAI2_MCLK_A (AF10), SPI2_RDY (AF7), TIM8_BKIN (AF3)
C6PB8ввод-выводDCMI_D6 (AF13), ETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), SPI4_RDY (AF5), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
C7PB4(NJTRST)ввод-выводDCMI_D7 (AF13), DEBUG_NJTRST (AF0), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), LPTIM1_CH2 (AF4), OCTOSPI1_CLK (AF3), PSSI_D7 (AF13), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
C8PG12ввод-выводDCMI_D11 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_NE4 (AF12), LPTIM1_IN1 (AF1), LPTIM5_CH1 (AF14), PSSI_D11 (AF13), PSSI_D15 (AF4), SDMMC2_D3 (AF10), SPI6_MISO (AF5), USART10_TX (AF6), USART6_DE (AF7), USART6_RTS (AF7)
C9PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), I2S1_SDO (AF5), LPTIM4_OUT (AF14), OCTOSPI1_IO7 (AF10), SDMMC2_CMD (AF11), SPI1_MOSI (AF5), USART2_CK (AF7)
C10VSSпитание—
C11VSSпитание—
C12PD1ввод-выводFDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), UART4_TX (AF8)
C13PA15(JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, CEC (AF4), DCMI_D11 (AF13), DEBUG_JTDI (AF0), FMC_NBL1 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM3_IN2 (AF2), PSSI_D11 (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF14), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
C14VSSпитание—
C15PA14(JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
D1PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT
D2PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
D3VBATпитание—
D4PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), FMC_A21 (AF12), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TAMP_IN8, TAMP_OUT7, TIM15_CH1 (AF4)
D5PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), TAMP_IN6, TAMP_OUT3, TIM15_BKIN (AF4), USART10_TX (AF7)
D6PE0ввод-выводDCMI_D2 (AF13), FDCAN1_RX (AF9), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_CH2 (AF3), LPTIM2_ETR (AF4), PSSI_D2 (AF13), SAI2_MCLK_A (AF10), SPI3_RDY (AF6), TIM4_ETR (AF2), UART8_RX (AF8)
D7VDDIO2питание—
D8PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D3 (AF13), ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LPTIM1_IN2 (AF1), PSSI_D3 (AF13), SDMMC2_D2 (AF10), SPI1_SCK (AF5), USART10_RX (AF6), USART11_DE (AF7), USART11_RTS (AF7)
D9VSSпитание—
D10VSSпитание—
D11PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), LPTIM4_ETR (AF14), PSSI_D11 (AF13), PWR_WKUP7, SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
D12PC10ввод-выводDCMI_D8 (AF13), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), I2S3_CK (AF6), LPTIM3_ETR (AF2), OCTOSPI1_IO1 (AF9), PSSI_D8 (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
D13VSSпитание—
D14PI3ввод-выводDCMI_D10 (AF13), I2S2_SDO (AF5), PSSI_D10 (AF13), SPI2_MOSI (AF5), TIM8_ETR (AF3)
D15PI1ввод-выводDCMI_D8 (AF13), I2S2_CK (AF5), PSSI_D8 (AF13), SPI2_SCK (AF5), TIM8_BKIN2 (AF3)
E1PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), LPTIM5_CH1 (AF13)
E2PI9ввод-выводDAC1_EXTI9, FDCAN1_RX (AF9), UART4_RX (AF8)
E3VSSпитание—
E4PI8ввод-выводPWR_WKUP3, RTC_OUT2, TAMP_IN2, TAMP_OUT3
E5VSSпитание—
E6VCAPпитание—
E7PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), OCTOSPI1_NCLK (AF3), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14)
E8PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LPUART1_TX (AF8), OCTOSPI1_NCS (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
E9VSSпитание—
E10PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), TIM8_CH4N (AF3), UART4_RX (AF8), UART9_CTS (AF11)
E11VSSпитание—
E12PI0ввод-выводDCMI_D13 (AF13), I2S2_WS (AF5), PSSI_D13 (AF13), SPI2_NSS (AF5), TIM5_CH4 (AF2)
E13PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMI_D11 (AF13), PSSI_D11 (AF13), TIM8_CH3N (AF3)
E14PH14ввод-выводDCMI_D4 (AF13), FDCAN1_RX (AF9), PSSI_D4 (AF13), TIM8_CH2N (AF3), UART4_RX (AF8)
E15PH13ввод-выводDCMI_D3 (AF13), FDCAN1_TX (AF9), LPTIM1_IN2 (AF1), PSSI_D3 (AF13), TIM8_CH1N (AF3), UART4_TX (AF8), UART8_TX (AF7)
F1VSSпитание—
F2PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), LPTIM3_IN2 (AF3), LPTIM5_IN1 (AF13), UART12_TX (AF6), USART11_CK (AF7)
F3PI11ввод-выводADC1_EXTI11, ADC2_EXTI11, PSSI_D15 (AF13), TAMP_IN4, TAMP_OUT5
F4VSSпитание—
F5VSSпитание—
F6PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TAMP_IN3, TAMP_OUT6, TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
F7VDDпитание—
F8VSSпитание—
F9VDDпитание—
F10PI2ввод-выводDCMI_D9 (AF13), I2S2_SDI (AF5), PSSI_D9 (AF13), SPI2_MISO (AF5), TIM8_CH4 (AF3)
F11VDDUSBпитание—
F12PA13(JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
F13PA10ввод-выводDCMI_D1 (AF13), FDCAN2_TX (AF9), LPTIM2_IN2 (AF4), LPUART1_RX (AF3), PSSI_D1 (AF13), SDMMC1_D0 (AF12), TIM1_CH3 (AF1), UCPD1_FRSTX (AF6), USART1_RX (AF7)
F14PA12ввод-выводFDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), SAI2_FS_B (AF8), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_DP (AF10)
F15PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX (AF9), I2S2_WS (AF5), LPUART1_CTS (AF3), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_DM (AF10)
G1PF4ввод-выводFMC_A4 (AF12), LPTIM3_ETR (AF2), USART11_RX (AF7)
G2VSSпитание—
G3VSSпитание—
G4PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), LPTIM5_CH2 (AF13)
G5VSSпитание—
G6VDDпитание—
G7VDDпитание—
G8VSSпитание—
G9VDDпитание—
G10VDDпитание—
G11PA8ввод-выводDCMI_D3 (AF13), FMC_NOE (AF12), I2C3_SCL (AF4), PSSI_D3 (AF13), RCC_MCO_1 (AF0), SPI1_RDY (AF5), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), UART7_RX (AF11), USART1_CK (AF7), USB_SOF (AF10)
G12VSSпитание—
G13PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_MII_TX_ER (AF11), FMC_NWE (AF12), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), UCPD1_DB1, USART1_TX (AF7)
G14PC9ввод-выводAUDIOCLK (AF5), DAC1_EXTI9, DCMI_D3 (AF13), FMC_CLE (AF11), I2C3_SDA (AF4), OCTOSPI1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8), UCPD1_DB2
G15VSSпитание—
H1PF8ввод-выводLPTIM5_IN1 (AF13), OCTOSPI1_IO0 (AF10), SAI1_SCK_B (AF6), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
H2PF7ввод-выводLPTIM5_CH2 (AF13), OCTOSPI1_IO2 (AF10), SAI1_MCLK_B (AF6), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
H3PF6ввод-выводLPTIM5_CH1 (AF13), OCTOSPI1_IO3 (AF10), SAI1_SD_B (AF6), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
H4PF5ввод-выводFMC_A5 (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM3_CH1 (AF2), LPTIM3_IN1 (AF14), UART12_RX (AF6), USART11_CTS (AF7), USART11_NSS (AF7)
H5PF3ввод-выводFMC_A3 (AF12), LPTIM3_IN1 (AF2), LPTIM5_IN2 (AF13), USART11_TX (AF7)
H6VSSпитание—
H7VSSпитание—
H8VSSпитание—
H9VSSпитание—
H10VSSпитание—
H11PG7ввод-выводDCMI_D13 (AF13), FMC_INT (AF12), I2C4_SCL (AF4), I3C1_SCL (AF3), PSSI_D13 (AF13), SAI1_CK2 (AF2), SAI1_MCLK_A (AF6), UCPD1_FRSTX (AF11), USART6_CK (AF7)
H12VSSпитание—
H13PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_ALE (AF11), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), PSSI_D2 (AF13), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
H14PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), FMC_NE1 (AF9), I2S3_MCK (AF6), OCTOSPI1_IO6 (AF11), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
H15VSSпитание—
J1PH0-OSC_INввод-выводRCC_OSC_IN
J2PH1-OSC_OUTввод-выводRCC_OSC_OUT
J3VSSпитание—
J4PF9ввод-выводDAC1_EXTI9, LPTIM5_IN2 (AF13), OCTOSPI1_IO1 (AF10), SAI1_FS_B (AF6), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
J5NRSTсброс—
J6VDDпитание—
J7VDDпитание—
J8VSSпитание—
J9VDDпитание—
J10VDDпитание—
J11PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
J12PG3ввод-выводFMC_A13 (AF12), LPTIM5_ETR (AF13), TIM8_BKIN2 (AF3), UART12_TX (AF7)
J13PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF3), OCTOSPI1_NCS (AF10), PSSI_D12 (AF13), SPI1_RDY (AF5), TIM17_BKIN (AF1), UCPD1_FRSTX (AF11)
J14PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
J15PC6ввод-выводDCMI_D0 (AF13), FMC_NWAIT (AF9), I2S2_MCK (AF5), OCTOSPI1_IO5 (AF11), PSSI_D0 (AF13), SAI1_SCK_A (AF6), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
K1PF10ввод-выводDCMI_D11 (AF13), OCTOSPI1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), TIM16_BKIN (AF1)
K2PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DEBUG_TRACED0 (AF0), ETH_MDC (AF11), I2S2_SDO (AF5), OCTOSPI1_IO4 (AF10), PWR_WKUP6, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5), TAMP_IN3, TAMP_OUT5, USART11_DE (AF7), USART11_RTS (AF7)
K3VSSAпитание—
K4VREF-питание—
K5VREF+питание—
K6PH5ввод-выводFMC_SDNWE (AF12), I2C2_SDA (AF4), SPI5_NSS (AF5), SPI6_RDY (AF7)
K7VDDпитание—
K8VSSпитание—
K9VDDпитание—
K10PH10ввод-выводDCMI_D1 (AF13), I2C4_SMBA (AF4), PSSI_D1 (AF13), SPI5_RDY (AF5), TIM1_CH1N (AF1), TIM5_CH1 (AF2), TIM8_CH3 (AF3)
K11PB14ввод-выводI2S2_SDI (AF5), LPTIM3_ETR (AF14), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC2, USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
K12PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
K13VSSпитание—
K14PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), LPTIM4_ETR (AF14), TIM1_BKIN2 (AF1)
K15PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
L1PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_A25 (AF9), FMC_SDNWE (AF12), OCTOSPI1_IO7 (AF10), SAI1_MCLK_A (AF6), SAI2_FS_B (AF8), SPI2_RDY (AF7), TIM16_BKIN (AF1)
L2PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS (AF11), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI3_RDY (AF6), SPI6_NSS (AF5), TAMP_IN2, TAMP_OUT1, TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
L3VDDAпитание—
L4PA1ввод-выводADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), LPTIM1_IN1 (AF5), OCTOSPI1_DQS (AF6), OCTOSPI1_IO3 (AF9), SAI2_MCLK_B (AF10), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
L5VSSпитание—
L6PB1ввод-выводADC1_INP5, ADC2_INP5, ETH_MII_RXD3 (AF11), LPTIM3_CH2 (AF14), OCTOSPI1_IO0 (AF6), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3)
L7PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), LPTIM6_CH1 (AF14), OCTOSPI1_NCLK (AF9), PSSI_D12 (AF13), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
L8PE7ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), OCTOSPI1_IO4 (AF10), TIM1_ETR (AF1), UART12_DE (AF6), UART12_RTS (AF6), UART7_RX (AF7)
L9PE12ввод-выводFMC_D9 (AF12), FMC_DA9 (AF12), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
L10VCAPпитание—
L11VSSпитание—
L12PD8ввод-выводFMC_D13 (AF12), FMC_DA13 (AF12), USART3_TX (AF7)
L13PD13ввод-выводDCMI_D13 (AF13), FMC_A18 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5), LPTIM1_CH1 (AF1), LPTIM2_CH1 (AF3), LPTIM4_IN1 (AF14), OCTOSPI1_IO3 (AF9), PSSI_D13 (AF13), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
L14VSSпитание—
L15PG2ввод-выводFMC_A12 (AF12), LPTIM6_ETR (AF14), TIM8_BKIN (AF3), UART12_RX (AF7)
M1PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_SDNE0 (AF12), I2S2_SDI (AF5), OCTOSPI1_IO2 (AF9), OCTOSPI1_IO5 (AF6), PWR_CSLEEP (AF0), SPI2_MISO (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2)
M2PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), LPTIM3_CH1 (AF3), OCTOSPI1_IO0 (AF9), OCTOSPI1_IO6 (AF6), PWR_CSTOP (AF0), SAI1_D3 (AF2), SPI2_MOSI (AF5)
M3PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM1_IN2 (AF5), PWR_WKUP2, SAI2_SCK_B (AF8), TAMP_IN4, TAMP_OUT3, TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
M4PA3ввод-выводADC1_INP15, ADC2_INP15, ETH_MII_COL (AF11), I2S2_WS (AF5), OCTOSPI1_CLK (AF3), SAI1_SD_B (AF6), SPI2_NSS (AF5), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
M5PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_SDCKE0 (AF12), OCTOSPI1_DQS (AF10), PSSI_D15 (AF4), SAI1_D3 (AF2), SAI1_FS_A (AF6), TIM1_CH4N (AF1), UART12_DE (AF7), UART12_RTS (AF7)
M6VSSпитание—
M7PF14ввод-выводADC2_INN2, ADC2_INP6, FMC_A8 (AF12), LPTIM6_IN2 (AF14)
M8PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), OCTOSPI1_IO5 (AF10), TIM1_CH1N (AF1), UART12_CTS (AF6), UART7_TX (AF7)
M9PE10ввод-выводFMC_D7 (AF12), FMC_DA7 (AF12), OCTOSPI1_IO7 (AF10), TIM1_CH2N (AF1), UART12_TX (AF6), UART7_CTS (AF7)
M10PB10ввод-выводETH_MII_RX_ER (AF11), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), LPTIM3_CH1 (AF2), OCTOSPI1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
M11PH7ввод-выводDCMI_D9 (AF13), ETH_MII_RXD3 (AF11), FMC_SDCKE1 (AF12), I2C3_SCL (AF4), PSSI_D9 (AF13), SPI5_MISO (AF5), TIM1_CH3 (AF1), TIM8_CH1N (AF3)
M12PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D2 (AF13), I2C4_SCL (AF4), I3C1_SCL (AF5), PSSI_D2 (AF13), TIM1_CH1 (AF1), TIM5_CH2 (AF2), TIM8_CH3N (AF3)
M13PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMI_D2 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), I2S2_SDO (AF5), OCTOSPI1_CLK (AF10), PSSI_D2 (AF13), PWR_PVD_IN, RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), UART5_RX (AF14), USART11_CTS (AF7), USART11_NSS (AF7), USART1_RX (AF4)
M14PD12ввод-выводDCMI_D12 (AF13), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), OCTOSPI1_IO1 (AF9), PSSI_D12 (AF13), SAI1_D1 (AF6), SAI2_FS_A (AF10), TIM4_CH1 (AF2), UART4_TX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
M15VSSпитание—
N1PH2ввод-выводETH_MII_CRS (AF11), FMC_SDCKE0 (AF12), LPTIM1_IN2 (AF1), OCTOSPI1_IO4 (AF9), SAI2_SCK_B (AF10)
N2PH3ввод-выводETH_MII_COL (AF11), FMC_SDNE0 (AF12), OCTOSPI1_IO5 (AF9), SAI2_MCLK_B (AF10)
N3PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM2_CH1 (AF3), PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
N4PC4ввод-выводADC1_INP4, ADC2_INP4, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LPTIM2_ETR (AF3), SAI1_CK1 (AF2), TIM2_CH4 (AF1), USART3_RX (AF7)
N5VSSпитание—
N6VSSпитание—
N7PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5)
N8PE9ввод-выводDAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), OCTOSPI1_IO6 (AF10), TIM1_CH1 (AF1), UART12_RX (AF6), UART7_DE (AF7), UART7_RTS (AF7)
N9VSSпитание—
N10PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
N11PH6ввод-выводDCMI_D8 (AF13), ETH_MII_RXD2 (AF11), FMC_SDNE1 (AF12), I2C2_SMBA (AF4), PSSI_D8 (AF13), SPI5_SCK (AF5), TIM12_CH1 (AF2), TIM1_CH3N (AF1), TIM8_CH1 (AF3)
N12PH8ввод-выводDCMI_HSYNC (AF13), I2C3_SDA (AF4), PSSI_DE (AF13), SPI5_MOSI (AF5), TIM1_CH2N (AF1), TIM5_ETR (AF2), TIM8_CH2 (AF3)
N13PB13ввод-выводFDCAN2_TX (AF9), I2C2_SMBA (AF4), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LPTIM3_IN1 (AF2), SDMMC1_D0 (AF12), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), UCPD1_CC1, USART3_CTS (AF7), USART3_NSS (AF7)
N14PD10ввод-выводFMC_D15 (AF12), FMC_DA15 (AF12), LPTIM2_CH2 (AF3), USART3_CK (AF7)
N15PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), OCTOSPI1_IO0 (AF9), SAI1_CK1 (AF2), SAI2_SD_A (AF10), UART4_RX (AF8), USART3_CTS (AF7), USART3_NSS (AF7)
P1PH4ввод-выводI2C2_SCL (AF4), PSSI_D14 (AF13), SPI5_RDY (AF5), SPI6_RDY (AF7)
P2PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), PSSI_D14 (AF13), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1N (AF3)
P3PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_NWE (AF13), FMC_SDNWE (AF12), I2S1_SDO (AF5), OCTOSPI1_IO2 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART11_RX (AF7)
P4PB2ввод-выводI2S3_SDO (AF7), LPTIM1_CH1 (AF5), LPTIM5_ETR (AF13), OCTOSPI1_CLK (AF9), OCTOSPI1_DQS (AF10), RCC_LSCO, RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC1_CMD (AF12), SPI1_RDY (AF4), SPI3_MOSI (AF7), TIM8_CH4N (AF3)
P5VSSпитание—
P6PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), LPTIM6_CH2 (AF14)
P7PG0ввод-выводFMC_A10 (AF12), LPTIM4_IN1 (AF14), UART9_RX (AF11)
P8VSSпитание—
P9VSSпитание—
P10PE13ввод-выводFMC_D10 (AF12), FMC_DA10 (AF12), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
P11PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), FMC_NBL1 (AF12), I2C2_SDA (AF4), LPTIM2_ETR (AF3), SPI2_RDY (AF5), SPI4_RDY (AF6), TIM2_CH4 (AF1), USART3_RX (AF7)
P12VSSSMPSпитание—
P13PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), I2C3_SMBA (AF4), PSSI_D0 (AF13), SPI5_NSS (AF5), TIM12_CH2 (AF2), TIM1_CH2 (AF1), TIM8_CH2N (AF3)
P14PB12ввод-выводETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SDA (AF4), I2S2_WS (AF5), OCTOSPI1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF14), UCPD1_FRSTX (AF6), USART3_CK (AF7)
P15PD9ввод-выводDAC1_EXTI9, FDCAN2_RX (AF9), FMC_D14 (AF12), FMC_DA14 (AF12), USART3_RX (AF7)
R1VSSпитание—
R2PA6ввод-выводADC1_INP3, ADC2_INP3, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), OCTOSPI1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART11_TX (AF7)
R3PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH_MII_RXD2 (AF11), LPTIM3_CH1 (AF14), OCTOSPI1_IO1 (AF6), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USART11_CK (AF7)
R4VSSпитание—
R5VSSпитание—
R6PF13ввод-выводADC2_INP2, FMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM6_IN1 (AF14)
R7PG1ввод-выводFMC_A11 (AF12), I2S2_SDO (AF7), SPI2_MOSI (AF7), UART9_TX (AF11)
R8VSSпитание—
R9VSSпитание—
R10PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D8 (AF12), FMC_DA8 (AF12), OCTOSPI1_NCS (AF6), SAI2_SD_B (AF10), SPI1_RDY (AF4), SPI4_NSS (AF5), TIM1_CH2 (AF1)
R11PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), TIM1_BKIN (AF1), TIM1_CH4N (AF3), USART10_CK (AF7)
R12VLXSMPSпитание—
R13VDDSMPSпитание—
R14PH12ввод-выводDCMI_D3 (AF13), I2C4_SDA (AF4), I3C1_SDA (AF5), PSSI_D3 (AF13), TIM1_BKIN (AF1), TIM5_CH3 (AF2), TIM8_BKIN (AF3), TIM8_CH4N (AF10)
R15VSSпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATD3резервное питание: часы реального времени и резервные регистры
VCAPE6, L10вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDF7, F9, G6, G7, G9, G10, J6, J7, J9, J10, K7, K9питание цифровой части и линий ввода-вывода
VDDAL3питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2D7питание отдельной группы линий ввода-вывода
VDDSMPSR13—
VDDUSBF11питание приёмопередатчика USB
VLXSMPSR12—
VREF-K4нижнее опорное напряжение АЦП
VREF+K5верхнее опорное напряжение АЦП и ЦАП
VSSA1, A2, A11, A12, A13, A15, B1, B2, B10, B11, C2, C10, C11, C14, D9, D10, D13, E3, E5, E9, E11, F1, F4, F5, F8, G2, G3, G5, G8, G12, G15, H6, H7, H8, H9, H10, H12, H15, J3, J8, K8, K13, L5, L11, L14, M6, M15, N5, N6, N9, P5, P8, P9, R1, R4, R5, R8, R9, R15общий провод (земля)
VSSAK3общий провод аналоговой части
VSSSMPSP12—
NRSTJ5сброс, активный уровень — низкий
BOOT0B6выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H573LIHxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H573LISTM32H573LIHxQ2 МБ640 КБ

Линейка STM32H5x3, семейство STM32H5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе TFBGA225, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H563LISTM32H5x3225 из 225выводы совпадают полностьютолько у этого: AES

Частые вопросы

На каких выводах USART1 у STM32H573LI?

В корпусе TFBGA225 сигнал USART1_TX выведен на PB6 (шарик E8, AF7) или PA9 (шарик G13, AF7) или PB14 (шарик K11, AF4), USART1_RX — на PB7 (шарик A6, AF7) или PA10 (шарик F13, AF7) или PB15 (шарик M13, AF4).

Где у STM32H573LI выводы SWD для программатора?

SWDIO — PA13(JTMS/SWDIO) (шарик F12, AF0), SWCLK — PA14(JTCK/SWCLK) (шарик C15, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H573LI?

I2C1_SCL — PB8 (шарик C6, AF4) или PB6 (шарик E8, AF4), I2C1_SDA — PB9 (шарик A5, AF4) или PB7 (шарик A6, AF4).

Сколько выводов ввода-вывода у STM32H573LI в корпусе TFBGA225?

140 из 225. Ещё 83 вывода заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
