STM32H573ZITx в корпусе LQFP144: распиновка

STM32H573ZITx — микроконтроллер STM32H5 на ядре Cortex-M33 с частотой до 250 МГц: 2 МБ флеш-памяти и 640 КБ ОЗУ. Корпус LQFP144 — 144 вывода, из них 112 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Частота ядра
до 250 МГц
Флеш-память
2 МБ
ОЗУ
640 КБ
Корпус
LQFP144, 144 вывода
Линий ввода-вывода
112
Напряжение питания
1,62…3,6 В

Схема корпуса LQFP144

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Распиновка STM32H573ZITx в корпусе LQFP144, вид сверхуSTM32H573ZITxLQFP144, вид сверхуPE2 — вывод 1: DCMI_D3, DEBUG_TRACECLK, ETH_MII_TXD3, FMC_A23, LPTIM1_IN2, OCTOSPI1_IO2, PSSI_D3, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, UART8_TX, USART10_RX1PE2PE3 — вывод 2: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM15_BKIN, USART10_TX2PE3PE4 — вывод 3: DCMI_D4, DEBUG_TRACED1, FMC_A20, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TAMP_IN7, TAMP_OUT8, TIM15_CH1N3PE4PE5 — вывод 4: DCMI_D6, DEBUG_TRACED2, FMC_A21, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TAMP_IN8, TAMP_OUT7, TIM15_CH14PE5PE6 — вывод 5: DCMI_D7, DEBUG_TRACED3, FMC_A22, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TAMP_IN3, TAMP_OUT6, TIM15_CH2, TIM1_BKIN25PE6VBAT — вывод 66VBATPC13 — вывод 7: PWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT37PC13PC14-OSC32_IN(OSC32_IN) — вывод 8: RCC_OSC32_IN8PC14-OSC32_IN(OSC32_IN)PC15-OSC32_OUT(OSC32_OUT) — вывод 9: ADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT9PC15-OSC32_OUT(OSC32_OUT)PF0 — вывод 10: FMC_A0, I2C2_SDA, LPTIM5_CH110PF0PF1 — вывод 11: FMC_A1, I2C2_SCL, LPTIM5_CH211PF1PF2 — вывод 12: FMC_A2, I2C2_SMBA, LPTIM3_CH2, LPTIM3_IN2, LPTIM5_IN1, UART12_TX, USART11_CK12PF2PF3 — вывод 13: FMC_A3, LPTIM3_IN1, LPTIM5_IN2, USART11_TX13PF3PF4 — вывод 14: FMC_A4, LPTIM3_ETR, USART11_RX14PF4PF5 — вывод 15: FMC_A5, I2C4_SCL, I3C1_SCL, LPTIM3_CH1, LPTIM3_IN1, UART12_RX, USART11_CTS, USART11_NSS15PF5VSS — вывод 1616VSSVDD — вывод 1717VDDPF6 — вывод 18: LPTIM5_CH1, OCTOSPI1_IO3, SAI1_SD_B, SPI5_NSS, TIM16_CH1, UART7_RX18PF6PF7 — вывод 19: LPTIM5_CH2, OCTOSPI1_IO2, SAI1_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TX19PF7PF8 — вывод 20: LPTIM5_IN1, OCTOSPI1_IO0, SAI1_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTS20PF8PF9 — вывод 21: DAC1_EXTI9, LPTIM5_IN2, OCTOSPI1_IO1, SAI1_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTS21PF9PF10 — вывод 22: DCMI_D11, OCTOSPI1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKIN22PF10PH0-OSC_IN — вывод 23: RCC_OSC_IN23PH0-OSC_INPH1-OSC_OUT — вывод 24: RCC_OSC_OUT24PH1-OSC_OUTNRST — вывод 2525NRSTPC0 — вывод 26: ADC1_INP10, ADC2_INP10, FMC_A25, FMC_SDNWE, OCTOSPI1_IO7, SAI1_MCLK_A, SAI2_FS_B, SPI2_RDY, TIM16_BKIN26PC0PC1 — вывод 27: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DEBUG_TRACED0, ETH_MDC, I2S2_SDO, OCTOSPI1_IO4, PWR_WKUP6, SAI1_D1, SAI1_SD_A, SAI2_SD_A, SDMMC2_CK, SPI2_MOSI, TAMP_IN3, TAMP_OUT5, USART11_DE, USART11_RTS27PC1PC2 — вывод 28: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_SDNE0, I2S2_SDI, OCTOSPI1_IO2, OCTOSPI1_IO5, PWR_CSLEEP, SPI2_MISO, TIM17_CH1, TIM4_CH428PC2PC3 — вывод 29: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_SDCKE0, I2S2_SDO, LPTIM3_CH1, OCTOSPI1_IO0, OCTOSPI1_IO6, PWR_CSTOP, SAI1_D3, SPI2_MOSI29PC3VDD — вывод 3030VDDVSSA — вывод 3131VSSAVREF+ — вывод 3232VREF+VDDA — вывод 3333VDDAPA0 — вывод 34: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI3_RDY, SPI6_NSS, TAMP_IN2, TAMP_OUT1, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSS34PA0PA1 — вывод 35: ADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, LPTIM1_IN1, OCTOSPI1_DQS, OCTOSPI1_IO3, SAI2_MCLK_B, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTS35PA1PA2 — вывод 36: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM1_IN2, PWR_WKUP2, SAI2_SCK_B, TAMP_IN4, TAMP_OUT3, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TX36PA2PA3 — вывод 37: ADC1_INP15, ADC2_INP15, ETH_MII_COL, I2S2_WS, OCTOSPI1_CLK, SAI1_SD_B, SPI2_NSS, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX37PA3VSS — вывод 3838VSSVDD — вывод 3939VDDPA4 — вывод 40: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, I2S1_WS, I2S3_WS, LPTIM2_CH1, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CK40PA4PA5 — вывод 41: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, PSSI_D14, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N41PA5PA6 — вывод 42: ADC1_INP3, ADC2_INP3, DCMI_PIXCLK, I2S1_SDI, OCTOSPI1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART11_TX42PA6PA7 — вывод 43: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_NWE, FMC_SDNWE, I2S1_SDO, OCTOSPI1_IO2, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART11_RX43PA7PC4 — вывод 44: ADC1_INP4, ADC2_INP4, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_SDNE0, I2S1_MCK, LPTIM2_ETR, SAI1_CK1, TIM2_CH4, USART3_RX44PC4PC5 — вывод 45: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_SDCKE0, OCTOSPI1_DQS, PSSI_D15, SAI1_D3, SAI1_FS_A, TIM1_CH4N, UART12_DE, UART12_RTS45PC5PB0 — вывод 46: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH_MII_RXD2, LPTIM3_CH1, OCTOSPI1_IO1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USART11_CK46PB0PB1 — вывод 47: ADC1_INP5, ADC2_INP5, ETH_MII_RXD3, LPTIM3_CH2, OCTOSPI1_IO0, TIM1_CH3N, TIM3_CH4, TIM8_CH3N47PB1PB2 — вывод 48: I2S3_SDO, LPTIM1_CH1, LPTIM5_ETR, OCTOSPI1_CLK, OCTOSPI1_DQS, RCC_LSCO, RTC_OUT2, SAI1_D1, SAI1_SD_A, SDMMC1_CMD, SPI1_RDY, SPI3_MOSI, TIM8_CH4N48PB2PF11 — вывод 49: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMI_D12, FMC_SDNRAS, LPTIM6_CH1, OCTOSPI1_NCLK, PSSI_D12, SAI2_SD_B, SPI5_MOSI49PF11PF12 — вывод 50: ADC1_INN2, ADC1_INP6, FMC_A6, LPTIM6_CH250PF12VSS — вывод 5151VSSVDD — вывод 5252VDDPF13 — вывод 53: ADC2_INP2, FMC_A7, I2C4_SMBA, LPTIM6_IN153PF13PF14 — вывод 54: ADC2_INN2, ADC2_INP6, FMC_A8, LPTIM6_IN254PF14PF15 — вывод 55: ADC1_EXTI15, ADC2_EXTI15, FMC_A9, I2C4_SDA, I3C1_SDA55PF15PG0 — вывод 56: FMC_A10, LPTIM4_IN1, UART9_RX56PG0PG1 — вывод 57: FMC_A11, I2S2_SDO, SPI2_MOSI, UART9_TX57PG1PE7 — вывод 58: FMC_D4, FMC_DA4, OCTOSPI1_IO4, TIM1_ETR, UART12_DE, UART12_RTS, UART7_RX58PE7PE8 — вывод 59: FMC_D5, FMC_DA5, OCTOSPI1_IO5, TIM1_CH1N, UART12_CTS, UART7_TX59PE8PE9 — вывод 60: DAC1_EXTI9, FMC_D6, FMC_DA6, OCTOSPI1_IO6, TIM1_CH1, UART12_RX, UART7_DE, UART7_RTS60PE9VSS — вывод 6161VSSVDD — вывод 6262VDDPE10 — вывод 63: FMC_D7, FMC_DA7, OCTOSPI1_IO7, TIM1_CH2N, UART12_TX, UART7_CTS63PE10PE11 — вывод 64: ADC1_EXTI11, ADC2_EXTI11, FMC_D8, FMC_DA8, OCTOSPI1_NCS, SAI2_SD_B, SPI1_RDY, SPI4_NSS, TIM1_CH264PE11PE12 — вывод 65: FMC_D9, FMC_DA9, SAI2_SCK_B, SPI4_SCK, TIM1_CH3N65PE12PE13 — вывод 66: FMC_D10, FMC_DA10, SAI2_FS_B, SPI4_MISO, TIM1_CH366PE13PE14 — вывод 67: FMC_D11, FMC_DA11, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH467PE14PE15 — вывод 68: ADC1_EXTI15, ADC2_EXTI15, FMC_D12, FMC_DA12, TIM1_BKIN, TIM1_CH4N, USART10_CK68PE15PB10 — вывод 69: ETH_MII_RX_ER, I2C2_SCL, I2S2_CK, LPTIM2_IN1, LPTIM3_CH1, OCTOSPI1_NCS, SPI2_SCK, TIM2_CH3, USART3_TX69PB10VCAP — вывод 7070VCAPVSS — вывод 7171VSSVDD — вывод 7272VDDPB12 — вывод 73: ETH_MII_TXD0, ETH_RMII_TXD0, FDCAN2_RX, I2C2_SDA, I2S2_WS, OCTOSPI1_NCLK, SPI2_NSS, TIM1_BKIN, UART5_RX, UCPD1_FRSTX, USART3_CK73PB12PB13 — вывод 74: FDCAN2_TX, I2C2_SMBA, I2S2_CK, LPTIM2_CH1, LPTIM3_IN1, SDMMC1_D0, SPI2_SCK, TIM1_CH1N, UART5_TX, UCPD1_CC1, USART3_CTS, USART3_NSS74PB13PB14 — вывод 75: I2S2_SDI, LPTIM3_ETR, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, UCPD1_CC2, USART1_TX, USART3_DE, USART3_RTS75PB14PB15 — вывод 76: ADC1_EXTI15, ADC2_EXTI15, DCMI_D2, ETH_MII_TXD1, ETH_RMII_TXD1, I2S2_SDO, OCTOSPI1_CLK, PSSI_D2, PWR_PVD_IN, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, UART5_RX, USART11_CTS, USART11_NSS, USART1_RX76PB15PD8 — вывод 77: FMC_D13, FMC_DA13, USART3_TX77PD8PD9 — вывод 78: DAC1_EXTI9, FDCAN2_RX, FMC_D14, FMC_DA14, USART3_RX78PD9PD10 — вывод 79: FMC_D15, FMC_DA15, LPTIM2_CH2, USART3_CK79PD10PD11 — вывод 80: ADC1_EXTI11, ADC2_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, OCTOSPI1_IO0, SAI1_CK1, SAI2_SD_A, UART4_RX, USART3_CTS, USART3_NSS80PD11PD12 — вывод 81: DCMI_D12, FMC_A17, FMC_ALE, I2C4_SCL, I3C1_SCL, LPTIM1_IN1, LPTIM2_IN1, OCTOSPI1_IO1, PSSI_D12, SAI1_D1, SAI2_FS_A, TIM4_CH1, UART4_TX, USART3_DE, USART3_RTS81PD12PD13 — вывод 82: DCMI_D13, FMC_A18, I2C4_SDA, I3C1_SDA, LPTIM1_CH1, LPTIM2_CH1, LPTIM4_IN1, OCTOSPI1_IO3, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTS82PD13VSS — вывод 8383VSSVDD — вывод 8484VDDPD14 — вывод 85: FMC_D0, FMC_DA0, TIM4_CH3, UART8_CTS, UART9_RX85PD14PD15 — вывод 86: ADC1_EXTI15, ADC2_EXTI15, FMC_D1, FMC_DA1, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TX86PD15PG2 — вывод 87: FMC_A12, LPTIM6_ETR, TIM8_BKIN, UART12_RX87PG2PG3 — вывод 88: FMC_A13, LPTIM5_ETR, TIM8_BKIN2, UART12_TX88PG3PG4 — вывод 89: FMC_A14, FMC_BA0, LPTIM4_ETR, TIM1_BKIN289PG4PG5 — вывод 90: FMC_A15, FMC_BA1, TIM1_ETR90PG5PG6 — вывод 91: DCMI_D12, FMC_NE3, I2C4_SDA, I3C1_SDA, OCTOSPI1_NCS, PSSI_D12, SPI1_RDY, TIM17_BKIN, UCPD1_FRSTX91PG6PG7 — вывод 92: DCMI_D13, FMC_INT, I2C4_SCL, I3C1_SCL, PSSI_D13, SAI1_CK2, SAI1_MCLK_A, UCPD1_FRSTX, USART6_CK92PG7PG8 — вывод 93: ETH_PPS_OUT, FMC_SDCLK, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTS93PG8VSS — вывод 9494VSSVDD — вывод 9595VDDPC6 — вывод 96: DCMI_D0, FMC_NWAIT, I2S2_MCK, OCTOSPI1_IO5, PSSI_D0, SAI1_SCK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, USART6_TX96PC6PC7 — вывод 97: DCMI_D1, DEBUG_TRGIO, FMC_NE1, I2S3_MCK, OCTOSPI1_IO6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, USART6_RX97PC7PC8 — вывод 98: DCMI_D2, DEBUG_TRACED1, FMC_ALE, FMC_INT, FMC_NCE, FMC_NE2, PSSI_D2, SDMMC1_D0, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CK98PC8PC9 — вывод 99: AUDIOCLK, DAC1_EXTI9, DCMI_D3, FMC_CLE, I2C3_SDA, OCTOSPI1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, TIM8_CH4, UART5_CTS, UCPD1_DB299PC9PA8 — вывод 100: DCMI_D3, FMC_NOE, I2C3_SCL, PSSI_D3, RCC_MCO_1, SPI1_RDY, TIM1_CH1, TIM8_BKIN2, UART7_RX, USART1_CK, USB_SOF100PA8PA9 — вывод 101: DAC1_EXTI9, DCMI_D0, ETH_MII_TX_ER, FMC_NWE, I2C3_SMBA, I2S2_CK, LPUART1_TX, PSSI_D0, SPI2_SCK, TIM1_CH2, UCPD1_DB1, USART1_TX101PA9PA10 — вывод 102: DCMI_D1, FDCAN2_TX, LPTIM2_IN2, LPUART1_RX, PSSI_D1, SDMMC1_D0, TIM1_CH3, UCPD1_FRSTX, USART1_RX102PA10PA11 — вывод 103: ADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX, I2S2_WS, LPUART1_CTS, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_DM103PA11PA12 — вывод 104: FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_DP104PA12PA13(JTMS/SWDIO) — вывод 105: DEBUG_JTMS-SWDIO105PA13(JTMS/SWDIO)VDDUSB — вывод 106106VDDUSBVSS — вывод 107107VSSVDD — вывод 108108VDDPA14(JTCK/SWCLK) — вывод 109: DEBUG_JTCK-SWCLK109PA14(JTCK/SWCLK)PA15(JTDI) — вывод 110: ADC1_EXTI15, ADC2_EXTI15, CEC, DCMI_D11, DEBUG_JTDI, FMC_NBL1, I2S1_WS, I2S3_WS, LPTIM3_IN2, PSSI_D11, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TX110PA15(JTDI)PC10 — вывод 111: DCMI_D8, ETH_MII_TXD0, ETH_RMII_TXD0, I2S3_CK, LPTIM3_ETR, OCTOSPI1_IO1, PSSI_D8, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TX111PC10PC11 — вывод 112: ADC1_EXTI11, ADC2_EXTI11, DCMI_D4, I2S3_SDI, LPTIM3_IN1, OCTOSPI1_NCS, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RX112PC11PC12 — вывод 113: DCMI_D9, DEBUG_TRACED3, I2S3_SDO, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CK113PC12PD0 — вывод 114: FDCAN1_RX, FMC_D2, FMC_DA2, TIM8_CH4N, UART4_RX, UART9_CTS114PD0PD1 — вывод 115: FDCAN1_TX, FMC_D3, FMC_DA3, UART4_TX115PD1PD2 — вывод 116: DCMI_D11, DEBUG_TRACED2, LPTIM4_ETR, PSSI_D11, PWR_WKUP7, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RX116PD2PD3 — вывод 117: DCMI_D5, FMC_CLK, I2S2_CK, PSSI_D5, PWR_WKUP8, SPI2_SCK, USART2_CTS, USART2_NSS117PD3PD4 — вывод 118: FMC_NOE, OCTOSPI1_IO4, USART2_DE, USART2_RTS118PD4PD5 — вывод 119: FDCAN1_TX, FMC_NWE, OCTOSPI1_IO5, SPI2_RDY, TIM1_CH4N, USART2_TX119PD5VSS — вывод 120120VSSVDDIO2 — вывод 121121VDDIO2PD6 — вывод 122: DCMI_D10, FMC_NWAIT, I2S3_SDO, OCTOSPI1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RX122PD6PD7 — вывод 123: FMC_NCE, FMC_NE1, I2S1_SDO, LPTIM4_OUT, OCTOSPI1_IO7, SDMMC2_CMD, SPI1_MOSI, USART2_CK123PD7PG9 — вывод 124: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, OCTOSPI1_IO6, PSSI_RDY, SAI2_FS_B, SDMMC2_D0, SPI1_MISO, USART6_RX124PG9PG10 — вывод 125: DCMI_D2, FMC_NE3, I2S1_WS, PSSI_D2, SAI2_SD_B, SDMMC2_D1, SPI1_NSS125PG10PG11 — вывод 126: ADC1_EXTI11, ADC2_EXTI11, DCMI_D3, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LPTIM1_IN2, PSSI_D3, SDMMC2_D2, SPI1_SCK, USART10_RX, USART11_DE, USART11_RTS126PG11PG12 — вывод 127: DCMI_D11, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_NE4, LPTIM1_IN1, LPTIM5_CH1, PSSI_D11, PSSI_D15, SDMMC2_D3, SPI6_MISO, USART10_TX, USART6_DE, USART6_RTS127PG12PG13 — вывод 128: DEBUG_TRACED0, ETH_MII_TXD0, ETH_RMII_TXD0, FMC_A24, LPTIM1_CH1, LPTIM5_CH2, SDMMC2_D6, SPI6_SCK, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSS128PG13PG14 — вывод 129: DEBUG_TRACED1, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_A25, LPTIM1_CH2, LPTIM1_ETR, LPTIM5_IN1, OCTOSPI1_IO7, SDMMC2_D7, SPI6_MOSI, USART10_DE, USART10_RTS, USART6_TX129PG14VSS — вывод 130130VSSVDD — вывод 131131VDDPG15 — вывод 132: ADC1_EXTI15, ADC2_EXTI15, DCMI_D13, FMC_SDNCAS, PSSI_D13, SPI4_RDY, USART10_CK, USART6_CTS, USART6_NSS132PG15PB3(JTDO/TRACESWO) — вывод 133: CRS_SYNC, DEBUG_JTDO-SWO, I2C2_SDA, I2S1_CK, I2S3_CK, LPTIM6_ETR, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART12_CTS, UART7_RX133PB3(JTDO/TRACESWO)PB4(NJTRST) — вывод 134: DCMI_D7, DEBUG_NJTRST, I2S1_SDI, I2S2_WS, I2S3_SDI, LPTIM1_CH2, OCTOSPI1_CLK, PSSI_D7, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TX134PB4(NJTRST)PB5 — вывод 135: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, OCTOSPI1_NCLK, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX135PB5PB6 — вывод 136: CEC, DCMI_D5, FDCAN2_TX, FMC_SDNE1, I2C1_SCL, I2C4_SCL, I3C1_SCL, LPUART1_TX, OCTOSPI1_NCS, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TX136PB6PB7 — вывод 137: DCMI_VSYNC, FDCAN1_TX, FMC_NL, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPUART1_RX, PSSI_RDY, PWR_WKUP5, SDMMC2_CKIN, SDMMC2_D5, TIM17_CH1N, TIM4_CH2, USART1_RX137PB7BOOT0 — вывод 138138BOOT0PB8 — вывод 139: DCMI_D6, ETH_MII_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, I3C1_SCL, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI4_RDY, TIM16_CH1, TIM4_CH3, UART4_RX139PB8PB9 — вывод 140: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2S2_WS, I3C1_SDA, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_CKIN, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TX140PB9PE0 — вывод 141: DCMI_D2, FDCAN1_RX, FMC_NBL0, LPTIM1_ETR, LPTIM2_CH2, LPTIM2_ETR, PSSI_D2, SAI2_MCLK_A, SPI3_RDY, TIM4_ETR, UART8_RX141PE0VCAP — вывод 142142VCAPVSS — вывод 143143VSSVDD — вывод 144144VDD
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

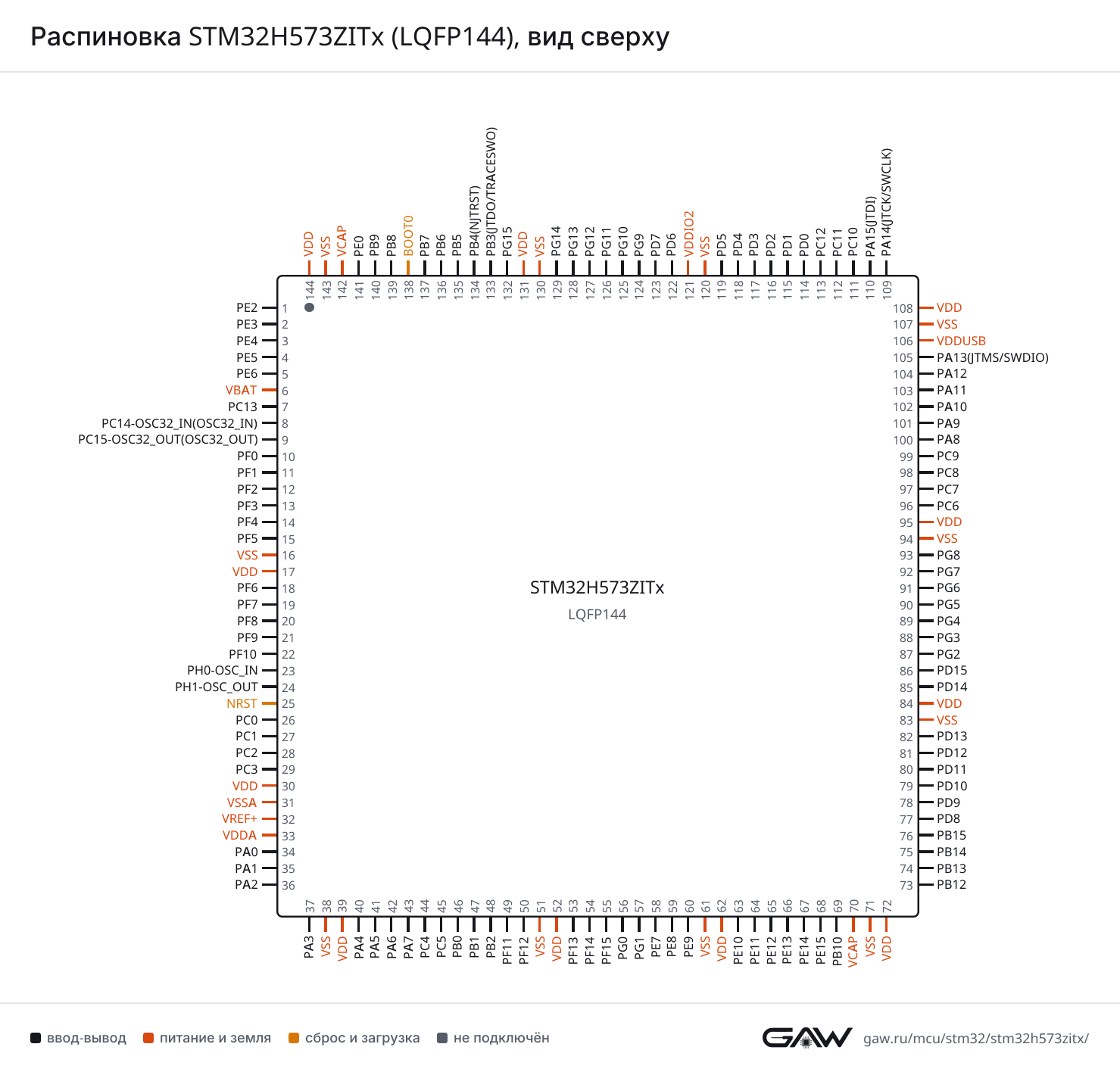

Распиновка STM32H573ZITx (LQFP144), вид сверхуРаспиновка LQFP144 картинкой
PNG, 1479 × 1416 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер вывода и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (100, AF7)
CTSPA11 (103, AF7)
DEPA12 (104, AF7)
NSSPA11 (103, AF7)
RTSPA12 (104, AF7)
RXPB15 (76, AF4), PA10 (102, AF7), PB7 (137, AF7)
TXPB14 (75, AF4), PA9 (101, AF7), PB6 (136, AF7)
USART2CKPA4 (40, AF7), PD7 (123, AF7)
CTSPA0 (34, AF7), PD3 (117, AF7)
DEPA1 (35, AF7), PD4 (118, AF7)
NSSPA0 (34, AF7), PD3 (117, AF7)
RTSPA1 (35, AF7), PD4 (118, AF7)
RXPA3 (37, AF7), PD6 (122, AF7)
TXPA2 (36, AF7), PD5 (119, AF7)
USART3CKPB12 (73, AF7), PD10 (79, AF7), PC12 (113, AF7)
CTSPB13 (74, AF7), PD11 (80, AF7)
DEPB14 (75, AF7), PD12 (81, AF7)
NSSPB13 (74, AF7), PD11 (80, AF7)
RTSPB14 (75, AF7), PD12 (81, AF7)
RXPC4 (44, AF7), PD9 (78, AF7), PC11 (112, AF7)
TXPB10 (69, AF7), PD8 (77, AF7), PC10 (111, AF7)
USART6CKPG7 (92, AF7), PC8 (98, AF7)
CTSPG13 (128, AF7), PG15 (132, AF7)
DEPG8 (93, AF7), PG12 (127, AF7)
NSSPG13 (128, AF7), PG15 (132, AF7)
RTSPG8 (93, AF7), PG12 (127, AF7)
RXPC7 (97, AF7), PG9 (124, AF7)
TXPC6 (96, AF7), PG14 (129, AF7)
USART10CKPE15 (68, AF7), PG15 (132, AF6)
CTSPG13 (128, AF6)
DEPG14 (129, AF6)
NSSPG13 (128, AF6)
RTSPG14 (129, AF6)
RXPE2 (1, AF7), PG11 (126, AF6)
TXPE3 (2, AF7), PG12 (127, AF6)
USART11CKPF2 (12, AF7), PB0 (46, AF7)
CTSPF5 (15, AF7), PB15 (76, AF7)
DEPC1 (27, AF7), PG11 (126, AF7)
NSSPF5 (15, AF7), PB15 (76, AF7)
RTSPC1 (27, AF7), PG11 (126, AF7)
RXPF4 (14, AF7), PA7 (43, AF7)
TXPF3 (13, AF7), PA6 (42, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB0 (46, AF8), PB15 (76, AF8)
DEPB14 (75, AF8), PA15(JTDI) (110, AF8)
RTSPB14 (75, AF8), PA15(JTDI) (110, AF8)
RXPA1 (35, AF8), PD11 (80, AF8), PA11 (103, AF6), PC11 (112, AF8), PD0 (114, AF8), PB8 (139, AF8)
TXPA0 (34, AF8), PD12 (81, AF8), PA12 (104, AF6), PC10 (111, AF8), PD1 (115, AF8), PB9 (140, AF8)
UART5CTSPC9 (99, AF8)
DEPC8 (98, AF8)
RTSPC8 (98, AF8)
RXPB12 (73, AF14), PB15 (76, AF14), PD2 (116, AF8), PB5 (135, AF14)
TXPB13 (74, AF14), PC12 (113, AF8), PB6 (136, AF14)
UART7CTSPF9 (21, AF7), PE10 (63, AF7)
DEPF8 (20, AF7), PE9 (60, AF7)
RTSPF8 (20, AF7), PE9 (60, AF7)
RXPF6 (18, AF7), PE7 (58, AF7), PA8 (100, AF11), PB3(JTDO/TRACESWO) (133, AF11)
TXPF7 (19, AF7), PE8 (59, AF7), PA15(JTDI) (110, AF11), PB4(NJTRST) (134, AF11)
UART8CTSPD14 (85, AF8)
DEPD15 (86, AF8)
RTSPD15 (86, AF8)
RXPE0 (141, AF8)
TXPE2 (1, AF8)
UART9CTSPD0 (114, AF11)
DEPD13 (82, AF11)
RTSPD13 (82, AF11)
RXPG0 (56, AF11), PD14 (85, AF11)
TXPG1 (57, AF11), PD15 (86, AF11)
UART12CTSPE8 (59, AF6), PB3(JTDO/TRACESWO) (133, AF7)
DEPC5 (45, AF7), PE7 (58, AF6)
RTSPC5 (45, AF7), PE7 (58, AF6)
RXPF5 (15, AF6), PE9 (60, AF6), PG2 (87, AF7)
TXPF2 (12, AF6), PE10 (63, AF6), PG3 (88, AF7)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (103, AF3)
DEPA12 (104, AF3)
RTSPA12 (104, AF3)
RXPA10 (102, AF3), PB7 (137, AF8)
TXPA9 (101, AF3), PB6 (136, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA6 (42, AF5), PG9 (124, AF5), PB4(NJTRST) (134, AF5)
MOSIPA7 (43, AF5), PD7 (123, AF5), PB5 (135, AF5)
NSSPA4 (40, AF5), PA15(JTDI) (110, AF5), PG10 (125, AF5)
RDYPB2 (48, AF4), PE11 (64, AF4), PG6 (91, AF5), PA8 (100, AF5)
SCKPA5 (41, AF5), PG11 (126, AF5), PB3(JTDO/TRACESWO) (133, AF5)
SPI2MISOPC2 (28, AF5), PB14 (75, AF5)
MOSIPC1 (27, AF5), PC3 (29, AF5), PG1 (57, AF7), PB15 (76, AF5)
NSSPA3 (37, AF5), PB12 (73, AF5), PA11 (103, AF5), PB4(NJTRST) (134, AF7), PB9 (140, AF5)
RDYPC0 (26, AF7), PD5 (119, AF5)
SCKPB10 (69, AF5), PB13 (74, AF5), PA9 (101, AF5), PA12 (104, AF5), PD3 (117, AF5)
SPI3MISOPC11 (112, AF6), PB4(NJTRST) (134, AF6)
MOSIPB2 (48, AF7), PC12 (113, AF6), PD6 (122, AF5), PB5 (135, AF7)
NSSPA4 (40, AF6), PA15(JTDI) (110, AF6)
RDYPA0 (34, AF6), PE0 (141, AF6)
SCKPC10 (111, AF6), PB3(JTDO/TRACESWO) (133, AF6)
SPI4MISOPE5 (4, AF5), PE13 (66, AF5)
MOSIPE6 (5, AF5), PE14 (67, AF5)
NSSPE4 (3, AF5), PE11 (64, AF5)
RDYPG15 (132, AF5), PB8 (139, AF5)
SCKPE2 (1, AF5), PE12 (65, AF5)
SPI5MISOPF8 (20, AF5)
MOSIPF9 (21, AF5), PF11 (49, AF5)
NSSPF6 (18, AF5)
SCKPF7 (19, AF5)
SPI6MISOPA6 (42, AF8), PG12 (127, AF5), PB4(NJTRST) (134, AF8)
MOSIPA7 (43, AF8), PG14 (129, AF5), PB5 (135, AF8)
NSSPA0 (34, AF5), PA4 (40, AF8), PG8 (93, AF5), PA15(JTDI) (110, AF7)
SCKPA5 (41, AF8), PC12 (113, AF5), PG13 (128, AF5), PB3(JTDO/TRACESWO) (133, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPA5 (41, AF5), PG11 (126, AF5), PB3(JTDO/TRACESWO) (133, AF5)
MCKPC4 (44, AF5)
SDIPA6 (42, AF5), PG9 (124, AF5), PB4(NJTRST) (134, AF5)
SDOPA7 (43, AF5), PD7 (123, AF5), PB5 (135, AF5)
WSPA4 (40, AF5), PA15(JTDI) (110, AF5), PG10 (125, AF5)
I2S2CKPB10 (69, AF5), PB13 (74, AF5), PA9 (101, AF5), PA12 (104, AF5), PD3 (117, AF5)
MCKPC6 (96, AF5)
SDIPC2 (28, AF5), PB14 (75, AF5)
SDOPC1 (27, AF5), PC3 (29, AF5), PG1 (57, AF7), PB15 (76, AF5)
WSPA3 (37, AF5), PB12 (73, AF5), PA11 (103, AF5), PB4(NJTRST) (134, AF7), PB9 (140, AF5)
I2S3CKPC10 (111, AF6), PB3(JTDO/TRACESWO) (133, AF6)
MCKPC7 (97, AF6)
SDIPC11 (112, AF6), PB4(NJTRST) (134, AF6)
SDOPB2 (48, AF7), PC12 (113, AF6), PD6 (122, AF5), PB5 (135, AF7)
WSPA4 (40, AF6), PA15(JTDI) (110, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (136, AF4), PB8 (139, AF4)
SDAPB7 (137, AF4), PB9 (140, AF4)
SMBAPB5 (135, AF4)
I2C2SCLPF1 (11, AF4), PB10 (69, AF4)
SDAPF0 (10, AF4), PB12 (73, AF4), PB3(JTDO/TRACESWO) (133, AF4)
SMBAPF2 (12, AF4), PB13 (74, AF4)
I2C3SCLPA8 (100, AF4)
SDAPC9 (99, AF4)
SMBAPA9 (101, AF4)
I2C4SCLPF5 (15, AF4), PD12 (81, AF4), PG7 (92, AF4), PB6 (136, AF6), PB8 (139, AF6)
SDAPF15 (55, AF4), PD13 (82, AF4), PG6 (91, AF4), PB7 (137, AF6), PB9 (140, AF6)
SMBAPF13 (53, AF4), PD11 (80, AF4), PB5 (135, AF6)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPF5 (15, AF5), PD12 (81, AF5), PG7 (92, AF3), PB6 (136, AF3), PB8 (139, AF3)
SDAPF15 (55, AF5), PD13 (82, AF5), PG6 (91, AF3), PB7 (137, AF3), PB9 (140, AF3)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPA11 (103, AF9), PD0 (114, AF9), PB8 (139, AF9), PE0 (141, AF9)
TXPA12 (104, AF9), PD1 (115, AF9), PD5 (119, AF9), PB7 (137, AF9), PB9 (140, AF9)
FDCAN2RXPB12 (73, AF9), PD9 (78, AF9), PB5 (135, AF9)
TXPB13 (74, AF9), PA10 (102, AF9), PB6 (136, AF9)

USB — USB Full Speed, устройство

БлокСигналВыводы
USBDMPA11 (103, AF10)
DPPA12 (104, AF10)
SOFPA8 (100, AF10)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB13 (74)
CC2PB14 (75)
DB1PA9 (101)
DB2PC9 (99)
FRSTXPB12 (73, AF6), PG6 (91, AF11), PG7 (92, AF11), PA10 (102, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHMDCPC1 (27, AF11)
MDIOPA2 (36, AF11)
MII_COLPA3 (37, AF11)
MII_CRSPA0 (34, AF11)
MII_RX_CLKPA1 (35, AF11)
MII_RX_DVPA7 (43, AF11)
MII_RX_ERPB10 (69, AF11)
MII_RXD0PC4 (44, AF11)
MII_RXD1PC5 (45, AF11)
MII_RXD2PB0 (46, AF11)
MII_RXD3PB1 (47, AF11)
MII_TX_CLKPC3 (29, AF11)
MII_TX_ENPA5 (41, AF11), PG11 (126, AF11)
MII_TX_ERPA9 (101, AF11)
MII_TXD0PB12 (73, AF11), PC10 (111, AF11), PG13 (128, AF11)
MII_TXD1PB15 (76, AF11), PG12 (127, AF11), PG14 (129, AF11)
MII_TXD2PC2 (28, AF11)
MII_TXD3PE2 (1, AF11), PB8 (139, AF11)
PPS_OUTPG8 (93, AF11), PB5 (135, AF11)
RMII_CRS_DVPA7 (43, AF11)
RMII_REF_CLKPA1 (35, AF11)
RMII_RXD0PC4 (44, AF11)
RMII_RXD1PC5 (45, AF11)
RMII_TX_ENPA5 (41, AF11), PG11 (126, AF11)
RMII_TXD0PB12 (73, AF11), PC10 (111, AF11), PG13 (128, AF11)
RMII_TXD1PB15 (76, AF11), PG12 (127, AF11), PG14 (129, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (140, AF7)
CKPC12 (113, AF12)
CKINPB8 (139, AF7)
CMDPB2 (48, AF12), PD2 (116, AF12)
D0PB13 (74, AF12), PC8 (98, AF12), PA10 (102, AF12)
D0DIRPC6 (96, AF8)
D1PC9 (99, AF12)
D2PC10 (111, AF12)
D3PC11 (112, AF12)
D4PB8 (139, AF12)
D5PB9 (140, AF12)
D6PC6 (96, AF12)
D7PC7 (97, AF12)
D123DIRPC7 (97, AF8)
SDMMC2CKPC1 (27, AF9), PD6 (122, AF11)
CKINPB7 (137, AF11), PB9 (140, AF11)
CMDPA0 (34, AF9), PD7 (123, AF11)
D0PB14 (75, AF9), PG9 (124, AF11)
D1PB15 (76, AF9), PG10 (125, AF11)
D2PG11 (126, AF10), PB3(JTDO/TRACESWO) (133, AF9)
D3PG12 (127, AF10), PB4(NJTRST) (134, AF9)
D4PB8 (139, AF10)
D5PB7 (137, AF10), PB9 (140, AF10)
D6PC6 (96, AF10), PG13 (128, AF10)
D7PC7 (97, AF10), PG14 (129, AF10)

OCTOSPI — интерфейс Octo-SPI памяти

БлокСигналВыводы
OCTOSPI1CLKPF10 (22, AF9), PA3 (37, AF3), PB2 (48, AF9), PB15 (76, AF10), PB4(NJTRST) (134, AF3)
DQSPA1 (35, AF6), PC5 (45, AF10), PB2 (48, AF10)
IO0PF8 (20, AF10), PC3 (29, AF9), PB1 (47, AF6), PD11 (80, AF9), PC9 (99, AF9)
IO1PF9 (21, AF10), PB0 (46, AF6), PD12 (81, AF9), PC10 (111, AF9)
IO2PE2 (1, AF9), PF7 (19, AF10), PC2 (28, AF9), PA7 (43, AF10)
IO3PF6 (18, AF10), PA1 (35, AF9), PA6 (42, AF6), PD13 (82, AF9)
IO4PC1 (27, AF10), PE7 (58, AF10), PD4 (118, AF10)
IO5PC2 (28, AF6), PE8 (59, AF10), PC6 (96, AF11), PD5 (119, AF10)
IO6PC3 (29, AF6), PE9 (60, AF10), PC7 (97, AF11), PD6 (122, AF10), PG9 (124, AF9)
IO7PC0 (26, AF10), PE10 (63, AF10), PD7 (123, AF10), PG14 (129, AF9)
NCLKPF11 (49, AF9), PB12 (73, AF3), PB5 (135, AF3)
NCSPE11 (64, AF6), PB10 (69, AF9), PG6 (91, AF10), PC11 (112, AF9), PB6 (136, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (1, AF2), PC4 (44, AF2), PD11 (80, AF2)
CK2PE5 (4, AF2), PG7 (92, AF2)
D1PE6 (5, AF2), PC1 (27, AF2), PB2 (48, AF2), PD12 (81, AF6), PD6 (122, AF2)
D2PE4 (3, AF2)
D3PF10 (22, AF2), PC3 (29, AF2), PC5 (45, AF2)
FS_APE4 (3, AF6), PC5 (45, AF6)
FS_BPF9 (21, AF6)
MCLK_APE2 (1, AF6), PC0 (26, AF6), PG7 (92, AF6)
MCLK_BPF7 (19, AF6)
SCK_APE5 (4, AF6), PC6 (96, AF6)
SCK_BPF8 (20, AF6)
SD_APE6 (5, AF6), PC1 (27, AF6), PB2 (48, AF6), PD6 (122, AF6)
SD_BPE3 (2, AF6), PF6 (18, AF6), PA3 (37, AF6)
SAI2FS_APD12 (81, AF10)
FS_BPC0 (26, AF8), PE13 (66, AF10), PA12 (104, AF8), PG9 (124, AF10)
MCLK_APE0 (141, AF10)
MCLK_BPE6 (5, AF10), PA1 (35, AF10), PE14 (67, AF10)
SCK_APD13 (82, AF10)
SCK_BPA2 (36, AF8), PE12 (65, AF10)
SD_APC1 (27, AF8), PD11 (80, AF10)
SD_BPA0 (34, AF10), PF11 (49, AF10), PE11 (64, AF10), PG10 (125, AF10)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15(JTDI) (110, AF4), PB6 (136, AF5)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PF11 (49), PE11 (64), PD11 (80), PA11 (103), PC11 (112), PG11 (126)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (9), PF15 (55), PE15 (68), PB15 (76), PD15 (86), PA15(JTDI) (110), PG15 (132)
INN1PA0 (34)
INN2PF12 (50)
INN3PA7 (43)
INN4PC5 (45)
INN5PB0 (46)
INN10PC1 (27)
INN11PC2 (28)
INN12PC3 (29)
INN18PA5 (41)
INP0PA0 (34)
INP1PA1 (35)
INP2PF11 (49)
INP3PA6 (42)
INP4PC4 (44)
INP5PB1 (47)
INP6PF12 (50)
INP7PA7 (43)
INP8PC5 (45)
INP9PB0 (46)
INP10PC0 (26)
INP11PC1 (27)
INP12PC2 (28)
INP13PC3 (29)
INP14PA2 (36)
INP15PA3 (37)
INP18PA4 (40)
INP19PA5 (41)
ADC2EXTI11PF11 (49), PE11 (64), PD11 (80), PA11 (103), PC11 (112), PG11 (126)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (9), PF15 (55), PE15 (68), PB15 (76), PD15 (86), PA15(JTDI) (110), PG15 (132)
INN1PA0 (34)
INN2PF14 (54)
INN3PA7 (43)
INN4PC5 (45)
INN5PB0 (46)
INN10PC1 (27)
INN11PC2 (28)
INN12PC3 (29)
INN18PA5 (41)
INP0PA0 (34)
INP1PA1 (35)
INP2PF13 (53)
INP3PA6 (42)
INP4PC4 (44)
INP5PB1 (47)
INP6PF14 (54)
INP7PA7 (43)
INP8PC5 (45)
INP9PB0 (46)
INP10PC0 (26)
INP11PC1 (27)
INP12PC2 (28)
INP13PC3 (29)
INP14PA2 (36)
INP15PA3 (37)
INP18PA4 (40)
INP19PA5 (41)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PF9 (21), PE9 (60), PD9 (78), PC9 (99), PA9 (101), PG9 (124), PB9 (140)
OUT1PA4 (40)
OUT2PA5 (41)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (42, AF1), PE15 (68, AF1), PB12 (73, AF1)
BKIN2PE6 (5, AF1), PG4 (89, AF1)
CH1PE9 (60, AF1), PA8 (100, AF1)
CH1NPA7 (43, AF1), PE8 (59, AF1), PB13 (74, AF1)
CH2PE11 (64, AF1), PA9 (101, AF1)
CH2NPB0 (46, AF1), PE10 (63, AF1), PB14 (75, AF1)
CH3PE13 (66, AF1), PA10 (102, AF1)
CH3NPB1 (47, AF1), PE12 (65, AF1), PB15 (76, AF1)
CH4PE14 (67, AF1), PA11 (103, AF1)
CH4NPC5 (45, AF1), PE15 (68, AF3), PD5 (119, AF1)
ETRPE7 (58, AF1), PG5 (90, AF1), PA12 (104, AF1)
TIM2CH1PA0 (34, AF1), PA5 (41, AF1), PA15(JTDI) (110, AF1)
CH2PA1 (35, AF1), PB3(JTDO/TRACESWO) (133, AF1)
CH3PA2 (36, AF1), PB10 (69, AF1)
CH4PA3 (37, AF1), PC4 (44, AF1)
ETRPA0 (34, AF14), PA5 (41, AF14), PA15(JTDI) (110, AF14)
TIM3CH1PA6 (42, AF2), PC6 (96, AF2), PB4(NJTRST) (134, AF2)
CH2PA7 (43, AF2), PC7 (97, AF2), PB5 (135, AF2)
CH3PB0 (46, AF2), PC8 (98, AF2)
CH4PB1 (47, AF2), PC9 (99, AF2)
ETRPD2 (116, AF2)
TIM4CH1PD12 (81, AF2), PB6 (136, AF2)
CH2PD13 (82, AF2), PB7 (137, AF2)
CH3PD14 (85, AF2), PB8 (139, AF2)
CH4PC2 (28, AF2), PD15 (86, AF2), PB9 (140, AF2)
ETRPE0 (141, AF2)
TIM5CH1PA0 (34, AF2)
CH2PA1 (35, AF2)
CH3PA2 (36, AF2)
CH4PA3 (37, AF2)
ETRPA4 (40, AF2)
TIM8BKINPA6 (42, AF3), PG2 (87, AF3)
BKIN2PG3 (88, AF3), PA8 (100, AF3)
CH1PC6 (96, AF3)
CH1NPA5 (41, AF3), PA7 (43, AF3)
CH2PC7 (97, AF3)
CH2NPB0 (46, AF3), PB14 (75, AF3)
CH3PC8 (98, AF3)
CH3NPB1 (47, AF3), PB15 (76, AF3)
CH4PC9 (99, AF3)
CH4NPB2 (48, AF3), PD0 (114, AF3)
ETRPA0 (34, AF3), PG8 (93, AF3)
TIM12CH1PB14 (75, AF2)
CH2PB15 (76, AF2)
TIM13CH1PF8 (20, AF9), PA6 (42, AF9)
TIM14CH1PF9 (21, AF9), PA7 (43, AF9)
TIM15BKINPE3 (2, AF4), PA0 (34, AF4), PD2 (116, AF4)
CH1PE5 (4, AF4), PA2 (36, AF4), PC12 (113, AF2)
CH1NPE4 (3, AF4), PA1 (35, AF4)
CH2PE6 (5, AF4), PA3 (37, AF4)
TIM16BKINPF10 (22, AF1), PC0 (26, AF1), PB4(NJTRST) (134, AF1)
CH1PF6 (18, AF1), PB8 (139, AF1)
CH1NPF8 (20, AF1), PB6 (136, AF1)
TIM17BKINPG6 (91, AF1), PB5 (135, AF1)
CH1PF7 (19, AF1), PC2 (28, AF1), PB9 (140, AF1)
CH1NPF9 (21, AF1), PB7 (137, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PB2 (48, AF5), PD13 (82, AF1), PG13 (128, AF1)
CH2PG14 (129, AF4), PB4(NJTRST) (134, AF4)
ETRPG14 (129, AF1), PE0 (141, AF1)
IN1PA1 (35, AF5), PD12 (81, AF1), PG12 (127, AF1)
IN2PE2 (1, AF1), PA2 (36, AF5), PG11 (126, AF1)
LPTIM2CH1PA4 (40, AF3), PB13 (74, AF3), PD13 (82, AF3)
CH2PD10 (79, AF3), PE0 (141, AF3)
ETRPC4 (44, AF3), PE0 (141, AF4)
IN1PB10 (69, AF3), PD12 (81, AF3)
IN2PD11 (80, AF3), PA10 (102, AF4)
LPTIM3CH1PF5 (15, AF2), PC3 (29, AF3), PB0 (46, AF14), PB10 (69, AF2)
CH2PF2 (12, AF2), PB1 (47, AF14)
ETRPF4 (14, AF2), PB14 (75, AF14), PC10 (111, AF2)
IN1PF3 (13, AF2), PF5 (15, AF14), PB13 (74, AF2), PC11 (112, AF2)
IN2PF2 (12, AF3), PA15(JTDI) (110, AF2)
LPTIM4ETRPG4 (89, AF14), PD2 (116, AF14)
IN1PG0 (56, AF14), PD13 (82, AF14)
OUTPD7 (123, AF14)
LPTIM5CH1PF0 (10, AF13), PF6 (18, AF13), PG12 (127, AF14)
CH2PF1 (11, AF13), PF7 (19, AF13), PG13 (128, AF13)
ETRPB2 (48, AF13), PG3 (88, AF13)
IN1PF2 (12, AF13), PF8 (20, AF13), PG14 (129, AF13)
IN2PF3 (13, AF13), PF9 (21, AF13)
LPTIM6CH1PF11 (49, AF14)
CH2PF12 (50, AF14)
ETRPG2 (87, AF14), PB3(JTDO/TRACESWO) (133, AF14)
IN1PF13 (53, AF14)
IN2PF14 (54, AF14)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (7)
OUT2PB2 (48, AF0)
REFINPB15 (76, AF0)
TSPC13 (7)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (10, AF12)
A1PF1 (11, AF12)
A2PF2 (12, AF12)
A3PF3 (13, AF12)
A4PF4 (14, AF12)
A5PF5 (15, AF12)
A6PF12 (50, AF12)
A7PF13 (53, AF12)
A8PF14 (54, AF12)
A9PF15 (55, AF12)
A10PG0 (56, AF12)
A11PG1 (57, AF12)
A12PG2 (87, AF12)
A13PG3 (88, AF12)
A14PG4 (89, AF12)
A15PG5 (90, AF12)
A16PD11 (80, AF12)
A17PD12 (81, AF12)
A18PD13 (82, AF12)
A19PE3 (2, AF12)
A20PE4 (3, AF12)
A21PE5 (4, AF12)
A22PE6 (5, AF12)
A23PE2 (1, AF12)
A24PG13 (128, AF12)
A25PC0 (26, AF9), PG14 (129, AF12)
ALEPD12 (81, AF12), PC8 (98, AF11)
BA0PG4 (89, AF12)
BA1PG5 (90, AF12)
CLEPD11 (80, AF12), PC9 (99, AF11)
CLKPD3 (117, AF12)
D0PD14 (85, AF12)
D1PD15 (86, AF12)
D2PD0 (114, AF12)
D3PD1 (115, AF12)
D4PE7 (58, AF12)
D5PE8 (59, AF12)
D6PE9 (60, AF12)
D7PE10 (63, AF12)
D8PE11 (64, AF12)
D9PE12 (65, AF12)
D10PE13 (66, AF12)
D11PE14 (67, AF12)
D12PE15 (68, AF12)
D13PD8 (77, AF12)
D14PD9 (78, AF12)
D15PD10 (79, AF12)
DA0PD14 (85, AF12)
DA1PD15 (86, AF12)
DA2PD0 (114, AF12)
DA3PD1 (115, AF12)
DA4PE7 (58, AF12)
DA5PE8 (59, AF12)
DA6PE9 (60, AF12)
DA7PE10 (63, AF12)
DA8PE11 (64, AF12)
DA9PE12 (65, AF12)
DA10PE13 (66, AF12)
DA11PE14 (67, AF12)
DA12PE15 (68, AF12)
DA13PD8 (77, AF12)
DA14PD9 (78, AF12)
DA15PD10 (79, AF12)
INTPG7 (92, AF12), PC8 (98, AF10)
NBL0PE0 (141, AF12)
NBL1PA15(JTDI) (110, AF12)
NCEPC8 (98, AF9), PD7 (123, AF12), PG9 (124, AF12)
NE1PC7 (97, AF9), PD7 (123, AF12)
NE2PC8 (98, AF9), PG9 (124, AF12)
NE3PG6 (91, AF12), PG10 (125, AF12)
NE4PG12 (127, AF12)
NLPB7 (137, AF12)
NOEPA8 (100, AF12), PD4 (118, AF12)
NWAITPC6 (96, AF9), PD6 (122, AF12)
NWEPA7 (43, AF13), PA9 (101, AF12), PD5 (119, AF12)
SDCKE0PC3 (29, AF12), PC5 (45, AF12)
SDCKE1PB5 (135, AF12)
SDCLKPG8 (93, AF12)
SDNCASPG15 (132, AF12)
SDNE0PC2 (28, AF12), PC4 (44, AF12)
SDNE1PB6 (136, AF12)
SDNRASPF11 (49, AF12)
SDNWEPC0 (26, AF12), PA7 (43, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PC6 (96, AF13), PA9 (101, AF13)
D1PC7 (97, AF13), PA10 (102, AF13)
D2PB15 (76, AF13), PC8 (98, AF13), PG10 (125, AF13), PE0 (141, AF13)
D3PE2 (1, AF13), PC9 (99, AF13), PA8 (100, AF13), PG11 (126, AF13)
D4PE4 (3, AF13), PC11 (112, AF13)
D5PD3 (117, AF13), PB6 (136, AF13)
D6PE5 (4, AF13), PB8 (139, AF13)
D7PE6 (5, AF13), PB4(NJTRST) (134, AF13), PB9 (140, AF13)
D8PC10 (111, AF13)
D9PC12 (113, AF13)
D10PD6 (122, AF13), PB5 (135, AF13)
D11PF10 (22, AF13), PA15(JTDI) (110, AF13), PD2 (116, AF13), PG12 (127, AF13)
D12PF11 (49, AF13), PD12 (81, AF13), PG6 (91, AF13)
D13PD13 (82, AF13), PG7 (92, AF13), PG15 (132, AF13)
HSYNCPA4 (40, AF13)
PIXCLKPA6 (42, AF13)
VSYNCPG9 (124, AF13), PB7 (137, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PC6 (96, AF13), PA9 (101, AF13)
D1PC7 (97, AF13), PA10 (102, AF13)
D2PB15 (76, AF13), PC8 (98, AF13), PG10 (125, AF13), PE0 (141, AF13)
D3PE2 (1, AF13), PC9 (99, AF13), PA8 (100, AF13), PG11 (126, AF13)
D4PE4 (3, AF13), PC11 (112, AF13)
D5PD3 (117, AF13), PB6 (136, AF13)
D6PE5 (4, AF13), PB8 (139, AF13)
D7PE6 (5, AF13), PB4(NJTRST) (134, AF13), PB9 (140, AF13)
D8PC10 (111, AF13)
D9PC12 (113, AF13)
D10PD6 (122, AF13), PB5 (135, AF13)
D11PF10 (22, AF13), PA15(JTDI) (110, AF13), PD2 (116, AF13), PG12 (127, AF13)
D12PF11 (49, AF13), PD12 (81, AF13), PG6 (91, AF13)
D13PD13 (82, AF13), PG7 (92, AF13), PG15 (132, AF13)
D14PA5 (41, AF13)
D15PF10 (22, AF4), PC5 (45, AF4), PG12 (127, AF4)
DEPA4 (40, AF13)
PDCKPA6 (42, AF13)
RDYPG9 (124, AF13), PB7 (137, AF13)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14(JTCK/SWCLK) (109, AF0)
JTDIPA15(JTDI) (110, AF0)
JTDO-SWOPB3(JTDO/TRACESWO) (133, AF0)
JTMS-SWDIOPA13(JTMS/SWDIO) (105, AF0)
NJTRSTPB4(NJTRST) (134, AF0)
TRACECLKPE2 (1, AF0)
TRACED0PE3 (2, AF0), PC1 (27, AF0), PG13 (128, AF0)
TRACED1PE4 (3, AF0), PC8 (98, AF0), PG14 (129, AF0)
TRACED2PE5 (4, AF0), PD2 (116, AF0)
TRACED3PE6 (5, AF0), PC12 (113, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPB2 (48)
MCO_1PA8 (100, AF0)
MCO_2PC9 (99, AF0)
OSC_INPH0-OSC_IN (23)
OSC_OUTPH1-OSC_OUT (24)
OSC32_INPC14-OSC32_IN(OSC32_IN) (8)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (9)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC2 (28, AF0)
PWR_CSTOPPC3 (29, AF0)
PWR_WKUP1PA0 (34)
PWR_WKUP2PA2 (36)
PWR_WKUP4PC13 (7)
PWR_WKUP5PB7 (137)
PWR_WKUP6PC1 (27)
PWR_WKUP7PD2 (116)
PWR_WKUP8PD3 (117)
TAMP_IN1PC13 (7)
TAMP_IN2PA0 (34)
TAMP_IN3PE6 (5), PC1 (27)
TAMP_IN4PA2 (36)
TAMP_IN5PA1 (35)
TAMP_IN6PE3 (2)
TAMP_IN7PE4 (3)
TAMP_IN8PE5 (4)
TAMP_OUT1PA0 (34)
TAMP_OUT2PC13 (7)
TAMP_OUT3PE3 (2), PC13 (7), PA2 (36)
TAMP_OUT4PA1 (35)
TAMP_OUT5PC1 (27)
TAMP_OUT6PE6 (5)
TAMP_OUT7PE5 (4)
TAMP_OUT8PE4 (3)

Блоки без собственных выводов: HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), AES (аппаратное шифрование AES), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 144 вывода корпуса LQFP144 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ВыводИмяТипФункции
1PE2ввод-выводDCMI_D3 (AF13), DEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_A23 (AF12), LPTIM1_IN2 (AF1), OCTOSPI1_IO2 (AF9), PSSI_D3 (AF13), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), UART8_TX (AF8), USART10_RX (AF7)
2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), TAMP_IN6, TAMP_OUT3, TIM15_BKIN (AF4), USART10_TX (AF7)
3PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), FMC_A20 (AF12), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TAMP_IN7, TAMP_OUT8, TIM15_CH1N (AF4)
4PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), FMC_A21 (AF12), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TAMP_IN8, TAMP_OUT7, TIM15_CH1 (AF4)
5PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TAMP_IN3, TAMP_OUT6, TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
6VBATпитание—
7PC13ввод-выводPWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3
8PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
9PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT
10PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), LPTIM5_CH1 (AF13)
11PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), LPTIM5_CH2 (AF13)
12PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), LPTIM3_IN2 (AF3), LPTIM5_IN1 (AF13), UART12_TX (AF6), USART11_CK (AF7)
13PF3ввод-выводFMC_A3 (AF12), LPTIM3_IN1 (AF2), LPTIM5_IN2 (AF13), USART11_TX (AF7)
14PF4ввод-выводFMC_A4 (AF12), LPTIM3_ETR (AF2), USART11_RX (AF7)
15PF5ввод-выводFMC_A5 (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM3_CH1 (AF2), LPTIM3_IN1 (AF14), UART12_RX (AF6), USART11_CTS (AF7), USART11_NSS (AF7)
16VSSпитание—
17VDDпитание—
18PF6ввод-выводLPTIM5_CH1 (AF13), OCTOSPI1_IO3 (AF10), SAI1_SD_B (AF6), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
19PF7ввод-выводLPTIM5_CH2 (AF13), OCTOSPI1_IO2 (AF10), SAI1_MCLK_B (AF6), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
20PF8ввод-выводLPTIM5_IN1 (AF13), OCTOSPI1_IO0 (AF10), SAI1_SCK_B (AF6), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
21PF9ввод-выводDAC1_EXTI9, LPTIM5_IN2 (AF13), OCTOSPI1_IO1 (AF10), SAI1_FS_B (AF6), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
22PF10ввод-выводDCMI_D11 (AF13), OCTOSPI1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), TIM16_BKIN (AF1)
23PH0-OSC_INввод-выводRCC_OSC_IN
24PH1-OSC_OUTввод-выводRCC_OSC_OUT
25NRSTсброс—
26PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_A25 (AF9), FMC_SDNWE (AF12), OCTOSPI1_IO7 (AF10), SAI1_MCLK_A (AF6), SAI2_FS_B (AF8), SPI2_RDY (AF7), TIM16_BKIN (AF1)
27PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DEBUG_TRACED0 (AF0), ETH_MDC (AF11), I2S2_SDO (AF5), OCTOSPI1_IO4 (AF10), PWR_WKUP6, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5), TAMP_IN3, TAMP_OUT5, USART11_DE (AF7), USART11_RTS (AF7)
28PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_SDNE0 (AF12), I2S2_SDI (AF5), OCTOSPI1_IO2 (AF9), OCTOSPI1_IO5 (AF6), PWR_CSLEEP (AF0), SPI2_MISO (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2)
29PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), LPTIM3_CH1 (AF3), OCTOSPI1_IO0 (AF9), OCTOSPI1_IO6 (AF6), PWR_CSTOP (AF0), SAI1_D3 (AF2), SPI2_MOSI (AF5)
30VDDпитание—
31VSSAпитание—
32VREF+питание—
33VDDAпитание—
34PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS (AF11), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI3_RDY (AF6), SPI6_NSS (AF5), TAMP_IN2, TAMP_OUT1, TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
35PA1ввод-выводADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), LPTIM1_IN1 (AF5), OCTOSPI1_DQS (AF6), OCTOSPI1_IO3 (AF9), SAI2_MCLK_B (AF10), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
36PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM1_IN2 (AF5), PWR_WKUP2, SAI2_SCK_B (AF8), TAMP_IN4, TAMP_OUT3, TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
37PA3ввод-выводADC1_INP15, ADC2_INP15, ETH_MII_COL (AF11), I2S2_WS (AF5), OCTOSPI1_CLK (AF3), SAI1_SD_B (AF6), SPI2_NSS (AF5), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
38VSSпитание—
39VDDпитание—
40PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM2_CH1 (AF3), PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
41PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), PSSI_D14 (AF13), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1N (AF3)
42PA6ввод-выводADC1_INP3, ADC2_INP3, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), OCTOSPI1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART11_TX (AF7)
43PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_NWE (AF13), FMC_SDNWE (AF12), I2S1_SDO (AF5), OCTOSPI1_IO2 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART11_RX (AF7)
44PC4ввод-выводADC1_INP4, ADC2_INP4, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LPTIM2_ETR (AF3), SAI1_CK1 (AF2), TIM2_CH4 (AF1), USART3_RX (AF7)
45PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_SDCKE0 (AF12), OCTOSPI1_DQS (AF10), PSSI_D15 (AF4), SAI1_D3 (AF2), SAI1_FS_A (AF6), TIM1_CH4N (AF1), UART12_DE (AF7), UART12_RTS (AF7)
46PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH_MII_RXD2 (AF11), LPTIM3_CH1 (AF14), OCTOSPI1_IO1 (AF6), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USART11_CK (AF7)
47PB1ввод-выводADC1_INP5, ADC2_INP5, ETH_MII_RXD3 (AF11), LPTIM3_CH2 (AF14), OCTOSPI1_IO0 (AF6), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3)
48PB2ввод-выводI2S3_SDO (AF7), LPTIM1_CH1 (AF5), LPTIM5_ETR (AF13), OCTOSPI1_CLK (AF9), OCTOSPI1_DQS (AF10), RCC_LSCO, RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC1_CMD (AF12), SPI1_RDY (AF4), SPI3_MOSI (AF7), TIM8_CH4N (AF3)
49PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), LPTIM6_CH1 (AF14), OCTOSPI1_NCLK (AF9), PSSI_D12 (AF13), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
50PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), LPTIM6_CH2 (AF14)
51VSSпитание—
52VDDпитание—
53PF13ввод-выводADC2_INP2, FMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM6_IN1 (AF14)
54PF14ввод-выводADC2_INN2, ADC2_INP6, FMC_A8 (AF12), LPTIM6_IN2 (AF14)
55PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5)
56PG0ввод-выводFMC_A10 (AF12), LPTIM4_IN1 (AF14), UART9_RX (AF11)
57PG1ввод-выводFMC_A11 (AF12), I2S2_SDO (AF7), SPI2_MOSI (AF7), UART9_TX (AF11)
58PE7ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), OCTOSPI1_IO4 (AF10), TIM1_ETR (AF1), UART12_DE (AF6), UART12_RTS (AF6), UART7_RX (AF7)
59PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), OCTOSPI1_IO5 (AF10), TIM1_CH1N (AF1), UART12_CTS (AF6), UART7_TX (AF7)
60PE9ввод-выводDAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), OCTOSPI1_IO6 (AF10), TIM1_CH1 (AF1), UART12_RX (AF6), UART7_DE (AF7), UART7_RTS (AF7)
61VSSпитание—
62VDDпитание—
63PE10ввод-выводFMC_D7 (AF12), FMC_DA7 (AF12), OCTOSPI1_IO7 (AF10), TIM1_CH2N (AF1), UART12_TX (AF6), UART7_CTS (AF7)
64PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D8 (AF12), FMC_DA8 (AF12), OCTOSPI1_NCS (AF6), SAI2_SD_B (AF10), SPI1_RDY (AF4), SPI4_NSS (AF5), TIM1_CH2 (AF1)
65PE12ввод-выводFMC_D9 (AF12), FMC_DA9 (AF12), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
66PE13ввод-выводFMC_D10 (AF12), FMC_DA10 (AF12), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
67PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
68PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), TIM1_BKIN (AF1), TIM1_CH4N (AF3), USART10_CK (AF7)
69PB10ввод-выводETH_MII_RX_ER (AF11), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), LPTIM3_CH1 (AF2), OCTOSPI1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
70VCAPпитание—
71VSSпитание—
72VDDпитание—
73PB12ввод-выводETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SDA (AF4), I2S2_WS (AF5), OCTOSPI1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF14), UCPD1_FRSTX (AF6), USART3_CK (AF7)
74PB13ввод-выводFDCAN2_TX (AF9), I2C2_SMBA (AF4), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LPTIM3_IN1 (AF2), SDMMC1_D0 (AF12), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), UCPD1_CC1, USART3_CTS (AF7), USART3_NSS (AF7)
75PB14ввод-выводI2S2_SDI (AF5), LPTIM3_ETR (AF14), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC2, USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
76PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMI_D2 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), I2S2_SDO (AF5), OCTOSPI1_CLK (AF10), PSSI_D2 (AF13), PWR_PVD_IN, RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), UART5_RX (AF14), USART11_CTS (AF7), USART11_NSS (AF7), USART1_RX (AF4)
77PD8ввод-выводFMC_D13 (AF12), FMC_DA13 (AF12), USART3_TX (AF7)
78PD9ввод-выводDAC1_EXTI9, FDCAN2_RX (AF9), FMC_D14 (AF12), FMC_DA14 (AF12), USART3_RX (AF7)
79PD10ввод-выводFMC_D15 (AF12), FMC_DA15 (AF12), LPTIM2_CH2 (AF3), USART3_CK (AF7)
80PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), OCTOSPI1_IO0 (AF9), SAI1_CK1 (AF2), SAI2_SD_A (AF10), UART4_RX (AF8), USART3_CTS (AF7), USART3_NSS (AF7)
81PD12ввод-выводDCMI_D12 (AF13), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), OCTOSPI1_IO1 (AF9), PSSI_D12 (AF13), SAI1_D1 (AF6), SAI2_FS_A (AF10), TIM4_CH1 (AF2), UART4_TX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
82PD13ввод-выводDCMI_D13 (AF13), FMC_A18 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5), LPTIM1_CH1 (AF1), LPTIM2_CH1 (AF3), LPTIM4_IN1 (AF14), OCTOSPI1_IO3 (AF9), PSSI_D13 (AF13), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
83VSSпитание—
84VDDпитание—
85PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
86PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
87PG2ввод-выводFMC_A12 (AF12), LPTIM6_ETR (AF14), TIM8_BKIN (AF3), UART12_RX (AF7)
88PG3ввод-выводFMC_A13 (AF12), LPTIM5_ETR (AF13), TIM8_BKIN2 (AF3), UART12_TX (AF7)
89PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), LPTIM4_ETR (AF14), TIM1_BKIN2 (AF1)
90PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
91PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF3), OCTOSPI1_NCS (AF10), PSSI_D12 (AF13), SPI1_RDY (AF5), TIM17_BKIN (AF1), UCPD1_FRSTX (AF11)
92PG7ввод-выводDCMI_D13 (AF13), FMC_INT (AF12), I2C4_SCL (AF4), I3C1_SCL (AF3), PSSI_D13 (AF13), SAI1_CK2 (AF2), SAI1_MCLK_A (AF6), UCPD1_FRSTX (AF11), USART6_CK (AF7)
93PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
94VSSпитание—
95VDDпитание—
96PC6ввод-выводDCMI_D0 (AF13), FMC_NWAIT (AF9), I2S2_MCK (AF5), OCTOSPI1_IO5 (AF11), PSSI_D0 (AF13), SAI1_SCK_A (AF6), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
97PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), FMC_NE1 (AF9), I2S3_MCK (AF6), OCTOSPI1_IO6 (AF11), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
98PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_ALE (AF11), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), PSSI_D2 (AF13), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
99PC9ввод-выводAUDIOCLK (AF5), DAC1_EXTI9, DCMI_D3 (AF13), FMC_CLE (AF11), I2C3_SDA (AF4), OCTOSPI1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8), UCPD1_DB2
100PA8ввод-выводDCMI_D3 (AF13), FMC_NOE (AF12), I2C3_SCL (AF4), PSSI_D3 (AF13), RCC_MCO_1 (AF0), SPI1_RDY (AF5), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), UART7_RX (AF11), USART1_CK (AF7), USB_SOF (AF10)
101PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_MII_TX_ER (AF11), FMC_NWE (AF12), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), UCPD1_DB1, USART1_TX (AF7)
102PA10ввод-выводDCMI_D1 (AF13), FDCAN2_TX (AF9), LPTIM2_IN2 (AF4), LPUART1_RX (AF3), PSSI_D1 (AF13), SDMMC1_D0 (AF12), TIM1_CH3 (AF1), UCPD1_FRSTX (AF6), USART1_RX (AF7)
103PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX (AF9), I2S2_WS (AF5), LPUART1_CTS (AF3), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_DM (AF10)
104PA12ввод-выводFDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), SAI2_FS_B (AF8), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_DP (AF10)
105PA13(JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
106VDDUSBпитание—
107VSSпитание—
108VDDпитание—
109PA14(JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
110PA15(JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, CEC (AF4), DCMI_D11 (AF13), DEBUG_JTDI (AF0), FMC_NBL1 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM3_IN2 (AF2), PSSI_D11 (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF14), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
111PC10ввод-выводDCMI_D8 (AF13), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), I2S3_CK (AF6), LPTIM3_ETR (AF2), OCTOSPI1_IO1 (AF9), PSSI_D8 (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
112PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D4 (AF13), I2S3_SDI (AF6), LPTIM3_IN1 (AF2), OCTOSPI1_NCS (AF9), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
113PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), I2S3_SDO (AF6), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
114PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), TIM8_CH4N (AF3), UART4_RX (AF8), UART9_CTS (AF11)
115PD1ввод-выводFDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), UART4_TX (AF8)
116PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), LPTIM4_ETR (AF14), PSSI_D11 (AF13), PWR_WKUP7, SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
117PD3ввод-выводDCMI_D5 (AF13), FMC_CLK (AF12), I2S2_CK (AF5), PSSI_D5 (AF13), PWR_WKUP8, SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
118PD4ввод-выводFMC_NOE (AF12), OCTOSPI1_IO4 (AF10), USART2_DE (AF7), USART2_RTS (AF7)
119PD5ввод-выводFDCAN1_TX (AF9), FMC_NWE (AF12), OCTOSPI1_IO5 (AF10), SPI2_RDY (AF5), TIM1_CH4N (AF1), USART2_TX (AF7)
120VSSпитание—
121VDDIO2питание—
122PD6ввод-выводDCMI_D10 (AF13), FMC_NWAIT (AF12), I2S3_SDO (AF5), OCTOSPI1_IO6 (AF10), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
123PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), I2S1_SDO (AF5), LPTIM4_OUT (AF14), OCTOSPI1_IO7 (AF10), SDMMC2_CMD (AF11), SPI1_MOSI (AF5), USART2_CK (AF7)
124PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), OCTOSPI1_IO6 (AF9), PSSI_RDY (AF13), SAI2_FS_B (AF10), SDMMC2_D0 (AF11), SPI1_MISO (AF5), USART6_RX (AF7)
125PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), I2S1_WS (AF5), PSSI_D2 (AF13), SAI2_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5)
126PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D3 (AF13), ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LPTIM1_IN2 (AF1), PSSI_D3 (AF13), SDMMC2_D2 (AF10), SPI1_SCK (AF5), USART10_RX (AF6), USART11_DE (AF7), USART11_RTS (AF7)
127PG12ввод-выводDCMI_D11 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_NE4 (AF12), LPTIM1_IN1 (AF1), LPTIM5_CH1 (AF14), PSSI_D11 (AF13), PSSI_D15 (AF4), SDMMC2_D3 (AF10), SPI6_MISO (AF5), USART10_TX (AF6), USART6_DE (AF7), USART6_RTS (AF7)
128PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FMC_A24 (AF12), LPTIM1_CH1 (AF1), LPTIM5_CH2 (AF13), SDMMC2_D6 (AF10), SPI6_SCK (AF5), USART10_CTS (AF6), USART10_NSS (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
129PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_A25 (AF12), LPTIM1_CH2 (AF4), LPTIM1_ETR (AF1), LPTIM5_IN1 (AF13), OCTOSPI1_IO7 (AF9), SDMMC2_D7 (AF10), SPI6_MOSI (AF5), USART10_DE (AF6), USART10_RTS (AF6), USART6_TX (AF7)
130VSSпитание—
131VDDпитание—
132PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), PSSI_D13 (AF13), SPI4_RDY (AF5), USART10_CK (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
133PB3(JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2C2_SDA (AF4), I2S1_CK (AF5), I2S3_CK (AF6), LPTIM6_ETR (AF14), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART12_CTS (AF7), UART7_RX (AF11)
134PB4(NJTRST)ввод-выводDCMI_D7 (AF13), DEBUG_NJTRST (AF0), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), LPTIM1_CH2 (AF4), OCTOSPI1_CLK (AF3), PSSI_D7 (AF13), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
135PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), OCTOSPI1_NCLK (AF3), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14)
136PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LPUART1_TX (AF8), OCTOSPI1_NCS (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
137PB7ввод-выводDCMI_VSYNC (AF13), FDCAN1_TX (AF9), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), I3C1_SDA (AF3), LPUART1_RX (AF8), PSSI_RDY (AF13), PWR_WKUP5, SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
138BOOT0загрузка—
139PB8ввод-выводDCMI_D6 (AF13), ETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), SPI4_RDY (AF5), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
140PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2S2_WS (AF5), I3C1_SDA (AF3), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
141PE0ввод-выводDCMI_D2 (AF13), FDCAN1_RX (AF9), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_CH2 (AF3), LPTIM2_ETR (AF4), PSSI_D2 (AF13), SAI2_MCLK_A (AF10), SPI3_RDY (AF6), TIM4_ETR (AF2), UART8_RX (AF8)
142VCAPпитание—
143VSSпитание—
144VDDпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяВыводыНазначение
VBAT6резервное питание: часы реального времени и резервные регистры
VCAP70, 142вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDD17, 30, 39, 52, 62, 72, 84, 95, 108, 131, 144питание цифровой части и линий ввода-вывода
VDDA33питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2121питание отдельной группы линий ввода-вывода
VDDUSB106питание приёмопередатчика USB
VREF+32верхнее опорное напряжение АЦП и ЦАП
VSS16, 38, 51, 61, 71, 83, 94, 107, 120, 130, 143общий провод (земля)
VSSA31общий провод аналоговой части
NRST25сброс, активный уровень — низкий
BOOT0138выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H573ZITx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H573ZISTM32H573ZITx2 МБ640 КБ

Линейка STM32H563/H573, семейство STM32H5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе LQFP144, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H563ZITxSTM32H563/H573144 из 144выводы совпадают полностьютолько у этого: AES
STM32H5E4ZJTxSTM32H5x4144 из 144выводы совпадают полностьютолько у этого: AES, USB; только у него: ADC3, ADF1, COMP1, COMP2, DMA2D, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, USB_OTG_FS, USB_OTG_FS1; флеш-память до 2048 и 4096 КБ; ОЗУ 640 и 1536 КБ
STM32H5E4ZKTxSTM32H5x4144 из 144выводы совпадают полностью
STM32H5F4ZJTxSTM32H5x4144 из 144выводы совпадают полностьютолько у этого: USB; только у него: ADC3, ADF1, COMP1, COMP2, DMA2D, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, USB_OTG_FS, USB_OTG_FS1; флеш-память до 2048 и 4096 КБ; ОЗУ 640 и 1536 КБ
STM32H523ZCSTM32H5x3144 из 144выводы совпадают полностьютолько у этого: AES, CORDIC, ETH, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART7, UART8, UART9, USART10, USART11; только у него: I3C2; флеш-память до 2048 и 256 КБ; ОЗУ 640 и 272 КБ
STM32H523ZESTM32H5x3144 из 144выводы совпадают полностьютолько у этого: AES, CORDIC, ETH, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART7, UART8, UART9, USART10, USART11; только у него: I3C2; флеш-память до 2048 и 512 КБ; ОЗУ 640 и 272 КБ
STM32H533ZESTM32H5x3144 из 144выводы совпадают полностьютолько у этого: CORDIC, ETH, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART7, UART8, UART9, USART10, USART11; только у него: I3C2; флеш-память до 2048 и 512 КБ; ОЗУ 640 и 272 КБ
STM32H543ZESTM32H5x3144 из 144выводы совпадают полностьютолько у этого: AES, DCMI, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, PSSI, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART9, USART10, USART11; только у него: ADC3, COMP1, COMP2, I3C2; флеш-память до 2048 и 512 КБ; ОЗУ 640 и 304 КБ
STM32H543ZGSTM32H5x3144 из 144выводы совпадают полностьютолько у этого: AES, DCMI, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, PSSI, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART9, USART10, USART11; только у него: ADC3, COMP1, COMP2, I3C2; флеш-память до 2048 и 1024 КБ; ОЗУ 640 и 304 КБ
STM32H553ZGSTM32H5x3144 из 144выводы совпадают полностьютолько у этого: DCMI, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, PSSI, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART9, USART10, USART11; только у него: ADC3, COMP1, COMP2, I3C2; флеш-память до 2048 и 1024 КБ; ОЗУ 640 и 304 КБ
STM32H562ZGSTM32H5x2144 из 144выводы совпадают полностьютолько у этого: AES, ETH, FDCAN2, SDMMC2; флеш-память до 2048 и 1024 КБ
STM32H562ZISTM32H562144 из 144выводы совпадают полностьютолько у этого: AES, ETH, FDCAN2, SDMMC2

Частые вопросы

На каких выводах USART1 у STM32H573ZITx?

В корпусе LQFP144 сигнал USART1_TX выведен на PB14 (вывод 75, AF4) или PA9 (вывод 101, AF7) или PB6 (вывод 136, AF7), USART1_RX — на PB15 (вывод 76, AF4) или PA10 (вывод 102, AF7) или PB7 (вывод 137, AF7).

Где у STM32H573ZITx выводы SWD для программатора?

SWDIO — PA13(JTMS/SWDIO) (вывод 105, AF0), SWCLK — PA14(JTCK/SWCLK) (вывод 109, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H573ZITx?

I2C1_SCL — PB6 (вывод 136, AF4) или PB8 (вывод 139, AF4), I2C1_SDA — PB7 (вывод 137, AF4) или PB9 (вывод 140, AF4).

Сколько выводов ввода-вывода у STM32H573ZITx в корпусе LQFP144?

112 из 144. Ещё 30 выводов заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32H573ZITx?

От 1,62 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
