STM32H5E4IJKxQ в корпусе UFBGA176: распиновка

STM32H5E4IJKxQ — микроконтроллер STM32H5 на ядре Cortex-M33: 4 МБ флеш-памяти и 1,5 МБ ОЗУ. Корпус UFBGA176 — 201 шарик, из них 139 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
4 МБ
ОЗУ
1,5 МБ
Корпус
UFBGA176, 201 шарик
Линий ввода-вывода
139

Схема корпуса UFBGA176

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

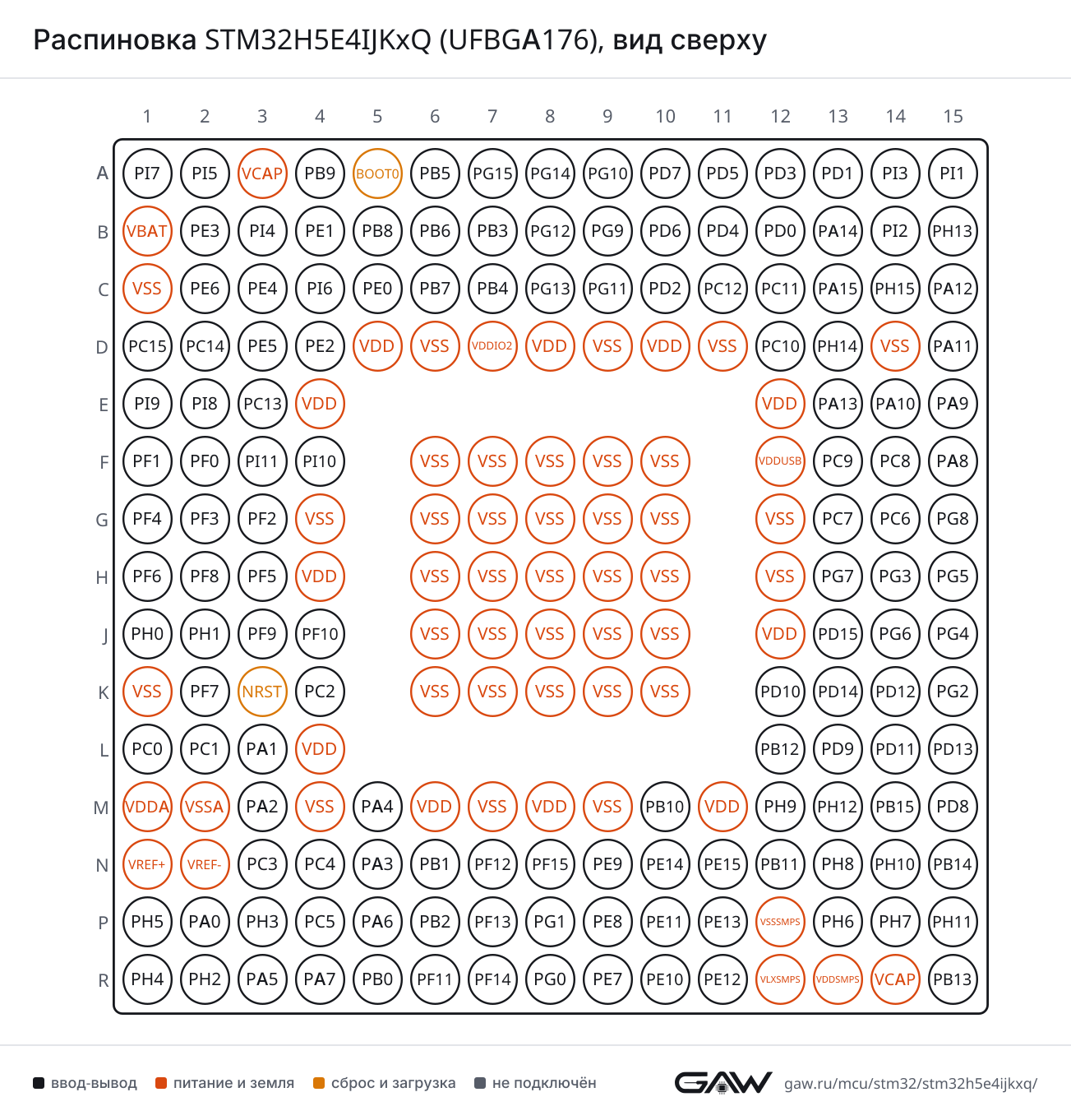

Расположение шариков STM32H5E4IJKxQ в корпусе UFBGA176, вид сверхуABCDEFGHJKLMNPR123456789101112131415PI7 — шарик A1: DCMI_D7, FMC_D30, MDF1_SDI5, PSSI_D7, SAI2_FS_A, SDMMC2_CK, TIM1_CH3N, TIM8_CH3PI7PI5 — шарик A2: DCMI_VSYNC, I2S1_MCK, LTDC_R0, PSSI_RDY, SAI2_SCK_A, TIM1_CH2N, TIM8_CH1PI5VCAP — шарик A3VCAPPB9 — шарик A4: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2S2_WS, I3C1_SDA, LTDC_G5, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_CKIN, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9BOOT0 — шарик A5BOOT0PB5 — шарик A6: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, GFXTIM_LCKCAL, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, OCTOSPIM_P1_NCLK, OCTOSPIM_P2_CLK, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RXPB5PG15 — шарик A7: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, LTDC_G2, OCTOSPIM_P2_IO7, PSSI_D13, SPI4_RDY, TIM16_CH1, USART10_CK, USART6_CTS, USART6_NSSPG15PG14 — шарик A8: DEBUG_TRACED1, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_A25, LPTIM1_CH2, LPTIM1_ETR, LPTIM5_IN1, LTDC_B0, OCTOSPIM_P1_IO7, SDMMC2_D7, SPI6_MOSI, USART10_DE, USART10_RTS, USART6_TXPG14PG10 — шарик A9: DCMI_D2, FMC_NE3, I2C3_SMBA, I2S1_WS, LTDC_B6, OCTOSPIM_P1_IO5, OCTOSPIM_P2_IO6, PSSI_D2, SAI2_SD_B, SDMMC2_D1, SPI1_NSS, TIM12_CH2, USART10_CK, USART6_CKPG10PD7 — шарик A10: FMC_NCE, FMC_NE1, I2C3_SCL, I2S1_SDO, LPTIM4_OUT, LTDC_R3, OCTOSPIM_P1_IO7, SDMMC2_CMD, SPI1_MOSI, TIM12_CH1, USART2_CKPD7PD5 — шарик A11: COMP2_OUT, ETH_MII_CRS, FDCAN1_TX, FMC_NWE, LTDC_B2, OCTOSPIM_P1_IO5, PLAY1_IN3, SPI2_RDY, TIM1_CH4N, UART8_RX, USART2_TXPD5PD3 — шарик A12: DCMI_D5, FMC_CLK, I2S2_CK, LTDC_B4, OCTOSPIM_P2_IO0, PLAY1_IN2, PSSI_D5, PWR_WKUP8, SPI2_SCK, TIM8_CH4, USART2_CTS, USART2_NSSPD3PD1 — шарик A13: ETH_MII_RX_DV, ETH_RMII_CRS_DV, FDCAN1_TX, FMC_D3, FMC_DA3, I2S2_MCK, LTDC_DE, OCTOSPIM_P2_DQS, PLAY1_OUT1, SAI1_MCLK_B, SDMMC1_D123DIR, UART4_TXPD1PI3 — шарик A14: DCMI_D10, DEBUG_TRACED2, FMC_D27, I2S2_SDO, LTDC_DE, PSSI_D10, SDMMC2_D2, SPI2_MOSI, TIM1_CH1N, TIM8_ETRPI3PI1 — шарик A15: DCMI_D8, DEBUG_TRACED0, FMC_A24, FMC_D25, I2S2_CK, MDF1_CKI4, PSSI_D8, SDMMC2_D0, SPI2_SCK, TIM1_BKIN2, TIM8_BKIN2PI1VBAT — шарик B1VBATPE3 — шарик B2: DEBUG_TRACED0, FMC_A19, GFXTIM_TE, LTDC_G1, MDF1_CKI2, OCTOSPIM_P2_IO0, PLAY1_IN9, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM15_BKIN, USART10_TXPE3PI4 — шарик B3: DCMI_D5, DEBUG_TRACED3, FMC_D28, PSSI_D5, SAI2_MCLK_A, SDMMC2_D3, SPI2_RDY, TIM1_CH1, TIM8_BKINPI4PE1 — шарик B4: DCMI_D3, FDCAN1_TX, FMC_NBL1, FMC_NWAIT, LPTIM1_IN2, PLAY1_IN8, PSSI_D3, UART8_TXPE1PB8 — шарик B5: DCMI_D6, ETH_MII_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, I3C1_SCL, LTDC_G6, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI4_RDY, TIM16_CH1, TIM4_CH3, UART4_RXPB8PB6 — шарик B6: CEC, DCMI_D5, ETH_MII_TX_ER, FDCAN2_TX, FMC_SDNE1, GFXTIM_FCKCAL, I2C1_SCL, I2C4_SCL, I3C1_SCL, LPUART1_TX, OCTOSPIM_P1_NCS1, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6PB3 (JTDO/TRACESWO) — шарик B7: CRS_SYNC, DEBUG_JTDO-SWO, ETH_MDC, I2C2_SDA, I2S1_CK, I2S3_CK, I3C2_SDA, LPTIM6_ETR, LTDC_HSYNC, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART12_CTS, UART7_RXPB3PG12 — шарик B8: DCMI_D11, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_NE4, FMC_SDCLK, LPTIM1_IN1, LPTIM2_CH1, LPTIM5_CH1, OCTOSPIM_P2_CLK, PSSI_D11, PSSI_D15, SDMMC2_D3, SPI6_MISO, USART10_TX, USART6_DE, USART6_RTSPG12PG9 — шарик B9: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, LTDC_B5, OCTOSPIM_P1_IO4, OCTOSPIM_P1_IO6, PSSI_RDY, SAI2_FS_B, SDMMC2_D0, SPI1_MISO, TIM12_CH1, USART10_RX, USART6_RXPG9PD6 — шарик B10: ADF1_SDI0, DCMI_D10, FMC_NWAIT, I2C3_SDA, I2S3_SDO, MDF1_SDI1, OCTOSPIM_P1_IO6, OCTOSPIM_P2_IO4, PLAY1_OUT3, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PD4 — шарик B11: COMP1_OUT, DEBUG_TRGIO, ETH_CLK, FMC_NOE, LTDC_B7, MDF1_CKI3, OCTOSPIM_P1_IO4, PLAY1_OUT2, USART2_DE, USART2_RTSPD4PD0 — шарик B12: FDCAN1_RX, FMC_D2, FMC_DA2, I2S1_MCK, LTDC_R2, OCTOSPIM_P1_NCS2, PLAY1_IN1, SDMMC1_D0DIR, TIM8_CH4N, UART4_RX, UART9_CTSPD0PA14 (JTCK/SWCLK) — шарик B13: DEBUG_JTCK-SWCLKPA14PI2 — шарик B14: DCMI_D9, DEBUG_TRACED1, FMC_D26, I2S2_SDI, MDF1_SDI4, PSSI_D9, SDMMC2_D1, SPI2_MISO, TIM1_ETR, TIM8_CH4PI2PH13 — шарик B15: DCMI_D3, FDCAN1_TX, FMC_D22, LPTIM1_IN2, LTDC_R3, OCTOSPIM_P2_IO5, PSSI_D3, TIM8_CH1N, UART4_TX, UART8_TXPH13VSS — шарик C1VSSPE6 — шарик C2: ADF1_SDI0, DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_R2, MDF1_SDI1, OCTOSPIM_P2_IO3, PLAY1_OUT10, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TAMP_IN3, TAMP_OUT6, TIM15_CH2, TIM1_BKIN2PE6PE4 — шарик C3: ADF1_SDI0, DCMI_D4, DEBUG_TRACED1, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_A20, LTDC_G3, MDF1_SDI2, OCTOSPIM_P2_IO1, PLAY1_OUT9, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TAMP_IN7, TAMP_OUT8, TIM15_CH1NPE4PI6 — шарик C4: DCMI_D6, FMC_D29, MDF1_CKI5, PSSI_D6, SAI2_SD_A, SDMMC2_CMD, TIM1_CH2, TIM8_CH2PI6PE0 — шарик C5: DCMI_D2, FDCAN1_RX, FMC_NBL0, LPTIM1_ETR, LPTIM2_CH2, LPTIM2_ETR, OCTOSPIM_P1_NCS2, PLAY1_OUT7, PSSI_D2, SAI2_MCLK_A, SPI3_RDY, TIM4_ETR, UART8_RXPE0PB7 — шарик C6: DCMI_VSYNC, FDCAN1_TX, FMC_NL, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPUART1_RX, LTDC_G7, PSSI_RDY, PWR_WKUP5, SDMMC2_CKIN, SDMMC2_D5, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PB4 (NJTRST) — шарик C7: DCMI_D7, DEBUG_NJTRST, ETH_MDIO, FMC_NBL3, I2S1_SDI, I2S2_WS, I2S3_SDI, LPTIM1_CH2, LTDC_R2, OCTOSPIM_P1_CLK, PSSI_D7, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4PG13 — шарик C8: DEBUG_TRACED0, ETH_MII_TXD0, ETH_RMII_TXD0, FMC_A24, LPTIM1_CH1, LPTIM5_CH2, LTDC_G4, OCTOSPIM_P2_NCS1, SDMMC2_D6, SPI6_SCK, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSSPG13PG11 — шарик C9: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LPTIM1_IN2, LTDC_B4, PSSI_D3, SDMMC2_D2, SPI1_SCK, USART10_RX, USART11_DE, USART11_RTSPG11PD2 — шарик C10: DCMI_D11, DEBUG_TRACED2, I2C2_SCL, I3C2_SCL, LPTIM4_ETR, LTDC_G7, OCTOSPIM_P1_NCS2, OCTOSPIM_P2_IO1, PSSI_D11, PWR_WKUP7, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RXPD2PC12 — шарик C11: COMP2_OUT, DCMI_D9, DEBUG_TRACED3, ETH_PPS_OUT, I2S3_SDO, LTDC_G4, OCTOSPIM_P2_IO7, PLAY1_OUT0, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CKPC12PC11 — шарик C12: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT, DCMI_D4, GFXTIM_FCKCAL, I2S3_SDI, LPTIM3_IN1, LTDC_VSYNC, OCTOSPIM_P1_NCS1, PLAY1_IN0, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PA15 (JTDI) — шарик C13: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DCMI_D11, DEBUG_JTDI, ETH_PHY_INTN, FMC_NBL1, I2S1_WS, I2S3_WS, LPTIM3_IN2, OCTOSPIM_P2_IO6, PSSI_D11, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PH15 — шарик C14: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11, DEBUG_TRACECLK, FMC_D24, LTDC_G1, MDF1_SDI3, OCTOSPIM_P2_IO7, PSSI_D11, SDMMC2_CKIN, TIM8_CH3NPH15PA12 — шарик C15: DMA2D_GPFLAG3, FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R4, SAI2_FS_B, SDMMC2_D4, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_FS_DPPA12PC15-OSC32_OUT(OSC32_OUT) — шарик D1: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUTPC15PC14-OSC32_IN(OSC32_IN) — шарик D2: RCC_OSC32_INPC14PE5 — шарик D3: ADF1_CCK1, DCMI_D6, DEBUG_TRACED2, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_A21, LTDC_B6, MDF1_CCK1, OCTOSPIM_P2_IO2, PLAY1_IN10, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TAMP_IN8, TAMP_OUT7, TIM15_CH1PE5PE2 — шарик D4: ADF1_CCK0, DCMI_D3, DEBUG_TRACECLK, ETH_MII_TXD3, FMC_A23, LPTIM1_IN2, MDF1_CCK0, OCTOSPIM_P1_IO2, PLAY1_OUT8, PSSI_D3, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, UART8_TX, USART10_RXPE2VDD — шарик D5VDDVSS — шарик D6VSSVDDIO2 — шарик D7VDDIO2VDD — шарик D8VDDVSS — шарик D9VSSVDD — шарик D10VDDVSS — шарик D11VSSPC10 — шарик D12: DCMI_D8, ETH_MII_TXD0, ETH_RMII_TXD0, GFXTIM_LCKCAL, I2S3_CK, LPTIM3_ETR, LTDC_B0, OCTOSPIM_P1_IO1, PSSI_D8, SAI1_SCK_B, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TXPC10PH14 — шарик D13: DCMI_D4, FDCAN1_RX, FMC_D23, LTDC_R6, MDF1_CKI3, OCTOSPIM_P2_IO6, PSSI_D4, TIM8_CH2N, UART4_RXPH14VSS — шарик D14VSSPA11 — шарик D15: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2, FDCAN1_RX, FMC_A17, FMC_ALE, I2S2_WS, LPUART1_CTS, LTDC_R5, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_FS_DMPA11PI9 — шарик E1: DAC1_EXTI9, FDCAN1_RX, SAI1_FS_A, TIM1_CH3, UART4_RXPI9PI8 — шарик E2: PWR_WKUP3, RTC_OUT2, TAMP_IN2, TAMP_OUT3PI8PC13 — шарик E3: PWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3PC13VDD — шарик E4VDDVDD — шарик E12VDDPA13 (JTMS/SWDIO) — шарик E13: DEBUG_JTMS-SWDIOPA13PA10 — шарик E14: DCMI_D1, DMA2D_GPFLAG1, ETH_CLK, FDCAN2_TX, LPTIM2_IN2, LPUART1_RX, LTDC_R6, PSSI_D1, SDMMC1_D0, TIM1_CH3, UCPD1_FRSTX, USART1_RXPA10PA9 — шарик E15: DAC1_EXTI9, DCMI_D0, ETH_MII_TX_ER, FMC_NWE, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R7, OCTOSPIM_P2_IO3, PSSI_D0, SPI2_SCK, TIM1_CH2, UCPD1_DB1, USART1_TXPA9PF1 — шарик F1: COMP2_OUT, FMC_A1, I2C2_SCL, I3C2_SCL, LPTIM5_CH2, PLAY1_IN1, SDMMC2_D3, TIM2_CH2, UART9_TXPF1PF0 — шарик F2: COMP1_OUT, FMC_A0, I2C2_SDA, I3C2_SDA, LPTIM5_CH1, PLAY1_IN0, SDMMC2_D2, TIM2_CH1, TIM2_ETR, UART9_RXPF0PI11 — шарик F3: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LPTIM1_CH2, LTDC_B1, PSSI_D15, SAI1_MCLK_A, TAMP_IN4, TAMP_OUT5, TIM1_CH4, USART11_TXPI11PI10 — шарик F4: ETH_MII_RX_ER, FDCAN1_RX, PSSI_D14, SAI1_SCK_A, TIM1_CH4N, USART11_RXPI10VSS — шарик F6VSSVSS — шарик F7VSSVSS — шарик F8VSSVSS — шарик F9VSSVSS — шарик F10VSSVDDUSB — шарик F12VDDUSBPC9 — шарик F13: AUDIOCLK, DAC1_EXTI9, DCMI_D3, FMC_A16, FMC_CLE, FMC_SDNCAS, I2C3_SDA, LTDC_B1, OCTOSPIM_P1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, TIM8_CH4, UART5_CTS, UCPD1_DB2PC9PC8 — шарик F14: DCMI_D2, DEBUG_TRACED1, FMC_A17, FMC_ALE, FMC_INT, FMC_NCE, FMC_NE2, LTDC_R0, PSSI_D2, SDMMC1_D0, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PA8 — шарик F15: DCMI_D3, FMC_NOE, I2C3_SCL, LTDC_CLK, OCTOSPIM_P2_DQS, PSSI_D3, RCC_MCO_1, SPI1_RDY, TIM1_CH1, TIM8_BKIN2, UART7_RX, USART1_CK, USB_OTG_FS_SOFPA8PF4 — шарик G1: DCMI_D6, FMC_A4, LPTIM3_ETR, OCTOSPIM_P2_NCS2, PLAY1_OUT1, PSSI_D6, SDMMC2_D6, TIM2_CH4, USART11_RXPF4PF3 — шарик G2: FMC_A3, LPTIM3_IN1, LPTIM5_IN2, PLAY1_OUT0, SDMMC2_D5, TIM2_CH3, USART11_TXPF3PF2 — шарик G3: FMC_A2, GFXTIM_TE, I2C2_SMBA, LPTIM3_CH2, LPTIM3_IN2, LPTIM5_IN1, PLAY1_IN2, SDMMC2_D4, UART12_TX, USART11_CKPF2VSS — шарик G4VSSVSS — шарик G6VSSVSS — шарик G7VSSVSS — шарик G8VSSVSS — шарик G9VSSVSS — шарик G10VSSVSS — шарик G12VSSPC7 — шарик G13: DCMI_D1, DEBUG_TRGIO, FMC_NE1, I2S3_MCK, LTDC_R1, OCTOSPIM_P1_IO6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, USART6_RXPC7PC6 — шарик G14: DCMI_D0, FMC_NWAIT, I2S2_MCK, LTDC_G0, OCTOSPIM_P1_IO5, PSSI_D0, SAI1_SCK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, USART6_TXPC6PG8 — шарик G15: ETH_PPS_OUT, FMC_SDCLK, LPTIM4_OUT, LTDC_B2, OCTOSPIM_P2_NCLK, SPI6_NSS, TIM16_CH1N, TIM8_ETR, USART6_DE, USART6_RTSPG8PF6 — шарик H1: FDCAN3_TX, FMC_D16, LPTIM5_CH1, LTDC_DE, OCTOSPIM_P1_IO3, SAI1_SD_B, SDMMC1_D0, SPI5_NSS, TIM16_CH1, UART7_RXPF6PF8 — шарик H2: ETH_MII_TX_ER, FMC_D18, LPTIM5_IN1, LTDC_R7, OCTOSPIM_P1_IO0, SAI1_SCK_B, SDMMC1_D2, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPF8PF5 — шарик H3: FMC_A5, I2C4_SCL, I3C1_SCL, LPTIM3_CH1, LPTIM3_IN1, OCTOSPIM_P2_DQS, SDMMC2_CKIN, SDMMC2_D7, UART12_RX, USART11_CTS, USART11_NSSPF5VDD — шарик H4VDDVSS — шарик H6VSSVSS — шарик H7VSSVSS — шарик H8VSSVSS — шарик H9VSSVSS — шарик H10VSSVSS — шарик H12VSSPG7 — шарик H13: ADF1_CCK1, DCMI_D13, FMC_INT, I2C4_SCL, I3C1_SCL, LTDC_R5, MDF1_CCK1, OCTOSPIM_P2_CLK, PSSI_D13, SAI1_CK2, SAI1_MCLK_A, UCPD1_FRSTX, USART6_CKPG7PG3 — шарик H14: ETH_MII_RX_ER, FMC_A13, LPTIM5_ETR, LTDC_G0, OCTOSPIM_P2_IO3, TIM4_CH4, TIM8_BKIN2, UART12_TX, UART7_RXPG3PG5 — шарик H15: FMC_A15, FMC_BA1, LTDC_HSYNC, MDF1_SDI0, OCTOSPIM_P2_IO5, PLAY1_OUT9, TIM1_ETRPG5PH0-OSC_IN — шарик J1: RCC_OSC_INPH0PH1-OSC_OUT — шарик J2: RCC_OSC_OUTPH1PF9 — шарик J3: DAC1_EXTI9, ETH_MDC, FMC_D19, LPTIM5_IN2, LTDC_B1, MDF1_CCK0, OCTOSPIM_P1_IO1, SAI1_FS_B, SDMMC1_D3, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTSPF9PF10 — шарик J4: DCMI_D11, LTDC_G6, MDF1_SDI3, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKINPF10VSS — шарик J6VSSVSS — шарик J7VSSVSS — шарик J8VSSVSS — шарик J9VSSVSS — шарик J10VSSVDD — шарик J12VDDPD15 — шарик J13: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, LTDC_CLK, OCTOSPIM_P2_NCLK, PLAY1_IN7, SAI1_FS_B, SPI6_RDY, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TXPD15PG6 — шарик J14: DCMI_D12, FMC_NE3, I2C4_SDA, I3C1_SDA, OCTOSPIM_P1_NCS1, OCTOSPIM_P2_NCS1, PLAY1_OUT10, PSSI_D12, SPI1_RDY, TIM17_BKIN, UCPD1_FRSTXPG6PG4 — шарик J15: FMC_A14, FMC_BA0, LPTIM4_ETR, LTDC_VSYNC, MDF1_CKI0, OCTOSPIM_P2_IO4, TIM1_BKIN2PG4VSS — шарик K1VSSPF7 — шарик K2: FDCAN3_RX, FMC_D17, LPTIM5_CH2, LTDC_G3, MDF1_CKI1, OCTOSPIM_P1_IO2, SAI1_MCLK_B, SDMMC1_D1, SPI5_SCK, TIM17_CH1, UART7_TXPF7NRST — шарик K3NRSTPC2 — шарик K4: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_NCE, FMC_NE1, FMC_SDNE0, I2S2_SDI, LTDC_HSYNC, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSLEEP, SDMMC2_D6, SPI2_MISO, TIM17_CH1, TIM4_CH4, TIM8_CH3PC2VSS — шарик K6VSSVSS — шарик K7VSSVSS — шарик K8VSSVSS — шарик K9VSSVSS — шарик K10VSSPD10 — шарик K12: AUDIOCLK, ETH_MII_CRS, FDCAN3_RX, FMC_D15, FMC_DA15, LPTIM2_CH2, LTDC_R7, PLAY1_IN5, TIM14_CH1, USART3_CKPD10PD14 — шарик K13: FMC_D0, FMC_DA0, LTDC_B1, OCTOSPIM_P2_CLK, PLAY1_OUT6, PSSI_D15, SAI1_FS_A, TIM4_CH3, UART8_CTS, UART9_RXPD14PD12 — шарик K14: DCMI_D12, FMC_A17, FMC_ALE, I2C4_SCL, I3C1_SCL, LPTIM1_IN1, LPTIM2_IN1, LTDC_G2, OCTOSPIM_P1_IO1, PLAY1_IN6, PSSI_D12, SAI1_D1, SAI2_FS_A, TIM4_CH1, UART4_TX, USART3_DE, USART3_RTSPD12PG2 — шарик K15: FMC_A12, I2S1_MCK, LPTIM6_ETR, LTDC_R2, OCTOSPIM_P2_IO2, TIM4_CH3, TIM8_BKIN, UART12_RXPG2PC0 — шарик L1: ADC1_INP10, ADC2_INP10, FMC_A25, FMC_INT, FMC_SDNWE, LTDC_G3, MDF1_CKI1, OCTOSPIM_P1_IO7, SAI1_MCLK_A, SAI2_FS_B, SPI2_RDY, TIM16_BKIN, TIM8_CH1PC0PC1 — шарик L2: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0, DEBUG_TRACED0, ETH_MDC, FMC_NCE, FMC_NE2, I2S2_SDO, LTDC_G2, MDF1_SDI1, OCTOSPIM_P1_IO4, PWR_WKUP6, SAI1_D1, SAI1_SD_A, SAI2_SD_A, SDMMC2_CK, SPI2_MOSI, TAMP_IN3, TAMP_OUT5, TIM8_CH2, USART11_DE, USART11_RTSPC1PA1 — шарик L3: ADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, LPTIM1_IN1, LTDC_B7, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI2_MCLK_B, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1VDD — шарик L4VDDPB12 — шарик L12: ETH_MII_TXD0, ETH_RMII_TXD0, FDCAN2_RX, I2C2_SDA, I2S2_WS, I3C2_SDA, LTDC_R1, OCTOSPIM_P1_NCLK, SPI2_NSS, TIM1_BKIN, UART5_RX, UCPD1_FRSTX, USART3_CKPB12PD9 — шарик L13: CEC, DAC1_EXTI9, FDCAN2_RX, FMC_D14, FMC_DA14, LTDC_R4, PLAY1_OUT4, TIM13_CH1, USART3_RXPD9PD11 — шарик L14: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0, ETH_PTP_AUX_TS, FMC_A16, FMC_CLE, GFXTIM_TE, I2C4_SMBA, LPTIM2_IN2, LTDC_R6, OCTOSPIM_P1_IO0, PLAY1_OUT5, SAI1_CK1, SAI2_SD_A, UART4_RX, USART3_CTS, USART3_NSSPD11PD13 — шарик L15: DCMI_D13, FMC_A18, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPTIM1_CH1, LPTIM2_CH1, LPTIM4_IN1, OCTOSPIM_P1_IO3, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTSPD13VDDA — шарик M1VDDAVSSA — шарик M2VSSAPA2 — шарик M3: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM1_IN2, LTDC_B6, LTDC_R0, OCTOSPIM_P2_IO4, PWR_WKUP2, SAI2_SCK_B, TAMP_IN4, TAMP_OUT3, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2VSS — шарик M4VSSPA4 — шарик M5: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, FMC_NBL2, I2S1_WS, I2S3_WS, LPTIM2_CH1, LTDC_B4, OPAMP1_VINM, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CKPA4VDD — шарик M6VDDVSS — шарик M7VSSVDD — шарик M8VDDVSS — шарик M9VSSPB10 — шарик M10: ETH_MII_RX_ER, FMC_NWAIT, FMC_SDNRAS, I2C2_SCL, I2S2_CK, I3C2_SCL, LPTIM2_IN1, LPTIM3_CH1, LTDC_G4, OCTOSPIM_P1_NCS1, SPI2_SCK, TIM2_CH3, USART3_TXPB10VDD — шарик M11VDDPH9 — шарик M12: DAC1_EXTI9, DCMI_D0, I2C3_SMBA, LTDC_R7, PSSI_D0, SPI5_NSS, TIM12_CH2, TIM1_CH2, TIM8_CH2NPH9PH12 — шарик M13: DCMI_D3, FMC_D3, FMC_DA3, I2C4_SDA, I3C1_SDA, OCTOSPIM_P2_IO4, PLAY1_OUT15, PSSI_D3, TIM1_BKIN, TIM5_CH3, TIM8_BKIN, TIM8_CH4NPH12PB15 — шарик M14: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2, ETH_MII_TXD1, ETH_RMII_TXD1, I2S2_SDO, LTDC_G0, OCTOSPIM_P1_CLK, PSSI_D2, PWR_PVD_IN, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, UART5_RX, USART11_CTS, USART11_NSS, USART1_RXPB15PD8 — шарик M15: ETH_MII_RXD0, ETH_RMII_RXD0, FDCAN3_TX, FMC_D13, FMC_DA13, I2S3_MCK, LTDC_R5, PLAY1_IN4, SDMMC2_D0, TIM12_CH2, USART3_TXPD8VREF+ — шарик N1VREF+VREF- — шарик N2VREF-PC3 — шарик N3: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_SDCKE0, I2S2_SDO, LPTIM3_CH1, LTDC_VSYNC, MDF1_SDI3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSTOP, SAI1_D3, SDMMC2_D7, SPI2_MOSIPC3PC4 — шарик N4: ADC1_INP4, ADC2_INP4, ADF1_CCK0, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_SDNE0, I2S1_MCK, LPTIM2_ETR, LTDC_DE, MDF1_CCK0, SAI1_CK1, TIM2_CH4, USART3_RXPC4PA3 — шарик N5: ADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0, ETH_MII_COL, I2S2_WS, LTDC_B5, OCTOSPIM_P1_CLK, SAI1_SD_B, SPI2_NSS, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3PB1 — шарик N6: ADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3, LPTIM3_CH2, LTDC_B3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_NCLK, OPAMP1_VOUT, TIM1_CH3N, TIM3_CH4, TIM8_CH3NPB1PF12 — шарик N7: ADC1_INN2, ADC1_INP6, FMC_A6, LPTIM6_CH2, LTDC_CLK, SDMMC1_CKIN, SDMMC1_D5, TIM2_CH4PF12PF15 — шарик N8: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADF1_SDI0, ETH_CLK, FMC_A9, I2C4_SDA, I3C1_SDA, LTDC_B7, OCTOSPIM_P2_NCS2, SDMMC1_CMD, TIM4_ETRPF15PE9 — шарик N9: ADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6, FMC_DA6, MDF1_CKI4, OCTOSPIM_P1_IO6, PLAY1_IN12, TIM1_CH1, UART12_RX, UART7_DE, UART7_RTSPE9PE14 — шарик N10: ADC3_INP8, COMP2_INM, DCMI_VSYNC, FMC_D11, FMC_DA11, LTDC_B0, OCTOSPIM_P2_CLK, PLAY1_OUT14, PSSI_RDY, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PE15 — шарик N11: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK, FMC_D12, FMC_DA12, LTDC_R0, OCTOSPIM_P2_NCS1, PLAY1_OUT15, PSSI_PDCK, TIM1_BKIN, TIM1_CH4N, USART10_CKPE15PB11 — шарик N12: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_MII_TX_EN, ETH_RMII_TX_EN, FMC_NBL1, I2C2_SDA, I3C2_SDA, LPTIM2_ETR, LTDC_G7, PLAY1_IN15, SPI2_RDY, SPI4_RDY, TIM2_CH4, USART3_RXPB11PH8 — шарик N13: DCMI_HSYNC, I2C3_SDA, PSSI_DE, SPI5_MOSI, TIM1_CH2N, TIM5_ETR, TIM8_CH2PH8PH10 — шарик N14: DCMI_D1, FMC_D20, I2C4_SMBA, OCTOSPIM_P2_IO2, PLAY1_OUT13, PSSI_D1, SPI5_RDY, TIM1_CH1N, TIM5_CH1, TIM8_CH3PH10PB14 — шарик N15: I2S2_SDI, LPTIM3_ETR, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, UCPD1_CC2, USART1_TX, USART3_DE, USART3_RTSPB14PH5 — шарик P1: FMC_SDNWE, I2C2_SDA, I3C2_SDA, SPI5_NSS, SPI6_RDYPH5PA0 — шарик P2: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS, LTDC_G6, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI3_RDY, SPI6_NSS, TAMP_IN2, TAMP_OUT1, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PH3 — шарик P3: ETH_MII_COL, FMC_NBL2, FMC_SDNE0, MDF1_SDI2, OCTOSPIM_P1_IO5, OCTOSPIM_P2_NCLK, PLAY1_OUT3, SAI2_MCLK_BPH3PC5 — шарик P4: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_SDCKE0, LTDC_G1, MDF1_SDI3, OCTOSPIM_P1_DQS, PSSI_D15, SAI1_D3, SAI1_FS_A, TIM1_CH4N, UART12_DE, UART12_RTSPC5PA6 — шарик P5: ADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK, FMC_D31, I2S1_SDI, LTDC_B3, OCTOSPIM_P1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART11_TXPA6PB2 — шарик P6: ADC3_INP0, ADF1_SDI0, COMP1_INP, ETH_MII_RXD0, ETH_RMII_RXD0, I2S3_SDO, LPTIM1_CH1, LPTIM5_ETR, LTDC_R3, OCTOSPIM_P1_CLK, OCTOSPIM_P1_DQS, RCC_LSCO, RTC_OUT2, SAI1_D1, SAI1_SD_A, SDMMC1_CMD, SPI1_RDY, SPI3_MOSI, TIM8_CH4NPB2PF13 — шарик P7: ADC2_INP2, ADF1_CCK0, FMC_A7, I2C4_SMBA, LPTIM2_CH2, LPTIM6_IN1, LTDC_B6, SDMMC1_CDIR, SDMMC1_D6PF13PG1 — шарик P8: FMC_A11, I2S2_SDO, OCTOSPIM_P2_IO1, PLAY1_IN3, SPI2_MOSI, TIM4_CH2, UART9_TXPG1PE8 — шарик P9: ADC3_INP2, DCMI_D8, FMC_D5, FMC_DA5, MDF1_SDI0, OCTOSPIM_P1_IO5, PLAY1_OUT11, PSSI_D8, TIM1_CH1N, UART12_CTS, UART7_TX, USART2_TXPE8PE11 — шарик P10: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8, FMC_DA8, LTDC_B5, MDF1_CKI5, OCTOSPIM_P1_NCS1, OCTOSPIM_P2_NCS2, OPAMP1_VINP, PLAY1_IN13, SAI2_SD_B, SPI1_RDY, SPI4_NSS, TIM1_CH2, USART6_TXPE11PE13 — шарик P11: ADC3_INP7, DCMI_HSYNC, FDCAN3_RX, FMC_D10, FMC_DA10, GFXTIM_FCKCAL, LTDC_R1, OPAMP1_VINM, PLAY1_IN14, PSSI_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH3, UART5_DE, UART5_RTS, USART6_CKPE13VSSSMPS — шарик P12VSSSMPSPH6 — шарик P13: DCMI_D8, ETH_MII_RXD2, FMC_SDNE1, I2C2_SMBA, OCTOSPIM_P2_IO0, PLAY1_OUT11, PSSI_D8, SPI5_SCK, TIM12_CH1, TIM1_CH3N, TIM8_CH1PH6PH7 — шарик P14: DCMI_D9, ETH_MII_RXD3, FMC_SDCKE1, I2C3_SCL, OCTOSPIM_P2_IO1, PLAY1_OUT12, PSSI_D9, SPI5_MISO, TIM1_CH3, TIM8_CH1NPH7PH11 — шарик P15: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2, FMC_D21, I2C4_SCL, I3C1_SCL, OCTOSPIM_P2_IO3, PLAY1_OUT14, PSSI_D2, TIM1_CH1, TIM5_CH2, TIM8_CH3NPH11PH4 — шарик R1: I2C2_SCL, I3C2_SCL, LTDC_R7, PSSI_D14, SPI5_RDY, SPI6_RDYPH4PH2 — шарик R2: ETH_MII_CRS, FMC_NBL0, FMC_SDCKE0, LPTIM1_IN2, MDF1_CKI2, OCTOSPIM_P1_IO4, OCTOSPIM_P2_CLK, PLAY1_OUT2, SAI2_SCK_BPH2PA5 — шарик R3: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LTDC_G5, OCTOSPIM_P2_IO5, OPAMP1_VINP, PSSI_D14, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1NPA5PA7 — шарик R4: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_NWE, FMC_SDNWE, I2S1_SDO, LTDC_B2, OCTOSPIM_P1_IO2, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART11_RXPA7PB0 — шарик R5: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2, LPTIM3_CH1, LTDC_R4, OCTOSPIM_P1_IO1, OCTOSPIM_P2_NCS1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USART11_CKPB0PF11 — шарик R6: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, LPTIM6_CH1, OCTOSPIM_P1_NCLK, PSSI_D12, SAI2_SD_B, SDMMC1_D4, SPI5_MOSI, TIM2_CH3PF11PF14 — шарик R7: ADC2_INN2, ADC2_INP6, ADF1_CCK1, FMC_A8, I2S3_SDI, LPTIM2_IN1, LPTIM6_IN2, LTDC_G5, SDMMC1_D123DIR, SDMMC1_D7, SPI3_MISO, TIM3_ETRPF14PG0 — шарик R8: FMC_A10, LPTIM4_IN1, OCTOSPIM_P2_IO0, SDMMC1_CK, TIM4_CH1, UART9_RXPG0PE7 — шарик R9: ADC3_INP1, COMP2_INP, FMC_D4, FMC_DA4, MDF1_CKI0, OCTOSPIM_P1_IO4, PLAY1_IN11, TIM1_ETR, UART12_DE, UART12_RTS, UART7_RX, USART2_RXPE7PE10 — шарик R10: ADC3_INP4, COMP1_INM, FMC_D7, FMC_DA7, MDF1_SDI4, OCTOSPIM_P1_IO7, PLAY1_OUT12, TIM1_CH2N, UART12_TX, UART7_CTSPE10PE12 — шарик R11: ADC3_INP6, DCMI_D0, ETH_MDIO, FDCAN3_TX, FMC_D9, FMC_DA9, GFXTIM_LCKCAL, MDF1_SDI5, OPAMP1_VINP, PLAY1_OUT13, PSSI_D0, SAI2_SCK_B, SPI4_SCK, TIM1_CH3N, USART6_RXPE12VLXSMPS — шарик R12VLXSMPSVDDSMPS — шарик R13VDDSMPSVCAP — шарик R14VCAPPB13 — шарик R15: FDCAN2_TX, I2C2_SMBA, I2S2_CK, LPTIM2_CH1, LPTIM3_IN1, SPI2_SCK, TIM1_CH1N, UART5_TX, UCPD1_CC1, USART3_CTS, USART3_NSSPB13UFBGA176, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия
Распиновка STM32H5E4IJKxQ (UFBGA176), вид сверхуРаспиновка UFBGA176 картинкой
PNG, 1303 × 1362 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (F15, AF7)
CTSPA11 (D15, AF7)
DEPA12 (C15, AF7)
NSSPA11 (D15, AF7)
RTSPA12 (C15, AF7)
RXPB7 (C6, AF7), PA10 (E14, AF7), PB15 (M14, AF4)
TXPB6 (B6, AF7), PA9 (E15, AF7), PB14 (N15, AF4)
USART2CKPD7 (A10, AF7), PA4 (M5, AF7)
CTSPD3 (A12, AF7), PA0 (P2, AF7)
DEPD4 (B11, AF7), PA1 (L3, AF7)
NSSPD3 (A12, AF7), PA0 (P2, AF7)
RTSPD4 (B11, AF7), PA1 (L3, AF7)
RXPD6 (B10, AF7), PA3 (N5, AF7), PE7 (R9, AF5)
TXPD5 (A11, AF7), PA2 (M3, AF7), PE8 (P9, AF5)
USART3CKPC12 (C11, AF7), PD10 (K12, AF7), PB12 (L12, AF7)
CTSPD11 (L14, AF7), PB13 (R15, AF7)
DEPD12 (K14, AF7), PB14 (N15, AF7)
NSSPD11 (L14, AF7), PB13 (R15, AF7)
RTSPD12 (K14, AF7), PB14 (N15, AF7)
RXPC11 (C12, AF7), PD9 (L13, AF7), PC4 (N4, AF7), PB11 (N12, AF7)
TXPC10 (D12, AF7), PB10 (M10, AF7), PD8 (M15, AF7)
USART6CKPG10 (A9, AF7), PC8 (F14, AF7), PG7 (H13, AF7), PE13 (P11, AF7)
CTSPG15 (A7, AF7), PG13 (C8, AF7)
DEPG12 (B8, AF7), PG8 (G15, AF7)
NSSPG15 (A7, AF7), PG13 (C8, AF7)
RTSPG12 (B8, AF7), PG8 (G15, AF7)
RXPG9 (B9, AF7), PC7 (G13, AF7), PE12 (R11, AF7)
TXPG14 (A8, AF7), PC6 (G14, AF7), PE11 (P10, AF7)
USART10CKPG15 (A7, AF6), PG10 (A9, AF6), PE15 (N11, AF7)
CTSPG13 (C8, AF6)
DEPG14 (A8, AF6)
NSSPG13 (C8, AF6)
RTSPG14 (A8, AF6)
RXPG9 (B9, AF6), PG11 (C9, AF6), PE2 (D4, AF7)
TXPE3 (B2, AF7), PG12 (B8, AF6)
USART11CKPF2 (G3, AF7), PB0 (R5, AF7)
CTSPF5 (H3, AF7), PB15 (M14, AF7)
DEPG11 (C9, AF7), PC1 (L2, AF7)
NSSPF5 (H3, AF7), PB15 (M14, AF7)
RTSPG11 (C9, AF7), PC1 (L2, AF7)
RXPI10 (F4, AF7), PF4 (G1, AF7), PA7 (R4, AF7)
TXPI11 (F3, AF7), PF3 (G2, AF7), PA6 (P5, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB15 (M14, AF8), PB0 (R5, AF8)
DEPA15 (JTDI) (C13, AF8), PB14 (N15, AF8)
RTSPA15 (JTDI) (C13, AF8), PB14 (N15, AF8)
RXPB8 (B5, AF8), PD0 (B12, AF8), PC11 (C12, AF8), PH14 (D13, AF8), PA11 (D15, AF6), PI9 (E1, AF8), PA1 (L3, AF8), PD11 (L14, AF8)
TXPB9 (A4, AF8), PD1 (A13, AF8), PH13 (B15, AF8), PA12 (C15, AF6), PC10 (D12, AF8), PD12 (K14, AF8), PA0 (P2, AF8)
UART5CTSPC9 (F13, AF8)
DEPC8 (F14, AF8), PE13 (P11, AF8)
RTSPC8 (F14, AF8), PE13 (P11, AF8)
RXPB5 (A6, AF14), PD2 (C10, AF8), PB12 (L12, AF14), PB15 (M14, AF14)
TXPB6 (B6, AF14), PC12 (C11, AF8), PB13 (R15, AF14)
UART7CTSPF9 (J3, AF7), PE10 (R10, AF7)
DEPF8 (H2, AF7), PE9 (N9, AF7)
RTSPF8 (H2, AF7), PE9 (N9, AF7)
RXPB3 (JTDO/TRACESWO) (B7, AF11), PA8 (F15, AF11), PF6 (H1, AF7), PG3 (H14, AF11), PE7 (R9, AF7)
TXPB4 (NJTRST) (C7, AF11), PA15 (JTDI) (C13, AF11), PF7 (K2, AF7), PE8 (P9, AF7)
UART8CTSPD14 (K13, AF8)
DEPD15 (J13, AF8)
RTSPD15 (J13, AF8)
RXPD5 (A11, AF8), PE0 (C5, AF8)
TXPE1 (B4, AF8), PH13 (B15, AF7), PE2 (D4, AF8)
UART9CTSPD0 (B12, AF11)
DEPD13 (L15, AF11)
RTSPD13 (L15, AF11)
RXPF0 (F2, AF11), PD14 (K13, AF11), PG0 (R8, AF11)
TXPF1 (F1, AF11), PD15 (J13, AF11), PG1 (P8, AF11)
UART12CTSPB3 (JTDO/TRACESWO) (B7, AF7), PE8 (P9, AF6)
DEPC5 (P4, AF7), PE7 (R9, AF6)
RTSPC5 (P4, AF7), PE7 (R9, AF6)
RXPF5 (H3, AF6), PG2 (K15, AF7), PE9 (N9, AF6)
TXPF2 (G3, AF6), PG3 (H14, AF7), PE10 (R10, AF6)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (D15, AF3)
DEPA12 (C15, AF3)
RTSPA12 (C15, AF3)
RXPB7 (C6, AF8), PA10 (E14, AF3)
TXPB6 (B6, AF8), PA9 (E15, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPG9 (B9, AF5), PB4 (NJTRST) (C7, AF5), PA6 (P5, AF5)
MOSIPB5 (A6, AF5), PD7 (A10, AF5), PA7 (R4, AF5)
NSSPG10 (A9, AF5), PA15 (JTDI) (C13, AF5), PA4 (M5, AF5)
RDYPA8 (F15, AF5), PG6 (J14, AF5), PB2 (P6, AF4), PE11 (P10, AF4)
SCKPB3 (JTDO/TRACESWO) (B7, AF5), PG11 (C9, AF5), PA5 (R3, AF5)
SPI2MISOPI2 (B14, AF5), PC2 (K4, AF5), PB14 (N15, AF5)
MOSIPI3 (A14, AF5), PC1 (L2, AF5), PB15 (M14, AF5), PC3 (N3, AF5), PG1 (P8, AF7)
NSSPB9 (A4, AF5), PB4 (NJTRST) (C7, AF7), PA11 (D15, AF5), PB12 (L12, AF5), PA3 (N5, AF5)
RDYPD5 (A11, AF5), PI4 (B3, AF7), PC0 (L1, AF7), PB11 (N12, AF5)
SCKPD3 (A12, AF5), PI1 (A15, AF5), PA12 (C15, AF5), PA9 (E15, AF5), PB10 (M10, AF5), PB13 (R15, AF5)
SPI3MISOPB4 (NJTRST) (C7, AF6), PC11 (C12, AF6), PF14 (R7, AF6)
MOSIPB5 (A6, AF7), PD6 (B10, AF5), PC12 (C11, AF6), PB2 (P6, AF7)
NSSPA15 (JTDI) (C13, AF6), PA4 (M5, AF6)
RDYPE0 (C5, AF6), PA0 (P2, AF6)
SCKPB3 (JTDO/TRACESWO) (B7, AF6), PC10 (D12, AF6)
SPI4MISOPE5 (D3, AF5), PE13 (P11, AF5)
MOSIPE6 (C2, AF5), PE14 (N10, AF5)
NSSPE4 (C3, AF5), PE11 (P10, AF5)
RDYPG15 (A7, AF5), PB8 (B5, AF5), PB11 (N12, AF6)
SCKPE2 (D4, AF5), PE12 (R11, AF5)
SPI5MISOPF8 (H2, AF5), PH7 (P14, AF5)
MOSIPF9 (J3, AF5), PH8 (N13, AF5), PF11 (R6, AF5)
NSSPF6 (H1, AF5), PH9 (M12, AF5), PH5 (P1, AF5)
RDYPH10 (N14, AF5), PH4 (R1, AF5)
SCKPF7 (K2, AF5), PH6 (P13, AF5)
SPI6MISOPG12 (B8, AF5), PB4 (NJTRST) (C7, AF8), PA6 (P5, AF8)
MOSIPB5 (A6, AF8), PG14 (A8, AF5), PA7 (R4, AF8)
NSSPA15 (JTDI) (C13, AF7), PG8 (G15, AF5), PA4 (M5, AF8), PA0 (P2, AF5)
RDYPD15 (J13, AF7), PH5 (P1, AF7), PH4 (R1, AF7)
SCKPB3 (JTDO/TRACESWO) (B7, AF8), PG13 (C8, AF5), PC12 (C11, AF5), PA5 (R3, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPB3 (JTDO/TRACESWO) (B7, AF5), PG11 (C9, AF5), PA5 (R3, AF5)
MCKPI5 (A2, AF5), PD0 (B12, AF5), PG2 (K15, AF5), PC4 (N4, AF5)
SDIPG9 (B9, AF5), PB4 (NJTRST) (C7, AF5), PA6 (P5, AF5)
SDOPB5 (A6, AF5), PD7 (A10, AF5), PA7 (R4, AF5)
WSPG10 (A9, AF5), PA15 (JTDI) (C13, AF5), PA4 (M5, AF5)
I2S2CKPD3 (A12, AF5), PI1 (A15, AF5), PA12 (C15, AF5), PA9 (E15, AF5), PB10 (M10, AF5), PB13 (R15, AF5)
MCKPD1 (A13, AF5), PC6 (G14, AF5)
SDIPI2 (B14, AF5), PC2 (K4, AF5), PB14 (N15, AF5)
SDOPI3 (A14, AF5), PC1 (L2, AF5), PB15 (M14, AF5), PC3 (N3, AF5), PG1 (P8, AF7)
WSPB9 (A4, AF5), PB4 (NJTRST) (C7, AF7), PA11 (D15, AF5), PB12 (L12, AF5), PA3 (N5, AF5)
I2S3CKPB3 (JTDO/TRACESWO) (B7, AF6), PC10 (D12, AF6)
MCKPC7 (G13, AF6), PD8 (M15, AF6)
SDIPB4 (NJTRST) (C7, AF6), PC11 (C12, AF6), PF14 (R7, AF6)
SDOPB5 (A6, AF7), PD6 (B10, AF5), PC12 (C11, AF6), PB2 (P6, AF7)
WSPA15 (JTDI) (C13, AF6), PA4 (M5, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8 (B5, AF4), PB6 (B6, AF4)
SDAPB9 (A4, AF4), PB7 (C6, AF4), PD13 (L15, AF6)
SMBAPB5 (A6, AF4)
I2C2SCLPD2 (C10, AF6), PF1 (F1, AF4), PB10 (M10, AF4), PH4 (R1, AF4)
SDAPB3 (JTDO/TRACESWO) (B7, AF4), PF0 (F2, AF4), PB12 (L12, AF4), PB11 (N12, AF4), PH5 (P1, AF4)
SMBAPF2 (G3, AF4), PH6 (P13, AF4), PB13 (R15, AF4)
I2C3SCLPD7 (A10, AF4), PA8 (F15, AF4), PH7 (P14, AF4)
SDAPD6 (B10, AF4), PC9 (F13, AF4), PH8 (N13, AF4)
SMBAPG10 (A9, AF3), PA9 (E15, AF4), PH9 (M12, AF4)
I2C4SCLPB8 (B5, AF6), PB6 (B6, AF6), PF5 (H3, AF4), PG7 (H13, AF4), PD12 (K14, AF4), PH11 (P15, AF4)
SDAPB9 (A4, AF6), PB7 (C6, AF6), PG6 (J14, AF4), PD13 (L15, AF4), PH12 (M13, AF4), PF15 (N8, AF4)
SMBAPB5 (A6, AF6), PD11 (L14, AF4), PH10 (N14, AF4), PF13 (P7, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPB8 (B5, AF3), PB6 (B6, AF3), PF5 (H3, AF5), PG7 (H13, AF3), PD12 (K14, AF5), PH11 (P15, AF5)
SDAPB9 (A4, AF3), PB7 (C6, AF3), PG6 (J14, AF3), PD13 (L15, AF5), PH12 (M13, AF5), PF15 (N8, AF5)
I3C2SCLPD2 (C10, AF5), PF1 (F1, AF5), PB10 (M10, AF8), PH4 (R1, AF3)
SDAPB3 (JTDO/TRACESWO) (B7, AF3), PF0 (F2, AF5), PB12 (L12, AF8), PB11 (N12, AF8), PH5 (P1, AF3)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPB8 (B5, AF9), PD0 (B12, AF9), PE0 (C5, AF9), PH14 (D13, AF9), PA11 (D15, AF9), PI9 (E1, AF9), PI10 (F4, AF9)
TXPB9 (A4, AF9), PD5 (A11, AF9), PD1 (A13, AF9), PE1 (B4, AF9), PH13 (B15, AF9), PB7 (C6, AF9), PA12 (C15, AF9)
FDCAN2RXPB5 (A6, AF9), PB12 (L12, AF9), PD9 (L13, AF9)
TXPB6 (B6, AF9), PA10 (E14, AF9), PB13 (R15, AF9)
FDCAN3RXPF7 (K2, AF9), PD10 (K12, AF9), PE13 (P11, AF9)
TXPF6 (H1, AF9), PD8 (M15, AF9), PE12 (R11, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (D15)
DPPA12 (C15)
SOFPA8 (F15)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB13 (R15)
CC2PB14 (N15)
DB1PA9 (E15)
DB2PC9 (F13)
FRSTXPA10 (E14, AF6), PG7 (H13, AF11), PG6 (J14, AF11), PB12 (L12, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCLKPD4 (B11, AF11), PA10 (E14, AF11), PF15 (N8, AF11)
MDCPB3 (JTDO/TRACESWO) (B7, AF12), PF9 (J3, AF11), PC1 (L2, AF11)
MDIOPB4 (NJTRST) (C7, AF10), PA2 (M3, AF11), PE12 (R11, AF11)
MII_COLPA3 (N5, AF11), PH3 (P3, AF11)
MII_CRSPD5 (A11, AF6), PD10 (K12, AF8), PA0 (P2, AF11), PH2 (R2, AF11)
MII_RX_CLKPA1 (L3, AF11)
MII_RX_DVPD1 (A13, AF11), PA7 (R4, AF11)
MII_RX_ERPI10 (F4, AF11), PG3 (H14, AF10), PB10 (M10, AF11)
MII_RXD0PE4 (C3, AF11), PD8 (M15, AF8), PC4 (N4, AF11), PB2 (P6, AF11)
MII_RXD1PE5 (D3, AF11), PC5 (P4, AF11)
MII_RXD2PH6 (P13, AF11), PB0 (R5, AF11)
MII_RXD3PB1 (N6, AF11), PH7 (P14, AF11)
MII_TX_CLKPC3 (N3, AF11)
MII_TX_ENPG11 (C9, AF11), PB11 (N12, AF11), PA5 (R3, AF11)
MII_TX_ERPB6 (B6, AF11), PA9 (E15, AF11), PF8 (H2, AF11)
MII_TXD0PG13 (C8, AF11), PC10 (D12, AF11), PB12 (L12, AF11)
MII_TXD1PG14 (A8, AF11), PG12 (B8, AF11), PB15 (M14, AF11)
MII_TXD2PC2 (K4, AF11)
MII_TXD3PB8 (B5, AF11), PE2 (D4, AF11)
PHY_INTNPA15 (JTDI) (C13, AF10)
PPS_OUTPB5 (A6, AF11), PC12 (C11, AF10), PG8 (G15, AF11)
PTP_AUX_TSPD11 (L14, AF11)
RMII_CRS_DVPD1 (A13, AF11), PA7 (R4, AF11)
RMII_REF_CLKPA1 (L3, AF11)
RMII_RXD0PE4 (C3, AF11), PD8 (M15, AF8), PC4 (N4, AF11), PB2 (P6, AF11)
RMII_RXD1PE5 (D3, AF11), PC5 (P4, AF11)
RMII_TX_ENPG11 (C9, AF11), PB11 (N12, AF11), PA5 (R3, AF11)
RMII_TXD0PG13 (C8, AF11), PC10 (D12, AF11), PB12 (L12, AF11)
RMII_TXD1PG14 (A8, AF11), PG12 (B8, AF11), PB15 (M14, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (A4, AF7), PF13 (P7, AF9)
CKPC12 (C11, AF12), PG0 (R8, AF8)
CKINPB8 (B5, AF7), PF12 (N7, AF9)
CMDPD2 (C10, AF12), PF15 (N8, AF8), PB2 (P6, AF12)
D0PA10 (E14, AF12), PC8 (F14, AF12), PF6 (H1, AF8)
D0DIRPD0 (B12, AF7), PC6 (G14, AF8)
D1PC9 (F13, AF12), PF7 (K2, AF8)
D2PC10 (D12, AF12), PF8 (H2, AF8)
D3PC11 (C12, AF12), PF9 (J3, AF8)
D4PB8 (B5, AF12), PF11 (R6, AF8)
D5PB9 (A4, AF12), PF12 (N7, AF8)
D6PC6 (G14, AF12), PF13 (P7, AF8)
D7PC7 (G13, AF12), PF14 (R7, AF8)
D123DIRPD1 (A13, AF7), PC7 (G13, AF8), PF14 (R7, AF9)
SDMMC2CKPI7 (A1, AF9), PD6 (B10, AF11), PC1 (L2, AF9)
CKINPB9 (A4, AF11), PB7 (C6, AF11), PH15 (C14, AF9), PF5 (H3, AF11)
CMDPD7 (A10, AF11), PI6 (C4, AF9), PA0 (P2, AF9)
D0PI1 (A15, AF9), PG9 (B9, AF11), PD8 (M15, AF11)
D1PG10 (A9, AF11), PI2 (B14, AF9), PB15 (M14, AF9)
D2PI3 (A14, AF9), PB3 (JTDO/TRACESWO) (B7, AF9), PG11 (C9, AF10), PF0 (F2, AF10)
D3PI4 (B3, AF9), PG12 (B8, AF10), PB4 (NJTRST) (C7, AF9), PF1 (F1, AF10)
D4PB8 (B5, AF10), PA12 (C15, AF10), PF2 (G3, AF10)
D5PB9 (A4, AF10), PB7 (C6, AF10), PF3 (G2, AF10)
D6PG13 (C8, AF10), PF4 (G1, AF10), PC6 (G14, AF10), PC2 (K4, AF10)
D7PG14 (A8, AF10), PC7 (G13, AF10), PF5 (H3, AF10), PC3 (N3, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (D4, AF2), PD11 (L14, AF2), PC4 (N4, AF2)
CK2PE5 (D3, AF2), PG7 (H13, AF2)
D1PD6 (B10, AF2), PE6 (C2, AF2), PD12 (K14, AF6), PC1 (L2, AF2), PB2 (P6, AF2)
D2PE4 (C3, AF2)
D3PF10 (J4, AF2), PC3 (N3, AF2), PC5 (P4, AF2)
FS_APE4 (C3, AF6), PI9 (E1, AF2), PD14 (K13, AF6), PC5 (P4, AF6)
FS_BPF9 (J3, AF6), PD15 (J13, AF6)
MCLK_APE2 (D4, AF6), PI11 (F3, AF2), PG7 (H13, AF6), PC0 (L1, AF6)
MCLK_BPD1 (A13, AF6), PF7 (K2, AF6)
SCK_APE5 (D3, AF6), PI10 (F4, AF2), PC6 (G14, AF6)
SCK_BPC10 (D12, AF4), PF8 (H2, AF6)
SD_APD6 (B10, AF6), PE6 (C2, AF6), PC1 (L2, AF6), PB2 (P6, AF6)
SD_BPE3 (B2, AF6), PF6 (H1, AF6), PA3 (N5, AF6)
SAI2FS_API7 (A1, AF10), PD12 (K14, AF10)
FS_BPG9 (B9, AF10), PA12 (C15, AF8), PC0 (L1, AF8), PE13 (P11, AF10)
MCLK_API4 (B3, AF10), PE0 (C5, AF10)
MCLK_BPE6 (C2, AF10), PA1 (L3, AF10), PE14 (N10, AF10), PH3 (P3, AF10)
SCK_API5 (A2, AF10), PD13 (L15, AF10)
SCK_BPA2 (M3, AF8), PH2 (R2, AF10), PE12 (R11, AF10)
SD_API6 (C4, AF10), PC1 (L2, AF8), PD11 (L14, AF10)
SD_BPG10 (A9, AF10), PA0 (P2, AF10), PE11 (P10, AF10), PF11 (R6, AF10)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPB6 (B6, AF5), PA15 (JTDI) (C13, AF4), PD9 (L13, AF5)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PG11 (C9), PC11 (C12), PA11 (D15), PI11 (F3), PD11 (L14), PB11 (N12), PE11 (P10), PH11 (P15), PF11 (R6)
EXTI15PG15 (A7), PA15 (JTDI) (C13), PH15 (C14), PC15-OSC32_OUT(OSC32_OUT) (D1), PD15 (J13), PB15 (M14), PF15 (N8), PE15 (N11)
INN1PA0 (P2)
INN2PF12 (N7)
INN3PA7 (R4)
INN4PC5 (P4)
INN5PB0 (R5)
INN10PC1 (L2)
INN11PC2 (K4)
INN12PC3 (N3)
INN18PA5 (R3)
INP0PA0 (P2)
INP1PA1 (L3)
INP2PF11 (R6)
INP3PA6 (P5)
INP4PC4 (N4)
INP5PB1 (N6)
INP6PF12 (N7)
INP7PA7 (R4)
INP8PC5 (P4)
INP9PB0 (R5)
INP10PC0 (L1)
INP11PC1 (L2)
INP12PC2 (K4)
INP13PC3 (N3)
INP14PA2 (M3)
INP15PA3 (N5)
INP18PA4 (M5)
INP19PA5 (R3)
ADC2EXTI11PG11 (C9), PC11 (C12), PA11 (D15), PI11 (F3), PD11 (L14), PB11 (N12), PE11 (P10), PH11 (P15), PF11 (R6)
EXTI15PG15 (A7), PA15 (JTDI) (C13), PH15 (C14), PC15-OSC32_OUT(OSC32_OUT) (D1), PD15 (J13), PB15 (M14), PF15 (N8), PE15 (N11)
INN1PA0 (P2)
INN2PF14 (R7)
INN3PA7 (R4)
INN4PC5 (P4)
INN5PB0 (R5)
INN10PC1 (L2)
INN11PC2 (K4)
INN12PC3 (N3)
INN18PA5 (R3)
INP0PA0 (P2)
INP1PA1 (L3)
INP2PF13 (P7)
INP3PA6 (P5)
INP4PC4 (N4)
INP5PB1 (N6)
INP6PF14 (R7)
INP7PA7 (R4)
INP8PC5 (P4)
INP9PB0 (R5)
INP10PC0 (L1)
INP11PC1 (L2)
INP12PC2 (K4)
INP13PC3 (N3)
INP14PA2 (M3)
INP15PA3 (N5)
INP18PA4 (M5)
INP19PA5 (R3)
ADC3EXTI11PG11 (C9), PC11 (C12), PA11 (D15), PI11 (F3), PD11 (L14), PB11 (N12), PE11 (P10), PH11 (P15), PF11 (R6)
EXTI15PG15 (A7), PA15 (JTDI) (C13), PH15 (C14), PC15-OSC32_OUT(OSC32_OUT) (D1), PD15 (J13), PB15 (M14), PF15 (N8), PE15 (N11)
INP0PB2 (P6)
INP1PE7 (R9)
INP2PE8 (P9)
INP3PE9 (N9)
INP4PE10 (R10)
INP5PE11 (P10)
INP6PE12 (R11)
INP7PE13 (P11)
INP8PE14 (N10)
INP9PE15 (N11)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (A4), PG9 (B9), PI9 (E1), PA9 (E15), PC9 (F13), PF9 (J3), PD9 (L13), PH9 (M12), PE9 (N9)
OUT1PA4 (M5)
OUT2PA5 (R3)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPA6 (P5), PE10 (R10)
INPPB2 (P6), PA7 (R4)
OUTPD4 (B11, AF3), PC11 (C12, AF3), PF0 (F2, AF3)
COMP2INMPB1 (N6), PE9 (N9), PE14 (N10)
INPPB0 (R5), PE7 (R9)
OUTPD5 (A11, AF3), PC12 (C11, AF3), PF1 (F1, AF3)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA4 (M5), PE13 (P11)
VINPPE11 (P10), PA5 (R3), PE12 (R11)
VOUTPB1 (N6)

TIM — таймер

БлокСигналВыводы
TIM1BKINPB12 (L12, AF1), PH12 (M13, AF1), PE15 (N11, AF1), PA6 (P5, AF1)
BKIN2PI1 (A15, AF1), PE6 (C2, AF1), PG4 (J15, AF1)
CH1PI4 (B3, AF1), PA8 (F15, AF1), PE9 (N9, AF1), PH11 (P15, AF1)
CH1NPI3 (A14, AF1), PH10 (N14, AF1), PE8 (P9, AF1), PA7 (R4, AF1), PB13 (R15, AF1)
CH2PI6 (C4, AF1), PA9 (E15, AF1), PH9 (M12, AF1), PE11 (P10, AF1)
CH2NPI5 (A2, AF1), PH8 (N13, AF1), PB14 (N15, AF1), PB0 (R5, AF1), PE10 (R10, AF1)
CH3PI9 (E1, AF1), PA10 (E14, AF1), PE13 (P11, AF1), PH7 (P14, AF1)
CH3NPI7 (A1, AF1), PB15 (M14, AF1), PB1 (N6, AF1), PH6 (P13, AF1), PE12 (R11, AF1)
CH4PA11 (D15, AF1), PI11 (F3, AF1), PE14 (N10, AF1)
CH4NPD5 (A11, AF1), PI10 (F4, AF1), PE15 (N11, AF3), PC5 (P4, AF1)
ETRPI2 (B14, AF1), PA12 (C15, AF1), PG5 (H15, AF1), PE7 (R9, AF1)
TIM2CH1PA15 (JTDI) (C13, AF1), PF0 (F2, AF1), PA0 (P2, AF1), PA5 (R3, AF1)
CH2PB3 (JTDO/TRACESWO) (B7, AF1), PF1 (F1, AF1), PA1 (L3, AF1)
CH3PF3 (G2, AF1), PA2 (M3, AF1), PB10 (M10, AF1), PF11 (R6, AF1)
CH4PF4 (G1, AF1), PC4 (N4, AF1), PA3 (N5, AF1), PF12 (N7, AF1), PB11 (N12, AF1)
ETRPA15 (JTDI) (C13, AF14), PF0 (F2, AF2), PA0 (P2, AF14), PA5 (R3, AF14)
TIM3CH1PB4 (NJTRST) (C7, AF2), PC6 (G14, AF2), PA6 (P5, AF2)
CH2PB5 (A6, AF2), PC7 (G13, AF2), PA7 (R4, AF2)
CH3PC8 (F14, AF2), PB0 (R5, AF2)
CH4PC9 (F13, AF2), PB1 (N6, AF2)
ETRPD2 (C10, AF2), PF14 (R7, AF2)
TIM4CH1PB6 (B6, AF2), PD12 (K14, AF2), PG0 (R8, AF2)
CH2PB7 (C6, AF2), PD13 (L15, AF2), PG1 (P8, AF2)
CH3PB8 (B5, AF2), PD14 (K13, AF2), PG2 (K15, AF2)
CH4PB9 (A4, AF2), PG3 (H14, AF2), PD15 (J13, AF2), PC2 (K4, AF2)
ETRPE0 (C5, AF2), PF15 (N8, AF2)
TIM5CH1PH10 (N14, AF2), PA0 (P2, AF2)
CH2PA1 (L3, AF2), PH11 (P15, AF2)
CH3PA2 (M3, AF2), PH12 (M13, AF2)
CH4PA3 (N5, AF2)
ETRPA4 (M5, AF2), PH8 (N13, AF2)
TIM8BKINPI4 (B3, AF3), PG2 (K15, AF3), PH12 (M13, AF3), PA6 (P5, AF3)
BKIN2PI1 (A15, AF3), PA8 (F15, AF3), PG3 (H14, AF3)
CH1PI5 (A2, AF3), PC6 (G14, AF3), PC0 (L1, AF3), PH6 (P13, AF3)
CH1NPH13 (B15, AF3), PH7 (P14, AF3), PA5 (R3, AF3), PA7 (R4, AF3)
CH2PI6 (C4, AF3), PC7 (G13, AF3), PC1 (L2, AF3), PH8 (N13, AF3)
CH2NPH14 (D13, AF3), PH9 (M12, AF3), PB14 (N15, AF3), PB0 (R5, AF3)
CH3PI7 (A1, AF3), PC8 (F14, AF3), PC2 (K4, AF3), PH10 (N14, AF3)
CH3NPH15 (C14, AF3), PB15 (M14, AF3), PB1 (N6, AF3), PH11 (P15, AF3)
CH4PD3 (A12, AF3), PI2 (B14, AF3), PC9 (F13, AF3)
CH4NPD0 (B12, AF3), PH12 (M13, AF10), PB2 (P6, AF3)
ETRPI3 (A14, AF3), PG8 (G15, AF3), PA0 (P2, AF3)
TIM12CH1PD7 (A10, AF2), PG9 (B9, AF2), PB14 (N15, AF2), PH6 (P13, AF2)
CH2PG10 (A9, AF2), PH9 (M12, AF2), PB15 (M14, AF2), PD8 (M15, AF2)
TIM13CH1PF8 (H2, AF9), PD9 (L13, AF2), PA6 (P5, AF9)
TIM14CH1PF9 (J3, AF9), PD10 (K12, AF2), PA7 (R4, AF9)
TIM15BKINPE3 (B2, AF4), PD2 (C10, AF4), PA0 (P2, AF4)
CH1PC12 (C11, AF2), PE5 (D3, AF4), PA2 (M3, AF4)
CH1NPE4 (C3, AF4), PA1 (L3, AF4)
CH2PE6 (C2, AF4), PA3 (N5, AF4)
TIM16BKINPB4 (NJTRST) (C7, AF1), PF10 (J4, AF1), PC0 (L1, AF1)
CH1PG15 (A7, AF1), PB8 (B5, AF1), PF6 (H1, AF1)
CH1NPB6 (B6, AF1), PG8 (G15, AF1), PF8 (H2, AF1)
TIM17BKINPB5 (A6, AF1), PG6 (J14, AF1)
CH1PB9 (A4, AF1), PF7 (K2, AF1), PC2 (K4, AF1)
CH1NPB7 (C6, AF1), PF9 (J3, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PG13 (C8, AF1), PD13 (L15, AF1), PB2 (P6, AF5)
CH2PG14 (A8, AF4), PB4 (NJTRST) (C7, AF4), PI11 (F3, AF4)
ETRPG14 (A8, AF1), PE0 (C5, AF1)
IN1PG12 (B8, AF1), PD12 (K14, AF1), PA1 (L3, AF5)
IN2PE1 (B4, AF1), PH13 (B15, AF1), PG11 (C9, AF1), PE2 (D4, AF1), PA2 (M3, AF5), PH2 (R2, AF1)
LPTIM2CH1PG12 (B8, AF3), PD13 (L15, AF3), PA4 (M5, AF3), PB13 (R15, AF3)
CH2PE0 (C5, AF3), PD10 (K12, AF3), PF13 (P7, AF3)
ETRPE0 (C5, AF4), PC4 (N4, AF3), PB11 (N12, AF3)
IN1PD12 (K14, AF3), PB10 (M10, AF3), PF14 (R7, AF3)
IN2PA10 (E14, AF4), PD11 (L14, AF3)
LPTIM3CH1PF5 (H3, AF2), PB10 (M10, AF2), PC3 (N3, AF3), PB0 (R5, AF14)
CH2PF2 (G3, AF2), PB1 (N6, AF14)
ETRPC10 (D12, AF2), PF4 (G1, AF2), PB14 (N15, AF14)
IN1PC11 (C12, AF2), PF3 (G2, AF2), PF5 (H3, AF14), PB13 (R15, AF2)
IN2PA15 (JTDI) (C13, AF2), PF2 (G3, AF3)
LPTIM4ETRPD2 (C10, AF14), PG4 (J15, AF14)
IN1PD13 (L15, AF14), PG0 (R8, AF14)
OUTPD7 (A10, AF14), PG8 (G15, AF14)
LPTIM5CH1PG12 (B8, AF14), PF0 (F2, AF13), PF6 (H1, AF13)
CH2PG13 (C8, AF13), PF1 (F1, AF13), PF7 (K2, AF13)
ETRPG3 (H14, AF13), PB2 (P6, AF13)
IN1PG14 (A8, AF13), PF2 (G3, AF13), PF8 (H2, AF13)
IN2PF3 (G2, AF13), PF9 (J3, AF13)
LPTIM6CH1PF11 (R6, AF14)
CH2PF12 (N7, AF14)
ETRPB3 (JTDO/TRACESWO) (B7, AF14), PG2 (K15, AF14)
IN1PF13 (P7, AF14)
IN2PF14 (R7, AF14)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (E3)
OUT2PI8 (E2), PB2 (P6, AF0)
REFINPB15 (M14, AF0)
TSPC13 (E3)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (F2, AF12)
A1PF1 (F1, AF12)
A2PF2 (G3, AF12)
A3PF3 (G2, AF12)
A4PF4 (G1, AF12)
A5PF5 (H3, AF12)
A6PF12 (N7, AF12)
A7PF13 (P7, AF12)
A8PF14 (R7, AF12)
A9PF15 (N8, AF12)
A10PG0 (R8, AF12)
A11PG1 (P8, AF12)
A12PG2 (K15, AF12)
A13PG3 (H14, AF12)
A14PG4 (J15, AF12)
A15PG5 (H15, AF12)
A16PC9 (F13, AF11), PD11 (L14, AF12)
A17PA11 (D15, AF12), PC8 (F14, AF11), PD12 (K14, AF12)
A18PD13 (L15, AF12)
A19PE3 (B2, AF12)
A20PE4 (C3, AF12)
A21PE5 (D3, AF12)
A22PE6 (C2, AF12)
A23PE2 (D4, AF12)
A24PI1 (A15, AF11), PG13 (C8, AF12)
A25PG14 (A8, AF12), PC0 (L1, AF9)
ALEPA11 (D15, AF12), PC8 (F14, AF11), PD12 (K14, AF12)
BA0PG4 (J15, AF12)
BA1PG5 (H15, AF12)
CLEPC9 (F13, AF11), PD11 (L14, AF12)
CLKPD3 (A12, AF12)
D0PD14 (K13, AF12)
D1PD15 (J13, AF12)
D2PD0 (B12, AF12)
D3PD1 (A13, AF12), PH12 (M13, AF12)
D4PE7 (R9, AF12)
D5PE8 (P9, AF12)
D6PE9 (N9, AF12)
D7PE10 (R10, AF12)
D8PE11 (P10, AF12)
D9PE12 (R11, AF12)
D10PE13 (P11, AF12)
D11PE14 (N10, AF12)
D12PE15 (N11, AF12)
D13PD8 (M15, AF12)
D14PD9 (L13, AF12)
D15PD10 (K12, AF12)
D16PF6 (H1, AF12)
D17PF7 (K2, AF12)
D18PF8 (H2, AF12)
D19PF9 (J3, AF12)
D20PH10 (N14, AF12)
D21PH11 (P15, AF12)
D22PH13 (B15, AF12)
D23PH14 (D13, AF12)
D24PH15 (C14, AF12)
D25PI1 (A15, AF12)
D26PI2 (B14, AF12)
D27PI3 (A14, AF12)
D28PI4 (B3, AF12)
D29PI6 (C4, AF12)
D30PI7 (A1, AF12)
D31PA6 (P5, AF12)
DA0PD14 (K13, AF12)
DA1PD15 (J13, AF12)
DA2PD0 (B12, AF12)
DA3PD1 (A13, AF12), PH12 (M13, AF12)
DA4PE7 (R9, AF12)
DA5PE8 (P9, AF12)
DA6PE9 (N9, AF12)
DA7PE10 (R10, AF12)
DA8PE11 (P10, AF12)
DA9PE12 (R11, AF12)
DA10PE13 (P11, AF12)
DA11PE14 (N10, AF12)
DA12PE15 (N11, AF12)
DA13PD8 (M15, AF12)
DA14PD9 (L13, AF12)
DA15PD10 (K12, AF12)
INTPC8 (F14, AF10), PG7 (H13, AF12), PC0 (L1, AF13)
NBL0PE0 (C5, AF12), PH2 (R2, AF13)
NBL1PE1 (B4, AF12), PA15 (JTDI) (C13, AF12), PB11 (N12, AF12)
NBL2PA4 (M5, AF12), PH3 (P3, AF13)
NBL3PB4 (NJTRST) (C7, AF12)
NCEPD7 (A10, AF12), PG9 (B9, AF12), PC8 (F14, AF9), PC2 (K4, AF13), PC1 (L2, AF13)
NE1PD7 (A10, AF12), PC7 (G13, AF9), PC2 (K4, AF13)
NE2PG9 (B9, AF12), PC8 (F14, AF9), PC1 (L2, AF13)
NE3PG10 (A9, AF12), PG6 (J14, AF12)
NE4PG12 (B8, AF12)
NLPB7 (C6, AF12)
NOEPD4 (B11, AF12), PA8 (F15, AF12)
NWAITPE1 (B4, AF11), PD6 (B10, AF12), PC6 (G14, AF9), PB10 (M10, AF13)
NWEPD5 (A11, AF12), PA9 (E15, AF12), PA7 (R4, AF13)
SDCKE0PC3 (N3, AF12), PC5 (P4, AF12), PH2 (R2, AF12)
SDCKE1PB5 (A6, AF12), PH7 (P14, AF12)
SDCLKPG12 (B8, AF8), PG8 (G15, AF12)
SDNCASPG15 (A7, AF12), PC9 (F13, AF10)
SDNE0PC2 (K4, AF12), PC4 (N4, AF12), PH3 (P3, AF12)
SDNE1PB6 (B6, AF12), PH6 (P13, AF12)
SDNRASPB10 (M10, AF10), PF11 (R6, AF12)
SDNWEPC0 (L1, AF12), PH5 (P1, AF12), PA7 (R4, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (E15, AF13), PC6 (G14, AF13), PH9 (M12, AF13), PE12 (R11, AF13)
D1PA10 (E14, AF13), PC7 (G13, AF13), PH10 (N14, AF13)
D2PG10 (A9, AF13), PE0 (C5, AF13), PC8 (F14, AF13), PB15 (M14, AF13), PH11 (P15, AF13)
D3PE1 (B4, AF13), PH13 (B15, AF13), PG11 (C9, AF13), PE2 (D4, AF13), PC9 (F13, AF13), PA8 (F15, AF13), PH12 (M13, AF13)
D4PE4 (C3, AF13), PC11 (C12, AF13), PH14 (D13, AF13)
D5PD3 (A12, AF13), PI4 (B3, AF13), PB6 (B6, AF13)
D6PB8 (B5, AF13), PI6 (C4, AF13), PE5 (D3, AF13), PF4 (G1, AF13)
D7PI7 (A1, AF13), PB9 (A4, AF13), PE6 (C2, AF13), PB4 (NJTRST) (C7, AF13)
D8PI1 (A15, AF13), PC10 (D12, AF13), PE8 (P9, AF13), PH6 (P13, AF13)
D9PI2 (B14, AF13), PC12 (C11, AF13), PH7 (P14, AF13)
D10PB5 (A6, AF13), PI3 (A14, AF13), PD6 (B10, AF13)
D11PG12 (B8, AF13), PD2 (C10, AF13), PA15 (JTDI) (C13, AF13), PH15 (C14, AF13), PF10 (J4, AF13)
D12PG6 (J14, AF13), PD12 (K14, AF13), PF11 (R6, AF13)
D13PG15 (A7, AF13), PG7 (H13, AF13), PD13 (L15, AF13)
HSYNCPA4 (M5, AF13), PH8 (N13, AF13), PE13 (P11, AF13)
PIXCLKPE15 (N11, AF13), PA6 (P5, AF13)
VSYNCPI5 (A2, AF13), PG9 (B9, AF13), PB7 (C6, AF13), PE14 (N10, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (E15, AF13), PC6 (G14, AF13), PH9 (M12, AF13), PE12 (R11, AF13)
D1PA10 (E14, AF13), PC7 (G13, AF13), PH10 (N14, AF13)
D2PG10 (A9, AF13), PE0 (C5, AF13), PC8 (F14, AF13), PB15 (M14, AF13), PH11 (P15, AF13)
D3PE1 (B4, AF13), PH13 (B15, AF13), PG11 (C9, AF13), PE2 (D4, AF13), PC9 (F13, AF13), PA8 (F15, AF13), PH12 (M13, AF13)
D4PE4 (C3, AF13), PC11 (C12, AF13), PH14 (D13, AF13)
D5PD3 (A12, AF13), PI4 (B3, AF13), PB6 (B6, AF13)
D6PB8 (B5, AF13), PI6 (C4, AF13), PE5 (D3, AF13), PF4 (G1, AF13)
D7PI7 (A1, AF13), PB9 (A4, AF13), PE6 (C2, AF13), PB4 (NJTRST) (C7, AF13)
D8PI1 (A15, AF13), PC10 (D12, AF13), PE8 (P9, AF13), PH6 (P13, AF13)
D9PI2 (B14, AF13), PC12 (C11, AF13), PH7 (P14, AF13)
D10PB5 (A6, AF13), PI3 (A14, AF13), PD6 (B10, AF13)
D11PG12 (B8, AF13), PD2 (C10, AF13), PA15 (JTDI) (C13, AF13), PH15 (C14, AF13), PF10 (J4, AF13)
D12PG6 (J14, AF13), PD12 (K14, AF13), PF11 (R6, AF13)
D13PG15 (A7, AF13), PG7 (H13, AF13), PD13 (L15, AF13)
D14PI10 (F4, AF13), PH4 (R1, AF13), PA5 (R3, AF13)
D15PG12 (B8, AF4), PI11 (F3, AF13), PF10 (J4, AF4), PD14 (K13, AF4), PC5 (P4, AF4)
DEPA4 (M5, AF13), PH8 (N13, AF13), PE13 (P11, AF13)
PDCKPE15 (N11, AF13), PA6 (P5, AF13)
RDYPI5 (A2, AF13), PG9 (B9, AF13), PB7 (C6, AF13), PE14 (N10, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PG14 (A8, AF14), PC10 (D12, AF14), PE14 (N10, AF11)
B1PI11 (F3, AF14), PC9 (F13, AF14), PF9 (J3, AF14), PD14 (K13, AF13)
B2PD5 (A11, AF13), PG8 (G15, AF13), PA7 (R4, AF14)
B3PB1 (N6, AF13), PA6 (P5, AF14)
B4PD3 (A12, AF10), PG11 (C9, AF14), PA4 (M5, AF14)
B5PG9 (B9, AF14), PA3 (N5, AF14), PE11 (P10, AF13)
B6PG10 (A9, AF14), PE5 (D3, AF10), PA2 (M3, AF14), PF13 (P7, AF13)
B7PD4 (B11, AF13), PA1 (L3, AF14), PF15 (N8, AF13)
CLKPA8 (F15, AF14), PD15 (J13, AF13), PF12 (N7, AF13)
DEPD1 (A13, AF13), PI3 (A14, AF14), PF6 (H1, AF14), PC4 (N4, AF14)
G0PC6 (G14, AF14), PG3 (H14, AF14), PB15 (M14, AF12)
G1PE3 (B2, AF13), PH15 (C14, AF14), PC5 (P4, AF14)
G2PG15 (A7, AF14), PD12 (K14, AF11), PC1 (L2, AF14)
G3PE4 (C3, AF10), PF7 (K2, AF14), PC0 (L1, AF14)
G4PG13 (C8, AF14), PC12 (C11, AF11), PB10 (M10, AF14)
G5PB9 (A4, AF14), PA5 (R3, AF10), PF14 (R7, AF13)
G6PB8 (B5, AF14), PF10 (J4, AF14), PA0 (P2, AF13)
G7PB7 (C6, AF14), PD2 (C10, AF11), PB11 (N12, AF13)
HSYNCPB3 (JTDO/TRACESWO) (B7, AF13), PG5 (H15, AF13), PC2 (K4, AF14)
R0PI5 (A2, AF14), PC8 (F14, AF14), PA2 (M3, AF13), PE15 (N11, AF11)
R1PC7 (G13, AF14), PB12 (L12, AF13), PE13 (P11, AF11)
R2PD0 (B12, AF13), PE6 (C2, AF11), PB4 (NJTRST) (C7, AF14), PG2 (K15, AF13)
R3PD7 (A10, AF13), PH13 (B15, AF14), PB2 (P6, AF14)
R4PA12 (C15, AF14), PD9 (L13, AF13), PB0 (R5, AF13)
R5PA11 (D15, AF14), PG7 (H13, AF14), PD8 (M15, AF13)
R6PH14 (D13, AF14), PA10 (E14, AF14), PD11 (L14, AF13)
R7PA9 (E15, AF14), PF8 (H2, AF14), PD10 (K12, AF13), PH9 (M12, AF14), PH4 (R1, AF14)
VSYNCPC11 (C12, AF11), PG4 (J15, AF13), PC3 (N3, AF14)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PE2 (D4, AF4), PF9 (J3, AF4), PC4 (N4, AF8)
CCK1PE5 (D3, AF8), PG7 (H13, AF8)
CKI0PG4 (J15, AF4), PE7 (R9, AF8)
CKI1PF7 (K2, AF4), PC0 (L1, AF4)
CKI2PE3 (B2, AF8), PH2 (R2, AF4)
CKI3PD4 (B11, AF8), PH14 (D13, AF4)
CKI4PI1 (A15, AF4), PE9 (N9, AF8)
CKI5PI6 (C4, AF4), PE11 (P10, AF8)
SDI0PG5 (H15, AF4), PE8 (P9, AF8)
SDI1PD6 (B10, AF8), PE6 (C2, AF8), PC1 (L2, AF4)
SDI2PE4 (C3, AF8), PH3 (P3, AF4)
SDI3PH15 (C14, AF4), PF10 (J4, AF8), PC3 (N3, AF8), PC5 (P4, AF8)
SDI4PI2 (B14, AF4), PE10 (R10, AF8)
SDI5PI7 (A1, AF4), PE12 (R11, AF8)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PE2 (D4, AF3), PD11 (L14, AF1), PC4 (N4, AF4), PF13 (P7, AF1)
CCK1PE5 (D3, AF1), PG7 (H13, AF1), PF14 (R7, AF1)
SDI0PD6 (B10, AF1), PE6 (C2, AF3), PE4 (C3, AF3), PC1 (L2, AF1), PF15 (N8, AF1), PB2 (P6, AF1)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (B13, AF0)
JTDIPA15 (JTDI) (C13, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (B7, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (E13, AF0)
NJTRSTPB4 (NJTRST) (C7, AF0)
TRACECLKPH15 (C14, AF0), PE2 (D4, AF0)
TRACED0PI1 (A15, AF0), PE3 (B2, AF0), PG13 (C8, AF0), PC1 (L2, AF0)
TRACED1PG14 (A8, AF0), PI2 (B14, AF0), PE4 (C3, AF0), PC8 (F14, AF0)
TRACED2PI3 (A14, AF0), PD2 (C10, AF0), PE5 (D3, AF0)
TRACED3PI4 (B3, AF0), PE6 (C2, AF0), PC12 (C11, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPB2 (P6)
MCO_1PA8 (F15, AF0)
MCO_2PC9 (F13, AF0)
OSC_INPH0-OSC_IN (J1)
OSC_OUTPH1-OSC_OUT (J2)
OSC32_INPC14-OSC32_IN(OSC32_IN) (D2)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (D1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC2 (K4, AF0)
PWR_CSTOPPC3 (N3, AF0)
PWR_WKUP1PA0 (P2)
PWR_WKUP2PA2 (M3)
PWR_WKUP3PI8 (E2)
PWR_WKUP4PC13 (E3)
PWR_WKUP5PB7 (C6)
PWR_WKUP6PC1 (L2)
PWR_WKUP7PD2 (C10)
PWR_WKUP8PD3 (A12)
TAMP_IN1PC13 (E3)
TAMP_IN2PI8 (E2), PA0 (P2)
TAMP_IN3PE6 (C2), PC1 (L2)
TAMP_IN4PI11 (F3), PA2 (M3)
TAMP_IN5PA1 (L3)
TAMP_IN6PE3 (B2)
TAMP_IN7PE4 (C3)
TAMP_IN8PE5 (D3)
TAMP_OUT1PA0 (P2)
TAMP_OUT2PC13 (E3)
TAMP_OUT3PE3 (B2), PI8 (E2), PC13 (E3), PA2 (M3)
TAMP_OUT4PA1 (L3)
TAMP_OUT5PI11 (F3), PC1 (L2)
TAMP_OUT6PE6 (C2)
TAMP_OUT7PE5 (D3)
TAMP_OUT8PE4 (C3)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 201 шарик корпуса UFBGA176 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PI7ввод-выводDCMI_D7 (AF13), FMC_D30 (AF12), MDF1_SDI5 (AF4), PSSI_D7 (AF13), SAI2_FS_A (AF10), SDMMC2_CK (AF9), TIM1_CH3N (AF1), TIM8_CH3 (AF3)
A2PI5ввод-выводDCMI_VSYNC (AF13), I2S1_MCK (AF5), LTDC_R0 (AF14), PSSI_RDY (AF13), SAI2_SCK_A (AF10), TIM1_CH2N (AF1), TIM8_CH1 (AF3)
A3VCAPпитание—
A4PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2S2_WS (AF5), I3C1_SDA (AF3), LTDC_G5 (AF14), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
A5BOOT0загрузка—
A6PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), GFXTIM_LCKCAL (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), OCTOSPIM_P1_NCLK (AF3), OCTOSPIM_P2_CLK (AF10), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14)
A7PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), LTDC_G2 (AF14), OCTOSPIM_P2_IO7 (AF9), PSSI_D13 (AF13), SPI4_RDY (AF5), TIM16_CH1 (AF1), USART10_CK (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
A8PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_A25 (AF12), LPTIM1_CH2 (AF4), LPTIM1_ETR (AF1), LPTIM5_IN1 (AF13), LTDC_B0 (AF14), OCTOSPIM_P1_IO7 (AF9), SDMMC2_D7 (AF10), SPI6_MOSI (AF5), USART10_DE (AF6), USART10_RTS (AF6), USART6_TX (AF7)
A9PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), I2C3_SMBA (AF3), I2S1_WS (AF5), LTDC_B6 (AF14), OCTOSPIM_P1_IO5 (AF8), OCTOSPIM_P2_IO6 (AF9), PSSI_D2 (AF13), SAI2_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5), TIM12_CH2 (AF2), USART10_CK (AF6), USART6_CK (AF7)
A10PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), I2C3_SCL (AF4), I2S1_SDO (AF5), LPTIM4_OUT (AF14), LTDC_R3 (AF13), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), SPI1_MOSI (AF5), TIM12_CH1 (AF2), USART2_CK (AF7)
A11PD5ввод-выводCOMP2_OUT (AF3), ETH_MII_CRS (AF6), FDCAN1_TX (AF9), FMC_NWE (AF12), LTDC_B2 (AF13), OCTOSPIM_P1_IO5 (AF10), PLAY1_IN3 (AF14), SPI2_RDY (AF5), TIM1_CH4N (AF1), UART8_RX (AF8), USART2_TX (AF7)
A12PD3ввод-выводDCMI_D5 (AF13), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_B4 (AF10), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN2 (AF14), PSSI_D5 (AF13), PWR_WKUP8, SPI2_SCK (AF5), TIM8_CH4 (AF3), USART2_CTS (AF7), USART2_NSS (AF7)
A13PD1ввод-выводETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2S2_MCK (AF5), LTDC_DE (AF13), OCTOSPIM_P2_DQS (AF10), PLAY1_OUT1 (AF14), SAI1_MCLK_B (AF6), SDMMC1_D123DIR (AF7), UART4_TX (AF8)
A14PI3ввод-выводDCMI_D10 (AF13), DEBUG_TRACED2 (AF0), FMC_D27 (AF12), I2S2_SDO (AF5), LTDC_DE (AF14), PSSI_D10 (AF13), SDMMC2_D2 (AF9), SPI2_MOSI (AF5), TIM1_CH1N (AF1), TIM8_ETR (AF3)
A15PI1ввод-выводDCMI_D8 (AF13), DEBUG_TRACED0 (AF0), FMC_A24 (AF11), FMC_D25 (AF12), I2S2_CK (AF5), MDF1_CKI4 (AF4), PSSI_D8 (AF13), SDMMC2_D0 (AF9), SPI2_SCK (AF5), TIM1_BKIN2 (AF1), TIM8_BKIN2 (AF3)
B1VBATпитание—
B2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), GFXTIM_TE (AF5), LTDC_G1 (AF13), MDF1_CKI2 (AF8), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN9 (AF14), SAI1_SD_B (AF6), TAMP_IN6, TAMP_OUT3, TIM15_BKIN (AF4), USART10_TX (AF7)
B3PI4ввод-выводDCMI_D5 (AF13), DEBUG_TRACED3 (AF0), FMC_D28 (AF12), PSSI_D5 (AF13), SAI2_MCLK_A (AF10), SDMMC2_D3 (AF9), SPI2_RDY (AF7), TIM1_CH1 (AF1), TIM8_BKIN (AF3)
B4PE1ввод-выводDCMI_D3 (AF13), FDCAN1_TX (AF9), FMC_NBL1 (AF12), FMC_NWAIT (AF11), LPTIM1_IN2 (AF1), PLAY1_IN8 (AF14), PSSI_D3 (AF13), UART8_TX (AF8)
B5PB8ввод-выводDCMI_D6 (AF13), ETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LTDC_G6 (AF14), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), SPI4_RDY (AF5), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
B6PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), ETH_MII_TX_ER (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), GFXTIM_FCKCAL (AF0), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS1 (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
B7PB3 (JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), ETH_MDC (AF12), I2C2_SDA (AF4), I2S1_CK (AF5), I2S3_CK (AF6), I3C2_SDA (AF3), LPTIM6_ETR (AF14), LTDC_HSYNC (AF13), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART12_CTS (AF7), UART7_RX (AF11)
B8PG12ввод-выводDCMI_D11 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_NE4 (AF12), FMC_SDCLK (AF8), LPTIM1_IN1 (AF1), LPTIM2_CH1 (AF3), LPTIM5_CH1 (AF14), OCTOSPIM_P2_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SDMMC2_D3 (AF10), SPI6_MISO (AF5), USART10_TX (AF6), USART6_DE (AF7), USART6_RTS (AF7)
B9PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), LTDC_B5 (AF14), OCTOSPIM_P1_IO4 (AF8), OCTOSPIM_P1_IO6 (AF9), PSSI_RDY (AF13), SAI2_FS_B (AF10), SDMMC2_D0 (AF11), SPI1_MISO (AF5), TIM12_CH1 (AF2), USART10_RX (AF6), USART6_RX (AF7)
B10PD6ввод-выводADF1_SDI0 (AF1), DCMI_D10 (AF13), FMC_NWAIT (AF12), I2C3_SDA (AF4), I2S3_SDO (AF5), MDF1_SDI1 (AF8), OCTOSPIM_P1_IO6 (AF10), OCTOSPIM_P2_IO4 (AF9), PLAY1_OUT3 (AF14), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
B11PD4ввод-выводCOMP1_OUT (AF3), DEBUG_TRGIO (AF0), ETH_CLK (AF11), FMC_NOE (AF12), LTDC_B7 (AF13), MDF1_CKI3 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_OUT2 (AF14), USART2_DE (AF7), USART2_RTS (AF7)
B12PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), I2S1_MCK (AF5), LTDC_R2 (AF13), OCTOSPIM_P1_NCS2 (AF10), PLAY1_IN1 (AF14), SDMMC1_D0DIR (AF7), TIM8_CH4N (AF3), UART4_RX (AF8), UART9_CTS (AF11)
B13PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
B14PI2ввод-выводDCMI_D9 (AF13), DEBUG_TRACED1 (AF0), FMC_D26 (AF12), I2S2_SDI (AF5), MDF1_SDI4 (AF4), PSSI_D9 (AF13), SDMMC2_D1 (AF9), SPI2_MISO (AF5), TIM1_ETR (AF1), TIM8_CH4 (AF3)
B15PH13ввод-выводDCMI_D3 (AF13), FDCAN1_TX (AF9), FMC_D22 (AF12), LPTIM1_IN2 (AF1), LTDC_R3 (AF14), OCTOSPIM_P2_IO5 (AF10), PSSI_D3 (AF13), TIM8_CH1N (AF3), UART4_TX (AF8), UART8_TX (AF7)
C1VSSпитание—
C2PE6ввод-выводADF1_SDI0 (AF3), DCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_R2 (AF11), MDF1_SDI1 (AF8), OCTOSPIM_P2_IO3 (AF9), PLAY1_OUT10 (AF14), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TAMP_IN3, TAMP_OUT6, TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
C3PE4ввод-выводADF1_SDI0 (AF3), DCMI_D4 (AF13), DEBUG_TRACED1 (AF0), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_A20 (AF12), LTDC_G3 (AF10), MDF1_SDI2 (AF8), OCTOSPIM_P2_IO1 (AF9), PLAY1_OUT9 (AF14), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TAMP_IN7, TAMP_OUT8, TIM15_CH1N (AF4)
C4PI6ввод-выводDCMI_D6 (AF13), FMC_D29 (AF12), MDF1_CKI5 (AF4), PSSI_D6 (AF13), SAI2_SD_A (AF10), SDMMC2_CMD (AF9), TIM1_CH2 (AF1), TIM8_CH2 (AF3)
C5PE0ввод-выводDCMI_D2 (AF13), FDCAN1_RX (AF9), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_CH2 (AF3), LPTIM2_ETR (AF4), OCTOSPIM_P1_NCS2 (AF11), PLAY1_OUT7 (AF14), PSSI_D2 (AF13), SAI2_MCLK_A (AF10), SPI3_RDY (AF6), TIM4_ETR (AF2), UART8_RX (AF8)
C6PB7ввод-выводDCMI_VSYNC (AF13), FDCAN1_TX (AF9), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), I3C1_SDA (AF3), LPUART1_RX (AF8), LTDC_G7 (AF14), PSSI_RDY (AF13), PWR_WKUP5, SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
C7PB4 (NJTRST)ввод-выводDCMI_D7 (AF13), DEBUG_NJTRST (AF0), ETH_MDIO (AF10), FMC_NBL3 (AF12), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), LPTIM1_CH2 (AF4), LTDC_R2 (AF14), OCTOSPIM_P1_CLK (AF3), PSSI_D7 (AF13), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
C8PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FMC_A24 (AF12), LPTIM1_CH1 (AF1), LPTIM5_CH2 (AF13), LTDC_G4 (AF14), OCTOSPIM_P2_NCS1 (AF9), SDMMC2_D6 (AF10), SPI6_SCK (AF5), USART10_CTS (AF6), USART10_NSS (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
C9PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3 (AF13), ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B4 (AF14), PSSI_D3 (AF13), SDMMC2_D2 (AF10), SPI1_SCK (AF5), USART10_RX (AF6), USART11_DE (AF7), USART11_RTS (AF7)
C10PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), I2C2_SCL (AF6), I3C2_SCL (AF5), LPTIM4_ETR (AF14), LTDC_G7 (AF11), OCTOSPIM_P1_NCS2 (AF9), OCTOSPIM_P2_IO1 (AF10), PSSI_D11 (AF13), PWR_WKUP7, SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
C11PC12ввод-выводCOMP2_OUT (AF3), DCMI_D9 (AF13), DEBUG_TRACED3 (AF0), ETH_PPS_OUT (AF10), I2S3_SDO (AF6), LTDC_G4 (AF11), OCTOSPIM_P2_IO7 (AF9), PLAY1_OUT0 (AF14), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
C12PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT (AF3), DCMI_D4 (AF13), GFXTIM_FCKCAL (AF0), I2S3_SDI (AF6), LPTIM3_IN1 (AF2), LTDC_VSYNC (AF11), OCTOSPIM_P1_NCS1 (AF9), PLAY1_IN0 (AF14), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
C13PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DCMI_D11 (AF13), DEBUG_JTDI (AF0), ETH_PHY_INTN (AF10), FMC_NBL1 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM3_IN2 (AF2), OCTOSPIM_P2_IO6 (AF9), PSSI_D11 (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF14), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
C14PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11 (AF13), DEBUG_TRACECLK (AF0), FMC_D24 (AF12), LTDC_G1 (AF14), MDF1_SDI3 (AF4), OCTOSPIM_P2_IO7 (AF10), PSSI_D11 (AF13), SDMMC2_CKIN (AF9), TIM8_CH3N (AF3)
C15PA12ввод-выводDMA2D_GPFLAG3 (AF0), FDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R4 (AF14), SAI2_FS_B (AF8), SDMMC2_D4 (AF10), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP
D1PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
D2PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
D3PE5ввод-выводADF1_CCK1 (AF1), DCMI_D6 (AF13), DEBUG_TRACED2 (AF0), ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_A21 (AF12), LTDC_B6 (AF10), MDF1_CCK1 (AF8), OCTOSPIM_P2_IO2 (AF9), PLAY1_IN10 (AF14), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TAMP_IN8, TAMP_OUT7, TIM15_CH1 (AF4)
D4PE2ввод-выводADF1_CCK0 (AF3), DCMI_D3 (AF13), DEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_A23 (AF12), LPTIM1_IN2 (AF1), MDF1_CCK0 (AF4), OCTOSPIM_P1_IO2 (AF9), PLAY1_OUT8 (AF14), PSSI_D3 (AF13), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), UART8_TX (AF8), USART10_RX (AF7)
D5VDDпитание—
D6VSSпитание—
D7VDDIO2питание—
D8VDDпитание—
D9VSSпитание—
D10VDDпитание—
D11VSSпитание—
D12PC10ввод-выводDCMI_D8 (AF13), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), GFXTIM_LCKCAL (AF0), I2S3_CK (AF6), LPTIM3_ETR (AF2), LTDC_B0 (AF14), OCTOSPIM_P1_IO1 (AF9), PSSI_D8 (AF13), SAI1_SCK_B (AF4), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
D13PH14ввод-выводDCMI_D4 (AF13), FDCAN1_RX (AF9), FMC_D23 (AF12), LTDC_R6 (AF14), MDF1_CKI3 (AF4), OCTOSPIM_P2_IO6 (AF10), PSSI_D4 (AF13), TIM8_CH2N (AF3), UART4_RX (AF8)
D14VSSпитание—
D15PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2 (AF0), FDCAN1_RX (AF9), FMC_A17 (AF12), FMC_ALE (AF12), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R5 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_FS_DM
E1PI9ввод-выводDAC1_EXTI9, FDCAN1_RX (AF9), SAI1_FS_A (AF2), TIM1_CH3 (AF1), UART4_RX (AF8)
E2PI8ввод-выводPWR_WKUP3, RTC_OUT2, TAMP_IN2, TAMP_OUT3
E3PC13ввод-выводPWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3
E4VDDпитание—
E12VDDпитание—
E13PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
E14PA10ввод-выводDCMI_D1 (AF13), DMA2D_GPFLAG1 (AF0), ETH_CLK (AF11), FDCAN2_TX (AF9), LPTIM2_IN2 (AF4), LPUART1_RX (AF3), LTDC_R6 (AF14), PSSI_D1 (AF13), SDMMC1_D0 (AF12), TIM1_CH3 (AF1), UCPD1_FRSTX (AF6), USART1_RX (AF7)
E15PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_MII_TX_ER (AF11), FMC_NWE (AF12), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R7 (AF14), OCTOSPIM_P2_IO3 (AF10), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), UCPD1_DB1, USART1_TX (AF7)
F1PF1ввод-выводCOMP2_OUT (AF3), FMC_A1 (AF12), I2C2_SCL (AF4), I3C2_SCL (AF5), LPTIM5_CH2 (AF13), PLAY1_IN1 (AF14), SDMMC2_D3 (AF10), TIM2_CH2 (AF1), UART9_TX (AF11)
F2PF0ввод-выводCOMP1_OUT (AF3), FMC_A0 (AF12), I2C2_SDA (AF4), I3C2_SDA (AF5), LPTIM5_CH1 (AF13), PLAY1_IN0 (AF14), SDMMC2_D2 (AF10), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART9_RX (AF11)
F3PI11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LPTIM1_CH2 (AF4), LTDC_B1 (AF14), PSSI_D15 (AF13), SAI1_MCLK_A (AF2), TAMP_IN4, TAMP_OUT5, TIM1_CH4 (AF1), USART11_TX (AF7)
F4PI10ввод-выводETH_MII_RX_ER (AF11), FDCAN1_RX (AF9), PSSI_D14 (AF13), SAI1_SCK_A (AF2), TIM1_CH4N (AF1), USART11_RX (AF7)
F6VSSпитание—
F7VSSпитание—
F8VSSпитание—
F9VSSпитание—
F10VSSпитание—
F12VDDUSBпитание—
F13PC9ввод-выводAUDIOCLK (AF5), DAC1_EXTI9, DCMI_D3 (AF13), FMC_A16 (AF11), FMC_CLE (AF11), FMC_SDNCAS (AF10), I2C3_SDA (AF4), LTDC_B1 (AF14), OCTOSPIM_P1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8), UCPD1_DB2
F14PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_A17 (AF11), FMC_ALE (AF11), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), LTDC_R0 (AF14), PSSI_D2 (AF13), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
F15PA8ввод-выводDCMI_D3 (AF13), FMC_NOE (AF12), I2C3_SCL (AF4), LTDC_CLK (AF14), OCTOSPIM_P2_DQS (AF9), PSSI_D3 (AF13), RCC_MCO_1 (AF0), SPI1_RDY (AF5), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF
G1PF4ввод-выводDCMI_D6 (AF13), FMC_A4 (AF12), LPTIM3_ETR (AF2), OCTOSPIM_P2_NCS2 (AF9), PLAY1_OUT1 (AF14), PSSI_D6 (AF13), SDMMC2_D6 (AF10), TIM2_CH4 (AF1), USART11_RX (AF7)
G2PF3ввод-выводFMC_A3 (AF12), LPTIM3_IN1 (AF2), LPTIM5_IN2 (AF13), PLAY1_OUT0 (AF14), SDMMC2_D5 (AF10), TIM2_CH3 (AF1), USART11_TX (AF7)
G3PF2ввод-выводFMC_A2 (AF12), GFXTIM_TE (AF5), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), LPTIM3_IN2 (AF3), LPTIM5_IN1 (AF13), PLAY1_IN2 (AF14), SDMMC2_D4 (AF10), UART12_TX (AF6), USART11_CK (AF7)
G4VSSпитание—
G6VSSпитание—
G7VSSпитание—
G8VSSпитание—
G9VSSпитание—
G10VSSпитание—
G12VSSпитание—
G13PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), FMC_NE1 (AF9), I2S3_MCK (AF6), LTDC_R1 (AF14), OCTOSPIM_P1_IO6 (AF11), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
G14PC6ввод-выводDCMI_D0 (AF13), FMC_NWAIT (AF9), I2S2_MCK (AF5), LTDC_G0 (AF14), OCTOSPIM_P1_IO5 (AF11), PSSI_D0 (AF13), SAI1_SCK_A (AF6), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
G15PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), LPTIM4_OUT (AF14), LTDC_B2 (AF13), OCTOSPIM_P2_NCLK (AF9), SPI6_NSS (AF5), TIM16_CH1N (AF1), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
H1PF6ввод-выводFDCAN3_TX (AF9), FMC_D16 (AF12), LPTIM5_CH1 (AF13), LTDC_DE (AF14), OCTOSPIM_P1_IO3 (AF10), SAI1_SD_B (AF6), SDMMC1_D0 (AF8), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
H2PF8ввод-выводETH_MII_TX_ER (AF11), FMC_D18 (AF12), LPTIM5_IN1 (AF13), LTDC_R7 (AF14), OCTOSPIM_P1_IO0 (AF10), SAI1_SCK_B (AF6), SDMMC1_D2 (AF8), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
H3PF5ввод-выводFMC_A5 (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM3_CH1 (AF2), LPTIM3_IN1 (AF14), OCTOSPIM_P2_DQS (AF9), SDMMC2_CKIN (AF11), SDMMC2_D7 (AF10), UART12_RX (AF6), USART11_CTS (AF7), USART11_NSS (AF7)
H4VDDпитание—
H6VSSпитание—
H7VSSпитание—
H8VSSпитание—
H9VSSпитание—
H10VSSпитание—
H12VSSпитание—
H13PG7ввод-выводADF1_CCK1 (AF1), DCMI_D13 (AF13), FMC_INT (AF12), I2C4_SCL (AF4), I3C1_SCL (AF3), LTDC_R5 (AF14), MDF1_CCK1 (AF8), OCTOSPIM_P2_CLK (AF9), PSSI_D13 (AF13), SAI1_CK2 (AF2), SAI1_MCLK_A (AF6), UCPD1_FRSTX (AF11), USART6_CK (AF7)
H14PG3ввод-выводETH_MII_RX_ER (AF10), FMC_A13 (AF12), LPTIM5_ETR (AF13), LTDC_G0 (AF14), OCTOSPIM_P2_IO3 (AF9), TIM4_CH4 (AF2), TIM8_BKIN2 (AF3), UART12_TX (AF7), UART7_RX (AF11)
H15PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), LTDC_HSYNC (AF13), MDF1_SDI0 (AF4), OCTOSPIM_P2_IO5 (AF9), PLAY1_OUT9 (AF14), TIM1_ETR (AF1)
J1PH0-OSC_INввод-выводRCC_OSC_IN
J2PH1-OSC_OUTввод-выводRCC_OSC_OUT
J3PF9ввод-выводDAC1_EXTI9, ETH_MDC (AF11), FMC_D19 (AF12), LPTIM5_IN2 (AF13), LTDC_B1 (AF14), MDF1_CCK0 (AF4), OCTOSPIM_P1_IO1 (AF10), SAI1_FS_B (AF6), SDMMC1_D3 (AF8), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
J4PF10ввод-выводDCMI_D11 (AF13), LTDC_G6 (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), TIM16_BKIN (AF1)
J6VSSпитание—
J7VSSпитание—
J8VSSпитание—
J9VSSпитание—
J10VSSпитание—
J12VDDпитание—
J13PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LTDC_CLK (AF13), OCTOSPIM_P2_NCLK (AF9), PLAY1_IN7 (AF14), SAI1_FS_B (AF6), SPI6_RDY (AF7), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
J14PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF3), OCTOSPIM_P1_NCS1 (AF10), OCTOSPIM_P2_NCS1 (AF9), PLAY1_OUT10 (AF14), PSSI_D12 (AF13), SPI1_RDY (AF5), TIM17_BKIN (AF1), UCPD1_FRSTX (AF11)
J15PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), LPTIM4_ETR (AF14), LTDC_VSYNC (AF13), MDF1_CKI0 (AF4), OCTOSPIM_P2_IO4 (AF9), TIM1_BKIN2 (AF1)
K1VSSпитание—
K2PF7ввод-выводFDCAN3_RX (AF9), FMC_D17 (AF12), LPTIM5_CH2 (AF13), LTDC_G3 (AF14), MDF1_CKI1 (AF4), OCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF6), SDMMC1_D1 (AF8), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
K3NRSTсброс—
K4PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_NCE (AF13), FMC_NE1 (AF13), FMC_SDNE0 (AF12), I2S2_SDI (AF5), LTDC_HSYNC (AF14), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF6), PWR_CSLEEP (AF0), SDMMC2_D6 (AF10), SPI2_MISO (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), TIM8_CH3 (AF3)
K6VSSпитание—
K7VSSпитание—
K8VSSпитание—
K9VSSпитание—
K10VSSпитание—
K12PD10ввод-выводAUDIOCLK (AF5), ETH_MII_CRS (AF8), FDCAN3_RX (AF9), FMC_D15 (AF12), FMC_DA15 (AF12), LPTIM2_CH2 (AF3), LTDC_R7 (AF13), PLAY1_IN5 (AF14), TIM14_CH1 (AF2), USART3_CK (AF7)
K13PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LTDC_B1 (AF13), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT6 (AF14), PSSI_D15 (AF4), SAI1_FS_A (AF6), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
K14PD12ввод-выводDCMI_D12 (AF13), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), LTDC_G2 (AF11), OCTOSPIM_P1_IO1 (AF9), PLAY1_IN6 (AF14), PSSI_D12 (AF13), SAI1_D1 (AF6), SAI2_FS_A (AF10), TIM4_CH1 (AF2), UART4_TX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
K15PG2ввод-выводFMC_A12 (AF12), I2S1_MCK (AF5), LPTIM6_ETR (AF14), LTDC_R2 (AF13), OCTOSPIM_P2_IO2 (AF9), TIM4_CH3 (AF2), TIM8_BKIN (AF3), UART12_RX (AF7)
L1PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_A25 (AF9), FMC_INT (AF13), FMC_SDNWE (AF12), LTDC_G3 (AF14), MDF1_CKI1 (AF4), OCTOSPIM_P1_IO7 (AF10), SAI1_MCLK_A (AF6), SAI2_FS_B (AF8), SPI2_RDY (AF7), TIM16_BKIN (AF1), TIM8_CH1 (AF3)
L2PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0 (AF1), DEBUG_TRACED0 (AF0), ETH_MDC (AF11), FMC_NCE (AF13), FMC_NE2 (AF13), I2S2_SDO (AF5), LTDC_G2 (AF14), MDF1_SDI1 (AF4), OCTOSPIM_P1_IO4 (AF10), PWR_WKUP6, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5), TAMP_IN3, TAMP_OUT5, TIM8_CH2 (AF3), USART11_DE (AF7), USART11_RTS (AF7)
L3PA1ввод-выводADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), LPTIM1_IN1 (AF5), LTDC_B7 (AF14), OCTOSPIM_P1_DQS (AF6), OCTOSPIM_P1_IO3 (AF9), SAI2_MCLK_B (AF10), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
L4VDDпитание—
L12PB12ввод-выводETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SDA (AF4), I2S2_WS (AF5), I3C2_SDA (AF8), LTDC_R1 (AF13), OCTOSPIM_P1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF14), UCPD1_FRSTX (AF6), USART3_CK (AF7)
L13PD9ввод-выводCEC (AF5), DAC1_EXTI9, FDCAN2_RX (AF9), FMC_D14 (AF12), FMC_DA14 (AF12), LTDC_R4 (AF13), PLAY1_OUT4 (AF14), TIM13_CH1 (AF2), USART3_RX (AF7)
L14PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0 (AF1), ETH_PTP_AUX_TS (AF11), FMC_A16 (AF12), FMC_CLE (AF12), GFXTIM_TE (AF5), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), LTDC_R6 (AF13), OCTOSPIM_P1_IO0 (AF9), PLAY1_OUT5 (AF14), SAI1_CK1 (AF2), SAI2_SD_A (AF10), UART4_RX (AF8), USART3_CTS (AF7), USART3_NSS (AF7)
L15PD13ввод-выводDCMI_D13 (AF13), FMC_A18 (AF12), I2C1_SDA (AF6), I2C4_SDA (AF4), I3C1_SDA (AF5), LPTIM1_CH1 (AF1), LPTIM2_CH1 (AF3), LPTIM4_IN1 (AF14), OCTOSPIM_P1_IO3 (AF9), PSSI_D13 (AF13), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
M1VDDAпитание—
M2VSSAпитание—
M3PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM1_IN2 (AF5), LTDC_B6 (AF14), LTDC_R0 (AF13), OCTOSPIM_P2_IO4 (AF9), PWR_WKUP2, SAI2_SCK_B (AF8), TAMP_IN4, TAMP_OUT3, TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
M4VSSпитание—
M5PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), FMC_NBL2 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM2_CH1 (AF3), LTDC_B4 (AF14), OPAMP1_VINM, PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
M6VDDпитание—
M7VSSпитание—
M8VDDпитание—
M9VSSпитание—
M10PB10ввод-выводETH_MII_RX_ER (AF11), FMC_NWAIT (AF13), FMC_SDNRAS (AF10), I2C2_SCL (AF4), I2S2_CK (AF5), I3C2_SCL (AF8), LPTIM2_IN1 (AF3), LPTIM3_CH1 (AF2), LTDC_G4 (AF14), OCTOSPIM_P1_NCS1 (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
M11VDDпитание—
M12PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), I2C3_SMBA (AF4), LTDC_R7 (AF14), PSSI_D0 (AF13), SPI5_NSS (AF5), TIM12_CH2 (AF2), TIM1_CH2 (AF1), TIM8_CH2N (AF3)
M13PH12ввод-выводDCMI_D3 (AF13), FMC_D3 (AF12), FMC_DA3 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5), OCTOSPIM_P2_IO4 (AF9), PLAY1_OUT15 (AF14), PSSI_D3 (AF13), TIM1_BKIN (AF1), TIM5_CH3 (AF2), TIM8_BKIN (AF3), TIM8_CH4N (AF10)
M14PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), I2S2_SDO (AF5), LTDC_G0 (AF12), OCTOSPIM_P1_CLK (AF10), PSSI_D2 (AF13), PWR_PVD_IN, RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), UART5_RX (AF14), USART11_CTS (AF7), USART11_NSS (AF7), USART1_RX (AF4)
M15PD8ввод-выводETH_MII_RXD0 (AF8), ETH_RMII_RXD0 (AF8), FDCAN3_TX (AF9), FMC_D13 (AF12), FMC_DA13 (AF12), I2S3_MCK (AF6), LTDC_R5 (AF13), PLAY1_IN4 (AF14), SDMMC2_D0 (AF11), TIM12_CH2 (AF2), USART3_TX (AF7)
N1VREF+питание—
N2VREF-питание—
N3PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), LPTIM3_CH1 (AF3), LTDC_VSYNC (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF6), PWR_CSTOP (AF0), SAI1_D3 (AF2), SDMMC2_D7 (AF10), SPI2_MOSI (AF5)
N4PC4ввод-выводADC1_INP4, ADC2_INP4, ADF1_CCK0 (AF4), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LPTIM2_ETR (AF3), LTDC_DE (AF14), MDF1_CCK0 (AF8), SAI1_CK1 (AF2), TIM2_CH4 (AF1), USART3_RX (AF7)
N5PA3ввод-выводADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0 (AF0), ETH_MII_COL (AF11), I2S2_WS (AF5), LTDC_B5 (AF14), OCTOSPIM_P1_CLK (AF3), SAI1_SD_B (AF6), SPI2_NSS (AF5), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
N6PB1ввод-выводADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3 (AF11), LPTIM3_CH2 (AF14), LTDC_B3 (AF13), OCTOSPIM_P1_IO0 (AF6), OCTOSPIM_P1_NCLK (AF9), OPAMP1_VOUT, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3)
N7PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), LPTIM6_CH2 (AF14), LTDC_CLK (AF13), SDMMC1_CKIN (AF9), SDMMC1_D5 (AF8), TIM2_CH4 (AF1)
N8PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADF1_SDI0 (AF1), ETH_CLK (AF11), FMC_A9 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5), LTDC_B7 (AF13), OCTOSPIM_P2_NCS2 (AF9), SDMMC1_CMD (AF8), TIM4_ETR (AF2)
N9PE9ввод-выводADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), MDF1_CKI4 (AF8), OCTOSPIM_P1_IO6 (AF10), PLAY1_IN12 (AF14), TIM1_CH1 (AF1), UART12_RX (AF6), UART7_DE (AF7), UART7_RTS (AF7)
N10PE14ввод-выводADC3_INP8, COMP2_INM, DCMI_VSYNC (AF13), FMC_D11 (AF12), FMC_DA11 (AF12), LTDC_B0 (AF11), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT14 (AF14), PSSI_RDY (AF13), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
N11PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK (AF13), FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R0 (AF11), OCTOSPIM_P2_NCS1 (AF9), PLAY1_OUT15 (AF14), PSSI_PDCK (AF13), TIM1_BKIN (AF1), TIM1_CH4N (AF3), USART10_CK (AF7)
N12PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), FMC_NBL1 (AF12), I2C2_SDA (AF4), I3C2_SDA (AF8), LPTIM2_ETR (AF3), LTDC_G7 (AF13), PLAY1_IN15 (AF14), SPI2_RDY (AF5), SPI4_RDY (AF6), TIM2_CH4 (AF1), USART3_RX (AF7)
N13PH8ввод-выводDCMI_HSYNC (AF13), I2C3_SDA (AF4), PSSI_DE (AF13), SPI5_MOSI (AF5), TIM1_CH2N (AF1), TIM5_ETR (AF2), TIM8_CH2 (AF3)
N14PH10ввод-выводDCMI_D1 (AF13), FMC_D20 (AF12), I2C4_SMBA (AF4), OCTOSPIM_P2_IO2 (AF9), PLAY1_OUT13 (AF14), PSSI_D1 (AF13), SPI5_RDY (AF5), TIM1_CH1N (AF1), TIM5_CH1 (AF2), TIM8_CH3 (AF3)
N15PB14ввод-выводI2S2_SDI (AF5), LPTIM3_ETR (AF14), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC2, USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
P1PH5ввод-выводFMC_SDNWE (AF12), I2C2_SDA (AF4), I3C2_SDA (AF3), SPI5_NSS (AF5), SPI6_RDY (AF7)
P2PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS (AF11), LTDC_G6 (AF13), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI3_RDY (AF6), SPI6_NSS (AF5), TAMP_IN2, TAMP_OUT1, TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
P3PH3ввод-выводETH_MII_COL (AF11), FMC_NBL2 (AF13), FMC_SDNE0 (AF12), MDF1_SDI2 (AF4), OCTOSPIM_P1_IO5 (AF9), OCTOSPIM_P2_NCLK (AF8), PLAY1_OUT3 (AF14), SAI2_MCLK_B (AF10)
P4PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_SDCKE0 (AF12), LTDC_G1 (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_DQS (AF10), PSSI_D15 (AF4), SAI1_D3 (AF2), SAI1_FS_A (AF6), TIM1_CH4N (AF1), UART12_DE (AF7), UART12_RTS (AF7)
P5PA6ввод-выводADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK (AF13), FMC_D31 (AF12), I2S1_SDI (AF5), LTDC_B3 (AF14), OCTOSPIM_P1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART11_TX (AF7)
P6PB2ввод-выводADC3_INP0, ADF1_SDI0 (AF1), COMP1_INP, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), I2S3_SDO (AF7), LPTIM1_CH1 (AF5), LPTIM5_ETR (AF13), LTDC_R3 (AF14), OCTOSPIM_P1_CLK (AF9), OCTOSPIM_P1_DQS (AF10), RCC_LSCO, RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC1_CMD (AF12), SPI1_RDY (AF4), SPI3_MOSI (AF7), TIM8_CH4N (AF3)
P7PF13ввод-выводADC2_INP2, ADF1_CCK0 (AF1), FMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM2_CH2 (AF3), LPTIM6_IN1 (AF14), LTDC_B6 (AF13), SDMMC1_CDIR (AF9), SDMMC1_D6 (AF8)
P8PG1ввод-выводFMC_A11 (AF12), I2S2_SDO (AF7), OCTOSPIM_P2_IO1 (AF9), PLAY1_IN3 (AF14), SPI2_MOSI (AF7), TIM4_CH2 (AF2), UART9_TX (AF11)
P9PE8ввод-выводADC3_INP2, DCMI_D8 (AF13), FMC_D5 (AF12), FMC_DA5 (AF12), MDF1_SDI0 (AF8), OCTOSPIM_P1_IO5 (AF10), PLAY1_OUT11 (AF14), PSSI_D8 (AF13), TIM1_CH1N (AF1), UART12_CTS (AF6), UART7_TX (AF7), USART2_TX (AF5)
P10PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_B5 (AF13), MDF1_CKI5 (AF8), OCTOSPIM_P1_NCS1 (AF6), OCTOSPIM_P2_NCS2 (AF9), OPAMP1_VINP, PLAY1_IN13 (AF14), SAI2_SD_B (AF10), SPI1_RDY (AF4), SPI4_NSS (AF5), TIM1_CH2 (AF1), USART6_TX (AF7)
P11PE13ввод-выводADC3_INP7, DCMI_HSYNC (AF13), FDCAN3_RX (AF9), FMC_D10 (AF12), FMC_DA10 (AF12), GFXTIM_FCKCAL (AF0), LTDC_R1 (AF11), OPAMP1_VINM, PLAY1_IN14 (AF14), PSSI_DE (AF13), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
P12VSSSMPSпитание—
P13PH6ввод-выводDCMI_D8 (AF13), ETH_MII_RXD2 (AF11), FMC_SDNE1 (AF12), I2C2_SMBA (AF4), OCTOSPIM_P2_IO0 (AF9), PLAY1_OUT11 (AF14), PSSI_D8 (AF13), SPI5_SCK (AF5), TIM12_CH1 (AF2), TIM1_CH3N (AF1), TIM8_CH1 (AF3)
P14PH7ввод-выводDCMI_D9 (AF13), ETH_MII_RXD3 (AF11), FMC_SDCKE1 (AF12), I2C3_SCL (AF4), OCTOSPIM_P2_IO1 (AF9), PLAY1_OUT12 (AF14), PSSI_D9 (AF13), SPI5_MISO (AF5), TIM1_CH3 (AF1), TIM8_CH1N (AF3)
P15PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2 (AF13), FMC_D21 (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), OCTOSPIM_P2_IO3 (AF9), PLAY1_OUT14 (AF14), PSSI_D2 (AF13), TIM1_CH1 (AF1), TIM5_CH2 (AF2), TIM8_CH3N (AF3)
R1PH4ввод-выводI2C2_SCL (AF4), I3C2_SCL (AF3), LTDC_R7 (AF14), PSSI_D14 (AF13), SPI5_RDY (AF5), SPI6_RDY (AF7)
R2PH2ввод-выводETH_MII_CRS (AF11), FMC_NBL0 (AF13), FMC_SDCKE0 (AF12), LPTIM1_IN2 (AF1), MDF1_CKI2 (AF4), OCTOSPIM_P1_IO4 (AF9), OCTOSPIM_P2_CLK (AF8), PLAY1_OUT2 (AF14), SAI2_SCK_B (AF10)
R3PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LTDC_G5 (AF10), OCTOSPIM_P2_IO5 (AF9), OPAMP1_VINP, PSSI_D14 (AF13), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1N (AF3)
R4PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_NWE (AF13), FMC_SDNWE (AF12), I2S1_SDO (AF5), LTDC_B2 (AF14), OCTOSPIM_P1_IO2 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART11_RX (AF7)
R5PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2 (AF11), LPTIM3_CH1 (AF14), LTDC_R4 (AF13), OCTOSPIM_P1_IO1 (AF6), OCTOSPIM_P2_NCS1 (AF9), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USART11_CK (AF7)
R6PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), LPTIM6_CH1 (AF14), OCTOSPIM_P1_NCLK (AF9), PSSI_D12 (AF13), SAI2_SD_B (AF10), SDMMC1_D4 (AF8), SPI5_MOSI (AF5), TIM2_CH3 (AF1)
R7PF14ввод-выводADC2_INN2, ADC2_INP6, ADF1_CCK1 (AF1), FMC_A8 (AF12), I2S3_SDI (AF6), LPTIM2_IN1 (AF3), LPTIM6_IN2 (AF14), LTDC_G5 (AF13), SDMMC1_D123DIR (AF9), SDMMC1_D7 (AF8), SPI3_MISO (AF6), TIM3_ETR (AF2)
R8PG0ввод-выводFMC_A10 (AF12), LPTIM4_IN1 (AF14), OCTOSPIM_P2_IO0 (AF9), SDMMC1_CK (AF8), TIM4_CH1 (AF2), UART9_RX (AF11)
R9PE7ввод-выводADC3_INP1, COMP2_INP, FMC_D4 (AF12), FMC_DA4 (AF12), MDF1_CKI0 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_IN11 (AF14), TIM1_ETR (AF1), UART12_DE (AF6), UART12_RTS (AF6), UART7_RX (AF7), USART2_RX (AF5)
R10PE10ввод-выводADC3_INP4, COMP1_INM, FMC_D7 (AF12), FMC_DA7 (AF12), MDF1_SDI4 (AF8), OCTOSPIM_P1_IO7 (AF10), PLAY1_OUT12 (AF14), TIM1_CH2N (AF1), UART12_TX (AF6), UART7_CTS (AF7)
R11PE12ввод-выводADC3_INP6, DCMI_D0 (AF13), ETH_MDIO (AF11), FDCAN3_TX (AF9), FMC_D9 (AF12), FMC_DA9 (AF12), GFXTIM_LCKCAL (AF0), MDF1_SDI5 (AF8), OPAMP1_VINP, PLAY1_OUT13 (AF14), PSSI_D0 (AF13), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1), USART6_RX (AF7)
R12VLXSMPSпитание—
R13VDDSMPSпитание—
R14VCAPпитание—
R15PB13ввод-выводFDCAN2_TX (AF9), I2C2_SMBA (AF4), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LPTIM3_IN1 (AF2), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), UCPD1_CC1, USART3_CTS (AF7), USART3_NSS (AF7)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATB1резервное питание: часы реального времени и резервные регистры
VCAPA3, R14вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDD5, D8, D10, E4, E12, H4, J12, L4, M6, M8, M11питание цифровой части и линий ввода-вывода
VDDAM1питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2D7питание отдельной группы линий ввода-вывода
VDDSMPSR13—
VDDUSBF12питание приёмопередатчика USB
VLXSMPSR12—
VREF-N2нижнее опорное напряжение АЦП
VREF+N1верхнее опорное напряжение АЦП и ЦАП
VSSC1, D6, D9, D11, D14, F6, F7, F8, F9, F10, G4, G6, G7, G8, G9, G10, G12, H6, H7, H8, H9, H10, H12, J6, J7, J8, J9, J10, K1, K6, K7, K8, K9, K10, M4, M7, M9общий провод (земля)
VSSAM2общий провод аналоговой части
VSSSMPSP12—
NRSTK3сброс, активный уровень — низкий
BOOT0A5выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H5E4IJKxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H5E4IJSTM32H5E4IJKxQ4 МБ1,5 МБ

Линейка STM32H5x4, семейство STM32H5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе UFBGA176, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H5F4IJKxQSTM32H5x4201 из 201выводы совпадают полностьютолько у него: AES
STM32H563IIKxQSTM32H563/H573201 из 201выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, DMA2D, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 2048 КБ; ОЗУ 1536 и 640 КБ
STM32H573IIKxQSTM32H563/H573201 из 201выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, DMA2D, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, USB_OTG_FS, USB_OTG_FS1; только у него: AES, USB; флеш-память до 4096 и 2048 КБ; ОЗУ 1536 и 640 КБ
STM32H5E5IJSTM32H5x5195 из 201D14: VSS → PA8; F15: PA8 → OTG_HS_DP; G10: VSS → VSSUSB; G15: PG8 → OTG_HS_DM; H10: VSS → VDD11USB; H12: VSS → PG8только у него: USB_OTG_HS, USB_OTG_HS1
STM32H5E5IKKxQSTM32H5x5195 из 201D14: VSS → PA8; F15: PA8 → OTG_HS_DP; G10: VSS → VSSUSB; G15: PG8 → OTG_HS_DM; H10: VSS → VDD11USB; H12: VSS → PG8
STM32H5F5IJSTM32H5x5195 из 201D14: VSS → PA8; F15: PA8 → OTG_HS_DP; G10: VSS → VSSUSB; G15: PG8 → OTG_HS_DM; H10: VSS → VDD11USB; H12: VSS → PG8только у него: AES, USB_OTG_HS, USB_OTG_HS1

Частые вопросы

На каких выводах USART1 у STM32H5E4IJKxQ?

В корпусе UFBGA176 сигнал USART1_TX выведен на PB6 (шарик B6, AF7) или PA9 (шарик E15, AF7) или PB14 (шарик N15, AF4), USART1_RX — на PB7 (шарик C6, AF7) или PA10 (шарик E14, AF7) или PB15 (шарик M14, AF4).

Где у STM32H5E4IJKxQ выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик E13, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик B13, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H5E4IJKxQ?

I2C1_SCL — PB8 (шарик B5, AF4) или PB6 (шарик B6, AF4), I2C1_SDA — PB9 (шарик A4, AF4) или PB7 (шарик C6, AF4) или PD13 (шарик L15, AF6).

Сколько выводов ввода-вывода у STM32H5E4IJKxQ в корпусе UFBGA176?

139 из 201. Ещё 60 выводов заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
