STM32H5E4VJTx в корпусе LQFP100: распиновка

STM32H5E4VJTx — микроконтроллер STM32H5 на ядре Cortex-M33: 4 МБ флеш-памяти и 1,5 МБ ОЗУ. Корпус LQFP100 — 100 выводов, из них 80 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
4 МБ
ОЗУ
1,5 МБ
Корпус
LQFP100, 100 выводов
Линий ввода-вывода
80

Схема корпуса LQFP100

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

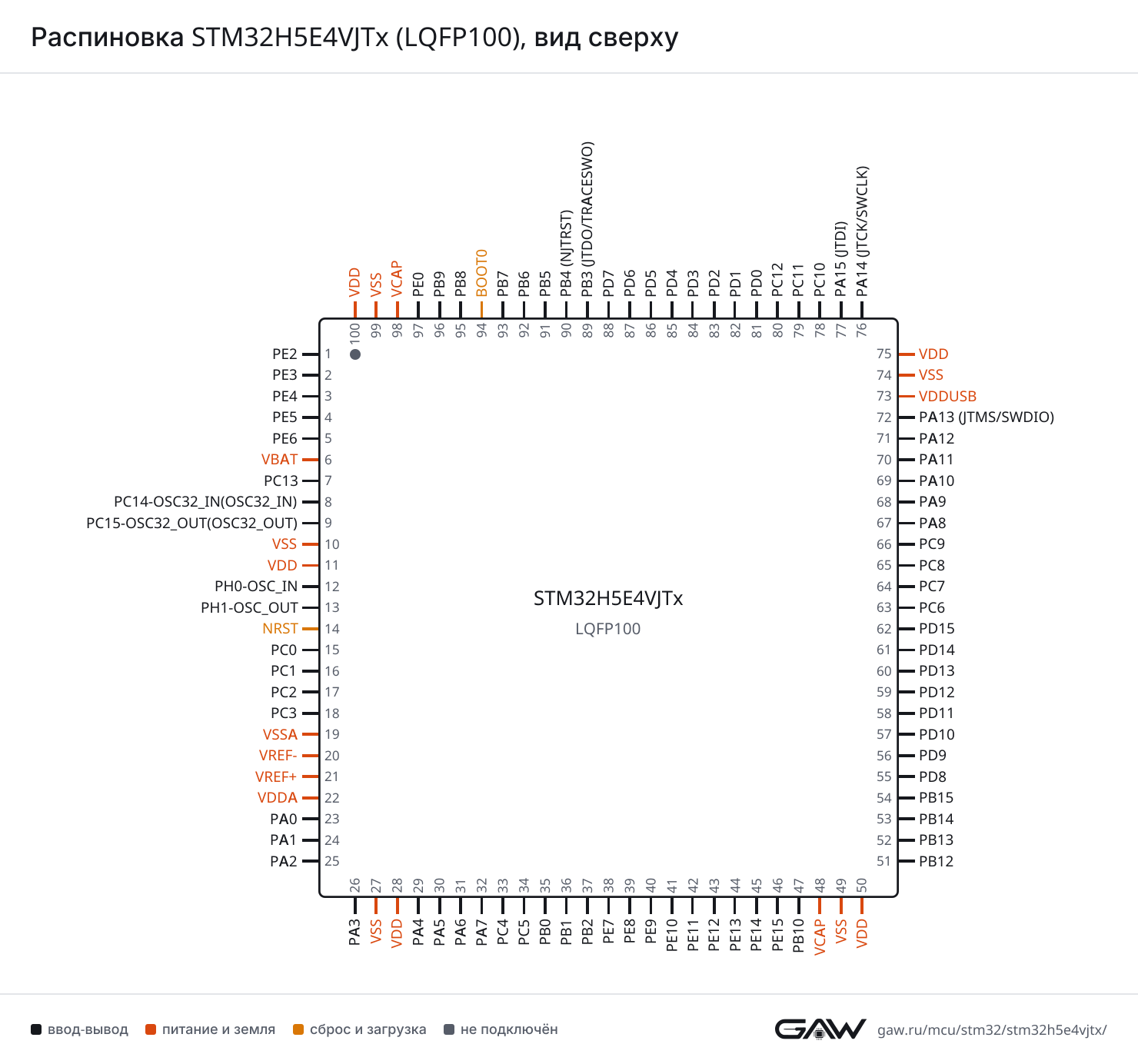

Распиновка STM32H5E4VJTx в корпусе LQFP100, вид сверхуSTM32H5E4VJTxLQFP100, вид сверхуPE2 — вывод 1: ADF1_CCK0, DCMI_D3, DEBUG_TRACECLK, ETH_MII_TXD3, FMC_A23, LPTIM1_IN2, MDF1_CCK0, OCTOSPIM_P1_IO2, PLAY1_OUT8, PSSI_D3, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, UART8_TX, USART10_RX1PE2PE3 — вывод 2: DEBUG_TRACED0, FMC_A19, GFXTIM_TE, LTDC_G1, MDF1_CKI2, OCTOSPIM_P2_IO0, PLAY1_IN9, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM15_BKIN, USART10_TX2PE3PE4 — вывод 3: ADF1_SDI0, DCMI_D4, DEBUG_TRACED1, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_A20, LTDC_G3, MDF1_SDI2, OCTOSPIM_P2_IO1, PLAY1_OUT9, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TAMP_IN7, TAMP_OUT8, TIM15_CH1N3PE4PE5 — вывод 4: ADF1_CCK1, DCMI_D6, DEBUG_TRACED2, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_A21, LTDC_B6, MDF1_CCK1, OCTOSPIM_P2_IO2, PLAY1_IN10, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TAMP_IN8, TAMP_OUT7, TIM15_CH14PE5PE6 — вывод 5: ADF1_SDI0, DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_R2, MDF1_SDI1, OCTOSPIM_P2_IO3, PLAY1_OUT10, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TAMP_IN3, TAMP_OUT6, TIM15_CH2, TIM1_BKIN25PE6VBAT — вывод 66VBATPC13 — вывод 7: PWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT37PC13PC14-OSC32_IN(OSC32_IN) — вывод 8: RCC_OSC32_IN8PC14-OSC32_IN(OSC32_IN)PC15-OSC32_OUT(OSC32_OUT) — вывод 9: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT9PC15-OSC32_OUT(OSC32_OUT)VSS — вывод 1010VSSVDD — вывод 1111VDDPH0-OSC_IN — вывод 12: RCC_OSC_IN12PH0-OSC_INPH1-OSC_OUT — вывод 13: RCC_OSC_OUT13PH1-OSC_OUTNRST — вывод 1414NRSTPC0 — вывод 15: ADC1_INP10, ADC2_INP10, FMC_A25, FMC_INT, FMC_SDNWE, LTDC_G3, MDF1_CKI1, OCTOSPIM_P1_IO7, SAI1_MCLK_A, SAI2_FS_B, SPI2_RDY, TIM16_BKIN, TIM8_CH115PC0PC1 — вывод 16: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0, DEBUG_TRACED0, ETH_MDC, FMC_NCE, FMC_NE2, I2S2_SDO, LTDC_G2, MDF1_SDI1, OCTOSPIM_P1_IO4, PWR_WKUP6, SAI1_D1, SAI1_SD_A, SAI2_SD_A, SDMMC2_CK, SPI2_MOSI, TAMP_IN3, TAMP_OUT5, TIM8_CH2, USART11_DE, USART11_RTS16PC1PC2 — вывод 17: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_NCE, FMC_NE1, FMC_SDNE0, I2S2_SDI, LTDC_HSYNC, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSLEEP, SDMMC2_D6, SPI2_MISO, TIM17_CH1, TIM4_CH4, TIM8_CH317PC2PC3 — вывод 18: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_SDCKE0, I2S2_SDO, LPTIM3_CH1, LTDC_VSYNC, MDF1_SDI3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSTOP, SAI1_D3, SDMMC2_D7, SPI2_MOSI18PC3VSSA — вывод 1919VSSAVREF- — вывод 2020VREF-VREF+ — вывод 2121VREF+VDDA — вывод 2222VDDAPA0 — вывод 23: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS, LTDC_G6, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI3_RDY, SPI6_NSS, TAMP_IN2, TAMP_OUT1, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSS23PA0PA1 — вывод 24: ADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, LPTIM1_IN1, LTDC_B7, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI2_MCLK_B, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTS24PA1PA2 — вывод 25: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM1_IN2, LTDC_B6, LTDC_R0, OCTOSPIM_P2_IO4, PWR_WKUP2, SAI2_SCK_B, TAMP_IN4, TAMP_OUT3, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TX25PA2PA3 — вывод 26: ADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0, ETH_MII_COL, I2S2_WS, LTDC_B5, OCTOSPIM_P1_CLK, SAI1_SD_B, SPI2_NSS, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX26PA3VSS — вывод 2727VSSVDD — вывод 2828VDDPA4 — вывод 29: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, FMC_NBL2, I2S1_WS, I2S3_WS, LPTIM2_CH1, LTDC_B4, OPAMP1_VINM, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CK29PA4PA5 — вывод 30: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LTDC_G5, OCTOSPIM_P2_IO5, OPAMP1_VINP, PSSI_D14, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N30PA5PA6 — вывод 31: ADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK, FMC_D31, I2S1_SDI, LTDC_B3, OCTOSPIM_P1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART11_TX31PA6PA7 — вывод 32: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_NWE, FMC_SDNWE, I2S1_SDO, LTDC_B2, OCTOSPIM_P1_IO2, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART11_RX32PA7PC4 — вывод 33: ADC1_INP4, ADC2_INP4, ADF1_CCK0, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_SDNE0, I2S1_MCK, LPTIM2_ETR, LTDC_DE, MDF1_CCK0, SAI1_CK1, TIM2_CH4, USART3_RX33PC4PC5 — вывод 34: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_SDCKE0, LTDC_G1, MDF1_SDI3, OCTOSPIM_P1_DQS, PSSI_D15, SAI1_D3, SAI1_FS_A, TIM1_CH4N, UART12_DE, UART12_RTS34PC5PB0 — вывод 35: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2, LPTIM3_CH1, LTDC_R4, OCTOSPIM_P1_IO1, OCTOSPIM_P2_NCS1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USART11_CK35PB0PB1 — вывод 36: ADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3, LPTIM3_CH2, LTDC_B3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_NCLK, OPAMP1_VOUT, TIM1_CH3N, TIM3_CH4, TIM8_CH3N36PB1PB2 — вывод 37: ADC3_INP0, ADF1_SDI0, COMP1_INP, ETH_MII_RXD0, ETH_RMII_RXD0, I2S3_SDO, LPTIM1_CH1, LPTIM5_ETR, LTDC_R3, OCTOSPIM_P1_CLK, OCTOSPIM_P1_DQS, RCC_LSCO, RTC_OUT2, SAI1_D1, SAI1_SD_A, SDMMC1_CMD, SPI1_RDY, SPI3_MOSI, TIM8_CH4N37PB2PE7 — вывод 38: ADC3_INP1, COMP2_INP, FMC_D4, FMC_DA4, MDF1_CKI0, OCTOSPIM_P1_IO4, PLAY1_IN11, TIM1_ETR, UART12_DE, UART12_RTS, UART7_RX, USART2_RX38PE7PE8 — вывод 39: ADC3_INP2, DCMI_D8, FMC_D5, FMC_DA5, MDF1_SDI0, OCTOSPIM_P1_IO5, PLAY1_OUT11, PSSI_D8, TIM1_CH1N, UART12_CTS, UART7_TX, USART2_TX39PE8PE9 — вывод 40: ADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6, FMC_DA6, MDF1_CKI4, OCTOSPIM_P1_IO6, PLAY1_IN12, TIM1_CH1, UART12_RX, UART7_DE, UART7_RTS40PE9PE10 — вывод 41: ADC3_INP4, COMP1_INM, FMC_D7, FMC_DA7, MDF1_SDI4, OCTOSPIM_P1_IO7, PLAY1_OUT12, TIM1_CH2N, UART12_TX, UART7_CTS41PE10PE11 — вывод 42: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8, FMC_DA8, LTDC_B5, MDF1_CKI5, OCTOSPIM_P1_NCS1, OCTOSPIM_P2_NCS2, OPAMP1_VINP, PLAY1_IN13, SAI2_SD_B, SPI1_RDY, SPI4_NSS, TIM1_CH2, USART6_TX42PE11PE12 — вывод 43: ADC3_INP6, DCMI_D0, ETH_MDIO, FDCAN3_TX, FMC_D9, FMC_DA9, GFXTIM_LCKCAL, MDF1_SDI5, OPAMP1_VINP, PLAY1_OUT13, PSSI_D0, SAI2_SCK_B, SPI4_SCK, TIM1_CH3N, USART6_RX43PE12PE13 — вывод 44: ADC3_INP7, DCMI_HSYNC, FDCAN3_RX, FMC_D10, FMC_DA10, GFXTIM_FCKCAL, LTDC_R1, OPAMP1_VINM, PLAY1_IN14, PSSI_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH3, UART5_DE, UART5_RTS, USART6_CK44PE13PE14 — вывод 45: ADC3_INP8, COMP2_INM, DCMI_VSYNC, FMC_D11, FMC_DA11, LTDC_B0, OCTOSPIM_P2_CLK, PLAY1_OUT14, PSSI_RDY, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH445PE14PE15 — вывод 46: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK, FMC_D12, FMC_DA12, LTDC_R0, OCTOSPIM_P2_NCS1, PLAY1_OUT15, PSSI_PDCK, TIM1_BKIN, TIM1_CH4N, USART10_CK46PE15PB10 — вывод 47: ETH_MII_RX_ER, FMC_NWAIT, FMC_SDNRAS, I2C2_SCL, I2S2_CK, I3C2_SCL, LPTIM2_IN1, LPTIM3_CH1, LTDC_G4, OCTOSPIM_P1_NCS1, SPI2_SCK, TIM2_CH3, USART3_TX47PB10VCAP — вывод 4848VCAPVSS — вывод 4949VSSVDD — вывод 5050VDDPB12 — вывод 51: ETH_MII_TXD0, ETH_RMII_TXD0, FDCAN2_RX, I2C2_SDA, I2S2_WS, I3C2_SDA, LTDC_R1, OCTOSPIM_P1_NCLK, SPI2_NSS, TIM1_BKIN, UART5_RX, UCPD1_FRSTX, USART3_CK51PB12PB13 — вывод 52: FDCAN2_TX, I2C2_SMBA, I2S2_CK, LPTIM2_CH1, LPTIM3_IN1, SPI2_SCK, TIM1_CH1N, UART5_TX, UCPD1_CC1, USART3_CTS, USART3_NSS52PB13PB14 — вывод 53: I2S2_SDI, LPTIM3_ETR, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, UCPD1_CC2, USART1_TX, USART3_DE, USART3_RTS53PB14PB15 — вывод 54: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2, ETH_MII_TXD1, ETH_RMII_TXD1, I2S2_SDO, LTDC_G0, OCTOSPIM_P1_CLK, PSSI_D2, PWR_PVD_IN, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, UART5_RX, USART11_CTS, USART11_NSS, USART1_RX54PB15PD8 — вывод 55: ETH_MII_RXD0, ETH_RMII_RXD0, FDCAN3_TX, FMC_D13, FMC_DA13, I2S3_MCK, LTDC_R5, PLAY1_IN4, SDMMC2_D0, TIM12_CH2, USART3_TX55PD8PD9 — вывод 56: CEC, DAC1_EXTI9, FDCAN2_RX, FMC_D14, FMC_DA14, LTDC_R4, PLAY1_OUT4, TIM13_CH1, USART3_RX56PD9PD10 — вывод 57: AUDIOCLK, ETH_MII_CRS, FDCAN3_RX, FMC_D15, FMC_DA15, LPTIM2_CH2, LTDC_R7, PLAY1_IN5, TIM14_CH1, USART3_CK57PD10PD11 — вывод 58: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0, ETH_PTP_AUX_TS, FMC_A16, FMC_CLE, GFXTIM_TE, I2C4_SMBA, LPTIM2_IN2, LTDC_R6, OCTOSPIM_P1_IO0, PLAY1_OUT5, SAI1_CK1, SAI2_SD_A, UART4_RX, USART3_CTS, USART3_NSS58PD11PD12 — вывод 59: DCMI_D12, FMC_A17, FMC_ALE, I2C4_SCL, I3C1_SCL, LPTIM1_IN1, LPTIM2_IN1, LTDC_G2, OCTOSPIM_P1_IO1, PLAY1_IN6, PSSI_D12, SAI1_D1, SAI2_FS_A, TIM4_CH1, UART4_TX, USART3_DE, USART3_RTS59PD12PD13 — вывод 60: DCMI_D13, FMC_A18, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPTIM1_CH1, LPTIM2_CH1, LPTIM4_IN1, OCTOSPIM_P1_IO3, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTS60PD13PD14 — вывод 61: FMC_D0, FMC_DA0, LTDC_B1, OCTOSPIM_P2_CLK, PLAY1_OUT6, PSSI_D15, SAI1_FS_A, TIM4_CH3, UART8_CTS, UART9_RX61PD14PD15 — вывод 62: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, LTDC_CLK, OCTOSPIM_P2_NCLK, PLAY1_IN7, SAI1_FS_B, SPI6_RDY, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TX62PD15PC6 — вывод 63: DCMI_D0, FMC_NWAIT, I2S2_MCK, LTDC_G0, OCTOSPIM_P1_IO5, PSSI_D0, SAI1_SCK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, USART6_TX63PC6PC7 — вывод 64: DCMI_D1, DEBUG_TRGIO, FMC_NE1, I2S3_MCK, LTDC_R1, OCTOSPIM_P1_IO6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, USART6_RX64PC7PC8 — вывод 65: DCMI_D2, DEBUG_TRACED1, FMC_A17, FMC_ALE, FMC_INT, FMC_NCE, FMC_NE2, LTDC_R0, PSSI_D2, SDMMC1_D0, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CK65PC8PC9 — вывод 66: AUDIOCLK, DAC1_EXTI9, DCMI_D3, FMC_A16, FMC_CLE, FMC_SDNCAS, I2C3_SDA, LTDC_B1, OCTOSPIM_P1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, TIM8_CH4, UART5_CTS, UCPD1_DB266PC9PA8 — вывод 67: DCMI_D3, FMC_NOE, I2C3_SCL, LTDC_CLK, OCTOSPIM_P2_DQS, PSSI_D3, RCC_MCO_1, SPI1_RDY, TIM1_CH1, TIM8_BKIN2, UART7_RX, USART1_CK, USB_OTG_FS_SOF67PA8PA9 — вывод 68: DAC1_EXTI9, DCMI_D0, ETH_MII_TX_ER, FMC_NWE, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R7, OCTOSPIM_P2_IO3, PSSI_D0, SPI2_SCK, TIM1_CH2, UCPD1_DB1, USART1_TX68PA9PA10 — вывод 69: DCMI_D1, DMA2D_GPFLAG1, ETH_CLK, FDCAN2_TX, LPTIM2_IN2, LPUART1_RX, LTDC_R6, PSSI_D1, SDMMC1_D0, TIM1_CH3, UCPD1_FRSTX, USART1_RX69PA10PA11 — вывод 70: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2, FDCAN1_RX, FMC_A17, FMC_ALE, I2S2_WS, LPUART1_CTS, LTDC_R5, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_FS_DM70PA11PA12 — вывод 71: DMA2D_GPFLAG3, FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R4, SAI2_FS_B, SDMMC2_D4, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_FS_DP71PA12PA13 (JTMS/SWDIO) — вывод 72: DEBUG_JTMS-SWDIO72PA13 (JTMS/SWDIO)VDDUSB — вывод 7373VDDUSBVSS — вывод 7474VSSVDD — вывод 7575VDDPA14 (JTCK/SWCLK) — вывод 76: DEBUG_JTCK-SWCLK76PA14 (JTCK/SWCLK)PA15 (JTDI) — вывод 77: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DCMI_D11, DEBUG_JTDI, ETH_PHY_INTN, FMC_NBL1, I2S1_WS, I2S3_WS, LPTIM3_IN2, OCTOSPIM_P2_IO6, PSSI_D11, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TX77PA15 (JTDI)PC10 — вывод 78: DCMI_D8, ETH_MII_TXD0, ETH_RMII_TXD0, GFXTIM_LCKCAL, I2S3_CK, LPTIM3_ETR, LTDC_B0, OCTOSPIM_P1_IO1, PSSI_D8, SAI1_SCK_B, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TX78PC10PC11 — вывод 79: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT, DCMI_D4, GFXTIM_FCKCAL, I2S3_SDI, LPTIM3_IN1, LTDC_VSYNC, OCTOSPIM_P1_NCS1, PLAY1_IN0, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RX79PC11PC12 — вывод 80: COMP2_OUT, DCMI_D9, DEBUG_TRACED3, ETH_PPS_OUT, I2S3_SDO, LTDC_G4, OCTOSPIM_P2_IO7, PLAY1_OUT0, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CK80PC12PD0 — вывод 81: FDCAN1_RX, FMC_D2, FMC_DA2, I2S1_MCK, LTDC_R2, OCTOSPIM_P1_NCS2, PLAY1_IN1, SDMMC1_D0DIR, TIM8_CH4N, UART4_RX, UART9_CTS81PD0PD1 — вывод 82: ETH_MII_RX_DV, ETH_RMII_CRS_DV, FDCAN1_TX, FMC_D3, FMC_DA3, I2S2_MCK, LTDC_DE, OCTOSPIM_P2_DQS, PLAY1_OUT1, SAI1_MCLK_B, SDMMC1_D123DIR, UART4_TX82PD1PD2 — вывод 83: DCMI_D11, DEBUG_TRACED2, I2C2_SCL, I3C2_SCL, LPTIM4_ETR, LTDC_G7, OCTOSPIM_P1_NCS2, OCTOSPIM_P2_IO1, PSSI_D11, PWR_WKUP7, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RX83PD2PD3 — вывод 84: DCMI_D5, FMC_CLK, I2S2_CK, LTDC_B4, OCTOSPIM_P2_IO0, PLAY1_IN2, PSSI_D5, PWR_WKUP8, SPI2_SCK, TIM8_CH4, USART2_CTS, USART2_NSS84PD3PD4 — вывод 85: COMP1_OUT, DEBUG_TRGIO, ETH_CLK, FMC_NOE, LTDC_B7, MDF1_CKI3, OCTOSPIM_P1_IO4, PLAY1_OUT2, USART2_DE, USART2_RTS85PD4PD5 — вывод 86: COMP2_OUT, ETH_MII_CRS, FDCAN1_TX, FMC_NWE, LTDC_B2, OCTOSPIM_P1_IO5, PLAY1_IN3, SPI2_RDY, TIM1_CH4N, UART8_RX, USART2_TX86PD5PD6 — вывод 87: ADF1_SDI0, DCMI_D10, FMC_NWAIT, I2C3_SDA, I2S3_SDO, MDF1_SDI1, OCTOSPIM_P1_IO6, OCTOSPIM_P2_IO4, PLAY1_OUT3, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RX87PD6PD7 — вывод 88: FMC_NCE, FMC_NE1, I2C3_SCL, I2S1_SDO, LPTIM4_OUT, LTDC_R3, OCTOSPIM_P1_IO7, SDMMC2_CMD, SPI1_MOSI, TIM12_CH1, USART2_CK88PD7PB3 (JTDO/TRACESWO) — вывод 89: CRS_SYNC, DEBUG_JTDO-SWO, ETH_MDC, I2C2_SDA, I2S1_CK, I2S3_CK, I3C2_SDA, LPTIM6_ETR, LTDC_HSYNC, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART12_CTS, UART7_RX89PB3 (JTDO/TRACESWO)PB4 (NJTRST) — вывод 90: DCMI_D7, DEBUG_NJTRST, ETH_MDIO, FMC_NBL3, I2S1_SDI, I2S2_WS, I2S3_SDI, LPTIM1_CH2, LTDC_R2, OCTOSPIM_P1_CLK, PSSI_D7, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TX90PB4 (NJTRST)PB5 — вывод 91: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, GFXTIM_LCKCAL, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, OCTOSPIM_P1_NCLK, OCTOSPIM_P2_CLK, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX91PB5PB6 — вывод 92: CEC, DCMI_D5, ETH_MII_TX_ER, FDCAN2_TX, FMC_SDNE1, GFXTIM_FCKCAL, I2C1_SCL, I2C4_SCL, I3C1_SCL, LPUART1_TX, OCTOSPIM_P1_NCS1, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TX92PB6PB7 — вывод 93: DCMI_VSYNC, FDCAN1_TX, FMC_NL, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPUART1_RX, LTDC_G7, PSSI_RDY, PWR_WKUP5, SDMMC2_CKIN, SDMMC2_D5, TIM17_CH1N, TIM4_CH2, USART1_RX93PB7BOOT0 — вывод 9494BOOT0PB8 — вывод 95: DCMI_D6, ETH_MII_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, I3C1_SCL, LTDC_G6, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI4_RDY, TIM16_CH1, TIM4_CH3, UART4_RX95PB8PB9 — вывод 96: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2S2_WS, I3C1_SDA, LTDC_G5, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_CKIN, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TX96PB9PE0 — вывод 97: DCMI_D2, FDCAN1_RX, FMC_NBL0, LPTIM1_ETR, LPTIM2_CH2, LPTIM2_ETR, OCTOSPIM_P1_NCS2, PLAY1_OUT7, PSSI_D2, SAI2_MCLK_A, SPI3_RDY, TIM4_ETR, UART8_RX97PE0VCAP — вывод 9898VCAPVSS — вывод 9999VSSVDD — вывод 100100VDD
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия
Распиновка STM32H5E4VJTx (LQFP100), вид сверхуРаспиновка LQFP100 картинкой
PNG, 1480 × 1384 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер вывода и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (67, AF7)
CTSPA11 (70, AF7)
DEPA12 (71, AF7)
NSSPA11 (70, AF7)
RTSPA12 (71, AF7)
RXPB15 (54, AF4), PA10 (69, AF7), PB7 (93, AF7)
TXPB14 (53, AF4), PA9 (68, AF7), PB6 (92, AF7)
USART2CKPA4 (29, AF7), PD7 (88, AF7)
CTSPA0 (23, AF7), PD3 (84, AF7)
DEPA1 (24, AF7), PD4 (85, AF7)
NSSPA0 (23, AF7), PD3 (84, AF7)
RTSPA1 (24, AF7), PD4 (85, AF7)
RXPA3 (26, AF7), PE7 (38, AF5), PD6 (87, AF7)
TXPA2 (25, AF7), PE8 (39, AF5), PD5 (86, AF7)
USART3CKPB12 (51, AF7), PD10 (57, AF7), PC12 (80, AF7)
CTSPB13 (52, AF7), PD11 (58, AF7)
DEPB14 (53, AF7), PD12 (59, AF7)
NSSPB13 (52, AF7), PD11 (58, AF7)
RTSPB14 (53, AF7), PD12 (59, AF7)
RXPC4 (33, AF7), PD9 (56, AF7), PC11 (79, AF7)
TXPB10 (47, AF7), PD8 (55, AF7), PC10 (78, AF7)
USART6CKPE13 (44, AF7), PC8 (65, AF7)
RXPE12 (43, AF7), PC7 (64, AF7)
TXPE11 (42, AF7), PC6 (63, AF7)
USART10CKPE15 (46, AF7)
RXPE2 (1, AF7)
TXPE3 (2, AF7)
USART11CKPB0 (35, AF7)
CTSPB15 (54, AF7)
DEPC1 (16, AF7)
NSSPB15 (54, AF7)
RTSPC1 (16, AF7)
RXPA7 (32, AF7)
TXPA6 (31, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB0 (35, AF8), PB15 (54, AF8)
DEPB14 (53, AF8), PA15 (JTDI) (77, AF8)
RTSPB14 (53, AF8), PA15 (JTDI) (77, AF8)
RXPA1 (24, AF8), PD11 (58, AF8), PA11 (70, AF6), PC11 (79, AF8), PD0 (81, AF8), PB8 (95, AF8)
TXPA0 (23, AF8), PD12 (59, AF8), PA12 (71, AF6), PC10 (78, AF8), PD1 (82, AF8), PB9 (96, AF8)
UART5CTSPC9 (66, AF8)
DEPE13 (44, AF8), PC8 (65, AF8)
RTSPE13 (44, AF8), PC8 (65, AF8)
RXPB12 (51, AF14), PB15 (54, AF14), PD2 (83, AF8), PB5 (91, AF14)
TXPB13 (52, AF14), PC12 (80, AF8), PB6 (92, AF14)
UART7CTSPE10 (41, AF7)
DEPE9 (40, AF7)
RTSPE9 (40, AF7)
RXPE7 (38, AF7), PA8 (67, AF11), PB3 (JTDO/TRACESWO) (89, AF11)
TXPE8 (39, AF7), PA15 (JTDI) (77, AF11), PB4 (NJTRST) (90, AF11)
UART8CTSPD14 (61, AF8)
DEPD15 (62, AF8)
RTSPD15 (62, AF8)
RXPD5 (86, AF8), PE0 (97, AF8)
TXPE2 (1, AF8)
UART9CTSPD0 (81, AF11)
DEPD13 (60, AF11)
RTSPD13 (60, AF11)
RXPD14 (61, AF11)
TXPD15 (62, AF11)
UART12CTSPE8 (39, AF6), PB3 (JTDO/TRACESWO) (89, AF7)
DEPC5 (34, AF7), PE7 (38, AF6)
RTSPC5 (34, AF7), PE7 (38, AF6)
RXPE9 (40, AF6)
TXPE10 (41, AF6)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (70, AF3)
DEPA12 (71, AF3)
RTSPA12 (71, AF3)
RXPA10 (69, AF3), PB7 (93, AF8)
TXPA9 (68, AF3), PB6 (92, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA6 (31, AF5), PB4 (NJTRST) (90, AF5)
MOSIPA7 (32, AF5), PD7 (88, AF5), PB5 (91, AF5)
NSSPA4 (29, AF5), PA15 (JTDI) (77, AF5)
RDYPB2 (37, AF4), PE11 (42, AF4), PA8 (67, AF5)
SCKPA5 (30, AF5), PB3 (JTDO/TRACESWO) (89, AF5)
SPI2MISOPC2 (17, AF5), PB14 (53, AF5)
MOSIPC1 (16, AF5), PC3 (18, AF5), PB15 (54, AF5)
NSSPA3 (26, AF5), PB12 (51, AF5), PA11 (70, AF5), PB4 (NJTRST) (90, AF7), PB9 (96, AF5)
RDYPC0 (15, AF7), PD5 (86, AF5)
SCKPB10 (47, AF5), PB13 (52, AF5), PA9 (68, AF5), PA12 (71, AF5), PD3 (84, AF5)
SPI3MISOPC11 (79, AF6), PB4 (NJTRST) (90, AF6)
MOSIPB2 (37, AF7), PC12 (80, AF6), PD6 (87, AF5), PB5 (91, AF7)
NSSPA4 (29, AF6), PA15 (JTDI) (77, AF6)
RDYPA0 (23, AF6), PE0 (97, AF6)
SCKPC10 (78, AF6), PB3 (JTDO/TRACESWO) (89, AF6)
SPI4MISOPE5 (4, AF5), PE13 (44, AF5)
MOSIPE6 (5, AF5), PE14 (45, AF5)
NSSPE4 (3, AF5), PE11 (42, AF5)
RDYPB8 (95, AF5)
SCKPE2 (1, AF5), PE12 (43, AF5)
SPI6MISOPA6 (31, AF8), PB4 (NJTRST) (90, AF8)
MOSIPA7 (32, AF8), PB5 (91, AF8)
NSSPA0 (23, AF5), PA4 (29, AF8), PA15 (JTDI) (77, AF7)
RDYPD15 (62, AF7)
SCKPA5 (30, AF8), PC12 (80, AF5), PB3 (JTDO/TRACESWO) (89, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPA5 (30, AF5), PB3 (JTDO/TRACESWO) (89, AF5)
MCKPC4 (33, AF5), PD0 (81, AF5)
SDIPA6 (31, AF5), PB4 (NJTRST) (90, AF5)
SDOPA7 (32, AF5), PD7 (88, AF5), PB5 (91, AF5)
WSPA4 (29, AF5), PA15 (JTDI) (77, AF5)
I2S2CKPB10 (47, AF5), PB13 (52, AF5), PA9 (68, AF5), PA12 (71, AF5), PD3 (84, AF5)
MCKPC6 (63, AF5), PD1 (82, AF5)
SDIPC2 (17, AF5), PB14 (53, AF5)
SDOPC1 (16, AF5), PC3 (18, AF5), PB15 (54, AF5)
WSPA3 (26, AF5), PB12 (51, AF5), PA11 (70, AF5), PB4 (NJTRST) (90, AF7), PB9 (96, AF5)
I2S3CKPC10 (78, AF6), PB3 (JTDO/TRACESWO) (89, AF6)
MCKPD8 (55, AF6), PC7 (64, AF6)
SDIPC11 (79, AF6), PB4 (NJTRST) (90, AF6)
SDOPB2 (37, AF7), PC12 (80, AF6), PD6 (87, AF5), PB5 (91, AF7)
WSPA4 (29, AF6), PA15 (JTDI) (77, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (92, AF4), PB8 (95, AF4)
SDAPD13 (60, AF6), PB7 (93, AF4), PB9 (96, AF4)
SMBAPB5 (91, AF4)
I2C2SCLPB10 (47, AF4), PD2 (83, AF6)
SDAPB12 (51, AF4), PB3 (JTDO/TRACESWO) (89, AF4)
SMBAPB13 (52, AF4)
I2C3SCLPA8 (67, AF4), PD7 (88, AF4)
SDAPC9 (66, AF4), PD6 (87, AF4)
SMBAPA9 (68, AF4)
I2C4SCLPD12 (59, AF4), PB6 (92, AF6), PB8 (95, AF6)
SDAPD13 (60, AF4), PB7 (93, AF6), PB9 (96, AF6)
SMBAPD11 (58, AF4), PB5 (91, AF6)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPD12 (59, AF5), PB6 (92, AF3), PB8 (95, AF3)
SDAPD13 (60, AF5), PB7 (93, AF3), PB9 (96, AF3)
I3C2SCLPB10 (47, AF8), PD2 (83, AF5)
SDAPB12 (51, AF8), PB3 (JTDO/TRACESWO) (89, AF3)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPA11 (70, AF9), PD0 (81, AF9), PB8 (95, AF9), PE0 (97, AF9)
TXPA12 (71, AF9), PD1 (82, AF9), PD5 (86, AF9), PB7 (93, AF9), PB9 (96, AF9)
FDCAN2RXPB12 (51, AF9), PD9 (56, AF9), PB5 (91, AF9)
TXPB13 (52, AF9), PA10 (69, AF9), PB6 (92, AF9)
FDCAN3RXPE13 (44, AF9), PD10 (57, AF9)
TXPE12 (43, AF9), PD8 (55, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (70)
DPPA12 (71)
SOFPA8 (67)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB13 (52)
CC2PB14 (53)
DB1PA9 (68)
DB2PC9 (66)
FRSTXPB12 (51, AF6), PA10 (69, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCLKPA10 (69, AF11), PD4 (85, AF11)
MDCPC1 (16, AF11), PB3 (JTDO/TRACESWO) (89, AF12)
MDIOPA2 (25, AF11), PE12 (43, AF11), PB4 (NJTRST) (90, AF10)
MII_COLPA3 (26, AF11)
MII_CRSPA0 (23, AF11), PD10 (57, AF8), PD5 (86, AF6)
MII_RX_CLKPA1 (24, AF11)
MII_RX_DVPA7 (32, AF11), PD1 (82, AF11)
MII_RX_ERPB10 (47, AF11)
MII_RXD0PE4 (3, AF11), PC4 (33, AF11), PB2 (37, AF11), PD8 (55, AF8)
MII_RXD1PE5 (4, AF11), PC5 (34, AF11)
MII_RXD2PB0 (35, AF11)
MII_RXD3PB1 (36, AF11)
MII_TX_CLKPC3 (18, AF11)
MII_TX_ENPA5 (30, AF11)
MII_TX_ERPA9 (68, AF11), PB6 (92, AF11)
MII_TXD0PB12 (51, AF11), PC10 (78, AF11)
MII_TXD1PB15 (54, AF11)
MII_TXD2PC2 (17, AF11)
MII_TXD3PE2 (1, AF11), PB8 (95, AF11)
PHY_INTNPA15 (JTDI) (77, AF10)
PPS_OUTPC12 (80, AF10), PB5 (91, AF11)
PTP_AUX_TSPD11 (58, AF11)
RMII_CRS_DVPA7 (32, AF11), PD1 (82, AF11)
RMII_REF_CLKPA1 (24, AF11)
RMII_RXD0PE4 (3, AF11), PC4 (33, AF11), PB2 (37, AF11), PD8 (55, AF8)
RMII_RXD1PE5 (4, AF11), PC5 (34, AF11)
RMII_TX_ENPA5 (30, AF11)
RMII_TXD0PB12 (51, AF11), PC10 (78, AF11)
RMII_TXD1PB15 (54, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (96, AF7)
CKPC12 (80, AF12)
CKINPB8 (95, AF7)
CMDPB2 (37, AF12), PD2 (83, AF12)
D0PC8 (65, AF12), PA10 (69, AF12)
D0DIRPC6 (63, AF8), PD0 (81, AF7)
D1PC9 (66, AF12)
D2PC10 (78, AF12)
D3PC11 (79, AF12)
D4PB8 (95, AF12)
D5PB9 (96, AF12)
D6PC6 (63, AF12)
D7PC7 (64, AF12)
D123DIRPC7 (64, AF8), PD1 (82, AF7)
SDMMC2CKPC1 (16, AF9), PD6 (87, AF11)
CKINPB7 (93, AF11), PB9 (96, AF11)
CMDPA0 (23, AF9), PD7 (88, AF11)
D0PD8 (55, AF11)
D1PB15 (54, AF9)
D2PB3 (JTDO/TRACESWO) (89, AF9)
D3PB4 (NJTRST) (90, AF9)
D4PA12 (71, AF10), PB8 (95, AF10)
D5PB7 (93, AF10), PB9 (96, AF10)
D6PC2 (17, AF10), PC6 (63, AF10)
D7PC3 (18, AF10), PC7 (64, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (1, AF2), PC4 (33, AF2), PD11 (58, AF2)
CK2PE5 (4, AF2)
D1PE6 (5, AF2), PC1 (16, AF2), PB2 (37, AF2), PD12 (59, AF6), PD6 (87, AF2)
D2PE4 (3, AF2)
D3PC3 (18, AF2), PC5 (34, AF2)
FS_APE4 (3, AF6), PC5 (34, AF6), PD14 (61, AF6)
FS_BPD15 (62, AF6)
MCLK_APE2 (1, AF6), PC0 (15, AF6)
MCLK_BPD1 (82, AF6)
SCK_APE5 (4, AF6), PC6 (63, AF6)
SCK_BPC10 (78, AF4)
SD_APE6 (5, AF6), PC1 (16, AF6), PB2 (37, AF6), PD6 (87, AF6)
SD_BPE3 (2, AF6), PA3 (26, AF6)
SAI2FS_APD12 (59, AF10)
FS_BPC0 (15, AF8), PE13 (44, AF10), PA12 (71, AF8)
MCLK_APE0 (97, AF10)
MCLK_BPE6 (5, AF10), PA1 (24, AF10), PE14 (45, AF10)
SCK_APD13 (60, AF10)
SCK_BPA2 (25, AF8), PE12 (43, AF10)
SD_APC1 (16, AF8), PD11 (58, AF10)
SD_BPA0 (23, AF10), PE11 (42, AF10)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPD9 (56, AF5), PA15 (JTDI) (77, AF4), PB6 (92, AF5)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PE11 (42), PD11 (58), PA11 (70), PC11 (79)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (9), PE15 (46), PB15 (54), PD15 (62), PA15 (JTDI) (77)
INN1PA0 (23)
INN3PA7 (32)
INN4PC5 (34)
INN5PB0 (35)
INN10PC1 (16)
INN11PC2 (17)
INN12PC3 (18)
INN18PA5 (30)
INP0PA0 (23)
INP1PA1 (24)
INP3PA6 (31)
INP4PC4 (33)
INP5PB1 (36)
INP7PA7 (32)
INP8PC5 (34)
INP9PB0 (35)
INP10PC0 (15)
INP11PC1 (16)
INP12PC2 (17)
INP13PC3 (18)
INP14PA2 (25)
INP15PA3 (26)
INP18PA4 (29)
INP19PA5 (30)
ADC2EXTI11PE11 (42), PD11 (58), PA11 (70), PC11 (79)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (9), PE15 (46), PB15 (54), PD15 (62), PA15 (JTDI) (77)
INN1PA0 (23)
INN3PA7 (32)
INN4PC5 (34)
INN5PB0 (35)
INN10PC1 (16)
INN11PC2 (17)
INN12PC3 (18)
INN18PA5 (30)
INP0PA0 (23)
INP1PA1 (24)
INP3PA6 (31)
INP4PC4 (33)
INP5PB1 (36)
INP7PA7 (32)
INP8PC5 (34)
INP9PB0 (35)
INP10PC0 (15)
INP11PC1 (16)
INP12PC2 (17)
INP13PC3 (18)
INP14PA2 (25)
INP15PA3 (26)
INP18PA4 (29)
INP19PA5 (30)
ADC3EXTI11PE11 (42), PD11 (58), PA11 (70), PC11 (79)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (9), PE15 (46), PB15 (54), PD15 (62), PA15 (JTDI) (77)
INP0PB2 (37)
INP1PE7 (38)
INP2PE8 (39)
INP3PE9 (40)
INP4PE10 (41)
INP5PE11 (42)
INP6PE12 (43)
INP7PE13 (44)
INP8PE14 (45)
INP9PE15 (46)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PE9 (40), PD9 (56), PC9 (66), PA9 (68), PB9 (96)
OUT1PA4 (29)
OUT2PA5 (30)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPA6 (31), PE10 (41)
INPPA7 (32), PB2 (37)
OUTPC11 (79, AF3), PD4 (85, AF3)
COMP2INMPB1 (36), PE9 (40), PE14 (45)
INPPB0 (35), PE7 (38)
OUTPC12 (80, AF3), PD5 (86, AF3)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA4 (29), PE13 (44)
VINPPA5 (30), PE11 (42), PE12 (43)
VOUTPB1 (36)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (31, AF1), PE15 (46, AF1), PB12 (51, AF1)
BKIN2PE6 (5, AF1)
CH1PE9 (40, AF1), PA8 (67, AF1)
CH1NPA7 (32, AF1), PE8 (39, AF1), PB13 (52, AF1)
CH2PE11 (42, AF1), PA9 (68, AF1)
CH2NPB0 (35, AF1), PE10 (41, AF1), PB14 (53, AF1)
CH3PE13 (44, AF1), PA10 (69, AF1)
CH3NPB1 (36, AF1), PE12 (43, AF1), PB15 (54, AF1)
CH4PE14 (45, AF1), PA11 (70, AF1)
CH4NPC5 (34, AF1), PE15 (46, AF3), PD5 (86, AF1)
ETRPE7 (38, AF1), PA12 (71, AF1)
TIM2CH1PA0 (23, AF1), PA5 (30, AF1), PA15 (JTDI) (77, AF1)
CH2PA1 (24, AF1), PB3 (JTDO/TRACESWO) (89, AF1)
CH3PA2 (25, AF1), PB10 (47, AF1)
CH4PA3 (26, AF1), PC4 (33, AF1)
ETRPA0 (23, AF14), PA5 (30, AF14), PA15 (JTDI) (77, AF14)
TIM3CH1PA6 (31, AF2), PC6 (63, AF2), PB4 (NJTRST) (90, AF2)
CH2PA7 (32, AF2), PC7 (64, AF2), PB5 (91, AF2)
CH3PB0 (35, AF2), PC8 (65, AF2)
CH4PB1 (36, AF2), PC9 (66, AF2)
ETRPD2 (83, AF2)
TIM4CH1PD12 (59, AF2), PB6 (92, AF2)
CH2PD13 (60, AF2), PB7 (93, AF2)
CH3PD14 (61, AF2), PB8 (95, AF2)
CH4PC2 (17, AF2), PD15 (62, AF2), PB9 (96, AF2)
ETRPE0 (97, AF2)
TIM5CH1PA0 (23, AF2)
CH2PA1 (24, AF2)
CH3PA2 (25, AF2)
CH4PA3 (26, AF2)
ETRPA4 (29, AF2)
TIM8BKINPA6 (31, AF3)
BKIN2PA8 (67, AF3)
CH1PC0 (15, AF3), PC6 (63, AF3)
CH1NPA5 (30, AF3), PA7 (32, AF3)
CH2PC1 (16, AF3), PC7 (64, AF3)
CH2NPB0 (35, AF3), PB14 (53, AF3)
CH3PC2 (17, AF3), PC8 (65, AF3)
CH3NPB1 (36, AF3), PB15 (54, AF3)
CH4PC9 (66, AF3), PD3 (84, AF3)
CH4NPB2 (37, AF3), PD0 (81, AF3)
ETRPA0 (23, AF3)
TIM12CH1PB14 (53, AF2), PD7 (88, AF2)
CH2PB15 (54, AF2), PD8 (55, AF2)
TIM13CH1PA6 (31, AF9), PD9 (56, AF2)
TIM14CH1PA7 (32, AF9), PD10 (57, AF2)
TIM15BKINPE3 (2, AF4), PA0 (23, AF4), PD2 (83, AF4)
CH1PE5 (4, AF4), PA2 (25, AF4), PC12 (80, AF2)
CH1NPE4 (3, AF4), PA1 (24, AF4)
CH2PE6 (5, AF4), PA3 (26, AF4)
TIM16BKINPC0 (15, AF1), PB4 (NJTRST) (90, AF1)
CH1PB8 (95, AF1)
CH1NPB6 (92, AF1)
TIM17BKINPB5 (91, AF1)
CH1PC2 (17, AF1), PB9 (96, AF1)
CH1NPB7 (93, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PB2 (37, AF5), PD13 (60, AF1)
CH2PB4 (NJTRST) (90, AF4)
ETRPE0 (97, AF1)
IN1PA1 (24, AF5), PD12 (59, AF1)
IN2PE2 (1, AF1), PA2 (25, AF5)
LPTIM2CH1PA4 (29, AF3), PB13 (52, AF3), PD13 (60, AF3)
CH2PD10 (57, AF3), PE0 (97, AF3)
ETRPC4 (33, AF3), PE0 (97, AF4)
IN1PB10 (47, AF3), PD12 (59, AF3)
IN2PD11 (58, AF3), PA10 (69, AF4)
LPTIM3CH1PC3 (18, AF3), PB0 (35, AF14), PB10 (47, AF2)
CH2PB1 (36, AF14)
ETRPB14 (53, AF14), PC10 (78, AF2)
IN1PB13 (52, AF2), PC11 (79, AF2)
IN2PA15 (JTDI) (77, AF2)
LPTIM4ETRPD2 (83, AF14)
IN1PD13 (60, AF14)
OUTPD7 (88, AF14)
LPTIM5ETRPB2 (37, AF13)
LPTIM6ETRPB3 (JTDO/TRACESWO) (89, AF14)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (7)
OUT2PB2 (37, AF0)
REFINPB15 (54, AF0)
TSPC13 (7)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA16PD11 (58, AF12), PC9 (66, AF11)
A17PD12 (59, AF12), PC8 (65, AF11), PA11 (70, AF12)
A18PD13 (60, AF12)
A19PE3 (2, AF12)
A20PE4 (3, AF12)
A21PE5 (4, AF12)
A22PE6 (5, AF12)
A23PE2 (1, AF12)
A25PC0 (15, AF9)
ALEPD12 (59, AF12), PC8 (65, AF11), PA11 (70, AF12)
CLEPD11 (58, AF12), PC9 (66, AF11)
CLKPD3 (84, AF12)
D0PD14 (61, AF12)
D1PD15 (62, AF12)
D2PD0 (81, AF12)
D3PD1 (82, AF12)
D4PE7 (38, AF12)
D5PE8 (39, AF12)
D6PE9 (40, AF12)
D7PE10 (41, AF12)
D8PE11 (42, AF12)
D9PE12 (43, AF12)
D10PE13 (44, AF12)
D11PE14 (45, AF12)
D12PE15 (46, AF12)
D13PD8 (55, AF12)
D14PD9 (56, AF12)
D15PD10 (57, AF12)
D31PA6 (31, AF12)
DA0PD14 (61, AF12)
DA1PD15 (62, AF12)
DA2PD0 (81, AF12)
DA3PD1 (82, AF12)
DA4PE7 (38, AF12)
DA5PE8 (39, AF12)
DA6PE9 (40, AF12)
DA7PE10 (41, AF12)
DA8PE11 (42, AF12)
DA9PE12 (43, AF12)
DA10PE13 (44, AF12)
DA11PE14 (45, AF12)
DA12PE15 (46, AF12)
DA13PD8 (55, AF12)
DA14PD9 (56, AF12)
DA15PD10 (57, AF12)
INTPC0 (15, AF13), PC8 (65, AF10)
NBL0PE0 (97, AF12)
NBL1PA15 (JTDI) (77, AF12)
NBL2PA4 (29, AF12)
NBL3PB4 (NJTRST) (90, AF12)
NCEPC1 (16, AF13), PC2 (17, AF13), PC8 (65, AF9), PD7 (88, AF12)
NE1PC2 (17, AF13), PC7 (64, AF9), PD7 (88, AF12)
NE2PC1 (16, AF13), PC8 (65, AF9)
NLPB7 (93, AF12)
NOEPA8 (67, AF12), PD4 (85, AF12)
NWAITPB10 (47, AF13), PC6 (63, AF9), PD6 (87, AF12)
NWEPA7 (32, AF13), PA9 (68, AF12), PD5 (86, AF12)
SDCKE0PC3 (18, AF12), PC5 (34, AF12)
SDCKE1PB5 (91, AF12)
SDNCASPC9 (66, AF10)
SDNE0PC2 (17, AF12), PC4 (33, AF12)
SDNE1PB6 (92, AF12)
SDNRASPB10 (47, AF10)
SDNWEPC0 (15, AF12), PA7 (32, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PE12 (43, AF13), PC6 (63, AF13), PA9 (68, AF13)
D1PC7 (64, AF13), PA10 (69, AF13)
D2PB15 (54, AF13), PC8 (65, AF13), PE0 (97, AF13)
D3PE2 (1, AF13), PC9 (66, AF13), PA8 (67, AF13)
D4PE4 (3, AF13), PC11 (79, AF13)
D5PD3 (84, AF13), PB6 (92, AF13)
D6PE5 (4, AF13), PB8 (95, AF13)
D7PE6 (5, AF13), PB4 (NJTRST) (90, AF13), PB9 (96, AF13)
D8PE8 (39, AF13), PC10 (78, AF13)
D9PC12 (80, AF13)
D10PD6 (87, AF13), PB5 (91, AF13)
D11PA15 (JTDI) (77, AF13), PD2 (83, AF13)
D12PD12 (59, AF13)
D13PD13 (60, AF13)
HSYNCPA4 (29, AF13), PE13 (44, AF13)
PIXCLKPA6 (31, AF13), PE15 (46, AF13)
VSYNCPE14 (45, AF13), PB7 (93, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PE12 (43, AF13), PC6 (63, AF13), PA9 (68, AF13)
D1PC7 (64, AF13), PA10 (69, AF13)
D2PB15 (54, AF13), PC8 (65, AF13), PE0 (97, AF13)
D3PE2 (1, AF13), PC9 (66, AF13), PA8 (67, AF13)
D4PE4 (3, AF13), PC11 (79, AF13)
D5PD3 (84, AF13), PB6 (92, AF13)
D6PE5 (4, AF13), PB8 (95, AF13)
D7PE6 (5, AF13), PB4 (NJTRST) (90, AF13), PB9 (96, AF13)
D8PE8 (39, AF13), PC10 (78, AF13)
D9PC12 (80, AF13)
D10PD6 (87, AF13), PB5 (91, AF13)
D11PA15 (JTDI) (77, AF13), PD2 (83, AF13)
D12PD12 (59, AF13)
D13PD13 (60, AF13)
D14PA5 (30, AF13)
D15PC5 (34, AF4), PD14 (61, AF4)
DEPA4 (29, AF13), PE13 (44, AF13)
PDCKPA6 (31, AF13), PE15 (46, AF13)
RDYPE14 (45, AF13), PB7 (93, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PE14 (45, AF11), PC10 (78, AF14)
B1PD14 (61, AF13), PC9 (66, AF14)
B2PA7 (32, AF14), PD5 (86, AF13)
B3PA6 (31, AF14), PB1 (36, AF13)
B4PA4 (29, AF14), PD3 (84, AF10)
B5PA3 (26, AF14), PE11 (42, AF13)
B6PE5 (4, AF10), PA2 (25, AF14)
B7PA1 (24, AF14), PD4 (85, AF13)
CLKPD15 (62, AF13), PA8 (67, AF14)
DEPC4 (33, AF14), PD1 (82, AF13)
G0PB15 (54, AF12), PC6 (63, AF14)
G1PE3 (2, AF13), PC5 (34, AF14)
G2PC1 (16, AF14), PD12 (59, AF11)
G3PE4 (3, AF10), PC0 (15, AF14)
G4PB10 (47, AF14), PC12 (80, AF11)
G5PA5 (30, AF10), PB9 (96, AF14)
G6PA0 (23, AF13), PB8 (95, AF14)
G7PD2 (83, AF11), PB7 (93, AF14)
HSYNCPC2 (17, AF14), PB3 (JTDO/TRACESWO) (89, AF13)
R0PA2 (25, AF13), PE15 (46, AF11), PC8 (65, AF14)
R1PE13 (44, AF11), PB12 (51, AF13), PC7 (64, AF14)
R2PE6 (5, AF11), PD0 (81, AF13), PB4 (NJTRST) (90, AF14)
R3PB2 (37, AF14), PD7 (88, AF13)
R4PB0 (35, AF13), PD9 (56, AF13), PA12 (71, AF14)
R5PD8 (55, AF13), PA11 (70, AF14)
R6PD11 (58, AF13), PA10 (69, AF14)
R7PD10 (57, AF13), PA9 (68, AF14)
VSYNCPC3 (18, AF14), PC11 (79, AF11)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PE2 (1, AF4), PC4 (33, AF8)
CCK1PE5 (4, AF8)
CKI0PE7 (38, AF8)
CKI1PC0 (15, AF4)
CKI2PE3 (2, AF8)
CKI3PD4 (85, AF8)
CKI4PE9 (40, AF8)
CKI5PE11 (42, AF8)
SDI0PE8 (39, AF8)
SDI1PE6 (5, AF8), PC1 (16, AF4), PD6 (87, AF8)
SDI2PE4 (3, AF8)
SDI3PC3 (18, AF8), PC5 (34, AF8)
SDI4PE10 (41, AF8)
SDI5PE12 (43, AF8)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PE2 (1, AF3), PC4 (33, AF4), PD11 (58, AF1)
CCK1PE5 (4, AF1)
SDI0PE4 (3, AF3), PE6 (5, AF3), PC1 (16, AF1), PB2 (37, AF1), PD6 (87, AF1)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (76, AF0)
JTDIPA15 (JTDI) (77, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (89, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (72, AF0)
NJTRSTPB4 (NJTRST) (90, AF0)
TRACECLKPE2 (1, AF0)
TRACED0PE3 (2, AF0), PC1 (16, AF0)
TRACED1PE4 (3, AF0), PC8 (65, AF0)
TRACED2PE5 (4, AF0), PD2 (83, AF0)
TRACED3PE6 (5, AF0), PC12 (80, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPB2 (37)
MCO_1PA8 (67, AF0)
MCO_2PC9 (66, AF0)
OSC_INPH0-OSC_IN (12)
OSC_OUTPH1-OSC_OUT (13)
OSC32_INPC14-OSC32_IN(OSC32_IN) (8)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (9)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC2 (17, AF0)
PWR_CSTOPPC3 (18, AF0)
PWR_WKUP1PA0 (23)
PWR_WKUP2PA2 (25)
PWR_WKUP4PC13 (7)
PWR_WKUP5PB7 (93)
PWR_WKUP6PC1 (16)
PWR_WKUP7PD2 (83)
PWR_WKUP8PD3 (84)
TAMP_IN1PC13 (7)
TAMP_IN2PA0 (23)
TAMP_IN3PE6 (5), PC1 (16)
TAMP_IN4PA2 (25)
TAMP_IN5PA1 (24)
TAMP_IN6PE3 (2)
TAMP_IN7PE4 (3)
TAMP_IN8PE5 (4)
TAMP_OUT1PA0 (23)
TAMP_OUT2PC13 (7)
TAMP_OUT3PE3 (2), PC13 (7), PA2 (25)
TAMP_OUT4PA1 (24)
TAMP_OUT5PC1 (16)
TAMP_OUT6PE6 (5)
TAMP_OUT7PE5 (4)
TAMP_OUT8PE4 (3)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 100 выводов корпуса LQFP100 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ВыводИмяТипФункции
1PE2ввод-выводADF1_CCK0 (AF3), DCMI_D3 (AF13), DEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_A23 (AF12), LPTIM1_IN2 (AF1), MDF1_CCK0 (AF4), OCTOSPIM_P1_IO2 (AF9), PLAY1_OUT8 (AF14), PSSI_D3 (AF13), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), UART8_TX (AF8), USART10_RX (AF7)
2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), GFXTIM_TE (AF5), LTDC_G1 (AF13), MDF1_CKI2 (AF8), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN9 (AF14), SAI1_SD_B (AF6), TAMP_IN6, TAMP_OUT3, TIM15_BKIN (AF4), USART10_TX (AF7)
3PE4ввод-выводADF1_SDI0 (AF3), DCMI_D4 (AF13), DEBUG_TRACED1 (AF0), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_A20 (AF12), LTDC_G3 (AF10), MDF1_SDI2 (AF8), OCTOSPIM_P2_IO1 (AF9), PLAY1_OUT9 (AF14), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TAMP_IN7, TAMP_OUT8, TIM15_CH1N (AF4)
4PE5ввод-выводADF1_CCK1 (AF1), DCMI_D6 (AF13), DEBUG_TRACED2 (AF0), ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_A21 (AF12), LTDC_B6 (AF10), MDF1_CCK1 (AF8), OCTOSPIM_P2_IO2 (AF9), PLAY1_IN10 (AF14), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TAMP_IN8, TAMP_OUT7, TIM15_CH1 (AF4)
5PE6ввод-выводADF1_SDI0 (AF3), DCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_R2 (AF11), MDF1_SDI1 (AF8), OCTOSPIM_P2_IO3 (AF9), PLAY1_OUT10 (AF14), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TAMP_IN3, TAMP_OUT6, TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
6VBATпитание—
7PC13ввод-выводPWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3
8PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
9PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
10VSSпитание—
11VDDпитание—
12PH0-OSC_INввод-выводRCC_OSC_IN
13PH1-OSC_OUTввод-выводRCC_OSC_OUT
14NRSTсброс—
15PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_A25 (AF9), FMC_INT (AF13), FMC_SDNWE (AF12), LTDC_G3 (AF14), MDF1_CKI1 (AF4), OCTOSPIM_P1_IO7 (AF10), SAI1_MCLK_A (AF6), SAI2_FS_B (AF8), SPI2_RDY (AF7), TIM16_BKIN (AF1), TIM8_CH1 (AF3)
16PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0 (AF1), DEBUG_TRACED0 (AF0), ETH_MDC (AF11), FMC_NCE (AF13), FMC_NE2 (AF13), I2S2_SDO (AF5), LTDC_G2 (AF14), MDF1_SDI1 (AF4), OCTOSPIM_P1_IO4 (AF10), PWR_WKUP6, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5), TAMP_IN3, TAMP_OUT5, TIM8_CH2 (AF3), USART11_DE (AF7), USART11_RTS (AF7)
17PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_NCE (AF13), FMC_NE1 (AF13), FMC_SDNE0 (AF12), I2S2_SDI (AF5), LTDC_HSYNC (AF14), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF6), PWR_CSLEEP (AF0), SDMMC2_D6 (AF10), SPI2_MISO (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), TIM8_CH3 (AF3)
18PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), LPTIM3_CH1 (AF3), LTDC_VSYNC (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF6), PWR_CSTOP (AF0), SAI1_D3 (AF2), SDMMC2_D7 (AF10), SPI2_MOSI (AF5)
19VSSAпитание—
20VREF-питание—
21VREF+питание—
22VDDAпитание—
23PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS (AF11), LTDC_G6 (AF13), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI3_RDY (AF6), SPI6_NSS (AF5), TAMP_IN2, TAMP_OUT1, TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
24PA1ввод-выводADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), LPTIM1_IN1 (AF5), LTDC_B7 (AF14), OCTOSPIM_P1_DQS (AF6), OCTOSPIM_P1_IO3 (AF9), SAI2_MCLK_B (AF10), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
25PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM1_IN2 (AF5), LTDC_B6 (AF14), LTDC_R0 (AF13), OCTOSPIM_P2_IO4 (AF9), PWR_WKUP2, SAI2_SCK_B (AF8), TAMP_IN4, TAMP_OUT3, TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
26PA3ввод-выводADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0 (AF0), ETH_MII_COL (AF11), I2S2_WS (AF5), LTDC_B5 (AF14), OCTOSPIM_P1_CLK (AF3), SAI1_SD_B (AF6), SPI2_NSS (AF5), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
27VSSпитание—
28VDDпитание—
29PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), FMC_NBL2 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM2_CH1 (AF3), LTDC_B4 (AF14), OPAMP1_VINM, PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
30PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LTDC_G5 (AF10), OCTOSPIM_P2_IO5 (AF9), OPAMP1_VINP, PSSI_D14 (AF13), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1N (AF3)
31PA6ввод-выводADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK (AF13), FMC_D31 (AF12), I2S1_SDI (AF5), LTDC_B3 (AF14), OCTOSPIM_P1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART11_TX (AF7)
32PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_NWE (AF13), FMC_SDNWE (AF12), I2S1_SDO (AF5), LTDC_B2 (AF14), OCTOSPIM_P1_IO2 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART11_RX (AF7)
33PC4ввод-выводADC1_INP4, ADC2_INP4, ADF1_CCK0 (AF4), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LPTIM2_ETR (AF3), LTDC_DE (AF14), MDF1_CCK0 (AF8), SAI1_CK1 (AF2), TIM2_CH4 (AF1), USART3_RX (AF7)
34PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_SDCKE0 (AF12), LTDC_G1 (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_DQS (AF10), PSSI_D15 (AF4), SAI1_D3 (AF2), SAI1_FS_A (AF6), TIM1_CH4N (AF1), UART12_DE (AF7), UART12_RTS (AF7)
35PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2 (AF11), LPTIM3_CH1 (AF14), LTDC_R4 (AF13), OCTOSPIM_P1_IO1 (AF6), OCTOSPIM_P2_NCS1 (AF9), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USART11_CK (AF7)
36PB1ввод-выводADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3 (AF11), LPTIM3_CH2 (AF14), LTDC_B3 (AF13), OCTOSPIM_P1_IO0 (AF6), OCTOSPIM_P1_NCLK (AF9), OPAMP1_VOUT, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3)
37PB2ввод-выводADC3_INP0, ADF1_SDI0 (AF1), COMP1_INP, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), I2S3_SDO (AF7), LPTIM1_CH1 (AF5), LPTIM5_ETR (AF13), LTDC_R3 (AF14), OCTOSPIM_P1_CLK (AF9), OCTOSPIM_P1_DQS (AF10), RCC_LSCO, RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC1_CMD (AF12), SPI1_RDY (AF4), SPI3_MOSI (AF7), TIM8_CH4N (AF3)
38PE7ввод-выводADC3_INP1, COMP2_INP, FMC_D4 (AF12), FMC_DA4 (AF12), MDF1_CKI0 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_IN11 (AF14), TIM1_ETR (AF1), UART12_DE (AF6), UART12_RTS (AF6), UART7_RX (AF7), USART2_RX (AF5)
39PE8ввод-выводADC3_INP2, DCMI_D8 (AF13), FMC_D5 (AF12), FMC_DA5 (AF12), MDF1_SDI0 (AF8), OCTOSPIM_P1_IO5 (AF10), PLAY1_OUT11 (AF14), PSSI_D8 (AF13), TIM1_CH1N (AF1), UART12_CTS (AF6), UART7_TX (AF7), USART2_TX (AF5)
40PE9ввод-выводADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), MDF1_CKI4 (AF8), OCTOSPIM_P1_IO6 (AF10), PLAY1_IN12 (AF14), TIM1_CH1 (AF1), UART12_RX (AF6), UART7_DE (AF7), UART7_RTS (AF7)
41PE10ввод-выводADC3_INP4, COMP1_INM, FMC_D7 (AF12), FMC_DA7 (AF12), MDF1_SDI4 (AF8), OCTOSPIM_P1_IO7 (AF10), PLAY1_OUT12 (AF14), TIM1_CH2N (AF1), UART12_TX (AF6), UART7_CTS (AF7)
42PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_B5 (AF13), MDF1_CKI5 (AF8), OCTOSPIM_P1_NCS1 (AF6), OCTOSPIM_P2_NCS2 (AF9), OPAMP1_VINP, PLAY1_IN13 (AF14), SAI2_SD_B (AF10), SPI1_RDY (AF4), SPI4_NSS (AF5), TIM1_CH2 (AF1), USART6_TX (AF7)
43PE12ввод-выводADC3_INP6, DCMI_D0 (AF13), ETH_MDIO (AF11), FDCAN3_TX (AF9), FMC_D9 (AF12), FMC_DA9 (AF12), GFXTIM_LCKCAL (AF0), MDF1_SDI5 (AF8), OPAMP1_VINP, PLAY1_OUT13 (AF14), PSSI_D0 (AF13), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1), USART6_RX (AF7)
44PE13ввод-выводADC3_INP7, DCMI_HSYNC (AF13), FDCAN3_RX (AF9), FMC_D10 (AF12), FMC_DA10 (AF12), GFXTIM_FCKCAL (AF0), LTDC_R1 (AF11), OPAMP1_VINM, PLAY1_IN14 (AF14), PSSI_DE (AF13), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
45PE14ввод-выводADC3_INP8, COMP2_INM, DCMI_VSYNC (AF13), FMC_D11 (AF12), FMC_DA11 (AF12), LTDC_B0 (AF11), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT14 (AF14), PSSI_RDY (AF13), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
46PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK (AF13), FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R0 (AF11), OCTOSPIM_P2_NCS1 (AF9), PLAY1_OUT15 (AF14), PSSI_PDCK (AF13), TIM1_BKIN (AF1), TIM1_CH4N (AF3), USART10_CK (AF7)
47PB10ввод-выводETH_MII_RX_ER (AF11), FMC_NWAIT (AF13), FMC_SDNRAS (AF10), I2C2_SCL (AF4), I2S2_CK (AF5), I3C2_SCL (AF8), LPTIM2_IN1 (AF3), LPTIM3_CH1 (AF2), LTDC_G4 (AF14), OCTOSPIM_P1_NCS1 (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
48VCAPпитание—
49VSSпитание—
50VDDпитание—
51PB12ввод-выводETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SDA (AF4), I2S2_WS (AF5), I3C2_SDA (AF8), LTDC_R1 (AF13), OCTOSPIM_P1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF14), UCPD1_FRSTX (AF6), USART3_CK (AF7)
52PB13ввод-выводFDCAN2_TX (AF9), I2C2_SMBA (AF4), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LPTIM3_IN1 (AF2), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), UCPD1_CC1, USART3_CTS (AF7), USART3_NSS (AF7)
53PB14ввод-выводI2S2_SDI (AF5), LPTIM3_ETR (AF14), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC2, USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
54PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), I2S2_SDO (AF5), LTDC_G0 (AF12), OCTOSPIM_P1_CLK (AF10), PSSI_D2 (AF13), PWR_PVD_IN, RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), UART5_RX (AF14), USART11_CTS (AF7), USART11_NSS (AF7), USART1_RX (AF4)
55PD8ввод-выводETH_MII_RXD0 (AF8), ETH_RMII_RXD0 (AF8), FDCAN3_TX (AF9), FMC_D13 (AF12), FMC_DA13 (AF12), I2S3_MCK (AF6), LTDC_R5 (AF13), PLAY1_IN4 (AF14), SDMMC2_D0 (AF11), TIM12_CH2 (AF2), USART3_TX (AF7)
56PD9ввод-выводCEC (AF5), DAC1_EXTI9, FDCAN2_RX (AF9), FMC_D14 (AF12), FMC_DA14 (AF12), LTDC_R4 (AF13), PLAY1_OUT4 (AF14), TIM13_CH1 (AF2), USART3_RX (AF7)
57PD10ввод-выводAUDIOCLK (AF5), ETH_MII_CRS (AF8), FDCAN3_RX (AF9), FMC_D15 (AF12), FMC_DA15 (AF12), LPTIM2_CH2 (AF3), LTDC_R7 (AF13), PLAY1_IN5 (AF14), TIM14_CH1 (AF2), USART3_CK (AF7)
58PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0 (AF1), ETH_PTP_AUX_TS (AF11), FMC_A16 (AF12), FMC_CLE (AF12), GFXTIM_TE (AF5), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), LTDC_R6 (AF13), OCTOSPIM_P1_IO0 (AF9), PLAY1_OUT5 (AF14), SAI1_CK1 (AF2), SAI2_SD_A (AF10), UART4_RX (AF8), USART3_CTS (AF7), USART3_NSS (AF7)
59PD12ввод-выводDCMI_D12 (AF13), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), LTDC_G2 (AF11), OCTOSPIM_P1_IO1 (AF9), PLAY1_IN6 (AF14), PSSI_D12 (AF13), SAI1_D1 (AF6), SAI2_FS_A (AF10), TIM4_CH1 (AF2), UART4_TX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
60PD13ввод-выводDCMI_D13 (AF13), FMC_A18 (AF12), I2C1_SDA (AF6), I2C4_SDA (AF4), I3C1_SDA (AF5), LPTIM1_CH1 (AF1), LPTIM2_CH1 (AF3), LPTIM4_IN1 (AF14), OCTOSPIM_P1_IO3 (AF9), PSSI_D13 (AF13), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
61PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LTDC_B1 (AF13), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT6 (AF14), PSSI_D15 (AF4), SAI1_FS_A (AF6), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
62PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LTDC_CLK (AF13), OCTOSPIM_P2_NCLK (AF9), PLAY1_IN7 (AF14), SAI1_FS_B (AF6), SPI6_RDY (AF7), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
63PC6ввод-выводDCMI_D0 (AF13), FMC_NWAIT (AF9), I2S2_MCK (AF5), LTDC_G0 (AF14), OCTOSPIM_P1_IO5 (AF11), PSSI_D0 (AF13), SAI1_SCK_A (AF6), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
64PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), FMC_NE1 (AF9), I2S3_MCK (AF6), LTDC_R1 (AF14), OCTOSPIM_P1_IO6 (AF11), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
65PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_A17 (AF11), FMC_ALE (AF11), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), LTDC_R0 (AF14), PSSI_D2 (AF13), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
66PC9ввод-выводAUDIOCLK (AF5), DAC1_EXTI9, DCMI_D3 (AF13), FMC_A16 (AF11), FMC_CLE (AF11), FMC_SDNCAS (AF10), I2C3_SDA (AF4), LTDC_B1 (AF14), OCTOSPIM_P1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8), UCPD1_DB2
67PA8ввод-выводDCMI_D3 (AF13), FMC_NOE (AF12), I2C3_SCL (AF4), LTDC_CLK (AF14), OCTOSPIM_P2_DQS (AF9), PSSI_D3 (AF13), RCC_MCO_1 (AF0), SPI1_RDY (AF5), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF
68PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_MII_TX_ER (AF11), FMC_NWE (AF12), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R7 (AF14), OCTOSPIM_P2_IO3 (AF10), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), UCPD1_DB1, USART1_TX (AF7)
69PA10ввод-выводDCMI_D1 (AF13), DMA2D_GPFLAG1 (AF0), ETH_CLK (AF11), FDCAN2_TX (AF9), LPTIM2_IN2 (AF4), LPUART1_RX (AF3), LTDC_R6 (AF14), PSSI_D1 (AF13), SDMMC1_D0 (AF12), TIM1_CH3 (AF1), UCPD1_FRSTX (AF6), USART1_RX (AF7)
70PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2 (AF0), FDCAN1_RX (AF9), FMC_A17 (AF12), FMC_ALE (AF12), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R5 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_FS_DM
71PA12ввод-выводDMA2D_GPFLAG3 (AF0), FDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R4 (AF14), SAI2_FS_B (AF8), SDMMC2_D4 (AF10), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP
72PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
73VDDUSBпитание—
74VSSпитание—
75VDDпитание—
76PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
77PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DCMI_D11 (AF13), DEBUG_JTDI (AF0), ETH_PHY_INTN (AF10), FMC_NBL1 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM3_IN2 (AF2), OCTOSPIM_P2_IO6 (AF9), PSSI_D11 (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF14), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
78PC10ввод-выводDCMI_D8 (AF13), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), GFXTIM_LCKCAL (AF0), I2S3_CK (AF6), LPTIM3_ETR (AF2), LTDC_B0 (AF14), OCTOSPIM_P1_IO1 (AF9), PSSI_D8 (AF13), SAI1_SCK_B (AF4), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
79PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT (AF3), DCMI_D4 (AF13), GFXTIM_FCKCAL (AF0), I2S3_SDI (AF6), LPTIM3_IN1 (AF2), LTDC_VSYNC (AF11), OCTOSPIM_P1_NCS1 (AF9), PLAY1_IN0 (AF14), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
80PC12ввод-выводCOMP2_OUT (AF3), DCMI_D9 (AF13), DEBUG_TRACED3 (AF0), ETH_PPS_OUT (AF10), I2S3_SDO (AF6), LTDC_G4 (AF11), OCTOSPIM_P2_IO7 (AF9), PLAY1_OUT0 (AF14), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
81PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), I2S1_MCK (AF5), LTDC_R2 (AF13), OCTOSPIM_P1_NCS2 (AF10), PLAY1_IN1 (AF14), SDMMC1_D0DIR (AF7), TIM8_CH4N (AF3), UART4_RX (AF8), UART9_CTS (AF11)
82PD1ввод-выводETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2S2_MCK (AF5), LTDC_DE (AF13), OCTOSPIM_P2_DQS (AF10), PLAY1_OUT1 (AF14), SAI1_MCLK_B (AF6), SDMMC1_D123DIR (AF7), UART4_TX (AF8)
83PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), I2C2_SCL (AF6), I3C2_SCL (AF5), LPTIM4_ETR (AF14), LTDC_G7 (AF11), OCTOSPIM_P1_NCS2 (AF9), OCTOSPIM_P2_IO1 (AF10), PSSI_D11 (AF13), PWR_WKUP7, SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
84PD3ввод-выводDCMI_D5 (AF13), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_B4 (AF10), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN2 (AF14), PSSI_D5 (AF13), PWR_WKUP8, SPI2_SCK (AF5), TIM8_CH4 (AF3), USART2_CTS (AF7), USART2_NSS (AF7)
85PD4ввод-выводCOMP1_OUT (AF3), DEBUG_TRGIO (AF0), ETH_CLK (AF11), FMC_NOE (AF12), LTDC_B7 (AF13), MDF1_CKI3 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_OUT2 (AF14), USART2_DE (AF7), USART2_RTS (AF7)
86PD5ввод-выводCOMP2_OUT (AF3), ETH_MII_CRS (AF6), FDCAN1_TX (AF9), FMC_NWE (AF12), LTDC_B2 (AF13), OCTOSPIM_P1_IO5 (AF10), PLAY1_IN3 (AF14), SPI2_RDY (AF5), TIM1_CH4N (AF1), UART8_RX (AF8), USART2_TX (AF7)
87PD6ввод-выводADF1_SDI0 (AF1), DCMI_D10 (AF13), FMC_NWAIT (AF12), I2C3_SDA (AF4), I2S3_SDO (AF5), MDF1_SDI1 (AF8), OCTOSPIM_P1_IO6 (AF10), OCTOSPIM_P2_IO4 (AF9), PLAY1_OUT3 (AF14), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
88PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), I2C3_SCL (AF4), I2S1_SDO (AF5), LPTIM4_OUT (AF14), LTDC_R3 (AF13), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), SPI1_MOSI (AF5), TIM12_CH1 (AF2), USART2_CK (AF7)
89PB3 (JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), ETH_MDC (AF12), I2C2_SDA (AF4), I2S1_CK (AF5), I2S3_CK (AF6), I3C2_SDA (AF3), LPTIM6_ETR (AF14), LTDC_HSYNC (AF13), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART12_CTS (AF7), UART7_RX (AF11)
90PB4 (NJTRST)ввод-выводDCMI_D7 (AF13), DEBUG_NJTRST (AF0), ETH_MDIO (AF10), FMC_NBL3 (AF12), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), LPTIM1_CH2 (AF4), LTDC_R2 (AF14), OCTOSPIM_P1_CLK (AF3), PSSI_D7 (AF13), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
91PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), GFXTIM_LCKCAL (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), OCTOSPIM_P1_NCLK (AF3), OCTOSPIM_P2_CLK (AF10), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14)
92PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), ETH_MII_TX_ER (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), GFXTIM_FCKCAL (AF0), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS1 (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
93PB7ввод-выводDCMI_VSYNC (AF13), FDCAN1_TX (AF9), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), I3C1_SDA (AF3), LPUART1_RX (AF8), LTDC_G7 (AF14), PSSI_RDY (AF13), PWR_WKUP5, SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
94BOOT0загрузка—
95PB8ввод-выводDCMI_D6 (AF13), ETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LTDC_G6 (AF14), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), SPI4_RDY (AF5), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
96PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2S2_WS (AF5), I3C1_SDA (AF3), LTDC_G5 (AF14), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
97PE0ввод-выводDCMI_D2 (AF13), FDCAN1_RX (AF9), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_CH2 (AF3), LPTIM2_ETR (AF4), OCTOSPIM_P1_NCS2 (AF11), PLAY1_OUT7 (AF14), PSSI_D2 (AF13), SAI2_MCLK_A (AF10), SPI3_RDY (AF6), TIM4_ETR (AF2), UART8_RX (AF8)
98VCAPпитание—
99VSSпитание—
100VDDпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяВыводыНазначение
VBAT6резервное питание: часы реального времени и резервные регистры
VCAP48, 98вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDD11, 28, 50, 75, 100питание цифровой части и линий ввода-вывода
VDDA22питание аналоговой части: АЦП, ЦАП, генераторы
VDDUSB73питание приёмопередатчика USB
VREF-20нижнее опорное напряжение АЦП
VREF+21верхнее опорное напряжение АЦП и ЦАП
VSS10, 27, 49, 74, 99общий провод (земля)
VSSA19общий провод аналоговой части
NRST14сброс, активный уровень — низкий
BOOT094выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H5E4VJTx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H5E4VJSTM32H5E4VJTx4 МБ1,5 МБ

Линейка STM32H5x4, семейство STM32H5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе LQFP100, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H5E4VKTxSTM32H5x4100 из 100выводы совпадают полностью
STM32H5F4VJTxSTM32H5x4100 из 100выводы совпадают полностьютолько у него: AES
STM32H523VCSTM32H5x3100 из 100выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, CORDIC, DMA2D, ETH, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, SAI1, SAI2, SDMMC2, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART7, UART8, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 256 КБ; ОЗУ 1536 и 272 КБ
STM32H523VESTM32H5x3100 из 100выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, CORDIC, DMA2D, ETH, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, SAI1, SAI2, SDMMC2, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART7, UART8, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 512 КБ; ОЗУ 1536 и 272 КБ
STM32H533VESTM32H5x3100 из 100выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, CORDIC, DMA2D, ETH, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, SAI1, SAI2, SDMMC2, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART7, UART8, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1; только у него: AES, USB; флеш-память до 4096 и 512 КБ; ОЗУ 1536 и 272 КБ
STM32H543VESTM32H5x3100 из 100выводы совпадают полностьютолько у этого: ADF1, DCMI, DMA2D, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, PSSI, SAI1, SAI2, SDMMC2, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 512 КБ; ОЗУ 1536 и 304 КБ
STM32H543VGSTM32H5x3100 из 100выводы совпадают полностьютолько у этого: ADF1, DCMI, DMA2D, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, PSSI, SAI1, SAI2, SDMMC2, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 304 КБ
STM32H553VGSTM32H5x3100 из 100выводы совпадают полностьютолько у этого: ADF1, DCMI, DMA2D, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, PSSI, SAI1, SAI2, SDMMC2, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1; только у него: AES, USB; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 304 КБ
STM32H562VGSTM32H5x2100 из 100выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, DMA2D, ETH, FDCAN2, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, SDMMC2, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 640 КБ
STM32H562VISTM32H562100 из 100выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, DMA2D, ETH, FDCAN2, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, SDMMC2, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 2048 КБ; ОЗУ 1536 и 640 КБ
STM32H563VGSTM32H563/H573100 из 100выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, DMA2D, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, SDMMC2, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 640 КБ
STM32H563VITxSTM32H563/H573100 из 100выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, DMA2D, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, SDMMC2, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 2048 КБ; ОЗУ 1536 и 640 КБ

Частые вопросы

На каких выводах USART1 у STM32H5E4VJTx?

В корпусе LQFP100 сигнал USART1_TX выведен на PB14 (вывод 53, AF4) или PA9 (вывод 68, AF7) или PB6 (вывод 92, AF7), USART1_RX — на PB15 (вывод 54, AF4) или PA10 (вывод 69, AF7) или PB7 (вывод 93, AF7).

Где у STM32H5E4VJTx выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (вывод 72, AF0), SWCLK — PA14 (JTCK/SWCLK) (вывод 76, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H5E4VJTx?

I2C1_SCL — PB6 (вывод 92, AF4) или PB8 (вывод 95, AF4), I2C1_SDA — PD13 (вывод 60, AF6) или PB7 (вывод 93, AF4) или PB9 (вывод 96, AF4).

Сколько выводов ввода-вывода у STM32H5E4VJTx в корпусе LQFP100?

80 из 100. Ещё 18 выводов заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
