STM32H5E5ZJ в корпусе LQFP144: распиновка

STM32H5E5ZJ — микроконтроллер STM32H5 на ядре Cortex-M33: 4 МБ флеш-памяти и 1,5 МБ ОЗУ. Корпус LQFP144 — 144 вывода, из них 110 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
4 МБ
ОЗУ
1,5 МБ
Корпус
LQFP144, 144 вывода
Линий ввода-вывода
110

Схема корпуса LQFP144

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

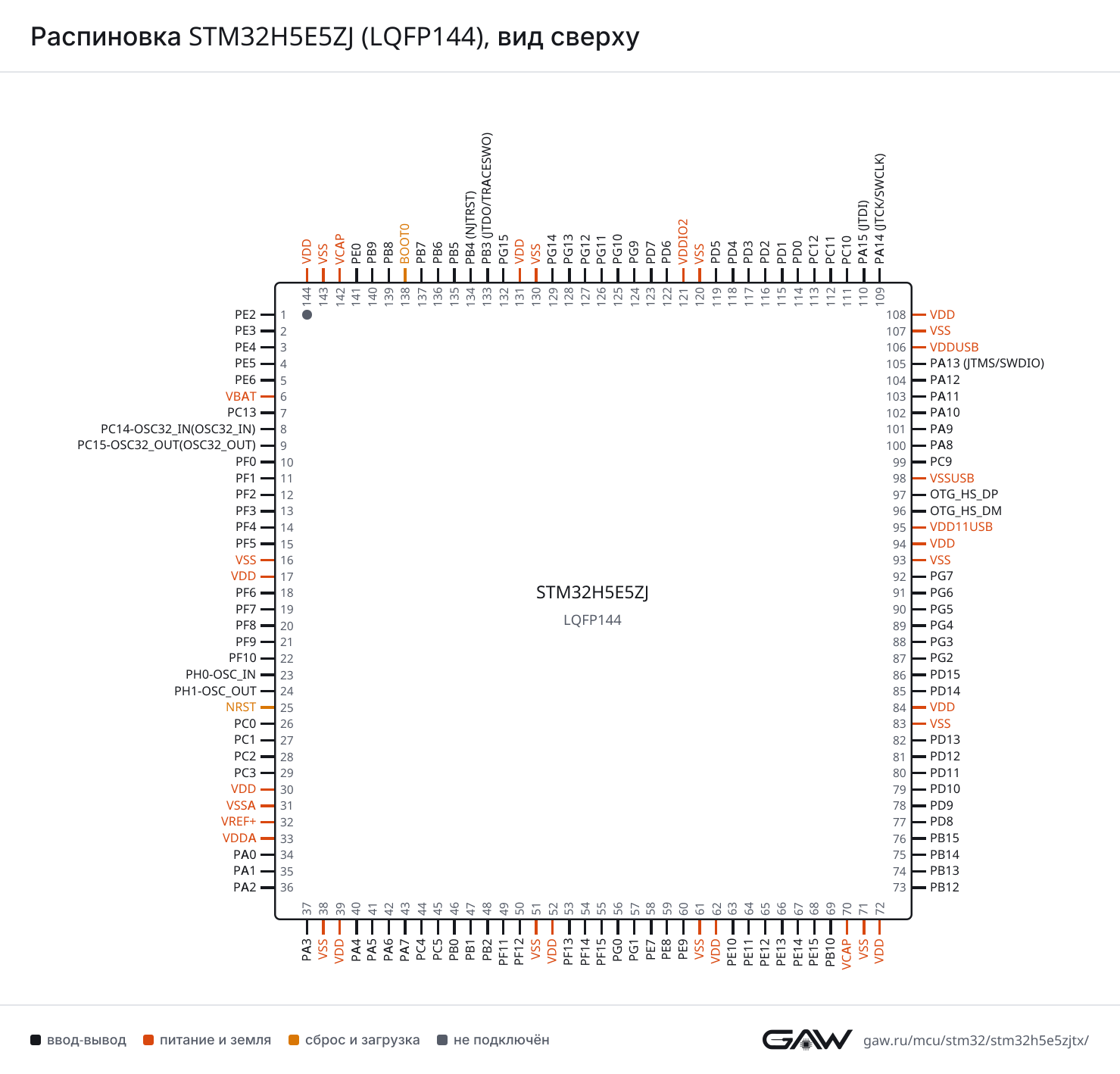

Распиновка STM32H5E5ZJ в корпусе LQFP144, вид сверхуSTM32H5E5ZJLQFP144, вид сверхуPE2 — вывод 1: ADF1_CCK0, DCMI_D3, DEBUG_TRACECLK, ETH_MII_TXD3, FMC_A23, LPTIM1_IN2, MDF1_CCK0, OCTOSPIM_P1_IO2, PLAY1_OUT8, PSSI_D3, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, UART8_TX, USART10_RX1PE2PE3 — вывод 2: DEBUG_TRACED0, FMC_A19, GFXTIM_TE, LTDC_G1, MDF1_CKI2, OCTOSPIM_P2_IO0, PLAY1_IN9, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM15_BKIN, USART10_TX2PE3PE4 — вывод 3: ADF1_SDI0, DCMI_D4, DEBUG_TRACED1, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_A20, LTDC_G3, MDF1_SDI2, OCTOSPIM_P2_IO1, PLAY1_OUT9, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TAMP_IN7, TAMP_OUT8, TIM15_CH1N3PE4PE5 — вывод 4: ADF1_CCK1, DCMI_D6, DEBUG_TRACED2, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_A21, LTDC_B6, MDF1_CCK1, OCTOSPIM_P2_IO2, PLAY1_IN10, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TAMP_IN8, TAMP_OUT7, TIM15_CH14PE5PE6 — вывод 5: ADF1_SDI0, DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_R2, MDF1_SDI1, OCTOSPIM_P2_IO3, PLAY1_OUT10, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TAMP_IN3, TAMP_OUT6, TIM15_CH2, TIM1_BKIN25PE6VBAT — вывод 66VBATPC13 — вывод 7: PWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT37PC13PC14-OSC32_IN(OSC32_IN) — вывод 8: RCC_OSC32_IN8PC14-OSC32_IN(OSC32_IN)PC15-OSC32_OUT(OSC32_OUT) — вывод 9: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT9PC15-OSC32_OUT(OSC32_OUT)PF0 — вывод 10: COMP1_OUT, FMC_A0, I2C2_SDA, I3C2_SDA, LPTIM5_CH1, PLAY1_IN0, SDMMC2_D2, TIM2_CH1, TIM2_ETR, UART9_RX10PF0PF1 — вывод 11: COMP2_OUT, FMC_A1, I2C2_SCL, I3C2_SCL, LPTIM5_CH2, PLAY1_IN1, SDMMC2_D3, TIM2_CH2, UART9_TX11PF1PF2 — вывод 12: FMC_A2, GFXTIM_TE, I2C2_SMBA, LPTIM3_CH2, LPTIM3_IN2, LPTIM5_IN1, PLAY1_IN2, SDMMC2_D4, UART12_TX, USART11_CK12PF2PF3 — вывод 13: FMC_A3, LPTIM3_IN1, LPTIM5_IN2, PLAY1_OUT0, SDMMC2_D5, TIM2_CH3, USART11_TX13PF3PF4 — вывод 14: DCMI_D6, FMC_A4, LPTIM3_ETR, OCTOSPIM_P2_NCS2, PLAY1_OUT1, PSSI_D6, SDMMC2_D6, TIM2_CH4, USART11_RX14PF4PF5 — вывод 15: FMC_A5, I2C4_SCL, I3C1_SCL, LPTIM3_CH1, LPTIM3_IN1, OCTOSPIM_P2_DQS, SDMMC2_CKIN, SDMMC2_D7, UART12_RX, USART11_CTS, USART11_NSS15PF5VSS — вывод 1616VSSVDD — вывод 1717VDDPF6 — вывод 18: FDCAN3_TX, FMC_D16, LPTIM5_CH1, LTDC_DE, OCTOSPIM_P1_IO3, SAI1_SD_B, SDMMC1_D0, SPI5_NSS, TIM16_CH1, UART7_RX18PF6PF7 — вывод 19: FDCAN3_RX, FMC_D17, LPTIM5_CH2, LTDC_G3, MDF1_CKI1, OCTOSPIM_P1_IO2, SAI1_MCLK_B, SDMMC1_D1, SPI5_SCK, TIM17_CH1, UART7_TX19PF7PF8 — вывод 20: ETH_MII_TX_ER, FMC_D18, LPTIM5_IN1, LTDC_R7, OCTOSPIM_P1_IO0, SAI1_SCK_B, SDMMC1_D2, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTS20PF8PF9 — вывод 21: DAC1_EXTI9, ETH_MDC, FMC_D19, LPTIM5_IN2, LTDC_B1, MDF1_CCK0, OCTOSPIM_P1_IO1, SAI1_FS_B, SDMMC1_D3, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTS21PF9PF10 — вывод 22: DCMI_D11, LTDC_G6, MDF1_SDI3, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKIN22PF10PH0-OSC_IN — вывод 23: RCC_OSC_IN23PH0-OSC_INPH1-OSC_OUT — вывод 24: RCC_OSC_OUT24PH1-OSC_OUTNRST — вывод 2525NRSTPC0 — вывод 26: ADC1_INP10, ADC2_INP10, FMC_A25, FMC_INT, FMC_SDNWE, LTDC_G3, MDF1_CKI1, OCTOSPIM_P1_IO7, SAI1_MCLK_A, SAI2_FS_B, SPI2_RDY, TIM16_BKIN, TIM8_CH126PC0PC1 — вывод 27: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0, DEBUG_TRACED0, ETH_MDC, FMC_NCE, FMC_NE2, I2S2_SDO, LTDC_G2, MDF1_SDI1, OCTOSPIM_P1_IO4, PWR_WKUP6, SAI1_D1, SAI1_SD_A, SAI2_SD_A, SDMMC2_CK, SPI2_MOSI, TAMP_IN3, TAMP_OUT5, TIM8_CH2, USART11_DE, USART11_RTS27PC1PC2 — вывод 28: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_NCE, FMC_NE1, FMC_SDNE0, I2S2_SDI, LTDC_HSYNC, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSLEEP, SDMMC2_D6, SPI2_MISO, TIM17_CH1, TIM4_CH4, TIM8_CH328PC2PC3 — вывод 29: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_SDCKE0, I2S2_SDO, LPTIM3_CH1, LTDC_VSYNC, MDF1_SDI3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSTOP, SAI1_D3, SDMMC2_D7, SPI2_MOSI29PC3VDD — вывод 3030VDDVSSA — вывод 3131VSSAVREF+ — вывод 3232VREF+VDDA — вывод 3333VDDAPA0 — вывод 34: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS, LTDC_G6, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI3_RDY, SPI6_NSS, TAMP_IN2, TAMP_OUT1, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSS34PA0PA1 — вывод 35: ADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, LPTIM1_IN1, LTDC_B7, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI2_MCLK_B, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTS35PA1PA2 — вывод 36: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM1_IN2, LTDC_B6, LTDC_R0, OCTOSPIM_P2_IO4, PWR_WKUP2, SAI2_SCK_B, TAMP_IN4, TAMP_OUT3, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TX36PA2PA3 — вывод 37: ADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0, ETH_MII_COL, I2S2_WS, LTDC_B5, OCTOSPIM_P1_CLK, SAI1_SD_B, SPI2_NSS, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX37PA3VSS — вывод 3838VSSVDD — вывод 3939VDDPA4 — вывод 40: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, FMC_NBL2, I2S1_WS, I2S3_WS, LPTIM2_CH1, LTDC_B4, OPAMP1_VINM, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CK, USB_OTG_HS_SOF40PA4PA5 — вывод 41: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LTDC_G5, OCTOSPIM_P2_IO5, OPAMP1_VINP, PSSI_D14, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N41PA5PA6 — вывод 42: ADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK, FMC_D31, I2S1_SDI, LTDC_B3, OCTOSPIM_P1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART11_TX42PA6PA7 — вывод 43: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_NWE, FMC_SDNWE, I2S1_SDO, LTDC_B2, OCTOSPIM_P1_IO2, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART11_RX43PA7PC4 — вывод 44: ADC1_INP4, ADC2_INP4, ADF1_CCK0, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_SDNE0, I2S1_MCK, LPTIM2_ETR, LTDC_DE, MDF1_CCK0, SAI1_CK1, TIM2_CH4, USART3_RX44PC4PC5 — вывод 45: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_SDCKE0, LTDC_G1, MDF1_SDI3, OCTOSPIM_P1_DQS, PSSI_D15, SAI1_D3, SAI1_FS_A, TIM1_CH4N, UART12_DE, UART12_RTS45PC5PB0 — вывод 46: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2, LPTIM3_CH1, LTDC_R4, OCTOSPIM_P1_IO1, OCTOSPIM_P2_NCS1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USART11_CK46PB0PB1 — вывод 47: ADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3, LPTIM3_CH2, LTDC_B3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_NCLK, OPAMP1_VOUT, TIM1_CH3N, TIM3_CH4, TIM8_CH3N47PB1PB2 — вывод 48: ADC3_INP0, ADF1_SDI0, COMP1_INP, ETH_MII_RXD0, ETH_RMII_RXD0, I2S3_SDO, LPTIM1_CH1, LPTIM5_ETR, LTDC_R3, OCTOSPIM_P1_CLK, OCTOSPIM_P1_DQS, RCC_LSCO, RTC_OUT2, SAI1_D1, SAI1_SD_A, SDMMC1_CMD, SPI1_RDY, SPI3_MOSI, TIM8_CH4N48PB2PF11 — вывод 49: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, LPTIM6_CH1, OCTOSPIM_P1_NCLK, PSSI_D12, SAI2_SD_B, SDMMC1_D4, SPI5_MOSI, TIM2_CH349PF11PF12 — вывод 50: ADC1_INN2, ADC1_INP6, FMC_A6, LPTIM6_CH2, LTDC_CLK, SDMMC1_CKIN, SDMMC1_D5, TIM2_CH450PF12VSS — вывод 5151VSSVDD — вывод 5252VDDPF13 — вывод 53: ADC2_INP2, ADF1_CCK0, FMC_A7, I2C4_SMBA, LPTIM2_CH2, LPTIM6_IN1, LTDC_B6, SDMMC1_CDIR, SDMMC1_D653PF13PF14 — вывод 54: ADC2_INN2, ADC2_INP6, ADF1_CCK1, FMC_A8, I2S3_SDI, LPTIM2_IN1, LPTIM6_IN2, LTDC_G5, SDMMC1_D123DIR, SDMMC1_D7, SPI3_MISO, TIM3_ETR54PF14PF15 — вывод 55: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADF1_SDI0, ETH_CLK, FMC_A9, I2C4_SDA, I3C1_SDA, LTDC_B7, OCTOSPIM_P2_NCS2, SDMMC1_CMD, TIM4_ETR55PF15PG0 — вывод 56: FMC_A10, LPTIM4_IN1, OCTOSPIM_P2_IO0, SDMMC1_CK, TIM4_CH1, UART9_RX56PG0PG1 — вывод 57: FMC_A11, I2S2_SDO, OCTOSPIM_P2_IO1, PLAY1_IN3, SPI2_MOSI, TIM4_CH2, UART9_TX57PG1PE7 — вывод 58: ADC3_INP1, COMP2_INP, FMC_D4, FMC_DA4, MDF1_CKI0, OCTOSPIM_P1_IO4, PLAY1_IN11, TIM1_ETR, UART12_DE, UART12_RTS, UART7_RX, USART2_RX58PE7PE8 — вывод 59: ADC3_INP2, DCMI_D8, FMC_D5, FMC_DA5, MDF1_SDI0, OCTOSPIM_P1_IO5, PLAY1_OUT11, PSSI_D8, TIM1_CH1N, UART12_CTS, UART7_TX, USART2_TX59PE8PE9 — вывод 60: ADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6, FMC_DA6, MDF1_CKI4, OCTOSPIM_P1_IO6, PLAY1_IN12, TIM1_CH1, UART12_RX, UART7_DE, UART7_RTS60PE9VSS — вывод 6161VSSVDD — вывод 6262VDDPE10 — вывод 63: ADC3_INP4, COMP1_INM, FMC_D7, FMC_DA7, MDF1_SDI4, OCTOSPIM_P1_IO7, PLAY1_OUT12, TIM1_CH2N, UART12_TX, UART7_CTS63PE10PE11 — вывод 64: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8, FMC_DA8, LTDC_B5, MDF1_CKI5, OCTOSPIM_P1_NCS1, OCTOSPIM_P2_NCS2, OPAMP1_VINP, PLAY1_IN13, SAI2_SD_B, SPI1_RDY, SPI4_NSS, TIM1_CH2, USART6_TX64PE11PE12 — вывод 65: ADC3_INP6, DCMI_D0, ETH_MDIO, FDCAN3_TX, FMC_D9, FMC_DA9, GFXTIM_LCKCAL, MDF1_SDI5, OPAMP1_VINP, PLAY1_OUT13, PSSI_D0, SAI2_SCK_B, SPI4_SCK, TIM1_CH3N, USART6_RX65PE12PE13 — вывод 66: ADC3_INP7, DCMI_HSYNC, FDCAN3_RX, FMC_D10, FMC_DA10, GFXTIM_FCKCAL, LTDC_R1, OPAMP1_VINM, PLAY1_IN14, PSSI_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH3, UART5_DE, UART5_RTS, USART6_CK66PE13PE14 — вывод 67: ADC3_INP8, COMP2_INM, DCMI_VSYNC, FMC_D11, FMC_DA11, LTDC_B0, OCTOSPIM_P2_CLK, PLAY1_OUT14, PSSI_RDY, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH467PE14PE15 — вывод 68: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK, FMC_D12, FMC_DA12, LTDC_R0, OCTOSPIM_P2_NCS1, PLAY1_OUT15, PSSI_PDCK, TIM1_BKIN, TIM1_CH4N, USART10_CK68PE15PB10 — вывод 69: ETH_MII_RX_ER, FMC_NWAIT, FMC_SDNRAS, I2C2_SCL, I2S2_CK, I3C2_SCL, LPTIM2_IN1, LPTIM3_CH1, LTDC_G4, OCTOSPIM_P1_NCS1, SPI2_SCK, TIM2_CH3, USART3_TX69PB10VCAP — вывод 7070VCAPVSS — вывод 7171VSSVDD — вывод 7272VDDPB12 — вывод 73: ETH_MII_TXD0, ETH_RMII_TXD0, FDCAN2_RX, I2C2_SDA, I2S2_WS, I3C2_SDA, LTDC_R1, OCTOSPIM_P1_NCLK, SPI2_NSS, TIM1_BKIN, UART5_RX, UCPD1_FRSTX, USART3_CK73PB12PB13 — вывод 74: FDCAN2_TX, I2C2_SMBA, I2S2_CK, LPTIM2_CH1, LPTIM3_IN1, SPI2_SCK, TIM1_CH1N, UART5_TX, UCPD1_CC1, USART3_CTS, USART3_NSS74PB13PB14 — вывод 75: I2S2_SDI, LPTIM3_ETR, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, UCPD1_CC2, USART1_TX, USART3_DE, USART3_RTS75PB14PB15 — вывод 76: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2, ETH_MII_TXD1, ETH_RMII_TXD1, I2S2_SDO, LTDC_G0, OCTOSPIM_P1_CLK, PSSI_D2, PWR_PVD_IN, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, UART5_RX, USART11_CTS, USART11_NSS, USART1_RX76PB15PD8 — вывод 77: ETH_MII_RXD0, ETH_RMII_RXD0, FDCAN3_TX, FMC_D13, FMC_DA13, I2S3_MCK, LTDC_R5, PLAY1_IN4, SDMMC2_D0, TIM12_CH2, USART3_TX77PD8PD9 — вывод 78: CEC, DAC1_EXTI9, FDCAN2_RX, FMC_D14, FMC_DA14, LTDC_R4, PLAY1_OUT4, TIM13_CH1, USART3_RX78PD9PD10 — вывод 79: AUDIOCLK, ETH_MII_CRS, FDCAN3_RX, FMC_D15, FMC_DA15, LPTIM2_CH2, LTDC_R7, PLAY1_IN5, TIM14_CH1, USART3_CK79PD10PD11 — вывод 80: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0, ETH_PTP_AUX_TS, FMC_A16, FMC_CLE, GFXTIM_TE, I2C4_SMBA, LPTIM2_IN2, LTDC_R6, OCTOSPIM_P1_IO0, PLAY1_OUT5, SAI1_CK1, SAI2_SD_A, UART4_RX, USART3_CTS, USART3_NSS80PD11PD12 — вывод 81: DCMI_D12, FMC_A17, FMC_ALE, I2C4_SCL, I3C1_SCL, LPTIM1_IN1, LPTIM2_IN1, LTDC_G2, OCTOSPIM_P1_IO1, PLAY1_IN6, PSSI_D12, SAI1_D1, SAI2_FS_A, TIM4_CH1, UART4_TX, USART3_DE, USART3_RTS81PD12PD13 — вывод 82: DCMI_D13, FMC_A18, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPTIM1_CH1, LPTIM2_CH1, LPTIM4_IN1, OCTOSPIM_P1_IO3, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTS82PD13VSS — вывод 8383VSSVDD — вывод 8484VDDPD14 — вывод 85: FMC_D0, FMC_DA0, LTDC_B1, OCTOSPIM_P2_CLK, PLAY1_OUT6, PSSI_D15, SAI1_FS_A, TIM4_CH3, UART8_CTS, UART9_RX85PD14PD15 — вывод 86: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, LTDC_CLK, OCTOSPIM_P2_NCLK, PLAY1_IN7, SAI1_FS_B, SPI6_RDY, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TX86PD15PG2 — вывод 87: FMC_A12, I2S1_MCK, LPTIM6_ETR, LTDC_R2, OCTOSPIM_P2_IO2, TIM4_CH3, TIM8_BKIN, UART12_RX87PG2PG3 — вывод 88: ETH_MII_RX_ER, FMC_A13, LPTIM5_ETR, LTDC_G0, OCTOSPIM_P2_IO3, TIM4_CH4, TIM8_BKIN2, UART12_TX, UART7_RX88PG3PG4 — вывод 89: FMC_A14, FMC_BA0, LPTIM4_ETR, LTDC_VSYNC, MDF1_CKI0, OCTOSPIM_P2_IO4, TIM1_BKIN289PG4PG5 — вывод 90: FMC_A15, FMC_BA1, LTDC_HSYNC, MDF1_SDI0, OCTOSPIM_P2_IO5, PLAY1_OUT9, TIM1_ETR90PG5PG6 — вывод 91: DCMI_D12, FMC_NE3, I2C4_SDA, I3C1_SDA, OCTOSPIM_P1_NCS1, OCTOSPIM_P2_NCS1, PLAY1_OUT10, PSSI_D12, SPI1_RDY, TIM17_BKIN, UCPD1_FRSTX91PG6PG7 — вывод 92: ADF1_CCK1, DCMI_D13, FMC_INT, I2C4_SCL, I3C1_SCL, LTDC_R5, MDF1_CCK1, OCTOSPIM_P2_CLK, PSSI_D13, SAI1_CK2, SAI1_MCLK_A, UCPD1_FRSTX, USART6_CK92PG7VSS — вывод 9393VSSVDD — вывод 9494VDDVDD11USB — вывод 9595VDD11USBOTG_HS_DM — вывод 96: USB_OTG_HS_DM96OTG_HS_DMOTG_HS_DP — вывод 97: USB_OTG_HS_DP97OTG_HS_DPVSSUSB — вывод 9898VSSUSBPC9 — вывод 99: AUDIOCLK, DAC1_EXTI9, DCMI_D3, FMC_A16, FMC_CLE, FMC_SDNCAS, I2C3_SDA, LTDC_B1, OCTOSPIM_P1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, TIM8_CH4, UART5_CTS, UCPD1_DB299PC9PA8 — вывод 100: DCMI_D3, FMC_NOE, I2C3_SCL, LTDC_CLK, OCTOSPIM_P2_DQS, PSSI_D3, RCC_MCO_1, SPI1_RDY, TIM1_CH1, TIM8_BKIN2, UART7_RX, USART1_CK, USB_OTG_FS_SOF100PA8PA9 — вывод 101: DAC1_EXTI9, DCMI_D0, ETH_MII_TX_ER, FMC_NWE, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R7, OCTOSPIM_P2_IO3, PSSI_D0, SPI2_SCK, TIM1_CH2, UCPD1_DB1, USART1_TX101PA9PA10 — вывод 102: DCMI_D1, DMA2D_GPFLAG1, ETH_CLK, FDCAN2_TX, LPTIM2_IN2, LPUART1_RX, LTDC_R6, PSSI_D1, SDMMC1_D0, TIM1_CH3, UCPD1_FRSTX, USART1_RX102PA10PA11 — вывод 103: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2, FDCAN1_RX, FMC_A17, FMC_ALE, I2S2_WS, LPUART1_CTS, LTDC_R5, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_FS_DM103PA11PA12 — вывод 104: DMA2D_GPFLAG3, FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R4, SAI2_FS_B, SDMMC2_D4, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_FS_DP104PA12PA13 (JTMS/SWDIO) — вывод 105: DEBUG_JTMS-SWDIO105PA13 (JTMS/SWDIO)VDDUSB — вывод 106106VDDUSBVSS — вывод 107107VSSVDD — вывод 108108VDDPA14 (JTCK/SWCLK) — вывод 109: DEBUG_JTCK-SWCLK109PA14 (JTCK/SWCLK)PA15 (JTDI) — вывод 110: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DCMI_D11, DEBUG_JTDI, ETH_PHY_INTN, FMC_NBL1, I2S1_WS, I2S3_WS, LPTIM3_IN2, OCTOSPIM_P2_IO6, PSSI_D11, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TX110PA15 (JTDI)PC10 — вывод 111: DCMI_D8, ETH_MII_TXD0, ETH_RMII_TXD0, GFXTIM_LCKCAL, I2S3_CK, LPTIM3_ETR, LTDC_B0, OCTOSPIM_P1_IO1, PSSI_D8, SAI1_SCK_B, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TX111PC10PC11 — вывод 112: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT, DCMI_D4, GFXTIM_FCKCAL, I2S3_SDI, LPTIM3_IN1, LTDC_VSYNC, OCTOSPIM_P1_NCS1, PLAY1_IN0, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RX112PC11PC12 — вывод 113: COMP2_OUT, DCMI_D9, DEBUG_TRACED3, ETH_PPS_OUT, I2S3_SDO, LTDC_G4, OCTOSPIM_P2_IO7, PLAY1_OUT0, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CK113PC12PD0 — вывод 114: FDCAN1_RX, FMC_D2, FMC_DA2, I2S1_MCK, LTDC_R2, OCTOSPIM_P1_NCS2, PLAY1_IN1, SDMMC1_D0DIR, TIM8_CH4N, UART4_RX, UART9_CTS114PD0PD1 — вывод 115: ETH_MII_RX_DV, ETH_RMII_CRS_DV, FDCAN1_TX, FMC_D3, FMC_DA3, I2S2_MCK, LTDC_DE, OCTOSPIM_P2_DQS, PLAY1_OUT1, SAI1_MCLK_B, SDMMC1_D123DIR, UART4_TX115PD1PD2 — вывод 116: DCMI_D11, DEBUG_TRACED2, I2C2_SCL, I3C2_SCL, LPTIM4_ETR, LTDC_G7, OCTOSPIM_P1_NCS2, OCTOSPIM_P2_IO1, PSSI_D11, PWR_WKUP7, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RX116PD2PD3 — вывод 117: DCMI_D5, FMC_CLK, I2S2_CK, LTDC_B4, OCTOSPIM_P2_IO0, PLAY1_IN2, PSSI_D5, PWR_WKUP8, SPI2_SCK, TIM8_CH4, USART2_CTS, USART2_NSS117PD3PD4 — вывод 118: COMP1_OUT, DEBUG_TRGIO, ETH_CLK, FMC_NOE, LTDC_B7, MDF1_CKI3, OCTOSPIM_P1_IO4, PLAY1_OUT2, USART2_DE, USART2_RTS118PD4PD5 — вывод 119: COMP2_OUT, ETH_MII_CRS, FDCAN1_TX, FMC_NWE, LTDC_B2, OCTOSPIM_P1_IO5, PLAY1_IN3, SPI2_RDY, TIM1_CH4N, UART8_RX, USART2_TX119PD5VSS — вывод 120120VSSVDDIO2 — вывод 121121VDDIO2PD6 — вывод 122: ADF1_SDI0, DCMI_D10, FMC_NWAIT, I2C3_SDA, I2S3_SDO, MDF1_SDI1, OCTOSPIM_P1_IO6, OCTOSPIM_P2_IO4, PLAY1_OUT3, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RX122PD6PD7 — вывод 123: FMC_NCE, FMC_NE1, I2C3_SCL, I2S1_SDO, LPTIM4_OUT, LTDC_R3, OCTOSPIM_P1_IO7, SDMMC2_CMD, SPI1_MOSI, TIM12_CH1, USART2_CK123PD7PG9 — вывод 124: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, LTDC_B5, OCTOSPIM_P1_IO4, OCTOSPIM_P1_IO6, PSSI_RDY, SAI2_FS_B, SDMMC2_D0, SPI1_MISO, TIM12_CH1, USART10_RX, USART6_RX124PG9PG10 — вывод 125: DCMI_D2, FMC_NE3, I2C3_SMBA, I2S1_WS, LTDC_B6, OCTOSPIM_P1_IO5, OCTOSPIM_P2_IO6, PSSI_D2, SAI2_SD_B, SDMMC2_D1, SPI1_NSS, TIM12_CH2, USART10_CK, USART6_CK125PG10PG11 — вывод 126: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LPTIM1_IN2, LTDC_B4, PSSI_D3, SDMMC2_D2, SPI1_SCK, USART10_RX, USART11_DE, USART11_RTS126PG11PG12 — вывод 127: DCMI_D11, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_NE4, FMC_SDCLK, LPTIM1_IN1, LPTIM2_CH1, LPTIM5_CH1, OCTOSPIM_P2_CLK, PSSI_D11, PSSI_D15, SDMMC2_D3, SPI6_MISO, USART10_TX, USART6_DE, USART6_RTS127PG12PG13 — вывод 128: DEBUG_TRACED0, ETH_MII_TXD0, ETH_RMII_TXD0, FMC_A24, LPTIM1_CH1, LPTIM5_CH2, LTDC_G4, OCTOSPIM_P2_NCS1, SDMMC2_D6, SPI6_SCK, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSS128PG13PG14 — вывод 129: DEBUG_TRACED1, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_A25, LPTIM1_CH2, LPTIM1_ETR, LPTIM5_IN1, LTDC_B0, OCTOSPIM_P1_IO7, SDMMC2_D7, SPI6_MOSI, USART10_DE, USART10_RTS, USART6_TX129PG14VSS — вывод 130130VSSVDD — вывод 131131VDDPG15 — вывод 132: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, LTDC_G2, OCTOSPIM_P2_IO7, PSSI_D13, SPI4_RDY, TIM16_CH1, USART10_CK, USART6_CTS, USART6_NSS132PG15PB3 (JTDO/TRACESWO) — вывод 133: CRS_SYNC, DEBUG_JTDO-SWO, ETH_MDC, I2C2_SDA, I2S1_CK, I2S3_CK, I3C2_SDA, LPTIM6_ETR, LTDC_HSYNC, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART12_CTS, UART7_RX133PB3 (JTDO/TRACESWO)PB4 (NJTRST) — вывод 134: DCMI_D7, DEBUG_NJTRST, ETH_MDIO, FMC_NBL3, I2S1_SDI, I2S2_WS, I2S3_SDI, LPTIM1_CH2, LTDC_R2, OCTOSPIM_P1_CLK, PSSI_D7, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TX134PB4 (NJTRST)PB5 — вывод 135: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, GFXTIM_LCKCAL, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, OCTOSPIM_P1_NCLK, OCTOSPIM_P2_CLK, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX135PB5PB6 — вывод 136: CEC, DCMI_D5, ETH_MII_TX_ER, FDCAN2_TX, FMC_SDNE1, GFXTIM_FCKCAL, I2C1_SCL, I2C4_SCL, I3C1_SCL, LPUART1_TX, OCTOSPIM_P1_NCS1, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TX136PB6PB7 — вывод 137: DCMI_VSYNC, FDCAN1_TX, FMC_NL, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPUART1_RX, LTDC_G7, PSSI_RDY, PWR_WKUP5, SDMMC2_CKIN, SDMMC2_D5, TIM17_CH1N, TIM4_CH2, USART1_RX137PB7BOOT0 — вывод 138138BOOT0PB8 — вывод 139: DCMI_D6, ETH_MII_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, I3C1_SCL, LTDC_G6, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI4_RDY, TIM16_CH1, TIM4_CH3, UART4_RX139PB8PB9 — вывод 140: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2S2_WS, I3C1_SDA, LTDC_G5, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_CKIN, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TX140PB9PE0 — вывод 141: DCMI_D2, FDCAN1_RX, FMC_NBL0, LPTIM1_ETR, LPTIM2_CH2, LPTIM2_ETR, OCTOSPIM_P1_NCS2, PLAY1_OUT7, PSSI_D2, SAI2_MCLK_A, SPI3_RDY, TIM4_ETR, UART8_RX141PE0VCAP — вывод 142142VCAPVSS — вывод 143143VSSVDD — вывод 144144VDD
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия
Распиновка STM32H5E5ZJ (LQFP144), вид сверхуРаспиновка LQFP144 картинкой
PNG, 1479 × 1418 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер вывода и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (100, AF7)
CTSPA11 (103, AF7)
DEPA12 (104, AF7)
NSSPA11 (103, AF7)
RTSPA12 (104, AF7)
RXPB15 (76, AF4), PA10 (102, AF7), PB7 (137, AF7)
TXPB14 (75, AF4), PA9 (101, AF7), PB6 (136, AF7)
USART2CKPA4 (40, AF7), PD7 (123, AF7)
CTSPA0 (34, AF7), PD3 (117, AF7)
DEPA1 (35, AF7), PD4 (118, AF7)
NSSPA0 (34, AF7), PD3 (117, AF7)
RTSPA1 (35, AF7), PD4 (118, AF7)
RXPA3 (37, AF7), PE7 (58, AF5), PD6 (122, AF7)
TXPA2 (36, AF7), PE8 (59, AF5), PD5 (119, AF7)
USART3CKPB12 (73, AF7), PD10 (79, AF7), PC12 (113, AF7)
CTSPB13 (74, AF7), PD11 (80, AF7)
DEPB14 (75, AF7), PD12 (81, AF7)
NSSPB13 (74, AF7), PD11 (80, AF7)
RTSPB14 (75, AF7), PD12 (81, AF7)
RXPC4 (44, AF7), PD9 (78, AF7), PC11 (112, AF7)
TXPB10 (69, AF7), PD8 (77, AF7), PC10 (111, AF7)
USART6CKPE13 (66, AF7), PG7 (92, AF7), PG10 (125, AF7)
CTSPG13 (128, AF7), PG15 (132, AF7)
DEPG12 (127, AF7)
NSSPG13 (128, AF7), PG15 (132, AF7)
RTSPG12 (127, AF7)
RXPE12 (65, AF7), PG9 (124, AF7)
TXPE11 (64, AF7), PG14 (129, AF7)
USART10CKPE15 (68, AF7), PG10 (125, AF6), PG15 (132, AF6)
CTSPG13 (128, AF6)
DEPG14 (129, AF6)
NSSPG13 (128, AF6)
RTSPG14 (129, AF6)
RXPE2 (1, AF7), PG9 (124, AF6), PG11 (126, AF6)
TXPE3 (2, AF7), PG12 (127, AF6)
USART11CKPF2 (12, AF7), PB0 (46, AF7)
CTSPF5 (15, AF7), PB15 (76, AF7)
DEPC1 (27, AF7), PG11 (126, AF7)
NSSPF5 (15, AF7), PB15 (76, AF7)
RTSPC1 (27, AF7), PG11 (126, AF7)
RXPF4 (14, AF7), PA7 (43, AF7)
TXPF3 (13, AF7), PA6 (42, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB0 (46, AF8), PB15 (76, AF8)
DEPB14 (75, AF8), PA15 (JTDI) (110, AF8)
RTSPB14 (75, AF8), PA15 (JTDI) (110, AF8)
RXPA1 (35, AF8), PD11 (80, AF8), PA11 (103, AF6), PC11 (112, AF8), PD0 (114, AF8), PB8 (139, AF8)
TXPA0 (34, AF8), PD12 (81, AF8), PA12 (104, AF6), PC10 (111, AF8), PD1 (115, AF8), PB9 (140, AF8)
UART5CTSPC9 (99, AF8)
DEPE13 (66, AF8)
RTSPE13 (66, AF8)
RXPB12 (73, AF14), PB15 (76, AF14), PD2 (116, AF8), PB5 (135, AF14)
TXPB13 (74, AF14), PC12 (113, AF8), PB6 (136, AF14)
UART7CTSPF9 (21, AF7), PE10 (63, AF7)
DEPF8 (20, AF7), PE9 (60, AF7)
RTSPF8 (20, AF7), PE9 (60, AF7)
RXPF6 (18, AF7), PE7 (58, AF7), PG3 (88, AF11), PA8 (100, AF11), PB3 (JTDO/TRACESWO) (133, AF11)
TXPF7 (19, AF7), PE8 (59, AF7), PA15 (JTDI) (110, AF11), PB4 (NJTRST) (134, AF11)
UART8CTSPD14 (85, AF8)
DEPD15 (86, AF8)
RTSPD15 (86, AF8)
RXPD5 (119, AF8), PE0 (141, AF8)
TXPE2 (1, AF8)
UART9CTSPD0 (114, AF11)
DEPD13 (82, AF11)
RTSPD13 (82, AF11)
RXPF0 (10, AF11), PG0 (56, AF11), PD14 (85, AF11)
TXPF1 (11, AF11), PG1 (57, AF11), PD15 (86, AF11)
UART12CTSPE8 (59, AF6), PB3 (JTDO/TRACESWO) (133, AF7)
DEPC5 (45, AF7), PE7 (58, AF6)
RTSPC5 (45, AF7), PE7 (58, AF6)
RXPF5 (15, AF6), PE9 (60, AF6), PG2 (87, AF7)
TXPF2 (12, AF6), PE10 (63, AF6), PG3 (88, AF7)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (103, AF3)
DEPA12 (104, AF3)
RTSPA12 (104, AF3)
RXPA10 (102, AF3), PB7 (137, AF8)
TXPA9 (101, AF3), PB6 (136, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA6 (42, AF5), PG9 (124, AF5), PB4 (NJTRST) (134, AF5)
MOSIPA7 (43, AF5), PD7 (123, AF5), PB5 (135, AF5)
NSSPA4 (40, AF5), PA15 (JTDI) (110, AF5), PG10 (125, AF5)
RDYPB2 (48, AF4), PE11 (64, AF4), PG6 (91, AF5), PA8 (100, AF5)
SCKPA5 (41, AF5), PG11 (126, AF5), PB3 (JTDO/TRACESWO) (133, AF5)
SPI2MISOPC2 (28, AF5), PB14 (75, AF5)
MOSIPC1 (27, AF5), PC3 (29, AF5), PG1 (57, AF7), PB15 (76, AF5)
NSSPA3 (37, AF5), PB12 (73, AF5), PA11 (103, AF5), PB4 (NJTRST) (134, AF7), PB9 (140, AF5)
RDYPC0 (26, AF7), PD5 (119, AF5)
SCKPB10 (69, AF5), PB13 (74, AF5), PA9 (101, AF5), PA12 (104, AF5), PD3 (117, AF5)
SPI3MISOPF14 (54, AF6), PC11 (112, AF6), PB4 (NJTRST) (134, AF6)
MOSIPB2 (48, AF7), PC12 (113, AF6), PD6 (122, AF5), PB5 (135, AF7)
NSSPA4 (40, AF6), PA15 (JTDI) (110, AF6)
RDYPA0 (34, AF6), PE0 (141, AF6)
SCKPC10 (111, AF6), PB3 (JTDO/TRACESWO) (133, AF6)
SPI4MISOPE5 (4, AF5), PE13 (66, AF5)
MOSIPE6 (5, AF5), PE14 (67, AF5)
NSSPE4 (3, AF5), PE11 (64, AF5)
RDYPG15 (132, AF5), PB8 (139, AF5)
SCKPE2 (1, AF5), PE12 (65, AF5)
SPI5MISOPF8 (20, AF5)
MOSIPF9 (21, AF5), PF11 (49, AF5)
NSSPF6 (18, AF5)
SCKPF7 (19, AF5)
SPI6MISOPA6 (42, AF8), PG12 (127, AF5), PB4 (NJTRST) (134, AF8)
MOSIPA7 (43, AF8), PG14 (129, AF5), PB5 (135, AF8)
NSSPA0 (34, AF5), PA4 (40, AF8), PA15 (JTDI) (110, AF7)
RDYPD15 (86, AF7)
SCKPA5 (41, AF8), PC12 (113, AF5), PG13 (128, AF5), PB3 (JTDO/TRACESWO) (133, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPA5 (41, AF5), PG11 (126, AF5), PB3 (JTDO/TRACESWO) (133, AF5)
MCKPC4 (44, AF5), PG2 (87, AF5), PD0 (114, AF5)
SDIPA6 (42, AF5), PG9 (124, AF5), PB4 (NJTRST) (134, AF5)
SDOPA7 (43, AF5), PD7 (123, AF5), PB5 (135, AF5)
WSPA4 (40, AF5), PA15 (JTDI) (110, AF5), PG10 (125, AF5)
I2S2CKPB10 (69, AF5), PB13 (74, AF5), PA9 (101, AF5), PA12 (104, AF5), PD3 (117, AF5)
MCKPD1 (115, AF5)
SDIPC2 (28, AF5), PB14 (75, AF5)
SDOPC1 (27, AF5), PC3 (29, AF5), PG1 (57, AF7), PB15 (76, AF5)
WSPA3 (37, AF5), PB12 (73, AF5), PA11 (103, AF5), PB4 (NJTRST) (134, AF7), PB9 (140, AF5)
I2S3CKPC10 (111, AF6), PB3 (JTDO/TRACESWO) (133, AF6)
MCKPD8 (77, AF6)
SDIPF14 (54, AF6), PC11 (112, AF6), PB4 (NJTRST) (134, AF6)
SDOPB2 (48, AF7), PC12 (113, AF6), PD6 (122, AF5), PB5 (135, AF7)
WSPA4 (40, AF6), PA15 (JTDI) (110, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (136, AF4), PB8 (139, AF4)
SDAPD13 (82, AF6), PB7 (137, AF4), PB9 (140, AF4)
SMBAPB5 (135, AF4)
I2C2SCLPF1 (11, AF4), PB10 (69, AF4), PD2 (116, AF6)
SDAPF0 (10, AF4), PB12 (73, AF4), PB3 (JTDO/TRACESWO) (133, AF4)
SMBAPF2 (12, AF4), PB13 (74, AF4)
I2C3SCLPA8 (100, AF4), PD7 (123, AF4)
SDAPC9 (99, AF4), PD6 (122, AF4)
SMBAPA9 (101, AF4), PG10 (125, AF3)
I2C4SCLPF5 (15, AF4), PD12 (81, AF4), PG7 (92, AF4), PB6 (136, AF6), PB8 (139, AF6)
SDAPF15 (55, AF4), PD13 (82, AF4), PG6 (91, AF4), PB7 (137, AF6), PB9 (140, AF6)
SMBAPF13 (53, AF4), PD11 (80, AF4), PB5 (135, AF6)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPF5 (15, AF5), PD12 (81, AF5), PG7 (92, AF3), PB6 (136, AF3), PB8 (139, AF3)
SDAPF15 (55, AF5), PD13 (82, AF5), PG6 (91, AF3), PB7 (137, AF3), PB9 (140, AF3)
I3C2SCLPF1 (11, AF5), PB10 (69, AF8), PD2 (116, AF5)
SDAPF0 (10, AF5), PB12 (73, AF8), PB3 (JTDO/TRACESWO) (133, AF3)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPA11 (103, AF9), PD0 (114, AF9), PB8 (139, AF9), PE0 (141, AF9)
TXPA12 (104, AF9), PD1 (115, AF9), PD5 (119, AF9), PB7 (137, AF9), PB9 (140, AF9)
FDCAN2RXPB12 (73, AF9), PD9 (78, AF9), PB5 (135, AF9)
TXPB13 (74, AF9), PA10 (102, AF9), PB6 (136, AF9)
FDCAN3RXPF7 (19, AF9), PE13 (66, AF9), PD10 (79, AF9)
TXPF6 (18, AF9), PE12 (65, AF9), PD8 (77, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (103)
DPPA12 (104)
SOFPA8 (100)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMOTG_HS_DM (96)
DPOTG_HS_DP (97)
SOFPA4 (40)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB13 (74)
CC2PB14 (75)
DB1PA9 (101)
DB2PC9 (99)
FRSTXPB12 (73, AF6), PG6 (91, AF11), PG7 (92, AF11), PA10 (102, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCLKPF15 (55, AF11), PA10 (102, AF11), PD4 (118, AF11)
MDCPF9 (21, AF11), PC1 (27, AF11), PB3 (JTDO/TRACESWO) (133, AF12)
MDIOPA2 (36, AF11), PE12 (65, AF11), PB4 (NJTRST) (134, AF10)
MII_COLPA3 (37, AF11)
MII_CRSPA0 (34, AF11), PD10 (79, AF8), PD5 (119, AF6)
MII_RX_CLKPA1 (35, AF11)
MII_RX_DVPA7 (43, AF11), PD1 (115, AF11)
MII_RX_ERPB10 (69, AF11), PG3 (88, AF10)
MII_RXD0PE4 (3, AF11), PC4 (44, AF11), PB2 (48, AF11), PD8 (77, AF8)
MII_RXD1PE5 (4, AF11), PC5 (45, AF11)
MII_RXD2PB0 (46, AF11)
MII_RXD3PB1 (47, AF11)
MII_TX_CLKPC3 (29, AF11)
MII_TX_ENPA5 (41, AF11), PG11 (126, AF11)
MII_TX_ERPF8 (20, AF11), PA9 (101, AF11), PB6 (136, AF11)
MII_TXD0PB12 (73, AF11), PC10 (111, AF11), PG13 (128, AF11)
MII_TXD1PB15 (76, AF11), PG12 (127, AF11), PG14 (129, AF11)
MII_TXD2PC2 (28, AF11)
MII_TXD3PE2 (1, AF11), PB8 (139, AF11)
PHY_INTNPA15 (JTDI) (110, AF10)
PPS_OUTPC12 (113, AF10), PB5 (135, AF11)
PTP_AUX_TSPD11 (80, AF11)
RMII_CRS_DVPA7 (43, AF11), PD1 (115, AF11)
RMII_REF_CLKPA1 (35, AF11)
RMII_RXD0PE4 (3, AF11), PC4 (44, AF11), PB2 (48, AF11), PD8 (77, AF8)
RMII_RXD1PE5 (4, AF11), PC5 (45, AF11)
RMII_TX_ENPA5 (41, AF11), PG11 (126, AF11)
RMII_TXD0PB12 (73, AF11), PC10 (111, AF11), PG13 (128, AF11)
RMII_TXD1PB15 (76, AF11), PG12 (127, AF11), PG14 (129, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPF13 (53, AF9), PB9 (140, AF7)
CKPG0 (56, AF8), PC12 (113, AF12)
CKINPF12 (50, AF9), PB8 (139, AF7)
CMDPB2 (48, AF12), PF15 (55, AF8), PD2 (116, AF12)
D0PF6 (18, AF8), PA10 (102, AF12)
D0DIRPD0 (114, AF7)
D1PF7 (19, AF8), PC9 (99, AF12)
D2PF8 (20, AF8), PC10 (111, AF12)
D3PF9 (21, AF8), PC11 (112, AF12)
D4PF11 (49, AF8), PB8 (139, AF12)
D5PF12 (50, AF8), PB9 (140, AF12)
D6PF13 (53, AF8)
D7PF14 (54, AF8)
D123DIRPF14 (54, AF9), PD1 (115, AF7)
SDMMC2CKPC1 (27, AF9), PD6 (122, AF11)
CKINPF5 (15, AF11), PB7 (137, AF11), PB9 (140, AF11)
CMDPA0 (34, AF9), PD7 (123, AF11)
D0PD8 (77, AF11), PG9 (124, AF11)
D1PB15 (76, AF9), PG10 (125, AF11)
D2PF0 (10, AF10), PG11 (126, AF10), PB3 (JTDO/TRACESWO) (133, AF9)
D3PF1 (11, AF10), PG12 (127, AF10), PB4 (NJTRST) (134, AF9)
D4PF2 (12, AF10), PA12 (104, AF10), PB8 (139, AF10)
D5PF3 (13, AF10), PB7 (137, AF10), PB9 (140, AF10)
D6PF4 (14, AF10), PC2 (28, AF10), PG13 (128, AF10)
D7PF5 (15, AF10), PC3 (29, AF10), PG14 (129, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (1, AF2), PC4 (44, AF2), PD11 (80, AF2)
CK2PE5 (4, AF2), PG7 (92, AF2)
D1PE6 (5, AF2), PC1 (27, AF2), PB2 (48, AF2), PD12 (81, AF6), PD6 (122, AF2)
D2PE4 (3, AF2)
D3PF10 (22, AF2), PC3 (29, AF2), PC5 (45, AF2)
FS_APE4 (3, AF6), PC5 (45, AF6), PD14 (85, AF6)
FS_BPF9 (21, AF6), PD15 (86, AF6)
MCLK_APE2 (1, AF6), PC0 (26, AF6), PG7 (92, AF6)
MCLK_BPF7 (19, AF6), PD1 (115, AF6)
SCK_APE5 (4, AF6)
SCK_BPF8 (20, AF6), PC10 (111, AF4)
SD_APE6 (5, AF6), PC1 (27, AF6), PB2 (48, AF6), PD6 (122, AF6)
SD_BPE3 (2, AF6), PF6 (18, AF6), PA3 (37, AF6)
SAI2FS_APD12 (81, AF10)
FS_BPC0 (26, AF8), PE13 (66, AF10), PA12 (104, AF8), PG9 (124, AF10)
MCLK_APE0 (141, AF10)
MCLK_BPE6 (5, AF10), PA1 (35, AF10), PE14 (67, AF10)
SCK_APD13 (82, AF10)
SCK_BPA2 (36, AF8), PE12 (65, AF10)
SD_APC1 (27, AF8), PD11 (80, AF10)
SD_BPA0 (34, AF10), PF11 (49, AF10), PE11 (64, AF10), PG10 (125, AF10)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPD9 (78, AF5), PA15 (JTDI) (110, AF4), PB6 (136, AF5)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PF11 (49), PE11 (64), PD11 (80), PA11 (103), PC11 (112), PG11 (126)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (9), PF15 (55), PE15 (68), PB15 (76), PD15 (86), PA15 (JTDI) (110), PG15 (132)
INN1PA0 (34)
INN2PF12 (50)
INN3PA7 (43)
INN4PC5 (45)
INN5PB0 (46)
INN10PC1 (27)
INN11PC2 (28)
INN12PC3 (29)
INN18PA5 (41)
INP0PA0 (34)
INP1PA1 (35)
INP2PF11 (49)
INP3PA6 (42)
INP4PC4 (44)
INP5PB1 (47)
INP6PF12 (50)
INP7PA7 (43)
INP8PC5 (45)
INP9PB0 (46)
INP10PC0 (26)
INP11PC1 (27)
INP12PC2 (28)
INP13PC3 (29)
INP14PA2 (36)
INP15PA3 (37)
INP18PA4 (40)
INP19PA5 (41)
ADC2EXTI11PF11 (49), PE11 (64), PD11 (80), PA11 (103), PC11 (112), PG11 (126)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (9), PF15 (55), PE15 (68), PB15 (76), PD15 (86), PA15 (JTDI) (110), PG15 (132)
INN1PA0 (34)
INN2PF14 (54)
INN3PA7 (43)
INN4PC5 (45)
INN5PB0 (46)
INN10PC1 (27)
INN11PC2 (28)
INN12PC3 (29)
INN18PA5 (41)
INP0PA0 (34)
INP1PA1 (35)
INP2PF13 (53)
INP3PA6 (42)
INP4PC4 (44)
INP5PB1 (47)
INP6PF14 (54)
INP7PA7 (43)
INP8PC5 (45)
INP9PB0 (46)
INP10PC0 (26)
INP11PC1 (27)
INP12PC2 (28)
INP13PC3 (29)
INP14PA2 (36)
INP15PA3 (37)
INP18PA4 (40)
INP19PA5 (41)
ADC3EXTI11PF11 (49), PE11 (64), PD11 (80), PA11 (103), PC11 (112), PG11 (126)
EXTI15PC15-OSC32_OUT(OSC32_OUT) (9), PF15 (55), PE15 (68), PB15 (76), PD15 (86), PA15 (JTDI) (110), PG15 (132)
INP0PB2 (48)
INP1PE7 (58)
INP2PE8 (59)
INP3PE9 (60)
INP4PE10 (63)
INP5PE11 (64)
INP6PE12 (65)
INP7PE13 (66)
INP8PE14 (67)
INP9PE15 (68)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PF9 (21), PE9 (60), PD9 (78), PC9 (99), PA9 (101), PG9 (124), PB9 (140)
OUT1PA4 (40)
OUT2PA5 (41)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPA6 (42), PE10 (63)
INPPA7 (43), PB2 (48)
OUTPF0 (10, AF3), PC11 (112, AF3), PD4 (118, AF3)
COMP2INMPB1 (47), PE9 (60), PE14 (67)
INPPB0 (46), PE7 (58)
OUTPF1 (11, AF3), PC12 (113, AF3), PD5 (119, AF3)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA4 (40), PE13 (66)
VINPPA5 (41), PE11 (64), PE12 (65)
VOUTPB1 (47)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (42, AF1), PE15 (68, AF1), PB12 (73, AF1)
BKIN2PE6 (5, AF1), PG4 (89, AF1)
CH1PE9 (60, AF1), PA8 (100, AF1)
CH1NPA7 (43, AF1), PE8 (59, AF1), PB13 (74, AF1)
CH2PE11 (64, AF1), PA9 (101, AF1)
CH2NPB0 (46, AF1), PE10 (63, AF1), PB14 (75, AF1)
CH3PE13 (66, AF1), PA10 (102, AF1)
CH3NPB1 (47, AF1), PE12 (65, AF1), PB15 (76, AF1)
CH4PE14 (67, AF1), PA11 (103, AF1)
CH4NPC5 (45, AF1), PE15 (68, AF3), PD5 (119, AF1)
ETRPE7 (58, AF1), PG5 (90, AF1), PA12 (104, AF1)
TIM2CH1PF0 (10, AF1), PA0 (34, AF1), PA5 (41, AF1), PA15 (JTDI) (110, AF1)
CH2PF1 (11, AF1), PA1 (35, AF1), PB3 (JTDO/TRACESWO) (133, AF1)
CH3PF3 (13, AF1), PA2 (36, AF1), PF11 (49, AF1), PB10 (69, AF1)
CH4PF4 (14, AF1), PA3 (37, AF1), PC4 (44, AF1), PF12 (50, AF1)
ETRPF0 (10, AF2), PA0 (34, AF14), PA5 (41, AF14), PA15 (JTDI) (110, AF14)
TIM3CH1PA6 (42, AF2), PB4 (NJTRST) (134, AF2)
CH2PA7 (43, AF2), PB5 (135, AF2)
CH3PB0 (46, AF2)
CH4PB1 (47, AF2), PC9 (99, AF2)
ETRPF14 (54, AF2), PD2 (116, AF2)
TIM4CH1PG0 (56, AF2), PD12 (81, AF2), PB6 (136, AF2)
CH2PG1 (57, AF2), PD13 (82, AF2), PB7 (137, AF2)
CH3PD14 (85, AF2), PG2 (87, AF2), PB8 (139, AF2)
CH4PC2 (28, AF2), PD15 (86, AF2), PG3 (88, AF2), PB9 (140, AF2)
ETRPF15 (55, AF2), PE0 (141, AF2)
TIM5CH1PA0 (34, AF2)
CH2PA1 (35, AF2)
CH3PA2 (36, AF2)
CH4PA3 (37, AF2)
ETRPA4 (40, AF2)
TIM8BKINPA6 (42, AF3), PG2 (87, AF3)
BKIN2PG3 (88, AF3), PA8 (100, AF3)
CH1PC0 (26, AF3)
CH1NPA5 (41, AF3), PA7 (43, AF3)
CH2PC1 (27, AF3)
CH2NPB0 (46, AF3), PB14 (75, AF3)
CH3PC2 (28, AF3)
CH3NPB1 (47, AF3), PB15 (76, AF3)
CH4PC9 (99, AF3), PD3 (117, AF3)
CH4NPB2 (48, AF3), PD0 (114, AF3)
ETRPA0 (34, AF3)
TIM12CH1PB14 (75, AF2), PD7 (123, AF2), PG9 (124, AF2)
CH2PB15 (76, AF2), PD8 (77, AF2), PG10 (125, AF2)
TIM13CH1PF8 (20, AF9), PA6 (42, AF9), PD9 (78, AF2)
TIM14CH1PF9 (21, AF9), PA7 (43, AF9), PD10 (79, AF2)
TIM15BKINPE3 (2, AF4), PA0 (34, AF4), PD2 (116, AF4)
CH1PE5 (4, AF4), PA2 (36, AF4), PC12 (113, AF2)
CH1NPE4 (3, AF4), PA1 (35, AF4)
CH2PE6 (5, AF4), PA3 (37, AF4)
TIM16BKINPF10 (22, AF1), PC0 (26, AF1), PB4 (NJTRST) (134, AF1)
CH1PF6 (18, AF1), PG15 (132, AF1), PB8 (139, AF1)
CH1NPF8 (20, AF1), PB6 (136, AF1)
TIM17BKINPG6 (91, AF1), PB5 (135, AF1)
CH1PF7 (19, AF1), PC2 (28, AF1), PB9 (140, AF1)
CH1NPF9 (21, AF1), PB7 (137, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PB2 (48, AF5), PD13 (82, AF1), PG13 (128, AF1)
CH2PG14 (129, AF4), PB4 (NJTRST) (134, AF4)
ETRPG14 (129, AF1), PE0 (141, AF1)
IN1PA1 (35, AF5), PD12 (81, AF1), PG12 (127, AF1)
IN2PE2 (1, AF1), PA2 (36, AF5), PG11 (126, AF1)
LPTIM2CH1PA4 (40, AF3), PB13 (74, AF3), PD13 (82, AF3), PG12 (127, AF3)
CH2PF13 (53, AF3), PD10 (79, AF3), PE0 (141, AF3)
ETRPC4 (44, AF3), PE0 (141, AF4)
IN1PF14 (54, AF3), PB10 (69, AF3), PD12 (81, AF3)
IN2PD11 (80, AF3), PA10 (102, AF4)
LPTIM3CH1PF5 (15, AF2), PC3 (29, AF3), PB0 (46, AF14), PB10 (69, AF2)
CH2PF2 (12, AF2), PB1 (47, AF14)
ETRPF4 (14, AF2), PB14 (75, AF14), PC10 (111, AF2)
IN1PF3 (13, AF2), PF5 (15, AF14), PB13 (74, AF2), PC11 (112, AF2)
IN2PF2 (12, AF3), PA15 (JTDI) (110, AF2)
LPTIM4ETRPG4 (89, AF14), PD2 (116, AF14)
IN1PG0 (56, AF14), PD13 (82, AF14)
OUTPD7 (123, AF14)
LPTIM5CH1PF0 (10, AF13), PF6 (18, AF13), PG12 (127, AF14)
CH2PF1 (11, AF13), PF7 (19, AF13), PG13 (128, AF13)
ETRPB2 (48, AF13), PG3 (88, AF13)
IN1PF2 (12, AF13), PF8 (20, AF13), PG14 (129, AF13)
IN2PF3 (13, AF13), PF9 (21, AF13)
LPTIM6CH1PF11 (49, AF14)
CH2PF12 (50, AF14)
ETRPG2 (87, AF14), PB3 (JTDO/TRACESWO) (133, AF14)
IN1PF13 (53, AF14)
IN2PF14 (54, AF14)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (7)
OUT2PB2 (48, AF0)
REFINPB15 (76, AF0)
TSPC13 (7)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (10, AF12)
A1PF1 (11, AF12)
A2PF2 (12, AF12)
A3PF3 (13, AF12)
A4PF4 (14, AF12)
A5PF5 (15, AF12)
A6PF12 (50, AF12)
A7PF13 (53, AF12)
A8PF14 (54, AF12)
A9PF15 (55, AF12)
A10PG0 (56, AF12)
A11PG1 (57, AF12)
A12PG2 (87, AF12)
A13PG3 (88, AF12)
A14PG4 (89, AF12)
A15PG5 (90, AF12)
A16PD11 (80, AF12), PC9 (99, AF11)
A17PD12 (81, AF12), PA11 (103, AF12)
A18PD13 (82, AF12)
A19PE3 (2, AF12)
A20PE4 (3, AF12)
A21PE5 (4, AF12)
A22PE6 (5, AF12)
A23PE2 (1, AF12)
A24PG13 (128, AF12)
A25PC0 (26, AF9), PG14 (129, AF12)
ALEPD12 (81, AF12), PA11 (103, AF12)
BA0PG4 (89, AF12)
BA1PG5 (90, AF12)
CLEPD11 (80, AF12), PC9 (99, AF11)
CLKPD3 (117, AF12)
D0PD14 (85, AF12)
D1PD15 (86, AF12)
D2PD0 (114, AF12)
D3PD1 (115, AF12)
D4PE7 (58, AF12)
D5PE8 (59, AF12)
D6PE9 (60, AF12)
D7PE10 (63, AF12)
D8PE11 (64, AF12)
D9PE12 (65, AF12)
D10PE13 (66, AF12)
D11PE14 (67, AF12)
D12PE15 (68, AF12)
D13PD8 (77, AF12)
D14PD9 (78, AF12)
D15PD10 (79, AF12)
D16PF6 (18, AF12)
D17PF7 (19, AF12)
D18PF8 (20, AF12)
D19PF9 (21, AF12)
D31PA6 (42, AF12)
DA0PD14 (85, AF12)
DA1PD15 (86, AF12)
DA2PD0 (114, AF12)
DA3PD1 (115, AF12)
DA4PE7 (58, AF12)
DA5PE8 (59, AF12)
DA6PE9 (60, AF12)
DA7PE10 (63, AF12)
DA8PE11 (64, AF12)
DA9PE12 (65, AF12)
DA10PE13 (66, AF12)
DA11PE14 (67, AF12)
DA12PE15 (68, AF12)
DA13PD8 (77, AF12)
DA14PD9 (78, AF12)
DA15PD10 (79, AF12)
INTPC0 (26, AF13), PG7 (92, AF12)
NBL0PE0 (141, AF12)
NBL1PA15 (JTDI) (110, AF12)
NBL2PA4 (40, AF12)
NBL3PB4 (NJTRST) (134, AF12)
NCEPC1 (27, AF13), PC2 (28, AF13), PD7 (123, AF12), PG9 (124, AF12)
NE1PC2 (28, AF13), PD7 (123, AF12)
NE2PC1 (27, AF13), PG9 (124, AF12)
NE3PG6 (91, AF12), PG10 (125, AF12)
NE4PG12 (127, AF12)
NLPB7 (137, AF12)
NOEPA8 (100, AF12), PD4 (118, AF12)
NWAITPB10 (69, AF13), PD6 (122, AF12)
NWEPA7 (43, AF13), PA9 (101, AF12), PD5 (119, AF12)
SDCKE0PC3 (29, AF12), PC5 (45, AF12)
SDCKE1PB5 (135, AF12)
SDCLKPG12 (127, AF8)
SDNCASPC9 (99, AF10), PG15 (132, AF12)
SDNE0PC2 (28, AF12), PC4 (44, AF12)
SDNE1PB6 (136, AF12)
SDNRASPF11 (49, AF12), PB10 (69, AF10)
SDNWEPC0 (26, AF12), PA7 (43, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PE12 (65, AF13), PA9 (101, AF13)
D1PA10 (102, AF13)
D2PB15 (76, AF13), PG10 (125, AF13), PE0 (141, AF13)
D3PE2 (1, AF13), PC9 (99, AF13), PA8 (100, AF13), PG11 (126, AF13)
D4PE4 (3, AF13), PC11 (112, AF13)
D5PD3 (117, AF13), PB6 (136, AF13)
D6PE5 (4, AF13), PF4 (14, AF13), PB8 (139, AF13)
D7PE6 (5, AF13), PB4 (NJTRST) (134, AF13), PB9 (140, AF13)
D8PE8 (59, AF13), PC10 (111, AF13)
D9PC12 (113, AF13)
D10PD6 (122, AF13), PB5 (135, AF13)
D11PF10 (22, AF13), PA15 (JTDI) (110, AF13), PD2 (116, AF13), PG12 (127, AF13)
D12PF11 (49, AF13), PD12 (81, AF13), PG6 (91, AF13)
D13PD13 (82, AF13), PG7 (92, AF13), PG15 (132, AF13)
HSYNCPA4 (40, AF13), PE13 (66, AF13)
PIXCLKPA6 (42, AF13), PE15 (68, AF13)
VSYNCPE14 (67, AF13), PG9 (124, AF13), PB7 (137, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PE12 (65, AF13), PA9 (101, AF13)
D1PA10 (102, AF13)
D2PB15 (76, AF13), PG10 (125, AF13), PE0 (141, AF13)
D3PE2 (1, AF13), PC9 (99, AF13), PA8 (100, AF13), PG11 (126, AF13)
D4PE4 (3, AF13), PC11 (112, AF13)
D5PD3 (117, AF13), PB6 (136, AF13)
D6PE5 (4, AF13), PF4 (14, AF13), PB8 (139, AF13)
D7PE6 (5, AF13), PB4 (NJTRST) (134, AF13), PB9 (140, AF13)
D8PE8 (59, AF13), PC10 (111, AF13)
D9PC12 (113, AF13)
D10PD6 (122, AF13), PB5 (135, AF13)
D11PF10 (22, AF13), PA15 (JTDI) (110, AF13), PD2 (116, AF13), PG12 (127, AF13)
D12PF11 (49, AF13), PD12 (81, AF13), PG6 (91, AF13)
D13PD13 (82, AF13), PG7 (92, AF13), PG15 (132, AF13)
D14PA5 (41, AF13)
D15PF10 (22, AF4), PC5 (45, AF4), PD14 (85, AF4), PG12 (127, AF4)
DEPA4 (40, AF13), PE13 (66, AF13)
PDCKPA6 (42, AF13), PE15 (68, AF13)
RDYPE14 (67, AF13), PG9 (124, AF13), PB7 (137, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PE14 (67, AF11), PC10 (111, AF14), PG14 (129, AF14)
B1PF9 (21, AF14), PD14 (85, AF13), PC9 (99, AF14)
B2PA7 (43, AF14), PD5 (119, AF13)
B3PA6 (42, AF14), PB1 (47, AF13)
B4PA4 (40, AF14), PD3 (117, AF10), PG11 (126, AF14)
B5PA3 (37, AF14), PE11 (64, AF13), PG9 (124, AF14)
B6PE5 (4, AF10), PA2 (36, AF14), PF13 (53, AF13), PG10 (125, AF14)
B7PA1 (35, AF14), PF15 (55, AF13), PD4 (118, AF13)
CLKPF12 (50, AF13), PD15 (86, AF13), PA8 (100, AF14)
DEPF6 (18, AF14), PC4 (44, AF14), PD1 (115, AF13)
G0PB15 (76, AF12), PG3 (88, AF14)
G1PE3 (2, AF13), PC5 (45, AF14)
G2PC1 (27, AF14), PD12 (81, AF11), PG15 (132, AF14)
G3PE4 (3, AF10), PF7 (19, AF14), PC0 (26, AF14)
G4PB10 (69, AF14), PC12 (113, AF11), PG13 (128, AF14)
G5PA5 (41, AF10), PF14 (54, AF13), PB9 (140, AF14)
G6PF10 (22, AF14), PA0 (34, AF13), PB8 (139, AF14)
G7PD2 (116, AF11), PB7 (137, AF14)
HSYNCPC2 (28, AF14), PG5 (90, AF13), PB3 (JTDO/TRACESWO) (133, AF13)
R0PA2 (36, AF13), PE15 (68, AF11)
R1PE13 (66, AF11), PB12 (73, AF13)
R2PE6 (5, AF11), PG2 (87, AF13), PD0 (114, AF13), PB4 (NJTRST) (134, AF14)
R3PB2 (48, AF14), PD7 (123, AF13)
R4PB0 (46, AF13), PD9 (78, AF13), PA12 (104, AF14)
R5PD8 (77, AF13), PG7 (92, AF14), PA11 (103, AF14)
R6PD11 (80, AF13), PA10 (102, AF14)
R7PF8 (20, AF14), PD10 (79, AF13), PA9 (101, AF14)
VSYNCPC3 (29, AF14), PG4 (89, AF13), PC11 (112, AF11)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PE2 (1, AF4), PF9 (21, AF4), PC4 (44, AF8)
CCK1PE5 (4, AF8), PG7 (92, AF8)
CKI0PE7 (58, AF8), PG4 (89, AF4)
CKI1PF7 (19, AF4), PC0 (26, AF4)
CKI2PE3 (2, AF8)
CKI3PD4 (118, AF8)
CKI4PE9 (60, AF8)
CKI5PE11 (64, AF8)
SDI0PE8 (59, AF8), PG5 (90, AF4)
SDI1PE6 (5, AF8), PC1 (27, AF4), PD6 (122, AF8)
SDI2PE4 (3, AF8)
SDI3PF10 (22, AF8), PC3 (29, AF8), PC5 (45, AF8)
SDI4PE10 (63, AF8)
SDI5PE12 (65, AF8)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PE2 (1, AF3), PC4 (44, AF4), PF13 (53, AF1), PD11 (80, AF1)
CCK1PE5 (4, AF1), PF14 (54, AF1), PG7 (92, AF1)
SDI0PE4 (3, AF3), PE6 (5, AF3), PC1 (27, AF1), PB2 (48, AF1), PF15 (55, AF1), PD6 (122, AF1)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (109, AF0)
JTDIPA15 (JTDI) (110, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (133, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (105, AF0)
NJTRSTPB4 (NJTRST) (134, AF0)
TRACECLKPE2 (1, AF0)
TRACED0PE3 (2, AF0), PC1 (27, AF0), PG13 (128, AF0)
TRACED1PE4 (3, AF0), PG14 (129, AF0)
TRACED2PE5 (4, AF0), PD2 (116, AF0)
TRACED3PE6 (5, AF0), PC12 (113, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPB2 (48)
MCO_1PA8 (100, AF0)
MCO_2PC9 (99, AF0)
OSC_INPH0-OSC_IN (23)
OSC_OUTPH1-OSC_OUT (24)
OSC32_INPC14-OSC32_IN(OSC32_IN) (8)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (9)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC2 (28, AF0)
PWR_CSTOPPC3 (29, AF0)
PWR_WKUP1PA0 (34)
PWR_WKUP2PA2 (36)
PWR_WKUP4PC13 (7)
PWR_WKUP5PB7 (137)
PWR_WKUP6PC1 (27)
PWR_WKUP7PD2 (116)
PWR_WKUP8PD3 (117)
TAMP_IN1PC13 (7)
TAMP_IN2PA0 (34)
TAMP_IN3PE6 (5), PC1 (27)
TAMP_IN4PA2 (36)
TAMP_IN5PA1 (35)
TAMP_IN6PE3 (2)
TAMP_IN7PE4 (3)
TAMP_IN8PE5 (4)
TAMP_OUT1PA0 (34)
TAMP_OUT2PC13 (7)
TAMP_OUT3PE3 (2), PC13 (7), PA2 (36)
TAMP_OUT4PA1 (35)
TAMP_OUT5PC1 (27)
TAMP_OUT6PE6 (5)
TAMP_OUT7PE5 (4)
TAMP_OUT8PE4 (3)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), USB_OTG_HS1 (USB On-The-Go High Speed), OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 144 вывода корпуса LQFP144 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ВыводИмяТипФункции
1PE2ввод-выводADF1_CCK0 (AF3), DCMI_D3 (AF13), DEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_A23 (AF12), LPTIM1_IN2 (AF1), MDF1_CCK0 (AF4), OCTOSPIM_P1_IO2 (AF9), PLAY1_OUT8 (AF14), PSSI_D3 (AF13), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), UART8_TX (AF8), USART10_RX (AF7)
2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), GFXTIM_TE (AF5), LTDC_G1 (AF13), MDF1_CKI2 (AF8), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN9 (AF14), SAI1_SD_B (AF6), TAMP_IN6, TAMP_OUT3, TIM15_BKIN (AF4), USART10_TX (AF7)
3PE4ввод-выводADF1_SDI0 (AF3), DCMI_D4 (AF13), DEBUG_TRACED1 (AF0), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_A20 (AF12), LTDC_G3 (AF10), MDF1_SDI2 (AF8), OCTOSPIM_P2_IO1 (AF9), PLAY1_OUT9 (AF14), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TAMP_IN7, TAMP_OUT8, TIM15_CH1N (AF4)
4PE5ввод-выводADF1_CCK1 (AF1), DCMI_D6 (AF13), DEBUG_TRACED2 (AF0), ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_A21 (AF12), LTDC_B6 (AF10), MDF1_CCK1 (AF8), OCTOSPIM_P2_IO2 (AF9), PLAY1_IN10 (AF14), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TAMP_IN8, TAMP_OUT7, TIM15_CH1 (AF4)
5PE6ввод-выводADF1_SDI0 (AF3), DCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_R2 (AF11), MDF1_SDI1 (AF8), OCTOSPIM_P2_IO3 (AF9), PLAY1_OUT10 (AF14), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TAMP_IN3, TAMP_OUT6, TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
6VBATпитание—
7PC13ввод-выводPWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3
8PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
9PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
10PF0ввод-выводCOMP1_OUT (AF3), FMC_A0 (AF12), I2C2_SDA (AF4), I3C2_SDA (AF5), LPTIM5_CH1 (AF13), PLAY1_IN0 (AF14), SDMMC2_D2 (AF10), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART9_RX (AF11)
11PF1ввод-выводCOMP2_OUT (AF3), FMC_A1 (AF12), I2C2_SCL (AF4), I3C2_SCL (AF5), LPTIM5_CH2 (AF13), PLAY1_IN1 (AF14), SDMMC2_D3 (AF10), TIM2_CH2 (AF1), UART9_TX (AF11)
12PF2ввод-выводFMC_A2 (AF12), GFXTIM_TE (AF5), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), LPTIM3_IN2 (AF3), LPTIM5_IN1 (AF13), PLAY1_IN2 (AF14), SDMMC2_D4 (AF10), UART12_TX (AF6), USART11_CK (AF7)
13PF3ввод-выводFMC_A3 (AF12), LPTIM3_IN1 (AF2), LPTIM5_IN2 (AF13), PLAY1_OUT0 (AF14), SDMMC2_D5 (AF10), TIM2_CH3 (AF1), USART11_TX (AF7)
14PF4ввод-выводDCMI_D6 (AF13), FMC_A4 (AF12), LPTIM3_ETR (AF2), OCTOSPIM_P2_NCS2 (AF9), PLAY1_OUT1 (AF14), PSSI_D6 (AF13), SDMMC2_D6 (AF10), TIM2_CH4 (AF1), USART11_RX (AF7)
15PF5ввод-выводFMC_A5 (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM3_CH1 (AF2), LPTIM3_IN1 (AF14), OCTOSPIM_P2_DQS (AF9), SDMMC2_CKIN (AF11), SDMMC2_D7 (AF10), UART12_RX (AF6), USART11_CTS (AF7), USART11_NSS (AF7)
16VSSпитание—
17VDDпитание—
18PF6ввод-выводFDCAN3_TX (AF9), FMC_D16 (AF12), LPTIM5_CH1 (AF13), LTDC_DE (AF14), OCTOSPIM_P1_IO3 (AF10), SAI1_SD_B (AF6), SDMMC1_D0 (AF8), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
19PF7ввод-выводFDCAN3_RX (AF9), FMC_D17 (AF12), LPTIM5_CH2 (AF13), LTDC_G3 (AF14), MDF1_CKI1 (AF4), OCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF6), SDMMC1_D1 (AF8), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
20PF8ввод-выводETH_MII_TX_ER (AF11), FMC_D18 (AF12), LPTIM5_IN1 (AF13), LTDC_R7 (AF14), OCTOSPIM_P1_IO0 (AF10), SAI1_SCK_B (AF6), SDMMC1_D2 (AF8), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
21PF9ввод-выводDAC1_EXTI9, ETH_MDC (AF11), FMC_D19 (AF12), LPTIM5_IN2 (AF13), LTDC_B1 (AF14), MDF1_CCK0 (AF4), OCTOSPIM_P1_IO1 (AF10), SAI1_FS_B (AF6), SDMMC1_D3 (AF8), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
22PF10ввод-выводDCMI_D11 (AF13), LTDC_G6 (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), TIM16_BKIN (AF1)
23PH0-OSC_INввод-выводRCC_OSC_IN
24PH1-OSC_OUTввод-выводRCC_OSC_OUT
25NRSTсброс—
26PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_A25 (AF9), FMC_INT (AF13), FMC_SDNWE (AF12), LTDC_G3 (AF14), MDF1_CKI1 (AF4), OCTOSPIM_P1_IO7 (AF10), SAI1_MCLK_A (AF6), SAI2_FS_B (AF8), SPI2_RDY (AF7), TIM16_BKIN (AF1), TIM8_CH1 (AF3)
27PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0 (AF1), DEBUG_TRACED0 (AF0), ETH_MDC (AF11), FMC_NCE (AF13), FMC_NE2 (AF13), I2S2_SDO (AF5), LTDC_G2 (AF14), MDF1_SDI1 (AF4), OCTOSPIM_P1_IO4 (AF10), PWR_WKUP6, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5), TAMP_IN3, TAMP_OUT5, TIM8_CH2 (AF3), USART11_DE (AF7), USART11_RTS (AF7)
28PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_NCE (AF13), FMC_NE1 (AF13), FMC_SDNE0 (AF12), I2S2_SDI (AF5), LTDC_HSYNC (AF14), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF6), PWR_CSLEEP (AF0), SDMMC2_D6 (AF10), SPI2_MISO (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), TIM8_CH3 (AF3)
29PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), LPTIM3_CH1 (AF3), LTDC_VSYNC (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF6), PWR_CSTOP (AF0), SAI1_D3 (AF2), SDMMC2_D7 (AF10), SPI2_MOSI (AF5)
30VDDпитание—
31VSSAпитание—
32VREF+питание—
33VDDAпитание—
34PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS (AF11), LTDC_G6 (AF13), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI3_RDY (AF6), SPI6_NSS (AF5), TAMP_IN2, TAMP_OUT1, TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
35PA1ввод-выводADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), LPTIM1_IN1 (AF5), LTDC_B7 (AF14), OCTOSPIM_P1_DQS (AF6), OCTOSPIM_P1_IO3 (AF9), SAI2_MCLK_B (AF10), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
36PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM1_IN2 (AF5), LTDC_B6 (AF14), LTDC_R0 (AF13), OCTOSPIM_P2_IO4 (AF9), PWR_WKUP2, SAI2_SCK_B (AF8), TAMP_IN4, TAMP_OUT3, TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
37PA3ввод-выводADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0 (AF0), ETH_MII_COL (AF11), I2S2_WS (AF5), LTDC_B5 (AF14), OCTOSPIM_P1_CLK (AF3), SAI1_SD_B (AF6), SPI2_NSS (AF5), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
38VSSпитание—
39VDDпитание—
40PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), FMC_NBL2 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM2_CH1 (AF3), LTDC_B4 (AF14), OPAMP1_VINM, PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7), USB_OTG_HS_SOF
41PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LTDC_G5 (AF10), OCTOSPIM_P2_IO5 (AF9), OPAMP1_VINP, PSSI_D14 (AF13), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1N (AF3)
42PA6ввод-выводADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK (AF13), FMC_D31 (AF12), I2S1_SDI (AF5), LTDC_B3 (AF14), OCTOSPIM_P1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART11_TX (AF7)
43PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_NWE (AF13), FMC_SDNWE (AF12), I2S1_SDO (AF5), LTDC_B2 (AF14), OCTOSPIM_P1_IO2 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART11_RX (AF7)
44PC4ввод-выводADC1_INP4, ADC2_INP4, ADF1_CCK0 (AF4), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LPTIM2_ETR (AF3), LTDC_DE (AF14), MDF1_CCK0 (AF8), SAI1_CK1 (AF2), TIM2_CH4 (AF1), USART3_RX (AF7)
45PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_SDCKE0 (AF12), LTDC_G1 (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_DQS (AF10), PSSI_D15 (AF4), SAI1_D3 (AF2), SAI1_FS_A (AF6), TIM1_CH4N (AF1), UART12_DE (AF7), UART12_RTS (AF7)
46PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2 (AF11), LPTIM3_CH1 (AF14), LTDC_R4 (AF13), OCTOSPIM_P1_IO1 (AF6), OCTOSPIM_P2_NCS1 (AF9), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USART11_CK (AF7)
47PB1ввод-выводADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3 (AF11), LPTIM3_CH2 (AF14), LTDC_B3 (AF13), OCTOSPIM_P1_IO0 (AF6), OCTOSPIM_P1_NCLK (AF9), OPAMP1_VOUT, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3)
48PB2ввод-выводADC3_INP0, ADF1_SDI0 (AF1), COMP1_INP, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), I2S3_SDO (AF7), LPTIM1_CH1 (AF5), LPTIM5_ETR (AF13), LTDC_R3 (AF14), OCTOSPIM_P1_CLK (AF9), OCTOSPIM_P1_DQS (AF10), RCC_LSCO, RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC1_CMD (AF12), SPI1_RDY (AF4), SPI3_MOSI (AF7), TIM8_CH4N (AF3)
49PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), LPTIM6_CH1 (AF14), OCTOSPIM_P1_NCLK (AF9), PSSI_D12 (AF13), SAI2_SD_B (AF10), SDMMC1_D4 (AF8), SPI5_MOSI (AF5), TIM2_CH3 (AF1)
50PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), LPTIM6_CH2 (AF14), LTDC_CLK (AF13), SDMMC1_CKIN (AF9), SDMMC1_D5 (AF8), TIM2_CH4 (AF1)
51VSSпитание—
52VDDпитание—
53PF13ввод-выводADC2_INP2, ADF1_CCK0 (AF1), FMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM2_CH2 (AF3), LPTIM6_IN1 (AF14), LTDC_B6 (AF13), SDMMC1_CDIR (AF9), SDMMC1_D6 (AF8)
54PF14ввод-выводADC2_INN2, ADC2_INP6, ADF1_CCK1 (AF1), FMC_A8 (AF12), I2S3_SDI (AF6), LPTIM2_IN1 (AF3), LPTIM6_IN2 (AF14), LTDC_G5 (AF13), SDMMC1_D123DIR (AF9), SDMMC1_D7 (AF8), SPI3_MISO (AF6), TIM3_ETR (AF2)
55PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADF1_SDI0 (AF1), ETH_CLK (AF11), FMC_A9 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5), LTDC_B7 (AF13), OCTOSPIM_P2_NCS2 (AF9), SDMMC1_CMD (AF8), TIM4_ETR (AF2)
56PG0ввод-выводFMC_A10 (AF12), LPTIM4_IN1 (AF14), OCTOSPIM_P2_IO0 (AF9), SDMMC1_CK (AF8), TIM4_CH1 (AF2), UART9_RX (AF11)
57PG1ввод-выводFMC_A11 (AF12), I2S2_SDO (AF7), OCTOSPIM_P2_IO1 (AF9), PLAY1_IN3 (AF14), SPI2_MOSI (AF7), TIM4_CH2 (AF2), UART9_TX (AF11)
58PE7ввод-выводADC3_INP1, COMP2_INP, FMC_D4 (AF12), FMC_DA4 (AF12), MDF1_CKI0 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_IN11 (AF14), TIM1_ETR (AF1), UART12_DE (AF6), UART12_RTS (AF6), UART7_RX (AF7), USART2_RX (AF5)
59PE8ввод-выводADC3_INP2, DCMI_D8 (AF13), FMC_D5 (AF12), FMC_DA5 (AF12), MDF1_SDI0 (AF8), OCTOSPIM_P1_IO5 (AF10), PLAY1_OUT11 (AF14), PSSI_D8 (AF13), TIM1_CH1N (AF1), UART12_CTS (AF6), UART7_TX (AF7), USART2_TX (AF5)
60PE9ввод-выводADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), MDF1_CKI4 (AF8), OCTOSPIM_P1_IO6 (AF10), PLAY1_IN12 (AF14), TIM1_CH1 (AF1), UART12_RX (AF6), UART7_DE (AF7), UART7_RTS (AF7)
61VSSпитание—
62VDDпитание—
63PE10ввод-выводADC3_INP4, COMP1_INM, FMC_D7 (AF12), FMC_DA7 (AF12), MDF1_SDI4 (AF8), OCTOSPIM_P1_IO7 (AF10), PLAY1_OUT12 (AF14), TIM1_CH2N (AF1), UART12_TX (AF6), UART7_CTS (AF7)
64PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_B5 (AF13), MDF1_CKI5 (AF8), OCTOSPIM_P1_NCS1 (AF6), OCTOSPIM_P2_NCS2 (AF9), OPAMP1_VINP, PLAY1_IN13 (AF14), SAI2_SD_B (AF10), SPI1_RDY (AF4), SPI4_NSS (AF5), TIM1_CH2 (AF1), USART6_TX (AF7)
65PE12ввод-выводADC3_INP6, DCMI_D0 (AF13), ETH_MDIO (AF11), FDCAN3_TX (AF9), FMC_D9 (AF12), FMC_DA9 (AF12), GFXTIM_LCKCAL (AF0), MDF1_SDI5 (AF8), OPAMP1_VINP, PLAY1_OUT13 (AF14), PSSI_D0 (AF13), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1), USART6_RX (AF7)
66PE13ввод-выводADC3_INP7, DCMI_HSYNC (AF13), FDCAN3_RX (AF9), FMC_D10 (AF12), FMC_DA10 (AF12), GFXTIM_FCKCAL (AF0), LTDC_R1 (AF11), OPAMP1_VINM, PLAY1_IN14 (AF14), PSSI_DE (AF13), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
67PE14ввод-выводADC3_INP8, COMP2_INM, DCMI_VSYNC (AF13), FMC_D11 (AF12), FMC_DA11 (AF12), LTDC_B0 (AF11), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT14 (AF14), PSSI_RDY (AF13), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
68PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK (AF13), FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R0 (AF11), OCTOSPIM_P2_NCS1 (AF9), PLAY1_OUT15 (AF14), PSSI_PDCK (AF13), TIM1_BKIN (AF1), TIM1_CH4N (AF3), USART10_CK (AF7)
69PB10ввод-выводETH_MII_RX_ER (AF11), FMC_NWAIT (AF13), FMC_SDNRAS (AF10), I2C2_SCL (AF4), I2S2_CK (AF5), I3C2_SCL (AF8), LPTIM2_IN1 (AF3), LPTIM3_CH1 (AF2), LTDC_G4 (AF14), OCTOSPIM_P1_NCS1 (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
70VCAPпитание—
71VSSпитание—
72VDDпитание—
73PB12ввод-выводETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SDA (AF4), I2S2_WS (AF5), I3C2_SDA (AF8), LTDC_R1 (AF13), OCTOSPIM_P1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF14), UCPD1_FRSTX (AF6), USART3_CK (AF7)
74PB13ввод-выводFDCAN2_TX (AF9), I2C2_SMBA (AF4), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LPTIM3_IN1 (AF2), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), UCPD1_CC1, USART3_CTS (AF7), USART3_NSS (AF7)
75PB14ввод-выводI2S2_SDI (AF5), LPTIM3_ETR (AF14), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC2, USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
76PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), I2S2_SDO (AF5), LTDC_G0 (AF12), OCTOSPIM_P1_CLK (AF10), PSSI_D2 (AF13), PWR_PVD_IN, RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), UART5_RX (AF14), USART11_CTS (AF7), USART11_NSS (AF7), USART1_RX (AF4)
77PD8ввод-выводETH_MII_RXD0 (AF8), ETH_RMII_RXD0 (AF8), FDCAN3_TX (AF9), FMC_D13 (AF12), FMC_DA13 (AF12), I2S3_MCK (AF6), LTDC_R5 (AF13), PLAY1_IN4 (AF14), SDMMC2_D0 (AF11), TIM12_CH2 (AF2), USART3_TX (AF7)
78PD9ввод-выводCEC (AF5), DAC1_EXTI9, FDCAN2_RX (AF9), FMC_D14 (AF12), FMC_DA14 (AF12), LTDC_R4 (AF13), PLAY1_OUT4 (AF14), TIM13_CH1 (AF2), USART3_RX (AF7)
79PD10ввод-выводAUDIOCLK (AF5), ETH_MII_CRS (AF8), FDCAN3_RX (AF9), FMC_D15 (AF12), FMC_DA15 (AF12), LPTIM2_CH2 (AF3), LTDC_R7 (AF13), PLAY1_IN5 (AF14), TIM14_CH1 (AF2), USART3_CK (AF7)
80PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0 (AF1), ETH_PTP_AUX_TS (AF11), FMC_A16 (AF12), FMC_CLE (AF12), GFXTIM_TE (AF5), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), LTDC_R6 (AF13), OCTOSPIM_P1_IO0 (AF9), PLAY1_OUT5 (AF14), SAI1_CK1 (AF2), SAI2_SD_A (AF10), UART4_RX (AF8), USART3_CTS (AF7), USART3_NSS (AF7)
81PD12ввод-выводDCMI_D12 (AF13), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), LTDC_G2 (AF11), OCTOSPIM_P1_IO1 (AF9), PLAY1_IN6 (AF14), PSSI_D12 (AF13), SAI1_D1 (AF6), SAI2_FS_A (AF10), TIM4_CH1 (AF2), UART4_TX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
82PD13ввод-выводDCMI_D13 (AF13), FMC_A18 (AF12), I2C1_SDA (AF6), I2C4_SDA (AF4), I3C1_SDA (AF5), LPTIM1_CH1 (AF1), LPTIM2_CH1 (AF3), LPTIM4_IN1 (AF14), OCTOSPIM_P1_IO3 (AF9), PSSI_D13 (AF13), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
83VSSпитание—
84VDDпитание—
85PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LTDC_B1 (AF13), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT6 (AF14), PSSI_D15 (AF4), SAI1_FS_A (AF6), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
86PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LTDC_CLK (AF13), OCTOSPIM_P2_NCLK (AF9), PLAY1_IN7 (AF14), SAI1_FS_B (AF6), SPI6_RDY (AF7), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
87PG2ввод-выводFMC_A12 (AF12), I2S1_MCK (AF5), LPTIM6_ETR (AF14), LTDC_R2 (AF13), OCTOSPIM_P2_IO2 (AF9), TIM4_CH3 (AF2), TIM8_BKIN (AF3), UART12_RX (AF7)
88PG3ввод-выводETH_MII_RX_ER (AF10), FMC_A13 (AF12), LPTIM5_ETR (AF13), LTDC_G0 (AF14), OCTOSPIM_P2_IO3 (AF9), TIM4_CH4 (AF2), TIM8_BKIN2 (AF3), UART12_TX (AF7), UART7_RX (AF11)
89PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), LPTIM4_ETR (AF14), LTDC_VSYNC (AF13), MDF1_CKI0 (AF4), OCTOSPIM_P2_IO4 (AF9), TIM1_BKIN2 (AF1)
90PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), LTDC_HSYNC (AF13), MDF1_SDI0 (AF4), OCTOSPIM_P2_IO5 (AF9), PLAY1_OUT9 (AF14), TIM1_ETR (AF1)
91PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF3), OCTOSPIM_P1_NCS1 (AF10), OCTOSPIM_P2_NCS1 (AF9), PLAY1_OUT10 (AF14), PSSI_D12 (AF13), SPI1_RDY (AF5), TIM17_BKIN (AF1), UCPD1_FRSTX (AF11)
92PG7ввод-выводADF1_CCK1 (AF1), DCMI_D13 (AF13), FMC_INT (AF12), I2C4_SCL (AF4), I3C1_SCL (AF3), LTDC_R5 (AF14), MDF1_CCK1 (AF8), OCTOSPIM_P2_CLK (AF9), PSSI_D13 (AF13), SAI1_CK2 (AF2), SAI1_MCLK_A (AF6), UCPD1_FRSTX (AF11), USART6_CK (AF7)
93VSSпитание—
94VDDпитание—
95VDD11USBпитание—
96OTG_HS_DMввод-выводUSB_OTG_HS_DM
97OTG_HS_DPввод-выводUSB_OTG_HS_DP
98VSSUSBпитание—
99PC9ввод-выводAUDIOCLK (AF5), DAC1_EXTI9, DCMI_D3 (AF13), FMC_A16 (AF11), FMC_CLE (AF11), FMC_SDNCAS (AF10), I2C3_SDA (AF4), LTDC_B1 (AF14), OCTOSPIM_P1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8), UCPD1_DB2
100PA8ввод-выводDCMI_D3 (AF13), FMC_NOE (AF12), I2C3_SCL (AF4), LTDC_CLK (AF14), OCTOSPIM_P2_DQS (AF9), PSSI_D3 (AF13), RCC_MCO_1 (AF0), SPI1_RDY (AF5), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF
101PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_MII_TX_ER (AF11), FMC_NWE (AF12), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R7 (AF14), OCTOSPIM_P2_IO3 (AF10), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), UCPD1_DB1, USART1_TX (AF7)
102PA10ввод-выводDCMI_D1 (AF13), DMA2D_GPFLAG1 (AF0), ETH_CLK (AF11), FDCAN2_TX (AF9), LPTIM2_IN2 (AF4), LPUART1_RX (AF3), LTDC_R6 (AF14), PSSI_D1 (AF13), SDMMC1_D0 (AF12), TIM1_CH3 (AF1), UCPD1_FRSTX (AF6), USART1_RX (AF7)
103PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2 (AF0), FDCAN1_RX (AF9), FMC_A17 (AF12), FMC_ALE (AF12), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R5 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_FS_DM
104PA12ввод-выводDMA2D_GPFLAG3 (AF0), FDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R4 (AF14), SAI2_FS_B (AF8), SDMMC2_D4 (AF10), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP
105PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
106VDDUSBпитание—
107VSSпитание—
108VDDпитание—
109PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
110PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DCMI_D11 (AF13), DEBUG_JTDI (AF0), ETH_PHY_INTN (AF10), FMC_NBL1 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM3_IN2 (AF2), OCTOSPIM_P2_IO6 (AF9), PSSI_D11 (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF14), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
111PC10ввод-выводDCMI_D8 (AF13), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), GFXTIM_LCKCAL (AF0), I2S3_CK (AF6), LPTIM3_ETR (AF2), LTDC_B0 (AF14), OCTOSPIM_P1_IO1 (AF9), PSSI_D8 (AF13), SAI1_SCK_B (AF4), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
112PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT (AF3), DCMI_D4 (AF13), GFXTIM_FCKCAL (AF0), I2S3_SDI (AF6), LPTIM3_IN1 (AF2), LTDC_VSYNC (AF11), OCTOSPIM_P1_NCS1 (AF9), PLAY1_IN0 (AF14), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
113PC12ввод-выводCOMP2_OUT (AF3), DCMI_D9 (AF13), DEBUG_TRACED3 (AF0), ETH_PPS_OUT (AF10), I2S3_SDO (AF6), LTDC_G4 (AF11), OCTOSPIM_P2_IO7 (AF9), PLAY1_OUT0 (AF14), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
114PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), I2S1_MCK (AF5), LTDC_R2 (AF13), OCTOSPIM_P1_NCS2 (AF10), PLAY1_IN1 (AF14), SDMMC1_D0DIR (AF7), TIM8_CH4N (AF3), UART4_RX (AF8), UART9_CTS (AF11)
115PD1ввод-выводETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2S2_MCK (AF5), LTDC_DE (AF13), OCTOSPIM_P2_DQS (AF10), PLAY1_OUT1 (AF14), SAI1_MCLK_B (AF6), SDMMC1_D123DIR (AF7), UART4_TX (AF8)
116PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), I2C2_SCL (AF6), I3C2_SCL (AF5), LPTIM4_ETR (AF14), LTDC_G7 (AF11), OCTOSPIM_P1_NCS2 (AF9), OCTOSPIM_P2_IO1 (AF10), PSSI_D11 (AF13), PWR_WKUP7, SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
117PD3ввод-выводDCMI_D5 (AF13), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_B4 (AF10), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN2 (AF14), PSSI_D5 (AF13), PWR_WKUP8, SPI2_SCK (AF5), TIM8_CH4 (AF3), USART2_CTS (AF7), USART2_NSS (AF7)
118PD4ввод-выводCOMP1_OUT (AF3), DEBUG_TRGIO (AF0), ETH_CLK (AF11), FMC_NOE (AF12), LTDC_B7 (AF13), MDF1_CKI3 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_OUT2 (AF14), USART2_DE (AF7), USART2_RTS (AF7)
119PD5ввод-выводCOMP2_OUT (AF3), ETH_MII_CRS (AF6), FDCAN1_TX (AF9), FMC_NWE (AF12), LTDC_B2 (AF13), OCTOSPIM_P1_IO5 (AF10), PLAY1_IN3 (AF14), SPI2_RDY (AF5), TIM1_CH4N (AF1), UART8_RX (AF8), USART2_TX (AF7)
120VSSпитание—
121VDDIO2питание—
122PD6ввод-выводADF1_SDI0 (AF1), DCMI_D10 (AF13), FMC_NWAIT (AF12), I2C3_SDA (AF4), I2S3_SDO (AF5), MDF1_SDI1 (AF8), OCTOSPIM_P1_IO6 (AF10), OCTOSPIM_P2_IO4 (AF9), PLAY1_OUT3 (AF14), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
123PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), I2C3_SCL (AF4), I2S1_SDO (AF5), LPTIM4_OUT (AF14), LTDC_R3 (AF13), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), SPI1_MOSI (AF5), TIM12_CH1 (AF2), USART2_CK (AF7)
124PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), LTDC_B5 (AF14), OCTOSPIM_P1_IO4 (AF8), OCTOSPIM_P1_IO6 (AF9), PSSI_RDY (AF13), SAI2_FS_B (AF10), SDMMC2_D0 (AF11), SPI1_MISO (AF5), TIM12_CH1 (AF2), USART10_RX (AF6), USART6_RX (AF7)
125PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), I2C3_SMBA (AF3), I2S1_WS (AF5), LTDC_B6 (AF14), OCTOSPIM_P1_IO5 (AF8), OCTOSPIM_P2_IO6 (AF9), PSSI_D2 (AF13), SAI2_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5), TIM12_CH2 (AF2), USART10_CK (AF6), USART6_CK (AF7)
126PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3 (AF13), ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B4 (AF14), PSSI_D3 (AF13), SDMMC2_D2 (AF10), SPI1_SCK (AF5), USART10_RX (AF6), USART11_DE (AF7), USART11_RTS (AF7)
127PG12ввод-выводDCMI_D11 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_NE4 (AF12), FMC_SDCLK (AF8), LPTIM1_IN1 (AF1), LPTIM2_CH1 (AF3), LPTIM5_CH1 (AF14), OCTOSPIM_P2_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SDMMC2_D3 (AF10), SPI6_MISO (AF5), USART10_TX (AF6), USART6_DE (AF7), USART6_RTS (AF7)
128PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FMC_A24 (AF12), LPTIM1_CH1 (AF1), LPTIM5_CH2 (AF13), LTDC_G4 (AF14), OCTOSPIM_P2_NCS1 (AF9), SDMMC2_D6 (AF10), SPI6_SCK (AF5), USART10_CTS (AF6), USART10_NSS (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
129PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_A25 (AF12), LPTIM1_CH2 (AF4), LPTIM1_ETR (AF1), LPTIM5_IN1 (AF13), LTDC_B0 (AF14), OCTOSPIM_P1_IO7 (AF9), SDMMC2_D7 (AF10), SPI6_MOSI (AF5), USART10_DE (AF6), USART10_RTS (AF6), USART6_TX (AF7)
130VSSпитание—
131VDDпитание—
132PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), LTDC_G2 (AF14), OCTOSPIM_P2_IO7 (AF9), PSSI_D13 (AF13), SPI4_RDY (AF5), TIM16_CH1 (AF1), USART10_CK (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
133PB3 (JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), ETH_MDC (AF12), I2C2_SDA (AF4), I2S1_CK (AF5), I2S3_CK (AF6), I3C2_SDA (AF3), LPTIM6_ETR (AF14), LTDC_HSYNC (AF13), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART12_CTS (AF7), UART7_RX (AF11)
134PB4 (NJTRST)ввод-выводDCMI_D7 (AF13), DEBUG_NJTRST (AF0), ETH_MDIO (AF10), FMC_NBL3 (AF12), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), LPTIM1_CH2 (AF4), LTDC_R2 (AF14), OCTOSPIM_P1_CLK (AF3), PSSI_D7 (AF13), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
135PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), GFXTIM_LCKCAL (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), OCTOSPIM_P1_NCLK (AF3), OCTOSPIM_P2_CLK (AF10), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14)
136PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), ETH_MII_TX_ER (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), GFXTIM_FCKCAL (AF0), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS1 (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
137PB7ввод-выводDCMI_VSYNC (AF13), FDCAN1_TX (AF9), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), I3C1_SDA (AF3), LPUART1_RX (AF8), LTDC_G7 (AF14), PSSI_RDY (AF13), PWR_WKUP5, SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
138BOOT0загрузка—
139PB8ввод-выводDCMI_D6 (AF13), ETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LTDC_G6 (AF14), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), SPI4_RDY (AF5), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
140PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2S2_WS (AF5), I3C1_SDA (AF3), LTDC_G5 (AF14), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
141PE0ввод-выводDCMI_D2 (AF13), FDCAN1_RX (AF9), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_CH2 (AF3), LPTIM2_ETR (AF4), OCTOSPIM_P1_NCS2 (AF11), PLAY1_OUT7 (AF14), PSSI_D2 (AF13), SAI2_MCLK_A (AF10), SPI3_RDY (AF6), TIM4_ETR (AF2), UART8_RX (AF8)
142VCAPпитание—
143VSSпитание—
144VDDпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяВыводыНазначение
VBAT6резервное питание: часы реального времени и резервные регистры
VCAP70, 142вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDD17, 30, 39, 52, 62, 72, 84, 94, 108, 131, 144питание цифровой части и линий ввода-вывода
VDD11USB95—
VDDA33питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2121питание отдельной группы линий ввода-вывода
VDDUSB106питание приёмопередатчика USB
VREF+32верхнее опорное напряжение АЦП и ЦАП
VSS16, 38, 51, 61, 71, 83, 93, 107, 120, 130, 143общий провод (земля)
VSSA31общий провод аналоговой части
VSSUSB98—
NRST25сброс, активный уровень — низкий
BOOT0138выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H5E5ZJTx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H5E5ZJSTM32H5E5ZJTx4 МБ1,5 МБ

Линейка STM32H5x5, семейство STM32H5, ядро Cortex-M33. Отладочные платы ST на этом микроконтроллере: NUCLEO-H5E5ZJ.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе LQFP144, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H5E5ZKTxSTM32H5x5144 из 144выводы совпадают полностью
STM32H5F5ZJSTM32H5x5144 из 144выводы совпадают полностьютолько у него: AES
STM32H5E4ZJTxSTM32H5x4138 из 14493: VSS → PG8; 94: VDD → VSS; 95: VDD11USB → VDD; 96: OTG_HS_DM → PC6; 97: OTG_HS_DP → PC7; 98: VSSUSB → PC8только у этого: USB_OTG_HS, USB_OTG_HS1
STM32H5E4ZKTxSTM32H5x4138 из 14493: VSS → PG8; 94: VDD → VSS; 95: VDD11USB → VDD; 96: OTG_HS_DM → PC6; 97: OTG_HS_DP → PC7; 98: VSSUSB → PC8
STM32H5F4ZJTxSTM32H5x4138 из 14493: VSS → PG8; 94: VDD → VSS; 95: VDD11USB → VDD; 96: OTG_HS_DM → PC6; 97: OTG_HS_DP → PC7; 98: VSSUSB → PC8только у этого: USB_OTG_HS, USB_OTG_HS1; только у него: AES
STM32H523ZCSTM32H5x3138 из 14493: VSS → PG8; 94: VDD → VSS; 95: VDD11USB → VDD; 96: OTG_HS_DM → PC6; 97: OTG_HS_DP → PC7; 98: VSSUSB → PC8только у этого: ADC3, ADF1, COMP1, COMP2, CORDIC, DMA2D, ETH, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART7, UART8, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1, USB_OTG_HS, USB_OTG_HS1; только у него: USB; флеш-память до 4096 и 256 КБ; ОЗУ 1536 и 272 КБ
STM32H523ZESTM32H5x3138 из 14493: VSS → PG8; 94: VDD → VSS; 95: VDD11USB → VDD; 96: OTG_HS_DM → PC6; 97: OTG_HS_DP → PC7; 98: VSSUSB → PC8только у этого: ADC3, ADF1, COMP1, COMP2, CORDIC, DMA2D, ETH, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART7, UART8, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1, USB_OTG_HS, USB_OTG_HS1; только у него: USB; флеш-память до 4096 и 512 КБ; ОЗУ 1536 и 272 КБ
STM32H533ZESTM32H5x3138 из 14493: VSS → PG8; 94: VDD → VSS; 95: VDD11USB → VDD; 96: OTG_HS_DM → PC6; 97: OTG_HS_DP → PC7; 98: VSSUSB → PC8только у этого: ADC3, ADF1, COMP1, COMP2, CORDIC, DMA2D, ETH, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART7, UART8, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1, USB_OTG_HS, USB_OTG_HS1; только у него: AES, USB; флеш-память до 4096 и 512 КБ; ОЗУ 1536 и 272 КБ
STM32H543ZESTM32H5x3138 из 14493: VSS → PG8; 94: VDD → VSS; 95: VDD11USB → VDD; 96: OTG_HS_DM → PC6; 97: OTG_HS_DP → PC7; 98: VSSUSB → PC8только у этого: ADF1, DCMI, DMA2D, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, PSSI, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1, USB_OTG_HS, USB_OTG_HS1; только у него: USB; флеш-память до 4096 и 512 КБ; ОЗУ 1536 и 304 КБ
STM32H543ZGSTM32H5x3138 из 14493: VSS → PG8; 94: VDD → VSS; 95: VDD11USB → VDD; 96: OTG_HS_DM → PC6; 97: OTG_HS_DP → PC7; 98: VSSUSB → PC8только у этого: ADF1, DCMI, DMA2D, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, PSSI, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1, USB_OTG_HS, USB_OTG_HS1; только у него: USB; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 304 КБ
STM32H553ZGSTM32H5x3138 из 14493: VSS → PG8; 94: VDD → VSS; 95: VDD11USB → VDD; 96: OTG_HS_DM → PC6; 97: OTG_HS_DP → PC7; 98: VSSUSB → PC8только у этого: ADF1, DCMI, DMA2D, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, PSSI, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1, USB_OTG_HS, USB_OTG_HS1; только у него: AES, USB; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 304 КБ
STM32H562ZGSTM32H5x2138 из 14493: VSS → PG8; 94: VDD → VSS; 95: VDD11USB → VDD; 96: OTG_HS_DM → PC6; 97: OTG_HS_DP → PC7; 98: VSSUSB → PC8только у этого: ADC3, ADF1, COMP1, COMP2, DMA2D, ETH, FDCAN2, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, SDMMC2, USB_OTG_FS, USB_OTG_FS1, USB_OTG_HS, USB_OTG_HS1; только у него: USB; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 640 КБ

Частые вопросы

На каких выводах USART1 у STM32H5E5ZJ?

В корпусе LQFP144 сигнал USART1_TX выведен на PB14 (вывод 75, AF4) или PA9 (вывод 101, AF7) или PB6 (вывод 136, AF7), USART1_RX — на PB15 (вывод 76, AF4) или PA10 (вывод 102, AF7) или PB7 (вывод 137, AF7).

Где у STM32H5E5ZJ выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (вывод 105, AF0), SWCLK — PA14 (JTCK/SWCLK) (вывод 109, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H5E5ZJ?

I2C1_SCL — PB6 (вывод 136, AF4) или PB8 (вывод 139, AF4), I2C1_SDA — PD13 (вывод 82, AF6) или PB7 (вывод 137, AF4) или PB9 (вывод 140, AF4).

Сколько выводов ввода-вывода у STM32H5E5ZJ в корпусе LQFP144?

110 из 144. Ещё 32 вывода заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
