STM32H5F4IJKx в корпусе UFBGA176: распиновка

STM32H5F4IJKx — микроконтроллер STM32H5 на ядре Cortex-M33: 4 МБ флеш-памяти и 1,5 МБ ОЗУ. Корпус UFBGA176 — 201 шарик, из них 140 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
4 МБ
ОЗУ
1,5 МБ
Корпус
UFBGA176, 201 шарик
Линий ввода-вывода
140

Схема корпуса UFBGA176

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32H5F4IJKx в корпусе UFBGA176, вид сверхуABCDEFGHJKLMNPR123456789101112131415PE3 — шарик A1: DEBUG_TRACED0, FMC_A19, GFXTIM_TE, LTDC_G1, MDF1_CKI2, OCTOSPIM_P2_IO0, PLAY1_IN9, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM15_BKIN, USART10_TXPE3PE2 — шарик A2: ADF1_CCK0, DCMI_D3, DEBUG_TRACECLK, ETH_MII_TXD3, FMC_A23, LPTIM1_IN2, MDF1_CCK0, OCTOSPIM_P1_IO2, PLAY1_OUT8, PSSI_D3, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, UART8_TX, USART10_RXPE2PE1 — шарик A3: DCMI_D3, FDCAN1_TX, FMC_NBL1, FMC_NWAIT, LPTIM1_IN2, PLAY1_IN8, PSSI_D3, UART8_TXPE1PE0 — шарик A4: DCMI_D2, FDCAN1_RX, FMC_NBL0, LPTIM1_ETR, LPTIM2_CH2, LPTIM2_ETR, OCTOSPIM_P1_NCS2, PLAY1_OUT7, PSSI_D2, SAI2_MCLK_A, SPI3_RDY, TIM4_ETR, UART8_RXPE0PB8 — шарик A5: DCMI_D6, ETH_MII_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, I3C1_SCL, LTDC_G6, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI4_RDY, TIM16_CH1, TIM4_CH3, UART4_RXPB8PB5 — шарик A6: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, GFXTIM_LCKCAL, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, OCTOSPIM_P1_NCLK, OCTOSPIM_P2_CLK, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RXPB5PG14 — шарик A7: DEBUG_TRACED1, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_A25, LPTIM1_CH2, LPTIM1_ETR, LPTIM5_IN1, LTDC_B0, OCTOSPIM_P1_IO7, SDMMC2_D7, SPI6_MOSI, USART10_DE, USART10_RTS, USART6_TXPG14PG13 — шарик A8: DEBUG_TRACED0, ETH_MII_TXD0, ETH_RMII_TXD0, FMC_A24, LPTIM1_CH1, LPTIM5_CH2, LTDC_G4, OCTOSPIM_P2_NCS1, SDMMC2_D6, SPI6_SCK, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSSPG13PB4 (NJTRST) — шарик A9: DCMI_D7, DEBUG_NJTRST, ETH_MDIO, FMC_NBL3, I2S1_SDI, I2S2_WS, I2S3_SDI, LPTIM1_CH2, LTDC_R2, OCTOSPIM_P1_CLK, PSSI_D7, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4PB3 (JTDO/TRACESWO) — шарик A10: CRS_SYNC, DEBUG_JTDO-SWO, ETH_MDC, I2C2_SDA, I2S1_CK, I2S3_CK, I3C2_SDA, LPTIM6_ETR, LTDC_HSYNC, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART12_CTS, UART7_RXPB3PD7 — шарик A11: FMC_NCE, FMC_NE1, I2C3_SCL, I2S1_SDO, LPTIM4_OUT, LTDC_R3, OCTOSPIM_P1_IO7, SDMMC2_CMD, SPI1_MOSI, TIM12_CH1, USART2_CKPD7PC12 — шарик A12: COMP2_OUT, DCMI_D9, DEBUG_TRACED3, ETH_PPS_OUT, I2S3_SDO, LTDC_G4, OCTOSPIM_P2_IO7, PLAY1_OUT0, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CKPC12PA15 (JTDI) — шарик A13: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DCMI_D11, DEBUG_JTDI, ETH_PHY_INTN, FMC_NBL1, I2S1_WS, I2S3_WS, LPTIM3_IN2, OCTOSPIM_P2_IO6, PSSI_D11, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PA14 (JTCK/SWCLK) — шарик A14: DEBUG_JTCK-SWCLKPA14PA13 (JTMS/SWDIO) — шарик A15: DEBUG_JTMS-SWDIOPA13PE4 — шарик B1: ADF1_SDI0, DCMI_D4, DEBUG_TRACED1, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_A20, LTDC_G3, MDF1_SDI2, OCTOSPIM_P2_IO1, PLAY1_OUT9, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TAMP_IN7, TAMP_OUT8, TIM15_CH1NPE4PE5 — шарик B2: ADF1_CCK1, DCMI_D6, DEBUG_TRACED2, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_A21, LTDC_B6, MDF1_CCK1, OCTOSPIM_P2_IO2, PLAY1_IN10, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TAMP_IN8, TAMP_OUT7, TIM15_CH1PE5PE6 — шарик B3: ADF1_SDI0, DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_R2, MDF1_SDI1, OCTOSPIM_P2_IO3, PLAY1_OUT10, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TAMP_IN3, TAMP_OUT6, TIM15_CH2, TIM1_BKIN2PE6PB9 — шарик B4: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2S2_WS, I3C1_SDA, LTDC_G5, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_CKIN, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PB7 — шарик B5: DCMI_VSYNC, FDCAN1_TX, FMC_NL, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPUART1_RX, LTDC_G7, PSSI_RDY, PWR_WKUP5, SDMMC2_CKIN, SDMMC2_D5, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PB6 — шарик B6: CEC, DCMI_D5, ETH_MII_TX_ER, FDCAN2_TX, FMC_SDNE1, GFXTIM_FCKCAL, I2C1_SCL, I2C4_SCL, I3C1_SCL, LPUART1_TX, OCTOSPIM_P1_NCS1, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6PG15 — шарик B7: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, LTDC_G2, OCTOSPIM_P2_IO7, PSSI_D13, SPI4_RDY, TIM16_CH1, USART10_CK, USART6_CTS, USART6_NSSPG15PG12 — шарик B8: DCMI_D11, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_NE4, FMC_SDCLK, LPTIM1_IN1, LPTIM2_CH1, LPTIM5_CH1, OCTOSPIM_P2_CLK, PSSI_D11, PSSI_D15, SDMMC2_D3, SPI6_MISO, USART10_TX, USART6_DE, USART6_RTSPG12PG11 — шарик B9: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LPTIM1_IN2, LTDC_B4, PSSI_D3, SDMMC2_D2, SPI1_SCK, USART10_RX, USART11_DE, USART11_RTSPG11PG10 — шарик B10: DCMI_D2, FMC_NE3, I2C3_SMBA, I2S1_WS, LTDC_B6, OCTOSPIM_P1_IO5, OCTOSPIM_P2_IO6, PSSI_D2, SAI2_SD_B, SDMMC2_D1, SPI1_NSS, TIM12_CH2, USART10_CK, USART6_CKPG10PD6 — шарик B11: ADF1_SDI0, DCMI_D10, FMC_NWAIT, I2C3_SDA, I2S3_SDO, MDF1_SDI1, OCTOSPIM_P1_IO6, OCTOSPIM_P2_IO4, PLAY1_OUT3, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PD0 — шарик B12: FDCAN1_RX, FMC_D2, FMC_DA2, I2S1_MCK, LTDC_R2, OCTOSPIM_P1_NCS2, PLAY1_IN1, SDMMC1_D0DIR, TIM8_CH4N, UART4_RX, UART9_CTSPD0PC11 — шарик B13: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT, DCMI_D4, GFXTIM_FCKCAL, I2S3_SDI, LPTIM3_IN1, LTDC_VSYNC, OCTOSPIM_P1_NCS1, PLAY1_IN0, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PC10 — шарик B14: DCMI_D8, ETH_MII_TXD0, ETH_RMII_TXD0, GFXTIM_LCKCAL, I2S3_CK, LPTIM3_ETR, LTDC_B0, OCTOSPIM_P1_IO1, PSSI_D8, SAI1_SCK_B, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TXPC10PA12 — шарик B15: DMA2D_GPFLAG3, FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R4, SAI2_FS_B, SDMMC2_D4, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_FS_DPPA12VBAT — шарик C1VBATPI7 — шарик C2: DCMI_D7, FMC_D30, MDF1_SDI5, PSSI_D7, SAI2_FS_A, SDMMC2_CK, TIM1_CH3N, TIM8_CH3PI7PI6 — шарик C3: DCMI_D6, FMC_D29, MDF1_CKI5, PSSI_D6, SAI2_SD_A, SDMMC2_CMD, TIM1_CH2, TIM8_CH2PI6PI5 — шарик C4: DCMI_VSYNC, I2S1_MCK, LTDC_R0, PSSI_RDY, SAI2_SCK_A, TIM1_CH2N, TIM8_CH1PI5VDD — шарик C5VDDVCAP — шарик C6VCAPVDD — шарик C7VDDVDDIO2 — шарик C8VDDIO2VDD — шарик C9VDDPG9 — шарик C10: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, LTDC_B5, OCTOSPIM_P1_IO4, OCTOSPIM_P1_IO6, PSSI_RDY, SAI2_FS_B, SDMMC2_D0, SPI1_MISO, TIM12_CH1, USART10_RX, USART6_RXPG9PD5 — шарик C11: COMP2_OUT, ETH_MII_CRS, FDCAN1_TX, FMC_NWE, LTDC_B2, OCTOSPIM_P1_IO5, PLAY1_IN3, SPI2_RDY, TIM1_CH4N, UART8_RX, USART2_TXPD5PD1 — шарик C12: ETH_MII_RX_DV, ETH_RMII_CRS_DV, FDCAN1_TX, FMC_D3, FMC_DA3, I2S2_MCK, LTDC_DE, OCTOSPIM_P2_DQS, PLAY1_OUT1, SAI1_MCLK_B, SDMMC1_D123DIR, UART4_TXPD1PI3 — шарик C13: DCMI_D10, DEBUG_TRACED2, FMC_D27, I2S2_SDO, LTDC_DE, PSSI_D10, SDMMC2_D2, SPI2_MOSI, TIM1_CH1N, TIM8_ETRPI3PI2 — шарик C14: DCMI_D9, DEBUG_TRACED1, FMC_D26, I2S2_SDI, MDF1_SDI4, PSSI_D9, SDMMC2_D1, SPI2_MISO, TIM1_ETR, TIM8_CH4PI2PA11 — шарик C15: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2, FDCAN1_RX, FMC_A17, FMC_ALE, I2S2_WS, LPUART1_CTS, LTDC_R5, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_FS_DMPA11PC13 — шарик D1: PWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3PC13PI8 — шарик D2: PWR_WKUP3, RTC_OUT2, TAMP_IN2, TAMP_OUT3PI8PI9 — шарик D3: DAC1_EXTI9, FDCAN1_RX, SAI1_FS_A, TIM1_CH3, UART4_RXPI9PI4 — шарик D4: DCMI_D5, DEBUG_TRACED3, FMC_D28, PSSI_D5, SAI2_MCLK_A, SDMMC2_D3, SPI2_RDY, TIM1_CH1, TIM8_BKINPI4VSS — шарик D5VSSBOOT0 — шарик D6BOOT0VSS — шарик D7VSSVSS — шарик D8VSSVSS — шарик D9VSSPD4 — шарик D10: COMP1_OUT, DEBUG_TRGIO, ETH_CLK, FMC_NOE, LTDC_B7, MDF1_CKI3, OCTOSPIM_P1_IO4, PLAY1_OUT2, USART2_DE, USART2_RTSPD4PD3 — шарик D11: DCMI_D5, FMC_CLK, I2S2_CK, LTDC_B4, OCTOSPIM_P2_IO0, PLAY1_IN2, PSSI_D5, PWR_WKUP8, SPI2_SCK, TIM8_CH4, USART2_CTS, USART2_NSSPD3PD2 — шарик D12: DCMI_D11, DEBUG_TRACED2, I2C2_SCL, I3C2_SCL, LPTIM4_ETR, LTDC_G7, OCTOSPIM_P1_NCS2, OCTOSPIM_P2_IO1, PSSI_D11, PWR_WKUP7, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RXPD2PH15 — шарик D13: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11, DEBUG_TRACECLK, FMC_D24, LTDC_G1, MDF1_SDI3, OCTOSPIM_P2_IO7, PSSI_D11, SDMMC2_CKIN, TIM8_CH3NPH15PI1 — шарик D14: DCMI_D8, DEBUG_TRACED0, FMC_A24, FMC_D25, I2S2_CK, MDF1_CKI4, PSSI_D8, SDMMC2_D0, SPI2_SCK, TIM1_BKIN2, TIM8_BKIN2PI1PA10 — шарик D15: DCMI_D1, DMA2D_GPFLAG1, ETH_CLK, FDCAN2_TX, LPTIM2_IN2, LPUART1_RX, LTDC_R6, PSSI_D1, SDMMC1_D0, TIM1_CH3, UCPD1_FRSTX, USART1_RXPA10PC14-OSC32_IN(OSC32_IN) — шарик E1: RCC_OSC32_INPC14PF0 — шарик E2: COMP1_OUT, FMC_A0, I2C2_SDA, I3C2_SDA, LPTIM5_CH1, PLAY1_IN0, SDMMC2_D2, TIM2_CH1, TIM2_ETR, UART9_RXPF0PI10 — шарик E3: ETH_MII_RX_ER, FDCAN1_RX, PSSI_D14, SAI1_SCK_A, TIM1_CH4N, USART11_RXPI10PI11 — шарик E4: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LPTIM1_CH2, LTDC_B1, PSSI_D15, SAI1_MCLK_A, TAMP_IN4, TAMP_OUT5, TIM1_CH4, USART11_TXPI11PH13 — шарик E12: DCMI_D3, FDCAN1_TX, FMC_D22, LPTIM1_IN2, LTDC_R3, OCTOSPIM_P2_IO5, PSSI_D3, TIM8_CH1N, UART4_TX, UART8_TXPH13PH14 — шарик E13: DCMI_D4, FDCAN1_RX, FMC_D23, LTDC_R6, MDF1_CKI3, OCTOSPIM_P2_IO6, PSSI_D4, TIM8_CH2N, UART4_RXPH14PI0 — шарик E14: DCMI_D13, I2S2_WS, LTDC_B1, PSSI_D13, SPI2_NSS, TIM5_CH4, USART11_CKPI0PA9 — шарик E15: DAC1_EXTI9, DCMI_D0, ETH_MII_TX_ER, FMC_NWE, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R7, OCTOSPIM_P2_IO3, PSSI_D0, SPI2_SCK, TIM1_CH2, UCPD1_DB1, USART1_TXPA9PC15-OSC32_OUT(OSC32_OUT) — шарик F1: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUTPC15VSS — шарик F2VSSVDD — шарик F3VDDPH2 — шарик F4: ETH_MII_CRS, FMC_NBL0, FMC_SDCKE0, LPTIM1_IN2, MDF1_CKI2, OCTOSPIM_P1_IO4, OCTOSPIM_P2_CLK, PLAY1_OUT2, SAI2_SCK_BPH2VSS — шарик F6VSSVSS — шарик F7VSSVSS — шарик F8VSSVSS — шарик F9VSSVSS — шарик F10VSSVSS — шарик F12VSSVDD — шарик F13VDDPC9 — шарик F14: AUDIOCLK, DAC1_EXTI9, DCMI_D3, FMC_A16, FMC_CLE, FMC_SDNCAS, I2C3_SDA, LTDC_B1, OCTOSPIM_P1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, TIM8_CH4, UART5_CTS, UCPD1_DB2PC9PA8 — шарик F15: DCMI_D3, FMC_NOE, I2C3_SCL, LTDC_CLK, OCTOSPIM_P2_DQS, PSSI_D3, RCC_MCO_1, SPI1_RDY, TIM1_CH1, TIM8_BKIN2, UART7_RX, USART1_CK, USB_OTG_FS_SOFPA8PH0-OSC_IN — шарик G1: RCC_OSC_INPH0VSS — шарик G2VSSVDD — шарик G3VDDPH3 — шарик G4: ETH_MII_COL, FMC_NBL2, FMC_SDNE0, MDF1_SDI2, OCTOSPIM_P1_IO5, OCTOSPIM_P2_NCLK, PLAY1_OUT3, SAI2_MCLK_BPH3VSS — шарик G6VSSVSS — шарик G7VSSVSS — шарик G8VSSVSS — шарик G9VSSVSS — шарик G10VSSVSS — шарик G12VSSVDD — шарик G13VDDPC8 — шарик G14: DCMI_D2, DEBUG_TRACED1, FMC_A17, FMC_ALE, FMC_INT, FMC_NCE, FMC_NE2, LTDC_R0, PSSI_D2, SDMMC1_D0, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PC7 — шарик G15: DCMI_D1, DEBUG_TRGIO, FMC_NE1, I2S3_MCK, LTDC_R1, OCTOSPIM_P1_IO6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, USART6_RXPC7PH1-OSC_OUT — шарик H1: RCC_OSC_OUTPH1PF2 — шарик H2: FMC_A2, GFXTIM_TE, I2C2_SMBA, LPTIM3_CH2, LPTIM3_IN2, LPTIM5_IN1, PLAY1_IN2, SDMMC2_D4, UART12_TX, USART11_CKPF2PF1 — шарик H3: COMP2_OUT, FMC_A1, I2C2_SCL, I3C2_SCL, LPTIM5_CH2, PLAY1_IN1, SDMMC2_D3, TIM2_CH2, UART9_TXPF1PH4 — шарик H4: I2C2_SCL, I3C2_SCL, LTDC_R7, PSSI_D14, SPI5_RDY, SPI6_RDYPH4VSS — шарик H6VSSVSS — шарик H7VSSVSS — шарик H8VSSVSS — шарик H9VSSVSS — шарик H10VSSVSS — шарик H12VSSVDDUSB — шарик H13VDDUSBPG8 — шарик H14: ETH_PPS_OUT, FMC_SDCLK, LPTIM4_OUT, LTDC_B2, OCTOSPIM_P2_NCLK, SPI6_NSS, TIM16_CH1N, TIM8_ETR, USART6_DE, USART6_RTSPG8PC6 — шарик H15: DCMI_D0, FMC_NWAIT, I2S2_MCK, LTDC_G0, OCTOSPIM_P1_IO5, PSSI_D0, SAI1_SCK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, USART6_TXPC6NRST — шарик J1NRSTPF3 — шарик J2: FMC_A3, LPTIM3_IN1, LPTIM5_IN2, PLAY1_OUT0, SDMMC2_D5, TIM2_CH3, USART11_TXPF3PF4 — шарик J3: DCMI_D6, FMC_A4, LPTIM3_ETR, OCTOSPIM_P2_NCS2, PLAY1_OUT1, PSSI_D6, SDMMC2_D6, TIM2_CH4, USART11_RXPF4PH5 — шарик J4: FMC_SDNWE, I2C2_SDA, I3C2_SDA, SPI5_NSS, SPI6_RDYPH5VSS — шарик J6VSSVSS — шарик J7VSSVSS — шарик J8VSSVSS — шарик J9VSSVSS — шарик J10VSSVDD — шарик J12VDDVDD — шарик J13VDDPG7 — шарик J14: ADF1_CCK1, DCMI_D13, FMC_INT, I2C4_SCL, I3C1_SCL, LTDC_R5, MDF1_CCK1, OCTOSPIM_P2_CLK, PSSI_D13, SAI1_CK2, SAI1_MCLK_A, UCPD1_FRSTX, USART6_CKPG7PG6 — шарик J15: DCMI_D12, FMC_NE3, I2C4_SDA, I3C1_SDA, OCTOSPIM_P1_NCS1, OCTOSPIM_P2_NCS1, PLAY1_OUT10, PSSI_D12, SPI1_RDY, TIM17_BKIN, UCPD1_FRSTXPG6PF7 — шарик K1: FDCAN3_RX, FMC_D17, LPTIM5_CH2, LTDC_G3, MDF1_CKI1, OCTOSPIM_P1_IO2, SAI1_MCLK_B, SDMMC1_D1, SPI5_SCK, TIM17_CH1, UART7_TXPF7PF6 — шарик K2: FDCAN3_TX, FMC_D16, LPTIM5_CH1, LTDC_DE, OCTOSPIM_P1_IO3, SAI1_SD_B, SDMMC1_D0, SPI5_NSS, TIM16_CH1, UART7_RXPF6PF5 — шарик K3: FMC_A5, I2C4_SCL, I3C1_SCL, LPTIM3_CH1, LPTIM3_IN1, OCTOSPIM_P2_DQS, SDMMC2_CKIN, SDMMC2_D7, UART12_RX, USART11_CTS, USART11_NSSPF5VDD — шарик K4VDDVSS — шарик K6VSSVSS — шарик K7VSSVSS — шарик K8VSSVSS — шарик K9VSSVSS — шарик K10VSSPH12 — шарик K12: DCMI_D3, FMC_D3, FMC_DA3, I2C4_SDA, I3C1_SDA, OCTOSPIM_P2_IO4, PLAY1_OUT15, PSSI_D3, TIM1_BKIN, TIM5_CH3, TIM8_BKIN, TIM8_CH4NPH12PG5 — шарик K13: FMC_A15, FMC_BA1, LTDC_HSYNC, MDF1_SDI0, OCTOSPIM_P2_IO5, PLAY1_OUT9, TIM1_ETRPG5PG4 — шарик K14: FMC_A14, FMC_BA0, LPTIM4_ETR, LTDC_VSYNC, MDF1_CKI0, OCTOSPIM_P2_IO4, TIM1_BKIN2PG4PG3 — шарик K15: ETH_MII_RX_ER, FMC_A13, LPTIM5_ETR, LTDC_G0, OCTOSPIM_P2_IO3, TIM4_CH4, TIM8_BKIN2, UART12_TX, UART7_RXPG3PF10 — шарик L1: DCMI_D11, LTDC_G6, MDF1_SDI3, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKINPF10PF9 — шарик L2: DAC1_EXTI9, ETH_MDC, FMC_D19, LPTIM5_IN2, LTDC_B1, MDF1_CCK0, OCTOSPIM_P1_IO1, SAI1_FS_B, SDMMC1_D3, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTSPF9PF8 — шарик L3: ETH_MII_TX_ER, FMC_D18, LPTIM5_IN1, LTDC_R7, OCTOSPIM_P1_IO0, SAI1_SCK_B, SDMMC1_D2, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPF8VSS — шарик L4VSSPH11 — шарик L12: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2, FMC_D21, I2C4_SCL, I3C1_SCL, OCTOSPIM_P2_IO3, PLAY1_OUT14, PSSI_D2, TIM1_CH1, TIM5_CH2, TIM8_CH3NPH11PH10 — шарик L13: DCMI_D1, FMC_D20, I2C4_SMBA, OCTOSPIM_P2_IO2, PLAY1_OUT13, PSSI_D1, SPI5_RDY, TIM1_CH1N, TIM5_CH1, TIM8_CH3PH10PD15 — шарик L14: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, LTDC_CLK, OCTOSPIM_P2_NCLK, PLAY1_IN7, SAI1_FS_B, SPI6_RDY, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TXPD15PG2 — шарик L15: FMC_A12, I2S1_MCK, LPTIM6_ETR, LTDC_R2, OCTOSPIM_P2_IO2, TIM4_CH3, TIM8_BKIN, UART12_RXPG2VSSA — шарик M1VSSAPC0 — шарик M2: ADC1_INP10, ADC2_INP10, FMC_A25, FMC_INT, FMC_SDNWE, LTDC_G3, MDF1_CKI1, OCTOSPIM_P1_IO7, SAI1_MCLK_A, SAI2_FS_B, SPI2_RDY, TIM16_BKIN, TIM8_CH1PC0PC1 — шарик M3: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0, DEBUG_TRACED0, ETH_MDC, FMC_NCE, FMC_NE2, I2S2_SDO, LTDC_G2, MDF1_SDI1, OCTOSPIM_P1_IO4, PWR_WKUP6, SAI1_D1, SAI1_SD_A, SAI2_SD_A, SDMMC2_CK, SPI2_MOSI, TAMP_IN3, TAMP_OUT5, TIM8_CH2, USART11_DE, USART11_RTSPC1PC2 — шарик M4: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_NCE, FMC_NE1, FMC_SDNE0, I2S2_SDI, LTDC_HSYNC, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSLEEP, SDMMC2_D6, SPI2_MISO, TIM17_CH1, TIM4_CH4, TIM8_CH3PC2PC3 — шарик M5: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_SDCKE0, I2S2_SDO, LPTIM3_CH1, LTDC_VSYNC, MDF1_SDI3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSTOP, SAI1_D3, SDMMC2_D7, SPI2_MOSIPC3PB2 — шарик M6: ADC3_INP0, ADF1_SDI0, COMP1_INP, ETH_MII_RXD0, ETH_RMII_RXD0, I2S3_SDO, LPTIM1_CH1, LPTIM5_ETR, LTDC_R3, OCTOSPIM_P1_CLK, OCTOSPIM_P1_DQS, RCC_LSCO, RTC_OUT2, SAI1_D1, SAI1_SD_A, SDMMC1_CMD, SPI1_RDY, SPI3_MOSI, TIM8_CH4NPB2PG1 — шарик M7: FMC_A11, I2S2_SDO, OCTOSPIM_P2_IO1, PLAY1_IN3, SPI2_MOSI, TIM4_CH2, UART9_TXPG1VSS — шарик M8VSSVSS — шарик M9VSSVCAP — шарик M10VCAPPH6 — шарик M11: DCMI_D8, ETH_MII_RXD2, FMC_SDNE1, I2C2_SMBA, OCTOSPIM_P2_IO0, PLAY1_OUT11, PSSI_D8, SPI5_SCK, TIM12_CH1, TIM1_CH3N, TIM8_CH1PH6PH8 — шарик M12: DCMI_HSYNC, I2C3_SDA, PSSI_DE, SPI5_MOSI, TIM1_CH2N, TIM5_ETR, TIM8_CH2PH8PH9 — шарик M13: DAC1_EXTI9, DCMI_D0, I2C3_SMBA, LTDC_R7, PSSI_D0, SPI5_NSS, TIM12_CH2, TIM1_CH2, TIM8_CH2NPH9PD14 — шарик M14: FMC_D0, FMC_DA0, LTDC_B1, OCTOSPIM_P2_CLK, PLAY1_OUT6, PSSI_D15, SAI1_FS_A, TIM4_CH3, UART8_CTS, UART9_RXPD14PD13 — шарик M15: DCMI_D13, FMC_A18, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPTIM1_CH1, LPTIM2_CH1, LPTIM4_IN1, OCTOSPIM_P1_IO3, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTSPD13VREF- — шарик N1VREF-PA1 — шарик N2: ADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, LPTIM1_IN1, LTDC_B7, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI2_MCLK_B, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PA0 — шарик N3: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS, LTDC_G6, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI3_RDY, SPI6_NSS, TAMP_IN2, TAMP_OUT1, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PA4 — шарик N4: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, FMC_NBL2, I2S1_WS, I2S3_WS, LPTIM2_CH1, LTDC_B4, OPAMP1_VINM, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CKPA4PC4 — шарик N5: ADC1_INP4, ADC2_INP4, ADF1_CCK0, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_SDNE0, I2S1_MCK, LPTIM2_ETR, LTDC_DE, MDF1_CCK0, SAI1_CK1, TIM2_CH4, USART3_RXPC4PF13 — шарик N6: ADC2_INP2, ADF1_CCK0, FMC_A7, I2C4_SMBA, LPTIM2_CH2, LPTIM6_IN1, LTDC_B6, SDMMC1_CDIR, SDMMC1_D6PF13PG0 — шарик N7: FMC_A10, LPTIM4_IN1, OCTOSPIM_P2_IO0, SDMMC1_CK, TIM4_CH1, UART9_RXPG0VDD — шарик N8VDDVDD — шарик N9VDDVDD — шарик N10VDDPE13 — шарик N11: ADC3_INP7, DCMI_HSYNC, FDCAN3_RX, FMC_D10, FMC_DA10, GFXTIM_FCKCAL, LTDC_R1, OPAMP1_VINM, PLAY1_IN14, PSSI_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH3, UART5_DE, UART5_RTS, USART6_CKPE13PH7 — шарик N12: DCMI_D9, ETH_MII_RXD3, FMC_SDCKE1, I2C3_SCL, OCTOSPIM_P2_IO1, PLAY1_OUT12, PSSI_D9, SPI5_MISO, TIM1_CH3, TIM8_CH1NPH7PD12 — шарик N13: DCMI_D12, FMC_A17, FMC_ALE, I2C4_SCL, I3C1_SCL, LPTIM1_IN1, LPTIM2_IN1, LTDC_G2, OCTOSPIM_P1_IO1, PLAY1_IN6, PSSI_D12, SAI1_D1, SAI2_FS_A, TIM4_CH1, UART4_TX, USART3_DE, USART3_RTSPD12PD11 — шарик N14: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0, ETH_PTP_AUX_TS, FMC_A16, FMC_CLE, GFXTIM_TE, I2C4_SMBA, LPTIM2_IN2, LTDC_R6, OCTOSPIM_P1_IO0, PLAY1_OUT5, SAI1_CK1, SAI2_SD_A, UART4_RX, USART3_CTS, USART3_NSSPD11PD10 — шарик N15: AUDIOCLK, ETH_MII_CRS, FDCAN3_RX, FMC_D15, FMC_DA15, LPTIM2_CH2, LTDC_R7, PLAY1_IN5, TIM14_CH1, USART3_CKPD10VREF+ — шарик P1VREF+PA2 — шарик P2: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM1_IN2, LTDC_B6, LTDC_R0, OCTOSPIM_P2_IO4, PWR_WKUP2, SAI2_SCK_B, TAMP_IN4, TAMP_OUT3, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PA6 — шарик P3: ADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK, FMC_D31, I2S1_SDI, LTDC_B3, OCTOSPIM_P1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART11_TXPA6PA5 — шарик P4: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LTDC_G5, OCTOSPIM_P2_IO5, OPAMP1_VINP, PSSI_D14, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1NPA5PC5 — шарик P5: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_SDCKE0, LTDC_G1, MDF1_SDI3, OCTOSPIM_P1_DQS, PSSI_D15, SAI1_D3, SAI1_FS_A, TIM1_CH4N, UART12_DE, UART12_RTSPC5PF12 — шарик P6: ADC1_INN2, ADC1_INP6, FMC_A6, LPTIM6_CH2, LTDC_CLK, SDMMC1_CKIN, SDMMC1_D5, TIM2_CH4PF12PF15 — шарик P7: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADF1_SDI0, ETH_CLK, FMC_A9, I2C4_SDA, I3C1_SDA, LTDC_B7, OCTOSPIM_P2_NCS2, SDMMC1_CMD, TIM4_ETRPF15PE8 — шарик P8: ADC3_INP2, DCMI_D8, FMC_D5, FMC_DA5, MDF1_SDI0, OCTOSPIM_P1_IO5, PLAY1_OUT11, PSSI_D8, TIM1_CH1N, UART12_CTS, UART7_TX, USART2_TXPE8PE9 — шарик P9: ADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6, FMC_DA6, MDF1_CKI4, OCTOSPIM_P1_IO6, PLAY1_IN12, TIM1_CH1, UART12_RX, UART7_DE, UART7_RTSPE9PE11 — шарик P10: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8, FMC_DA8, LTDC_B5, MDF1_CKI5, OCTOSPIM_P1_NCS1, OCTOSPIM_P2_NCS2, OPAMP1_VINP, PLAY1_IN13, SAI2_SD_B, SPI1_RDY, SPI4_NSS, TIM1_CH2, USART6_TXPE11PE14 — шарик P11: ADC3_INP8, COMP2_INM, DCMI_VSYNC, FMC_D11, FMC_DA11, LTDC_B0, OCTOSPIM_P2_CLK, PLAY1_OUT14, PSSI_RDY, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PB12 — шарик P12: ETH_MII_TXD0, ETH_RMII_TXD0, FDCAN2_RX, I2C2_SDA, I2S2_WS, I3C2_SDA, LTDC_R1, OCTOSPIM_P1_NCLK, SPI2_NSS, TIM1_BKIN, UART5_RX, UCPD1_FRSTX, USART3_CKPB12PB13 — шарик P13: FDCAN2_TX, I2C2_SMBA, I2S2_CK, LPTIM2_CH1, LPTIM3_IN1, SPI2_SCK, TIM1_CH1N, UART5_TX, UCPD1_CC1, USART3_CTS, USART3_NSSPB13PD9 — шарик P14: CEC, DAC1_EXTI9, FDCAN2_RX, FMC_D14, FMC_DA14, LTDC_R4, PLAY1_OUT4, TIM13_CH1, USART3_RXPD9PD8 — шарик P15: ETH_MII_RXD0, ETH_RMII_RXD0, FDCAN3_TX, FMC_D13, FMC_DA13, I2S3_MCK, LTDC_R5, PLAY1_IN4, SDMMC2_D0, TIM12_CH2, USART3_TXPD8VDDA — шарик R1VDDAPA3 — шарик R2: ADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0, ETH_MII_COL, I2S2_WS, LTDC_B5, OCTOSPIM_P1_CLK, SAI1_SD_B, SPI2_NSS, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3PA7 — шарик R3: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_NWE, FMC_SDNWE, I2S1_SDO, LTDC_B2, OCTOSPIM_P1_IO2, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART11_RXPA7PB1 — шарик R4: ADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3, LPTIM3_CH2, LTDC_B3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_NCLK, OPAMP1_VOUT, TIM1_CH3N, TIM3_CH4, TIM8_CH3NPB1PB0 — шарик R5: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2, LPTIM3_CH1, LTDC_R4, OCTOSPIM_P1_IO1, OCTOSPIM_P2_NCS1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USART11_CKPB0PF11 — шарик R6: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, LPTIM6_CH1, OCTOSPIM_P1_NCLK, PSSI_D12, SAI2_SD_B, SDMMC1_D4, SPI5_MOSI, TIM2_CH3PF11PF14 — шарик R7: ADC2_INN2, ADC2_INP6, ADF1_CCK1, FMC_A8, I2S3_SDI, LPTIM2_IN1, LPTIM6_IN2, LTDC_G5, SDMMC1_D123DIR, SDMMC1_D7, SPI3_MISO, TIM3_ETRPF14PE7 — шарик R8: ADC3_INP1, COMP2_INP, FMC_D4, FMC_DA4, MDF1_CKI0, OCTOSPIM_P1_IO4, PLAY1_IN11, TIM1_ETR, UART12_DE, UART12_RTS, UART7_RX, USART2_RXPE7PE10 — шарик R9: ADC3_INP4, COMP1_INM, FMC_D7, FMC_DA7, MDF1_SDI4, OCTOSPIM_P1_IO7, PLAY1_OUT12, TIM1_CH2N, UART12_TX, UART7_CTSPE10PE12 — шарик R10: ADC3_INP6, DCMI_D0, ETH_MDIO, FDCAN3_TX, FMC_D9, FMC_DA9, GFXTIM_LCKCAL, MDF1_SDI5, OPAMP1_VINP, PLAY1_OUT13, PSSI_D0, SAI2_SCK_B, SPI4_SCK, TIM1_CH3N, USART6_RXPE12PE15 — шарик R11: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK, FMC_D12, FMC_DA12, LTDC_R0, OCTOSPIM_P2_NCS1, PLAY1_OUT15, PSSI_PDCK, TIM1_BKIN, TIM1_CH4N, USART10_CKPE15PB10 — шарик R12: ETH_MII_RX_ER, FMC_NWAIT, FMC_SDNRAS, I2C2_SCL, I2S2_CK, I3C2_SCL, LPTIM2_IN1, LPTIM3_CH1, LTDC_G4, OCTOSPIM_P1_NCS1, SPI2_SCK, TIM2_CH3, USART3_TXPB10PB11 — шарик R13: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_MII_TX_EN, ETH_RMII_TX_EN, FMC_NBL1, I2C2_SDA, I3C2_SDA, LPTIM2_ETR, LTDC_G7, PLAY1_IN15, SPI2_RDY, SPI4_RDY, TIM2_CH4, USART3_RXPB11PB14 — шарик R14: I2S2_SDI, LPTIM3_ETR, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, UCPD1_CC2, USART1_TX, USART3_DE, USART3_RTSPB14PB15 — шарик R15: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2, ETH_MII_TXD1, ETH_RMII_TXD1, I2S2_SDO, LTDC_G0, OCTOSPIM_P1_CLK, PSSI_D2, PWR_PVD_IN, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, UART5_RX, USART11_CTS, USART11_NSS, USART1_RXPB15UFBGA176, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

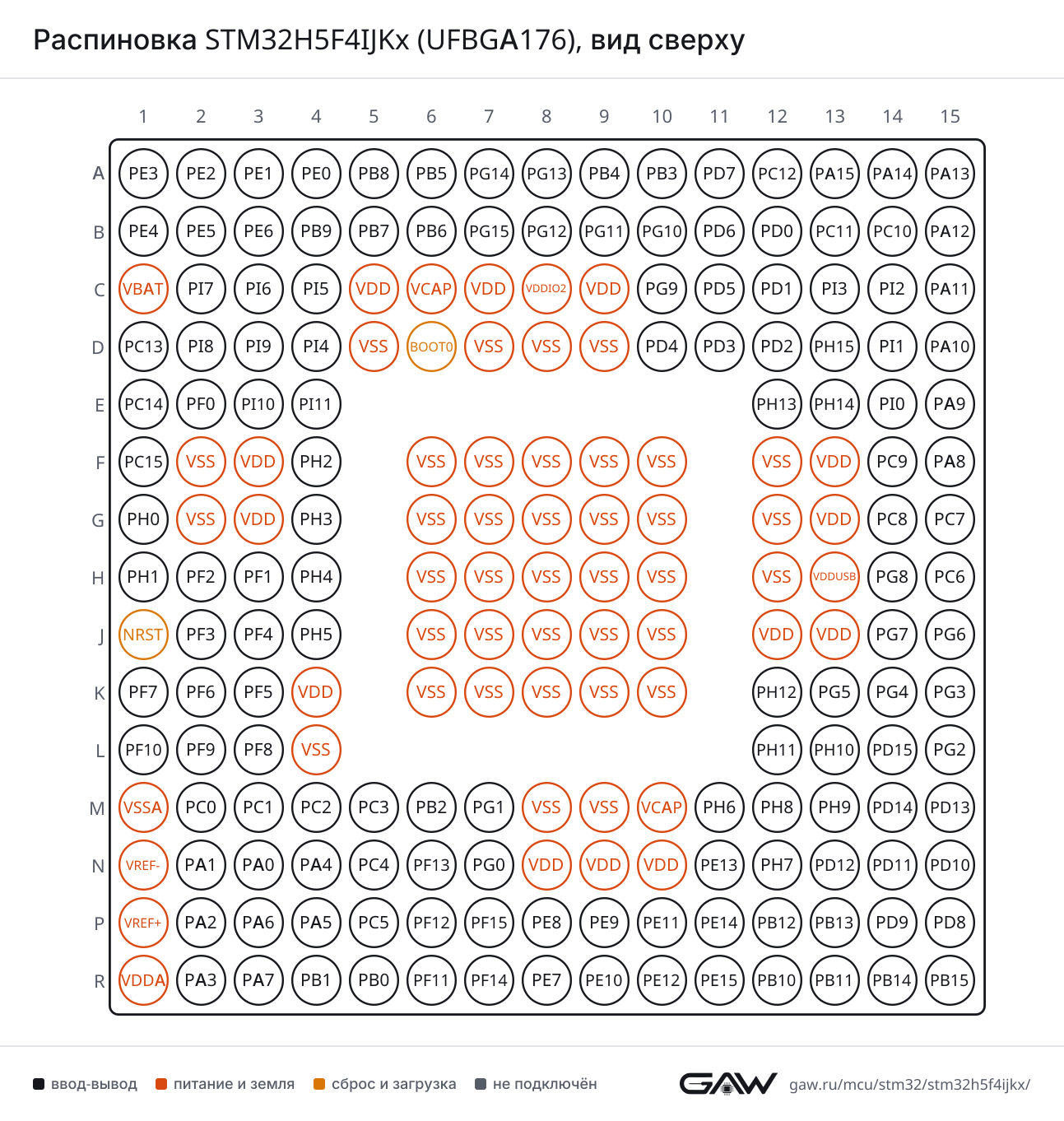

Распиновка STM32H5F4IJKx (UFBGA176), вид сверхуРаспиновка UFBGA176 картинкой
PNG, 1293 × 1362 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (F15, AF7)
CTSPA11 (C15, AF7)
DEPA12 (B15, AF7)
NSSPA11 (C15, AF7)
RTSPA12 (B15, AF7)
RXPB7 (B5, AF7), PA10 (D15, AF7), PB15 (R15, AF4)
TXPB6 (B6, AF7), PA9 (E15, AF7), PB14 (R14, AF4)
USART2CKPD7 (A11, AF7), PA4 (N4, AF7)
CTSPD3 (D11, AF7), PA0 (N3, AF7)
DEPD4 (D10, AF7), PA1 (N2, AF7)
NSSPD3 (D11, AF7), PA0 (N3, AF7)
RTSPD4 (D10, AF7), PA1 (N2, AF7)
RXPD6 (B11, AF7), PA3 (R2, AF7), PE7 (R8, AF5)
TXPD5 (C11, AF7), PA2 (P2, AF7), PE8 (P8, AF5)
USART3CKPC12 (A12, AF7), PD10 (N15, AF7), PB12 (P12, AF7)
CTSPD11 (N14, AF7), PB13 (P13, AF7)
DEPD12 (N13, AF7), PB14 (R14, AF7)
NSSPD11 (N14, AF7), PB13 (P13, AF7)
RTSPD12 (N13, AF7), PB14 (R14, AF7)
RXPC11 (B13, AF7), PC4 (N5, AF7), PD9 (P14, AF7), PB11 (R13, AF7)
TXPC10 (B14, AF7), PD8 (P15, AF7), PB10 (R12, AF7)
USART6CKPG10 (B10, AF7), PC8 (G14, AF7), PG7 (J14, AF7), PE13 (N11, AF7)
CTSPG13 (A8, AF7), PG15 (B7, AF7)
DEPG12 (B8, AF7), PG8 (H14, AF7)
NSSPG13 (A8, AF7), PG15 (B7, AF7)
RTSPG12 (B8, AF7), PG8 (H14, AF7)
RXPG9 (C10, AF7), PC7 (G15, AF7), PE12 (R10, AF7)
TXPG14 (A7, AF7), PC6 (H15, AF7), PE11 (P10, AF7)
USART10CKPG15 (B7, AF6), PG10 (B10, AF6), PE15 (R11, AF7)
CTSPG13 (A8, AF6)
DEPG14 (A7, AF6)
NSSPG13 (A8, AF6)
RTSPG14 (A7, AF6)
RXPE2 (A2, AF7), PG11 (B9, AF6), PG9 (C10, AF6)
TXPE3 (A1, AF7), PG12 (B8, AF6)
USART11CKPI0 (E14, AF7), PF2 (H2, AF7), PB0 (R5, AF7)
CTSPF5 (K3, AF7), PB15 (R15, AF7)
DEPG11 (B9, AF7), PC1 (M3, AF7)
NSSPF5 (K3, AF7), PB15 (R15, AF7)
RTSPG11 (B9, AF7), PC1 (M3, AF7)
RXPI10 (E3, AF7), PF4 (J3, AF7), PA7 (R3, AF7)
TXPI11 (E4, AF7), PF3 (J2, AF7), PA6 (P3, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB0 (R5, AF8), PB15 (R15, AF8)
DEPA15 (JTDI) (A13, AF8), PB14 (R14, AF8)
RTSPA15 (JTDI) (A13, AF8), PB14 (R14, AF8)
RXPB8 (A5, AF8), PD0 (B12, AF8), PC11 (B13, AF8), PA11 (C15, AF6), PI9 (D3, AF8), PH14 (E13, AF8), PA1 (N2, AF8), PD11 (N14, AF8)
TXPB9 (B4, AF8), PC10 (B14, AF8), PA12 (B15, AF6), PD1 (C12, AF8), PH13 (E12, AF8), PA0 (N3, AF8), PD12 (N13, AF8)
UART5CTSPC9 (F14, AF8)
DEPC8 (G14, AF8), PE13 (N11, AF8)
RTSPC8 (G14, AF8), PE13 (N11, AF8)
RXPB5 (A6, AF14), PD2 (D12, AF8), PB12 (P12, AF14), PB15 (R15, AF14)
TXPC12 (A12, AF8), PB6 (B6, AF14), PB13 (P13, AF14)
UART7CTSPF9 (L2, AF7), PE10 (R9, AF7)
DEPF8 (L3, AF7), PE9 (P9, AF7)
RTSPF8 (L3, AF7), PE9 (P9, AF7)
RXPB3 (JTDO/TRACESWO) (A10, AF11), PA8 (F15, AF11), PF6 (K2, AF7), PG3 (K15, AF11), PE7 (R8, AF7)
TXPB4 (NJTRST) (A9, AF11), PA15 (JTDI) (A13, AF11), PF7 (K1, AF7), PE8 (P8, AF7)
UART8CTSPD14 (M14, AF8)
DEPD15 (L14, AF8)
RTSPD15 (L14, AF8)
RXPE0 (A4, AF8), PD5 (C11, AF8)
TXPE2 (A2, AF8), PE1 (A3, AF8), PH13 (E12, AF7)
UART9CTSPD0 (B12, AF11)
DEPD13 (M15, AF11)
RTSPD13 (M15, AF11)
RXPF0 (E2, AF11), PD14 (M14, AF11), PG0 (N7, AF11)
TXPF1 (H3, AF11), PD15 (L14, AF11), PG1 (M7, AF11)
UART12CTSPB3 (JTDO/TRACESWO) (A10, AF7), PE8 (P8, AF6)
DEPC5 (P5, AF7), PE7 (R8, AF6)
RTSPC5 (P5, AF7), PE7 (R8, AF6)
RXPF5 (K3, AF6), PG2 (L15, AF7), PE9 (P9, AF6)
TXPF2 (H2, AF6), PG3 (K15, AF7), PE10 (R9, AF6)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (C15, AF3)
DEPA12 (B15, AF3)
RTSPA12 (B15, AF3)
RXPB7 (B5, AF8), PA10 (D15, AF3)
TXPB6 (B6, AF8), PA9 (E15, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4 (NJTRST) (A9, AF5), PG9 (C10, AF5), PA6 (P3, AF5)
MOSIPB5 (A6, AF5), PD7 (A11, AF5), PA7 (R3, AF5)
NSSPA15 (JTDI) (A13, AF5), PG10 (B10, AF5), PA4 (N4, AF5)
RDYPA8 (F15, AF5), PG6 (J15, AF5), PB2 (M6, AF4), PE11 (P10, AF4)
SCKPB3 (JTDO/TRACESWO) (A10, AF5), PG11 (B9, AF5), PA5 (P4, AF5)
SPI2MISOPI2 (C14, AF5), PC2 (M4, AF5), PB14 (R14, AF5)
MOSIPI3 (C13, AF5), PC1 (M3, AF5), PC3 (M5, AF5), PG1 (M7, AF7), PB15 (R15, AF5)
NSSPB4 (NJTRST) (A9, AF7), PB9 (B4, AF5), PA11 (C15, AF5), PI0 (E14, AF5), PB12 (P12, AF5), PA3 (R2, AF5)
RDYPD5 (C11, AF5), PI4 (D4, AF7), PC0 (M2, AF7), PB11 (R13, AF5)
SCKPA12 (B15, AF5), PD3 (D11, AF5), PI1 (D14, AF5), PA9 (E15, AF5), PB13 (P13, AF5), PB10 (R12, AF5)
SPI3MISOPB4 (NJTRST) (A9, AF6), PC11 (B13, AF6), PF14 (R7, AF6)
MOSIPB5 (A6, AF7), PC12 (A12, AF6), PD6 (B11, AF5), PB2 (M6, AF7)
NSSPA15 (JTDI) (A13, AF6), PA4 (N4, AF6)
RDYPE0 (A4, AF6), PA0 (N3, AF6)
SCKPB3 (JTDO/TRACESWO) (A10, AF6), PC10 (B14, AF6)
SPI4MISOPE5 (B2, AF5), PE13 (N11, AF5)
MOSIPE6 (B3, AF5), PE14 (P11, AF5)
NSSPE4 (B1, AF5), PE11 (P10, AF5)
RDYPB8 (A5, AF5), PG15 (B7, AF5), PB11 (R13, AF6)
SCKPE2 (A2, AF5), PE12 (R10, AF5)
SPI5MISOPF8 (L3, AF5), PH7 (N12, AF5)
MOSIPF9 (L2, AF5), PH8 (M12, AF5), PF11 (R6, AF5)
NSSPH5 (J4, AF5), PF6 (K2, AF5), PH9 (M13, AF5)
RDYPH4 (H4, AF5), PH10 (L13, AF5)
SCKPF7 (K1, AF5), PH6 (M11, AF5)
SPI6MISOPB4 (NJTRST) (A9, AF8), PG12 (B8, AF5), PA6 (P3, AF8)
MOSIPB5 (A6, AF8), PG14 (A7, AF5), PA7 (R3, AF8)
NSSPA15 (JTDI) (A13, AF7), PG8 (H14, AF5), PA0 (N3, AF5), PA4 (N4, AF8)
RDYPH4 (H4, AF7), PH5 (J4, AF7), PD15 (L14, AF7)
SCKPG13 (A8, AF5), PB3 (JTDO/TRACESWO) (A10, AF8), PC12 (A12, AF5), PA5 (P4, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPB3 (JTDO/TRACESWO) (A10, AF5), PG11 (B9, AF5), PA5 (P4, AF5)
MCKPD0 (B12, AF5), PI5 (C4, AF5), PG2 (L15, AF5), PC4 (N5, AF5)
SDIPB4 (NJTRST) (A9, AF5), PG9 (C10, AF5), PA6 (P3, AF5)
SDOPB5 (A6, AF5), PD7 (A11, AF5), PA7 (R3, AF5)
WSPA15 (JTDI) (A13, AF5), PG10 (B10, AF5), PA4 (N4, AF5)
I2S2CKPA12 (B15, AF5), PD3 (D11, AF5), PI1 (D14, AF5), PA9 (E15, AF5), PB13 (P13, AF5), PB10 (R12, AF5)
MCKPD1 (C12, AF5), PC6 (H15, AF5)
SDIPI2 (C14, AF5), PC2 (M4, AF5), PB14 (R14, AF5)
SDOPI3 (C13, AF5), PC1 (M3, AF5), PC3 (M5, AF5), PG1 (M7, AF7), PB15 (R15, AF5)
WSPB4 (NJTRST) (A9, AF7), PB9 (B4, AF5), PA11 (C15, AF5), PI0 (E14, AF5), PB12 (P12, AF5), PA3 (R2, AF5)
I2S3CKPB3 (JTDO/TRACESWO) (A10, AF6), PC10 (B14, AF6)
MCKPC7 (G15, AF6), PD8 (P15, AF6)
SDIPB4 (NJTRST) (A9, AF6), PC11 (B13, AF6), PF14 (R7, AF6)
SDOPB5 (A6, AF7), PC12 (A12, AF6), PD6 (B11, AF5), PB2 (M6, AF7)
WSPA15 (JTDI) (A13, AF6), PA4 (N4, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8 (A5, AF4), PB6 (B6, AF4)
SDAPB9 (B4, AF4), PB7 (B5, AF4), PD13 (M15, AF6)
SMBAPB5 (A6, AF4)
I2C2SCLPD2 (D12, AF6), PF1 (H3, AF4), PH4 (H4, AF4), PB10 (R12, AF4)
SDAPB3 (JTDO/TRACESWO) (A10, AF4), PF0 (E2, AF4), PH5 (J4, AF4), PB12 (P12, AF4), PB11 (R13, AF4)
SMBAPF2 (H2, AF4), PH6 (M11, AF4), PB13 (P13, AF4)
I2C3SCLPD7 (A11, AF4), PA8 (F15, AF4), PH7 (N12, AF4)
SDAPD6 (B11, AF4), PC9 (F14, AF4), PH8 (M12, AF4)
SMBAPG10 (B10, AF3), PA9 (E15, AF4), PH9 (M13, AF4)
I2C4SCLPB8 (A5, AF6), PB6 (B6, AF6), PG7 (J14, AF4), PF5 (K3, AF4), PH11 (L12, AF4), PD12 (N13, AF4)
SDAPB9 (B4, AF6), PB7 (B5, AF6), PG6 (J15, AF4), PH12 (K12, AF4), PD13 (M15, AF4), PF15 (P7, AF4)
SMBAPB5 (A6, AF6), PH10 (L13, AF4), PF13 (N6, AF4), PD11 (N14, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPB8 (A5, AF3), PB6 (B6, AF3), PG7 (J14, AF3), PF5 (K3, AF5), PH11 (L12, AF5), PD12 (N13, AF5)
SDAPB9 (B4, AF3), PB7 (B5, AF3), PG6 (J15, AF3), PH12 (K12, AF5), PD13 (M15, AF5), PF15 (P7, AF5)
I3C2SCLPD2 (D12, AF5), PF1 (H3, AF5), PH4 (H4, AF3), PB10 (R12, AF8)
SDAPB3 (JTDO/TRACESWO) (A10, AF3), PF0 (E2, AF5), PH5 (J4, AF3), PB12 (P12, AF8), PB11 (R13, AF8)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPE0 (A4, AF9), PB8 (A5, AF9), PD0 (B12, AF9), PA11 (C15, AF9), PI9 (D3, AF9), PI10 (E3, AF9), PH14 (E13, AF9)
TXPE1 (A3, AF9), PB9 (B4, AF9), PB7 (B5, AF9), PA12 (B15, AF9), PD5 (C11, AF9), PD1 (C12, AF9), PH13 (E12, AF9)
FDCAN2RXPB5 (A6, AF9), PB12 (P12, AF9), PD9 (P14, AF9)
TXPB6 (B6, AF9), PA10 (D15, AF9), PB13 (P13, AF9)
FDCAN3RXPF7 (K1, AF9), PE13 (N11, AF9), PD10 (N15, AF9)
TXPF6 (K2, AF9), PD8 (P15, AF9), PE12 (R10, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (C15)
DPPA12 (B15)
SOFPA8 (F15)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB13 (P13)
CC2PB14 (R14)
DB1PA9 (E15)
DB2PC9 (F14)
FRSTXPA10 (D15, AF6), PG7 (J14, AF11), PG6 (J15, AF11), PB12 (P12, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCLKPD4 (D10, AF11), PA10 (D15, AF11), PF15 (P7, AF11)
MDCPB3 (JTDO/TRACESWO) (A10, AF12), PF9 (L2, AF11), PC1 (M3, AF11)
MDIOPB4 (NJTRST) (A9, AF10), PA2 (P2, AF11), PE12 (R10, AF11)
MII_COLPH3 (G4, AF11), PA3 (R2, AF11)
MII_CRSPD5 (C11, AF6), PH2 (F4, AF11), PA0 (N3, AF11), PD10 (N15, AF8)
MII_RX_CLKPA1 (N2, AF11)
MII_RX_DVPD1 (C12, AF11), PA7 (R3, AF11)
MII_RX_ERPI10 (E3, AF11), PG3 (K15, AF10), PB10 (R12, AF11)
MII_RXD0PE4 (B1, AF11), PB2 (M6, AF11), PC4 (N5, AF11), PD8 (P15, AF8)
MII_RXD1PE5 (B2, AF11), PC5 (P5, AF11)
MII_RXD2PH6 (M11, AF11), PB0 (R5, AF11)
MII_RXD3PH7 (N12, AF11), PB1 (R4, AF11)
MII_TX_CLKPC3 (M5, AF11)
MII_TX_ENPG11 (B9, AF11), PA5 (P4, AF11), PB11 (R13, AF11)
MII_TX_ERPB6 (B6, AF11), PA9 (E15, AF11), PF8 (L3, AF11)
MII_TXD0PG13 (A8, AF11), PC10 (B14, AF11), PB12 (P12, AF11)
MII_TXD1PG14 (A7, AF11), PG12 (B8, AF11), PB15 (R15, AF11)
MII_TXD2PC2 (M4, AF11)
MII_TXD3PE2 (A2, AF11), PB8 (A5, AF11)
PHY_INTNPA15 (JTDI) (A13, AF10)
PPS_OUTPB5 (A6, AF11), PC12 (A12, AF10), PG8 (H14, AF11)
PTP_AUX_TSPD11 (N14, AF11)
RMII_CRS_DVPD1 (C12, AF11), PA7 (R3, AF11)
RMII_REF_CLKPA1 (N2, AF11)
RMII_RXD0PE4 (B1, AF11), PB2 (M6, AF11), PC4 (N5, AF11), PD8 (P15, AF8)
RMII_RXD1PE5 (B2, AF11), PC5 (P5, AF11)
RMII_TX_ENPG11 (B9, AF11), PA5 (P4, AF11), PB11 (R13, AF11)
RMII_TXD0PG13 (A8, AF11), PC10 (B14, AF11), PB12 (P12, AF11)
RMII_TXD1PG14 (A7, AF11), PG12 (B8, AF11), PB15 (R15, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (B4, AF7), PF13 (N6, AF9)
CKPC12 (A12, AF12), PG0 (N7, AF8)
CKINPB8 (A5, AF7), PF12 (P6, AF9)
CMDPD2 (D12, AF12), PB2 (M6, AF12), PF15 (P7, AF8)
D0PA10 (D15, AF12), PC8 (G14, AF12), PF6 (K2, AF8)
D0DIRPD0 (B12, AF7), PC6 (H15, AF8)
D1PC9 (F14, AF12), PF7 (K1, AF8)
D2PC10 (B14, AF12), PF8 (L3, AF8)
D3PC11 (B13, AF12), PF9 (L2, AF8)
D4PB8 (A5, AF12), PF11 (R6, AF8)
D5PB9 (B4, AF12), PF12 (P6, AF8)
D6PC6 (H15, AF12), PF13 (N6, AF8)
D7PC7 (G15, AF12), PF14 (R7, AF8)
D123DIRPD1 (C12, AF7), PC7 (G15, AF8), PF14 (R7, AF9)
SDMMC2CKPD6 (B11, AF11), PI7 (C2, AF9), PC1 (M3, AF9)
CKINPB9 (B4, AF11), PB7 (B5, AF11), PH15 (D13, AF9), PF5 (K3, AF11)
CMDPD7 (A11, AF11), PI6 (C3, AF9), PA0 (N3, AF9)
D0PG9 (C10, AF11), PI1 (D14, AF9), PD8 (P15, AF11)
D1PG10 (B10, AF11), PI2 (C14, AF9), PB15 (R15, AF9)
D2PB3 (JTDO/TRACESWO) (A10, AF9), PG11 (B9, AF10), PI3 (C13, AF9), PF0 (E2, AF10)
D3PB4 (NJTRST) (A9, AF9), PG12 (B8, AF10), PI4 (D4, AF9), PF1 (H3, AF10)
D4PB8 (A5, AF10), PA12 (B15, AF10), PF2 (H2, AF10)
D5PB9 (B4, AF10), PB7 (B5, AF10), PF3 (J2, AF10)
D6PG13 (A8, AF10), PC6 (H15, AF10), PF4 (J3, AF10), PC2 (M4, AF10)
D7PG14 (A7, AF10), PC7 (G15, AF10), PF5 (K3, AF10), PC3 (M5, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (A2, AF2), PC4 (N5, AF2), PD11 (N14, AF2)
CK2PE5 (B2, AF2), PG7 (J14, AF2)
D1PE6 (B3, AF2), PD6 (B11, AF2), PC1 (M3, AF2), PB2 (M6, AF2), PD12 (N13, AF6)
D2PE4 (B1, AF2)
D3PF10 (L1, AF2), PC3 (M5, AF2), PC5 (P5, AF2)
FS_APE4 (B1, AF6), PI9 (D3, AF2), PD14 (M14, AF6), PC5 (P5, AF6)
FS_BPF9 (L2, AF6), PD15 (L14, AF6)
MCLK_APE2 (A2, AF6), PI11 (E4, AF2), PG7 (J14, AF6), PC0 (M2, AF6)
MCLK_BPD1 (C12, AF6), PF7 (K1, AF6)
SCK_APE5 (B2, AF6), PI10 (E3, AF2), PC6 (H15, AF6)
SCK_BPC10 (B14, AF4), PF8 (L3, AF6)
SD_APE6 (B3, AF6), PD6 (B11, AF6), PC1 (M3, AF6), PB2 (M6, AF6)
SD_BPE3 (A1, AF6), PF6 (K2, AF6), PA3 (R2, AF6)
SAI2FS_API7 (C2, AF10), PD12 (N13, AF10)
FS_BPA12 (B15, AF8), PG9 (C10, AF10), PC0 (M2, AF8), PE13 (N11, AF10)
MCLK_APE0 (A4, AF10), PI4 (D4, AF10)
MCLK_BPE6 (B3, AF10), PH3 (G4, AF10), PA1 (N2, AF10), PE14 (P11, AF10)
SCK_API5 (C4, AF10), PD13 (M15, AF10)
SCK_BPH2 (F4, AF10), PA2 (P2, AF8), PE12 (R10, AF10)
SD_API6 (C3, AF10), PC1 (M3, AF8), PD11 (N14, AF10)
SD_BPG10 (B10, AF10), PA0 (N3, AF10), PE11 (P10, AF10), PF11 (R6, AF10)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15 (JTDI) (A13, AF4), PB6 (B6, AF5), PD9 (P14, AF5)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PG11 (B9), PC11 (B13), PA11 (C15), PI11 (E4), PH11 (L12), PD11 (N14), PE11 (P10), PF11 (R6), PB11 (R13)
EXTI15PA15 (JTDI) (A13), PG15 (B7), PH15 (D13), PC15-OSC32_OUT(OSC32_OUT) (F1), PD15 (L14), PF15 (P7), PE15 (R11), PB15 (R15)
INN1PA0 (N3)
INN2PF12 (P6)
INN3PA7 (R3)
INN4PC5 (P5)
INN5PB0 (R5)
INN10PC1 (M3)
INN11PC2 (M4)
INN12PC3 (M5)
INN18PA5 (P4)
INP0PA0 (N3)
INP1PA1 (N2)
INP2PF11 (R6)
INP3PA6 (P3)
INP4PC4 (N5)
INP5PB1 (R4)
INP6PF12 (P6)
INP7PA7 (R3)
INP8PC5 (P5)
INP9PB0 (R5)
INP10PC0 (M2)
INP11PC1 (M3)
INP12PC2 (M4)
INP13PC3 (M5)
INP14PA2 (P2)
INP15PA3 (R2)
INP18PA4 (N4)
INP19PA5 (P4)
ADC2EXTI11PG11 (B9), PC11 (B13), PA11 (C15), PI11 (E4), PH11 (L12), PD11 (N14), PE11 (P10), PF11 (R6), PB11 (R13)
EXTI15PA15 (JTDI) (A13), PG15 (B7), PH15 (D13), PC15-OSC32_OUT(OSC32_OUT) (F1), PD15 (L14), PF15 (P7), PE15 (R11), PB15 (R15)
INN1PA0 (N3)
INN2PF14 (R7)
INN3PA7 (R3)
INN4PC5 (P5)
INN5PB0 (R5)
INN10PC1 (M3)
INN11PC2 (M4)
INN12PC3 (M5)
INN18PA5 (P4)
INP0PA0 (N3)
INP1PA1 (N2)
INP2PF13 (N6)
INP3PA6 (P3)
INP4PC4 (N5)
INP5PB1 (R4)
INP6PF14 (R7)
INP7PA7 (R3)
INP8PC5 (P5)
INP9PB0 (R5)
INP10PC0 (M2)
INP11PC1 (M3)
INP12PC2 (M4)
INP13PC3 (M5)
INP14PA2 (P2)
INP15PA3 (R2)
INP18PA4 (N4)
INP19PA5 (P4)
ADC3EXTI11PG11 (B9), PC11 (B13), PA11 (C15), PI11 (E4), PH11 (L12), PD11 (N14), PE11 (P10), PF11 (R6), PB11 (R13)
EXTI15PA15 (JTDI) (A13), PG15 (B7), PH15 (D13), PC15-OSC32_OUT(OSC32_OUT) (F1), PD15 (L14), PF15 (P7), PE15 (R11), PB15 (R15)
INP0PB2 (M6)
INP1PE7 (R8)
INP2PE8 (P8)
INP3PE9 (P9)
INP4PE10 (R9)
INP5PE11 (P10)
INP6PE12 (R10)
INP7PE13 (N11)
INP8PE14 (P11)
INP9PE15 (R11)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (B4), PG9 (C10), PI9 (D3), PA9 (E15), PC9 (F14), PF9 (L2), PH9 (M13), PE9 (P9), PD9 (P14)
OUT1PA4 (N4)
OUT2PA5 (P4)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPA6 (P3), PE10 (R9)
INPPB2 (M6), PA7 (R3)
OUTPC11 (B13, AF3), PD4 (D10, AF3), PF0 (E2, AF3)
COMP2INMPE9 (P9), PE14 (P11), PB1 (R4)
INPPB0 (R5), PE7 (R8)
OUTPC12 (A12, AF3), PD5 (C11, AF3), PF1 (H3, AF3)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA4 (N4), PE13 (N11)
VINPPA5 (P4), PE11 (P10), PE12 (R10)
VOUTPB1 (R4)

TIM — таймер

БлокСигналВыводы
TIM1BKINPH12 (K12, AF1), PA6 (P3, AF1), PB12 (P12, AF1), PE15 (R11, AF1)
BKIN2PE6 (B3, AF1), PI1 (D14, AF1), PG4 (K14, AF1)
CH1PI4 (D4, AF1), PA8 (F15, AF1), PH11 (L12, AF1), PE9 (P9, AF1)
CH1NPI3 (C13, AF1), PH10 (L13, AF1), PE8 (P8, AF1), PB13 (P13, AF1), PA7 (R3, AF1)
CH2PI6 (C3, AF1), PA9 (E15, AF1), PH9 (M13, AF1), PE11 (P10, AF1)
CH2NPI5 (C4, AF1), PH8 (M12, AF1), PB0 (R5, AF1), PE10 (R9, AF1), PB14 (R14, AF1)
CH3PI9 (D3, AF1), PA10 (D15, AF1), PE13 (N11, AF1), PH7 (N12, AF1)
CH3NPI7 (C2, AF1), PH6 (M11, AF1), PB1 (R4, AF1), PE12 (R10, AF1), PB15 (R15, AF1)
CH4PA11 (C15, AF1), PI11 (E4, AF1), PE14 (P11, AF1)
CH4NPD5 (C11, AF1), PI10 (E3, AF1), PC5 (P5, AF1), PE15 (R11, AF3)
ETRPA12 (B15, AF1), PI2 (C14, AF1), PG5 (K13, AF1), PE7 (R8, AF1)
TIM2CH1PA15 (JTDI) (A13, AF1), PF0 (E2, AF1), PA0 (N3, AF1), PA5 (P4, AF1)
CH2PB3 (JTDO/TRACESWO) (A10, AF1), PF1 (H3, AF1), PA1 (N2, AF1)
CH3PF3 (J2, AF1), PA2 (P2, AF1), PF11 (R6, AF1), PB10 (R12, AF1)
CH4PF4 (J3, AF1), PC4 (N5, AF1), PF12 (P6, AF1), PA3 (R2, AF1), PB11 (R13, AF1)
ETRPA15 (JTDI) (A13, AF14), PF0 (E2, AF2), PA0 (N3, AF14), PA5 (P4, AF14)
TIM3CH1PB4 (NJTRST) (A9, AF2), PC6 (H15, AF2), PA6 (P3, AF2)
CH2PB5 (A6, AF2), PC7 (G15, AF2), PA7 (R3, AF2)
CH3PC8 (G14, AF2), PB0 (R5, AF2)
CH4PC9 (F14, AF2), PB1 (R4, AF2)
ETRPD2 (D12, AF2), PF14 (R7, AF2)
TIM4CH1PB6 (B6, AF2), PG0 (N7, AF2), PD12 (N13, AF2)
CH2PB7 (B5, AF2), PG1 (M7, AF2), PD13 (M15, AF2)
CH3PB8 (A5, AF2), PG2 (L15, AF2), PD14 (M14, AF2)
CH4PB9 (B4, AF2), PG3 (K15, AF2), PD15 (L14, AF2), PC2 (M4, AF2)
ETRPE0 (A4, AF2), PF15 (P7, AF2)
TIM5CH1PH10 (L13, AF2), PA0 (N3, AF2)
CH2PH11 (L12, AF2), PA1 (N2, AF2)
CH3PH12 (K12, AF2), PA2 (P2, AF2)
CH4PI0 (E14, AF2), PA3 (R2, AF2)
ETRPH8 (M12, AF2), PA4 (N4, AF2)
TIM8BKINPI4 (D4, AF3), PH12 (K12, AF3), PG2 (L15, AF3), PA6 (P3, AF3)
BKIN2PI1 (D14, AF3), PA8 (F15, AF3), PG3 (K15, AF3)
CH1PI5 (C4, AF3), PC6 (H15, AF3), PC0 (M2, AF3), PH6 (M11, AF3)
CH1NPH13 (E12, AF3), PH7 (N12, AF3), PA5 (P4, AF3), PA7 (R3, AF3)
CH2PI6 (C3, AF3), PC7 (G15, AF3), PC1 (M3, AF3), PH8 (M12, AF3)
CH2NPH14 (E13, AF3), PH9 (M13, AF3), PB0 (R5, AF3), PB14 (R14, AF3)
CH3PI7 (C2, AF3), PC8 (G14, AF3), PH10 (L13, AF3), PC2 (M4, AF3)
CH3NPH15 (D13, AF3), PH11 (L12, AF3), PB1 (R4, AF3), PB15 (R15, AF3)
CH4PI2 (C14, AF3), PD3 (D11, AF3), PC9 (F14, AF3)
CH4NPD0 (B12, AF3), PH12 (K12, AF10), PB2 (M6, AF3)
ETRPI3 (C13, AF3), PG8 (H14, AF3), PA0 (N3, AF3)
TIM12CH1PD7 (A11, AF2), PG9 (C10, AF2), PH6 (M11, AF2), PB14 (R14, AF2)
CH2PG10 (B10, AF2), PH9 (M13, AF2), PD8 (P15, AF2), PB15 (R15, AF2)
TIM13CH1PF8 (L3, AF9), PA6 (P3, AF9), PD9 (P14, AF2)
TIM14CH1PF9 (L2, AF9), PD10 (N15, AF2), PA7 (R3, AF9)
TIM15BKINPE3 (A1, AF4), PD2 (D12, AF4), PA0 (N3, AF4)
CH1PC12 (A12, AF2), PE5 (B2, AF4), PA2 (P2, AF4)
CH1NPE4 (B1, AF4), PA1 (N2, AF4)
CH2PE6 (B3, AF4), PA3 (R2, AF4)
TIM16BKINPB4 (NJTRST) (A9, AF1), PF10 (L1, AF1), PC0 (M2, AF1)
CH1PB8 (A5, AF1), PG15 (B7, AF1), PF6 (K2, AF1)
CH1NPB6 (B6, AF1), PG8 (H14, AF1), PF8 (L3, AF1)
TIM17BKINPB5 (A6, AF1), PG6 (J15, AF1)
CH1PB9 (B4, AF1), PF7 (K1, AF1), PC2 (M4, AF1)
CH1NPB7 (B5, AF1), PF9 (L2, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PG13 (A8, AF1), PB2 (M6, AF5), PD13 (M15, AF1)
CH2PG14 (A7, AF4), PB4 (NJTRST) (A9, AF4), PI11 (E4, AF4)
ETRPE0 (A4, AF1), PG14 (A7, AF1)
IN1PG12 (B8, AF1), PA1 (N2, AF5), PD12 (N13, AF1)
IN2PE2 (A2, AF1), PE1 (A3, AF1), PG11 (B9, AF1), PH13 (E12, AF1), PH2 (F4, AF1), PA2 (P2, AF5)
LPTIM2CH1PG12 (B8, AF3), PD13 (M15, AF3), PA4 (N4, AF3), PB13 (P13, AF3)
CH2PE0 (A4, AF3), PF13 (N6, AF3), PD10 (N15, AF3)
ETRPE0 (A4, AF4), PC4 (N5, AF3), PB11 (R13, AF3)
IN1PD12 (N13, AF3), PF14 (R7, AF3), PB10 (R12, AF3)
IN2PA10 (D15, AF4), PD11 (N14, AF3)
LPTIM3CH1PF5 (K3, AF2), PC3 (M5, AF3), PB0 (R5, AF14), PB10 (R12, AF2)
CH2PF2 (H2, AF2), PB1 (R4, AF14)
ETRPC10 (B14, AF2), PF4 (J3, AF2), PB14 (R14, AF14)
IN1PC11 (B13, AF2), PF3 (J2, AF2), PF5 (K3, AF14), PB13 (P13, AF2)
IN2PA15 (JTDI) (A13, AF2), PF2 (H2, AF3)
LPTIM4ETRPD2 (D12, AF14), PG4 (K14, AF14)
IN1PD13 (M15, AF14), PG0 (N7, AF14)
OUTPD7 (A11, AF14), PG8 (H14, AF14)
LPTIM5CH1PG12 (B8, AF14), PF0 (E2, AF13), PF6 (K2, AF13)
CH2PG13 (A8, AF13), PF1 (H3, AF13), PF7 (K1, AF13)
ETRPG3 (K15, AF13), PB2 (M6, AF13)
IN1PG14 (A7, AF13), PF2 (H2, AF13), PF8 (L3, AF13)
IN2PF3 (J2, AF13), PF9 (L2, AF13)
LPTIM6CH1PF11 (R6, AF14)
CH2PF12 (P6, AF14)
ETRPB3 (JTDO/TRACESWO) (A10, AF14), PG2 (L15, AF14)
IN1PF13 (N6, AF14)
IN2PF14 (R7, AF14)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (D1)
OUT2PI8 (D2), PB2 (M6, AF0)
REFINPB15 (R15, AF0)
TSPC13 (D1)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (E2, AF12)
A1PF1 (H3, AF12)
A2PF2 (H2, AF12)
A3PF3 (J2, AF12)
A4PF4 (J3, AF12)
A5PF5 (K3, AF12)
A6PF12 (P6, AF12)
A7PF13 (N6, AF12)
A8PF14 (R7, AF12)
A9PF15 (P7, AF12)
A10PG0 (N7, AF12)
A11PG1 (M7, AF12)
A12PG2 (L15, AF12)
A13PG3 (K15, AF12)
A14PG4 (K14, AF12)
A15PG5 (K13, AF12)
A16PC9 (F14, AF11), PD11 (N14, AF12)
A17PA11 (C15, AF12), PC8 (G14, AF11), PD12 (N13, AF12)
A18PD13 (M15, AF12)
A19PE3 (A1, AF12)
A20PE4 (B1, AF12)
A21PE5 (B2, AF12)
A22PE6 (B3, AF12)
A23PE2 (A2, AF12)
A24PG13 (A8, AF12), PI1 (D14, AF11)
A25PG14 (A7, AF12), PC0 (M2, AF9)
ALEPA11 (C15, AF12), PC8 (G14, AF11), PD12 (N13, AF12)
BA0PG4 (K14, AF12)
BA1PG5 (K13, AF12)
CLEPC9 (F14, AF11), PD11 (N14, AF12)
CLKPD3 (D11, AF12)
D0PD14 (M14, AF12)
D1PD15 (L14, AF12)
D2PD0 (B12, AF12)
D3PD1 (C12, AF12), PH12 (K12, AF12)
D4PE7 (R8, AF12)
D5PE8 (P8, AF12)
D6PE9 (P9, AF12)
D7PE10 (R9, AF12)
D8PE11 (P10, AF12)
D9PE12 (R10, AF12)
D10PE13 (N11, AF12)
D11PE14 (P11, AF12)
D12PE15 (R11, AF12)
D13PD8 (P15, AF12)
D14PD9 (P14, AF12)
D15PD10 (N15, AF12)
D16PF6 (K2, AF12)
D17PF7 (K1, AF12)
D18PF8 (L3, AF12)
D19PF9 (L2, AF12)
D20PH10 (L13, AF12)
D21PH11 (L12, AF12)
D22PH13 (E12, AF12)
D23PH14 (E13, AF12)
D24PH15 (D13, AF12)
D25PI1 (D14, AF12)
D26PI2 (C14, AF12)
D27PI3 (C13, AF12)
D28PI4 (D4, AF12)
D29PI6 (C3, AF12)
D30PI7 (C2, AF12)
D31PA6 (P3, AF12)
DA0PD14 (M14, AF12)
DA1PD15 (L14, AF12)
DA2PD0 (B12, AF12)
DA3PD1 (C12, AF12), PH12 (K12, AF12)
DA4PE7 (R8, AF12)
DA5PE8 (P8, AF12)
DA6PE9 (P9, AF12)
DA7PE10 (R9, AF12)
DA8PE11 (P10, AF12)
DA9PE12 (R10, AF12)
DA10PE13 (N11, AF12)
DA11PE14 (P11, AF12)
DA12PE15 (R11, AF12)
DA13PD8 (P15, AF12)
DA14PD9 (P14, AF12)
DA15PD10 (N15, AF12)
INTPC8 (G14, AF10), PG7 (J14, AF12), PC0 (M2, AF13)
NBL0PE0 (A4, AF12), PH2 (F4, AF13)
NBL1PE1 (A3, AF12), PA15 (JTDI) (A13, AF12), PB11 (R13, AF12)
NBL2PH3 (G4, AF13), PA4 (N4, AF12)
NBL3PB4 (NJTRST) (A9, AF12)
NCEPD7 (A11, AF12), PG9 (C10, AF12), PC8 (G14, AF9), PC1 (M3, AF13), PC2 (M4, AF13)
NE1PD7 (A11, AF12), PC7 (G15, AF9), PC2 (M4, AF13)
NE2PG9 (C10, AF12), PC8 (G14, AF9), PC1 (M3, AF13)
NE3PG10 (B10, AF12), PG6 (J15, AF12)
NE4PG12 (B8, AF12)
NLPB7 (B5, AF12)
NOEPD4 (D10, AF12), PA8 (F15, AF12)
NWAITPE1 (A3, AF11), PD6 (B11, AF12), PC6 (H15, AF9), PB10 (R12, AF13)
NWEPD5 (C11, AF12), PA9 (E15, AF12), PA7 (R3, AF13)
SDCKE0PH2 (F4, AF12), PC3 (M5, AF12), PC5 (P5, AF12)
SDCKE1PB5 (A6, AF12), PH7 (N12, AF12)
SDCLKPG12 (B8, AF8), PG8 (H14, AF12)
SDNCASPG15 (B7, AF12), PC9 (F14, AF10)
SDNE0PH3 (G4, AF12), PC2 (M4, AF12), PC4 (N5, AF12)
SDNE1PB6 (B6, AF12), PH6 (M11, AF12)
SDNRASPF11 (R6, AF12), PB10 (R12, AF10)
SDNWEPH5 (J4, AF12), PC0 (M2, AF12), PA7 (R3, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (E15, AF13), PC6 (H15, AF13), PH9 (M13, AF13), PE12 (R10, AF13)
D1PA10 (D15, AF13), PC7 (G15, AF13), PH10 (L13, AF13)
D2PE0 (A4, AF13), PG10 (B10, AF13), PC8 (G14, AF13), PH11 (L12, AF13), PB15 (R15, AF13)
D3PE2 (A2, AF13), PE1 (A3, AF13), PG11 (B9, AF13), PH13 (E12, AF13), PC9 (F14, AF13), PA8 (F15, AF13), PH12 (K12, AF13)
D4PE4 (B1, AF13), PC11 (B13, AF13), PH14 (E13, AF13)
D5PB6 (B6, AF13), PI4 (D4, AF13), PD3 (D11, AF13)
D6PB8 (A5, AF13), PE5 (B2, AF13), PI6 (C3, AF13), PF4 (J3, AF13)
D7PB4 (NJTRST) (A9, AF13), PE6 (B3, AF13), PB9 (B4, AF13), PI7 (C2, AF13)
D8PC10 (B14, AF13), PI1 (D14, AF13), PH6 (M11, AF13), PE8 (P8, AF13)
D9PC12 (A12, AF13), PI2 (C14, AF13), PH7 (N12, AF13)
D10PB5 (A6, AF13), PD6 (B11, AF13), PI3 (C13, AF13)
D11PA15 (JTDI) (A13, AF13), PG12 (B8, AF13), PD2 (D12, AF13), PH15 (D13, AF13), PF10 (L1, AF13)
D12PG6 (J15, AF13), PD12 (N13, AF13), PF11 (R6, AF13)
D13PG15 (B7, AF13), PI0 (E14, AF13), PG7 (J14, AF13), PD13 (M15, AF13)
HSYNCPH8 (M12, AF13), PA4 (N4, AF13), PE13 (N11, AF13)
PIXCLKPA6 (P3, AF13), PE15 (R11, AF13)
VSYNCPB7 (B5, AF13), PI5 (C4, AF13), PG9 (C10, AF13), PE14 (P11, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (E15, AF13), PC6 (H15, AF13), PH9 (M13, AF13), PE12 (R10, AF13)
D1PA10 (D15, AF13), PC7 (G15, AF13), PH10 (L13, AF13)
D2PE0 (A4, AF13), PG10 (B10, AF13), PC8 (G14, AF13), PH11 (L12, AF13), PB15 (R15, AF13)
D3PE2 (A2, AF13), PE1 (A3, AF13), PG11 (B9, AF13), PH13 (E12, AF13), PC9 (F14, AF13), PA8 (F15, AF13), PH12 (K12, AF13)
D4PE4 (B1, AF13), PC11 (B13, AF13), PH14 (E13, AF13)
D5PB6 (B6, AF13), PI4 (D4, AF13), PD3 (D11, AF13)
D6PB8 (A5, AF13), PE5 (B2, AF13), PI6 (C3, AF13), PF4 (J3, AF13)
D7PB4 (NJTRST) (A9, AF13), PE6 (B3, AF13), PB9 (B4, AF13), PI7 (C2, AF13)
D8PC10 (B14, AF13), PI1 (D14, AF13), PH6 (M11, AF13), PE8 (P8, AF13)
D9PC12 (A12, AF13), PI2 (C14, AF13), PH7 (N12, AF13)
D10PB5 (A6, AF13), PD6 (B11, AF13), PI3 (C13, AF13)
D11PA15 (JTDI) (A13, AF13), PG12 (B8, AF13), PD2 (D12, AF13), PH15 (D13, AF13), PF10 (L1, AF13)
D12PG6 (J15, AF13), PD12 (N13, AF13), PF11 (R6, AF13)
D13PG15 (B7, AF13), PI0 (E14, AF13), PG7 (J14, AF13), PD13 (M15, AF13)
D14PI10 (E3, AF13), PH4 (H4, AF13), PA5 (P4, AF13)
D15PG12 (B8, AF4), PI11 (E4, AF13), PF10 (L1, AF4), PD14 (M14, AF4), PC5 (P5, AF4)
DEPH8 (M12, AF13), PA4 (N4, AF13), PE13 (N11, AF13)
PDCKPA6 (P3, AF13), PE15 (R11, AF13)
RDYPB7 (B5, AF13), PI5 (C4, AF13), PG9 (C10, AF13), PE14 (P11, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PG14 (A7, AF14), PC10 (B14, AF14), PE14 (P11, AF11)
B1PI11 (E4, AF14), PI0 (E14, AF14), PC9 (F14, AF14), PF9 (L2, AF14), PD14 (M14, AF13)
B2PD5 (C11, AF13), PG8 (H14, AF13), PA7 (R3, AF14)
B3PA6 (P3, AF14), PB1 (R4, AF13)
B4PG11 (B9, AF14), PD3 (D11, AF10), PA4 (N4, AF14)
B5PG9 (C10, AF14), PE11 (P10, AF13), PA3 (R2, AF14)
B6PE5 (B2, AF10), PG10 (B10, AF14), PF13 (N6, AF13), PA2 (P2, AF14)
B7PD4 (D10, AF13), PA1 (N2, AF14), PF15 (P7, AF13)
CLKPA8 (F15, AF14), PD15 (L14, AF13), PF12 (P6, AF13)
DEPD1 (C12, AF13), PI3 (C13, AF14), PF6 (K2, AF14), PC4 (N5, AF14)
G0PC6 (H15, AF14), PG3 (K15, AF14), PB15 (R15, AF12)
G1PE3 (A1, AF13), PH15 (D13, AF14), PC5 (P5, AF14)
G2PG15 (B7, AF14), PC1 (M3, AF14), PD12 (N13, AF11)
G3PE4 (B1, AF10), PF7 (K1, AF14), PC0 (M2, AF14)
G4PG13 (A8, AF14), PC12 (A12, AF11), PB10 (R12, AF14)
G5PB9 (B4, AF14), PA5 (P4, AF10), PF14 (R7, AF13)
G6PB8 (A5, AF14), PF10 (L1, AF14), PA0 (N3, AF13)
G7PB7 (B5, AF14), PD2 (D12, AF11), PB11 (R13, AF13)
HSYNCPB3 (JTDO/TRACESWO) (A10, AF13), PG5 (K13, AF13), PC2 (M4, AF14)
R0PI5 (C4, AF14), PC8 (G14, AF14), PA2 (P2, AF13), PE15 (R11, AF11)
R1PC7 (G15, AF14), PE13 (N11, AF11), PB12 (P12, AF13)
R2PB4 (NJTRST) (A9, AF14), PE6 (B3, AF11), PD0 (B12, AF13), PG2 (L15, AF13)
R3PD7 (A11, AF13), PH13 (E12, AF14), PB2 (M6, AF14)
R4PA12 (B15, AF14), PD9 (P14, AF13), PB0 (R5, AF13)
R5PA11 (C15, AF14), PG7 (J14, AF14), PD8 (P15, AF13)
R6PA10 (D15, AF14), PH14 (E13, AF14), PD11 (N14, AF13)
R7PA9 (E15, AF14), PH4 (H4, AF14), PF8 (L3, AF14), PH9 (M13, AF14), PD10 (N15, AF13)
VSYNCPC11 (B13, AF11), PG4 (K14, AF13), PC3 (M5, AF14)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PE2 (A2, AF4), PF9 (L2, AF4), PC4 (N5, AF8)
CCK1PE5 (B2, AF8), PG7 (J14, AF8)
CKI0PG4 (K14, AF4), PE7 (R8, AF8)
CKI1PF7 (K1, AF4), PC0 (M2, AF4)
CKI2PE3 (A1, AF8), PH2 (F4, AF4)
CKI3PD4 (D10, AF8), PH14 (E13, AF4)
CKI4PI1 (D14, AF4), PE9 (P9, AF8)
CKI5PI6 (C3, AF4), PE11 (P10, AF8)
SDI0PG5 (K13, AF4), PE8 (P8, AF8)
SDI1PE6 (B3, AF8), PD6 (B11, AF8), PC1 (M3, AF4)
SDI2PE4 (B1, AF8), PH3 (G4, AF4)
SDI3PH15 (D13, AF4), PF10 (L1, AF8), PC3 (M5, AF8), PC5 (P5, AF8)
SDI4PI2 (C14, AF4), PE10 (R9, AF8)
SDI5PI7 (C2, AF4), PE12 (R10, AF8)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PE2 (A2, AF3), PC4 (N5, AF4), PF13 (N6, AF1), PD11 (N14, AF1)
CCK1PE5 (B2, AF1), PG7 (J14, AF1), PF14 (R7, AF1)
SDI0PE4 (B1, AF3), PE6 (B3, AF3), PD6 (B11, AF1), PC1 (M3, AF1), PB2 (M6, AF1), PF15 (P7, AF1)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (A14, AF0)
JTDIPA15 (JTDI) (A13, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (A10, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (A15, AF0)
NJTRSTPB4 (NJTRST) (A9, AF0)
TRACECLKPE2 (A2, AF0), PH15 (D13, AF0)
TRACED0PE3 (A1, AF0), PG13 (A8, AF0), PI1 (D14, AF0), PC1 (M3, AF0)
TRACED1PG14 (A7, AF0), PE4 (B1, AF0), PI2 (C14, AF0), PC8 (G14, AF0)
TRACED2PE5 (B2, AF0), PI3 (C13, AF0), PD2 (D12, AF0)
TRACED3PC12 (A12, AF0), PE6 (B3, AF0), PI4 (D4, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPB2 (M6)
MCO_1PA8 (F15, AF0)
MCO_2PC9 (F14, AF0)
OSC_INPH0-OSC_IN (G1)
OSC_OUTPH1-OSC_OUT (H1)
OSC32_INPC14-OSC32_IN(OSC32_IN) (E1)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (F1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC2 (M4, AF0)
PWR_CSTOPPC3 (M5, AF0)
PWR_WKUP1PA0 (N3)
PWR_WKUP2PA2 (P2)
PWR_WKUP3PI8 (D2)
PWR_WKUP4PC13 (D1)
PWR_WKUP5PB7 (B5)
PWR_WKUP6PC1 (M3)
PWR_WKUP7PD2 (D12)
PWR_WKUP8PD3 (D11)
TAMP_IN1PC13 (D1)
TAMP_IN2PI8 (D2), PA0 (N3)
TAMP_IN3PE6 (B3), PC1 (M3)
TAMP_IN4PI11 (E4), PA2 (P2)
TAMP_IN5PA1 (N2)
TAMP_IN6PE3 (A1)
TAMP_IN7PE4 (B1)
TAMP_IN8PE5 (B2)
TAMP_OUT1PA0 (N3)
TAMP_OUT2PC13 (D1)
TAMP_OUT3PE3 (A1), PC13 (D1), PI8 (D2), PA2 (P2)
TAMP_OUT4PA1 (N2)
TAMP_OUT5PI11 (E4), PC1 (M3)
TAMP_OUT6PE6 (B3)
TAMP_OUT7PE5 (B2)
TAMP_OUT8PE4 (B1)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), AES (аппаратное шифрование AES), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 201 шарик корпуса UFBGA176 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), GFXTIM_TE (AF5), LTDC_G1 (AF13), MDF1_CKI2 (AF8), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN9 (AF14), SAI1_SD_B (AF6), TAMP_IN6, TAMP_OUT3, TIM15_BKIN (AF4), USART10_TX (AF7)
A2PE2ввод-выводADF1_CCK0 (AF3), DCMI_D3 (AF13), DEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_A23 (AF12), LPTIM1_IN2 (AF1), MDF1_CCK0 (AF4), OCTOSPIM_P1_IO2 (AF9), PLAY1_OUT8 (AF14), PSSI_D3 (AF13), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), UART8_TX (AF8), USART10_RX (AF7)
A3PE1ввод-выводDCMI_D3 (AF13), FDCAN1_TX (AF9), FMC_NBL1 (AF12), FMC_NWAIT (AF11), LPTIM1_IN2 (AF1), PLAY1_IN8 (AF14), PSSI_D3 (AF13), UART8_TX (AF8)
A4PE0ввод-выводDCMI_D2 (AF13), FDCAN1_RX (AF9), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_CH2 (AF3), LPTIM2_ETR (AF4), OCTOSPIM_P1_NCS2 (AF11), PLAY1_OUT7 (AF14), PSSI_D2 (AF13), SAI2_MCLK_A (AF10), SPI3_RDY (AF6), TIM4_ETR (AF2), UART8_RX (AF8)
A5PB8ввод-выводDCMI_D6 (AF13), ETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LTDC_G6 (AF14), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), SPI4_RDY (AF5), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
A6PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), GFXTIM_LCKCAL (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), OCTOSPIM_P1_NCLK (AF3), OCTOSPIM_P2_CLK (AF10), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14)
A7PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_A25 (AF12), LPTIM1_CH2 (AF4), LPTIM1_ETR (AF1), LPTIM5_IN1 (AF13), LTDC_B0 (AF14), OCTOSPIM_P1_IO7 (AF9), SDMMC2_D7 (AF10), SPI6_MOSI (AF5), USART10_DE (AF6), USART10_RTS (AF6), USART6_TX (AF7)
A8PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FMC_A24 (AF12), LPTIM1_CH1 (AF1), LPTIM5_CH2 (AF13), LTDC_G4 (AF14), OCTOSPIM_P2_NCS1 (AF9), SDMMC2_D6 (AF10), SPI6_SCK (AF5), USART10_CTS (AF6), USART10_NSS (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
A9PB4 (NJTRST)ввод-выводDCMI_D7 (AF13), DEBUG_NJTRST (AF0), ETH_MDIO (AF10), FMC_NBL3 (AF12), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), LPTIM1_CH2 (AF4), LTDC_R2 (AF14), OCTOSPIM_P1_CLK (AF3), PSSI_D7 (AF13), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
A10PB3 (JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), ETH_MDC (AF12), I2C2_SDA (AF4), I2S1_CK (AF5), I2S3_CK (AF6), I3C2_SDA (AF3), LPTIM6_ETR (AF14), LTDC_HSYNC (AF13), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART12_CTS (AF7), UART7_RX (AF11)
A11PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), I2C3_SCL (AF4), I2S1_SDO (AF5), LPTIM4_OUT (AF14), LTDC_R3 (AF13), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), SPI1_MOSI (AF5), TIM12_CH1 (AF2), USART2_CK (AF7)
A12PC12ввод-выводCOMP2_OUT (AF3), DCMI_D9 (AF13), DEBUG_TRACED3 (AF0), ETH_PPS_OUT (AF10), I2S3_SDO (AF6), LTDC_G4 (AF11), OCTOSPIM_P2_IO7 (AF9), PLAY1_OUT0 (AF14), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
A13PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DCMI_D11 (AF13), DEBUG_JTDI (AF0), ETH_PHY_INTN (AF10), FMC_NBL1 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM3_IN2 (AF2), OCTOSPIM_P2_IO6 (AF9), PSSI_D11 (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF14), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
A14PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
A15PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
B1PE4ввод-выводADF1_SDI0 (AF3), DCMI_D4 (AF13), DEBUG_TRACED1 (AF0), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_A20 (AF12), LTDC_G3 (AF10), MDF1_SDI2 (AF8), OCTOSPIM_P2_IO1 (AF9), PLAY1_OUT9 (AF14), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TAMP_IN7, TAMP_OUT8, TIM15_CH1N (AF4)
B2PE5ввод-выводADF1_CCK1 (AF1), DCMI_D6 (AF13), DEBUG_TRACED2 (AF0), ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_A21 (AF12), LTDC_B6 (AF10), MDF1_CCK1 (AF8), OCTOSPIM_P2_IO2 (AF9), PLAY1_IN10 (AF14), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TAMP_IN8, TAMP_OUT7, TIM15_CH1 (AF4)
B3PE6ввод-выводADF1_SDI0 (AF3), DCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_R2 (AF11), MDF1_SDI1 (AF8), OCTOSPIM_P2_IO3 (AF9), PLAY1_OUT10 (AF14), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TAMP_IN3, TAMP_OUT6, TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
B4PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2S2_WS (AF5), I3C1_SDA (AF3), LTDC_G5 (AF14), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
B5PB7ввод-выводDCMI_VSYNC (AF13), FDCAN1_TX (AF9), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), I3C1_SDA (AF3), LPUART1_RX (AF8), LTDC_G7 (AF14), PSSI_RDY (AF13), PWR_WKUP5, SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
B6PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), ETH_MII_TX_ER (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), GFXTIM_FCKCAL (AF0), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS1 (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
B7PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), LTDC_G2 (AF14), OCTOSPIM_P2_IO7 (AF9), PSSI_D13 (AF13), SPI4_RDY (AF5), TIM16_CH1 (AF1), USART10_CK (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
B8PG12ввод-выводDCMI_D11 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_NE4 (AF12), FMC_SDCLK (AF8), LPTIM1_IN1 (AF1), LPTIM2_CH1 (AF3), LPTIM5_CH1 (AF14), OCTOSPIM_P2_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SDMMC2_D3 (AF10), SPI6_MISO (AF5), USART10_TX (AF6), USART6_DE (AF7), USART6_RTS (AF7)
B9PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3 (AF13), ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B4 (AF14), PSSI_D3 (AF13), SDMMC2_D2 (AF10), SPI1_SCK (AF5), USART10_RX (AF6), USART11_DE (AF7), USART11_RTS (AF7)
B10PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), I2C3_SMBA (AF3), I2S1_WS (AF5), LTDC_B6 (AF14), OCTOSPIM_P1_IO5 (AF8), OCTOSPIM_P2_IO6 (AF9), PSSI_D2 (AF13), SAI2_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5), TIM12_CH2 (AF2), USART10_CK (AF6), USART6_CK (AF7)
B11PD6ввод-выводADF1_SDI0 (AF1), DCMI_D10 (AF13), FMC_NWAIT (AF12), I2C3_SDA (AF4), I2S3_SDO (AF5), MDF1_SDI1 (AF8), OCTOSPIM_P1_IO6 (AF10), OCTOSPIM_P2_IO4 (AF9), PLAY1_OUT3 (AF14), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
B12PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), I2S1_MCK (AF5), LTDC_R2 (AF13), OCTOSPIM_P1_NCS2 (AF10), PLAY1_IN1 (AF14), SDMMC1_D0DIR (AF7), TIM8_CH4N (AF3), UART4_RX (AF8), UART9_CTS (AF11)
B13PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT (AF3), DCMI_D4 (AF13), GFXTIM_FCKCAL (AF0), I2S3_SDI (AF6), LPTIM3_IN1 (AF2), LTDC_VSYNC (AF11), OCTOSPIM_P1_NCS1 (AF9), PLAY1_IN0 (AF14), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
B14PC10ввод-выводDCMI_D8 (AF13), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), GFXTIM_LCKCAL (AF0), I2S3_CK (AF6), LPTIM3_ETR (AF2), LTDC_B0 (AF14), OCTOSPIM_P1_IO1 (AF9), PSSI_D8 (AF13), SAI1_SCK_B (AF4), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
B15PA12ввод-выводDMA2D_GPFLAG3 (AF0), FDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R4 (AF14), SAI2_FS_B (AF8), SDMMC2_D4 (AF10), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP
C1VBATпитание—
C2PI7ввод-выводDCMI_D7 (AF13), FMC_D30 (AF12), MDF1_SDI5 (AF4), PSSI_D7 (AF13), SAI2_FS_A (AF10), SDMMC2_CK (AF9), TIM1_CH3N (AF1), TIM8_CH3 (AF3)
C3PI6ввод-выводDCMI_D6 (AF13), FMC_D29 (AF12), MDF1_CKI5 (AF4), PSSI_D6 (AF13), SAI2_SD_A (AF10), SDMMC2_CMD (AF9), TIM1_CH2 (AF1), TIM8_CH2 (AF3)
C4PI5ввод-выводDCMI_VSYNC (AF13), I2S1_MCK (AF5), LTDC_R0 (AF14), PSSI_RDY (AF13), SAI2_SCK_A (AF10), TIM1_CH2N (AF1), TIM8_CH1 (AF3)
C5VDDпитание—
C6VCAPпитание—
C7VDDпитание—
C8VDDIO2питание—
C9VDDпитание—
C10PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), LTDC_B5 (AF14), OCTOSPIM_P1_IO4 (AF8), OCTOSPIM_P1_IO6 (AF9), PSSI_RDY (AF13), SAI2_FS_B (AF10), SDMMC2_D0 (AF11), SPI1_MISO (AF5), TIM12_CH1 (AF2), USART10_RX (AF6), USART6_RX (AF7)
C11PD5ввод-выводCOMP2_OUT (AF3), ETH_MII_CRS (AF6), FDCAN1_TX (AF9), FMC_NWE (AF12), LTDC_B2 (AF13), OCTOSPIM_P1_IO5 (AF10), PLAY1_IN3 (AF14), SPI2_RDY (AF5), TIM1_CH4N (AF1), UART8_RX (AF8), USART2_TX (AF7)
C12PD1ввод-выводETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2S2_MCK (AF5), LTDC_DE (AF13), OCTOSPIM_P2_DQS (AF10), PLAY1_OUT1 (AF14), SAI1_MCLK_B (AF6), SDMMC1_D123DIR (AF7), UART4_TX (AF8)
C13PI3ввод-выводDCMI_D10 (AF13), DEBUG_TRACED2 (AF0), FMC_D27 (AF12), I2S2_SDO (AF5), LTDC_DE (AF14), PSSI_D10 (AF13), SDMMC2_D2 (AF9), SPI2_MOSI (AF5), TIM1_CH1N (AF1), TIM8_ETR (AF3)
C14PI2ввод-выводDCMI_D9 (AF13), DEBUG_TRACED1 (AF0), FMC_D26 (AF12), I2S2_SDI (AF5), MDF1_SDI4 (AF4), PSSI_D9 (AF13), SDMMC2_D1 (AF9), SPI2_MISO (AF5), TIM1_ETR (AF1), TIM8_CH4 (AF3)
C15PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2 (AF0), FDCAN1_RX (AF9), FMC_A17 (AF12), FMC_ALE (AF12), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R5 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_FS_DM
D1PC13ввод-выводPWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3
D2PI8ввод-выводPWR_WKUP3, RTC_OUT2, TAMP_IN2, TAMP_OUT3
D3PI9ввод-выводDAC1_EXTI9, FDCAN1_RX (AF9), SAI1_FS_A (AF2), TIM1_CH3 (AF1), UART4_RX (AF8)
D4PI4ввод-выводDCMI_D5 (AF13), DEBUG_TRACED3 (AF0), FMC_D28 (AF12), PSSI_D5 (AF13), SAI2_MCLK_A (AF10), SDMMC2_D3 (AF9), SPI2_RDY (AF7), TIM1_CH1 (AF1), TIM8_BKIN (AF3)
D5VSSпитание—
D6BOOT0загрузка—
D7VSSпитание—
D8VSSпитание—
D9VSSпитание—
D10PD4ввод-выводCOMP1_OUT (AF3), DEBUG_TRGIO (AF0), ETH_CLK (AF11), FMC_NOE (AF12), LTDC_B7 (AF13), MDF1_CKI3 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_OUT2 (AF14), USART2_DE (AF7), USART2_RTS (AF7)
D11PD3ввод-выводDCMI_D5 (AF13), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_B4 (AF10), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN2 (AF14), PSSI_D5 (AF13), PWR_WKUP8, SPI2_SCK (AF5), TIM8_CH4 (AF3), USART2_CTS (AF7), USART2_NSS (AF7)
D12PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), I2C2_SCL (AF6), I3C2_SCL (AF5), LPTIM4_ETR (AF14), LTDC_G7 (AF11), OCTOSPIM_P1_NCS2 (AF9), OCTOSPIM_P2_IO1 (AF10), PSSI_D11 (AF13), PWR_WKUP7, SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
D13PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11 (AF13), DEBUG_TRACECLK (AF0), FMC_D24 (AF12), LTDC_G1 (AF14), MDF1_SDI3 (AF4), OCTOSPIM_P2_IO7 (AF10), PSSI_D11 (AF13), SDMMC2_CKIN (AF9), TIM8_CH3N (AF3)
D14PI1ввод-выводDCMI_D8 (AF13), DEBUG_TRACED0 (AF0), FMC_A24 (AF11), FMC_D25 (AF12), I2S2_CK (AF5), MDF1_CKI4 (AF4), PSSI_D8 (AF13), SDMMC2_D0 (AF9), SPI2_SCK (AF5), TIM1_BKIN2 (AF1), TIM8_BKIN2 (AF3)
D15PA10ввод-выводDCMI_D1 (AF13), DMA2D_GPFLAG1 (AF0), ETH_CLK (AF11), FDCAN2_TX (AF9), LPTIM2_IN2 (AF4), LPUART1_RX (AF3), LTDC_R6 (AF14), PSSI_D1 (AF13), SDMMC1_D0 (AF12), TIM1_CH3 (AF1), UCPD1_FRSTX (AF6), USART1_RX (AF7)
E1PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
E2PF0ввод-выводCOMP1_OUT (AF3), FMC_A0 (AF12), I2C2_SDA (AF4), I3C2_SDA (AF5), LPTIM5_CH1 (AF13), PLAY1_IN0 (AF14), SDMMC2_D2 (AF10), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART9_RX (AF11)
E3PI10ввод-выводETH_MII_RX_ER (AF11), FDCAN1_RX (AF9), PSSI_D14 (AF13), SAI1_SCK_A (AF2), TIM1_CH4N (AF1), USART11_RX (AF7)
E4PI11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LPTIM1_CH2 (AF4), LTDC_B1 (AF14), PSSI_D15 (AF13), SAI1_MCLK_A (AF2), TAMP_IN4, TAMP_OUT5, TIM1_CH4 (AF1), USART11_TX (AF7)
E12PH13ввод-выводDCMI_D3 (AF13), FDCAN1_TX (AF9), FMC_D22 (AF12), LPTIM1_IN2 (AF1), LTDC_R3 (AF14), OCTOSPIM_P2_IO5 (AF10), PSSI_D3 (AF13), TIM8_CH1N (AF3), UART4_TX (AF8), UART8_TX (AF7)
E13PH14ввод-выводDCMI_D4 (AF13), FDCAN1_RX (AF9), FMC_D23 (AF12), LTDC_R6 (AF14), MDF1_CKI3 (AF4), OCTOSPIM_P2_IO6 (AF10), PSSI_D4 (AF13), TIM8_CH2N (AF3), UART4_RX (AF8)
E14PI0ввод-выводDCMI_D13 (AF13), I2S2_WS (AF5), LTDC_B1 (AF14), PSSI_D13 (AF13), SPI2_NSS (AF5), TIM5_CH4 (AF2), USART11_CK (AF7)
E15PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_MII_TX_ER (AF11), FMC_NWE (AF12), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R7 (AF14), OCTOSPIM_P2_IO3 (AF10), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), UCPD1_DB1, USART1_TX (AF7)
F1PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
F2VSSпитание—
F3VDDпитание—
F4PH2ввод-выводETH_MII_CRS (AF11), FMC_NBL0 (AF13), FMC_SDCKE0 (AF12), LPTIM1_IN2 (AF1), MDF1_CKI2 (AF4), OCTOSPIM_P1_IO4 (AF9), OCTOSPIM_P2_CLK (AF8), PLAY1_OUT2 (AF14), SAI2_SCK_B (AF10)
F6VSSпитание—
F7VSSпитание—
F8VSSпитание—
F9VSSпитание—
F10VSSпитание—
F12VSSпитание—
F13VDDпитание—
F14PC9ввод-выводAUDIOCLK (AF5), DAC1_EXTI9, DCMI_D3 (AF13), FMC_A16 (AF11), FMC_CLE (AF11), FMC_SDNCAS (AF10), I2C3_SDA (AF4), LTDC_B1 (AF14), OCTOSPIM_P1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8), UCPD1_DB2
F15PA8ввод-выводDCMI_D3 (AF13), FMC_NOE (AF12), I2C3_SCL (AF4), LTDC_CLK (AF14), OCTOSPIM_P2_DQS (AF9), PSSI_D3 (AF13), RCC_MCO_1 (AF0), SPI1_RDY (AF5), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF
G1PH0-OSC_INввод-выводRCC_OSC_IN
G2VSSпитание—
G3VDDпитание—
G4PH3ввод-выводETH_MII_COL (AF11), FMC_NBL2 (AF13), FMC_SDNE0 (AF12), MDF1_SDI2 (AF4), OCTOSPIM_P1_IO5 (AF9), OCTOSPIM_P2_NCLK (AF8), PLAY1_OUT3 (AF14), SAI2_MCLK_B (AF10)
G6VSSпитание—
G7VSSпитание—
G8VSSпитание—
G9VSSпитание—
G10VSSпитание—
G12VSSпитание—
G13VDDпитание—
G14PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_A17 (AF11), FMC_ALE (AF11), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), LTDC_R0 (AF14), PSSI_D2 (AF13), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
G15PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), FMC_NE1 (AF9), I2S3_MCK (AF6), LTDC_R1 (AF14), OCTOSPIM_P1_IO6 (AF11), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
H1PH1-OSC_OUTввод-выводRCC_OSC_OUT
H2PF2ввод-выводFMC_A2 (AF12), GFXTIM_TE (AF5), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), LPTIM3_IN2 (AF3), LPTIM5_IN1 (AF13), PLAY1_IN2 (AF14), SDMMC2_D4 (AF10), UART12_TX (AF6), USART11_CK (AF7)
H3PF1ввод-выводCOMP2_OUT (AF3), FMC_A1 (AF12), I2C2_SCL (AF4), I3C2_SCL (AF5), LPTIM5_CH2 (AF13), PLAY1_IN1 (AF14), SDMMC2_D3 (AF10), TIM2_CH2 (AF1), UART9_TX (AF11)
H4PH4ввод-выводI2C2_SCL (AF4), I3C2_SCL (AF3), LTDC_R7 (AF14), PSSI_D14 (AF13), SPI5_RDY (AF5), SPI6_RDY (AF7)
H6VSSпитание—
H7VSSпитание—
H8VSSпитание—
H9VSSпитание—
H10VSSпитание—
H12VSSпитание—
H13VDDUSBпитание—
H14PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), LPTIM4_OUT (AF14), LTDC_B2 (AF13), OCTOSPIM_P2_NCLK (AF9), SPI6_NSS (AF5), TIM16_CH1N (AF1), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
H15PC6ввод-выводDCMI_D0 (AF13), FMC_NWAIT (AF9), I2S2_MCK (AF5), LTDC_G0 (AF14), OCTOSPIM_P1_IO5 (AF11), PSSI_D0 (AF13), SAI1_SCK_A (AF6), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
J1NRSTсброс—
J2PF3ввод-выводFMC_A3 (AF12), LPTIM3_IN1 (AF2), LPTIM5_IN2 (AF13), PLAY1_OUT0 (AF14), SDMMC2_D5 (AF10), TIM2_CH3 (AF1), USART11_TX (AF7)
J3PF4ввод-выводDCMI_D6 (AF13), FMC_A4 (AF12), LPTIM3_ETR (AF2), OCTOSPIM_P2_NCS2 (AF9), PLAY1_OUT1 (AF14), PSSI_D6 (AF13), SDMMC2_D6 (AF10), TIM2_CH4 (AF1), USART11_RX (AF7)
J4PH5ввод-выводFMC_SDNWE (AF12), I2C2_SDA (AF4), I3C2_SDA (AF3), SPI5_NSS (AF5), SPI6_RDY (AF7)
J6VSSпитание—
J7VSSпитание—
J8VSSпитание—
J9VSSпитание—
J10VSSпитание—
J12VDDпитание—
J13VDDпитание—
J14PG7ввод-выводADF1_CCK1 (AF1), DCMI_D13 (AF13), FMC_INT (AF12), I2C4_SCL (AF4), I3C1_SCL (AF3), LTDC_R5 (AF14), MDF1_CCK1 (AF8), OCTOSPIM_P2_CLK (AF9), PSSI_D13 (AF13), SAI1_CK2 (AF2), SAI1_MCLK_A (AF6), UCPD1_FRSTX (AF11), USART6_CK (AF7)
J15PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF3), OCTOSPIM_P1_NCS1 (AF10), OCTOSPIM_P2_NCS1 (AF9), PLAY1_OUT10 (AF14), PSSI_D12 (AF13), SPI1_RDY (AF5), TIM17_BKIN (AF1), UCPD1_FRSTX (AF11)
K1PF7ввод-выводFDCAN3_RX (AF9), FMC_D17 (AF12), LPTIM5_CH2 (AF13), LTDC_G3 (AF14), MDF1_CKI1 (AF4), OCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF6), SDMMC1_D1 (AF8), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
K2PF6ввод-выводFDCAN3_TX (AF9), FMC_D16 (AF12), LPTIM5_CH1 (AF13), LTDC_DE (AF14), OCTOSPIM_P1_IO3 (AF10), SAI1_SD_B (AF6), SDMMC1_D0 (AF8), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
K3PF5ввод-выводFMC_A5 (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM3_CH1 (AF2), LPTIM3_IN1 (AF14), OCTOSPIM_P2_DQS (AF9), SDMMC2_CKIN (AF11), SDMMC2_D7 (AF10), UART12_RX (AF6), USART11_CTS (AF7), USART11_NSS (AF7)
K4VDDпитание—
K6VSSпитание—
K7VSSпитание—
K8VSSпитание—
K9VSSпитание—
K10VSSпитание—
K12PH12ввод-выводDCMI_D3 (AF13), FMC_D3 (AF12), FMC_DA3 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5), OCTOSPIM_P2_IO4 (AF9), PLAY1_OUT15 (AF14), PSSI_D3 (AF13), TIM1_BKIN (AF1), TIM5_CH3 (AF2), TIM8_BKIN (AF3), TIM8_CH4N (AF10)
K13PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), LTDC_HSYNC (AF13), MDF1_SDI0 (AF4), OCTOSPIM_P2_IO5 (AF9), PLAY1_OUT9 (AF14), TIM1_ETR (AF1)
K14PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), LPTIM4_ETR (AF14), LTDC_VSYNC (AF13), MDF1_CKI0 (AF4), OCTOSPIM_P2_IO4 (AF9), TIM1_BKIN2 (AF1)
K15PG3ввод-выводETH_MII_RX_ER (AF10), FMC_A13 (AF12), LPTIM5_ETR (AF13), LTDC_G0 (AF14), OCTOSPIM_P2_IO3 (AF9), TIM4_CH4 (AF2), TIM8_BKIN2 (AF3), UART12_TX (AF7), UART7_RX (AF11)
L1PF10ввод-выводDCMI_D11 (AF13), LTDC_G6 (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), TIM16_BKIN (AF1)
L2PF9ввод-выводDAC1_EXTI9, ETH_MDC (AF11), FMC_D19 (AF12), LPTIM5_IN2 (AF13), LTDC_B1 (AF14), MDF1_CCK0 (AF4), OCTOSPIM_P1_IO1 (AF10), SAI1_FS_B (AF6), SDMMC1_D3 (AF8), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
L3PF8ввод-выводETH_MII_TX_ER (AF11), FMC_D18 (AF12), LPTIM5_IN1 (AF13), LTDC_R7 (AF14), OCTOSPIM_P1_IO0 (AF10), SAI1_SCK_B (AF6), SDMMC1_D2 (AF8), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
L4VSSпитание—
L12PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2 (AF13), FMC_D21 (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), OCTOSPIM_P2_IO3 (AF9), PLAY1_OUT14 (AF14), PSSI_D2 (AF13), TIM1_CH1 (AF1), TIM5_CH2 (AF2), TIM8_CH3N (AF3)
L13PH10ввод-выводDCMI_D1 (AF13), FMC_D20 (AF12), I2C4_SMBA (AF4), OCTOSPIM_P2_IO2 (AF9), PLAY1_OUT13 (AF14), PSSI_D1 (AF13), SPI5_RDY (AF5), TIM1_CH1N (AF1), TIM5_CH1 (AF2), TIM8_CH3 (AF3)
L14PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LTDC_CLK (AF13), OCTOSPIM_P2_NCLK (AF9), PLAY1_IN7 (AF14), SAI1_FS_B (AF6), SPI6_RDY (AF7), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
L15PG2ввод-выводFMC_A12 (AF12), I2S1_MCK (AF5), LPTIM6_ETR (AF14), LTDC_R2 (AF13), OCTOSPIM_P2_IO2 (AF9), TIM4_CH3 (AF2), TIM8_BKIN (AF3), UART12_RX (AF7)
M1VSSAпитание—
M2PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_A25 (AF9), FMC_INT (AF13), FMC_SDNWE (AF12), LTDC_G3 (AF14), MDF1_CKI1 (AF4), OCTOSPIM_P1_IO7 (AF10), SAI1_MCLK_A (AF6), SAI2_FS_B (AF8), SPI2_RDY (AF7), TIM16_BKIN (AF1), TIM8_CH1 (AF3)
M3PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0 (AF1), DEBUG_TRACED0 (AF0), ETH_MDC (AF11), FMC_NCE (AF13), FMC_NE2 (AF13), I2S2_SDO (AF5), LTDC_G2 (AF14), MDF1_SDI1 (AF4), OCTOSPIM_P1_IO4 (AF10), PWR_WKUP6, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5), TAMP_IN3, TAMP_OUT5, TIM8_CH2 (AF3), USART11_DE (AF7), USART11_RTS (AF7)
M4PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_NCE (AF13), FMC_NE1 (AF13), FMC_SDNE0 (AF12), I2S2_SDI (AF5), LTDC_HSYNC (AF14), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF6), PWR_CSLEEP (AF0), SDMMC2_D6 (AF10), SPI2_MISO (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), TIM8_CH3 (AF3)
M5PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), LPTIM3_CH1 (AF3), LTDC_VSYNC (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF6), PWR_CSTOP (AF0), SAI1_D3 (AF2), SDMMC2_D7 (AF10), SPI2_MOSI (AF5)
M6PB2ввод-выводADC3_INP0, ADF1_SDI0 (AF1), COMP1_INP, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), I2S3_SDO (AF7), LPTIM1_CH1 (AF5), LPTIM5_ETR (AF13), LTDC_R3 (AF14), OCTOSPIM_P1_CLK (AF9), OCTOSPIM_P1_DQS (AF10), RCC_LSCO, RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC1_CMD (AF12), SPI1_RDY (AF4), SPI3_MOSI (AF7), TIM8_CH4N (AF3)
M7PG1ввод-выводFMC_A11 (AF12), I2S2_SDO (AF7), OCTOSPIM_P2_IO1 (AF9), PLAY1_IN3 (AF14), SPI2_MOSI (AF7), TIM4_CH2 (AF2), UART9_TX (AF11)
M8VSSпитание—
M9VSSпитание—
M10VCAPпитание—
M11PH6ввод-выводDCMI_D8 (AF13), ETH_MII_RXD2 (AF11), FMC_SDNE1 (AF12), I2C2_SMBA (AF4), OCTOSPIM_P2_IO0 (AF9), PLAY1_OUT11 (AF14), PSSI_D8 (AF13), SPI5_SCK (AF5), TIM12_CH1 (AF2), TIM1_CH3N (AF1), TIM8_CH1 (AF3)
M12PH8ввод-выводDCMI_HSYNC (AF13), I2C3_SDA (AF4), PSSI_DE (AF13), SPI5_MOSI (AF5), TIM1_CH2N (AF1), TIM5_ETR (AF2), TIM8_CH2 (AF3)
M13PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), I2C3_SMBA (AF4), LTDC_R7 (AF14), PSSI_D0 (AF13), SPI5_NSS (AF5), TIM12_CH2 (AF2), TIM1_CH2 (AF1), TIM8_CH2N (AF3)
M14PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LTDC_B1 (AF13), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT6 (AF14), PSSI_D15 (AF4), SAI1_FS_A (AF6), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
M15PD13ввод-выводDCMI_D13 (AF13), FMC_A18 (AF12), I2C1_SDA (AF6), I2C4_SDA (AF4), I3C1_SDA (AF5), LPTIM1_CH1 (AF1), LPTIM2_CH1 (AF3), LPTIM4_IN1 (AF14), OCTOSPIM_P1_IO3 (AF9), PSSI_D13 (AF13), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
N1VREF-питание—
N2PA1ввод-выводADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), LPTIM1_IN1 (AF5), LTDC_B7 (AF14), OCTOSPIM_P1_DQS (AF6), OCTOSPIM_P1_IO3 (AF9), SAI2_MCLK_B (AF10), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
N3PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS (AF11), LTDC_G6 (AF13), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI3_RDY (AF6), SPI6_NSS (AF5), TAMP_IN2, TAMP_OUT1, TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
N4PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), FMC_NBL2 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM2_CH1 (AF3), LTDC_B4 (AF14), OPAMP1_VINM, PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
N5PC4ввод-выводADC1_INP4, ADC2_INP4, ADF1_CCK0 (AF4), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LPTIM2_ETR (AF3), LTDC_DE (AF14), MDF1_CCK0 (AF8), SAI1_CK1 (AF2), TIM2_CH4 (AF1), USART3_RX (AF7)
N6PF13ввод-выводADC2_INP2, ADF1_CCK0 (AF1), FMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM2_CH2 (AF3), LPTIM6_IN1 (AF14), LTDC_B6 (AF13), SDMMC1_CDIR (AF9), SDMMC1_D6 (AF8)
N7PG0ввод-выводFMC_A10 (AF12), LPTIM4_IN1 (AF14), OCTOSPIM_P2_IO0 (AF9), SDMMC1_CK (AF8), TIM4_CH1 (AF2), UART9_RX (AF11)
N8VDDпитание—
N9VDDпитание—
N10VDDпитание—
N11PE13ввод-выводADC3_INP7, DCMI_HSYNC (AF13), FDCAN3_RX (AF9), FMC_D10 (AF12), FMC_DA10 (AF12), GFXTIM_FCKCAL (AF0), LTDC_R1 (AF11), OPAMP1_VINM, PLAY1_IN14 (AF14), PSSI_DE (AF13), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
N12PH7ввод-выводDCMI_D9 (AF13), ETH_MII_RXD3 (AF11), FMC_SDCKE1 (AF12), I2C3_SCL (AF4), OCTOSPIM_P2_IO1 (AF9), PLAY1_OUT12 (AF14), PSSI_D9 (AF13), SPI5_MISO (AF5), TIM1_CH3 (AF1), TIM8_CH1N (AF3)
N13PD12ввод-выводDCMI_D12 (AF13), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), LTDC_G2 (AF11), OCTOSPIM_P1_IO1 (AF9), PLAY1_IN6 (AF14), PSSI_D12 (AF13), SAI1_D1 (AF6), SAI2_FS_A (AF10), TIM4_CH1 (AF2), UART4_TX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
N14PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0 (AF1), ETH_PTP_AUX_TS (AF11), FMC_A16 (AF12), FMC_CLE (AF12), GFXTIM_TE (AF5), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), LTDC_R6 (AF13), OCTOSPIM_P1_IO0 (AF9), PLAY1_OUT5 (AF14), SAI1_CK1 (AF2), SAI2_SD_A (AF10), UART4_RX (AF8), USART3_CTS (AF7), USART3_NSS (AF7)
N15PD10ввод-выводAUDIOCLK (AF5), ETH_MII_CRS (AF8), FDCAN3_RX (AF9), FMC_D15 (AF12), FMC_DA15 (AF12), LPTIM2_CH2 (AF3), LTDC_R7 (AF13), PLAY1_IN5 (AF14), TIM14_CH1 (AF2), USART3_CK (AF7)
P1VREF+питание—
P2PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM1_IN2 (AF5), LTDC_B6 (AF14), LTDC_R0 (AF13), OCTOSPIM_P2_IO4 (AF9), PWR_WKUP2, SAI2_SCK_B (AF8), TAMP_IN4, TAMP_OUT3, TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
P3PA6ввод-выводADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK (AF13), FMC_D31 (AF12), I2S1_SDI (AF5), LTDC_B3 (AF14), OCTOSPIM_P1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART11_TX (AF7)
P4PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LTDC_G5 (AF10), OCTOSPIM_P2_IO5 (AF9), OPAMP1_VINP, PSSI_D14 (AF13), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1N (AF3)
P5PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_SDCKE0 (AF12), LTDC_G1 (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_DQS (AF10), PSSI_D15 (AF4), SAI1_D3 (AF2), SAI1_FS_A (AF6), TIM1_CH4N (AF1), UART12_DE (AF7), UART12_RTS (AF7)
P6PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), LPTIM6_CH2 (AF14), LTDC_CLK (AF13), SDMMC1_CKIN (AF9), SDMMC1_D5 (AF8), TIM2_CH4 (AF1)
P7PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADF1_SDI0 (AF1), ETH_CLK (AF11), FMC_A9 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5), LTDC_B7 (AF13), OCTOSPIM_P2_NCS2 (AF9), SDMMC1_CMD (AF8), TIM4_ETR (AF2)
P8PE8ввод-выводADC3_INP2, DCMI_D8 (AF13), FMC_D5 (AF12), FMC_DA5 (AF12), MDF1_SDI0 (AF8), OCTOSPIM_P1_IO5 (AF10), PLAY1_OUT11 (AF14), PSSI_D8 (AF13), TIM1_CH1N (AF1), UART12_CTS (AF6), UART7_TX (AF7), USART2_TX (AF5)
P9PE9ввод-выводADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), MDF1_CKI4 (AF8), OCTOSPIM_P1_IO6 (AF10), PLAY1_IN12 (AF14), TIM1_CH1 (AF1), UART12_RX (AF6), UART7_DE (AF7), UART7_RTS (AF7)
P10PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_B5 (AF13), MDF1_CKI5 (AF8), OCTOSPIM_P1_NCS1 (AF6), OCTOSPIM_P2_NCS2 (AF9), OPAMP1_VINP, PLAY1_IN13 (AF14), SAI2_SD_B (AF10), SPI1_RDY (AF4), SPI4_NSS (AF5), TIM1_CH2 (AF1), USART6_TX (AF7)
P11PE14ввод-выводADC3_INP8, COMP2_INM, DCMI_VSYNC (AF13), FMC_D11 (AF12), FMC_DA11 (AF12), LTDC_B0 (AF11), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT14 (AF14), PSSI_RDY (AF13), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
P12PB12ввод-выводETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SDA (AF4), I2S2_WS (AF5), I3C2_SDA (AF8), LTDC_R1 (AF13), OCTOSPIM_P1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF14), UCPD1_FRSTX (AF6), USART3_CK (AF7)
P13PB13ввод-выводFDCAN2_TX (AF9), I2C2_SMBA (AF4), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LPTIM3_IN1 (AF2), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), UCPD1_CC1, USART3_CTS (AF7), USART3_NSS (AF7)
P14PD9ввод-выводCEC (AF5), DAC1_EXTI9, FDCAN2_RX (AF9), FMC_D14 (AF12), FMC_DA14 (AF12), LTDC_R4 (AF13), PLAY1_OUT4 (AF14), TIM13_CH1 (AF2), USART3_RX (AF7)
P15PD8ввод-выводETH_MII_RXD0 (AF8), ETH_RMII_RXD0 (AF8), FDCAN3_TX (AF9), FMC_D13 (AF12), FMC_DA13 (AF12), I2S3_MCK (AF6), LTDC_R5 (AF13), PLAY1_IN4 (AF14), SDMMC2_D0 (AF11), TIM12_CH2 (AF2), USART3_TX (AF7)
R1VDDAпитание—
R2PA3ввод-выводADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0 (AF0), ETH_MII_COL (AF11), I2S2_WS (AF5), LTDC_B5 (AF14), OCTOSPIM_P1_CLK (AF3), SAI1_SD_B (AF6), SPI2_NSS (AF5), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
R3PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_NWE (AF13), FMC_SDNWE (AF12), I2S1_SDO (AF5), LTDC_B2 (AF14), OCTOSPIM_P1_IO2 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART11_RX (AF7)
R4PB1ввод-выводADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3 (AF11), LPTIM3_CH2 (AF14), LTDC_B3 (AF13), OCTOSPIM_P1_IO0 (AF6), OCTOSPIM_P1_NCLK (AF9), OPAMP1_VOUT, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3)
R5PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2 (AF11), LPTIM3_CH1 (AF14), LTDC_R4 (AF13), OCTOSPIM_P1_IO1 (AF6), OCTOSPIM_P2_NCS1 (AF9), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USART11_CK (AF7)
R6PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), LPTIM6_CH1 (AF14), OCTOSPIM_P1_NCLK (AF9), PSSI_D12 (AF13), SAI2_SD_B (AF10), SDMMC1_D4 (AF8), SPI5_MOSI (AF5), TIM2_CH3 (AF1)
R7PF14ввод-выводADC2_INN2, ADC2_INP6, ADF1_CCK1 (AF1), FMC_A8 (AF12), I2S3_SDI (AF6), LPTIM2_IN1 (AF3), LPTIM6_IN2 (AF14), LTDC_G5 (AF13), SDMMC1_D123DIR (AF9), SDMMC1_D7 (AF8), SPI3_MISO (AF6), TIM3_ETR (AF2)
R8PE7ввод-выводADC3_INP1, COMP2_INP, FMC_D4 (AF12), FMC_DA4 (AF12), MDF1_CKI0 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_IN11 (AF14), TIM1_ETR (AF1), UART12_DE (AF6), UART12_RTS (AF6), UART7_RX (AF7), USART2_RX (AF5)
R9PE10ввод-выводADC3_INP4, COMP1_INM, FMC_D7 (AF12), FMC_DA7 (AF12), MDF1_SDI4 (AF8), OCTOSPIM_P1_IO7 (AF10), PLAY1_OUT12 (AF14), TIM1_CH2N (AF1), UART12_TX (AF6), UART7_CTS (AF7)
R10PE12ввод-выводADC3_INP6, DCMI_D0 (AF13), ETH_MDIO (AF11), FDCAN3_TX (AF9), FMC_D9 (AF12), FMC_DA9 (AF12), GFXTIM_LCKCAL (AF0), MDF1_SDI5 (AF8), OPAMP1_VINP, PLAY1_OUT13 (AF14), PSSI_D0 (AF13), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1), USART6_RX (AF7)
R11PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK (AF13), FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R0 (AF11), OCTOSPIM_P2_NCS1 (AF9), PLAY1_OUT15 (AF14), PSSI_PDCK (AF13), TIM1_BKIN (AF1), TIM1_CH4N (AF3), USART10_CK (AF7)
R12PB10ввод-выводETH_MII_RX_ER (AF11), FMC_NWAIT (AF13), FMC_SDNRAS (AF10), I2C2_SCL (AF4), I2S2_CK (AF5), I3C2_SCL (AF8), LPTIM2_IN1 (AF3), LPTIM3_CH1 (AF2), LTDC_G4 (AF14), OCTOSPIM_P1_NCS1 (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
R13PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), FMC_NBL1 (AF12), I2C2_SDA (AF4), I3C2_SDA (AF8), LPTIM2_ETR (AF3), LTDC_G7 (AF13), PLAY1_IN15 (AF14), SPI2_RDY (AF5), SPI4_RDY (AF6), TIM2_CH4 (AF1), USART3_RX (AF7)
R14PB14ввод-выводI2S2_SDI (AF5), LPTIM3_ETR (AF14), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC2, USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
R15PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), I2S2_SDO (AF5), LTDC_G0 (AF12), OCTOSPIM_P1_CLK (AF10), PSSI_D2 (AF13), PWR_PVD_IN, RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), UART5_RX (AF14), USART11_CTS (AF7), USART11_NSS (AF7), USART1_RX (AF4)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATC1резервное питание: часы реального времени и резервные регистры
VCAPC6, M10вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDC5, C7, C9, F3, F13, G3, G13, J12, J13, K4, N8, N9, N10питание цифровой части и линий ввода-вывода
VDDAR1питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2C8питание отдельной группы линий ввода-вывода
VDDUSBH13питание приёмопередатчика USB
VREF-N1нижнее опорное напряжение АЦП
VREF+P1верхнее опорное напряжение АЦП и ЦАП
VSSD5, D7, D8, D9, F2, F6, F7, F8, F9, F10, F12, G2, G6, G7, G8, G9, G10, G12, H6, H7, H8, H9, H10, H12, J6, J7, J8, J9, J10, K6, K7, K8, K9, K10, L4, M8, M9общий провод (земля)
VSSAM1общий провод аналоговой части
NRSTJ1сброс, активный уровень — низкий
BOOT0D6выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H5F4IJKx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H5F4IJSTM32H5F4IJKx4 МБ1,5 МБ

Линейка STM32H5x4, семейство STM32H5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе UFBGA176, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H5E4IJKxSTM32H5x4201 из 201выводы совпадают полностьютолько у этого: AES
STM32H5E4IKKxSTM32H5x4201 из 201выводы совпадают полностью
STM32H562IGSTM32H5x2201 из 201выводы совпадают полностьютолько у этого: ADC3, ADF1, AES, COMP1, COMP2, DMA2D, ETH, FDCAN2, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, SDMMC2, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 640 КБ
STM32H562IISTM32H562201 из 201выводы совпадают полностьютолько у этого: ADC3, ADF1, AES, COMP1, COMP2, DMA2D, ETH, FDCAN2, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, SDMMC2, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 2048 КБ; ОЗУ 1536 и 640 КБ
STM32H563IGSTM32H563/H573201 из 201выводы совпадают полностьютолько у этого: ADC3, ADF1, AES, COMP1, COMP2, DMA2D, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 640 КБ
STM32H563IIKxSTM32H563/H573201 из 201выводы совпадают полностьютолько у этого: ADC3, ADF1, AES, COMP1, COMP2, DMA2D, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 2048 КБ; ОЗУ 1536 и 640 КБ
STM32H573IIKxSTM32H563/H573201 из 201выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, DMA2D, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 2048 КБ; ОЗУ 1536 и 640 КБ
STM32F722IC, STM32F722IESTM32F7x2197 из 201C6: VCAP → PDR_ON; C8: VDDIO2 → VDDSDMMC; F13: VDD → VCAP; L4: VSS → BYPASS_REGтолько у этого: ADF1, AES, COMP1, COMP2, CORDIC, DAC1, DCMI, DMA2D, ETH, FDCAN1, FDCAN2, FDCAN3, FMAC, HASH, HDMI_CEC, I2C4, I3C1, I3C2, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LPUART1, LTDC, MDF1, OCTOSPI1, OCTOSPI2, OPAMP1, PKA, PSSI, SPI6, TIM15, TIM16, TIM17, UART12, UART9, UCPD1, USART10, USART11, USB_OTG_FS1, VREFBUF; только у него: CAN1, DAC, QUADSPI, TIM10, TIM11, TIM9, USB_OTG_HS; флеш-память до 4096 и 512 КБ; ОЗУ 1536 и 192 КБ
STM32F732IESTM32F7x2197 из 201C6: VCAP → PDR_ON; C8: VDDIO2 → VDDSDMMC; F13: VDD → VCAP; L4: VSS → BYPASS_REGтолько у этого: ADF1, COMP1, COMP2, CORDIC, DAC1, DCMI, DMA2D, ETH, FDCAN1, FDCAN2, FDCAN3, FMAC, HASH, HDMI_CEC, I2C4, I3C1, I3C2, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LPUART1, LTDC, MDF1, OCTOSPI1, OCTOSPI2, OPAMP1, PKA, PSSI, SPI6, TIM15, TIM16, TIM17, UART12, UART9, UCPD1, USART10, USART11, USB_OTG_FS1, VREFBUF; только у него: CAN1, DAC, QUADSPI, TIM10, TIM11, TIM9, USB_OTG_HS; флеш-память до 4096 и 512 КБ; ОЗУ 1536 и 192 КБ
STM32F745IE, STM32F745IGSTM32F7x5197 из 201C6: VCAP → PDR_ON; C8: VDDIO2 → VDD; F13: VDD → VCAP; L4: VSS → BYPASS_REGтолько у этого: ADF1, AES, COMP1, COMP2, CORDIC, DAC1, FDCAN1, FDCAN2, FDCAN3, FMAC, HASH, I3C1, I3C2, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LPUART1, LTDC, MDF1, OCTOSPI1, OCTOSPI2, OPAMP1, PKA, PSSI, SDMMC2, TIM15, TIM16, TIM17, UART12, UART9, UCPD1, USART10, USART11, USB_OTG_FS1, VREFBUF; только у него: CAN1, CAN2, DAC, QUADSPI, SPDIFRX, TIM10, TIM11, TIM9, USB_OTG_HS; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 320 КБ
STM32F746IE, STM32F746IGSTM32F7x6197 из 201C6: VCAP → PDR_ON; C8: VDDIO2 → VDD; F13: VDD → VCAP; L4: VSS → BYPASS_REGтолько у этого: ADF1, AES, COMP1, COMP2, CORDIC, DAC1, FDCAN1, FDCAN2, FDCAN3, FMAC, HASH, I3C1, I3C2, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LPUART1, MDF1, OCTOSPI1, OCTOSPI2, OPAMP1, PKA, PSSI, SDMMC2, TIM15, TIM16, TIM17, UART12, UART9, UCPD1, USART10, USART11, USB_OTG_FS1, VREFBUF; только у него: CAN1, CAN2, DAC, QUADSPI, SPDIFRX, TIM10, TIM11, TIM9, USB_OTG_HS; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 320 КБ
STM32F756IGSTM32F7x6197 из 201C6: VCAP → PDR_ON; C8: VDDIO2 → VDD; F13: VDD → VCAP; L4: VSS → BYPASS_REGтолько у этого: ADF1, AES, COMP1, COMP2, CORDIC, DAC1, FDCAN1, FDCAN2, FDCAN3, FMAC, I3C1, I3C2, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LPUART1, MDF1, OCTOSPI1, OCTOSPI2, OPAMP1, PKA, PSSI, SDMMC2, TIM15, TIM16, TIM17, UART12, UART9, UCPD1, USART10, USART11, USB_OTG_FS1, VREFBUF; только у него: CAN1, CAN2, CRYP, DAC, QUADSPI, SPDIFRX, TIM10, TIM11, TIM9, USB_OTG_HS; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 320 КБ

Частые вопросы

На каких выводах USART1 у STM32H5F4IJKx?

В корпусе UFBGA176 сигнал USART1_TX выведен на PB6 (шарик B6, AF7) или PA9 (шарик E15, AF7) или PB14 (шарик R14, AF4), USART1_RX — на PB7 (шарик B5, AF7) или PA10 (шарик D15, AF7) или PB15 (шарик R15, AF4).

Где у STM32H5F4IJKx выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик A15, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик A14, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H5F4IJKx?

I2C1_SCL — PB8 (шарик A5, AF4) или PB6 (шарик B6, AF4), I2C1_SDA — PB9 (шарик B4, AF4) или PB7 (шарик B5, AF4) или PD13 (шарик M15, AF6).

Сколько выводов ввода-вывода у STM32H5F4IJKx в корпусе UFBGA176?

140 из 201. Ещё 59 выводов заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
