STM32H5F5LJ в корпусе TFBGA225: распиновка

STM32H5F5LJ — микроконтроллер STM32H5 на ядре Cortex-M33: 4 МБ флеш-памяти и 1,5 МБ ОЗУ. Корпус TFBGA225 — 225 шариков, из них 178 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
4 МБ
ОЗУ
1,5 МБ
Корпус
TFBGA225, 225 шариков
Линий ввода-вывода
178

Схема корпуса TFBGA225

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32H5F5LJ в корпусе TFBGA225, вид сверхуABCDEFGHJKLMNPR123456789101112131415VSS — шарик A1VSSPK9 — шарик A2: DAC1_EXTI9, I2C1_SCL, I3C1_SCL, PLAY1_IN14, SDMMC1_CKIN, SDMMC1_D4, TIM12_CH1PK9PI6 — шарик A3: DCMI_D6, FMC_D29, MDF1_CKI5, PSSI_D6, SAI2_SD_A, SDMMC2_CMD, TIM1_CH2, TIM8_CH2PI6PI5 — шарик A4: DCMI_VSYNC, I2S1_MCK, LTDC_R0, PSSI_RDY, SAI2_SCK_A, TIM1_CH2N, TIM8_CH1PI5PB9 — шарик A5: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2S2_WS, I3C1_SDA, LTDC_G5, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_CKIN, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PB7 — шарик A6: DCMI_VSYNC, FDCAN1_TX, FMC_NL, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPUART1_RX, LTDC_G7, PSSI_RDY, PWR_WKUP5, SDMMC2_CKIN, SDMMC2_D5, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PG15 — шарик A7: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, LTDC_G2, OCTOSPIM_P2_IO7, PSSI_D13, SPI4_RDY, TIM16_CH1, USART10_CK, USART6_CTS, USART6_NSSPG15PG14 — шарик A8: DEBUG_TRACED1, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_A25, LPTIM1_CH2, LPTIM1_ETR, LPTIM5_IN1, LTDC_B0, OCTOSPIM_P1_IO7, SDMMC2_D7, SPI6_MOSI, USART10_DE, USART10_RTS, USART6_TXPG14PG10 — шарик A9: DCMI_D2, FMC_NE3, I2C3_SMBA, I2S1_WS, LTDC_B6, OCTOSPIM_P1_IO5, OCTOSPIM_P2_IO6, PSSI_D2, SAI2_SD_B, SDMMC2_D1, SPI1_NSS, TIM12_CH2, USART10_CK, USART6_CKPG10PD6 — шарик A10: ADF1_SDI0, DCMI_D10, FMC_NWAIT, I2C3_SDA, I2S3_SDO, MDF1_SDI1, OCTOSPIM_P1_IO6, OCTOSPIM_P2_IO4, PLAY1_OUT3, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PK6 — шарик A11: LTDC_G4, PLAY1_IN12, SDMMC1_D3, SPI4_NSS, TIM8_CH4PK6PK3 — шарик A12: FDCAN2_TX, PLAY1_IN10, SDMMC1_D0, TIM8_CH2N, USART1_CTS, USART1_NSSPK3PJ12 — шарик A13: FDCAN3_TX, I2S2_MCK, LTDC_G7, MDF1_CKI0, SAI1_SD_A, USART11_CTS, USART11_NSSPJ12PD3 — шарик A14: DCMI_D5, FMC_CLK, I2S2_CK, LTDC_B4, OCTOSPIM_P2_IO0, PLAY1_IN2, PSSI_D5, PWR_WKUP8, SPI2_SCK, TIM8_CH4, USART2_CTS, USART2_NSSPD3VSS — шарик A15VSSPK13 — шарик B1: DEBUG_TRACED1, LTDC_B2, OCTOSPIM_P2_IO5, TIM3_CH3, USART6_TXPK13PK10 — шарик B2: I2C1_SDA, I3C1_SDA, PLAY1_IN15, SDMMC1_CDIR, SDMMC1_D5, TIM12_CH2PK10PE2 — шарик B3: ADF1_CCK0, DCMI_D3, DEBUG_TRACECLK, ETH_MII_TXD3, FMC_A23, LPTIM1_IN2, MDF1_CCK0, OCTOSPIM_P1_IO2, PLAY1_OUT8, PSSI_D3, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, UART8_TX, USART10_RXPE2PI7 — шарик B4: DCMI_D7, FMC_D30, MDF1_SDI5, PSSI_D7, SAI2_FS_A, SDMMC2_CK, TIM1_CH3N, TIM8_CH3PI7PE1 — шарик B5: DCMI_D3, FDCAN1_TX, FMC_NBL1, FMC_NWAIT, LPTIM1_IN2, PLAY1_IN8, PSSI_D3, UART8_TXPE1BOOT0 — шарик B6BOOT0PB3 (JTDO/TRACESWO) — шарик B7: CRS_SYNC, DEBUG_JTDO-SWO, ETH_MDC, I2C2_SDA, I2S1_CK, I2S3_CK, I3C2_SDA, LPTIM6_ETR, LTDC_HSYNC, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART12_CTS, UART7_RXPB3PG13 — шарик B8: DEBUG_TRACED0, ETH_MII_TXD0, ETH_RMII_TXD0, FMC_A24, LPTIM1_CH1, LPTIM5_CH2, LTDC_G4, OCTOSPIM_P2_NCS1, SDMMC2_D6, SPI6_SCK, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSSPG13PG9 — шарик B9: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, LTDC_B5, OCTOSPIM_P1_IO4, OCTOSPIM_P1_IO6, PSSI_RDY, SAI2_FS_B, SDMMC2_D0, SPI1_MISO, TIM12_CH1, USART10_RX, USART6_RXPG9PK7 — шарик B10: PLAY1_OUT8, SDMMC1_CMD, SPI4_MISO, TIM8_CH4NPK7PK4 — шарик B11: FDCAN2_RX, PLAY1_OUT7, SDMMC1_D1, SPI4_RDY, TIM8_CH3, USART1_DE, USART1_RTSPK4PD5 — шарик B12: COMP2_OUT, ETH_MII_CRS, FDCAN1_TX, FMC_NWE, LTDC_B2, OCTOSPIM_P1_IO5, PLAY1_IN3, SPI2_RDY, TIM1_CH4N, UART8_RX, USART2_TXPD5PD4 — шарик B13: COMP1_OUT, DEBUG_TRGIO, ETH_CLK, FMC_NOE, LTDC_B7, MDF1_CKI3, OCTOSPIM_P1_IO4, PLAY1_OUT2, USART2_DE, USART2_RTSPD4PC11 — шарик B14: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT, DCMI_D4, GFXTIM_FCKCAL, I2S3_SDI, LPTIM3_IN1, LTDC_VSYNC, OCTOSPIM_P1_NCS1, PLAY1_IN0, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PC12 — шарик B15: COMP2_OUT, DCMI_D9, DEBUG_TRACED3, ETH_PPS_OUT, I2S3_SDO, LTDC_G4, OCTOSPIM_P2_IO7, PLAY1_OUT0, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CKPC12PI10 — шарик C1: ETH_MII_RX_ER, FDCAN1_RX, PSSI_D14, SAI1_SCK_A, TIM1_CH4N, USART11_RXPI10PK11 — шарик C2: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DEBUG_TRACECLK, I2S3_MCK, LTDC_B0, SDMMC1_D0DIR, SDMMC1_D6, TIM3_CH1, USART6_DE, USART6_RTSPK11PC13 — шарик C3: PWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3PC13PE4 — шарик C4: ADF1_SDI0, DCMI_D4, DEBUG_TRACED1, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_A20, LTDC_G3, MDF1_SDI2, OCTOSPIM_P2_IO1, PLAY1_OUT9, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TAMP_IN7, TAMP_OUT8, TIM15_CH1NPE4PI4 — шарик C5: DCMI_D5, DEBUG_TRACED3, FMC_D28, PSSI_D5, SAI2_MCLK_A, SDMMC2_D3, SPI2_RDY, TIM1_CH1, TIM8_BKINPI4PB8 — шарик C6: DCMI_D6, ETH_MII_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, I3C1_SCL, LTDC_G6, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI4_RDY, TIM16_CH1, TIM4_CH3, UART4_RXPB8PB4 (NJTRST) — шарик C7: DCMI_D7, DEBUG_NJTRST, ETH_MDIO, FMC_NBL3, I2S1_SDI, I2S2_WS, I2S3_SDI, LPTIM1_CH2, LTDC_R2, OCTOSPIM_P1_CLK, PSSI_D7, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4PG12 — шарик C8: DCMI_D11, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_NE4, FMC_SDCLK, LPTIM1_IN1, LPTIM2_CH1, LPTIM5_CH1, OCTOSPIM_P2_CLK, PSSI_D11, PSSI_D15, SDMMC2_D3, SPI6_MISO, USART10_TX, USART6_DE, USART6_RTSPG12PD7 — шарик C9: FMC_NCE, FMC_NE1, I2C3_SCL, I2S1_SDO, LPTIM4_OUT, LTDC_R3, OCTOSPIM_P1_IO7, SDMMC2_CMD, SPI1_MOSI, TIM12_CH1, USART2_CKPD7PK5 — шарик C10: LTDC_G3, PLAY1_IN11, SDMMC1_D2, SPI4_SCK, TIM8_CH3NPK5PJ13 — шарик C11: FDCAN3_RX, I2C3_SMBA, LTDC_B5, MDF1_SDI0, TIM17_CH1N, USART11_DE, USART11_RTSPJ13PD1 — шарик C12: ETH_MII_RX_DV, ETH_RMII_CRS_DV, FDCAN1_TX, FMC_D3, FMC_DA3, I2S2_MCK, LTDC_DE, OCTOSPIM_P2_DQS, PLAY1_OUT1, SAI1_MCLK_B, SDMMC1_D123DIR, UART4_TXPD1PA15 (JTDI) — шарик C13: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DCMI_D11, DEBUG_JTDI, ETH_PHY_INTN, FMC_NBL1, I2S1_WS, I2S3_WS, LPTIM3_IN2, OCTOSPIM_P2_IO6, PSSI_D11, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PJ11 — шарик C14: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LPTIM1_ETR, LTDC_VSYNC, SAI2_SCK_A, TIM5_ETR, UART5_TXPJ11PA14 (JTCK/SWCLK) — шарик C15: DEBUG_JTCK-SWCLKPA14PC15-OSC32_OUT(OSC32_OUT) — шарик D1: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUTPC15PC14-OSC32_IN(OSC32_IN) — шарик D2: RCC_OSC32_INPC14VBAT — шарик D3VBATPE5 — шарик D4: ADF1_CCK1, DCMI_D6, DEBUG_TRACED2, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_A21, LTDC_B6, MDF1_CCK1, OCTOSPIM_P2_IO2, PLAY1_IN10, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TAMP_IN8, TAMP_OUT7, TIM15_CH1PE5PE3 — шарик D5: DEBUG_TRACED0, FMC_A19, GFXTIM_TE, LTDC_G1, MDF1_CKI2, OCTOSPIM_P2_IO0, PLAY1_IN9, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM15_BKIN, USART10_TXPE3PE0 — шарик D6: DCMI_D2, FDCAN1_RX, FMC_NBL0, LPTIM1_ETR, LPTIM2_CH2, LPTIM2_ETR, OCTOSPIM_P1_NCS2, PLAY1_OUT7, PSSI_D2, SAI2_MCLK_A, SPI3_RDY, TIM4_ETR, UART8_RXPE0VDDIO2 — шарик D7VDDIO2PG11 — шарик D8: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LPTIM1_IN2, LTDC_B4, PSSI_D3, SDMMC2_D2, SPI1_SCK, USART10_RX, USART11_DE, USART11_RTSPG11PK8 — шарик D9: PLAY1_IN13, SDMMC1_CK, SPI4_MOSI, TIM8_ETRPK8PJ14 — шарик D10: ETH_MII_TXD0, ETH_RMII_TXD0, I2C3_SCL, LTDC_R6, SAI1_SD_A, TIM16_BKIN, USART10_CTS, USART10_NSSPJ14PD2 — шарик D11: DCMI_D11, DEBUG_TRACED2, I2C2_SCL, I3C2_SCL, LPTIM4_ETR, LTDC_G7, OCTOSPIM_P1_NCS2, OCTOSPIM_P2_IO1, PSSI_D11, PWR_WKUP7, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RXPD2PC10 — шарик D12: DCMI_D8, ETH_MII_TXD0, ETH_RMII_TXD0, GFXTIM_LCKCAL, I2S3_CK, LPTIM3_ETR, LTDC_B0, OCTOSPIM_P1_IO1, PSSI_D8, SAI1_SCK_B, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TXPC10PJ10 — шарик D13: LTDC_HSYNC, SAI2_FS_A, TIM5_CH4, UART5_RXPJ10PI3 — шарик D14: DCMI_D10, DEBUG_TRACED2, FMC_D27, I2S2_SDO, LTDC_DE, PSSI_D10, SDMMC2_D2, SPI2_MOSI, TIM1_CH1N, TIM8_ETRPI3PI1 — шарик D15: DCMI_D8, DEBUG_TRACED0, FMC_A24, FMC_D25, I2S2_CK, MDF1_CKI4, PSSI_D8, SDMMC2_D0, SPI2_SCK, TIM1_BKIN2, TIM8_BKIN2PI1PF0 — шарик E1: COMP1_OUT, FMC_A0, I2C2_SDA, I3C2_SDA, LPTIM5_CH1, PLAY1_IN0, SDMMC2_D2, TIM2_CH1, TIM2_ETR, UART9_RXPF0PI9 — шарик E2: DAC1_EXTI9, FDCAN1_RX, SAI1_FS_A, TIM1_CH3, UART4_RXPI9VSS — шарик E3VSSPI8 — шарик E4: PWR_WKUP3, RTC_OUT2, TAMP_IN2, TAMP_OUT3PI8VSS — шарик E5VSSVCAP — шарик E6VCAPPB5 — шарик E7: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, GFXTIM_LCKCAL, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, OCTOSPIM_P1_NCLK, OCTOSPIM_P2_CLK, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RXPB5PB6 — шарик E8: CEC, DCMI_D5, ETH_MII_TX_ER, FDCAN2_TX, FMC_SDNE1, GFXTIM_FCKCAL, I2C1_SCL, I2C4_SCL, I3C1_SCL, LPUART1_TX, OCTOSPIM_P1_NCS1, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6PJ15 — шарик E9: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ETH_MII_TXD1, ETH_RMII_TXD1, I2C3_SDA, LTDC_G6, TIM16_CH1, USART10_DE, USART10_RTSPJ15PD0 — шарик E10: FDCAN1_RX, FMC_D2, FMC_DA2, I2S1_MCK, LTDC_R2, OCTOSPIM_P1_NCS2, PLAY1_IN1, SDMMC1_D0DIR, TIM8_CH4N, UART4_RX, UART9_CTSPD0VSS — шарик E11VSSPI0 — шарик E12: DCMI_D13, I2S2_WS, LTDC_B1, PSSI_D13, SPI2_NSS, TIM5_CH4, USART11_CKPI0PH15 — шарик E13: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11, DEBUG_TRACECLK, FMC_D24, LTDC_G1, MDF1_SDI3, OCTOSPIM_P2_IO7, PSSI_D11, SDMMC2_CKIN, TIM8_CH3NPH15PH14 — шарик E14: DCMI_D4, FDCAN1_RX, FMC_D23, LTDC_R6, MDF1_CKI3, OCTOSPIM_P2_IO6, PSSI_D4, TIM8_CH2N, UART4_RXPH14PH13 — шарик E15: DCMI_D3, FDCAN1_TX, FMC_D22, LPTIM1_IN2, LTDC_R3, OCTOSPIM_P2_IO5, PSSI_D3, TIM8_CH1N, UART4_TX, UART8_TXPH13PI12 — шарик F1: LPUART1_TX, LTDC_R5, MDF1_CKI5, SAI1_SD_B, TIM15_BKIN, TIM1_BKINPI12PF2 — шарик F2: FMC_A2, GFXTIM_TE, I2C2_SMBA, LPTIM3_CH2, LPTIM3_IN2, LPTIM5_IN1, PLAY1_IN2, SDMMC2_D4, UART12_TX, USART11_CKPF2PI11 — шарик F3: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LPTIM1_CH2, LTDC_B1, PSSI_D15, SAI1_MCLK_A, TAMP_IN4, TAMP_OUT5, TIM1_CH4, USART11_TXPI11PK14 — шарик F4: DEBUG_TRACED2, LTDC_R3, OCTOSPIM_P2_IO6, TIM3_CH4, USART6_RXPK14PK12 — шарик F5: DEBUG_TRACED0, LTDC_B3, SDMMC1_D123DIR, SDMMC1_D7, TIM3_CH2, USART6_CTS, USART6_NSSPK12PE6 — шарик F6: ADF1_SDI0, DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_R2, MDF1_SDI1, OCTOSPIM_P2_IO3, PLAY1_OUT10, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TAMP_IN3, TAMP_OUT6, TIM15_CH2, TIM1_BKIN2PE6VDD — шарик F7VDDVSS — шарик F8VSSVDD — шарик F9VDDPI2 — шарик F10: DCMI_D9, DEBUG_TRACED1, FMC_D26, I2S2_SDI, MDF1_SDI4, PSSI_D9, SDMMC2_D1, SPI2_MISO, TIM1_ETR, TIM8_CH4PI2VDDUSB — шарик F11VDDUSBPA13 (JTMS/SWDIO) — шарик F12: DEBUG_JTMS-SWDIOPA13PA10 — шарик F13: DCMI_D1, DMA2D_GPFLAG1, ETH_CLK, FDCAN2_TX, LPTIM2_IN2, LPUART1_RX, LTDC_R6, PSSI_D1, SDMMC1_D0, TIM1_CH3, UCPD1_FRSTX, USART1_RXPA10PA12 — шарик F14: DMA2D_GPFLAG3, FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R4, SAI2_FS_B, SDMMC2_D4, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_FS_DPPA12PA11 — шарик F15: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2, FDCAN1_RX, FMC_A17, FMC_ALE, I2S2_WS, LPUART1_CTS, LTDC_R5, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_FS_DMPA11PF4 — шарик G1: DCMI_D6, FMC_A4, LPTIM3_ETR, OCTOSPIM_P2_NCS2, PLAY1_OUT1, PSSI_D6, SDMMC2_D6, TIM2_CH4, USART11_RXPF4PI14 — шарик G2: LPUART1_CTS, LTDC_B7, SAI1_SCK_B, TIM13_CH1, TIM15_CH1PI14PI13 — шарик G3: LPUART1_RX, LTDC_G5, MDF1_SDI5, SAI1_MCLK_B, TIM15_CH1NPI13PF1 — шарик G4: COMP2_OUT, FMC_A1, I2C2_SCL, I3C2_SCL, LPTIM5_CH2, PLAY1_IN1, SDMMC2_D3, TIM2_CH2, UART9_TXPF1PK15 — шарик G5: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DEBUG_TRACED3, ETH_MII_RX_DV, ETH_RMII_CRS_DV, LTDC_G0, OCTOSPIM_P2_IO7, TIM3_ETR, USART6_CKPK15VDD — шарик G6VDDVDD — шарик G7VDDVSS — шарик G8VSSVDD — шарик G9VDDVDD — шарик G10VDDPA8 — шарик G11: DCMI_D3, FMC_NOE, I2C3_SCL, LTDC_CLK, OCTOSPIM_P2_DQS, PSSI_D3, RCC_MCO_1, SPI1_RDY, TIM1_CH1, TIM8_BKIN2, UART7_RX, USART1_CK, USB_OTG_FS_SOFPA8VSSUSB — шарик G12VSSUSBPA9 — шарик G13: DAC1_EXTI9, DCMI_D0, ETH_MII_TX_ER, FMC_NWE, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R7, OCTOSPIM_P2_IO3, PSSI_D0, SPI2_SCK, TIM1_CH2, UCPD1_DB1, USART1_TXPA9PC9 — шарик G14: AUDIOCLK, DAC1_EXTI9, DCMI_D3, FMC_A16, FMC_CLE, FMC_SDNCAS, I2C3_SDA, LTDC_B1, OCTOSPIM_P1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, TIM8_CH4, UART5_CTS, UCPD1_DB2PC9OTG_HS_DP — шарик G15: USB_OTG_HS_DPOTGHS_DPPF8 — шарик H1: ETH_MII_TX_ER, FMC_D18, LPTIM5_IN1, LTDC_R7, OCTOSPIM_P1_IO0, SAI1_SCK_B, SDMMC1_D2, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPF8PF7 — шарик H2: FDCAN3_RX, FMC_D17, LPTIM5_CH2, LTDC_G3, MDF1_CKI1, OCTOSPIM_P1_IO2, SAI1_MCLK_B, SDMMC1_D1, SPI5_SCK, TIM17_CH1, UART7_TXPF7PF6 — шарик H3: FDCAN3_TX, FMC_D16, LPTIM5_CH1, LTDC_DE, OCTOSPIM_P1_IO3, SAI1_SD_B, SDMMC1_D0, SPI5_NSS, TIM16_CH1, UART7_RXPF6PF5 — шарик H4: FMC_A5, I2C4_SCL, I3C1_SCL, LPTIM3_CH1, LPTIM3_IN1, OCTOSPIM_P2_DQS, SDMMC2_CKIN, SDMMC2_D7, UART12_RX, USART11_CTS, USART11_NSSPF5PF3 — шарик H5: FMC_A3, LPTIM3_IN1, LPTIM5_IN2, PLAY1_OUT0, SDMMC2_D5, TIM2_CH3, USART11_TXPF3VSS — шарик H6VSSVSS — шарик H7VSSVSS — шарик H8VSSVSS — шарик H9VSSVSS — шарик H10VSSPG7 — шарик H11: ADF1_CCK1, DCMI_D13, FMC_INT, I2C4_SCL, I3C1_SCL, LTDC_R5, MDF1_CCK1, OCTOSPIM_P2_CLK, PSSI_D13, SAI1_CK2, SAI1_MCLK_A, UCPD1_FRSTX, USART6_CKPG7VDD11USB — шарик H12VDD11USBPC8 — шарик H13: DCMI_D2, DEBUG_TRACED1, FMC_A17, FMC_ALE, FMC_INT, FMC_NCE, FMC_NE2, LTDC_R0, PSSI_D2, SDMMC1_D0, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PC7 — шарик H14: DCMI_D1, DEBUG_TRGIO, FMC_NE1, I2S3_MCK, LTDC_R1, OCTOSPIM_P1_IO6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, USART6_RXPC7OTG_HS_DM — шарик H15: USB_OTG_HS_DMOTGHS_DMPH0-OSC_IN — шарик J1: RCC_OSC_INPH0PH1-OSC_OUT — шарик J2: RCC_OSC_OUTPH1VSS — шарик J3VSSPF9 — шарик J4: DAC1_EXTI9, ETH_MDC, FMC_D19, LPTIM5_IN2, LTDC_B1, MDF1_CCK0, OCTOSPIM_P1_IO1, SAI1_FS_B, SDMMC1_D3, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTSPF9NRST — шарик J5NRSTVDD — шарик J6VDDVDD — шарик J7VDDVSS — шарик J8VSSVDD — шарик J9VDDVDD — шарик J10VDDPD14 — шарик J11: FMC_D0, FMC_DA0, LTDC_B1, OCTOSPIM_P2_CLK, PLAY1_OUT6, PSSI_D15, SAI1_FS_A, TIM4_CH3, UART8_CTS, UART9_RXPD14PG3 — шарик J12: ETH_MII_RX_ER, FMC_A13, LPTIM5_ETR, LTDC_G0, OCTOSPIM_P2_IO3, TIM4_CH4, TIM8_BKIN2, UART12_TX, UART7_RXPG3PG6 — шарик J13: DCMI_D12, FMC_NE3, I2C4_SDA, I3C1_SDA, OCTOSPIM_P1_NCS1, OCTOSPIM_P2_NCS1, PLAY1_OUT10, PSSI_D12, SPI1_RDY, TIM17_BKIN, UCPD1_FRSTXPG6PG8 — шарик J14: ETH_PPS_OUT, FMC_SDCLK, LPTIM4_OUT, LTDC_B2, OCTOSPIM_P2_NCLK, SPI6_NSS, TIM16_CH1N, TIM8_ETR, USART6_DE, USART6_RTSPG8PC6 — шарик J15: DCMI_D0, FMC_NWAIT, I2S2_MCK, LTDC_G0, OCTOSPIM_P1_IO5, PSSI_D0, SAI1_SCK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, USART6_TXPC6PF10 — шарик K1: DCMI_D11, LTDC_G6, MDF1_SDI3, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKINPF10PC1 — шарик K2: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0, DEBUG_TRACED0, ETH_MDC, FMC_NCE, FMC_NE2, I2S2_SDO, LTDC_G2, MDF1_SDI1, OCTOSPIM_P1_IO4, PWR_WKUP6, SAI1_D1, SAI1_SD_A, SAI2_SD_A, SDMMC2_CK, SPI2_MOSI, TAMP_IN3, TAMP_OUT5, TIM8_CH2, USART11_DE, USART11_RTSPC1VSSA — шарик K3VSSAVREF- — шарик K4VREF-VREF+ — шарик K5VREF+PH5 — шарик K6: FMC_SDNWE, I2C2_SDA, I3C2_SDA, SPI5_NSS, SPI6_RDYPH5VDD — шарик K7VDDVSS — шарик K8VSSVDD — шарик K9VDDPH10 — шарик K10: DCMI_D1, FMC_D20, I2C4_SMBA, OCTOSPIM_P2_IO2, PLAY1_OUT13, PSSI_D1, SPI5_RDY, TIM1_CH1N, TIM5_CH1, TIM8_CH3PH10PB14 — шарик K11: I2S2_SDI, LPTIM3_ETR, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, UCPD1_CC2, USART1_TX, USART3_DE, USART3_RTSPB14PD15 — шарик K12: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, LTDC_CLK, OCTOSPIM_P2_NCLK, PLAY1_IN7, SAI1_FS_B, SPI6_RDY, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TXPD15PK2 — шарик K13: LPTIM6_CH1, OCTOSPIM_P2_IO4, PLAY1_IN9, TIM8_CH2, USART1_RXPK2PG4 — шарик K14: FMC_A14, FMC_BA0, LPTIM4_ETR, LTDC_VSYNC, MDF1_CKI0, OCTOSPIM_P2_IO4, TIM1_BKIN2PG4PG5 — шарик K15: FMC_A15, FMC_BA1, LTDC_HSYNC, MDF1_SDI0, OCTOSPIM_P2_IO5, PLAY1_OUT9, TIM1_ETRPG5PC0 — шарик L1: ADC1_INP10, ADC2_INP10, FMC_A25, FMC_INT, FMC_SDNWE, LTDC_G3, MDF1_CKI1, OCTOSPIM_P1_IO7, SAI1_MCLK_A, SAI2_FS_B, SPI2_RDY, TIM16_BKIN, TIM8_CH1PC0PA0 — шарик L2: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS, LTDC_G6, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI3_RDY, SPI6_NSS, TAMP_IN2, TAMP_OUT1, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0VDDA — шарик L3VDDAPA1 — шарик L4: ADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, LPTIM1_IN1, LTDC_B7, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI2_MCLK_B, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1VSS — шарик L5VSSPB1 — шарик L6: ADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3, LPTIM3_CH2, LTDC_B3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_NCLK, OPAMP1_VOUT, TIM1_CH3N, TIM3_CH4, TIM8_CH3NPB1PF11 — шарик L7: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, LPTIM6_CH1, OCTOSPIM_P1_NCLK, PSSI_D12, SAI2_SD_B, SDMMC1_D4, SPI5_MOSI, TIM2_CH3PF11PE7 — шарик L8: ADC3_INP1, COMP2_INP, FMC_D4, FMC_DA4, MDF1_CKI0, OCTOSPIM_P1_IO4, PLAY1_IN11, TIM1_ETR, UART12_DE, UART12_RTS, UART7_RX, USART2_RXPE7PE12 — шарик L9: ADC3_INP6, DCMI_D0, ETH_MDIO, FDCAN3_TX, FMC_D9, FMC_DA9, GFXTIM_LCKCAL, MDF1_SDI5, OPAMP1_VINP, PLAY1_OUT13, PSSI_D0, SAI2_SCK_B, SPI4_SCK, TIM1_CH3N, USART6_RXPE12VCAP — шарик L10VCAPVSS — шарик L11VSSPD8 — шарик L12: ETH_MII_RXD0, ETH_RMII_RXD0, FDCAN3_TX, FMC_D13, FMC_DA13, I2S3_MCK, LTDC_R5, PLAY1_IN4, SDMMC2_D0, TIM12_CH2, USART3_TXPD8PD13 — шарик L13: DCMI_D13, FMC_A18, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPTIM1_CH1, LPTIM2_CH1, LPTIM4_IN1, OCTOSPIM_P1_IO3, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTSPD13PK1 — шарик L14: LPTIM6_IN2, MDF1_CKI2, OCTOSPIM_P2_IO3, PLAY1_OUT6, SAI1_CK2, TIM8_CH1N, USART1_TXPK1PG2 — шарик L15: FMC_A12, I2S1_MCK, LPTIM6_ETR, LTDC_R2, OCTOSPIM_P2_IO2, TIM4_CH3, TIM8_BKIN, UART12_RXPG2PC2 — шарик M1: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_NCE, FMC_NE1, FMC_SDNE0, I2S2_SDI, LTDC_HSYNC, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSLEEP, SDMMC2_D6, SPI2_MISO, TIM17_CH1, TIM4_CH4, TIM8_CH3PC2PC3 — шарик M2: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_SDCKE0, I2S2_SDO, LPTIM3_CH1, LTDC_VSYNC, MDF1_SDI3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSTOP, SAI1_D3, SDMMC2_D7, SPI2_MOSIPC3PA2 — шарик M3: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM1_IN2, LTDC_B6, LTDC_R0, OCTOSPIM_P2_IO4, PWR_WKUP2, SAI2_SCK_B, TAMP_IN4, TAMP_OUT3, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PA3 — шарик M4: ADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0, ETH_MII_COL, I2S2_WS, LTDC_B5, OCTOSPIM_P1_CLK, SAI1_SD_B, SPI2_NSS, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3PC5 — шарик M5: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_SDCKE0, LTDC_G1, MDF1_SDI3, OCTOSPIM_P1_DQS, PSSI_D15, SAI1_D3, SAI1_FS_A, TIM1_CH4N, UART12_DE, UART12_RTSPC5PJ1 — шарик M6: ETH_PTP_AUX_TS, MDF1_SDI1, OCTOSPIM_P1_DQS, PLAY1_OUT4, TIM17_CH1, USART3_TXPJ1PF14 — шарик M7: ADC2_INN2, ADC2_INP6, ADF1_CCK1, FMC_A8, I2S3_SDI, LPTIM2_IN1, LPTIM6_IN2, LTDC_G5, SDMMC1_D123DIR, SDMMC1_D7, SPI3_MISO, TIM3_ETRPF14PE8 — шарик M8: ADC3_INP2, DCMI_D8, FMC_D5, FMC_DA5, MDF1_SDI0, OCTOSPIM_P1_IO5, PLAY1_OUT11, PSSI_D8, TIM1_CH1N, UART12_CTS, UART7_TX, USART2_TXPE8PE10 — шарик M9: ADC3_INP4, COMP1_INM, FMC_D7, FMC_DA7, MDF1_SDI4, OCTOSPIM_P1_IO7, PLAY1_OUT12, TIM1_CH2N, UART12_TX, UART7_CTSPE10PB10 — шарик M10: ETH_MII_RX_ER, FMC_NWAIT, FMC_SDNRAS, I2C2_SCL, I2S2_CK, I3C2_SCL, LPTIM2_IN1, LPTIM3_CH1, LTDC_G4, OCTOSPIM_P1_NCS1, SPI2_SCK, TIM2_CH3, USART3_TXPB10PH7 — шарик M11: DCMI_D9, ETH_MII_RXD3, FMC_SDCKE1, I2C3_SCL, OCTOSPIM_P2_IO1, PLAY1_OUT12, PSSI_D9, SPI5_MISO, TIM1_CH3, TIM8_CH1NPH7PH11 — шарик M12: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2, FMC_D21, I2C4_SCL, I3C1_SCL, OCTOSPIM_P2_IO3, PLAY1_OUT14, PSSI_D2, TIM1_CH1, TIM5_CH2, TIM8_CH3NPH11PB15 — шарик M13: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2, ETH_MII_TXD1, ETH_RMII_TXD1, I2S2_SDO, LTDC_G0, OCTOSPIM_P1_CLK, PSSI_D2, PWR_PVD_IN, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, UART5_RX, USART11_CTS, USART11_NSS, USART1_RXPB15PD12 — шарик M14: DCMI_D12, FMC_A17, FMC_ALE, I2C4_SCL, I3C1_SCL, LPTIM1_IN1, LPTIM2_IN1, LTDC_G2, OCTOSPIM_P1_IO1, PLAY1_IN6, PSSI_D12, SAI1_D1, SAI2_FS_A, TIM4_CH1, UART4_TX, USART3_DE, USART3_RTSPD12PK0 — шарик M15: LPTIM6_IN1, MDF1_SDI2, OCTOSPIM_P2_IO2, PLAY1_IN8, SAI1_D2, TIM8_CH1, USART1_CKPK0PH2 — шарик N1: ETH_MII_CRS, FMC_NBL0, FMC_SDCKE0, LPTIM1_IN2, MDF1_CKI2, OCTOSPIM_P1_IO4, OCTOSPIM_P2_CLK, PLAY1_OUT2, SAI2_SCK_BPH2PH3 — шарик N2: ETH_MII_COL, FMC_NBL2, FMC_SDNE0, MDF1_SDI2, OCTOSPIM_P1_IO5, OCTOSPIM_P2_NCLK, PLAY1_OUT3, SAI2_MCLK_BPH3PA4 — шарик N3: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, FMC_NBL2, I2S1_WS, I2S3_WS, LPTIM2_CH1, LTDC_B4, OPAMP1_VINM, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CK, USB_OTG_HS_SOFPA4PC4 — шарик N4: ADC1_INP4, ADC2_INP4, ADF1_CCK0, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_SDNE0, I2S1_MCK, LPTIM2_ETR, LTDC_DE, MDF1_CCK0, SAI1_CK1, TIM2_CH4, USART3_RXPC4PI15 — шарик N5: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, GFXTIM_TE, LPUART1_DE, LPUART1_RTS, LTDC_R4, SAI1_FS_B, TIM14_CH1, TIM15_CH2PI15PJ4 — шарик N6: LPTIM2_IN2, LTDC_G2, MDF1_CCK1, TIM4_CH2, USART3_CTS, USART3_NSSPJ4PF15 — шарик N7: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADF1_SDI0, ETH_CLK, FMC_A9, I2C4_SDA, I3C1_SDA, LTDC_B7, OCTOSPIM_P2_NCS2, SDMMC1_CMD, TIM4_ETRPF15PE9 — шарик N8: ADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6, FMC_DA6, MDF1_CKI4, OCTOSPIM_P1_IO6, PLAY1_IN12, TIM1_CH1, UART12_RX, UART7_DE, UART7_RTSPE9PJ9 — шарик N9: COMP2_OUT, DAC1_EXTI9, LPTIM5_IN1, LTDC_CLK, SAI2_MCLK_A, TIM5_CH3, UART5_CTSPJ9PE14 — шарик N10: ADC3_INP8, COMP2_INM, DCMI_VSYNC, FMC_D11, FMC_DA11, LTDC_B0, OCTOSPIM_P2_CLK, PLAY1_OUT14, PSSI_RDY, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PH6 — шарик N11: DCMI_D8, ETH_MII_RXD2, FMC_SDNE1, I2C2_SMBA, OCTOSPIM_P2_IO0, PLAY1_OUT11, PSSI_D8, SPI5_SCK, TIM12_CH1, TIM1_CH3N, TIM8_CH1PH6PH8 — шарик N12: DCMI_HSYNC, I2C3_SDA, PSSI_DE, SPI5_MOSI, TIM1_CH2N, TIM5_ETR, TIM8_CH2PH8PB13 — шарик N13: FDCAN2_TX, I2C2_SMBA, I2S2_CK, LPTIM2_CH1, LPTIM3_IN1, SPI2_SCK, TIM1_CH1N, UART5_TX, UCPD1_CC1, USART3_CTS, USART3_NSSPB13PD10 — шарик N14: AUDIOCLK, ETH_MII_CRS, FDCAN3_RX, FMC_D15, FMC_DA15, LPTIM2_CH2, LTDC_R7, PLAY1_IN5, TIM14_CH1, USART3_CKPD10PD11 — шарик N15: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0, ETH_PTP_AUX_TS, FMC_A16, FMC_CLE, GFXTIM_TE, I2C4_SMBA, LPTIM2_IN2, LTDC_R6, OCTOSPIM_P1_IO0, PLAY1_OUT5, SAI1_CK1, SAI2_SD_A, UART4_RX, USART3_CTS, USART3_NSSPD11PH4 — шарик P1: I2C2_SCL, I3C2_SCL, LTDC_R7, PSSI_D14, SPI5_RDY, SPI6_RDYPH4PA5 — шарик P2: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LTDC_G5, OCTOSPIM_P2_IO5, OPAMP1_VINP, PSSI_D14, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1NPA5PA7 — шарик P3: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_NWE, FMC_SDNWE, I2S1_SDO, LTDC_B2, OCTOSPIM_P1_IO2, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART11_RXPA7PB2 — шарик P4: ADC3_INP0, ADF1_SDI0, COMP1_INP, ETH_MII_RXD0, ETH_RMII_RXD0, I2S3_SDO, LPTIM1_CH1, LPTIM5_ETR, LTDC_R3, OCTOSPIM_P1_CLK, OCTOSPIM_P1_DQS, RCC_LSCO, RTC_OUT2, SAI1_D1, SAI1_SD_A, SDMMC1_CMD, SPI1_RDY, SPI3_MOSI, TIM8_CH4NPB2PJ2 — шарик P5: ETH_PHY_INTN, MDF1_CCK0, OCTOSPIM_P2_NCS2, PLAY1_IN5, SAI1_FS_A, USART3_RXPJ2PF12 — шарик P6: ADC1_INN2, ADC1_INP6, FMC_A6, LPTIM6_CH2, LTDC_CLK, SDMMC1_CKIN, SDMMC1_D5, TIM2_CH4PF12PG0 — шарик P7: FMC_A10, LPTIM4_IN1, OCTOSPIM_P2_IO0, SDMMC1_CK, TIM4_CH1, UART9_RXPG0PJ5 — шарик P8: ADF1_CCK0, ETH_PPS_OUT, OCTOSPIM_P2_NCS1, PLAY1_IN6, TIM4_CH3, USART10_RXPJ5PJ8 — шарик P9: COMP1_OUT, LPTIM5_ETR, LTDC_R1, MDF1_CKI4, TIM5_CH2, UART5_DE, UART5_RTSPJ8PE13 — шарик P10: ADC3_INP7, DCMI_HSYNC, FDCAN3_RX, FMC_D10, FMC_DA10, GFXTIM_FCKCAL, LTDC_R1, OPAMP1_VINM, PLAY1_IN14, PSSI_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH3, UART5_DE, UART5_RTS, USART6_CKPE13PB11 — шарик P11: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_MII_TX_EN, ETH_RMII_TX_EN, FMC_NBL1, I2C2_SDA, I3C2_SDA, LPTIM2_ETR, LTDC_G7, PLAY1_IN15, SPI2_RDY, SPI4_RDY, TIM2_CH4, USART3_RXPB11VSSSMPS — шарик P12VSSSMPSPH9 — шарик P13: DAC1_EXTI9, DCMI_D0, I2C3_SMBA, LTDC_R7, PSSI_D0, SPI5_NSS, TIM12_CH2, TIM1_CH2, TIM8_CH2NPH9PB12 — шарик P14: ETH_MII_TXD0, ETH_RMII_TXD0, FDCAN2_RX, I2C2_SDA, I2S2_WS, I3C2_SDA, LTDC_R1, OCTOSPIM_P1_NCLK, SPI2_NSS, TIM1_BKIN, UART5_RX, UCPD1_FRSTX, USART3_CKPB12PD9 — шарик P15: CEC, DAC1_EXTI9, FDCAN2_RX, FMC_D14, FMC_DA14, LTDC_R4, PLAY1_OUT4, TIM13_CH1, USART3_RXPD9VSS — шарик R1VSSPA6 — шарик R2: ADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK, FMC_D31, I2S1_SDI, LTDC_B3, OCTOSPIM_P1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART11_TXPA6PB0 — шарик R3: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2, LPTIM3_CH1, LTDC_R4, OCTOSPIM_P1_IO1, OCTOSPIM_P2_NCS1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USART11_CKPB0PJ0 — шарик R4: MDF1_CKI1, OCTOSPIM_P1_NCS2, PLAY1_IN4, TIM17_BKIN, TIM4_ETR, USART3_CKPJ0PJ3 — шарик R5: LTDC_G1, MDF1_SDI4, OCTOSPIM_P2_DQS, TIM4_CH1, USART3_DE, USART3_RTSPJ3PF13 — шарик R6: ADC2_INP2, ADF1_CCK0, FMC_A7, I2C4_SMBA, LPTIM2_CH2, LPTIM6_IN1, LTDC_B6, SDMMC1_CDIR, SDMMC1_D6PF13PG1 — шарик R7: FMC_A11, I2S2_SDO, OCTOSPIM_P2_IO1, PLAY1_IN3, SPI2_MOSI, TIM4_CH2, UART9_TXPG1PJ6 — шарик R8: ADF1_CCK1, ETH_MDIO, OCTOSPIM_P2_IO0, PLAY1_OUT5, TIM4_CH4, USART10_TXPJ6PJ7 — шарик R9: ADF1_SDI0, ETH_MDC, OCTOSPIM_P2_IO1, PLAY1_IN7, TIM5_CH1, USART10_CKPJ7PE11 — шарик R10: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8, FMC_DA8, LTDC_B5, MDF1_CKI5, OCTOSPIM_P1_NCS1, OCTOSPIM_P2_NCS2, OPAMP1_VINP, PLAY1_IN13, SAI2_SD_B, SPI1_RDY, SPI4_NSS, TIM1_CH2, USART6_TXPE11PE15 — шарик R11: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK, FMC_D12, FMC_DA12, LTDC_R0, OCTOSPIM_P2_NCS1, PLAY1_OUT15, PSSI_PDCK, TIM1_BKIN, TIM1_CH4N, USART10_CKPE15VLXSMPS — шарик R12VLXSMPSVDDSMPS — шарик R13VDDSMPSPH12 — шарик R14: DCMI_D3, FMC_D3, FMC_DA3, I2C4_SDA, I3C1_SDA, OCTOSPIM_P2_IO4, PLAY1_OUT15, PSSI_D3, TIM1_BKIN, TIM5_CH3, TIM8_BKIN, TIM8_CH4NPH12VSS — шарик R15VSSTFBGA225, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

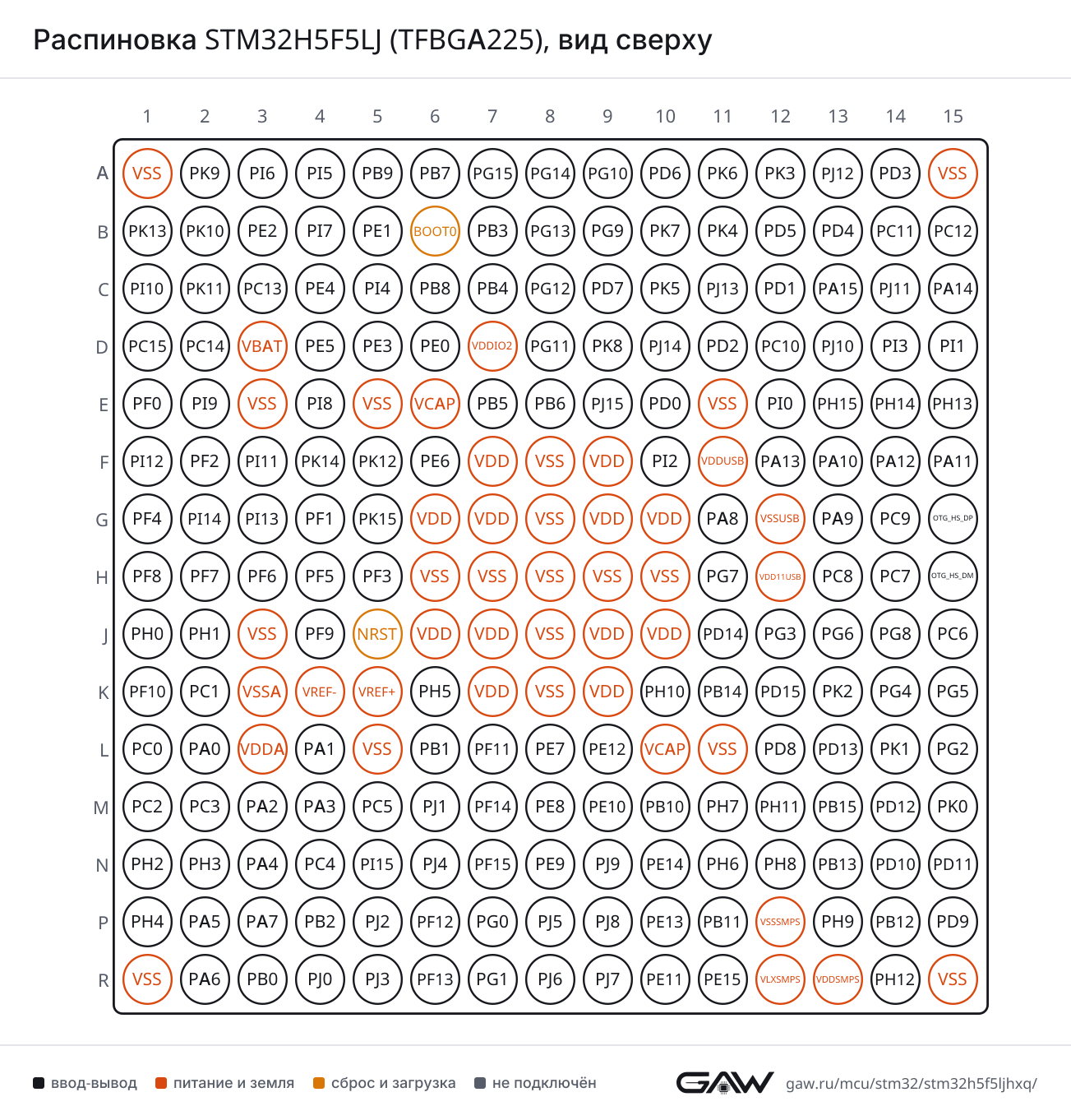

Распиновка STM32H5F5LJ (TFBGA225), вид сверхуРаспиновка TFBGA225 картинкой
PNG, 1303 × 1362 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (G11, AF7), PK0 (M15, AF7)
CTSPK3 (A12, AF7), PA11 (F15, AF7)
DEPK4 (B11, AF7), PA12 (F14, AF7)
NSSPK3 (A12, AF7), PA11 (F15, AF7)
RTSPK4 (B11, AF7), PA12 (F14, AF7)
RXPB7 (A6, AF7), PA10 (F13, AF7), PK2 (K13, AF7), PB15 (M13, AF4)
TXPB6 (E8, AF7), PA9 (G13, AF7), PB14 (K11, AF4), PK1 (L14, AF7)
USART2CKPD7 (C9, AF7), PA4 (N3, AF7)
CTSPD3 (A14, AF7), PA0 (L2, AF7)
DEPD4 (B13, AF7), PA1 (L4, AF7)
NSSPD3 (A14, AF7), PA0 (L2, AF7)
RTSPD4 (B13, AF7), PA1 (L4, AF7)
RXPD6 (A10, AF7), PE7 (L8, AF5), PA3 (M4, AF7)
TXPD5 (B12, AF7), PA2 (M3, AF7), PE8 (M8, AF5)
USART3CKPC12 (B15, AF7), PD10 (N14, AF7), PB12 (P14, AF7), PJ0 (R4, AF7)
CTSPJ4 (N6, AF7), PB13 (N13, AF7), PD11 (N15, AF7)
DEPB14 (K11, AF7), PD12 (M14, AF7), PJ3 (R5, AF7)
NSSPJ4 (N6, AF7), PB13 (N13, AF7), PD11 (N15, AF7)
RTSPB14 (K11, AF7), PD12 (M14, AF7), PJ3 (R5, AF7)
RXPC11 (B14, AF7), PC4 (N4, AF7), PJ2 (P5, AF7), PB11 (P11, AF7), PD9 (P15, AF7)
TXPC10 (D12, AF7), PD8 (L12, AF7), PJ1 (M6, AF7), PB10 (M10, AF7)
USART6CKPG10 (A9, AF7), PK15 (G5, AF7), PG7 (H11, AF7), PC8 (H13, AF7), PE13 (P10, AF7)
CTSPG15 (A7, AF7), PG13 (B8, AF7), PK12 (F5, AF7)
DEPK11 (C2, AF7), PG12 (C8, AF7), PG8 (J14, AF7)
NSSPG15 (A7, AF7), PG13 (B8, AF7), PK12 (F5, AF7)
RTSPK11 (C2, AF7), PG12 (C8, AF7), PG8 (J14, AF7)
RXPG9 (B9, AF7), PK14 (F4, AF7), PC7 (H14, AF7), PE12 (L9, AF7)
TXPG14 (A8, AF7), PK13 (B1, AF7), PC6 (J15, AF7), PE11 (R10, AF7)
USART10CKPG15 (A7, AF6), PG10 (A9, AF6), PJ7 (R9, AF6), PE15 (R11, AF7)
CTSPG13 (B8, AF6), PJ14 (D10, AF6)
DEPG14 (A8, AF6), PJ15 (E9, AF6)
NSSPG13 (B8, AF6), PJ14 (D10, AF6)
RTSPG14 (A8, AF6), PJ15 (E9, AF6)
RXPE2 (B3, AF7), PG9 (B9, AF6), PG11 (D8, AF6), PJ5 (P8, AF6)
TXPG12 (C8, AF6), PE3 (D5, AF7), PJ6 (R8, AF6)
USART11CKPI0 (E12, AF7), PF2 (F2, AF7), PB0 (R3, AF7)
CTSPJ12 (A13, AF7), PF5 (H4, AF7), PB15 (M13, AF7)
DEPJ13 (C11, AF7), PG11 (D8, AF7), PC1 (K2, AF7)
NSSPJ12 (A13, AF7), PF5 (H4, AF7), PB15 (M13, AF7)
RTSPJ13 (C11, AF7), PG11 (D8, AF7), PC1 (K2, AF7)
RXPI10 (C1, AF7), PF4 (G1, AF7), PA7 (P3, AF7)
TXPI11 (F3, AF7), PF3 (H5, AF7), PA6 (R2, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB15 (M13, AF8), PB0 (R3, AF8)
DEPA15 (JTDI) (C13, AF8), PB14 (K11, AF8)
RTSPA15 (JTDI) (C13, AF8), PB14 (K11, AF8)
RXPC11 (B14, AF8), PB8 (C6, AF8), PI9 (E2, AF8), PD0 (E10, AF8), PH14 (E14, AF8), PA11 (F15, AF6), PA1 (L4, AF8), PD11 (N15, AF8)
TXPB9 (A5, AF8), PD1 (C12, AF8), PC10 (D12, AF8), PH13 (E15, AF8), PA12 (F14, AF6), PA0 (L2, AF8), PD12 (M14, AF8)
UART5CTSPC9 (G14, AF8), PJ9 (N9, AF8)
DEPC8 (H13, AF8), PJ8 (P9, AF8), PE13 (P10, AF8)
RTSPC8 (H13, AF8), PJ8 (P9, AF8), PE13 (P10, AF8)
RXPD2 (D11, AF8), PJ10 (D13, AF8), PB5 (E7, AF14), PB15 (M13, AF14), PB12 (P14, AF14)
TXPC12 (B15, AF8), PJ11 (C14, AF8), PB6 (E8, AF14), PB13 (N13, AF14)
UART7CTSPF9 (J4, AF7), PE10 (M9, AF7)
DEPF8 (H1, AF7), PE9 (N8, AF7)
RTSPF8 (H1, AF7), PE9 (N8, AF7)
RXPB3 (JTDO/TRACESWO) (B7, AF11), PA8 (G11, AF11), PF6 (H3, AF7), PG3 (J12, AF11), PE7 (L8, AF7)
TXPB4 (NJTRST) (C7, AF11), PA15 (JTDI) (C13, AF11), PF7 (H2, AF7), PE8 (M8, AF7)
UART8CTSPD14 (J11, AF8)
DEPD15 (K12, AF8)
RTSPD15 (K12, AF8)
RXPD5 (B12, AF8), PE0 (D6, AF8)
TXPE2 (B3, AF8), PE1 (B5, AF8), PH13 (E15, AF7)
UART9CTSPD0 (E10, AF11)
DEPD13 (L13, AF11)
RTSPD13 (L13, AF11)
RXPF0 (E1, AF11), PD14 (J11, AF11), PG0 (P7, AF11)
TXPF1 (G4, AF11), PD15 (K12, AF11), PG1 (R7, AF11)
UART12CTSPB3 (JTDO/TRACESWO) (B7, AF7), PE8 (M8, AF6)
DEPE7 (L8, AF6), PC5 (M5, AF7)
RTSPE7 (L8, AF6), PC5 (M5, AF7)
RXPF5 (H4, AF6), PG2 (L15, AF7), PE9 (N8, AF6)
TXPF2 (F2, AF6), PG3 (J12, AF7), PE10 (M9, AF6)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (F15, AF3), PI14 (G2, AF3)
DEPA12 (F14, AF3), PI15 (N5, AF3)
RTSPA12 (F14, AF3), PI15 (N5, AF3)
RXPB7 (A6, AF8), PA10 (F13, AF3), PI13 (G3, AF3)
TXPB6 (E8, AF8), PI12 (F1, AF3), PA9 (G13, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPG9 (B9, AF5), PB4 (NJTRST) (C7, AF5), PA6 (R2, AF5)
MOSIPD7 (C9, AF5), PB5 (E7, AF5), PA7 (P3, AF5)
NSSPG10 (A9, AF5), PA15 (JTDI) (C13, AF5), PA4 (N3, AF5)
RDYPA8 (G11, AF5), PG6 (J13, AF5), PB2 (P4, AF4), PE11 (R10, AF4)
SCKPB3 (JTDO/TRACESWO) (B7, AF5), PG11 (D8, AF5), PA5 (P2, AF5)
SPI2MISOPI2 (F10, AF5), PB14 (K11, AF5), PC2 (M1, AF5)
MOSIPI3 (D14, AF5), PC1 (K2, AF5), PC3 (M2, AF5), PB15 (M13, AF5), PG1 (R7, AF7)
NSSPB9 (A5, AF5), PB4 (NJTRST) (C7, AF7), PI0 (E12, AF5), PA11 (F15, AF5), PA3 (M4, AF5), PB12 (P14, AF5)
RDYPD5 (B12, AF5), PI4 (C5, AF7), PC0 (L1, AF7), PB11 (P11, AF5)
SCKPD3 (A14, AF5), PI1 (D15, AF5), PA12 (F14, AF5), PA9 (G13, AF5), PB10 (M10, AF5), PB13 (N13, AF5)
SPI3MISOPC11 (B14, AF6), PB4 (NJTRST) (C7, AF6), PF14 (M7, AF6)
MOSIPD6 (A10, AF5), PC12 (B15, AF6), PB5 (E7, AF7), PB2 (P4, AF7)
NSSPA15 (JTDI) (C13, AF6), PA4 (N3, AF6)
RDYPE0 (D6, AF6), PA0 (L2, AF6)
SCKPB3 (JTDO/TRACESWO) (B7, AF6), PC10 (D12, AF6)
SPI4MISOPK7 (B10, AF5), PE5 (D4, AF5), PE13 (P10, AF5)
MOSIPK8 (D9, AF5), PE6 (F6, AF5), PE14 (N10, AF5)
NSSPK6 (A11, AF5), PE4 (C4, AF5), PE11 (R10, AF5)
RDYPG15 (A7, AF5), PK4 (B11, AF5), PB8 (C6, AF5), PB11 (P11, AF6)
SCKPE2 (B3, AF5), PK5 (C10, AF5), PE12 (L9, AF5)
SPI5MISOPF8 (H1, AF5), PH7 (M11, AF5)
MOSIPF9 (J4, AF5), PF11 (L7, AF5), PH8 (N12, AF5)
NSSPF6 (H3, AF5), PH5 (K6, AF5), PH9 (P13, AF5)
RDYPH10 (K10, AF5), PH4 (P1, AF5)
SCKPF7 (H2, AF5), PH6 (N11, AF5)
SPI6MISOPB4 (NJTRST) (C7, AF8), PG12 (C8, AF5), PA6 (R2, AF8)
MOSIPG14 (A8, AF5), PB5 (E7, AF8), PA7 (P3, AF8)
NSSPA15 (JTDI) (C13, AF7), PG8 (J14, AF5), PA0 (L2, AF5), PA4 (N3, AF8)
RDYPH5 (K6, AF7), PD15 (K12, AF7), PH4 (P1, AF7)
SCKPB3 (JTDO/TRACESWO) (B7, AF8), PG13 (B8, AF5), PC12 (B15, AF5), PA5 (P2, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPB3 (JTDO/TRACESWO) (B7, AF5), PG11 (D8, AF5), PA5 (P2, AF5)
MCKPI5 (A4, AF5), PD0 (E10, AF5), PG2 (L15, AF5), PC4 (N4, AF5)
SDIPG9 (B9, AF5), PB4 (NJTRST) (C7, AF5), PA6 (R2, AF5)
SDOPD7 (C9, AF5), PB5 (E7, AF5), PA7 (P3, AF5)
WSPG10 (A9, AF5), PA15 (JTDI) (C13, AF5), PA4 (N3, AF5)
I2S2CKPD3 (A14, AF5), PI1 (D15, AF5), PA12 (F14, AF5), PA9 (G13, AF5), PB10 (M10, AF5), PB13 (N13, AF5)
MCKPJ12 (A13, AF5), PD1 (C12, AF5), PC6 (J15, AF5)
SDIPI2 (F10, AF5), PB14 (K11, AF5), PC2 (M1, AF5)
SDOPI3 (D14, AF5), PC1 (K2, AF5), PC3 (M2, AF5), PB15 (M13, AF5), PG1 (R7, AF7)
WSPB9 (A5, AF5), PB4 (NJTRST) (C7, AF7), PI0 (E12, AF5), PA11 (F15, AF5), PA3 (M4, AF5), PB12 (P14, AF5)
I2S3CKPB3 (JTDO/TRACESWO) (B7, AF6), PC10 (D12, AF6)
MCKPK11 (C2, AF5), PC7 (H14, AF6), PD8 (L12, AF6)
SDIPC11 (B14, AF6), PB4 (NJTRST) (C7, AF6), PF14 (M7, AF6)
SDOPD6 (A10, AF5), PC12 (B15, AF6), PB5 (E7, AF7), PB2 (P4, AF7)
WSPA15 (JTDI) (C13, AF6), PA4 (N3, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPK9 (A2, AF4), PB8 (C6, AF4), PB6 (E8, AF4)
SDAPB9 (A5, AF4), PB7 (A6, AF4), PK10 (B2, AF4), PD13 (L13, AF6)
SMBAPB5 (E7, AF4)
I2C2SCLPD2 (D11, AF6), PF1 (G4, AF4), PB10 (M10, AF4), PH4 (P1, AF4)
SDAPB3 (JTDO/TRACESWO) (B7, AF4), PF0 (E1, AF4), PH5 (K6, AF4), PB11 (P11, AF4), PB12 (P14, AF4)
SMBAPF2 (F2, AF4), PH6 (N11, AF4), PB13 (N13, AF4)
I2C3SCLPD7 (C9, AF4), PJ14 (D10, AF4), PA8 (G11, AF4), PH7 (M11, AF4)
SDAPD6 (A10, AF4), PJ15 (E9, AF4), PC9 (G14, AF4), PH8 (N12, AF4)
SMBAPG10 (A9, AF3), PJ13 (C11, AF4), PA9 (G13, AF4), PH9 (P13, AF4)
I2C4SCLPB8 (C6, AF6), PB6 (E8, AF6), PF5 (H4, AF4), PG7 (H11, AF4), PH11 (M12, AF4), PD12 (M14, AF4)
SDAPB9 (A5, AF6), PB7 (A6, AF6), PG6 (J13, AF4), PD13 (L13, AF4), PF15 (N7, AF4), PH12 (R14, AF4)
SMBAPB5 (E7, AF6), PH10 (K10, AF4), PD11 (N15, AF4), PF13 (R6, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPK9 (A2, AF3), PB8 (C6, AF3), PB6 (E8, AF3), PF5 (H4, AF5), PG7 (H11, AF3), PH11 (M12, AF5), PD12 (M14, AF5)
SDAPB9 (A5, AF3), PB7 (A6, AF3), PK10 (B2, AF3), PG6 (J13, AF3), PD13 (L13, AF5), PF15 (N7, AF5), PH12 (R14, AF5)
I3C2SCLPD2 (D11, AF5), PF1 (G4, AF5), PB10 (M10, AF8), PH4 (P1, AF3)
SDAPB3 (JTDO/TRACESWO) (B7, AF3), PF0 (E1, AF5), PH5 (K6, AF3), PB11 (P11, AF8), PB12 (P14, AF8)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPI10 (C1, AF9), PB8 (C6, AF9), PE0 (D6, AF9), PI9 (E2, AF9), PD0 (E10, AF9), PH14 (E14, AF9), PA11 (F15, AF9)
TXPB9 (A5, AF9), PB7 (A6, AF9), PE1 (B5, AF9), PD5 (B12, AF9), PD1 (C12, AF9), PH13 (E15, AF9), PA12 (F14, AF9)
FDCAN2RXPK4 (B11, AF9), PB5 (E7, AF9), PB12 (P14, AF9), PD9 (P15, AF9)
TXPK3 (A12, AF9), PB6 (E8, AF9), PA10 (F13, AF9), PB13 (N13, AF9)
FDCAN3RXPJ13 (C11, AF9), PF7 (H2, AF9), PD10 (N14, AF9), PE13 (P10, AF9)
TXPJ12 (A13, AF9), PF6 (H3, AF9), PE12 (L9, AF9), PD8 (L12, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (F15)
DPPA12 (F14)
SOFPA8 (G11)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMOTG_HS_DM (H15)
DPOTG_HS_DP (G15)
SOFPA4 (N3)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB13 (N13)
CC2PB14 (K11)
DB1PA9 (G13)
DB2PC9 (G14)
FRSTXPA10 (F13, AF6), PG7 (H11, AF11), PG6 (J13, AF11), PB12 (P14, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCLKPD4 (B13, AF11), PA10 (F13, AF11), PF15 (N7, AF11)
MDCPB3 (JTDO/TRACESWO) (B7, AF12), PF9 (J4, AF11), PC1 (K2, AF11), PJ7 (R9, AF12)
MDIOPB4 (NJTRST) (C7, AF10), PE12 (L9, AF11), PA2 (M3, AF11), PJ6 (R8, AF12)
MII_COLPA3 (M4, AF11), PH3 (N2, AF11)
MII_CRSPD5 (B12, AF6), PA0 (L2, AF11), PH2 (N1, AF11), PD10 (N14, AF8)
MII_RX_CLKPA1 (L4, AF11)
MII_RX_DVPD1 (C12, AF11), PK15 (G5, AF12), PA7 (P3, AF11)
MII_RX_ERPI10 (C1, AF11), PG3 (J12, AF10), PB10 (M10, AF11)
MII_RXD0PE4 (C4, AF11), PD8 (L12, AF8), PC4 (N4, AF11), PB2 (P4, AF11)
MII_RXD1PE5 (D4, AF11), PC5 (M5, AF11)
MII_RXD2PH6 (N11, AF11), PB0 (R3, AF11)
MII_RXD3PB1 (L6, AF11), PH7 (M11, AF11)
MII_TX_CLKPC3 (M2, AF11)
MII_TX_ENPG11 (D8, AF11), PA5 (P2, AF11), PB11 (P11, AF11)
MII_TX_ERPB6 (E8, AF11), PA9 (G13, AF11), PF8 (H1, AF11)
MII_TXD0PG13 (B8, AF11), PJ14 (D10, AF12), PC10 (D12, AF11), PB12 (P14, AF11)
MII_TXD1PG14 (A8, AF11), PG12 (C8, AF11), PJ15 (E9, AF12), PB15 (M13, AF11)
MII_TXD2PC2 (M1, AF11)
MII_TXD3PE2 (B3, AF11), PB8 (C6, AF11)
PHY_INTNPA15 (JTDI) (C13, AF10), PJ2 (P5, AF12)
PPS_OUTPC12 (B15, AF10), PB5 (E7, AF11), PG8 (J14, AF11), PJ5 (P8, AF12)
PTP_AUX_TSPJ1 (M6, AF12), PD11 (N15, AF11)
RMII_CRS_DVPD1 (C12, AF11), PK15 (G5, AF12), PA7 (P3, AF11)
RMII_REF_CLKPA1 (L4, AF11)
RMII_RXD0PE4 (C4, AF11), PD8 (L12, AF8), PC4 (N4, AF11), PB2 (P4, AF11)
RMII_RXD1PE5 (D4, AF11), PC5 (M5, AF11)
RMII_TX_ENPG11 (D8, AF11), PA5 (P2, AF11), PB11 (P11, AF11)
RMII_TXD0PG13 (B8, AF11), PJ14 (D10, AF12), PC10 (D12, AF11), PB12 (P14, AF11)
RMII_TXD1PG14 (A8, AF11), PG12 (C8, AF11), PJ15 (E9, AF12), PB15 (M13, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (A5, AF7), PK10 (B2, AF12), PF13 (R6, AF9)
CKPC12 (B15, AF12), PK8 (D9, AF8), PG0 (P7, AF8)
CKINPK9 (A2, AF12), PB8 (C6, AF7), PF12 (P6, AF9)
CMDPK7 (B10, AF8), PD2 (D11, AF12), PF15 (N7, AF8), PB2 (P4, AF12)
D0PK3 (A12, AF8), PA10 (F13, AF12), PF6 (H3, AF8), PC8 (H13, AF12)
D0DIRPK11 (C2, AF12), PD0 (E10, AF7), PC6 (J15, AF8)
D1PK4 (B11, AF8), PC9 (G14, AF12), PF7 (H2, AF8)
D2PK5 (C10, AF8), PC10 (D12, AF12), PF8 (H1, AF8)
D3PK6 (A11, AF8), PC11 (B14, AF12), PF9 (J4, AF8)
D4PK9 (A2, AF8), PB8 (C6, AF12), PF11 (L7, AF8)
D5PB9 (A5, AF12), PK10 (B2, AF8), PF12 (P6, AF8)
D6PK11 (C2, AF8), PC6 (J15, AF12), PF13 (R6, AF8)
D7PK12 (F5, AF8), PC7 (H14, AF12), PF14 (M7, AF8)
D123DIRPD1 (C12, AF7), PK12 (F5, AF12), PC7 (H14, AF8), PF14 (M7, AF9)
SDMMC2CKPD6 (A10, AF11), PI7 (B4, AF9), PC1 (K2, AF9)
CKINPB9 (A5, AF11), PB7 (A6, AF11), PH15 (E13, AF9), PF5 (H4, AF11)
CMDPI6 (A3, AF9), PD7 (C9, AF11), PA0 (L2, AF9)
D0PG9 (B9, AF11), PI1 (D15, AF9), PD8 (L12, AF11)
D1PG10 (A9, AF11), PI2 (F10, AF9), PB15 (M13, AF9)
D2PB3 (JTDO/TRACESWO) (B7, AF9), PG11 (D8, AF10), PI3 (D14, AF9), PF0 (E1, AF10)
D3PI4 (C5, AF9), PB4 (NJTRST) (C7, AF9), PG12 (C8, AF10), PF1 (G4, AF10)
D4PB8 (C6, AF10), PF2 (F2, AF10), PA12 (F14, AF10)
D5PB9 (A5, AF10), PB7 (A6, AF10), PF3 (H5, AF10)
D6PG13 (B8, AF10), PF4 (G1, AF10), PC6 (J15, AF10), PC2 (M1, AF10)
D7PG14 (A8, AF10), PF5 (H4, AF10), PC7 (H14, AF10), PC3 (M2, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (B3, AF2), PC4 (N4, AF2), PD11 (N15, AF2)
CK2PE5 (D4, AF2), PG7 (H11, AF2), PK1 (L14, AF2)
D1PD6 (A10, AF2), PE6 (F6, AF2), PC1 (K2, AF2), PD12 (M14, AF6), PB2 (P4, AF2)
D2PE4 (C4, AF2), PK0 (M15, AF2)
D3PF10 (K1, AF2), PC3 (M2, AF2), PC5 (M5, AF2)
FS_APE4 (C4, AF6), PI9 (E2, AF2), PD14 (J11, AF6), PC5 (M5, AF6), PJ2 (P5, AF2)
FS_BPF9 (J4, AF6), PD15 (K12, AF6), PI15 (N5, AF6)
MCLK_APE2 (B3, AF6), PI11 (F3, AF2), PG7 (H11, AF6), PC0 (L1, AF6)
MCLK_BPD1 (C12, AF6), PI13 (G3, AF6), PF7 (H2, AF6)
SCK_API10 (C1, AF2), PE5 (D4, AF6), PC6 (J15, AF6)
SCK_BPC10 (D12, AF4), PI14 (G2, AF6), PF8 (H1, AF6)
SD_APD6 (A10, AF6), PJ12 (A13, AF2), PJ14 (D10, AF2), PE6 (F6, AF6), PC1 (K2, AF6), PB2 (P4, AF6)
SD_BPE3 (D5, AF6), PI12 (F1, AF6), PF6 (H3, AF6), PA3 (M4, AF6)
SAI2FS_API7 (B4, AF10), PJ10 (D13, AF10), PD12 (M14, AF10)
FS_BPG9 (B9, AF10), PA12 (F14, AF8), PC0 (L1, AF8), PE13 (P10, AF10)
MCLK_API4 (C5, AF10), PE0 (D6, AF10), PJ9 (N9, AF10)
MCLK_BPE6 (F6, AF10), PA1 (L4, AF10), PH3 (N2, AF10), PE14 (N10, AF10)
SCK_API5 (A4, AF10), PJ11 (C14, AF10), PD13 (L13, AF10)
SCK_BPE12 (L9, AF10), PA2 (M3, AF8), PH2 (N1, AF10)
SD_API6 (A3, AF10), PC1 (K2, AF8), PD11 (N15, AF10)
SD_BPG10 (A9, AF10), PA0 (L2, AF10), PF11 (L7, AF10), PE11 (R10, AF10)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15 (JTDI) (C13, AF4), PB6 (E8, AF5), PD9 (P15, AF5)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (B14), PK11 (C2), PJ11 (C14), PG11 (D8), PI11 (F3), PA11 (F15), PF11 (L7), PH11 (M12), PD11 (N15), PB11 (P11), PE11 (R10)
EXTI15PG15 (A7), PA15 (JTDI) (C13), PC15-OSC32_OUT(OSC32_OUT) (D1), PJ15 (E9), PH15 (E13), PK15 (G5), PD15 (K12), PB15 (M13), PI15 (N5), PF15 (N7), PE15 (R11)
INN1PA0 (L2)
INN2PF12 (P6)
INN3PA7 (P3)
INN4PC5 (M5)
INN5PB0 (R3)
INN10PC1 (K2)
INN11PC2 (M1)
INN12PC3 (M2)
INN18PA5 (P2)
INP0PA0 (L2)
INP1PA1 (L4)
INP2PF11 (L7)
INP3PA6 (R2)
INP4PC4 (N4)
INP5PB1 (L6)
INP6PF12 (P6)
INP7PA7 (P3)
INP8PC5 (M5)
INP9PB0 (R3)
INP10PC0 (L1)
INP11PC1 (K2)
INP12PC2 (M1)
INP13PC3 (M2)
INP14PA2 (M3)
INP15PA3 (M4)
INP18PA4 (N3)
INP19PA5 (P2)
ADC2EXTI11PC11 (B14), PK11 (C2), PJ11 (C14), PG11 (D8), PI11 (F3), PA11 (F15), PF11 (L7), PH11 (M12), PD11 (N15), PB11 (P11), PE11 (R10)
EXTI15PG15 (A7), PA15 (JTDI) (C13), PC15-OSC32_OUT(OSC32_OUT) (D1), PJ15 (E9), PH15 (E13), PK15 (G5), PD15 (K12), PB15 (M13), PI15 (N5), PF15 (N7), PE15 (R11)
INN1PA0 (L2)
INN2PF14 (M7)
INN3PA7 (P3)
INN4PC5 (M5)
INN5PB0 (R3)
INN10PC1 (K2)
INN11PC2 (M1)
INN12PC3 (M2)
INN18PA5 (P2)
INP0PA0 (L2)
INP1PA1 (L4)
INP2PF13 (R6)
INP3PA6 (R2)
INP4PC4 (N4)
INP5PB1 (L6)
INP6PF14 (M7)
INP7PA7 (P3)
INP8PC5 (M5)
INP9PB0 (R3)
INP10PC0 (L1)
INP11PC1 (K2)
INP12PC2 (M1)
INP13PC3 (M2)
INP14PA2 (M3)
INP15PA3 (M4)
INP18PA4 (N3)
INP19PA5 (P2)
ADC3EXTI11PC11 (B14), PK11 (C2), PJ11 (C14), PG11 (D8), PI11 (F3), PA11 (F15), PF11 (L7), PH11 (M12), PD11 (N15), PB11 (P11), PE11 (R10)
EXTI15PG15 (A7), PA15 (JTDI) (C13), PC15-OSC32_OUT(OSC32_OUT) (D1), PJ15 (E9), PH15 (E13), PK15 (G5), PD15 (K12), PB15 (M13), PI15 (N5), PF15 (N7), PE15 (R11)
INP0PB2 (P4)
INP1PE7 (L8)
INP2PE8 (M8)
INP3PE9 (N8)
INP4PE10 (M9)
INP5PE11 (R10)
INP6PE12 (L9)
INP7PE13 (P10)
INP8PE14 (N10)
INP9PE15 (R11)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PK9 (A2), PB9 (A5), PG9 (B9), PI9 (E2), PA9 (G13), PC9 (G14), PF9 (J4), PE9 (N8), PJ9 (N9), PH9 (P13), PD9 (P15)
OUT1PA4 (N3)
OUT2PA5 (P2)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPE10 (M9), PA6 (R2)
INPPA7 (P3), PB2 (P4)
OUTPD4 (B13, AF3), PC11 (B14, AF3), PF0 (E1, AF3), PJ8 (P9, AF3)
COMP2INMPB1 (L6), PE9 (N8), PE14 (N10)
INPPE7 (L8), PB0 (R3)
OUTPD5 (B12, AF3), PC12 (B15, AF3), PF1 (G4, AF3), PJ9 (N9, AF3)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA4 (N3), PE13 (P10)
VINPPE12 (L9), PA5 (P2), PE11 (R10)
VOUTPB1 (L6)

TIM — таймер

БлокСигналВыводы
TIM1BKINPI12 (F1, AF1), PB12 (P14, AF1), PA6 (R2, AF1), PE15 (R11, AF1), PH12 (R14, AF1)
BKIN2PI1 (D15, AF1), PE6 (F6, AF1), PG4 (K14, AF1)
CH1PI4 (C5, AF1), PA8 (G11, AF1), PH11 (M12, AF1), PE9 (N8, AF1)
CH1NPI3 (D14, AF1), PH10 (K10, AF1), PE8 (M8, AF1), PB13 (N13, AF1), PA7 (P3, AF1)
CH2PI6 (A3, AF1), PA9 (G13, AF1), PH9 (P13, AF1), PE11 (R10, AF1)
CH2NPI5 (A4, AF1), PB14 (K11, AF1), PE10 (M9, AF1), PH8 (N12, AF1), PB0 (R3, AF1)
CH3PI9 (E2, AF1), PA10 (F13, AF1), PH7 (M11, AF1), PE13 (P10, AF1)
CH3NPI7 (B4, AF1), PB1 (L6, AF1), PE12 (L9, AF1), PB15 (M13, AF1), PH6 (N11, AF1)
CH4PI11 (F3, AF1), PA11 (F15, AF1), PE14 (N10, AF1)
CH4NPD5 (B12, AF1), PI10 (C1, AF1), PC5 (M5, AF1), PE15 (R11, AF3)
ETRPI2 (F10, AF1), PA12 (F14, AF1), PG5 (K15, AF1), PE7 (L8, AF1)
TIM2CH1PA15 (JTDI) (C13, AF1), PF0 (E1, AF1), PA0 (L2, AF1), PA5 (P2, AF1)
CH2PB3 (JTDO/TRACESWO) (B7, AF1), PF1 (G4, AF1), PA1 (L4, AF1)
CH3PF3 (H5, AF1), PF11 (L7, AF1), PA2 (M3, AF1), PB10 (M10, AF1)
CH4PF4 (G1, AF1), PA3 (M4, AF1), PC4 (N4, AF1), PF12 (P6, AF1), PB11 (P11, AF1)
ETRPA15 (JTDI) (C13, AF14), PF0 (E1, AF2), PA0 (L2, AF14), PA5 (P2, AF14)
TIM3CH1PK11 (C2, AF2), PB4 (NJTRST) (C7, AF2), PC6 (J15, AF2), PA6 (R2, AF2)
CH2PB5 (E7, AF2), PK12 (F5, AF2), PC7 (H14, AF2), PA7 (P3, AF2)
CH3PK13 (B1, AF2), PC8 (H13, AF2), PB0 (R3, AF2)
CH4PK14 (F4, AF2), PC9 (G14, AF2), PB1 (L6, AF2)
ETRPD2 (D11, AF2), PK15 (G5, AF2), PF14 (M7, AF2)
TIM4CH1PB6 (E8, AF2), PD12 (M14, AF2), PG0 (P7, AF2), PJ3 (R5, AF2)
CH2PB7 (A6, AF2), PD13 (L13, AF2), PJ4 (N6, AF2), PG1 (R7, AF2)
CH3PB8 (C6, AF2), PD14 (J11, AF2), PG2 (L15, AF2), PJ5 (P8, AF2)
CH4PB9 (A5, AF2), PG3 (J12, AF2), PD15 (K12, AF2), PC2 (M1, AF2), PJ6 (R8, AF2)
ETRPE0 (D6, AF2), PF15 (N7, AF2), PJ0 (R4, AF2)
TIM5CH1PH10 (K10, AF2), PA0 (L2, AF2), PJ7 (R9, AF2)
CH2PA1 (L4, AF2), PH11 (M12, AF2), PJ8 (P9, AF2)
CH3PA2 (M3, AF2), PJ9 (N9, AF2), PH12 (R14, AF2)
CH4PJ10 (D13, AF2), PI0 (E12, AF2), PA3 (M4, AF2)
ETRPJ11 (C14, AF2), PA4 (N3, AF2), PH8 (N12, AF2)
TIM8BKINPI4 (C5, AF3), PG2 (L15, AF3), PA6 (R2, AF3), PH12 (R14, AF3)
BKIN2PI1 (D15, AF3), PA8 (G11, AF3), PG3 (J12, AF3)
CH1PI5 (A4, AF3), PC6 (J15, AF3), PC0 (L1, AF3), PK0 (M15, AF3), PH6 (N11, AF3)
CH1NPH13 (E15, AF3), PK1 (L14, AF3), PH7 (M11, AF3), PA5 (P2, AF3), PA7 (P3, AF3)
CH2PI6 (A3, AF3), PC7 (H14, AF3), PC1 (K2, AF3), PK2 (K13, AF3), PH8 (N12, AF3)
CH2NPK3 (A12, AF3), PH14 (E14, AF3), PB14 (K11, AF3), PH9 (P13, AF3), PB0 (R3, AF3)
CH3PI7 (B4, AF3), PK4 (B11, AF3), PC8 (H13, AF3), PH10 (K10, AF3), PC2 (M1, AF3)
CH3NPK5 (C10, AF3), PH15 (E13, AF3), PB1 (L6, AF3), PH11 (M12, AF3), PB15 (M13, AF3)
CH4PK6 (A11, AF3), PD3 (A14, AF3), PI2 (F10, AF3), PC9 (G14, AF3)
CH4NPK7 (B10, AF3), PD0 (E10, AF3), PB2 (P4, AF3), PH12 (R14, AF10)
ETRPK8 (D9, AF3), PI3 (D14, AF3), PG8 (J14, AF3), PA0 (L2, AF3)
TIM12CH1PK9 (A2, AF2), PG9 (B9, AF2), PD7 (C9, AF2), PB14 (K11, AF2), PH6 (N11, AF2)
CH2PG10 (A9, AF2), PK10 (B2, AF2), PD8 (L12, AF2), PB15 (M13, AF2), PH9 (P13, AF2)
TIM13CH1PI14 (G2, AF9), PF8 (H1, AF9), PD9 (P15, AF2), PA6 (R2, AF9)
TIM14CH1PF9 (J4, AF9), PI15 (N5, AF9), PD10 (N14, AF2), PA7 (P3, AF9)
TIM15BKINPE3 (D5, AF4), PD2 (D11, AF4), PI12 (F1, AF4), PA0 (L2, AF4)
CH1PC12 (B15, AF2), PE5 (D4, AF4), PI14 (G2, AF4), PA2 (M3, AF4)
CH1NPE4 (C4, AF4), PI13 (G3, AF4), PA1 (L4, AF4)
CH2PE6 (F6, AF4), PA3 (M4, AF4), PI15 (N5, AF4)
TIM16BKINPB4 (NJTRST) (C7, AF1), PJ14 (D10, AF1), PF10 (K1, AF1), PC0 (L1, AF1)
CH1PG15 (A7, AF1), PB8 (C6, AF1), PJ15 (E9, AF1), PF6 (H3, AF1)
CH1NPB6 (E8, AF1), PF8 (H1, AF1), PG8 (J14, AF1)
TIM17BKINPB5 (E7, AF1), PG6 (J13, AF1), PJ0 (R4, AF1)
CH1PB9 (A5, AF1), PF7 (H2, AF1), PC2 (M1, AF1), PJ1 (M6, AF1)
CH1NPB7 (A6, AF1), PJ13 (C11, AF1), PF9 (J4, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PG13 (B8, AF1), PD13 (L13, AF1), PB2 (P4, AF5)
CH2PG14 (A8, AF4), PB4 (NJTRST) (C7, AF4), PI11 (F3, AF4)
ETRPG14 (A8, AF1), PJ11 (C14, AF4), PE0 (D6, AF1)
IN1PG12 (C8, AF1), PA1 (L4, AF5), PD12 (M14, AF1)
IN2PE2 (B3, AF1), PE1 (B5, AF1), PG11 (D8, AF1), PH13 (E15, AF1), PA2 (M3, AF5), PH2 (N1, AF1)
LPTIM2CH1PG12 (C8, AF3), PD13 (L13, AF3), PA4 (N3, AF3), PB13 (N13, AF3)
CH2PE0 (D6, AF3), PD10 (N14, AF3), PF13 (R6, AF3)
ETRPE0 (D6, AF4), PC4 (N4, AF3), PB11 (P11, AF3)
IN1PF14 (M7, AF3), PB10 (M10, AF3), PD12 (M14, AF3)
IN2PA10 (F13, AF4), PJ4 (N6, AF3), PD11 (N15, AF3)
LPTIM3CH1PF5 (H4, AF2), PC3 (M2, AF3), PB10 (M10, AF2), PB0 (R3, AF14)
CH2PF2 (F2, AF2), PB1 (L6, AF14)
ETRPC10 (D12, AF2), PF4 (G1, AF2), PB14 (K11, AF14)
IN1PC11 (B14, AF2), PF5 (H4, AF14), PF3 (H5, AF2), PB13 (N13, AF2)
IN2PA15 (JTDI) (C13, AF2), PF2 (F2, AF3)
LPTIM4ETRPD2 (D11, AF14), PG4 (K14, AF14)
IN1PD13 (L13, AF14), PG0 (P7, AF14)
OUTPD7 (C9, AF14), PG8 (J14, AF14)
LPTIM5CH1PG12 (C8, AF14), PF0 (E1, AF13), PF6 (H3, AF13)
CH2PG13 (B8, AF13), PF1 (G4, AF13), PF7 (H2, AF13)
ETRPG3 (J12, AF13), PB2 (P4, AF13), PJ8 (P9, AF13)
IN1PG14 (A8, AF13), PF2 (F2, AF13), PF8 (H1, AF13), PJ9 (N9, AF13)
IN2PF3 (H5, AF13), PF9 (J4, AF13)
LPTIM6CH1PK2 (K13, AF13), PF11 (L7, AF14)
CH2PF12 (P6, AF14)
ETRPB3 (JTDO/TRACESWO) (B7, AF14), PG2 (L15, AF14)
IN1PK0 (M15, AF13), PF13 (R6, AF14)
IN2PK1 (L14, AF13), PF14 (M7, AF14)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (C3)
OUT2PI8 (E4), PB2 (P4, AF0)
REFINPB15 (M13, AF0)
TSPC13 (C3)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (E1, AF12)
A1PF1 (G4, AF12)
A2PF2 (F2, AF12)
A3PF3 (H5, AF12)
A4PF4 (G1, AF12)
A5PF5 (H4, AF12)
A6PF12 (P6, AF12)
A7PF13 (R6, AF12)
A8PF14 (M7, AF12)
A9PF15 (N7, AF12)
A10PG0 (P7, AF12)
A11PG1 (R7, AF12)
A12PG2 (L15, AF12)
A13PG3 (J12, AF12)
A14PG4 (K14, AF12)
A15PG5 (K15, AF12)
A16PC9 (G14, AF11), PD11 (N15, AF12)
A17PA11 (F15, AF12), PC8 (H13, AF11), PD12 (M14, AF12)
A18PD13 (L13, AF12)
A19PE3 (D5, AF12)
A20PE4 (C4, AF12)
A21PE5 (D4, AF12)
A22PE6 (F6, AF12)
A23PE2 (B3, AF12)
A24PG13 (B8, AF12), PI1 (D15, AF11)
A25PG14 (A8, AF12), PC0 (L1, AF9)
ALEPA11 (F15, AF12), PC8 (H13, AF11), PD12 (M14, AF12)
BA0PG4 (K14, AF12)
BA1PG5 (K15, AF12)
CLEPC9 (G14, AF11), PD11 (N15, AF12)
CLKPD3 (A14, AF12)
D0PD14 (J11, AF12)
D1PD15 (K12, AF12)
D2PD0 (E10, AF12)
D3PD1 (C12, AF12), PH12 (R14, AF12)
D4PE7 (L8, AF12)
D5PE8 (M8, AF12)
D6PE9 (N8, AF12)
D7PE10 (M9, AF12)
D8PE11 (R10, AF12)
D9PE12 (L9, AF12)
D10PE13 (P10, AF12)
D11PE14 (N10, AF12)
D12PE15 (R11, AF12)
D13PD8 (L12, AF12)
D14PD9 (P15, AF12)
D15PD10 (N14, AF12)
D16PF6 (H3, AF12)
D17PF7 (H2, AF12)
D18PF8 (H1, AF12)
D19PF9 (J4, AF12)
D20PH10 (K10, AF12)
D21PH11 (M12, AF12)
D22PH13 (E15, AF12)
D23PH14 (E14, AF12)
D24PH15 (E13, AF12)
D25PI1 (D15, AF12)
D26PI2 (F10, AF12)
D27PI3 (D14, AF12)
D28PI4 (C5, AF12)
D29PI6 (A3, AF12)
D30PI7 (B4, AF12)
D31PA6 (R2, AF12)
DA0PD14 (J11, AF12)
DA1PD15 (K12, AF12)
DA2PD0 (E10, AF12)
DA3PD1 (C12, AF12), PH12 (R14, AF12)
DA4PE7 (L8, AF12)
DA5PE8 (M8, AF12)
DA6PE9 (N8, AF12)
DA7PE10 (M9, AF12)
DA8PE11 (R10, AF12)
DA9PE12 (L9, AF12)
DA10PE13 (P10, AF12)
DA11PE14 (N10, AF12)
DA12PE15 (R11, AF12)
DA13PD8 (L12, AF12)
DA14PD9 (P15, AF12)
DA15PD10 (N14, AF12)
INTPG7 (H11, AF12), PC8 (H13, AF10), PC0 (L1, AF13)
NBL0PE0 (D6, AF12), PH2 (N1, AF13)
NBL1PE1 (B5, AF12), PA15 (JTDI) (C13, AF12), PB11 (P11, AF12)
NBL2PH3 (N2, AF13), PA4 (N3, AF12)
NBL3PB4 (NJTRST) (C7, AF12)
NCEPG9 (B9, AF12), PD7 (C9, AF12), PC8 (H13, AF9), PC1 (K2, AF13), PC2 (M1, AF13)
NE1PD7 (C9, AF12), PC7 (H14, AF9), PC2 (M1, AF13)
NE2PG9 (B9, AF12), PC8 (H13, AF9), PC1 (K2, AF13)
NE3PG10 (A9, AF12), PG6 (J13, AF12)
NE4PG12 (C8, AF12)
NLPB7 (A6, AF12)
NOEPD4 (B13, AF12), PA8 (G11, AF12)
NWAITPD6 (A10, AF12), PE1 (B5, AF11), PC6 (J15, AF9), PB10 (M10, AF13)
NWEPD5 (B12, AF12), PA9 (G13, AF12), PA7 (P3, AF13)
SDCKE0PC3 (M2, AF12), PC5 (M5, AF12), PH2 (N1, AF12)
SDCKE1PB5 (E7, AF12), PH7 (M11, AF12)
SDCLKPG12 (C8, AF8), PG8 (J14, AF12)
SDNCASPG15 (A7, AF12), PC9 (G14, AF10)
SDNE0PC2 (M1, AF12), PH3 (N2, AF12), PC4 (N4, AF12)
SDNE1PB6 (E8, AF12), PH6 (N11, AF12)
SDNRASPF11 (L7, AF12), PB10 (M10, AF10)
SDNWEPH5 (K6, AF12), PC0 (L1, AF12), PA7 (P3, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (G13, AF13), PC6 (J15, AF13), PE12 (L9, AF13), PH9 (P13, AF13)
D1PA10 (F13, AF13), PC7 (H14, AF13), PH10 (K10, AF13)
D2PG10 (A9, AF13), PE0 (D6, AF13), PC8 (H13, AF13), PH11 (M12, AF13), PB15 (M13, AF13)
D3PE2 (B3, AF13), PE1 (B5, AF13), PG11 (D8, AF13), PH13 (E15, AF13), PA8 (G11, AF13), PC9 (G14, AF13), PH12 (R14, AF13)
D4PC11 (B14, AF13), PE4 (C4, AF13), PH14 (E14, AF13)
D5PD3 (A14, AF13), PI4 (C5, AF13), PB6 (E8, AF13)
D6PI6 (A3, AF13), PB8 (C6, AF13), PE5 (D4, AF13), PF4 (G1, AF13)
D7PB9 (A5, AF13), PI7 (B4, AF13), PB4 (NJTRST) (C7, AF13), PE6 (F6, AF13)
D8PC10 (D12, AF13), PI1 (D15, AF13), PE8 (M8, AF13), PH6 (N11, AF13)
D9PC12 (B15, AF13), PI2 (F10, AF13), PH7 (M11, AF13)
D10PD6 (A10, AF13), PI3 (D14, AF13), PB5 (E7, AF13)
D11PG12 (C8, AF13), PA15 (JTDI) (C13, AF13), PD2 (D11, AF13), PH15 (E13, AF13), PF10 (K1, AF13)
D12PG6 (J13, AF13), PF11 (L7, AF13), PD12 (M14, AF13)
D13PG15 (A7, AF13), PI0 (E12, AF13), PG7 (H11, AF13), PD13 (L13, AF13)
HSYNCPA4 (N3, AF13), PH8 (N12, AF13), PE13 (P10, AF13)
PIXCLKPA6 (R2, AF13), PE15 (R11, AF13)
VSYNCPI5 (A4, AF13), PB7 (A6, AF13), PG9 (B9, AF13), PE14 (N10, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (G13, AF13), PC6 (J15, AF13), PE12 (L9, AF13), PH9 (P13, AF13)
D1PA10 (F13, AF13), PC7 (H14, AF13), PH10 (K10, AF13)
D2PG10 (A9, AF13), PE0 (D6, AF13), PC8 (H13, AF13), PH11 (M12, AF13), PB15 (M13, AF13)
D3PE2 (B3, AF13), PE1 (B5, AF13), PG11 (D8, AF13), PH13 (E15, AF13), PA8 (G11, AF13), PC9 (G14, AF13), PH12 (R14, AF13)
D4PC11 (B14, AF13), PE4 (C4, AF13), PH14 (E14, AF13)
D5PD3 (A14, AF13), PI4 (C5, AF13), PB6 (E8, AF13)
D6PI6 (A3, AF13), PB8 (C6, AF13), PE5 (D4, AF13), PF4 (G1, AF13)
D7PB9 (A5, AF13), PI7 (B4, AF13), PB4 (NJTRST) (C7, AF13), PE6 (F6, AF13)
D8PC10 (D12, AF13), PI1 (D15, AF13), PE8 (M8, AF13), PH6 (N11, AF13)
D9PC12 (B15, AF13), PI2 (F10, AF13), PH7 (M11, AF13)
D10PD6 (A10, AF13), PI3 (D14, AF13), PB5 (E7, AF13)
D11PG12 (C8, AF13), PA15 (JTDI) (C13, AF13), PD2 (D11, AF13), PH15 (E13, AF13), PF10 (K1, AF13)
D12PG6 (J13, AF13), PF11 (L7, AF13), PD12 (M14, AF13)
D13PG15 (A7, AF13), PI0 (E12, AF13), PG7 (H11, AF13), PD13 (L13, AF13)
D14PI10 (C1, AF13), PH4 (P1, AF13), PA5 (P2, AF13)
D15PG12 (C8, AF4), PI11 (F3, AF13), PD14 (J11, AF4), PF10 (K1, AF4), PC5 (M5, AF4)
DEPA4 (N3, AF13), PH8 (N12, AF13), PE13 (P10, AF13)
PDCKPA6 (R2, AF13), PE15 (R11, AF13)
RDYPI5 (A4, AF13), PB7 (A6, AF13), PG9 (B9, AF13), PE14 (N10, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PG14 (A8, AF14), PK11 (C2, AF14), PC10 (D12, AF14), PE14 (N10, AF11)
B1PI0 (E12, AF14), PI11 (F3, AF14), PC9 (G14, AF14), PF9 (J4, AF14), PD14 (J11, AF13)
B2PK13 (B1, AF14), PD5 (B12, AF13), PG8 (J14, AF13), PA7 (P3, AF14)
B3PK12 (F5, AF14), PB1 (L6, AF13), PA6 (R2, AF14)
B4PD3 (A14, AF10), PG11 (D8, AF14), PA4 (N3, AF14)
B5PG9 (B9, AF14), PJ13 (C11, AF13), PA3 (M4, AF14), PE11 (R10, AF13)
B6PG10 (A9, AF14), PE5 (D4, AF10), PA2 (M3, AF14), PF13 (R6, AF13)
B7PD4 (B13, AF13), PI14 (G2, AF14), PA1 (L4, AF14), PF15 (N7, AF13)
CLKPA8 (G11, AF14), PD15 (K12, AF13), PJ9 (N9, AF14), PF12 (P6, AF13)
DEPD1 (C12, AF13), PI3 (D14, AF14), PF6 (H3, AF14), PC4 (N4, AF14)
G0PK15 (G5, AF14), PG3 (J12, AF14), PC6 (J15, AF14), PB15 (M13, AF12)
G1PE3 (D5, AF13), PH15 (E13, AF14), PC5 (M5, AF14), PJ3 (R5, AF14)
G2PG15 (A7, AF14), PC1 (K2, AF14), PD12 (M14, AF11), PJ4 (N6, AF14)
G3PE4 (C4, AF10), PK5 (C10, AF13), PF7 (H2, AF14), PC0 (L1, AF14)
G4PK6 (A11, AF13), PG13 (B8, AF14), PC12 (B15, AF11), PB10 (M10, AF14)
G5PB9 (A5, AF14), PI13 (G3, AF14), PF14 (M7, AF13), PA5 (P2, AF10)
G6PB8 (C6, AF14), PJ15 (E9, AF14), PF10 (K1, AF14), PA0 (L2, AF13)
G7PB7 (A6, AF14), PJ12 (A13, AF13), PD2 (D11, AF11), PB11 (P11, AF13)
HSYNCPB3 (JTDO/TRACESWO) (B7, AF13), PJ10 (D13, AF14), PG5 (K15, AF13), PC2 (M1, AF14)
R0PI5 (A4, AF14), PC8 (H13, AF14), PA2 (M3, AF13), PE15 (R11, AF11)
R1PC7 (H14, AF14), PJ8 (P9, AF14), PE13 (P10, AF11), PB12 (P14, AF13)
R2PB4 (NJTRST) (C7, AF14), PD0 (E10, AF13), PE6 (F6, AF11), PG2 (L15, AF13)
R3PD7 (C9, AF13), PH13 (E15, AF14), PK14 (F4, AF14), PB2 (P4, AF14)
R4PA12 (F14, AF14), PI15 (N5, AF14), PD9 (P15, AF13), PB0 (R3, AF13)
R5PI12 (F1, AF14), PA11 (F15, AF14), PG7 (H11, AF14), PD8 (L12, AF13)
R6PJ14 (D10, AF14), PH14 (E14, AF14), PA10 (F13, AF14), PD11 (N15, AF13)
R7PA9 (G13, AF14), PF8 (H1, AF14), PD10 (N14, AF13), PH4 (P1, AF14), PH9 (P13, AF14)
VSYNCPC11 (B14, AF11), PJ11 (C14, AF14), PG4 (K14, AF13), PC3 (M2, AF14)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PE2 (B3, AF4), PF9 (J4, AF4), PC4 (N4, AF8), PJ2 (P5, AF4)
CCK1PE5 (D4, AF8), PG7 (H11, AF8), PJ4 (N6, AF4)
CKI0PJ12 (A13, AF8), PG4 (K14, AF4), PE7 (L8, AF8)
CKI1PF7 (H2, AF4), PC0 (L1, AF4), PJ0 (R4, AF4)
CKI2PE3 (D5, AF8), PK1 (L14, AF4), PH2 (N1, AF4)
CKI3PD4 (B13, AF8), PH14 (E14, AF4)
CKI4PI1 (D15, AF4), PE9 (N8, AF8), PJ8 (P9, AF4)
CKI5PI6 (A3, AF4), PI12 (F1, AF8), PE11 (R10, AF8)
SDI0PJ13 (C11, AF8), PG5 (K15, AF4), PE8 (M8, AF8)
SDI1PD6 (A10, AF8), PE6 (F6, AF8), PC1 (K2, AF4), PJ1 (M6, AF4)
SDI2PE4 (C4, AF8), PK0 (M15, AF4), PH3 (N2, AF4)
SDI3PH15 (E13, AF4), PF10 (K1, AF8), PC3 (M2, AF8), PC5 (M5, AF8)
SDI4PI2 (F10, AF4), PE10 (M9, AF8), PJ3 (R5, AF4)
SDI5PI7 (B4, AF4), PI13 (G3, AF8), PE12 (L9, AF8)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PE2 (B3, AF3), PC4 (N4, AF4), PD11 (N15, AF1), PJ5 (P8, AF3), PF13 (R6, AF1)
CCK1PE5 (D4, AF1), PG7 (H11, AF1), PF14 (M7, AF1), PJ6 (R8, AF3)
SDI0PD6 (A10, AF1), PE4 (C4, AF3), PE6 (F6, AF3), PC1 (K2, AF1), PF15 (N7, AF1), PB2 (P4, AF1), PJ7 (R9, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (C15, AF0)
JTDIPA15 (JTDI) (C13, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (B7, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (F12, AF0)
NJTRSTPB4 (NJTRST) (C7, AF0)
TRACECLKPE2 (B3, AF0), PK11 (C2, AF0), PH15 (E13, AF0)
TRACED0PG13 (B8, AF0), PE3 (D5, AF0), PI1 (D15, AF0), PK12 (F5, AF0), PC1 (K2, AF0)
TRACED1PG14 (A8, AF0), PK13 (B1, AF0), PE4 (C4, AF0), PI2 (F10, AF0), PC8 (H13, AF0)
TRACED2PE5 (D4, AF0), PD2 (D11, AF0), PI3 (D14, AF0), PK14 (F4, AF0)
TRACED3PC12 (B15, AF0), PI4 (C5, AF0), PE6 (F6, AF0), PK15 (G5, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPB2 (P4)
MCO_1PA8 (G11, AF0)
MCO_2PC9 (G14, AF0)
OSC_INPH0-OSC_IN (J1)
OSC_OUTPH1-OSC_OUT (J2)
OSC32_INPC14-OSC32_IN(OSC32_IN) (D2)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (D1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC2 (M1, AF0)
PWR_CSTOPPC3 (M2, AF0)
PWR_WKUP1PA0 (L2)
PWR_WKUP2PA2 (M3)
PWR_WKUP3PI8 (E4)
PWR_WKUP4PC13 (C3)
PWR_WKUP5PB7 (A6)
PWR_WKUP6PC1 (K2)
PWR_WKUP7PD2 (D11)
PWR_WKUP8PD3 (A14)
TAMP_IN1PC13 (C3)
TAMP_IN2PI8 (E4), PA0 (L2)
TAMP_IN3PE6 (F6), PC1 (K2)
TAMP_IN4PI11 (F3), PA2 (M3)
TAMP_IN5PA1 (L4)
TAMP_IN6PE3 (D5)
TAMP_IN7PE4 (C4)
TAMP_IN8PE5 (D4)
TAMP_OUT1PA0 (L2)
TAMP_OUT2PC13 (C3)
TAMP_OUT3PC13 (C3), PE3 (D5), PI8 (E4), PA2 (M3)
TAMP_OUT4PA1 (L4)
TAMP_OUT5PI11 (F3), PC1 (K2)
TAMP_OUT6PE6 (F6)
TAMP_OUT7PE5 (D4)
TAMP_OUT8PE4 (C4)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), USB_OTG_HS1 (USB On-The-Go High Speed), OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), AES (аппаратное шифрование AES), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 225 шариков корпуса TFBGA225 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1VSSпитание—
A2PK9ввод-выводDAC1_EXTI9, I2C1_SCL (AF4), I3C1_SCL (AF3), PLAY1_IN14 (AF14), SDMMC1_CKIN (AF12), SDMMC1_D4 (AF8), TIM12_CH1 (AF2)
A3PI6ввод-выводDCMI_D6 (AF13), FMC_D29 (AF12), MDF1_CKI5 (AF4), PSSI_D6 (AF13), SAI2_SD_A (AF10), SDMMC2_CMD (AF9), TIM1_CH2 (AF1), TIM8_CH2 (AF3)
A4PI5ввод-выводDCMI_VSYNC (AF13), I2S1_MCK (AF5), LTDC_R0 (AF14), PSSI_RDY (AF13), SAI2_SCK_A (AF10), TIM1_CH2N (AF1), TIM8_CH1 (AF3)
A5PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2S2_WS (AF5), I3C1_SDA (AF3), LTDC_G5 (AF14), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
A6PB7ввод-выводDCMI_VSYNC (AF13), FDCAN1_TX (AF9), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), I3C1_SDA (AF3), LPUART1_RX (AF8), LTDC_G7 (AF14), PSSI_RDY (AF13), PWR_WKUP5, SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
A7PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), LTDC_G2 (AF14), OCTOSPIM_P2_IO7 (AF9), PSSI_D13 (AF13), SPI4_RDY (AF5), TIM16_CH1 (AF1), USART10_CK (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
A8PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_A25 (AF12), LPTIM1_CH2 (AF4), LPTIM1_ETR (AF1), LPTIM5_IN1 (AF13), LTDC_B0 (AF14), OCTOSPIM_P1_IO7 (AF9), SDMMC2_D7 (AF10), SPI6_MOSI (AF5), USART10_DE (AF6), USART10_RTS (AF6), USART6_TX (AF7)
A9PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), I2C3_SMBA (AF3), I2S1_WS (AF5), LTDC_B6 (AF14), OCTOSPIM_P1_IO5 (AF8), OCTOSPIM_P2_IO6 (AF9), PSSI_D2 (AF13), SAI2_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5), TIM12_CH2 (AF2), USART10_CK (AF6), USART6_CK (AF7)
A10PD6ввод-выводADF1_SDI0 (AF1), DCMI_D10 (AF13), FMC_NWAIT (AF12), I2C3_SDA (AF4), I2S3_SDO (AF5), MDF1_SDI1 (AF8), OCTOSPIM_P1_IO6 (AF10), OCTOSPIM_P2_IO4 (AF9), PLAY1_OUT3 (AF14), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
A11PK6ввод-выводLTDC_G4 (AF13), PLAY1_IN12 (AF14), SDMMC1_D3 (AF8), SPI4_NSS (AF5), TIM8_CH4 (AF3)
A12PK3ввод-выводFDCAN2_TX (AF9), PLAY1_IN10 (AF14), SDMMC1_D0 (AF8), TIM8_CH2N (AF3), USART1_CTS (AF7), USART1_NSS (AF7)
A13PJ12ввод-выводFDCAN3_TX (AF9), I2S2_MCK (AF5), LTDC_G7 (AF13), MDF1_CKI0 (AF8), SAI1_SD_A (AF2), USART11_CTS (AF7), USART11_NSS (AF7)
A14PD3ввод-выводDCMI_D5 (AF13), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_B4 (AF10), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN2 (AF14), PSSI_D5 (AF13), PWR_WKUP8, SPI2_SCK (AF5), TIM8_CH4 (AF3), USART2_CTS (AF7), USART2_NSS (AF7)
A15VSSпитание—
B1PK13ввод-выводDEBUG_TRACED1 (AF0), LTDC_B2 (AF14), OCTOSPIM_P2_IO5 (AF10), TIM3_CH3 (AF2), USART6_TX (AF7)
B2PK10ввод-выводI2C1_SDA (AF4), I3C1_SDA (AF3), PLAY1_IN15 (AF14), SDMMC1_CDIR (AF12), SDMMC1_D5 (AF8), TIM12_CH2 (AF2)
B3PE2ввод-выводADF1_CCK0 (AF3), DCMI_D3 (AF13), DEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_A23 (AF12), LPTIM1_IN2 (AF1), MDF1_CCK0 (AF4), OCTOSPIM_P1_IO2 (AF9), PLAY1_OUT8 (AF14), PSSI_D3 (AF13), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), UART8_TX (AF8), USART10_RX (AF7)
B4PI7ввод-выводDCMI_D7 (AF13), FMC_D30 (AF12), MDF1_SDI5 (AF4), PSSI_D7 (AF13), SAI2_FS_A (AF10), SDMMC2_CK (AF9), TIM1_CH3N (AF1), TIM8_CH3 (AF3)
B5PE1ввод-выводDCMI_D3 (AF13), FDCAN1_TX (AF9), FMC_NBL1 (AF12), FMC_NWAIT (AF11), LPTIM1_IN2 (AF1), PLAY1_IN8 (AF14), PSSI_D3 (AF13), UART8_TX (AF8)
B6BOOT0загрузка—
B7PB3 (JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), ETH_MDC (AF12), I2C2_SDA (AF4), I2S1_CK (AF5), I2S3_CK (AF6), I3C2_SDA (AF3), LPTIM6_ETR (AF14), LTDC_HSYNC (AF13), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART12_CTS (AF7), UART7_RX (AF11)
B8PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FMC_A24 (AF12), LPTIM1_CH1 (AF1), LPTIM5_CH2 (AF13), LTDC_G4 (AF14), OCTOSPIM_P2_NCS1 (AF9), SDMMC2_D6 (AF10), SPI6_SCK (AF5), USART10_CTS (AF6), USART10_NSS (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
B9PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), LTDC_B5 (AF14), OCTOSPIM_P1_IO4 (AF8), OCTOSPIM_P1_IO6 (AF9), PSSI_RDY (AF13), SAI2_FS_B (AF10), SDMMC2_D0 (AF11), SPI1_MISO (AF5), TIM12_CH1 (AF2), USART10_RX (AF6), USART6_RX (AF7)
B10PK7ввод-выводPLAY1_OUT8 (AF14), SDMMC1_CMD (AF8), SPI4_MISO (AF5), TIM8_CH4N (AF3)
B11PK4ввод-выводFDCAN2_RX (AF9), PLAY1_OUT7 (AF14), SDMMC1_D1 (AF8), SPI4_RDY (AF5), TIM8_CH3 (AF3), USART1_DE (AF7), USART1_RTS (AF7)
B12PD5ввод-выводCOMP2_OUT (AF3), ETH_MII_CRS (AF6), FDCAN1_TX (AF9), FMC_NWE (AF12), LTDC_B2 (AF13), OCTOSPIM_P1_IO5 (AF10), PLAY1_IN3 (AF14), SPI2_RDY (AF5), TIM1_CH4N (AF1), UART8_RX (AF8), USART2_TX (AF7)
B13PD4ввод-выводCOMP1_OUT (AF3), DEBUG_TRGIO (AF0), ETH_CLK (AF11), FMC_NOE (AF12), LTDC_B7 (AF13), MDF1_CKI3 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_OUT2 (AF14), USART2_DE (AF7), USART2_RTS (AF7)
B14PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT (AF3), DCMI_D4 (AF13), GFXTIM_FCKCAL (AF0), I2S3_SDI (AF6), LPTIM3_IN1 (AF2), LTDC_VSYNC (AF11), OCTOSPIM_P1_NCS1 (AF9), PLAY1_IN0 (AF14), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
B15PC12ввод-выводCOMP2_OUT (AF3), DCMI_D9 (AF13), DEBUG_TRACED3 (AF0), ETH_PPS_OUT (AF10), I2S3_SDO (AF6), LTDC_G4 (AF11), OCTOSPIM_P2_IO7 (AF9), PLAY1_OUT0 (AF14), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
C1PI10ввод-выводETH_MII_RX_ER (AF11), FDCAN1_RX (AF9), PSSI_D14 (AF13), SAI1_SCK_A (AF2), TIM1_CH4N (AF1), USART11_RX (AF7)
C2PK11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DEBUG_TRACECLK (AF0), I2S3_MCK (AF5), LTDC_B0 (AF14), SDMMC1_D0DIR (AF12), SDMMC1_D6 (AF8), TIM3_CH1 (AF2), USART6_DE (AF7), USART6_RTS (AF7)
C3PC13ввод-выводPWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3
C4PE4ввод-выводADF1_SDI0 (AF3), DCMI_D4 (AF13), DEBUG_TRACED1 (AF0), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_A20 (AF12), LTDC_G3 (AF10), MDF1_SDI2 (AF8), OCTOSPIM_P2_IO1 (AF9), PLAY1_OUT9 (AF14), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TAMP_IN7, TAMP_OUT8, TIM15_CH1N (AF4)
C5PI4ввод-выводDCMI_D5 (AF13), DEBUG_TRACED3 (AF0), FMC_D28 (AF12), PSSI_D5 (AF13), SAI2_MCLK_A (AF10), SDMMC2_D3 (AF9), SPI2_RDY (AF7), TIM1_CH1 (AF1), TIM8_BKIN (AF3)
C6PB8ввод-выводDCMI_D6 (AF13), ETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LTDC_G6 (AF14), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), SPI4_RDY (AF5), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
C7PB4 (NJTRST)ввод-выводDCMI_D7 (AF13), DEBUG_NJTRST (AF0), ETH_MDIO (AF10), FMC_NBL3 (AF12), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), LPTIM1_CH2 (AF4), LTDC_R2 (AF14), OCTOSPIM_P1_CLK (AF3), PSSI_D7 (AF13), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
C8PG12ввод-выводDCMI_D11 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_NE4 (AF12), FMC_SDCLK (AF8), LPTIM1_IN1 (AF1), LPTIM2_CH1 (AF3), LPTIM5_CH1 (AF14), OCTOSPIM_P2_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SDMMC2_D3 (AF10), SPI6_MISO (AF5), USART10_TX (AF6), USART6_DE (AF7), USART6_RTS (AF7)
C9PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), I2C3_SCL (AF4), I2S1_SDO (AF5), LPTIM4_OUT (AF14), LTDC_R3 (AF13), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), SPI1_MOSI (AF5), TIM12_CH1 (AF2), USART2_CK (AF7)
C10PK5ввод-выводLTDC_G3 (AF13), PLAY1_IN11 (AF14), SDMMC1_D2 (AF8), SPI4_SCK (AF5), TIM8_CH3N (AF3)
C11PJ13ввод-выводFDCAN3_RX (AF9), I2C3_SMBA (AF4), LTDC_B5 (AF13), MDF1_SDI0 (AF8), TIM17_CH1N (AF1), USART11_DE (AF7), USART11_RTS (AF7)
C12PD1ввод-выводETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2S2_MCK (AF5), LTDC_DE (AF13), OCTOSPIM_P2_DQS (AF10), PLAY1_OUT1 (AF14), SAI1_MCLK_B (AF6), SDMMC1_D123DIR (AF7), UART4_TX (AF8)
C13PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DCMI_D11 (AF13), DEBUG_JTDI (AF0), ETH_PHY_INTN (AF10), FMC_NBL1 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM3_IN2 (AF2), OCTOSPIM_P2_IO6 (AF9), PSSI_D11 (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF14), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
C14PJ11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LPTIM1_ETR (AF4), LTDC_VSYNC (AF14), SAI2_SCK_A (AF10), TIM5_ETR (AF2), UART5_TX (AF8)
C15PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
D1PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
D2PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
D3VBATпитание—
D4PE5ввод-выводADF1_CCK1 (AF1), DCMI_D6 (AF13), DEBUG_TRACED2 (AF0), ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_A21 (AF12), LTDC_B6 (AF10), MDF1_CCK1 (AF8), OCTOSPIM_P2_IO2 (AF9), PLAY1_IN10 (AF14), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TAMP_IN8, TAMP_OUT7, TIM15_CH1 (AF4)
D5PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), GFXTIM_TE (AF5), LTDC_G1 (AF13), MDF1_CKI2 (AF8), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN9 (AF14), SAI1_SD_B (AF6), TAMP_IN6, TAMP_OUT3, TIM15_BKIN (AF4), USART10_TX (AF7)
D6PE0ввод-выводDCMI_D2 (AF13), FDCAN1_RX (AF9), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_CH2 (AF3), LPTIM2_ETR (AF4), OCTOSPIM_P1_NCS2 (AF11), PLAY1_OUT7 (AF14), PSSI_D2 (AF13), SAI2_MCLK_A (AF10), SPI3_RDY (AF6), TIM4_ETR (AF2), UART8_RX (AF8)
D7VDDIO2питание—
D8PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3 (AF13), ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B4 (AF14), PSSI_D3 (AF13), SDMMC2_D2 (AF10), SPI1_SCK (AF5), USART10_RX (AF6), USART11_DE (AF7), USART11_RTS (AF7)
D9PK8ввод-выводPLAY1_IN13 (AF14), SDMMC1_CK (AF8), SPI4_MOSI (AF5), TIM8_ETR (AF3)
D10PJ14ввод-выводETH_MII_TXD0 (AF12), ETH_RMII_TXD0 (AF12), I2C3_SCL (AF4), LTDC_R6 (AF14), SAI1_SD_A (AF2), TIM16_BKIN (AF1), USART10_CTS (AF6), USART10_NSS (AF6)
D11PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), I2C2_SCL (AF6), I3C2_SCL (AF5), LPTIM4_ETR (AF14), LTDC_G7 (AF11), OCTOSPIM_P1_NCS2 (AF9), OCTOSPIM_P2_IO1 (AF10), PSSI_D11 (AF13), PWR_WKUP7, SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
D12PC10ввод-выводDCMI_D8 (AF13), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), GFXTIM_LCKCAL (AF0), I2S3_CK (AF6), LPTIM3_ETR (AF2), LTDC_B0 (AF14), OCTOSPIM_P1_IO1 (AF9), PSSI_D8 (AF13), SAI1_SCK_B (AF4), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
D13PJ10ввод-выводLTDC_HSYNC (AF14), SAI2_FS_A (AF10), TIM5_CH4 (AF2), UART5_RX (AF8)
D14PI3ввод-выводDCMI_D10 (AF13), DEBUG_TRACED2 (AF0), FMC_D27 (AF12), I2S2_SDO (AF5), LTDC_DE (AF14), PSSI_D10 (AF13), SDMMC2_D2 (AF9), SPI2_MOSI (AF5), TIM1_CH1N (AF1), TIM8_ETR (AF3)
D15PI1ввод-выводDCMI_D8 (AF13), DEBUG_TRACED0 (AF0), FMC_A24 (AF11), FMC_D25 (AF12), I2S2_CK (AF5), MDF1_CKI4 (AF4), PSSI_D8 (AF13), SDMMC2_D0 (AF9), SPI2_SCK (AF5), TIM1_BKIN2 (AF1), TIM8_BKIN2 (AF3)
E1PF0ввод-выводCOMP1_OUT (AF3), FMC_A0 (AF12), I2C2_SDA (AF4), I3C2_SDA (AF5), LPTIM5_CH1 (AF13), PLAY1_IN0 (AF14), SDMMC2_D2 (AF10), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART9_RX (AF11)
E2PI9ввод-выводDAC1_EXTI9, FDCAN1_RX (AF9), SAI1_FS_A (AF2), TIM1_CH3 (AF1), UART4_RX (AF8)
E3VSSпитание—
E4PI8ввод-выводPWR_WKUP3, RTC_OUT2, TAMP_IN2, TAMP_OUT3
E5VSSпитание—
E6VCAPпитание—
E7PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), GFXTIM_LCKCAL (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), OCTOSPIM_P1_NCLK (AF3), OCTOSPIM_P2_CLK (AF10), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14)
E8PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), ETH_MII_TX_ER (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), GFXTIM_FCKCAL (AF0), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS1 (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
E9PJ15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ETH_MII_TXD1 (AF12), ETH_RMII_TXD1 (AF12), I2C3_SDA (AF4), LTDC_G6 (AF14), TIM16_CH1 (AF1), USART10_DE (AF6), USART10_RTS (AF6)
E10PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), I2S1_MCK (AF5), LTDC_R2 (AF13), OCTOSPIM_P1_NCS2 (AF10), PLAY1_IN1 (AF14), SDMMC1_D0DIR (AF7), TIM8_CH4N (AF3), UART4_RX (AF8), UART9_CTS (AF11)
E11VSSпитание—
E12PI0ввод-выводDCMI_D13 (AF13), I2S2_WS (AF5), LTDC_B1 (AF14), PSSI_D13 (AF13), SPI2_NSS (AF5), TIM5_CH4 (AF2), USART11_CK (AF7)
E13PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11 (AF13), DEBUG_TRACECLK (AF0), FMC_D24 (AF12), LTDC_G1 (AF14), MDF1_SDI3 (AF4), OCTOSPIM_P2_IO7 (AF10), PSSI_D11 (AF13), SDMMC2_CKIN (AF9), TIM8_CH3N (AF3)
E14PH14ввод-выводDCMI_D4 (AF13), FDCAN1_RX (AF9), FMC_D23 (AF12), LTDC_R6 (AF14), MDF1_CKI3 (AF4), OCTOSPIM_P2_IO6 (AF10), PSSI_D4 (AF13), TIM8_CH2N (AF3), UART4_RX (AF8)
E15PH13ввод-выводDCMI_D3 (AF13), FDCAN1_TX (AF9), FMC_D22 (AF12), LPTIM1_IN2 (AF1), LTDC_R3 (AF14), OCTOSPIM_P2_IO5 (AF10), PSSI_D3 (AF13), TIM8_CH1N (AF3), UART4_TX (AF8), UART8_TX (AF7)
F1PI12ввод-выводLPUART1_TX (AF3), LTDC_R5 (AF14), MDF1_CKI5 (AF8), SAI1_SD_B (AF6), TIM15_BKIN (AF4), TIM1_BKIN (AF1)
F2PF2ввод-выводFMC_A2 (AF12), GFXTIM_TE (AF5), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), LPTIM3_IN2 (AF3), LPTIM5_IN1 (AF13), PLAY1_IN2 (AF14), SDMMC2_D4 (AF10), UART12_TX (AF6), USART11_CK (AF7)
F3PI11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LPTIM1_CH2 (AF4), LTDC_B1 (AF14), PSSI_D15 (AF13), SAI1_MCLK_A (AF2), TAMP_IN4, TAMP_OUT5, TIM1_CH4 (AF1), USART11_TX (AF7)
F4PK14ввод-выводDEBUG_TRACED2 (AF0), LTDC_R3 (AF14), OCTOSPIM_P2_IO6 (AF10), TIM3_CH4 (AF2), USART6_RX (AF7)
F5PK12ввод-выводDEBUG_TRACED0 (AF0), LTDC_B3 (AF14), SDMMC1_D123DIR (AF12), SDMMC1_D7 (AF8), TIM3_CH2 (AF2), USART6_CTS (AF7), USART6_NSS (AF7)
F6PE6ввод-выводADF1_SDI0 (AF3), DCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_R2 (AF11), MDF1_SDI1 (AF8), OCTOSPIM_P2_IO3 (AF9), PLAY1_OUT10 (AF14), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TAMP_IN3, TAMP_OUT6, TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
F7VDDпитание—
F8VSSпитание—
F9VDDпитание—
F10PI2ввод-выводDCMI_D9 (AF13), DEBUG_TRACED1 (AF0), FMC_D26 (AF12), I2S2_SDI (AF5), MDF1_SDI4 (AF4), PSSI_D9 (AF13), SDMMC2_D1 (AF9), SPI2_MISO (AF5), TIM1_ETR (AF1), TIM8_CH4 (AF3)
F11VDDUSBпитание—
F12PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
F13PA10ввод-выводDCMI_D1 (AF13), DMA2D_GPFLAG1 (AF0), ETH_CLK (AF11), FDCAN2_TX (AF9), LPTIM2_IN2 (AF4), LPUART1_RX (AF3), LTDC_R6 (AF14), PSSI_D1 (AF13), SDMMC1_D0 (AF12), TIM1_CH3 (AF1), UCPD1_FRSTX (AF6), USART1_RX (AF7)
F14PA12ввод-выводDMA2D_GPFLAG3 (AF0), FDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R4 (AF14), SAI2_FS_B (AF8), SDMMC2_D4 (AF10), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP
F15PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2 (AF0), FDCAN1_RX (AF9), FMC_A17 (AF12), FMC_ALE (AF12), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R5 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_FS_DM
G1PF4ввод-выводDCMI_D6 (AF13), FMC_A4 (AF12), LPTIM3_ETR (AF2), OCTOSPIM_P2_NCS2 (AF9), PLAY1_OUT1 (AF14), PSSI_D6 (AF13), SDMMC2_D6 (AF10), TIM2_CH4 (AF1), USART11_RX (AF7)
G2PI14ввод-выводLPUART1_CTS (AF3), LTDC_B7 (AF14), SAI1_SCK_B (AF6), TIM13_CH1 (AF9), TIM15_CH1 (AF4)
G3PI13ввод-выводLPUART1_RX (AF3), LTDC_G5 (AF14), MDF1_SDI5 (AF8), SAI1_MCLK_B (AF6), TIM15_CH1N (AF4)
G4PF1ввод-выводCOMP2_OUT (AF3), FMC_A1 (AF12), I2C2_SCL (AF4), I3C2_SCL (AF5), LPTIM5_CH2 (AF13), PLAY1_IN1 (AF14), SDMMC2_D3 (AF10), TIM2_CH2 (AF1), UART9_TX (AF11)
G5PK15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DEBUG_TRACED3 (AF0), ETH_MII_RX_DV (AF12), ETH_RMII_CRS_DV (AF12), LTDC_G0 (AF14), OCTOSPIM_P2_IO7 (AF10), TIM3_ETR (AF2), USART6_CK (AF7)
G6VDDпитание—
G7VDDпитание—
G8VSSпитание—
G9VDDпитание—
G10VDDпитание—
G11PA8ввод-выводDCMI_D3 (AF13), FMC_NOE (AF12), I2C3_SCL (AF4), LTDC_CLK (AF14), OCTOSPIM_P2_DQS (AF9), PSSI_D3 (AF13), RCC_MCO_1 (AF0), SPI1_RDY (AF5), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF
G12VSSUSBпитание—
G13PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_MII_TX_ER (AF11), FMC_NWE (AF12), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R7 (AF14), OCTOSPIM_P2_IO3 (AF10), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), UCPD1_DB1, USART1_TX (AF7)
G14PC9ввод-выводAUDIOCLK (AF5), DAC1_EXTI9, DCMI_D3 (AF13), FMC_A16 (AF11), FMC_CLE (AF11), FMC_SDNCAS (AF10), I2C3_SDA (AF4), LTDC_B1 (AF14), OCTOSPIM_P1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8), UCPD1_DB2
G15OTG_HS_DPввод-выводUSB_OTG_HS_DP
H1PF8ввод-выводETH_MII_TX_ER (AF11), FMC_D18 (AF12), LPTIM5_IN1 (AF13), LTDC_R7 (AF14), OCTOSPIM_P1_IO0 (AF10), SAI1_SCK_B (AF6), SDMMC1_D2 (AF8), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
H2PF7ввод-выводFDCAN3_RX (AF9), FMC_D17 (AF12), LPTIM5_CH2 (AF13), LTDC_G3 (AF14), MDF1_CKI1 (AF4), OCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF6), SDMMC1_D1 (AF8), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
H3PF6ввод-выводFDCAN3_TX (AF9), FMC_D16 (AF12), LPTIM5_CH1 (AF13), LTDC_DE (AF14), OCTOSPIM_P1_IO3 (AF10), SAI1_SD_B (AF6), SDMMC1_D0 (AF8), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
H4PF5ввод-выводFMC_A5 (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM3_CH1 (AF2), LPTIM3_IN1 (AF14), OCTOSPIM_P2_DQS (AF9), SDMMC2_CKIN (AF11), SDMMC2_D7 (AF10), UART12_RX (AF6), USART11_CTS (AF7), USART11_NSS (AF7)
H5PF3ввод-выводFMC_A3 (AF12), LPTIM3_IN1 (AF2), LPTIM5_IN2 (AF13), PLAY1_OUT0 (AF14), SDMMC2_D5 (AF10), TIM2_CH3 (AF1), USART11_TX (AF7)
H6VSSпитание—
H7VSSпитание—
H8VSSпитание—
H9VSSпитание—
H10VSSпитание—
H11PG7ввод-выводADF1_CCK1 (AF1), DCMI_D13 (AF13), FMC_INT (AF12), I2C4_SCL (AF4), I3C1_SCL (AF3), LTDC_R5 (AF14), MDF1_CCK1 (AF8), OCTOSPIM_P2_CLK (AF9), PSSI_D13 (AF13), SAI1_CK2 (AF2), SAI1_MCLK_A (AF6), UCPD1_FRSTX (AF11), USART6_CK (AF7)
H12VDD11USBпитание—
H13PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_A17 (AF11), FMC_ALE (AF11), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), LTDC_R0 (AF14), PSSI_D2 (AF13), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
H14PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), FMC_NE1 (AF9), I2S3_MCK (AF6), LTDC_R1 (AF14), OCTOSPIM_P1_IO6 (AF11), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
H15OTG_HS_DMввод-выводUSB_OTG_HS_DM
J1PH0-OSC_INввод-выводRCC_OSC_IN
J2PH1-OSC_OUTввод-выводRCC_OSC_OUT
J3VSSпитание—
J4PF9ввод-выводDAC1_EXTI9, ETH_MDC (AF11), FMC_D19 (AF12), LPTIM5_IN2 (AF13), LTDC_B1 (AF14), MDF1_CCK0 (AF4), OCTOSPIM_P1_IO1 (AF10), SAI1_FS_B (AF6), SDMMC1_D3 (AF8), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
J5NRSTсброс—
J6VDDпитание—
J7VDDпитание—
J8VSSпитание—
J9VDDпитание—
J10VDDпитание—
J11PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LTDC_B1 (AF13), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT6 (AF14), PSSI_D15 (AF4), SAI1_FS_A (AF6), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
J12PG3ввод-выводETH_MII_RX_ER (AF10), FMC_A13 (AF12), LPTIM5_ETR (AF13), LTDC_G0 (AF14), OCTOSPIM_P2_IO3 (AF9), TIM4_CH4 (AF2), TIM8_BKIN2 (AF3), UART12_TX (AF7), UART7_RX (AF11)
J13PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF3), OCTOSPIM_P1_NCS1 (AF10), OCTOSPIM_P2_NCS1 (AF9), PLAY1_OUT10 (AF14), PSSI_D12 (AF13), SPI1_RDY (AF5), TIM17_BKIN (AF1), UCPD1_FRSTX (AF11)
J14PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), LPTIM4_OUT (AF14), LTDC_B2 (AF13), OCTOSPIM_P2_NCLK (AF9), SPI6_NSS (AF5), TIM16_CH1N (AF1), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
J15PC6ввод-выводDCMI_D0 (AF13), FMC_NWAIT (AF9), I2S2_MCK (AF5), LTDC_G0 (AF14), OCTOSPIM_P1_IO5 (AF11), PSSI_D0 (AF13), SAI1_SCK_A (AF6), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
K1PF10ввод-выводDCMI_D11 (AF13), LTDC_G6 (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), TIM16_BKIN (AF1)
K2PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0 (AF1), DEBUG_TRACED0 (AF0), ETH_MDC (AF11), FMC_NCE (AF13), FMC_NE2 (AF13), I2S2_SDO (AF5), LTDC_G2 (AF14), MDF1_SDI1 (AF4), OCTOSPIM_P1_IO4 (AF10), PWR_WKUP6, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5), TAMP_IN3, TAMP_OUT5, TIM8_CH2 (AF3), USART11_DE (AF7), USART11_RTS (AF7)
K3VSSAпитание—
K4VREF-питание—
K5VREF+питание—
K6PH5ввод-выводFMC_SDNWE (AF12), I2C2_SDA (AF4), I3C2_SDA (AF3), SPI5_NSS (AF5), SPI6_RDY (AF7)
K7VDDпитание—
K8VSSпитание—
K9VDDпитание—
K10PH10ввод-выводDCMI_D1 (AF13), FMC_D20 (AF12), I2C4_SMBA (AF4), OCTOSPIM_P2_IO2 (AF9), PLAY1_OUT13 (AF14), PSSI_D1 (AF13), SPI5_RDY (AF5), TIM1_CH1N (AF1), TIM5_CH1 (AF2), TIM8_CH3 (AF3)
K11PB14ввод-выводI2S2_SDI (AF5), LPTIM3_ETR (AF14), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC2, USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
K12PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LTDC_CLK (AF13), OCTOSPIM_P2_NCLK (AF9), PLAY1_IN7 (AF14), SAI1_FS_B (AF6), SPI6_RDY (AF7), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
K13PK2ввод-выводLPTIM6_CH1 (AF13), OCTOSPIM_P2_IO4 (AF10), PLAY1_IN9 (AF14), TIM8_CH2 (AF3), USART1_RX (AF7)
K14PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), LPTIM4_ETR (AF14), LTDC_VSYNC (AF13), MDF1_CKI0 (AF4), OCTOSPIM_P2_IO4 (AF9), TIM1_BKIN2 (AF1)
K15PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), LTDC_HSYNC (AF13), MDF1_SDI0 (AF4), OCTOSPIM_P2_IO5 (AF9), PLAY1_OUT9 (AF14), TIM1_ETR (AF1)
L1PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_A25 (AF9), FMC_INT (AF13), FMC_SDNWE (AF12), LTDC_G3 (AF14), MDF1_CKI1 (AF4), OCTOSPIM_P1_IO7 (AF10), SAI1_MCLK_A (AF6), SAI2_FS_B (AF8), SPI2_RDY (AF7), TIM16_BKIN (AF1), TIM8_CH1 (AF3)
L2PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS (AF11), LTDC_G6 (AF13), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI3_RDY (AF6), SPI6_NSS (AF5), TAMP_IN2, TAMP_OUT1, TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
L3VDDAпитание—
L4PA1ввод-выводADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), LPTIM1_IN1 (AF5), LTDC_B7 (AF14), OCTOSPIM_P1_DQS (AF6), OCTOSPIM_P1_IO3 (AF9), SAI2_MCLK_B (AF10), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
L5VSSпитание—
L6PB1ввод-выводADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3 (AF11), LPTIM3_CH2 (AF14), LTDC_B3 (AF13), OCTOSPIM_P1_IO0 (AF6), OCTOSPIM_P1_NCLK (AF9), OPAMP1_VOUT, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3)
L7PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), LPTIM6_CH1 (AF14), OCTOSPIM_P1_NCLK (AF9), PSSI_D12 (AF13), SAI2_SD_B (AF10), SDMMC1_D4 (AF8), SPI5_MOSI (AF5), TIM2_CH3 (AF1)
L8PE7ввод-выводADC3_INP1, COMP2_INP, FMC_D4 (AF12), FMC_DA4 (AF12), MDF1_CKI0 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_IN11 (AF14), TIM1_ETR (AF1), UART12_DE (AF6), UART12_RTS (AF6), UART7_RX (AF7), USART2_RX (AF5)
L9PE12ввод-выводADC3_INP6, DCMI_D0 (AF13), ETH_MDIO (AF11), FDCAN3_TX (AF9), FMC_D9 (AF12), FMC_DA9 (AF12), GFXTIM_LCKCAL (AF0), MDF1_SDI5 (AF8), OPAMP1_VINP, PLAY1_OUT13 (AF14), PSSI_D0 (AF13), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1), USART6_RX (AF7)
L10VCAPпитание—
L11VSSпитание—
L12PD8ввод-выводETH_MII_RXD0 (AF8), ETH_RMII_RXD0 (AF8), FDCAN3_TX (AF9), FMC_D13 (AF12), FMC_DA13 (AF12), I2S3_MCK (AF6), LTDC_R5 (AF13), PLAY1_IN4 (AF14), SDMMC2_D0 (AF11), TIM12_CH2 (AF2), USART3_TX (AF7)
L13PD13ввод-выводDCMI_D13 (AF13), FMC_A18 (AF12), I2C1_SDA (AF6), I2C4_SDA (AF4), I3C1_SDA (AF5), LPTIM1_CH1 (AF1), LPTIM2_CH1 (AF3), LPTIM4_IN1 (AF14), OCTOSPIM_P1_IO3 (AF9), PSSI_D13 (AF13), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
L14PK1ввод-выводLPTIM6_IN2 (AF13), MDF1_CKI2 (AF4), OCTOSPIM_P2_IO3 (AF10), PLAY1_OUT6 (AF14), SAI1_CK2 (AF2), TIM8_CH1N (AF3), USART1_TX (AF7)
L15PG2ввод-выводFMC_A12 (AF12), I2S1_MCK (AF5), LPTIM6_ETR (AF14), LTDC_R2 (AF13), OCTOSPIM_P2_IO2 (AF9), TIM4_CH3 (AF2), TIM8_BKIN (AF3), UART12_RX (AF7)
M1PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_NCE (AF13), FMC_NE1 (AF13), FMC_SDNE0 (AF12), I2S2_SDI (AF5), LTDC_HSYNC (AF14), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF6), PWR_CSLEEP (AF0), SDMMC2_D6 (AF10), SPI2_MISO (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), TIM8_CH3 (AF3)
M2PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), LPTIM3_CH1 (AF3), LTDC_VSYNC (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF6), PWR_CSTOP (AF0), SAI1_D3 (AF2), SDMMC2_D7 (AF10), SPI2_MOSI (AF5)
M3PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM1_IN2 (AF5), LTDC_B6 (AF14), LTDC_R0 (AF13), OCTOSPIM_P2_IO4 (AF9), PWR_WKUP2, SAI2_SCK_B (AF8), TAMP_IN4, TAMP_OUT3, TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
M4PA3ввод-выводADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0 (AF0), ETH_MII_COL (AF11), I2S2_WS (AF5), LTDC_B5 (AF14), OCTOSPIM_P1_CLK (AF3), SAI1_SD_B (AF6), SPI2_NSS (AF5), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
M5PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_SDCKE0 (AF12), LTDC_G1 (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_DQS (AF10), PSSI_D15 (AF4), SAI1_D3 (AF2), SAI1_FS_A (AF6), TIM1_CH4N (AF1), UART12_DE (AF7), UART12_RTS (AF7)
M6PJ1ввод-выводETH_PTP_AUX_TS (AF12), MDF1_SDI1 (AF4), OCTOSPIM_P1_DQS (AF10), PLAY1_OUT4 (AF14), TIM17_CH1 (AF1), USART3_TX (AF7)
M7PF14ввод-выводADC2_INN2, ADC2_INP6, ADF1_CCK1 (AF1), FMC_A8 (AF12), I2S3_SDI (AF6), LPTIM2_IN1 (AF3), LPTIM6_IN2 (AF14), LTDC_G5 (AF13), SDMMC1_D123DIR (AF9), SDMMC1_D7 (AF8), SPI3_MISO (AF6), TIM3_ETR (AF2)
M8PE8ввод-выводADC3_INP2, DCMI_D8 (AF13), FMC_D5 (AF12), FMC_DA5 (AF12), MDF1_SDI0 (AF8), OCTOSPIM_P1_IO5 (AF10), PLAY1_OUT11 (AF14), PSSI_D8 (AF13), TIM1_CH1N (AF1), UART12_CTS (AF6), UART7_TX (AF7), USART2_TX (AF5)
M9PE10ввод-выводADC3_INP4, COMP1_INM, FMC_D7 (AF12), FMC_DA7 (AF12), MDF1_SDI4 (AF8), OCTOSPIM_P1_IO7 (AF10), PLAY1_OUT12 (AF14), TIM1_CH2N (AF1), UART12_TX (AF6), UART7_CTS (AF7)
M10PB10ввод-выводETH_MII_RX_ER (AF11), FMC_NWAIT (AF13), FMC_SDNRAS (AF10), I2C2_SCL (AF4), I2S2_CK (AF5), I3C2_SCL (AF8), LPTIM2_IN1 (AF3), LPTIM3_CH1 (AF2), LTDC_G4 (AF14), OCTOSPIM_P1_NCS1 (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
M11PH7ввод-выводDCMI_D9 (AF13), ETH_MII_RXD3 (AF11), FMC_SDCKE1 (AF12), I2C3_SCL (AF4), OCTOSPIM_P2_IO1 (AF9), PLAY1_OUT12 (AF14), PSSI_D9 (AF13), SPI5_MISO (AF5), TIM1_CH3 (AF1), TIM8_CH1N (AF3)
M12PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2 (AF13), FMC_D21 (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), OCTOSPIM_P2_IO3 (AF9), PLAY1_OUT14 (AF14), PSSI_D2 (AF13), TIM1_CH1 (AF1), TIM5_CH2 (AF2), TIM8_CH3N (AF3)
M13PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), I2S2_SDO (AF5), LTDC_G0 (AF12), OCTOSPIM_P1_CLK (AF10), PSSI_D2 (AF13), PWR_PVD_IN, RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), UART5_RX (AF14), USART11_CTS (AF7), USART11_NSS (AF7), USART1_RX (AF4)
M14PD12ввод-выводDCMI_D12 (AF13), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), LTDC_G2 (AF11), OCTOSPIM_P1_IO1 (AF9), PLAY1_IN6 (AF14), PSSI_D12 (AF13), SAI1_D1 (AF6), SAI2_FS_A (AF10), TIM4_CH1 (AF2), UART4_TX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
M15PK0ввод-выводLPTIM6_IN1 (AF13), MDF1_SDI2 (AF4), OCTOSPIM_P2_IO2 (AF10), PLAY1_IN8 (AF14), SAI1_D2 (AF2), TIM8_CH1 (AF3), USART1_CK (AF7)
N1PH2ввод-выводETH_MII_CRS (AF11), FMC_NBL0 (AF13), FMC_SDCKE0 (AF12), LPTIM1_IN2 (AF1), MDF1_CKI2 (AF4), OCTOSPIM_P1_IO4 (AF9), OCTOSPIM_P2_CLK (AF8), PLAY1_OUT2 (AF14), SAI2_SCK_B (AF10)
N2PH3ввод-выводETH_MII_COL (AF11), FMC_NBL2 (AF13), FMC_SDNE0 (AF12), MDF1_SDI2 (AF4), OCTOSPIM_P1_IO5 (AF9), OCTOSPIM_P2_NCLK (AF8), PLAY1_OUT3 (AF14), SAI2_MCLK_B (AF10)
N3PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), FMC_NBL2 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM2_CH1 (AF3), LTDC_B4 (AF14), OPAMP1_VINM, PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7), USB_OTG_HS_SOF
N4PC4ввод-выводADC1_INP4, ADC2_INP4, ADF1_CCK0 (AF4), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LPTIM2_ETR (AF3), LTDC_DE (AF14), MDF1_CCK0 (AF8), SAI1_CK1 (AF2), TIM2_CH4 (AF1), USART3_RX (AF7)
N5PI15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, GFXTIM_TE (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R4 (AF14), SAI1_FS_B (AF6), TIM14_CH1 (AF9), TIM15_CH2 (AF4)
N6PJ4ввод-выводLPTIM2_IN2 (AF3), LTDC_G2 (AF14), MDF1_CCK1 (AF4), TIM4_CH2 (AF2), USART3_CTS (AF7), USART3_NSS (AF7)
N7PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADF1_SDI0 (AF1), ETH_CLK (AF11), FMC_A9 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5), LTDC_B7 (AF13), OCTOSPIM_P2_NCS2 (AF9), SDMMC1_CMD (AF8), TIM4_ETR (AF2)
N8PE9ввод-выводADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), MDF1_CKI4 (AF8), OCTOSPIM_P1_IO6 (AF10), PLAY1_IN12 (AF14), TIM1_CH1 (AF1), UART12_RX (AF6), UART7_DE (AF7), UART7_RTS (AF7)
N9PJ9ввод-выводCOMP2_OUT (AF3), DAC1_EXTI9, LPTIM5_IN1 (AF13), LTDC_CLK (AF14), SAI2_MCLK_A (AF10), TIM5_CH3 (AF2), UART5_CTS (AF8)
N10PE14ввод-выводADC3_INP8, COMP2_INM, DCMI_VSYNC (AF13), FMC_D11 (AF12), FMC_DA11 (AF12), LTDC_B0 (AF11), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT14 (AF14), PSSI_RDY (AF13), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
N11PH6ввод-выводDCMI_D8 (AF13), ETH_MII_RXD2 (AF11), FMC_SDNE1 (AF12), I2C2_SMBA (AF4), OCTOSPIM_P2_IO0 (AF9), PLAY1_OUT11 (AF14), PSSI_D8 (AF13), SPI5_SCK (AF5), TIM12_CH1 (AF2), TIM1_CH3N (AF1), TIM8_CH1 (AF3)
N12PH8ввод-выводDCMI_HSYNC (AF13), I2C3_SDA (AF4), PSSI_DE (AF13), SPI5_MOSI (AF5), TIM1_CH2N (AF1), TIM5_ETR (AF2), TIM8_CH2 (AF3)
N13PB13ввод-выводFDCAN2_TX (AF9), I2C2_SMBA (AF4), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LPTIM3_IN1 (AF2), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), UCPD1_CC1, USART3_CTS (AF7), USART3_NSS (AF7)
N14PD10ввод-выводAUDIOCLK (AF5), ETH_MII_CRS (AF8), FDCAN3_RX (AF9), FMC_D15 (AF12), FMC_DA15 (AF12), LPTIM2_CH2 (AF3), LTDC_R7 (AF13), PLAY1_IN5 (AF14), TIM14_CH1 (AF2), USART3_CK (AF7)
N15PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0 (AF1), ETH_PTP_AUX_TS (AF11), FMC_A16 (AF12), FMC_CLE (AF12), GFXTIM_TE (AF5), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), LTDC_R6 (AF13), OCTOSPIM_P1_IO0 (AF9), PLAY1_OUT5 (AF14), SAI1_CK1 (AF2), SAI2_SD_A (AF10), UART4_RX (AF8), USART3_CTS (AF7), USART3_NSS (AF7)
P1PH4ввод-выводI2C2_SCL (AF4), I3C2_SCL (AF3), LTDC_R7 (AF14), PSSI_D14 (AF13), SPI5_RDY (AF5), SPI6_RDY (AF7)
P2PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LTDC_G5 (AF10), OCTOSPIM_P2_IO5 (AF9), OPAMP1_VINP, PSSI_D14 (AF13), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1N (AF3)
P3PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_NWE (AF13), FMC_SDNWE (AF12), I2S1_SDO (AF5), LTDC_B2 (AF14), OCTOSPIM_P1_IO2 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART11_RX (AF7)
P4PB2ввод-выводADC3_INP0, ADF1_SDI0 (AF1), COMP1_INP, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), I2S3_SDO (AF7), LPTIM1_CH1 (AF5), LPTIM5_ETR (AF13), LTDC_R3 (AF14), OCTOSPIM_P1_CLK (AF9), OCTOSPIM_P1_DQS (AF10), RCC_LSCO, RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC1_CMD (AF12), SPI1_RDY (AF4), SPI3_MOSI (AF7), TIM8_CH4N (AF3)
P5PJ2ввод-выводETH_PHY_INTN (AF12), MDF1_CCK0 (AF4), OCTOSPIM_P2_NCS2 (AF9), PLAY1_IN5 (AF14), SAI1_FS_A (AF2), USART3_RX (AF7)
P6PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), LPTIM6_CH2 (AF14), LTDC_CLK (AF13), SDMMC1_CKIN (AF9), SDMMC1_D5 (AF8), TIM2_CH4 (AF1)
P7PG0ввод-выводFMC_A10 (AF12), LPTIM4_IN1 (AF14), OCTOSPIM_P2_IO0 (AF9), SDMMC1_CK (AF8), TIM4_CH1 (AF2), UART9_RX (AF11)
P8PJ5ввод-выводADF1_CCK0 (AF3), ETH_PPS_OUT (AF12), OCTOSPIM_P2_NCS1 (AF10), PLAY1_IN6 (AF14), TIM4_CH3 (AF2), USART10_RX (AF6)
P9PJ8ввод-выводCOMP1_OUT (AF3), LPTIM5_ETR (AF13), LTDC_R1 (AF14), MDF1_CKI4 (AF4), TIM5_CH2 (AF2), UART5_DE (AF8), UART5_RTS (AF8)
P10PE13ввод-выводADC3_INP7, DCMI_HSYNC (AF13), FDCAN3_RX (AF9), FMC_D10 (AF12), FMC_DA10 (AF12), GFXTIM_FCKCAL (AF0), LTDC_R1 (AF11), OPAMP1_VINM, PLAY1_IN14 (AF14), PSSI_DE (AF13), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
P11PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), FMC_NBL1 (AF12), I2C2_SDA (AF4), I3C2_SDA (AF8), LPTIM2_ETR (AF3), LTDC_G7 (AF13), PLAY1_IN15 (AF14), SPI2_RDY (AF5), SPI4_RDY (AF6), TIM2_CH4 (AF1), USART3_RX (AF7)
P12VSSSMPSпитание—
P13PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), I2C3_SMBA (AF4), LTDC_R7 (AF14), PSSI_D0 (AF13), SPI5_NSS (AF5), TIM12_CH2 (AF2), TIM1_CH2 (AF1), TIM8_CH2N (AF3)
P14PB12ввод-выводETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SDA (AF4), I2S2_WS (AF5), I3C2_SDA (AF8), LTDC_R1 (AF13), OCTOSPIM_P1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF14), UCPD1_FRSTX (AF6), USART3_CK (AF7)
P15PD9ввод-выводCEC (AF5), DAC1_EXTI9, FDCAN2_RX (AF9), FMC_D14 (AF12), FMC_DA14 (AF12), LTDC_R4 (AF13), PLAY1_OUT4 (AF14), TIM13_CH1 (AF2), USART3_RX (AF7)
R1VSSпитание—
R2PA6ввод-выводADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK (AF13), FMC_D31 (AF12), I2S1_SDI (AF5), LTDC_B3 (AF14), OCTOSPIM_P1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART11_TX (AF7)
R3PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2 (AF11), LPTIM3_CH1 (AF14), LTDC_R4 (AF13), OCTOSPIM_P1_IO1 (AF6), OCTOSPIM_P2_NCS1 (AF9), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USART11_CK (AF7)
R4PJ0ввод-выводMDF1_CKI1 (AF4), OCTOSPIM_P1_NCS2 (AF11), PLAY1_IN4 (AF14), TIM17_BKIN (AF1), TIM4_ETR (AF2), USART3_CK (AF7)
R5PJ3ввод-выводLTDC_G1 (AF14), MDF1_SDI4 (AF4), OCTOSPIM_P2_DQS (AF9), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
R6PF13ввод-выводADC2_INP2, ADF1_CCK0 (AF1), FMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM2_CH2 (AF3), LPTIM6_IN1 (AF14), LTDC_B6 (AF13), SDMMC1_CDIR (AF9), SDMMC1_D6 (AF8)
R7PG1ввод-выводFMC_A11 (AF12), I2S2_SDO (AF7), OCTOSPIM_P2_IO1 (AF9), PLAY1_IN3 (AF14), SPI2_MOSI (AF7), TIM4_CH2 (AF2), UART9_TX (AF11)
R8PJ6ввод-выводADF1_CCK1 (AF3), ETH_MDIO (AF12), OCTOSPIM_P2_IO0 (AF10), PLAY1_OUT5 (AF14), TIM4_CH4 (AF2), USART10_TX (AF6)
R9PJ7ввод-выводADF1_SDI0 (AF3), ETH_MDC (AF12), OCTOSPIM_P2_IO1 (AF10), PLAY1_IN7 (AF14), TIM5_CH1 (AF2), USART10_CK (AF6)
R10PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_B5 (AF13), MDF1_CKI5 (AF8), OCTOSPIM_P1_NCS1 (AF6), OCTOSPIM_P2_NCS2 (AF9), OPAMP1_VINP, PLAY1_IN13 (AF14), SAI2_SD_B (AF10), SPI1_RDY (AF4), SPI4_NSS (AF5), TIM1_CH2 (AF1), USART6_TX (AF7)
R11PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK (AF13), FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R0 (AF11), OCTOSPIM_P2_NCS1 (AF9), PLAY1_OUT15 (AF14), PSSI_PDCK (AF13), TIM1_BKIN (AF1), TIM1_CH4N (AF3), USART10_CK (AF7)
R12VLXSMPSпитание—
R13VDDSMPSпитание—
R14PH12ввод-выводDCMI_D3 (AF13), FMC_D3 (AF12), FMC_DA3 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5), OCTOSPIM_P2_IO4 (AF9), PLAY1_OUT15 (AF14), PSSI_D3 (AF13), TIM1_BKIN (AF1), TIM5_CH3 (AF2), TIM8_BKIN (AF3), TIM8_CH4N (AF10)
R15VSSпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATD3резервное питание: часы реального времени и резервные регистры
VCAPE6, L10вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDF7, F9, G6, G7, G9, G10, J6, J7, J9, J10, K7, K9питание цифровой части и линий ввода-вывода
VDD11USBH12—
VDDAL3питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2D7питание отдельной группы линий ввода-вывода
VDDSMPSR13—
VDDUSBF11питание приёмопередатчика USB
VLXSMPSR12—
VREF-K4нижнее опорное напряжение АЦП
VREF+K5верхнее опорное напряжение АЦП и ЦАП
VSSA1, A15, E3, E5, E11, F8, G8, H6, H7, H8, H9, H10, J3, J8, K8, L5, L11, R1, R15общий провод (земля)
VSSAK3общий провод аналоговой части
VSSSMPSP12—
VSSUSBG12—
NRSTJ5сброс, активный уровень — низкий
BOOT0B6выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H5F5LJHxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H5F5LJSTM32H5F5LJHxQ4 МБ1,5 МБ

Линейка STM32H5x5, семейство STM32H5, ядро Cortex-M33. Отладочные платы ST на этом микроконтроллере: STM32H5F5J-DK.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе TFBGA225, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H5E5LJSTM32H5x5225 из 225выводы совпадают полностьютолько у этого: AES
STM32H5E5LKHxQSTM32H5x5225 из 225выводы совпадают полностью

Частые вопросы

На каких выводах USART1 у STM32H5F5LJ?

В корпусе TFBGA225 сигнал USART1_TX выведен на PB6 (шарик E8, AF7) или PA9 (шарик G13, AF7) или PB14 (шарик K11, AF4) или PK1 (шарик L14, AF7), USART1_RX — на PB7 (шарик A6, AF7) или PA10 (шарик F13, AF7) или PK2 (шарик K13, AF7) или PB15 (шарик M13, AF4).

Где у STM32H5F5LJ выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик F12, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик C15, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H5F5LJ?

I2C1_SCL — PK9 (шарик A2, AF4) или PB8 (шарик C6, AF4) или PB6 (шарик E8, AF4), I2C1_SDA — PB9 (шарик A5, AF4) или PB7 (шарик A6, AF4) или PK10 (шарик B2, AF4) или PD13 (шарик L13, AF6).

Сколько выводов ввода-вывода у STM32H5F5LJ в корпусе TFBGA225?

178 из 225. Ещё 45 выводов заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
