STM32H5F5VJ в корпусе WLCSP105: распиновка

STM32H5F5VJ — микроконтроллер STM32H5 на ядре Cortex-M33: 4 МБ флеш-памяти и 1,5 МБ ОЗУ. Корпус WLCSP105 — 105 шариков, из них 80 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
4 МБ
ОЗУ
1,5 МБ
Корпус
WLCSP105, 105 шариков
Линий ввода-вывода
80

Схема корпуса WLCSP105

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

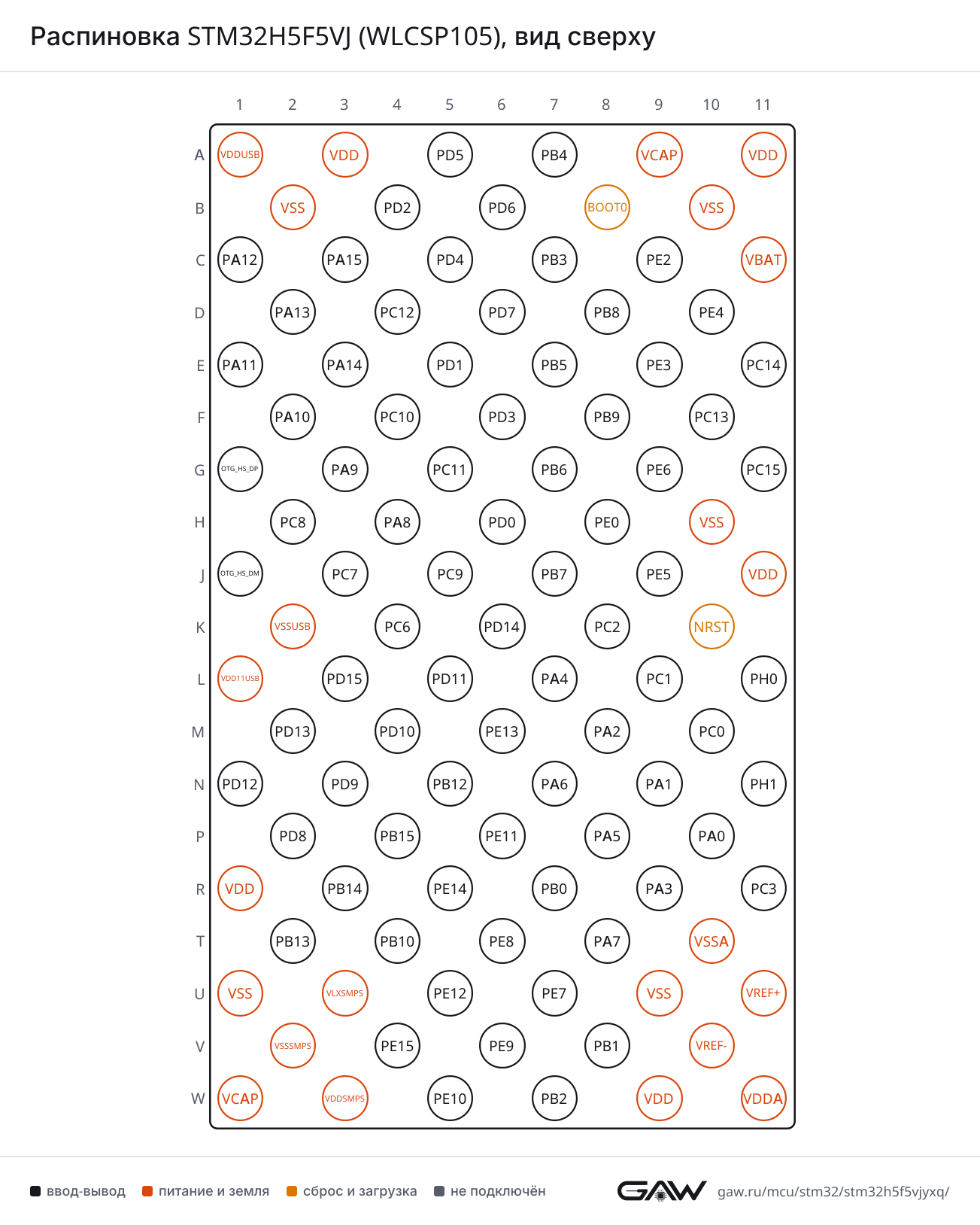

Расположение шариков STM32H5F5VJ в корпусе WLCSP105, вид сверхуABCDEFGHJKLMNPRTUVW1234567891011VDDUSB — шарик A1VDDUSBVDD — шарик A3VDDPD5 — шарик A5: COMP2_OUT, ETH_MII_CRS, FDCAN1_TX, FMC_NWE, LTDC_B2, OCTOSPIM_P1_IO5, PLAY1_IN3, SPI2_RDY, TIM1_CH4N, UART8_RX, USART2_TXPD5PB4 (NJTRST) — шарик A7: DCMI_D7, DEBUG_NJTRST, ETH_MDIO, FMC_NBL3, I2S1_SDI, I2S2_WS, I2S3_SDI, LPTIM1_CH2, LTDC_R2, OCTOSPIM_P1_CLK, PSSI_D7, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4VCAP — шарик A9VCAPVDD — шарик A11VDDVSS — шарик B2VSSPD2 — шарик B4: DCMI_D11, DEBUG_TRACED2, I2C2_SCL, I3C2_SCL, LPTIM4_ETR, LTDC_G7, OCTOSPIM_P1_NCS2, OCTOSPIM_P2_IO1, PSSI_D11, PWR_WKUP7, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RXPD2PD6 — шарик B6: ADF1_SDI0, DCMI_D10, FMC_NWAIT, I2C3_SDA, I2S3_SDO, MDF1_SDI1, OCTOSPIM_P1_IO6, OCTOSPIM_P2_IO4, PLAY1_OUT3, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6BOOT0 — шарик B8BOOT0VSS — шарик B10VSSPA12 — шарик C1: DMA2D_GPFLAG3, FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R4, SAI2_FS_B, SDMMC2_D4, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_FS_DPPA12PA15 (JTDI) — шарик C3: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DCMI_D11, DEBUG_JTDI, ETH_PHY_INTN, FMC_NBL1, I2S1_WS, I2S3_WS, LPTIM3_IN2, OCTOSPIM_P2_IO6, PSSI_D11, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PD4 — шарик C5: COMP1_OUT, DEBUG_TRGIO, ETH_CLK, FMC_NOE, LTDC_B7, MDF1_CKI3, OCTOSPIM_P1_IO4, PLAY1_OUT2, USART2_DE, USART2_RTSPD4PB3 (JTDO/TRACESWO) — шарик C7: CRS_SYNC, DEBUG_JTDO-SWO, ETH_MDC, I2C2_SDA, I2S1_CK, I2S3_CK, I3C2_SDA, LPTIM6_ETR, LTDC_HSYNC, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART12_CTS, UART7_RXPB3PE2 — шарик C9: ADF1_CCK0, DCMI_D3, DEBUG_TRACECLK, ETH_MII_TXD3, FMC_A23, LPTIM1_IN2, MDF1_CCK0, OCTOSPIM_P1_IO2, PLAY1_OUT8, PSSI_D3, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, UART8_TX, USART10_RXPE2VBAT — шарик C11VBATPA13 (JTMS/SWDIO) — шарик D2: DEBUG_JTMS-SWDIOPA13PC12 — шарик D4: COMP2_OUT, DCMI_D9, DEBUG_TRACED3, ETH_PPS_OUT, I2S3_SDO, LTDC_G4, OCTOSPIM_P2_IO7, PLAY1_OUT0, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CKPC12PD7 — шарик D6: FMC_NCE, FMC_NE1, I2C3_SCL, I2S1_SDO, LPTIM4_OUT, LTDC_R3, OCTOSPIM_P1_IO7, SDMMC2_CMD, SPI1_MOSI, TIM12_CH1, USART2_CKPD7PB8 — шарик D8: DCMI_D6, ETH_MII_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, I3C1_SCL, LTDC_G6, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI4_RDY, TIM16_CH1, TIM4_CH3, UART4_RXPB8PE4 — шарик D10: ADF1_SDI0, DCMI_D4, DEBUG_TRACED1, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_A20, LTDC_G3, MDF1_SDI2, OCTOSPIM_P2_IO1, PLAY1_OUT9, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TAMP_IN7, TAMP_OUT8, TIM15_CH1NPE4PA11 — шарик E1: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2, FDCAN1_RX, FMC_A17, FMC_ALE, I2S2_WS, LPUART1_CTS, LTDC_R5, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_FS_DMPA11PA14 (JTCK/SWCLK) — шарик E3: DEBUG_JTCK-SWCLKPA14PD1 — шарик E5: ETH_MII_RX_DV, ETH_RMII_CRS_DV, FDCAN1_TX, FMC_D3, FMC_DA3, I2S2_MCK, LTDC_DE, OCTOSPIM_P2_DQS, PLAY1_OUT1, SAI1_MCLK_B, SDMMC1_D123DIR, UART4_TXPD1PB5 — шарик E7: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, GFXTIM_LCKCAL, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, OCTOSPIM_P1_NCLK, OCTOSPIM_P2_CLK, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RXPB5PE3 — шарик E9: DEBUG_TRACED0, FMC_A19, GFXTIM_TE, LTDC_G1, MDF1_CKI2, OCTOSPIM_P2_IO0, PLAY1_IN9, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM15_BKIN, USART10_TXPE3PC14-OSC32_IN(OSC32_IN) — шарик E11: RCC_OSC32_INPC14PA10 — шарик F2: DCMI_D1, DMA2D_GPFLAG1, ETH_CLK, FDCAN2_TX, LPTIM2_IN2, LPUART1_RX, LTDC_R6, PSSI_D1, SDMMC1_D0, TIM1_CH3, UCPD1_FRSTX, USART1_RXPA10PC10 — шарик F4: DCMI_D8, ETH_MII_TXD0, ETH_RMII_TXD0, GFXTIM_LCKCAL, I2S3_CK, LPTIM3_ETR, LTDC_B0, OCTOSPIM_P1_IO1, PSSI_D8, SAI1_SCK_B, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TXPC10PD3 — шарик F6: DCMI_D5, FMC_CLK, I2S2_CK, LTDC_B4, OCTOSPIM_P2_IO0, PLAY1_IN2, PSSI_D5, PWR_WKUP8, SPI2_SCK, TIM8_CH4, USART2_CTS, USART2_NSSPD3PB9 — шарик F8: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2S2_WS, I3C1_SDA, LTDC_G5, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_CKIN, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PC13 — шарик F10: PWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3PC13OTG_HS_DP — шарик G1: USB_OTG_HS_DPOTGHS_DPPA9 — шарик G3: DAC1_EXTI9, DCMI_D0, ETH_MII_TX_ER, FMC_NWE, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R7, OCTOSPIM_P2_IO3, PSSI_D0, SPI2_SCK, TIM1_CH2, UCPD1_DB1, USART1_TXPA9PC11 — шарик G5: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT, DCMI_D4, GFXTIM_FCKCAL, I2S3_SDI, LPTIM3_IN1, LTDC_VSYNC, OCTOSPIM_P1_NCS1, PLAY1_IN0, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PB6 — шарик G7: CEC, DCMI_D5, ETH_MII_TX_ER, FDCAN2_TX, FMC_SDNE1, GFXTIM_FCKCAL, I2C1_SCL, I2C4_SCL, I3C1_SCL, LPUART1_TX, OCTOSPIM_P1_NCS1, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6PE6 — шарик G9: ADF1_SDI0, DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_R2, MDF1_SDI1, OCTOSPIM_P2_IO3, PLAY1_OUT10, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TAMP_IN3, TAMP_OUT6, TIM15_CH2, TIM1_BKIN2PE6PC15-OSC32_OUT(OSC32_OUT) — шарик G11: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUTPC15PC8 — шарик H2: DCMI_D2, DEBUG_TRACED1, FMC_A17, FMC_ALE, FMC_INT, FMC_NCE, FMC_NE2, LTDC_R0, PSSI_D2, SDMMC1_D0, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PA8 — шарик H4: DCMI_D3, FMC_NOE, I2C3_SCL, LTDC_CLK, OCTOSPIM_P2_DQS, PSSI_D3, RCC_MCO_1, SPI1_RDY, TIM1_CH1, TIM8_BKIN2, UART7_RX, USART1_CK, USB_OTG_FS_SOFPA8PD0 — шарик H6: FDCAN1_RX, FMC_D2, FMC_DA2, I2S1_MCK, LTDC_R2, OCTOSPIM_P1_NCS2, PLAY1_IN1, SDMMC1_D0DIR, TIM8_CH4N, UART4_RX, UART9_CTSPD0PE0 — шарик H8: DCMI_D2, FDCAN1_RX, FMC_NBL0, LPTIM1_ETR, LPTIM2_CH2, LPTIM2_ETR, OCTOSPIM_P1_NCS2, PLAY1_OUT7, PSSI_D2, SAI2_MCLK_A, SPI3_RDY, TIM4_ETR, UART8_RXPE0VSS — шарик H10VSSOTG_HS_DM — шарик J1: USB_OTG_HS_DMOTGHS_DMPC7 — шарик J3: DCMI_D1, DEBUG_TRGIO, FMC_NE1, I2S3_MCK, LTDC_R1, OCTOSPIM_P1_IO6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, USART6_RXPC7PC9 — шарик J5: AUDIOCLK, DAC1_EXTI9, DCMI_D3, FMC_A16, FMC_CLE, FMC_SDNCAS, I2C3_SDA, LTDC_B1, OCTOSPIM_P1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, TIM8_CH4, UART5_CTS, UCPD1_DB2PC9PB7 — шарик J7: DCMI_VSYNC, FDCAN1_TX, FMC_NL, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPUART1_RX, LTDC_G7, PSSI_RDY, PWR_WKUP5, SDMMC2_CKIN, SDMMC2_D5, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PE5 — шарик J9: ADF1_CCK1, DCMI_D6, DEBUG_TRACED2, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_A21, LTDC_B6, MDF1_CCK1, OCTOSPIM_P2_IO2, PLAY1_IN10, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TAMP_IN8, TAMP_OUT7, TIM15_CH1PE5VDD — шарик J11VDDVSSUSB — шарик K2VSSUSBPC6 — шарик K4: DCMI_D0, FMC_NWAIT, I2S2_MCK, LTDC_G0, OCTOSPIM_P1_IO5, PSSI_D0, SAI1_SCK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, USART6_TXPC6PD14 — шарик K6: FMC_D0, FMC_DA0, LTDC_B1, OCTOSPIM_P2_CLK, PLAY1_OUT6, PSSI_D15, SAI1_FS_A, TIM4_CH3, UART8_CTS, UART9_RXPD14PC2 — шарик K8: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_NCE, FMC_NE1, FMC_SDNE0, I2S2_SDI, LTDC_HSYNC, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSLEEP, SDMMC2_D6, SPI2_MISO, TIM17_CH1, TIM4_CH4, TIM8_CH3PC2NRST — шарик K10NRSTVDD11USB — шарик L1VDD11USBPD15 — шарик L3: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, LTDC_CLK, OCTOSPIM_P2_NCLK, PLAY1_IN7, SAI1_FS_B, SPI6_RDY, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TXPD15PD11 — шарик L5: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0, ETH_PTP_AUX_TS, FMC_A16, FMC_CLE, GFXTIM_TE, I2C4_SMBA, LPTIM2_IN2, LTDC_R6, OCTOSPIM_P1_IO0, PLAY1_OUT5, SAI1_CK1, SAI2_SD_A, UART4_RX, USART3_CTS, USART3_NSSPD11PA4 — шарик L7: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, FMC_NBL2, I2S1_WS, I2S3_WS, LPTIM2_CH1, LTDC_B4, OPAMP1_VINM, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CK, USB_OTG_HS_SOFPA4PC1 — шарик L9: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0, DEBUG_TRACED0, ETH_MDC, FMC_NCE, FMC_NE2, I2S2_SDO, LTDC_G2, MDF1_SDI1, OCTOSPIM_P1_IO4, PWR_WKUP6, SAI1_D1, SAI1_SD_A, SAI2_SD_A, SDMMC2_CK, SPI2_MOSI, TAMP_IN3, TAMP_OUT5, TIM8_CH2, USART11_DE, USART11_RTSPC1PH0-OSC_IN — шарик L11: RCC_OSC_INPH0PD13 — шарик M2: DCMI_D13, FMC_A18, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPTIM1_CH1, LPTIM2_CH1, LPTIM4_IN1, OCTOSPIM_P1_IO3, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTSPD13PD10 — шарик M4: AUDIOCLK, ETH_MII_CRS, FDCAN3_RX, FMC_D15, FMC_DA15, LPTIM2_CH2, LTDC_R7, PLAY1_IN5, TIM14_CH1, USART3_CKPD10PE13 — шарик M6: ADC3_INP7, DCMI_HSYNC, FDCAN3_RX, FMC_D10, FMC_DA10, GFXTIM_FCKCAL, LTDC_R1, OPAMP1_VINM, PLAY1_IN14, PSSI_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH3, UART5_DE, UART5_RTS, USART6_CKPE13PA2 — шарик M8: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM1_IN2, LTDC_B6, LTDC_R0, OCTOSPIM_P2_IO4, PWR_WKUP2, SAI2_SCK_B, TAMP_IN4, TAMP_OUT3, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PC0 — шарик M10: ADC1_INP10, ADC2_INP10, FMC_A25, FMC_INT, FMC_SDNWE, LTDC_G3, MDF1_CKI1, OCTOSPIM_P1_IO7, SAI1_MCLK_A, SAI2_FS_B, SPI2_RDY, TIM16_BKIN, TIM8_CH1PC0PD12 — шарик N1: DCMI_D12, FMC_A17, FMC_ALE, I2C4_SCL, I3C1_SCL, LPTIM1_IN1, LPTIM2_IN1, LTDC_G2, OCTOSPIM_P1_IO1, PLAY1_IN6, PSSI_D12, SAI1_D1, SAI2_FS_A, TIM4_CH1, UART4_TX, USART3_DE, USART3_RTSPD12PD9 — шарик N3: CEC, DAC1_EXTI9, FDCAN2_RX, FMC_D14, FMC_DA14, LTDC_R4, PLAY1_OUT4, TIM13_CH1, USART3_RXPD9PB12 — шарик N5: ETH_MII_TXD0, ETH_RMII_TXD0, FDCAN2_RX, I2C2_SDA, I2S2_WS, I3C2_SDA, LTDC_R1, OCTOSPIM_P1_NCLK, SPI2_NSS, TIM1_BKIN, UART5_RX, UCPD1_FRSTX, USART3_CKPB12PA6 — шарик N7: ADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK, FMC_D31, I2S1_SDI, LTDC_B3, OCTOSPIM_P1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART11_TXPA6PA1 — шарик N9: ADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, LPTIM1_IN1, LTDC_B7, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI2_MCLK_B, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PH1-OSC_OUT — шарик N11: RCC_OSC_OUTPH1PD8 — шарик P2: ETH_MII_RXD0, ETH_RMII_RXD0, FDCAN3_TX, FMC_D13, FMC_DA13, I2S3_MCK, LTDC_R5, PLAY1_IN4, SDMMC2_D0, TIM12_CH2, USART3_TXPD8PB15 — шарик P4: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2, ETH_MII_TXD1, ETH_RMII_TXD1, I2S2_SDO, LTDC_G0, OCTOSPIM_P1_CLK, PSSI_D2, PWR_PVD_IN, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, UART5_RX, USART11_CTS, USART11_NSS, USART1_RXPB15PE11 — шарик P6: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8, FMC_DA8, LTDC_B5, MDF1_CKI5, OCTOSPIM_P1_NCS1, OCTOSPIM_P2_NCS2, OPAMP1_VINP, PLAY1_IN13, SAI2_SD_B, SPI1_RDY, SPI4_NSS, TIM1_CH2, USART6_TXPE11PA5 — шарик P8: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LTDC_G5, OCTOSPIM_P2_IO5, OPAMP1_VINP, PSSI_D14, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1NPA5PA0 — шарик P10: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS, LTDC_G6, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI3_RDY, SPI6_NSS, TAMP_IN2, TAMP_OUT1, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0VDD — шарик R1VDDPB14 — шарик R3: I2S2_SDI, LPTIM3_ETR, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, UCPD1_CC2, USART1_TX, USART3_DE, USART3_RTSPB14PE14 — шарик R5: ADC3_INP8, COMP2_INM, DCMI_VSYNC, FMC_D11, FMC_DA11, LTDC_B0, OCTOSPIM_P2_CLK, PLAY1_OUT14, PSSI_RDY, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PB0 — шарик R7: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2, LPTIM3_CH1, LTDC_R4, OCTOSPIM_P1_IO1, OCTOSPIM_P2_NCS1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USART11_CKPB0PA3 — шарик R9: ADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0, ETH_MII_COL, I2S2_WS, LTDC_B5, OCTOSPIM_P1_CLK, SAI1_SD_B, SPI2_NSS, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3PC3 — шарик R11: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_SDCKE0, I2S2_SDO, LPTIM3_CH1, LTDC_VSYNC, MDF1_SDI3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSTOP, SAI1_D3, SDMMC2_D7, SPI2_MOSIPC3PB13 — шарик T2: FDCAN2_TX, I2C2_SMBA, I2S2_CK, LPTIM2_CH1, LPTIM3_IN1, SPI2_SCK, TIM1_CH1N, UART5_TX, UCPD1_CC1, USART3_CTS, USART3_NSSPB13PB10 — шарик T4: ETH_MII_RX_ER, FMC_NWAIT, FMC_SDNRAS, I2C2_SCL, I2S2_CK, I3C2_SCL, LPTIM2_IN1, LPTIM3_CH1, LTDC_G4, OCTOSPIM_P1_NCS1, SPI2_SCK, TIM2_CH3, USART3_TXPB10PE8 — шарик T6: ADC3_INP2, DCMI_D8, FMC_D5, FMC_DA5, MDF1_SDI0, OCTOSPIM_P1_IO5, PLAY1_OUT11, PSSI_D8, TIM1_CH1N, UART12_CTS, UART7_TX, USART2_TXPE8PA7 — шарик T8: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_NWE, FMC_SDNWE, I2S1_SDO, LTDC_B2, OCTOSPIM_P1_IO2, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART11_RXPA7VSSA — шарик T10VSSAVSS — шарик U1VSSVLXSMPS — шарик U3VLXSMPSPE12 — шарик U5: ADC3_INP6, DCMI_D0, ETH_MDIO, FDCAN3_TX, FMC_D9, FMC_DA9, GFXTIM_LCKCAL, MDF1_SDI5, OPAMP1_VINP, PLAY1_OUT13, PSSI_D0, SAI2_SCK_B, SPI4_SCK, TIM1_CH3N, USART6_RXPE12PE7 — шарик U7: ADC3_INP1, COMP2_INP, FMC_D4, FMC_DA4, MDF1_CKI0, OCTOSPIM_P1_IO4, PLAY1_IN11, TIM1_ETR, UART12_DE, UART12_RTS, UART7_RX, USART2_RXPE7VSS — шарик U9VSSVREF+ — шарик U11VREF+VSSSMPS — шарик V2VSSSMPSPE15 — шарик V4: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK, FMC_D12, FMC_DA12, LTDC_R0, OCTOSPIM_P2_NCS1, PLAY1_OUT15, PSSI_PDCK, TIM1_BKIN, TIM1_CH4N, USART10_CKPE15PE9 — шарик V6: ADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6, FMC_DA6, MDF1_CKI4, OCTOSPIM_P1_IO6, PLAY1_IN12, TIM1_CH1, UART12_RX, UART7_DE, UART7_RTSPE9PB1 — шарик V8: ADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3, LPTIM3_CH2, LTDC_B3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_NCLK, OPAMP1_VOUT, TIM1_CH3N, TIM3_CH4, TIM8_CH3NPB1VREF- — шарик V10VREF-VCAP — шарик W1VCAPVDDSMPS — шарик W3VDDSMPSPE10 — шарик W5: ADC3_INP4, COMP1_INM, FMC_D7, FMC_DA7, MDF1_SDI4, OCTOSPIM_P1_IO7, PLAY1_OUT12, TIM1_CH2N, UART12_TX, UART7_CTSPE10PB2 — шарик W7: ADC3_INP0, ADF1_SDI0, COMP1_INP, ETH_MII_RXD0, ETH_RMII_RXD0, I2S3_SDO, LPTIM1_CH1, LPTIM5_ETR, LTDC_R3, OCTOSPIM_P1_CLK, OCTOSPIM_P1_DQS, RCC_LSCO, RTC_OUT2, SAI1_D1, SAI1_SD_A, SDMMC1_CMD, SPI1_RDY, SPI3_MOSI, TIM8_CH4NPB2VDD — шарик W9VDDVDDA — шарик W11VDDAWLCSP105, вид сверху: шарики видны сквозь корпус, A1 — в левомверхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия
Распиновка STM32H5F5VJ (WLCSP105), вид сверхуРаспиновка WLCSP105 картинкой
PNG, 1303 × 1628 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (H4, AF7)
CTSPA11 (E1, AF7)
DEPA12 (C1, AF7)
NSSPA11 (E1, AF7)
RTSPA12 (C1, AF7)
RXPA10 (F2, AF7), PB7 (J7, AF7), PB15 (P4, AF4)
TXPA9 (G3, AF7), PB6 (G7, AF7), PB14 (R3, AF4)
USART2CKPD7 (D6, AF7), PA4 (L7, AF7)
CTSPD3 (F6, AF7), PA0 (P10, AF7)
DEPD4 (C5, AF7), PA1 (N9, AF7)
NSSPD3 (F6, AF7), PA0 (P10, AF7)
RTSPD4 (C5, AF7), PA1 (N9, AF7)
RXPD6 (B6, AF7), PA3 (R9, AF7), PE7 (U7, AF5)
TXPD5 (A5, AF7), PA2 (M8, AF7), PE8 (T6, AF5)
USART3CKPC12 (D4, AF7), PD10 (M4, AF7), PB12 (N5, AF7)
CTSPD11 (L5, AF7), PB13 (T2, AF7)
DEPD12 (N1, AF7), PB14 (R3, AF7)
NSSPD11 (L5, AF7), PB13 (T2, AF7)
RTSPD12 (N1, AF7), PB14 (R3, AF7)
RXPC11 (G5, AF7), PD9 (N3, AF7)
TXPC10 (F4, AF7), PD8 (P2, AF7), PB10 (T4, AF7)
USART6CKPC8 (H2, AF7), PE13 (M6, AF7)
RXPC7 (J3, AF7), PE12 (U5, AF7)
TXPC6 (K4, AF7), PE11 (P6, AF7)
USART10CKPE15 (V4, AF7)
RXPE2 (C9, AF7)
TXPE3 (E9, AF7)
USART11CKPB0 (R7, AF7)
CTSPB15 (P4, AF7)
DEPC1 (L9, AF7)
NSSPB15 (P4, AF7)
RTSPC1 (L9, AF7)
RXPA7 (T8, AF7)
TXPA6 (N7, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB15 (P4, AF8), PB0 (R7, AF8)
DEPA15 (JTDI) (C3, AF8), PB14 (R3, AF8)
RTSPA15 (JTDI) (C3, AF8), PB14 (R3, AF8)
RXPB8 (D8, AF8), PA11 (E1, AF6), PC11 (G5, AF8), PD0 (H6, AF8), PD11 (L5, AF8), PA1 (N9, AF8)
TXPA12 (C1, AF6), PD1 (E5, AF8), PC10 (F4, AF8), PB9 (F8, AF8), PD12 (N1, AF8), PA0 (P10, AF8)
UART5CTSPC9 (J5, AF8)
DEPC8 (H2, AF8), PE13 (M6, AF8)
RTSPC8 (H2, AF8), PE13 (M6, AF8)
RXPD2 (B4, AF8), PB5 (E7, AF14), PB12 (N5, AF14), PB15 (P4, AF14)
TXPC12 (D4, AF8), PB6 (G7, AF14), PB13 (T2, AF14)
UART7CTSPE10 (W5, AF7)
DEPE9 (V6, AF7)
RTSPE9 (V6, AF7)
RXPB3 (JTDO/TRACESWO) (C7, AF11), PA8 (H4, AF11), PE7 (U7, AF7)
TXPB4 (NJTRST) (A7, AF11), PA15 (JTDI) (C3, AF11), PE8 (T6, AF7)
UART8CTSPD14 (K6, AF8)
DEPD15 (L3, AF8)
RTSPD15 (L3, AF8)
RXPD5 (A5, AF8), PE0 (H8, AF8)
TXPE2 (C9, AF8)
UART9CTSPD0 (H6, AF11)
DEPD13 (M2, AF11)
RTSPD13 (M2, AF11)
RXPD14 (K6, AF11)
TXPD15 (L3, AF11)
UART12CTSPB3 (JTDO/TRACESWO) (C7, AF7), PE8 (T6, AF6)
DEPE7 (U7, AF6)
RTSPE7 (U7, AF6)
RXPE9 (V6, AF6)
TXPE10 (W5, AF6)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (E1, AF3)
DEPA12 (C1, AF3)
RTSPA12 (C1, AF3)
RXPA10 (F2, AF3), PB7 (J7, AF8)
TXPA9 (G3, AF3), PB6 (G7, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4 (NJTRST) (A7, AF5), PA6 (N7, AF5)
MOSIPD7 (D6, AF5), PB5 (E7, AF5), PA7 (T8, AF5)
NSSPA15 (JTDI) (C3, AF5), PA4 (L7, AF5)
RDYPA8 (H4, AF5), PE11 (P6, AF4), PB2 (W7, AF4)
SCKPB3 (JTDO/TRACESWO) (C7, AF5), PA5 (P8, AF5)
SPI2MISOPC2 (K8, AF5), PB14 (R3, AF5)
MOSIPC1 (L9, AF5), PB15 (P4, AF5), PC3 (R11, AF5)
NSSPB4 (NJTRST) (A7, AF7), PA11 (E1, AF5), PB9 (F8, AF5), PB12 (N5, AF5), PA3 (R9, AF5)
RDYPD5 (A5, AF5), PC0 (M10, AF7)
SCKPA12 (C1, AF5), PD3 (F6, AF5), PA9 (G3, AF5), PB13 (T2, AF5), PB10 (T4, AF5)
SPI3MISOPB4 (NJTRST) (A7, AF6), PC11 (G5, AF6)
MOSIPD6 (B6, AF5), PC12 (D4, AF6), PB5 (E7, AF7), PB2 (W7, AF7)
NSSPA15 (JTDI) (C3, AF6), PA4 (L7, AF6)
RDYPE0 (H8, AF6), PA0 (P10, AF6)
SCKPB3 (JTDO/TRACESWO) (C7, AF6), PC10 (F4, AF6)
SPI4MISOPE5 (J9, AF5), PE13 (M6, AF5)
MOSIPE6 (G9, AF5), PE14 (R5, AF5)
NSSPE4 (D10, AF5), PE11 (P6, AF5)
RDYPB8 (D8, AF5)
SCKPE2 (C9, AF5), PE12 (U5, AF5)
SPI6MISOPB4 (NJTRST) (A7, AF8), PA6 (N7, AF8)
MOSIPB5 (E7, AF8), PA7 (T8, AF8)
NSSPA15 (JTDI) (C3, AF7), PA4 (L7, AF8), PA0 (P10, AF5)
RDYPD15 (L3, AF7)
SCKPB3 (JTDO/TRACESWO) (C7, AF8), PC12 (D4, AF5), PA5 (P8, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPB3 (JTDO/TRACESWO) (C7, AF5), PA5 (P8, AF5)
MCKPD0 (H6, AF5)
SDIPB4 (NJTRST) (A7, AF5), PA6 (N7, AF5)
SDOPD7 (D6, AF5), PB5 (E7, AF5), PA7 (T8, AF5)
WSPA15 (JTDI) (C3, AF5), PA4 (L7, AF5)
I2S2CKPA12 (C1, AF5), PD3 (F6, AF5), PA9 (G3, AF5), PB13 (T2, AF5), PB10 (T4, AF5)
MCKPD1 (E5, AF5), PC6 (K4, AF5)
SDIPC2 (K8, AF5), PB14 (R3, AF5)
SDOPC1 (L9, AF5), PB15 (P4, AF5), PC3 (R11, AF5)
WSPB4 (NJTRST) (A7, AF7), PA11 (E1, AF5), PB9 (F8, AF5), PB12 (N5, AF5), PA3 (R9, AF5)
I2S3CKPB3 (JTDO/TRACESWO) (C7, AF6), PC10 (F4, AF6)
MCKPC7 (J3, AF6), PD8 (P2, AF6)
SDIPB4 (NJTRST) (A7, AF6), PC11 (G5, AF6)
SDOPD6 (B6, AF5), PC12 (D4, AF6), PB5 (E7, AF7), PB2 (W7, AF7)
WSPA15 (JTDI) (C3, AF6), PA4 (L7, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8 (D8, AF4), PB6 (G7, AF4)
SDAPB9 (F8, AF4), PB7 (J7, AF4), PD13 (M2, AF6)
SMBAPB5 (E7, AF4)
I2C2SCLPD2 (B4, AF6), PB10 (T4, AF4)
SDAPB3 (JTDO/TRACESWO) (C7, AF4), PB12 (N5, AF4)
SMBAPB13 (T2, AF4)
I2C3SCLPD7 (D6, AF4), PA8 (H4, AF4)
SDAPD6 (B6, AF4), PC9 (J5, AF4)
SMBAPA9 (G3, AF4)
I2C4SCLPB8 (D8, AF6), PB6 (G7, AF6), PD12 (N1, AF4)
SDAPB9 (F8, AF6), PB7 (J7, AF6), PD13 (M2, AF4)
SMBAPB5 (E7, AF6), PD11 (L5, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPB8 (D8, AF3), PB6 (G7, AF3), PD12 (N1, AF5)
SDAPB9 (F8, AF3), PB7 (J7, AF3), PD13 (M2, AF5)
I3C2SCLPD2 (B4, AF5), PB10 (T4, AF8)
SDAPB3 (JTDO/TRACESWO) (C7, AF3), PB12 (N5, AF8)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPB8 (D8, AF9), PA11 (E1, AF9), PD0 (H6, AF9), PE0 (H8, AF9)
TXPD5 (A5, AF9), PA12 (C1, AF9), PD1 (E5, AF9), PB9 (F8, AF9), PB7 (J7, AF9)
FDCAN2RXPB5 (E7, AF9), PD9 (N3, AF9), PB12 (N5, AF9)
TXPA10 (F2, AF9), PB6 (G7, AF9), PB13 (T2, AF9)
FDCAN3RXPD10 (M4, AF9), PE13 (M6, AF9)
TXPD8 (P2, AF9), PE12 (U5, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (E1)
DPPA12 (C1)
SOFPA8 (H4)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMOTG_HS_DM (J1)
DPOTG_HS_DP (G1)
SOFPA4 (L7)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB13 (T2)
CC2PB14 (R3)
DB1PA9 (G3)
DB2PC9 (J5)
FRSTXPA10 (F2, AF6), PB12 (N5, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCLKPD4 (C5, AF11), PA10 (F2, AF11)
MDCPB3 (JTDO/TRACESWO) (C7, AF12), PC1 (L9, AF11)
MDIOPB4 (NJTRST) (A7, AF10), PA2 (M8, AF11), PE12 (U5, AF11)
MII_COLPA3 (R9, AF11)
MII_CRSPD5 (A5, AF6), PD10 (M4, AF8), PA0 (P10, AF11)
MII_RX_CLKPA1 (N9, AF11)
MII_RX_DVPD1 (E5, AF11), PA7 (T8, AF11)
MII_RX_ERPB10 (T4, AF11)
MII_RXD0PE4 (D10, AF11), PD8 (P2, AF8), PB2 (W7, AF11)
MII_RXD1PE5 (J9, AF11)
MII_RXD2PB0 (R7, AF11)
MII_RXD3PB1 (V8, AF11)
MII_TX_CLKPC3 (R11, AF11)
MII_TX_ENPA5 (P8, AF11)
MII_TX_ERPA9 (G3, AF11), PB6 (G7, AF11)
MII_TXD0PC10 (F4, AF11), PB12 (N5, AF11)
MII_TXD1PB15 (P4, AF11)
MII_TXD2PC2 (K8, AF11)
MII_TXD3PE2 (C9, AF11), PB8 (D8, AF11)
PHY_INTNPA15 (JTDI) (C3, AF10)
PPS_OUTPC12 (D4, AF10), PB5 (E7, AF11)
PTP_AUX_TSPD11 (L5, AF11)
RMII_CRS_DVPD1 (E5, AF11), PA7 (T8, AF11)
RMII_REF_CLKPA1 (N9, AF11)
RMII_RXD0PE4 (D10, AF11), PD8 (P2, AF8), PB2 (W7, AF11)
RMII_RXD1PE5 (J9, AF11)
RMII_TX_ENPA5 (P8, AF11)
RMII_TXD0PC10 (F4, AF11), PB12 (N5, AF11)
RMII_TXD1PB15 (P4, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (F8, AF7)
CKPC12 (D4, AF12)
CKINPB8 (D8, AF7)
CMDPD2 (B4, AF12), PB2 (W7, AF12)
D0PA10 (F2, AF12), PC8 (H2, AF12)
D0DIRPD0 (H6, AF7), PC6 (K4, AF8)
D1PC9 (J5, AF12)
D2PC10 (F4, AF12)
D3PC11 (G5, AF12)
D4PB8 (D8, AF12)
D5PB9 (F8, AF12)
D6PC6 (K4, AF12)
D7PC7 (J3, AF12)
D123DIRPD1 (E5, AF7), PC7 (J3, AF8)
SDMMC2CKPD6 (B6, AF11), PC1 (L9, AF9)
CKINPB9 (F8, AF11), PB7 (J7, AF11)
CMDPD7 (D6, AF11), PA0 (P10, AF9)
D0PD8 (P2, AF11)
D1PB15 (P4, AF9)
D2PB3 (JTDO/TRACESWO) (C7, AF9)
D3PB4 (NJTRST) (A7, AF9)
D4PA12 (C1, AF10), PB8 (D8, AF10)
D5PB9 (F8, AF10), PB7 (J7, AF10)
D6PC6 (K4, AF10), PC2 (K8, AF10)
D7PC7 (J3, AF10), PC3 (R11, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (C9, AF2), PD11 (L5, AF2)
CK2PE5 (J9, AF2)
D1PD6 (B6, AF2), PE6 (G9, AF2), PC1 (L9, AF2), PD12 (N1, AF6), PB2 (W7, AF2)
D2PE4 (D10, AF2)
D3PC3 (R11, AF2)
FS_APE4 (D10, AF6), PD14 (K6, AF6)
FS_BPD15 (L3, AF6)
MCLK_APE2 (C9, AF6), PC0 (M10, AF6)
MCLK_BPD1 (E5, AF6)
SCK_APE5 (J9, AF6), PC6 (K4, AF6)
SCK_BPC10 (F4, AF4)
SD_APD6 (B6, AF6), PE6 (G9, AF6), PC1 (L9, AF6), PB2 (W7, AF6)
SD_BPE3 (E9, AF6), PA3 (R9, AF6)
SAI2FS_APD12 (N1, AF10)
FS_BPA12 (C1, AF8), PE13 (M6, AF10), PC0 (M10, AF8)
MCLK_APE0 (H8, AF10)
MCLK_BPE6 (G9, AF10), PA1 (N9, AF10), PE14 (R5, AF10)
SCK_APD13 (M2, AF10)
SCK_BPA2 (M8, AF8), PE12 (U5, AF10)
SD_APD11 (L5, AF10), PC1 (L9, AF8)
SD_BPE11 (P6, AF10), PA0 (P10, AF10)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15 (JTDI) (C3, AF4), PB6 (G7, AF5), PD9 (N3, AF5)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PA11 (E1), PC11 (G5), PD11 (L5), PE11 (P6)
EXTI15PA15 (JTDI) (C3), PC15-OSC32_OUT(OSC32_OUT) (G11), PD15 (L3), PB15 (P4), PE15 (V4)
INN1PA0 (P10)
INN3PA7 (T8)
INN5PB0 (R7)
INN10PC1 (L9)
INN11PC2 (K8)
INN12PC3 (R11)
INN18PA5 (P8)
INP0PA0 (P10)
INP1PA1 (N9)
INP3PA6 (N7)
INP5PB1 (V8)
INP7PA7 (T8)
INP9PB0 (R7)
INP10PC0 (M10)
INP11PC1 (L9)
INP12PC2 (K8)
INP13PC3 (R11)
INP14PA2 (M8)
INP15PA3 (R9)
INP18PA4 (L7)
INP19PA5 (P8)
ADC2EXTI11PA11 (E1), PC11 (G5), PD11 (L5), PE11 (P6)
EXTI15PA15 (JTDI) (C3), PC15-OSC32_OUT(OSC32_OUT) (G11), PD15 (L3), PB15 (P4), PE15 (V4)
INN1PA0 (P10)
INN3PA7 (T8)
INN5PB0 (R7)
INN10PC1 (L9)
INN11PC2 (K8)
INN12PC3 (R11)
INN18PA5 (P8)
INP0PA0 (P10)
INP1PA1 (N9)
INP3PA6 (N7)
INP5PB1 (V8)
INP7PA7 (T8)
INP9PB0 (R7)
INP10PC0 (M10)
INP11PC1 (L9)
INP12PC2 (K8)
INP13PC3 (R11)
INP14PA2 (M8)
INP15PA3 (R9)
INP18PA4 (L7)
INP19PA5 (P8)
ADC3EXTI11PA11 (E1), PC11 (G5), PD11 (L5), PE11 (P6)
EXTI15PA15 (JTDI) (C3), PC15-OSC32_OUT(OSC32_OUT) (G11), PD15 (L3), PB15 (P4), PE15 (V4)
INP0PB2 (W7)
INP1PE7 (U7)
INP2PE8 (T6)
INP3PE9 (V6)
INP4PE10 (W5)
INP5PE11 (P6)
INP6PE12 (U5)
INP7PE13 (M6)
INP8PE14 (R5)
INP9PE15 (V4)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (F8), PA9 (G3), PC9 (J5), PD9 (N3), PE9 (V6)
OUT1PA4 (L7)
OUT2PA5 (P8)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPA6 (N7), PE10 (W5)
INPPA7 (T8), PB2 (W7)
OUTPD4 (C5, AF3), PC11 (G5, AF3)
COMP2INMPE14 (R5), PE9 (V6), PB1 (V8)
INPPB0 (R7), PE7 (U7)
OUTPD5 (A5, AF3), PC12 (D4, AF3)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA4 (L7), PE13 (M6)
VINPPE11 (P6), PA5 (P8), PE12 (U5)
VOUTPB1 (V8)

TIM — таймер

БлокСигналВыводы
TIM1BKINPB12 (N5, AF1), PA6 (N7, AF1), PE15 (V4, AF1)
BKIN2PE6 (G9, AF1)
CH1PA8 (H4, AF1), PE9 (V6, AF1)
CH1NPB13 (T2, AF1), PE8 (T6, AF1), PA7 (T8, AF1)
CH2PA9 (G3, AF1), PE11 (P6, AF1)
CH2NPB14 (R3, AF1), PB0 (R7, AF1), PE10 (W5, AF1)
CH3PA10 (F2, AF1), PE13 (M6, AF1)
CH3NPB15 (P4, AF1), PE12 (U5, AF1), PB1 (V8, AF1)
CH4PA11 (E1, AF1), PE14 (R5, AF1)
CH4NPD5 (A5, AF1), PE15 (V4, AF3)
ETRPA12 (C1, AF1), PE7 (U7, AF1)
TIM2CH1PA15 (JTDI) (C3, AF1), PA5 (P8, AF1), PA0 (P10, AF1)
CH2PB3 (JTDO/TRACESWO) (C7, AF1), PA1 (N9, AF1)
CH3PA2 (M8, AF1), PB10 (T4, AF1)
CH4PA3 (R9, AF1)
ETRPA15 (JTDI) (C3, AF14), PA5 (P8, AF14), PA0 (P10, AF14)
TIM3CH1PB4 (NJTRST) (A7, AF2), PC6 (K4, AF2), PA6 (N7, AF2)
CH2PB5 (E7, AF2), PC7 (J3, AF2), PA7 (T8, AF2)
CH3PC8 (H2, AF2), PB0 (R7, AF2)
CH4PC9 (J5, AF2), PB1 (V8, AF2)
ETRPD2 (B4, AF2)
TIM4CH1PB6 (G7, AF2), PD12 (N1, AF2)
CH2PB7 (J7, AF2), PD13 (M2, AF2)
CH3PB8 (D8, AF2), PD14 (K6, AF2)
CH4PB9 (F8, AF2), PC2 (K8, AF2), PD15 (L3, AF2)
ETRPE0 (H8, AF2)
TIM5CH1PA0 (P10, AF2)
CH2PA1 (N9, AF2)
CH3PA2 (M8, AF2)
CH4PA3 (R9, AF2)
ETRPA4 (L7, AF2)
TIM8BKINPA6 (N7, AF3)
BKIN2PA8 (H4, AF3)
CH1PC6 (K4, AF3), PC0 (M10, AF3)
CH1NPA5 (P8, AF3), PA7 (T8, AF3)
CH2PC7 (J3, AF3), PC1 (L9, AF3)
CH2NPB14 (R3, AF3), PB0 (R7, AF3)
CH3PC8 (H2, AF3), PC2 (K8, AF3)
CH3NPB15 (P4, AF3), PB1 (V8, AF3)
CH4PD3 (F6, AF3), PC9 (J5, AF3)
CH4NPD0 (H6, AF3), PB2 (W7, AF3)
ETRPA0 (P10, AF3)
TIM12CH1PD7 (D6, AF2), PB14 (R3, AF2)
CH2PD8 (P2, AF2), PB15 (P4, AF2)
TIM13CH1PD9 (N3, AF2), PA6 (N7, AF9)
TIM14CH1PD10 (M4, AF2), PA7 (T8, AF9)
TIM15BKINPD2 (B4, AF4), PE3 (E9, AF4), PA0 (P10, AF4)
CH1PC12 (D4, AF2), PE5 (J9, AF4), PA2 (M8, AF4)
CH1NPE4 (D10, AF4), PA1 (N9, AF4)
CH2PE6 (G9, AF4), PA3 (R9, AF4)
TIM16BKINPB4 (NJTRST) (A7, AF1), PC0 (M10, AF1)
CH1PB8 (D8, AF1)
CH1NPB6 (G7, AF1)
TIM17BKINPB5 (E7, AF1)
CH1PB9 (F8, AF1), PC2 (K8, AF1)
CH1NPB7 (J7, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PD13 (M2, AF1), PB2 (W7, AF5)
CH2PB4 (NJTRST) (A7, AF4)
ETRPE0 (H8, AF1)
IN1PD12 (N1, AF1), PA1 (N9, AF5)
IN2PE2 (C9, AF1), PA2 (M8, AF5)
LPTIM2CH1PA4 (L7, AF3), PD13 (M2, AF3), PB13 (T2, AF3)
CH2PE0 (H8, AF3), PD10 (M4, AF3)
ETRPE0 (H8, AF4)
IN1PD12 (N1, AF3), PB10 (T4, AF3)
IN2PA10 (F2, AF4), PD11 (L5, AF3)
LPTIM3CH1PB0 (R7, AF14), PC3 (R11, AF3), PB10 (T4, AF2)
CH2PB1 (V8, AF14)
ETRPC10 (F4, AF2), PB14 (R3, AF14)
IN1PC11 (G5, AF2), PB13 (T2, AF2)
IN2PA15 (JTDI) (C3, AF2)
LPTIM4ETRPD2 (B4, AF14)
IN1PD13 (M2, AF14)
OUTPD7 (D6, AF14)
LPTIM5ETRPB2 (W7, AF13)
LPTIM6ETRPB3 (JTDO/TRACESWO) (C7, AF14)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (F10)
OUT2PB2 (W7, AF0)
REFINPB15 (P4, AF0)
TSPC13 (F10)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA16PC9 (J5, AF11), PD11 (L5, AF12)
A17PA11 (E1, AF12), PC8 (H2, AF11), PD12 (N1, AF12)
A18PD13 (M2, AF12)
A19PE3 (E9, AF12)
A20PE4 (D10, AF12)
A21PE5 (J9, AF12)
A22PE6 (G9, AF12)
A23PE2 (C9, AF12)
A25PC0 (M10, AF9)
ALEPA11 (E1, AF12), PC8 (H2, AF11), PD12 (N1, AF12)
CLEPC9 (J5, AF11), PD11 (L5, AF12)
CLKPD3 (F6, AF12)
D0PD14 (K6, AF12)
D1PD15 (L3, AF12)
D2PD0 (H6, AF12)
D3PD1 (E5, AF12)
D4PE7 (U7, AF12)
D5PE8 (T6, AF12)
D6PE9 (V6, AF12)
D7PE10 (W5, AF12)
D8PE11 (P6, AF12)
D9PE12 (U5, AF12)
D10PE13 (M6, AF12)
D11PE14 (R5, AF12)
D12PE15 (V4, AF12)
D13PD8 (P2, AF12)
D14PD9 (N3, AF12)
D15PD10 (M4, AF12)
D31PA6 (N7, AF12)
DA0PD14 (K6, AF12)
DA1PD15 (L3, AF12)
DA2PD0 (H6, AF12)
DA3PD1 (E5, AF12)
DA4PE7 (U7, AF12)
DA5PE8 (T6, AF12)
DA6PE9 (V6, AF12)
DA7PE10 (W5, AF12)
DA8PE11 (P6, AF12)
DA9PE12 (U5, AF12)
DA10PE13 (M6, AF12)
DA11PE14 (R5, AF12)
DA12PE15 (V4, AF12)
DA13PD8 (P2, AF12)
DA14PD9 (N3, AF12)
DA15PD10 (M4, AF12)
INTPC8 (H2, AF10), PC0 (M10, AF13)
NBL0PE0 (H8, AF12)
NBL1PA15 (JTDI) (C3, AF12)
NBL2PA4 (L7, AF12)
NBL3PB4 (NJTRST) (A7, AF12)
NCEPD7 (D6, AF12), PC8 (H2, AF9), PC2 (K8, AF13), PC1 (L9, AF13)
NE1PD7 (D6, AF12), PC7 (J3, AF9), PC2 (K8, AF13)
NE2PC8 (H2, AF9), PC1 (L9, AF13)
NLPB7 (J7, AF12)
NOEPD4 (C5, AF12), PA8 (H4, AF12)
NWAITPD6 (B6, AF12), PC6 (K4, AF9), PB10 (T4, AF13)
NWEPD5 (A5, AF12), PA9 (G3, AF12), PA7 (T8, AF13)
SDCKE0PC3 (R11, AF12)
SDCKE1PB5 (E7, AF12)
SDNCASPC9 (J5, AF10)
SDNE0PC2 (K8, AF12)
SDNE1PB6 (G7, AF12)
SDNRASPB10 (T4, AF10)
SDNWEPC0 (M10, AF12), PA7 (T8, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (G3, AF13), PC6 (K4, AF13), PE12 (U5, AF13)
D1PA10 (F2, AF13), PC7 (J3, AF13)
D2PC8 (H2, AF13), PE0 (H8, AF13), PB15 (P4, AF13)
D3PE2 (C9, AF13), PA8 (H4, AF13), PC9 (J5, AF13)
D4PE4 (D10, AF13), PC11 (G5, AF13)
D5PD3 (F6, AF13), PB6 (G7, AF13)
D6PB8 (D8, AF13), PE5 (J9, AF13)
D7PB4 (NJTRST) (A7, AF13), PB9 (F8, AF13), PE6 (G9, AF13)
D8PC10 (F4, AF13), PE8 (T6, AF13)
D9PC12 (D4, AF13)
D10PD6 (B6, AF13), PB5 (E7, AF13)
D11PD2 (B4, AF13), PA15 (JTDI) (C3, AF13)
D12PD12 (N1, AF13)
D13PD13 (M2, AF13)
HSYNCPA4 (L7, AF13), PE13 (M6, AF13)
PIXCLKPA6 (N7, AF13), PE15 (V4, AF13)
VSYNCPB7 (J7, AF13), PE14 (R5, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (G3, AF13), PC6 (K4, AF13), PE12 (U5, AF13)
D1PA10 (F2, AF13), PC7 (J3, AF13)
D2PC8 (H2, AF13), PE0 (H8, AF13), PB15 (P4, AF13)
D3PE2 (C9, AF13), PA8 (H4, AF13), PC9 (J5, AF13)
D4PE4 (D10, AF13), PC11 (G5, AF13)
D5PD3 (F6, AF13), PB6 (G7, AF13)
D6PB8 (D8, AF13), PE5 (J9, AF13)
D7PB4 (NJTRST) (A7, AF13), PB9 (F8, AF13), PE6 (G9, AF13)
D8PC10 (F4, AF13), PE8 (T6, AF13)
D9PC12 (D4, AF13)
D10PD6 (B6, AF13), PB5 (E7, AF13)
D11PD2 (B4, AF13), PA15 (JTDI) (C3, AF13)
D12PD12 (N1, AF13)
D13PD13 (M2, AF13)
D14PA5 (P8, AF13)
D15PD14 (K6, AF4)
DEPA4 (L7, AF13), PE13 (M6, AF13)
PDCKPA6 (N7, AF13), PE15 (V4, AF13)
RDYPB7 (J7, AF13), PE14 (R5, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PC10 (F4, AF14), PE14 (R5, AF11)
B1PC9 (J5, AF14), PD14 (K6, AF13)
B2PD5 (A5, AF13), PA7 (T8, AF14)
B3PA6 (N7, AF14), PB1 (V8, AF13)
B4PD3 (F6, AF10), PA4 (L7, AF14)
B5PE11 (P6, AF13), PA3 (R9, AF14)
B6PE5 (J9, AF10), PA2 (M8, AF14)
B7PD4 (C5, AF13), PA1 (N9, AF14)
CLKPA8 (H4, AF14), PD15 (L3, AF13)
DEPD1 (E5, AF13)
G0PC6 (K4, AF14), PB15 (P4, AF12)
G1PE3 (E9, AF13)
G2PC1 (L9, AF14), PD12 (N1, AF11)
G3PE4 (D10, AF10), PC0 (M10, AF14)
G4PC12 (D4, AF11), PB10 (T4, AF14)
G5PB9 (F8, AF14), PA5 (P8, AF10)
G6PB8 (D8, AF14), PA0 (P10, AF13)
G7PD2 (B4, AF11), PB7 (J7, AF14)
HSYNCPB3 (JTDO/TRACESWO) (C7, AF13), PC2 (K8, AF14)
R0PC8 (H2, AF14), PA2 (M8, AF13), PE15 (V4, AF11)
R1PC7 (J3, AF14), PE13 (M6, AF11), PB12 (N5, AF13)
R2PB4 (NJTRST) (A7, AF14), PE6 (G9, AF11), PD0 (H6, AF13)
R3PD7 (D6, AF13), PB2 (W7, AF14)
R4PA12 (C1, AF14), PD9 (N3, AF13), PB0 (R7, AF13)
R5PA11 (E1, AF14), PD8 (P2, AF13)
R6PA10 (F2, AF14), PD11 (L5, AF13)
R7PA9 (G3, AF14), PD10 (M4, AF13)
VSYNCPC11 (G5, AF11), PC3 (R11, AF14)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PE2 (C9, AF4)
CCK1PE5 (J9, AF8)
CKI0PE7 (U7, AF8)
CKI1PC0 (M10, AF4)
CKI2PE3 (E9, AF8)
CKI3PD4 (C5, AF8)
CKI4PE9 (V6, AF8)
CKI5PE11 (P6, AF8)
SDI0PE8 (T6, AF8)
SDI1PD6 (B6, AF8), PE6 (G9, AF8), PC1 (L9, AF4)
SDI2PE4 (D10, AF8)
SDI3PC3 (R11, AF8)
SDI4PE10 (W5, AF8)
SDI5PE12 (U5, AF8)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PE2 (C9, AF3), PD11 (L5, AF1)
CCK1PE5 (J9, AF1)
SDI0PD6 (B6, AF1), PE4 (D10, AF3), PE6 (G9, AF3), PC1 (L9, AF1), PB2 (W7, AF1)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (E3, AF0)
JTDIPA15 (JTDI) (C3, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (C7, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (D2, AF0)
NJTRSTPB4 (NJTRST) (A7, AF0)
TRACECLKPE2 (C9, AF0)
TRACED0PE3 (E9, AF0), PC1 (L9, AF0)
TRACED1PE4 (D10, AF0), PC8 (H2, AF0)
TRACED2PD2 (B4, AF0), PE5 (J9, AF0)
TRACED3PC12 (D4, AF0), PE6 (G9, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPB2 (W7)
MCO_1PA8 (H4, AF0)
MCO_2PC9 (J5, AF0)
OSC_INPH0-OSC_IN (L11)
OSC_OUTPH1-OSC_OUT (N11)
OSC32_INPC14-OSC32_IN(OSC32_IN) (E11)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (G11)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC2 (K8, AF0)
PWR_CSTOPPC3 (R11, AF0)
PWR_WKUP1PA0 (P10)
PWR_WKUP2PA2 (M8)
PWR_WKUP4PC13 (F10)
PWR_WKUP5PB7 (J7)
PWR_WKUP6PC1 (L9)
PWR_WKUP7PD2 (B4)
PWR_WKUP8PD3 (F6)
TAMP_IN1PC13 (F10)
TAMP_IN2PA0 (P10)
TAMP_IN3PE6 (G9), PC1 (L9)
TAMP_IN4PA2 (M8)
TAMP_IN5PA1 (N9)
TAMP_IN6PE3 (E9)
TAMP_IN7PE4 (D10)
TAMP_IN8PE5 (J9)
TAMP_OUT1PA0 (P10)
TAMP_OUT2PC13 (F10)
TAMP_OUT3PE3 (E9), PC13 (F10), PA2 (M8)
TAMP_OUT4PA1 (N9)
TAMP_OUT5PC1 (L9)
TAMP_OUT6PE6 (G9)
TAMP_OUT7PE5 (J9)
TAMP_OUT8PE4 (D10)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), USB_OTG_HS1 (USB On-The-Go High Speed), OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), AES (аппаратное шифрование AES), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 105 шариков корпуса WLCSP105 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1VDDUSBпитание—
A3VDDпитание—
A5PD5ввод-выводCOMP2_OUT (AF3), ETH_MII_CRS (AF6), FDCAN1_TX (AF9), FMC_NWE (AF12), LTDC_B2 (AF13), OCTOSPIM_P1_IO5 (AF10), PLAY1_IN3 (AF14), SPI2_RDY (AF5), TIM1_CH4N (AF1), UART8_RX (AF8), USART2_TX (AF7)
A7PB4 (NJTRST)ввод-выводDCMI_D7 (AF13), DEBUG_NJTRST (AF0), ETH_MDIO (AF10), FMC_NBL3 (AF12), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), LPTIM1_CH2 (AF4), LTDC_R2 (AF14), OCTOSPIM_P1_CLK (AF3), PSSI_D7 (AF13), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
A9VCAPпитание—
A11VDDпитание—
B2VSSпитание—
B4PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), I2C2_SCL (AF6), I3C2_SCL (AF5), LPTIM4_ETR (AF14), LTDC_G7 (AF11), OCTOSPIM_P1_NCS2 (AF9), OCTOSPIM_P2_IO1 (AF10), PSSI_D11 (AF13), PWR_WKUP7, SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
B6PD6ввод-выводADF1_SDI0 (AF1), DCMI_D10 (AF13), FMC_NWAIT (AF12), I2C3_SDA (AF4), I2S3_SDO (AF5), MDF1_SDI1 (AF8), OCTOSPIM_P1_IO6 (AF10), OCTOSPIM_P2_IO4 (AF9), PLAY1_OUT3 (AF14), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
B8BOOT0загрузка—
B10VSSпитание—
C1PA12ввод-выводDMA2D_GPFLAG3 (AF0), FDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R4 (AF14), SAI2_FS_B (AF8), SDMMC2_D4 (AF10), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP
C3PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DCMI_D11 (AF13), DEBUG_JTDI (AF0), ETH_PHY_INTN (AF10), FMC_NBL1 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM3_IN2 (AF2), OCTOSPIM_P2_IO6 (AF9), PSSI_D11 (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF14), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
C5PD4ввод-выводCOMP1_OUT (AF3), DEBUG_TRGIO (AF0), ETH_CLK (AF11), FMC_NOE (AF12), LTDC_B7 (AF13), MDF1_CKI3 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_OUT2 (AF14), USART2_DE (AF7), USART2_RTS (AF7)
C7PB3 (JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), ETH_MDC (AF12), I2C2_SDA (AF4), I2S1_CK (AF5), I2S3_CK (AF6), I3C2_SDA (AF3), LPTIM6_ETR (AF14), LTDC_HSYNC (AF13), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART12_CTS (AF7), UART7_RX (AF11)
C9PE2ввод-выводADF1_CCK0 (AF3), DCMI_D3 (AF13), DEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_A23 (AF12), LPTIM1_IN2 (AF1), MDF1_CCK0 (AF4), OCTOSPIM_P1_IO2 (AF9), PLAY1_OUT8 (AF14), PSSI_D3 (AF13), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), UART8_TX (AF8), USART10_RX (AF7)
C11VBATпитание—
D2PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
D4PC12ввод-выводCOMP2_OUT (AF3), DCMI_D9 (AF13), DEBUG_TRACED3 (AF0), ETH_PPS_OUT (AF10), I2S3_SDO (AF6), LTDC_G4 (AF11), OCTOSPIM_P2_IO7 (AF9), PLAY1_OUT0 (AF14), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
D6PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), I2C3_SCL (AF4), I2S1_SDO (AF5), LPTIM4_OUT (AF14), LTDC_R3 (AF13), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), SPI1_MOSI (AF5), TIM12_CH1 (AF2), USART2_CK (AF7)
D8PB8ввод-выводDCMI_D6 (AF13), ETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LTDC_G6 (AF14), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), SPI4_RDY (AF5), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
D10PE4ввод-выводADF1_SDI0 (AF3), DCMI_D4 (AF13), DEBUG_TRACED1 (AF0), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_A20 (AF12), LTDC_G3 (AF10), MDF1_SDI2 (AF8), OCTOSPIM_P2_IO1 (AF9), PLAY1_OUT9 (AF14), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TAMP_IN7, TAMP_OUT8, TIM15_CH1N (AF4)
E1PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2 (AF0), FDCAN1_RX (AF9), FMC_A17 (AF12), FMC_ALE (AF12), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R5 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_FS_DM
E3PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
E5PD1ввод-выводETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2S2_MCK (AF5), LTDC_DE (AF13), OCTOSPIM_P2_DQS (AF10), PLAY1_OUT1 (AF14), SAI1_MCLK_B (AF6), SDMMC1_D123DIR (AF7), UART4_TX (AF8)
E7PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), GFXTIM_LCKCAL (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), OCTOSPIM_P1_NCLK (AF3), OCTOSPIM_P2_CLK (AF10), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14)
E9PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), GFXTIM_TE (AF5), LTDC_G1 (AF13), MDF1_CKI2 (AF8), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN9 (AF14), SAI1_SD_B (AF6), TAMP_IN6, TAMP_OUT3, TIM15_BKIN (AF4), USART10_TX (AF7)
E11PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
F2PA10ввод-выводDCMI_D1 (AF13), DMA2D_GPFLAG1 (AF0), ETH_CLK (AF11), FDCAN2_TX (AF9), LPTIM2_IN2 (AF4), LPUART1_RX (AF3), LTDC_R6 (AF14), PSSI_D1 (AF13), SDMMC1_D0 (AF12), TIM1_CH3 (AF1), UCPD1_FRSTX (AF6), USART1_RX (AF7)
F4PC10ввод-выводDCMI_D8 (AF13), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), GFXTIM_LCKCAL (AF0), I2S3_CK (AF6), LPTIM3_ETR (AF2), LTDC_B0 (AF14), OCTOSPIM_P1_IO1 (AF9), PSSI_D8 (AF13), SAI1_SCK_B (AF4), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
F6PD3ввод-выводDCMI_D5 (AF13), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_B4 (AF10), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN2 (AF14), PSSI_D5 (AF13), PWR_WKUP8, SPI2_SCK (AF5), TIM8_CH4 (AF3), USART2_CTS (AF7), USART2_NSS (AF7)
F8PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2S2_WS (AF5), I3C1_SDA (AF3), LTDC_G5 (AF14), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
F10PC13ввод-выводPWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3
G1OTG_HS_DPввод-выводUSB_OTG_HS_DP
G3PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_MII_TX_ER (AF11), FMC_NWE (AF12), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R7 (AF14), OCTOSPIM_P2_IO3 (AF10), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), UCPD1_DB1, USART1_TX (AF7)
G5PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT (AF3), DCMI_D4 (AF13), GFXTIM_FCKCAL (AF0), I2S3_SDI (AF6), LPTIM3_IN1 (AF2), LTDC_VSYNC (AF11), OCTOSPIM_P1_NCS1 (AF9), PLAY1_IN0 (AF14), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
G7PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), ETH_MII_TX_ER (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), GFXTIM_FCKCAL (AF0), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS1 (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
G9PE6ввод-выводADF1_SDI0 (AF3), DCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_R2 (AF11), MDF1_SDI1 (AF8), OCTOSPIM_P2_IO3 (AF9), PLAY1_OUT10 (AF14), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TAMP_IN3, TAMP_OUT6, TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
G11PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
H2PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_A17 (AF11), FMC_ALE (AF11), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), LTDC_R0 (AF14), PSSI_D2 (AF13), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
H4PA8ввод-выводDCMI_D3 (AF13), FMC_NOE (AF12), I2C3_SCL (AF4), LTDC_CLK (AF14), OCTOSPIM_P2_DQS (AF9), PSSI_D3 (AF13), RCC_MCO_1 (AF0), SPI1_RDY (AF5), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF
H6PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), I2S1_MCK (AF5), LTDC_R2 (AF13), OCTOSPIM_P1_NCS2 (AF10), PLAY1_IN1 (AF14), SDMMC1_D0DIR (AF7), TIM8_CH4N (AF3), UART4_RX (AF8), UART9_CTS (AF11)
H8PE0ввод-выводDCMI_D2 (AF13), FDCAN1_RX (AF9), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_CH2 (AF3), LPTIM2_ETR (AF4), OCTOSPIM_P1_NCS2 (AF11), PLAY1_OUT7 (AF14), PSSI_D2 (AF13), SAI2_MCLK_A (AF10), SPI3_RDY (AF6), TIM4_ETR (AF2), UART8_RX (AF8)
H10VSSпитание—
J1OTG_HS_DMввод-выводUSB_OTG_HS_DM
J3PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), FMC_NE1 (AF9), I2S3_MCK (AF6), LTDC_R1 (AF14), OCTOSPIM_P1_IO6 (AF11), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
J5PC9ввод-выводAUDIOCLK (AF5), DAC1_EXTI9, DCMI_D3 (AF13), FMC_A16 (AF11), FMC_CLE (AF11), FMC_SDNCAS (AF10), I2C3_SDA (AF4), LTDC_B1 (AF14), OCTOSPIM_P1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8), UCPD1_DB2
J7PB7ввод-выводDCMI_VSYNC (AF13), FDCAN1_TX (AF9), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), I3C1_SDA (AF3), LPUART1_RX (AF8), LTDC_G7 (AF14), PSSI_RDY (AF13), PWR_WKUP5, SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
J9PE5ввод-выводADF1_CCK1 (AF1), DCMI_D6 (AF13), DEBUG_TRACED2 (AF0), ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_A21 (AF12), LTDC_B6 (AF10), MDF1_CCK1 (AF8), OCTOSPIM_P2_IO2 (AF9), PLAY1_IN10 (AF14), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TAMP_IN8, TAMP_OUT7, TIM15_CH1 (AF4)
J11VDDпитание—
K2VSSUSBпитание—
K4PC6ввод-выводDCMI_D0 (AF13), FMC_NWAIT (AF9), I2S2_MCK (AF5), LTDC_G0 (AF14), OCTOSPIM_P1_IO5 (AF11), PSSI_D0 (AF13), SAI1_SCK_A (AF6), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
K6PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LTDC_B1 (AF13), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT6 (AF14), PSSI_D15 (AF4), SAI1_FS_A (AF6), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
K8PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_NCE (AF13), FMC_NE1 (AF13), FMC_SDNE0 (AF12), I2S2_SDI (AF5), LTDC_HSYNC (AF14), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF6), PWR_CSLEEP (AF0), SDMMC2_D6 (AF10), SPI2_MISO (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), TIM8_CH3 (AF3)
K10NRSTсброс—
L1VDD11USBпитание—
L3PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LTDC_CLK (AF13), OCTOSPIM_P2_NCLK (AF9), PLAY1_IN7 (AF14), SAI1_FS_B (AF6), SPI6_RDY (AF7), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
L5PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0 (AF1), ETH_PTP_AUX_TS (AF11), FMC_A16 (AF12), FMC_CLE (AF12), GFXTIM_TE (AF5), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), LTDC_R6 (AF13), OCTOSPIM_P1_IO0 (AF9), PLAY1_OUT5 (AF14), SAI1_CK1 (AF2), SAI2_SD_A (AF10), UART4_RX (AF8), USART3_CTS (AF7), USART3_NSS (AF7)
L7PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), FMC_NBL2 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM2_CH1 (AF3), LTDC_B4 (AF14), OPAMP1_VINM, PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7), USB_OTG_HS_SOF
L9PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0 (AF1), DEBUG_TRACED0 (AF0), ETH_MDC (AF11), FMC_NCE (AF13), FMC_NE2 (AF13), I2S2_SDO (AF5), LTDC_G2 (AF14), MDF1_SDI1 (AF4), OCTOSPIM_P1_IO4 (AF10), PWR_WKUP6, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5), TAMP_IN3, TAMP_OUT5, TIM8_CH2 (AF3), USART11_DE (AF7), USART11_RTS (AF7)
L11PH0-OSC_INввод-выводRCC_OSC_IN
M2PD13ввод-выводDCMI_D13 (AF13), FMC_A18 (AF12), I2C1_SDA (AF6), I2C4_SDA (AF4), I3C1_SDA (AF5), LPTIM1_CH1 (AF1), LPTIM2_CH1 (AF3), LPTIM4_IN1 (AF14), OCTOSPIM_P1_IO3 (AF9), PSSI_D13 (AF13), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
M4PD10ввод-выводAUDIOCLK (AF5), ETH_MII_CRS (AF8), FDCAN3_RX (AF9), FMC_D15 (AF12), FMC_DA15 (AF12), LPTIM2_CH2 (AF3), LTDC_R7 (AF13), PLAY1_IN5 (AF14), TIM14_CH1 (AF2), USART3_CK (AF7)
M6PE13ввод-выводADC3_INP7, DCMI_HSYNC (AF13), FDCAN3_RX (AF9), FMC_D10 (AF12), FMC_DA10 (AF12), GFXTIM_FCKCAL (AF0), LTDC_R1 (AF11), OPAMP1_VINM, PLAY1_IN14 (AF14), PSSI_DE (AF13), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
M8PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM1_IN2 (AF5), LTDC_B6 (AF14), LTDC_R0 (AF13), OCTOSPIM_P2_IO4 (AF9), PWR_WKUP2, SAI2_SCK_B (AF8), TAMP_IN4, TAMP_OUT3, TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
M10PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_A25 (AF9), FMC_INT (AF13), FMC_SDNWE (AF12), LTDC_G3 (AF14), MDF1_CKI1 (AF4), OCTOSPIM_P1_IO7 (AF10), SAI1_MCLK_A (AF6), SAI2_FS_B (AF8), SPI2_RDY (AF7), TIM16_BKIN (AF1), TIM8_CH1 (AF3)
N1PD12ввод-выводDCMI_D12 (AF13), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), LTDC_G2 (AF11), OCTOSPIM_P1_IO1 (AF9), PLAY1_IN6 (AF14), PSSI_D12 (AF13), SAI1_D1 (AF6), SAI2_FS_A (AF10), TIM4_CH1 (AF2), UART4_TX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
N3PD9ввод-выводCEC (AF5), DAC1_EXTI9, FDCAN2_RX (AF9), FMC_D14 (AF12), FMC_DA14 (AF12), LTDC_R4 (AF13), PLAY1_OUT4 (AF14), TIM13_CH1 (AF2), USART3_RX (AF7)
N5PB12ввод-выводETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SDA (AF4), I2S2_WS (AF5), I3C2_SDA (AF8), LTDC_R1 (AF13), OCTOSPIM_P1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF14), UCPD1_FRSTX (AF6), USART3_CK (AF7)
N7PA6ввод-выводADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK (AF13), FMC_D31 (AF12), I2S1_SDI (AF5), LTDC_B3 (AF14), OCTOSPIM_P1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART11_TX (AF7)
N9PA1ввод-выводADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), LPTIM1_IN1 (AF5), LTDC_B7 (AF14), OCTOSPIM_P1_DQS (AF6), OCTOSPIM_P1_IO3 (AF9), SAI2_MCLK_B (AF10), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
N11PH1-OSC_OUTввод-выводRCC_OSC_OUT
P2PD8ввод-выводETH_MII_RXD0 (AF8), ETH_RMII_RXD0 (AF8), FDCAN3_TX (AF9), FMC_D13 (AF12), FMC_DA13 (AF12), I2S3_MCK (AF6), LTDC_R5 (AF13), PLAY1_IN4 (AF14), SDMMC2_D0 (AF11), TIM12_CH2 (AF2), USART3_TX (AF7)
P4PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), I2S2_SDO (AF5), LTDC_G0 (AF12), OCTOSPIM_P1_CLK (AF10), PSSI_D2 (AF13), PWR_PVD_IN, RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), UART5_RX (AF14), USART11_CTS (AF7), USART11_NSS (AF7), USART1_RX (AF4)
P6PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_B5 (AF13), MDF1_CKI5 (AF8), OCTOSPIM_P1_NCS1 (AF6), OCTOSPIM_P2_NCS2 (AF9), OPAMP1_VINP, PLAY1_IN13 (AF14), SAI2_SD_B (AF10), SPI1_RDY (AF4), SPI4_NSS (AF5), TIM1_CH2 (AF1), USART6_TX (AF7)
P8PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LTDC_G5 (AF10), OCTOSPIM_P2_IO5 (AF9), OPAMP1_VINP, PSSI_D14 (AF13), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1N (AF3)
P10PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS (AF11), LTDC_G6 (AF13), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI3_RDY (AF6), SPI6_NSS (AF5), TAMP_IN2, TAMP_OUT1, TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
R1VDDпитание—
R3PB14ввод-выводI2S2_SDI (AF5), LPTIM3_ETR (AF14), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC2, USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
R5PE14ввод-выводADC3_INP8, COMP2_INM, DCMI_VSYNC (AF13), FMC_D11 (AF12), FMC_DA11 (AF12), LTDC_B0 (AF11), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT14 (AF14), PSSI_RDY (AF13), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
R7PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2 (AF11), LPTIM3_CH1 (AF14), LTDC_R4 (AF13), OCTOSPIM_P1_IO1 (AF6), OCTOSPIM_P2_NCS1 (AF9), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USART11_CK (AF7)
R9PA3ввод-выводADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0 (AF0), ETH_MII_COL (AF11), I2S2_WS (AF5), LTDC_B5 (AF14), OCTOSPIM_P1_CLK (AF3), SAI1_SD_B (AF6), SPI2_NSS (AF5), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
R11PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), LPTIM3_CH1 (AF3), LTDC_VSYNC (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF6), PWR_CSTOP (AF0), SAI1_D3 (AF2), SDMMC2_D7 (AF10), SPI2_MOSI (AF5)
T2PB13ввод-выводFDCAN2_TX (AF9), I2C2_SMBA (AF4), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LPTIM3_IN1 (AF2), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), UCPD1_CC1, USART3_CTS (AF7), USART3_NSS (AF7)
T4PB10ввод-выводETH_MII_RX_ER (AF11), FMC_NWAIT (AF13), FMC_SDNRAS (AF10), I2C2_SCL (AF4), I2S2_CK (AF5), I3C2_SCL (AF8), LPTIM2_IN1 (AF3), LPTIM3_CH1 (AF2), LTDC_G4 (AF14), OCTOSPIM_P1_NCS1 (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
T6PE8ввод-выводADC3_INP2, DCMI_D8 (AF13), FMC_D5 (AF12), FMC_DA5 (AF12), MDF1_SDI0 (AF8), OCTOSPIM_P1_IO5 (AF10), PLAY1_OUT11 (AF14), PSSI_D8 (AF13), TIM1_CH1N (AF1), UART12_CTS (AF6), UART7_TX (AF7), USART2_TX (AF5)
T8PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_NWE (AF13), FMC_SDNWE (AF12), I2S1_SDO (AF5), LTDC_B2 (AF14), OCTOSPIM_P1_IO2 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART11_RX (AF7)
T10VSSAпитание—
U1VSSпитание—
U3VLXSMPSпитание—
U5PE12ввод-выводADC3_INP6, DCMI_D0 (AF13), ETH_MDIO (AF11), FDCAN3_TX (AF9), FMC_D9 (AF12), FMC_DA9 (AF12), GFXTIM_LCKCAL (AF0), MDF1_SDI5 (AF8), OPAMP1_VINP, PLAY1_OUT13 (AF14), PSSI_D0 (AF13), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1), USART6_RX (AF7)
U7PE7ввод-выводADC3_INP1, COMP2_INP, FMC_D4 (AF12), FMC_DA4 (AF12), MDF1_CKI0 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_IN11 (AF14), TIM1_ETR (AF1), UART12_DE (AF6), UART12_RTS (AF6), UART7_RX (AF7), USART2_RX (AF5)
U9VSSпитание—
U11VREF+питание—
V2VSSSMPSпитание—
V4PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK (AF13), FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R0 (AF11), OCTOSPIM_P2_NCS1 (AF9), PLAY1_OUT15 (AF14), PSSI_PDCK (AF13), TIM1_BKIN (AF1), TIM1_CH4N (AF3), USART10_CK (AF7)
V6PE9ввод-выводADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), MDF1_CKI4 (AF8), OCTOSPIM_P1_IO6 (AF10), PLAY1_IN12 (AF14), TIM1_CH1 (AF1), UART12_RX (AF6), UART7_DE (AF7), UART7_RTS (AF7)
V8PB1ввод-выводADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3 (AF11), LPTIM3_CH2 (AF14), LTDC_B3 (AF13), OCTOSPIM_P1_IO0 (AF6), OCTOSPIM_P1_NCLK (AF9), OPAMP1_VOUT, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3)
V10VREF-питание—
W1VCAPпитание—
W3VDDSMPSпитание—
W5PE10ввод-выводADC3_INP4, COMP1_INM, FMC_D7 (AF12), FMC_DA7 (AF12), MDF1_SDI4 (AF8), OCTOSPIM_P1_IO7 (AF10), PLAY1_OUT12 (AF14), TIM1_CH2N (AF1), UART12_TX (AF6), UART7_CTS (AF7)
W7PB2ввод-выводADC3_INP0, ADF1_SDI0 (AF1), COMP1_INP, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), I2S3_SDO (AF7), LPTIM1_CH1 (AF5), LPTIM5_ETR (AF13), LTDC_R3 (AF14), OCTOSPIM_P1_CLK (AF9), OCTOSPIM_P1_DQS (AF10), RCC_LSCO, RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC1_CMD (AF12), SPI1_RDY (AF4), SPI3_MOSI (AF7), TIM8_CH4N (AF3)
W9VDDпитание—
W11VDDAпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATC11резервное питание: часы реального времени и резервные регистры
VCAPA9, W1вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDA3, A11, J11, R1, W9питание цифровой части и линий ввода-вывода
VDD11USBL1—
VDDAW11питание аналоговой части: АЦП, ЦАП, генераторы
VDDSMPSW3—
VDDUSBA1питание приёмопередатчика USB
VLXSMPSU3—
VREF-V10нижнее опорное напряжение АЦП
VREF+U11верхнее опорное напряжение АЦП и ЦАП
VSSB2, B10, H10, U1, U9общий провод (земля)
VSSAT10общий провод аналоговой части
VSSSMPSV2—
VSSUSBK2—
NRSTK10сброс, активный уровень — низкий
BOOT0B8выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H5F5VJYxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H5F5VJSTM32H5F5VJYxQ4 МБ1,5 МБ

Линейка STM32H5x5, семейство STM32H5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе WLCSP105, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H5E5VJSTM32H5x5105 из 105выводы совпадают полностьютолько у этого: AES
STM32H5E5VKYxQSTM32H5x5105 из 105выводы совпадают полностью

Частые вопросы

На каких выводах USART1 у STM32H5F5VJ?

В корпусе WLCSP105 сигнал USART1_TX выведен на PA9 (шарик G3, AF7) или PB6 (шарик G7, AF7) или PB14 (шарик R3, AF4), USART1_RX — на PA10 (шарик F2, AF7) или PB7 (шарик J7, AF7) или PB15 (шарик P4, AF4).

Где у STM32H5F5VJ выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик D2, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик E3, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H5F5VJ?

I2C1_SCL — PB8 (шарик D8, AF4) или PB6 (шарик G7, AF4), I2C1_SDA — PB9 (шарик F8, AF4) или PB7 (шарик J7, AF4) или PD13 (шарик M2, AF6).

Сколько выводов ввода-вывода у STM32H5F5VJ в корпусе WLCSP105?

80 из 105. Ещё 23 вывода заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
