STM32H743IG в корпусе UFBGA176+25: распиновка

STM32H743IG — микроконтроллер STM32H7 на ядре Cortex-M7 с частотой до 480 МГц: 1 МБ флеш-памяти и 864 КБ ОЗУ. Корпус UFBGA176+25 — 201 шарик, из них 140 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M7
Частота ядра
до 480 МГц
Флеш-память
1 МБ
ОЗУ
864 КБ
Корпус
UFBGA176+25, 201 шарик
Линий ввода-вывода
140
Напряжение питания
1,62…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса UFBGA176+25

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32H743IG в корпусе UFBGA176+25, вид сверхуABCDEFGHJKLMNPR123456789101112131415PE3 — шарик A1: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, SAI4_SD_B, TIM15_BKINPE3PE2 — шарик A2: DEBUG_TRACECLK, ETH_TXD3, FMC_A23, QUADSPI_BK1_IO2, SAI1_CK1, SAI1_MCLK_A, SAI4_CK1, SAI4_MCLK_A, SPI4_SCKPE2PE1 — шарик A3: DCMI_D3, FMC_NBL1, HRTIM_SCOUT, LPTIM1_IN2, UART8_TXPE1PE0 — шарик A4: DCMI_D2, FMC_NBL0, HRTIM_SCIN, LPTIM1_ETR, LPTIM2_ETR, SAI2_MCLK_A, TIM4_ETR, UART8_RXPE0PB8 — шарик A5: DCMI_D6, DFSDM1_CKIN7, ETH_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, LTDC_B6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RXPB8PB5 — шарик A6: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, HRTIM_EEV7, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX, USB_OTG_HS_ULPI_D7PB5PG14 — шарик A7: DEBUG_TRACED1, ETH_TXD1, FMC_A25, LPTIM1_ETR, LTDC_B0, QUADSPI_BK2_IO3, SPI6_MOSI, USART6_TXPG14PG13 — шарик A8: DEBUG_TRACED0, ETH_TXD0, FMC_A24, HRTIM_EEV10, LPTIM1_OUT, LTDC_R0, SPI6_SCK, USART6_CTS, USART6_NSSPG13PB4 (NJTRST) — шарик A9: DEBUG_JTRST, HRTIM_EEV6, I2S1_SDI, I2S2_WS, I2S3_SDI, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4PB3 (JTDO/TRACESWO) — шарик A10: CRS_SYNC, DEBUG_JTDO-SWO, HRTIM_FLT4, I2S1_CK, I2S3_CK, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART7_RXPB3PD7 — шарик A11: DFSDM1_CKIN1, DFSDM1_DATIN4, FMC_NE1, I2S1_SDO, SDMMC2_CMD, SPDIFRX1_IN0, SPI1_MOSI, USART2_CKPD7PC12 — шарик A12: DCMI_D9, DEBUG_TRACED3, HRTIM_EEV2, I2S3_SDO, SDMMC1_CK, SPI3_MOSI, UART5_TX, USART3_CKPC12PA15 (JTDI) — шарик A13: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DEBUG_JTDI, HRTIM_FLT1, I2S1_WS, I2S3_WS, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PA14 (JTCK/SWCLK) — шарик A14: DEBUG_JTCK-SWCLKPA14PA13 (JTMS/SWDIO) — шарик A15: DEBUG_JTMS-SWDIOPA13PE4 — шарик B1: DCMI_D4, DEBUG_TRACED1, DFSDM1_DATIN3, FMC_A20, LTDC_B0, SAI1_D2, SAI1_FS_A, SAI4_D2, SAI4_FS_A, SPI4_NSS, TIM15_CH1NPE4PE5 — шарик B2: DCMI_D6, DEBUG_TRACED2, DFSDM1_CKIN3, FMC_A21, LTDC_G0, SAI1_CK2, SAI1_SCK_A, SAI4_CK2, SAI4_SCK_A, SPI4_MISO, TIM15_CH1PE5PE6 — шарик B3: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SAI4_D1, SAI4_SD_A, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PE6PB9 — шарик B4: DAC1_EXTI9, DCMI_D7, DFSDM1_DATIN7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2C4_SMBA, I2S2_WS, LTDC_B7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PB7 — шарик B5: DCMI_VSYNC, DFSDM1_CKIN5, FMC_NL, HRTIM_EEV9, I2C1_SDA, I2C4_SDA, LPUART1_RX, PWR_PVD_IN, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PB6 — шарик B6: CEC, DCMI_D5, DFSDM1_DATIN5, FDCAN2_TX, FMC_SDNE1, HRTIM_EEV8, I2C1_SCL, I2C4_SCL, LPUART1_TX, QUADSPI_BK1_NCS, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6PG15 — шарик B7: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, USART6_CTS, USART6_NSSPG15PG12 — шарик B8: ETH_TXD1, FMC_NE4, HRTIM_EEV5, LPTIM1_IN1, LTDC_B1, LTDC_B4, SPDIFRX1_IN1, SPI6_MISO, USART6_DE, USART6_RTSPG12PG11 — шарик B9: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3, ETH_TX_EN, HRTIM_EEV4, I2S1_CK, LPTIM1_IN2, LTDC_B3, SDMMC2_D2, SPDIFRX1_IN0, SPI1_SCKPG11PG10 — шарик B10: DCMI_D2, FMC_NE3, HRTIM_FLT5, I2S1_WS, LTDC_B2, LTDC_G3, SAI2_SD_B, SPI1_NSSPG10PD6 — шарик B11: DCMI_D10, DFSDM1_CKIN4, DFSDM1_DATIN1, FMC_NWAIT, I2S3_SDO, LTDC_B2, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PD0 — шарик B12: DFSDM1_CKIN6, FDCAN1_RX, FMC_D2, FMC_DA2, SAI3_SCK_A, UART4_RXPD0PC11 — шарик B13: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4, DFSDM1_DATIN5, HRTIM_FLT2, I2S3_SDI, QUADSPI_BK2_NCS, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PC10 — шарик B14: DCMI_D8, DFSDM1_CKIN5, HRTIM_EEV1, I2S3_CK, LTDC_R2, QUADSPI_BK1_IO1, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TXPC10PA12 — шарик B15: FDCAN1_TX, HRTIM_CHD2, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R5, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_FS_DPPA12VBAT — шарик C1VBATPI7 — шарик C2: DCMI_D7, FMC_D29, LTDC_B7, SAI2_FS_A, TIM8_CH3PI7PI6 — шарик C3: DCMI_D6, FMC_D28, LTDC_B6, SAI2_SD_A, TIM8_CH2PI6PI5 — шарик C4: DCMI_VSYNC, FMC_NBL3, LTDC_B5, SAI2_SCK_A, TIM8_CH1PI5VDD — шарик C5VDDPDR_ON — шарик C6PDR_ONVDD — шарик C7VDDVDD — шарик C8VDDVDD — шарик C9VDDPG9 — шарик C10: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, QUADSPI_BK2_IO2, SAI2_FS_B, SPDIFRX1_IN3, SPI1_MISO, USART6_RXPG9PD5 — шарик C11: FMC_NWE, HRTIM_EEV3, USART2_TXPD5PD1 — шарик C12: DFSDM1_DATIN6, FDCAN1_TX, FMC_D3, FMC_DA3, SAI3_SD_A, UART4_TXPD1PI3 — шарик C13: DCMI_D10, FMC_D27, I2S2_SDO, SPI2_MOSI, TIM8_ETRPI3PI2 — шарик C14: DCMI_D9, FMC_D26, I2S2_SDI, LTDC_G7, SPI2_MISO, TIM8_CH4PI2PA11 — шарик C15: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX, HRTIM_CHD1, I2S2_WS, LPUART1_CTS, LTDC_R4, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_FS_DMPA11PC13 — шарик D1: PWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TSPC13PI8 — шарик D2: PWR_WKUP3, RTC_TAMP2PI8PI9 — шарик D3: DAC1_EXTI9, FDCAN1_RX, FMC_D30, LTDC_VSYNC, UART4_RXPI9PI4 — шарик D4: DCMI_D5, FMC_NBL2, LTDC_B4, SAI2_MCLK_A, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PI4VSS — шарик D5VSSBOOT0 — шарик D6BOOT0VSS — шарик D7VSSVSS — шарик D8VSSVSS — шарик D9VSSPD4 — шарик D10: FMC_NOE, HRTIM_FLT3, SAI3_FS_A, USART2_DE, USART2_RTSPD4PD3 — шарик D11: DCMI_D5, DFSDM1_CKOUT, FMC_CLK, I2S2_CK, LTDC_G7, SPI2_SCK, USART2_CTS, USART2_NSSPD3PD2 — шарик D12: DCMI_D11, DEBUG_TRACED2, SDMMC1_CMD, TIM3_ETR, UART5_RXPD2PH15 — шарик D13: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11, FMC_D23, LTDC_G4, TIM8_CH3NPH15PI1 — шарик D14: DCMI_D8, FMC_D25, I2S2_CK, LTDC_G6, SPI2_SCK, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2PI1PA10 — шарик D15: DCMI_D1, HRTIM_CHC2, LPUART1_RX, LTDC_B1, LTDC_B4, MDIOS_MDIO, TIM1_CH3, USART1_RX, USB_OTG_FS_IDPA10PC14-OSC32_IN (OSC32_IN) — шарик E1: RCC_OSC32_INPC14PF0 — шарик E2: FMC_A0, I2C2_SDAPF0PI10 — шарик E3: ETH_RX_ER, FMC_D31, LTDC_HSYNCPI10PI11 — шарик E4: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LTDC_G6, PWR_WKUP5, USB_OTG_HS_ULPI_DIRPI11PH13 — шарик E12: FDCAN1_TX, FMC_D21, LTDC_G2, TIM8_CH1N, UART4_TXPH13PH14 — шарик E13: DCMI_D4, FDCAN1_RX, FMC_D22, LTDC_G3, TIM8_CH2N, UART4_RXPH14PI0 — шарик E14: DCMI_D13, FMC_D24, I2S2_WS, LTDC_G5, SPI2_NSS, TIM5_CH4PI0PA9 — шарик E15: DAC1_EXTI9, DCMI_D0, ETH_TX_ER, HRTIM_CHC1, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R5, SPI2_SCK, TIM1_CH2, USART1_TX, USB_OTG_FS_VBUSPA9PC15-OSC32_OUT (OSC32_OUT) — шарик F1: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUTPC15VSS — шарик F2VSSVDD — шарик F3VDDPH2 — шарик F4: ADC3_INP13, ETH_CRS, FMC_SDCKE0, LPTIM1_IN2, LTDC_R0, QUADSPI_BK2_IO0, SAI2_SCK_BPH2VSS — шарик F6VSSVSS — шарик F7VSSVSS — шарик F8VSSVSS — шарик F9VSSVSS — шарик F10VSSVSS — шарик F12VSSVCAP — шарик F13VCAPPC9 — шарик F14: DAC1_EXTI9, DCMI_D3, I2C3_SDA, I2S_CKIN, LTDC_B2, LTDC_G3, QUADSPI_BK1_IO0, RCC_MCO_2, SDMMC1_D1, SWPMI1_SUSPEND, TIM3_CH4, TIM8_CH4, UART5_CTSPC9PA8 — шарик F15: HRTIM_CHB2, I2C3_SCL, LTDC_B3, LTDC_R6, RCC_MCO_1, TIM1_CH1, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2, UART7_RX, USART1_CK, USB_OTG_FS_SOFPA8PH0-OSC_IN — шарик G1: RCC_OSC_INPH0VSS — шарик G2VSSVDD — шарик G3VDDPH3 — шарик G4: ADC3_INN13, ADC3_INP14, ETH_COL, FMC_SDNE0, LTDC_R1, QUADSPI_BK2_IO1, SAI2_MCLK_BPH3VSS — шарик G6VSSVSS — шарик G7VSSVSS — шарик G8VSSVSS — шарик G9VSSVSS — шарик G10VSSVSS — шарик G12VSSVDD — шарик G13VDDPC8 — шарик G14: DCMI_D2, DEBUG_TRACED1, FMC_NCE, FMC_NE2, HRTIM_CHB1, SDMMC1_D0, SWPMI1_RX, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PC7 — шарик G15: DCMI_D1, DEBUG_TRGIO, DFSDM1_DATIN3, FMC_NE1, HRTIM_CHA2, I2S3_MCK, LTDC_G6, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, SWPMI1_TX, TIM3_CH2, TIM8_CH2, USART6_RXPC7PH1-OSC_OUT — шарик H1: RCC_OSC_OUTPH1PF2 — шарик H2: FMC_A2, I2C2_SMBAPF2PF1 — шарик H3: FMC_A1, I2C2_SCLPF1PH4 — шарик H4: ADC3_INN14, ADC3_INP15, I2C2_SCL, LTDC_G4, LTDC_G5, USB_OTG_HS_ULPI_NXTPH4VSS — шарик H6VSSVSS — шарик H7VSSVSS — шарик H8VSSVSS — шарик H9VSSVSS — шарик H10VSSVSS — шарик H12VSSVDD33_USB — шарик H13VDD33USBPG8 — шарик H14: ETH_PPS_OUT, FMC_SDCLK, LTDC_G7, SPDIFRX1_IN2, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTSPG8PC6 — шарик H15: DCMI_D0, DFSDM1_CKIN3, FMC_NWAIT, HRTIM_CHA1, I2S2_MCK, LTDC_HSYNC, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, SWPMI1_IO, TIM3_CH1, TIM8_CH1, USART6_TXPC6NRST — шарик J1NRSTPF3 — шарик J2: ADC3_INP5, FMC_A3PF3PF4 — шарик J3: ADC3_INN5, ADC3_INP9, FMC_A4PF4PH5 — шарик J4: ADC3_INN15, ADC3_INP16, FMC_SDNWE, I2C2_SDA, SPI5_NSSPH5VSS — шарик J6VSSVSS — шарик J7VSSVSS — шарик J8VSSVSS — шарик J9VSSVSS — шарик J10VSSVDD — шарик J12VDDVDD — шарик J13VDDPG7 — шарик J14: DCMI_D13, FMC_INT, HRTIM_CHE2, LTDC_CLK, SAI1_MCLK_A, USART6_CKPG7PG6 — шарик J15: DCMI_D12, FMC_NE3, HRTIM_CHE1, LTDC_R7, QUADSPI_BK1_NCS, TIM17_BKINPG6PF7 — шарик K1: ADC3_INP3, QUADSPI_BK1_IO2, SAI1_MCLK_B, SAI4_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TXPF7PF6 — шарик K2: ADC3_INN4, ADC3_INP8, QUADSPI_BK1_IO3, SAI1_SD_B, SAI4_SD_B, SPI5_NSS, TIM16_CH1, UART7_RXPF6PF5 — шарик K3: ADC3_INP4, FMC_A5PF5VDD — шарик K4VDDVSS — шарик K6VSSVSS — шарик K7VSSVSS — шарик K8VSSVSS — шарик K9VSSVSS — шарик K10VSSPH12 — шарик K12: DCMI_D3, FMC_D20, I2C4_SDA, LTDC_R6, TIM5_CH3PH12PG5 — шарик K13: FMC_A15, FMC_BA1, TIM1_ETRPG5PG4 — шарик K14: FMC_A14, FMC_BA0, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PG4PG3 — шарик K15: FMC_A13, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2PG3PF10 — шарик L1: ADC3_INN2, ADC3_INP6, DCMI_D11, LTDC_DE, QUADSPI_CLK, SAI1_D3, SAI4_D3, TIM16_BKINPF10PF9 — шарик L2: ADC3_INP2, DAC1_EXTI9, QUADSPI_BK1_IO1, SAI1_FS_B, SAI4_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTSPF9PF8 — шарик L3: ADC3_INN3, ADC3_INP7, QUADSPI_BK1_IO0, SAI1_SCK_B, SAI4_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPF8VSS — шарик L4VSSPH11 — шарик L12: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2, FMC_D19, I2C4_SCL, LTDC_R5, TIM5_CH2PH11PH10 — шарик L13: DCMI_D1, FMC_D18, I2C4_SMBA, LTDC_R4, TIM5_CH1PH10PD15 — шарик L14: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, SAI3_MCLK_A, TIM4_CH4, UART8_DE, UART8_RTSPD15PG2 — шарик L15: FMC_A12, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PG2VSSA — шарик M1VSSAPC0 — шарик M2: ADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0, DFSDM1_DATIN4, FMC_SDNWE, LTDC_R5, SAI2_FS_B, USB_OTG_HS_ULPI_STPPC0PC1 — шарик M3: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0, DFSDM1_CKIN4, DFSDM1_DATIN0, ETH_MDC, I2S2_SDO, MDIOS_MDC, PWR_WKUP6, RTC_TAMP3, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI2_MOSIPC1PC2_C — шарик M4: ADC3_INN1, ADC3_INP0, DFSDM1_CKIN1, DFSDM1_CKOUT, ETH_TXD2, FMC_SDNE0, I2S2_SDI, PWR_CSTOP, SPI2_MISO, USB_OTG_HS_ULPI_DIRPC2PC3_C — шарик M5: ADC3_INP1, DFSDM1_DATIN1, ETH_TX_CLK, FMC_SDCKE0, I2S2_SDO, PWR_CSLEEP, SPI2_MOSI, USB_OTG_HS_ULPI_NXTPC3PB2 — шарик M6: COMP1_INP, DFSDM1_CKIN1, ETH_TX_ER, I2S3_SDO, QUADSPI_CLK, RTC_OUT_ALARM, RTC_OUT_CALIB, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SPI3_MOSIPB2PG1 — шарик M7: FMC_A11, OPAMP2_VINM, OPAMP2_VINM1PG1VSS — шарик M8VSSVSS — шарик M9VSSVCAP — шарик M10VCAPPH6 — шарик M11: DCMI_D8, ETH_RXD2, FMC_SDNE1, I2C2_SMBA, SPI5_SCK, TIM12_CH1PH6PH8 — шарик M12: DCMI_HSYNC, FMC_D16, I2C3_SDA, LTDC_R2, TIM5_ETRPH8PH9 — шарик M13: DAC1_EXTI9, DCMI_D0, FMC_D17, I2C3_SMBA, LTDC_R3, TIM12_CH2PH9PD14 — шарик M14: FMC_D0, FMC_DA0, SAI3_MCLK_B, TIM4_CH3, UART8_CTSPD14PD13 — шарик M15: FMC_A18, I2C4_SDA, LPTIM1_OUT, QUADSPI_BK1_IO3, SAI2_SCK_A, TIM4_CH2PD13VREF- — шарик N1VREF-PA1 — шарик N2: ADC1_INN16, ADC1_INP17, ETH_REF_CLK, ETH_RX_CLK, LPTIM3_OUT, LTDC_R2, QUADSPI_BK1_IO3, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PA0 — шарик N3: ADC1_INP16, ETH_CRS, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PA4 — шарик N4: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, I2S1_WS, I2S3_WS, LTDC_VSYNC, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CK, USB_OTG_HS_SOFPA4PC4 — шарик N5: ADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2, ETH_RXD0, FMC_SDNE0, I2S1_MCK, OPAMP1_VOUT, SPDIFRX1_IN2PC4PF13 — шарик N6: ADC2_INP2, DFSDM1_DATIN6, FMC_A7, I2C4_SMBAPF13PG0 — шарик N7: FMC_A10PG0VDD — шарик N8VDDVDD — шарик N9VDDVDD — шарик N10VDDPE13 — шарик N11: COMP2_OUT, DFSDM1_CKIN5, FMC_D10, FMC_DA10, LTDC_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH3PE13PH7 — шарик N12: DCMI_D9, ETH_RXD3, FMC_SDCKE1, I2C3_SCL, SPI5_MISOPH7PD12 — шарик N13: FMC_A17, FMC_ALE, I2C4_SCL, LPTIM1_IN1, LPTIM2_IN1, QUADSPI_BK1_IO1, SAI2_FS_A, TIM4_CH1, USART3_DE, USART3_RTSPD12PD11 — шарик N14: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, QUADSPI_BK1_IO0, SAI2_SD_A, USART3_CTS, USART3_NSSPD11PD10 — шарик N15: DFSDM1_CKOUT, FMC_D15, FMC_DA15, LTDC_B3, SAI3_FS_B, USART3_CKPD10VREF+ — шарик P1: VREFBUF_OUTVREF+PA2 — шарик P2: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM4_OUT, LTDC_R1, MDIOS_MDIO, PWR_WKUP2, SAI2_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PA6 — шарик P3: ADC1_INP3, ADC2_INP3, DCMI_PIXCLK, I2S1_SDI, LTDC_G2, MDIOS_MDC, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM3_CH1, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PA6PA5 — шарик P4: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, I2S1_CK, LTDC_R4, PWR_NDSTOP2, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USB_OTG_HS_ULPI_CKPA5PC5 — шарик P5: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT, DFSDM1_DATIN2, ETH_RXD1, FMC_SDCKE0, OPAMP1_VINM, OPAMP1_VINM0, SAI1_D3, SAI4_D3, SPDIFRX1_IN3PC5PF12 — шарик P6: ADC1_INN2, ADC1_INP6, FMC_A6PF12PF15 — шарик P7: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9, I2C4_SDAPF15PE8 — шарик P8: COMP2_OUT, DFSDM1_CKIN2, FMC_D5, FMC_DA5, OPAMP2_VINM, OPAMP2_VINM0, QUADSPI_BK2_IO1, TIM1_CH1N, UART7_TXPE8PE9 — шарик P9: COMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT, FMC_D6, FMC_DA6, OPAMP2_VINP, QUADSPI_BK2_IO2, TIM1_CH1, UART7_DE, UART7_RTSPE9PE11 — шарик P10: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4, FMC_D8, FMC_DA8, LTDC_G3, SAI2_SD_B, SPI4_NSS, TIM1_CH2PE11PE14 — шарик P11: FMC_D11, FMC_DA11, LTDC_CLK, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PB12 — шарик P12: DFSDM1_DATIN1, ETH_TXD0, FDCAN2_RX, I2C2_SMBA, I2S2_WS, SPI2_NSS, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, UART5_RX, USART3_CK, USB_OTG_HS_ID, USB_OTG_HS_ULPI_D5PB12PB13 — шарик P13: DFSDM1_CKIN1, ETH_TXD1, FDCAN2_TX, I2S2_CK, LPTIM2_OUT, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSS, USB_OTG_HS_ULPI_D6, USB_OTG_HS_VBUSPB13PD9 — шарик P14: DAC1_EXTI9, DFSDM1_DATIN3, FMC_D14, FMC_DA14, SAI3_SD_B, USART3_RXPD9PD8 — шарик P15: DFSDM1_CKIN3, FMC_D13, FMC_DA13, SAI3_SCK_B, SPDIFRX1_IN1, USART3_TXPD8VDDA — шарик R1VDDAPA3 — шарик R2: ADC1_INP15, ADC2_INP15, ETH_COL, LPTIM5_OUT, LTDC_B2, LTDC_B5, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX, USB_OTG_HS_ULPI_D0PA3PA7 — шарик R3: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV, ETH_RX_DV, FMC_SDNWE, I2S1_SDO, OPAMP1_VINM, OPAMP1_VINM1, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1NPA7PB1 — шарик R4: ADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1, ETH_RXD3, LTDC_G0, LTDC_R6, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USB_OTG_HS_ULPI_D2PB1PB0 — шарик R5: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT, ETH_RXD2, LTDC_G1, LTDC_R3, OPAMP1_VINP, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USB_OTG_HS_ULPI_D1PB0PF11 — шарик R6: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, SAI2_SD_B, SPI5_MOSIPF11PF14 — шарик R7: ADC2_INN2, ADC2_INP6, DFSDM1_CKIN6, FMC_A8, I2C4_SCLPF14PE7 — шарик R8: COMP2_INM, DFSDM1_DATIN2, FMC_D4, FMC_DA4, OPAMP2_VOUT, QUADSPI_BK2_IO0, TIM1_ETR, UART7_RXPE7PE10 — шарик R9: COMP2_INM, DFSDM1_DATIN4, FMC_D7, FMC_DA7, QUADSPI_BK2_IO3, TIM1_CH2N, UART7_CTSPE10PE12 — шарик R10: COMP1_OUT, DFSDM1_DATIN5, FMC_D9, FMC_DA9, LTDC_B4, SAI2_SCK_B, SPI4_SCK, TIM1_CH3NPE12PE15 — шарик R11: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12, FMC_DA12, LTDC_R7, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2PE15PB10 — шарик R12: DFSDM1_DATIN7, ETH_RX_ER, HRTIM_SCOUT, I2C2_SCL, I2S2_CK, LPTIM2_IN1, LTDC_G4, QUADSPI_BK1_NCS, SPI2_SCK, TIM2_CH3, USART3_TX, USB_OTG_HS_ULPI_D3PB10PB11 — шарик R13: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7, ETH_TX_EN, HRTIM_SCIN, I2C2_SDA, LPTIM2_ETR, LTDC_G5, TIM2_CH4, USART3_RX, USB_OTG_HS_ULPI_D4PB11PB14 — шарик R14: DFSDM1_DATIN2, I2S2_SDI, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, USART1_TX, USART3_DE, USART3_RTS, USB_OTG_HS_DMPB14PB15 — шарик R15: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2, I2S2_SDO, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, USART1_RX, USB_OTG_HS_DPPB15UFBGA176+25, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

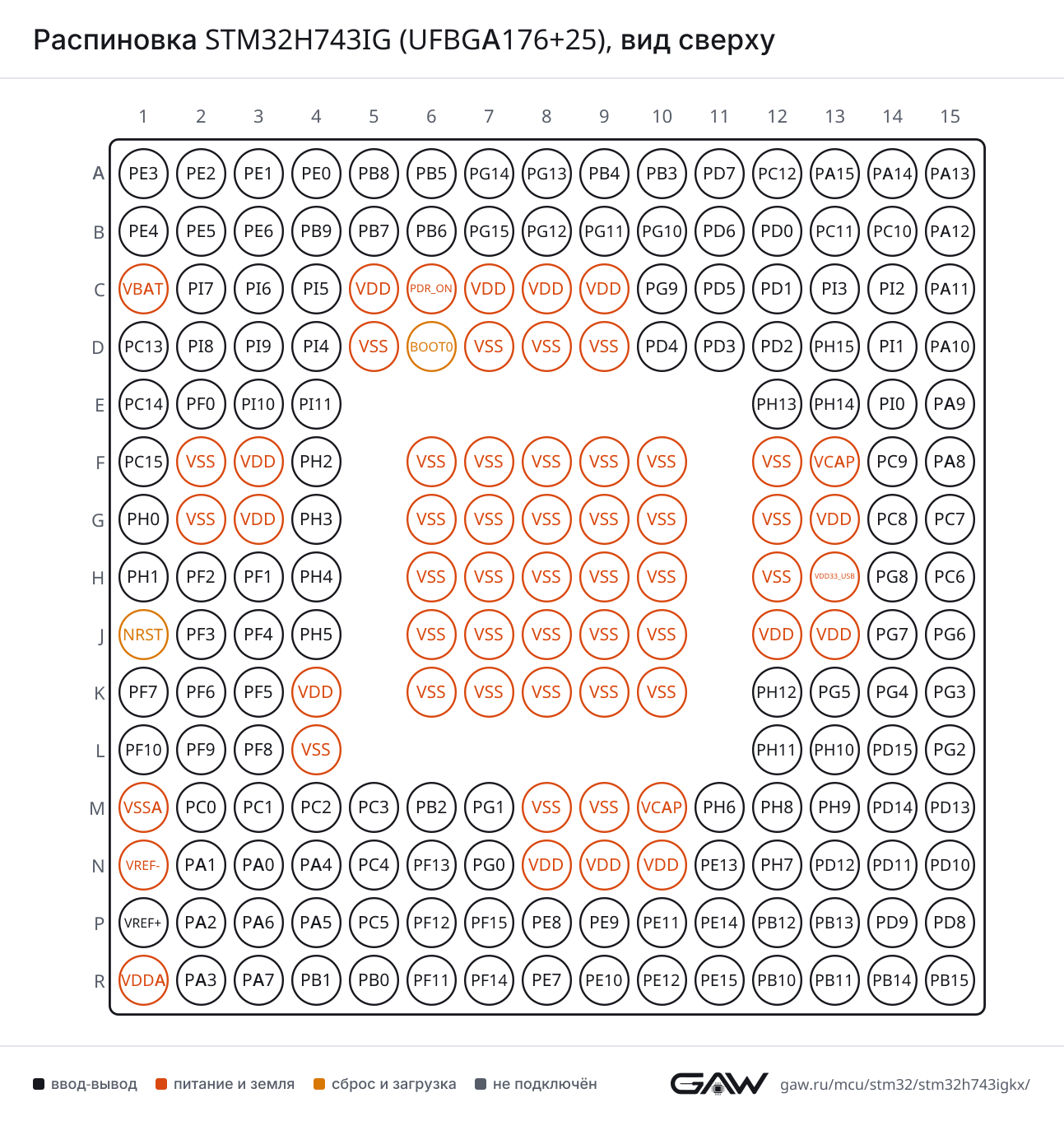

Распиновка STM32H743IG (UFBGA176+25), вид сверхуРаспиновка UFBGA176+25 картинкой
PNG, 1293 × 1362 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (F15, AF7)
CTSPA11 (C15, AF7)
DEPA12 (B15, AF7)
NSSPA11 (C15, AF7)
RTSPA12 (B15, AF7)
RXPB7 (B5, AF7), PA10 (D15, AF7), PB15 (R15, AF4)
TXPB6 (B6, AF7), PA9 (E15, AF7), PB14 (R14, AF4)
USART2CKPD7 (A11, AF7), PA4 (N4, AF7)
CTSPD3 (D11, AF7), PA0 (N3, AF7)
DEPD4 (D10, AF7), PA1 (N2, AF7)
NSSPD3 (D11, AF7), PA0 (N3, AF7)
RTSPD4 (D10, AF7), PA1 (N2, AF7)
RXPD6 (B11, AF7), PA3 (R2, AF7)
TXPD5 (C11, AF7), PA2 (P2, AF7)
USART3CKPC12 (A12, AF7), PD10 (N15, AF7), PB12 (P12, AF7)
CTSPD11 (N14, AF7), PB13 (P13, AF7)
DEPD12 (N13, AF7), PB14 (R14, AF7)
NSSPD11 (N14, AF7), PB13 (P13, AF7)
RTSPD12 (N13, AF7), PB14 (R14, AF7)
RXPC11 (B13, AF7), PD9 (P14, AF7), PB11 (R13, AF7)
TXPC10 (B14, AF7), PD8 (P15, AF7), PB10 (R12, AF7)
USART6CKPC8 (G14, AF7), PG7 (J14, AF7)
CTSPG13 (A8, AF7), PG15 (B7, AF7)
DEPG12 (B8, AF7), PG8 (H14, AF7)
NSSPG13 (A8, AF7), PG15 (B7, AF7)
RTSPG12 (B8, AF7), PG8 (H14, AF7)
RXPG9 (C10, AF7), PC7 (G15, AF7)
TXPG14 (A7, AF7), PC6 (H15, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB0 (R5, AF8), PB15 (R15, AF8)
DEPA15 (JTDI) (A13, AF8), PB14 (R14, AF8)
RTSPA15 (JTDI) (A13, AF8), PB14 (R14, AF8)
RXPB8 (A5, AF8), PD0 (B12, AF8), PC11 (B13, AF8), PA11 (C15, AF6), PI9 (D3, AF8), PH14 (E13, AF8), PA1 (N2, AF8)
TXPB9 (B4, AF8), PC10 (B14, AF8), PA12 (B15, AF6), PD1 (C12, AF8), PH13 (E12, AF8), PA0 (N3, AF8)
UART5CTSPC9 (F14, AF8)
DEPC8 (G14, AF8)
RTSPC8 (G14, AF8)
RXPB5 (A6, AF14), PD2 (D12, AF8), PB12 (P12, AF14)
TXPC12 (A12, AF8), PB6 (B6, AF14), PB13 (P13, AF14)
UART7CTSPF9 (L2, AF7), PE10 (R9, AF7)
DEPF8 (L3, AF7), PE9 (P9, AF7)
RTSPF8 (L3, AF7), PE9 (P9, AF7)
RXPB3 (JTDO/TRACESWO) (A10, AF11), PA8 (F15, AF11), PF6 (K2, AF7), PE7 (R8, AF7)
TXPB4 (NJTRST) (A9, AF11), PA15 (JTDI) (A13, AF11), PF7 (K1, AF7), PE8 (P8, AF7)
UART8CTSPD14 (M14, AF8)
DEPD15 (L14, AF8)
RTSPD15 (L14, AF8)
RXPE0 (A4, AF8)
TXPE1 (A3, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (C15, AF3)
DEPA12 (B15, AF3)
RTSPA12 (B15, AF3)
RXPB7 (B5, AF8), PA10 (D15, AF3)
TXPB6 (B6, AF8), PA9 (E15, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4 (NJTRST) (A9, AF5), PG9 (C10, AF5), PA6 (P3, AF5)
MOSIPB5 (A6, AF5), PD7 (A11, AF5), PA7 (R3, AF5)
NSSPA15 (JTDI) (A13, AF5), PG10 (B10, AF5), PA4 (N4, AF5)
SCKPB3 (JTDO/TRACESWO) (A10, AF5), PG11 (B9, AF5), PA5 (P4, AF5)
SPI2MISOPI2 (C14, AF5), PC2_C (M4, AF5), PB14 (R14, AF5)
MOSIPI3 (C13, AF5), PC1 (M3, AF5), PC3_C (M5, AF5), PB15 (R15, AF5)
NSSPB4 (NJTRST) (A9, AF7), PB9 (B4, AF5), PA11 (C15, AF5), PI0 (E14, AF5), PB12 (P12, AF5)
SCKPA12 (B15, AF5), PD3 (D11, AF5), PI1 (D14, AF5), PA9 (E15, AF5), PB13 (P13, AF5), PB10 (R12, AF5)
SPI3MISOPB4 (NJTRST) (A9, AF6), PC11 (B13, AF6)
MOSIPB5 (A6, AF7), PC12 (A12, AF6), PD6 (B11, AF5), PB2 (M6, AF7)
NSSPA15 (JTDI) (A13, AF6), PA4 (N4, AF6)
SCKPB3 (JTDO/TRACESWO) (A10, AF6), PC10 (B14, AF6)
SPI4MISOPE5 (B2, AF5), PE13 (N11, AF5)
MOSIPE6 (B3, AF5), PE14 (P11, AF5)
NSSPE4 (B1, AF5), PE11 (P10, AF5)
SCKPE2 (A2, AF5), PE12 (R10, AF5)
SPI5MISOPF8 (L3, AF5), PH7 (N12, AF5)
MOSIPF9 (L2, AF5), PF11 (R6, AF5)
NSSPH5 (J4, AF5), PF6 (K2, AF5)
SCKPF7 (K1, AF5), PH6 (M11, AF5)
SPI6MISOPB4 (NJTRST) (A9, AF8), PG12 (B8, AF5), PA6 (P3, AF8)
MOSIPB5 (A6, AF8), PG14 (A7, AF5), PA7 (R3, AF8)
NSSPA15 (JTDI) (A13, AF7), PG8 (H14, AF5), PA4 (N4, AF8)
SCKPG13 (A8, AF5), PB3 (JTDO/TRACESWO) (A10, AF8), PA5 (P4, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (F14, AF5)
I2S1CKPB3 (JTDO/TRACESWO) (A10, AF5), PG11 (B9, AF5), PA5 (P4, AF5)
MCKPC4 (N5, AF5)
SDIPB4 (NJTRST) (A9, AF5), PG9 (C10, AF5), PA6 (P3, AF5)
SDOPB5 (A6, AF5), PD7 (A11, AF5), PA7 (R3, AF5)
WSPA15 (JTDI) (A13, AF5), PG10 (B10, AF5), PA4 (N4, AF5)
I2S2CKPA12 (B15, AF5), PD3 (D11, AF5), PI1 (D14, AF5), PA9 (E15, AF5), PB13 (P13, AF5), PB10 (R12, AF5)
MCKPC6 (H15, AF5)
SDIPI2 (C14, AF5), PC2_C (M4, AF5), PB14 (R14, AF5)
SDOPI3 (C13, AF5), PC1 (M3, AF5), PC3_C (M5, AF5), PB15 (R15, AF5)
WSPB4 (NJTRST) (A9, AF7), PB9 (B4, AF5), PA11 (C15, AF5), PI0 (E14, AF5), PB12 (P12, AF5)
I2S3CKPB3 (JTDO/TRACESWO) (A10, AF6), PC10 (B14, AF6)
MCKPC7 (G15, AF6)
SDIPB4 (NJTRST) (A9, AF6), PC11 (B13, AF6)
SDOPB5 (A6, AF7), PC12 (A12, AF6), PD6 (B11, AF5), PB2 (M6, AF7)
WSPA15 (JTDI) (A13, AF6), PA4 (N4, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8 (A5, AF4), PB6 (B6, AF4)
SDAPB9 (B4, AF4), PB7 (B5, AF4)
SMBAPB5 (A6, AF4)
I2C2SCLPF1 (H3, AF4), PH4 (H4, AF4), PB10 (R12, AF4)
SDAPF0 (E2, AF4), PH5 (J4, AF4), PB11 (R13, AF4)
SMBAPF2 (H2, AF4), PH6 (M11, AF4), PB12 (P12, AF4)
I2C3SCLPA8 (F15, AF4), PH7 (N12, AF4)
SDAPC9 (F14, AF4), PH8 (M12, AF4)
SMBAPA9 (E15, AF4), PH9 (M13, AF4)
I2C4SCLPB8 (A5, AF6), PB6 (B6, AF6), PH11 (L12, AF4), PD12 (N13, AF4), PF14 (R7, AF4)
SDAPB9 (B4, AF6), PB7 (B5, AF6), PH12 (K12, AF4), PD13 (M15, AF4), PF15 (P7, AF4)
SMBAPB5 (A6, AF6), PB9 (B4, AF11), PH10 (L13, AF4), PF13 (N6, AF4), PD11 (N14, AF4)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPB8 (A5, AF9), PD0 (B12, AF9), PA11 (C15, AF9), PI9 (D3, AF9), PH14 (E13, AF9)
TXPB9 (B4, AF9), PA12 (B15, AF9), PD1 (C12, AF9), PH13 (E12, AF9)
FDCAN2RXPB5 (A6, AF9), PB12 (P12, AF9)
TXPB6 (B6, AF9), PB13 (P13, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (C15, AF10)
DPPA12 (B15, AF10)
IDPA10 (D15, AF10)
SOFPA8 (F15, AF10)
VBUSPA9 (E15)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPB14 (R14, AF12)
DPPB15 (R15, AF12)
IDPB12 (P12, AF12)
SOFPA4 (N4, AF12)
ULPI_CKPA5 (P4, AF10)
ULPI_D0PA3 (R2, AF10)
ULPI_D1PB0 (R5, AF10)
ULPI_D2PB1 (R4, AF10)
ULPI_D3PB10 (R12, AF10)
ULPI_D4PB11 (R13, AF10)
ULPI_D5PB12 (P12, AF10)
ULPI_D6PB13 (P13, AF10)
ULPI_D7PB5 (A6, AF10)
ULPI_DIRPI11 (E4, AF10), PC2_C (M4, AF10)
ULPI_NXTPH4 (H4, AF10), PC3_C (M5, AF10)
ULPI_STPPC0 (M2, AF10)
VBUSPB13 (P13)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCOLPH3 (G4, AF11), PA3 (R2, AF11)
CRSPH2 (F4, AF11), PA0 (N3, AF11)
CRS_DVPA7 (R3, AF11)
MDCPC1 (M3, AF11)
MDIOPA2 (P2, AF11)
PPS_OUTPB5 (A6, AF11), PG8 (H14, AF11)
REF_CLKPA1 (N2, AF11)
RX_CLKPA1 (N2, AF11)
RX_DVPA7 (R3, AF11)
RX_ERPI10 (E3, AF11), PB10 (R12, AF11)
RXD0PC4 (N5, AF11)
RXD1PC5 (P5, AF11)
RXD2PH6 (M11, AF11), PB0 (R5, AF11)
RXD3PH7 (N12, AF11), PB1 (R4, AF11)
TX_CLKPC3_C (M5, AF11)
TX_ENPG11 (B9, AF11), PB11 (R13, AF11)
TX_ERPA9 (E15, AF11), PB2 (M6, AF11)
TXD0PG13 (A8, AF11), PB12 (P12, AF11)
TXD1PG14 (A7, AF11), PG12 (B8, AF11), PB13 (P13, AF11)
TXD2PC2_C (M4, AF11)
TXD3PE2 (A2, AF11), PB8 (A5, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (B4, AF7)
CKPC12 (A12, AF12)
CKINPB8 (A5, AF7)
CMDPD2 (D12, AF12)
D0PC8 (G14, AF12)
D0DIRPC6 (H15, AF8)
D1PC9 (F14, AF12)
D2PC10 (B14, AF12)
D3PC11 (B13, AF12)
D4PB8 (A5, AF12)
D5PB9 (B4, AF12)
D6PC6 (H15, AF12)
D7PC7 (G15, AF12)
D123DIRPC7 (G15, AF8)
SDMMC2CKPD6 (B11, AF11), PC1 (M3, AF9)
CMDPD7 (A11, AF11), PA0 (N3, AF9)
D0PB14 (R14, AF9)
D1PB15 (R15, AF9)
D2PB3 (JTDO/TRACESWO) (A10, AF9), PG11 (B9, AF10)
D3PB4 (NJTRST) (A9, AF9)
D4PB8 (A5, AF10)
D5PB9 (B4, AF10)
D6PC6 (H15, AF10)
D7PC7 (G15, AF10)

QUADSPI — интерфейс Quad-SPI памяти

БлокСигналВыводы
QUADSPIBK1_IO0PC9 (F14, AF9), PF8 (L3, AF10), PD11 (N14, AF9)
BK1_IO1PC10 (B14, AF9), PF9 (L2, AF10), PD12 (N13, AF9)
BK1_IO2PE2 (A2, AF9), PF7 (K1, AF9)
BK1_IO3PF6 (K2, AF9), PD13 (M15, AF9), PA1 (N2, AF9)
BK1_NCSPB6 (B6, AF10), PG6 (J15, AF10), PB10 (R12, AF9)
BK2_IO0PH2 (F4, AF9), PE7 (R8, AF10)
BK2_IO1PH3 (G4, AF9), PE8 (P8, AF10)
BK2_IO2PG9 (C10, AF9), PE9 (P9, AF10)
BK2_IO3PG14 (A7, AF9), PE10 (R9, AF10)
BK2_NCSPC11 (B13, AF9)
CLKPF10 (L1, AF9), PB2 (M6, AF9)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (A2, AF2)
CK2PE5 (B2, AF2)
D1PE6 (B3, AF2), PD6 (B11, AF2), PC1 (M3, AF2), PB2 (M6, AF2)
D2PE4 (B1, AF2)
D3PF10 (L1, AF2), PC5 (P5, AF2)
FS_APE4 (B1, AF6)
FS_BPF9 (L2, AF6)
MCLK_APE2 (A2, AF6), PG7 (J14, AF6)
MCLK_BPF7 (K1, AF6)
SCK_APE5 (B2, AF6)
SCK_BPF8 (L3, AF6)
SD_APE6 (B3, AF6), PD6 (B11, AF6), PC1 (M3, AF6), PB2 (M6, AF6)
SD_BPE3 (A1, AF6), PF6 (K2, AF6)
SAI2FS_API7 (C2, AF10), PD12 (N13, AF10)
FS_BPA12 (B15, AF8), PG9 (C10, AF10), PC0 (M2, AF8), PE13 (N11, AF10)
MCLK_APE0 (A4, AF10), PI4 (D4, AF10)
MCLK_BPE6 (B3, AF10), PH3 (G4, AF10), PA1 (N2, AF10), PE14 (P11, AF10)
SCK_API5 (C4, AF10), PD13 (M15, AF10)
SCK_BPH2 (F4, AF10), PA2 (P2, AF8), PE12 (R10, AF10)
SD_API6 (C3, AF10), PD11 (N14, AF10)
SD_BPG10 (B10, AF10), PA0 (N3, AF10), PE11 (P10, AF10), PF11 (R6, AF10)
SAI3FS_APD4 (D10, AF6)
FS_BPD10 (N15, AF6)
MCLK_APD15 (L14, AF6)
MCLK_BPD14 (M14, AF6)
SCK_APD0 (B12, AF6)
SCK_BPD8 (P15, AF6)
SD_APD1 (C12, AF6)
SD_BPD9 (P14, AF6)
SAI4CK1PE2 (A2, AF10)
CK2PE5 (B2, AF10)
D1PE6 (B3, AF9), PD6 (B11, AF10), PC1 (M3, AF10), PB2 (M6, AF10)
D2PE4 (B1, AF10)
D3PF10 (L1, AF10), PC5 (P5, AF10)
FS_APE4 (B1, AF8)
FS_BPF9 (L2, AF8)
MCLK_APE2 (A2, AF8)
MCLK_BPF7 (K1, AF8)
SCK_APE5 (B2, AF8)
SCK_BPF8 (L3, AF8)
SD_APE6 (B3, AF8), PD6 (B11, AF8), PC1 (M3, AF8), PB2 (M6, AF8)
SD_BPE3 (A1, AF8), PF6 (K2, AF8)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRX1IN0PD7 (A11, AF9), PG11 (B9, AF8)
IN1PG12 (B8, AF8), PD8 (P15, AF9)
IN2PG8 (H14, AF8), PC4 (N5, AF9)
IN3PG9 (C10, AF8), PC5 (P5, AF9)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15 (JTDI) (A13, AF4), PB6 (B6, AF5)

SWPMI — интерфейс Single Wire Protocol

БлокСигналВыводы
SWPMI1IOPC6 (H15)
RXPC8 (G14, AF11)
SUSPENDPC9 (F14, AF11)
TXPC7 (G15, AF11)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PG11 (B9), PC11 (B13), PA11 (C15), PI11 (E4), PH11 (L12), PD11 (N14), PE11 (P10), PF11 (R6), PB11 (R13)
EXTI15PA15 (JTDI) (A13), PG15 (B7), PH15 (D13), PC15-OSC32_OUT (OSC32_OUT) (F1), PD15 (L14), PF15 (P7), PE15 (R11), PB15 (R15)
INN2PF12 (P6)
INN3PA7 (R3)
INN4PC5 (P5)
INN5PB0 (R5)
INN10PC1 (M3)
INN16PA1 (N2)
INN18PA5 (P4)
INP2PF11 (R6)
INP3PA6 (P3)
INP4PC4 (N5)
INP5PB1 (R4)
INP6PF12 (P6)
INP7PA7 (R3)
INP8PC5 (P5)
INP9PB0 (R5)
INP10PC0 (M2)
INP11PC1 (M3)
INP14PA2 (P2)
INP15PA3 (R2)
INP16PA0 (N3)
INP17PA1 (N2)
INP18PA4 (N4)
INP19PA5 (P4)
ADC2EXTI11PG11 (B9), PC11 (B13), PA11 (C15), PI11 (E4), PH11 (L12), PD11 (N14), PE11 (P10), PF11 (R6), PB11 (R13)
EXTI15PA15 (JTDI) (A13), PG15 (B7), PH15 (D13), PC15-OSC32_OUT (OSC32_OUT) (F1), PD15 (L14), PF15 (P7), PE15 (R11), PB15 (R15)
INN2PF14 (R7)
INN3PA7 (R3)
INN4PC5 (P5)
INN5PB0 (R5)
INN10PC1 (M3)
INN18PA5 (P4)
INP2PF13 (N6)
INP3PA6 (P3)
INP4PC4 (N5)
INP5PB1 (R4)
INP6PF14 (R7)
INP7PA7 (R3)
INP8PC5 (P5)
INP9PB0 (R5)
INP10PC0 (M2)
INP11PC1 (M3)
INP14PA2 (P2)
INP15PA3 (R2)
INP18PA4 (N4)
INP19PA5 (P4)
ADC3EXTI11PG11 (B9), PC11 (B13), PA11 (C15), PI11 (E4), PH11 (L12), PD11 (N14), PE11 (P10), PF11 (R6), PB11 (R13)
EXTI15PA15 (JTDI) (A13), PG15 (B7), PH15 (D13), PC15-OSC32_OUT (OSC32_OUT) (F1), PD15 (L14), PF15 (P7), PE15 (R11), PB15 (R15)
INN1PC2_C (M4)
INN2PF10 (L1)
INN3PF8 (L3)
INN4PF6 (K2)
INN5PF4 (J3)
INN10PC1 (M3)
INN13PH3 (G4)
INN14PH4 (H4)
INN15PH5 (J4)
INP0PC2_C (M4)
INP1PC3_C (M5)
INP2PF9 (L2)
INP3PF7 (K1)
INP4PF5 (K3)
INP5PF3 (J2)
INP6PF10 (L1)
INP7PF8 (L3)
INP8PF6 (K2)
INP9PF4 (J3)
INP10PC0 (M2)
INP11PC1 (M3)
INP13PH2 (F4)
INP14PH3 (G4)
INP15PH4 (H4)
INP16PH5 (J4)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (B4), PG9 (C10), PI9 (D3), PA9 (E15), PC9 (F14), PF9 (L2), PH9 (M13), PE9 (P9), PD9 (P14)
OUT1PA4 (N4)
OUT2PA5 (P4)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPC4 (N5), PB1 (R4)
INPPB2 (M6), PB0 (R5)
OUTPC5 (P5, AF13), PE12 (R10, AF13)
COMP2INMPE7 (R8), PE10 (R9)
INPPE9 (P9), PE11 (P10)
OUTPE13 (N11, AF13), PE8 (P8, AF13)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPC5 (P5), PA7 (R3)
VINM0PC5 (P5)
VINM1PA7 (R3)
VINPPB0 (R5)
VOUTPC4 (N5)
OPAMP2VINMPG1 (M7), PE8 (P8)
VINM0PE8 (P8)
VINM1PG1 (M7)
VINPPE9 (P9)
VOUTPE7 (R8)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (P1)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (P3, AF1), PB12 (P12, AF1), PE15 (R11, AF1)
BKIN_COMP1PA6 (P3, AF12), PB12 (P12, AF13), PE15 (R11, AF13)
BKIN_COMP2PA6 (P3, AF12), PB12 (P12, AF13), PE15 (R11, AF13)
BKIN2PE6 (B3, AF1), PG4 (K14, AF1)
BKIN2_COMP1PE6 (B3, AF11), PG4 (K14, AF11)
BKIN2_COMP2PE6 (B3, AF11), PG4 (K14, AF11)
CH1PA8 (F15, AF1), PE9 (P9, AF1)
CH1NPE8 (P8, AF1), PB13 (P13, AF1), PA7 (R3, AF1)
CH2PA9 (E15, AF1), PE11 (P10, AF1)
CH2NPB0 (R5, AF1), PE10 (R9, AF1), PB14 (R14, AF1)
CH3PA10 (D15, AF1), PE13 (N11, AF1)
CH3NPB1 (R4, AF1), PE12 (R10, AF1), PB15 (R15, AF1)
CH4PA11 (C15, AF1), PE14 (P11, AF1)
ETRPA12 (B15, AF1), PG5 (K13, AF1), PE7 (R8, AF1)
TIM2CH1PA15 (JTDI) (A13, AF1), PA0 (N3, AF1), PA5 (P4, AF1)
CH2PB3 (JTDO/TRACESWO) (A10, AF1), PA1 (N2, AF1)
CH3PA2 (P2, AF1), PB10 (R12, AF1)
CH4PA3 (R2, AF1), PB11 (R13, AF1)
ETRPA15 (JTDI) (A13, AF1), PA0 (N3, AF1), PA5 (P4, AF1)
TIM3CH1PB4 (NJTRST) (A9, AF2), PC6 (H15, AF2), PA6 (P3, AF2)
CH2PB5 (A6, AF2), PC7 (G15, AF2), PA7 (R3, AF2)
CH3PC8 (G14, AF2), PB0 (R5, AF2)
CH4PC9 (F14, AF2), PB1 (R4, AF2)
ETRPD2 (D12, AF2)
TIM4CH1PB6 (B6, AF2), PD12 (N13, AF2)
CH2PB7 (B5, AF2), PD13 (M15, AF2)
CH3PB8 (A5, AF2), PD14 (M14, AF2)
CH4PB9 (B4, AF2), PD15 (L14, AF2)
ETRPE0 (A4, AF2)
TIM5CH1PH10 (L13, AF2), PA0 (N3, AF2)
CH2PH11 (L12, AF2), PA1 (N2, AF2)
CH3PH12 (K12, AF2), PA2 (P2, AF2)
CH4PI0 (E14, AF2), PA3 (R2, AF2)
ETRPH8 (M12, AF2), PA4 (N4, AF2)
TIM8BKINPI4 (D4, AF3), PG2 (L15, AF3), PA6 (P3, AF3)
BKIN_COMP1PI4 (D4, AF11), PG2 (L15, AF11), PA6 (P3, AF10)
BKIN_COMP2PI4 (D4, AF11), PG2 (L15, AF11), PA6 (P3, AF10)
BKIN2PI1 (D14, AF3), PA8 (F15, AF3), PG3 (K15, AF3)
BKIN2_COMP1PI1 (D14, AF11), PA8 (F15, AF12), PG3 (K15, AF11)
BKIN2_COMP2PI1 (D14, AF11), PA8 (F15, AF12), PG3 (K15, AF11)
CH1PI5 (C4, AF3), PC6 (H15, AF3)
CH1NPH13 (E12, AF3), PA5 (P4, AF3), PA7 (R3, AF3)
CH2PI6 (C3, AF3), PC7 (G15, AF3)
CH2NPH14 (E13, AF3), PB0 (R5, AF3), PB14 (R14, AF3)
CH3PI7 (C2, AF3), PC8 (G14, AF3)
CH3NPH15 (D13, AF3), PB1 (R4, AF3), PB15 (R15, AF3)
CH4PI2 (C14, AF3), PC9 (F14, AF3)
ETRPI3 (C13, AF3), PG8 (H14, AF3), PA0 (N3, AF3)
TIM12CH1PH6 (M11, AF2), PB14 (R14, AF2)
CH2PH9 (M13, AF2), PB15 (R15, AF2)
TIM13CH1PF8 (L3, AF9), PA6 (P3, AF9)
TIM14CH1PF9 (L2, AF9), PA7 (R3, AF9)
TIM15BKINPE3 (A1, AF4), PA0 (N3, AF4)
CH1PE5 (B2, AF4), PA2 (P2, AF4)
CH1NPE4 (B1, AF4), PA1 (N2, AF4)
CH2PE6 (B3, AF4), PA3 (R2, AF4)
TIM16BKINPB4 (NJTRST) (A9, AF1), PF10 (L1, AF1)
CH1PB8 (A5, AF1), PF6 (K2, AF1)
CH1NPB6 (B6, AF1), PF8 (L3, AF1)
TIM17BKINPB5 (A6, AF1), PG6 (J15, AF1)
CH1PB9 (B4, AF1), PF7 (K1, AF1)
CH1NPB7 (B5, AF1), PF9 (L2, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPE0 (A4, AF1), PG14 (A7, AF1)
IN1PG12 (B8, AF1), PD12 (N13, AF1)
IN2PE1 (A3, AF1), PG11 (B9, AF1), PH2 (F4, AF1)
OUTPG13 (A8, AF1), PD13 (M15, AF1)
LPTIM2ETRPE0 (A4, AF4), PB11 (R13, AF3)
IN1PD12 (N13, AF3), PB10 (R12, AF3)
IN2PD11 (N14, AF3)
OUTPB13 (P13, AF3)
LPTIM3OUTPA1 (N2, AF3)
LPTIM4OUTPA2 (P2, AF3)
LPTIM5OUTPA3 (R2, AF3)

HRTIM — таймер высокого разрешения

БлокСигналВыводы
HRTIMCHA1PC6 (H15, AF1)
CHA2PC7 (G15, AF1)
CHB1PC8 (G14, AF1)
CHB2PA8 (F15, AF2)
CHC1PA9 (E15, AF2)
CHC2PA10 (D15, AF2)
CHD1PA11 (C15, AF2)
CHD2PA12 (B15, AF2)
CHE1PG6 (J15, AF2)
CHE2PG7 (J14, AF2)
EEV1PC10 (B14, AF2)
EEV2PC12 (A12, AF2)
EEV3PD5 (C11, AF2)
EEV4PG11 (B9, AF2)
EEV5PG12 (B8, AF2)
EEV6PB4 (NJTRST) (A9, AF3)
EEV7PB5 (A6, AF3)
EEV8PB6 (B6, AF3)
EEV9PB7 (B5, AF3)
EEV10PG13 (A8, AF2)
FLT1PA15 (JTDI) (A13, AF2)
FLT2PC11 (B13, AF2)
FLT3PD4 (D10, AF2)
FLT4PB3 (JTDO/TRACESWO) (A10, AF2)
FLT5PG10 (B10, AF2)
SCINPE0 (A4, AF3), PB11 (R13, AF2)
SCOUTPE1 (A3, AF3), PB10 (R12, AF2)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT_ALARMPC13 (D1), PB2 (M6, AF0)
OUT_CALIBPC13 (D1), PB2 (M6, AF0)
REFINPB15 (R15, AF0)
TSPC13 (D1)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (E2, AF12)
A1PF1 (H3, AF12)
A2PF2 (H2, AF12)
A3PF3 (J2, AF12)
A4PF4 (J3, AF12)
A5PF5 (K3, AF12)
A6PF12 (P6, AF12)
A7PF13 (N6, AF12)
A8PF14 (R7, AF12)
A9PF15 (P7, AF12)
A10PG0 (N7, AF12)
A11PG1 (M7, AF12)
A12PG2 (L15, AF12)
A13PG3 (K15, AF12)
A14PG4 (K14, AF12)
A15PG5 (K13, AF12)
A16PD11 (N14, AF12)
A17PD12 (N13, AF12)
A18PD13 (M15, AF12)
A19PE3 (A1, AF12)
A20PE4 (B1, AF12)
A21PE5 (B2, AF12)
A22PE6 (B3, AF12)
A23PE2 (A2, AF12)
A24PG13 (A8, AF12)
A25PG14 (A7, AF12)
ALEPD12 (N13)
BA0PG4 (K14, AF12)
BA1PG5 (K13, AF12)
CLEPD11 (N14)
CLKPD3 (D11, AF12)
D0PD14 (M14, AF12)
D1PD15 (L14, AF12)
D2PD0 (B12, AF12)
D3PD1 (C12, AF12)
D4PE7 (R8, AF12)
D5PE8 (P8, AF12)
D6PE9 (P9, AF12)
D7PE10 (R9, AF12)
D8PE11 (P10, AF12)
D9PE12 (R10, AF12)
D10PE13 (N11, AF12)
D11PE14 (P11, AF12)
D12PE15 (R11, AF12)
D13PD8 (P15, AF12)
D14PD9 (P14, AF12)
D15PD10 (N15, AF12)
D16PH8 (M12, AF12)
D17PH9 (M13, AF12)
D18PH10 (L13, AF12)
D19PH11 (L12, AF12)
D20PH12 (K12, AF12)
D21PH13 (E12, AF12)
D22PH14 (E13, AF12)
D23PH15 (D13, AF12)
D24PI0 (E14, AF12)
D25PI1 (D14, AF12)
D26PI2 (C14, AF12)
D27PI3 (C13, AF12)
D28PI6 (C3, AF12)
D29PI7 (C2, AF12)
D30PI9 (D3, AF12)
D31PI10 (E3, AF12)
DA0PD14 (M14, AF12)
DA1PD15 (L14, AF12)
DA2PD0 (B12, AF12)
DA3PD1 (C12, AF12)
DA4PE7 (R8, AF12)
DA5PE8 (P8, AF12)
DA6PE9 (P9, AF12)
DA7PE10 (R9, AF12)
DA8PE11 (P10, AF12)
DA9PE12 (R10, AF12)
DA10PE13 (N11, AF12)
DA11PE14 (P11, AF12)
DA12PE15 (R11, AF12)
DA13PD8 (P15, AF12)
DA14PD9 (P14, AF12)
DA15PD10 (N15, AF12)
INTPG7 (J14, AF12)
NBL0PE0 (A4, AF12)
NBL1PE1 (A3, AF12)
NBL2PI4 (D4, AF12)
NBL3PI5 (C4, AF12)
NCEPG9 (C10, AF12), PC8 (G14, AF9)
NE1PD7 (A11, AF12), PC7 (G15, AF9)
NE2PG9 (C10, AF12), PC8 (G14, AF9)
NE3PG10 (B10, AF12), PG6 (J15, AF12)
NE4PG12 (B8, AF12)
NLPB7 (B5, AF12)
NOEPD4 (D10, AF12)
NWAITPD6 (B11, AF12), PC6 (H15, AF9)
NWEPD5 (C11, AF12)
SDCKE0PH2 (F4, AF12), PC3_C (M5, AF12), PC5 (P5, AF12)
SDCKE1PB5 (A6, AF12), PH7 (N12, AF12)
SDCLKPG8 (H14, AF12)
SDNCASPG15 (B7, AF12)
SDNE0PH3 (G4, AF12), PC2_C (M4, AF12), PC4 (N5, AF12)
SDNE1PB6 (B6, AF12), PH6 (M11, AF12)
SDNRASPF11 (R6, AF12)
SDNWEPH5 (J4, AF12), PC0 (M2, AF12), PA7 (R3, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (E15, AF13), PC6 (H15, AF13), PH9 (M13, AF13)
D1PA10 (D15, AF13), PC7 (G15, AF13), PH10 (L13, AF13)
D2PE0 (A4, AF13), PG10 (B10, AF13), PC8 (G14, AF13), PH11 (L12, AF13)
D3PE1 (A3, AF13), PG11 (B9, AF13), PC9 (F14, AF13), PH12 (K12, AF13)
D4PE4 (B1, AF13), PC11 (B13, AF13), PH14 (E13, AF13)
D5PB6 (B6, AF13), PI4 (D4, AF13), PD3 (D11, AF13)
D6PB8 (A5, AF13), PE5 (B2, AF13), PI6 (C3, AF13)
D7PE6 (B3, AF13), PB9 (B4, AF13), PI7 (C2, AF13)
D8PC10 (B14, AF13), PI1 (D14, AF13), PH6 (M11, AF13)
D9PC12 (A12, AF13), PI2 (C14, AF13), PH7 (N12, AF13)
D10PB5 (A6, AF13), PD6 (B11, AF13), PI3 (C13, AF13)
D11PD2 (D12, AF13), PH15 (D13, AF13), PF10 (L1, AF13)
D12PG6 (J15, AF13), PF11 (R6, AF13)
D13PG15 (B7, AF13), PI0 (E14, AF13), PG7 (J14, AF13)
HSYNCPH8 (M12, AF13), PA4 (N4, AF13)
PIXCLKPA6 (P3, AF13)
VSYNCPB7 (B5, AF13), PI5 (C4, AF13), PG9 (C10, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PG14 (A7, AF14), PE4 (B1, AF14)
B1PG12 (B8, AF14), PA10 (D15, AF14)
B2PG10 (B10, AF14), PD6 (B11, AF14), PC9 (F14, AF14), PA3 (R2, AF9)
B3PG11 (B9, AF14), PA8 (F15, AF13), PD10 (N15, AF14)
B4PG12 (B8, AF9), PI4 (D4, AF14), PA10 (D15, AF12), PE12 (R10, AF14)
B5PI5 (C4, AF14), PA3 (R2, AF14)
B6PB8 (A5, AF14), PI6 (C3, AF14)
B7PB9 (B4, AF14), PI7 (C2, AF14)
CLKPG7 (J14, AF14), PE14 (P11, AF14)
DEPF10 (L1, AF14), PE13 (N11, AF14)
G0PE5 (B2, AF14), PB1 (R4, AF14)
G1PE6 (B3, AF14), PB0 (R5, AF14)
G2PH13 (E12, AF14), PA6 (P3, AF14)
G3PG10 (B10, AF9), PH14 (E13, AF14), PC9 (F14, AF10), PE11 (P10, AF14)
G4PH15 (D13, AF14), PH4 (H4, AF14), PB10 (R12, AF14)
G5PI0 (E14, AF14), PH4 (H4, AF9), PB11 (R13, AF14)
G6PI1 (D14, AF14), PI11 (E4, AF9), PC7 (G15, AF14)
G7PI2 (C14, AF14), PD3 (D11, AF14), PG8 (H14, AF14)
HSYNCPI10 (E3, AF14), PC6 (H15, AF14)
R0PG13 (A8, AF14), PH2 (F4, AF14)
R1PH3 (G4, AF14), PA2 (P2, AF14)
R2PC10 (B14, AF14), PH8 (M12, AF14), PA1 (N2, AF14)
R3PH9 (M13, AF14), PB0 (R5, AF9)
R4PA11 (C15, AF14), PH10 (L13, AF14), PA5 (P4, AF14)
R5PA12 (B15, AF14), PA9 (E15, AF14), PH11 (L12, AF14), PC0 (M2, AF14)
R6PA8 (F15, AF14), PH12 (K12, AF14), PB1 (R4, AF9)
R7PG6 (J15, AF14), PE15 (R11, AF14)
VSYNCPI9 (D3, AF14), PA4 (N4, AF14)

DFSDM — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
DFSDM1CKIN0PC0 (M2, AF3)
CKIN1PD7 (A11, AF6), PC2_C (M4, AF3), PB2 (M6, AF4), PB13 (P13, AF6)
CKIN2PC4 (N5, AF3), PE8 (P8, AF3), PB15 (R15, AF6)
CKIN3PE5 (B2, AF3), PC6 (H15, AF4), PD8 (P15, AF3)
CKIN4PD6 (B11, AF3), PC1 (M3, AF4), PE11 (P10, AF3)
CKIN5PB7 (B5, AF11), PC10 (B14, AF3), PE13 (N11, AF3)
CKIN6PD0 (B12, AF3), PF14 (R7, AF3)
CKIN7PB8 (A5, AF3), PB11 (R13, AF6)
CKOUTPD3 (D11, AF3), PC2_C (M4, AF6), PD10 (N15, AF3), PE9 (P9, AF3), PB0 (R5, AF6)
DATIN0PC1 (M3, AF3)
DATIN1PD6 (B11, AF4), PC3_C (M5, AF3), PB12 (P12, AF6), PB1 (R4, AF6)
DATIN2PC5 (P5, AF3), PE7 (R8, AF3), PB14 (R14, AF6)
DATIN3PE4 (B1, AF3), PC7 (G15, AF4), PD9 (P14, AF3)
DATIN4PD7 (A11, AF3), PC0 (M2, AF6), PE10 (R9, AF3)
DATIN5PB6 (B6, AF11), PC11 (B13, AF3), PE12 (R10, AF3)
DATIN6PD1 (C12, AF3), PF13 (N6, AF3)
DATIN7PB9 (B4, AF3), PB10 (R12, AF6)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (A14, AF0)
JTDIPA15 (JTDI) (A13, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (A10, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (A15, AF0)
TRACECLKPE2 (A2, AF0)
TRACED0PE3 (A1, AF0), PG13 (A8, AF0), PC1 (M3, AF0)
TRACED1PG14 (A7, AF0), PE4 (B1, AF0), PC8 (G14, AF0)
TRACED2PE5 (B2, AF0), PD2 (D12, AF0)
TRACED3PC12 (A12, AF0), PE6 (B3, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (F15, AF0)
MCO_2PC9 (F14, AF0)
OSC_INPH0-OSC_IN (G1)
OSC_OUTPH1-OSC_OUT (H1)
OSC32_INPC14-OSC32_IN (OSC32_IN) (E1)
OSC32_OUTPC15-OSC32_OUT (OSC32_OUT) (F1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC3_C (M5)
PWR_CSTOPPC2_C (M4)
PWR_WKUP1PA0 (N3)
PWR_WKUP2PA2 (P2)
PWR_WKUP3PI8 (D2)
PWR_WKUP4PC13 (D1)
PWR_WKUP5PI11 (E4)
PWR_WKUP6PC1 (M3)
RTC_TAMP1PC13 (D1)
RTC_TAMP2PI8 (D2)
RTC_TAMP3PC1 (M3)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), USB_OTG_HS1 (USB On-The-Go High Speed), HDMI_CEC (шина управления HDMI), TIM6 (таймер), TIM7 (таймер), IWDG1 (независимый сторожевой таймер), WWDG1 (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), DMA2D (графический ускоритель Chrom-ART).

Таблица выводов

Все 201 шарик корпуса UFBGA176+25 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), SAI4_SD_B (AF8), TIM15_BKIN (AF4)
A2PE2ввод-выводDEBUG_TRACECLK (AF0), ETH_TXD3 (AF11), FMC_A23 (AF12), QUADSPI_BK1_IO2 (AF9), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SAI4_CK1 (AF10), SAI4_MCLK_A (AF8), SPI4_SCK (AF5)
A3PE1ввод-выводDCMI_D3 (AF13), FMC_NBL1 (AF12), HRTIM_SCOUT (AF3), LPTIM1_IN2 (AF1), UART8_TX (AF8)
A4PE0ввод-выводDCMI_D2 (AF13), FMC_NBL0 (AF12), HRTIM_SCIN (AF3), LPTIM1_ETR (AF1), LPTIM2_ETR (AF4), SAI2_MCLK_A (AF10), TIM4_ETR (AF2), UART8_RX (AF8)
A5PB8ввод-выводDCMI_D6 (AF13), DFSDM1_CKIN7 (AF3), ETH_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), LTDC_B6 (AF14), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
A6PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), HRTIM_EEV7 (AF3), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14), USB_OTG_HS_ULPI_D7 (AF10)
A7PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_TXD1 (AF11), FMC_A25 (AF12), LPTIM1_ETR (AF1), LTDC_B0 (AF14), QUADSPI_BK2_IO3 (AF9), SPI6_MOSI (AF5), USART6_TX (AF7)
A8PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_TXD0 (AF11), FMC_A24 (AF12), HRTIM_EEV10 (AF2), LPTIM1_OUT (AF1), LTDC_R0 (AF14), SPI6_SCK (AF5), USART6_CTS (AF7), USART6_NSS (AF7)
A9PB4 (NJTRST)ввод-выводDEBUG_JTRST, HRTIM_EEV6 (AF3), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
A10PB3 (JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), HRTIM_FLT4 (AF2), I2S1_CK (AF5), I2S3_CK (AF6), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART7_RX (AF11)
A11PD7ввод-выводDFSDM1_CKIN1 (AF6), DFSDM1_DATIN4 (AF3), FMC_NE1 (AF12), I2S1_SDO (AF5), SDMMC2_CMD (AF11), SPDIFRX1_IN0 (AF9), SPI1_MOSI (AF5), USART2_CK (AF7)
A12PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), HRTIM_EEV2 (AF2), I2S3_SDO (AF6), SDMMC1_CK (AF12), SPI3_MOSI (AF6), UART5_TX (AF8), USART3_CK (AF7)
A13PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), HRTIM_FLT1 (AF2), I2S1_WS (AF5), I2S3_WS (AF6), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF1), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
A14PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
A15PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
B1PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), DFSDM1_DATIN3 (AF3), FMC_A20 (AF12), LTDC_B0 (AF14), SAI1_D2 (AF2), SAI1_FS_A (AF6), SAI4_D2 (AF10), SAI4_FS_A (AF8), SPI4_NSS (AF5), TIM15_CH1N (AF4)
B2PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), DFSDM1_CKIN3 (AF3), FMC_A21 (AF12), LTDC_G0 (AF14), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SAI4_CK2 (AF10), SAI4_SCK_A (AF8), SPI4_MISO (AF5), TIM15_CH1 (AF4)
B3PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF14), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SAI4_D1 (AF9), SAI4_SD_A (AF8), SPI4_MOSI (AF5), TIM15_CH2 (AF4), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
B4PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), DFSDM1_DATIN7 (AF3), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2C4_SMBA (AF11), I2S2_WS (AF5), LTDC_B7 (AF14), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
B5PB7ввод-выводDCMI_VSYNC (AF13), DFSDM1_CKIN5 (AF11), FMC_NL (AF12), HRTIM_EEV9 (AF3), I2C1_SDA (AF4), I2C4_SDA (AF6), LPUART1_RX (AF8), PWR_PVD_IN, TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
B6PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), DFSDM1_DATIN5 (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), HRTIM_EEV8 (AF3), I2C1_SCL (AF4), I2C4_SCL (AF6), LPUART1_TX (AF8), QUADSPI_BK1_NCS (AF10), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
B7PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), USART6_CTS (AF7), USART6_NSS (AF7)
B8PG12ввод-выводETH_TXD1 (AF11), FMC_NE4 (AF12), HRTIM_EEV5 (AF2), LPTIM1_IN1 (AF1), LTDC_B1 (AF14), LTDC_B4 (AF9), SPDIFRX1_IN1 (AF8), SPI6_MISO (AF5), USART6_DE (AF7), USART6_RTS (AF7)
B9PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3 (AF13), ETH_TX_EN (AF11), HRTIM_EEV4 (AF2), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B3 (AF14), SDMMC2_D2 (AF10), SPDIFRX1_IN0 (AF8), SPI1_SCK (AF5)
B10PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), HRTIM_FLT5 (AF2), I2S1_WS (AF5), LTDC_B2 (AF14), LTDC_G3 (AF9), SAI2_SD_B (AF10), SPI1_NSS (AF5)
B11PD6ввод-выводDCMI_D10 (AF13), DFSDM1_CKIN4 (AF3), DFSDM1_DATIN1 (AF4), FMC_NWAIT (AF12), I2S3_SDO (AF5), LTDC_B2 (AF14), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
B12PD0ввод-выводDFSDM1_CKIN6 (AF3), FDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), SAI3_SCK_A (AF6), UART4_RX (AF8)
B13PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4 (AF13), DFSDM1_DATIN5 (AF3), HRTIM_FLT2 (AF2), I2S3_SDI (AF6), QUADSPI_BK2_NCS (AF9), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
B14PC10ввод-выводDCMI_D8 (AF13), DFSDM1_CKIN5 (AF3), HRTIM_EEV1 (AF2), I2S3_CK (AF6), LTDC_R2 (AF14), QUADSPI_BK1_IO1 (AF9), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
B15PA12ввод-выводFDCAN1_TX (AF9), HRTIM_CHD2 (AF2), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R5 (AF14), SAI2_FS_B (AF8), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP (AF10)
C1VBATпитание—
C2PI7ввод-выводDCMI_D7 (AF13), FMC_D29 (AF12), LTDC_B7 (AF14), SAI2_FS_A (AF10), TIM8_CH3 (AF3)
C3PI6ввод-выводDCMI_D6 (AF13), FMC_D28 (AF12), LTDC_B6 (AF14), SAI2_SD_A (AF10), TIM8_CH2 (AF3)
C4PI5ввод-выводDCMI_VSYNC (AF13), FMC_NBL3 (AF12), LTDC_B5 (AF14), SAI2_SCK_A (AF10), TIM8_CH1 (AF3)
C5VDDпитание—
C6PDR_ONпитание—
C7VDDпитание—
C8VDDпитание—
C9VDDпитание—
C10PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), QUADSPI_BK2_IO2 (AF9), SAI2_FS_B (AF10), SPDIFRX1_IN3 (AF8), SPI1_MISO (AF5), USART6_RX (AF7)
C11PD5ввод-выводFMC_NWE (AF12), HRTIM_EEV3 (AF2), USART2_TX (AF7)
C12PD1ввод-выводDFSDM1_DATIN6 (AF3), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), SAI3_SD_A (AF6), UART4_TX (AF8)
C13PI3ввод-выводDCMI_D10 (AF13), FMC_D27 (AF12), I2S2_SDO (AF5), SPI2_MOSI (AF5), TIM8_ETR (AF3)
C14PI2ввод-выводDCMI_D9 (AF13), FMC_D26 (AF12), I2S2_SDI (AF5), LTDC_G7 (AF14), SPI2_MISO (AF5), TIM8_CH4 (AF3)
C15PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX (AF9), HRTIM_CHD1 (AF2), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R4 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_FS_DM (AF10)
D1PC13ввод-выводPWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS
D2PI8ввод-выводPWR_WKUP3, RTC_TAMP2
D3PI9ввод-выводDAC1_EXTI9, FDCAN1_RX (AF9), FMC_D30 (AF12), LTDC_VSYNC (AF14), UART4_RX (AF8)
D4PI4ввод-выводDCMI_D5 (AF13), FMC_NBL2 (AF12), LTDC_B4 (AF14), SAI2_MCLK_A (AF10), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
D5VSSпитание—
D6BOOT0загрузка—
D7VSSпитание—
D8VSSпитание—
D9VSSпитание—
D10PD4ввод-выводFMC_NOE (AF12), HRTIM_FLT3 (AF2), SAI3_FS_A (AF6), USART2_DE (AF7), USART2_RTS (AF7)
D11PD3ввод-выводDCMI_D5 (AF13), DFSDM1_CKOUT (AF3), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_G7 (AF14), SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
D12PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), SDMMC1_CMD (AF12), TIM3_ETR (AF2), UART5_RX (AF8)
D13PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11 (AF13), FMC_D23 (AF12), LTDC_G4 (AF14), TIM8_CH3N (AF3)
D14PI1ввод-выводDCMI_D8 (AF13), FMC_D25 (AF12), I2S2_CK (AF5), LTDC_G6 (AF14), SPI2_SCK (AF5), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
D15PA10ввод-выводDCMI_D1 (AF13), HRTIM_CHC2 (AF2), LPUART1_RX (AF3), LTDC_B1 (AF14), LTDC_B4 (AF12), MDIOS_MDIO (AF11), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_FS_ID (AF10)
E1PC14-OSC32_IN (OSC32_IN)ввод-выводRCC_OSC32_IN
E2PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4)
E3PI10ввод-выводETH_RX_ER (AF11), FMC_D31 (AF12), LTDC_HSYNC (AF14)
E4PI11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LTDC_G6 (AF9), PWR_WKUP5, USB_OTG_HS_ULPI_DIR (AF10)
E12PH13ввод-выводFDCAN1_TX (AF9), FMC_D21 (AF12), LTDC_G2 (AF14), TIM8_CH1N (AF3), UART4_TX (AF8)
E13PH14ввод-выводDCMI_D4 (AF13), FDCAN1_RX (AF9), FMC_D22 (AF12), LTDC_G3 (AF14), TIM8_CH2N (AF3), UART4_RX (AF8)
E14PI0ввод-выводDCMI_D13 (AF13), FMC_D24 (AF12), I2S2_WS (AF5), LTDC_G5 (AF14), SPI2_NSS (AF5), TIM5_CH4 (AF2)
E15PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_TX_ER (AF11), HRTIM_CHC1 (AF2), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R5 (AF14), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_FS_VBUS
F1PC15-OSC32_OUT (OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
F2VSSпитание—
F3VDDпитание—
F4PH2ввод-выводADC3_INP13, ETH_CRS (AF11), FMC_SDCKE0 (AF12), LPTIM1_IN2 (AF1), LTDC_R0 (AF14), QUADSPI_BK2_IO0 (AF9), SAI2_SCK_B (AF10)
F6VSSпитание—
F7VSSпитание—
F8VSSпитание—
F9VSSпитание—
F10VSSпитание—
F12VSSпитание—
F13VCAPпитание—
F14PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF13), I2C3_SDA (AF4), I2S_CKIN (AF5), LTDC_B2 (AF14), LTDC_G3 (AF10), QUADSPI_BK1_IO0 (AF9), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), SWPMI1_SUSPEND (AF11), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8)
F15PA8ввод-выводHRTIM_CHB2 (AF2), I2C3_SCL (AF4), LTDC_B3 (AF13), LTDC_R6 (AF14), RCC_MCO_1 (AF0), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF12), TIM8_BKIN2_COMP2 (AF12), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF (AF10)
G1PH0-OSC_INввод-выводRCC_OSC_IN
G2VSSпитание—
G3VDDпитание—
G4PH3ввод-выводADC3_INN13, ADC3_INP14, ETH_COL (AF11), FMC_SDNE0 (AF12), LTDC_R1 (AF14), QUADSPI_BK2_IO1 (AF9), SAI2_MCLK_B (AF10)
G6VSSпитание—
G7VSSпитание—
G8VSSпитание—
G9VSSпитание—
G10VSSпитание—
G12VSSпитание—
G13VDDпитание—
G14PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_NCE (AF9), FMC_NE2 (AF9), HRTIM_CHB1 (AF1), SDMMC1_D0 (AF12), SWPMI1_RX (AF11), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
G15PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), DFSDM1_DATIN3 (AF4), FMC_NE1 (AF9), HRTIM_CHA2 (AF1), I2S3_MCK (AF6), LTDC_G6 (AF14), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), SWPMI1_TX (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
H1PH1-OSC_OUTввод-выводRCC_OSC_OUT
H2PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4)
H3PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4)
H4PH4ввод-выводADC3_INN14, ADC3_INP15, I2C2_SCL (AF4), LTDC_G4 (AF14), LTDC_G5 (AF9), USB_OTG_HS_ULPI_NXT (AF10)
H6VSSпитание—
H7VSSпитание—
H8VSSпитание—
H9VSSпитание—
H10VSSпитание—
H12VSSпитание—
H13VDD33_USBпитание—
H14PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), LTDC_G7 (AF14), SPDIFRX1_IN2 (AF8), SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
H15PC6ввод-выводDCMI_D0 (AF13), DFSDM1_CKIN3 (AF4), FMC_NWAIT (AF9), HRTIM_CHA1 (AF1), I2S2_MCK (AF5), LTDC_HSYNC (AF14), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), SWPMI1_IO, TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
J1NRSTсброс—
J2PF3ввод-выводADC3_INP5, FMC_A3 (AF12)
J3PF4ввод-выводADC3_INN5, ADC3_INP9, FMC_A4 (AF12)
J4PH5ввод-выводADC3_INN15, ADC3_INP16, FMC_SDNWE (AF12), I2C2_SDA (AF4), SPI5_NSS (AF5)
J6VSSпитание—
J7VSSпитание—
J8VSSпитание—
J9VSSпитание—
J10VSSпитание—
J12VDDпитание—
J13VDDпитание—
J14PG7ввод-выводDCMI_D13 (AF13), FMC_INT (AF12), HRTIM_CHE2 (AF2), LTDC_CLK (AF14), SAI1_MCLK_A (AF6), USART6_CK (AF7)
J15PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), HRTIM_CHE1 (AF2), LTDC_R7 (AF14), QUADSPI_BK1_NCS (AF10), TIM17_BKIN (AF1)
K1PF7ввод-выводADC3_INP3, QUADSPI_BK1_IO2 (AF9), SAI1_MCLK_B (AF6), SAI4_MCLK_B (AF8), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
K2PF6ввод-выводADC3_INN4, ADC3_INP8, QUADSPI_BK1_IO3 (AF9), SAI1_SD_B (AF6), SAI4_SD_B (AF8), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
K3PF5ввод-выводADC3_INP4, FMC_A5 (AF12)
K4VDDпитание—
K6VSSпитание—
K7VSSпитание—
K8VSSпитание—
K9VSSпитание—
K10VSSпитание—
K12PH12ввод-выводDCMI_D3 (AF13), FMC_D20 (AF12), I2C4_SDA (AF4), LTDC_R6 (AF14), TIM5_CH3 (AF2)
K13PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
K14PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
K15PG3ввод-выводFMC_A13 (AF12), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
L1PF10ввод-выводADC3_INN2, ADC3_INP6, DCMI_D11 (AF13), LTDC_DE (AF14), QUADSPI_CLK (AF9), SAI1_D3 (AF2), SAI4_D3 (AF10), TIM16_BKIN (AF1)
L2PF9ввод-выводADC3_INP2, DAC1_EXTI9, QUADSPI_BK1_IO1 (AF10), SAI1_FS_B (AF6), SAI4_FS_B (AF8), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
L3PF8ввод-выводADC3_INN3, ADC3_INP7, QUADSPI_BK1_IO0 (AF10), SAI1_SCK_B (AF6), SAI4_SCK_B (AF8), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
L4VSSпитание—
L12PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2 (AF13), FMC_D19 (AF12), I2C4_SCL (AF4), LTDC_R5 (AF14), TIM5_CH2 (AF2)
L13PH10ввод-выводDCMI_D1 (AF13), FMC_D18 (AF12), I2C4_SMBA (AF4), LTDC_R4 (AF14), TIM5_CH1 (AF2)
L14PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), SAI3_MCLK_A (AF6), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8)
L15PG2ввод-выводFMC_A12 (AF12), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
M1VSSAпитание—
M2PC0ввод-выводADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0 (AF3), DFSDM1_DATIN4 (AF6), FMC_SDNWE (AF12), LTDC_R5 (AF14), SAI2_FS_B (AF8), USB_OTG_HS_ULPI_STP (AF10)
M3PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0 (AF0), DFSDM1_CKIN4 (AF4), DFSDM1_DATIN0 (AF3), ETH_MDC (AF11), I2S2_SDO (AF5), MDIOS_MDC (AF12), PWR_WKUP6, RTC_TAMP3, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5)
M4PC2_Cввод-выводADC3_INN1, ADC3_INP0, DFSDM1_CKIN1 (AF3), DFSDM1_CKOUT (AF6), ETH_TXD2 (AF11), FMC_SDNE0 (AF12), I2S2_SDI (AF5), PWR_CSTOP, SPI2_MISO (AF5), USB_OTG_HS_ULPI_DIR (AF10)
M5PC3_Cввод-выводADC3_INP1, DFSDM1_DATIN1 (AF3), ETH_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), PWR_CSLEEP, SPI2_MOSI (AF5), USB_OTG_HS_ULPI_NXT (AF10)
M6PB2ввод-выводCOMP1_INP, DFSDM1_CKIN1 (AF4), ETH_TX_ER (AF11), I2S3_SDO (AF7), QUADSPI_CLK (AF9), RTC_OUT_ALARM (AF0), RTC_OUT_CALIB (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SPI3_MOSI (AF7)
M7PG1ввод-выводFMC_A11 (AF12), OPAMP2_VINM, OPAMP2_VINM1
M8VSSпитание—
M9VSSпитание—
M10VCAPпитание—
M11PH6ввод-выводDCMI_D8 (AF13), ETH_RXD2 (AF11), FMC_SDNE1 (AF12), I2C2_SMBA (AF4), SPI5_SCK (AF5), TIM12_CH1 (AF2)
M12PH8ввод-выводDCMI_HSYNC (AF13), FMC_D16 (AF12), I2C3_SDA (AF4), LTDC_R2 (AF14), TIM5_ETR (AF2)
M13PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), FMC_D17 (AF12), I2C3_SMBA (AF4), LTDC_R3 (AF14), TIM12_CH2 (AF2)
M14PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), SAI3_MCLK_B (AF6), TIM4_CH3 (AF2), UART8_CTS (AF8)
M15PD13ввод-выводFMC_A18 (AF12), I2C4_SDA (AF4), LPTIM1_OUT (AF1), QUADSPI_BK1_IO3 (AF9), SAI2_SCK_A (AF10), TIM4_CH2 (AF2)
N1VREF-питание—
N2PA1ввод-выводADC1_INN16, ADC1_INP17, ETH_REF_CLK (AF11), ETH_RX_CLK (AF11), LPTIM3_OUT (AF3), LTDC_R2 (AF14), QUADSPI_BK1_IO3 (AF9), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
N3PA0ввод-выводADC1_INP16, ETH_CRS (AF11), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
N4PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), I2S1_WS (AF5), I2S3_WS (AF6), LTDC_VSYNC (AF14), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7), USB_OTG_HS_SOF (AF12)
N5PC4ввод-выводADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2 (AF3), ETH_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), OPAMP1_VOUT, SPDIFRX1_IN2 (AF9)
N6PF13ввод-выводADC2_INP2, DFSDM1_DATIN6 (AF3), FMC_A7 (AF12), I2C4_SMBA (AF4)
N7PG0ввод-выводFMC_A10 (AF12)
N8VDDпитание—
N9VDDпитание—
N10VDDпитание—
N11PE13ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN5 (AF3), FMC_D10 (AF12), FMC_DA10 (AF12), LTDC_DE (AF14), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
N12PH7ввод-выводDCMI_D9 (AF13), ETH_RXD3 (AF11), FMC_SDCKE1 (AF12), I2C3_SCL (AF4), SPI5_MISO (AF5)
N13PD12ввод-выводFMC_A17 (AF12), FMC_ALE, I2C4_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), QUADSPI_BK1_IO1 (AF9), SAI2_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
N14PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16 (AF12), FMC_CLE, I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), QUADSPI_BK1_IO0 (AF9), SAI2_SD_A (AF10), USART3_CTS (AF7), USART3_NSS (AF7)
N15PD10ввод-выводDFSDM1_CKOUT (AF3), FMC_D15 (AF12), FMC_DA15 (AF12), LTDC_B3 (AF14), SAI3_FS_B (AF6), USART3_CK (AF7)
P1VREF+служебныйVREFBUF_OUT
P2PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM4_OUT (AF3), LTDC_R1 (AF14), MDIOS_MDIO (AF12), PWR_WKUP2, SAI2_SCK_B (AF8), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
P3PA6ввод-выводADC1_INP3, ADC2_INP3, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), LTDC_G2 (AF14), MDIOS_MDC (AF11), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF12), TIM1_BKIN_COMP2 (AF12), TIM3_CH1 (AF2), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
P4PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, I2S1_CK (AF5), LTDC_R4 (AF14), PWR_NDSTOP2, SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM8_CH1N (AF3), USB_OTG_HS_ULPI_CK (AF10)
P5PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT (AF13), DFSDM1_DATIN2 (AF3), ETH_RXD1 (AF11), FMC_SDCKE0 (AF12), OPAMP1_VINM, OPAMP1_VINM0, SAI1_D3 (AF2), SAI4_D3 (AF10), SPDIFRX1_IN3 (AF9)
P6PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12)
P7PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4)
P8PE8ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN2 (AF3), FMC_D5 (AF12), FMC_DA5 (AF12), OPAMP2_VINM, OPAMP2_VINM0, QUADSPI_BK2_IO1 (AF10), TIM1_CH1N (AF1), UART7_TX (AF7)
P9PE9ввод-выводCOMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT (AF3), FMC_D6 (AF12), FMC_DA6 (AF12), OPAMP2_VINP, QUADSPI_BK2_IO2 (AF10), TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
P10PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4 (AF3), FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G3 (AF14), SAI2_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
P11PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), LTDC_CLK (AF14), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
P12PB12ввод-выводDFSDM1_DATIN1 (AF6), ETH_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SMBA (AF4), I2S2_WS (AF5), SPI2_NSS (AF5), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), UART5_RX (AF14), USART3_CK (AF7), USB_OTG_HS_ID (AF12), USB_OTG_HS_ULPI_D5 (AF10)
P13PB13ввод-выводDFSDM1_CKIN1 (AF6), ETH_TXD1 (AF11), FDCAN2_TX (AF9), I2S2_CK (AF5), LPTIM2_OUT (AF3), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), USART3_CTS (AF7), USART3_NSS (AF7), USB_OTG_HS_ULPI_D6 (AF10), USB_OTG_HS_VBUS
P14PD9ввод-выводDAC1_EXTI9, DFSDM1_DATIN3 (AF3), FMC_D14 (AF12), FMC_DA14 (AF12), SAI3_SD_B (AF6), USART3_RX (AF7)
P15PD8ввод-выводDFSDM1_CKIN3 (AF3), FMC_D13 (AF12), FMC_DA13 (AF12), SAI3_SCK_B (AF6), SPDIFRX1_IN1 (AF9), USART3_TX (AF7)
R1VDDAпитание—
R2PA3ввод-выводADC1_INP15, ADC2_INP15, ETH_COL (AF11), LPTIM5_OUT (AF3), LTDC_B2 (AF9), LTDC_B5 (AF14), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7), USB_OTG_HS_ULPI_D0 (AF10)
R3PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV (AF11), ETH_RX_DV (AF11), FMC_SDNWE (AF12), I2S1_SDO (AF5), OPAMP1_VINM, OPAMP1_VINM1, SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3)
R4PB1ввод-выводADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1 (AF6), ETH_RXD3 (AF11), LTDC_G0 (AF14), LTDC_R6 (AF9), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USB_OTG_HS_ULPI_D2 (AF10)
R5PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT (AF6), ETH_RXD2 (AF11), LTDC_G1 (AF14), LTDC_R3 (AF9), OPAMP1_VINP, TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USB_OTG_HS_ULPI_D1 (AF10)
R6PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
R7PF14ввод-выводADC2_INN2, ADC2_INP6, DFSDM1_CKIN6 (AF3), FMC_A8 (AF12), I2C4_SCL (AF4)
R8PE7ввод-выводCOMP2_INM, DFSDM1_DATIN2 (AF3), FMC_D4 (AF12), FMC_DA4 (AF12), OPAMP2_VOUT, QUADSPI_BK2_IO0 (AF10), TIM1_ETR (AF1), UART7_RX (AF7)
R9PE10ввод-выводCOMP2_INM, DFSDM1_DATIN4 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), QUADSPI_BK2_IO3 (AF10), TIM1_CH2N (AF1), UART7_CTS (AF7)
R10PE12ввод-выводCOMP1_OUT (AF13), DFSDM1_DATIN5 (AF3), FMC_D9 (AF12), FMC_DA9 (AF12), LTDC_B4 (AF14), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
R11PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R7 (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13)
R12PB10ввод-выводDFSDM1_DATIN7 (AF6), ETH_RX_ER (AF11), HRTIM_SCOUT (AF2), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), LTDC_G4 (AF14), QUADSPI_BK1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7), USB_OTG_HS_ULPI_D3 (AF10)
R13PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7 (AF6), ETH_TX_EN (AF11), HRTIM_SCIN (AF2), I2C2_SDA (AF4), LPTIM2_ETR (AF3), LTDC_G5 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7), USB_OTG_HS_ULPI_D4 (AF10)
R14PB14ввод-выводDFSDM1_DATIN2 (AF6), I2S2_SDI (AF5), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7), USB_OTG_HS_DM (AF12)
R15PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2 (AF6), I2S2_SDO (AF5), RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), USART1_RX (AF4), USB_OTG_HS_DP (AF12)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
PDR_ONC6управление внутренней схемой сброса по питанию
VBATC1резервное питание: часы реального времени и резервные регистры
VCAPF13, M10вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDC5, C7, C8, C9, F3, G3, G13, J12, J13, K4, N8, N9, N10питание цифровой части и линий ввода-вывода
VDD33_USBH13—
VDDAR1питание аналоговой части: АЦП, ЦАП, генераторы
VREF-N1нижнее опорное напряжение АЦП
VSSD5, D7, D8, D9, F2, F6, F7, F8, F9, F10, F12, G2, G6, G7, G8, G9, G10, G12, H6, H7, H8, H9, H10, H12, J6, J7, J8, J9, J10, K6, K7, K8, K9, K10, L4, M8, M9общий провод (земля)
VSSAM1общий провод аналоговой части
NRSTJ1сброс, активный уровень — низкий
BOOT0D6выбор источника загрузки при сбросе
VREF+P1верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H743IGKx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H743IGSTM32H743IGKx1 МБ864 КБ

Линейка STM32H743/753, семейство STM32H7, ядро Cortex-M7.

Заказные номера

Полные номера для заказа из таблицы на странице продукта на сайте ST: STM32H743IG. Данные на 11 октября 2026 г.; перечислены номера, которые в этот момент выпускались. Цифра после буквы корпуса — температурный диапазон, вид упаковки указан в последнем столбце.

Номер для заказаКорпусТемператураУпаковка
STM32H743IGK6UFBGA 176+25, 10×10×0,6 мм, шаг 0,65 мм−40…+85 °Cлоток

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе UFBGA176+25, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H743IISTM32H743/753201 из 201выводы совпадают полностьюфлеш-память до 1024 и 2048 КБ
STM32H753IISTM32H743/753201 из 201выводы совпадают полностьютолько у него: CRYP, HASH; флеш-память до 1024 и 2048 КБ
STM32H742IG, STM32H742IISTM32H742201 из 201выводы совпадают полностьютолько у этого: LTDC; флеш-память до 1024 и 2048 КБ
STM32H750IBSTM32H750 Value line201 из 201выводы совпадают полностьютолько у него: CRYP, HASH; флеш-память до 1024 и 128 КБ

Частые вопросы

На каких выводах USART1 у STM32H743IG?

В корпусе UFBGA176+25 сигнал USART1_TX выведен на PB6 (шарик B6, AF7) или PA9 (шарик E15, AF7) или PB14 (шарик R14, AF4), USART1_RX — на PB7 (шарик B5, AF7) или PA10 (шарик D15, AF7) или PB15 (шарик R15, AF4).

Где у STM32H743IG выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик A15, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик A14, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H743IG?

I2C1_SCL — PB8 (шарик A5, AF4) или PB6 (шарик B6, AF4), I2C1_SDA — PB9 (шарик B4, AF4) или PB7 (шарик B5, AF4).

Сколько выводов ввода-вывода у STM32H743IG в корпусе UFBGA176+25?

140 из 201. Ещё 58 выводов заняты питанием и землёй, остальные 3 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32H743IG?

От 1,62 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Заказные номера, корпуса, упаковка и температурный диапазон — из таблиц на страницах продуктов st.com (данные на 11 октября 2026 г.). Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
