STM32H7B0AB в корпусе UFBGA169: распиновка

STM32H7B0AB — микроконтроллер STM32H7 на ядре Cortex-M7 с частотой до 280 МГц: 128 КБ флеш-памяти и 1,390625 МБ ОЗУ. Корпус UFBGA169 — 169 шариков, из них 125 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M7
Частота ядра
до 280 МГц
Флеш-память
128 КБ
ОЗУ
1,390625 МБ
Корпус
UFBGA169, 169 шариков
Линий ввода-вывода
125
Напряжение питания
1,62…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса UFBGA169

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32H7B0AB в корпусе UFBGA169, вид сверхуABCDEFGHJKLMN12345678910111213PE4 — шарик A1: DCMI_D4, DEBUG_TRACED1, DFSDM1_DATIN3, FMC_A20, LTDC_B0, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TIM15_CH1NPE4PE2 — шарик A2: DEBUG_TRACECLK, FMC_A23, OCTOSPIM_P1_IO2, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, USART10_RXPE2VDD — шарик A3VDDVCAP — шарик A4VCAPPB6 — шарик A5: CEC, DCMI_D5, DFSDM1_DATIN5, FDCAN2_TX, FMC_SDNE1, I2C1_SCL, I2C4_SCL, LPUART1_TX, OCTOSPIM_P1_NCS, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6VDDMMC — шарик A6VDDMMCVDD — шарик A7VDDPG10 — шарик A8: DCMI_D2, FMC_NE3, I2S1_WS, LTDC_B2, LTDC_G3, OCTOSPIM_P2_IO6, PSSI_D2, SAI2_SD_B, SDMMC2_D1, SPI1_NSSPG10PD5 — шарик A9: FMC_NWE, OCTOSPIM_P1_IO5, USART2_TXPD5VDD — шарик A10VDDPC12 — шарик A11: DCMI_D9, DEBUG_TRACED3, DFSDM2_CKOUT, I2S3_SDO, I2S6_CK, LTDC_R6, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CKPC12PC10 — шарик A12: DCMI_D8, DFSDM1_CKIN5, DFSDM2_CKIN0, I2S3_CK, LTDC_B1, LTDC_R2, OCTOSPIM_P1_IO1, PSSI_D8, SDMMC1_D2, SPI3_SCK, SWPMI1_RX, UART4_TX, USART3_TXPC10PH14 — шарик A13: DCMI_D4, FDCAN1_RX, FMC_D22, LTDC_G3, PSSI_D4, TIM8_CH2N, UART4_RXPH14PC15-OSC32_OUT — шарик B1: ADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUTPC15PE3 — шарик B2: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, TIM15_BKIN, USART10_TXPE3VSS — шарик B3VSSVDDLDO — шарик B4VDDLDOPB8 — шарик B5: DCMI_D6, DFSDM1_CKIN7, FDCAN1_RX, I2C1_SCL, I2C4_SCL, LTDC_B6, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RXPB8PB4 — шарик B6: DEBUG_NJTRST, I2S1_SDI, I2S2_WS, I2S3_SDI, I2S6_SDI, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4VSS — шарик B7VSSPG11 — шарик B8: ADC1_EXTI11, ADC2_EXTI11, DCMI_D3, I2S1_CK, LPTIM1_IN2, LTDC_B3, OCTOSPIM_P2_IO7, PSSI_D3, SDMMC2_D2, SPDIFRX_IN0, SPI1_SCK, USART10_RXPG11PD6 — шарик B9: DCMI_D10, DFSDM1_CKIN4, DFSDM1_DATIN1, FMC_NWAIT, I2S3_SDO, LTDC_B2, OCTOSPIM_P1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6VSS — шарик B10VSSPC11 — шарик B11: ADC1_EXTI11, ADC2_EXTI11, DCMI_D4, DFSDM1_DATIN5, DFSDM2_DATIN0, I2S3_SDI, LTDC_B4, OCTOSPIM_P1_NCS, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PA14 — шарик B12: DEBUG_JTCK-SWCLKPA14PH13 — шарик B13: FDCAN1_TX, FMC_D21, LTDC_G2, TIM8_CH1N, UART4_TXPH13PC14-OSC32_IN — шарик C1: RCC_OSC32_INPC14PE6 — шарик C2: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PE6PE5 — шарик C3: DCMI_D6, DEBUG_TRACED2, DFSDM1_CKIN3, FMC_A21, LTDC_G0, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TIM15_CH1PE5PDR_ON — шарик C4PDR_ONPB9 — шарик C5: DAC1_EXTI9, DCMI_D7, DFSDM1_DATIN7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2C4_SMBA, I2S2_WS, LTDC_B7, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PB5 — шарик C6: DCMI_D10, FDCAN2_RX, FMC_SDCKE1, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, I2S6_SDO, LTDC_B5, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX, USB_OTG_HS_ULPI_D7PB5PG14 — шарик C7: DEBUG_TRACED1, FMC_A25, I2S6_SDO, LPTIM1_ETR, LTDC_B0, OCTOSPIM_P1_IO7, SDMMC2_D7, SPI6_MOSI, USART10_DE, USART10_RTS, USART6_TXPG14PG9 — шарик C8: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, OCTOSPIM_P1_IO6, PSSI_RDY, SAI2_FS_B, SDMMC2_D0, SPDIFRX_IN3, SPI1_MISO, USART6_RXPG9PD4 — шарик C9: FMC_NOE, OCTOSPIM_P1_IO4, USART2_DE, USART2_RTSPD4PD1 — шарик C10: DFSDM1_DATIN6, FDCAN1_TX, FMC_D3, FMC_DA3, UART4_TXPD1PA15 — шарик C11: ADC1_EXTI15, ADC2_EXTI15, CEC, DEBUG_JTDI, I2S1_WS, I2S3_WS, I2S6_WS, LTDC_B6, LTDC_R3, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15VSS — шарик C12VSSVDD — шарик C13VDDVDD — шарик D1VDDVSS — шарик D2VSSPC13 — шарик D3: PWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TSPC13PE1 — шарик D4: DCMI_D3, FMC_NBL1, LPTIM1_IN2, LTDC_R6, PSSI_D3, UART8_TXPE1PE0 — шарик D5: DCMI_D2, FMC_NBL0, LPTIM1_ETR, LPTIM2_ETR, LTDC_R0, PSSI_D2, SAI2_MCLK_A, TIM4_ETR, UART8_RXPE0PB7 — шарик D6: DCMI_VSYNC, DFSDM1_CKIN5, FMC_NL, I2C1_SDA, I2C4_SDA, LPUART1_RX, PSSI_RDY, PWR_PVD_IN, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PG13 — шарик D7: DEBUG_TRACED0, FMC_A24, I2S6_CK, LPTIM1_OUT, LTDC_R0, SDMMC2_D6, SPI6_SCK, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSSPG13PD7 — шарик D8: DFSDM1_CKIN1, DFSDM1_DATIN4, FMC_NE1, I2S1_SDO, OCTOSPIM_P1_IO7, SDMMC2_CMD, SPDIFRX_IN0, SPI1_MOSI, USART2_CKPD7PD3 — шарик D9: DCMI_D5, DFSDM1_CKOUT, FMC_CLK, I2S2_CK, LTDC_G7, PSSI_D5, SPI2_SCK, USART2_CTS, USART2_NSSPD3PD0 — шарик D10: DFSDM1_CKIN6, FDCAN1_RX, FMC_D2, FMC_DA2, LTDC_B1, UART4_RX, UART9_CTSPD0PA13 — шарик D11: DEBUG_JTMS-SWDIOPA13VDDLDO — шарик D12VDDLDOVCAP — шарик D13VCAPVLXSMPS — шарик E1VLXSMPSVSSSMPS — шарик E2VSSSMPSVBAT — шарик E3VBATPF1 — шарик E4: FMC_A1, I2C2_SCL, OCTOSPIM_P2_IO1PF1PF3 — шарик E5: FMC_A3, OCTOSPIM_P2_IO3PF3BOOT0 — шарик E6BOOT0PG15 — шарик E7: ADC1_EXTI15, ADC2_EXTI15, DCMI_D13, FMC_SDNCAS, OCTOSPIM_P2_DQS, PSSI_D13, USART10_CK, USART6_CTS, USART6_NSSPG15PG12 — шарик E8: FMC_NE4, I2S6_SDI, LPTIM1_IN1, LTDC_B1, LTDC_B4, OCTOSPIM_P2_NCS, SDMMC2_D3, SPDIFRX_IN1, SPI6_MISO, USART10_TX, USART6_DE, USART6_RTSPG12PD2 — шарик E9: DCMI_D11, DEBUG_TRACED2, LTDC_B2, LTDC_B7, PSSI_D11, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RXPD2PA10 — шарик E10: DCMI_D1, LPUART1_RX, LTDC_B1, LTDC_B4, MDIOS_MDIO, PSSI_D1, TIM1_CH3, USART1_RX, USB_OTG_HS_IDPA10PA9 — шарик E11: DAC1_EXTI9, DCMI_D0, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R5, PSSI_D0, SPI2_SCK, TIM1_CH2, USART1_TX, USB_OTG_HS_VBUSPA9PA8 — шарик E12: I2C3_SCL, LTDC_B3, LTDC_R6, RCC_MCO_1, TIM1_CH1, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2, UART7_RX, USART1_CK, USB_OTG_HS_SOFPA8PA12 — шарик E13: FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R5, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_HS_DPPA12VDDSMPS — шарик F1VDDSMPSVFBSMPS — шарик F2VFBSMPSPF0 — шарик F3: FMC_A0, I2C2_SDA, OCTOSPIM_P2_IO0PF0PF2 — шарик F4: FMC_A2, I2C2_SMBA, OCTOSPIM_P2_IO2PF2PF5 — шарик F5: FMC_A5, OCTOSPIM_P2_NCLKPF5PF7 — шарик F6: OCTOSPIM_P1_IO2, SAI1_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TXPF7PB3 — шарик F7: CRS_SYNC, DEBUG_JTDO-SWO, I2S1_CK, I2S3_CK, I2S6_CK, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART7_RXPB3PG4 — шарик F8: FMC_A14, FMC_BA0, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PG4PC6 — шарик F9: DCMI_D0, DFSDM1_CKIN3, FMC_NWAIT, I2S2_MCK, LTDC_HSYNC, PSSI_D0, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, SWPMI1_IO, TIM3_CH1, TIM8_CH1, USART6_TXPC6PC7 — шарик F10: DCMI_D1, DEBUG_TRGIO, DFSDM1_DATIN3, FMC_NE1, I2S3_MCK, LTDC_G6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, SWPMI1_TX, TIM3_CH2, TIM8_CH2, USART6_RXPC7PC9 — шарик F11: DAC1_EXTI9, DCMI_D3, I2C3_SDA, I2S_CKIN, LTDC_B2, LTDC_G3, OCTOSPIM_P1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, SWPMI1_SUSPEND, TIM3_CH4, TIM8_CH4, UART5_CTSPC9PC8 — шарик F12: DCMI_D2, DEBUG_TRACED1, FMC_INT, FMC_NCE, FMC_NE2, PSSI_D2, SDMMC1_D0, SWPMI1_RX, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PA11 — шарик F13: ADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX, I2S2_WS, LPUART1_CTS, LTDC_R4, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_HS_DMPA11VDD — шарик G1VDDVSS — шарик G2VSSPF4 — шарик G3: FMC_A4, OCTOSPIM_P2_CLKPF4PF6 — шарик G4: OCTOSPIM_P1_IO3, SAI1_SD_B, SPI5_NSS, TIM16_CH1, UART7_RXPF6PF9 — шарик G5: DAC1_EXTI9, OCTOSPIM_P1_IO1, SAI1_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTSPF9NRST — шарик G6NRSTPF13 — шарик G7: ADC2_INP2, DFSDM1_DATIN6, FMC_A7, I2C4_SMBAPF13PE7 — шарик G8: COMP2_INM, DFSDM1_DATIN2, FMC_D4, FMC_DA4, OCTOSPIM_P1_IO4, OPAMP2_VOUT, TIM1_ETR, UART7_RXPE7PG6 — шарик G9: DCMI_D12, FMC_NE3, LTDC_R7, OCTOSPIM_P1_NCS, PSSI_D12, TIM17_BKINPG6PG7 — шарик G10: DCMI_D13, FMC_INT, LTDC_CLK, OCTOSPIM_P2_DQS, PSSI_D13, SAI1_MCLK_A, USART6_CKPG7PG8 — шарик G11: FMC_SDCLK, I2S6_WS, LTDC_G7, SPDIFRX_IN2, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTSPG8VDD50_USB — шарик G12VDD50USBVDD33_USB — шарик G13VDD33USBPH0-OSC_IN — шарик H1: RCC_OSC_INPH0PH1-OSC_OUT — шарик H2: RCC_OSC_OUTPH1PF10 — шарик H3: DCMI_D11, LTDC_DE, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKINPF10PF8 — шарик H4: OCTOSPIM_P1_IO0, SAI1_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPF8PC2 — шарик H5: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, DFSDM1_CKIN1, DFSDM1_CKOUT, FMC_SDNE0, I2S2_SDI, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSTOP, SPI2_MISO, USB_OTG_HS_ULPI_DIRPC2PA4 — шарик H6: ADC1_INP18, DAC1_OUT1, DCMI_HSYNC, I2S1_WS, I2S3_WS, I2S6_WS, LTDC_VSYNC, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CKPA4PF14 — шарик H7: ADC2_INN2, ADC2_INP6, DFSDM1_CKIN6, FMC_A8, I2C4_SCLPF14PE8 — шарик H8: COMP2_OUT, DFSDM1_CKIN2, FMC_D5, FMC_DA5, OCTOSPIM_P1_IO5, OPAMP2_VINM, TIM1_CH1N, UART7_TXPE8PG2 — шарик H9: FMC_A12, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PG2PG3 — шарик H10: FMC_A13, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2PG3PG5 — шарик H11: FMC_A15, FMC_BA1, TIM1_ETRPG5VSS — шарик H12VSSVDD — шарик H13VDDPC0 — шарик J1: ADC1_INP10, ADC2_INP10, DFSDM1_CKIN0, DFSDM1_DATIN4, FMC_A25, FMC_SDNWE, LTDC_G2, LTDC_R5, SAI2_FS_B, USB_OTG_HS_ULPI_STPPC0PC1 — шарик J2: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DEBUG_TRACED0, DFSDM1_CKIN4, DFSDM1_DATIN0, I2S2_SDO, LTDC_G5, MDIOS_MDC, OCTOSPIM_P1_IO4, PWR_WKUP6, RTC_TAMP3, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI2_MOSIPC1VSSA — шарик J3VSSAPC3 — шарик J4: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, DFSDM1_DATIN1, FMC_SDCKE0, I2S2_SDO, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSLEEP, SPI2_MOSI, USB_OTG_HS_ULPI_NXTPC3PA0 — шарик J5: ADC1_INP16, I2S6_WS, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI6_NSS, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PA7 — шарик J6: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, DFSDM2_DATIN1, FMC_SDNWE, I2S1_SDO, I2S6_SDO, LTDC_VSYNC, OCTOSPIM_P1_IO2, OPAMP1_VINM, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1NPA7PF15 — шарик J7: ADC1_EXTI15, ADC2_EXTI15, FMC_A9, I2C4_SDAPF15PE9 — шарик J8: COMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT, FMC_D6, FMC_DA6, OCTOSPIM_P1_IO6, OPAMP2_VINP, TIM1_CH1, UART7_DE, UART7_RTSPE9PE14 — шарик J9: FMC_D11, FMC_DA11, LTDC_CLK, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PD11 — шарик J10: ADC1_EXTI11, ADC2_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, OCTOSPIM_P1_IO0, SAI2_SD_A, USART3_CTS, USART3_NSSPD11PD13 — шарик J11: DCMI_D13, FMC_A18, I2C4_SDA, LPTIM1_OUT, OCTOSPIM_P1_IO3, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTSPD13PD15 — шарик J12: ADC1_EXTI15, ADC2_EXTI15, FMC_D1, FMC_DA1, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TXPD15PD14 — шарик J13: FMC_D0, FMC_DA0, TIM4_CH3, UART8_CTS, UART9_RXPD14PC3_C — шарик K1: ADC2_INP1, DFSDM1_DATIN1, FMC_SDCKE0, I2S2_SDO, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSLEEP, SPI2_MOSI, USB_OTG_HS_ULPI_NXTPC3PC2_C — шарик K2: ADC2_INN1, ADC2_INP0, DFSDM1_CKIN1, DFSDM1_CKOUT, FMC_SDNE0, I2S2_SDI, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSTOP, SPI2_MISO, USB_OTG_HS_ULPI_DIRPC2PA0_C — шарик K3: ADC1_INN1, ADC1_INP0, I2S6_WS, SAI2_SD_B, SDMMC2_CMD, SPI6_NSS, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PA1 — шарик K4: ADC1_INN16, ADC1_INP17, LPTIM3_OUT, LTDC_R2, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PA6 — шарик K5: ADC1_INP3, ADC2_INP3, DAC2_OUT1, DCMI_PIXCLK, I2S1_SDI, I2S6_SDI, LTDC_G2, MDIOS_MDC, OCTOSPIM_P1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM3_CH1, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PA6PC4 — шарик K6: ADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2, FMC_SDNE0, I2S1_MCK, LTDC_R7, OPAMP1_VOUT, SPDIFRX_IN2PC4PG0 — шарик K7: FMC_A10, OCTOSPIM_P2_IO4, UART9_RXPG0PE13 — шарик K8: COMP2_OUT, DFSDM1_CKIN5, FMC_D10, FMC_DA10, LTDC_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH3PE13PH10 — шарик K9: DCMI_D1, FMC_D18, I2C4_SMBA, LTDC_R4, PSSI_D1, TIM5_CH1PH10PH12 — шарик K10: DCMI_D3, FMC_D20, I2C4_SDA, LTDC_R6, PSSI_D3, TIM5_CH3PH12PD9 — шарик K11: DAC1_EXTI9, DFSDM1_DATIN3, FMC_D14, FMC_DA14, USART3_RXPD9PD10 — шарик K12: DFSDM1_CKOUT, DFSDM2_CKOUT, FMC_D15, FMC_DA15, LTDC_B3, USART3_CKPD10PD12 — шарик K13: DCMI_D12, FMC_A17, FMC_ALE, I2C4_SCL, LPTIM1_IN1, LPTIM2_IN1, OCTOSPIM_P1_IO1, PSSI_D12, SAI2_FS_A, TIM4_CH1, USART3_DE, USART3_RTSPD12VDDA — шарик L1VDDAVREF+ — шарик L2: VREFBUF_OUTVREF+PA1_C — шарик L3: ADC1_INP1, LPTIM3_OUT, LTDC_R2, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PA5 — шарик L4: ADC1_INN18, ADC1_INP19, DAC1_OUT2, I2S1_CK, I2S6_CK, LTDC_R4, PSSI_D14, PWR_NDSTOP2, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USB_OTG_HS_ULPI_CKPA5PB1 — шарик L5: ADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1, LTDC_G0, LTDC_R6, OCTOSPIM_P1_IO0, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USB_OTG_HS_ULPI_D2PB1PB2 — шарик L6: COMP1_INP, DFSDM1_CKIN1, I2S3_SDO, OCTOSPIM_P1_CLK, OCTOSPIM_P1_DQS, RTC_OUT_ALARM, RTC_OUT_CALIB, SAI1_D1, SAI1_SD_A, SPI3_MOSIPB2PG1 — шарик L7: FMC_A11, OCTOSPIM_P2_IO5, OPAMP2_VINM, UART9_TXPG1PE12 — шарик L8: COMP1_OUT, DFSDM1_DATIN5, FMC_D9, FMC_DA9, LTDC_B4, SAI2_SCK_B, SPI4_SCK, TIM1_CH3NPE12PB10 — шарик L9: DFSDM1_DATIN7, I2C2_SCL, I2S2_CK, LPTIM2_IN1, LTDC_G4, OCTOSPIM_P1_NCS, SPI2_SCK, TIM2_CH3, USART3_TX, USB_OTG_HS_ULPI_D3PB10PH11 — шарик L10: ADC1_EXTI11, ADC2_EXTI11, DCMI_D2, FMC_D19, I2C4_SCL, LTDC_R5, PSSI_D2, TIM5_CH2PH11PB13 — шарик L11: DCMI_D2, DFSDM1_CKIN1, DFSDM2_CKIN1, FDCAN2_TX, I2S2_CK, LPTIM2_OUT, PSSI_D2, SDMMC1_D0, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSS, USB_OTG_HS_ULPI_D6PB13VSS — шарик L12VSSVDD — шарик L13VDDVDD — шарик M1VDDVSS — шарик M2VSSPH3 — шарик M3: FMC_SDNE0, LTDC_R1, OCTOSPIM_P1_IO5, SAI2_MCLK_BPH3VSS — шарик M4VSSPB0 — шарик M5: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT, DFSDM2_CKOUT, LTDC_G1, LTDC_R3, OCTOSPIM_P1_IO1, OPAMP1_VINP, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USB_OTG_HS_ULPI_D1PB0PF11 — шарик M6: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMI_D12, FMC_SDNRAS, OCTOSPIM_P1_NCLK, PSSI_D12, SAI2_SD_B, SPI5_MOSIPF11VSS — шарик M7VSSPE10 — шарик M8: COMP2_INM, DFSDM1_DATIN4, FMC_D7, FMC_DA7, OCTOSPIM_P1_IO7, TIM1_CH2N, UART7_CTSPE10PB11 — шарик M9: ADC1_EXTI11, ADC2_EXTI11, DFSDM1_CKIN7, I2C2_SDA, LPTIM2_ETR, LTDC_G5, TIM2_CH4, USART3_RX, USB_OTG_HS_ULPI_D4PB11VDDLDO — шарик M10VDDLDOVSS — шарик M11VSSPD8 — шарик M12: DFSDM1_CKIN3, FMC_D13, FMC_DA13, SPDIFRX_IN1, USART3_TXPD8PB15 — шарик M13: ADC1_EXTI15, ADC2_EXTI15, DFSDM1_CKIN2, I2S2_SDO, LTDC_G7, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, USART1_RXPB15PA2 — шарик N1: ADC1_INP14, DFSDM2_CKIN1, LTDC_R1, MDIOS_MDIO, PWR_WKUP2, SAI2_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PH2 — шарик N2: FMC_SDCKE0, LPTIM1_IN2, LTDC_R0, OCTOSPIM_P1_IO4, SAI2_SCK_BPH2PA3 — шарик N3: ADC1_INP15, I2S6_MCK, LTDC_B2, LTDC_B5, OCTOSPIM_P1_CLK, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX, USB_OTG_HS_ULPI_D0PA3VDD — шарик N4VDDPC5 — шарик N5: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT, DFSDM1_DATIN2, FMC_SDCKE0, LTDC_DE, OCTOSPIM_P1_DQS, OPAMP1_VINM, PSSI_D15, SAI1_D3, SPDIFRX_IN3PC5PF12 — шарик N6: ADC1_INN2, ADC1_INP6, FMC_A6, OCTOSPIM_P2_DQSPF12VDD — шарик N7VDDPE11 — шарик N8: ADC1_EXTI11, ADC2_EXTI11, COMP2_INP, DFSDM1_CKIN4, FMC_D8, FMC_DA8, LTDC_G3, OCTOSPIM_P1_NCS, SAI2_SD_B, SPI4_NSS, TIM1_CH2PE11PE15 — шарик N9: ADC1_EXTI15, ADC2_EXTI15, FMC_D12, FMC_DA12, LTDC_R7, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, USART10_CKPE15VCAP — шарик N10VCAPVDD — шарик N11VDDPB12 — шарик N12: DFSDM1_DATIN1, DFSDM2_DATIN1, FDCAN2_RX, I2C2_SMBA, I2S2_WS, OCTOSPIM_P1_NCLK, SPI2_NSS, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, UART5_RX, USART3_CK, USB_OTG_HS_ULPI_D5PB12PB14 — шарик N13: DFSDM1_DATIN2, I2S2_SDI, LTDC_CLK, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, USART1_TX, USART3_DE, USART3_RTSPB14UFBGA169, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнемуглу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

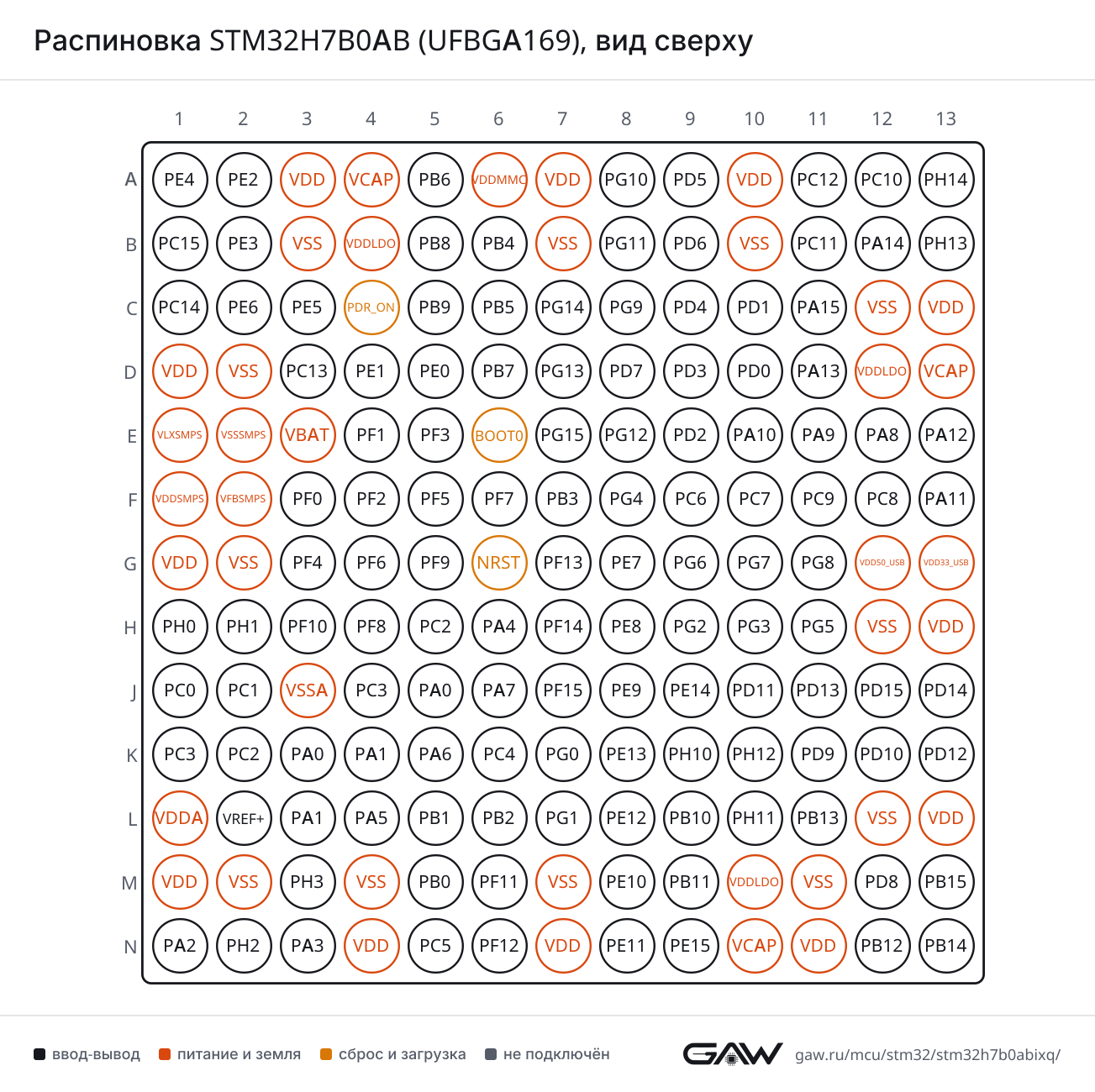

Распиновка STM32H7B0AB (UFBGA169), вид сверхуРаспиновка UFBGA169 картинкой
PNG, 1303 × 1300 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (E12, AF7)
CTSPA11 (F13, AF7)
DEPA12 (E13, AF7)
NSSPA11 (F13, AF7)
RTSPA12 (E13, AF7)
RXPB7 (D6, AF7), PA10 (E10, AF7), PB15 (M13, AF4)
TXPB6 (A5, AF7), PA9 (E11, AF7), PB14 (N13, AF4)
USART2CKPD7 (D8, AF7), PA4 (H6, AF7)
CTSPD3 (D9, AF7), PA0 (J5, AF7), PA0_C (K3, AF7)
DEPD4 (C9, AF7), PA1 (K4, AF7), PA1_C (L3, AF7)
NSSPD3 (D9, AF7), PA0 (J5, AF7), PA0_C (K3, AF7)
RTSPD4 (C9, AF7), PA1 (K4, AF7), PA1_C (L3, AF7)
RXPD6 (B9, AF7), PA3 (N3, AF7)
TXPD5 (A9, AF7), PA2 (N1, AF7)
USART3CKPC12 (A11, AF7), PD10 (K12, AF7), PB12 (N12, AF7)
CTSPD11 (J10, AF7), PB13 (L11, AF7)
DEPD12 (K13, AF7), PB14 (N13, AF7)
NSSPD11 (J10, AF7), PB13 (L11, AF7)
RTSPD12 (K13, AF7), PB14 (N13, AF7)
RXPC11 (B11, AF7), PD9 (K11, AF7), PB11 (M9, AF7)
TXPC10 (A12, AF7), PB10 (L9, AF7), PD8 (M12, AF7)
USART6CKPC8 (F12, AF7), PG7 (G10, AF7)
CTSPG13 (D7, AF7), PG15 (E7, AF7)
DEPG12 (E8, AF7), PG8 (G11, AF7)
NSSPG13 (D7, AF7), PG15 (E7, AF7)
RTSPG12 (E8, AF7), PG8 (G11, AF7)
RXPG9 (C8, AF7), PC7 (F10, AF7)
TXPG14 (C7, AF7), PC6 (F9, AF7)
USART10CKPG15 (E7, AF11), PE15 (N9, AF11)
CTSPG13 (D7, AF11)
DEPG14 (C7, AF11)
NSSPG13 (D7, AF11)
RTSPG14 (C7, AF11)
RXPE2 (A2, AF11), PG11 (B8, AF11)
TXPE3 (B2, AF11), PG12 (E8, AF11)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB0 (M5, AF8), PB15 (M13, AF8)
DEPA15 (C11, AF8), PB14 (N13, AF8)
RTSPA15 (C11, AF8), PB14 (N13, AF8)
RXPH14 (A13, AF8), PB8 (B5, AF8), PC11 (B11, AF8), PD0 (D10, AF8), PA11 (F13, AF6), PA1 (K4, AF8), PA1_C (L3, AF8)
TXPC10 (A12, AF8), PH13 (B13, AF8), PB9 (C5, AF8), PD1 (C10, AF8), PA12 (E13, AF6), PA0 (J5, AF8), PA0_C (K3, AF8)
UART5CTSPC9 (F11, AF8)
DEPC8 (F12, AF8)
RTSPC8 (F12, AF8)
RXPB5 (C6, AF14), PD2 (E9, AF8), PB12 (N12, AF14)
TXPB6 (A5, AF14), PC12 (A11, AF8), PB13 (L11, AF14)
UART7CTSPF9 (G5, AF7), PE10 (M8, AF7)
DEPF8 (H4, AF7), PE9 (J8, AF7)
RTSPF8 (H4, AF7), PE9 (J8, AF7)
RXPA8 (E12, AF11), PB3 (F7, AF11), PF6 (G4, AF7), PE7 (G8, AF7)
TXPB4 (B6, AF11), PA15 (C11, AF11), PF7 (F6, AF7), PE8 (H8, AF7)
UART8CTSPD14 (J13, AF8)
DEPD15 (J12, AF8)
RTSPD15 (J12, AF8)
RXPE0 (D5, AF8)
TXPE1 (D4, AF8)
UART9CTSPD0 (D10, AF11)
DEPD13 (J11, AF11)
RTSPD13 (J11, AF11)
RXPD14 (J13, AF11), PG0 (K7, AF11)
TXPD15 (J12, AF11), PG1 (L7, AF11)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (F13, AF3)
DEPA12 (E13, AF3)
RTSPA12 (E13, AF3)
RXPB7 (D6, AF8), PA10 (E10, AF3)
TXPB6 (A5, AF8), PA9 (E11, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4 (B6, AF5), PG9 (C8, AF5), PA6 (K5, AF5)
MOSIPB5 (C6, AF5), PD7 (D8, AF5), PA7 (J6, AF5)
NSSPG10 (A8, AF5), PA15 (C11, AF5), PA4 (H6, AF5)
SCKPG11 (B8, AF5), PB3 (F7, AF5), PA5 (L4, AF5)
SPI2MISOPC2 (H5, AF5), PC2_C (K2, AF5), PB14 (N13, AF5)
MOSIPC1 (J2, AF5), PC3 (J4, AF5), PC3_C (K1, AF5), PB15 (M13, AF5)
NSSPB4 (B6, AF7), PB9 (C5, AF5), PA11 (F13, AF5), PB12 (N12, AF5)
SCKPD3 (D9, AF5), PA9 (E11, AF5), PA12 (E13, AF5), PB10 (L9, AF5), PB13 (L11, AF5)
SPI3MISOPB4 (B6, AF6), PC11 (B11, AF6)
MOSIPC12 (A11, AF6), PD6 (B9, AF5), PB5 (C6, AF7), PB2 (L6, AF7)
NSSPA15 (C11, AF6), PA4 (H6, AF6)
SCKPC10 (A12, AF6), PB3 (F7, AF6)
SPI4MISOPE5 (C3, AF5), PE13 (K8, AF5)
MOSIPE6 (C2, AF5), PE14 (J9, AF5)
NSSPE4 (A1, AF5), PE11 (N8, AF5)
SCKPE2 (A2, AF5), PE12 (L8, AF5)
SPI5MISOPF8 (H4, AF5)
MOSIPF9 (G5, AF5), PF11 (M6, AF5)
NSSPF6 (G4, AF5)
SCKPF7 (F6, AF5)
SPI6MISOPB4 (B6, AF8), PG12 (E8, AF5), PA6 (K5, AF8)
MOSIPB5 (C6, AF8), PG14 (C7, AF5), PA7 (J6, AF8)
NSSPA15 (C11, AF7), PG8 (G11, AF5), PA4 (H6, AF8), PA0 (J5, AF5), PA0_C (K3, AF5)
SCKPC12 (A11, AF5), PG13 (D7, AF5), PB3 (F7, AF8), PA5 (L4, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (F11, AF5)
I2S1CKPG11 (B8, AF5), PB3 (F7, AF5), PA5 (L4, AF5)
MCKPC4 (K6, AF5)
SDIPB4 (B6, AF5), PG9 (C8, AF5), PA6 (K5, AF5)
SDOPB5 (C6, AF5), PD7 (D8, AF5), PA7 (J6, AF5)
WSPG10 (A8, AF5), PA15 (C11, AF5), PA4 (H6, AF5)
I2S2CKPD3 (D9, AF5), PA9 (E11, AF5), PA12 (E13, AF5), PB10 (L9, AF5), PB13 (L11, AF5)
MCKPC6 (F9, AF5)
SDIPC2 (H5, AF5), PC2_C (K2, AF5), PB14 (N13, AF5)
SDOPC1 (J2, AF5), PC3 (J4, AF5), PC3_C (K1, AF5), PB15 (M13, AF5)
WSPB4 (B6, AF7), PB9 (C5, AF5), PA11 (F13, AF5), PB12 (N12, AF5)
I2S3CKPC10 (A12, AF6), PB3 (F7, AF6)
MCKPC7 (F10, AF6)
SDIPB4 (B6, AF6), PC11 (B11, AF6)
SDOPC12 (A11, AF6), PD6 (B9, AF5), PB5 (C6, AF7), PB2 (L6, AF7)
WSPA15 (C11, AF6), PA4 (H6, AF6)
I2S6CKPC12 (A11, AF5), PG13 (D7, AF5), PB3 (F7, AF8), PA5 (L4, AF8)
MCKPA3 (N3, AF5)
SDIPB4 (B6, AF8), PG12 (E8, AF5), PA6 (K5, AF8)
SDOPB5 (C6, AF8), PG14 (C7, AF5), PA7 (J6, AF8)
WSPA15 (C11, AF7), PG8 (G11, AF5), PA4 (H6, AF8), PA0 (J5, AF5), PA0_C (K3, AF5)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (A5, AF4), PB8 (B5, AF4)
SDAPB9 (C5, AF4), PB7 (D6, AF4)
SMBAPB5 (C6, AF4)
I2C2SCLPF1 (E4, AF4), PB10 (L9, AF4)
SDAPF0 (F3, AF4), PB11 (M9, AF4)
SMBAPF2 (F4, AF4), PB12 (N12, AF4)
I2C3SCLPA8 (E12, AF4)
SDAPC9 (F11, AF4)
SMBAPA9 (E11, AF4)
I2C4SCLPB6 (A5, AF6), PB8 (B5, AF6), PF14 (H7, AF4), PD12 (K13, AF4), PH11 (L10, AF4)
SDAPB9 (C5, AF6), PB7 (D6, AF6), PF15 (J7, AF4), PD13 (J11, AF4), PH12 (K10, AF4)
SMBAPB9 (C5, AF11), PB5 (C6, AF6), PF13 (G7, AF4), PD11 (J10, AF4), PH10 (K9, AF4)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPH14 (A13, AF9), PB8 (B5, AF9), PD0 (D10, AF9), PA11 (F13, AF9)
TXPH13 (B13, AF9), PB9 (C5, AF9), PD1 (C10, AF9), PA12 (E13, AF9)
FDCAN2RXPB5 (C6, AF9), PB12 (N12, AF9)
TXPB6 (A5, AF9), PB13 (L11, AF9)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPA11 (F13)
DPPA12 (E13)
IDPA10 (E10, AF10)
SOFPA8 (E12, AF10)
ULPI_CKPA5 (L4, AF10)
ULPI_D0PA3 (N3, AF10)
ULPI_D1PB0 (M5, AF10)
ULPI_D2PB1 (L5, AF10)
ULPI_D3PB10 (L9, AF10)
ULPI_D4PB11 (M9, AF10)
ULPI_D5PB12 (N12, AF10)
ULPI_D6PB13 (L11, AF10)
ULPI_D7PB5 (C6, AF10)
ULPI_DIRPC2 (H5, AF10), PC2_C (K2, AF10)
ULPI_NXTPC3 (J4, AF10), PC3_C (K1, AF10)
ULPI_STPPC0 (J1, AF10)
VBUSPA9 (E11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (C5, AF7)
CKPC12 (A11, AF12)
CKINPB8 (B5, AF7)
CMDPD2 (E9, AF12)
D0PC8 (F12, AF12), PB13 (L11, AF12)
D0DIRPC6 (F9, AF8)
D1PC9 (F11, AF12)
D2PC10 (A12, AF12)
D3PC11 (B11, AF12)
D4PB8 (B5, AF12)
D5PB9 (C5, AF12)
D6PC6 (F9, AF12)
D7PC7 (F10, AF12)
D123DIRPC7 (F10, AF8)
SDMMC2CKPD6 (B9, AF11), PC1 (J2, AF9)
CMDPD7 (D8, AF11), PA0 (J5, AF9), PA0_C (K3, AF9)
D0PG9 (C8, AF11), PB14 (N13, AF9)
D1PG10 (A8, AF11), PB15 (M13, AF9)
D2PG11 (B8, AF10), PB3 (F7, AF9)
D3PB4 (B6, AF9), PG12 (E8, AF10)
D4PB8 (B5, AF10)
D5PB9 (C5, AF10)
D6PG13 (D7, AF10), PC6 (F9, AF10)
D7PG14 (C7, AF10), PC7 (F10, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (A2, AF2)
CK2PE5 (C3, AF2)
D1PD6 (B9, AF2), PE6 (C2, AF2), PC1 (J2, AF2), PB2 (L6, AF2)
D2PE4 (A1, AF2)
D3PF10 (H3, AF2), PC5 (N5, AF2)
FS_APE4 (A1, AF6)
FS_BPF9 (G5, AF6)
MCLK_APE2 (A2, AF6), PG7 (G10, AF6)
MCLK_BPF7 (F6, AF6)
SCK_APE5 (C3, AF6)
SCK_BPF8 (H4, AF6)
SD_APD6 (B9, AF6), PE6 (C2, AF6), PC1 (J2, AF6), PB2 (L6, AF6)
SD_BPE3 (B2, AF6), PF6 (G4, AF6)
SAI2FS_APD12 (K13, AF10)
FS_BPG9 (C8, AF10), PA12 (E13, AF8), PC0 (J1, AF8), PE13 (K8, AF10)
MCLK_APE0 (D5, AF10)
MCLK_BPE6 (C2, AF10), PE14 (J9, AF10), PA1 (K4, AF10), PA1_C (L3, AF10), PH3 (M3, AF10)
SCK_APD13 (J11, AF10)
SCK_BPE12 (L8, AF10), PA2 (N1, AF8), PH2 (N2, AF10)
SD_APD11 (J10, AF10)
SD_BPG10 (A8, AF10), PA0 (J5, AF10), PA0_C (K3, AF10), PF11 (M6, AF10), PE11 (N8, AF10)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRXIN0PG11 (B8), PD7 (D8)
IN1PG12 (E8), PD8 (M12)
IN2PG8 (G11), PC4 (K6)
IN3PG9 (C8), PC5 (N5)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPB6 (A5, AF5), PA15 (C11, AF4)

SWPMI — интерфейс Single Wire Protocol

БлокСигналВыводы
SWPMI1IOPC6 (F9)
RXPC10 (A12, AF11), PC8 (F12, AF11)
SUSPENDPC9 (F11, AF11)
TXPC7 (F10, AF11)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PG11 (B8), PC11 (B11), PA11 (F13), PD11 (J10), PH11 (L10), PF11 (M6), PB11 (M9), PE11 (N8)
EXTI15PC15-OSC32_OUT (B1), PA15 (C11), PG15 (E7), PF15 (J7), PD15 (J12), PB15 (M13), PE15 (N9)
INN1PA0_C (K3)
INN2PF12 (N6)
INN3PA7 (J6)
INN4PC5 (N5)
INN5PB0 (M5)
INN10PC1 (J2)
INN11PC2 (H5)
INN12PC3 (J4)
INN16PA1 (K4)
INN18PA5 (L4)
INP0PA0_C (K3)
INP1PA1_C (L3)
INP2PF11 (M6)
INP3PA6 (K5)
INP4PC4 (K6)
INP5PB1 (L5)
INP6PF12 (N6)
INP7PA7 (J6)
INP8PC5 (N5)
INP9PB0 (M5)
INP10PC0 (J1)
INP11PC1 (J2)
INP12PC2 (H5)
INP13PC3 (J4)
INP14PA2 (N1)
INP15PA3 (N3)
INP16PA0 (J5)
INP17PA1 (K4)
INP18PA4 (H6)
INP19PA5 (L4)
ADC2EXTI11PG11 (B8), PC11 (B11), PA11 (F13), PD11 (J10), PH11 (L10), PF11 (M6), PB11 (M9), PE11 (N8)
EXTI15PC15-OSC32_OUT (B1), PA15 (C11), PG15 (E7), PF15 (J7), PD15 (J12), PB15 (M13), PE15 (N9)
INN1PC2_C (K2)
INN2PF14 (H7)
INN3PA7 (J6)
INN4PC5 (N5)
INN5PB0 (M5)
INN10PC1 (J2)
INN11PC2 (H5)
INN12PC3 (J4)
INP0PC2_C (K2)
INP1PC3_C (K1)
INP2PF13 (G7)
INP3PA6 (K5)
INP4PC4 (K6)
INP5PB1 (L5)
INP6PF14 (H7)
INP7PA7 (J6)
INP8PC5 (N5)
INP9PB0 (M5)
INP10PC0 (J1)
INP11PC1 (J2)
INP12PC2 (H5)
INP13PC3 (J4)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (C5), PG9 (C8), PA9 (E11), PC9 (F11), PF9 (G5), PE9 (J8), PD9 (K11)
OUT1PA4 (H6)
OUT2PA5 (L4)
DAC2OUT1PA6 (K5)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPC4 (K6), PB1 (L5)
INPPB2 (L6), PB0 (M5)
OUTPE12 (L8, AF13), PC5 (N5, AF13)
COMP2INMPE7 (G8), PE10 (M8)
INPPE9 (J8), PE11 (N8)
OUTPE8 (H8, AF13), PE13 (K8, AF13)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA7 (J6), PC5 (N5)
VINPPB0 (M5)
VOUTPC4 (K6)
OPAMP2VINMPE8 (H8), PG1 (L7)
VINPPE9 (J8)
VOUTPE7 (G8)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (L2)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (K5, AF1), PE15 (N9, AF1), PB12 (N12, AF1)
BKIN_COMP1PA6 (K5, AF12), PE15 (N9, AF13), PB12 (N12, AF13)
BKIN_COMP2PA6 (K5, AF12), PE15 (N9, AF13), PB12 (N12, AF13)
BKIN2PE6 (C2, AF1), PG4 (F8, AF1)
BKIN2_COMP1PE6 (C2, AF11), PG4 (F8, AF11)
BKIN2_COMP2PE6 (C2, AF11), PG4 (F8, AF11)
CH1PA8 (E12, AF1), PE9 (J8, AF1)
CH1NPE8 (H8, AF1), PA7 (J6, AF1), PB13 (L11, AF1)
CH2PA9 (E11, AF1), PE11 (N8, AF1)
CH2NPB0 (M5, AF1), PE10 (M8, AF1), PB14 (N13, AF1)
CH3PA10 (E10, AF1), PE13 (K8, AF1)
CH3NPB1 (L5, AF1), PE12 (L8, AF1), PB15 (M13, AF1)
CH4PA11 (F13, AF1), PE14 (J9, AF1)
ETRPA12 (E13, AF1), PE7 (G8, AF1), PG5 (H11, AF1)
TIM2CH1PA15 (C11, AF1), PA0 (J5, AF1), PA0_C (K3, AF1), PA5 (L4, AF1)
CH2PB3 (F7, AF1), PA1 (K4, AF1), PA1_C (L3, AF1)
CH3PB10 (L9, AF1), PA2 (N1, AF1)
CH4PB11 (M9, AF1), PA3 (N3, AF1)
ETRPA15 (C11, AF1), PA0 (J5, AF1), PA0_C (K3, AF1), PA5 (L4, AF1)
TIM3CH1PB4 (B6, AF2), PC6 (F9, AF2), PA6 (K5, AF2)
CH2PB5 (C6, AF2), PC7 (F10, AF2), PA7 (J6, AF2)
CH3PC8 (F12, AF2), PB0 (M5, AF2)
CH4PC9 (F11, AF2), PB1 (L5, AF2)
ETRPD2 (E9, AF2)
TIM4CH1PB6 (A5, AF2), PD12 (K13, AF2)
CH2PB7 (D6, AF2), PD13 (J11, AF2)
CH3PB8 (B5, AF2), PD14 (J13, AF2)
CH4PB9 (C5, AF2), PD15 (J12, AF2)
ETRPE0 (D5, AF2)
TIM5CH1PA0 (J5, AF2), PA0_C (K3, AF2), PH10 (K9, AF2)
CH2PA1 (K4, AF2), PA1_C (L3, AF2), PH11 (L10, AF2)
CH3PH12 (K10, AF2), PA2 (N1, AF2)
CH4PA3 (N3, AF2)
ETRPA4 (H6, AF2)
TIM8BKINPG2 (H9, AF3), PA6 (K5, AF3)
BKIN_COMP1PG2 (H9, AF11), PA6 (K5, AF10)
BKIN_COMP2PG2 (H9, AF11), PA6 (K5, AF10)
BKIN2PA8 (E12, AF3), PG3 (H10, AF3)
BKIN2_COMP1PA8 (E12, AF12), PG3 (H10, AF11)
BKIN2_COMP2PA8 (E12, AF12), PG3 (H10, AF11)
CH1PC6 (F9, AF3)
CH1NPH13 (B13, AF3), PA7 (J6, AF3), PA5 (L4, AF3)
CH2PC7 (F10, AF3)
CH2NPH14 (A13, AF3), PB0 (M5, AF3), PB14 (N13, AF3)
CH3PC8 (F12, AF3)
CH3NPB1 (L5, AF3), PB15 (M13, AF3)
CH4PC9 (F11, AF3)
ETRPG8 (G11, AF3), PA0 (J5, AF3), PA0_C (K3, AF3)
TIM12CH1PB14 (N13, AF2)
CH2PB15 (M13, AF2)
TIM13CH1PF8 (H4, AF9), PA6 (K5, AF9)
TIM14CH1PF9 (G5, AF9), PA7 (J6, AF9)
TIM15BKINPE3 (B2, AF4), PD2 (E9, AF4), PA0 (J5, AF4), PA0_C (K3, AF4)
CH1PC12 (A11, AF2), PE5 (C3, AF4), PA2 (N1, AF4)
CH1NPE4 (A1, AF4), PA1 (K4, AF4), PA1_C (L3, AF4)
CH2PE6 (C2, AF4), PA3 (N3, AF4)
TIM16BKINPB4 (B6, AF1), PF10 (H3, AF1)
CH1PB8 (B5, AF1), PF6 (G4, AF1)
CH1NPB6 (A5, AF1), PF8 (H4, AF1)
TIM17BKINPB5 (C6, AF1), PG6 (G9, AF1)
CH1PB9 (C5, AF1), PF7 (F6, AF1)
CH1NPB7 (D6, AF1), PF9 (G5, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPG14 (C7, AF1), PE0 (D5, AF1)
IN1PG12 (E8, AF1), PD12 (K13, AF1)
IN2PG11 (B8, AF1), PE1 (D4, AF1), PH2 (N2, AF1)
OUTPG13 (D7, AF1), PD13 (J11, AF1)
LPTIM2ETRPE0 (D5, AF4), PB11 (M9, AF3)
IN1PD12 (K13, AF3), PB10 (L9, AF3)
IN2PD11 (J10, AF3)
OUTPB13 (L11, AF3)
LPTIM3OUTPA1 (K4, AF3), PA1_C (L3, AF3)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT_ALARMPC13 (D3), PB2 (L6, AF0)
OUT_CALIBPC13 (D3), PB2 (L6)
REFINPB15 (M13, AF0)
TSPC13 (D3)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (F3, AF12)
A1PF1 (E4, AF12)
A2PF2 (F4, AF12)
A3PF3 (E5, AF12)
A4PF4 (G3, AF12)
A5PF5 (F5, AF12)
A6PF12 (N6, AF12)
A7PF13 (G7, AF12)
A8PF14 (H7, AF12)
A9PF15 (J7, AF12)
A10PG0 (K7, AF12)
A11PG1 (L7, AF12)
A12PG2 (H9, AF12)
A13PG3 (H10, AF12)
A14PG4 (F8, AF12)
A15PG5 (H11, AF12)
A16PD11 (J10, AF12)
A17PD12 (K13, AF12)
A18PD13 (J11, AF12)
A19PE3 (B2, AF12)
A20PE4 (A1, AF12)
A21PE5 (C3, AF12)
A22PE6 (C2, AF12)
A23PE2 (A2, AF12)
A24PG13 (D7, AF12)
A25PG14 (C7, AF12), PC0 (J1, AF9)
ALEPD12 (K13, AF12)
BA0PG4 (F8, AF12)
BA1PG5 (H11, AF12)
CLEPD11 (J10, AF12)
CLKPD3 (D9, AF12)
D0PD14 (J13, AF12)
D1PD15 (J12, AF12)
D2PD0 (D10, AF12)
D3PD1 (C10, AF12)
D4PE7 (G8, AF12)
D5PE8 (H8, AF12)
D6PE9 (J8, AF12)
D7PE10 (M8, AF12)
D8PE11 (N8, AF12)
D9PE12 (L8, AF12)
D10PE13 (K8, AF12)
D11PE14 (J9, AF12)
D12PE15 (N9, AF12)
D13PD8 (M12, AF12)
D14PD9 (K11, AF12)
D15PD10 (K12, AF12)
D18PH10 (K9, AF12)
D19PH11 (L10, AF12)
D20PH12 (K10, AF12)
D21PH13 (B13, AF12)
D22PH14 (A13, AF12)
DA0PD14 (J13, AF12)
DA1PD15 (J12, AF12)
DA2PD0 (D10, AF12)
DA3PD1 (C10, AF12)
DA4PE7 (G8, AF12)
DA5PE8 (H8, AF12)
DA6PE9 (J8, AF12)
DA7PE10 (M8, AF12)
DA8PE11 (N8, AF12)
DA9PE12 (L8, AF12)
DA10PE13 (K8, AF12)
DA11PE14 (J9, AF12)
DA12PE15 (N9, AF12)
DA13PD8 (M12, AF12)
DA14PD9 (K11, AF12)
DA15PD10 (K12, AF12)
INTPC8 (F12, AF10), PG7 (G10, AF12)
NBL0PE0 (D5, AF12)
NBL1PE1 (D4, AF12)
NCEPG9 (C8, AF12), PC8 (F12, AF9)
NE1PD7 (D8, AF12), PC7 (F10, AF9)
NE2PG9 (C8, AF12), PC8 (F12, AF9)
NE3PG10 (A8, AF12), PG6 (G9, AF12)
NE4PG12 (E8, AF12)
NLPB7 (D6, AF12)
NOEPD4 (C9, AF12)
NWAITPD6 (B9, AF12), PC6 (F9, AF9)
NWEPD5 (A9, AF12)
SDCKE0PC3 (J4, AF12), PC3_C (K1, AF12), PH2 (N2, AF12), PC5 (N5, AF12)
SDCKE1PB5 (C6, AF12)
SDCLKPG8 (G11, AF12)
SDNCASPG15 (E7, AF12)
SDNE0PC2 (H5, AF12), PC2_C (K2, AF12), PC4 (K6, AF12), PH3 (M3, AF12)
SDNE1PB6 (A5, AF12)
SDNRASPF11 (M6, AF12)
SDNWEPC0 (J1, AF12), PA7 (J6, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (E11, AF13), PC6 (F9, AF13)
D1PA10 (E10, AF13), PC7 (F10, AF13), PH10 (K9, AF13)
D2PG10 (A8, AF13), PE0 (D5, AF13), PC8 (F12, AF13), PH11 (L10, AF13), PB13 (L11, AF13)
D3PG11 (B8, AF13), PE1 (D4, AF13), PC9 (F11, AF13), PH12 (K10, AF13)
D4PE4 (A1, AF13), PH14 (A13, AF13), PC11 (B11, AF13)
D5PB6 (A5, AF13), PD3 (D9, AF13)
D6PB8 (B5, AF13), PE5 (C3, AF13)
D7PE6 (C2, AF13), PB9 (C5, AF13)
D8PC10 (A12, AF13)
D9PC12 (A11, AF13)
D10PD6 (B9, AF13), PB5 (C6, AF13)
D11PD2 (E9, AF13), PF10 (H3, AF13)
D12PG6 (G9, AF13), PD12 (K13, AF13), PF11 (M6, AF13)
D13PG15 (E7, AF13), PG7 (G10, AF13), PD13 (J11, AF13)
HSYNCPA4 (H6, AF13)
PIXCLKPA6 (K5, AF13)
VSYNCPG9 (C8, AF13), PB7 (D6, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (E11, AF13), PC6 (F9, AF13)
D1PA10 (E10, AF13), PC7 (F10, AF13), PH10 (K9, AF13)
D2PG10 (A8, AF13), PE0 (D5, AF13), PC8 (F12, AF13), PH11 (L10, AF13), PB13 (L11, AF13)
D3PG11 (B8, AF13), PE1 (D4, AF13), PC9 (F11, AF13), PH12 (K10, AF13)
D4PE4 (A1, AF13), PH14 (A13, AF13), PC11 (B11, AF13)
D5PB6 (A5, AF13), PD3 (D9, AF13)
D6PB8 (B5, AF13), PE5 (C3, AF13)
D7PE6 (C2, AF13), PB9 (C5, AF13)
D8PC10 (A12, AF13)
D9PC12 (A11, AF13)
D10PD6 (B9, AF13), PB5 (C6, AF13)
D11PD2 (E9, AF13), PF10 (H3, AF13)
D12PG6 (G9, AF13), PD12 (K13, AF13), PF11 (M6, AF13)
D13PG15 (E7, AF13), PG7 (G10, AF13), PD13 (J11, AF13)
D14PA5 (L4, AF13)
D15PF10 (H3, AF4), PC5 (N5, AF4)
DEPA4 (H6, AF13)
PDCKPA6 (K5, AF13)
RDYPG9 (C8, AF13), PB7 (D6, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PE4 (A1, AF14), PG14 (C7, AF14)
B1PC10 (A12, AF10), PD0 (D10, AF14), PG12 (E8, AF14), PA10 (E10, AF14)
B2PG10 (A8, AF14), PD6 (B9, AF14), PD2 (E9, AF14), PC9 (F11, AF14), PA3 (N3, AF9)
B3PG11 (B8, AF14), PA8 (E12, AF13), PD10 (K12, AF14)
B4PC11 (B11, AF14), PG12 (E8, AF9), PA10 (E10, AF12), PE12 (L8, AF14)
B5PB5 (C6, AF11), PA3 (N3, AF14)
B6PB8 (B5, AF14), PA15 (C11, AF14)
B7PB9 (C5, AF14), PD2 (E9, AF9)
CLKPG7 (G10, AF14), PE14 (J9, AF14), PB14 (N13, AF14)
DEPF10 (H3, AF14), PE13 (K8, AF14), PC5 (N5, AF14)
G0PE5 (C3, AF14), PB1 (L5, AF14)
G1PE6 (C2, AF14), PB0 (M5, AF14)
G2PH13 (B13, AF14), PC0 (J1, AF11), PA6 (K5, AF14)
G3PG10 (A8, AF9), PH14 (A13, AF14), PC9 (F11, AF10), PE11 (N8, AF14)
G4PB10 (L9, AF14)
G5PC1 (J2, AF14), PB11 (M9, AF14)
G6PC7 (F10, AF14)
G7PD3 (D9, AF14), PG8 (G11, AF14), PB15 (M13, AF14)
HSYNCPC6 (F9, AF14)
R0PE0 (D5, AF14), PG13 (D7, AF14), PH2 (N2, AF14)
R1PH3 (M3, AF14), PA2 (N1, AF14)
R2PC10 (A12, AF14), PA1 (K4, AF14), PA1_C (L3, AF14)
R3PA15 (C11, AF9), PB0 (M5, AF9)
R4PA11 (F13, AF14), PH10 (K9, AF14), PA5 (L4, AF14)
R5PA9 (E11, AF14), PA12 (E13, AF14), PC0 (J1, AF14), PH11 (L10, AF14)
R6PC12 (A11, AF14), PE1 (D4, AF14), PA8 (E12, AF14), PH12 (K10, AF14), PB1 (L5, AF9)
R7PG6 (G9, AF14), PC4 (K6, AF14), PE15 (N9, AF14)
VSYNCPA4 (H6, AF14), PA7 (J6, AF14)

DFSDM — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
DFSDM1CKIN0PC0 (J1, AF3)
CKIN1PD7 (D8, AF6), PC2 (H5, AF3), PC2_C (K2, AF3), PB2 (L6, AF4), PB13 (L11, AF6)
CKIN2PE8 (H8, AF3), PC4 (K6, AF3), PB15 (M13, AF6)
CKIN3PE5 (C3, AF3), PC6 (F9, AF4), PD8 (M12, AF3)
CKIN4PD6 (B9, AF3), PC1 (J2, AF4), PE11 (N8, AF3)
CKIN5PC10 (A12, AF3), PB7 (D6, AF11), PE13 (K8, AF3)
CKIN6PD0 (D10, AF3), PF14 (H7, AF3)
CKIN7PB8 (B5, AF3), PB11 (M9, AF6)
CKOUTPD3 (D9, AF3), PC2 (H5, AF6), PE9 (J8, AF3), PC2_C (K2, AF6), PD10 (K12, AF3), PB0 (M5, AF6)
DATIN0PC1 (J2, AF3)
DATIN1PD6 (B9, AF4), PC3 (J4, AF3), PC3_C (K1, AF3), PB1 (L5, AF6), PB12 (N12, AF6)
DATIN2PE7 (G8, AF3), PC5 (N5, AF3), PB14 (N13, AF6)
DATIN3PE4 (A1, AF3), PC7 (F10, AF4), PD9 (K11, AF3)
DATIN4PD7 (D8, AF3), PC0 (J1, AF6), PE10 (M8, AF3)
DATIN5PB6 (A5, AF11), PC11 (B11, AF3), PE12 (L8, AF3)
DATIN6PD1 (C10, AF3), PF13 (G7, AF3)
DATIN7PB9 (C5, AF3), PB10 (L9, AF6)
DFSDM2CKIN0PC10 (A12, AF4)
CKIN1PB13 (L11, AF4), PA2 (N1, AF6)
CKOUTPC12 (A11, AF4), PD10 (K12, AF4), PB0 (M5, AF4)
DATIN0PC11 (B11, AF4)
DATIN1PA7 (J6, AF4), PB12 (N12, AF11)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (B12, AF0)
JTDIPA15 (C11, AF0)
JTDO-SWOPB3 (F7, AF0)
JTMS-SWDIOPA13 (D11, AF0)
NJTRSTPB4 (B6, AF0)
TRACECLKPE2 (A2, AF0)
TRACED0PE3 (B2, AF0), PG13 (D7, AF0), PC1 (J2, AF0)
TRACED1PE4 (A1, AF0), PG14 (C7, AF0), PC8 (F12, AF0)
TRACED2PE5 (C3, AF0), PD2 (E9, AF0)
TRACED3PC12 (A11, AF0), PE6 (C2, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (E12, AF0)
MCO_2PC9 (F11, AF0)
OSC_INPH0-OSC_IN (H1)
OSC_OUTPH1-OSC_OUT (H2)
OSC32_INPC14-OSC32_IN (C1)
OSC32_OUTPC15-OSC32_OUT (B1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC3 (J4, AF0), PC3_C (K1, AF0)
PWR_CSTOPPC2 (H5, AF0), PC2_C (K2, AF0)
PWR_WKUP1PA0 (J5)
PWR_WKUP2PA2 (N1)
PWR_WKUP4PC13 (D3)
PWR_WKUP6PC1 (J2)
RTC_TAMP1PC13 (D3)
RTC_TAMP3PC1 (J2)

Блоки без собственных выводов: USB_OTG_HS1 (USB On-The-Go High Speed), OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), HDMI_CEC (шина управления HDMI), TIM6 (таймер), TIM7 (таймер), IWDG1 (независимый сторожевой таймер), WWDG1 (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), CRYP (криптографический процессор), HASH (блок хеширования), DMA2D (графический ускоритель Chrom-ART).

Таблица выводов

Все 169 шариков корпуса UFBGA169 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), DFSDM1_DATIN3 (AF3), FMC_A20 (AF12), LTDC_B0 (AF14), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TIM15_CH1N (AF4)
A2PE2ввод-выводDEBUG_TRACECLK (AF0), FMC_A23 (AF12), OCTOSPIM_P1_IO2 (AF9), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), USART10_RX (AF11)
A3VDDпитание—
A4VCAPпитание—
A5PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), DFSDM1_DATIN5 (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), I2C1_SCL (AF4), I2C4_SCL (AF6), LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
A6VDDMMCпитание—
A7VDDпитание—
A8PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), I2S1_WS (AF5), LTDC_B2 (AF14), LTDC_G3 (AF9), OCTOSPIM_P2_IO6 (AF3), PSSI_D2 (AF13), SAI2_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5)
A9PD5ввод-выводFMC_NWE (AF12), OCTOSPIM_P1_IO5 (AF10), USART2_TX (AF7)
A10VDDпитание—
A11PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), DFSDM2_CKOUT (AF4), I2S3_SDO (AF6), I2S6_CK (AF5), LTDC_R6 (AF14), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
A12PC10ввод-выводDCMI_D8 (AF13), DFSDM1_CKIN5 (AF3), DFSDM2_CKIN0 (AF4), I2S3_CK (AF6), LTDC_B1 (AF10), LTDC_R2 (AF14), OCTOSPIM_P1_IO1 (AF9), PSSI_D8 (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), SWPMI1_RX (AF11), UART4_TX (AF8), USART3_TX (AF7)
A13PH14ввод-выводDCMI_D4 (AF13), FDCAN1_RX (AF9), FMC_D22 (AF12), LTDC_G3 (AF14), PSSI_D4 (AF13), TIM8_CH2N (AF3), UART4_RX (AF8)
B1PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT
B2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), TIM15_BKIN (AF4), USART10_TX (AF11)
B3VSSпитание—
B4VDDLDOпитание—
B5PB8ввод-выводDCMI_D6 (AF13), DFSDM1_CKIN7 (AF3), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), LTDC_B6 (AF14), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
B6PB4ввод-выводDEBUG_NJTRST (AF0), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), I2S6_SDI (AF8), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
B7VSSпитание—
B8PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D3 (AF13), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B3 (AF14), OCTOSPIM_P2_IO7 (AF9), PSSI_D3 (AF13), SDMMC2_D2 (AF10), SPDIFRX_IN0, SPI1_SCK (AF5), USART10_RX (AF11)
B9PD6ввод-выводDCMI_D10 (AF13), DFSDM1_CKIN4 (AF3), DFSDM1_DATIN1 (AF4), FMC_NWAIT (AF12), I2S3_SDO (AF5), LTDC_B2 (AF14), OCTOSPIM_P1_IO6 (AF10), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
B10VSSпитание—
B11PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D4 (AF13), DFSDM1_DATIN5 (AF3), DFSDM2_DATIN0 (AF4), I2S3_SDI (AF6), LTDC_B4 (AF14), OCTOSPIM_P1_NCS (AF9), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
B12PA14ввод-выводDEBUG_JTCK-SWCLK (AF0)
B13PH13ввод-выводFDCAN1_TX (AF9), FMC_D21 (AF12), LTDC_G2 (AF14), TIM8_CH1N (AF3), UART4_TX (AF8)
C1PC14-OSC32_INввод-выводRCC_OSC32_IN
C2PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF14), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM15_CH2 (AF4), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
C3PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), DFSDM1_CKIN3 (AF3), FMC_A21 (AF12), LTDC_G0 (AF14), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TIM15_CH1 (AF4)
C4PDR_ONсброс—
C5PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), DFSDM1_DATIN7 (AF3), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2C4_SMBA (AF11), I2S2_WS (AF5), LTDC_B7 (AF14), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
C6PB5ввод-выводDCMI_D10 (AF13), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), I2S6_SDO (AF8), LTDC_B5 (AF11), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14), USB_OTG_HS_ULPI_D7 (AF10)
C7PG14ввод-выводDEBUG_TRACED1 (AF0), FMC_A25 (AF12), I2S6_SDO (AF5), LPTIM1_ETR (AF1), LTDC_B0 (AF14), OCTOSPIM_P1_IO7 (AF9), SDMMC2_D7 (AF10), SPI6_MOSI (AF5), USART10_DE (AF11), USART10_RTS (AF11), USART6_TX (AF7)
C8PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), OCTOSPIM_P1_IO6 (AF9), PSSI_RDY (AF13), SAI2_FS_B (AF10), SDMMC2_D0 (AF11), SPDIFRX_IN3, SPI1_MISO (AF5), USART6_RX (AF7)
C9PD4ввод-выводFMC_NOE (AF12), OCTOSPIM_P1_IO4 (AF10), USART2_DE (AF7), USART2_RTS (AF7)
C10PD1ввод-выводDFSDM1_DATIN6 (AF3), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), UART4_TX (AF8)
C11PA15ввод-выводADC1_EXTI15, ADC2_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF7), LTDC_B6 (AF14), LTDC_R3 (AF9), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF1), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
C12VSSпитание—
C13VDDпитание—
D1VDDпитание—
D2VSSпитание—
D3PC13ввод-выводPWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS
D4PE1ввод-выводDCMI_D3 (AF13), FMC_NBL1 (AF12), LPTIM1_IN2 (AF1), LTDC_R6 (AF14), PSSI_D3 (AF13), UART8_TX (AF8)
D5PE0ввод-выводDCMI_D2 (AF13), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_ETR (AF4), LTDC_R0 (AF14), PSSI_D2 (AF13), SAI2_MCLK_A (AF10), TIM4_ETR (AF2), UART8_RX (AF8)
D6PB7ввод-выводDCMI_VSYNC (AF13), DFSDM1_CKIN5 (AF11), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), LPUART1_RX (AF8), PSSI_RDY (AF13), PWR_PVD_IN, TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
D7PG13ввод-выводDEBUG_TRACED0 (AF0), FMC_A24 (AF12), I2S6_CK (AF5), LPTIM1_OUT (AF1), LTDC_R0 (AF14), SDMMC2_D6 (AF10), SPI6_SCK (AF5), USART10_CTS (AF11), USART10_NSS (AF11), USART6_CTS (AF7), USART6_NSS (AF7)
D8PD7ввод-выводDFSDM1_CKIN1 (AF6), DFSDM1_DATIN4 (AF3), FMC_NE1 (AF12), I2S1_SDO (AF5), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), SPDIFRX_IN0, SPI1_MOSI (AF5), USART2_CK (AF7)
D9PD3ввод-выводDCMI_D5 (AF13), DFSDM1_CKOUT (AF3), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_G7 (AF14), PSSI_D5 (AF13), SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
D10PD0ввод-выводDFSDM1_CKIN6 (AF3), FDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), LTDC_B1 (AF14), UART4_RX (AF8), UART9_CTS (AF11)
D11PA13ввод-выводDEBUG_JTMS-SWDIO (AF0)
D12VDDLDOпитание—
D13VCAPпитание—
E1VLXSMPSпитание—
E2VSSSMPSпитание—
E3VBATпитание—
E4PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), OCTOSPIM_P2_IO1 (AF9)
E5PF3ввод-выводFMC_A3 (AF12), OCTOSPIM_P2_IO3 (AF9)
E6BOOT0загрузка—
E7PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), OCTOSPIM_P2_DQS (AF9), PSSI_D13 (AF13), USART10_CK (AF11), USART6_CTS (AF7), USART6_NSS (AF7)
E8PG12ввод-выводFMC_NE4 (AF12), I2S6_SDI (AF5), LPTIM1_IN1 (AF1), LTDC_B1 (AF14), LTDC_B4 (AF9), OCTOSPIM_P2_NCS (AF3), SDMMC2_D3 (AF10), SPDIFRX_IN1, SPI6_MISO (AF5), USART10_TX (AF11), USART6_DE (AF7), USART6_RTS (AF7)
E9PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), LTDC_B2 (AF14), LTDC_B7 (AF9), PSSI_D11 (AF13), SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
E10PA10ввод-выводDCMI_D1 (AF13), LPUART1_RX (AF3), LTDC_B1 (AF14), LTDC_B4 (AF12), MDIOS_MDIO (AF11), PSSI_D1 (AF13), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_HS_ID (AF10)
E11PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R5 (AF14), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_HS_VBUS
E12PA8ввод-выводI2C3_SCL (AF4), LTDC_B3 (AF13), LTDC_R6 (AF14), RCC_MCO_1 (AF0), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF12), TIM8_BKIN2_COMP2 (AF12), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_HS_SOF (AF10)
E13PA12ввод-выводFDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R5 (AF14), SAI2_FS_B (AF8), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_HS_DP
F1VDDSMPSпитание—
F2VFBSMPSпитание—
F3PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), OCTOSPIM_P2_IO0 (AF9)
F4PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), OCTOSPIM_P2_IO2 (AF9)
F5PF5ввод-выводFMC_A5 (AF12), OCTOSPIM_P2_NCLK (AF9)
F6PF7ввод-выводOCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF6), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
F7PB3ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2S1_CK (AF5), I2S3_CK (AF6), I2S6_CK (AF8), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART7_RX (AF11)
F8PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
F9PC6ввод-выводDCMI_D0 (AF13), DFSDM1_CKIN3 (AF4), FMC_NWAIT (AF9), I2S2_MCK (AF5), LTDC_HSYNC (AF14), PSSI_D0 (AF13), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), SWPMI1_IO, TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
F10PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), DFSDM1_DATIN3 (AF4), FMC_NE1 (AF9), I2S3_MCK (AF6), LTDC_G6 (AF14), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), SWPMI1_TX (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
F11PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF13), I2C3_SDA (AF4), I2S_CKIN (AF5), LTDC_B2 (AF14), LTDC_G3 (AF10), OCTOSPIM_P1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), SWPMI1_SUSPEND (AF11), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8)
F12PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), PSSI_D2 (AF13), SDMMC1_D0 (AF12), SWPMI1_RX (AF11), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
F13PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX (AF9), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R4 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_HS_DM
G1VDDпитание—
G2VSSпитание—
G3PF4ввод-выводFMC_A4 (AF12), OCTOSPIM_P2_CLK (AF9)
G4PF6ввод-выводOCTOSPIM_P1_IO3 (AF10), SAI1_SD_B (AF6), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
G5PF9ввод-выводDAC1_EXTI9, OCTOSPIM_P1_IO1 (AF10), SAI1_FS_B (AF6), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
G6NRSTсброс—
G7PF13ввод-выводADC2_INP2, DFSDM1_DATIN6 (AF3), FMC_A7 (AF12), I2C4_SMBA (AF4)
G8PE7ввод-выводCOMP2_INM, DFSDM1_DATIN2 (AF3), FMC_D4 (AF12), FMC_DA4 (AF12), OCTOSPIM_P1_IO4 (AF10), OPAMP2_VOUT, TIM1_ETR (AF1), UART7_RX (AF7)
G9PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), LTDC_R7 (AF14), OCTOSPIM_P1_NCS (AF10), PSSI_D12 (AF13), TIM17_BKIN (AF1)
G10PG7ввод-выводDCMI_D13 (AF13), FMC_INT (AF12), LTDC_CLK (AF14), OCTOSPIM_P2_DQS (AF9), PSSI_D13 (AF13), SAI1_MCLK_A (AF6), USART6_CK (AF7)
G11PG8ввод-выводFMC_SDCLK (AF12), I2S6_WS (AF5), LTDC_G7 (AF14), SPDIFRX_IN2, SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
G12VDD50_USBпитание—
G13VDD33_USBпитание—
H1PH0-OSC_INввод-выводRCC_OSC_IN
H2PH1-OSC_OUTввод-выводRCC_OSC_OUT
H3PF10ввод-выводDCMI_D11 (AF13), LTDC_DE (AF14), OCTOSPIM_P1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), TIM16_BKIN (AF1)
H4PF8ввод-выводOCTOSPIM_P1_IO0 (AF10), SAI1_SCK_B (AF6), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
H5PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, DFSDM1_CKIN1 (AF3), DFSDM1_CKOUT (AF6), FMC_SDNE0 (AF12), I2S2_SDI (AF5), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF11), PWR_CSTOP (AF0), SPI2_MISO (AF5), USB_OTG_HS_ULPI_DIR (AF10)
H6PA4ввод-выводADC1_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF8), LTDC_VSYNC (AF14), PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
H7PF14ввод-выводADC2_INN2, ADC2_INP6, DFSDM1_CKIN6 (AF3), FMC_A8 (AF12), I2C4_SCL (AF4)
H8PE8ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN2 (AF3), FMC_D5 (AF12), FMC_DA5 (AF12), OCTOSPIM_P1_IO5 (AF10), OPAMP2_VINM, TIM1_CH1N (AF1), UART7_TX (AF7)
H9PG2ввод-выводFMC_A12 (AF12), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
H10PG3ввод-выводFMC_A13 (AF12), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
H11PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
H12VSSпитание—
H13VDDпитание—
J1PC0ввод-выводADC1_INP10, ADC2_INP10, DFSDM1_CKIN0 (AF3), DFSDM1_DATIN4 (AF6), FMC_A25 (AF9), FMC_SDNWE (AF12), LTDC_G2 (AF11), LTDC_R5 (AF14), SAI2_FS_B (AF8), USB_OTG_HS_ULPI_STP (AF10)
J2PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DEBUG_TRACED0 (AF0), DFSDM1_CKIN4 (AF4), DFSDM1_DATIN0 (AF3), I2S2_SDO (AF5), LTDC_G5 (AF14), MDIOS_MDC (AF12), OCTOSPIM_P1_IO4 (AF10), PWR_WKUP6, RTC_TAMP3, SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF9), SPI2_MOSI (AF5)
J3VSSAпитание—
J4PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, DFSDM1_DATIN1 (AF3), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF11), PWR_CSLEEP (AF0), SPI2_MOSI (AF5), USB_OTG_HS_ULPI_NXT (AF10)
J5PA0ввод-выводADC1_INP16, I2S6_WS (AF5), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI6_NSS (AF5), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
J6PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, DFSDM2_DATIN1 (AF4), FMC_SDNWE (AF12), I2S1_SDO (AF5), I2S6_SDO (AF8), LTDC_VSYNC (AF14), OCTOSPIM_P1_IO2 (AF10), OPAMP1_VINM, SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3)
J7PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4)
J8PE9ввод-выводCOMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT (AF3), FMC_D6 (AF12), FMC_DA6 (AF12), OCTOSPIM_P1_IO6 (AF10), OPAMP2_VINP, TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
J9PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), LTDC_CLK (AF14), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
J10PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), OCTOSPIM_P1_IO0 (AF9), SAI2_SD_A (AF10), USART3_CTS (AF7), USART3_NSS (AF7)
J11PD13ввод-выводDCMI_D13 (AF13), FMC_A18 (AF12), I2C4_SDA (AF4), LPTIM1_OUT (AF1), OCTOSPIM_P1_IO3 (AF9), PSSI_D13 (AF13), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
J12PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
J13PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
K1PC3_Cввод-выводADC2_INP1, DFSDM1_DATIN1 (AF3), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF11), PWR_CSLEEP (AF0), SPI2_MOSI (AF5), USB_OTG_HS_ULPI_NXT (AF10)
K2PC2_Cввод-выводADC2_INN1, ADC2_INP0, DFSDM1_CKIN1 (AF3), DFSDM1_CKOUT (AF6), FMC_SDNE0 (AF12), I2S2_SDI (AF5), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF11), PWR_CSTOP (AF0), SPI2_MISO (AF5), USB_OTG_HS_ULPI_DIR (AF10)
K3PA0_Cввод-выводADC1_INN1, ADC1_INP0, I2S6_WS (AF5), SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI6_NSS (AF5), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
K4PA1ввод-выводADC1_INN16, ADC1_INP17, LPTIM3_OUT (AF3), LTDC_R2 (AF14), OCTOSPIM_P1_DQS (AF11), OCTOSPIM_P1_IO3 (AF9), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
K5PA6ввод-выводADC1_INP3, ADC2_INP3, DAC2_OUT1, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), I2S6_SDI (AF8), LTDC_G2 (AF14), MDIOS_MDC (AF11), OCTOSPIM_P1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF12), TIM1_BKIN_COMP2 (AF12), TIM3_CH1 (AF2), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
K6PC4ввод-выводADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2 (AF3), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LTDC_R7 (AF14), OPAMP1_VOUT, SPDIFRX_IN2
K7PG0ввод-выводFMC_A10 (AF12), OCTOSPIM_P2_IO4 (AF9), UART9_RX (AF11)
K8PE13ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN5 (AF3), FMC_D10 (AF12), FMC_DA10 (AF12), LTDC_DE (AF14), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
K9PH10ввод-выводDCMI_D1 (AF13), FMC_D18 (AF12), I2C4_SMBA (AF4), LTDC_R4 (AF14), PSSI_D1 (AF13), TIM5_CH1 (AF2)
K10PH12ввод-выводDCMI_D3 (AF13), FMC_D20 (AF12), I2C4_SDA (AF4), LTDC_R6 (AF14), PSSI_D3 (AF13), TIM5_CH3 (AF2)
K11PD9ввод-выводDAC1_EXTI9, DFSDM1_DATIN3 (AF3), FMC_D14 (AF12), FMC_DA14 (AF12), USART3_RX (AF7)
K12PD10ввод-выводDFSDM1_CKOUT (AF3), DFSDM2_CKOUT (AF4), FMC_D15 (AF12), FMC_DA15 (AF12), LTDC_B3 (AF14), USART3_CK (AF7)
K13PD12ввод-выводDCMI_D12 (AF13), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), OCTOSPIM_P1_IO1 (AF9), PSSI_D12 (AF13), SAI2_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
L1VDDAпитание—
L2VREF+служебныйVREFBUF_OUT
L3PA1_Cввод-выводADC1_INP1, LPTIM3_OUT (AF3), LTDC_R2 (AF14), OCTOSPIM_P1_DQS (AF11), OCTOSPIM_P1_IO3 (AF9), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
L4PA5ввод-выводADC1_INN18, ADC1_INP19, DAC1_OUT2, I2S1_CK (AF5), I2S6_CK (AF8), LTDC_R4 (AF14), PSSI_D14 (AF13), PWR_NDSTOP2 (AF0), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM8_CH1N (AF3), USB_OTG_HS_ULPI_CK (AF10)
L5PB1ввод-выводADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1 (AF6), LTDC_G0 (AF14), LTDC_R6 (AF9), OCTOSPIM_P1_IO0 (AF11), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USB_OTG_HS_ULPI_D2 (AF10)
L6PB2ввод-выводCOMP1_INP, DFSDM1_CKIN1 (AF4), I2S3_SDO (AF7), OCTOSPIM_P1_CLK (AF9), OCTOSPIM_P1_DQS (AF10), RTC_OUT_ALARM (AF0), RTC_OUT_CALIB, SAI1_D1 (AF2), SAI1_SD_A (AF6), SPI3_MOSI (AF7)
L7PG1ввод-выводFMC_A11 (AF12), OCTOSPIM_P2_IO5 (AF9), OPAMP2_VINM, UART9_TX (AF11)
L8PE12ввод-выводCOMP1_OUT (AF13), DFSDM1_DATIN5 (AF3), FMC_D9 (AF12), FMC_DA9 (AF12), LTDC_B4 (AF14), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
L9PB10ввод-выводDFSDM1_DATIN7 (AF6), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), LTDC_G4 (AF14), OCTOSPIM_P1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7), USB_OTG_HS_ULPI_D3 (AF10)
L10PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D2 (AF13), FMC_D19 (AF12), I2C4_SCL (AF4), LTDC_R5 (AF14), PSSI_D2 (AF13), TIM5_CH2 (AF2)
L11PB13ввод-выводDCMI_D2 (AF13), DFSDM1_CKIN1 (AF6), DFSDM2_CKIN1 (AF4), FDCAN2_TX (AF9), I2S2_CK (AF5), LPTIM2_OUT (AF3), PSSI_D2 (AF13), SDMMC1_D0 (AF12), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), USART3_CTS (AF7), USART3_NSS (AF7), USB_OTG_HS_ULPI_D6 (AF10)
L12VSSпитание—
L13VDDпитание—
M1VDDпитание—
M2VSSпитание—
M3PH3ввод-выводFMC_SDNE0 (AF12), LTDC_R1 (AF14), OCTOSPIM_P1_IO5 (AF9), SAI2_MCLK_B (AF10)
M4VSSпитание—
M5PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT (AF6), DFSDM2_CKOUT (AF4), LTDC_G1 (AF14), LTDC_R3 (AF9), OCTOSPIM_P1_IO1 (AF11), OPAMP1_VINP, TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USB_OTG_HS_ULPI_D1 (AF10)
M6PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), OCTOSPIM_P1_NCLK (AF9), PSSI_D12 (AF13), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
M7VSSпитание—
M8PE10ввод-выводCOMP2_INM, DFSDM1_DATIN4 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), OCTOSPIM_P1_IO7 (AF10), TIM1_CH2N (AF1), UART7_CTS (AF7)
M9PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, DFSDM1_CKIN7 (AF6), I2C2_SDA (AF4), LPTIM2_ETR (AF3), LTDC_G5 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7), USB_OTG_HS_ULPI_D4 (AF10)
M10VDDLDOпитание—
M11VSSпитание—
M12PD8ввод-выводDFSDM1_CKIN3 (AF3), FMC_D13 (AF12), FMC_DA13 (AF12), SPDIFRX_IN1, USART3_TX (AF7)
M13PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, DFSDM1_CKIN2 (AF6), I2S2_SDO (AF5), LTDC_G7 (AF14), RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), USART1_RX (AF4)
N1PA2ввод-выводADC1_INP14, DFSDM2_CKIN1 (AF6), LTDC_R1 (AF14), MDIOS_MDIO (AF12), PWR_WKUP2, SAI2_SCK_B (AF8), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
N2PH2ввод-выводFMC_SDCKE0 (AF12), LPTIM1_IN2 (AF1), LTDC_R0 (AF14), OCTOSPIM_P1_IO4 (AF9), SAI2_SCK_B (AF10)
N3PA3ввод-выводADC1_INP15, I2S6_MCK (AF5), LTDC_B2 (AF9), LTDC_B5 (AF14), OCTOSPIM_P1_CLK (AF3), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7), USB_OTG_HS_ULPI_D0 (AF10)
N4VDDпитание—
N5PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT (AF13), DFSDM1_DATIN2 (AF3), FMC_SDCKE0 (AF12), LTDC_DE (AF14), OCTOSPIM_P1_DQS (AF10), OPAMP1_VINM, PSSI_D15 (AF4), SAI1_D3 (AF2), SPDIFRX_IN3
N6PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), OCTOSPIM_P2_DQS (AF9)
N7VDDпитание—
N8PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, COMP2_INP, DFSDM1_CKIN4 (AF3), FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G3 (AF14), OCTOSPIM_P1_NCS (AF11), SAI2_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
N9PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R7 (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), USART10_CK (AF11)
N10VCAPпитание—
N11VDDпитание—
N12PB12ввод-выводDFSDM1_DATIN1 (AF6), DFSDM2_DATIN1 (AF11), FDCAN2_RX (AF9), I2C2_SMBA (AF4), I2S2_WS (AF5), OCTOSPIM_P1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), UART5_RX (AF14), USART3_CK (AF7), USB_OTG_HS_ULPI_D5 (AF10)
N13PB14ввод-выводDFSDM1_DATIN2 (AF6), I2S2_SDI (AF5), LTDC_CLK (AF14), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATE3резервное питание: часы реального времени и резервные регистры
VCAPA4, D13, N10вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDA3, A7, A10, C13, D1, G1, H13, L13, M1, N4, N7, N11питание цифровой части и линий ввода-вывода
VDD33_USBG13—
VDD50_USBG12—
VDDAL1питание аналоговой части: АЦП, ЦАП, генераторы
VDDLDOB4, D12, M10—
VDDMMCA6—
VDDSMPSF1—
VFBSMPSF2—
VLXSMPSE1—
VSSB3, B7, B10, C12, D2, G2, H12, L12, M2, M4, M7, M11общий провод (земля)
VSSAJ3общий провод аналоговой части
VSSSMPSE2—
NRSTG6сброс, активный уровень — низкий
PDR_ONC4управление внутренней схемой сброса по питанию
BOOT0E6выбор источника загрузки при сбросе
VREF+L2верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H7B0ABIxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H7B0ABSTM32H7B0ABIxQ128 КБ1,390625 МБ

Линейка STM32H7B0 Value line, семейство STM32H7, ядро Cortex-M7.

Заказные номера

Полные номера для заказа из таблицы на странице продукта на сайте ST: STM32H7B0AB. Данные на 11 октября 2026 г.; перечислены номера, которые в этот момент выпускались. Цифра после буквы корпуса — температурный диапазон, вид упаковки указан в последнем столбце.

Номер для заказаКорпусТемператураУпаковка
STM32H7B0ABI6QUFBGA 169, 7×7×0,6 мм, шаг 0,5 мм−40…+85 °Cлоток

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе UFBGA169, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H7A3AG, STM32H7A3AISTM32H7A3/7B3169 из 169выводы совпадают полностьютолько у этого: CRYP, HASH; флеш-память до 128 и 2048 КБ
STM32H7B3AISTM32H7A3/7B3169 из 169выводы совпадают полностьюфлеш-память до 128 и 2048 КБ
STM32H725AESTM32H725/735166 из 169A6: VDDMMC → VDD; G12: VDD50_USB → VDD50USB; G13: VDD33_USB → VDD33USBтолько у этого: CRYP, DAC2, DFSDM2, HASH, SAI2, SPDIFRX; только у него: ADC3, CORDIC, ETH, FDCAN3, FMAC, I2C5, LPTIM4, LPTIM5, SAI4, SPDIFRX1, TIM23, TIM24; частота до 280 и 550 МГц; флеш-память до 128 и 512 КБ; ОЗУ 1424 и 564 КБ
STM32H725AGSTM32H725/735166 из 169A6: VDDMMC → VDD; G12: VDD50_USB → VDD50USB; G13: VDD33_USB → VDD33USBтолько у этого: CRYP, DAC2, DFSDM2, HASH, SAI2, SPDIFRX; только у него: ADC3, CORDIC, ETH, FDCAN3, FMAC, I2C5, LPTIM4, LPTIM5, SAI4, SPDIFRX1, TIM23, TIM24; частота до 280 и 550 МГц; флеш-память до 128 и 1024 КБ; ОЗУ 1424 и 564 КБ
STM32H730ABSTM32H730 Value line166 из 169A6: VDDMMC → VDD; G12: VDD50_USB → VDD50USB; G13: VDD33_USB → VDD33USBтолько у этого: DAC2, DFSDM2, SAI2, SPDIFRX; только у него: ADC3, CORDIC, ETH, FDCAN3, FMAC, I2C5, LPTIM4, LPTIM5, SAI4, SPDIFRX1, TIM23, TIM24; частота до 280 и 550 МГц; ОЗУ 1424 и 564 КБ
STM32H735AGSTM32H725/735166 из 169A6: VDDMMC → VDD; G12: VDD50_USB → VDD50USB; G13: VDD33_USB → VDD33USBтолько у этого: DAC2, DFSDM2, SAI2, SPDIFRX; только у него: ADC3, CORDIC, ETH, FDCAN3, FMAC, I2C5, LPTIM4, LPTIM5, SAI4, SPDIFRX1, TIM23, TIM24; частота до 280 и 550 МГц; флеш-память до 128 и 1024 КБ; ОЗУ 1424 и 564 КБ
STM32H742AG, STM32H742AISTM32H742156 из 169A4: VCAP → PI6; A6: VDDMMC → PI2; A13: PH14 → PI0; B7: VSS → PI3; B13: PH13 → PI1; E1: VLXSMPS → PI11; E2: VSSSMPS → PI7; F1: VDDSMPS → PI13; F2: VFBSMPS → PI12; H5: PC2 → PJ1; J4: PC3 → PJ0; K3: PA0 → PH4только у этого: CRYP, DAC2, DFSDM2, HASH, I2S6, LTDC, OCTOSPI1, OCTOSPI2, PSSI, SPDIFRX, UART9, USART10; только у него: ADC3, ETH, HRTIM, LPTIM4, LPTIM5, QUADSPI, SAI3, SAI4, SPDIFRX1, USB_OTG_FS, USB_OTG_FS1; частота до 280 и 480 МГц; флеш-память до 128 и 2048 КБ; ОЗУ 1424 и 864 КБ
STM32H743AG, STM32H743AISTM32H743/753156 из 169A4: VCAP → PI6; A6: VDDMMC → PI2; A13: PH14 → PI0; B7: VSS → PI3; B13: PH13 → PI1; E1: VLXSMPS → PI11; E2: VSSSMPS → PI7; F1: VDDSMPS → PI13; F2: VFBSMPS → PI12; H5: PC2 → PJ1; J4: PC3 → PJ0; K3: PA0 → PH4только у этого: CRYP, DAC2, DFSDM2, HASH, I2S6, OCTOSPI1, OCTOSPI2, PSSI, SPDIFRX, UART9, USART10; только у него: ADC3, ETH, HRTIM, LPTIM4, LPTIM5, QUADSPI, SAI3, SAI4, SPDIFRX1, USB_OTG_FS, USB_OTG_FS1; частота до 280 и 480 МГц; флеш-память до 128 и 2048 КБ; ОЗУ 1424 и 864 КБ
STM32H753AISTM32H743/753156 из 169A4: VCAP → PI6; A6: VDDMMC → PI2; A13: PH14 → PI0; B7: VSS → PI3; B13: PH13 → PI1; E1: VLXSMPS → PI11; E2: VSSSMPS → PI7; F1: VDDSMPS → PI13; F2: VFBSMPS → PI12; H5: PC2 → PJ1; J4: PC3 → PJ0; K3: PA0 → PH4только у этого: DAC2, DFSDM2, I2S6, OCTOSPI1, OCTOSPI2, PSSI, SPDIFRX, UART9, USART10; только у него: ADC3, ETH, HRTIM, LPTIM4, LPTIM5, QUADSPI, SAI3, SAI4, SPDIFRX1, USB_OTG_FS, USB_OTG_FS1; частота до 280 и 480 МГц; флеш-память до 128 и 2048 КБ; ОЗУ 1424 и 864 КБ

Частые вопросы

На каких выводах USART1 у STM32H7B0AB?

В корпусе UFBGA169 сигнал USART1_TX выведен на PB6 (шарик A5, AF7) или PA9 (шарик E11, AF7) или PB14 (шарик N13, AF4), USART1_RX — на PB7 (шарик D6, AF7) или PA10 (шарик E10, AF7) или PB15 (шарик M13, AF4).

Где у STM32H7B0AB выводы SWD для программатора?

SWDIO — PA13 (шарик D11, AF0), SWCLK — PA14 (шарик B12, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H7B0AB?

I2C1_SCL — PB6 (шарик A5, AF4) или PB8 (шарик B5, AF4), I2C1_SDA — PB9 (шарик C5, AF4) или PB7 (шарик D6, AF4).

Сколько выводов ввода-вывода у STM32H7B0AB в корпусе UFBGA169?

125 из 169. Ещё 40 выводов заняты питанием и землёй, остальные 4 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32H7B0AB?

От 1,62 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Заказные номера, корпуса, упаковка и температурный диапазон — из таблиц на страницах продуктов st.com (данные на 11 октября 2026 г.). Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
