STM32N645L0 в корпусе VFBGA223: распиновка

STM32N645L0 — микроконтроллер STM32N6 на ядре Cortex-M55 с частотой до 800 МГц: 4200 КБ ОЗУ. Корпус VFBGA223 — 223 шарика, из них 144 линии ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M55
Частота ядра
до 800 МГц
ОЗУ
4200 КБ
Корпус
VFBGA223, 223 шарика
Линий ввода-вывода
144
Напряжение питания
1,71…3,6 В

Схема корпуса VFBGA223

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32N645L0 в корпусе VFBGA223, вид сверхуABCDEFGHJKLMNPRTUVW12345678910111213141516171819PDR_ON — шарик A1PDR_ONOTG1_TXRTUNE — шарик A2OTG1TXRTUNEOTG1_HSDP — шарик A3: USB1_OTG_HS_DPOTG1HSDPUCPD1_CC1 — шарик A4: UCPD1_CC1UCPD1CC1PH0-OSC_IN — шарик A5: RCC_OSC_INPH0PC12 — шарик A6: DCMIPP_D9, DCMI_D9, DEBUG_TRACED3, FMC_NL, HDP_HDP4, I2S3_SDO, I2S6_CK, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, TIM1_CH4, UART5_TX, USART3_CKPC12PC1 — шарик A7: DCMIPP_D7, DCMI_D7, FDCAN1_TX, HDP_HDP1, I2C1_SDA, I2S2_WS, I3C1_SDA, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPC1PC6 — шарик A8: DCMIPP_D1, DCMI_D1, HDP_HDP6, I2S2_MCK, PSSI_D1, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM1_CH1, TIM3_CH1, TIM9_CH1, USART6_TXPC6PE13 — шарик A9: ADF1_CCK0, FMC_SDNCAS, I2C4_SCL, SAI2_FS_B, SPI4_MISO, TIM1_CH3PE13PD6 — шарик A10: FMC_A1, FMC_A17, FMC_ALE, HDP_HDP2, I2S2_SDI, SPI2_MISO, TIM15_CH2, TIM1_CH1PD6PD12 — шарик A11: DCMIPP_D12, DCMI_D12, ETH1_MDIO, FMC_A5, FMC_A21, HDP_HDP5, MDF1_SDI3, PSSI_D12, SAI1_D3, SPDIFRX1_IN3, UCPD1_FRSTX2PD12PD15 — шарик A12: ADC1_EXTI15, ADC2_EXTI15, FMC_A8, I2C2_SDA, LTDC_R2, USART10_TXPD15PE8 — шарик A13: DCMIPP_D4, DCMI_D4, FMC_A12, MDF1_SDI0, PSSI_D4, TIM1_CH1N, UART7_TX, USART3_TXPE8PB15 — шарик A14: ADC1_EXTI15, ADC2_EXTI15, FMC_D0, FMC_DA0, I2S6_WS, LTDC_G4, SPDIFRX1_IN2, SPI6_NSS, USART6_DE, USART6_RTSPB15PD5 — шарик A15: DCMIPP_PIXCLK, DCMI_PIXCLK, FMC_D6, FMC_DA6, PSSI_PDCK, SDMMC2_D7, TIM1_CH4N, USART2_TXPD5PB13 — шарик A16: DEBUG_TRACED0, FMC_D5, FMC_DA5, I2S6_CK, LPTIM1_CH1, LTDC_CLK, SDMMC2_D6, SPI6_SCK, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSSPB13PD11 — шарик A17: ADC1_EXTI11, ADC2_EXTI11, DCMIPP_D15, FMC_D8, FMC_DA8, I2C4_SDA, I2S2_SDI, PSSI_D15, SDMMC1_D0, SPI2_MISO, UCPD1_FRSTX1PD11PE0 — шарик A18: DCMIPP_D2, DCMI_D2, FMC_D9, FMC_DA9, LPTIM1_ETR, LPTIM2_ETR, PSSI_D2, SAI2_MCLK_A, TAMP_IN6, TAMP_OUT5, TIM4_ETR, UART8_RX, USART3_RXPE0VSS — шарик A19VSSNC — шарик B1NCOTG1_ID — шарик B2: USB1_OTG_HS_IDOTG1IDOTG1_HSDM — шарик B3: USB1_OTG_HS_DMOTG1HSDMUCPD1_CC2 — шарик B4: UCPD1_CC2UCPD1CC2PH1-OSC_OUT — шарик B5: RCC_OSC_OUTPH1PC11 — шарик B6: ADC1_EXTI11, ADC2_EXTI11, DCMIPP_D4, DCMI_D4, HDP_HDP3, I2C4_SDA, I2S3_SDI, I3C2_SDA, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PH9 — шарик B7: DCMIPP_D6, DCMI_D6, FDCAN1_RX, FMC_D9, FMC_DA9, HDP_HDP0, I2C1_SCL, I3C1_SCL, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RX, USART3_CKPH9PC7 — шарик B8: DCMIPP_D1, DCMI_D1, DEBUG_TRGIO, HDP_HDP7, I2S3_MCK, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM16_CH1N, TIM3_CH2, TIM9_CH2, USART6_RXPC7PE6 — шарик B9: DCMIPP_D1, DCMIPP_VSYNC, DCMI_D1, DCMI_VSYNC, FMC_SDCKE1, HDP_HDP7, I2C1_SDA, I3C1_SDA, LPUART1_RX, PSSI_D1, PSSI_RDY, TIM17_CH1N, TIM4_CH2, UART5_TX, USART1_RXPE6PD2 — шарик B10: ADF1_SDI0, DEBUG_TRACED0, FMC_A0, FMC_A16, FMC_CLE, HDP_HDP1, I2S2_SDO, MDF1_SDI1, MDIOS_MDC, PWR_WKUP4, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI2_MOSI, TIM15_CH1N, TIM1_CH3PD2PE7 — шарик B11: FMC_A4, FMC_A20, MDF1_CKI0, SAI2_SD_B, TIM1_ETR, UART7_RXPE7PD0 — шарик B12: DCMIPP_HSYNC, DCMI_HSYNC, FDCAN1_RX, FMC_A6, FMC_A22, PSSI_DE, TIM1_ETR, UART4_RX, UART9_CTSPD0PD4 — шарик B13: DCMIPP_D9, DCMI_D9, FMC_A11, I2C2_SDA, PSSI_D9, SPI5_MISO, TAMP_IN7, TAMP_OUT8, TIM1_BKIN2, USART6_DE, USART6_RTSPD4PD8 — шарик B14: DCMIPP_D11, DCMI_D11, FMC_NBL0, LTDC_R7, PSSI_D11, SPDIFRX1_IN1, TAMP_IN3, TAMP_OUT4, USART3_TXPD8PB9 — шарик B15: DCMIPP_D3, DCMI_D3, FMC_D3, FMC_DA3, I2S1_CK, LPTIM1_IN2, PSSI_D3, SDMMC2_D2, SPDIFRX1_IN0, SPI1_SCK, USART10_TXPB9PB2 — шарик B16: ADF1_SDI0, FMC_D2, FMC_DA2, HDP_HDP2, I2S3_SDO, LTDC_B2, MDF1_SDI1, RTC_OUT2, SAI1_D1, SAI1_SD_A, SPI3_MOSI, TIM1_CH1PB2PB3 — шарик B17: DEBUG_TRACECLK, FMC_A23, FMC_NBL1, GFXTIM_FCKCAL, GFXTIM_LCKCAL, HDP_HDP0, MDF1_CKI1, SAI2_FS_B, TIM1_CH4N, USART1_CKPB3PE1 — шарик B18: DCMIPP_D8, DCMI_D8, FMC_D10, FMC_DA10, LPTIM1_IN2, LPTIM2_CH2, PSSI_D8, UART8_TX, USART3_TXPE1PE2 — шарик B19: ADF1_CCK0, DEBUG_TRACECLK, FMC_D11, FMC_DA11, LPTIM5_IN1, MDF1_CCK0, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, TIM1_CH2N, UCPD1_FRSTX1PE2OTG2_HSDP — шарик C1: USB2_OTG_HS_DPOTG2HSDPOTG2_HSDM — шарик C2: USB2_OTG_HS_DMOTG2HSDMVDD33USB — шарик C3VDD33USBPB14 — шарик C17: DCMIPP_D10, DCMI_D10, FMC_D7, FMC_DA7, LPTIM1_CH2, LTDC_HSYNC, PSSI_D10, USART10_CK, USART6_CTS, USART6_NSSPB14PE3 — шарик C18: DEBUG_TRACED0, FMC_D12, FMC_DA12, LPTIM5_ETR, MDF1_CKI2, SAI1_SD_B, TIM15_BKINPE3PB0 — шарик C19: ADF1_SDI0, DCMIPP_D4, DCMI_D4, DEBUG_TRACED1, FMC_D13, FMC_DA13, MDF1_SDI2, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TIM15_CH1N, TIM1_CH4PB0PC15-OSC32_OUT(OSC32_OUT) — шарик D1: RCC_OSC32_OUTPC15NC — шарик D2NCVDDA18USB — шарик D4VDDA18USBPC9 — шарик D5: AUDIOCLK, DCMIPP_D3, DCMI_D3, HDP_HDP1, I2C3_SDA, LTDC_B3, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, UART5_CTS, UCPD1_FRSTX2, USART6_RXPC9PC10 — шарик D6: DCMIPP_D14, FMC_CLK, HDP_HDP2, I2C4_SCL, I2S3_CK, I3C2_SCL, PSSI_D14, SDMMC1_D2, SPI3_SCK, TIM1_BKIN, UART4_TX, USART3_TXPC10PH2 — шарик D7: DCMIPP_D11, DCMI_D11, DEBUG_TRACED2, FDCAN1_TX, FMC_NE3, PSSI_D11, SDMMC1_CMD, TIM15_BKIN, TIM1_ETR, TIM3_ETR, UART5_RXPH2PE11 — шарик D8: ADC1_EXTI11, ADC2_EXTI11, FDCAN3_TX, FMC_SDNWE, LTDC_VSYNC, MDF1_CKI5, SAI2_SD_B, SPI4_NSS, TIM1_CH2PE11PE5 — шарик D9: DCMIPP_D5, DCMI_D5, FDCAN2_TX, FMC_SDNE1, HDP_HDP6, I2C1_SCL, I3C1_SCL, LPUART1_TX, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPE5PE12 — шарик D10: FDCAN3_RX, FMC_SDNRAS, MDF1_SDI5, SAI2_SCK_B, SPI4_SCK, TIM1_CH3NPE12PD10 — шарик D11: DEBUG_TRACECLK, FMC_A3, FMC_A19, GFXTIM_TE, HDP_HDP4, I2S1_MCK, MDF1_CKI3, SAI2_FS_B, SPDIFRX1_IN2, TIM1_ETR, UCPD1_FRSTX1PD10PD1 — шарик D12: ETH1_MDC, FDCAN1_TX, FMC_A7, FMC_A23, UART4_TXPD1PD3 — шарик D13: DCMIPP_D14, ETH1_PHY_INTN, FMC_A10, I2C2_SMBA, PSSI_D14, USART10_RX, USART6_CTSPD3PE10 — шарик D14: DCMIPP_D3, DCMI_D3, DEBUG_TRACECLK, FMC_A15, FMC_BA1, MDF1_SDI4, PSSI_D3, TIM1_CH2N, UART7_CTS, USART3_RXPE10PB8 — шарик D15: DCMIPP_VSYNC, DCMI_VSYNC, FMC_D1, FMC_DA1, I2S1_SDI, PSSI_RDY, SAI2_FS_B, SDMMC2_D0, SPDIFRX1_IN3, SPI1_MISO, USART6_RXPB8PD13 — шарик D16: DCMIPP_D13, DCMI_D13, FMC_D4, FMC_DA4, LPTIM1_CH1, LTDC_R6, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTS, UCPD1_FRSTX2PD13PP10 — шарик D18: ETH1_MDC, FMC_D26, XSPIM_P1_IO10PP10PB6 — шарик D19: ADF1_CCK1, DCMIPP_D6, DCMI_D6, DEBUG_TRACED2, FMC_D14, FMC_DA14, MDF1_CCK1, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TIM15_CH1PB6PC14-OSC32_IN(OSC32_IN) — шарик E1: RCC_OSC32_INPC14OTG2_TXRTUNE — шарик E2OTG2TXRTUNEOTG2_ID — шарик E4: USB2_OTG_HS_IDOTG2IDPB7 — шарик E16: ADF1_SDI0, DCMIPP_D7, DCMI_D7, DEBUG_TRACED3, FMC_D15, FMC_DA15, MDF1_SDI1, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2PB7PO3 — шарик E18: FMC_A25, LTDC_G3, XSPIM_P1_DQS1PO3PP9 — шарик E19: FMC_D25, SPI2_MOSI, XSPIM_P1_IO9PP9VBAT — шарик F1VBATNRST — шарик F2NRSTBOOT0 — шарик F4BOOT0PC8 — шарик F6: DCMIPP_D2, DCMI_D2, DEBUG_TRACED1, FMC_NE4, HDP_HDP0, I2C3_SMBA, LTDC_B0, PSSI_D2, SDMMC1_D0, TIM3_CH3, UART5_DE, UART5_RTS, UCPD1_FRSTX1, USART6_CKPC8VDDIO4 — шарик F7VDDIO4VDDIO4 — шарик F8VDDIO4PE14 — шарик F9: ADF1_CCK1, FMC_NWE, FMC_SDNE0, GFXTIM_FCKCAL, GFXTIM_LCKCAL, I2C4_SDA, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PE15 — шарик F10: ADC1_EXTI15, ADC2_EXTI15, FMC_SDCKE0, GFXTIM_FCKCAL, GFXTIM_LCKCAL, I2C4_SMBA, SDMMC1_D0, SPI5_SCK, TIM1_BKIN, USART10_CK, USART2_CKPE15PD7 — шарик F11: DCMIPP_D0, DCMI_D0, FMC_A2, FMC_A18, HDP_HDP3, I2S2_SDO, I2S3_WS, PSSI_D0, SPI2_MOSI, SPI3_NSS, TIM15_CH1N, TIM1_CH2PD7VSS — шарик F12VSSPD14 — шарик F13: FMC_A9, I2C2_SCL, USART10_RXPD14PE9 — шарик F14: FMC_A14, FMC_BA0, MDF1_CKI4, TIM1_CH1, UART7_DE, UART7_RTSPE9PO0 — шарик F16: FMC_A22, XSPIM_P1_NCS1PO0PP1 — шарик F18: FMC_D17, XSPIM_P1_IO1PP1PP8 — шарик F19: FMC_D24, SPI2_MISO, XSPIM_P1_IO8PP8V08CAP — шарик G1V08CAPVFBSMPS — шарик G2VFBSMPSPWR_ON — шарик G4PWR_ONVSSAON — шарик G6VSSAONPD9 — шарик G14: DCMIPP_D11, DCMI_D11, FMC_SDCLK, LTDC_R1, PSSI_D11, TAMP_IN5, TAMP_OUT6, USART3_RXPD9PO5 — шарик G16: FMC_A25, FMC_NBL3, XSPIM_P1_NCLKPO5PO2 — шарик G18: FMC_A24, LTDC_B7, XSPIM_P1_DQS0PO2PP7 — шарик G19: FMC_D23, XSPIM_P1_IO7PP7VDDA18PMU — шарик H1VDDA18PMUVSSAPMU — шарик H2VSSAPMUPC13 — шарик H4: HDP_HDP5, PWR_WKUP3, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2PC13VDDA18AON — шарик H6VDDA18AONVSS — шарик H14VSSVDDIO2 — шарик H16VDDIO2PP0 — шарик H18: FMC_D16, XSPIM_P1_IO0PP0PP6 — шарик H19: FMC_D22, XSPIM_P1_IO6PP6VSSSMPS — шарик J1VSSSMPSVSSSMPS — шарик J2VSSSMPSVSSSMPS — шарик J3VSSSMPSVSSSMPS — шарик J4VSSSMPSVSSSMPS — шарик J5VSSSMPSVDD — шарик J14VDDVDDIO2 — шарик J16VDDIO2PO4 — шарик J18: FMC_A24, FMC_NBL2, LTDC_B4, XSPIM_P1_CLKPO4PP5 — шарик J19: FMC_D21, XSPIM_P1_IO5PP5VLXSMPS — шарик K1VLXSMPSVLXSMPS — шарик K2VLXSMPSVLXSMPS — шарик K3VLXSMPSVLXSMPS — шарик K4VLXSMPSVLXSMPS — шарик K5VLXSMPSVDD — шарик K14VDDVDDIO2 — шарик K16VDDIO2PP2 — шарик K18: FMC_D18, XSPIM_P1_IO2PP2PP3 — шарик K19: FMC_D19, XSPIM_P1_IO3PP3VDDSMPS — шарик L1VDDSMPSVDDSMPS — шарик L2VDDSMPSVDDSMPS — шарик L3VDDSMPSVDDSMPS — шарик L4VDDSMPSVDDSMPS — шарик L5VDDSMPSVDD — шарик L14VDDVDDIO2 — шарик L16VDDIO2PP15 — шарик L18: ADC1_EXTI15, ADC2_EXTI15, FMC_D31, LTDC_B5, XSPIM_P1_IO15PP15PP4 — шарик L19: FMC_D20, XSPIM_P1_IO4PP4PF4 — шарик M1: ADC1_INP18, DCMIPP_HSYNC, DCMI_HSYNC, ETH1_MDIO, HDP_HDP4, I2S1_WS, I2S3_WS, I2S6_WS, LPTIM3_CH2, LTDC_R3, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CKPF4PF10 — шарик M2: DCMIPP_D11, DCMIPP_D15, DCMI_D11, ETH1_MII_RX_DV, ETH1_RGMII_RX_CTL, ETH1_RMII_CRS_DV, LTDC_R1, MDF1_SDI3, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKIN, UART7_RX, UCPD1_FRSTX1PF10PF6 — шарик M4: ADC1_INP15, ADC2_INP15, ETH1_MII_COL, GFXTIM_FCKCAL, GFXTIM_LCKCAL, HDP_HDP3, I2S6_MCK, LPTIM3_CH1, LTDC_DE, SPI1_RDY, SPI4_RDY, SPI5_RDY, TIM15_CH2, TIM1_CH3, TIM2_CH4, TIM5_CH4, USART2_RXPF6VDDA18PLL — шарик M6VDDA18PLLVDDIO3 — шарик M14VDDIO3VDDIO3 — шарик M16VDDIO3PP14 — шарик M18: FMC_D30, XSPIM_P1_IO14PP14PP13 — шарик M19: FMC_D29, XSPIM_P1_IO13PP13PG6 — шарик N1: DCMIPP_D12, DCMI_D12, ETH1_MII_CRS, LTDC_B3, PSSI_D12, TIM17_BKIN, USART6_CKPG6PG5 — шарик N2: ETH1_MII_RX_ER, LTDC_B1, TIM1_ETR, USART2_CTS, USART2_NSSPG5PF5 — шарик N4: DCMIPP_D6, DCMI_D6, ETH1_CLK, FMC_NE3, LPTIM2_IN2, LTDC_G0, PSSI_D6, SAI2_SD_A, TIM1_ETR, USART3_CTS, USART3_NSSPF5VSSA — шарик N6VSSAPO1 — шарик N14: FMC_A23, XSPIM_P1_NCS2PO1VSS — шарик N16VSSPP12 — шарик N18: FMC_D28, XSPIM_P1_IO12PP12PP11 — шарик N19: ADC1_EXTI11, ADC2_EXTI11, FMC_D27, XSPIM_P1_IO11PP11PF3 — шарик P1: ADC1_INP16, DCMIPP_HSYNC, DCMI_HSYNC, ETH1_PPS_OUT, FDCAN3_RX, FMC_NL, LTDC_R4, PSSI_DE, USART2_DE, USART2_RTSPF3PF14 — шарик P2: ADC2_INN2, ADC2_INP6, ETH1_MII_RXD0, ETH1_RGMII_RXD0, ETH1_RMII_RXD0, LTDC_G0, SPI5_MOSI, TIM2_CH2, USART1_CTSPF14PF2 — шарик P4: ETH1_RGMII_CLK125, FDCAN3_TX, FMC_NWAIT, I2S2_CK, LTDC_B1, SPI2_SCK, TIM1_CH3N, USART2_CTS, USART2_NSSPF2VDDA18ADC — шарик P6VDDA18ADCVDDCORE — шарик P7VDDCOREVSS — шарик P8VSSVDDCORE — шарик P9VDDCOREVDDCORE — шарик P10VDDCOREVDDCORE — шарик P11VDDCOREVSS — шарик P12VSSVDDCORE — шарик P13VDDCOREVSS — шарик P14VSSPN1 — шарик P16: FMC_A24, XSPIM_P2_NCS1PN1PN11 — шарик P18: ADC1_EXTI11, ADC2_EXTI11, LTDC_B6, XSPIM_P2_IO7PN11PN3 — шарик P19: FMC_A22, XSPIM_P2_IO1PN3PF15 — шарик R1: ADC1_EXTI15, ADC2_EXTI15, ETH1_MII_RXD1, ETH1_RGMII_RXD1, ETH1_RMII_RXD1, LTDC_G1, SPI5_SCK, USART1_DE, USART1_RTSPF15PF7 — шарик R2: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH1_MII_RX_CLK, ETH1_RGMII_RX_CLK, ETH1_RMII_REF_CLK, GFXTIM_TE, HDP_HDP0, I2S1_CK, LTDC_VSYNC, SPI1_SCK, TIM1_CH2N, TIM3_CH3, TIM9_CH1, UART4_CTSPF7PF8 — шарик R4: DEBUG_TRACECLK, ETH1_MII_RXD2, ETH1_RGMII_RXD2, FMC_NWE, LTDC_R6, UART9_TXPF8PN7 — шарик R16: XSPIM_P2_NCLKPN7PN10 — шарик R18: LTDC_B4, XSPIM_P2_IO6PN10PN0 — шарик R19: FMC_A25, XSPIM_P2_DQS0PN0PF11 — шарик T1: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMIPP_D15, ETH1_MII_TX_EN, ETH1_RGMII_TX_CTL, ETH1_RMII_TX_EN, LTDC_B0, PSSI_D15, SAI2_SD_B, SPI5_MOSIPF11PF9 — шарик T2: DEBUG_TRACED0, ETH1_MII_RXD3, ETH1_RGMII_RXD3, LTDC_HSYNCPF9PG4 — шарик T4: ETH1_MII_TXD3, ETH1_RGMII_TXD3, LTDC_B0, TIM1_BKIN2PG4PG3 — шарик T5: DCMIPP_HSYNC, DCMI_HSYNC, DEBUG_TRACED1, ETH1_MII_TXD2, ETH1_RGMII_TXD2, PSSI_DE, USART2_TXPG3CSI_REXT — шарик T6: CSI_REXTCSIREXTPG14 — шарик T7: DCMIPP_D11, DCMI_D11, DEBUG_TRACED1, FMC_NCE, FMC_NE2, I2S6_SDO, LPTIM1_ETR, LTDC_B1, PSSI_D11, SPI6_MOSI, USART10_RTS, USART2_DE, USART2_RTS, USART6_TXPG14PA11 — шарик T8: ADC1_EXTI11, ADC1_INN11, ADC1_INP12, ADC2_EXTI11, ADC2_INN11, ADC2_INP12, FDCAN1_RX, FMC_D1, FMC_DA1, HDP_HDP3, I2S2_WS, LPUART1_CTS, LTDC_B3, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSSPA11PA8 — шарик T9: ADC1_INP5, ADC2_INP5, FMC_D4, FMC_DA4, HDP_HDP0, I2C3_SCL, I3C2_SCL, LTDC_B6, RCC_MCO_1, TIM11_CH1, TIM1_CH1, UART7_RX, USART1_CKPA8PA6 — шарик T10: ADC1_INP3, ADC2_INP3, BOOT1, DCMIPP_PIXCLK, DCMI_PIXCLK, HDP_HDP6, I2S1_SDI, I2S6_SDI, I3C1_SDA, LPTIM3_ETR, LTDC_B7, LTDC_HSYNC, MDIOS_MDC, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1PA6PG1 — шарик T11: DCMIPP_PIXCLK, DCMI_PIXCLK, FMC_A19, LTDC_G1, PSSI_PDCK, SAI1_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPG1PG10 — шарик T12: DCMIPP_D2, DCMI_D2, FDCAN2_TX, FMC_A16, FMC_CLE, HDP_HDP5, I2S2_CK, LPTIM2_CH1, LTDC_G4, PSSI_D2, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSSPG10PB10 — шарик T13: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, FMC_D11, FMC_DA11, HDP_HDP2, I2C2_SCL, I2S2_CK, I3C2_SCL, LPTIM2_IN1, LTDC_G7, SPI2_SCK, TIM2_CH3, USART3_TXPB10PB5(JTDO/TRACESWO) — шарик T14: DCMIPP_D10, DCMI_D10, DEBUG_JTDO-SWO, FDCAN2_RX, FMC_D12, FMC_DA12, HDP_HDP5, I2C1_SMBA, I2S1_SDO, I2S3_SDO, I2S6_SDO, LTDC_R2, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RXPB5PA15(JTDI) — шарик T15: ADC1_EXTI15, ADC2_EXTI15, DEBUG_JTDI, FMC_D15, FMC_DA15, HDP_HDP7, I2S1_WS, I2S3_WS, I2S6_WS, LTDC_R5, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PG0 — шарик T16: ETH1_PHY_INTN, LTDC_R0, LTDC_VSYNC, TIM12_CH1, TIM1_CH4N, UART9_RXPG0PN9 — шарик T18: DCMIPP_D5, DCMI_D5, PSSI_D5, XSPIM_P2_IO5PN9PN2 — шарик T19: FMC_A23, XSPIM_P2_IO0PN2PF1 — шарик U1: DCMIPP_D7, DCMI_D7, ETH1_TX_ER, LPTIM1_CH2, LPTIM2_CH1, PSSI_D7, TIM4_CH3, UART8_CTS, UART9_RX, UCPD1_FRSTX1PF1PF12 — шарик U2: ADC1_INN2, ADC1_INP6, DCMIPP_D13, DCMI_D13, ETH1_MII_TXD0, ETH1_RGMII_TXD0, ETH1_RMII_TXD0, PSSI_D13, SPI5_MISO, USART1_RXPF12PF0 — шарик U3: DCMIPP_D9, DCMI_D9, ETH1_MII_TX_CLK, ETH1_RGMII_GTX_CLK, LPTIM5_OUT, PSSI_D9, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TX, UCPD1_FRSTX2PF0PA3 — шарик U17: FMC_A17, FMC_ALE, SAI1_SD_B, SPI5_NSS, TIM16_CH1, UART7_RXPA3PN5 — шарик U18: XSPIM_P2_IO3PN5PN6 — шарик U19: XSPIM_P2_CLKPN6PF13 — шарик V1: ADC2_INP2, DCMIPP_D10, DCMI_D10, ETH1_MII_TXD1, ETH1_RGMII_TXD1, ETH1_RMII_TXD1, PSSI_D10, SPI5_NSS, USART1_TXPF13VREF- — шарик V2VREF-CSI_D1N — шарик V3: CSI_D1NCSID1NCSI_CKN — шарик V4: CSI_CKNCSICKNCSI_D0N — шарик V5: CSI_D0NCSID0NVDDA18CSI — шарик V6VDDA18CSIPA14(JTCK/SWCLK) — шарик V7: DEBUG_JTCK-SWCLK, HDP_HDP6PA14PA12 — шарик V8: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, FDCAN1_TX, FMC_D0, FMC_DA0, HDP_HDP4, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_B2, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTSPA12PA9 — шарик V9: ADC1_INP10, ADC2_INP10, DCMIPP_D0, DCMI_D0, FMC_D3, FMC_DA3, HDP_HDP1, I2C3_SDA, I2S2_CK, I3C2_SDA, LPUART1_TX, LTDC_B5, PSSI_D0, SPI2_SCK, TIM1_CH2, USART1_TXPA9PA5 — шарик V10: ADC2_INP18, DCMIPP_D8, DCMI_D8, FMC_NOE, HDP_HDP5, I2S1_CK, I2S6_CK, I3C1_SCL, LTDC_CLK, PSSI_D8, PWR_CSTOP, SPI1_SCK, SPI6_SCK, TIM10_CH1, TIM2_CH1, TIM2_ETR, TIM9_CH2PA5PG12 — шарик V11: FMC_A18, LTDC_G0, SAI1_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TXPG12PA0 — шарик V12: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, FMC_D7, FMC_DA7, HDP_HDP0, I2S6_WS, LTDC_G3, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI6_NSS, TIM15_BKIN, TIM2_CH1, TIM5_CH1, TIM9_CH1, UART4_TX, USART2_CTS, USART2_NSSPA0PB11 — шарик V13: ADC1_EXTI11, ADC1_INP4, ADC2_EXTI11, ADC2_INP4, FMC_D10, FMC_DA10, HDP_HDP3, I2C2_SDA, I3C2_SDA, LPTIM2_ETR, LTDC_G6, TIM2_CH4, USART3_RXPB11PB1 — шарик V14: FDCAN2_TX, FMC_NOE, HDP_HDP1, LTDC_R1, TIM1_CH3N, TIM3_CH4, TIM9_CH2, USART2_TXPB1PA7 — шарик V15: HDP_HDP7, I2S1_SDO, I2S6_SDO, LTDC_B1, LTDC_R4, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, USART1_RXPA7PG9 — шарик V16: FMC_D8, FMC_DA8, LTDC_R7PG9PG8 — шарик V17: FMC_A20, HDP_HDP7, I2S2_SDO, LTDC_G7, PWR_PVD_IN, RTC_REFIN, SAI1_SCK_B, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, UART4_CTS, USART1_RXPG8PN8 — шарик V18: XSPIM_P2_IO4PN8PN4 — шарик V19: XSPIM_P2_IO2PN4VSS — шарик W1VSSVREF+ — шарик W2VREF+CSI_D1P — шарик W3: CSI_D1PCSID1PCSI_CKP — шарик W4: CSI_CKPCSICKPCSI_D0P — шарик W5: CSI_D0PCSID0PVDDCSI — шарик W6VDDCSIPA13(JTMS/SWDIO) — шарик W7: DEBUG_JTMS-SWDIO, HDP_HDP5PA13PG15 — шарик W8: ADC1_EXTI15, ADC1_INN3, ADC1_INP7, ADC2_EXTI15, ADC2_INN3, ADC2_INP7, DCMIPP_D4, DCMI_D4, ETH1_MII_RX_CLK, ETH1_RMII_REF_CLK, FMC_CLK, LTDC_B0, PSSI_D4, SPI1_RDY, SPI4_RDY, SPI5_RDY, TIM1_CH4, USART3_CKPG15PA10 — шарик W9: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DCMIPP_D1, DCMI_D1, FMC_D2, FMC_DA2, HDP_HDP2, LPUART1_RX, LTDC_B4, MDIOS_MDIO, PSSI_D1, PWR_CSLEEP, TIM1_CH3, USART1_RXPA10PA2 — шарик W10: ADC1_INP14, ADC2_INP14, FMC_D5, FMC_DA5, HDP_HDP2, LPTIM3_IN2, LTDC_B7, MDIOS_MDIO, PWR_WKUP2, SAI2_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PG13 — шарик W11: DCMIPP_D12, DCMI_D12, FMC_NE1, LPTIM1_IN1, LPTIM2_IN1, LTDC_DE, PSSI_D12, SAI2_FS_A, TIM4_CH1, USART3_DE, USART3_RTSPG13PA1 — шарик W12: ADC1_INP1, ADC2_INP1, DCMIPP_D0, DCMI_D0, FMC_D6, FMC_DA6, HDP_HDP1, LPTIM3_IN1, LTDC_G2, PSSI_D0, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PB12 — шарик W13: FDCAN2_RX, FMC_D9, FMC_DA9, HDP_HDP4, I2C2_SMBA, I2S2_WS, LPTIM2_IN2, LTDC_G5, SPI2_NSS, TIM1_BKIN, UART5_RX, USART3_CKPB12PG2 — шарик W14: DCMIPP_D6, DCMI_D6, FMC_A21, LTDC_R0, PSSI_D6, SAI1_FS_B, SAI2_MCLK_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTS, USART3_DE, USART3_RTSPG2PB4(NJTRST) — шарик W15: DCMIPP_VSYNC, DCMI_VSYNC, DEBUG_NJTRST, FMC_D13, FMC_DA13, HDP_HDP4, I2S1_SDI, I2S2_WS, I2S3_SDI, I2S6_SDI, LTDC_R3, PSSI_RDY, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4PG11 — шарик W16: ADC1_EXTI11, ADC2_EXTI11, ETH1_MDC, LTDC_R6, UART7_RXPG11PA4 — шарик W17: DCMIPP_D3, DCMI_D3, FMC_A13, PSSI_D3, SPI5_MOSI, USART6_RXPA4PN12 — шарик W18: XSPIM_P2_NCS2PN12VSS — шарик W19VSSVFBGA223, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

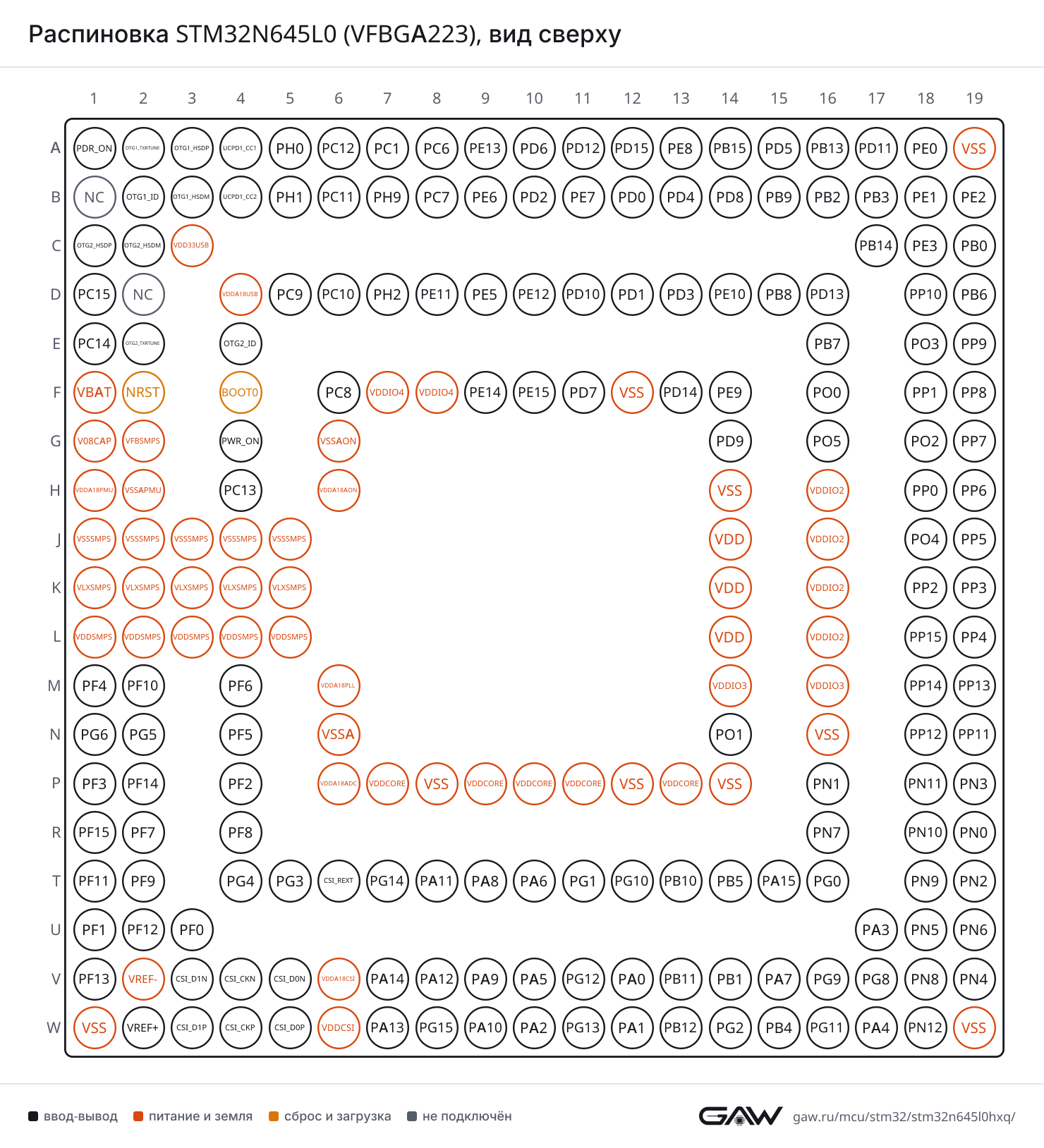

Распиновка STM32N645L0 (VFBGA223), вид сверхуРаспиновка VFBGA223 картинкой
PNG, 1480 × 1628 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPB3 (B17, AF7), PA8 (T9, AF7)
CTSPF14 (P2, AF4), PA11 (T8, AF7)
DEPF15 (R1, AF4), PA12 (V8, AF7)
NSSPA11 (T8, AF7)
RTSPF15 (R1, AF4), PA12 (V8, AF7)
RXPE6 (B9, AF7), PF12 (U2, AF4), PA7 (V15, AF7), PG8 (V17, AF4), PA10 (W9, AF7)
TXPE5 (D9, AF7), PF13 (V1, AF4), PA9 (V9, AF7)
USART2CKPE15 (F10, AF7), PF4 (M1, AF7)
CTSPG5 (N2, AF7), PF2 (P4, AF7), PA0 (V12, AF7)
DEPF3 (P1, AF7), PG14 (T7, AF8), PA1 (W12, AF7)
NSSPG5 (N2, AF7), PF2 (P4, AF7), PA0 (V12, AF7)
RTSPF3 (P1, AF7), PG14 (T7, AF8), PA1 (W12, AF7)
RXPF6 (M4, AF7)
TXPD5 (A15, AF7), PG3 (T5, AF7), PB1 (V14, AF7), PA2 (W10, AF7)
USART3CKPC12 (A6, AF7), PH9 (B7, AF3), PG15 (W8, AF7), PB12 (W13, AF7)
CTSPF5 (N4, AF7), PG10 (T12, AF7)
DEPG13 (W11, AF7), PG2 (W14, AF7)
NSSPF5 (N4, AF7), PG10 (T12, AF7)
RTSPG13 (W11, AF7), PG2 (W14, AF7)
RXPE0 (A18, AF7), PC11 (B6, AF7), PE10 (D14, AF7), PD9 (G14, AF7), PB11 (V13, AF7)
TXPE8 (A13, AF7), PD8 (B14, AF7), PE1 (B18, AF7), PC10 (D6, AF7), PB10 (T13, AF7)
USART6CKPC8 (F6, AF7), PG6 (N1, AF7)
CTSPB13 (A16, AF7), PB14 (C17, AF7), PD3 (D13, AF7)
DEPB15 (A14, AF7), PD4 (B13, AF7)
NSSPB13 (A16, AF7), PB14 (C17, AF7)
RTSPB15 (A14, AF7), PD4 (B13, AF7)
RXPC7 (B8, AF7), PC9 (D5, AF7), PB8 (D15, AF7), PA4 (W17, AF7)
TXPC6 (A8, AF7), PG14 (T7, AF7)
USART10CKPB14 (C17, AF6), PE15 (F10, AF6)
CTSPB13 (A16, AF6)
NSSPB13 (A16, AF6)
RTSPG14 (T7, AF6)
RXPD3 (D13, AF6), PD14 (F13, AF6)
TXPD15 (A12, AF6), PB9 (B15, AF6)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPF7 (R2, AF8), PG8 (V17, AF8)
DEPA15(JTDI) (T15, AF8)
RTSPA15(JTDI) (T15, AF8)
RXPC11 (B6, AF8), PH9 (B7, AF8), PD0 (B12, AF8), PA11 (T8, AF8), PA1 (W12, AF8)
TXPC1 (A7, AF8), PC10 (D6, AF8), PD1 (D12, AF8), PA12 (V8, AF8), PA0 (V12, AF8)
UART5CTSPC9 (D5, AF11)
DEPC8 (F6, AF11)
RTSPC8 (F6, AF11)
RXPH2 (D7, AF11), PB5(JTDO/TRACESWO) (T14, AF11), PB12 (W13, AF11)
TXPC12 (A6, AF11), PE6 (B9, AF11), PE5 (D9, AF11), PG10 (T12, AF11)
UART7CTSPE10 (D14, AF8), PG2 (W14, AF8)
DEPE9 (F14, AF8), PG1 (T11, AF8)
RTSPE9 (F14, AF8), PG1 (T11, AF8)
RXPE7 (B11, AF8), PF10 (M2, AF8), PA8 (T9, AF10), PA3 (U17, AF8), PG11 (W16, AF8)
TXPE8 (A13, AF8), PA15(JTDI) (T15, AF10), PG12 (V11, AF8), PB4(NJTRST) (W15, AF10)
UART8CTSPF1 (U1, AF8)
DEPF0 (U3, AF8)
RTSPF0 (U3, AF8)
RXPE0 (A18, AF8)
TXPE1 (B18, AF8)
UART9CTSPD0 (B12, AF7)
DEPD13 (D16, AF7)
RTSPD13 (D16, AF7)
RXPG0 (T16, AF7), PF1 (U1, AF7)
TXPF8 (R4, AF7), PF0 (U3, AF7)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (T8, AF3)
DEPA12 (V8, AF3)
RTSPA12 (V8, AF3)
RXPE6 (B9, AF3), PA10 (W9, AF3)
TXPE5 (D9, AF3), PA9 (V9, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB8 (D15, AF5), PA6 (T10, AF5), PB4(NJTRST) (W15, AF5)
MOSIPB5(JTDO/TRACESWO) (T14, AF5), PA7 (V15, AF5)
NSSPF4 (M1, AF5), PA15(JTDI) (T15, AF5)
RDYPF6 (M4, AF10), PG15 (W8, AF10)
SCKPB9 (B15, AF5), PF7 (R2, AF5), PA5 (V10, AF5)
SPI2MISOPD6 (A10, AF5), PD11 (A17, AF5), PP8 (F19, AF5)
MOSIPD2 (B10, AF5), PP9 (E19, AF5), PD7 (F11, AF5), PG8 (V17, AF5)
NSSPC1 (A7, AF5), PA11 (T8, AF5), PB12 (W13, AF5), PB4(NJTRST) (W15, AF7)
SCKPF2 (P4, AF5), PG10 (T12, AF5), PB10 (T13, AF5), PA12 (V8, AF5), PA9 (V9, AF5)
SPI3MISOPC11 (B6, AF6), PB4(NJTRST) (W15, AF6)
MOSIPC12 (A6, AF6), PB2 (B16, AF7), PB5(JTDO/TRACESWO) (T14, AF7)
NSSPD7 (F11, AF6), PF4 (M1, AF6), PA15(JTDI) (T15, AF6)
SCKPC10 (D6, AF6)
SPI4MISOPE13 (A9, AF5), PB6 (D19, AF5)
MOSIPB7 (E16, AF5), PE14 (F9, AF5)
NSSPB0 (C19, AF5), PE11 (D8, AF5)
RDYPF6 (M4, AF6), PG15 (W8, AF6)
SCKPE2 (B19, AF5), PE12 (D10, AF5)
SPI5MISOPD4 (B13, AF5), PG1 (T11, AF5), PF12 (U2, AF5)
MOSIPF14 (P2, AF5), PF11 (T1, AF5), PG2 (W14, AF5), PA4 (W17, AF5)
NSSPA3 (U17, AF5), PF13 (V1, AF5)
RDYPF6 (M4, AF9), PG15 (W8, AF5)
SCKPE15 (F10, AF5), PF15 (R1, AF5), PG12 (V11, AF5)
SPI6MISOPA6 (T10, AF8), PB4(NJTRST) (W15, AF8)
MOSIPG14 (T7, AF5), PB5(JTDO/TRACESWO) (T14, AF8), PA7 (V15, AF8)
NSSPB15 (A14, AF5), PF4 (M1, AF8), PA15(JTDI) (T15, AF7), PA0 (V12, AF5)
SCKPC12 (A6, AF5), PB13 (A16, AF5), PA5 (V10, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPB9 (B15, AF5), PF7 (R2, AF5), PA5 (V10, AF5)
MCKPD10 (D11, AF5)
SDIPB8 (D15, AF5), PA6 (T10, AF5), PB4(NJTRST) (W15, AF5)
SDOPB5(JTDO/TRACESWO) (T14, AF5), PA7 (V15, AF5)
WSPF4 (M1, AF5), PA15(JTDI) (T15, AF5)
I2S2CKPF2 (P4, AF5), PG10 (T12, AF5), PB10 (T13, AF5), PA12 (V8, AF5), PA9 (V9, AF5)
MCKPC6 (A8, AF5)
SDIPD6 (A10, AF5), PD11 (A17, AF5)
SDOPD2 (B10, AF5), PD7 (F11, AF5), PG8 (V17, AF5)
WSPC1 (A7, AF5), PA11 (T8, AF5), PB12 (W13, AF5), PB4(NJTRST) (W15, AF7)
I2S3CKPC10 (D6, AF6)
MCKPC7 (B8, AF6)
SDIPC11 (B6, AF6), PB4(NJTRST) (W15, AF6)
SDOPC12 (A6, AF6), PB2 (B16, AF7), PB5(JTDO/TRACESWO) (T14, AF7)
WSPD7 (F11, AF6), PF4 (M1, AF6), PA15(JTDI) (T15, AF6)
I2S6CKPC12 (A6, AF5), PB13 (A16, AF5), PA5 (V10, AF8)
MCKPF6 (M4, AF5)
SDIPA6 (T10, AF8), PB4(NJTRST) (W15, AF8)
SDOPG14 (T7, AF5), PB5(JTDO/TRACESWO) (T14, AF8), PA7 (V15, AF8)
WSPB15 (A14, AF5), PF4 (M1, AF8), PA15(JTDI) (T15, AF7), PA0 (V12, AF5)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPH9 (B7, AF4), PE5 (D9, AF4)
SDAPC1 (A7, AF4), PE6 (B9, AF4)
SMBAPB5(JTDO/TRACESWO) (T14, AF4)
I2C2SCLPD14 (F13, AF4), PB10 (T13, AF4)
SDAPD15 (A12, AF4), PD4 (B13, AF4), PB11 (V13, AF4)
SMBAPD3 (D13, AF4), PB12 (W13, AF4)
I2C3SCLPA8 (T9, AF4)
SDAPC9 (D5, AF4), PA9 (V9, AF4)
SMBAPC8 (F6, AF4)
I2C4SCLPE13 (A9, AF4), PC10 (D6, AF4)
SDAPD11 (A17, AF4), PC11 (B6, AF4), PE14 (F9, AF4)
SMBAPE15 (F10, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPH9 (B7, AF7), PE5 (D9, AF5), PA5 (V10, AF4)
SDAPC1 (A7, AF7), PE6 (B9, AF5), PA6 (T10, AF4)
I3C2SCLPC10 (D6, AF2), PA8 (T9, AF2), PB10 (T13, AF2)
SDAPC11 (B6, AF2), PA9 (V9, AF2), PB11 (V13, AF2)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPH9 (B7, AF6), PD0 (B12, AF6), PA11 (T8, AF6)
TXPC1 (A7, AF6), PH2 (D7, AF6), PD1 (D12, AF6), PA12 (V8, AF6)
FDCAN2RXPB5(JTDO/TRACESWO) (T14, AF6), PB12 (W13, AF6)
TXPE5 (D9, AF6), PG10 (T12, AF6), PB1 (V14, AF6)
FDCAN3RXPE12 (D10, AF6), PF3 (P1, AF6)
TXPE11 (D8, AF6), PF2 (P4, AF6)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB1_OTG_HSDMOTG1_HSDM (B3)
DPOTG1_HSDP (A3)
IDOTG1_ID (B2)
USB2_OTG_HSDMOTG2_HSDM (C2)
DPOTG2_HSDP (C1)
IDOTG2_ID (E4)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1UCPD1_CC1 (A4)
CC2UCPD1_CC2 (B4)
FRSTX1PD11 (A17, AF6), PE2 (B19, AF7), PD10 (D11, AF6), PC8 (F6, AF6), PF10 (M2, AF6), PF1 (U1, AF6)
FRSTX2PD12 (A11, AF6), PC9 (D5, AF6), PD13 (D16, AF6), PF0 (U3, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETH1CLKPF5 (N4, AF11)
MDCPD1 (D12, AF11), PP10 (D18, AF11), PG11 (W16, AF11)
MDIOPD12 (A11, AF11), PF4 (M1, AF11)
MII_COLPF6 (M4, AF11)
MII_CRSPG6 (N1, AF11)
MII_RX_CLKPF7 (R2, AF11), PG15 (W8, AF11)
MII_RX_DVPF10 (M2, AF11)
MII_RX_ERPG5 (N2, AF11)
MII_RXD0PF14 (P2, AF11)
MII_RXD1PF15 (R1, AF11)
MII_RXD2PF8 (R4, AF11)
MII_RXD3PF9 (T2, AF11)
MII_TX_CLKPF0 (U3, AF11)
MII_TX_ENPF11 (T1, AF11)
MII_TXD0PF12 (U2, AF11)
MII_TXD1PF13 (V1, AF11)
MII_TXD2PG3 (T5, AF11)
MII_TXD3PG4 (T4, AF11)
PHY_INTNPD3 (D13, AF11), PG0 (T16, AF11)
PPS_OUTPF3 (P1, AF11)
RGMII_CLK125PF2 (P4, AF11)
RGMII_GTX_CLKPF0 (U3, AF12)
RGMII_RX_CLKPF7 (R2, AF11)
RGMII_RX_CTLPF10 (M2, AF11)
RGMII_RXD0PF14 (P2, AF11)
RGMII_RXD1PF15 (R1, AF11)
RGMII_RXD2PF8 (R4, AF11)
RGMII_RXD3PF9 (T2, AF11)
RGMII_TX_CTLPF11 (T1, AF11)
RGMII_TXD0PF12 (U2, AF11)
RGMII_TXD1PF13 (V1, AF11)
RGMII_TXD2PG3 (T5, AF11)
RGMII_TXD3PG4 (T4, AF11)
RMII_CRS_DVPF10 (M2, AF11)
RMII_REF_CLKPF7 (R2, AF11), PG15 (W8, AF11)
RMII_RXD0PF14 (P2, AF11)
RMII_RXD1PF15 (R1, AF11)
RMII_TX_ENPF11 (T1, AF11)
RMII_TXD0PF12 (U2, AF11)
RMII_TXD1PF13 (V1, AF11)
TX_ERPF1 (U1, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPC1 (A7, AF12)
CKPC12 (A6, AF10)
CKINPH9 (B7, AF12)
CMDPH2 (D7, AF10)
D0PD11 (A17, AF10), PC8 (F6, AF10), PE15 (F10, AF10)
D0DIRPC6 (A8, AF12)
D1PC9 (D5, AF10)
D2PC10 (D6, AF10)
D3PC11 (B6, AF10)
D4PH9 (B7, AF10)
D5PC1 (A7, AF10)
D6PC6 (A8, AF10)
D7PC7 (B8, AF10)
D123DIRPC7 (B8, AF12)
SDMMC2CKPD2 (B10, AF11)
CMDPA0 (V12, AF11)
D0PB8 (D15, AF11)
D1PG8 (V17, AF11)
D2PB9 (B15, AF11)
D3PB4(NJTRST) (W15, AF11)
D4PH9 (B7, AF11)
D5PC1 (A7, AF11)
D6PC6 (A8, AF11), PB13 (A16, AF11)
D7PD5 (A15, AF11), PC7 (B8, AF11)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (B19, AF2)
CK2PB6 (D19, AF2)
D1PD2 (B10, AF2), PB2 (B16, AF2), PB7 (E16, AF2)
D2PB0 (C19, AF2)
D3PD12 (A11, AF2), PF10 (M2, AF2)
FS_APB0 (C19, AF6)
FS_BPG2 (W14, AF6)
MCLK_APE2 (B19, AF6)
MCLK_BPG12 (V11, AF6)
SCK_APB6 (D19, AF6)
SCK_BPG1 (T11, AF6), PG8 (V17, AF6)
SD_APD2 (B10, AF6), PB2 (B16, AF6), PB7 (E16, AF6)
SD_BPE3 (C18, AF6), PA3 (U17, AF6)
SAI2FS_APG13 (W11, AF10)
FS_BPE13 (A9, AF10), PB3 (B17, AF10), PD10 (D11, AF10), PB8 (D15, AF10), PA12 (V8, AF10)
MCLK_APE0 (A18, AF10)
MCLK_BPB7 (E16, AF10), PE14 (F9, AF10), PA1 (W12, AF10), PG2 (W14, AF10)
SCK_APD13 (D16, AF10)
SCK_BPE12 (D10, AF10), PA2 (W10, AF10)
SD_APF5 (N4, AF10)
SD_BPE7 (B11, AF10), PE11 (D8, AF10), PF11 (T1, AF10), PA0 (V12, AF10)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRX1IN0PB9 (B15, AF8)
IN1PD8 (B14, AF8)
IN2PB15 (A14, AF8), PD10 (D11, AF8)
IN3PD12 (A11, AF8), PB8 (D15, AF8)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PD11 (A17), PC11 (B6), PE11 (D8), PP11 (N19), PN11 (P18), PF11 (T1), PA11 (T8), PB11 (V13), PG11 (W16)
EXTI15PD15 (A12), PB15 (A14), PE15 (F10), PP15 (L18), PF15 (R1), PA15(JTDI) (T15), PG15 (W8)
INN1PA0 (V12)
INN2PF12 (U2)
INN3PG15 (W8)
INN4PB10 (T13)
INN5PF7 (R2)
INN10PA10 (W9)
INN11PA11 (T8)
INN12PA12 (V8)
INP0PA0 (V12)
INP1PA1 (W12)
INP2PF11 (T1)
INP3PA6 (T10)
INP4PB11 (V13)
INP5PA8 (T9)
INP6PF12 (U2)
INP7PG15 (W8)
INP8PB10 (T13)
INP9PF7 (R2)
INP10PA9 (V9)
INP11PA10 (W9)
INP12PA11 (T8)
INP13PA12 (V8)
INP14PA2 (W10)
INP15PF6 (M4)
INP16PF3 (P1)
INP18PF4 (M1)
ADC2EXTI11PD11 (A17), PC11 (B6), PE11 (D8), PP11 (N19), PN11 (P18), PF11 (T1), PA11 (T8), PB11 (V13), PG11 (W16)
EXTI15PD15 (A12), PB15 (A14), PE15 (F10), PP15 (L18), PF15 (R1), PA15(JTDI) (T15), PG15 (W8)
INN1PA0 (V12)
INN2PF14 (P2)
INN3PG15 (W8)
INN4PB10 (T13)
INN5PF7 (R2)
INN10PA10 (W9)
INN11PA11 (T8)
INN12PA12 (V8)
INP0PA0 (V12)
INP1PA1 (W12)
INP2PF13 (V1)
INP3PA6 (T10)
INP4PB11 (V13)
INP5PA8 (T9)
INP6PF14 (P2)
INP7PG15 (W8)
INP8PB10 (T13)
INP9PF7 (R2)
INP10PA9 (V9)
INP11PA10 (W9)
INP12PA11 (T8)
INP13PA12 (V8)
INP14PA2 (W10)
INP15PF6 (M4)
INP18PA5 (V10)

TIM — таймер

БлокСигналВыводы
TIM1BKINPC10 (D6, AF1), PE15 (F10, AF1), PA6 (T10, AF1), PB12 (W13, AF1)
BKIN2PD4 (B13, AF1), PB7 (E16, AF1), PG4 (T4, AF1)
CH1PC6 (A8, AF1), PD6 (A10, AF1), PB2 (B16, AF1), PE9 (F14, AF1), PA8 (T9, AF1)
CH1NPE8 (A13, AF1), PG10 (T12, AF1), PA7 (V15, AF1)
CH2PE11 (D8, AF1), PD7 (F11, AF1), PA9 (V9, AF1)
CH2NPE2 (B19, AF13), PE10 (D14, AF1), PF7 (R2, AF1)
CH3PE13 (A9, AF1), PD2 (B10, AF1), PF6 (M4, AF13), PA10 (W9, AF1)
CH3NPE12 (D10, AF1), PF2 (P4, AF1), PB1 (V14, AF1), PG8 (V17, AF1)
CH4PC12 (A6, AF1), PB0 (C19, AF1), PE14 (F9, AF1), PA11 (T8, AF1), PG15 (W8, AF1)
CH4NPD5 (A15, AF1), PB3 (B17, AF1), PG0 (T16, AF1)
ETRPE7 (B11, AF1), PD0 (B12, AF1), PH2 (D7, AF1), PD10 (D11, AF1), PG5 (N2, AF1), PF5 (N4, AF1), PA12 (V8, AF1)
TIM2CH1PA15(JTDI) (T15, AF1), PA5 (V10, AF1), PA0 (V12, AF1)
CH2PF14 (P2, AF1), PA1 (W12, AF1)
CH3PB10 (T13, AF1), PA2 (W10, AF1)
CH4PF6 (M4, AF1), PB11 (V13, AF1)
ETRPA15(JTDI) (T15, AF2), PA5 (V10, AF2)
TIM3CH1PC6 (A8, AF2), PA6 (T10, AF2), PB4(NJTRST) (W15, AF2)
CH2PC7 (B8, AF2), PB5(JTDO/TRACESWO) (T14, AF2), PA7 (V15, AF2)
CH3PC8 (F6, AF2), PF7 (R2, AF2)
CH4PC9 (D5, AF2), PB1 (V14, AF2)
ETRPH2 (D7, AF2)
TIM4CH1PE5 (D9, AF2), PG13 (W11, AF2)
CH2PE6 (B9, AF2), PD13 (D16, AF2)
CH3PH9 (B7, AF2), PF1 (U1, AF2)
CH4PC1 (A7, AF2), PF0 (U3, AF2)
ETRPE0 (A18, AF2)
TIM5CH1PA0 (V12, AF2)
CH2PA1 (W12, AF2)
CH3PA2 (W10, AF2)
CH4PF6 (M4, AF2)
ETRPF4 (M1, AF2)
TIM9CH1PC6 (A8, AF3), PF7 (R2, AF3), PA0 (V12, AF3)
CH2PC7 (B8, AF3), PA5 (V10, AF3), PB1 (V14, AF3)
TIM10CH1PA5 (V10, AF10)
TIM11CH1PA8 (T9, AF9)
TIM12CH1PG0 (T16, AF2)
CH2PG8 (V17, AF2)
TIM13CH1PA6 (T10, AF10), PG1 (T11, AF10)
TIM14CH1PA7 (V15, AF11), PG2 (W14, AF11)
TIM15BKINPE3 (C18, AF7), PH2 (D7, AF4), PA0 (V12, AF4)
CH1PC12 (A6, AF4), PB6 (D19, AF7), PA2 (W10, AF4)
CH1NPD2 (B10, AF7), PB0 (C19, AF7), PD7 (F11, AF4), PA1 (W12, AF4)
CH2PD6 (A10, AF4), PB7 (E16, AF7), PF6 (M4, AF4)
TIM16BKINPF10 (M2, AF1), PB4(NJTRST) (W15, AF1)
CH1PH9 (B7, AF1), PA3 (U17, AF1)
CH1NPC7 (B8, AF1), PE5 (D9, AF1), PG1 (T11, AF1)
TIM17BKINPG6 (N1, AF1), PB5(JTDO/TRACESWO) (T14, AF1)
CH1PC1 (A7, AF1), PG12 (V11, AF1)
CH1NPE6 (B9, AF1), PG2 (W14, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PB13 (A16, AF1), PD13 (D16, AF1)
CH2PB14 (C17, AF1), PF1 (U1, AF1)
ETRPE0 (A18, AF1), PG14 (T7, AF1)
IN1PG13 (W11, AF1)
IN2PB9 (B15, AF1), PE1 (B18, AF1)
LPTIM2CH1PG10 (T12, AF3), PF1 (U1, AF3)
CH2PE1 (B18, AF3)
ETRPE0 (A18, AF3), PB11 (V13, AF3)
IN1PB10 (T13, AF3), PG13 (W11, AF3)
IN2PF5 (N4, AF3), PB12 (W13, AF3)
LPTIM3CH1PF6 (M4, AF3)
CH2PF4 (M1, AF3)
ETRPA6 (T10, AF3)
IN1PA1 (W12, AF3)
IN2PA2 (W10, AF3)
LPTIM5ETRPE3 (C18, AF1)
IN1PE2 (B19, AF1)
OUTPF0 (U3, AF1)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (H4)
OUT2PB2 (B16, AF0)
REFINPG8 (V17, AF0)
TSPC13 (H4)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PD2 (B10, AF12)
A1PD6 (A10, AF12)
A2PD7 (F11, AF12)
A3PD10 (D11, AF12)
A4PE7 (B11, AF12)
A5PD12 (A11, AF12)
A6PD0 (B12, AF12)
A7PD1 (D12, AF12)
A8PD15 (A12, AF12)
A9PD14 (F13, AF12)
A10PD3 (D13, AF12)
A11PD4 (B13, AF12)
A12PE8 (A13, AF12)
A13PA4 (W17, AF12)
A14PE9 (F14, AF12)
A15PE10 (D14, AF12)
A16PD2 (B10, AF14), PG10 (T12, AF12)
A17PD6 (A10, AF14), PA3 (U17, AF12)
A18PD7 (F11, AF14), PG12 (V11, AF12)
A19PD10 (D11, AF14), PG1 (T11, AF12)
A20PE7 (B11, AF14), PG8 (V17, AF12)
A21PD12 (A11, AF14), PG2 (W14, AF12)
A22PD0 (B12, AF14), PO0 (F16, AF12), PN3 (P19, AF12)
A23PB3 (B17, AF14), PD1 (D12, AF14), PO1 (N14, AF12), PN2 (T19, AF12)
A24PO2 (G18, AF12), PO4 (J18, AF12), PN1 (P16, AF12)
A25PO3 (E18, AF12), PO5 (G16, AF12), PN0 (R19, AF12)
ALEPD6 (A10, AF14), PA3 (U17, AF12)
BA0PE9 (F14, AF12)
BA1PE10 (D14, AF12)
CLEPD2 (B10, AF14), PG10 (T12, AF12)
CLKPC10 (D6, AF12), PG15 (W8, AF12)
D0PB15 (A14, AF12), PA12 (V8, AF12)
D1PB8 (D15, AF12), PA11 (T8, AF12)
D2PB2 (B16, AF12), PA10 (W9, AF12)
D3PB9 (B15, AF12), PA9 (V9, AF12)
D4PD13 (D16, AF12), PA8 (T9, AF12)
D5PB13 (A16, AF12), PA2 (W10, AF12)
D6PD5 (A15, AF12), PA1 (W12, AF12)
D7PB14 (C17, AF12), PA0 (V12, AF12)
D8PD11 (A17, AF12), PG9 (V16, AF12)
D9PE0 (A18, AF12), PH9 (B7, AF14), PB12 (W13, AF12)
D10PE1 (B18, AF12), PB11 (V13, AF12)
D11PE2 (B19, AF12), PB10 (T13, AF12)
D12PE3 (C18, AF12), PB5(JTDO/TRACESWO) (T14, AF12)
D13PB0 (C19, AF12), PB4(NJTRST) (W15, AF12)
D14PB6 (D19, AF12)
D15PB7 (E16, AF12), PA15(JTDI) (T15, AF12)
D16PP0 (H18, AF12)
D17PP1 (F18, AF12)
D18PP2 (K18, AF12)
D19PP3 (K19, AF12)
D20PP4 (L19, AF12)
D21PP5 (J19, AF12)
D22PP6 (H19, AF12)
D23PP7 (G19, AF12)
D24PP8 (F19, AF12)
D25PP9 (E19, AF12)
D26PP10 (D18, AF12)
D27PP11 (N19, AF12)
D28PP12 (N18, AF12)
D29PP13 (M19, AF12)
D30PP14 (M18, AF12)
D31PP15 (L18, AF12)
DA0PB15 (A14, AF12), PA12 (V8, AF12)
DA1PB8 (D15, AF12), PA11 (T8, AF12)
DA2PB2 (B16, AF12), PA10 (W9, AF12)
DA3PB9 (B15, AF12), PA9 (V9, AF12)
DA4PD13 (D16, AF12), PA8 (T9, AF12)
DA5PB13 (A16, AF12), PA2 (W10, AF12)
DA6PD5 (A15, AF12), PA1 (W12, AF12)
DA7PB14 (C17, AF12), PA0 (V12, AF12)
DA8PD11 (A17, AF12), PG9 (V16, AF12)
DA9PE0 (A18, AF12), PH9 (B7, AF14), PB12 (W13, AF12)
DA10PE1 (B18, AF12), PB11 (V13, AF12)
DA11PE2 (B19, AF12), PB10 (T13, AF12)
DA12PE3 (C18, AF12), PB5(JTDO/TRACESWO) (T14, AF12)
DA13PB0 (C19, AF12), PB4(NJTRST) (W15, AF12)
DA14PB6 (D19, AF12)
DA15PB7 (E16, AF12), PA15(JTDI) (T15, AF12)
NBL0PD8 (B14, AF12)
NBL1PB3 (B17, AF12)
NBL2PO4 (J18, AF14)
NBL3PO5 (G16, AF14)
NCEPG14 (T7, AF10)
NE1PG13 (W11, AF12)
NE2PG14 (T7, AF12)
NE3PH2 (D7, AF12), PF5 (N4, AF12)
NE4PC8 (F6, AF12)
NLPC12 (A6, AF12), PF3 (P1, AF12)
NOEPA5 (V10, AF12), PB1 (V14, AF12)
NWAITPF2 (P4, AF12)
NWEPE14 (F9, AF14), PF8 (R4, AF12)
SDCKE0PE15 (F10, AF12)
SDCKE1PE6 (B9, AF12)
SDCLKPD9 (G14, AF12)
SDNCASPE13 (A9, AF12)
SDNE0PE14 (F9, AF12)
SDNE1PE5 (D9, AF12)
SDNRASPE12 (D10, AF12)
SDNWEPE11 (D8, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PD7 (F11, AF9), PA9 (V9, AF9), PA1 (W12, AF9)
D1PC6 (A8, AF9), PC7 (B8, AF9), PE6 (B9, AF10), PA10 (W9, AF9)
D2PE0 (A18, AF9), PC8 (F6, AF9), PG10 (T12, AF9)
D3PB9 (B15, AF9), PC9 (D5, AF9), PE10 (D14, AF9), PA4 (W17, AF9)
D4PE8 (A13, AF9), PC11 (B6, AF9), PB0 (C19, AF9), PG15 (W8, AF9)
D5PE5 (D9, AF9), PN9 (T18, AF10)
D6PH9 (B7, AF9), PB6 (D19, AF9), PF5 (N4, AF9), PG2 (W14, AF9)
D7PC1 (A7, AF9), PB7 (E16, AF9), PF1 (U1, AF9)
D8PE1 (B18, AF9), PA5 (V10, AF9)
D9PC12 (A6, AF9), PD4 (B13, AF9), PF0 (U3, AF9)
D10PB14 (C17, AF9), PB5(JTDO/TRACESWO) (T14, AF9), PF13 (V1, AF9)
D11PD8 (B14, AF9), PH2 (D7, AF9), PD9 (G14, AF9), PF10 (M2, AF9), PG14 (T7, AF9)
D12PD12 (A11, AF9), PG6 (N1, AF9), PG13 (W11, AF9)
D13PD13 (D16, AF9), PF12 (U2, AF9)
HSYNCPD0 (B12, AF9), PF4 (M1, AF9), PF3 (P1, AF9), PG3 (T5, AF9)
PIXCLKPD5 (A15, AF9), PA6 (T10, AF9), PG1 (T11, AF9)
VSYNCPE6 (B9, AF9), PB8 (D15, AF9), PB4(NJTRST) (W15, AF9)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PD7 (F11, AF9), PA9 (V9, AF9), PA1 (W12, AF9)
D1PC6 (A8, AF9), PC7 (B8, AF9), PE6 (B9, AF10), PA10 (W9, AF9)
D2PE0 (A18, AF9), PC8 (F6, AF9), PG10 (T12, AF9)
D3PB9 (B15, AF9), PC9 (D5, AF9), PE10 (D14, AF9), PA4 (W17, AF9)
D4PE8 (A13, AF9), PC11 (B6, AF9), PB0 (C19, AF9), PG15 (W8, AF9)
D5PE5 (D9, AF9), PN9 (T18, AF10)
D6PH9 (B7, AF9), PB6 (D19, AF9), PF5 (N4, AF9), PG2 (W14, AF9)
D7PC1 (A7, AF9), PB7 (E16, AF9), PF1 (U1, AF9)
D8PE1 (B18, AF9), PA5 (V10, AF9)
D9PC12 (A6, AF9), PD4 (B13, AF9), PF0 (U3, AF9)
D10PB14 (C17, AF9), PB5(JTDO/TRACESWO) (T14, AF9), PF13 (V1, AF9)
D11PD8 (B14, AF9), PH2 (D7, AF9), PD9 (G14, AF9), PF10 (M2, AF9), PG14 (T7, AF9)
D12PD12 (A11, AF9), PG6 (N1, AF9), PG13 (W11, AF9)
D13PD13 (D16, AF9), PF12 (U2, AF9)
D14PC10 (D6, AF9), PD3 (D13, AF9)
D15PD11 (A17, AF9), PF10 (M2, AF10), PF11 (T1, AF9)
DEPD0 (B12, AF9), PF4 (M1, AF9), PF3 (P1, AF9), PG3 (T5, AF9)
PDCKPD5 (A15, AF9), PA6 (T10, AF9), PG1 (T11, AF9)
RDYPE6 (B9, AF9), PB8 (D15, AF9), PB4(NJTRST) (W15, AF9)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PC8 (F6, AF14), PF11 (T1, AF14), PG4 (T4, AF14), PG15 (W8, AF14)
B1PG5 (N2, AF14), PF2 (P4, AF14), PG14 (T7, AF14), PA7 (V15, AF14)
B2PB2 (B16, AF14), PA12 (V8, AF14)
B3PC9 (D5, AF14), PG6 (N1, AF14), PA11 (T8, AF14)
B4PO4 (J18, AF10), PN10 (R18, AF14), PA10 (W9, AF14)
B5PP15 (L18, AF14), PA9 (V9, AF14)
B6PN11 (P18, AF14), PA8 (T9, AF14)
B7PO2 (G18, AF14), PA6 (T10, AF12), PA2 (W10, AF14)
CLKPB13 (A16, AF14), PA5 (V10, AF14)
DEPF6 (M4, AF14), PG13 (W11, AF14)
G0PF5 (N4, AF14), PF14 (P2, AF14), PG12 (V11, AF14)
G1PF15 (R1, AF14), PG1 (T11, AF14)
G2PA1 (W12, AF14)
G3PO3 (E18, AF14), PA0 (V12, AF14)
G4PB15 (A14, AF14), PG10 (T12, AF14)
G5PB12 (W13, AF14)
G6PB11 (V13, AF14)
G7PB10 (T13, AF14), PG8 (V17, AF14)
HSYNCPB14 (C17, AF14), PF9 (T2, AF14), PA6 (T10, AF14)
R0PG0 (T16, AF14), PG2 (W14, AF14)
R1PD9 (G14, AF14), PF10 (M2, AF14), PB1 (V14, AF14)
R2PD15 (A12, AF14), PB5(JTDO/TRACESWO) (T14, AF14)
R3PF4 (M1, AF14), PB4(NJTRST) (W15, AF14)
R4PF3 (P1, AF14), PA7 (V15, AF10)
R5PA15(JTDI) (T15, AF14)
R6PD13 (D16, AF14), PF8 (R4, AF14), PG11 (W16, AF14)
R7PD8 (B14, AF14), PG9 (V16, AF14)
VSYNCPE11 (D8, AF14), PF7 (R2, AF14), PG0 (T16, AF10)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PE2 (B19, AF4)
CCK1PB6 (D19, AF4)
CKI0PE7 (B11, AF4)
CKI1PB3 (B17, AF4)
CKI2PE3 (C18, AF4)
CKI3PD10 (D11, AF4)
CKI4PE9 (F14, AF4)
CKI5PE11 (D8, AF4)
SDI0PE8 (A13, AF4)
SDI1PD2 (B10, AF4), PB2 (B16, AF4), PB7 (E16, AF4)
SDI2PB0 (C19, AF4)
SDI3PD12 (A11, AF4), PF10 (M2, AF4)
SDI4PE10 (D14, AF4)
SDI5PE12 (D10, AF4)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PE13 (A9, AF3), PE2 (B19, AF3)
CCK1PB6 (D19, AF3), PE14 (F9, AF3)
SDI0PD2 (B10, AF3), PB2 (B16, AF3), PB0 (C19, AF3), PB7 (E16, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14(JTCK/SWCLK) (V7, AF0)
JTDIPA15(JTDI) (T15, AF0)
JTDO-SWOPB5(JTDO/TRACESWO) (T14, AF0)
JTMS-SWDIOPA13(JTMS/SWDIO) (W7, AF0)
NJTRSTPB4(NJTRST) (W15, AF0)
TRACECLKPB3 (B17, AF0), PE2 (B19, AF0), PD10 (D11, AF0), PE10 (D14, AF0), PF8 (R4, AF0)
TRACED0PB13 (A16, AF0), PD2 (B10, AF0), PE3 (C18, AF0), PF9 (T2, AF0)
TRACED1PB0 (C19, AF0), PC8 (F6, AF0), PG3 (T5, AF0), PG14 (T7, AF0)
TRACED2PH2 (D7, AF0), PB6 (D19, AF0)
TRACED3PC12 (A6, AF0), PB7 (E16, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (T9, AF0)
MCO_2PC9 (D5, AF0)
OSC_INPH0-OSC_IN (A5)
OSC_OUTPH1-OSC_OUT (B5)
OSC32_INPC14-OSC32_IN(OSC32_IN) (E1)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (D1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPA10 (W9, AF0)
PWR_CSTOPPA5 (V10, AF0)
PWR_WKUP1PA0 (V12)
PWR_WKUP2PA2 (W10)
PWR_WKUP3PC13 (H4)
PWR_WKUP4PD2 (B10)
TAMP_IN1PC13 (H4)
TAMP_IN3PD8 (B14)
TAMP_IN5PD9 (G14)
TAMP_IN6PE0 (A18)
TAMP_IN7PD4 (B13)
TAMP_OUT2PC13 (H4)
TAMP_OUT4PD8 (B14)
TAMP_OUT5PE0 (A18)
TAMP_OUT6PD9 (G14)
TAMP_OUT8PD4 (B13)

Блоки без собственных выводов: XSPI1 (расширенный SPI для памяти), XSPI2 (расширенный SPI для памяти), XSPI3 (расширенный SPI для памяти), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), TIM18 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), DMA2D (графический ускоритель Chrom-ART).

Таблица выводов

Все 223 шарика корпуса VFBGA223 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PDR_ONслужебный—
A2OTG1_TXRTUNEслужебный—
A3OTG1_HSDPслужебныйUSB1_OTG_HS_DP
A4UCPD1_CC1служебныйUCPD1_CC1
A5PH0-OSC_INввод-выводRCC_OSC_IN
A6PC12ввод-выводDCMIPP_D9 (AF9), DCMI_D9 (AF9), DEBUG_TRACED3 (AF0), FMC_NL (AF12), HDP_HDP4 (AF15), I2S3_SDO (AF6), I2S6_CK (AF5), PSSI_D9 (AF9), SDMMC1_CK (AF10), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF4), TIM1_CH4 (AF1), UART5_TX (AF11), USART3_CK (AF7)
A7PC1ввод-выводDCMIPP_D7 (AF9), DCMI_D7 (AF9), FDCAN1_TX (AF6), HDP_HDP1 (AF15), I2C1_SDA (AF4), I2S2_WS (AF5), I3C1_SDA (AF7), PSSI_D7 (AF9), SDMMC1_CDIR (AF12), SDMMC1_D5 (AF10), SDMMC2_D5 (AF11), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
A8PC6ввод-выводDCMIPP_D1 (AF9), DCMI_D1 (AF9), HDP_HDP6 (AF15), I2S2_MCK (AF5), PSSI_D1 (AF9), SDMMC1_D0DIR (AF12), SDMMC1_D6 (AF10), SDMMC2_D6 (AF11), TIM1_CH1 (AF1), TIM3_CH1 (AF2), TIM9_CH1 (AF3), USART6_TX (AF7)
A9PE13ввод-выводADF1_CCK0 (AF3), FMC_SDNCAS (AF12), I2C4_SCL (AF4), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
A10PD6ввод-выводFMC_A1 (AF12), FMC_A17 (AF14), FMC_ALE (AF14), HDP_HDP2 (AF15), I2S2_SDI (AF5), SPI2_MISO (AF5), TIM15_CH2 (AF4), TIM1_CH1 (AF1)
A11PD12ввод-выводDCMIPP_D12 (AF9), DCMI_D12 (AF9), ETH1_MDIO (AF11), FMC_A5 (AF12), FMC_A21 (AF14), HDP_HDP5 (AF15), MDF1_SDI3 (AF4), PSSI_D12 (AF9), SAI1_D3 (AF2), SPDIFRX1_IN3 (AF8), UCPD1_FRSTX2 (AF6)
A12PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_A8 (AF12), I2C2_SDA (AF4), LTDC_R2 (AF14), USART10_TX (AF6)
A13PE8ввод-выводDCMIPP_D4 (AF9), DCMI_D4 (AF9), FMC_A12 (AF12), MDF1_SDI0 (AF4), PSSI_D4 (AF9), TIM1_CH1N (AF1), UART7_TX (AF8), USART3_TX (AF7)
A14PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D0 (AF12), FMC_DA0 (AF12), I2S6_WS (AF5), LTDC_G4 (AF14), SPDIFRX1_IN2 (AF8), SPI6_NSS (AF5), USART6_DE (AF7), USART6_RTS (AF7)
A15PD5ввод-выводDCMIPP_PIXCLK (AF9), DCMI_PIXCLK (AF9), FMC_D6 (AF12), FMC_DA6 (AF12), PSSI_PDCK (AF9), SDMMC2_D7 (AF11), TIM1_CH4N (AF1), USART2_TX (AF7)
A16PB13ввод-выводDEBUG_TRACED0 (AF0), FMC_D5 (AF12), FMC_DA5 (AF12), I2S6_CK (AF5), LPTIM1_CH1 (AF1), LTDC_CLK (AF14), SDMMC2_D6 (AF11), SPI6_SCK (AF5), USART10_CTS (AF6), USART10_NSS (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
A17PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMIPP_D15 (AF9), FMC_D8 (AF12), FMC_DA8 (AF12), I2C4_SDA (AF4), I2S2_SDI (AF5), PSSI_D15 (AF9), SDMMC1_D0 (AF10), SPI2_MISO (AF5), UCPD1_FRSTX1 (AF6)
A18PE0ввод-выводDCMIPP_D2 (AF9), DCMI_D2 (AF9), FMC_D9 (AF12), FMC_DA9 (AF12), LPTIM1_ETR (AF1), LPTIM2_ETR (AF3), PSSI_D2 (AF9), SAI2_MCLK_A (AF10), TAMP_IN6, TAMP_OUT5, TIM4_ETR (AF2), UART8_RX (AF8), USART3_RX (AF7)
A19VSSпитание—
B1NCне подключён—
B2OTG1_IDслужебныйUSB1_OTG_HS_ID
B3OTG1_HSDMслужебныйUSB1_OTG_HS_DM
B4UCPD1_CC2служебныйUCPD1_CC2
B5PH1-OSC_OUTввод-выводRCC_OSC_OUT
B6PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMIPP_D4 (AF9), DCMI_D4 (AF9), HDP_HDP3 (AF15), I2C4_SDA (AF4), I2S3_SDI (AF6), I3C2_SDA (AF2), PSSI_D4 (AF9), SDMMC1_D3 (AF10), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
B7PH9ввод-выводDCMIPP_D6 (AF9), DCMI_D6 (AF9), FDCAN1_RX (AF6), FMC_D9 (AF14), FMC_DA9 (AF14), HDP_HDP0 (AF15), I2C1_SCL (AF4), I3C1_SCL (AF7), PSSI_D6 (AF9), SDMMC1_CKIN (AF12), SDMMC1_D4 (AF10), SDMMC2_D4 (AF11), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8), USART3_CK (AF3)
B8PC7ввод-выводDCMIPP_D1 (AF9), DCMI_D1 (AF9), DEBUG_TRGIO (AF0), HDP_HDP7 (AF15), I2S3_MCK (AF6), PSSI_D1 (AF9), SDMMC1_D123DIR (AF12), SDMMC1_D7 (AF10), SDMMC2_D7 (AF11), TIM16_CH1N (AF1), TIM3_CH2 (AF2), TIM9_CH2 (AF3), USART6_RX (AF7)
B9PE6ввод-выводDCMIPP_D1 (AF10), DCMIPP_VSYNC (AF9), DCMI_D1 (AF10), DCMI_VSYNC (AF9), FMC_SDCKE1 (AF12), HDP_HDP7 (AF15), I2C1_SDA (AF4), I3C1_SDA (AF5), LPUART1_RX (AF3), PSSI_D1 (AF10), PSSI_RDY (AF9), TIM17_CH1N (AF1), TIM4_CH2 (AF2), UART5_TX (AF11), USART1_RX (AF7)
B10PD2ввод-выводADF1_SDI0 (AF3), DEBUG_TRACED0 (AF0), FMC_A0 (AF12), FMC_A16 (AF14), FMC_CLE (AF14), HDP_HDP1 (AF15), I2S2_SDO (AF5), MDF1_SDI1 (AF4), MDIOS_MDC (AF10), PWR_WKUP4, SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI2_MOSI (AF5), TIM15_CH1N (AF7), TIM1_CH3 (AF1)
B11PE7ввод-выводFMC_A4 (AF12), FMC_A20 (AF14), MDF1_CKI0 (AF4), SAI2_SD_B (AF10), TIM1_ETR (AF1), UART7_RX (AF8)
B12PD0ввод-выводDCMIPP_HSYNC (AF9), DCMI_HSYNC (AF9), FDCAN1_RX (AF6), FMC_A6 (AF12), FMC_A22 (AF14), PSSI_DE (AF9), TIM1_ETR (AF1), UART4_RX (AF8), UART9_CTS (AF7)
B13PD4ввод-выводDCMIPP_D9 (AF9), DCMI_D9 (AF9), FMC_A11 (AF12), I2C2_SDA (AF4), PSSI_D9 (AF9), SPI5_MISO (AF5), TAMP_IN7, TAMP_OUT8, TIM1_BKIN2 (AF1), USART6_DE (AF7), USART6_RTS (AF7)
B14PD8ввод-выводDCMIPP_D11 (AF9), DCMI_D11 (AF9), FMC_NBL0 (AF12), LTDC_R7 (AF14), PSSI_D11 (AF9), SPDIFRX1_IN1 (AF8), TAMP_IN3, TAMP_OUT4, USART3_TX (AF7)
B15PB9ввод-выводDCMIPP_D3 (AF9), DCMI_D3 (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2S1_CK (AF5), LPTIM1_IN2 (AF1), PSSI_D3 (AF9), SDMMC2_D2 (AF11), SPDIFRX1_IN0 (AF8), SPI1_SCK (AF5), USART10_TX (AF6)
B16PB2ввод-выводADF1_SDI0 (AF3), FMC_D2 (AF12), FMC_DA2 (AF12), HDP_HDP2 (AF15), I2S3_SDO (AF7), LTDC_B2 (AF14), MDF1_SDI1 (AF4), RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SPI3_MOSI (AF7), TIM1_CH1 (AF1)
B17PB3ввод-выводDEBUG_TRACECLK (AF0), FMC_A23 (AF14), FMC_NBL1 (AF12), GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF13), HDP_HDP0 (AF15), MDF1_CKI1 (AF4), SAI2_FS_B (AF10), TIM1_CH4N (AF1), USART1_CK (AF7)
B18PE1ввод-выводDCMIPP_D8 (AF9), DCMI_D8 (AF9), FMC_D10 (AF12), FMC_DA10 (AF12), LPTIM1_IN2 (AF1), LPTIM2_CH2 (AF3), PSSI_D8 (AF9), UART8_TX (AF8), USART3_TX (AF7)
B19PE2ввод-выводADF1_CCK0 (AF3), DEBUG_TRACECLK (AF0), FMC_D11 (AF12), FMC_DA11 (AF12), LPTIM5_IN1 (AF1), MDF1_CCK0 (AF4), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), TIM1_CH2N (AF13), UCPD1_FRSTX1 (AF7)
C1OTG2_HSDPслужебныйUSB2_OTG_HS_DP
C2OTG2_HSDMслужебныйUSB2_OTG_HS_DM
C3VDD33USBпитание—
C17PB14ввод-выводDCMIPP_D10 (AF9), DCMI_D10 (AF9), FMC_D7 (AF12), FMC_DA7 (AF12), LPTIM1_CH2 (AF1), LTDC_HSYNC (AF14), PSSI_D10 (AF9), USART10_CK (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
C18PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_D12 (AF12), FMC_DA12 (AF12), LPTIM5_ETR (AF1), MDF1_CKI2 (AF4), SAI1_SD_B (AF6), TIM15_BKIN (AF7)
C19PB0ввод-выводADF1_SDI0 (AF3), DCMIPP_D4 (AF9), DCMI_D4 (AF9), DEBUG_TRACED1 (AF0), FMC_D13 (AF12), FMC_DA13 (AF12), MDF1_SDI2 (AF4), PSSI_D4 (AF9), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TIM15_CH1N (AF7), TIM1_CH4 (AF1)
D1PC15-OSC32_OUT(OSC32_OUT)ввод-выводRCC_OSC32_OUT
D2NCне подключён—
D4VDDA18USBпитание—
D5PC9ввод-выводAUDIOCLK (AF5), DCMIPP_D3 (AF9), DCMI_D3 (AF9), HDP_HDP1 (AF15), I2C3_SDA (AF4), LTDC_B3 (AF14), PSSI_D3 (AF9), RCC_MCO_2 (AF0), SDMMC1_D1 (AF10), TIM3_CH4 (AF2), UART5_CTS (AF11), UCPD1_FRSTX2 (AF6), USART6_RX (AF7)
D6PC10ввод-выводDCMIPP_D14 (AF9), FMC_CLK (AF12), HDP_HDP2 (AF15), I2C4_SCL (AF4), I2S3_CK (AF6), I3C2_SCL (AF2), PSSI_D14 (AF9), SDMMC1_D2 (AF10), SPI3_SCK (AF6), TIM1_BKIN (AF1), UART4_TX (AF8), USART3_TX (AF7)
D7PH2ввод-выводDCMIPP_D11 (AF9), DCMI_D11 (AF9), DEBUG_TRACED2 (AF0), FDCAN1_TX (AF6), FMC_NE3 (AF12), PSSI_D11 (AF9), SDMMC1_CMD (AF10), TIM15_BKIN (AF4), TIM1_ETR (AF1), TIM3_ETR (AF2), UART5_RX (AF11)
D8PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN3_TX (AF6), FMC_SDNWE (AF12), LTDC_VSYNC (AF14), MDF1_CKI5 (AF4), SAI2_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
D9PE5ввод-выводDCMIPP_D5 (AF9), DCMI_D5 (AF9), FDCAN2_TX (AF6), FMC_SDNE1 (AF12), HDP_HDP6 (AF15), I2C1_SCL (AF4), I3C1_SCL (AF5), LPUART1_TX (AF3), PSSI_D5 (AF9), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF11), USART1_TX (AF7)
D10PE12ввод-выводFDCAN3_RX (AF6), FMC_SDNRAS (AF12), MDF1_SDI5 (AF4), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
D11PD10ввод-выводDEBUG_TRACECLK (AF0), FMC_A3 (AF12), FMC_A19 (AF14), GFXTIM_TE (AF13), HDP_HDP4 (AF15), I2S1_MCK (AF5), MDF1_CKI3 (AF4), SAI2_FS_B (AF10), SPDIFRX1_IN2 (AF8), TIM1_ETR (AF1), UCPD1_FRSTX1 (AF6)
D12PD1ввод-выводETH1_MDC (AF11), FDCAN1_TX (AF6), FMC_A7 (AF12), FMC_A23 (AF14), UART4_TX (AF8)
D13PD3ввод-выводDCMIPP_D14 (AF9), ETH1_PHY_INTN (AF11), FMC_A10 (AF12), I2C2_SMBA (AF4), PSSI_D14 (AF9), USART10_RX (AF6), USART6_CTS (AF7)
D14PE10ввод-выводDCMIPP_D3 (AF9), DCMI_D3 (AF9), DEBUG_TRACECLK (AF0), FMC_A15 (AF12), FMC_BA1 (AF12), MDF1_SDI4 (AF4), PSSI_D3 (AF9), TIM1_CH2N (AF1), UART7_CTS (AF8), USART3_RX (AF7)
D15PB8ввод-выводDCMIPP_VSYNC (AF9), DCMI_VSYNC (AF9), FMC_D1 (AF12), FMC_DA1 (AF12), I2S1_SDI (AF5), PSSI_RDY (AF9), SAI2_FS_B (AF10), SDMMC2_D0 (AF11), SPDIFRX1_IN3 (AF8), SPI1_MISO (AF5), USART6_RX (AF7)
D16PD13ввод-выводDCMIPP_D13 (AF9), DCMI_D13 (AF9), FMC_D4 (AF12), FMC_DA4 (AF12), LPTIM1_CH1 (AF1), LTDC_R6 (AF14), PSSI_D13 (AF9), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF7), UART9_RTS (AF7), UCPD1_FRSTX2 (AF6)
D18PP10ввод-выводETH1_MDC (AF11), FMC_D26 (AF12), XSPIM_P1_IO10 (AF9)
D19PB6ввод-выводADF1_CCK1 (AF3), DCMIPP_D6 (AF9), DCMI_D6 (AF9), DEBUG_TRACED2 (AF0), FMC_D14 (AF12), FMC_DA14 (AF12), MDF1_CCK1 (AF4), PSSI_D6 (AF9), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TIM15_CH1 (AF7)
E1PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
E2OTG2_TXRTUNEслужебный—
E4OTG2_IDслужебныйUSB2_OTG_HS_ID
E16PB7ввод-выводADF1_SDI0 (AF3), DCMIPP_D7 (AF9), DCMI_D7 (AF9), DEBUG_TRACED3 (AF0), FMC_D15 (AF12), FMC_DA15 (AF12), MDF1_SDI1 (AF4), PSSI_D7 (AF9), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM15_CH2 (AF7), TIM1_BKIN2 (AF1)
E18PO3ввод-выводFMC_A25 (AF12), LTDC_G3 (AF14), XSPIM_P1_DQS1 (AF9)
E19PP9ввод-выводFMC_D25 (AF12), SPI2_MOSI (AF5), XSPIM_P1_IO9 (AF9)
F1VBATпитание—
F2NRSTсброс—
F4BOOT0загрузка—
F6PC8ввод-выводDCMIPP_D2 (AF9), DCMI_D2 (AF9), DEBUG_TRACED1 (AF0), FMC_NE4 (AF12), HDP_HDP0 (AF15), I2C3_SMBA (AF4), LTDC_B0 (AF14), PSSI_D2 (AF9), SDMMC1_D0 (AF10), TIM3_CH3 (AF2), UART5_DE (AF11), UART5_RTS (AF11), UCPD1_FRSTX1 (AF6), USART6_CK (AF7)
F7VDDIO4питание—
F8VDDIO4питание—
F9PE14ввод-выводADF1_CCK1 (AF3), FMC_NWE (AF14), FMC_SDNE0 (AF12), GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF13), I2C4_SDA (AF4), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
F10PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_SDCKE0 (AF12), GFXTIM_FCKCAL (AF13), GFXTIM_LCKCAL (AF2), I2C4_SMBA (AF4), SDMMC1_D0 (AF10), SPI5_SCK (AF5), TIM1_BKIN (AF1), USART10_CK (AF6), USART2_CK (AF7)
F11PD7ввод-выводDCMIPP_D0 (AF9), DCMI_D0 (AF9), FMC_A2 (AF12), FMC_A18 (AF14), HDP_HDP3 (AF15), I2S2_SDO (AF5), I2S3_WS (AF6), PSSI_D0 (AF9), SPI2_MOSI (AF5), SPI3_NSS (AF6), TIM15_CH1N (AF4), TIM1_CH2 (AF1)
F12VSSпитание—
F13PD14ввод-выводFMC_A9 (AF12), I2C2_SCL (AF4), USART10_RX (AF6)
F14PE9ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), MDF1_CKI4 (AF4), TIM1_CH1 (AF1), UART7_DE (AF8), UART7_RTS (AF8)
F16PO0ввод-выводFMC_A22 (AF12), XSPIM_P1_NCS1 (AF9)
F18PP1ввод-выводFMC_D17 (AF12), XSPIM_P1_IO1 (AF9)
F19PP8ввод-выводFMC_D24 (AF12), SPI2_MISO (AF5), XSPIM_P1_IO8 (AF9)
G1V08CAPпитание—
G2VFBSMPSпитание—
G4PWR_ONслужебный—
G6VSSAONпитание—
G14PD9ввод-выводDCMIPP_D11 (AF9), DCMI_D11 (AF9), FMC_SDCLK (AF12), LTDC_R1 (AF14), PSSI_D11 (AF9), TAMP_IN5, TAMP_OUT6, USART3_RX (AF7)
G16PO5ввод-выводFMC_A25 (AF12), FMC_NBL3 (AF14), XSPIM_P1_NCLK (AF9)
G18PO2ввод-выводFMC_A24 (AF12), LTDC_B7 (AF14), XSPIM_P1_DQS0 (AF9)
G19PP7ввод-выводFMC_D23 (AF12), XSPIM_P1_IO7 (AF9)
H1VDDA18PMUпитание—
H2VSSAPMUпитание—
H4PC13ввод-выводHDP_HDP5 (AF15), PWR_WKUP3, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2
H6VDDA18AONпитание—
H14VSSпитание—
H16VDDIO2питание—
H18PP0ввод-выводFMC_D16 (AF12), XSPIM_P1_IO0 (AF9)
H19PP6ввод-выводFMC_D22 (AF12), XSPIM_P1_IO6 (AF9)
J1VSSSMPSпитание—
J2VSSSMPSпитание—
J3VSSSMPSпитание—
J4VSSSMPSпитание—
J5VSSSMPSпитание—
J14VDDпитание—
J16VDDIO2питание—
J18PO4ввод-выводFMC_A24 (AF12), FMC_NBL2 (AF14), LTDC_B4 (AF10), XSPIM_P1_CLK (AF9)
J19PP5ввод-выводFMC_D21 (AF12), XSPIM_P1_IO5 (AF9)
K1VLXSMPSпитание—
K2VLXSMPSпитание—
K3VLXSMPSпитание—
K4VLXSMPSпитание—
K5VLXSMPSпитание—
K14VDDпитание—
K16VDDIO2питание—
K18PP2ввод-выводFMC_D18 (AF12), XSPIM_P1_IO2 (AF9)
K19PP3ввод-выводFMC_D19 (AF12), XSPIM_P1_IO3 (AF9)
L1VDDSMPSпитание—
L2VDDSMPSпитание—
L3VDDSMPSпитание—
L4VDDSMPSпитание—
L5VDDSMPSпитание—
L14VDDпитание—
L16VDDIO2питание—
L18PP15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D31 (AF12), LTDC_B5 (AF14), XSPIM_P1_IO15 (AF9)
L19PP4ввод-выводFMC_D20 (AF12), XSPIM_P1_IO4 (AF9)
M1PF4ввод-выводADC1_INP18, DCMIPP_HSYNC (AF9), DCMI_HSYNC (AF9), ETH1_MDIO (AF11), HDP_HDP4 (AF15), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF8), LPTIM3_CH2 (AF3), LTDC_R3 (AF14), PSSI_DE (AF9), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
M2PF10ввод-выводDCMIPP_D11 (AF9), DCMIPP_D15 (AF10), DCMI_D11 (AF9), ETH1_MII_RX_DV (AF11), ETH1_RGMII_RX_CTL (AF11), ETH1_RMII_CRS_DV (AF11), LTDC_R1 (AF14), MDF1_SDI3 (AF4), PSSI_D11 (AF9), PSSI_D15 (AF10), SAI1_D3 (AF2), TIM16_BKIN (AF1), UART7_RX (AF8), UCPD1_FRSTX1 (AF6)
M4PF6ввод-выводADC1_INP15, ADC2_INP15, ETH1_MII_COL (AF11), GFXTIM_FCKCAL (AF12), GFXTIM_LCKCAL (AF8), HDP_HDP3 (AF15), I2S6_MCK (AF5), LPTIM3_CH1 (AF3), LTDC_DE (AF14), SPI1_RDY (AF10), SPI4_RDY (AF6), SPI5_RDY (AF9), TIM15_CH2 (AF4), TIM1_CH3 (AF13), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
M6VDDA18PLLпитание—
M14VDDIO3питание—
M16VDDIO3питание—
M18PP14ввод-выводFMC_D30 (AF12), XSPIM_P1_IO14 (AF9)
M19PP13ввод-выводFMC_D29 (AF12), XSPIM_P1_IO13 (AF9)
N1PG6ввод-выводDCMIPP_D12 (AF9), DCMI_D12 (AF9), ETH1_MII_CRS (AF11), LTDC_B3 (AF14), PSSI_D12 (AF9), TIM17_BKIN (AF1), USART6_CK (AF7)
N2PG5ввод-выводETH1_MII_RX_ER (AF11), LTDC_B1 (AF14), TIM1_ETR (AF1), USART2_CTS (AF7), USART2_NSS (AF7)
N4PF5ввод-выводDCMIPP_D6 (AF9), DCMI_D6 (AF9), ETH1_CLK (AF11), FMC_NE3 (AF12), LPTIM2_IN2 (AF3), LTDC_G0 (AF14), PSSI_D6 (AF9), SAI2_SD_A (AF10), TIM1_ETR (AF1), USART3_CTS (AF7), USART3_NSS (AF7)
N6VSSAпитание—
N14PO1ввод-выводFMC_A23 (AF12), XSPIM_P1_NCS2 (AF9)
N16VSSпитание—
N18PP12ввод-выводFMC_D28 (AF12), XSPIM_P1_IO12 (AF9)
N19PP11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D27 (AF12), XSPIM_P1_IO11 (AF9)
P1PF3ввод-выводADC1_INP16, DCMIPP_HSYNC (AF9), DCMI_HSYNC (AF9), ETH1_PPS_OUT (AF11), FDCAN3_RX (AF6), FMC_NL (AF12), LTDC_R4 (AF14), PSSI_DE (AF9), USART2_DE (AF7), USART2_RTS (AF7)
P2PF14ввод-выводADC2_INN2, ADC2_INP6, ETH1_MII_RXD0 (AF11), ETH1_RGMII_RXD0 (AF11), ETH1_RMII_RXD0 (AF11), LTDC_G0 (AF14), SPI5_MOSI (AF5), TIM2_CH2 (AF1), USART1_CTS (AF4)
P4PF2ввод-выводETH1_RGMII_CLK125 (AF11), FDCAN3_TX (AF6), FMC_NWAIT (AF12), I2S2_CK (AF5), LTDC_B1 (AF14), SPI2_SCK (AF5), TIM1_CH3N (AF1), USART2_CTS (AF7), USART2_NSS (AF7)
P6VDDA18ADCпитание—
P7VDDCOREпитание—
P8VSSпитание—
P9VDDCOREпитание—
P10VDDCOREпитание—
P11VDDCOREпитание—
P12VSSпитание—
P13VDDCOREпитание—
P14VSSпитание—
P16PN1ввод-выводFMC_A24 (AF12), XSPIM_P2_NCS1 (AF9)
P18PN11ввод-выводADC1_EXTI11, ADC2_EXTI11, LTDC_B6 (AF14), XSPIM_P2_IO7 (AF9)
P19PN3ввод-выводFMC_A22 (AF12), XSPIM_P2_IO1 (AF9)
R1PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ETH1_MII_RXD1 (AF11), ETH1_RGMII_RXD1 (AF11), ETH1_RMII_RXD1 (AF11), LTDC_G1 (AF14), SPI5_SCK (AF5), USART1_DE (AF4), USART1_RTS (AF4)
R2PF7ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH1_MII_RX_CLK (AF11), ETH1_RGMII_RX_CLK (AF11), ETH1_RMII_REF_CLK (AF11), GFXTIM_TE (AF12), HDP_HDP0 (AF15), I2S1_CK (AF5), LTDC_VSYNC (AF14), SPI1_SCK (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM9_CH1 (AF3), UART4_CTS (AF8)
R4PF8ввод-выводDEBUG_TRACECLK (AF0), ETH1_MII_RXD2 (AF11), ETH1_RGMII_RXD2 (AF11), FMC_NWE (AF12), LTDC_R6 (AF14), UART9_TX (AF7)
R16PN7ввод-выводXSPIM_P2_NCLK (AF9)
R18PN10ввод-выводLTDC_B4 (AF14), XSPIM_P2_IO6 (AF9)
R19PN0ввод-выводFMC_A25 (AF12), XSPIM_P2_DQS0 (AF9)
T1PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMIPP_D15 (AF9), ETH1_MII_TX_EN (AF11), ETH1_RGMII_TX_CTL (AF11), ETH1_RMII_TX_EN (AF11), LTDC_B0 (AF14), PSSI_D15 (AF9), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
T2PF9ввод-выводDEBUG_TRACED0 (AF0), ETH1_MII_RXD3 (AF11), ETH1_RGMII_RXD3 (AF11), LTDC_HSYNC (AF14)
T4PG4ввод-выводETH1_MII_TXD3 (AF11), ETH1_RGMII_TXD3 (AF11), LTDC_B0 (AF14), TIM1_BKIN2 (AF1)
T5PG3ввод-выводDCMIPP_HSYNC (AF9), DCMI_HSYNC (AF9), DEBUG_TRACED1 (AF0), ETH1_MII_TXD2 (AF11), ETH1_RGMII_TXD2 (AF11), PSSI_DE (AF9), USART2_TX (AF7)
T6CSI_REXTслужебныйCSI_REXT
T7PG14ввод-выводDCMIPP_D11 (AF9), DCMI_D11 (AF9), DEBUG_TRACED1 (AF0), FMC_NCE (AF10), FMC_NE2 (AF12), I2S6_SDO (AF5), LPTIM1_ETR (AF1), LTDC_B1 (AF14), PSSI_D11 (AF9), SPI6_MOSI (AF5), USART10_RTS (AF6), USART2_DE (AF8), USART2_RTS (AF8), USART6_TX (AF7)
T8PA11ввод-выводADC1_EXTI11, ADC1_INN11, ADC1_INP12, ADC2_EXTI11, ADC2_INN11, ADC2_INP12, FDCAN1_RX (AF6), FMC_D1 (AF12), FMC_DA1 (AF12), HDP_HDP3 (AF15), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_B3 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF8), USART1_CTS (AF7), USART1_NSS (AF7)
T9PA8ввод-выводADC1_INP5, ADC2_INP5, FMC_D4 (AF12), FMC_DA4 (AF12), HDP_HDP0 (AF15), I2C3_SCL (AF4), I3C2_SCL (AF2), LTDC_B6 (AF14), RCC_MCO_1 (AF0), TIM11_CH1 (AF9), TIM1_CH1 (AF1), UART7_RX (AF10), USART1_CK (AF7)
T10PA6ввод-выводADC1_INP3, ADC2_INP3, BOOT1 (AF0), DCMIPP_PIXCLK (AF9), DCMI_PIXCLK (AF9), HDP_HDP6 (AF15), I2S1_SDI (AF5), I2S6_SDI (AF8), I3C1_SDA (AF4), LPTIM3_ETR (AF3), LTDC_B7 (AF12), LTDC_HSYNC (AF14), MDIOS_MDC (AF11), PSSI_PDCK (AF9), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF10), TIM1_BKIN (AF1), TIM3_CH1 (AF2)
T11PG1ввод-выводDCMIPP_PIXCLK (AF9), DCMI_PIXCLK (AF9), FMC_A19 (AF12), LTDC_G1 (AF14), PSSI_PDCK (AF9), SAI1_SCK_B (AF6), SPI5_MISO (AF5), TIM13_CH1 (AF10), TIM16_CH1N (AF1), UART7_DE (AF8), UART7_RTS (AF8)
T12PG10ввод-выводDCMIPP_D2 (AF9), DCMI_D2 (AF9), FDCAN2_TX (AF6), FMC_A16 (AF12), FMC_CLE (AF12), HDP_HDP5 (AF15), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LTDC_G4 (AF14), PSSI_D2 (AF9), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF11), USART3_CTS (AF7), USART3_NSS (AF7)
T13PB10ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, FMC_D11 (AF12), FMC_DA11 (AF12), HDP_HDP2 (AF15), I2C2_SCL (AF4), I2S2_CK (AF5), I3C2_SCL (AF2), LPTIM2_IN1 (AF3), LTDC_G7 (AF14), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
T14PB5(JTDO/TRACESWO)ввод-выводDCMIPP_D10 (AF9), DCMI_D10 (AF9), DEBUG_JTDO-SWO (AF0), FDCAN2_RX (AF6), FMC_D12 (AF12), FMC_DA12 (AF12), HDP_HDP5 (AF15), I2C1_SMBA (AF4), I2S1_SDO (AF5), I2S3_SDO (AF7), I2S6_SDO (AF8), LTDC_R2 (AF14), PSSI_D10 (AF9), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF11)
T15PA15(JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, DEBUG_JTDI (AF0), FMC_D15 (AF12), FMC_DA15 (AF12), HDP_HDP7 (AF15), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF7), LTDC_R5 (AF14), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF10)
T16PG0ввод-выводETH1_PHY_INTN (AF11), LTDC_R0 (AF14), LTDC_VSYNC (AF10), TIM12_CH1 (AF2), TIM1_CH4N (AF1), UART9_RX (AF7)
T18PN9ввод-выводDCMIPP_D5 (AF10), DCMI_D5 (AF10), PSSI_D5 (AF10), XSPIM_P2_IO5 (AF9)
T19PN2ввод-выводFMC_A23 (AF12), XSPIM_P2_IO0 (AF9)
U1PF1ввод-выводDCMIPP_D7 (AF9), DCMI_D7 (AF9), ETH1_TX_ER (AF11), LPTIM1_CH2 (AF1), LPTIM2_CH1 (AF3), PSSI_D7 (AF9), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF7), UCPD1_FRSTX1 (AF6)
U2PF12ввод-выводADC1_INN2, ADC1_INP6, DCMIPP_D13 (AF9), DCMI_D13 (AF9), ETH1_MII_TXD0 (AF11), ETH1_RGMII_TXD0 (AF11), ETH1_RMII_TXD0 (AF11), PSSI_D13 (AF9), SPI5_MISO (AF5), USART1_RX (AF4)
U3PF0ввод-выводDCMIPP_D9 (AF9), DCMI_D9 (AF9), ETH1_MII_TX_CLK (AF11), ETH1_RGMII_GTX_CLK (AF12), LPTIM5_OUT (AF1), PSSI_D9 (AF9), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF7), UCPD1_FRSTX2 (AF6)
U17PA3ввод-выводFMC_A17 (AF12), FMC_ALE (AF12), SAI1_SD_B (AF6), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF8)
U18PN5ввод-выводXSPIM_P2_IO3 (AF9)
U19PN6ввод-выводXSPIM_P2_CLK (AF9)
V1PF13ввод-выводADC2_INP2, DCMIPP_D10 (AF9), DCMI_D10 (AF9), ETH1_MII_TXD1 (AF11), ETH1_RGMII_TXD1 (AF11), ETH1_RMII_TXD1 (AF11), PSSI_D10 (AF9), SPI5_NSS (AF5), USART1_TX (AF4)
V2VREF-питание—
V3CSI_D1NслужебныйCSI_D1N
V4CSI_CKNслужебныйCSI_CKN
V5CSI_D0NслужебныйCSI_D0N
V6VDDA18CSIпитание—
V7PA14(JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0), HDP_HDP6 (AF15)
V8PA12ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, FDCAN1_TX (AF6), FMC_D0 (AF12), FMC_DA0 (AF12), HDP_HDP4 (AF15), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_B2 (AF14), SAI2_FS_B (AF10), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF8), USART1_DE (AF7), USART1_RTS (AF7)
V9PA9ввод-выводADC1_INP10, ADC2_INP10, DCMIPP_D0 (AF9), DCMI_D0 (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), HDP_HDP1 (AF15), I2C3_SDA (AF4), I2S2_CK (AF5), I3C2_SDA (AF2), LPUART1_TX (AF3), LTDC_B5 (AF14), PSSI_D0 (AF9), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7)
V10PA5ввод-выводADC2_INP18, DCMIPP_D8 (AF9), DCMI_D8 (AF9), FMC_NOE (AF12), HDP_HDP5 (AF15), I2S1_CK (AF5), I2S6_CK (AF8), I3C1_SCL (AF4), LTDC_CLK (AF14), PSSI_D8 (AF9), PWR_CSTOP (AF0), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM10_CH1 (AF10), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM9_CH2 (AF3)
V11PG12ввод-выводFMC_A18 (AF12), LTDC_G0 (AF14), SAI1_MCLK_B (AF6), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF8)
V12PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, FMC_D7 (AF12), FMC_DA7 (AF12), HDP_HDP0 (AF15), I2S6_WS (AF5), LTDC_G3 (AF14), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF11), SPI6_NSS (AF5), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM5_CH1 (AF2), TIM9_CH1 (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
V13PB11ввод-выводADC1_EXTI11, ADC1_INP4, ADC2_EXTI11, ADC2_INP4, FMC_D10 (AF12), FMC_DA10 (AF12), HDP_HDP3 (AF15), I2C2_SDA (AF4), I3C2_SDA (AF2), LPTIM2_ETR (AF3), LTDC_G6 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7)
V14PB1ввод-выводFDCAN2_TX (AF6), FMC_NOE (AF12), HDP_HDP1 (AF15), LTDC_R1 (AF14), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM9_CH2 (AF3), USART2_TX (AF7)
V15PA7ввод-выводHDP_HDP7 (AF15), I2S1_SDO (AF5), I2S6_SDO (AF8), LTDC_B1 (AF14), LTDC_R4 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF11), TIM1_CH1N (AF1), TIM3_CH2 (AF2), USART1_RX (AF7)
V16PG9ввод-выводFMC_D8 (AF12), FMC_DA8 (AF12), LTDC_R7 (AF14)
V17PG8ввод-выводFMC_A20 (AF12), HDP_HDP7 (AF15), I2S2_SDO (AF5), LTDC_G7 (AF14), PWR_PVD_IN, RTC_REFIN (AF0), SAI1_SCK_B (AF6), SDMMC2_D1 (AF11), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), UART4_CTS (AF8), USART1_RX (AF4)
V18PN8ввод-выводXSPIM_P2_IO4 (AF9)
V19PN4ввод-выводXSPIM_P2_IO2 (AF9)
W1VSSпитание—
W2VREF+служебный—
W3CSI_D1PслужебныйCSI_D1P
W4CSI_CKPслужебныйCSI_CKP
W5CSI_D0PслужебныйCSI_D0P
W6VDDCSIпитание—
W7PA13(JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0), HDP_HDP5 (AF15)
W8PG15ввод-выводADC1_EXTI15, ADC1_INN3, ADC1_INP7, ADC2_EXTI15, ADC2_INN3, ADC2_INP7, DCMIPP_D4 (AF9), DCMI_D4 (AF9), ETH1_MII_RX_CLK (AF11), ETH1_RMII_REF_CLK (AF11), FMC_CLK (AF12), LTDC_B0 (AF14), PSSI_D4 (AF9), SPI1_RDY (AF10), SPI4_RDY (AF6), SPI5_RDY (AF5), TIM1_CH4 (AF1), USART3_CK (AF7)
W9PA10ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DCMIPP_D1 (AF9), DCMI_D1 (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), HDP_HDP2 (AF15), LPUART1_RX (AF3), LTDC_B4 (AF14), MDIOS_MDIO (AF11), PSSI_D1 (AF9), PWR_CSLEEP (AF0), TIM1_CH3 (AF1), USART1_RX (AF7)
W10PA2ввод-выводADC1_INP14, ADC2_INP14, FMC_D5 (AF12), FMC_DA5 (AF12), HDP_HDP2 (AF15), LPTIM3_IN2 (AF3), LTDC_B7 (AF14), MDIOS_MDIO (AF11), PWR_WKUP2, SAI2_SCK_B (AF10), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
W11PG13ввод-выводDCMIPP_D12 (AF9), DCMI_D12 (AF9), FMC_NE1 (AF12), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), LTDC_DE (AF14), PSSI_D12 (AF9), SAI2_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
W12PA1ввод-выводADC1_INP1, ADC2_INP1, DCMIPP_D0 (AF9), DCMI_D0 (AF9), FMC_D6 (AF12), FMC_DA6 (AF12), HDP_HDP1 (AF15), LPTIM3_IN1 (AF3), LTDC_G2 (AF14), PSSI_D0 (AF9), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
W13PB12ввод-выводFDCAN2_RX (AF6), FMC_D9 (AF12), FMC_DA9 (AF12), HDP_HDP4 (AF15), I2C2_SMBA (AF4), I2S2_WS (AF5), LPTIM2_IN2 (AF3), LTDC_G5 (AF14), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF11), USART3_CK (AF7)
W14PG2ввод-выводDCMIPP_D6 (AF9), DCMI_D6 (AF9), FMC_A21 (AF12), LTDC_R0 (AF14), PSSI_D6 (AF9), SAI1_FS_B (AF6), SAI2_MCLK_B (AF10), SPI5_MOSI (AF5), TIM14_CH1 (AF11), TIM17_CH1N (AF1), UART7_CTS (AF8), USART3_DE (AF7), USART3_RTS (AF7)
W15PB4(NJTRST)ввод-выводDCMIPP_VSYNC (AF9), DCMI_VSYNC (AF9), DEBUG_NJTRST (AF0), FMC_D13 (AF12), FMC_DA13 (AF12), HDP_HDP4 (AF15), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), I2S6_SDI (AF8), LTDC_R3 (AF14), PSSI_RDY (AF9), SDMMC2_D3 (AF11), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF10)
W16PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ETH1_MDC (AF11), LTDC_R6 (AF14), UART7_RX (AF8)
W17PA4ввод-выводDCMIPP_D3 (AF9), DCMI_D3 (AF9), FMC_A13 (AF12), PSSI_D3 (AF9), SPI5_MOSI (AF5), USART6_RX (AF7)
W18PN12ввод-выводXSPIM_P2_NCS2 (AF9)
W19VSSпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
V08CAPG1—
VBATF1резервное питание: часы реального времени и резервные регистры
VDDJ14, K14, L14питание цифровой части и линий ввода-вывода
VDD33USBC3—
VDDA18ADCP6—
VDDA18AONH6—
VDDA18CSIV6—
VDDA18PLLM6—
VDDA18PMUH1—
VDDA18USBD4—
VDDCOREP7, P9, P10, P11, P13—
VDDCSIW6—
VDDIO2H16, J16, K16, L16питание отдельной группы линий ввода-вывода
VDDIO3M14, M16—
VDDIO4F7, F8—
VDDSMPSL1, L2, L3, L4, L5—
VFBSMPSG2—
VLXSMPSK1, K2, K3, K4, K5—
VREF-V2нижнее опорное напряжение АЦП
VSSA19, F12, H14, N16, P8, P12, P14, W1, W19общий провод (земля)
VSSAN6общий провод аналоговой части
VSSAONG6—
VSSAPMUH2—
VSSSMPSJ1, J2, J3, J4, J5—
NRSTF2сброс, активный уровень — низкий
BOOT0F4выбор источника загрузки при сбросе
CSI_CKNV4—
CSI_CKPW4—
CSI_D0NV5—
CSI_D0PW5—
CSI_D1NV3—
CSI_D1PW3—
CSI_REXTT6—
OTG1_HSDMB3—
OTG1_HSDPA3—
OTG1_IDB2—
OTG1_TXRTUNEA2—
OTG2_HSDMC2—
OTG2_HSDPC1—
OTG2_IDE4—
OTG2_TXRTUNEE2—
PDR_ONA1управление внутренней схемой сброса по питанию
PWR_ONG4—
UCPD1_CC1A4—
UCPD1_CC2B4—
VREF+W2верхнее опорное напряжение АЦП и ЦАП
NCB1, D2не подключён

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32N645L0HxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32N645L0STM32N645L0HxQ—4200 КБ

Линейка STM32N6x5, семейство STM32N6, ядро Cortex-M55.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе VFBGA223, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32N655L0STM32N6x5223 из 223выводы совпадают полностьютолько у него: CRYP, PKA
STM32N647L0STM32N6x7223 из 223выводы совпадают полностью
STM32N657L0STM32N6x7223 из 223выводы совпадают полностьютолько у него: CRYP, PKA

Частые вопросы

На каких выводах USART1 у STM32N645L0?

В корпусе VFBGA223 сигнал USART1_TX выведен на PE5 (шарик D9, AF7) или PF13 (шарик V1, AF4) или PA9 (шарик V9, AF7), USART1_RX — на PE6 (шарик B9, AF7) или PF12 (шарик U2, AF4) или PA7 (шарик V15, AF7) или PG8 (шарик V17, AF4) или PA10 (шарик W9, AF7).

Где у STM32N645L0 выводы SWD для программатора?

SWDIO — PA13(JTMS/SWDIO) (шарик W7, AF0), SWCLK — PA14(JTCK/SWCLK) (шарик V7, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32N645L0?

I2C1_SCL — PH9 (шарик B7, AF4) или PE5 (шарик D9, AF4), I2C1_SDA — PC1 (шарик A7, AF4) или PE6 (шарик B9, AF4).

Сколько выводов ввода-вывода у STM32N645L0 в корпусе VFBGA223?

144 из 223. Ещё 55 выводов заняты питанием и землёй, остальные 24 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32N645L0?

От 1,71 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
