STM32N647I0 в корпусе VFBGA178: распиновка

STM32N647I0 — микроконтроллер STM32N6 на ядре Cortex-M55 с частотой до 800 МГц: 4200 КБ ОЗУ. Корпус VFBGA178 — 178 шариков, из них 106 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M55
Частота ядра
до 800 МГц
ОЗУ
4200 КБ
Корпус
VFBGA178, 178 шариков
Линий ввода-вывода
106
Напряжение питания
1,71…3,6 В

Схема корпуса VFBGA178

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32N647I0 в корпусе VFBGA178, вид сверхуABCDEFGHJKLMNP1234567891011121314PDR_ON — шарик A1PDR_ONOTG2_HSDM — шарик A2: USB2_OTG_HS_DMOTG2HSDMNC — шарик A3NCVDD33USB — шарик A4VDD33USBOTG1_HSDM — шарик A5: USB1_OTG_HS_DMOTG1HSDMUCPD1_CC1 — шарик A6: UCPD1_CC1UCPD1CC1PH1-OSC_OUT — шарик A7: RCC_OSC_OUTPH1PC6 — шарик A8: DCMIPP_D1, DCMI_D1, HDP_HDP6, I2S2_MCK, PSSI_D1, SDMMC1_D0DIR, SDMMC1_D6, TIM1_CH1, TIM3_CH1, TIM9_CH1, USART6_TXPC6PC7 — шарик A9: DCMIPP_D1, DCMI_D1, DEBUG_TRGIO, HDP_HDP7, I2S3_MCK, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, TIM16_CH1N, TIM3_CH2, TIM9_CH2, USART6_RXPC7PE6 — шарик A10: DCMIPP_D1, DCMIPP_VSYNC, DCMI_D1, DCMI_VSYNC, FMC_SDCKE1, HDP_HDP7, I2C1_SDA, I3C1_SDA, LPUART1_RX, PSSI_D1, PSSI_RDY, TIM17_CH1N, TIM4_CH2, UART5_TX, USART1_RXPE6PD6 — шарик A11: FMC_A1, FMC_A17, FMC_ALE, HDP_HDP2, I2S2_SDI, SPI2_MISO, TIM15_CH2, TIM1_CH1PD6PD0 — шарик A12: DCMIPP_HSYNC, DCMI_HSYNC, FDCAN1_RX, FMC_A6, FMC_A22, PSSI_DE, TIM1_ETR, UART4_RX, UART9_CTSPD0PD3 — шарик A13: DCMIPP_D14, ETH1_PHY_INTN, FMC_A10, I2C2_SMBA, PSSI_D14, USART10_RX, USART6_CTSPD3VSS — шарик A14VSSPC14-OSC32_IN(OSC32_IN) — шарик B1: RCC_OSC32_INPC14OTG2_HSDP — шарик B2: USB2_OTG_HS_DPOTG2HSDPOTG1_ID — шарик B3: USB1_OTG_HS_IDOTG1IDOTG2_TXRTUNE — шарик B4OTG2TXRTUNEOTG1_HSDP — шарик B5: USB1_OTG_HS_DPOTG1HSDPUCPD1_CC2 — шарик B6: UCPD1_CC2UCPD1CC2PH0-OSC_IN — шарик B7: RCC_OSC_INPH0PC1 — шарик B8: DCMIPP_D7, DCMI_D7, FDCAN1_TX, HDP_HDP1, I2C1_SDA, I2S2_WS, I3C1_SDA, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPC1PE11 — шарик B9: ADC1_EXTI11, ADC2_EXTI11, FDCAN3_TX, FMC_SDNWE, LTDC_VSYNC, MDF1_CKI5, SAI2_SD_B, SPI4_NSS, TIM1_CH2PE11PE15 — шарик B10: ADC1_EXTI15, ADC2_EXTI15, FMC_SDCKE0, GFXTIM_FCKCAL, GFXTIM_LCKCAL, I2C4_SMBA, SDMMC1_D0, SPI5_SCK, TIM1_BKIN, USART10_CK, USART2_CKPE15PD7 — шарик B11: DCMIPP_D0, DCMI_D0, FMC_A2, FMC_A18, HDP_HDP3, I2S2_SDO, I2S3_WS, PSSI_D0, SPI2_MOSI, SPI3_NSS, TIM15_CH1N, TIM1_CH2PD7PD1 — шарик B12: ETH1_MDC, FDCAN1_TX, FMC_A7, FMC_A23, UART4_TXPD1PD4 — шарик B13: DCMIPP_D9, DCMI_D9, FMC_A11, I2C2_SDA, PSSI_D9, SPI5_MISO, TAMP_IN7, TAMP_OUT8, TIM1_BKIN2, USART6_DE, USART6_RTSPD4PE9 — шарик B14: FMC_A14, FMC_BA0, MDF1_CKI4, TIM1_CH1, UART7_DE, UART7_RTSPE9PC15-OSC32_OUT(OSC32_OUT) — шарик C1: RCC_OSC32_OUTPC15VBAT — шарик C2VBATPC13 — шарик C3: HDP_HDP5, PWR_WKUP3, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2PC13NC — шарик C4NCOTG2_ID — шарик C5: USB2_OTG_HS_IDOTG2IDPC8 — шарик C6: DCMIPP_D2, DCMI_D2, DEBUG_TRACED1, FMC_NE4, HDP_HDP0, I2C3_SMBA, LTDC_B0, PSSI_D2, SDMMC1_D0, TIM3_CH3, UART5_DE, UART5_RTS, UCPD1_FRSTX1, USART6_CKPC8PC11 — шарик C7: ADC1_EXTI11, ADC2_EXTI11, DCMIPP_D4, DCMI_D4, HDP_HDP3, I2C4_SDA, I2S3_SDI, I3C2_SDA, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PH9 — шарик C8: DCMIPP_D6, DCMI_D6, FDCAN1_RX, FMC_D9, FMC_DA9, HDP_HDP0, I2C1_SCL, I3C1_SCL, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, TIM16_CH1, TIM4_CH3, UART4_RX, USART3_CKPH9PE14 — шарик C9: ADF1_CCK1, FMC_NWE, FMC_SDNE0, GFXTIM_FCKCAL, GFXTIM_LCKCAL, I2C4_SDA, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PE13 — шарик C10: ADF1_CCK0, FMC_SDNCAS, I2C4_SCL, SAI2_FS_B, SPI4_MISO, TIM1_CH3PE13PD10 — шарик C11: DEBUG_TRACECLK, FMC_A3, FMC_A19, GFXTIM_TE, HDP_HDP4, I2S1_MCK, MDF1_CKI3, SAI2_FS_B, TIM1_ETR, UCPD1_FRSTX1PD10PD15 — шарик C12: ADC1_EXTI15, ADC2_EXTI15, FMC_A8, I2C2_SDA, LTDC_R2, USART10_TXPD15PE8 — шарик C13: DCMIPP_D4, DCMI_D4, FMC_A12, MDF1_SDI0, PSSI_D4, TIM1_CH1N, UART7_TX, USART3_TXPE8PE10 — шарик C14: DCMIPP_D3, DCMI_D3, DEBUG_TRACECLK, FMC_A15, FMC_BA1, MDF1_SDI4, PSSI_D3, TIM1_CH2N, UART7_CTS, USART3_RXPE10V08CAP — шарик D1V08CAPVFBSMPS — шарик D2VFBSMPSBOOT0 — шарик D3BOOT0VDDA18USB — шарик D4VDDA18USBOTG1_TXRTUNE — шарик D5OTG1TXRTUNEPC9 — шарик D6: AUDIOCLK, DCMIPP_D3, DCMI_D3, HDP_HDP1, I2C3_SDA, LTDC_B3, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, UART5_CTS, UCPD1_FRSTX2, USART6_RXPC9PC12 — шарик D7: DCMIPP_D9, DCMI_D9, DEBUG_TRACED3, FMC_NL, HDP_HDP4, I2S3_SDO, I2S6_CK, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, TIM1_CH4, UART5_TX, USART3_CKPC12PC10 — шарик D8: DCMIPP_D14, FMC_CLK, HDP_HDP2, I2C4_SCL, I2S3_CK, I3C2_SCL, PSSI_D14, SDMMC1_D2, SPI3_SCK, TIM1_BKIN, UART4_TX, USART3_TXPC10PE5 — шарик D9: DCMIPP_D5, DCMI_D5, FDCAN2_TX, FMC_SDNE1, HDP_HDP6, I2C1_SCL, I3C1_SCL, LPUART1_TX, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPE5PE12 — шарик D10: FDCAN3_RX, FMC_SDNRAS, MDF1_SDI5, SAI2_SCK_B, SPI4_SCK, TIM1_CH3NPE12PE7 — шарик D11: FMC_A4, FMC_A20, MDF1_CKI0, SAI2_SD_B, TIM1_ETR, UART7_RXPE7PD14 — шарик D12: FMC_A9, I2C2_SCL, USART10_RXPD14PD8 — шарик D13: DCMIPP_D11, DCMI_D11, FMC_NBL0, LTDC_R7, PSSI_D11, TAMP_IN3, TAMP_OUT4, USART3_TXPD8PD5 — шарик D14: DCMIPP_PIXCLK, DCMI_PIXCLK, FMC_D6, FMC_DA6, PSSI_PDCK, TIM1_CH4N, USART2_TXPD5VDDA18PMU — шарик E1VDDA18PMUVSSAPMU — шарик E2VSSAPMUPWR_ON — шарик E3PWR_ONNRST — шарик E4NRSTVDDA18AON — шарик E5VDDA18AONPH2 — шарик E6: DCMIPP_D11, DCMI_D11, DEBUG_TRACED2, FDCAN1_TX, FMC_NE3, PSSI_D11, SDMMC1_CMD, TIM15_BKIN, TIM1_ETR, TIM3_ETR, UART5_RXPH2VSS — шарик E7VSSVDDIO4 — шарик E8VDDIO4VDDIO4 — шарик E9VDDIO4PD2 — шарик E10: ADF1_SDI0, DEBUG_TRACED0, FMC_A0, FMC_A16, FMC_CLE, HDP_HDP1, I2S2_SDO, MDF1_SDI1, MDIOS_MDC, PWR_WKUP4, SAI1_D1, SAI1_SD_A, SPI2_MOSI, TIM15_CH1N, TIM1_CH3PD2PD12 — шарик E11: DCMIPP_D12, DCMI_D12, ETH1_MDIO, FMC_A5, FMC_A21, HDP_HDP5, MDF1_SDI3, PSSI_D12, SAI1_D3, UCPD1_FRSTX2PD12PB3 — шарик E12: DEBUG_TRACECLK, FMC_A23, FMC_NBL1, GFXTIM_FCKCAL, GFXTIM_LCKCAL, HDP_HDP0, MDF1_CKI1, SAI2_FS_B, TIM1_CH4N, USART1_CKPB3PB2 — шарик E13: ADF1_SDI0, FMC_D2, FMC_DA2, HDP_HDP2, I2S3_SDO, LTDC_B2, MDF1_SDI1, RTC_OUT2, SAI1_D1, SAI1_SD_A, SPI3_MOSI, TIM1_CH1PB2PD13 — шарик E14: DCMIPP_D13, DCMI_D13, FMC_D4, FMC_DA4, LTDC_R6, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTS, UCPD1_FRSTX2PD13VSSSMPS — шарик F1VSSSMPSVSSSMPS — шарик F2VSSSMPSVSSSMPS — шарик F3VSSSMPSVSSSMPS — шарик F4VSSSMPSVSSAON — шарик F5VSSAONVSS — шарик F10VSSPD11 — шарик F11: ADC1_EXTI11, ADC2_EXTI11, DCMIPP_D15, FMC_D8, FMC_DA8, I2C4_SDA, I2S2_SDI, PSSI_D15, SDMMC1_D0, SPI2_MISO, UCPD1_FRSTX1PD11PE0 — шарик F12: DCMIPP_D2, DCMI_D2, FMC_D9, FMC_DA9, LPTIM2_ETR, PSSI_D2, SAI2_MCLK_A, TAMP_IN6, TAMP_OUT5, TIM4_ETR, UART8_RX, USART3_RXPE0PE1 — шарик F13: DCMIPP_D8, DCMI_D8, FMC_D10, FMC_DA10, LPTIM2_CH2, PSSI_D8, UART8_TX, USART3_TXPE1PE2 — шарик F14: ADF1_CCK0, DEBUG_TRACECLK, FMC_D11, FMC_DA11, MDF1_CCK0, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, TIM1_CH2N, UCPD1_FRSTX1PE2VLXSMPS — шарик G1VLXSMPSVLXSMPS — шарик G2VLXSMPSVLXSMPS — шарик G3VLXSMPSVLXSMPS — шарик G4VLXSMPSVDD — шарик G10VDDVDD — шарик G11VDDVDD — шарик G12VDDPE3 — шарик G13: DEBUG_TRACED0, FMC_D12, FMC_DA12, MDF1_CKI2, SAI1_SD_B, TIM15_BKINPE3PB0 — шарик G14: ADF1_SDI0, DCMIPP_D4, DCMI_D4, DEBUG_TRACED1, FMC_D13, FMC_DA13, MDF1_SDI2, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TIM15_CH1N, TIM1_CH4PB0VDDSMPS — шарик H1VDDSMPSVDDSMPS — шарик H2VDDSMPSVDDSMPS — шарик H3VDDSMPSVDDSMPS — шарик H4VDDSMPSVSS — шарик H10VSSVSS — шарик H11VSSPD9 — шарик H12: DCMIPP_D11, DCMI_D11, FMC_SDCLK, LTDC_R1, PSSI_D11, TAMP_IN5, TAMP_OUT6, USART3_RXPD9PB7 — шарик H13: ADF1_SDI0, DCMIPP_D7, DCMI_D7, DEBUG_TRACED3, FMC_D15, FMC_DA15, MDF1_SDI1, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2PB7PB6 — шарик H14: ADF1_CCK1, DCMIPP_D6, DCMI_D6, DEBUG_TRACED2, FMC_D14, FMC_DA14, MDF1_CCK1, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TIM15_CH1PB6PF4 — шарик J1: ADC1_INP18, DCMIPP_HSYNC, DCMI_HSYNC, ETH1_MDIO, HDP_HDP4, I2S1_WS, I2S3_WS, I2S6_WS, LPTIM3_CH2, LTDC_R3, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CKPF4PF6 — шарик J2: ADC1_INP15, ADC2_INP15, ETH1_MII_COL, GFXTIM_FCKCAL, GFXTIM_LCKCAL, HDP_HDP3, I2S6_MCK, LPTIM3_CH1, LTDC_DE, SPI1_RDY, SPI4_RDY, SPI5_RDY, TIM15_CH2, TIM1_CH3, TIM2_CH4, TIM5_CH4, USART2_RXPF6PF10 — шарик J3: DCMIPP_D11, DCMIPP_D15, DCMI_D11, ETH1_MII_RX_DV, ETH1_RGMII_RX_CTL, ETH1_RMII_CRS_DV, LTDC_R1, MDF1_SDI3, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKIN, UART7_RX, UCPD1_FRSTX1PF10PF5 — шарик J4: DCMIPP_D6, DCMI_D6, ETH1_CLK, FMC_NE3, LPTIM2_IN2, LTDC_G0, PSSI_D6, SAI2_SD_A, TIM1_ETR, USART3_CTS, USART3_NSSPF5PF3 — шарик J5: ADC1_INP16, DCMIPP_HSYNC, DCMI_HSYNC, ETH1_PPS_OUT, FDCAN3_RX, FMC_NL, LTDC_R4, PSSI_DE, USART2_DE, USART2_RTSPF3VDDIO3 — шарик J10VDDIO3VDDIO3 — шарик J11VDDIO3PN12 — шарик J12: XSPIM_P2_NCS2PN12PN4 — шарик J13: XSPIM_P2_IO2PN4PN8 — шарик J14: XSPIM_P2_IO4PN8PF2 — шарик K1: ETH1_RGMII_CLK125, FDCAN3_TX, FMC_NWAIT, I2S2_CK, LTDC_B1, SPI2_SCK, TIM1_CH3N, USART2_CTS, USART2_NSSPF2PF14 — шарик K2: ADC2_INN2, ADC2_INP6, ETH1_MII_RXD0, ETH1_RGMII_RXD0, ETH1_RMII_RXD0, LTDC_G0, SPI5_MOSI, TIM2_CH2, USART1_CTSPF14PF15 — шарик K3: ADC1_EXTI15, ADC2_EXTI15, ETH1_MII_RXD1, ETH1_RGMII_RXD1, ETH1_RMII_RXD1, LTDC_G1, SPI5_SCK, USART1_DE, USART1_RTSPF15PF7 — шарик K4: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH1_MII_RX_CLK, ETH1_RGMII_RX_CLK, ETH1_RMII_REF_CLK, GFXTIM_TE, HDP_HDP0, I2S1_CK, LTDC_VSYNC, SPI1_SCK, TIM1_CH2N, TIM3_CH3, TIM9_CH1, UART4_CTSPF7VSS — шарик K5VSSVDDCORE — шарик K6VDDCOREVDDCORE — шарик K7VDDCOREVDDCORE — шарик K8VDDCOREVDDCORE — шарик K9VDDCOREVSS — шарик K10VSSPA3 — шарик K11: FMC_A17, FMC_ALE, SAI1_SD_B, SPI5_NSS, TIM16_CH1, UART7_RXPA3PN6 — шарик K12: XSPIM_P2_CLKPN6PN7 — шарик K13: XSPIM_P2_NCLKPN7PN5 — шарик K14: XSPIM_P2_IO3PN5PF8 — шарик L1: DEBUG_TRACECLK, ETH1_MII_RXD2, ETH1_RGMII_RXD2, FMC_NWE, LTDC_R6, UART9_TXPF8PF11 — шарик L2: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMIPP_D15, ETH1_MII_TX_EN, ETH1_RGMII_TX_CTL, ETH1_RMII_TX_EN, LTDC_B0, PSSI_D15, SAI2_SD_B, SPI5_MOSIPF11PF12 — шарик L3: ADC1_INN2, ADC1_INP6, DCMIPP_D13, DCMI_D13, ETH1_MII_TXD0, ETH1_RGMII_TXD0, ETH1_RMII_TXD0, PSSI_D13, SPI5_MISO, USART1_RXPF12VDDA18PLL — шарик L4VDDA18PLLPG14 — шарик L5: DCMIPP_D11, DCMI_D11, DEBUG_TRACED1, FMC_NCE, FMC_NE2, I2S6_SDO, LTDC_B1, PSSI_D11, SPI6_MOSI, USART10_RTS, USART2_DE, USART2_RTS, USART6_TXPG14PA12 — шарик L6: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, FDCAN1_TX, FMC_D0, FMC_DA0, HDP_HDP4, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_B2, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTSPA12VDDCORE — шарик L7VDDCOREPA6 — шарик L8: ADC1_INP3, ADC2_INP3, BOOT1, DCMIPP_PIXCLK, DCMI_PIXCLK, HDP_HDP6, I2S1_SDI, I2S6_SDI, I3C1_SDA, LPTIM3_ETR, LTDC_B7, LTDC_HSYNC, MDIOS_MDC, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1PA6PA1 — шарик L9: ADC1_INP1, ADC2_INP1, DCMIPP_D0, DCMI_D0, FMC_D6, FMC_DA6, HDP_HDP1, LPTIM3_IN1, LTDC_G2, PSSI_D0, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PB11 — шарик L10: ADC1_EXTI11, ADC1_INP4, ADC2_EXTI11, ADC2_INP4, FMC_D10, FMC_DA10, HDP_HDP3, I2C2_SDA, I3C2_SDA, LPTIM2_ETR, LTDC_G6, TIM2_CH4, USART3_RXPB11PB4(NJTRST) — шарик L11: DCMIPP_VSYNC, DCMI_VSYNC, DEBUG_NJTRST, FMC_D13, FMC_DA13, HDP_HDP4, I2S1_SDI, I2S2_WS, I2S3_SDI, I2S6_SDI, LTDC_R3, PSSI_RDY, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4PG8 — шарик L12: FMC_A20, HDP_HDP7, I2S2_SDO, LTDC_G7, PWR_PVD_IN, RTC_REFIN, SAI1_SCK_B, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, UART4_CTS, USART1_RXPG8PN2 — шарик L13: FMC_A23, XSPIM_P2_IO0PN2PN9 — шарик L14: DCMIPP_D5, DCMI_D5, PSSI_D5, XSPIM_P2_IO5PN9VREF+ — шарик M1VREF+PF13 — шарик M2: ADC2_INP2, DCMIPP_D10, DCMI_D10, ETH1_MII_TXD1, ETH1_RGMII_TXD1, ETH1_RMII_TXD1, PSSI_D10, SPI5_NSS, USART1_TXPF13VDDA18ADC — шарик M3VDDA18ADCVSSA — шарик M4VSSAPG15 — шарик M5: ADC1_EXTI15, ADC1_INN3, ADC1_INP7, ADC2_EXTI15, ADC2_INN3, ADC2_INP7, DCMIPP_D4, DCMI_D4, ETH1_MII_RX_CLK, ETH1_RMII_REF_CLK, FMC_CLK, LTDC_B0, PSSI_D4, SPI1_RDY, SPI4_RDY, SPI5_RDY, TIM1_CH4, USART3_CKPG15PA11 — шарик M6: ADC1_EXTI11, ADC1_INN11, ADC1_INP12, ADC2_EXTI11, ADC2_INN11, ADC2_INP12, FDCAN1_RX, FMC_D1, FMC_DA1, HDP_HDP3, I2S2_WS, LPUART1_CTS, LTDC_B3, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSSPA11PA9 — шарик M7: ADC1_INP10, ADC2_INP10, DCMIPP_D0, DCMI_D0, FMC_D3, FMC_DA3, HDP_HDP1, I2C3_SDA, I2S2_CK, I3C2_SDA, LPUART1_TX, LTDC_B5, PSSI_D0, SPI2_SCK, TIM1_CH2, USART1_TXPA9PA5 — шарик M8: ADC2_INP18, DCMIPP_D8, DCMI_D8, FMC_NOE, HDP_HDP5, I2S1_CK, I2S6_CK, I3C1_SCL, LTDC_CLK, PSSI_D8, PWR_CSTOP, SPI1_SCK, SPI6_SCK, TIM10_CH1, TIM2_CH1, TIM2_ETR, TIM9_CH2PA5PG1 — шарик M9: DCMIPP_PIXCLK, DCMI_PIXCLK, FMC_A19, LTDC_G1, PSSI_PDCK, SAI1_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPG1PB12 — шарик M10: FDCAN2_RX, FMC_D9, FMC_DA9, HDP_HDP4, I2C2_SMBA, I2S2_WS, LPTIM2_IN2, LTDC_G5, SPI2_NSS, TIM1_BKIN, UART5_RX, USART3_CKPB12PB5(JTDO/TRACESWO) — шарик M11: DCMIPP_D10, DCMI_D10, DEBUG_JTDO-SWO, FDCAN2_RX, FMC_D12, FMC_DA12, HDP_HDP5, I2C1_SMBA, I2S1_SDO, I2S3_SDO, I2S6_SDO, LTDC_R2, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RXPB5PG0 — шарик M12: ETH1_PHY_INTN, LTDC_R0, LTDC_VSYNC, TIM12_CH1, TIM1_CH4N, UART9_RXPG0PN0 — шарик M13: FMC_A25, XSPIM_P2_DQS0PN0PN10 — шарик M14: LTDC_B4, XSPIM_P2_IO6PN10VREF- — шарик N1VREF-CSI_D1N — шарик N2: CSI_D1NCSID1NCSI_CKN — шарик N3: CSI_CKNCSICKNCSI_D0N — шарик N4: CSI_D0NCSID0NCSI_REXT — шарик N5: CSI_REXTCSIREXTVDDCSI — шарик N6VDDCSIPA10 — шарик N7: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DCMIPP_D1, DCMI_D1, FMC_D2, FMC_DA2, HDP_HDP2, LPUART1_RX, LTDC_B4, MDIOS_MDIO, PSSI_D1, PWR_CSLEEP, TIM1_CH3, USART1_RXPA10PA2 — шарик N8: ADC1_INP14, ADC2_INP14, FMC_D5, FMC_DA5, HDP_HDP2, LPTIM3_IN2, LTDC_B7, MDIOS_MDIO, PWR_WKUP2, SAI2_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PG12 — шарик N9: FMC_A18, LTDC_G0, SAI1_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TXPG12PG10 — шарик N10: DCMIPP_D2, DCMI_D2, FDCAN2_TX, FMC_A16, FMC_CLE, HDP_HDP5, I2S2_CK, LPTIM2_CH1, LTDC_G4, PSSI_D2, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSSPG10PG2 — шарик N11: DCMIPP_D6, DCMI_D6, FMC_A21, LTDC_R0, PSSI_D6, SAI1_FS_B, SAI2_MCLK_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTS, USART3_DE, USART3_RTSPG2PA15(JTDI) — шарик N12: ADC1_EXTI15, ADC2_EXTI15, DEBUG_JTDI, FMC_D15, FMC_DA15, HDP_HDP7, I2S1_WS, I2S3_WS, I2S6_WS, LTDC_R5, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PN3 — шарик N13: FMC_A22, XSPIM_P2_IO1PN3PN11 — шарик N14: ADC1_EXTI11, ADC2_EXTI11, LTDC_B6, XSPIM_P2_IO7PN11VSS — шарик P1VSSCSI_D1P — шарик P2: CSI_D1PCSID1PCSI_CKP — шарик P3: CSI_CKPCSICKPCSI_D0P — шарик P4: CSI_D0PCSID0PVDDA18CSI — шарик P5VDDA18CSIPA14(JTCK/SWCLK) — шарик P6: DEBUG_JTCK-SWCLK, HDP_HDP6PA14PA13(JTMS/SWDIO) — шарик P7: DEBUG_JTMS-SWDIO, HDP_HDP5PA13PA8 — шарик P8: ADC1_INP5, ADC2_INP5, FMC_D4, FMC_DA4, HDP_HDP0, I2C3_SCL, I3C2_SCL, LTDC_B6, RCC_MCO_1, TIM11_CH1, TIM1_CH1, UART7_RX, USART1_CKPA8PG13 — шарик P9: DCMIPP_D12, DCMI_D12, FMC_NE1, LPTIM2_IN1, LTDC_DE, PSSI_D12, SAI2_FS_A, TIM4_CH1, USART3_DE, USART3_RTSPG13PA0 — шарик P10: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, FMC_D7, FMC_DA7, HDP_HDP0, I2S6_WS, LTDC_G3, PWR_WKUP1, SAI2_SD_B, SPI6_NSS, TIM15_BKIN, TIM2_CH1, TIM5_CH1, TIM9_CH1, UART4_TX, USART2_CTS, USART2_NSSPA0PB10 — шарик P11: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, FMC_D11, FMC_DA11, HDP_HDP2, I2C2_SCL, I2S2_CK, I3C2_SCL, LPTIM2_IN1, LTDC_G7, SPI2_SCK, TIM2_CH3, USART3_TXPB10PA7 — шарик P12: HDP_HDP7, I2S1_SDO, I2S6_SDO, LTDC_B1, LTDC_R4, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, USART1_RXPA7PN1 — шарик P13: FMC_A24, XSPIM_P2_NCS1PN1VSS — шарик P14VSSVFBGA178, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнемуглу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

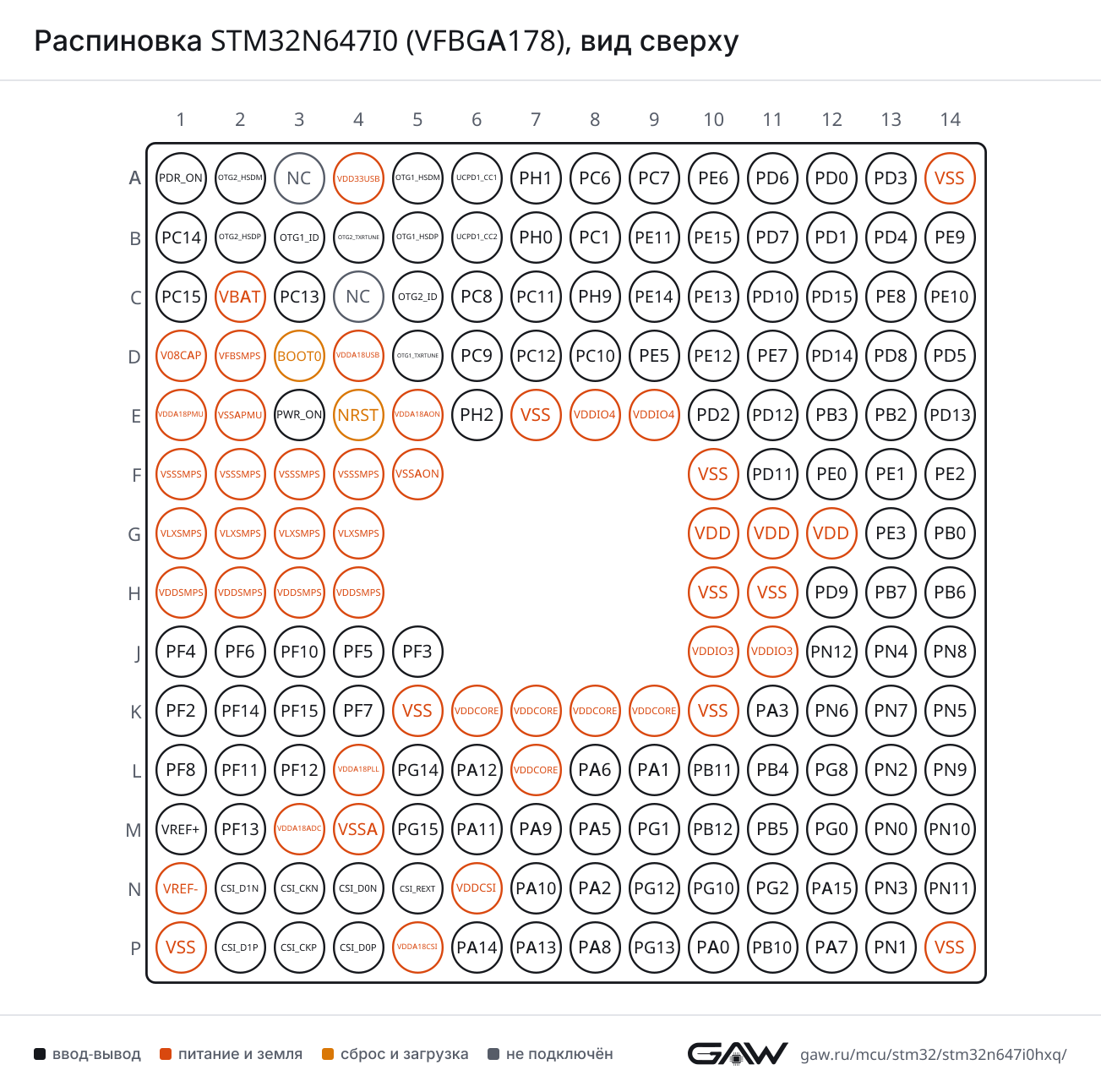

Распиновка STM32N647I0 (VFBGA178), вид сверхуРаспиновка VFBGA178 картинкой
PNG, 1303 × 1292 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPB3 (E12, AF7), PA8 (P8, AF7)
CTSPF14 (K2, AF4), PA11 (M6, AF7)
DEPF15 (K3, AF4), PA12 (L6, AF7)
NSSPA11 (M6, AF7)
RTSPF15 (K3, AF4), PA12 (L6, AF7)
RXPE6 (A10, AF7), PF12 (L3, AF4), PG8 (L12, AF4), PA10 (N7, AF7), PA7 (P12, AF7)
TXPE5 (D9, AF7), PF13 (M2, AF4), PA9 (M7, AF7)
USART2CKPE15 (B10, AF7), PF4 (J1, AF7)
CTSPF2 (K1, AF7), PA0 (P10, AF7)
DEPF3 (J5, AF7), PG14 (L5, AF8), PA1 (L9, AF7)
NSSPF2 (K1, AF7), PA0 (P10, AF7)
RTSPF3 (J5, AF7), PG14 (L5, AF8), PA1 (L9, AF7)
RXPF6 (J2, AF7)
TXPD5 (D14, AF7), PA2 (N8, AF7)
USART3CKPH9 (C8, AF3), PC12 (D7, AF7), PG15 (M5, AF7), PB12 (M10, AF7)
CTSPF5 (J4, AF7), PG10 (N10, AF7)
DEPG2 (N11, AF7), PG13 (P9, AF7)
NSSPF5 (J4, AF7), PG10 (N10, AF7)
RTSPG2 (N11, AF7), PG13 (P9, AF7)
RXPC11 (C7, AF7), PE10 (C14, AF7), PE0 (F12, AF7), PD9 (H12, AF7), PB11 (L10, AF7)
TXPE8 (C13, AF7), PC10 (D8, AF7), PD8 (D13, AF7), PE1 (F13, AF7), PB10 (P11, AF7)
USART6CKPC8 (C6, AF7)
CTSPD3 (A13, AF7)
DEPD4 (B13, AF7)
RTSPD4 (B13, AF7)
RXPC7 (A9, AF7), PC9 (D6, AF7)
TXPC6 (A8, AF7), PG14 (L5, AF7)
USART10CKPE15 (B10, AF6)
RTSPG14 (L5, AF6)
RXPD3 (A13, AF6), PD14 (D12, AF6)
TXPD15 (C12, AF6)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPF7 (K4, AF8), PG8 (L12, AF8)
DEPA15(JTDI) (N12, AF8)
RTSPA15(JTDI) (N12, AF8)
RXPD0 (A12, AF8), PC11 (C7, AF8), PH9 (C8, AF8), PA1 (L9, AF8), PA11 (M6, AF8)
TXPC1 (B8, AF8), PD1 (B12, AF8), PC10 (D8, AF8), PA12 (L6, AF8), PA0 (P10, AF8)
UART5CTSPC9 (D6, AF11)
DEPC8 (C6, AF11)
RTSPC8 (C6, AF11)
RXPH2 (E6, AF11), PB12 (M10, AF11), PB5(JTDO/TRACESWO) (M11, AF11)
TXPE6 (A10, AF11), PC12 (D7, AF11), PE5 (D9, AF11), PG10 (N10, AF11)
UART7CTSPE10 (C14, AF8), PG2 (N11, AF8)
DEPE9 (B14, AF8), PG1 (M9, AF8)
RTSPE9 (B14, AF8), PG1 (M9, AF8)
RXPE7 (D11, AF8), PF10 (J3, AF8), PA3 (K11, AF8), PA8 (P8, AF10)
TXPE8 (C13, AF8), PB4(NJTRST) (L11, AF10), PG12 (N9, AF8), PA15(JTDI) (N12, AF10)
UART8RXPE0 (F12, AF8)
TXPE1 (F13, AF8)
UART9CTSPD0 (A12, AF7)
DEPD13 (E14, AF7)
RTSPD13 (E14, AF7)
RXPG0 (M12, AF7)
TXPF8 (L1, AF7)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (M6, AF3)
DEPA12 (L6, AF3)
RTSPA12 (L6, AF3)
RXPE6 (A10, AF3), PA10 (N7, AF3)
TXPE5 (D9, AF3), PA9 (M7, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA6 (L8, AF5), PB4(NJTRST) (L11, AF5)
MOSIPB5(JTDO/TRACESWO) (M11, AF5), PA7 (P12, AF5)
NSSPF4 (J1, AF5), PA15(JTDI) (N12, AF5)
RDYPF6 (J2, AF10), PG15 (M5, AF10)
SCKPF7 (K4, AF5), PA5 (M8, AF5)
SPI2MISOPD6 (A11, AF5), PD11 (F11, AF5)
MOSIPD7 (B11, AF5), PD2 (E10, AF5), PG8 (L12, AF5)
NSSPC1 (B8, AF5), PB4(NJTRST) (L11, AF7), PA11 (M6, AF5), PB12 (M10, AF5)
SCKPF2 (K1, AF5), PA12 (L6, AF5), PA9 (M7, AF5), PG10 (N10, AF5), PB10 (P11, AF5)
SPI3MISOPC11 (C7, AF6), PB4(NJTRST) (L11, AF6)
MOSIPC12 (D7, AF6), PB2 (E13, AF7), PB5(JTDO/TRACESWO) (M11, AF7)
NSSPD7 (B11, AF6), PF4 (J1, AF6), PA15(JTDI) (N12, AF6)
SCKPC10 (D8, AF6)
SPI4MISOPE13 (C10, AF5), PB6 (H14, AF5)
MOSIPE14 (C9, AF5), PB7 (H13, AF5)
NSSPE11 (B9, AF5), PB0 (G14, AF5)
RDYPF6 (J2, AF6), PG15 (M5, AF6)
SCKPE12 (D10, AF5), PE2 (F14, AF5)
SPI5MISOPD4 (B13, AF5), PF12 (L3, AF5), PG1 (M9, AF5)
MOSIPF14 (K2, AF5), PF11 (L2, AF5), PG2 (N11, AF5)
NSSPA3 (K11, AF5), PF13 (M2, AF5)
RDYPF6 (J2, AF9), PG15 (M5, AF5)
SCKPE15 (B10, AF5), PF15 (K3, AF5), PG12 (N9, AF5)
SPI6MISOPA6 (L8, AF8), PB4(NJTRST) (L11, AF8)
MOSIPG14 (L5, AF5), PB5(JTDO/TRACESWO) (M11, AF8), PA7 (P12, AF8)
NSSPF4 (J1, AF8), PA15(JTDI) (N12, AF7), PA0 (P10, AF5)
SCKPC12 (D7, AF5), PA5 (M8, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPF7 (K4, AF5), PA5 (M8, AF5)
MCKPD10 (C11, AF5)
SDIPA6 (L8, AF5), PB4(NJTRST) (L11, AF5)
SDOPB5(JTDO/TRACESWO) (M11, AF5), PA7 (P12, AF5)
WSPF4 (J1, AF5), PA15(JTDI) (N12, AF5)
I2S2CKPF2 (K1, AF5), PA12 (L6, AF5), PA9 (M7, AF5), PG10 (N10, AF5), PB10 (P11, AF5)
MCKPC6 (A8, AF5)
SDIPD6 (A11, AF5), PD11 (F11, AF5)
SDOPD7 (B11, AF5), PD2 (E10, AF5), PG8 (L12, AF5)
WSPC1 (B8, AF5), PB4(NJTRST) (L11, AF7), PA11 (M6, AF5), PB12 (M10, AF5)
I2S3CKPC10 (D8, AF6)
MCKPC7 (A9, AF6)
SDIPC11 (C7, AF6), PB4(NJTRST) (L11, AF6)
SDOPC12 (D7, AF6), PB2 (E13, AF7), PB5(JTDO/TRACESWO) (M11, AF7)
WSPD7 (B11, AF6), PF4 (J1, AF6), PA15(JTDI) (N12, AF6)
I2S6CKPC12 (D7, AF5), PA5 (M8, AF8)
MCKPF6 (J2, AF5)
SDIPA6 (L8, AF8), PB4(NJTRST) (L11, AF8)
SDOPG14 (L5, AF5), PB5(JTDO/TRACESWO) (M11, AF8), PA7 (P12, AF8)
WSPF4 (J1, AF8), PA15(JTDI) (N12, AF7), PA0 (P10, AF5)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPH9 (C8, AF4), PE5 (D9, AF4)
SDAPE6 (A10, AF4), PC1 (B8, AF4)
SMBAPB5(JTDO/TRACESWO) (M11, AF4)
I2C2SCLPD14 (D12, AF4), PB10 (P11, AF4)
SDAPD4 (B13, AF4), PD15 (C12, AF4), PB11 (L10, AF4)
SMBAPD3 (A13, AF4), PB12 (M10, AF4)
I2C3SCLPA8 (P8, AF4)
SDAPC9 (D6, AF4), PA9 (M7, AF4)
SMBAPC8 (C6, AF4)
I2C4SCLPE13 (C10, AF4), PC10 (D8, AF4)
SDAPC11 (C7, AF4), PE14 (C9, AF4), PD11 (F11, AF4)
SMBAPE15 (B10, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPH9 (C8, AF7), PE5 (D9, AF5), PA5 (M8, AF4)
SDAPE6 (A10, AF5), PC1 (B8, AF7), PA6 (L8, AF4)
I3C2SCLPC10 (D8, AF2), PA8 (P8, AF2), PB10 (P11, AF2)
SDAPC11 (C7, AF2), PB11 (L10, AF2), PA9 (M7, AF2)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPD0 (A12, AF6), PH9 (C8, AF6), PA11 (M6, AF6)
TXPC1 (B8, AF6), PD1 (B12, AF6), PH2 (E6, AF6), PA12 (L6, AF6)
FDCAN2RXPB12 (M10, AF6), PB5(JTDO/TRACESWO) (M11, AF6)
TXPE5 (D9, AF6), PG10 (N10, AF6)
FDCAN3RXPE12 (D10, AF6), PF3 (J5, AF6)
TXPE11 (B9, AF6), PF2 (K1, AF6)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB1_OTG_HSDMOTG1_HSDM (A5)
DPOTG1_HSDP (B5)
IDOTG1_ID (B3)
USB2_OTG_HSDMOTG2_HSDM (A2)
DPOTG2_HSDP (B2)
IDOTG2_ID (C5)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1UCPD1_CC1 (A6)
CC2UCPD1_CC2 (B6)
FRSTX1PC8 (C6, AF6), PD10 (C11, AF6), PD11 (F11, AF6), PE2 (F14, AF7), PF10 (J3, AF6)
FRSTX2PC9 (D6, AF6), PD12 (E11, AF6), PD13 (E14, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETH1CLKPF5 (J4, AF11)
MDCPD1 (B12, AF11)
MDIOPD12 (E11, AF11), PF4 (J1, AF11)
MII_COLPF6 (J2, AF11)
MII_RX_CLKPF7 (K4, AF11), PG15 (M5, AF11)
MII_RX_DVPF10 (J3, AF11)
MII_RXD0PF14 (K2, AF11)
MII_RXD1PF15 (K3, AF11)
MII_RXD2PF8 (L1, AF11)
MII_TX_ENPF11 (L2, AF11)
MII_TXD0PF12 (L3, AF11)
MII_TXD1PF13 (M2, AF11)
PHY_INTNPD3 (A13, AF11), PG0 (M12, AF11)
PPS_OUTPF3 (J5, AF11)
RGMII_CLK125PF2 (K1, AF11)
RGMII_RX_CLKPF7 (K4, AF11)
RGMII_RX_CTLPF10 (J3, AF11)
RGMII_RXD0PF14 (K2, AF11)
RGMII_RXD1PF15 (K3, AF11)
RGMII_RXD2PF8 (L1, AF11)
RGMII_TX_CTLPF11 (L2, AF11)
RGMII_TXD0PF12 (L3, AF11)
RGMII_TXD1PF13 (M2, AF11)
RMII_CRS_DVPF10 (J3, AF11)
RMII_REF_CLKPF7 (K4, AF11), PG15 (M5, AF11)
RMII_RXD0PF14 (K2, AF11)
RMII_RXD1PF15 (K3, AF11)
RMII_TX_ENPF11 (L2, AF11)
RMII_TXD0PF12 (L3, AF11)
RMII_TXD1PF13 (M2, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPC1 (B8, AF12)
CKPC12 (D7, AF10)
CKINPH9 (C8, AF12)
CMDPH2 (E6, AF10)
D0PE15 (B10, AF10), PC8 (C6, AF10), PD11 (F11, AF10)
D0DIRPC6 (A8, AF12)
D1PC9 (D6, AF10)
D2PC10 (D8, AF10)
D3PC11 (C7, AF10)
D4PH9 (C8, AF10)
D5PC1 (B8, AF10)
D6PC6 (A8, AF10)
D7PC7 (A9, AF10)
D123DIRPC7 (A9, AF12)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (F14, AF2)
CK2PB6 (H14, AF2)
D1PD2 (E10, AF2), PB2 (E13, AF2), PB7 (H13, AF2)
D2PB0 (G14, AF2)
D3PD12 (E11, AF2), PF10 (J3, AF2)
FS_APB0 (G14, AF6)
FS_BPG2 (N11, AF6)
MCLK_APE2 (F14, AF6)
MCLK_BPG12 (N9, AF6)
SCK_APB6 (H14, AF6)
SCK_BPG8 (L12, AF6), PG1 (M9, AF6)
SD_APD2 (E10, AF6), PB2 (E13, AF6), PB7 (H13, AF6)
SD_BPE3 (G13, AF6), PA3 (K11, AF6)
SAI2FS_APG13 (P9, AF10)
FS_BPE13 (C10, AF10), PD10 (C11, AF10), PB3 (E12, AF10), PA12 (L6, AF10)
MCLK_APE0 (F12, AF10)
MCLK_BPE14 (C9, AF10), PB7 (H13, AF10), PA1 (L9, AF10), PG2 (N11, AF10)
SCK_APD13 (E14, AF10)
SCK_BPE12 (D10, AF10), PA2 (N8, AF10)
SD_APF5 (J4, AF10)
SD_BPE11 (B9, AF10), PE7 (D11, AF10), PF11 (L2, AF10), PA0 (P10, AF10)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PE11 (B9), PC11 (C7), PD11 (F11), PF11 (L2), PB11 (L10), PA11 (M6), PN11 (N14)
EXTI15PE15 (B10), PD15 (C12), PF15 (K3), PG15 (M5), PA15(JTDI) (N12)
INN1PA0 (P10)
INN2PF12 (L3)
INN3PG15 (M5)
INN4PB10 (P11)
INN5PF7 (K4)
INN10PA10 (N7)
INN11PA11 (M6)
INN12PA12 (L6)
INP0PA0 (P10)
INP1PA1 (L9)
INP2PF11 (L2)
INP3PA6 (L8)
INP4PB11 (L10)
INP5PA8 (P8)
INP6PF12 (L3)
INP7PG15 (M5)
INP8PB10 (P11)
INP9PF7 (K4)
INP10PA9 (M7)
INP11PA10 (N7)
INP12PA11 (M6)
INP13PA12 (L6)
INP14PA2 (N8)
INP15PF6 (J2)
INP16PF3 (J5)
INP18PF4 (J1)
ADC2EXTI11PE11 (B9), PC11 (C7), PD11 (F11), PF11 (L2), PB11 (L10), PA11 (M6), PN11 (N14)
EXTI15PE15 (B10), PD15 (C12), PF15 (K3), PG15 (M5), PA15(JTDI) (N12)
INN1PA0 (P10)
INN2PF14 (K2)
INN3PG15 (M5)
INN4PB10 (P11)
INN5PF7 (K4)
INN10PA10 (N7)
INN11PA11 (M6)
INN12PA12 (L6)
INP0PA0 (P10)
INP1PA1 (L9)
INP2PF13 (M2)
INP3PA6 (L8)
INP4PB11 (L10)
INP5PA8 (P8)
INP6PF14 (K2)
INP7PG15 (M5)
INP8PB10 (P11)
INP9PF7 (K4)
INP10PA9 (M7)
INP11PA10 (N7)
INP12PA11 (M6)
INP13PA12 (L6)
INP14PA2 (N8)
INP15PF6 (J2)
INP18PA5 (M8)

TIM — таймер

БлокСигналВыводы
TIM1BKINPE15 (B10, AF1), PC10 (D8, AF1), PA6 (L8, AF1), PB12 (M10, AF1)
BKIN2PD4 (B13, AF1), PB7 (H13, AF1)
CH1PC6 (A8, AF1), PD6 (A11, AF1), PE9 (B14, AF1), PB2 (E13, AF1), PA8 (P8, AF1)
CH1NPE8 (C13, AF1), PG10 (N10, AF1), PA7 (P12, AF1)
CH2PE11 (B9, AF1), PD7 (B11, AF1), PA9 (M7, AF1)
CH2NPE10 (C14, AF1), PE2 (F14, AF13), PF7 (K4, AF1)
CH3PE13 (C10, AF1), PD2 (E10, AF1), PF6 (J2, AF13), PA10 (N7, AF1)
CH3NPE12 (D10, AF1), PF2 (K1, AF1), PG8 (L12, AF1)
CH4PE14 (C9, AF1), PC12 (D7, AF1), PB0 (G14, AF1), PG15 (M5, AF1), PA11 (M6, AF1)
CH4NPD5 (D14, AF1), PB3 (E12, AF1), PG0 (M12, AF1)
ETRPD0 (A12, AF1), PD10 (C11, AF1), PE7 (D11, AF1), PH2 (E6, AF1), PF5 (J4, AF1), PA12 (L6, AF1)
TIM2CH1PA5 (M8, AF1), PA15(JTDI) (N12, AF1), PA0 (P10, AF1)
CH2PF14 (K2, AF1), PA1 (L9, AF1)
CH3PA2 (N8, AF1), PB10 (P11, AF1)
CH4PF6 (J2, AF1), PB11 (L10, AF1)
ETRPA5 (M8, AF2), PA15(JTDI) (N12, AF2)
TIM3CH1PC6 (A8, AF2), PA6 (L8, AF2), PB4(NJTRST) (L11, AF2)
CH2PC7 (A9, AF2), PB5(JTDO/TRACESWO) (M11, AF2), PA7 (P12, AF2)
CH3PC8 (C6, AF2), PF7 (K4, AF2)
CH4PC9 (D6, AF2)
ETRPH2 (E6, AF2)
TIM4CH1PE5 (D9, AF2), PG13 (P9, AF2)
CH2PE6 (A10, AF2), PD13 (E14, AF2)
CH3PH9 (C8, AF2)
CH4PC1 (B8, AF2)
ETRPE0 (F12, AF2)
TIM5CH1PA0 (P10, AF2)
CH2PA1 (L9, AF2)
CH3PA2 (N8, AF2)
CH4PF6 (J2, AF2)
ETRPF4 (J1, AF2)
TIM9CH1PC6 (A8, AF3), PF7 (K4, AF3), PA0 (P10, AF3)
CH2PC7 (A9, AF3), PA5 (M8, AF3)
TIM10CH1PA5 (M8, AF10)
TIM11CH1PA8 (P8, AF9)
TIM12CH1PG0 (M12, AF2)
CH2PG8 (L12, AF2)
TIM13CH1PA6 (L8, AF10), PG1 (M9, AF10)
TIM14CH1PG2 (N11, AF11), PA7 (P12, AF11)
TIM15BKINPH2 (E6, AF4), PE3 (G13, AF7), PA0 (P10, AF4)
CH1PC12 (D7, AF4), PB6 (H14, AF7), PA2 (N8, AF4)
CH1NPD7 (B11, AF4), PD2 (E10, AF7), PB0 (G14, AF7), PA1 (L9, AF4)
CH2PD6 (A11, AF4), PB7 (H13, AF7), PF6 (J2, AF4)
TIM16BKINPF10 (J3, AF1), PB4(NJTRST) (L11, AF1)
CH1PH9 (C8, AF1), PA3 (K11, AF1)
CH1NPC7 (A9, AF1), PE5 (D9, AF1), PG1 (M9, AF1)
TIM17BKINPB5(JTDO/TRACESWO) (M11, AF1)
CH1PC1 (B8, AF1), PG12 (N9, AF1)
CH1NPE6 (A10, AF1), PG2 (N11, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM2CH1PG10 (N10, AF3)
CH2PE1 (F13, AF3)
ETRPE0 (F12, AF3), PB11 (L10, AF3)
IN1PG13 (P9, AF3), PB10 (P11, AF3)
IN2PF5 (J4, AF3), PB12 (M10, AF3)
LPTIM3CH1PF6 (J2, AF3)
CH2PF4 (J1, AF3)
ETRPA6 (L8, AF3)
IN1PA1 (L9, AF3)
IN2PA2 (N8, AF3)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (C3)
OUT2PB2 (E13, AF0)
REFINPG8 (L12, AF0)
TSPC13 (C3)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PD2 (E10, AF12)
A1PD6 (A11, AF12)
A2PD7 (B11, AF12)
A3PD10 (C11, AF12)
A4PE7 (D11, AF12)
A5PD12 (E11, AF12)
A6PD0 (A12, AF12)
A7PD1 (B12, AF12)
A8PD15 (C12, AF12)
A9PD14 (D12, AF12)
A10PD3 (A13, AF12)
A11PD4 (B13, AF12)
A12PE8 (C13, AF12)
A14PE9 (B14, AF12)
A15PE10 (C14, AF12)
A16PD2 (E10, AF14), PG10 (N10, AF12)
A17PD6 (A11, AF14), PA3 (K11, AF12)
A18PD7 (B11, AF14), PG12 (N9, AF12)
A19PD10 (C11, AF14), PG1 (M9, AF12)
A20PE7 (D11, AF14), PG8 (L12, AF12)
A21PD12 (E11, AF14), PG2 (N11, AF12)
A22PD0 (A12, AF14), PN3 (N13, AF12)
A23PD1 (B12, AF14), PB3 (E12, AF14), PN2 (L13, AF12)
A24PN1 (P13, AF12)
A25PN0 (M13, AF12)
ALEPD6 (A11, AF14), PA3 (K11, AF12)
BA0PE9 (B14, AF12)
BA1PE10 (C14, AF12)
CLEPD2 (E10, AF14), PG10 (N10, AF12)
CLKPC10 (D8, AF12), PG15 (M5, AF12)
D0PA12 (L6, AF12)
D1PA11 (M6, AF12)
D2PB2 (E13, AF12), PA10 (N7, AF12)
D3PA9 (M7, AF12)
D4PD13 (E14, AF12), PA8 (P8, AF12)
D5PA2 (N8, AF12)
D6PD5 (D14, AF12), PA1 (L9, AF12)
D7PA0 (P10, AF12)
D8PD11 (F11, AF12)
D9PH9 (C8, AF14), PE0 (F12, AF12), PB12 (M10, AF12)
D10PE1 (F13, AF12), PB11 (L10, AF12)
D11PE2 (F14, AF12), PB10 (P11, AF12)
D12PE3 (G13, AF12), PB5(JTDO/TRACESWO) (M11, AF12)
D13PB0 (G14, AF12), PB4(NJTRST) (L11, AF12)
D14PB6 (H14, AF12)
D15PB7 (H13, AF12), PA15(JTDI) (N12, AF12)
DA0PA12 (L6, AF12)
DA1PA11 (M6, AF12)
DA2PB2 (E13, AF12), PA10 (N7, AF12)
DA3PA9 (M7, AF12)
DA4PD13 (E14, AF12), PA8 (P8, AF12)
DA5PA2 (N8, AF12)
DA6PD5 (D14, AF12), PA1 (L9, AF12)
DA7PA0 (P10, AF12)
DA8PD11 (F11, AF12)
DA9PH9 (C8, AF14), PE0 (F12, AF12), PB12 (M10, AF12)
DA10PE1 (F13, AF12), PB11 (L10, AF12)
DA11PE2 (F14, AF12), PB10 (P11, AF12)
DA12PE3 (G13, AF12), PB5(JTDO/TRACESWO) (M11, AF12)
DA13PB0 (G14, AF12), PB4(NJTRST) (L11, AF12)
DA14PB6 (H14, AF12)
DA15PB7 (H13, AF12), PA15(JTDI) (N12, AF12)
NBL0PD8 (D13, AF12)
NBL1PB3 (E12, AF12)
NCEPG14 (L5, AF10)
NE1PG13 (P9, AF12)
NE2PG14 (L5, AF12)
NE3PH2 (E6, AF12), PF5 (J4, AF12)
NE4PC8 (C6, AF12)
NLPC12 (D7, AF12), PF3 (J5, AF12)
NOEPA5 (M8, AF12)
NWAITPF2 (K1, AF12)
NWEPE14 (C9, AF14), PF8 (L1, AF12)
SDCKE0PE15 (B10, AF12)
SDCKE1PE6 (A10, AF12)
SDCLKPD9 (H12, AF12)
SDNCASPE13 (C10, AF12)
SDNE0PE14 (C9, AF12)
SDNE1PE5 (D9, AF12)
SDNRASPE12 (D10, AF12)
SDNWEPE11 (B9, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PD7 (B11, AF9), PA1 (L9, AF9), PA9 (M7, AF9)
D1PC6 (A8, AF9), PC7 (A9, AF9), PE6 (A10, AF10), PA10 (N7, AF9)
D2PC8 (C6, AF9), PE0 (F12, AF9), PG10 (N10, AF9)
D3PE10 (C14, AF9), PC9 (D6, AF9)
D4PC11 (C7, AF9), PE8 (C13, AF9), PB0 (G14, AF9), PG15 (M5, AF9)
D5PE5 (D9, AF9), PN9 (L14, AF10)
D6PH9 (C8, AF9), PB6 (H14, AF9), PF5 (J4, AF9), PG2 (N11, AF9)
D7PC1 (B8, AF9), PB7 (H13, AF9)
D8PE1 (F13, AF9), PA5 (M8, AF9)
D9PD4 (B13, AF9), PC12 (D7, AF9)
D10PF13 (M2, AF9), PB5(JTDO/TRACESWO) (M11, AF9)
D11PD8 (D13, AF9), PH2 (E6, AF9), PD9 (H12, AF9), PF10 (J3, AF9), PG14 (L5, AF9)
D12PD12 (E11, AF9), PG13 (P9, AF9)
D13PD13 (E14, AF9), PF12 (L3, AF9)
HSYNCPD0 (A12, AF9), PF4 (J1, AF9), PF3 (J5, AF9)
PIXCLKPD5 (D14, AF9), PA6 (L8, AF9), PG1 (M9, AF9)
VSYNCPE6 (A10, AF9), PB4(NJTRST) (L11, AF9)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PD7 (B11, AF9), PA1 (L9, AF9), PA9 (M7, AF9)
D1PC6 (A8, AF9), PC7 (A9, AF9), PE6 (A10, AF10), PA10 (N7, AF9)
D2PC8 (C6, AF9), PE0 (F12, AF9), PG10 (N10, AF9)
D3PE10 (C14, AF9), PC9 (D6, AF9)
D4PC11 (C7, AF9), PE8 (C13, AF9), PB0 (G14, AF9), PG15 (M5, AF9)
D5PE5 (D9, AF9), PN9 (L14, AF10)
D6PH9 (C8, AF9), PB6 (H14, AF9), PF5 (J4, AF9), PG2 (N11, AF9)
D7PC1 (B8, AF9), PB7 (H13, AF9)
D8PE1 (F13, AF9), PA5 (M8, AF9)
D9PD4 (B13, AF9), PC12 (D7, AF9)
D10PF13 (M2, AF9), PB5(JTDO/TRACESWO) (M11, AF9)
D11PD8 (D13, AF9), PH2 (E6, AF9), PD9 (H12, AF9), PF10 (J3, AF9), PG14 (L5, AF9)
D12PD12 (E11, AF9), PG13 (P9, AF9)
D13PD13 (E14, AF9), PF12 (L3, AF9)
D14PD3 (A13, AF9), PC10 (D8, AF9)
D15PD11 (F11, AF9), PF10 (J3, AF10), PF11 (L2, AF9)
DEPD0 (A12, AF9), PF4 (J1, AF9), PF3 (J5, AF9)
PDCKPD5 (D14, AF9), PA6 (L8, AF9), PG1 (M9, AF9)
RDYPE6 (A10, AF9), PB4(NJTRST) (L11, AF9)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PC8 (C6, AF14), PF11 (L2, AF14), PG15 (M5, AF14)
B1PF2 (K1, AF14), PG14 (L5, AF14), PA7 (P12, AF14)
B2PB2 (E13, AF14), PA12 (L6, AF14)
B3PC9 (D6, AF14), PA11 (M6, AF14)
B4PN10 (M14, AF14), PA10 (N7, AF14)
B5PA9 (M7, AF14)
B6PN11 (N14, AF14), PA8 (P8, AF14)
B7PA6 (L8, AF12), PA2 (N8, AF14)
CLKPA5 (M8, AF14)
DEPF6 (J2, AF14), PG13 (P9, AF14)
G0PF5 (J4, AF14), PF14 (K2, AF14), PG12 (N9, AF14)
G1PF15 (K3, AF14), PG1 (M9, AF14)
G2PA1 (L9, AF14)
G3PA0 (P10, AF14)
G4PG10 (N10, AF14)
G5PB12 (M10, AF14)
G6PB11 (L10, AF14)
G7PG8 (L12, AF14), PB10 (P11, AF14)
HSYNCPA6 (L8, AF14)
R0PG0 (M12, AF14), PG2 (N11, AF14)
R1PD9 (H12, AF14), PF10 (J3, AF14)
R2PD15 (C12, AF14), PB5(JTDO/TRACESWO) (M11, AF14)
R3PF4 (J1, AF14), PB4(NJTRST) (L11, AF14)
R4PF3 (J5, AF14), PA7 (P12, AF10)
R5PA15(JTDI) (N12, AF14)
R6PD13 (E14, AF14), PF8 (L1, AF14)
R7PD8 (D13, AF14)
VSYNCPE11 (B9, AF14), PF7 (K4, AF14), PG0 (M12, AF10)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PE2 (F14, AF4)
CCK1PB6 (H14, AF4)
CKI0PE7 (D11, AF4)
CKI1PB3 (E12, AF4)
CKI2PE3 (G13, AF4)
CKI3PD10 (C11, AF4)
CKI4PE9 (B14, AF4)
CKI5PE11 (B9, AF4)
SDI0PE8 (C13, AF4)
SDI1PD2 (E10, AF4), PB2 (E13, AF4), PB7 (H13, AF4)
SDI2PB0 (G14, AF4)
SDI3PD12 (E11, AF4), PF10 (J3, AF4)
SDI4PE10 (C14, AF4)
SDI5PE12 (D10, AF4)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PE13 (C10, AF3), PE2 (F14, AF3)
CCK1PE14 (C9, AF3), PB6 (H14, AF3)
SDI0PD2 (E10, AF3), PB2 (E13, AF3), PB0 (G14, AF3), PB7 (H13, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14(JTCK/SWCLK) (P6, AF0)
JTDIPA15(JTDI) (N12, AF0)
JTDO-SWOPB5(JTDO/TRACESWO) (M11, AF0)
JTMS-SWDIOPA13(JTMS/SWDIO) (P7, AF0)
NJTRSTPB4(NJTRST) (L11, AF0)
TRACECLKPD10 (C11, AF0), PE10 (C14, AF0), PB3 (E12, AF0), PE2 (F14, AF0), PF8 (L1, AF0)
TRACED0PD2 (E10, AF0), PE3 (G13, AF0)
TRACED1PC8 (C6, AF0), PB0 (G14, AF0), PG14 (L5, AF0)
TRACED2PH2 (E6, AF0), PB6 (H14, AF0)
TRACED3PC12 (D7, AF0), PB7 (H13, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (P8, AF0)
MCO_2PC9 (D6, AF0)
OSC_INPH0-OSC_IN (B7)
OSC_OUTPH1-OSC_OUT (A7)
OSC32_INPC14-OSC32_IN(OSC32_IN) (B1)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (C1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPA10 (N7, AF0)
PWR_CSTOPPA5 (M8, AF0)
PWR_WKUP1PA0 (P10)
PWR_WKUP2PA2 (N8)
PWR_WKUP3PC13 (C3)
PWR_WKUP4PD2 (E10)
TAMP_IN1PC13 (C3)
TAMP_IN3PD8 (D13)
TAMP_IN5PD9 (H12)
TAMP_IN6PE0 (F12)
TAMP_IN7PD4 (B13)
TAMP_OUT2PC13 (C3)
TAMP_OUT4PD8 (D13)
TAMP_OUT5PE0 (F12)
TAMP_OUT6PD9 (H12)
TAMP_OUT8PD4 (B13)

Блоки без собственных выводов: XSPI1 (расширенный SPI для памяти), XSPI2 (расширенный SPI для памяти), XSPI3 (расширенный SPI для памяти), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), TIM18 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), DMA2D (графический ускоритель Chrom-ART).

Таблица выводов

Все 178 шариков корпуса VFBGA178 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PDR_ONслужебный—
A2OTG2_HSDMслужебныйUSB2_OTG_HS_DM
A3NCне подключён—
A4VDD33USBпитание—
A5OTG1_HSDMслужебныйUSB1_OTG_HS_DM
A6UCPD1_CC1служебныйUCPD1_CC1
A7PH1-OSC_OUTввод-выводRCC_OSC_OUT
A8PC6ввод-выводDCMIPP_D1 (AF9), DCMI_D1 (AF9), HDP_HDP6 (AF15), I2S2_MCK (AF5), PSSI_D1 (AF9), SDMMC1_D0DIR (AF12), SDMMC1_D6 (AF10), TIM1_CH1 (AF1), TIM3_CH1 (AF2), TIM9_CH1 (AF3), USART6_TX (AF7)
A9PC7ввод-выводDCMIPP_D1 (AF9), DCMI_D1 (AF9), DEBUG_TRGIO (AF0), HDP_HDP7 (AF15), I2S3_MCK (AF6), PSSI_D1 (AF9), SDMMC1_D123DIR (AF12), SDMMC1_D7 (AF10), TIM16_CH1N (AF1), TIM3_CH2 (AF2), TIM9_CH2 (AF3), USART6_RX (AF7)
A10PE6ввод-выводDCMIPP_D1 (AF10), DCMIPP_VSYNC (AF9), DCMI_D1 (AF10), DCMI_VSYNC (AF9), FMC_SDCKE1 (AF12), HDP_HDP7 (AF15), I2C1_SDA (AF4), I3C1_SDA (AF5), LPUART1_RX (AF3), PSSI_D1 (AF10), PSSI_RDY (AF9), TIM17_CH1N (AF1), TIM4_CH2 (AF2), UART5_TX (AF11), USART1_RX (AF7)
A11PD6ввод-выводFMC_A1 (AF12), FMC_A17 (AF14), FMC_ALE (AF14), HDP_HDP2 (AF15), I2S2_SDI (AF5), SPI2_MISO (AF5), TIM15_CH2 (AF4), TIM1_CH1 (AF1)
A12PD0ввод-выводDCMIPP_HSYNC (AF9), DCMI_HSYNC (AF9), FDCAN1_RX (AF6), FMC_A6 (AF12), FMC_A22 (AF14), PSSI_DE (AF9), TIM1_ETR (AF1), UART4_RX (AF8), UART9_CTS (AF7)
A13PD3ввод-выводDCMIPP_D14 (AF9), ETH1_PHY_INTN (AF11), FMC_A10 (AF12), I2C2_SMBA (AF4), PSSI_D14 (AF9), USART10_RX (AF6), USART6_CTS (AF7)
A14VSSпитание—
B1PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
B2OTG2_HSDPслужебныйUSB2_OTG_HS_DP
B3OTG1_IDслужебныйUSB1_OTG_HS_ID
B4OTG2_TXRTUNEслужебный—
B5OTG1_HSDPслужебныйUSB1_OTG_HS_DP
B6UCPD1_CC2служебныйUCPD1_CC2
B7PH0-OSC_INввод-выводRCC_OSC_IN
B8PC1ввод-выводDCMIPP_D7 (AF9), DCMI_D7 (AF9), FDCAN1_TX (AF6), HDP_HDP1 (AF15), I2C1_SDA (AF4), I2S2_WS (AF5), I3C1_SDA (AF7), PSSI_D7 (AF9), SDMMC1_CDIR (AF12), SDMMC1_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
B9PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN3_TX (AF6), FMC_SDNWE (AF12), LTDC_VSYNC (AF14), MDF1_CKI5 (AF4), SAI2_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
B10PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_SDCKE0 (AF12), GFXTIM_FCKCAL (AF13), GFXTIM_LCKCAL (AF2), I2C4_SMBA (AF4), SDMMC1_D0 (AF10), SPI5_SCK (AF5), TIM1_BKIN (AF1), USART10_CK (AF6), USART2_CK (AF7)
B11PD7ввод-выводDCMIPP_D0 (AF9), DCMI_D0 (AF9), FMC_A2 (AF12), FMC_A18 (AF14), HDP_HDP3 (AF15), I2S2_SDO (AF5), I2S3_WS (AF6), PSSI_D0 (AF9), SPI2_MOSI (AF5), SPI3_NSS (AF6), TIM15_CH1N (AF4), TIM1_CH2 (AF1)
B12PD1ввод-выводETH1_MDC (AF11), FDCAN1_TX (AF6), FMC_A7 (AF12), FMC_A23 (AF14), UART4_TX (AF8)
B13PD4ввод-выводDCMIPP_D9 (AF9), DCMI_D9 (AF9), FMC_A11 (AF12), I2C2_SDA (AF4), PSSI_D9 (AF9), SPI5_MISO (AF5), TAMP_IN7, TAMP_OUT8, TIM1_BKIN2 (AF1), USART6_DE (AF7), USART6_RTS (AF7)
B14PE9ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), MDF1_CKI4 (AF4), TIM1_CH1 (AF1), UART7_DE (AF8), UART7_RTS (AF8)
C1PC15-OSC32_OUT(OSC32_OUT)ввод-выводRCC_OSC32_OUT
C2VBATпитание—
C3PC13ввод-выводHDP_HDP5 (AF15), PWR_WKUP3, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2
C4NCне подключён—
C5OTG2_IDслужебныйUSB2_OTG_HS_ID
C6PC8ввод-выводDCMIPP_D2 (AF9), DCMI_D2 (AF9), DEBUG_TRACED1 (AF0), FMC_NE4 (AF12), HDP_HDP0 (AF15), I2C3_SMBA (AF4), LTDC_B0 (AF14), PSSI_D2 (AF9), SDMMC1_D0 (AF10), TIM3_CH3 (AF2), UART5_DE (AF11), UART5_RTS (AF11), UCPD1_FRSTX1 (AF6), USART6_CK (AF7)
C7PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMIPP_D4 (AF9), DCMI_D4 (AF9), HDP_HDP3 (AF15), I2C4_SDA (AF4), I2S3_SDI (AF6), I3C2_SDA (AF2), PSSI_D4 (AF9), SDMMC1_D3 (AF10), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
C8PH9ввод-выводDCMIPP_D6 (AF9), DCMI_D6 (AF9), FDCAN1_RX (AF6), FMC_D9 (AF14), FMC_DA9 (AF14), HDP_HDP0 (AF15), I2C1_SCL (AF4), I3C1_SCL (AF7), PSSI_D6 (AF9), SDMMC1_CKIN (AF12), SDMMC1_D4 (AF10), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8), USART3_CK (AF3)
C9PE14ввод-выводADF1_CCK1 (AF3), FMC_NWE (AF14), FMC_SDNE0 (AF12), GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF13), I2C4_SDA (AF4), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
C10PE13ввод-выводADF1_CCK0 (AF3), FMC_SDNCAS (AF12), I2C4_SCL (AF4), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
C11PD10ввод-выводDEBUG_TRACECLK (AF0), FMC_A3 (AF12), FMC_A19 (AF14), GFXTIM_TE (AF13), HDP_HDP4 (AF15), I2S1_MCK (AF5), MDF1_CKI3 (AF4), SAI2_FS_B (AF10), TIM1_ETR (AF1), UCPD1_FRSTX1 (AF6)
C12PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_A8 (AF12), I2C2_SDA (AF4), LTDC_R2 (AF14), USART10_TX (AF6)
C13PE8ввод-выводDCMIPP_D4 (AF9), DCMI_D4 (AF9), FMC_A12 (AF12), MDF1_SDI0 (AF4), PSSI_D4 (AF9), TIM1_CH1N (AF1), UART7_TX (AF8), USART3_TX (AF7)
C14PE10ввод-выводDCMIPP_D3 (AF9), DCMI_D3 (AF9), DEBUG_TRACECLK (AF0), FMC_A15 (AF12), FMC_BA1 (AF12), MDF1_SDI4 (AF4), PSSI_D3 (AF9), TIM1_CH2N (AF1), UART7_CTS (AF8), USART3_RX (AF7)
D1V08CAPпитание—
D2VFBSMPSпитание—
D3BOOT0загрузка—
D4VDDA18USBпитание—
D5OTG1_TXRTUNEслужебный—
D6PC9ввод-выводAUDIOCLK (AF5), DCMIPP_D3 (AF9), DCMI_D3 (AF9), HDP_HDP1 (AF15), I2C3_SDA (AF4), LTDC_B3 (AF14), PSSI_D3 (AF9), RCC_MCO_2 (AF0), SDMMC1_D1 (AF10), TIM3_CH4 (AF2), UART5_CTS (AF11), UCPD1_FRSTX2 (AF6), USART6_RX (AF7)
D7PC12ввод-выводDCMIPP_D9 (AF9), DCMI_D9 (AF9), DEBUG_TRACED3 (AF0), FMC_NL (AF12), HDP_HDP4 (AF15), I2S3_SDO (AF6), I2S6_CK (AF5), PSSI_D9 (AF9), SDMMC1_CK (AF10), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF4), TIM1_CH4 (AF1), UART5_TX (AF11), USART3_CK (AF7)
D8PC10ввод-выводDCMIPP_D14 (AF9), FMC_CLK (AF12), HDP_HDP2 (AF15), I2C4_SCL (AF4), I2S3_CK (AF6), I3C2_SCL (AF2), PSSI_D14 (AF9), SDMMC1_D2 (AF10), SPI3_SCK (AF6), TIM1_BKIN (AF1), UART4_TX (AF8), USART3_TX (AF7)
D9PE5ввод-выводDCMIPP_D5 (AF9), DCMI_D5 (AF9), FDCAN2_TX (AF6), FMC_SDNE1 (AF12), HDP_HDP6 (AF15), I2C1_SCL (AF4), I3C1_SCL (AF5), LPUART1_TX (AF3), PSSI_D5 (AF9), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF11), USART1_TX (AF7)
D10PE12ввод-выводFDCAN3_RX (AF6), FMC_SDNRAS (AF12), MDF1_SDI5 (AF4), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
D11PE7ввод-выводFMC_A4 (AF12), FMC_A20 (AF14), MDF1_CKI0 (AF4), SAI2_SD_B (AF10), TIM1_ETR (AF1), UART7_RX (AF8)
D12PD14ввод-выводFMC_A9 (AF12), I2C2_SCL (AF4), USART10_RX (AF6)
D13PD8ввод-выводDCMIPP_D11 (AF9), DCMI_D11 (AF9), FMC_NBL0 (AF12), LTDC_R7 (AF14), PSSI_D11 (AF9), TAMP_IN3, TAMP_OUT4, USART3_TX (AF7)
D14PD5ввод-выводDCMIPP_PIXCLK (AF9), DCMI_PIXCLK (AF9), FMC_D6 (AF12), FMC_DA6 (AF12), PSSI_PDCK (AF9), TIM1_CH4N (AF1), USART2_TX (AF7)
E1VDDA18PMUпитание—
E2VSSAPMUпитание—
E3PWR_ONслужебный—
E4NRSTсброс—
E5VDDA18AONпитание—
E6PH2ввод-выводDCMIPP_D11 (AF9), DCMI_D11 (AF9), DEBUG_TRACED2 (AF0), FDCAN1_TX (AF6), FMC_NE3 (AF12), PSSI_D11 (AF9), SDMMC1_CMD (AF10), TIM15_BKIN (AF4), TIM1_ETR (AF1), TIM3_ETR (AF2), UART5_RX (AF11)
E7VSSпитание—
E8VDDIO4питание—
E9VDDIO4питание—
E10PD2ввод-выводADF1_SDI0 (AF3), DEBUG_TRACED0 (AF0), FMC_A0 (AF12), FMC_A16 (AF14), FMC_CLE (AF14), HDP_HDP1 (AF15), I2S2_SDO (AF5), MDF1_SDI1 (AF4), MDIOS_MDC (AF10), PWR_WKUP4, SAI1_D1 (AF2), SAI1_SD_A (AF6), SPI2_MOSI (AF5), TIM15_CH1N (AF7), TIM1_CH3 (AF1)
E11PD12ввод-выводDCMIPP_D12 (AF9), DCMI_D12 (AF9), ETH1_MDIO (AF11), FMC_A5 (AF12), FMC_A21 (AF14), HDP_HDP5 (AF15), MDF1_SDI3 (AF4), PSSI_D12 (AF9), SAI1_D3 (AF2), UCPD1_FRSTX2 (AF6)
E12PB3ввод-выводDEBUG_TRACECLK (AF0), FMC_A23 (AF14), FMC_NBL1 (AF12), GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF13), HDP_HDP0 (AF15), MDF1_CKI1 (AF4), SAI2_FS_B (AF10), TIM1_CH4N (AF1), USART1_CK (AF7)
E13PB2ввод-выводADF1_SDI0 (AF3), FMC_D2 (AF12), FMC_DA2 (AF12), HDP_HDP2 (AF15), I2S3_SDO (AF7), LTDC_B2 (AF14), MDF1_SDI1 (AF4), RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SPI3_MOSI (AF7), TIM1_CH1 (AF1)
E14PD13ввод-выводDCMIPP_D13 (AF9), DCMI_D13 (AF9), FMC_D4 (AF12), FMC_DA4 (AF12), LTDC_R6 (AF14), PSSI_D13 (AF9), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF7), UART9_RTS (AF7), UCPD1_FRSTX2 (AF6)
F1VSSSMPSпитание—
F2VSSSMPSпитание—
F3VSSSMPSпитание—
F4VSSSMPSпитание—
F5VSSAONпитание—
F10VSSпитание—
F11PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMIPP_D15 (AF9), FMC_D8 (AF12), FMC_DA8 (AF12), I2C4_SDA (AF4), I2S2_SDI (AF5), PSSI_D15 (AF9), SDMMC1_D0 (AF10), SPI2_MISO (AF5), UCPD1_FRSTX1 (AF6)
F12PE0ввод-выводDCMIPP_D2 (AF9), DCMI_D2 (AF9), FMC_D9 (AF12), FMC_DA9 (AF12), LPTIM2_ETR (AF3), PSSI_D2 (AF9), SAI2_MCLK_A (AF10), TAMP_IN6, TAMP_OUT5, TIM4_ETR (AF2), UART8_RX (AF8), USART3_RX (AF7)
F13PE1ввод-выводDCMIPP_D8 (AF9), DCMI_D8 (AF9), FMC_D10 (AF12), FMC_DA10 (AF12), LPTIM2_CH2 (AF3), PSSI_D8 (AF9), UART8_TX (AF8), USART3_TX (AF7)
F14PE2ввод-выводADF1_CCK0 (AF3), DEBUG_TRACECLK (AF0), FMC_D11 (AF12), FMC_DA11 (AF12), MDF1_CCK0 (AF4), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), TIM1_CH2N (AF13), UCPD1_FRSTX1 (AF7)
G1VLXSMPSпитание—
G2VLXSMPSпитание—
G3VLXSMPSпитание—
G4VLXSMPSпитание—
G10VDDпитание—
G11VDDпитание—
G12VDDпитание—
G13PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_D12 (AF12), FMC_DA12 (AF12), MDF1_CKI2 (AF4), SAI1_SD_B (AF6), TIM15_BKIN (AF7)
G14PB0ввод-выводADF1_SDI0 (AF3), DCMIPP_D4 (AF9), DCMI_D4 (AF9), DEBUG_TRACED1 (AF0), FMC_D13 (AF12), FMC_DA13 (AF12), MDF1_SDI2 (AF4), PSSI_D4 (AF9), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TIM15_CH1N (AF7), TIM1_CH4 (AF1)
H1VDDSMPSпитание—
H2VDDSMPSпитание—
H3VDDSMPSпитание—
H4VDDSMPSпитание—
H10VSSпитание—
H11VSSпитание—
H12PD9ввод-выводDCMIPP_D11 (AF9), DCMI_D11 (AF9), FMC_SDCLK (AF12), LTDC_R1 (AF14), PSSI_D11 (AF9), TAMP_IN5, TAMP_OUT6, USART3_RX (AF7)
H13PB7ввод-выводADF1_SDI0 (AF3), DCMIPP_D7 (AF9), DCMI_D7 (AF9), DEBUG_TRACED3 (AF0), FMC_D15 (AF12), FMC_DA15 (AF12), MDF1_SDI1 (AF4), PSSI_D7 (AF9), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM15_CH2 (AF7), TIM1_BKIN2 (AF1)
H14PB6ввод-выводADF1_CCK1 (AF3), DCMIPP_D6 (AF9), DCMI_D6 (AF9), DEBUG_TRACED2 (AF0), FMC_D14 (AF12), FMC_DA14 (AF12), MDF1_CCK1 (AF4), PSSI_D6 (AF9), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TIM15_CH1 (AF7)
J1PF4ввод-выводADC1_INP18, DCMIPP_HSYNC (AF9), DCMI_HSYNC (AF9), ETH1_MDIO (AF11), HDP_HDP4 (AF15), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF8), LPTIM3_CH2 (AF3), LTDC_R3 (AF14), PSSI_DE (AF9), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
J2PF6ввод-выводADC1_INP15, ADC2_INP15, ETH1_MII_COL (AF11), GFXTIM_FCKCAL (AF12), GFXTIM_LCKCAL (AF8), HDP_HDP3 (AF15), I2S6_MCK (AF5), LPTIM3_CH1 (AF3), LTDC_DE (AF14), SPI1_RDY (AF10), SPI4_RDY (AF6), SPI5_RDY (AF9), TIM15_CH2 (AF4), TIM1_CH3 (AF13), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
J3PF10ввод-выводDCMIPP_D11 (AF9), DCMIPP_D15 (AF10), DCMI_D11 (AF9), ETH1_MII_RX_DV (AF11), ETH1_RGMII_RX_CTL (AF11), ETH1_RMII_CRS_DV (AF11), LTDC_R1 (AF14), MDF1_SDI3 (AF4), PSSI_D11 (AF9), PSSI_D15 (AF10), SAI1_D3 (AF2), TIM16_BKIN (AF1), UART7_RX (AF8), UCPD1_FRSTX1 (AF6)
J4PF5ввод-выводDCMIPP_D6 (AF9), DCMI_D6 (AF9), ETH1_CLK (AF11), FMC_NE3 (AF12), LPTIM2_IN2 (AF3), LTDC_G0 (AF14), PSSI_D6 (AF9), SAI2_SD_A (AF10), TIM1_ETR (AF1), USART3_CTS (AF7), USART3_NSS (AF7)
J5PF3ввод-выводADC1_INP16, DCMIPP_HSYNC (AF9), DCMI_HSYNC (AF9), ETH1_PPS_OUT (AF11), FDCAN3_RX (AF6), FMC_NL (AF12), LTDC_R4 (AF14), PSSI_DE (AF9), USART2_DE (AF7), USART2_RTS (AF7)
J10VDDIO3питание—
J11VDDIO3питание—
J12PN12ввод-выводXSPIM_P2_NCS2 (AF9)
J13PN4ввод-выводXSPIM_P2_IO2 (AF9)
J14PN8ввод-выводXSPIM_P2_IO4 (AF9)
K1PF2ввод-выводETH1_RGMII_CLK125 (AF11), FDCAN3_TX (AF6), FMC_NWAIT (AF12), I2S2_CK (AF5), LTDC_B1 (AF14), SPI2_SCK (AF5), TIM1_CH3N (AF1), USART2_CTS (AF7), USART2_NSS (AF7)
K2PF14ввод-выводADC2_INN2, ADC2_INP6, ETH1_MII_RXD0 (AF11), ETH1_RGMII_RXD0 (AF11), ETH1_RMII_RXD0 (AF11), LTDC_G0 (AF14), SPI5_MOSI (AF5), TIM2_CH2 (AF1), USART1_CTS (AF4)
K3PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ETH1_MII_RXD1 (AF11), ETH1_RGMII_RXD1 (AF11), ETH1_RMII_RXD1 (AF11), LTDC_G1 (AF14), SPI5_SCK (AF5), USART1_DE (AF4), USART1_RTS (AF4)
K4PF7ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH1_MII_RX_CLK (AF11), ETH1_RGMII_RX_CLK (AF11), ETH1_RMII_REF_CLK (AF11), GFXTIM_TE (AF12), HDP_HDP0 (AF15), I2S1_CK (AF5), LTDC_VSYNC (AF14), SPI1_SCK (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM9_CH1 (AF3), UART4_CTS (AF8)
K5VSSпитание—
K6VDDCOREпитание—
K7VDDCOREпитание—
K8VDDCOREпитание—
K9VDDCOREпитание—
K10VSSпитание—
K11PA3ввод-выводFMC_A17 (AF12), FMC_ALE (AF12), SAI1_SD_B (AF6), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF8)
K12PN6ввод-выводXSPIM_P2_CLK (AF9)
K13PN7ввод-выводXSPIM_P2_NCLK (AF9)
K14PN5ввод-выводXSPIM_P2_IO3 (AF9)
L1PF8ввод-выводDEBUG_TRACECLK (AF0), ETH1_MII_RXD2 (AF11), ETH1_RGMII_RXD2 (AF11), FMC_NWE (AF12), LTDC_R6 (AF14), UART9_TX (AF7)
L2PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMIPP_D15 (AF9), ETH1_MII_TX_EN (AF11), ETH1_RGMII_TX_CTL (AF11), ETH1_RMII_TX_EN (AF11), LTDC_B0 (AF14), PSSI_D15 (AF9), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
L3PF12ввод-выводADC1_INN2, ADC1_INP6, DCMIPP_D13 (AF9), DCMI_D13 (AF9), ETH1_MII_TXD0 (AF11), ETH1_RGMII_TXD0 (AF11), ETH1_RMII_TXD0 (AF11), PSSI_D13 (AF9), SPI5_MISO (AF5), USART1_RX (AF4)
L4VDDA18PLLпитание—
L5PG14ввод-выводDCMIPP_D11 (AF9), DCMI_D11 (AF9), DEBUG_TRACED1 (AF0), FMC_NCE (AF10), FMC_NE2 (AF12), I2S6_SDO (AF5), LTDC_B1 (AF14), PSSI_D11 (AF9), SPI6_MOSI (AF5), USART10_RTS (AF6), USART2_DE (AF8), USART2_RTS (AF8), USART6_TX (AF7)
L6PA12ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, FDCAN1_TX (AF6), FMC_D0 (AF12), FMC_DA0 (AF12), HDP_HDP4 (AF15), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_B2 (AF14), SAI2_FS_B (AF10), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF8), USART1_DE (AF7), USART1_RTS (AF7)
L7VDDCOREпитание—
L8PA6ввод-выводADC1_INP3, ADC2_INP3, BOOT1 (AF0), DCMIPP_PIXCLK (AF9), DCMI_PIXCLK (AF9), HDP_HDP6 (AF15), I2S1_SDI (AF5), I2S6_SDI (AF8), I3C1_SDA (AF4), LPTIM3_ETR (AF3), LTDC_B7 (AF12), LTDC_HSYNC (AF14), MDIOS_MDC (AF11), PSSI_PDCK (AF9), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF10), TIM1_BKIN (AF1), TIM3_CH1 (AF2)
L9PA1ввод-выводADC1_INP1, ADC2_INP1, DCMIPP_D0 (AF9), DCMI_D0 (AF9), FMC_D6 (AF12), FMC_DA6 (AF12), HDP_HDP1 (AF15), LPTIM3_IN1 (AF3), LTDC_G2 (AF14), PSSI_D0 (AF9), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
L10PB11ввод-выводADC1_EXTI11, ADC1_INP4, ADC2_EXTI11, ADC2_INP4, FMC_D10 (AF12), FMC_DA10 (AF12), HDP_HDP3 (AF15), I2C2_SDA (AF4), I3C2_SDA (AF2), LPTIM2_ETR (AF3), LTDC_G6 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7)
L11PB4(NJTRST)ввод-выводDCMIPP_VSYNC (AF9), DCMI_VSYNC (AF9), DEBUG_NJTRST (AF0), FMC_D13 (AF12), FMC_DA13 (AF12), HDP_HDP4 (AF15), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), I2S6_SDI (AF8), LTDC_R3 (AF14), PSSI_RDY (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF10)
L12PG8ввод-выводFMC_A20 (AF12), HDP_HDP7 (AF15), I2S2_SDO (AF5), LTDC_G7 (AF14), PWR_PVD_IN, RTC_REFIN (AF0), SAI1_SCK_B (AF6), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), UART4_CTS (AF8), USART1_RX (AF4)
L13PN2ввод-выводFMC_A23 (AF12), XSPIM_P2_IO0 (AF9)
L14PN9ввод-выводDCMIPP_D5 (AF10), DCMI_D5 (AF10), PSSI_D5 (AF10), XSPIM_P2_IO5 (AF9)
M1VREF+служебный—
M2PF13ввод-выводADC2_INP2, DCMIPP_D10 (AF9), DCMI_D10 (AF9), ETH1_MII_TXD1 (AF11), ETH1_RGMII_TXD1 (AF11), ETH1_RMII_TXD1 (AF11), PSSI_D10 (AF9), SPI5_NSS (AF5), USART1_TX (AF4)
M3VDDA18ADCпитание—
M4VSSAпитание—
M5PG15ввод-выводADC1_EXTI15, ADC1_INN3, ADC1_INP7, ADC2_EXTI15, ADC2_INN3, ADC2_INP7, DCMIPP_D4 (AF9), DCMI_D4 (AF9), ETH1_MII_RX_CLK (AF11), ETH1_RMII_REF_CLK (AF11), FMC_CLK (AF12), LTDC_B0 (AF14), PSSI_D4 (AF9), SPI1_RDY (AF10), SPI4_RDY (AF6), SPI5_RDY (AF5), TIM1_CH4 (AF1), USART3_CK (AF7)
M6PA11ввод-выводADC1_EXTI11, ADC1_INN11, ADC1_INP12, ADC2_EXTI11, ADC2_INN11, ADC2_INP12, FDCAN1_RX (AF6), FMC_D1 (AF12), FMC_DA1 (AF12), HDP_HDP3 (AF15), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_B3 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF8), USART1_CTS (AF7), USART1_NSS (AF7)
M7PA9ввод-выводADC1_INP10, ADC2_INP10, DCMIPP_D0 (AF9), DCMI_D0 (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), HDP_HDP1 (AF15), I2C3_SDA (AF4), I2S2_CK (AF5), I3C2_SDA (AF2), LPUART1_TX (AF3), LTDC_B5 (AF14), PSSI_D0 (AF9), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7)
M8PA5ввод-выводADC2_INP18, DCMIPP_D8 (AF9), DCMI_D8 (AF9), FMC_NOE (AF12), HDP_HDP5 (AF15), I2S1_CK (AF5), I2S6_CK (AF8), I3C1_SCL (AF4), LTDC_CLK (AF14), PSSI_D8 (AF9), PWR_CSTOP (AF0), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM10_CH1 (AF10), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM9_CH2 (AF3)
M9PG1ввод-выводDCMIPP_PIXCLK (AF9), DCMI_PIXCLK (AF9), FMC_A19 (AF12), LTDC_G1 (AF14), PSSI_PDCK (AF9), SAI1_SCK_B (AF6), SPI5_MISO (AF5), TIM13_CH1 (AF10), TIM16_CH1N (AF1), UART7_DE (AF8), UART7_RTS (AF8)
M10PB12ввод-выводFDCAN2_RX (AF6), FMC_D9 (AF12), FMC_DA9 (AF12), HDP_HDP4 (AF15), I2C2_SMBA (AF4), I2S2_WS (AF5), LPTIM2_IN2 (AF3), LTDC_G5 (AF14), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF11), USART3_CK (AF7)
M11PB5(JTDO/TRACESWO)ввод-выводDCMIPP_D10 (AF9), DCMI_D10 (AF9), DEBUG_JTDO-SWO (AF0), FDCAN2_RX (AF6), FMC_D12 (AF12), FMC_DA12 (AF12), HDP_HDP5 (AF15), I2C1_SMBA (AF4), I2S1_SDO (AF5), I2S3_SDO (AF7), I2S6_SDO (AF8), LTDC_R2 (AF14), PSSI_D10 (AF9), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF11)
M12PG0ввод-выводETH1_PHY_INTN (AF11), LTDC_R0 (AF14), LTDC_VSYNC (AF10), TIM12_CH1 (AF2), TIM1_CH4N (AF1), UART9_RX (AF7)
M13PN0ввод-выводFMC_A25 (AF12), XSPIM_P2_DQS0 (AF9)
M14PN10ввод-выводLTDC_B4 (AF14), XSPIM_P2_IO6 (AF9)
N1VREF-питание—
N2CSI_D1NслужебныйCSI_D1N
N3CSI_CKNслужебныйCSI_CKN
N4CSI_D0NслужебныйCSI_D0N
N5CSI_REXTслужебныйCSI_REXT
N6VDDCSIпитание—
N7PA10ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DCMIPP_D1 (AF9), DCMI_D1 (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), HDP_HDP2 (AF15), LPUART1_RX (AF3), LTDC_B4 (AF14), MDIOS_MDIO (AF11), PSSI_D1 (AF9), PWR_CSLEEP (AF0), TIM1_CH3 (AF1), USART1_RX (AF7)
N8PA2ввод-выводADC1_INP14, ADC2_INP14, FMC_D5 (AF12), FMC_DA5 (AF12), HDP_HDP2 (AF15), LPTIM3_IN2 (AF3), LTDC_B7 (AF14), MDIOS_MDIO (AF11), PWR_WKUP2, SAI2_SCK_B (AF10), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
N9PG12ввод-выводFMC_A18 (AF12), LTDC_G0 (AF14), SAI1_MCLK_B (AF6), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF8)
N10PG10ввод-выводDCMIPP_D2 (AF9), DCMI_D2 (AF9), FDCAN2_TX (AF6), FMC_A16 (AF12), FMC_CLE (AF12), HDP_HDP5 (AF15), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LTDC_G4 (AF14), PSSI_D2 (AF9), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF11), USART3_CTS (AF7), USART3_NSS (AF7)
N11PG2ввод-выводDCMIPP_D6 (AF9), DCMI_D6 (AF9), FMC_A21 (AF12), LTDC_R0 (AF14), PSSI_D6 (AF9), SAI1_FS_B (AF6), SAI2_MCLK_B (AF10), SPI5_MOSI (AF5), TIM14_CH1 (AF11), TIM17_CH1N (AF1), UART7_CTS (AF8), USART3_DE (AF7), USART3_RTS (AF7)
N12PA15(JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, DEBUG_JTDI (AF0), FMC_D15 (AF12), FMC_DA15 (AF12), HDP_HDP7 (AF15), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF7), LTDC_R5 (AF14), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF10)
N13PN3ввод-выводFMC_A22 (AF12), XSPIM_P2_IO1 (AF9)
N14PN11ввод-выводADC1_EXTI11, ADC2_EXTI11, LTDC_B6 (AF14), XSPIM_P2_IO7 (AF9)
P1VSSпитание—
P2CSI_D1PслужебныйCSI_D1P
P3CSI_CKPслужебныйCSI_CKP
P4CSI_D0PслужебныйCSI_D0P
P5VDDA18CSIпитание—
P6PA14(JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0), HDP_HDP6 (AF15)
P7PA13(JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0), HDP_HDP5 (AF15)
P8PA8ввод-выводADC1_INP5, ADC2_INP5, FMC_D4 (AF12), FMC_DA4 (AF12), HDP_HDP0 (AF15), I2C3_SCL (AF4), I3C2_SCL (AF2), LTDC_B6 (AF14), RCC_MCO_1 (AF0), TIM11_CH1 (AF9), TIM1_CH1 (AF1), UART7_RX (AF10), USART1_CK (AF7)
P9PG13ввод-выводDCMIPP_D12 (AF9), DCMI_D12 (AF9), FMC_NE1 (AF12), LPTIM2_IN1 (AF3), LTDC_DE (AF14), PSSI_D12 (AF9), SAI2_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
P10PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, FMC_D7 (AF12), FMC_DA7 (AF12), HDP_HDP0 (AF15), I2S6_WS (AF5), LTDC_G3 (AF14), PWR_WKUP1, SAI2_SD_B (AF10), SPI6_NSS (AF5), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM5_CH1 (AF2), TIM9_CH1 (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
P11PB10ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, FMC_D11 (AF12), FMC_DA11 (AF12), HDP_HDP2 (AF15), I2C2_SCL (AF4), I2S2_CK (AF5), I3C2_SCL (AF2), LPTIM2_IN1 (AF3), LTDC_G7 (AF14), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
P12PA7ввод-выводHDP_HDP7 (AF15), I2S1_SDO (AF5), I2S6_SDO (AF8), LTDC_B1 (AF14), LTDC_R4 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF11), TIM1_CH1N (AF1), TIM3_CH2 (AF2), USART1_RX (AF7)
P13PN1ввод-выводFMC_A24 (AF12), XSPIM_P2_NCS1 (AF9)
P14VSSпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
V08CAPD1—
VBATC2резервное питание: часы реального времени и резервные регистры
VDDG10, G11, G12питание цифровой части и линий ввода-вывода
VDD33USBA4—
VDDA18ADCM3—
VDDA18AONE5—
VDDA18CSIP5—
VDDA18PLLL4—
VDDA18PMUE1—
VDDA18USBD4—
VDDCOREK6, K7, K8, K9, L7—
VDDCSIN6—
VDDIO3J10, J11—
VDDIO4E8, E9—
VDDSMPSH1, H2, H3, H4—
VFBSMPSD2—
VLXSMPSG1, G2, G3, G4—
VREF-N1нижнее опорное напряжение АЦП
VSSA14, E7, F10, H10, H11, K5, K10, P1, P14общий провод (земля)
VSSAM4общий провод аналоговой части
VSSAONF5—
VSSAPMUE2—
VSSSMPSF1, F2, F3, F4—
NRSTE4сброс, активный уровень — низкий
BOOT0D3выбор источника загрузки при сбросе
CSI_CKNN3—
CSI_CKPP3—
CSI_D0NN4—
CSI_D0PP4—
CSI_D1NN2—
CSI_D1PP2—
CSI_REXTN5—
OTG1_HSDMA5—
OTG1_HSDPB5—
OTG1_IDB3—
OTG1_TXRTUNED5—
OTG2_HSDMA2—
OTG2_HSDPB2—
OTG2_IDC5—
OTG2_TXRTUNEB4—
PDR_ONA1управление внутренней схемой сброса по питанию
PWR_ONE3—
UCPD1_CC1A6—
UCPD1_CC2B6—
VREF+M1верхнее опорное напряжение АЦП и ЦАП
NCA3, C4не подключён

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32N647I0HxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32N647I0STM32N647I0HxQ—4200 КБ

Линейка STM32N6x7, семейство STM32N6, ядро Cortex-M55.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе VFBGA178, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32N657I0STM32N6x7178 из 178выводы совпадают полностьютолько у него: CRYP, PKA
STM32N645I0STM32N6x5178 из 178выводы совпадают полностью
STM32N655I0STM32N6x5178 из 178выводы совпадают полностьютолько у него: CRYP, PKA

Частые вопросы

На каких выводах USART1 у STM32N647I0?

В корпусе VFBGA178 сигнал USART1_TX выведен на PE5 (шарик D9, AF7) или PF13 (шарик M2, AF4) или PA9 (шарик M7, AF7), USART1_RX — на PE6 (шарик A10, AF7) или PF12 (шарик L3, AF4) или PG8 (шарик L12, AF4) или PA10 (шарик N7, AF7) или PA7 (шарик P12, AF7).

Где у STM32N647I0 выводы SWD для программатора?

SWDIO — PA13(JTMS/SWDIO) (шарик P7, AF0), SWCLK — PA14(JTCK/SWCLK) (шарик P6, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32N647I0?

I2C1_SCL — PH9 (шарик C8, AF4) или PE5 (шарик D9, AF4), I2C1_SDA — PE6 (шарик A10, AF4) или PC1 (шарик B8, AF4).

Сколько выводов ввода-вывода у STM32N647I0 в корпусе VFBGA178?

106 из 178. Ещё 48 выводов заняты питанием и землёй, остальные 24 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32N647I0?

От 1,71 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
