STM32N655X0 в корпусе VFBGA264: распиновка

STM32N655X0 — микроконтроллер STM32N6 на ядре Cortex-M55 с частотой до 800 МГц: 4200 КБ ОЗУ. Корпус VFBGA264 — 264 шарика, из них 165 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M55
Частота ядра
до 800 МГц
ОЗУ
4200 КБ
Корпус
VFBGA264, 264 шарика
Линий ввода-вывода
165
Напряжение питания
1,71…3,6 В

Схема корпуса VFBGA264

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32N655X0 в корпусе VFBGA264, вид сверхуABCDEFGHJKLMNPRTU1234567891011121314151617PDR_ON — шарик A1PDR_ONPQ6 — шарик A2: SAI2_SD_B, TIM8_CH2NPQ6OTG2_HSDM — шарик A3: USB2_OTG_HS_DMOTG2HSDMVDD33USB — шарик A4VDD33USBOTG1_HSDM — шарик A5: USB1_OTG_HS_DMOTG1HSDMUCPD1_CC1 — шарик A6: UCPD1_CC1UCPD1CC1PH0-OSC_IN — шарик A7: RCC_OSC_INPH0PC10 — шарик A8: DCMIPP_D14, FMC_CLK, HDP_HDP2, I2C4_SCL, I2S3_CK, I3C2_SCL, PSSI_D14, SDMMC1_D2, SPI3_SCK, TIM1_BKIN, UART4_TX, USART3_TXPC10PC1 — шарик A9: DCMIPP_D7, DCMI_D7, FDCAN1_TX, HDP_HDP1, I2C1_SDA, I2S2_WS, I3C1_SDA, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPC1PC4 — шарик A10: FMC_NE1, HDP_HDP6, I2S2_SDI, LPTIM2_CH2, LTDC_DE, LTDC_VSYNC, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, UART4_DE, UART4_RTS, USART1_TX, USART3_DE, USART3_RTSPC4PE13 — шарик A11: ADF1_CCK0, FMC_SDNCAS, I2C4_SCL, SAI2_FS_B, SPI4_MISO, TIM1_CH3PE13PE15 — шарик A12: ADC1_EXTI15, ADC2_EXTI15, FMC_SDCKE0, GFXTIM_FCKCAL, GFXTIM_LCKCAL, I2C4_SMBA, SDMMC1_D0, SPI5_SCK, TIM1_BKIN, USART10_CK, USART2_CKPE15PD10 — шарик A13: DEBUG_TRACECLK, FMC_A3, FMC_A19, GFXTIM_TE, HDP_HDP4, I2S1_MCK, MDF1_CKI3, SAI2_FS_B, SPDIFRX1_IN2, TIM1_ETR, UCPD1_FRSTX1PD10PD1 — шарик A14: ETH1_MDC, FDCAN1_TX, FMC_A7, FMC_A23, UART4_TXPD1PE8 — шарик A15: DCMIPP_D4, DCMI_D4, FMC_A12, MDF1_SDI0, PSSI_D4, TIM1_CH1N, UART7_TX, USART3_TXPE8PE9 — шарик A16: FMC_A14, FMC_BA0, MDF1_CKI4, TIM1_CH1, UART7_DE, UART7_RTSPE9VSS — шарик A17VSSPH3 — шарик B1: DEBUG_TRACECLK, LTDC_B4, UART7_TXPH3PH6 — шарик B2: LTDC_B5, SPI5_NSSPH6OTG2_HSDP — шарик B3: USB2_OTG_HS_DPOTG2HSDPNC — шарик B4NCOTG1_HSDP — шарик B5: USB1_OTG_HS_DPOTG1HSDPUCPD1_CC2 — шарик B6: UCPD1_CC2UCPD1CC2PH1-OSC_OUT — шарик B7: RCC_OSC_OUTPH1PC11 — шарик B8: ADC1_EXTI11, ADC2_EXTI11, DCMIPP_D4, DCMI_D4, HDP_HDP3, I2C4_SDA, I2S3_SDI, I3C2_SDA, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PC6 — шарик B9: DCMIPP_D1, DCMI_D1, HDP_HDP6, I2S2_MCK, PSSI_D1, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM1_CH1, TIM3_CH1, TIM9_CH1, USART6_TXPC6PC5 — шарик B10: DCMIPP_D2, DCMI_D2, FMC_NWE, I2S1_WS, PSSI_D2, SAI2_SD_B, SDMMC2_D1, SPI1_NSSPC5PE14 — шарик B11: ADF1_CCK1, FMC_NWE, FMC_SDNE0, GFXTIM_FCKCAL, GFXTIM_LCKCAL, I2C4_SDA, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PE12 — шарик B12: FDCAN3_RX, FMC_SDNRAS, MDF1_SDI5, SAI2_SCK_B, SPI4_SCK, TIM1_CH3NPE12PE7 — шарик B13: FMC_A4, FMC_A20, MDF1_CKI0, SAI2_SD_B, TIM1_ETR, UART7_RXPE7PD15 — шарик B14: ADC1_EXTI15, ADC2_EXTI15, FMC_A8, I2C2_SDA, LTDC_R2, USART10_TXPD15PD4 — шарик B15: DCMIPP_D9, DCMI_D9, FMC_A11, I2C2_SDA, PSSI_D9, SPI5_MISO, TAMP_IN7, TAMP_OUT8, TIM1_BKIN2, USART6_DE, USART6_RTSPD4PE10 — шарик B16: DCMIPP_D3, DCMI_D3, DEBUG_TRACECLK, FMC_A15, FMC_BA1, MDF1_SDI4, PSSI_D3, TIM1_CH2N, UART7_CTS, USART3_RXPE10PB14 — шарик B17: DCMIPP_D10, DCMI_D10, FMC_D7, FMC_DA7, LPTIM1_CH2, LTDC_HSYNC, PSSI_D10, TIM8_CH4N, USART10_CK, USART6_CTS, USART6_NSSPB14PC15-OSC32_OUT(OSC32_OUT) — шарик C1: RCC_OSC32_OUTPC15PH8 — шарик C2: I3C2_SDA, SPI5_MISOPH8OTG1_ID — шарик C3: USB1_OTG_HS_IDOTG1IDNC — шарик C4NCVDDA18USB — шарик C5VDDA18USBOTG1_TXRTUNE — шарик C6OTG1TXRTUNEPC9 — шарик C7: AUDIOCLK, DCMIPP_D3, DCMI_D3, HDP_HDP1, I2C3_SDA, LTDC_B3, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, UART5_CTS, UCPD1_FRSTX2, USART6_RXPC9PC12 — шарик C8: DCMIPP_D9, DCMI_D9, DEBUG_TRACED3, FMC_NL, HDP_HDP4, I2S3_SDO, I2S6_CK, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, TIM1_CH4, UART5_TX, USART3_CKPC12PC7 — шарик C9: DCMIPP_D1, DCMI_D1, DEBUG_TRGIO, HDP_HDP7, I2S3_MCK, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM16_CH1N, TIM3_CH2, TIM9_CH2, USART6_RXPC7PC0 — шарик C10: DCMIPP_HSYNC, DCMI_HSYNC, FMC_D14, FMC_DA14, HDP_HDP3, I2S1_CK, I2S3_CK, I2S6_CK, LPTIM4_IN1, LTDC_R4, MDF1_CKI1, PSSI_DE, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART7_RXPC0PE5 — шарик C11: DCMIPP_D5, DCMI_D5, FDCAN2_TX, FMC_SDNE1, HDP_HDP6, I2C1_SCL, I3C1_SCL, LPUART1_TX, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPE5PD2 — шарик C12: ADF1_SDI0, DEBUG_TRACED0, FMC_A0, FMC_A16, FMC_CLE, HDP_HDP1, I2S2_SDO, MDF1_SDI1, MDIOS_MDC, PWR_WKUP4, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI2_MOSI, TIM15_CH1N, TIM1_CH3PD2PD12 — шарик C13: DCMIPP_D12, DCMI_D12, ETH1_MDIO, FMC_A5, FMC_A21, HDP_HDP5, MDF1_SDI3, PSSI_D12, SAI1_D3, SPDIFRX1_IN3, UCPD1_FRSTX2PD12PD14 — шарик C14: FMC_A9, I2C2_SCL, USART10_RXPD14PB13 — шарик C15: DEBUG_TRACED0, FMC_D5, FMC_DA5, I2S6_CK, LPTIM1_CH1, LTDC_CLK, SDMMC2_D6, SPI6_SCK, TIM8_CH3N, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSSPB13PB2 — шарик C16: ADF1_SDI0, FMC_D2, FMC_DA2, HDP_HDP2, I2S3_SDO, LTDC_B2, MDF1_SDI1, RTC_OUT2, SAI1_D1, SAI1_SD_A, SPI3_MOSI, TIM1_CH1PB2PD13 — шарик C17: DCMIPP_D13, DCMI_D13, FMC_D4, FMC_DA4, LPTIM1_CH1, LTDC_R6, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTS, UCPD1_FRSTX2PD13PC14-OSC32_IN(OSC32_IN) — шарик D1: RCC_OSC32_INPC14PH7 — шарик D2: I3C2_SCL, SPI5_MOSIPH7PQ3 — шарик D3: TIM8_CH1PQ3PQ4 — шарик D4: TIM8_CH1NPQ4PQ5 — шарик D5: SAI2_FS_B, TIM8_CH2PQ5OTG2_TXRTUNE — шарик D6OTG2TXRTUNEPC8 — шарик D7: DCMIPP_D2, DCMI_D2, DEBUG_TRACED1, FMC_NE4, HDP_HDP0, I2C3_SMBA, LTDC_B0, PSSI_D2, SDMMC1_D0, TIM3_CH3, UART5_DE, UART5_RTS, UCPD1_FRSTX1, USART6_CKPC8PH9 — шарик D8: DCMIPP_D6, DCMI_D6, FDCAN1_RX, FMC_D9, FMC_DA9, HDP_HDP0, I2C1_SCL, I3C1_SCL, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RX, USART3_CKPH9PC2 — шарик D9: ADF1_SDI0, DCMIPP_D13, DCMI_D13, FMC_NE3, I2S3_SDO, MDF1_SDI1, PSSI_D13, SAI1_D1, SAI1_SCK_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPC2PE4 — шарик D10: DCMIPP_D5, DCMI_D5, I2S6_SDI, LPTIM1_IN1, LTDC_G1, PSSI_D5, SDMMC2_D3, SPDIFRX1_IN1, SPI6_MISO, USART10_RX, USART6_DE, USART6_RTSPE4PE6 — шарик D11: DCMIPP_D1, DCMIPP_VSYNC, DCMI_D1, DCMI_VSYNC, FMC_SDCKE1, HDP_HDP7, I2C1_SDA, I3C1_SDA, LPUART1_RX, PSSI_D1, PSSI_RDY, TIM17_CH1N, TIM4_CH2, UART5_TX, USART1_RXPE6PD6 — шарик D12: FMC_A1, FMC_A17, FMC_ALE, HDP_HDP2, I2S2_SDI, SPI2_MISO, TIM15_CH2, TIM1_CH1PD6PD0 — шарик D13: DCMIPP_HSYNC, DCMI_HSYNC, FDCAN1_RX, FMC_A6, FMC_A22, PSSI_DE, TIM1_ETR, UART4_RX, UART9_CTSPD0PD5 — шарик D14: DCMIPP_PIXCLK, DCMI_PIXCLK, FMC_D6, FMC_DA6, PSSI_PDCK, SDMMC2_D7, TIM1_CH4N, USART2_TXPD5PB9 — шарик D15: DCMIPP_D3, DCMI_D3, FMC_D3, FMC_DA3, I2S1_CK, LPTIM1_IN2, PSSI_D3, SDMMC2_D2, SPDIFRX1_IN0, SPI1_SCK, USART10_TXPB9PB8 — шарик D16: DCMIPP_VSYNC, DCMI_VSYNC, FMC_D1, FMC_DA1, I2S1_SDI, PSSI_RDY, SAI2_FS_B, SDMMC2_D0, SPDIFRX1_IN3, SPI1_MISO, USART6_RXPB8PB15 — шарик D17: ADC1_EXTI15, ADC2_EXTI15, FMC_D0, FMC_DA0, I2S6_WS, LTDC_G4, SPDIFRX1_IN2, SPI6_NSS, USART6_DE, USART6_RTSPB15VBAT — шарик E1VBATPWR_ON — шарик E2PWR_ONPQ2 — шарик E3: SAI2_SCK_B, TIM8_BKIN2PQ2PQ1 — шарик E4: TIM8_BKINPQ1PQ0 — шарик E5: DEBUG_TRACECLK, TIM8_ETRPQ0OTG2_ID — шарик E6: USB2_OTG_HS_IDOTG2IDPH2 — шарик E7: DCMIPP_D11, DCMI_D11, DEBUG_TRACED2, FDCAN1_TX, FMC_NE3, PSSI_D11, SDMMC1_CMD, TIM15_BKIN, TIM1_ETR, TIM3_ETR, UART5_RXPH2VDDIO4 — шарик E8VDDIO4VDDIO5 — шарик E9VDDIO5PC3 — шарик E10: DCMIPP_D2, DCMI_D2, FMC_D8, FMC_DA8, I2S1_SDO, PSSI_D2, SDMMC2_CMD, SPDIFRX1_IN0, SPI1_MOSI, USART2_CKPC3PE11 — шарик E11: ADC1_EXTI11, ADC2_EXTI11, FDCAN3_TX, FMC_SDNWE, LTDC_VSYNC, MDF1_CKI5, SAI2_SD_B, SPI4_NSS, TIM1_CH2PE11PD7 — шарик E12: DCMIPP_D0, DCMI_D0, FMC_A2, FMC_A18, HDP_HDP3, I2S2_SDO, I2S3_WS, PSSI_D0, SPI2_MOSI, SPI3_NSS, TIM15_CH1N, TIM1_CH2PD7PD3 — шарик E13: DCMIPP_D14, ETH1_PHY_INTN, FMC_A10, I2C2_SMBA, PSSI_D14, USART10_RX, USART6_CTSPD3PD8 — шарик E14: DCMIPP_D11, DCMI_D11, FMC_NBL0, LTDC_R7, PSSI_D11, SPDIFRX1_IN1, TAMP_IN3, TAMP_OUT4, USART3_TXPD8PB0 — шарик E15: ADF1_SDI0, DCMIPP_D4, DCMI_D4, DEBUG_TRACED1, FMC_D13, FMC_DA13, MDF1_SDI2, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TIM15_CH1N, TIM1_CH4PB0PB7 — шарик E16: ADF1_SDI0, DCMIPP_D7, DCMI_D7, DEBUG_TRACED3, FMC_D15, FMC_DA15, MDF1_SDI1, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2PB7PB6 — шарик E17: ADF1_CCK1, DCMIPP_D6, DCMI_D6, DEBUG_TRACED2, FMC_D14, FMC_DA14, MDF1_CCK1, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TIM15_CH1PB6V08CAP — шарик F1V08CAPVSSAPMU — шарик F2VSSAPMUPC13 — шарик F3: HDP_HDP5, PWR_WKUP3, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2PC13PH4 — шарик F4: LTDC_R4, TAMP_IN4, TAMP_OUT3, UART7_TXPH4PH5 — шарик F5: ETH1_MDC, SPI5_SCKPH5VDDA18AON — шарик F6VDDA18AONVSS — шарик F7VSSVDDIO4 — шарик F8VDDIO4VDDIO5 — шарик F9VDDIO5VSS — шарик F10VSSVSS — шарик F11VSSVSS — шарик F12VSSPB3 — шарик F13: DEBUG_TRACECLK, FMC_A23, FMC_NBL1, GFXTIM_FCKCAL, GFXTIM_LCKCAL, HDP_HDP0, MDF1_CKI1, SAI2_FS_B, TIM1_CH4N, USART1_CKPB3PE3 — шарик F14: DEBUG_TRACED0, FMC_D12, FMC_DA12, LPTIM5_ETR, MDF1_CKI2, SAI1_SD_B, TIM15_BKINPE3PE2 — шарик F15: ADF1_CCK0, DEBUG_TRACECLK, FMC_D11, FMC_DA11, LPTIM5_IN1, MDF1_CCK0, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, TIM1_CH2N, UCPD1_FRSTX1PE2PE0 — шарик F16: DCMIPP_D2, DCMI_D2, FMC_D9, FMC_DA9, LPTIM1_ETR, LPTIM2_ETR, PSSI_D2, SAI2_MCLK_A, TAMP_IN6, TAMP_OUT5, TIM4_ETR, UART8_RX, USART3_RXPE0PE1 — шарик F17: DCMIPP_D8, DCMI_D8, FMC_D10, FMC_DA10, LPTIM1_IN2, LPTIM2_CH2, PSSI_D8, UART8_TX, USART3_TXPE1VDDA18PMU — шарик G1VDDA18PMUVFBSMPS — шарик G2VFBSMPSNRST — шарик G3NRSTBOOT0 — шарик G4BOOT0PQ7 — шарик G5: SAI2_MCLK_B, TAMP_IN2, TAMP_OUT1, TIM8_CH3PQ7VSSAON — шарик G6VSSAONVSS — шарик G12VSSVDD — шарик G13VDDPD11 — шарик G14: ADC1_EXTI11, ADC2_EXTI11, DCMIPP_D15, FMC_D8, FMC_DA8, I2C4_SDA, I2S2_SDI, PSSI_D15, SDMMC1_D0, SPI2_MISO, UCPD1_FRSTX1PD11PP7 — шарик G15: FMC_D23, XSPIM_P1_IO7PP7PP6 — шарик G16: FMC_D22, XSPIM_P1_IO6PP6PP0 — шарик G17: FMC_D16, XSPIM_P1_IO0PP0VSSSMPS — шарик H1VSSSMPSVSSSMPS — шарик H2VSSSMPSVSSSMPS — шарик H3VSSSMPSVSSSMPS — шарик H4VSSSMPSVSSSMPS — шарик H5VSSSMPSVSSSMPS — шарик H6VSSSMPSVDD — шарик H12VDDVDD — шарик H13VDDPD9 — шарик H14: DCMIPP_D11, DCMI_D11, FMC_SDCLK, LTDC_R1, PSSI_D11, TAMP_IN5, TAMP_OUT6, USART3_RXPD9PP4 — шарик H15: FMC_D20, XSPIM_P1_IO4PP4PP1 — шарик H16: FMC_D17, XSPIM_P1_IO1PP1PP15 — шарик H17: ADC1_EXTI15, ADC2_EXTI15, FMC_D31, LTDC_B5, XSPIM_P1_IO15PP15VLXSMPS — шарик J1VLXSMPSVLXSMPS — шарик J2VLXSMPSVLXSMPS — шарик J3VLXSMPSVLXSMPS — шарик J4VLXSMPSVLXSMPS — шарик J5VLXSMPSVLXSMPS — шарик J6VLXSMPSVDD — шарик J12VDDVDD — шарик J13VDDPP5 — шарик J14: FMC_D21, XSPIM_P1_IO5PP5PP12 — шарик J15: FMC_D28, XSPIM_P1_IO12PP12PP3 — шарик J16: FMC_D19, XSPIM_P1_IO3PP3PP2 — шарик J17: FMC_D18, XSPIM_P1_IO2PP2VDDSMPS — шарик K1VDDSMPSVDDSMPS — шарик K2VDDSMPSVDDSMPS — шарик K3VDDSMPSVDDSMPS — шарик K4VDDSMPSVDDSMPS — шарик K5VDDSMPSVDDSMPS — шарик K6VDDSMPSVSS — шарик K12VSSVDD — шарик K13VDDPP13 — шарик K14: FMC_D29, XSPIM_P1_IO13PP13PO5 — шарик K15: FMC_A25, FMC_NBL3, XSPIM_P1_NCLKPO5PO1 — шарик K16: FMC_A23, XSPIM_P1_NCS2PO1PO2 — шарик K17: FMC_A24, LTDC_B7, XSPIM_P1_DQS0PO2PG7 — шарик L1: DCMIPP_D13, DCMI_D13, DEBUG_TRACECLK, ETH1_PHY_INTN, PSSI_D13, SAI1_MCLK_A, USART6_CKPG7PF4 — шарик L2: ADC1_INP18, DCMIPP_HSYNC, DCMI_HSYNC, ETH1_MDIO, HDP_HDP4, I2S1_WS, I2S3_WS, I2S6_WS, LPTIM3_CH2, LTDC_R3, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CKPF4PG6 — шарик L3: DCMIPP_D12, DCMI_D12, ETH1_MII_CRS, LTDC_B3, PSSI_D12, TIM17_BKIN, USART6_CKPG6PF10 — шарик L4: DCMIPP_D11, DCMIPP_D15, DCMI_D11, ETH1_MII_RX_DV, ETH1_RGMII_RX_CTL, ETH1_RMII_CRS_DV, LTDC_R1, MDF1_SDI3, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKIN, UART7_RX, UCPD1_FRSTX1PF10PF6 — шарик L5: ADC1_INP15, ADC2_INP15, ETH1_MII_COL, GFXTIM_FCKCAL, GFXTIM_LCKCAL, HDP_HDP3, I2S6_MCK, LPTIM3_CH1, LTDC_DE, SPI1_RDY, SPI4_RDY, SPI5_RDY, TIM15_CH2, TIM1_CH3, TIM2_CH4, TIM5_CH4, USART2_RXPF6VDDCORE — шарик L6VDDCOREVDDCORE — шарик L12VDDCOREVDDIO2 — шарик L13VDDIO2VDDIO2 — шарик L14VDDIO2PP11 — шарик L15: ADC1_EXTI11, ADC2_EXTI11, FMC_D27, XSPIM_P1_IO11PP11PP8 — шарик L16: FMC_D24, SPI2_MISO, XSPIM_P1_IO8PP8PP14 — шарик L17: FMC_D30, XSPIM_P1_IO14PP14PF7 — шарик M1: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH1_MII_RX_CLK, ETH1_RGMII_RX_CLK, ETH1_RMII_REF_CLK, GFXTIM_TE, HDP_HDP0, I2S1_CK, LTDC_VSYNC, SPI1_SCK, TIM1_CH2N, TIM3_CH3, TIM9_CH1, UART4_CTSPF7PF3 — шарик M2: ADC1_INP16, DCMIPP_HSYNC, DCMI_HSYNC, ETH1_PPS_OUT, FDCAN3_RX, FMC_NL, LTDC_R4, PSSI_DE, USART2_DE, USART2_RTSPF3PF5 — шарик M3: DCMIPP_D6, DCMI_D6, ETH1_CLK, FMC_NE3, LPTIM2_IN2, LTDC_G0, PSSI_D6, SAI2_SD_A, TIM1_ETR, USART3_CTS, USART3_NSSPF5PG5 — шарик M4: ETH1_MII_RX_ER, LTDC_B1, TIM1_ETR, USART2_CTS, USART2_NSSPG5VDDA18PLL — шарик M5VDDA18PLLVSSA — шарик M6VSSAVDDCORE — шарик M7VDDCOREVSS — шарик M8VSSVDDCORE — шарик M9VDDCOREVSS — шарик M10VSSVDDCORE — шарик M11VDDCOREVSS — шарик M12VSSVSS — шарик M13VSSVDDIO2 — шарик M14VDDIO2VDDIO2 — шарик M15VDDIO2PO3 — шарик M16: FMC_A25, LTDC_G3, XSPIM_P1_DQS1PO3PO0 — шарик M17: FMC_A22, XSPIM_P1_NCS1PO0PF15 — шарик N1: ADC1_EXTI15, ADC2_EXTI15, ETH1_MII_RXD1, ETH1_RGMII_RXD1, ETH1_RMII_RXD1, LTDC_G1, SPI5_SCK, USART1_DE, USART1_RTSPF15PF14 — шарик N2: ADC2_INN2, ADC2_INP6, ETH1_MII_RXD0, ETH1_RGMII_RXD0, ETH1_RMII_RXD0, LTDC_G0, SPI5_MOSI, TIM2_CH2, USART1_CTSPF14PF8 — шарик N3: DEBUG_TRACECLK, ETH1_MII_RXD2, ETH1_RGMII_RXD2, FMC_NWE, LTDC_R6, UART9_TXPF8PF2 — шарик N4: ETH1_RGMII_CLK125, FDCAN3_TX, FMC_NWAIT, I2S2_CK, LTDC_B1, SPI2_SCK, TIM1_CH3N, USART2_CTS, USART2_NSSPF2VSS — шарик N5VSSVDDA18ADC — шарик N6VDDA18ADCVSS — шарик N7VSSVDDCORE — шарик N8VDDCOREVSS — шарик N9VSSVDDCORE — шарик N10VDDCOREVSS — шарик N11VSSVDDCORE — шарик N12VDDCOREVDDIO3 — шарик N13VDDIO3PP9 — шарик N14: FMC_D25, SPI2_MOSI, XSPIM_P1_IO9PP9PP10 — шарик N15: ETH1_MDC, FMC_D26, XSPIM_P1_IO10PP10PO4 — шарик N16: FMC_A24, FMC_NBL2, LTDC_B4, XSPIM_P1_CLKPO4PN4 — шарик N17: XSPIM_P2_IO2PN4PF9 — шарик P1: DEBUG_TRACED0, ETH1_MII_RXD3, ETH1_RGMII_RXD3, LTDC_HSYNCPF9PG4 — шарик P2: ETH1_MII_TXD3, ETH1_RGMII_TXD3, LTDC_B0, TIM1_BKIN2PG4PF11 — шарик P3: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMIPP_D15, ETH1_MII_TX_EN, ETH1_RGMII_TX_CTL, ETH1_RMII_TX_EN, LTDC_B0, PSSI_D15, SAI2_SD_B, SPI5_MOSIPF11PF1 — шарик P4: DCMIPP_D7, DCMI_D7, ETH1_TX_ER, LPTIM1_CH2, LPTIM2_CH1, PSSI_D7, TIM4_CH3, UART8_CTS, UART9_RX, UCPD1_FRSTX1PF1CSI_REXT — шарик P5: CSI_REXTCSIREXTPG14 — шарик P6: DCMIPP_D11, DCMI_D11, DEBUG_TRACED1, FMC_NCE, FMC_NE2, I2S6_SDO, LPTIM1_ETR, LTDC_B1, PSSI_D11, SPI6_MOSI, TIM8_CH4, USART10_RTS, USART2_DE, USART2_RTS, USART6_TXPG14PA9 — шарик P7: ADC1_INP10, ADC2_INP10, DCMIPP_D0, DCMI_D0, FMC_D3, FMC_DA3, HDP_HDP1, I2C3_SDA, I2S2_CK, I3C2_SDA, LPUART1_TX, LTDC_B5, PSSI_D0, SPI2_SCK, TIM1_CH2, USART1_TXPA9PA6 — шарик P8: ADC1_INP3, ADC2_INP3, BOOT1, DCMIPP_PIXCLK, DCMI_PIXCLK, HDP_HDP6, I2S1_SDI, I2S6_SDI, I3C1_SDA, LPTIM3_ETR, LTDC_B7, LTDC_HSYNC, MDIOS_MDC, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1PA6PA1 — шарик P9: ADC1_INP1, ADC2_INP1, DCMIPP_D0, DCMI_D0, FMC_D6, FMC_DA6, HDP_HDP1, LPTIM3_IN1, LTDC_G2, PSSI_D0, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PB11 — шарик P10: ADC1_EXTI11, ADC1_INP4, ADC2_EXTI11, ADC2_INP4, FMC_D10, FMC_DA10, HDP_HDP3, I2C2_SDA, I3C2_SDA, LPTIM2_ETR, LTDC_G6, TIM2_CH4, USART3_RXPB11VDDCORE — шарик P11VDDCOREPA15(JTDI) — шарик P12: ADC1_EXTI15, ADC2_EXTI15, DEBUG_JTDI, FMC_D15, FMC_DA15, HDP_HDP7, I2S1_WS, I2S3_WS, I2S6_WS, LTDC_R5, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15VDDIO3 — шарик P13VDDIO3PN12 — шарик P14: XSPIM_P2_NCS2PN12PN6 — шарик P15: XSPIM_P2_CLKPN6PN8 — шарик P16: XSPIM_P2_IO4PN8PN0 — шарик P17: FMC_A25, XSPIM_P2_DQS0PN0PG3 — шарик R1: DCMIPP_HSYNC, DCMI_HSYNC, DEBUG_TRACED1, ETH1_MII_TXD2, ETH1_RGMII_TXD2, PSSI_DE, USART2_TXPG3PF13 — шарик R2: ADC2_INP2, DCMIPP_D10, DCMI_D10, ETH1_MII_TXD1, ETH1_RGMII_TXD1, ETH1_RMII_TXD1, PSSI_D10, SPI5_NSS, USART1_TXPF13PF0 — шарик R3: DCMIPP_D9, DCMI_D9, ETH1_MII_TX_CLK, ETH1_RGMII_GTX_CLK, LPTIM5_OUT, PSSI_D9, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TX, UCPD1_FRSTX2PF0VDDCSI — шарик R4VDDCSIVDDA18CSI — шарик R5VDDA18CSIPG15 — шарик R6: ADC1_EXTI15, ADC1_INN3, ADC1_INP7, ADC2_EXTI15, ADC2_INN3, ADC2_INP7, DCMIPP_D4, DCMI_D4, ETH1_MII_RX_CLK, ETH1_RMII_REF_CLK, FMC_CLK, LTDC_B0, PSSI_D4, SPI1_RDY, SPI4_RDY, SPI5_RDY, TIM1_CH4, USART3_CKPG15PA10 — шарик R7: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DCMIPP_D1, DCMI_D1, FMC_D2, FMC_DA2, HDP_HDP2, LPUART1_RX, LTDC_B4, MDIOS_MDIO, PSSI_D1, PWR_CSLEEP, TIM1_CH3, USART1_RXPA10PA5 — шарик R8: ADC2_INP18, DCMIPP_D8, DCMI_D8, FMC_NOE, HDP_HDP5, I2S1_CK, I2S6_CK, I3C1_SCL, LTDC_CLK, PSSI_D8, PWR_CSTOP, SPI1_SCK, SPI6_SCK, TIM10_CH1, TIM2_CH1, TIM2_ETR, TIM9_CH2PA5PG1 — шарик R9: DCMIPP_PIXCLK, DCMI_PIXCLK, FMC_A19, LTDC_G1, PSSI_PDCK, SAI1_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPG1PB12 — шарик R10: FDCAN2_RX, FMC_D9, FMC_DA9, HDP_HDP4, I2C2_SMBA, I2S2_WS, LPTIM2_IN2, LTDC_G5, SPI2_NSS, TIM1_BKIN, UART5_RX, USART3_CKPB12PB1 — шарик R11: FDCAN2_TX, FMC_NOE, HDP_HDP1, LTDC_R1, TIM1_CH3N, TIM3_CH4, TIM9_CH2, USART2_TXPB1PA7 — шарик R12: HDP_HDP7, I2S1_SDO, I2S6_SDO, LTDC_B1, LTDC_R4, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, USART1_RXPA7PG0 — шарик R13: ETH1_PHY_INTN, LTDC_R0, LTDC_VSYNC, TIM12_CH1, TIM1_CH4N, UART9_RXPG0PA3 — шарик R14: FMC_A17, FMC_ALE, SAI1_SD_B, SPI5_NSS, TIM16_CH1, UART7_RXPA3PN3 — шарик R15: FMC_A22, XSPIM_P2_IO1PN3PN5 — шарик R16: XSPIM_P2_IO3PN5PN1 — шарик R17: FMC_A24, XSPIM_P2_NCS1PN1PF12 — шарик T1: ADC1_INN2, ADC1_INP6, DCMIPP_D13, DCMI_D13, ETH1_MII_TXD0, ETH1_RGMII_TXD0, ETH1_RMII_TXD0, PSSI_D13, SPI5_MISO, USART1_RXPF12VREF- — шарик T2VREF-CSI_CKP — шарик T3: CSI_CKPCSICKPCSI_D1P — шарик T4: CSI_D1PCSID1PCSI_D0P — шарик T5: CSI_D0PCSID0PPA14(JTCK/SWCLK) — шарик T6: DEBUG_JTCK-SWCLK, HDP_HDP6PA14PA11 — шарик T7: ADC1_EXTI11, ADC1_INN11, ADC1_INP12, ADC2_EXTI11, ADC2_INN11, ADC2_INP12, FDCAN1_RX, FMC_D1, FMC_DA1, HDP_HDP3, I2S2_WS, LPUART1_CTS, LTDC_B3, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSSPA11PA2 — шарик T8: ADC1_INP14, ADC2_INP14, FMC_D5, FMC_DA5, HDP_HDP2, LPTIM3_IN2, LTDC_B7, MDIOS_MDIO, PWR_WKUP2, SAI2_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PG12 — шарик T9: FMC_A18, LTDC_G0, SAI1_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TXPG12PG10 — шарик T10: DCMIPP_D2, DCMI_D2, FDCAN2_TX, FMC_A16, FMC_CLE, HDP_HDP5, I2S2_CK, LPTIM2_CH1, LTDC_G4, PSSI_D2, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSSPG10PG2 — шарик T11: DCMIPP_D6, DCMI_D6, FMC_A21, LTDC_R0, PSSI_D6, SAI1_FS_B, SAI2_MCLK_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTS, USART3_DE, USART3_RTSPG2PB4(NJTRST) — шарик T12: DCMIPP_VSYNC, DCMI_VSYNC, DEBUG_NJTRST, FMC_D13, FMC_DA13, HDP_HDP4, I2S1_SDI, I2S2_WS, I2S3_SDI, I2S6_SDI, LPTIM4_ETR, LTDC_R3, PSSI_RDY, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4PG9 — шарик T13: FMC_D8, FMC_DA8, LTDC_R7PG9PG8 — шарик T14: FMC_A20, HDP_HDP7, I2S2_SDO, LTDC_G7, PWR_PVD_IN, RTC_REFIN, SAI1_SCK_B, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, UART4_CTS, USART1_RXPG8PN9 — шарик T15: DCMIPP_D5, DCMI_D5, PSSI_D5, XSPIM_P2_IO5PN9PN7 — шарик T16: XSPIM_P2_NCLKPN7PN2 — шарик T17: FMC_A23, XSPIM_P2_IO0PN2VSS — шарик U1VSSVREF+ — шарик U2VREF+CSI_CKN — шарик U3: CSI_CKNCSICKNCSI_D1N — шарик U4: CSI_D1NCSID1NCSI_D0N — шарик U5: CSI_D0NCSID0NPA13(JTMS/SWDIO) — шарик U6: DEBUG_JTMS-SWDIO, HDP_HDP5PA13PA12 — шарик U7: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, FDCAN1_TX, FMC_D0, FMC_DA0, HDP_HDP4, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_B2, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTSPA12PA8 — шарик U8: ADC1_INP5, ADC2_INP5, FMC_D4, FMC_DA4, HDP_HDP0, I2C3_SCL, I3C2_SCL, LTDC_B6, RCC_MCO_1, TIM11_CH1, TIM1_CH1, UART7_RX, USART1_CKPA8PG13 — шарик U9: DCMIPP_D12, DCMI_D12, FMC_NE1, LPTIM1_IN1, LPTIM2_IN1, LTDC_DE, PSSI_D12, SAI2_FS_A, TIM4_CH1, USART3_DE, USART3_RTSPG13PA0 — шарик U10: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, FMC_D7, FMC_DA7, HDP_HDP0, I2S6_WS, LTDC_G3, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI6_NSS, TIM15_BKIN, TIM2_CH1, TIM5_CH1, TIM9_CH1, UART4_TX, USART2_CTS, USART2_NSSPA0PB10 — шарик U11: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, FMC_D11, FMC_DA11, HDP_HDP2, I2C2_SCL, I2S2_CK, I3C2_SCL, LPTIM2_IN1, LTDC_G7, SPI2_SCK, TIM2_CH3, USART3_TXPB10PB5(JTDO/TRACESWO) — шарик U12: DCMIPP_D10, DCMI_D10, DEBUG_JTDO-SWO, FDCAN2_RX, FMC_D12, FMC_DA12, HDP_HDP5, I2C1_SMBA, I2S1_SDO, I2S3_SDO, I2S6_SDO, LPTIM4_OUT, LTDC_R2, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RXPB5PG11 — шарик U13: ADC1_EXTI11, ADC2_EXTI11, ETH1_MDC, LTDC_R6, UART7_RXPG11PA4 — шарик U14: DCMIPP_D3, DCMI_D3, FMC_A13, PSSI_D3, SPI5_MOSI, USART6_RXPA4PN10 — шарик U15: LTDC_B4, XSPIM_P2_IO6PN10PN11 — шарик U16: ADC1_EXTI11, ADC2_EXTI11, LTDC_B6, XSPIM_P2_IO7PN11VSS — шарик U17VSSVFBGA264, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

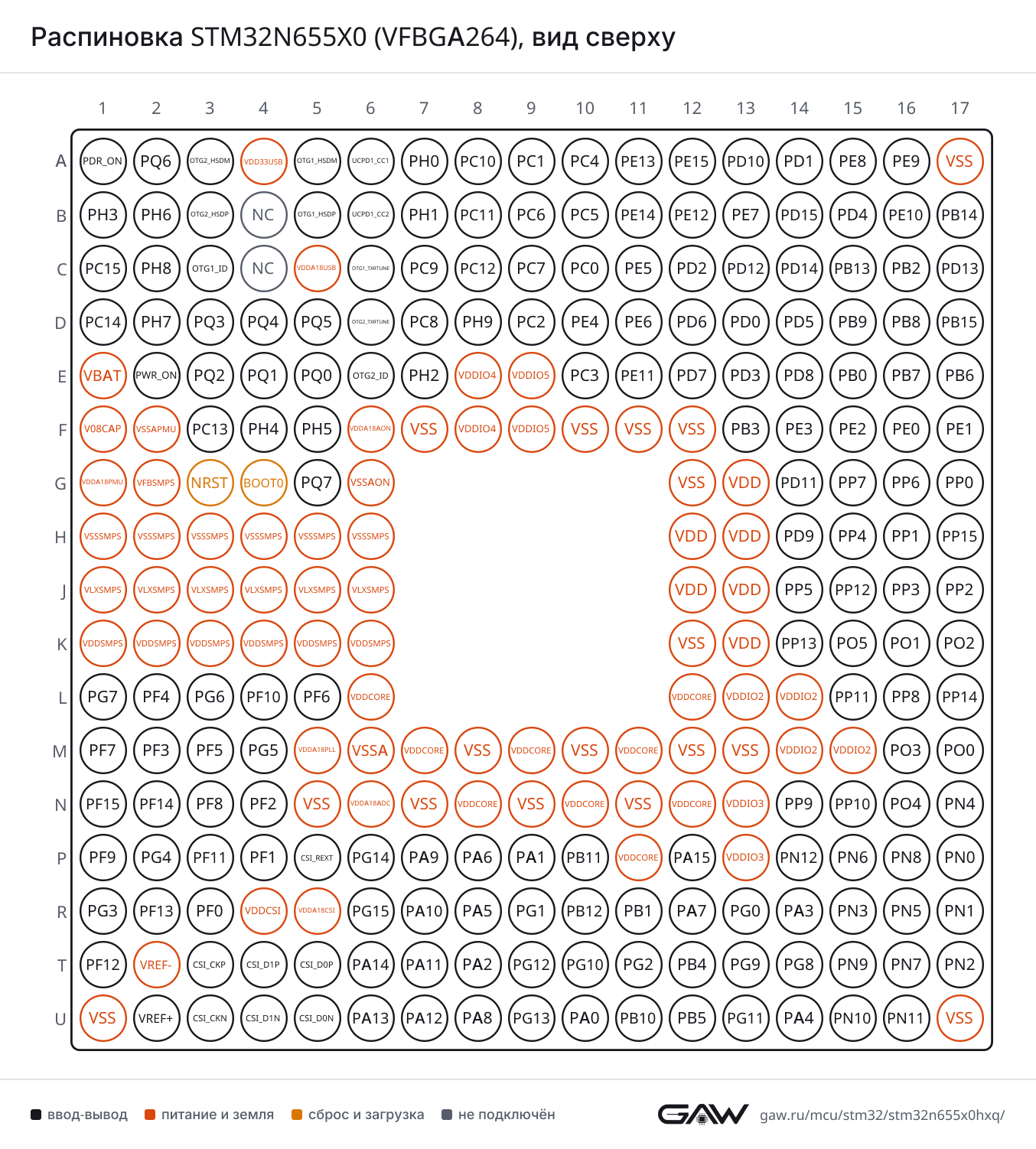

Распиновка STM32N655X0 (VFBGA264), вид сверхуРаспиновка VFBGA264 картинкой
PNG, 1354 × 1502 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPB3 (F13, AF7), PA8 (U8, AF7)
CTSPF14 (N2, AF4), PA11 (T7, AF7)
DEPF15 (N1, AF4), PA12 (U7, AF7)
NSSPA11 (T7, AF7)
RTSPF15 (N1, AF4), PA12 (U7, AF7)
RXPE6 (D11, AF7), PA10 (R7, AF7), PA7 (R12, AF7), PF12 (T1, AF4), PG8 (T14, AF4)
TXPC4 (A10, AF4), PE5 (C11, AF7), PA9 (P7, AF7), PF13 (R2, AF4)
USART2CKPE15 (A12, AF7), PC3 (E10, AF7), PF4 (L2, AF7)
CTSPG5 (M4, AF7), PF2 (N4, AF7), PA0 (U10, AF7)
DEPF3 (M2, AF7), PG14 (P6, AF8), PA1 (P9, AF7)
NSSPG5 (M4, AF7), PF2 (N4, AF7), PA0 (U10, AF7)
RTSPF3 (M2, AF7), PG14 (P6, AF8), PA1 (P9, AF7)
RXPC2 (D9, AF7), PF6 (L5, AF7)
TXPD5 (D14, AF7), PG3 (R1, AF7), PB1 (R11, AF7), PA2 (T8, AF7)
USART3CKPC12 (C8, AF7), PH9 (D8, AF3), PG15 (R6, AF7), PB12 (R10, AF7)
CTSPF5 (M3, AF7), PG10 (T10, AF7)
DEPC4 (A10, AF7), PG2 (T11, AF7), PG13 (U9, AF7)
NSSPF5 (M3, AF7), PG10 (T10, AF7)
RTSPC4 (A10, AF7), PG2 (T11, AF7), PG13 (U9, AF7)
RXPC11 (B8, AF7), PE10 (B16, AF7), PE0 (F16, AF7), PD9 (H14, AF7), PB11 (P10, AF7)
TXPC10 (A8, AF7), PE8 (A15, AF7), PD8 (E14, AF7), PE1 (F17, AF7), PB10 (U11, AF7)
USART6CKPC8 (D7, AF7), PG7 (L1, AF7), PG6 (L3, AF7)
CTSPB14 (B17, AF7), PB13 (C15, AF7), PD3 (E13, AF7)
DEPD4 (B15, AF7), PE4 (D10, AF7), PB15 (D17, AF7)
NSSPB14 (B17, AF7), PB13 (C15, AF7)
RTSPD4 (B15, AF7), PE4 (D10, AF7), PB15 (D17, AF7)
RXPC9 (C7, AF7), PC7 (C9, AF7), PB8 (D16, AF7), PA4 (U14, AF7)
TXPC6 (B9, AF7), PG14 (P6, AF7)
USART10CKPE15 (A12, AF6), PB14 (B17, AF6)
CTSPB13 (C15, AF6)
NSSPB13 (C15, AF6)
RTSPG14 (P6, AF6)
RXPD14 (C14, AF6), PE4 (D10, AF6), PD3 (E13, AF6)
TXPD15 (B14, AF6), PB9 (D15, AF6)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPF7 (M1, AF8), PG8 (T14, AF8)
DEPC4 (A10, AF8), PA15(JTDI) (P12, AF8)
RTSPC4 (A10, AF8), PA15(JTDI) (P12, AF8)
RXPC11 (B8, AF8), PH9 (D8, AF8), PD0 (D13, AF8), PA1 (P9, AF8), PA11 (T7, AF8)
TXPC10 (A8, AF8), PC1 (A9, AF8), PD1 (A14, AF8), PA12 (U7, AF8), PA0 (U10, AF8)
UART5CTSPC9 (C7, AF11)
DEPC8 (D7, AF11)
RTSPC8 (D7, AF11)
RXPH2 (E7, AF11), PB12 (R10, AF11), PB5(JTDO/TRACESWO) (U12, AF11)
TXPC12 (C8, AF11), PE5 (C11, AF11), PE6 (D11, AF11), PG10 (T10, AF11)
UART7CTSPE10 (B16, AF8), PG2 (T11, AF8)
DEPE9 (A16, AF8), PG1 (R9, AF8)
RTSPE9 (A16, AF8), PG1 (R9, AF8)
RXPE7 (B13, AF8), PC0 (C10, AF10), PF10 (L4, AF8), PA3 (R14, AF8), PA8 (U8, AF10), PG11 (U13, AF8)
TXPE8 (A15, AF8), PH3 (B1, AF8), PH4 (F4, AF8), PA15(JTDI) (P12, AF10), PG12 (T9, AF8), PB4(NJTRST) (T12, AF10)
UART8CTSPF1 (P4, AF8)
DEPF0 (R3, AF8)
RTSPF0 (R3, AF8)
RXPE0 (F16, AF8)
TXPE1 (F17, AF8)
UART9CTSPD0 (D13, AF7)
DEPD13 (C17, AF7)
RTSPD13 (C17, AF7)
RXPF1 (P4, AF7), PG0 (R13, AF7)
TXPF8 (N3, AF7), PF0 (R3, AF7)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (T7, AF3)
DEPA12 (U7, AF3)
RTSPA12 (U7, AF3)
RXPE6 (D11, AF3), PA10 (R7, AF3)
TXPE5 (C11, AF3), PA9 (P7, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB8 (D16, AF5), PA6 (P8, AF5), PB4(NJTRST) (T12, AF5)
MOSIPC3 (E10, AF5), PA7 (R12, AF5), PB5(JTDO/TRACESWO) (U12, AF5)
NSSPC5 (B10, AF5), PF4 (L2, AF5), PA15(JTDI) (P12, AF5)
RDYPF6 (L5, AF10), PG15 (R6, AF10)
SCKPC0 (C10, AF5), PB9 (D15, AF5), PF7 (M1, AF5), PA5 (R8, AF5)
SPI2MISOPC4 (A10, AF5), PD6 (D12, AF5), PD11 (G14, AF5), PP8 (L16, AF5)
MOSIPD2 (C12, AF5), PD7 (E12, AF5), PP9 (N14, AF5), PG8 (T14, AF5)
NSSPC1 (A9, AF5), PB12 (R10, AF5), PA11 (T7, AF5), PB4(NJTRST) (T12, AF7)
SCKPF2 (N4, AF5), PA9 (P7, AF5), PG10 (T10, AF5), PA12 (U7, AF5), PB10 (U11, AF5)
SPI3MISOPC11 (B8, AF6), PB4(NJTRST) (T12, AF6)
MOSIPC12 (C8, AF6), PB2 (C16, AF7), PC2 (D9, AF5), PB5(JTDO/TRACESWO) (U12, AF7)
NSSPD7 (E12, AF6), PF4 (L2, AF6), PA15(JTDI) (P12, AF6)
SCKPC10 (A8, AF6), PC0 (C10, AF6)
SPI4MISOPE13 (A11, AF5), PB6 (E17, AF5)
MOSIPE14 (B11, AF5), PB7 (E16, AF5)
NSSPE11 (E11, AF5), PB0 (E15, AF5)
RDYPF6 (L5, AF6), PG15 (R6, AF6)
SCKPE12 (B12, AF5), PE2 (F15, AF5)
SPI5MISOPD4 (B15, AF5), PH8 (C2, AF5), PG1 (R9, AF5), PF12 (T1, AF5)
MOSIPH7 (D2, AF5), PF14 (N2, AF5), PF11 (P3, AF5), PG2 (T11, AF5), PA4 (U14, AF5)
NSSPH6 (B2, AF5), PF13 (R2, AF5), PA3 (R14, AF5)
RDYPF6 (L5, AF9), PG15 (R6, AF5)
SCKPE15 (A12, AF5), PH5 (F5, AF5), PF15 (N1, AF5), PG12 (T9, AF5)
SPI6MISOPE4 (D10, AF5), PA6 (P8, AF8), PB4(NJTRST) (T12, AF8)
MOSIPG14 (P6, AF5), PA7 (R12, AF8), PB5(JTDO/TRACESWO) (U12, AF8)
NSSPB15 (D17, AF5), PF4 (L2, AF8), PA15(JTDI) (P12, AF7), PA0 (U10, AF5)
SCKPC12 (C8, AF5), PC0 (C10, AF8), PB13 (C15, AF5), PA5 (R8, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPC0 (C10, AF5), PB9 (D15, AF5), PF7 (M1, AF5), PA5 (R8, AF5)
MCKPD10 (A13, AF5)
SDIPB8 (D16, AF5), PA6 (P8, AF5), PB4(NJTRST) (T12, AF5)
SDOPC3 (E10, AF5), PA7 (R12, AF5), PB5(JTDO/TRACESWO) (U12, AF5)
WSPC5 (B10, AF5), PF4 (L2, AF5), PA15(JTDI) (P12, AF5)
I2S2CKPF2 (N4, AF5), PA9 (P7, AF5), PG10 (T10, AF5), PA12 (U7, AF5), PB10 (U11, AF5)
MCKPC6 (B9, AF5)
SDIPC4 (A10, AF5), PD6 (D12, AF5), PD11 (G14, AF5)
SDOPD2 (C12, AF5), PD7 (E12, AF5), PG8 (T14, AF5)
WSPC1 (A9, AF5), PB12 (R10, AF5), PA11 (T7, AF5), PB4(NJTRST) (T12, AF7)
I2S3CKPC10 (A8, AF6), PC0 (C10, AF6)
MCKPC7 (C9, AF6)
SDIPC11 (B8, AF6), PB4(NJTRST) (T12, AF6)
SDOPC12 (C8, AF6), PB2 (C16, AF7), PC2 (D9, AF5), PB5(JTDO/TRACESWO) (U12, AF7)
WSPD7 (E12, AF6), PF4 (L2, AF6), PA15(JTDI) (P12, AF6)
I2S6CKPC12 (C8, AF5), PC0 (C10, AF8), PB13 (C15, AF5), PA5 (R8, AF8)
MCKPF6 (L5, AF5)
SDIPE4 (D10, AF5), PA6 (P8, AF8), PB4(NJTRST) (T12, AF8)
SDOPG14 (P6, AF5), PA7 (R12, AF8), PB5(JTDO/TRACESWO) (U12, AF8)
WSPB15 (D17, AF5), PF4 (L2, AF8), PA15(JTDI) (P12, AF7), PA0 (U10, AF5)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPE5 (C11, AF4), PH9 (D8, AF4)
SDAPC1 (A9, AF4), PE6 (D11, AF4)
SMBAPB5(JTDO/TRACESWO) (U12, AF4)
I2C2SCLPD14 (C14, AF4), PB10 (U11, AF4)
SDAPD15 (B14, AF4), PD4 (B15, AF4), PB11 (P10, AF4)
SMBAPD3 (E13, AF4), PB12 (R10, AF4)
I2C3SCLPA8 (U8, AF4)
SDAPC9 (C7, AF4), PA9 (P7, AF4)
SMBAPC8 (D7, AF4)
I2C4SCLPC10 (A8, AF4), PE13 (A11, AF4)
SDAPC11 (B8, AF4), PE14 (B11, AF4), PD11 (G14, AF4)
SMBAPE15 (A12, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPE5 (C11, AF5), PH9 (D8, AF7), PA5 (R8, AF4)
SDAPC1 (A9, AF7), PE6 (D11, AF5), PA6 (P8, AF4)
I3C2SCLPC10 (A8, AF2), PH7 (D2, AF2), PA8 (U8, AF2), PB10 (U11, AF2)
SDAPC11 (B8, AF2), PH8 (C2, AF2), PA9 (P7, AF2), PB11 (P10, AF2)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPH9 (D8, AF6), PD0 (D13, AF6), PA11 (T7, AF6)
TXPC1 (A9, AF6), PD1 (A14, AF6), PH2 (E7, AF6), PA12 (U7, AF6)
FDCAN2RXPB12 (R10, AF6), PB5(JTDO/TRACESWO) (U12, AF6)
TXPE5 (C11, AF6), PB1 (R11, AF6), PG10 (T10, AF6)
FDCAN3RXPE12 (B12, AF6), PF3 (M2, AF6)
TXPE11 (E11, AF6), PF2 (N4, AF6)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB1_OTG_HSDMOTG1_HSDM (A5)
DPOTG1_HSDP (B5)
IDOTG1_ID (C3)
USB2_OTG_HSDMOTG2_HSDM (A3)
DPOTG2_HSDP (B3)
IDOTG2_ID (E6)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1UCPD1_CC1 (A6)
CC2UCPD1_CC2 (B6)
FRSTX1PD10 (A13, AF6), PC8 (D7, AF6), PE2 (F15, AF7), PD11 (G14, AF6), PF10 (L4, AF6), PF1 (P4, AF6)
FRSTX2PC9 (C7, AF6), PD12 (C13, AF6), PD13 (C17, AF6), PF0 (R3, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETH1CLKPF5 (M3, AF11)
MDCPD1 (A14, AF11), PH5 (F5, AF11), PP10 (N15, AF11), PG11 (U13, AF11)
MDIOPD12 (C13, AF11), PF4 (L2, AF11)
MII_COLPF6 (L5, AF11)
MII_CRSPG6 (L3, AF11)
MII_RX_CLKPF7 (M1, AF11), PG15 (R6, AF11)
MII_RX_DVPF10 (L4, AF11)
MII_RX_ERPG5 (M4, AF11)
MII_RXD0PF14 (N2, AF11)
MII_RXD1PF15 (N1, AF11)
MII_RXD2PF8 (N3, AF11)
MII_RXD3PF9 (P1, AF11)
MII_TX_CLKPF0 (R3, AF11)
MII_TX_ENPF11 (P3, AF11)
MII_TXD0PF12 (T1, AF11)
MII_TXD1PF13 (R2, AF11)
MII_TXD2PG3 (R1, AF11)
MII_TXD3PG4 (P2, AF11)
PHY_INTNPD3 (E13, AF11), PG7 (L1, AF11), PG0 (R13, AF11)
PPS_OUTPF3 (M2, AF11)
RGMII_CLK125PF2 (N4, AF11)
RGMII_GTX_CLKPF0 (R3, AF12)
RGMII_RX_CLKPF7 (M1, AF11)
RGMII_RX_CTLPF10 (L4, AF11)
RGMII_RXD0PF14 (N2, AF11)
RGMII_RXD1PF15 (N1, AF11)
RGMII_RXD2PF8 (N3, AF11)
RGMII_RXD3PF9 (P1, AF11)
RGMII_TX_CTLPF11 (P3, AF11)
RGMII_TXD0PF12 (T1, AF11)
RGMII_TXD1PF13 (R2, AF11)
RGMII_TXD2PG3 (R1, AF11)
RGMII_TXD3PG4 (P2, AF11)
RMII_CRS_DVPF10 (L4, AF11)
RMII_REF_CLKPF7 (M1, AF11), PG15 (R6, AF11)
RMII_RXD0PF14 (N2, AF11)
RMII_RXD1PF15 (N1, AF11)
RMII_TX_ENPF11 (P3, AF11)
RMII_TXD0PF12 (T1, AF11)
RMII_TXD1PF13 (R2, AF11)
TX_ERPF1 (P4, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPC1 (A9, AF12)
CKPC12 (C8, AF10)
CKINPH9 (D8, AF12)
CMDPH2 (E7, AF10)
D0PE15 (A12, AF10), PC8 (D7, AF10), PD11 (G14, AF10)
D0DIRPC6 (B9, AF12)
D1PC9 (C7, AF10)
D2PC10 (A8, AF10)
D3PC11 (B8, AF10)
D4PH9 (D8, AF10)
D5PC1 (A9, AF10)
D6PC6 (B9, AF10)
D7PC7 (C9, AF10)
D123DIRPC7 (C9, AF12)
SDMMC2CKPD2 (C12, AF11), PC2 (D9, AF11)
CMDPC3 (E10, AF11), PA0 (U10, AF11)
D0PC4 (A10, AF11), PB8 (D16, AF11)
D1PC5 (B10, AF11), PG8 (T14, AF11)
D2PC0 (C10, AF11), PB9 (D15, AF11)
D3PE4 (D10, AF11), PB4(NJTRST) (T12, AF11)
D4PH9 (D8, AF11)
D5PC1 (A9, AF11)
D6PC6 (B9, AF11), PB13 (C15, AF11)
D7PC7 (C9, AF11), PD5 (D14, AF11)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (F15, AF2)
CK2PB6 (E17, AF2)
D1PD2 (C12, AF2), PB2 (C16, AF2), PC2 (D9, AF2), PB7 (E16, AF2)
D2PB0 (E15, AF2)
D3PD12 (C13, AF2), PF10 (L4, AF2)
FS_APB0 (E15, AF6)
FS_BPG2 (T11, AF6)
MCLK_APE2 (F15, AF6), PG7 (L1, AF6)
MCLK_BPG12 (T9, AF6)
SCK_APC2 (D9, AF6), PB6 (E17, AF6)
SCK_BPG1 (R9, AF6), PG8 (T14, AF6)
SD_APD2 (C12, AF6), PB2 (C16, AF6), PB7 (E16, AF6)
SD_BPE3 (F14, AF6), PA3 (R14, AF6)
SAI2FS_APG13 (U9, AF10)
FS_BPE13 (A11, AF10), PD10 (A13, AF10), PQ5 (D5, AF10), PB8 (D16, AF10), PB3 (F13, AF10), PA12 (U7, AF10)
MCLK_APE0 (F16, AF10)
MCLK_BPE14 (B11, AF10), PB7 (E16, AF10), PQ7 (G5, AF10), PA1 (P9, AF10), PG2 (T11, AF10)
SCK_APD13 (C17, AF10)
SCK_BPE12 (B12, AF10), PQ2 (E3, AF10), PA2 (T8, AF10)
SD_APF5 (M3, AF10)
SD_BPQ6 (A2, AF10), PC5 (B10, AF10), PE7 (B13, AF10), PE11 (E11, AF10), PF11 (P3, AF10), PA0 (U10, AF10)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRX1IN0PB9 (D15, AF8), PC3 (E10, AF8)
IN1PE4 (D10, AF8), PD8 (E14, AF8)
IN2PD10 (A13, AF8), PB15 (D17, AF8)
IN3PD12 (C13, AF8), PB8 (D16, AF8)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (B8), PE11 (E11), PD11 (G14), PP11 (L15), PF11 (P3), PB11 (P10), PA11 (T7), PG11 (U13), PN11 (U16)
EXTI15PE15 (A12), PD15 (B14), PB15 (D17), PP15 (H17), PF15 (N1), PA15(JTDI) (P12), PG15 (R6)
INN1PA0 (U10)
INN2PF12 (T1)
INN3PG15 (R6)
INN4PB10 (U11)
INN5PF7 (M1)
INN10PA10 (R7)
INN11PA11 (T7)
INN12PA12 (U7)
INP0PA0 (U10)
INP1PA1 (P9)
INP2PF11 (P3)
INP3PA6 (P8)
INP4PB11 (P10)
INP5PA8 (U8)
INP6PF12 (T1)
INP7PG15 (R6)
INP8PB10 (U11)
INP9PF7 (M1)
INP10PA9 (P7)
INP11PA10 (R7)
INP12PA11 (T7)
INP13PA12 (U7)
INP14PA2 (T8)
INP15PF6 (L5)
INP16PF3 (M2)
INP18PF4 (L2)
ADC2EXTI11PC11 (B8), PE11 (E11), PD11 (G14), PP11 (L15), PF11 (P3), PB11 (P10), PA11 (T7), PG11 (U13), PN11 (U16)
EXTI15PE15 (A12), PD15 (B14), PB15 (D17), PP15 (H17), PF15 (N1), PA15(JTDI) (P12), PG15 (R6)
INN1PA0 (U10)
INN2PF14 (N2)
INN3PG15 (R6)
INN4PB10 (U11)
INN5PF7 (M1)
INN10PA10 (R7)
INN11PA11 (T7)
INN12PA12 (U7)
INP0PA0 (U10)
INP1PA1 (P9)
INP2PF13 (R2)
INP3PA6 (P8)
INP4PB11 (P10)
INP5PA8 (U8)
INP6PF14 (N2)
INP7PG15 (R6)
INP8PB10 (U11)
INP9PF7 (M1)
INP10PA9 (P7)
INP11PA10 (R7)
INP12PA11 (T7)
INP13PA12 (U7)
INP14PA2 (T8)
INP15PF6 (L5)
INP18PA5 (R8)

TIM — таймер

БлокСигналВыводы
TIM1BKINPC10 (A8, AF1), PE15 (A12, AF1), PA6 (P8, AF1), PB12 (R10, AF1)
BKIN2PD4 (B15, AF1), PB7 (E16, AF1), PG4 (P2, AF1)
CH1PE9 (A16, AF1), PC6 (B9, AF1), PB2 (C16, AF1), PD6 (D12, AF1), PA8 (U8, AF1)
CH1NPE8 (A15, AF1), PA7 (R12, AF1), PG10 (T10, AF1)
CH2PE11 (E11, AF1), PD7 (E12, AF1), PA9 (P7, AF1)
CH2NPC4 (A10, AF1), PE10 (B16, AF1), PE2 (F15, AF13), PF7 (M1, AF1)
CH3PE13 (A11, AF1), PD2 (C12, AF1), PF6 (L5, AF13), PA10 (R7, AF1)
CH3NPE12 (B12, AF1), PF2 (N4, AF1), PB1 (R11, AF1), PG8 (T14, AF1)
CH4PE14 (B11, AF1), PC12 (C8, AF1), PB0 (E15, AF1), PG15 (R6, AF1), PA11 (T7, AF1)
CH4NPD5 (D14, AF1), PB3 (F13, AF1), PG0 (R13, AF1)
ETRPD10 (A13, AF1), PE7 (B13, AF1), PD0 (D13, AF1), PH2 (E7, AF1), PF5 (M3, AF1), PG5 (M4, AF1), PA12 (U7, AF1)
TIM2CH1PA15(JTDI) (P12, AF1), PA5 (R8, AF1), PA0 (U10, AF1)
CH2PC0 (C10, AF1), PF14 (N2, AF1), PA1 (P9, AF1)
CH3PA2 (T8, AF1), PB10 (U11, AF1)
CH4PF6 (L5, AF1), PB11 (P10, AF1)
ETRPA15(JTDI) (P12, AF2), PA5 (R8, AF2)
TIM3CH1PC6 (B9, AF2), PA6 (P8, AF2), PB4(NJTRST) (T12, AF2)
CH2PC7 (C9, AF2), PA7 (R12, AF2), PB5(JTDO/TRACESWO) (U12, AF2)
CH3PC8 (D7, AF2), PF7 (M1, AF2)
CH4PC9 (C7, AF2), PB1 (R11, AF2)
ETRPH2 (E7, AF2)
TIM4CH1PE5 (C11, AF2), PG13 (U9, AF2)
CH2PD13 (C17, AF2), PE6 (D11, AF2)
CH3PH9 (D8, AF2), PF1 (P4, AF2)
CH4PC1 (A9, AF2), PF0 (R3, AF2)
ETRPE0 (F16, AF2)
TIM5CH1PA0 (U10, AF2)
CH2PA1 (P9, AF2)
CH3PA2 (T8, AF2)
CH4PF6 (L5, AF2)
ETRPF4 (L2, AF2)
TIM8BKINPQ1 (E4, AF2)
BKIN2PQ2 (E3, AF2)
CH1PQ3 (D3, AF2)
CH1NPQ4 (D4, AF2)
CH2PQ5 (D5, AF2)
CH2NPQ6 (A2, AF2)
CH3PQ7 (G5, AF2)
CH3NPB13 (C15, AF2)
CH4PG14 (P6, AF2)
CH4NPB14 (B17, AF2)
ETRPQ0 (E5, AF2)
TIM9CH1PC6 (B9, AF3), PF7 (M1, AF3), PA0 (U10, AF3)
CH2PC7 (C9, AF3), PA5 (R8, AF3), PB1 (R11, AF3)
TIM10CH1PA5 (R8, AF10)
TIM11CH1PA8 (U8, AF9)
TIM12CH1PC4 (A10, AF2), PG0 (R13, AF2)
CH2PG8 (T14, AF2)
TIM13CH1PA6 (P8, AF10), PG1 (R9, AF10)
TIM14CH1PA7 (R12, AF11), PG2 (T11, AF11)
TIM15BKINPH2 (E7, AF4), PE3 (F14, AF7), PA0 (U10, AF4)
CH1PC12 (C8, AF4), PB6 (E17, AF7), PA2 (T8, AF4)
CH1NPD2 (C12, AF7), PD7 (E12, AF4), PB0 (E15, AF7), PA1 (P9, AF4)
CH2PD6 (D12, AF4), PB7 (E16, AF7), PF6 (L5, AF4)
TIM16BKINPF10 (L4, AF1), PB4(NJTRST) (T12, AF1)
CH1PH9 (D8, AF1), PA3 (R14, AF1)
CH1NPC7 (C9, AF1), PE5 (C11, AF1), PG1 (R9, AF1)
TIM17BKINPG6 (L3, AF1), PB5(JTDO/TRACESWO) (U12, AF1)
CH1PC1 (A9, AF1), PG12 (T9, AF1)
CH1NPE6 (D11, AF1), PG2 (T11, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PB13 (C15, AF1), PD13 (C17, AF1)
CH2PB14 (B17, AF1), PF1 (P4, AF1)
ETRPE0 (F16, AF1), PG14 (P6, AF1)
IN1PE4 (D10, AF1), PG13 (U9, AF1)
IN2PB9 (D15, AF1), PE1 (F17, AF1)
LPTIM2CH1PF1 (P4, AF3), PG10 (T10, AF3)
CH2PC4 (A10, AF3), PE1 (F17, AF3)
ETRPE0 (F16, AF3), PB11 (P10, AF3)
IN1PG13 (U9, AF3), PB10 (U11, AF3)
IN2PF5 (M3, AF3), PB12 (R10, AF3)
LPTIM3CH1PF6 (L5, AF3)
CH2PF4 (L2, AF3)
ETRPA6 (P8, AF3)
IN1PA1 (P9, AF3)
IN2PA2 (T8, AF3)
LPTIM4ETRPB4(NJTRST) (T12, AF3)
IN1PC0 (C10, AF3)
OUTPB5(JTDO/TRACESWO) (U12, AF3)
LPTIM5ETRPE3 (F14, AF1)
IN1PE2 (F15, AF1)
OUTPF0 (R3, AF1)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (F3)
OUT2PB2 (C16, AF0)
REFINPG8 (T14, AF0)
TSPC13 (F3)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PD2 (C12, AF12)
A1PD6 (D12, AF12)
A2PD7 (E12, AF12)
A3PD10 (A13, AF12)
A4PE7 (B13, AF12)
A5PD12 (C13, AF12)
A6PD0 (D13, AF12)
A7PD1 (A14, AF12)
A8PD15 (B14, AF12)
A9PD14 (C14, AF12)
A10PD3 (E13, AF12)
A11PD4 (B15, AF12)
A12PE8 (A15, AF12)
A13PA4 (U14, AF12)
A14PE9 (A16, AF12)
A15PE10 (B16, AF12)
A16PD2 (C12, AF14), PG10 (T10, AF12)
A17PD6 (D12, AF14), PA3 (R14, AF12)
A18PD7 (E12, AF14), PG12 (T9, AF12)
A19PD10 (A13, AF14), PG1 (R9, AF12)
A20PE7 (B13, AF14), PG8 (T14, AF12)
A21PD12 (C13, AF14), PG2 (T11, AF12)
A22PD0 (D13, AF14), PO0 (M17, AF12), PN3 (R15, AF12)
A23PD1 (A14, AF14), PB3 (F13, AF14), PO1 (K16, AF12), PN2 (T17, AF12)
A24PO2 (K17, AF12), PO4 (N16, AF12), PN1 (R17, AF12)
A25PO5 (K15, AF12), PO3 (M16, AF12), PN0 (P17, AF12)
ALEPD6 (D12, AF14), PA3 (R14, AF12)
BA0PE9 (A16, AF12)
BA1PE10 (B16, AF12)
CLEPD2 (C12, AF14), PG10 (T10, AF12)
CLKPC10 (A8, AF12), PG15 (R6, AF12)
D0PB15 (D17, AF12), PA12 (U7, AF12)
D1PB8 (D16, AF12), PA11 (T7, AF12)
D2PB2 (C16, AF12), PA10 (R7, AF12)
D3PB9 (D15, AF12), PA9 (P7, AF12)
D4PD13 (C17, AF12), PA8 (U8, AF12)
D5PB13 (C15, AF12), PA2 (T8, AF12)
D6PD5 (D14, AF12), PA1 (P9, AF12)
D7PB14 (B17, AF12), PA0 (U10, AF12)
D8PC3 (E10, AF12), PD11 (G14, AF12), PG9 (T13, AF12)
D9PH9 (D8, AF14), PE0 (F16, AF12), PB12 (R10, AF12)
D10PE1 (F17, AF12), PB11 (P10, AF12)
D11PE2 (F15, AF12), PB10 (U11, AF12)
D12PE3 (F14, AF12), PB5(JTDO/TRACESWO) (U12, AF12)
D13PB0 (E15, AF12), PB4(NJTRST) (T12, AF12)
D14PC0 (C10, AF12), PB6 (E17, AF12)
D15PB7 (E16, AF12), PA15(JTDI) (P12, AF12)
D16PP0 (G17, AF12)
D17PP1 (H16, AF12)
D18PP2 (J17, AF12)
D19PP3 (J16, AF12)
D20PP4 (H15, AF12)
D21PP5 (J14, AF12)
D22PP6 (G16, AF12)
D23PP7 (G15, AF12)
D24PP8 (L16, AF12)
D25PP9 (N14, AF12)
D26PP10 (N15, AF12)
D27PP11 (L15, AF12)
D28PP12 (J15, AF12)
D29PP13 (K14, AF12)
D30PP14 (L17, AF12)
D31PP15 (H17, AF12)
DA0PB15 (D17, AF12), PA12 (U7, AF12)
DA1PB8 (D16, AF12), PA11 (T7, AF12)
DA2PB2 (C16, AF12), PA10 (R7, AF12)
DA3PB9 (D15, AF12), PA9 (P7, AF12)
DA4PD13 (C17, AF12), PA8 (U8, AF12)
DA5PB13 (C15, AF12), PA2 (T8, AF12)
DA6PD5 (D14, AF12), PA1 (P9, AF12)
DA7PB14 (B17, AF12), PA0 (U10, AF12)
DA8PC3 (E10, AF12), PD11 (G14, AF12), PG9 (T13, AF12)
DA9PH9 (D8, AF14), PE0 (F16, AF12), PB12 (R10, AF12)
DA10PE1 (F17, AF12), PB11 (P10, AF12)
DA11PE2 (F15, AF12), PB10 (U11, AF12)
DA12PE3 (F14, AF12), PB5(JTDO/TRACESWO) (U12, AF12)
DA13PB0 (E15, AF12), PB4(NJTRST) (T12, AF12)
DA14PC0 (C10, AF12), PB6 (E17, AF12)
DA15PB7 (E16, AF12), PA15(JTDI) (P12, AF12)
NBL0PD8 (E14, AF12)
NBL1PB3 (F13, AF12)
NBL2PO4 (N16, AF14)
NBL3PO5 (K15, AF14)
NCEPG14 (P6, AF10)
NE1PC4 (A10, AF12), PG13 (U9, AF12)
NE2PG14 (P6, AF12)
NE3PC2 (D9, AF12), PH2 (E7, AF12), PF5 (M3, AF12)
NE4PC8 (D7, AF12)
NLPC12 (C8, AF12), PF3 (M2, AF12)
NOEPA5 (R8, AF12), PB1 (R11, AF12)
NWAITPF2 (N4, AF12)
NWEPC5 (B10, AF12), PE14 (B11, AF14), PF8 (N3, AF12)
SDCKE0PE15 (A12, AF12)
SDCKE1PE6 (D11, AF12)
SDCLKPD9 (H14, AF12)
SDNCASPE13 (A11, AF12)
SDNE0PE14 (B11, AF12)
SDNE1PE5 (C11, AF12)
SDNRASPE12 (B12, AF12)
SDNWEPE11 (E11, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PD7 (E12, AF9), PA9 (P7, AF9), PA1 (P9, AF9)
D1PC6 (B9, AF9), PC7 (C9, AF9), PE6 (D11, AF10), PA10 (R7, AF9)
D2PC5 (B10, AF9), PC8 (D7, AF9), PC3 (E10, AF9), PE0 (F16, AF9), PG10 (T10, AF9)
D3PE10 (B16, AF9), PC9 (C7, AF9), PB9 (D15, AF9), PA4 (U14, AF9)
D4PE8 (A15, AF9), PC11 (B8, AF9), PB0 (E15, AF9), PG15 (R6, AF9)
D5PE5 (C11, AF9), PE4 (D10, AF9), PN9 (T15, AF10)
D6PH9 (D8, AF9), PB6 (E17, AF9), PF5 (M3, AF9), PG2 (T11, AF9)
D7PC1 (A9, AF9), PB7 (E16, AF9), PF1 (P4, AF9)
D8PE1 (F17, AF9), PA5 (R8, AF9)
D9PD4 (B15, AF9), PC12 (C8, AF9), PF0 (R3, AF9)
D10PB14 (B17, AF9), PF13 (R2, AF9), PB5(JTDO/TRACESWO) (U12, AF9)
D11PH2 (E7, AF9), PD8 (E14, AF9), PD9 (H14, AF9), PF10 (L4, AF9), PG14 (P6, AF9)
D12PD12 (C13, AF9), PG6 (L3, AF9), PG13 (U9, AF9)
D13PD13 (C17, AF9), PC2 (D9, AF9), PG7 (L1, AF9), PF12 (T1, AF9)
HSYNCPC0 (C10, AF9), PD0 (D13, AF9), PF4 (L2, AF9), PF3 (M2, AF9), PG3 (R1, AF9)
PIXCLKPD5 (D14, AF9), PA6 (P8, AF9), PG1 (R9, AF9)
VSYNCPE6 (D11, AF9), PB8 (D16, AF9), PB4(NJTRST) (T12, AF9)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PD7 (E12, AF9), PA9 (P7, AF9), PA1 (P9, AF9)
D1PC6 (B9, AF9), PC7 (C9, AF9), PE6 (D11, AF10), PA10 (R7, AF9)
D2PC5 (B10, AF9), PC8 (D7, AF9), PC3 (E10, AF9), PE0 (F16, AF9), PG10 (T10, AF9)
D3PE10 (B16, AF9), PC9 (C7, AF9), PB9 (D15, AF9), PA4 (U14, AF9)
D4PE8 (A15, AF9), PC11 (B8, AF9), PB0 (E15, AF9), PG15 (R6, AF9)
D5PE5 (C11, AF9), PE4 (D10, AF9), PN9 (T15, AF10)
D6PH9 (D8, AF9), PB6 (E17, AF9), PF5 (M3, AF9), PG2 (T11, AF9)
D7PC1 (A9, AF9), PB7 (E16, AF9), PF1 (P4, AF9)
D8PE1 (F17, AF9), PA5 (R8, AF9)
D9PD4 (B15, AF9), PC12 (C8, AF9), PF0 (R3, AF9)
D10PB14 (B17, AF9), PF13 (R2, AF9), PB5(JTDO/TRACESWO) (U12, AF9)
D11PH2 (E7, AF9), PD8 (E14, AF9), PD9 (H14, AF9), PF10 (L4, AF9), PG14 (P6, AF9)
D12PD12 (C13, AF9), PG6 (L3, AF9), PG13 (U9, AF9)
D13PD13 (C17, AF9), PC2 (D9, AF9), PG7 (L1, AF9), PF12 (T1, AF9)
D14PC10 (A8, AF9), PD3 (E13, AF9)
D15PD11 (G14, AF9), PF10 (L4, AF10), PF11 (P3, AF9)
DEPC0 (C10, AF9), PD0 (D13, AF9), PF4 (L2, AF9), PF3 (M2, AF9), PG3 (R1, AF9)
PDCKPD5 (D14, AF9), PA6 (P8, AF9), PG1 (R9, AF9)
RDYPE6 (D11, AF9), PB8 (D16, AF9), PB4(NJTRST) (T12, AF9)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PC8 (D7, AF14), PG4 (P2, AF14), PF11 (P3, AF14), PG15 (R6, AF14)
B1PG5 (M4, AF14), PF2 (N4, AF14), PG14 (P6, AF14), PA7 (R12, AF14)
B2PB2 (C16, AF14), PA12 (U7, AF14)
B3PC9 (C7, AF14), PG6 (L3, AF14), PA11 (T7, AF14)
B4PH3 (B1, AF14), PO4 (N16, AF10), PA10 (R7, AF14), PN10 (U15, AF14)
B5PH6 (B2, AF14), PP15 (H17, AF14), PA9 (P7, AF14)
B6PA8 (U8, AF14), PN11 (U16, AF14)
B7PO2 (K17, AF14), PA6 (P8, AF12), PA2 (T8, AF14)
CLKPB13 (C15, AF14), PA5 (R8, AF14)
DEPC4 (A10, AF14), PF6 (L5, AF14), PG13 (U9, AF14)
G0PF5 (M3, AF14), PF14 (N2, AF14), PG12 (T9, AF14)
G1PE4 (D10, AF14), PF15 (N1, AF14), PG1 (R9, AF14)
G2PA1 (P9, AF14)
G3PO3 (M16, AF14), PA0 (U10, AF14)
G4PB15 (D17, AF14), PG10 (T10, AF14)
G5PB12 (R10, AF14)
G6PB11 (P10, AF14)
G7PG8 (T14, AF14), PB10 (U11, AF14)
HSYNCPB14 (B17, AF14), PF9 (P1, AF14), PA6 (P8, AF14)
R0PG0 (R13, AF14), PG2 (T11, AF14)
R1PD9 (H14, AF14), PF10 (L4, AF14), PB1 (R11, AF14)
R2PD15 (B14, AF14), PB5(JTDO/TRACESWO) (U12, AF14)
R3PF4 (L2, AF14), PB4(NJTRST) (T12, AF14)
R4PC0 (C10, AF14), PH4 (F4, AF14), PF3 (M2, AF14), PA7 (R12, AF10)
R5PA15(JTDI) (P12, AF14)
R6PD13 (C17, AF14), PF8 (N3, AF14), PG11 (U13, AF14)
R7PD8 (E14, AF14), PG9 (T13, AF14)
VSYNCPC4 (A10, AF10), PE11 (E11, AF14), PF7 (M1, AF14), PG0 (R13, AF10)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PE2 (F15, AF4)
CCK1PB6 (E17, AF4)
CKI0PE7 (B13, AF4)
CKI1PC0 (C10, AF4), PB3 (F13, AF4)
CKI2PE3 (F14, AF4)
CKI3PD10 (A13, AF4)
CKI4PE9 (A16, AF4)
CKI5PE11 (E11, AF4)
SDI0PE8 (A15, AF4)
SDI1PD2 (C12, AF4), PB2 (C16, AF4), PC2 (D9, AF4), PB7 (E16, AF4)
SDI2PB0 (E15, AF4)
SDI3PD12 (C13, AF4), PF10 (L4, AF4)
SDI4PE10 (B16, AF4)
SDI5PE12 (B12, AF4)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PE13 (A11, AF3), PE2 (F15, AF3)
CCK1PE14 (B11, AF3), PB6 (E17, AF3)
SDI0PD2 (C12, AF3), PB2 (C16, AF3), PC2 (D9, AF3), PB0 (E15, AF3), PB7 (E16, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14(JTCK/SWCLK) (T6, AF0)
JTDIPA15(JTDI) (P12, AF0)
JTDO-SWOPB5(JTDO/TRACESWO) (U12, AF0)
JTMS-SWDIOPA13(JTMS/SWDIO) (U6, AF0)
NJTRSTPB4(NJTRST) (T12, AF0)
TRACECLKPD10 (A13, AF0), PH3 (B1, AF0), PE10 (B16, AF0), PQ0 (E5, AF0), PB3 (F13, AF0), PE2 (F15, AF0), PG7 (L1, AF0), PF8 (N3, AF0)
TRACED0PD2 (C12, AF0), PB13 (C15, AF0), PE3 (F14, AF0), PF9 (P1, AF0)
TRACED1PC8 (D7, AF0), PB0 (E15, AF0), PG14 (P6, AF0), PG3 (R1, AF0)
TRACED2PH2 (E7, AF0), PB6 (E17, AF0)
TRACED3PC12 (C8, AF0), PB7 (E16, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (U8, AF0)
MCO_2PC9 (C7, AF0)
OSC_INPH0-OSC_IN (A7)
OSC_OUTPH1-OSC_OUT (B7)
OSC32_INPC14-OSC32_IN(OSC32_IN) (D1)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (C1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPA10 (R7, AF0)
PWR_CSTOPPA5 (R8, AF0)
PWR_WKUP1PA0 (U10)
PWR_WKUP2PA2 (T8)
PWR_WKUP3PC13 (F3)
PWR_WKUP4PD2 (C12)
TAMP_IN1PC13 (F3)
TAMP_IN2PQ7 (G5)
TAMP_IN3PD8 (E14)
TAMP_IN4PH4 (F4)
TAMP_IN5PD9 (H14)
TAMP_IN6PE0 (F16)
TAMP_IN7PD4 (B15)
TAMP_OUT1PQ7 (G5)
TAMP_OUT2PC13 (F3)
TAMP_OUT3PH4 (F4)
TAMP_OUT4PD8 (E14)
TAMP_OUT5PE0 (F16)
TAMP_OUT6PD9 (H14)
TAMP_OUT8PD4 (B15)

Блоки без собственных выводов: XSPI1 (расширенный SPI для памяти), XSPI2 (расширенный SPI для памяти), XSPI3 (расширенный SPI для памяти), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), TIM18 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), CRYP (криптографический процессор), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), DMA2D (графический ускоритель Chrom-ART).

Таблица выводов

Все 264 шарика корпуса VFBGA264 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PDR_ONслужебный—
A2PQ6ввод-выводSAI2_SD_B (AF10), TIM8_CH2N (AF2)
A3OTG2_HSDMслужебныйUSB2_OTG_HS_DM
A4VDD33USBпитание—
A5OTG1_HSDMслужебныйUSB1_OTG_HS_DM
A6UCPD1_CC1служебныйUCPD1_CC1
A7PH0-OSC_INввод-выводRCC_OSC_IN
A8PC10ввод-выводDCMIPP_D14 (AF9), FMC_CLK (AF12), HDP_HDP2 (AF15), I2C4_SCL (AF4), I2S3_CK (AF6), I3C2_SCL (AF2), PSSI_D14 (AF9), SDMMC1_D2 (AF10), SPI3_SCK (AF6), TIM1_BKIN (AF1), UART4_TX (AF8), USART3_TX (AF7)
A9PC1ввод-выводDCMIPP_D7 (AF9), DCMI_D7 (AF9), FDCAN1_TX (AF6), HDP_HDP1 (AF15), I2C1_SDA (AF4), I2S2_WS (AF5), I3C1_SDA (AF7), PSSI_D7 (AF9), SDMMC1_CDIR (AF12), SDMMC1_D5 (AF10), SDMMC2_D5 (AF11), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
A10PC4ввод-выводFMC_NE1 (AF12), HDP_HDP6 (AF15), I2S2_SDI (AF5), LPTIM2_CH2 (AF3), LTDC_DE (AF14), LTDC_VSYNC (AF10), SDMMC2_D0 (AF11), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), UART4_DE (AF8), UART4_RTS (AF8), USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
A11PE13ввод-выводADF1_CCK0 (AF3), FMC_SDNCAS (AF12), I2C4_SCL (AF4), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
A12PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_SDCKE0 (AF12), GFXTIM_FCKCAL (AF13), GFXTIM_LCKCAL (AF2), I2C4_SMBA (AF4), SDMMC1_D0 (AF10), SPI5_SCK (AF5), TIM1_BKIN (AF1), USART10_CK (AF6), USART2_CK (AF7)
A13PD10ввод-выводDEBUG_TRACECLK (AF0), FMC_A3 (AF12), FMC_A19 (AF14), GFXTIM_TE (AF13), HDP_HDP4 (AF15), I2S1_MCK (AF5), MDF1_CKI3 (AF4), SAI2_FS_B (AF10), SPDIFRX1_IN2 (AF8), TIM1_ETR (AF1), UCPD1_FRSTX1 (AF6)
A14PD1ввод-выводETH1_MDC (AF11), FDCAN1_TX (AF6), FMC_A7 (AF12), FMC_A23 (AF14), UART4_TX (AF8)
A15PE8ввод-выводDCMIPP_D4 (AF9), DCMI_D4 (AF9), FMC_A12 (AF12), MDF1_SDI0 (AF4), PSSI_D4 (AF9), TIM1_CH1N (AF1), UART7_TX (AF8), USART3_TX (AF7)
A16PE9ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), MDF1_CKI4 (AF4), TIM1_CH1 (AF1), UART7_DE (AF8), UART7_RTS (AF8)
A17VSSпитание—
B1PH3ввод-выводDEBUG_TRACECLK (AF0), LTDC_B4 (AF14), UART7_TX (AF8)
B2PH6ввод-выводLTDC_B5 (AF14), SPI5_NSS (AF5)
B3OTG2_HSDPслужебныйUSB2_OTG_HS_DP
B4NCне подключён—
B5OTG1_HSDPслужебныйUSB1_OTG_HS_DP
B6UCPD1_CC2служебныйUCPD1_CC2
B7PH1-OSC_OUTввод-выводRCC_OSC_OUT
B8PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMIPP_D4 (AF9), DCMI_D4 (AF9), HDP_HDP3 (AF15), I2C4_SDA (AF4), I2S3_SDI (AF6), I3C2_SDA (AF2), PSSI_D4 (AF9), SDMMC1_D3 (AF10), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
B9PC6ввод-выводDCMIPP_D1 (AF9), DCMI_D1 (AF9), HDP_HDP6 (AF15), I2S2_MCK (AF5), PSSI_D1 (AF9), SDMMC1_D0DIR (AF12), SDMMC1_D6 (AF10), SDMMC2_D6 (AF11), TIM1_CH1 (AF1), TIM3_CH1 (AF2), TIM9_CH1 (AF3), USART6_TX (AF7)
B10PC5ввод-выводDCMIPP_D2 (AF9), DCMI_D2 (AF9), FMC_NWE (AF12), I2S1_WS (AF5), PSSI_D2 (AF9), SAI2_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5)
B11PE14ввод-выводADF1_CCK1 (AF3), FMC_NWE (AF14), FMC_SDNE0 (AF12), GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF13), I2C4_SDA (AF4), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
B12PE12ввод-выводFDCAN3_RX (AF6), FMC_SDNRAS (AF12), MDF1_SDI5 (AF4), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
B13PE7ввод-выводFMC_A4 (AF12), FMC_A20 (AF14), MDF1_CKI0 (AF4), SAI2_SD_B (AF10), TIM1_ETR (AF1), UART7_RX (AF8)
B14PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_A8 (AF12), I2C2_SDA (AF4), LTDC_R2 (AF14), USART10_TX (AF6)
B15PD4ввод-выводDCMIPP_D9 (AF9), DCMI_D9 (AF9), FMC_A11 (AF12), I2C2_SDA (AF4), PSSI_D9 (AF9), SPI5_MISO (AF5), TAMP_IN7, TAMP_OUT8, TIM1_BKIN2 (AF1), USART6_DE (AF7), USART6_RTS (AF7)
B16PE10ввод-выводDCMIPP_D3 (AF9), DCMI_D3 (AF9), DEBUG_TRACECLK (AF0), FMC_A15 (AF12), FMC_BA1 (AF12), MDF1_SDI4 (AF4), PSSI_D3 (AF9), TIM1_CH2N (AF1), UART7_CTS (AF8), USART3_RX (AF7)
B17PB14ввод-выводDCMIPP_D10 (AF9), DCMI_D10 (AF9), FMC_D7 (AF12), FMC_DA7 (AF12), LPTIM1_CH2 (AF1), LTDC_HSYNC (AF14), PSSI_D10 (AF9), TIM8_CH4N (AF2), USART10_CK (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
C1PC15-OSC32_OUT(OSC32_OUT)ввод-выводRCC_OSC32_OUT
C2PH8ввод-выводI3C2_SDA (AF2), SPI5_MISO (AF5)
C3OTG1_IDслужебныйUSB1_OTG_HS_ID
C4NCне подключён—
C5VDDA18USBпитание—
C6OTG1_TXRTUNEслужебный—
C7PC9ввод-выводAUDIOCLK (AF5), DCMIPP_D3 (AF9), DCMI_D3 (AF9), HDP_HDP1 (AF15), I2C3_SDA (AF4), LTDC_B3 (AF14), PSSI_D3 (AF9), RCC_MCO_2 (AF0), SDMMC1_D1 (AF10), TIM3_CH4 (AF2), UART5_CTS (AF11), UCPD1_FRSTX2 (AF6), USART6_RX (AF7)
C8PC12ввод-выводDCMIPP_D9 (AF9), DCMI_D9 (AF9), DEBUG_TRACED3 (AF0), FMC_NL (AF12), HDP_HDP4 (AF15), I2S3_SDO (AF6), I2S6_CK (AF5), PSSI_D9 (AF9), SDMMC1_CK (AF10), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF4), TIM1_CH4 (AF1), UART5_TX (AF11), USART3_CK (AF7)
C9PC7ввод-выводDCMIPP_D1 (AF9), DCMI_D1 (AF9), DEBUG_TRGIO (AF0), HDP_HDP7 (AF15), I2S3_MCK (AF6), PSSI_D1 (AF9), SDMMC1_D123DIR (AF12), SDMMC1_D7 (AF10), SDMMC2_D7 (AF11), TIM16_CH1N (AF1), TIM3_CH2 (AF2), TIM9_CH2 (AF3), USART6_RX (AF7)
C10PC0ввод-выводDCMIPP_HSYNC (AF9), DCMI_HSYNC (AF9), FMC_D14 (AF12), FMC_DA14 (AF12), HDP_HDP3 (AF15), I2S1_CK (AF5), I2S3_CK (AF6), I2S6_CK (AF8), LPTIM4_IN1 (AF3), LTDC_R4 (AF14), MDF1_CKI1 (AF4), PSSI_DE (AF9), SDMMC2_D2 (AF11), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART7_RX (AF10)
C11PE5ввод-выводDCMIPP_D5 (AF9), DCMI_D5 (AF9), FDCAN2_TX (AF6), FMC_SDNE1 (AF12), HDP_HDP6 (AF15), I2C1_SCL (AF4), I3C1_SCL (AF5), LPUART1_TX (AF3), PSSI_D5 (AF9), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF11), USART1_TX (AF7)
C12PD2ввод-выводADF1_SDI0 (AF3), DEBUG_TRACED0 (AF0), FMC_A0 (AF12), FMC_A16 (AF14), FMC_CLE (AF14), HDP_HDP1 (AF15), I2S2_SDO (AF5), MDF1_SDI1 (AF4), MDIOS_MDC (AF10), PWR_WKUP4, SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI2_MOSI (AF5), TIM15_CH1N (AF7), TIM1_CH3 (AF1)
C13PD12ввод-выводDCMIPP_D12 (AF9), DCMI_D12 (AF9), ETH1_MDIO (AF11), FMC_A5 (AF12), FMC_A21 (AF14), HDP_HDP5 (AF15), MDF1_SDI3 (AF4), PSSI_D12 (AF9), SAI1_D3 (AF2), SPDIFRX1_IN3 (AF8), UCPD1_FRSTX2 (AF6)
C14PD14ввод-выводFMC_A9 (AF12), I2C2_SCL (AF4), USART10_RX (AF6)
C15PB13ввод-выводDEBUG_TRACED0 (AF0), FMC_D5 (AF12), FMC_DA5 (AF12), I2S6_CK (AF5), LPTIM1_CH1 (AF1), LTDC_CLK (AF14), SDMMC2_D6 (AF11), SPI6_SCK (AF5), TIM8_CH3N (AF2), USART10_CTS (AF6), USART10_NSS (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
C16PB2ввод-выводADF1_SDI0 (AF3), FMC_D2 (AF12), FMC_DA2 (AF12), HDP_HDP2 (AF15), I2S3_SDO (AF7), LTDC_B2 (AF14), MDF1_SDI1 (AF4), RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SPI3_MOSI (AF7), TIM1_CH1 (AF1)
C17PD13ввод-выводDCMIPP_D13 (AF9), DCMI_D13 (AF9), FMC_D4 (AF12), FMC_DA4 (AF12), LPTIM1_CH1 (AF1), LTDC_R6 (AF14), PSSI_D13 (AF9), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF7), UART9_RTS (AF7), UCPD1_FRSTX2 (AF6)
D1PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
D2PH7ввод-выводI3C2_SCL (AF2), SPI5_MOSI (AF5)
D3PQ3ввод-выводTIM8_CH1 (AF2)
D4PQ4ввод-выводTIM8_CH1N (AF2)
D5PQ5ввод-выводSAI2_FS_B (AF10), TIM8_CH2 (AF2)
D6OTG2_TXRTUNEслужебный—
D7PC8ввод-выводDCMIPP_D2 (AF9), DCMI_D2 (AF9), DEBUG_TRACED1 (AF0), FMC_NE4 (AF12), HDP_HDP0 (AF15), I2C3_SMBA (AF4), LTDC_B0 (AF14), PSSI_D2 (AF9), SDMMC1_D0 (AF10), TIM3_CH3 (AF2), UART5_DE (AF11), UART5_RTS (AF11), UCPD1_FRSTX1 (AF6), USART6_CK (AF7)
D8PH9ввод-выводDCMIPP_D6 (AF9), DCMI_D6 (AF9), FDCAN1_RX (AF6), FMC_D9 (AF14), FMC_DA9 (AF14), HDP_HDP0 (AF15), I2C1_SCL (AF4), I3C1_SCL (AF7), PSSI_D6 (AF9), SDMMC1_CKIN (AF12), SDMMC1_D4 (AF10), SDMMC2_D4 (AF11), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8), USART3_CK (AF3)
D9PC2ввод-выводADF1_SDI0 (AF3), DCMIPP_D13 (AF9), DCMI_D13 (AF9), FMC_NE3 (AF12), I2S3_SDO (AF5), MDF1_SDI1 (AF4), PSSI_D13 (AF9), SAI1_D1 (AF2), SAI1_SCK_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
D10PE4ввод-выводDCMIPP_D5 (AF9), DCMI_D5 (AF9), I2S6_SDI (AF5), LPTIM1_IN1 (AF1), LTDC_G1 (AF14), PSSI_D5 (AF9), SDMMC2_D3 (AF11), SPDIFRX1_IN1 (AF8), SPI6_MISO (AF5), USART10_RX (AF6), USART6_DE (AF7), USART6_RTS (AF7)
D11PE6ввод-выводDCMIPP_D1 (AF10), DCMIPP_VSYNC (AF9), DCMI_D1 (AF10), DCMI_VSYNC (AF9), FMC_SDCKE1 (AF12), HDP_HDP7 (AF15), I2C1_SDA (AF4), I3C1_SDA (AF5), LPUART1_RX (AF3), PSSI_D1 (AF10), PSSI_RDY (AF9), TIM17_CH1N (AF1), TIM4_CH2 (AF2), UART5_TX (AF11), USART1_RX (AF7)
D12PD6ввод-выводFMC_A1 (AF12), FMC_A17 (AF14), FMC_ALE (AF14), HDP_HDP2 (AF15), I2S2_SDI (AF5), SPI2_MISO (AF5), TIM15_CH2 (AF4), TIM1_CH1 (AF1)
D13PD0ввод-выводDCMIPP_HSYNC (AF9), DCMI_HSYNC (AF9), FDCAN1_RX (AF6), FMC_A6 (AF12), FMC_A22 (AF14), PSSI_DE (AF9), TIM1_ETR (AF1), UART4_RX (AF8), UART9_CTS (AF7)
D14PD5ввод-выводDCMIPP_PIXCLK (AF9), DCMI_PIXCLK (AF9), FMC_D6 (AF12), FMC_DA6 (AF12), PSSI_PDCK (AF9), SDMMC2_D7 (AF11), TIM1_CH4N (AF1), USART2_TX (AF7)
D15PB9ввод-выводDCMIPP_D3 (AF9), DCMI_D3 (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2S1_CK (AF5), LPTIM1_IN2 (AF1), PSSI_D3 (AF9), SDMMC2_D2 (AF11), SPDIFRX1_IN0 (AF8), SPI1_SCK (AF5), USART10_TX (AF6)
D16PB8ввод-выводDCMIPP_VSYNC (AF9), DCMI_VSYNC (AF9), FMC_D1 (AF12), FMC_DA1 (AF12), I2S1_SDI (AF5), PSSI_RDY (AF9), SAI2_FS_B (AF10), SDMMC2_D0 (AF11), SPDIFRX1_IN3 (AF8), SPI1_MISO (AF5), USART6_RX (AF7)
D17PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D0 (AF12), FMC_DA0 (AF12), I2S6_WS (AF5), LTDC_G4 (AF14), SPDIFRX1_IN2 (AF8), SPI6_NSS (AF5), USART6_DE (AF7), USART6_RTS (AF7)
E1VBATпитание—
E2PWR_ONслужебный—
E3PQ2ввод-выводSAI2_SCK_B (AF10), TIM8_BKIN2 (AF2)
E4PQ1ввод-выводTIM8_BKIN (AF2)
E5PQ0ввод-выводDEBUG_TRACECLK (AF0), TIM8_ETR (AF2)
E6OTG2_IDслужебныйUSB2_OTG_HS_ID
E7PH2ввод-выводDCMIPP_D11 (AF9), DCMI_D11 (AF9), DEBUG_TRACED2 (AF0), FDCAN1_TX (AF6), FMC_NE3 (AF12), PSSI_D11 (AF9), SDMMC1_CMD (AF10), TIM15_BKIN (AF4), TIM1_ETR (AF1), TIM3_ETR (AF2), UART5_RX (AF11)
E8VDDIO4питание—
E9VDDIO5питание—
E10PC3ввод-выводDCMIPP_D2 (AF9), DCMI_D2 (AF9), FMC_D8 (AF12), FMC_DA8 (AF12), I2S1_SDO (AF5), PSSI_D2 (AF9), SDMMC2_CMD (AF11), SPDIFRX1_IN0 (AF8), SPI1_MOSI (AF5), USART2_CK (AF7)
E11PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN3_TX (AF6), FMC_SDNWE (AF12), LTDC_VSYNC (AF14), MDF1_CKI5 (AF4), SAI2_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
E12PD7ввод-выводDCMIPP_D0 (AF9), DCMI_D0 (AF9), FMC_A2 (AF12), FMC_A18 (AF14), HDP_HDP3 (AF15), I2S2_SDO (AF5), I2S3_WS (AF6), PSSI_D0 (AF9), SPI2_MOSI (AF5), SPI3_NSS (AF6), TIM15_CH1N (AF4), TIM1_CH2 (AF1)
E13PD3ввод-выводDCMIPP_D14 (AF9), ETH1_PHY_INTN (AF11), FMC_A10 (AF12), I2C2_SMBA (AF4), PSSI_D14 (AF9), USART10_RX (AF6), USART6_CTS (AF7)
E14PD8ввод-выводDCMIPP_D11 (AF9), DCMI_D11 (AF9), FMC_NBL0 (AF12), LTDC_R7 (AF14), PSSI_D11 (AF9), SPDIFRX1_IN1 (AF8), TAMP_IN3, TAMP_OUT4, USART3_TX (AF7)
E15PB0ввод-выводADF1_SDI0 (AF3), DCMIPP_D4 (AF9), DCMI_D4 (AF9), DEBUG_TRACED1 (AF0), FMC_D13 (AF12), FMC_DA13 (AF12), MDF1_SDI2 (AF4), PSSI_D4 (AF9), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TIM15_CH1N (AF7), TIM1_CH4 (AF1)
E16PB7ввод-выводADF1_SDI0 (AF3), DCMIPP_D7 (AF9), DCMI_D7 (AF9), DEBUG_TRACED3 (AF0), FMC_D15 (AF12), FMC_DA15 (AF12), MDF1_SDI1 (AF4), PSSI_D7 (AF9), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM15_CH2 (AF7), TIM1_BKIN2 (AF1)
E17PB6ввод-выводADF1_CCK1 (AF3), DCMIPP_D6 (AF9), DCMI_D6 (AF9), DEBUG_TRACED2 (AF0), FMC_D14 (AF12), FMC_DA14 (AF12), MDF1_CCK1 (AF4), PSSI_D6 (AF9), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TIM15_CH1 (AF7)
F1V08CAPпитание—
F2VSSAPMUпитание—
F3PC13ввод-выводHDP_HDP5 (AF15), PWR_WKUP3, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2
F4PH4ввод-выводLTDC_R4 (AF14), TAMP_IN4, TAMP_OUT3, UART7_TX (AF8)
F5PH5ввод-выводETH1_MDC (AF11), SPI5_SCK (AF5)
F6VDDA18AONпитание—
F7VSSпитание—
F8VDDIO4питание—
F9VDDIO5питание—
F10VSSпитание—
F11VSSпитание—
F12VSSпитание—
F13PB3ввод-выводDEBUG_TRACECLK (AF0), FMC_A23 (AF14), FMC_NBL1 (AF12), GFXTIM_FCKCAL (AF2), GFXTIM_LCKCAL (AF13), HDP_HDP0 (AF15), MDF1_CKI1 (AF4), SAI2_FS_B (AF10), TIM1_CH4N (AF1), USART1_CK (AF7)
F14PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_D12 (AF12), FMC_DA12 (AF12), LPTIM5_ETR (AF1), MDF1_CKI2 (AF4), SAI1_SD_B (AF6), TIM15_BKIN (AF7)
F15PE2ввод-выводADF1_CCK0 (AF3), DEBUG_TRACECLK (AF0), FMC_D11 (AF12), FMC_DA11 (AF12), LPTIM5_IN1 (AF1), MDF1_CCK0 (AF4), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), TIM1_CH2N (AF13), UCPD1_FRSTX1 (AF7)
F16PE0ввод-выводDCMIPP_D2 (AF9), DCMI_D2 (AF9), FMC_D9 (AF12), FMC_DA9 (AF12), LPTIM1_ETR (AF1), LPTIM2_ETR (AF3), PSSI_D2 (AF9), SAI2_MCLK_A (AF10), TAMP_IN6, TAMP_OUT5, TIM4_ETR (AF2), UART8_RX (AF8), USART3_RX (AF7)
F17PE1ввод-выводDCMIPP_D8 (AF9), DCMI_D8 (AF9), FMC_D10 (AF12), FMC_DA10 (AF12), LPTIM1_IN2 (AF1), LPTIM2_CH2 (AF3), PSSI_D8 (AF9), UART8_TX (AF8), USART3_TX (AF7)
G1VDDA18PMUпитание—
G2VFBSMPSпитание—
G3NRSTсброс—
G4BOOT0загрузка—
G5PQ7ввод-выводSAI2_MCLK_B (AF10), TAMP_IN2, TAMP_OUT1, TIM8_CH3 (AF2)
G6VSSAONпитание—
G12VSSпитание—
G13VDDпитание—
G14PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMIPP_D15 (AF9), FMC_D8 (AF12), FMC_DA8 (AF12), I2C4_SDA (AF4), I2S2_SDI (AF5), PSSI_D15 (AF9), SDMMC1_D0 (AF10), SPI2_MISO (AF5), UCPD1_FRSTX1 (AF6)
G15PP7ввод-выводFMC_D23 (AF12), XSPIM_P1_IO7 (AF9)
G16PP6ввод-выводFMC_D22 (AF12), XSPIM_P1_IO6 (AF9)
G17PP0ввод-выводFMC_D16 (AF12), XSPIM_P1_IO0 (AF9)
H1VSSSMPSпитание—
H2VSSSMPSпитание—
H3VSSSMPSпитание—
H4VSSSMPSпитание—
H5VSSSMPSпитание—
H6VSSSMPSпитание—
H12VDDпитание—
H13VDDпитание—
H14PD9ввод-выводDCMIPP_D11 (AF9), DCMI_D11 (AF9), FMC_SDCLK (AF12), LTDC_R1 (AF14), PSSI_D11 (AF9), TAMP_IN5, TAMP_OUT6, USART3_RX (AF7)
H15PP4ввод-выводFMC_D20 (AF12), XSPIM_P1_IO4 (AF9)
H16PP1ввод-выводFMC_D17 (AF12), XSPIM_P1_IO1 (AF9)
H17PP15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D31 (AF12), LTDC_B5 (AF14), XSPIM_P1_IO15 (AF9)
J1VLXSMPSпитание—
J2VLXSMPSпитание—
J3VLXSMPSпитание—
J4VLXSMPSпитание—
J5VLXSMPSпитание—
J6VLXSMPSпитание—
J12VDDпитание—
J13VDDпитание—
J14PP5ввод-выводFMC_D21 (AF12), XSPIM_P1_IO5 (AF9)
J15PP12ввод-выводFMC_D28 (AF12), XSPIM_P1_IO12 (AF9)
J16PP3ввод-выводFMC_D19 (AF12), XSPIM_P1_IO3 (AF9)
J17PP2ввод-выводFMC_D18 (AF12), XSPIM_P1_IO2 (AF9)
K1VDDSMPSпитание—
K2VDDSMPSпитание—
K3VDDSMPSпитание—
K4VDDSMPSпитание—
K5VDDSMPSпитание—
K6VDDSMPSпитание—
K12VSSпитание—
K13VDDпитание—
K14PP13ввод-выводFMC_D29 (AF12), XSPIM_P1_IO13 (AF9)
K15PO5ввод-выводFMC_A25 (AF12), FMC_NBL3 (AF14), XSPIM_P1_NCLK (AF9)
K16PO1ввод-выводFMC_A23 (AF12), XSPIM_P1_NCS2 (AF9)
K17PO2ввод-выводFMC_A24 (AF12), LTDC_B7 (AF14), XSPIM_P1_DQS0 (AF9)
L1PG7ввод-выводDCMIPP_D13 (AF9), DCMI_D13 (AF9), DEBUG_TRACECLK (AF0), ETH1_PHY_INTN (AF11), PSSI_D13 (AF9), SAI1_MCLK_A (AF6), USART6_CK (AF7)
L2PF4ввод-выводADC1_INP18, DCMIPP_HSYNC (AF9), DCMI_HSYNC (AF9), ETH1_MDIO (AF11), HDP_HDP4 (AF15), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF8), LPTIM3_CH2 (AF3), LTDC_R3 (AF14), PSSI_DE (AF9), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
L3PG6ввод-выводDCMIPP_D12 (AF9), DCMI_D12 (AF9), ETH1_MII_CRS (AF11), LTDC_B3 (AF14), PSSI_D12 (AF9), TIM17_BKIN (AF1), USART6_CK (AF7)
L4PF10ввод-выводDCMIPP_D11 (AF9), DCMIPP_D15 (AF10), DCMI_D11 (AF9), ETH1_MII_RX_DV (AF11), ETH1_RGMII_RX_CTL (AF11), ETH1_RMII_CRS_DV (AF11), LTDC_R1 (AF14), MDF1_SDI3 (AF4), PSSI_D11 (AF9), PSSI_D15 (AF10), SAI1_D3 (AF2), TIM16_BKIN (AF1), UART7_RX (AF8), UCPD1_FRSTX1 (AF6)
L5PF6ввод-выводADC1_INP15, ADC2_INP15, ETH1_MII_COL (AF11), GFXTIM_FCKCAL (AF12), GFXTIM_LCKCAL (AF8), HDP_HDP3 (AF15), I2S6_MCK (AF5), LPTIM3_CH1 (AF3), LTDC_DE (AF14), SPI1_RDY (AF10), SPI4_RDY (AF6), SPI5_RDY (AF9), TIM15_CH2 (AF4), TIM1_CH3 (AF13), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
L6VDDCOREпитание—
L12VDDCOREпитание—
L13VDDIO2питание—
L14VDDIO2питание—
L15PP11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D27 (AF12), XSPIM_P1_IO11 (AF9)
L16PP8ввод-выводFMC_D24 (AF12), SPI2_MISO (AF5), XSPIM_P1_IO8 (AF9)
L17PP14ввод-выводFMC_D30 (AF12), XSPIM_P1_IO14 (AF9)
M1PF7ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, ETH1_MII_RX_CLK (AF11), ETH1_RGMII_RX_CLK (AF11), ETH1_RMII_REF_CLK (AF11), GFXTIM_TE (AF12), HDP_HDP0 (AF15), I2S1_CK (AF5), LTDC_VSYNC (AF14), SPI1_SCK (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM9_CH1 (AF3), UART4_CTS (AF8)
M2PF3ввод-выводADC1_INP16, DCMIPP_HSYNC (AF9), DCMI_HSYNC (AF9), ETH1_PPS_OUT (AF11), FDCAN3_RX (AF6), FMC_NL (AF12), LTDC_R4 (AF14), PSSI_DE (AF9), USART2_DE (AF7), USART2_RTS (AF7)
M3PF5ввод-выводDCMIPP_D6 (AF9), DCMI_D6 (AF9), ETH1_CLK (AF11), FMC_NE3 (AF12), LPTIM2_IN2 (AF3), LTDC_G0 (AF14), PSSI_D6 (AF9), SAI2_SD_A (AF10), TIM1_ETR (AF1), USART3_CTS (AF7), USART3_NSS (AF7)
M4PG5ввод-выводETH1_MII_RX_ER (AF11), LTDC_B1 (AF14), TIM1_ETR (AF1), USART2_CTS (AF7), USART2_NSS (AF7)
M5VDDA18PLLпитание—
M6VSSAпитание—
M7VDDCOREпитание—
M8VSSпитание—
M9VDDCOREпитание—
M10VSSпитание—
M11VDDCOREпитание—
M12VSSпитание—
M13VSSпитание—
M14VDDIO2питание—
M15VDDIO2питание—
M16PO3ввод-выводFMC_A25 (AF12), LTDC_G3 (AF14), XSPIM_P1_DQS1 (AF9)
M17PO0ввод-выводFMC_A22 (AF12), XSPIM_P1_NCS1 (AF9)
N1PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ETH1_MII_RXD1 (AF11), ETH1_RGMII_RXD1 (AF11), ETH1_RMII_RXD1 (AF11), LTDC_G1 (AF14), SPI5_SCK (AF5), USART1_DE (AF4), USART1_RTS (AF4)
N2PF14ввод-выводADC2_INN2, ADC2_INP6, ETH1_MII_RXD0 (AF11), ETH1_RGMII_RXD0 (AF11), ETH1_RMII_RXD0 (AF11), LTDC_G0 (AF14), SPI5_MOSI (AF5), TIM2_CH2 (AF1), USART1_CTS (AF4)
N3PF8ввод-выводDEBUG_TRACECLK (AF0), ETH1_MII_RXD2 (AF11), ETH1_RGMII_RXD2 (AF11), FMC_NWE (AF12), LTDC_R6 (AF14), UART9_TX (AF7)
N4PF2ввод-выводETH1_RGMII_CLK125 (AF11), FDCAN3_TX (AF6), FMC_NWAIT (AF12), I2S2_CK (AF5), LTDC_B1 (AF14), SPI2_SCK (AF5), TIM1_CH3N (AF1), USART2_CTS (AF7), USART2_NSS (AF7)
N5VSSпитание—
N6VDDA18ADCпитание—
N7VSSпитание—
N8VDDCOREпитание—
N9VSSпитание—
N10VDDCOREпитание—
N11VSSпитание—
N12VDDCOREпитание—
N13VDDIO3питание—
N14PP9ввод-выводFMC_D25 (AF12), SPI2_MOSI (AF5), XSPIM_P1_IO9 (AF9)
N15PP10ввод-выводETH1_MDC (AF11), FMC_D26 (AF12), XSPIM_P1_IO10 (AF9)
N16PO4ввод-выводFMC_A24 (AF12), FMC_NBL2 (AF14), LTDC_B4 (AF10), XSPIM_P1_CLK (AF9)
N17PN4ввод-выводXSPIM_P2_IO2 (AF9)
P1PF9ввод-выводDEBUG_TRACED0 (AF0), ETH1_MII_RXD3 (AF11), ETH1_RGMII_RXD3 (AF11), LTDC_HSYNC (AF14)
P2PG4ввод-выводETH1_MII_TXD3 (AF11), ETH1_RGMII_TXD3 (AF11), LTDC_B0 (AF14), TIM1_BKIN2 (AF1)
P3PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMIPP_D15 (AF9), ETH1_MII_TX_EN (AF11), ETH1_RGMII_TX_CTL (AF11), ETH1_RMII_TX_EN (AF11), LTDC_B0 (AF14), PSSI_D15 (AF9), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
P4PF1ввод-выводDCMIPP_D7 (AF9), DCMI_D7 (AF9), ETH1_TX_ER (AF11), LPTIM1_CH2 (AF1), LPTIM2_CH1 (AF3), PSSI_D7 (AF9), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF7), UCPD1_FRSTX1 (AF6)
P5CSI_REXTслужебныйCSI_REXT
P6PG14ввод-выводDCMIPP_D11 (AF9), DCMI_D11 (AF9), DEBUG_TRACED1 (AF0), FMC_NCE (AF10), FMC_NE2 (AF12), I2S6_SDO (AF5), LPTIM1_ETR (AF1), LTDC_B1 (AF14), PSSI_D11 (AF9), SPI6_MOSI (AF5), TIM8_CH4 (AF2), USART10_RTS (AF6), USART2_DE (AF8), USART2_RTS (AF8), USART6_TX (AF7)
P7PA9ввод-выводADC1_INP10, ADC2_INP10, DCMIPP_D0 (AF9), DCMI_D0 (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), HDP_HDP1 (AF15), I2C3_SDA (AF4), I2S2_CK (AF5), I3C2_SDA (AF2), LPUART1_TX (AF3), LTDC_B5 (AF14), PSSI_D0 (AF9), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7)
P8PA6ввод-выводADC1_INP3, ADC2_INP3, BOOT1 (AF0), DCMIPP_PIXCLK (AF9), DCMI_PIXCLK (AF9), HDP_HDP6 (AF15), I2S1_SDI (AF5), I2S6_SDI (AF8), I3C1_SDA (AF4), LPTIM3_ETR (AF3), LTDC_B7 (AF12), LTDC_HSYNC (AF14), MDIOS_MDC (AF11), PSSI_PDCK (AF9), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF10), TIM1_BKIN (AF1), TIM3_CH1 (AF2)
P9PA1ввод-выводADC1_INP1, ADC2_INP1, DCMIPP_D0 (AF9), DCMI_D0 (AF9), FMC_D6 (AF12), FMC_DA6 (AF12), HDP_HDP1 (AF15), LPTIM3_IN1 (AF3), LTDC_G2 (AF14), PSSI_D0 (AF9), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
P10PB11ввод-выводADC1_EXTI11, ADC1_INP4, ADC2_EXTI11, ADC2_INP4, FMC_D10 (AF12), FMC_DA10 (AF12), HDP_HDP3 (AF15), I2C2_SDA (AF4), I3C2_SDA (AF2), LPTIM2_ETR (AF3), LTDC_G6 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7)
P11VDDCOREпитание—
P12PA15(JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, DEBUG_JTDI (AF0), FMC_D15 (AF12), FMC_DA15 (AF12), HDP_HDP7 (AF15), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF7), LTDC_R5 (AF14), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF10)
P13VDDIO3питание—
P14PN12ввод-выводXSPIM_P2_NCS2 (AF9)
P15PN6ввод-выводXSPIM_P2_CLK (AF9)
P16PN8ввод-выводXSPIM_P2_IO4 (AF9)
P17PN0ввод-выводFMC_A25 (AF12), XSPIM_P2_DQS0 (AF9)
R1PG3ввод-выводDCMIPP_HSYNC (AF9), DCMI_HSYNC (AF9), DEBUG_TRACED1 (AF0), ETH1_MII_TXD2 (AF11), ETH1_RGMII_TXD2 (AF11), PSSI_DE (AF9), USART2_TX (AF7)
R2PF13ввод-выводADC2_INP2, DCMIPP_D10 (AF9), DCMI_D10 (AF9), ETH1_MII_TXD1 (AF11), ETH1_RGMII_TXD1 (AF11), ETH1_RMII_TXD1 (AF11), PSSI_D10 (AF9), SPI5_NSS (AF5), USART1_TX (AF4)
R3PF0ввод-выводDCMIPP_D9 (AF9), DCMI_D9 (AF9), ETH1_MII_TX_CLK (AF11), ETH1_RGMII_GTX_CLK (AF12), LPTIM5_OUT (AF1), PSSI_D9 (AF9), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF7), UCPD1_FRSTX2 (AF6)
R4VDDCSIпитание—
R5VDDA18CSIпитание—
R6PG15ввод-выводADC1_EXTI15, ADC1_INN3, ADC1_INP7, ADC2_EXTI15, ADC2_INN3, ADC2_INP7, DCMIPP_D4 (AF9), DCMI_D4 (AF9), ETH1_MII_RX_CLK (AF11), ETH1_RMII_REF_CLK (AF11), FMC_CLK (AF12), LTDC_B0 (AF14), PSSI_D4 (AF9), SPI1_RDY (AF10), SPI4_RDY (AF6), SPI5_RDY (AF5), TIM1_CH4 (AF1), USART3_CK (AF7)
R7PA10ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DCMIPP_D1 (AF9), DCMI_D1 (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), HDP_HDP2 (AF15), LPUART1_RX (AF3), LTDC_B4 (AF14), MDIOS_MDIO (AF11), PSSI_D1 (AF9), PWR_CSLEEP (AF0), TIM1_CH3 (AF1), USART1_RX (AF7)
R8PA5ввод-выводADC2_INP18, DCMIPP_D8 (AF9), DCMI_D8 (AF9), FMC_NOE (AF12), HDP_HDP5 (AF15), I2S1_CK (AF5), I2S6_CK (AF8), I3C1_SCL (AF4), LTDC_CLK (AF14), PSSI_D8 (AF9), PWR_CSTOP (AF0), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM10_CH1 (AF10), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM9_CH2 (AF3)
R9PG1ввод-выводDCMIPP_PIXCLK (AF9), DCMI_PIXCLK (AF9), FMC_A19 (AF12), LTDC_G1 (AF14), PSSI_PDCK (AF9), SAI1_SCK_B (AF6), SPI5_MISO (AF5), TIM13_CH1 (AF10), TIM16_CH1N (AF1), UART7_DE (AF8), UART7_RTS (AF8)
R10PB12ввод-выводFDCAN2_RX (AF6), FMC_D9 (AF12), FMC_DA9 (AF12), HDP_HDP4 (AF15), I2C2_SMBA (AF4), I2S2_WS (AF5), LPTIM2_IN2 (AF3), LTDC_G5 (AF14), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF11), USART3_CK (AF7)
R11PB1ввод-выводFDCAN2_TX (AF6), FMC_NOE (AF12), HDP_HDP1 (AF15), LTDC_R1 (AF14), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM9_CH2 (AF3), USART2_TX (AF7)
R12PA7ввод-выводHDP_HDP7 (AF15), I2S1_SDO (AF5), I2S6_SDO (AF8), LTDC_B1 (AF14), LTDC_R4 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF11), TIM1_CH1N (AF1), TIM3_CH2 (AF2), USART1_RX (AF7)
R13PG0ввод-выводETH1_PHY_INTN (AF11), LTDC_R0 (AF14), LTDC_VSYNC (AF10), TIM12_CH1 (AF2), TIM1_CH4N (AF1), UART9_RX (AF7)
R14PA3ввод-выводFMC_A17 (AF12), FMC_ALE (AF12), SAI1_SD_B (AF6), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF8)
R15PN3ввод-выводFMC_A22 (AF12), XSPIM_P2_IO1 (AF9)
R16PN5ввод-выводXSPIM_P2_IO3 (AF9)
R17PN1ввод-выводFMC_A24 (AF12), XSPIM_P2_NCS1 (AF9)
T1PF12ввод-выводADC1_INN2, ADC1_INP6, DCMIPP_D13 (AF9), DCMI_D13 (AF9), ETH1_MII_TXD0 (AF11), ETH1_RGMII_TXD0 (AF11), ETH1_RMII_TXD0 (AF11), PSSI_D13 (AF9), SPI5_MISO (AF5), USART1_RX (AF4)
T2VREF-питание—
T3CSI_CKPслужебныйCSI_CKP
T4CSI_D1PслужебныйCSI_D1P
T5CSI_D0PслужебныйCSI_D0P
T6PA14(JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0), HDP_HDP6 (AF15)
T7PA11ввод-выводADC1_EXTI11, ADC1_INN11, ADC1_INP12, ADC2_EXTI11, ADC2_INN11, ADC2_INP12, FDCAN1_RX (AF6), FMC_D1 (AF12), FMC_DA1 (AF12), HDP_HDP3 (AF15), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_B3 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF8), USART1_CTS (AF7), USART1_NSS (AF7)
T8PA2ввод-выводADC1_INP14, ADC2_INP14, FMC_D5 (AF12), FMC_DA5 (AF12), HDP_HDP2 (AF15), LPTIM3_IN2 (AF3), LTDC_B7 (AF14), MDIOS_MDIO (AF11), PWR_WKUP2, SAI2_SCK_B (AF10), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
T9PG12ввод-выводFMC_A18 (AF12), LTDC_G0 (AF14), SAI1_MCLK_B (AF6), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF8)
T10PG10ввод-выводDCMIPP_D2 (AF9), DCMI_D2 (AF9), FDCAN2_TX (AF6), FMC_A16 (AF12), FMC_CLE (AF12), HDP_HDP5 (AF15), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LTDC_G4 (AF14), PSSI_D2 (AF9), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF11), USART3_CTS (AF7), USART3_NSS (AF7)
T11PG2ввод-выводDCMIPP_D6 (AF9), DCMI_D6 (AF9), FMC_A21 (AF12), LTDC_R0 (AF14), PSSI_D6 (AF9), SAI1_FS_B (AF6), SAI2_MCLK_B (AF10), SPI5_MOSI (AF5), TIM14_CH1 (AF11), TIM17_CH1N (AF1), UART7_CTS (AF8), USART3_DE (AF7), USART3_RTS (AF7)
T12PB4(NJTRST)ввод-выводDCMIPP_VSYNC (AF9), DCMI_VSYNC (AF9), DEBUG_NJTRST (AF0), FMC_D13 (AF12), FMC_DA13 (AF12), HDP_HDP4 (AF15), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), I2S6_SDI (AF8), LPTIM4_ETR (AF3), LTDC_R3 (AF14), PSSI_RDY (AF9), SDMMC2_D3 (AF11), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF10)
T13PG9ввод-выводFMC_D8 (AF12), FMC_DA8 (AF12), LTDC_R7 (AF14)
T14PG8ввод-выводFMC_A20 (AF12), HDP_HDP7 (AF15), I2S2_SDO (AF5), LTDC_G7 (AF14), PWR_PVD_IN, RTC_REFIN (AF0), SAI1_SCK_B (AF6), SDMMC2_D1 (AF11), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), UART4_CTS (AF8), USART1_RX (AF4)
T15PN9ввод-выводDCMIPP_D5 (AF10), DCMI_D5 (AF10), PSSI_D5 (AF10), XSPIM_P2_IO5 (AF9)
T16PN7ввод-выводXSPIM_P2_NCLK (AF9)
T17PN2ввод-выводFMC_A23 (AF12), XSPIM_P2_IO0 (AF9)
U1VSSпитание—
U2VREF+служебный—
U3CSI_CKNслужебныйCSI_CKN
U4CSI_D1NслужебныйCSI_D1N
U5CSI_D0NслужебныйCSI_D0N
U6PA13(JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0), HDP_HDP5 (AF15)
U7PA12ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, FDCAN1_TX (AF6), FMC_D0 (AF12), FMC_DA0 (AF12), HDP_HDP4 (AF15), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_B2 (AF14), SAI2_FS_B (AF10), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF8), USART1_DE (AF7), USART1_RTS (AF7)
U8PA8ввод-выводADC1_INP5, ADC2_INP5, FMC_D4 (AF12), FMC_DA4 (AF12), HDP_HDP0 (AF15), I2C3_SCL (AF4), I3C2_SCL (AF2), LTDC_B6 (AF14), RCC_MCO_1 (AF0), TIM11_CH1 (AF9), TIM1_CH1 (AF1), UART7_RX (AF10), USART1_CK (AF7)
U9PG13ввод-выводDCMIPP_D12 (AF9), DCMI_D12 (AF9), FMC_NE1 (AF12), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), LTDC_DE (AF14), PSSI_D12 (AF9), SAI2_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
U10PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, FMC_D7 (AF12), FMC_DA7 (AF12), HDP_HDP0 (AF15), I2S6_WS (AF5), LTDC_G3 (AF14), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF11), SPI6_NSS (AF5), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM5_CH1 (AF2), TIM9_CH1 (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
U11PB10ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, FMC_D11 (AF12), FMC_DA11 (AF12), HDP_HDP2 (AF15), I2C2_SCL (AF4), I2S2_CK (AF5), I3C2_SCL (AF2), LPTIM2_IN1 (AF3), LTDC_G7 (AF14), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
U12PB5(JTDO/TRACESWO)ввод-выводDCMIPP_D10 (AF9), DCMI_D10 (AF9), DEBUG_JTDO-SWO (AF0), FDCAN2_RX (AF6), FMC_D12 (AF12), FMC_DA12 (AF12), HDP_HDP5 (AF15), I2C1_SMBA (AF4), I2S1_SDO (AF5), I2S3_SDO (AF7), I2S6_SDO (AF8), LPTIM4_OUT (AF3), LTDC_R2 (AF14), PSSI_D10 (AF9), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF11)
U13PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ETH1_MDC (AF11), LTDC_R6 (AF14), UART7_RX (AF8)
U14PA4ввод-выводDCMIPP_D3 (AF9), DCMI_D3 (AF9), FMC_A13 (AF12), PSSI_D3 (AF9), SPI5_MOSI (AF5), USART6_RX (AF7)
U15PN10ввод-выводLTDC_B4 (AF14), XSPIM_P2_IO6 (AF9)
U16PN11ввод-выводADC1_EXTI11, ADC2_EXTI11, LTDC_B6 (AF14), XSPIM_P2_IO7 (AF9)
U17VSSпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
V08CAPF1—
VBATE1резервное питание: часы реального времени и резервные регистры
VDDG13, H12, H13, J12, J13, K13питание цифровой части и линий ввода-вывода
VDD33USBA4—
VDDA18ADCN6—
VDDA18AONF6—
VDDA18CSIR5—
VDDA18PLLM5—
VDDA18PMUG1—
VDDA18USBC5—
VDDCOREL6, L12, M7, M9, M11, N8, N10, N12, P11—
VDDCSIR4—
VDDIO2L13, L14, M14, M15питание отдельной группы линий ввода-вывода
VDDIO3N13, P13—
VDDIO4E8, F8—
VDDIO5E9, F9—
VDDSMPSK1, K2, K3, K4, K5, K6—
VFBSMPSG2—
VLXSMPSJ1, J2, J3, J4, J5, J6—
VREF-T2нижнее опорное напряжение АЦП
VSSA17, F7, F10, F11, F12, G12, K12, M8, M10, M12, M13, N5, N7, N9, N11, U1, U17общий провод (земля)
VSSAM6общий провод аналоговой части
VSSAONG6—
VSSAPMUF2—
VSSSMPSH1, H2, H3, H4, H5, H6—
NRSTG3сброс, активный уровень — низкий
BOOT0G4выбор источника загрузки при сбросе
CSI_CKNU3—
CSI_CKPT3—
CSI_D0NU5—
CSI_D0PT5—
CSI_D1NU4—
CSI_D1PT4—
CSI_REXTP5—
OTG1_HSDMA5—
OTG1_HSDPB5—
OTG1_IDC3—
OTG1_TXRTUNEC6—
OTG2_HSDMA3—
OTG2_HSDPB3—
OTG2_IDE6—
OTG2_TXRTUNED6—
PDR_ONA1управление внутренней схемой сброса по питанию
PWR_ONE2—
UCPD1_CC1A6—
UCPD1_CC2B6—
VREF+U2верхнее опорное напряжение АЦП и ЦАП
NCB4, C4не подключён

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32N655X0HxQ. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32N655X0STM32N655X0HxQ—4200 КБ

Линейка STM32N6x5, семейство STM32N6, ядро Cortex-M55.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе VFBGA264, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32N645X0STM32N6x5264 из 264выводы совпадают полностьютолько у этого: CRYP, PKA
STM32N647X0STM32N6x7264 из 264выводы совпадают полностьютолько у этого: CRYP, PKA
STM32N657X0STM32N6x7264 из 264выводы совпадают полностью

Частые вопросы

На каких выводах USART1 у STM32N655X0?

В корпусе VFBGA264 сигнал USART1_TX выведен на PC4 (шарик A10, AF4) или PE5 (шарик C11, AF7) или PA9 (шарик P7, AF7) или PF13 (шарик R2, AF4), USART1_RX — на PE6 (шарик D11, AF7) или PA10 (шарик R7, AF7) или PA7 (шарик R12, AF7) или PF12 (шарик T1, AF4) или PG8 (шарик T14, AF4).

Где у STM32N655X0 выводы SWD для программатора?

SWDIO — PA13(JTMS/SWDIO) (шарик U6, AF0), SWCLK — PA14(JTCK/SWCLK) (шарик T6, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32N655X0?

I2C1_SCL — PE5 (шарик C11, AF4) или PH9 (шарик D8, AF4), I2C1_SDA — PC1 (шарик A9, AF4) или PE6 (шарик D11, AF4).

Сколько выводов ввода-вывода у STM32N655X0 в корпусе VFBGA264?

165 из 264. Ещё 75 выводов заняты питанием и землёй, остальные 24 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32N655X0?

От 1,71 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
