STM32H562AI в корпусе UFBGA169: распиновка

STM32H562AI — микроконтроллер STM32H5 на ядре Cortex-M33 с частотой до 250 МГц: 2 МБ флеш-памяти и 640 КБ ОЗУ. Корпус UFBGA169 — 169 шариков, из них 136 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Частота ядра
до 250 МГц
Флеш-память
2 МБ
ОЗУ
640 КБ
Корпус
UFBGA169, 169 шариков
Линий ввода-вывода
136
Напряжение питания
1,62…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса UFBGA169

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

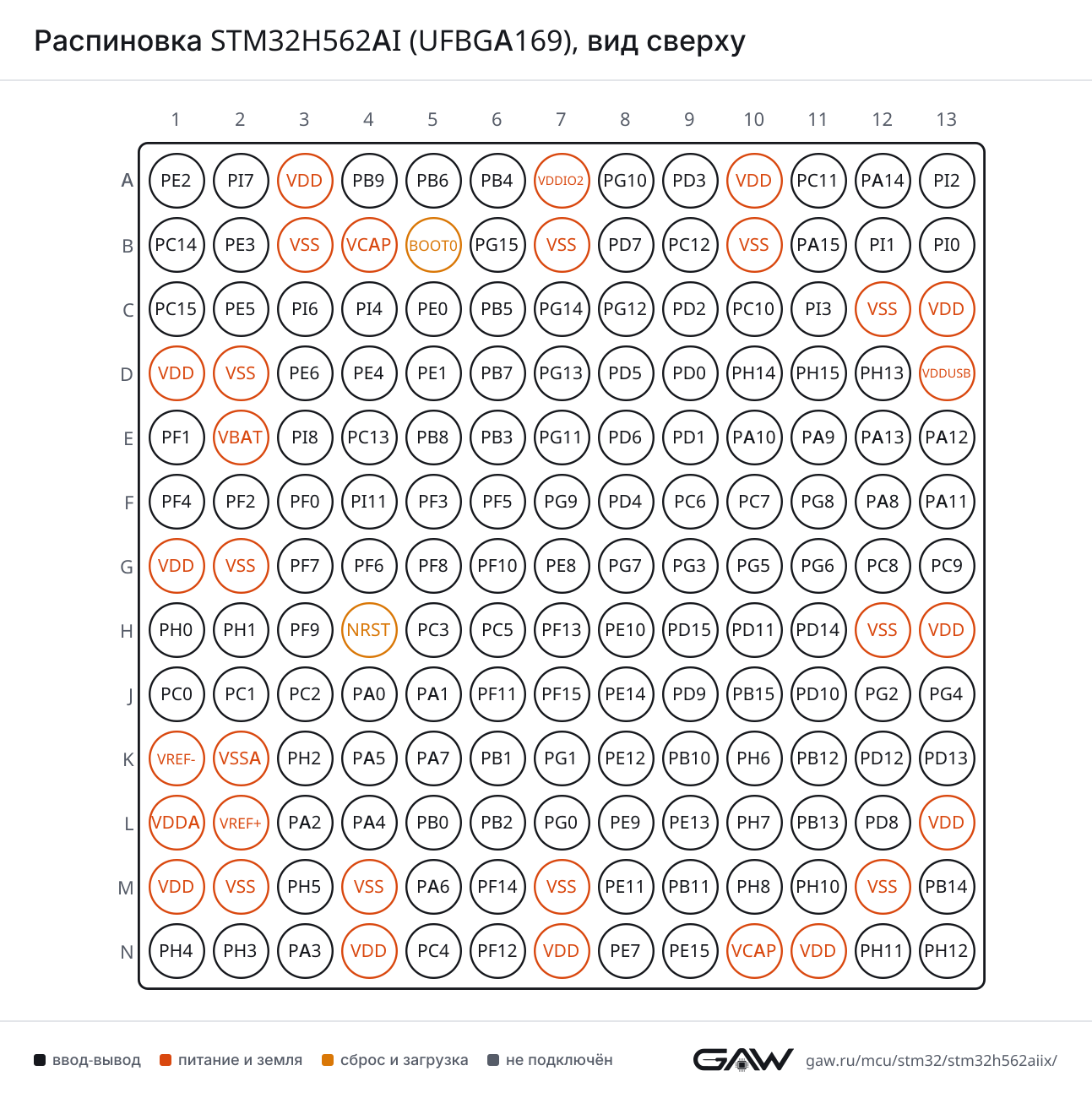

Расположение шариков STM32H562AI в корпусе UFBGA169, вид сверхуABCDEFGHJKLMN12345678910111213PE2 — шарик A1: DCMI_D3, DEBUG_TRACECLK, FMC_A23, LPTIM1_IN2, OCTOSPI1_IO2, PSSI_D3, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, UART8_TX, USART10_RXPE2PI7 — шарик A2: DCMI_D7, PSSI_D7, SAI2_FS_A, TIM8_CH3PI7VDD — шарик A3VDDPB9 — шарик A4: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2S2_WS, I3C1_SDA, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PB6 — шарик A5: CEC, DCMI_D5, FMC_SDNE1, I2C1_SCL, I2C4_SCL, I3C1_SCL, LPUART1_TX, OCTOSPI1_NCS, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6PB4(NJTRST) — шарик A6: DCMI_D7, DEBUG_NJTRST, I2S1_SDI, I2S2_WS, I2S3_SDI, LPTIM1_CH2, OCTOSPI1_CLK, PSSI_D7, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4VDDIO2 — шарик A7VDDIO2PG10 — шарик A8: DCMI_D2, FMC_NE3, I2S1_WS, PSSI_D2, SAI2_SD_B, SPI1_NSSPG10PD3 — шарик A9: DCMI_D5, FMC_CLK, I2S2_CK, PSSI_D5, PWR_WKUP8, SPI2_SCK, USART2_CTS, USART2_NSSPD3VDD — шарик A10VDDPC11 — шарик A11: ADC1_EXTI11, ADC2_EXTI11, DCMI_D4, I2S3_SDI, LPTIM3_IN1, OCTOSPI1_NCS, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PA14(JTCK/SWCLK) — шарик A12: DEBUG_JTCK-SWCLKPA14PI2 — шарик A13: DCMI_D9, I2S2_SDI, PSSI_D9, SPI2_MISO, TIM8_CH4PI2PC14-OSC32_IN(OSC32_IN) — шарик B1: RCC_OSC32_INPC14PE3 — шарик B2: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM15_BKIN, USART10_TXPE3VSS — шарик B3VSSVCAP — шарик B4VCAPBOOT0 — шарик B5BOOT0PG15 — шарик B6: ADC1_EXTI15, ADC2_EXTI15, DCMI_D13, FMC_SDNCAS, PSSI_D13, SPI4_RDY, USART10_CK, USART6_CTS, USART6_NSSPG15VSS — шарик B7VSSPD7 — шарик B8: FMC_NCE, FMC_NE1, I2S1_SDO, LPTIM4_OUT, OCTOSPI1_IO7, SPI1_MOSI, USART2_CKPD7PC12 — шарик B9: DCMI_D9, DEBUG_TRACED3, I2S3_SDO, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CKPC12VSS — шарик B10VSSPA15(JTDI) — шарик B11: ADC1_EXTI15, ADC2_EXTI15, CEC, DCMI_D11, DEBUG_JTDI, FMC_NBL1, I2S1_WS, I2S3_WS, LPTIM3_IN2, PSSI_D11, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PI1 — шарик B12: DCMI_D8, I2S2_CK, PSSI_D8, SPI2_SCK, TIM8_BKIN2PI1PI0 — шарик B13: DCMI_D13, I2S2_WS, PSSI_D13, SPI2_NSS, TIM5_CH4PI0PC15-OSC32_OUT(OSC32_OUT) — шарик C1: ADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUTPC15PE5 — шарик C2: DCMI_D6, DEBUG_TRACED2, FMC_A21, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TAMP_IN8, TAMP_OUT7, TIM15_CH1PE5PI6 — шарик C3: DCMI_D6, PSSI_D6, SAI2_SD_A, TIM8_CH2PI6PI4 — шарик C4: DCMI_D5, PSSI_D5, SAI2_MCLK_A, SPI2_RDY, TIM8_BKINPI4PE0 — шарик C5: DCMI_D2, FDCAN1_RX, FMC_NBL0, LPTIM1_ETR, LPTIM2_CH2, LPTIM2_ETR, PSSI_D2, SAI2_MCLK_A, SPI3_RDY, TIM4_ETR, UART8_RXPE0PB5 — шарик C6: DCMI_D10, FMC_SDCKE1, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, OCTOSPI1_NCLK, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RXPB5PG14 — шарик C7: DEBUG_TRACED1, FMC_A25, LPTIM1_CH2, LPTIM1_ETR, LPTIM5_IN1, OCTOSPI1_IO7, SPI6_MOSI, USART10_DE, USART10_RTS, USART6_TXPG14PG12 — шарик C8: DCMI_D11, FMC_NE4, LPTIM1_IN1, LPTIM5_CH1, PSSI_D11, PSSI_D15, SPI6_MISO, USART10_TX, USART6_DE, USART6_RTSPG12PD2 — шарик C9: DCMI_D11, DEBUG_TRACED2, LPTIM4_ETR, PSSI_D11, PWR_WKUP7, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RXPD2PC10 — шарик C10: DCMI_D8, I2S3_CK, LPTIM3_ETR, OCTOSPI1_IO1, PSSI_D8, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TXPC10PI3 — шарик C11: DCMI_D10, I2S2_SDO, PSSI_D10, SPI2_MOSI, TIM8_ETRPI3VSS — шарик C12VSSVDD — шарик C13VDDVDD — шарик D1VDDVSS — шарик D2VSSPE6 — шарик D3: DCMI_D7, DEBUG_TRACED3, FMC_A22, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TAMP_IN3, TAMP_OUT6, TIM15_CH2, TIM1_BKIN2PE6PE4 — шарик D4: DCMI_D4, DEBUG_TRACED1, FMC_A20, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TAMP_IN7, TAMP_OUT8, TIM15_CH1NPE4PE1 — шарик D5: DCMI_D3, FDCAN1_TX, FMC_NBL1, LPTIM1_IN2, PSSI_D3, UART8_TXPE1PB7 — шарик D6: DCMI_VSYNC, FDCAN1_TX, FMC_NL, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPUART1_RX, PSSI_RDY, PWR_WKUP5, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PG13 — шарик D7: DEBUG_TRACED0, FMC_A24, LPTIM1_CH1, LPTIM5_CH2, SPI6_SCK, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSSPG13PD5 — шарик D8: FDCAN1_TX, FMC_NWE, OCTOSPI1_IO5, SPI2_RDY, TIM1_CH4N, USART2_TXPD5PD0 — шарик D9: FDCAN1_RX, FMC_D2, FMC_DA2, TIM8_CH4N, UART4_RX, UART9_CTSPD0PH14 — шарик D10: DCMI_D4, FDCAN1_RX, PSSI_D4, TIM8_CH2N, UART4_RXPH14PH15 — шарик D11: ADC1_EXTI15, ADC2_EXTI15, DCMI_D11, PSSI_D11, TIM8_CH3NPH15PH13 — шарик D12: DCMI_D3, FDCAN1_TX, LPTIM1_IN2, PSSI_D3, TIM8_CH1N, UART4_TX, UART8_TXPH13VDDUSB — шарик D13VDDUSBPF1 — шарик E1: FMC_A1, I2C2_SCL, LPTIM5_CH2PF1VBAT — шарик E2VBATPI8 — шарик E3: PWR_WKUP3, RTC_OUT2, TAMP_IN2, TAMP_OUT3PI8PC13 — шарик E4: PWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3PC13PB8 — шарик E5: DCMI_D6, FDCAN1_RX, I2C1_SCL, I2C4_SCL, I3C1_SCL, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SPI4_RDY, TIM16_CH1, TIM4_CH3, UART4_RXPB8PB3(JTDO/TRACESWO) — шарик E6: CRS_SYNC, DEBUG_JTDO-SWO, I2C2_SDA, I2S1_CK, I2S3_CK, LPTIM6_ETR, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART12_CTS, UART7_RXPB3PG11 — шарик E7: ADC1_EXTI11, ADC2_EXTI11, DCMI_D3, I2S1_CK, LPTIM1_IN2, PSSI_D3, SPI1_SCK, USART10_RX, USART11_DE, USART11_RTSPG11PD6 — шарик E8: DCMI_D10, FMC_NWAIT, I2S3_SDO, OCTOSPI1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SPI3_MOSI, USART2_RXPD6PD1 — шарик E9: FDCAN1_TX, FMC_D3, FMC_DA3, UART4_TXPD1PA10 — шарик E10: DCMI_D1, LPTIM2_IN2, LPUART1_RX, PSSI_D1, SDMMC1_D0, TIM1_CH3, UCPD1_FRSTX, USART1_RXPA10PA9 — шарик E11: DAC1_EXTI9, DCMI_D0, FMC_NWE, I2C3_SMBA, I2S2_CK, LPUART1_TX, PSSI_D0, SPI2_SCK, TIM1_CH2, UCPD1_DB1, USART1_TXPA9PA13(JTMS/SWDIO) — шарик E12: DEBUG_JTMS-SWDIOPA13PA12 — шарик E13: FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_DPPA12PF4 — шарик F1: FMC_A4, LPTIM3_ETR, USART11_RXPF4PF2 — шарик F2: FMC_A2, I2C2_SMBA, LPTIM3_CH2, LPTIM3_IN2, LPTIM5_IN1, UART12_TX, USART11_CKPF2PF0 — шарик F3: FMC_A0, I2C2_SDA, LPTIM5_CH1PF0PI11 — шарик F4: ADC1_EXTI11, ADC2_EXTI11, PSSI_D15, TAMP_IN4, TAMP_OUT5PI11PF3 — шарик F5: FMC_A3, LPTIM3_IN1, LPTIM5_IN2, USART11_TXPF3PF5 — шарик F6: FMC_A5, I2C4_SCL, I3C1_SCL, LPTIM3_CH1, LPTIM3_IN1, UART12_RX, USART11_CTS, USART11_NSSPF5PG9 — шарик F7: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, OCTOSPI1_IO6, PSSI_RDY, SAI2_FS_B, SPI1_MISO, USART6_RXPG9PD4 — шарик F8: FMC_NOE, OCTOSPI1_IO4, USART2_DE, USART2_RTSPD4PC6 — шарик F9: DCMI_D0, FMC_NWAIT, I2S2_MCK, OCTOSPI1_IO5, PSSI_D0, SAI1_SCK_A, SDMMC1_D0DIR, SDMMC1_D6, TIM3_CH1, TIM8_CH1, USART6_TXPC6PC7 — шарик F10: DCMI_D1, DEBUG_TRGIO, FMC_NE1, I2S3_MCK, OCTOSPI1_IO6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, TIM3_CH2, TIM8_CH2, USART6_RXPC7PG8 — шарик F11: FMC_SDCLK, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTSPG8PA8 — шарик F12: DCMI_D3, FMC_NOE, I2C3_SCL, PSSI_D3, RCC_MCO_1, SPI1_RDY, TIM1_CH1, TIM8_BKIN2, UART7_RX, USART1_CK, USB_SOFPA8PA11 — шарик F13: ADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX, I2S2_WS, LPUART1_CTS, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_DMPA11VDD — шарик G1VDDVSS — шарик G2VSSPF7 — шарик G3: LPTIM5_CH2, OCTOSPI1_IO2, SAI1_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TXPF7PF6 — шарик G4: LPTIM5_CH1, OCTOSPI1_IO3, SAI1_SD_B, SPI5_NSS, TIM16_CH1, UART7_RXPF6PF8 — шарик G5: LPTIM5_IN1, OCTOSPI1_IO0, SAI1_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPF8PF10 — шарик G6: DCMI_D11, OCTOSPI1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKINPF10PE8 — шарик G7: FMC_D5, FMC_DA5, OCTOSPI1_IO5, TIM1_CH1N, UART12_CTS, UART7_TXPE8PG7 — шарик G8: DCMI_D13, FMC_INT, I2C4_SCL, I3C1_SCL, PSSI_D13, SAI1_CK2, SAI1_MCLK_A, UCPD1_FRSTX, USART6_CKPG7PG3 — шарик G9: FMC_A13, LPTIM5_ETR, TIM8_BKIN2, UART12_TXPG3PG5 — шарик G10: FMC_A15, FMC_BA1, TIM1_ETRPG5PG6 — шарик G11: DCMI_D12, FMC_NE3, I2C4_SDA, I3C1_SDA, OCTOSPI1_NCS, PSSI_D12, SPI1_RDY, TIM17_BKIN, UCPD1_FRSTXPG6PC8 — шарик G12: DCMI_D2, DEBUG_TRACED1, FMC_ALE, FMC_INT, FMC_NCE, FMC_NE2, PSSI_D2, SDMMC1_D0, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PC9 — шарик G13: AUDIOCLK, DAC1_EXTI9, DCMI_D3, FMC_CLE, I2C3_SDA, OCTOSPI1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, TIM8_CH4, UART5_CTS, UCPD1_DB2PC9PH0-OSC_IN — шарик H1: RCC_OSC_INPH0PH1-OSC_OUT — шарик H2: RCC_OSC_OUTPH1PF9 — шарик H3: DAC1_EXTI9, LPTIM5_IN2, OCTOSPI1_IO1, SAI1_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTSPF9NRST — шарик H4NRSTPC3 — шарик H5: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, FMC_SDCKE0, I2S2_SDO, LPTIM3_CH1, OCTOSPI1_IO0, OCTOSPI1_IO6, PWR_CSTOP, SAI1_D3, SPI2_MOSIPC3PC5 — шарик H6: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, FMC_SDCKE0, OCTOSPI1_DQS, PSSI_D15, SAI1_D3, SAI1_FS_A, TIM1_CH4N, UART12_DE, UART12_RTSPC5PF13 — шарик H7: ADC2_INP2, FMC_A7, I2C4_SMBA, LPTIM6_IN1PF13PE10 — шарик H8: FMC_D7, FMC_DA7, OCTOSPI1_IO7, TIM1_CH2N, UART12_TX, UART7_CTSPE10PD15 — шарик H9: ADC1_EXTI15, ADC2_EXTI15, FMC_D1, FMC_DA1, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TXPD15PD11 — шарик H10: ADC1_EXTI11, ADC2_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, OCTOSPI1_IO0, SAI1_CK1, SAI2_SD_A, UART4_RX, USART3_CTS, USART3_NSSPD11PD14 — шарик H11: FMC_D0, FMC_DA0, TIM4_CH3, UART8_CTS, UART9_RXPD14VSS — шарик H12VSSVDD — шарик H13VDDPC0 — шарик J1: ADC1_INP10, ADC2_INP10, FMC_A25, FMC_SDNWE, OCTOSPI1_IO7, SAI1_MCLK_A, SAI2_FS_B, SPI2_RDY, TIM16_BKINPC0PC1 — шарик J2: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DEBUG_TRACED0, I2S2_SDO, OCTOSPI1_IO4, PWR_WKUP6, SAI1_D1, SAI1_SD_A, SAI2_SD_A, SPI2_MOSI, TAMP_IN3, TAMP_OUT5, USART11_DE, USART11_RTSPC1PC2 — шарик J3: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, FMC_SDNE0, I2S2_SDI, OCTOSPI1_IO2, OCTOSPI1_IO5, PWR_CSLEEP, SPI2_MISO, TIM17_CH1, TIM4_CH4PC2PA0 — шарик J4: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, PWR_WKUP1, SAI2_SD_B, SPI3_RDY, SPI6_NSS, TAMP_IN2, TAMP_OUT1, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PA1 — шарик J5: ADC1_INP1, ADC2_INP1, LPTIM1_IN1, OCTOSPI1_DQS, OCTOSPI1_IO3, SAI2_MCLK_B, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PF11 — шарик J6: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMI_D12, FMC_SDNRAS, LPTIM6_CH1, OCTOSPI1_NCLK, PSSI_D12, SAI2_SD_B, SPI5_MOSIPF11PF15 — шарик J7: ADC1_EXTI15, ADC2_EXTI15, FMC_A9, I2C4_SDA, I3C1_SDAPF15PE14 — шарик J8: FMC_D11, FMC_DA11, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PD9 — шарик J9: DAC1_EXTI9, FMC_D14, FMC_DA14, USART3_RXPD9PB15 — шарик J10: ADC1_EXTI15, ADC2_EXTI15, DCMI_D2, I2S2_SDO, OCTOSPI1_CLK, PSSI_D2, PWR_PVD_IN, RTC_REFIN, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, UART5_RX, USART11_CTS, USART11_NSS, USART1_RXPB15PD10 — шарик J11: FMC_D15, FMC_DA15, LPTIM2_CH2, USART3_CKPD10PG2 — шарик J12: FMC_A12, LPTIM6_ETR, TIM8_BKIN, UART12_RXPG2PG4 — шарик J13: FMC_A14, FMC_BA0, LPTIM4_ETR, TIM1_BKIN2PG4VREF- — шарик K1VREF-VSSA — шарик K2VSSAPH2 — шарик K3: FMC_SDCKE0, LPTIM1_IN2, OCTOSPI1_IO4, SAI2_SCK_BPH2PA5 — шарик K4: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, I2S1_CK, PSSI_D14, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1NPA5PA7 — шарик K5: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, FMC_NWE, FMC_SDNWE, I2S1_SDO, OCTOSPI1_IO2, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART11_RXPA7PB1 — шарик K6: ADC1_INP5, ADC2_INP5, LPTIM3_CH2, OCTOSPI1_IO0, TIM1_CH3N, TIM3_CH4, TIM8_CH3NPB1PG1 — шарик K7: FMC_A11, I2S2_SDO, SPI2_MOSI, UART9_TXPG1PE12 — шарик K8: FMC_D9, FMC_DA9, SAI2_SCK_B, SPI4_SCK, TIM1_CH3NPE12PB10 — шарик K9: I2C2_SCL, I2S2_CK, LPTIM2_IN1, LPTIM3_CH1, OCTOSPI1_NCS, SPI2_SCK, TIM2_CH3, USART3_TXPB10PH6 — шарик K10: DCMI_D8, FMC_SDNE1, I2C2_SMBA, PSSI_D8, SPI5_SCK, TIM12_CH1, TIM1_CH3N, TIM8_CH1PH6PB12 — шарик K11: I2C2_SDA, I2S2_WS, OCTOSPI1_NCLK, SPI2_NSS, TIM1_BKIN, UART5_RX, UCPD1_FRSTX, USART3_CKPB12PD12 — шарик K12: DCMI_D12, FMC_A17, FMC_ALE, I2C4_SCL, I3C1_SCL, LPTIM1_IN1, LPTIM2_IN1, OCTOSPI1_IO1, PSSI_D12, SAI1_D1, SAI2_FS_A, TIM4_CH1, UART4_TX, USART3_DE, USART3_RTSPD12PD13 — шарик K13: DCMI_D13, FMC_A18, I2C4_SDA, I3C1_SDA, LPTIM1_CH1, LPTIM2_CH1, LPTIM4_IN1, OCTOSPI1_IO3, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTSPD13VDDA — шарик L1VDDAVREF+ — шарик L2VREF+PA2 — шарик L3: ADC1_INP14, ADC2_INP14, LPTIM1_IN2, PWR_WKUP2, SAI2_SCK_B, TAMP_IN4, TAMP_OUT3, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PA4 — шарик L4: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, I2S1_WS, I2S3_WS, LPTIM2_CH1, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CKPA4PB0 — шарик L5: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, LPTIM3_CH1, OCTOSPI1_IO1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USART11_CKPB0PB2 — шарик L6: I2S3_SDO, LPTIM1_CH1, LPTIM5_ETR, OCTOSPI1_CLK, OCTOSPI1_DQS, RCC_LSCO, RTC_OUT2, SAI1_D1, SAI1_SD_A, SDMMC1_CMD, SPI1_RDY, SPI3_MOSI, TIM8_CH4NPB2PG0 — шарик L7: FMC_A10, LPTIM4_IN1, UART9_RXPG0PE9 — шарик L8: DAC1_EXTI9, FMC_D6, FMC_DA6, OCTOSPI1_IO6, TIM1_CH1, UART12_RX, UART7_DE, UART7_RTSPE9PE13 — шарик L9: FMC_D10, FMC_DA10, SAI2_FS_B, SPI4_MISO, TIM1_CH3PE13PH7 — шарик L10: DCMI_D9, FMC_SDCKE1, I2C3_SCL, PSSI_D9, SPI5_MISO, TIM1_CH3, TIM8_CH1NPH7PB13 — шарик L11: I2C2_SMBA, I2S2_CK, LPTIM2_CH1, LPTIM3_IN1, SDMMC1_D0, SPI2_SCK, TIM1_CH1N, UART5_TX, UCPD1_CC1, USART3_CTS, USART3_NSSPB13PD8 — шарик L12: FMC_D13, FMC_DA13, USART3_TXPD8VDD — шарик L13VDDVDD — шарик M1VDDVSS — шарик M2VSSPH5 — шарик M3: FMC_SDNWE, I2C2_SDA, SPI5_NSS, SPI6_RDYPH5VSS — шарик M4VSSPA6 — шарик M5: ADC1_INP3, ADC2_INP3, DCMI_PIXCLK, I2S1_SDI, OCTOSPI1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART11_TXPA6PF14 — шарик M6: ADC2_INN2, ADC2_INP6, FMC_A8, LPTIM6_IN2PF14VSS — шарик M7VSSPE11 — шарик M8: ADC1_EXTI11, ADC2_EXTI11, FMC_D8, FMC_DA8, OCTOSPI1_NCS, SAI2_SD_B, SPI1_RDY, SPI4_NSS, TIM1_CH2PE11PB11 — шарик M9: ADC1_EXTI11, ADC2_EXTI11, FMC_NBL1, I2C2_SDA, LPTIM2_ETR, SPI2_RDY, SPI4_RDY, TIM2_CH4, USART3_RXPB11PH8 — шарик M10: DCMI_HSYNC, I2C3_SDA, PSSI_DE, SPI5_MOSI, TIM1_CH2N, TIM5_ETR, TIM8_CH2PH8PH10 — шарик M11: DCMI_D1, I2C4_SMBA, PSSI_D1, SPI5_RDY, TIM1_CH1N, TIM5_CH1, TIM8_CH3PH10VSS — шарик M12VSSPB14 — шарик M13: I2S2_SDI, LPTIM3_ETR, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, UCPD1_CC2, USART1_TX, USART3_DE, USART3_RTSPB14PH4 — шарик N1: I2C2_SCL, PSSI_D14, SPI5_RDY, SPI6_RDYPH4PH3 — шарик N2: FMC_SDNE0, OCTOSPI1_IO5, SAI2_MCLK_BPH3PA3 — шарик N3: ADC1_INP15, ADC2_INP15, I2S2_WS, OCTOSPI1_CLK, SAI1_SD_B, SPI2_NSS, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3VDD — шарик N4VDDPC4 — шарик N5: ADC1_INP4, ADC2_INP4, FMC_SDNE0, I2S1_MCK, LPTIM2_ETR, SAI1_CK1, TIM2_CH4, USART3_RXPC4PF12 — шарик N6: ADC1_INN2, ADC1_INP6, FMC_A6, LPTIM6_CH2PF12VDD — шарик N7VDDPE7 — шарик N8: FMC_D4, FMC_DA4, OCTOSPI1_IO4, TIM1_ETR, UART12_DE, UART12_RTS, UART7_RXPE7PE15 — шарик N9: ADC1_EXTI15, ADC2_EXTI15, FMC_D12, FMC_DA12, TIM1_BKIN, TIM1_CH4N, USART10_CKPE15VCAP — шарик N10VCAPVDD — шарик N11VDDPH11 — шарик N12: ADC1_EXTI11, ADC2_EXTI11, DCMI_D2, I2C4_SCL, I3C1_SCL, PSSI_D2, TIM1_CH1, TIM5_CH2, TIM8_CH3NPH11PH12 — шарик N13: DCMI_D3, I2C4_SDA, I3C1_SDA, PSSI_D3, TIM1_BKIN, TIM5_CH3, TIM8_BKIN, TIM8_CH4NPH12UFBGA169, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнемуглу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия
Распиновка STM32H562AI (UFBGA169), вид сверхуРаспиновка UFBGA169 картинкой
PNG, 1293 × 1300 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (F12, AF7)
CTSPA11 (F13, AF7)
DEPA12 (E13, AF7)
NSSPA11 (F13, AF7)
RTSPA12 (E13, AF7)
RXPB7 (D6, AF7), PA10 (E10, AF7), PB15 (J10, AF4)
TXPB6 (A5, AF7), PA9 (E11, AF7), PB14 (M13, AF4)
USART2CKPD7 (B8, AF7), PA4 (L4, AF7)
CTSPD3 (A9, AF7), PA0 (J4, AF7)
DEPD4 (F8, AF7), PA1 (J5, AF7)
NSSPD3 (A9, AF7), PA0 (J4, AF7)
RTSPD4 (F8, AF7), PA1 (J5, AF7)
RXPD6 (E8, AF7), PA3 (N3, AF7)
TXPD5 (D8, AF7), PA2 (L3, AF7)
USART3CKPC12 (B9, AF7), PD10 (J11, AF7), PB12 (K11, AF7)
CTSPD11 (H10, AF7), PB13 (L11, AF7)
DEPD12 (K12, AF7), PB14 (M13, AF7)
NSSPD11 (H10, AF7), PB13 (L11, AF7)
RTSPD12 (K12, AF7), PB14 (M13, AF7)
RXPC11 (A11, AF7), PD9 (J9, AF7), PB11 (M9, AF7), PC4 (N5, AF7)
TXPC10 (C10, AF7), PB10 (K9, AF7), PD8 (L12, AF7)
USART6CKPG7 (G8, AF7), PC8 (G12, AF7)
CTSPG15 (B6, AF7), PG13 (D7, AF7)
DEPG12 (C8, AF7), PG8 (F11, AF7)
NSSPG15 (B6, AF7), PG13 (D7, AF7)
RTSPG12 (C8, AF7), PG8 (F11, AF7)
RXPG9 (F7, AF7), PC7 (F10, AF7)
TXPG14 (C7, AF7), PC6 (F9, AF7)
USART10CKPG15 (B6, AF6), PE15 (N9, AF7)
CTSPG13 (D7, AF6)
DEPG14 (C7, AF6)
NSSPG13 (D7, AF6)
RTSPG14 (C7, AF6)
RXPE2 (A1, AF7), PG11 (E7, AF6)
TXPE3 (B2, AF7), PG12 (C8, AF6)
USART11CKPF2 (F2, AF7), PB0 (L5, AF7)
CTSPF5 (F6, AF7), PB15 (J10, AF7)
DEPG11 (E7, AF7), PC1 (J2, AF7)
NSSPF5 (F6, AF7), PB15 (J10, AF7)
RTSPG11 (E7, AF7), PC1 (J2, AF7)
RXPF4 (F1, AF7), PA7 (K5, AF7)
TXPF3 (F5, AF7), PA6 (M5, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB15 (J10, AF8), PB0 (L5, AF8)
DEPA15(JTDI) (B11, AF8), PB14 (M13, AF8)
RTSPA15(JTDI) (B11, AF8), PB14 (M13, AF8)
RXPC11 (A11, AF8), PD0 (D9, AF8), PH14 (D10, AF8), PB8 (E5, AF8), PA11 (F13, AF6), PD11 (H10, AF8), PA1 (J5, AF8)
TXPB9 (A4, AF8), PC10 (C10, AF8), PH13 (D12, AF8), PD1 (E9, AF8), PA12 (E13, AF6), PA0 (J4, AF8), PD12 (K12, AF8)
UART5CTSPC9 (G13, AF8)
DEPC8 (G12, AF8)
RTSPC8 (G12, AF8)
RXPB5 (C6, AF14), PD2 (C9, AF8), PB15 (J10, AF14), PB12 (K11, AF14)
TXPB6 (A5, AF14), PC12 (B9, AF8), PB13 (L11, AF14)
UART7CTSPF9 (H3, AF7), PE10 (H8, AF7)
DEPF8 (G5, AF7), PE9 (L8, AF7)
RTSPF8 (G5, AF7), PE9 (L8, AF7)
RXPB3(JTDO/TRACESWO) (E6, AF11), PA8 (F12, AF11), PF6 (G4, AF7), PE7 (N8, AF7)
TXPB4(NJTRST) (A6, AF11), PA15(JTDI) (B11, AF11), PF7 (G3, AF7), PE8 (G7, AF7)
UART8CTSPD14 (H11, AF8)
DEPD15 (H9, AF8)
RTSPD15 (H9, AF8)
RXPE0 (C5, AF8)
TXPE2 (A1, AF8), PE1 (D5, AF8), PH13 (D12, AF7)
UART9CTSPD0 (D9, AF11)
DEPD13 (K13, AF11)
RTSPD13 (K13, AF11)
RXPD14 (H11, AF11), PG0 (L7, AF11)
TXPD15 (H9, AF11), PG1 (K7, AF11)
UART12CTSPB3(JTDO/TRACESWO) (E6, AF7), PE8 (G7, AF6)
DEPC5 (H6, AF7), PE7 (N8, AF6)
RTSPC5 (H6, AF7), PE7 (N8, AF6)
RXPF5 (F6, AF6), PG2 (J12, AF7), PE9 (L8, AF6)
TXPF2 (F2, AF6), PG3 (G9, AF7), PE10 (H8, AF6)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (F13, AF3)
DEPA12 (E13, AF3)
RTSPA12 (E13, AF3)
RXPB7 (D6, AF8), PA10 (E10, AF3)
TXPB6 (A5, AF8), PA9 (E11, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4(NJTRST) (A6, AF5), PG9 (F7, AF5), PA6 (M5, AF5)
MOSIPD7 (B8, AF5), PB5 (C6, AF5), PA7 (K5, AF5)
NSSPG10 (A8, AF5), PA15(JTDI) (B11, AF5), PA4 (L4, AF5)
RDYPA8 (F12, AF5), PG6 (G11, AF5), PB2 (L6, AF4), PE11 (M8, AF4)
SCKPB3(JTDO/TRACESWO) (E6, AF5), PG11 (E7, AF5), PA5 (K4, AF5)
SPI2MISOPI2 (A13, AF5), PC2 (J3, AF5), PB14 (M13, AF5)
MOSIPI3 (C11, AF5), PC3 (H5, AF5), PC1 (J2, AF5), PB15 (J10, AF5), PG1 (K7, AF7)
NSSPB9 (A4, AF5), PB4(NJTRST) (A6, AF7), PI0 (B13, AF5), PA11 (F13, AF5), PB12 (K11, AF5), PA3 (N3, AF5)
RDYPI4 (C4, AF7), PD5 (D8, AF5), PC0 (J1, AF7), PB11 (M9, AF5)
SCKPD3 (A9, AF5), PI1 (B12, AF5), PA9 (E11, AF5), PA12 (E13, AF5), PB10 (K9, AF5), PB13 (L11, AF5)
SPI3MISOPB4(NJTRST) (A6, AF6), PC11 (A11, AF6)
MOSIPC12 (B9, AF6), PB5 (C6, AF7), PD6 (E8, AF5), PB2 (L6, AF7)
NSSPA15(JTDI) (B11, AF6), PA4 (L4, AF6)
RDYPE0 (C5, AF6), PA0 (J4, AF6)
SCKPC10 (C10, AF6), PB3(JTDO/TRACESWO) (E6, AF6)
SPI4MISOPE5 (C2, AF5), PE13 (L9, AF5)
MOSIPE6 (D3, AF5), PE14 (J8, AF5)
NSSPE4 (D4, AF5), PE11 (M8, AF5)
RDYPG15 (B6, AF5), PB8 (E5, AF5), PB11 (M9, AF6)
SCKPE2 (A1, AF5), PE12 (K8, AF5)
SPI5MISOPF8 (G5, AF5), PH7 (L10, AF5)
MOSIPF9 (H3, AF5), PF11 (J6, AF5), PH8 (M10, AF5)
NSSPF6 (G4, AF5), PH5 (M3, AF5)
RDYPH10 (M11, AF5), PH4 (N1, AF5)
SCKPF7 (G3, AF5), PH6 (K10, AF5)
SPI6MISOPB4(NJTRST) (A6, AF8), PG12 (C8, AF5), PA6 (M5, AF8)
MOSIPB5 (C6, AF8), PG14 (C7, AF5), PA7 (K5, AF8)
NSSPA15(JTDI) (B11, AF7), PG8 (F11, AF5), PA0 (J4, AF5), PA4 (L4, AF8)
RDYPH5 (M3, AF7), PH4 (N1, AF7)
SCKPC12 (B9, AF5), PG13 (D7, AF5), PB3(JTDO/TRACESWO) (E6, AF8), PA5 (K4, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPB3(JTDO/TRACESWO) (E6, AF5), PG11 (E7, AF5), PA5 (K4, AF5)
MCKPC4 (N5, AF5)
SDIPB4(NJTRST) (A6, AF5), PG9 (F7, AF5), PA6 (M5, AF5)
SDOPD7 (B8, AF5), PB5 (C6, AF5), PA7 (K5, AF5)
WSPG10 (A8, AF5), PA15(JTDI) (B11, AF5), PA4 (L4, AF5)
I2S2CKPD3 (A9, AF5), PI1 (B12, AF5), PA9 (E11, AF5), PA12 (E13, AF5), PB10 (K9, AF5), PB13 (L11, AF5)
MCKPC6 (F9, AF5)
SDIPI2 (A13, AF5), PC2 (J3, AF5), PB14 (M13, AF5)
SDOPI3 (C11, AF5), PC3 (H5, AF5), PC1 (J2, AF5), PB15 (J10, AF5), PG1 (K7, AF7)
WSPB9 (A4, AF5), PB4(NJTRST) (A6, AF7), PI0 (B13, AF5), PA11 (F13, AF5), PB12 (K11, AF5), PA3 (N3, AF5)
I2S3CKPC10 (C10, AF6), PB3(JTDO/TRACESWO) (E6, AF6)
MCKPC7 (F10, AF6)
SDIPB4(NJTRST) (A6, AF6), PC11 (A11, AF6)
SDOPC12 (B9, AF6), PB5 (C6, AF7), PD6 (E8, AF5), PB2 (L6, AF7)
WSPA15(JTDI) (B11, AF6), PA4 (L4, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (A5, AF4), PB8 (E5, AF4)
SDAPB9 (A4, AF4), PB7 (D6, AF4)
SMBAPB5 (C6, AF4)
I2C2SCLPF1 (E1, AF4), PB10 (K9, AF4), PH4 (N1, AF4)
SDAPB3(JTDO/TRACESWO) (E6, AF4), PF0 (F3, AF4), PB12 (K11, AF4), PH5 (M3, AF4), PB11 (M9, AF4)
SMBAPF2 (F2, AF4), PH6 (K10, AF4), PB13 (L11, AF4)
I2C3SCLPA8 (F12, AF4), PH7 (L10, AF4)
SDAPC9 (G13, AF4), PH8 (M10, AF4)
SMBAPA9 (E11, AF4)
I2C4SCLPB6 (A5, AF6), PB8 (E5, AF6), PF5 (F6, AF4), PG7 (G8, AF4), PD12 (K12, AF4), PH11 (N12, AF4)
SDAPB9 (A4, AF6), PB7 (D6, AF6), PG6 (G11, AF4), PF15 (J7, AF4), PD13 (K13, AF4), PH12 (N13, AF4)
SMBAPB5 (C6, AF6), PF13 (H7, AF4), PD11 (H10, AF4), PH10 (M11, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPB6 (A5, AF3), PB8 (E5, AF3), PF5 (F6, AF5), PG7 (G8, AF3), PD12 (K12, AF5), PH11 (N12, AF5)
SDAPB9 (A4, AF3), PB7 (D6, AF3), PG6 (G11, AF3), PF15 (J7, AF5), PD13 (K13, AF5), PH12 (N13, AF5)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPE0 (C5, AF9), PD0 (D9, AF9), PH14 (D10, AF9), PB8 (E5, AF9), PA11 (F13, AF9)
TXPB9 (A4, AF9), PE1 (D5, AF9), PB7 (D6, AF9), PD5 (D8, AF9), PH13 (D12, AF9), PD1 (E9, AF9), PA12 (E13, AF9)

USB — USB Full Speed, устройство

БлокСигналВыводы
USBDMPA11 (F13, AF10)
DPPA12 (E13, AF10)
SOFPA8 (F12, AF10)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB13 (L11)
CC2PB14 (M13)
DB1PA9 (E11)
DB2PC9 (G13)
FRSTXPA10 (E10, AF6), PG7 (G8, AF11), PG6 (G11, AF11), PB12 (K11, AF6)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (A4, AF7)
CKPC12 (B9, AF12)
CKINPB8 (E5, AF7)
CMDPD2 (C9, AF12), PB2 (L6, AF12)
D0PA10 (E10, AF12), PC8 (G12, AF12), PB13 (L11, AF12)
D0DIRPC6 (F9, AF8)
D1PC9 (G13, AF12)
D2PC10 (C10, AF12)
D3PC11 (A11, AF12)
D4PB8 (E5, AF12)
D5PB9 (A4, AF12)
D6PC6 (F9, AF12)
D7PC7 (F10, AF12)
D123DIRPC7 (F10, AF8)

OCTOSPI — интерфейс Octo-SPI памяти

БлокСигналВыводы
OCTOSPI1CLKPB4(NJTRST) (A6, AF3), PF10 (G6, AF9), PB15 (J10, AF10), PB2 (L6, AF9), PA3 (N3, AF3)
DQSPC5 (H6, AF10), PA1 (J5, AF6), PB2 (L6, AF10)
IO0PF8 (G5, AF10), PC9 (G13, AF9), PC3 (H5, AF9), PD11 (H10, AF9), PB1 (K6, AF6)
IO1PC10 (C10, AF9), PF9 (H3, AF10), PD12 (K12, AF9), PB0 (L5, AF6)
IO2PE2 (A1, AF9), PF7 (G3, AF10), PC2 (J3, AF9), PA7 (K5, AF10)
IO3PF6 (G4, AF10), PA1 (J5, AF9), PD13 (K13, AF9), PA6 (M5, AF6)
IO4PD4 (F8, AF10), PC1 (J2, AF10), PH2 (K3, AF9), PE7 (N8, AF10)
IO5PD5 (D8, AF10), PC6 (F9, AF11), PE8 (G7, AF10), PC2 (J3, AF6), PH3 (N2, AF9)
IO6PD6 (E8, AF10), PG9 (F7, AF9), PC7 (F10, AF11), PC3 (H5, AF6), PE9 (L8, AF10)
IO7PD7 (B8, AF10), PG14 (C7, AF9), PE10 (H8, AF10), PC0 (J1, AF10)
NCLKPB5 (C6, AF3), PF11 (J6, AF9), PB12 (K11, AF3)
NCSPB6 (A5, AF10), PC11 (A11, AF9), PG6 (G11, AF10), PB10 (K9, AF9), PE11 (M8, AF6)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (A1, AF2), PD11 (H10, AF2), PC4 (N5, AF2)
CK2PE5 (C2, AF2), PG7 (G8, AF2)
D1PE6 (D3, AF2), PD6 (E8, AF2), PC1 (J2, AF2), PD12 (K12, AF6), PB2 (L6, AF2)
D2PE4 (D4, AF2)
D3PF10 (G6, AF2), PC3 (H5, AF2), PC5 (H6, AF2)
FS_APE4 (D4, AF6), PC5 (H6, AF6)
FS_BPF9 (H3, AF6)
MCLK_APE2 (A1, AF6), PG7 (G8, AF6), PC0 (J1, AF6)
MCLK_BPF7 (G3, AF6)
SCK_APE5 (C2, AF6), PC6 (F9, AF6)
SCK_BPF8 (G5, AF6)
SD_APE6 (D3, AF6), PD6 (E8, AF6), PC1 (J2, AF6), PB2 (L6, AF6)
SD_BPE3 (B2, AF6), PF6 (G4, AF6), PA3 (N3, AF6)
SAI2FS_API7 (A2, AF10), PD12 (K12, AF10)
FS_BPA12 (E13, AF8), PG9 (F7, AF10), PC0 (J1, AF8), PE13 (L9, AF10)
MCLK_API4 (C4, AF10), PE0 (C5, AF10)
MCLK_BPE6 (D3, AF10), PA1 (J5, AF10), PE14 (J8, AF10), PH3 (N2, AF10)
SCK_APD13 (K13, AF10)
SCK_BPH2 (K3, AF10), PE12 (K8, AF10), PA2 (L3, AF8)
SD_API6 (C3, AF10), PD11 (H10, AF10), PC1 (J2, AF8)
SD_BPG10 (A8, AF10), PA0 (J4, AF10), PF11 (J6, AF10), PE11 (M8, AF10)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPB6 (A5, AF5), PA15(JTDI) (B11, AF4)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (A11), PG11 (E7), PI11 (F4), PA11 (F13), PD11 (H10), PF11 (J6), PE11 (M8), PB11 (M9), PH11 (N12)
EXTI15PG15 (B6), PA15(JTDI) (B11), PC15-OSC32_OUT(OSC32_OUT) (C1), PH15 (D11), PD15 (H9), PF15 (J7), PB15 (J10), PE15 (N9)
INN1PA0 (J4)
INN2PF12 (N6)
INN3PA7 (K5)
INN4PC5 (H6)
INN5PB0 (L5)
INN10PC1 (J2)
INN11PC2 (J3)
INN12PC3 (H5)
INN18PA5 (K4)
INP0PA0 (J4)
INP1PA1 (J5)
INP2PF11 (J6)
INP3PA6 (M5)
INP4PC4 (N5)
INP5PB1 (K6)
INP6PF12 (N6)
INP7PA7 (K5)
INP8PC5 (H6)
INP9PB0 (L5)
INP10PC0 (J1)
INP11PC1 (J2)
INP12PC2 (J3)
INP13PC3 (H5)
INP14PA2 (L3)
INP15PA3 (N3)
INP18PA4 (L4)
INP19PA5 (K4)
ADC2EXTI11PC11 (A11), PG11 (E7), PI11 (F4), PA11 (F13), PD11 (H10), PF11 (J6), PE11 (M8), PB11 (M9), PH11 (N12)
EXTI15PG15 (B6), PA15(JTDI) (B11), PC15-OSC32_OUT(OSC32_OUT) (C1), PH15 (D11), PD15 (H9), PF15 (J7), PB15 (J10), PE15 (N9)
INN1PA0 (J4)
INN2PF14 (M6)
INN3PA7 (K5)
INN4PC5 (H6)
INN5PB0 (L5)
INN10PC1 (J2)
INN11PC2 (J3)
INN12PC3 (H5)
INN18PA5 (K4)
INP0PA0 (J4)
INP1PA1 (J5)
INP2PF13 (H7)
INP3PA6 (M5)
INP4PC4 (N5)
INP5PB1 (K6)
INP6PF14 (M6)
INP7PA7 (K5)
INP8PC5 (H6)
INP9PB0 (L5)
INP10PC0 (J1)
INP11PC1 (J2)
INP12PC2 (J3)
INP13PC3 (H5)
INP14PA2 (L3)
INP15PA3 (N3)
INP18PA4 (L4)
INP19PA5 (K4)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (A4), PA9 (E11), PG9 (F7), PC9 (G13), PF9 (H3), PD9 (J9), PE9 (L8)
OUT1PA4 (L4)
OUT2PA5 (K4)

TIM — таймер

БлокСигналВыводы
TIM1BKINPB12 (K11, AF1), PA6 (M5, AF1), PE15 (N9, AF1), PH12 (N13, AF1)
BKIN2PE6 (D3, AF1), PG4 (J13, AF1)
CH1PA8 (F12, AF1), PE9 (L8, AF1), PH11 (N12, AF1)
CH1NPE8 (G7, AF1), PA7 (K5, AF1), PB13 (L11, AF1), PH10 (M11, AF1)
CH2PA9 (E11, AF1), PE11 (M8, AF1)
CH2NPE10 (H8, AF1), PB0 (L5, AF1), PH8 (M10, AF1), PB14 (M13, AF1)
CH3PA10 (E10, AF1), PE13 (L9, AF1), PH7 (L10, AF1)
CH3NPB15 (J10, AF1), PB1 (K6, AF1), PE12 (K8, AF1), PH6 (K10, AF1)
CH4PA11 (F13, AF1), PE14 (J8, AF1)
CH4NPD5 (D8, AF1), PC5 (H6, AF1), PE15 (N9, AF3)
ETRPA12 (E13, AF1), PG5 (G10, AF1), PE7 (N8, AF1)
TIM2CH1PA15(JTDI) (B11, AF1), PA0 (J4, AF1), PA5 (K4, AF1)
CH2PB3(JTDO/TRACESWO) (E6, AF1), PA1 (J5, AF1)
CH3PB10 (K9, AF1), PA2 (L3, AF1)
CH4PB11 (M9, AF1), PA3 (N3, AF1), PC4 (N5, AF1)
ETRPA15(JTDI) (B11, AF14), PA0 (J4, AF14), PA5 (K4, AF14)
TIM3CH1PB4(NJTRST) (A6, AF2), PC6 (F9, AF2), PA6 (M5, AF2)
CH2PB5 (C6, AF2), PC7 (F10, AF2), PA7 (K5, AF2)
CH3PC8 (G12, AF2), PB0 (L5, AF2)
CH4PC9 (G13, AF2), PB1 (K6, AF2)
ETRPD2 (C9, AF2)
TIM4CH1PB6 (A5, AF2), PD12 (K12, AF2)
CH2PB7 (D6, AF2), PD13 (K13, AF2)
CH3PB8 (E5, AF2), PD14 (H11, AF2)
CH4PB9 (A4, AF2), PD15 (H9, AF2), PC2 (J3, AF2)
ETRPE0 (C5, AF2)
TIM5CH1PA0 (J4, AF2), PH10 (M11, AF2)
CH2PA1 (J5, AF2), PH11 (N12, AF2)
CH3PA2 (L3, AF2), PH12 (N13, AF2)
CH4PI0 (B13, AF2), PA3 (N3, AF2)
ETRPA4 (L4, AF2), PH8 (M10, AF2)
TIM8BKINPI4 (C4, AF3), PG2 (J12, AF3), PA6 (M5, AF3), PH12 (N13, AF3)
BKIN2PI1 (B12, AF3), PA8 (F12, AF3), PG3 (G9, AF3)
CH1PC6 (F9, AF3), PH6 (K10, AF3)
CH1NPH13 (D12, AF3), PA5 (K4, AF3), PA7 (K5, AF3), PH7 (L10, AF3)
CH2PI6 (C3, AF3), PC7 (F10, AF3), PH8 (M10, AF3)
CH2NPH14 (D10, AF3), PB0 (L5, AF3), PB14 (M13, AF3)
CH3PI7 (A2, AF3), PC8 (G12, AF3), PH10 (M11, AF3)
CH3NPH15 (D11, AF3), PB15 (J10, AF3), PB1 (K6, AF3), PH11 (N12, AF3)
CH4PI2 (A13, AF3), PC9 (G13, AF3)
CH4NPD0 (D9, AF3), PB2 (L6, AF3), PH12 (N13, AF10)
ETRPI3 (C11, AF3), PG8 (F11, AF3), PA0 (J4, AF3)
TIM12CH1PH6 (K10, AF2), PB14 (M13, AF2)
CH2PB15 (J10, AF2)
TIM13CH1PF8 (G5, AF9), PA6 (M5, AF9)
TIM14CH1PF9 (H3, AF9), PA7 (K5, AF9)
TIM15BKINPE3 (B2, AF4), PD2 (C9, AF4), PA0 (J4, AF4)
CH1PC12 (B9, AF2), PE5 (C2, AF4), PA2 (L3, AF4)
CH1NPE4 (D4, AF4), PA1 (J5, AF4)
CH2PE6 (D3, AF4), PA3 (N3, AF4)
TIM16BKINPB4(NJTRST) (A6, AF1), PF10 (G6, AF1), PC0 (J1, AF1)
CH1PB8 (E5, AF1), PF6 (G4, AF1)
CH1NPB6 (A5, AF1), PF8 (G5, AF1)
TIM17BKINPB5 (C6, AF1), PG6 (G11, AF1)
CH1PB9 (A4, AF1), PF7 (G3, AF1), PC2 (J3, AF1)
CH1NPB7 (D6, AF1), PF9 (H3, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PG13 (D7, AF1), PD13 (K13, AF1), PB2 (L6, AF5)
CH2PB4(NJTRST) (A6, AF4), PG14 (C7, AF4)
ETRPE0 (C5, AF1), PG14 (C7, AF1)
IN1PG12 (C8, AF1), PA1 (J5, AF5), PD12 (K12, AF1)
IN2PE2 (A1, AF1), PE1 (D5, AF1), PH13 (D12, AF1), PG11 (E7, AF1), PH2 (K3, AF1), PA2 (L3, AF5)
LPTIM2CH1PD13 (K13, AF3), PA4 (L4, AF3), PB13 (L11, AF3)
CH2PE0 (C5, AF3), PD10 (J11, AF3)
ETRPE0 (C5, AF4), PB11 (M9, AF3), PC4 (N5, AF3)
IN1PB10 (K9, AF3), PD12 (K12, AF3)
IN2PA10 (E10, AF4), PD11 (H10, AF3)
LPTIM3CH1PF5 (F6, AF2), PC3 (H5, AF3), PB10 (K9, AF2), PB0 (L5, AF14)
CH2PF2 (F2, AF2), PB1 (K6, AF14)
ETRPC10 (C10, AF2), PF4 (F1, AF2), PB14 (M13, AF14)
IN1PC11 (A11, AF2), PF3 (F5, AF2), PF5 (F6, AF14), PB13 (L11, AF2)
IN2PA15(JTDI) (B11, AF2), PF2 (F2, AF3)
LPTIM4ETRPD2 (C9, AF14), PG4 (J13, AF14)
IN1PD13 (K13, AF14), PG0 (L7, AF14)
OUTPD7 (B8, AF14)
LPTIM5CH1PG12 (C8, AF14), PF0 (F3, AF13), PF6 (G4, AF13)
CH2PG13 (D7, AF13), PF1 (E1, AF13), PF7 (G3, AF13)
ETRPG3 (G9, AF13), PB2 (L6, AF13)
IN1PG14 (C7, AF13), PF2 (F2, AF13), PF8 (G5, AF13)
IN2PF3 (F5, AF13), PF9 (H3, AF13)
LPTIM6CH1PF11 (J6, AF14)
CH2PF12 (N6, AF14)
ETRPB3(JTDO/TRACESWO) (E6, AF14), PG2 (J12, AF14)
IN1PF13 (H7, AF14)
IN2PF14 (M6, AF14)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (E4)
OUT2PI8 (E3), PB2 (L6, AF0)
REFINPB15 (J10, AF0)
TSPC13 (E4)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (F3, AF12)
A1PF1 (E1, AF12)
A2PF2 (F2, AF12)
A3PF3 (F5, AF12)
A4PF4 (F1, AF12)
A5PF5 (F6, AF12)
A6PF12 (N6, AF12)
A7PF13 (H7, AF12)
A8PF14 (M6, AF12)
A9PF15 (J7, AF12)
A10PG0 (L7, AF12)
A11PG1 (K7, AF12)
A12PG2 (J12, AF12)
A13PG3 (G9, AF12)
A14PG4 (J13, AF12)
A15PG5 (G10, AF12)
A16PD11 (H10, AF12)
A17PD12 (K12, AF12)
A18PD13 (K13, AF12)
A19PE3 (B2, AF12)
A20PE4 (D4, AF12)
A21PE5 (C2, AF12)
A22PE6 (D3, AF12)
A23PE2 (A1, AF12)
A24PG13 (D7, AF12)
A25PG14 (C7, AF12), PC0 (J1, AF9)
ALEPC8 (G12, AF11), PD12 (K12, AF12)
BA0PG4 (J13, AF12)
BA1PG5 (G10, AF12)
CLEPC9 (G13, AF11), PD11 (H10, AF12)
CLKPD3 (A9, AF12)
D0PD14 (H11, AF12)
D1PD15 (H9, AF12)
D2PD0 (D9, AF12)
D3PD1 (E9, AF12)
D4PE7 (N8, AF12)
D5PE8 (G7, AF12)
D6PE9 (L8, AF12)
D7PE10 (H8, AF12)
D8PE11 (M8, AF12)
D9PE12 (K8, AF12)
D10PE13 (L9, AF12)
D11PE14 (J8, AF12)
D12PE15 (N9, AF12)
D13PD8 (L12, AF12)
D14PD9 (J9, AF12)
D15PD10 (J11, AF12)
DA0PD14 (H11, AF12)
DA1PD15 (H9, AF12)
DA2PD0 (D9, AF12)
DA3PD1 (E9, AF12)
DA4PE7 (N8, AF12)
DA5PE8 (G7, AF12)
DA6PE9 (L8, AF12)
DA7PE10 (H8, AF12)
DA8PE11 (M8, AF12)
DA9PE12 (K8, AF12)
DA10PE13 (L9, AF12)
DA11PE14 (J8, AF12)
DA12PE15 (N9, AF12)
DA13PD8 (L12, AF12)
DA14PD9 (J9, AF12)
DA15PD10 (J11, AF12)
INTPG7 (G8, AF12), PC8 (G12, AF10)
NBL0PE0 (C5, AF12)
NBL1PA15(JTDI) (B11, AF12), PE1 (D5, AF12), PB11 (M9, AF12)
NCEPD7 (B8, AF12), PG9 (F7, AF12), PC8 (G12, AF9)
NE1PD7 (B8, AF12), PC7 (F10, AF9)
NE2PG9 (F7, AF12), PC8 (G12, AF9)
NE3PG10 (A8, AF12), PG6 (G11, AF12)
NE4PG12 (C8, AF12)
NLPB7 (D6, AF12)
NOEPD4 (F8, AF12), PA8 (F12, AF12)
NWAITPD6 (E8, AF12), PC6 (F9, AF9)
NWEPD5 (D8, AF12), PA9 (E11, AF12), PA7 (K5, AF13)
SDCKE0PC3 (H5, AF12), PC5 (H6, AF12), PH2 (K3, AF12)
SDCKE1PB5 (C6, AF12), PH7 (L10, AF12)
SDCLKPG8 (F11, AF12)
SDNCASPG15 (B6, AF12)
SDNE0PC2 (J3, AF12), PH3 (N2, AF12), PC4 (N5, AF12)
SDNE1PB6 (A5, AF12), PH6 (K10, AF12)
SDNRASPF11 (J6, AF12)
SDNWEPC0 (J1, AF12), PA7 (K5, AF12), PH5 (M3, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (E11, AF13), PC6 (F9, AF13)
D1PA10 (E10, AF13), PC7 (F10, AF13), PH10 (M11, AF13)
D2PG10 (A8, AF13), PE0 (C5, AF13), PC8 (G12, AF13), PB15 (J10, AF13), PH11 (N12, AF13)
D3PE2 (A1, AF13), PE1 (D5, AF13), PH13 (D12, AF13), PG11 (E7, AF13), PA8 (F12, AF13), PC9 (G13, AF13), PH12 (N13, AF13)
D4PC11 (A11, AF13), PE4 (D4, AF13), PH14 (D10, AF13)
D5PB6 (A5, AF13), PD3 (A9, AF13), PI4 (C4, AF13)
D6PE5 (C2, AF13), PI6 (C3, AF13), PB8 (E5, AF13)
D7PI7 (A2, AF13), PB9 (A4, AF13), PB4(NJTRST) (A6, AF13), PE6 (D3, AF13)
D8PI1 (B12, AF13), PC10 (C10, AF13), PH6 (K10, AF13)
D9PI2 (A13, AF13), PC12 (B9, AF13), PH7 (L10, AF13)
D10PB5 (C6, AF13), PI3 (C11, AF13), PD6 (E8, AF13)
D11PA15(JTDI) (B11, AF13), PG12 (C8, AF13), PD2 (C9, AF13), PH15 (D11, AF13), PF10 (G6, AF13)
D12PG6 (G11, AF13), PF11 (J6, AF13), PD12 (K12, AF13)
D13PG15 (B6, AF13), PI0 (B13, AF13), PG7 (G8, AF13), PD13 (K13, AF13)
HSYNCPA4 (L4, AF13), PH8 (M10, AF13)
PIXCLKPA6 (M5, AF13)
VSYNCPB7 (D6, AF13), PG9 (F7, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (E11, AF13), PC6 (F9, AF13)
D1PA10 (E10, AF13), PC7 (F10, AF13), PH10 (M11, AF13)
D2PG10 (A8, AF13), PE0 (C5, AF13), PC8 (G12, AF13), PB15 (J10, AF13), PH11 (N12, AF13)
D3PE2 (A1, AF13), PE1 (D5, AF13), PH13 (D12, AF13), PG11 (E7, AF13), PA8 (F12, AF13), PC9 (G13, AF13), PH12 (N13, AF13)
D4PC11 (A11, AF13), PE4 (D4, AF13), PH14 (D10, AF13)
D5PB6 (A5, AF13), PD3 (A9, AF13), PI4 (C4, AF13)
D6PE5 (C2, AF13), PI6 (C3, AF13), PB8 (E5, AF13)
D7PI7 (A2, AF13), PB9 (A4, AF13), PB4(NJTRST) (A6, AF13), PE6 (D3, AF13)
D8PI1 (B12, AF13), PC10 (C10, AF13), PH6 (K10, AF13)
D9PI2 (A13, AF13), PC12 (B9, AF13), PH7 (L10, AF13)
D10PB5 (C6, AF13), PI3 (C11, AF13), PD6 (E8, AF13)
D11PA15(JTDI) (B11, AF13), PG12 (C8, AF13), PD2 (C9, AF13), PH15 (D11, AF13), PF10 (G6, AF13)
D12PG6 (G11, AF13), PF11 (J6, AF13), PD12 (K12, AF13)
D13PG15 (B6, AF13), PI0 (B13, AF13), PG7 (G8, AF13), PD13 (K13, AF13)
D14PA5 (K4, AF13), PH4 (N1, AF13)
D15PG12 (C8, AF4), PI11 (F4, AF13), PF10 (G6, AF4), PC5 (H6, AF4)
DEPA4 (L4, AF13), PH8 (M10, AF13)
PDCKPA6 (M5, AF13)
RDYPB7 (D6, AF13), PG9 (F7, AF13)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14(JTCK/SWCLK) (A12, AF0)
JTDIPA15(JTDI) (B11, AF0)
JTDO-SWOPB3(JTDO/TRACESWO) (E6, AF0)
JTMS-SWDIOPA13(JTMS/SWDIO) (E12, AF0)
NJTRSTPB4(NJTRST) (A6, AF0)
TRACECLKPE2 (A1, AF0)
TRACED0PE3 (B2, AF0), PG13 (D7, AF0), PC1 (J2, AF0)
TRACED1PG14 (C7, AF0), PE4 (D4, AF0), PC8 (G12, AF0)
TRACED2PE5 (C2, AF0), PD2 (C9, AF0)
TRACED3PC12 (B9, AF0), PE6 (D3, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPB2 (L6)
MCO_1PA8 (F12, AF0)
MCO_2PC9 (G13, AF0)
OSC_INPH0-OSC_IN (H1)
OSC_OUTPH1-OSC_OUT (H2)
OSC32_INPC14-OSC32_IN(OSC32_IN) (B1)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (C1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC2 (J3, AF0)
PWR_CSTOPPC3 (H5, AF0)
PWR_WKUP1PA0 (J4)
PWR_WKUP2PA2 (L3)
PWR_WKUP3PI8 (E3)
PWR_WKUP4PC13 (E4)
PWR_WKUP5PB7 (D6)
PWR_WKUP6PC1 (J2)
PWR_WKUP7PD2 (C9)
PWR_WKUP8PD3 (A9)
TAMP_IN1PC13 (E4)
TAMP_IN2PI8 (E3), PA0 (J4)
TAMP_IN3PE6 (D3), PC1 (J2)
TAMP_IN4PI11 (F4), PA2 (L3)
TAMP_IN5PA1 (J5)
TAMP_IN6PE3 (B2)
TAMP_IN7PE4 (D4)
TAMP_IN8PE5 (C2)
TAMP_OUT1PA0 (J4)
TAMP_OUT2PC13 (E4)
TAMP_OUT3PE3 (B2), PI8 (E3), PC13 (E4), PA2 (L3)
TAMP_OUT4PA1 (J5)
TAMP_OUT5PI11 (F4), PC1 (J2)
TAMP_OUT6PE6 (D3)
TAMP_OUT7PE5 (C2)
TAMP_OUT8PE4 (D4)

Блоки без собственных выводов: HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 169 шариков корпуса UFBGA169 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PE2ввод-выводDCMI_D3 (AF13), DEBUG_TRACECLK (AF0), FMC_A23 (AF12), LPTIM1_IN2 (AF1), OCTOSPI1_IO2 (AF9), PSSI_D3 (AF13), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), UART8_TX (AF8), USART10_RX (AF7)
A2PI7ввод-выводDCMI_D7 (AF13), PSSI_D7 (AF13), SAI2_FS_A (AF10), TIM8_CH3 (AF3)
A3VDDпитание—
A4PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2S2_WS (AF5), I3C1_SDA (AF3), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
A5PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), FMC_SDNE1 (AF12), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LPUART1_TX (AF8), OCTOSPI1_NCS (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
A6PB4(NJTRST)ввод-выводDCMI_D7 (AF13), DEBUG_NJTRST (AF0), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), LPTIM1_CH2 (AF4), OCTOSPI1_CLK (AF3), PSSI_D7 (AF13), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
A7VDDIO2питание—
A8PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), I2S1_WS (AF5), PSSI_D2 (AF13), SAI2_SD_B (AF10), SPI1_NSS (AF5)
A9PD3ввод-выводDCMI_D5 (AF13), FMC_CLK (AF12), I2S2_CK (AF5), PSSI_D5 (AF13), PWR_WKUP8, SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
A10VDDпитание—
A11PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D4 (AF13), I2S3_SDI (AF6), LPTIM3_IN1 (AF2), OCTOSPI1_NCS (AF9), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
A12PA14(JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
A13PI2ввод-выводDCMI_D9 (AF13), I2S2_SDI (AF5), PSSI_D9 (AF13), SPI2_MISO (AF5), TIM8_CH4 (AF3)
B1PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
B2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), TAMP_IN6, TAMP_OUT3, TIM15_BKIN (AF4), USART10_TX (AF7)
B3VSSпитание—
B4VCAPпитание—
B5BOOT0загрузка—
B6PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), PSSI_D13 (AF13), SPI4_RDY (AF5), USART10_CK (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
B7VSSпитание—
B8PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), I2S1_SDO (AF5), LPTIM4_OUT (AF14), OCTOSPI1_IO7 (AF10), SPI1_MOSI (AF5), USART2_CK (AF7)
B9PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), I2S3_SDO (AF6), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
B10VSSпитание—
B11PA15(JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, CEC (AF4), DCMI_D11 (AF13), DEBUG_JTDI (AF0), FMC_NBL1 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM3_IN2 (AF2), PSSI_D11 (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF14), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
B12PI1ввод-выводDCMI_D8 (AF13), I2S2_CK (AF5), PSSI_D8 (AF13), SPI2_SCK (AF5), TIM8_BKIN2 (AF3)
B13PI0ввод-выводDCMI_D13 (AF13), I2S2_WS (AF5), PSSI_D13 (AF13), SPI2_NSS (AF5), TIM5_CH4 (AF2)
C1PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, RCC_OSC32_OUT
C2PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), FMC_A21 (AF12), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TAMP_IN8, TAMP_OUT7, TIM15_CH1 (AF4)
C3PI6ввод-выводDCMI_D6 (AF13), PSSI_D6 (AF13), SAI2_SD_A (AF10), TIM8_CH2 (AF3)
C4PI4ввод-выводDCMI_D5 (AF13), PSSI_D5 (AF13), SAI2_MCLK_A (AF10), SPI2_RDY (AF7), TIM8_BKIN (AF3)
C5PE0ввод-выводDCMI_D2 (AF13), FDCAN1_RX (AF9), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_CH2 (AF3), LPTIM2_ETR (AF4), PSSI_D2 (AF13), SAI2_MCLK_A (AF10), SPI3_RDY (AF6), TIM4_ETR (AF2), UART8_RX (AF8)
C6PB5ввод-выводDCMI_D10 (AF13), FMC_SDCKE1 (AF12), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), OCTOSPI1_NCLK (AF3), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14)
C7PG14ввод-выводDEBUG_TRACED1 (AF0), FMC_A25 (AF12), LPTIM1_CH2 (AF4), LPTIM1_ETR (AF1), LPTIM5_IN1 (AF13), OCTOSPI1_IO7 (AF9), SPI6_MOSI (AF5), USART10_DE (AF6), USART10_RTS (AF6), USART6_TX (AF7)
C8PG12ввод-выводDCMI_D11 (AF13), FMC_NE4 (AF12), LPTIM1_IN1 (AF1), LPTIM5_CH1 (AF14), PSSI_D11 (AF13), PSSI_D15 (AF4), SPI6_MISO (AF5), USART10_TX (AF6), USART6_DE (AF7), USART6_RTS (AF7)
C9PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), LPTIM4_ETR (AF14), PSSI_D11 (AF13), PWR_WKUP7, SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
C10PC10ввод-выводDCMI_D8 (AF13), I2S3_CK (AF6), LPTIM3_ETR (AF2), OCTOSPI1_IO1 (AF9), PSSI_D8 (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
C11PI3ввод-выводDCMI_D10 (AF13), I2S2_SDO (AF5), PSSI_D10 (AF13), SPI2_MOSI (AF5), TIM8_ETR (AF3)
C12VSSпитание—
C13VDDпитание—
D1VDDпитание—
D2VSSпитание—
D3PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TAMP_IN3, TAMP_OUT6, TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
D4PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), FMC_A20 (AF12), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TAMP_IN7, TAMP_OUT8, TIM15_CH1N (AF4)
D5PE1ввод-выводDCMI_D3 (AF13), FDCAN1_TX (AF9), FMC_NBL1 (AF12), LPTIM1_IN2 (AF1), PSSI_D3 (AF13), UART8_TX (AF8)
D6PB7ввод-выводDCMI_VSYNC (AF13), FDCAN1_TX (AF9), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), I3C1_SDA (AF3), LPUART1_RX (AF8), PSSI_RDY (AF13), PWR_WKUP5, TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
D7PG13ввод-выводDEBUG_TRACED0 (AF0), FMC_A24 (AF12), LPTIM1_CH1 (AF1), LPTIM5_CH2 (AF13), SPI6_SCK (AF5), USART10_CTS (AF6), USART10_NSS (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
D8PD5ввод-выводFDCAN1_TX (AF9), FMC_NWE (AF12), OCTOSPI1_IO5 (AF10), SPI2_RDY (AF5), TIM1_CH4N (AF1), USART2_TX (AF7)
D9PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), TIM8_CH4N (AF3), UART4_RX (AF8), UART9_CTS (AF11)
D10PH14ввод-выводDCMI_D4 (AF13), FDCAN1_RX (AF9), PSSI_D4 (AF13), TIM8_CH2N (AF3), UART4_RX (AF8)
D11PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMI_D11 (AF13), PSSI_D11 (AF13), TIM8_CH3N (AF3)
D12PH13ввод-выводDCMI_D3 (AF13), FDCAN1_TX (AF9), LPTIM1_IN2 (AF1), PSSI_D3 (AF13), TIM8_CH1N (AF3), UART4_TX (AF8), UART8_TX (AF7)
D13VDDUSBпитание—
E1PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), LPTIM5_CH2 (AF13)
E2VBATпитание—
E3PI8ввод-выводPWR_WKUP3, RTC_OUT2, TAMP_IN2, TAMP_OUT3
E4PC13ввод-выводPWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3
E5PB8ввод-выводDCMI_D6 (AF13), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SPI4_RDY (AF5), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
E6PB3(JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2C2_SDA (AF4), I2S1_CK (AF5), I2S3_CK (AF6), LPTIM6_ETR (AF14), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART12_CTS (AF7), UART7_RX (AF11)
E7PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D3 (AF13), I2S1_CK (AF5), LPTIM1_IN2 (AF1), PSSI_D3 (AF13), SPI1_SCK (AF5), USART10_RX (AF6), USART11_DE (AF7), USART11_RTS (AF7)
E8PD6ввод-выводDCMI_D10 (AF13), FMC_NWAIT (AF12), I2S3_SDO (AF5), OCTOSPI1_IO6 (AF10), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SPI3_MOSI (AF5), USART2_RX (AF7)
E9PD1ввод-выводFDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), UART4_TX (AF8)
E10PA10ввод-выводDCMI_D1 (AF13), LPTIM2_IN2 (AF4), LPUART1_RX (AF3), PSSI_D1 (AF13), SDMMC1_D0 (AF12), TIM1_CH3 (AF1), UCPD1_FRSTX (AF6), USART1_RX (AF7)
E11PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), FMC_NWE (AF12), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), UCPD1_DB1, USART1_TX (AF7)
E12PA13(JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
E13PA12ввод-выводFDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), SAI2_FS_B (AF8), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_DP (AF10)
F1PF4ввод-выводFMC_A4 (AF12), LPTIM3_ETR (AF2), USART11_RX (AF7)
F2PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), LPTIM3_IN2 (AF3), LPTIM5_IN1 (AF13), UART12_TX (AF6), USART11_CK (AF7)
F3PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), LPTIM5_CH1 (AF13)
F4PI11ввод-выводADC1_EXTI11, ADC2_EXTI11, PSSI_D15 (AF13), TAMP_IN4, TAMP_OUT5
F5PF3ввод-выводFMC_A3 (AF12), LPTIM3_IN1 (AF2), LPTIM5_IN2 (AF13), USART11_TX (AF7)
F6PF5ввод-выводFMC_A5 (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM3_CH1 (AF2), LPTIM3_IN1 (AF14), UART12_RX (AF6), USART11_CTS (AF7), USART11_NSS (AF7)
F7PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), OCTOSPI1_IO6 (AF9), PSSI_RDY (AF13), SAI2_FS_B (AF10), SPI1_MISO (AF5), USART6_RX (AF7)
F8PD4ввод-выводFMC_NOE (AF12), OCTOSPI1_IO4 (AF10), USART2_DE (AF7), USART2_RTS (AF7)
F9PC6ввод-выводDCMI_D0 (AF13), FMC_NWAIT (AF9), I2S2_MCK (AF5), OCTOSPI1_IO5 (AF11), PSSI_D0 (AF13), SAI1_SCK_A (AF6), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
F10PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), FMC_NE1 (AF9), I2S3_MCK (AF6), OCTOSPI1_IO6 (AF11), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
F11PG8ввод-выводFMC_SDCLK (AF12), SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
F12PA8ввод-выводDCMI_D3 (AF13), FMC_NOE (AF12), I2C3_SCL (AF4), PSSI_D3 (AF13), RCC_MCO_1 (AF0), SPI1_RDY (AF5), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), UART7_RX (AF11), USART1_CK (AF7), USB_SOF (AF10)
F13PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX (AF9), I2S2_WS (AF5), LPUART1_CTS (AF3), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_DM (AF10)
G1VDDпитание—
G2VSSпитание—
G3PF7ввод-выводLPTIM5_CH2 (AF13), OCTOSPI1_IO2 (AF10), SAI1_MCLK_B (AF6), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
G4PF6ввод-выводLPTIM5_CH1 (AF13), OCTOSPI1_IO3 (AF10), SAI1_SD_B (AF6), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
G5PF8ввод-выводLPTIM5_IN1 (AF13), OCTOSPI1_IO0 (AF10), SAI1_SCK_B (AF6), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
G6PF10ввод-выводDCMI_D11 (AF13), OCTOSPI1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), TIM16_BKIN (AF1)
G7PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), OCTOSPI1_IO5 (AF10), TIM1_CH1N (AF1), UART12_CTS (AF6), UART7_TX (AF7)
G8PG7ввод-выводDCMI_D13 (AF13), FMC_INT (AF12), I2C4_SCL (AF4), I3C1_SCL (AF3), PSSI_D13 (AF13), SAI1_CK2 (AF2), SAI1_MCLK_A (AF6), UCPD1_FRSTX (AF11), USART6_CK (AF7)
G9PG3ввод-выводFMC_A13 (AF12), LPTIM5_ETR (AF13), TIM8_BKIN2 (AF3), UART12_TX (AF7)
G10PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
G11PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF3), OCTOSPI1_NCS (AF10), PSSI_D12 (AF13), SPI1_RDY (AF5), TIM17_BKIN (AF1), UCPD1_FRSTX (AF11)
G12PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_ALE (AF11), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), PSSI_D2 (AF13), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
G13PC9ввод-выводAUDIOCLK (AF5), DAC1_EXTI9, DCMI_D3 (AF13), FMC_CLE (AF11), I2C3_SDA (AF4), OCTOSPI1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8), UCPD1_DB2
H1PH0-OSC_INввод-выводRCC_OSC_IN
H2PH1-OSC_OUTввод-выводRCC_OSC_OUT
H3PF9ввод-выводDAC1_EXTI9, LPTIM5_IN2 (AF13), OCTOSPI1_IO1 (AF10), SAI1_FS_B (AF6), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
H4NRSTсброс—
H5PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, FMC_SDCKE0 (AF12), I2S2_SDO (AF5), LPTIM3_CH1 (AF3), OCTOSPI1_IO0 (AF9), OCTOSPI1_IO6 (AF6), PWR_CSTOP (AF0), SAI1_D3 (AF2), SPI2_MOSI (AF5)
H6PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, FMC_SDCKE0 (AF12), OCTOSPI1_DQS (AF10), PSSI_D15 (AF4), SAI1_D3 (AF2), SAI1_FS_A (AF6), TIM1_CH4N (AF1), UART12_DE (AF7), UART12_RTS (AF7)
H7PF13ввод-выводADC2_INP2, FMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM6_IN1 (AF14)
H8PE10ввод-выводFMC_D7 (AF12), FMC_DA7 (AF12), OCTOSPI1_IO7 (AF10), TIM1_CH2N (AF1), UART12_TX (AF6), UART7_CTS (AF7)
H9PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
H10PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), OCTOSPI1_IO0 (AF9), SAI1_CK1 (AF2), SAI2_SD_A (AF10), UART4_RX (AF8), USART3_CTS (AF7), USART3_NSS (AF7)
H11PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
H12VSSпитание—
H13VDDпитание—
J1PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_A25 (AF9), FMC_SDNWE (AF12), OCTOSPI1_IO7 (AF10), SAI1_MCLK_A (AF6), SAI2_FS_B (AF8), SPI2_RDY (AF7), TIM16_BKIN (AF1)
J2PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, DEBUG_TRACED0 (AF0), I2S2_SDO (AF5), OCTOSPI1_IO4 (AF10), PWR_WKUP6, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_SD_A (AF8), SPI2_MOSI (AF5), TAMP_IN3, TAMP_OUT5, USART11_DE (AF7), USART11_RTS (AF7)
J3PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, FMC_SDNE0 (AF12), I2S2_SDI (AF5), OCTOSPI1_IO2 (AF9), OCTOSPI1_IO5 (AF6), PWR_CSLEEP (AF0), SPI2_MISO (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2)
J4PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, PWR_WKUP1, SAI2_SD_B (AF10), SPI3_RDY (AF6), SPI6_NSS (AF5), TAMP_IN2, TAMP_OUT1, TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
J5PA1ввод-выводADC1_INP1, ADC2_INP1, LPTIM1_IN1 (AF5), OCTOSPI1_DQS (AF6), OCTOSPI1_IO3 (AF9), SAI2_MCLK_B (AF10), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
J6PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), LPTIM6_CH1 (AF14), OCTOSPI1_NCLK (AF9), PSSI_D12 (AF13), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
J7PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5)
J8PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
J9PD9ввод-выводDAC1_EXTI9, FMC_D14 (AF12), FMC_DA14 (AF12), USART3_RX (AF7)
J10PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, DCMI_D2 (AF13), I2S2_SDO (AF5), OCTOSPI1_CLK (AF10), PSSI_D2 (AF13), PWR_PVD_IN, RTC_REFIN (AF0), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), UART5_RX (AF14), USART11_CTS (AF7), USART11_NSS (AF7), USART1_RX (AF4)
J11PD10ввод-выводFMC_D15 (AF12), FMC_DA15 (AF12), LPTIM2_CH2 (AF3), USART3_CK (AF7)
J12PG2ввод-выводFMC_A12 (AF12), LPTIM6_ETR (AF14), TIM8_BKIN (AF3), UART12_RX (AF7)
J13PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), LPTIM4_ETR (AF14), TIM1_BKIN2 (AF1)
K1VREF-питание—
K2VSSAпитание—
K3PH2ввод-выводFMC_SDCKE0 (AF12), LPTIM1_IN2 (AF1), OCTOSPI1_IO4 (AF9), SAI2_SCK_B (AF10)
K4PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, I2S1_CK (AF5), PSSI_D14 (AF13), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1N (AF3)
K5PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, FMC_NWE (AF13), FMC_SDNWE (AF12), I2S1_SDO (AF5), OCTOSPI1_IO2 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART11_RX (AF7)
K6PB1ввод-выводADC1_INP5, ADC2_INP5, LPTIM3_CH2 (AF14), OCTOSPI1_IO0 (AF6), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3)
K7PG1ввод-выводFMC_A11 (AF12), I2S2_SDO (AF7), SPI2_MOSI (AF7), UART9_TX (AF11)
K8PE12ввод-выводFMC_D9 (AF12), FMC_DA9 (AF12), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
K9PB10ввод-выводI2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), LPTIM3_CH1 (AF2), OCTOSPI1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
K10PH6ввод-выводDCMI_D8 (AF13), FMC_SDNE1 (AF12), I2C2_SMBA (AF4), PSSI_D8 (AF13), SPI5_SCK (AF5), TIM12_CH1 (AF2), TIM1_CH3N (AF1), TIM8_CH1 (AF3)
K11PB12ввод-выводI2C2_SDA (AF4), I2S2_WS (AF5), OCTOSPI1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF14), UCPD1_FRSTX (AF6), USART3_CK (AF7)
K12PD12ввод-выводDCMI_D12 (AF13), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), OCTOSPI1_IO1 (AF9), PSSI_D12 (AF13), SAI1_D1 (AF6), SAI2_FS_A (AF10), TIM4_CH1 (AF2), UART4_TX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
K13PD13ввод-выводDCMI_D13 (AF13), FMC_A18 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5), LPTIM1_CH1 (AF1), LPTIM2_CH1 (AF3), LPTIM4_IN1 (AF14), OCTOSPI1_IO3 (AF9), PSSI_D13 (AF13), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
L1VDDAпитание—
L2VREF+питание—
L3PA2ввод-выводADC1_INP14, ADC2_INP14, LPTIM1_IN2 (AF5), PWR_WKUP2, SAI2_SCK_B (AF8), TAMP_IN4, TAMP_OUT3, TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
L4PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM2_CH1 (AF3), PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
L5PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, LPTIM3_CH1 (AF14), OCTOSPI1_IO1 (AF6), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USART11_CK (AF7)
L6PB2ввод-выводI2S3_SDO (AF7), LPTIM1_CH1 (AF5), LPTIM5_ETR (AF13), OCTOSPI1_CLK (AF9), OCTOSPI1_DQS (AF10), RCC_LSCO, RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC1_CMD (AF12), SPI1_RDY (AF4), SPI3_MOSI (AF7), TIM8_CH4N (AF3)
L7PG0ввод-выводFMC_A10 (AF12), LPTIM4_IN1 (AF14), UART9_RX (AF11)
L8PE9ввод-выводDAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), OCTOSPI1_IO6 (AF10), TIM1_CH1 (AF1), UART12_RX (AF6), UART7_DE (AF7), UART7_RTS (AF7)
L9PE13ввод-выводFMC_D10 (AF12), FMC_DA10 (AF12), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
L10PH7ввод-выводDCMI_D9 (AF13), FMC_SDCKE1 (AF12), I2C3_SCL (AF4), PSSI_D9 (AF13), SPI5_MISO (AF5), TIM1_CH3 (AF1), TIM8_CH1N (AF3)
L11PB13ввод-выводI2C2_SMBA (AF4), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LPTIM3_IN1 (AF2), SDMMC1_D0 (AF12), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), UCPD1_CC1, USART3_CTS (AF7), USART3_NSS (AF7)
L12PD8ввод-выводFMC_D13 (AF12), FMC_DA13 (AF12), USART3_TX (AF7)
L13VDDпитание—
M1VDDпитание—
M2VSSпитание—
M3PH5ввод-выводFMC_SDNWE (AF12), I2C2_SDA (AF4), SPI5_NSS (AF5), SPI6_RDY (AF7)
M4VSSпитание—
M5PA6ввод-выводADC1_INP3, ADC2_INP3, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), OCTOSPI1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART11_TX (AF7)
M6PF14ввод-выводADC2_INN2, ADC2_INP6, FMC_A8 (AF12), LPTIM6_IN2 (AF14)
M7VSSпитание—
M8PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D8 (AF12), FMC_DA8 (AF12), OCTOSPI1_NCS (AF6), SAI2_SD_B (AF10), SPI1_RDY (AF4), SPI4_NSS (AF5), TIM1_CH2 (AF1)
M9PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_NBL1 (AF12), I2C2_SDA (AF4), LPTIM2_ETR (AF3), SPI2_RDY (AF5), SPI4_RDY (AF6), TIM2_CH4 (AF1), USART3_RX (AF7)
M10PH8ввод-выводDCMI_HSYNC (AF13), I2C3_SDA (AF4), PSSI_DE (AF13), SPI5_MOSI (AF5), TIM1_CH2N (AF1), TIM5_ETR (AF2), TIM8_CH2 (AF3)
M11PH10ввод-выводDCMI_D1 (AF13), I2C4_SMBA (AF4), PSSI_D1 (AF13), SPI5_RDY (AF5), TIM1_CH1N (AF1), TIM5_CH1 (AF2), TIM8_CH3 (AF3)
M12VSSпитание—
M13PB14ввод-выводI2S2_SDI (AF5), LPTIM3_ETR (AF14), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC2, USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
N1PH4ввод-выводI2C2_SCL (AF4), PSSI_D14 (AF13), SPI5_RDY (AF5), SPI6_RDY (AF7)
N2PH3ввод-выводFMC_SDNE0 (AF12), OCTOSPI1_IO5 (AF9), SAI2_MCLK_B (AF10)
N3PA3ввод-выводADC1_INP15, ADC2_INP15, I2S2_WS (AF5), OCTOSPI1_CLK (AF3), SAI1_SD_B (AF6), SPI2_NSS (AF5), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
N4VDDпитание—
N5PC4ввод-выводADC1_INP4, ADC2_INP4, FMC_SDNE0 (AF12), I2S1_MCK (AF5), LPTIM2_ETR (AF3), SAI1_CK1 (AF2), TIM2_CH4 (AF1), USART3_RX (AF7)
N6PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), LPTIM6_CH2 (AF14)
N7VDDпитание—
N8PE7ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), OCTOSPI1_IO4 (AF10), TIM1_ETR (AF1), UART12_DE (AF6), UART12_RTS (AF6), UART7_RX (AF7)
N9PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), TIM1_BKIN (AF1), TIM1_CH4N (AF3), USART10_CK (AF7)
N10VCAPпитание—
N11VDDпитание—
N12PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D2 (AF13), I2C4_SCL (AF4), I3C1_SCL (AF5), PSSI_D2 (AF13), TIM1_CH1 (AF1), TIM5_CH2 (AF2), TIM8_CH3N (AF3)
N13PH12ввод-выводDCMI_D3 (AF13), I2C4_SDA (AF4), I3C1_SDA (AF5), PSSI_D3 (AF13), TIM1_BKIN (AF1), TIM5_CH3 (AF2), TIM8_BKIN (AF3), TIM8_CH4N (AF10)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATE2резервное питание: часы реального времени и резервные регистры
VCAPB4, N10вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDA3, A10, C13, D1, G1, H13, L13, M1, N4, N7, N11питание цифровой части и линий ввода-вывода
VDDAL1питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2A7питание отдельной группы линий ввода-вывода
VDDUSBD13питание приёмопередатчика USB
VREF-K1нижнее опорное напряжение АЦП
VREF+L2верхнее опорное напряжение АЦП и ЦАП
VSSB3, B7, B10, C12, D2, G2, H12, M2, M4, M7, M12общий провод (земля)
VSSAK2общий провод аналоговой части
NRSTH4сброс, активный уровень — низкий
BOOT0B5выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H562AIIx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H562AISTM32H562AIIx2 МБ640 КБ

Линейка STM32H562, семейство STM32H5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе UFBGA169, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H5E4AJIxSTM32H5x4169 из 169выводы совпадают полностьютолько у этого: USB; только у него: ADC3, ADF1, COMP1, COMP2, DMA2D, ETH, FDCAN2, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, SDMMC2, USB_OTG_FS, USB_OTG_FS1; флеш-память до 2048 и 4096 КБ; ОЗУ 640 и 1536 КБ
STM32H5E4AKIxSTM32H5x4169 из 169выводы совпадают полностью
STM32H5F4AJIxSTM32H5x4169 из 169выводы совпадают полностьютолько у этого: USB; только у него: ADC3, ADF1, AES, COMP1, COMP2, DMA2D, ETH, FDCAN2, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, SDMMC2, USB_OTG_FS, USB_OTG_FS1; флеш-память до 2048 и 4096 КБ; ОЗУ 640 и 1536 КБ
STM32H562AGSTM32H5x2169 из 169выводы совпадают полностьюфлеш-память до 2048 и 1024 КБ
STM32H563AGSTM32H5x3169 из 169выводы совпадают полностьютолько у него: ETH, FDCAN2, SDMMC2; флеш-память до 2048 и 1024 КБ
STM32H563AIIxSTM32H563/H573169 из 169выводы совпадают полностьютолько у него: ETH, FDCAN2, SDMMC2
STM32H573AIIxSTM32H563/H573169 из 169выводы совпадают полностьютолько у него: AES, ETH, FDCAN2, SDMMC2

Частые вопросы

На каких выводах USART1 у STM32H562AI?

В корпусе UFBGA169 сигнал USART1_TX выведен на PB6 (шарик A5, AF7) или PA9 (шарик E11, AF7) или PB14 (шарик M13, AF4), USART1_RX — на PB7 (шарик D6, AF7) или PA10 (шарик E10, AF7) или PB15 (шарик J10, AF4).

Где у STM32H562AI выводы SWD для программатора?

SWDIO — PA13(JTMS/SWDIO) (шарик E12, AF0), SWCLK — PA14(JTCK/SWCLK) (шарик A12, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H562AI?

I2C1_SCL — PB6 (шарик A5, AF4) или PB8 (шарик E5, AF4), I2C1_SDA — PB9 (шарик A4, AF4) или PB7 (шарик D6, AF4).

Сколько выводов ввода-вывода у STM32H562AI в корпусе UFBGA169?

136 из 169. Ещё 31 вывод занят питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32H562AI?

От 1,62 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
