STM32H5E4AJIx в корпусе UFBGA169: распиновка

STM32H5E4AJIx — микроконтроллер STM32H5 на ядре Cortex-M33: 4 МБ флеш-памяти и 1,5 МБ ОЗУ. Корпус UFBGA169 — 169 шариков, из них 136 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
4 МБ
ОЗУ
1,5 МБ
Корпус
UFBGA169, 169 шариков
Линий ввода-вывода
136

Схема корпуса UFBGA169

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

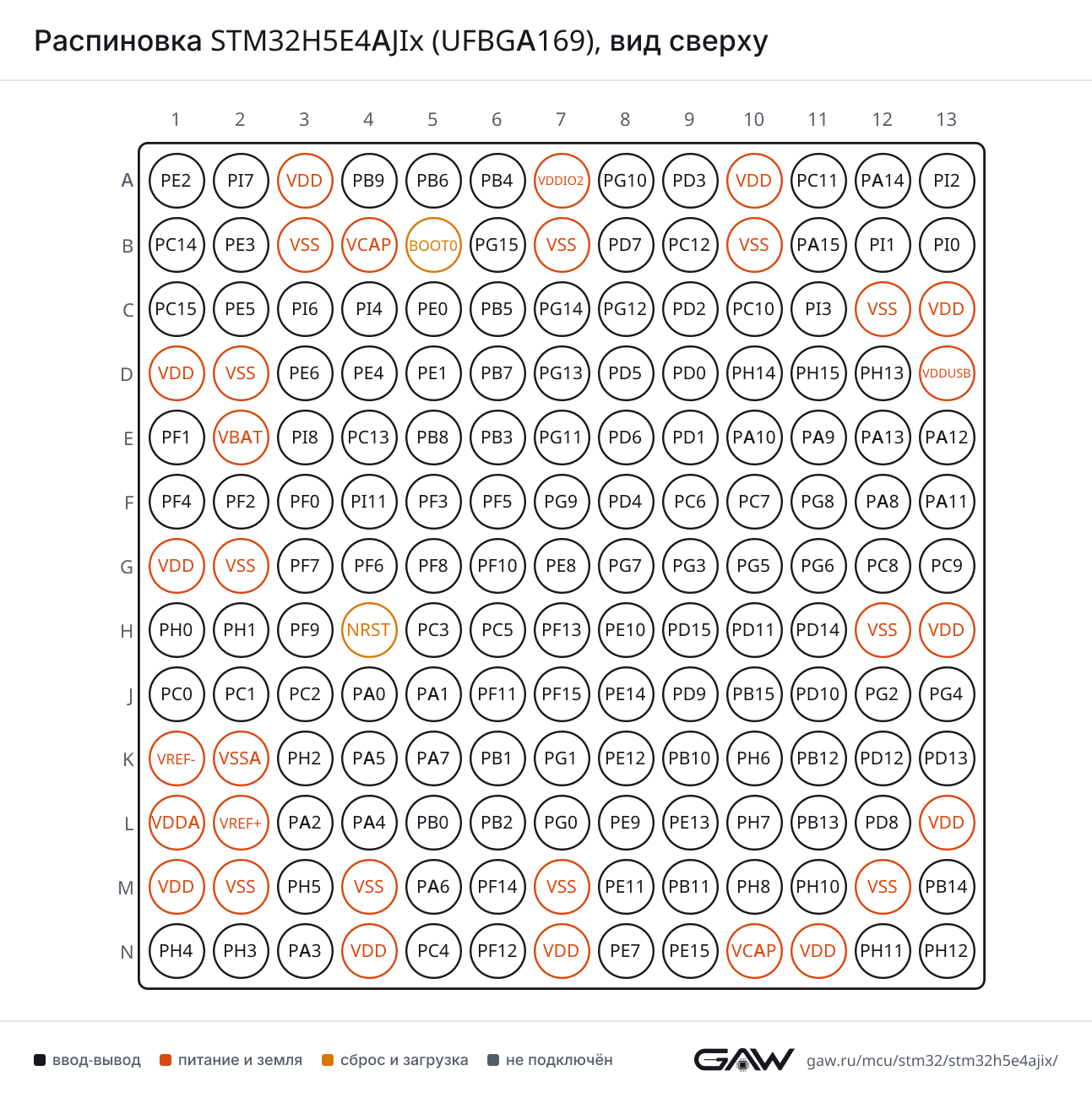

Расположение шариков STM32H5E4AJIx в корпусе UFBGA169, вид сверхуABCDEFGHJKLMN12345678910111213PE2 — шарик A1: ADF1_CCK0, DCMI_D3, DEBUG_TRACECLK, ETH_MII_TXD3, FMC_A23, LPTIM1_IN2, MDF1_CCK0, OCTOSPIM_P1_IO2, PLAY1_OUT8, PSSI_D3, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, UART8_TX, USART10_RXPE2PI7 — шарик A2: DCMI_D7, FMC_D30, MDF1_SDI5, PSSI_D7, SAI2_FS_A, SDMMC2_CK, TIM1_CH3N, TIM8_CH3PI7VDD — шарик A3VDDPB9 — шарик A4: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2S2_WS, I3C1_SDA, LTDC_G5, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_CKIN, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PB6 — шарик A5: CEC, DCMI_D5, ETH_MII_TX_ER, FDCAN2_TX, FMC_SDNE1, GFXTIM_FCKCAL, I2C1_SCL, I2C4_SCL, I3C1_SCL, LPUART1_TX, OCTOSPIM_P1_NCS1, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6PB4 (NJTRST) — шарик A6: DCMI_D7, DEBUG_NJTRST, ETH_MDIO, FMC_NBL3, I2S1_SDI, I2S2_WS, I2S3_SDI, LPTIM1_CH2, LTDC_R2, OCTOSPIM_P1_CLK, PSSI_D7, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4VDDIO2 — шарик A7VDDIO2PG10 — шарик A8: DCMI_D2, FMC_NE3, I2C3_SMBA, I2S1_WS, LTDC_B6, OCTOSPIM_P1_IO5, OCTOSPIM_P2_IO6, PSSI_D2, SAI2_SD_B, SDMMC2_D1, SPI1_NSS, TIM12_CH2, USART10_CK, USART6_CKPG10PD3 — шарик A9: DCMI_D5, FMC_CLK, I2S2_CK, LTDC_B4, OCTOSPIM_P2_IO0, PLAY1_IN2, PSSI_D5, PWR_WKUP8, SPI2_SCK, TIM8_CH4, USART2_CTS, USART2_NSSPD3VDD — шарик A10VDDPC11 — шарик A11: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT, DCMI_D4, GFXTIM_FCKCAL, I2S3_SDI, LPTIM3_IN1, LTDC_VSYNC, OCTOSPIM_P1_NCS1, PLAY1_IN0, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PA14 (JTCK/SWCLK) — шарик A12: DEBUG_JTCK-SWCLKPA14PI2 — шарик A13: DCMI_D9, DEBUG_TRACED1, FMC_D26, I2S2_SDI, MDF1_SDI4, PSSI_D9, SDMMC2_D1, SPI2_MISO, TIM1_ETR, TIM8_CH4PI2PC14-OSC32_IN(OSC32_IN) — шарик B1: RCC_OSC32_INPC14PE3 — шарик B2: DEBUG_TRACED0, FMC_A19, GFXTIM_TE, LTDC_G1, MDF1_CKI2, OCTOSPIM_P2_IO0, PLAY1_IN9, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM15_BKIN, USART10_TXPE3VSS — шарик B3VSSVCAP — шарик B4VCAPBOOT0 — шарик B5BOOT0PG15 — шарик B6: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, LTDC_G2, OCTOSPIM_P2_IO7, PSSI_D13, SPI4_RDY, TIM16_CH1, USART10_CK, USART6_CTS, USART6_NSSPG15VSS — шарик B7VSSPD7 — шарик B8: FMC_NCE, FMC_NE1, I2C3_SCL, I2S1_SDO, LPTIM4_OUT, LTDC_R3, OCTOSPIM_P1_IO7, SDMMC2_CMD, SPI1_MOSI, TIM12_CH1, USART2_CKPD7PC12 — шарик B9: COMP2_OUT, DCMI_D9, DEBUG_TRACED3, ETH_PPS_OUT, I2S3_SDO, LTDC_G4, OCTOSPIM_P2_IO7, PLAY1_OUT0, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CKPC12VSS — шарик B10VSSPA15 (JTDI) — шарик B11: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DCMI_D11, DEBUG_JTDI, ETH_PHY_INTN, FMC_NBL1, I2S1_WS, I2S3_WS, LPTIM3_IN2, OCTOSPIM_P2_IO6, PSSI_D11, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PI1 — шарик B12: DCMI_D8, DEBUG_TRACED0, FMC_A24, FMC_D25, I2S2_CK, MDF1_CKI4, PSSI_D8, SDMMC2_D0, SPI2_SCK, TIM1_BKIN2, TIM8_BKIN2PI1PI0 — шарик B13: DCMI_D13, I2S2_WS, LTDC_B1, PSSI_D13, SPI2_NSS, TIM5_CH4, USART11_CKPI0PC15-OSC32_OUT(OSC32_OUT) — шарик C1: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUTPC15PE5 — шарик C2: ADF1_CCK1, DCMI_D6, DEBUG_TRACED2, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_A21, LTDC_B6, MDF1_CCK1, OCTOSPIM_P2_IO2, PLAY1_IN10, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TAMP_IN8, TAMP_OUT7, TIM15_CH1PE5PI6 — шарик C3: DCMI_D6, FMC_D29, MDF1_CKI5, PSSI_D6, SAI2_SD_A, SDMMC2_CMD, TIM1_CH2, TIM8_CH2PI6PI4 — шарик C4: DCMI_D5, DEBUG_TRACED3, FMC_D28, PSSI_D5, SAI2_MCLK_A, SDMMC2_D3, SPI2_RDY, TIM1_CH1, TIM8_BKINPI4PE0 — шарик C5: DCMI_D2, FDCAN1_RX, FMC_NBL0, LPTIM1_ETR, LPTIM2_CH2, LPTIM2_ETR, OCTOSPIM_P1_NCS2, PLAY1_OUT7, PSSI_D2, SAI2_MCLK_A, SPI3_RDY, TIM4_ETR, UART8_RXPE0PB5 — шарик C6: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, GFXTIM_LCKCAL, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, OCTOSPIM_P1_NCLK, OCTOSPIM_P2_CLK, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RXPB5PG14 — шарик C7: DEBUG_TRACED1, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_A25, LPTIM1_CH2, LPTIM1_ETR, LPTIM5_IN1, LTDC_B0, OCTOSPIM_P1_IO7, SDMMC2_D7, SPI6_MOSI, USART10_DE, USART10_RTS, USART6_TXPG14PG12 — шарик C8: DCMI_D11, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_NE4, FMC_SDCLK, LPTIM1_IN1, LPTIM2_CH1, LPTIM5_CH1, OCTOSPIM_P2_CLK, PSSI_D11, PSSI_D15, SDMMC2_D3, SPI6_MISO, USART10_TX, USART6_DE, USART6_RTSPG12PD2 — шарик C9: DCMI_D11, DEBUG_TRACED2, I2C2_SCL, I3C2_SCL, LPTIM4_ETR, LTDC_G7, OCTOSPIM_P1_NCS2, OCTOSPIM_P2_IO1, PSSI_D11, PWR_WKUP7, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RXPD2PC10 — шарик C10: DCMI_D8, ETH_MII_TXD0, ETH_RMII_TXD0, GFXTIM_LCKCAL, I2S3_CK, LPTIM3_ETR, LTDC_B0, OCTOSPIM_P1_IO1, PSSI_D8, SAI1_SCK_B, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TXPC10PI3 — шарик C11: DCMI_D10, DEBUG_TRACED2, FMC_D27, I2S2_SDO, LTDC_DE, PSSI_D10, SDMMC2_D2, SPI2_MOSI, TIM1_CH1N, TIM8_ETRPI3VSS — шарик C12VSSVDD — шарик C13VDDVDD — шарик D1VDDVSS — шарик D2VSSPE6 — шарик D3: ADF1_SDI0, DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_R2, MDF1_SDI1, OCTOSPIM_P2_IO3, PLAY1_OUT10, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TAMP_IN3, TAMP_OUT6, TIM15_CH2, TIM1_BKIN2PE6PE4 — шарик D4: ADF1_SDI0, DCMI_D4, DEBUG_TRACED1, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_A20, LTDC_G3, MDF1_SDI2, OCTOSPIM_P2_IO1, PLAY1_OUT9, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TAMP_IN7, TAMP_OUT8, TIM15_CH1NPE4PE1 — шарик D5: DCMI_D3, FDCAN1_TX, FMC_NBL1, FMC_NWAIT, LPTIM1_IN2, PLAY1_IN8, PSSI_D3, UART8_TXPE1PB7 — шарик D6: DCMI_VSYNC, FDCAN1_TX, FMC_NL, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPUART1_RX, LTDC_G7, PSSI_RDY, PWR_WKUP5, SDMMC2_CKIN, SDMMC2_D5, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PG13 — шарик D7: DEBUG_TRACED0, ETH_MII_TXD0, ETH_RMII_TXD0, FMC_A24, LPTIM1_CH1, LPTIM5_CH2, LTDC_G4, OCTOSPIM_P2_NCS1, SDMMC2_D6, SPI6_SCK, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSSPG13PD5 — шарик D8: COMP2_OUT, ETH_MII_CRS, FDCAN1_TX, FMC_NWE, LTDC_B2, OCTOSPIM_P1_IO5, PLAY1_IN3, SPI2_RDY, TIM1_CH4N, UART8_RX, USART2_TXPD5PD0 — шарик D9: FDCAN1_RX, FMC_D2, FMC_DA2, I2S1_MCK, LTDC_R2, OCTOSPIM_P1_NCS2, PLAY1_IN1, SDMMC1_D0DIR, TIM8_CH4N, UART4_RX, UART9_CTSPD0PH14 — шарик D10: DCMI_D4, FDCAN1_RX, FMC_D23, LTDC_R6, MDF1_CKI3, OCTOSPIM_P2_IO6, PSSI_D4, TIM8_CH2N, UART4_RXPH14PH15 — шарик D11: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11, DEBUG_TRACECLK, FMC_D24, LTDC_G1, MDF1_SDI3, OCTOSPIM_P2_IO7, PSSI_D11, SDMMC2_CKIN, TIM8_CH3NPH15PH13 — шарик D12: DCMI_D3, FDCAN1_TX, FMC_D22, LPTIM1_IN2, LTDC_R3, OCTOSPIM_P2_IO5, PSSI_D3, TIM8_CH1N, UART4_TX, UART8_TXPH13VDDUSB — шарик D13VDDUSBPF1 — шарик E1: COMP2_OUT, FMC_A1, I2C2_SCL, I3C2_SCL, LPTIM5_CH2, PLAY1_IN1, SDMMC2_D3, TIM2_CH2, UART9_TXPF1VBAT — шарик E2VBATPI8 — шарик E3: PWR_WKUP3, RTC_OUT2, TAMP_IN2, TAMP_OUT3PI8PC13 — шарик E4: PWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3PC13PB8 — шарик E5: DCMI_D6, ETH_MII_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, I3C1_SCL, LTDC_G6, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI4_RDY, TIM16_CH1, TIM4_CH3, UART4_RXPB8PB3 (JTDO/TRACESWO) — шарик E6: CRS_SYNC, DEBUG_JTDO-SWO, ETH_MDC, I2C2_SDA, I2S1_CK, I2S3_CK, I3C2_SDA, LPTIM6_ETR, LTDC_HSYNC, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART12_CTS, UART7_RXPB3PG11 — шарик E7: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LPTIM1_IN2, LTDC_B4, PSSI_D3, SDMMC2_D2, SPI1_SCK, USART10_RX, USART11_DE, USART11_RTSPG11PD6 — шарик E8: ADF1_SDI0, DCMI_D10, FMC_NWAIT, I2C3_SDA, I2S3_SDO, MDF1_SDI1, OCTOSPIM_P1_IO6, OCTOSPIM_P2_IO4, PLAY1_OUT3, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PD1 — шарик E9: ETH_MII_RX_DV, ETH_RMII_CRS_DV, FDCAN1_TX, FMC_D3, FMC_DA3, I2S2_MCK, LTDC_DE, OCTOSPIM_P2_DQS, PLAY1_OUT1, SAI1_MCLK_B, SDMMC1_D123DIR, UART4_TXPD1PA10 — шарик E10: DCMI_D1, DMA2D_GPFLAG1, ETH_CLK, FDCAN2_TX, LPTIM2_IN2, LPUART1_RX, LTDC_R6, PSSI_D1, SDMMC1_D0, TIM1_CH3, UCPD1_FRSTX, USART1_RXPA10PA9 — шарик E11: DAC1_EXTI9, DCMI_D0, ETH_MII_TX_ER, FMC_NWE, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R7, OCTOSPIM_P2_IO3, PSSI_D0, SPI2_SCK, TIM1_CH2, UCPD1_DB1, USART1_TXPA9PA13 (JTMS/SWDIO) — шарик E12: DEBUG_JTMS-SWDIOPA13PA12 — шарик E13: DMA2D_GPFLAG3, FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R4, SAI2_FS_B, SDMMC2_D4, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_FS_DPPA12PF4 — шарик F1: DCMI_D6, FMC_A4, LPTIM3_ETR, OCTOSPIM_P2_NCS2, PLAY1_OUT1, PSSI_D6, SDMMC2_D6, TIM2_CH4, USART11_RXPF4PF2 — шарик F2: FMC_A2, GFXTIM_TE, I2C2_SMBA, LPTIM3_CH2, LPTIM3_IN2, LPTIM5_IN1, PLAY1_IN2, SDMMC2_D4, UART12_TX, USART11_CKPF2PF0 — шарик F3: COMP1_OUT, FMC_A0, I2C2_SDA, I3C2_SDA, LPTIM5_CH1, PLAY1_IN0, SDMMC2_D2, TIM2_CH1, TIM2_ETR, UART9_RXPF0PI11 — шарик F4: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LPTIM1_CH2, LTDC_B1, PSSI_D15, SAI1_MCLK_A, TAMP_IN4, TAMP_OUT5, TIM1_CH4, USART11_TXPI11PF3 — шарик F5: FMC_A3, LPTIM3_IN1, LPTIM5_IN2, PLAY1_OUT0, SDMMC2_D5, TIM2_CH3, USART11_TXPF3PF5 — шарик F6: FMC_A5, I2C4_SCL, I3C1_SCL, LPTIM3_CH1, LPTIM3_IN1, OCTOSPIM_P2_DQS, SDMMC2_CKIN, SDMMC2_D7, UART12_RX, USART11_CTS, USART11_NSSPF5PG9 — шарик F7: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, LTDC_B5, OCTOSPIM_P1_IO4, OCTOSPIM_P1_IO6, PSSI_RDY, SAI2_FS_B, SDMMC2_D0, SPI1_MISO, TIM12_CH1, USART10_RX, USART6_RXPG9PD4 — шарик F8: COMP1_OUT, DEBUG_TRGIO, ETH_CLK, FMC_NOE, LTDC_B7, MDF1_CKI3, OCTOSPIM_P1_IO4, PLAY1_OUT2, USART2_DE, USART2_RTSPD4PC6 — шарик F9: DCMI_D0, FMC_NWAIT, I2S2_MCK, LTDC_G0, OCTOSPIM_P1_IO5, PSSI_D0, SAI1_SCK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, USART6_TXPC6PC7 — шарик F10: DCMI_D1, DEBUG_TRGIO, FMC_NE1, I2S3_MCK, LTDC_R1, OCTOSPIM_P1_IO6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, USART6_RXPC7PG8 — шарик F11: ETH_PPS_OUT, FMC_SDCLK, LPTIM4_OUT, LTDC_B2, OCTOSPIM_P2_NCLK, SPI6_NSS, TIM16_CH1N, TIM8_ETR, USART6_DE, USART6_RTSPG8PA8 — шарик F12: DCMI_D3, FMC_NOE, I2C3_SCL, LTDC_CLK, OCTOSPIM_P2_DQS, PSSI_D3, RCC_MCO_1, SPI1_RDY, TIM1_CH1, TIM8_BKIN2, UART7_RX, USART1_CK, USB_OTG_FS_SOFPA8PA11 — шарик F13: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2, FDCAN1_RX, FMC_A17, FMC_ALE, I2S2_WS, LPUART1_CTS, LTDC_R5, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_FS_DMPA11VDD — шарик G1VDDVSS — шарик G2VSSPF7 — шарик G3: FDCAN3_RX, FMC_D17, LPTIM5_CH2, LTDC_G3, MDF1_CKI1, OCTOSPIM_P1_IO2, SAI1_MCLK_B, SDMMC1_D1, SPI5_SCK, TIM17_CH1, UART7_TXPF7PF6 — шарик G4: FDCAN3_TX, FMC_D16, LPTIM5_CH1, LTDC_DE, OCTOSPIM_P1_IO3, SAI1_SD_B, SDMMC1_D0, SPI5_NSS, TIM16_CH1, UART7_RXPF6PF8 — шарик G5: ETH_MII_TX_ER, FMC_D18, LPTIM5_IN1, LTDC_R7, OCTOSPIM_P1_IO0, SAI1_SCK_B, SDMMC1_D2, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPF8PF10 — шарик G6: DCMI_D11, LTDC_G6, MDF1_SDI3, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKINPF10PE8 — шарик G7: ADC3_INP2, DCMI_D8, FMC_D5, FMC_DA5, MDF1_SDI0, OCTOSPIM_P1_IO5, PLAY1_OUT11, PSSI_D8, TIM1_CH1N, UART12_CTS, UART7_TX, USART2_TXPE8PG7 — шарик G8: ADF1_CCK1, DCMI_D13, FMC_INT, I2C4_SCL, I3C1_SCL, LTDC_R5, MDF1_CCK1, OCTOSPIM_P2_CLK, PSSI_D13, SAI1_CK2, SAI1_MCLK_A, UCPD1_FRSTX, USART6_CKPG7PG3 — шарик G9: ETH_MII_RX_ER, FMC_A13, LPTIM5_ETR, LTDC_G0, OCTOSPIM_P2_IO3, TIM4_CH4, TIM8_BKIN2, UART12_TX, UART7_RXPG3PG5 — шарик G10: FMC_A15, FMC_BA1, LTDC_HSYNC, MDF1_SDI0, OCTOSPIM_P2_IO5, PLAY1_OUT9, TIM1_ETRPG5PG6 — шарик G11: DCMI_D12, FMC_NE3, I2C4_SDA, I3C1_SDA, OCTOSPIM_P1_NCS1, OCTOSPIM_P2_NCS1, PLAY1_OUT10, PSSI_D12, SPI1_RDY, TIM17_BKIN, UCPD1_FRSTXPG6PC8 — шарик G12: DCMI_D2, DEBUG_TRACED1, FMC_A17, FMC_ALE, FMC_INT, FMC_NCE, FMC_NE2, LTDC_R0, PSSI_D2, SDMMC1_D0, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PC9 — шарик G13: AUDIOCLK, DAC1_EXTI9, DCMI_D3, FMC_A16, FMC_CLE, FMC_SDNCAS, I2C3_SDA, LTDC_B1, OCTOSPIM_P1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, TIM8_CH4, UART5_CTS, UCPD1_DB2PC9PH0-OSC_IN — шарик H1: RCC_OSC_INPH0PH1-OSC_OUT — шарик H2: RCC_OSC_OUTPH1PF9 — шарик H3: DAC1_EXTI9, ETH_MDC, FMC_D19, LPTIM5_IN2, LTDC_B1, MDF1_CCK0, OCTOSPIM_P1_IO1, SAI1_FS_B, SDMMC1_D3, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTSPF9NRST — шарик H4NRSTPC3 — шарик H5: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_SDCKE0, I2S2_SDO, LPTIM3_CH1, LTDC_VSYNC, MDF1_SDI3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSTOP, SAI1_D3, SDMMC2_D7, SPI2_MOSIPC3PC5 — шарик H6: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_SDCKE0, LTDC_G1, MDF1_SDI3, OCTOSPIM_P1_DQS, PSSI_D15, SAI1_D3, SAI1_FS_A, TIM1_CH4N, UART12_DE, UART12_RTSPC5PF13 — шарик H7: ADC2_INP2, ADF1_CCK0, FMC_A7, I2C4_SMBA, LPTIM2_CH2, LPTIM6_IN1, LTDC_B6, SDMMC1_CDIR, SDMMC1_D6PF13PE10 — шарик H8: ADC3_INP4, COMP1_INM, FMC_D7, FMC_DA7, MDF1_SDI4, OCTOSPIM_P1_IO7, PLAY1_OUT12, TIM1_CH2N, UART12_TX, UART7_CTSPE10PD15 — шарик H9: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, LTDC_CLK, OCTOSPIM_P2_NCLK, PLAY1_IN7, SAI1_FS_B, SPI6_RDY, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TXPD15PD11 — шарик H10: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0, ETH_PTP_AUX_TS, FMC_A16, FMC_CLE, GFXTIM_TE, I2C4_SMBA, LPTIM2_IN2, LTDC_R6, OCTOSPIM_P1_IO0, PLAY1_OUT5, SAI1_CK1, SAI2_SD_A, UART4_RX, USART3_CTS, USART3_NSSPD11PD14 — шарик H11: FMC_D0, FMC_DA0, LTDC_B1, OCTOSPIM_P2_CLK, PLAY1_OUT6, PSSI_D15, SAI1_FS_A, TIM4_CH3, UART8_CTS, UART9_RXPD14VSS — шарик H12VSSVDD — шарик H13VDDPC0 — шарик J1: ADC1_INP10, ADC2_INP10, FMC_A25, FMC_INT, FMC_SDNWE, LTDC_G3, MDF1_CKI1, OCTOSPIM_P1_IO7, SAI1_MCLK_A, SAI2_FS_B, SPI2_RDY, TIM16_BKIN, TIM8_CH1PC0PC1 — шарик J2: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0, DEBUG_TRACED0, ETH_MDC, FMC_NCE, FMC_NE2, I2S2_SDO, LTDC_G2, MDF1_SDI1, OCTOSPIM_P1_IO4, PWR_WKUP6, SAI1_D1, SAI1_SD_A, SAI2_SD_A, SDMMC2_CK, SPI2_MOSI, TAMP_IN3, TAMP_OUT5, TIM8_CH2, USART11_DE, USART11_RTSPC1PC2 — шарик J3: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_NCE, FMC_NE1, FMC_SDNE0, I2S2_SDI, LTDC_HSYNC, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSLEEP, SDMMC2_D6, SPI2_MISO, TIM17_CH1, TIM4_CH4, TIM8_CH3PC2PA0 — шарик J4: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS, LTDC_G6, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI3_RDY, SPI6_NSS, TAMP_IN2, TAMP_OUT1, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PA1 — шарик J5: ADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, LPTIM1_IN1, LTDC_B7, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI2_MCLK_B, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PF11 — шарик J6: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, LPTIM6_CH1, OCTOSPIM_P1_NCLK, PSSI_D12, SAI2_SD_B, SDMMC1_D4, SPI5_MOSI, TIM2_CH3PF11PF15 — шарик J7: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADF1_SDI0, ETH_CLK, FMC_A9, I2C4_SDA, I3C1_SDA, LTDC_B7, OCTOSPIM_P2_NCS2, SDMMC1_CMD, TIM4_ETRPF15PE14 — шарик J8: ADC3_INP8, COMP2_INM, DCMI_VSYNC, FMC_D11, FMC_DA11, LTDC_B0, OCTOSPIM_P2_CLK, PLAY1_OUT14, PSSI_RDY, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PD9 — шарик J9: CEC, DAC1_EXTI9, FDCAN2_RX, FMC_D14, FMC_DA14, LTDC_R4, PLAY1_OUT4, TIM13_CH1, USART3_RXPD9PB15 — шарик J10: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2, ETH_MII_TXD1, ETH_RMII_TXD1, I2S2_SDO, LTDC_G0, OCTOSPIM_P1_CLK, PSSI_D2, PWR_PVD_IN, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, UART5_RX, USART11_CTS, USART11_NSS, USART1_RXPB15PD10 — шарик J11: AUDIOCLK, ETH_MII_CRS, FDCAN3_RX, FMC_D15, FMC_DA15, LPTIM2_CH2, LTDC_R7, PLAY1_IN5, TIM14_CH1, USART3_CKPD10PG2 — шарик J12: FMC_A12, I2S1_MCK, LPTIM6_ETR, LTDC_R2, OCTOSPIM_P2_IO2, TIM4_CH3, TIM8_BKIN, UART12_RXPG2PG4 — шарик J13: FMC_A14, FMC_BA0, LPTIM4_ETR, LTDC_VSYNC, MDF1_CKI0, OCTOSPIM_P2_IO4, TIM1_BKIN2PG4VREF- — шарик K1VREF-VSSA — шарик K2VSSAPH2 — шарик K3: ETH_MII_CRS, FMC_NBL0, FMC_SDCKE0, LPTIM1_IN2, MDF1_CKI2, OCTOSPIM_P1_IO4, OCTOSPIM_P2_CLK, PLAY1_OUT2, SAI2_SCK_BPH2PA5 — шарик K4: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LTDC_G5, OCTOSPIM_P2_IO5, OPAMP1_VINP, PSSI_D14, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1NPA5PA7 — шарик K5: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_NWE, FMC_SDNWE, I2S1_SDO, LTDC_B2, OCTOSPIM_P1_IO2, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART11_RXPA7PB1 — шарик K6: ADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3, LPTIM3_CH2, LTDC_B3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_NCLK, OPAMP1_VOUT, TIM1_CH3N, TIM3_CH4, TIM8_CH3NPB1PG1 — шарик K7: FMC_A11, I2S2_SDO, OCTOSPIM_P2_IO1, PLAY1_IN3, SPI2_MOSI, TIM4_CH2, UART9_TXPG1PE12 — шарик K8: ADC3_INP6, DCMI_D0, ETH_MDIO, FDCAN3_TX, FMC_D9, FMC_DA9, GFXTIM_LCKCAL, MDF1_SDI5, OPAMP1_VINP, PLAY1_OUT13, PSSI_D0, SAI2_SCK_B, SPI4_SCK, TIM1_CH3N, USART6_RXPE12PB10 — шарик K9: ETH_MII_RX_ER, FMC_NWAIT, FMC_SDNRAS, I2C2_SCL, I2S2_CK, I3C2_SCL, LPTIM2_IN1, LPTIM3_CH1, LTDC_G4, OCTOSPIM_P1_NCS1, SPI2_SCK, TIM2_CH3, USART3_TXPB10PH6 — шарик K10: DCMI_D8, ETH_MII_RXD2, FMC_SDNE1, I2C2_SMBA, OCTOSPIM_P2_IO0, PLAY1_OUT11, PSSI_D8, SPI5_SCK, TIM12_CH1, TIM1_CH3N, TIM8_CH1PH6PB12 — шарик K11: ETH_MII_TXD0, ETH_RMII_TXD0, FDCAN2_RX, I2C2_SDA, I2S2_WS, I3C2_SDA, LTDC_R1, OCTOSPIM_P1_NCLK, SPI2_NSS, TIM1_BKIN, UART5_RX, UCPD1_FRSTX, USART3_CKPB12PD12 — шарик K12: DCMI_D12, FMC_A17, FMC_ALE, I2C4_SCL, I3C1_SCL, LPTIM1_IN1, LPTIM2_IN1, LTDC_G2, OCTOSPIM_P1_IO1, PLAY1_IN6, PSSI_D12, SAI1_D1, SAI2_FS_A, TIM4_CH1, UART4_TX, USART3_DE, USART3_RTSPD12PD13 — шарик K13: DCMI_D13, FMC_A18, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPTIM1_CH1, LPTIM2_CH1, LPTIM4_IN1, OCTOSPIM_P1_IO3, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTSPD13VDDA — шарик L1VDDAVREF+ — шарик L2VREF+PA2 — шарик L3: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM1_IN2, LTDC_B6, LTDC_R0, OCTOSPIM_P2_IO4, PWR_WKUP2, SAI2_SCK_B, TAMP_IN4, TAMP_OUT3, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PA4 — шарик L4: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, FMC_NBL2, I2S1_WS, I2S3_WS, LPTIM2_CH1, LTDC_B4, OPAMP1_VINM, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CKPA4PB0 — шарик L5: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2, LPTIM3_CH1, LTDC_R4, OCTOSPIM_P1_IO1, OCTOSPIM_P2_NCS1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USART11_CKPB0PB2 — шарик L6: ADC3_INP0, ADF1_SDI0, COMP1_INP, ETH_MII_RXD0, ETH_RMII_RXD0, I2S3_SDO, LPTIM1_CH1, LPTIM5_ETR, LTDC_R3, OCTOSPIM_P1_CLK, OCTOSPIM_P1_DQS, RCC_LSCO, RTC_OUT2, SAI1_D1, SAI1_SD_A, SDMMC1_CMD, SPI1_RDY, SPI3_MOSI, TIM8_CH4NPB2PG0 — шарик L7: FMC_A10, LPTIM4_IN1, OCTOSPIM_P2_IO0, SDMMC1_CK, TIM4_CH1, UART9_RXPG0PE9 — шарик L8: ADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6, FMC_DA6, MDF1_CKI4, OCTOSPIM_P1_IO6, PLAY1_IN12, TIM1_CH1, UART12_RX, UART7_DE, UART7_RTSPE9PE13 — шарик L9: ADC3_INP7, DCMI_HSYNC, FDCAN3_RX, FMC_D10, FMC_DA10, GFXTIM_FCKCAL, LTDC_R1, OPAMP1_VINM, PLAY1_IN14, PSSI_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH3, UART5_DE, UART5_RTS, USART6_CKPE13PH7 — шарик L10: DCMI_D9, ETH_MII_RXD3, FMC_SDCKE1, I2C3_SCL, OCTOSPIM_P2_IO1, PLAY1_OUT12, PSSI_D9, SPI5_MISO, TIM1_CH3, TIM8_CH1NPH7PB13 — шарик L11: FDCAN2_TX, I2C2_SMBA, I2S2_CK, LPTIM2_CH1, LPTIM3_IN1, SPI2_SCK, TIM1_CH1N, UART5_TX, UCPD1_CC1, USART3_CTS, USART3_NSSPB13PD8 — шарик L12: ETH_MII_RXD0, ETH_RMII_RXD0, FDCAN3_TX, FMC_D13, FMC_DA13, I2S3_MCK, LTDC_R5, PLAY1_IN4, SDMMC2_D0, TIM12_CH2, USART3_TXPD8VDD — шарик L13VDDVDD — шарик M1VDDVSS — шарик M2VSSPH5 — шарик M3: FMC_SDNWE, I2C2_SDA, I3C2_SDA, SPI5_NSS, SPI6_RDYPH5VSS — шарик M4VSSPA6 — шарик M5: ADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK, FMC_D31, I2S1_SDI, LTDC_B3, OCTOSPIM_P1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART11_TXPA6PF14 — шарик M6: ADC2_INN2, ADC2_INP6, ADF1_CCK1, FMC_A8, I2S3_SDI, LPTIM2_IN1, LPTIM6_IN2, LTDC_G5, SDMMC1_D123DIR, SDMMC1_D7, SPI3_MISO, TIM3_ETRPF14VSS — шарик M7VSSPE11 — шарик M8: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8, FMC_DA8, LTDC_B5, MDF1_CKI5, OCTOSPIM_P1_NCS1, OCTOSPIM_P2_NCS2, OPAMP1_VINP, PLAY1_IN13, SAI2_SD_B, SPI1_RDY, SPI4_NSS, TIM1_CH2, USART6_TXPE11PB11 — шарик M9: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_MII_TX_EN, ETH_RMII_TX_EN, FMC_NBL1, I2C2_SDA, I3C2_SDA, LPTIM2_ETR, LTDC_G7, PLAY1_IN15, SPI2_RDY, SPI4_RDY, TIM2_CH4, USART3_RXPB11PH8 — шарик M10: DCMI_HSYNC, I2C3_SDA, PSSI_DE, SPI5_MOSI, TIM1_CH2N, TIM5_ETR, TIM8_CH2PH8PH10 — шарик M11: DCMI_D1, FMC_D20, I2C4_SMBA, OCTOSPIM_P2_IO2, PLAY1_OUT13, PSSI_D1, SPI5_RDY, TIM1_CH1N, TIM5_CH1, TIM8_CH3PH10VSS — шарик M12VSSPB14 — шарик M13: I2S2_SDI, LPTIM3_ETR, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, UCPD1_CC2, USART1_TX, USART3_DE, USART3_RTSPB14PH4 — шарик N1: I2C2_SCL, I3C2_SCL, LTDC_R7, PSSI_D14, SPI5_RDY, SPI6_RDYPH4PH3 — шарик N2: ETH_MII_COL, FMC_NBL2, FMC_SDNE0, MDF1_SDI2, OCTOSPIM_P1_IO5, OCTOSPIM_P2_NCLK, PLAY1_OUT3, SAI2_MCLK_BPH3PA3 — шарик N3: ADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0, ETH_MII_COL, I2S2_WS, LTDC_B5, OCTOSPIM_P1_CLK, SAI1_SD_B, SPI2_NSS, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3VDD — шарик N4VDDPC4 — шарик N5: ADC1_INP4, ADC2_INP4, ADF1_CCK0, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_SDNE0, I2S1_MCK, LPTIM2_ETR, LTDC_DE, MDF1_CCK0, SAI1_CK1, TIM2_CH4, USART3_RXPC4PF12 — шарик N6: ADC1_INN2, ADC1_INP6, FMC_A6, LPTIM6_CH2, LTDC_CLK, SDMMC1_CKIN, SDMMC1_D5, TIM2_CH4PF12VDD — шарик N7VDDPE7 — шарик N8: ADC3_INP1, COMP2_INP, FMC_D4, FMC_DA4, MDF1_CKI0, OCTOSPIM_P1_IO4, PLAY1_IN11, TIM1_ETR, UART12_DE, UART12_RTS, UART7_RX, USART2_RXPE7PE15 — шарик N9: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK, FMC_D12, FMC_DA12, LTDC_R0, OCTOSPIM_P2_NCS1, PLAY1_OUT15, PSSI_PDCK, TIM1_BKIN, TIM1_CH4N, USART10_CKPE15VCAP — шарик N10VCAPVDD — шарик N11VDDPH11 — шарик N12: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2, FMC_D21, I2C4_SCL, I3C1_SCL, OCTOSPIM_P2_IO3, PLAY1_OUT14, PSSI_D2, TIM1_CH1, TIM5_CH2, TIM8_CH3NPH11PH12 — шарик N13: DCMI_D3, FMC_D3, FMC_DA3, I2C4_SDA, I3C1_SDA, OCTOSPIM_P2_IO4, PLAY1_OUT15, PSSI_D3, TIM1_BKIN, TIM5_CH3, TIM8_BKIN, TIM8_CH4NPH12UFBGA169, вид сверху: шарики видны сквозь корпус, A1 — в левом верхнемуглу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия
Распиновка STM32H5E4AJIx (UFBGA169), вид сверхуРаспиновка UFBGA169 картинкой
PNG, 1293 × 1300 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (F12, AF7)
CTSPA11 (F13, AF7)
DEPA12 (E13, AF7)
NSSPA11 (F13, AF7)
RTSPA12 (E13, AF7)
RXPB7 (D6, AF7), PA10 (E10, AF7), PB15 (J10, AF4)
TXPB6 (A5, AF7), PA9 (E11, AF7), PB14 (M13, AF4)
USART2CKPD7 (B8, AF7), PA4 (L4, AF7)
CTSPD3 (A9, AF7), PA0 (J4, AF7)
DEPD4 (F8, AF7), PA1 (J5, AF7)
NSSPD3 (A9, AF7), PA0 (J4, AF7)
RTSPD4 (F8, AF7), PA1 (J5, AF7)
RXPD6 (E8, AF7), PA3 (N3, AF7), PE7 (N8, AF5)
TXPD5 (D8, AF7), PE8 (G7, AF5), PA2 (L3, AF7)
USART3CKPC12 (B9, AF7), PD10 (J11, AF7), PB12 (K11, AF7)
CTSPD11 (H10, AF7), PB13 (L11, AF7)
DEPD12 (K12, AF7), PB14 (M13, AF7)
NSSPD11 (H10, AF7), PB13 (L11, AF7)
RTSPD12 (K12, AF7), PB14 (M13, AF7)
RXPC11 (A11, AF7), PD9 (J9, AF7), PB11 (M9, AF7), PC4 (N5, AF7)
TXPC10 (C10, AF7), PB10 (K9, AF7), PD8 (L12, AF7)
USART6CKPG10 (A8, AF7), PG7 (G8, AF7), PC8 (G12, AF7), PE13 (L9, AF7)
CTSPG15 (B6, AF7), PG13 (D7, AF7)
DEPG12 (C8, AF7), PG8 (F11, AF7)
NSSPG15 (B6, AF7), PG13 (D7, AF7)
RTSPG12 (C8, AF7), PG8 (F11, AF7)
RXPG9 (F7, AF7), PC7 (F10, AF7), PE12 (K8, AF7)
TXPG14 (C7, AF7), PC6 (F9, AF7), PE11 (M8, AF7)
USART10CKPG10 (A8, AF6), PG15 (B6, AF6), PE15 (N9, AF7)
CTSPG13 (D7, AF6)
DEPG14 (C7, AF6)
NSSPG13 (D7, AF6)
RTSPG14 (C7, AF6)
RXPE2 (A1, AF7), PG11 (E7, AF6), PG9 (F7, AF6)
TXPE3 (B2, AF7), PG12 (C8, AF6)
USART11CKPI0 (B13, AF7), PF2 (F2, AF7), PB0 (L5, AF7)
CTSPF5 (F6, AF7), PB15 (J10, AF7)
DEPG11 (E7, AF7), PC1 (J2, AF7)
NSSPF5 (F6, AF7), PB15 (J10, AF7)
RTSPG11 (E7, AF7), PC1 (J2, AF7)
RXPF4 (F1, AF7), PA7 (K5, AF7)
TXPI11 (F4, AF7), PF3 (F5, AF7), PA6 (M5, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB15 (J10, AF8), PB0 (L5, AF8)
DEPA15 (JTDI) (B11, AF8), PB14 (M13, AF8)
RTSPA15 (JTDI) (B11, AF8), PB14 (M13, AF8)
RXPC11 (A11, AF8), PD0 (D9, AF8), PH14 (D10, AF8), PB8 (E5, AF8), PA11 (F13, AF6), PD11 (H10, AF8), PA1 (J5, AF8)
TXPB9 (A4, AF8), PC10 (C10, AF8), PH13 (D12, AF8), PD1 (E9, AF8), PA12 (E13, AF6), PA0 (J4, AF8), PD12 (K12, AF8)
UART5CTSPC9 (G13, AF8)
DEPC8 (G12, AF8), PE13 (L9, AF8)
RTSPC8 (G12, AF8), PE13 (L9, AF8)
RXPB5 (C6, AF14), PD2 (C9, AF8), PB15 (J10, AF14), PB12 (K11, AF14)
TXPB6 (A5, AF14), PC12 (B9, AF8), PB13 (L11, AF14)
UART7CTSPF9 (H3, AF7), PE10 (H8, AF7)
DEPF8 (G5, AF7), PE9 (L8, AF7)
RTSPF8 (G5, AF7), PE9 (L8, AF7)
RXPB3 (JTDO/TRACESWO) (E6, AF11), PA8 (F12, AF11), PF6 (G4, AF7), PG3 (G9, AF11), PE7 (N8, AF7)
TXPB4 (NJTRST) (A6, AF11), PA15 (JTDI) (B11, AF11), PF7 (G3, AF7), PE8 (G7, AF7)
UART8CTSPD14 (H11, AF8)
DEPD15 (H9, AF8)
RTSPD15 (H9, AF8)
RXPE0 (C5, AF8), PD5 (D8, AF8)
TXPE2 (A1, AF8), PE1 (D5, AF8), PH13 (D12, AF7)
UART9CTSPD0 (D9, AF11)
DEPD13 (K13, AF11)
RTSPD13 (K13, AF11)
RXPF0 (F3, AF11), PD14 (H11, AF11), PG0 (L7, AF11)
TXPF1 (E1, AF11), PD15 (H9, AF11), PG1 (K7, AF11)
UART12CTSPB3 (JTDO/TRACESWO) (E6, AF7), PE8 (G7, AF6)
DEPC5 (H6, AF7), PE7 (N8, AF6)
RTSPC5 (H6, AF7), PE7 (N8, AF6)
RXPF5 (F6, AF6), PG2 (J12, AF7), PE9 (L8, AF6)
TXPF2 (F2, AF6), PG3 (G9, AF7), PE10 (H8, AF6)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (F13, AF3)
DEPA12 (E13, AF3)
RTSPA12 (E13, AF3)
RXPB7 (D6, AF8), PA10 (E10, AF3)
TXPB6 (A5, AF8), PA9 (E11, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4 (NJTRST) (A6, AF5), PG9 (F7, AF5), PA6 (M5, AF5)
MOSIPD7 (B8, AF5), PB5 (C6, AF5), PA7 (K5, AF5)
NSSPG10 (A8, AF5), PA15 (JTDI) (B11, AF5), PA4 (L4, AF5)
RDYPA8 (F12, AF5), PG6 (G11, AF5), PB2 (L6, AF4), PE11 (M8, AF4)
SCKPB3 (JTDO/TRACESWO) (E6, AF5), PG11 (E7, AF5), PA5 (K4, AF5)
SPI2MISOPI2 (A13, AF5), PC2 (J3, AF5), PB14 (M13, AF5)
MOSIPI3 (C11, AF5), PC3 (H5, AF5), PC1 (J2, AF5), PB15 (J10, AF5), PG1 (K7, AF7)
NSSPB9 (A4, AF5), PB4 (NJTRST) (A6, AF7), PI0 (B13, AF5), PA11 (F13, AF5), PB12 (K11, AF5), PA3 (N3, AF5)
RDYPI4 (C4, AF7), PD5 (D8, AF5), PC0 (J1, AF7), PB11 (M9, AF5)
SCKPD3 (A9, AF5), PI1 (B12, AF5), PA9 (E11, AF5), PA12 (E13, AF5), PB10 (K9, AF5), PB13 (L11, AF5)
SPI3MISOPB4 (NJTRST) (A6, AF6), PC11 (A11, AF6), PF14 (M6, AF6)
MOSIPC12 (B9, AF6), PB5 (C6, AF7), PD6 (E8, AF5), PB2 (L6, AF7)
NSSPA15 (JTDI) (B11, AF6), PA4 (L4, AF6)
RDYPE0 (C5, AF6), PA0 (J4, AF6)
SCKPC10 (C10, AF6), PB3 (JTDO/TRACESWO) (E6, AF6)
SPI4MISOPE5 (C2, AF5), PE13 (L9, AF5)
MOSIPE6 (D3, AF5), PE14 (J8, AF5)
NSSPE4 (D4, AF5), PE11 (M8, AF5)
RDYPG15 (B6, AF5), PB8 (E5, AF5), PB11 (M9, AF6)
SCKPE2 (A1, AF5), PE12 (K8, AF5)
SPI5MISOPF8 (G5, AF5), PH7 (L10, AF5)
MOSIPF9 (H3, AF5), PF11 (J6, AF5), PH8 (M10, AF5)
NSSPF6 (G4, AF5), PH5 (M3, AF5)
RDYPH10 (M11, AF5), PH4 (N1, AF5)
SCKPF7 (G3, AF5), PH6 (K10, AF5)
SPI6MISOPB4 (NJTRST) (A6, AF8), PG12 (C8, AF5), PA6 (M5, AF8)
MOSIPB5 (C6, AF8), PG14 (C7, AF5), PA7 (K5, AF8)
NSSPA15 (JTDI) (B11, AF7), PG8 (F11, AF5), PA0 (J4, AF5), PA4 (L4, AF8)
RDYPD15 (H9, AF7), PH5 (M3, AF7), PH4 (N1, AF7)
SCKPC12 (B9, AF5), PG13 (D7, AF5), PB3 (JTDO/TRACESWO) (E6, AF8), PA5 (K4, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPB3 (JTDO/TRACESWO) (E6, AF5), PG11 (E7, AF5), PA5 (K4, AF5)
MCKPD0 (D9, AF5), PG2 (J12, AF5), PC4 (N5, AF5)
SDIPB4 (NJTRST) (A6, AF5), PG9 (F7, AF5), PA6 (M5, AF5)
SDOPD7 (B8, AF5), PB5 (C6, AF5), PA7 (K5, AF5)
WSPG10 (A8, AF5), PA15 (JTDI) (B11, AF5), PA4 (L4, AF5)
I2S2CKPD3 (A9, AF5), PI1 (B12, AF5), PA9 (E11, AF5), PA12 (E13, AF5), PB10 (K9, AF5), PB13 (L11, AF5)
MCKPD1 (E9, AF5), PC6 (F9, AF5)
SDIPI2 (A13, AF5), PC2 (J3, AF5), PB14 (M13, AF5)
SDOPI3 (C11, AF5), PC3 (H5, AF5), PC1 (J2, AF5), PB15 (J10, AF5), PG1 (K7, AF7)
WSPB9 (A4, AF5), PB4 (NJTRST) (A6, AF7), PI0 (B13, AF5), PA11 (F13, AF5), PB12 (K11, AF5), PA3 (N3, AF5)
I2S3CKPC10 (C10, AF6), PB3 (JTDO/TRACESWO) (E6, AF6)
MCKPC7 (F10, AF6), PD8 (L12, AF6)
SDIPB4 (NJTRST) (A6, AF6), PC11 (A11, AF6), PF14 (M6, AF6)
SDOPC12 (B9, AF6), PB5 (C6, AF7), PD6 (E8, AF5), PB2 (L6, AF7)
WSPA15 (JTDI) (B11, AF6), PA4 (L4, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (A5, AF4), PB8 (E5, AF4)
SDAPB9 (A4, AF4), PB7 (D6, AF4), PD13 (K13, AF6)
SMBAPB5 (C6, AF4)
I2C2SCLPD2 (C9, AF6), PF1 (E1, AF4), PB10 (K9, AF4), PH4 (N1, AF4)
SDAPB3 (JTDO/TRACESWO) (E6, AF4), PF0 (F3, AF4), PB12 (K11, AF4), PH5 (M3, AF4), PB11 (M9, AF4)
SMBAPF2 (F2, AF4), PH6 (K10, AF4), PB13 (L11, AF4)
I2C3SCLPD7 (B8, AF4), PA8 (F12, AF4), PH7 (L10, AF4)
SDAPD6 (E8, AF4), PC9 (G13, AF4), PH8 (M10, AF4)
SMBAPG10 (A8, AF3), PA9 (E11, AF4)
I2C4SCLPB6 (A5, AF6), PB8 (E5, AF6), PF5 (F6, AF4), PG7 (G8, AF4), PD12 (K12, AF4), PH11 (N12, AF4)
SDAPB9 (A4, AF6), PB7 (D6, AF6), PG6 (G11, AF4), PF15 (J7, AF4), PD13 (K13, AF4), PH12 (N13, AF4)
SMBAPB5 (C6, AF6), PF13 (H7, AF4), PD11 (H10, AF4), PH10 (M11, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPB6 (A5, AF3), PB8 (E5, AF3), PF5 (F6, AF5), PG7 (G8, AF3), PD12 (K12, AF5), PH11 (N12, AF5)
SDAPB9 (A4, AF3), PB7 (D6, AF3), PG6 (G11, AF3), PF15 (J7, AF5), PD13 (K13, AF5), PH12 (N13, AF5)
I3C2SCLPD2 (C9, AF5), PF1 (E1, AF5), PB10 (K9, AF8), PH4 (N1, AF3)
SDAPB3 (JTDO/TRACESWO) (E6, AF3), PF0 (F3, AF5), PB12 (K11, AF8), PH5 (M3, AF3), PB11 (M9, AF8)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPE0 (C5, AF9), PD0 (D9, AF9), PH14 (D10, AF9), PB8 (E5, AF9), PA11 (F13, AF9)
TXPB9 (A4, AF9), PE1 (D5, AF9), PB7 (D6, AF9), PD5 (D8, AF9), PH13 (D12, AF9), PD1 (E9, AF9), PA12 (E13, AF9)
FDCAN2RXPB5 (C6, AF9), PD9 (J9, AF9), PB12 (K11, AF9)
TXPB6 (A5, AF9), PA10 (E10, AF9), PB13 (L11, AF9)
FDCAN3RXPF7 (G3, AF9), PD10 (J11, AF9), PE13 (L9, AF9)
TXPF6 (G4, AF9), PE12 (K8, AF9), PD8 (L12, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (F13)
DPPA12 (E13)
SOFPA8 (F12)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB13 (L11)
CC2PB14 (M13)
DB1PA9 (E11)
DB2PC9 (G13)
FRSTXPA10 (E10, AF6), PG7 (G8, AF11), PG6 (G11, AF11), PB12 (K11, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCLKPA10 (E10, AF11), PD4 (F8, AF11), PF15 (J7, AF11)
MDCPB3 (JTDO/TRACESWO) (E6, AF12), PF9 (H3, AF11), PC1 (J2, AF11)
MDIOPB4 (NJTRST) (A6, AF10), PE12 (K8, AF11), PA2 (L3, AF11)
MII_COLPH3 (N2, AF11), PA3 (N3, AF11)
MII_CRSPD5 (D8, AF6), PA0 (J4, AF11), PD10 (J11, AF8), PH2 (K3, AF11)
MII_RX_CLKPA1 (J5, AF11)
MII_RX_DVPD1 (E9, AF11), PA7 (K5, AF11)
MII_RX_ERPG3 (G9, AF10), PB10 (K9, AF11)
MII_RXD0PE4 (D4, AF11), PB2 (L6, AF11), PD8 (L12, AF8), PC4 (N5, AF11)
MII_RXD1PE5 (C2, AF11), PC5 (H6, AF11)
MII_RXD2PH6 (K10, AF11), PB0 (L5, AF11)
MII_RXD3PB1 (K6, AF11), PH7 (L10, AF11)
MII_TX_CLKPC3 (H5, AF11)
MII_TX_ENPG11 (E7, AF11), PA5 (K4, AF11), PB11 (M9, AF11)
MII_TX_ERPB6 (A5, AF11), PA9 (E11, AF11), PF8 (G5, AF11)
MII_TXD0PC10 (C10, AF11), PG13 (D7, AF11), PB12 (K11, AF11)
MII_TXD1PG14 (C7, AF11), PG12 (C8, AF11), PB15 (J10, AF11)
MII_TXD2PC2 (J3, AF11)
MII_TXD3PE2 (A1, AF11), PB8 (E5, AF11)
PHY_INTNPA15 (JTDI) (B11, AF10)
PPS_OUTPC12 (B9, AF10), PB5 (C6, AF11), PG8 (F11, AF11)
PTP_AUX_TSPD11 (H10, AF11)
RMII_CRS_DVPD1 (E9, AF11), PA7 (K5, AF11)
RMII_REF_CLKPA1 (J5, AF11)
RMII_RXD0PE4 (D4, AF11), PB2 (L6, AF11), PD8 (L12, AF8), PC4 (N5, AF11)
RMII_RXD1PE5 (C2, AF11), PC5 (H6, AF11)
RMII_TX_ENPG11 (E7, AF11), PA5 (K4, AF11), PB11 (M9, AF11)
RMII_TXD0PC10 (C10, AF11), PG13 (D7, AF11), PB12 (K11, AF11)
RMII_TXD1PG14 (C7, AF11), PG12 (C8, AF11), PB15 (J10, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (A4, AF7), PF13 (H7, AF9)
CKPC12 (B9, AF12), PG0 (L7, AF8)
CKINPB8 (E5, AF7), PF12 (N6, AF9)
CMDPD2 (C9, AF12), PF15 (J7, AF8), PB2 (L6, AF12)
D0PA10 (E10, AF12), PF6 (G4, AF8), PC8 (G12, AF12)
D0DIRPD0 (D9, AF7), PC6 (F9, AF8)
D1PF7 (G3, AF8), PC9 (G13, AF12)
D2PC10 (C10, AF12), PF8 (G5, AF8)
D3PC11 (A11, AF12), PF9 (H3, AF8)
D4PB8 (E5, AF12), PF11 (J6, AF8)
D5PB9 (A4, AF12), PF12 (N6, AF8)
D6PC6 (F9, AF12), PF13 (H7, AF8)
D7PC7 (F10, AF12), PF14 (M6, AF8)
D123DIRPD1 (E9, AF7), PC7 (F10, AF8), PF14 (M6, AF9)
SDMMC2CKPI7 (A2, AF9), PD6 (E8, AF11), PC1 (J2, AF9)
CKINPB9 (A4, AF11), PB7 (D6, AF11), PH15 (D11, AF9), PF5 (F6, AF11)
CMDPD7 (B8, AF11), PI6 (C3, AF9), PA0 (J4, AF9)
D0PI1 (B12, AF9), PG9 (F7, AF11), PD8 (L12, AF11)
D1PG10 (A8, AF11), PI2 (A13, AF9), PB15 (J10, AF9)
D2PI3 (C11, AF9), PB3 (JTDO/TRACESWO) (E6, AF9), PG11 (E7, AF10), PF0 (F3, AF10)
D3PB4 (NJTRST) (A6, AF9), PI4 (C4, AF9), PG12 (C8, AF10), PF1 (E1, AF10)
D4PB8 (E5, AF10), PA12 (E13, AF10), PF2 (F2, AF10)
D5PB9 (A4, AF10), PB7 (D6, AF10), PF3 (F5, AF10)
D6PG13 (D7, AF10), PF4 (F1, AF10), PC6 (F9, AF10), PC2 (J3, AF10)
D7PG14 (C7, AF10), PF5 (F6, AF10), PC7 (F10, AF10), PC3 (H5, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (A1, AF2), PD11 (H10, AF2), PC4 (N5, AF2)
CK2PE5 (C2, AF2), PG7 (G8, AF2)
D1PE6 (D3, AF2), PD6 (E8, AF2), PC1 (J2, AF2), PD12 (K12, AF6), PB2 (L6, AF2)
D2PE4 (D4, AF2)
D3PF10 (G6, AF2), PC3 (H5, AF2), PC5 (H6, AF2)
FS_APE4 (D4, AF6), PC5 (H6, AF6), PD14 (H11, AF6)
FS_BPF9 (H3, AF6), PD15 (H9, AF6)
MCLK_APE2 (A1, AF6), PI11 (F4, AF2), PG7 (G8, AF6), PC0 (J1, AF6)
MCLK_BPD1 (E9, AF6), PF7 (G3, AF6)
SCK_APE5 (C2, AF6), PC6 (F9, AF6)
SCK_BPC10 (C10, AF4), PF8 (G5, AF6)
SD_APE6 (D3, AF6), PD6 (E8, AF6), PC1 (J2, AF6), PB2 (L6, AF6)
SD_BPE3 (B2, AF6), PF6 (G4, AF6), PA3 (N3, AF6)
SAI2FS_API7 (A2, AF10), PD12 (K12, AF10)
FS_BPA12 (E13, AF8), PG9 (F7, AF10), PC0 (J1, AF8), PE13 (L9, AF10)
MCLK_API4 (C4, AF10), PE0 (C5, AF10)
MCLK_BPE6 (D3, AF10), PA1 (J5, AF10), PE14 (J8, AF10), PH3 (N2, AF10)
SCK_APD13 (K13, AF10)
SCK_BPH2 (K3, AF10), PE12 (K8, AF10), PA2 (L3, AF8)
SD_API6 (C3, AF10), PD11 (H10, AF10), PC1 (J2, AF8)
SD_BPG10 (A8, AF10), PA0 (J4, AF10), PF11 (J6, AF10), PE11 (M8, AF10)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPB6 (A5, AF5), PA15 (JTDI) (B11, AF4), PD9 (J9, AF5)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (A11), PG11 (E7), PI11 (F4), PA11 (F13), PD11 (H10), PF11 (J6), PE11 (M8), PB11 (M9), PH11 (N12)
EXTI15PG15 (B6), PA15 (JTDI) (B11), PC15-OSC32_OUT(OSC32_OUT) (C1), PH15 (D11), PD15 (H9), PF15 (J7), PB15 (J10), PE15 (N9)
INN1PA0 (J4)
INN2PF12 (N6)
INN3PA7 (K5)
INN4PC5 (H6)
INN5PB0 (L5)
INN10PC1 (J2)
INN11PC2 (J3)
INN12PC3 (H5)
INN18PA5 (K4)
INP0PA0 (J4)
INP1PA1 (J5)
INP2PF11 (J6)
INP3PA6 (M5)
INP4PC4 (N5)
INP5PB1 (K6)
INP6PF12 (N6)
INP7PA7 (K5)
INP8PC5 (H6)
INP9PB0 (L5)
INP10PC0 (J1)
INP11PC1 (J2)
INP12PC2 (J3)
INP13PC3 (H5)
INP14PA2 (L3)
INP15PA3 (N3)
INP18PA4 (L4)
INP19PA5 (K4)
ADC2EXTI11PC11 (A11), PG11 (E7), PI11 (F4), PA11 (F13), PD11 (H10), PF11 (J6), PE11 (M8), PB11 (M9), PH11 (N12)
EXTI15PG15 (B6), PA15 (JTDI) (B11), PC15-OSC32_OUT(OSC32_OUT) (C1), PH15 (D11), PD15 (H9), PF15 (J7), PB15 (J10), PE15 (N9)
INN1PA0 (J4)
INN2PF14 (M6)
INN3PA7 (K5)
INN4PC5 (H6)
INN5PB0 (L5)
INN10PC1 (J2)
INN11PC2 (J3)
INN12PC3 (H5)
INN18PA5 (K4)
INP0PA0 (J4)
INP1PA1 (J5)
INP2PF13 (H7)
INP3PA6 (M5)
INP4PC4 (N5)
INP5PB1 (K6)
INP6PF14 (M6)
INP7PA7 (K5)
INP8PC5 (H6)
INP9PB0 (L5)
INP10PC0 (J1)
INP11PC1 (J2)
INP12PC2 (J3)
INP13PC3 (H5)
INP14PA2 (L3)
INP15PA3 (N3)
INP18PA4 (L4)
INP19PA5 (K4)
ADC3EXTI11PC11 (A11), PG11 (E7), PI11 (F4), PA11 (F13), PD11 (H10), PF11 (J6), PE11 (M8), PB11 (M9), PH11 (N12)
EXTI15PG15 (B6), PA15 (JTDI) (B11), PC15-OSC32_OUT(OSC32_OUT) (C1), PH15 (D11), PD15 (H9), PF15 (J7), PB15 (J10), PE15 (N9)
INP0PB2 (L6)
INP1PE7 (N8)
INP2PE8 (G7)
INP3PE9 (L8)
INP4PE10 (H8)
INP5PE11 (M8)
INP6PE12 (K8)
INP7PE13 (L9)
INP8PE14 (J8)
INP9PE15 (N9)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (A4), PA9 (E11), PG9 (F7), PC9 (G13), PF9 (H3), PD9 (J9), PE9 (L8)
OUT1PA4 (L4)
OUT2PA5 (K4)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPE10 (H8), PA6 (M5)
INPPA7 (K5), PB2 (L6)
OUTPC11 (A11, AF3), PF0 (F3, AF3), PD4 (F8, AF3)
COMP2INMPE14 (J8), PB1 (K6), PE9 (L8)
INPPB0 (L5), PE7 (N8)
OUTPC12 (B9, AF3), PD5 (D8, AF3), PF1 (E1, AF3)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA4 (L4), PE13 (L9)
VINPPA5 (K4), PE12 (K8), PE11 (M8)
VOUTPB1 (K6)

TIM — таймер

БлокСигналВыводы
TIM1BKINPB12 (K11, AF1), PA6 (M5, AF1), PE15 (N9, AF1), PH12 (N13, AF1)
BKIN2PI1 (B12, AF1), PE6 (D3, AF1), PG4 (J13, AF1)
CH1PI4 (C4, AF1), PA8 (F12, AF1), PE9 (L8, AF1), PH11 (N12, AF1)
CH1NPI3 (C11, AF1), PE8 (G7, AF1), PA7 (K5, AF1), PB13 (L11, AF1), PH10 (M11, AF1)
CH2PI6 (C3, AF1), PA9 (E11, AF1), PE11 (M8, AF1)
CH2NPE10 (H8, AF1), PB0 (L5, AF1), PH8 (M10, AF1), PB14 (M13, AF1)
CH3PA10 (E10, AF1), PE13 (L9, AF1), PH7 (L10, AF1)
CH3NPI7 (A2, AF1), PB15 (J10, AF1), PB1 (K6, AF1), PE12 (K8, AF1), PH6 (K10, AF1)
CH4PI11 (F4, AF1), PA11 (F13, AF1), PE14 (J8, AF1)
CH4NPD5 (D8, AF1), PC5 (H6, AF1), PE15 (N9, AF3)
ETRPI2 (A13, AF1), PA12 (E13, AF1), PG5 (G10, AF1), PE7 (N8, AF1)
TIM2CH1PA15 (JTDI) (B11, AF1), PF0 (F3, AF1), PA0 (J4, AF1), PA5 (K4, AF1)
CH2PF1 (E1, AF1), PB3 (JTDO/TRACESWO) (E6, AF1), PA1 (J5, AF1)
CH3PF3 (F5, AF1), PF11 (J6, AF1), PB10 (K9, AF1), PA2 (L3, AF1)
CH4PF4 (F1, AF1), PB11 (M9, AF1), PA3 (N3, AF1), PC4 (N5, AF1), PF12 (N6, AF1)
ETRPA15 (JTDI) (B11, AF14), PF0 (F3, AF2), PA0 (J4, AF14), PA5 (K4, AF14)
TIM3CH1PB4 (NJTRST) (A6, AF2), PC6 (F9, AF2), PA6 (M5, AF2)
CH2PB5 (C6, AF2), PC7 (F10, AF2), PA7 (K5, AF2)
CH3PC8 (G12, AF2), PB0 (L5, AF2)
CH4PC9 (G13, AF2), PB1 (K6, AF2)
ETRPD2 (C9, AF2), PF14 (M6, AF2)
TIM4CH1PB6 (A5, AF2), PD12 (K12, AF2), PG0 (L7, AF2)
CH2PB7 (D6, AF2), PG1 (K7, AF2), PD13 (K13, AF2)
CH3PB8 (E5, AF2), PD14 (H11, AF2), PG2 (J12, AF2)
CH4PB9 (A4, AF2), PG3 (G9, AF2), PD15 (H9, AF2), PC2 (J3, AF2)
ETRPE0 (C5, AF2), PF15 (J7, AF2)
TIM5CH1PA0 (J4, AF2), PH10 (M11, AF2)
CH2PA1 (J5, AF2), PH11 (N12, AF2)
CH3PA2 (L3, AF2), PH12 (N13, AF2)
CH4PI0 (B13, AF2), PA3 (N3, AF2)
ETRPA4 (L4, AF2), PH8 (M10, AF2)
TIM8BKINPI4 (C4, AF3), PG2 (J12, AF3), PA6 (M5, AF3), PH12 (N13, AF3)
BKIN2PI1 (B12, AF3), PA8 (F12, AF3), PG3 (G9, AF3)
CH1PC6 (F9, AF3), PC0 (J1, AF3), PH6 (K10, AF3)
CH1NPH13 (D12, AF3), PA5 (K4, AF3), PA7 (K5, AF3), PH7 (L10, AF3)
CH2PI6 (C3, AF3), PC7 (F10, AF3), PC1 (J2, AF3), PH8 (M10, AF3)
CH2NPH14 (D10, AF3), PB0 (L5, AF3), PB14 (M13, AF3)
CH3PI7 (A2, AF3), PC8 (G12, AF3), PC2 (J3, AF3), PH10 (M11, AF3)
CH3NPH15 (D11, AF3), PB15 (J10, AF3), PB1 (K6, AF3), PH11 (N12, AF3)
CH4PD3 (A9, AF3), PI2 (A13, AF3), PC9 (G13, AF3)
CH4NPD0 (D9, AF3), PB2 (L6, AF3), PH12 (N13, AF10)
ETRPI3 (C11, AF3), PG8 (F11, AF3), PA0 (J4, AF3)
TIM12CH1PD7 (B8, AF2), PG9 (F7, AF2), PH6 (K10, AF2), PB14 (M13, AF2)
CH2PG10 (A8, AF2), PB15 (J10, AF2), PD8 (L12, AF2)
TIM13CH1PF8 (G5, AF9), PD9 (J9, AF2), PA6 (M5, AF9)
TIM14CH1PF9 (H3, AF9), PD10 (J11, AF2), PA7 (K5, AF9)
TIM15BKINPE3 (B2, AF4), PD2 (C9, AF4), PA0 (J4, AF4)
CH1PC12 (B9, AF2), PE5 (C2, AF4), PA2 (L3, AF4)
CH1NPE4 (D4, AF4), PA1 (J5, AF4)
CH2PE6 (D3, AF4), PA3 (N3, AF4)
TIM16BKINPB4 (NJTRST) (A6, AF1), PF10 (G6, AF1), PC0 (J1, AF1)
CH1PG15 (B6, AF1), PB8 (E5, AF1), PF6 (G4, AF1)
CH1NPB6 (A5, AF1), PG8 (F11, AF1), PF8 (G5, AF1)
TIM17BKINPB5 (C6, AF1), PG6 (G11, AF1)
CH1PB9 (A4, AF1), PF7 (G3, AF1), PC2 (J3, AF1)
CH1NPB7 (D6, AF1), PF9 (H3, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PG13 (D7, AF1), PD13 (K13, AF1), PB2 (L6, AF5)
CH2PB4 (NJTRST) (A6, AF4), PG14 (C7, AF4), PI11 (F4, AF4)
ETRPE0 (C5, AF1), PG14 (C7, AF1)
IN1PG12 (C8, AF1), PA1 (J5, AF5), PD12 (K12, AF1)
IN2PE2 (A1, AF1), PE1 (D5, AF1), PH13 (D12, AF1), PG11 (E7, AF1), PH2 (K3, AF1), PA2 (L3, AF5)
LPTIM2CH1PG12 (C8, AF3), PD13 (K13, AF3), PA4 (L4, AF3), PB13 (L11, AF3)
CH2PE0 (C5, AF3), PF13 (H7, AF3), PD10 (J11, AF3)
ETRPE0 (C5, AF4), PB11 (M9, AF3), PC4 (N5, AF3)
IN1PB10 (K9, AF3), PD12 (K12, AF3), PF14 (M6, AF3)
IN2PA10 (E10, AF4), PD11 (H10, AF3)
LPTIM3CH1PF5 (F6, AF2), PC3 (H5, AF3), PB10 (K9, AF2), PB0 (L5, AF14)
CH2PF2 (F2, AF2), PB1 (K6, AF14)
ETRPC10 (C10, AF2), PF4 (F1, AF2), PB14 (M13, AF14)
IN1PC11 (A11, AF2), PF3 (F5, AF2), PF5 (F6, AF14), PB13 (L11, AF2)
IN2PA15 (JTDI) (B11, AF2), PF2 (F2, AF3)
LPTIM4ETRPD2 (C9, AF14), PG4 (J13, AF14)
IN1PD13 (K13, AF14), PG0 (L7, AF14)
OUTPD7 (B8, AF14), PG8 (F11, AF14)
LPTIM5CH1PG12 (C8, AF14), PF0 (F3, AF13), PF6 (G4, AF13)
CH2PG13 (D7, AF13), PF1 (E1, AF13), PF7 (G3, AF13)
ETRPG3 (G9, AF13), PB2 (L6, AF13)
IN1PG14 (C7, AF13), PF2 (F2, AF13), PF8 (G5, AF13)
IN2PF3 (F5, AF13), PF9 (H3, AF13)
LPTIM6CH1PF11 (J6, AF14)
CH2PF12 (N6, AF14)
ETRPB3 (JTDO/TRACESWO) (E6, AF14), PG2 (J12, AF14)
IN1PF13 (H7, AF14)
IN2PF14 (M6, AF14)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (E4)
OUT2PI8 (E3), PB2 (L6, AF0)
REFINPB15 (J10, AF0)
TSPC13 (E4)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (F3, AF12)
A1PF1 (E1, AF12)
A2PF2 (F2, AF12)
A3PF3 (F5, AF12)
A4PF4 (F1, AF12)
A5PF5 (F6, AF12)
A6PF12 (N6, AF12)
A7PF13 (H7, AF12)
A8PF14 (M6, AF12)
A9PF15 (J7, AF12)
A10PG0 (L7, AF12)
A11PG1 (K7, AF12)
A12PG2 (J12, AF12)
A13PG3 (G9, AF12)
A14PG4 (J13, AF12)
A15PG5 (G10, AF12)
A16PC9 (G13, AF11), PD11 (H10, AF12)
A17PA11 (F13, AF12), PC8 (G12, AF11), PD12 (K12, AF12)
A18PD13 (K13, AF12)
A19PE3 (B2, AF12)
A20PE4 (D4, AF12)
A21PE5 (C2, AF12)
A22PE6 (D3, AF12)
A23PE2 (A1, AF12)
A24PI1 (B12, AF11), PG13 (D7, AF12)
A25PG14 (C7, AF12), PC0 (J1, AF9)
ALEPA11 (F13, AF12), PC8 (G12, AF11), PD12 (K12, AF12)
BA0PG4 (J13, AF12)
BA1PG5 (G10, AF12)
CLEPC9 (G13, AF11), PD11 (H10, AF12)
CLKPD3 (A9, AF12)
D0PD14 (H11, AF12)
D1PD15 (H9, AF12)
D2PD0 (D9, AF12)
D3PD1 (E9, AF12), PH12 (N13, AF12)
D4PE7 (N8, AF12)
D5PE8 (G7, AF12)
D6PE9 (L8, AF12)
D7PE10 (H8, AF12)
D8PE11 (M8, AF12)
D9PE12 (K8, AF12)
D10PE13 (L9, AF12)
D11PE14 (J8, AF12)
D12PE15 (N9, AF12)
D13PD8 (L12, AF12)
D14PD9 (J9, AF12)
D15PD10 (J11, AF12)
D16PF6 (G4, AF12)
D17PF7 (G3, AF12)
D18PF8 (G5, AF12)
D19PF9 (H3, AF12)
D20PH10 (M11, AF12)
D21PH11 (N12, AF12)
D22PH13 (D12, AF12)
D23PH14 (D10, AF12)
D24PH15 (D11, AF12)
D25PI1 (B12, AF12)
D26PI2 (A13, AF12)
D27PI3 (C11, AF12)
D28PI4 (C4, AF12)
D29PI6 (C3, AF12)
D30PI7 (A2, AF12)
D31PA6 (M5, AF12)
DA0PD14 (H11, AF12)
DA1PD15 (H9, AF12)
DA2PD0 (D9, AF12)
DA3PD1 (E9, AF12), PH12 (N13, AF12)
DA4PE7 (N8, AF12)
DA5PE8 (G7, AF12)
DA6PE9 (L8, AF12)
DA7PE10 (H8, AF12)
DA8PE11 (M8, AF12)
DA9PE12 (K8, AF12)
DA10PE13 (L9, AF12)
DA11PE14 (J8, AF12)
DA12PE15 (N9, AF12)
DA13PD8 (L12, AF12)
DA14PD9 (J9, AF12)
DA15PD10 (J11, AF12)
INTPG7 (G8, AF12), PC8 (G12, AF10), PC0 (J1, AF13)
NBL0PE0 (C5, AF12), PH2 (K3, AF13)
NBL1PA15 (JTDI) (B11, AF12), PE1 (D5, AF12), PB11 (M9, AF12)
NBL2PA4 (L4, AF12), PH3 (N2, AF13)
NBL3PB4 (NJTRST) (A6, AF12)
NCEPD7 (B8, AF12), PG9 (F7, AF12), PC8 (G12, AF9), PC1 (J2, AF13), PC2 (J3, AF13)
NE1PD7 (B8, AF12), PC7 (F10, AF9), PC2 (J3, AF13)
NE2PG9 (F7, AF12), PC8 (G12, AF9), PC1 (J2, AF13)
NE3PG10 (A8, AF12), PG6 (G11, AF12)
NE4PG12 (C8, AF12)
NLPB7 (D6, AF12)
NOEPD4 (F8, AF12), PA8 (F12, AF12)
NWAITPE1 (D5, AF11), PD6 (E8, AF12), PC6 (F9, AF9), PB10 (K9, AF13)
NWEPD5 (D8, AF12), PA9 (E11, AF12), PA7 (K5, AF13)
SDCKE0PC3 (H5, AF12), PC5 (H6, AF12), PH2 (K3, AF12)
SDCKE1PB5 (C6, AF12), PH7 (L10, AF12)
SDCLKPG12 (C8, AF8), PG8 (F11, AF12)
SDNCASPG15 (B6, AF12), PC9 (G13, AF10)
SDNE0PC2 (J3, AF12), PH3 (N2, AF12), PC4 (N5, AF12)
SDNE1PB6 (A5, AF12), PH6 (K10, AF12)
SDNRASPF11 (J6, AF12), PB10 (K9, AF10)
SDNWEPC0 (J1, AF12), PA7 (K5, AF12), PH5 (M3, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (E11, AF13), PC6 (F9, AF13), PE12 (K8, AF13)
D1PA10 (E10, AF13), PC7 (F10, AF13), PH10 (M11, AF13)
D2PG10 (A8, AF13), PE0 (C5, AF13), PC8 (G12, AF13), PB15 (J10, AF13), PH11 (N12, AF13)
D3PE2 (A1, AF13), PE1 (D5, AF13), PH13 (D12, AF13), PG11 (E7, AF13), PA8 (F12, AF13), PC9 (G13, AF13), PH12 (N13, AF13)
D4PC11 (A11, AF13), PE4 (D4, AF13), PH14 (D10, AF13)
D5PB6 (A5, AF13), PD3 (A9, AF13), PI4 (C4, AF13)
D6PE5 (C2, AF13), PI6 (C3, AF13), PB8 (E5, AF13), PF4 (F1, AF13)
D7PI7 (A2, AF13), PB9 (A4, AF13), PB4 (NJTRST) (A6, AF13), PE6 (D3, AF13)
D8PI1 (B12, AF13), PC10 (C10, AF13), PE8 (G7, AF13), PH6 (K10, AF13)
D9PI2 (A13, AF13), PC12 (B9, AF13), PH7 (L10, AF13)
D10PB5 (C6, AF13), PI3 (C11, AF13), PD6 (E8, AF13)
D11PA15 (JTDI) (B11, AF13), PG12 (C8, AF13), PD2 (C9, AF13), PH15 (D11, AF13), PF10 (G6, AF13)
D12PG6 (G11, AF13), PF11 (J6, AF13), PD12 (K12, AF13)
D13PG15 (B6, AF13), PI0 (B13, AF13), PG7 (G8, AF13), PD13 (K13, AF13)
HSYNCPA4 (L4, AF13), PE13 (L9, AF13), PH8 (M10, AF13)
PIXCLKPA6 (M5, AF13), PE15 (N9, AF13)
VSYNCPB7 (D6, AF13), PG9 (F7, AF13), PE14 (J8, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (E11, AF13), PC6 (F9, AF13), PE12 (K8, AF13)
D1PA10 (E10, AF13), PC7 (F10, AF13), PH10 (M11, AF13)
D2PG10 (A8, AF13), PE0 (C5, AF13), PC8 (G12, AF13), PB15 (J10, AF13), PH11 (N12, AF13)
D3PE2 (A1, AF13), PE1 (D5, AF13), PH13 (D12, AF13), PG11 (E7, AF13), PA8 (F12, AF13), PC9 (G13, AF13), PH12 (N13, AF13)
D4PC11 (A11, AF13), PE4 (D4, AF13), PH14 (D10, AF13)
D5PB6 (A5, AF13), PD3 (A9, AF13), PI4 (C4, AF13)
D6PE5 (C2, AF13), PI6 (C3, AF13), PB8 (E5, AF13), PF4 (F1, AF13)
D7PI7 (A2, AF13), PB9 (A4, AF13), PB4 (NJTRST) (A6, AF13), PE6 (D3, AF13)
D8PI1 (B12, AF13), PC10 (C10, AF13), PE8 (G7, AF13), PH6 (K10, AF13)
D9PI2 (A13, AF13), PC12 (B9, AF13), PH7 (L10, AF13)
D10PB5 (C6, AF13), PI3 (C11, AF13), PD6 (E8, AF13)
D11PA15 (JTDI) (B11, AF13), PG12 (C8, AF13), PD2 (C9, AF13), PH15 (D11, AF13), PF10 (G6, AF13)
D12PG6 (G11, AF13), PF11 (J6, AF13), PD12 (K12, AF13)
D13PG15 (B6, AF13), PI0 (B13, AF13), PG7 (G8, AF13), PD13 (K13, AF13)
D14PA5 (K4, AF13), PH4 (N1, AF13)
D15PG12 (C8, AF4), PI11 (F4, AF13), PF10 (G6, AF4), PC5 (H6, AF4), PD14 (H11, AF4)
DEPA4 (L4, AF13), PE13 (L9, AF13), PH8 (M10, AF13)
PDCKPA6 (M5, AF13), PE15 (N9, AF13)
RDYPB7 (D6, AF13), PG9 (F7, AF13), PE14 (J8, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PG14 (C7, AF14), PC10 (C10, AF14), PE14 (J8, AF11)
B1PI0 (B13, AF14), PI11 (F4, AF14), PC9 (G13, AF14), PF9 (H3, AF14), PD14 (H11, AF13)
B2PD5 (D8, AF13), PG8 (F11, AF13), PA7 (K5, AF14)
B3PB1 (K6, AF13), PA6 (M5, AF14)
B4PD3 (A9, AF10), PG11 (E7, AF14), PA4 (L4, AF14)
B5PG9 (F7, AF14), PE11 (M8, AF13), PA3 (N3, AF14)
B6PG10 (A8, AF14), PE5 (C2, AF10), PF13 (H7, AF13), PA2 (L3, AF14)
B7PD4 (F8, AF13), PA1 (J5, AF14), PF15 (J7, AF13)
CLKPA8 (F12, AF14), PD15 (H9, AF13), PF12 (N6, AF13)
DEPI3 (C11, AF14), PD1 (E9, AF13), PF6 (G4, AF14), PC4 (N5, AF14)
G0PC6 (F9, AF14), PG3 (G9, AF14), PB15 (J10, AF12)
G1PE3 (B2, AF13), PH15 (D11, AF14), PC5 (H6, AF14)
G2PG15 (B6, AF14), PC1 (J2, AF14), PD12 (K12, AF11)
G3PE4 (D4, AF10), PF7 (G3, AF14), PC0 (J1, AF14)
G4PC12 (B9, AF11), PG13 (D7, AF14), PB10 (K9, AF14)
G5PB9 (A4, AF14), PA5 (K4, AF10), PF14 (M6, AF13)
G6PB8 (E5, AF14), PF10 (G6, AF14), PA0 (J4, AF13)
G7PD2 (C9, AF11), PB7 (D6, AF14), PB11 (M9, AF13)
HSYNCPB3 (JTDO/TRACESWO) (E6, AF13), PG5 (G10, AF13), PC2 (J3, AF14)
R0PC8 (G12, AF14), PA2 (L3, AF13), PE15 (N9, AF11)
R1PC7 (F10, AF14), PB12 (K11, AF13), PE13 (L9, AF11)
R2PB4 (NJTRST) (A6, AF14), PE6 (D3, AF11), PD0 (D9, AF13), PG2 (J12, AF13)
R3PD7 (B8, AF13), PH13 (D12, AF14), PB2 (L6, AF14)
R4PA12 (E13, AF14), PD9 (J9, AF13), PB0 (L5, AF13)
R5PA11 (F13, AF14), PG7 (G8, AF14), PD8 (L12, AF13)
R6PH14 (D10, AF14), PA10 (E10, AF14), PD11 (H10, AF13)
R7PA9 (E11, AF14), PF8 (G5, AF14), PD10 (J11, AF13), PH4 (N1, AF14)
VSYNCPC11 (A11, AF11), PC3 (H5, AF14), PG4 (J13, AF13)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PE2 (A1, AF4), PF9 (H3, AF4), PC4 (N5, AF8)
CCK1PE5 (C2, AF8), PG7 (G8, AF8)
CKI0PG4 (J13, AF4), PE7 (N8, AF8)
CKI1PF7 (G3, AF4), PC0 (J1, AF4)
CKI2PE3 (B2, AF8), PH2 (K3, AF4)
CKI3PH14 (D10, AF4), PD4 (F8, AF8)
CKI4PI1 (B12, AF4), PE9 (L8, AF8)
CKI5PI6 (C3, AF4), PE11 (M8, AF8)
SDI0PE8 (G7, AF8), PG5 (G10, AF4)
SDI1PE6 (D3, AF8), PD6 (E8, AF8), PC1 (J2, AF4)
SDI2PE4 (D4, AF8), PH3 (N2, AF4)
SDI3PH15 (D11, AF4), PF10 (G6, AF8), PC3 (H5, AF8), PC5 (H6, AF8)
SDI4PI2 (A13, AF4), PE10 (H8, AF8)
SDI5PI7 (A2, AF4), PE12 (K8, AF8)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PE2 (A1, AF3), PF13 (H7, AF1), PD11 (H10, AF1), PC4 (N5, AF4)
CCK1PE5 (C2, AF1), PG7 (G8, AF1), PF14 (M6, AF1)
SDI0PE6 (D3, AF3), PE4 (D4, AF3), PD6 (E8, AF1), PC1 (J2, AF1), PF15 (J7, AF1), PB2 (L6, AF1)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (A12, AF0)
JTDIPA15 (JTDI) (B11, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (E6, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (E12, AF0)
NJTRSTPB4 (NJTRST) (A6, AF0)
TRACECLKPE2 (A1, AF0), PH15 (D11, AF0)
TRACED0PE3 (B2, AF0), PI1 (B12, AF0), PG13 (D7, AF0), PC1 (J2, AF0)
TRACED1PI2 (A13, AF0), PG14 (C7, AF0), PE4 (D4, AF0), PC8 (G12, AF0)
TRACED2PE5 (C2, AF0), PD2 (C9, AF0), PI3 (C11, AF0)
TRACED3PC12 (B9, AF0), PI4 (C4, AF0), PE6 (D3, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPB2 (L6)
MCO_1PA8 (F12, AF0)
MCO_2PC9 (G13, AF0)
OSC_INPH0-OSC_IN (H1)
OSC_OUTPH1-OSC_OUT (H2)
OSC32_INPC14-OSC32_IN(OSC32_IN) (B1)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (C1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC2 (J3, AF0)
PWR_CSTOPPC3 (H5, AF0)
PWR_WKUP1PA0 (J4)
PWR_WKUP2PA2 (L3)
PWR_WKUP3PI8 (E3)
PWR_WKUP4PC13 (E4)
PWR_WKUP5PB7 (D6)
PWR_WKUP6PC1 (J2)
PWR_WKUP7PD2 (C9)
PWR_WKUP8PD3 (A9)
TAMP_IN1PC13 (E4)
TAMP_IN2PI8 (E3), PA0 (J4)
TAMP_IN3PE6 (D3), PC1 (J2)
TAMP_IN4PI11 (F4), PA2 (L3)
TAMP_IN5PA1 (J5)
TAMP_IN6PE3 (B2)
TAMP_IN7PE4 (D4)
TAMP_IN8PE5 (C2)
TAMP_OUT1PA0 (J4)
TAMP_OUT2PC13 (E4)
TAMP_OUT3PE3 (B2), PI8 (E3), PC13 (E4), PA2 (L3)
TAMP_OUT4PA1 (J5)
TAMP_OUT5PI11 (F4), PC1 (J2)
TAMP_OUT6PE6 (D3)
TAMP_OUT7PE5 (C2)
TAMP_OUT8PE4 (D4)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 169 шариков корпуса UFBGA169 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PE2ввод-выводADF1_CCK0 (AF3), DCMI_D3 (AF13), DEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_A23 (AF12), LPTIM1_IN2 (AF1), MDF1_CCK0 (AF4), OCTOSPIM_P1_IO2 (AF9), PLAY1_OUT8 (AF14), PSSI_D3 (AF13), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), UART8_TX (AF8), USART10_RX (AF7)
A2PI7ввод-выводDCMI_D7 (AF13), FMC_D30 (AF12), MDF1_SDI5 (AF4), PSSI_D7 (AF13), SAI2_FS_A (AF10), SDMMC2_CK (AF9), TIM1_CH3N (AF1), TIM8_CH3 (AF3)
A3VDDпитание—
A4PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2S2_WS (AF5), I3C1_SDA (AF3), LTDC_G5 (AF14), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
A5PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), ETH_MII_TX_ER (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), GFXTIM_FCKCAL (AF0), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS1 (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
A6PB4 (NJTRST)ввод-выводDCMI_D7 (AF13), DEBUG_NJTRST (AF0), ETH_MDIO (AF10), FMC_NBL3 (AF12), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), LPTIM1_CH2 (AF4), LTDC_R2 (AF14), OCTOSPIM_P1_CLK (AF3), PSSI_D7 (AF13), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
A7VDDIO2питание—
A8PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), I2C3_SMBA (AF3), I2S1_WS (AF5), LTDC_B6 (AF14), OCTOSPIM_P1_IO5 (AF8), OCTOSPIM_P2_IO6 (AF9), PSSI_D2 (AF13), SAI2_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5), TIM12_CH2 (AF2), USART10_CK (AF6), USART6_CK (AF7)
A9PD3ввод-выводDCMI_D5 (AF13), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_B4 (AF10), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN2 (AF14), PSSI_D5 (AF13), PWR_WKUP8, SPI2_SCK (AF5), TIM8_CH4 (AF3), USART2_CTS (AF7), USART2_NSS (AF7)
A10VDDпитание—
A11PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT (AF3), DCMI_D4 (AF13), GFXTIM_FCKCAL (AF0), I2S3_SDI (AF6), LPTIM3_IN1 (AF2), LTDC_VSYNC (AF11), OCTOSPIM_P1_NCS1 (AF9), PLAY1_IN0 (AF14), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
A12PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
A13PI2ввод-выводDCMI_D9 (AF13), DEBUG_TRACED1 (AF0), FMC_D26 (AF12), I2S2_SDI (AF5), MDF1_SDI4 (AF4), PSSI_D9 (AF13), SDMMC2_D1 (AF9), SPI2_MISO (AF5), TIM1_ETR (AF1), TIM8_CH4 (AF3)
B1PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
B2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), GFXTIM_TE (AF5), LTDC_G1 (AF13), MDF1_CKI2 (AF8), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN9 (AF14), SAI1_SD_B (AF6), TAMP_IN6, TAMP_OUT3, TIM15_BKIN (AF4), USART10_TX (AF7)
B3VSSпитание—
B4VCAPпитание—
B5BOOT0загрузка—
B6PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), LTDC_G2 (AF14), OCTOSPIM_P2_IO7 (AF9), PSSI_D13 (AF13), SPI4_RDY (AF5), TIM16_CH1 (AF1), USART10_CK (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
B7VSSпитание—
B8PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), I2C3_SCL (AF4), I2S1_SDO (AF5), LPTIM4_OUT (AF14), LTDC_R3 (AF13), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), SPI1_MOSI (AF5), TIM12_CH1 (AF2), USART2_CK (AF7)
B9PC12ввод-выводCOMP2_OUT (AF3), DCMI_D9 (AF13), DEBUG_TRACED3 (AF0), ETH_PPS_OUT (AF10), I2S3_SDO (AF6), LTDC_G4 (AF11), OCTOSPIM_P2_IO7 (AF9), PLAY1_OUT0 (AF14), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
B10VSSпитание—
B11PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DCMI_D11 (AF13), DEBUG_JTDI (AF0), ETH_PHY_INTN (AF10), FMC_NBL1 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM3_IN2 (AF2), OCTOSPIM_P2_IO6 (AF9), PSSI_D11 (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF14), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
B12PI1ввод-выводDCMI_D8 (AF13), DEBUG_TRACED0 (AF0), FMC_A24 (AF11), FMC_D25 (AF12), I2S2_CK (AF5), MDF1_CKI4 (AF4), PSSI_D8 (AF13), SDMMC2_D0 (AF9), SPI2_SCK (AF5), TIM1_BKIN2 (AF1), TIM8_BKIN2 (AF3)
B13PI0ввод-выводDCMI_D13 (AF13), I2S2_WS (AF5), LTDC_B1 (AF14), PSSI_D13 (AF13), SPI2_NSS (AF5), TIM5_CH4 (AF2), USART11_CK (AF7)
C1PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
C2PE5ввод-выводADF1_CCK1 (AF1), DCMI_D6 (AF13), DEBUG_TRACED2 (AF0), ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_A21 (AF12), LTDC_B6 (AF10), MDF1_CCK1 (AF8), OCTOSPIM_P2_IO2 (AF9), PLAY1_IN10 (AF14), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TAMP_IN8, TAMP_OUT7, TIM15_CH1 (AF4)
C3PI6ввод-выводDCMI_D6 (AF13), FMC_D29 (AF12), MDF1_CKI5 (AF4), PSSI_D6 (AF13), SAI2_SD_A (AF10), SDMMC2_CMD (AF9), TIM1_CH2 (AF1), TIM8_CH2 (AF3)
C4PI4ввод-выводDCMI_D5 (AF13), DEBUG_TRACED3 (AF0), FMC_D28 (AF12), PSSI_D5 (AF13), SAI2_MCLK_A (AF10), SDMMC2_D3 (AF9), SPI2_RDY (AF7), TIM1_CH1 (AF1), TIM8_BKIN (AF3)
C5PE0ввод-выводDCMI_D2 (AF13), FDCAN1_RX (AF9), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_CH2 (AF3), LPTIM2_ETR (AF4), OCTOSPIM_P1_NCS2 (AF11), PLAY1_OUT7 (AF14), PSSI_D2 (AF13), SAI2_MCLK_A (AF10), SPI3_RDY (AF6), TIM4_ETR (AF2), UART8_RX (AF8)
C6PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), GFXTIM_LCKCAL (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), OCTOSPIM_P1_NCLK (AF3), OCTOSPIM_P2_CLK (AF10), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14)
C7PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_A25 (AF12), LPTIM1_CH2 (AF4), LPTIM1_ETR (AF1), LPTIM5_IN1 (AF13), LTDC_B0 (AF14), OCTOSPIM_P1_IO7 (AF9), SDMMC2_D7 (AF10), SPI6_MOSI (AF5), USART10_DE (AF6), USART10_RTS (AF6), USART6_TX (AF7)
C8PG12ввод-выводDCMI_D11 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_NE4 (AF12), FMC_SDCLK (AF8), LPTIM1_IN1 (AF1), LPTIM2_CH1 (AF3), LPTIM5_CH1 (AF14), OCTOSPIM_P2_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SDMMC2_D3 (AF10), SPI6_MISO (AF5), USART10_TX (AF6), USART6_DE (AF7), USART6_RTS (AF7)
C9PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), I2C2_SCL (AF6), I3C2_SCL (AF5), LPTIM4_ETR (AF14), LTDC_G7 (AF11), OCTOSPIM_P1_NCS2 (AF9), OCTOSPIM_P2_IO1 (AF10), PSSI_D11 (AF13), PWR_WKUP7, SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
C10PC10ввод-выводDCMI_D8 (AF13), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), GFXTIM_LCKCAL (AF0), I2S3_CK (AF6), LPTIM3_ETR (AF2), LTDC_B0 (AF14), OCTOSPIM_P1_IO1 (AF9), PSSI_D8 (AF13), SAI1_SCK_B (AF4), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
C11PI3ввод-выводDCMI_D10 (AF13), DEBUG_TRACED2 (AF0), FMC_D27 (AF12), I2S2_SDO (AF5), LTDC_DE (AF14), PSSI_D10 (AF13), SDMMC2_D2 (AF9), SPI2_MOSI (AF5), TIM1_CH1N (AF1), TIM8_ETR (AF3)
C12VSSпитание—
C13VDDпитание—
D1VDDпитание—
D2VSSпитание—
D3PE6ввод-выводADF1_SDI0 (AF3), DCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_R2 (AF11), MDF1_SDI1 (AF8), OCTOSPIM_P2_IO3 (AF9), PLAY1_OUT10 (AF14), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TAMP_IN3, TAMP_OUT6, TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
D4PE4ввод-выводADF1_SDI0 (AF3), DCMI_D4 (AF13), DEBUG_TRACED1 (AF0), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_A20 (AF12), LTDC_G3 (AF10), MDF1_SDI2 (AF8), OCTOSPIM_P2_IO1 (AF9), PLAY1_OUT9 (AF14), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TAMP_IN7, TAMP_OUT8, TIM15_CH1N (AF4)
D5PE1ввод-выводDCMI_D3 (AF13), FDCAN1_TX (AF9), FMC_NBL1 (AF12), FMC_NWAIT (AF11), LPTIM1_IN2 (AF1), PLAY1_IN8 (AF14), PSSI_D3 (AF13), UART8_TX (AF8)
D6PB7ввод-выводDCMI_VSYNC (AF13), FDCAN1_TX (AF9), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), I3C1_SDA (AF3), LPUART1_RX (AF8), LTDC_G7 (AF14), PSSI_RDY (AF13), PWR_WKUP5, SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
D7PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FMC_A24 (AF12), LPTIM1_CH1 (AF1), LPTIM5_CH2 (AF13), LTDC_G4 (AF14), OCTOSPIM_P2_NCS1 (AF9), SDMMC2_D6 (AF10), SPI6_SCK (AF5), USART10_CTS (AF6), USART10_NSS (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
D8PD5ввод-выводCOMP2_OUT (AF3), ETH_MII_CRS (AF6), FDCAN1_TX (AF9), FMC_NWE (AF12), LTDC_B2 (AF13), OCTOSPIM_P1_IO5 (AF10), PLAY1_IN3 (AF14), SPI2_RDY (AF5), TIM1_CH4N (AF1), UART8_RX (AF8), USART2_TX (AF7)
D9PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), I2S1_MCK (AF5), LTDC_R2 (AF13), OCTOSPIM_P1_NCS2 (AF10), PLAY1_IN1 (AF14), SDMMC1_D0DIR (AF7), TIM8_CH4N (AF3), UART4_RX (AF8), UART9_CTS (AF11)
D10PH14ввод-выводDCMI_D4 (AF13), FDCAN1_RX (AF9), FMC_D23 (AF12), LTDC_R6 (AF14), MDF1_CKI3 (AF4), OCTOSPIM_P2_IO6 (AF10), PSSI_D4 (AF13), TIM8_CH2N (AF3), UART4_RX (AF8)
D11PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11 (AF13), DEBUG_TRACECLK (AF0), FMC_D24 (AF12), LTDC_G1 (AF14), MDF1_SDI3 (AF4), OCTOSPIM_P2_IO7 (AF10), PSSI_D11 (AF13), SDMMC2_CKIN (AF9), TIM8_CH3N (AF3)
D12PH13ввод-выводDCMI_D3 (AF13), FDCAN1_TX (AF9), FMC_D22 (AF12), LPTIM1_IN2 (AF1), LTDC_R3 (AF14), OCTOSPIM_P2_IO5 (AF10), PSSI_D3 (AF13), TIM8_CH1N (AF3), UART4_TX (AF8), UART8_TX (AF7)
D13VDDUSBпитание—
E1PF1ввод-выводCOMP2_OUT (AF3), FMC_A1 (AF12), I2C2_SCL (AF4), I3C2_SCL (AF5), LPTIM5_CH2 (AF13), PLAY1_IN1 (AF14), SDMMC2_D3 (AF10), TIM2_CH2 (AF1), UART9_TX (AF11)
E2VBATпитание—
E3PI8ввод-выводPWR_WKUP3, RTC_OUT2, TAMP_IN2, TAMP_OUT3
E4PC13ввод-выводPWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3
E5PB8ввод-выводDCMI_D6 (AF13), ETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LTDC_G6 (AF14), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), SPI4_RDY (AF5), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
E6PB3 (JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), ETH_MDC (AF12), I2C2_SDA (AF4), I2S1_CK (AF5), I2S3_CK (AF6), I3C2_SDA (AF3), LPTIM6_ETR (AF14), LTDC_HSYNC (AF13), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART12_CTS (AF7), UART7_RX (AF11)
E7PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3 (AF13), ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B4 (AF14), PSSI_D3 (AF13), SDMMC2_D2 (AF10), SPI1_SCK (AF5), USART10_RX (AF6), USART11_DE (AF7), USART11_RTS (AF7)
E8PD6ввод-выводADF1_SDI0 (AF1), DCMI_D10 (AF13), FMC_NWAIT (AF12), I2C3_SDA (AF4), I2S3_SDO (AF5), MDF1_SDI1 (AF8), OCTOSPIM_P1_IO6 (AF10), OCTOSPIM_P2_IO4 (AF9), PLAY1_OUT3 (AF14), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
E9PD1ввод-выводETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2S2_MCK (AF5), LTDC_DE (AF13), OCTOSPIM_P2_DQS (AF10), PLAY1_OUT1 (AF14), SAI1_MCLK_B (AF6), SDMMC1_D123DIR (AF7), UART4_TX (AF8)
E10PA10ввод-выводDCMI_D1 (AF13), DMA2D_GPFLAG1 (AF0), ETH_CLK (AF11), FDCAN2_TX (AF9), LPTIM2_IN2 (AF4), LPUART1_RX (AF3), LTDC_R6 (AF14), PSSI_D1 (AF13), SDMMC1_D0 (AF12), TIM1_CH3 (AF1), UCPD1_FRSTX (AF6), USART1_RX (AF7)
E11PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_MII_TX_ER (AF11), FMC_NWE (AF12), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R7 (AF14), OCTOSPIM_P2_IO3 (AF10), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), UCPD1_DB1, USART1_TX (AF7)
E12PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
E13PA12ввод-выводDMA2D_GPFLAG3 (AF0), FDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R4 (AF14), SAI2_FS_B (AF8), SDMMC2_D4 (AF10), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP
F1PF4ввод-выводDCMI_D6 (AF13), FMC_A4 (AF12), LPTIM3_ETR (AF2), OCTOSPIM_P2_NCS2 (AF9), PLAY1_OUT1 (AF14), PSSI_D6 (AF13), SDMMC2_D6 (AF10), TIM2_CH4 (AF1), USART11_RX (AF7)
F2PF2ввод-выводFMC_A2 (AF12), GFXTIM_TE (AF5), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), LPTIM3_IN2 (AF3), LPTIM5_IN1 (AF13), PLAY1_IN2 (AF14), SDMMC2_D4 (AF10), UART12_TX (AF6), USART11_CK (AF7)
F3PF0ввод-выводCOMP1_OUT (AF3), FMC_A0 (AF12), I2C2_SDA (AF4), I3C2_SDA (AF5), LPTIM5_CH1 (AF13), PLAY1_IN0 (AF14), SDMMC2_D2 (AF10), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART9_RX (AF11)
F4PI11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, LPTIM1_CH2 (AF4), LTDC_B1 (AF14), PSSI_D15 (AF13), SAI1_MCLK_A (AF2), TAMP_IN4, TAMP_OUT5, TIM1_CH4 (AF1), USART11_TX (AF7)
F5PF3ввод-выводFMC_A3 (AF12), LPTIM3_IN1 (AF2), LPTIM5_IN2 (AF13), PLAY1_OUT0 (AF14), SDMMC2_D5 (AF10), TIM2_CH3 (AF1), USART11_TX (AF7)
F6PF5ввод-выводFMC_A5 (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM3_CH1 (AF2), LPTIM3_IN1 (AF14), OCTOSPIM_P2_DQS (AF9), SDMMC2_CKIN (AF11), SDMMC2_D7 (AF10), UART12_RX (AF6), USART11_CTS (AF7), USART11_NSS (AF7)
F7PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), LTDC_B5 (AF14), OCTOSPIM_P1_IO4 (AF8), OCTOSPIM_P1_IO6 (AF9), PSSI_RDY (AF13), SAI2_FS_B (AF10), SDMMC2_D0 (AF11), SPI1_MISO (AF5), TIM12_CH1 (AF2), USART10_RX (AF6), USART6_RX (AF7)
F8PD4ввод-выводCOMP1_OUT (AF3), DEBUG_TRGIO (AF0), ETH_CLK (AF11), FMC_NOE (AF12), LTDC_B7 (AF13), MDF1_CKI3 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_OUT2 (AF14), USART2_DE (AF7), USART2_RTS (AF7)
F9PC6ввод-выводDCMI_D0 (AF13), FMC_NWAIT (AF9), I2S2_MCK (AF5), LTDC_G0 (AF14), OCTOSPIM_P1_IO5 (AF11), PSSI_D0 (AF13), SAI1_SCK_A (AF6), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
F10PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), FMC_NE1 (AF9), I2S3_MCK (AF6), LTDC_R1 (AF14), OCTOSPIM_P1_IO6 (AF11), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
F11PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), LPTIM4_OUT (AF14), LTDC_B2 (AF13), OCTOSPIM_P2_NCLK (AF9), SPI6_NSS (AF5), TIM16_CH1N (AF1), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
F12PA8ввод-выводDCMI_D3 (AF13), FMC_NOE (AF12), I2C3_SCL (AF4), LTDC_CLK (AF14), OCTOSPIM_P2_DQS (AF9), PSSI_D3 (AF13), RCC_MCO_1 (AF0), SPI1_RDY (AF5), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF
F13PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2 (AF0), FDCAN1_RX (AF9), FMC_A17 (AF12), FMC_ALE (AF12), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R5 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_FS_DM
G1VDDпитание—
G2VSSпитание—
G3PF7ввод-выводFDCAN3_RX (AF9), FMC_D17 (AF12), LPTIM5_CH2 (AF13), LTDC_G3 (AF14), MDF1_CKI1 (AF4), OCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF6), SDMMC1_D1 (AF8), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
G4PF6ввод-выводFDCAN3_TX (AF9), FMC_D16 (AF12), LPTIM5_CH1 (AF13), LTDC_DE (AF14), OCTOSPIM_P1_IO3 (AF10), SAI1_SD_B (AF6), SDMMC1_D0 (AF8), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
G5PF8ввод-выводETH_MII_TX_ER (AF11), FMC_D18 (AF12), LPTIM5_IN1 (AF13), LTDC_R7 (AF14), OCTOSPIM_P1_IO0 (AF10), SAI1_SCK_B (AF6), SDMMC1_D2 (AF8), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
G6PF10ввод-выводDCMI_D11 (AF13), LTDC_G6 (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), TIM16_BKIN (AF1)
G7PE8ввод-выводADC3_INP2, DCMI_D8 (AF13), FMC_D5 (AF12), FMC_DA5 (AF12), MDF1_SDI0 (AF8), OCTOSPIM_P1_IO5 (AF10), PLAY1_OUT11 (AF14), PSSI_D8 (AF13), TIM1_CH1N (AF1), UART12_CTS (AF6), UART7_TX (AF7), USART2_TX (AF5)
G8PG7ввод-выводADF1_CCK1 (AF1), DCMI_D13 (AF13), FMC_INT (AF12), I2C4_SCL (AF4), I3C1_SCL (AF3), LTDC_R5 (AF14), MDF1_CCK1 (AF8), OCTOSPIM_P2_CLK (AF9), PSSI_D13 (AF13), SAI1_CK2 (AF2), SAI1_MCLK_A (AF6), UCPD1_FRSTX (AF11), USART6_CK (AF7)
G9PG3ввод-выводETH_MII_RX_ER (AF10), FMC_A13 (AF12), LPTIM5_ETR (AF13), LTDC_G0 (AF14), OCTOSPIM_P2_IO3 (AF9), TIM4_CH4 (AF2), TIM8_BKIN2 (AF3), UART12_TX (AF7), UART7_RX (AF11)
G10PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), LTDC_HSYNC (AF13), MDF1_SDI0 (AF4), OCTOSPIM_P2_IO5 (AF9), PLAY1_OUT9 (AF14), TIM1_ETR (AF1)
G11PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF3), OCTOSPIM_P1_NCS1 (AF10), OCTOSPIM_P2_NCS1 (AF9), PLAY1_OUT10 (AF14), PSSI_D12 (AF13), SPI1_RDY (AF5), TIM17_BKIN (AF1), UCPD1_FRSTX (AF11)
G12PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_A17 (AF11), FMC_ALE (AF11), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), LTDC_R0 (AF14), PSSI_D2 (AF13), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
G13PC9ввод-выводAUDIOCLK (AF5), DAC1_EXTI9, DCMI_D3 (AF13), FMC_A16 (AF11), FMC_CLE (AF11), FMC_SDNCAS (AF10), I2C3_SDA (AF4), LTDC_B1 (AF14), OCTOSPIM_P1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8), UCPD1_DB2
H1PH0-OSC_INввод-выводRCC_OSC_IN
H2PH1-OSC_OUTввод-выводRCC_OSC_OUT
H3PF9ввод-выводDAC1_EXTI9, ETH_MDC (AF11), FMC_D19 (AF12), LPTIM5_IN2 (AF13), LTDC_B1 (AF14), MDF1_CCK0 (AF4), OCTOSPIM_P1_IO1 (AF10), SAI1_FS_B (AF6), SDMMC1_D3 (AF8), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
H4NRSTсброс—
H5PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), LPTIM3_CH1 (AF3), LTDC_VSYNC (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF6), PWR_CSTOP (AF0), SAI1_D3 (AF2), SDMMC2_D7 (AF10), SPI2_MOSI (AF5)
H6PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_SDCKE0 (AF12), LTDC_G1 (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_DQS (AF10), PSSI_D15 (AF4), SAI1_D3 (AF2), SAI1_FS_A (AF6), TIM1_CH4N (AF1), UART12_DE (AF7), UART12_RTS (AF7)
H7PF13ввод-выводADC2_INP2, ADF1_CCK0 (AF1), FMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM2_CH2 (AF3), LPTIM6_IN1 (AF14), LTDC_B6 (AF13), SDMMC1_CDIR (AF9), SDMMC1_D6 (AF8)
H8PE10ввод-выводADC3_INP4, COMP1_INM, FMC_D7 (AF12), FMC_DA7 (AF12), MDF1_SDI4 (AF8), OCTOSPIM_P1_IO7 (AF10), PLAY1_OUT12 (AF14), TIM1_CH2N (AF1), UART12_TX (AF6), UART7_CTS (AF7)
H9PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LTDC_CLK (AF13), OCTOSPIM_P2_NCLK (AF9), PLAY1_IN7 (AF14), SAI1_FS_B (AF6), SPI6_RDY (AF7), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
H10PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0 (AF1), ETH_PTP_AUX_TS (AF11), FMC_A16 (AF12), FMC_CLE (AF12), GFXTIM_TE (AF5), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), LTDC_R6 (AF13), OCTOSPIM_P1_IO0 (AF9), PLAY1_OUT5 (AF14), SAI1_CK1 (AF2), SAI2_SD_A (AF10), UART4_RX (AF8), USART3_CTS (AF7), USART3_NSS (AF7)
H11PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LTDC_B1 (AF13), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT6 (AF14), PSSI_D15 (AF4), SAI1_FS_A (AF6), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
H12VSSпитание—
H13VDDпитание—
J1PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_A25 (AF9), FMC_INT (AF13), FMC_SDNWE (AF12), LTDC_G3 (AF14), MDF1_CKI1 (AF4), OCTOSPIM_P1_IO7 (AF10), SAI1_MCLK_A (AF6), SAI2_FS_B (AF8), SPI2_RDY (AF7), TIM16_BKIN (AF1), TIM8_CH1 (AF3)
J2PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0 (AF1), DEBUG_TRACED0 (AF0), ETH_MDC (AF11), FMC_NCE (AF13), FMC_NE2 (AF13), I2S2_SDO (AF5), LTDC_G2 (AF14), MDF1_SDI1 (AF4), OCTOSPIM_P1_IO4 (AF10), PWR_WKUP6, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5), TAMP_IN3, TAMP_OUT5, TIM8_CH2 (AF3), USART11_DE (AF7), USART11_RTS (AF7)
J3PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_NCE (AF13), FMC_NE1 (AF13), FMC_SDNE0 (AF12), I2S2_SDI (AF5), LTDC_HSYNC (AF14), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF6), PWR_CSLEEP (AF0), SDMMC2_D6 (AF10), SPI2_MISO (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), TIM8_CH3 (AF3)
J4PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS (AF11), LTDC_G6 (AF13), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI3_RDY (AF6), SPI6_NSS (AF5), TAMP_IN2, TAMP_OUT1, TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
J5PA1ввод-выводADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), LPTIM1_IN1 (AF5), LTDC_B7 (AF14), OCTOSPIM_P1_DQS (AF6), OCTOSPIM_P1_IO3 (AF9), SAI2_MCLK_B (AF10), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
J6PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), LPTIM6_CH1 (AF14), OCTOSPIM_P1_NCLK (AF9), PSSI_D12 (AF13), SAI2_SD_B (AF10), SDMMC1_D4 (AF8), SPI5_MOSI (AF5), TIM2_CH3 (AF1)
J7PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADF1_SDI0 (AF1), ETH_CLK (AF11), FMC_A9 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5), LTDC_B7 (AF13), OCTOSPIM_P2_NCS2 (AF9), SDMMC1_CMD (AF8), TIM4_ETR (AF2)
J8PE14ввод-выводADC3_INP8, COMP2_INM, DCMI_VSYNC (AF13), FMC_D11 (AF12), FMC_DA11 (AF12), LTDC_B0 (AF11), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT14 (AF14), PSSI_RDY (AF13), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
J9PD9ввод-выводCEC (AF5), DAC1_EXTI9, FDCAN2_RX (AF9), FMC_D14 (AF12), FMC_DA14 (AF12), LTDC_R4 (AF13), PLAY1_OUT4 (AF14), TIM13_CH1 (AF2), USART3_RX (AF7)
J10PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), I2S2_SDO (AF5), LTDC_G0 (AF12), OCTOSPIM_P1_CLK (AF10), PSSI_D2 (AF13), PWR_PVD_IN, RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), UART5_RX (AF14), USART11_CTS (AF7), USART11_NSS (AF7), USART1_RX (AF4)
J11PD10ввод-выводAUDIOCLK (AF5), ETH_MII_CRS (AF8), FDCAN3_RX (AF9), FMC_D15 (AF12), FMC_DA15 (AF12), LPTIM2_CH2 (AF3), LTDC_R7 (AF13), PLAY1_IN5 (AF14), TIM14_CH1 (AF2), USART3_CK (AF7)
J12PG2ввод-выводFMC_A12 (AF12), I2S1_MCK (AF5), LPTIM6_ETR (AF14), LTDC_R2 (AF13), OCTOSPIM_P2_IO2 (AF9), TIM4_CH3 (AF2), TIM8_BKIN (AF3), UART12_RX (AF7)
J13PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), LPTIM4_ETR (AF14), LTDC_VSYNC (AF13), MDF1_CKI0 (AF4), OCTOSPIM_P2_IO4 (AF9), TIM1_BKIN2 (AF1)
K1VREF-питание—
K2VSSAпитание—
K3PH2ввод-выводETH_MII_CRS (AF11), FMC_NBL0 (AF13), FMC_SDCKE0 (AF12), LPTIM1_IN2 (AF1), MDF1_CKI2 (AF4), OCTOSPIM_P1_IO4 (AF9), OCTOSPIM_P2_CLK (AF8), PLAY1_OUT2 (AF14), SAI2_SCK_B (AF10)
K4PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LTDC_G5 (AF10), OCTOSPIM_P2_IO5 (AF9), OPAMP1_VINP, PSSI_D14 (AF13), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1N (AF3)
K5PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_NWE (AF13), FMC_SDNWE (AF12), I2S1_SDO (AF5), LTDC_B2 (AF14), OCTOSPIM_P1_IO2 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART11_RX (AF7)
K6PB1ввод-выводADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3 (AF11), LPTIM3_CH2 (AF14), LTDC_B3 (AF13), OCTOSPIM_P1_IO0 (AF6), OCTOSPIM_P1_NCLK (AF9), OPAMP1_VOUT, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3)
K7PG1ввод-выводFMC_A11 (AF12), I2S2_SDO (AF7), OCTOSPIM_P2_IO1 (AF9), PLAY1_IN3 (AF14), SPI2_MOSI (AF7), TIM4_CH2 (AF2), UART9_TX (AF11)
K8PE12ввод-выводADC3_INP6, DCMI_D0 (AF13), ETH_MDIO (AF11), FDCAN3_TX (AF9), FMC_D9 (AF12), FMC_DA9 (AF12), GFXTIM_LCKCAL (AF0), MDF1_SDI5 (AF8), OPAMP1_VINP, PLAY1_OUT13 (AF14), PSSI_D0 (AF13), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1), USART6_RX (AF7)
K9PB10ввод-выводETH_MII_RX_ER (AF11), FMC_NWAIT (AF13), FMC_SDNRAS (AF10), I2C2_SCL (AF4), I2S2_CK (AF5), I3C2_SCL (AF8), LPTIM2_IN1 (AF3), LPTIM3_CH1 (AF2), LTDC_G4 (AF14), OCTOSPIM_P1_NCS1 (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
K10PH6ввод-выводDCMI_D8 (AF13), ETH_MII_RXD2 (AF11), FMC_SDNE1 (AF12), I2C2_SMBA (AF4), OCTOSPIM_P2_IO0 (AF9), PLAY1_OUT11 (AF14), PSSI_D8 (AF13), SPI5_SCK (AF5), TIM12_CH1 (AF2), TIM1_CH3N (AF1), TIM8_CH1 (AF3)
K11PB12ввод-выводETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SDA (AF4), I2S2_WS (AF5), I3C2_SDA (AF8), LTDC_R1 (AF13), OCTOSPIM_P1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF14), UCPD1_FRSTX (AF6), USART3_CK (AF7)
K12PD12ввод-выводDCMI_D12 (AF13), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), LTDC_G2 (AF11), OCTOSPIM_P1_IO1 (AF9), PLAY1_IN6 (AF14), PSSI_D12 (AF13), SAI1_D1 (AF6), SAI2_FS_A (AF10), TIM4_CH1 (AF2), UART4_TX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
K13PD13ввод-выводDCMI_D13 (AF13), FMC_A18 (AF12), I2C1_SDA (AF6), I2C4_SDA (AF4), I3C1_SDA (AF5), LPTIM1_CH1 (AF1), LPTIM2_CH1 (AF3), LPTIM4_IN1 (AF14), OCTOSPIM_P1_IO3 (AF9), PSSI_D13 (AF13), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
L1VDDAпитание—
L2VREF+питание—
L3PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM1_IN2 (AF5), LTDC_B6 (AF14), LTDC_R0 (AF13), OCTOSPIM_P2_IO4 (AF9), PWR_WKUP2, SAI2_SCK_B (AF8), TAMP_IN4, TAMP_OUT3, TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
L4PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), FMC_NBL2 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM2_CH1 (AF3), LTDC_B4 (AF14), OPAMP1_VINM, PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
L5PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2 (AF11), LPTIM3_CH1 (AF14), LTDC_R4 (AF13), OCTOSPIM_P1_IO1 (AF6), OCTOSPIM_P2_NCS1 (AF9), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USART11_CK (AF7)
L6PB2ввод-выводADC3_INP0, ADF1_SDI0 (AF1), COMP1_INP, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), I2S3_SDO (AF7), LPTIM1_CH1 (AF5), LPTIM5_ETR (AF13), LTDC_R3 (AF14), OCTOSPIM_P1_CLK (AF9), OCTOSPIM_P1_DQS (AF10), RCC_LSCO, RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC1_CMD (AF12), SPI1_RDY (AF4), SPI3_MOSI (AF7), TIM8_CH4N (AF3)
L7PG0ввод-выводFMC_A10 (AF12), LPTIM4_IN1 (AF14), OCTOSPIM_P2_IO0 (AF9), SDMMC1_CK (AF8), TIM4_CH1 (AF2), UART9_RX (AF11)
L8PE9ввод-выводADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), MDF1_CKI4 (AF8), OCTOSPIM_P1_IO6 (AF10), PLAY1_IN12 (AF14), TIM1_CH1 (AF1), UART12_RX (AF6), UART7_DE (AF7), UART7_RTS (AF7)
L9PE13ввод-выводADC3_INP7, DCMI_HSYNC (AF13), FDCAN3_RX (AF9), FMC_D10 (AF12), FMC_DA10 (AF12), GFXTIM_FCKCAL (AF0), LTDC_R1 (AF11), OPAMP1_VINM, PLAY1_IN14 (AF14), PSSI_DE (AF13), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
L10PH7ввод-выводDCMI_D9 (AF13), ETH_MII_RXD3 (AF11), FMC_SDCKE1 (AF12), I2C3_SCL (AF4), OCTOSPIM_P2_IO1 (AF9), PLAY1_OUT12 (AF14), PSSI_D9 (AF13), SPI5_MISO (AF5), TIM1_CH3 (AF1), TIM8_CH1N (AF3)
L11PB13ввод-выводFDCAN2_TX (AF9), I2C2_SMBA (AF4), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LPTIM3_IN1 (AF2), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), UCPD1_CC1, USART3_CTS (AF7), USART3_NSS (AF7)
L12PD8ввод-выводETH_MII_RXD0 (AF8), ETH_RMII_RXD0 (AF8), FDCAN3_TX (AF9), FMC_D13 (AF12), FMC_DA13 (AF12), I2S3_MCK (AF6), LTDC_R5 (AF13), PLAY1_IN4 (AF14), SDMMC2_D0 (AF11), TIM12_CH2 (AF2), USART3_TX (AF7)
L13VDDпитание—
M1VDDпитание—
M2VSSпитание—
M3PH5ввод-выводFMC_SDNWE (AF12), I2C2_SDA (AF4), I3C2_SDA (AF3), SPI5_NSS (AF5), SPI6_RDY (AF7)
M4VSSпитание—
M5PA6ввод-выводADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK (AF13), FMC_D31 (AF12), I2S1_SDI (AF5), LTDC_B3 (AF14), OCTOSPIM_P1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART11_TX (AF7)
M6PF14ввод-выводADC2_INN2, ADC2_INP6, ADF1_CCK1 (AF1), FMC_A8 (AF12), I2S3_SDI (AF6), LPTIM2_IN1 (AF3), LPTIM6_IN2 (AF14), LTDC_G5 (AF13), SDMMC1_D123DIR (AF9), SDMMC1_D7 (AF8), SPI3_MISO (AF6), TIM3_ETR (AF2)
M7VSSпитание—
M8PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_B5 (AF13), MDF1_CKI5 (AF8), OCTOSPIM_P1_NCS1 (AF6), OCTOSPIM_P2_NCS2 (AF9), OPAMP1_VINP, PLAY1_IN13 (AF14), SAI2_SD_B (AF10), SPI1_RDY (AF4), SPI4_NSS (AF5), TIM1_CH2 (AF1), USART6_TX (AF7)
M9PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), FMC_NBL1 (AF12), I2C2_SDA (AF4), I3C2_SDA (AF8), LPTIM2_ETR (AF3), LTDC_G7 (AF13), PLAY1_IN15 (AF14), SPI2_RDY (AF5), SPI4_RDY (AF6), TIM2_CH4 (AF1), USART3_RX (AF7)
M10PH8ввод-выводDCMI_HSYNC (AF13), I2C3_SDA (AF4), PSSI_DE (AF13), SPI5_MOSI (AF5), TIM1_CH2N (AF1), TIM5_ETR (AF2), TIM8_CH2 (AF3)
M11PH10ввод-выводDCMI_D1 (AF13), FMC_D20 (AF12), I2C4_SMBA (AF4), OCTOSPIM_P2_IO2 (AF9), PLAY1_OUT13 (AF14), PSSI_D1 (AF13), SPI5_RDY (AF5), TIM1_CH1N (AF1), TIM5_CH1 (AF2), TIM8_CH3 (AF3)
M12VSSпитание—
M13PB14ввод-выводI2S2_SDI (AF5), LPTIM3_ETR (AF14), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC2, USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
N1PH4ввод-выводI2C2_SCL (AF4), I3C2_SCL (AF3), LTDC_R7 (AF14), PSSI_D14 (AF13), SPI5_RDY (AF5), SPI6_RDY (AF7)
N2PH3ввод-выводETH_MII_COL (AF11), FMC_NBL2 (AF13), FMC_SDNE0 (AF12), MDF1_SDI2 (AF4), OCTOSPIM_P1_IO5 (AF9), OCTOSPIM_P2_NCLK (AF8), PLAY1_OUT3 (AF14), SAI2_MCLK_B (AF10)
N3PA3ввод-выводADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0 (AF0), ETH_MII_COL (AF11), I2S2_WS (AF5), LTDC_B5 (AF14), OCTOSPIM_P1_CLK (AF3), SAI1_SD_B (AF6), SPI2_NSS (AF5), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
N4VDDпитание—
N5PC4ввод-выводADC1_INP4, ADC2_INP4, ADF1_CCK0 (AF4), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LPTIM2_ETR (AF3), LTDC_DE (AF14), MDF1_CCK0 (AF8), SAI1_CK1 (AF2), TIM2_CH4 (AF1), USART3_RX (AF7)
N6PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), LPTIM6_CH2 (AF14), LTDC_CLK (AF13), SDMMC1_CKIN (AF9), SDMMC1_D5 (AF8), TIM2_CH4 (AF1)
N7VDDпитание—
N8PE7ввод-выводADC3_INP1, COMP2_INP, FMC_D4 (AF12), FMC_DA4 (AF12), MDF1_CKI0 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_IN11 (AF14), TIM1_ETR (AF1), UART12_DE (AF6), UART12_RTS (AF6), UART7_RX (AF7), USART2_RX (AF5)
N9PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK (AF13), FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R0 (AF11), OCTOSPIM_P2_NCS1 (AF9), PLAY1_OUT15 (AF14), PSSI_PDCK (AF13), TIM1_BKIN (AF1), TIM1_CH4N (AF3), USART10_CK (AF7)
N10VCAPпитание—
N11VDDпитание—
N12PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2 (AF13), FMC_D21 (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), OCTOSPIM_P2_IO3 (AF9), PLAY1_OUT14 (AF14), PSSI_D2 (AF13), TIM1_CH1 (AF1), TIM5_CH2 (AF2), TIM8_CH3N (AF3)
N13PH12ввод-выводDCMI_D3 (AF13), FMC_D3 (AF12), FMC_DA3 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5), OCTOSPIM_P2_IO4 (AF9), PLAY1_OUT15 (AF14), PSSI_D3 (AF13), TIM1_BKIN (AF1), TIM5_CH3 (AF2), TIM8_BKIN (AF3), TIM8_CH4N (AF10)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATE2резервное питание: часы реального времени и резервные регистры
VCAPB4, N10вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDA3, A10, C13, D1, G1, H13, L13, M1, N4, N7, N11питание цифровой части и линий ввода-вывода
VDDAL1питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2A7питание отдельной группы линий ввода-вывода
VDDUSBD13питание приёмопередатчика USB
VREF-K1нижнее опорное напряжение АЦП
VREF+L2верхнее опорное напряжение АЦП и ЦАП
VSSB3, B7, B10, C12, D2, G2, H12, M2, M4, M7, M12общий провод (земля)
VSSAK2общий провод аналоговой части
NRSTH4сброс, активный уровень — низкий
BOOT0B5выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H5E4AJIx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H5E4AJSTM32H5E4AJIx4 МБ1,5 МБ

Линейка STM32H5x4, семейство STM32H5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе UFBGA169, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H5E4AKIxSTM32H5x4169 из 169выводы совпадают полностью
STM32H5F4AJIxSTM32H5x4169 из 169выводы совпадают полностьютолько у него: AES
STM32H562AGSTM32H5x2169 из 169выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, DMA2D, ETH, FDCAN2, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, SDMMC2, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 640 КБ
STM32H562AISTM32H562169 из 169выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, DMA2D, ETH, FDCAN2, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, SDMMC2, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 2048 КБ; ОЗУ 1536 и 640 КБ
STM32H563AGSTM32H5x3169 из 169выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, DMA2D, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 640 КБ
STM32H563AIIxSTM32H563/H573169 из 169выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, DMA2D, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 2048 КБ; ОЗУ 1536 и 640 КБ
STM32H573AIIxSTM32H563/H573169 из 169выводы совпадают полностьютолько у этого: ADC3, ADF1, COMP1, COMP2, DMA2D, FDCAN3, I3C2, LTDC, MDF1, OCTOSPI2, OPAMP1, USB_OTG_FS, USB_OTG_FS1; только у него: AES, USB; флеш-память до 4096 и 2048 КБ; ОЗУ 1536 и 640 КБ

Частые вопросы

На каких выводах USART1 у STM32H5E4AJIx?

В корпусе UFBGA169 сигнал USART1_TX выведен на PB6 (шарик A5, AF7) или PA9 (шарик E11, AF7) или PB14 (шарик M13, AF4), USART1_RX — на PB7 (шарик D6, AF7) или PA10 (шарик E10, AF7) или PB15 (шарик J10, AF4).

Где у STM32H5E4AJIx выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик E12, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик A12, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H5E4AJIx?

I2C1_SCL — PB6 (шарик A5, AF4) или PB8 (шарик E5, AF4), I2C1_SDA — PB9 (шарик A4, AF4) или PB7 (шарик D6, AF4) или PD13 (шарик K13, AF6).

Сколько выводов ввода-вывода у STM32H5E4AJIx в корпусе UFBGA169?

136 из 169. Ещё 31 вывод занят питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
