STM32H5E4ZJJx в корпусе UFBGA144: распиновка

STM32H5E4ZJJx — микроконтроллер STM32H5 на ядре Cortex-M33: 4 МБ флеш-памяти и 1,5 МБ ОЗУ. Корпус UFBGA144 — 144 шарика, из них 113 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
4 МБ
ОЗУ
1,5 МБ
Корпус
UFBGA144, 144 шарика
Линий ввода-вывода
113

Схема корпуса UFBGA144

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32H5E4ZJJx в корпусе UFBGA144, вид сверхуABCDEFGHJKLM123456789101112VSS — шарик A1VSSPB9 — шарик A2: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2S2_WS, I3C1_SDA, LTDC_G5, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_CKIN, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PB7 — шарик A3: DCMI_VSYNC, FDCAN1_TX, FMC_NL, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPUART1_RX, LTDC_G7, PSSI_RDY, PWR_WKUP5, SDMMC2_CKIN, SDMMC2_D5, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PB4 (NJTRST) — шарик A4: DCMI_D7, DEBUG_NJTRST, ETH_MDIO, FMC_NBL3, I2S1_SDI, I2S2_WS, I2S3_SDI, LPTIM1_CH2, LTDC_R2, OCTOSPIM_P1_CLK, PSSI_D7, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4PG15 — шарик A5: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, LTDC_G2, OCTOSPIM_P2_IO7, PSSI_D13, SPI4_RDY, TIM16_CH1, USART10_CK, USART6_CTS, USART6_NSSPG15PG12 — шарик A6: DCMI_D11, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_NE4, FMC_SDCLK, LPTIM1_IN1, LPTIM2_CH1, LPTIM5_CH1, OCTOSPIM_P2_CLK, PSSI_D11, PSSI_D15, SDMMC2_D3, SPI6_MISO, USART10_TX, USART6_DE, USART6_RTSPG12PG11 — шарик A7: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LPTIM1_IN2, LTDC_B4, PSSI_D3, SDMMC2_D2, SPI1_SCK, USART10_RX, USART11_DE, USART11_RTSPG11PD7 — шарик A8: FMC_NCE, FMC_NE1, I2C3_SCL, I2S1_SDO, LPTIM4_OUT, LTDC_R3, OCTOSPIM_P1_IO7, SDMMC2_CMD, SPI1_MOSI, TIM12_CH1, USART2_CKPD7PD4 — шарик A9: COMP1_OUT, DEBUG_TRGIO, ETH_CLK, FMC_NOE, LTDC_B7, MDF1_CKI3, OCTOSPIM_P1_IO4, PLAY1_OUT2, USART2_DE, USART2_RTSPD4PD2 — шарик A10: DCMI_D11, DEBUG_TRACED2, I2C2_SCL, I3C2_SCL, LPTIM4_ETR, LTDC_G7, OCTOSPIM_P1_NCS2, OCTOSPIM_P2_IO1, PSSI_D11, PWR_WKUP7, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RXPD2PC10 — шарик A11: DCMI_D8, ETH_MII_TXD0, ETH_RMII_TXD0, GFXTIM_LCKCAL, I2S3_CK, LPTIM3_ETR, LTDC_B0, OCTOSPIM_P1_IO1, PSSI_D8, SAI1_SCK_B, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TXPC10VSS — шарик A12VSSPE2 — шарик B1: ADF1_CCK0, DCMI_D3, DEBUG_TRACECLK, ETH_MII_TXD3, FMC_A23, LPTIM1_IN2, MDF1_CCK0, OCTOSPIM_P1_IO2, PLAY1_OUT8, PSSI_D3, SAI1_CK1, SAI1_MCLK_A, SPI4_SCK, UART8_TX, USART10_RXPE2PE0 — шарик B2: DCMI_D2, FDCAN1_RX, FMC_NBL0, LPTIM1_ETR, LPTIM2_CH2, LPTIM2_ETR, OCTOSPIM_P1_NCS2, PLAY1_OUT7, PSSI_D2, SAI2_MCLK_A, SPI3_RDY, TIM4_ETR, UART8_RXPE0PB8 — шарик B3: DCMI_D6, ETH_MII_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, I3C1_SCL, LTDC_G6, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI4_RDY, TIM16_CH1, TIM4_CH3, UART4_RXPB8PB6 — шарик B4: CEC, DCMI_D5, ETH_MII_TX_ER, FDCAN2_TX, FMC_SDNE1, GFXTIM_FCKCAL, I2C1_SCL, I2C4_SCL, I3C1_SCL, LPUART1_TX, OCTOSPIM_P1_NCS1, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6PB3 (JTDO/TRACESWO) — шарик B5: CRS_SYNC, DEBUG_JTDO-SWO, ETH_MDC, I2C2_SDA, I2S1_CK, I2S3_CK, I3C2_SDA, LPTIM6_ETR, LTDC_HSYNC, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART12_CTS, UART7_RXPB3PG14 — шарик B6: DEBUG_TRACED1, ETH_MII_TXD1, ETH_RMII_TXD1, FMC_A25, LPTIM1_CH2, LPTIM1_ETR, LPTIM5_IN1, LTDC_B0, OCTOSPIM_P1_IO7, SDMMC2_D7, SPI6_MOSI, USART10_DE, USART10_RTS, USART6_TXPG14PG10 — шарик B7: DCMI_D2, FMC_NE3, I2C3_SMBA, I2S1_WS, LTDC_B6, OCTOSPIM_P1_IO5, OCTOSPIM_P2_IO6, PSSI_D2, SAI2_SD_B, SDMMC2_D1, SPI1_NSS, TIM12_CH2, USART10_CK, USART6_CKPG10PD6 — шарик B8: ADF1_SDI0, DCMI_D10, FMC_NWAIT, I2C3_SDA, I2S3_SDO, MDF1_SDI1, OCTOSPIM_P1_IO6, OCTOSPIM_P2_IO4, PLAY1_OUT3, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PD3 — шарик B9: DCMI_D5, FMC_CLK, I2S2_CK, LTDC_B4, OCTOSPIM_P2_IO0, PLAY1_IN2, PSSI_D5, PWR_WKUP8, SPI2_SCK, TIM8_CH4, USART2_CTS, USART2_NSSPD3PC12 — шарик B10: COMP2_OUT, DCMI_D9, DEBUG_TRACED3, ETH_PPS_OUT, I2S3_SDO, LTDC_G4, OCTOSPIM_P2_IO7, PLAY1_OUT0, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CKPC12PA14 (JTCK/SWCLK) — шарик B11: DEBUG_JTCK-SWCLKPA14PA10 — шарик B12: DCMI_D1, DMA2D_GPFLAG1, ETH_CLK, FDCAN2_TX, LPTIM2_IN2, LPUART1_RX, LTDC_R6, PSSI_D1, SDMMC1_D0, TIM1_CH3, UCPD1_FRSTX, USART1_RXPA10VBAT — шарик C1VBATPE4 — шарик C2: ADF1_SDI0, DCMI_D4, DEBUG_TRACED1, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_A20, LTDC_G3, MDF1_SDI2, OCTOSPIM_P2_IO1, PLAY1_OUT9, PSSI_D4, SAI1_D2, SAI1_FS_A, SPI4_NSS, TAMP_IN7, TAMP_OUT8, TIM15_CH1NPE4PE3 — шарик C3: DEBUG_TRACED0, FMC_A19, GFXTIM_TE, LTDC_G1, MDF1_CKI2, OCTOSPIM_P2_IO0, PLAY1_IN9, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM15_BKIN, USART10_TXPE3BOOT0 — шарик C4BOOT0VDDIO2 — шарик C5VDDIO2VSS — шарик C6VSSPB11 — шарик C7: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_MII_TX_EN, ETH_RMII_TX_EN, FMC_NBL1, I2C2_SDA, I3C2_SDA, LPTIM2_ETR, LTDC_G7, PLAY1_IN15, SPI2_RDY, SPI4_RDY, TIM2_CH4, USART3_RXPB11PD5 — шарик C8: COMP2_OUT, ETH_MII_CRS, FDCAN1_TX, FMC_NWE, LTDC_B2, OCTOSPIM_P1_IO5, PLAY1_IN3, SPI2_RDY, TIM1_CH4N, UART8_RX, USART2_TXPD5PD1 — шарик C9: ETH_MII_RX_DV, ETH_RMII_CRS_DV, FDCAN1_TX, FMC_D3, FMC_DA3, I2S2_MCK, LTDC_DE, OCTOSPIM_P2_DQS, PLAY1_OUT1, SAI1_MCLK_B, SDMMC1_D123DIR, UART4_TXPD1VDDUSB — шарик C10VDDUSBPA12 — шарик C11: DMA2D_GPFLAG3, FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R4, SAI2_FS_B, SDMMC2_D4, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_FS_DPPA12PA11 — шарик C12: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2, FDCAN1_RX, FMC_A17, FMC_ALE, I2S2_WS, LPUART1_CTS, LTDC_R5, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_FS_DMPA11PC15-OSC32_OUT(OSC32_OUT) — шарик D1: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUTPC15PC14-OSC32_IN(OSC32_IN) — шарик D2: RCC_OSC32_INPC14PE5 — шарик D3: ADF1_CCK1, DCMI_D6, DEBUG_TRACED2, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_A21, LTDC_B6, MDF1_CCK1, OCTOSPIM_P2_IO2, PLAY1_IN10, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SPI4_MISO, TAMP_IN8, TAMP_OUT7, TIM15_CH1PE5VSS — шарик D4VSSVCAP — шарик D5VCAPPG13 — шарик D6: DEBUG_TRACED0, ETH_MII_TXD0, ETH_RMII_TXD0, FMC_A24, LPTIM1_CH1, LPTIM5_CH2, LTDC_G4, OCTOSPIM_P2_NCS1, SDMMC2_D6, SPI6_SCK, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSSPG13PG9 — шарик D7: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, LTDC_B5, OCTOSPIM_P1_IO4, OCTOSPIM_P1_IO6, PSSI_RDY, SAI2_FS_B, SDMMC2_D0, SPI1_MISO, TIM12_CH1, USART10_RX, USART6_RXPG9PD0 — шарик D8: FDCAN1_RX, FMC_D2, FMC_DA2, I2S1_MCK, LTDC_R2, OCTOSPIM_P1_NCS2, PLAY1_IN1, SDMMC1_D0DIR, TIM8_CH4N, UART4_RX, UART9_CTSPD0PC11 — шарик D9: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT, DCMI_D4, GFXTIM_FCKCAL, I2S3_SDI, LPTIM3_IN1, LTDC_VSYNC, OCTOSPIM_P1_NCS1, PLAY1_IN0, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11VSS — шарик D10VSSPA9 — шарик D11: DAC1_EXTI9, DCMI_D0, ETH_MII_TX_ER, FMC_NWE, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R7, OCTOSPIM_P2_IO3, PSSI_D0, SPI2_SCK, TIM1_CH2, UCPD1_DB1, USART1_TXPA9PA8 — шарик D12: DCMI_D3, FMC_NOE, I2C3_SCL, LTDC_CLK, OCTOSPIM_P2_DQS, PSSI_D3, RCC_MCO_1, SPI1_RDY, TIM1_CH1, TIM8_BKIN2, UART7_RX, USART1_CK, USB_OTG_FS_SOFPA8PF1 — шарик E1: COMP2_OUT, FMC_A1, I2C2_SCL, I3C2_SCL, LPTIM5_CH2, PLAY1_IN1, SDMMC2_D3, TIM2_CH2, UART9_TXPF1PF0 — шарик E2: COMP1_OUT, FMC_A0, I2C2_SDA, I3C2_SDA, LPTIM5_CH1, PLAY1_IN0, SDMMC2_D2, TIM2_CH1, TIM2_ETR, UART9_RXPF0PC13 — шарик E3: PWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3PC13PE6 — шарик E4: ADF1_SDI0, DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_R2, MDF1_SDI1, OCTOSPIM_P2_IO3, PLAY1_OUT10, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SPI4_MOSI, TAMP_IN3, TAMP_OUT6, TIM15_CH2, TIM1_BKIN2PE6VDD — шарик E5VDDPB5 — шарик E6: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, GFXTIM_LCKCAL, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, OCTOSPIM_P1_NCLK, OCTOSPIM_P2_CLK, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RXPB5VDD — шарик E7VDDPA15 (JTDI) — шарик E8: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DCMI_D11, DEBUG_JTDI, ETH_PHY_INTN, FMC_NBL1, I2S1_WS, I2S3_WS, LPTIM3_IN2, OCTOSPIM_P2_IO6, PSSI_D11, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PA13 (JTMS/SWDIO) — шарик E9: DEBUG_JTMS-SWDIOPA13PC9 — шарик E10: AUDIOCLK, DAC1_EXTI9, DCMI_D3, FMC_A16, FMC_CLE, FMC_SDNCAS, I2C3_SDA, LTDC_B1, OCTOSPIM_P1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, TIM3_CH4, TIM8_CH4, UART5_CTS, UCPD1_DB2PC9PC8 — шарик E11: DCMI_D2, DEBUG_TRACED1, FMC_A17, FMC_ALE, FMC_INT, FMC_NCE, FMC_NE2, LTDC_R0, PSSI_D2, SDMMC1_D0, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PC7 — шарик E12: DCMI_D1, DEBUG_TRGIO, FMC_NE1, I2S3_MCK, LTDC_R1, OCTOSPIM_P1_IO6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, USART6_RXPC7PF5 — шарик F1: FMC_A5, I2C4_SCL, I3C1_SCL, LPTIM3_CH1, LPTIM3_IN1, OCTOSPIM_P2_DQS, SDMMC2_CKIN, SDMMC2_D7, UART12_RX, USART11_CTS, USART11_NSSPF5PF4 — шарик F2: DCMI_D6, FMC_A4, LPTIM3_ETR, OCTOSPIM_P2_NCS2, PLAY1_OUT1, PSSI_D6, SDMMC2_D6, TIM2_CH4, USART11_RXPF4PF3 — шарик F3: FMC_A3, LPTIM3_IN1, LPTIM5_IN2, PLAY1_OUT0, SDMMC2_D5, TIM2_CH3, USART11_TXPF3PF2 — шарик F4: FMC_A2, GFXTIM_TE, I2C2_SMBA, LPTIM3_CH2, LPTIM3_IN2, LPTIM5_IN1, PLAY1_IN2, SDMMC2_D4, UART12_TX, USART11_CKPF2VSS — шарик F5VSSVDD — шарик F6VDDVSS — шарик F7VSSVDD — шарик F8VDDPC6 — шарик F9: DCMI_D0, FMC_NWAIT, I2S2_MCK, LTDC_G0, OCTOSPIM_P1_IO5, PSSI_D0, SAI1_SCK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, USART6_TXPC6PG8 — шарик F10: ETH_PPS_OUT, FMC_SDCLK, LPTIM4_OUT, LTDC_B2, OCTOSPIM_P2_NCLK, SPI6_NSS, TIM16_CH1N, TIM8_ETR, USART6_DE, USART6_RTSPG8PG7 — шарик F11: ADF1_CCK1, DCMI_D13, FMC_INT, I2C4_SCL, I3C1_SCL, LTDC_R5, MDF1_CCK1, OCTOSPIM_P2_CLK, PSSI_D13, SAI1_CK2, SAI1_MCLK_A, UCPD1_FRSTX, USART6_CKPG7PG6 — шарик F12: DCMI_D12, FMC_NE3, I2C4_SDA, I3C1_SDA, OCTOSPIM_P1_NCS1, OCTOSPIM_P2_NCS1, PLAY1_OUT10, PSSI_D12, SPI1_RDY, TIM17_BKIN, UCPD1_FRSTXPG6PF6 — шарик G1: FDCAN3_TX, FMC_D16, LPTIM5_CH1, LTDC_DE, OCTOSPIM_P1_IO3, SAI1_SD_B, SDMMC1_D0, SPI5_NSS, TIM16_CH1, UART7_RXPF6PF7 — шарик G2: FDCAN3_RX, FMC_D17, LPTIM5_CH2, LTDC_G3, MDF1_CKI1, OCTOSPIM_P1_IO2, SAI1_MCLK_B, SDMMC1_D1, SPI5_SCK, TIM17_CH1, UART7_TXPF7PF9 — шарик G3: DAC1_EXTI9, ETH_MDC, FMC_D19, LPTIM5_IN2, LTDC_B1, MDF1_CCK0, OCTOSPIM_P1_IO1, SAI1_FS_B, SDMMC1_D3, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTSPF9PF8 — шарик G4: ETH_MII_TX_ER, FMC_D18, LPTIM5_IN1, LTDC_R7, OCTOSPIM_P1_IO0, SAI1_SCK_B, SDMMC1_D2, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTSPF8VDD — шарик G5VDDVSS — шарик G6VSSVDD — шарик G7VDDPD11 — шарик G8: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0, ETH_PTP_AUX_TS, FMC_A16, FMC_CLE, GFXTIM_TE, I2C4_SMBA, LPTIM2_IN2, LTDC_R6, OCTOSPIM_P1_IO0, PLAY1_OUT5, SAI1_CK1, SAI2_SD_A, UART4_RX, USART3_CTS, USART3_NSSPD11PD15 — шарик G9: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, LTDC_CLK, OCTOSPIM_P2_NCLK, PLAY1_IN7, SAI1_FS_B, SPI6_RDY, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TXPD15PG3 — шарик G10: ETH_MII_RX_ER, FMC_A13, LPTIM5_ETR, LTDC_G0, OCTOSPIM_P2_IO3, TIM4_CH4, TIM8_BKIN2, UART12_TX, UART7_RXPG3PG4 — шарик G11: FMC_A14, FMC_BA0, LPTIM4_ETR, LTDC_VSYNC, MDF1_CKI0, OCTOSPIM_P2_IO4, TIM1_BKIN2PG4PG5 — шарик G12: FMC_A15, FMC_BA1, LTDC_HSYNC, MDF1_SDI0, OCTOSPIM_P2_IO5, PLAY1_OUT9, TIM1_ETRPG5PH0-OSC_IN — шарик H1: RCC_OSC_INPH0PH1-OSC_OUT — шарик H2: RCC_OSC_OUTPH1PF10 — шарик H3: DCMI_D11, LTDC_G6, MDF1_SDI3, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, TIM16_BKINPF10VREF- — шарик H4VREF-VSS — шарик H5VSSVDD — шарик H6VDDVSS — шарик H7VSSPB14 — шарик H8: I2S2_SDI, LPTIM3_ETR, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, UCPD1_CC2, USART1_TX, USART3_DE, USART3_RTSPB14PB15 — шарик H9: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2, ETH_MII_TXD1, ETH_RMII_TXD1, I2S2_SDO, LTDC_G0, OCTOSPIM_P1_CLK, PSSI_D2, PWR_PVD_IN, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, UART5_RX, USART11_CTS, USART11_NSS, USART1_RXPB15PD12 — шарик H10: DCMI_D12, FMC_A17, FMC_ALE, I2C4_SCL, I3C1_SCL, LPTIM1_IN1, LPTIM2_IN1, LTDC_G2, OCTOSPIM_P1_IO1, PLAY1_IN6, PSSI_D12, SAI1_D1, SAI2_FS_A, TIM4_CH1, UART4_TX, USART3_DE, USART3_RTSPD12PD14 — шарик H11: FMC_D0, FMC_DA0, LTDC_B1, OCTOSPIM_P2_CLK, PLAY1_OUT6, PSSI_D15, SAI1_FS_A, TIM4_CH3, UART8_CTS, UART9_RXPD14PG2 — шарик H12: FMC_A12, I2S1_MCK, LPTIM6_ETR, LTDC_R2, OCTOSPIM_P2_IO2, TIM4_CH3, TIM8_BKIN, UART12_RXPG2NRST — шарик J1NRSTPC0 — шарик J2: ADC1_INP10, ADC2_INP10, FMC_A25, FMC_INT, FMC_SDNWE, LTDC_G3, MDF1_CKI1, OCTOSPIM_P1_IO7, SAI1_MCLK_A, SAI2_FS_B, SPI2_RDY, TIM16_BKIN, TIM8_CH1PC0VREF+ — шарик J3VREF+VDDA — шарик J4VDDAPA7 — шарик J5: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV, ETH_RMII_CRS_DV, FMC_NWE, FMC_SDNWE, I2S1_SDO, LTDC_B2, OCTOSPIM_P1_IO2, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART11_RXPA7PB1 — шарик J6: ADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3, LPTIM3_CH2, LTDC_B3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_NCLK, OPAMP1_VOUT, TIM1_CH3N, TIM3_CH4, TIM8_CH3NPB1PG1 — шарик J7: FMC_A11, I2S2_SDO, OCTOSPIM_P2_IO1, PLAY1_IN3, SPI2_MOSI, TIM4_CH2, UART9_TXPG1VCAP — шарик J8VCAPVSS — шарик J9VSSPD8 — шарик J10: ETH_MII_RXD0, ETH_RMII_RXD0, FDCAN3_TX, FMC_D13, FMC_DA13, I2S3_MCK, LTDC_R5, PLAY1_IN4, SDMMC2_D0, TIM12_CH2, USART3_TXPD8PD9 — шарик J11: CEC, DAC1_EXTI9, FDCAN2_RX, FMC_D14, FMC_DA14, LTDC_R4, PLAY1_OUT4, TIM13_CH1, USART3_RXPD9PD13 — шарик J12: DCMI_D13, FMC_A18, I2C1_SDA, I2C4_SDA, I3C1_SDA, LPTIM1_CH1, LPTIM2_CH1, LPTIM4_IN1, OCTOSPIM_P1_IO3, PSSI_D13, SAI2_SCK_A, TIM4_CH2, UART9_DE, UART9_RTSPD13PC2 — шарик K1: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2, FMC_NCE, FMC_NE1, FMC_SDNE0, I2S2_SDI, LTDC_HSYNC, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSLEEP, SDMMC2_D6, SPI2_MISO, TIM17_CH1, TIM4_CH4, TIM8_CH3PC2PC1 — шарик K2: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0, DEBUG_TRACED0, ETH_MDC, FMC_NCE, FMC_NE2, I2S2_SDO, LTDC_G2, MDF1_SDI1, OCTOSPIM_P1_IO4, PWR_WKUP6, SAI1_D1, SAI1_SD_A, SAI2_SD_A, SDMMC2_CK, SPI2_MOSI, TAMP_IN3, TAMP_OUT5, TIM8_CH2, USART11_DE, USART11_RTSPC1VSSA — шарик K3VSSAPA2 — шарик K4: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM1_IN2, LTDC_B6, LTDC_R0, OCTOSPIM_P2_IO4, PWR_WKUP2, SAI2_SCK_B, TAMP_IN4, TAMP_OUT3, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PC4 — шарик K5: ADC1_INP4, ADC2_INP4, ADF1_CCK0, ETH_MII_RXD0, ETH_RMII_RXD0, FMC_SDNE0, I2S1_MCK, LPTIM2_ETR, LTDC_DE, MDF1_CCK0, SAI1_CK1, TIM2_CH4, USART3_RXPC4PB2 — шарик K6: ADC3_INP0, ADF1_SDI0, COMP1_INP, ETH_MII_RXD0, ETH_RMII_RXD0, I2S3_SDO, LPTIM1_CH1, LPTIM5_ETR, LTDC_R3, OCTOSPIM_P1_CLK, OCTOSPIM_P1_DQS, RCC_LSCO, RTC_OUT2, SAI1_D1, SAI1_SD_A, SDMMC1_CMD, SPI1_RDY, SPI3_MOSI, TIM8_CH4NPB2PF15 — шарик K7: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADF1_SDI0, ETH_CLK, FMC_A9, I2C4_SDA, I3C1_SDA, LTDC_B7, OCTOSPIM_P2_NCS2, SDMMC1_CMD, TIM4_ETRPF15PE9 — шарик K8: ADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6, FMC_DA6, MDF1_CKI4, OCTOSPIM_P1_IO6, PLAY1_IN12, TIM1_CH1, UART12_RX, UART7_DE, UART7_RTSPE9PE12 — шарик K9: ADC3_INP6, DCMI_D0, ETH_MDIO, FDCAN3_TX, FMC_D9, FMC_DA9, GFXTIM_LCKCAL, MDF1_SDI5, OPAMP1_VINP, PLAY1_OUT13, PSSI_D0, SAI2_SCK_B, SPI4_SCK, TIM1_CH3N, USART6_RXPE12PE15 — шарик K10: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK, FMC_D12, FMC_DA12, LTDC_R0, OCTOSPIM_P2_NCS1, PLAY1_OUT15, PSSI_PDCK, TIM1_BKIN, TIM1_CH4N, USART10_CKPE15PB13 — шарик K11: FDCAN2_TX, I2C2_SMBA, I2S2_CK, LPTIM2_CH1, LPTIM3_IN1, SPI2_SCK, TIM1_CH1N, UART5_TX, UCPD1_CC1, USART3_CTS, USART3_NSSPB13PD10 — шарик K12: AUDIOCLK, ETH_MII_CRS, FDCAN3_RX, FMC_D15, FMC_DA15, LPTIM2_CH2, LTDC_R7, PLAY1_IN5, TIM14_CH1, USART3_CKPD10PC3 — шарик L1: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK, FMC_SDCKE0, I2S2_SDO, LPTIM3_CH1, LTDC_VSYNC, MDF1_SDI3, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSTOP, SAI1_D3, SDMMC2_D7, SPI2_MOSIPC3PA0 — шарик L2: ADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS, LTDC_G6, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, SPI3_RDY, SPI6_NSS, TAMP_IN2, TAMP_OUT1, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PA1 — шарик L3: ADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK, ETH_RMII_REF_CLK, LPTIM1_IN1, LTDC_B7, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI2_MCLK_B, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PA5 — шарик L4: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN, ETH_RMII_TX_EN, I2S1_CK, LTDC_G5, OCTOSPIM_P2_IO5, OPAMP1_VINP, PSSI_D14, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1NPA5PC5 — шарик L5: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1, ETH_RMII_RXD1, FMC_SDCKE0, LTDC_G1, MDF1_SDI3, OCTOSPIM_P1_DQS, PSSI_D15, SAI1_D3, SAI1_FS_A, TIM1_CH4N, UART12_DE, UART12_RTSPC5PF11 — шарик L6: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, LPTIM6_CH1, OCTOSPIM_P1_NCLK, PSSI_D12, SAI2_SD_B, SDMMC1_D4, SPI5_MOSI, TIM2_CH3PF11PF14 — шарик L7: ADC2_INN2, ADC2_INP6, ADF1_CCK1, FMC_A8, I2S3_SDI, LPTIM2_IN1, LPTIM6_IN2, LTDC_G5, SDMMC1_D123DIR, SDMMC1_D7, SPI3_MISO, TIM3_ETRPF14PE7 — шарик L8: ADC3_INP1, COMP2_INP, FMC_D4, FMC_DA4, MDF1_CKI0, OCTOSPIM_P1_IO4, PLAY1_IN11, TIM1_ETR, UART12_DE, UART12_RTS, UART7_RX, USART2_RXPE7PE10 — шарик L9: ADC3_INP4, COMP1_INM, FMC_D7, FMC_DA7, MDF1_SDI4, OCTOSPIM_P1_IO7, PLAY1_OUT12, TIM1_CH2N, UART12_TX, UART7_CTSPE10PE14 — шарик L10: ADC3_INP8, COMP2_INM, DCMI_VSYNC, FMC_D11, FMC_DA11, LTDC_B0, OCTOSPIM_P2_CLK, PLAY1_OUT14, PSSI_RDY, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PB10 — шарик L11: ETH_MII_RX_ER, FMC_NWAIT, FMC_SDNRAS, I2C2_SCL, I2S2_CK, I3C2_SCL, LPTIM2_IN1, LPTIM3_CH1, LTDC_G4, OCTOSPIM_P1_NCS1, SPI2_SCK, TIM2_CH3, USART3_TXPB10PB12 — шарик L12: ETH_MII_TXD0, ETH_RMII_TXD0, FDCAN2_RX, I2C2_SDA, I2S2_WS, I3C2_SDA, LTDC_R1, OCTOSPIM_P1_NCLK, SPI2_NSS, TIM1_BKIN, UART5_RX, UCPD1_FRSTX, USART3_CKPB12VSS — шарик M1VSSPA3 — шарик M2: ADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0, ETH_MII_COL, I2S2_WS, LTDC_B5, OCTOSPIM_P1_CLK, SAI1_SD_B, SPI2_NSS, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3PA4 — шарик M3: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, FMC_NBL2, I2S1_WS, I2S3_WS, LPTIM2_CH1, LTDC_B4, OPAMP1_VINM, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CKPA4PA6 — шарик M4: ADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK, FMC_D31, I2S1_SDI, LTDC_B3, OCTOSPIM_P1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART11_TXPA6PB0 — шарик M5: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2, LPTIM3_CH1, LTDC_R4, OCTOSPIM_P1_IO1, OCTOSPIM_P2_NCS1, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USART11_CKPB0PF12 — шарик M6: ADC1_INN2, ADC1_INP6, FMC_A6, LPTIM6_CH2, LTDC_CLK, SDMMC1_CKIN, SDMMC1_D5, TIM2_CH4PF12PF13 — шарик M7: ADC2_INP2, ADF1_CCK0, FMC_A7, I2C4_SMBA, LPTIM2_CH2, LPTIM6_IN1, LTDC_B6, SDMMC1_CDIR, SDMMC1_D6PF13PG0 — шарик M8: FMC_A10, LPTIM4_IN1, OCTOSPIM_P2_IO0, SDMMC1_CK, TIM4_CH1, UART9_RXPG0PE8 — шарик M9: ADC3_INP2, DCMI_D8, FMC_D5, FMC_DA5, MDF1_SDI0, OCTOSPIM_P1_IO5, PLAY1_OUT11, PSSI_D8, TIM1_CH1N, UART12_CTS, UART7_TX, USART2_TXPE8PE11 — шарик M10: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8, FMC_DA8, LTDC_B5, MDF1_CKI5, OCTOSPIM_P1_NCS1, OCTOSPIM_P2_NCS2, OPAMP1_VINP, PLAY1_IN13, SAI2_SD_B, SPI1_RDY, SPI4_NSS, TIM1_CH2, USART6_TXPE11PE13 — шарик M11: ADC3_INP7, DCMI_HSYNC, FDCAN3_RX, FMC_D10, FMC_DA10, GFXTIM_FCKCAL, LTDC_R1, OPAMP1_VINM, PLAY1_IN14, PSSI_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH3, UART5_DE, UART5_RTS, USART6_CKPE13VSS — шарик M12VSSUFBGA144, вид сверху: шарики видны сквозь корпус, A1 — в левомверхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

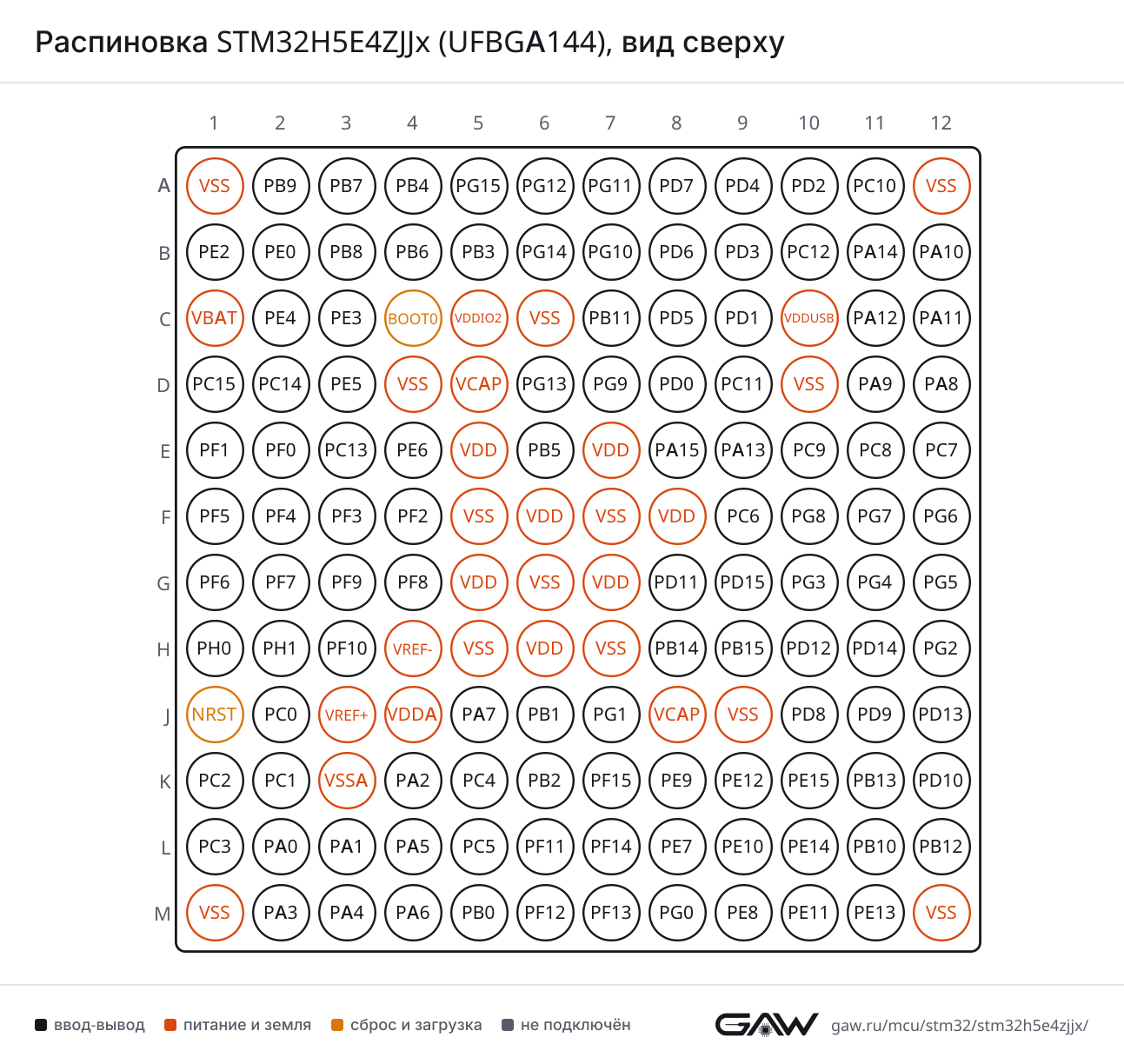

Распиновка STM32H5E4ZJJx (UFBGA144), вид сверхуРаспиновка UFBGA144 картинкой
PNG, 1293 × 1224 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (D12, AF7)
CTSPA11 (C12, AF7)
DEPA12 (C11, AF7)
NSSPA11 (C12, AF7)
RTSPA12 (C11, AF7)
RXPB7 (A3, AF7), PA10 (B12, AF7), PB15 (H9, AF4)
TXPB6 (B4, AF7), PA9 (D11, AF7), PB14 (H8, AF4)
USART2CKPD7 (A8, AF7), PA4 (M3, AF7)
CTSPD3 (B9, AF7), PA0 (L2, AF7)
DEPD4 (A9, AF7), PA1 (L3, AF7)
NSSPD3 (B9, AF7), PA0 (L2, AF7)
RTSPD4 (A9, AF7), PA1 (L3, AF7)
RXPD6 (B8, AF7), PE7 (L8, AF5), PA3 (M2, AF7)
TXPD5 (C8, AF7), PA2 (K4, AF7), PE8 (M9, AF5)
USART3CKPC12 (B10, AF7), PD10 (K12, AF7), PB12 (L12, AF7)
CTSPD11 (G8, AF7), PB13 (K11, AF7)
DEPB14 (H8, AF7), PD12 (H10, AF7)
NSSPD11 (G8, AF7), PB13 (K11, AF7)
RTSPB14 (H8, AF7), PD12 (H10, AF7)
RXPB11 (C7, AF7), PC11 (D9, AF7), PD9 (J11, AF7), PC4 (K5, AF7)
TXPC10 (A11, AF7), PD8 (J10, AF7), PB10 (L11, AF7)
USART6CKPG10 (B7, AF7), PC8 (E11, AF7), PG7 (F11, AF7), PE13 (M11, AF7)
CTSPG15 (A5, AF7), PG13 (D6, AF7)
DEPG12 (A6, AF7), PG8 (F10, AF7)
NSSPG15 (A5, AF7), PG13 (D6, AF7)
RTSPG12 (A6, AF7), PG8 (F10, AF7)
RXPG9 (D7, AF7), PC7 (E12, AF7), PE12 (K9, AF7)
TXPG14 (B6, AF7), PC6 (F9, AF7), PE11 (M10, AF7)
USART10CKPG15 (A5, AF6), PG10 (B7, AF6), PE15 (K10, AF7)
CTSPG13 (D6, AF6)
DEPG14 (B6, AF6)
NSSPG13 (D6, AF6)
RTSPG14 (B6, AF6)
RXPG11 (A7, AF6), PE2 (B1, AF7), PG9 (D7, AF6)
TXPG12 (A6, AF6), PE3 (C3, AF7)
USART11CKPF2 (F4, AF7), PB0 (M5, AF7)
CTSPF5 (F1, AF7), PB15 (H9, AF7)
DEPG11 (A7, AF7), PC1 (K2, AF7)
NSSPF5 (F1, AF7), PB15 (H9, AF7)
RTSPG11 (A7, AF7), PC1 (K2, AF7)
RXPF4 (F2, AF7), PA7 (J5, AF7)
TXPF3 (F3, AF7), PA6 (M4, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB15 (H9, AF8), PB0 (M5, AF8)
DEPA15 (JTDI) (E8, AF8), PB14 (H8, AF8)
RTSPA15 (JTDI) (E8, AF8), PB14 (H8, AF8)
RXPB8 (B3, AF8), PA11 (C12, AF6), PD0 (D8, AF8), PC11 (D9, AF8), PD11 (G8, AF8), PA1 (L3, AF8)
TXPB9 (A2, AF8), PC10 (A11, AF8), PD1 (C9, AF8), PA12 (C11, AF6), PD12 (H10, AF8), PA0 (L2, AF8)
UART5CTSPC9 (E10, AF8)
DEPC8 (E11, AF8), PE13 (M11, AF8)
RTSPC8 (E11, AF8), PE13 (M11, AF8)
RXPD2 (A10, AF8), PB5 (E6, AF14), PB15 (H9, AF14), PB12 (L12, AF14)
TXPB6 (B4, AF14), PC12 (B10, AF8), PB13 (K11, AF14)
UART7CTSPF9 (G3, AF7), PE10 (L9, AF7)
DEPF8 (G4, AF7), PE9 (K8, AF7)
RTSPF8 (G4, AF7), PE9 (K8, AF7)
RXPB3 (JTDO/TRACESWO) (B5, AF11), PA8 (D12, AF11), PF6 (G1, AF7), PG3 (G10, AF11), PE7 (L8, AF7)
TXPB4 (NJTRST) (A4, AF11), PA15 (JTDI) (E8, AF11), PF7 (G2, AF7), PE8 (M9, AF7)
UART8CTSPD14 (H11, AF8)
DEPD15 (G9, AF8)
RTSPD15 (G9, AF8)
RXPE0 (B2, AF8), PD5 (C8, AF8)
TXPE2 (B1, AF8)
UART9CTSPD0 (D8, AF11)
DEPD13 (J12, AF11)
RTSPD13 (J12, AF11)
RXPF0 (E2, AF11), PD14 (H11, AF11), PG0 (M8, AF11)
TXPF1 (E1, AF11), PD15 (G9, AF11), PG1 (J7, AF11)
UART12CTSPB3 (JTDO/TRACESWO) (B5, AF7), PE8 (M9, AF6)
DEPC5 (L5, AF7), PE7 (L8, AF6)
RTSPC5 (L5, AF7), PE7 (L8, AF6)
RXPF5 (F1, AF6), PG2 (H12, AF7), PE9 (K8, AF6)
TXPF2 (F4, AF6), PG3 (G10, AF7), PE10 (L9, AF6)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (C12, AF3)
DEPA12 (C11, AF3)
RTSPA12 (C11, AF3)
RXPB7 (A3, AF8), PA10 (B12, AF3)
TXPB6 (B4, AF8), PA9 (D11, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4 (NJTRST) (A4, AF5), PG9 (D7, AF5), PA6 (M4, AF5)
MOSIPD7 (A8, AF5), PB5 (E6, AF5), PA7 (J5, AF5)
NSSPG10 (B7, AF5), PA15 (JTDI) (E8, AF5), PA4 (M3, AF5)
RDYPA8 (D12, AF5), PG6 (F12, AF5), PB2 (K6, AF4), PE11 (M10, AF4)
SCKPG11 (A7, AF5), PB3 (JTDO/TRACESWO) (B5, AF5), PA5 (L4, AF5)
SPI2MISOPB14 (H8, AF5), PC2 (K1, AF5)
MOSIPB15 (H9, AF5), PG1 (J7, AF7), PC1 (K2, AF5), PC3 (L1, AF5)
NSSPB9 (A2, AF5), PB4 (NJTRST) (A4, AF7), PA11 (C12, AF5), PB12 (L12, AF5), PA3 (M2, AF5)
RDYPB11 (C7, AF5), PD5 (C8, AF5), PC0 (J2, AF7)
SCKPD3 (B9, AF5), PA12 (C11, AF5), PA9 (D11, AF5), PB13 (K11, AF5), PB10 (L11, AF5)
SPI3MISOPB4 (NJTRST) (A4, AF6), PC11 (D9, AF6), PF14 (L7, AF6)
MOSIPD6 (B8, AF5), PC12 (B10, AF6), PB5 (E6, AF7), PB2 (K6, AF7)
NSSPA15 (JTDI) (E8, AF6), PA4 (M3, AF6)
RDYPE0 (B2, AF6), PA0 (L2, AF6)
SCKPC10 (A11, AF6), PB3 (JTDO/TRACESWO) (B5, AF6)
SPI4MISOPE5 (D3, AF5), PE13 (M11, AF5)
MOSIPE6 (E4, AF5), PE14 (L10, AF5)
NSSPE4 (C2, AF5), PE11 (M10, AF5)
RDYPG15 (A5, AF5), PB8 (B3, AF5), PB11 (C7, AF6)
SCKPE2 (B1, AF5), PE12 (K9, AF5)
SPI5MISOPF8 (G4, AF5)
MOSIPF9 (G3, AF5), PF11 (L6, AF5)
NSSPF6 (G1, AF5)
SCKPF7 (G2, AF5)
SPI6MISOPB4 (NJTRST) (A4, AF8), PG12 (A6, AF5), PA6 (M4, AF8)
MOSIPG14 (B6, AF5), PB5 (E6, AF8), PA7 (J5, AF8)
NSSPA15 (JTDI) (E8, AF7), PG8 (F10, AF5), PA0 (L2, AF5), PA4 (M3, AF8)
RDYPD15 (G9, AF7)
SCKPB3 (JTDO/TRACESWO) (B5, AF8), PC12 (B10, AF5), PG13 (D6, AF5), PA5 (L4, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2S1CKPG11 (A7, AF5), PB3 (JTDO/TRACESWO) (B5, AF5), PA5 (L4, AF5)
MCKPD0 (D8, AF5), PG2 (H12, AF5), PC4 (K5, AF5)
SDIPB4 (NJTRST) (A4, AF5), PG9 (D7, AF5), PA6 (M4, AF5)
SDOPD7 (A8, AF5), PB5 (E6, AF5), PA7 (J5, AF5)
WSPG10 (B7, AF5), PA15 (JTDI) (E8, AF5), PA4 (M3, AF5)
I2S2CKPD3 (B9, AF5), PA12 (C11, AF5), PA9 (D11, AF5), PB13 (K11, AF5), PB10 (L11, AF5)
MCKPD1 (C9, AF5), PC6 (F9, AF5)
SDIPB14 (H8, AF5), PC2 (K1, AF5)
SDOPB15 (H9, AF5), PG1 (J7, AF7), PC1 (K2, AF5), PC3 (L1, AF5)
WSPB9 (A2, AF5), PB4 (NJTRST) (A4, AF7), PA11 (C12, AF5), PB12 (L12, AF5), PA3 (M2, AF5)
I2S3CKPC10 (A11, AF6), PB3 (JTDO/TRACESWO) (B5, AF6)
MCKPC7 (E12, AF6), PD8 (J10, AF6)
SDIPB4 (NJTRST) (A4, AF6), PC11 (D9, AF6), PF14 (L7, AF6)
SDOPD6 (B8, AF5), PC12 (B10, AF6), PB5 (E6, AF7), PB2 (K6, AF7)
WSPA15 (JTDI) (E8, AF6), PA4 (M3, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8 (B3, AF4), PB6 (B4, AF4)
SDAPB9 (A2, AF4), PB7 (A3, AF4), PD13 (J12, AF6)
SMBAPB5 (E6, AF4)
I2C2SCLPD2 (A10, AF6), PF1 (E1, AF4), PB10 (L11, AF4)
SDAPB3 (JTDO/TRACESWO) (B5, AF4), PB11 (C7, AF4), PF0 (E2, AF4), PB12 (L12, AF4)
SMBAPF2 (F4, AF4), PB13 (K11, AF4)
I2C3SCLPD7 (A8, AF4), PA8 (D12, AF4)
SDAPD6 (B8, AF4), PC9 (E10, AF4)
SMBAPG10 (B7, AF3), PA9 (D11, AF4)
I2C4SCLPB8 (B3, AF6), PB6 (B4, AF6), PF5 (F1, AF4), PG7 (F11, AF4), PD12 (H10, AF4)
SDAPB9 (A2, AF6), PB7 (A3, AF6), PG6 (F12, AF4), PD13 (J12, AF4), PF15 (K7, AF4)
SMBAPB5 (E6, AF6), PD11 (G8, AF4), PF13 (M7, AF4)

I3C — шина I3C

БлокСигналВыводы
I3C1SCLPB8 (B3, AF3), PB6 (B4, AF3), PF5 (F1, AF5), PG7 (F11, AF3), PD12 (H10, AF5)
SDAPB9 (A2, AF3), PB7 (A3, AF3), PG6 (F12, AF3), PD13 (J12, AF5), PF15 (K7, AF5)
I3C2SCLPD2 (A10, AF5), PF1 (E1, AF5), PB10 (L11, AF8)
SDAPB3 (JTDO/TRACESWO) (B5, AF3), PB11 (C7, AF8), PF0 (E2, AF5), PB12 (L12, AF8)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPE0 (B2, AF9), PB8 (B3, AF9), PA11 (C12, AF9), PD0 (D8, AF9)
TXPB9 (A2, AF9), PB7 (A3, AF9), PD5 (C8, AF9), PD1 (C9, AF9), PA12 (C11, AF9)
FDCAN2RXPB5 (E6, AF9), PD9 (J11, AF9), PB12 (L12, AF9)
TXPB6 (B4, AF9), PA10 (B12, AF9), PB13 (K11, AF9)
FDCAN3RXPF7 (G2, AF9), PD10 (K12, AF9), PE13 (M11, AF9)
TXPF6 (G1, AF9), PD8 (J10, AF9), PE12 (K9, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (C12)
DPPA12 (C11)
SOFPA8 (D12)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PB13 (K11)
CC2PB14 (H8)
DB1PA9 (D11)
DB2PC9 (E10)
FRSTXPA10 (B12, AF6), PG7 (F11, AF11), PG6 (F12, AF11), PB12 (L12, AF6)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCLKPD4 (A9, AF11), PA10 (B12, AF11), PF15 (K7, AF11)
MDCPB3 (JTDO/TRACESWO) (B5, AF12), PF9 (G3, AF11), PC1 (K2, AF11)
MDIOPB4 (NJTRST) (A4, AF10), PA2 (K4, AF11), PE12 (K9, AF11)
MII_COLPA3 (M2, AF11)
MII_CRSPD5 (C8, AF6), PD10 (K12, AF8), PA0 (L2, AF11)
MII_RX_CLKPA1 (L3, AF11)
MII_RX_DVPD1 (C9, AF11), PA7 (J5, AF11)
MII_RX_ERPG3 (G10, AF10), PB10 (L11, AF11)
MII_RXD0PE4 (C2, AF11), PD8 (J10, AF8), PC4 (K5, AF11), PB2 (K6, AF11)
MII_RXD1PE5 (D3, AF11), PC5 (L5, AF11)
MII_RXD2PB0 (M5, AF11)
MII_RXD3PB1 (J6, AF11)
MII_TX_CLKPC3 (L1, AF11)
MII_TX_ENPG11 (A7, AF11), PB11 (C7, AF11), PA5 (L4, AF11)
MII_TX_ERPB6 (B4, AF11), PA9 (D11, AF11), PF8 (G4, AF11)
MII_TXD0PC10 (A11, AF11), PG13 (D6, AF11), PB12 (L12, AF11)
MII_TXD1PG12 (A6, AF11), PG14 (B6, AF11), PB15 (H9, AF11)
MII_TXD2PC2 (K1, AF11)
MII_TXD3PE2 (B1, AF11), PB8 (B3, AF11)
PHY_INTNPA15 (JTDI) (E8, AF10)
PPS_OUTPC12 (B10, AF10), PB5 (E6, AF11), PG8 (F10, AF11)
PTP_AUX_TSPD11 (G8, AF11)
RMII_CRS_DVPD1 (C9, AF11), PA7 (J5, AF11)
RMII_REF_CLKPA1 (L3, AF11)
RMII_RXD0PE4 (C2, AF11), PD8 (J10, AF8), PC4 (K5, AF11), PB2 (K6, AF11)
RMII_RXD1PE5 (D3, AF11), PC5 (L5, AF11)
RMII_TX_ENPG11 (A7, AF11), PB11 (C7, AF11), PA5 (L4, AF11)
RMII_TXD0PC10 (A11, AF11), PG13 (D6, AF11), PB12 (L12, AF11)
RMII_TXD1PG12 (A6, AF11), PG14 (B6, AF11), PB15 (H9, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (A2, AF7), PF13 (M7, AF9)
CKPC12 (B10, AF12), PG0 (M8, AF8)
CKINPB8 (B3, AF7), PF12 (M6, AF9)
CMDPD2 (A10, AF12), PB2 (K6, AF12), PF15 (K7, AF8)
D0PA10 (B12, AF12), PC8 (E11, AF12), PF6 (G1, AF8)
D0DIRPD0 (D8, AF7), PC6 (F9, AF8)
D1PC9 (E10, AF12), PF7 (G2, AF8)
D2PC10 (A11, AF12), PF8 (G4, AF8)
D3PC11 (D9, AF12), PF9 (G3, AF8)
D4PB8 (B3, AF12), PF11 (L6, AF8)
D5PB9 (A2, AF12), PF12 (M6, AF8)
D6PC6 (F9, AF12), PF13 (M7, AF8)
D7PC7 (E12, AF12), PF14 (L7, AF8)
D123DIRPD1 (C9, AF7), PC7 (E12, AF8), PF14 (L7, AF9)
SDMMC2CKPD6 (B8, AF11), PC1 (K2, AF9)
CKINPB9 (A2, AF11), PB7 (A3, AF11), PF5 (F1, AF11)
CMDPD7 (A8, AF11), PA0 (L2, AF9)
D0PG9 (D7, AF11), PD8 (J10, AF11)
D1PG10 (B7, AF11), PB15 (H9, AF9)
D2PG11 (A7, AF10), PB3 (JTDO/TRACESWO) (B5, AF9), PF0 (E2, AF10)
D3PB4 (NJTRST) (A4, AF9), PG12 (A6, AF10), PF1 (E1, AF10)
D4PB8 (B3, AF10), PA12 (C11, AF10), PF2 (F4, AF10)
D5PB9 (A2, AF10), PB7 (A3, AF10), PF3 (F3, AF10)
D6PG13 (D6, AF10), PF4 (F2, AF10), PC6 (F9, AF10), PC2 (K1, AF10)
D7PG14 (B6, AF10), PC7 (E12, AF10), PF5 (F1, AF10), PC3 (L1, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (B1, AF2), PD11 (G8, AF2), PC4 (K5, AF2)
CK2PE5 (D3, AF2), PG7 (F11, AF2)
D1PD6 (B8, AF2), PE6 (E4, AF2), PD12 (H10, AF6), PC1 (K2, AF2), PB2 (K6, AF2)
D2PE4 (C2, AF2)
D3PF10 (H3, AF2), PC3 (L1, AF2), PC5 (L5, AF2)
FS_APE4 (C2, AF6), PD14 (H11, AF6), PC5 (L5, AF6)
FS_BPF9 (G3, AF6), PD15 (G9, AF6)
MCLK_APE2 (B1, AF6), PG7 (F11, AF6), PC0 (J2, AF6)
MCLK_BPD1 (C9, AF6), PF7 (G2, AF6)
SCK_APE5 (D3, AF6), PC6 (F9, AF6)
SCK_BPC10 (A11, AF4), PF8 (G4, AF6)
SD_APD6 (B8, AF6), PE6 (E4, AF6), PC1 (K2, AF6), PB2 (K6, AF6)
SD_BPE3 (C3, AF6), PF6 (G1, AF6), PA3 (M2, AF6)
SAI2FS_APD12 (H10, AF10)
FS_BPA12 (C11, AF8), PG9 (D7, AF10), PC0 (J2, AF8), PE13 (M11, AF10)
MCLK_APE0 (B2, AF10)
MCLK_BPE6 (E4, AF10), PA1 (L3, AF10), PE14 (L10, AF10)
SCK_APD13 (J12, AF10)
SCK_BPA2 (K4, AF8), PE12 (K9, AF10)
SD_APD11 (G8, AF10), PC1 (K2, AF8)
SD_BPG10 (B7, AF10), PA0 (L2, AF10), PF11 (L6, AF10), PE11 (M10, AF10)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPB6 (B4, AF5), PA15 (JTDI) (E8, AF4), PD9 (J11, AF5)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PG11 (A7), PB11 (C7), PA11 (C12), PC11 (D9), PD11 (G8), PF11 (L6), PE11 (M10)
EXTI15PG15 (A5), PC15-OSC32_OUT(OSC32_OUT) (D1), PA15 (JTDI) (E8), PD15 (G9), PB15 (H9), PF15 (K7), PE15 (K10)
INN1PA0 (L2)
INN2PF12 (M6)
INN3PA7 (J5)
INN4PC5 (L5)
INN5PB0 (M5)
INN10PC1 (K2)
INN11PC2 (K1)
INN12PC3 (L1)
INN18PA5 (L4)
INP0PA0 (L2)
INP1PA1 (L3)
INP2PF11 (L6)
INP3PA6 (M4)
INP4PC4 (K5)
INP5PB1 (J6)
INP6PF12 (M6)
INP7PA7 (J5)
INP8PC5 (L5)
INP9PB0 (M5)
INP10PC0 (J2)
INP11PC1 (K2)
INP12PC2 (K1)
INP13PC3 (L1)
INP14PA2 (K4)
INP15PA3 (M2)
INP18PA4 (M3)
INP19PA5 (L4)
ADC2EXTI11PG11 (A7), PB11 (C7), PA11 (C12), PC11 (D9), PD11 (G8), PF11 (L6), PE11 (M10)
EXTI15PG15 (A5), PC15-OSC32_OUT(OSC32_OUT) (D1), PA15 (JTDI) (E8), PD15 (G9), PB15 (H9), PF15 (K7), PE15 (K10)
INN1PA0 (L2)
INN2PF14 (L7)
INN3PA7 (J5)
INN4PC5 (L5)
INN5PB0 (M5)
INN10PC1 (K2)
INN11PC2 (K1)
INN12PC3 (L1)
INN18PA5 (L4)
INP0PA0 (L2)
INP1PA1 (L3)
INP2PF13 (M7)
INP3PA6 (M4)
INP4PC4 (K5)
INP5PB1 (J6)
INP6PF14 (L7)
INP7PA7 (J5)
INP8PC5 (L5)
INP9PB0 (M5)
INP10PC0 (J2)
INP11PC1 (K2)
INP12PC2 (K1)
INP13PC3 (L1)
INP14PA2 (K4)
INP15PA3 (M2)
INP18PA4 (M3)
INP19PA5 (L4)
ADC3EXTI11PG11 (A7), PB11 (C7), PA11 (C12), PC11 (D9), PD11 (G8), PF11 (L6), PE11 (M10)
EXTI15PG15 (A5), PC15-OSC32_OUT(OSC32_OUT) (D1), PA15 (JTDI) (E8), PD15 (G9), PB15 (H9), PF15 (K7), PE15 (K10)
INP0PB2 (K6)
INP1PE7 (L8)
INP2PE8 (M9)
INP3PE9 (K8)
INP4PE10 (L9)
INP5PE11 (M10)
INP6PE12 (K9)
INP7PE13 (M11)
INP8PE14 (L10)
INP9PE15 (K10)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (A2), PG9 (D7), PA9 (D11), PC9 (E10), PF9 (G3), PD9 (J11), PE9 (K8)
OUT1PA4 (M3)
OUT2PA5 (L4)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPE10 (L9), PA6 (M4)
INPPA7 (J5), PB2 (K6)
OUTPD4 (A9, AF3), PC11 (D9, AF3), PF0 (E2, AF3)
COMP2INMPB1 (J6), PE9 (K8), PE14 (L10)
INPPE7 (L8), PB0 (M5)
OUTPC12 (B10, AF3), PD5 (C8, AF3), PF1 (E1, AF3)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA4 (M3), PE13 (M11)
VINPPE12 (K9), PA5 (L4), PE11 (M10)
VOUTPB1 (J6)

TIM — таймер

БлокСигналВыводы
TIM1BKINPE15 (K10, AF1), PB12 (L12, AF1), PA6 (M4, AF1)
BKIN2PE6 (E4, AF1), PG4 (G11, AF1)
CH1PA8 (D12, AF1), PE9 (K8, AF1)
CH1NPA7 (J5, AF1), PB13 (K11, AF1), PE8 (M9, AF1)
CH2PA9 (D11, AF1), PE11 (M10, AF1)
CH2NPB14 (H8, AF1), PE10 (L9, AF1), PB0 (M5, AF1)
CH3PA10 (B12, AF1), PE13 (M11, AF1)
CH3NPB15 (H9, AF1), PB1 (J6, AF1), PE12 (K9, AF1)
CH4PA11 (C12, AF1), PE14 (L10, AF1)
CH4NPD5 (C8, AF1), PE15 (K10, AF3), PC5 (L5, AF1)
ETRPA12 (C11, AF1), PG5 (G12, AF1), PE7 (L8, AF1)
TIM2CH1PF0 (E2, AF1), PA15 (JTDI) (E8, AF1), PA0 (L2, AF1), PA5 (L4, AF1)
CH2PB3 (JTDO/TRACESWO) (B5, AF1), PF1 (E1, AF1), PA1 (L3, AF1)
CH3PF3 (F3, AF1), PA2 (K4, AF1), PF11 (L6, AF1), PB10 (L11, AF1)
CH4PB11 (C7, AF1), PF4 (F2, AF1), PC4 (K5, AF1), PA3 (M2, AF1), PF12 (M6, AF1)
ETRPF0 (E2, AF2), PA15 (JTDI) (E8, AF14), PA0 (L2, AF14), PA5 (L4, AF14)
TIM3CH1PB4 (NJTRST) (A4, AF2), PC6 (F9, AF2), PA6 (M4, AF2)
CH2PB5 (E6, AF2), PC7 (E12, AF2), PA7 (J5, AF2)
CH3PC8 (E11, AF2), PB0 (M5, AF2)
CH4PC9 (E10, AF2), PB1 (J6, AF2)
ETRPD2 (A10, AF2), PF14 (L7, AF2)
TIM4CH1PB6 (B4, AF2), PD12 (H10, AF2), PG0 (M8, AF2)
CH2PB7 (A3, AF2), PG1 (J7, AF2), PD13 (J12, AF2)
CH3PB8 (B3, AF2), PD14 (H11, AF2), PG2 (H12, AF2)
CH4PB9 (A2, AF2), PD15 (G9, AF2), PG3 (G10, AF2), PC2 (K1, AF2)
ETRPE0 (B2, AF2), PF15 (K7, AF2)
TIM5CH1PA0 (L2, AF2)
CH2PA1 (L3, AF2)
CH3PA2 (K4, AF2)
CH4PA3 (M2, AF2)
ETRPA4 (M3, AF2)
TIM8BKINPG2 (H12, AF3), PA6 (M4, AF3)
BKIN2PA8 (D12, AF3), PG3 (G10, AF3)
CH1PC6 (F9, AF3), PC0 (J2, AF3)
CH1NPA7 (J5, AF3), PA5 (L4, AF3)
CH2PC7 (E12, AF3), PC1 (K2, AF3)
CH2NPB14 (H8, AF3), PB0 (M5, AF3)
CH3PC8 (E11, AF3), PC2 (K1, AF3)
CH3NPB15 (H9, AF3), PB1 (J6, AF3)
CH4PD3 (B9, AF3), PC9 (E10, AF3)
CH4NPD0 (D8, AF3), PB2 (K6, AF3)
ETRPG8 (F10, AF3), PA0 (L2, AF3)
TIM12CH1PD7 (A8, AF2), PG9 (D7, AF2), PB14 (H8, AF2)
CH2PG10 (B7, AF2), PB15 (H9, AF2), PD8 (J10, AF2)
TIM13CH1PF8 (G4, AF9), PD9 (J11, AF2), PA6 (M4, AF9)
TIM14CH1PF9 (G3, AF9), PA7 (J5, AF9), PD10 (K12, AF2)
TIM15BKINPD2 (A10, AF4), PE3 (C3, AF4), PA0 (L2, AF4)
CH1PC12 (B10, AF2), PE5 (D3, AF4), PA2 (K4, AF4)
CH1NPE4 (C2, AF4), PA1 (L3, AF4)
CH2PE6 (E4, AF4), PA3 (M2, AF4)
TIM16BKINPB4 (NJTRST) (A4, AF1), PF10 (H3, AF1), PC0 (J2, AF1)
CH1PG15 (A5, AF1), PB8 (B3, AF1), PF6 (G1, AF1)
CH1NPB6 (B4, AF1), PG8 (F10, AF1), PF8 (G4, AF1)
TIM17BKINPB5 (E6, AF1), PG6 (F12, AF1)
CH1PB9 (A2, AF1), PF7 (G2, AF1), PC2 (K1, AF1)
CH1NPB7 (A3, AF1), PF9 (G3, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PG13 (D6, AF1), PD13 (J12, AF1), PB2 (K6, AF5)
CH2PB4 (NJTRST) (A4, AF4), PG14 (B6, AF4)
ETRPE0 (B2, AF1), PG14 (B6, AF1)
IN1PG12 (A6, AF1), PD12 (H10, AF1), PA1 (L3, AF5)
IN2PG11 (A7, AF1), PE2 (B1, AF1), PA2 (K4, AF5)
LPTIM2CH1PG12 (A6, AF3), PD13 (J12, AF3), PB13 (K11, AF3), PA4 (M3, AF3)
CH2PE0 (B2, AF3), PD10 (K12, AF3), PF13 (M7, AF3)
ETRPE0 (B2, AF4), PB11 (C7, AF3), PC4 (K5, AF3)
IN1PD12 (H10, AF3), PF14 (L7, AF3), PB10 (L11, AF3)
IN2PA10 (B12, AF4), PD11 (G8, AF3)
LPTIM3CH1PF5 (F1, AF2), PC3 (L1, AF3), PB10 (L11, AF2), PB0 (M5, AF14)
CH2PF2 (F4, AF2), PB1 (J6, AF14)
ETRPC10 (A11, AF2), PF4 (F2, AF2), PB14 (H8, AF14)
IN1PC11 (D9, AF2), PF5 (F1, AF14), PF3 (F3, AF2), PB13 (K11, AF2)
IN2PA15 (JTDI) (E8, AF2), PF2 (F4, AF3)
LPTIM4ETRPD2 (A10, AF14), PG4 (G11, AF14)
IN1PD13 (J12, AF14), PG0 (M8, AF14)
OUTPD7 (A8, AF14), PG8 (F10, AF14)
LPTIM5CH1PG12 (A6, AF14), PF0 (E2, AF13), PF6 (G1, AF13)
CH2PG13 (D6, AF13), PF1 (E1, AF13), PF7 (G2, AF13)
ETRPG3 (G10, AF13), PB2 (K6, AF13)
IN1PG14 (B6, AF13), PF2 (F4, AF13), PF8 (G4, AF13)
IN2PF3 (F3, AF13), PF9 (G3, AF13)
LPTIM6CH1PF11 (L6, AF14)
CH2PF12 (M6, AF14)
ETRPB3 (JTDO/TRACESWO) (B5, AF14), PG2 (H12, AF14)
IN1PF13 (M7, AF14)
IN2PF14 (L7, AF14)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (E3)
OUT2PB2 (K6, AF0)
REFINPB15 (H9, AF0)
TSPC13 (E3)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (E2, AF12)
A1PF1 (E1, AF12)
A2PF2 (F4, AF12)
A3PF3 (F3, AF12)
A4PF4 (F2, AF12)
A5PF5 (F1, AF12)
A6PF12 (M6, AF12)
A7PF13 (M7, AF12)
A8PF14 (L7, AF12)
A9PF15 (K7, AF12)
A10PG0 (M8, AF12)
A11PG1 (J7, AF12)
A12PG2 (H12, AF12)
A13PG3 (G10, AF12)
A14PG4 (G11, AF12)
A15PG5 (G12, AF12)
A16PC9 (E10, AF11), PD11 (G8, AF12)
A17PA11 (C12, AF12), PC8 (E11, AF11), PD12 (H10, AF12)
A18PD13 (J12, AF12)
A19PE3 (C3, AF12)
A20PE4 (C2, AF12)
A21PE5 (D3, AF12)
A22PE6 (E4, AF12)
A23PE2 (B1, AF12)
A24PG13 (D6, AF12)
A25PG14 (B6, AF12), PC0 (J2, AF9)
ALEPA11 (C12, AF12), PC8 (E11, AF11), PD12 (H10, AF12)
BA0PG4 (G11, AF12)
BA1PG5 (G12, AF12)
CLEPC9 (E10, AF11), PD11 (G8, AF12)
CLKPD3 (B9, AF12)
D0PD14 (H11, AF12)
D1PD15 (G9, AF12)
D2PD0 (D8, AF12)
D3PD1 (C9, AF12)
D4PE7 (L8, AF12)
D5PE8 (M9, AF12)
D6PE9 (K8, AF12)
D7PE10 (L9, AF12)
D8PE11 (M10, AF12)
D9PE12 (K9, AF12)
D10PE13 (M11, AF12)
D11PE14 (L10, AF12)
D12PE15 (K10, AF12)
D13PD8 (J10, AF12)
D14PD9 (J11, AF12)
D15PD10 (K12, AF12)
D16PF6 (G1, AF12)
D17PF7 (G2, AF12)
D18PF8 (G4, AF12)
D19PF9 (G3, AF12)
D31PA6 (M4, AF12)
DA0PD14 (H11, AF12)
DA1PD15 (G9, AF12)
DA2PD0 (D8, AF12)
DA3PD1 (C9, AF12)
DA4PE7 (L8, AF12)
DA5PE8 (M9, AF12)
DA6PE9 (K8, AF12)
DA7PE10 (L9, AF12)
DA8PE11 (M10, AF12)
DA9PE12 (K9, AF12)
DA10PE13 (M11, AF12)
DA11PE14 (L10, AF12)
DA12PE15 (K10, AF12)
DA13PD8 (J10, AF12)
DA14PD9 (J11, AF12)
DA15PD10 (K12, AF12)
INTPC8 (E11, AF10), PG7 (F11, AF12), PC0 (J2, AF13)
NBL0PE0 (B2, AF12)
NBL1PB11 (C7, AF12), PA15 (JTDI) (E8, AF12)
NBL2PA4 (M3, AF12)
NBL3PB4 (NJTRST) (A4, AF12)
NCEPD7 (A8, AF12), PG9 (D7, AF12), PC8 (E11, AF9), PC2 (K1, AF13), PC1 (K2, AF13)
NE1PD7 (A8, AF12), PC7 (E12, AF9), PC2 (K1, AF13)
NE2PG9 (D7, AF12), PC8 (E11, AF9), PC1 (K2, AF13)
NE3PG10 (B7, AF12), PG6 (F12, AF12)
NE4PG12 (A6, AF12)
NLPB7 (A3, AF12)
NOEPD4 (A9, AF12), PA8 (D12, AF12)
NWAITPD6 (B8, AF12), PC6 (F9, AF9), PB10 (L11, AF13)
NWEPD5 (C8, AF12), PA9 (D11, AF12), PA7 (J5, AF13)
SDCKE0PC3 (L1, AF12), PC5 (L5, AF12)
SDCKE1PB5 (E6, AF12)
SDCLKPG12 (A6, AF8), PG8 (F10, AF12)
SDNCASPG15 (A5, AF12), PC9 (E10, AF10)
SDNE0PC2 (K1, AF12), PC4 (K5, AF12)
SDNE1PB6 (B4, AF12)
SDNRASPF11 (L6, AF12), PB10 (L11, AF10)
SDNWEPC0 (J2, AF12), PA7 (J5, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (D11, AF13), PC6 (F9, AF13), PE12 (K9, AF13)
D1PA10 (B12, AF13), PC7 (E12, AF13)
D2PE0 (B2, AF13), PG10 (B7, AF13), PC8 (E11, AF13), PB15 (H9, AF13)
D3PG11 (A7, AF13), PE2 (B1, AF13), PA8 (D12, AF13), PC9 (E10, AF13)
D4PE4 (C2, AF13), PC11 (D9, AF13)
D5PB6 (B4, AF13), PD3 (B9, AF13)
D6PB8 (B3, AF13), PE5 (D3, AF13), PF4 (F2, AF13)
D7PB9 (A2, AF13), PB4 (NJTRST) (A4, AF13), PE6 (E4, AF13)
D8PC10 (A11, AF13), PE8 (M9, AF13)
D9PC12 (B10, AF13)
D10PD6 (B8, AF13), PB5 (E6, AF13)
D11PG12 (A6, AF13), PD2 (A10, AF13), PA15 (JTDI) (E8, AF13), PF10 (H3, AF13)
D12PG6 (F12, AF13), PD12 (H10, AF13), PF11 (L6, AF13)
D13PG15 (A5, AF13), PG7 (F11, AF13), PD13 (J12, AF13)
HSYNCPA4 (M3, AF13), PE13 (M11, AF13)
PIXCLKPE15 (K10, AF13), PA6 (M4, AF13)
VSYNCPB7 (A3, AF13), PG9 (D7, AF13), PE14 (L10, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (D11, AF13), PC6 (F9, AF13), PE12 (K9, AF13)
D1PA10 (B12, AF13), PC7 (E12, AF13)
D2PE0 (B2, AF13), PG10 (B7, AF13), PC8 (E11, AF13), PB15 (H9, AF13)
D3PG11 (A7, AF13), PE2 (B1, AF13), PA8 (D12, AF13), PC9 (E10, AF13)
D4PE4 (C2, AF13), PC11 (D9, AF13)
D5PB6 (B4, AF13), PD3 (B9, AF13)
D6PB8 (B3, AF13), PE5 (D3, AF13), PF4 (F2, AF13)
D7PB9 (A2, AF13), PB4 (NJTRST) (A4, AF13), PE6 (E4, AF13)
D8PC10 (A11, AF13), PE8 (M9, AF13)
D9PC12 (B10, AF13)
D10PD6 (B8, AF13), PB5 (E6, AF13)
D11PG12 (A6, AF13), PD2 (A10, AF13), PA15 (JTDI) (E8, AF13), PF10 (H3, AF13)
D12PG6 (F12, AF13), PD12 (H10, AF13), PF11 (L6, AF13)
D13PG15 (A5, AF13), PG7 (F11, AF13), PD13 (J12, AF13)
D14PA5 (L4, AF13)
D15PG12 (A6, AF4), PF10 (H3, AF4), PD14 (H11, AF4), PC5 (L5, AF4)
DEPA4 (M3, AF13), PE13 (M11, AF13)
PDCKPE15 (K10, AF13), PA6 (M4, AF13)
RDYPB7 (A3, AF13), PG9 (D7, AF13), PE14 (L10, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PC10 (A11, AF14), PG14 (B6, AF14), PE14 (L10, AF11)
B1PC9 (E10, AF14), PF9 (G3, AF14), PD14 (H11, AF13)
B2PD5 (C8, AF13), PG8 (F10, AF13), PA7 (J5, AF14)
B3PB1 (J6, AF13), PA6 (M4, AF14)
B4PG11 (A7, AF14), PD3 (B9, AF10), PA4 (M3, AF14)
B5PG9 (D7, AF14), PA3 (M2, AF14), PE11 (M10, AF13)
B6PG10 (B7, AF14), PE5 (D3, AF10), PA2 (K4, AF14), PF13 (M7, AF13)
B7PD4 (A9, AF13), PF15 (K7, AF13), PA1 (L3, AF14)
CLKPA8 (D12, AF14), PD15 (G9, AF13), PF12 (M6, AF13)
DEPD1 (C9, AF13), PF6 (G1, AF14), PC4 (K5, AF14)
G0PC6 (F9, AF14), PG3 (G10, AF14), PB15 (H9, AF12)
G1PE3 (C3, AF13), PC5 (L5, AF14)
G2PG15 (A5, AF14), PD12 (H10, AF11), PC1 (K2, AF14)
G3PE4 (C2, AF10), PF7 (G2, AF14), PC0 (J2, AF14)
G4PC12 (B10, AF11), PG13 (D6, AF14), PB10 (L11, AF14)
G5PB9 (A2, AF14), PA5 (L4, AF10), PF14 (L7, AF13)
G6PB8 (B3, AF14), PF10 (H3, AF14), PA0 (L2, AF13)
G7PB7 (A3, AF14), PD2 (A10, AF11), PB11 (C7, AF13)
HSYNCPB3 (JTDO/TRACESWO) (B5, AF13), PG5 (G12, AF13), PC2 (K1, AF14)
R0PC8 (E11, AF14), PA2 (K4, AF13), PE15 (K10, AF11)
R1PC7 (E12, AF14), PB12 (L12, AF13), PE13 (M11, AF11)
R2PB4 (NJTRST) (A4, AF14), PD0 (D8, AF13), PE6 (E4, AF11), PG2 (H12, AF13)
R3PD7 (A8, AF13), PB2 (K6, AF14)
R4PA12 (C11, AF14), PD9 (J11, AF13), PB0 (M5, AF13)
R5PA11 (C12, AF14), PG7 (F11, AF14), PD8 (J10, AF13)
R6PA10 (B12, AF14), PD11 (G8, AF13)
R7PA9 (D11, AF14), PF8 (G4, AF14), PD10 (K12, AF13)
VSYNCPC11 (D9, AF11), PG4 (G11, AF13), PC3 (L1, AF14)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PE2 (B1, AF4), PF9 (G3, AF4), PC4 (K5, AF8)
CCK1PE5 (D3, AF8), PG7 (F11, AF8)
CKI0PG4 (G11, AF4), PE7 (L8, AF8)
CKI1PF7 (G2, AF4), PC0 (J2, AF4)
CKI2PE3 (C3, AF8)
CKI3PD4 (A9, AF8)
CKI4PE9 (K8, AF8)
CKI5PE11 (M10, AF8)
SDI0PG5 (G12, AF4), PE8 (M9, AF8)
SDI1PD6 (B8, AF8), PE6 (E4, AF8), PC1 (K2, AF4)
SDI2PE4 (C2, AF8)
SDI3PF10 (H3, AF8), PC3 (L1, AF8), PC5 (L5, AF8)
SDI4PE10 (L9, AF8)
SDI5PE12 (K9, AF8)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PE2 (B1, AF3), PD11 (G8, AF1), PC4 (K5, AF4), PF13 (M7, AF1)
CCK1PE5 (D3, AF1), PG7 (F11, AF1), PF14 (L7, AF1)
SDI0PD6 (B8, AF1), PE4 (C2, AF3), PE6 (E4, AF3), PC1 (K2, AF1), PB2 (K6, AF1), PF15 (K7, AF1)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (B11, AF0)
JTDIPA15 (JTDI) (E8, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (B5, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (E9, AF0)
NJTRSTPB4 (NJTRST) (A4, AF0)
TRACECLKPE2 (B1, AF0)
TRACED0PE3 (C3, AF0), PG13 (D6, AF0), PC1 (K2, AF0)
TRACED1PG14 (B6, AF0), PE4 (C2, AF0), PC8 (E11, AF0)
TRACED2PD2 (A10, AF0), PE5 (D3, AF0)
TRACED3PC12 (B10, AF0), PE6 (E4, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPB2 (K6)
MCO_1PA8 (D12, AF0)
MCO_2PC9 (E10, AF0)
OSC_INPH0-OSC_IN (H1)
OSC_OUTPH1-OSC_OUT (H2)
OSC32_INPC14-OSC32_IN(OSC32_IN) (D2)
OSC32_OUTPC15-OSC32_OUT(OSC32_OUT) (D1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC2 (K1, AF0)
PWR_CSTOPPC3 (L1, AF0)
PWR_WKUP1PA0 (L2)
PWR_WKUP2PA2 (K4)
PWR_WKUP4PC13 (E3)
PWR_WKUP5PB7 (A3)
PWR_WKUP6PC1 (K2)
PWR_WKUP7PD2 (A10)
PWR_WKUP8PD3 (B9)
TAMP_IN1PC13 (E3)
TAMP_IN2PA0 (L2)
TAMP_IN3PE6 (E4), PC1 (K2)
TAMP_IN4PA2 (K4)
TAMP_IN5PA1 (L3)
TAMP_IN6PE3 (C3)
TAMP_IN7PE4 (C2)
TAMP_IN8PE5 (D3)
TAMP_OUT1PA0 (L2)
TAMP_OUT2PC13 (E3)
TAMP_OUT3PE3 (C3), PC13 (E3), PA2 (K4)
TAMP_OUT4PA1 (L3)
TAMP_OUT5PC1 (K2)
TAMP_OUT6PE6 (E4)
TAMP_OUT7PE5 (D3)
TAMP_OUT8PE4 (C2)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), HDMI_CEC (шина управления HDMI), VREFBUF (буфер опорного напряжения), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 144 шарика корпуса UFBGA144 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1VSSпитание—
A2PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2S2_WS (AF5), I3C1_SDA (AF3), LTDC_G5 (AF14), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
A3PB7ввод-выводDCMI_VSYNC (AF13), FDCAN1_TX (AF9), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), I3C1_SDA (AF3), LPUART1_RX (AF8), LTDC_G7 (AF14), PSSI_RDY (AF13), PWR_WKUP5, SDMMC2_CKIN (AF11), SDMMC2_D5 (AF10), TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
A4PB4 (NJTRST)ввод-выводDCMI_D7 (AF13), DEBUG_NJTRST (AF0), ETH_MDIO (AF10), FMC_NBL3 (AF12), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), LPTIM1_CH2 (AF4), LTDC_R2 (AF14), OCTOSPIM_P1_CLK (AF3), PSSI_D7 (AF13), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
A5PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), LTDC_G2 (AF14), OCTOSPIM_P2_IO7 (AF9), PSSI_D13 (AF13), SPI4_RDY (AF5), TIM16_CH1 (AF1), USART10_CK (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
A6PG12ввод-выводDCMI_D11 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_NE4 (AF12), FMC_SDCLK (AF8), LPTIM1_IN1 (AF1), LPTIM2_CH1 (AF3), LPTIM5_CH1 (AF14), OCTOSPIM_P2_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SDMMC2_D3 (AF10), SPI6_MISO (AF5), USART10_TX (AF6), USART6_DE (AF7), USART6_RTS (AF7)
A7PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3 (AF13), ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B4 (AF14), PSSI_D3 (AF13), SDMMC2_D2 (AF10), SPI1_SCK (AF5), USART10_RX (AF6), USART11_DE (AF7), USART11_RTS (AF7)
A8PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), I2C3_SCL (AF4), I2S1_SDO (AF5), LPTIM4_OUT (AF14), LTDC_R3 (AF13), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), SPI1_MOSI (AF5), TIM12_CH1 (AF2), USART2_CK (AF7)
A9PD4ввод-выводCOMP1_OUT (AF3), DEBUG_TRGIO (AF0), ETH_CLK (AF11), FMC_NOE (AF12), LTDC_B7 (AF13), MDF1_CKI3 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_OUT2 (AF14), USART2_DE (AF7), USART2_RTS (AF7)
A10PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), I2C2_SCL (AF6), I3C2_SCL (AF5), LPTIM4_ETR (AF14), LTDC_G7 (AF11), OCTOSPIM_P1_NCS2 (AF9), OCTOSPIM_P2_IO1 (AF10), PSSI_D11 (AF13), PWR_WKUP7, SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
A11PC10ввод-выводDCMI_D8 (AF13), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), GFXTIM_LCKCAL (AF0), I2S3_CK (AF6), LPTIM3_ETR (AF2), LTDC_B0 (AF14), OCTOSPIM_P1_IO1 (AF9), PSSI_D8 (AF13), SAI1_SCK_B (AF4), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
A12VSSпитание—
B1PE2ввод-выводADF1_CCK0 (AF3), DCMI_D3 (AF13), DEBUG_TRACECLK (AF0), ETH_MII_TXD3 (AF11), FMC_A23 (AF12), LPTIM1_IN2 (AF1), MDF1_CCK0 (AF4), OCTOSPIM_P1_IO2 (AF9), PLAY1_OUT8 (AF14), PSSI_D3 (AF13), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SPI4_SCK (AF5), UART8_TX (AF8), USART10_RX (AF7)
B2PE0ввод-выводDCMI_D2 (AF13), FDCAN1_RX (AF9), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_CH2 (AF3), LPTIM2_ETR (AF4), OCTOSPIM_P1_NCS2 (AF11), PLAY1_OUT7 (AF14), PSSI_D2 (AF13), SAI2_MCLK_A (AF10), SPI3_RDY (AF6), TIM4_ETR (AF2), UART8_RX (AF8)
B3PB8ввод-выводDCMI_D6 (AF13), ETH_MII_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LTDC_G6 (AF14), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), SPI4_RDY (AF5), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
B4PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), ETH_MII_TX_ER (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), GFXTIM_FCKCAL (AF0), I2C1_SCL (AF4), I2C4_SCL (AF6), I3C1_SCL (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS1 (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
B5PB3 (JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), ETH_MDC (AF12), I2C2_SDA (AF4), I2S1_CK (AF5), I2S3_CK (AF6), I3C2_SDA (AF3), LPTIM6_ETR (AF14), LTDC_HSYNC (AF13), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART12_CTS (AF7), UART7_RX (AF11)
B6PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), FMC_A25 (AF12), LPTIM1_CH2 (AF4), LPTIM1_ETR (AF1), LPTIM5_IN1 (AF13), LTDC_B0 (AF14), OCTOSPIM_P1_IO7 (AF9), SDMMC2_D7 (AF10), SPI6_MOSI (AF5), USART10_DE (AF6), USART10_RTS (AF6), USART6_TX (AF7)
B7PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), I2C3_SMBA (AF3), I2S1_WS (AF5), LTDC_B6 (AF14), OCTOSPIM_P1_IO5 (AF8), OCTOSPIM_P2_IO6 (AF9), PSSI_D2 (AF13), SAI2_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5), TIM12_CH2 (AF2), USART10_CK (AF6), USART6_CK (AF7)
B8PD6ввод-выводADF1_SDI0 (AF1), DCMI_D10 (AF13), FMC_NWAIT (AF12), I2C3_SDA (AF4), I2S3_SDO (AF5), MDF1_SDI1 (AF8), OCTOSPIM_P1_IO6 (AF10), OCTOSPIM_P2_IO4 (AF9), PLAY1_OUT3 (AF14), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
B9PD3ввод-выводDCMI_D5 (AF13), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_B4 (AF10), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN2 (AF14), PSSI_D5 (AF13), PWR_WKUP8, SPI2_SCK (AF5), TIM8_CH4 (AF3), USART2_CTS (AF7), USART2_NSS (AF7)
B10PC12ввод-выводCOMP2_OUT (AF3), DCMI_D9 (AF13), DEBUG_TRACED3 (AF0), ETH_PPS_OUT (AF10), I2S3_SDO (AF6), LTDC_G4 (AF11), OCTOSPIM_P2_IO7 (AF9), PLAY1_OUT0 (AF14), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
B11PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
B12PA10ввод-выводDCMI_D1 (AF13), DMA2D_GPFLAG1 (AF0), ETH_CLK (AF11), FDCAN2_TX (AF9), LPTIM2_IN2 (AF4), LPUART1_RX (AF3), LTDC_R6 (AF14), PSSI_D1 (AF13), SDMMC1_D0 (AF12), TIM1_CH3 (AF1), UCPD1_FRSTX (AF6), USART1_RX (AF7)
C1VBATпитание—
C2PE4ввод-выводADF1_SDI0 (AF3), DCMI_D4 (AF13), DEBUG_TRACED1 (AF0), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_A20 (AF12), LTDC_G3 (AF10), MDF1_SDI2 (AF8), OCTOSPIM_P2_IO1 (AF9), PLAY1_OUT9 (AF14), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SPI4_NSS (AF5), TAMP_IN7, TAMP_OUT8, TIM15_CH1N (AF4)
C3PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), GFXTIM_TE (AF5), LTDC_G1 (AF13), MDF1_CKI2 (AF8), OCTOSPIM_P2_IO0 (AF9), PLAY1_IN9 (AF14), SAI1_SD_B (AF6), TAMP_IN6, TAMP_OUT3, TIM15_BKIN (AF4), USART10_TX (AF7)
C4BOOT0загрузка—
C5VDDIO2питание—
C6VSSпитание—
C7PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), FMC_NBL1 (AF12), I2C2_SDA (AF4), I3C2_SDA (AF8), LPTIM2_ETR (AF3), LTDC_G7 (AF13), PLAY1_IN15 (AF14), SPI2_RDY (AF5), SPI4_RDY (AF6), TIM2_CH4 (AF1), USART3_RX (AF7)
C8PD5ввод-выводCOMP2_OUT (AF3), ETH_MII_CRS (AF6), FDCAN1_TX (AF9), FMC_NWE (AF12), LTDC_B2 (AF13), OCTOSPIM_P1_IO5 (AF10), PLAY1_IN3 (AF14), SPI2_RDY (AF5), TIM1_CH4N (AF1), UART8_RX (AF8), USART2_TX (AF7)
C9PD1ввод-выводETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2S2_MCK (AF5), LTDC_DE (AF13), OCTOSPIM_P2_DQS (AF10), PLAY1_OUT1 (AF14), SAI1_MCLK_B (AF6), SDMMC1_D123DIR (AF7), UART4_TX (AF8)
C10VDDUSBпитание—
C11PA12ввод-выводDMA2D_GPFLAG3 (AF0), FDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R4 (AF14), SAI2_FS_B (AF8), SDMMC2_D4 (AF10), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP
C12PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DMA2D_GPFLAG2 (AF0), FDCAN1_RX (AF9), FMC_A17 (AF12), FMC_ALE (AF12), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R5 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_FS_DM
D1PC15-OSC32_OUT(OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
D2PC14-OSC32_IN(OSC32_IN)ввод-выводRCC_OSC32_IN
D3PE5ввод-выводADF1_CCK1 (AF1), DCMI_D6 (AF13), DEBUG_TRACED2 (AF0), ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_A21 (AF12), LTDC_B6 (AF10), MDF1_CCK1 (AF8), OCTOSPIM_P2_IO2 (AF9), PLAY1_IN10 (AF14), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SPI4_MISO (AF5), TAMP_IN8, TAMP_OUT7, TIM15_CH1 (AF4)
D4VSSпитание—
D5VCAPпитание—
D6PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FMC_A24 (AF12), LPTIM1_CH1 (AF1), LPTIM5_CH2 (AF13), LTDC_G4 (AF14), OCTOSPIM_P2_NCS1 (AF9), SDMMC2_D6 (AF10), SPI6_SCK (AF5), USART10_CTS (AF6), USART10_NSS (AF6), USART6_CTS (AF7), USART6_NSS (AF7)
D7PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), LTDC_B5 (AF14), OCTOSPIM_P1_IO4 (AF8), OCTOSPIM_P1_IO6 (AF9), PSSI_RDY (AF13), SAI2_FS_B (AF10), SDMMC2_D0 (AF11), SPI1_MISO (AF5), TIM12_CH1 (AF2), USART10_RX (AF6), USART6_RX (AF7)
D8PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), I2S1_MCK (AF5), LTDC_R2 (AF13), OCTOSPIM_P1_NCS2 (AF10), PLAY1_IN1 (AF14), SDMMC1_D0DIR (AF7), TIM8_CH4N (AF3), UART4_RX (AF8), UART9_CTS (AF11)
D9PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP1_OUT (AF3), DCMI_D4 (AF13), GFXTIM_FCKCAL (AF0), I2S3_SDI (AF6), LPTIM3_IN1 (AF2), LTDC_VSYNC (AF11), OCTOSPIM_P1_NCS1 (AF9), PLAY1_IN0 (AF14), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
D10VSSпитание—
D11PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_MII_TX_ER (AF11), FMC_NWE (AF12), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R7 (AF14), OCTOSPIM_P2_IO3 (AF10), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), UCPD1_DB1, USART1_TX (AF7)
D12PA8ввод-выводDCMI_D3 (AF13), FMC_NOE (AF12), I2C3_SCL (AF4), LTDC_CLK (AF14), OCTOSPIM_P2_DQS (AF9), PSSI_D3 (AF13), RCC_MCO_1 (AF0), SPI1_RDY (AF5), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF
E1PF1ввод-выводCOMP2_OUT (AF3), FMC_A1 (AF12), I2C2_SCL (AF4), I3C2_SCL (AF5), LPTIM5_CH2 (AF13), PLAY1_IN1 (AF14), SDMMC2_D3 (AF10), TIM2_CH2 (AF1), UART9_TX (AF11)
E2PF0ввод-выводCOMP1_OUT (AF3), FMC_A0 (AF12), I2C2_SDA (AF4), I3C2_SDA (AF5), LPTIM5_CH1 (AF13), PLAY1_IN0 (AF14), SDMMC2_D2 (AF10), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART9_RX (AF11)
E3PC13ввод-выводPWR_WKUP4, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2, TAMP_OUT3
E4PE6ввод-выводADF1_SDI0 (AF3), DCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_R2 (AF11), MDF1_SDI1 (AF8), OCTOSPIM_P2_IO3 (AF9), PLAY1_OUT10 (AF14), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TAMP_IN3, TAMP_OUT6, TIM15_CH2 (AF4), TIM1_BKIN2 (AF1)
E5VDDпитание—
E6PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), GFXTIM_LCKCAL (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), OCTOSPIM_P1_NCLK (AF3), OCTOSPIM_P2_CLK (AF10), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14)
E7VDDпитание—
E8PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DCMI_D11 (AF13), DEBUG_JTDI (AF0), ETH_PHY_INTN (AF10), FMC_NBL1 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM3_IN2 (AF2), OCTOSPIM_P2_IO6 (AF9), PSSI_D11 (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF14), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
E9PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
E10PC9ввод-выводAUDIOCLK (AF5), DAC1_EXTI9, DCMI_D3 (AF13), FMC_A16 (AF11), FMC_CLE (AF11), FMC_SDNCAS (AF10), I2C3_SDA (AF4), LTDC_B1 (AF14), OCTOSPIM_P1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8), UCPD1_DB2
E11PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_A17 (AF11), FMC_ALE (AF11), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), LTDC_R0 (AF14), PSSI_D2 (AF13), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
E12PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), FMC_NE1 (AF9), I2S3_MCK (AF6), LTDC_R1 (AF14), OCTOSPIM_P1_IO6 (AF11), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
F1PF5ввод-выводFMC_A5 (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM3_CH1 (AF2), LPTIM3_IN1 (AF14), OCTOSPIM_P2_DQS (AF9), SDMMC2_CKIN (AF11), SDMMC2_D7 (AF10), UART12_RX (AF6), USART11_CTS (AF7), USART11_NSS (AF7)
F2PF4ввод-выводDCMI_D6 (AF13), FMC_A4 (AF12), LPTIM3_ETR (AF2), OCTOSPIM_P2_NCS2 (AF9), PLAY1_OUT1 (AF14), PSSI_D6 (AF13), SDMMC2_D6 (AF10), TIM2_CH4 (AF1), USART11_RX (AF7)
F3PF3ввод-выводFMC_A3 (AF12), LPTIM3_IN1 (AF2), LPTIM5_IN2 (AF13), PLAY1_OUT0 (AF14), SDMMC2_D5 (AF10), TIM2_CH3 (AF1), USART11_TX (AF7)
F4PF2ввод-выводFMC_A2 (AF12), GFXTIM_TE (AF5), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), LPTIM3_IN2 (AF3), LPTIM5_IN1 (AF13), PLAY1_IN2 (AF14), SDMMC2_D4 (AF10), UART12_TX (AF6), USART11_CK (AF7)
F5VSSпитание—
F6VDDпитание—
F7VSSпитание—
F8VDDпитание—
F9PC6ввод-выводDCMI_D0 (AF13), FMC_NWAIT (AF9), I2S2_MCK (AF5), LTDC_G0 (AF14), OCTOSPIM_P1_IO5 (AF11), PSSI_D0 (AF13), SAI1_SCK_A (AF6), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
F10PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), LPTIM4_OUT (AF14), LTDC_B2 (AF13), OCTOSPIM_P2_NCLK (AF9), SPI6_NSS (AF5), TIM16_CH1N (AF1), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
F11PG7ввод-выводADF1_CCK1 (AF1), DCMI_D13 (AF13), FMC_INT (AF12), I2C4_SCL (AF4), I3C1_SCL (AF3), LTDC_R5 (AF14), MDF1_CCK1 (AF8), OCTOSPIM_P2_CLK (AF9), PSSI_D13 (AF13), SAI1_CK2 (AF2), SAI1_MCLK_A (AF6), UCPD1_FRSTX (AF11), USART6_CK (AF7)
F12PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF3), OCTOSPIM_P1_NCS1 (AF10), OCTOSPIM_P2_NCS1 (AF9), PLAY1_OUT10 (AF14), PSSI_D12 (AF13), SPI1_RDY (AF5), TIM17_BKIN (AF1), UCPD1_FRSTX (AF11)
G1PF6ввод-выводFDCAN3_TX (AF9), FMC_D16 (AF12), LPTIM5_CH1 (AF13), LTDC_DE (AF14), OCTOSPIM_P1_IO3 (AF10), SAI1_SD_B (AF6), SDMMC1_D0 (AF8), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
G2PF7ввод-выводFDCAN3_RX (AF9), FMC_D17 (AF12), LPTIM5_CH2 (AF13), LTDC_G3 (AF14), MDF1_CKI1 (AF4), OCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF6), SDMMC1_D1 (AF8), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
G3PF9ввод-выводDAC1_EXTI9, ETH_MDC (AF11), FMC_D19 (AF12), LPTIM5_IN2 (AF13), LTDC_B1 (AF14), MDF1_CCK0 (AF4), OCTOSPIM_P1_IO1 (AF10), SAI1_FS_B (AF6), SDMMC1_D3 (AF8), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
G4PF8ввод-выводETH_MII_TX_ER (AF11), FMC_D18 (AF12), LPTIM5_IN1 (AF13), LTDC_R7 (AF14), OCTOSPIM_P1_IO0 (AF10), SAI1_SCK_B (AF6), SDMMC1_D2 (AF8), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
G5VDDпитание—
G6VSSпитание—
G7VDDпитание—
G8PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADF1_CCK0 (AF1), ETH_PTP_AUX_TS (AF11), FMC_A16 (AF12), FMC_CLE (AF12), GFXTIM_TE (AF5), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), LTDC_R6 (AF13), OCTOSPIM_P1_IO0 (AF9), PLAY1_OUT5 (AF14), SAI1_CK1 (AF2), SAI2_SD_A (AF10), UART4_RX (AF8), USART3_CTS (AF7), USART3_NSS (AF7)
G9PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LTDC_CLK (AF13), OCTOSPIM_P2_NCLK (AF9), PLAY1_IN7 (AF14), SAI1_FS_B (AF6), SPI6_RDY (AF7), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
G10PG3ввод-выводETH_MII_RX_ER (AF10), FMC_A13 (AF12), LPTIM5_ETR (AF13), LTDC_G0 (AF14), OCTOSPIM_P2_IO3 (AF9), TIM4_CH4 (AF2), TIM8_BKIN2 (AF3), UART12_TX (AF7), UART7_RX (AF11)
G11PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), LPTIM4_ETR (AF14), LTDC_VSYNC (AF13), MDF1_CKI0 (AF4), OCTOSPIM_P2_IO4 (AF9), TIM1_BKIN2 (AF1)
G12PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), LTDC_HSYNC (AF13), MDF1_SDI0 (AF4), OCTOSPIM_P2_IO5 (AF9), PLAY1_OUT9 (AF14), TIM1_ETR (AF1)
H1PH0-OSC_INввод-выводRCC_OSC_IN
H2PH1-OSC_OUTввод-выводRCC_OSC_OUT
H3PF10ввод-выводDCMI_D11 (AF13), LTDC_G6 (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), TIM16_BKIN (AF1)
H4VREF-питание—
H5VSSпитание—
H6VDDпитание—
H7VSSпитание—
H8PB14ввод-выводI2S2_SDI (AF5), LPTIM3_ETR (AF14), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC2, USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
H9PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D2 (AF13), ETH_MII_TXD1 (AF11), ETH_RMII_TXD1 (AF11), I2S2_SDO (AF5), LTDC_G0 (AF12), OCTOSPIM_P1_CLK (AF10), PSSI_D2 (AF13), PWR_PVD_IN, RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), UART5_RX (AF14), USART11_CTS (AF7), USART11_NSS (AF7), USART1_RX (AF4)
H10PD12ввод-выводDCMI_D12 (AF13), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), I3C1_SCL (AF5), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), LTDC_G2 (AF11), OCTOSPIM_P1_IO1 (AF9), PLAY1_IN6 (AF14), PSSI_D12 (AF13), SAI1_D1 (AF6), SAI2_FS_A (AF10), TIM4_CH1 (AF2), UART4_TX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
H11PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LTDC_B1 (AF13), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT6 (AF14), PSSI_D15 (AF4), SAI1_FS_A (AF6), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
H12PG2ввод-выводFMC_A12 (AF12), I2S1_MCK (AF5), LPTIM6_ETR (AF14), LTDC_R2 (AF13), OCTOSPIM_P2_IO2 (AF9), TIM4_CH3 (AF2), TIM8_BKIN (AF3), UART12_RX (AF7)
J1NRSTсброс—
J2PC0ввод-выводADC1_INP10, ADC2_INP10, FMC_A25 (AF9), FMC_INT (AF13), FMC_SDNWE (AF12), LTDC_G3 (AF14), MDF1_CKI1 (AF4), OCTOSPIM_P1_IO7 (AF10), SAI1_MCLK_A (AF6), SAI2_FS_B (AF8), SPI2_RDY (AF7), TIM16_BKIN (AF1), TIM8_CH1 (AF3)
J3VREF+питание—
J4VDDAпитание—
J5PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, COMP1_INP, ETH_MII_RX_DV (AF11), ETH_RMII_CRS_DV (AF11), FMC_NWE (AF13), FMC_SDNWE (AF12), I2S1_SDO (AF5), LTDC_B2 (AF14), OCTOSPIM_P1_IO2 (AF10), SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART11_RX (AF7)
J6PB1ввод-выводADC1_INP5, ADC2_INP5, COMP2_INM, ETH_MII_RXD3 (AF11), LPTIM3_CH2 (AF14), LTDC_B3 (AF13), OCTOSPIM_P1_IO0 (AF6), OCTOSPIM_P1_NCLK (AF9), OPAMP1_VOUT, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3)
J7PG1ввод-выводFMC_A11 (AF12), I2S2_SDO (AF7), OCTOSPIM_P2_IO1 (AF9), PLAY1_IN3 (AF14), SPI2_MOSI (AF7), TIM4_CH2 (AF2), UART9_TX (AF11)
J8VCAPпитание—
J9VSSпитание—
J10PD8ввод-выводETH_MII_RXD0 (AF8), ETH_RMII_RXD0 (AF8), FDCAN3_TX (AF9), FMC_D13 (AF12), FMC_DA13 (AF12), I2S3_MCK (AF6), LTDC_R5 (AF13), PLAY1_IN4 (AF14), SDMMC2_D0 (AF11), TIM12_CH2 (AF2), USART3_TX (AF7)
J11PD9ввод-выводCEC (AF5), DAC1_EXTI9, FDCAN2_RX (AF9), FMC_D14 (AF12), FMC_DA14 (AF12), LTDC_R4 (AF13), PLAY1_OUT4 (AF14), TIM13_CH1 (AF2), USART3_RX (AF7)
J12PD13ввод-выводDCMI_D13 (AF13), FMC_A18 (AF12), I2C1_SDA (AF6), I2C4_SDA (AF4), I3C1_SDA (AF5), LPTIM1_CH1 (AF1), LPTIM2_CH1 (AF3), LPTIM4_IN1 (AF14), OCTOSPIM_P1_IO3 (AF9), PSSI_D13 (AF13), SAI2_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
K1PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ETH_MII_TXD2 (AF11), FMC_NCE (AF13), FMC_NE1 (AF13), FMC_SDNE0 (AF12), I2S2_SDI (AF5), LTDC_HSYNC (AF14), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF6), PWR_CSLEEP (AF0), SDMMC2_D6 (AF10), SPI2_MISO (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), TIM8_CH3 (AF3)
K2PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADF1_SDI0 (AF1), DEBUG_TRACED0 (AF0), ETH_MDC (AF11), FMC_NCE (AF13), FMC_NE2 (AF13), I2S2_SDO (AF5), LTDC_G2 (AF14), MDF1_SDI1 (AF4), OCTOSPIM_P1_IO4 (AF10), PWR_WKUP6, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5), TAMP_IN3, TAMP_OUT5, TIM8_CH2 (AF3), USART11_DE (AF7), USART11_RTS (AF7)
K3VSSAпитание—
K4PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM1_IN2 (AF5), LTDC_B6 (AF14), LTDC_R0 (AF13), OCTOSPIM_P2_IO4 (AF9), PWR_WKUP2, SAI2_SCK_B (AF8), TAMP_IN4, TAMP_OUT3, TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
K5PC4ввод-выводADC1_INP4, ADC2_INP4, ADF1_CCK0 (AF4), ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LPTIM2_ETR (AF3), LTDC_DE (AF14), MDF1_CCK0 (AF8), SAI1_CK1 (AF2), TIM2_CH4 (AF1), USART3_RX (AF7)
K6PB2ввод-выводADC3_INP0, ADF1_SDI0 (AF1), COMP1_INP, ETH_MII_RXD0 (AF11), ETH_RMII_RXD0 (AF11), I2S3_SDO (AF7), LPTIM1_CH1 (AF5), LPTIM5_ETR (AF13), LTDC_R3 (AF14), OCTOSPIM_P1_CLK (AF9), OCTOSPIM_P1_DQS (AF10), RCC_LSCO, RTC_OUT2 (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SDMMC1_CMD (AF12), SPI1_RDY (AF4), SPI3_MOSI (AF7), TIM8_CH4N (AF3)
K7PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADF1_SDI0 (AF1), ETH_CLK (AF11), FMC_A9 (AF12), I2C4_SDA (AF4), I3C1_SDA (AF5), LTDC_B7 (AF13), OCTOSPIM_P2_NCS2 (AF9), SDMMC1_CMD (AF8), TIM4_ETR (AF2)
K8PE9ввод-выводADC3_INP3, COMP2_INM, DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), MDF1_CKI4 (AF8), OCTOSPIM_P1_IO6 (AF10), PLAY1_IN12 (AF14), TIM1_CH1 (AF1), UART12_RX (AF6), UART7_DE (AF7), UART7_RTS (AF7)
K9PE12ввод-выводADC3_INP6, DCMI_D0 (AF13), ETH_MDIO (AF11), FDCAN3_TX (AF9), FMC_D9 (AF12), FMC_DA9 (AF12), GFXTIM_LCKCAL (AF0), MDF1_SDI5 (AF8), OPAMP1_VINP, PLAY1_OUT13 (AF14), PSSI_D0 (AF13), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1), USART6_RX (AF7)
K10PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, ADC3_INP9, DCMI_PIXCLK (AF13), FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R0 (AF11), OCTOSPIM_P2_NCS1 (AF9), PLAY1_OUT15 (AF14), PSSI_PDCK (AF13), TIM1_BKIN (AF1), TIM1_CH4N (AF3), USART10_CK (AF7)
K11PB13ввод-выводFDCAN2_TX (AF9), I2C2_SMBA (AF4), I2S2_CK (AF5), LPTIM2_CH1 (AF3), LPTIM3_IN1 (AF2), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), UCPD1_CC1, USART3_CTS (AF7), USART3_NSS (AF7)
K12PD10ввод-выводAUDIOCLK (AF5), ETH_MII_CRS (AF8), FDCAN3_RX (AF9), FMC_D15 (AF12), FMC_DA15 (AF12), LPTIM2_CH2 (AF3), LTDC_R7 (AF13), PLAY1_IN5 (AF14), TIM14_CH1 (AF2), USART3_CK (AF7)
L1PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, ETH_MII_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), LPTIM3_CH1 (AF3), LTDC_VSYNC (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF6), PWR_CSTOP (AF0), SAI1_D3 (AF2), SDMMC2_D7 (AF10), SPI2_MOSI (AF5)
L2PA0ввод-выводADC1_INN1, ADC1_INP0, ADC2_INN1, ADC2_INP0, ETH_MII_CRS (AF11), LTDC_G6 (AF13), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), SPI3_RDY (AF6), SPI6_NSS (AF5), TAMP_IN2, TAMP_OUT1, TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
L3PA1ввод-выводADC1_INP1, ADC2_INP1, ETH_MII_RX_CLK (AF11), ETH_RMII_REF_CLK (AF11), LPTIM1_IN1 (AF5), LTDC_B7 (AF14), OCTOSPIM_P1_DQS (AF6), OCTOSPIM_P1_IO3 (AF9), SAI2_MCLK_B (AF10), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
L4PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, ETH_MII_TX_EN (AF11), ETH_RMII_TX_EN (AF11), I2S1_CK (AF5), LTDC_G5 (AF10), OCTOSPIM_P2_IO5 (AF9), OPAMP1_VINP, PSSI_D14 (AF13), SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM8_CH1N (AF3)
L5PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, ETH_MII_RXD1 (AF11), ETH_RMII_RXD1 (AF11), FMC_SDCKE0 (AF12), LTDC_G1 (AF14), MDF1_SDI3 (AF8), OCTOSPIM_P1_DQS (AF10), PSSI_D15 (AF4), SAI1_D3 (AF2), SAI1_FS_A (AF6), TIM1_CH4N (AF1), UART12_DE (AF7), UART12_RTS (AF7)
L6PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), LPTIM6_CH1 (AF14), OCTOSPIM_P1_NCLK (AF9), PSSI_D12 (AF13), SAI2_SD_B (AF10), SDMMC1_D4 (AF8), SPI5_MOSI (AF5), TIM2_CH3 (AF1)
L7PF14ввод-выводADC2_INN2, ADC2_INP6, ADF1_CCK1 (AF1), FMC_A8 (AF12), I2S3_SDI (AF6), LPTIM2_IN1 (AF3), LPTIM6_IN2 (AF14), LTDC_G5 (AF13), SDMMC1_D123DIR (AF9), SDMMC1_D7 (AF8), SPI3_MISO (AF6), TIM3_ETR (AF2)
L8PE7ввод-выводADC3_INP1, COMP2_INP, FMC_D4 (AF12), FMC_DA4 (AF12), MDF1_CKI0 (AF8), OCTOSPIM_P1_IO4 (AF10), PLAY1_IN11 (AF14), TIM1_ETR (AF1), UART12_DE (AF6), UART12_RTS (AF6), UART7_RX (AF7), USART2_RX (AF5)
L9PE10ввод-выводADC3_INP4, COMP1_INM, FMC_D7 (AF12), FMC_DA7 (AF12), MDF1_SDI4 (AF8), OCTOSPIM_P1_IO7 (AF10), PLAY1_OUT12 (AF14), TIM1_CH2N (AF1), UART12_TX (AF6), UART7_CTS (AF7)
L10PE14ввод-выводADC3_INP8, COMP2_INM, DCMI_VSYNC (AF13), FMC_D11 (AF12), FMC_DA11 (AF12), LTDC_B0 (AF11), OCTOSPIM_P2_CLK (AF9), PLAY1_OUT14 (AF14), PSSI_RDY (AF13), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
L11PB10ввод-выводETH_MII_RX_ER (AF11), FMC_NWAIT (AF13), FMC_SDNRAS (AF10), I2C2_SCL (AF4), I2S2_CK (AF5), I3C2_SCL (AF8), LPTIM2_IN1 (AF3), LPTIM3_CH1 (AF2), LTDC_G4 (AF14), OCTOSPIM_P1_NCS1 (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7)
L12PB12ввод-выводETH_MII_TXD0 (AF11), ETH_RMII_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SDA (AF4), I2S2_WS (AF5), I3C2_SDA (AF8), LTDC_R1 (AF13), OCTOSPIM_P1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), UART5_RX (AF14), UCPD1_FRSTX (AF6), USART3_CK (AF7)
M1VSSпитание—
M2PA3ввод-выводADC1_INP15, ADC2_INP15, DMA2D_GPFLAG0 (AF0), ETH_MII_COL (AF11), I2S2_WS (AF5), LTDC_B5 (AF14), OCTOSPIM_P1_CLK (AF3), SAI1_SD_B (AF6), SPI2_NSS (AF5), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
M3PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), FMC_NBL2 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), LPTIM2_CH1 (AF3), LTDC_B4 (AF14), OPAMP1_VINM, PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
M4PA6ввод-выводADC1_INP3, ADC2_INP3, COMP1_INM, DCMI_PIXCLK (AF13), FMC_D31 (AF12), I2S1_SDI (AF5), LTDC_B3 (AF14), OCTOSPIM_P1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART11_TX (AF7)
M5PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP2_INP, ETH_MII_RXD2 (AF11), LPTIM3_CH1 (AF14), LTDC_R4 (AF13), OCTOSPIM_P1_IO1 (AF6), OCTOSPIM_P2_NCS1 (AF9), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USART11_CK (AF7)
M6PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), LPTIM6_CH2 (AF14), LTDC_CLK (AF13), SDMMC1_CKIN (AF9), SDMMC1_D5 (AF8), TIM2_CH4 (AF1)
M7PF13ввод-выводADC2_INP2, ADF1_CCK0 (AF1), FMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM2_CH2 (AF3), LPTIM6_IN1 (AF14), LTDC_B6 (AF13), SDMMC1_CDIR (AF9), SDMMC1_D6 (AF8)
M8PG0ввод-выводFMC_A10 (AF12), LPTIM4_IN1 (AF14), OCTOSPIM_P2_IO0 (AF9), SDMMC1_CK (AF8), TIM4_CH1 (AF2), UART9_RX (AF11)
M9PE8ввод-выводADC3_INP2, DCMI_D8 (AF13), FMC_D5 (AF12), FMC_DA5 (AF12), MDF1_SDI0 (AF8), OCTOSPIM_P1_IO5 (AF10), PLAY1_OUT11 (AF14), PSSI_D8 (AF13), TIM1_CH1N (AF1), UART12_CTS (AF6), UART7_TX (AF7), USART2_TX (AF5)
M10PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, ADC3_INP5, FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_B5 (AF13), MDF1_CKI5 (AF8), OCTOSPIM_P1_NCS1 (AF6), OCTOSPIM_P2_NCS2 (AF9), OPAMP1_VINP, PLAY1_IN13 (AF14), SAI2_SD_B (AF10), SPI1_RDY (AF4), SPI4_NSS (AF5), TIM1_CH2 (AF1), USART6_TX (AF7)
M11PE13ввод-выводADC3_INP7, DCMI_HSYNC (AF13), FDCAN3_RX (AF9), FMC_D10 (AF12), FMC_DA10 (AF12), GFXTIM_FCKCAL (AF0), LTDC_R1 (AF11), OPAMP1_VINM, PLAY1_IN14 (AF14), PSSI_DE (AF13), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
M12VSSпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATC1резервное питание: часы реального времени и резервные регистры
VCAPD5, J8вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDE5, E7, F6, F8, G5, G7, H6питание цифровой части и линий ввода-вывода
VDDAJ4питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2C5питание отдельной группы линий ввода-вывода
VDDUSBC10питание приёмопередатчика USB
VREF-H4нижнее опорное напряжение АЦП
VREF+J3верхнее опорное напряжение АЦП и ЦАП
VSSA1, A12, C6, D4, D10, F5, F7, G6, H5, H7, J9, M1, M12общий провод (земля)
VSSAK3общий провод аналоговой части
NRSTJ1сброс, активный уровень — низкий
BOOT0C4выбор источника загрузки при сбросе

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H5E4ZJJx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H5E4ZJSTM32H5E4ZJJx4 МБ1,5 МБ

Линейка STM32H5x4, семейство STM32H5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе UFBGA144, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H5E4ZKJxSTM32H5x4144 из 144выводы совпадают полностью
STM32H5F4ZJJxSTM32H5x4144 из 144выводы совпадают полностьютолько у него: AES
STM32H523ZCSTM32H5x3143 из 144C7: PB11 → VDDIO2только у этого: ADC3, ADF1, COMP1, COMP2, CORDIC, DMA2D, ETH, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART7, UART8, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 256 КБ; ОЗУ 1536 и 272 КБ
STM32H523ZESTM32H5x3143 из 144C7: PB11 → VDDIO2только у этого: ADC3, ADF1, COMP1, COMP2, CORDIC, DMA2D, ETH, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART7, UART8, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 512 КБ; ОЗУ 1536 и 272 КБ
STM32H533ZESTM32H5x3143 из 144C7: PB11 → VDDIO2только у этого: ADC3, ADF1, COMP1, COMP2, CORDIC, DMA2D, ETH, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART7, UART8, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1; только у него: AES, USB; флеш-память до 4096 и 512 КБ; ОЗУ 1536 и 272 КБ
STM32H543ZESTM32H5x3143 из 144C7: PB11 → VDDIO2только у этого: ADF1, DCMI, DMA2D, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, PSSI, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 512 КБ; ОЗУ 1536 и 304 КБ
STM32H543ZGSTM32H5x3143 из 144C7: PB11 → VDDIO2только у этого: ADF1, DCMI, DMA2D, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, PSSI, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1; только у него: USB; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 304 КБ
STM32H553ZGSTM32H5x3143 из 144C7: PB11 → VDDIO2только у этого: ADF1, DCMI, DMA2D, FDCAN3, FMAC, I2C4, LPTIM3, LPTIM4, LPTIM5, LPTIM6, LTDC, MDF1, OCTOSPI2, OPAMP1, PSSI, SAI1, SAI2, SDMMC2, SPI5, SPI6, TIM13, TIM14, TIM16, TIM17, UART12, UART9, USART10, USART11, USB_OTG_FS, USB_OTG_FS1; только у него: AES, USB; флеш-память до 4096 и 1024 КБ; ОЗУ 1536 и 304 КБ

Частые вопросы

На каких выводах USART1 у STM32H5E4ZJJx?

В корпусе UFBGA144 сигнал USART1_TX выведен на PB6 (шарик B4, AF7) или PA9 (шарик D11, AF7) или PB14 (шарик H8, AF4), USART1_RX — на PB7 (шарик A3, AF7) или PA10 (шарик B12, AF7) или PB15 (шарик H9, AF4).

Где у STM32H5E4ZJJx выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик E9, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик B11, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H5E4ZJJx?

I2C1_SCL — PB8 (шарик B3, AF4) или PB6 (шарик B4, AF4), I2C1_SDA — PB9 (шарик A2, AF4) или PB7 (шарик A3, AF4) или PD13 (шарик J12, AF6).

Сколько выводов ввода-вывода у STM32H5E4ZJJx в корпусе UFBGA144?

113 из 144. Ещё 29 выводов заняты питанием и землёй, остальные 2 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
