STM32H742BG и STM32H742BI в корпусе LQFP208: распиновка

STM32H742BG и STM32H742BI — микроконтроллеры STM32H7 на ядре Cortex-M7 с частотой до 480 МГц: 1 и 2 МБ флеш-памяти и 864 КБ ОЗУ. Корпус LQFP208 — 208 выводов, из них 168 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M7
Частота ядра
до 480 МГц
Флеш-память
1 и 2 МБ
ОЗУ
864 КБ
Корпус
LQFP208, 208 выводов
Линий ввода-вывода
168
Напряжение питания
1,62…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса LQFP208

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Распиновка STM32H742BG, STM32H742BI в корпусе LQFP208, вид сверхуSTM32H742BGSTM32H742BILQFP208, вид сверхуPE2 — вывод 1: DEBUG_TRACECLK, ETH_TXD3, FMC_A23, QUADSPI_BK1_IO2, SAI1_CK1, SAI1_MCLK_A, SAI4_CK1, SAI4_MCLK_A, SPI4_SCK1PE2PE3 — вывод 2: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, SAI4_SD_B, TIM15_BKIN2PE3PE4 — вывод 3: DCMI_D4, DEBUG_TRACED1, DFSDM1_DATIN3, FMC_A20, SAI1_D2, SAI1_FS_A, SAI4_D2, SAI4_FS_A, SPI4_NSS, TIM15_CH1N3PE4PE5 — вывод 4: DCMI_D6, DEBUG_TRACED2, DFSDM1_CKIN3, FMC_A21, SAI1_CK2, SAI1_SCK_A, SAI4_CK2, SAI4_SCK_A, SPI4_MISO, TIM15_CH14PE5PE6 — вывод 5: DCMI_D7, DEBUG_TRACED3, FMC_A22, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SAI4_D1, SAI4_SD_A, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP25PE6VBAT — вывод 66VBATPI8 — вывод 7: PWR_WKUP3, RTC_TAMP27PI8PC13 — вывод 8: PWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS8PC13PC14-OSC32_IN (OSC32_IN) — вывод 9: RCC_OSC32_IN9PC14-OSC32_IN (OSC32_IN)PC15-OSC32_OUT (OSC32_OUT) — вывод 10: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT10PC15-OSC32_OUT (OSC32_OUT)PI9 — вывод 11: DAC1_EXTI9, FDCAN1_RX, FMC_D30, UART4_RX11PI9PI10 — вывод 12: ETH_RX_ER, FMC_D3112PI10PI11 — вывод 13: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, PWR_WKUP5, USB_OTG_HS_ULPI_DIR13PI11VSS — вывод 1414VSSVDD — вывод 1515VDDPF0 — вывод 16: FMC_A0, I2C2_SDA16PF0PF1 — вывод 17: FMC_A1, I2C2_SCL17PF1PF2 — вывод 18: FMC_A2, I2C2_SMBA18PF2PI12 — вывод 19: ETH_TX_ER19PI12PI13 — вывод 2020PI13PI14 — вывод 2121PI14PF3 — вывод 22: ADC3_INP5, FMC_A322PF3PF4 — вывод 23: ADC3_INN5, ADC3_INP9, FMC_A423PF4PF5 — вывод 24: ADC3_INP4, FMC_A524PF5VSS — вывод 2525VSSVDD — вывод 2626VDDPF6 — вывод 27: ADC3_INN4, ADC3_INP8, QUADSPI_BK1_IO3, SAI1_SD_B, SAI4_SD_B, SPI5_NSS, TIM16_CH1, UART7_RX27PF6PF7 — вывод 28: ADC3_INP3, QUADSPI_BK1_IO2, SAI1_MCLK_B, SAI4_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TX28PF7PF8 — вывод 29: ADC3_INN3, ADC3_INP7, QUADSPI_BK1_IO0, SAI1_SCK_B, SAI4_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTS29PF8PF9 — вывод 30: ADC3_INP2, DAC1_EXTI9, QUADSPI_BK1_IO1, SAI1_FS_B, SAI4_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTS30PF9PF10 — вывод 31: ADC3_INN2, ADC3_INP6, DCMI_D11, QUADSPI_CLK, SAI1_D3, SAI4_D3, TIM16_BKIN31PF10PH0-OSC_IN — вывод 32: RCC_OSC_IN32PH0-OSC_INPH1-OSC_OUT — вывод 33: RCC_OSC_OUT33PH1-OSC_OUTNRST — вывод 3434NRSTPC0 — вывод 35: ADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0, DFSDM1_DATIN4, FMC_SDNWE, SAI2_FS_B, USB_OTG_HS_ULPI_STP35PC0PC1 — вывод 36: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0, DFSDM1_CKIN4, DFSDM1_DATIN0, ETH_MDC, I2S2_SDO, MDIOS_MDC, PWR_WKUP6, RTC_TAMP3, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI2_MOSI36PC1PC2_C — вывод 37: ADC3_INN1, ADC3_INP0, DFSDM1_CKIN1, DFSDM1_CKOUT, ETH_TXD2, FMC_SDNE0, I2S2_SDI, PWR_CSTOP, SPI2_MISO, USB_OTG_HS_ULPI_DIR37PC2_CPC3_C — вывод 38: ADC3_INP1, DFSDM1_DATIN1, ETH_TX_CLK, FMC_SDCKE0, I2S2_SDO, PWR_CSLEEP, SPI2_MOSI, USB_OTG_HS_ULPI_NXT38PC3_CVDD — вывод 3939VDDVSSA — вывод 4040VSSAVREF+ — вывод 41: VREFBUF_OUT41VREF+VDDA — вывод 4242VDDAPA0 — вывод 43: ADC1_INP16, ETH_CRS, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSS43PA0PA1 — вывод 44: ADC1_INN16, ADC1_INP17, ETH_REF_CLK, ETH_RX_CLK, LPTIM3_OUT, QUADSPI_BK1_IO3, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTS44PA1PA2 — вывод 45: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM4_OUT, MDIOS_MDIO, PWR_WKUP2, SAI2_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TX45PA2PH2 — вывод 46: ADC3_INP13, ETH_CRS, FMC_SDCKE0, LPTIM1_IN2, QUADSPI_BK2_IO0, SAI2_SCK_B46PH2PH3 — вывод 47: ADC3_INN13, ADC3_INP14, ETH_COL, FMC_SDNE0, QUADSPI_BK2_IO1, SAI2_MCLK_B47PH3PH4 — вывод 48: ADC3_INN14, ADC3_INP15, I2C2_SCL, USB_OTG_HS_ULPI_NXT48PH4PH5 — вывод 49: ADC3_INN15, ADC3_INP16, FMC_SDNWE, I2C2_SDA, SPI5_NSS49PH5PA3 — вывод 50: ADC1_INP15, ADC2_INP15, ETH_COL, LPTIM5_OUT, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX, USB_OTG_HS_ULPI_D050PA3VSS — вывод 5151VSSVDD — вывод 5252VDDPA4 — вывод 53: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, I2S1_WS, I2S3_WS, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CK, USB_OTG_HS_SOF53PA4PA5 — вывод 54: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, I2S1_CK, PWR_NDSTOP2, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USB_OTG_HS_ULPI_CK54PA5PA6 — вывод 55: ADC1_INP3, ADC2_INP3, DCMI_PIXCLK, I2S1_SDI, MDIOS_MDC, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM3_CH1, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP255PA6PA7 — вывод 56: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV, ETH_RX_DV, FMC_SDNWE, I2S1_SDO, OPAMP1_VINM, OPAMP1_VINM1, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N56PA7PC4 — вывод 57: ADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2, ETH_RXD0, FMC_SDNE0, I2S1_MCK, OPAMP1_VOUT, SPDIFRX1_IN257PC4PC5 — вывод 58: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT, DFSDM1_DATIN2, ETH_RXD1, FMC_SDCKE0, OPAMP1_VINM, OPAMP1_VINM0, SAI1_D3, SAI4_D3, SPDIFRX1_IN358PC5VDD — вывод 5959VDDVSS — вывод 6060VSSPB0 — вывод 61: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT, ETH_RXD2, OPAMP1_VINP, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USB_OTG_HS_ULPI_D161PB0PB1 — вывод 62: ADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1, ETH_RXD3, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USB_OTG_HS_ULPI_D262PB1PB2 — вывод 63: COMP1_INP, DFSDM1_CKIN1, ETH_TX_ER, I2S3_SDO, QUADSPI_CLK, RTC_OUT_ALARM, RTC_OUT_CALIB, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SPI3_MOSI63PB2PI15 — вывод 64: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI1564PI15PJ0 — вывод 6565PJ0PJ1 — вывод 6666PJ1PJ2 — вывод 6767PJ2PJ3 — вывод 6868PJ3PJ4 — вывод 6969PJ4PF11 — вывод 70: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, SAI2_SD_B, SPI5_MOSI70PF11PF12 — вывод 71: ADC1_INN2, ADC1_INP6, FMC_A671PF12VSS — вывод 7272VSSVDD — вывод 7373VDDPF13 — вывод 74: ADC2_INP2, DFSDM1_DATIN6, FMC_A7, I2C4_SMBA74PF13PF14 — вывод 75: ADC2_INN2, ADC2_INP6, DFSDM1_CKIN6, FMC_A8, I2C4_SCL75PF14PF15 — вывод 76: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9, I2C4_SDA76PF15PG0 — вывод 77: FMC_A1077PG0PG1 — вывод 78: FMC_A11, OPAMP2_VINM, OPAMP2_VINM178PG1PE7 — вывод 79: COMP2_INM, DFSDM1_DATIN2, FMC_D4, FMC_DA4, OPAMP2_VOUT, QUADSPI_BK2_IO0, TIM1_ETR, UART7_RX79PE7PE8 — вывод 80: COMP2_OUT, DFSDM1_CKIN2, FMC_D5, FMC_DA5, OPAMP2_VINM, OPAMP2_VINM0, QUADSPI_BK2_IO1, TIM1_CH1N, UART7_TX80PE8PE9 — вывод 81: COMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT, FMC_D6, FMC_DA6, OPAMP2_VINP, QUADSPI_BK2_IO2, TIM1_CH1, UART7_DE, UART7_RTS81PE9VSS — вывод 8282VSSVDD — вывод 8383VDDPE10 — вывод 84: COMP2_INM, DFSDM1_DATIN4, FMC_D7, FMC_DA7, QUADSPI_BK2_IO3, TIM1_CH2N, UART7_CTS84PE10PE11 — вывод 85: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4, FMC_D8, FMC_DA8, SAI2_SD_B, SPI4_NSS, TIM1_CH285PE11PE12 — вывод 86: COMP1_OUT, DFSDM1_DATIN5, FMC_D9, FMC_DA9, SAI2_SCK_B, SPI4_SCK, TIM1_CH3N86PE12PE13 — вывод 87: COMP2_OUT, DFSDM1_CKIN5, FMC_D10, FMC_DA10, SAI2_FS_B, SPI4_MISO, TIM1_CH387PE13PE14 — вывод 88: FMC_D11, FMC_DA11, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH488PE14PE15 — вывод 89: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12, FMC_DA12, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP289PE15PB10 — вывод 90: DFSDM1_DATIN7, ETH_RX_ER, HRTIM_SCOUT, I2C2_SCL, I2S2_CK, LPTIM2_IN1, QUADSPI_BK1_NCS, SPI2_SCK, TIM2_CH3, USART3_TX, USB_OTG_HS_ULPI_D390PB10PB11 — вывод 91: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7, ETH_TX_EN, HRTIM_SCIN, I2C2_SDA, LPTIM2_ETR, TIM2_CH4, USART3_RX, USB_OTG_HS_ULPI_D491PB11VCAP — вывод 9292VCAPVSS — вывод 9393VSSVDD — вывод 9494VDDPJ5 — вывод 9595PJ5PH6 — вывод 96: DCMI_D8, ETH_RXD2, FMC_SDNE1, I2C2_SMBA, SPI5_SCK, TIM12_CH196PH6PH7 — вывод 97: DCMI_D9, ETH_RXD3, FMC_SDCKE1, I2C3_SCL, SPI5_MISO97PH7PH8 — вывод 98: DCMI_HSYNC, FMC_D16, I2C3_SDA, TIM5_ETR98PH8PH9 — вывод 99: DAC1_EXTI9, DCMI_D0, FMC_D17, I2C3_SMBA, TIM12_CH299PH9PH10 — вывод 100: DCMI_D1, FMC_D18, I2C4_SMBA, TIM5_CH1100PH10PH11 — вывод 101: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2, FMC_D19, I2C4_SCL, TIM5_CH2101PH11PH12 — вывод 102: DCMI_D3, FMC_D20, I2C4_SDA, TIM5_CH3102PH12VDD — вывод 103103VDDPB12 — вывод 104: DFSDM1_DATIN1, ETH_TXD0, FDCAN2_RX, I2C2_SMBA, I2S2_WS, SPI2_NSS, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, UART5_RX, USART3_CK, USB_OTG_HS_ID, USB_OTG_HS_ULPI_D5104PB12PB13 — вывод 105: DFSDM1_CKIN1, ETH_TXD1, FDCAN2_TX, I2S2_CK, LPTIM2_OUT, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSS, USB_OTG_HS_ULPI_D6, USB_OTG_HS_VBUS105PB13PB14 — вывод 106: DFSDM1_DATIN2, I2S2_SDI, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, USART1_TX, USART3_DE, USART3_RTS, USB_OTG_HS_DM106PB14PB15 — вывод 107: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2, I2S2_SDO, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, USART1_RX, USB_OTG_HS_DP107PB15PD8 — вывод 108: DFSDM1_CKIN3, FMC_D13, FMC_DA13, SAI3_SCK_B, SPDIFRX1_IN1, USART3_TX108PD8PD9 — вывод 109: DAC1_EXTI9, DFSDM1_DATIN3, FMC_D14, FMC_DA14, SAI3_SD_B, USART3_RX109PD9PD10 — вывод 110: DFSDM1_CKOUT, FMC_D15, FMC_DA15, SAI3_FS_B, USART3_CK110PD10PD11 — вывод 111: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, QUADSPI_BK1_IO0, SAI2_SD_A, USART3_CTS, USART3_NSS111PD11PD12 — вывод 112: FMC_A17, FMC_ALE, I2C4_SCL, LPTIM1_IN1, LPTIM2_IN1, QUADSPI_BK1_IO1, SAI2_FS_A, TIM4_CH1, USART3_DE, USART3_RTS112PD12PD13 — вывод 113: FMC_A18, I2C4_SDA, LPTIM1_OUT, QUADSPI_BK1_IO3, SAI2_SCK_A, TIM4_CH2113PD13VSS — вывод 114114VSSVDD — вывод 115115VDDPD14 — вывод 116: FMC_D0, FMC_DA0, SAI3_MCLK_B, TIM4_CH3, UART8_CTS116PD14PD15 — вывод 117: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, SAI3_MCLK_A, TIM4_CH4, UART8_DE, UART8_RTS117PD15PJ6 — вывод 118: TIM8_CH2118PJ6PJ7 — вывод 119: DEBUG_TRGIN, TIM8_CH2N119PJ7PJ8 — вывод 120: TIM1_CH3N, TIM8_CH1, UART8_TX120PJ8PJ9 — вывод 121: DAC1_EXTI9, TIM1_CH3, TIM8_CH1N, UART8_RX121PJ9PJ10 — вывод 122: SPI5_MOSI, TIM1_CH2N, TIM8_CH2122PJ10PJ11 — вывод 123: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, SPI5_MISO, TIM1_CH2, TIM8_CH2N123PJ11VDD — вывод 124124VDDVSS — вывод 125125VSSPK0 — вывод 126: SPI5_SCK, TIM1_CH1N, TIM8_CH3126PK0PK1 — вывод 127: SPI5_NSS, TIM1_CH1, TIM8_CH3N127PK1PK2 — вывод 128: TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2128PK2PG2 — вывод 129: FMC_A12, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2129PG2PG3 — вывод 130: FMC_A13, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2130PG3PG4 — вывод 131: FMC_A14, FMC_BA0, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2131PG4PG5 — вывод 132: FMC_A15, FMC_BA1, TIM1_ETR132PG5PG6 — вывод 133: DCMI_D12, FMC_NE3, HRTIM_CHE1, QUADSPI_BK1_NCS, TIM17_BKIN133PG6PG7 — вывод 134: DCMI_D13, FMC_INT, HRTIM_CHE2, SAI1_MCLK_A, USART6_CK134PG7PG8 — вывод 135: ETH_PPS_OUT, FMC_SDCLK, SPDIFRX1_IN2, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTS135PG8VSS — вывод 136136VSSVDD33_USB — вывод 137137VDD33_USBPC6 — вывод 138: DCMI_D0, DFSDM1_CKIN3, FMC_NWAIT, HRTIM_CHA1, I2S2_MCK, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, SWPMI1_IO, TIM3_CH1, TIM8_CH1, USART6_TX138PC6PC7 — вывод 139: DCMI_D1, DEBUG_TRGIO, DFSDM1_DATIN3, FMC_NE1, HRTIM_CHA2, I2S3_MCK, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, SWPMI1_TX, TIM3_CH2, TIM8_CH2, USART6_RX139PC7PC8 — вывод 140: DCMI_D2, DEBUG_TRACED1, FMC_NCE, FMC_NE2, HRTIM_CHB1, SDMMC1_D0, SWPMI1_RX, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CK140PC8PC9 — вывод 141: DAC1_EXTI9, DCMI_D3, I2C3_SDA, I2S_CKIN, QUADSPI_BK1_IO0, RCC_MCO_2, SDMMC1_D1, SWPMI1_SUSPEND, TIM3_CH4, TIM8_CH4, UART5_CTS141PC9PA8 — вывод 142: HRTIM_CHB2, I2C3_SCL, RCC_MCO_1, TIM1_CH1, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2, UART7_RX, USART1_CK, USB_OTG_FS_SOF142PA8PA9 — вывод 143: DAC1_EXTI9, DCMI_D0, ETH_TX_ER, HRTIM_CHC1, I2C3_SMBA, I2S2_CK, LPUART1_TX, SPI2_SCK, TIM1_CH2, USART1_TX, USB_OTG_FS_VBUS143PA9PA10 — вывод 144: DCMI_D1, HRTIM_CHC2, LPUART1_RX, MDIOS_MDIO, TIM1_CH3, USART1_RX, USB_OTG_FS_ID144PA10PA11 — вывод 145: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX, HRTIM_CHD1, I2S2_WS, LPUART1_CTS, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_FS_DM145PA11PA12 — вывод 146: FDCAN1_TX, HRTIM_CHD2, I2S2_CK, LPUART1_DE, LPUART1_RTS, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_FS_DP146PA12PA13 (JTMS/SWDIO) — вывод 147: DEBUG_JTMS-SWDIO147PA13 (JTMS/SWDIO)VCAP — вывод 148148VCAPVSS — вывод 149149VSSVDD — вывод 150150VDDPH13 — вывод 151: FDCAN1_TX, FMC_D21, TIM8_CH1N, UART4_TX151PH13PH14 — вывод 152: DCMI_D4, FDCAN1_RX, FMC_D22, TIM8_CH2N, UART4_RX152PH14PH15 — вывод 153: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11, FMC_D23, TIM8_CH3N153PH15PI0 — вывод 154: DCMI_D13, FMC_D24, I2S2_WS, SPI2_NSS, TIM5_CH4154PI0PI1 — вывод 155: DCMI_D8, FMC_D25, I2S2_CK, SPI2_SCK, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2155PI1PI2 — вывод 156: DCMI_D9, FMC_D26, I2S2_SDI, SPI2_MISO, TIM8_CH4156PI2PI3 — вывод 157: DCMI_D10, FMC_D27, I2S2_SDO, SPI2_MOSI, TIM8_ETR157PI3VDD — вывод 158158VDDPA14 (JTCK/SWCLK) — вывод 159: DEBUG_JTCK-SWCLK159PA14 (JTCK/SWCLK)PA15 (JTDI) — вывод 160: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DEBUG_JTDI, HRTIM_FLT1, I2S1_WS, I2S3_WS, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TX160PA15 (JTDI)PC10 — вывод 161: DCMI_D8, DFSDM1_CKIN5, HRTIM_EEV1, I2S3_CK, QUADSPI_BK1_IO1, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TX161PC10PC11 — вывод 162: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4, DFSDM1_DATIN5, HRTIM_FLT2, I2S3_SDI, QUADSPI_BK2_NCS, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RX162PC11PC12 — вывод 163: DCMI_D9, DEBUG_TRACED3, HRTIM_EEV2, I2S3_SDO, SDMMC1_CK, SPI3_MOSI, UART5_TX, USART3_CK163PC12PD0 — вывод 164: DFSDM1_CKIN6, FDCAN1_RX, FMC_D2, FMC_DA2, SAI3_SCK_A, UART4_RX164PD0PD1 — вывод 165: DFSDM1_DATIN6, FDCAN1_TX, FMC_D3, FMC_DA3, SAI3_SD_A, UART4_TX165PD1PD2 — вывод 166: DCMI_D11, DEBUG_TRACED2, SDMMC1_CMD, TIM3_ETR, UART5_RX166PD2PD3 — вывод 167: DCMI_D5, DFSDM1_CKOUT, FMC_CLK, I2S2_CK, SPI2_SCK, USART2_CTS, USART2_NSS167PD3PD4 — вывод 168: FMC_NOE, HRTIM_FLT3, SAI3_FS_A, USART2_DE, USART2_RTS168PD4PD5 — вывод 169: FMC_NWE, HRTIM_EEV3, USART2_TX169PD5VSS — вывод 170170VSSVDD — вывод 171171VDDPD6 — вывод 172: DCMI_D10, DFSDM1_CKIN4, DFSDM1_DATIN1, FMC_NWAIT, I2S3_SDO, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RX172PD6PD7 — вывод 173: DFSDM1_CKIN1, DFSDM1_DATIN4, FMC_NE1, I2S1_SDO, SDMMC2_CMD, SPDIFRX1_IN0, SPI1_MOSI, USART2_CK173PD7PJ12 — вывод 174: DEBUG_TRGOUT174PJ12PJ13 — вывод 175175PJ13PJ14 — вывод 176176PJ14PJ15 — вывод 177: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15177PJ15PG9 — вывод 178: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, QUADSPI_BK2_IO2, SAI2_FS_B, SPDIFRX1_IN3, SPI1_MISO, USART6_RX178PG9PG10 — вывод 179: DCMI_D2, FMC_NE3, HRTIM_FLT5, I2S1_WS, SAI2_SD_B, SPI1_NSS179PG10PG11 — вывод 180: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3, ETH_TX_EN, HRTIM_EEV4, I2S1_CK, LPTIM1_IN2, SDMMC2_D2, SPDIFRX1_IN0, SPI1_SCK180PG11PG12 — вывод 181: ETH_TXD1, FMC_NE4, HRTIM_EEV5, LPTIM1_IN1, SPDIFRX1_IN1, SPI6_MISO, USART6_DE, USART6_RTS181PG12PG13 — вывод 182: DEBUG_TRACED0, ETH_TXD0, FMC_A24, HRTIM_EEV10, LPTIM1_OUT, SPI6_SCK, USART6_CTS, USART6_NSS182PG13PG14 — вывод 183: DEBUG_TRACED1, ETH_TXD1, FMC_A25, LPTIM1_ETR, QUADSPI_BK2_IO3, SPI6_MOSI, USART6_TX183PG14VSS — вывод 184184VSSVDD — вывод 185185VDDPK3 — вывод 186186PK3PK4 — вывод 187187PK4PK5 — вывод 188188PK5PK6 — вывод 189189PK6PK7 — вывод 190190PK7PG15 — вывод 191: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, USART6_CTS, USART6_NSS191PG15PB3 (JTDO/TRACESWO) — вывод 192: CRS_SYNC, DEBUG_JTDO-SWO, HRTIM_FLT4, I2S1_CK, I2S3_CK, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART7_RX192PB3 (JTDO/TRACESWO)PB4 (NJTRST) — вывод 193: DEBUG_JTRST, HRTIM_EEV6, I2S1_SDI, I2S2_WS, I2S3_SDI, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TX193PB4 (NJTRST)PB5 — вывод 194: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, HRTIM_EEV7, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX, USB_OTG_HS_ULPI_D7194PB5PB6 — вывод 195: CEC, DCMI_D5, DFSDM1_DATIN5, FDCAN2_TX, FMC_SDNE1, HRTIM_EEV8, I2C1_SCL, I2C4_SCL, LPUART1_TX, QUADSPI_BK1_NCS, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TX195PB6PB7 — вывод 196: DCMI_VSYNC, DFSDM1_CKIN5, FMC_NL, HRTIM_EEV9, I2C1_SDA, I2C4_SDA, LPUART1_RX, PWR_PVD_IN, TIM17_CH1N, TIM4_CH2, USART1_RX196PB7BOOT0 — вывод 197197BOOT0PB8 — вывод 198: DCMI_D6, DFSDM1_CKIN7, ETH_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RX198PB8PB9 — вывод 199: DAC1_EXTI9, DCMI_D7, DFSDM1_DATIN7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2C4_SMBA, I2S2_WS, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TX199PB9PE0 — вывод 200: DCMI_D2, FMC_NBL0, HRTIM_SCIN, LPTIM1_ETR, LPTIM2_ETR, SAI2_MCLK_A, TIM4_ETR, UART8_RX200PE0PE1 — вывод 201: DCMI_D3, FMC_NBL1, HRTIM_SCOUT, LPTIM1_IN2, UART8_TX201PE1VSS — вывод 202202VSSPDR_ON — вывод 203203PDR_ONVDD — вывод 204204VDDPI4 — вывод 205: DCMI_D5, FMC_NBL2, SAI2_MCLK_A, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2205PI4PI5 — вывод 206: DCMI_VSYNC, FMC_NBL3, SAI2_SCK_A, TIM8_CH1206PI5PI6 — вывод 207: DCMI_D6, FMC_D28, SAI2_SD_A, TIM8_CH2207PI6PI7 — вывод 208: DCMI_D7, FMC_D29, SAI2_FS_A, TIM8_CH3208PI7
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

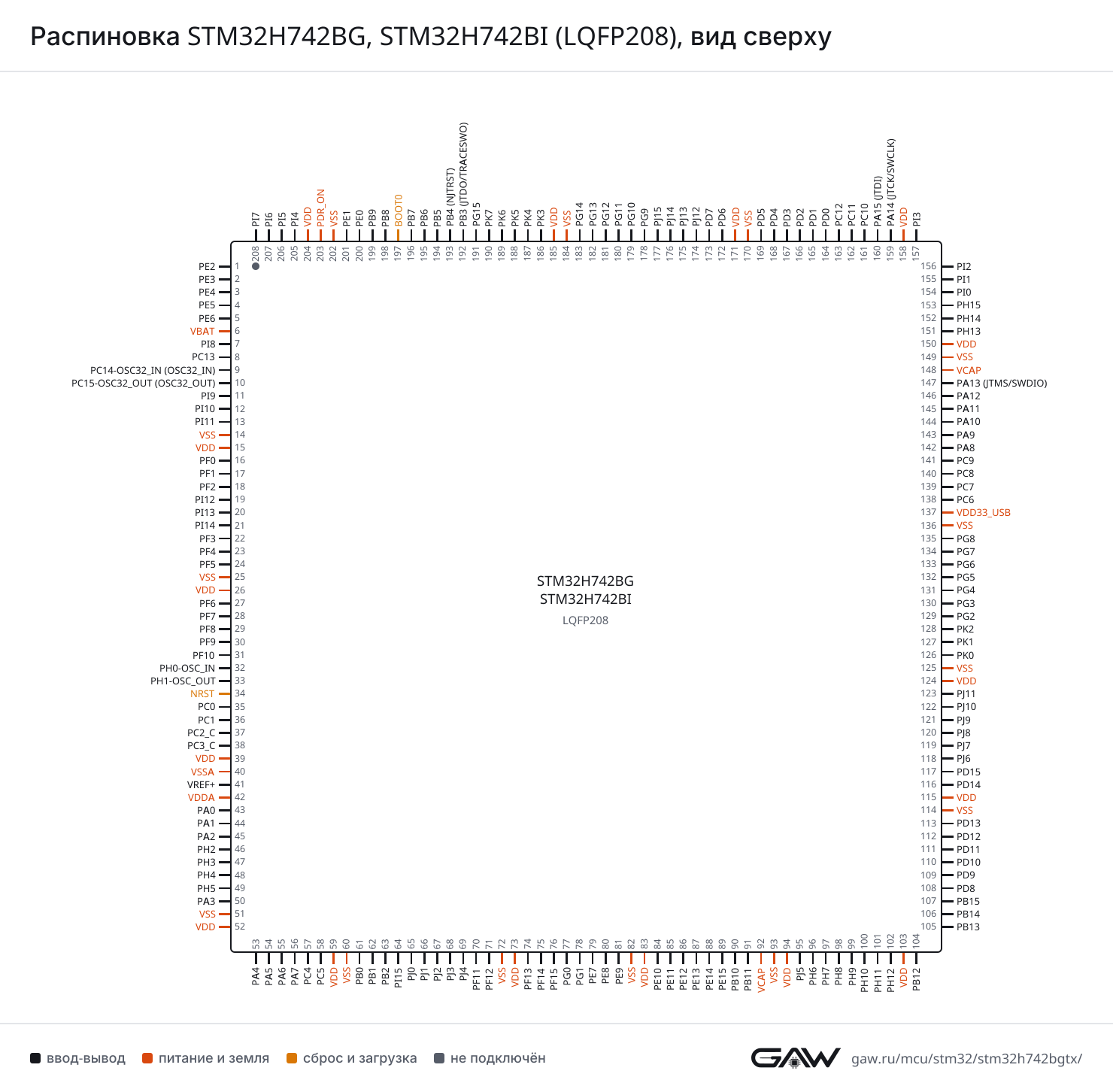

Распиновка STM32H742BG, STM32H742BI (LQFP208), вид сверхуРаспиновка LQFP208 картинкой
PNG, 1480 × 1452 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер вывода и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (142, AF7)
CTSPA11 (145, AF7)
DEPA12 (146, AF7)
NSSPA11 (145, AF7)
RTSPA12 (146, AF7)
RXPB15 (107, AF4), PA10 (144, AF7), PB7 (196, AF7)
TXPB14 (106, AF4), PA9 (143, AF7), PB6 (195, AF7)
USART2CKPA4 (53, AF7), PD7 (173, AF7)
CTSPA0 (43, AF7), PD3 (167, AF7)
DEPA1 (44, AF7), PD4 (168, AF7)
NSSPA0 (43, AF7), PD3 (167, AF7)
RTSPA1 (44, AF7), PD4 (168, AF7)
RXPA3 (50, AF7), PD6 (172, AF7)
TXPA2 (45, AF7), PD5 (169, AF7)
USART3CKPB12 (104, AF7), PD10 (110, AF7), PC12 (163, AF7)
CTSPB13 (105, AF7), PD11 (111, AF7)
DEPB14 (106, AF7), PD12 (112, AF7)
NSSPB13 (105, AF7), PD11 (111, AF7)
RTSPB14 (106, AF7), PD12 (112, AF7)
RXPB11 (91, AF7), PD9 (109, AF7), PC11 (162, AF7)
TXPB10 (90, AF7), PD8 (108, AF7), PC10 (161, AF7)
USART6CKPG7 (134, AF7), PC8 (140, AF7)
CTSPG13 (182, AF7), PG15 (191, AF7)
DEPG8 (135, AF7), PG12 (181, AF7)
NSSPG13 (182, AF7), PG15 (191, AF7)
RTSPG8 (135, AF7), PG12 (181, AF7)
RXPC7 (139, AF7), PG9 (178, AF7)
TXPC6 (138, AF7), PG14 (183, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB0 (61, AF8), PB15 (107, AF8)
DEPB14 (106, AF8), PA15 (JTDI) (160, AF8)
RTSPB14 (106, AF8), PA15 (JTDI) (160, AF8)
RXPI9 (11, AF8), PA1 (44, AF8), PA11 (145, AF6), PH14 (152, AF8), PC11 (162, AF8), PD0 (164, AF8), PB8 (198, AF8)
TXPA0 (43, AF8), PA12 (146, AF6), PH13 (151, AF8), PC10 (161, AF8), PD1 (165, AF8), PB9 (199, AF8)
UART5CTSPC9 (141, AF8)
DEPC8 (140, AF8)
RTSPC8 (140, AF8)
RXPB12 (104, AF14), PD2 (166, AF8), PB5 (194, AF14)
TXPB13 (105, AF14), PC12 (163, AF8), PB6 (195, AF14)
UART7CTSPF9 (30, AF7), PE10 (84, AF7)
DEPF8 (29, AF7), PE9 (81, AF7)
RTSPF8 (29, AF7), PE9 (81, AF7)
RXPF6 (27, AF7), PE7 (79, AF7), PA8 (142, AF11), PB3 (JTDO/TRACESWO) (192, AF11)
TXPF7 (28, AF7), PE8 (80, AF7), PA15 (JTDI) (160, AF11), PB4 (NJTRST) (193, AF11)
UART8CTSPD14 (116, AF8)
DEPD15 (117, AF8)
RTSPD15 (117, AF8)
RXPJ9 (121, AF8), PE0 (200, AF8)
TXPJ8 (120, AF8), PE1 (201, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (145, AF3)
DEPA12 (146, AF3)
RTSPA12 (146, AF3)
RXPA10 (144, AF3), PB7 (196, AF8)
TXPA9 (143, AF3), PB6 (195, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA6 (55, AF5), PG9 (178, AF5), PB4 (NJTRST) (193, AF5)
MOSIPA7 (56, AF5), PD7 (173, AF5), PB5 (194, AF5)
NSSPA4 (53, AF5), PA15 (JTDI) (160, AF5), PG10 (179, AF5)
SCKPA5 (54, AF5), PG11 (180, AF5), PB3 (JTDO/TRACESWO) (192, AF5)
SPI2MISOPC2_C (37, AF5), PB14 (106, AF5), PI2 (156, AF5)
MOSIPC1 (36, AF5), PC3_C (38, AF5), PB15 (107, AF5), PI3 (157, AF5)
NSSPB12 (104, AF5), PA11 (145, AF5), PI0 (154, AF5), PB4 (NJTRST) (193, AF7), PB9 (199, AF5)
SCKPB10 (90, AF5), PB13 (105, AF5), PA9 (143, AF5), PA12 (146, AF5), PI1 (155, AF5), PD3 (167, AF5)
SPI3MISOPC11 (162, AF6), PB4 (NJTRST) (193, AF6)
MOSIPB2 (63, AF7), PC12 (163, AF6), PD6 (172, AF5), PB5 (194, AF7)
NSSPA4 (53, AF6), PA15 (JTDI) (160, AF6)
SCKPC10 (161, AF6), PB3 (JTDO/TRACESWO) (192, AF6)
SPI4MISOPE5 (4, AF5), PE13 (87, AF5)
MOSIPE6 (5, AF5), PE14 (88, AF5)
NSSPE4 (3, AF5), PE11 (85, AF5)
SCKPE2 (1, AF5), PE12 (86, AF5)
SPI5MISOPF8 (29, AF5), PH7 (97, AF5), PJ11 (123, AF5)
MOSIPF9 (30, AF5), PF11 (70, AF5), PJ10 (122, AF5)
NSSPF6 (27, AF5), PH5 (49, AF5), PK1 (127, AF5)
SCKPF7 (28, AF5), PH6 (96, AF5), PK0 (126, AF5)
SPI6MISOPA6 (55, AF8), PG12 (181, AF5), PB4 (NJTRST) (193, AF8)
MOSIPA7 (56, AF8), PG14 (183, AF5), PB5 (194, AF8)
NSSPA4 (53, AF8), PG8 (135, AF5), PA15 (JTDI) (160, AF7)
SCKPA5 (54, AF8), PG13 (182, AF5), PB3 (JTDO/TRACESWO) (192, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (141, AF5)
I2S1CKPA5 (54, AF5), PG11 (180, AF5), PB3 (JTDO/TRACESWO) (192, AF5)
MCKPC4 (57, AF5)
SDIPA6 (55, AF5), PG9 (178, AF5), PB4 (NJTRST) (193, AF5)
SDOPA7 (56, AF5), PD7 (173, AF5), PB5 (194, AF5)
WSPA4 (53, AF5), PA15 (JTDI) (160, AF5), PG10 (179, AF5)
I2S2CKPB10 (90, AF5), PB13 (105, AF5), PA9 (143, AF5), PA12 (146, AF5), PI1 (155, AF5), PD3 (167, AF5)
MCKPC6 (138, AF5)
SDIPC2_C (37, AF5), PB14 (106, AF5), PI2 (156, AF5)
SDOPC1 (36, AF5), PC3_C (38, AF5), PB15 (107, AF5), PI3 (157, AF5)
WSPB12 (104, AF5), PA11 (145, AF5), PI0 (154, AF5), PB4 (NJTRST) (193, AF7), PB9 (199, AF5)
I2S3CKPC10 (161, AF6), PB3 (JTDO/TRACESWO) (192, AF6)
MCKPC7 (139, AF6)
SDIPC11 (162, AF6), PB4 (NJTRST) (193, AF6)
SDOPB2 (63, AF7), PC12 (163, AF6), PD6 (172, AF5), PB5 (194, AF7)
WSPA4 (53, AF6), PA15 (JTDI) (160, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (195, AF4), PB8 (198, AF4)
SDAPB7 (196, AF4), PB9 (199, AF4)
SMBAPB5 (194, AF4)
I2C2SCLPF1 (17, AF4), PH4 (48, AF4), PB10 (90, AF4)
SDAPF0 (16, AF4), PH5 (49, AF4), PB11 (91, AF4)
SMBAPF2 (18, AF4), PH6 (96, AF4), PB12 (104, AF4)
I2C3SCLPH7 (97, AF4), PA8 (142, AF4)
SDAPH8 (98, AF4), PC9 (141, AF4)
SMBAPH9 (99, AF4), PA9 (143, AF4)
I2C4SCLPF14 (75, AF4), PH11 (101, AF4), PD12 (112, AF4), PB6 (195, AF6), PB8 (198, AF6)
SDAPF15 (76, AF4), PH12 (102, AF4), PD13 (113, AF4), PB7 (196, AF6), PB9 (199, AF6)
SMBAPF13 (74, AF4), PH10 (100, AF4), PD11 (111, AF4), PB5 (194, AF6), PB9 (199, AF11)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPI9 (11, AF9), PA11 (145, AF9), PH14 (152, AF9), PD0 (164, AF9), PB8 (198, AF9)
TXPA12 (146, AF9), PH13 (151, AF9), PD1 (165, AF9), PB9 (199, AF9)
FDCAN2RXPB12 (104, AF9), PB5 (194, AF9)
TXPB13 (105, AF9), PB6 (195, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (145, AF10)
DPPA12 (146, AF10)
IDPA10 (144, AF10)
SOFPA8 (142, AF10)
VBUSPA9 (143)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPB14 (106, AF12)
DPPB15 (107, AF12)
IDPB12 (104, AF12)
SOFPA4 (53, AF12)
ULPI_CKPA5 (54, AF10)
ULPI_D0PA3 (50, AF10)
ULPI_D1PB0 (61, AF10)
ULPI_D2PB1 (62, AF10)
ULPI_D3PB10 (90, AF10)
ULPI_D4PB11 (91, AF10)
ULPI_D5PB12 (104, AF10)
ULPI_D6PB13 (105, AF10)
ULPI_D7PB5 (194, AF10)
ULPI_DIRPI11 (13, AF10), PC2_C (37, AF10)
ULPI_NXTPC3_C (38, AF10), PH4 (48, AF10)
ULPI_STPPC0 (35, AF10)
VBUSPB13 (105)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCOLPH3 (47, AF11), PA3 (50, AF11)
CRSPA0 (43, AF11), PH2 (46, AF11)
CRS_DVPA7 (56, AF11)
MDCPC1 (36, AF11)
MDIOPA2 (45, AF11)
PPS_OUTPG8 (135, AF11), PB5 (194, AF11)
REF_CLKPA1 (44, AF11)
RX_CLKPA1 (44, AF11)
RX_DVPA7 (56, AF11)
RX_ERPI10 (12, AF11), PB10 (90, AF11)
RXD0PC4 (57, AF11)
RXD1PC5 (58, AF11)
RXD2PB0 (61, AF11), PH6 (96, AF11)
RXD3PB1 (62, AF11), PH7 (97, AF11)
TX_CLKPC3_C (38, AF11)
TX_ENPB11 (91, AF11), PG11 (180, AF11)
TX_ERPI12 (19, AF11), PB2 (63, AF11), PA9 (143, AF11)
TXD0PB12 (104, AF11), PG13 (182, AF11)
TXD1PB13 (105, AF11), PG12 (181, AF11), PG14 (183, AF11)
TXD2PC2_C (37, AF11)
TXD3PE2 (1, AF11), PB8 (198, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (199, AF7)
CKPC12 (163, AF12)
CKINPB8 (198, AF7)
CMDPD2 (166, AF12)
D0PC8 (140, AF12)
D0DIRPC6 (138, AF8)
D1PC9 (141, AF12)
D2PC10 (161, AF12)
D3PC11 (162, AF12)
D4PB8 (198, AF12)
D5PB9 (199, AF12)
D6PC6 (138, AF12)
D7PC7 (139, AF12)
D123DIRPC7 (139, AF8)
SDMMC2CKPC1 (36, AF9), PD6 (172, AF11)
CMDPA0 (43, AF9), PD7 (173, AF11)
D0PB14 (106, AF9)
D1PB15 (107, AF9)
D2PG11 (180, AF10), PB3 (JTDO/TRACESWO) (192, AF9)
D3PB4 (NJTRST) (193, AF9)
D4PB8 (198, AF10)
D5PB9 (199, AF10)
D6PC6 (138, AF10)
D7PC7 (139, AF10)

QUADSPI — интерфейс Quad-SPI памяти

БлокСигналВыводы
QUADSPIBK1_IO0PF8 (29, AF10), PD11 (111, AF9), PC9 (141, AF9)
BK1_IO1PF9 (30, AF10), PD12 (112, AF9), PC10 (161, AF9)
BK1_IO2PE2 (1, AF9), PF7 (28, AF9)
BK1_IO3PF6 (27, AF9), PA1 (44, AF9), PD13 (113, AF9)
BK1_NCSPB10 (90, AF9), PG6 (133, AF10), PB6 (195, AF10)
BK2_IO0PH2 (46, AF9), PE7 (79, AF10)
BK2_IO1PH3 (47, AF9), PE8 (80, AF10)
BK2_IO2PE9 (81, AF10), PG9 (178, AF9)
BK2_IO3PE10 (84, AF10), PG14 (183, AF9)
BK2_NCSPC11 (162, AF9)
CLKPF10 (31, AF9), PB2 (63, AF9)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (1, AF2)
CK2PE5 (4, AF2)
D1PE6 (5, AF2), PC1 (36, AF2), PB2 (63, AF2), PD6 (172, AF2)
D2PE4 (3, AF2)
D3PF10 (31, AF2), PC5 (58, AF2)
FS_APE4 (3, AF6)
FS_BPF9 (30, AF6)
MCLK_APE2 (1, AF6), PG7 (134, AF6)
MCLK_BPF7 (28, AF6)
SCK_APE5 (4, AF6)
SCK_BPF8 (29, AF6)
SD_APE6 (5, AF6), PC1 (36, AF6), PB2 (63, AF6), PD6 (172, AF6)
SD_BPE3 (2, AF6), PF6 (27, AF6)
SAI2FS_APD12 (112, AF10), PI7 (208, AF10)
FS_BPC0 (35, AF8), PE13 (87, AF10), PA12 (146, AF8), PG9 (178, AF10)
MCLK_APE0 (200, AF10), PI4 (205, AF10)
MCLK_BPE6 (5, AF10), PA1 (44, AF10), PH3 (47, AF10), PE14 (88, AF10)
SCK_APD13 (113, AF10), PI5 (206, AF10)
SCK_BPA2 (45, AF8), PH2 (46, AF10), PE12 (86, AF10)
SD_APD11 (111, AF10), PI6 (207, AF10)
SD_BPA0 (43, AF10), PF11 (70, AF10), PE11 (85, AF10), PG10 (179, AF10)
SAI3FS_APD4 (168, AF6)
FS_BPD10 (110, AF6)
MCLK_APD15 (117, AF6)
MCLK_BPD14 (116, AF6)
SCK_APD0 (164, AF6)
SCK_BPD8 (108, AF6)
SD_APD1 (165, AF6)
SD_BPD9 (109, AF6)
SAI4CK1PE2 (1, AF10)
CK2PE5 (4, AF10)
D1PE6 (5, AF9), PC1 (36, AF10), PB2 (63, AF10), PD6 (172, AF10)
D2PE4 (3, AF10)
D3PF10 (31, AF10), PC5 (58, AF10)
FS_APE4 (3, AF8)
FS_BPF9 (30, AF8)
MCLK_APE2 (1, AF8)
MCLK_BPF7 (28, AF8)
SCK_APE5 (4, AF8)
SCK_BPF8 (29, AF8)
SD_APE6 (5, AF8), PC1 (36, AF8), PB2 (63, AF8), PD6 (172, AF8)
SD_BPE3 (2, AF8), PF6 (27, AF8)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRX1IN0PD7 (173, AF9), PG11 (180, AF8)
IN1PD8 (108, AF9), PG12 (181, AF8)
IN2PC4 (57, AF9), PG8 (135, AF8)
IN3PC5 (58, AF9), PG9 (178, AF8)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15 (JTDI) (160, AF4), PB6 (195, AF5)

SWPMI — интерфейс Single Wire Protocol

БлокСигналВыводы
SWPMI1IOPC6 (138)
RXPC8 (140, AF11)
SUSPENDPC9 (141, AF11)
TXPC7 (139, AF11)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PI11 (13), PF11 (70), PE11 (85), PB11 (91), PH11 (101), PD11 (111), PJ11 (123), PA11 (145), PC11 (162), PG11 (180)
EXTI15PC15-OSC32_OUT (OSC32_OUT) (10), PI15 (64), PF15 (76), PE15 (89), PB15 (107), PD15 (117), PH15 (153), PA15 (JTDI) (160), PJ15 (177), PG15 (191)
INN2PF12 (71)
INN3PA7 (56)
INN4PC5 (58)
INN5PB0 (61)
INN10PC1 (36)
INN16PA1 (44)
INN18PA5 (54)
INP2PF11 (70)
INP3PA6 (55)
INP4PC4 (57)
INP5PB1 (62)
INP6PF12 (71)
INP7PA7 (56)
INP8PC5 (58)
INP9PB0 (61)
INP10PC0 (35)
INP11PC1 (36)
INP14PA2 (45)
INP15PA3 (50)
INP16PA0 (43)
INP17PA1 (44)
INP18PA4 (53)
INP19PA5 (54)
ADC2EXTI11PI11 (13), PF11 (70), PE11 (85), PB11 (91), PH11 (101), PD11 (111), PJ11 (123), PA11 (145), PC11 (162), PG11 (180)
EXTI15PC15-OSC32_OUT (OSC32_OUT) (10), PI15 (64), PF15 (76), PE15 (89), PB15 (107), PD15 (117), PH15 (153), PA15 (JTDI) (160), PJ15 (177), PG15 (191)
INN2PF14 (75)
INN3PA7 (56)
INN4PC5 (58)
INN5PB0 (61)
INN10PC1 (36)
INN18PA5 (54)
INP2PF13 (74)
INP3PA6 (55)
INP4PC4 (57)
INP5PB1 (62)
INP6PF14 (75)
INP7PA7 (56)
INP8PC5 (58)
INP9PB0 (61)
INP10PC0 (35)
INP11PC1 (36)
INP14PA2 (45)
INP15PA3 (50)
INP18PA4 (53)
INP19PA5 (54)
ADC3EXTI11PI11 (13), PF11 (70), PE11 (85), PB11 (91), PH11 (101), PD11 (111), PJ11 (123), PA11 (145), PC11 (162), PG11 (180)
EXTI15PC15-OSC32_OUT (OSC32_OUT) (10), PI15 (64), PF15 (76), PE15 (89), PB15 (107), PD15 (117), PH15 (153), PA15 (JTDI) (160), PJ15 (177), PG15 (191)
INN1PC2_C (37)
INN2PF10 (31)
INN3PF8 (29)
INN4PF6 (27)
INN5PF4 (23)
INN10PC1 (36)
INN13PH3 (47)
INN14PH4 (48)
INN15PH5 (49)
INP0PC2_C (37)
INP1PC3_C (38)
INP2PF9 (30)
INP3PF7 (28)
INP4PF5 (24)
INP5PF3 (22)
INP6PF10 (31)
INP7PF8 (29)
INP8PF6 (27)
INP9PF4 (23)
INP10PC0 (35)
INP11PC1 (36)
INP13PH2 (46)
INP14PH3 (47)
INP15PH4 (48)
INP16PH5 (49)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PI9 (11), PF9 (30), PE9 (81), PH9 (99), PD9 (109), PJ9 (121), PC9 (141), PA9 (143), PG9 (178), PB9 (199)
OUT1PA4 (53)
OUT2PA5 (54)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPC4 (57), PB1 (62)
INPPB0 (61), PB2 (63)
OUTPC5 (58, AF13), PE12 (86, AF13)
COMP2INMPE7 (79), PE10 (84)
INPPE9 (81), PE11 (85)
OUTPE8 (80, AF13), PE13 (87, AF13)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA7 (56), PC5 (58)
VINM0PC5 (58)
VINM1PA7 (56)
VINPPB0 (61)
VOUTPC4 (57)
OPAMP2VINMPG1 (78), PE8 (80)
VINM0PE8 (80)
VINM1PG1 (78)
VINPPE9 (81)
VOUTPE7 (79)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (41)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (55, AF1), PE15 (89, AF1), PB12 (104, AF1), PK2 (128, AF1)
BKIN_COMP1PA6 (55, AF12), PE15 (89, AF13), PB12 (104, AF13), PK2 (128, AF11)
BKIN_COMP2PA6 (55, AF12), PE15 (89, AF13), PB12 (104, AF13), PK2 (128, AF11)
BKIN2PE6 (5, AF1), PG4 (131, AF1)
BKIN2_COMP1PE6 (5, AF11), PG4 (131, AF11)
BKIN2_COMP2PE6 (5, AF11), PG4 (131, AF11)
CH1PE9 (81, AF1), PK1 (127, AF1), PA8 (142, AF1)
CH1NPA7 (56, AF1), PE8 (80, AF1), PB13 (105, AF1), PK0 (126, AF1)
CH2PE11 (85, AF1), PJ11 (123, AF1), PA9 (143, AF1)
CH2NPB0 (61, AF1), PE10 (84, AF1), PB14 (106, AF1), PJ10 (122, AF1)
CH3PE13 (87, AF1), PJ9 (121, AF1), PA10 (144, AF1)
CH3NPB1 (62, AF1), PE12 (86, AF1), PB15 (107, AF1), PJ8 (120, AF1)
CH4PE14 (88, AF1), PA11 (145, AF1)
ETRPE7 (79, AF1), PG5 (132, AF1), PA12 (146, AF1)
TIM2CH1PA0 (43, AF1), PA5 (54, AF1), PA15 (JTDI) (160, AF1)
CH2PA1 (44, AF1), PB3 (JTDO/TRACESWO) (192, AF1)
CH3PA2 (45, AF1), PB10 (90, AF1)
CH4PA3 (50, AF1), PB11 (91, AF1)
ETRPA0 (43, AF1), PA5 (54, AF1), PA15 (JTDI) (160, AF1)
TIM3CH1PA6 (55, AF2), PC6 (138, AF2), PB4 (NJTRST) (193, AF2)
CH2PA7 (56, AF2), PC7 (139, AF2), PB5 (194, AF2)
CH3PB0 (61, AF2), PC8 (140, AF2)
CH4PB1 (62, AF2), PC9 (141, AF2)
ETRPD2 (166, AF2)
TIM4CH1PD12 (112, AF2), PB6 (195, AF2)
CH2PD13 (113, AF2), PB7 (196, AF2)
CH3PD14 (116, AF2), PB8 (198, AF2)
CH4PD15 (117, AF2), PB9 (199, AF2)
ETRPE0 (200, AF2)
TIM5CH1PA0 (43, AF2), PH10 (100, AF2)
CH2PA1 (44, AF2), PH11 (101, AF2)
CH3PA2 (45, AF2), PH12 (102, AF2)
CH4PA3 (50, AF2), PI0 (154, AF2)
ETRPA4 (53, AF2), PH8 (98, AF2)
TIM8BKINPA6 (55, AF3), PK2 (128, AF3), PG2 (129, AF3), PI4 (205, AF3)
BKIN_COMP1PA6 (55, AF10), PK2 (128, AF10), PG2 (129, AF11), PI4 (205, AF11)
BKIN_COMP2PA6 (55, AF10), PK2 (128, AF10), PG2 (129, AF11), PI4 (205, AF11)
BKIN2PG3 (130, AF3), PA8 (142, AF3), PI1 (155, AF3)
BKIN2_COMP1PG3 (130, AF11), PA8 (142, AF12), PI1 (155, AF11)
BKIN2_COMP2PG3 (130, AF11), PA8 (142, AF12), PI1 (155, AF11)
CH1PJ8 (120, AF3), PC6 (138, AF3), PI5 (206, AF3)
CH1NPA5 (54, AF3), PA7 (56, AF3), PJ9 (121, AF3), PH13 (151, AF3)
CH2PJ6 (118, AF3), PJ10 (122, AF3), PC7 (139, AF3), PI6 (207, AF3)
CH2NPB0 (61, AF3), PB14 (106, AF3), PJ7 (119, AF3), PJ11 (123, AF3), PH14 (152, AF3)
CH3PK0 (126, AF3), PC8 (140, AF3), PI7 (208, AF3)
CH3NPB1 (62, AF3), PB15 (107, AF3), PK1 (127, AF3), PH15 (153, AF3)
CH4PC9 (141, AF3), PI2 (156, AF3)
ETRPA0 (43, AF3), PG8 (135, AF3), PI3 (157, AF3)
TIM12CH1PH6 (96, AF2), PB14 (106, AF2)
CH2PH9 (99, AF2), PB15 (107, AF2)
TIM13CH1PF8 (29, AF9), PA6 (55, AF9)
TIM14CH1PF9 (30, AF9), PA7 (56, AF9)
TIM15BKINPE3 (2, AF4), PA0 (43, AF4)
CH1PE5 (4, AF4), PA2 (45, AF4)
CH1NPE4 (3, AF4), PA1 (44, AF4)
CH2PE6 (5, AF4), PA3 (50, AF4)
TIM16BKINPF10 (31, AF1), PB4 (NJTRST) (193, AF1)
CH1PF6 (27, AF1), PB8 (198, AF1)
CH1NPF8 (29, AF1), PB6 (195, AF1)
TIM17BKINPG6 (133, AF1), PB5 (194, AF1)
CH1PF7 (28, AF1), PB9 (199, AF1)
CH1NPF9 (30, AF1), PB7 (196, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPG14 (183, AF1), PE0 (200, AF1)
IN1PD12 (112, AF1), PG12 (181, AF1)
IN2PH2 (46, AF1), PG11 (180, AF1), PE1 (201, AF1)
OUTPD13 (113, AF1), PG13 (182, AF1)
LPTIM2ETRPB11 (91, AF3), PE0 (200, AF4)
IN1PB10 (90, AF3), PD12 (112, AF3)
IN2PD11 (111, AF3)
OUTPB13 (105, AF3)
LPTIM3OUTPA1 (44, AF3)
LPTIM4OUTPA2 (45, AF3)
LPTIM5OUTPA3 (50, AF3)

HRTIM — таймер высокого разрешения

БлокСигналВыводы
HRTIMCHA1PC6 (138, AF1)
CHA2PC7 (139, AF1)
CHB1PC8 (140, AF1)
CHB2PA8 (142, AF2)
CHC1PA9 (143, AF2)
CHC2PA10 (144, AF2)
CHD1PA11 (145, AF2)
CHD2PA12 (146, AF2)
CHE1PG6 (133, AF2)
CHE2PG7 (134, AF2)
EEV1PC10 (161, AF2)
EEV2PC12 (163, AF2)
EEV3PD5 (169, AF2)
EEV4PG11 (180, AF2)
EEV5PG12 (181, AF2)
EEV6PB4 (NJTRST) (193, AF3)
EEV7PB5 (194, AF3)
EEV8PB6 (195, AF3)
EEV9PB7 (196, AF3)
EEV10PG13 (182, AF2)
FLT1PA15 (JTDI) (160, AF2)
FLT2PC11 (162, AF2)
FLT3PD4 (168, AF2)
FLT4PB3 (JTDO/TRACESWO) (192, AF2)
FLT5PG10 (179, AF2)
SCINPB11 (91, AF2), PE0 (200, AF3)
SCOUTPB10 (90, AF2), PE1 (201, AF3)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT_ALARMPC13 (8), PB2 (63, AF0)
OUT_CALIBPC13 (8), PB2 (63, AF0)
REFINPB15 (107, AF0)
TSPC13 (8)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (16, AF12)
A1PF1 (17, AF12)
A2PF2 (18, AF12)
A3PF3 (22, AF12)
A4PF4 (23, AF12)
A5PF5 (24, AF12)
A6PF12 (71, AF12)
A7PF13 (74, AF12)
A8PF14 (75, AF12)
A9PF15 (76, AF12)
A10PG0 (77, AF12)
A11PG1 (78, AF12)
A12PG2 (129, AF12)
A13PG3 (130, AF12)
A14PG4 (131, AF12)
A15PG5 (132, AF12)
A16PD11 (111, AF12)
A17PD12 (112, AF12)
A18PD13 (113, AF12)
A19PE3 (2, AF12)
A20PE4 (3, AF12)
A21PE5 (4, AF12)
A22PE6 (5, AF12)
A23PE2 (1, AF12)
A24PG13 (182, AF12)
A25PG14 (183, AF12)
ALEPD12 (112)
BA0PG4 (131, AF12)
BA1PG5 (132, AF12)
CLEPD11 (111)
CLKPD3 (167, AF12)
D0PD14 (116, AF12)
D1PD15 (117, AF12)
D2PD0 (164, AF12)
D3PD1 (165, AF12)
D4PE7 (79, AF12)
D5PE8 (80, AF12)
D6PE9 (81, AF12)
D7PE10 (84, AF12)
D8PE11 (85, AF12)
D9PE12 (86, AF12)
D10PE13 (87, AF12)
D11PE14 (88, AF12)
D12PE15 (89, AF12)
D13PD8 (108, AF12)
D14PD9 (109, AF12)
D15PD10 (110, AF12)
D16PH8 (98, AF12)
D17PH9 (99, AF12)
D18PH10 (100, AF12)
D19PH11 (101, AF12)
D20PH12 (102, AF12)
D21PH13 (151, AF12)
D22PH14 (152, AF12)
D23PH15 (153, AF12)
D24PI0 (154, AF12)
D25PI1 (155, AF12)
D26PI2 (156, AF12)
D27PI3 (157, AF12)
D28PI6 (207, AF12)
D29PI7 (208, AF12)
D30PI9 (11, AF12)
D31PI10 (12, AF12)
DA0PD14 (116, AF12)
DA1PD15 (117, AF12)
DA2PD0 (164, AF12)
DA3PD1 (165, AF12)
DA4PE7 (79, AF12)
DA5PE8 (80, AF12)
DA6PE9 (81, AF12)
DA7PE10 (84, AF12)
DA8PE11 (85, AF12)
DA9PE12 (86, AF12)
DA10PE13 (87, AF12)
DA11PE14 (88, AF12)
DA12PE15 (89, AF12)
DA13PD8 (108, AF12)
DA14PD9 (109, AF12)
DA15PD10 (110, AF12)
INTPG7 (134, AF12)
NBL0PE0 (200, AF12)
NBL1PE1 (201, AF12)
NBL2PI4 (205, AF12)
NBL3PI5 (206, AF12)
NCEPC8 (140, AF9), PG9 (178, AF12)
NE1PC7 (139, AF9), PD7 (173, AF12)
NE2PC8 (140, AF9), PG9 (178, AF12)
NE3PG6 (133, AF12), PG10 (179, AF12)
NE4PG12 (181, AF12)
NLPB7 (196, AF12)
NOEPD4 (168, AF12)
NWAITPC6 (138, AF9), PD6 (172, AF12)
NWEPD5 (169, AF12)
SDCKE0PC3_C (38, AF12), PH2 (46, AF12), PC5 (58, AF12)
SDCKE1PH7 (97, AF12), PB5 (194, AF12)
SDCLKPG8 (135, AF12)
SDNCASPG15 (191, AF12)
SDNE0PC2_C (37, AF12), PH3 (47, AF12), PC4 (57, AF12)
SDNE1PH6 (96, AF12), PB6 (195, AF12)
SDNRASPF11 (70, AF12)
SDNWEPC0 (35, AF12), PH5 (49, AF12), PA7 (56, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PH9 (99, AF13), PC6 (138, AF13), PA9 (143, AF13)
D1PH10 (100, AF13), PC7 (139, AF13), PA10 (144, AF13)
D2PH11 (101, AF13), PC8 (140, AF13), PG10 (179, AF13), PE0 (200, AF13)
D3PH12 (102, AF13), PC9 (141, AF13), PG11 (180, AF13), PE1 (201, AF13)
D4PE4 (3, AF13), PH14 (152, AF13), PC11 (162, AF13)
D5PD3 (167, AF13), PB6 (195, AF13), PI4 (205, AF13)
D6PE5 (4, AF13), PB8 (198, AF13), PI6 (207, AF13)
D7PE6 (5, AF13), PB9 (199, AF13), PI7 (208, AF13)
D8PH6 (96, AF13), PI1 (155, AF13), PC10 (161, AF13)
D9PH7 (97, AF13), PI2 (156, AF13), PC12 (163, AF13)
D10PI3 (157, AF13), PD6 (172, AF13), PB5 (194, AF13)
D11PF10 (31, AF13), PH15 (153, AF13), PD2 (166, AF13)
D12PF11 (70, AF13), PG6 (133, AF13)
D13PG7 (134, AF13), PI0 (154, AF13), PG15 (191, AF13)
HSYNCPA4 (53, AF13), PH8 (98, AF13)
PIXCLKPA6 (55, AF13)
VSYNCPG9 (178, AF13), PB7 (196, AF13), PI5 (206, AF13)

DFSDM — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
DFSDM1CKIN0PC0 (35, AF3)
CKIN1PC2_C (37, AF3), PB2 (63, AF4), PB13 (105, AF6), PD7 (173, AF6)
CKIN2PC4 (57, AF3), PE8 (80, AF3), PB15 (107, AF6)
CKIN3PE5 (4, AF3), PD8 (108, AF3), PC6 (138, AF4)
CKIN4PC1 (36, AF4), PE11 (85, AF3), PD6 (172, AF3)
CKIN5PE13 (87, AF3), PC10 (161, AF3), PB7 (196, AF11)
CKIN6PF14 (75, AF3), PD0 (164, AF3)
CKIN7PB11 (91, AF6), PB8 (198, AF3)
CKOUTPC2_C (37, AF6), PB0 (61, AF6), PE9 (81, AF3), PD10 (110, AF3), PD3 (167, AF3)
DATIN0PC1 (36, AF3)
DATIN1PC3_C (38, AF3), PB1 (62, AF6), PB12 (104, AF6), PD6 (172, AF4)
DATIN2PC5 (58, AF3), PE7 (79, AF3), PB14 (106, AF6)
DATIN3PE4 (3, AF3), PD9 (109, AF3), PC7 (139, AF4)
DATIN4PC0 (35, AF6), PE10 (84, AF3), PD7 (173, AF3)
DATIN5PE12 (86, AF3), PC11 (162, AF3), PB6 (195, AF11)
DATIN6PF13 (74, AF3), PD1 (165, AF3)
DATIN7PB10 (90, AF6), PB9 (199, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (159, AF0)
JTDIPA15 (JTDI) (160, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (192, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (147, AF0)
TRACECLKPE2 (1, AF0)
TRACED0PE3 (2, AF0), PC1 (36, AF0), PG13 (182, AF0)
TRACED1PE4 (3, AF0), PC8 (140, AF0), PG14 (183, AF0)
TRACED2PE5 (4, AF0), PD2 (166, AF0)
TRACED3PE6 (5, AF0), PC12 (163, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (142, AF0)
MCO_2PC9 (141, AF0)
OSC_INPH0-OSC_IN (32)
OSC_OUTPH1-OSC_OUT (33)
OSC32_INPC14-OSC32_IN (OSC32_IN) (9)
OSC32_OUTPC15-OSC32_OUT (OSC32_OUT) (10)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC3_C (38)
PWR_CSTOPPC2_C (37)
PWR_WKUP1PA0 (43)
PWR_WKUP2PA2 (45)
PWR_WKUP3PI8 (7)
PWR_WKUP4PC13 (8)
PWR_WKUP5PI11 (13)
PWR_WKUP6PC1 (36)
RTC_TAMP1PC13 (8)
RTC_TAMP2PI8 (7)
RTC_TAMP3PC1 (36)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), USB_OTG_HS1 (USB On-The-Go High Speed), HDMI_CEC (шина управления HDMI), TIM6 (таймер), TIM7 (таймер), IWDG1 (независимый сторожевой таймер), WWDG1 (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), DMA2D (графический ускоритель Chrom-ART).

Таблица выводов

Все 208 выводов корпуса LQFP208 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ВыводИмяТипФункции
1PE2ввод-выводDEBUG_TRACECLK (AF0), ETH_TXD3 (AF11), FMC_A23 (AF12), QUADSPI_BK1_IO2 (AF9), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SAI4_CK1 (AF10), SAI4_MCLK_A (AF8), SPI4_SCK (AF5)
2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), SAI4_SD_B (AF8), TIM15_BKIN (AF4)
3PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), DFSDM1_DATIN3 (AF3), FMC_A20 (AF12), SAI1_D2 (AF2), SAI1_FS_A (AF6), SAI4_D2 (AF10), SAI4_FS_A (AF8), SPI4_NSS (AF5), TIM15_CH1N (AF4)
4PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), DFSDM1_CKIN3 (AF3), FMC_A21 (AF12), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SAI4_CK2 (AF10), SAI4_SCK_A (AF8), SPI4_MISO (AF5), TIM15_CH1 (AF4)
5PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SAI4_D1 (AF9), SAI4_SD_A (AF8), SPI4_MOSI (AF5), TIM15_CH2 (AF4), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
6VBATпитание—
7PI8ввод-выводPWR_WKUP3, RTC_TAMP2
8PC13ввод-выводPWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS
9PC14-OSC32_IN (OSC32_IN)ввод-выводRCC_OSC32_IN
10PC15-OSC32_OUT (OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
11PI9ввод-выводDAC1_EXTI9, FDCAN1_RX (AF9), FMC_D30 (AF12), UART4_RX (AF8)
12PI10ввод-выводETH_RX_ER (AF11), FMC_D31 (AF12)
13PI11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, PWR_WKUP5, USB_OTG_HS_ULPI_DIR (AF10)
14VSSпитание—
15VDDпитание—
16PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4)
17PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4)
18PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4)
19PI12ввод-выводETH_TX_ER (AF11)
20PI13ввод-вывод—
21PI14ввод-вывод—
22PF3ввод-выводADC3_INP5, FMC_A3 (AF12)
23PF4ввод-выводADC3_INN5, ADC3_INP9, FMC_A4 (AF12)
24PF5ввод-выводADC3_INP4, FMC_A5 (AF12)
25VSSпитание—
26VDDпитание—
27PF6ввод-выводADC3_INN4, ADC3_INP8, QUADSPI_BK1_IO3 (AF9), SAI1_SD_B (AF6), SAI4_SD_B (AF8), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
28PF7ввод-выводADC3_INP3, QUADSPI_BK1_IO2 (AF9), SAI1_MCLK_B (AF6), SAI4_MCLK_B (AF8), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
29PF8ввод-выводADC3_INN3, ADC3_INP7, QUADSPI_BK1_IO0 (AF10), SAI1_SCK_B (AF6), SAI4_SCK_B (AF8), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
30PF9ввод-выводADC3_INP2, DAC1_EXTI9, QUADSPI_BK1_IO1 (AF10), SAI1_FS_B (AF6), SAI4_FS_B (AF8), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
31PF10ввод-выводADC3_INN2, ADC3_INP6, DCMI_D11 (AF13), QUADSPI_CLK (AF9), SAI1_D3 (AF2), SAI4_D3 (AF10), TIM16_BKIN (AF1)
32PH0-OSC_INввод-выводRCC_OSC_IN
33PH1-OSC_OUTввод-выводRCC_OSC_OUT
34NRSTсброс—
35PC0ввод-выводADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0 (AF3), DFSDM1_DATIN4 (AF6), FMC_SDNWE (AF12), SAI2_FS_B (AF8), USB_OTG_HS_ULPI_STP (AF10)
36PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0 (AF0), DFSDM1_CKIN4 (AF4), DFSDM1_DATIN0 (AF3), ETH_MDC (AF11), I2S2_SDO (AF5), MDIOS_MDC (AF12), PWR_WKUP6, RTC_TAMP3, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5)
37PC2_Cввод-выводADC3_INN1, ADC3_INP0, DFSDM1_CKIN1 (AF3), DFSDM1_CKOUT (AF6), ETH_TXD2 (AF11), FMC_SDNE0 (AF12), I2S2_SDI (AF5), PWR_CSTOP, SPI2_MISO (AF5), USB_OTG_HS_ULPI_DIR (AF10)
38PC3_Cввод-выводADC3_INP1, DFSDM1_DATIN1 (AF3), ETH_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), PWR_CSLEEP, SPI2_MOSI (AF5), USB_OTG_HS_ULPI_NXT (AF10)
39VDDпитание—
40VSSAпитание—
41VREF+служебныйVREFBUF_OUT
42VDDAпитание—
43PA0ввод-выводADC1_INP16, ETH_CRS (AF11), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
44PA1ввод-выводADC1_INN16, ADC1_INP17, ETH_REF_CLK (AF11), ETH_RX_CLK (AF11), LPTIM3_OUT (AF3), QUADSPI_BK1_IO3 (AF9), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
45PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM4_OUT (AF3), MDIOS_MDIO (AF12), PWR_WKUP2, SAI2_SCK_B (AF8), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
46PH2ввод-выводADC3_INP13, ETH_CRS (AF11), FMC_SDCKE0 (AF12), LPTIM1_IN2 (AF1), QUADSPI_BK2_IO0 (AF9), SAI2_SCK_B (AF10)
47PH3ввод-выводADC3_INN13, ADC3_INP14, ETH_COL (AF11), FMC_SDNE0 (AF12), QUADSPI_BK2_IO1 (AF9), SAI2_MCLK_B (AF10)
48PH4ввод-выводADC3_INN14, ADC3_INP15, I2C2_SCL (AF4), USB_OTG_HS_ULPI_NXT (AF10)
49PH5ввод-выводADC3_INN15, ADC3_INP16, FMC_SDNWE (AF12), I2C2_SDA (AF4), SPI5_NSS (AF5)
50PA3ввод-выводADC1_INP15, ADC2_INP15, ETH_COL (AF11), LPTIM5_OUT (AF3), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7), USB_OTG_HS_ULPI_D0 (AF10)
51VSSпитание—
52VDDпитание—
53PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), I2S1_WS (AF5), I2S3_WS (AF6), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7), USB_OTG_HS_SOF (AF12)
54PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, I2S1_CK (AF5), PWR_NDSTOP2, SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM8_CH1N (AF3), USB_OTG_HS_ULPI_CK (AF10)
55PA6ввод-выводADC1_INP3, ADC2_INP3, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), MDIOS_MDC (AF11), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF12), TIM1_BKIN_COMP2 (AF12), TIM3_CH1 (AF2), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
56PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV (AF11), ETH_RX_DV (AF11), FMC_SDNWE (AF12), I2S1_SDO (AF5), OPAMP1_VINM, OPAMP1_VINM1, SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3)
57PC4ввод-выводADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2 (AF3), ETH_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), OPAMP1_VOUT, SPDIFRX1_IN2 (AF9)
58PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT (AF13), DFSDM1_DATIN2 (AF3), ETH_RXD1 (AF11), FMC_SDCKE0 (AF12), OPAMP1_VINM, OPAMP1_VINM0, SAI1_D3 (AF2), SAI4_D3 (AF10), SPDIFRX1_IN3 (AF9)
59VDDпитание—
60VSSпитание—
61PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT (AF6), ETH_RXD2 (AF11), OPAMP1_VINP, TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USB_OTG_HS_ULPI_D1 (AF10)
62PB1ввод-выводADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1 (AF6), ETH_RXD3 (AF11), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USB_OTG_HS_ULPI_D2 (AF10)
63PB2ввод-выводCOMP1_INP, DFSDM1_CKIN1 (AF4), ETH_TX_ER (AF11), I2S3_SDO (AF7), QUADSPI_CLK (AF9), RTC_OUT_ALARM (AF0), RTC_OUT_CALIB (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SPI3_MOSI (AF7)
64PI15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15
65PJ0ввод-вывод—
66PJ1ввод-вывод—
67PJ2ввод-вывод—
68PJ3ввод-вывод—
69PJ4ввод-вывод—
70PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
71PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12)
72VSSпитание—
73VDDпитание—
74PF13ввод-выводADC2_INP2, DFSDM1_DATIN6 (AF3), FMC_A7 (AF12), I2C4_SMBA (AF4)
75PF14ввод-выводADC2_INN2, ADC2_INP6, DFSDM1_CKIN6 (AF3), FMC_A8 (AF12), I2C4_SCL (AF4)
76PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4)
77PG0ввод-выводFMC_A10 (AF12)
78PG1ввод-выводFMC_A11 (AF12), OPAMP2_VINM, OPAMP2_VINM1
79PE7ввод-выводCOMP2_INM, DFSDM1_DATIN2 (AF3), FMC_D4 (AF12), FMC_DA4 (AF12), OPAMP2_VOUT, QUADSPI_BK2_IO0 (AF10), TIM1_ETR (AF1), UART7_RX (AF7)
80PE8ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN2 (AF3), FMC_D5 (AF12), FMC_DA5 (AF12), OPAMP2_VINM, OPAMP2_VINM0, QUADSPI_BK2_IO1 (AF10), TIM1_CH1N (AF1), UART7_TX (AF7)
81PE9ввод-выводCOMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT (AF3), FMC_D6 (AF12), FMC_DA6 (AF12), OPAMP2_VINP, QUADSPI_BK2_IO2 (AF10), TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
82VSSпитание—
83VDDпитание—
84PE10ввод-выводCOMP2_INM, DFSDM1_DATIN4 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), QUADSPI_BK2_IO3 (AF10), TIM1_CH2N (AF1), UART7_CTS (AF7)
85PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4 (AF3), FMC_D8 (AF12), FMC_DA8 (AF12), SAI2_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
86PE12ввод-выводCOMP1_OUT (AF13), DFSDM1_DATIN5 (AF3), FMC_D9 (AF12), FMC_DA9 (AF12), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
87PE13ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN5 (AF3), FMC_D10 (AF12), FMC_DA10 (AF12), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
88PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
89PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13)
90PB10ввод-выводDFSDM1_DATIN7 (AF6), ETH_RX_ER (AF11), HRTIM_SCOUT (AF2), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), QUADSPI_BK1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7), USB_OTG_HS_ULPI_D3 (AF10)
91PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7 (AF6), ETH_TX_EN (AF11), HRTIM_SCIN (AF2), I2C2_SDA (AF4), LPTIM2_ETR (AF3), TIM2_CH4 (AF1), USART3_RX (AF7), USB_OTG_HS_ULPI_D4 (AF10)
92VCAPпитание—
93VSSпитание—
94VDDпитание—
95PJ5ввод-вывод—
96PH6ввод-выводDCMI_D8 (AF13), ETH_RXD2 (AF11), FMC_SDNE1 (AF12), I2C2_SMBA (AF4), SPI5_SCK (AF5), TIM12_CH1 (AF2)
97PH7ввод-выводDCMI_D9 (AF13), ETH_RXD3 (AF11), FMC_SDCKE1 (AF12), I2C3_SCL (AF4), SPI5_MISO (AF5)
98PH8ввод-выводDCMI_HSYNC (AF13), FMC_D16 (AF12), I2C3_SDA (AF4), TIM5_ETR (AF2)
99PH9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), FMC_D17 (AF12), I2C3_SMBA (AF4), TIM12_CH2 (AF2)
100PH10ввод-выводDCMI_D1 (AF13), FMC_D18 (AF12), I2C4_SMBA (AF4), TIM5_CH1 (AF2)
101PH11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D2 (AF13), FMC_D19 (AF12), I2C4_SCL (AF4), TIM5_CH2 (AF2)
102PH12ввод-выводDCMI_D3 (AF13), FMC_D20 (AF12), I2C4_SDA (AF4), TIM5_CH3 (AF2)
103VDDпитание—
104PB12ввод-выводDFSDM1_DATIN1 (AF6), ETH_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SMBA (AF4), I2S2_WS (AF5), SPI2_NSS (AF5), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), UART5_RX (AF14), USART3_CK (AF7), USB_OTG_HS_ID (AF12), USB_OTG_HS_ULPI_D5 (AF10)
105PB13ввод-выводDFSDM1_CKIN1 (AF6), ETH_TXD1 (AF11), FDCAN2_TX (AF9), I2S2_CK (AF5), LPTIM2_OUT (AF3), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), USART3_CTS (AF7), USART3_NSS (AF7), USB_OTG_HS_ULPI_D6 (AF10), USB_OTG_HS_VBUS
106PB14ввод-выводDFSDM1_DATIN2 (AF6), I2S2_SDI (AF5), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7), USB_OTG_HS_DM (AF12)
107PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2 (AF6), I2S2_SDO (AF5), RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), USART1_RX (AF4), USB_OTG_HS_DP (AF12)
108PD8ввод-выводDFSDM1_CKIN3 (AF3), FMC_D13 (AF12), FMC_DA13 (AF12), SAI3_SCK_B (AF6), SPDIFRX1_IN1 (AF9), USART3_TX (AF7)
109PD9ввод-выводDAC1_EXTI9, DFSDM1_DATIN3 (AF3), FMC_D14 (AF12), FMC_DA14 (AF12), SAI3_SD_B (AF6), USART3_RX (AF7)
110PD10ввод-выводDFSDM1_CKOUT (AF3), FMC_D15 (AF12), FMC_DA15 (AF12), SAI3_FS_B (AF6), USART3_CK (AF7)
111PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16 (AF12), FMC_CLE, I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), QUADSPI_BK1_IO0 (AF9), SAI2_SD_A (AF10), USART3_CTS (AF7), USART3_NSS (AF7)
112PD12ввод-выводFMC_A17 (AF12), FMC_ALE, I2C4_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), QUADSPI_BK1_IO1 (AF9), SAI2_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
113PD13ввод-выводFMC_A18 (AF12), I2C4_SDA (AF4), LPTIM1_OUT (AF1), QUADSPI_BK1_IO3 (AF9), SAI2_SCK_A (AF10), TIM4_CH2 (AF2)
114VSSпитание—
115VDDпитание—
116PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), SAI3_MCLK_B (AF6), TIM4_CH3 (AF2), UART8_CTS (AF8)
117PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), SAI3_MCLK_A (AF6), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8)
118PJ6ввод-выводTIM8_CH2 (AF3)
119PJ7ввод-выводDEBUG_TRGIN (AF0), TIM8_CH2N (AF3)
120PJ8ввод-выводTIM1_CH3N (AF1), TIM8_CH1 (AF3), UART8_TX (AF8)
121PJ9ввод-выводDAC1_EXTI9, TIM1_CH3 (AF1), TIM8_CH1N (AF3), UART8_RX (AF8)
122PJ10ввод-выводSPI5_MOSI (AF5), TIM1_CH2N (AF1), TIM8_CH2 (AF3)
123PJ11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, SPI5_MISO (AF5), TIM1_CH2 (AF1), TIM8_CH2N (AF3)
124VDDпитание—
125VSSпитание—
126PK0ввод-выводSPI5_SCK (AF5), TIM1_CH1N (AF1), TIM8_CH3 (AF3)
127PK1ввод-выводSPI5_NSS (AF5), TIM1_CH1 (AF1), TIM8_CH3N (AF3)
128PK2ввод-выводTIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF11), TIM1_BKIN_COMP2 (AF11), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
129PG2ввод-выводFMC_A12 (AF12), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
130PG3ввод-выводFMC_A13 (AF12), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
131PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
132PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
133PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), HRTIM_CHE1 (AF2), QUADSPI_BK1_NCS (AF10), TIM17_BKIN (AF1)
134PG7ввод-выводDCMI_D13 (AF13), FMC_INT (AF12), HRTIM_CHE2 (AF2), SAI1_MCLK_A (AF6), USART6_CK (AF7)
135PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), SPDIFRX1_IN2 (AF8), SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
136VSSпитание—
137VDD33_USBпитание—
138PC6ввод-выводDCMI_D0 (AF13), DFSDM1_CKIN3 (AF4), FMC_NWAIT (AF9), HRTIM_CHA1 (AF1), I2S2_MCK (AF5), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), SWPMI1_IO, TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
139PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), DFSDM1_DATIN3 (AF4), FMC_NE1 (AF9), HRTIM_CHA2 (AF1), I2S3_MCK (AF6), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), SWPMI1_TX (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
140PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_NCE (AF9), FMC_NE2 (AF9), HRTIM_CHB1 (AF1), SDMMC1_D0 (AF12), SWPMI1_RX (AF11), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
141PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF13), I2C3_SDA (AF4), I2S_CKIN (AF5), QUADSPI_BK1_IO0 (AF9), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), SWPMI1_SUSPEND (AF11), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8)
142PA8ввод-выводHRTIM_CHB2 (AF2), I2C3_SCL (AF4), RCC_MCO_1 (AF0), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF12), TIM8_BKIN2_COMP2 (AF12), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF (AF10)
143PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_TX_ER (AF11), HRTIM_CHC1 (AF2), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_FS_VBUS
144PA10ввод-выводDCMI_D1 (AF13), HRTIM_CHC2 (AF2), LPUART1_RX (AF3), MDIOS_MDIO (AF11), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_FS_ID (AF10)
145PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX (AF9), HRTIM_CHD1 (AF2), I2S2_WS (AF5), LPUART1_CTS (AF3), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_FS_DM (AF10)
146PA12ввод-выводFDCAN1_TX (AF9), HRTIM_CHD2 (AF2), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), SAI2_FS_B (AF8), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP (AF10)
147PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
148VCAPпитание—
149VSSпитание—
150VDDпитание—
151PH13ввод-выводFDCAN1_TX (AF9), FMC_D21 (AF12), TIM8_CH1N (AF3), UART4_TX (AF8)
152PH14ввод-выводDCMI_D4 (AF13), FDCAN1_RX (AF9), FMC_D22 (AF12), TIM8_CH2N (AF3), UART4_RX (AF8)
153PH15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D11 (AF13), FMC_D23 (AF12), TIM8_CH3N (AF3)
154PI0ввод-выводDCMI_D13 (AF13), FMC_D24 (AF12), I2S2_WS (AF5), SPI2_NSS (AF5), TIM5_CH4 (AF2)
155PI1ввод-выводDCMI_D8 (AF13), FMC_D25 (AF12), I2S2_CK (AF5), SPI2_SCK (AF5), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
156PI2ввод-выводDCMI_D9 (AF13), FMC_D26 (AF12), I2S2_SDI (AF5), SPI2_MISO (AF5), TIM8_CH4 (AF3)
157PI3ввод-выводDCMI_D10 (AF13), FMC_D27 (AF12), I2S2_SDO (AF5), SPI2_MOSI (AF5), TIM8_ETR (AF3)
158VDDпитание—
159PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
160PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), HRTIM_FLT1 (AF2), I2S1_WS (AF5), I2S3_WS (AF6), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF1), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
161PC10ввод-выводDCMI_D8 (AF13), DFSDM1_CKIN5 (AF3), HRTIM_EEV1 (AF2), I2S3_CK (AF6), QUADSPI_BK1_IO1 (AF9), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
162PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4 (AF13), DFSDM1_DATIN5 (AF3), HRTIM_FLT2 (AF2), I2S3_SDI (AF6), QUADSPI_BK2_NCS (AF9), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
163PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), HRTIM_EEV2 (AF2), I2S3_SDO (AF6), SDMMC1_CK (AF12), SPI3_MOSI (AF6), UART5_TX (AF8), USART3_CK (AF7)
164PD0ввод-выводDFSDM1_CKIN6 (AF3), FDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), SAI3_SCK_A (AF6), UART4_RX (AF8)
165PD1ввод-выводDFSDM1_DATIN6 (AF3), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), SAI3_SD_A (AF6), UART4_TX (AF8)
166PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), SDMMC1_CMD (AF12), TIM3_ETR (AF2), UART5_RX (AF8)
167PD3ввод-выводDCMI_D5 (AF13), DFSDM1_CKOUT (AF3), FMC_CLK (AF12), I2S2_CK (AF5), SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
168PD4ввод-выводFMC_NOE (AF12), HRTIM_FLT3 (AF2), SAI3_FS_A (AF6), USART2_DE (AF7), USART2_RTS (AF7)
169PD5ввод-выводFMC_NWE (AF12), HRTIM_EEV3 (AF2), USART2_TX (AF7)
170VSSпитание—
171VDDпитание—
172PD6ввод-выводDCMI_D10 (AF13), DFSDM1_CKIN4 (AF3), DFSDM1_DATIN1 (AF4), FMC_NWAIT (AF12), I2S3_SDO (AF5), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
173PD7ввод-выводDFSDM1_CKIN1 (AF6), DFSDM1_DATIN4 (AF3), FMC_NE1 (AF12), I2S1_SDO (AF5), SDMMC2_CMD (AF11), SPDIFRX1_IN0 (AF9), SPI1_MOSI (AF5), USART2_CK (AF7)
174PJ12ввод-выводDEBUG_TRGOUT (AF0)
175PJ13ввод-вывод—
176PJ14ввод-вывод—
177PJ15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15
178PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), QUADSPI_BK2_IO2 (AF9), SAI2_FS_B (AF10), SPDIFRX1_IN3 (AF8), SPI1_MISO (AF5), USART6_RX (AF7)
179PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), HRTIM_FLT5 (AF2), I2S1_WS (AF5), SAI2_SD_B (AF10), SPI1_NSS (AF5)
180PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3 (AF13), ETH_TX_EN (AF11), HRTIM_EEV4 (AF2), I2S1_CK (AF5), LPTIM1_IN2 (AF1), SDMMC2_D2 (AF10), SPDIFRX1_IN0 (AF8), SPI1_SCK (AF5)
181PG12ввод-выводETH_TXD1 (AF11), FMC_NE4 (AF12), HRTIM_EEV5 (AF2), LPTIM1_IN1 (AF1), SPDIFRX1_IN1 (AF8), SPI6_MISO (AF5), USART6_DE (AF7), USART6_RTS (AF7)
182PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_TXD0 (AF11), FMC_A24 (AF12), HRTIM_EEV10 (AF2), LPTIM1_OUT (AF1), SPI6_SCK (AF5), USART6_CTS (AF7), USART6_NSS (AF7)
183PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_TXD1 (AF11), FMC_A25 (AF12), LPTIM1_ETR (AF1), QUADSPI_BK2_IO3 (AF9), SPI6_MOSI (AF5), USART6_TX (AF7)
184VSSпитание—
185VDDпитание—
186PK3ввод-вывод—
187PK4ввод-вывод—
188PK5ввод-вывод—
189PK6ввод-вывод—
190PK7ввод-вывод—
191PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), USART6_CTS (AF7), USART6_NSS (AF7)
192PB3 (JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), HRTIM_FLT4 (AF2), I2S1_CK (AF5), I2S3_CK (AF6), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART7_RX (AF11)
193PB4 (NJTRST)ввод-выводDEBUG_JTRST, HRTIM_EEV6 (AF3), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
194PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), HRTIM_EEV7 (AF3), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14), USB_OTG_HS_ULPI_D7 (AF10)
195PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), DFSDM1_DATIN5 (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), HRTIM_EEV8 (AF3), I2C1_SCL (AF4), I2C4_SCL (AF6), LPUART1_TX (AF8), QUADSPI_BK1_NCS (AF10), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
196PB7ввод-выводDCMI_VSYNC (AF13), DFSDM1_CKIN5 (AF11), FMC_NL (AF12), HRTIM_EEV9 (AF3), I2C1_SDA (AF4), I2C4_SDA (AF6), LPUART1_RX (AF8), PWR_PVD_IN, TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
197BOOT0загрузка—
198PB8ввод-выводDCMI_D6 (AF13), DFSDM1_CKIN7 (AF3), ETH_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
199PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), DFSDM1_DATIN7 (AF3), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2C4_SMBA (AF11), I2S2_WS (AF5), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
200PE0ввод-выводDCMI_D2 (AF13), FMC_NBL0 (AF12), HRTIM_SCIN (AF3), LPTIM1_ETR (AF1), LPTIM2_ETR (AF4), SAI2_MCLK_A (AF10), TIM4_ETR (AF2), UART8_RX (AF8)
201PE1ввод-выводDCMI_D3 (AF13), FMC_NBL1 (AF12), HRTIM_SCOUT (AF3), LPTIM1_IN2 (AF1), UART8_TX (AF8)
202VSSпитание—
203PDR_ONпитание—
204VDDпитание—
205PI4ввод-выводDCMI_D5 (AF13), FMC_NBL2 (AF12), SAI2_MCLK_A (AF10), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
206PI5ввод-выводDCMI_VSYNC (AF13), FMC_NBL3 (AF12), SAI2_SCK_A (AF10), TIM8_CH1 (AF3)
207PI6ввод-выводDCMI_D6 (AF13), FMC_D28 (AF12), SAI2_SD_A (AF10), TIM8_CH2 (AF3)
208PI7ввод-выводDCMI_D7 (AF13), FMC_D29 (AF12), SAI2_FS_A (AF10), TIM8_CH3 (AF3)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяВыводыНазначение
PDR_ON203управление внутренней схемой сброса по питанию
VBAT6резервное питание: часы реального времени и резервные регистры
VCAP92, 148вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDD15, 26, 39, 52, 59, 73, 83, 94, 103, 115, 124, 150, 158, 171, 185, 204питание цифровой части и линий ввода-вывода
VDD33_USB137—
VDDA42питание аналоговой части: АЦП, ЦАП, генераторы
VSS14, 25, 51, 60, 72, 82, 93, 114, 125, 136, 149, 170, 184, 202общий провод (земля)
VSSA40общий провод аналоговой части
NRST34сброс, активный уровень — низкий
BOOT0197выбор источника загрузки при сбросе
VREF+41верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX эта группа называется STM32H742B(G-I)Tx: одна распиновка и один набор периферии, отличается только объём памяти. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H742BGSTM32H742BGTx1 МБ864 КБ
STM32H742BISTM32H742BITx2 МБ864 КБ

Линейка STM32H742, семейство STM32H7, ядро Cortex-M7.

Заказные номера

Полные номера для заказа из таблицы на страницах продуктов на сайте ST: STM32H742BG, STM32H742BI. Данные на 11 октября 2026 г.; перечислены номера, которые в этот момент выпускались. Цифра после буквы корпуса — температурный диапазон, вид упаковки указан в последнем столбце.

Номер для заказаКорпусТемператураУпаковка
STM32H742BGT6LQFP 208, 28×28×1,4 мм−40…+85 °Cлоток
STM32H742BIT6LQFP 208, 28×28×1,4 мм−40…+85 °Cлоток

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе LQFP208, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H743BGSTM32H743/753208 из 208выводы совпадают полностьютолько у него: LTDC; флеш-память до 2048 и 1024 КБ
STM32H743BISTM32H743/753208 из 208выводы совпадают полностьютолько у него: LTDC
STM32H753BISTM32H743/753208 из 208выводы совпадают полностьютолько у него: CRYP, HASH, LTDC
STM32F429BE, STM32F429BG, STM32F429BISTM32F429/439207 из 208137: VDD33_USB → VDDтолько у этого: COMP1, COMP2, DAC1, DFSDM1, FDCAN1, FDCAN2, HDMI_CEC, HRTIM, I2C4, I2S1, IWDG1, LPTIM1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, OPAMP1, OPAMP2, QUADSPI, SAI2, SAI3, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SWPMI1, TIM15, TIM16, TIM17, USB_OTG_FS1, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, DAC, IWDG, LTDC, SDIO, TIM10, TIM11, TIM9, WWDG; частота до 480 и 180 МГц; ОЗУ 864 и 192 КБ
STM32F439BG, STM32F439BISTM32F429/439207 из 208137: VDD33_USB → VDDтолько у этого: COMP1, COMP2, DAC1, DFSDM1, FDCAN1, FDCAN2, HDMI_CEC, HRTIM, I2C4, I2S1, IWDG1, LPTIM1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, OPAMP1, OPAMP2, QUADSPI, SAI2, SAI3, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SWPMI1, TIM15, TIM16, TIM17, USB_OTG_FS1, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, CRYP, DAC, HASH, IWDG, LTDC, SDIO, TIM10, TIM11, TIM9, WWDG; частота до 480 и 180 МГц; ОЗУ 864 и 192 КБ
STM32F746BE, STM32F746BGSTM32F7x6207 из 208137: VDD33_USB → VDDUSBтолько у этого: COMP1, COMP2, DAC1, DFSDM1, FDCAN1, FDCAN2, HRTIM, IWDG1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, OPAMP1, OPAMP2, SAI3, SAI4, SDMMC2, SPDIFRX1, SWPMI1, TIM15, TIM16, TIM17, USB_OTG_FS1, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, DAC, IWDG, LTDC, SPDIFRX, TIM10, TIM11, TIM9, WWDG; частота до 480 и 216 МГц; флеш-память до 2048 и 1024 КБ; ОЗУ 864 и 320 КБ
STM32F756BGSTM32F7x6207 из 208137: VDD33_USB → VDDUSBтолько у этого: COMP1, COMP2, DAC1, DFSDM1, FDCAN1, FDCAN2, HRTIM, IWDG1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, OPAMP1, OPAMP2, SAI3, SAI4, SDMMC2, SPDIFRX1, SWPMI1, TIM15, TIM16, TIM17, USB_OTG_FS1, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, CRYP, DAC, HASH, IWDG, LTDC, SPDIFRX, TIM10, TIM11, TIM9, WWDG; частота до 480 и 216 МГц; флеш-память до 2048 и 1024 КБ; ОЗУ 864 и 320 КБ
STM32F765BG, STM32F765BISTM32F7x5206 из 208137: VDD33_USB → VDDUSB; 171: VDD → VDDSDMMCтолько у этого: COMP1, COMP2, DAC1, FDCAN1, FDCAN2, HRTIM, IWDG1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, OPAMP1, OPAMP2, SAI3, SAI4, SPDIFRX1, SWPMI1, TIM15, TIM16, TIM17, USB_OTG_FS1, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, CAN3, DAC, IWDG, SPDIFRX, TIM10, TIM11, TIM9, WWDG; частота до 480 и 216 МГц; ОЗУ 864 и 384 КБ
STM32F767BG, STM32F767BISTM32F7x7206 из 208137: VDD33_USB → VDDUSB; 171: VDD → VDDSDMMCтолько у этого: COMP1, COMP2, DAC1, FDCAN1, FDCAN2, HRTIM, IWDG1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, OPAMP1, OPAMP2, SAI3, SAI4, SPDIFRX1, SWPMI1, TIM15, TIM16, TIM17, USB_OTG_FS1, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, CAN3, DAC, IWDG, LTDC, SPDIFRX, TIM10, TIM11, TIM9, WWDG; частота до 480 и 216 МГц; ОЗУ 864 и 384 КБ
STM32F777BISTM32F7x7206 из 208137: VDD33_USB → VDDUSB; 171: VDD → VDDSDMMCтолько у этого: COMP1, COMP2, DAC1, FDCAN1, FDCAN2, HRTIM, IWDG1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, OPAMP1, OPAMP2, SAI3, SAI4, SPDIFRX1, SWPMI1, TIM15, TIM16, TIM17, USB_OTG_FS1, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, CAN3, CRYP, DAC, HASH, IWDG, LTDC, SPDIFRX, TIM10, TIM11, TIM9, WWDG; частота до 480 и 216 МГц; ОЗУ 864 и 384 КБ
STM32F769BG, STM32F769BISTM32F7x9195 из 208118: PJ6 → VDDDSI; 119: PJ7 → VCAPDSI; 120: PJ8 → DSIHOST_D0P; 121: PJ9 → DSIHOST_D0N; 122: PJ10 → VSSDSI; 123: PJ11 → DSIHOST_CKP; 124: VDD → DSIHOST_CKN; 125: VSS → VDD12DSI; 126: PK0 → DSIHOST_D1P; 127: PK1 → DSIHOST_D1N; 128: PK2 → VSSDSI; 137: VDD33_USB → VDDUSBтолько у этого: COMP1, COMP2, DAC1, FDCAN1, FDCAN2, HRTIM, IWDG1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, OPAMP1, OPAMP2, SAI3, SAI4, SPDIFRX1, SWPMI1, TIM15, TIM16, TIM17, USB_OTG_FS1, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, CAN3, DAC, DSIHOST, IWDG, LTDC, SPDIFRX, TIM10, TIM11, TIM9, WWDG; частота до 480 и 216 МГц; ОЗУ 864 и 384 КБ
STM32F779BISTM32F7x9195 из 208118: PJ6 → VDDDSI; 119: PJ7 → VCAPDSI; 120: PJ8 → DSIHOST_D0P; 121: PJ9 → DSIHOST_D0N; 122: PJ10 → VSSDSI; 123: PJ11 → DSIHOST_CKP; 124: VDD → DSIHOST_CKN; 125: VSS → VDD12DSI; 126: PK0 → DSIHOST_D1P; 127: PK1 → DSIHOST_D1N; 128: PK2 → VSSDSI; 137: VDD33_USB → VDDUSBтолько у этого: COMP1, COMP2, DAC1, FDCAN1, FDCAN2, HRTIM, IWDG1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, OPAMP1, OPAMP2, SAI3, SAI4, SPDIFRX1, SWPMI1, TIM15, TIM16, TIM17, USB_OTG_FS1, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, CAN3, CRYP, DAC, DSIHOST, HASH, IWDG, LTDC, SPDIFRX, TIM10, TIM11, TIM9, WWDG; частота до 480 и 216 МГц; ОЗУ 864 и 384 КБ

Частые вопросы

На каких выводах USART1 у STM32H742BG?

В корпусе LQFP208 сигнал USART1_TX выведен на PB14 (вывод 106, AF4) или PA9 (вывод 143, AF7) или PB6 (вывод 195, AF7), USART1_RX — на PB15 (вывод 107, AF4) или PA10 (вывод 144, AF7) или PB7 (вывод 196, AF7).

Где у STM32H742BG выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (вывод 147, AF0), SWCLK — PA14 (JTCK/SWCLK) (вывод 159, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H742BG?

I2C1_SCL — PB6 (вывод 195, AF4) или PB8 (вывод 198, AF4), I2C1_SDA — PB7 (вывод 196, AF4) или PB9 (вывод 199, AF4).

Сколько выводов ввода-вывода у STM32H742BG в корпусе LQFP208?

168 из 208. Ещё 37 выводов заняты питанием и землёй, остальные 3 — сброс, выбор загрузки и служебные цепи.

Чем отличаются STM32H742BG и STM32H742BI?

Объёмом памяти: STM32H742BG — 1 МБ флеш-памяти и 864 КБ ОЗУ, STM32H742BI — 2 МБ флеш-памяти и 864 КБ ОЗУ. Корпус, расположение выводов и набор периферии у них одинаковые.

Какое напряжение питания у STM32H742BG?

От 1,62 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Заказные номера, корпуса, упаковка и температурный диапазон — из таблиц на страницах продуктов st.com (данные на 11 октября 2026 г.). Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
