STM32U5A5QJIx в корпусе UFBGA132: распиновка

STM32U5A5QJIx — микроконтроллер STM32U5 на ядре Cortex-M33: 4 МБ флеш-памяти и 2514 КБ ОЗУ. Корпус UFBGA132 — 132 шарика, из них 110 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M33
Флеш-память
4 МБ
ОЗУ
2514 КБ
Корпус
UFBGA132, 132 шарика
Линий ввода-вывода
110

Схема корпуса UFBGA132

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32U5A5QJIx в корпусе UFBGA132, вид сверхуABCDEFGHJKLM123456789101112PE5 — шарик A1: DCMI_D6, DEBUG_TRACED2, FMC_A21, MDF1_CKI3, PSSI_D6, PWR_WKUP2, SAI1_CK2, SAI1_SCK_A, TAMP_IN8, TAMP_OUT7, TIM3_CH3, TSC_G7_IO4PE5PE3 — шарик A2: DEBUG_TRACED0, FMC_A19, OCTOSPIM_P1_DQS, SAI1_SD_B, TAMP_IN6, TAMP_OUT3, TIM3_CH1, TSC_G7_IO2, USART6_CTSPE3PE1 — шарик A3: DCMI_D3, FMC_NBL1, PSSI_D3, TIM17_CH1, USART6_TXPE1PB9 — шарик A4: DAC1_EXTI9, DCMI_D7, FDCAN1_TX, I2C1_SDA, IR_OUT, PSSI_D7, SAI1_D2, SAI1_FS_A, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4PB9PB6 — шарик A5: COMP2_INP, DCMI_D5, I2C1_SCL, I2C4_SCL, LPTIM1_ETR, MDF1_SDI5, PSSI_D5, PWR_WKUP3, SAI1_FS_B, TIM16_CH1N, TIM4_CH1, TIM8_BKIN2, TSC_G2_IO3, USART1_TXPB6PG12 — шарик A6: FMC_NE4, LPTIM1_ETR, OCTOSPIM_P2_NCS, SAI2_SD_A, SPI3_NSS, USART1_DE, USART1_RTSPG12PD6 — шарик A7: DCMI_D10, FMC_NWAIT, MDF1_SDI1, OCTOSPIM_P1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PD5 — шарик A8: FMC_NWE, OCTOSPIM_P1_IO5, SPI2_RDY, USART2_TXPD5PD2 — шарик A9: DCMI_D11, DEBUG_TRACED2, I2C5_SMBA, LPTIM4_ETR, PSSI_D11, SDMMC1_CMD, TIM3_ETR, TSC_SYNC, UART5_RX, USART3_DE, USART3_RTSPD2PC11 — шарик A10: ADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0, DCMI_D2, DCMI_D4, LPTIM3_IN1, OCTOSPIM_P1_NCS, PSSI_D2, PSSI_D4, SAI2_MCLK_B, SDMMC1_D3, SPI3_MISO, TSC_G3_IO3, UART4_RX, UCPD1_FRSTX2, USART3_RXPC11PA15 (JTDI) — шарик A11: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI, SAI2_FS_B, SPI1_NSS, SPI3_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UCPD1_CC1, USART2_RX, USART3_DE, USART3_RTSPA15VDDUSB — шарик A12VDDUSBVBAT — шарик B1VBATPE4 — шарик B2: DCMI_D4, DEBUG_TRACED1, FMC_A20, MDF1_SDI3, PSSI_D4, PWR_WKUP1, SAI1_D2, SAI1_FS_A, TAMP_IN7, TAMP_OUT8, TIM3_CH2, TSC_G7_IO3, USART6_DE, USART6_RTSPE4PE2 — шарик B3: DEBUG_TRACECLK, FMC_A23, SAI1_CK1, SAI1_MCLK_A, TIM3_ETR, TSC_G7_IO1, USART6_CKPE2PG15 — шарик B4: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13, I2C1_SMBA, LPTIM1_CH1, OCTOSPIM_P2_DQS, PSSI_D13PG15PH3-BOOT0 — шарик B5PH3PB4 (NJTRST) — шарик B6: ADF1_SDI0, COMP2_INP, DCMI_D12, DEBUG_NJTRST, I2C3_SDA, LPTIM1_CH2, PSSI_D12, SAI1_MCLK_B, SDMMC2_D3, SPI1_MISO, SPI3_MISO, TIM17_BKIN, TIM3_CH1, TSC_G2_IO1, UART5_DE, UART5_RTS, USART1_CTSPB4PG9 — шарик B7: DAC1_EXTI9, FMC_NCE, FMC_NE2, OCTOSPIM_P2_IO6, SAI2_SCK_A, SPI3_SCK, TIM15_CH1N, USART1_TXPG9PD4 — шарик B8: FMC_NOE, MDF1_CKI0, OCTOSPIM_P1_IO4, SPI2_MOSI, USART2_DE, USART2_RTSPD4PD1 — шарик B9: FDCAN1_TX, FMC_D3, FMC_DA3, I2C5_SCL, I2C6_SCL, SPI2_SCKPD1PC12 — шарик B10: DCMI_D9, DEBUG_TRACED3, PSSI_D9, SAI2_SD_B, SDMMC1_CK, SPI3_MOSI, TSC_G3_IO4, UART5_TX, USART3_CKPC12PC10 — шарик B11: ADF1_CCK1, DCMI_D8, DEBUG_TRACED1, LPTIM3_ETR, PSSI_D8, SAI2_SCK_B, SDMMC1_D2, SPI3_SCK, TSC_G3_IO2, UART4_TX, USART3_TXPC10PA12 — шарик B12: FDCAN1_TX, OCTOSPIM_P2_NCS, SPI1_MOSI, TIM1_ETR, USART1_DE, USART1_RTS, USB_OTG_HS_DPPA12PC14-OSC32_IN — шарик C1: RCC_OSC32_INPC14PE6 — шарик C2: DCMI_D7, DEBUG_TRACED3, FMC_A22, PSSI_D7, PWR_WKUP3, SAI1_D1, SAI1_SD_A, TAMP_IN3, TAMP_OUT6, TIM3_CH4PE6PC13 — шарик C3: PWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2PC13PE0 — шарик C4: DCMI_D2, FMC_NBL0, PSSI_D2, TIM16_CH1, TIM4_ETR, USART6_RXPE0PB8 — шарик C5: DCMI_D6, FDCAN1_RX, I2C1_SCL, MDF1_CCK0, PSSI_D6, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, SPI3_RDY, TIM16_CH1, TIM4_CH3PB8PB3 (JTDO/TRACESWO) — шарик C6: ADF1_CCK0, COMP2_INM, CRS_SYNC, DEBUG_JTDO-SWO, I2C1_SDA, LPTIM1_CH1, SAI1_SCK_B, SDMMC2_D2, SPI1_SCK, SPI3_SCK, TIM2_CH2, USART1_DE, USART1_RTSPB3PG10 — шарик C7: FMC_NE3, LPTIM1_IN1, OCTOSPIM_P2_IO7, SAI2_FS_A, SPI3_MISO, TIM15_CH1, USART1_RXPG10PD3 — шарик C8: DCMI_D5, FMC_CLK, I2C6_SMBA, MDF1_SDI0, OCTOSPIM_P2_NCS, PSSI_D5, SPI2_MISO, SPI2_SCK, USART2_CTSPD3PD0 — шарик C9: FDCAN1_RX, FMC_D2, FMC_DA2, I2C5_SDA, I2C6_SDA, SPI2_NSS, TIM8_CH4NPD0PA13 (JTMS/SWDIO) — шарик C10: DEBUG_JTMS-SWDIO, IR_OUT, SAI1_SD_BPA13PA14 (JTCK/SWCLK) — шарик C11: DEBUG_JTCK-SWCLK, I2C1_SMBA, I2C4_SMBA, LPTIM1_CH1, SAI1_FS_B, USB_OTG_HS_SOFPA14PA11 — шарик C12: ADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX, SPI1_MISO, TIM1_BKIN2, TIM1_CH4, USART1_CTS, USB_OTG_HS_DMPA11PC15-OSC32_OUT — шарик D1: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUTPC15PF0 — шарик D2: FMC_A0, I2C2_SDA, I2C6_SDA, OCTOSPIM_P2_IO0, USART6_TXPF0PF3 — шарик D3: ADF1_CCK0, FMC_A3, LPTIM3_IN1, MDF1_CCK0, OCTOSPIM_P2_IO3, UART5_TX, USART6_CTSPF3VDD — шарик D4VDDPB7 — шарик D5: COMP2_INM, DCMI_VSYNC, FMC_NL, I2C1_SDA, I2C4_SDA, LPTIM1_IN2, MDF1_CKI5, PSSI_RDY, PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N, TIM4_CH2, TIM8_BKIN, TSC_G2_IO4, UART4_CTS, USART1_RXPB7PB5 — шарик D6: COMP2_OUT, DCMI_D10, I2C1_SMBA, LPTIM1_IN1, OCTOSPIM_P1_NCLK, PSSI_D10, PWR_WKUP6, SAI1_SD_B, SPI1_MOSI, SPI3_MOSI, TIM16_BKIN, TIM3_CH2, TSC_G2_IO2, UART5_CTS, UCPD1_DBCC1, USART1_CKPB5PD7 — шарик D7: FMC_NCE, FMC_NE1, LPTIM4_OUT, MDF1_CKI1, OCTOSPIM_P1_IO7, SDMMC2_CMD, USART2_CKPD7VDDIO2 — шарик D8VDDIO2VDD — шарик D9VDDPA9 — шарик D10: DAC1_EXTI9, DCMI_D0, PSSI_D0, SAI1_FS_A, SPI2_SCK, TIM15_BKIN, TIM1_CH2, USART1_TX, USB_OTG_HS_VBUSPA9PA10 — шарик D11: CRS_SYNC, DCMI_D1, LPTIM2_IN2, PSSI_D1, SAI1_D1, SAI1_SD_A, TIM17_BKIN, TIM1_CH3, USART1_RX, USB_OTG_HS_IDPA10PA8 — шарик D12: DEBUG_TRACECLK, LPTIM2_CH1, RCC_MCO, SAI1_CK2, SAI1_SCK_A, SPI1_RDY, TIM1_CH1, USART1_CK, USB_OTG_HS_SOFPA8PF2 — шарик E1: FMC_A2, I2C2_SMBA, LPTIM3_CH2, OCTOSPIM_P2_IO2, PWR_WKUP8, USART6_CKPF2PF1 — шарик E2: FMC_A1, I2C2_SCL, I2C6_SCL, OCTOSPIM_P2_IO1, USART6_RXPF1PF4 — шарик E3: ADF1_SDI0, FMC_A4, LPTIM3_ETR, MDF1_SDI0, OCTOSPIM_P2_CLK, UART5_RX, USART6_DE, USART6_RTSPF4VSS — шарик E4VSSVSS — шарик E9VSSPC7 — шарик E10: DCMI_D1, LPTIM2_CH2, MDF1_SDI3, PSSI_D1, PWR_CDSTOP, SAI2_MCLK_B, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, TIM3_CH2, TIM8_CH2, TSC_G4_IO2PC7PC9 — шарик E11: DAC1_EXTI9, DCMI_D3, DEBUG_TRACED0, LPTIM3_CH2, PSSI_D3, SDMMC1_D1, TIM3_CH4, TIM8_BKIN2, TIM8_CH4, TSC_G4_IO4, USART6_TXPC9PC8 — шарик E12: DCMI_D2, LPTIM3_CH1, PSSI_D2, PWR_SRDSTOP, SDMMC1_D0, TIM3_CH3, TIM8_CH3, TSC_G4_IO3, USART6_RXPC8PH0-OSC_IN — шарик F1: RCC_OSC_INPH0PF5 — шарик F2: FMC_A5, LPTIM3_CH1, MDF1_CKI0, OCTOSPIM_P2_NCLKPF5PC2 — шарик F3: ADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2, MDF1_CCK1, OCTOSPIM_P1_IO5, SPI2_MISO, USART6_RXPC2PC3 — шарик F4: ADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR, LPTIM2_ETR, LPTIM3_CH1, OCTOSPIM_P1_IO6, SAI1_D1, SAI1_SD_A, SPI2_MOSI, USART6_TXPC3VSS — шарик F6VSSVDD — шарик F7VDDPG6 — шарик F9: I2C3_SMBA, LPUART1_DE, LPUART1_RTS, OCTOSPIM_P1_DQS, SPI1_RDY, UCPD1_FRSTX1PG6PG7 — шарик F10: FMC_INT, I2C3_SCL, LPUART1_TX, MDF1_CCK0, OCTOSPIM_P2_DQS, SAI1_CK1, SAI1_MCLK_A, UCPD1_FRSTX2PG7PC6 — шарик F11: DCMI_D0, MDF1_CKI3, PSSI_D0, PWR_CSLEEP, SAI2_MCLK_A, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, TIM3_CH1, TIM8_CH1, TSC_G4_IO1PC6PG8 — шарик F12: I2C3_SDA, LPUART1_RXPG8PH1-OSC_OUT — шарик G1: RCC_OSC_OUTPH1NRST — шарик G2NRSTPC1 — шарик G3: ADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0, I2C3_SDA, LPTIM1_CH1, LPUART1_TX, MDF1_CKI4, OCTOSPIM_P1_IO4, SAI1_SD_A, SDMMC2_CK, SPI2_MOSI, USART6_CKPC1PA1 — шарик G4: ADC1_IN6, ADC2_IN6, I2C1_SMBA, LPTIM1_CH2, OCTOSPIM_P1_DQS, OPAMP1_VINM, PWR_WKUP3, SPI1_SCK, TAMP_IN5, TAMP_OUT4, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1VDD — шарик G6VDDVSS — шарик G7VSSPG4 — шарик G9: FMC_A14, SAI2_MCLK_B, SPI1_MOSIPG4PG2 — шарик G10: FMC_A12, SAI2_SCK_B, SPI1_SCKPG2PG3 — шарик G11: FMC_A13, SAI2_FS_B, SPI1_MISOPG3PG5 — шарик G12: FMC_A15, LPUART1_CTS, SAI2_SD_B, SPI1_NSSPG5VSSA — шарик H1VSSAPC0 — шарик H2: ADC1_IN1, ADC2_IN1, ADC4_IN1, I2C3_SCL, LPTIM1_IN1, LPTIM2_IN1, LPUART1_RX, MDF1_SDI4, OCTOSPIM_P1_IO7, SAI2_FS_A, SDMMC1_D5, SPI2_RDY, USART6_CTSPC0OPAMP1_VINM — шарик H3: OPAMP1_VINMOPAMP1VINMVSS — шарик H4VSSVSS — шарик H9VSSPD14 — шарик H10: FMC_D0, FMC_DA0, LPTIM3_CH1, TIM4_CH3, USART6_CKPD14PD13 — шарик H11: ADC4_IN17, FMC_A18, I2C4_SDA, LPTIM2_CH1, LPTIM4_IN1, TIM4_CH2, TSC_G6_IO4, USART6_CTSPD13PD15 — шарик H12: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1, FMC_DA1, LPTIM3_CH2, TIM4_CH4, USART6_DE, USART6_RTSPD15VREF+ — шарик J1: VREFBUF_OUTVREF+PA0 — шарик J2: ADC1_IN5, ADC2_IN5, AUDIOCLK, OCTOSPIM_P2_NCS, OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD, SPI3_RDY, TAMP_IN2, TAMP_OUT1, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTSPA0PC5 — шарик J3: ADC1_IN14, ADC2_IN14, ADC4_IN23, COMP1_INP, PSSI_D15, PWR_WKUP5, SAI1_D3, TAMP_IN4, TAMP_OUT5, TIM1_CH4N, USART3_RXPC5VDD — шарик J4VDDPF14 — шарик J5: ADC4_IN5, FMC_A8, I2C4_SCL, TSC_G8_IO1PF14PE8 — шарик J6: FMC_D5, FMC_DA5, MDF1_CKI2, PWR_WKUP7, SAI1_SCK_B, TIM1_CH1NPE8PE10 — шарик J7: ADF1_SDI0, FMC_D7, FMC_DA7, MDF1_SDI4, OCTOSPIM_P1_CLK, SAI1_MCLK_B, TIM1_CH2N, TSC_G5_IO1PE10PE12 — шарик J8: FMC_D9, FMC_DA9, MDF1_SDI5, OCTOSPIM_P1_IO0, SPI1_NSS, TIM1_CH3N, TSC_G5_IO3PE12VDD — шарик J9VDDPD9 — шарик J10: DAC1_EXTI9, DCMI_PIXCLK, FMC_D14, FMC_DA14, LPTIM2_IN2, LPTIM3_IN1, PSSI_PDCK, SAI2_MCLK_A, USART3_RXPD9PD11 — шарик J11: ADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_ETR, SAI2_SD_A, TSC_G6_IO2, USART3_CTSPD11PD12 — шарик J12: ADC4_IN16, FMC_A17, FMC_ALE, I2C4_SCL, LPTIM2_IN1, SAI2_FS_A, TIM4_CH1, TSC_G6_IO3, USART3_DE, USART3_RTSPD12VDDA — шарик K1VDDAPA2 — шарик K2: ADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX, OCTOSPIM_P1_NCS, PWR_WKUP4, RCC_LSCO, SPI1_RDY, TIM15_CH1, TIM2_CH3, TIM5_CH3, UCPD1_FRSTX1, USART2_TXPA2PA7 — шарик K3: ADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL, LPTIM2_CH2, OCTOSPIM_P1_IO2, OPAMP2_VINM, PWR_SRDSTOP, PWR_WKUP8, SPI1_MOSI, TIM17_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N, USART3_TXPA7PB2 — шарик K4: ADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA, LPTIM1_CH1, MDF1_CKI0, OCTOSPIM_P1_DQS, PWR_WKUP1, RTC_OUT2, SPI1_RDY, TIM8_CH4N, UCPD1_FRSTX1PB2PF11 — шарик K5: ADC1_EXTI11, ADC2_EXTI11, DCMI_D12, LPTIM4_IN1, OCTOSPIM_P1_NCLK, PSSI_D12PF11PG1 — шарик K6: ADC4_IN8, FMC_A11, OCTOSPIM_P2_IO5, TSC_G8_IO4PG1PE7 — шарик K7: FMC_D4, FMC_DA4, MDF1_SDI2, PWR_WKUP6, SAI1_SD_B, TIM1_ETRPE7PE14 — шарик K8: FMC_D11, FMC_DA11, OCTOSPIM_P1_IO2, SPI1_MISO, TIM1_BKIN2, TIM1_CH4PE14PB10 — шарик K9: COMP1_OUT, I2C2_SCL, I2C4_SCL, LPTIM3_CH1, LPUART1_RX, OCTOSPIM_P1_CLK, PWR_WKUP8, SAI1_SCK_A, SPI2_SCK, TIM2_CH3, TSC_SYNC, USART3_TXPB10PB13 — шарик K10: I2C2_SCL, LPTIM3_IN1, LPUART1_CTS, MDF1_CKI1, SAI2_SCK_A, SPI2_SCK, TIM15_CH1N, TIM1_CH1N, TSC_G1_IO2, USART3_CTSPB13PB14 — шарик K11: I2C2_SDA, LPTIM3_ETR, MDF1_SDI2, SAI2_MCLK_A, SDMMC2_D0, SPI2_MISO, TIM15_CH1, TIM1_CH2N, TIM8_CH2N, TSC_G1_IO3, UCPD1_DBCC2, USART3_DE, USART3_RTSPB14PB15 — шарик K12: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_NBL1, LPTIM2_IN2, MDF1_CKI2, PWR_WKUP7, RTC_REFIN, SAI2_SD_A, SDMMC2_D1, SPI2_MOSI, TIM15_CH2, TIM1_CH3N, TIM8_CH3N, UCPD1_CC2PB15PA3 — шарик L1: ADC1_IN8, ADC2_IN8, LPUART1_RX, OCTOSPIM_P1_CLK, OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1, SAI1_MCLK_A, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RXPA3PA6 — шарик L2: ADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK, LPUART1_CTS, OCTOSPIM_P1_IO3, OPAMP2_VINP, PSSI_PDCK, PWR_CDSTOP, PWR_WKUP7, SPI1_MISO, TIM16_CH1, TIM1_BKIN, TIM3_CH1, TIM8_BKIN, USART3_CTSPA6PA4 — шарик L3: ADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC, LPTIM2_CH1, OCTOSPIM_P1_NCS, PSSI_DE, PWR_WKUP2, SAI1_FS_B, SPI1_NSS, SPI3_NSS, USART2_CKPA4PB1 — шарик L4: ADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1, LPTIM3_CH2, LPUART1_DE, LPUART1_RTS, MDF1_SDI0, OCTOSPIM_P1_IO0, PWR_WKUP4, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USART3_DE, USART3_RTSPB1PF12 — шарик L5: FMC_A6, LPTIM4_ETR, OCTOSPIM_P2_DQSPF12PF15 — шарик L6: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, ADC4_IN6, FMC_A9, I2C4_SDA, TSC_G8_IO2PF15PE11 — шарик L7: ADC1_EXTI11, ADC2_EXTI11, FMC_D8, FMC_DA8, MDF1_CKI4, OCTOSPIM_P1_NCS, SPI1_RDY, TIM1_CH2, TSC_G5_IO2PE11PE15 — шарик L8: ADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12, FMC_DA12, OCTOSPIM_P1_IO3, SPI1_MOSI, TIM1_BKIN, TIM1_CH4NPE15PB11 — шарик L9: ADC1_EXTI11, ADC2_EXTI11, COMP2_OUT, I2C2_SDA, I2C4_SDA, LPUART1_TX, OCTOSPIM_P1_NCS, SPI2_RDY, TIM2_CH4, USART3_RXPB11VCAP — шарик L10VCAPPB12 — шарик L11: I2C2_SMBA, I2C6_SMBA, LPUART1_DE, LPUART1_RTS, MDF1_SDI1, OCTOSPIM_P1_NCLK, SAI2_FS_A, SPI2_NSS, TIM15_BKIN, TIM1_BKIN, TSC_G1_IO1, USART3_CKPB12PD8 — шарик L12: DCMI_HSYNC, FMC_D13, FMC_DA13, PSSI_DE, USART3_TXPD8PA5 — шарик M1: ADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR, PSSI_D14, PWR_CSLEEP, PWR_WKUP6, SPI1_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USART3_RXPA5OPAMP2_VINM — шарик M2: OPAMP2_VINMOPAMP2VINMPC4 — шарик M3: ADC1_IN13, ADC2_IN13, ADC4_IN22, COMP1_INM, I2C6_SMBA, OCTOSPIM_P1_IO7, USART3_TXPC4PB0 — шарик M4: ADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK, COMP1_OUT, LPTIM3_CH1, OCTOSPIM_P1_IO1, OPAMP2_VOUT, SPI1_NSS, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, USART3_CKPB0PF13 — шарик M5: FMC_A7, I2C4_SMBA, LPTIM4_OUT, UCPD1_FRSTX2PF13PG0 — шарик M6: ADC4_IN7, FMC_A10, OCTOSPIM_P2_IO4, TSC_G8_IO3PG0PE9 — шарик M7: ADF1_CCK0, DAC1_EXTI9, FMC_D6, FMC_DA6, MDF1_CCK0, OCTOSPIM_P1_NCLK, SAI1_FS_B, TIM1_CH1PE9PE13 — шарик M8: FMC_D10, FMC_DA10, MDF1_CKI5, OCTOSPIM_P1_IO1, SPI1_SCK, TIM1_CH3, TSC_G5_IO4PE13PG14 — шарик M9: FMC_A25, I2C1_SCL, LPTIM1_CH2PG14PG13 — шарик M10: FMC_A24, I2C1_SDA, SPI3_RDY, USART1_CKPG13PG11 — шарик M11: ADC1_EXTI11, ADC2_EXTI11, LPTIM1_IN2, OCTOSPIM_P1_IO5, SAI2_MCLK_A, SPI3_MOSI, TIM15_CH2, USART1_CTSPG11PD10 — шарик M12: FMC_D15, FMC_DA15, I2C5_SMBA, LPTIM2_CH2, LPTIM3_ETR, SAI2_SCK_A, TSC_G6_IO1, USART3_CKPD10UFBGA132, вид сверху: шарики видны сквозь корпус, A1 — в левомверхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

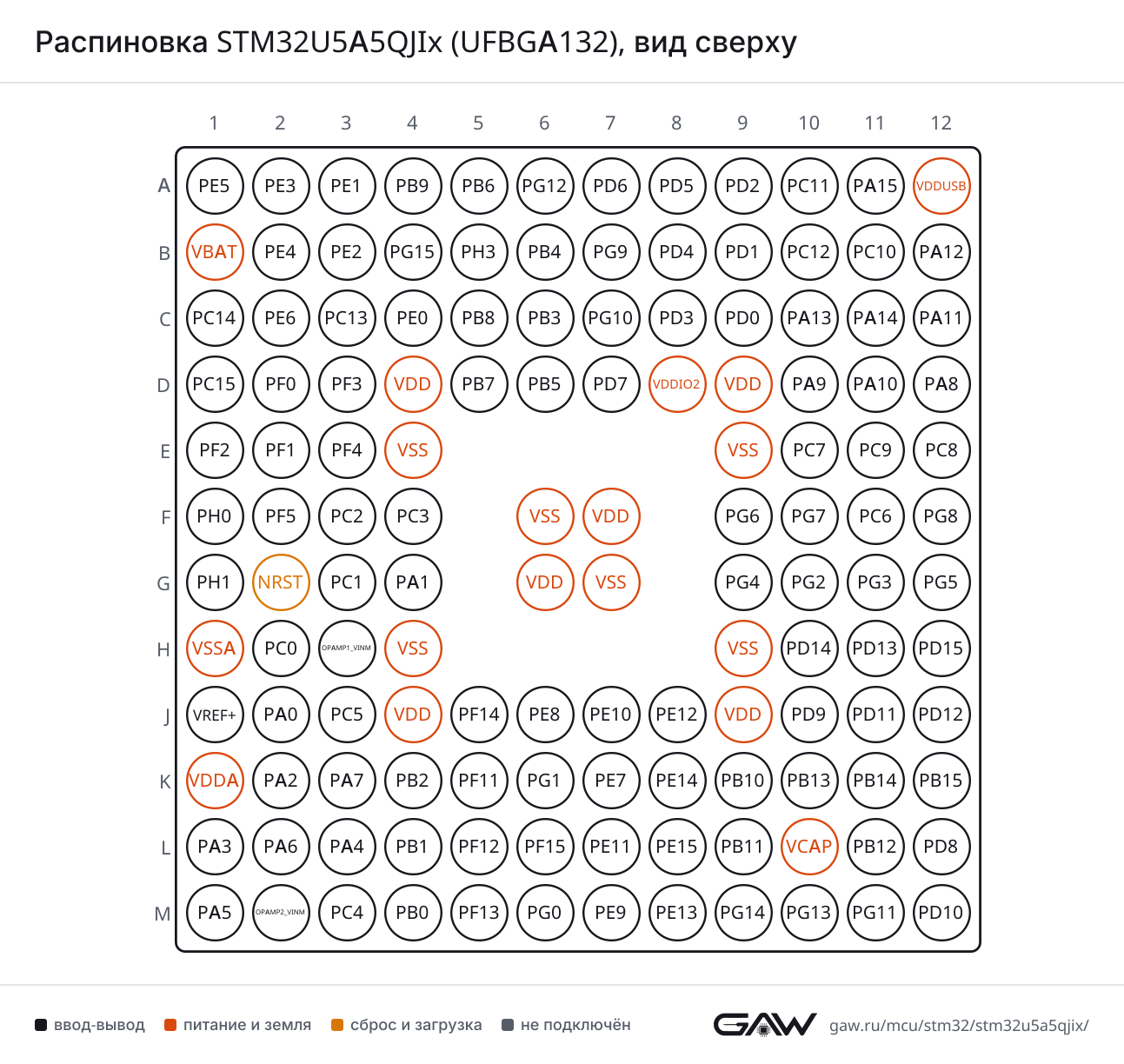

Распиновка STM32U5A5QJIx (UFBGA132), вид сверхуРаспиновка UFBGA132 картинкой
PNG, 1293 × 1224 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPB5 (D6, AF7), PA8 (D12, AF7), PG13 (M10, AF7)
CTSPB4 (NJTRST) (B6, AF7), PA11 (C12, AF7), PG11 (M11, AF7)
DEPG12 (A6, AF7), PA12 (B12, AF7), PB3 (JTDO/TRACESWO) (C6, AF7)
RTSPG12 (A6, AF7), PA12 (B12, AF7), PB3 (JTDO/TRACESWO) (C6, AF7)
RXPG10 (C7, AF7), PB7 (D5, AF7), PA10 (D11, AF7)
TXPB6 (A5, AF7), PG9 (B7, AF7), PA9 (D10, AF7)
USART2CKPD7 (D7, AF7), PA4 (L3, AF7)
CTSPD3 (C8, AF7), PA0 (J2, AF7)
DEPD4 (B8, AF7), PA1 (G4, AF7)
RTSPD4 (B8, AF7), PA1 (G4, AF7)
RXPD6 (A7, AF7), PA15 (JTDI) (A11, AF3), PA3 (L1, AF7)
TXPD5 (A8, AF7), PA2 (K2, AF7)
USART3CKPC12 (B10, AF7), PB12 (L11, AF7), PB0 (M4, AF7), PD10 (M12, AF7)
CTSPD11 (J11, AF7), PB13 (K10, AF7), PA6 (L2, AF7)
DEPD2 (A9, AF7), PA15 (JTDI) (A11, AF7), PD12 (J12, AF7), PB14 (K11, AF7), PB1 (L4, AF7)
RTSPD2 (A9, AF7), PA15 (JTDI) (A11, AF7), PD12 (J12, AF7), PB14 (K11, AF7), PB1 (L4, AF7)
RXPC11 (A10, AF7), PC5 (J3, AF7), PD9 (J10, AF7), PB11 (L9, AF7), PA5 (M1, AF7)
TXPC10 (B11, AF7), PA7 (K3, AF7), PB10 (K9, AF7), PD8 (L12, AF7), PC4 (M3, AF7)
USART6CKPE2 (B3, AF7), PF2 (E1, AF7), PC1 (G3, AF7), PD14 (H10, AF7)
CTSPE3 (A2, AF7), PF3 (D3, AF7), PC0 (H2, AF7), PD13 (H11, AF7)
DEPE4 (B2, AF7), PF4 (E3, AF7), PD15 (H12, AF7)
RTSPE4 (B2, AF7), PF4 (E3, AF7), PD15 (H12, AF7)
RXPE0 (C4, AF7), PF1 (E2, AF7), PC8 (E12, AF7), PC2 (F3, AF7)
TXPE1 (A3, AF7), PF0 (D2, AF7), PC9 (E11, AF7), PC3 (F4, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB7 (D5, AF8)
DEPA15 (JTDI) (A11, AF8)
RTSPA15 (JTDI) (A11, AF8)
RXPC11 (A10, AF8), PA1 (G4, AF8)
TXPC10 (B11, AF8), PA0 (J2, AF8)
UART5CTSPB5 (D6, AF8)
DEPB4 (NJTRST) (B6, AF8)
RTSPB4 (NJTRST) (B6, AF8)
RXPD2 (A9, AF8), PF4 (E3, AF8)
TXPC12 (B10, AF8), PF3 (D3, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPG5 (G12, AF8), PB13 (K10, AF8), PA6 (L2, AF8)
DEPG6 (F9, AF8), PB1 (L4, AF8), PB12 (L11, AF8)
RTSPG6 (F9, AF8), PB1 (L4, AF8), PB12 (L11, AF8)
RXPG8 (F12, AF8), PC0 (H2, AF8), PB10 (K9, AF8), PA3 (L1, AF8)
TXPG7 (F10, AF8), PC1 (G3, AF8), PA2 (K2, AF8), PB11 (L9, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4 (NJTRST) (B6, AF5), PA11 (C12, AF5), PG3 (G11, AF5), PE14 (K8, AF5), PA6 (L2, AF5)
MOSIPA12 (B12, AF5), PB5 (D6, AF5), PG4 (G9, AF5), PA7 (K3, AF5), PE15 (L8, AF5)
NSSPA15 (JTDI) (A11, AF5), PG5 (G12, AF5), PE12 (J8, AF5), PA4 (L3, AF5), PB0 (M4, AF5)
RDYPA8 (D12, AF5), PG6 (F9, AF5), PA2 (K2, AF5), PB2 (K4, AF5), PE11 (L7, AF5)
SCKPB3 (JTDO/TRACESWO) (C6, AF5), PA1 (G4, AF5), PG2 (G10, AF5), PA5 (M1, AF5), PE13 (M8, AF5)
SPI2MISOPD3 (C8, AF5), PC2 (F3, AF5), PB14 (K11, AF5)
MOSIPD4 (B8, AF5), PC3 (F4, AF5), PC1 (G3, AF3), PB15 (K12, AF5)
NSSPB9 (A4, AF5), PD0 (C9, AF5), PB12 (L11, AF5)
RDYPD5 (A8, AF5), PC0 (H2, AF5), PB11 (L9, AF5)
SCKPD1 (B9, AF5), PD3 (C8, AF3), PA9 (D10, AF3), PB10 (K9, AF5), PB13 (K10, AF5)
SPI3MISOPC11 (A10, AF6), PB4 (NJTRST) (B6, AF6), PG10 (C7, AF6)
MOSIPD6 (A7, AF5), PC12 (B10, AF6), PB5 (D6, AF6), PG11 (M11, AF6)
NSSPG12 (A6, AF6), PA15 (JTDI) (A11, AF6), PA4 (L3, AF6)
RDYPB8 (C5, AF6), PA0 (J2, AF6), PG13 (M10, AF6)
SCKPG9 (B7, AF6), PC10 (B11, AF6), PB3 (JTDO/TRACESWO) (C6, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (A5, AF4), PB8 (C5, AF4), PG14 (M9, AF4)
SDAPB9 (A4, AF4), PB3 (JTDO/TRACESWO) (C6, AF4), PB7 (D5, AF4), PG13 (M10, AF4)
SMBAPG15 (B4, AF4), PA14 (JTCK/SWCLK) (C11, AF4), PB5 (D6, AF4), PA1 (G4, AF4)
I2C2SCLPF1 (E2, AF4), PB10 (K9, AF4), PB13 (K10, AF4)
SDAPF0 (D2, AF4), PB14 (K11, AF4), PB11 (L9, AF4)
SMBAPF2 (E1, AF4), PB12 (L11, AF4)
I2C3SCLPG7 (F10, AF4), PC0 (H2, AF4), PA7 (K3, AF4)
SDAPB4 (NJTRST) (B6, AF4), PG8 (F12, AF4), PC1 (G3, AF4)
SMBAPG6 (F9, AF4), PB2 (K4, AF4)
I2C4SCLPB6 (A5, AF5), PF14 (J5, AF4), PD12 (J12, AF4), PB10 (K9, AF3)
SDAPB7 (D5, AF5), PD13 (H11, AF4), PF15 (L6, AF4), PB11 (L9, AF3)
SMBAPA14 (JTCK/SWCLK) (C11, AF5), PD11 (J11, AF4), PF13 (M5, AF4)
I2C5SCLPD1 (B9, AF4)
SDAPD0 (C9, AF4)
SMBAPD2 (A9, AF4), PD10 (M12, AF4)
I2C6SCLPD1 (B9, AF2), PF1 (E2, AF2)
SDAPD0 (C9, AF2), PF0 (D2, AF2)
SMBAPD3 (C8, AF2), PB12 (L11, AF2), PC4 (M3, AF2)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPB8 (C5, AF9), PD0 (C9, AF9), PA11 (C12, AF9)
TXPB9 (A4, AF9), PD1 (B9, AF9), PA12 (B12, AF9)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPA11 (C12)
DPPA12 (B12)
IDPA10 (D11, AF10)
SOFPA14 (JTCK/SWCLK) (C11, AF10), PA8 (D12, AF10)
VBUSPA9 (D10)

UCPD — контроллер USB Type-C Power Delivery

БлокСигналВыводы
UCPD1CC1PA15 (JTDI) (A11)
CC2PB15 (K12)
DBCC1PB5 (D6)
DBCC2PB14 (K11)
FRSTX1PG6 (F9, AF11), PA2 (K2, AF11), PB2 (K4, AF11)
FRSTX2PC11 (A10, AF11), PG7 (F10, AF11), PF13 (M5, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (A4, AF8)
CKPC12 (B10, AF12)
CKINPB8 (C5, AF8)
CMDPD2 (A9, AF12)
D0PC8 (E12, AF12)
D0DIRPC6 (F11, AF8)
D1PC9 (E11, AF12)
D2PC10 (B11, AF12)
D3PC11 (A10, AF12)
D4PB8 (C5, AF12)
D5PB9 (A4, AF12), PC0 (H2, AF12)
D6PC6 (F11, AF12)
D7PC7 (E10, AF12)
D123DIRPC7 (E10, AF8)
SDMMC2CKPD6 (A7, AF11), PC1 (G3, AF12)
CMDPD7 (D7, AF11), PA0 (J2, AF12)
D0PB14 (K11, AF12)
D1PB15 (K12, AF12)
D2PB3 (JTDO/TRACESWO) (C6, AF12)
D3PB4 (NJTRST) (B6, AF12)
D4PB8 (C5, AF11)
D5PB9 (A4, AF11)
D6PC6 (F11, AF11)
D7PC7 (E10, AF11)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (B3, AF3), PB8 (C5, AF3), PG7 (F10, AF3), PA3 (L1, AF3)
CK2PE5 (A1, AF3), PA8 (D12, AF3)
D1PD6 (A7, AF3), PE6 (C2, AF3), PA10 (D11, AF3), PC3 (F4, AF3)
D2PB9 (A4, AF3), PE4 (B2, AF3)
D3PC5 (J3, AF3)
FS_APB9 (A4, AF13), PE4 (B2, AF13), PA9 (D10, AF13)
FS_BPB6 (A5, AF13), PA14 (JTCK/SWCLK) (C11, AF13), PA4 (L3, AF13), PE9 (M7, AF13)
MCLK_APE2 (B3, AF13), PB8 (C5, AF13), PG7 (F10, AF13), PA3 (L1, AF13)
MCLK_BPB4 (NJTRST) (B6, AF13), PE10 (J7, AF13)
SCK_APE5 (A1, AF13), PA8 (D12, AF13), PB10 (K9, AF13)
SCK_BPB3 (JTDO/TRACESWO) (C6, AF13), PE8 (J6, AF13)
SD_APD6 (A7, AF13), PE6 (C2, AF13), PA10 (D11, AF13), PC3 (F4, AF13), PC1 (G3, AF13)
SD_BPE3 (A2, AF13), PA13 (JTMS/SWDIO) (C10, AF13), PB5 (D6, AF13), PE7 (K7, AF13)
SAI2FS_APG10 (C7, AF13), PC0 (H2, AF13), PD12 (J12, AF13), PB12 (L11, AF13)
FS_BPA15 (JTDI) (A11, AF13), PG3 (G11, AF13)
MCLK_APC6 (F11, AF13), PD9 (J10, AF13), PB14 (K11, AF13), PG11 (M11, AF13)
MCLK_BPC11 (A10, AF13), PC7 (E10, AF13), PG4 (G9, AF13)
SCK_APG9 (B7, AF13), PB13 (K10, AF13), PD10 (M12, AF13)
SCK_BPC10 (B11, AF13), PG2 (G10, AF13)
SD_APG12 (A6, AF13), PD11 (J11, AF13), PB15 (K12, AF13)
SD_BPC12 (B10, AF13), PG5 (G12, AF13)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (A10), PA11 (C12), PD11 (J11), PF11 (K5), PE11 (L7), PB11 (L9), PG11 (M11)
EXTI15PA15 (JTDI) (A11), PG15 (B4), PC15-OSC32_OUT (D1), PD15 (H12), PB15 (K12), PF15 (L6), PE15 (L8)
IN1PC0 (H2)
IN2PC1 (G3)
IN3PC2 (F3)
IN4PC3 (F4)
IN5PA0 (J2)
IN6PA1 (G4)
IN7PA2 (K2)
IN8PA3 (L1)
IN9PA4 (L3)
IN10PA5 (M1)
IN11PA6 (L2)
IN12PA7 (K3)
IN13PC4 (M3)
IN14PC5 (J3)
IN15PB0 (M4)
IN16PB1 (L4)
IN17PB2 (K4)
ADC2EXTI11PC11 (A10), PA11 (C12), PD11 (J11), PF11 (K5), PE11 (L7), PB11 (L9), PG11 (M11)
EXTI15PA15 (JTDI) (A11), PG15 (B4), PC15-OSC32_OUT (D1), PD15 (H12), PB15 (K12), PF15 (L6), PE15 (L8)
IN1PC0 (H2)
IN2PC1 (G3)
IN3PC2 (F3)
IN4PC3 (F4)
IN5PA0 (J2)
IN6PA1 (G4)
IN7PA2 (K2)
IN8PA3 (L1)
IN9PA4 (L3)
IN10PA5 (M1)
IN11PA6 (L2)
IN12PA7 (K3)
IN13PC4 (M3)
IN14PC5 (J3)
IN15PB0 (M4)
IN16PB1 (L4)
IN17PB2 (K4)
ADC4EXTI15PA15 (JTDI) (A11), PG15 (B4), PC15-OSC32_OUT (D1), PD15 (H12), PB15 (K12), PF15 (L6), PE15 (L8)
IN1PC0 (H2)
IN2PC1 (G3)
IN3PC2 (F3)
IN4PC3 (F4)
IN5PF14 (J5)
IN6PF15 (L6)
IN7PG0 (M6)
IN8PG1 (K6)
IN9PA4 (L3)
IN10PA5 (M1)
IN11PA6 (L2)
IN15PD11 (J11)
IN16PD12 (J12)
IN17PD13 (H11)
IN18PB0 (M4)
IN19PB1 (L4)
IN20PA7 (K3)
IN22PC4 (M3)
IN23PC5 (J3)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (A4), PG9 (B7), PA9 (D10), PC9 (E11), PD9 (J10), PE9 (M7)
OUT1PA4 (L3)
OUT2PA5 (M1)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPB1 (L4), PC4 (M3)
INPPC5 (J3), PA2 (K2), PB2 (K4)
OUTPB10 (K9, AF12), PB0 (M4, AF12)
COMP2INMPB3 (JTDO/TRACESWO) (C6), PB7 (D5)
INPPB6 (A5), PB4 (NJTRST) (B6)
OUTPB5 (D6, AF12), PB11 (L9, AF12)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA1 (G4), OPAMP1_VINM (H3)
VINPPA0 (J2)
VOUTPA3 (L1)
OPAMP2VINMPA7 (K3), OPAMP2_VINM (M2)
VINPPA6 (L2)
VOUTPB0 (M4)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (J1)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (L2, AF1), PE15 (L8, AF1), PB12 (L11, AF1)
BKIN2PA11 (C12, AF2), PE14 (K8, AF2)
CH1PA8 (D12, AF1), PE9 (M7, AF1)
CH1NPE8 (J6, AF1), PA7 (K3, AF1), PB13 (K10, AF1)
CH2PA9 (D10, AF1), PE11 (L7, AF1)
CH2NPE10 (J7, AF1), PB14 (K11, AF1), PB0 (M4, AF1)
CH3PA10 (D11, AF1), PE13 (M8, AF1)
CH3NPE12 (J8, AF1), PB15 (K12, AF1), PB1 (L4, AF1)
CH4PA11 (C12, AF1), PE14 (K8, AF1)
CH4NPC5 (J3, AF1), PE15 (L8, AF3)
ETRPA12 (B12, AF1), PE7 (K7, AF1)
TIM2CH1PA15 (JTDI) (A11, AF1), PA0 (J2, AF1), PA5 (M1, AF1)
CH2PB3 (JTDO/TRACESWO) (C6, AF1), PA1 (G4, AF1)
CH3PA2 (K2, AF1), PB10 (K9, AF1)
CH4PA3 (L1, AF1), PB11 (L9, AF1)
ETRPA15 (JTDI) (A11, AF2), PA0 (J2, AF14), PA5 (M1, AF2)
TIM3CH1PE3 (A2, AF2), PB4 (NJTRST) (B6, AF2), PC6 (F11, AF2), PA6 (L2, AF2)
CH2PE4 (B2, AF2), PB5 (D6, AF2), PC7 (E10, AF2), PA7 (K3, AF2)
CH3PE5 (A1, AF2), PC8 (E12, AF2), PB0 (M4, AF2)
CH4PE6 (C2, AF2), PC9 (E11, AF2), PB1 (L4, AF2)
ETRPD2 (A9, AF2), PE2 (B3, AF2)
TIM4CH1PB6 (A5, AF2), PD12 (J12, AF2)
CH2PB7 (D5, AF2), PD13 (H11, AF2)
CH3PB8 (C5, AF2), PD14 (H10, AF2)
CH4PB9 (A4, AF2), PD15 (H12, AF2)
ETRPE0 (C4, AF2)
TIM5CH1PA0 (J2, AF2)
CH2PA1 (G4, AF2)
CH3PA2 (K2, AF2)
CH4PA3 (L1, AF2)
TIM8BKINPB7 (D5, AF3), PA6 (L2, AF3)
BKIN2PB6 (A5, AF3), PC9 (E11, AF1)
CH1PC6 (F11, AF3)
CH1NPA7 (K3, AF3), PA5 (M1, AF3)
CH2PC7 (E10, AF3)
CH2NPB14 (K11, AF3), PB0 (M4, AF3)
CH3PC8 (E12, AF3)
CH3NPB15 (K12, AF3), PB1 (L4, AF3)
CH4PC9 (E11, AF3)
CH4NPD0 (C9, AF3), PB2 (K4, AF3)
ETRPA0 (J2, AF3)
TIM15BKINPA9 (D10, AF14), PB12 (L11, AF14)
CH1PG10 (C7, AF14), PA2 (K2, AF14), PB14 (K11, AF14)
CH1NPG9 (B7, AF14), PA1 (G4, AF14), PB13 (K10, AF14)
CH2PB15 (K12, AF14), PA3 (L1, AF14), PG11 (M11, AF14)
TIM16BKINPB5 (D6, AF14)
CH1PE0 (C4, AF14), PB8 (C5, AF14), PA6 (L2, AF14)
CH1NPB6 (A5, AF14)
TIM17BKINPB4 (NJTRST) (B6, AF14), PA10 (D11, AF14)
CH1PE1 (A3, AF14), PB9 (A4, AF14), PA7 (K3, AF14)
CH1NPB7 (D5, AF14)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1CH1PG15 (B4, AF1), PB3 (JTDO/TRACESWO) (C6, AF2), PA14 (JTCK/SWCLK) (C11, AF1), PC1 (G3, AF1), PB2 (K4, AF1)
CH2PB4 (NJTRST) (B6, AF1), PA1 (G4, AF0), PG14 (M9, AF1)
ETRPB6 (A5, AF1), PG12 (A6, AF1), PC3 (F4, AF1)
IN1PG10 (C7, AF1), PB5 (D6, AF1), PC0 (H2, AF1)
IN2PB7 (D5, AF1), PC2 (F3, AF1), PG11 (M11, AF1)
LPTIM2CH1PA8 (D12, AF14), PD13 (H11, AF14), PA4 (L3, AF14)
CH2PC7 (E10, AF14), PA7 (K3, AF13), PD10 (M12, AF2)
ETRPC3 (F4, AF14), PD11 (J11, AF14), PA5 (M1, AF14)
IN1PC0 (H2, AF14), PD12 (J12, AF14), PB1 (L4, AF14)
IN2PA10 (D11, AF2), PD9 (J10, AF2), PB15 (K12, AF2)
LPTIM3CH1PC8 (E12, AF14), PF5 (F2, AF2), PC3 (F4, AF2), PD14 (H10, AF14), PB10 (K9, AF2), PB0 (M4, AF4)
CH2PF2 (E1, AF2), PC9 (E11, AF14), PD15 (H12, AF14), PB1 (L4, AF4)
ETRPC10 (B11, AF2), PF4 (E3, AF2), PB14 (K11, AF2), PD10 (M12, AF14)
IN1PC11 (A10, AF2), PF3 (D3, AF2), PD9 (J10, AF14), PB13 (K10, AF2)
LPTIM4ETRPD2 (A9, AF13), PF12 (L5, AF13)
IN1PD13 (H11, AF13), PF11 (K5, AF13)
OUTPD7 (D7, AF13), PF13 (M5, AF13)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT1PC13 (C3)
OUT2PB2 (K4)
REFINPB15 (K12, AF0)
TSPC13 (C3)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (D2, AF12)
A1PF1 (E2, AF12)
A2PF2 (E1, AF12)
A3PF3 (D3, AF12)
A4PF4 (E3, AF12)
A5PF5 (F2, AF12)
A6PF12 (L5, AF12)
A7PF13 (M5, AF12)
A8PF14 (J5, AF12)
A9PF15 (L6, AF12)
A10PG0 (M6, AF12)
A11PG1 (K6, AF12)
A12PG2 (G10, AF12)
A13PG3 (G11, AF12)
A14PG4 (G9, AF12)
A15PG5 (G12, AF12)
A16PD11 (J11, AF12)
A17PD12 (J12, AF12)
A18PD13 (H11, AF12)
A19PE3 (A2, AF12)
A20PE4 (B2, AF12)
A21PE5 (A1, AF12)
A22PE6 (C2, AF12)
A23PE2 (B3, AF12)
A24PG13 (M10, AF12)
A25PG14 (M9, AF12)
ALEPD12 (J12, AF12)
CLEPD11 (J11, AF12)
CLKPD3 (C8, AF12)
D0PD14 (H10, AF12)
D1PD15 (H12, AF12)
D2PD0 (C9, AF12)
D3PD1 (B9, AF12)
D4PE7 (K7, AF12)
D5PE8 (J6, AF12)
D6PE9 (M7, AF12)
D7PE10 (J7, AF12)
D8PE11 (L7, AF12)
D9PE12 (J8, AF12)
D10PE13 (M8, AF12)
D11PE14 (K8, AF12)
D12PE15 (L8, AF12)
D13PD8 (L12, AF12)
D14PD9 (J10, AF12)
D15PD10 (M12, AF12)
DA0PD14 (H10, AF12)
DA1PD15 (H12, AF12)
DA2PD0 (C9, AF12)
DA3PD1 (B9, AF12)
DA4PE7 (K7, AF12)
DA5PE8 (J6, AF12)
DA6PE9 (M7, AF12)
DA7PE10 (J7, AF12)
DA8PE11 (L7, AF12)
DA9PE12 (J8, AF12)
DA10PE13 (M8, AF12)
DA11PE14 (K8, AF12)
DA12PE15 (L8, AF12)
DA13PD8 (L12, AF12)
DA14PD9 (J10, AF12)
DA15PD10 (M12, AF12)
INTPG7 (F10, AF12)
NBL0PE0 (C4, AF12)
NBL1PE1 (A3, AF12), PB15 (K12, AF11)
NCEPG9 (B7, AF12), PD7 (D7, AF12)
NE1PD7 (D7, AF12)
NE2PG9 (B7, AF12)
NE3PG10 (C7, AF12)
NE4PG12 (A6, AF12)
NLPB7 (D5, AF12)
NOEPD4 (B8, AF12)
NWAITPD6 (A7, AF12)
NWEPD5 (A8, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (D10, AF5), PC6 (F11, AF10)
D1PA10 (D11, AF5), PC7 (E10, AF10)
D2PC11 (A10, AF4), PE0 (C4, AF10), PC8 (E12, AF10)
D3PE1 (A3, AF10), PC9 (E11, AF4)
D4PC11 (A10, AF10), PE4 (B2, AF10)
D5PB6 (A5, AF10), PD3 (C8, AF4)
D6PE5 (A1, AF10), PB8 (C5, AF10)
D7PB9 (A4, AF10), PE6 (C2, AF10)
D8PC10 (B11, AF10)
D9PC12 (B10, AF10)
D10PD6 (A7, AF4), PB5 (D6, AF10)
D11PD2 (A9, AF10)
D12PB4 (NJTRST) (B6, AF10), PF11 (K5, AF10)
D13PG15 (B4, AF10)
HSYNCPA4 (L3, AF10), PD8 (L12, AF10)
PIXCLKPD9 (J10, AF10), PA6 (L2, AF4)
VSYNCPB7 (D5, AF10)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (D10, AF5), PC6 (F11, AF10)
D1PA10 (D11, AF5), PC7 (E10, AF10)
D2PC11 (A10, AF4), PE0 (C4, AF10), PC8 (E12, AF10)
D3PE1 (A3, AF10), PC9 (E11, AF4)
D4PC11 (A10, AF10), PE4 (B2, AF10)
D5PB6 (A5, AF10), PD3 (C8, AF4)
D6PE5 (A1, AF10), PB8 (C5, AF10)
D7PB9 (A4, AF10), PE6 (C2, AF10)
D8PC10 (B11, AF10)
D9PC12 (B10, AF10)
D10PD6 (A7, AF4), PB5 (D6, AF10)
D11PD2 (A9, AF10)
D12PB4 (NJTRST) (B6, AF10), PF11 (K5, AF10)
D13PG15 (B4, AF10)
D14PA5 (M1, AF4)
D15PC5 (J3, AF4)
DEPA4 (L3, AF10), PD8 (L12, AF10)
PDCKPD9 (J10, AF10), PA6 (L2, AF4)
RDYPB7 (D5, AF10)

TSC — контроллер сенсорных кнопок

БлокСигналВыводы
TSCG1_IO1PB12 (L11, AF9)
G1_IO2PB13 (K10, AF9)
G1_IO3PB14 (K11, AF9)
G2_IO1PB4 (NJTRST) (B6, AF9)
G2_IO2PB5 (D6, AF9)
G2_IO3PB6 (A5, AF9)
G2_IO4PB7 (D5, AF9)
G3_IO2PC10 (B11, AF9)
G3_IO3PC11 (A10, AF9)
G3_IO4PC12 (B10, AF9)
G4_IO1PC6 (F11, AF9)
G4_IO2PC7 (E10, AF9)
G4_IO3PC8 (E12, AF9)
G4_IO4PC9 (E11, AF9)
G5_IO1PE10 (J7, AF9)
G5_IO2PE11 (L7, AF9)
G5_IO3PE12 (J8, AF9)
G5_IO4PE13 (M8, AF9)
G6_IO1PD10 (M12, AF9)
G6_IO2PD11 (J11, AF9)
G6_IO3PD12 (J12, AF9)
G6_IO4PD13 (H11, AF9)
G7_IO1PE2 (B3, AF9)
G7_IO2PE3 (A2, AF9)
G7_IO3PE4 (B2, AF9)
G7_IO4PE5 (A1, AF9)
G8_IO1PF14 (J5, AF9)
G8_IO2PF15 (L6, AF9)
G8_IO3PG0 (M6, AF9)
G8_IO4PG1 (K6, AF9)
SYNCPD2 (A9, AF9), PB10 (K9, AF9)

MDF — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
MDF1CCK0PB8 (C5, AF5), PF3 (D3, AF6), PG7 (F10, AF6), PE9 (M7, AF6)
CCK1PC2 (F3, AF6)
CKI0PD4 (B8, AF6), PF5 (F2, AF6), PB2 (K4, AF6)
CKI1PD7 (D7, AF6), PB13 (K10, AF6)
CKI2PE8 (J6, AF6), PB15 (K12, AF6)
CKI3PE5 (A1, AF6), PC6 (F11, AF6)
CKI4PC1 (G3, AF6), PE11 (L7, AF6)
CKI5PB7 (D5, AF6), PE13 (M8, AF6)
SDI0PD3 (C8, AF6), PF4 (E3, AF6), PB1 (L4, AF6)
SDI1PD6 (A7, AF6), PB12 (L11, AF6)
SDI2PE7 (K7, AF6), PB14 (K11, AF6)
SDI3PE4 (B2, AF6), PC7 (E10, AF6)
SDI4PC0 (H2, AF6), PE10 (J7, AF6)
SDI5PB6 (A5, AF6), PE12 (J8, AF6)

ADF — цифровой аудиофильтр

БлокСигналВыводы
ADF1CCK0PB3 (JTDO/TRACESWO) (C6, AF3), PF3 (D3, AF3), PE9 (M7, AF3)
CCK1PC10 (B11, AF3)
SDI0PC11 (A10, AF3), PB4 (NJTRST) (B6, AF3), PF4 (E3, AF3), PE10 (J7, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (C11, AF0)
JTDIPA15 (JTDI) (A11, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (C6, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (C10, AF0)
NJTRSTPB4 (NJTRST) (B6, AF0)
TRACECLKPE2 (B3, AF0), PA8 (D12, AF12)
TRACED0PE3 (A2, AF0), PC9 (E11, AF0), PC1 (G3, AF0)
TRACED1PE4 (B2, AF0), PC10 (B11, AF0)
TRACED2PE5 (A1, AF0), PD2 (A9, AF0)
TRACED3PC12 (B10, AF0), PE6 (C2, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCLSCOPA2 (K2)
MCOPA8 (D12, AF0)
OSC_INPH0-OSC_IN (F1)
OSC_OUTPH1-OSC_OUT (G1)
OSC32_INPC14-OSC32_IN (C1)
OSC32_OUTPC15-OSC32_OUT (D1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC6 (F11, AF0), PA5 (M1, AF0)
PWR_WKUP1PE4 (B2), PA0 (J2), PB2 (K4)
PWR_WKUP2PE5 (A1), PC13 (C3), PA4 (L3)
PWR_WKUP3PB6 (A5), PE6 (C2), PA1 (G4)
PWR_WKUP4PB7 (D5), PA2 (K2), PB1 (L4)
PWR_WKUP5PB8 (C5), PC5 (J3), PA3 (L1)
PWR_WKUP6PB5 (D6), PE7 (K7), PA5 (M1)
PWR_WKUP7PE8 (J6), PB15 (K12), PA6 (L2)
PWR_WKUP8PF2 (E1), PA7 (K3), PB10 (K9)
TAMP_IN1PC13 (C3)
TAMP_IN2PA0 (J2)
TAMP_IN3PE6 (C2)
TAMP_IN4PC5 (J3)
TAMP_IN5PA1 (G4)
TAMP_IN6PE3 (A2)
TAMP_IN7PE4 (B2)
TAMP_IN8PE5 (A1)
TAMP_OUT1PA0 (J2)
TAMP_OUT2PC13 (C3)
TAMP_OUT3PE3 (A2)
TAMP_OUT4PA1 (G4)
TAMP_OUT5PC5 (J3)
TAMP_OUT6PE6 (C2)
TAMP_OUT7PE5 (A1)
TAMP_OUT8PE4 (B2)

Блоки без собственных выводов: OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), IRTIM (формирователь ИК-сигнала), TIM6 (таймер), TIM7 (таймер), IWDG (независимый сторожевой таймер), WWDG (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), AES (аппаратное шифрование AES), HASH (блок хеширования), PKA (ускоритель криптографии с открытым ключом), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 132 шарика корпуса UFBGA132 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PE5ввод-выводDCMI_D6 (AF10), DEBUG_TRACED2 (AF0), FMC_A21 (AF12), MDF1_CKI3 (AF6), PSSI_D6 (AF10), PWR_WKUP2, SAI1_CK2 (AF3), SAI1_SCK_A (AF13), TAMP_IN8, TAMP_OUT7, TIM3_CH3 (AF2), TSC_G7_IO4 (AF9)
A2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), OCTOSPIM_P1_DQS (AF3), SAI1_SD_B (AF13), TAMP_IN6, TAMP_OUT3, TIM3_CH1 (AF2), TSC_G7_IO2 (AF9), USART6_CTS (AF7)
A3PE1ввод-выводDCMI_D3 (AF10), FMC_NBL1 (AF12), PSSI_D3 (AF10), TIM17_CH1 (AF14), USART6_TX (AF7)
A4PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF10), FDCAN1_TX (AF9), I2C1_SDA (AF4), IR_OUT (AF1), PSSI_D7 (AF10), SAI1_D2 (AF3), SAI1_FS_A (AF13), SDMMC1_CDIR (AF8), SDMMC1_D5 (AF12), SDMMC2_D5 (AF11), SPI2_NSS (AF5), TIM17_CH1 (AF14), TIM4_CH4 (AF2)
A5PB6ввод-выводCOMP2_INP, DCMI_D5 (AF10), I2C1_SCL (AF4), I2C4_SCL (AF5), LPTIM1_ETR (AF1), MDF1_SDI5 (AF6), PSSI_D5 (AF10), PWR_WKUP3, SAI1_FS_B (AF13), TIM16_CH1N (AF14), TIM4_CH1 (AF2), TIM8_BKIN2 (AF3), TSC_G2_IO3 (AF9), USART1_TX (AF7)
A6PG12ввод-выводFMC_NE4 (AF12), LPTIM1_ETR (AF1), OCTOSPIM_P2_NCS (AF5), SAI2_SD_A (AF13), SPI3_NSS (AF6), USART1_DE (AF7), USART1_RTS (AF7)
A7PD6ввод-выводDCMI_D10 (AF4), FMC_NWAIT (AF12), MDF1_SDI1 (AF6), OCTOSPIM_P1_IO6 (AF10), PSSI_D10 (AF4), SAI1_D1 (AF3), SAI1_SD_A (AF13), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
A8PD5ввод-выводFMC_NWE (AF12), OCTOSPIM_P1_IO5 (AF10), SPI2_RDY (AF5), USART2_TX (AF7)
A9PD2ввод-выводDCMI_D11 (AF10), DEBUG_TRACED2 (AF0), I2C5_SMBA (AF4), LPTIM4_ETR (AF13), PSSI_D11 (AF10), SDMMC1_CMD (AF12), TIM3_ETR (AF2), TSC_SYNC (AF9), UART5_RX (AF8), USART3_DE (AF7), USART3_RTS (AF7)
A10PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADF1_SDI0 (AF3), DCMI_D2 (AF4), DCMI_D4 (AF10), LPTIM3_IN1 (AF2), OCTOSPIM_P1_NCS (AF5), PSSI_D2 (AF4), PSSI_D4 (AF10), SAI2_MCLK_B (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), TSC_G3_IO3 (AF9), UART4_RX (AF8), UCPD1_FRSTX2 (AF11), USART3_RX (AF7)
A11PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DEBUG_JTDI (AF0), SAI2_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), TIM2_CH1 (AF1), TIM2_ETR (AF2), UART4_DE (AF8), UART4_RTS (AF8), UCPD1_CC1, USART2_RX (AF3), USART3_DE (AF7), USART3_RTS (AF7)
A12VDDUSBпитание—
B1VBATпитание—
B2PE4ввод-выводDCMI_D4 (AF10), DEBUG_TRACED1 (AF0), FMC_A20 (AF12), MDF1_SDI3 (AF6), PSSI_D4 (AF10), PWR_WKUP1, SAI1_D2 (AF3), SAI1_FS_A (AF13), TAMP_IN7, TAMP_OUT8, TIM3_CH2 (AF2), TSC_G7_IO3 (AF9), USART6_DE (AF7), USART6_RTS (AF7)
B3PE2ввод-выводDEBUG_TRACECLK (AF0), FMC_A23 (AF12), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM3_ETR (AF2), TSC_G7_IO1 (AF9), USART6_CK (AF7)
B4PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, DCMI_D13 (AF10), I2C1_SMBA (AF4), LPTIM1_CH1 (AF1), OCTOSPIM_P2_DQS (AF5), PSSI_D13 (AF10)
B5PH3-BOOT0ввод-вывод—
B6PB4 (NJTRST)ввод-выводADF1_SDI0 (AF3), COMP2_INP, DCMI_D12 (AF10), DEBUG_NJTRST (AF0), I2C3_SDA (AF4), LPTIM1_CH2 (AF1), PSSI_D12 (AF10), SAI1_MCLK_B (AF13), SDMMC2_D3 (AF12), SPI1_MISO (AF5), SPI3_MISO (AF6), TIM17_BKIN (AF14), TIM3_CH1 (AF2), TSC_G2_IO1 (AF9), UART5_DE (AF8), UART5_RTS (AF8), USART1_CTS (AF7)
B7PG9ввод-выводDAC1_EXTI9, FMC_NCE (AF12), FMC_NE2 (AF12), OCTOSPIM_P2_IO6 (AF5), SAI2_SCK_A (AF13), SPI3_SCK (AF6), TIM15_CH1N (AF14), USART1_TX (AF7)
B8PD4ввод-выводFMC_NOE (AF12), MDF1_CKI0 (AF6), OCTOSPIM_P1_IO4 (AF10), SPI2_MOSI (AF5), USART2_DE (AF7), USART2_RTS (AF7)
B9PD1ввод-выводFDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), I2C5_SCL (AF4), I2C6_SCL (AF2), SPI2_SCK (AF5)
B10PC12ввод-выводDCMI_D9 (AF10), DEBUG_TRACED3 (AF0), PSSI_D9 (AF10), SAI2_SD_B (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), TSC_G3_IO4 (AF9), UART5_TX (AF8), USART3_CK (AF7)
B11PC10ввод-выводADF1_CCK1 (AF3), DCMI_D8 (AF10), DEBUG_TRACED1 (AF0), LPTIM3_ETR (AF2), PSSI_D8 (AF10), SAI2_SCK_B (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), TSC_G3_IO2 (AF9), UART4_TX (AF8), USART3_TX (AF7)
B12PA12ввод-выводFDCAN1_TX (AF9), OCTOSPIM_P2_NCS (AF6), SPI1_MOSI (AF5), TIM1_ETR (AF1), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_HS_DP
C1PC14-OSC32_INввод-выводRCC_OSC32_IN
C2PE6ввод-выводDCMI_D7 (AF10), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), PSSI_D7 (AF10), PWR_WKUP3, SAI1_D1 (AF3), SAI1_SD_A (AF13), TAMP_IN3, TAMP_OUT6, TIM3_CH4 (AF2)
C3PC13ввод-выводPWR_WKUP2, RTC_OUT1, RTC_TS, TAMP_IN1, TAMP_OUT2
C4PE0ввод-выводDCMI_D2 (AF10), FMC_NBL0 (AF12), PSSI_D2 (AF10), TIM16_CH1 (AF14), TIM4_ETR (AF2), USART6_RX (AF7)
C5PB8ввод-выводDCMI_D6 (AF10), FDCAN1_RX (AF9), I2C1_SCL (AF4), MDF1_CCK0 (AF5), PSSI_D6 (AF10), PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), SDMMC1_CKIN (AF8), SDMMC1_D4 (AF12), SDMMC2_D4 (AF11), SPI3_RDY (AF6), TIM16_CH1 (AF14), TIM4_CH3 (AF2)
C6PB3 (JTDO/TRACESWO)ввод-выводADF1_CCK0 (AF3), COMP2_INM, CRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2C1_SDA (AF4), LPTIM1_CH1 (AF2), SAI1_SCK_B (AF13), SDMMC2_D2 (AF12), SPI1_SCK (AF5), SPI3_SCK (AF6), TIM2_CH2 (AF1), USART1_DE (AF7), USART1_RTS (AF7)
C7PG10ввод-выводFMC_NE3 (AF12), LPTIM1_IN1 (AF1), OCTOSPIM_P2_IO7 (AF5), SAI2_FS_A (AF13), SPI3_MISO (AF6), TIM15_CH1 (AF14), USART1_RX (AF7)
C8PD3ввод-выводDCMI_D5 (AF4), FMC_CLK (AF12), I2C6_SMBA (AF2), MDF1_SDI0 (AF6), OCTOSPIM_P2_NCS (AF10), PSSI_D5 (AF4), SPI2_MISO (AF5), SPI2_SCK (AF3), USART2_CTS (AF7)
C9PD0ввод-выводFDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), I2C5_SDA (AF4), I2C6_SDA (AF2), SPI2_NSS (AF5), TIM8_CH4N (AF3)
C10PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0), IR_OUT (AF1), SAI1_SD_B (AF13)
C11PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0), I2C1_SMBA (AF4), I2C4_SMBA (AF5), LPTIM1_CH1 (AF1), SAI1_FS_B (AF13), USB_OTG_HS_SOF (AF10)
C12PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, FDCAN1_RX (AF9), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1), USART1_CTS (AF7), USB_OTG_HS_DM
D1PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, RCC_OSC32_OUT
D2PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), I2C6_SDA (AF2), OCTOSPIM_P2_IO0 (AF5), USART6_TX (AF7)
D3PF3ввод-выводADF1_CCK0 (AF3), FMC_A3 (AF12), LPTIM3_IN1 (AF2), MDF1_CCK0 (AF6), OCTOSPIM_P2_IO3 (AF5), UART5_TX (AF8), USART6_CTS (AF7)
D4VDDпитание—
D5PB7ввод-выводCOMP2_INM, DCMI_VSYNC (AF10), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF5), LPTIM1_IN2 (AF1), MDF1_CKI5 (AF6), PSSI_RDY (AF10), PWR_PVD_IN, PWR_WKUP4, TIM17_CH1N (AF14), TIM4_CH2 (AF2), TIM8_BKIN (AF3), TSC_G2_IO4 (AF9), UART4_CTS (AF8), USART1_RX (AF7)
D6PB5ввод-выводCOMP2_OUT (AF12), DCMI_D10 (AF10), I2C1_SMBA (AF4), LPTIM1_IN1 (AF1), OCTOSPIM_P1_NCLK (AF3), PSSI_D10 (AF10), PWR_WKUP6, SAI1_SD_B (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF6), TIM16_BKIN (AF14), TIM3_CH2 (AF2), TSC_G2_IO2 (AF9), UART5_CTS (AF8), UCPD1_DBCC1, USART1_CK (AF7)
D7PD7ввод-выводFMC_NCE (AF12), FMC_NE1 (AF12), LPTIM4_OUT (AF13), MDF1_CKI1 (AF6), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), USART2_CK (AF7)
D8VDDIO2питание—
D9VDDпитание—
D10PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF5), PSSI_D0 (AF5), SAI1_FS_A (AF13), SPI2_SCK (AF3), TIM15_BKIN (AF14), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_HS_VBUS
D11PA10ввод-выводCRS_SYNC (AF0), DCMI_D1 (AF5), LPTIM2_IN2 (AF2), PSSI_D1 (AF5), SAI1_D1 (AF3), SAI1_SD_A (AF13), TIM17_BKIN (AF14), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_HS_ID (AF10)
D12PA8ввод-выводDEBUG_TRACECLK (AF12), LPTIM2_CH1 (AF14), RCC_MCO (AF0), SAI1_CK2 (AF3), SAI1_SCK_A (AF13), SPI1_RDY (AF5), TIM1_CH1 (AF1), USART1_CK (AF7), USB_OTG_HS_SOF (AF10)
E1PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), LPTIM3_CH2 (AF2), OCTOSPIM_P2_IO2 (AF5), PWR_WKUP8, USART6_CK (AF7)
E2PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), I2C6_SCL (AF2), OCTOSPIM_P2_IO1 (AF5), USART6_RX (AF7)
E3PF4ввод-выводADF1_SDI0 (AF3), FMC_A4 (AF12), LPTIM3_ETR (AF2), MDF1_SDI0 (AF6), OCTOSPIM_P2_CLK (AF5), UART5_RX (AF8), USART6_DE (AF7), USART6_RTS (AF7)
E4VSSпитание—
E9VSSпитание—
E10PC7ввод-выводDCMI_D1 (AF10), LPTIM2_CH2 (AF14), MDF1_SDI3 (AF6), PSSI_D1 (AF10), PWR_CDSTOP (AF0), SAI2_MCLK_B (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), TSC_G4_IO2 (AF9)
E11PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF4), DEBUG_TRACED0 (AF0), LPTIM3_CH2 (AF14), PSSI_D3 (AF4), SDMMC1_D1 (AF12), TIM3_CH4 (AF2), TIM8_BKIN2 (AF1), TIM8_CH4 (AF3), TSC_G4_IO4 (AF9), USART6_TX (AF7)
E12PC8ввод-выводDCMI_D2 (AF10), LPTIM3_CH1 (AF14), PSSI_D2 (AF10), PWR_SRDSTOP (AF0), SDMMC1_D0 (AF12), TIM3_CH3 (AF2), TIM8_CH3 (AF3), TSC_G4_IO3 (AF9), USART6_RX (AF7)
F1PH0-OSC_INввод-выводRCC_OSC_IN
F2PF5ввод-выводFMC_A5 (AF12), LPTIM3_CH1 (AF2), MDF1_CKI0 (AF6), OCTOSPIM_P2_NCLK (AF5)
F3PC2ввод-выводADC1_IN3, ADC2_IN3, ADC4_IN3, LPTIM1_IN2 (AF1), MDF1_CCK1 (AF6), OCTOSPIM_P1_IO5 (AF10), SPI2_MISO (AF5), USART6_RX (AF7)
F4PC3ввод-выводADC1_IN4, ADC2_IN4, ADC4_IN4, LPTIM1_ETR (AF1), LPTIM2_ETR (AF14), LPTIM3_CH1 (AF2), OCTOSPIM_P1_IO6 (AF10), SAI1_D1 (AF3), SAI1_SD_A (AF13), SPI2_MOSI (AF5), USART6_TX (AF7)
F6VSSпитание—
F7VDDпитание—
F9PG6ввод-выводI2C3_SMBA (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), OCTOSPIM_P1_DQS (AF3), SPI1_RDY (AF5), UCPD1_FRSTX1 (AF11)
F10PG7ввод-выводFMC_INT (AF12), I2C3_SCL (AF4), LPUART1_TX (AF8), MDF1_CCK0 (AF6), OCTOSPIM_P2_DQS (AF5), SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), UCPD1_FRSTX2 (AF11)
F11PC6ввод-выводDCMI_D0 (AF10), MDF1_CKI3 (AF6), PSSI_D0 (AF10), PWR_CSLEEP (AF0), SAI2_MCLK_A (AF13), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF11), TIM3_CH1 (AF2), TIM8_CH1 (AF3), TSC_G4_IO1 (AF9)
F12PG8ввод-выводI2C3_SDA (AF4), LPUART1_RX (AF8)
G1PH1-OSC_OUTввод-выводRCC_OSC_OUT
G2NRSTсброс—
G3PC1ввод-выводADC1_IN2, ADC2_IN2, ADC4_IN2, DEBUG_TRACED0 (AF0), I2C3_SDA (AF4), LPTIM1_CH1 (AF1), LPUART1_TX (AF8), MDF1_CKI4 (AF6), OCTOSPIM_P1_IO4 (AF10), SAI1_SD_A (AF13), SDMMC2_CK (AF12), SPI2_MOSI (AF3), USART6_CK (AF7)
G4PA1ввод-выводADC1_IN6, ADC2_IN6, I2C1_SMBA (AF4), LPTIM1_CH2 (AF0), OCTOSPIM_P1_DQS (AF10), OPAMP1_VINM, PWR_WKUP3, SPI1_SCK (AF5), TAMP_IN5, TAMP_OUT4, TIM15_CH1N (AF14), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
G6VDDпитание—
G7VSSпитание—
G9PG4ввод-выводFMC_A14 (AF12), SAI2_MCLK_B (AF13), SPI1_MOSI (AF5)
G10PG2ввод-выводFMC_A12 (AF12), SAI2_SCK_B (AF13), SPI1_SCK (AF5)
G11PG3ввод-выводFMC_A13 (AF12), SAI2_FS_B (AF13), SPI1_MISO (AF5)
G12PG5ввод-выводFMC_A15 (AF12), LPUART1_CTS (AF8), SAI2_SD_B (AF13), SPI1_NSS (AF5)
H1VSSAпитание—
H2PC0ввод-выводADC1_IN1, ADC2_IN1, ADC4_IN1, I2C3_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF14), LPUART1_RX (AF8), MDF1_SDI4 (AF6), OCTOSPIM_P1_IO7 (AF3), SAI2_FS_A (AF13), SDMMC1_D5 (AF12), SPI2_RDY (AF5), USART6_CTS (AF7)
H3OPAMP1_VINMслужебныйOPAMP1_VINM
H4VSSпитание—
H9VSSпитание—
H10PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), LPTIM3_CH1 (AF14), TIM4_CH3 (AF2), USART6_CK (AF7)
H11PD13ввод-выводADC4_IN17, FMC_A18 (AF12), I2C4_SDA (AF4), LPTIM2_CH1 (AF14), LPTIM4_IN1 (AF13), TIM4_CH2 (AF2), TSC_G6_IO4 (AF9), USART6_CTS (AF7)
H12PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), LPTIM3_CH2 (AF14), TIM4_CH4 (AF2), USART6_DE (AF7), USART6_RTS (AF7)
J1VREF+служебныйVREFBUF_OUT
J2PA0ввод-выводADC1_IN5, ADC2_IN5, AUDIOCLK (AF13), OCTOSPIM_P2_NCS (AF10), OPAMP1_VINP, PWR_WKUP1, SDMMC2_CMD (AF12), SPI3_RDY (AF6), TAMP_IN2, TAMP_OUT1, TIM2_CH1 (AF1), TIM2_ETR (AF14), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7)
J3PC5ввод-выводADC1_IN14, ADC2_IN14, ADC4_IN23, COMP1_INP, PSSI_D15 (AF4), PWR_WKUP5, SAI1_D3 (AF3), TAMP_IN4, TAMP_OUT5, TIM1_CH4N (AF1), USART3_RX (AF7)
J4VDDпитание—
J5PF14ввод-выводADC4_IN5, FMC_A8 (AF12), I2C4_SCL (AF4), TSC_G8_IO1 (AF9)
J6PE8ввод-выводFMC_D5 (AF12), FMC_DA5 (AF12), MDF1_CKI2 (AF6), PWR_WKUP7, SAI1_SCK_B (AF13), TIM1_CH1N (AF1)
J7PE10ввод-выводADF1_SDI0 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), MDF1_SDI4 (AF6), OCTOSPIM_P1_CLK (AF10), SAI1_MCLK_B (AF13), TIM1_CH2N (AF1), TSC_G5_IO1 (AF9)
J8PE12ввод-выводFMC_D9 (AF12), FMC_DA9 (AF12), MDF1_SDI5 (AF6), OCTOSPIM_P1_IO0 (AF10), SPI1_NSS (AF5), TIM1_CH3N (AF1), TSC_G5_IO3 (AF9)
J9VDDпитание—
J10PD9ввод-выводDAC1_EXTI9, DCMI_PIXCLK (AF10), FMC_D14 (AF12), FMC_DA14 (AF12), LPTIM2_IN2 (AF2), LPTIM3_IN1 (AF14), PSSI_PDCK (AF10), SAI2_MCLK_A (AF13), USART3_RX (AF7)
J11PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC4_IN15, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_ETR (AF14), SAI2_SD_A (AF13), TSC_G6_IO2 (AF9), USART3_CTS (AF7)
J12PD12ввод-выводADC4_IN16, FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), LPTIM2_IN1 (AF14), SAI2_FS_A (AF13), TIM4_CH1 (AF2), TSC_G6_IO3 (AF9), USART3_DE (AF7), USART3_RTS (AF7)
K1VDDAпитание—
K2PA2ввод-выводADC1_IN7, ADC2_IN7, COMP1_INP, LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), PWR_WKUP4, RCC_LSCO, SPI1_RDY (AF5), TIM15_CH1 (AF14), TIM2_CH3 (AF1), TIM5_CH3 (AF2), UCPD1_FRSTX1 (AF11), USART2_TX (AF7)
K3PA7ввод-выводADC1_IN12, ADC2_IN12, ADC4_IN20, I2C3_SCL (AF4), LPTIM2_CH2 (AF13), OCTOSPIM_P1_IO2 (AF10), OPAMP2_VINM, PWR_SRDSTOP (AF0), PWR_WKUP8, SPI1_MOSI (AF5), TIM17_CH1 (AF14), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3), USART3_TX (AF7)
K4PB2ввод-выводADC1_IN17, ADC2_IN17, COMP1_INP, I2C3_SMBA (AF4), LPTIM1_CH1 (AF1), MDF1_CKI0 (AF6), OCTOSPIM_P1_DQS (AF10), PWR_WKUP1, RTC_OUT2, SPI1_RDY (AF5), TIM8_CH4N (AF3), UCPD1_FRSTX1 (AF11)
K5PF11ввод-выводADC1_EXTI11, ADC2_EXTI11, DCMI_D12 (AF10), LPTIM4_IN1 (AF13), OCTOSPIM_P1_NCLK (AF3), PSSI_D12 (AF10)
K6PG1ввод-выводADC4_IN8, FMC_A11 (AF12), OCTOSPIM_P2_IO5 (AF5), TSC_G8_IO4 (AF9)
K7PE7ввод-выводFMC_D4 (AF12), FMC_DA4 (AF12), MDF1_SDI2 (AF6), PWR_WKUP6, SAI1_SD_B (AF13), TIM1_ETR (AF1)
K8PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), OCTOSPIM_P1_IO2 (AF10), SPI1_MISO (AF5), TIM1_BKIN2 (AF2), TIM1_CH4 (AF1)
K9PB10ввод-выводCOMP1_OUT (AF12), I2C2_SCL (AF4), I2C4_SCL (AF3), LPTIM3_CH1 (AF2), LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), PWR_WKUP8, SAI1_SCK_A (AF13), SPI2_SCK (AF5), TIM2_CH3 (AF1), TSC_SYNC (AF9), USART3_TX (AF7)
K10PB13ввод-выводI2C2_SCL (AF4), LPTIM3_IN1 (AF2), LPUART1_CTS (AF8), MDF1_CKI1 (AF6), SAI2_SCK_A (AF13), SPI2_SCK (AF5), TIM15_CH1N (AF14), TIM1_CH1N (AF1), TSC_G1_IO2 (AF9), USART3_CTS (AF7)
K11PB14ввод-выводI2C2_SDA (AF4), LPTIM3_ETR (AF2), MDF1_SDI2 (AF6), SAI2_MCLK_A (AF13), SDMMC2_D0 (AF12), SPI2_MISO (AF5), TIM15_CH1 (AF14), TIM1_CH2N (AF1), TIM8_CH2N (AF3), TSC_G1_IO3 (AF9), UCPD1_DBCC2, USART3_DE (AF7), USART3_RTS (AF7)
K12PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_NBL1 (AF11), LPTIM2_IN2 (AF2), MDF1_CKI2 (AF6), PWR_WKUP7, RTC_REFIN (AF0), SAI2_SD_A (AF13), SDMMC2_D1 (AF12), SPI2_MOSI (AF5), TIM15_CH2 (AF14), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UCPD1_CC2
L1PA3ввод-выводADC1_IN8, ADC2_IN8, LPUART1_RX (AF8), OCTOSPIM_P1_CLK (AF10), OPAMP1_VOUT, PWR_WKUP5, SAI1_CK1 (AF3), SAI1_MCLK_A (AF13), TIM15_CH2 (AF14), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7)
L2PA6ввод-выводADC1_IN11, ADC2_IN11, ADC4_IN11, DCMI_PIXCLK (AF4), LPUART1_CTS (AF8), OCTOSPIM_P1_IO3 (AF10), OPAMP2_VINP, PSSI_PDCK (AF4), PWR_CDSTOP (AF0), PWR_WKUP7, SPI1_MISO (AF5), TIM16_CH1 (AF14), TIM1_BKIN (AF1), TIM3_CH1 (AF2), TIM8_BKIN (AF3), USART3_CTS (AF7)
L3PA4ввод-выводADC1_IN9, ADC2_IN9, ADC4_IN9, DAC1_OUT1, DCMI_HSYNC (AF10), LPTIM2_CH1 (AF14), OCTOSPIM_P1_NCS (AF3), PSSI_DE (AF10), PWR_WKUP2, SAI1_FS_B (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), USART2_CK (AF7)
L4PB1ввод-выводADC1_IN16, ADC2_IN16, ADC4_IN19, COMP1_INM, LPTIM2_IN1 (AF14), LPTIM3_CH2 (AF4), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI0 (AF6), OCTOSPIM_P1_IO0 (AF10), PWR_WKUP4, TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USART3_DE (AF7), USART3_RTS (AF7)
L5PF12ввод-выводFMC_A6 (AF12), LPTIM4_ETR (AF13), OCTOSPIM_P2_DQS (AF5)
L6PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, ADC4_IN6, FMC_A9 (AF12), I2C4_SDA (AF4), TSC_G8_IO2 (AF9)
L7PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, FMC_D8 (AF12), FMC_DA8 (AF12), MDF1_CKI4 (AF6), OCTOSPIM_P1_NCS (AF10), SPI1_RDY (AF5), TIM1_CH2 (AF1), TSC_G5_IO2 (AF9)
L8PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC4_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), OCTOSPIM_P1_IO3 (AF10), SPI1_MOSI (AF5), TIM1_BKIN (AF1), TIM1_CH4N (AF3)
L9PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, COMP2_OUT (AF12), I2C2_SDA (AF4), I2C4_SDA (AF3), LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), SPI2_RDY (AF5), TIM2_CH4 (AF1), USART3_RX (AF7)
L10VCAPпитание—
L11PB12ввод-выводI2C2_SMBA (AF4), I2C6_SMBA (AF2), LPUART1_DE (AF8), LPUART1_RTS (AF8), MDF1_SDI1 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI2_FS_A (AF13), SPI2_NSS (AF5), TIM15_BKIN (AF14), TIM1_BKIN (AF1), TSC_G1_IO1 (AF9), USART3_CK (AF7)
L12PD8ввод-выводDCMI_HSYNC (AF10), FMC_D13 (AF12), FMC_DA13 (AF12), PSSI_DE (AF10), USART3_TX (AF7)
M1PA5ввод-выводADC1_IN10, ADC2_IN10, ADC4_IN10, DAC1_OUT2, LPTIM2_ETR (AF14), PSSI_D14 (AF4), PWR_CSLEEP (AF0), PWR_WKUP6, SPI1_SCK (AF5), TIM2_CH1 (AF1), TIM2_ETR (AF2), TIM8_CH1N (AF3), USART3_RX (AF7)
M2OPAMP2_VINMслужебныйOPAMP2_VINM
M3PC4ввод-выводADC1_IN13, ADC2_IN13, ADC4_IN22, COMP1_INM, I2C6_SMBA (AF2), OCTOSPIM_P1_IO7 (AF10), USART3_TX (AF7)
M4PB0ввод-выводADC1_IN15, ADC2_IN15, ADC4_IN18, AUDIOCLK (AF13), COMP1_OUT (AF12), LPTIM3_CH1 (AF4), OCTOSPIM_P1_IO1 (AF10), OPAMP2_VOUT, SPI1_NSS (AF5), TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), USART3_CK (AF7)
M5PF13ввод-выводFMC_A7 (AF12), I2C4_SMBA (AF4), LPTIM4_OUT (AF13), UCPD1_FRSTX2 (AF11)
M6PG0ввод-выводADC4_IN7, FMC_A10 (AF12), OCTOSPIM_P2_IO4 (AF5), TSC_G8_IO3 (AF9)
M7PE9ввод-выводADF1_CCK0 (AF3), DAC1_EXTI9, FMC_D6 (AF12), FMC_DA6 (AF12), MDF1_CCK0 (AF6), OCTOSPIM_P1_NCLK (AF10), SAI1_FS_B (AF13), TIM1_CH1 (AF1)
M8PE13ввод-выводFMC_D10 (AF12), FMC_DA10 (AF12), MDF1_CKI5 (AF6), OCTOSPIM_P1_IO1 (AF10), SPI1_SCK (AF5), TIM1_CH3 (AF1), TSC_G5_IO4 (AF9)
M9PG14ввод-выводFMC_A25 (AF12), I2C1_SCL (AF4), LPTIM1_CH2 (AF1)
M10PG13ввод-выводFMC_A24 (AF12), I2C1_SDA (AF4), SPI3_RDY (AF6), USART1_CK (AF7)
M11PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, LPTIM1_IN2 (AF1), OCTOSPIM_P1_IO5 (AF3), SAI2_MCLK_A (AF13), SPI3_MOSI (AF6), TIM15_CH2 (AF14), USART1_CTS (AF7)
M12PD10ввод-выводFMC_D15 (AF12), FMC_DA15 (AF12), I2C5_SMBA (AF4), LPTIM2_CH2 (AF2), LPTIM3_ETR (AF14), SAI2_SCK_A (AF13), TSC_G6_IO1 (AF9), USART3_CK (AF7)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
VBATB1резервное питание: часы реального времени и резервные регистры
VCAPL10вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDD4, D9, F7, G6, J4, J9питание цифровой части и линий ввода-вывода
VDDAK1питание аналоговой части: АЦП, ЦАП, генераторы
VDDIO2D8питание отдельной группы линий ввода-вывода
VDDUSBA12питание приёмопередатчика USB
VSSE4, E9, F6, G7, H4, H9общий провод (земля)
VSSAH1общий провод аналоговой части
NRSTG2сброс, активный уровень — низкий
OPAMP1_VINMH3—
OPAMP2_VINMM2—
VREF+J1верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32U5A5QJIx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32U5A5QJSTM32U5A5QJIx4 МБ2514 КБ

Линейка STM32U5x5, семейство STM32U5, ядро Cortex-M33.

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе UFBGA132, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32U595QIIxSTM32U5x5132 из 132выводы совпадают полностьютолько у этого: AES, PKA; флеш-память до 4096 и 2048 КБ
STM32U595QJIxSTM32U5x5132 из 132выводы совпадают полностьютолько у этого: AES, PKA
STM32U3B5QGIxSTM32U3x5132 из 132выводы совпадают полностьютолько у этого: ADC4, AES, CORDIC, DCMI, DMA2D, FMAC, FMC, I2C5, I2C6, MDF1, OCTOSPI2, PSSI, SAI2, SDMMC2, TIM5, UCPD1, USART6, USB_OTG_HS; только у него: FDCAN2, I3C1, I3C2, SPI4, TIM12, USB; флеш-память до 4096 и 1024 КБ; ОЗУ 2514 и 640 КБ
STM32U3B5QIIxSTM32U3x5132 из 132выводы совпадают полностьютолько у этого: ADC4, AES, CORDIC, DCMI, DMA2D, FMAC, FMC, I2C5, I2C6, MDF1, OCTOSPI2, PSSI, SAI2, SDMMC2, TIM5, UCPD1, USART6, USB_OTG_HS; только у него: FDCAN2, I3C1, I3C2, SPI4, TIM12, USB; флеш-память до 4096 и 2048 КБ; ОЗУ 2514 и 640 КБ
STM32U3C5QIIxSTM32U3x5132 из 132выводы совпадают полностьютолько у этого: ADC4, CORDIC, DCMI, DMA2D, FMAC, FMC, I2C5, I2C6, MDF1, OCTOSPI2, PSSI, SAI2, SDMMC2, TIM5, UCPD1, USART6, USB_OTG_HS; только у него: FDCAN2, I3C1, I3C2, SPI4, TIM12, USB; флеш-память до 4096 и 2048 КБ; ОЗУ 2514 и 640 КБ
STM32U575QGIxSTM32U575/585132 из 132выводы совпадают полностьютолько у этого: ADC2, AES, I2C5, I2C6, PKA, USART6, USB_OTG_HS; только у него: USB_OTG_FS; флеш-память до 4096 и 1024 КБ; ОЗУ 2514 и 786 КБ
STM32U575QIIxSTM32U575/585132 из 132выводы совпадают полностьютолько у этого: ADC2, AES, I2C5, I2C6, PKA, USART6, USB_OTG_HS; только у него: USB_OTG_FS; флеш-память до 4096 и 2048 КБ; ОЗУ 2514 и 786 КБ
STM32U585QIIxSTM32U575/585132 из 132выводы совпадают полностьютолько у этого: ADC2, I2C5, I2C6, USART6, USB_OTG_HS; только у него: USB_OTG_FS; флеш-память до 4096 и 2048 КБ; ОЗУ 2514 и 786 КБ
STM32L552QEIxSTM32L5x2130 из 132H1: VSSA → VSSA/VREF-; L10: VCAP → VSSтолько у этого: ADC4, ADF1, AES, CORDIC, DCMI, DMA2D, FMAC, I2C5, I2C6, LPTIM4, MDF1, OCTOSPI2, PKA, PSSI, SDMMC2, USART6, USB_OTG_HS; только у него: DFSDM1, USB; флеш-память до 4096 и 512 КБ; ОЗУ 2514 и 256 КБ
STM32L562QEIxSTM32L5x2130 из 132H1: VSSA → VSSA/VREF-; L10: VCAP → VSSтолько у этого: ADC4, ADF1, CORDIC, DCMI, DMA2D, FMAC, I2C5, I2C6, LPTIM4, MDF1, OCTOSPI2, PSSI, SDMMC2, USART6, USB_OTG_HS; только у него: DFSDM1, USB; флеш-память до 4096 и 512 КБ; ОЗУ 2514 и 256 КБ
STM32L552QEIxPSTM32L5x2128 из 132B4: PG15 → VDD12; H1: VSSA → VSSA/VREF-; L10: VCAP → VSS; M11: PG11 → VDD12только у этого: ADC4, ADF1, AES, CORDIC, DCMI, DMA2D, FMAC, I2C5, I2C6, LPTIM4, MDF1, OCTOSPI2, PKA, PSSI, SDMMC2, USART6, USB_OTG_HS; только у него: DFSDM1, USB; флеш-память до 4096 и 512 КБ; ОЗУ 2514 и 256 КБ
STM32L562QEIxPSTM32L5x2128 из 132B4: PG15 → VDD12; H1: VSSA → VSSA/VREF-; L10: VCAP → VSS; M11: PG11 → VDD12только у этого: ADC4, ADF1, CORDIC, DCMI, DMA2D, FMAC, I2C5, I2C6, LPTIM4, MDF1, OCTOSPI2, PSSI, SDMMC2, USART6, USB_OTG_HS; только у него: DFSDM1, USB; флеш-память до 4096 и 512 КБ; ОЗУ 2514 и 256 КБ

Частые вопросы

На каких выводах USART1 у STM32U5A5QJIx?

В корпусе UFBGA132 сигнал USART1_TX выведен на PB6 (шарик A5, AF7) или PG9 (шарик B7, AF7) или PA9 (шарик D10, AF7), USART1_RX — на PG10 (шарик C7, AF7) или PB7 (шарик D5, AF7) или PA10 (шарик D11, AF7).

Где у STM32U5A5QJIx выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (шарик C10, AF0), SWCLK — PA14 (JTCK/SWCLK) (шарик C11, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32U5A5QJIx?

I2C1_SCL — PB6 (шарик A5, AF4) или PB8 (шарик C5, AF4) или PG14 (шарик M9, AF4), I2C1_SDA — PB9 (шарик A4, AF4) или PB3 (JTDO/TRACESWO) (шарик C6, AF4) или PB7 (шарик D5, AF4) или PG13 (шарик M10, AF4).

Сколько выводов ввода-вывода у STM32U5A5QJIx в корпусе UFBGA132?

110 из 132. Ещё 18 выводов заняты питанием и землёй, остальные 4 — сброс, выбор загрузки и служебные цепи.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
