STM32H733ZG в корпусе UFBGA144: распиновка

STM32H733ZG — микроконтроллер STM32H7 на ядре Cortex-M7 с частотой до 550 МГц: 1 МБ флеш-памяти и 564 КБ ОЗУ. Корпус UFBGA144 — 144 шарика, из них 114 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M7
Частота ядра
до 550 МГц
Флеш-память
1 МБ
ОЗУ
564 КБ
Корпус
UFBGA144, 144 шарика
Линий ввода-вывода
114
Напряжение питания
1,62…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса UFBGA144

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

Расположение шариков STM32H733ZG в корпусе UFBGA144, вид сверхуABCDEFGHJKLM123456789101112PC13 — шарик A1: PWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TSPC13PE3 — шарик A2: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, SAI4_SD_B, TIM15_BKIN, USART10_TXPE3PE2 — шарик A3: DEBUG_TRACECLK, ETH_TXD3, FMC_A23, OCTOSPIM_P1_IO2, SAI1_CK1, SAI1_MCLK_A, SAI4_CK1, SAI4_MCLK_A, SPI4_SCK, USART10_RXPE2PE1 — шарик A4: DCMI_D3, FMC_NBL1, LPTIM1_IN2, LTDC_R6, PSSI_D3, UART8_TXPE1PE0 — шарик A5: DCMI_D2, FMC_NBL0, LPTIM1_ETR, LPTIM2_ETR, LTDC_R0, PSSI_D2, SAI4_MCLK_A, TIM4_ETR, UART8_RXPE0PB4(NJTRST) — шарик A6: DEBUG_JTRST, I2S1_SDI, I2S2_WS, I2S3_SDI, I2S6_SDI, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TXPB4PB3(JTDO/TRACESWO) — шарик A7: CRS_SYNC, DEBUG_JTDO-SWO, I2S1_CK, I2S3_CK, I2S6_CK, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM24_ETR, TIM2_CH2, UART7_RXPB3PD6 — шарик A8: DCMI_D10, DFSDM1_CKIN4, DFSDM1_DATIN1, FMC_NWAIT, I2S3_SDO, LTDC_B2, OCTOSPIM_P1_IO6, PSSI_D10, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RXPD6PD7 — шарик A9: DFSDM1_CKIN1, DFSDM1_DATIN4, FMC_NE1, I2S1_SDO, OCTOSPIM_P1_IO7, SDMMC2_CMD, SPDIFRX1_IN0, SPI1_MOSI, USART2_CKPD7PA15(JTDI) — шарик A10: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DEBUG_JTDI, I2S1_WS, I2S3_WS, I2S6_WS, LTDC_B6, LTDC_R3, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TXPA15PA14(JTCK/SWCLK) — шарик A11: DEBUG_JTCK-SWCLKPA14PA13(JTMS/SWDIO) — шарик A12: DEBUG_JTMS-SWDIOPA13PC14-OSC32_IN — шарик B1: RCC_OSC32_INPC14PE4 — шарик B2: DCMI_D4, DEBUG_TRACED1, DFSDM1_DATIN3, FMC_A20, LTDC_B0, PSSI_D4, SAI1_D2, SAI1_FS_A, SAI4_D2, SAI4_FS_A, SPI4_NSS, TIM15_CH1NPE4PE5 — шарик B3: DCMI_D6, DEBUG_TRACED2, DFSDM1_CKIN3, FMC_A21, LTDC_G0, PSSI_D6, SAI1_CK2, SAI1_SCK_A, SAI4_CK2, SAI4_SCK_A, SPI4_MISO, TIM15_CH1PE5PE6 — шарик B4: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, PSSI_D7, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_MCLK_B, SAI4_SD_A, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PE6PB9 — шарик B5: DAC1_EXTI9, DCMI_D7, DFSDM1_DATIN7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2C4_SMBA, I2S2_WS, LTDC_B7, PSSI_D7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TXPB9PB5 — шарик B6: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, I2S6_SDO, LTDC_B5, PSSI_D10, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX, USB_OTG_HS_ULPI_D7PB5PG15 — шарик B7: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, OCTOSPIM_P2_DQS, PSSI_D13, USART10_CK, USART6_CTS, USART6_NSSPG15PG12 — шарик B8: ETH_TXD1, FMC_NE4, I2S6_SDI, LPTIM1_IN1, LTDC_B1, LTDC_B4, OCTOSPIM_P2_NCS, SDMMC2_D3, SPDIFRX1_IN1, SPI6_MISO, TIM23_CH1, USART10_TX, USART6_DE, USART6_RTSPG12PD5 — шарик B9: FMC_NWE, OCTOSPIM_P1_IO5, USART2_TXPD5PC11 — шарик B10: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4, DFSDM1_DATIN5, I2C5_SCL, I2S3_SDI, LTDC_B4, OCTOSPIM_P1_NCS, PSSI_D4, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RXPC11PC10 — шарик B11: DCMI_D8, DFSDM1_CKIN5, I2C5_SDA, I2S3_CK, LTDC_B1, LTDC_R2, OCTOSPIM_P1_IO1, PSSI_D8, SDMMC1_D2, SPI3_SCK, SWPMI1_RX, UART4_TX, USART3_TXPC10PA12 — шарик B12: FDCAN1_TX, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R5, SAI4_FS_B, SPI2_SCK, TIM1_BKIN2, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_HS_DPPA12PC15-OSC32_OUT — шарик C1: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUTPC15VBAT — шарик C2VBATPF0 — шарик C3: FMC_A0, I2C2_SDA, I2C5_SDA, OCTOSPIM_P2_IO0, TIM23_CH1PF0PF1 — шарик C4: FMC_A1, I2C2_SCL, I2C5_SCL, OCTOSPIM_P2_IO1, TIM23_CH2PF1PB8 — шарик C5: DCMI_D6, DFSDM1_CKIN7, ETH_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, LTDC_B6, PSSI_D6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RXPB8PB6 — шарик C6: CEC, DCMI_D5, DFSDM1_DATIN5, FDCAN2_TX, FMC_SDNE1, I2C1_SCL, I2C4_SCL, LPUART1_TX, OCTOSPIM_P1_NCS, PSSI_D5, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TXPB6PG14 — шарик C7: DEBUG_TRACED1, ETH_TXD1, FMC_A25, I2S6_SDO, LPTIM1_ETR, LTDC_B0, OCTOSPIM_P1_IO7, SDMMC2_D7, SPI6_MOSI, TIM23_CH3, USART10_DE, USART10_RTS, USART6_TXPG14PG11 — шарик C8: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3, ETH_TX_EN, I2S1_CK, LPTIM1_IN2, LTDC_B3, OCTOSPIM_P2_IO7, PSSI_D3, SDMMC2_D2, SPDIFRX1_IN0, SPI1_SCK, USART10_RXPG11PD4 — шарик C9: FMC_NOE, OCTOSPIM_P1_IO4, USART2_DE, USART2_RTSPD4PC12 — шарик C10: DCMI_D9, DEBUG_TRACED3, FMC_D6, FMC_DA6, I2C5_SMBA, I2S3_SDO, I2S6_CK, LTDC_R6, PSSI_D9, SDMMC1_CK, SPI3_MOSI, SPI6_SCK, TIM15_CH1, UART5_TX, USART3_CKPC12VDD33USB — шарик C11VDD33USBPA11 — шарик C12: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX, I2S2_WS, LPUART1_CTS, LTDC_R4, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_HS_DMPA11PH0-OSC_IN — шарик D1: RCC_OSC_INPH0VSS — шарик D2VSSVDD — шарик D3VDDPF2 — шарик D4: FMC_A2, I2C2_SMBA, I2C5_SMBA, OCTOSPIM_P2_IO2, TIM23_CH3PF2BOOT0 — шарик D5BOOT0PB7 — шарик D6: DCMI_VSYNC, DFSDM1_CKIN5, FMC_NL, I2C1_SDA, I2C4_SDA, LPUART1_RX, PSSI_RDY, PWR_PVD_IN, TIM17_CH1N, TIM4_CH2, USART1_RXPB7PG13 — шарик D7: DEBUG_TRACED0, ETH_TXD0, FMC_A24, I2S6_CK, LPTIM1_OUT, LTDC_R0, SDMMC2_D6, SPI6_SCK, TIM23_CH2, USART10_CTS, USART10_NSS, USART6_CTS, USART6_NSSPG13PG10 — шарик D8: DCMI_D2, FDCAN3_RX, FMC_NE3, I2S1_WS, LTDC_B2, LTDC_G3, OCTOSPIM_P2_IO6, PSSI_D2, SAI4_SD_B, SDMMC2_D1, SPI1_NSSPG10PD3 — шарик D9: DCMI_D5, DFSDM1_CKOUT, FMC_CLK, I2S2_CK, LTDC_G7, PSSI_D5, SPI2_SCK, USART2_CTS, USART2_NSSPD3PD1 — шарик D10: DFSDM1_DATIN6, FDCAN1_TX, FMC_D3, FMC_DA3, UART4_TXPD1PA10 — шарик D11: DCMI_D1, LPUART1_RX, LTDC_B1, LTDC_B4, MDIOS_MDIO, PSSI_D1, TIM1_CH3, USART1_RX, USB_OTG_HS_IDPA10PA9 — шарик D12: DAC1_EXTI9, DCMI_D0, ETH_TX_ER, I2C3_SMBA, I2C5_SMBA, I2S2_CK, LPUART1_TX, LTDC_R5, PSSI_D0, SPI2_SCK, TIM1_CH2, USART1_TX, USB_OTG_HS_VBUSPA9PH1-OSC_OUT — шарик E1: RCC_OSC_OUTPH1PF3 — шарик E2: ADC3_INP5, FMC_A3, OCTOSPIM_P2_IO3, TIM23_CH4PF3PF4 — шарик E3: ADC3_INN5, ADC3_INP9, FMC_A4, OCTOSPIM_P2_CLKPF4PF5 — шарик E4: ADC3_INP4, FMC_A5, OCTOSPIM_P2_NCLKPF5PDR_ON — шарик E5PDR_ONVSS — шарик E6VSSVSS — шарик E7VSSPG9 — шарик E8: DAC1_EXTI9, DCMI_VSYNC, FDCAN3_TX, FMC_NCE, FMC_NE2, I2S1_SDI, OCTOSPIM_P1_IO6, PSSI_RDY, SAI4_FS_B, SDMMC2_D0, SPDIFRX1_IN3, SPI1_MISO, USART6_RXPG9PD2 — шарик E9: DCMI_D11, DEBUG_TRACED2, FMC_D7, FMC_DA7, LTDC_B2, LTDC_B7, PSSI_D11, SDMMC1_CMD, TIM15_BKIN, TIM3_ETR, UART5_RXPD2PD0 — шарик E10: DFSDM1_CKIN6, FDCAN1_RX, FMC_D2, FMC_DA2, LTDC_B1, UART4_RX, UART9_CTSPD0PC9 — шарик E11: DAC1_EXTI9, DCMI_D3, I2C3_SDA, I2C5_SDA, I2S_CKIN, LTDC_B2, LTDC_G3, OCTOSPIM_P1_IO0, PSSI_D3, RCC_MCO_2, SDMMC1_D1, SWPMI1_SUSPEND, TIM3_CH4, TIM8_CH4, UART5_CTSPC9PA8 — шарик E12: I2C3_SCL, I2C5_SCL, LTDC_B3, LTDC_R6, RCC_MCO_1, TIM1_CH1, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2, UART7_RX, USART1_CK, USB_OTG_HS_SOFPA8NRST — шарик F1NRSTPF7 — шарик F2: ADC3_INP3, FDCAN3_TX, OCTOSPIM_P1_IO2, SAI1_MCLK_B, SAI4_MCLK_B, SPI5_SCK, TIM17_CH1, TIM23_CH2, UART7_TXPF7PF6 — шарик F3: ADC3_INN4, ADC3_INP8, FDCAN3_RX, OCTOSPIM_P1_IO3, SAI1_SD_B, SAI4_SD_B, SPI5_NSS, TIM16_CH1, TIM23_CH1, UART7_RXPF6VDD — шарик F4VDDVDD — шарик F5VDDVDD — шарик F6VDDVDD — шарик F7VDDVDD — шарик F8VDDVDD — шарик F9VDDVDD — шарик F10VDDPC8 — шарик F11: DCMI_D2, DEBUG_TRACED1, FMC_INT, FMC_NCE, FMC_NE2, PSSI_D2, SDMMC1_D0, SWPMI1_RX, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CKPC8PC7 — шарик F12: DCMI_D1, DEBUG_TRGIO, DFSDM1_DATIN3, FMC_NE1, I2S3_MCK, LTDC_G6, PSSI_D1, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, SWPMI1_TX, TIM3_CH2, TIM8_CH2, USART6_RXPC7PF10 — шарик G1: ADC3_INN2, ADC3_INP6, DCMI_D11, LTDC_DE, OCTOSPIM_P1_CLK, PSSI_D11, PSSI_D15, SAI1_D3, SAI4_D3, TIM16_BKINPF10PF9 — шарик G2: ADC3_INP2, DAC1_EXTI9, OCTOSPIM_P1_IO1, SAI1_FS_B, SAI4_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, TIM23_CH4, UART7_CTSPF9PF8 — шарик G3: ADC3_INN3, ADC3_INP7, OCTOSPIM_P1_IO0, SAI1_SCK_B, SAI4_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, TIM23_CH3, UART7_DE, UART7_RTSPF8VSS — шарик G4VSSVDD — шарик G5VDDVDD — шарик G6VDDVDD — шарик G7VDDVSS — шарик G8VSSVCAP — шарик G9VCAPVSS — шарик G10VSSPG8 — шарик G11: ETH_PPS_OUT, FMC_SDCLK, I2S6_WS, LTDC_G7, SPDIFRX1_IN2, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTSPG8PC6 — шарик G12: DCMI_D0, DFSDM1_CKIN3, FMC_NWAIT, I2S2_MCK, LTDC_HSYNC, PSSI_D0, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, SWPMI1_IO, TIM3_CH1, TIM8_CH1, USART6_TXPC6PC0 — шарик H1: ADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0, DFSDM1_DATIN4, FMC_A25, FMC_D12, FMC_DA12, FMC_SDNWE, LTDC_G2, LTDC_R5, SAI4_FS_B, USB_OTG_HS_ULPI_STPPC0PC1 — шарик H2: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0, DFSDM1_CKIN4, DFSDM1_DATIN0, ETH_MDC, I2S2_SDO, LTDC_G5, MDIOS_MDC, OCTOSPIM_P1_IO4, PWR_WKUP6, RTC_TAMP3, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI2_MOSIPC1PC2 — шарик H3: ADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ADC3_INN11, ADC3_INP12, DFSDM1_CKIN1, DFSDM1_CKOUT, ETH_TXD2, FMC_SDNE0, I2S2_SDI, OCTOSPIM_P1_IO2, OCTOSPIM_P1_IO5, PWR_CSTOP, SPI2_MISO, USB_OTG_HS_ULPI_DIRPC2PC3 — шарик H4: ADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, DFSDM1_DATIN1, ETH_TX_CLK, FMC_SDCKE0, I2S2_SDO, OCTOSPIM_P1_IO0, OCTOSPIM_P1_IO6, PWR_CSLEEP, SPI2_MOSI, USB_OTG_HS_ULPI_NXTPC3VSS — шарик H5VSSVSS — шарик H6VSSVCAP — шарик H7VCAPPE11 — шарик H8: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4, FMC_D8, FMC_DA8, LTDC_G3, OCTOSPIM_P1_NCS, SAI4_SD_B, SPI4_NSS, TIM1_CH2PE11PD11 — шарик H9: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, OCTOSPIM_P1_IO0, SAI4_SD_A, USART3_CTS, USART3_NSSPD11PG7 — шарик H10: DCMI_D13, FMC_INT, LTDC_CLK, OCTOSPIM_P2_DQS, PSSI_D13, SAI1_MCLK_A, USART6_CKPG7PG6 — шарик H11: DCMI_D12, FMC_NE3, LTDC_R7, OCTOSPIM_P1_NCS, PSSI_D12, TIM17_BKINPG6PG5 — шарик H12: FMC_A15, FMC_BA1, TIM1_ETRPG5VSSA — шарик J1VSSAPA0 — шарик J2: ADC1_INP16, ETH_CRS, FMC_A19, I2S6_WS, PWR_WKUP1, SAI4_SD_B, SDMMC2_CMD, SPI6_NSS, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSSPA0PA4 — шарик J3: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, FMC_D8, FMC_DA8, I2S1_WS, I2S3_WS, I2S6_WS, LTDC_VSYNC, PSSI_DE, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CKPA4PC4 — шарик J4: ADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2, ETH_RXD0, FMC_A22, FMC_SDNE0, I2S1_MCK, LTDC_R7, OPAMP1_VOUT, SDMMC2_CKIN, SPDIFRX1_IN2PC4PB2 — шарик J5: COMP1_INP, DFSDM1_CKIN1, ETH_TX_ER, I2S3_SDO, OCTOSPIM_P1_CLK, OCTOSPIM_P1_DQS, RTC_OUT_ALARM, RTC_OUT_CALIB, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SPI3_MOSI, TIM23_ETRPB2PG1 — шарик J6: FMC_A11, OCTOSPIM_P2_IO5, OPAMP2_VINM, UART9_TXPG1PE10 — шарик J7: COMP2_INM, DFSDM1_DATIN4, FMC_D7, FMC_DA7, OCTOSPIM_P1_IO7, TIM1_CH2N, UART7_CTSPE10PE12 — шарик J8: COMP1_OUT, DFSDM1_DATIN5, FMC_D9, FMC_DA9, LTDC_B4, SAI4_SCK_B, SPI4_SCK, TIM1_CH3NPE12PD10 — шарик J9: DFSDM1_CKOUT, FMC_D15, FMC_DA15, LTDC_B3, USART3_CKPD10PG4 — шарик J10: FMC_A14, FMC_BA0, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP2PG4PG3 — шарик J11: FMC_A13, TIM23_ETR, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2PG3PG2 — шарик J12: FMC_A12, TIM24_ETR, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PG2VREF- — шарик K1VREF-PA1 — шарик K2: ADC1_INN16, ADC1_INP17, ETH_REF_CLK, ETH_RX_CLK, LPTIM3_OUT, LTDC_R2, OCTOSPIM_P1_DQS, OCTOSPIM_P1_IO3, SAI4_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTSPA1PA5 — шарик K3: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, FMC_D9, FMC_DA9, I2S1_CK, I2S6_CK, LTDC_R4, PSSI_D14, PWR_NDSTOP2, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USB_OTG_HS_ULPI_CKPA5PC5 — шарик K4: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT, DFSDM1_DATIN2, ETH_RXD1, FMC_SDCKE0, LTDC_DE, OCTOSPIM_P1_DQS, OPAMP1_VINM, PSSI_D15, SAI1_D3, SAI4_D3, SPDIFRX1_IN3PC5PF13 — шарик K5: ADC2_INP2, DFSDM1_DATIN6, FMC_A7, I2C4_SMBA, TIM24_CH3PF13PG0 — шарик K6: FMC_A10, OCTOSPIM_P2_IO4, UART9_RXPG0PE9 — шарик K7: COMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT, FMC_D6, FMC_DA6, OCTOSPIM_P1_IO6, OPAMP2_VINP, TIM1_CH1, UART7_DE, UART7_RTSPE9PE13 — шарик K8: COMP2_OUT, DFSDM1_CKIN5, FMC_D10, FMC_DA10, LTDC_DE, SAI4_FS_B, SPI4_MISO, TIM1_CH3PE13PD9 — шарик K9: DAC1_EXTI9, DFSDM1_DATIN3, FMC_D14, FMC_DA14, USART3_RXPD9PD13 — шарик K10: DCMI_D13, FDCAN3_TX, FMC_A18, I2C4_SDA, LPTIM1_OUT, OCTOSPIM_P1_IO3, PSSI_D13, SAI4_SCK_A, TIM4_CH2, UART9_DE, UART9_RTSPD13PD14 — шарик K11: FMC_D0, FMC_DA0, TIM4_CH3, UART8_CTS, UART9_RXPD14PD15 — шарик K12: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, TIM4_CH4, UART8_DE, UART8_RTS, UART9_TXPD15VREF+ — шарик L1: VREFBUF_OUTVREF+PA2 — шарик L2: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM4_OUT, LTDC_R1, MDIOS_MDIO, OCTOSPIM_P1_IO0, PWR_WKUP2, SAI4_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TXPA2PA6 — шарик L3: ADC1_INP3, ADC2_INP3, DCMI_PIXCLK, I2S1_SDI, I2S6_SDI, LTDC_G2, MDIOS_MDC, OCTOSPIM_P1_IO3, PSSI_PDCK, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM3_CH1, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP2PA6PB0 — шарик L4: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT, ETH_RXD2, LTDC_G1, LTDC_R3, OCTOSPIM_P1_IO1, OPAMP1_VINP, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USB_OTG_HS_ULPI_D1PB0PF12 — шарик L5: ADC1_INN2, ADC1_INP6, FMC_A6, OCTOSPIM_P2_DQS, TIM24_CH2PF12PF15 — шарик L6: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9, I2C4_SDAPF15PE8 — шарик L7: COMP2_OUT, DFSDM1_CKIN2, FMC_D5, FMC_DA5, OCTOSPIM_P1_IO5, OPAMP2_VINM, TIM1_CH1N, UART7_TXPE8PE14 — шарик L8: FMC_D11, FMC_DA11, LTDC_CLK, SAI4_MCLK_B, SPI4_MOSI, TIM1_CH4PE14PD8 — шарик L9: DFSDM1_CKIN3, FMC_D13, FMC_DA13, SPDIFRX1_IN1, USART3_TXPD8PD12 — шарик L10: DCMI_D12, FDCAN3_RX, FMC_A17, FMC_ALE, I2C4_SCL, LPTIM1_IN1, LPTIM2_IN1, OCTOSPIM_P1_IO1, PSSI_D12, SAI4_FS_A, TIM4_CH1, USART3_DE, USART3_RTSPD12PB14 — шарик L11: DFSDM1_DATIN2, FMC_D10, FMC_DA10, I2S2_SDI, LTDC_CLK, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, USART1_TX, USART3_DE, USART3_RTSPB14PB15 — шарик L12: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2, FMC_D11, FMC_DA11, I2S2_SDO, LTDC_G7, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, USART1_RXPB15VDDA — шарик M1VDDAPA3 — шарик M2: ADC1_INP15, ADC2_INP15, ETH_COL, I2S6_MCK, LPTIM5_OUT, LTDC_B2, LTDC_B5, OCTOSPIM_P1_CLK, OCTOSPIM_P1_IO2, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX, USB_OTG_HS_ULPI_D0PA3PA7 — шарик M3: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV, ETH_RX_DV, FMC_SDNWE, I2S1_SDO, I2S6_SDO, LTDC_VSYNC, OCTOSPIM_P1_IO2, OPAMP1_VINM, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1NPA7PB1 — шарик M4: ADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1, ETH_RXD3, LTDC_G0, LTDC_R6, OCTOSPIM_P1_IO0, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USB_OTG_HS_ULPI_D2PB1PF11 — шарик M5: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, OCTOSPIM_P1_NCLK, PSSI_D12, SAI4_SD_B, SPI5_MOSI, TIM24_CH1PF11PF14 — шарик M6: ADC2_INN2, ADC2_INP6, DFSDM1_CKIN6, FMC_A8, I2C4_SCL, TIM24_CH4PF14PE7 — шарик M7: COMP2_INM, DFSDM1_DATIN2, FMC_D4, FMC_DA4, OCTOSPIM_P1_IO4, OPAMP2_VOUT, TIM1_ETR, UART7_RXPE7PE15 — шарик M8: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12, FMC_DA12, LTDC_R7, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, USART10_CKPE15PB10 — шарик M9: DFSDM1_DATIN7, ETH_RX_ER, I2C2_SCL, I2S2_CK, LPTIM2_IN1, LTDC_G4, OCTOSPIM_P1_NCS, SPI2_SCK, TIM2_CH3, USART3_TX, USB_OTG_HS_ULPI_D3PB10PB11 — шарик M10: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7, ETH_TX_EN, I2C2_SDA, LPTIM2_ETR, LTDC_G5, TIM2_CH4, USART3_RX, USB_OTG_HS_ULPI_D4PB11PB12 — шарик M11: DFSDM1_DATIN1, ETH_TXD0, FDCAN2_RX, I2C2_SMBA, I2S2_WS, OCTOSPIM_P1_IO0, OCTOSPIM_P1_NCLK, SPI2_NSS, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, UART5_RX, USART3_CK, USB_OTG_HS_ULPI_D5PB12PB13 — шарик M12: DCMI_D2, DFSDM1_CKIN1, ETH_TXD1, FDCAN2_TX, I2S2_CK, LPTIM2_OUT, OCTOSPIM_P1_IO2, PSSI_D2, SDMMC1_D0, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSS, USB_OTG_HS_ULPI_D6PB13UFBGA144, вид сверху: шарики видны сквозь корпус, A1 — в левомверхнем углу
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия

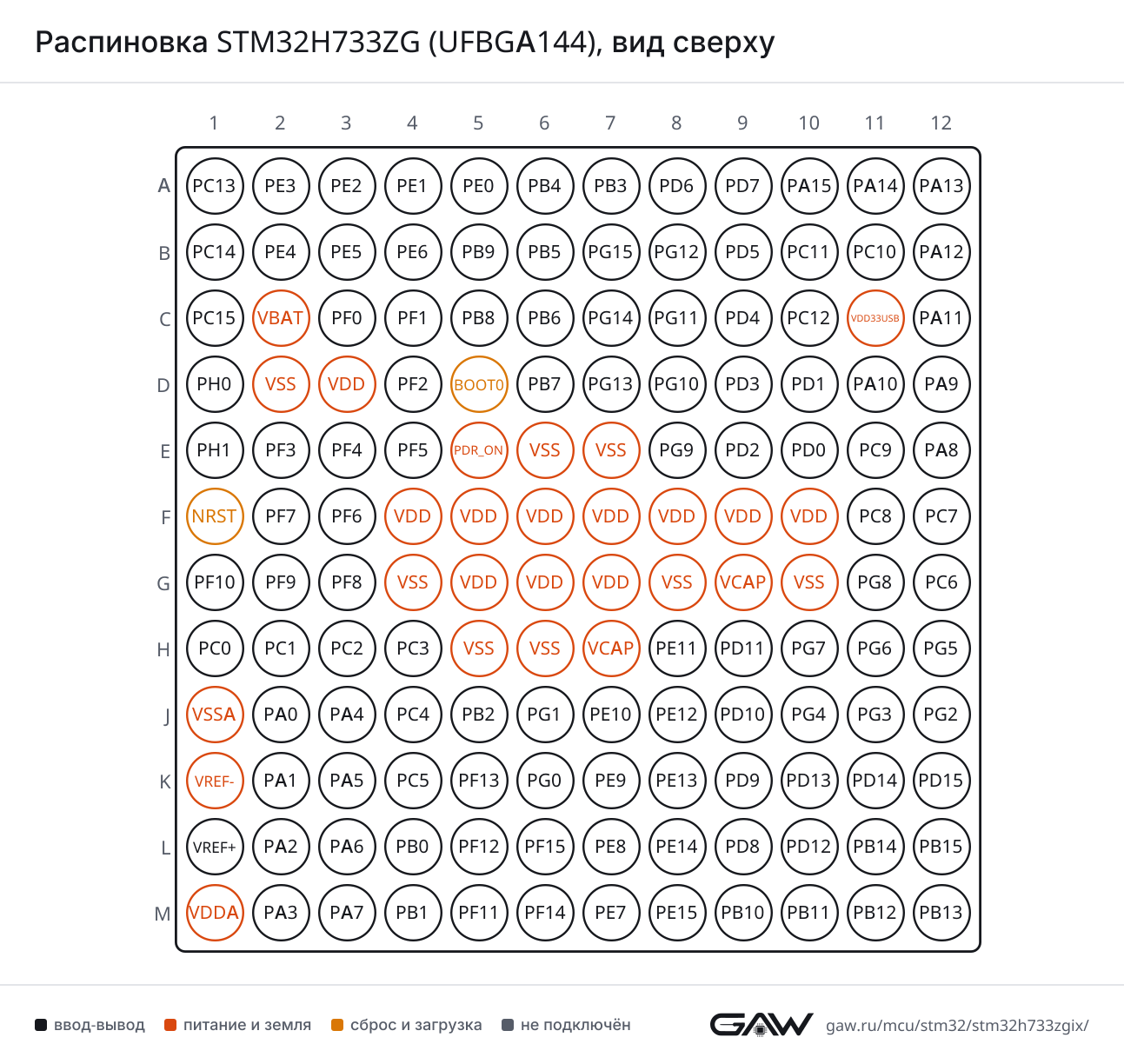

Распиновка STM32H733ZG (UFBGA144), вид сверхуРаспиновка UFBGA144 картинкой
PNG, 1293 × 1224 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер шарика и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (E12, AF7)
CTSPA11 (C12, AF7)
DEPA12 (B12, AF7)
NSSPA11 (C12, AF7)
RTSPA12 (B12, AF7)
RXPB7 (D6, AF7), PA10 (D11, AF7), PB15 (L12, AF4)
TXPB6 (C6, AF7), PA9 (D12, AF7), PB14 (L11, AF4)
USART2CKPD7 (A9, AF7), PA4 (J3, AF7)
CTSPD3 (D9, AF7), PA0 (J2, AF7)
DEPD4 (C9, AF7), PA1 (K2, AF7)
NSSPD3 (D9, AF7), PA0 (J2, AF7)
RTSPD4 (C9, AF7), PA1 (K2, AF7)
RXPD6 (A8, AF7), PA3 (M2, AF7)
TXPD5 (B9, AF7), PA2 (L2, AF7)
USART3CKPC12 (C10, AF7), PD10 (J9, AF7), PB12 (M11, AF7)
CTSPD11 (H9, AF7), PB13 (M12, AF7)
DEPD12 (L10, AF7), PB14 (L11, AF7)
NSSPD11 (H9, AF7), PB13 (M12, AF7)
RTSPD12 (L10, AF7), PB14 (L11, AF7)
RXPC11 (B10, AF7), PD9 (K9, AF7), PB11 (M10, AF7)
TXPC10 (B11, AF7), PD8 (L9, AF7), PB10 (M9, AF7)
USART6CKPC8 (F11, AF7), PG7 (H10, AF7)
CTSPG15 (B7, AF7), PG13 (D7, AF7)
DEPG12 (B8, AF7), PG8 (G11, AF7)
NSSPG15 (B7, AF7), PG13 (D7, AF7)
RTSPG12 (B8, AF7), PG8 (G11, AF7)
RXPG9 (E8, AF7), PC7 (F12, AF7)
TXPG14 (C7, AF7), PC6 (G12, AF7)
USART10CKPG15 (B7, AF11), PE15 (M8, AF11)
CTSPG13 (D7, AF4)
DEPG14 (C7, AF4)
NSSPG13 (D7, AF4)
RTSPG14 (C7, AF4)
RXPE2 (A3, AF4), PG11 (C8, AF4)
TXPE3 (A2, AF11), PG12 (B8, AF4)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB0 (L4, AF8), PB15 (L12, AF8)
DEPA15(JTDI) (A10, AF8), PB14 (L11, AF8)
RTSPA15(JTDI) (A10, AF8), PB14 (L11, AF8)
RXPC11 (B10, AF8), PB8 (C5, AF8), PA11 (C12, AF6), PD0 (E10, AF8), PA1 (K2, AF8)
TXPB9 (B5, AF8), PC10 (B11, AF8), PA12 (B12, AF6), PD1 (D10, AF8), PA0 (J2, AF8)
UART5CTSPC9 (E11, AF8)
DEPC8 (F11, AF8)
RTSPC8 (F11, AF8)
RXPB5 (B6, AF14), PD2 (E9, AF8), PB12 (M11, AF14)
TXPB6 (C6, AF14), PC12 (C10, AF8), PB13 (M12, AF14)
UART7CTSPF9 (G2, AF7), PE10 (J7, AF7)
DEPF8 (G3, AF7), PE9 (K7, AF7)
RTSPF8 (G3, AF7), PE9 (K7, AF7)
RXPB3(JTDO/TRACESWO) (A7, AF11), PA8 (E12, AF11), PF6 (F3, AF7), PE7 (M7, AF7)
TXPB4(NJTRST) (A6, AF11), PA15(JTDI) (A10, AF11), PF7 (F2, AF7), PE8 (L7, AF7)
UART8CTSPD14 (K11, AF8)
DEPD15 (K12, AF8)
RTSPD15 (K12, AF8)
RXPE0 (A5, AF8)
TXPE1 (A4, AF8)
UART9CTSPD0 (E10, AF11)
DEPD13 (K10, AF11)
RTSPD13 (K10, AF11)
RXPG0 (K6, AF11), PD14 (K11, AF11)
TXPG1 (J6, AF11), PD15 (K12, AF11)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (C12, AF3)
DEPA12 (B12, AF3)
RTSPA12 (B12, AF3)
RXPB7 (D6, AF8), PA10 (D11, AF3)
TXPB6 (C6, AF8), PA9 (D12, AF3)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPB4(NJTRST) (A6, AF5), PG9 (E8, AF5), PA6 (L3, AF5)
MOSIPD7 (A9, AF5), PB5 (B6, AF5), PA7 (M3, AF5)
NSSPA15(JTDI) (A10, AF5), PG10 (D8, AF5), PA4 (J3, AF5)
SCKPB3(JTDO/TRACESWO) (A7, AF5), PG11 (C8, AF5), PA5 (K3, AF5)
SPI2MISOPC2 (H3, AF5), PB14 (L11, AF5)
MOSIPC1 (H2, AF5), PC3 (H4, AF5), PB15 (L12, AF5)
NSSPB4(NJTRST) (A6, AF7), PB9 (B5, AF5), PA11 (C12, AF5), PB12 (M11, AF5)
SCKPA12 (B12, AF5), PD3 (D9, AF5), PA9 (D12, AF5), PB10 (M9, AF5), PB13 (M12, AF5)
SPI3MISOPB4(NJTRST) (A6, AF6), PC11 (B10, AF6)
MOSIPD6 (A8, AF5), PB5 (B6, AF7), PC12 (C10, AF6), PB2 (J5, AF7)
NSSPA15(JTDI) (A10, AF6), PA4 (J3, AF6)
SCKPB3(JTDO/TRACESWO) (A7, AF6), PC10 (B11, AF6)
SPI4MISOPE5 (B3, AF5), PE13 (K8, AF5)
MOSIPE6 (B4, AF5), PE14 (L8, AF5)
NSSPE4 (B2, AF5), PE11 (H8, AF5)
SCKPE2 (A3, AF5), PE12 (J8, AF5)
SPI5MISOPF8 (G3, AF5)
MOSIPF9 (G2, AF5), PF11 (M5, AF5)
NSSPF6 (F3, AF5)
SCKPF7 (F2, AF5)
SPI6MISOPB4(NJTRST) (A6, AF8), PG12 (B8, AF5), PA6 (L3, AF8)
MOSIPB5 (B6, AF8), PG14 (C7, AF5), PA7 (M3, AF8)
NSSPA15(JTDI) (A10, AF7), PG8 (G11, AF5), PA0 (J2, AF5), PA4 (J3, AF8)
SCKPB3(JTDO/TRACESWO) (A7, AF8), PC12 (C10, AF5), PG13 (D7, AF5), PA5 (K3, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (E11, AF5)
I2S1CKPB3(JTDO/TRACESWO) (A7, AF5), PG11 (C8, AF5), PA5 (K3, AF5)
MCKPC4 (J4, AF5)
SDIPB4(NJTRST) (A6, AF5), PG9 (E8, AF5), PA6 (L3, AF5)
SDOPD7 (A9, AF5), PB5 (B6, AF5), PA7 (M3, AF5)
WSPA15(JTDI) (A10, AF5), PG10 (D8, AF5), PA4 (J3, AF5)
I2S2CKPA12 (B12, AF5), PD3 (D9, AF5), PA9 (D12, AF5), PB10 (M9, AF5), PB13 (M12, AF5)
MCKPC6 (G12, AF5)
SDIPC2 (H3, AF5), PB14 (L11, AF5)
SDOPC1 (H2, AF5), PC3 (H4, AF5), PB15 (L12, AF5)
WSPB4(NJTRST) (A6, AF7), PB9 (B5, AF5), PA11 (C12, AF5), PB12 (M11, AF5)
I2S3CKPB3(JTDO/TRACESWO) (A7, AF6), PC10 (B11, AF6)
MCKPC7 (F12, AF6)
SDIPB4(NJTRST) (A6, AF6), PC11 (B10, AF6)
SDOPD6 (A8, AF5), PB5 (B6, AF7), PC12 (C10, AF6), PB2 (J5, AF7)
WSPA15(JTDI) (A10, AF6), PA4 (J3, AF6)
I2S6CKPB3(JTDO/TRACESWO) (A7, AF8), PC12 (C10, AF5), PG13 (D7, AF5), PA5 (K3, AF8)
MCKPA3 (M2, AF5)
SDIPB4(NJTRST) (A6, AF8), PG12 (B8, AF5), PA6 (L3, AF8)
SDOPB5 (B6, AF8), PG14 (C7, AF5), PA7 (M3, AF8)
WSPA15(JTDI) (A10, AF7), PG8 (G11, AF5), PA0 (J2, AF5), PA4 (J3, AF8)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB8 (C5, AF4), PB6 (C6, AF4)
SDAPB9 (B5, AF4), PB7 (D6, AF4)
SMBAPB5 (B6, AF4)
I2C2SCLPF1 (C4, AF4), PB10 (M9, AF4)
SDAPF0 (C3, AF4), PB11 (M10, AF4)
SMBAPF2 (D4, AF4), PB12 (M11, AF4)
I2C3SCLPA8 (E12, AF4)
SDAPC9 (E11, AF4)
SMBAPA9 (D12, AF4)
I2C4SCLPB8 (C5, AF6), PB6 (C6, AF6), PD12 (L10, AF4), PF14 (M6, AF4)
SDAPB9 (B5, AF6), PB7 (D6, AF6), PD13 (K10, AF4), PF15 (L6, AF4)
SMBAPB9 (B5, AF11), PB5 (B6, AF6), PD11 (H9, AF4), PF13 (K5, AF4)
I2C5SCLPC11 (B10, AF4), PF1 (C4, AF6), PA8 (E12, AF6)
SDAPC10 (B11, AF4), PF0 (C3, AF6), PC9 (E11, AF6)
SMBAPC12 (C10, AF4), PF2 (D4, AF6), PA9 (D12, AF6)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPB8 (C5, AF9), PA11 (C12, AF9), PD0 (E10, AF9)
TXPB9 (B5, AF9), PA12 (B12, AF9), PD1 (D10, AF9)
FDCAN2RXPB5 (B6, AF9), PB12 (M11, AF9)
TXPB6 (C6, AF9), PB13 (M12, AF9)
FDCAN3RXPG10 (D8, AF2), PF6 (F3, AF2), PD12 (L10, AF5)
TXPG9 (E8, AF2), PF7 (F2, AF2), PD13 (K10, AF5)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPA11 (C12)
DPPA12 (B12)
IDPA10 (D11, AF10)
SOFPA8 (E12, AF10)
ULPI_CKPA5 (K3, AF10)
ULPI_D0PA3 (M2, AF10)
ULPI_D1PB0 (L4, AF10)
ULPI_D2PB1 (M4, AF10)
ULPI_D3PB10 (M9, AF10)
ULPI_D4PB11 (M10, AF10)
ULPI_D5PB12 (M11, AF10)
ULPI_D6PB13 (M12, AF10)
ULPI_D7PB5 (B6, AF10)
ULPI_DIRPC2 (H3)
ULPI_NXTPC3 (H4)
ULPI_STPPC0 (H1, AF10)
VBUSPA9 (D12)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCOLPA3 (M2, AF11)
CRSPA0 (J2, AF11)
CRS_DVPA7 (M3, AF11)
MDCPC1 (H2, AF11)
MDIOPA2 (L2, AF11)
PPS_OUTPB5 (B6, AF11), PG8 (G11, AF11)
REF_CLKPA1 (K2, AF11)
RX_CLKPA1 (K2, AF11)
RX_DVPA7 (M3, AF11)
RX_ERPB10 (M9, AF11)
RXD0PC4 (J4, AF11)
RXD1PC5 (K4, AF11)
RXD2PB0 (L4, AF11)
RXD3PB1 (M4, AF11)
TX_CLKPC3 (H4)
TX_ENPG11 (C8, AF11), PB11 (M10, AF11)
TX_ERPA9 (D12, AF11), PB2 (J5, AF11)
TXD0PG13 (D7, AF11), PB12 (M11, AF11)
TXD1PG12 (B8, AF11), PG14 (C7, AF11), PB13 (M12, AF11)
TXD2PC2 (H3)
TXD3PE2 (A3, AF11), PB8 (C5, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (B5, AF7)
CKPC12 (C10, AF12)
CKINPB8 (C5, AF7)
CMDPD2 (E9, AF12)
D0PC8 (F11, AF12), PB13 (M12, AF12)
D0DIRPC6 (G12, AF8)
D1PC9 (E11, AF12)
D2PC10 (B11, AF12)
D3PC11 (B10, AF12)
D4PB8 (C5, AF12)
D5PB9 (B5, AF12)
D6PC6 (G12, AF12)
D7PC7 (F12, AF12)
D123DIRPC7 (F12, AF8)
SDMMC2CKPD6 (A8, AF11), PC1 (H2, AF9)
CKINPC4 (J4, AF10)
CMDPD7 (A9, AF11), PA0 (J2, AF9)
D0PG9 (E8, AF11), PB14 (L11, AF9)
D1PG10 (D8, AF11), PB15 (L12, AF9)
D2PB3(JTDO/TRACESWO) (A7, AF9), PG11 (C8, AF10)
D3PB4(NJTRST) (A6, AF9), PG12 (B8, AF10)
D4PB8 (C5, AF10)
D5PB9 (B5, AF10)
D6PG13 (D7, AF10), PC6 (G12, AF10)
D7PG14 (C7, AF10), PC7 (F12, AF10)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (A3, AF2)
CK2PE5 (B3, AF2)
D1PD6 (A8, AF2), PE6 (B4, AF2), PC1 (H2, AF2), PB2 (J5, AF2)
D2PE4 (B2, AF2)
D3PF10 (G1, AF2), PC5 (K4, AF2)
FS_APE4 (B2, AF6)
FS_BPF9 (G2, AF6)
MCLK_APE2 (A3, AF6), PG7 (H10, AF6)
MCLK_BPF7 (F2, AF6)
SCK_APE5 (B3, AF6)
SCK_BPF8 (G3, AF6)
SD_APD6 (A8, AF6), PE6 (B4, AF6), PC1 (H2, AF6), PB2 (J5, AF6)
SD_BPE3 (A2, AF6), PF6 (F3, AF6)
SAI4CK1PE2 (A3, AF10)
CK2PE5 (B3, AF10)
D1PD6 (A8, AF1), PE6 (B4, AF9), PC1 (H2, AF1), PB2 (J5, AF1)
D2PE4 (B2, AF10)
D3PF10 (G1, AF10), PC5 (K4, AF1)
FS_APE4 (B2, AF8), PD12 (L10, AF10)
FS_BPA12 (B12, AF8), PG9 (E8, AF10), PF9 (G2, AF8), PC0 (H1, AF8), PE13 (K8, AF10)
MCLK_APE2 (A3, AF8), PE0 (A5, AF10)
MCLK_BPE6 (B4, AF10), PF7 (F2, AF8), PA1 (K2, AF10), PE14 (L8, AF10)
SCK_APE5 (B3, AF8), PD13 (K10, AF10)
SCK_BPF8 (G3, AF8), PE12 (J8, AF10), PA2 (L2, AF8)
SD_APD6 (A8, AF8), PE6 (B4, AF8), PC1 (H2, AF8), PD11 (H9, AF10), PB2 (J5, AF8)
SD_BPE3 (A2, AF8), PG10 (D8, AF10), PF6 (F3, AF8), PE11 (H8, AF10), PA0 (J2, AF10), PF11 (M5, AF10)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRX1IN0PD7 (A9, AF9), PG11 (C8, AF8)
IN1PG12 (B8, AF8), PD8 (L9, AF9)
IN2PG8 (G11, AF8), PC4 (J4, AF9)
IN3PG9 (E8, AF8), PC5 (K4, AF9)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15(JTDI) (A10, AF4), PB6 (C6, AF5)

SWPMI — интерфейс Single Wire Protocol

БлокСигналВыводы
SWPMI1IOPC6 (G12)
RXPC10 (B11, AF11), PC8 (F11, AF11)
SUSPENDPC9 (E11, AF11)
TXPC7 (F12, AF11)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PC11 (B10), PG11 (C8), PA11 (C12), PE11 (H8), PD11 (H9), PF11 (M5), PB11 (M10)
EXTI15PA15(JTDI) (A10), PG15 (B7), PC15-OSC32_OUT (C1), PD15 (K12), PF15 (L6), PB15 (L12), PE15 (M8)
INN2PF12 (L5)
INN3PA7 (M3)
INN4PC5 (K4)
INN5PB0 (L4)
INN10PC1 (H2)
INN11PC2 (H3)
INN12PC3 (H4)
INN16PA1 (K2)
INN18PA5 (K3)
INP2PF11 (M5)
INP3PA6 (L3)
INP4PC4 (J4)
INP5PB1 (M4)
INP6PF12 (L5)
INP7PA7 (M3)
INP8PC5 (K4)
INP9PB0 (L4)
INP10PC0 (H1)
INP11PC1 (H2)
INP12PC2 (H3)
INP13PC3 (H4)
INP14PA2 (L2)
INP15PA3 (M2)
INP16PA0 (J2)
INP17PA1 (K2)
INP18PA4 (J3)
INP19PA5 (K3)
ADC2EXTI11PC11 (B10), PG11 (C8), PA11 (C12), PE11 (H8), PD11 (H9), PF11 (M5), PB11 (M10)
EXTI15PA15(JTDI) (A10), PG15 (B7), PC15-OSC32_OUT (C1), PD15 (K12), PF15 (L6), PB15 (L12), PE15 (M8)
INN2PF14 (M6)
INN3PA7 (M3)
INN4PC5 (K4)
INN5PB0 (L4)
INN10PC1 (H2)
INN11PC2 (H3)
INN12PC3 (H4)
INN18PA5 (K3)
INP2PF13 (K5)
INP3PA6 (L3)
INP4PC4 (J4)
INP5PB1 (M4)
INP6PF14 (M6)
INP7PA7 (M3)
INP8PC5 (K4)
INP9PB0 (L4)
INP10PC0 (H1)
INP11PC1 (H2)
INP12PC2 (H3)
INP13PC3 (H4)
INP14PA2 (L2)
INP15PA3 (M2)
INP18PA4 (J3)
INP19PA5 (K3)
ADC3EXTI11PC11 (B10), PG11 (C8), PA11 (C12), PE11 (H8), PD11 (H9), PF11 (M5), PB11 (M10)
EXTI15PA15(JTDI) (A10), PG15 (B7), PC15-OSC32_OUT (C1), PD15 (K12), PF15 (L6), PB15 (L12), PE15 (M8)
INN2PF10 (G1)
INN3PF8 (G3)
INN4PF6 (F3)
INN5PF4 (E3)
INN10PC1 (H2)
INN11PC2 (H3)
INP2PF9 (G2)
INP3PF7 (F2)
INP4PF5 (E4)
INP5PF3 (E2)
INP6PF10 (G1)
INP7PF8 (G3)
INP8PF6 (F3)
INP9PF4 (E3)
INP10PC0 (H1)
INP11PC1 (H2)
INP12PC2 (H3)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PB9 (B5), PA9 (D12), PG9 (E8), PC9 (E11), PF9 (G2), PE9 (K7), PD9 (K9)
OUT1PA4 (J3)
OUT2PA5 (K3)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPC4 (J4), PB1 (M4)
INPPB2 (J5), PB0 (L4)
OUTPE12 (J8, AF13), PC5 (K4, AF13)
COMP2INMPE10 (J7), PE7 (M7)
INPPE11 (H8), PE9 (K7)
OUTPE13 (K8, AF13), PE8 (L7, AF13)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPC5 (K4), PA7 (M3)
VINPPB0 (L4)
VOUTPC4 (J4)
OPAMP2VINMPG1 (J6), PE8 (L7)
VINPPE9 (K7)
VOUTPE7 (M7)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (L1)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (L3, AF1), PE15 (M8, AF1), PB12 (M11, AF1)
BKIN_COMP1PA6 (L3, AF12), PE15 (M8, AF13), PB12 (M11, AF13)
BKIN_COMP2PA6 (L3, AF12), PE15 (M8, AF13), PB12 (M11, AF13)
BKIN2PE6 (B4, AF1), PA12 (B12, AF12), PG4 (J10, AF1)
BKIN2_COMP1PE6 (B4, AF11), PG4 (J10, AF11)
BKIN2_COMP2PE6 (B4, AF11), PG4 (J10, AF11)
CH1PA8 (E12, AF1), PE9 (K7, AF1)
CH1NPE8 (L7, AF1), PA7 (M3, AF1), PB13 (M12, AF1)
CH2PA9 (D12, AF1), PE11 (H8, AF1)
CH2NPE10 (J7, AF1), PB0 (L4, AF1), PB14 (L11, AF1)
CH3PA10 (D11, AF1), PE13 (K8, AF1)
CH3NPE12 (J8, AF1), PB15 (L12, AF1), PB1 (M4, AF1)
CH4PA11 (C12, AF1), PE14 (L8, AF1)
ETRPA12 (B12, AF1), PG5 (H12, AF1), PE7 (M7, AF1)
TIM2CH1PA15(JTDI) (A10, AF1), PA0 (J2, AF1), PA5 (K3, AF1)
CH2PB3(JTDO/TRACESWO) (A7, AF1), PA1 (K2, AF1)
CH3PA2 (L2, AF1), PB10 (M9, AF1)
CH4PA3 (M2, AF1), PB11 (M10, AF1)
ETRPA15(JTDI) (A10, AF1), PA0 (J2, AF1), PA5 (K3, AF1)
TIM3CH1PB4(NJTRST) (A6, AF2), PC6 (G12, AF2), PA6 (L3, AF2)
CH2PB5 (B6, AF2), PC7 (F12, AF2), PA7 (M3, AF2)
CH3PC8 (F11, AF2), PB0 (L4, AF2)
CH4PC9 (E11, AF2), PB1 (M4, AF2)
ETRPD2 (E9, AF2)
TIM4CH1PB6 (C6, AF2), PD12 (L10, AF2)
CH2PB7 (D6, AF2), PD13 (K10, AF2)
CH3PB8 (C5, AF2), PD14 (K11, AF2)
CH4PB9 (B5, AF2), PD15 (K12, AF2)
ETRPE0 (A5, AF2)
TIM5CH1PA0 (J2, AF2)
CH2PA1 (K2, AF2)
CH3PA2 (L2, AF2)
CH4PA3 (M2, AF2)
ETRPA4 (J3, AF2)
TIM8BKINPG2 (J12, AF3), PA6 (L3, AF3)
BKIN_COMP1PG2 (J12, AF11), PA6 (L3, AF10)
BKIN_COMP2PG2 (J12, AF11), PA6 (L3, AF10)
BKIN2PA8 (E12, AF3), PG3 (J11, AF3)
BKIN2_COMP1PA8 (E12, AF12), PG3 (J11, AF11)
BKIN2_COMP2PA8 (E12, AF12), PG3 (J11, AF11)
CH1PC6 (G12, AF3)
CH1NPA5 (K3, AF3), PA7 (M3, AF3)
CH2PC7 (F12, AF3)
CH2NPB0 (L4, AF3), PB14 (L11, AF3)
CH3PC8 (F11, AF3)
CH3NPB15 (L12, AF3), PB1 (M4, AF3)
CH4PC9 (E11, AF3)
ETRPG8 (G11, AF3), PA0 (J2, AF3)
TIM12CH1PB14 (L11, AF2)
CH2PB15 (L12, AF2)
TIM13CH1PF8 (G3, AF9), PA6 (L3, AF9)
TIM14CH1PF9 (G2, AF9), PA7 (M3, AF9)
TIM15BKINPE3 (A2, AF4), PD2 (E9, AF4), PA0 (J2, AF4)
CH1PE5 (B3, AF4), PC12 (C10, AF2), PA2 (L2, AF4)
CH1NPE4 (B2, AF4), PA1 (K2, AF4)
CH2PE6 (B4, AF4), PA3 (M2, AF4)
TIM16BKINPB4(NJTRST) (A6, AF1), PF10 (G1, AF1)
CH1PB8 (C5, AF1), PF6 (F3, AF1)
CH1NPB6 (C6, AF1), PF8 (G3, AF1)
TIM17BKINPB5 (B6, AF1), PG6 (H11, AF1)
CH1PB9 (B5, AF1), PF7 (F2, AF1)
CH1NPB7 (D6, AF1), PF9 (G2, AF1)
TIM23CH1PG12 (B8, AF13), PF0 (C3, AF13), PF6 (F3, AF13)
CH2PF1 (C4, AF13), PG13 (D7, AF13), PF7 (F2, AF13)
CH3PG14 (C7, AF13), PF2 (D4, AF13), PF8 (G3, AF13)
CH4PF3 (E2, AF13), PF9 (G2, AF13)
ETRPB2 (J5, AF13), PG3 (J11, AF13)
TIM24CH1PF11 (M5, AF14)
CH2PF12 (L5, AF14)
CH3PF13 (K5, AF14)
CH4PF14 (M6, AF14)
ETRPB3(JTDO/TRACESWO) (A7, AF14), PG2 (J12, AF14)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPE0 (A5, AF1), PG14 (C7, AF1)
IN1PG12 (B8, AF1), PD12 (L10, AF1)
IN2PE1 (A4, AF1), PG11 (C8, AF1)
OUTPG13 (D7, AF1), PD13 (K10, AF1)
LPTIM2ETRPE0 (A5, AF4), PB11 (M10, AF3)
IN1PD12 (L10, AF3), PB10 (M9, AF3)
IN2PD11 (H9, AF3)
OUTPB13 (M12, AF3)
LPTIM3OUTPA1 (K2, AF3)
LPTIM4OUTPA2 (L2, AF3)
LPTIM5OUTPA3 (M2, AF3)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT_ALARMPC13 (A1), PB2 (J5, AF0)
OUT_CALIBPC13 (A1), PB2 (J5, AF0)
REFINPB15 (L12, AF0)
TSPC13 (A1)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (C3, AF12)
A1PF1 (C4, AF12)
A2PF2 (D4, AF12)
A3PF3 (E2, AF12)
A4PF4 (E3, AF12)
A5PF5 (E4, AF12)
A6PF12 (L5, AF12)
A7PF13 (K5, AF12)
A8PF14 (M6, AF12)
A9PF15 (L6, AF12)
A10PG0 (K6, AF12)
A11PG1 (J6, AF12)
A12PG2 (J12, AF12)
A13PG3 (J11, AF12)
A14PG4 (J10, AF12)
A15PG5 (H12, AF12)
A16PD11 (H9, AF12)
A17PD12 (L10, AF12)
A18PD13 (K10, AF12)
A19PE3 (A2, AF12), PA0 (J2, AF12)
A20PE4 (B2, AF12)
A21PE5 (B3, AF12)
A22PE6 (B4, AF12), PC4 (J4, AF1)
A23PE2 (A3, AF12)
A24PG13 (D7, AF12)
A25PG14 (C7, AF12), PC0 (H1, AF9)
ALEPD12 (L10, AF12)
BA0PG4 (J10, AF12)
BA1PG5 (H12, AF12)
CLEPD11 (H9, AF12)
CLKPD3 (D9, AF12)
D0PD14 (K11, AF12)
D1PD15 (K12, AF12)
D2PD0 (E10, AF12)
D3PD1 (D10, AF12)
D4PE7 (M7, AF12)
D5PE8 (L7, AF12)
D6PC12 (C10, AF1), PE9 (K7, AF12)
D7PD2 (E9, AF1), PE10 (J7, AF12)
D8PE11 (H8, AF12), PA4 (J3, AF12)
D9PE12 (J8, AF12), PA5 (K3, AF12)
D10PE13 (K8, AF12), PB14 (L11, AF12)
D11PE14 (L8, AF12), PB15 (L12, AF12)
D12PC0 (H1, AF1), PE15 (M8, AF12)
D13PD8 (L9, AF12)
D14PD9 (K9, AF12)
D15PD10 (J9, AF12)
DA0PD14 (K11, AF12)
DA1PD15 (K12, AF12)
DA2PD0 (E10, AF12)
DA3PD1 (D10, AF12)
DA4PE7 (M7, AF12)
DA5PE8 (L7, AF12)
DA6PC12 (C10, AF1), PE9 (K7, AF12)
DA7PD2 (E9, AF1), PE10 (J7, AF12)
DA8PE11 (H8, AF12), PA4 (J3, AF12)
DA9PE12 (J8, AF12), PA5 (K3, AF12)
DA10PE13 (K8, AF12), PB14 (L11, AF12)
DA11PE14 (L8, AF12), PB15 (L12, AF12)
DA12PC0 (H1, AF1), PE15 (M8, AF12)
DA13PD8 (L9, AF12)
DA14PD9 (K9, AF12)
DA15PD10 (J9, AF12)
INTPC8 (F11, AF10), PG7 (H10, AF12)
NBL0PE0 (A5, AF12)
NBL1PE1 (A4, AF12)
NCEPG9 (E8, AF12), PC8 (F11, AF9)
NE1PD7 (A9, AF12), PC7 (F12, AF9)
NE2PG9 (E8, AF12), PC8 (F11, AF9)
NE3PG10 (D8, AF12), PG6 (H11, AF12)
NE4PG12 (B8, AF12)
NLPB7 (D6, AF12)
NOEPD4 (C9, AF12)
NWAITPD6 (A8, AF12), PC6 (G12, AF9)
NWEPD5 (B9, AF12)
SDCKE0PC3 (H4, AF12), PC5 (K4, AF12)
SDCKE1PB5 (B6, AF12)
SDCLKPG8 (G11, AF12)
SDNCASPG15 (B7, AF12)
SDNE0PC2 (H3, AF12), PC4 (J4, AF12)
SDNE1PB6 (C6, AF12)
SDNRASPF11 (M5, AF12)
SDNWEPC0 (H1, AF12), PA7 (M3, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PA9 (D12, AF13), PC6 (G12, AF13)
D1PA10 (D11, AF13), PC7 (F12, AF13)
D2PE0 (A5, AF13), PG10 (D8, AF13), PC8 (F11, AF13), PB13 (M12, AF13)
D3PE1 (A4, AF13), PG11 (C8, AF13), PC9 (E11, AF13)
D4PE4 (B2, AF13), PC11 (B10, AF13)
D5PB6 (C6, AF13), PD3 (D9, AF13)
D6PE5 (B3, AF13), PB8 (C5, AF13)
D7PE6 (B4, AF13), PB9 (B5, AF13)
D8PC10 (B11, AF13)
D9PC12 (C10, AF13)
D10PD6 (A8, AF13), PB5 (B6, AF13)
D11PD2 (E9, AF13), PF10 (G1, AF13)
D12PG6 (H11, AF13), PD12 (L10, AF13), PF11 (M5, AF13)
D13PG15 (B7, AF13), PG7 (H10, AF13), PD13 (K10, AF13)
HSYNCPA4 (J3, AF13)
PIXCLKPA6 (L3, AF13)
VSYNCPB7 (D6, AF13), PG9 (E8, AF13)

PSSI — параллельный синхронный интерфейс

БлокСигналВыводы
PSSID0PA9 (D12, AF13), PC6 (G12, AF13)
D1PA10 (D11, AF13), PC7 (F12, AF13)
D2PE0 (A5, AF13), PG10 (D8, AF13), PC8 (F11, AF13), PB13 (M12, AF13)
D3PE1 (A4, AF13), PG11 (C8, AF13), PC9 (E11, AF13)
D4PE4 (B2, AF13), PC11 (B10, AF13)
D5PB6 (C6, AF13), PD3 (D9, AF13)
D6PE5 (B3, AF13), PB8 (C5, AF13)
D7PE6 (B4, AF13), PB9 (B5, AF13)
D8PC10 (B11, AF13)
D9PC12 (C10, AF13)
D10PD6 (A8, AF13), PB5 (B6, AF13)
D11PD2 (E9, AF13), PF10 (G1, AF13)
D12PG6 (H11, AF13), PD12 (L10, AF13), PF11 (M5, AF13)
D13PG15 (B7, AF13), PG7 (H10, AF13), PD13 (K10, AF13)
D14PA5 (K3, AF13)
D15PF10 (G1, AF4), PC5 (K4, AF4)
DEPA4 (J3, AF13)
PDCKPA6 (L3, AF13)
RDYPB7 (D6, AF13), PG9 (E8, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PE4 (B2, AF14), PG14 (C7, AF14)
B1PG12 (B8, AF14), PC10 (B11, AF10), PA10 (D11, AF14), PD0 (E10, AF14)
B2PD6 (A8, AF14), PG10 (D8, AF14), PD2 (E9, AF14), PC9 (E11, AF14), PA3 (M2, AF9)
B3PG11 (C8, AF14), PA8 (E12, AF13), PD10 (J9, AF14)
B4PG12 (B8, AF9), PC11 (B10, AF14), PA10 (D11, AF12), PE12 (J8, AF14)
B5PB5 (B6, AF3), PA3 (M2, AF14)
B6PA15(JTDI) (A10, AF14), PB8 (C5, AF14)
B7PB9 (B5, AF14), PD2 (E9, AF9)
CLKPG7 (H10, AF14), PE14 (L8, AF14), PB14 (L11, AF14)
DEPF10 (G1, AF14), PC5 (K4, AF14), PE13 (K8, AF14)
G0PE5 (B3, AF14), PB1 (M4, AF14)
G1PE6 (B4, AF14), PB0 (L4, AF14)
G2PC0 (H1, AF11), PA6 (L3, AF14)
G3PG10 (D8, AF9), PC9 (E11, AF10), PE11 (H8, AF14)
G4PB10 (M9, AF14)
G5PC1 (H2, AF14), PB11 (M10, AF14)
G6PC7 (F12, AF14)
G7PD3 (D9, AF14), PG8 (G11, AF14), PB15 (L12, AF14)
HSYNCPC6 (G12, AF14)
R0PE0 (A5, AF14), PG13 (D7, AF14)
R1PA2 (L2, AF14)
R2PC10 (B11, AF14), PA1 (K2, AF14)
R3PA15(JTDI) (A10, AF9), PB0 (L4, AF9)
R4PA11 (C12, AF14), PA5 (K3, AF14)
R5PA12 (B12, AF14), PA9 (D12, AF14), PC0 (H1, AF14)
R6PE1 (A4, AF14), PC12 (C10, AF14), PA8 (E12, AF14), PB1 (M4, AF9)
R7PG6 (H11, AF14), PC4 (J4, AF14), PE15 (M8, AF14)
VSYNCPA4 (J3, AF14), PA7 (M3, AF14)

DFSDM — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
DFSDM1CKIN0PC0 (H1, AF3)
CKIN1PD7 (A9, AF6), PC2 (H3, AF3), PB2 (J5, AF4), PB13 (M12, AF6)
CKIN2PC4 (J4, AF3), PE8 (L7, AF3), PB15 (L12, AF6)
CKIN3PE5 (B3, AF3), PC6 (G12, AF4), PD8 (L9, AF3)
CKIN4PD6 (A8, AF3), PC1 (H2, AF4), PE11 (H8, AF3)
CKIN5PC10 (B11, AF3), PB7 (D6, AF11), PE13 (K8, AF3)
CKIN6PD0 (E10, AF3), PF14 (M6, AF3)
CKIN7PB8 (C5, AF3), PB11 (M10, AF6)
CKOUTPD3 (D9, AF3), PC2 (H3, AF6), PD10 (J9, AF3), PE9 (K7, AF3), PB0 (L4, AF6)
DATIN0PC1 (H2, AF3)
DATIN1PD6 (A8, AF4), PC3 (H4, AF3), PB1 (M4, AF6), PB12 (M11, AF6)
DATIN2PC5 (K4, AF3), PB14 (L11, AF6), PE7 (M7, AF3)
DATIN3PE4 (B2, AF3), PC7 (F12, AF4), PD9 (K9, AF3)
DATIN4PD7 (A9, AF3), PC0 (H1, AF6), PE10 (J7, AF3)
DATIN5PC11 (B10, AF3), PB6 (C6, AF11), PE12 (J8, AF3)
DATIN6PD1 (D10, AF3), PF13 (K5, AF3)
DATIN7PB9 (B5, AF3), PB10 (M9, AF6)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14(JTCK/SWCLK) (A11, AF0)
JTDIPA15(JTDI) (A10, AF0)
JTDO-SWOPB3(JTDO/TRACESWO) (A7, AF0)
JTMS-SWDIOPA13(JTMS/SWDIO) (A12, AF0)
TRACECLKPE2 (A3, AF0)
TRACED0PE3 (A2, AF0), PG13 (D7, AF0), PC1 (H2, AF0)
TRACED1PE4 (B2, AF0), PG14 (C7, AF0), PC8 (F11, AF0)
TRACED2PE5 (B3, AF0), PD2 (E9, AF0)
TRACED3PE6 (B4, AF0), PC12 (C10, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (E12, AF0)
MCO_2PC9 (E11, AF0)
OSC_INPH0-OSC_IN (D1)
OSC_OUTPH1-OSC_OUT (E1)
OSC32_INPC14-OSC32_IN (B1)
OSC32_OUTPC15-OSC32_OUT (C1)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC3 (H4)
PWR_CSTOPPC2 (H3)
PWR_WKUP1PA0 (J2)
PWR_WKUP2PA2 (L2)
PWR_WKUP4PC13 (A1)
PWR_WKUP6PC1 (H2)
RTC_TAMP1PC13 (A1)
RTC_TAMP3PC1 (H2)

Блоки без собственных выводов: USB_OTG_HS1 (USB On-The-Go High Speed), OCTOSPI1 (интерфейс Octo-SPI памяти), OCTOSPI2 (интерфейс Octo-SPI памяти), HDMI_CEC (шина управления HDMI), TIM6 (таймер), TIM7 (таймер), IWDG1 (независимый сторожевой таймер), WWDG1 (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), CRYP (криптографический процессор), HASH (блок хеширования), DMA2D (графический ускоритель Chrom-ART), CORDIC (сопроцессор тригонометрических функций), FMAC (ускоритель цифровых фильтров).

Таблица выводов

Все 144 шарика корпуса UFBGA144 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ШарикИмяТипФункции
A1PC13ввод-выводPWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS
A2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), SAI4_SD_B (AF8), TIM15_BKIN (AF4), USART10_TX (AF11)
A3PE2ввод-выводDEBUG_TRACECLK (AF0), ETH_TXD3 (AF11), FMC_A23 (AF12), OCTOSPIM_P1_IO2 (AF9), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SAI4_CK1 (AF10), SAI4_MCLK_A (AF8), SPI4_SCK (AF5), USART10_RX (AF4)
A4PE1ввод-выводDCMI_D3 (AF13), FMC_NBL1 (AF12), LPTIM1_IN2 (AF1), LTDC_R6 (AF14), PSSI_D3 (AF13), UART8_TX (AF8)
A5PE0ввод-выводDCMI_D2 (AF13), FMC_NBL0 (AF12), LPTIM1_ETR (AF1), LPTIM2_ETR (AF4), LTDC_R0 (AF14), PSSI_D2 (AF13), SAI4_MCLK_A (AF10), TIM4_ETR (AF2), UART8_RX (AF8)
A6PB4(NJTRST)ввод-выводDEBUG_JTRST (AF0), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), I2S6_SDI (AF8), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
A7PB3(JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), I2S1_CK (AF5), I2S3_CK (AF6), I2S6_CK (AF8), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM24_ETR (AF14), TIM2_CH2 (AF1), UART7_RX (AF11)
A8PD6ввод-выводDCMI_D10 (AF13), DFSDM1_CKIN4 (AF3), DFSDM1_DATIN1 (AF4), FMC_NWAIT (AF12), I2S3_SDO (AF5), LTDC_B2 (AF14), OCTOSPIM_P1_IO6 (AF10), PSSI_D10 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF1), SAI4_SD_A (AF8), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
A9PD7ввод-выводDFSDM1_CKIN1 (AF6), DFSDM1_DATIN4 (AF3), FMC_NE1 (AF12), I2S1_SDO (AF5), OCTOSPIM_P1_IO7 (AF10), SDMMC2_CMD (AF11), SPDIFRX1_IN0 (AF9), SPI1_MOSI (AF5), USART2_CK (AF7)
A10PA15(JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF7), LTDC_B6 (AF14), LTDC_R3 (AF9), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF1), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
A11PA14(JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
A12PA13(JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
B1PC14-OSC32_INввод-выводRCC_OSC32_IN
B2PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), DFSDM1_DATIN3 (AF3), FMC_A20 (AF12), LTDC_B0 (AF14), PSSI_D4 (AF13), SAI1_D2 (AF2), SAI1_FS_A (AF6), SAI4_D2 (AF10), SAI4_FS_A (AF8), SPI4_NSS (AF5), TIM15_CH1N (AF4)
B3PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), DFSDM1_CKIN3 (AF3), FMC_A21 (AF12), LTDC_G0 (AF14), PSSI_D6 (AF13), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SAI4_CK2 (AF10), SAI4_SCK_A (AF8), SPI4_MISO (AF5), TIM15_CH1 (AF4)
B4PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF14), PSSI_D7 (AF13), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF9), SAI4_MCLK_B (AF10), SAI4_SD_A (AF8), SPI4_MOSI (AF5), TIM15_CH2 (AF4), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
B5PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), DFSDM1_DATIN7 (AF3), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2C4_SMBA (AF11), I2S2_WS (AF5), LTDC_B7 (AF14), PSSI_D7 (AF13), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
B6PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), I2S6_SDO (AF8), LTDC_B5 (AF3), PSSI_D10 (AF13), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14), USB_OTG_HS_ULPI_D7 (AF10)
B7PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), OCTOSPIM_P2_DQS (AF9), PSSI_D13 (AF13), USART10_CK (AF11), USART6_CTS (AF7), USART6_NSS (AF7)
B8PG12ввод-выводETH_TXD1 (AF11), FMC_NE4 (AF12), I2S6_SDI (AF5), LPTIM1_IN1 (AF1), LTDC_B1 (AF14), LTDC_B4 (AF9), OCTOSPIM_P2_NCS (AF3), SDMMC2_D3 (AF10), SPDIFRX1_IN1 (AF8), SPI6_MISO (AF5), TIM23_CH1 (AF13), USART10_TX (AF4), USART6_DE (AF7), USART6_RTS (AF7)
B9PD5ввод-выводFMC_NWE (AF12), OCTOSPIM_P1_IO5 (AF10), USART2_TX (AF7)
B10PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4 (AF13), DFSDM1_DATIN5 (AF3), I2C5_SCL (AF4), I2S3_SDI (AF6), LTDC_B4 (AF14), OCTOSPIM_P1_NCS (AF9), PSSI_D4 (AF13), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
B11PC10ввод-выводDCMI_D8 (AF13), DFSDM1_CKIN5 (AF3), I2C5_SDA (AF4), I2S3_CK (AF6), LTDC_B1 (AF10), LTDC_R2 (AF14), OCTOSPIM_P1_IO1 (AF9), PSSI_D8 (AF13), SDMMC1_D2 (AF12), SPI3_SCK (AF6), SWPMI1_RX (AF11), UART4_TX (AF8), USART3_TX (AF7)
B12PA12ввод-выводFDCAN1_TX (AF9), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R5 (AF14), SAI4_FS_B (AF8), SPI2_SCK (AF5), TIM1_BKIN2 (AF12), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_HS_DP
C1PC15-OSC32_OUTввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
C2VBATпитание—
C3PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4), I2C5_SDA (AF6), OCTOSPIM_P2_IO0 (AF9), TIM23_CH1 (AF13)
C4PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4), I2C5_SCL (AF6), OCTOSPIM_P2_IO1 (AF9), TIM23_CH2 (AF13)
C5PB8ввод-выводDCMI_D6 (AF13), DFSDM1_CKIN7 (AF3), ETH_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), LTDC_B6 (AF14), PSSI_D6 (AF13), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
C6PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), DFSDM1_DATIN5 (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), I2C1_SCL (AF4), I2C4_SCL (AF6), LPUART1_TX (AF8), OCTOSPIM_P1_NCS (AF10), PSSI_D5 (AF13), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
C7PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_TXD1 (AF11), FMC_A25 (AF12), I2S6_SDO (AF5), LPTIM1_ETR (AF1), LTDC_B0 (AF14), OCTOSPIM_P1_IO7 (AF9), SDMMC2_D7 (AF10), SPI6_MOSI (AF5), TIM23_CH3 (AF13), USART10_DE (AF4), USART10_RTS (AF4), USART6_TX (AF7)
C8PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3 (AF13), ETH_TX_EN (AF11), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B3 (AF14), OCTOSPIM_P2_IO7 (AF9), PSSI_D3 (AF13), SDMMC2_D2 (AF10), SPDIFRX1_IN0 (AF8), SPI1_SCK (AF5), USART10_RX (AF4)
C9PD4ввод-выводFMC_NOE (AF12), OCTOSPIM_P1_IO4 (AF10), USART2_DE (AF7), USART2_RTS (AF7)
C10PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), FMC_D6 (AF1), FMC_DA6 (AF1), I2C5_SMBA (AF4), I2S3_SDO (AF6), I2S6_CK (AF5), LTDC_R6 (AF14), PSSI_D9 (AF13), SDMMC1_CK (AF12), SPI3_MOSI (AF6), SPI6_SCK (AF5), TIM15_CH1 (AF2), UART5_TX (AF8), USART3_CK (AF7)
C11VDD33USBпитание—
C12PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX (AF9), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R4 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_HS_DM
D1PH0-OSC_INввод-выводRCC_OSC_IN
D2VSSпитание—
D3VDDпитание—
D4PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4), I2C5_SMBA (AF6), OCTOSPIM_P2_IO2 (AF9), TIM23_CH3 (AF13)
D5BOOT0загрузка—
D6PB7ввод-выводDCMI_VSYNC (AF13), DFSDM1_CKIN5 (AF11), FMC_NL (AF12), I2C1_SDA (AF4), I2C4_SDA (AF6), LPUART1_RX (AF8), PSSI_RDY (AF13), PWR_PVD_IN, TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
D7PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_TXD0 (AF11), FMC_A24 (AF12), I2S6_CK (AF5), LPTIM1_OUT (AF1), LTDC_R0 (AF14), SDMMC2_D6 (AF10), SPI6_SCK (AF5), TIM23_CH2 (AF13), USART10_CTS (AF4), USART10_NSS (AF4), USART6_CTS (AF7), USART6_NSS (AF7)
D8PG10ввод-выводDCMI_D2 (AF13), FDCAN3_RX (AF2), FMC_NE3 (AF12), I2S1_WS (AF5), LTDC_B2 (AF14), LTDC_G3 (AF9), OCTOSPIM_P2_IO6 (AF3), PSSI_D2 (AF13), SAI4_SD_B (AF10), SDMMC2_D1 (AF11), SPI1_NSS (AF5)
D9PD3ввод-выводDCMI_D5 (AF13), DFSDM1_CKOUT (AF3), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_G7 (AF14), PSSI_D5 (AF13), SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
D10PD1ввод-выводDFSDM1_DATIN6 (AF3), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), UART4_TX (AF8)
D11PA10ввод-выводDCMI_D1 (AF13), LPUART1_RX (AF3), LTDC_B1 (AF14), LTDC_B4 (AF12), MDIOS_MDIO (AF11), PSSI_D1 (AF13), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_HS_ID (AF10)
D12PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_TX_ER (AF11), I2C3_SMBA (AF4), I2C5_SMBA (AF6), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R5 (AF14), PSSI_D0 (AF13), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_HS_VBUS
E1PH1-OSC_OUTввод-выводRCC_OSC_OUT
E2PF3ввод-выводADC3_INP5, FMC_A3 (AF12), OCTOSPIM_P2_IO3 (AF9), TIM23_CH4 (AF13)
E3PF4ввод-выводADC3_INN5, ADC3_INP9, FMC_A4 (AF12), OCTOSPIM_P2_CLK (AF9)
E4PF5ввод-выводADC3_INP4, FMC_A5 (AF12), OCTOSPIM_P2_NCLK (AF9)
E5PDR_ONпитание—
E6VSSпитание—
E7VSSпитание—
E8PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FDCAN3_TX (AF2), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), OCTOSPIM_P1_IO6 (AF9), PSSI_RDY (AF13), SAI4_FS_B (AF10), SDMMC2_D0 (AF11), SPDIFRX1_IN3 (AF8), SPI1_MISO (AF5), USART6_RX (AF7)
E9PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), FMC_D7 (AF1), FMC_DA7 (AF1), LTDC_B2 (AF14), LTDC_B7 (AF9), PSSI_D11 (AF13), SDMMC1_CMD (AF12), TIM15_BKIN (AF4), TIM3_ETR (AF2), UART5_RX (AF8)
E10PD0ввод-выводDFSDM1_CKIN6 (AF3), FDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), LTDC_B1 (AF14), UART4_RX (AF8), UART9_CTS (AF11)
E11PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF13), I2C3_SDA (AF4), I2C5_SDA (AF6), I2S_CKIN (AF5), LTDC_B2 (AF14), LTDC_G3 (AF10), OCTOSPIM_P1_IO0 (AF9), PSSI_D3 (AF13), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), SWPMI1_SUSPEND (AF11), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8)
E12PA8ввод-выводI2C3_SCL (AF4), I2C5_SCL (AF6), LTDC_B3 (AF13), LTDC_R6 (AF14), RCC_MCO_1 (AF0), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF12), TIM8_BKIN2_COMP2 (AF12), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_HS_SOF (AF10)
F1NRSTсброс—
F2PF7ввод-выводADC3_INP3, FDCAN3_TX (AF2), OCTOSPIM_P1_IO2 (AF10), SAI1_MCLK_B (AF6), SAI4_MCLK_B (AF8), SPI5_SCK (AF5), TIM17_CH1 (AF1), TIM23_CH2 (AF13), UART7_TX (AF7)
F3PF6ввод-выводADC3_INN4, ADC3_INP8, FDCAN3_RX (AF2), OCTOSPIM_P1_IO3 (AF10), SAI1_SD_B (AF6), SAI4_SD_B (AF8), SPI5_NSS (AF5), TIM16_CH1 (AF1), TIM23_CH1 (AF13), UART7_RX (AF7)
F4VDDпитание—
F5VDDпитание—
F6VDDпитание—
F7VDDпитание—
F8VDDпитание—
F9VDDпитание—
F10VDDпитание—
F11PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_INT (AF10), FMC_NCE (AF9), FMC_NE2 (AF9), PSSI_D2 (AF13), SDMMC1_D0 (AF12), SWPMI1_RX (AF11), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
F12PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), DFSDM1_DATIN3 (AF4), FMC_NE1 (AF9), I2S3_MCK (AF6), LTDC_G6 (AF14), PSSI_D1 (AF13), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), SWPMI1_TX (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
G1PF10ввод-выводADC3_INN2, ADC3_INP6, DCMI_D11 (AF13), LTDC_DE (AF14), OCTOSPIM_P1_CLK (AF9), PSSI_D11 (AF13), PSSI_D15 (AF4), SAI1_D3 (AF2), SAI4_D3 (AF10), TIM16_BKIN (AF1)
G2PF9ввод-выводADC3_INP2, DAC1_EXTI9, OCTOSPIM_P1_IO1 (AF10), SAI1_FS_B (AF6), SAI4_FS_B (AF8), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), TIM23_CH4 (AF13), UART7_CTS (AF7)
G3PF8ввод-выводADC3_INN3, ADC3_INP7, OCTOSPIM_P1_IO0 (AF10), SAI1_SCK_B (AF6), SAI4_SCK_B (AF8), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), TIM23_CH3 (AF13), UART7_DE (AF7), UART7_RTS (AF7)
G4VSSпитание—
G5VDDпитание—
G6VDDпитание—
G7VDDпитание—
G8VSSпитание—
G9VCAPпитание—
G10VSSпитание—
G11PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), I2S6_WS (AF5), LTDC_G7 (AF14), SPDIFRX1_IN2 (AF8), SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
G12PC6ввод-выводDCMI_D0 (AF13), DFSDM1_CKIN3 (AF4), FMC_NWAIT (AF9), I2S2_MCK (AF5), LTDC_HSYNC (AF14), PSSI_D0 (AF13), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), SWPMI1_IO, TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
H1PC0ввод-выводADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0 (AF3), DFSDM1_DATIN4 (AF6), FMC_A25 (AF9), FMC_D12 (AF1), FMC_DA12 (AF1), FMC_SDNWE (AF12), LTDC_G2 (AF11), LTDC_R5 (AF14), SAI4_FS_B (AF8), USB_OTG_HS_ULPI_STP (AF10)
H2PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0 (AF0), DFSDM1_CKIN4 (AF4), DFSDM1_DATIN0 (AF3), ETH_MDC (AF11), I2S2_SDO (AF5), LTDC_G5 (AF14), MDIOS_MDC (AF12), OCTOSPIM_P1_IO4 (AF10), PWR_WKUP6, RTC_TAMP3, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF1), SAI4_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5)
H3PC2ввод-выводADC1_INN11, ADC1_INP12, ADC2_INN11, ADC2_INP12, ADC3_INN11, ADC3_INP12, DFSDM1_CKIN1 (AF3), DFSDM1_CKOUT (AF6), ETH_TXD2, FMC_SDNE0 (AF12), I2S2_SDI (AF5), OCTOSPIM_P1_IO2 (AF9), OCTOSPIM_P1_IO5 (AF4), PWR_CSTOP, SPI2_MISO (AF5), USB_OTG_HS_ULPI_DIR
H4PC3ввод-выводADC1_INN12, ADC1_INP13, ADC2_INN12, ADC2_INP13, DFSDM1_DATIN1 (AF3), ETH_TX_CLK, FMC_SDCKE0 (AF12), I2S2_SDO (AF5), OCTOSPIM_P1_IO0 (AF9), OCTOSPIM_P1_IO6 (AF4), PWR_CSLEEP, SPI2_MOSI (AF5), USB_OTG_HS_ULPI_NXT
H5VSSпитание—
H6VSSпитание—
H7VCAPпитание—
H8PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4 (AF3), FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G3 (AF14), OCTOSPIM_P1_NCS (AF11), SAI4_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
H9PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16 (AF12), FMC_CLE (AF12), I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), OCTOSPIM_P1_IO0 (AF9), SAI4_SD_A (AF10), USART3_CTS (AF7), USART3_NSS (AF7)
H10PG7ввод-выводDCMI_D13 (AF13), FMC_INT (AF12), LTDC_CLK (AF14), OCTOSPIM_P2_DQS (AF9), PSSI_D13 (AF13), SAI1_MCLK_A (AF6), USART6_CK (AF7)
H11PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), LTDC_R7 (AF14), OCTOSPIM_P1_NCS (AF10), PSSI_D12 (AF13), TIM17_BKIN (AF1)
H12PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
J1VSSAпитание—
J2PA0ввод-выводADC1_INP16, ETH_CRS (AF11), FMC_A19 (AF12), I2S6_WS (AF5), PWR_WKUP1, SAI4_SD_B (AF10), SDMMC2_CMD (AF9), SPI6_NSS (AF5), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
J3PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), FMC_D8 (AF12), FMC_DA8 (AF12), I2S1_WS (AF5), I2S3_WS (AF6), I2S6_WS (AF8), LTDC_VSYNC (AF14), PSSI_DE (AF13), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7)
J4PC4ввод-выводADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2 (AF3), ETH_RXD0 (AF11), FMC_A22 (AF1), FMC_SDNE0 (AF12), I2S1_MCK (AF5), LTDC_R7 (AF14), OPAMP1_VOUT, SDMMC2_CKIN (AF10), SPDIFRX1_IN2 (AF9)
J5PB2ввод-выводCOMP1_INP, DFSDM1_CKIN1 (AF4), ETH_TX_ER (AF11), I2S3_SDO (AF7), OCTOSPIM_P1_CLK (AF9), OCTOSPIM_P1_DQS (AF10), RTC_OUT_ALARM (AF0), RTC_OUT_CALIB (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF1), SAI4_SD_A (AF8), SPI3_MOSI (AF7), TIM23_ETR (AF13)
J6PG1ввод-выводFMC_A11 (AF12), OCTOSPIM_P2_IO5 (AF9), OPAMP2_VINM, UART9_TX (AF11)
J7PE10ввод-выводCOMP2_INM, DFSDM1_DATIN4 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), OCTOSPIM_P1_IO7 (AF10), TIM1_CH2N (AF1), UART7_CTS (AF7)
J8PE12ввод-выводCOMP1_OUT (AF13), DFSDM1_DATIN5 (AF3), FMC_D9 (AF12), FMC_DA9 (AF12), LTDC_B4 (AF14), SAI4_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
J9PD10ввод-выводDFSDM1_CKOUT (AF3), FMC_D15 (AF12), FMC_DA15 (AF12), LTDC_B3 (AF14), USART3_CK (AF7)
J10PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
J11PG3ввод-выводFMC_A13 (AF12), TIM23_ETR (AF13), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
J12PG2ввод-выводFMC_A12 (AF12), TIM24_ETR (AF14), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
K1VREF-питание—
K2PA1ввод-выводADC1_INN16, ADC1_INP17, ETH_REF_CLK (AF11), ETH_RX_CLK (AF11), LPTIM3_OUT (AF3), LTDC_R2 (AF14), OCTOSPIM_P1_DQS (AF12), OCTOSPIM_P1_IO3 (AF9), SAI4_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
K3PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, FMC_D9 (AF12), FMC_DA9 (AF12), I2S1_CK (AF5), I2S6_CK (AF8), LTDC_R4 (AF14), PSSI_D14 (AF13), PWR_NDSTOP2, SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM8_CH1N (AF3), USB_OTG_HS_ULPI_CK (AF10)
K4PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT (AF13), DFSDM1_DATIN2 (AF3), ETH_RXD1 (AF11), FMC_SDCKE0 (AF12), LTDC_DE (AF14), OCTOSPIM_P1_DQS (AF10), OPAMP1_VINM, PSSI_D15 (AF4), SAI1_D3 (AF2), SAI4_D3 (AF1), SPDIFRX1_IN3 (AF9)
K5PF13ввод-выводADC2_INP2, DFSDM1_DATIN6 (AF3), FMC_A7 (AF12), I2C4_SMBA (AF4), TIM24_CH3 (AF14)
K6PG0ввод-выводFMC_A10 (AF12), OCTOSPIM_P2_IO4 (AF9), UART9_RX (AF11)
K7PE9ввод-выводCOMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT (AF3), FMC_D6 (AF12), FMC_DA6 (AF12), OCTOSPIM_P1_IO6 (AF10), OPAMP2_VINP, TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
K8PE13ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN5 (AF3), FMC_D10 (AF12), FMC_DA10 (AF12), LTDC_DE (AF14), SAI4_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
K9PD9ввод-выводDAC1_EXTI9, DFSDM1_DATIN3 (AF3), FMC_D14 (AF12), FMC_DA14 (AF12), USART3_RX (AF7)
K10PD13ввод-выводDCMI_D13 (AF13), FDCAN3_TX (AF5), FMC_A18 (AF12), I2C4_SDA (AF4), LPTIM1_OUT (AF1), OCTOSPIM_P1_IO3 (AF9), PSSI_D13 (AF13), SAI4_SCK_A (AF10), TIM4_CH2 (AF2), UART9_DE (AF11), UART9_RTS (AF11)
K11PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), TIM4_CH3 (AF2), UART8_CTS (AF8), UART9_RX (AF11)
K12PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8), UART9_TX (AF11)
L1VREF+служебныйVREFBUF_OUT
L2PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM4_OUT (AF3), LTDC_R1 (AF14), MDIOS_MDIO (AF12), OCTOSPIM_P1_IO0 (AF6), PWR_WKUP2, SAI4_SCK_B (AF8), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
L3PA6ввод-выводADC1_INP3, ADC2_INP3, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), I2S6_SDI (AF8), LTDC_G2 (AF14), MDIOS_MDC (AF11), OCTOSPIM_P1_IO3 (AF6), PSSI_PDCK (AF13), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF12), TIM1_BKIN_COMP2 (AF12), TIM3_CH1 (AF2), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
L4PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT (AF6), ETH_RXD2 (AF11), LTDC_G1 (AF14), LTDC_R3 (AF9), OCTOSPIM_P1_IO1 (AF4), OPAMP1_VINP, TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USB_OTG_HS_ULPI_D1 (AF10)
L5PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12), OCTOSPIM_P2_DQS (AF9), TIM24_CH2 (AF14)
L6PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4)
L7PE8ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN2 (AF3), FMC_D5 (AF12), FMC_DA5 (AF12), OCTOSPIM_P1_IO5 (AF10), OPAMP2_VINM, TIM1_CH1N (AF1), UART7_TX (AF7)
L8PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), LTDC_CLK (AF14), SAI4_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
L9PD8ввод-выводDFSDM1_CKIN3 (AF3), FMC_D13 (AF12), FMC_DA13 (AF12), SPDIFRX1_IN1 (AF9), USART3_TX (AF7)
L10PD12ввод-выводDCMI_D12 (AF13), FDCAN3_RX (AF5), FMC_A17 (AF12), FMC_ALE (AF12), I2C4_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), OCTOSPIM_P1_IO1 (AF9), PSSI_D12 (AF13), SAI4_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
L11PB14ввод-выводDFSDM1_DATIN2 (AF6), FMC_D10 (AF12), FMC_DA10 (AF12), I2S2_SDI (AF5), LTDC_CLK (AF14), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7)
L12PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2 (AF6), FMC_D11 (AF12), FMC_DA11 (AF12), I2S2_SDO (AF5), LTDC_G7 (AF14), RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), USART1_RX (AF4)
M1VDDAпитание—
M2PA3ввод-выводADC1_INP15, ADC2_INP15, ETH_COL (AF11), I2S6_MCK (AF5), LPTIM5_OUT (AF3), LTDC_B2 (AF9), LTDC_B5 (AF14), OCTOSPIM_P1_CLK (AF12), OCTOSPIM_P1_IO2 (AF6), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7), USB_OTG_HS_ULPI_D0 (AF10)
M3PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV (AF11), ETH_RX_DV (AF11), FMC_SDNWE (AF12), I2S1_SDO (AF5), I2S6_SDO (AF8), LTDC_VSYNC (AF14), OCTOSPIM_P1_IO2 (AF10), OPAMP1_VINM, SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3)
M4PB1ввод-выводADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1 (AF6), ETH_RXD3 (AF11), LTDC_G0 (AF14), LTDC_R6 (AF9), OCTOSPIM_P1_IO0 (AF4), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USB_OTG_HS_ULPI_D2 (AF10)
M5PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), OCTOSPIM_P1_NCLK (AF9), PSSI_D12 (AF13), SAI4_SD_B (AF10), SPI5_MOSI (AF5), TIM24_CH1 (AF14)
M6PF14ввод-выводADC2_INN2, ADC2_INP6, DFSDM1_CKIN6 (AF3), FMC_A8 (AF12), I2C4_SCL (AF4), TIM24_CH4 (AF14)
M7PE7ввод-выводCOMP2_INM, DFSDM1_DATIN2 (AF3), FMC_D4 (AF12), FMC_DA4 (AF12), OCTOSPIM_P1_IO4 (AF10), OPAMP2_VOUT, TIM1_ETR (AF1), UART7_RX (AF7)
M8PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R7 (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), USART10_CK (AF11)
M9PB10ввод-выводDFSDM1_DATIN7 (AF6), ETH_RX_ER (AF11), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), LTDC_G4 (AF14), OCTOSPIM_P1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7), USB_OTG_HS_ULPI_D3 (AF10)
M10PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7 (AF6), ETH_TX_EN (AF11), I2C2_SDA (AF4), LPTIM2_ETR (AF3), LTDC_G5 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7), USB_OTG_HS_ULPI_D4 (AF10)
M11PB12ввод-выводDFSDM1_DATIN1 (AF6), ETH_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SMBA (AF4), I2S2_WS (AF5), OCTOSPIM_P1_IO0 (AF12), OCTOSPIM_P1_NCLK (AF3), SPI2_NSS (AF5), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), UART5_RX (AF14), USART3_CK (AF7), USB_OTG_HS_ULPI_D5 (AF10)
M12PB13ввод-выводDCMI_D2 (AF13), DFSDM1_CKIN1 (AF6), ETH_TXD1 (AF11), FDCAN2_TX (AF9), I2S2_CK (AF5), LPTIM2_OUT (AF3), OCTOSPIM_P1_IO2 (AF4), PSSI_D2 (AF13), SDMMC1_D0 (AF12), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), USART3_CTS (AF7), USART3_NSS (AF7), USB_OTG_HS_ULPI_D6 (AF10)

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяШарикиНазначение
PDR_ONE5управление внутренней схемой сброса по питанию
VBATC2резервное питание: часы реального времени и резервные регистры
VCAPG9, H7вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDDD3, F4, F5, F6, F7, F8, F9, F10, G5, G6, G7питание цифровой части и линий ввода-вывода
VDD33USBC11—
VDDAM1питание аналоговой части: АЦП, ЦАП, генераторы
VREF-K1нижнее опорное напряжение АЦП
VSSD2, E6, E7, G4, G8, G10, H5, H6общий провод (земля)
VSSAJ1общий провод аналоговой части
NRSTF1сброс, активный уровень — низкий
BOOT0D5выбор источника загрузки при сбросе
VREF+L1верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H733ZGIx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H733ZGSTM32H733ZGIx1 МБ564 КБ

Линейка STM32H723/733, семейство STM32H7, ядро Cortex-M7.

Заказные номера

Полные номера для заказа из таблицы на странице продукта на сайте ST: STM32H733ZG. Данные на 11 октября 2026 г.; перечислены номера, которые в этот момент выпускались. Цифра после буквы корпуса — температурный диапазон, вид упаковки указан в последнем столбце.

Номер для заказаКорпусТемператураУпаковка
STM32H733ZGI6UFBGA 144, 7×7×0,6 мм, шаг 0,5 мм−40…+85 °Cлоток

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе UFBGA144, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H723ZESTM32H723/733144 из 144выводы совпадают полностьютолько у этого: CRYP, HASH; флеш-память до 1024 и 512 КБ
STM32H723ZGSTM32H723/733144 из 144выводы совпадают полностьютолько у этого: CRYP, HASH
STM32H730ZBSTM32H730 Value line144 из 144выводы совпадают полностьюфлеш-память до 1024 и 128 КБ
STM32F412ZE, STM32F412ZGSTM32F412142 из 144C11: VDD33USB → VDD_USB; H5: VSS → BYPASS_REGтолько у этого: ADC2, ADC3, COMP1, COMP2, CORDIC, CRYP, DAC1, DCMI, DMA2D, ETH, FDCAN1, FDCAN2, FDCAN3, FMAC, FMC, HASH, HDMI_CEC, I2C4, I2C5, I2S6, IWDG1, LPTIM1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SAI1, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SPI6, SWPMI1, TIM15, TIM16, TIM17, TIM23, TIM24, UART4, UART5, UART7, UART8, UART9, USART10, USB_OTG_HS, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, FMPI2C1, FSMC, I2S4, I2S5, IWDG, QUADSPI, SDIO, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 550 и 100 МГц; ОЗУ 564 и 256 КБ
STM32F413ZG, STM32F413ZHSTM32F413/423142 из 144C11: VDD33USB → VDDUSB; H5: VSS → BYPASS_REGтолько у этого: ADC2, ADC3, COMP1, COMP2, CORDIC, CRYP, DAC1, DCMI, DMA2D, ETH, FDCAN1, FDCAN2, FDCAN3, FMAC, FMC, HASH, HDMI_CEC, I2C4, I2C5, I2S6, IWDG1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SPI6, SWPMI1, TIM15, TIM16, TIM17, TIM23, TIM24, USART10, USB_OTG_HS, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, CAN3, DAC, DFSDM2, FMPI2C1, FSMC, I2S4, I2S5, IWDG, QUADSPI, SDIO, TIM10, TIM11, TIM9, UART10, USB_OTG_FS, WWDG; частота до 550 и 100 МГц; флеш-память до 1024 и 1536 КБ; ОЗУ 564 и 320 КБ
STM32F423ZHSTM32F413/423142 из 144C11: VDD33USB → VDDUSB; H5: VSS → BYPASS_REGтолько у этого: ADC2, ADC3, COMP1, COMP2, CORDIC, CRYP, DAC1, DCMI, DMA2D, ETH, FDCAN1, FDCAN2, FDCAN3, FMAC, FMC, HASH, HDMI_CEC, I2C4, I2C5, I2S6, IWDG1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SPI6, SWPMI1, TIM15, TIM16, TIM17, TIM23, TIM24, USART10, USB_OTG_HS, USB_OTG_HS1, VREFBUF, WWDG1; только у него: AES, CAN1, CAN2, CAN3, DAC, DFSDM2, FMPI2C1, FSMC, I2S4, I2S5, IWDG, QUADSPI, SDIO, TIM10, TIM11, TIM9, UART10, USB_OTG_FS, WWDG; частота до 550 и 100 МГц; флеш-память до 1024 и 1536 КБ; ОЗУ 564 и 320 КБ
STM32F446ZCHx, STM32F446ZEHxSTM32F446142 из 144C11: VDD33USB → VDDUSB; H5: VSS → BYPASS_REGтолько у этого: COMP1, COMP2, CORDIC, CRYP, DAC1, DFSDM1, DMA2D, ETH, FDCAN1, FDCAN2, FDCAN3, FMAC, HASH, I2C4, I2C5, I2S6, IWDG1, LPTIM1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, RNG, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SPI5, SPI6, SWPMI1, TIM15, TIM16, TIM17, TIM23, TIM24, UART7, UART8, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, DAC, FMPI2C1, IWDG, QUADSPI, SAI2, SDIO, SPDIFRX, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 550 и 180 МГц; флеш-память до 1024 и 512 КБ; ОЗУ 564 и 128 КБ
STM32F446ZCJx, STM32F446ZEJxSTM32F446142 из 144C11: VDD33USB → VDDUSB; H5: VSS → BYPASS_REGтолько у этого: COMP1, COMP2, CORDIC, CRYP, DAC1, DFSDM1, DMA2D, ETH, FDCAN1, FDCAN2, FDCAN3, FMAC, HASH, I2C4, I2C5, I2S6, IWDG1, LPTIM1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, RNG, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SPI5, SPI6, SWPMI1, TIM15, TIM16, TIM17, TIM23, TIM24, UART7, UART8, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, DAC, FMPI2C1, IWDG, QUADSPI, SAI2, SDIO, SPDIFRX, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 550 и 180 МГц; флеш-память до 1024 и 512 КБ; ОЗУ 564 и 128 КБ
STM32F723ZC, STM32F723ZESTM32F7x3139 из 144C11: VDD33USB → VDDUSB; F7: VDD → VDDSDMMC; H5: VSS → BYPASS_REG; H10: PG7 → V12_PHYHS; H11: PG6 → REXTPHYHSтолько у этого: COMP1, COMP2, CORDIC, CRYP, DAC1, DCMI, DFSDM1, DMA2D, ETH, FDCAN1, FDCAN2, FDCAN3, FMAC, HASH, HDMI_CEC, I2C4, I2C5, I2S6, IWDG1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SAI4, SPDIFRX1, SPI6, SWPMI1, TIM12, TIM15, TIM16, TIM17, TIM23, TIM24, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, DAC, IWDG, QUADSPI, SAI2, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 550 и 216 МГц; флеш-память до 1024 и 512 КБ; ОЗУ 564 и 192 КБ
STM32F733ZESTM32F7x3139 из 144C11: VDD33USB → VDDUSB; F7: VDD → VDDSDMMC; H5: VSS → BYPASS_REG; H10: PG7 → V12_PHYHS; H11: PG6 → REXTPHYHSтолько у этого: COMP1, COMP2, CORDIC, CRYP, DAC1, DCMI, DFSDM1, DMA2D, ETH, FDCAN1, FDCAN2, FDCAN3, FMAC, HASH, HDMI_CEC, I2C4, I2C5, I2S6, IWDG1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OCTOSPI1, OCTOSPI2, OPAMP1, OPAMP2, PSSI, SAI4, SPDIFRX1, SPI6, SWPMI1, TIM12, TIM15, TIM16, TIM17, TIM23, TIM24, UART9, USART10, USB_OTG_HS1, VREFBUF, WWDG1; только у него: AES, CAN1, DAC, IWDG, QUADSPI, SAI2, TIM10, TIM11, TIM9, USB_OTG_FS, WWDG; частота до 550 и 216 МГц; флеш-память до 1024 и 512 КБ; ОЗУ 564 и 192 КБ

Частые вопросы

На каких выводах USART1 у STM32H733ZG?

В корпусе UFBGA144 сигнал USART1_TX выведен на PB6 (шарик C6, AF7) или PA9 (шарик D12, AF7) или PB14 (шарик L11, AF4), USART1_RX — на PB7 (шарик D6, AF7) или PA10 (шарик D11, AF7) или PB15 (шарик L12, AF4).

Где у STM32H733ZG выводы SWD для программатора?

SWDIO — PA13(JTMS/SWDIO) (шарик A12, AF0), SWCLK — PA14(JTCK/SWCLK) (шарик A11, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H733ZG?

I2C1_SCL — PB8 (шарик C5, AF4) или PB6 (шарик C6, AF4), I2C1_SDA — PB9 (шарик B5, AF4) или PB7 (шарик D6, AF4).

Сколько выводов ввода-вывода у STM32H733ZG в корпусе UFBGA144?

114 из 144. Ещё 27 выводов заняты питанием и землёй, остальные 3 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32H733ZG?

От 1,62 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Заказные номера, корпуса, упаковка и температурный диапазон — из таблиц на страницах продуктов st.com (данные на 11 октября 2026 г.). Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
