STM32H743ZG в корпусе LQFP144: распиновка

STM32H743ZG — микроконтроллер STM32H7 на ядре Cortex-M7 с частотой до 480 МГц: 1 МБ флеш-памяти и 864 КБ ОЗУ. Корпус LQFP144 — 144 вывода, из них 114 линий ввода-вывода. Ниже — схема корпуса, назначение каждого вывода и выводы всей периферии.

Обновлено данные STMicroelectronics, STM32CubeMX 6.18.0

Содержание
Ядро
Cortex-M7
Частота ядра
до 480 МГц
Флеш-память
1 МБ
ОЗУ
864 КБ
Корпус
LQFP144, 144 вывода
Линий ввода-вывода
114
Напряжение питания
1,62…3,6 В
Рабочая температура
−40…+85 °C, зависит от исполнения

Схема корпуса LQFP144

Вид сверху. Выберите периферию — её выводы подсветятся на схеме, а в списке под схемой останутся только её сигналы. Наведите курсор на вывод, чтобы увидеть все его функции.

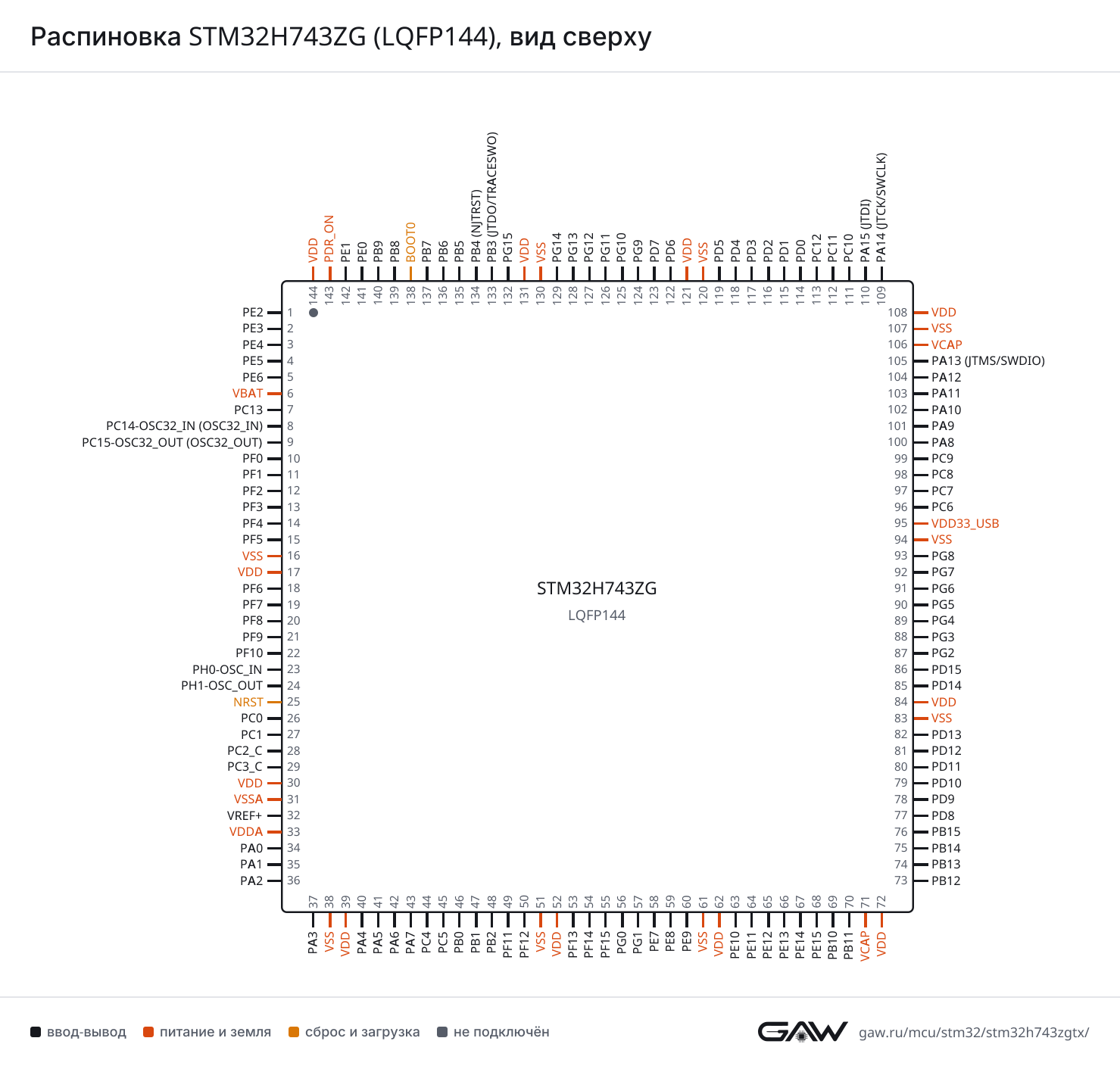

Распиновка STM32H743ZG в корпусе LQFP144, вид сверхуSTM32H743ZGLQFP144, вид сверхуPE2 — вывод 1: DEBUG_TRACECLK, ETH_TXD3, FMC_A23, QUADSPI_BK1_IO2, SAI1_CK1, SAI1_MCLK_A, SAI4_CK1, SAI4_MCLK_A, SPI4_SCK1PE2PE3 — вывод 2: DEBUG_TRACED0, FMC_A19, SAI1_SD_B, SAI4_SD_B, TIM15_BKIN2PE3PE4 — вывод 3: DCMI_D4, DEBUG_TRACED1, DFSDM1_DATIN3, FMC_A20, LTDC_B0, SAI1_D2, SAI1_FS_A, SAI4_D2, SAI4_FS_A, SPI4_NSS, TIM15_CH1N3PE4PE5 — вывод 4: DCMI_D6, DEBUG_TRACED2, DFSDM1_CKIN3, FMC_A21, LTDC_G0, SAI1_CK2, SAI1_SCK_A, SAI4_CK2, SAI4_SCK_A, SPI4_MISO, TIM15_CH14PE5PE6 — вывод 5: DCMI_D7, DEBUG_TRACED3, FMC_A22, LTDC_G1, SAI1_D1, SAI1_SD_A, SAI2_MCLK_B, SAI4_D1, SAI4_SD_A, SPI4_MOSI, TIM15_CH2, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP25PE6VBAT — вывод 66VBATPC13 — вывод 7: PWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS7PC13PC14-OSC32_IN (OSC32_IN) — вывод 8: RCC_OSC32_IN8PC14-OSC32_IN (OSC32_IN)PC15-OSC32_OUT (OSC32_OUT) — вывод 9: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT9PC15-OSC32_OUT (OSC32_OUT)PF0 — вывод 10: FMC_A0, I2C2_SDA10PF0PF1 — вывод 11: FMC_A1, I2C2_SCL11PF1PF2 — вывод 12: FMC_A2, I2C2_SMBA12PF2PF3 — вывод 13: ADC3_INP5, FMC_A313PF3PF4 — вывод 14: ADC3_INN5, ADC3_INP9, FMC_A414PF4PF5 — вывод 15: ADC3_INP4, FMC_A515PF5VSS — вывод 1616VSSVDD — вывод 1717VDDPF6 — вывод 18: ADC3_INN4, ADC3_INP8, QUADSPI_BK1_IO3, SAI1_SD_B, SAI4_SD_B, SPI5_NSS, TIM16_CH1, UART7_RX18PF6PF7 — вывод 19: ADC3_INP3, QUADSPI_BK1_IO2, SAI1_MCLK_B, SAI4_MCLK_B, SPI5_SCK, TIM17_CH1, UART7_TX19PF7PF8 — вывод 20: ADC3_INN3, ADC3_INP7, QUADSPI_BK1_IO0, SAI1_SCK_B, SAI4_SCK_B, SPI5_MISO, TIM13_CH1, TIM16_CH1N, UART7_DE, UART7_RTS20PF8PF9 — вывод 21: ADC3_INP2, DAC1_EXTI9, QUADSPI_BK1_IO1, SAI1_FS_B, SAI4_FS_B, SPI5_MOSI, TIM14_CH1, TIM17_CH1N, UART7_CTS21PF9PF10 — вывод 22: ADC3_INN2, ADC3_INP6, DCMI_D11, LTDC_DE, QUADSPI_CLK, SAI1_D3, SAI4_D3, TIM16_BKIN22PF10PH0-OSC_IN — вывод 23: RCC_OSC_IN23PH0-OSC_INPH1-OSC_OUT — вывод 24: RCC_OSC_OUT24PH1-OSC_OUTNRST — вывод 2525NRSTPC0 — вывод 26: ADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0, DFSDM1_DATIN4, FMC_SDNWE, LTDC_R5, SAI2_FS_B, USB_OTG_HS_ULPI_STP26PC0PC1 — вывод 27: ADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0, DFSDM1_CKIN4, DFSDM1_DATIN0, ETH_MDC, I2S2_SDO, MDIOS_MDC, PWR_WKUP6, RTC_TAMP3, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI2_MOSI27PC1PC2_C — вывод 28: ADC3_INN1, ADC3_INP0, DFSDM1_CKIN1, DFSDM1_CKOUT, ETH_TXD2, FMC_SDNE0, I2S2_SDI, PWR_CSTOP, SPI2_MISO, USB_OTG_HS_ULPI_DIR28PC2_CPC3_C — вывод 29: ADC3_INP1, DFSDM1_DATIN1, ETH_TX_CLK, FMC_SDCKE0, I2S2_SDO, PWR_CSLEEP, SPI2_MOSI, USB_OTG_HS_ULPI_NXT29PC3_CVDD — вывод 3030VDDVSSA — вывод 3131VSSAVREF+ — вывод 32: VREFBUF_OUT32VREF+VDDA — вывод 3333VDDAPA0 — вывод 34: ADC1_INP16, ETH_CRS, PWR_WKUP1, SAI2_SD_B, SDMMC2_CMD, TIM15_BKIN, TIM2_CH1, TIM2_ETR, TIM5_CH1, TIM8_ETR, UART4_TX, USART2_CTS, USART2_NSS34PA0PA1 — вывод 35: ADC1_INN16, ADC1_INP17, ETH_REF_CLK, ETH_RX_CLK, LPTIM3_OUT, LTDC_R2, QUADSPI_BK1_IO3, SAI2_MCLK_B, TIM15_CH1N, TIM2_CH2, TIM5_CH2, UART4_RX, USART2_DE, USART2_RTS35PA1PA2 — вывод 36: ADC1_INP14, ADC2_INP14, ETH_MDIO, LPTIM4_OUT, LTDC_R1, MDIOS_MDIO, PWR_WKUP2, SAI2_SCK_B, TIM15_CH1, TIM2_CH3, TIM5_CH3, USART2_TX36PA2PA3 — вывод 37: ADC1_INP15, ADC2_INP15, ETH_COL, LPTIM5_OUT, LTDC_B2, LTDC_B5, TIM15_CH2, TIM2_CH4, TIM5_CH4, USART2_RX, USB_OTG_HS_ULPI_D037PA3VSS — вывод 3838VSSVDD — вывод 3939VDDPA4 — вывод 40: ADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC, I2S1_WS, I2S3_WS, LTDC_VSYNC, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM5_ETR, USART2_CK, USB_OTG_HS_SOF40PA4PA5 — вывод 41: ADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, I2S1_CK, LTDC_R4, PWR_NDSTOP2, SPI1_SCK, SPI6_SCK, TIM2_CH1, TIM2_ETR, TIM8_CH1N, USB_OTG_HS_ULPI_CK41PA5PA6 — вывод 42: ADC1_INP3, ADC2_INP3, DCMI_PIXCLK, I2S1_SDI, LTDC_G2, MDIOS_MDC, SPI1_MISO, SPI6_MISO, TIM13_CH1, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, TIM3_CH1, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP242PA6PA7 — вывод 43: ADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV, ETH_RX_DV, FMC_SDNWE, I2S1_SDO, OPAMP1_VINM, OPAMP1_VINM1, SPI1_MOSI, SPI6_MOSI, TIM14_CH1, TIM1_CH1N, TIM3_CH2, TIM8_CH1N43PA7PC4 — вывод 44: ADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2, ETH_RXD0, FMC_SDNE0, I2S1_MCK, OPAMP1_VOUT, SPDIFRX1_IN244PC4PC5 — вывод 45: ADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT, DFSDM1_DATIN2, ETH_RXD1, FMC_SDCKE0, OPAMP1_VINM, OPAMP1_VINM0, SAI1_D3, SAI4_D3, SPDIFRX1_IN345PC5PB0 — вывод 46: ADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT, ETH_RXD2, LTDC_G1, LTDC_R3, OPAMP1_VINP, TIM1_CH2N, TIM3_CH3, TIM8_CH2N, UART4_CTS, USB_OTG_HS_ULPI_D146PB0PB1 — вывод 47: ADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1, ETH_RXD3, LTDC_G0, LTDC_R6, TIM1_CH3N, TIM3_CH4, TIM8_CH3N, USB_OTG_HS_ULPI_D247PB1PB2 — вывод 48: COMP1_INP, DFSDM1_CKIN1, ETH_TX_ER, I2S3_SDO, QUADSPI_CLK, RTC_OUT_ALARM, RTC_OUT_CALIB, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SPI3_MOSI48PB2PF11 — вывод 49: ADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12, FMC_SDNRAS, SAI2_SD_B, SPI5_MOSI49PF11PF12 — вывод 50: ADC1_INN2, ADC1_INP6, FMC_A650PF12VSS — вывод 5151VSSVDD — вывод 5252VDDPF13 — вывод 53: ADC2_INP2, DFSDM1_DATIN6, FMC_A7, I2C4_SMBA53PF13PF14 — вывод 54: ADC2_INN2, ADC2_INP6, DFSDM1_CKIN6, FMC_A8, I2C4_SCL54PF14PF15 — вывод 55: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9, I2C4_SDA55PF15PG0 — вывод 56: FMC_A1056PG0PG1 — вывод 57: FMC_A11, OPAMP2_VINM, OPAMP2_VINM157PG1PE7 — вывод 58: COMP2_INM, DFSDM1_DATIN2, FMC_D4, FMC_DA4, OPAMP2_VOUT, QUADSPI_BK2_IO0, TIM1_ETR, UART7_RX58PE7PE8 — вывод 59: COMP2_OUT, DFSDM1_CKIN2, FMC_D5, FMC_DA5, OPAMP2_VINM, OPAMP2_VINM0, QUADSPI_BK2_IO1, TIM1_CH1N, UART7_TX59PE8PE9 — вывод 60: COMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT, FMC_D6, FMC_DA6, OPAMP2_VINP, QUADSPI_BK2_IO2, TIM1_CH1, UART7_DE, UART7_RTS60PE9VSS — вывод 6161VSSVDD — вывод 6262VDDPE10 — вывод 63: COMP2_INM, DFSDM1_DATIN4, FMC_D7, FMC_DA7, QUADSPI_BK2_IO3, TIM1_CH2N, UART7_CTS63PE10PE11 — вывод 64: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4, FMC_D8, FMC_DA8, LTDC_G3, SAI2_SD_B, SPI4_NSS, TIM1_CH264PE11PE12 — вывод 65: COMP1_OUT, DFSDM1_DATIN5, FMC_D9, FMC_DA9, LTDC_B4, SAI2_SCK_B, SPI4_SCK, TIM1_CH3N65PE12PE13 — вывод 66: COMP2_OUT, DFSDM1_CKIN5, FMC_D10, FMC_DA10, LTDC_DE, SAI2_FS_B, SPI4_MISO, TIM1_CH366PE13PE14 — вывод 67: FMC_D11, FMC_DA11, LTDC_CLK, SAI2_MCLK_B, SPI4_MOSI, TIM1_CH467PE14PE15 — вывод 68: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12, FMC_DA12, LTDC_R7, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP268PE15PB10 — вывод 69: DFSDM1_DATIN7, ETH_RX_ER, HRTIM_SCOUT, I2C2_SCL, I2S2_CK, LPTIM2_IN1, LTDC_G4, QUADSPI_BK1_NCS, SPI2_SCK, TIM2_CH3, USART3_TX, USB_OTG_HS_ULPI_D369PB10PB11 — вывод 70: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7, ETH_TX_EN, HRTIM_SCIN, I2C2_SDA, LPTIM2_ETR, LTDC_G5, TIM2_CH4, USART3_RX, USB_OTG_HS_ULPI_D470PB11VCAP — вывод 7171VCAPVDD — вывод 7272VDDPB12 — вывод 73: DFSDM1_DATIN1, ETH_TXD0, FDCAN2_RX, I2C2_SMBA, I2S2_WS, SPI2_NSS, TIM1_BKIN, TIM1_BKIN_COMP1, TIM1_BKIN_COMP2, UART5_RX, USART3_CK, USB_OTG_HS_ID, USB_OTG_HS_ULPI_D573PB12PB13 — вывод 74: DFSDM1_CKIN1, ETH_TXD1, FDCAN2_TX, I2S2_CK, LPTIM2_OUT, SPI2_SCK, TIM1_CH1N, UART5_TX, USART3_CTS, USART3_NSS, USB_OTG_HS_ULPI_D6, USB_OTG_HS_VBUS74PB13PB14 — вывод 75: DFSDM1_DATIN2, I2S2_SDI, SDMMC2_D0, SPI2_MISO, TIM12_CH1, TIM1_CH2N, TIM8_CH2N, UART4_DE, UART4_RTS, USART1_TX, USART3_DE, USART3_RTS, USB_OTG_HS_DM75PB14PB15 — вывод 76: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2, I2S2_SDO, RTC_REFIN, SDMMC2_D1, SPI2_MOSI, TIM12_CH2, TIM1_CH3N, TIM8_CH3N, UART4_CTS, USART1_RX, USB_OTG_HS_DP76PB15PD8 — вывод 77: DFSDM1_CKIN3, FMC_D13, FMC_DA13, SAI3_SCK_B, SPDIFRX1_IN1, USART3_TX77PD8PD9 — вывод 78: DAC1_EXTI9, DFSDM1_DATIN3, FMC_D14, FMC_DA14, SAI3_SD_B, USART3_RX78PD9PD10 — вывод 79: DFSDM1_CKOUT, FMC_D15, FMC_DA15, LTDC_B3, SAI3_FS_B, USART3_CK79PD10PD11 — вывод 80: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16, FMC_CLE, I2C4_SMBA, LPTIM2_IN2, QUADSPI_BK1_IO0, SAI2_SD_A, USART3_CTS, USART3_NSS80PD11PD12 — вывод 81: FMC_A17, FMC_ALE, I2C4_SCL, LPTIM1_IN1, LPTIM2_IN1, QUADSPI_BK1_IO1, SAI2_FS_A, TIM4_CH1, USART3_DE, USART3_RTS81PD12PD13 — вывод 82: FMC_A18, I2C4_SDA, LPTIM1_OUT, QUADSPI_BK1_IO3, SAI2_SCK_A, TIM4_CH282PD13VSS — вывод 8383VSSVDD — вывод 8484VDDPD14 — вывод 85: FMC_D0, FMC_DA0, SAI3_MCLK_B, TIM4_CH3, UART8_CTS85PD14PD15 — вывод 86: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1, FMC_DA1, SAI3_MCLK_A, TIM4_CH4, UART8_DE, UART8_RTS86PD15PG2 — вывод 87: FMC_A12, TIM8_BKIN, TIM8_BKIN_COMP1, TIM8_BKIN_COMP287PG2PG3 — вывод 88: FMC_A13, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP288PG3PG4 — вывод 89: FMC_A14, FMC_BA0, TIM1_BKIN2, TIM1_BKIN2_COMP1, TIM1_BKIN2_COMP289PG4PG5 — вывод 90: FMC_A15, FMC_BA1, TIM1_ETR90PG5PG6 — вывод 91: DCMI_D12, FMC_NE3, HRTIM_CHE1, LTDC_R7, QUADSPI_BK1_NCS, TIM17_BKIN91PG6PG7 — вывод 92: DCMI_D13, FMC_INT, HRTIM_CHE2, LTDC_CLK, SAI1_MCLK_A, USART6_CK92PG7PG8 — вывод 93: ETH_PPS_OUT, FMC_SDCLK, LTDC_G7, SPDIFRX1_IN2, SPI6_NSS, TIM8_ETR, USART6_DE, USART6_RTS93PG8VSS — вывод 9494VSSVDD33_USB — вывод 9595VDD33_USBPC6 — вывод 96: DCMI_D0, DFSDM1_CKIN3, FMC_NWAIT, HRTIM_CHA1, I2S2_MCK, LTDC_HSYNC, SDMMC1_D0DIR, SDMMC1_D6, SDMMC2_D6, SWPMI1_IO, TIM3_CH1, TIM8_CH1, USART6_TX96PC6PC7 — вывод 97: DCMI_D1, DEBUG_TRGIO, DFSDM1_DATIN3, FMC_NE1, HRTIM_CHA2, I2S3_MCK, LTDC_G6, SDMMC1_D123DIR, SDMMC1_D7, SDMMC2_D7, SWPMI1_TX, TIM3_CH2, TIM8_CH2, USART6_RX97PC7PC8 — вывод 98: DCMI_D2, DEBUG_TRACED1, FMC_NCE, FMC_NE2, HRTIM_CHB1, SDMMC1_D0, SWPMI1_RX, TIM3_CH3, TIM8_CH3, UART5_DE, UART5_RTS, USART6_CK98PC8PC9 — вывод 99: DAC1_EXTI9, DCMI_D3, I2C3_SDA, I2S_CKIN, LTDC_B2, LTDC_G3, QUADSPI_BK1_IO0, RCC_MCO_2, SDMMC1_D1, SWPMI1_SUSPEND, TIM3_CH4, TIM8_CH4, UART5_CTS99PC9PA8 — вывод 100: HRTIM_CHB2, I2C3_SCL, LTDC_B3, LTDC_R6, RCC_MCO_1, TIM1_CH1, TIM8_BKIN2, TIM8_BKIN2_COMP1, TIM8_BKIN2_COMP2, UART7_RX, USART1_CK, USB_OTG_FS_SOF100PA8PA9 — вывод 101: DAC1_EXTI9, DCMI_D0, ETH_TX_ER, HRTIM_CHC1, I2C3_SMBA, I2S2_CK, LPUART1_TX, LTDC_R5, SPI2_SCK, TIM1_CH2, USART1_TX, USB_OTG_FS_VBUS101PA9PA10 — вывод 102: DCMI_D1, HRTIM_CHC2, LPUART1_RX, LTDC_B1, LTDC_B4, MDIOS_MDIO, TIM1_CH3, USART1_RX, USB_OTG_FS_ID102PA10PA11 — вывод 103: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX, HRTIM_CHD1, I2S2_WS, LPUART1_CTS, LTDC_R4, SPI2_NSS, TIM1_CH4, UART4_RX, USART1_CTS, USART1_NSS, USB_OTG_FS_DM103PA11PA12 — вывод 104: FDCAN1_TX, HRTIM_CHD2, I2S2_CK, LPUART1_DE, LPUART1_RTS, LTDC_R5, SAI2_FS_B, SPI2_SCK, TIM1_ETR, UART4_TX, USART1_DE, USART1_RTS, USB_OTG_FS_DP104PA12PA13 (JTMS/SWDIO) — вывод 105: DEBUG_JTMS-SWDIO105PA13 (JTMS/SWDIO)VCAP — вывод 106106VCAPVSS — вывод 107107VSSVDD — вывод 108108VDDPA14 (JTCK/SWCLK) — вывод 109: DEBUG_JTCK-SWCLK109PA14 (JTCK/SWCLK)PA15 (JTDI) — вывод 110: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC, DEBUG_JTDI, HRTIM_FLT1, I2S1_WS, I2S3_WS, SPI1_NSS, SPI3_NSS, SPI6_NSS, TIM2_CH1, TIM2_ETR, UART4_DE, UART4_RTS, UART7_TX110PA15 (JTDI)PC10 — вывод 111: DCMI_D8, DFSDM1_CKIN5, HRTIM_EEV1, I2S3_CK, LTDC_R2, QUADSPI_BK1_IO1, SDMMC1_D2, SPI3_SCK, UART4_TX, USART3_TX111PC10PC11 — вывод 112: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4, DFSDM1_DATIN5, HRTIM_FLT2, I2S3_SDI, QUADSPI_BK2_NCS, SDMMC1_D3, SPI3_MISO, UART4_RX, USART3_RX112PC11PC12 — вывод 113: DCMI_D9, DEBUG_TRACED3, HRTIM_EEV2, I2S3_SDO, SDMMC1_CK, SPI3_MOSI, UART5_TX, USART3_CK113PC12PD0 — вывод 114: DFSDM1_CKIN6, FDCAN1_RX, FMC_D2, FMC_DA2, SAI3_SCK_A, UART4_RX114PD0PD1 — вывод 115: DFSDM1_DATIN6, FDCAN1_TX, FMC_D3, FMC_DA3, SAI3_SD_A, UART4_TX115PD1PD2 — вывод 116: DCMI_D11, DEBUG_TRACED2, SDMMC1_CMD, TIM3_ETR, UART5_RX116PD2PD3 — вывод 117: DCMI_D5, DFSDM1_CKOUT, FMC_CLK, I2S2_CK, LTDC_G7, SPI2_SCK, USART2_CTS, USART2_NSS117PD3PD4 — вывод 118: FMC_NOE, HRTIM_FLT3, SAI3_FS_A, USART2_DE, USART2_RTS118PD4PD5 — вывод 119: FMC_NWE, HRTIM_EEV3, USART2_TX119PD5VSS — вывод 120120VSSVDD — вывод 121121VDDPD6 — вывод 122: DCMI_D10, DFSDM1_CKIN4, DFSDM1_DATIN1, FMC_NWAIT, I2S3_SDO, LTDC_B2, SAI1_D1, SAI1_SD_A, SAI4_D1, SAI4_SD_A, SDMMC2_CK, SPI3_MOSI, USART2_RX122PD6PD7 — вывод 123: DFSDM1_CKIN1, DFSDM1_DATIN4, FMC_NE1, I2S1_SDO, SDMMC2_CMD, SPDIFRX1_IN0, SPI1_MOSI, USART2_CK123PD7PG9 — вывод 124: DAC1_EXTI9, DCMI_VSYNC, FMC_NCE, FMC_NE2, I2S1_SDI, QUADSPI_BK2_IO2, SAI2_FS_B, SPDIFRX1_IN3, SPI1_MISO, USART6_RX124PG9PG10 — вывод 125: DCMI_D2, FMC_NE3, HRTIM_FLT5, I2S1_WS, LTDC_B2, LTDC_G3, SAI2_SD_B, SPI1_NSS125PG10PG11 — вывод 126: ADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3, ETH_TX_EN, HRTIM_EEV4, I2S1_CK, LPTIM1_IN2, LTDC_B3, SDMMC2_D2, SPDIFRX1_IN0, SPI1_SCK126PG11PG12 — вывод 127: ETH_TXD1, FMC_NE4, HRTIM_EEV5, LPTIM1_IN1, LTDC_B1, LTDC_B4, SPDIFRX1_IN1, SPI6_MISO, USART6_DE, USART6_RTS127PG12PG13 — вывод 128: DEBUG_TRACED0, ETH_TXD0, FMC_A24, HRTIM_EEV10, LPTIM1_OUT, LTDC_R0, SPI6_SCK, USART6_CTS, USART6_NSS128PG13PG14 — вывод 129: DEBUG_TRACED1, ETH_TXD1, FMC_A25, LPTIM1_ETR, LTDC_B0, QUADSPI_BK2_IO3, SPI6_MOSI, USART6_TX129PG14VSS — вывод 130130VSSVDD — вывод 131131VDDPG15 — вывод 132: ADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13, FMC_SDNCAS, USART6_CTS, USART6_NSS132PG15PB3 (JTDO/TRACESWO) — вывод 133: CRS_SYNC, DEBUG_JTDO-SWO, HRTIM_FLT4, I2S1_CK, I2S3_CK, SDMMC2_D2, SPI1_SCK, SPI3_SCK, SPI6_SCK, TIM2_CH2, UART7_RX133PB3 (JTDO/TRACESWO)PB4 (NJTRST) — вывод 134: DEBUG_JTRST, HRTIM_EEV6, I2S1_SDI, I2S2_WS, I2S3_SDI, SDMMC2_D3, SPI1_MISO, SPI2_NSS, SPI3_MISO, SPI6_MISO, TIM16_BKIN, TIM3_CH1, UART7_TX134PB4 (NJTRST)PB5 — вывод 135: DCMI_D10, ETH_PPS_OUT, FDCAN2_RX, FMC_SDCKE1, HRTIM_EEV7, I2C1_SMBA, I2C4_SMBA, I2S1_SDO, I2S3_SDO, SPI1_MOSI, SPI3_MOSI, SPI6_MOSI, TIM17_BKIN, TIM3_CH2, UART5_RX, USB_OTG_HS_ULPI_D7135PB5PB6 — вывод 136: CEC, DCMI_D5, DFSDM1_DATIN5, FDCAN2_TX, FMC_SDNE1, HRTIM_EEV8, I2C1_SCL, I2C4_SCL, LPUART1_TX, QUADSPI_BK1_NCS, TIM16_CH1N, TIM4_CH1, UART5_TX, USART1_TX136PB6PB7 — вывод 137: DCMI_VSYNC, DFSDM1_CKIN5, FMC_NL, HRTIM_EEV9, I2C1_SDA, I2C4_SDA, LPUART1_RX, PWR_PVD_IN, TIM17_CH1N, TIM4_CH2, USART1_RX137PB7BOOT0 — вывод 138138BOOT0PB8 — вывод 139: DCMI_D6, DFSDM1_CKIN7, ETH_TXD3, FDCAN1_RX, I2C1_SCL, I2C4_SCL, LTDC_B6, SDMMC1_CKIN, SDMMC1_D4, SDMMC2_D4, TIM16_CH1, TIM4_CH3, UART4_RX139PB8PB9 — вывод 140: DAC1_EXTI9, DCMI_D7, DFSDM1_DATIN7, FDCAN1_TX, I2C1_SDA, I2C4_SDA, I2C4_SMBA, I2S2_WS, LTDC_B7, SDMMC1_CDIR, SDMMC1_D5, SDMMC2_D5, SPI2_NSS, TIM17_CH1, TIM4_CH4, UART4_TX140PB9PE0 — вывод 141: DCMI_D2, FMC_NBL0, HRTIM_SCIN, LPTIM1_ETR, LPTIM2_ETR, SAI2_MCLK_A, TIM4_ETR, UART8_RX141PE0PE1 — вывод 142: DCMI_D3, FMC_NBL1, HRTIM_SCOUT, LPTIM1_IN2, UART8_TX142PE1PDR_ON — вывод 143143PDR_ONVDD — вывод 144144VDD
  • ввод-вывод
  • питание и земля
  • сброс и выбор загрузки
  • не подключён
  • выбранная периферия
Распиновка STM32H743ZG (LQFP144), вид сверхуРаспиновка LQFP144 картинкой
PNG, 1479 × 1408 — для документации и печати

Периферия и её выводы

На какие выводы выходит каждый сигнал. В скобках — номер вывода и номер альтернативной функции (AF), который записывают в регистры GPIOx_AFRL и GPIOx_AFRH. Сигналы без номера AF — аналоговые входы, генераторы, пробуждение — включаются настройкой самой периферии.

USART — синхронно-асинхронный приёмопередатчик

БлокСигналВыводы
USART1CKPA8 (100, AF7)
CTSPA11 (103, AF7)
DEPA12 (104, AF7)
NSSPA11 (103, AF7)
RTSPA12 (104, AF7)
RXPB15 (76, AF4), PA10 (102, AF7), PB7 (137, AF7)
TXPB14 (75, AF4), PA9 (101, AF7), PB6 (136, AF7)
USART2CKPA4 (40, AF7), PD7 (123, AF7)
CTSPA0 (34, AF7), PD3 (117, AF7)
DEPA1 (35, AF7), PD4 (118, AF7)
NSSPA0 (34, AF7), PD3 (117, AF7)
RTSPA1 (35, AF7), PD4 (118, AF7)
RXPA3 (37, AF7), PD6 (122, AF7)
TXPA2 (36, AF7), PD5 (119, AF7)
USART3CKPB12 (73, AF7), PD10 (79, AF7), PC12 (113, AF7)
CTSPB13 (74, AF7), PD11 (80, AF7)
DEPB14 (75, AF7), PD12 (81, AF7)
NSSPB13 (74, AF7), PD11 (80, AF7)
RTSPB14 (75, AF7), PD12 (81, AF7)
RXPB11 (70, AF7), PD9 (78, AF7), PC11 (112, AF7)
TXPB10 (69, AF7), PD8 (77, AF7), PC10 (111, AF7)
USART6CKPG7 (92, AF7), PC8 (98, AF7)
CTSPG13 (128, AF7), PG15 (132, AF7)
DEPG8 (93, AF7), PG12 (127, AF7)
NSSPG13 (128, AF7), PG15 (132, AF7)
RTSPG8 (93, AF7), PG12 (127, AF7)
RXPC7 (97, AF7), PG9 (124, AF7)
TXPC6 (96, AF7), PG14 (129, AF7)

UART — асинхронный приёмопередатчик

БлокСигналВыводы
UART4CTSPB0 (46, AF8), PB15 (76, AF8)
DEPB14 (75, AF8), PA15 (JTDI) (110, AF8)
RTSPB14 (75, AF8), PA15 (JTDI) (110, AF8)
RXPA1 (35, AF8), PA11 (103, AF6), PC11 (112, AF8), PD0 (114, AF8), PB8 (139, AF8)
TXPA0 (34, AF8), PA12 (104, AF6), PC10 (111, AF8), PD1 (115, AF8), PB9 (140, AF8)
UART5CTSPC9 (99, AF8)
DEPC8 (98, AF8)
RTSPC8 (98, AF8)
RXPB12 (73, AF14), PD2 (116, AF8), PB5 (135, AF14)
TXPB13 (74, AF14), PC12 (113, AF8), PB6 (136, AF14)
UART7CTSPF9 (21, AF7), PE10 (63, AF7)
DEPF8 (20, AF7), PE9 (60, AF7)
RTSPF8 (20, AF7), PE9 (60, AF7)
RXPF6 (18, AF7), PE7 (58, AF7), PA8 (100, AF11), PB3 (JTDO/TRACESWO) (133, AF11)
TXPF7 (19, AF7), PE8 (59, AF7), PA15 (JTDI) (110, AF11), PB4 (NJTRST) (134, AF11)
UART8CTSPD14 (85, AF8)
DEPD15 (86, AF8)
RTSPD15 (86, AF8)
RXPE0 (141, AF8)
TXPE1 (142, AF8)

LPUART — UART с малым потреблением

БлокСигналВыводы
LPUART1CTSPA11 (103, AF3)
DEPA12 (104, AF3)
RTSPA12 (104, AF3)
RXPA10 (102, AF3), PB7 (137, AF8)
TXPA9 (101, AF3), PB6 (136, AF8)

SPI — последовательный интерфейс SPI

БлокСигналВыводы
SPI1MISOPA6 (42, AF5), PG9 (124, AF5), PB4 (NJTRST) (134, AF5)
MOSIPA7 (43, AF5), PD7 (123, AF5), PB5 (135, AF5)
NSSPA4 (40, AF5), PA15 (JTDI) (110, AF5), PG10 (125, AF5)
SCKPA5 (41, AF5), PG11 (126, AF5), PB3 (JTDO/TRACESWO) (133, AF5)
SPI2MISOPC2_C (28, AF5), PB14 (75, AF5)
MOSIPC1 (27, AF5), PC3_C (29, AF5), PB15 (76, AF5)
NSSPB12 (73, AF5), PA11 (103, AF5), PB4 (NJTRST) (134, AF7), PB9 (140, AF5)
SCKPB10 (69, AF5), PB13 (74, AF5), PA9 (101, AF5), PA12 (104, AF5), PD3 (117, AF5)
SPI3MISOPC11 (112, AF6), PB4 (NJTRST) (134, AF6)
MOSIPB2 (48, AF7), PC12 (113, AF6), PD6 (122, AF5), PB5 (135, AF7)
NSSPA4 (40, AF6), PA15 (JTDI) (110, AF6)
SCKPC10 (111, AF6), PB3 (JTDO/TRACESWO) (133, AF6)
SPI4MISOPE5 (4, AF5), PE13 (66, AF5)
MOSIPE6 (5, AF5), PE14 (67, AF5)
NSSPE4 (3, AF5), PE11 (64, AF5)
SCKPE2 (1, AF5), PE12 (65, AF5)
SPI5MISOPF8 (20, AF5)
MOSIPF9 (21, AF5), PF11 (49, AF5)
NSSPF6 (18, AF5)
SCKPF7 (19, AF5)
SPI6MISOPA6 (42, AF8), PG12 (127, AF5), PB4 (NJTRST) (134, AF8)
MOSIPA7 (43, AF8), PG14 (129, AF5), PB5 (135, AF8)
NSSPA4 (40, AF8), PG8 (93, AF5), PA15 (JTDI) (110, AF7)
SCKPA5 (41, AF8), PG13 (128, AF5), PB3 (JTDO/TRACESWO) (133, AF8)

I²S — цифровой аудиоинтерфейс

БлокСигналВыводы
I2SCKINPC9 (99, AF5)
I2S1CKPA5 (41, AF5), PG11 (126, AF5), PB3 (JTDO/TRACESWO) (133, AF5)
MCKPC4 (44, AF5)
SDIPA6 (42, AF5), PG9 (124, AF5), PB4 (NJTRST) (134, AF5)
SDOPA7 (43, AF5), PD7 (123, AF5), PB5 (135, AF5)
WSPA4 (40, AF5), PA15 (JTDI) (110, AF5), PG10 (125, AF5)
I2S2CKPB10 (69, AF5), PB13 (74, AF5), PA9 (101, AF5), PA12 (104, AF5), PD3 (117, AF5)
MCKPC6 (96, AF5)
SDIPC2_C (28, AF5), PB14 (75, AF5)
SDOPC1 (27, AF5), PC3_C (29, AF5), PB15 (76, AF5)
WSPB12 (73, AF5), PA11 (103, AF5), PB4 (NJTRST) (134, AF7), PB9 (140, AF5)
I2S3CKPC10 (111, AF6), PB3 (JTDO/TRACESWO) (133, AF6)
MCKPC7 (97, AF6)
SDIPC11 (112, AF6), PB4 (NJTRST) (134, AF6)
SDOPB2 (48, AF7), PC12 (113, AF6), PD6 (122, AF5), PB5 (135, AF7)
WSPA4 (40, AF6), PA15 (JTDI) (110, AF6)

I²C — шина I²C

БлокСигналВыводы
I2C1SCLPB6 (136, AF4), PB8 (139, AF4)
SDAPB7 (137, AF4), PB9 (140, AF4)
SMBAPB5 (135, AF4)
I2C2SCLPF1 (11, AF4), PB10 (69, AF4)
SDAPF0 (10, AF4), PB11 (70, AF4)
SMBAPF2 (12, AF4), PB12 (73, AF4)
I2C3SCLPA8 (100, AF4)
SDAPC9 (99, AF4)
SMBAPA9 (101, AF4)
I2C4SCLPF14 (54, AF4), PD12 (81, AF4), PB6 (136, AF6), PB8 (139, AF6)
SDAPF15 (55, AF4), PD13 (82, AF4), PB7 (137, AF6), PB9 (140, AF6)
SMBAPF13 (53, AF4), PD11 (80, AF4), PB5 (135, AF6), PB9 (140, AF11)

FDCAN — контроллер CAN FD

БлокСигналВыводы
FDCAN1RXPA11 (103, AF9), PD0 (114, AF9), PB8 (139, AF9)
TXPA12 (104, AF9), PD1 (115, AF9), PB9 (140, AF9)
FDCAN2RXPB12 (73, AF9), PB5 (135, AF9)
TXPB13 (74, AF9), PB6 (136, AF9)

USB OTG FS — USB On-The-Go Full Speed

БлокСигналВыводы
USB_OTG_FSDMPA11 (103, AF10)
DPPA12 (104, AF10)
IDPA10 (102, AF10)
SOFPA8 (100, AF10)
VBUSPA9 (101)

USB OTG HS — USB On-The-Go High Speed

БлокСигналВыводы
USB_OTG_HSDMPB14 (75, AF12)
DPPB15 (76, AF12)
IDPB12 (73, AF12)
SOFPA4 (40, AF12)
ULPI_CKPA5 (41, AF10)
ULPI_D0PA3 (37, AF10)
ULPI_D1PB0 (46, AF10)
ULPI_D2PB1 (47, AF10)
ULPI_D3PB10 (69, AF10)
ULPI_D4PB11 (70, AF10)
ULPI_D5PB12 (73, AF10)
ULPI_D6PB13 (74, AF10)
ULPI_D7PB5 (135, AF10)
ULPI_DIRPC2_C (28, AF10)
ULPI_NXTPC3_C (29, AF10)
ULPI_STPPC0 (26, AF10)
VBUSPB13 (74)

Ethernet — MAC Ethernet (MII, RMII)

БлокСигналВыводы
ETHCOLPA3 (37, AF11)
CRSPA0 (34, AF11)
CRS_DVPA7 (43, AF11)
MDCPC1 (27, AF11)
MDIOPA2 (36, AF11)
PPS_OUTPG8 (93, AF11), PB5 (135, AF11)
REF_CLKPA1 (35, AF11)
RX_CLKPA1 (35, AF11)
RX_DVPA7 (43, AF11)
RX_ERPB10 (69, AF11)
RXD0PC4 (44, AF11)
RXD1PC5 (45, AF11)
RXD2PB0 (46, AF11)
RXD3PB1 (47, AF11)
TX_CLKPC3_C (29, AF11)
TX_ENPB11 (70, AF11), PG11 (126, AF11)
TX_ERPB2 (48, AF11), PA9 (101, AF11)
TXD0PB12 (73, AF11), PG13 (128, AF11)
TXD1PB13 (74, AF11), PG12 (127, AF11), PG14 (129, AF11)
TXD2PC2_C (28, AF11)
TXD3PE2 (1, AF11), PB8 (139, AF11)

SDMMC — интерфейс карт SD и MMC

БлокСигналВыводы
SDMMC1CDIRPB9 (140, AF7)
CKPC12 (113, AF12)
CKINPB8 (139, AF7)
CMDPD2 (116, AF12)
D0PC8 (98, AF12)
D0DIRPC6 (96, AF8)
D1PC9 (99, AF12)
D2PC10 (111, AF12)
D3PC11 (112, AF12)
D4PB8 (139, AF12)
D5PB9 (140, AF12)
D6PC6 (96, AF12)
D7PC7 (97, AF12)
D123DIRPC7 (97, AF8)
SDMMC2CKPC1 (27, AF9), PD6 (122, AF11)
CMDPA0 (34, AF9), PD7 (123, AF11)
D0PB14 (75, AF9)
D1PB15 (76, AF9)
D2PG11 (126, AF10), PB3 (JTDO/TRACESWO) (133, AF9)
D3PB4 (NJTRST) (134, AF9)
D4PB8 (139, AF10)
D5PB9 (140, AF10)
D6PC6 (96, AF10)
D7PC7 (97, AF10)

QUADSPI — интерфейс Quad-SPI памяти

БлокСигналВыводы
QUADSPIBK1_IO0PF8 (20, AF10), PD11 (80, AF9), PC9 (99, AF9)
BK1_IO1PF9 (21, AF10), PD12 (81, AF9), PC10 (111, AF9)
BK1_IO2PE2 (1, AF9), PF7 (19, AF9)
BK1_IO3PF6 (18, AF9), PA1 (35, AF9), PD13 (82, AF9)
BK1_NCSPB10 (69, AF9), PG6 (91, AF10), PB6 (136, AF10)
BK2_IO0PE7 (58, AF10)
BK2_IO1PE8 (59, AF10)
BK2_IO2PE9 (60, AF10), PG9 (124, AF9)
BK2_IO3PE10 (63, AF10), PG14 (129, AF9)
BK2_NCSPC11 (112, AF9)
CLKPF10 (22, AF9), PB2 (48, AF9)

SAI — последовательный аудиоинтерфейс

БлокСигналВыводы
SAI1CK1PE2 (1, AF2)
CK2PE5 (4, AF2)
D1PE6 (5, AF2), PC1 (27, AF2), PB2 (48, AF2), PD6 (122, AF2)
D2PE4 (3, AF2)
D3PF10 (22, AF2), PC5 (45, AF2)
FS_APE4 (3, AF6)
FS_BPF9 (21, AF6)
MCLK_APE2 (1, AF6), PG7 (92, AF6)
MCLK_BPF7 (19, AF6)
SCK_APE5 (4, AF6)
SCK_BPF8 (20, AF6)
SD_APE6 (5, AF6), PC1 (27, AF6), PB2 (48, AF6), PD6 (122, AF6)
SD_BPE3 (2, AF6), PF6 (18, AF6)
SAI2FS_APD12 (81, AF10)
FS_BPC0 (26, AF8), PE13 (66, AF10), PA12 (104, AF8), PG9 (124, AF10)
MCLK_APE0 (141, AF10)
MCLK_BPE6 (5, AF10), PA1 (35, AF10), PE14 (67, AF10)
SCK_APD13 (82, AF10)
SCK_BPA2 (36, AF8), PE12 (65, AF10)
SD_APD11 (80, AF10)
SD_BPA0 (34, AF10), PF11 (49, AF10), PE11 (64, AF10), PG10 (125, AF10)
SAI3FS_APD4 (118, AF6)
FS_BPD10 (79, AF6)
MCLK_APD15 (86, AF6)
MCLK_BPD14 (85, AF6)
SCK_APD0 (114, AF6)
SCK_BPD8 (77, AF6)
SD_APD1 (115, AF6)
SD_BPD9 (78, AF6)
SAI4CK1PE2 (1, AF10)
CK2PE5 (4, AF10)
D1PE6 (5, AF9), PC1 (27, AF10), PB2 (48, AF10), PD6 (122, AF10)
D2PE4 (3, AF10)
D3PF10 (22, AF10), PC5 (45, AF10)
FS_APE4 (3, AF8)
FS_BPF9 (21, AF8)
MCLK_APE2 (1, AF8)
MCLK_BPF7 (19, AF8)
SCK_APE5 (4, AF8)
SCK_BPF8 (20, AF8)
SD_APE6 (5, AF8), PC1 (27, AF8), PB2 (48, AF8), PD6 (122, AF8)
SD_BPE3 (2, AF8), PF6 (18, AF8)

SPDIF-RX — приёмник S/PDIF

БлокСигналВыводы
SPDIFRX1IN0PD7 (123, AF9), PG11 (126, AF8)
IN1PD8 (77, AF9), PG12 (127, AF8)
IN2PC4 (44, AF9), PG8 (93, AF8)
IN3PC5 (45, AF9), PG9 (124, AF8)

HDMI-CEC — шина управления HDMI

БлокСигналВыводы
CECCECPA15 (JTDI) (110, AF4), PB6 (136, AF5)

SWPMI — интерфейс Single Wire Protocol

БлокСигналВыводы
SWPMI1IOPC6 (96)
RXPC8 (98, AF11)
SUSPENDPC9 (99, AF11)
TXPC7 (97, AF11)

ADC — аналого-цифровой преобразователь

БлокСигналВыводы
ADC1EXTI11PF11 (49), PE11 (64), PB11 (70), PD11 (80), PA11 (103), PC11 (112), PG11 (126)
EXTI15PC15-OSC32_OUT (OSC32_OUT) (9), PF15 (55), PE15 (68), PB15 (76), PD15 (86), PA15 (JTDI) (110), PG15 (132)
INN2PF12 (50)
INN3PA7 (43)
INN4PC5 (45)
INN5PB0 (46)
INN10PC1 (27)
INN16PA1 (35)
INN18PA5 (41)
INP2PF11 (49)
INP3PA6 (42)
INP4PC4 (44)
INP5PB1 (47)
INP6PF12 (50)
INP7PA7 (43)
INP8PC5 (45)
INP9PB0 (46)
INP10PC0 (26)
INP11PC1 (27)
INP14PA2 (36)
INP15PA3 (37)
INP16PA0 (34)
INP17PA1 (35)
INP18PA4 (40)
INP19PA5 (41)
ADC2EXTI11PF11 (49), PE11 (64), PB11 (70), PD11 (80), PA11 (103), PC11 (112), PG11 (126)
EXTI15PC15-OSC32_OUT (OSC32_OUT) (9), PF15 (55), PE15 (68), PB15 (76), PD15 (86), PA15 (JTDI) (110), PG15 (132)
INN2PF14 (54)
INN3PA7 (43)
INN4PC5 (45)
INN5PB0 (46)
INN10PC1 (27)
INN18PA5 (41)
INP2PF13 (53)
INP3PA6 (42)
INP4PC4 (44)
INP5PB1 (47)
INP6PF14 (54)
INP7PA7 (43)
INP8PC5 (45)
INP9PB0 (46)
INP10PC0 (26)
INP11PC1 (27)
INP14PA2 (36)
INP15PA3 (37)
INP18PA4 (40)
INP19PA5 (41)
ADC3EXTI11PF11 (49), PE11 (64), PB11 (70), PD11 (80), PA11 (103), PC11 (112), PG11 (126)
EXTI15PC15-OSC32_OUT (OSC32_OUT) (9), PF15 (55), PE15 (68), PB15 (76), PD15 (86), PA15 (JTDI) (110), PG15 (132)
INN1PC2_C (28)
INN2PF10 (22)
INN3PF8 (20)
INN4PF6 (18)
INN5PF4 (14)
INN10PC1 (27)
INP0PC2_C (28)
INP1PC3_C (29)
INP2PF9 (21)
INP3PF7 (19)
INP4PF5 (15)
INP5PF3 (13)
INP6PF10 (22)
INP7PF8 (20)
INP8PF6 (18)
INP9PF4 (14)
INP10PC0 (26)
INP11PC1 (27)

DAC — цифро-аналоговый преобразователь

БлокСигналВыводы
DAC1EXTI9PF9 (21), PE9 (60), PD9 (78), PC9 (99), PA9 (101), PG9 (124), PB9 (140)
OUT1PA4 (40)
OUT2PA5 (41)

COMP — аналоговый компаратор

БлокСигналВыводы
COMP1INMPC4 (44), PB1 (47)
INPPB0 (46), PB2 (48)
OUTPC5 (45, AF13), PE12 (65, AF13)
COMP2INMPE7 (58), PE10 (63)
INPPE9 (60), PE11 (64)
OUTPE8 (59, AF13), PE13 (66, AF13)

OPAMP — операционный усилитель

БлокСигналВыводы
OPAMP1VINMPA7 (43), PC5 (45)
VINM0PC5 (45)
VINM1PA7 (43)
VINPPB0 (46)
VOUTPC4 (44)
OPAMP2VINMPG1 (57), PE8 (59)
VINM0PE8 (59)
VINM1PG1 (57)
VINPPE9 (60)
VOUTPE7 (58)

VREFBUF — буфер опорного напряжения

БлокСигналВыводы
VREFBUFOUTVREF+ (32)

TIM — таймер

БлокСигналВыводы
TIM1BKINPA6 (42, AF1), PE15 (68, AF1), PB12 (73, AF1)
BKIN_COMP1PA6 (42, AF12), PE15 (68, AF13), PB12 (73, AF13)
BKIN_COMP2PA6 (42, AF12), PE15 (68, AF13), PB12 (73, AF13)
BKIN2PE6 (5, AF1), PG4 (89, AF1)
BKIN2_COMP1PE6 (5, AF11), PG4 (89, AF11)
BKIN2_COMP2PE6 (5, AF11), PG4 (89, AF11)
CH1PE9 (60, AF1), PA8 (100, AF1)
CH1NPA7 (43, AF1), PE8 (59, AF1), PB13 (74, AF1)
CH2PE11 (64, AF1), PA9 (101, AF1)
CH2NPB0 (46, AF1), PE10 (63, AF1), PB14 (75, AF1)
CH3PE13 (66, AF1), PA10 (102, AF1)
CH3NPB1 (47, AF1), PE12 (65, AF1), PB15 (76, AF1)
CH4PE14 (67, AF1), PA11 (103, AF1)
ETRPE7 (58, AF1), PG5 (90, AF1), PA12 (104, AF1)
TIM2CH1PA0 (34, AF1), PA5 (41, AF1), PA15 (JTDI) (110, AF1)
CH2PA1 (35, AF1), PB3 (JTDO/TRACESWO) (133, AF1)
CH3PA2 (36, AF1), PB10 (69, AF1)
CH4PA3 (37, AF1), PB11 (70, AF1)
ETRPA0 (34, AF1), PA5 (41, AF1), PA15 (JTDI) (110, AF1)
TIM3CH1PA6 (42, AF2), PC6 (96, AF2), PB4 (NJTRST) (134, AF2)
CH2PA7 (43, AF2), PC7 (97, AF2), PB5 (135, AF2)
CH3PB0 (46, AF2), PC8 (98, AF2)
CH4PB1 (47, AF2), PC9 (99, AF2)
ETRPD2 (116, AF2)
TIM4CH1PD12 (81, AF2), PB6 (136, AF2)
CH2PD13 (82, AF2), PB7 (137, AF2)
CH3PD14 (85, AF2), PB8 (139, AF2)
CH4PD15 (86, AF2), PB9 (140, AF2)
ETRPE0 (141, AF2)
TIM5CH1PA0 (34, AF2)
CH2PA1 (35, AF2)
CH3PA2 (36, AF2)
CH4PA3 (37, AF2)
ETRPA4 (40, AF2)
TIM8BKINPA6 (42, AF3), PG2 (87, AF3)
BKIN_COMP1PA6 (42, AF10), PG2 (87, AF11)
BKIN_COMP2PA6 (42, AF10), PG2 (87, AF11)
BKIN2PG3 (88, AF3), PA8 (100, AF3)
BKIN2_COMP1PG3 (88, AF11), PA8 (100, AF12)
BKIN2_COMP2PG3 (88, AF11), PA8 (100, AF12)
CH1PC6 (96, AF3)
CH1NPA5 (41, AF3), PA7 (43, AF3)
CH2PC7 (97, AF3)
CH2NPB0 (46, AF3), PB14 (75, AF3)
CH3PC8 (98, AF3)
CH3NPB1 (47, AF3), PB15 (76, AF3)
CH4PC9 (99, AF3)
ETRPA0 (34, AF3), PG8 (93, AF3)
TIM12CH1PB14 (75, AF2)
CH2PB15 (76, AF2)
TIM13CH1PF8 (20, AF9), PA6 (42, AF9)
TIM14CH1PF9 (21, AF9), PA7 (43, AF9)
TIM15BKINPE3 (2, AF4), PA0 (34, AF4)
CH1PE5 (4, AF4), PA2 (36, AF4)
CH1NPE4 (3, AF4), PA1 (35, AF4)
CH2PE6 (5, AF4), PA3 (37, AF4)
TIM16BKINPF10 (22, AF1), PB4 (NJTRST) (134, AF1)
CH1PF6 (18, AF1), PB8 (139, AF1)
CH1NPF8 (20, AF1), PB6 (136, AF1)
TIM17BKINPG6 (91, AF1), PB5 (135, AF1)
CH1PF7 (19, AF1), PB9 (140, AF1)
CH1NPF9 (21, AF1), PB7 (137, AF1)

LPTIM — таймер с малым потреблением

БлокСигналВыводы
LPTIM1ETRPG14 (129, AF1), PE0 (141, AF1)
IN1PD12 (81, AF1), PG12 (127, AF1)
IN2PG11 (126, AF1), PE1 (142, AF1)
OUTPD13 (82, AF1), PG13 (128, AF1)
LPTIM2ETRPB11 (70, AF3), PE0 (141, AF4)
IN1PB10 (69, AF3), PD12 (81, AF3)
IN2PD11 (80, AF3)
OUTPB13 (74, AF3)
LPTIM3OUTPA1 (35, AF3)
LPTIM4OUTPA2 (36, AF3)
LPTIM5OUTPA3 (37, AF3)

HRTIM — таймер высокого разрешения

БлокСигналВыводы
HRTIMCHA1PC6 (96, AF1)
CHA2PC7 (97, AF1)
CHB1PC8 (98, AF1)
CHB2PA8 (100, AF2)
CHC1PA9 (101, AF2)
CHC2PA10 (102, AF2)
CHD1PA11 (103, AF2)
CHD2PA12 (104, AF2)
CHE1PG6 (91, AF2)
CHE2PG7 (92, AF2)
EEV1PC10 (111, AF2)
EEV2PC12 (113, AF2)
EEV3PD5 (119, AF2)
EEV4PG11 (126, AF2)
EEV5PG12 (127, AF2)
EEV6PB4 (NJTRST) (134, AF3)
EEV7PB5 (135, AF3)
EEV8PB6 (136, AF3)
EEV9PB7 (137, AF3)
EEV10PG13 (128, AF2)
FLT1PA15 (JTDI) (110, AF2)
FLT2PC11 (112, AF2)
FLT3PD4 (118, AF2)
FLT4PB3 (JTDO/TRACESWO) (133, AF2)
FLT5PG10 (125, AF2)
SCINPB11 (70, AF2), PE0 (141, AF3)
SCOUTPB10 (69, AF2), PE1 (142, AF3)

RTC — часы реального времени

БлокСигналВыводы
RTCOUT_ALARMPC13 (7), PB2 (48, AF0)
OUT_CALIBPC13 (7), PB2 (48, AF0)
REFINPB15 (76, AF0)
TSPC13 (7)

FMC — контроллер внешней памяти

БлокСигналВыводы
FMCA0PF0 (10, AF12)
A1PF1 (11, AF12)
A2PF2 (12, AF12)
A3PF3 (13, AF12)
A4PF4 (14, AF12)
A5PF5 (15, AF12)
A6PF12 (50, AF12)
A7PF13 (53, AF12)
A8PF14 (54, AF12)
A9PF15 (55, AF12)
A10PG0 (56, AF12)
A11PG1 (57, AF12)
A12PG2 (87, AF12)
A13PG3 (88, AF12)
A14PG4 (89, AF12)
A15PG5 (90, AF12)
A16PD11 (80, AF12)
A17PD12 (81, AF12)
A18PD13 (82, AF12)
A19PE3 (2, AF12)
A20PE4 (3, AF12)
A21PE5 (4, AF12)
A22PE6 (5, AF12)
A23PE2 (1, AF12)
A24PG13 (128, AF12)
A25PG14 (129, AF12)
ALEPD12 (81)
BA0PG4 (89, AF12)
BA1PG5 (90, AF12)
CLEPD11 (80)
CLKPD3 (117, AF12)
D0PD14 (85, AF12)
D1PD15 (86, AF12)
D2PD0 (114, AF12)
D3PD1 (115, AF12)
D4PE7 (58, AF12)
D5PE8 (59, AF12)
D6PE9 (60, AF12)
D7PE10 (63, AF12)
D8PE11 (64, AF12)
D9PE12 (65, AF12)
D10PE13 (66, AF12)
D11PE14 (67, AF12)
D12PE15 (68, AF12)
D13PD8 (77, AF12)
D14PD9 (78, AF12)
D15PD10 (79, AF12)
DA0PD14 (85, AF12)
DA1PD15 (86, AF12)
DA2PD0 (114, AF12)
DA3PD1 (115, AF12)
DA4PE7 (58, AF12)
DA5PE8 (59, AF12)
DA6PE9 (60, AF12)
DA7PE10 (63, AF12)
DA8PE11 (64, AF12)
DA9PE12 (65, AF12)
DA10PE13 (66, AF12)
DA11PE14 (67, AF12)
DA12PE15 (68, AF12)
DA13PD8 (77, AF12)
DA14PD9 (78, AF12)
DA15PD10 (79, AF12)
INTPG7 (92, AF12)
NBL0PE0 (141, AF12)
NBL1PE1 (142, AF12)
NCEPC8 (98, AF9), PG9 (124, AF12)
NE1PC7 (97, AF9), PD7 (123, AF12)
NE2PC8 (98, AF9), PG9 (124, AF12)
NE3PG6 (91, AF12), PG10 (125, AF12)
NE4PG12 (127, AF12)
NLPB7 (137, AF12)
NOEPD4 (118, AF12)
NWAITPC6 (96, AF9), PD6 (122, AF12)
NWEPD5 (119, AF12)
SDCKE0PC3_C (29, AF12), PC5 (45, AF12)
SDCKE1PB5 (135, AF12)
SDCLKPG8 (93, AF12)
SDNCASPG15 (132, AF12)
SDNE0PC2_C (28, AF12), PC4 (44, AF12)
SDNE1PB6 (136, AF12)
SDNRASPF11 (49, AF12)
SDNWEPC0 (26, AF12), PA7 (43, AF12)

DCMI — интерфейс цифровой камеры

БлокСигналВыводы
DCMID0PC6 (96, AF13), PA9 (101, AF13)
D1PC7 (97, AF13), PA10 (102, AF13)
D2PC8 (98, AF13), PG10 (125, AF13), PE0 (141, AF13)
D3PC9 (99, AF13), PG11 (126, AF13), PE1 (142, AF13)
D4PE4 (3, AF13), PC11 (112, AF13)
D5PD3 (117, AF13), PB6 (136, AF13)
D6PE5 (4, AF13), PB8 (139, AF13)
D7PE6 (5, AF13), PB9 (140, AF13)
D8PC10 (111, AF13)
D9PC12 (113, AF13)
D10PD6 (122, AF13), PB5 (135, AF13)
D11PF10 (22, AF13), PD2 (116, AF13)
D12PF11 (49, AF13), PG6 (91, AF13)
D13PG7 (92, AF13), PG15 (132, AF13)
HSYNCPA4 (40, AF13)
PIXCLKPA6 (42, AF13)
VSYNCPG9 (124, AF13), PB7 (137, AF13)

LTDC — контроллер TFT-дисплея

БлокСигналВыводы
LTDCB0PE4 (3, AF14), PG14 (129, AF14)
B1PA10 (102, AF14), PG12 (127, AF14)
B2PA3 (37, AF9), PC9 (99, AF14), PD6 (122, AF14), PG10 (125, AF14)
B3PD10 (79, AF14), PA8 (100, AF13), PG11 (126, AF14)
B4PE12 (65, AF14), PA10 (102, AF12), PG12 (127, AF9)
B5PA3 (37, AF14)
B6PB8 (139, AF14)
B7PB9 (140, AF14)
CLKPE14 (67, AF14), PG7 (92, AF14)
DEPF10 (22, AF14), PE13 (66, AF14)
G0PE5 (4, AF14), PB1 (47, AF14)
G1PE6 (5, AF14), PB0 (46, AF14)
G2PA6 (42, AF14)
G3PE11 (64, AF14), PC9 (99, AF10), PG10 (125, AF9)
G4PB10 (69, AF14)
G5PB11 (70, AF14)
G6PC7 (97, AF14)
G7PG8 (93, AF14), PD3 (117, AF14)
HSYNCPC6 (96, AF14)
R0PG13 (128, AF14)
R1PA2 (36, AF14)
R2PA1 (35, AF14), PC10 (111, AF14)
R3PB0 (46, AF9)
R4PA5 (41, AF14), PA11 (103, AF14)
R5PC0 (26, AF14), PA9 (101, AF14), PA12 (104, AF14)
R6PB1 (47, AF9), PA8 (100, AF14)
R7PE15 (68, AF14), PG6 (91, AF14)
VSYNCPA4 (40, AF14)

DFSDM — цифровой фильтр сигма-дельта модуляторов

БлокСигналВыводы
DFSDM1CKIN0PC0 (26, AF3)
CKIN1PC2_C (28, AF3), PB2 (48, AF4), PB13 (74, AF6), PD7 (123, AF6)
CKIN2PC4 (44, AF3), PE8 (59, AF3), PB15 (76, AF6)
CKIN3PE5 (4, AF3), PD8 (77, AF3), PC6 (96, AF4)
CKIN4PC1 (27, AF4), PE11 (64, AF3), PD6 (122, AF3)
CKIN5PE13 (66, AF3), PC10 (111, AF3), PB7 (137, AF11)
CKIN6PF14 (54, AF3), PD0 (114, AF3)
CKIN7PB11 (70, AF6), PB8 (139, AF3)
CKOUTPC2_C (28, AF6), PB0 (46, AF6), PE9 (60, AF3), PD10 (79, AF3), PD3 (117, AF3)
DATIN0PC1 (27, AF3)
DATIN1PC3_C (29, AF3), PB1 (47, AF6), PB12 (73, AF6), PD6 (122, AF4)
DATIN2PC5 (45, AF3), PE7 (58, AF3), PB14 (75, AF6)
DATIN3PE4 (3, AF3), PD9 (78, AF3), PC7 (97, AF4)
DATIN4PC0 (26, AF6), PE10 (63, AF3), PD7 (123, AF3)
DATIN5PE12 (65, AF3), PC11 (112, AF3), PB6 (136, AF11)
DATIN6PF13 (53, AF3), PD1 (115, AF3)
DATIN7PB10 (69, AF6), PB9 (140, AF3)

SWD и JTAG — отладочный интерфейс

БлокСигналВыводы
DEBUGJTCK-SWCLKPA14 (JTCK/SWCLK) (109, AF0)
JTDIPA15 (JTDI) (110, AF0)
JTDO-SWOPB3 (JTDO/TRACESWO) (133, AF0)
JTMS-SWDIOPA13 (JTMS/SWDIO) (105, AF0)
TRACECLKPE2 (1, AF0)
TRACED0PE3 (2, AF0), PC1 (27, AF0), PG13 (128, AF0)
TRACED1PE4 (3, AF0), PC8 (98, AF0), PG14 (129, AF0)
TRACED2PE5 (4, AF0), PD2 (116, AF0)
TRACED3PE6 (5, AF0), PC12 (113, AF0)

Тактирование — входы кварца и выходы тактовых сигналов

БлокСигналВыводы
RCCMCO_1PA8 (100, AF0)
MCO_2PC9 (99, AF0)
OSC_INPH0-OSC_IN (23)
OSC_OUTPH1-OSC_OUT (24)
OSC32_INPC14-OSC32_IN (OSC32_IN) (8)
OSC32_OUTPC15-OSC32_OUT (OSC32_OUT) (9)

Пробуждение — выводы пробуждения и защиты от вскрытия

БлокСигналВыводы
WKUPPWR_CSLEEPPC3_C (29)
PWR_CSTOPPC2_C (28)
PWR_WKUP1PA0 (34)
PWR_WKUP2PA2 (36)
PWR_WKUP4PC13 (7)
PWR_WKUP6PC1 (27)
RTC_TAMP1PC13 (7)
RTC_TAMP3PC1 (27)

Блоки без собственных выводов: USB_OTG_FS1 (USB On-The-Go Full Speed), USB_OTG_HS1 (USB On-The-Go High Speed), HDMI_CEC (шина управления HDMI), TIM6 (таймер), TIM7 (таймер), IWDG1 (независимый сторожевой таймер), WWDG1 (оконный сторожевой таймер), CRC (блок расчёта CRC), RNG (генератор случайных чисел), DMA2D (графический ускоритель Chrom-ART).

Таблица выводов

Все 144 вывода корпуса LQFP144 по порядку. В столбце «Функции» — сигналы периферии, которые можно вывести на этот вывод; обычный режим порта (вход, выход, аналоговый вход) доступен на каждой линии ввода-вывода.

ВыводИмяТипФункции
1PE2ввод-выводDEBUG_TRACECLK (AF0), ETH_TXD3 (AF11), FMC_A23 (AF12), QUADSPI_BK1_IO2 (AF9), SAI1_CK1 (AF2), SAI1_MCLK_A (AF6), SAI4_CK1 (AF10), SAI4_MCLK_A (AF8), SPI4_SCK (AF5)
2PE3ввод-выводDEBUG_TRACED0 (AF0), FMC_A19 (AF12), SAI1_SD_B (AF6), SAI4_SD_B (AF8), TIM15_BKIN (AF4)
3PE4ввод-выводDCMI_D4 (AF13), DEBUG_TRACED1 (AF0), DFSDM1_DATIN3 (AF3), FMC_A20 (AF12), LTDC_B0 (AF14), SAI1_D2 (AF2), SAI1_FS_A (AF6), SAI4_D2 (AF10), SAI4_FS_A (AF8), SPI4_NSS (AF5), TIM15_CH1N (AF4)
4PE5ввод-выводDCMI_D6 (AF13), DEBUG_TRACED2 (AF0), DFSDM1_CKIN3 (AF3), FMC_A21 (AF12), LTDC_G0 (AF14), SAI1_CK2 (AF2), SAI1_SCK_A (AF6), SAI4_CK2 (AF10), SAI4_SCK_A (AF8), SPI4_MISO (AF5), TIM15_CH1 (AF4)
5PE6ввод-выводDCMI_D7 (AF13), DEBUG_TRACED3 (AF0), FMC_A22 (AF12), LTDC_G1 (AF14), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI2_MCLK_B (AF10), SAI4_D1 (AF9), SAI4_SD_A (AF8), SPI4_MOSI (AF5), TIM15_CH2 (AF4), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
6VBATпитание—
7PC13ввод-выводPWR_WKUP4, RTC_OUT_ALARM, RTC_OUT_CALIB, RTC_TAMP1, RTC_TS
8PC14-OSC32_IN (OSC32_IN)ввод-выводRCC_OSC32_IN
9PC15-OSC32_OUT (OSC32_OUT)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, RCC_OSC32_OUT
10PF0ввод-выводFMC_A0 (AF12), I2C2_SDA (AF4)
11PF1ввод-выводFMC_A1 (AF12), I2C2_SCL (AF4)
12PF2ввод-выводFMC_A2 (AF12), I2C2_SMBA (AF4)
13PF3ввод-выводADC3_INP5, FMC_A3 (AF12)
14PF4ввод-выводADC3_INN5, ADC3_INP9, FMC_A4 (AF12)
15PF5ввод-выводADC3_INP4, FMC_A5 (AF12)
16VSSпитание—
17VDDпитание—
18PF6ввод-выводADC3_INN4, ADC3_INP8, QUADSPI_BK1_IO3 (AF9), SAI1_SD_B (AF6), SAI4_SD_B (AF8), SPI5_NSS (AF5), TIM16_CH1 (AF1), UART7_RX (AF7)
19PF7ввод-выводADC3_INP3, QUADSPI_BK1_IO2 (AF9), SAI1_MCLK_B (AF6), SAI4_MCLK_B (AF8), SPI5_SCK (AF5), TIM17_CH1 (AF1), UART7_TX (AF7)
20PF8ввод-выводADC3_INN3, ADC3_INP7, QUADSPI_BK1_IO0 (AF10), SAI1_SCK_B (AF6), SAI4_SCK_B (AF8), SPI5_MISO (AF5), TIM13_CH1 (AF9), TIM16_CH1N (AF1), UART7_DE (AF7), UART7_RTS (AF7)
21PF9ввод-выводADC3_INP2, DAC1_EXTI9, QUADSPI_BK1_IO1 (AF10), SAI1_FS_B (AF6), SAI4_FS_B (AF8), SPI5_MOSI (AF5), TIM14_CH1 (AF9), TIM17_CH1N (AF1), UART7_CTS (AF7)
22PF10ввод-выводADC3_INN2, ADC3_INP6, DCMI_D11 (AF13), LTDC_DE (AF14), QUADSPI_CLK (AF9), SAI1_D3 (AF2), SAI4_D3 (AF10), TIM16_BKIN (AF1)
23PH0-OSC_INввод-выводRCC_OSC_IN
24PH1-OSC_OUTввод-выводRCC_OSC_OUT
25NRSTсброс—
26PC0ввод-выводADC1_INP10, ADC2_INP10, ADC3_INP10, DFSDM1_CKIN0 (AF3), DFSDM1_DATIN4 (AF6), FMC_SDNWE (AF12), LTDC_R5 (AF14), SAI2_FS_B (AF8), USB_OTG_HS_ULPI_STP (AF10)
27PC1ввод-выводADC1_INN10, ADC1_INP11, ADC2_INN10, ADC2_INP11, ADC3_INN10, ADC3_INP11, DEBUG_TRACED0 (AF0), DFSDM1_CKIN4 (AF4), DFSDM1_DATIN0 (AF3), ETH_MDC (AF11), I2S2_SDO (AF5), MDIOS_MDC (AF12), PWR_WKUP6, RTC_TAMP3, SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SDMMC2_CK (AF9), SPI2_MOSI (AF5)
28PC2_Cввод-выводADC3_INN1, ADC3_INP0, DFSDM1_CKIN1 (AF3), DFSDM1_CKOUT (AF6), ETH_TXD2 (AF11), FMC_SDNE0 (AF12), I2S2_SDI (AF5), PWR_CSTOP, SPI2_MISO (AF5), USB_OTG_HS_ULPI_DIR (AF10)
29PC3_Cввод-выводADC3_INP1, DFSDM1_DATIN1 (AF3), ETH_TX_CLK (AF11), FMC_SDCKE0 (AF12), I2S2_SDO (AF5), PWR_CSLEEP, SPI2_MOSI (AF5), USB_OTG_HS_ULPI_NXT (AF10)
30VDDпитание—
31VSSAпитание—
32VREF+служебныйVREFBUF_OUT
33VDDAпитание—
34PA0ввод-выводADC1_INP16, ETH_CRS (AF11), PWR_WKUP1, SAI2_SD_B (AF10), SDMMC2_CMD (AF9), TIM15_BKIN (AF4), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM5_CH1 (AF2), TIM8_ETR (AF3), UART4_TX (AF8), USART2_CTS (AF7), USART2_NSS (AF7)
35PA1ввод-выводADC1_INN16, ADC1_INP17, ETH_REF_CLK (AF11), ETH_RX_CLK (AF11), LPTIM3_OUT (AF3), LTDC_R2 (AF14), QUADSPI_BK1_IO3 (AF9), SAI2_MCLK_B (AF10), TIM15_CH1N (AF4), TIM2_CH2 (AF1), TIM5_CH2 (AF2), UART4_RX (AF8), USART2_DE (AF7), USART2_RTS (AF7)
36PA2ввод-выводADC1_INP14, ADC2_INP14, ETH_MDIO (AF11), LPTIM4_OUT (AF3), LTDC_R1 (AF14), MDIOS_MDIO (AF12), PWR_WKUP2, SAI2_SCK_B (AF8), TIM15_CH1 (AF4), TIM2_CH3 (AF1), TIM5_CH3 (AF2), USART2_TX (AF7)
37PA3ввод-выводADC1_INP15, ADC2_INP15, ETH_COL (AF11), LPTIM5_OUT (AF3), LTDC_B2 (AF9), LTDC_B5 (AF14), TIM15_CH2 (AF4), TIM2_CH4 (AF1), TIM5_CH4 (AF2), USART2_RX (AF7), USB_OTG_HS_ULPI_D0 (AF10)
38VSSпитание—
39VDDпитание—
40PA4ввод-выводADC1_INP18, ADC2_INP18, DAC1_OUT1, DCMI_HSYNC (AF13), I2S1_WS (AF5), I2S3_WS (AF6), LTDC_VSYNC (AF14), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF8), TIM5_ETR (AF2), USART2_CK (AF7), USB_OTG_HS_SOF (AF12)
41PA5ввод-выводADC1_INN18, ADC1_INP19, ADC2_INN18, ADC2_INP19, DAC1_OUT2, I2S1_CK (AF5), LTDC_R4 (AF14), PWR_NDSTOP2, SPI1_SCK (AF5), SPI6_SCK (AF8), TIM2_CH1 (AF1), TIM2_ETR (AF1), TIM8_CH1N (AF3), USB_OTG_HS_ULPI_CK (AF10)
42PA6ввод-выводADC1_INP3, ADC2_INP3, DCMI_PIXCLK (AF13), I2S1_SDI (AF5), LTDC_G2 (AF14), MDIOS_MDC (AF11), SPI1_MISO (AF5), SPI6_MISO (AF8), TIM13_CH1 (AF9), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF12), TIM1_BKIN_COMP2 (AF12), TIM3_CH1 (AF2), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF10), TIM8_BKIN_COMP2 (AF10)
43PA7ввод-выводADC1_INN3, ADC1_INP7, ADC2_INN3, ADC2_INP7, ETH_CRS_DV (AF11), ETH_RX_DV (AF11), FMC_SDNWE (AF12), I2S1_SDO (AF5), OPAMP1_VINM, OPAMP1_VINM1, SPI1_MOSI (AF5), SPI6_MOSI (AF8), TIM14_CH1 (AF9), TIM1_CH1N (AF1), TIM3_CH2 (AF2), TIM8_CH1N (AF3)
44PC4ввод-выводADC1_INP4, ADC2_INP4, COMP1_INM, DFSDM1_CKIN2 (AF3), ETH_RXD0 (AF11), FMC_SDNE0 (AF12), I2S1_MCK (AF5), OPAMP1_VOUT, SPDIFRX1_IN2 (AF9)
45PC5ввод-выводADC1_INN4, ADC1_INP8, ADC2_INN4, ADC2_INP8, COMP1_OUT (AF13), DFSDM1_DATIN2 (AF3), ETH_RXD1 (AF11), FMC_SDCKE0 (AF12), OPAMP1_VINM, OPAMP1_VINM0, SAI1_D3 (AF2), SAI4_D3 (AF10), SPDIFRX1_IN3 (AF9)
46PB0ввод-выводADC1_INN5, ADC1_INP9, ADC2_INN5, ADC2_INP9, COMP1_INP, DFSDM1_CKOUT (AF6), ETH_RXD2 (AF11), LTDC_G1 (AF14), LTDC_R3 (AF9), OPAMP1_VINP, TIM1_CH2N (AF1), TIM3_CH3 (AF2), TIM8_CH2N (AF3), UART4_CTS (AF8), USB_OTG_HS_ULPI_D1 (AF10)
47PB1ввод-выводADC1_INP5, ADC2_INP5, COMP1_INM, DFSDM1_DATIN1 (AF6), ETH_RXD3 (AF11), LTDC_G0 (AF14), LTDC_R6 (AF9), TIM1_CH3N (AF1), TIM3_CH4 (AF2), TIM8_CH3N (AF3), USB_OTG_HS_ULPI_D2 (AF10)
48PB2ввод-выводCOMP1_INP, DFSDM1_CKIN1 (AF4), ETH_TX_ER (AF11), I2S3_SDO (AF7), QUADSPI_CLK (AF9), RTC_OUT_ALARM (AF0), RTC_OUT_CALIB (AF0), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SPI3_MOSI (AF7)
49PF11ввод-выводADC1_EXTI11, ADC1_INP2, ADC2_EXTI11, ADC3_EXTI11, DCMI_D12 (AF13), FMC_SDNRAS (AF12), SAI2_SD_B (AF10), SPI5_MOSI (AF5)
50PF12ввод-выводADC1_INN2, ADC1_INP6, FMC_A6 (AF12)
51VSSпитание—
52VDDпитание—
53PF13ввод-выводADC2_INP2, DFSDM1_DATIN6 (AF3), FMC_A7 (AF12), I2C4_SMBA (AF4)
54PF14ввод-выводADC2_INN2, ADC2_INP6, DFSDM1_CKIN6 (AF3), FMC_A8 (AF12), I2C4_SCL (AF4)
55PF15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_A9 (AF12), I2C4_SDA (AF4)
56PG0ввод-выводFMC_A10 (AF12)
57PG1ввод-выводFMC_A11 (AF12), OPAMP2_VINM, OPAMP2_VINM1
58PE7ввод-выводCOMP2_INM, DFSDM1_DATIN2 (AF3), FMC_D4 (AF12), FMC_DA4 (AF12), OPAMP2_VOUT, QUADSPI_BK2_IO0 (AF10), TIM1_ETR (AF1), UART7_RX (AF7)
59PE8ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN2 (AF3), FMC_D5 (AF12), FMC_DA5 (AF12), OPAMP2_VINM, OPAMP2_VINM0, QUADSPI_BK2_IO1 (AF10), TIM1_CH1N (AF1), UART7_TX (AF7)
60PE9ввод-выводCOMP2_INP, DAC1_EXTI9, DFSDM1_CKOUT (AF3), FMC_D6 (AF12), FMC_DA6 (AF12), OPAMP2_VINP, QUADSPI_BK2_IO2 (AF10), TIM1_CH1 (AF1), UART7_DE (AF7), UART7_RTS (AF7)
61VSSпитание—
62VDDпитание—
63PE10ввод-выводCOMP2_INM, DFSDM1_DATIN4 (AF3), FMC_D7 (AF12), FMC_DA7 (AF12), QUADSPI_BK2_IO3 (AF10), TIM1_CH2N (AF1), UART7_CTS (AF7)
64PE11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, COMP2_INP, DFSDM1_CKIN4 (AF3), FMC_D8 (AF12), FMC_DA8 (AF12), LTDC_G3 (AF14), SAI2_SD_B (AF10), SPI4_NSS (AF5), TIM1_CH2 (AF1)
65PE12ввод-выводCOMP1_OUT (AF13), DFSDM1_DATIN5 (AF3), FMC_D9 (AF12), FMC_DA9 (AF12), LTDC_B4 (AF14), SAI2_SCK_B (AF10), SPI4_SCK (AF5), TIM1_CH3N (AF1)
66PE13ввод-выводCOMP2_OUT (AF13), DFSDM1_CKIN5 (AF3), FMC_D10 (AF12), FMC_DA10 (AF12), LTDC_DE (AF14), SAI2_FS_B (AF10), SPI4_MISO (AF5), TIM1_CH3 (AF1)
67PE14ввод-выводFMC_D11 (AF12), FMC_DA11 (AF12), LTDC_CLK (AF14), SAI2_MCLK_B (AF10), SPI4_MOSI (AF5), TIM1_CH4 (AF1)
68PE15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D12 (AF12), FMC_DA12 (AF12), LTDC_R7 (AF14), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13)
69PB10ввод-выводDFSDM1_DATIN7 (AF6), ETH_RX_ER (AF11), HRTIM_SCOUT (AF2), I2C2_SCL (AF4), I2S2_CK (AF5), LPTIM2_IN1 (AF3), LTDC_G4 (AF14), QUADSPI_BK1_NCS (AF9), SPI2_SCK (AF5), TIM2_CH3 (AF1), USART3_TX (AF7), USB_OTG_HS_ULPI_D3 (AF10)
70PB11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DFSDM1_CKIN7 (AF6), ETH_TX_EN (AF11), HRTIM_SCIN (AF2), I2C2_SDA (AF4), LPTIM2_ETR (AF3), LTDC_G5 (AF14), TIM2_CH4 (AF1), USART3_RX (AF7), USB_OTG_HS_ULPI_D4 (AF10)
71VCAPпитание—
72VDDпитание—
73PB12ввод-выводDFSDM1_DATIN1 (AF6), ETH_TXD0 (AF11), FDCAN2_RX (AF9), I2C2_SMBA (AF4), I2S2_WS (AF5), SPI2_NSS (AF5), TIM1_BKIN (AF1), TIM1_BKIN_COMP1 (AF13), TIM1_BKIN_COMP2 (AF13), UART5_RX (AF14), USART3_CK (AF7), USB_OTG_HS_ID (AF12), USB_OTG_HS_ULPI_D5 (AF10)
74PB13ввод-выводDFSDM1_CKIN1 (AF6), ETH_TXD1 (AF11), FDCAN2_TX (AF9), I2S2_CK (AF5), LPTIM2_OUT (AF3), SPI2_SCK (AF5), TIM1_CH1N (AF1), UART5_TX (AF14), USART3_CTS (AF7), USART3_NSS (AF7), USB_OTG_HS_ULPI_D6 (AF10), USB_OTG_HS_VBUS
75PB14ввод-выводDFSDM1_DATIN2 (AF6), I2S2_SDI (AF5), SDMMC2_D0 (AF9), SPI2_MISO (AF5), TIM12_CH1 (AF2), TIM1_CH2N (AF1), TIM8_CH2N (AF3), UART4_DE (AF8), UART4_RTS (AF8), USART1_TX (AF4), USART3_DE (AF7), USART3_RTS (AF7), USB_OTG_HS_DM (AF12)
76PB15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DFSDM1_CKIN2 (AF6), I2S2_SDO (AF5), RTC_REFIN (AF0), SDMMC2_D1 (AF9), SPI2_MOSI (AF5), TIM12_CH2 (AF2), TIM1_CH3N (AF1), TIM8_CH3N (AF3), UART4_CTS (AF8), USART1_RX (AF4), USB_OTG_HS_DP (AF12)
77PD8ввод-выводDFSDM1_CKIN3 (AF3), FMC_D13 (AF12), FMC_DA13 (AF12), SAI3_SCK_B (AF6), SPDIFRX1_IN1 (AF9), USART3_TX (AF7)
78PD9ввод-выводDAC1_EXTI9, DFSDM1_DATIN3 (AF3), FMC_D14 (AF12), FMC_DA14 (AF12), SAI3_SD_B (AF6), USART3_RX (AF7)
79PD10ввод-выводDFSDM1_CKOUT (AF3), FMC_D15 (AF12), FMC_DA15 (AF12), LTDC_B3 (AF14), SAI3_FS_B (AF6), USART3_CK (AF7)
80PD11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FMC_A16 (AF12), FMC_CLE, I2C4_SMBA (AF4), LPTIM2_IN2 (AF3), QUADSPI_BK1_IO0 (AF9), SAI2_SD_A (AF10), USART3_CTS (AF7), USART3_NSS (AF7)
81PD12ввод-выводFMC_A17 (AF12), FMC_ALE, I2C4_SCL (AF4), LPTIM1_IN1 (AF1), LPTIM2_IN1 (AF3), QUADSPI_BK1_IO1 (AF9), SAI2_FS_A (AF10), TIM4_CH1 (AF2), USART3_DE (AF7), USART3_RTS (AF7)
82PD13ввод-выводFMC_A18 (AF12), I2C4_SDA (AF4), LPTIM1_OUT (AF1), QUADSPI_BK1_IO3 (AF9), SAI2_SCK_A (AF10), TIM4_CH2 (AF2)
83VSSпитание—
84VDDпитание—
85PD14ввод-выводFMC_D0 (AF12), FMC_DA0 (AF12), SAI3_MCLK_B (AF6), TIM4_CH3 (AF2), UART8_CTS (AF8)
86PD15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, FMC_D1 (AF12), FMC_DA1 (AF12), SAI3_MCLK_A (AF6), TIM4_CH4 (AF2), UART8_DE (AF8), UART8_RTS (AF8)
87PG2ввод-выводFMC_A12 (AF12), TIM8_BKIN (AF3), TIM8_BKIN_COMP1 (AF11), TIM8_BKIN_COMP2 (AF11)
88PG3ввод-выводFMC_A13 (AF12), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF11), TIM8_BKIN2_COMP2 (AF11)
89PG4ввод-выводFMC_A14 (AF12), FMC_BA0 (AF12), TIM1_BKIN2 (AF1), TIM1_BKIN2_COMP1 (AF11), TIM1_BKIN2_COMP2 (AF11)
90PG5ввод-выводFMC_A15 (AF12), FMC_BA1 (AF12), TIM1_ETR (AF1)
91PG6ввод-выводDCMI_D12 (AF13), FMC_NE3 (AF12), HRTIM_CHE1 (AF2), LTDC_R7 (AF14), QUADSPI_BK1_NCS (AF10), TIM17_BKIN (AF1)
92PG7ввод-выводDCMI_D13 (AF13), FMC_INT (AF12), HRTIM_CHE2 (AF2), LTDC_CLK (AF14), SAI1_MCLK_A (AF6), USART6_CK (AF7)
93PG8ввод-выводETH_PPS_OUT (AF11), FMC_SDCLK (AF12), LTDC_G7 (AF14), SPDIFRX1_IN2 (AF8), SPI6_NSS (AF5), TIM8_ETR (AF3), USART6_DE (AF7), USART6_RTS (AF7)
94VSSпитание—
95VDD33_USBпитание—
96PC6ввод-выводDCMI_D0 (AF13), DFSDM1_CKIN3 (AF4), FMC_NWAIT (AF9), HRTIM_CHA1 (AF1), I2S2_MCK (AF5), LTDC_HSYNC (AF14), SDMMC1_D0DIR (AF8), SDMMC1_D6 (AF12), SDMMC2_D6 (AF10), SWPMI1_IO, TIM3_CH1 (AF2), TIM8_CH1 (AF3), USART6_TX (AF7)
97PC7ввод-выводDCMI_D1 (AF13), DEBUG_TRGIO (AF0), DFSDM1_DATIN3 (AF4), FMC_NE1 (AF9), HRTIM_CHA2 (AF1), I2S3_MCK (AF6), LTDC_G6 (AF14), SDMMC1_D123DIR (AF8), SDMMC1_D7 (AF12), SDMMC2_D7 (AF10), SWPMI1_TX (AF11), TIM3_CH2 (AF2), TIM8_CH2 (AF3), USART6_RX (AF7)
98PC8ввод-выводDCMI_D2 (AF13), DEBUG_TRACED1 (AF0), FMC_NCE (AF9), FMC_NE2 (AF9), HRTIM_CHB1 (AF1), SDMMC1_D0 (AF12), SWPMI1_RX (AF11), TIM3_CH3 (AF2), TIM8_CH3 (AF3), UART5_DE (AF8), UART5_RTS (AF8), USART6_CK (AF7)
99PC9ввод-выводDAC1_EXTI9, DCMI_D3 (AF13), I2C3_SDA (AF4), I2S_CKIN (AF5), LTDC_B2 (AF14), LTDC_G3 (AF10), QUADSPI_BK1_IO0 (AF9), RCC_MCO_2 (AF0), SDMMC1_D1 (AF12), SWPMI1_SUSPEND (AF11), TIM3_CH4 (AF2), TIM8_CH4 (AF3), UART5_CTS (AF8)
100PA8ввод-выводHRTIM_CHB2 (AF2), I2C3_SCL (AF4), LTDC_B3 (AF13), LTDC_R6 (AF14), RCC_MCO_1 (AF0), TIM1_CH1 (AF1), TIM8_BKIN2 (AF3), TIM8_BKIN2_COMP1 (AF12), TIM8_BKIN2_COMP2 (AF12), UART7_RX (AF11), USART1_CK (AF7), USB_OTG_FS_SOF (AF10)
101PA9ввод-выводDAC1_EXTI9, DCMI_D0 (AF13), ETH_TX_ER (AF11), HRTIM_CHC1 (AF2), I2C3_SMBA (AF4), I2S2_CK (AF5), LPUART1_TX (AF3), LTDC_R5 (AF14), SPI2_SCK (AF5), TIM1_CH2 (AF1), USART1_TX (AF7), USB_OTG_FS_VBUS
102PA10ввод-выводDCMI_D1 (AF13), HRTIM_CHC2 (AF2), LPUART1_RX (AF3), LTDC_B1 (AF14), LTDC_B4 (AF12), MDIOS_MDIO (AF11), TIM1_CH3 (AF1), USART1_RX (AF7), USB_OTG_FS_ID (AF10)
103PA11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, FDCAN1_RX (AF9), HRTIM_CHD1 (AF2), I2S2_WS (AF5), LPUART1_CTS (AF3), LTDC_R4 (AF14), SPI2_NSS (AF5), TIM1_CH4 (AF1), UART4_RX (AF6), USART1_CTS (AF7), USART1_NSS (AF7), USB_OTG_FS_DM (AF10)
104PA12ввод-выводFDCAN1_TX (AF9), HRTIM_CHD2 (AF2), I2S2_CK (AF5), LPUART1_DE (AF3), LPUART1_RTS (AF3), LTDC_R5 (AF14), SAI2_FS_B (AF8), SPI2_SCK (AF5), TIM1_ETR (AF1), UART4_TX (AF6), USART1_DE (AF7), USART1_RTS (AF7), USB_OTG_FS_DP (AF10)
105PA13 (JTMS/SWDIO)ввод-выводDEBUG_JTMS-SWDIO (AF0)
106VCAPпитание—
107VSSпитание—
108VDDпитание—
109PA14 (JTCK/SWCLK)ввод-выводDEBUG_JTCK-SWCLK (AF0)
110PA15 (JTDI)ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, CEC (AF4), DEBUG_JTDI (AF0), HRTIM_FLT1 (AF2), I2S1_WS (AF5), I2S3_WS (AF6), SPI1_NSS (AF5), SPI3_NSS (AF6), SPI6_NSS (AF7), TIM2_CH1 (AF1), TIM2_ETR (AF1), UART4_DE (AF8), UART4_RTS (AF8), UART7_TX (AF11)
111PC10ввод-выводDCMI_D8 (AF13), DFSDM1_CKIN5 (AF3), HRTIM_EEV1 (AF2), I2S3_CK (AF6), LTDC_R2 (AF14), QUADSPI_BK1_IO1 (AF9), SDMMC1_D2 (AF12), SPI3_SCK (AF6), UART4_TX (AF8), USART3_TX (AF7)
112PC11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D4 (AF13), DFSDM1_DATIN5 (AF3), HRTIM_FLT2 (AF2), I2S3_SDI (AF6), QUADSPI_BK2_NCS (AF9), SDMMC1_D3 (AF12), SPI3_MISO (AF6), UART4_RX (AF8), USART3_RX (AF7)
113PC12ввод-выводDCMI_D9 (AF13), DEBUG_TRACED3 (AF0), HRTIM_EEV2 (AF2), I2S3_SDO (AF6), SDMMC1_CK (AF12), SPI3_MOSI (AF6), UART5_TX (AF8), USART3_CK (AF7)
114PD0ввод-выводDFSDM1_CKIN6 (AF3), FDCAN1_RX (AF9), FMC_D2 (AF12), FMC_DA2 (AF12), SAI3_SCK_A (AF6), UART4_RX (AF8)
115PD1ввод-выводDFSDM1_DATIN6 (AF3), FDCAN1_TX (AF9), FMC_D3 (AF12), FMC_DA3 (AF12), SAI3_SD_A (AF6), UART4_TX (AF8)
116PD2ввод-выводDCMI_D11 (AF13), DEBUG_TRACED2 (AF0), SDMMC1_CMD (AF12), TIM3_ETR (AF2), UART5_RX (AF8)
117PD3ввод-выводDCMI_D5 (AF13), DFSDM1_CKOUT (AF3), FMC_CLK (AF12), I2S2_CK (AF5), LTDC_G7 (AF14), SPI2_SCK (AF5), USART2_CTS (AF7), USART2_NSS (AF7)
118PD4ввод-выводFMC_NOE (AF12), HRTIM_FLT3 (AF2), SAI3_FS_A (AF6), USART2_DE (AF7), USART2_RTS (AF7)
119PD5ввод-выводFMC_NWE (AF12), HRTIM_EEV3 (AF2), USART2_TX (AF7)
120VSSпитание—
121VDDпитание—
122PD6ввод-выводDCMI_D10 (AF13), DFSDM1_CKIN4 (AF3), DFSDM1_DATIN1 (AF4), FMC_NWAIT (AF12), I2S3_SDO (AF5), LTDC_B2 (AF14), SAI1_D1 (AF2), SAI1_SD_A (AF6), SAI4_D1 (AF10), SAI4_SD_A (AF8), SDMMC2_CK (AF11), SPI3_MOSI (AF5), USART2_RX (AF7)
123PD7ввод-выводDFSDM1_CKIN1 (AF6), DFSDM1_DATIN4 (AF3), FMC_NE1 (AF12), I2S1_SDO (AF5), SDMMC2_CMD (AF11), SPDIFRX1_IN0 (AF9), SPI1_MOSI (AF5), USART2_CK (AF7)
124PG9ввод-выводDAC1_EXTI9, DCMI_VSYNC (AF13), FMC_NCE (AF12), FMC_NE2 (AF12), I2S1_SDI (AF5), QUADSPI_BK2_IO2 (AF9), SAI2_FS_B (AF10), SPDIFRX1_IN3 (AF8), SPI1_MISO (AF5), USART6_RX (AF7)
125PG10ввод-выводDCMI_D2 (AF13), FMC_NE3 (AF12), HRTIM_FLT5 (AF2), I2S1_WS (AF5), LTDC_B2 (AF14), LTDC_G3 (AF9), SAI2_SD_B (AF10), SPI1_NSS (AF5)
126PG11ввод-выводADC1_EXTI11, ADC2_EXTI11, ADC3_EXTI11, DCMI_D3 (AF13), ETH_TX_EN (AF11), HRTIM_EEV4 (AF2), I2S1_CK (AF5), LPTIM1_IN2 (AF1), LTDC_B3 (AF14), SDMMC2_D2 (AF10), SPDIFRX1_IN0 (AF8), SPI1_SCK (AF5)
127PG12ввод-выводETH_TXD1 (AF11), FMC_NE4 (AF12), HRTIM_EEV5 (AF2), LPTIM1_IN1 (AF1), LTDC_B1 (AF14), LTDC_B4 (AF9), SPDIFRX1_IN1 (AF8), SPI6_MISO (AF5), USART6_DE (AF7), USART6_RTS (AF7)
128PG13ввод-выводDEBUG_TRACED0 (AF0), ETH_TXD0 (AF11), FMC_A24 (AF12), HRTIM_EEV10 (AF2), LPTIM1_OUT (AF1), LTDC_R0 (AF14), SPI6_SCK (AF5), USART6_CTS (AF7), USART6_NSS (AF7)
129PG14ввод-выводDEBUG_TRACED1 (AF0), ETH_TXD1 (AF11), FMC_A25 (AF12), LPTIM1_ETR (AF1), LTDC_B0 (AF14), QUADSPI_BK2_IO3 (AF9), SPI6_MOSI (AF5), USART6_TX (AF7)
130VSSпитание—
131VDDпитание—
132PG15ввод-выводADC1_EXTI15, ADC2_EXTI15, ADC3_EXTI15, DCMI_D13 (AF13), FMC_SDNCAS (AF12), USART6_CTS (AF7), USART6_NSS (AF7)
133PB3 (JTDO/TRACESWO)ввод-выводCRS_SYNC (AF10), DEBUG_JTDO-SWO (AF0), HRTIM_FLT4 (AF2), I2S1_CK (AF5), I2S3_CK (AF6), SDMMC2_D2 (AF9), SPI1_SCK (AF5), SPI3_SCK (AF6), SPI6_SCK (AF8), TIM2_CH2 (AF1), UART7_RX (AF11)
134PB4 (NJTRST)ввод-выводDEBUG_JTRST, HRTIM_EEV6 (AF3), I2S1_SDI (AF5), I2S2_WS (AF7), I2S3_SDI (AF6), SDMMC2_D3 (AF9), SPI1_MISO (AF5), SPI2_NSS (AF7), SPI3_MISO (AF6), SPI6_MISO (AF8), TIM16_BKIN (AF1), TIM3_CH1 (AF2), UART7_TX (AF11)
135PB5ввод-выводDCMI_D10 (AF13), ETH_PPS_OUT (AF11), FDCAN2_RX (AF9), FMC_SDCKE1 (AF12), HRTIM_EEV7 (AF3), I2C1_SMBA (AF4), I2C4_SMBA (AF6), I2S1_SDO (AF5), I2S3_SDO (AF7), SPI1_MOSI (AF5), SPI3_MOSI (AF7), SPI6_MOSI (AF8), TIM17_BKIN (AF1), TIM3_CH2 (AF2), UART5_RX (AF14), USB_OTG_HS_ULPI_D7 (AF10)
136PB6ввод-выводCEC (AF5), DCMI_D5 (AF13), DFSDM1_DATIN5 (AF11), FDCAN2_TX (AF9), FMC_SDNE1 (AF12), HRTIM_EEV8 (AF3), I2C1_SCL (AF4), I2C4_SCL (AF6), LPUART1_TX (AF8), QUADSPI_BK1_NCS (AF10), TIM16_CH1N (AF1), TIM4_CH1 (AF2), UART5_TX (AF14), USART1_TX (AF7)
137PB7ввод-выводDCMI_VSYNC (AF13), DFSDM1_CKIN5 (AF11), FMC_NL (AF12), HRTIM_EEV9 (AF3), I2C1_SDA (AF4), I2C4_SDA (AF6), LPUART1_RX (AF8), PWR_PVD_IN, TIM17_CH1N (AF1), TIM4_CH2 (AF2), USART1_RX (AF7)
138BOOT0загрузка—
139PB8ввод-выводDCMI_D6 (AF13), DFSDM1_CKIN7 (AF3), ETH_TXD3 (AF11), FDCAN1_RX (AF9), I2C1_SCL (AF4), I2C4_SCL (AF6), LTDC_B6 (AF14), SDMMC1_CKIN (AF7), SDMMC1_D4 (AF12), SDMMC2_D4 (AF10), TIM16_CH1 (AF1), TIM4_CH3 (AF2), UART4_RX (AF8)
140PB9ввод-выводDAC1_EXTI9, DCMI_D7 (AF13), DFSDM1_DATIN7 (AF3), FDCAN1_TX (AF9), I2C1_SDA (AF4), I2C4_SDA (AF6), I2C4_SMBA (AF11), I2S2_WS (AF5), LTDC_B7 (AF14), SDMMC1_CDIR (AF7), SDMMC1_D5 (AF12), SDMMC2_D5 (AF10), SPI2_NSS (AF5), TIM17_CH1 (AF1), TIM4_CH4 (AF2), UART4_TX (AF8)
141PE0ввод-выводDCMI_D2 (AF13), FMC_NBL0 (AF12), HRTIM_SCIN (AF3), LPTIM1_ETR (AF1), LPTIM2_ETR (AF4), SAI2_MCLK_A (AF10), TIM4_ETR (AF2), UART8_RX (AF8)
142PE1ввод-выводDCMI_D3 (AF13), FMC_NBL1 (AF12), HRTIM_SCOUT (AF3), LPTIM1_IN2 (AF1), UART8_TX (AF8)
143PDR_ONпитание—
144VDDпитание—

Питание, сброс и загрузка

Выводы, которые не являются линиями ввода-вывода. Номиналы блокировочных конденсаторов и допустимые напряжения берите из даташита: они зависят от линейки и корпуса.

ИмяВыводыНазначение
PDR_ON143управление внутренней схемой сброса по питанию
VBAT6резервное питание: часы реального времени и резервные регистры
VCAP71, 106вывод внутреннего стабилизатора напряжения ядра для внешнего конденсатора
VDD17, 30, 39, 52, 62, 72, 84, 108, 121, 131, 144питание цифровой части и линий ввода-вывода
VDD33_USB95—
VDDA33питание аналоговой части: АЦП, ЦАП, генераторы
VSS16, 38, 51, 61, 83, 94, 107, 120, 130общий провод (земля)
VSSA31общий провод аналоговой части
NRST25сброс, активный уровень — низкий
BOOT0138выбор источника загрузки при сбросе
VREF+32верхнее опорное напряжение АЦП и ЦАП

Исполнения

В базе STM32CubeMX микроконтроллер называется STM32H743ZGTx. Буква x в обозначении заменяет цифру температурного диапазона в заказном номере.

МикроконтроллерОбозначение в STM32CubeMXФлеш-памятьОЗУ
STM32H743ZGSTM32H743ZGTx1 МБ864 КБ

Линейка STM32H743/753, семейство STM32H7, ядро Cortex-M7.

Заказные номера

Полные номера для заказа из таблицы на странице продукта на сайте ST: STM32H743ZG. Данные на 11 октября 2026 г.; перечислены номера, которые в этот момент выпускались. Цифра после буквы корпуса — температурный диапазон, вид упаковки указан в последнем столбце.

Номер для заказаКорпусТемператураУпаковка
STM32H743ZGT6LQFP 144, 20×20×1,4 мм−40…+85 °Cлоток

Похожие по выводам микроконтроллеры

Микроконтроллеры STM32 в корпусе LQFP144, у которых на тех же местах стоят те же выводы — не меньше чем на 90 % позиций. Сравниваются только имена выводов по базе STM32CubeMX: перед заменой проверьте по даташитам питание, выводы VCAP, допустимые напряжения и набор периферии. Серой строкой — чем микроконтроллеры различаются по данным ST: блоки периферии, частота, память.

МикроконтроллерЛинейкаСовпадаетОтличия
STM32H743ZISTM32H743/753144 из 144выводы совпадают полностьюфлеш-память до 1024 и 2048 КБ
STM32H753ZISTM32H743/753144 из 144выводы совпадают полностьютолько у него: CRYP, HASH; флеш-память до 1024 и 2048 КБ
STM32H742ZG, STM32H742ZISTM32H742144 из 144выводы совпадают полностьютолько у этого: LTDC; флеш-память до 1024 и 2048 КБ
STM32H750ZBSTM32H750 Value line144 из 144выводы совпадают полностьютолько у него: CRYP, HASH; флеш-память до 1024 и 128 КБ
STM32F405ZGSTM32F405/415143 из 14495: VDD33_USB → VDDтолько у этого: COMP1, COMP2, DAC1, DCMI, DFSDM1, DMA2D, ETH, FDCAN1, FDCAN2, FMC, HDMI_CEC, HRTIM, I2C4, I2S1, IWDG1, LPTIM1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OPAMP1, OPAMP2, QUADSPI, SAI1, SAI2, SAI3, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SPI4, SPI5, SPI6, SWPMI1, TIM15, TIM16, TIM17, UART7, UART8, USB_OTG_FS1, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, DAC, FSMC, IWDG, SDIO, TIM10, TIM11, TIM9, WWDG; частота до 480 и 168 МГц; ОЗУ 864 и 128 КБ
STM32F407ZE, STM32F407ZGSTM32F407/417143 из 14495: VDD33_USB → VDDтолько у этого: COMP1, COMP2, DAC1, DFSDM1, DMA2D, FDCAN1, FDCAN2, FMC, HDMI_CEC, HRTIM, I2C4, I2S1, IWDG1, LPTIM1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OPAMP1, OPAMP2, QUADSPI, SAI1, SAI2, SAI3, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SPI4, SPI5, SPI6, SWPMI1, TIM15, TIM16, TIM17, UART7, UART8, USB_OTG_FS1, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, DAC, FSMC, IWDG, SDIO, TIM10, TIM11, TIM9, WWDG; частота до 480 и 168 МГц; ОЗУ 864 и 128 КБ
STM32F412ZE, STM32F412ZGSTM32F412143 из 14495: VDD33_USB → VDD_USBтолько у этого: ADC2, ADC3, COMP1, COMP2, DAC1, DCMI, DMA2D, ETH, FDCAN1, FDCAN2, FMC, HDMI_CEC, HRTIM, I2C4, IWDG1, LPTIM1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OPAMP1, OPAMP2, SAI1, SAI2, SAI3, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SPI6, SWPMI1, TIM15, TIM16, TIM17, UART4, UART5, UART7, UART8, USB_OTG_FS1, USB_OTG_HS, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, FMPI2C1, FSMC, I2S4, I2S5, IWDG, SDIO, TIM10, TIM11, TIM9, WWDG; частота до 480 и 100 МГц; ОЗУ 864 и 256 КБ
STM32F413ZG, STM32F413ZHSTM32F413/423143 из 14495: VDD33_USB → VDDUSBтолько у этого: ADC2, ADC3, COMP1, COMP2, DAC1, DCMI, DMA2D, ETH, FDCAN1, FDCAN2, FMC, HDMI_CEC, HRTIM, I2C4, IWDG1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OPAMP1, OPAMP2, SAI2, SAI3, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SPI6, SWPMI1, TIM15, TIM16, TIM17, USB_OTG_FS1, USB_OTG_HS, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, CAN3, DAC, DFSDM2, FMPI2C1, FSMC, I2S4, I2S5, IWDG, SDIO, TIM10, TIM11, TIM9, UART10, UART9, WWDG; частота до 480 и 100 МГц; флеш-память до 1024 и 1536 КБ; ОЗУ 864 и 320 КБ
STM32F415ZGSTM32F405/415143 из 14495: VDD33_USB → VDDтолько у этого: COMP1, COMP2, DAC1, DCMI, DFSDM1, DMA2D, ETH, FDCAN1, FDCAN2, FMC, HDMI_CEC, HRTIM, I2C4, I2S1, IWDG1, LPTIM1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OPAMP1, OPAMP2, QUADSPI, SAI1, SAI2, SAI3, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SPI4, SPI5, SPI6, SWPMI1, TIM15, TIM16, TIM17, UART7, UART8, USB_OTG_FS1, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, CRYP, DAC, FSMC, HASH, IWDG, SDIO, TIM10, TIM11, TIM9, WWDG; частота до 480 и 168 МГц; ОЗУ 864 и 128 КБ
STM32F417ZE, STM32F417ZGSTM32F407/417143 из 14495: VDD33_USB → VDDтолько у этого: COMP1, COMP2, DAC1, DFSDM1, DMA2D, FDCAN1, FDCAN2, FMC, HDMI_CEC, HRTIM, I2C4, I2S1, IWDG1, LPTIM1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OPAMP1, OPAMP2, QUADSPI, SAI1, SAI2, SAI3, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SPI4, SPI5, SPI6, SWPMI1, TIM15, TIM16, TIM17, UART7, UART8, USB_OTG_FS1, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, CRYP, DAC, FSMC, HASH, IWDG, SDIO, TIM10, TIM11, TIM9, WWDG; частота до 480 и 168 МГц; ОЗУ 864 и 128 КБ
STM32F423ZHSTM32F413/423143 из 14495: VDD33_USB → VDDUSBтолько у этого: ADC2, ADC3, COMP1, COMP2, DAC1, DCMI, DMA2D, ETH, FDCAN1, FDCAN2, FMC, HDMI_CEC, HRTIM, I2C4, IWDG1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OPAMP1, OPAMP2, SAI2, SAI3, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SPI6, SWPMI1, TIM15, TIM16, TIM17, USB_OTG_FS1, USB_OTG_HS, USB_OTG_HS1, VREFBUF, WWDG1; только у него: AES, CAN1, CAN2, CAN3, DAC, DFSDM2, FMPI2C1, FSMC, I2S4, I2S5, IWDG, SDIO, TIM10, TIM11, TIM9, UART10, UART9, WWDG; частота до 480 и 100 МГц; флеш-память до 1024 и 1536 КБ; ОЗУ 864 и 320 КБ
STM32F427ZG, STM32F427ZISTM32F427/437143 из 14495: VDD33_USB → VDDтолько у этого: COMP1, COMP2, DAC1, DFSDM1, FDCAN1, FDCAN2, HDMI_CEC, HRTIM, I2C4, I2S1, IWDG1, LPTIM1, LPTIM2, LPTIM3, LPTIM4, LPTIM5, LPUART1, LTDC, OPAMP1, OPAMP2, QUADSPI, SAI2, SAI3, SAI4, SDMMC1, SDMMC2, SPDIFRX1, SWPMI1, TIM15, TIM16, TIM17, USB_OTG_FS1, USB_OTG_HS1, VREFBUF, WWDG1; только у него: CAN1, CAN2, DAC, IWDG, SDIO, TIM10, TIM11, TIM9, WWDG; частота до 480 и 180 МГц; флеш-память до 1024 и 2048 КБ; ОЗУ 864 и 192 КБ

Частые вопросы

На каких выводах USART1 у STM32H743ZG?

В корпусе LQFP144 сигнал USART1_TX выведен на PB14 (вывод 75, AF4) или PA9 (вывод 101, AF7) или PB6 (вывод 136, AF7), USART1_RX — на PB15 (вывод 76, AF4) или PA10 (вывод 102, AF7) или PB7 (вывод 137, AF7).

Где у STM32H743ZG выводы SWD для программатора?

SWDIO — PA13 (JTMS/SWDIO) (вывод 105, AF0), SWCLK — PA14 (JTCK/SWCLK) (вывод 109, AF0). Для прошивки и отладки по SWD к программатору подключают эти два сигнала и общий провод; NRST добавляют, чтобы программатор мог сбрасывать микроконтроллер.

На каких выводах I2C1 у STM32H743ZG?

I2C1_SCL — PB6 (вывод 136, AF4) или PB8 (вывод 139, AF4), I2C1_SDA — PB7 (вывод 137, AF4) или PB9 (вывод 140, AF4).

Сколько выводов ввода-вывода у STM32H743ZG в корпусе LQFP144?

114 из 144. Ещё 27 выводов заняты питанием и землёй, остальные 3 — сброс, выбор загрузки и служебные цепи.

Какое напряжение питания у STM32H743ZG?

От 1,62 до 3,6 В на выводах VDD. Допустимые напряжения на остальных выводах питания и на входах смотрите в даташите.

Источник данных

Выводы, сигналы и параметры взяты из открытого набора STM32_open_pin_data компании STMicroelectronics (база STM32CubeMX 6.18.0, версия от 29 июня 2026 г.), лицензия BSD-3-Clause. Данные преобразованы в таблицы и схему корпуса; тексты и рисунки — GAW. Заказные номера, корпуса, упаковка и температурный диапазон — из таблиц на страницах продуктов st.com (данные на 11 октября 2026 г.). Лицензии и источники данных. Перед разводкой платы сверяйте выводы с даташитом своего исполнения.

Нашли ошибку в данных?

Калькуляторы и статьи
